Use & Care Guide
Guía de uso y cuidada
English / Español
Model/Modelos:
Kenmore®
Gas Range
Estufa de gas
* = color number, código de color
790.7050*, 7060*, 7323*, 7343*
P/N 808530303 Rev B
Sears Brands Management Corporation
Homan Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
2
All rights reserved. Printed in the USA.
Table of Contents
Kenmore Limited Warranty........................................................2
IMPORTANT SAFETY INSTRUCTIONS ................................ 3-6
Before Setting Oven Controls ....................................................7
Before Setting Surface Controls ................................................ 8
Setting Surface Controls ............................................................. 9
Oven Controls Functions ........................................................... 10
Setting Oven Controls .......................................................... 10-13
Setting Clock .......................................................................... 10
Setting Timer ........................................................................... 11
Setting Bake ............................................................................. 11
Setting Broil..............................................................................12
Adjusting oven temperature ..................................................13
Care & Cleaning ...................................................................14-17
Before You Call - Solutions to common problems ........... 18-19

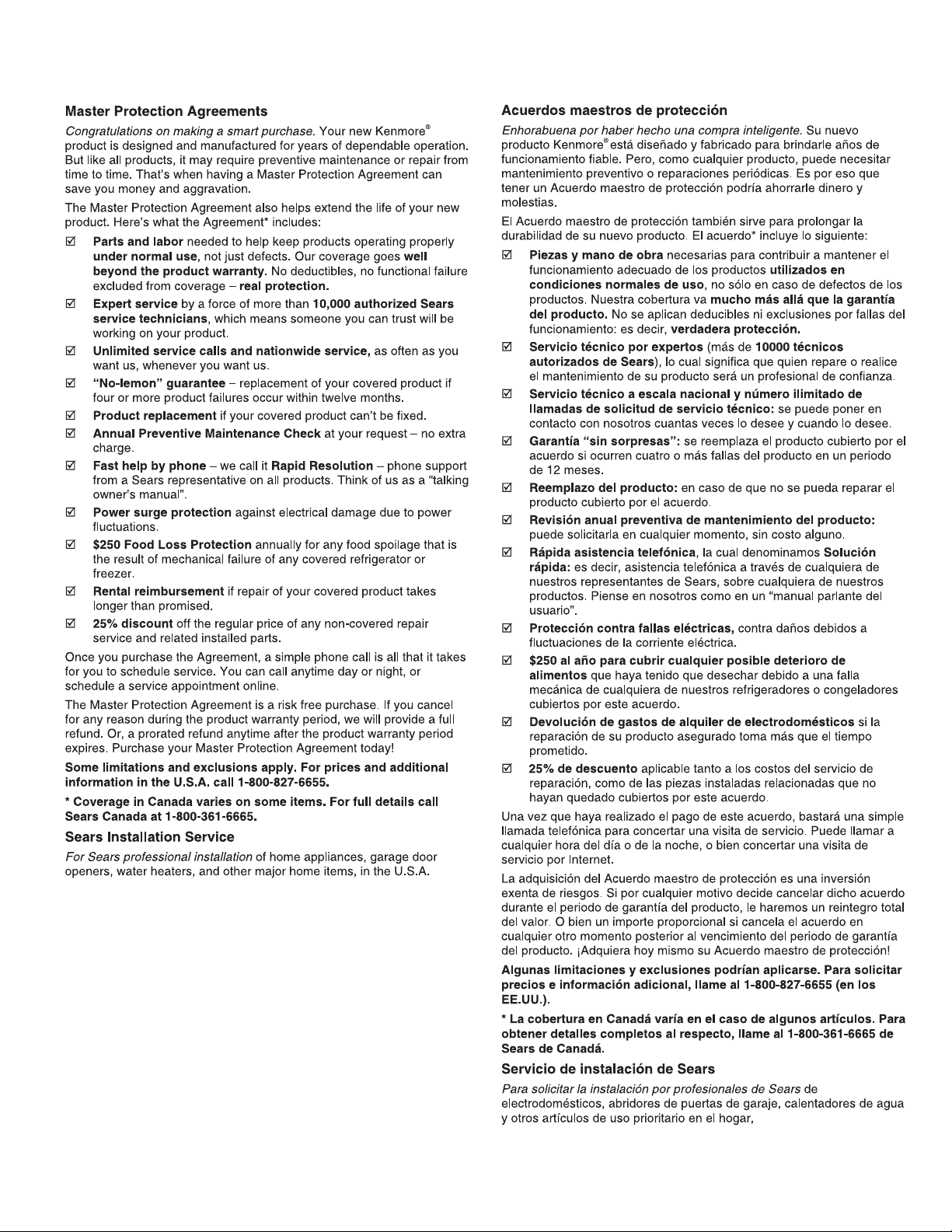

Protection Agreements ..............................................................20
Sears Service ................................................................Back Cove
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship when it is correctly installed, operated
and maintained according to all supplied instructions.
WITH PROOF OF SALE, a defective appliance will receive free repair or replacement at option of seller.
For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty
This warranty applies for only 90 DAYS from the sale date in the United States, and is void in Canada, if this appliance is ever used for other than
private household purposes.
This warranty covers ONLY defects in material and workmanship, and will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from accident or improper operation or maintenance.
3. Discoloration of cooktop surfaces resulting from normal use.
4. Expendable items that can wear out from normal use, including but not limited to lters, belts, bags or screw-in base light bulbs.
5. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.
6. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit
breakers, house wiring, and plumbing or gas supply systems resulting from such installation.
7. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was
not in accord with electrical, gas or plumbing codes.
8. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all sup-
plied instructions.
9. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other
than its intended purpose.
10. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other
than those recommended in all instructions supplied with the product.
11. Damage to or failure of parts or systems resulting from unauthorized modications made to this appliance.
12. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certication logo.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, includ-
ing warranties of merchantability or tness for a particular purpose, are limited to one year or the shortest period allowed by law. Seller shall not be lia-
ble for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages,
or limitation on the duration of implied warranties of merchantability or tness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada*.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
* In-home repair service is not available in all Canadian geographical areas, nor will this warranty cover user or servicer travel and transportation ex-
penses if this product is located in a remote area (as dened by Sears Canada Inc.) where an authorized servicer is not available.
Sears Brands Management Corporation, Homan Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3
3
Important Safety Instructions
Read all instructions before using this appliance.
This manual contains important safety symbols and
instructions. Please pay attention to these symbols and
follow all instructions given.
- indicates a potentially hazardous
situation which, if not avoided, may result in death or
serious injury.
- indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury.
Do not attempt to install or operate your appliance until
you have read the safety precautions in this manual. Safety
items throughout this manual are labeled with a WARNING
or CAUTION statement based on the risk type.
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
Denitions
If the information in this manual is not
followed exactly, a re or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
— Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
— WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a
qualied installer, servicer or the gas supplier.
Save these instructions for future reference.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking
the range. Never allow children to play with packaging
material.
• Proper Installation—Be sure your appliance is properly
installed and grounded by a qualied technician in
accordance with the National Fuel Gas Code ANSI
Z223.- latest edition, or in Canada CAN/CGA B149.1,
and CAN/CGA B149.2, and the National Electrical
Code ANSI/NFPA No.70-latest edition, or in Canada
CSA Standard C22.1, Canadian Electrical Code, Part 1,
and local code requirements. Install only per installation
instructions provided in the literature package for this
range. Ask your dealer to recommend a qualied
technician and an authorized repair service. Know how to
disconnect the power to the range at the circuit breaker
or fuse box in case of an emergency.
• User servicing—Do not repair or replace any part of
the appliance unless specically recommended in the
manuals. All other servicing should be done only by a
qualied technician, This may reduce the risk of personal
injury and damage to the range.
• Never modify or alter the construction of a range by
removing the leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the range.
• Remove the oven door from any unused range if it is to be
stored or discarded.

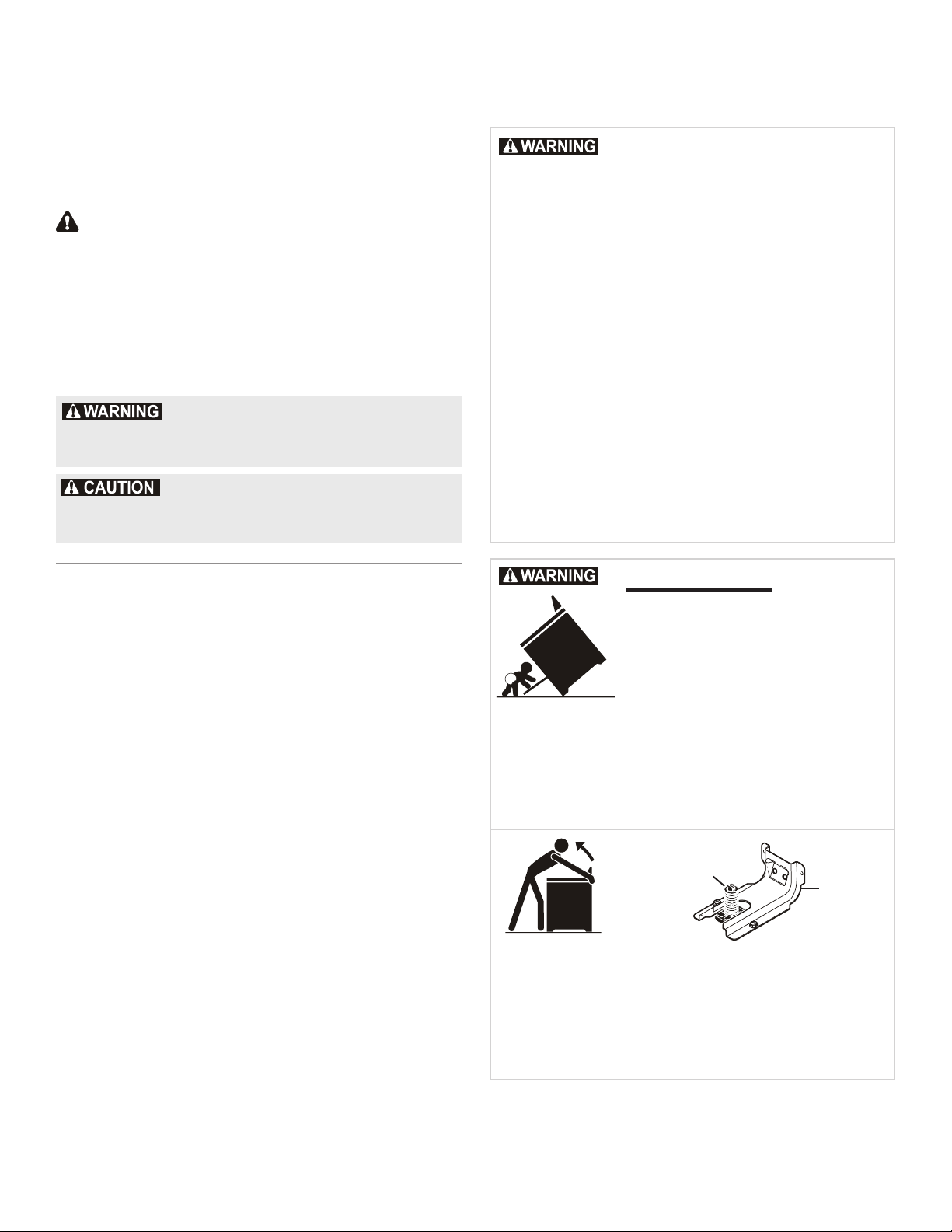

Tip Over Hazard
• A child or adult can tip the range
and be killed.
• Verify the anti-tip device has been
installed to oor or wall.
• Ensure the anti-tip device is re-engaged when the
range is moved to oor or wall.
• Do not operate the range without the anti-tip device in
place and engaged.
• Failure to follow these instructions can result in death
or serious burns to children and adults.
To check if the anti-tip bracket is installed properly,
use both arms and grasp the rear edge of range back.
Carefully attempt to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Range
leveling leg
Anti-Tip
bracket
4
DO NOT LEAVE CHILDREN ALONE —
children should not be left alone or unattended in the area
where appliance is in use. They should never be allowed
to sit or stand on any part of the appliance, including the
storage drawer, lower broiler drawer, warmer drawer or
lower double oven.
Do not use water or our on grease res —
smother the re with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
When heating fat or grease, watch it
closely. Fat or grease may catch re if allowed to become
too hot.
Use dry potholders — moist or damp
potholders on hot surfaces may result in burns from steam.
Do not let potholders touch hot heating elements. Do not
use a towel or other bulky cloth instead of a potholder.
Do not heat unopened food containers
— buildup of pressure may cause container to burst and
result in injury.
For electric ignition models only: Do not attempt to operate
the range during a power failure. If the power fails, always
turn o the range. If the range is not turned o and the
power resumes, the range will begin to operate again. Once
the power resumes, reset the clock and oven function.
NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
CARBON MONOXIDE poisoning.
NEVER cover any slots, holes or passag-
es in the oven bottom or cover an entire oven rack with
materials such as aluminum foil. Doing so blocks air ow
through the oven and may cause CARBON MONOXIDE
poisoning. Aluminum foil linings may trap heat, causing a
re hazard.
Stepping, leaning or sitting on the door or
drawers of a range can result in serious injuries and also
cause damage to the appliance. DO NOT allow children
to climb or play around the range. The weight of a child on
an open oven door may cause the range to tip, resulting in
serious burns or other injury.
Storage in or on appliance — ammable
materials should not be stored in an oven, near surface
units or in the storage drawer, warmer drawer or lower
oven. This includes paper, plastic and cloth items, such as
cookbooks, plasticware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans, on or
near the range.
Do not store items of interest to children
in the cabinets above a range or on the backguard of the
range. Children climbing on the range to reach items could
be seriously injured.
DO NOT TOUCH SURFACE BURNERS,
AREAS NEAR THESE BURNERS, OVEN BURNERS OR
INTERIOR SURFACES OF THE OVEN. Both surface and
oven burners may be hot even though ames are not visible.
Areas near surface burners may become hot enough to
cause burns. During and after use, do not touch, or let
clothing or other ammable materials touch these areas
until they have had sucient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the
oven vent openings and surfaces near these openings, oven
door and window.
Wear proper apparel — loose-tting or
hanging garments should never be worn while using the
appliance. Do not let clothing or other ammable materials
contact hot surfaces or open ames.
Air curtain or other overhead range hoods, which operate
by blowing a downward air ow on to a range, shall not
be used in conjunction with gas ranges other than when the
hood and range have been designed, tested and listed by
an independent test laboratory for use in combination with
each other.
Important Safety Instructions
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a
list of substances known to the state to cause cancer,
birth defects or other reproductive harm, and requires
businesses to warn customers of potential exposure to such
substances.
5

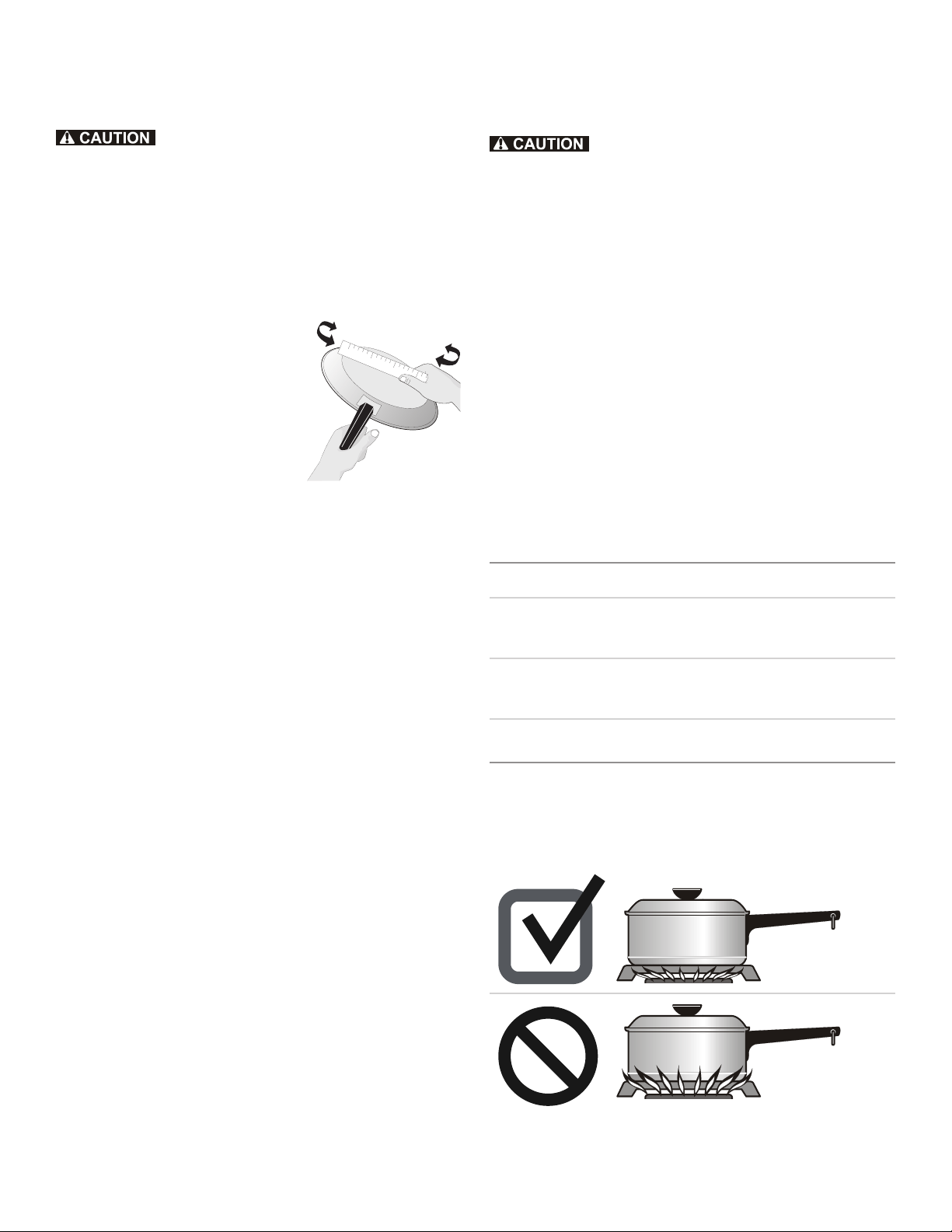

IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface burner. Place a
pan of food on the burner before turning it on, and turn
the burner o before removing the pan.
• Always turn knob to the full LITE position when igniting
top burners. Visually check that burner has lit. Then adjust
the ame so it does not extend beyond the edge of the
utensil.
• Utensil handles should be turned inward and not extend
over adjacent surface burners — To reduce the risk of
burns, ignition of ammable materials, and spillage due
to unintentional contact with the utensil, the handle of the
utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface burners.
• Never leave surface burners unattended at high heat
settings — Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
• Glazed cooking utensils — Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer’s recommendations for cook top use.
• When aming foods under a ventilating hood, turn the
fan on.
Use Proper Flame Size — Adjust ame
size so it does not extend beyond the edge of the utensil.
The use of undersized utensils will expose a portion of the
burner ame to direct contact and may result in ignition
of clothing. Proper relationship of utensil to ame will also
improve eciency.
• Use care when opening oven door , warmer drawer or
lower oven door — Stand to the side of the range when
opening the door of a hot oven. Let hot air or steam
escape before you remove or replace food in the oven.
• Keep oven vent ducts unobstructed. The oven vent is
located below the backguard. Touching the surfaces in
this area when the oven is operating may cause severe
burns. Also, do not place plastic or heat-sensitive items on
or near the oven vent. These items could melt or ignite.
• Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.

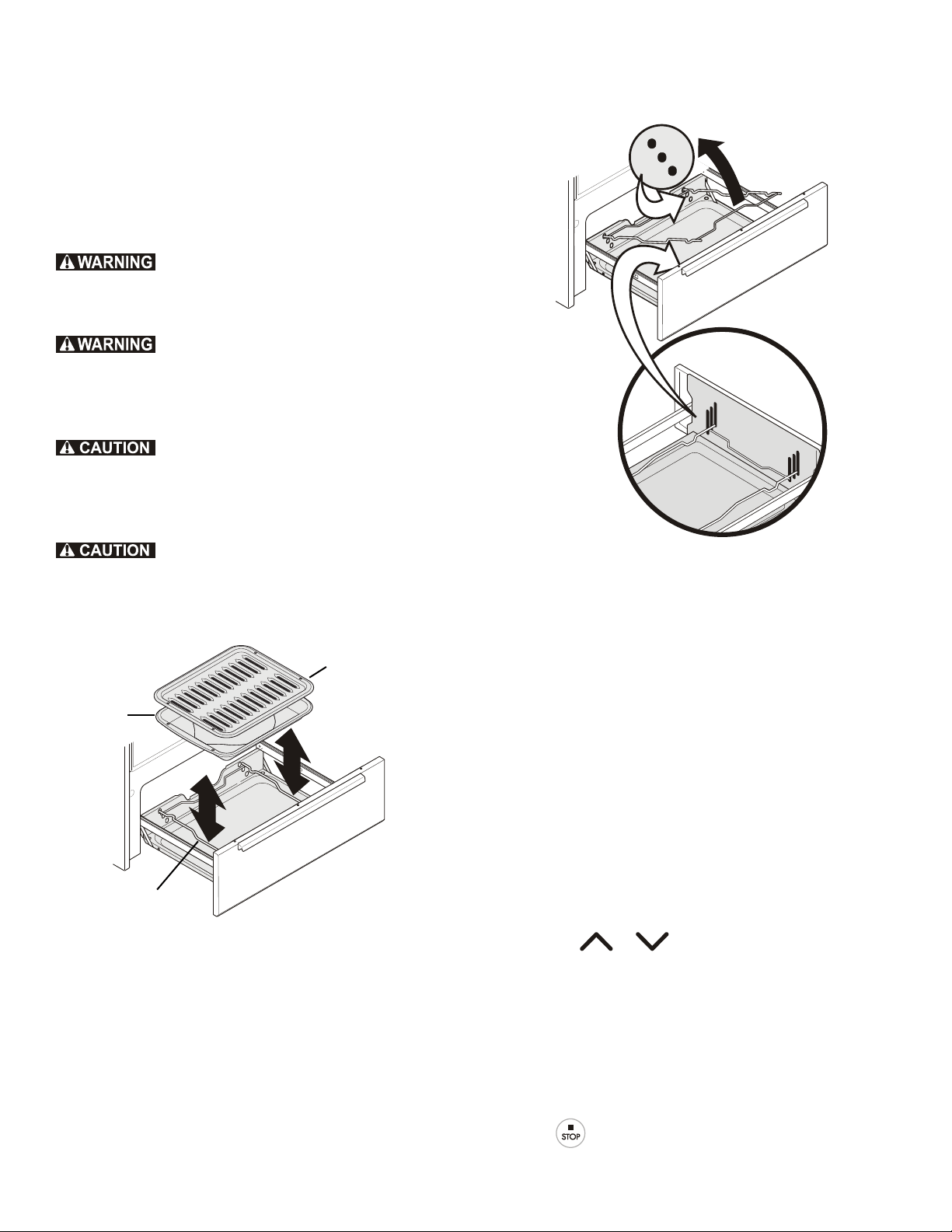

• Do not use the broiler pan without its insert. The broiler
pan and its insert allow dripping fat to drain and be kept
away from the high heat of the broiler.
• Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
Important Safety Instructions
Protective Liners — DO NOT use aluminum
foil to line the oven bottom. Only use aluminum foil as
recommended in this manual. Improper installation of these
liners may result in risk of electric shock, or re.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
6
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
Important Safety Instructions

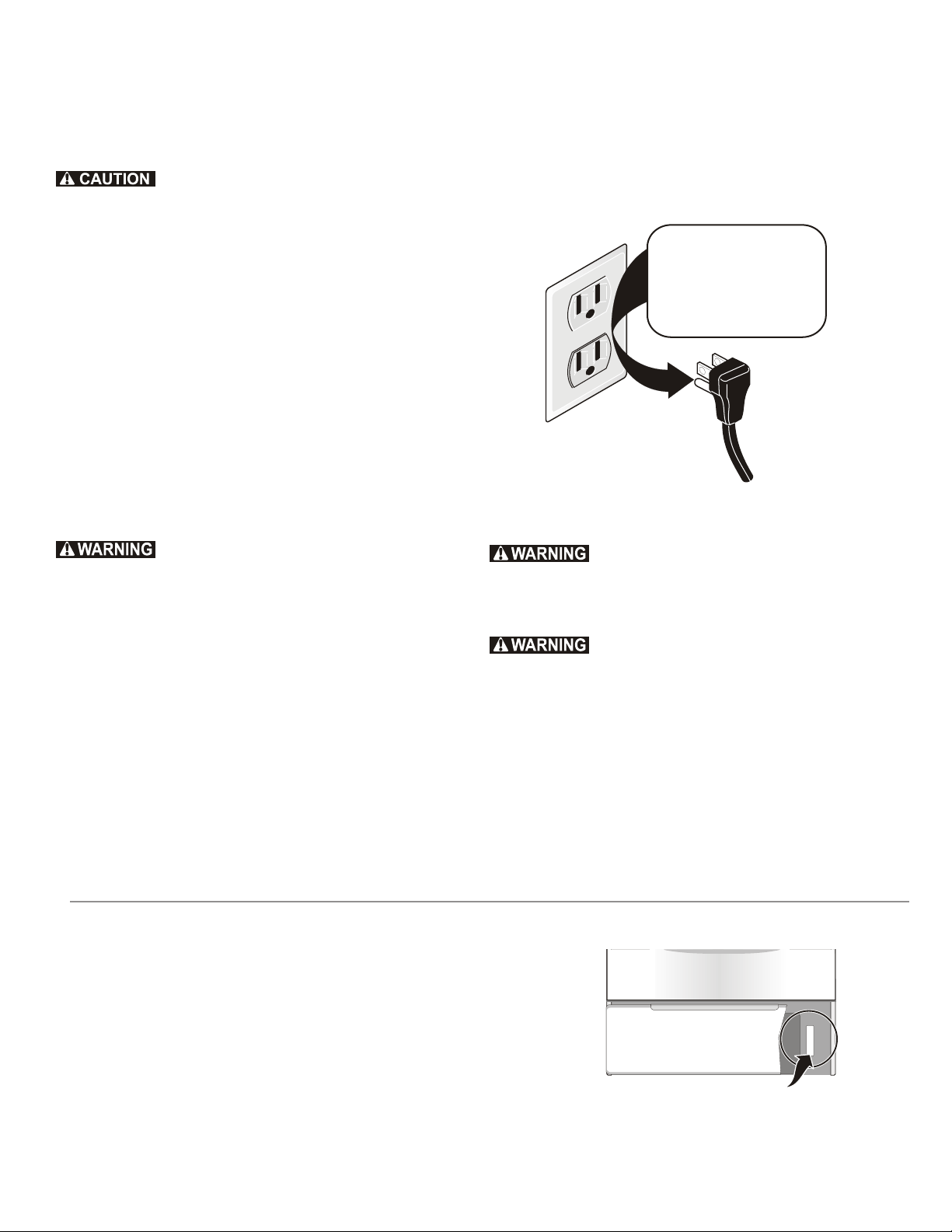

Avoid re hazard or electrical shock. DO
NOT use an adapter plug, an extension cord, or remove
grounding prong from electrical power cord. Failure to
follow this warning can cause serious injury, re or death.
This appliance is equipped with a 3-prong grounding plug
for your protection against shock hazard and should be
plugged directly into a properly grounded receptacle. DO
NOT cut or remove the grounding prong from this plug.
For personal safety, the range must be properly grounded.
For maximum safety, the power cord must be plugged into
an electrical outlet that is correctly polarized and properly
grounded.
If a 2-prong wall receptacle is the only available outlet,
it is the personal responsibility of the consumer to have it
replaced with a properly grounded 3-prong wall receptacle
installed by a qualied electrician.
Grounding Instructions
See the INSTALLATION INSTRUCTIONS packaged with this
range for complete installation and grounding instructions.
Personal injury or death from electrical
shock may occur if the range is not installed by a qualied
installer or electrician.
Any additions, changes or conversions
required in order for this appliance to satisfactorily meet
the application needs must be made by a qualied
technician.
Conversion to L.P. Gas
Do not under any
circumstance, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong
grounding plug.
Grounding type
wall receptacle
• Clean the range regularly to keep all parts free of grease
that could catch re. Pay particular attention to the area
around each surface burner. Do not allow grease to
accumulate.
• Kitchen cleaners and aerosols — Always follow the
manufacturer’s recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
• Clean ventilating hoods frequently — Grease should not
be allowed to accumulate on the hood or lter. Follow
the manufacturer’s instructions for cleaning hoods.
Before manually cleaning any part of the
range, be sure all controls are turned OFF and the range is
COOL. The range may be hot and can cause burns.
This appliance allows for conversion to Liqueed Petroleum
(L.P.) Gas.
If L.P. conversion is needed, contact your local L.P. Gas
provider for assistance. The L.P. conversion kit is provided
with this appliance and is located on the lower REAR (back
side) panel of the range. Before installing the kit be sure to
follow the L.P. Installation Instructions carefully.
In this space below, record the date of purchase, model and
serial number of your product. You will nd the model and
serial number printed on an identication plate. See bottom
of this page for serial plate location.
Model No. _____________________________________
Serial No. ______________________________________
Date of Purchase ________________________________
Save sales receipt for future reference.
Product Record
790.
Serial Plate Location
Open broiler drawer (some models) or
storage drawer (some models).
7
at handle
oven rack
oset
oven rack
at
oven rack

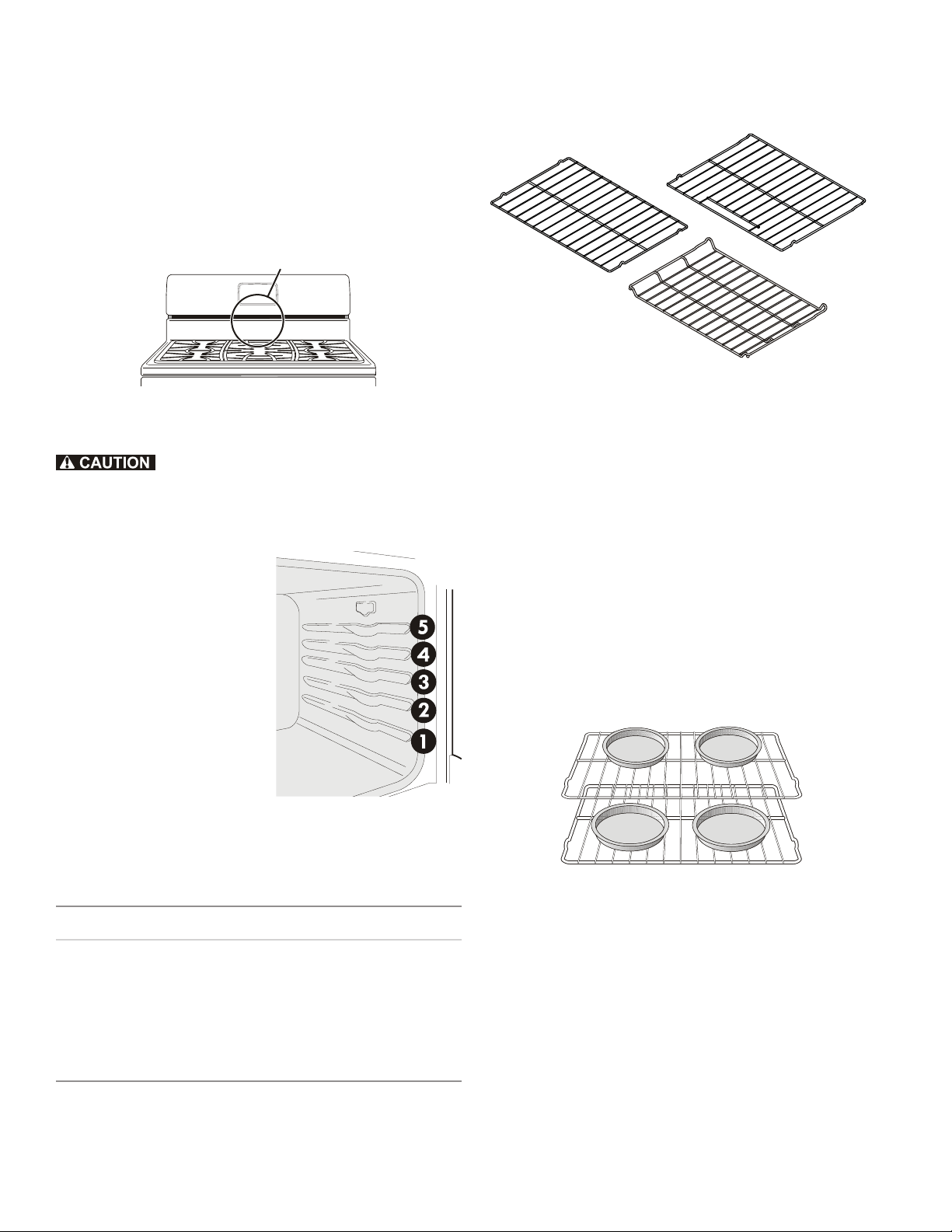

Before Setting Oven Controls
Oven vent location
The oven vent is located below the control panel (Refer to
Fig. 1). When the oven is on, warm air passes through this
vent. This venting is necessary for proper air circulation in
the oven and good baking results. Do not block the oven
vent.
oven vent
Fig. 1
Always use oven mitts when using the
oven. When cooking using the oven, the oven interior, oven
racks and cooktop will become very hot which can cause
burns.
Arranging - always arrange
the oven racks when the oven
is cool (prior to operating the
oven).
To remove - pull the rack
forward until it stops. Lift up
front of rack and slide out.
To replace - t the rack onto
the guides on the oven walls.
Tilt the front of the rack
upward and slide the rack
back into place.
Removing, replacing and arranging racks
Fig. 2
Recommended oven rack positions by food type:
(Refer to Fig. 2 for oven rack positions)
Food type Position
Broiling See broil
Cookies, cakes, pies, biscuits & muns 2 or 3
Frozen pies, angel food cake, yeast, bread
and casseroles 1 or 2
Small cuts of meat or poultry 1 or 2
Turkey, roast or ham 1
Types of oven racks
The at oven rack or at handle oven rack (on some
models) may be used for most cooking needs.
The oset oven rack (on some models) will place the base
of the rack about 1/2 of a rack position lower than a at
oven rack. This feature provides several additional possible
oven rack positions.
Air circulation in the oven
For best baking results allow 2-4” (5-10 cm) around the
cookware for proper air circulation and be sure pans and
cookware do not touch each other, the oven door, sides or
back of the oven cavity. Hot air must be able to circulate
around the pans and cookware in the oven for even heat to
reach around the food.
8

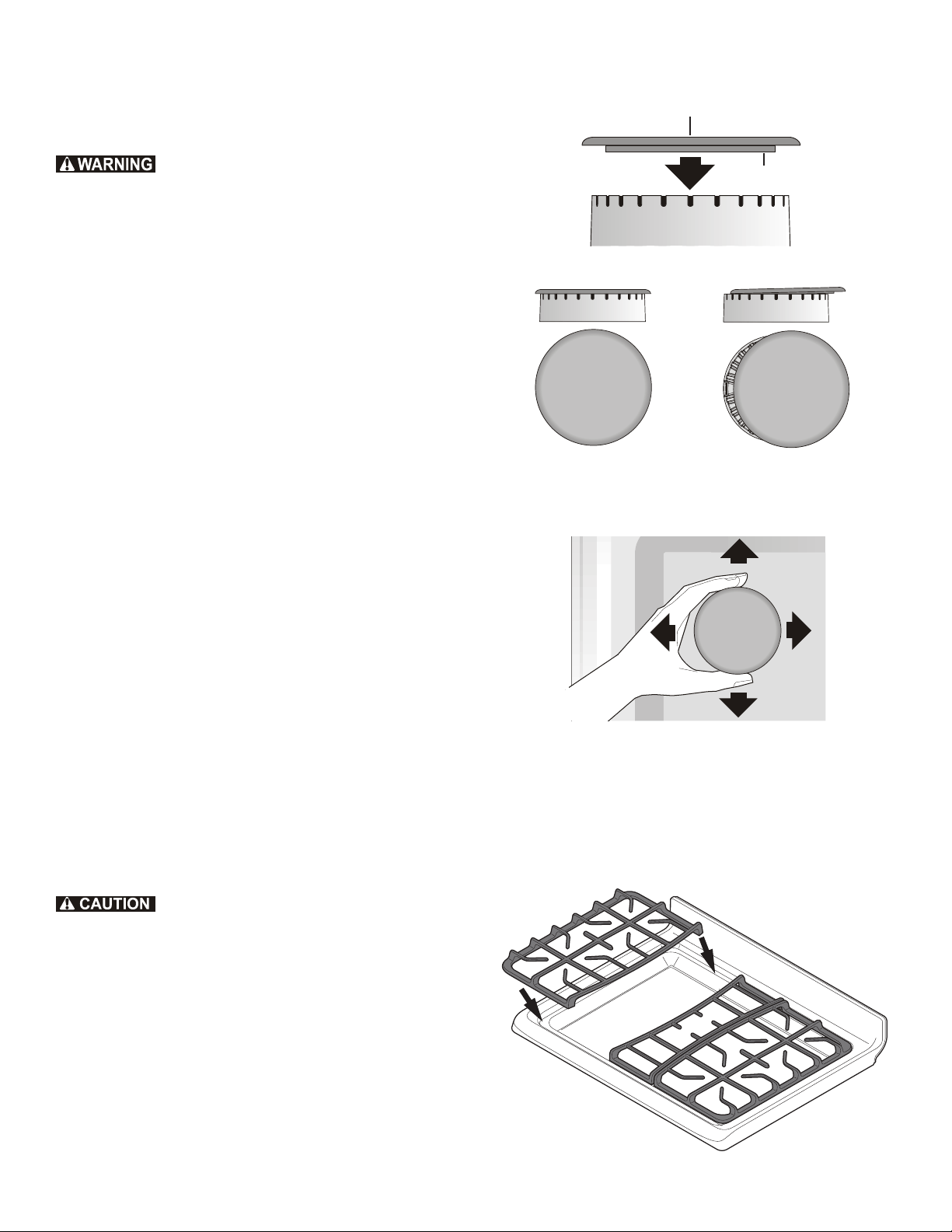

Fig. 1
Burner cap lip
Burner cap
Correct burner cap
placement
Incorrect burner cap
placement
To prevent are-ups and avoid creation
of harmful by-products, do not use the cooktop without all
burner caps properly installed to insure proper ignition and
gas ame size.
On round style burners, the burner cap lip (See Fig. 1)
should t snug into the center of burner head and rest level.
Refer to Figs. 2 & 3 for correct and incorrect burner cap
placement. Once in place, you may check the t by gently
sliding the burner cap from side to side (Fig. 4) to be sure
it is centered and rmly seated. When the burner cap lip
makes contact inside the center of the burner head you will
be able to hear the burner cap click. Please note that the
burner cap should NOT move o the center of the burner
head when sliding from side to side.
Check and be sure that all oval style (some models) burner
caps are correctly in place on oval burner heads.
Burner head
Fig. 2
Fig. 3
Fig. 4
It is very important to be sure that all surface burner caps
and burner grates are properly installed and in the correct
locations BEFORE operating the cooktop burners.
Remember:
• Always keep surface burner caps in place whenever
using a surface burner.
• When placing the burner caps, be sure that all burner
caps are seated rmly and rest level on top of burner
heads.

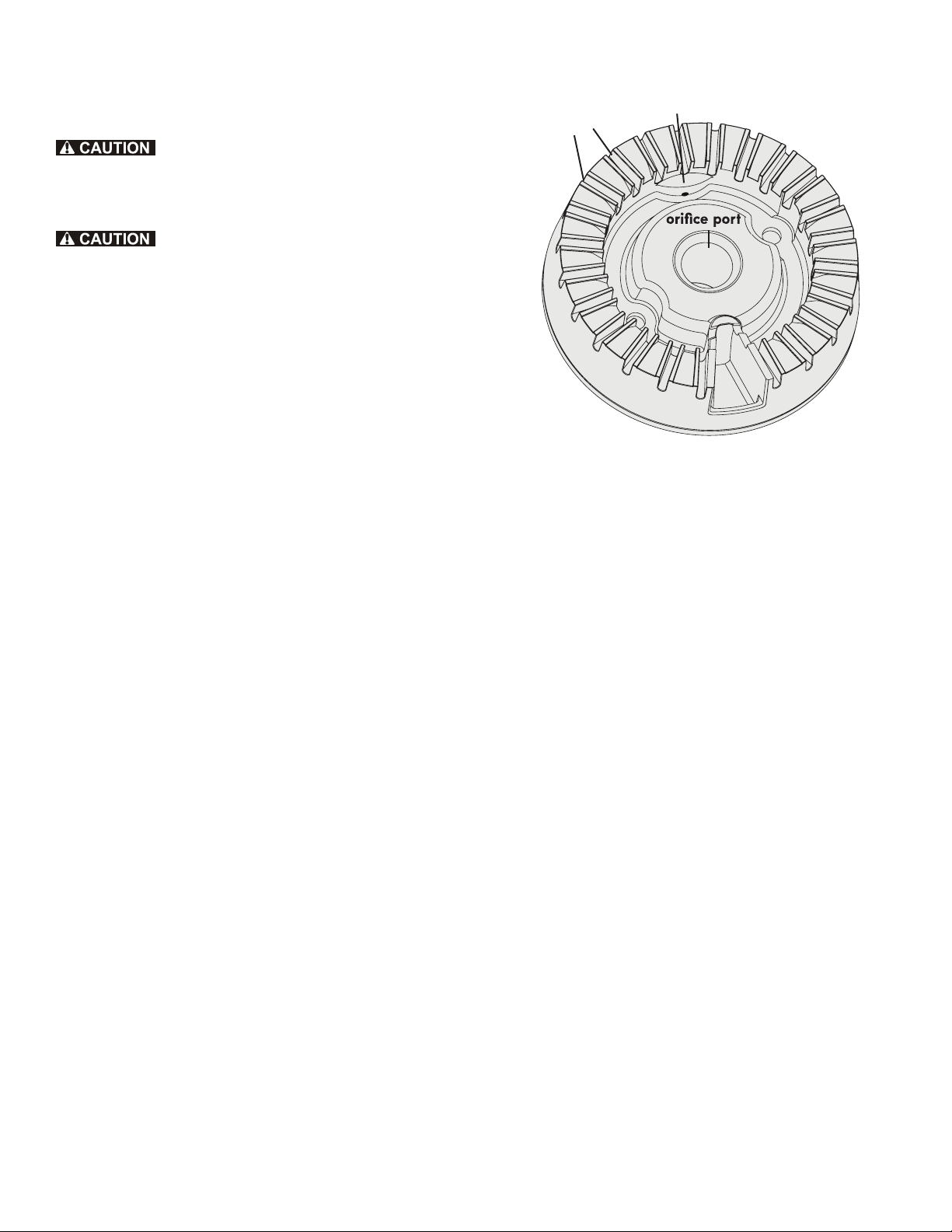

• For proper ow of gas and ignition of burners DO NOT
allow spills, food, cleaning agents or any other material
to enter the gas orice port opening.
Check burner cap placement before operating the
surface burners
Before Setting Surface Controls
Do not use the surface burners without the
burner caps and burner grates properly installed. Missing
pieces or improper installation may lead to spills, burns, or
damage to your range and cookware.
Make sure the burner grates are properly placed on the
cooktop before using the surface burners. The grates are
designed to rest inside the recess on the cooktop.
To install burner grates, place grates at-side down and
align into the cooktop recess. Grates should rest ush
against each other and against the sides of the recess.
Installing burner grates
Fig. 5
9
Before Setting Surface Controls
Please note: The size and type of utensil used, and the
amount and type of food being cooked will inuence the
burner ame setting needed for best cooking results.
Cookware material types
The most popular materials available are:
Aluminum - Excellent heat conductor. Some types of food
will cause it to darken (Anodized aluminum cookware resists
staining & pitting).
Copper - Excellent heat conductor but discolors easily.
Stainless - Slow heat conductor with uneven cooking results.
Is durable, easy to clean and resists staining.
Cast Iron - A slow heat conductor however will retain
heat very well. Cooks evenly once cooking temperature is
reached.
Porcelain-enamel on metal - Heating characteristics will
vary depending on base material.
Glass - Slow heat conductor.
Using proper cookware
For best cooking results,
cookware should have at
bottoms that rest level on the
burner grate. Before using
cookware, check for atness
by rotating a ruler across the
bottom of the cookware (Fig. 1).
Setting proper burner ame size
For most cooking; start on the highest setting and then
turn to a lower setting to complete the process. Use the
recommendations below as a guide for determining proper
ame size for various types of cooking (Fig. 2)
For deep fat frying; use a thermometer and adjust the
surface knob accordingly. If the fat is too cool, the food will
absorb the fat and be greasy. If the fat is too hot, the food
will brown so quickly that the center will be under cooked.
Do not attempt to deep fat fry too much food at once as
the food will neither brown or cook properly.
Never extend the ame beyond the outer
edge of the cooking utensil. A higher ame wastes energy,
and increases your risk of being burned by the ame.
*These settings are based for medium-weight metal or
aluminum pans with lids. Settings may vary when using
other types of pans.
The color of the ame is the key to proper burner adjustment.
A good ame is clear, blue and hardly visible in a well-lighted
room. Each cone of ame should be steady and sharp. Adjust
or clean burner if ame is yellow-orange.
Correct
ame setting
Incorrect
ame setting
DO NOT place ammable items such as
plastic salt and pepper shakers, spoon holders or plastic
wrappings on the cooktop when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons
could catch re if placed too close to the range cooktop.
Important: DO NOT place aluminum foil, or ANY material
that can melt on the range cooktop. If these items melt they
may damage the cooktop.
Fig. 1
Fig. 2
Flame size* Type of cooking
High ame Start most foods; bring water to a
boil; pan broiling.
Medium ame Maintain a slow boil; thicken sauces,
gravies; steaming.
Low ame Keep foods cooking; poach; stewing.
10
Do not place ammable items such as
plastic salt and pepper shakers, spoon holders or plastic
wrappings on the cooktop when it is in use. These items
could melt or ignite. Potholders, towels or wooden spoons
could catch re if placed too close to the range cooktop.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance. Check with the USDA
(United States Department of Agriculture) website and be
sure to read all the information they have available as
well as follow their recommendations for home canning
procedures.
• Use only quality at bottom canners when home canning.
Use a straight-edge to check canner bottom.
• Use only a completely at bottom canner.
• Make sure the diameter of the canner does not exceed 1
inch beyond the surface element markings or burner.
• Start with hot tap water to bring water to boil more
quickly.
• Use the highest heat setting when rst bringing the water
to a boil. Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
Setting Surface Controls
Do not place aluminum foil, or ANY
material that can melt on the range cooktop. If these items
melt they may permanently damage the cooktop surface.
Fig. 1
Important notes:
• DO NOT cook with the surface control knob left in the
LITE position. The electronic ignitor will continue to spark
if the control knob setting remains in the LITE position .
• When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
• NEVER place or straddle a cooking utensil over 2
dierent surface cooking areas at the same time. This
can cause uneven heating results.
• In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner, hold a
lit match to the burner head, then slowly turn the surface
control knob to LITE. After burner lights push in and turn
knob to desired setting.
• When operating the oven, it is possible for residual heat
from the oven to build-up and over time to eventually
transfer to the surface control knobs located directly
above the oven door.
Setting surface burners
Your gas appliance may be equipped with dierent sized
surface burners. The ability to heat food quicker and in
larger volumes increases as the burner size increases. It is
important to select cookware that is suitable for the amount
and type of food being prepared.
The smaller SIMMER burner (on some models) is best suited
for simmering delicate sauces, etc.
The standard size burners may be used for most surface
cooking needs. Some models are equipped with a center
burner.
The larger POWER burners (on some models) or TURBO
BOIL burner (on some models) are recommended for
bringing large quantities of liquid to temperature and when
preparing larger quantities of food.
To set surface burners:
1. Place cooking utensil on center of surface burner grate.
Be sure the cooking utensil sets stable on the burner
grate.

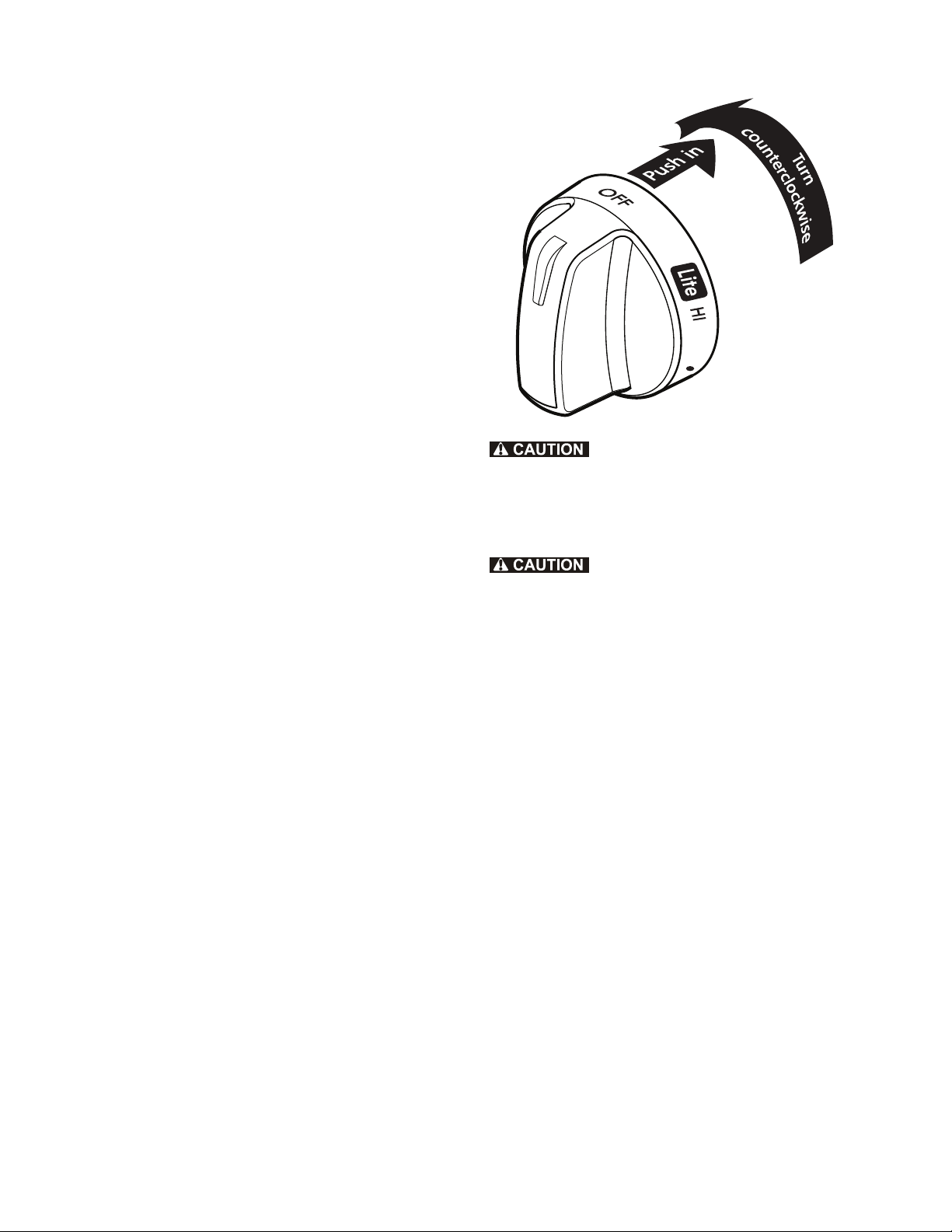

2. Push the desired surface control knob in and turn
counterclockwise out of the OFF position (Fig. 1).
3. Release the surface control knob and rotate to the LITE
position. Visually check that the burner has lit.
4. Once the burner has a ame, push the control knob in and
turn counterclockwise to the desired ame size. Use the
control knob markings and adjust the ame as needed.
11
For satisfactory use of your oven, become familiar with the various pad features and functions of the oven as described
below.
Oven Control Features
Changing temperature display mode (°F or
°C) The electronic oven control is set to display °F
(Fahrenheit) when shipped from the factory. The display
may be changed to show either Fahrenheit or Celsius oven
temperatures.
Setting Clock
When the appliance is rst plugged in or when the power
supply to the appliance has been interrupted, the display
will ash “12:00”.
You must set the clock for the time of day before using the
appliance.
To set the clock:
1. Press key pad once (do not hold key pad down).
2. Within 5 seconds, press and hold the
or key
pad until the correct time of day appears in the display
and release key pad.
3. The clock should display the correct time of day.
Setting Oven Controls
To change temperature display mode from °F to °C
(Celsius) or from °C to °F (Fahrenheit):
1. Press and hold Broil key pad (for 6-8 seconds) until F
or C appears in the display. At this time the display will
show the current temperature display mode whether set
for F or C. Before proceeding read the notes below.
2. Press either
or key pad to toggle between F
(Fahrenheit) or C (Celsius) mode choices.
3. To accept the change, wait until the oven control
provides the acceptance beep (See Notes below).
4. The display will return to the time of day with the
temperature display mode changed the next time the
oven is set for Bake or Broil.
Important notes:
If at any time during the process of changing the
temperature display mode you decide not to change
the mode, press the
key pad once before the
acceptance beep.
The temperature display mode cannot be changed
when Bake or Broil is active.

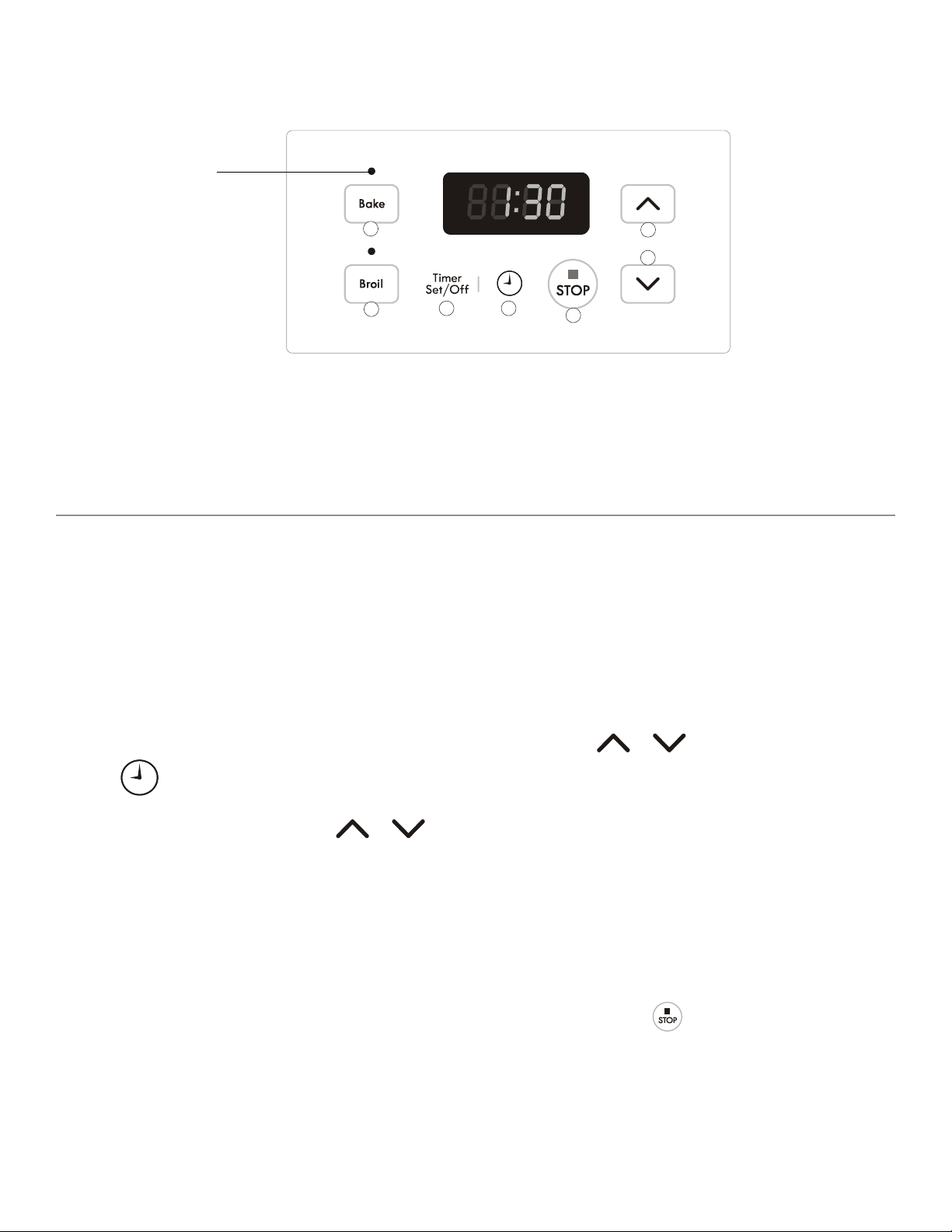

1
2
3 4
5
6
1. Bake - Use to select Bake function.
2. Broil - Use to select variable broil function.
3. Timer Set/O - Use to set or cancel the timer. Timer
Set/O is used to set the continuous bake feature.
4. Clock - Use to set the time of day.
6
Function indicator
lights - These
indicator lights glow
when a function is
active.
5. STOP - Use to cancel any active oven function except
clock or timer.
6. Up / Down arrow key pads - Use with the function key
pads to accept settings and to adjust temperature and
times.
Oven control keypads
12
Setting Oven Controls
To set Timer:
1. Press Timer Set/O.
2. Press the
to increase the time in one minute
increments. Press and hold the
to increase the
time in 10 minute increments. The timer can be set for
any amount of time from 1 minute to 11 hours and 59
minutes.
Note: If the
pad is pressed rst, the timer will
advance to 11 hours and 59 minutes.
3. When the set time has run out, the timer will sound a 3
second tone . 0:00 will show in the display until Timer
Set/O is pressed.
Important notes:
The Timer will not start or stop the cooking process. It
serves as an extra timer in the kitchen that will beep
when the set time has run out. The minute timer can be
used alone or when Bake or Broil is active.
If another feature is active when the Timer is running,
the minute timer will show in the display. To view
information about other active features, press the key
pad for that feature.
To change the time remaining in Timer:
While the timer is active, press and hold the or
key pad to increase or decrease the time remaining.
To cancel the Timer before the set time has run out:
Press Timer Set/O key pad once.
Setting Bake
The oven may be programmed to Bake at any temperature
from 170°F to 550°F (77°C to 287°C). The factory preset
bake temperature is 350°F (177°C).
To set Bake:
1. Press Bake key pad. — — — appears in display.
2. Within 5 seconds, press
or key pad. The
display will show 350°F (177°C). By pressing and
holding
or key pad, the temperature can be
adjusted in 5°F increments (1°C if the control is set to
display Celsius).
3. As soon as the
or key pad is released, the
oven will begin preheating to the selected temperature.
As a reminder the control will beep when the oven
reaches the set baking temperature.
Important notes:
To cancel Bake at any time press the
key pad.
Important: Dark or dull pans absorb more heat than
shiny bakeware resulting in dark or overbrowning
of foods. It may be necessary to reduce the oven
temperature or cook time to prevent overbrowning of
some foods. Dark pans are recommended for pies.
Shiny pans are recommended for cakes, cookies and
muns.
To change oven temperature after Bake has started:
1. Press Bake key pad once. Visually check the bake
temperature and that it needs to be changed.
2. Press the
or key pad to increase or
decrease the set temperature to the desired new oven
temperature.
The timer allows you to track your cooking times without
interferring the cooking process. The timer may be set from
1 minute up to 11 hours and 59 minutes.
Setting Timer
13
To set broil:
1. Slide broiler drawer out until drawer stops.
2. Remove broiler pan and insert (See Fig. 1).
3. If needed, reposition broiler rack in broiler drawer
while the range is still cool. Be sure to read broiler rack
position recommendations (See Notes).
4. If needed, change broiler rack position by tilting front
of rack up & pulling rack completely out from locating
holes in rear of broiler drawer (See Fig. 2). Reposition
back of rack in one of 3 locating holes and allow front
of rack to slide down into the corresponding slots in
front of broiler drawer (Fig. 3). Be sure rack is level
before broiling.
5. Place insert on broiler pan and place prepared food on
insert. Place broiler pan and insert with food into broiler
on drawer rack as shown (See Fig. 1). Slide broiler
drawer completely into range.
6. Press Broil key pad.
7. Press the
or key pad until the desired broil
setting level appears in the display. nor is for normal,
hi for high and lo is for low setting. Most foods can be
broiled at the hi broil setting. Select the lo broil setting
to avoid excess browning or drying of foods that should
be broiled to the well-done stage.
8. Broil on one side until food is browned; turn and broil
on other side.
9. When nished broiling or to cancel broil at any time
press
key pad.
Use the Broil feature to cook meats that require direct
exposure to ame heat for optimum browning. Use the
broiler drawer and rack along with the broil pan and insert
when broiling. The broiler drawer oers 3 dierent broil
rack positions.
Broil
Broil pan insert
DO NOT use oven or broiler drawer for
storage. Items placed in oven or broiler drawer will catch
re.
Should an oven re occur, close the door
and drawer and turn the oven OFF. If the re continues, use
a re extinguisher. DO NOT put water or our on the re.
Flour may be explosive.
Always use oven mitts when using the oven
or broiler drawer. When cooking, the oven, cooktop, broiler
drawer and racks will become very hot which can cause
burns.
The broil pan and insert allows grease to
drain and be kept away from high heat of the broiler. DO
NOT use broil pan without insert. DO NOT cover insert with
aluminum foil; the exposed grease could ignite.
Broiler drawer rack
3 front
slot positions
3 rear locating
hole positions
tilt up front of rack
to remove and adjust
Always pick up
broil pan and insert
from sides
Broil pan
Setting Oven Controls
Fig. 1
Important notes:
For medium doneness, position the broiler rack close to
the oven burner (upper or middle positions). For well-
done foods such as chicken, lobster tails or thick cuts of
meat, position rack further away from oven burner (lower
position).
For optimum browning, close broiler drawer and preheat
broiler 5 minutes before adding food.
Fig. 2
Fig. 3
14
Setting Oven Controls
Adjusting oven temperature
Your appliance has been factory calibrated and tested
to ensure an accurate baking temperature. For the rst
few uses, follow your recipe times and temperature
recommendations carefully. If you think the oven is cooking
too hot or too cool for your recipe times, you can adjust
the control so the oven cooks hotter or cooler than the
temperature displayed.
To adjust oven temperature:
1. Press & hold the Bake key pad and release after the
display shows the factory temperature setting of 00. If
the oven temperature has been previously adjusted from
the factory setting, the latest adjusted value will appear
in the display instead.
2. You may increase the oven temperature in 5°F
increments with each press of the
key pad. You
may also adjust the oven temperature downward in 5°F
increments with each press of the
key pad (total
adjustment range is +35°F to -35° F).
3. To accept the change, wait until the oven control
provides the acceptance beep (See Notes).
4. The oven temperature adjustment has been accepted
by the oven control and the display will return to the
time of day.
Important notes:
• If at any time during the process of adjusting the oven
temperature feature you decide not to make the change,
press the
key pad once before the acceptance beep
tone.
• The oven temperature adjustment feature can not be
modied if Bake or Broil is active.
• The oven temperature adjustment may be made if your
oven control has been set for °C (Celsius) temperature
display mode. In this case each press of the
or
key pad will adjust in 1°C increments upward
(maximum +18°C) or downward (maximum -18°C),
depending on which arrow key pad is pressed.
• DO NOT USE oven thermometers such as those found in
grocery stores to check the temperature settings inside
your oven. These oven thermometers may vary as much
as 20 to 40°F from actual temperatures.
Operating oven light (on some models)
Press the oven light switch located on the upper left control
panel to turn the interior oven light ON and OFF.
If your model is equipped with an interior oven light, the
light is located at the upper left rear wall of the oven
interior. To replace the interior oven light, see the Care &
Cleaning section for more information.
15
Care & Cleaning
Control panel
Control key pad membrane
Decorative trim (some models)
Surface type Recommendation
Oven interior & door liner
Porcelain enamel broil pan and broil
pan insert (some models)
For general cleaning, use hot, soapy water and a cloth. For more dicult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30-
60 minutes. Rinse with a damp cloth and dry. Do not use abrasive cleaners on any
of these materials; they can scratch. To remove control knobs, turn to OFF position;
grasp rmly and pull straight o the shaft. To replace knobs after cleaning, line up
the at sides of both knob and shaft; then push knob into place.
Control knobs
Painted body parts
Painted decorative trim
Aluminum, plastic or vinyl trim
pieces
Oven racks
Oven door
Remove oven racks from oven cavity before cleaning. Clean by using a mild, abrasive
cleaner following manufacturer’s instructions. Rinse with clean water, dry and then
replace in oven.
Cooktop surface
Surface burners
Burner grates
Cleaning recommendation table
Do not use spray oven cleaners on the cooktop. See Cleaning the cooktop and burner
grates instructions provided in the Care & Cleaning section.
Stainless Steel (on some models) Only use cleaners and polishes that are specically manufactured for cleaning
stainless steel. Always rub in direction of metal grain to avoid damaging. Do not use
cleaners with high concentrations of chlorides or chlorine. Do not use harsh scrub-
bing cleaners. Polish with a lint-free cloth. Always be sure to wipe excess cleaner/
polish o from the metal surface as bluish stains may occur during future oven heat-
ing that cannot be removed. Clean heavier soils with hot, soapy water and a dish-
cloth. Rinse and dry using clean water and a cloth.
Before cleaning the control panel, turn all controls OFF, activate oven lockout (on
some models) and if needed remove any knobs from panel. Clean using hot, soapy
water and a dishcloth. Be sure to squeeze excess water from dishcloth before wiping
control panel; especially when wiping around the controls area. Excess water in or
around the controls may cause damage to the appliance. When rinsing, use clean
water and a dishcloth and be sure to squeeze excess water from dishcloth before
wiping the control panel.
Use soap & water to thoroughly clean the top, sides and front of the oven door.
Rinse well. You may use a glass cleaner on the outside glass of the oven door. Do not
immerse the door in water. Do not spray or allow water or the glass cleaner to enter
the door vents. Do not use oven cleaners, cleaning powders or any harsh abrasive
cleaning materials on the outside of the oven door.
Gentle scubbing with a soapy no-scratch cleaning pad will remove most spots. Rinse
with a 1:1 solution of clear water and ammonia. If necessary, cover dicult spots with
an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and
a damp cloth, and then scrub with a soap-lled no-scratch cleaning pad. Rinse and
wipe dry with a clean cloth. Do not allow food spills with high sugar or acid content
(milk, tomatoes, sauerkraut, fruit juices or pie lling) to remain on the surface; they
may cause a dull spot even after cleaning.
The oven interior is porcelain coated and safe to clean with oven cleaners following
manufacturer’s instructions. After cleaning, remove any oven cleaner or the porcelain
may become damaged during future heating. Do not spray oven cleaner on any
electrical controls or switches. Do not spray or allow oven cleaner to build up on
oven temperature sensing bulb. Do not spray cleaner on oven door trim, door gasket,
plastic drawer glides, handles or any exterior surfaces of the range. Clean any soils
from oven frame and door liner outside the oven door gasket. Clean with hot, soapy
water. Rinse using clean water and a cloth. For additional cleaning information see
General cleaning in the Care & Cleaning section.
16
Care & Cleaning
Follow these cleaning precautions:
• Allow the oven to cool before cleaning.
• Wear rubber gloves when cleaning the appliance
manually.
Remove soils using hot, soapy water. Do not allow food
spills with a high sugar or acid content (such as milk,
tomatoes, saukerkraut, fruit juices or pie lling) to remain
on the surface as they may cause a dull spot even after
cleaning. Remove spillovers and heavy soiling as soon as
possible. Regular cleaning will reduce the eort required for
major cleaning later.
Adhere to the following precautions when using
spray oven cleaners:
• DO NOT spray cleaner on the electrical controls or
switches because it could cause a short circuit and
result in sparking or re.
• DO NOT allow a lm from the cleaner to build up on
the temperature sensing bulb; it could cause the oven
to heat improperly. The bulb is located in the rear of
the oven. Carefully wipe the bulb clean after each oven
cleaning, being careful not to move the bulb. A change
in its position could aect how the oven bakes. Avoid
bending the bulb and capillary tube.
• DO NOT spray any cleaner on the oven door trim or
gasket, broiler drawer glides, handles or any exterior
surfaces of the range, plastic or painted surfaces. The
cleaner can damage these surfaces.
Cleaning porcelain enamel oven and broiler drawer:
The oven interior is porcelain on steel, it is safe to clean
using oven cleaners.
To remove heavy soil:
1. Allow a dish of ammonia to sit in the oven overnight
or for several hours with the oven door closed. Clean
softened dirt spots using hot, soapy water. Rinse well
with water and a clean cloth.
2. If soil remains, use a nonabrasive scouring pad or a
nonabrasive cleaner. If necessary, use an oven cleaner
following manufacturer’s instructions. DO NOT mix
ammonia with other cleaners.
3. Clean any soil from the oven frame, the door liner
outside the oven door gasket and the small area at the
front center of the oven bottom. Clean with hot, soapy
water. Rinse well using clean water and a cloth.
Aluminum foil and utensils
• Aluminum foil - Use of aluminum foil on a hot cooktop
can damage the cooktop. Do not use thin aluminum
cooking utensils or allow aluminum foil to touch the
surface burners under ANY circumstances.
• Aluminum utensils - The melting point of aluminum is
much lower than that of other metals. Care must be taken
when aluminum pots or pans are used on the cooktop. If
aluminum pans are allowed to boil dry when using the
cooktop, the utensil may be damaged or destroyed.
Cleaning oven bottom (some models)
The oven bottom is porcelain enamel and on some models
may be removed for easier cleaning.
Gentle scouring with a soapy nonabrasive plastic scrubbing
pad will remove most spots. Rinse with a 1:1 solution of clear
water and ammonia.
If necessary, cover dicult spots with an ammonia-soaked
paper towel for 30 to 40 minutes. Rinse with clean water
and a damp cloth, and then scrub with a soap-lled non-
abrasive scouring pad. Rinse and wipe dry with a clean
cloth.
Ammonia must be rinsed before operating
the oven. Provide adequate ventilation.
NEVER cover any slots, holes or passag-
es in the oven bottom or cover an entire oven rack with
materials such as aluminum foil. Doing so blocks air ow
through the oven and may cause CARBON MONOXIDE
poisoning. Aluminum foil linings may trap heat, causing a
re hazard.
Ammonia must be rinsed before operating the
oven. Provide adequate ventilation.
General cleaning
Before manually cleaning any part of the range,
be sure all controls are turned OFF and the range is COOL.
The range may be hot and can cause burns.
Be sure the range is unplugged and all parts
are COOL before replacing oven light. Wear a leath-
er-faced glove for protection against possible broken glass.
To replace the oven light:
1. Turn electrical power o at
the main source or unplug
the range.
2. Replace bulb with a new
40 watt appliance bulb.
3. Turn power back on again
at the main source (or plug
the range back in).
4. The clock will then need
to be reset. To reset see
“Setting clock”.
Replacing oven light (on some models)
Oven
light
17
Care & Cleaning
Routinely clean the cooktop. Wipe with a clean, damp cloth
and wipe dry to avoid scratches.
Keeping the surface burner head ports and slots clean will
prevent improper ignition and an uneven ame. See the
following sections for more instructions.
Cleaning the cooktop and surface burners
Cleaning recessed and contoured areas of cooktop
If a spill occurs on or in the recessed or contoured areas,
blot up spill with an absorbent cloth. Rinse with a clean,
damp cloth and wipe dry.
To clean the burner head ignition ports
Each burner head has a small ignition port located as
shown. Should you experience ignition problems it may be
that this port hole is partially blocked with soil. With the
burner head in place, use a small wire gauge needle or the
end of a paper clip to clear the ignition port (See Fig. 1;
round style shown; oval burner on some models not shown).
Cleaning burner caps
• Remove caps from burner heads after they have cooled.
• Clean heavy soils with a plastic scrubbing pad and
absorbent cloth.
• Thoroughly dry burner caps immediately following
cleaning including the bottom and inside of cap.
• Do not use abrasive cleaners. They can scratch porcelain.
• Do not clean burner caps in the dishwasher.
• Do not operate surface burners without burner caps
properly in place. Read important notes.
Cleaning surface burner grates
• Clean only after the grates are completely cool.
• Use nonabrasive plastic scrubbing pad and mild abrasive
cleanser or clean in the dishwasher.
• Food soils containing acids may aect the nish. Clean
immediately after the grates are cool.
• Thoroughly dry grates immediately following cleaning.
Cleaning surface burner heads
For proper gas ow it may be necessary to clean the
burner head and slots. To clean, rst use a clean DAMP
cloth to soak up any spills. Remove any food from between
the burner slots using a small nonabrasive brush like a
toothbrush and afterwards wipe up using a damp cloth. For
stubborn soils located in the slots, use a small-gauge wire or
needle to clean.
Any spill on or around the electrode must be carefully
cleaned. Take care not to hit the electrode with any thing
hard or it could be damaged.
Fig. 1 - Cooktop burner head
Important notes:
• The surface burner heads are secured to the cooktop and
must be cleaned in place on the cooktop.
• Always keep the surface burner caps in place whenever
a surface burner is in use.
• When replacing the burner caps, be sure the burner caps
are seated rmly on top of the burner heads.
• For proper ow of gas and ignition of burners DO NOT
allow spills, food, cleaning agents or any other material
to enter the gas orice port opening.
To avoid possible burns DO NOT attempt
any of the cooktop cleaning instructions provided before
turning OFF all of the surface burners and allow them to
completely cool.
Any additions, changes or conversions
required in order for this appliance to satisfactorily meet
the application needs must be made by an authorized
qualied agency.
ignition port
slots
18
Care and Cleaning

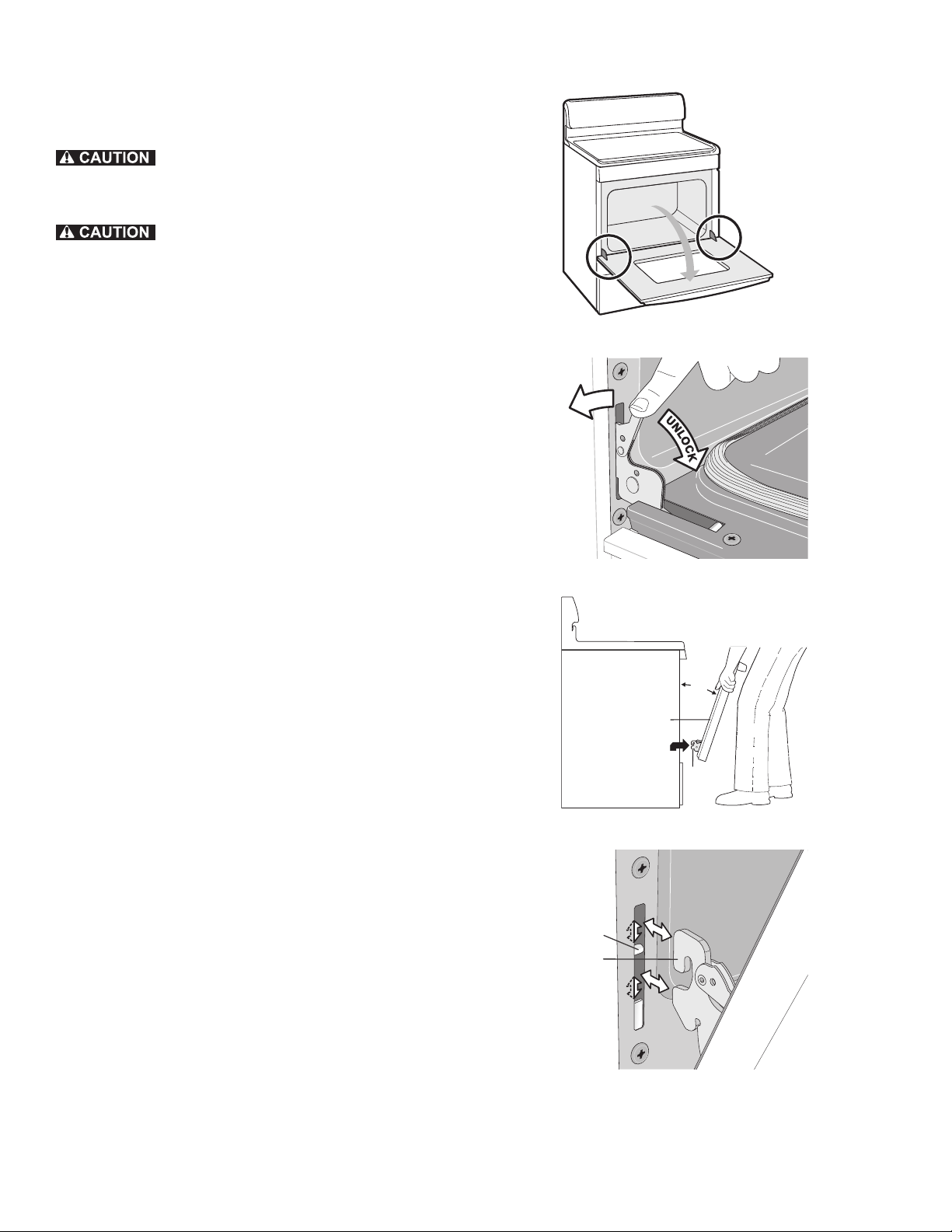

Removing and replacing the lift-o oven door
To avoid possible injury when removing or re-
placing the oven door, follow the instructions below carefully and
always hold the oven door with both hands positioned away from
the door hinge area.
The door is heavy. For safe, temporary storage,
lay the door at with the inside of the door facing down.
To remove oven door:
1. Open oven door completely (horizontal with oor - See Fig.
1).
2. Pull the door hinge locks on both left and right door hinges
down from the oven frame completely towards the oven door
(See Fig. 2). A tool such as a small at-blade screwdriver may
be required.
3. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle - See Fig. 3).
4. Close the door to the broil stop position (the oven door will
stop into this position just before fully closing).
5. With the oven door in the broil stop position, lift the oven
door hinge arms over the roller pins located on each side of
the oven frame (See Fig. 4).
To replace oven door:
1. Firmly grasp both sides of oven door along the door sides (Do
not use the oven door handle - See Fig. 3).
2. Holding the oven door at the same angle as the removal
position, seat the hook of the hinge arm over the roller pins
located on each side of the oven door frame (See Fig. 4). The
hook of the hinge arms must be fully seated onto the roller
pins.
3. Fully open the oven door (horizontal with oor - See Fig. 1).
4. Push the door hinge locks up towards and into the oven frame
on both left and right oven door hinges (See Fig. 2) to the
locked position.
5. Close the oven door.
Special door care instructions - Most oven doors contain glass
that can break. Read the following recommendations:
• Do not close the oven door until all the oven racks are fully in
place.
• Do not hit the glass with pots, pans, or any other object.
• Scratching, hitting, jarring or stressing the glass may weaken
its structure causing an increased risk of breakage at a later
time.
about
10°
hinge
oven
door
Oven door
hinge
locations
Fig. 3
Fig. 1
Fig. 4
Fig. 2
roller
pin
hing
e
arm
L
O
C
K
19
Oven light does not work
(on some models).
• Be sure the oven light is secure in the socket. Also see Replacing oven light
in Care & Cleaning section.
Before You Call • Solutions to common problems
Entire appliance does not operate.
• The time of day is not set. The time of day must rst be set in order to
operate the oven. See Setting the clock in Setting Oven Controls section.
• Make sure power cord is plugged properly into outlet.
• Electrical power outage. Check house lights to be sure. Call your local
electric company for service outage information.
• Service wiring is not complete. Call 1-844-553-6667 for assistance (See back
cover).
Problem
Solution
Poor baking results. • Many factors aect baking results. Make sure the proper oven rack position
is used. Center food in the oven and space pans to allow air to circulate.
Allow the oven to preheat to the set temperature before placing food in the
oven. Try adjusting the recipe’s recommended temperature or baking time.
If you feel the oven is too hot or cool, see Adjusting oven temperature in
Setting Oven Controls section.
Before you call for service, review this list. It may save you time and expense.
Surface burners do not ignite.
• Surface control knob was not completely turned to LITE. Push in & turn the
surface control knob to LITE until burner ignites and then turn control knob to
desired ame size.
• Burner ports are clogged. With the burner OFF, use a small-gauge wire or
needle to burner head slots and ignition ports. See Cleaning the cooktop
and surface burners in the Care & Cleaning section for additional cleaning
instructions.
• Range power cord is disconnected from outlet (electric ignition models only).
Be sure power cord is securely plugged into the power outlet.
• Electrical power outage. Burners may be lit manually. See section on Setting
Surface Controls.
Surface burner ame only part way
around burner cap.
• Burner slots or ports are clogged. With the surface burner OFF, clean ports
with a small-gauge wire or needle.
• Moisture is present after cleaning. Lightly fan the ame and allow burner to
operate until ame is full.
Surface burner ame is orange. • Dust particles in main gas line. Allow the burner to operate a few minutes
until ame turns blue. In coastal areas, a slightly orange ame is unavoidable
due to salt content in air.
• Be sure regulator gas valve is turned to ON. See installation instructions.•
The time of day is not set. The time of day must rst be set in order to
operate the oven. See Setting clock in Setting Oven Controls section.
• Be sure the oven controls are set properly for the desired function. See
Setting Oven Controls section and review instructions for the desired cooking
function in this manual or see “Entire appliance does not operate” in this
checklist.
Oven portion of appliance does not
operate.
20
Before You Call • Solutions to common problems
Oven smokes excessively during broiling. • Incorrect setting. Follow broil instructions in Setting Oven Controls.
• Broiler drawer is open. Be sure broiler drawer is closed.
• Meat too close to broil burner. Reposition the broiler drawer rack to provide
proper clearance between the meat & the burner.
• Meat not properly prepared. Remove excess fat from meat. Cut remaining
fatty edges to prevent curling, but do not cut into lean.
• Broiler pan and insert wrong side up and grease not draining. Always place
insert on the broiler pan with ribs up & slots down to allow grease to drip
into pan.
• Grease built up on drawer surfaces. Regular cleaning is necessary when
broiling frequently. Old grease or food spatters cause excessive smoking.
Oven control panel beeps & displays any
F code error.
• Oven control has detected a fault or error condition. Press
to clear
the error code. Try the Bake or Broil feature again. If the F code error
repeats, remove power from appliance, wait 5 minutes and then repower
appliance and set clock for the time of day. Try the Bake or Broil feature
again. If the fault recurs, press the
key pad to clear.
Call 1-844-553-6667 for assistance (See back cover).
Appliance is not level.
• Be sure oor is level, strong & stable enough to adequately support range.
• If oor is sagging or sloping, contact a carpenter to correct the situation.
• Poor installation. Place oven rack in center of oven. Place a level on the
oven rack. Adjust leveling legs at base of appliance until the rack is level.
• Kitchen cabinet alignment may make range appear not level. Be sure
cabinets are square & have sucient room for appliance clearance.
Problem Solution
Flames inside oven or smoking from oven
vent.
• Excessive spillovers in oven. For example this will happen for pie spillovers
or large amounts of grease left on the oven bottom. Wipe up excessive
spillovers before starting oven. If ames or excessive smoke are present see
Broil in Setting Oven Controls section.
Oven control beeps and displays F code
error.
• Oven control has detected a fault or error condition. Press
key pad to
clear the error code. Try Bake or Broil function. If the F code error repeats,
remove power from appliance, wait 5 minutes and then repower appliance
and set clock with the correct time of day. Try Bake or Broil function again.
If the fault recurs, press
to clear and call 1-844-553-6667 for assis-
tance (See back cover).
Cannot move appliance easily.
Appliance must be accessible for
service.
• Cabinets not square or are built in too tightly. Contact builder or installer to
make appliance accessible.
• Carpet interferes with appliance. Provide sucient space so appliance can
be lifted over carpet.
• Gas line is hard-plumbed. Have a exible CSA International approved
metal appliance connector installed.
21
Protection Agreements Acuerodes de protección
call 1-844-553-6667, and in Canada call 1-800-469-4663.
llame al 1-800-553-6667
en lose EE.UU. o llame al 1-800-469-4663 en Canadá.
