1. About Your Camcorder
About this Manual
Congratulations on purchasing the Minolta MN200NV HD Camcorder!
The contents of this manual are subject to change without notice. Note that the
example screens and
somewhat from the screens and configuration of the actual camera.
Copyright
This manual contains proprietary information protected by copyright. All rights
are reserved. No part of this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior written permission of Elite
Brands Inc. © 2020.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)
This device may not cause harmful interference and
(2)
This device must accept any interference received, including interference
that may cause undesired operation.
RF Exposure Warning
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment must be installed and operated in
accordance with provided instructions and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must
1. About Your Camcorder
be provided with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg
CE Mark Warning
This is a Class B product, in a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Safety and Handling Precautions
Camera Information
Do not disassemble or attempt to service the camera yourself.
Do not expose the camera to moisture, or extreme temperatures.
Allow the camera to warm up when moving from cold to warm temperatures.
Do not touch and put pressure on the camera lens.
Do not expose the lens to direct sunlight for extended periods.
Do not use abrasive chemicals, cleaning solvents or strong detergents to clean
the product. Wipe the product with a slightly damp soft cloth.
Do not use the flash or LED Light near a person's eyes to prevent possible eye
injury.
To prevent you from falling over or resulting in traffic accident, please do not use
the camera while you are walking, driving or riding a vehicle.
Please handle the camera strap with care, and never place the strap around the
neck of an infant or child. Wrapping the strap around a neck may cause
suffocation.
Do not subject the LCD screen to impact.
To prevent the risk of fire or electric shock, do not expose this appliance to rain
or moisture.
Battery Information
Turn off the camera before installing or removing the battery.
Use only the provided batteries or type of battery and charger that came with
your camera. Using other types of battery or charger may damage the device
and invalidate the warranty.
Inserting the battery upside down can cause damage to the product and possibly
cause an explosion.
When the camera is used for an extended period of time, it is normal for the
camera body to feel warm.
Download all pictures and remove the battery from the camera if you are going
to store the camera for a long period of time.
The type of battery and the battery power level may cause the lens to be stuck
up. Ensure you use the correct battery type and use a fully charged battery.
Risk of explosion if battery is replaced by an incorrect type. Dispose of used
1. About Your Camcorder
batteries according to the instructions.
Please keep the batteries out of the reach of children to prevent from swallowing
batteries, which might cause poisoning.
Once the battery's color changes or its shape is twisted, please stop using it.
USB adapter Information
Do not expose the adapter to high temperatures or moisture places. Otherwise, it
may cause fire or electric shock.
Do not attempt to repair, disassemble, change or transform the adapter.
Avoid sudden changes in temperature, which may cause condensation on the
iately in this situation.
Do not touch the plug with wet hands. Otherwise, it may cause electric shock.
Do not use the travel voltage converter or AC/DC power inverter. Otherwise, it
may cause damage, overheating, malfunction or fire to the camera.
1.1

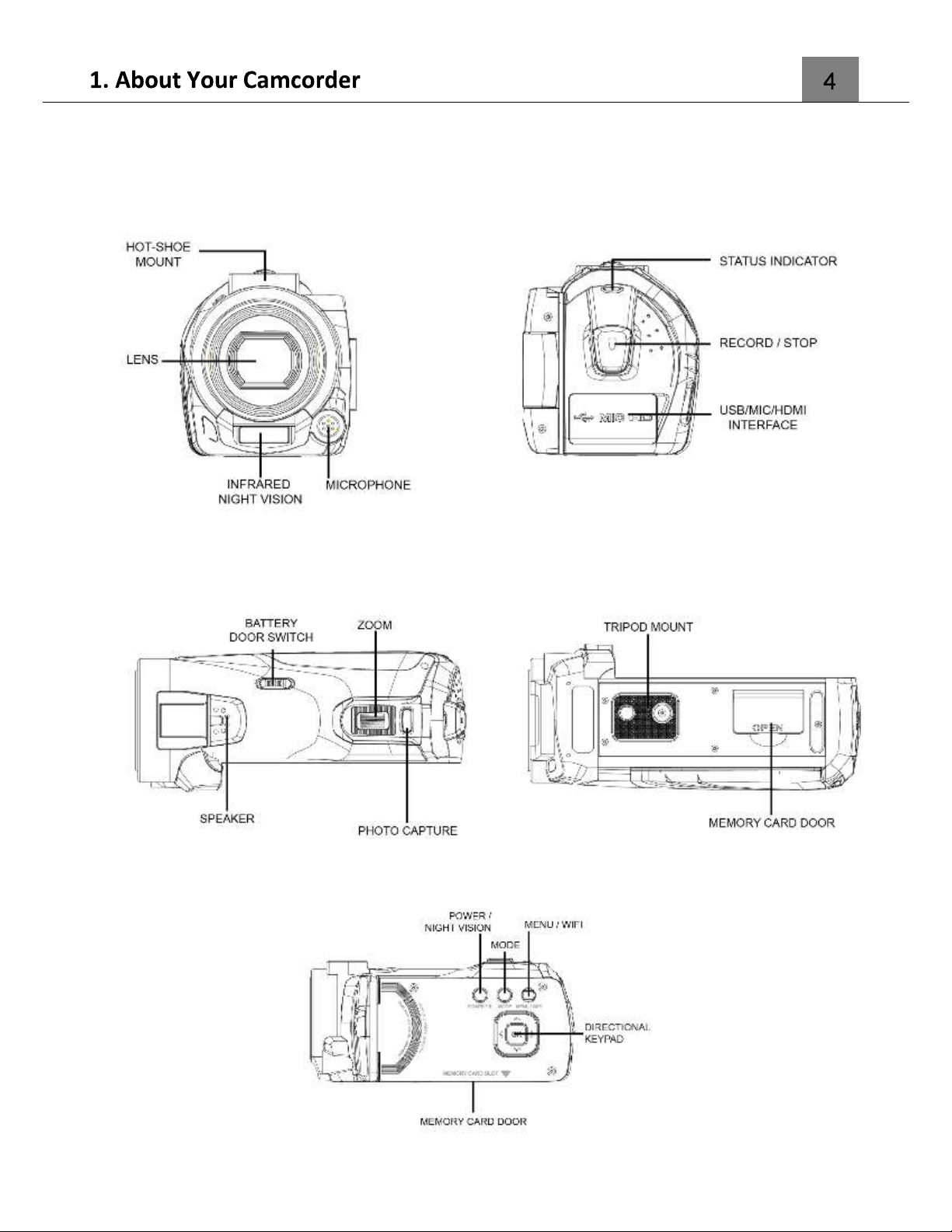

Camcorder Interface
[Top View] [Bottom View]
[Side View]
[
Front V
iew]
[Rear View]
1.2
Button Function Description
Function Description
Power | IR Press for 3 seconds to power on or off. Tap once
to enable or disable IR night vision.
Mode Press to cycle between Video, Photo, Playback
and Setup modes.
Menu | WIFI Press to access and exit all menus and submenus.
Press for 3 seconds to enter WiFi mode.
Zoom
In Video or Photo:
Press right to zoom-in. Press
left to zoom-out.
In Playback Mode: Press to view 9 images on the
screen.
In Video Playback: Press to raise and lower the
playback volume.
In Photo Playback: Press to zoom in and out of a
photo.
In Photo:
Press to capture a photo.
In Video: Press to pause and resume recording.
In Video Playback: Press to pause and resume
the video.
Record
In Video:
Press to start and stop recording video.
In Video Playback: Press to start and stop the
video.
Directional Pad
In Menus:
Use the UP, Down, Left and Right
buttons to scroll through menus and options.
In Video and Photo Modes: Press the Up or
Down buttons to adjust the exposure value. Press
the Left button to hide the icons from the screen,
press the Left button again to show them.
OK Press to enter sub menus and to select menu
options
Infrared Night
Vision
Infrared LED to aid with vision and recording in
darkness.
Tripod Mount Mount port for attaching to a tripod nut.
. First Use
Memory Card
Door
Door to cover storage slot for inserting a memory
card.
Battery Door Door to cover the battery compartment.
Speaker Built-in speaker output for playback of video files
when audio recording is enabled.
Lens Front capture device for all video and photo.
2.
First Use
2.1
Inserting the Memory Card
Insert the included SD memory card to record and store your videos and photos.
When the battery is low, media stored on the memory card will not be erased.
Please insert the SD memory card by following the steps below:
1.
Open the memory card door on the bottom by lifting from the side that says
.
2.
Insert the memory card. Ensure that the metal contacts are inserted first.
Push the memory card in until you hear an audible click.
The memory card can only be inserted in one way. Do not force the card
in if it will not go in smoothly.
3.
Close the memory card door.
4.
To remove the memory card, simply push in and the card will eject back out.
2. Insert the memory card as shown
1. Open the memory card door
. First Use
Attention!
Please insert the battery in the correct way!
2.2
Installing the Battery
Insert the lithium-ion battery into the battery compartment with the metal
contacts facing the back of the camcorder. The battery can only inserted
one way.
2.3
Charging the Battery
Connect your camcorder to the included AC adaptor with the USB cable
provided for charging. Insert the small end of the USB plug into the
camcorder s port, and the larger end in to the included AC adaptor. The
status LED will light up Green when charging.
3. Close the battery door.
2. Insert the Li-ion battery into the
compartment as shown. Make sure the
contacts face the rear of the camcorder.
1. Slide the battery door switch
forward to open the battery door.
NOTE:
Please format the memory card before using the camcorder
(Caution, this will erase all data on the card).
Do not remove or insert the memory card when recording. It
may damage the card or cause data loss.
Memory card rating must be Class 10 or above.
2. First Use
2.4
Powering the Camcorder On/Off
Hold the POWER button for 3 seconds to power the camcorder on. To
power the camcorder off, press and hold the POWER button for a further 3
seconds.
The camcorder will automatically power on and off when the screen is
opened or closed. If the
message will display on the screen and it will automatically shut down
within a few seconds to prevent memory corruption or loss.
2.5
Switching Modes
Press the MODE button to cycle between Video, Photo, Playback and
Setup Modes. The corresponding mode will be displayed in the top left
corner of the screen.
2.6
Connecting to a Computer
Your camcorder can connect to a computer to transfer photo and video
files for viewing and editing, as shown below. Once connected and
powered on, the
automatically.
1. Connect the small end of the
USB cable to the USB port on
the camcorder.
2. Connect the large end of the
USB cable to the USB port on
the computer.
2. First Use
2.7

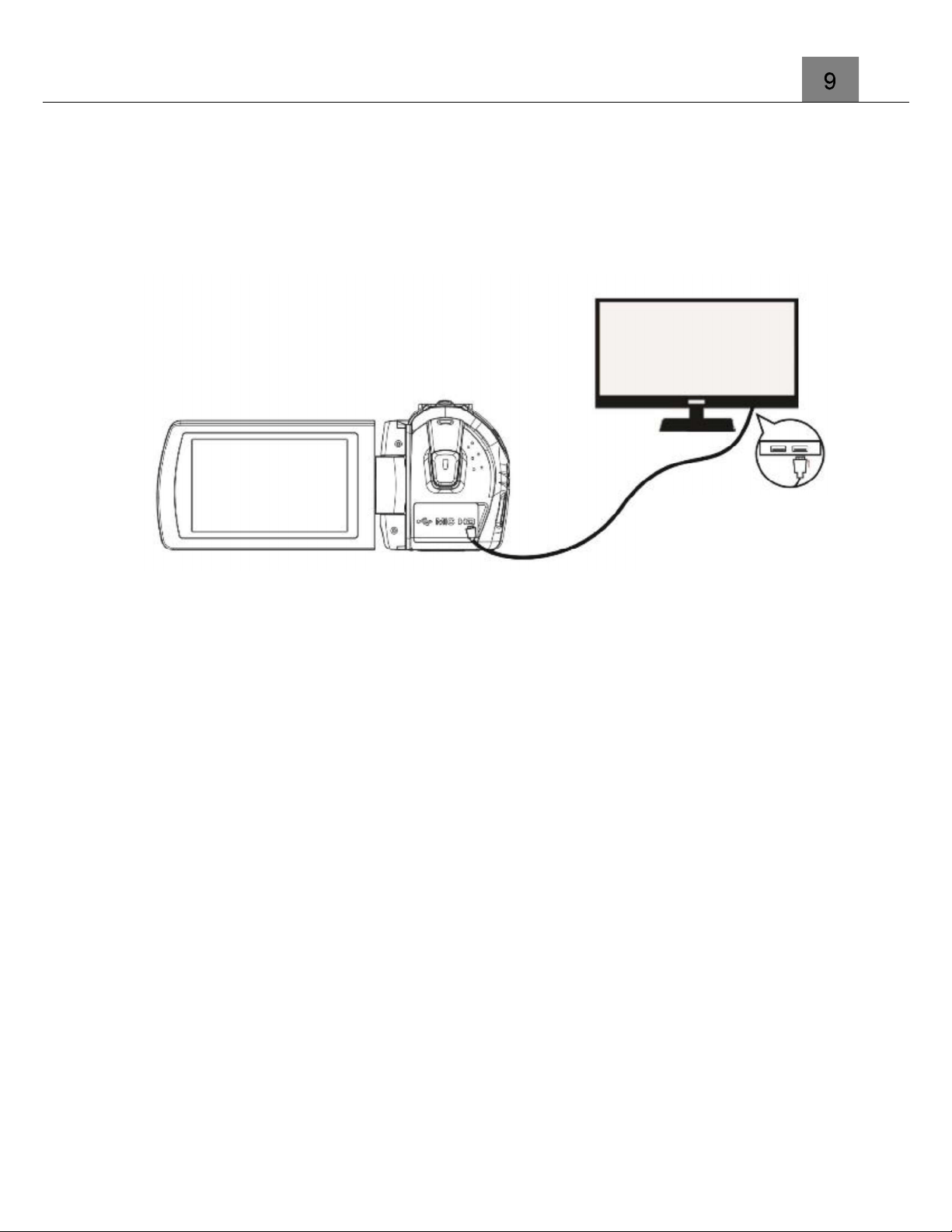

Connecting to a TV
The camcorder can also be connected to a TV. When connected, the
camcorder screen will turn off and the camcorder will function normally.
Use the TV as the camcorder monitor.
1. Connect the small end of
the HDMI cable to HDMI port
on the camcorder.
1. Connect the large
end of the HDMI
cable to HDMI port on
the TV.
2. First Use
2.8
Video Mode
Press the MODE button to switch to Video Mode. The meaning of each icon
within Video Mode is explained in the table below:
1) Video Mode 6) Recording Time
2) Video Quality Indicator 7) Memory Card Inserted
3) Exposure 8) Battery Level
4) Video Size (Resolution) 9) IR LED Light Indicator
5) Frame Rate 10) WiFi Indicator
2.9
Photo Mode
Press the MODE button to switch to Photo Mode. The meaning of each icon
within Photo Mode is explained in the table below:
1) Photo Mode 5) Photo Size (Resolution) 9) Battery Level
2) White Balance 6) Photo Quality Indicator 10) IR LED Light
3) Metering 7) Remaining Image Space 11) WiFi Indicator
4) Exposure Value 8) Memory Card Inserted
2.10
Using the Zoom Function
This camcorder has a digital zoom function. To operate the zoom
function, slide the ZOOM button right to zoom in closer to the subject,
and to the left to zoom away from the subject.
2.11
Using the IR Night Vision Mode
This camcorder has built-in infrared (IR) LEDs for night vision recording -
giving you the ability to capture photos and videos in a dark environment.
In Photo or Video mode, short-press the POWER/IR button once to enable
the IR LED light. When the IR LED light is enabled, the IR LED light
indicator on the left of the screen will display in white.
To disable the IR light, short-press the POWER/IR button again. You will
notice that the IR light indicator on the screen will now be grayed out.
2.12
Attaching External Accessories
This camcorder supports lens filters & attachments. Simply utilize the front lens
diameter 37mm threading for any desired attachments.
Note:
The photos and videos taken while the IR LED is enabled will be
recorded in black and white.
The IR LED cannot be enabled or disabled during a recording.
3. Using Your Camcorder
3.
Using the Camcorder
3.1 Video Recording
Power the camcorder on and it will be ready to record clips right away. You
may press the MODE button to switch to another mode. A camcorder icon
will appear in the top left hand corner of the screen when you are in Video
mode.
1. Line up your shot by looking at the LCD screen to see what is in view.
2. Hold the camcorder steady and press the RECORD button to begin recording.
3. When recording begins, a rolling timer will display in red in the top right hand
corner of the screen. This indicates the recorded video time elapsed.
4. Press the PHOTO button to pause and resume recording. Press the RECORD
button to stop recording.
5. The status LED will blink Red slowly while recording and will be solid Red if the
recording is paused.
6. The recorded video files will automatically save onto the inserted memory card.
3.1.1 Movie Size (Resolution)
Your camcorder has a number of preset resolutions and frames per second rates.
1.
In Video Mode press the MENU button.
2.
S using the UP or DOWN buttons and press the OK
button to enter the submenu.
3.
Press the UP or DOWN buttons to navigate the menu and press the OK
button to confirm your selected setting (1080P 30fps, 720P 60fps, 720P
30fps, 480P 60fps). A higher resolution and faster frames per second rate
will produce a higher quality and larger video file.
3.1.2 Video Quality
The Video Quality function determines the level of compression the camcorder
uses when saving videos to a memory card.
1.
In Video Mode press the MENU button.
2.
Select using the UP or DOWN buttons and press the OK
Video submenu.
3.
Press the UP or DOWN buttons to select the required quality option
(Super Fine, Fine, Normal), and press the OK button to confirm your
selected image option. Fine uses the least amount of compression for
saving, and as a result produces a higher video quality.
3.1.3 Loop Record
This function allows you to set a maximum duration for each video clip recorded.
1.
In Video Mode press the MENU button.
3. Using Your Camcorder
2.
S using the UP or DOWN buttons and press the OK
button to enter the submenu.
3.
Press the UP or DOWN buttons to select the required loop duration
option (Off, 1 Minute, 3 Minutes, 5 Minutes), and press the OK button to
confirm your selected option.
Once you select an option, your camcorder will record video clips in this
interval only. Once this duration is reached, the camcorder will
seamlessly end recording and begin recording a new video file.
3.1.4 White Balance
White Balance changes the color of light in your pictures, making it seem
warmer or cooler depending on how the light you're shooting in affects the
frame.
1.
In Video Mode press the MENU button.
2.
using the UP or Down buttons and press the
OK White Ba submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected setting (Auto, Daylight, Cloudy,
Incandescent, Fluorescent, Fluorescent L).
3.1.5 Exposure
This function adjusts the frame brightness in your video.
1.
In Video Mode press the MENU button.
2.
Select using the UP or Down buttons and press the OK
button to enter the submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected exposure mode (-2.0, -1.7, -1.3, -1.0, -0.7,
0.0, +0.3, +0.7, +1.0, +1.3, +1.7, +2.0).
3.1.6 Video Stabilization
This function enables photo capture in high speed and low-light by
electronically minimizing motion blur and reducing camera shake.
1.
In Video Mode press the MENU button.
2.
Select Video Stabilization using the UP or Down buttons and press
the OK button to enter the Video Stabilization submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected option (Off, On).
3.1.7 Metering
Metering mode refers to the way in which a camera determines the
appropriate exposure (quantity of light reaching the camcorder lens). Spot
metering will only base the exposure setting on a very small area of the
3. Using Your Camcorder
scene. Center-Weighted metering will use the light from the center of the
LCD and the Multi setting measures the light at several points on the
screen.
1.
In Video Mode press the MENU button.
2.
using the UP or DOWN buttons and press the OK
submenu.
3.
Press the UP or DOWN buttons to select the required Metering option
(Center, Multi, Spot), and press the OK button to confirm your selected
option.
3.1.8 Video Effect
This function sets the color filter effect of a video.
1.
In Video Mode press the MENU button.
2.
Select Video Effect using the UP or DOWN buttons and press the OK
button to enter the Video Effect submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected filter (Normal, Black & White,
Sepia, Negative, Red, Green, Blue).
3.1.9 Slow Motion
This function sets the frame rate of the recorded video to a much slower
10 frames per second.
1.
In Video Mode press the MENU button.
2.
Select Slow Motion using the UP or DOWN buttons and press the OK
button to enter the Slow Motion submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected setting (Off, On).
3.1.10 Time Lapse
This feature allows you to capture long sequences of events in a much
shorter time period.
1.
In Video Mode press the MENU button.
2.
Time L using the UP or DOWN buttons and press the OK
Time Lapse submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected setting (Off, Interval of 3 Seconds,
5 Seconds, 10 Seconds, 30 Seconds, 1 Minute).
NOTE: By selecting 10 the camera will capture a photo every 10
seconds and create a time-lapse video. To disable Time-Lapse recording,
in this submenu.
3. Using Your Camcorder
3.1.11 Time Lapse Duration
The duration for the time lapse setting is determined in the menu. The
option chosen here will record for the chosen duration.
1.
In Video Mode press the MENU button.
2.
Select Time Lapse Duration using the UP or DOWN buttons and
press the OK button to enter the Time Lapse Duration submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected option (Unlimited, 5 Minutes, 10
Minutes, 15 Minutes, 20 Minutes, 30 Minutes, 60 Minutes).
For example, by selecting 15Min the camera will record for 15 minutes of
real time. If 10 Sec is selected in the previous menu, the camera will
capture a photo every 10 seconds for 15 minutes.
3. Using Your Camcorder
3.2 Photo Shooting
Power the camcorder on and press the MODE button or press the icon in the
top left hand corner of the screen to switch to Photo mode.
1.
Line up your shot by looking at the LCD screen to see what is in the shot.
2.
Hold the camera steady and press the PHOTO button to capture a photo.
3.
The status LED will blink Red once when a photo is taken.
4.
The number of photos that can be captured at a particular resolution
will be displayed in the top right corner of the screen.
5.
no card
storage card full
message will be shown on the screen when the SD card is full.
6.
The number of remaining photos is determined by the selected photo
resolution. The higher the photo resolution, the lower the number of photos
you are able to be save to the memory card. Before capturing any photos,
you can select a preferred photo resolution.
3.2.1 Resolution (Photo Size)
This function sets the photo resolution. The higher the resolution, the greater
the photo quality and the larger the file size of the photo.
1.
In Photo Mode press the MENU button.
2.
Resolution using the UP or DOWN buttons and press the OK
Resolution submenu.
3.
Press the UP or DOWN button to select a resolution, and press the OK
button to confirm the selected photo resolution (24MP, 20MP, 16MP,
12MP, 10MP, 8MP, 7MP, 5MP, 3MP, 2MP).
3.2.2 Quality
The Photo Quality function determines the level of compression the
camcorder uses when saving photos to a memory card.
1. In Photo Mode press the MENU button.
2. using the UP or DOWN buttons and press the OK button
submenu.
3. Press the UP or DOWN buttons to select the required quality option
(Super Fine, Fine, Normal), and press the OK button to confirm your
selected image option. Super Fine uses the least amount of compression
for saving, and as a result produces a higher photo quality.
3.2.3 Metering
Metering mode refers to the way in which a camera determines the
appropriate exposure (quantity of light reaching the camcorder lens). Spot
metering will only base the exposure setting on a very small area of the
3. Using Your Camcorder
scene. Center-Weighted metering will use the light from the center of the
LCD and the Multi setting measures the light at several points on the
screen.
1.
In Photo Mode press the MENU button.
2.
using the UP or DOWN buttons and press the OK
but submenu.
3.
Press the UP or DOWN buttons to select the required Metering option
(Center, Multi, Spot), and press the OK button to confirm your selected
option.
3.2.4 White Balance
White Balance changes the color of light in your pictures, making it seem
warmer or cooler depending on how the light you're shooting in affects the
frame.
1. In Photo Mode press the MENU button.
2. Select using the UP or DOWN buttons and press the OK
button to enter the submenu.
3. Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected setting (Auto, Daylight, Cloudy,
Incandescent, Fluorescent, Fluorescent L).
3.2.5 ISO
This function adjusts the light sensitivity in your photograph.
1.
In Photo Mode press the MENU button.
2.
using the UP or DOWN buttons and press the OK button
submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected ISO (Auto, 50, 100, 200, 400).
3.2.6 Exposure
This function adjusts the frame brightness in your photograph.
1.
In Photo Mode press the MENU button.
2.
using the UP or DOWN buttons and press the OK
submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected exposure mode (-2.0, -1.7, -1.3, -1.0, -0.7,
-0.3, 0.0, +0.3, +0.7, +1.0, +1.3, +1.7, +2.0).
3.2.7 Self-Timer
This function determines the time delay before a photograph is captured.
This setting can be used by photographers to take photographs of
themselves.
3. Using Your Camcorder
1. In Photo Mode press the MENU button.
2. Select using the UP or DOWN buttons and press the OK
button to enter the submenu.
3. Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected option (Off, 2 Seconds, 10 Seconds,
Double).
3.2.8 Photo Burst
This function allows to you capture consecutive photos with one click of the
PHOTO button.
1.
In Photo Mode press the MENU button.
2.
using the UP or DOWN buttons and press the OK
submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected setting (Off, 3, 5, 10).
3.2.9 Sharpness
This function adjusts the visible detail of a photograph.
1.
In Photo Mode, press the MENU button.
2.
using the UP or DOWN buttons and press the OK
submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm how sharp you would like your photograph to be
(Hard, Normal, Soft).
3.2.10 Photo Effect
This function sets the color filter effect of a photograph.
1.
In Photo Mode press the MENU button.
2.
Select Photo Effect using the UP or DOWN buttons and press the OK
Photo submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected filter (Normal, B&W, Sepia,
Negative, Red, Green, Blue).
3.2.11 Date/Time Stamp
This function adds a date/time stamp to your photographs.
1.
In Photo Mode press the MENU button.
2.
Date/Time using the UP or DOWN buttons and press the
OK Date/Time submenu.
3.
Press the UP or DOWN buttons to navigate the menu and the OK
button for your selected setting (Off, Date, Date and Time). Section
3. Using Your Camcorder
3.3.4 explains how to set the time & date on your camcorder.
Note that once a date/time stamp is captured on a photograph, it
cannot be removed.
3.2.12 Image Stabilization
This function enables photo capture in high speed and low-light by electronically
minimizing motion blur and reducing camera shake.
1.
In Photo Mode press the MENU button.
2.
Select Image Stabilization using the UP or DOWN buttons and press
the OK button to enter the Image Stabilization submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the OK
button to confirm your selected option (Off, On).
3.2.13 Scene Modes
that
will produce the best image for that selected scene.
1.
In Photo Mode press the MENU button.
2.
Scene Modes using the UP or DOWN buttons and press the
OK Scene Modes submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected option (Auto, Landscape, Portrait,
Sport, Flower, Beach, Aquarium, Snow, Sunset, Night Scene,
Fireworks).
3.2.14 Face Detection
This function allows you to set your camera to detect faces in a scene
and adjust your camera's setting for the most optimal picture. You can
also enable your camera to capture a photo once a smile is detected on
the faces in a scene.
1.
In Photo Mode press the MENU button.
2.
Select using the UP or DOWN buttons and press the
OK button to enter the submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected option (Off, On, Smile Detect). The
On setting will enable Face Detection. The Smile Detect setting will
enable your camera to capture a photo once a smile is detected on
the faces in a scene.
3.2.15 Time Lapse
This function allows you to capture a long sequence of events in a much shorter
time period. This specific setting will determine how often an image is
automatically captured.
3. Using Your Camcorder
1.
In Photo Mode, press the MENU button.
2.
Time Lapse using the UP or DOWN buttons and press the OK
Time Lapse submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected option (Off, 3 Seconds, 5 Seconds,
10 Seconds, 30 Seconds, 1 Minute). For example, by selecting 10 Sec
the camera will capture a photo every 10 seconds for a determined time
period as selected in the Time Lapse Duration setting (see next setting).
3.2.16 Time Lapse Duration
The duration for the time lapse setting is determined in the menu. The
option chosen here will record for the chosen duration.
1.
In Photo Mode press the MENU button.
2.
Select Time Lapse Duration using the UP or DOWN buttons and
press the OK button to enter the Time Lapse Duration submenu.
3.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button to confirm your selected option (Unlimited, 5 Minutes, 10
Minutes, 15 Minutes, 20 Minutes, 30 Minutes, 60 Minutes).
For example, by selecting 15 Min, the camera will record for 15 minutes
of real time. If 10 Sec is selected in the previous menu, the camera
will capture a photo every 10 seconds for 15 minutes.
3. Using Your Camcorder
3.3 Setup Menu
Basic settings can be changed in the Setup menu. These include date &
time, language and sound options. Power the camera on and press the
MODE button to switch to setup mode. A menu will display on the screen.
3.3.1 Sounds
This function can set the sound volume on your camcorder.
1. In Setup Mode, use the UP or DOWN buttons to select and
press the OK button to enter the submenu.
2. Press the UP or DOWN buttons to switch between , and
. Press the LEFT or RIGHT buttons to change the setting of the
S option (the sound made when a photo is captured), the B
option (the sound is made when the camcorder mode is cycled) and the
option (the volume level of the camera sounds).
3. Once you are happy with the sound settings press the OK button confirm
your setting and exit the submenu.
3.3.2 Power Frequency
This function sets the frequency of the camcorder from 50Hz to 60Hz.
Please check the frequency of your location and set accordingly.
1. In Setup Mode use the UP or DOWN buttons to select
and press the OK button to enter the Power
submenu.
2. Press the UP or DOWN buttons to select your desired frequency. Then
press the OK button to confirm your selection (50Hz, 60Hz). The default
frequency for the United States is 60Hz.
3.3.3 Power Save
This function sets the duration of time in which the camcorder will wait with
no user input before automatically powering off.
1. In Setup Mode use the UP or DOWN buttons to select and
press the OK button to enter the submenu.
2. Press the UP or DOWN buttons to navigate the menu and then press the
OK button to confirm your selected setting (Off, 1 Minute, 3 Minutes, 5
Minutes).
3.3.4 Date and Time
This function allows you to set the current Date and Time on your recorded
video clips and captured photos.
3. Using Your Camcorder
1. In Setup Mode use the UP or DOWN buttons Date and
and press the OK button to enter the submenu.
2. Press the LEFT or RIGHT button to switch between year, month, date,
hours and minutes.
3. Once highlighted on your desired field, press the UP or DOWN buttons to
cycle through numbers.
4. The date format can be changed to display in three formats; YY/MM/DD,
DD/MM/YY or MM/DD/YY.
5. Once completed with all of the fields, press the OK button to confirm the
changes.
3.3.5 Language
This function allows you to s language.
1. In Setup Mode use the UP or DOWN buttons to select and
press the OK button to enter the submenu.
2. Press the UP or DOWN buttons to select your desired language. Then
press the OK button to confirm your selection.
3.3.6 TV Output
This function allows you to set how you view your media on your television.
1. In Setup Mode use the UP or DOWN buttons TV Out and
press the OK TV Out submenu.
2. Press the UP or DOWN buttons to select your desired setting (NTSC for
US or Canada or PAL for Europe). Then press the OK button to confirm
your selection.
3.3.7 Format
The format setting erases all photos, videos and data stored on your
memory card.
1. In Setup Mode use the UP or DOWN buttons to select and
press the OK button to enter the submenu.
2. Press the UP or DOWN buttons to select your desired selection, press
the OK button for your selected setting (Yes, No).
NOTE: This will delete all of your media and cannot be undone.
3.3.8 Reset All
Factory default settings can be restored in this menu. This function will
not delete the media stored on the memory card, and will only restore all
1. In Setup Mode use the UP or DOWN buttons to select and
press the OK button to enter the submenu.
3. Using Your Camcorder
2. Press the UP or DOWN buttons to select your desired option, then press
the OK button to confirm your selection (Yes, No).
3.4 Playback Mode
Videos and photos captured on your camcorder can be easily played back.
The status LED will be solid RED while in Playback Mode. Power the
camcorder on and press the MODE button twice to switch to Playback Mode.
1.
Press the LEFT or RIGHT buttons to cycle through the captured videos and
photos stored on the memory card.
2.
When viewing a photo push the ZOOM button to the right and it will zoom in on
the picture on the screen. Use the directional pad to navigate while zoomed in.
3.
When viewing a video press the RECORD button to start playback, while the
video is playing press the PHOTO button to pause, press the LEFT button to
rewind, press the RIGHT button to fast forward and the RECORD button to
stop.
4.
Push the ZOOM button to the left to view 9 images on the screen at once, use
the UP, DOWN, LEFT or RIGHT buttons to navigate and press the OK button
on the selected image to view that image on the full screen.
In Playback Mode the following options are available:
3.4.1 Protect
This function protects the photo/video file. The file will be protected from
being deleted accidentally. Files must be unprotected to be deleted.
1.
In Playback Mode press the MENU button, and use the UP or DOWN
buttons and press the OK
submenu.
2.
Press the UP or DOWN buttons to navigate the menu and press the OK
button to confirm your selected setting (Single, Protect All, Unprotect All).
3.
Press the MENU button to exit the menu without protecting any pictures
or videos.
3.4.2 Delete
This function is used to delete photos and videos. Photos and videos can
be deleted singly or all at once.
1.
In Playback Mode press the MENU button, and use the UP or DOWN
buttons . Press the OK
submenu.
2.
Press the UP or DOWN buttons to navigate the menu, and press the
OK button for your selected setting (Single, All).
3. Using Your Camcorder
3.
Press the MENU button to exit the menu without deleting any pictures or
videos.
3.4.3 Slideshow
Photographs can be viewed as a slideshow on the camcorder.
1.
In Playback Mode press the MENU button, and use the UP or DOWN
buttons Slide Show Press the OK button to enter the
Slide Show submenu.
2.
Press the UP or DOWN buttons to navigate the menu.
3.
To change the photo interval, select and press the LEFT or
RIGHT buttons to choose between 1 to 10 seconds.
4.
To repeat the images, select and press the LEFT or RIGHT
buttons to change from O to O .
5.
Once your desired settings are selected, use the UP or DOWN buttons to
select then press the OK button to start the slideshow.
6.
To pause and restart the slide show press the PHOTO button, to cancel the
slide show press the RECORD button.
7.
Slide Show without starting the slide show, press the
MENU button.
3. Using Your Camcorder
3.4 Wireless Connectivity
3.5.1
Connecting to the iSmart DV App
To wirelessly operate the MN200NV camcorder you will need to install
the on your Android or iOS device.
The camera can be operated remotely by following the steps below:
1.
Turn the camcorder on and hold the MENU/WIFI button for 3 seconds
to launch the wireless menu. A WiFi Enabled. Now Connect From
Smartphone message will be displayed on the screen.
2.
To close the wireless menu, hold the MENU/WIFI button for 3
seconds.
3.
The status LED will blink BLUE while searching for a WiFi connection.
4.
Open your phone wireless menu, turn all wireless settings on and
connect to the network named Minolta_XXXXXX then join the
network, password is 1234567890.
5.
Successfully message will
appear on the screen when WiFi is connected.
6.
The status LED will be a steady BLUE when connected.
7.
Exit the wireless menu and open the app to launch
remote operation of the camera.
8.
Click New and -Fi Once you are
successfully connected a preview screen will be shown and you can
begin filming.
9.
When you return to the homepage your menu should look as shown
below:
3. Using Your Camcorder
3.5.2
Operating the iSmart DV App

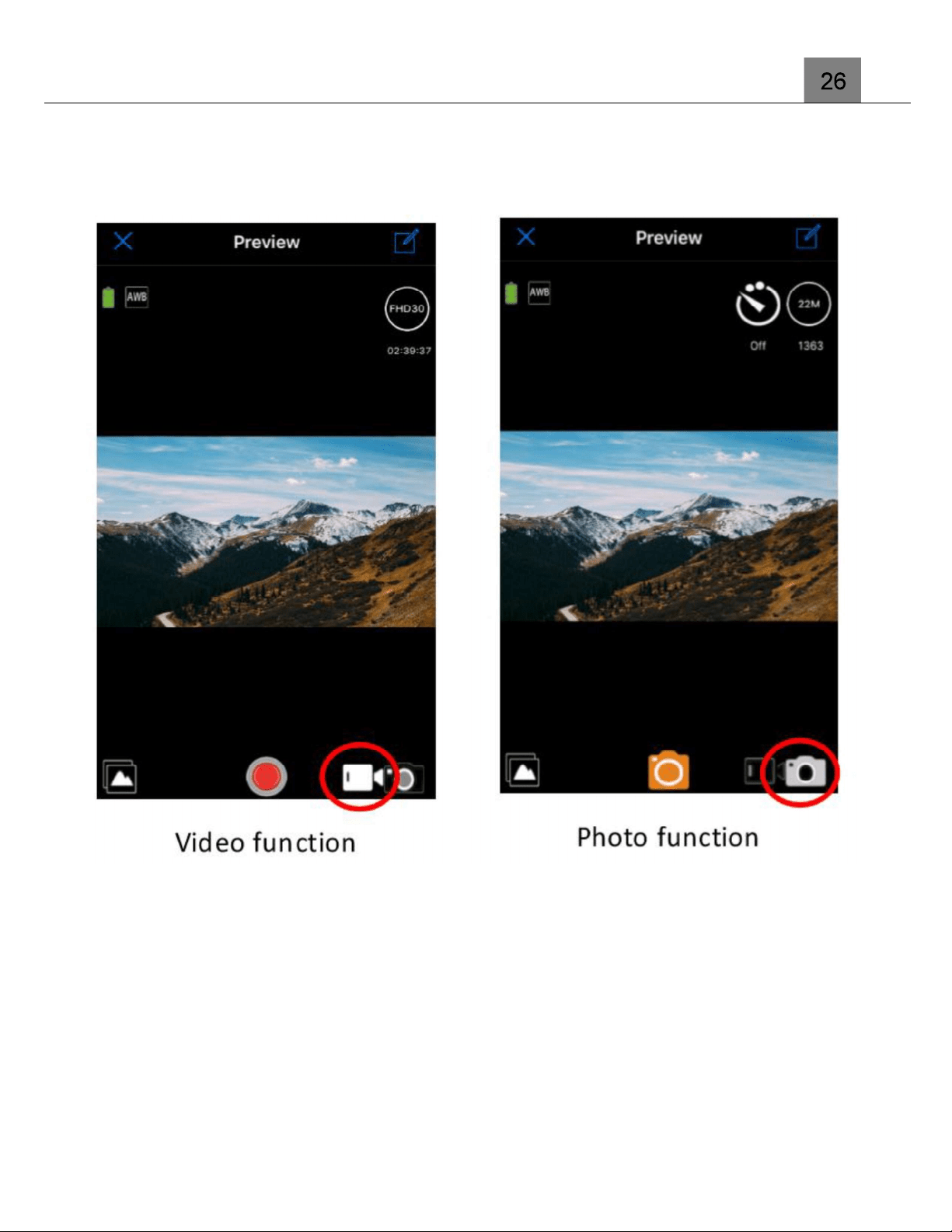

Your MN200NV will now be operable via your smartphone. It will initially
default to the video recording function. To change from video, press the
camera icon in the bottom right hand corner your phone screen.
3.5.2.1
Recording Videos Remotely
1.
To start recording a video, press the record button at the bottom of
your smartphone screen. While a video is recording remotely, the
operating indicator light at the back of the camcorder will flash red and
blue.
2.

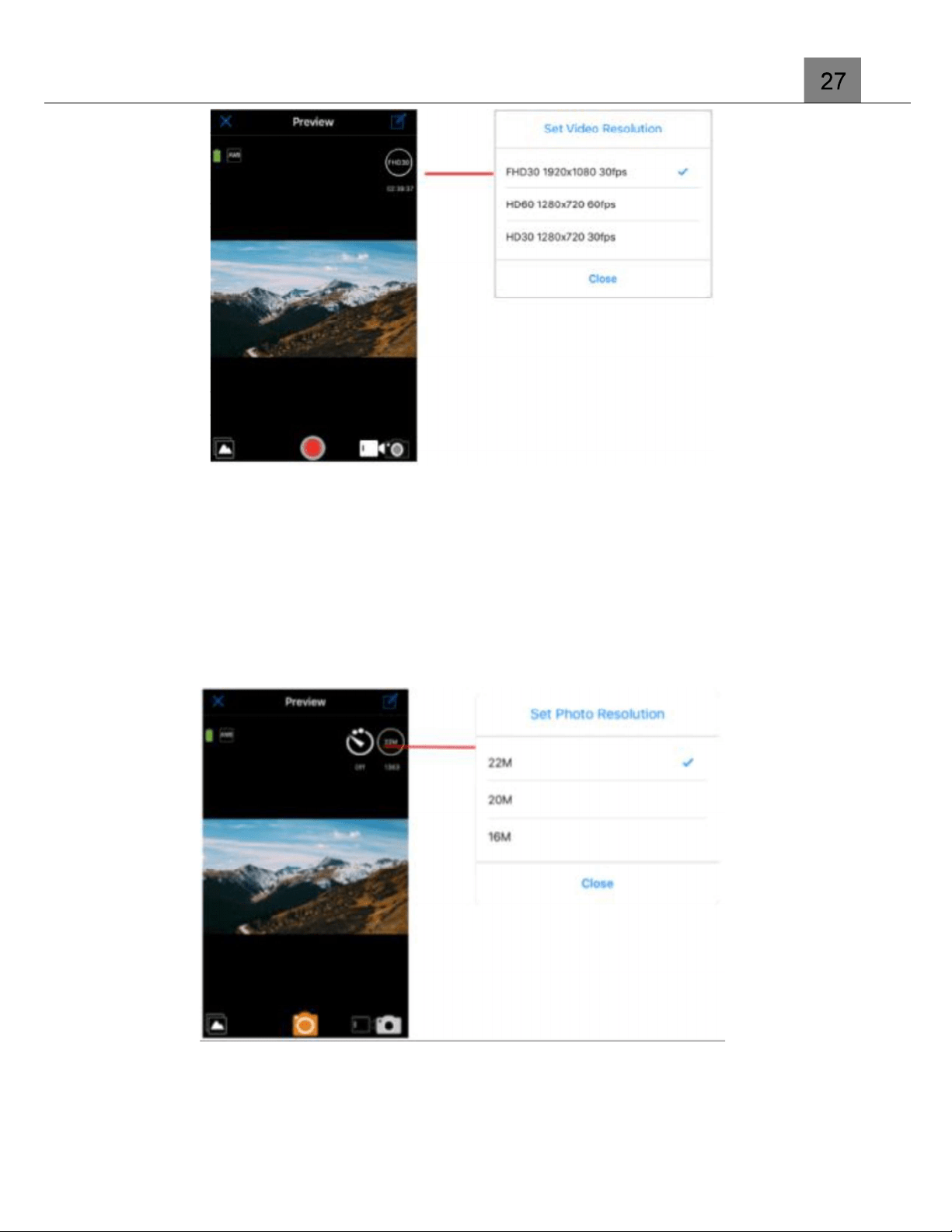

The video resolution can be changed on the app by pressing the button
to the right of the screen. The text in the button will change according
to current video resolution. Video resolution can be set at FHD30
1080p 30fps, HD60 720p 60fps, HD30 720p 30fps and VGA60 480p
60fps.
3. Using Your Camcorder
3.5.2.2 Taking Photos Remotely
1. To take a photo, press the capture button at the bottom of your
smartphone screen. When a photo is taken, the operating indicator
light at the back of the camcorder will flash red twice.
2. The photo resolution can be changed on the app. Press the button at
the far right of your smartphone screen to bring up the photo resolution
sub menu. Photo resolution can be set at 24MP, 20MP, 16MP, 12MP,
10MP, 8MP, 7MP, 5MP, 3MP, 2MP.

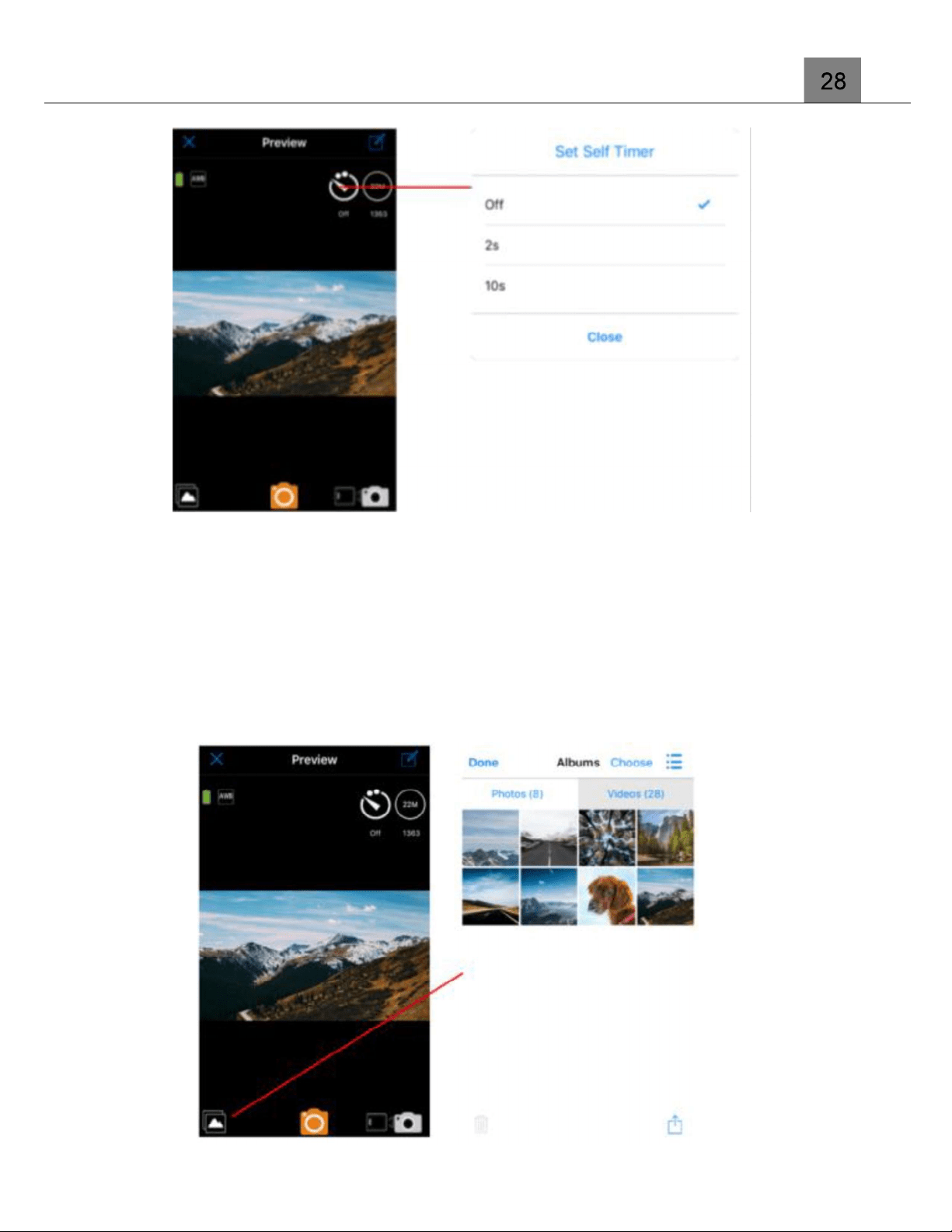

3. Self timer can also be adjusted on the app and can be set to Off, 2S
and 10S. Once 2S or 10S is selected, press the capture button. A
countdown timer will appear on the camcorder screen to signal the
countdown.
3. Using Your Camcorder
3.5.2.3 Viewing Media on the App
To view your photos and videos on the app, press the photo gallery
button in the bottom left corner of the screen. All media on the camcorder
will load in two sections; photos and videos. Tap the photo or video file
you wish to view. From this screen media can be saved to your
smartphone and deleted. If a photo or video is deleted on the app, it will
also be removed from the SD card in the camcorder.
3. Using Your Camcorder

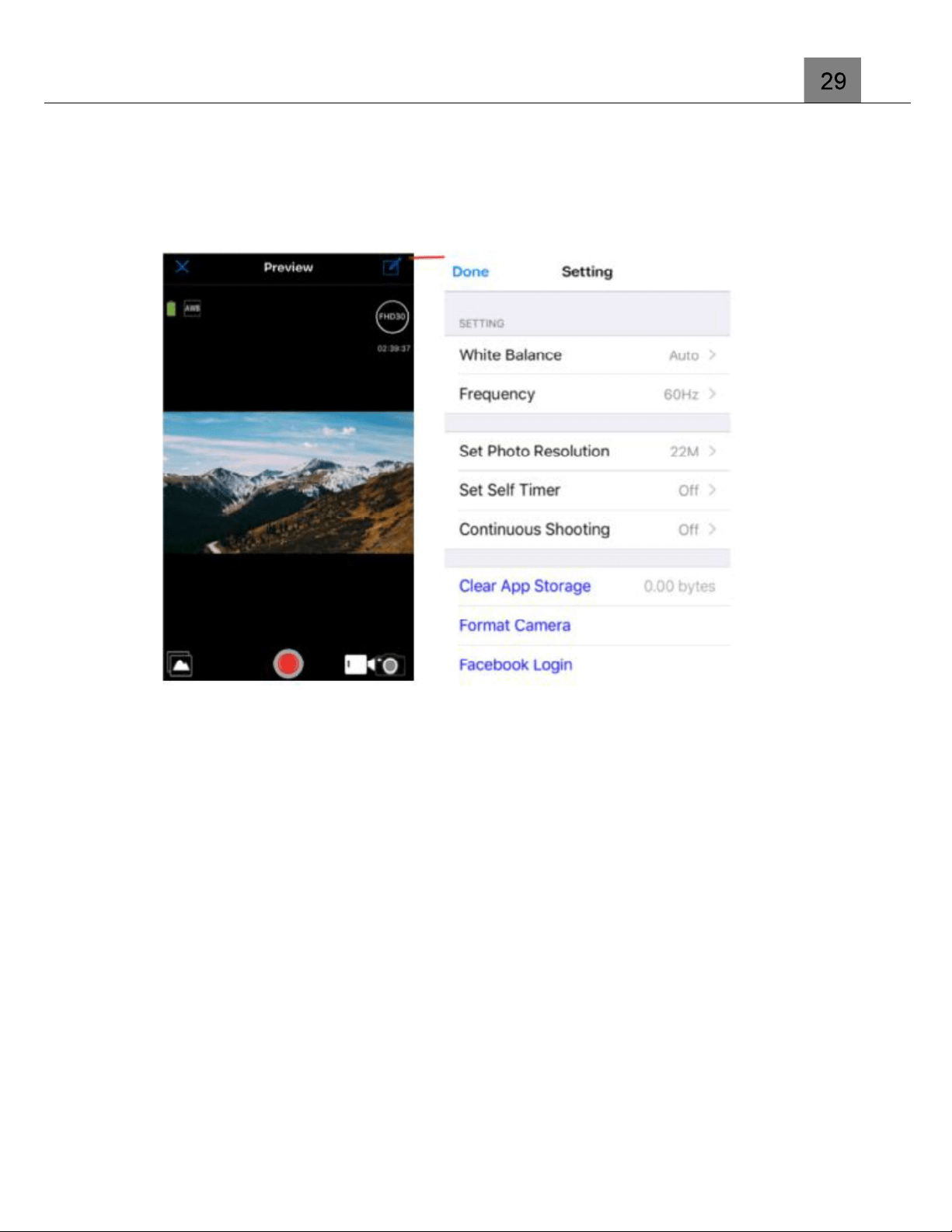

3.5.2.4 Changing Camcorder Settings on the App
Camcorder settings can also be changed on the app. Click the icon in the
top right hand corner of the screen to launch the settings menu. From
here, a number of settings including white balance and frequency can be
changed.
.
4.1 Technical Specifications
Model Number
Minolta MN200NV
Lens
7mm Front
Threading for Lens Accessory Attachments
Zoom
16X Digital Zoom
Image Sensor
1/3.2" IMX179 Sony CMOS; 3288x2512 Pixels
Shutter Speed
1/60 ~ 1/30 sec
Shutter
-Shake Image Stabilization
Pixels (photo)
JPEG:
MP)
Pixels (video)
MOV:
VGAp60fps
ISO Sensitivity
Auto
LCD Monitor
262k 3.0 Inch 16:9 Wide LCD Screen
WiFi Connection
Yes
Assistive Light
Infrared LED (for shooting in dark scenery)
Po
wer Saving Mode
1 3 5 Minutes
White Balance
Control
Fluorescent L
Scene Modes
Fireworks
Special Features
-
Burst
Recording Media
32GB
I/O Ports
5-pin Mini USB, USB 2.0 (high
Microphone (built-
Microphone Input
Power
NP-120; 3.7v, 1000mAh, 3.7Wh
Dimensions
Minolta is a registered trademark of JMM Lee Properties, LLC
and is used in the United States by Elite Brands Inc. under license.
-441-1100
www.minoltadigital.com www.elitebrands.com
Copyright © 2020 Elite Brands Inc.
please call our toll-free technical support hotline at 800-441-1100. Please be
sure to have your camera handy when calling.
