KAW05M1BWT
KAW05R1BWT
KAW06R1BWT
KAW08R1BWT
KAW10R1BWT
KAW12R1BWT
KAW15R1BWT
!
Table of Contents
Important Safety Instructions ...................................................03

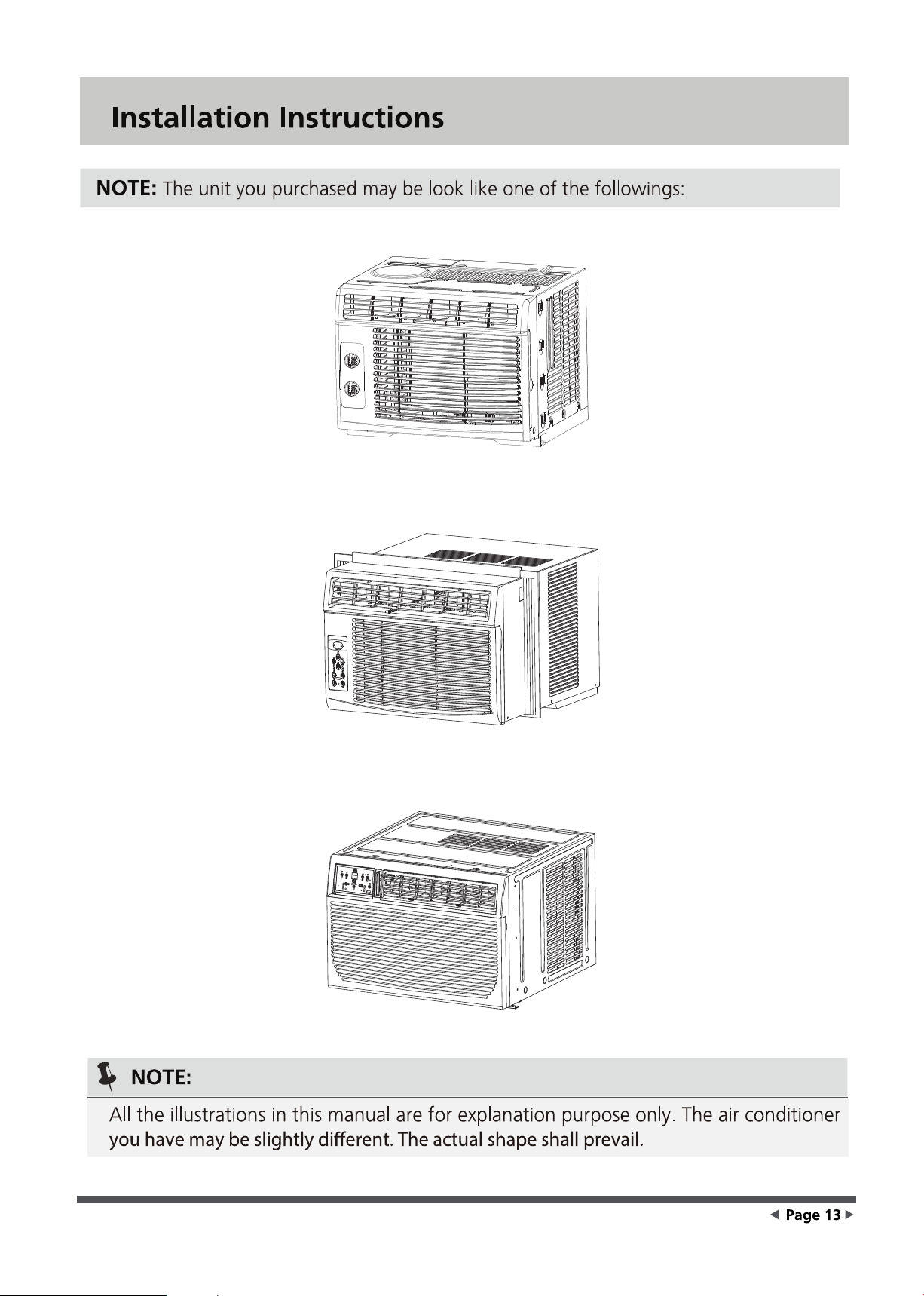

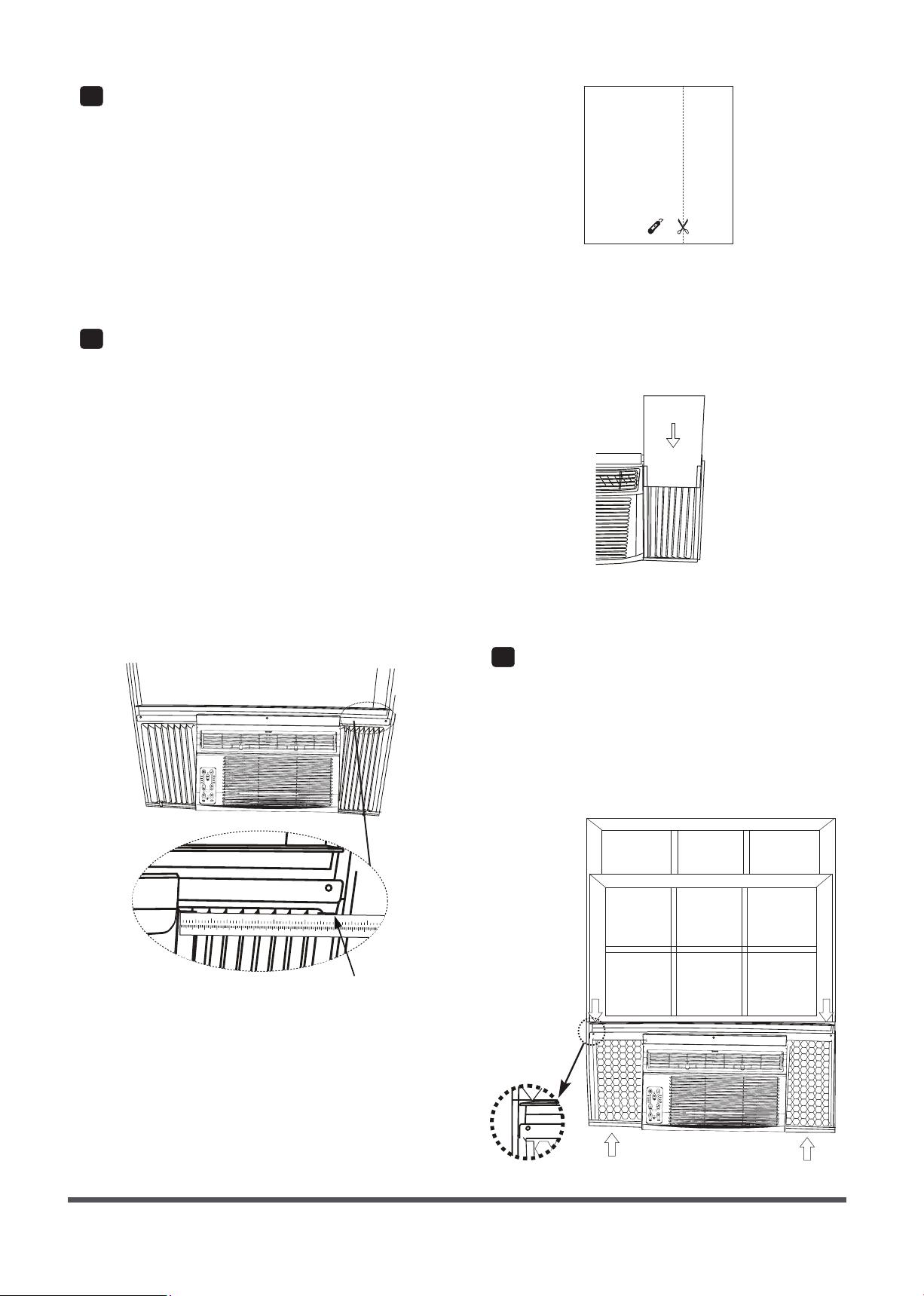

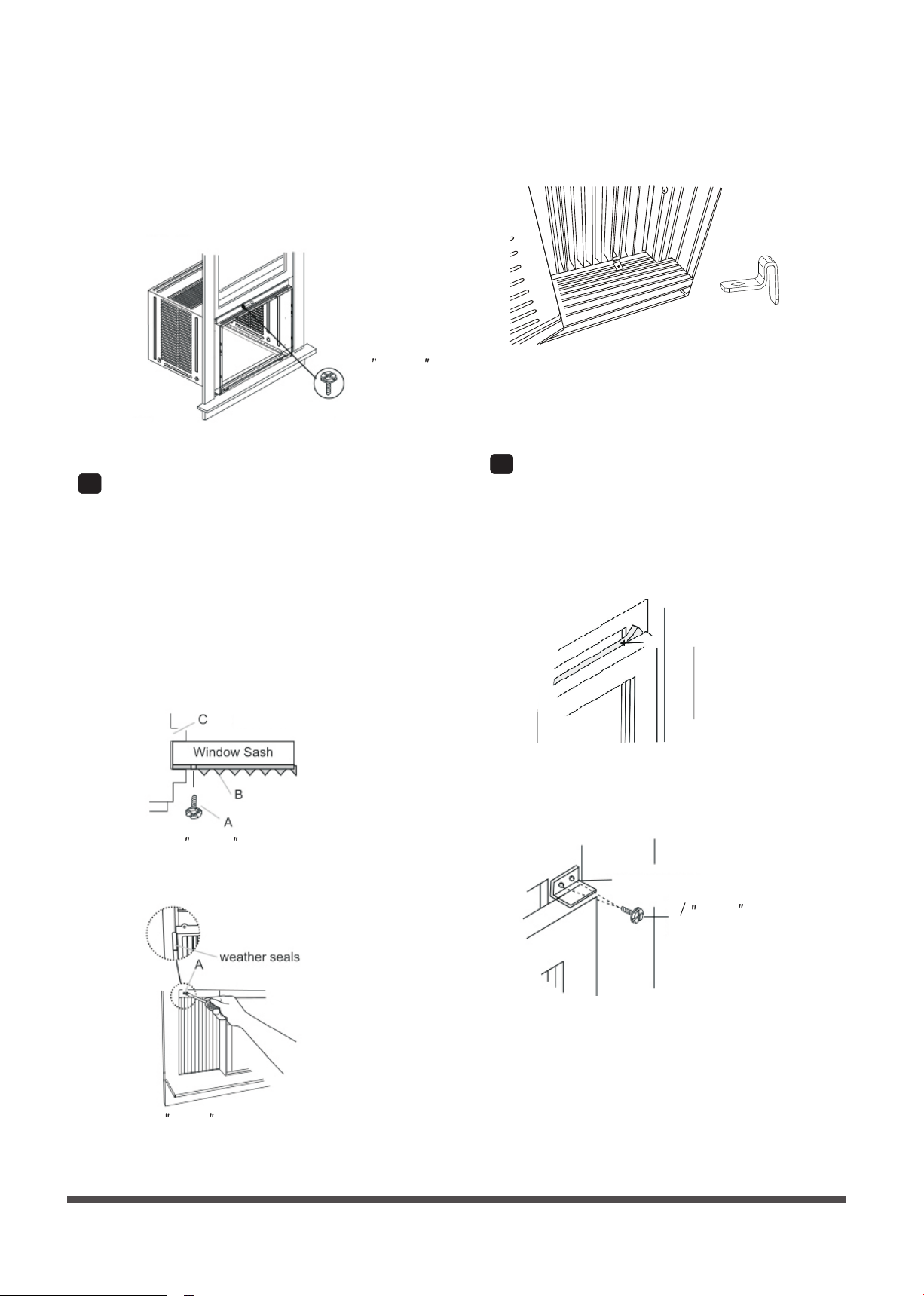

Installation Instructions..............................................................13

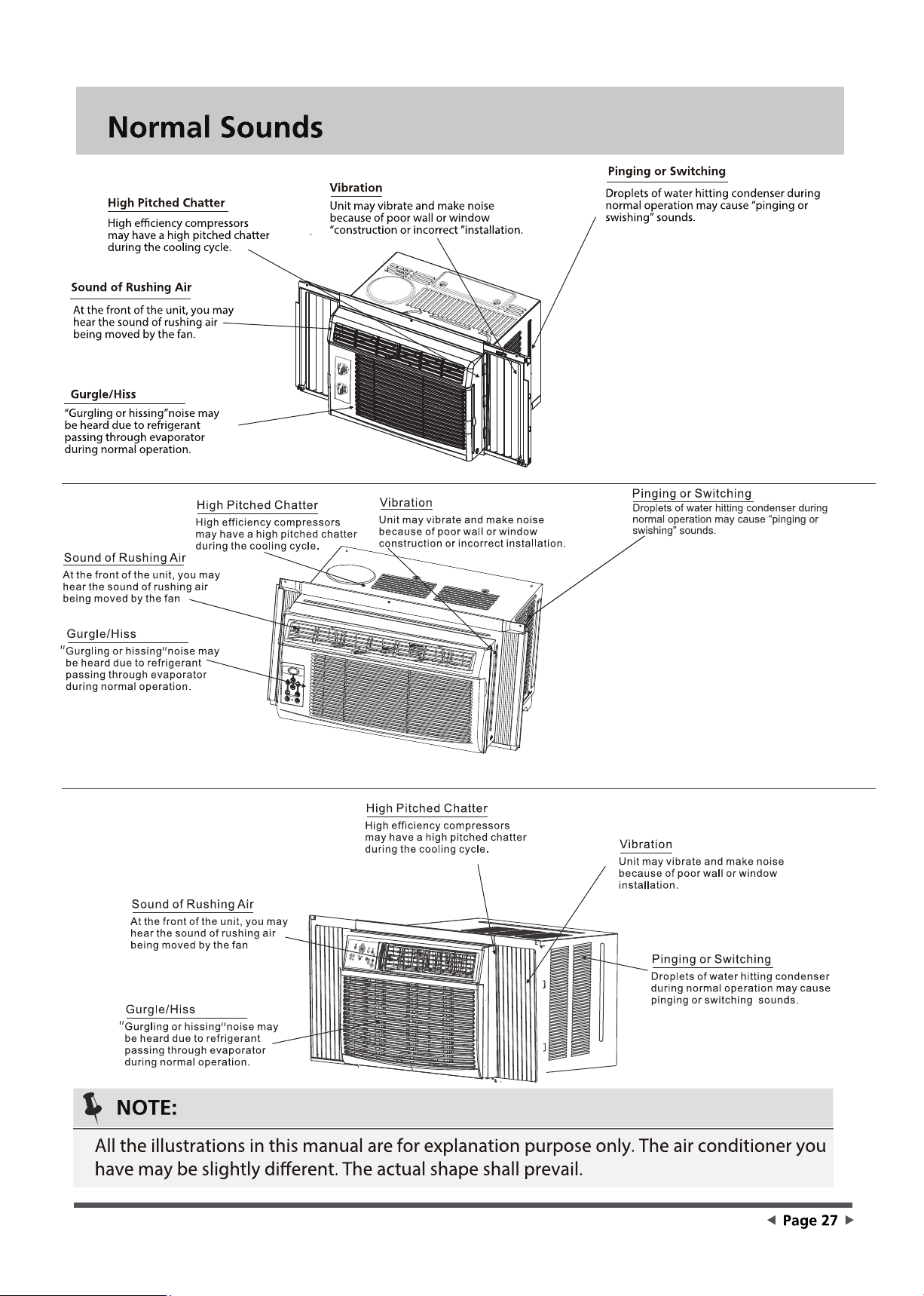

Normal Sounds............................................................................27
Air Conditioner Features............................................................28
Care and Cleaning.......................................................................33
Troubleshooting Tips..................................................................34

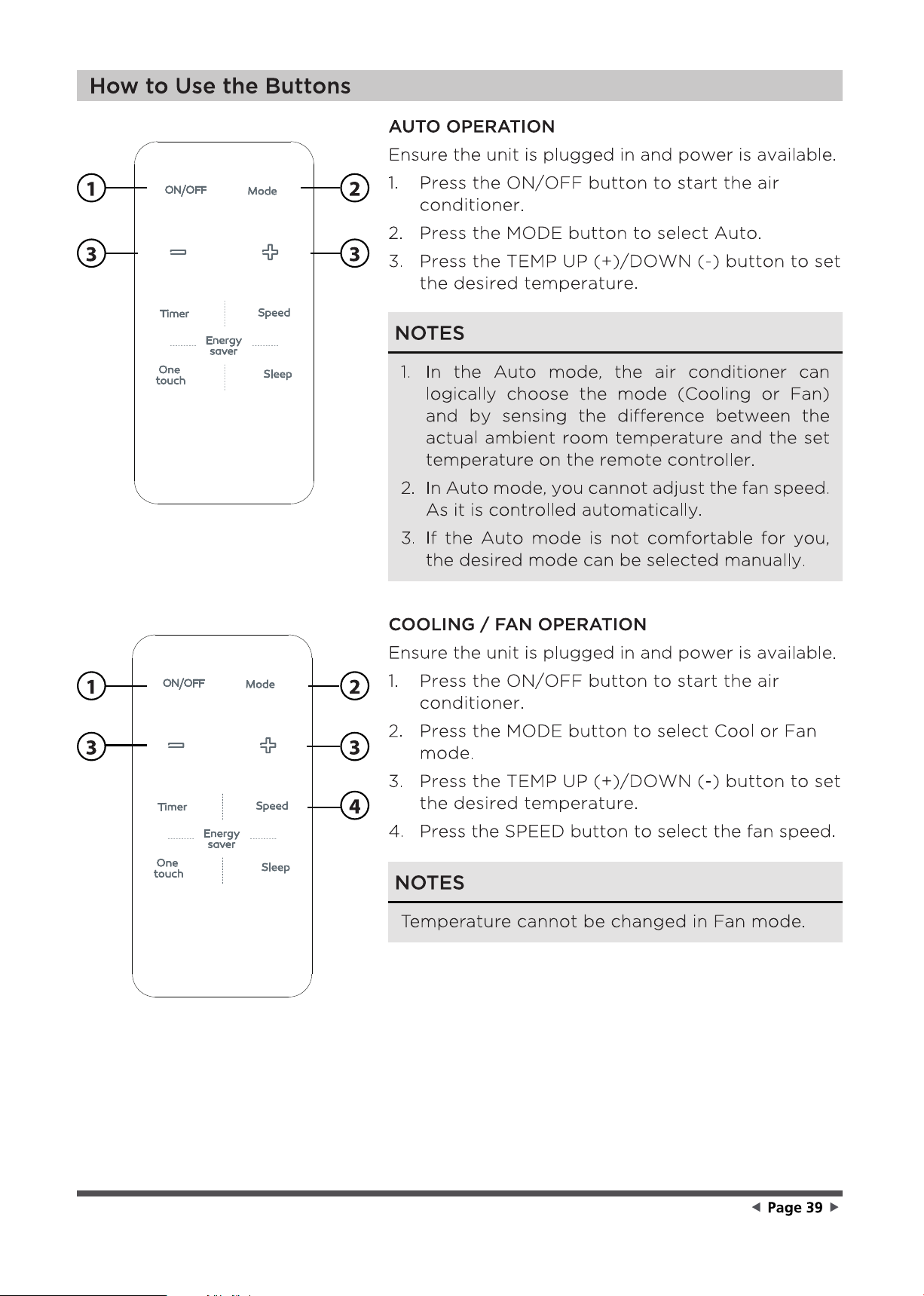

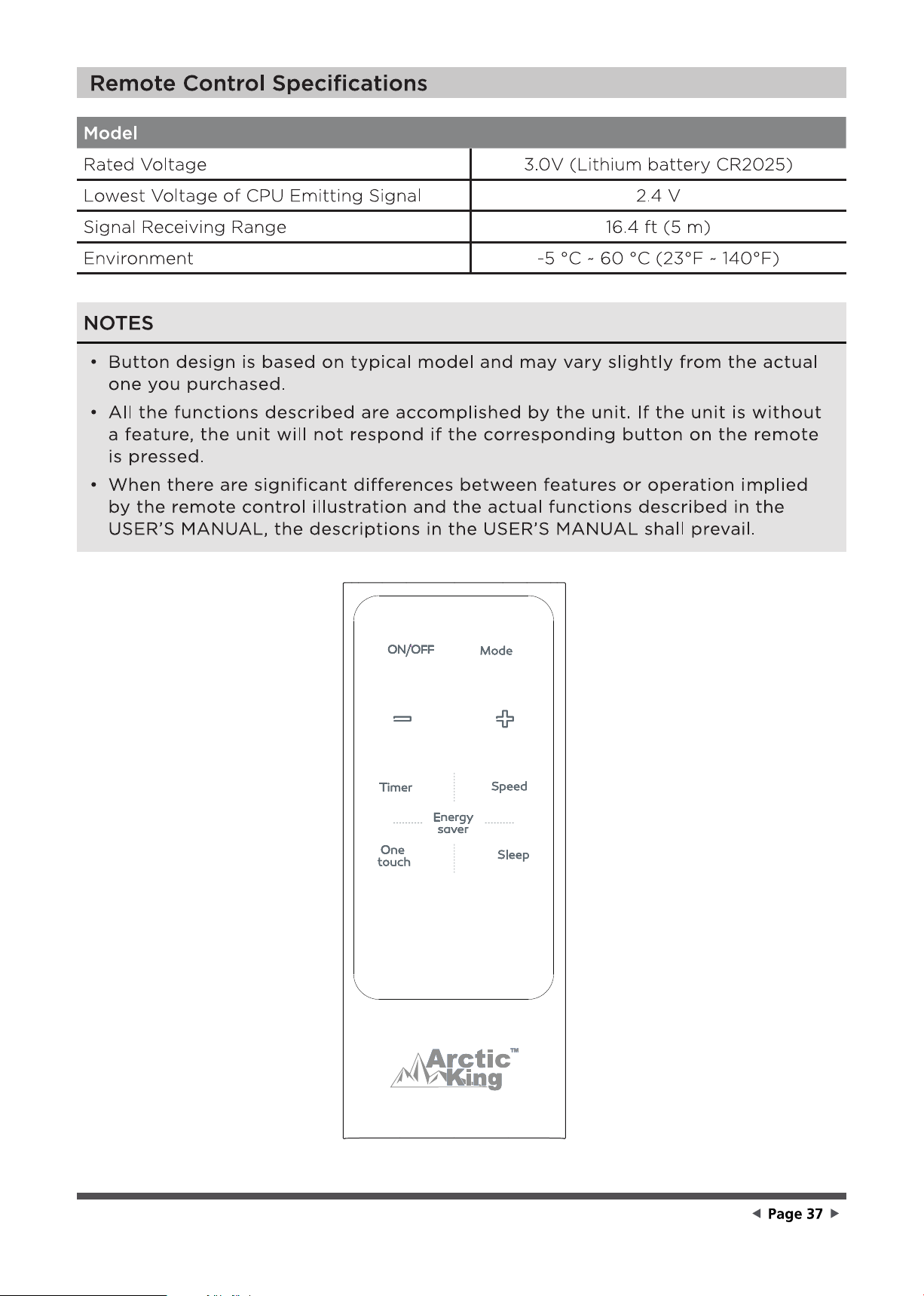

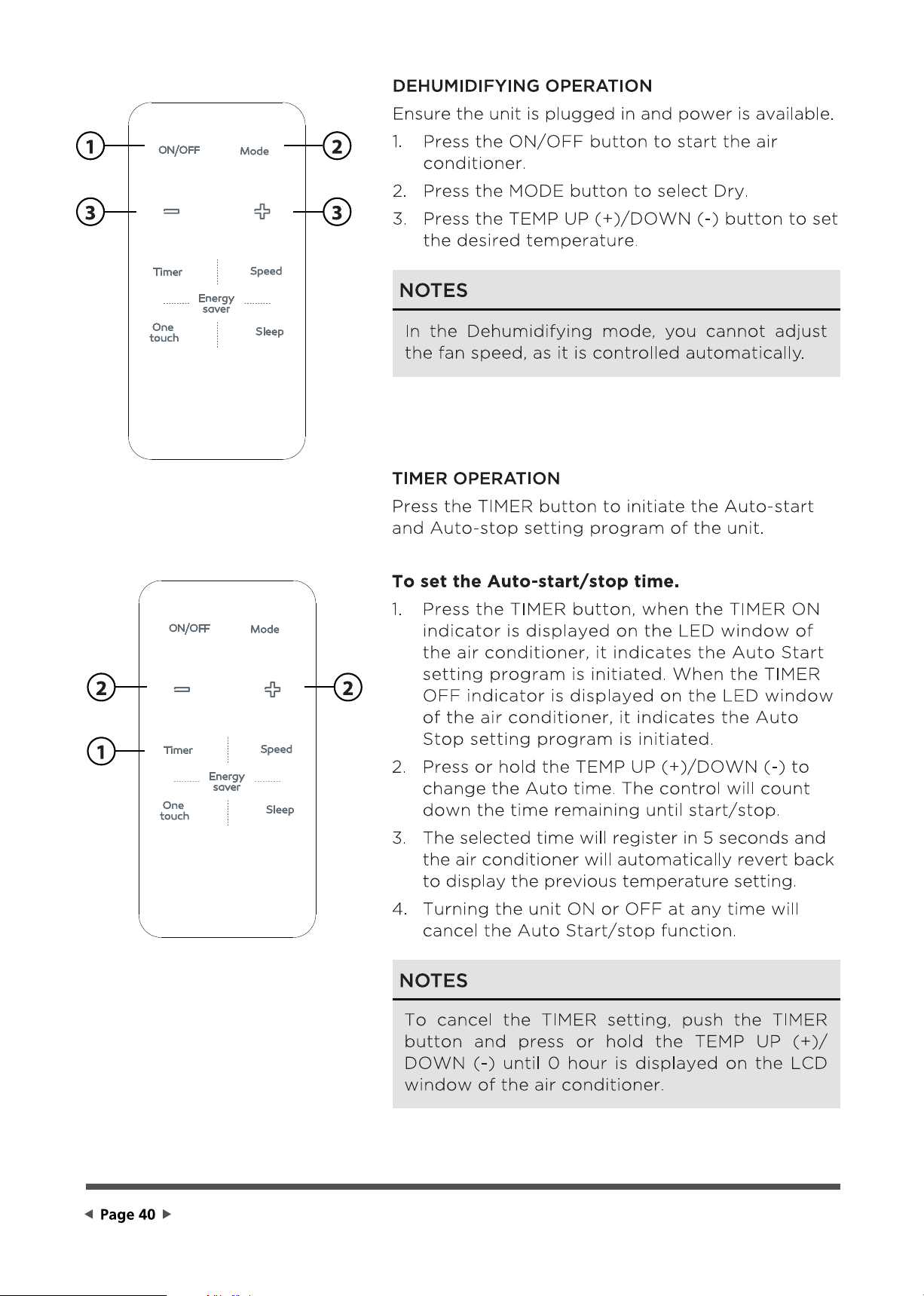

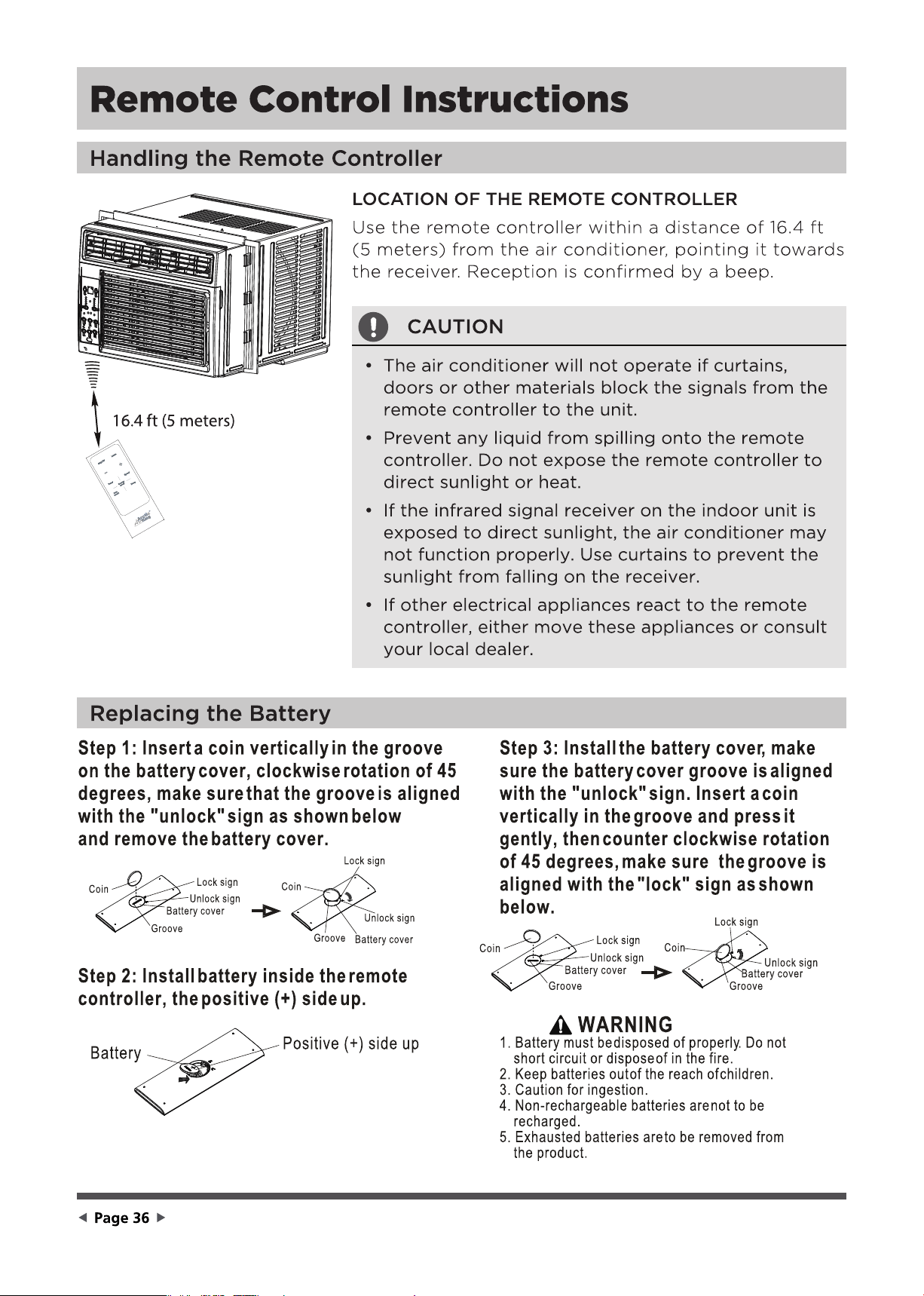

Remote Control Instructions ...................................................... 36

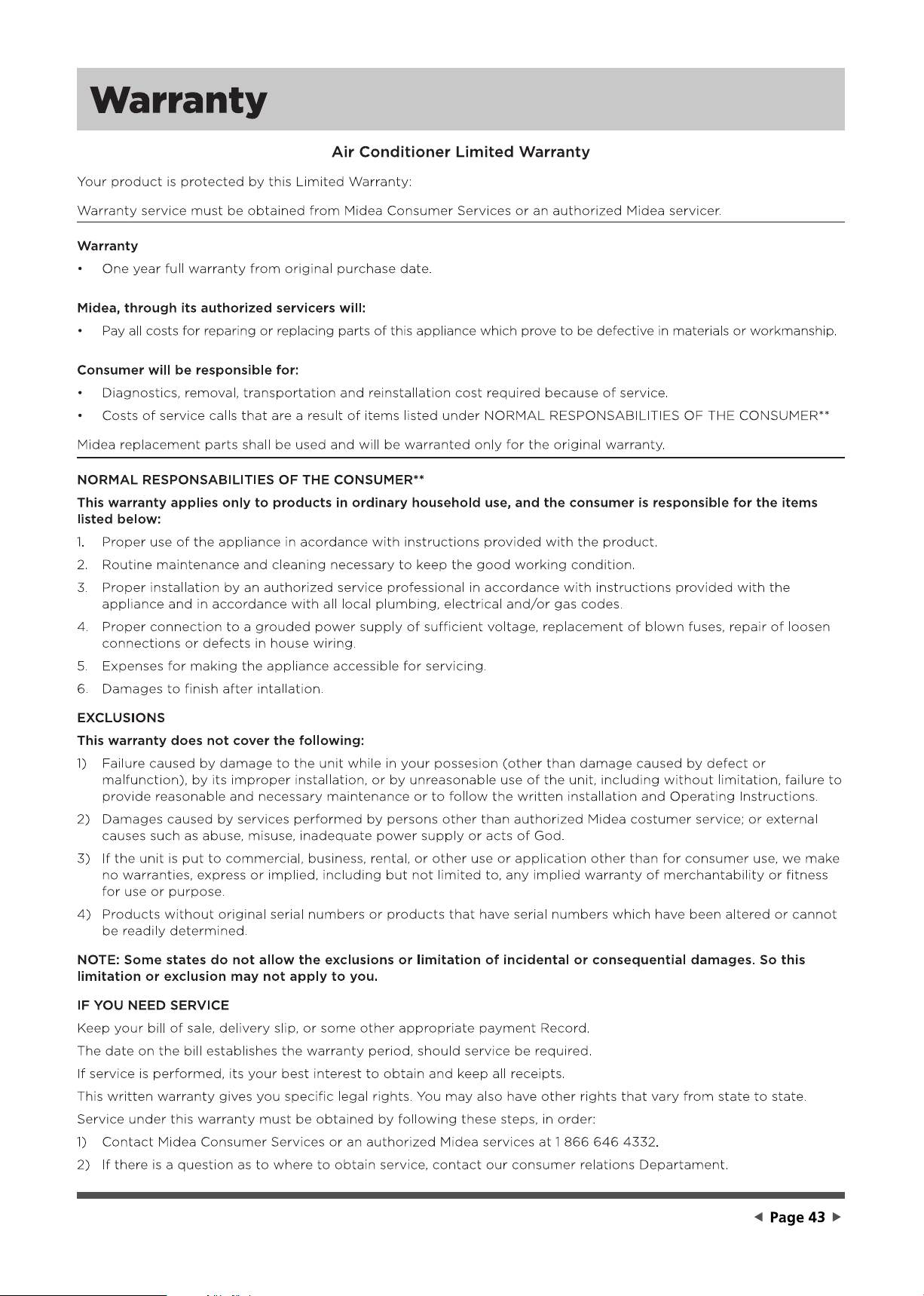

...................................................... 43 Warranty and Return Policy
WARNING
Important Safety Instructions
Inside you will nd many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your air conditioner. You'll nd many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips rst, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classied by the following indications.
.
READ THIS MANUAL
Plug in power plug properly. Otherwise, it may cause electric shock or re due to excess
heat generation. Do not operate or stop the unit by inserting or pulling out the power
plug.It may cause electric shock or re due to heat generation. Do not damage or use an
unspecied power cord.It may cause electric shock or re. If the power cord is damaged,
it must be replaced by the manufacturer or an authorised service centre or a similarly
qualied person in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect installation may
cause re and electric shock. Do not operate with wet hands or in damp environment. It
may cause electric shock . Do not direct airow at room occupants only. This could
damage your health.
Always ensure eective grounding.Incorrect grounding may cause electric shock. Do not
allow water to run into electric parts.It may cause failure of machine of electric shock.
Do not modify power cord length or share the outlet with other appliances. It may cause
electric shock or re due to heat generation.
Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause re and
electricshock. Do not use the socket if it is loose or damaged. It may cause re and electric
shock. Do not open the unit during operation. It may cause electric shock.
Keep rearms away. It may cause re. Do not use the power cord close to heating
appliances.It may cause re and electric shock.
Do not use the power cord near ammable
gas
or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or re.
Ventilate room before operating air conditioner if there is a gas leakage from another
appliance. It may cause explosion, re and, burns. Do not disassemble or modify unit. It
may cause failure and electric shock.
This symbol indicates the possibility of death or serious injury .
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
Page 3
CAUTION
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless they
have beengivensu pervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heater shall have at least 1meter space to the combustible
materials.
Contactthe authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not operate the louvers with your hands, it may cause an injury.
CAUTION
When the air lter is to be removed, do not touch the
metal parts of the unit. It may cause
an injury. Do not put a pet or house plant where it will be exposed to direct air ow. This
could injure the pet or plant. Ventilate the room well when used together with a stove,
etc. An oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance may
be deteriorated due to change of product color or scratching of its surface. Do not clean
the air conditioner with water. Water may enter the unit and degrade the insulation. It
may cause an electric shock. Do not use for special purposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art objects.lt may cause
deterioration of quality, etc.
Stop operation and close the window in storm or hurricane. Operation with windows
opened may cause wetting of indoor and soaking of household furniture. When the unit
is to be cleaned, switch o, and turn o the circuit breaker.Do not clean unit when power
is on as it may cause re and electric shock, it may cause an injury. Ensure that the
installation bracket of the outdoor appliance is not damaged due to prolonged exposure.
If bracket is damaged, there is concern of damage due to falling of unit.
Always insert the lters securely. Clean lter once every two weeks. Operation without
lters may cause failure. Hold the plug by the head of the power plug when taking it out.
It may cause electric shock and damage. Turn o the main power switch when not using
the unit for a long time. It may cause failure of product or re.
Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of
appliance or accident. Do not place heavy object on the power cord and ensure that the
cord is not compressed. There is danger of re or electric shock. Do not drink water
drained from air conditioner. It contains contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could cause injury.
If water enters the unit, turn the unit o at the powei outlet and switch o the circuit
breaker. Isolate supply by taking the power-plug out and contact a qualied service
technician.
Page 4
WARNING
Page 5

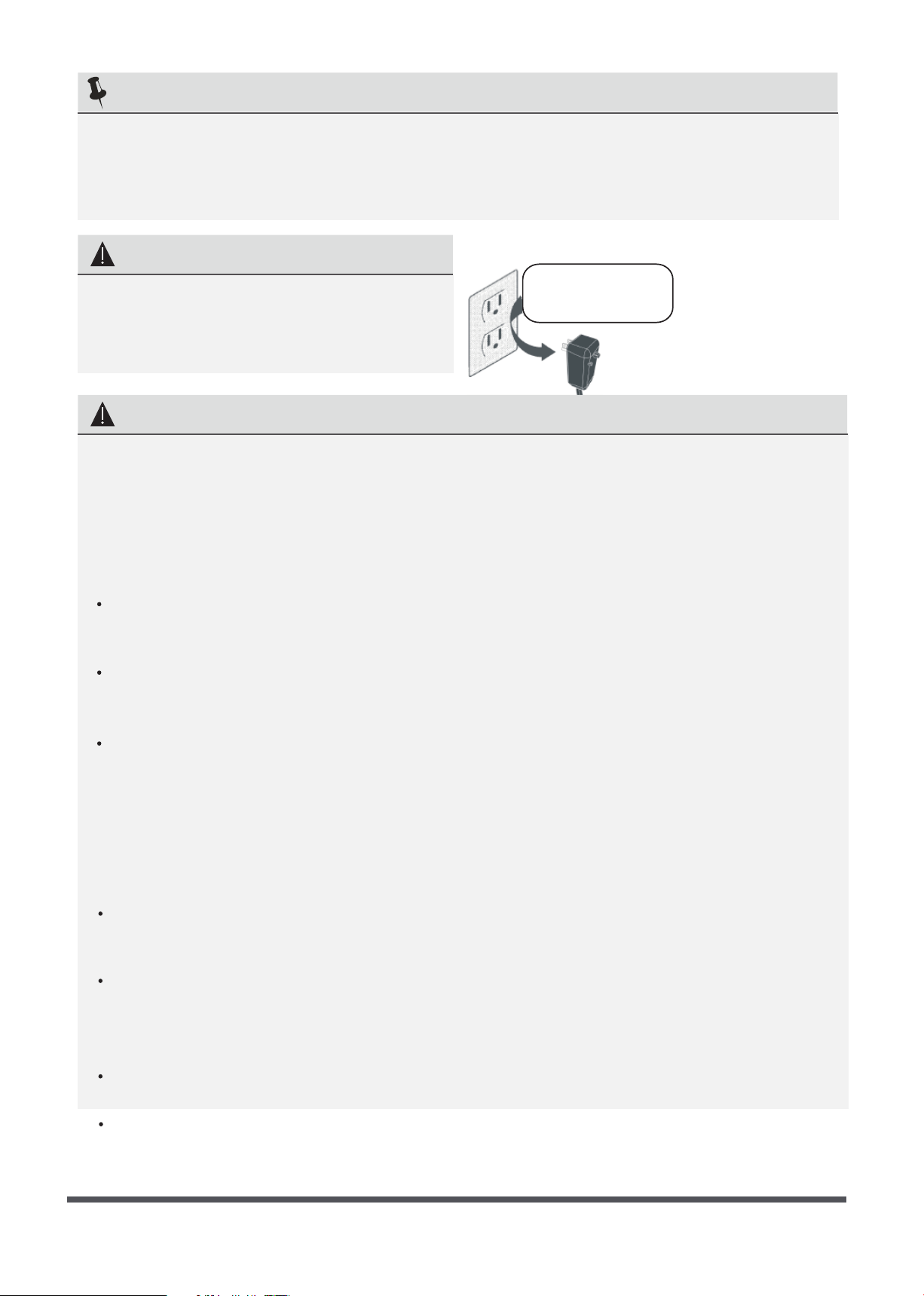

Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
NOTE:
The power supply cord with this air conditioner contains a current detection device
designed to reduce the risk of re. Please refer to the section Operation of Current Device
for details.In the event that the power supply cord is damaged, it cannot be repaired-it
must be replaced with acord from the Product Manufacturer.
Avoid re hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
WARNING
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this
or any other appliance.
To reduce the risk of re, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the the
cabinet and behind the grille.

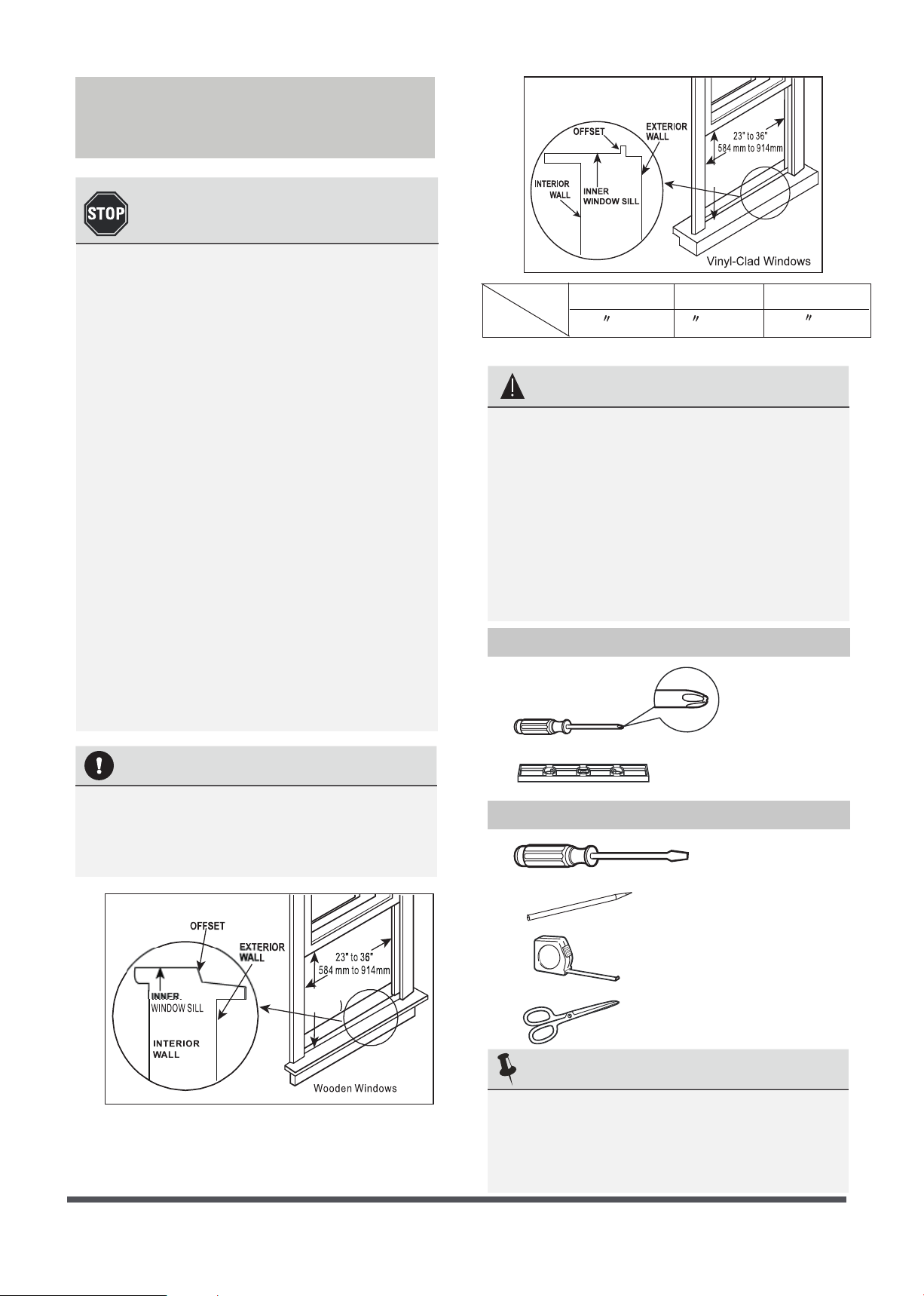

If the air conditioner is to be istalled in a window,you will probably want to clean both
sides of the glass rst. If the window is a triple-trackty pew it has creen panel included,
remove the screen completely before installation.
Be sure the airconditionerh as been securely and correctly in stalled accordingto the
installation instructions in this manual. Save this manual for possible future use in
removing or installing this unit. When handling the air conditioner, be careful to
avoid cutsf romsnarpm etalf ins on front and rear coils.
For Your Safety
Prevent Accidents
The complete electical rating of your new room air conditioner is stated on the serial
plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and re hazards,
proper grounding is important. The power cord is equipped with a three-prong
grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay
fuse or circuit breaker, have a qualied electrician install the proper receptacle. Ensure
the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.This could result in
mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information
Operation of Current Device
(Applicable to the unit adopts current detection device only )
Note: Performance may be reduced
outside of these operating
temperatures.

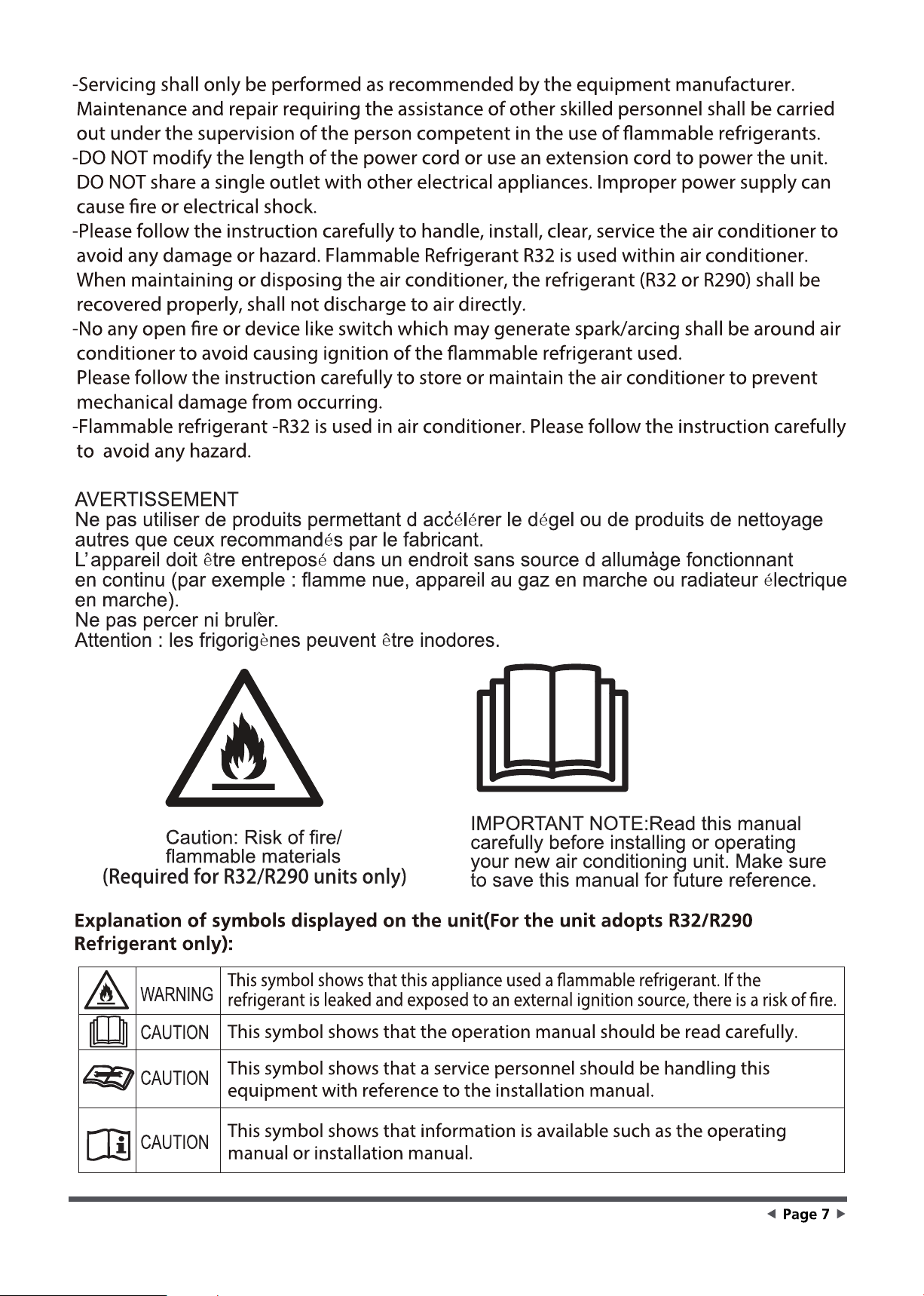

WARNING： (for using R290/R32 refrigerant only)
-Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
-The appliance shall be stored in a room without continuously operating ignition sources
(for example: open ames, an operating gas appliance) and ignition sourcesor (for example:
an operating electric heater) close to the appliance. The appliance shall be stored in a room
without continuously operating ignition sources (for example: open ames, an operating
gas appliance or an operating electric heater).
-Do not pierce or burn.
-Be aware that the refrigerants may not contain an odour.
-Compliance with national gas regulations shall be observed.
-Keep ventilation openings clear of obstruction.
-The appliance shall be stored so as to prevent mechanical damage from occurring.
-A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specied for operation.
-Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certicate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specication.
NOTE:
Do not use this device to turn the unit on or o.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is
pushed, or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one
obtained from the product manufacturer.
NOTE:This air conditioner is designed to be operated under condition as follows:
The power supply cord contains a current device that senses damage to the power cord.
To test your power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST
button, you will notice a click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this
it also indicated by a light on the plug head.)
Page 6
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
62-90 F/
O
17-32 C
WARNINGS (for using R290/R32 refrigerant only)
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing ammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on
the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
ammable gas or vapour being present while the work is being performed.
3)General work area
All maintenance sta and others working in the local area shall be instructed on the
nature of work being carried out. Work in conned spaces shall be avoided. The area
around the workspace shall be sectioned o. Ensure that the conditions within the area
have been made safe by control of ammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during
work, to ensure the technician is aware of potentially ammable atmospheres. Ensure
that the leak detection equipment being used is suitable for use with ammable
refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
5)Presence of re extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any associated parts,
appropriate re extinguishing equipment shall be available to hand. Have a dry powder
or CO2 re extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relatio
n to a refrigeration system which involves exposing
any pipe work that contains or has contained
ammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of re or explosion. All possible
ignition sources, including cigarette smoking, should be kept suciently far away from
the site of installation, repairing, removing and disposal, during which ammable
refrigerant can possibly be released to the surrounding space. Prior to work taking place,
the area around the equipment is to be surveyed to make sure that there are no
ammable hazards or ignition risks. No Smoking signs shall be displayed.
Page 8
WARNINGS (for using R290/R32 refrigerant only)
7)ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue
during the period that the work is carried out. The ventilation should safely disperse any
released refrigerant and preferably expel it externally into the atmosphere.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be t for the purpose and to
the correct specication. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using ammable
refrigerants:
The charge size is in accordance with the room size within which the refrigerant
containing parts are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for
the presence of refrigerant;
Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to
be exposed to any substance which may corrode refrigerant containing components,
unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then
no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If
the fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the owner of the
equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
That there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
That there is continuity of earth bonding.
7.Repairs to sealed components
1)During repairs to sealed components, all electrical supplies shall be disconnected from
the equipment being worked upon prior to any removal of sealed covers, etc. If it is
absolutely necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical point
to warn of a potentially hazardous situation.
2)P
articular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is aected.
This shall include damage to cables, excessive number of connections, terminals not made
to original specication, damage to seals, incorrect tting of glands, etc.
Ensure that apparatus is mounted securely.
Page 9
WARNINGS (for using R290/R32 refrigerant only)
Page 10
Ensure that seals or sealing materials have not degraded such that they no longer serve
the purpose of preventing the ingress of ammable atmospheres. Replacement parts
shall be in accordance with the manufacturer's specications.
NOTE: The use of silicon sealant may inhibit the eectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior to
working on them.
8.Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without
ensuring that this will not exceed the permissible voltage and current permitted for the
equipment in use. Intrinsically safe components are the only types that can be worked on
while live in the presence of a ammable atmosphere. The test apparatus shall be at the
correct rating.Replace components only with parts specied by the manufacturer. Other
parts may result in the ignition of refrigerant in the atmosphere from a leak.
9.Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental eects. The check shall also take into
account the eects of aging or continual vibration from sources such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked ame)
shall not be used.
11.Leak detection methods
The following leak detection methods are deemed acceptable for systems containing
ammable refrigerants. Electronic leak detectors shall be used to detect ammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25 %
maximum) is conrmed. Leak detection uids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
ames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of
shut o valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN)
shall then be purged through the system both before and during the brazing process.
12.Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose
conventional procedures shall be used. However, it is important that best practice is
followed since ammability is a consideration. Opening of the refrigeration systems shall
not be done by brazing. The following procedure shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;
Page 11
WARNINGS (for using R290/R32 refrigerant only)
Open the circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system
shall be ushed with OFN to render the unit safe. This process may need to be repeated
several times. Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and
continuing to ll until the working pressure is achieved, then venting to atmosphere, and
nally pulling down to a vacuum. This process shall be repeated until no refrigerant is
within the system. When the nal OFN charge is used, the system shall be vented down
to atmospheric pressure to enable work to take place. This operation is absolutely vital if
brazing operations on the pipe-work are to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there
is ventilation available.
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be
followed. Ensure that contamination of dierent refrigerants does not occur when using
charging equipment. Hoses or lines shall be as short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept upright.
E
nsure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overll the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be
leak tested on completion of charging but prior to commissioning. A follow up leak test
shall be carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall
be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a)Become familiar with the equipment and its operation.
b)Isolate system electrically.
c)Before attempting the procedure ensure that:
Mechanical handling equipment is available,
if required, for handling refrigerant cylinders;
All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person;
Recovery equipment and cylinders conform to the appropriate standards.
d)Pump down refrigerant system, if possible.
e)If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f)Make sure that cylinder is situated on the scales before recovery takes place.
g)Start the recovery machine and operate in accordance with manufacturer's instructions.
h)Do not overll cylinders. (No more than 80 % volume liquid charge).
i)Do not exceed the maximum working pressure of the cylinder, even temporarily.
Page12
WARNINGS (for using R290/R32 refrigerant only)
j)When the cylinders have been lled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
valves on the equipment are closed o.
k)Recovered refrigerant shall not be charged into another refrigeration system unless it
has been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains ammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for holding
the total system charge is available. All cylinders to be used are designated for the
recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall be complete with pressure relief valve and
associated shut-o valves in good working order. Empty recovery cylinders are evacuated
and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
ammable refrigerants.In addition, a set of calibrated weighing scales shall be available
and in good working order. Hoses shall be complete with leak-free disconnect couplings
and in good condition. Before using the recovery machine, check that it is in satisfactory
working order, has been properly maintained and that any associated electrical
components are sealed to prevent ignition in the event of a refrigerant release. Consult
manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct
recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to
be removed, ensure that they have been evacuated to an acceptable level to make
certain that ammable refrigerant does not remain within the lubricant. The evacuation
process shall be carried out prior to returning the compressor to the suppliers. Only
electric heating to the compressor body shall be employed to accelerate this process.
When oil is drained from a system, it shall be carried out safely.
Page 14
Installation Instructions
(for 5000 to 12000Btu/h)
NOTE:
Save Carton and these Installation
Instructions for future reference. The
carton is the best way to store unit during
winter, or when not in use.
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from
the power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house
wiring may present
special
problems- consult a qualied
electircian.When handling unit, be
careful
to avoid cuts
from sharp metal edges and
aluminum ns on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
MPORTANT-Save these instructions for
local inspector’s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these
instructions for futrue reference.
Skill level- Installatio of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of
the installer.
Product
failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as
described in these instructions when
installing this air conditioner.
TOOLS YOU WILL NEED
TOOLS YOU MAY USE
H
WINDOW REQUIREMENTS
Your air conditioner is designed to install
in standard double hung windows with
opening widths of 23 to 36 inches
(584mm to 914mm).
Screwdriver
Level
Screwdriver
Pencil
Ruler or tape
measure
Scissors or knife
Model
H
6000~8000Btu/h
10000~12000Btu/h
14 (356mm)
15-1/2 (394mm)
Table 1
5000~6000Btu/h
13 (330mm)
H
Page 15
3/ 4 (or 1/
Screws
(7)
2 )
Lock Frame
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Lock Frame
(2)
(For Wooden
windows)
(For Vinyl-Clad
windows)
(on some models)
Lower sash must open suciently to allow a clear
vertical opening of 13 inches (330mm). Side
louvers and the rear of the AC must have clear air
space to allow enough airow through the
condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.

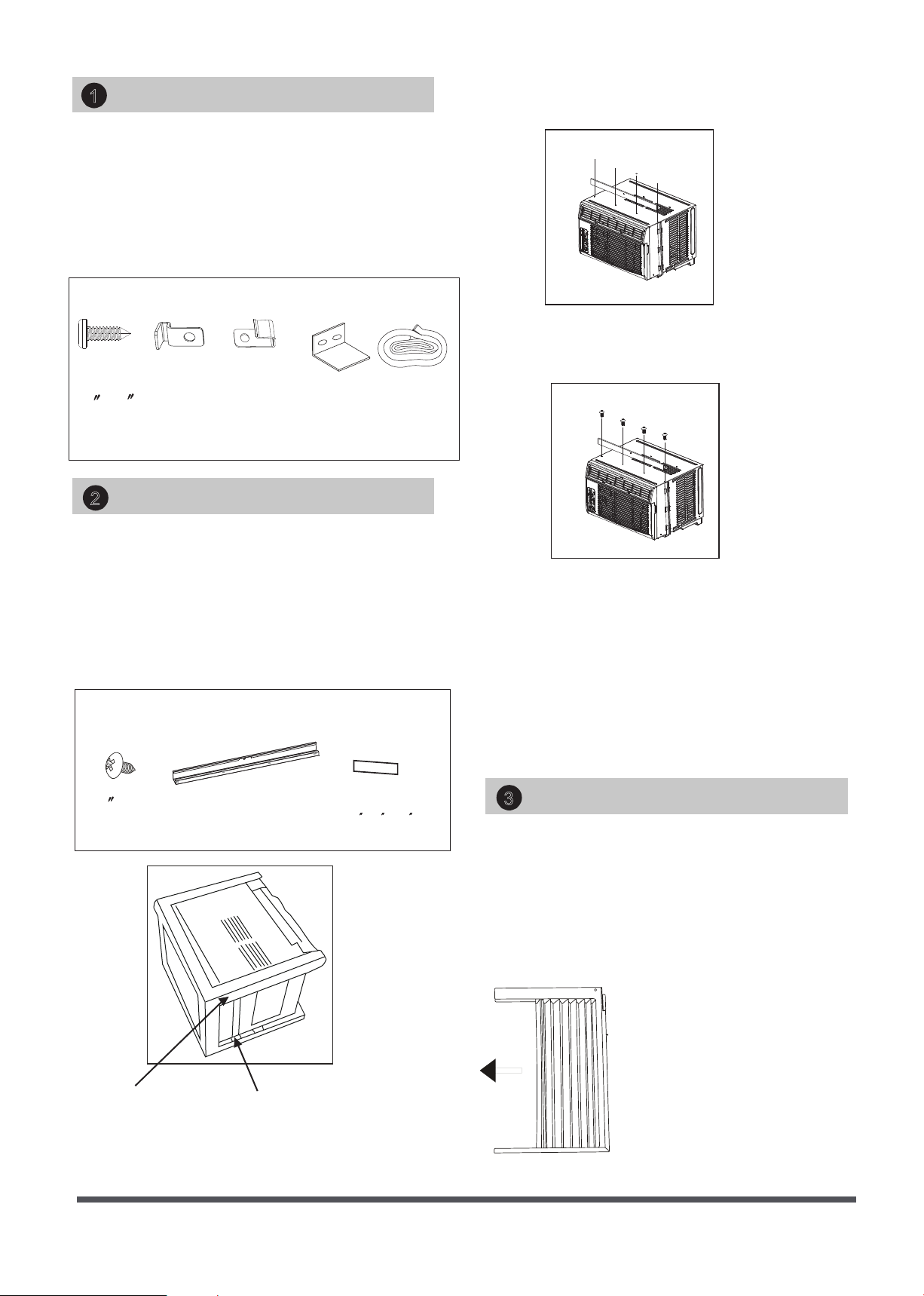

PREPARE THE WINDOW
1
Mounting Hardware
A: Remove the air conditioner from the carton
and place on a at surface.
B: Remove top rail and weather stripping from
the packaging material as shown in Fig. A
(Weather stripping are only available for
Energy star models).
Packaging
Top Rail
Top Rail Hardware
3/
8 Screws
4)
Top Rail
1)
(10 *3/4 *1/12 )
Weather stripping
5)
PREPARE AIR CONDITIONER
2
3
INSTALL THE ACCORDION PANELS
NOTE: The top rail hardware and the Fig.A,
Fig.B and Fig.C are not applicable to the units
more than 10000Btu/h.Before installing unit,
the top rail must be assembled on the unit
(For <10000Btu/h models only).
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8"
Screws as shown in Fig.C.
Fig.1
Fig.A
Fig.C
Fig.B
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.
NOTE: Top rail and Sliding Panels at each
side are oset to provide the proper pitch to
the rear of (5/16 "). This is necessary for proper
condensed water utilization and drainage. If
you are not using the Side Panels for any
reason, this pitch to the rear must be
maintained.
A.Place unit on oor, a bench
or a table. Hold the Accordion
Panel in one hand and gently
pull back the center to free
the open end. See Fig.1
Page 16
"Ⅰ"section
Top Rail
Bottom Rail
Top Rail
Bottom Rail
Top left
Top right
Fig.2
Fig.3
Fig.4
NOTE: If storm window blocks AC, see Fig. 11.
B. Slide the free end " I" section of the panel
directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave enough
space to slip the top and bottom of the frame
into the rails on the cabinet.
C. Once the panel has been installed on the side
of the cabinet, make sure it sits securely inside
the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into
the top and bottom rails of the cabinet. Fig .3.
D. Slide the panel all the way in and repeat on
the other side.
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
INSTALL SUPPORT BRACKET
5
SECURE THE ACCORDION PANELS
NOTE: Check that air conditioner is tilted
back about H (Fig.5A and Fig.5B) (tilted
about 3°to 4°downward to the outside).
After proper installation, condensate
should not drain from the overow drain
hole during normalu se,correct the slope
otherwise.
Fig.5A
Fig.5B
Fig.6
A. Keep a rm grip on the air conditioner,
carefully place the unit into the window
opening so the bottom of the air conditioner
frame is against the window sill (Fig.5A and
Fig.5B). Carefully close the window behind the
top rail of the unit.
B. Extend the side panels out against the window
frame(Fig.6).

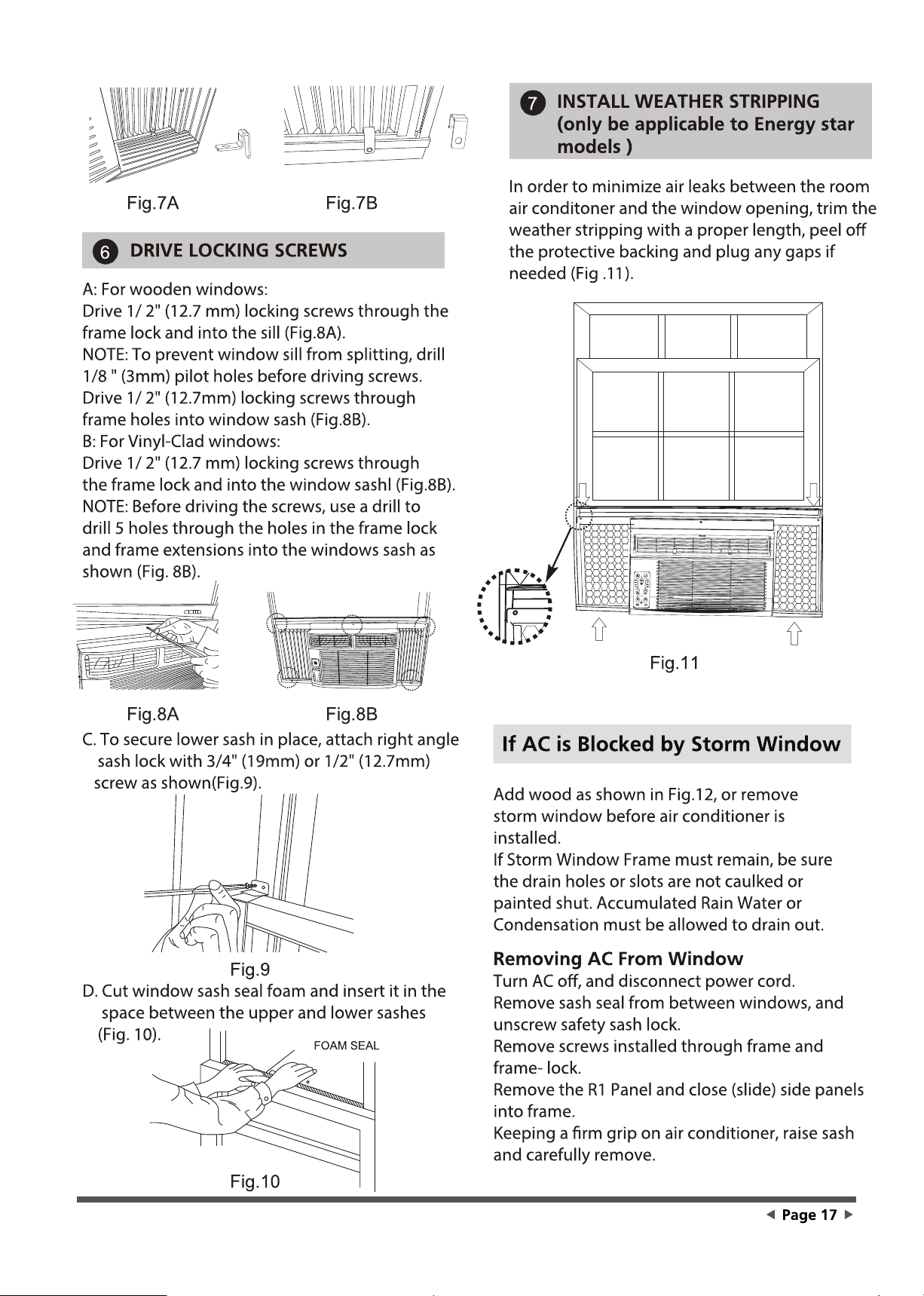

A. Place the frame lock between the frame
extensions and the window sill as shown(Fig.7A
for Wooden windows), (Fig.7B for Vinyl-Clad
windows) .
window
frame
4

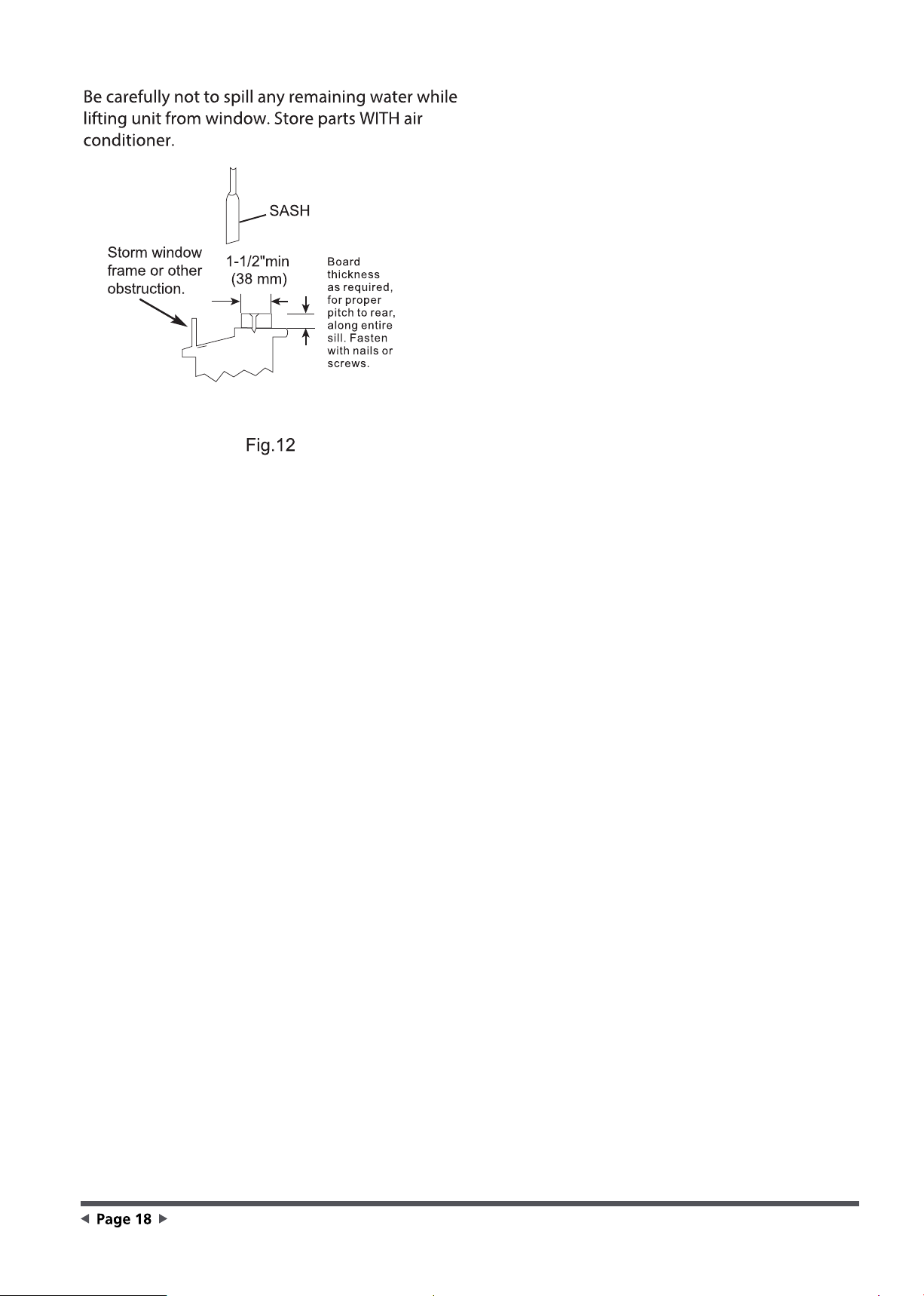

Installation Instructions
(for 15000 to 28500Btu/h)
Page 19
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.Do not change the plug on the
power cord of the air conditioner.
Aluminum house wiring may present
special problems- consult a qualied
electircian.When handling unit, be careful
to avoid cuts from sharp metal edges and
aluminum ns on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT-Save these instructions for
local inspector
’
s
use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these
instructions for futrue reference.
Skill level- Installation of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of
the installer.
P
roduct failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this
air conditioner.
NOTE:
Save Carton and these Installation
Instructions for future reference. The
carton is the best way to store unit during
winter, or when not in use.
Do the following before starting to install unit.
See illustrations below.
Check dimensions of your unit to determine
model type:
Unit Height: 18 5/8 " 17 5/8 ''
Unit Width: 26 " 23 "
Min. Window Opening: 19 " 18 "
Min. Window Width: 31" 28"
Max. Window Width: 42" 40 "
1 .Check window opening size-- the
mounting parts furnished with this air conditioner
are made to install in a wooden sill double-hung
window. The standard parts are for window
dimensions listed above. Open sash to a
minimum of 19 inches(483mm). See Fig.D.
2.Check condition of window-- all wood parts
of window must be in good shape and able to
rmly hold the needed screws. If not, make
repairs before installing unit.
1
2
/
1
2
/
1
2
/
1
2
/
5
8
/
SASH
.
19 MIN.
indow Frame or
bstruction
Storm Window
Frame or Other
Obstruction
Board
Thickness
As Required,
Along Entire
Sill. Fasten
With Two Nails
Or Screws.
/2 MIN.
1
/2 MIN.
1
19 MIN.
SASH
Window Sash Seal
Safety Lock and
3 /4 (or1/2 ) Long
Hex Head Screw
Top Angle
Foam Gasket
Washer Head
Locking screw
Frame
Assembly
(Left)
Side Retainer
Bottom rail
seal to Unit
1 /2 Long
Screw and
Locknuts
Locknut
3 /4 Long
Flat Head
Bolt
Sill Angle
Bracket
Window Support
Bracket
Frame
Assembly
(Right)
Preliminary Instructions
Fig.D Fig.E
Page 20
Locking screw 10X 1/ 4 panhead
screws (for Vinyl-Clad window)(on some models)
Phillips
7/16 inch Locking screw and
Flat washer for window panels
3 / 4 （or 1/2)inch Long
Hex-head Screw
Safety Lock
1 / 2 inch Long screw and Locknut
3 / 4 inch Long Flat Head
Bolt and Locknut
Sill Angle Bracket
Long hex-head locking
screw for top angle, side
retainer 5 /16 inch Long
2 ea.
7
1
4ea.
2ea.
2
10
Foam insert
2
Window sash
seal foam
1
R1 hardware
2
(10 *3/4 *1/12 )
NOET: R1 hardware and Weather stripping is on
ly
for Energy star models.
Weather stripping
5
Safety Lock
(for Vinyl-Clad window)(on some models)
2
2
Lock Frame(For Wooden
windows)(on some models)
2
3 / 4 inch Long Screw(on some models)
2
3. Check your storm windows-- if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood
as shown in Fig.E,or by removing storm window
while room air conditioner is being installed.
4 .Check for anything that could block
airflow- check area outside of window for things
such as shrubs, trees, or awnings. Inside, be sure
furniture, drapes, or blinds will not stop proper
airow.
5. Check the available electrical service- Power
supply must be the same as that shown on the
unit serial nameplate. Power cord is 48 inches
long. Be sure you have an outlet near.
6. Carefully unpack air conditioner- Remove all
packing material. Protect oor or carpet from
damage. Two people should be used to move
and install unit.
Tools Required
A large at blade screwdriver; Tape measure;
Adjustable wrench or pliers; Pencil; Level Socket
wrenches; Phillips Screwdriver.
Hardware(Packed with the unit)
1
Front Grille
Front Panel
shipping
screws

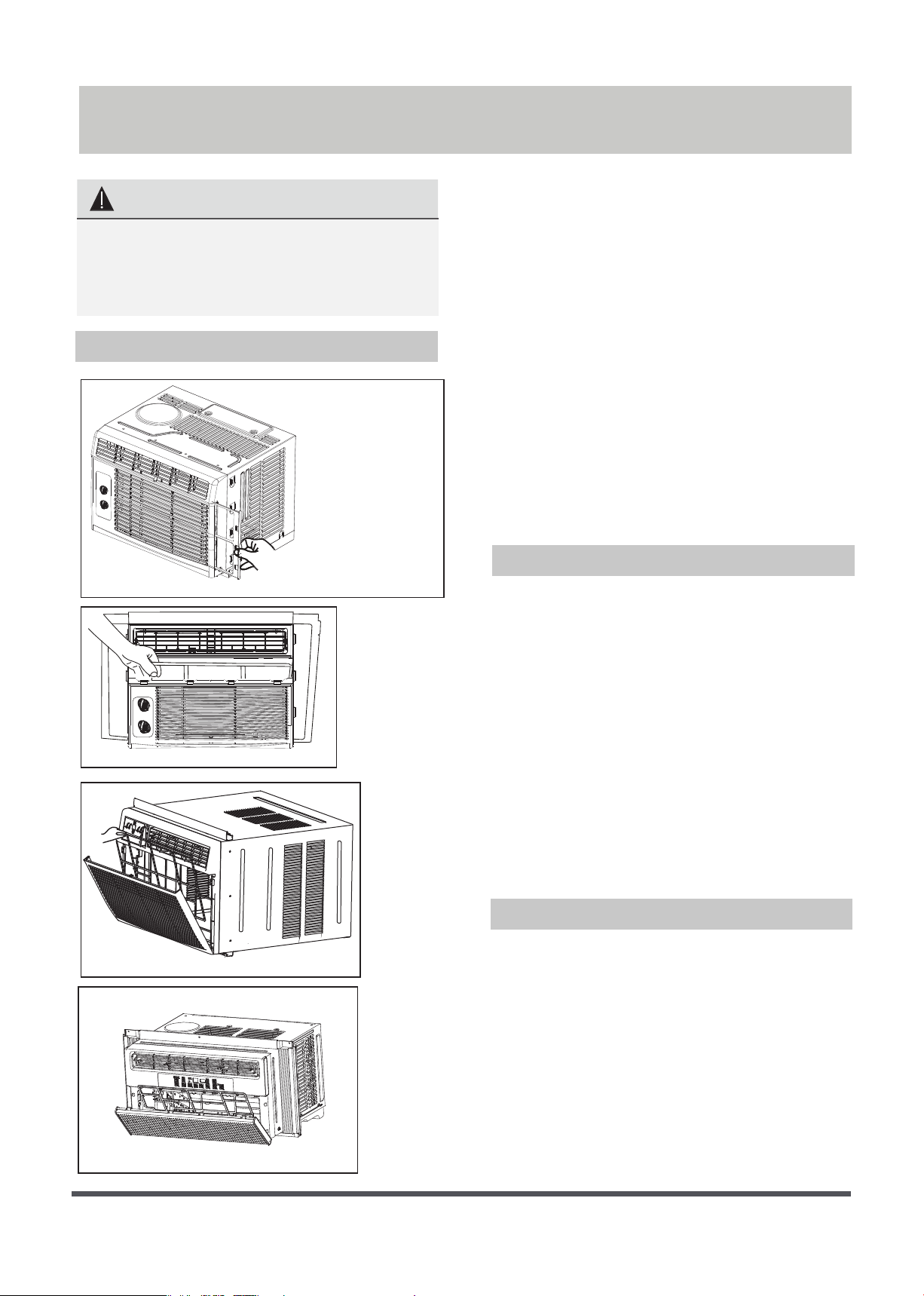

Remove Air Conditioner from Cabinet
A. Window Mounting
NOTE:
Remove any packaging material from
cabinet exterior.
1. Pull down front grille and remove lter.
(See Fig.1).
2. Lift front grille upwards and place to one side.
3. Locate the four front screws and remove. These
screws will be needed to re-install the front panel
(see Fig.2).
4. Push metal cabinet side to release plastic tabs
on each side of front panel (see Fig.3).
5. Gently lift front panel o unit(see Fig.3A).
6. Disconnect the connector plug of the display
panel from the unit and place front panel to
one side(see Fig.4).
7. Remove shipping screws from top of unit and
also on the side by the base if installed(see Fig.5).
8. Hold the cabinet while pulling on the base
pan handle, and carefully remove the unit.
9. Add two foam inserts to holes in top of
cabinet where shipping screws were
removed from (see Fig .6)
Fig.1 Fig.2
Fig.3
Fig.3A
Fig.4
Fig.5
Fig.6
Page 21
2
3
Plastic
Frame
Window Filler
Panel
Side Retainer
5 16 long
hex-head
/
Shipping Packaging
Plastic tie
Top
View
Air Conditioner
Cabinet
Plastic
Frame
"Ⅰ" Section
Window
Filler
Panel
Locking
Screw
Hole
Window
inner Sill
Sill
Angle
Window
outer Sill

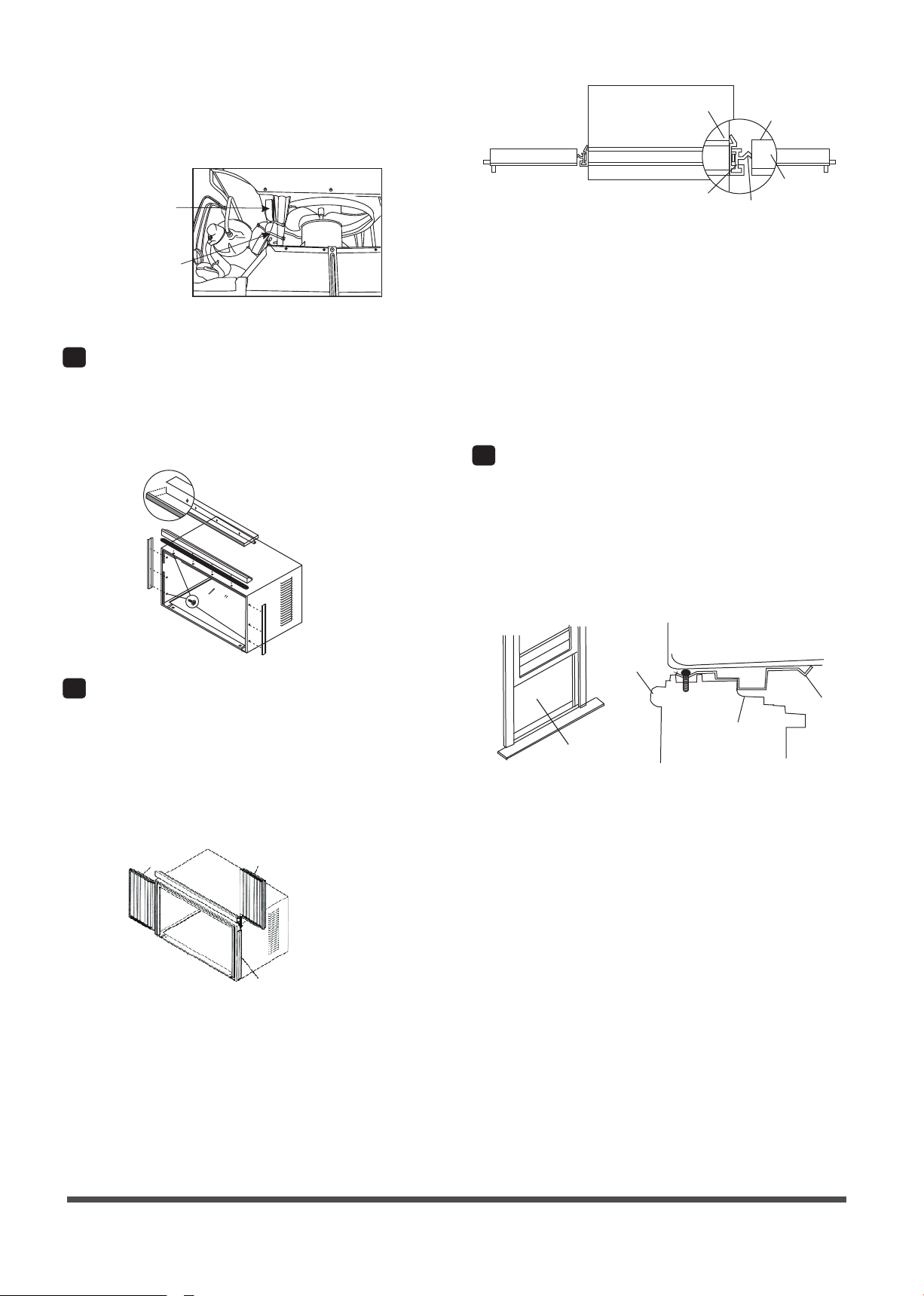

10. Your unit may come with internal packaging.
This packaging must be removed prior to installing
the air conditioner back into the cabinet.(see Fig .7).
1. Attach foam gasket to top angle above holes as
shown in Fig.6.
2. Install top angle and side retainers to cabinet as
shown in Fig.8(10 screws).
1. Place cabinet on oor, a bench, or a table.
2. Slide "I " section of window ller panel into
side retainer on the side of the cabinet (see Fig.9
& Fig.10).
Do both sides.
3. Insert top and bottom legs of window ller
panel frame into channel in the top angle and
bottom rail. Do both sides.
4. Insert washer head locking 7/16” screws (2) into
holes in top leg of ller panel frame (see step 6). Do
not totally tighten. Allow leg to slide freely. Screws
will be tightened after section 6.
1. Open window and mark center of window inner
sill as shown(Fig.11).
2. Place cabinet in window with bottom sill angle
rmly seated over window sill as shown. Bring
window down temporarily behind top angle to
hold cabinet in place(Fig.12).
3. Shift cabinet left or right as needed to line up
center of cabinet on center line marked on inner
sill.
4. For wooden window: Fasten cabinet to window
inner sill with two screws into holes (Fig.13) (You
may wish to pre-drill pilot holes).
For Vinyl-Clad window: Place two safety locks into
the holes located in the bottom of the cabinet and
drive two #10X1/4" pan-head Phillips locking screws
through the safety locks into the cabinet as shown
(Fig.13B).
5. Remove protective strip from adhesive side of
Bottom Rail Foam Seal.
Apply Seal over screws fastening bottom rail to
window inner sill.
Fig.7
Fig.8
Fig.9
Fig.10
Fig.11 Fig.12
Install top angle and side Bracket
Assemble Window Filler Panels
4
Place Cabinet in window
Page 22
1 2 Long Screws
And Locknuts
Left
Right
Sill Angle
Bracket
Flat Head
Bolt
2 Each Required For
Each Support Bracket
Locknut
Mark
1 2 Long Screws
and Locknuts
L ocking S c rew
7/16"Locking Screw
and Washer
1
/
4
5
/
8
5
Side Louvers
Window Sash
Window Sill
Sill Angle Bracket
1 5
About1 / to1 /
4 8
Measure from
the cabinet edge.
3 4 (or1 )Long
Hex-head Screw
/2

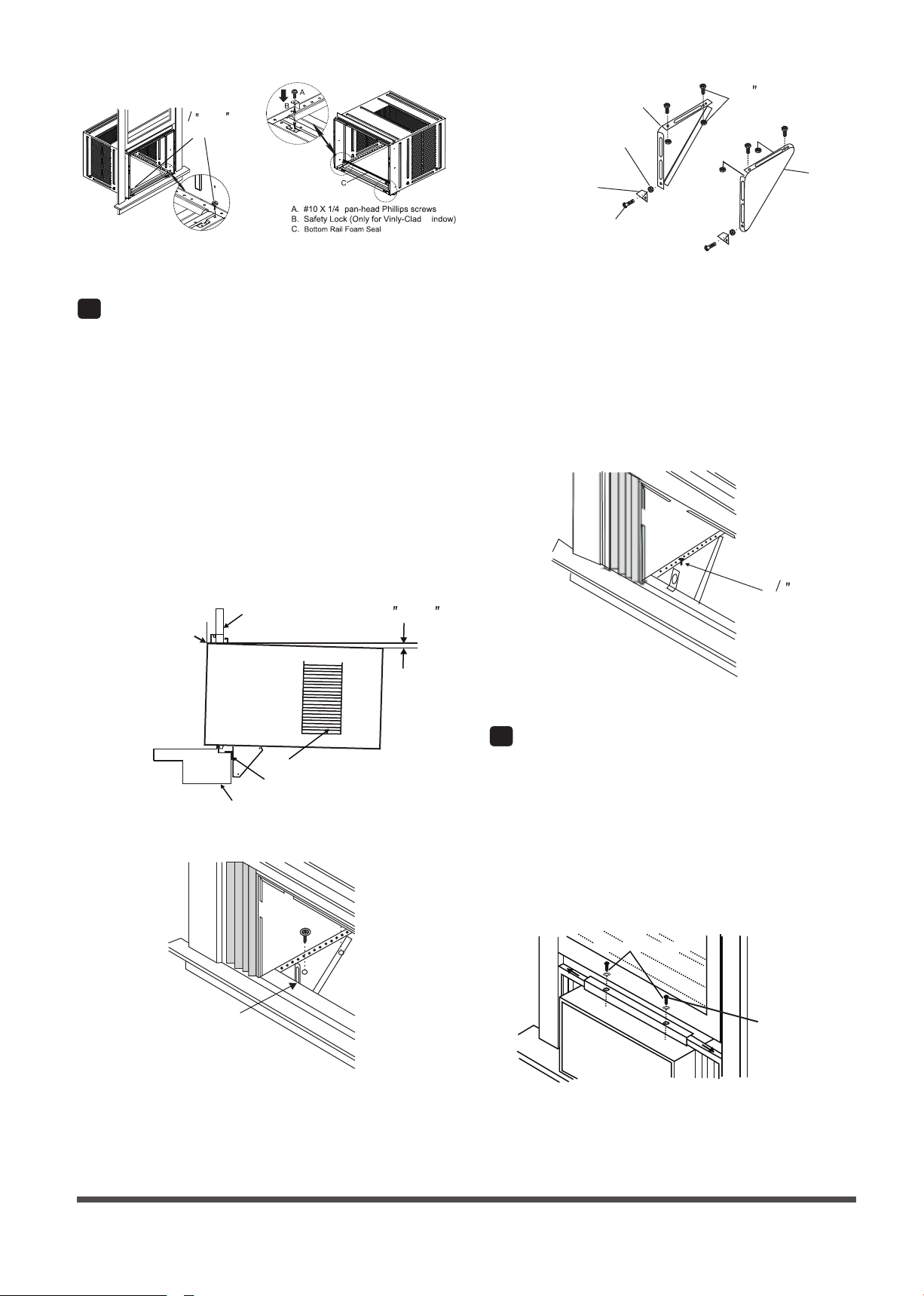

1. Hold each support bracket ush against outside
of sill, and tight to bottom of cabinet as shown in
Fig.15A. Mark brackets at top level of sill and remove.
2. Assemble sill angle bracket to support brackets
at the marked position(Fig.15B).
Hand tighten, but allow for any changes later.
3. Install support brackets(with sill angle brackets
attached) to correct hole in bottom of cabinet as
shown in Fig.16.
4. Tighten all 6 bolts securely.
1. Carefully raise window to expose ller panel
locking screws. Loosen screws so ller panels
slide easily.
2. Extend panels to ll window opening
completely. Tighten locking screws on top
(Fig.17).
3. Close window behind top angle.
Fig.13 Fig.13B
Fig.15B
Fig.16
Fig.17
Fig.14
Fig.15A
5
Install Support Bracket
6
Extend Window Filler Panels
NOTE:
Check that air conditioner is tilted back about
1 "to 1 " (tilted about 3
° to 4°downward to the
outside). After proper installation, condensate should
not drain from the overow drain hole during
normal use,correct the slope otherwise (Fig .14).
Page 23
Window Sash Seal
A.3/ 4 (or 1/2 ) long hex head screw
B. Left-hand Window Filler
Panel Top Leg
C. Window channel
Fig.18B
Fig.18A
A.3/ 4 (or1/2 ) long hex head screw
Safety Lock
3 4 (or1 )Long
Hex-head Screws
/2
1. Extend the window ller panels out against
the window frame.
2. Use a 1/8" drill bit to drill a starter hole
through the hole in the top leg of each window
ller panel and into the window sash (Fig. 18A
and Fig. 18B). Connect with one 3/ 4 " (or 1/ 2")
long hex head screw.
1. Trim sash seal to t window width. Insert
into space between upper and lower sashes
(Fig.18).
2. Attach right angle safety lock (Fig. 19).
4. Attach the top angle to window frame: Use a
3/32" drill bit to drill one hole through the hole
in the middle of top angle into the window frame,
and drive one 3/ 4 " (or 1/ 2 '' ) HEX-HEAD locking
screw through hole in the middle of top angle
into the window frame as shown (Fig.17A)
3. Attach the Lock Frames to the winow sill
using two 3/ 4 " (19mm) screws(Fig.18C)
(on some models)
7
Attach Window Filler Panels to
Window Frame
8
Install Window Sash Seal and Safety
Lock
Fig.17A
Fig.18C
Fig.18
Fig.19
3/ 4 (or 1/ 2 ) long
HEX-HEAD
SCREW
Page 24
or
Measure the inner width
of the side curtain
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
1 2 3 4
5 6
1. Lift air conditioner and carefully slide into
cabinet leaving 6 inches protruding.
2. DO NOT push on controls or nned coils.
3. Be sure chassis is rmly seated towards rear of
cabinet.
4. Installation of front is the reverse of removal
outlined in Section 1.
In order to minimize air leaks and ensure optimal
insulation, it is necessary to install the included R1
hardware to the side curtain. Follow the
instructions below.
Step 1. After the unit is installed to the window,
measure the inner width of the side curtain as
shown (Fig.20).
Step 2. Remark a line on the provided R1
insulation panel according to a length 1/8 "
(3mm) less than the measured width in step 1,
then cut the R1 insulation panel along the line
(Fig. 12).
Step 3. Slide the R1 insulation panel into the
side curtain, the side with pattern should facing
the indoor(Fig. 22).
In order to minimize air leaks between the room
air conditoner and the window opening, trim the
weather stripping with a proper length, peel o
the protective backing and plug any gaps if
needed (Fig.23).
Step 4. Repeat on the other side.
9
Install Chassis into Cabinet and Install
Front to Unit
10
NSTALL R1 HARDWARE (only applicable
to ≥15000Btu/h Energy star models )
11
INSTALL WEATHER STRIPPING (only
applicable to Energy star models )
Fig.20
Fig.21
Fig.22
Fig.23
Page 25
NAIL SPACERS
TO STUDS
LEVEL
Caulks
Required
Aluminum Flashing
Over Bottom Of Frame
Over
8-1/2
)
Inside Frame Height: 18-7/8"(47.9cm) or18" (45.7cm)
Inside Frame Width: 26-3/4"(67.9cm) or 23-7/8"(60.6cm
Frame
Height
Inside
Frame
Y
Inside
Width
Up to 8-1/2"
3-3/8" MIN
(8.6 cm)
2

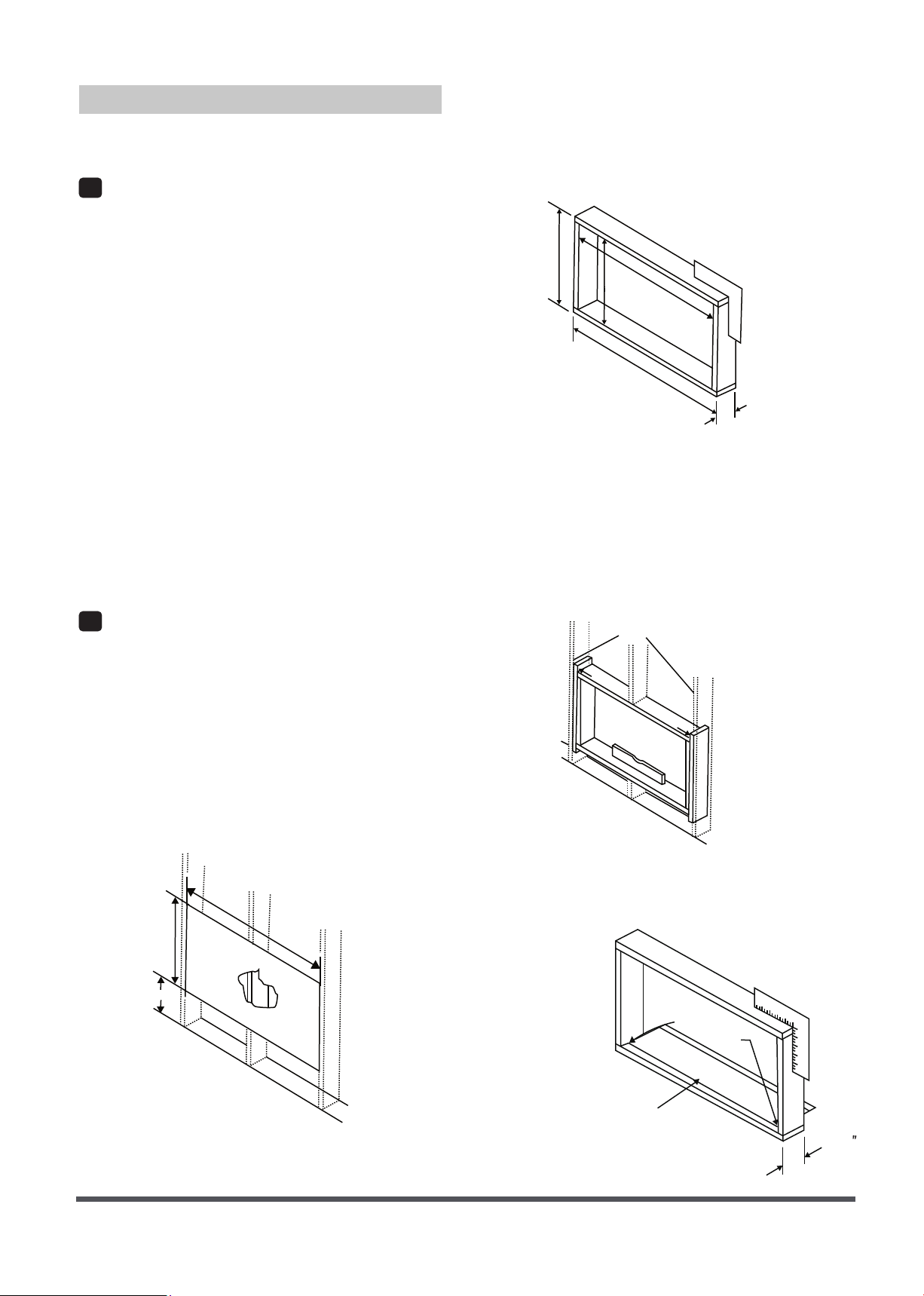

Prepare Wall
1
Select Wall Location
B. Thru-The-Wall Installation
NOTE:
Consult local building codes prior to
installation or a qualied carpenter.
NOTE: If wall thickness is 8-1/2 " or more, add
aluminum ashing over bottom of frame opening
to assure no water can enter area between inner
and outer wall.
The air conditioner has a slide-out chassis, so
that it can be installed through an outside wall
as specied below:
Max. Wall thickness: 12" or 10"
IMPORTANT: Side louvers must never be blocked.
NOTE: All parts needed for Thru-The-Wall
Installation are provided, except a wood frame,
shims, and 10 wood screws(#10-1" long minimum).
Select a wall surface that:
1. does not support major structural loads such
as the frame construction at ends of windows,
and under truss-bearing points, etc.
2. does not have plumbing or wiring inside.
3. is near existing electrical outlets or where
another outlet can be installed.
4.is not blocked to the area to be cooled.
5. allows unblocked airow from rear sides and
end(outside) of installed air conditioner.
1. Prepare wall in frame construction (including
brick and stucco veneer). Working from inside
the room, nd wall stud nearest the center of
area where air conditioner will be installed (by
sounding wall or by magnetically nding nails).
2. Cut or knock out a hole on each side of center
stud.
3. Measure between inside edges of every other
stud as shown in Fig.1.
4. Build a wooden frame with the INSIDE dimensions
of your model listed above. (Remember to measure
twice). Frame depth should be the same as wall
thickness. Fill in the space from the opening to the
studs with wood spacers,as shown.
5. Nail frame to spacers to spacers with front ush
with drywall.
Carefully measure and cut an opening with the
following dimensions depending on your model.
See Fig.1 and Fig.2.
WIDTH " X"= inside model width plus twice the
thickness of framing material used.
HEIGHT '' Y " = inside model height plus twice the
thickness of framing material used.
Fig.2
Fig.3
Fig.4
Fig.1
Page 26
1 Long Wood
Screw
Side Louvers
1 5
About1 / to 1 /
4 8
Measure from
the cabinet edge.
Support bracket
Sill angle bracket
Wooden strip
3

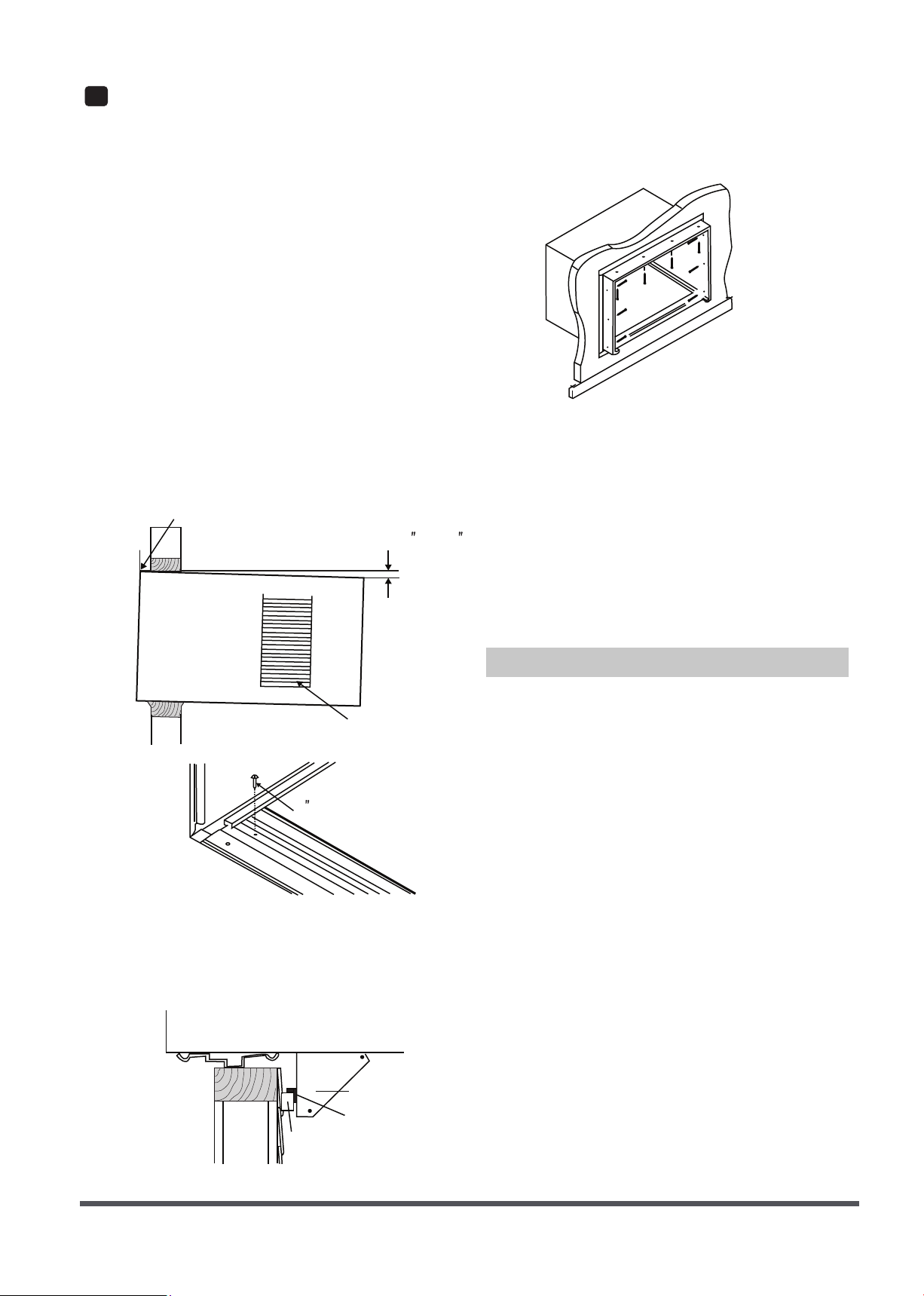

Prepare and Install Cabinet
1. Slide chass is from cabinet. Refer back to
Step one of Window Mounting.
2. Place cabinet into opening with bottom
rail resting rmly on bottom board of wooden
frame.
3. Position cabinet to achieve proper slope for
water removal.(See Fig.5 below.)
4. Secure bottom rail to wood frame with two
large wood screws 1"(2.5cm) long using the two
holes in the bottom of the channel resting on
frame.(See Fig.6 ).
5. Screw or nail cabinet wooden frame using shims
if frame is oversized to eliminate distortion. See
Fig.8.Remember to maintain proper slope as
described in Step 3.
6. Install chassis into cabinet by followings all
steps in Steps 8 of Window Mounting.
OPTIONAL: Caulking and installation of trim on
nterior wall may be done. You can buy wood
from your local lumber or hardware supply. On
the outside, caulk openings around top and
sides of cabinet, and all sides of wood sleeve to
the opening.
NOTE: See Step 5, Item 3 of Window Mounting
Instructions for bottom rail seal location.
1. Cut or build a wall opening in the masonry
wall similar to the frame construction (refer to
Step 2 of Thru-the-wall Installation for a wall
thickness greater than 8-1/2 " ).
2. Secure cabinet in place using masonry nails,
or the right masonry anchor screws. (Another
way to secure cabinet is to build a frame in the
masonry wall such as the one shown in Fig. 3
of Step 2 Prepare Wall. Securely anchor frame
to masonry wall. This way gives very good louver
clearance on either side of cabinet.)
3. Install a lintel to support masonry wall above
cabinet. Existing holes in cabinet can be used
and/or additions holes can be drilled to fasten
cabinet at various positions. Be sure that side
louver clearance is in accordance with Step 1
Select Wall Location.
4. Install exterior cabinet support brackets as
shown in Step 2 of Thru-the-wall installation.
Caulk or ash if needed, to provide a weather-
tight seal around top and sides of cabinet.
5. To complete installation, apply wood trim
molding around room side projection of cabinet.
Refer to Step 5 of Window Mounting for assembly
of support brackets. A wooden strip nailed to the
outside wall should be used in conjunction with sill
support angle brackets.
NOTE: Check that air conditioner is tilted
back about 1 "to 1 "(tilted about 3°to
4° downward tothe o utside). After proper
installation, condensate should not drain
from the overowdrain hole duringnormal
use,correctthe slope otherwise (Fig.14).
1
/
4
5
/
8
Fig.5
Fig.8
Fig.6
Fig.7
C. Masonry Construction

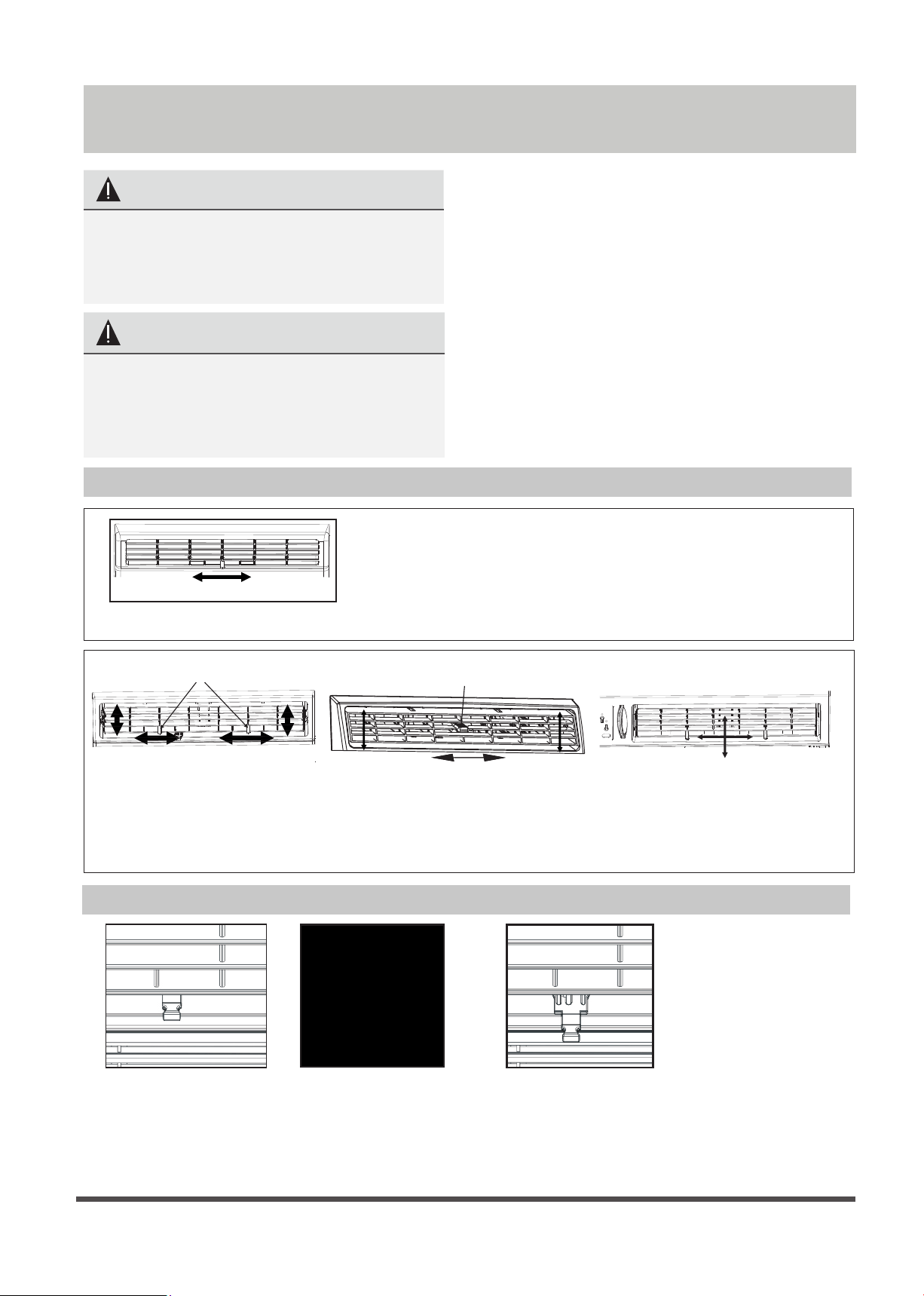

Air Conditioner Features
Page 28
CAUTION
Please always wait 3 minutes when turning unit
o then on again, and when changing from cool
to fan and back to cool. This prevents
compressor from overheating & possible circuit
breaker tripping.
WARNING
To reduce the risk of re, electric shock, or
injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating
this appliance.
To begin operating the air conditioner,
follow these steps:
1. Set the thermostat to the highest number
(coldest or cooler setting).
2. Set the selector control to the highest COOL
setting.
3. Adjust the louver for comfortable air ow (see
Air Directional Louvers).
4. Once the room has cooled, adjust the
thermostat to the setting you nd most
comfortable.
5. Make sure that the air ow inside and outside
are not obstructed by anything.
The louvers will allow you to direct the air ow Left or Right
throughout the room as needed.
Move the Levers from side to side until the desired Left/Right
direction is obtained.
Air Directional Louvers
Fresh Air Vent Control （on 10-12 K MODELS）
Lever
Air Direc tion
for 05K, 06K
Levers
Air D irec tion
Levers
Air D irection
Air Direction(4- way)
Levers
The louvers will allow you to direct the air ow Up or Down(on some models) and Left or Right
throughout the room as needed. Pivot horizontal louvers until the desired Up/Down direction is
obtained. Move the Lever(s) from side to side until the desired Left/Right direction is obtained.

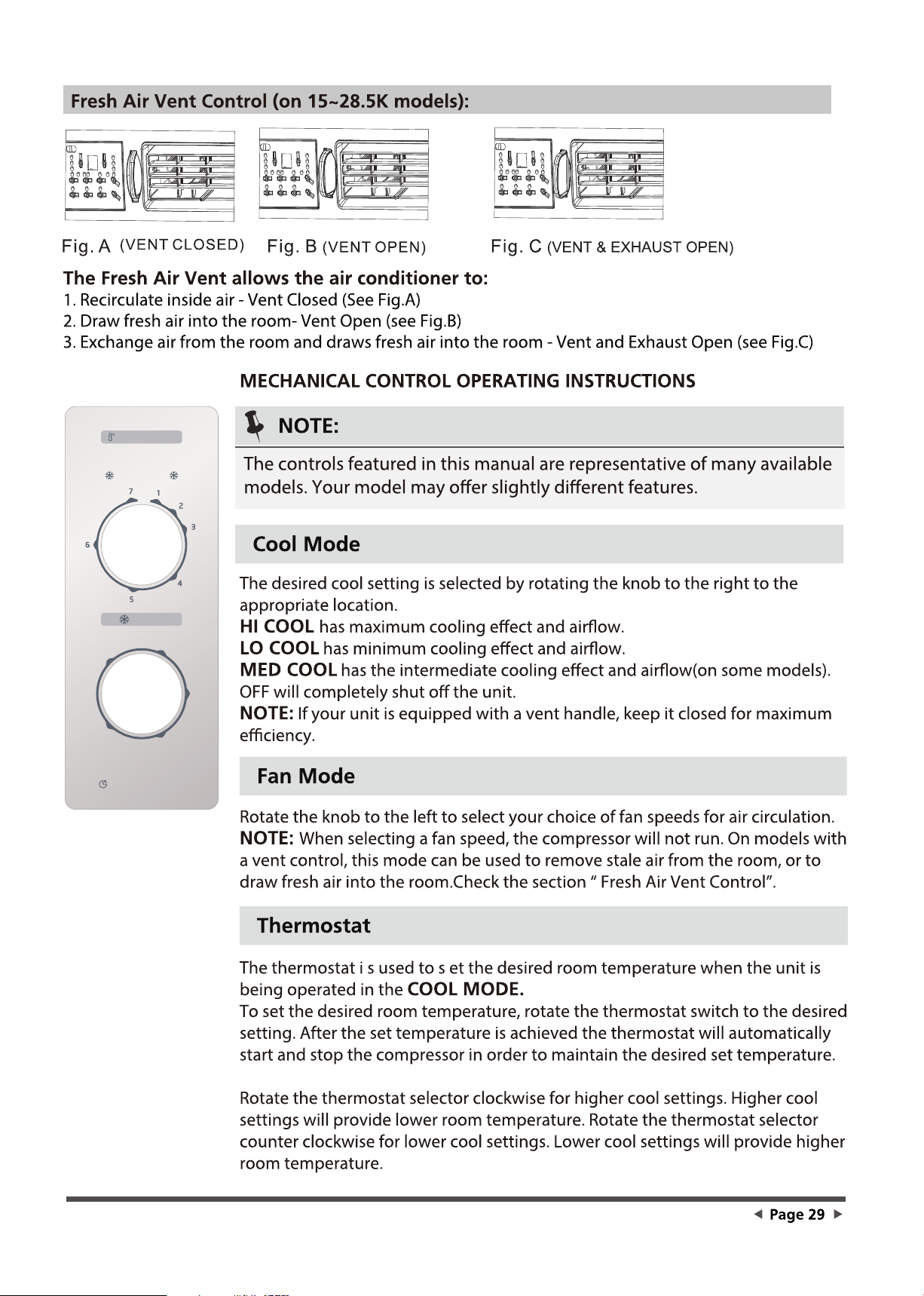

The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (See Fig.A)
2. Draw fresh air into the room- Vent Open (see Fig.B)
3. Exchange air from the room and draws fresh air into the room - Vent and Exhaust Open (see Fig.C)
for 06K, 08K, 10K, 12K, 15K, 18K, 25K,28.5K
Fig. A
(VENT CLOSED)
cord.
Fig. B (VENT OPEN)
Fig. C (VENT & EXHAUST OPEN)

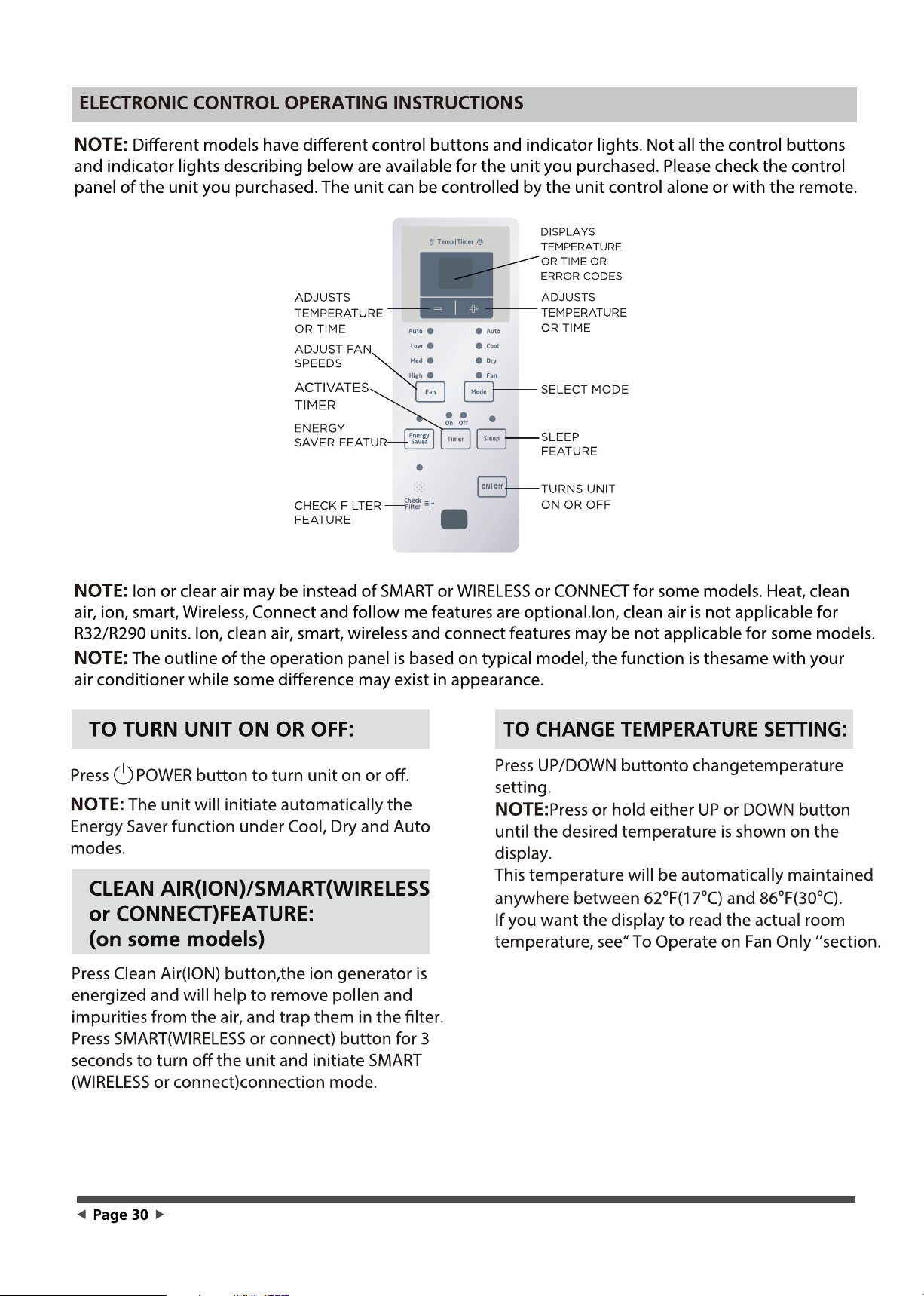

High
Cool
High
Fan
Off
Low
Fan
Low
Cool
Cooling
Temperature
Wait three minutes
before restarting
Max
Cool
Min
Cool
SLEEP FEATURE:
TO ADJUST FAN SPEEDS:
Page 31
Press Sleep button to initiate the sleep mode.
In this mode the selected temperature will
increase (cooling) or decrease (heating) by 2
°F/1
(or 2)
°C 30 minutes after the mode is selected.
The temperature will then increase (cooling) or
decrease (heating) by another 2
°F/1 (or 2)°C
after an additional 30 minutes. This new
temperature will be maintained for 6 or 7 hours
before it returns to theoriginally selected
temperature. This ends the Sleep mode and the
unit will continue to operate as originally
programmed. The Sleep mode program can be
cancelled at any time during operation by pressing
the Sleep button again.
TO SELECT THE OPERATING MODE:
To choose operating mode, press Mode button.
Each time you press the button, a mode is
selected in a sequence that goes from Auto,
Cool, Dry ,heat(cooling only models without)and
Fan. The indicator light beside will be illuminated
and remained on once the mode is selected.
The unit will initiate automatically the Energy
Saver function under Cool, Dry, Auto(only
Auto-Cooling and Auto-Fan) modes.
To operate on COOL mode:
• Choose Cool Mode to set the cooling function.
Use the Up and Down buttons to choose the
desired temperature. When Cool Mode is
selected, the fan speed can be adjusted by
pressing the fan button.
To operate on HEAT mode(cooling only models
without):
• Choose Heat Mode to set the heating function.
Use the Up and Down buttons to choose the
desired temperature .When heat Mode is selected,
the fan speed can be adjusted by pressing the
fan button.
NOTE: For some models, the fan speed can not
be adjusted under HEAT mode.
FOLLOW ME FEATURE:(on some models)
This feature can be activated from the remote
control ONLY. The remote control serves as a
remote thermostat allowing for the precise
temperature control at its location.
To activate the Follow Me feature, point the
remote control towards the unit and press the
Follow Me button. The remote display is actual
temperature at its location. The remote control
will send this signal to the air conditioner every
3 minutes interval until press the Follow Me
button again.If the unit does not receive the
Follow Me signal during any 7 minutes interval,
the unit will beep to indicate the Follow Me
mode has ended.
Press Fan button to select the Fan Speed in four
steps-Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
For some models, the fan speed can not be
adjusted.
CHECK FILTER FEATURE:
Press Check lter button to initiate theis feature.
This feature is a reminder to clean the Air Filter for
more ecient operation. The LED(light) will
illuminate after 250 hours of operation. To reset
after cleaning the lter, press the Check Filter
button and the light will go o.
ENERGY SAVER FEATURE:
Press Energy saver button to initiate this function.
This function is available on COOL, DRY, AUTO
(only AUTO-COOLING and AUTO-FAN) modes.
The fan will continue to run for 3 minutes after
the compressor shuts o.The fan then cycles on
for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on and
Cooling Starts.
Light flashes or
illuminates
Follow
Me
Page 32
NOTE:
If the unit breaks o unexpectedly due to
the power cut, it will restart with the previous
function setting automatically when the
power resumes.
TIMER: AUTO START/STOP FEATURE:
ADDITIONAL THINGS YOU SHOULD KNOW
DISPLAYS:
• Press Timer button, the TIMER ON or TIMER OFF
indicator light illuminates. It indicates the Auto
Start or Auto Stop program is initiated. For some
units, keep pressing the Timer button will cancel
the timer settings.
• Press or hold the UP or DOWN button to change
the Auto time by 0.5 hour increments, up to 10
hours,then at 1 hour increments up to 24 hours.
The control will count down the time remaining
until start.
• The selected time will register in 5 seconds, and
the system will automatically revert back to display
the previous temperature setting or room
temperature when the unit is on.(when the unit
is o,there is no display.)
Now that you have mastered the operating
procedure, here are more features in your control
that you should become familiar with.
• The Cool circuit has an automatic 3 minutes time
delayed start if the unit is turned o and on quickly.
This prevents overheating of the compressor and
possible circuit breaker tripping.The fan will
continue to run during this time.
• The control is capable of displaying temperature
in degrees Fahrenheit or degrees Celsius. To
convert from one to the other, press and hold the
Up and Down buttons at the same time for 3
seconds.
• Turning the unit ON or OFF at any time or a
djusting the timer setting to 0.0 will cancel the
Auto Start/Stop timed program.
Shows the set temperature in ” °C" or ” °F" and
the Auto-timer settings.While on Fan only mode,
it shows the room temperature. If the room
temperature is too high or low, it will display
" HI" or " LO".
Error codes:
AS - Room temperature sensor error
ES -Evaporator temperature sensor error
NOTE: " • " is displayed as shown in the obove
picture.
HS -Electric heating sensor error(on some models);
CS -Condenser temperature sensor error
(on some models);
OS -Outside temperature sensor error
(on some models);
E7 -Unit malfunction(on some models).
NOTE:When error occurs,unplug the unit and
plug it back in.If error repeats, call for service.
To operate on Auto feature:
• When you set the air conditioner in AUTO mode,
it will automatically select cooling, heating(cooling
only models without), or fan only operation
depending on what temperature you have selected
and the room temperature.
• The air conditioner will control room temperature
automatically round the temperature point set
by you.
• In this mode, the fan speed cannot be adjusted,
it starts automatically at a speed according to the
room temperature.
To operate on Fan Only:
• Use this function only when cooling is not
desired,such as for room air circulation or to
exhaust stale air(on some models). (Remember
to open the vent during this function, but keep
it closed during cooling for maximum cooling
eciency.) You can choose any fan speed you
prefer.
• During this function, the display will show the
actual room temperature, not the set temperature
as in the cooling mode.
• In Fan only mode ,the temperature is not adjusted.
To operate on Dry mode:
• In this mode, the air conditioner will generally
operate in the form of a dehumidier. Since the
conditioned space is a closed or sealed area, some
degree of cooling will continue. On Dry mode,the
fan speed is controlled at Low automatically.
Displays
Care and Cleaning
Air Filter Cleaning
CAUTION
Clean your air conditioner occasionally to
keep it looking new.
Be sure to unplug
the unit before cleaning to prevent
chock or fire hazards.
Cabinet Cleaning
The air lter should be checked at least once a
month to see if cleaning is necessary. Trapped
particles in the lter can build up and cause an
accumulation of frost on the cooling coils.
• Push the vent handle to the Vent Closed position
(where applicable). Open the front panel.
• Take the lter by the center and pull up and out.
• Wash the lter using l iquid dishwashing
detergent and warm water. Rinse lter
thoroughly. Gently shake excess water from the
lter. Be sure the lter is thoroughly dry before
replacing. Instead of washing, you may vacuum
the lter clean.
Note: Never use hot water over 40°C(104°F) to
clean the air lter. Never attempt to operate
the unit without the air lter.
Winter Storage
If you plan to store the air conditioner during
the winter, remove it carefully from the window
according to the installation instructions. Cover
it with plastic or return it to the original carton.
• Be sure to unplug the air conditioner to
prevent shock or re hazard. The cabinet and
front may be dusted with an oil-free cloth or
washed with a cloth dampened in a solution
of warm water and mild liquid dishwashing
detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the
cabinet front.
• Be sure to wring excess water
from the cloth before wiping around the controls.
Excess water in or around the controls may cause
damage to the air conditioner.
• Plug in air conditioner.
Page 33
For 5000 to 6000 Btu/h
For 6000 to 12000 Btu/h
For 15000 to 28500 Btu/h
For 6000 to 8000 Btu/h
Remove the filter by
sliding out from the
right-hand side.
TROUBLESHOOTING TIPS
Before calling for service, review this list. It may save your time and expense. This list includes common
occurrences that are not the result of defective workman-ship or materials in this appliance.
Air conditioner
does not start
Wall plug disconnected. Push plug rmly into wall outlet.
House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset
circuit breaker.
Plug Current Device Tripped. Press the RESET button.
Power is OFF. Turn power ON.
Air from unit does
not feel cold
enough
Room temperature below 62°F(17°C). Cooling may not occur until room temperature rises
above 62°F(17°C).
Temperature sensing behind air lter element touching cold coil. Keep it from the cold coil.
Set to a Lower temperature.
Compressor stopped when changing modes. Wait for 3 minutes after set to the COOL mode.
Air conditioner
cooling, but room
is too warm- ice
forming on cooling
coil behind
decorative front.
Outdoor temperature below 64°F(18°C). To defrost the coil, set FAN ONLY mode.
Air lter may be dirty. Clean lter. Refer to Care and Cleaning section. To defrost, set to
FAN ONLY mode.
Thermostat set too cold for night-time cooling. To defrost the coil, set to FAN ONLY mode.
Then, set temperature to a Higher setting.
Problem Solution
Air conditioner
cooling, but room
is too warm- NO
ice forming on
cooling coil behind
decorative front.
Air conditioner
turns on and off
rapidly
Noise when unit is
cooling
Dirty air lter- air restricted. Clean air lter. Refer to Care and Cleaning section.
Temperature is set too High, set temperature to a Lower setting.
Air directional louvers positioned improperly. Position louvers for better air distribution.
Front of units is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear
blockage in front of unit.
An open doors, windows,or register may allow cold air to escape. Close any doors, winows,
or registers.
The room may be too warm. Allow additional time to remove “Stored heat” from walls,
ceiling, oor and furniture.
Dirty air lter- air restricted. Clean air lter.
Outside temperature extremely hot. Set FAN speed to a Higher setting to bring air past
cooling coils more frequently.
Page 34
Air movement sound. This is normal . If too loud, set to a slower FAN setting.
Window vibration - poor installation. Refer to installation instructions or check with installer.
Water dripping
INSIDE when unit
is cooling.
Improper installation. Tilt air conditioner slightly to the outside to allow water drainage.
Refer to installation instructions - check with installer.
Water dripping
OUTSIDE when
unit is cooling.
Unit removing large quantity of moisture from humid room. This is normal during
excessively humid days.
Remote Sensing
Deactivating
Prematurely
(some models)
Remote control not located within range. Place remote control within feet and pointed
in the general direction of the air conditioner unit.
Remote control signal obstructed. Remove obstruction.
Problem Solution
Room too cold
Set temperature too low. Increase set temperatur
Page 35
16.4
RG15A(B)/E
