WAL CANOPY RANGEHOOD
INSTALLATION AND
USER’S MANUAL
M odel: T R 20160 & T R 20190
2
Introduction
Thank you for choosing this extractor hood.
To ensure that you get the best results from your new extractor, we
strongly suggest that you read this instruction manual thoroughly before
use. If treated with care, your extractorshould give you years of
trouble-free use
To register ownership, please ensure you complete and returnthe
guarantee card supplied with the appliance.
This instruction manual is designed toprovide you with all required
informationrelatedtothe installation, use and maintenance of the
appliance.
These cooker hoods are designed to extract unpleasant odours from the
kitchen; they are not intended to extract steam.
Inordertooperate the unit correctlyandsafety, please read this
instruction manual carefully before installation and use.
The cooker hood uses high quality materials, and is made with a
streamlined design. Equipped with an electric motor and centrifugal fan,
it provides strong extraction with low noise. It also features non-stick
grease filters and an easy installation.
Safety
precautions
-
Never let the children operate the machine.
-
The cooker hood is for home use only, not suitable for barbecuing,
restaurants or other commercial purposes.
-
The cookerhoodandits filter should be cleaned regularly in ordertokeep
in good working condition.
-
Clean the cooker hood according to the instruction manual to reduce the
risk of fire.
-
When using a gas hob, do not leave naked flames under the extractor.
-
Before connecting this appliance checkthat the power supplycord is not
3
damaged. A damagesupply cord must be replaced by qualified service
personnel only. Please contact the service department.
-
If the room where the hood is to be used contains a fuel burning
appliance such as a central heating boiler then its flue must be of the
sealed orbalanced flue type. Ifother types of flue orappliancesare fitted
ensure that there is an adequate supply of air to the room.
-
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
-
Regulations concerning the discharge of air have to be conformed to.
-
This appliance if not intended foruse by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a personslide fortheir safety.
-
Children should be supervised to ensure that they do not play with the
appliance.
-
Do not flambé under the cooker hood.
-
Neverleavefrying pans unattended during use as over-heated fats and
oils may catch fire.
-
To ensure the best performance, we recommend switching on the
extractor 15 minutes before cookingandleave it running 15 minutes after.
This will ensure that the air in the kitchen is being circulatedbefore
cooking commences and the air is being cleaned after cooking has
finished.
-
The performance of your extractor will vary depending on a number of
factors. These include type of extraction, room volume, length of ducting,
ventilation available and the cleanliness of the filters.
Electrical shock hazard
-
Only plug this unit into a properly earthed outlet. If in doubt seek advice
from a suitably qualified engineer.
-
Failure to follow these instructions can result in death, fire, or electrical
shock.
4
65cm
- 76cm
Installation
Prepare for the installation:
a.
If you have an outlet to the outside, your cooker hood can be
connected as per the below picture by means of an extraction duct
with an interior diameter of 150mm.
b.
Before installation, turn the unit off and unplug it from the outlet.
c.
The cooker hood should be placed at a minimum distance of 65~76cm
above the hob. It is the manufacturer of the hob who determines the
clearance required and the clearance quoted by the hob manufacturer
must be followed. In the absence of any instructions supplied with a
gas hob the minimum distance between the hob and the hood must be
at least
760mm.
5
Holes on
Screw
Screw
Wall
Cooker hood
Wall bracket

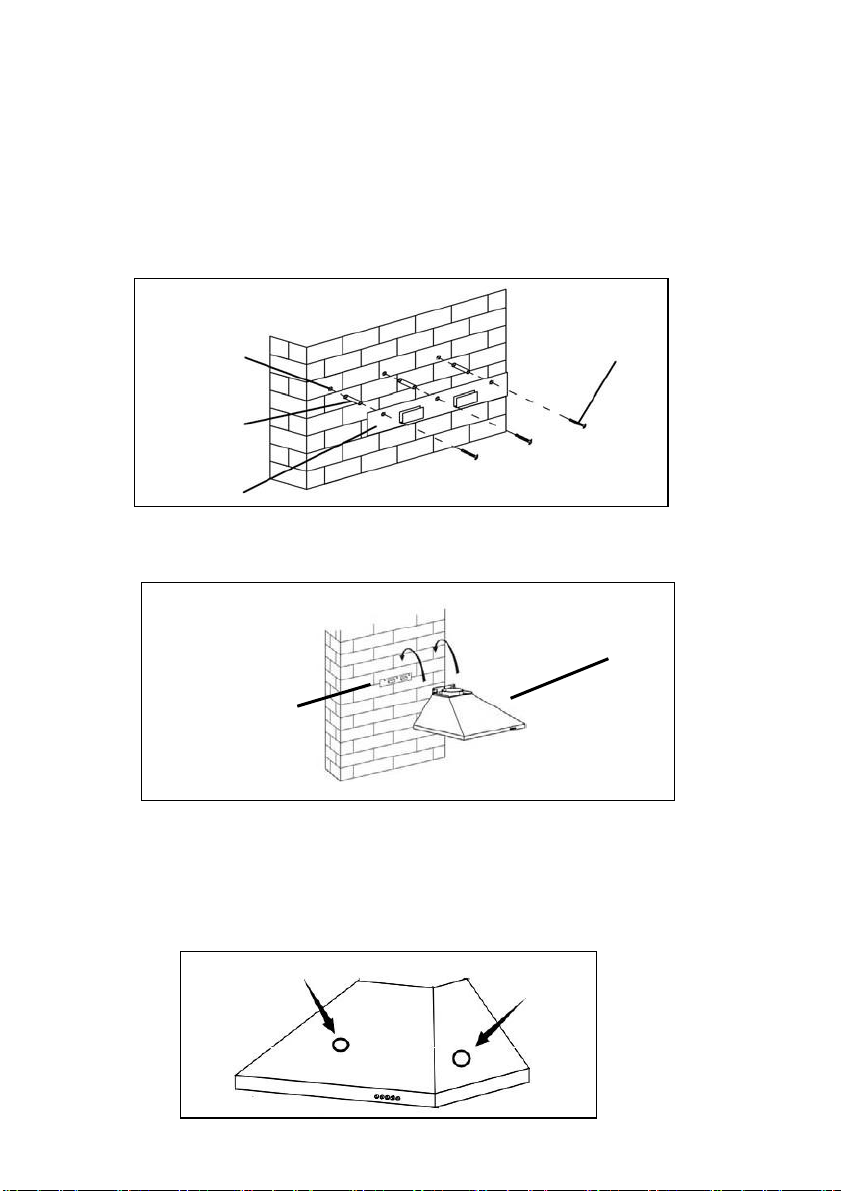

Installation – ducted
Attention! Observe the warning concerning the operation of the
appliance when air is discharged from the room.
Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the
bracket onto the wall with the screws and screw plugs provided.
Lift up the cooker hood and hang it onto the wall bracket hooks.
After hanging the hood on the bracket , remove the Alu Filters ,
mark 2 holes inside the hood for safety screws .After marking ,
remove
the hood ,drill two holes and insert 2 pcs of Wall Plugs and finally
fix the safety screws with 2 screws ST4x30mm
6
Exhaust pipe
Cooker hood

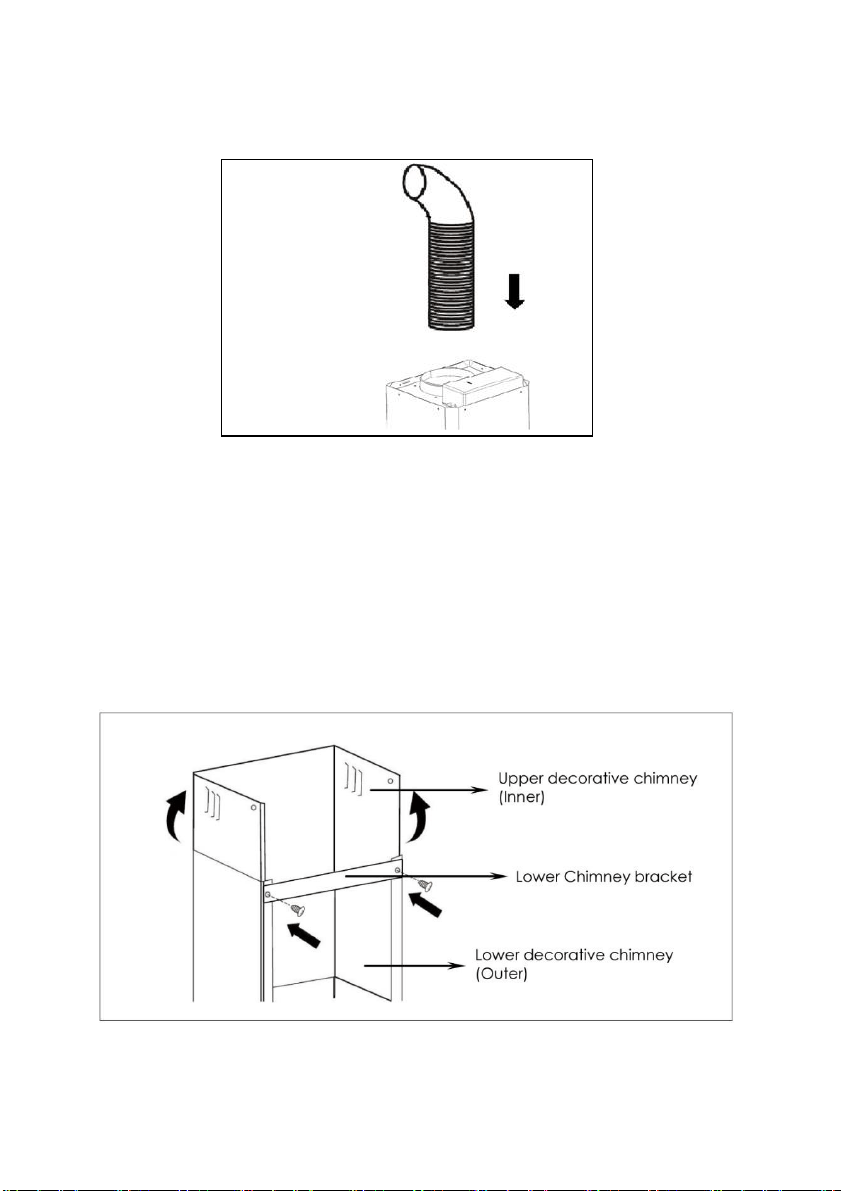

Fix the one-way-valve to the air outlet of the cooker hood. Then, attach
the exhaust pipe to the one-way-valve as shown below.
Chimney installation.
Place the upper chimney into the lower chimney .
Use 2 pcs ST4x8mm screws to attach lower and upper chimney
together. Before attaching the bracket to the chimney,decide the
location of lower chimney bracket fixing holes for fixing the lower
chimney bracket in the
later steps.
Do not fasten screws too much, make sure upper chimney
can be telescopically adjusted after assembled.

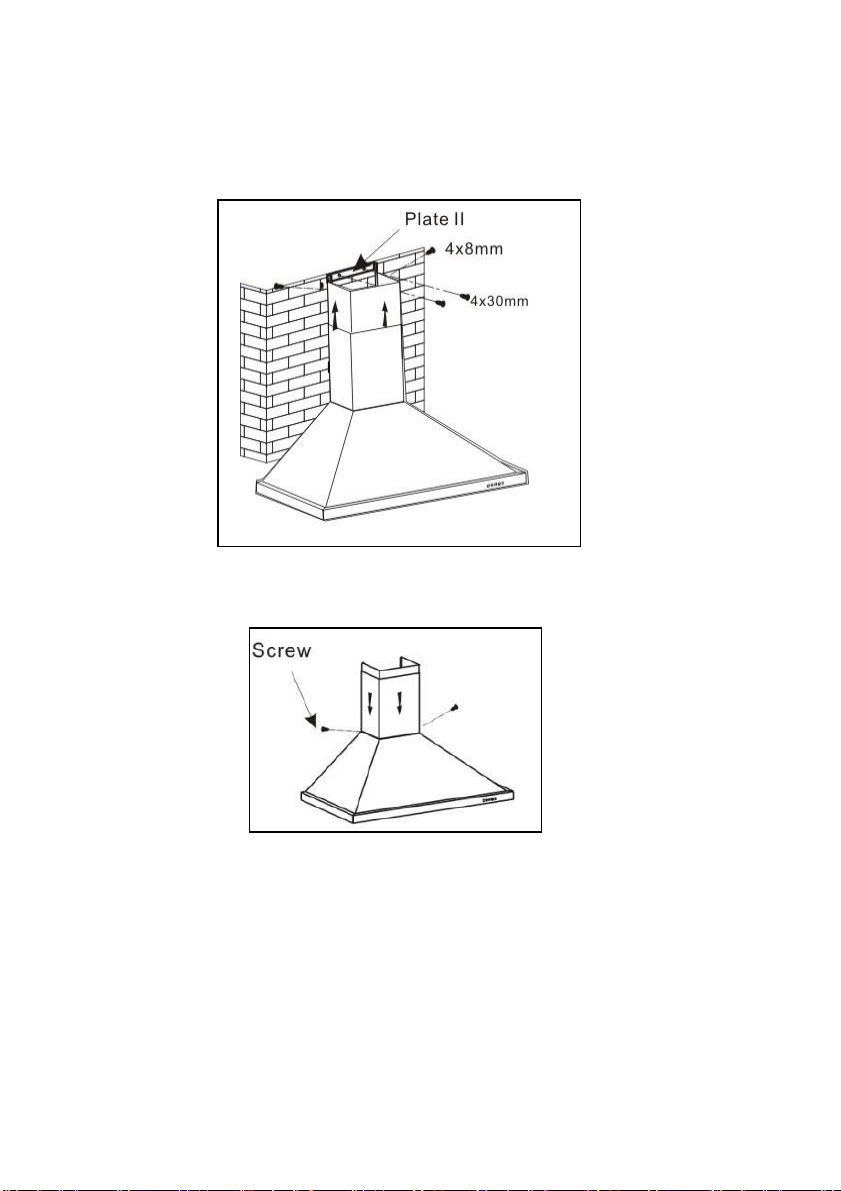

Drill 2 holes to accommodate the plate II. Screw and tighten
the plate II onto the wall with two screws and wall.plugs
provided Slide up the upper chimney and fix the upper
chimney with plate II with 2 screws ST4x8mm
Fix the lower chimney with the hood with 2 screws ST4x8mm
8

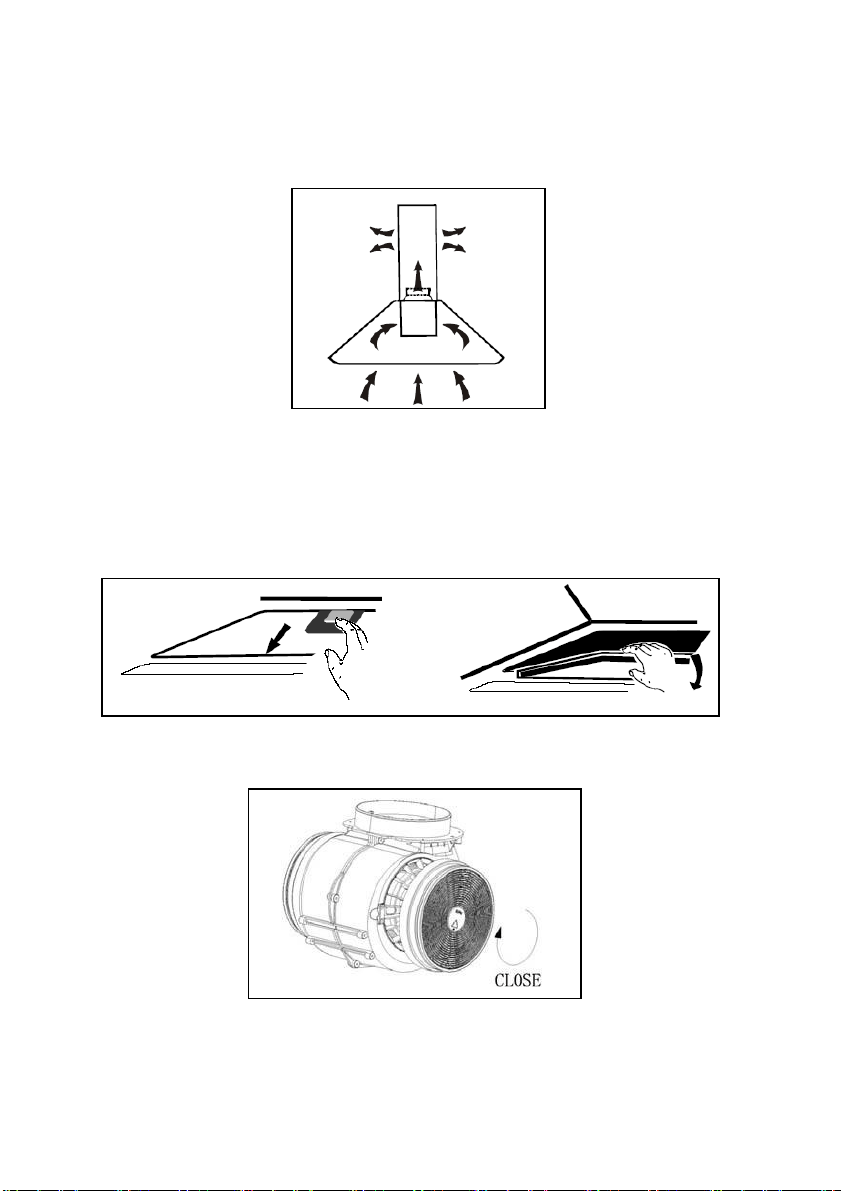

Installation – recirculation mode
If you do not have an outlet to the outside, the exhaust pipe is not
required (as shown in the section “Installation - ducted”).
Installing the charcoal filter
An activated charcoal filter can be used to trap odours.
In order to install the charcoal filter, the grease filter should be
detached first. Press the lock and pull it downward.
Fit the activated charcoal filter onto the side of the motor and turn it
in a clockwise direction. Repeat the same on the other side.
NOTE:
-
Make sure the filter is securely locked in position. Otherwise, it
may loosen and become dangerous.
-
When the charcoal filter is attached, the extraction power
may be slightly reduced.
9
Operation
Low speed button
Is suitable for simmering and cooking which does not produce
much odour.
Medium speed button
The airflow speed is ideal for extracting with regular cooking.
High speed button
When a high amount of smoke or odour is produced, press the
high speed button for the most effective extraction.
Light button
This switches the light on and off
NOTE: If the low, medium and high speed buttons are pressed at
the same time, the unit will only operate at the highest speed.
10
Care and maintenance
IMPORTANT: Before cleaning or maintenance please switch off the
electricity supply and remove the plug from the wall.
Regular cleaning
Use a soft cloth moistened with lukewarm mildly soapy water or
household cleaning detergent. Never use metal pads, chemicals,
abrasive material, abrasive cleaning creams or stiff brushes to clean the
appliance.
Cleaning the grease filter
Clean the filter every month to help minimise the risk of fire.
The filter collects grease, smoke and dust, therefore the filter is directly
affecting the efficiency of the cooker hood. If not cleaned, the grease
residue (which is potentially flammable) will saturate the filter. It can be
easily cleaned with warm water and washing up liquid, alternatively the
filters can be cleaned in your dishwasher. Please ensure no other items
are washed with the filters, they must be washed separately to prevent
food becoming trapped in the gauze. Cleaning the grease filters in the
dishwasher may lead to discolouration, this is normal and is a not a fault
with the product.
Replacing your charcoal filter
This only applies if you are using the hood in recirculation mode (not
vented to the outside). The charcoal filter traps your cooking odours and
they need to be replaced, this can vary depending on how frequently the
cooker hood is used. We recommend replacing them at least every 6
months.
11
Replacing the bulb
1.
Switch the unit off and unplug the appliance.
2.
Remove the lamp cover by unscrewing the 2
screws. 3.Unscrew the bulbs.
4.Replace with the same type and rated bulb/lamp.
Troubleshooting
Fault
Cause
Solution
The lights on,
but the fan does
not work
The fan blade is jammed.
Switch off the unit and
repaired by qualified
service personnel only.
The motor is damaged.
The lights and
fan do not work
A blown fuse
Replace the fuse
The power cord is loose.
Plug in to the power supply again.
Serious vibration
of the unit
The fan blade is damaged.
Switch off the unit and
repaired by qualified
service personnel only.
The fan motor is not fixed
tightly.
Switch off the unit and
repaired by qualified
service personnel only.
The unit is not hung
correctly on the bracket.
Take down the unit and check whether
the bracket is in the correct location.
The extraction
performance is
not good
The filter requires cleaning
Clean the grease filter as directed in
the ‘Care and maintenance’ section.
Replace the charcoal filter (if in
recirculation mode)
12
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling
advice.
This appliance is marked according to the European directive 2012/19/EC on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of
this product, please contact your local council, your household waste
disposal service or the retailer where you purchased the product.
