Instruction Manual
High Resolution Weather Station
model 01535
CONTENTS
Unpacking Instructions ........... 2
Package Contents .................. 2
Product Registration ............... 2
Features & Benets: 5-in-1....... 3
Features & Benets: Display.... 4
Setup .................................... 8
5-in-1 Sensor Setup ................ 8
Display Setup ........................ 9
Placement Guidelines ............10
Using the Weather Station.....12
Expand the System................14
Troubleshooting ....................15
Care & Maintenance............. 16
Calibration ...........................17
Specications........................18
FCC Information ...................18
Customer Support .................19
Warranty..............................19
Records
47
Questions? Contact Customer Support at
(877) 221-1252 or visit www.AcuRite.com.
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Congratulations on your new AcuRite product. To ensure the best
possible product performance, please read this manual in its entirety
and retain it for future reference.
Unpacking Instructions
Remove the protective lm that is applied to the LED screen prior to using this
product. Locate the tab and peel off to remove.
Package Contents
1. Display with Tabletop Stand
2. 5-in-1 Sensor
3. Power Adapter
4. Mounting Hardware
5. Mounting Brackets
6. Instruction Manual
PRODUCT MUST BE REGISTERED
IMPORTANT
TO RECEIVE WARRANTY SERVICE
PRODUCT REGISTRATION
Register online to receive 1 year warranty protection
www.AcuRite.com
2
7
Features & Benets
11
6
5-in-1 SENSOR
1. Rainfall Collector Funnel
2. Solar Cell Panel
Converts sunlight into power to run
internal aspirating fan.
Internal Aspirating Fan
(not shown)
Draws ambient air into
sensor to reduce solar radiation
heating, resulting in more accurate
temperature measurement.
3. A-B-C Switch
ID code used to identify sensor.
4. Battery Compartment
10
2
1
8
5
4
3
9
5. Temperature & Humidity Sensors
(internal)
6. Mounting Point
7. Wind Speed Anemometer
8. Wind Direction Vane
9. Mounting Bracket
10. Mounting Hardware
Includes 5 anchors & the following
screws:
Qty Diameter Length
5 #4 3/4”
1 #4 1/2”
1 #6 1/2”
11. Debris Filter
Pre-installed to prevent debris from
entering the rain gauge.
3
weatlier overview
Features & Benets
Weather Overview Dashboard
22 21
20
19
18 14 17 16 15 14 13 12
Records
47
1
2
3
4
5
7
6
8
9
10
11
4
~·)),)
1.
Alarm ON Indicator
Indicates alarm is activated to emit an
audible alert when conditions exceed
your presets (see page 12).
2. Current Outdoor Humidity
Arrow icon indicates direction
humidity is trending.
3. Current “Feels Like” Temperature
4. Seasonal Information
Heat Index calculation displays when
temperature is 80°F (27°C) or higher.
Dew Point calculation displays when
temperature is 79°F (26°C) or lower.
Wind chill calculation displays when
temperature is 40°F (4°C) or lower.
5. Barometric Pressure
Arrow icon indicates direction
pressure is trending.
6. 12 to 24 Hour Weather Forecast
Self-Calibrating Forecasting pulls data
from your 5-in-1 sensor to generate
your personal forecast.
7. Clock
8. Date & Day of the Week
9. Rainfall Rate/Most Recent Rainfall
Displays rainfall rate of current
rain event, or total from the most
recent rainfall.
10.
Rainfall History
Displays rainfall records for current
week, month & year.
11. Today’s Rain Indicator
Illustrates rainfall collection up to 2
inches (50 mm) once rain is detected.
12. Messages
Displays weather information and
messages (see page 14).
13.
Peak Wind Speed
Highest speed from the last 60 minutes.
14.
Previous 2 Wind Directions
15.
Current Wind Speed
Background color changes based on
current wind speed.
16. Current Wind Direction
17.
Average Wind Speed
Average wind speed over the past
2 minutes.
18.
Sensor Low Battery Indicator
19. Outdoor High Temperature Record
Highest temperature recorded since
midnight.
20.
Current Outdoor Temperature
Arrow indicates direction temperature
is trending.
21.
Outdoor Low Temperature Record
Lowest temperature recorded since
midnight.
22. 5-in-1 Sensor Signal Strength
5
Features & Benets
Indoor Overview Dashboard
5
1
2
4
3
1. Current Indoor Temperature 4. Current Indoor Humidity
Arrow indicates direction temperature Arrow indicates direction humidity
is trending. is trending.
2. Daily High & Low 5. Humidity Level Indicator
Temperature Records
Indicates a high, low or ideal
Highest and lowest temperature humidity comfort level.
recorded since midnight.
3. Daily High & Low
Humidity Records
Highest and lowest humidity recorded
since midnight.
6
0
Records
47
Features & Benets
Display
1
2
3
4 5 6 7 8
BACK OF DISPLAY
1. Plug-in for Power Adapter
2. Display Stand
3. Mounting Bracket
For easy wall mounting.
FRONT OF DISPLAY
4. Button
For menu access and setup
preferences.
5.
6.
7.
8.
V
Button
For setup preferences and cycling
through messages on the Weather
Overview dashboard.
Button
Press to view a different dashboard.
T
Button
For setup preferences and cycling
through messages on the Weather
Overview dashboard.
Button
For setup preferences.
7
•
•
•
LITHIUM q
■
BATTERIES g; I• Jil ili1'i\2
~
__ a_o_
0
c_>_1_5:.._8=----
O
.:..F_JI
ALKALINE
BATTERIES
It W iiHm ao
0
c> 1se°F 1
1
SETUP
5-in-1 Sensor Setup
Install or Replace Batteries
Batteries MUST be installed for
this product to operate. AcuRite
recommends high quality alkaline
or lithium batteries for the best
product performance. Heavy duty
or rechargeable batteries are not
recommended.
The 5-in-1 sensor requires lithium
batteries in low temperature
conditions. Cold temperatures can
cause alkaline batteries to function
improperly. Use lithium batteries in
the 5-in-1 sensor for temperatures
below -4ºF / -20ºC.
2
1. Slide off the battery
compartment cover.
2. Insert 4 x AA batteries into the
battery compartment, as
shown. Follow the polarity
(+/-) diagram in the battery
compartment.
3. Replace the battery cover.
Remove Rain Gauge Stabilizer
Locate and remove the rain gauge
stabilizer (plastic tab) taped into
the bottom of the sensor. The rain
gauge will not function until this is
removed.
1
Install Batteries
4 AA Batteries
2
Rain Gauge Stabilizer
Remove and discard
8
0
0
V
Display Setup
Settings

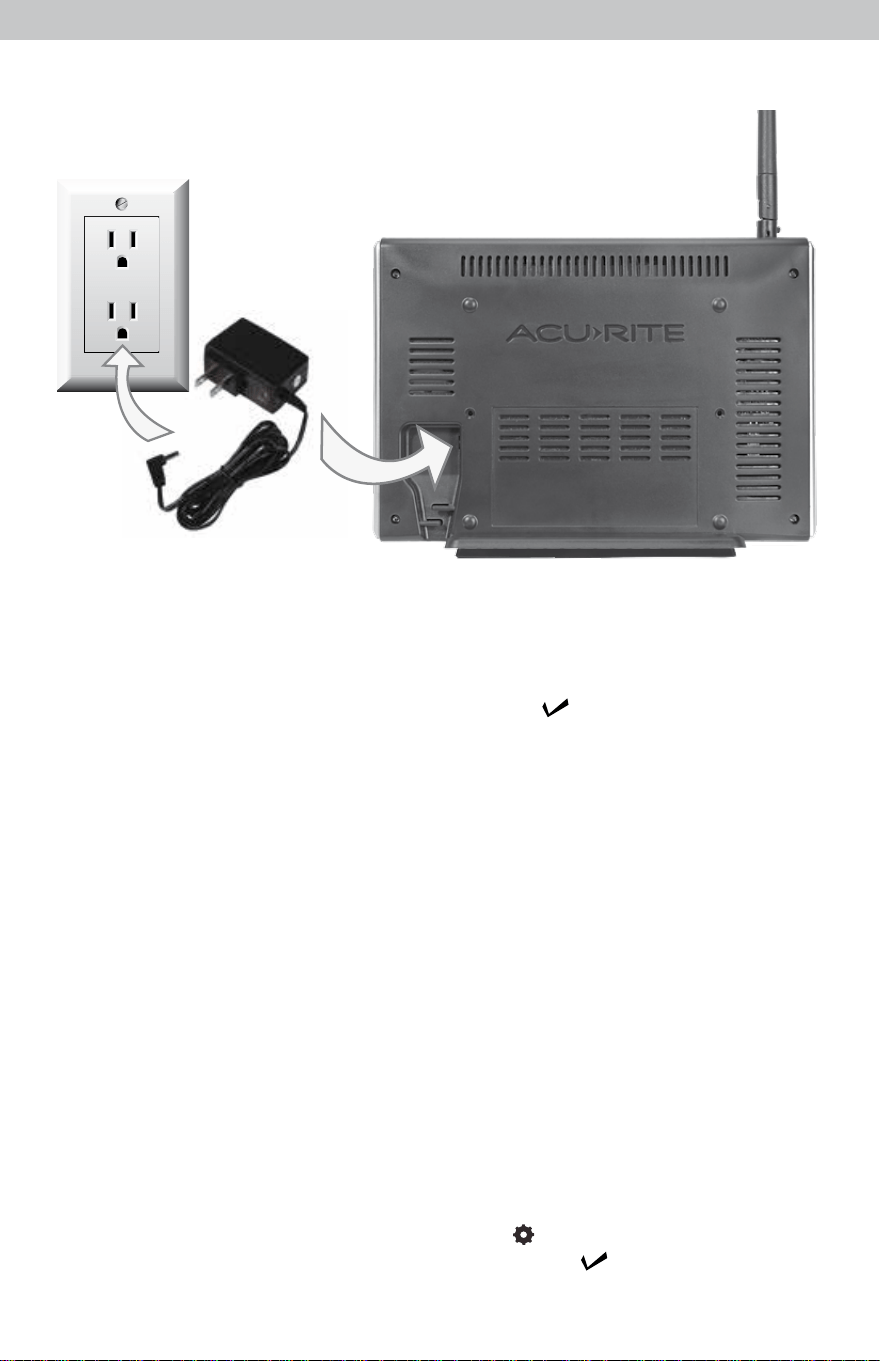

Plug Power Adapter into Electrical Outlet
After powering on for the rst time, the display will automatically enter setup
mode. Follow the on-screen instructions to set up the display.
To adjust the currently selected item, press and release the “
T
” or “
V
“
buttons.
To save your adjustments, press and release the “ ” button again to adjust
the next preference. The preference set order is as follows:
TIME ZONE (PST, MST, CST, EST, AST, HAST, NST, AKST)
AUTO DST (Daylight Saving Time YES or NO)*
CLOCK HOUR
CLOCK MINUTE
CALENDAR MONTH
CALENDAR DATE
CALENDAR YEAR
PRESSURE UNITS (inHg or hPa)
TEMPERATURE UNITS (ºF or ºC)
WIND SPEED UNITS (mph, km/h, knots)
RAINFALL UNITS (inches or mm)
DISTANCE UNITS (miles or kilometers)
AUTO DIM (YES or NO)**
AUTO CYCLE (OFF, 15 sec., 30 sec., 60 sec., 2 min., 5 min.)
ALERT VOLUME
*If you live in an area that observes Daylight Saving Time, DST should be set to YES,
even if it is not currently Daylight Saving Time.
**For more information see page 12, under “Display”.
Enter setup mode at any time by pressing the “ ” button to access the menu,
then navigate to “Setup” and press and release the “ ” button.
9
Records
47
Placement for Maximum Accuracy
AcuRite sensors are sensitive to surrounding environmental conditions. Proper
placement of both the display and the sensor are critical to the accuracy and
performance of this product.
Display Placement
Place the display in a dry area free of dirt and dust. Display
stands upright for tabletop use and is wall-mountable.
5-in-1 Sensor Placement
The 5-in-1 sensor is designed to remain outdoors all year long.
Choose an open location with no obstructions above or around
the sensor for the most accurate measurements.
Important Placement Guidelines
Display and sensor must be within 330 feet (100 meters) of each other.
MAXIMIZE WIRELESS RANGE
Place units away from large metallic items, thick walls, metal surfaces, or other
objects that may limit wireless communication.
PREVENT WIRELESS INTERFERENCE
Place units at least 3 feet (.9 m) away from electronic devices (TV, computer,
microwave, radio, etc.).
LOCATE AWAY FROM HEAT SOURCES
Position sensor away from heaters, air conditioners, chimneys, exhaust vents,
asphalt and concrete (surfaces that radiate heat).
LOCATE AWAY FROM HUMIDITY SOURCES
Avoid installing the sensor near pools, spas, or other bodies of water. Water
sources may impact humidity accuracy.
LOCATE AWAY FROM SPRINKLER HEADS
DO NOT install the sensor where it will be sprayed by a sprinkler system. This
may force water inside the sensor.
LOCATE AWAY FROM WIND & RAIN OBSTRUCTIONS
DO NOT mount the sensor with obstructions around it.
Consider a location that is a wide open area, with few
structures around to ensure accurate wind measurement.
Visit us online to view installation photos and
video, or learn more about AcuRite technology:
www.AcuRite.com/5in1
View Video
10
t
at least
5 Feet
l from
~
~
ground

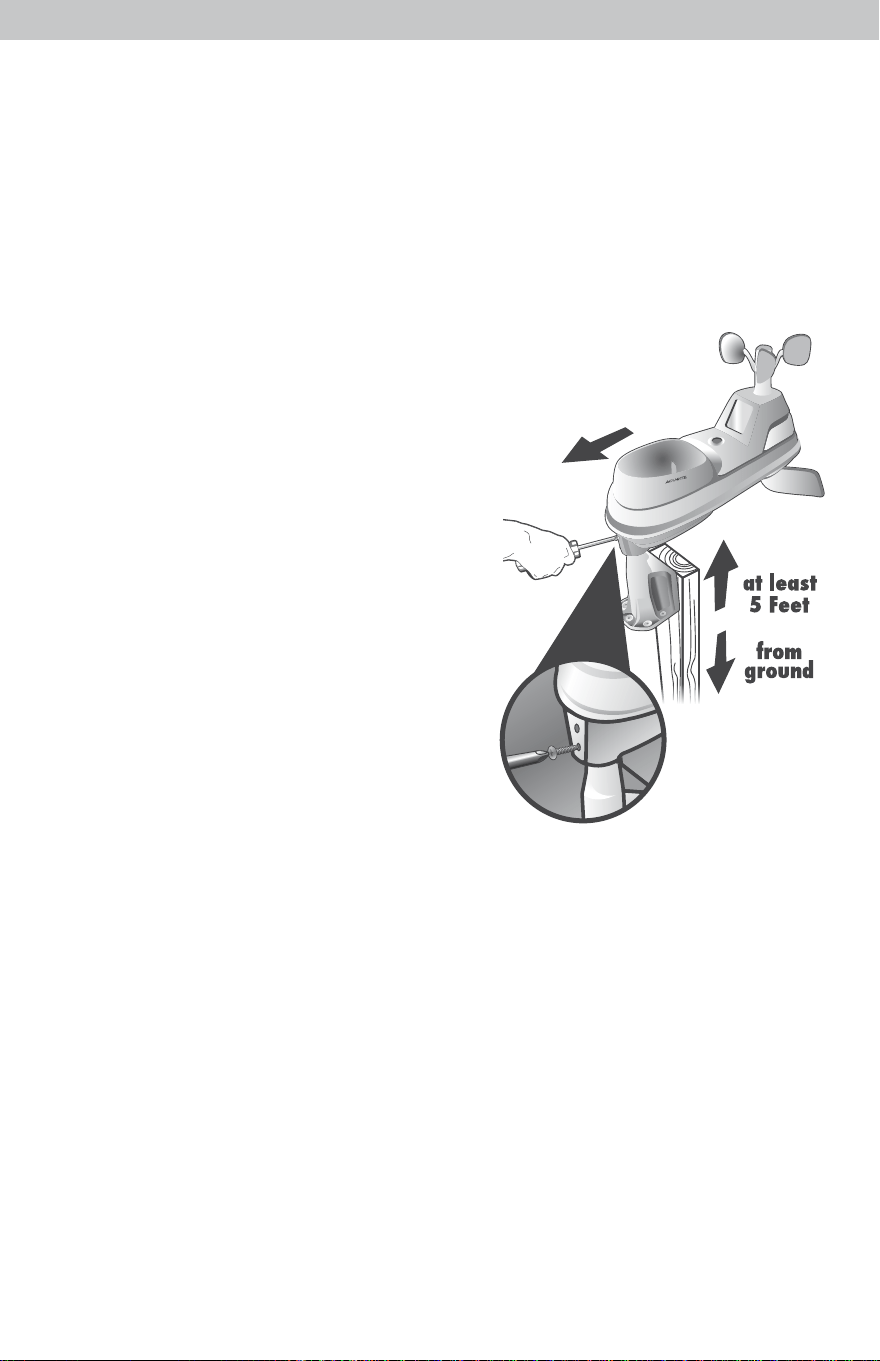

5-in-1 Sensor Installation Guidelines
INSTALLATION HEIGHT Mount the sensor at a minimum height of 5 feet
(1.5 meters) off the ground, in an open area. Higher is better for wind
measurements - the National Weather Service recommends 33 feet
(10 meters) high!
MOUNTING OPTIONS The included mounting bracket is designed to screw
directly onto wooden posts or surfaces that are 2”x 4” or larger. The sensor
can also be mounted directly to 3/4” steel pipe (available at hardware stores
and home centers).
SOLAR CELL INSTALLATION Install the sensor
with the solar cell facing SOUTH. This ensures
the cell receives as much sun as possible and
orients wind direction.
5-in-1 Sensor Installation
1. Fasten mounting base (included) to a post
or pole (not included) using the 4 longer
screws included in the hardware bag.
2. Insert the mounting base into the hole on
the bottom of the sensor.
3. Make sure the arrows on the top of the
sensor are pointed in the proper direction
and the bubble level is centered. The
solar cell should be facing south to
properly orient the wind direction.
4. Fasten the sensor into the mounting base
SOUTH
(1.5 meters)
NO OBSTRUCTIONS
ABOVE OR AROUND
using the 2 shorter screws included in the
hardware bag.
The 5-in-1 sensor is now ready to use.
Basic Setup is Complete
The 5-in-1 sensor will now synchronize with the display. It may take a few
minutes for synchronization to complete. If both or one of the units appear to
be functioning improperly, please refer to the troubleshooting section.
11
OPERATION
Using the Weather Station
Menu
Records
Display
Sensor
Setup
Factory Reset
Units
Alarms
Calibrate
press to exit menu
1
5
2
6
3
7
4 8
Navigate to the main menu at any time by pressing the “ ” button. From the main
menu, you can view records, set alarms, setup an additional sensor and more.
1. Records
Access the “Records” sub-menu to view high and low values recorded
for each location by date and view trends for the sensor’s readings on a
graphic chart.
2. Alarms
Access the “Alarms” sub-menu to set and edit alarm values, including
temperature, humidity, wind speed and rainfall. The display also includes
an alarm clock feature (time alarm) and storm alarm (activated when
barometric pressure drops).
3. Setup
Access the “Setup” sub-menu to enter the initial setup process.
4. Display
Access the “Display” sub-menu to adjust display settings (brightness, contrast,
tint), display mode (screen cycle) and backlight (auto dim, sleep mode).
When auto dim mode is activated in display setup, the backlight automatically
dims the brightness based on the time of day. When “Sleep Mode” is
activated, the display automatically dims during the timeframe you choose
and shows only the most important readings for at-a-glance viewing.
12
AUTO DIM MODE: Automatically adjusts display brightness based on time of day.
6:00 a.m. - 9:00 p.m. = 100% brightness
9:01 p.m. - 5:59 a.m.= 15% brightness
5. Sensor
Access the “Sensor” sub-menu to add, remove or view information about
a sensor.
6. Units
Access the “Units” sub-menu to change measurement units for barometric
pressure, temperature, wind speed, rainfall and distance.
7. Calibrate
Access the “Calibrate” sub-menu to adjust display or sensor data. First,
select the display or sensor for which you wish to calibrate readings.
Second, select the reading you wish to calibrate. Lastly, follow the on-screen
prompts to adjust the value.
8. Factory Reset
Access the “Factory Reset” sub-menu to revert the display back to factory
defaults. Follow the on-screen prompts to perform the reset.
Weather Overview Dashboard
Weather Forecast
AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast
of weather conditions for the next 12 to 24 hours by collecting data from
a sensor in your backyard. It generates a forecast with pinpoint accuracy -
personalized for your exact location.
Self-Calibrating Forecasting uses a unique algorithm to analyze changes in
pressure over a time period (called Learning Mode) to determine your altitude.
After 14 days, the self-calibrated pressure is tuned in to your location and the
unit is ready for superior weather prediction.
Moon Phase
The moon phase is displayed between 7:00 p.m. to 5:59 a.m. when conditions
allow for moon visibility. The phases of the moon are conveyed through simple
lunar phase icons:
NEW WAXING 1ST FULL
3RD
WANING
CRESCENT QUARTER
QUARTER
CRESCENT
13
V
Expand the System
This weather station measures temperature,
humidity, wind speed, wind direction and
rainfall. The weather station can be expanded
to include lightning detection by connecting
a compatible AcuRite Lightning Sensor
(optional; sold separately).
Compatible Sensor
Lightning Sensor
Model 06045
Compatible Lightning Sensor available at: www.AcuRite.com
Messages
This display shows real-time weather information and alert messages on the
Weather Dashboard. Manually cycle through all available messages by pressing
and releasing the “
T
” or “ “ buttons while viewing the Weather Overview
dashboard.
Default messages are pre-loaded as follows:
HEAT INDEX - XX
WIND CHILL - XX
DEW POINT - XX
IT FEELS LIKE XX OUTSIDE
TODAY’S HIGH HUMIDITY . . . OUTDOOR XX / INDOOR XX
TODAY’S LOW HUMIDITY . . . OUTDOOR XX / INDOOR XX
TODAY’S HIGH TEMP. . . OUTDOOR XXX / INDOOR XXX
TODAY’S LOW TEMP. . . OUTDOOR XXX / INDOOR XXX
7 DAY HIGH TEMP. XX – MM/DD
7 DAY LOW TEMP. XX – MM/DD
30 DAY HIGH TEMP. XX – MM/DD
30 DAY LOW TEMP. XX – MM/DD
ALL TIME HIGH TEMP. XXX… RECORDED MM/DD/YY
ALL TIME LOW TEMP. XXX… RECORDED MM/DD/YY
24 HOUR TEMP. CHANGE +XX
ALL TIME HIGH WIND XX MPH… RECORDED MM/DD/YY
7 DAY AVERAGE WIND XX MPH
TODAY’S AVERAGE WIND XX MPH
NEW LOW TEMP. RECORD XX
NEW HIGH TEMP. RECORD XX
NEW WIND RECORD TODAY XX
5-IN-1 SENSOR BATTERIES LOW
5-IN-1 SENSOR SIGNAL LOST… CHECK BATTERIES AND PLACEMENT
CAUTION – HEAT INDEX IS XXX
CAUTION – WIND CHILL IS XXX
WARMEST DAY THIS WEEK
COLDEST DAY THIS WEEK
TODAY’S RAINFALL - XX
14
1111
15
Troubleshooting
Problem Possible Solution
No reception
no bars
• Relocate the display and/or the 5-in-1 sensor.
The units must be within 330 ft (100 m) of each other.
• Make sure both units are placed at least 3 feet
(.9 m) away from electronics that may interfere with
the wireless communication (such as TVs, microwaves,
computers, etc).
• Use standard alkaline batteries (or lithium batteries in
sensor when temperature is below -20ºC/-4ºF). Do not
use heavy duty or rechargeable batteries.
NOTE: It may take a few minutes for display and
sensor to synchronize after batteries are replaced.
• Synchronize the units:
1. Bring both the sensor and display indoors and
remove power adapter/batteries from each.
2. Reinstall batteries in outdoor sensor.
3. Reinstall power adapter in display.
4. Let the units sit within a couple feet of each other for
a few minutes to gain a strong connection.
Temperature is
showing dashes
When the outdoor temperature is showing dashes, it
may be an indication of wireless interference between
the sensor and display.
• Re-add sensor to display by accessing the “Sensors”
sub-menu (see page 13).
Inaccurate forecast
• Weather Forecast icon predicts conditions for the next
12 to 24 hours, not current conditions.
• Allow product to run continuously for 33 days.
Powering down or resetting the display will restart
Learning Mode. After 14 days, forecast should be
fairly accurate, however Learning Mode calibrates for
a total of 33 days.
Inaccurate wind
readings
• What is wind reading being compared to? Pro
weather stations are typically mounted at 30 ft (9 m)
high or more. Make sure to compare data using a
sensor positioned at the same mounting height.
• Check location of the sensor. Ensure it’s mounted a
minimum of 5 ft (1.5 m) in the air with no obstructions
around it (within several feet).
• Ensure wind cups are spinning freely. If they hesitate
or stop try lubricating with graphite powder or spray
lubricant.
15
16
Problem Possible Solution
Inaccurate temperature
or humidity
• Make sure both the display and 5-in-1 sensor are
placed away from any heat sources or vents
(see page 10).
• Make sure both units are positioned away from
moisture sources (see page 10).
• Make sure 5-in-1 sensor is mounted at least 1.5 m
(5 ft) off of the ground.
• Calibrate indoor and outdoor temperature and
humidity (see “Calibrate” on page 13).
Display screen
not working
• Check that the power adapter is plugged into the
display and an electrical outlet.
If your AcuRite product does not operate properly after trying
the troubleshooting steps, visit www.AcuRite.com or call
(877) 221-1252 for assistance.
Care & Maintenance
Display Care
Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep
away from dust, dirt and moisture. Clean ventilation ports regularly with a
gentle puff of air.
5-in-1 Sensor Care
Clean the Sensor
Clean with a soft damp cloth. Do not use caustic cleaners or abrasives that
will mar the polished surfaces of the rain collection funnel or the solar cell.
Scratches will result in decreased performance and reliability.
Insect Prevention
Insects may cause obstructions and interrupt data by nesting in or on the 5-in-1
sensor. To limit this problem, spray sensor with a household insect repellent.
Consult the insect repellent instructions prior to use.
Snow & Freezing Weather
The 5-in-1 sensor will not be damaged by freezing conditions. NO TE: If the rain
collector cup lls with snow and then melts, it will register as rain on the display.
Clean the Rain Collector Cup
Remove and empty rain collector debris lter. The debris lter is located in the
rain collector funnel. Remove from the top by gently squeezing and pulling out.
16
Clean the Wind Vane & Anemometer
Remove foreign matter from the outside of the sensor for free movement of the
wind vane and anemometer. If needed, use a small amount of spray lubricant,
clear silicone or graphite powder on the anemometer for improved movement.
Calibrate the Rain Gauge
The rain gauge on the 5-in-1 sensor can be calibrated to improve accuracy.
Items Needed: 5-in-1 sensor, display, plastic cup, pin, screw driver
1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level.
2. Place display close so you can monitor it during calibration.
3. Make a pin hole in the bottom of a plastic cup. Hold the cup over the rain
gauge and ll it with exactly 1 cup (8oz) of water, allowing the water to drip
into the rain gauge. You should hear the internal buckets tip and see water
drain through the rain gauge.
4. A few seconds after each bucket tip, the display displays rainfall in
approximately 0.01” (.25 mm) or more increments.
5. The cup of water should take more than 20 minutes to empty; a quicker
period will result in inaccurate calibration. Try to simulate a normal steady
rainfall. When cup is empty of water, display should register 1.06” (27 mm).
Tips
• There should be nearly an equal number of water drops (about 25 water
drops) between bucket tips. If not, adjust the calibration screws on the
bottom of the 5-in-1 sensor until an equal number of water drops are tipping
the buckets. Then, restart the calibration procedure.
• If you don’t hear the buckets tipping and see water dripping alternately out
of each drain, there may be an issue with the rain gauge or it’s adjustment.
See Troubleshooting on page 16.
Adjustment
If the rain gauge doesn’t register close to 1.06” (27 mm), make an EQUAL
adjustment to the two calibration screws on the bottom of the 5-in-1 sensor.
Turning screws clockwise increases rainfall; counter clockwise decreases
rainfall.
• To adjust the rainfall reading by 2% turn both screws 1/8 of a turn.
• To adjust the rainfall reading by 4% turn both screws 1/4 of a turn.
• To adjust the rainfall reading by 8% turn both screws 1/2 of a turn.
Watch the video at www.acurite.com/5in1
17
Specications
TEMPERATURE RANGE
Outdoor: -40ºF to 158ºF; -40ºC to 70ºC
Indoor: 32ºF to 122ºF; 0ºC to 50ºC
HUMIDITY RANGE
Outdoor: 1% to 99%
Indoor: 1% to 99%
WIND SPEED
0 to 99 mph; 0 to 159 km/h
WIND DIRECTION
INDICATORS
16 points
RAINFALL MEASUREMENT
0.01 inches (0.25 mm) and up
WIRELESS RANGE
330ft / 100m depending on home construction materials
OPERATING FREQUENCY
433 MHz
POWER
Display: 5V power adapter
Sensor: 4 x AA alkaline or lithium batteries
DATA REPORTING
Display: Indoor temperature & humidity: 60 second updates
Sensor: Wind Speed: 18 second updates;
Wind Direction: 36 second updates;
Outdoor temperature & humidity: 36 second updates
FCC Information
This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:
1- This device may NOT cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this equipment.
Such modications could void the user authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE
WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment that will not be
used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used
batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fre,
as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge
non-rechargeable batteries. DO NOT short-circuit the supply terminals.
18
Q)
Customer Support
AcuRite customer support is committed to providing you with best-in-
class service. For assistance, please have the model number of this
product available and contact us in any of the following ways:
(877) 221-1252
Visit us at www.AcuRite.com
► Installation Videos ► Register your Product
► Instruction Manuals ► Support User Forum
► Replacement Parts ► Submit Feedback & Ideas
PRODUCT MUS T BE REGIS TERED
IMPORTANT
TO RECEIVE WARRANT Y SERVICE
PRODUCT REGIS TRATION
Regist er online t o receive 1 year war ranty pro t ection
www.AcuRit e.com
Limited 1-Year Warranty
AcuRite is a wholly owned subsidiary of Chaney
Instrument Company. For purchases of AcuRite
products, AcuRite provides the benets and services set
forth herein. For purchases of Chaney products, Chaney
provides the benets and services set forth herein.
We warrant that all products we manufacture under this
warranty are of good material and workmanship and, when
properly installed and operated, will be free of defects for a
period of one year from the date of purchase.
Any product which, under normal use and service, is proven
to breach the warranty contained herein within ONE YEAR
from date of sale will, upon examination by us, and at our sole
option, be repaired or replaced by us. Transportation costs and
charges for returned goods shall be paid for by the purchaser.
We hereby disclaim all responsibility for such transportation
costs and charges. This warranty will not be breached, and we
will give no credit for products which have received normal
wear and tear not affecting the functionality of the product,
been damaged (including by acts of nature), tampered,
abused, improperly installed, or repaired or altered by others
than our authorized representatives.
Remedy for breach of this warranty is limited to repair or
replacement of the defective item(s). If we determine that repair
or replacement is not feasible, we may, at our option, refund
the amount of the original purchase price.
THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY
FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES
OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN
ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY
AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE.
We expressly disclaim all liability for special, consequential,
or incidental damages, whether arising in tort or by contract
from any breach of this warranty. Some states do not allow the
exclusion or limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you.
We further disclaim liability from personal injury relating to
our products to the extent permitted by law. By acceptance of
any of our products, the purchaser assumes all liability for the
consequences arising from their use or misuse. No person, rm
or corporation is authorized to bind us to any other obligation
or liability in connection with the sale of our products.
Furthermore, no person, rm or corporation is authorized
to modify or waive the terms of this warranty unless done in
writing and signed by a duly authorized agent of ours.
In no case shall our liability for any claim relating to our
products, your purchase or your use thereof, exceed the
original purchase price paid for the product.
Applicability of Policy
This Return, Refund, and Warranty Policy applies only to
purchases made in the United States and Canada. For
purchases made in a country other than the United States or
Canada, please consult the policies applicable to the country in
which you made your purchase.
Additionally, this Policy applies only to the original purchaser
of our products. We cannot and do not offer any return,
refund, or warranty services if you buy products used or from
resale sites such as eBay or Craigslist.
Governing Law
This Return, Refund, and Warranty Policy is governed by the
laws of the United States and the State of Wisconsin. Any
dispute relating to this Policy shall be brought exclusively in the
federal or State courts having jurisdiction in Walworth County,
Wisconsin; and purchaser consents to jurisdiction within the
State of Wisconsin.
19
ACU
►
RITE®
ACU RITE.
Weather Temperature Weather Kitchen
Clocks
Stations & Humidity Alert Radio Thermometers
& Timers
It’s more than accurate, it’s
AcuRite offers an extensive assortment of precision instruments,
designed to provide you with information you can depend on to
Plan your day with condence
™
.
www.AcuRite.com
©Chaney Instrument Co. All rights reserved. AcuRite is a registered trademark of
the Chaney Instrument Co., Lake Geneva, WI 53147. All other trademarks and copy-
Printed in China
rights are the property of their respective owners. AcuRite uses patented technology.
01535 INST 090616 Visit www.AcuRite.com/patents for details.
