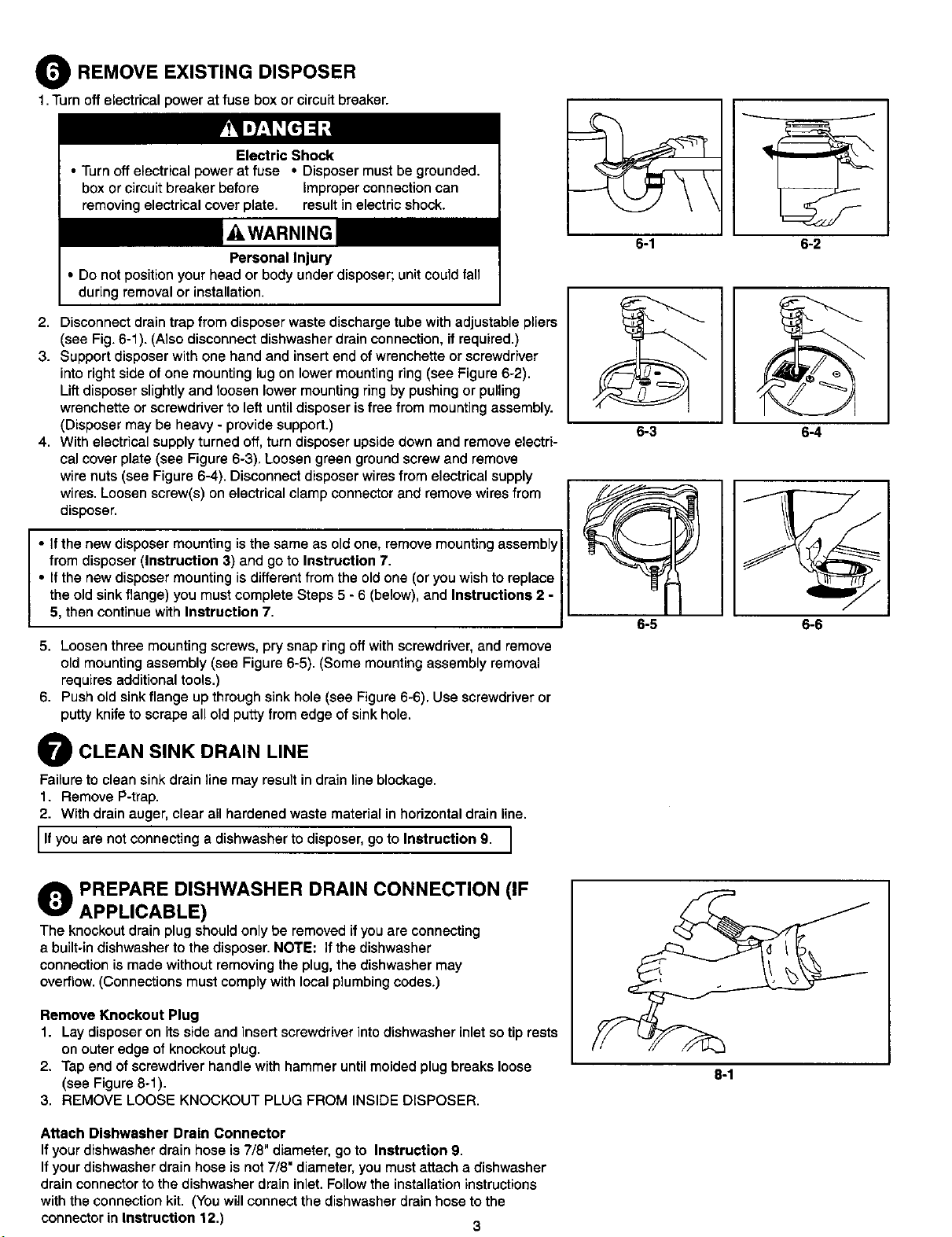

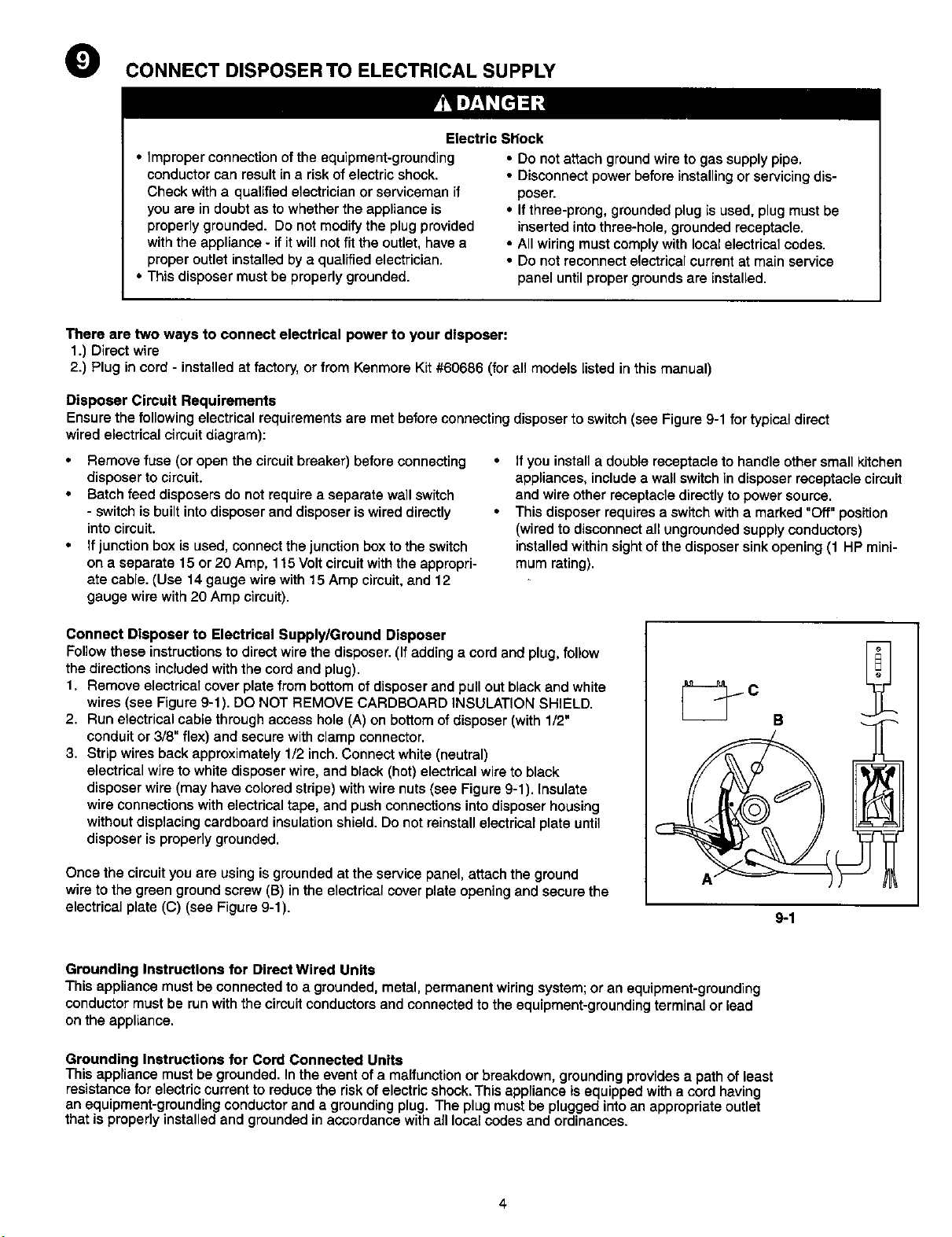

FOOD WASTE DISPOSERS
Installation, Care & Use Manual
TOOLS AND MATERIALS YOU WILL NEED:
Slotted Screwdriver, Adjustable Pliers, Plumber's Putty,
Electrical Tape
TOOLS, MATERIALS, AND ACCESSORIES
YOU MAY NEED:
Phillips Screwdriver, Drain Auger, 3/8" Electrical Clamp
Connector, Wire Nuts (2), Second 1 1/2" Drain Trap,
Hammer, Hacksaw, Water Hose Clamp, Pipe Wrench,
Copper Ground Wire, Dishwasher Drain Connection Kit, Air
Gap, Electrical On/Off Switch, Drain Tube Extension

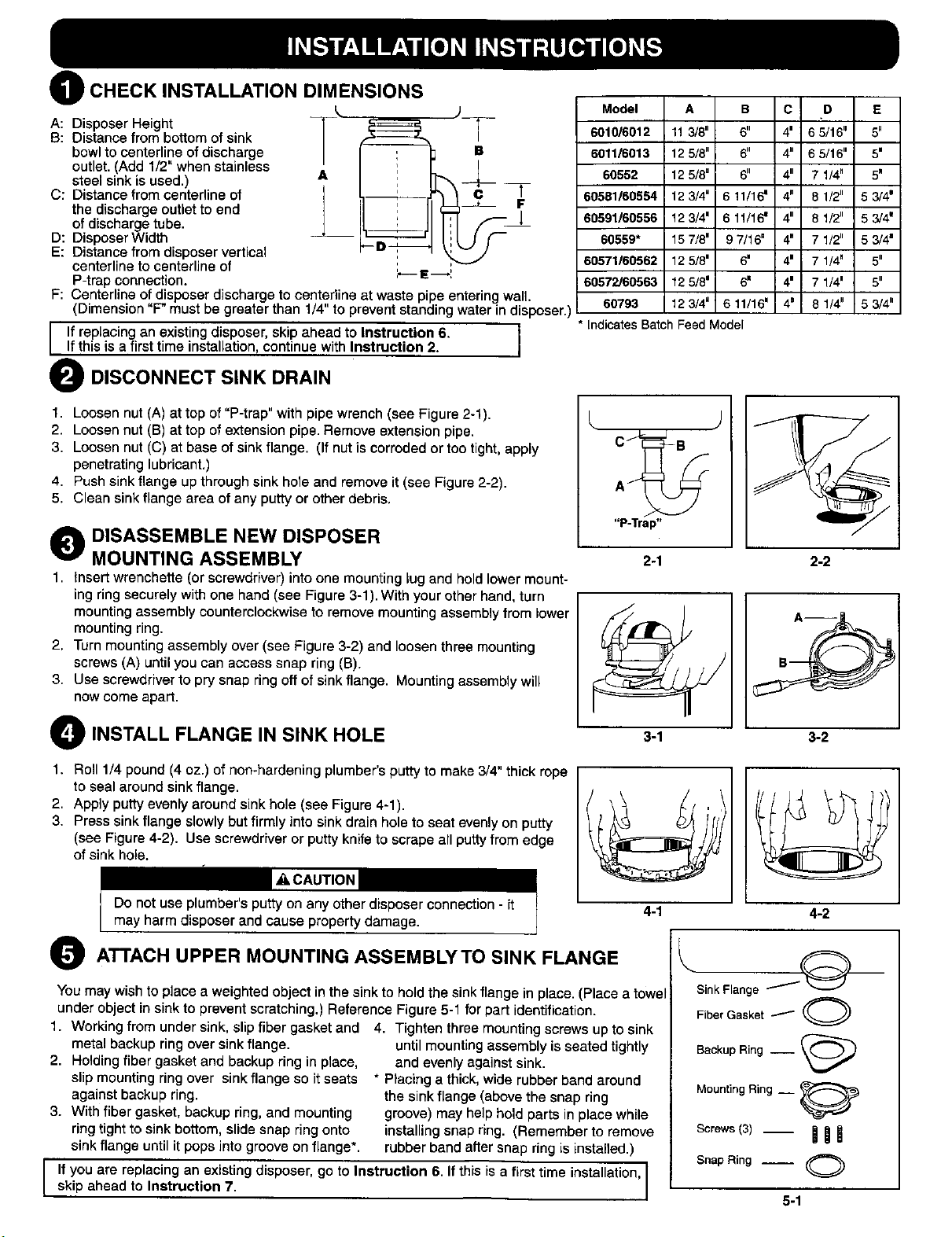

Read through the entire Installation, Care
& Use manual before installing the dis-
poser. Determine which of the tools,
materials, and accessories you will need
before you begin. Make sure you have all
necessary disposer parts before install-
ing the disposer (see part identification
diagram below).
(_/A
JlB
O--c
O--G
Mounting Assembly
A: Stopper
B: SinkFlange
C: Fiber Gasket
D: Backup Ring
E: Mounting Ring
F: Screws (3)
G: Snap Ring
Disposer
H: Mounting Gasket/Splash Baffle
1: Lower Mounting Ring
J: Dishwasher Inlet
K: Discharge Outlet
L: Wrenchette
_ @-N
#1 .-0
OR
--#2 ___N
Two-Bolt Discharge
N: Bolt (2)
_10: DischargeTube (1-1/2" Diam.)
P: Flange
Q:Gasket
OR One-Bolt Discharge
N: Bolt
#20:DischargeTube(1-1/2" Diam.)
P: Flange
Q:Gasket

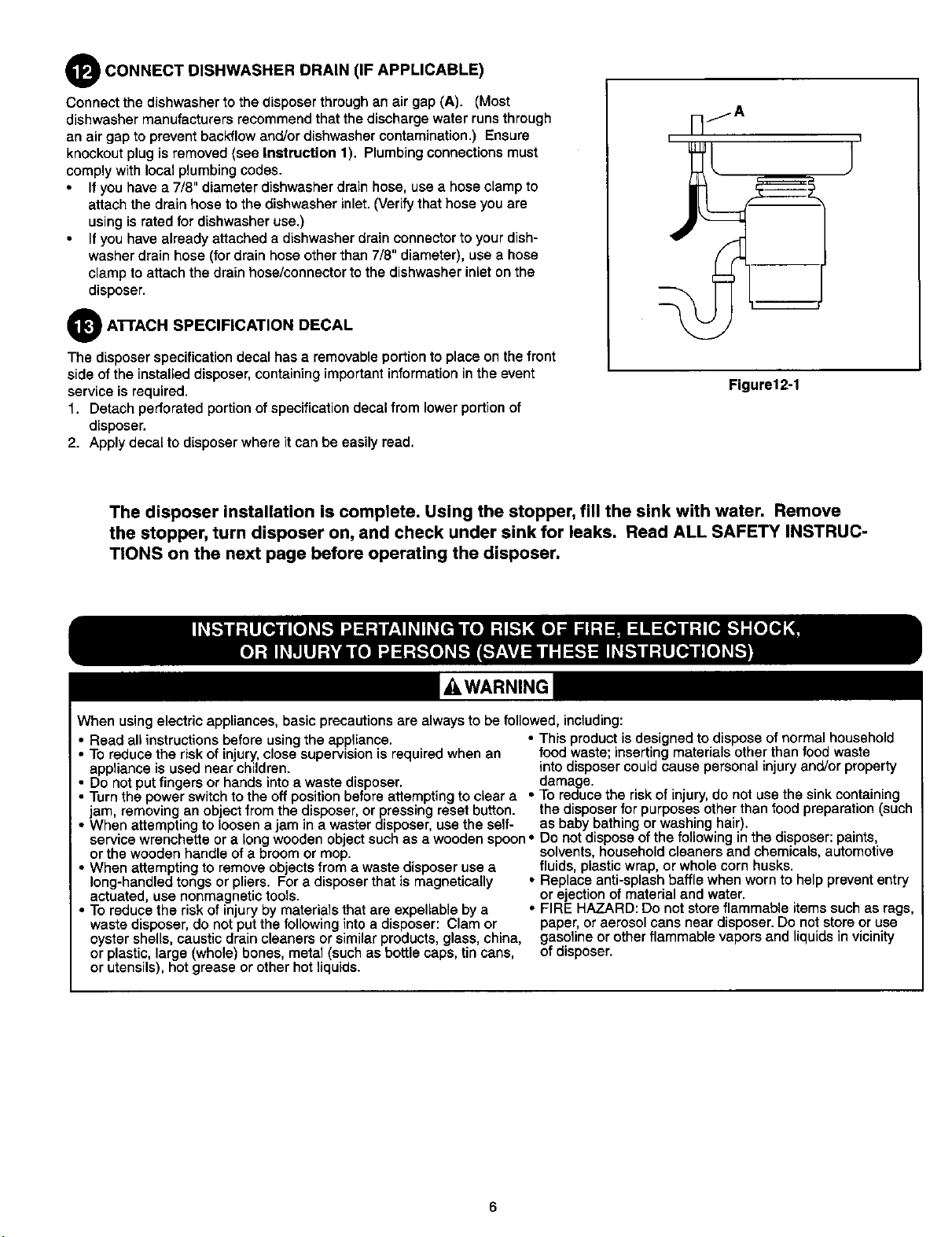

SAFETY SYMBOLS
Danger indicates an
imminently hazardous situation which,
if not avoided, will result in death or
serious injury.
It" WARNINGIWarning indicates
apotentially hazardous situation
which, if not avoided, could result in
death or serious injury.
[_kCAUTION] Caution indicates a
potentially hazardous situation which,
if not avoided, may result in minor or
moderate injury,
