Owner’s Manual
ESPT-1G-1S, ESPT-2G-2S, ESPT-1S-1S, ESPT-2S-2S,
ESR1, ESRH2, ESR2, ESRH4, ESWR2, ESR3, ESF1,
ESFH2, ESF2, ESWF2, ESF3, ESRFH2, ESRF2A,
ESWRF2, ESWQ3, ESRF3, ESR1D2, ESR2D2,
ESR2D4, ESRF2D2, ESWQ2D2, ESGR1, ESGRH2,
ESGR2, ESGRH4, ESGWR2, ESGR3A, EGSH2,
EGSDH2, EGSH4, EGSWH4, EGSH6
Upright Reach-Ins
TOP Mounted Condensing Unit
THIS PAGE INTENTIONALLY LEFT BLANK
Everest Owner’s Manual
Upright Reach-Ins
Top Mounted Condensing Unit
ESPT-1G-1S, ESPT-2G-2S, ESPT-1S-1S, ESPT-2S-2S, ESR1, ESRH2, ESR2, ESRH4, ESWR2,
ESR3, ESF1, ESFH2, ESF2, ESWF2, ESF3, ESRFH2, ESRF2A, ESWRF2, ESWQ3, ESRF3,
ESR1D2, ESR2D2, ESR2D4, ESRF2D2, ESWQ2D2, ESGR1, ESGRH2, ESGR2, ESGRH4,
ESGWR2, ESGR3A, EGSH2, EGSDH2, EGSH4, EGSWH4, EGSH6
Contents
Hydrocarbon Guidelines ...................... 1
Installation Instructions ......................... 3
General Safety ...................................... 8
Electrical Safety .................................... 9
Operation ............................................ 10

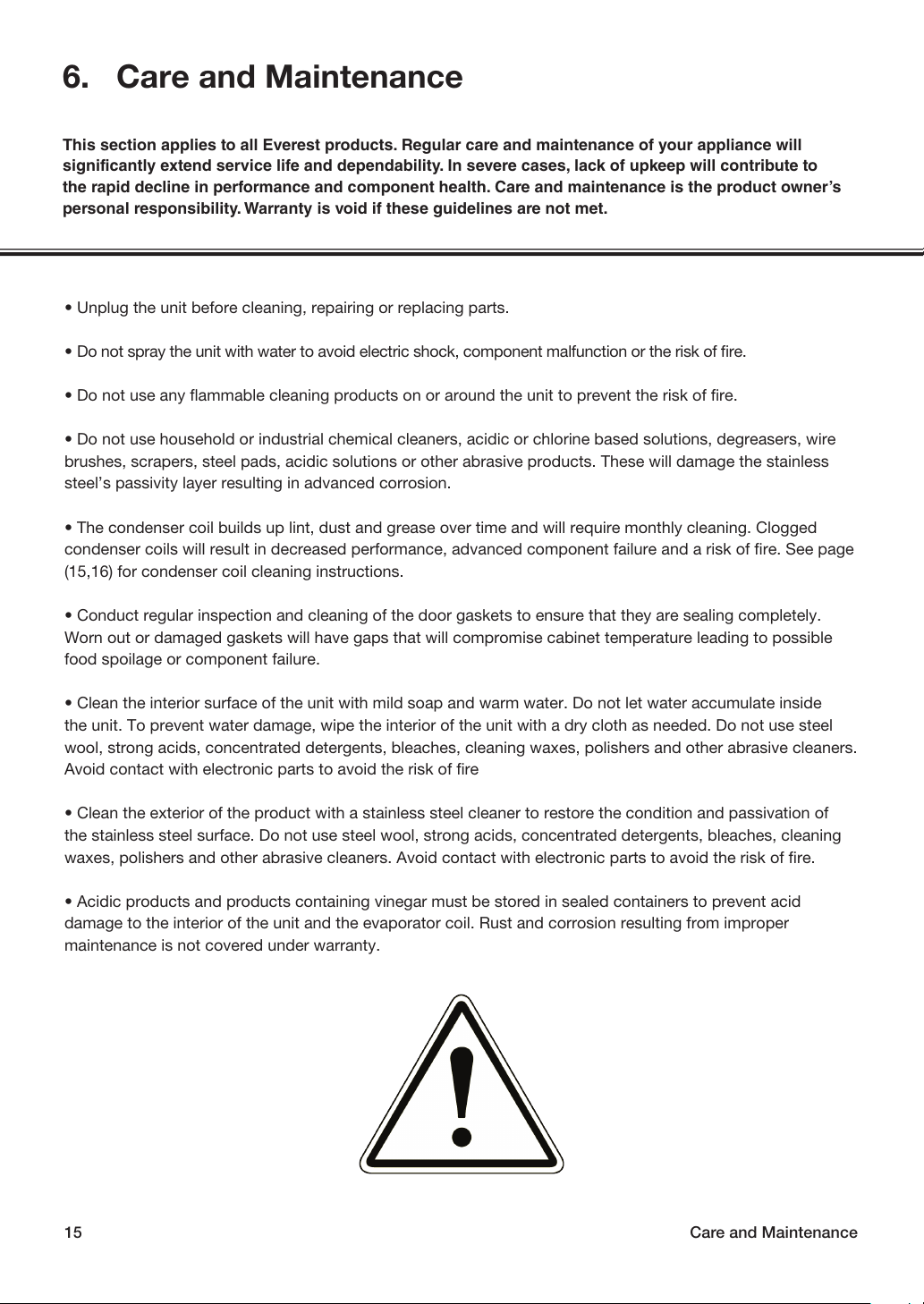

Care and Maintenance ....................... 15

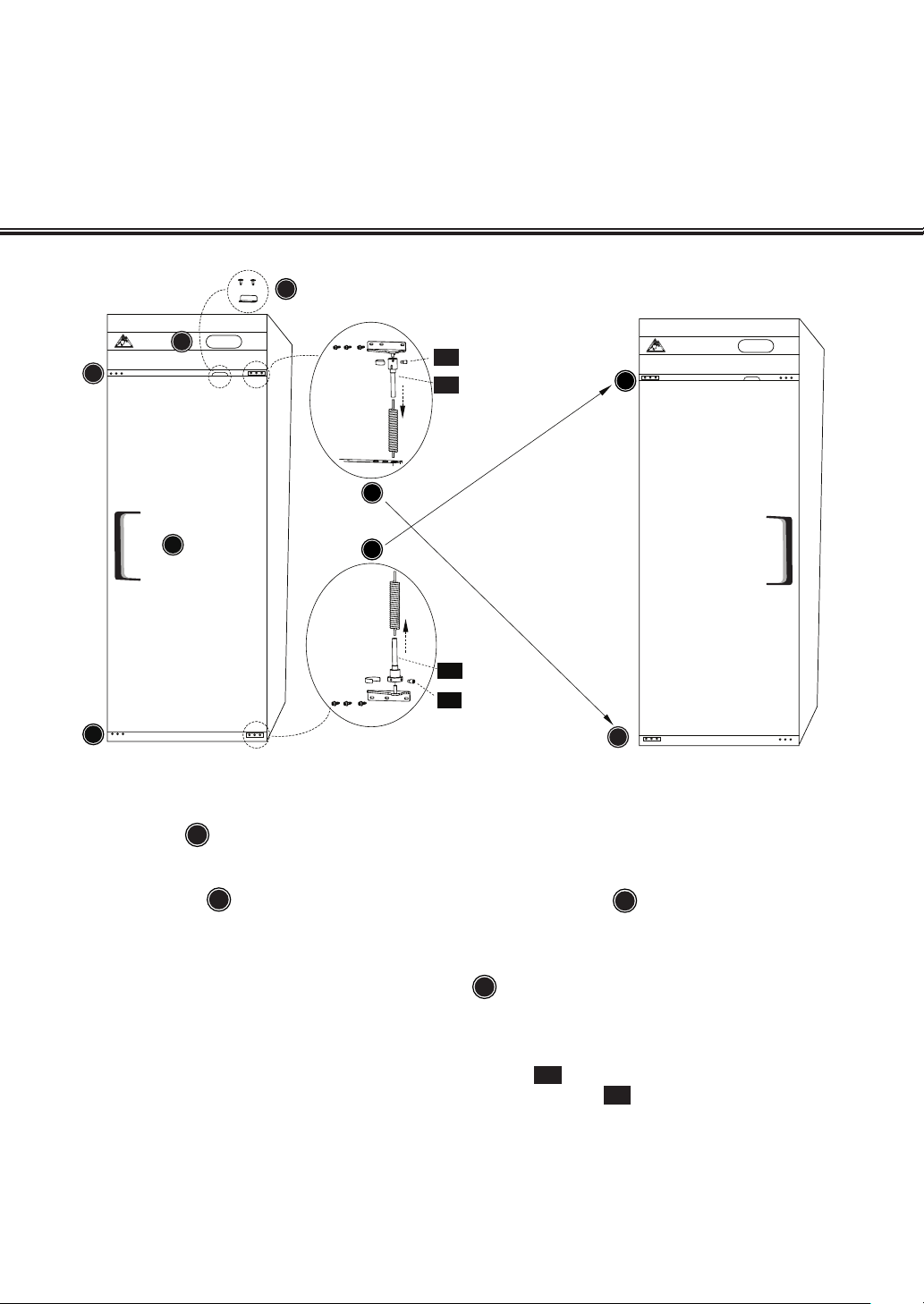

Door Reversal Instructions ................. 18
Troubleshooting Guide .......................20

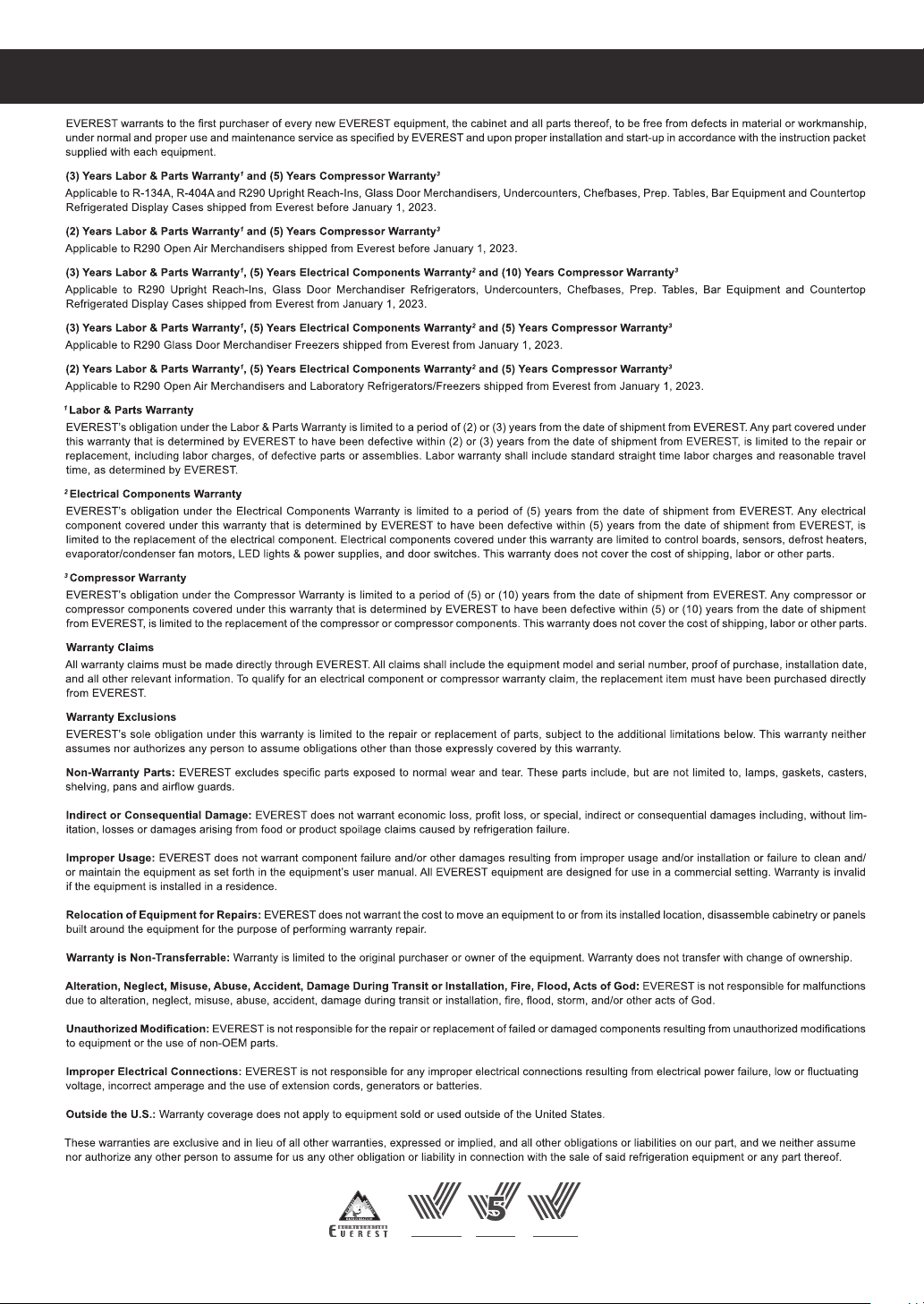

Warranty Information ..........................22
Hydrocarbon Guidelines1

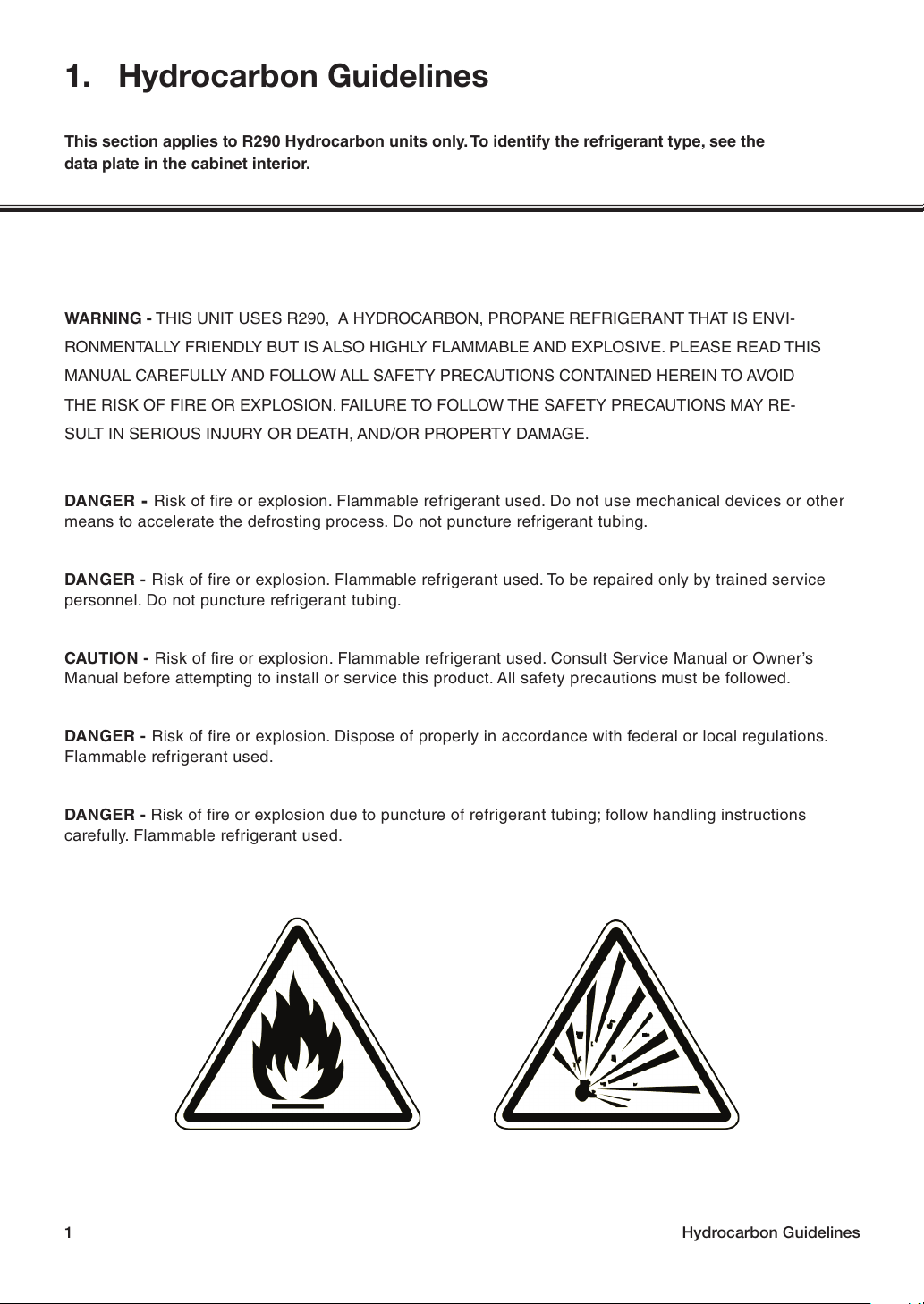

1. Hydrocarbon Guidelines
This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the
data plate in the cabinet interior.
DANGER - Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices or other
means to accelerate the defrosting process. Do not puncture refrigerant tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service
personnel. Do not puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult Service Manual or Owner’s
Manual before attempting to install or service this product. All safety precautions must be followed.
DANGER - Risk of fire or explosion. Dispose of properly in accordance with federal or local regulations.
Flammable refrigerant used.
DANGER - Risk of fire or explosion due to puncture of refrigerant tubing; follow handling instructions
carefully. Flammable refrigerant used.
WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVI-
RONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS
MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID
THE RISK OF FIRE OR EXPLOSION. FAILURE TO FOLLOW THE SAFETY PRECAUTIONS MAY RE-
SULT IN SERIOUS INJURY OR DEATH, AND/OR PROPERTY DAMAGE.
Hydrocarbon Guidelines 2
Propane (R290) is highly approved for use as a refrigerant in commercial, self-contained units in the US under limited
use conditions. It can only be used in new equipment. Backfitting or modifications of old equipment are not allowed. It
must be charged in a strictly limited volume of up to 150 grams (5.3 oz) per refrigeration circuit. Even though this is a
small amount, it still presents a fire or explosion hazard if it leaks out of parts that hold refrigerant. When it comes in
contact with air, a flammable propane-air mixture can be created and easily ignited by electrical sparks, open flames
or hot surfaces. The risk is higher in small, confined, poorly ventilated spaces. Propane will settle at lower zones
because it is heavier than air. To reduce these risks, observe the following precautions
• Avoid installation of unit in areas with open flames or in general vicinity of open flames or high surface
temperatures.
• Avoid unit installation in small, confined spaces. Ensure ample ventilation at all times. Keep all exhaust vents
free of any blockage or obstruction.
• Do not rely on smell to detect potential leaks of propane refrigerant. Propane refrigerant is a high purity
propane gas and does not contain odourants or stenching agents. These additives are typically used in fuel-
grade propane and natural gas in order to give them a distinctive smell which makes it easier to detect leaks.
• General service and repairs must be performed in well-ventilated areas. General service and repairs must be
performed only by professionals authorized by Everest Refrigeration.
• Component shall be replaced with Everest-issued, like components to minimize the risk of possible ignition
resulting from incompatible parts or improper repairs.
• Do not modify, re-appropriate or remove any functional part(s) from the unit.
• Handle the unit with care to avoid any damage.
• Practice safety guidelines when transporting the unit. Consult with your local Department of Transportation for
requirements in moving flammable gasses.
Installation Instructions
3
2. Installation Instructions
This section applies to all Everest products. Correct installation ensures proper performance and
longevity of your appliance. Professional installation by a trained refrigeration technician and
electrician is recommended. Warranty is void if the following guidelines are not met.
1. Inspect for any freight damage upon
delivery of the unit. If damage is detected,
immediately report it to an Everest
representative. Everest is not responsible for
damage that occurs during shipment.
2. Keep the unit upright at all times. The
compressor contains oil, refrigerant,
lubricants and various chemicals. When tilted,
these fluids may shift and travel to sections
where they don’t naturally occur. This will
lead to system contamination and compressor
failure.
3. Some units require caster installation
for proper performance. Visit our website at
www.everestref.com and enter your product’s
model number in the search field to determine
its caster requirements.
4. Do not place your hands under the unit
when moving it to avoid injury from sharp
edges, protruding parts or weight impact.
5. Select a location with good air ventilation.
Poor ventilation rapidly increases ambient
temperature. High ambient temperatures
exceeding 86°F (30°C) promote excessive
compressor activity in order to maintain
the desired cabinet temperature. This will
result in decreased performance, advanced
component failure and the risk of fire.
6. Select a location away from heat-generating
equipment such as stoves, ovens, etc. Heat
sources rapidly increase the temperature
of theimmediate vicinity. High temperatures
exceeding 86°F (30°C) promote excessive
compressor activity in order to maintain the
desired cabinet temperature. This will result in
decreased performance, advanced component
failure and the risk of fire.
7. Backside clearance of 6” and topside clearance
of 12” are required. This allows proper ventilation
and prevents overheating which can lead to
advanced component failure and the risk of fire.
8. Select a location with a hard, leveled surface.
Use a leveling tool on the unit to ensure a proper
alignment. Proper door function and condensate
removal is dependent on accurate balance.
9. Select a location close to an electrical wall
outlet to ensure direct connection without the use
of extension cords.
10. Select a location away from severe moisture
conditions. This may compromise the unit’s
electrical components and lead to electrical
shocks or the risk of fire.
11. Select a location that will not expose the
unit to extremely dusty conditions. Environments
with high dust and debris content will significantly
hasten condenser coil blockage and will result in
decreased performance, advanced component
failure and the risk of fire.
12. Do not build an enclosure or cabinet around
the unit. This will restrict air ventilation resulting
in elevated compressor activity, decreased
performance, advanced component failure and the
risk of fire.
13. The unit is not intended for use in food trucks.
Limited space, lack of ventilation and ambient
temperatures exceeding 86°F (30°C) typical to this
setting will result in elevated compressor activity,
decreased performance, advanced component failure
and the risk of fire.
14. The unit is intended for indoor use only.
Outdoor use will cause a decrease in performance,
advanced component failure and the risk of fire.
Installation Instructions 4
Some units come standard with shelves, shelf clips and notched pilasters. Each shelf requires
four clips.

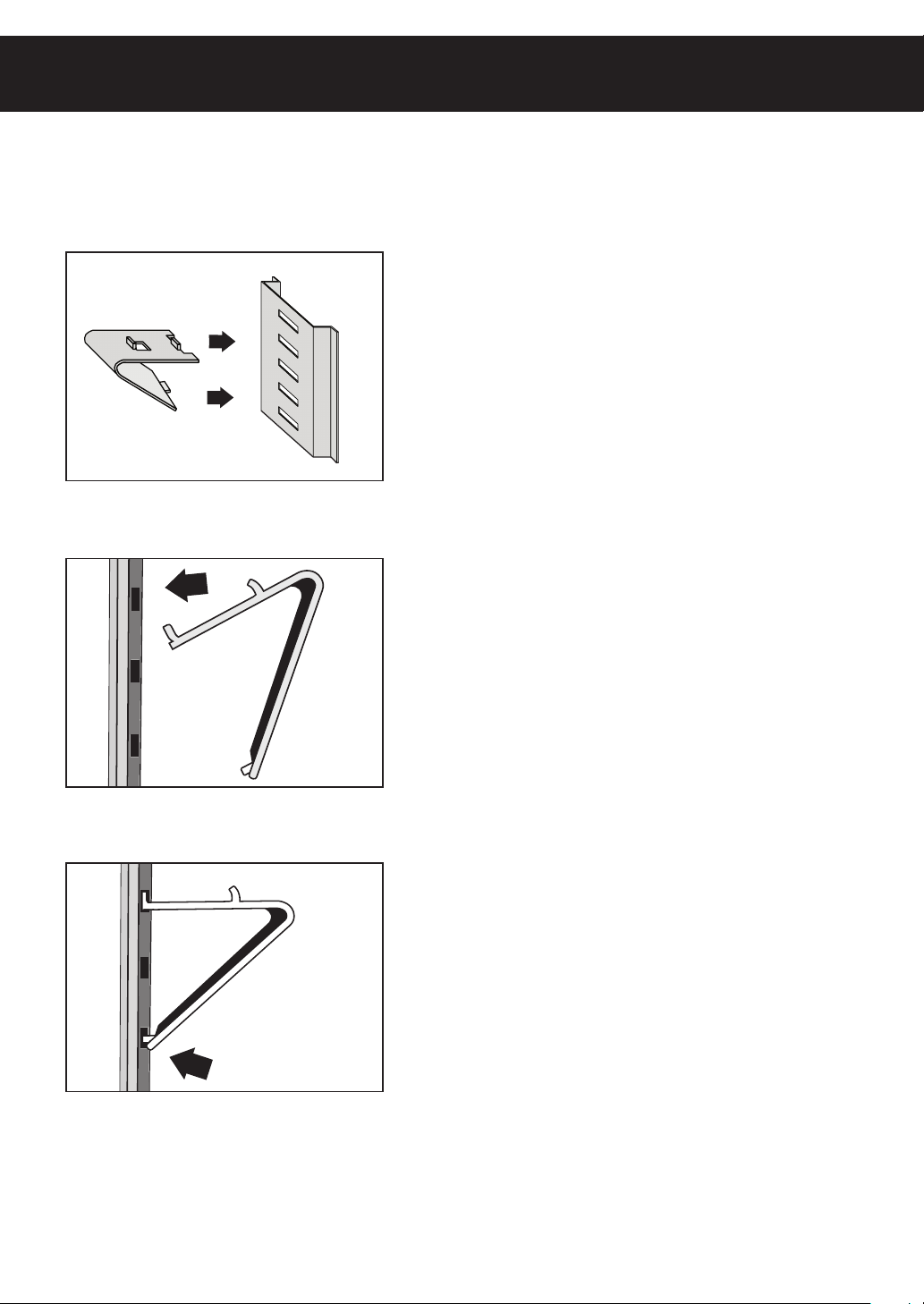

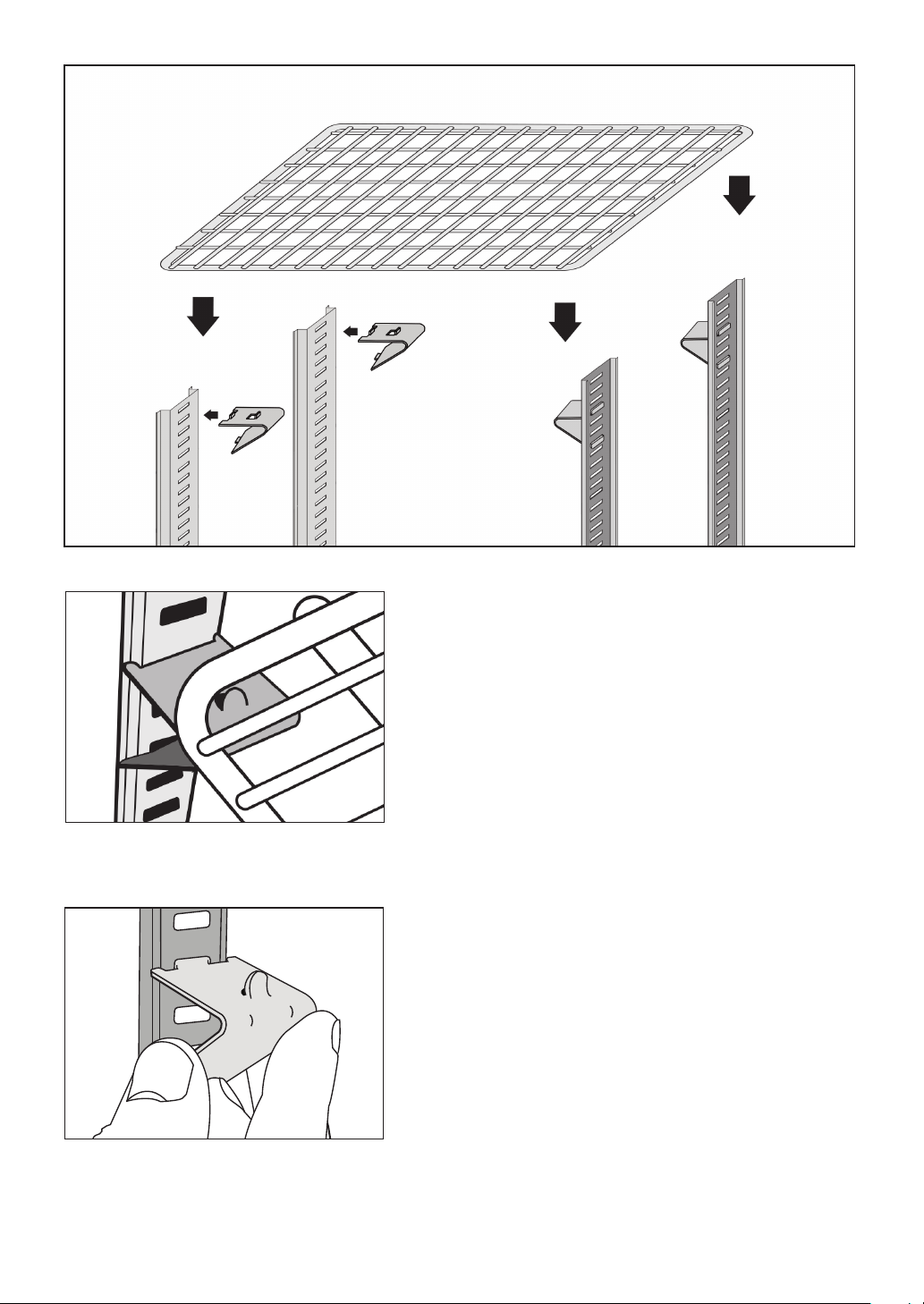

Shelf Installation
Attach the shelf clips onto the pilasters by inserting its top
hook into a pilaster notch followed by the bottom hook. Do
not use pliers or other crimping tools to modify the shape of
the shelf clips. This will result in shelf mounting instability.
Installation Instructions
5
Place shelves on the shelf clips making sure all corners
are mounted securely and evenly with identical dis-
tance from the unit’s floor and up. Always lay the back
of each shelf down on the rear clips before the front.
When removing a shelf, unmount the shelf from the
shelf clips. To detach the shelf clip from the pilaster, tilt
up the shelf clip until the bottom hook clears followed
by the top hook.
Installation Instructions 6

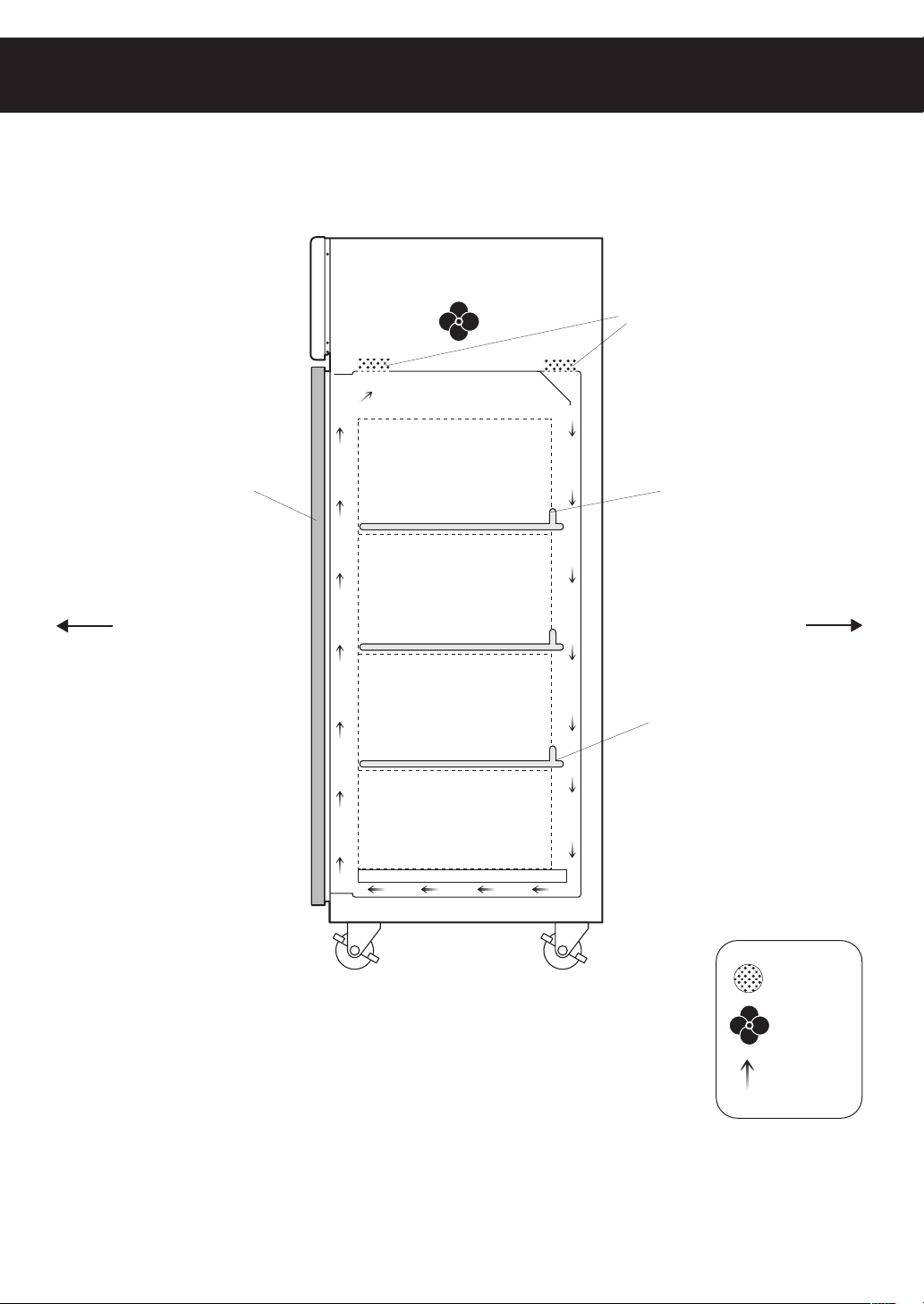

ES Series
Product Load Level & Shelf Placement
Air Vent
Air Vent
Fan
Airflow
Side View
Front
Rear
Load Level 12”
Load Level 12”
Load Level 12”
Load Level 12”
Airflow Guard
Shelf
Solid Door
Installation Instructions
7
Some Upright Reach-In models come with drawers. Drawer pans are not included and must be purchased
separately from third party sources. Most standard sized pans will fit as long as it follows the pan
configuration. Not all models will accommodate standard full sized pans.
ESR1D2
[Standard: (1) pan divider per drawer included] / 6” Depth
ESR2D2 / ESR2D4 / ESRF2D2
[Standard: (1) pan divider per drawer included] / 6” Depth
ESWQ2D2
[Standard: (1) pan divider per drawer included] / 6” Depth

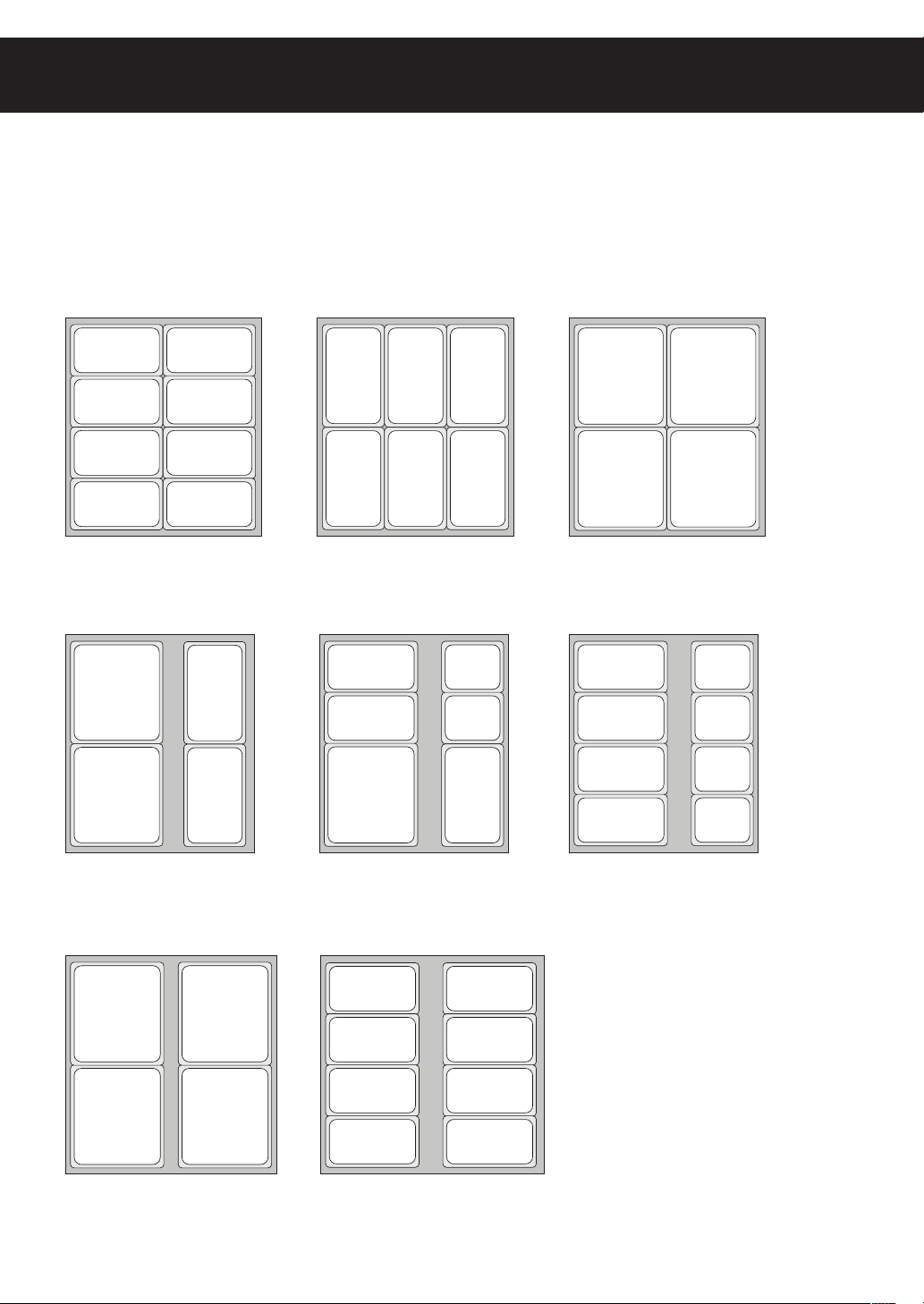

Pan Configuration
1/4
1/4
1/4
1/4
1/3
1/3
1/3
1/2
1/2
1/2
1/2
1/6
1/6

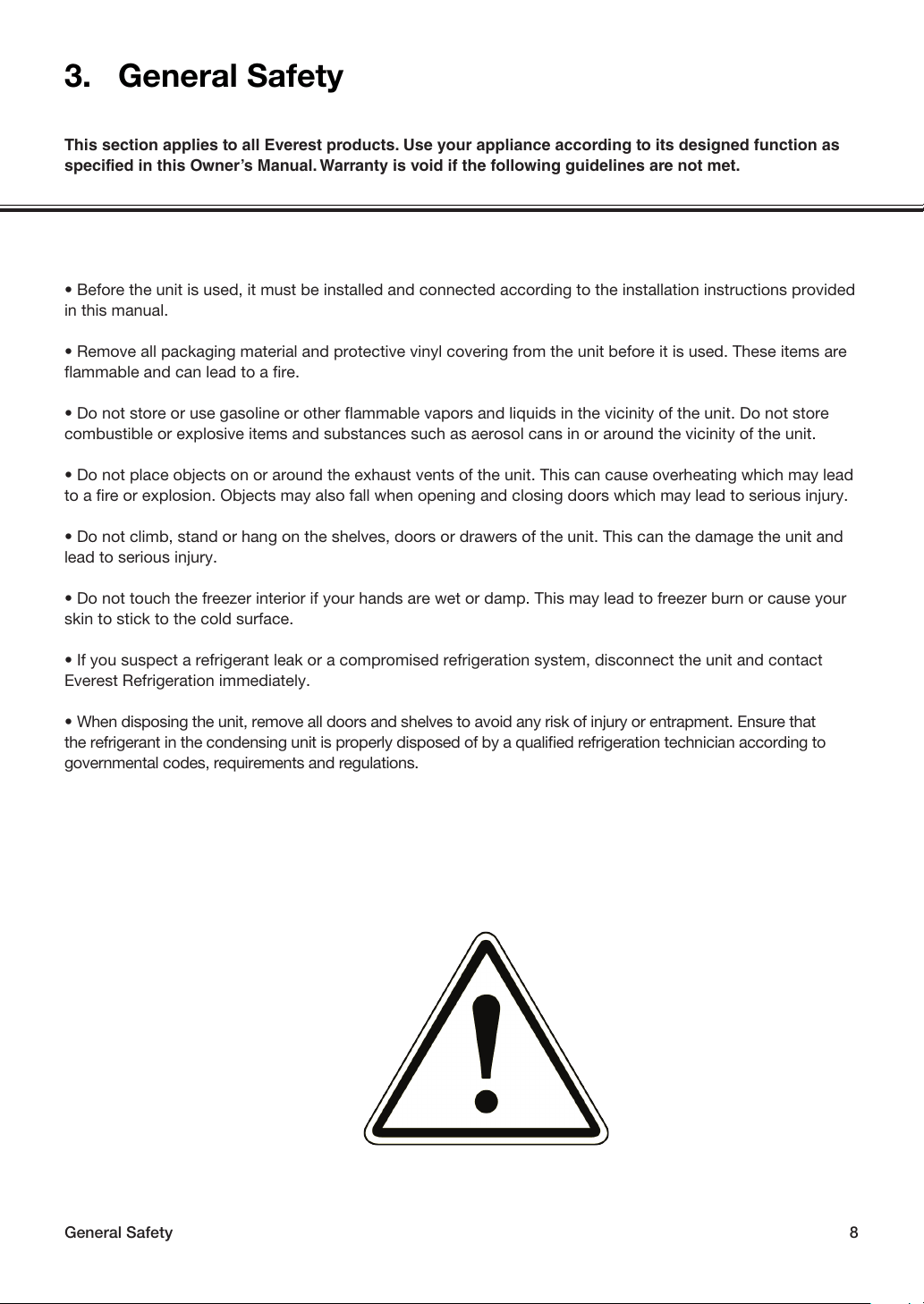

General Safety 8
• Before the unit is used, it must be installed and connected according to the installation instructions provided
in this manual.
• Remove all packaging material and protective vinyl covering from the unit before it is used. These items are
flammable and can lead to a fire.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of the unit. Do not store
combustible or explosive items and substances such as aerosol cans in or around the vicinity of the unit.
• Do not place objects on or around the exhaust vents of the unit. This can cause overheating which may lead
to a fire or explosion. Objects may also fall when opening and closing doors which may lead to serious injury.
• Do not climb, stand or hang on the shelves, doors or drawers of the unit. This can the damage the unit and
lead to serious injury.
• Do not touch the freezer interior if your hands are wet or damp. This may lead to freezer burn or cause your
skin to stick to the cold surface.
• If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit and contact
Everest Refrigeration immediately.
• When disposing the unit, remove all doors and shelves to avoid any risk of injury or entrapment. Ensure that
the refrigerant in the condensing unit is properly disposed of by a qualified refrigeration technician according to
governmental codes, requirements and regulations.
3. General Safety
This section applies to all Everest products. Use your appliance according to its designed function as
specified in this Owner’s Manual. Warranty is void if the following guidelines are not met.
Electrical Safety9
Everest units come as 115 volts, 60 hertz, single
phase.
Everest units in this family are equipped with a
NEMA5-15P plug except for models ESF2, ESWF2
and ESF3 which are equipped with a NEMA 5-20P. A
15 amp breaker must be used for units that come
with a NEMA 5-15P plug. A 20 amp breaker must be
used for units that come with a NEMA 5-20P plug.
The ground prong must not be removed to reduce
the risk of electric shock and related hazards. If the
grounding pin is missing, the cord must be removed
from use. If the outlet is a standard 2-prong outlet, it
must be replaced with the properly grounded 3-prong
wall outlet. Only a qualified electrician may install the
correct power source.
To guarantee electrical safety, the wall outlet and
circuit must be checked by a qualified electrician to
make sure it is properly grounded.
Remove debris from the power plug prongs with a
soft cloth or brush before connecting it to an outlet.
Assign the unit to a dedicated, undamaged electrical
circuit with a voltage rating that matches the data
plate. Check the incoming voltage with a multi-meter.
This avoids the overloading and overheating of circuit
wires which may lead to a fire.
Do not use extension cords, adapter plugs or
other third party electrical connections. Everest is
not responsible for issues resulting from improper
electrical connections, electrical power failures and
voltage fluctuations.
Everest does not recommend the use of generators in
conjunction with the unit due to voltage fluctuations
that may compromise electrical components.
Turn off the unit using the power button before
unplugging. Wait at least 5 minutes before re-
plugging to prevent damage to the compressor.
Do not unplug the unit by tugging on the power cord.
Grip the plug and pull it securely out of the outlet.
Prevent damage to the power cord by providing
sufficient clearance around and under the unit.
Do not use a power cord that shows cracks or
exposed wires. Power cords that have been severely
worn or damaged must be replaced with original
manufacturer parts and only by an authorized
technician.
4. Electrical Safety
This section applies to all Everest products. Basic safety precautions must be observed when using
electrical appliances in addition to the following. Warranty is void if these guidelines are not met.
115/60/1
115/60/1
NEMA 5-15R
NEMA 5-20R
Operation
10
Starting your Everest Product
After plugging in the unit, the current temperature
and compressor symbol
will appear on the
digital temperature control’s LED display.
will flash at short intervals for 1 minute after
which the compressor(s) and condenser fan
motor(s) will initiate. At the beginning of every
compressor cycle, the condenser fan motor is
automated to rotate in reverse for 30 seconds in
order to blow dust off the condenser coil.
The evaporator fan motor(s) will initiate once the
evaporator coil reaches a specific temperature
relative to the digital temperature control setting
and for as long as the door is closed. A fan symbol
will appear on the LED display to indicate that
the evaporator fan is running.
Allow the unit to operate for 24 to 72 hours before
storing contents in the cabinet. This lets the cabinet
temperature fully stabilize. Use this time to verify
proper installation and operation.
The interior light and evaporator fan motor is
controlled by a door switch for solid door models
and a rocker switch for glass door models.
The default temperature setting is 35.0°F (2.0°C) for
refrigerators and -4.0°F (-20.0°C) for freezers. The
factory recommended temperature range is between
33.0°F (1.0°C) to 40.0°F (4.0°C) for refrigerators and
-5.0°F (-21.0°C) to 0°F (-18.0°C) for freezers. Setting
the temperature outside of the recommended range
will cause performance issues and in some cases may
result in component failure that is outside of warranty
coverage.
The compressor, condenser and evaporator fan
motors run while the unit is on refrigeration cycle.
The compressor, condenser and evaporator fan
motors stop running while the unit is on defrost cycle.
The unit is preset to defrost every 5-6 hours with
a duration of 45 minutes or less depending on the
evaporator coil temperature. Changing the preset
outside of the default range will result in cooling issues
and advanced component failure.
The digital temperature control is intended to read and
display the cabinet’s air temperature, not actual food
product temperature. The displayed temperature may
fluctuate due to frequent or prolonged door operation.
The most conclusive method to determine a unit’s
cooling performance is to measure the food product’s
temperature using a digital food thermometer.
5. Operation
This section applies to all Everest products. Use according to the described and intended functions.
Warranty is void if these guidelines are not met.
Operation
11
Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on
the model and production date.

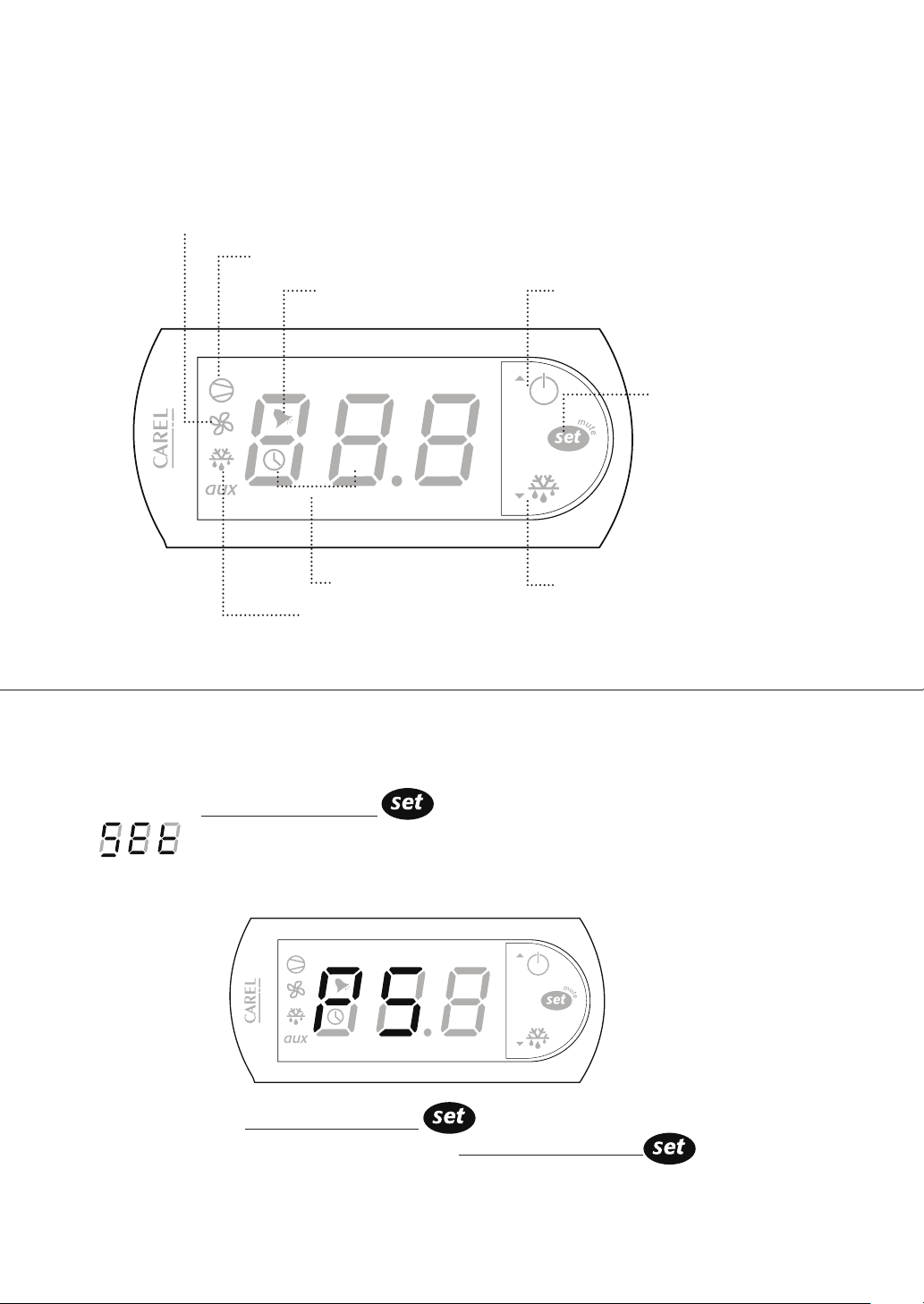

Carel ‘Easy’ Digital Temperature Control
Setting the Temperature
1. Press and hold Temperature Set Button
for 2 seconds until the LED blinks
SET
alternating with a number. The blinking number is the current set temperature.
CAUTION: If PS appears on the LED
This means the Temperature Set button was held down longer than 3
seconds. To exit this mode and restart, press Temperature Set Button
Alarm in Progress
Compressor Running
Power / Up Button
Cabinet in Defrost
Manual Defrost / Down Button
Evaporator Fan Running
Temperature
Set Button
Cabinet Temperature
Operation
12
2. Toggle through the desired temperature by pressing UP or DOWN
The number increases or decreases by a decimal point.
3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The avail
-
able temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F
(-23.0°C to 12.0°C) for Freezers.
4. Press and hold the Temperature Set Button
for 3 seconds to save the new temperature and exit
the setting mode. The LED will return to the current cabinet temperature.
Initiating Manual Defrost
The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary
unless there is an abnormal accumulation of ice around the evaporator coil.
1. Press and hold down the Manual Defrost Button
until the Defrost Symbol appears
on the LED display.
The compressor, condenser and evaporator fan motors will stop running.
The refrigeration system will remain in defrost cycle for 45 minutes or until the
evaporator coil reaches the safety termination temperature setting.
Setting the Temperature ( continued )
Operation
13
Setting the Temperature
1. Press and hold Temperature Set Button
for 2 seconds until a number blinks on the LED. The blinking
number is the current set temperature.
2. Toggle through the desired temperature by pressing UP
or DOWN. The number increases or
decreases by a decimal point.
3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The
available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to
54.0°F (-23.0°C to 12.0°C) for Freezers.
4. Press and hold the Temperature Set Button
for 3 seconds to save the new temperature and exit the
setting mode. The LED will return to the current cabinet temperature.
Compressor Running
Cabinet in Defrost
Evaporator Fan Running
Cabinet Temperature
Alarm in Progress
Error
Up Button /
Auxillary
Down Button /
Manual Defrost
Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the
model and production date
.

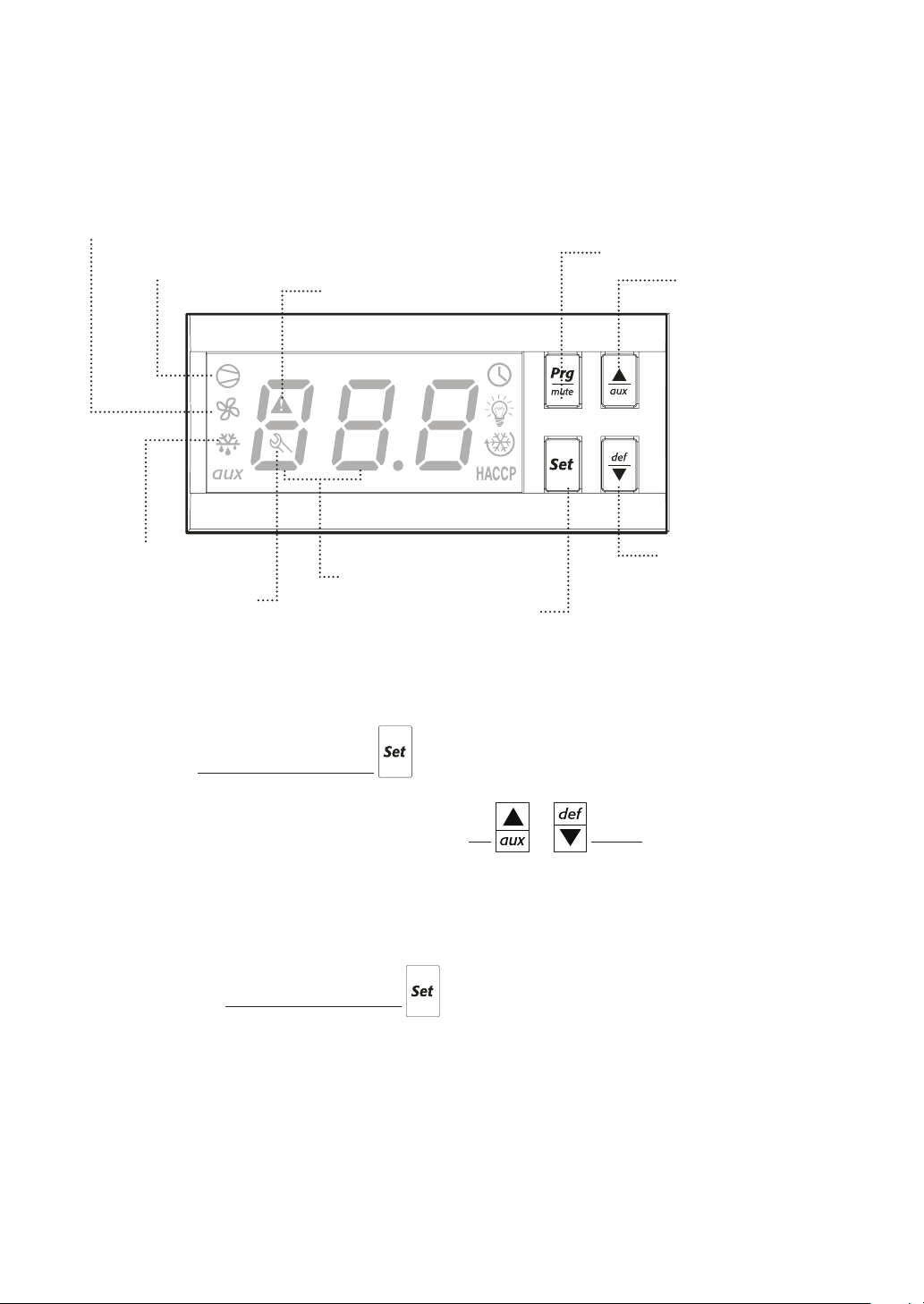

Carel ‘ir33’ Digital Temperature Control
Program Button
Temperature Set Button
Operation
14
The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless
there is an abnormal accumulation of ice around the evaporator coil.
1. Press and hold down the Manual Defrost Button
until the Defrost Symbol appears on the LED
display.
The compressor, condenser and evaporator fan motors will stop running. The refrigeration system
will remain in defrost cycle for 45 minutes or until the evaporator coil reaches the safety termination
temperature setting.
Initiating Manual Defrost
Care and Maintenance
15
• Unplug the unit before cleaning, repairing or replacing parts.
• Do not spray the unit with water to avoid electric shock, component malfunction or the risk of fire.
• Do not use any flammable cleaning products on or around the unit to prevent the risk of fire.
• Do not use household or industrial chemical cleaners, acidic or chlorine based solutions, degreasers, wire
brushes, scrapers, steel pads, acidic solutions or other abrasive products. These will damage the stainless
steel’s passivity layer resulting in advanced corrosion.
• The condenser coil builds up lint, dust and grease over time and will require monthly cleaning. Clogged
condenser coils will result in decreased performance, advanced component failure and a risk of fire. See page
(15,16) for condenser coil cleaning instructions.
• Conduct regular inspection and cleaning of the door gaskets to ensure that they are sealing completely.
Worn out or damaged gaskets will have gaps that will compromise cabinet temperature leading to possible
food spoilage or component failure.
• Clean the interior surface of the unit with mild soap and warm water. Do not let water accumulate inside
the unit. To prevent water damage, wipe the interior of the unit with a dry cloth as needed. Do not use steel
wool, strong acids, concentrated detergents, bleaches, cleaning waxes, polishers and other abrasive cleaners.
Avoid contact with electronic parts to avoid the risk of fire
• Clean the exterior of the product with a stainless steel cleaner to restore the condition and passivation of
the stainless steel surface. Do not use steel wool, strong acids, concentrated detergents, bleaches, cleaning
waxes, polishers and other abrasive cleaners. Avoid contact with electronic parts to avoid the risk of fire.
• Acidic products and products containing vinegar must be stored in sealed containers to prevent acid
damage to the interior of the unit and the evaporator coil. Rust and corrosion resulting from improper
maintenance is not covered under warranty.
6. Care and Maintenance
This section applies to all Everest products. Regular care and maintenance of your appliance will
significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to
the rapid decline in performance and component health. Care and maintenance is the product owner’s
personal responsibility. Warranty is void if these guidelines are not met.
Care and Maintenance
16
This section applies to all Everest products. The condenser coil requires monthly cleaning to keep the metal
fins clear of lint, dust and grease build-up. A clogged condenser coil severely reduces your product’s energy
efficiency and places strain on the compressor and other components leading to advanced failure. Cleaning the
condenser coil is the product owner’s personal responsibility. Warranty is void if the following guidelines are
not met.

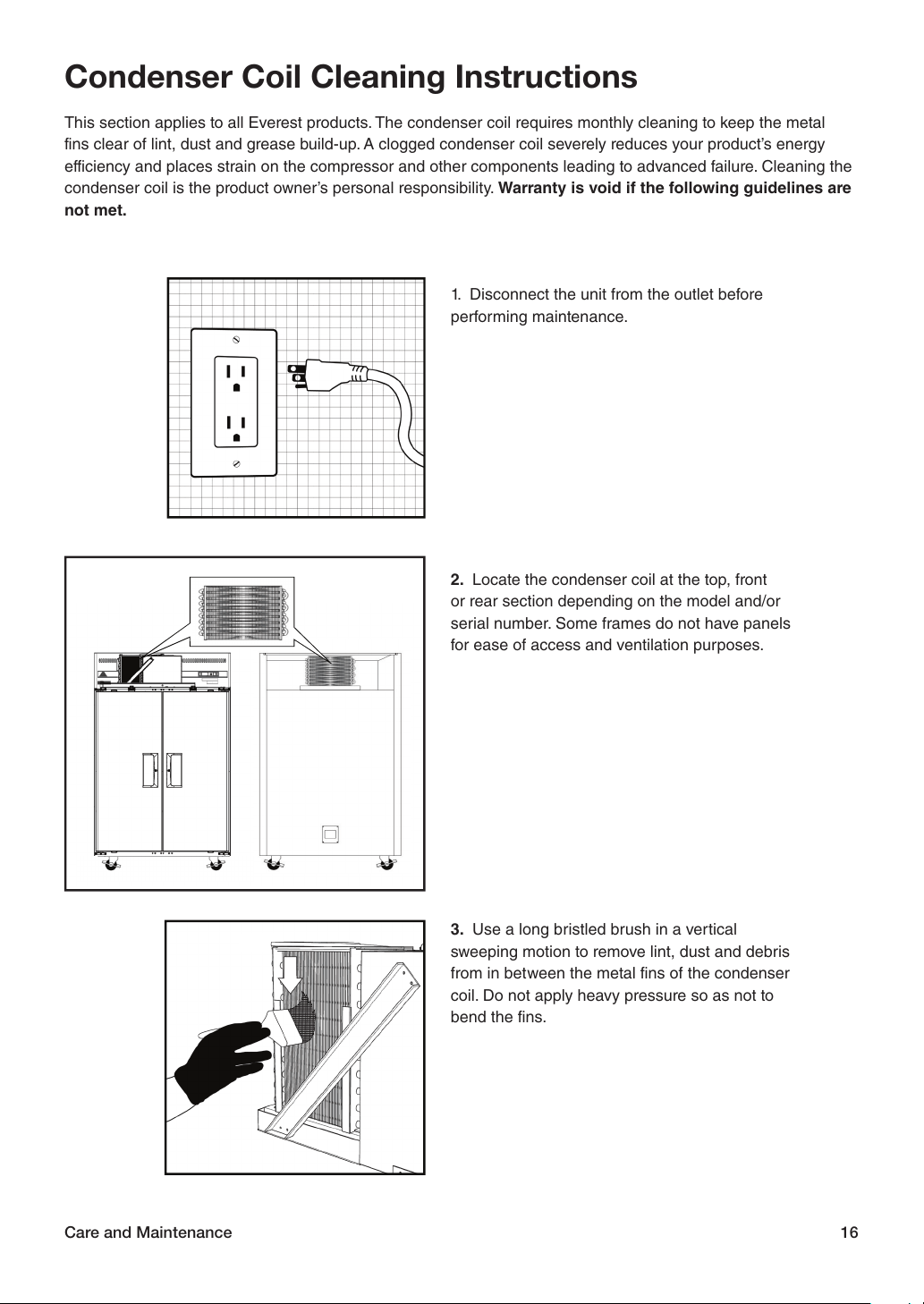

Condenser Coil Cleaning Instructions
1. Disconnect the unit from the outlet before
performing maintenance.
2. Locate the condenser coil at the top, front
or rear section depending on the model and/or
serial number. Some frames do not have panels
for ease of access and ventilation purposes.
3. Use a long bristled brush in a vertical
sweeping motion to remove lint, dust and debris
from in between the metal fins of the condenser
coil. Do not apply heavy pressure so as not to
bend the fins.
Care and Maintenance
17

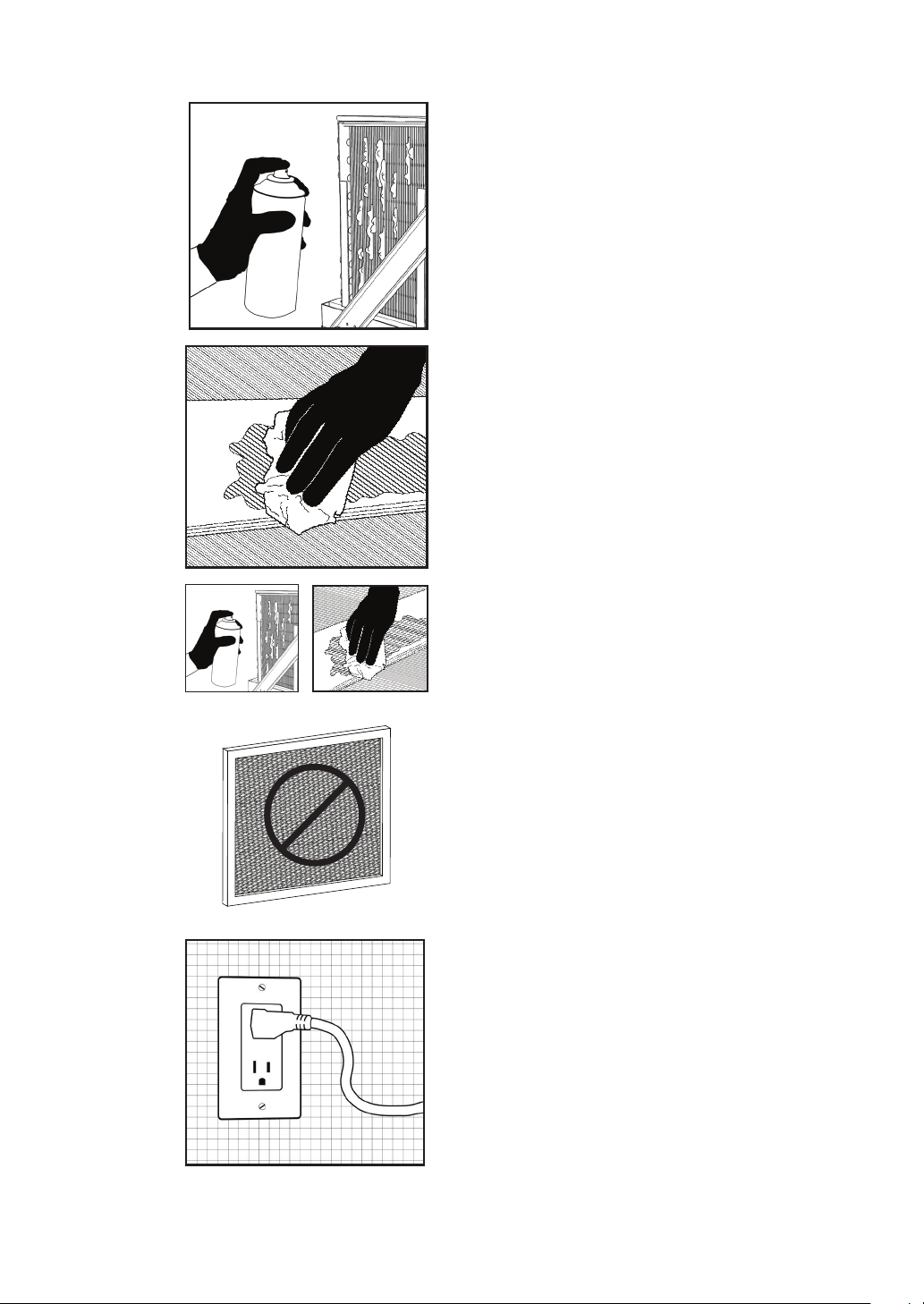

4. Use a commercial condenser coil cleaner
for metal fins that are coated in grease. Allow
the cleaner to saturate the area. Follow the
recommended wait time printed on the product
packaging.
5. The grease and cleaning solvent will pool at the
base of the metal fins. Brush the fins and wipe off
any accumulated residue.
6. Repeat the above steps until the metal fins are
clean. You should be able to see in through and in
between the metal fins.
7. Do not attach an aftermarket filter or screen
around the condenser coil. This constricts
ventilation which leads to overheating, component
failure or the risk of fire.
8. Reconnect the unit to the designated outlet.
Door Reversal Instructions
18
1. The front grill
A
must be opened before reversing the door. Grab the left and right bottom corner of the front
grill and pull it towards you. Slightly lift up the front grill until it’s top hooks unlock from the frame.
2. Locate 3 screws
B
on the top left corner of the door frame and 3 screws
B
on the bottom left corner of
the door frame. Remove these screws from the pre-drilled holes. They will be used to mount the door to the left
door frame later.
3. Locate the door switch tab on the top right door frame
F
. The tab is positioned to press on the door switch
that controls the interior lights and evaporator fans. Once the door is reversed, the tab must be moved to the
same location.
4. Locate the door spring shaft on the top right corner of the door
C- 1
. The head of the shaft has 4 screw holes,
one of which is occupied by a lock screw that maintains door spring tension
C- 2
. Remove the half ring shaft cap
to expose the remaining vacant screw holes.
7. Door Reversal Instructions
Some products have field reversible doors to accommodate specific kitchen layouts. Door reversals
must be performed by qualified technicians. A second person is required. Safety goggles must be worn
to protect from spinning parts. Warranty is void if the following guidelines are not met.
Before After
MANUFACTURING
MANUFACTURING
Lock Screw
Right Top
Hinge Shaft
Door Switch Tab
F
D
D
A
B
B
E
C
C
C- 2
C- 1
Lock Screw
Right Bottom
Hinge Shaft
D- 1
D- 2
Door Reversal Instructions
19
5. Extra precaution must be taken for the following steps. Release the door tension from the door spring by
inserting a sharp pointed implement into one of the door hinge shaft’s unoccupied tension lock screws
C- 2
.
6. Slowly turn the door spring shaft clockwise until you are able to unscrew the tension lock screw
C- 2
. Remove
the tension lock screw.
7. Slowly take out the sharp pointed implement inserted into one of the spring shaft’s unoccupied tension lock
screw holes. When the rigid object clears the hole, the door spring will release the stored tension and the door
spring shaft will spin rapidly.
8. Follow steps 4 through 7 for the bottom door shaft.
9. A second person is required to secure the door against the unit while the top hinge is removed
E
.
10. Detach the top hinge by removing the 3 screws holding it in place
C
.
11. Lift the door until it detaches from the bottom hinge
D
. Ensure that the top and bottom springs and shafts
remain in the door cavity.
12. Detach the bottom hinge by removing the 3 screws holding it in place
C
. Detach the bottom hinge.
13. The right top hinge becomes the left bottom hinge
C
. Install the right top hinge into the left bottom position
using 3 screws. Ensure that the door hinge pins are facing up.
14. Flip the door so that the hinged corners are on the left side when facing the door
E
.
15. Mount the door on the bottom door hinge
C
. The longer of the two pins pointing upward should be
inserted into the bottom spring shaft.
16. A second person is required to secure and hold the door against the unit while the top hinge is installed
E
17. The bottom right hinge becomes the left top hinge
D
. Install the left top hinge on the door. The two pins on
the door hinge should be facing down and the longer of the two inserted into the top door spring shaft.
18. Secure the top hinge to the unit using 3 screws. Ensure that the door is properly secured to the frame.
19. Sufficient tension must be added to the door springs so that it self-closes. Insert 2 sharp pointed
implements into the vacant tension lock screw holes
C- 1
D- 1
and turn the shaft counterclockwise. 2 to 3 rotations
should provide sufficient tension.
20. Test the door for proper operation.
Troubleshooting
20
‘cht’ or ‘CHt’ appears on the LED alternating
with the current temperature and accompanied
by an audible alarm.
The condenser coil may be clogged with dust, grime
or debris. Clean it following the instructions on page
(15,16)
The room’s ambient temperature may be higher than
86°F (30°C). Provide ample ventilation or additional
cooling to the room. Relocate the unit from extremely
small spaces without ventilation.
The unit may be installed in close proximity to heat
sources such as ovens, stoves, heaters or direct
sunlight. Relocate the unit away from these sources.
The unit may be installed without clearance or proper
ventilation. Provide additional exhaust vents and
observe the clearance allowance specified on page
(3).
The compressor, fan motors or entire system
fails to start
The ON/OFF switch may be set to OFF. Turn to the
ON position and wait for the LED and motors to show
signs of operation.
The power cord may not be connected. Ensure the
connection. In cases of damage to the power cord or
plug, immediately mark the unit as out of order until
the damaged part is replaced.
The outlet may not be sending power or the power
supply breaker may be switched off. Unplug the unit
and contact a licensed electrician for inspection and/
or repairs.
8. Troubleshooting Guide
In most cases, your Everest product may be exhibiting behavior that is typical of standard operation.
Observe the following when troubleshooting symptoms.
The compressor operates continuously or for
prolonged periods.
The condenser coil may be clogged with dust, grime
or debris. Clean it following the instructions on page
(15,16) The door or door gaskets may not be sealing
properly. Check product placement in the cabinet as it
may preven t the door from fully closing. If the gasket
is loose, reattach.
The evaporator coil may be blocked with ice. Defrost it
following the instructions on page Chapter 5. Normally,
evaporator coils will self-maintain with automated
defrost cycles. If the evaporator coil ices up frequently,
re-assess placement of food items in the cabinet as it
could obstruct cold air circulation.
The room’s ambient temperature may be higher than
86°F (30°C). Provide ample ventilation or additional
cooling to the room. Relocate the unit from extremely
small spaces without ventilation.
The unit may be installed in close proximity to heat
sources such as ovens, stoves, heaters or direct
sunlight. Relocate the unit away from these sources.
The unit may be installed without clearance or proper
ventilation. This forces the compressor to operate
constantly in order to maintain cabinet temperature.
Provide additional exhaust vents and observe the
clearance allowance specified on page (15,16).
The cabinet temperature is too warm.
The condenser coil may be clogged with dust, grime
or debris. Clean it following the instructions on page
(15).
Troubleshooting
21
The door or door gasket may not be sealing properly.
Check product placement in the cabinet as it may
prevent the door from fully closing. If the gasket is
loose, reattach.
The temperature may be set too high. Adjust the
setting to 35.0°F (2.0°C) for refrigerators or -4.0°F
(-20.0°C) for freezers.
Hot food items may have been placed in the cabinet.
Store only room temperature food items.
The room’s ambient temperature may be higher than
86°F (30°C). Provide ample ventilation or additional
cooling to the room. Relocate the unit from extremely
small spaces without ventilation.
The unit may be installed in close proximity to heat
sources such as ovens, stoves, heaters or direct
sunlight. Relocate the unit away from these sources.
The unit may be installed without clearance or
proper ventilation. Provide additional exhaust vents
and observe the clearance allowance specified on
page (3).
Food items are frosting over.
The temperature may be set too low. Adjust the
setting to 35.0°F (2.0°C) for refrigerators or -4.0°F
(-20.0°C) for freezers.
The placement of food items in the cabinet may be
obstructing circulation of refrigerated air. This creates
uneven temperature in the cabinet with pockets of
very cold air that may cause items to frost or freeze
over.
Condensation in the interior cabinet.
The door or door gasket may not be sealing properly.
Check product placement in the cabinet as it may
prevent the door from fully closing. If the gasket is
loose, reattach.
Hot food items may have been stored in the cabinet.
The interaction between hot and cold temperatures
will promote condensation.
Unsealed or open food items with high moisture
content may have been stored in the cabinet. Keep
these items in air tight containers.
Mild condensation in warmer ambient temperature
conditions may occur due to frequent or prolonged
door operation.
Condensation on the unit’s exterior
surfaces.
Highly humid environments will contribute to the
condensation build up on exterior panels. Providing
ample ventilation and air movement to a space will
reduce the humidity level.
The door or door gasket may not be sealing properly.
Check product placement in the cabinet as it may
prevent the door from fully closing. If the gasket is
loose, reattach.
Noise level during unit operation.
It is normal for commercial grade compressors and
components to have a higher decibel output compared
to residential counterparts.
The unit may not be balanced evenly. Poorly leveled
units may cause components or fittings to misalign or
disengage during operation. This may produce noise
as a direct result of repeated surface friction or impact.
The unit may not be securely mounted to the floor.
This may produce noise as a direct result of repeated
surface friction or impact.
Some sounds are normal for the refrigeration
process. A dripping sound, for example, is the result
of refrigerant circulation during the compressor rest
period.
22

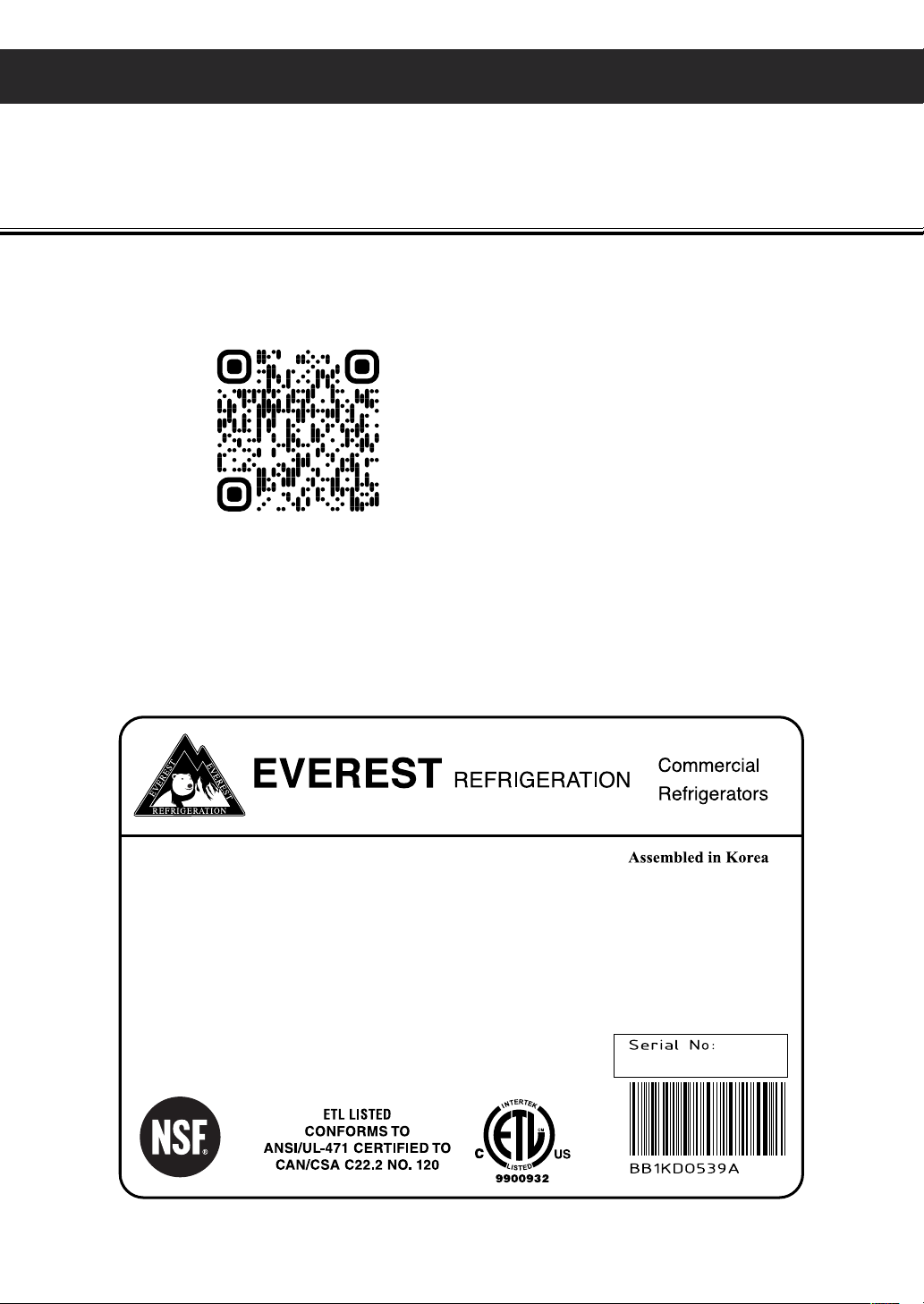

Warranty Information
You may register online at www.EVERESTref.com or use your smart phone to scan the QR code below:
Product Identification:
The product data plate is a permanently affixed label that contains the model, serial, barcode numbers,
and refrigeration data of your Everest product. The tag is located on the rear or side of the unit exterior.
Please retain this information for warranty-related purposes.
Warranty Registration
Registering your new appliance is important. In the unlikely event a safety notification or
warranty service is required, we will have the means to contact you. Your completed appliance
registration also verifies your ownership in the event of an insurance loss or theft.
Product Identification
The product data plate is a permanently affixed label that contains the model, serial, barcode numbers
and refrigeration data of your Everest product. This tag is located in the upper left or right interior
compar tment for models with doors, or the exterior left or right exterior housing for models with
drawers. Please retain this information for service-related purposes.
8. Warranty Information
Register your Everest product within thirty (30) days of purchase to take full advantage of warranty
services. Successful registration will expedite and help prevent complications in processing
service requests.
Warranty Registration
You may register online at www.EVERESTref.com or send a completed warranty registration to:
MODEL : ESR1
COMPRESSOR : 1/8 HP
REFRIGERANT : R290
* Use of other than specified refrigerant voids warranty
REFRIGERANT CHARGE : 3.17 Oz
ELECTRICAL :
115VX1Phx60Hz
TOTAL AMPS : 3.27A (COMP RUN)
HIGH PRESSURE TEST : 218PSIG.
LOW PRESSURE TEST : 38PSIG.
* Do not clean label with solvent
ESC47L
BTR1XXXXXXXX
1. Open the camera app.
2. Point the camera at the QR code.
3. Scan and launch the QR code.
23
Warranty Certificate
YEAR S
PARTS & LABOR
3
3
YEAR S
COMPRESSOR
10
10
YEAR S
ELECTRICAL
A Step Above The Standard
201 W. Artesia Blvd., Compton, CA 90220
Tel: 800-444-6285 / 310-323-6586
Fax: 310-323-7524 / 310-761-1127
www.EVERESTref.com
v101722
