NEC LCD4620-BK-IT 46" Large-Screen IT Display User Manual











EnglishFrançaisEspañol

English

Français

Español

Important Information .......................................................................................................................... English-2

Safety Precautions and Maintenance .................................................................................................. English-3

Recommended Use ...................................................................................................................................English-4

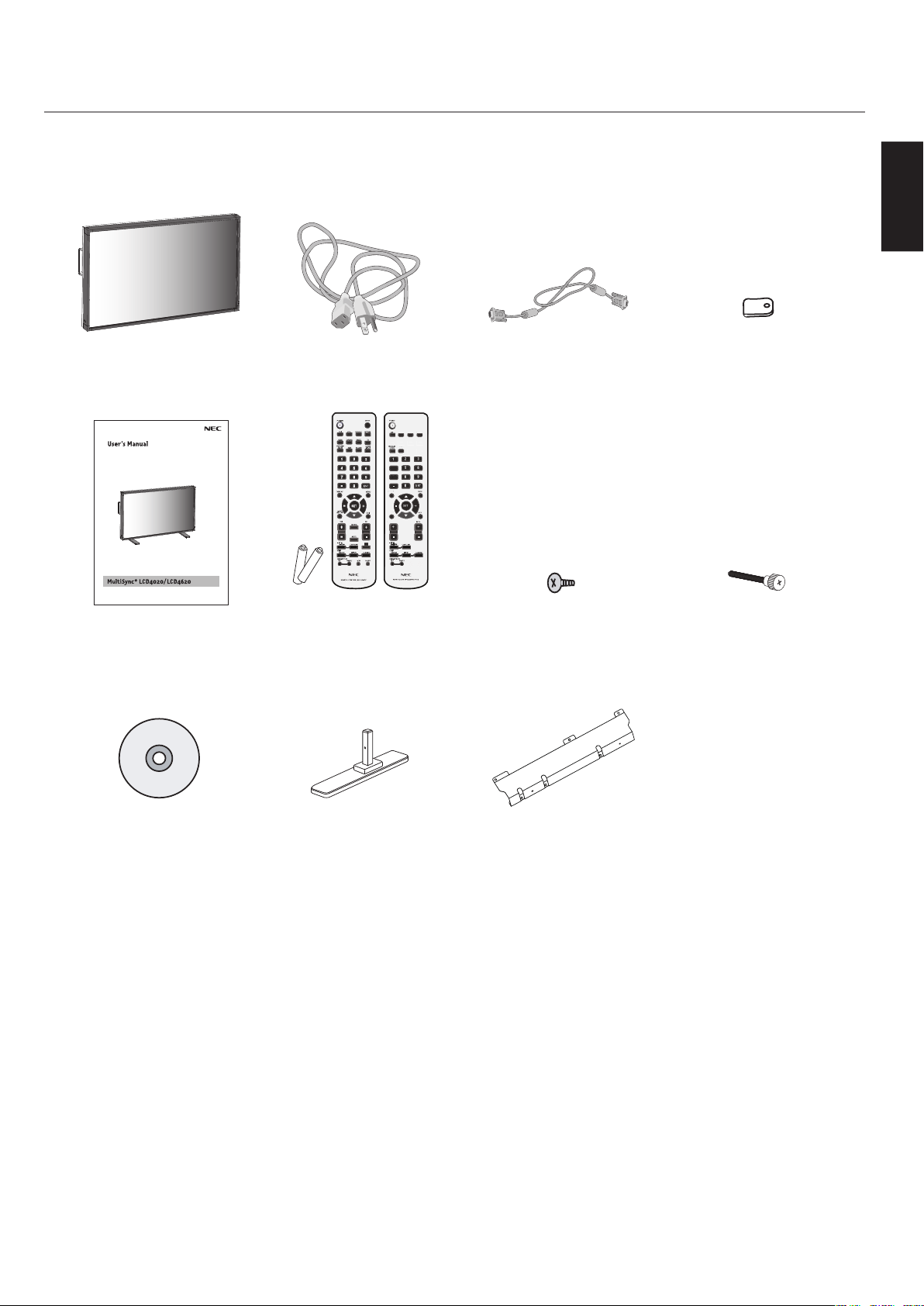

Package Contents ....................................................................................................................................English-5

Installation

Mounting .................................................................................................................................... English-6

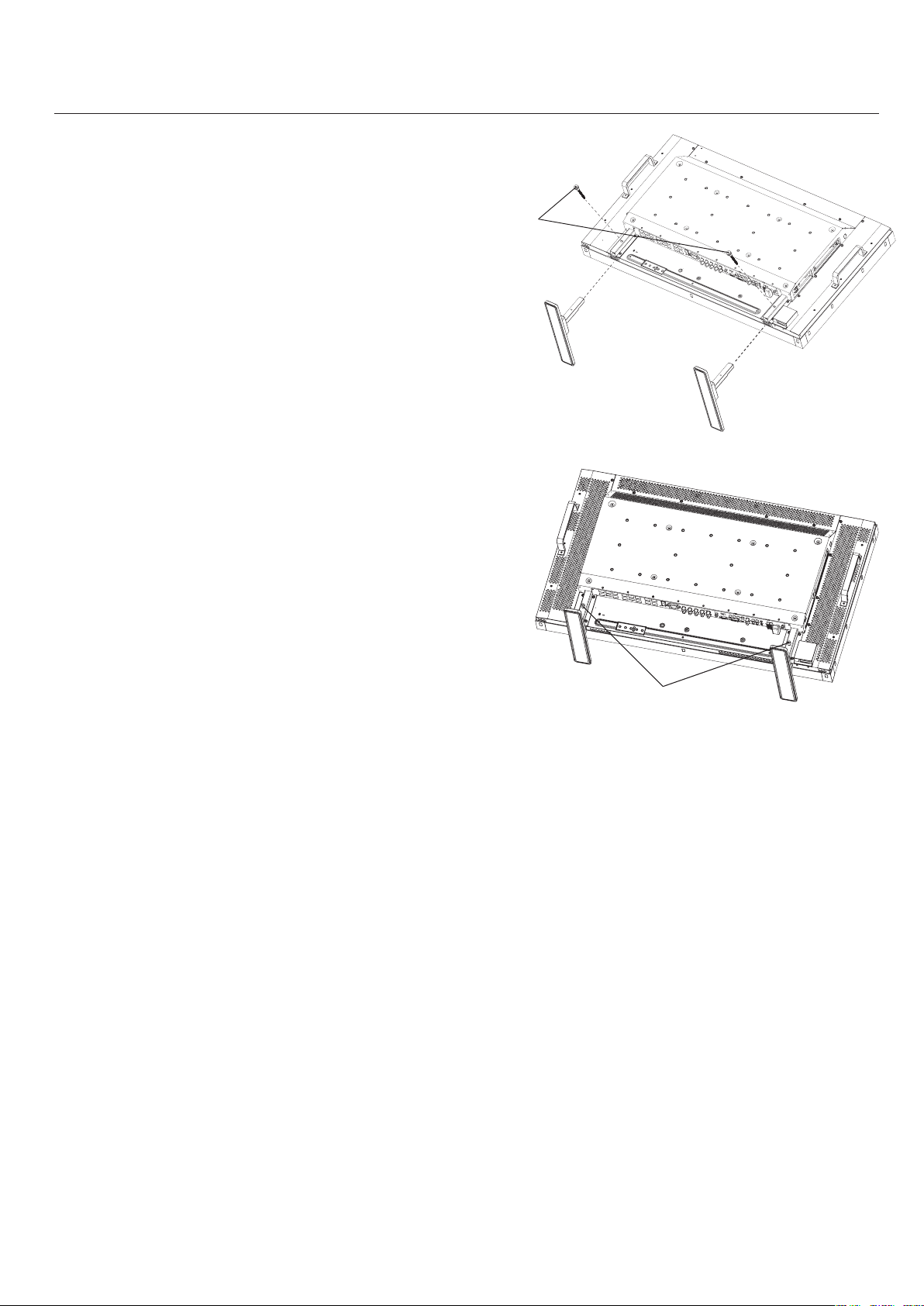

Attaching Mounting Accessories .......................................................................................... English-7

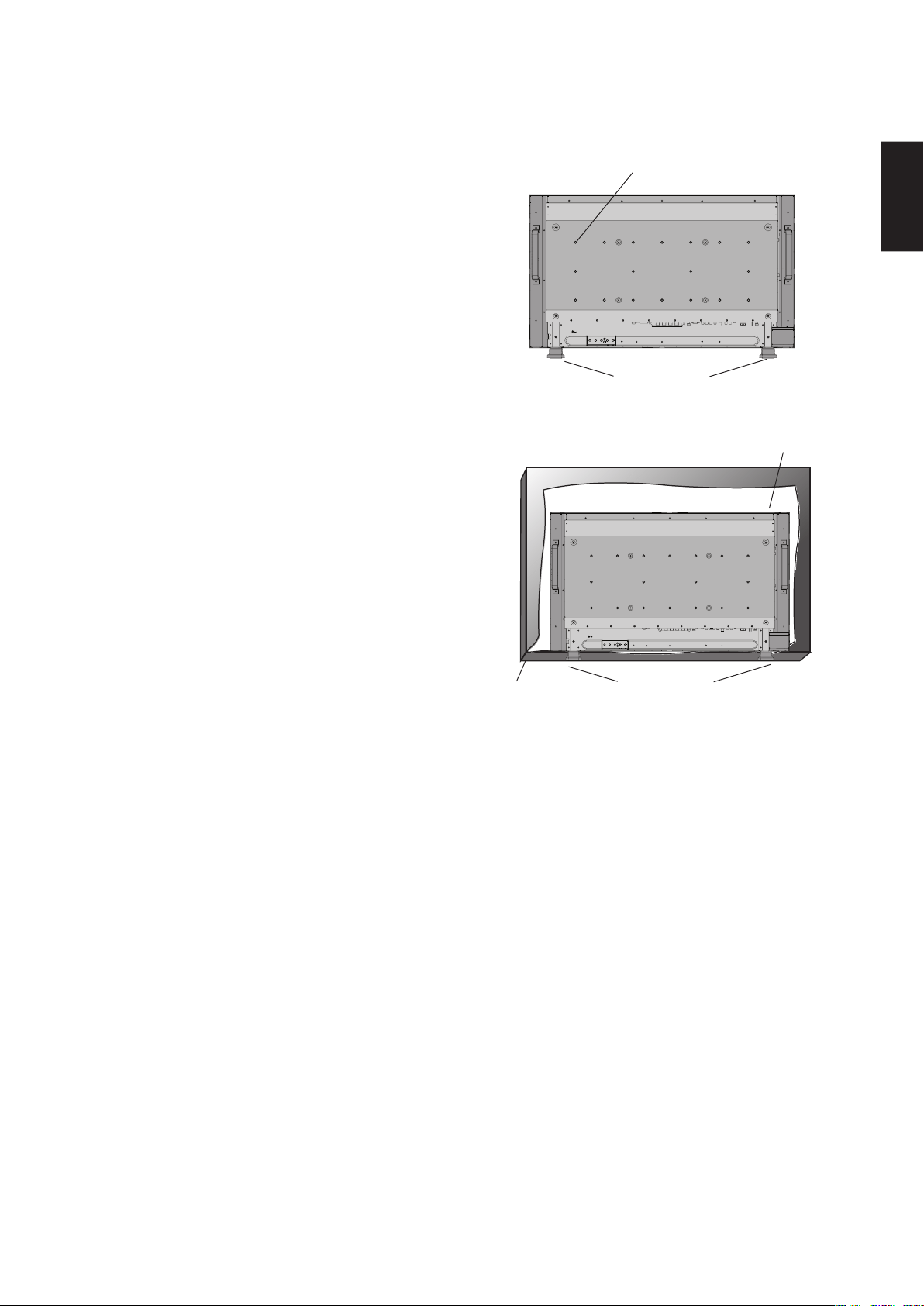

Stand Removal ........................................................................................................................... English-8

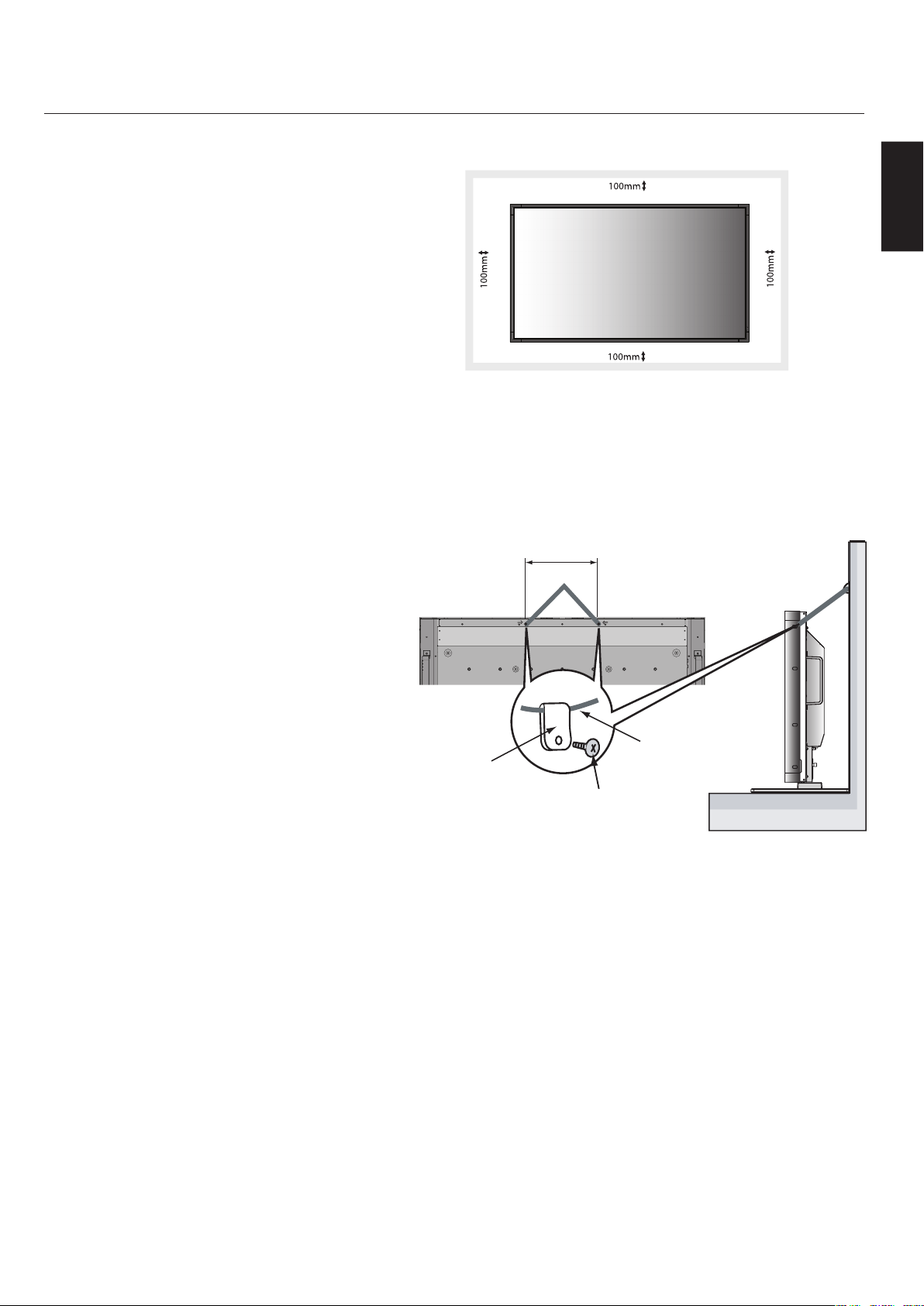

Ventilation Requirements, Prevent Tipping .......................................................................English-9

Part Names and Functions

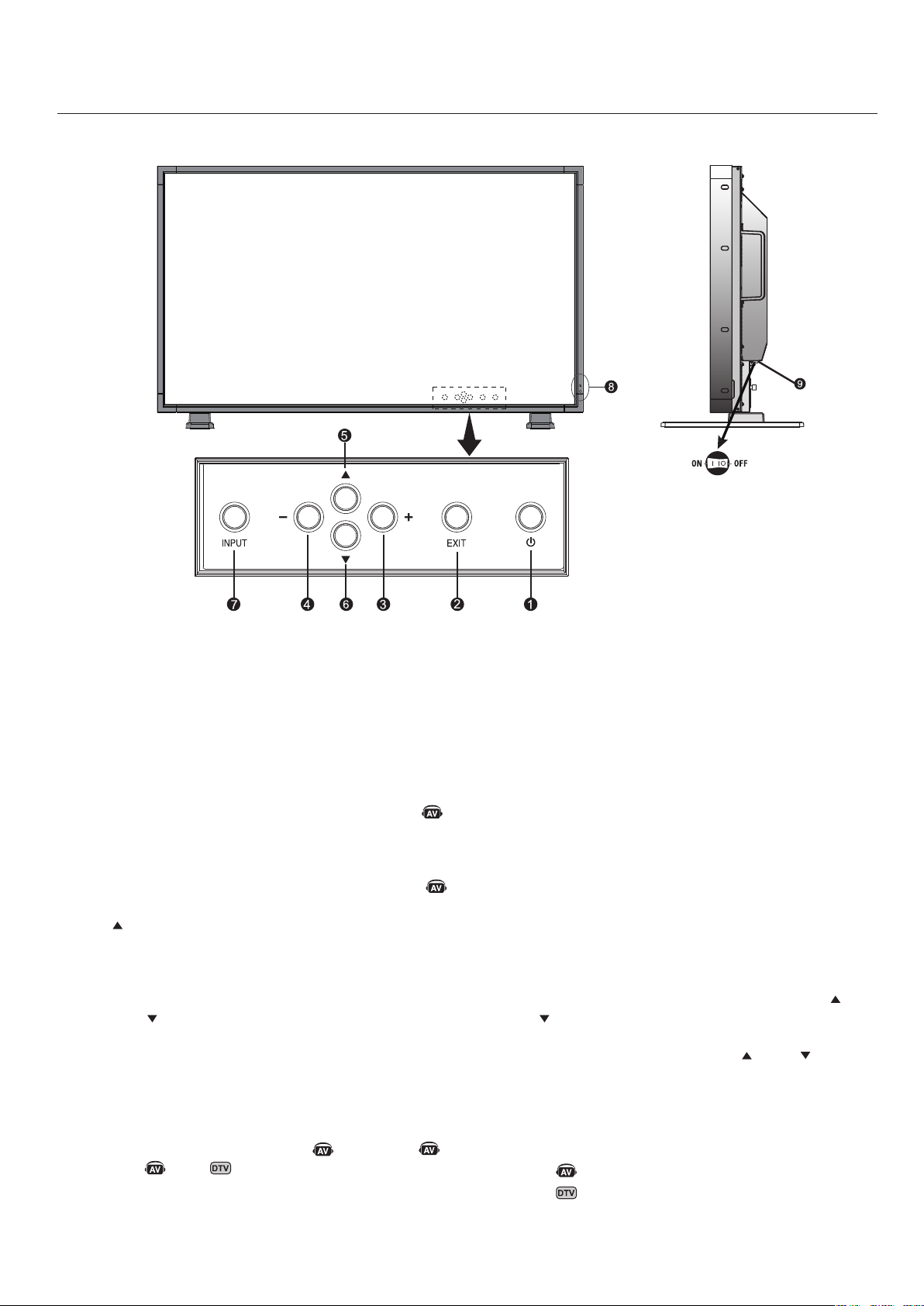

Control Panel ............................................................................................................................. English-10

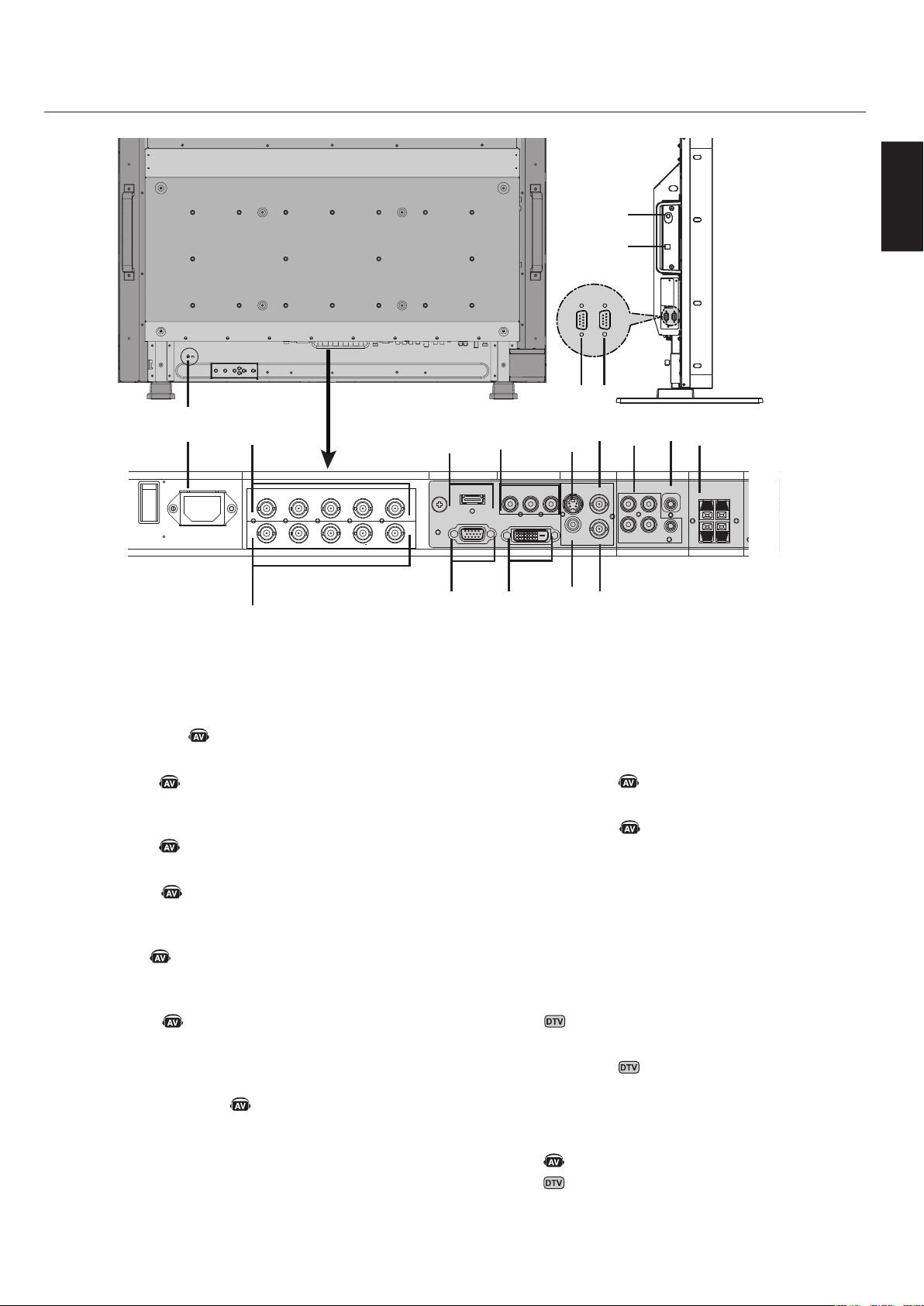

Terminal Panel ........................................................................................................................... English-11

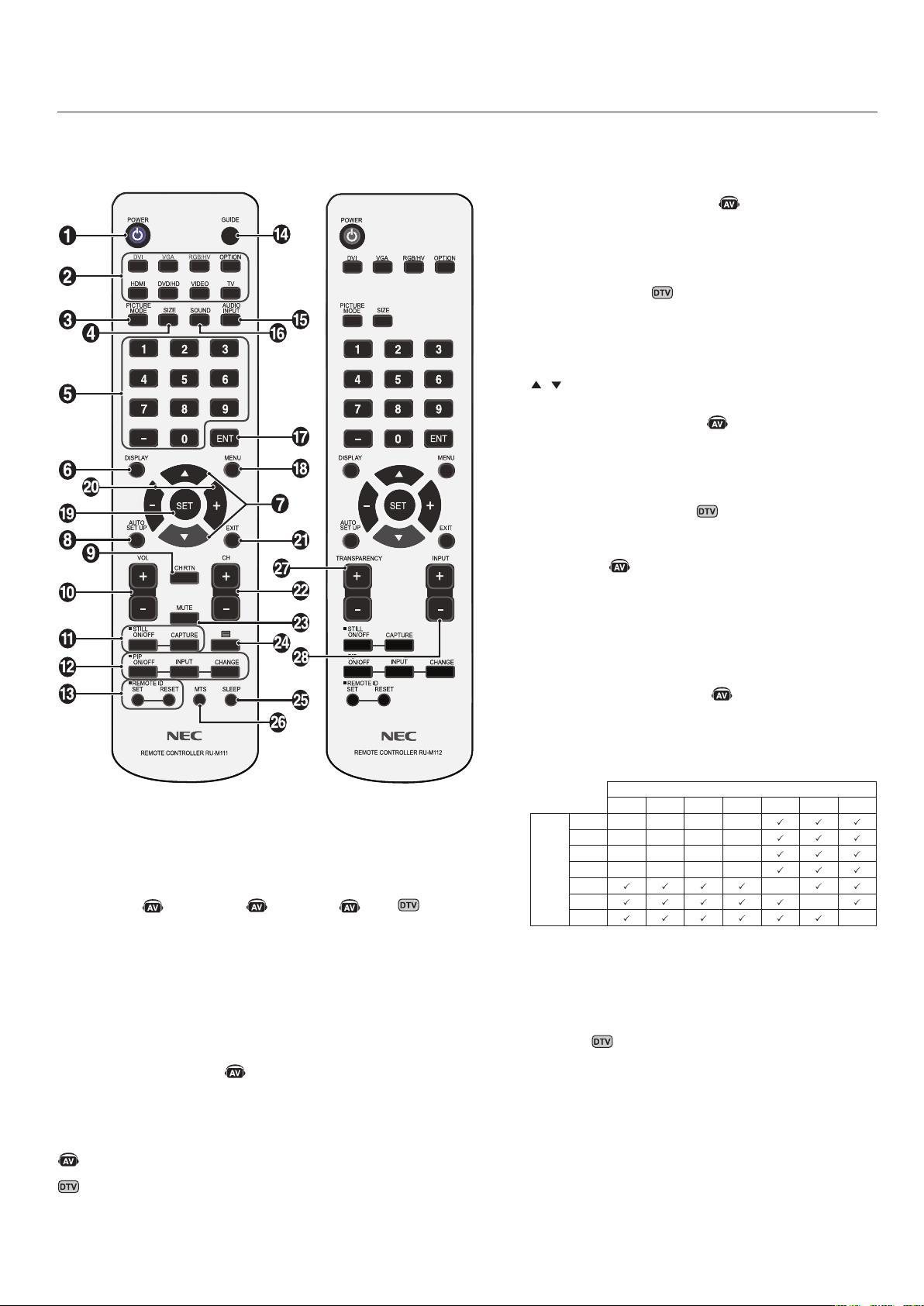

Remote Control ......................................................................................................................... English-12

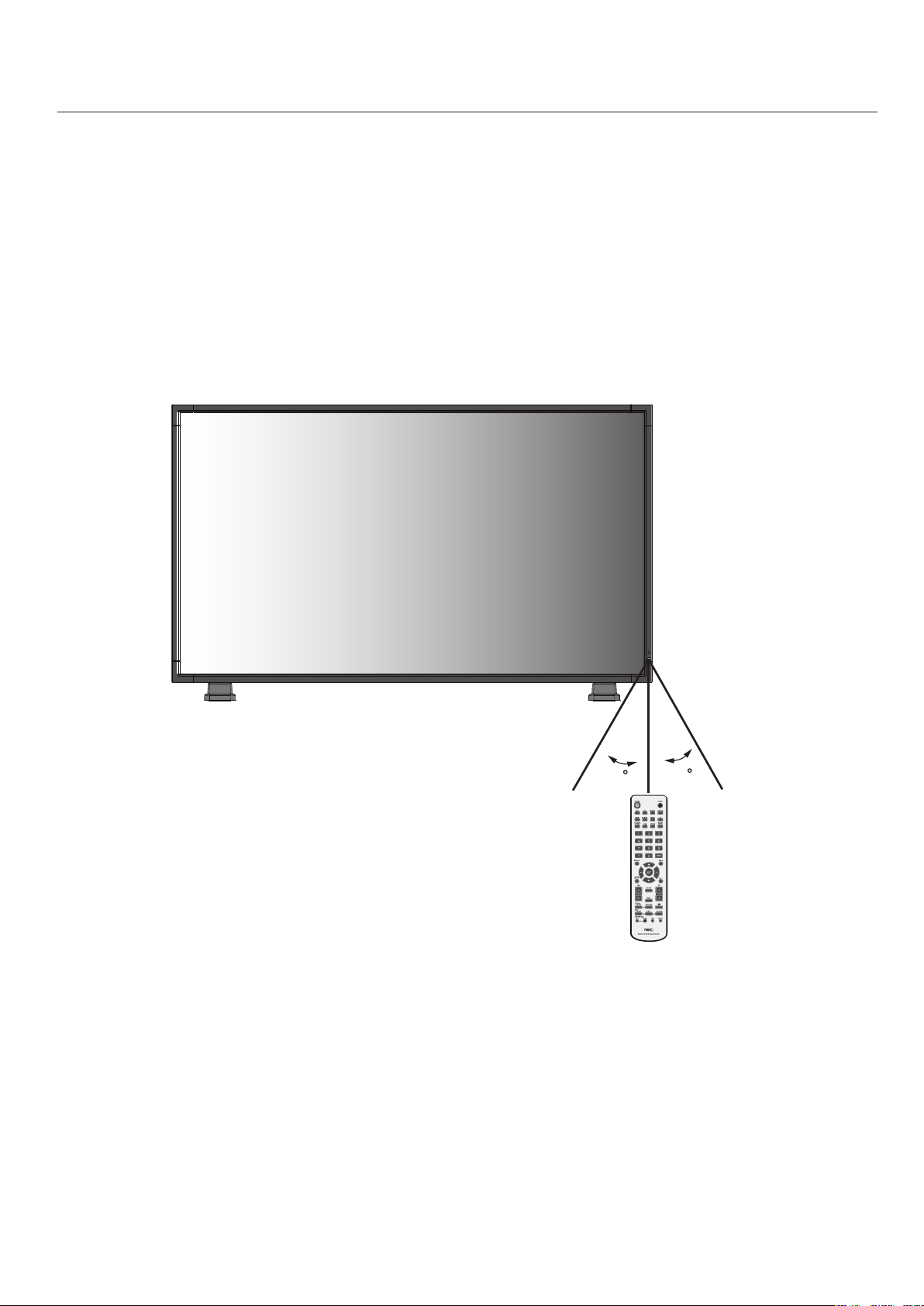

Remote Control Operating Range ......................................................................................... English-14

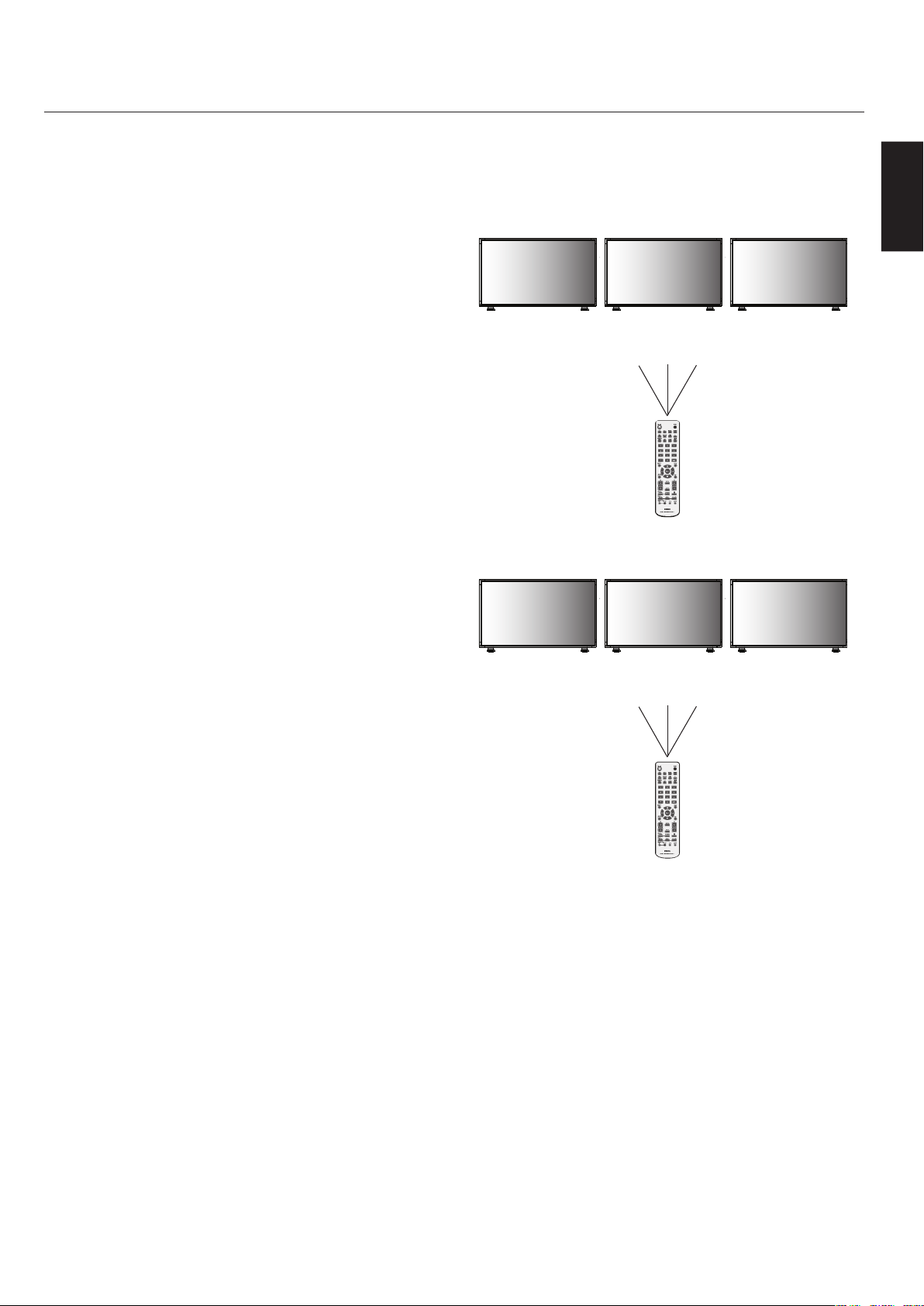

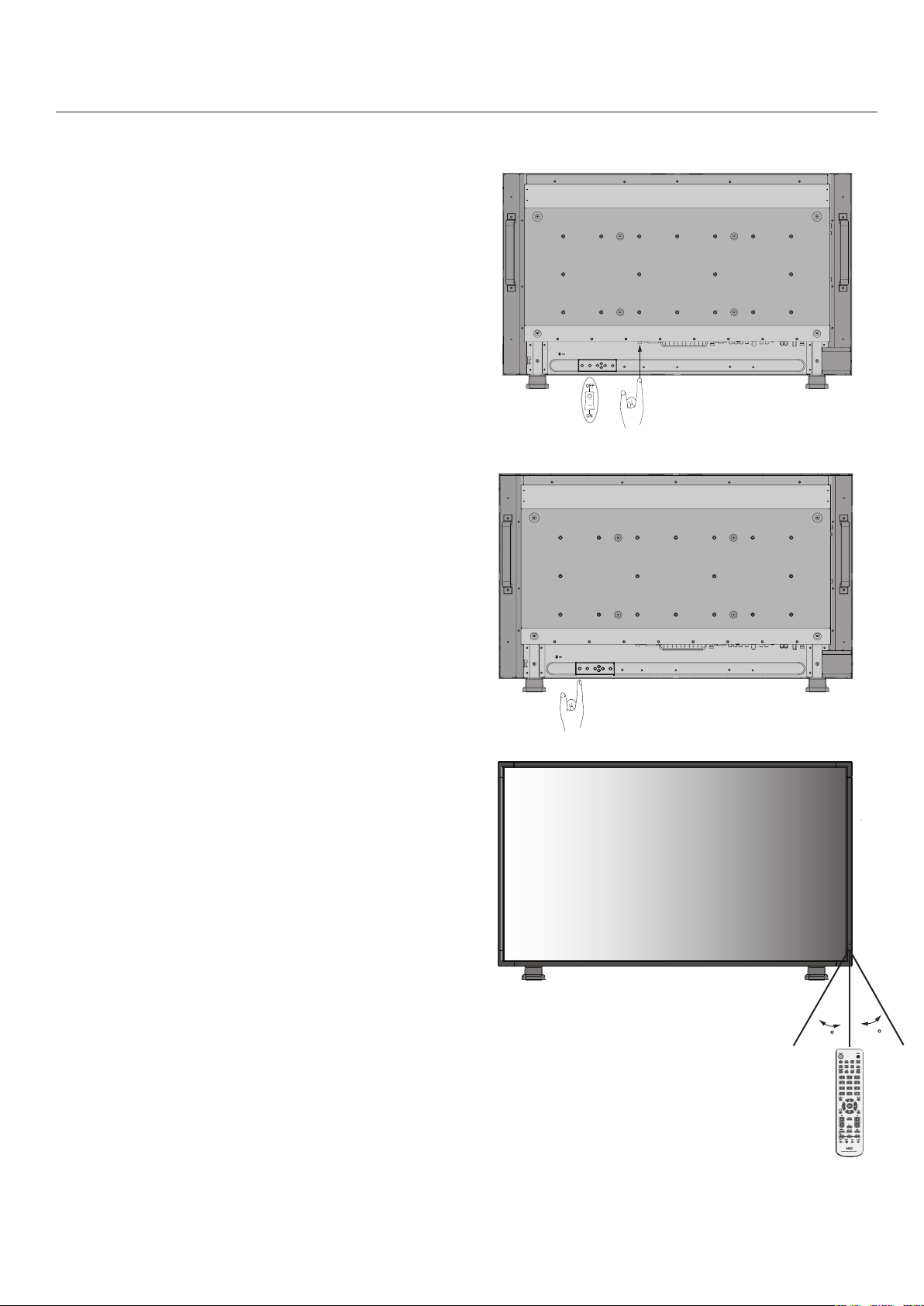

Remote Control ID Function .................................................................................................. English-15

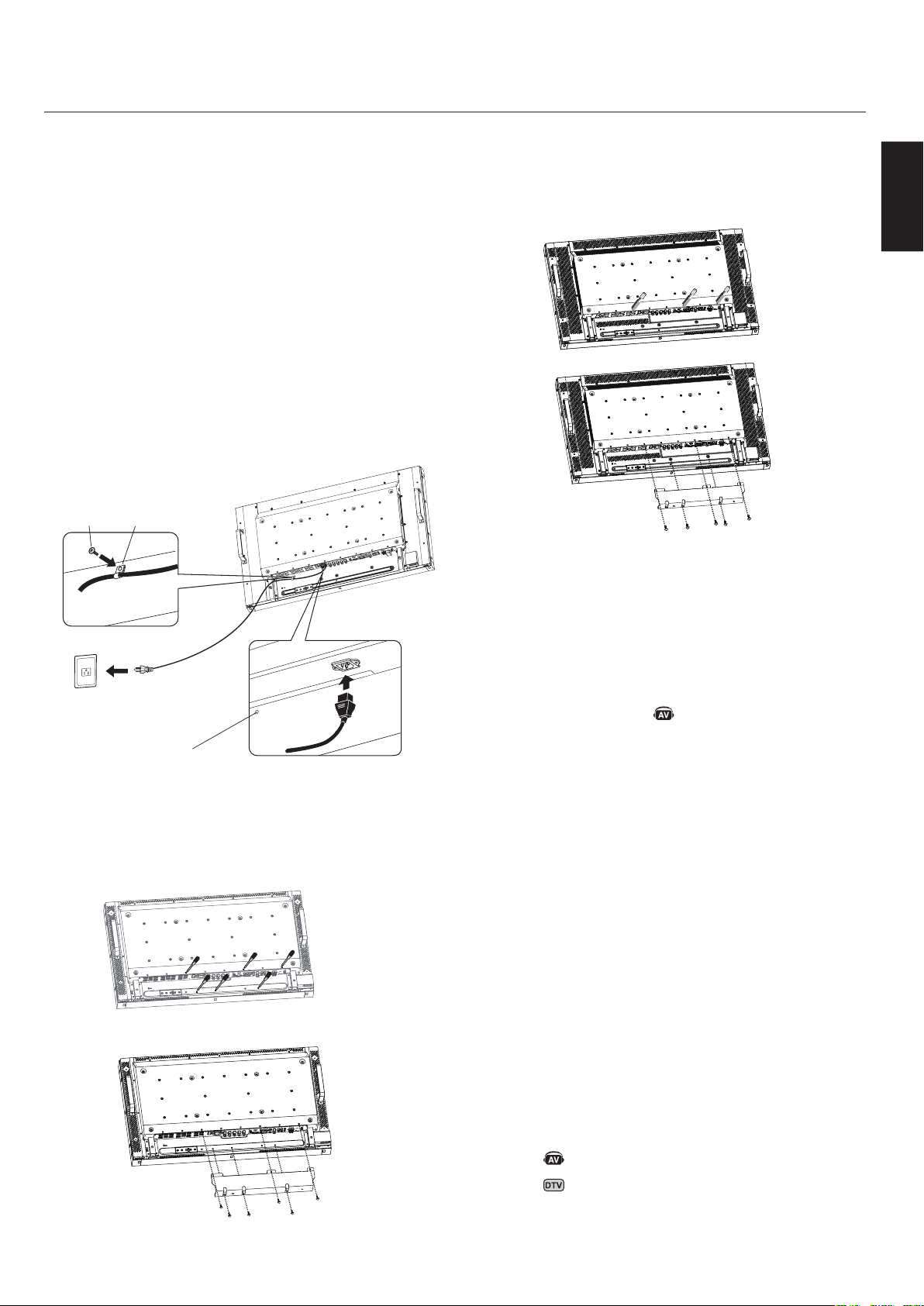

Setup ........................................................................................................................................................... English-16

Connections

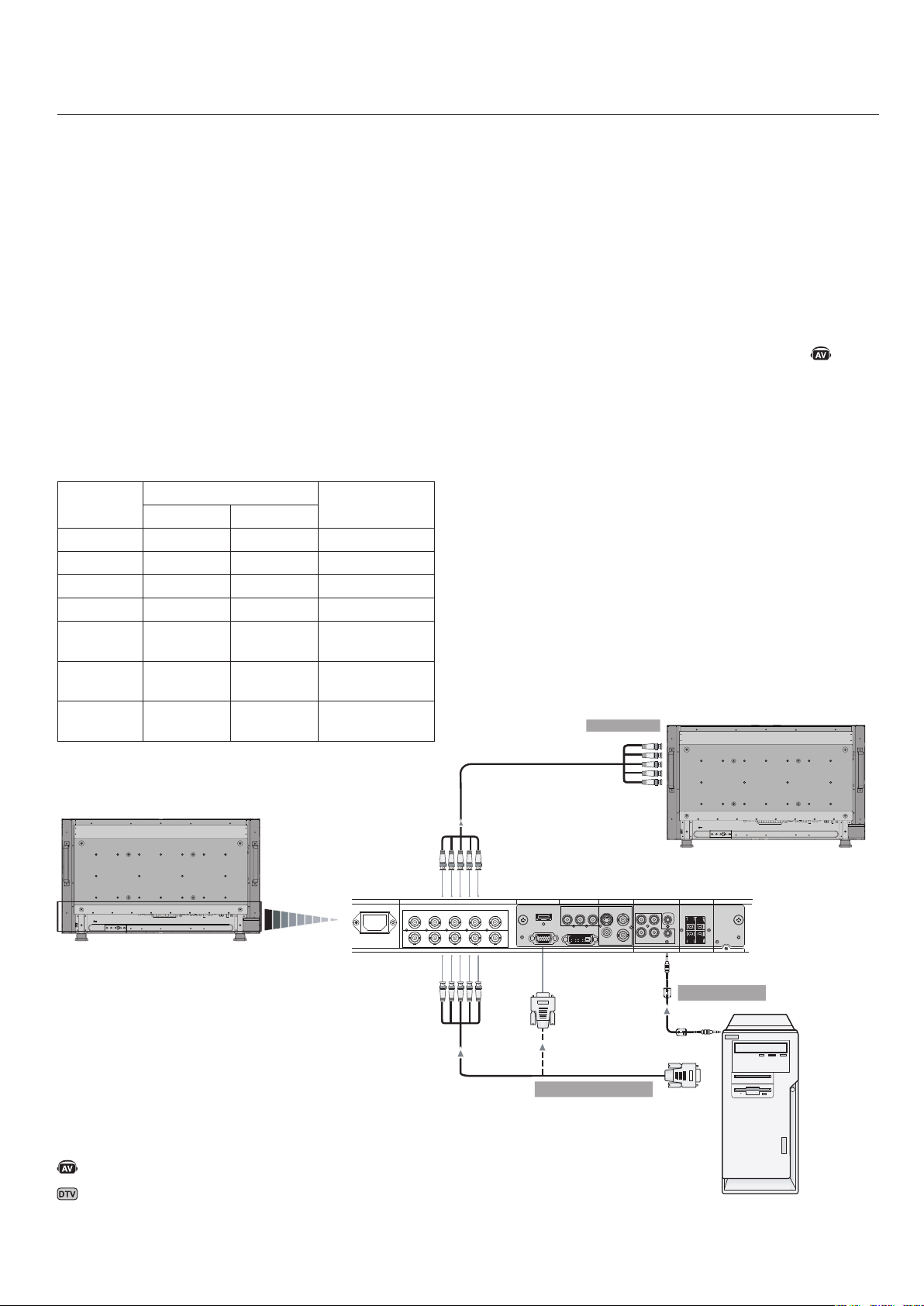

Connecting the LCD Monitor to a PC .................................................................................... English-18

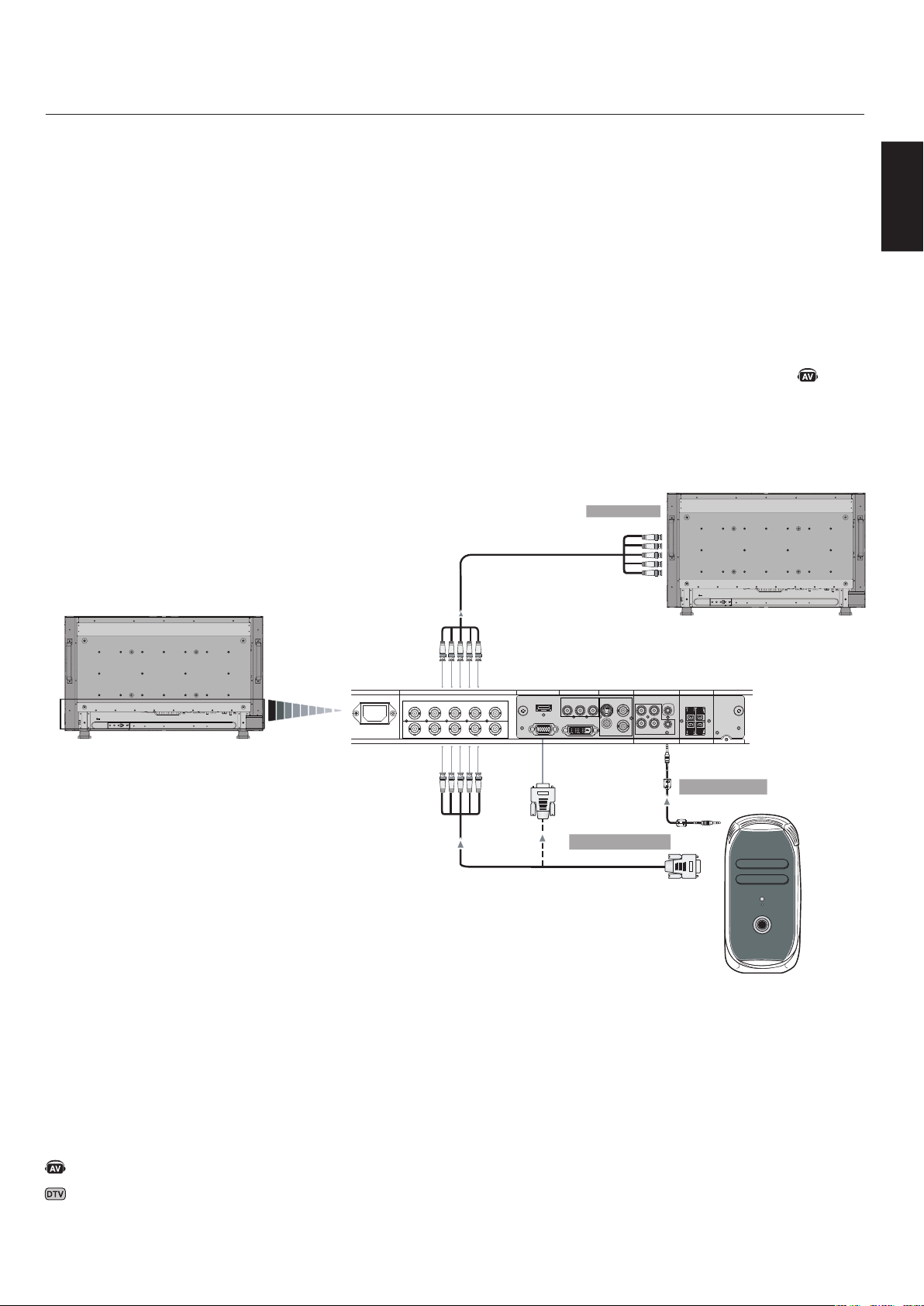

Connecting to a Macintosh Computer ................................................................................. English-19

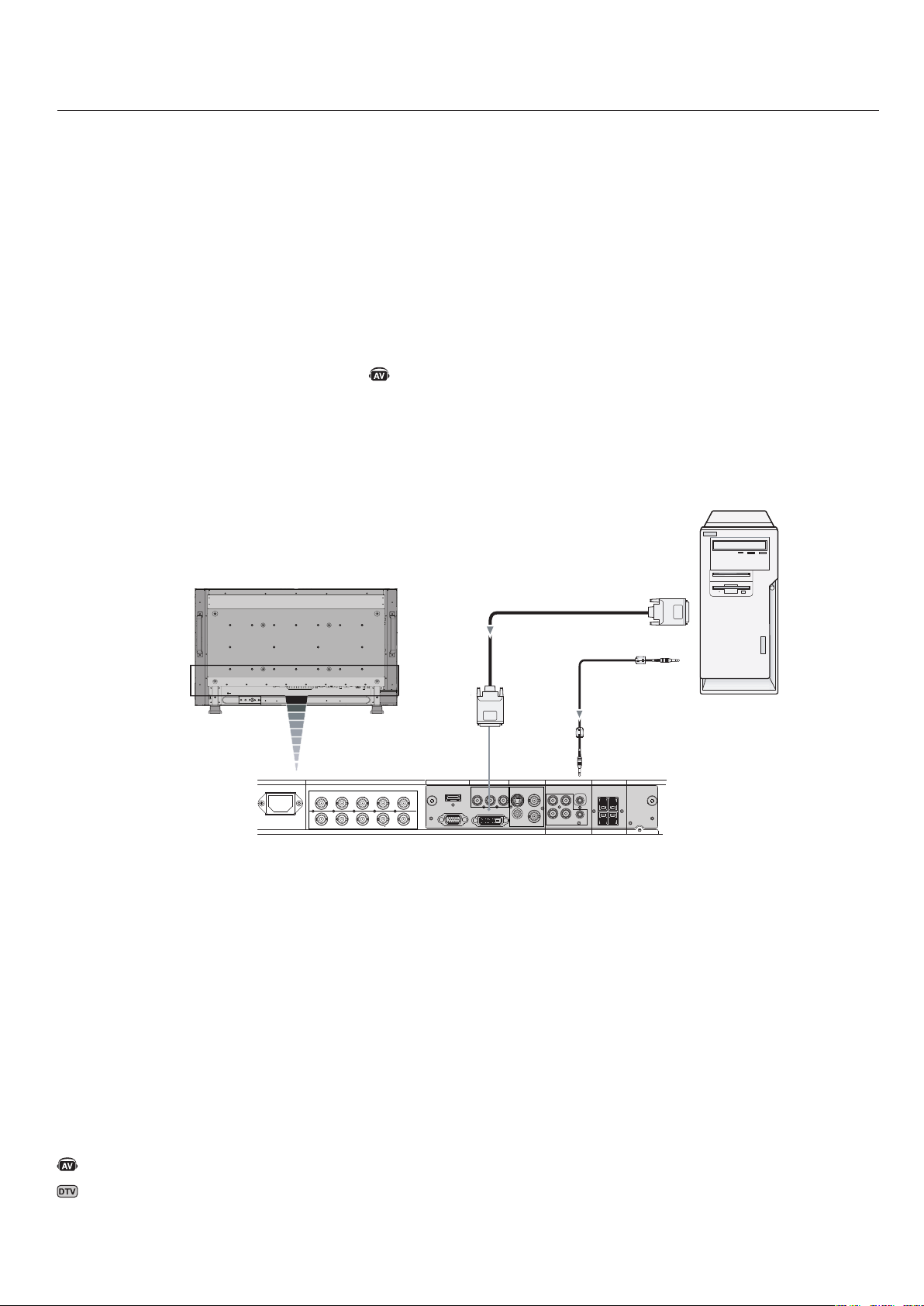

Connecting to a Computer with a Digital Output ............................................................. English-20

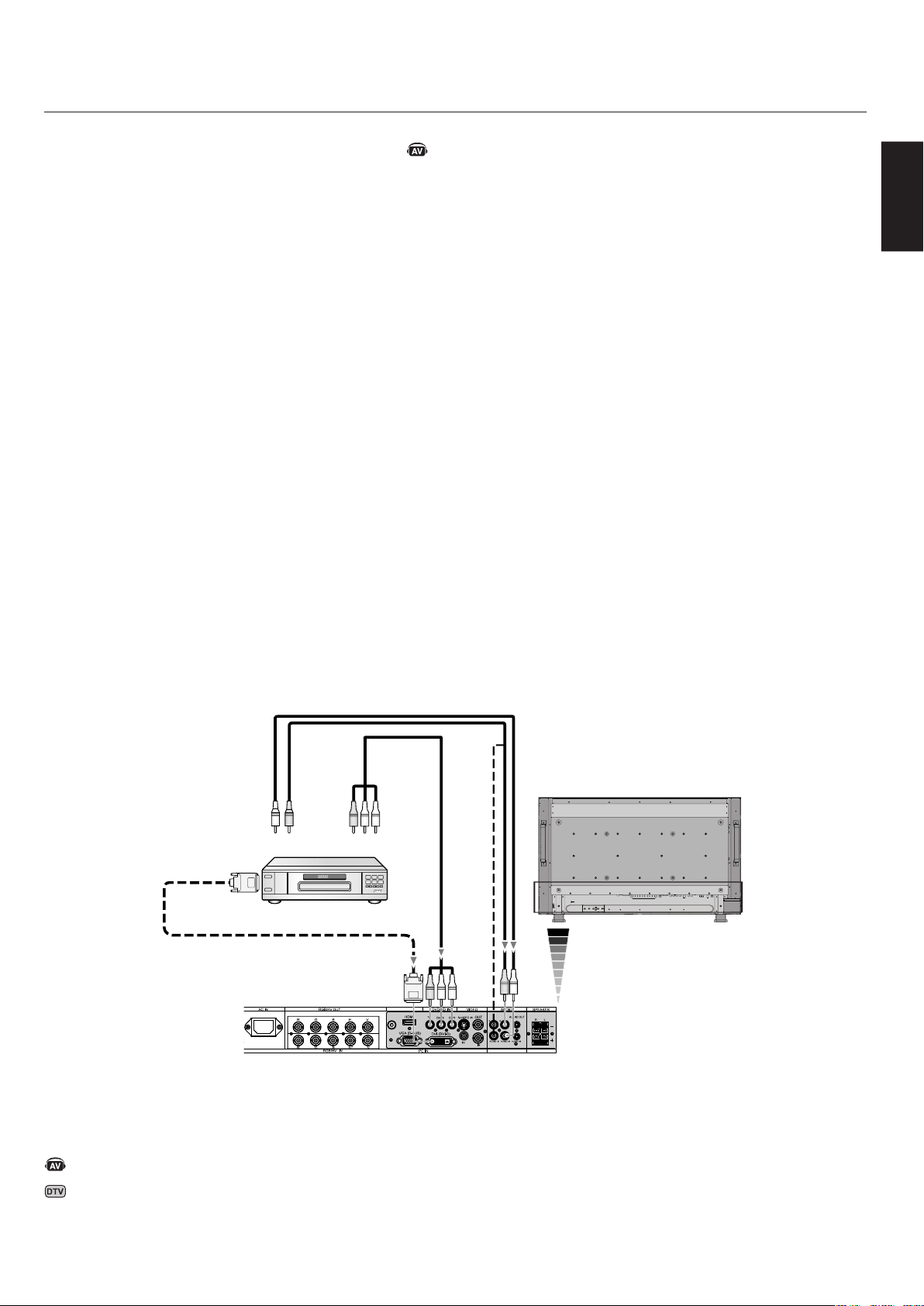

Connecting a DVD Player with component out .................................................................. English-21

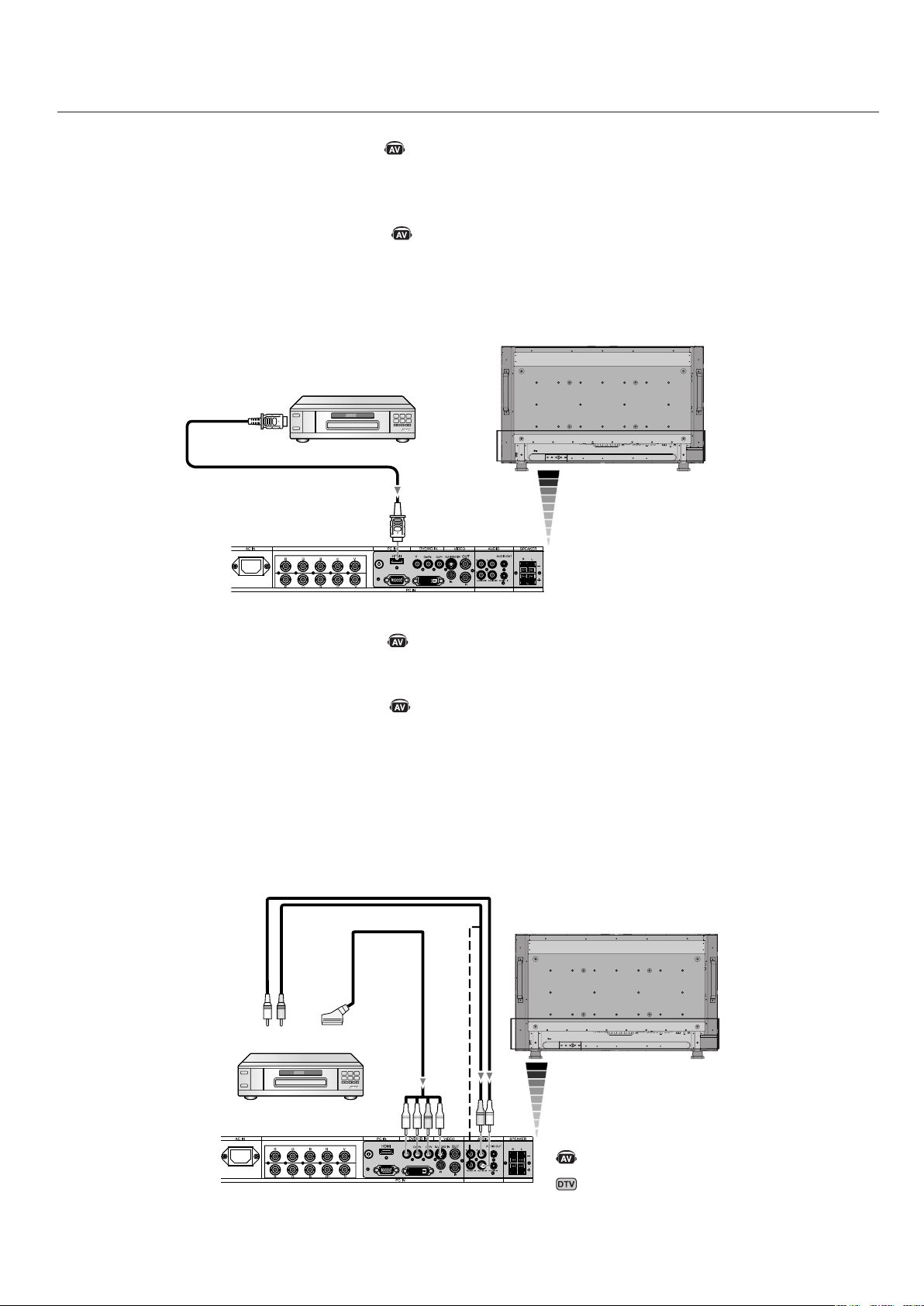

Connecting a DVD Player with HDMI out ............................................................................. English 22

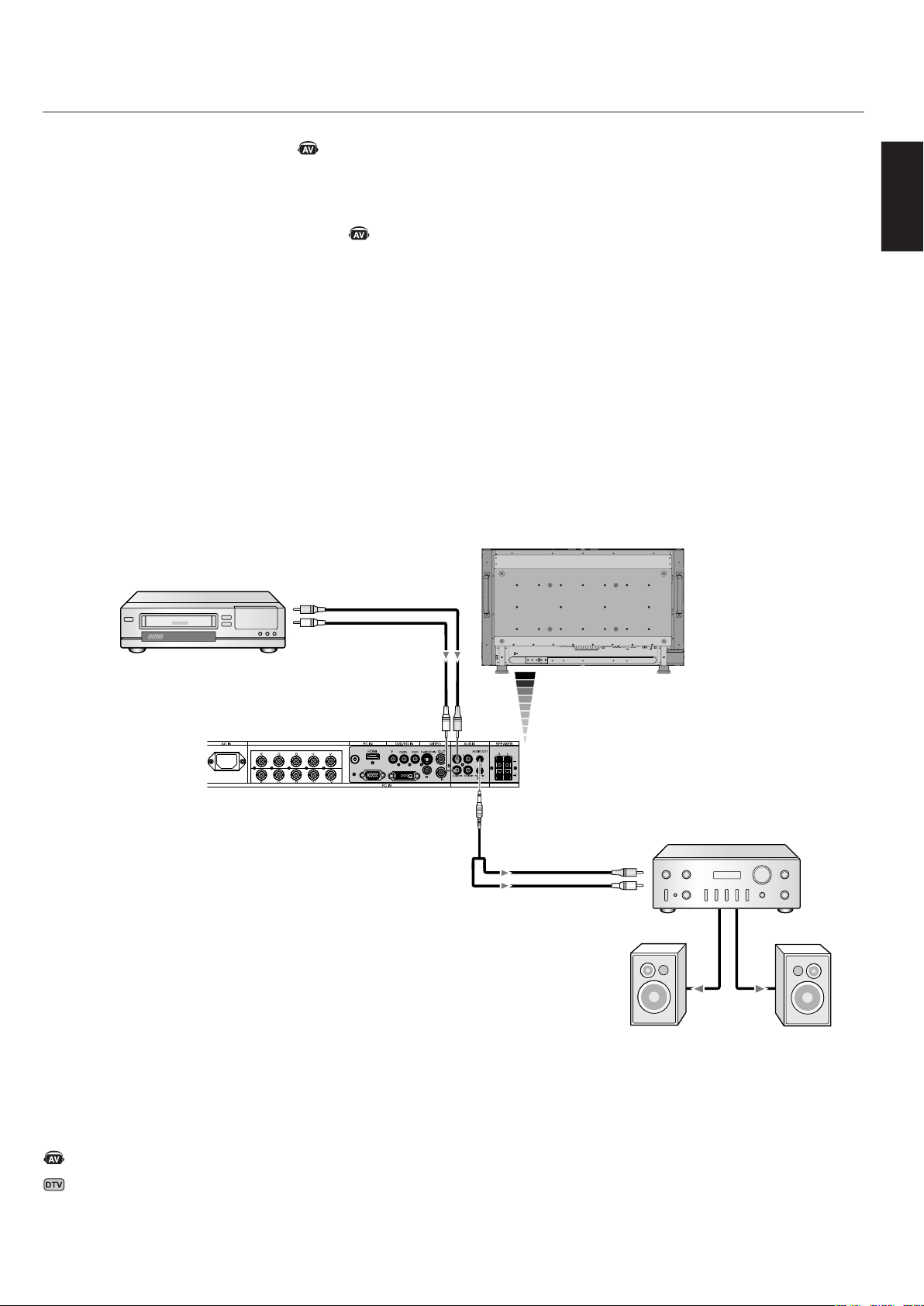

Connecting to a Stereo Ampliﬁer ......................................................................................... English 23

Basic Operation

Power On and Off Modes ..........................................................................................................English-24

Power Indicator ........................................................................................................................ English-25

Power Management Function ................................................................................................ English-25

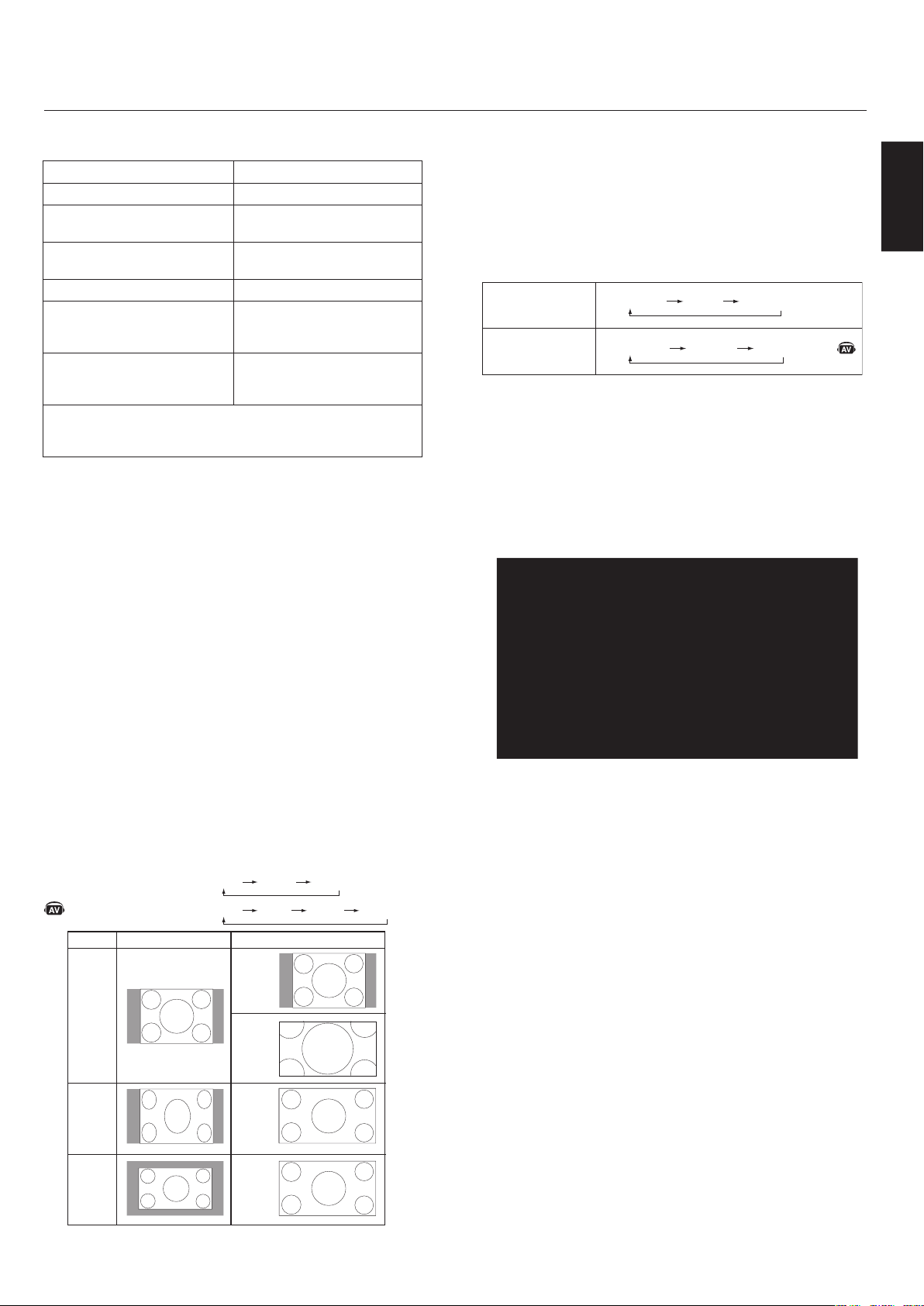

Picture Size ...............................................................................................................................English-25

Picture Mode ............................................................................................................................. English-25

Information OSD ....................................................................................................................... English-25

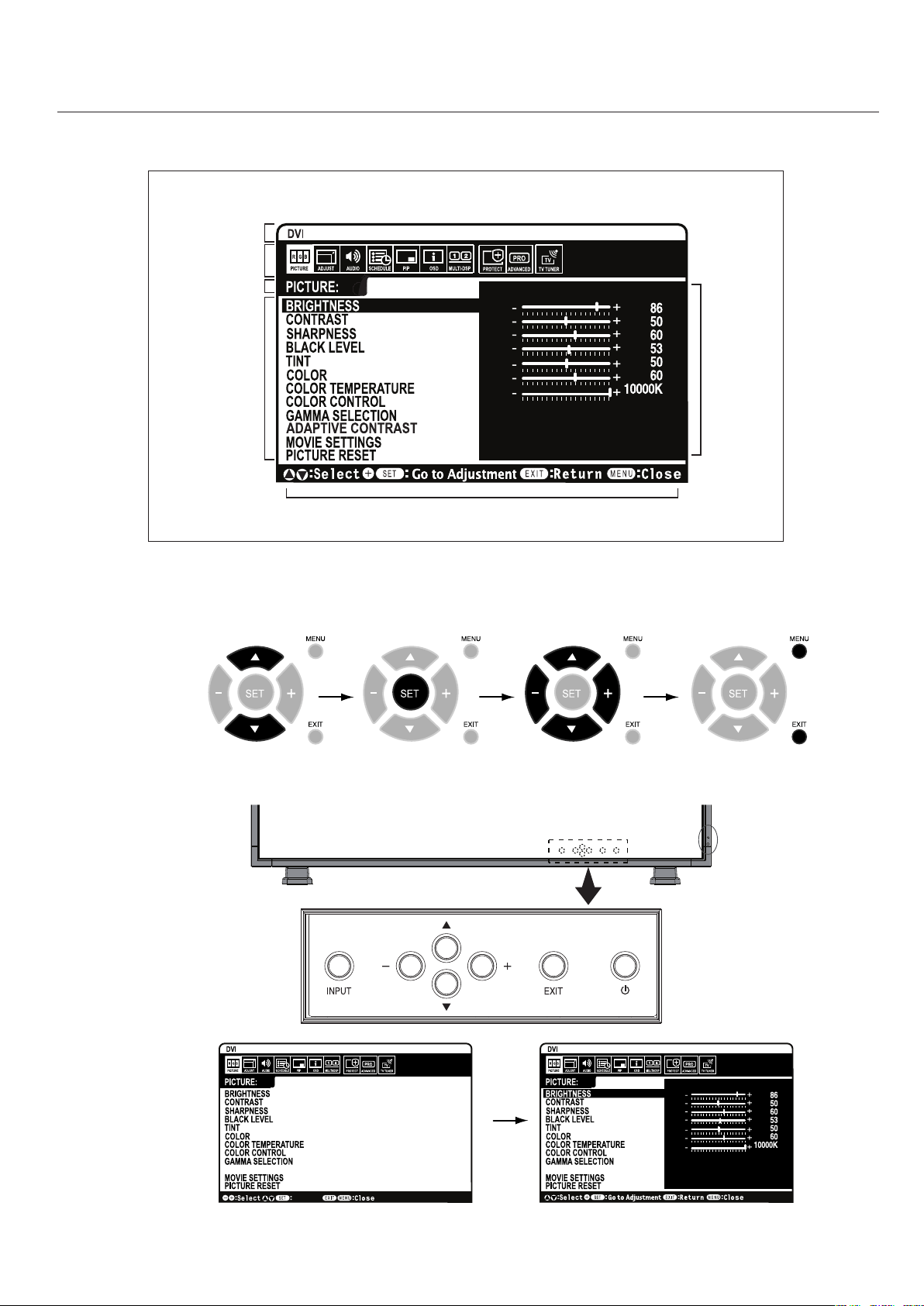

OSD (On-Screen-Display) Controls ......................................................................................................... English-26

Picture ........................................................................................................................................ English-27

Adjust .......................................................................................................................................... English-27

Audio ........................................................................................................................................... English-28

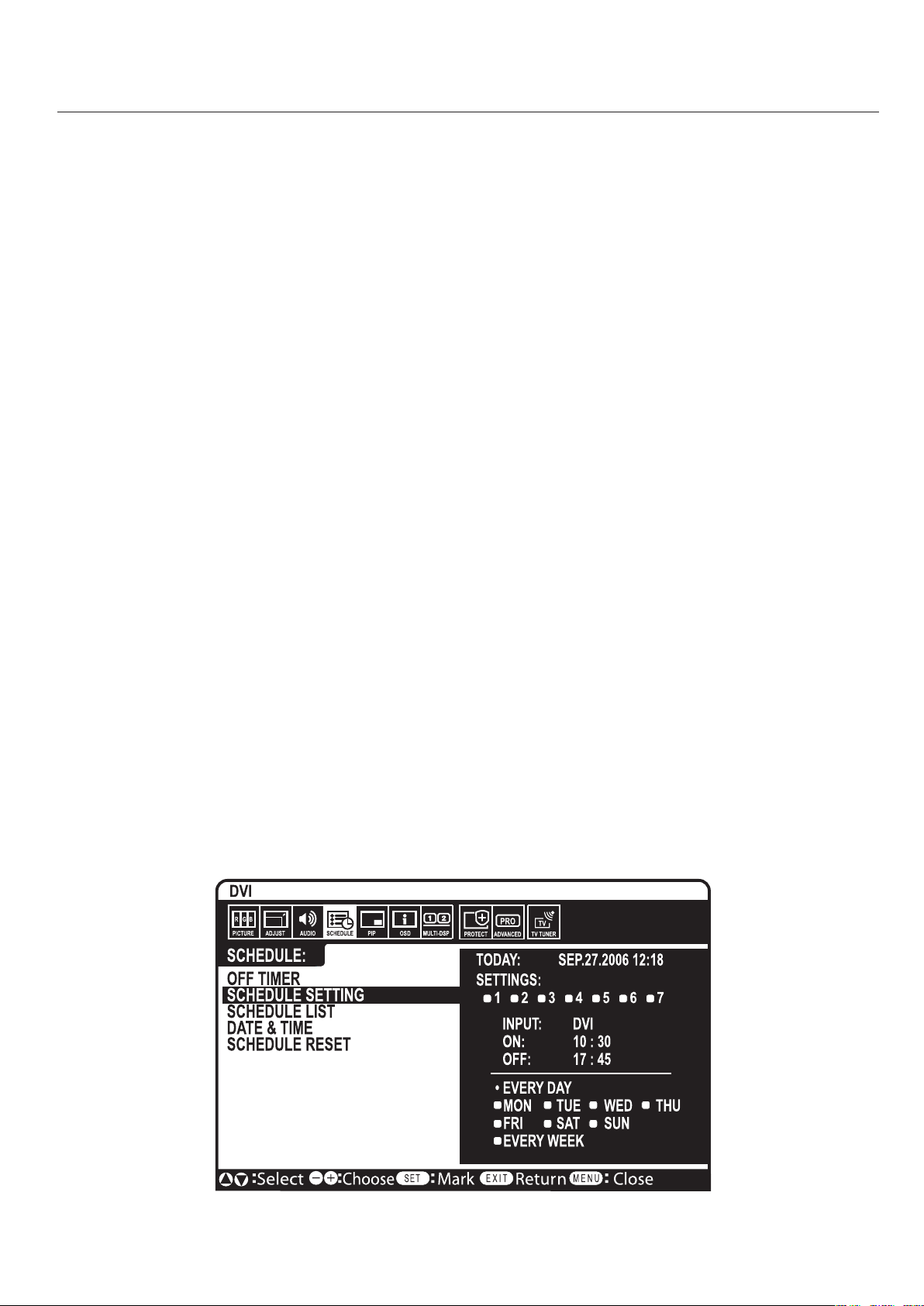

Schedule ..................................................................................................................................... English-28

PIP (Picture-in-Picture) .......................................................................................................... English-29

OSD ............................................................................................................................................... English-29

Multi Display .............................................................................................................................. English-30

Display Protection .................................................................................................................... English-30

Advanced Option ....................................................................................................................... English-31

TV Tuner ...................................................................................................................................... English-32

Digital Tuner Operation .......................................................................................................... English- 33

NOTE ............................................................................................................................................ English-34

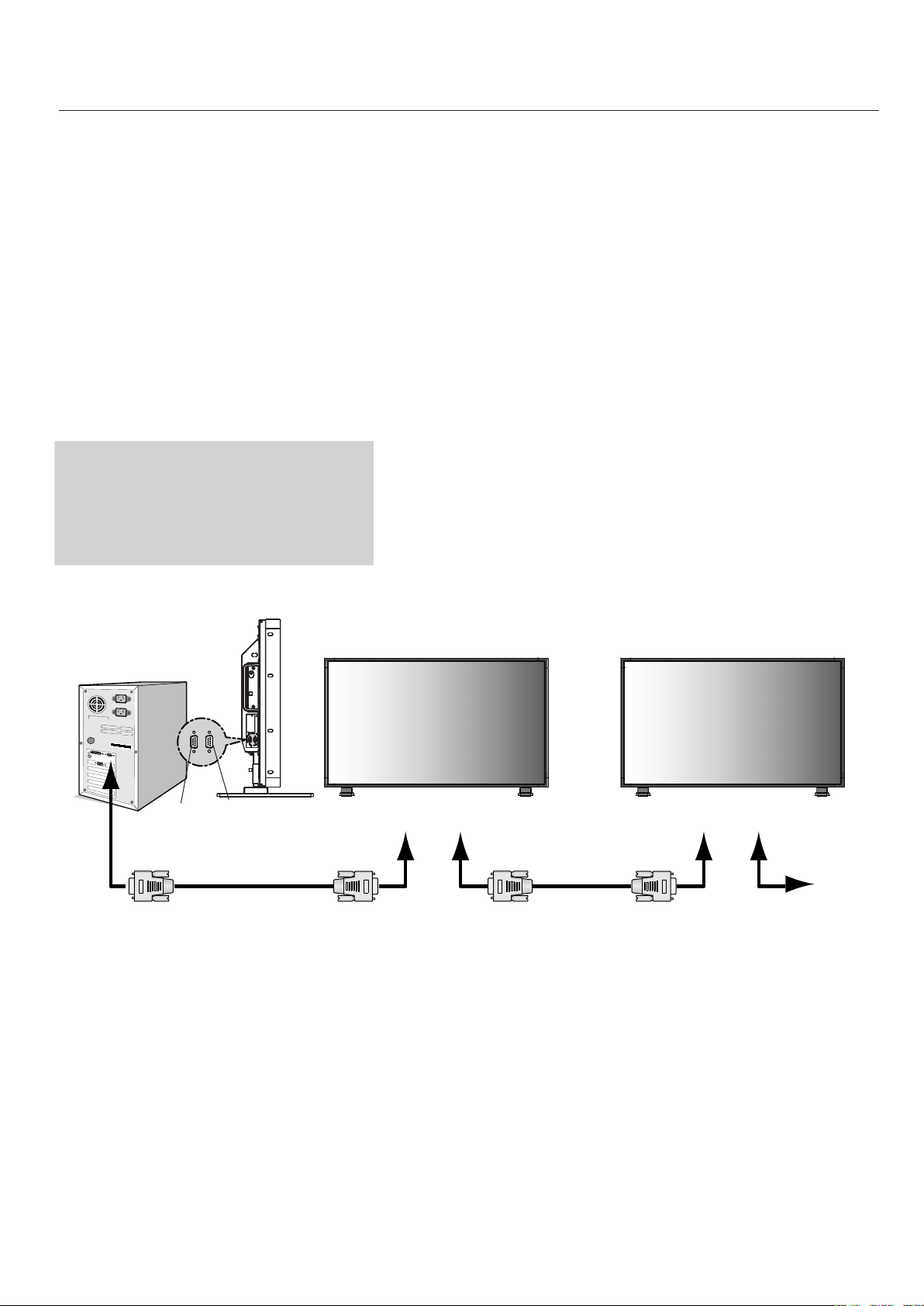

Using the LCD with RS-232C ................................................................................................................... English-35

Features ..................................................................................................................................................... English-40

Troubleshooting .......................................................................................................................................English-41

References ................................................................................................................................................. English-42

Speciﬁcations ........................................................................................................................................... English-43

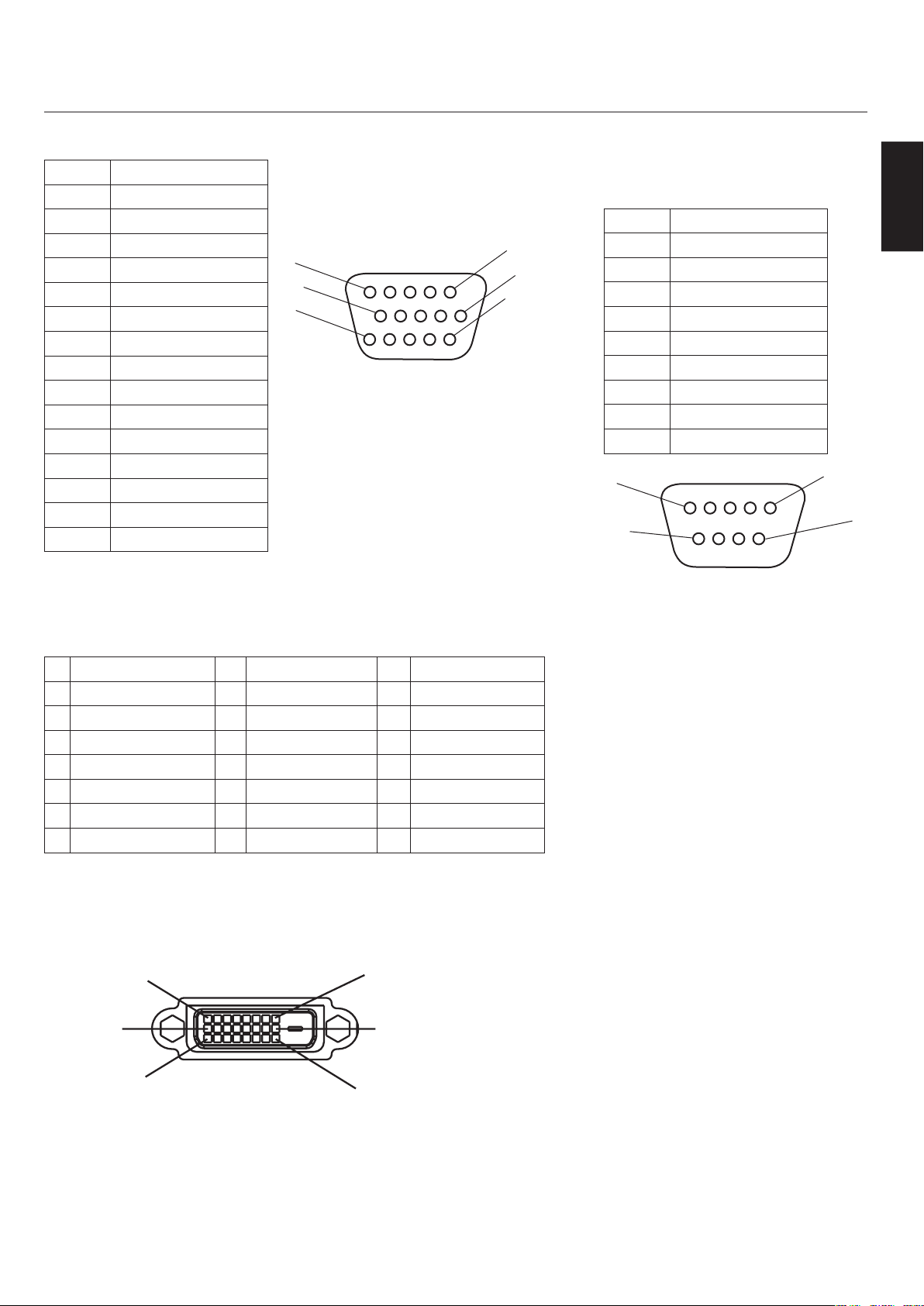

Pin Assignment ......................................................................................................................................... English-45

Limited Warranty ..................................................................................................................................... English-46

Manufacturer’s Recycling and Energy Information ......................................................................... English-47



Informations importantes ......................................................................................................................Français-2

Consignes de sécurité et d’entretien ...................................................................................................Français-3

Utilisation recommandée ....................................................................................................................... Français-4

Contenu de la boîte .................................................................................................................................Français-5

Installation

Montage .....................................................................................................................................Français-6

Fixation des accessoires de montage ...................................................................................Français-7

Retrait du support ...................................................................................................................Français-8

Exigences de ventilation, Couvercle de l’interrupteur d’alimentation principal,

Éviter le renversement ...........................................................................................................Français-9

Nom des pièces et fonctions

Panneau de commande ..........................................................................................................Français-10

Panneau de borne .................................................................................................................... Français-11

Télécommande .........................................................................................................................Français-12

Plage de fonctionnement pour la télécommande ............................................................Français-14

ID Télécommande fonctionne ...............................................................................................Français-15

Conﬁguration ...........................................................................................................................................Français-16

Branchements

Brancher le moniteur ACL au PC ..........................................................................................Français-18

Brancher à un ordinateur Macintosh

...............................................................................Français-19

Brancher à un ordinateur avec sortie numérique ..........................................................Français-20

Branchement d’un lecteur DVD via la sortie de composant ..........................................Français-21

Branchement d’un lecteur DVD via la sortie HDMI .........................................................Français-22

Branchement à un ampliﬁcateur stéréophonique .......................................................... Français-23

Fonctionnement de base

Modes SOUS et HORS tension ...............................................................................................Français-24

Voyant d’alimentation ...........................................................................................................Français-25

Gestion de la consommation ................................................................................................Français-25

Taille de l’image ......................................................................................................................Français-25

Mode image ..............................................................................................................................Français-25

Information OSD .....................................................................................................................Français-25

Commandes OSD (gestionnaire à l’écran) ..........................................................................................Français-26

Image .........................................................................................................................................Français-27

Régler .........................................................................................................................................Français-27

Audio .........................................................................................................................................Français-28

Calendrier ................................................................................................................................Français-29

Image Dans Image (PIP) .........................................................................................................Français-29

OSD .............................................................................................................................................Français-29

Afﬁchages Multiples ...............................................................................................................Français-30

Protection Afﬁchage ..............................................................................................................Français-30

Option Avancée ........................................................................................................................Français-31

Syntoniseur TV ........................................................................................................................Français-32

Opération de syntonisation numérique ............................................................................Français-34

Remarques ............................................................................................................................... Français-35

Utiliser l’ACL avec RS-232C ...................................................................................................................Français-36

Fonctions ..................................................................................................................................................Français-41

Dépannage ...............................................................................................................................................Français-42

Références ...............................................................................................................................................Français-43

Caractéristiques ....................................................................................................................................Français-44

Affectation des broches .......................................................................................................................Français-46

Garantie limitée .....................................................................................................................................Français-47

Informations du fabricant relatives au recylage et aux économies d’énergie ........................Français-48



Información importante ........................................................................................................................ Español-2

Precauciones de seguridad y mantenimiento ................................................................................... Español-3

Uso recomendado ..................................................................................................................................... Español-4

Contenidos del paquete .......................................................................................................................... Español-5

Instalación

Montaje ....................................................................................................................................... Español-6

Conexión de accesorios de montaje ..................................................................................... Español-7

Remoción del soporte ............................................................................................................. Español-8

Requisitos de ventilación, Tapa del interruptor de corriente principal,

Prevención de caídas ...............................................................................................................Español-9

Nombres y funciones de las piezas

Panel de control ........................................................................................................................ Español-10

Panel de terminal ..................................................................................................................... Español-11

Control remoto ......................................................................................................................... Español-12

Rango operativo del control remoto .................................................................................... Español-14

Función Identiﬁcación de control remoto .......................................................................... Español-15

Conﬁguración ............................................................................................................................................ Español-16

Conexiones

Conexión del monitor LCD a la PC .........................................................................................Español-18

Conexión a una computadora Macintosh ............................................................................ Español-19

Conexión a una computadora con salida digital ................................................................ Español-20

Conexión de un reproductor de DVD con un componente externo ............................... Español-21

Conexión de un reproductor de DVD con HDMI externo .................................................. Español-22

Conexión a un ampliﬁcador de estéreo ............................................................................... Español-23

Funcionamiento básico

Modos ENCENDIDO y APAGADO ............................................................................................... Español-24

Indicador de corriente ........................................................................................................... Español-25

Administración de la energía ................................................................................................. Español-25

Tamaño de la imagen ...............................................................................................................Español-25

Modo de imagen ........................................................................................................................ Español-25

Información OSD ....................................................................................................................... Español-25

Controles OSD (Administrador de pantalla) ........................................................................................ Español-26

Imagen ........................................................................................................................................ Español-27

Adjuste ........................................................................................................................................ Español-27

Audio ........................................................................................................................................... Español-28

Programa .................................................................................................................................... Español-28

PIP (Picture-in-Picture) .......................................................................................................... Español-29

OSD ............................................................................................................................................... Español-29

Multipantalla ............................................................................................................................. Español-30

Protección Pantalla ................................................................................................................. Español-30

Opción Avanzada ....................................................................................................................... Español-31

Sintonizador de TV ................................................................................................................... Español-32

Funcionamiento del sintonizador digital ............................................................................ Español-33

Notas ........................................................................................................................................... Español-34

Uso del LCD con RS-232C ........................................................................................................................ Español-35

Características ......................................................................................................................................... Español-40

Solución de problemas ............................................................................................................................ Español-41

Referencias ................................................................................................................................................ Español-42

Especiﬁcaciones ....................................................................................................................................... Español-38

Asignación de clavijas .............................................................................................................................Español-45

Garantía limitada ..................................................................................................................................... Español-46

Información del fabricante sobre reciclado y energía .................................................................... Español-47



English-2

2.฀This฀equipment฀has฀been฀tested฀and฀found฀to฀

comply฀with฀the฀limits฀for฀a฀Class฀B฀digital฀device,฀

pursuant฀to฀part฀15฀of฀the฀FCC฀Rules.฀These฀

limits฀are฀designed฀to฀provide฀reasonable฀protec-

tion฀against฀harmful฀interference฀in฀a฀residential฀

installation.฀This฀equipment฀generates,฀uses,฀and฀

can฀radiate฀radio฀frequency฀energy,฀and,฀if฀not฀

installed฀and฀used฀in฀accordance฀with฀the฀instruc-

tions,฀may฀cause฀harmful฀interference฀to฀radio฀

communications.฀However,฀there฀is฀no฀guarantee฀

that฀interference฀will฀not฀occur฀in฀a฀particular฀

installation.฀If฀this฀equipment฀does฀cause฀harm-

ful฀interference฀to฀radio฀or฀television฀reception,฀

which฀can฀be฀determined฀by฀turning฀the฀equip-

ment฀off฀and฀on,฀the฀user฀is฀encouraged฀to฀try฀

to฀correct฀the฀interference฀by฀one฀or฀more฀of฀the฀

following฀measures:

Reorient฀or฀relocate฀the฀receiving฀antenna.

Increase฀the฀distance฀between฀the฀equipment฀and฀

receiver.

Connect฀the฀equipment฀into฀an฀outlet฀on฀a฀circuit฀

different฀from฀that฀to฀which฀the฀receiver฀is฀

connected.

Consult฀your฀dealer฀or฀an฀experienced฀radio/TV฀

technician฀for฀help.

If฀necessary,฀the฀user฀should฀contact฀the฀dealer฀or฀an฀

experienced฀radio/television฀technician฀for฀addi-

tional฀suggestions.฀The฀user฀may฀ﬁnd฀the฀following฀

booklet,฀prepared฀by฀the฀Federal฀Communications฀

Commission,฀helpful:฀“How฀to฀Identify฀and฀Resolve฀

Radio-TV฀Interference฀Problems.”฀This฀booklet฀is฀

available฀from฀the฀U.S.฀Government฀Printing฀Ofﬁce,฀

Washington,฀D.C.,฀20402,฀Stock฀No.฀004-000-00345-4.

•

WARNING

TO฀PREVENT฀FIRE฀OR฀SHOCK฀HAZARDS,฀DO฀NOT฀EX-

POSE฀THIS฀UNIT฀TO฀RAIN฀OR฀MOISTURE.฀DO฀NOT฀USE฀

THIS฀UNIT’S฀POLARIZED฀PLUG฀WITH฀AN฀EXTENSION฀

CORD฀RECEPTACLE฀OR฀OTHER฀OUTLETS฀UNLESS฀THE฀

PRONGS฀CAN฀BE฀FULLY฀INSERTED.

REFRAIN฀FROM฀OPENING฀THE฀CABINET฀AS฀THERE฀ARE฀

HIGH฀VOLTAGE฀COMPONENTS฀INSIDE.฀REFER฀SERVIC-

ING฀TO฀QUALIFIED฀SERVICE฀PERSONNEL.

CAUTION

CAUTION:฀TO฀REDUCE฀THE฀RISK฀OF฀ELECTRIC฀SHOCK,฀

MAKE฀SURE฀POWER฀CORD฀IS฀UNPLUGGED฀

FROM฀WALL฀SOCKET.฀TO฀FULLY฀DISENGAGE฀

THE฀POWER฀TO฀THE฀UNIT,฀PLEASE฀DISCON-

NECT฀THE฀POWER฀CORD฀FROM฀THE฀AC฀

OUTLET.฀DO฀NOT฀REMOVE฀COVER฀(OR฀BACK).฀

NO฀USER฀SERVICEABLE฀PARTS฀INSIDE.฀REFER฀

SERVICING฀TO฀QUALIFIED฀SERVICE฀PERSON-

NEL.

฀This฀symbol฀warns฀user฀that฀uninsulated฀voltage฀

within฀the฀unit฀may฀have฀sufﬁcient฀magnitude฀to฀

cause฀electric฀shock.฀Therefore,฀it฀is฀dangerous฀to฀

make฀any฀kind฀of฀contact฀with฀any฀part฀inside฀this฀

unit.

฀This฀symbol฀alerts฀the฀user฀that฀important฀litera-

ture฀concerning฀the฀operation฀and฀maintenance฀of฀

this฀unit฀has฀been฀included.฀Therefore,฀it฀should฀be฀

read฀carefully฀in฀order฀to฀avoid฀any฀problems.



Canadian฀Department฀of฀

Communications฀Compliance฀Statement

DOC:฀This฀Class฀B฀digital฀apparatus฀meets฀all฀requirements฀

of฀the฀Canadian฀Interference-Causing฀Equipment฀Regula-

tions.

C-UL:฀Bears฀the฀C-UL฀Mark฀and฀is฀in฀compliance฀with฀Cana-

dian฀Safety฀Regulations฀according฀to฀CAN/CSA฀C22.2฀

No.฀60950-1.

FCC฀Information

1.฀Use฀the฀attached฀speciﬁed฀cables฀with฀the฀L406T6,฀or฀

L466T7฀color฀monitor฀so฀as฀not฀to฀interfere฀with฀radio฀and฀

television฀reception.

฀(1)฀Please฀use฀the฀supplied฀power฀cord฀or฀equivalent฀to฀฀

฀ensure฀FCC฀compliance.

฀(2)฀Please฀use฀the฀supplied฀shielded฀video฀signal฀cable,฀฀

฀

฀Mini฀D-SUB฀15-pin฀to฀Mini฀D-SUB฀15-pin.

Declaration฀of฀the฀Manufacturer

We฀hereby฀certify฀that฀the฀color฀monitor฀

L406T6฀or฀L466T7฀is฀in฀compliance฀with

Council฀Directive฀2006/95/EEC:

–฀EN฀60950-1

Council฀Directive฀2004/108/EEC:

—฀EN฀55022

—฀EN฀61000-3-2

—฀EN฀61000-3-3

—฀EN฀55024

and฀marked฀with

NEC฀Display฀Solutions฀Ltd.฀

4-13-23,฀Shibaura,

Minato-Ku

Tokyo฀108-0023,฀Japan

English

English-3

Safety฀Precautions฀

and฀Maintenance

FOR฀OPTIMUM฀PERFORMANCE,฀PLEASE฀NOTE฀

THE฀FOLLOWING฀WHEN฀SETTING฀UP฀AND฀

USING฀THE฀MONITOR:

DO฀NOT฀OPEN฀THE฀MONITOR.฀There฀are฀no฀user-

serviceable฀parts฀inside฀and฀opening฀or฀removing฀

covers฀may฀expose฀you฀to฀dangerous฀shock฀hazards฀

or฀other฀risks.฀Refer฀all฀servicing฀to฀qualiﬁed฀service฀

personnel.

Do฀not฀spill฀any฀liquids฀into฀the฀cabinet฀or฀use฀your฀

monitor฀near฀water.

Do฀not฀insert฀objects฀of฀any฀kind฀into฀the฀cabinet฀slots,฀

as฀they฀may฀touch฀dangerous฀voltage฀points,฀which฀can฀

be฀harmful฀or฀fatal฀or฀may฀cause฀electric฀shock,฀ﬁre฀or฀

equipment฀failure.

Do฀not฀place฀any฀heavy฀objects฀on฀the฀power฀cord.฀

Damage฀to฀the฀cord฀may฀cause฀shock฀or฀ﬁre.

Do฀not฀place฀this฀product฀on฀a฀sloping฀or฀unstable฀cart,฀

stand฀or฀table,฀as฀the฀monitor฀may฀fall,฀causing฀serious฀

damage฀to฀the฀monitor.

When฀operating฀the฀MultiSync฀monitor฀with฀its฀AC฀

125-240V฀power฀supply,฀use฀a฀power฀supply฀cord฀that฀

matches฀the฀power฀supply฀voltage฀of฀the฀AC฀power฀

outlet฀being฀used.฀The฀power฀supply฀cord฀you฀use฀must฀

have฀been฀approved฀by฀and฀comply฀with฀the฀safety฀

standards฀of฀your฀country.฀(Type฀H05VV-F฀3G฀1mm²฀

should฀be฀used฀in฀Europe)

In฀the฀UK,฀use฀a฀BS-approved฀power฀cord฀with฀molded฀

plug฀having฀a฀black฀(13A)฀fuse฀installed฀for฀use฀with฀

this฀monitor.฀If฀a฀power฀cord฀is฀not฀supplied฀with฀this฀

monitor,฀please฀contact฀your฀supplier.

Do฀not฀place฀any฀objects฀onto฀the฀monitor฀and฀do฀not฀

use฀the฀monitor฀outdoors.

The฀lamps฀in฀this฀product฀contain฀mercury.฀Please฀

dispose฀according฀to฀state,฀local฀or฀federal฀law.

Do฀not฀bend,฀crimp฀or฀otherwise฀damage฀the฀power฀

cord.

Do฀not฀use฀monitor฀in฀high฀temperature,฀humid,฀

dusty,฀or฀oily฀areas.

Do฀not฀cover฀vent฀on฀monitor.

If฀monitor฀or฀glass฀is฀broken,฀do฀not฀come฀in฀contact฀

with฀the฀liquid฀crystal.

Handle฀broken฀glass฀with฀care.

Allow฀adequate฀ventilation฀around฀the฀monitor฀so฀that฀

heat฀can฀properly฀dissipate.฀Do฀not฀block฀ventilated฀

openings฀or฀place฀the฀monitor฀near฀a฀radiator฀or฀other฀

heat฀sources.฀Do฀not฀put฀anything฀on฀top฀of฀monitor.

The฀power฀cable฀connector฀is฀the฀primary฀means฀of฀

detaching฀the฀system฀from฀the฀power฀supply.฀The฀

monitor฀should฀be฀installed฀close฀to฀a฀power฀outlet฀

that฀is฀easily฀accessible.

•

Handle฀with฀care฀when฀transporting.฀Save฀packaging฀

for฀transporting.

Do฀not฀hold฀the฀display฀by฀the฀bezel฀when฀moving฀or฀

shifting฀the฀display.

Keep฀the฀vent฀holes฀on฀the฀back฀of฀the฀LCD฀clean฀of฀

dirt฀and฀dust.฀It฀is฀recommended฀to฀wipe฀vent฀holes฀

with฀a฀soft฀cloth฀a฀minimum฀of฀once฀per฀year.

If฀using฀the฀cooling฀fan฀continuously,฀it฀is฀

recommended฀to฀wipe฀vent฀holes฀a฀minimum฀of฀once฀a฀

month.

CAUTION

Immediately฀unplug฀your฀monitor฀from฀the฀wall฀outlet฀and฀

refer฀servicing฀to฀qualiﬁed฀service฀personnel฀under฀the฀fol-

lowing฀conditions:

When฀the฀power฀supply฀cord฀or฀plug฀is฀damaged.

If฀liquid฀has฀been฀spilled฀on,฀or฀objects฀have฀fallen฀into฀

the฀monitor.

If฀the฀monitor฀has฀been฀exposed฀to฀rain฀or฀water.

If฀the฀monitor฀has฀been฀dropped฀or฀the฀cabinet฀

damaged.

If฀the฀monitor฀does฀not฀operate฀normally฀by฀following฀

operating฀instructions.

•



English-4



CAUTION

CORRECT฀PLACEMENT฀AND฀ADJUSTMENT฀OF฀THE฀

MONITOR฀CAN฀REDUCE฀EYE,฀SHOULDER฀AND฀

NECK฀FATIGUE.฀CHECK฀THE฀FOLLOWING฀WHEN฀

POSITIONING฀THE฀MONITOR:

For฀optimum฀performance,฀allow฀20฀minutes฀for฀warm-

up.

Rest฀your฀eyes฀periodically฀by฀focusing฀on฀an฀object฀at฀

least฀5฀feet฀away.฀Blink฀often.

Position฀the฀monitor฀at฀a฀90˚฀angle฀to฀windows฀and฀other฀

light฀sources฀to฀minimize฀glare฀and฀reﬂ฀ections.

Clean฀the฀LCD฀monitor฀surface฀with฀a฀lint-free,฀

nonabrasive฀cloth.฀Avoid฀using฀any฀cleaning฀solution฀or฀

glass฀cleaner.

Adjust฀the฀monitor’s฀brightness฀and฀contrast฀controls฀to฀

enhance฀readability.

Avoid฀displaying฀ﬁ฀xed฀patterns฀on฀the฀monitor฀for฀long฀

periods฀of฀time฀to฀avoid฀image฀persistence฀(afterimage฀

effects).

Get฀regular฀eye฀checkups.

Ergonomics

To฀realize฀the฀maximum฀ergonomic฀beneﬁ฀ts,฀we฀recommend฀

the฀following:

Use฀the฀preset฀Size฀and฀Position฀controls฀with฀standard฀

signals.

Use฀the฀preset฀Color฀Setting.

Use฀non-interlaced฀signals.

Do฀not฀use฀primary฀color฀blue฀on฀a฀dark฀background,฀as฀

it฀is฀difﬁ฀cult฀to฀see฀and฀may฀produce฀eye฀fatigue฀due฀to฀

insufﬁ฀cient฀contrast.

For฀more฀detailed฀information฀on฀setting฀up฀a฀healthy฀work฀

environment,฀refer฀to฀the฀following฀document:

฀฀

American฀National฀Standard฀for฀Human฀Factors

Engineering฀of฀Visual฀Display฀Terminal฀Workstations

ANSI-HFS฀Standard฀No.฀100-1988

Published฀by:

The฀Human฀Factors฀and฀Ergonomics฀Society

P.O.฀Box฀1369,฀Santa฀Monica,฀California฀90406.

•

Cleaning฀the฀LCD฀Panel

When฀the฀liquid฀crystal฀panel฀becomes฀dusty฀or฀dirty,฀

wipe฀gently฀with฀soft฀cloth.

Do฀not฀rub฀the฀LCD฀panel฀with฀coarse฀material.

Do฀not฀apply฀pressure฀to฀the฀LCD฀surface.

Do฀not฀use฀OA฀cleaner.฀฀OA฀cleaner฀will฀cause฀

deterioration฀or฀discolor฀the฀LCD฀surface.

Cleaning฀the฀Cabinet

Unplug฀the฀power฀supply

Gently฀wipe฀the฀cabinet฀with฀a฀soft฀cloth

To฀clean฀the฀cabinet,฀dampen฀the฀cloth฀with฀a฀neutral฀

detergent฀and฀water,฀wipe฀the฀cabinet฀and฀follow฀with฀a฀

dry฀cloth.

NOTE:

฀The฀surface฀of฀the฀cabinet฀is฀composed฀of฀many฀

types฀of฀plastic.฀DO฀NOT฀clean฀with฀benzene฀thinner,฀

alkaline฀detergent,฀alcoholic฀system฀detergent,฀glass฀cleaner,฀

wax,฀polish฀cleaner,฀soap฀powder,฀or฀insecticide.฀Rubber฀

or฀vinyl฀should฀not฀be฀in฀contact฀with฀the฀cabinet฀for฀an฀

extended฀perior฀of฀time.฀These฀types฀of฀ﬂ฀uids฀and฀materials฀

can฀cause฀the฀paint฀to฀deteriorate,฀crack฀or฀peel.

•

English

English-5



LCD฀MonitorPower฀Cord

Video฀Signal฀Cable฀

(Mini฀D-SUB฀15฀pin฀to฀Mini฀D-

SUB฀15฀pin)

Clamp฀x฀3

VGA RGB/HV OPTION

DISPLAY

AUTO

SET UP

TRANSPARENCY

SIZE

VGA

RGB/HV

OPTION

DISPLA

TRAN

PAREN

SIZ

VGA

RGB/HV

OPTION

User’s฀Manual

Wireless฀Remote฀Control

and฀AA฀Batteries

(The฀product฀you฀purchased฀has฀

one฀of฀these฀remote฀controls)

Screw฀(M4฀x฀10฀)฀x฀9Thumbscrew฀for฀stand฀x฀2

CD-ROMStand฀x฀2Cable฀cover

English-6



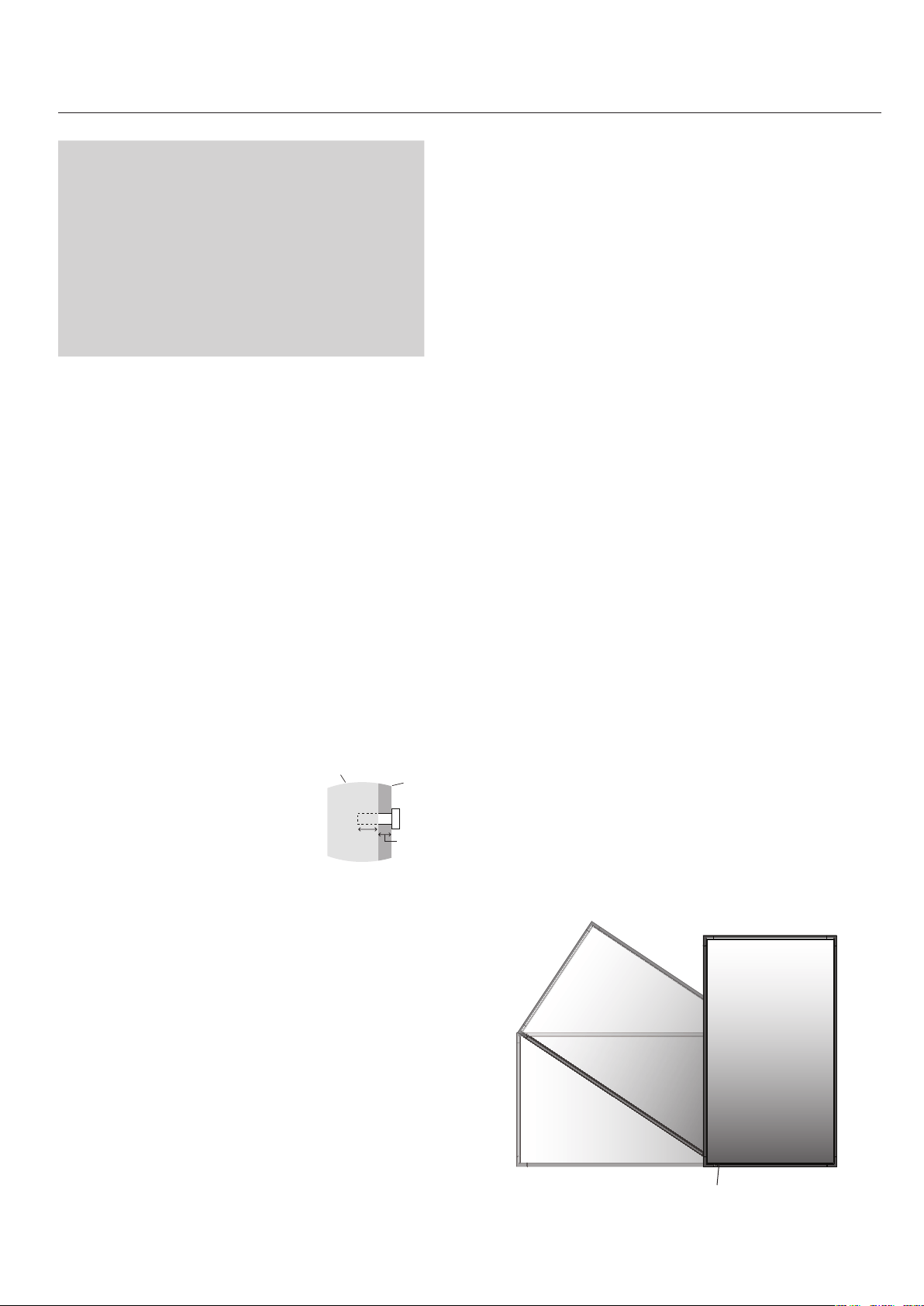

Mounting

DO฀NOT฀mount฀the฀monitor฀yourself.฀Please฀

ask฀dealer.฀For฀proper฀installation฀it฀is฀strongly฀

recommended฀to฀use฀a฀trained,฀qualiﬁ฀ed฀technician.฀

Please฀inspect฀the฀location฀where฀the฀unit฀is฀to฀

be฀mounted.฀Not฀all฀walls฀or฀ceilings฀are฀capable฀

of฀supporting฀the฀weight฀of฀the฀unit.฀Product฀

warranty฀does฀not฀cover฀damage฀caused฀by฀improper฀

installation,฀remodeling,฀or฀natural฀disasters.฀Failure฀

to฀comply฀with฀these฀recommendations฀could฀result฀in฀

voiding฀the฀warranty.฀

DO฀NOT฀block฀ventilated฀openings฀with฀mounting฀

accessories฀or฀other฀accessories.

For฀NEC฀Qualiﬁ฀ed฀Personnel:

To฀insure฀safe฀installation,฀use฀two฀or฀more฀brackets฀to฀

mount฀the฀unit.฀Mount฀the฀unit฀to฀at฀least฀two฀points฀on฀

the฀installation฀location.

Please฀note฀the฀following฀when฀mounting

on฀wall฀or฀ceiling.

When฀using฀mounting฀accessories฀

other฀than฀those฀that฀are฀NEC฀

approved,฀they฀must฀comply฀with฀

the฀VESA-compatible฀(FDMlv1)฀

mounting฀method.

NEC฀strongly฀recommends฀using฀

size฀M6฀screws฀(10mm฀+฀thickness฀

of฀bracket฀in฀length).฀If฀using฀

screws฀longer฀than฀10mm,฀check฀the฀depth฀of฀the฀hole.฀

(Recommended฀Fasten฀Force:฀470฀-฀635N

·cm)฀NEC฀

recommends฀mounting฀interfaces฀that฀comply฀with฀

UL1678฀standard฀in฀North฀America.

Prior฀to฀mounting,฀inspect฀the฀installation฀location฀to฀

insure฀that฀it฀is฀strong฀enough฀to฀support฀the฀weight฀of฀

the฀unit฀so฀that฀the฀unit฀will฀be฀safe฀from฀harm.

Refer฀to฀the฀instructions฀included฀with฀the฀mounting฀

equipment฀for฀detailed฀information.

Mounting฀location

The฀ceiling฀and฀wall฀must฀be฀strong฀enough฀to฀support฀the฀

monitor฀and฀mounting฀accessories.

DO฀NOT฀install฀in฀locations฀where฀a฀door฀or฀gate฀can฀

hit฀the฀unit.฀

DO฀NOT฀install฀in฀areas฀where฀the฀unit฀will฀be฀

•

subjected฀to฀strong฀vibrations฀and฀dust.

DO฀NOT฀install฀near฀where฀the฀main฀power฀supply฀

enters฀the฀building.

Do฀not฀install฀in฀where฀people฀can฀easily฀grab฀and฀

hang฀onto฀the฀unit฀or฀the฀mounting฀apparatus.

When฀mounting฀in฀a฀recessed฀area,฀as฀in฀a฀wall,฀leave฀at฀

least฀4฀inches฀(10cm)฀of฀space฀between฀the฀monitor฀and฀

the฀wall฀for฀proper฀ventilation.

Allow฀adequate฀ventilation฀or฀provide฀air฀conditioning฀

around฀the฀monitor,฀so฀that฀heat฀can฀properly฀dissipate฀

away฀from฀the฀unit฀and฀mounting฀apparatus.

Mounting฀on฀Ceiling

Ensure฀that฀the฀ceiling฀is฀sturdy฀enough฀to฀support฀the฀

weight฀of฀the฀unit฀and฀the฀mounting฀apparatus฀over฀

time,฀against฀earthquakes,฀unexpected฀vibrations,฀and฀

other฀external฀forces.

Be฀sure฀the฀unit฀is฀mounted฀to฀a฀solid฀structure฀

within฀the฀ceiling,฀such฀as฀a฀support฀beam.฀Secure฀the฀

monitor฀using฀bolts,฀spring฀lock฀washers,฀washer฀and฀

nut.

DO฀NOT฀mount฀to฀areas฀that฀have฀no฀supporting฀

internal฀structure.฀DO฀NOT฀use฀wood฀screws฀or฀

anchor฀screws฀for฀mounting.฀DO฀NOT฀mount฀the฀unit฀

to฀trim฀or฀to฀hanging฀ﬁ฀xtures.

Maintenance

Periodically฀check฀for฀loose฀screws,฀gaps,฀distortions,฀

or฀other฀problems฀that฀may฀occur฀with฀the฀mounting฀

apparatus.฀If฀a฀problem฀is฀detected,฀please฀refer฀to฀

qualiﬁ฀ed฀personnel฀for฀service.

Regularly฀check฀the฀mounting฀location฀for฀signs฀of฀

damage฀or฀weakness฀that฀may฀occur฀over฀time.

Orientation

When฀using฀the฀display฀in฀the฀portrait฀position,฀the฀

monitor฀should฀be฀rotated฀clockwise฀so฀that฀the฀left฀side฀

is฀moved฀to฀the฀top฀and฀the฀LED฀indicator฀light฀is฀on฀the฀

bottom.฀This฀will฀allow฀for฀proper฀ventilation฀and฀will฀ex-

tend฀the฀lifetime฀of฀the฀monitor.฀Improper฀ventilation฀may฀

shorten฀the฀lifetime฀of฀the฀monitor.

•

Unit

Mounting

Bracket

Thickness of

Bracket

Screw

10mm

Screw length should equal depth of

hole (10mm) + the thickness of

mounting bracket.

This฀device฀cannot฀be฀used฀or฀installed฀without฀the฀

Tabletop฀Stand฀or฀other฀mounting฀accessory฀for฀support.฀

For฀proper฀installation฀it฀is฀strongly฀recommended฀to฀

use฀a฀trained,฀NEC฀authorized฀service฀person.฀Failure฀

to฀follow฀NEC฀standard฀mounting฀procedures฀could฀

result฀in฀damage฀to฀the฀equipment฀or฀injury฀to฀the฀user฀

or฀installer.฀Product฀warranty฀does฀not฀cover฀damage฀

caused฀by฀improper฀installation.฀Failure฀to฀follow฀these฀

recommendations฀could฀result฀in฀voiding฀the฀warranty.

For฀further฀mounting฀information฀see฀page฀6.

For฀stand฀installation฀see฀page฀8~9.

LED฀Indicator

English

English-7

- continued

Attaching฀Mounting฀Accessories

The฀display฀is฀designed฀for฀use฀with฀the฀VESA฀mounting฀

system.

฀1)฀Attach฀Mounting฀Accessories

Mounting฀accessories฀can฀be฀attached฀while฀the฀

monitor฀is฀on฀the฀Tabletop฀Stand฀in฀the฀upright฀

position฀(Figure฀1).฀Be฀careful฀to฀avoid฀tipping฀

monitor฀when฀attaching฀accessories.฀After฀accessories฀

are฀attached,฀stand฀can฀be฀removed.

Mounting฀accessories฀can฀be฀attached฀with฀the฀

monitor฀in฀the฀face฀down฀position.฀To฀avoid฀damaging฀

the฀screen฀face,฀place฀the฀protective฀sheet฀on฀the฀

table฀underneath฀the฀LCD฀(Figure฀2).฀The฀protective฀

sheet฀was฀wrapped฀around฀the฀LCD฀in฀the฀original฀

packaging.฀Make฀sure฀there฀is฀nothing฀on฀the฀table฀

that฀can฀damage฀the฀monitor.

When฀using฀mounting฀accessories฀other฀than฀NEC฀

compliant฀and฀approved,฀they฀must฀comply฀with฀the฀

VESA-compatible฀mounting฀method.฀NEC฀strongly฀

recommends฀using฀screws฀M6฀size฀and฀10mm฀in฀

length.฀If฀using฀screws฀longer฀than฀10mm,฀check฀the฀

depth฀of฀the฀hole.฀(Recommended฀Fasten฀Force:฀470-

635N•cm)

NEC฀recommends฀using฀mounting฀interface฀that฀

comply฀with฀UL1678฀standard฀in฀North฀America.

฀

Figure฀1

Figure฀2

VESA฀Mounting฀Interface

Tabletop฀Stand

Protective฀Sheet

Table

Tabletop฀Stand

English-8

฀2)฀Installing฀and฀removing฀stand

CAUTION฀

Installing฀and฀removing฀the฀stand฀must฀be฀done฀by฀two฀

or฀more฀people.฀

How฀to฀install฀stand

1.฀Please฀turn฀monitor฀off.

2.฀Place฀stand฀onto฀monitor฀with฀the฀long฀ends฀of฀the฀฀

฀฀฀฀฀feet฀in฀front฀of฀the฀monitor.

3.฀After฀inserting฀stand฀in฀guide฀block,฀fasten฀฀฀฀฀

฀฀฀฀฀thumbscrews฀on฀both฀sides฀of฀the฀monitor.

How฀to฀remove฀the฀stand

1.฀Spread฀the฀protective฀sheet฀on฀a฀ﬂat฀surface,฀such฀฀

฀฀฀฀฀as฀a฀desk.

2.฀Place฀monitor฀on฀the฀protective฀sheet.

3.฀Remove฀thumbscrews฀with฀a฀screwdriver฀or฀with฀฀฀฀

฀฀฀฀฀your฀ﬁngers฀and฀place฀them฀in฀a฀safe฀place฀for฀฀

฀฀฀฀฀reuse.

- continued

Thumbscrews

NOTE:฀Place฀stand฀onto฀monitor฀so฀

that฀the฀long฀end฀of฀the฀feet฀are฀in฀the฀

front.

English

English-9

฀3)฀Ventilation฀Requirements฀

When฀mounting฀in฀an฀enclosure฀or฀in฀a฀recessed฀

area฀,฀leave฀space฀between฀surrounding฀the฀monitor฀

and฀surrounding฀objects฀to฀allow฀heat฀to฀disperse,฀as฀

shown฀in฀Figure฀5.

฀4)฀Prevent฀Tipping

When฀using฀the฀display฀with฀the฀Tabletop฀Stand฀

fasten฀the฀LCD฀to฀a฀wall฀using฀a฀cord฀or฀chain฀that฀can฀

support฀the฀weight฀of฀the฀monitor฀(LCD4020฀approx.฀

31.1kg;฀LCD4620฀approx.฀37.9kg)฀in฀order฀to฀prevent฀

the฀monitor฀from฀falling.฀Fasten฀the฀cord฀or฀chain฀

to฀the฀monitor฀using฀the฀provided฀clamp฀and฀screw฀

(Figure฀6).฀

Before฀attaching฀the฀LCD฀monitor฀to฀the฀wall,฀make฀

sure฀that฀the฀wall฀can฀support฀the฀weight฀of฀the฀

monitor.฀

Be฀sure฀to฀remove฀the฀cord฀or฀chain฀from฀the฀wall฀

before฀moving฀the฀LCD.

Figure฀5

- continued

LCD4020:278mm

LCD4620:210mm

Figure฀6

Clamp

Screw

Cord฀or฀Chain

Screw฀Holes

English-10



฀1)฀POWER

Switches฀the฀power฀on/off.฀(See฀page฀24)

฀2)฀฀EXIT

Activates฀the฀OSD฀menu฀when฀the฀OSD฀menu฀is฀off.฀

Exits฀from฀the฀current฀menu฀being฀displayed฀to฀the฀

previous฀menu฀within฀the฀OSD.

฀3)฀PLUS(+)

Increases฀the฀setting฀adjustment฀within฀OSD฀menu.฀

Increases฀the฀audio฀output฀level฀when฀the฀OSD฀is฀off.฀

฀4)฀MINUS(-)

Decreases฀the฀setting฀adjustment฀within฀OSD฀menu.฀฀

Decreases฀the฀audio฀output฀level฀when฀the฀OSD฀is฀off.฀

฀5)฀UP(฀฀)฀

Activates฀the฀OSD฀menu฀when฀the฀OSD฀menu฀is฀off.฀

Moves฀the฀highlighted฀area฀up฀to฀select฀which฀setting฀to฀be฀

adjust฀within฀OSD฀menu.

฀6)฀DOWN(฀฀)฀

Activates฀the฀OSD฀menu฀when฀the฀OSD฀menu฀is฀off.฀

Moves฀the฀highlighted฀area฀down฀to฀select฀which฀setting฀

to฀be฀adjust฀within฀OSD฀menu.

฀7)฀INPUT

Selects฀which฀signal฀connected฀to฀the฀display฀is฀shown.฀

([DVI],฀[VGA],฀[RGB/HV],฀[HDMI]฀฀฀฀฀฀฀฀฀,฀[DVD/HD]฀฀฀฀฀฀฀฀฀,฀

[VIDEO]฀฀฀฀฀฀฀฀฀,฀[TV]฀฀฀฀฀฀฀฀฀)฀

Acts฀as฀SET฀button฀within฀the฀OSD฀menu.

฀8)฀Remote฀control฀sensor฀and฀Power฀indicator

Receives฀the฀signal฀when฀using฀the฀wireless฀remote฀control.฀

(See฀page฀14)฀

Glows฀green฀when฀the฀LCD฀monitor฀is฀in฀active฀mode*.฀Glows฀

red฀when฀the฀LCD฀is฀in฀POWER฀OFF฀(ECO฀standby)฀mode.฀

Glows฀amber฀when฀the฀LCD฀is฀in฀POWER฀OFF฀(standby)฀

mode.฀Blinks฀amber฀when฀the฀monitor฀is฀in฀Power฀Save฀

Mode.฀Green฀and฀amber฀blink฀alternately฀while฀in฀Power฀

Standby฀with฀the฀“SCHEDULE฀SETTINGS”฀function฀enabled.฀

When฀a฀component฀failure฀is฀detected฀within฀the฀monitor,฀the฀

indicator฀will฀blink฀red.

"*If฀฀"OFF"฀is฀selected฀in฀POWER฀INDICATOR(See฀page฀30),฀

the฀LED฀will฀not฀light฀when฀the฀LCD฀monitor฀is฀active฀mode".

฀9)฀Main฀Power฀Switch

Seesaw฀Switch฀to฀turn฀the฀the฀main฀power฀on/off.

฀฀Control฀Key฀Lock฀Mode

This฀function฀completely฀locks฀out฀access฀to฀all฀Control฀

Key฀functions.฀

To฀enable฀the฀Control฀Key฀Lock฀Mode,฀press฀both฀฀“฀฀฀฀฀”฀

and฀“฀฀฀฀฀”฀simultaneously฀and฀hold฀down฀for฀three฀(3)฀

seconds.฀

To฀go฀back฀to฀user฀mode,฀press฀both฀“฀฀฀฀฀”฀and฀“฀฀฀฀฀”฀

simultaneously฀and฀hold฀down฀for฀three฀(3)฀seconds.



฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English

English-11

 - continued



฀1)฀AC฀IN

Connects฀with฀the฀supplied฀power฀cord.

฀2)฀RGB/HV฀OUT฀[R,฀G,฀B,฀H,฀V]฀(BNC)

Outputs฀the฀signal฀from฀the฀RGB/HV฀IN฀connector฀to฀an฀

input฀on฀a฀separate฀device.฀

฀3)฀HDMI฀connector฀

To฀input฀digital฀HDMI฀signals.

฀4)฀DVD/HD฀IN฀฀฀฀฀฀฀฀

Connecting฀equipment฀such฀as฀a฀DVD฀player,฀HDTV฀

device,฀or฀Set-Top-Box.

฀5)฀S-VIDEO฀IN฀

Input฀S-video.

฀6)฀VIDEO฀OUT฀

Output฀the฀composite฀video฀signal฀from฀the฀VIDEO฀IN฀

connection.

฀7)฀฀AUDIO฀IN฀

Input฀the฀audio฀signal฀from฀external฀equipment฀such฀as฀

a฀computer,฀VCR฀or฀DVD฀player.

฀8)฀AUDIO฀OUT฀

Output฀the฀audio฀signal฀from฀the฀AUDIO฀IN฀1,฀2,฀

3,฀HDMI,฀and฀TV฀jack฀to฀an฀external฀device฀(stereo฀

receiver,฀ampliﬁer,฀etc,).

฀9)฀SPEAKER฀TERMINALS฀

Output฀the฀audio฀signal฀from฀AUDIO฀1,฀2,฀3,฀HDMI,฀and฀

TV฀to฀external฀speakers฀jack.฀

NOTE:฀Speaker฀Terminal฀is฀15W฀+฀15W฀(8฀ohm).

฀10)฀RGB/HV฀IN฀[R,฀G,฀B,฀H,฀V]฀(BNC)

Input฀RGB/฀HV฀signals฀or฀signals฀from฀other฀RGB฀

equipment.฀A฀Sync-on-Green฀signal฀can฀be฀connected฀to฀

the฀G฀connector.

฀11)฀VGA฀(Mini฀D-SUB15)

Analog฀computer฀input.

฀12)฀DVI-D฀

Input฀digital฀RGB฀signals฀from฀a฀computer฀or฀HDTV

device฀having฀a฀digital฀RGB฀output.

13)฀VIDEO฀IN฀(RCA)฀

Composite฀video฀input.

14)฀VIDEO฀IN฀(BNC)฀

Composite฀video฀input.

฀15)฀EXTERNAL฀CONTROL฀(D-Sub฀9฀pin)

Connect฀RS-232C฀input฀to฀external฀equipment฀such฀as฀a฀

PC฀in฀order฀to฀control฀RS-232C฀functions.

฀16)฀EXTERNAL฀CONTROL฀(D-Sub฀9฀pin)

Connect฀RS-232C฀output.

To฀connect฀to฀multiple฀MultiSync฀monitors฀

via฀daisy฀RS-232C฀Chain.

฀17)฀RF฀IN฀

฀

TV฀signal฀input.

฀18)฀S/PDIF฀OUTPUT฀

฀

Optical฀digital฀audio฀out.

฀19)฀Kensington฀Lock

For฀security฀and฀theft฀prevention.

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

INOUT

AC IN RGB/HV OUT

PC IN

VIDEO

DVD/HD IN

AUDIO SPEAKER

RGB/HV IN

VGA(D-SUB)

DVI(DVI-D)

HDMI

Y Cb/Pb Cr/Pr

S-VIDEO IN

OUT

AUDIO OUT

R L

AUDIO1 INAUDIO2 INAUDIO3 IN

R R

L L

R G B H V

English-12

- continued

฀1)฀POWER

Switches฀the฀power฀on/off.฀

฀ 2)฀INPUT

Selects฀which฀input฀signal฀([DVI],฀[VGA],฀[RGB/HV],฀

[HDMI]฀฀฀฀฀฀฀฀,฀[DVD/HD]฀฀฀฀฀฀฀฀,฀[฀VIDEO]฀฀฀฀฀฀฀฀,[TV]฀฀฀฀฀฀฀฀,฀

[OPTION])฀to฀be฀displayed.

฀3)฀PICTURE฀MODE

Selects฀picture฀mode,฀[HIGHBRIGHT],฀[STANDARD],฀

[sRGB],฀[CINEMA].฀See฀page฀25.฀

HIGHBRIGHT:฀for฀moving฀images฀

STANDARD:฀for฀images฀

sRGB:฀for฀text฀based฀images฀

CINEMA:฀for฀movies

฀4)฀SIZE

Selects฀aspect฀ratio฀of฀the฀displayed฀image.฀

[FULL],฀[NORMAL],฀[WIDE]฀฀฀฀฀฀฀฀,฀and฀[ZOOM].฀

See฀page฀25.

฀5)฀KEYPAD

Set฀and฀change฀passwords.฀Set฀REMOTE฀ID.฀

Select฀TV฀channel.

฀6)฀DISPLAY

Turn฀on/off฀the฀Information฀OSD.฀See฀page฀25.

฀7)฀

Move฀highlighted฀area฀up฀or฀down.฀฀

Moves฀the฀PIP฀sub-picture.

฀8)฀AUTO฀SETUP

Enters฀AUTO฀SETUP฀menu.

฀9)฀CHANNEL฀RETURN฀

฀

Return฀to฀previous฀channel.

10)฀VOLUME฀

Increases฀or฀Decreases฀sound฀level.

฀11)฀STILL

ON/OFF:฀Activates/deactivates฀still฀picture฀mode.฀

CAPTURE:฀Captures฀still฀picture.

฀12)฀PICTURE฀in฀PICTURE฀

ON/OFF:฀Turns฀PIP฀on฀or฀off.

INPUT:฀Changes฀the฀input฀signal฀of฀PIP.

CHANGE:฀Swaps฀inner฀picture฀with฀outer฀picture.

Sub฀Picture

DVIVGARGB/HVHDMIDVD/HDVIDEOTV

Main฀


DVI----

VGA----

RGB/HV----

HDMI----

DVD/HD-

VIDEO-

TV-

฀13)฀REMOTE฀ID

Activates฀REMOTE฀ID฀function.฀See฀page฀15.

฀14)฀GUIDE฀

฀฀

Enter฀on฀screen฀program฀guide.



฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English

English-13

฀15)฀AUDIO฀INPUT฀

Select฀the฀Audio฀source.฀

NOTE:฀It฀is฀possible฀to฀play฀audio฀from฀a฀source฀that฀is฀

different฀from฀the฀video฀source.฀When฀setting฀parental฀

controls฀for฀video,฀be฀aware฀that฀this฀content฀is฀not฀

ﬁltered.฀

฀16)฀SOUND฀

Artiﬁcial฀surround฀sound.

฀17)฀ENTER฀

฀฀

Go฀to฀channel฀selected.

฀18)฀MENU

Turns฀ON/OFF฀menu฀mode.

฀19)฀SET

Makes฀selection.฀

฀20)฀-฀,฀+

Increases฀or฀decreases฀adjustment.฀

Moves฀the฀PIP฀sub-picture.

฀21)฀EXIT

Goes฀to฀previous฀menu.

฀22)฀Channel฀

฀฀

Go฀up฀or฀down฀channel฀selections.

฀23)฀MUTE฀

Mutes฀audio฀output.

฀24)฀

฀฀฀฀฀

Activates฀closed฀captioning.

฀25)฀SLEEP

Sleep฀timer.

฀26)฀MTS฀

฀฀

Multi-track฀sound.

27)฀TRANSPARENCY฀button*฀฀

Determines฀the฀level฀of฀OSD฀transparency.

28)฀INPUT฀button*

Cycles฀through฀available฀inputs.

*:฀The฀product฀you฀purchased฀may฀not฀have฀this฀feature.

Changing฀the฀channel฀

฀

Both฀Analog฀and฀Digital฀channels฀are฀available฀using฀this฀

tuner.฀In฀addition฀to฀the฀CH+฀and฀CH-฀buttons฀channels฀

can฀be฀changed฀in฀the฀following฀method.

Tuning฀Analog฀Channels฀

Input฀the฀desired฀channel฀number฀using฀the฀keypad,฀then฀

press฀[SET]฀or฀[ENT]฀to฀immediately฀tune฀to฀the฀new฀

channel.฀If฀the฀number฀is฀input฀and฀[SET]฀or฀[ENT]฀is฀not฀

pushed,฀after฀a฀few฀seconds฀the฀channel฀will฀be฀changed.฀

For฀example฀to฀tune฀to฀channel฀5,฀press฀[5]฀then฀press฀

[SET]฀or฀[ENT].฀

฀

Tuning฀Digital฀Channels฀

To฀tune฀in฀to฀a฀digital฀sub-channel฀enter฀the฀number฀of฀the฀

main฀channel,฀then฀a฀dash฀followed฀by฀the฀number฀of฀the฀

sub-channel.฀For฀example฀to฀tune฀to฀digital฀channel฀5-1,฀

press฀[5]฀then฀[–]฀then฀[1].฀Press฀[SET]฀or฀[ENT]฀to฀tune.

- continued

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English-14





Operating฀Range฀for฀the฀Remote฀Control

Point฀the฀top฀of฀the฀remote฀control฀toward฀the฀monitor’s฀

remote฀sensor฀while฀pressing฀buttons.฀The฀remote฀

control฀can฀be฀used฀from฀the฀front฀of฀the฀monitor฀at฀a฀

maximum฀distance฀of฀7฀m/23฀ft.฀from฀the฀front฀of฀the฀

LCD฀monitor’s฀remote฀control฀sensor.฀The฀maximum฀

horizontal฀and฀vertical฀angle฀for฀use฀of฀the฀remote฀is฀30฀

degrees฀within฀a฀distance฀of฀3.5฀m/10฀ft.

CAUTION

The฀remote฀control฀system฀may฀not฀function฀when฀

direct฀sunlight฀or฀strong฀illumination฀strikes฀the฀remote฀

control฀sensor฀of฀the฀LCD฀monitor,฀or฀when฀there฀is฀an฀

object฀in฀the฀path฀of฀the฀sensor.

Handling฀the฀Remote฀Control

Do฀not฀open฀the฀remote฀control฀other฀than฀to฀

install฀batteries.

Do฀not฀allow฀water฀or฀other฀liquid฀to฀splash฀onto฀the฀

remote฀control.฀If฀the฀remote฀control฀gets฀wet,฀wipe฀it฀

dry฀immediately.

Avoid฀exposure฀to฀heat฀and฀steam.

- continued

English

English-15

REMOTE฀CONTROL฀ID

The฀remote฀control฀included฀with฀the฀display฀can฀be฀used฀

to฀control฀up฀to฀26฀individual฀MultiSync฀monitors฀us-

ing฀what฀is฀called฀the฀REMOTE฀CONTROL฀ID฀mode.฀The฀

REMOTE฀CONTROL฀ID฀mode฀works฀in฀conjunction฀with฀

the฀Monitor฀ID,฀allowing฀control฀of฀up฀to฀26฀individual฀

MultiSync฀monitors.฀For฀example:฀if฀there฀are฀many฀moni-

tors฀being฀used฀in฀the฀same฀area,฀a฀remote฀control฀in฀nor-

mal฀mode฀would฀send฀signals฀to฀every฀monitor฀at฀the฀same฀

time฀Figure฀1.฀Using฀the฀remote฀in฀REMOTE฀CONTROL฀

ID฀mode฀will฀only฀operate฀one฀speciﬁ฀c฀monitor฀within฀the฀

group฀Figure฀2.

TO฀SET฀REMOTE฀CONTROL฀ID:

While฀holding฀down฀the฀REMOTE฀ID฀SET฀button฀on฀the฀

remote฀control,฀use฀the฀KEYPAD฀to฀input฀the฀Monitor฀

ID฀(1-26)฀of฀the฀display฀to฀be฀controlled฀via฀remote.฀The฀

remote฀can฀then฀be฀used฀to฀operate฀the฀monitor฀having฀that฀

speciﬁ฀c฀Monitor฀ID฀number.

When฀0฀is฀selected฀or฀when฀the฀remote฀control฀is฀in฀normal฀

mode,฀all฀monitors฀will฀be฀operated.

TO฀USE฀REMOTE฀CONTROL฀ID฀MODE

ID฀Mode฀-฀To฀enter฀ID฀Mode฀press฀the฀REMOTE฀ID฀SET฀

button฀and฀hold฀down฀for฀2฀seconds.

Normal฀Mode฀-฀To฀return฀to฀Normal฀Mode฀press฀the

REMOTE฀ID฀RESET฀button฀and฀hold฀down฀for฀2฀seconds.

In฀order฀for฀this฀feature฀to฀work฀properly,฀the฀display฀must฀

be฀assigned฀a฀Monitor฀ID฀number.฀The฀Monitor฀ID฀number฀

can฀be฀assigned฀under฀the฀MULTI฀DISPLAY฀menu฀in฀the฀

OSD฀(See฀page฀30).

You฀monitor฀ID฀in฀the฀center฀of฀display฀when฀your฀remote฀

control฀is฀ID฀mode.-

Monitor฀ID:1Monitor฀ID:2Monitor฀ID:3

Remote฀does

not฀work

Remote฀does

not฀work

Remote฀works

Figure฀2

Remote฀set฀up฀to฀

use฀Remote฀ID:3

Monitor฀ID:1Monitor฀ID:2Monitor฀ID:3

Remote฀worksRemote฀worksRemote฀works

Figure฀1

Remote฀in฀Normal฀

mode฀or฀the฀REMOTE฀

ID฀is฀set฀to฀0



- continued

English-16

Please฀see฀installation฀on฀page฀6฀of฀

this฀manual฀and฀follow฀all฀installation฀

instructions.฀

฀1)฀Determine฀the฀installation฀location.

CAUTION:฀Installing฀your฀LCD฀display฀must฀be฀

done฀by฀a฀qualiﬁed฀technician.฀Contact฀your฀dealer฀

for฀more฀information.

CAUTION:฀MOVING฀OR฀INSTALLING฀THE฀LCD฀

MONITOR฀MUST฀BE฀DONE฀BY฀TWO฀OR฀MORE฀

PEOPLE.฀Failure฀to฀follow฀this฀caution฀may฀result฀in฀

injury฀if฀the฀LCD฀monitor฀falls.

CAUTION:฀Do฀not฀mount฀or฀operate฀the฀display฀

upside฀down,฀face฀up,฀or฀face฀down.

CAUTION:฀This฀LCD฀has฀a฀temperature฀sensor฀and฀

cooling฀fan.฀If฀the฀LCD฀becomes฀too฀hot,฀the฀cooling฀

fan฀will฀turn฀on฀automatically.฀฀If฀the฀LCD฀becomes฀

overheated฀while฀the฀cooling฀fan฀is฀running,฀the฀

“Caution”฀฀menu฀will฀appear.฀If฀the฀“Caution”฀menu฀

appears,฀discontinue฀use฀and฀allow฀the฀unit฀to฀cool.฀

Using฀the฀cooling฀fan฀will฀reduce฀the฀likelihood฀

of฀early฀circuit฀failure฀and฀may฀help฀reduce฀image฀

degradation฀and฀"฀image฀persistance".

If฀the฀LCD฀is฀used฀in฀an฀enclosed฀area฀or฀if฀the฀LCD฀

panel฀is฀covered฀with฀a฀protective฀screen,฀please฀check฀

the฀inside฀temperature฀of฀the฀monitor฀by฀using฀the฀

“HEAT฀STATUS”฀control฀in฀the฀OSD฀(see฀page฀30).฀If฀

the฀temperature฀is฀higher฀than฀the฀normal฀operating฀

temperature,฀please฀turn฀the฀cooling฀fan฀to฀ON฀within฀

the฀FAN฀CONTROL฀menu฀within฀the฀OSD฀

(see฀page฀30).

IMPORTANT฀

Lay฀the฀protective฀sheet,฀which฀was฀wrapped฀around฀

the฀LCD฀monitor฀when฀it฀was฀packaged,฀beneath฀the฀

LCD฀monitor฀so฀as฀not฀to฀scratch฀the฀panel.

฀2)฀Install฀the฀remote฀control฀batteries.

The฀remote฀control฀is฀powered฀by฀two฀1.5V฀AA฀

batteries.฀To฀install฀or฀replace฀batteries:

A.฀Press฀and฀slide฀to฀open฀the฀cover.฀

B.฀Align฀the฀batteries฀according฀to฀the฀(+)฀฀฀

฀and฀(–)฀indications฀inside฀the฀case.฀

C.฀Replace฀the฀cover.

CAUTION:฀Incorrect฀usage฀of฀batteries฀can฀result฀

in฀leaks฀or฀bursting.฀NEC฀recommends฀the฀following฀

battery฀use:

Place฀“AA”฀size฀batteries฀matching฀the฀(+)฀and฀(-)฀signs฀

on฀each฀battery฀to฀the฀(+)฀and฀(-)฀signs฀of฀฀the฀battery฀

compartment.

Do฀not฀mix฀battery฀brands.

Do฀not฀combine฀new฀and฀old฀batteries.฀This฀can฀

shorten฀battery฀life฀or฀cause฀liquid฀leakage฀of฀batteries.

Remove฀dead฀batteries฀immediately฀to฀prevent฀battery฀

acid฀from฀leaking฀into฀the฀battery฀compartment.

Do฀not฀touch฀exposed฀battery฀acid,฀it฀may฀injure฀skin.

NOTE:฀If฀you฀do฀not฀intend฀to฀use฀the฀Remote฀Control฀for฀

a฀long฀period฀of฀time,฀remove฀the฀batteries.

•



English

English-17

฀3)฀Connect฀external฀equipment.

To฀protect฀the฀external฀equipment,฀turn฀off฀the฀main฀

power฀before฀making฀connections.

Refer฀to฀your฀equipment฀user฀manual฀for฀further฀

information.

฀4)฀Connect฀the฀supplied฀power฀cord.

The฀equipment฀should฀be฀installed฀close฀to฀an฀easily฀

accessible฀power฀outlet.

Please฀attached฀power฀cord฀the฀LCD฀monitor฀by฀

attaching฀the฀screw฀and฀clamp.

Fully฀insert฀the฀prongs฀into฀the฀power฀outlet฀socket.฀A฀

loose฀connection฀may฀cause฀image฀degradation.

NOTE:฀If฀you฀use฀this฀monitor฀at฀AC฀220฀-฀240V,฀

please฀refer฀to฀“Safety฀Precautions฀and฀Maintenance฀

&฀Recommended฀Use”฀sections฀of฀this฀manual฀for฀

proper฀selection฀of฀AC฀power฀cord.

฀5)฀Attach฀the฀cable฀cover

฀For฀LCD4020

Remove฀the฀six฀screws.

Use฀6฀of฀the฀M4฀x฀10฀screws(included)to฀attach฀the฀

cable฀฀cover.฀

•

For฀LCD4620

Remove฀the฀3฀screws.

Use฀5฀of฀the฀M4฀x฀10฀screws(included)to฀attach฀the฀

cable฀฀cover.฀

฀6)฀Switch฀on฀the฀power฀of฀all฀the฀attached฀

external฀equipment.

When฀connected฀with฀a฀computer,฀switch฀on฀the฀

power฀of฀the฀computer฀ﬁrst.

฀7)฀Operate฀the฀attached฀external฀equipment.

Display฀the฀signal฀from฀the฀desired฀input฀source.

฀8)฀Adjust฀the฀sound฀

Make฀volume฀adjustments฀as฀required.

฀9)฀Adjust฀the฀screen฀(See฀page฀27).

Make฀adjustments฀of฀the฀screen฀display฀position฀when฀

necessary.

฀10)฀Adjust฀the฀image฀(See฀page฀27).

Make฀adjustments฀such฀as฀brightness฀or฀contrast฀

when฀required.

฀11)฀Recommended฀Adjustments

To฀reduce฀the฀risk฀of฀the฀“image฀persistence”,฀please฀

adjust฀the฀following฀items฀based฀on฀the฀application฀

being฀used:฀

฀“DATE฀&฀TIME”฀and฀“SCHEDULE฀SETTINGS”฀฀

฀(See฀pages฀28฀and฀29)฀

฀“SCREEN฀SAVER”,฀and฀“SIDE฀BORDER฀COLOR”฀฀

฀(See฀page฀30)฀

฀

It฀is฀recommended฀that฀the฀“FAN฀CONTROL”฀฀฀

setting฀(see฀page฀30)฀be฀turned฀to฀ON฀also.

•

 - continued

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

Screw

Clamp

Screwhole฀for฀Clamp

English-18



AC IN RGB/HV OUT

PC IN

VIDEO

DVD/HD IN

AUDIO SPEAKER

RGB/HV IN

VGA(D-SUB)

DVI(DVI-D)

HDMI

Cb/Pb Cr/Pr

S-VIDEO IN

OUT

AUDIO OUT

R L

AUDIO1 INAUDIO2 INAUDIO3 IN

R R

L L

R G B H V

Before฀connecting฀external฀equipment฀to฀LCD:

First฀turn฀off฀the฀power฀to฀all฀of฀the฀equipment฀associated฀

with฀the฀LCD฀as฀well฀as฀that฀of฀the฀equipment฀to฀be฀con-

nected.

For฀questions฀regarding฀external฀equipment฀please฀refer฀to฀

the฀user’s฀manual฀supplied฀with฀that฀equipment.

Connecting฀the฀LCD฀Monitor฀to฀a฀PC

Connecting฀your฀computer฀to฀your฀LCD฀monitor฀will฀en-

able฀you฀to฀display฀your฀computer’s฀screen฀image.

Some฀video฀cards฀having฀a฀pixel฀clock฀over฀162MHz฀may฀

not฀display฀images฀correctly.

The฀LCD฀monitor฀will฀฀automatically฀adjust฀to฀a฀preset฀

timing฀to฀display฀the฀proper฀image.

<Factory฀Preset฀Signal฀Timing>

Resolution

Scanning฀frequency

RemarksHorizontalVertical

640x48031.5kHz60Hz

800x60037.9kHz60Hz

1024x76848.4kHz60Hz

1280x76848.0kHz60Hz

1360x76848.0kHz60Hz

Recommended฀

resolution

1280x102464.0kHz60Hz

Compressed฀


1600x120075.0kHz60Hz

Compressed฀


To฀connect฀to฀the฀VGA฀connector฀(mini฀D-sub฀15฀pin)฀on฀

the฀LCD฀monitor,฀use฀the฀provided฀RGB฀signal฀cable฀(mini฀

D-sub฀15฀pin฀to฀mini฀D-sub฀15฀pin).

To฀connect฀to฀the฀RGB/HV฀connector฀(BNC)฀on฀the฀LCD฀

monitor,฀use฀a฀mini฀D-sub฀15฀pin฀to฀BNC฀x฀5฀signal฀cable฀

(not฀included).฀Select฀RGB/HV฀from฀the฀INPUT฀button.

When฀connecting฀to฀a฀second฀LCD฀monitor,฀use฀the฀RGB/

HV฀OUT฀connector฀(BNC)(BNC฀INPUT฀only).

The฀AUDIO฀IN1,฀2,฀3฀can฀be฀used฀to฀choose฀the฀audio฀

source.฀To฀select,฀use฀the฀AUDIO฀INPUT฀button.฀

LCD฀Monitor

(second฀monitor)

LCD฀Monitor

To฀RGB/HV฀Input

From฀Audio฀Output฀

Mini฀D-sub฀15฀pin

PC฀or฀IBM฀

compatible

BNC฀x฀5

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

From฀Analog฀RGB฀Output฀

(BNC฀Input฀only)

English

English-19

AC IN RGB/HV OUT

PC IN

VIDEO

DVD/HD IN

AUDIO SPEAKER

RGB/HV IN

VGA(D-SUB)

DVI(DVI-D)

HDMI

Y Cb/Pb Cr/Pr

S-VIDEO IN

OUT

AUDIO OUT

R L

AUDIO1 INAUDIO2 INAUDIO3 IN

R R

L L

R G B H V

Connecting฀to฀a฀Macintosh®฀Computer

Connecting฀your฀Macintosh฀computer฀to฀your฀LCD฀

monitor฀will฀enable฀you฀to฀display฀your฀computer’s฀screen฀

image.฀Some฀video฀cards฀or฀drivers฀may฀not฀display฀images฀

correctly.

To฀connect฀to฀the฀VGA฀connector฀(mini฀D-sub฀15฀pin)฀on฀

the฀LCD฀monitor,฀use฀the฀RGB฀signal฀cable฀(mini฀D-sub฀15฀

pin฀to฀mini฀D-sub฀15฀pin)฀included฀with฀the฀display.

NOTE:฀For฀older฀Macintosh฀computers,฀use฀Macintosh฀

cable฀adapter฀to฀connect฀to฀your฀Macintosh’s฀video฀port.฀To฀

obtain฀the฀Macintosh฀cable฀adapter฀call฀NEC฀Display฀Solu-

tions฀of฀America,฀Inc.฀at฀(800)฀632-4662

To฀connect฀to฀the฀RGB/฀HVconnector฀(BNC)฀on฀the฀LCD฀

monitor,฀use฀a฀mini฀D-sub฀15฀pin฀to฀BNC฀x฀5฀signal฀cable฀

(not฀included)(BNC฀INPUT฀only).

If฀you฀will฀be฀connecting฀the฀LCD฀monitor฀to฀a฀Macintosh฀

PowerBook,฀set฀“Mirroring”฀to฀off.

Refer฀to฀your฀Macintosh’s฀owner’s฀manual฀for฀more฀infor-

mation฀about฀your฀computer’s฀video฀output฀requirements฀

and฀any฀special฀identiﬁcation฀or฀conﬁguring฀that฀may฀be฀

required.

The฀AUDIO฀IN1,฀2,฀3฀can฀be฀used฀to฀choose฀the฀audio฀

source.฀To฀select,฀use฀the฀AUDIO฀INPUT฀button.฀

 - continued

LCD฀Monitor

(second฀monitor)

Mini฀D-sub฀15฀pin

Macintosh

BNC฀x฀5

BNC฀x฀5BNC฀x฀5

LCD฀Monitor

To฀RGB/HV฀Input

From฀Analog฀RGB฀Output฀

Mini฀D-sub฀15฀pin

From฀Audio฀Output฀

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

(BNC฀Input฀only)

English-20

Connecting฀to฀a฀Computer฀with฀Digital฀Output

Connections฀can฀be฀made฀with฀devices฀equipped฀with฀a฀

digital฀interface฀that฀complies฀with฀the฀DVI฀(Digital฀Visual฀

Interface)฀standard.

DVI฀connector฀also฀accepts฀a฀DVI-D฀cable.

Input฀TMDS฀signals฀conforming฀to฀DVI฀standards.

To฀maintain฀display฀quality,฀use฀a฀cable฀recommended฀

by฀DVI฀standards.

The฀AUDIO฀IN1,฀2,฀3฀can฀be฀used฀to฀choose฀the฀audio฀

source.฀To฀select,฀use฀the฀AUDIO฀INPUT฀button.฀

•

 - continued

AC IN RGB/HV OUT

PC IN

VIDEO

DVD/HD IN

AUDIO SPEAKER

RGB/HV IN

VGA(D-SUB)

DVI(DVI-D)

HDMI

Cb/Pb Cr/Pr

S-VIDEO IN

OUT

AUDIO OUT

R L

AUDIO1 INAUDIO2 INAUDIO3 IN

R R

L L

R G B H V

LCD฀Monitor

Equipment฀with฀a฀digital฀interface฀such฀as

a฀PC฀with฀RGB฀output฀(TMDS)

From฀DVI฀output

DVI-D฀connector

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English

English-21

LCD฀Monitor

RCA

DVI-D฀Connector

To฀DVI฀Output

From฀DVD฀Compononent฀

Video฀Output

Left฀Audio

Right฀Audio

Connecting฀a฀DVD฀Player฀with฀component฀out฀

Connecting฀your฀DVD฀player฀to฀your฀LCD฀monitor฀will฀en-

able฀you฀to฀display฀DVD฀video.

Refer฀to฀your฀DVD฀player฀user’s฀manual฀for฀more฀

information.

Connect฀the฀LCD฀Monitor฀to฀a฀DVD฀Player

To฀connect฀the฀DVD/HD฀IN฀connector฀(RCA)฀on฀the฀LCD฀

monitor,฀use฀a฀separately฀available฀RCA฀connector฀cable.

Some฀DVD฀players฀may฀have฀different฀connectors฀such฀as฀

a฀DVI-D฀connector.

Select฀[DVI-HD]฀mode฀from฀the฀“DVI฀MODE”฀menu฀

when฀you฀connect฀a฀DVI-D฀connector.฀For฀DVI฀฀Mode฀

selection,฀see฀“DVI฀MODE”฀on฀page฀31.

The฀AUDIO฀IN1,฀2,฀and฀3฀(both฀RCA)฀can฀be฀used฀for฀

audio฀input.฀For฀connection,฀select฀[IN1,฀IN2]฀or฀[IN3]฀

from฀the฀AUDIO฀INPUT฀button.

•

 - continued

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English-22

 - continued

RGB/HV OUT

RGB/HV IN

VGA (D-SUB) DVI (DVI-D)

RGB/HV OUT

RGB/HV IN

VGA (D-SUB) DVI (DVI-D)

LCD฀Monitor

RCA

From฀HDMI฀Output

To฀DVD฀Component฀

video฀output

Connecting฀a฀DVD฀Player฀with฀HDMI฀out฀

Connecting฀your฀DVD฀player฀to฀your฀LCD฀monitor฀will฀enable฀you฀to฀display฀DVD฀video.฀฀

Refer฀to฀your฀DVD฀player฀user’s฀manual฀for฀more฀information.

Connect฀the฀LCD฀Monitor฀to฀a฀DVD฀Player฀

Please฀use฀an฀HDMI฀cable฀that฀has฀the฀HDMI฀logo.

It฀may฀take฀a฀few฀seconds฀to฀show฀the฀signal.

We฀do฀not฀support฀PC-DVI฀signals.

•

LCD฀Monitor

Connecting฀a฀DVD฀Player฀with฀SCART฀out฀

Connecting฀your฀DVD฀player฀to฀your฀LCD฀monitor฀will฀enable฀you฀to฀display฀SCART.

Connect฀the฀LCD฀Monitor฀to฀a฀DVD฀Player฀

To฀connect฀the฀DVD/HD฀IN฀connector฀(RCA)฀on฀the฀LCD฀monitor฀and฀connect฀the฀video฀(sync)฀and฀the฀Video฀In฀connector฀

(RCA),฀use฀a฀separately฀available฀RCA฀connector฀cable.

Some฀DVD฀players฀may฀have฀different฀connectors฀such฀as฀DVI-D฀connector.

Select฀[ON]฀mode฀from฀the฀“SCART฀MODE”฀menu฀when฀you฀use฀a฀SCART฀connector.฀Mode฀selection,฀see฀“SCART”฀on฀฀

page฀31.

The฀AUDIO฀IN฀2฀and฀3฀(both฀RCA)฀can฀be฀used฀for฀audio฀input.฀For฀connection,฀select฀[IN2]฀or฀[IN3]฀from฀the฀AUDIO฀

INPUT฀button.

•

HDMI฀Connector

RCA

Left฀Audio

Right฀Audio

SCART

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English

English-23

 - continued

RGB/HV OUT

RGB/HV IN

VGA (D-SUB) DVI (DVI-D)

LCD฀Monitor

RCA

External

Speakers

VCR฀or฀Laser฀disc฀player

Connecting฀to฀a฀Stereo฀Ampliﬁer฀

You฀can฀connect฀your฀stereo฀ampliﬁer฀to฀your฀LCD฀monitor.฀Refer฀to฀your฀ampliﬁer฀owner’s฀

manual฀for฀more฀information.

Connect฀the฀LCD฀Monitor฀to฀a฀Stereo฀Ampliﬁer฀

Turn฀on฀the฀LCD฀monitor฀and฀the฀ampliﬁer฀only฀after฀all฀connections฀have฀been฀made.

Use฀a฀stereo฀Mini฀RCA฀cable฀to฀connect฀the฀AUDIO฀OUT฀connector฀(a฀stereo฀Mini฀Jack)฀

on฀the฀LCD฀monitor฀and฀the฀audio฀input฀on฀the฀ampliﬁer.

Do฀not฀reverse฀the฀audio฀left฀and฀right฀jacks.

The฀AUDIO฀IN฀is฀used฀for฀audio฀input.

The฀AUDIO฀OUT฀jack฀outputs฀sound฀from฀the฀selected฀Audio฀input.

•

To฀Audio฀Right

Ampliﬁer

To฀Audio฀Left

To฀Audio฀Right

To฀Audio฀Left

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English-24

 - Power ON and OFF Modes

The฀LCD฀monitor฀power฀indicator฀will฀turn฀green฀while฀

powered฀on฀and฀will฀turn฀red฀or฀amber฀while฀powered฀off.฀

NOTE:฀The฀Main฀Power฀Switch฀must฀be฀in฀the฀ON฀

position฀in฀order฀to฀power฀up฀the฀monitor฀using฀the฀

remote฀control฀or฀the฀Power฀Button฀on฀the฀front฀of฀the฀

LCD.฀

Power฀Button



Main฀Power฀Switch

English

English-25



POWER

DVI VGA RGB/HV OPTION

HDMI


MODE

DISPLAY

AUTO

SET UP

VOL

STILL

PIP

REMOTEID

ON/OFF

SET RESET

REMOTE CONTROLLER RU-M111

MTS SLEEP

INPUT

CHANGE

ON/OFF

CAPTURE

MUTE

CHRTN

EXIT

AUDIO

INPUT

DVD/HD

SIZE

SOUND

VIDEO

GUIDE











ENT

SET

+ +

Power฀Indicator

ModeStatus฀Indicator฀Light

Power฀ONGreen฀*2

Power฀OFF฀(ECO฀STANDBY)*

Power฀consumption฀under฀1W

Red

Power฀OFF฀(STANDBY)฀

Power฀consumption฀฀under฀5W

Amber

Power฀SaveAmber฀Blinking

Power฀Standby฀when฀

“SCHEDULE฀SETTINGS”฀

enabled

Green฀and฀Amber฀฀

blink฀alternately

Diagnosis฀(Detecting฀failure)Red฀Blinking฀

(See฀Trouble฀Shooting฀page฀

41)

*When฀in฀Eco฀Standby฀Mode฀RS-232C฀controls฀do฀not฀function.

*2฀If฀"OFF"฀is฀selected฀in฀POWER฀INDICATOR฀(See฀page฀30),฀the฀

LED฀will฀not฀light฀when฀the฀LCD฀monitor฀is฀active฀mode.฀

Power฀Management

The฀LCD฀monitor฀follows฀the฀VESA฀approved฀DPM฀Power฀

Management฀function.฀

The฀power฀management฀function฀is฀an฀energy฀saving฀func-

tion฀that฀automatically฀reduces฀the฀power฀consumption฀of฀

the฀display฀when฀the฀keyboard฀or฀the฀mouse฀has฀not฀been฀

used฀for฀a฀ﬁxed฀period฀of฀time.฀

The฀power฀management฀feature฀on฀your฀new฀display฀has฀

been฀set฀to฀the฀“ON”฀mode.฀This฀allows฀your฀display฀to฀en-

ter฀a฀Power฀Saving฀Mode฀when฀no฀signal฀is฀detected.฀This฀

could฀potentially฀increase฀the฀lifetime฀of฀the฀display฀while฀

power฀consumption฀is฀decreased.

STANDBY฀mode฀is฀used฀when฀the฀display฀is฀connected฀

to฀an฀RS-232C฀cable฀or฀when฀using฀the฀INPUT฀DETECT฀

function.

ECO฀STANDBY฀uses฀less฀power,฀but฀the฀RS-232C฀and฀฀

INPUT฀DETECT฀functions฀are฀not฀available.

Picture฀Size

The฀size฀of฀the฀picture฀can฀be฀changed฀depending฀on฀the฀

aspect฀ratio฀(4:3,฀16:9,฀etc.)฀of฀the฀input฀signal.

Picture฀Mode

Choose฀the฀Picture฀Mode฀that฀is฀most฀suitable฀for฀the฀type฀

of฀content฀that฀is฀shown.

Standard:฀for฀images฀

sRGB:฀for฀text฀based฀applications.

Highbright:฀for฀moving฀images

Cinema:฀for฀movies

STANDARD฀฀฀฀฀฀฀sRGB฀฀฀฀฀฀฀฀HIGHBRIGHT฀฀฀฀฀฀฀฀฀

STANDARD฀฀฀฀฀฀฀CINEMA฀฀฀฀฀฀฀HIGHBRIGHT

DVI,฀VGA,฀

RGB/HV,฀OPTION

HDMI,฀DVD/HD,฀

VIDEO,฀TV

Information฀OSD

The฀Information฀OSD฀provides฀information฀such฀as:฀Mon-

itor฀ID,฀Input฀Source,฀Picture฀Size,฀etc.฀Press฀the฀DISPLAY฀

button฀on฀the฀remote฀to฀bring฀up฀the฀Information฀OSD.฀฀

See฀page฀35฀for฀detailed฀explanation.

 - continued

Monitor ID:1

Target ID:5

DVI

AUDIO: IN1

SIZE:FULL

1024 X 768

48KHz/60Hz

Signal฀Type

4:3

NORMAL฀SIZERECOMMENDED฀SIZE

NORMAL

ZOOM

(DYNAMIC)

FULL

WIDE

Squeeze

Letterbox

DVI,฀VGA,฀RGBH/V,฀OPTIONFULL฀฀฀฀฀฀฀ZOOM฀฀฀฀฀฀฀NORMAL

FULL฀฀฀฀฀฀WIDE฀฀฀฀฀฀฀ZOOM฀฀฀฀฀฀฀NORMAL

HDMI,฀DVD/HD,฀VIDEO,฀TV

English-26



ADAPTIVE CONTRASTADAPTIVE CONTRAST



Input฀Source

Main฀Menu฀Items

Sub฀Menu

Main฀Menu฀Icons

Key฀Guide

Adjustment฀

Settings

Press฀UP฀or฀DOWN฀

button฀to฀select฀

sub-menu.

Press฀

SET.

Press฀UP,฀DOWN,฀PLUS,฀

or฀MINUS฀to฀select฀฀the฀

function฀or฀setting฀to฀฀be฀

adjusted.

Press฀MENU฀or฀

EXIT.

Press฀UP฀or฀DOWN฀

button฀to฀select.

Press฀INPUT฀button฀

to฀decide.

Press฀UP,฀DOWN,฀

PLUS,฀or฀MINUS฀to฀

select.

Press฀

EXIT.

Remote฀

Control

Control฀

Panel

OSD฀

Screen

English

English-27

OSDSetting

PICTUREBRIGHTNESSAdjusts฀the฀overall฀image฀and฀background฀brightness.฀Press฀+฀or฀-฀to฀adjust.

CONTRASTAdjusts฀the฀image฀brightness฀in฀relationship฀to฀the฀background.฀Press฀+฀or฀-฀to฀adjust.

Note:฀The฀sRGB฀picture฀mode฀is฀standard฀and฀cannot฀be฀changed.

SHARPNESSAdjusts฀the฀crispness฀of฀the฀image.฀Press฀+฀or฀-฀to฀adjust.

BLACK฀LEVELAdjusts฀the฀image฀brightness฀in฀relationship฀to฀the฀background.฀Press฀+฀or฀-฀to฀adjust.

Note:฀The฀sRGB฀picture฀mode฀is฀standard฀and฀cannot฀be฀changed.

TINT฀

HDMI,฀DVD/HD,฀VIDEO,฀TV฀

input฀only

Adjusts฀the฀tint฀of฀the฀screen.฀Press฀+฀or฀-฀to฀adjust.

COLOR฀

HDMI,฀DVD/HD,฀VIDEO,฀TV฀

input฀only

Adjusts฀the฀color฀depth฀of฀the฀screen.฀Press฀+฀or฀-฀to฀adjust.

COLOR฀TEMPERATUREAdjusts฀the฀color฀temperature฀of฀the฀entire฀screen.฀A฀low฀color฀temperature฀will฀make

the฀screen฀reddish.฀A฀high฀color฀temperature฀will฀make฀the฀screen฀bluish.

Note:฀The฀sRGB฀picture฀mode฀is฀set฀to฀a฀predeﬁned฀6500฀K฀standard

and฀connot฀be฀changed.

COLOR฀CONTROL

DVI,฀VGA,฀RGB/HV,฀HDMI฀

input฀only

Adjusts฀the฀levels฀of฀the฀Red,฀Yellow,฀Green,฀Cyan,฀Blue,฀Magenta฀and฀Saturation.

Note:฀The฀sRGB฀picture฀mode฀is฀standard฀and฀cannot฀be฀changed.

GAMMA฀SELECTIONSelect฀a฀display฀gamma฀for฀best฀picture฀quality.

Note:฀The฀sRGB฀picture฀mode฀is฀standard฀and฀cannot฀be฀changed.

NATIVE

2.2

2.4

S฀GAMMA

DICOM฀SIM.

PROGRAMMABLE

Gamma฀correction฀is฀handled฀by฀the฀LCD฀panel.

Typical฀display฀gamma฀for฀use฀with฀a฀PC.

Good฀for฀video฀(TV,฀DVD,฀etc.).

Special฀gamma฀for฀certain฀types฀of฀movies.฀Raises฀the฀dark฀parts฀and฀lowers฀the฀light฀

parts฀of฀the฀image.฀(S-Curve)

DICOM฀GSDF฀curve฀simulated฀for฀LCD฀type.฀

A฀programmable฀gamma฀curve฀can฀be฀loaded฀using฀NEC฀software.

ADAPTIVE฀CONTRAST฀

HDMI,฀DVD/HD,฀VIDEO,฀TV฀

input฀only

Sets฀the฀level฀of฀adjusment฀for฀dynamic฀contrast.

OFF

MID

HIGH

MOVIE฀SETTINGS฀

NOISE฀REDUCTION

VIDEO,฀TV฀input฀only

FILM฀MODE

HDMI,฀DVD/HD,฀VIDEO,฀TV฀

input฀only

Adjusts฀the฀amount฀of฀noise฀reduction.฀Press฀+฀or฀-฀to฀adjust.

Selects฀Film฀mode.

PICTURE฀RESETResets฀the฀following฀settings฀within฀the฀PICTURE฀menu฀back฀to฀factory฀setting:฀฀

BRIGHTNESS,฀CONTRAST,฀SHARPNESS,฀BLACK฀LEVEL,฀TINT,฀COLOR฀TEMPERATURE,฀

COLOR฀CONTROL฀,฀GAMMA฀SELECTION,฀ADAPTIVE฀CONTRAST,฀MOVIE฀SETTINGS.

ADJUSTAUTO฀SETUP

VGA฀and฀RGB/HV฀input฀only

Automatically฀adjusts฀screen฀size,฀H฀position,฀V฀position,฀Clock,฀Clock฀Phase,฀White

Level,฀and฀Black฀Level.

AUTO฀ADJUST

VGA฀and฀RGB/HV฀input฀only

H฀Position,฀V฀Position฀and฀Clock฀Phase฀are฀adjusted฀automatically฀upon฀power฀on.

H฀POSITIONControls฀the฀horizontal฀position฀of฀the฀image฀within฀the฀Display฀area฀of฀the฀LCD.

Press฀+฀to฀move฀right.฀Press฀-฀to฀move฀left.

V฀POSITIONControls฀the฀vertical฀position฀of฀the฀image฀within฀the฀Display฀area฀of฀the฀LCD.

Press฀+฀to฀move฀up.฀Press฀-฀to฀move฀down.

CLOCK

VGA฀and฀RGB/HV฀input฀only

Press฀+฀to฀expand฀the฀width฀of฀the฀image฀on฀the฀right฀of฀the฀screen.

Press฀-฀to฀narrow฀the฀width฀of฀the฀image฀on฀the฀left.

ADAPTIVE CONTRASTADAPTIVE CONTRAST



 - continued

English-28

 - continued

CLOCK฀PHASE

VGA,฀RGB/HV,฀DVD/HD฀input฀only

Adjusts฀the฀visual฀“noise”฀on฀the฀image.

H฀RESOLUTION

DVI,฀VGA,฀RGB/HV฀input฀only

Adjusts฀the฀horizontal฀size฀of฀the฀image.

V฀RESOLUTION

DVI,฀VGA,฀RGB/HV฀฀

input฀only

Adjusts฀the฀vertical฀size฀of฀the฀image.

ZOOM฀MODE

All฀input฀except฀for฀TV

Select฀the฀aspect฀ratio฀of฀the฀screen฀image.

BASE฀ZOOM

Choose฀the฀zoom฀method.฀

16:9

HDMI,฀DVD/HD,฀

VIDEO฀Input฀only

14:9

HDMI,฀DVD/HD,฀

VIDEO฀Input฀only

DYNAMIC

HDMI,฀DVD/HD,฀

VIDEO฀Input฀only

OFF

CUSTOM

Same฀aspect฀ratio฀as฀the฀LCD฀panel.

14:9

Expands฀a฀4:3฀picture฀to฀ﬁll฀the฀screen฀in฀a฀non-linear฀(non-proportionate)฀manner฀and฀

some฀of฀the฀image฀will฀be฀lost฀due฀to฀expansion.฀DYNAMIC฀is฀the฀same฀as฀FULL฀size฀

image฀when฀HDTV฀1080i฀signal฀is฀input.฀

Selecting฀“OFF”฀will฀display฀the฀image฀in฀a฀1฀by฀1฀pixel฀format.฀(If฀the฀input฀resolution฀is฀

higher฀than฀a฀1360฀x฀768฀resolution,฀the฀image฀will฀be฀scaled฀down฀to฀ﬁt฀the฀screen.

Displays฀an฀image฀as฀large฀as฀possible฀without฀changing฀the฀aspect฀ratio฀or฀cutting฀off฀

part฀of฀the฀image.

ZOOM

16:9,฀14:9,฀CUSTOM฀only

H฀ZOOM

16:9,฀14:9,฀CUSTOM฀only

V฀ZOOM

16:9,฀14:9,฀CUSTOM฀only

H฀POS

16:9,฀14:9,฀CUSTOM฀only

V฀POS

16:9,฀14:9,฀CUSTOM฀only

Maintains฀the฀aspect฀ratio฀while฀zooming.

Amount฀of฀horizontal฀zoom.฀Can฀be฀adjusted฀for฀each฀BASE฀ZOOM฀setting.

Amount฀of฀vertical฀zoom.฀Can฀be฀adjusted฀for฀each฀BASE฀ZOOM฀setting.

Horizontal฀position.฀Can฀be฀adjusted฀for฀each฀BASE฀ZOOM฀setting.

Vertical฀position.฀Can฀be฀adjusted฀for฀each฀BASE฀ZOOM฀setting.

INPUT฀RESOLUTION

VGA฀and฀RGB/HV฀input฀only

If฀there฀is฀a฀problem฀with฀signal฀detection,฀this฀function฀forces฀the฀monitor฀to฀display฀the฀

signal฀at฀the฀desired฀resolution.฀

If฀no฀problem฀is฀detected,฀the฀only฀available฀option฀will฀be฀“AUTO”.

ADJUST฀RESETResets฀the฀following฀settings฀within฀the฀ADJUST฀menu฀back฀to฀factory฀setting:฀฀

AUTO฀ADJUST,฀H฀POSITION,฀V฀POSITION,฀CLOCK,฀CLOCK฀PHASE,฀H฀RESOLUTION,฀V฀

RESOLUTION,฀ZOOM฀MODE,฀INPUT฀RESOLUTION.

AUDIO฀

BALANCE

TREBLE

BASS

PIP฀AUDIOSelects฀source฀of฀PIP฀audio.

AUDIO฀RESETResets฀“AUDIO”฀options฀back฀to฀factory฀settings.

SCHEDULEOFF฀TIMERSets฀the฀monitor฀to฀power฀off฀after฀a฀length฀of฀time฀between฀1฀and฀24฀hours.

SCHEDULE฀SETTINGCreates฀a฀working฀schedule฀for฀the฀monitor฀to฀use.฀See฀page฀34฀for฀instructions.

SCHEDULE฀LISTList฀of฀schedules.

DATE฀&฀TIMESets฀the฀date,฀time,฀and฀daylight฀saving฀region.฀Date฀&฀time฀must฀be฀set฀in฀order฀for฀the

“SCHEDULE”฀function฀to฀operate.

English

English-29

 - continued

YEAR

MONTH

DAY

TIME

DAYLIGHT฀SAVING

SCHEDULE฀RESETResets฀the฀following฀settings฀within฀the฀SCHEDULE฀menu฀back฀to฀factory฀setting:฀฀

OFF฀TIMER,฀SCHEDULE฀SETTINGS.

PIP

KEEP฀PIP฀MODE฀

Allows฀the฀monitor฀to฀remain฀in฀“PIP”฀mode฀after฀powering฀off.฀When฀Power฀is฀returned,

PIP฀appears฀without฀having฀to฀enter฀the฀OSD.

PIP฀MODEPicture-in-Picture

OFF

PIP

POP

SIDE฀BY฀SIDE฀(ASPECT)

SIDE฀BY฀SIDE฀(FULL)

PIP฀SIZESelects฀the฀size฀of฀the฀sub-picture฀used฀in฀Picture-in-Picture฀(PIP)฀mode.

SMALL

MIDDLE

LARGE

PIP฀POSITIONDetermines฀where฀the฀PIP฀appears฀on฀the฀screen.

PIP฀RESETResets฀the฀following฀settings฀within฀the฀PIP฀menu฀back฀to฀factory฀setting:฀฀

KEEP฀PIP฀MODE,฀PIP฀MODE,฀PIP฀SIZE,฀PIP฀POSITION.

OSDLANGUAGESelect฀the฀language฀used฀by฀the฀OSD.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

SVENSKA

OSD฀TURN฀OFFTurns฀off฀the฀OSD฀after฀a฀period฀of฀inactivity.฀The฀preset฀choices฀are฀10-240฀seconds.

OSD฀POSITIONDetermines฀the฀location฀where฀the฀OSD฀appears฀on฀the฀screen.

DOWN

LEFT

RIGHT

INFORMATION฀OSDSelects฀whether฀the฀information฀OSD฀is฀displayed฀or฀not.฀The฀information฀OSD฀will฀be

displayed฀when฀the฀input฀signal฀or฀source฀changes.฀The฀information฀OSD฀will฀also฀give

a฀warning฀when฀there฀is฀no-signal฀or฀the฀signal฀is฀out-of฀range.

An฀interval฀between฀3฀to฀10฀seconds฀for฀the฀Information฀OSD฀to฀appear฀is฀available.

MONITOR฀INFORMATIONMonitor฀Information.

English-30

 - continued

OSD฀TRANSPARENCYSet฀the฀transparency฀level฀of฀the฀OSD.

OFF

TYPE1

TYPE2

OSD฀RESETResets฀the฀following฀settings฀within฀the฀OSD฀menu฀back฀to฀factory฀setting:฀฀

OSD฀TURN฀OFF,฀OSD฀POSITION,฀INFORMATION฀OSD,฀and฀OSD฀TRANSPARENCY.

MULTI฀DISPLAYMONITOR฀ID

Sets฀the฀monitor฀ID฀number฀from฀1-26.

IR฀CONTROL

Selects฀the฀mode฀of฀the฀monitor฀for฀use฀with฀the฀infra-red฀remote฀control฀when฀using

the฀RS-232C฀daisy฀chain.

NORMAL

PRIMARY

SECONDARY

LOCK

The฀monitor฀will฀be฀controlled฀normally฀by฀wireless฀remote฀controller.

Choose฀“PRIMARY”฀for฀the฀ﬁrst฀monitor฀within฀an฀R-S232C฀daisy฀chain.

Choose฀“SECONDARY”฀for฀all฀subsequent฀monitors฀within฀an฀RS-232C฀daisy฀chain.

Prevents฀the฀monitor฀from฀being฀controlled฀by฀wireless฀remote฀controller.฀To฀return฀to

normal฀operation,฀press฀the฀“DISPLAY”฀button฀on฀the฀remote฀controller฀for฀5฀seconds.

TILE฀MATRIX

Allows฀one฀image฀to฀be฀expanded฀and฀displayed฀over฀multiple฀screens฀(up฀to฀25)

through฀a฀distribution฀ampliﬁer.

H฀MONITORS

V฀MONITORS

POSITION

TILE฀COMP

ENABLE

Number฀of฀monitors฀arranged฀horizontally.

Number฀of฀monitors฀arranged฀vertically.

Select฀which฀section฀of฀the฀tiled฀image฀to฀be฀displayed฀on฀the฀monitor.

Turns฀the฀TILE฀COMP฀feature฀on.

Enables฀Tile฀Matrix.

POWER฀ON฀DELAY

Adjusts฀the฀delay฀time฀between฀being฀in฀“standby”฀mode฀and฀entering฀“power฀on”฀mode.

“POWER฀ON฀DELAY”฀can฀be฀set฀between฀0฀and฀50฀seconds.

POWER฀INDICATOR

Turns฀on฀or฀off฀the฀LED฀located฀on฀the฀front฀of฀the฀monitor.฀If฀"OFF"฀is฀selected,฀the฀LED฀will฀

not฀light฀when฀the฀LCD฀monitor฀is฀active฀mode.

MULTI฀DISPLAY฀RESET

Resets฀the฀following฀settings฀within฀the฀MULTI฀DISPLAY฀menu฀back฀to฀factory฀setting:฀฀

MONITOR฀ID,฀IR฀CONTROL,฀TILE฀MATRIX,฀POWER฀ON฀DELAY.

DISPLAY

PROTECTION

POWER฀SAVE

All฀inputs฀except฀for฀TV฀

Sets฀how฀long฀the฀monitor฀waits฀to฀go฀into฀power฀save฀mode฀after฀a฀lost฀signal.

NOTE:฀When฀connecting฀DVI,฀video฀card฀might฀not฀stop฀sending฀digital฀even฀if฀image฀has฀dis-

appeared.฀In฀this฀case฀the฀monitor฀does฀not฀got฀to฀power฀management฀mode.

STANDBY฀MODE

Lowers฀power฀consumption.

Note:฀RS-232C฀Function฀is฀lost฀when฀in฀Eco฀Standby฀mode.

HEAT฀STATUS

Displays฀status฀of฀the฀COOLING฀FAN,฀BRIGHTNESS฀and฀TEMPERATURE.

FAN฀CONTROL

Cooling฀fan฀reduces฀the฀temperature฀of฀the฀display.

SCREEN฀SAVER

Use฀the฀SCREEN฀SAVER฀function฀to฀reduce฀the฀risk฀of฀Image฀Persistence.

GAMMA

BRIGHTNESS

MOTION

The฀gamma฀curve฀becomes฀narrow,฀reducing฀contrast฀and฀cutting฀down฀the฀risk฀of฀

image฀retention.

The฀brightness฀is฀decreased฀when฀“ON”฀is฀selected.

The฀screen฀image฀is฀slightly฀expanded฀and฀moves฀in฀4฀directions฀(UP,฀DOWN,฀RIGHT,

LEFT)฀at฀user฀determined฀intervals.

SIDE฀BORDER฀COLOR

Adjusts฀the฀color฀of฀the฀side฀borders฀when฀a฀4:3฀image฀is฀displayed.

Press฀+฀button,฀the฀bar฀will฀become฀lighter.

Press฀-฀button,฀the฀bar฀will฀become฀darker.

AUTO฀BRIGHTNESS

DVI,฀VGA,฀RGB/HV฀฀

input฀only

Adjusts฀the฀brightness฀level฀according฀to฀the฀input฀signal.

CHANGE฀SECURITY฀

PASSWORD

Allows฀the฀security฀password฀to฀be฀changed.฀Factory฀preset฀password฀is฀0000.

SECURITY฀LOCK

Locks฀the฀security฀password.

DDC/฀CI

ENABLE/฀DISEABLE:฀turn฀on฀or฀off฀the฀two฀way฀communication฀and฀control฀of฀the฀monitor.

DISPLAY฀

PROTECTION฀RESET

Resets฀the฀following฀settings฀within฀the฀Picture฀menu฀back฀to฀factory฀setting:฀฀

POWER฀SAVE,฀STANDBY฀MODE,฀FAN฀CONTROL,฀SCREEN฀SAVER,฀SIDE฀BORDER฀COLOR,฀

AUTO฀BRIGHTNESS.

English

English-31

 - continued

ADVANCED฀OPTIONINPUT฀DETECT

All฀inputs฀except฀for฀TV

Selects฀the฀method฀of฀input฀detection฀the฀monitor฀uses฀when฀more฀than฀two฀input

devices฀are฀connected.

NONE

FIRST฀DETECT

LAST฀DETECT

VIDEO฀DETECT

฀

The฀Monitor฀will฀not฀search฀the฀other฀video฀input฀ports.

When฀the฀current฀video฀input฀signal฀is฀not฀present,฀then฀the฀monitor฀searches฀for฀a

video฀signal฀from฀the฀other฀video฀input฀port.฀If฀the฀video฀signal฀is฀present฀in฀the฀other

port,฀then฀the฀monitor฀switches฀the฀video฀source฀input฀port฀to฀the฀new฀found฀video

source฀automatically.฀The฀monitor฀will฀not฀look฀for฀other฀video฀signals฀while฀the฀current

video฀source฀is฀present.

When฀the฀monitor฀is฀displaying฀a฀signal฀from฀the฀current฀source฀and฀a฀new฀secondary

source฀is฀supplied฀to฀the฀monitor,฀the฀monitor฀will฀automatically฀switch฀to

the฀new฀video฀source.฀When฀current฀video฀input฀signal฀is฀not฀present,฀the฀monitor

searches฀for฀a฀video฀signal฀from฀the฀other฀video฀input฀port.฀If฀the฀video฀signal฀is฀present

in฀the฀other฀port,฀then฀the฀monitor฀switches฀the฀video฀source฀input฀port฀to฀the

new฀found฀video฀source฀automatically.

DVD/HD฀or฀VIDEO฀inputs฀will฀have฀priority฀over฀DVI,฀VGA,฀and฀RGB/HV.฀When฀DVD/HD฀

or฀VIDEO฀input฀signal฀is฀present฀the฀monitor฀will฀change฀and฀keep฀to฀the฀DVD/HD฀or฀

VIDEO฀input.

LONG฀CABLE฀ON/OFF

VGA฀and฀RGB/HV฀input฀only

Compensates฀for฀image฀degradation฀caused฀from฀using฀a฀long฀cable.

LONG฀CABLE฀MANUAL

VGA฀and฀RGB/HV฀input฀only

Manually฀compensates฀for฀image฀degradation฀caused฀from฀using฀a฀long฀cable.

RED฀DELAY

GREEN฀DELAY

BLUE฀DELAY

RED฀SHARPNESS

GREEN฀SHARPNESS

BLUE฀SHARPNESS

SOG฀PEAK.

VIDEO฀EQ.

RGB/HV฀input฀only

SYNC฀TERMINATE

RGB/HV฀input฀only

Adjusts฀the฀phase฀of฀the฀red฀signal.

Adjusts฀the฀phase฀of฀the฀green฀signal.

Adjusts฀the฀phase฀of฀the฀blue฀signal.

Adjusts฀the฀performance฀degradation฀of฀the฀RED฀signal.

Adjusts฀the฀performance฀degradation฀of฀the฀GREEN฀signal.

Adjusts฀the฀performance฀degradation฀of฀the฀BLUE฀signal.

Adjusts฀the฀shape฀of฀Sync฀on฀Green฀signal.

Optimize฀the฀shape฀(Tailing)฀of฀RED,฀GREEN฀and฀BLUE฀signals.

Selects฀the฀terminate฀resistance฀for฀matching฀the฀cable฀impedance.

DVI฀MODEChoose฀the฀DVI฀mode฀based฀on฀the฀input฀device฀connected฀via฀DVI฀connector.

DVI-PC

DVI-HD

When฀a฀PC฀or฀similar฀equipment฀is฀connected.

When฀a฀DVD฀player฀is฀connected.

SCAN฀CONVERSION

All฀inputs฀except฀for฀RGB,฀RGB/฀HV

Selects฀the฀IP฀(Interlace฀to฀Progressive)฀conversion฀function.

Note:฀For฀DVI฀input฀"DVI-HD"฀needs฀to฀be฀enabled฀in฀the฀DVI฀mode฀menu.

PROGRESSIVE

INTERLACE

Converts฀interlaced฀signals฀to฀progressive.

This฀is฀the฀default฀setting.

Disables฀IP฀conversion.฀This฀setting฀is฀best฀suited฀for฀motion฀pictures,฀but฀increases฀

the฀risk฀of฀image฀retention.

SCART฀MODE฀

Input฀mode฀for฀devices฀using฀SCART฀connectors.

S-VIDEO฀MODE฀

Selects฀the฀S-Video฀input฀port฀function.

PRIORITY

SEPARATE

When฀an฀S-Video฀cable฀is฀connected฀to฀the฀S-Video฀input,฀it฀will฀have฀priority฀over

the฀composite฀input฀port.

The฀S-Video฀port฀and฀Composite฀port฀can฀be฀selected฀as฀independent฀input฀ports.

COLOR฀SYSTEM

฀

VIDEO฀input฀only

The฀selected฀Color฀System฀depends฀on฀the฀video฀format฀of฀the฀input฀signal.

AUTO

NTSC

PAL

SECAM

4.43NTSC

PAL-60

Automatically฀chooses฀Color฀System฀setting฀based฀on฀input฀signal.

English-32

 - continued

SCAN฀MODE฀

HDMI,฀DVD/HD,฀VIDEO,฀TV฀

input฀only

Some฀video฀formats฀may฀require฀scan฀conversion฀in฀order฀to฀best฀display฀the฀image.

OVER฀SCAN

UNDER฀SCAN

Image฀size฀is฀larger฀than฀what฀can฀be฀displayed.฀The฀image฀edge฀will฀appear฀cropped.

Approximately฀95%฀of฀the฀image฀will฀be฀shown฀on฀the฀screen

Image฀size฀stays฀within฀the฀display฀area.฀The฀whole฀image฀is฀displayed฀on฀the฀screen.

ADVANCED฀OPTION฀

RESET

Resets฀the฀following฀settings฀within฀the฀ADVANCED฀OPTION฀menu฀back฀to฀factory฀set-

ting:฀INPUT฀DETECT,฀LONG฀CABLE฀ON/OFF,฀LONG฀CABLE฀MANUAL,฀DVI฀MODE,฀SCAN฀

CONVERSION,฀S-VIDEO฀MODE,฀SCAN฀MODE.

FACTORY฀RESETResets฀OSD฀options฀back฀to฀factory฀settings฀EXCEPT฀FOR:฀CHANGE฀SECURITY฀PASS-

WORD฀and฀SECURITY฀PASSWORD.

TV฀TUNER฀

฀

Not฀all฀models฀have฀

the฀Digital฀Tuner฀

installed.

TUNER

TUNING฀BAND

CHECK฀DTV฀SIGNAL

CHANNEL฀SEARCH

ADD฀ON฀CHANNEL฀

FINE฀TUNING

CHANNEL฀EDIT

CHANNEL฀LABELS

Choose฀AIR฀or฀Cable฀as฀TV฀source.฀

Shows฀the฀status฀of฀the฀Digital฀TV฀signal.

Searches฀for฀TV฀channels฀and฀stores฀them฀in฀memory.

Searches฀for฀TV฀channels฀and฀stores฀them฀in฀memory฀without฀erasing฀previously฀

stored฀channels.

Performs฀ﬁne฀adjustments฀to฀analog฀channels.

Add฀or฀remove฀channels฀stored฀in฀memory.

Add฀a฀label฀to฀the฀channel.

CONFIGURATION

MENU฀LANGUAGE

TIME฀ZONE

PASSWORD฀SET

PARENTAL฀CONTROL

PARENTAL฀฀

CONTROL฀MENU

ADVANCED฀฀

RATING

CLOSED฀CAPTION฀

OPTIONS

RESOLUTION

Set฀the฀Parental฀Control฀Password.฀Factory฀default฀password฀is฀0000.

Parents฀can฀choose฀to฀block฀types฀of฀programming฀based฀on฀rating฀and฀content.

Downloadable฀rating,฀depending฀on฀broadcast.฀Press฀SET฀to฀change฀setting.

NOTE:฀Closed฀captioning฀settings฀can฀not฀be฀adjusted฀for฀the฀VIDEO/S-VIDEO฀inputs.

AUTO฀is฀is฀the฀only฀option฀available฀for฀these฀inputs.

Set฀the฀displayed฀image฀to฀the฀desired฀resolution.

AUDIO

AUDIO฀LANGUAGE

DIGITAL฀AUDIO฀฀

OUTPUT

Choose฀the฀language฀of฀audio฀output.

Select฀the฀digital฀audio฀output฀source.฀Choose฀Dolby฀D/PCM/OFF.

฀Denotes฀AV฀unit฀function.฀All฀AV฀functions฀are฀enabled฀with฀the฀AV฀

unit฀is฀installed.฀Not฀all฀models฀have฀the฀AV฀unit฀installed.

฀฀Denotes฀Digital฀Tuner฀function.฀All฀DTV฀and฀AV฀functions฀are฀

enabled฀when฀the฀DTV฀unit฀is฀installed.฀Not฀all฀models฀will฀have฀

the฀digital฀tuner฀installed.

English

English-33



Initial฀TV฀Setup

Before฀watching฀TV฀for฀the฀ﬁrst฀time฀it฀is฀necessary฀to฀

program฀the฀channels.

1.฀Attach฀the฀cable฀or฀antenna฀to฀the฀coaxial฀RF฀Connector฀฀

on฀the฀back฀of฀the฀monitor.

NOTE:฀Cable฀distribution฀system฀should฀be฀grounded฀

(earthed)฀in฀accordance฀with฀ANSI/NFPA฀70,฀the฀National฀

Electric฀Code฀(NEC),฀in฀particular฀section฀820.93,฀

Grounding฀of฀Outer฀Conductive฀Shield฀of฀a฀Coaxial฀Cable.

2.฀Enter฀the฀OSD฀and฀go฀to฀the฀TUNER.฀

3.฀In฀the฀TUNING฀BAND฀menu฀select฀which฀tuning฀

method฀(Air,฀Cable,฀Cable฀HRC,฀Cable฀IRC)฀will฀be฀used.

4.฀Enter฀the฀CHANNEL฀SEARCH฀menu.฀Press฀SET฀to฀

automatically฀scan฀and฀store฀channels฀to฀memory.฀

The฀channel฀search฀will฀store฀both฀analog฀and฀digital฀

channels.฀

NOTE:฀Analog฀channels฀are฀indicated฀with฀a฀-0฀following฀

the฀channel฀number.฀Digital฀channels฀are฀indicated฀with฀

a฀-฀followed฀by฀a฀number.฀For฀example,฀channel฀2-0฀is฀

analog฀and฀channel฀2-1฀is฀digital.฀Analog฀channels฀may฀

also฀have฀separate฀digital฀subchannels฀associated฀with฀

them.฀For฀example฀channel฀3-0฀would฀be฀analog฀followed฀

by฀channel฀3-1,฀3-2,฀etc.

5.฀Once฀channels฀are฀in฀memory,฀use฀the฀CHANNEL฀EDIT฀

menu฀to฀add฀or฀remove฀channels฀and฀the฀CHANNEL฀

LABEL฀menu฀to฀create฀unique฀names฀for฀channels,฀if฀

desired.

Parental฀Controls฀TV,฀VIDEO฀input฀only.

Parents฀can฀block฀certain฀types฀of฀programming฀based฀on฀

the฀rating฀and฀the฀content.

To฀block฀programming฀:

1.฀Enter฀the฀PARENTAL฀CONTROL฀menu,฀found฀under฀the฀

CONFIG฀submenu฀within฀the฀TUNER฀OSD.

2.฀Enter฀the฀password.฀Default฀password฀is฀0000.฀This฀

password฀can฀be฀changed฀in฀the฀PASSWORD฀SET฀menu.

3.฀Highlight฀the฀square฀next฀to฀the฀type฀of฀programming฀

you฀wish฀to฀block฀and฀press฀SET฀on฀the฀remote.฀฀

NOTE:฀Blocking฀one฀type฀of฀programming฀will฀

automatically฀block฀all฀higher฀rated฀programming฀also.฀

However,฀it฀is฀possible฀to฀unlock฀this฀programming฀while฀

keeping฀the฀desired฀programming฀blocked.฀

TV฀Parental฀Guide฀Ratings฀Chart

OFFNo฀Limitation.

TV-YAll฀children.฀The฀themes฀and฀elements฀in฀this฀program฀are฀speciﬁcally฀designed฀for฀a฀very฀young฀

audience,฀including฀children฀from฀ages฀2-6.

TV-Y7Directed฀to฀older฀children.฀Themes฀and฀elements฀in฀this฀program฀may฀include฀mild฀physical฀or฀comic฀

violence฀or฀may฀frighten฀children฀under฀the฀age฀of฀7.

TV-GGeneral฀audience.฀It฀contains฀little฀or฀no฀violence,฀no฀strong฀language,฀and฀little฀or฀no฀suggestive฀

dialogue฀or฀situations.

TV-PGParental฀guidance฀suggested.฀The฀program฀may฀contain฀infrequent฀coarse฀language,฀limited฀violence,฀

some฀suggestive฀sexual฀dialogue฀and฀situations.

TV-14Parents฀strongly฀cautioned.฀This฀program฀contains฀some฀material฀that฀many฀parents฀would฀ﬁnd฀

unsuitable฀for฀children฀under฀14฀years฀of฀age.฀This฀program฀may฀contain฀intense฀violence฀(V),฀intense฀

sexual฀situations฀(S),฀strong฀coarse฀language฀(L),฀or฀intensely฀suggestive฀dialogue฀(D).

TV-MAMature฀audiences฀only.฀This฀program฀may฀contain฀mature฀themes,฀indecent฀language,฀graphic฀violence฀

and฀explicit฀sexual฀content.

Video฀Parental฀Guide฀Ratings฀Chart

OFFNo฀Limitation

GGeneral฀audiences.฀All฀ages฀are฀permitted฀to฀watch.

PGParental฀guidance฀suggested.฀Some฀material฀may฀not฀be฀suitable฀for฀children.

PG-13Parents฀strongly฀cautioned.฀Some฀material฀may฀be฀inappropriate฀for฀children฀under฀13.

RRestricted.฀Under฀17฀requires฀an฀accompanying฀parent฀or฀adult฀guardian.

NC-17No฀one฀under฀17฀permitted฀to฀watch.

XAdults฀only.

NOTE:฀Not฀all฀models฀come฀with฀the฀Digital฀Tuner฀installed.

English-34

NOTE฀1:฀CREATING฀A฀SCHEDULE

The฀schedule฀function฀allows฀the฀display฀to฀be฀set฀to฀power฀

on฀and฀off฀at฀different฀times.฀Up฀to฀seven฀different฀sched-

ules฀can฀be฀programmed.

To฀program฀the฀schedule:

1.฀Enter฀the฀SCHEDULE฀menu.฀฀

Highlight฀SCHEDULE฀SETTING฀using฀the฀up฀and฀

down฀buttons.฀Press฀the฀SET฀or฀the฀+฀button฀to฀enter฀the฀

Settings฀menu.฀Highlight฀the฀desired฀schedule฀number฀

and฀press฀set.฀The฀box฀next฀to฀the฀number฀will฀turn฀

yellow.฀The฀schedule฀can฀now฀be฀programmed.

2.฀Use฀the฀up฀and฀down฀arrows฀to฀highlight฀INPUT.฀฀

Use฀the฀+฀and฀-฀buttons฀to฀choose฀the฀input฀source.

3.฀After฀the฀INPUT฀source฀is฀selected,฀use฀the฀down฀button฀

to฀highlight฀the฀hours฀setting฀in฀the฀ON฀timeslot.฀Use฀

the฀+฀and฀-฀buttons฀to฀set฀the฀hour.฀Use฀the฀up฀and฀down฀

buttons฀to฀highlight฀the฀minutes฀setting.฀Use฀the฀+฀and฀

-฀buttons฀to฀set฀the฀minutes.฀Set฀the฀OFF฀time฀in฀the฀same฀

manner.฀

4.฀Use฀the฀down฀button฀to฀select฀a฀day฀on฀which฀the฀

schedule฀will฀be฀enabled.฀Push฀the฀set฀button฀to฀enable.฀If฀

the฀schedule฀is฀to฀be฀ran฀every฀day,฀use฀the฀choose฀EVERY฀

DAY฀and฀press฀the฀SET฀button฀The฀circle฀next฀to฀EVERY฀

DAY฀will฀turn฀yellow.฀If฀a฀weekly฀schedule฀is฀desired,฀

choose฀the฀days฀of฀the฀week฀using฀the฀up฀and฀down฀

buttons฀and฀pressing฀SET฀to฀select.฀Then฀highlight฀the฀

EVERY฀WEEK฀option฀and฀press฀SET.

5.฀After฀a฀schedule฀is฀programmed฀the฀remaining฀schedules฀

can฀then฀be฀set.฀Press฀CLOSE฀to฀leave฀the฀OSD฀or฀press฀

EXIT฀to฀go฀back฀to฀the฀previous฀menu.฀

NOTE:฀If฀schedules฀are฀overlapping฀then฀the฀schedule฀

with฀the฀highest฀number฀will฀have฀priority฀over฀the฀

schedule฀with฀the฀lowest฀number.฀For฀example฀Schedule฀

#7฀will฀have฀priority฀over฀Schedule฀#1.฀

NOTE฀2:฀IMAGE฀PERSISTENCE

Please฀be฀aware฀that฀LCD฀Technology฀may฀experience฀a฀

phenomenon฀known฀as฀Image฀Persistence.฀Image฀Persis-

tence฀occurs฀when฀a฀residual฀or฀“ghost”฀image฀of฀a฀previous฀

image฀remains฀visible฀on฀the฀screen.฀Unlike฀CRT฀monitors,฀

LCD฀monitors’฀image฀persistence฀is฀not฀usually฀permanent,฀

but฀constant฀images฀being฀displayed฀for฀a฀long฀period฀of฀

time฀should฀be฀avoided฀since฀there฀may฀be฀a฀“semi-perma-

nent”฀effect.

To฀alleviate฀image฀persistence,฀turn฀off฀the฀monitor฀for฀as฀

long฀as฀the฀previous฀image฀was฀displayed.฀For฀example,฀if฀

an฀image฀was฀on฀the฀monitor฀for฀one฀hour฀and฀a฀residual฀

image฀remains,฀the฀monitor฀should฀be฀turned฀off฀for฀one฀

hour฀to฀erase฀the฀image.

As฀with฀all฀personal฀display฀devices,฀NEC฀DISPLAY฀SOLU-

TIONS฀recommends฀displaying฀moving฀images฀and฀using฀

a฀moving฀screen฀saver฀at฀regular฀intervals฀whenever฀the฀

screen฀is฀idle฀or฀turning฀off฀the฀monitor฀when฀not฀in฀use.

Please฀set฀the฀“SCREEN฀SAVER”,฀“DATE฀&฀TIME”฀and฀

“SCHEDULE฀SETTINGS”฀functions฀to฀further฀reduce฀the฀

risk฀of฀Image฀persistence.



English

English-35



This฀LCD฀monitor฀can฀be฀controlled฀via฀personal฀computer฀

or฀wireless฀remote฀control฀using฀an฀RS-232C฀connection.

MONITOR฀ID฀and฀IR฀CONTROL

Using฀one฀PC฀or฀one฀infra-red฀wireless฀controller,฀up฀to฀26฀

individual฀LCD4020/LCD4620฀monitors฀can฀be฀controlled฀

through฀a฀daisy฀chain฀via฀RS-232C฀connection.

฀1.฀Connect฀PC฀and฀LCD4020/LCD4620.

Connect฀a฀PC’s฀RS-232C฀control฀output฀to฀the฀

LCD4020/LCD4620’s฀RS-232C฀input.฀You฀can฀then฀

connect฀the฀RS-232C฀output฀from฀the฀LCD4020/

LCD4620฀to฀another฀LCD4020/LCD4620’s฀RS-232C฀

input.฀Up฀to฀26฀monitors฀can฀be฀connected฀using฀RS-

232C.

฀2.฀Set฀Monitor฀ID฀and฀IR฀Control฀mode.

For฀proper฀operation,฀the฀Monitor฀ID฀should฀be฀

set฀in฀the฀OSD฀menu฀of฀each฀monitor฀that฀is฀in฀the฀

chain.฀The฀Monitor฀ID฀can฀be฀set฀under฀the฀“MULTI฀

DISPLAY”฀menu฀in฀the฀OSD.฀The฀Monitor฀ID฀number฀

can฀be฀set฀within฀a฀range฀from฀1฀to฀26.฀No฀two฀

monitors฀should฀share฀the฀same฀Monitor฀ID฀number.฀

It฀is฀recommended฀to฀number฀each฀monitor฀in฀a฀daisy฀

chain฀sequentially฀from฀1.฀The฀ﬁrst฀monitor฀in฀the฀

daisy฀chain฀is฀designated฀as฀the฀primary฀monitor.฀

Subsequent฀monitors฀with฀the฀chain฀are฀secondary฀

monitors.

In฀the฀“MULTI฀DISPLAY”฀menu฀on฀the฀ﬁrst฀monitor฀

in฀the฀RS-232C฀daisy฀chain฀set฀the฀“IR฀CONTROL”฀to฀

“PRIMARY”.

Set฀the฀“IR฀CONTROL”฀to฀“SECONDARY”฀on฀all฀other฀

monitors.

฀3.฀Press฀the฀“DISPLAY”฀button฀on฀the฀remote฀

control฀while฀aiming฀at฀the฀“PRIMARY”฀

monitor.

The฀Information฀OSD฀will฀be฀shown฀at฀top฀left฀side฀of฀

the฀screen.

MONITOR฀ID:฀Displays฀the฀ID฀number฀of฀the฀

current฀monitor฀within฀the฀daisy฀chain.

TARGET฀ID:฀Displays฀the฀ID฀number฀of฀the฀monitor฀

that฀to฀be฀controlled฀via฀daisy฀chain฀from฀the฀current฀

monitor.

Press฀the฀“+”฀or฀“-”฀buttons฀to฀change฀the฀“Target฀

ID”฀to฀show฀the฀ID฀number฀of฀the฀monitor฀to฀be฀

controlled.฀To฀control฀all฀of฀the฀daisy฀chained฀

monitors฀simultaneously,฀select฀“ALL”฀as฀the฀“Target฀

ID.”

NOTE:฀If฀the฀monitor฀is฀in฀ECO฀Standby฀mode,฀RS-

232C฀functionality฀is฀stopped.

฀4.฀Use฀the฀wireless฀remote฀controller฀to฀control฀

the฀“SECONDARY”฀monitor฀while฀aiming฀at฀

the฀“PRIMARY”฀monitor.

The฀“MENU฀OSD”฀will฀appear฀on฀the฀selected฀target฀

monitor.

NOTE:฀If฀the฀“ID฀No.”฀mode฀select฀OSD฀is฀showing,฀

press฀the฀“DISPLAY”฀button฀on฀the฀remote฀control฀

while฀pointing฀at฀the฀“PRIMARY”฀monitor฀to฀clear฀

this฀OSD.

HINT:฀If฀you฀lost฀control฀due฀to฀the฀incorrect฀setting฀

of฀“IR฀CONTROL”,฀pressing฀the฀“DISPLAY”฀button฀

on฀the฀remote฀control฀for฀5฀or฀more฀seconds฀will฀reset฀

the฀“IR฀CONTROL”฀menu฀to฀“NORMAL”฀function.

Monitor ID:1

Target ID:5

DVI

AUDIO: IN1

SIZE:FULL

1024 X 768

48KHz/60Hz

Input Source

Picture Size

Input Signal Information

ID number assigned to current monitor *1

ID number assigned monitor to be

controlled via RS-232C *2

*1:฀"IR฀control"฀should฀be฀set฀"Primary"฀or฀"Secondary".

*2:฀"IR฀control"฀should฀be฀set฀"Primary".

English-36

This฀LCD฀monitor฀uses฀RXD,฀TXD฀and฀

GND฀lines฀for฀RS-232C฀control.฀฀

The฀reverse฀type฀cable฀(null฀modem฀cable)฀

should฀be฀used฀for฀RS-232C฀control.

Functions฀that฀can฀be฀controlled฀

via฀RS-232C฀are:

Powering฀ON฀or฀OFF

Switching฀input฀signals

NOTE:฀If฀your฀PC฀(IBM฀or฀IBM฀compatible)฀is฀equipped฀

only฀with฀a฀25-pin฀serial฀port฀connector,฀a฀25-pin฀serial฀

port฀adapter฀is฀required.฀Contact฀your฀dealer฀for฀details.

NOTE:฀In฀order฀to฀function,฀the฀RS-232C฀OUT฀terminal฀

can฀only฀be฀connected฀to฀another฀monitor฀of฀the฀same฀

model.฀Do฀not฀connect฀to฀other฀types฀of฀equipment.

•

 - continued

(Out)

RS-232C฀Cable

RS-232C฀(IN)RS-232C฀(OUT)RS-232C฀(IN)RS-232C฀(OUT)

MultiSync

OUT

English

English-37

 - continued

The฀following฀control฀sequence฀is฀used฀for฀a฀single฀MultiSync฀display.฀

When฀using฀the฀following฀control฀commands,฀all฀of฀the฀daisy-chained฀monitors฀can฀

be฀controlled฀at฀the฀same฀time฀from฀the฀primary฀monitor.฀However,฀reply฀and฀status฀

commands฀will฀only฀pertain฀to฀the฀primary฀monitor,฀and฀not฀to฀the฀secondary฀moni-

tors.

฀1)฀Interface฀

PROTOCOLRS-232C

BAUD฀RATE9600฀[bps]

DATA฀LENGTH8฀[bits]

PARITY฀BITNONE

STOP฀BIT1฀[bit]

FLOW฀CONTROLNONE

฀2)฀Control฀command฀diagram

The฀command฀is฀structured฀by฀the฀address฀code,฀function฀code,฀data฀code฀and฀

end฀code.฀The฀length฀of฀the฀command฀is฀different฀for฀each฀function.

Address฀CodeFunction฀CodeData฀CodeEnd฀Code

HEX30h฀30hFunctionData0Dh

ASCII'0'฀'0'FunctionData

฀[Address฀code]฀30h฀30h฀(In฀ASCII฀code,฀'0'฀'0')฀ﬁxed.

฀[Function฀code]฀A฀code฀of฀each฀ﬁxed฀control฀move.

฀[Data฀code]฀A฀code฀of฀each฀ﬁxed฀control฀data฀(number)฀and฀฀฀

฀฀฀not฀always฀indicated.

฀[End฀code]฀0Dh฀(In฀ASCII฀code,฀'

'฀)฀ﬁxed.

To฀control฀multiple฀MultiSync฀monitors฀that฀are฀

daisy-chained฀together฀please฀use฀the฀extended฀

control฀command.฀Instructions฀for฀the฀ex-

tended฀control฀command฀can฀be฀found฀on฀the฀

CD฀included฀with฀the฀display.฀฀The฀ﬁle฀is฀called฀

“External_control.pdf”.฀

English-38

 - continued

฀3)฀Control฀sequence

1)฀The฀command฀from฀a฀computer฀to฀the฀LCD฀monitor฀will฀take฀400ms.

2)฀The฀LCD฀monitor฀will฀send฀a฀return฀command฀400ms*฀after฀it฀has฀received฀

฀an฀encode.฀If฀the฀command฀is฀not฀received฀correctly,฀฀

฀the฀LCD฀monitor฀will฀not฀send฀the฀return฀command.

3)฀The฀personal฀computer฀checks฀the฀command฀and฀conﬁrms฀if฀the฀

฀command฀which฀has฀฀been฀sent฀has฀been฀฀executed฀or฀not.

4)฀This฀LCD฀monitor฀sends฀various฀codes฀other฀than฀the฀return฀code.฀฀When฀฀

฀sending฀a฀control฀sequence฀via฀RS-232C,฀other฀codes฀from฀personal฀

฀computers฀will฀be฀ignored.

฀

฀*The฀sending฀time฀of฀the฀return฀command฀may฀be฀delayed฀depending฀on฀the฀

฀฀monitor’s฀current฀activity฀(changing฀of฀the฀input฀signal,฀etc.).

฀฀[Example]฀Turn฀the฀power฀ON.฀('฀฀'฀is฀for฀฀ASCII฀code)

Sending฀commands฀

from฀the฀PC฀etc.

Status฀code฀

from฀LCD฀moni-

tor

Meaning

30฀30฀21฀0D

'0'฀'0'฀'!'฀'

Command฀for

POWER฀ON

30฀30฀21฀0D

'0'฀'0'฀'!'฀'

Command฀received

(Command฀echo฀back)

฀4)฀Operation฀commands

฀Operation฀commands฀execute฀the฀basic฀operation฀setting฀of฀this฀LCD฀

monitor.฀

฀It฀may฀not฀operate฀when฀changing฀the฀signal:

OperationASCIIHEX

POWER฀ON!21h

POWER฀OFF"22h

DVI_r15Fh฀฀72h฀฀31h

VGA_r25Fh฀฀72h฀฀32h

RGB/HV_r35Fh฀฀72h฀฀33h

HDMI_h15Fh฀฀68h฀฀31h

VIDEO฀

_v15Fh฀฀76h฀฀31h

DVD/HD฀

_v25Fh฀฀76h฀฀32h

S-VIDEO฀

_v35Fh฀฀76h฀฀33h

TV฀

_t25Fh฀฀74h฀฀32h

POWER฀OFF฀command฀should฀not฀be฀used฀less฀than฀1฀minute฀after฀the฀power฀is฀

turned฀on.

POWER฀ON฀command฀should฀not฀be฀used฀less฀than฀1฀minute฀after฀the฀power฀is฀

turned฀off.

S-VIDEO฀is฀enabled฀by฀having฀an฀S-VIDEO฀cable฀connected฀with฀the฀"S-

VIDEO"฀signal฀present฀and฀selecting฀"PRIORITY฀MODE".

•

English

English-39

฀5)฀Read฀command

Host฀computer฀sends฀the฀command฀without฀Data-code฀to฀monitor.

After฀receiving฀this฀command,฀the฀monitor฀returns฀the฀command฀with฀Data-

code฀of฀current฀status฀to฀host฀computer.

<ex>฀When฀the฀Host฀computer฀checks฀the฀Power฀status฀of฀monitor,฀the฀status฀of฀

monitor฀is฀powered-on.

Command฀from฀

computer

Command฀from฀

Monitor

Detail฀of฀command

30฀30฀76฀50฀0D

‘0’’0’’v’’P’[enter]

Ask฀about฀the฀power

status฀of฀monitor.

30฀30฀76฀50฀31฀0D

‘0’’0’’v’’P’’1’[enter]

Monitor฀is฀powered-on.

Structure฀of฀the฀Read-command฀

ASCIIHEX

FunctionData฀(Receive)FunctionData฀(Receive)

POWER

ONvP176฀5031

OFF฀(stand฀by)vP076฀5030

Input

DVI฀(DVI-D)vIr176฀4972฀31

VGA฀(D-sub)vIr276฀4972฀32

RGB/HV฀(BNC)vIr376฀4972฀33

HDMIvIh176฀4968฀31

VIDEO฀

vIv176฀4976฀31

DVD/HD฀

vIv276฀4976฀32

S-VIDEO฀

vIv376฀4976฀33

TV฀

vIt276฀4974฀32

Picture฀Mode

HIGHBRIGHTvMp176฀4D70฀31

StandardvMp276฀4D70฀32

NOTE:฀For฀complete฀information฀please฀see฀ﬁle฀

“External_Control.pdf”฀on฀the฀CD-ROM.

 - continued

RS-232C฀control฀will฀not฀function฀if฀the฀display฀is฀in฀“ECO฀

STANDBY”฀mode.฀If฀monitors฀are฀daisy-chained,฀and฀one฀display฀

is฀in฀“ECO฀STANDBY฀mode,฀then฀control฀of฀the฀entire฀daisy-chain฀

will฀be฀lost.฀See฀page฀30฀for฀more฀information฀on฀STANDBY฀mode.

English-40

40"฀or฀46"฀diagonal฀screen฀size:฀Adds฀a฀new฀dimension฀to฀information฀display฀technology.

1366฀x฀768฀resolution:฀Allows฀for฀crisp฀text฀and฀precise฀images.

XtraView®฀technology:฀Allows฀for฀wide-angle฀viewing.

DDC/CI฀capabilities:฀Allow฀control฀commands฀to฀be฀sent฀directly฀to฀the฀monitor฀through฀a฀

standard฀PC฀or฀over฀an฀existing฀network฀by฀a฀system฀administrator.

CableComp™:฀Automatic฀long฀cable฀compensation฀prevents฀image฀quality฀degradation฀caused฀by฀

long฀cable฀lengths.

User-friendly,฀efﬁcient฀design:฀Features฀the฀currently฀proposed฀VESA-standard฀mounting฀and฀an฀

overall฀lightweight฀construction฀for฀easy฀transport฀and฀installation.

Low฀power฀consumption฀and฀reduced฀heat฀emission:฀Lead฀to฀a฀lower฀total฀cost฀of฀ownership.

On฀Screen฀Display฀(OSD):฀Puts฀you฀in฀complete฀control฀of฀display฀settings.

NEC’s฀quality฀and฀reliability:฀Provide฀peace฀of฀mind฀with฀a฀3-year฀warranty฀(including฀backlight)฀

and฀24/7฀customer฀service฀and฀technical฀support.

Reduced฀Footprint:฀Provides฀the฀ideal฀solution฀for฀environments฀requiring฀superior฀image฀quality฀

but฀with฀size฀and฀weight฀reductions.฀The฀monitor’s฀small฀footprint฀and฀low฀weight฀allow฀it฀to฀be฀

moved฀or฀transported฀easily฀from฀one฀location฀to฀another.

AccuColor®฀Control฀System:฀Along฀with฀sRGB฀allows฀you฀to฀change฀between฀the฀color฀settings฀on฀

your฀display฀to฀match฀your฀personal฀preference.

OmniColor™฀Control฀System:฀Along฀with฀sRGB฀color-matching฀uses฀6-axis฀color฀data฀to฀ensure฀

true-to-life฀color฀reproduction฀for฀still฀images฀and฀real-time฀videos.

Plug฀and฀Play:฀The฀Microsoft®฀solution฀with฀the฀Windows

฀operating฀system฀facilitates฀setup฀and฀

installation฀by฀allowing฀

the฀monitor฀to฀send฀its฀capabilities฀(such฀as฀screen฀size฀and฀resolutions฀

supported)

฀directly฀to฀your฀computer,฀automatically฀optimizing฀display฀performance.

Intelligent฀Power฀Manager฀(IPM®)฀System:฀Provides฀innovative฀power-saving฀methods,฀saving฀

two-thirds฀of฀your฀monitor฀energy฀costs.

Multiple฀Frequency฀Technology:฀Automatically฀adjusts฀monitor฀to฀the฀display฀card’s฀scanning฀

frequency,฀thus฀displaying฀the฀resolution฀required.

FullScan®฀Capability:฀Allows฀you฀to฀use฀the฀entire฀screen฀area฀in฀most฀resolutions,฀signiﬁcantly฀

expanding฀image฀size.

VESA®฀Standard฀Mounting฀Interface:฀Allows฀users฀to฀connect฀their฀LCD฀monitor฀to฀any฀VESA฀

standard฀third฀party฀mounting฀arm฀or฀bracket.฀Allows฀for฀the฀monitor฀to฀be฀mounted฀on฀a฀wall฀or฀

an฀arm฀using฀any฀third฀party฀compliant฀device.฀฀NEC฀recommends฀using฀mounting฀interface฀that฀

comply฀with฀UL1678฀standard฀in฀North฀America.

DVI-D:฀The฀digital-only฀subset฀of฀DVI฀created฀by฀the฀Digital฀Display฀Working฀Group฀(DDWG)฀for฀

digital฀connections฀between฀computers฀and฀displays.฀฀As฀a฀digital-only฀connector,฀analog฀support฀

is฀not฀provided฀off฀a฀DVI-D฀connector.฀฀As฀a฀DVI-based฀digital฀only฀connection,฀only฀a฀simple฀

adapter฀is฀necessary฀for฀compatibility฀between฀DVI-D฀and฀other฀DVI-based฀digital฀connectors฀

such฀as฀DFP฀and฀P&D.

TILE฀MATRIX฀with฀TILE฀COMP:฀Allows฀multiple฀screens฀to฀display฀one฀image฀tiled฀over฀several฀

stacked฀monitors฀while฀compensating฀within฀the฀displayed฀image฀for฀monitor฀bezel฀width.

ZOOM:฀Expands฀the฀image฀horizontally฀and฀vertically฀direction.

RS-232C฀daisy฀chain:฀You฀can฀control฀multiple฀monitors฀by฀PC฀or฀wireless฀remote฀control.

Self-diagnosis:฀If฀an฀internal฀error฀should฀occur,฀a฀failure฀state฀will฀be฀indicated฀by฀a฀blinking฀red฀

light฀on฀the฀front฀of฀the฀monitor.



English

English-41



No฀picture

The฀signal฀cable฀should฀be฀properly฀connected฀to฀the฀display฀

card/computer.

The฀display฀card฀should฀be฀properly฀seated฀in฀its฀slot.

Front฀Power฀Switch฀and฀computer฀power฀switch฀should฀be฀in฀

the฀ON฀position.

Check฀to฀make฀sure฀that฀a฀supported฀mode฀has฀been฀selected฀

on฀the฀display฀card฀or฀system฀being฀used.฀(Please฀consult฀

display฀card฀or฀system฀manual฀to฀change฀graphics฀mode.)

Check฀the฀monitor฀and฀your฀display฀card฀with฀respect฀to฀

compatibility฀and฀recommended฀settings.

Check฀the฀signal฀cable฀connector฀for฀bent฀or฀pushed-in฀pins.

Power฀Button฀does฀not฀respond

Unplug฀the฀power฀cord฀of฀the฀monitor฀from฀the฀AC฀outlet฀to฀

turn฀off฀and฀reset฀the฀monitor.

Image฀persistence

Please฀be฀aware฀that฀LCD฀Technology฀may฀experience฀a฀

phenomena฀known฀as฀Image฀Persistence.฀Image฀Persistence฀

occurs฀when฀a฀residual฀or฀“ghost”฀image฀of฀a฀previous฀image฀

remains฀visible฀on฀the฀screen.฀Unlike฀CRT฀monitors,฀LCD฀

monitors’฀image฀persistence฀is฀not฀permanent,฀but฀constant฀

images฀being฀displayed฀for฀a฀long฀period฀of฀time฀should฀

be฀avoided.฀To฀alleviate฀image฀persistence,฀turn฀off฀the฀

monitor฀for฀as฀long฀as฀the฀previous฀image฀was฀displayed.฀For฀

example,฀if฀an฀image฀was฀on฀the฀monitor฀for฀one฀hour฀and฀

a฀residual฀image฀remains,฀the฀monitor฀should฀be฀turned฀off฀

for฀one฀hour฀to฀erase฀the฀image.฀

฀NOTE:฀As฀with฀all฀personal฀display฀devices,฀NEC฀Display฀

Solutions฀of฀America,฀Inc.฀recommends฀displaying฀moving฀

images฀and฀using฀a฀moving฀screen฀saver฀at฀regular฀฀intervals฀

whenever฀the฀screen฀is฀idle฀or฀turning฀off฀the฀monitor฀when฀

not฀in฀use.

Image฀is฀unstable,฀unfocused฀or฀฀

swimming฀is฀apparent

Signal฀cable฀should฀be฀properly฀attached฀to฀the฀LCD฀

monitor,฀computer,฀or฀other฀input฀device.

Use฀the฀OSD฀screen฀controls฀to฀focus฀and฀adjust฀display฀by฀

increasing฀or฀decreasing฀the฀clock฀phase฀total.฀When฀the฀

display฀mode฀is฀changed,฀the฀OSD฀Image฀Adjust฀settings฀

may฀need฀to฀be฀readjusted.

Check฀the฀monitor฀and฀your฀display฀card฀with฀respect฀to฀

compatibility฀and฀recommended฀signal฀timings.

If฀your฀text฀is฀garbled,฀change฀the฀video฀mode฀to฀non-

interlaced฀and฀use฀60Hz฀refresh฀rate.

Image฀of฀component฀signal฀is฀greenish

Check฀to฀see฀if฀the฀DVD/HD฀input฀connector฀is฀selected.

LED฀on฀monitor฀is฀not฀lit฀

(no฀green฀or฀red฀color฀can฀be฀seen)

Main฀Power฀Switch฀should฀be฀in฀the฀ON฀position฀and฀power฀

cord฀should฀be฀connected.

Make฀certain฀the฀computer฀is฀not฀in฀a฀power-saving฀mode฀

(touch฀the฀keyboard฀or฀mouse).

•

Red฀LED฀on฀monitor฀is฀blinking

A฀certain฀failure฀might฀have฀occurred,฀please฀contact฀your฀

nearest฀authorized฀NEC฀DISPLAY฀SOLUTIONS฀service฀

facility.

Display฀image฀is฀not฀sized฀properly

Use฀the฀OSD฀screen฀controls฀to฀increase฀or฀decrease฀the฀

clock฀total.

Check฀to฀make฀sure฀that฀a฀supported฀mode฀has฀been฀selected฀

on฀the฀display฀card฀or฀system฀being฀used.฀(Please฀consult฀

display฀card฀or฀system฀manual฀to฀change฀graphics฀mode.)

Selected฀resolution฀is฀not฀displayed฀properly

Use฀OSD฀information฀to฀enter฀Information฀menu฀and฀

conﬁrm฀that฀the฀appropriate฀resolution฀has฀been฀selected.฀If฀

not,฀select฀appropriate฀resolution.

“SCHEDULE฀SETTINGS”฀/฀"OFF฀TIMER”฀functions฀

not฀working฀properly฀

The฀“SCHEDULE฀SETTINGS”฀function฀will฀be฀disabled฀

when฀the฀“OFF฀TIMER”฀is฀set.

If฀the฀“OFF฀TIMER”฀function฀is฀enabled฀and฀the฀power฀

to฀the฀LCD฀monitor฀is฀turned฀off฀or฀if฀the฀power฀supply฀is฀

interrupted฀unexpectedly,฀then฀the฀OFF฀TIMER฀will฀be฀

reset.

No฀Sound

Check฀to฀see฀if฀speaker฀cable฀is฀properly฀connected.

Check฀to฀see฀if฀mute฀is฀activated.

Check฀to฀see฀if฀volume฀is฀set฀at฀minimum.฀฀

NOTE:฀It฀is฀possible฀to฀play฀audio฀from฀a฀source฀that฀is฀

different฀from฀the฀video฀source.฀When฀setting฀parental฀

controls฀for฀video,฀be฀aware฀that฀this฀content฀is฀not฀ﬁltered.฀

RS-232C฀does฀not฀work

Make฀sure฀the฀monitor฀is฀not฀in฀“Eco฀Standby”฀mode.฀(see฀page฀

30)

Remote฀Control฀does฀not฀work

Make฀sure฀the฀batteries฀are฀inserted฀properly.

Test฀the฀batteries฀for฀strength/life.

Make฀sure฀to฀point฀the฀remote฀directly฀at฀the฀sensor฀on฀the฀

monitor.

Check฀if฀the฀remote฀is฀in฀Remote฀ID฀mode.

The฀remote฀control฀may฀not฀function฀when฀in฀direct฀

sunlight฀or฀when฀there฀is฀strong฀illumination฀on฀the฀remote฀

sensor฀of฀the฀monitor.

Snowy฀Picture,฀Poor฀Sound฀in฀TV

Check฀antenna/cable฀connection.฀Use฀new฀cable฀if฀necessary.

Interference฀in฀TV

Check฀components฀for฀shielding.฀Move฀them฀away฀from฀the฀

monitor฀if฀necessary.

•

English-42



NEC฀Monitor฀Customer฀Service฀&฀Support

฀Customer฀Service฀and฀Technical฀Support:฀(800)฀632-4662฀

฀฀Fax:฀(800)฀695-3044

฀Parts฀and฀Accessories/Macintosh฀Cable฀Adapter:฀(800)฀632-4662

฀Warranty฀Information:฀฀฀www.necdisplay.com

฀Online฀Technical฀Support:฀www.necdisplay.com

฀Sales฀and฀Product฀Information฀

฀Sales฀Information฀Line:฀(888)฀632-6487฀

฀Canadian฀Customers:฀(866)฀771-0266,฀Ext#:฀4037฀

฀Government฀Sales:฀(800)฀284-6320฀

฀Government฀Sales฀email:฀gov@necdisplay.com

฀Electronic฀Channels฀฀฀

฀World฀Wide฀Web:฀฀฀www.necdisplay.com฀

฀Product฀Registration:฀฀฀www.necdisplay.com

฀European฀Operations:฀www.nec-display-solutions.com

฀฀Drivers฀and฀Downloads:฀www.necdisplay.com

English

English-43



LCD฀Module(40"฀/฀101.6฀cm฀diagonal)

Pixel฀Pitch0.648฀mm

Resolution1366฀x฀768฀pixels

ColorOver฀16฀million฀colors฀(depending฀on฀video฀card฀used)

Brightness700cd/m²฀(Maximum),฀500cd/m²(Typ)฀

Contrast฀Ratio2000:1฀(typ)

Viewing฀AngleUp฀89฀/฀Down฀89฀/฀Left฀89฀/฀Right฀89฀(typ)฀@฀CR฀>10

FrequencyHorizontalANALOG:฀15.625/15.734kHz,฀31.5kHz฀-฀91.1kHz

DIGITAL:฀31.5kHz฀-฀91.1kHz

Vertical50Hz฀to฀85Hz

Pixel฀Clock25.2MHz฀-฀162.0MHz

Viewable฀Size885.168฀x฀497.664mm฀฀

Input฀Signal

DVIDVI-D฀24฀PinDIGITAL฀RGB

DVI฀(HDCP)

VGA60,฀SVGA60,฀XGA60,฀WXGA60,฀SXGA60,฀UXGA60*,฀1920X1080*฀(60Hz)

VGAMini฀D-sub฀15฀Pin฀

Analog฀RGB

0.7V฀p-p/฀75฀ohm

VGA60,฀SVGA60,฀XGA60,฀WXGA60,฀SXGA60,฀UXGA60*,฀1920X1080*฀(60Hz)

Sync

Separate:฀TTL฀level฀(Pos./Neg.)

Composite฀sync฀on฀Green฀Video:฀

0.3Vp-p฀Neg.

RGB/HVBNC฀(R,G,B,H,V)

Analog฀RGB

0.7V฀p-p/฀75฀ohm

VGA60,฀SVGA60,฀XGA60,฀WXGA60,฀SXGA60,฀UXGA60*,฀1920X1080*฀(60Hz)

Sync

Separate:฀TTL฀level฀(Pos./Neg.)

Composite฀sync฀on฀Green฀Video:฀

0.3Vp-p฀Neg.

HDMIHDMI฀Type-ADigital฀RGB

HDMI

1080p*,1080i*,720p@฀50Hz/60Hz,฀฀576p@฀50Hz,฀฀480p@฀60Hz

DVD/HD

RCA฀(Y,฀Cb/Pb,฀

Cr/Pr)

Component

Y฀:฀1.0Vp-p/75ohm,฀Cb/Cr฀(Pb/Pr)฀:฀0.7Vp-p/75฀ohm

HDTV/DVD:1080p*,1080i*,720p@฀50Hz/60Hz,฀฀฀576p@฀50Hz฀,฀480p@฀60Hz,฀576i@฀50Hz,฀฀480i@฀60Hz

VIDEO

BNC

Composite

1.0V฀p-p/฀75฀ohm

RCANTSC/PAL/SECAM/4.43NTSC/PAL60

S-VIDEOMini฀DIN฀4฀pinS-VIDEO

Y:฀1.0Vp-p/75ohm฀C:฀0.286Vp-p/75฀ohm฀

NTSC/PAL/SECAM/4.43NTSC/PAL60

75฀ohm฀฀

F-terminal

Analog฀

Terrestrial฀broadcast

NTSC:฀VHF(2-13ch),UHF(14-69ch)฀

Analog฀CableCATV฀1-135ch

Digital฀

Terrestrial฀broadcast

ATSC฀(8VSB):2-69ch

Digital฀Cable64/256฀QAM฀:฀1-135ch

Output฀SignalRGB/HVBNC฀(R,G,B,H,V)Analog฀RGB0.7V฀p-p฀with฀75฀ohm฀terminated

Separate฀HV฀sync:฀TTL฀level฀(Pos./Neg.)฀

VIDEOBNCCOMPOSITE1.0V฀p-p฀with฀75฀ohm฀terminated

AudioAUDIO฀InputRCA฀(L/R)฀x฀2

STEREO฀฀

Mini฀Jack

Analog฀AudioStereo฀L/R฀0.5Vrms

HDMI฀Type-ADIGITAL฀AudioPCM฀32,฀44.1,฀48KHz฀(16bit)

AUDIO฀OutputSTEREO฀฀

Mini฀Jack

Analog฀AudioStereo฀L/R฀0.5Vrms฀

Optical฀S/PDIF฀

connector

Digital฀AudioS/PDIF฀Optical฀Digital฀audio฀output฀(PCM/Dolby฀Digital)**

Speaker฀OutputExternal฀Speaker฀Jack฀15W฀+฀15W฀(8฀ohm)

ControlRS-232C:฀IND-sub฀9฀Pin฀

RS-232C:฀OUTD-sub฀9฀Pin฀(daisy฀chain)

Power฀Supply3.0-1.2A@100-240V฀AC,฀50/60Hz

Operational฀

Environment

Temperature5฀to฀40˚C/4˚F฀to฀140˚F(Default฀brightness)

5฀~฀20˚C/4˚F฀to฀68˚F(Maximum฀brightness)

Humidity20%฀to฀80%

Storage

Environment

Temperature-20˚C฀to฀60˚C/-4˚F฀to฀140˚F

Humidity10%฀to฀90%฀(without฀condensation)฀/฀below฀60%฀over฀40˚C

DimensionsNet919.7฀(W)฀x฀567.7฀(H)฀x฀330฀(D)฀mm฀(with฀Stand)฀

919.7฀(W)฀x฀532.2฀(H)฀x฀140฀(D)฀mm฀(without฀Stand)

Gross1147฀(W)฀x฀761฀(H)฀x฀312฀(D)฀mm

WeightNet31.1kg฀/฀68.6฀lbs.

Gross38.9kg฀/฀85.8฀lbs.

VESA฀compatible฀arm

mounting฀interface

3฀x฀200mm฀x฀200mm฀(8฀Holes)

2฀x฀200mm฀x฀200mm฀(6฀Holes)

Complied฀Regulatory฀

and฀Guidelines

UL฀60950-1/CSA฀C22.2฀No.60950-1/฀TUV-GS/EN60950-1

FCC-B/DOC-B/EN55022-A/EN55024/EN61000-3-2/EN61000-3-3/CE

Power฀ManagementVESA฀DPM

Plug฀&฀PlayVESA฀DDC2B฀

DDC/CI

AccessoriesUser’s฀manual,฀Power฀Cord,฀Video฀Signal฀Cable,฀Remote฀Control,฀AA฀Battery฀x฀2,฀Clamp฀x฀3,฀Screw฀x฀11,฀CD-ROM,฀Stand฀x฀2,฀Cable฀cover.

*Compressed฀Image฀

**Audio฀Output฀for฀Digital฀Terrestrial฀broadcast฀

Manufactured฀under฀license฀from฀Dolby฀Laboratories.฀"Dolby"฀and฀the฀double-D฀symbol฀are฀trademarks฀of฀Dolby฀Laboratories.

English-44



LCD฀Module(46"฀/฀116.8฀cm฀diagonal)

Pixel฀Pitch0.7455฀mm

Resolution1366฀x฀768฀pixels

ColorOver฀16฀million฀colors฀(depending฀on฀video฀card฀used)

Brightness650cd/m²฀(Maximum),฀500cd/m²(Typ)

Contrast฀Ratio2000:1฀(typ)

Viewing฀AngleUp฀89฀/฀Down฀89฀/฀Left฀89฀/฀Right฀89฀(typ)฀@฀CR฀>10

FrequencyHorizontalANALOG:฀15.625/15.734kHz,฀31.5kHz฀-฀91.1kHz

DIGITAL:฀31.5kHz฀-฀91.1kHz

Vertical50Hz฀to฀85Hz

Pixel฀Clock25.2MHz฀-฀162.0MHz

Viewable฀Size1018.353฀x฀572.544mm฀฀

Input฀Signal

DVIDVI-D฀24฀PinDIGITAL฀RGB

DVI฀(HDCP)

VGA60,฀SVGA60,฀XGA60,฀WXGA60,฀SXGA60,฀UXGA60*,฀1920X1080*฀(60Hz)

VGAMini฀D-sub฀15฀Pin฀

Analog฀RGB

0.7V฀p-p/฀75฀ohm

VGA60,฀SVGA60,฀XGA60,฀WXGA60,฀SXGA60,฀UXGA60*,฀1920X1080*฀(60Hz)

Sync

Separate:฀TTL฀level฀(Pos./Neg.)

Composite฀sync฀on฀Green฀Video:฀

0.3Vp-p฀Neg.

RGB/HVBNC฀(R,G,B,H,V)

Analog฀RGB

0.7V฀p-p/฀75฀ohm

VGA60,฀SVGA60,฀XGA60,฀WXGA60,฀SXGA60,฀UXGA60*,฀1920X1080*฀(60Hz)

Sync

Separate:฀TTL฀level฀(Pos./Neg.)

Composite฀sync฀on฀Green฀Video:฀

0.3Vp-p฀Neg.

HDMIHDMI฀Type-ADigital฀RGB

HDMI

1080p*,1080i*,720p@฀50Hz/60Hz,฀฀฀576p@฀50Hz,฀฀480p@฀60Hz

DVD/HD

RCA฀(Y,฀Cb/Pb,฀

Cr/Pr)

Component

Y฀:฀1.0Vp-p/75ohm,฀Cb/Cr฀(Pb/Pr)฀:฀0.7Vp-p/75฀ohm

HDTV/DVD:1080p*,1080i*,720p@฀50Hz/60Hz,฀฀฀576p@฀50Hz฀,฀480p@฀60Hz,฀576i@฀50Hz,฀฀480i@฀60Hz

VIDEO

BNC

Composite

1.0V฀p-p/฀75฀ohm

RCANTSC/PAL/SECAM/4.43NTSC/PAL60

S-VIDEOMini฀DIN฀4฀pinS-VIDEO

Y:฀1.0Vp-p/75ohm฀C:฀0.286Vp-p/75฀ohm฀

NTSC/PAL/SECAM/4.43NTSC/PAL60

75฀ohm฀฀

F-terminal

Analog฀

Terrestrial฀broadcast

NTSC:฀VHF(2-13ch),UHF(14-69ch)฀

Analog฀CableCATV฀1-135ch

Digital฀

Terrestrial฀broadcast

ATSC฀(8VSB):2-69ch

Digital฀Cable64/256฀QAM฀:฀1-135ch

Output฀SignalRGB/HVBNC฀(R,G,B,H,V)Analog฀RGB0.7V฀p-p฀with฀75฀ohm฀terminated

Separate฀HV฀sync:฀TTL฀level฀(Pos./Neg.)฀

VIDEOBNCCOMPOSITE1.0V฀p-p฀with฀75฀ohm฀terminated

Audio

AUDIO฀InputRCA฀(L/R)฀x฀2

STEREO฀฀

Mini฀Jack

Analog฀AudioStereo฀L/R฀0.5Vrms

HDMI฀Type-ADIGITAL฀AudioPCM฀32,฀44.1,฀48KHz฀(16bit)

AUDIO฀OutputSTEREO฀฀

Mini฀Jack

Analog฀AudioStereo฀L/R฀0.5Vrms฀

Optical฀S/PDIF฀

connector

Digital฀AudioS/PDIF฀Optical฀Digital฀audio฀output฀(PCM/Dolby฀Digital)**

Speaker฀Output

External฀Speaker฀Jack฀15W฀+฀15W฀(8฀ohm)

ControlRS-232C:฀IND-sub฀9฀Pin฀

RS-232C:฀OUTD-sub฀9฀Pin฀(daisy฀chain)

Power฀Supply3.4-1.35A@100-240V฀AC,฀50/60Hz

Operational฀

Environment

Temperature5฀to฀40˚C/4˚F฀to฀140˚F(Default฀brightness)

5฀~฀20˚C/4˚F฀to฀68˚F(Maximum฀brightness)

Humidity20%฀to฀80%

Storage

Environment

Temperature-20˚C฀to฀60˚C/-4˚F฀to฀140˚F

Humidity10%฀to฀90%฀(without฀condensation)฀/฀below฀60%฀over฀40˚C

DimensionsNet1055.4฀(W)฀x฀644.1฀(H)฀x฀351฀(D)฀mm฀(with฀Stand)

1055.4฀(W)฀x฀608.6฀(H)฀x฀140฀(D)฀mm฀(without฀Stand)

Gross1278฀(W)฀x฀837฀(H)฀x฀312฀(D)฀mm

WeightNet37.9kg฀/฀83.6฀lbs.

Gross47.1kg฀/฀103.8฀lbs.

VESA฀compatible฀arm

mounting฀interface

3฀x฀200mm฀x฀200mm฀(8฀Holes)

2฀x฀200mm฀x฀200mm฀(6฀Holes)

Complied฀Regulatory฀

and฀Guidelines

UL฀60950-1/CSA฀C22.2฀No.60950-1/฀TUV-GS/EN60950-1

FCC-B/DOC-B/EN55022-A/EN55024/EN61000-3-2/EN61000-3-3/CE

Power฀ManagementVESA฀DPM

Plug฀&฀PlayVESA฀DDC2B฀

DDC/CI

AccessoriesUser’s฀manual,฀Power฀Cord,฀Video฀Signal฀Cable,฀Remote฀Control,฀AA฀Battery฀x฀2,฀Clamp฀x฀3,฀Screw฀x฀11,฀CD-ROM,฀Stand฀x฀2,฀Cable฀cover

*Compressed฀Image฀

**Audio฀Output฀for฀Digital฀Terrestrial฀broadcast

Manufactured฀under฀license฀from฀Dolby฀Laboratories.฀"Dolby"฀and฀the฀double-D฀symbol฀are฀trademarks฀of฀Dolby฀Laboratories.

English

English-45



฀1)฀฀Analog฀RGB฀Input฀(Mini฀D-SUB฀15P)฀VGA

Pin฀No.Name

1 Video฀Signal฀Red

2 Video฀Signal฀Green

3 Video฀Signal฀Blue

4 GND

5 DDC-GND

6 Red-GND

7 Green-GND

8 Blue-GND

9 +5V฀(DDC)

10 SYNC-GND

11 GND

12 DDC-SDA

13 H-SYNC

14 V-SYNC

15 DDC-SCL

฀2)฀Digital฀RGB฀Input฀(DVI-D)฀DVI

1 TX2-9 TX1-17 TX0-

2 TX2+10 TX1+18 TX0+

3 Shield฀(TX2/TX4)11 Shield฀(TX1/TX3)19 Shield฀(TXP/TX5)

4 NC12 NC20 NC

5 NC13 NC21 NC

6 DDC-Serial฀Clock14 +5฀power22 Shield฀(TXC)

7 DDC-Serial฀Data15 Ground฀(+5V)23 TXC+

8 NC16 Hot฀Plug฀Detect24 TXC-

฀3)฀RS-232C฀Input฀

(D-SUB฀9P)

Pin฀No.Name

1 Connected฀to฀7฀&฀8

2 RXD

3 TXD

4 Connected฀to฀6

5 GND

6 Connected฀to฀4฀฀

7 Connected฀to฀1฀&฀8

8 Connected฀to฀1฀&฀7

9 NC

D-SUB฀9P

DVI-D

Mini฀D-SUB฀15P

English-46



NEC฀Display฀Solutions฀of฀America,฀Inc.฀(hereinafter฀“NEC฀DISPLAY฀SOLUTIONS”)฀warrants฀this฀

Product฀to฀be฀free฀from฀defects฀in฀material฀and฀workmanship฀and,฀subject฀to฀the฀conditions฀set฀

forth฀below,฀agrees฀to฀repair฀or฀replace฀(at฀NEC฀DISPLAY฀SOLUTIONS’฀sole฀option)฀any฀part฀of฀the฀

enclosed฀unit฀which฀proves฀defective฀for฀a฀period฀of฀three฀(3)฀years฀from฀the฀date฀of฀ﬁrst฀consumer฀

purchase.฀Spare฀parts฀are฀warranted฀for฀ninety฀(90)฀days.฀Replacement฀parts฀or฀unit฀may฀be฀new฀or฀

refurbished฀and฀will฀meet฀speciﬁcations฀of฀the฀original฀parts฀or฀unit.

This฀warranty฀gives฀you฀speciﬁc฀legal฀rights฀and฀you฀may฀also฀have฀other฀rights,฀which฀vary฀from฀

state฀to฀state.฀This฀warranty฀is฀limited฀to฀the฀original฀purchaser฀of฀the฀Product฀and฀is฀not฀transferable.฀

This฀warranty฀covers฀only฀NEC฀DISPLAY฀SOLUTIONS-supplied฀components.฀Service฀required฀as฀a฀

result฀of฀third฀party฀components฀is฀not฀covered฀under฀this฀warranty.฀In฀order฀to฀be฀covered฀under฀this฀

warranty,฀the฀Product฀must฀have฀been฀purchased฀in฀the฀U.S.A.฀or฀Canada฀by฀the฀original฀purchaser.฀

This฀warranty฀only฀covers฀Product฀distribution฀in฀the฀U.S.A.฀or฀Canada฀by฀NEC฀DISPLAY฀SOLU-

TIONS฀No฀warranty฀service฀is฀provided฀outside฀of฀the฀U.S.A.฀or฀Canada.฀Proof฀of฀Purchase฀will฀be฀

required฀by฀NEC฀DISPLAY฀SOLUTIONS฀to฀substantiate฀date฀of฀purchase.฀Such฀proof฀of฀purchase฀

must฀be฀an฀original฀bill฀of฀sale฀or฀receipt฀containing฀name฀and฀address฀of฀seller,฀purchaser,฀and฀the฀

serial฀number฀of฀the฀product.

It฀shall฀be฀your฀obligation฀and฀expense฀to฀have฀the฀Product฀shipped,฀freight฀prepaid,฀or฀delivered฀to฀

the฀authorized฀reseller฀from฀whom฀it฀was฀purchased฀or฀other฀facility฀authorized฀by฀NEC฀DISPLAY฀

SOLUTIONS฀to฀render฀the฀services฀provided฀hereunder฀in฀either฀the฀original฀package฀or฀a฀similar฀

package฀affording฀an฀equal฀degree฀of฀protection.฀All฀Products฀returned฀to฀NEC฀DISPLAY฀SOLU-

TIONS฀for฀service฀MUST฀have฀prior฀approval,฀which฀may฀be฀obtained฀by฀calling฀1-800-632-4662.฀The฀

Product฀shall฀not฀have฀been฀previously฀altered,฀repaired,฀or฀serviced฀by฀anyone฀other฀than฀a฀service฀

facility฀authorized฀by฀NEC฀DISPLAY฀SOLUTIONS฀to฀render฀such฀service,฀the฀serial฀number฀of฀the฀

product฀shall฀not฀have฀been฀altered฀or฀removed.฀In฀order฀to฀be฀covered฀by฀this฀warranty฀the฀Product฀

shall฀not฀have฀been฀subjected฀to฀displaying฀of฀ﬁxed฀images฀for฀long฀periods฀of฀time฀resulting฀in฀image฀

persistence฀(afterimage฀effects),฀accident,฀misuse฀or฀abuse฀or฀operated฀contrary฀to฀the฀instructions฀

contained฀in฀the฀User’s฀Manual.฀Any฀such฀conditions฀will฀void฀this฀warranty.

NEC฀DISPLAY฀SOLUTIONS฀SHALL฀NOT฀BE฀LIABLE฀FOR฀DIRECT,฀INDIRECT,฀INCIDENTAL,฀

CONSEQUENTIAL,฀OR฀OTHER฀TYPES฀OF฀DAMAGES฀RESULTING฀FROM฀THE฀USE฀OF฀ANY฀

NEC฀DISPLAY฀SOLUTIONS฀฀PRODUCT฀OTHER฀THAN฀THE฀LIABILITY฀STATED฀ABOVE.฀THESE฀

WARRANTIES฀ARE฀IN฀LIEU฀OF฀ALL฀OTHER฀WARRANTIES฀EXPRESS฀OR฀IMPLIED,฀INCLUDING,฀

BUT฀NOT฀LIMITED฀TO,฀THE฀IMPLIED฀WARRANTIES฀OF฀MERCHANTABILITY฀OR฀FITNESS฀

FOR฀A฀PARTICULAR฀PURPOSE.฀SOME฀STATES฀DO฀NOT฀ALLOW฀THE฀EXCLUSION฀OF฀IMPLIED฀

WARRANTIES฀OR฀THE฀LIMITATION฀OR฀EXCLUSION฀OF฀LIABILITY฀FOR฀INCIDENTAL฀OR฀

CONSEQUENTIAL฀DAMAGES฀SO฀THE฀ABOVE฀EXCLUSIONS฀OR฀LIMITATIONS฀MAY฀NOT฀AP-

PLY฀TO฀YOU.

This฀Product฀is฀warranted฀in฀accordance฀with฀the฀terms฀of฀this฀limited฀warranty.฀Consumers฀are฀

cautioned฀that฀Product฀performance฀is฀affected฀by฀system฀conﬁguration,฀software,฀the฀application,฀

customer฀data,฀and฀operator฀control฀of฀the฀system,฀among฀other฀factors.฀While฀NEC฀DISPLAY฀

SOLUTIONS฀Products฀are฀considered฀to฀be฀compatible฀with฀many฀systems,฀speciﬁc฀functional฀

implementation฀by฀the฀customers฀of฀the฀Product฀may฀vary.฀Therefore,฀suitability฀of฀a฀Product฀for฀

a฀speciﬁc฀purpose฀or฀application฀must฀be฀determined฀by฀consumer฀and฀is฀not฀warranted฀by฀NEC฀

DISPLAY฀SOLUTIONS.

For฀the฀name฀of฀your฀nearest฀authorized฀NEC฀Display฀Solutions฀of฀America,฀Inc.฀service฀facility,฀

contact฀NEC฀Display฀Solutions฀of฀America,฀Inc.฀at฀1-800-632-4662.

English

English-47

NEC฀DISPLAY฀SOLUTIONS฀is฀strongly฀committed฀to฀environmental฀protection฀and฀

sees฀recycling฀as฀one฀of฀the฀company’s฀top฀priorities฀in฀trying฀to฀minimize฀the฀burden฀

placed฀on฀the฀environment.฀We฀are฀engaged฀in฀developing฀environmentally-friendly฀

products,฀and฀always฀strive฀to฀help฀deﬁne฀and฀comply฀with฀the฀latest฀independent฀

standards฀from฀agencies฀such฀as฀ISO฀(International฀Organization฀for฀Standardization)฀

and฀TCO฀(Swedish฀Trades฀Union).

Disposing฀of฀old฀NEC฀product

The฀aim฀of฀recycling฀is฀to฀gain฀environmental฀beneﬁts฀by฀means฀of฀reusing,฀upgrading,฀

reconditioning,฀or฀reclaiming฀old฀material.฀Dedicated฀recycling฀sites฀ensure฀that฀

environmentally฀harmful฀components฀are฀properly฀handled฀and฀securely฀disposed.฀

To฀ensure฀the฀best฀recycling฀of฀our฀products,฀NEC฀DISPLAY฀SOLUTIONS฀offers฀a฀

variety฀of฀recycling฀procedures฀and฀gives฀advice฀on฀how฀to฀handle฀the฀product,฀in฀an฀

environmentally฀sensitive฀way,฀once฀it฀has฀reached฀the฀end฀of฀its฀life.

All฀required฀information฀concerning฀the฀disposal฀of฀the฀product฀and฀country-speciﬁc฀

information฀can฀be฀found฀on฀our฀following฀websites:

USA:฀http://www.necdisplay.com฀

Europe:฀฀http://www.nec-display-solutions.com/greencompany/฀

Japan:฀http://www.nec-display.com

Energy฀saving

This฀monitor฀features฀an฀advanced฀energy฀saving฀capability.฀When฀a฀VESA฀Display฀

Power฀Management฀Signaling฀(DPMS)฀Standard฀signal฀is฀sent฀to฀the฀monitor,฀the฀

Energy฀Saving฀mode฀is฀activated.฀The฀monitor฀enters฀a฀single฀Energy฀Saving฀mode.

LCD4020

ModePower฀consumptionLED฀color

Normal฀Operation300WGreen

Energy฀Saving฀ModeLess฀than฀5WAmber

Off฀Mode(ECO฀standby)Less฀than฀1WRed

LCD4620

ModePower฀consumptionLED฀color

Normal฀Operation340WGreen

Energy฀Saving฀ModeLess฀than฀5WAmber

Off฀Mode(ECO฀standby)Less฀than฀1WRed



WEEE฀Mark฀(European฀Directive฀2002/96/EC)

Within฀the฀European฀Union

EU-wide฀legislation,฀as฀implemented฀in฀each฀Member฀State,฀requires฀that฀waste฀electrical฀and฀electronic฀products฀

carrying฀the฀mark฀(left)฀must฀be฀disposed฀of฀separately฀from฀normal฀household฀waste.฀This฀includes฀monitors฀

and฀electrical฀accessories,฀such฀as฀signal฀cables฀or฀power฀cords.฀When฀you฀need฀to฀dispose฀of฀your฀NEC฀display฀

products,฀please฀follow฀the฀guidance฀of฀your฀local฀authority,฀or฀ask฀the฀shop฀where฀you฀purchased฀the฀product,฀

or฀if฀applicable,฀follow฀any฀agreements฀made฀between฀yourself฀and฀NEC.฀The฀mark฀on฀electrical฀and฀electronic฀

products฀only฀applies฀to฀the฀current฀European฀Union฀Member฀States.฀฀

The฀mark฀on฀electrical฀and฀electronic฀products฀only฀applies฀to฀the฀current฀European฀Union฀Member฀States.

Outside฀the฀European฀Union

If฀you฀wish฀to฀dispose฀of฀used฀electrical฀and฀electronic฀products฀outside฀the฀European฀Union,฀please฀contact฀your฀

local฀authority฀so฀as฀to฀comply฀with฀the฀correct฀disposal฀method.



PROPRIETARY฀NOTICE฀AND฀LIABILITY฀DISCLAIMER

The฀information฀disclosed฀in฀this฀document,฀including฀all฀designs฀and฀related฀materials,฀

is฀the฀valuable฀property฀of฀NEC฀Display฀Solutions฀of฀America,฀Inc.฀and/or฀its฀licensors,฀as฀

appropriate,฀reserve฀all฀patent,฀copyright฀and฀other฀proprietary฀rights฀to฀this฀document,฀

including฀all฀design,฀manufacturing,฀reproduction,฀use฀and฀sales฀rights฀thereto,฀except฀to฀the฀

extent฀said฀rights฀are฀expressly฀granted฀to฀others.

The฀NEC฀Display฀Solutions฀of฀America,฀Inc.฀product(s)฀discussed฀in฀this฀document฀are฀

warranted฀in฀accordance฀with฀the฀terms฀of฀the฀Limited฀Warranty฀Statement฀accompanying฀

each฀product.฀However,฀actual฀performance฀of฀each฀such฀product฀is฀dependent฀upon฀factors฀

such฀as฀system฀conﬁguration,฀customer฀data฀and฀operator฀control.฀Since฀implementation฀by฀

customers฀of฀each฀product฀may฀vary,฀the฀suitability฀of฀speciﬁc฀product฀conﬁgurations฀and฀

applications฀must฀be฀determined฀by฀the฀customer฀and฀is฀not฀warranted฀by฀NEC฀Display฀Solu-

tions฀of฀America,฀Inc.

To฀allow฀for฀design฀and฀speciﬁcation฀improvements,฀the฀information฀in฀this฀document฀is฀

subject฀to฀change฀at฀any฀time฀without฀notice.

Reproduction฀of฀this฀document฀or฀portions฀thereof฀without฀prior฀approval฀of฀NEC฀Display฀

Solutions฀of฀America,฀Inc.฀is฀prohibited.฀

DECLARATION฀OF฀CONFORMITY

This฀device฀complies฀with฀Part฀15฀of฀FCC฀Rules.฀Operation฀is฀subject฀to฀the฀following฀two฀

conditions.฀(1)฀This฀device฀may฀not฀cause฀harmful฀interference,฀and฀(2)฀this฀device฀must฀ac-

cept฀any฀interference฀received,฀including฀interference฀that฀may฀cause฀undesired฀operation.

U.S.฀Responsible฀Party:NEC฀Display฀Solutions฀of฀America,฀Inc.

Address:500฀Park฀Blvd.฀Suite฀1100

Itasca,฀IL฀60143

Tel.฀No.:(630)467-3000

฀Type฀of฀Product:฀Computer฀Monitor฀

฀Equipment฀Classiﬁcation:฀Class฀B฀Peripheral฀

฀Model:฀MultiSync฀LCD4020฀(L406T6)฀

฀฀MultiSync฀LCD4620฀(L466T7)

We฀hereby฀declare฀that฀the฀equipment฀speciﬁed฀above฀

conforms฀to฀the฀technical฀standards฀as฀speciﬁed฀in฀the฀FCC฀Rules.฀

Windows฀is฀a฀registered฀trademark฀of฀Microsoft฀Corporation.฀NEC฀is฀a฀registered฀trademark฀

of฀NEC฀Corporation.฀All฀other฀brands฀and฀product฀names฀are฀trademarks฀or฀registered฀

trademarks฀of฀their฀respective฀owners.

LCD4020-AV,฀LCD4020-AVT,฀LCD4620-AV,฀LCD4620-AVT฀only

HDMI,฀the฀HDMI฀logo฀and฀High-Deﬁnition฀Multimedia฀Interface฀are฀trademarks฀or฀regis-

tered฀trademarks฀of฀HDMI฀Licensing฀LLC.

Part฀No฀1E50XXXX฀

Printed฀In฀China
