CONVERTIBLE CAR SEAT
www.gracobaby.com
Do not install or use this child
restraint until you read and
understand the instructions in
this manual.
FAILURE TO PROPERLY USE
THIS CHILD RESTRAINT
INCREASES THE RISK OF
SERIOUS INJURY OR DEATH
IN A SUDDEN STOP OR
CRASH.
2

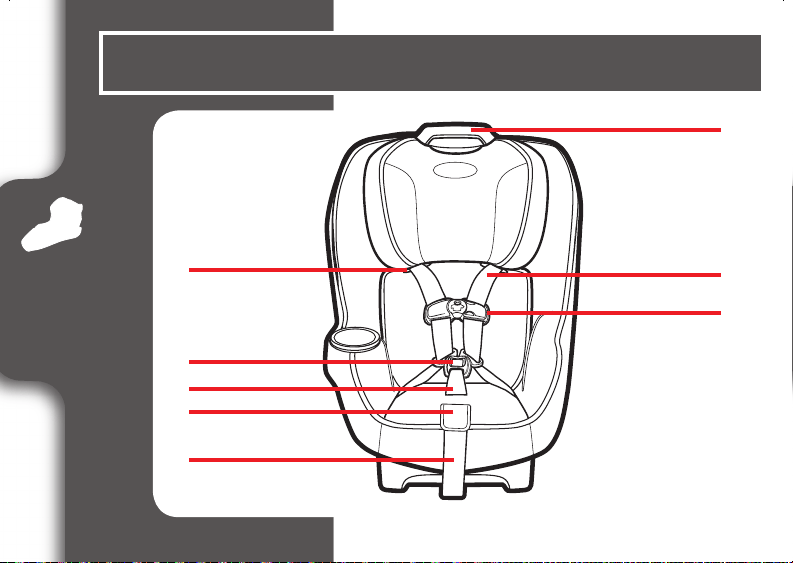

2-A Car Seat Features
1 Important Pages 6-23
2 Features Pages 24-29
1-A A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Right Mode of Use
1-D Before You Begin
Register This Car Seat
If You Need Help
Certification
Car Seat’s Useful Life
Vehicle Seat Protection
Warm Weather Use
1-E Safety Warnings
3
4-A Forward-Facing
4-B Install Forward-Facing with LATCH Strap
4-C Installing With Vehicle Seat Belt
4 Forward-Facing Use Pages 45-58
3-A Rear-Facing
3-B Install Rear-Facing with LATCH Strap
3-C Installing With Vehicle Seat Belt
3 Rear-Facing Use Pages 30-44
5-A Securing Child 5-Point Harness
5 Securing Child Pages 59-66
4
7-A Moving the LATCH Strap
7 Moving LATCH Pages 69-71
6-A Accessories
6 Accessories Pages 67-68
5
8-A How to Remove LATCH and Tether
8-B Choosing Vehicle Seat Location
8-C Unsafe Vehicle Seat Locations
8-D Vehicle Seat Belts
8 Additional Information Pages 72-82
9-A Cleaning Seat Pad
9-B Cleaning Buckle
9-C Cleaning Harness and LATCH
9 Care & Cleaning Pages 83-86
66
1-A A Quick Guide to Your Manual
This car seat is for children: Rear-Facing: 5-40 lb (2.2-18 kg)
Forward Facing: 22-65 lb (10-30 kg)
• Children less than 22 lb (10 kg) MUST use this car seat rear-facing.
Review section 1-C for more information.
Get to Know Your Car Seat
What Seating Location Should I Use?
Review section 2-A to see all of the features of this infant car seat.
The best seating location for this infant car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat.
Some vehicles have specific requirements for where the car seat can be
installed, so be sure to check your vehicle owner’s manual for available
seating positions, if any.
Review section 8-B, 8-C of this manual AND your vehicle owner’s manual.
77
Which Installation Method Should I Use?
This car seat can be installed in your vehicle using either the vehicle seat
belt OR the LATCH system. Both are equally safe to use. DO NOT USE BOTH
AT THE SAME TIME.
Vehicle Seat Belt: Review section 8 and your vehicle owner’s manual to
learn how to install your car seat with the vehicle seat belts.
LATCH: The LATCH system allows you to securely attach your safety seat
in your car without using the vehicle seat belt and possibly to get a better
fit. All 2003 and newer model year vehicles are required to have a LATCH
system, although some manufacturers began including LATCH earlier. Some
vehicle owner manuals use the term ISOFIX to identify the LATCH system.
According to accident statistics, the safest
place for your child in any vehicle is the
back seat. The center of the back seat can
be the safest during a possible side impact.
88
LATCH consists of lower anchors and top tether anchors, which are built-
in to your vehicle, and connecting hooks that are built-in to your car seat.
Lower anchors are used INSTEAD of the vehicle’s seat belt to secure the
child seat to the vehicle. Top tethers are used IN ADDITION to the lower
anchors OR the vehicle’s seat belt to secure a forward-facing car seat to
the vehicle.
Review your vehicle’s owner manual for exact location and use.

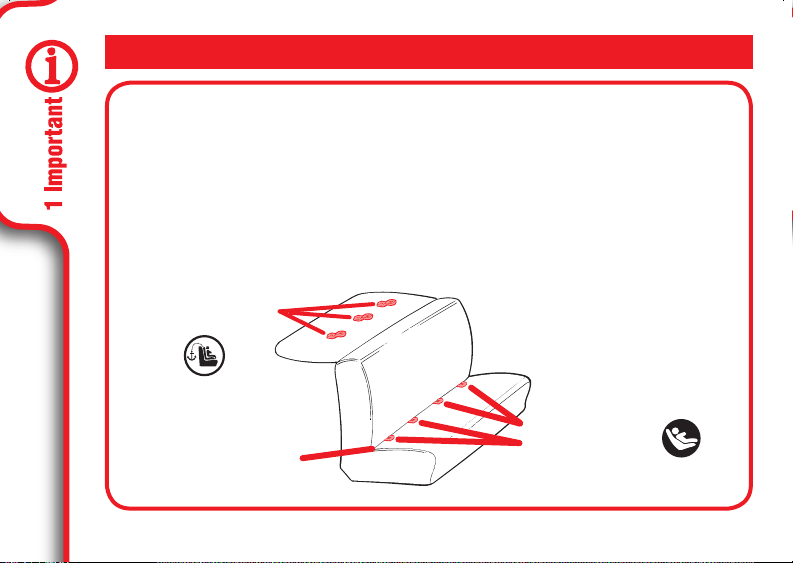

What is LATCH?
Vehicle Top Tether
Anchor Points
Vehicle Lower
Anchor Points
Typical seat in a passenger
vehicle. Other vehicle types
may have different LATCH
locations.
Vehicle Seat Bight
continue next page
99

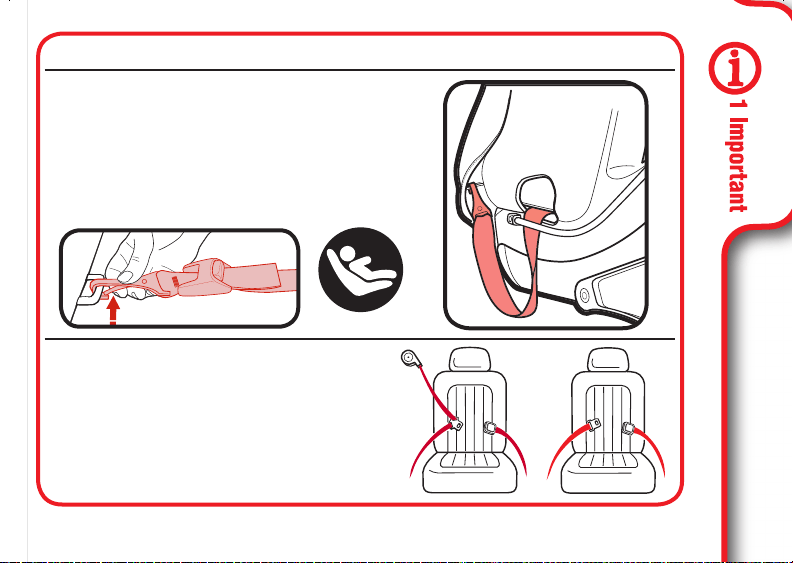

When Installing Rear-Facing & Forward-Facing
Vehicle Seat Belt
There are two types of vehicle seat belts
that can be used. Lap/Shoulder Seat Belt
or Lap Only Seat Belt.
Review section 3-C & 4-C of this manual
AND your vehicle owner’s manual.
LATCH System
LATCH consists of two lower anchors, which
are built-in to your vehicle, and connecting
hooks that are built-in your car seat.
Review section 3-B & 4-B of this manual
AND your vehicle owner’s manual.
1010

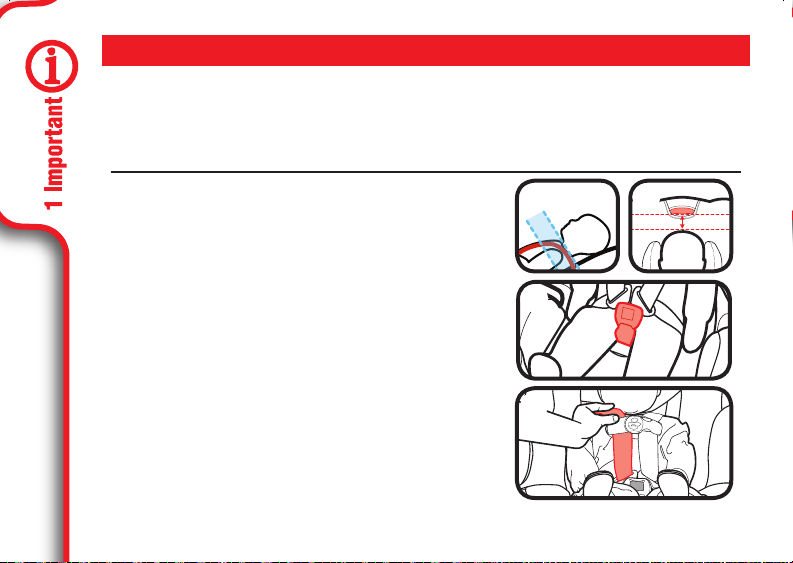

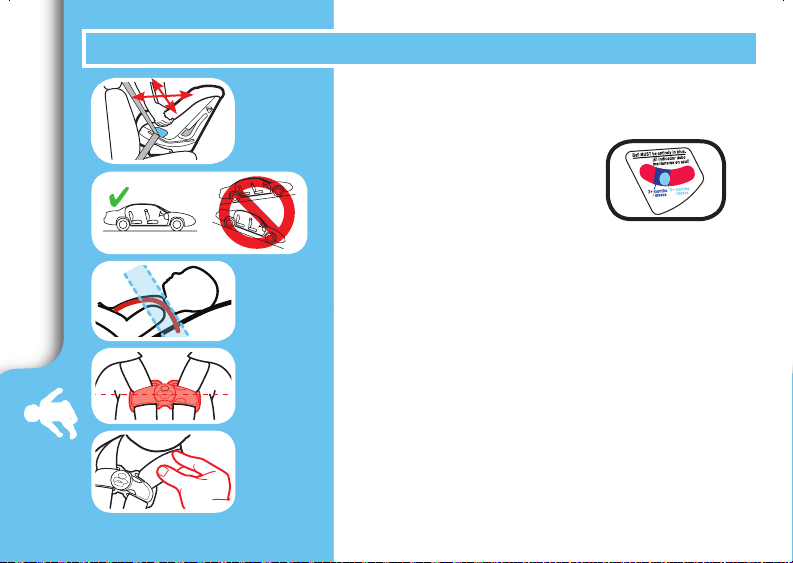

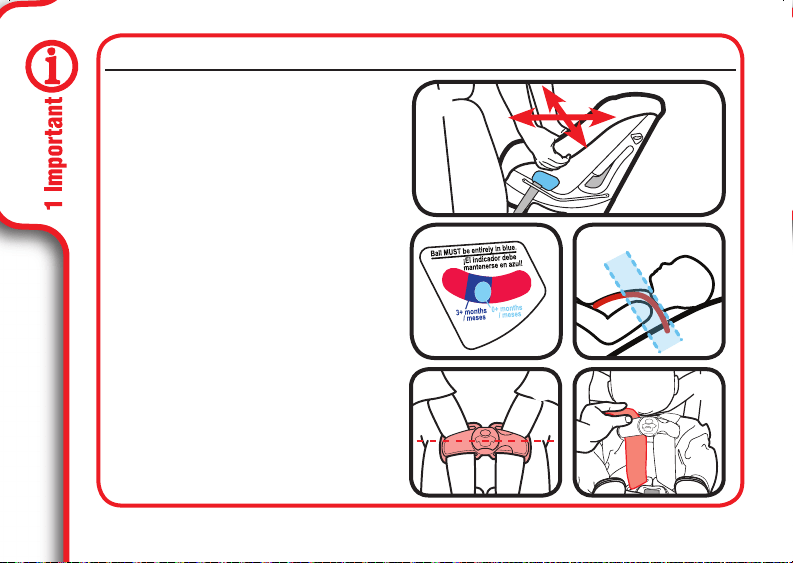

Does Your Car Seat Fit Your Child Correctly?
To make sure your child is secured properly, review section 3 and 4 to
understand all of the actions you need to take to properly adjust the car seat
to fit your child.
Harness Height, Rear-Facing (A)
Harness straps at or just below the child’s
shoulders and
top of head must be 1” (2.5 cm)
below the headrest adjustment lever
(B). Review
section 5.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 5.
Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 5.
For Rear-Facing, You Need to Adjust:
A
C
B
D
continue next page
1111

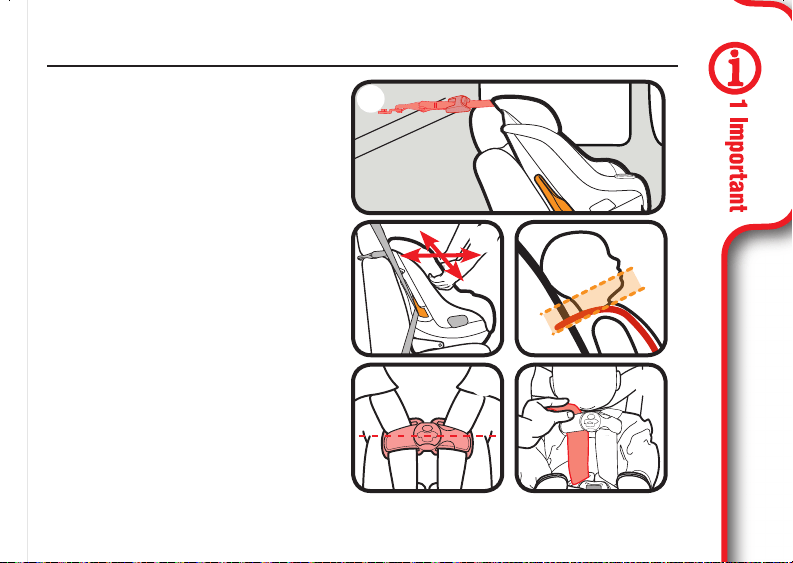

Harness Height, Forward-Facing (A)
Harness straps at or just above the child’s
shoulders and top of child’s ears below top of
headrest (B). Review section 5.
Buckle Position (C)
The correct slot is the one that is closest to
your child without being underneath them.
Review section 5.
Harness Tightness (D)
If your fingers slide off the harness straps
without pinching the straps, it is tight enough.
Review section 5.
For Forward-Facing, You Need to Adjust:
A
C
B
D
1212
Car Seat Does Not Move More
than 1” (2.5 cm) at the Belt
Path (A)
Review section 3
Check level indicator (B)
Review section 3
Harness Straps at or Just
Below Child’s Shoulders (C)
Review section 5
Chest Clip Even With Armpits (D)
Review section 5
Cannot Pinch Harness Straps
at the Shoulder (E)
Review section 5
Rear-Facing Installation
B
A
D E
C
1313
Use the top tether strap when
using forward-facing (A)
When used properly, the top tether
helps reduce injury in a sudden
stop or crash.
Review section 4
Car Seat Does Not Move More
than 1” (2.5 cm) at the Belt
Path (B)
Review section 4
Harness Straps at or Just
Above Child’s Shoulders (C)
Review section 5
Chest Clip Even With Armpits (D)
Review section 5
Cannot Pinch Harness Straps
at the Shoulder (E)
Review section 5
Forward-Facing Installation
A
D E
CB
1414
1-B Welcome to the Graco Family!
Your child’s safety depends on you. No car seat can guarantee protection from injury in
every situation, but proper use helps reduce the risk of serious injury or death.
Even if this car seat seems easy to figure out on your own, you must follow the detailed
instructions in this instruction manual to ensure the steps below are performed correctly.
1515
* Check your state laws and the AAP/NHTSA recommendations. See page 21.
5 lb
(2.2 kg)
22 lb
(10 kg)
40 lb
(18 kg)
65 lb
(30 kg)
Rear-Facing with 5-Point Harness*
5-22 lb (2.2-10 kg) less than 1 year old MUST be
rear-facing.
22-40 lb (10-18 kg) SHOULD be rear-facing.
Forward-Facing with 5-Point Harness*
22-40 lb (10-18 kg) can sit upright unassisted CAN be
forward-facing.
40-65 lb (18-30 kg) MUST be forward-facing.
1-C Right Mode of Use
1616
1-D Before You Begin
Please fill out the prepaid registration postcard attached to the harness and mail
it in today or register online at www.gracobaby.com/carseatregistration.
Child restraints could be recalled for safety reasons. You must register this
restraint to be reached in a recall. Send your name, address, and the restraint’s
model number and manufacturing date to:
Graco Children’s Products, Inc.
Attn: Customer Service
P.O. Box 169, Elverson, PA 19520-9901
or call 1-800-345-4109
or register online at
www.gracobaby.com/carseatregistration
For recall information, call the U.S. Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1–800–424–9153), or go to http://www.NHTSA.gov.
Register This Child Restraint
1717
Model Name _________________________
Model Number _______________________
Date of Manufacture __________________
Date of Purchase _____________________
For future reference or if you change addresses, record the model name, model
number, date of manufacture and purchase date of this car seat on the below.
You can find this information either on the registration card if you still have it or
on the date label located on the back of the car seat.
In the U.S.A, please contact our Customer Service Department with any
questions you may have concerning parts, use, or maintenance. When you
contact us, please have your product’s model number and date of manufacture
ready so that we may help you efficiently. These numbers can be found on a
sticker on the back side of your car seat.
For additional resources or to get your car seat checked by a child passenger
safety technician, please visit the following web sites:
www.nhtsa.gov • www.seatcheck.org • www.safekids.org
If You Need Help
1818
STOP using this car seat and throw it away 7 years after the date of
manufacture. Look for this sticker on back of the car seat.
Graco Children’s Products Inc. advises against loaning or passing along a car
seat unless you know the complete history of the product. We also advise
against purchasing a car seat second hand.
This child restraint meets or exceeds all applicable requirements of Federal
motor vehicle safety standard 213 for use in motor vehicles.
This child seat is certified for use in aircraft. Use only on foward-
facing aircraft seats. Follow the instructions for vehicle installation.
For rear-facing installation, see section 3-C and 8-D Lap Belt
Installation. For forward-facing installation, see section 4-C and 8-D
Lap Belt Installation, but do not use top tether.
Contact the airline for their specific polices.
Certification
Car Seat’s Useful Life
Protect vehicle seat. Use a car seat mat, towel, or thin blanket under and behind
car seat.
Vehicle Seat Protection
1919
Car seat parts can get very hot in the sun or warm weather. To avoid burns,
always check before putting child in car seat.
1-E Safety Warnings
No car seat can guarantee protection from injury in
every situation, but proper use helps reduce the risk of
serious injury or death. READ THIS MANUAL CAREFULLY.
Warm Weather Use
Failure to follow these instructions and child restraint’s labels
can result in child striking the vehicle’s interior during a sudden
stop or crash.
2020
! NEVER PLACE THIS CHILD RESTRAINT REAR-FACING
IN A VEHICLE SEATING LOCATION THAT HAS AN ACTIVE
FRONT AIR BAG.
If an air bag inflates, it can hit the child and car seat with great force
and cause serious injury or death to your child.
! Review your vehicle owner’s manual for more information
about air bags and car seat use.
! If your vehicle does not have a back seat, review your vehicle
owner’s manual.
2121
! Children are safer riding rear-facing and should ride rear-
facing as long as possible, until they reach the maximum rear-
facing height or weight rating for their car seat. Then children
should ride forward-facing, using the built-in harness system
for as long as possible until they reach the maximum forward-
facing weight or height for their car seat. Be sure to check your
local and state laws, as well AAP and NHTSA recommendations,
for car seat usage.*
! Choose the correct mode of use for the car seat depending on
your child’s size. Infants less than 22 lb (10 kg) MUST use this
car seat rear-facing.
! Select a suitable location for the car seat in your vehicle.
! Secure car seat with a vehicle seat belt or LATCH that is
properly routed as shown in this manual.
* Graco supports the American Academy of Pediatrics and National Highway Traffic
Safety Administration’s Car Seat Guidelines. Visit www.gracobaby.com/en-US/safety
for information on car seat usage recommendations.
2222
! Vehicle seat belt system MUST hold car seat securely. Not all vehicle
seat belts can be used with a car seat.
! If vehicle seat belt does not hold car seat securely, read “Vehicle Seat
Belts” section 8-D and your vehicle owner’s manual.
! Always secure car seat with LATCH or a vehicle seat belt, even when
unoccupied. In a crash, an unsecured car seat can injure passengers.
! If car seat is in a crash, it must be replaced. DO NOT use it again!
A crash can cause unseen damage and using it again could result in
serious injury or death.
! DO NOT use car seat if it is damaged or missing parts.
! DO NOT use accessories or parts other than those provided by Graco
except for a thin towel or mat to protect your vehicle seat or rolled
towels or pool noodles to help get your car seat level. Their use could
alter the performance of the car seat.
! DO NOT remove LATCH system from car seat. If using vehicle seat belt to
secure car seat, LATCH connectors must be stored.
2323
! Never leave child unattended, even when sleeping. Child may
become tangled in harness straps and suffocate or strangle.
! Rear-facing car seat must be properly leveled:
• Too reclined can result in injury or ejection.
• Too upright can result in breathing difficulties.
! Never attach two LATCH connectors to one vehicle
lower anchor point unless specifically allowed by
the vehicle manufacturer.
! Do not use both the vehicle belt and LATCH belts at the
same time when using the car seat rear or forward facing.
Note: Preterm or low birth weight infants may be at special risk in a vehicle or aircraft.
According to the AAP, these infants may suffer breathing issues if improperly reclined in
a car seat. When rear-facing, use the corrected age for preemies. Graco advises that you
have your physician or hospital staff evaluate your infant and recommend the proper car
seat or car bed before you and your infant leave the hospital.
24
2 Features
2-A Car Seat Features
A
B
G
F
H
C
D
E
25
2 Features

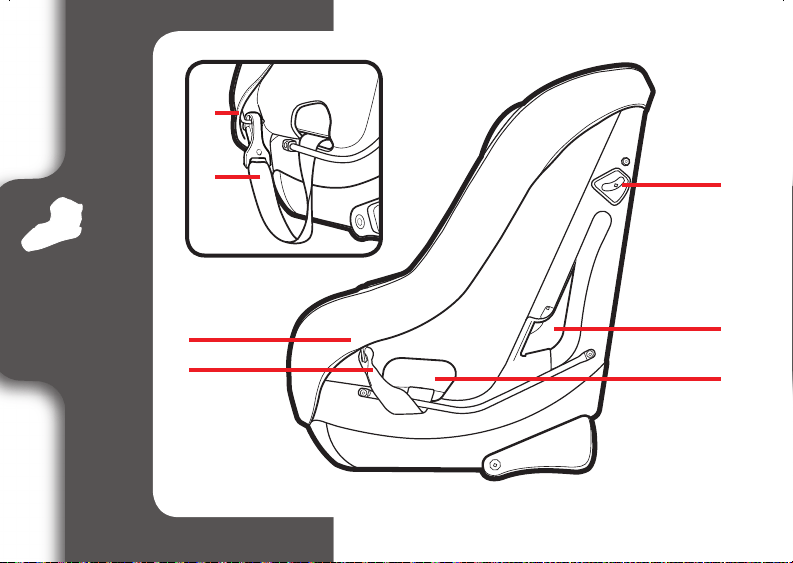

A Harness Slots
B Harness Buckle
C Buckle Strap
D Harness Release Lever
(Under Flap)
E Harness Adjustment Strap
F Headrest/ Harness
Adjustment Handle
G Harness Straps
H Chest Clip
26
2 Features
C
D
E
A
B
A
B
27
2 Features
A LATCH Storage Bar
B LATCH Strap (stored)
C Level Indicator
D Forward-Facing Belt Path
E Rear-Facing Belt Path
28
2 Features
A
B
D
E
F
G
C
29
2 Features

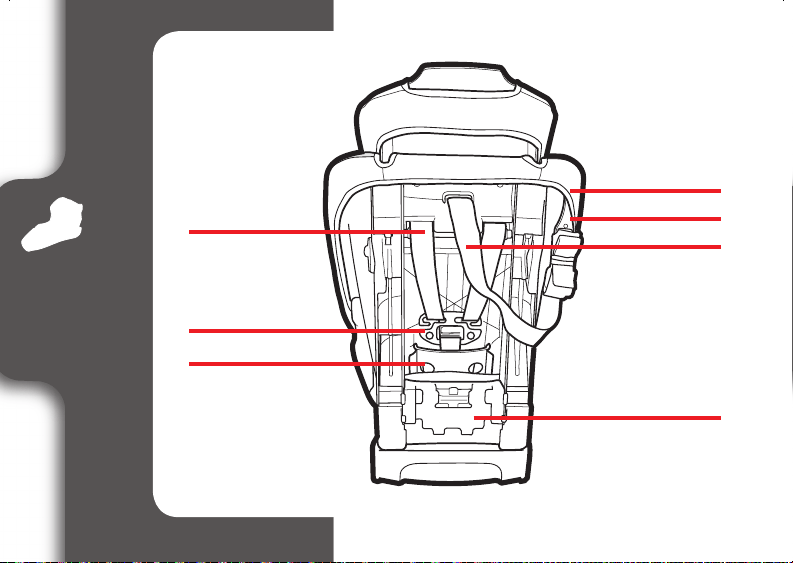

A Harness Straps
B Splitter Plate
C Harness Cover Plate
D Tether Storage Bar
E Tether Hook
F Tether Strap
G Instruction Manual Storage
30
3 Rear
Facing
3-A Rear-Facing
Rear-Facing:
5-40 lb (2.2-18 kg) and whose head is at
least 1 inch (2.5 cm) below the top of the
car seat
• Infants who weigh less than 22 lb (10 kg)
MUST be rear-facing.
• Place car seat rear-facing in the vehicle back seat.
• Make sure LATCH strap or vehicle seat belt is
routed through the rear-facing belt path marked
with a blue label.
• Install this car seat tightly in your vehicle. Car
seat should not move at the rear-facing belt
path more than 1 inch (2.5 cm) from side to
side, front to back.
• Check recline level making sure the ball is within
the blue area.
LATCH Strap
Vehicle Seat Lap/
Shoulder Belt
• Harness straps need to be even with or just
below the top of child’s shoulders and chest
clip is at armpit level.
• Children are safer riding rear-facing and
should ride rear-facing as long as possible,
until they reach maximum rear-facing
height or weight rating for their car seat.
Then children should ride forward-facing,
using the built-in harness system for
as long as possible until they reach the
maximum forward-facing weight or height
for their car seat. Be sure to check local
and state laws, as well as AAP and NHTSA
recommendations, for car seat usage.
31

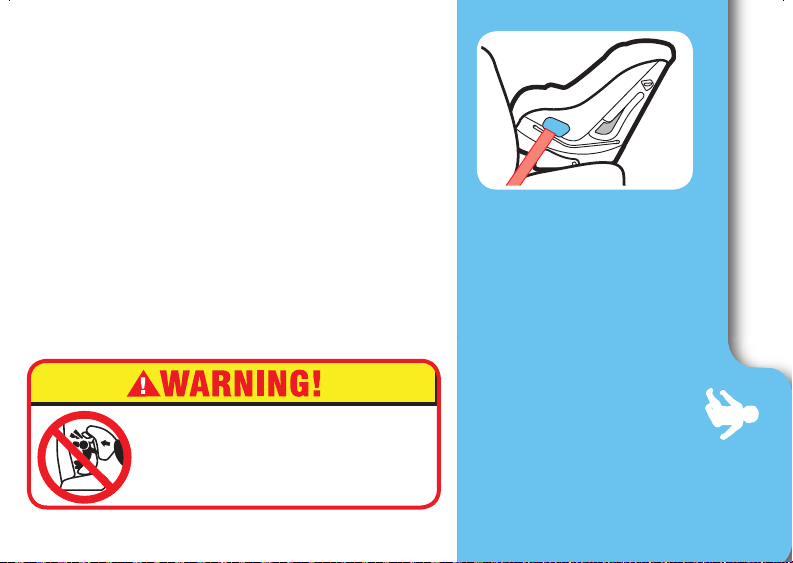

3 Rear
Facing
NEVER place this child
restraint rear-facing in a
vehicle seating location that
has an active front air bag.
• Harness straps need to be even with or just
below the top of child’s shoulders and chest
clip is at armpit level.
• Children are safer riding rear-facing and
should ride rear-facing as long as possible,
until they reach maximum rear-facing
height or weight rating for their car seat.
Then children should ride forward-facing,
using the built-in harness system for
as long as possible until they reach the
maximum forward-facing weight or height
for their car seat. Be sure to check local
and state laws, as well as AAP and NHTSA
recommendations, for car seat usage.
Vehicle Seat Lap Belt
32
3 Rear
Facing

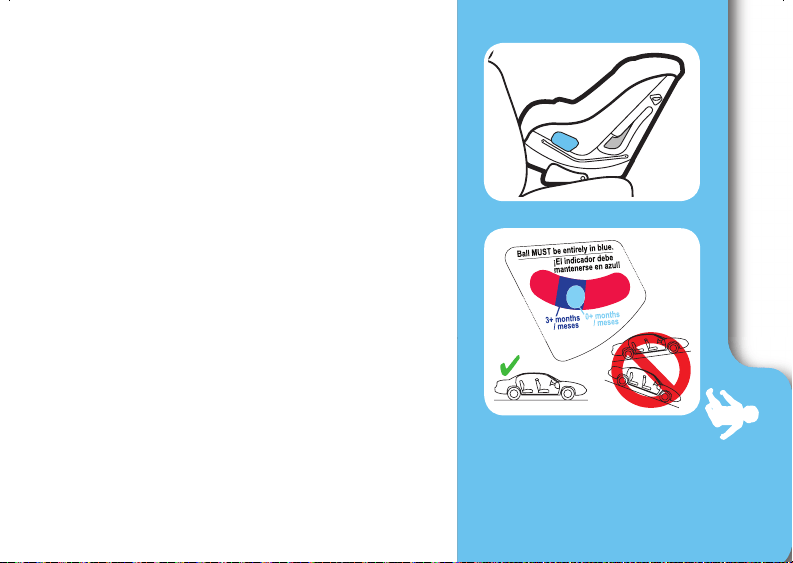

How to Read the Level Indicator:
Use corrected age for preemies.
• If the ball is entirely in light blue, the restraint is
level for infants 0+ months in age.
• If the ball is in light blue and dark blue, the
restraint is level for a child 3+ months in age.
• If the ball is in RED, child restraint is NOT
level. You must adjust your recline position.

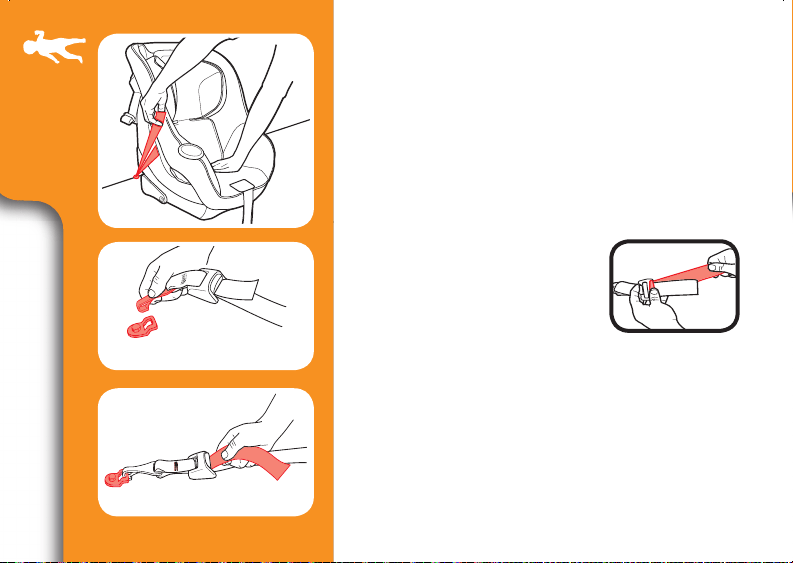

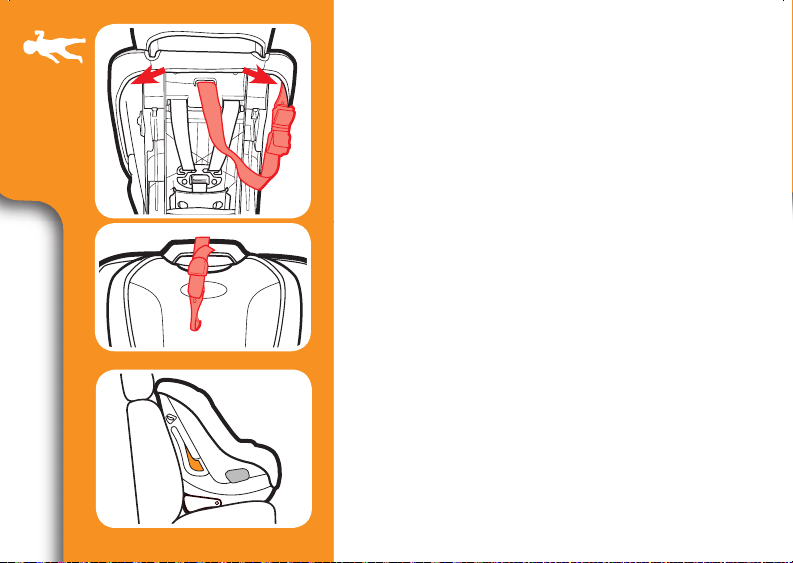

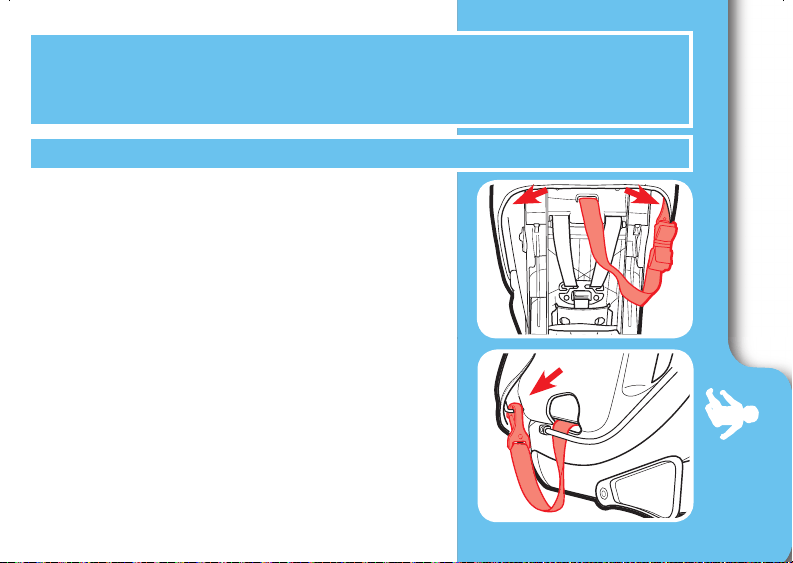

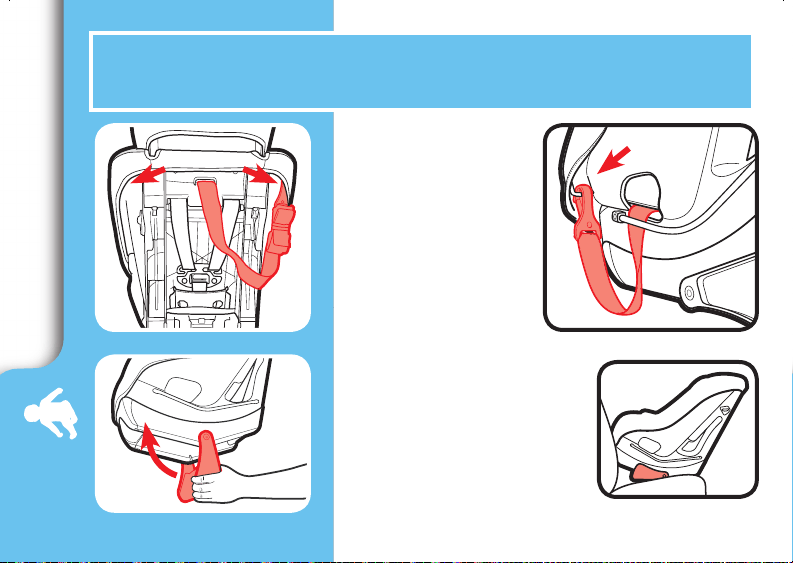

1. Store Top Tether Strap
Attach tether hook to the plastic bar on either side
of the car seat.
2. Remove LATCH Strap from Storage
Location
33
3 Rear
Facing

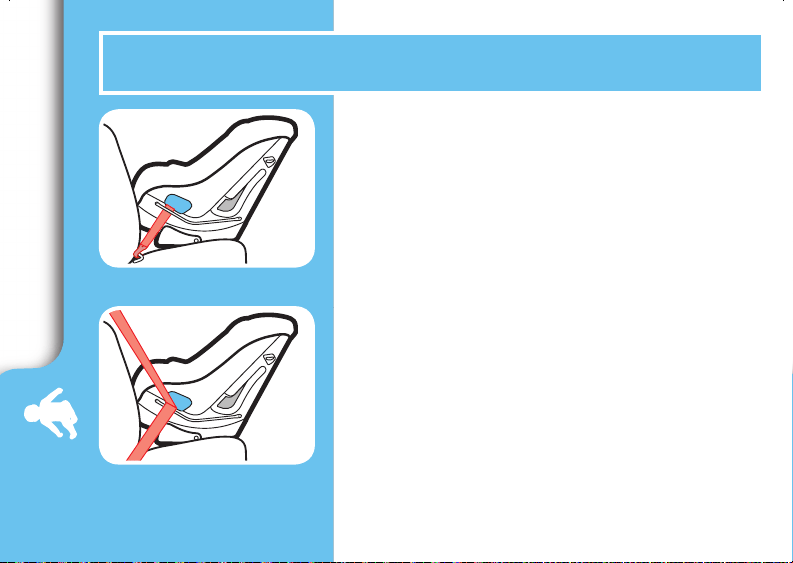

3-B Install Rear-Facing with
LATCH Strap
Review your vehicle’s owner manual for LATCH location and use.
1. Store Top Tether Strap
Attach tether hook to the plastic bar on either side
of the car seat.
2. Remove LATCH Strap from Storage
Location
34
3 Rear
Facing

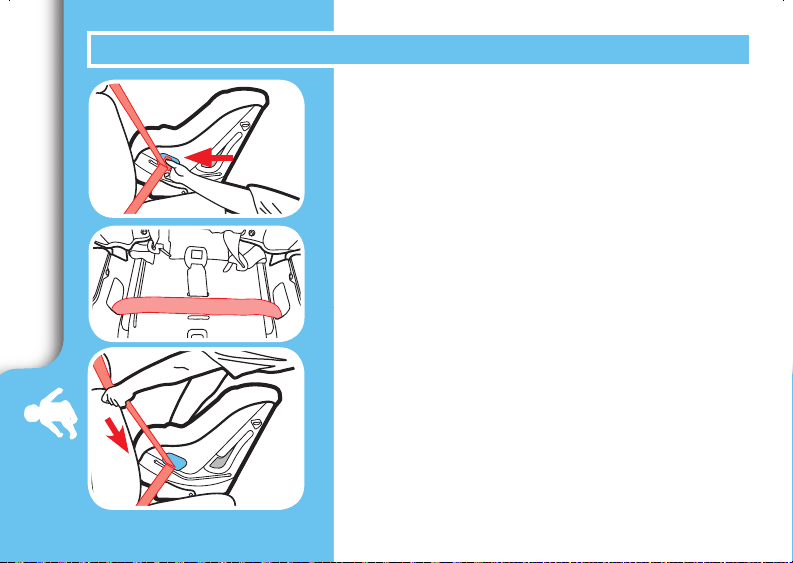

3. Make Sure LATCH Strap is in the
Rear-Facing Belt Path Marked With
a Blue Label
If it is not, see section 7-A to move
LATCH strap.

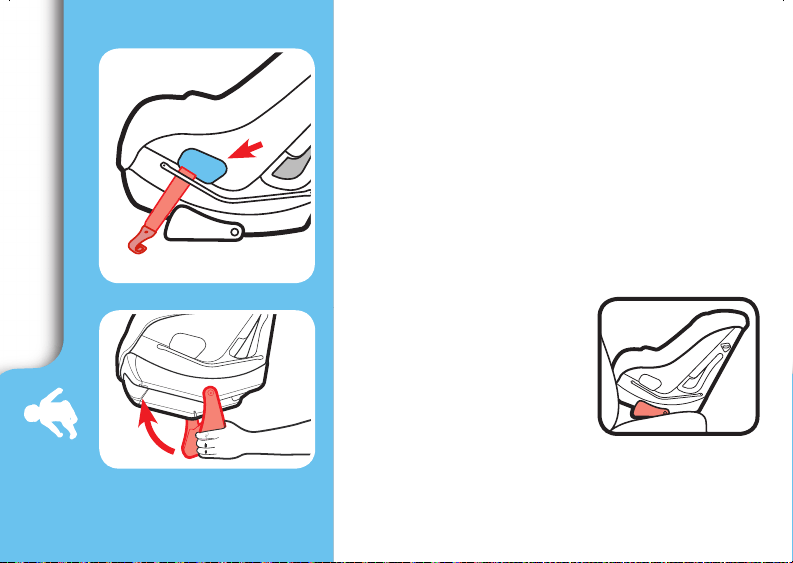

4. Recline the Car Seat
Flip recline foot under car
seat for rear facing use.

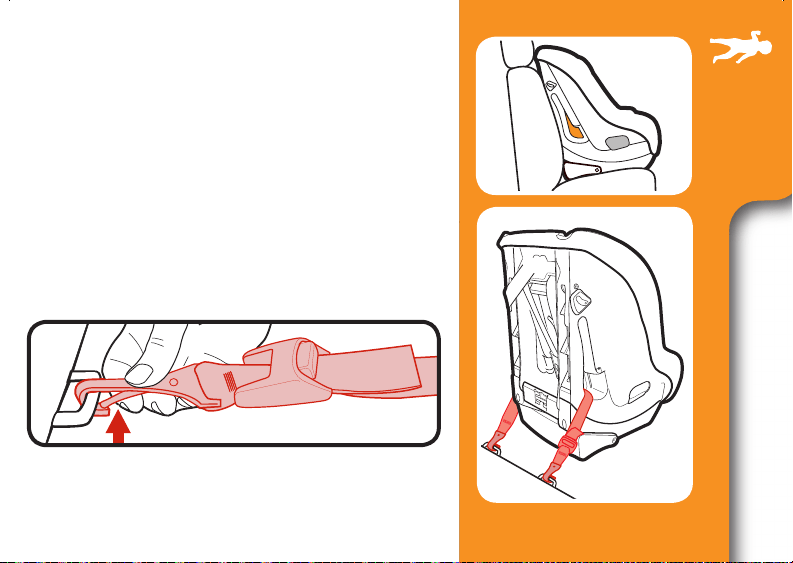

6. Extend the LATCH Strap
For easier installation, extend the LATCH strap
to its maximum length by pressing the grey
button and pulling on the strap.
35
3 Rear
Facing
6. Extend the LATCH Strap
For easier installation, extend the LATCH strap
to its maximum length by pressing the grey
button and pulling on the strap.
5. Place Car Seat Rear-Facing
in Back Seat of the Vehicle
Place rear-facing in vehicle seat and
center the car seat between the lower
LATCH anchors. The bottom of the car
seat should sit as flat as possible on the
vehicle seat.
36
3 Rear
Facing

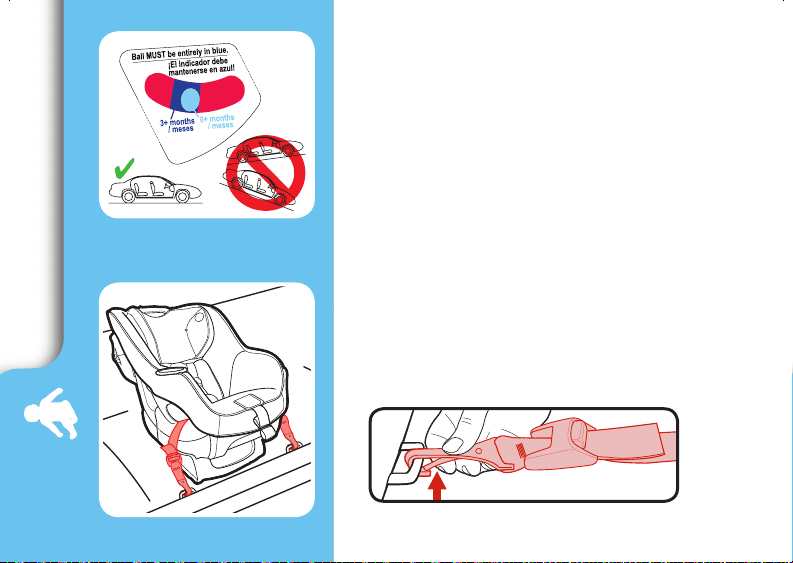

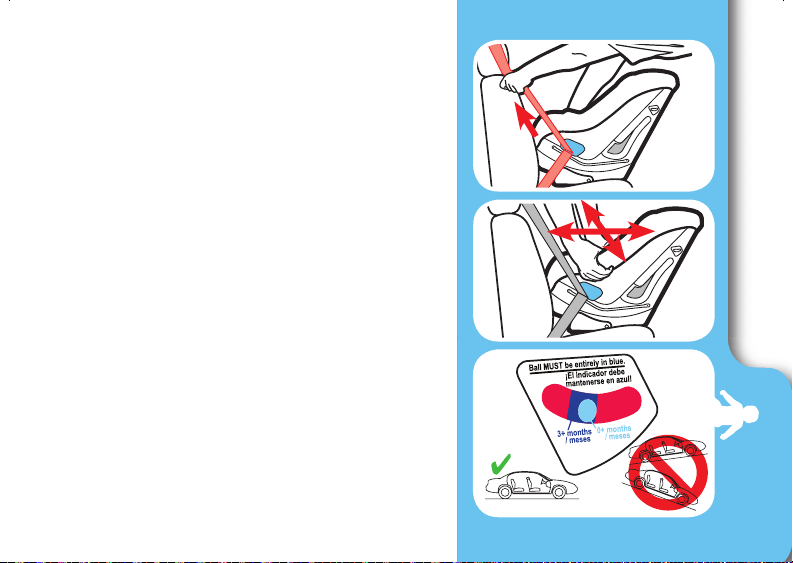

7. Check the Level Indicator
Vehicle MUST be on level ground. Ball must
be completely in the blue zone. Readjust if
needed.
For infants 3 months and under, the ball must
completely cover the light blue circle.
If needed, rolled towels may be placed under
the car seat at the vehicle seat crease, until
the ball is completely in the blue zone.
8. Attach LATCH Connectors to Vehicle’s
Lower LATCH Anchors.
LATCH strap should lie flat and not be twisted.
9. Tighten the LATCH Strap
Press down firmly in the center of the car seat
while tightening the LATCH strap. You may
need to tighten through the rear-facing belt
path as shown.

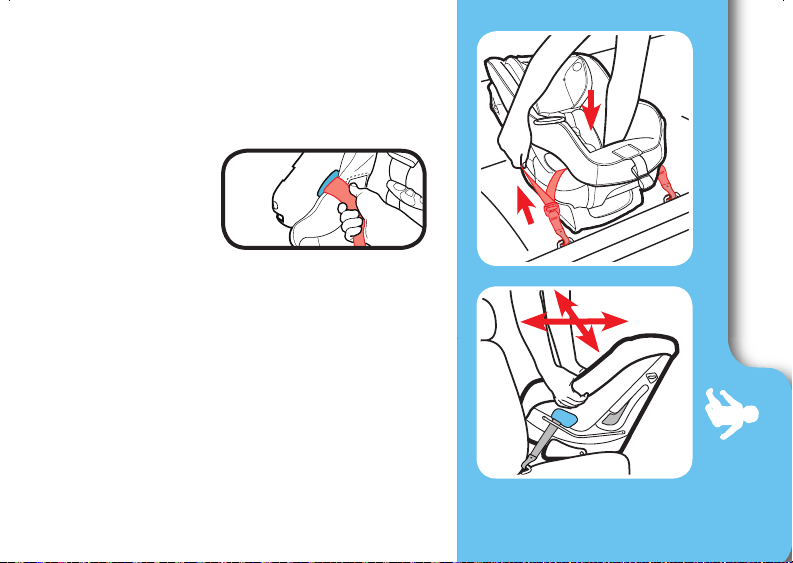

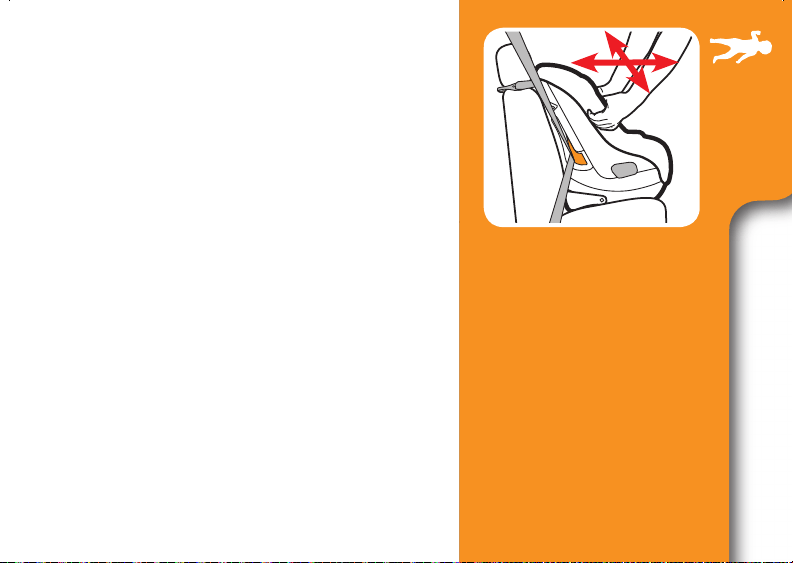

10. Test For Tightness
Grab the sides of the seat where the LATCH
strap is and slide the car seat side-to-side
and front-to-back.
If the seat moves less than 1inch (2.5 cm), it
is tight enough.
37
3 Rear
Facing
9. Tighten the LATCH Strap
Press down firmly in the center of the car seat
while tightening the LATCH strap. You may
need to tighten through the rear-facing belt
path as shown.
10. Test For Tightness
Grab the sides of the seat where the LATCH
strap is and slide the car seat side-to-side
and front-to-back.
If the seat moves less than 1inch (2.5 cm), it
is tight enough.
38
3 Rear
Facing
11. Check the Level Indicator
Vehicle MUST be on level ground. Ball must
be completely in the blue zone. Readjust if
needed.
For infants 3 months and under, the ball
must completely cover the light blue circle.
If needed, rolled towels may be placed under
the car seat at the vehicle seat crease, until
the ball is completely in the blue zone.
See section 5-A to secure your child.
Recheck the level indicator with child in seat.
12. To Remove LATCH Strap From Vehicle
See section 8-A.
39
3 Rear
Facing

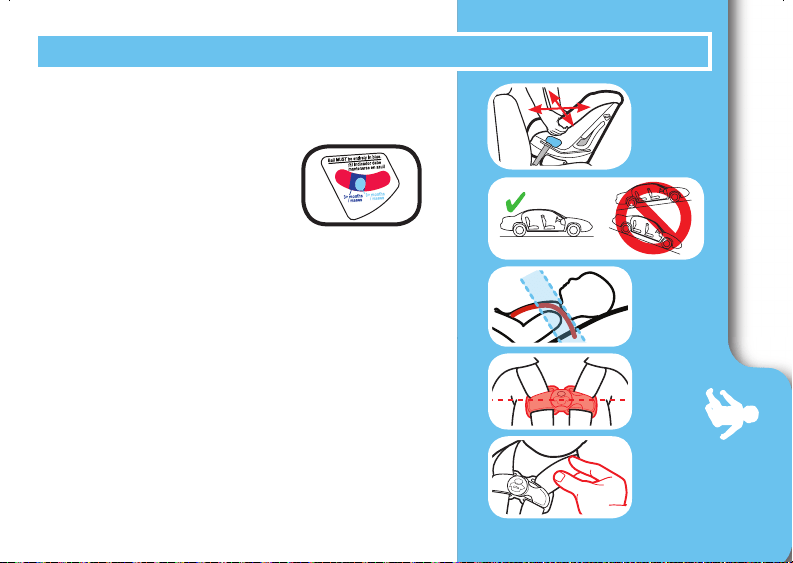

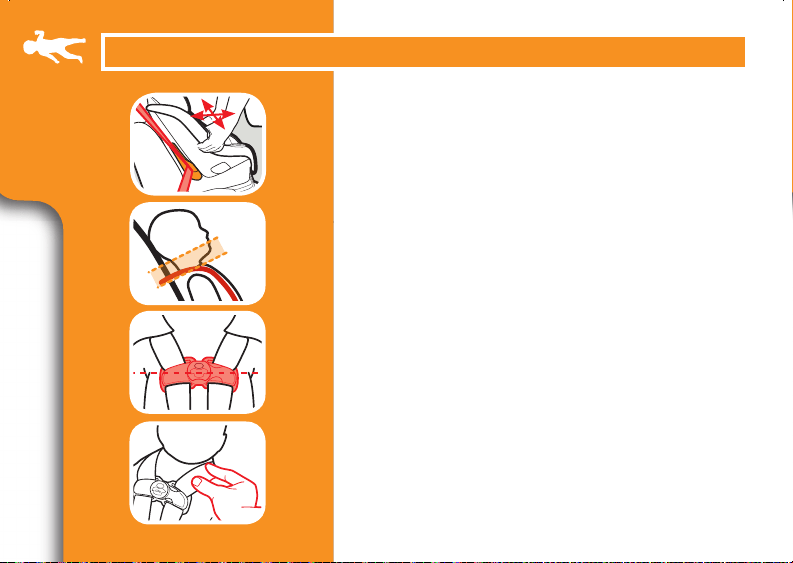

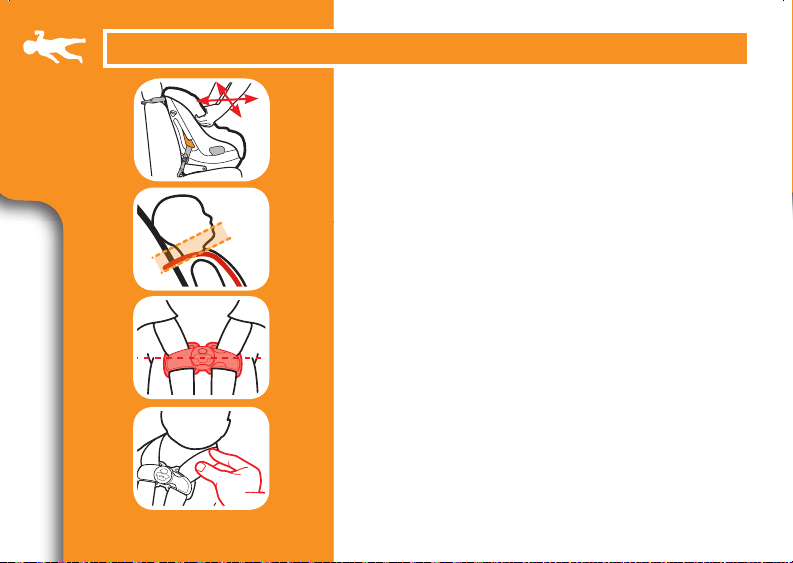

Is Everything Correct?
Car Seat Does Not Move More than
1 inch (2.5 cm) at the Belt Path
Level Indicator’s Ball
in the Blue Zone and
Vehicle on Level Ground
Harness Straps at or Just Below the
Child’s Shoulders.
Review section 5
Chest Clip Even With Armpits
Review section 5
Cannot Pinch Harness Straps at the
Shoulder
Review section 5
40
3 Rear
Facing
3-C Installing Rear-Facing With
Vehicle Seat Belt
1. Store Top Tether
and LATCH Strap
Attach tether hook
and LATCH
connectors to the
plastic bars as
shown.
2. Recline the Car Seat
Flip recline foot under car
seat for rear facing use.
41
3 Rear
Facing
3. Place Car Seat Rear-Facing in Back
Seat of the Vehicle
Place rear-facing in vehicle seat. The bottom
of the car seat should sit as flat as possible on
the vehicle seat.

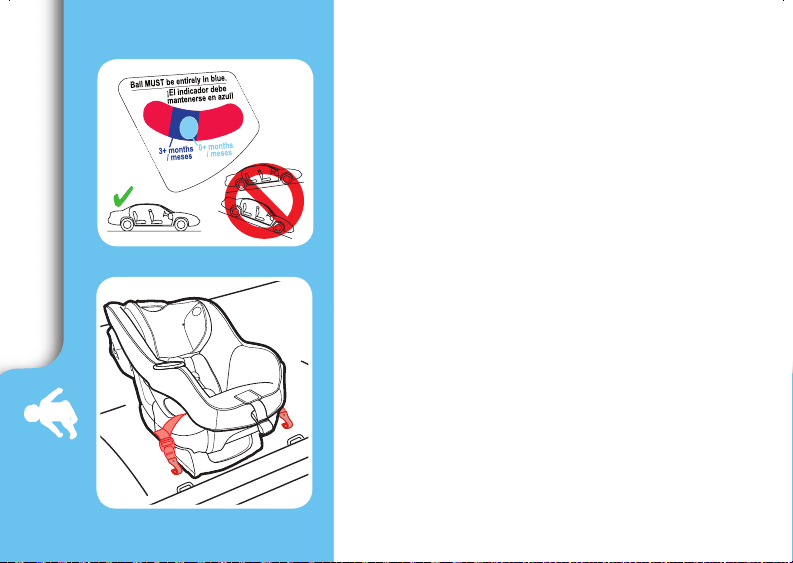

4. Check the Level Indicator
Vehicle MUST be on level ground. Ball must
be completely in the blue zone. Readjust if
needed.
For infants 3 months and under, the ball must
completely cover the light blue circle.
If needed, rolled towels may be placed under
the car seat at the vehicle seat crease, until
the ball is completely in the blue zone.
42
3 Rear
Facing
Review your vehicle’s owner manual for vehicle seat belt use

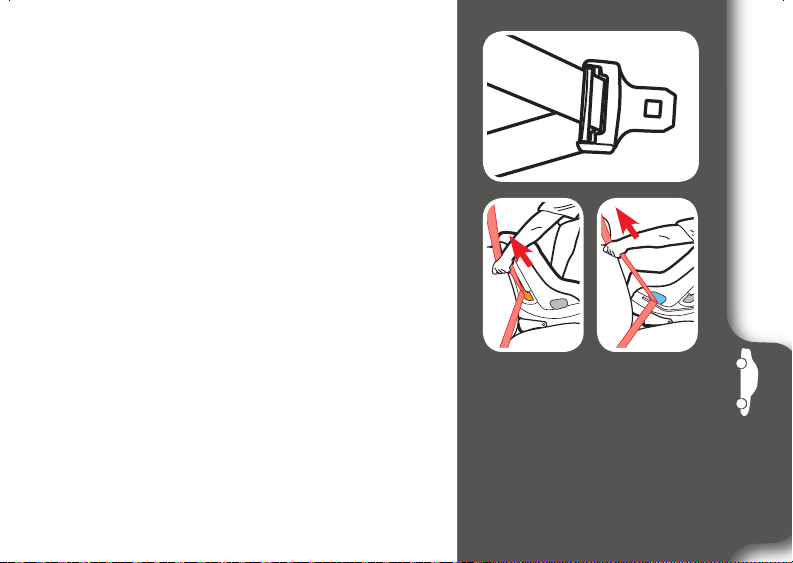

5. Route the Vehicle Seat Belt
Thread vehicle seat belt through the rear-
facing belt path (marked with a blue label)
and out the other side. Buckle it. The seat
belt should lie as flat as possible and not
be twisted.
Note: It may be easier to route the vehicle
seat belt by lifting seat pad up to expose
the belt path.
Make sure the vehicle seat belt is in front
of the buckle strap when the buckle is in
the inner-most position, and in behind
when in the outter-most position.
6. Lock Vehicle Seat Belt
In most vehicles today, slowly pull the
shoulder belt all the way out and then let it
go back in. You will hear a clicking sound.
Slowly pull out on the belt and it should
be locked. If not, review your car’s owner
manual and section 8-D.
43
3 Rear
Facing
7. Tighten the Vehicle Seat Belt
Press down firmly in the center of the car
seat. Pull on the shoulder belt to tighten while
feeding the slack back in the retractor.
8. Test For Tightness
Grab the sides of the seat where the vehicle
seat belt is and slide the car seat side-to-side
and front-to-back.
If the seat moves less than 1 inch (2.5 cm), it
is tight enough.
9. Check the Level Indicator
Vehicle MUST be on level ground. Ball must
be completely in the blue zone. Readjust if
needed.
For infants 3 months and under, the ball must
completely cover the light blue circle.
If needed, rolled towels may be placed under
the car seat at the vehicle seat crease, until
the ball is completely in the blue zone.
44
3 Rear
Facing
Is Everything Correct?
Car Seat Does Not Move More than
1 inch (2.5 cm) at the Belt Path
Level Indicator’s Ball
in the Blue Zone and
Vehicle on Level Ground
Harness Straps at or Just Below the
Child’s Shoulders.
Review section 5
Chest Clip Even With Armpits
Review section 5
Cannot Pinch Harness Straps at the
Shoulder
Review section 5
Forward-Facing:
22-65 lb (10-30 kg) 49” (125 cm) or less
• Place car seat forward-facing in the vehicle
back seat.
• Make sure LATCH strap or vehicle seat belt
is routed through the forward-facing belt path
marked with a orange label.
• Install this car seat tightly in your vehicle. Car
seat should not move at the forward-facing
belt path more than 1 inch (2.5 cm) from side
to side, front to back.
• Harness straps need to be even with or just
above the top of child’s shoulders and chest
clip is at armpit level.
45
Important
I
m
p
ortant
4 Forward
Facing
4-A Forward-Facing
Forward-Facing:
22-65 lb (10-30 kg) 49” (125 cm) or less
• Place car seat forward-facing in the vehicle
back seat.
• Make sure LATCH strap or vehicle seat belt
is routed through the forward-facing belt path
marked with a orange label.
• Install this car seat tightly in your vehicle. Car
seat should not move at the forward-facing
belt path more than 1 inch (2.5 cm) from side
to side, front to back.
• Harness straps need to be even with or just
above the top of child’s shoulders and chest
clip is at armpit level.
LATCH Strap
Do not install by this
method for a child
weighing more than
45 lb (20 kg)
46
4 Forward
Facing
• Children are safer riding rear-facing and should
ride rear-facing as long as possible, until they
reach the maximum rear-facing height or weight
rating for their car seat. Then children should
ride forward-facing, using the built-in harness
system for as long as possible until they reach
the maximum forward-facing weight or height
rating for their car seat. Be sure to check
your local and state laws, as well as AAP and
NHTSA recommendations, for car seat usage.

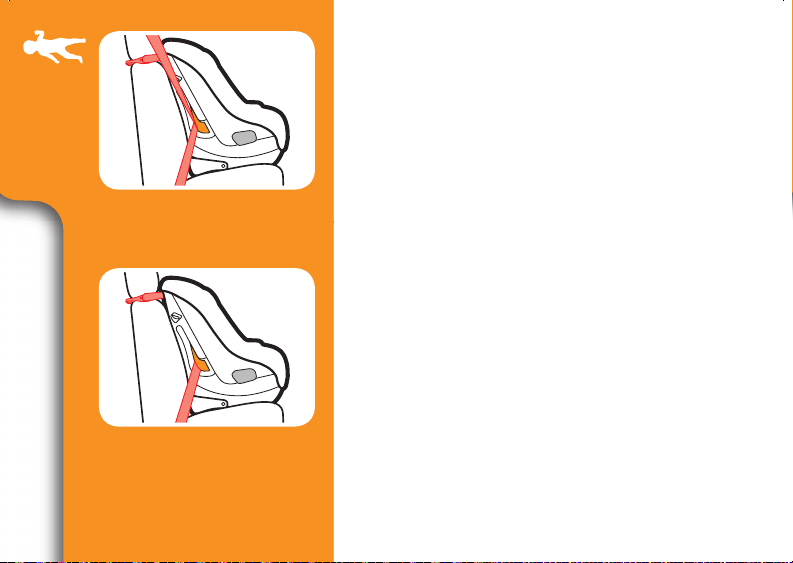

Vehicle Lap/Shoulder
Seat Belt
Vehicle Seat Lap Belt
2. Make Sure LATCH Strap is in the
Forward-Facing Belt Path Marked with
Orange Label
If it is not, see section 7-A to
move LATCH strap.

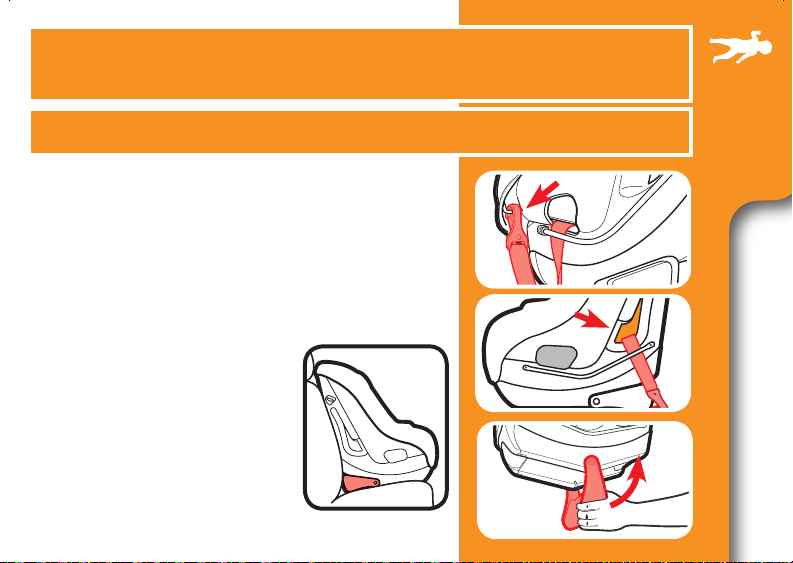

3. Flip recline foot out
for forward facing use.
47
Important
I
m
p
ortant
4 Forward
Facing

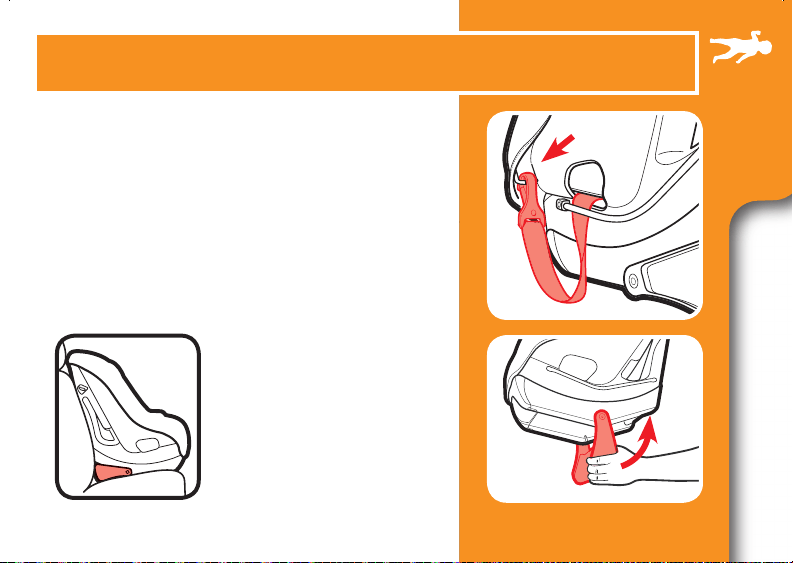

4-B Install Forward-Facing
with LATCH Strap
Review your vehicle’s owner manual for LATCH location and use.
2. Make Sure LATCH Strap is in the
Forward-Facing Belt Path Marked with
Orange Label
If it is not, see section 7-A to
move LATCH strap.
3. Flip recline foot out
for forward facing use.
1. Remove LATCH Strap from
Storage Location
48

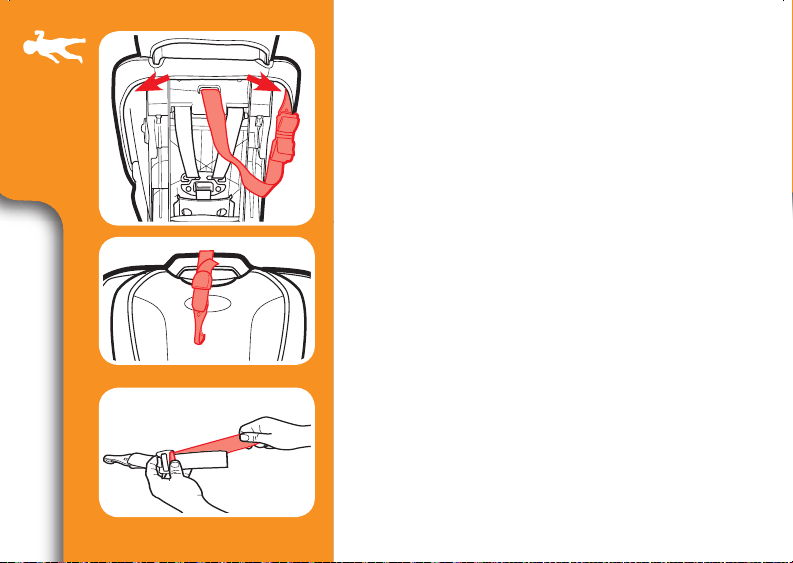

4 Forward
Facing
4. Remove Top Tether Strap from Storage
Location
Unhook tether and lay it in the seat.
5. Extend the LATCH Strap.
For easier installation, extend the LATCH strap
to its maximum length by pressing the grey
button and pull out on the strap.
6. Place Car Seat Forward-Facing
inBack Seat of the Vehicle
Place forward-facing in vehicle seat. The
bottom of the seat should sit as flat as
possible on the vehicle seat.
7. Attach LATCH Connector to Vehicle’s
Lower LATCH Anchors.
LATCH strap should not be twisted.
49
Important
I
m
p
ortant
4 Forward
Facing
6. Place Car Seat Forward-Facing
inBack Seat of the Vehicle
Place forward-facing in vehicle seat. The
bottom of the seat should sit as flat as
possible on the vehicle seat.
7. Attach LATCH Connector to Vehicle’s
Lower LATCH Anchors.
LATCH strap should not be twisted.
50
4 Forward
Facing
8. Tighten the LATCH Strap
Press down firmly in the center of the car seat
while tightening the LATCH strap.
9. Attach Top Tether Strap
Extend the top tether
pressing the grey button
and pulling out on the strap
and attach.
Consult vehicle’s owner manual for specific
location.
10. Tighten Top Tether Strap
Remove all the slack.
51
Important
I
m
p
ortant
4 Forward
Facing

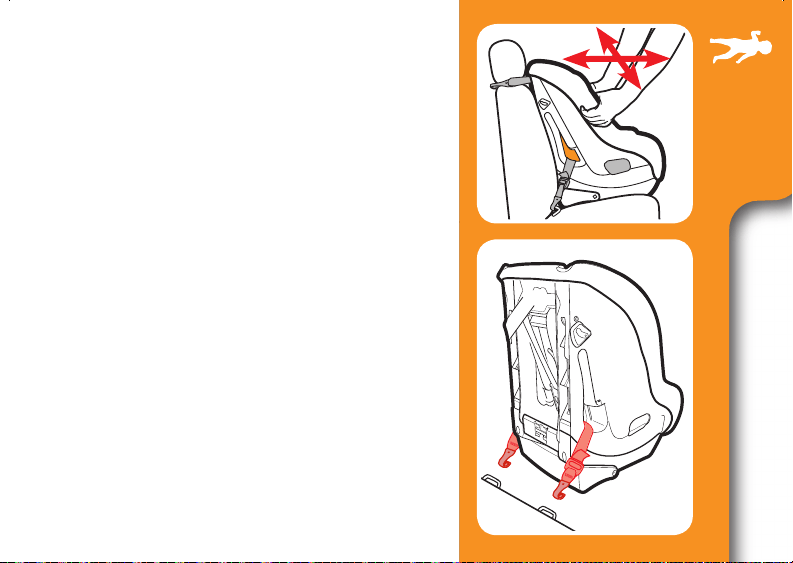

11. Test For Tightness
Grab the sides of the seat where the LATCH
strap is and slide the car seat side-to-side
and front-to-back.
If the seat moves less than 1 inch (2.5 cm), it
is tight enough.
See section 5-A to secure your child.
12. To Remove LATCH Strap From Vehicle
See section 8-A.
52
4 Forward
Facing
Is Everything Correct?
Car Seat Does Not Move More than
1 inch (2.5 cm) at the Belt Path
Harness Straps at or Just Above the
Child’s Shoulders.
Review section 5
Chest Clip Even With Armpits
Review section 5
Cannot Pinch Harness Straps at the
Shoulder
Review section 5
53
Important
I
m
p
ortant
4 Forward
Facing
1. Store LATCH Strap
Attach LATCH connectors to the plastic bars
as shown.
2. Adjust child restraint to Upright
position.
Flip recline foot out for forward facing use.
4-C
Installing With Vehicle Seat Belt
54
4 Forward
Facing
3. Unhook Top Tether Strap From Storage
location and Lay it in the Seat
4. Place Car Seat Forward-Facing in
Back Seat of the Vehicle
Place forward-facing in vehicle seat. The
bottom of the seat should sit as flat as
possible on the vehicle seat.
55
Important
I
m
p
ortant
4 Forward
Facing

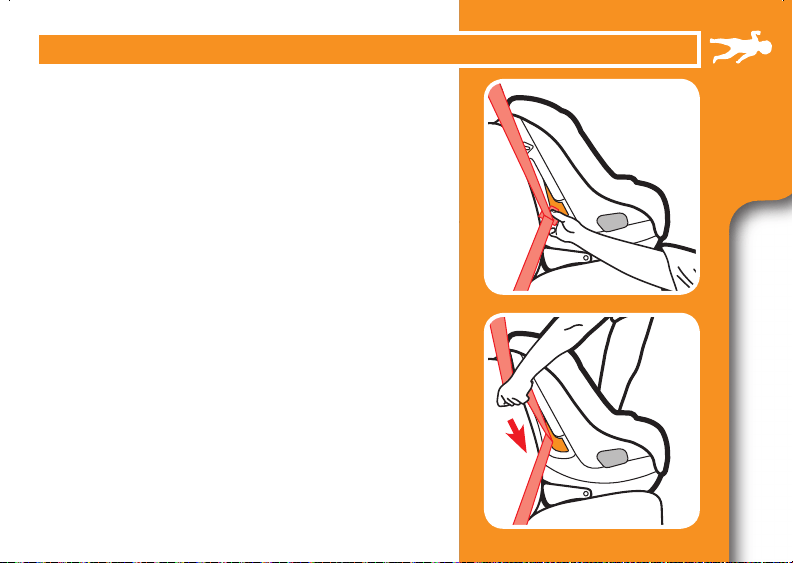

5. Route the Vehicle Seat Belt
Thread vehicle seat belt through the forward-
facing belt path (marked with a orange label)
and out the other side. Buckle it. The seat
belt should lie as flat as possible and not be
twisted.
6. Lock the Vehicle Seat Belt
In most vehicles today, slowly pull the
shoulder belt all the way out and then let it go
back in. You will hear a clicking sound. Slowly
pull out on the belt and it should be locked.
If not, review your car’s owner manual and
section 8-D.
Review your vehicle’s owner manual for vehicle seat belt use
56
4 Forward
Facing
7. Tighten the Vehicle Seat Belt
Press down firmly in the center of the car seat.
Pull on the shoulder belt to tighten while feeding
the slack back in the retractor.
8. Attach Top Tether Strap
Extend the top tether by
pressing the grey button and
pulling out on the strap and
attach. Consult vehicle’s owner manual for
specific location.
9. Tighten the Tether Strap
Push the car seat back while tightening the
tether strap to remove all the slack.
57
Important
I
m
p
ortant
4 Forward
Facing
10. Test For Tightness
Grab the sides of the seat where the vehicle
seat belt is and slide the car seat side-to-side
and front-to-back.
If the seat moves less than 1 inch (2.5 cm), it
is tight enough.
See section 5-A to secure your child.
58
4 Forward
Facing
Is Everything Correct?
Car Seat Does Not Move More than
1 inch (2.5 cm) at the Belt Path
Harness Straps at or Just Above the
Child’s Shoulders.
Review section 5
Chest Clip Even With Armpits
Review section 5
Cannot Pinch Harness Straps at the
Shoulder
Review section 5
59
5 Securing
Child
5-A
Securing Child 5-point Harness

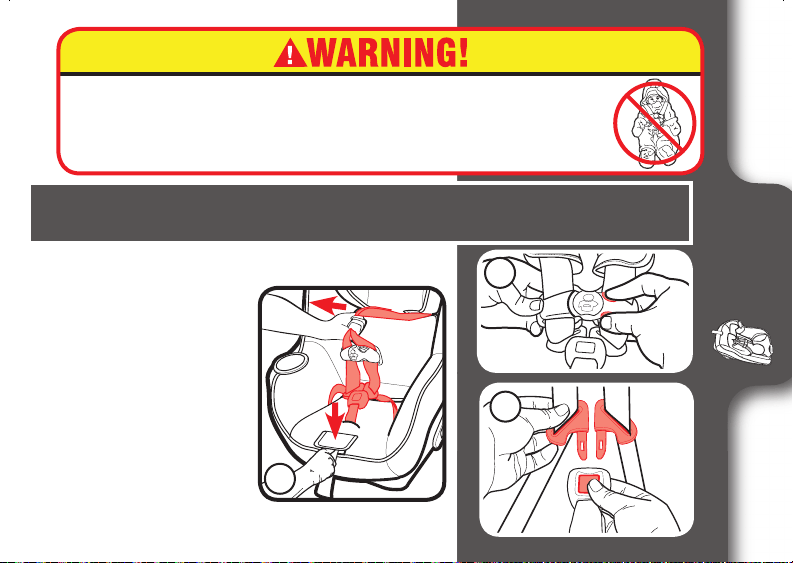

1. Loosen Harness
Straps
Push down on the
harness release lever
while pulling out on
the harness straps at
the chest clip.
Unbuckle the chest
clip and the buckle
strap. Place harness
straps off to the
sides.
B
C
A
WARNING! In cold weather, do not put snowsuits or bulky garments
on your child when placing them in the car seat. Bulky clothing can
prevent the harness straps from being tightened properly. To keep child
warm, buckle your child in the car seat and place a blanket around the child
or place the child’s coat on backwards after buckling in.
60
5 Securing
Child

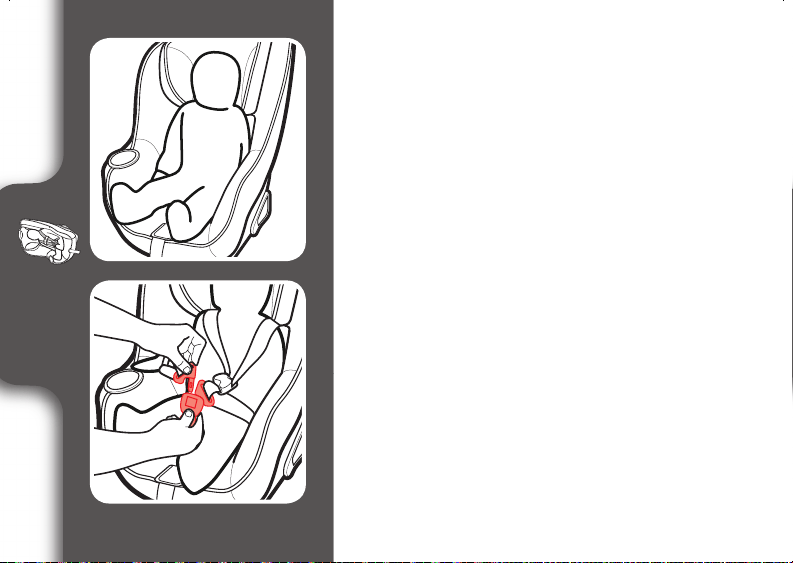

2. Place Your Child in the Seat
Make sure their back is flat against the car
seat back.
Avoid bulky or heavy clothing when it is cold
out. Doing so will prevent the harness straps
from being tighten properly. If needed, place a
blanket over the child after you have secured
the child.

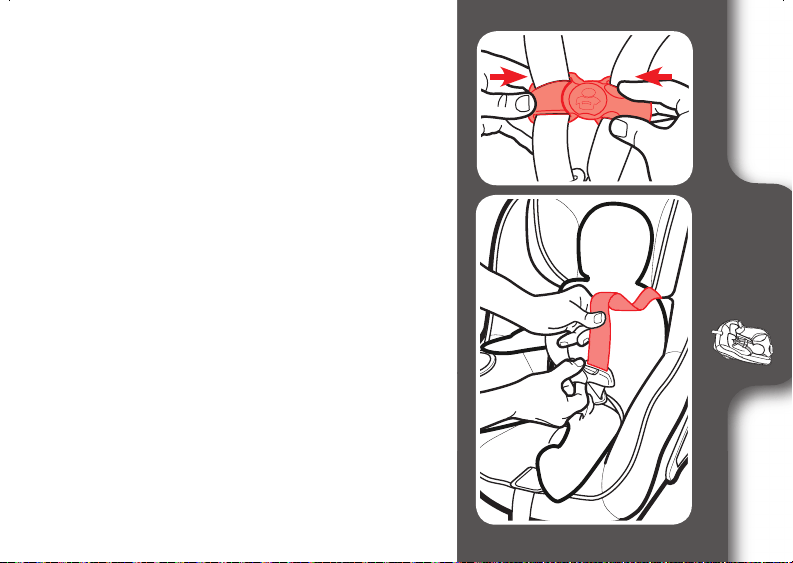

3. Place Harness Straps Over
Child’s Shoulders and Buckle
You will hear a “click” when buckle tongues
are securely attached. Pull up on each buckle
tongue to make sure it is securely attached.
4. Be Sure the Harness Straps Are at the
Proper Height
Rear-Facing: Harness straps should be at or
just below the child’s shoulders. Top of head
MUST be at least 1 inch (2.5 cm) below the
handle.
Forward-Facing: Harness straps should be
at or just above the child’s shoulders. Top of
child’s ears below top of car seat.

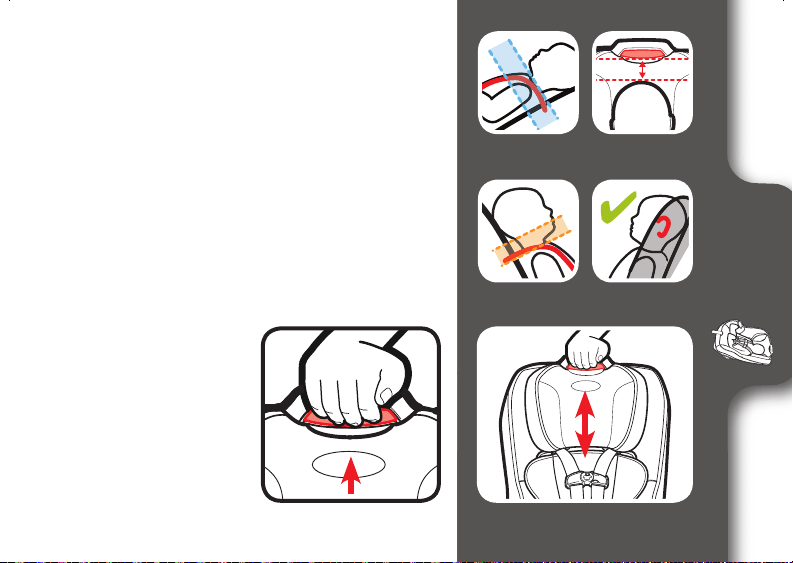

To Raise or Lower
Headrest/Harness
Height
Squeeze the
adjustment handle and
move headrest for the
proper harness height.
61
5 Securing
Child
2. Place Your Child in the Seat
Make sure their back is flat against the car
seat back.
Avoid bulky or heavy clothing when it is cold
out. Doing so will prevent the harness straps
from being tighten properly. If needed, place a
blanket over the child after you have secured
the child.
3. Place Harness Straps Over
Child’s Shoulders and Buckle
You will hear a “click” when buckle tongues
are securely attached. Pull up on each buckle
tongue to make sure it is securely attached.
4. Be Sure the Harness Straps Are at the
Proper Height
Rear-Facing: Harness straps should be at or
just below the child’s shoulders. Top of head
MUST be at least 1 inch (2.5 cm) below the
handle.
Forward-Facing: Harness straps should be
at or just above the child’s shoulders. Top of
child’s ears below top of car seat.
To Raise or Lower
Headrest/Harness
Height
Squeeze the
adjustment handle and
move headrest for the
proper harness height.
Rear-Facing
Forward-Facing
62
5 Securing
Child

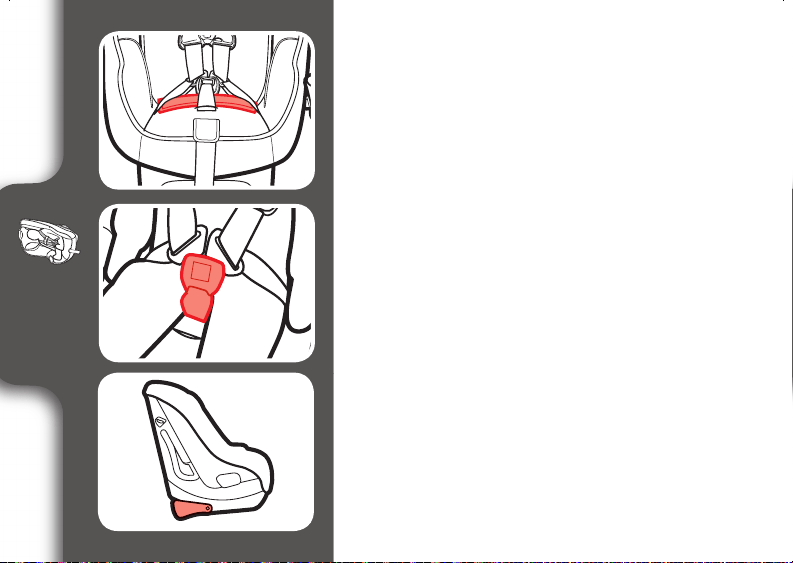

When head support is in lowest position,
always pull flap forward as shown.
5. Check the Buckle Position
The correct slot is the one that is closest to
your child without being underneath them.
To adjust, recline flip foot must be in
forward-facing position.
From bottom of car seat, rotate metal
retainer to side in order to push it
through slot easier.

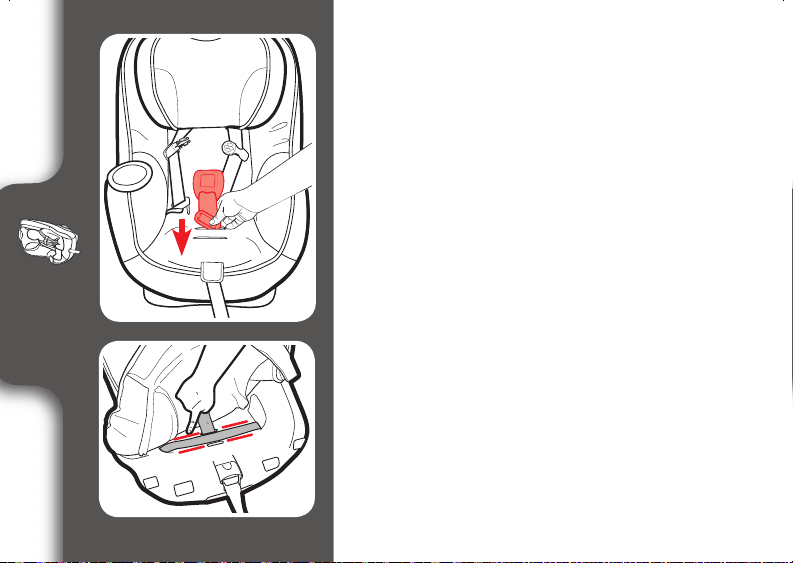

Pull buckle strap from child restraint
as shown.
63
5 Securing
Child
When head support is in lowest position,
always pull flap forward as shown.

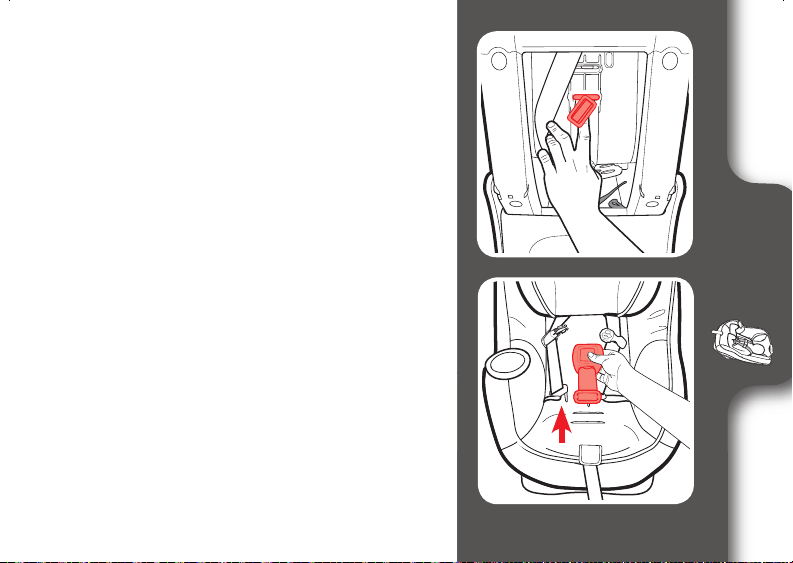

5. Check the Buckle Position
The correct slot is the one that is closest to
your child without being underneath them.
To adjust, recline flip foot must be in
forward-facing position.
From bottom of car seat, rotate metal
retainer to side in order to push it
through slot easier.
Pull buckle strap from child restraint
as shown.
64
5 Securing
Child
Insert buckle strap into desired slot.
Pull up on buckle strap to be sure it is
secure.
When changing buckle strap location
LATCH belt must pass between the
LATCH belt lines as shown.
6. Buckle the Chest Clip
You will hear a “click” when the chest clip is
securely buckled.
7. Pull All the Slack Out From Around
the Waist
Pull up on the harness strap while pushing
the chest clip down. Do this to both sides.
65
5 Securing
Child
Insert buckle strap into desired slot.
Pull up on buckle strap to be sure it is
secure.
When changing buckle strap location
LATCH belt must pass between the
LATCH belt lines as shown.
6. Buckle the Chest Clip
You will hear a “click” when the chest clip is
securely buckled.
7. Pull All the Slack Out From Around
the Waist
Pull up on the harness strap while pushing
the chest clip down. Do this to both sides.
66
5 Securing
Child

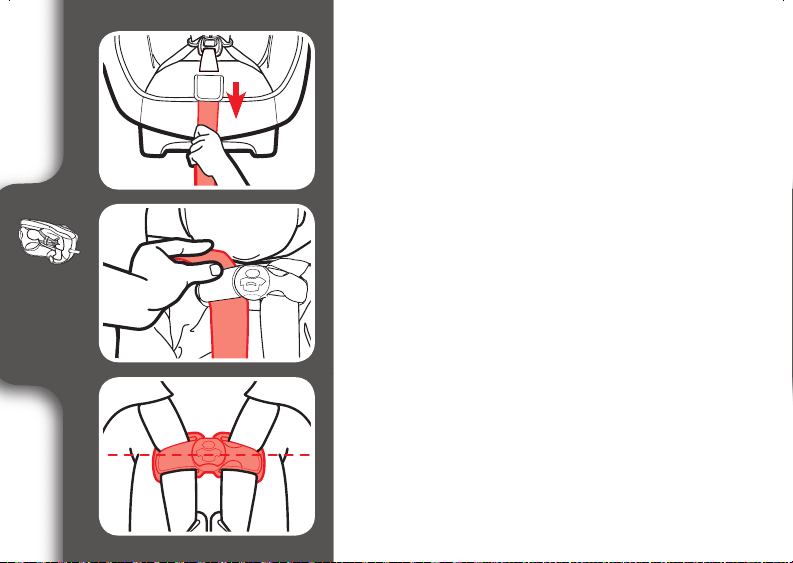

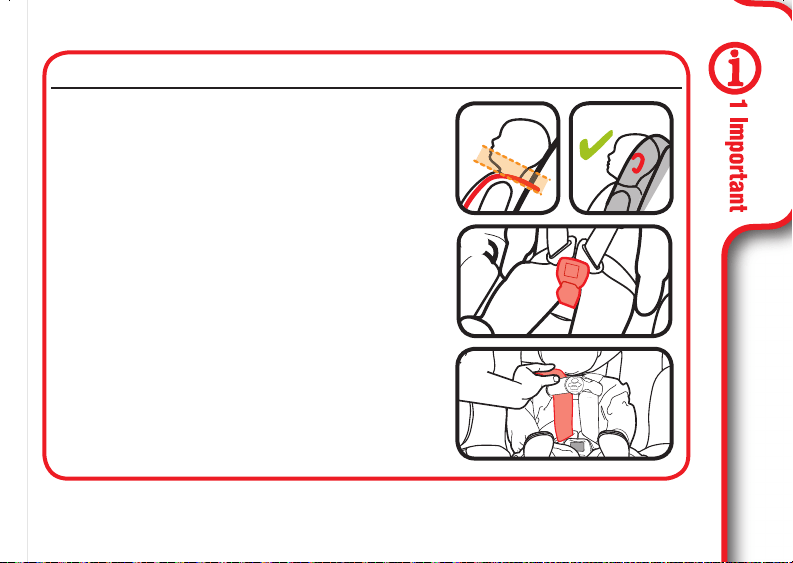

8. Tighten the Harness by Pulling the
Harness Adjustment Strap
A snug harness should not allow any slack. It
lies in a relatively straight line without sagging.
It does not press on the child’s flesh or push
the child’s body into an unnatural position.
When you are not able to pinch any of the
harness webbing at your child’s shoulder, the
harness is tight enough.
9. Raise the Chest Clip to Child’s Armpit
Level
67
Important
I
m
p
ortant
6 Accessories
8. Tighten the Harness by Pulling the
Harness Adjustment Strap
A snug harness should not allow any slack. It
lies in a relatively straight line without sagging.
It does not press on the child’s flesh or push
the child’s body into an unnatural position.
When you are not able to pinch any of the
harness webbing at your child’s shoulder, the
harness is tight enough.
9. Raise the Chest Clip to Child’s Armpit
Level

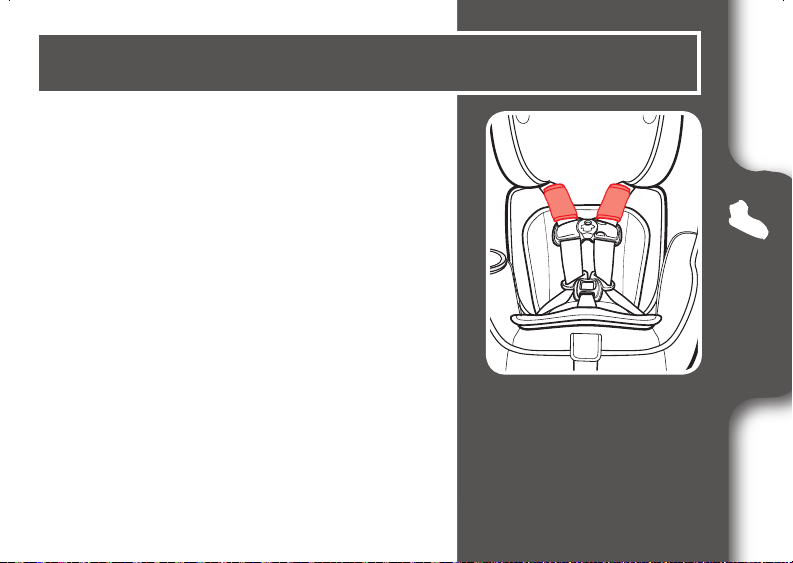

Harness Covers
Make sure that harness covers do not
interfere with placement of the chest clip at
armpit level.
6-A Accessories (on select models)
68
6 Accessories

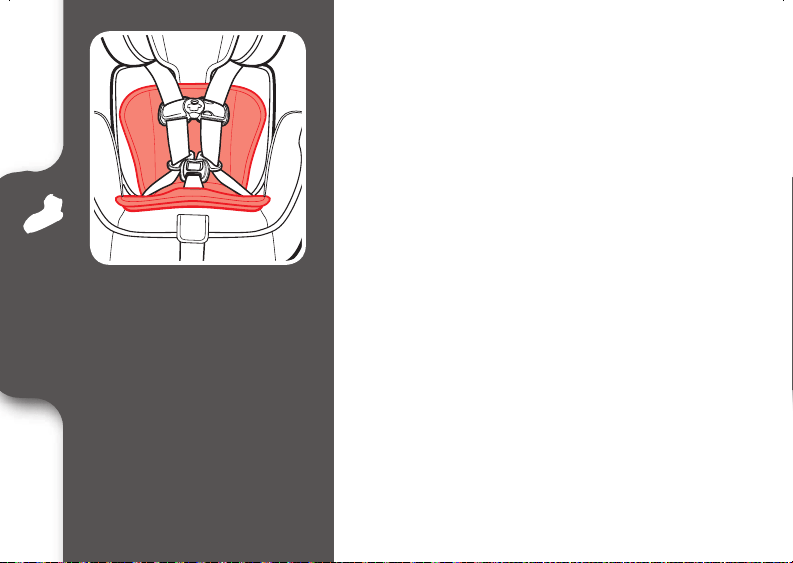

Body Support
Only use body support in rear-facing mode.
Body support must be used if shoulders are
below the lowest harness setting.
Never allow body support to bunch or fold
behind child.

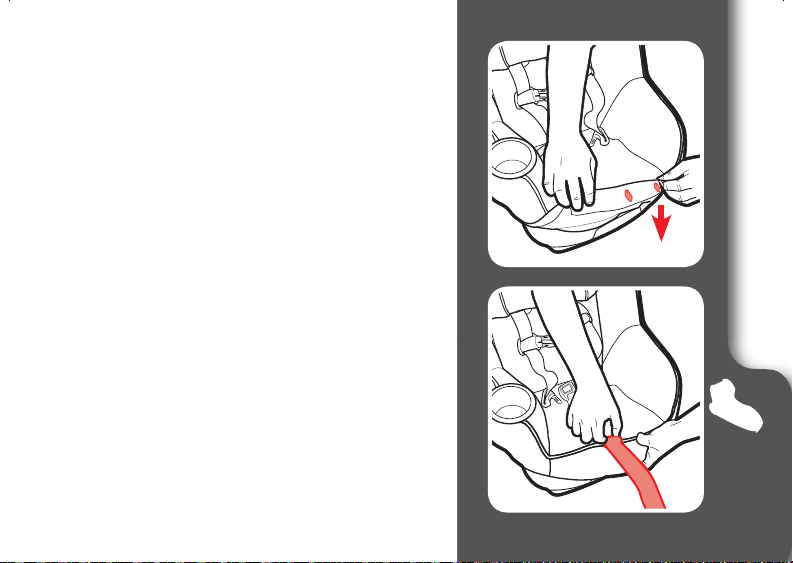

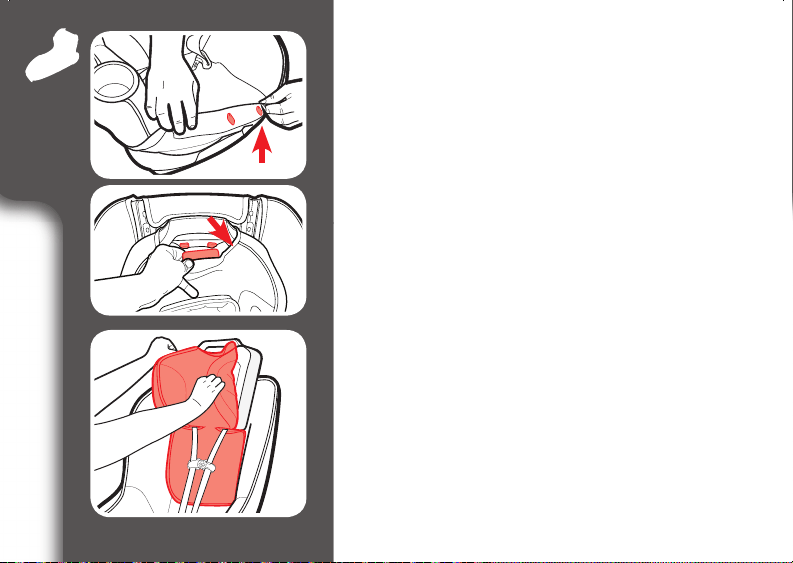

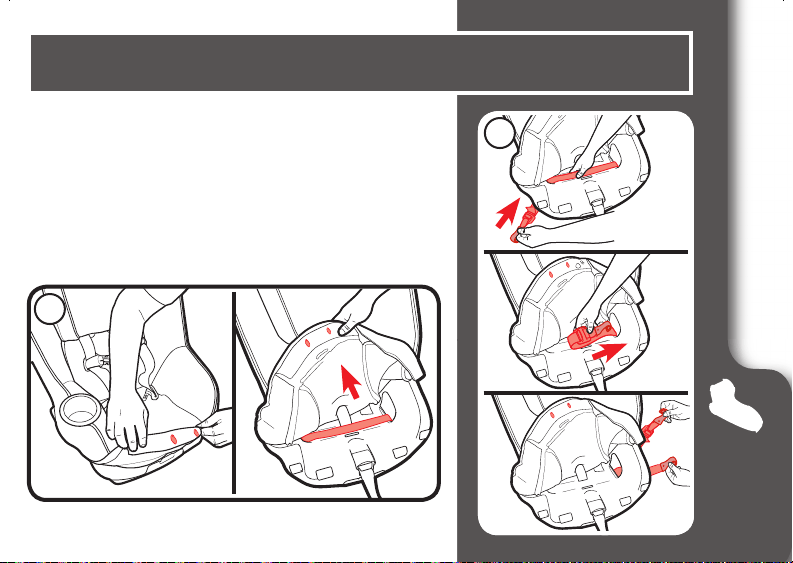

1. For Ease of Moving the LATCH Strap
A. Unclip The Seat Pad From The Front Of
The Child Restraint.
B. Pull the LATCH strap out of the belt path
opening, so that the LATCH connectors end
up on the same side of the child restraint.
69
7 Moving
LATCH
Body Support
7-A
Moving the LATCH Strap
1. For Ease of Moving the LATCH Strap
A. Unclip The Seat Pad From The Front Of
The Child Restraint.
B. Pull the LATCH strap out of the belt path
opening, so that the LATCH connectors end
up on the same side of the child restraint.
A
B
70
7 Moving
LATCH

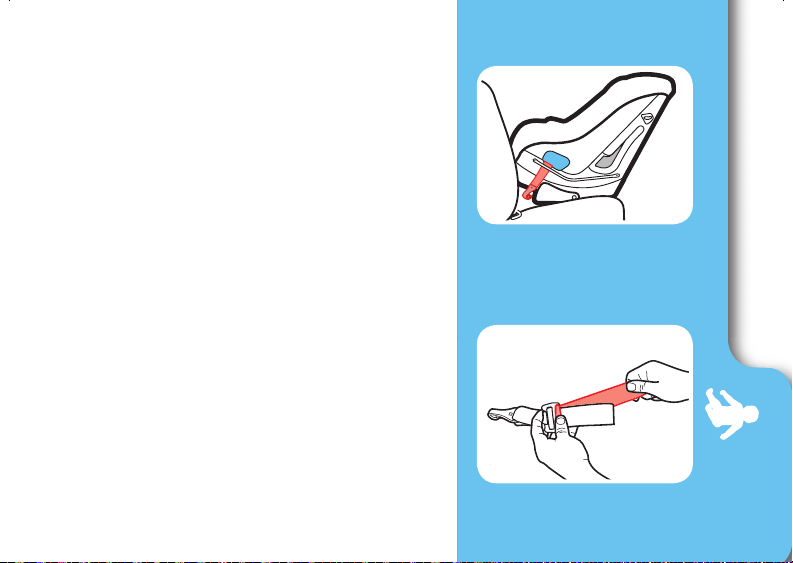

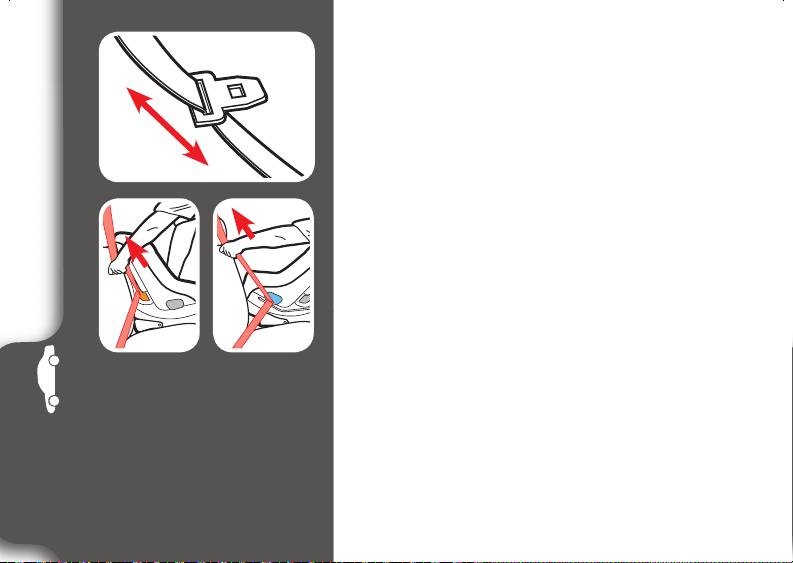

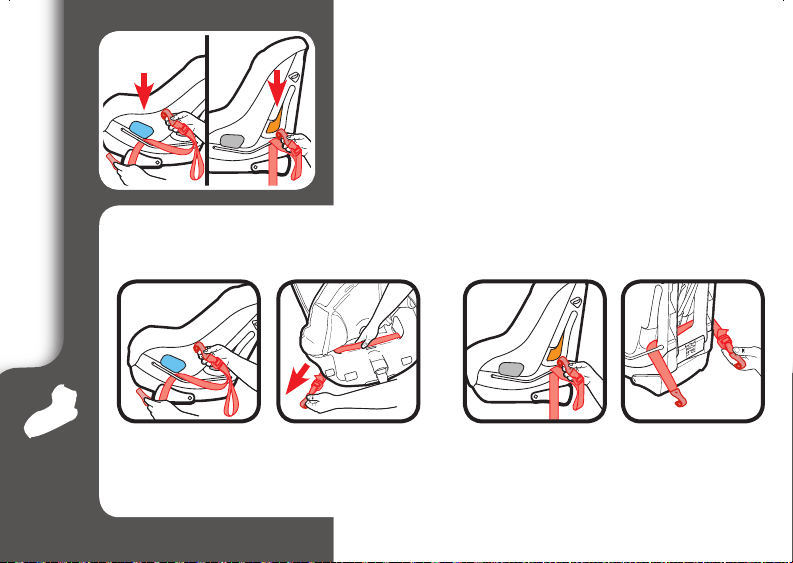

2. Slide Entire LATCH Strap Along Bar to
Correct Belt Path Opening
Rear-Facing: Slide LATCH strap down to
the blue label.
Forward-Facing: slide the LATCH strap up
to the orange label.
3. Feed the LATCH Connector with the Adjuster Closest to it
Through the Chosen Belt Path
Rear-Facing: Make sure the
LATCH strap is routed behind the
buckle strap, is flat and is not twisted.
Forward-Facing: Make sure
the strap is flat and not twisted.
OR
70
4. Replace the seat pad fabric on the
front of the child restraint.
71
7 Moving
LATCH
2. Slide Entire LATCH Strap Along Bar to
Correct Belt Path Opening
Rear-Facing: Slide LATCH strap down to
the blue label.
Forward-Facing: slide the LATCH strap up
to the orange label.
4. Replace the seat pad fabric on the
front of the child restraint.
72
8 Additional
Information
8-A

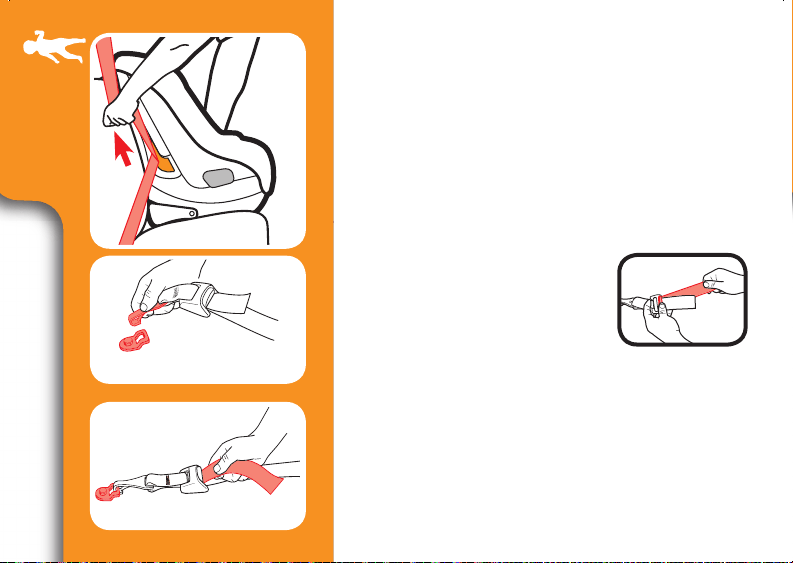

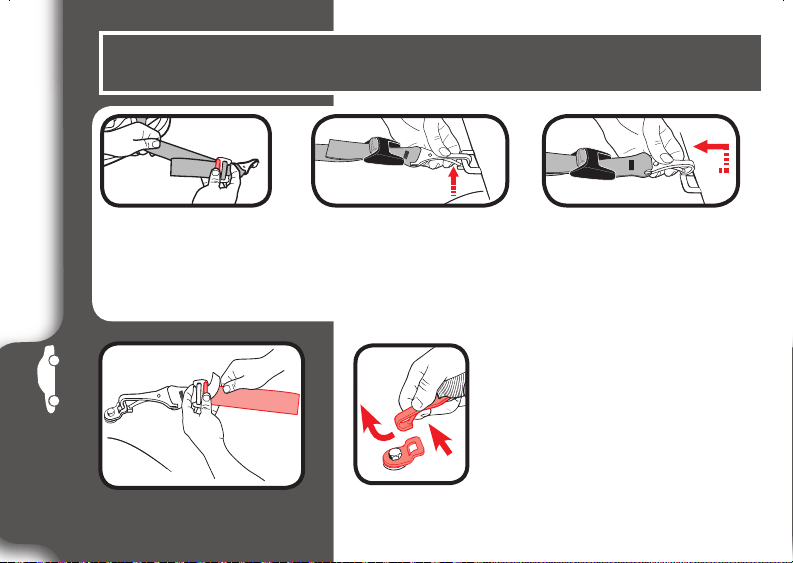

How to Remove LATCH and Tether
Top Tether Strap
To remove, press the grey
button and pull out on the
strap to release the tension.
Press in on the hook’s spring.
Push tether hook in, then lift
up and pull away from tether
anchor.
72
LATCH
Push gray button in while pulling on LATCH strap to loosen. Press in on
the hook’s spring. Push hook in, lift hook up, twist and pull out away from
anchor point.
73
8 Additional
Information
8-B
Choosing Vehicle Seat Location
Some vehicles have specific requirements for where the car seat can be installed,
so be sure to check your vehicle owner’s manual for available seating positions,
if any.
According to accident statistics, the safest
place for your child in any vehicle is the back
seat. The center of the back seat can be the
safest during a possible side impact.
The best seating location for this car seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this car seat
73
Review your vehicle owner’s manual for seating locations.
74
8 Additional
Information
In the event there is no available back seat and / or you have no other option
than to place a child other than an infant in a rear-facing car seat in a front
passenger seating position, the National Highway Traffic Safety Administration
(NHTSA) recommends that you take the following steps:
• Ensure the child is properly restrained according to their age and size
• Move the seat as far back as possible
• Make sure the child is not leaning out of position, such as leaning
forward into the deployment path of the air bag
• Set the air bag ON-OFF switch, if available, to the OFF position
• Move the seat as far back as possible
8-C
Unsafe Vehicle Seat Locations
Never install this car seat in any of the following vehicle seating locations:
Rear-facing or side-facing vehicle seats
Rear-facing with an active front air bag
75
8 Additional
Information
Rear-facing with an active front air bag
This car seat can be installed using a vehicle seat belt. To do this, you will
need to change the seat belt to a locked mode for use with car seats. With
some vehicle seat belts, this is done with the latchplate; with other vehicle
seat belts, this is done with the retractor.
8-D

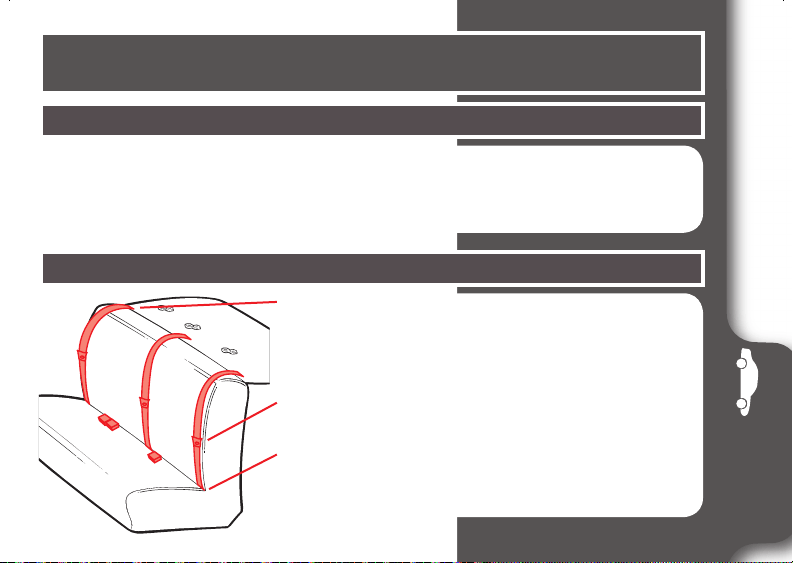

Vehicle Seat Belts
Review your vehicle owner’s manual for vehicle seat belt use
Vehicle Seat Belt Terms
75
Retractor
A device that winds up the unused vehicle seat
belt. It is often hidden inside the panels on the
walls of the vehicle or in the vehicle seatback.
Latch Plate
The male end of the seat belt with the silver tongue.
Seat Bight
The crease where the vehicle seat back and seat
bottom meet.
76
8 Additional
Information

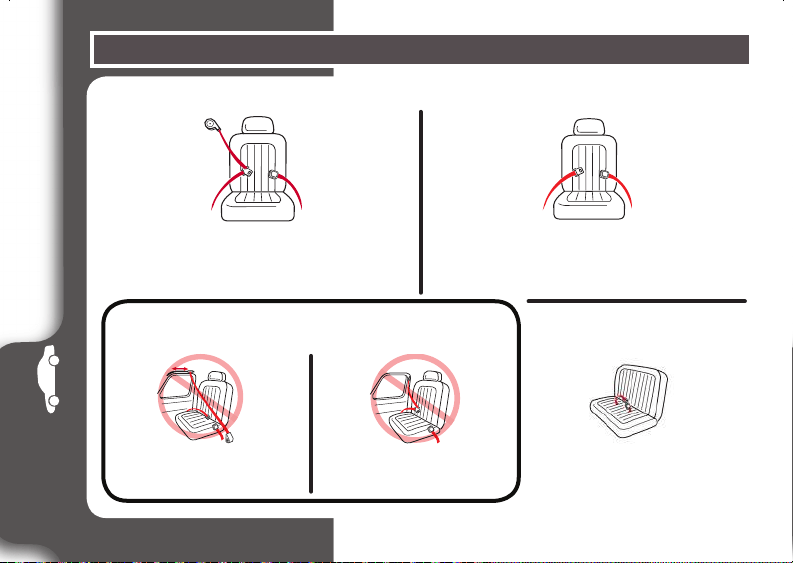

There are two different types of vehicle seat belts that can be used with this car seat:
Identify Your Seat Belt Type
76
Belts Forward of the
Seat Bight
Lap Belt Only
2 connection points. Can ONLY be
used in harness
mode.
Lap/Shoulder Belt
3 connections points. Can be used in
all car seats modes of use.
Lap Belt with Motorized
Shoulder Belt
The following types of vehicle seat belts CANNOT be
used safely with this car seat:
Lap Belt or Shoulder Belt
Mounted on Door
Some vehicles you may not
get a secure fit. Read both
your vehicle and car seat
manuals.
77
8 Additional
Information
Always review your vehicle owner’s manual for specific information about
your vehicle seat belts.
There are three types of retractors: ELR (Emergency Locking
Retractor), ALR (Automatic Locking Retractor) , and
Switchable (ELR switch to ALR). To determine your type of
retractor, follow these steps:
1. Slowly pull the belt out about halfway and stop.
2. Let the belt retract back several inches.
3. Try to slowly pull the belt out more. If the belt cannot be pulled any further, it is
ALR. If it can be pulled further, go to the next step.
4. Slowly pull the belt all the way out, and then allow it to retract several inches.
5. Try to pull the belt all the way out again. If it cannot be pulled out, it is
Switchable. If it can still be pulled out freely, it is ELR.
Note: Most vehicles manufactured after 1996 will have Switchable retractors in
the back seat. If you have any questions about your retractor type, consult your
vehicle owner’s manual or call Graco for assistance.
Lap/Shoulder Belt Installation - Rear-Facing/Forward Facing Modes
77
78
8 Additional
Information
Note: With the vehicle seat belt in this locking mode, all the tension is upwards in the
shoulder belt. This may start to tilt your car seat sideways. If this happens, use a locking
clip instead of this switching the retractor. See Sliding Latch Plate and ELR Retractor.
How to Lock Your Lap and Shoulder Vehicle Seat Belt
78

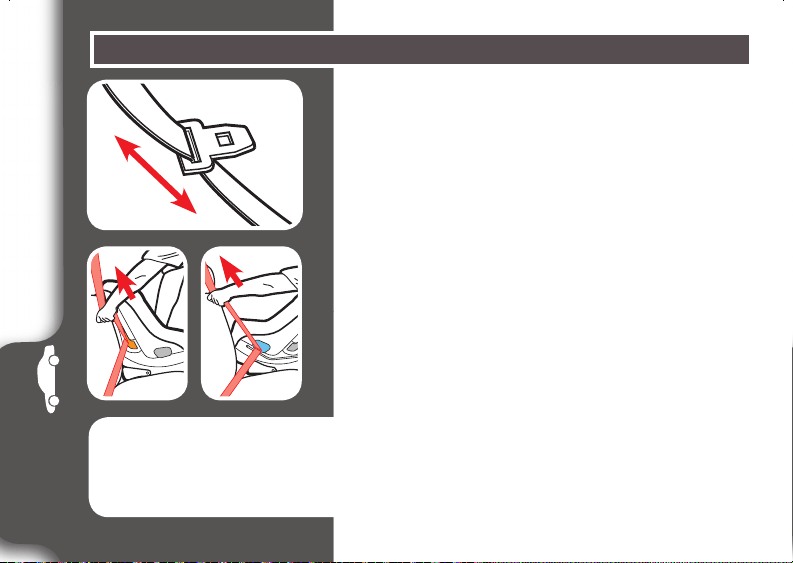

Sliding Latch Plate and Switchable
Retractor
A latchplate that slides freely on the belt webbing and
cannot, by itself, hold the belt snug around a car seat.

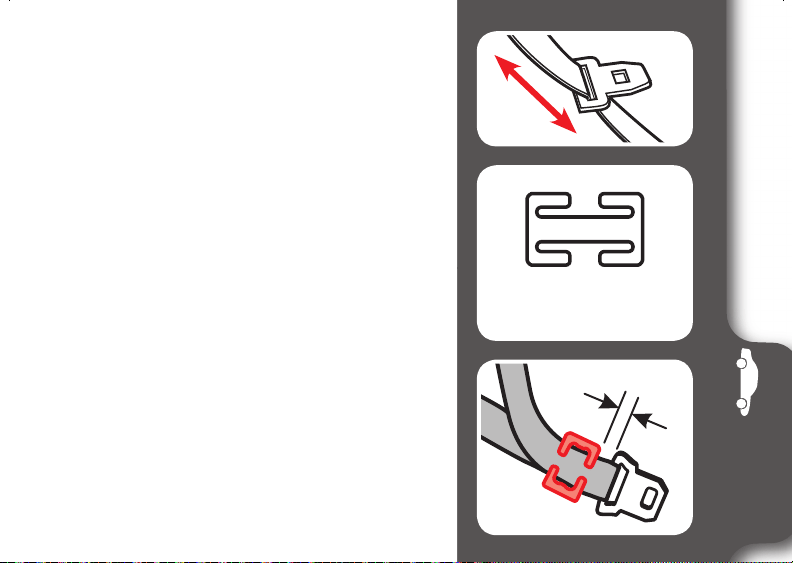

When installing the car seat, route the vehicle seat
belt through the proper belt path and buckle it in.
Slowly pull the shoulder belt all the way out to
switch it to locking mode. Then, as you pull the
vehicle seat belt tight, feed all the slack back into the
retractor.
Grab the sides of the seat at the belt path and slide
the seat side-to-side and front-to-back. The seat
should not move more than 1 inch (2.5 cm).
79
8 Additional
Information
Locking Latchplate and ELR Retractor
A latchplate that holds the lap belt snug after
it has been adjusted; contains a metal bar on
the underside of the hardware that “locks” the
belt in position.
When installing the car seat, route the
vehicle seat belt through the proper belt path
and buckle it in. Then, pull upwards on the
shoulder belt so that the lap belt gets tight
around the car seat.
Grab the sides of the seat at the belt path and
slide the seat side-to-side and front-to-back.
The seat should not move more than 1 inch
(2.5 cm).
79
80
8 Additional
Information
80
Sliding Latch Plate and ALR Retractor
A latchplate that slides freely on the belt
webbing and cannot, by itself, hold the belt
snug around a car seat.
Slowly pull the shoulder belt all the way
out. Route the vehicle seat belt through the
proper belt path and buckle it in. Then, as
you pull the vehicle seat belt tight, feed all the
slack back into the retractor.
Grab the sides of the seat at the belt path and
slide the seat side-to-side and front-to-back.
The seat should not move more than 1 inch
(2.5 cm).
Sliding Latch Plate and ELR Retractor
A latchplate that slides freely on the belt
webbing and cannot, by itself, hold the belt
snug around a car seat.
With this retractor, you will need to use the
locking clip to lock the vehicle seat belt.
To obtain a locking clip call 1-800-345-4109.
Route the vehicle seat belt through the proper
belt path and buckle it in. Pull the vehicle seat
belt tight. While pushing down on seat, pinch
the two straps together behind the buckle
tongue. Unbuckle the belt without allowing it
to slip.
Attach locking clip to lap and shoulder belts
as shown.
Rebuckle belt. Check that lap belt does not
move by pulling hard. If belt loosens or
lengthens, repeat procedure.
81
8 Additional
Information
Sliding Latch Plate and ELR Retractor
A latchplate that slides freely on the belt
webbing and cannot, by itself, hold the belt
snug around a car seat.
With this retractor, you will need to use the
locking clip to lock the vehicle seat belt.
To obtain a locking clip call 1-800-345-4109.
Route the vehicle seat belt through the proper
belt path and buckle it in. Pull the vehicle seat
belt tight. While pushing down on seat, pinch
the two straps together behind the buckle
tongue. Unbuckle the belt without allowing it
to slip.
Attach locking clip to lap and shoulder belts
as shown.
Rebuckle belt. Check that lap belt does not
move by pulling hard. If belt loosens or
lengthens, repeat procedure.
81
1 in (2.5 cm)
Locking Clip
82
8 Additional
Information
82
Locking Latch Plate and No Retractor
When installing the car seat, route the lap seat
belt through the proper path and buckle it in.
Then, pull upwards on the tail of the belt so that
the lap belt gets tight around the car seat.
Sewn On Latch Plate and ALR
Slowly pull the lap belt all the way out. Route
the vehicle seat lap belt through the proper belt
path and buckle it in. Then, pull the lap belt tight
while feeding all the slack back into the retractor.
Lap Belt Installation
Always review your vehicle owner’s manual for specific information
about your vehicle seat belts.
Grab the sides of the seat
at the belt path and slide
the seat side-to-side and
front-to-back. The seat
should not move more
than 1 inch (2.5 cm).
83
Important
I
m
p
ortant
9 Care &
Cleaning
Always review your vehicle owner’s manual for specific information
about your vehicle seat belts.
Clean with a damp sponge using mild soap and
cool water. Refer to seat pad care tag for washing
instructions.

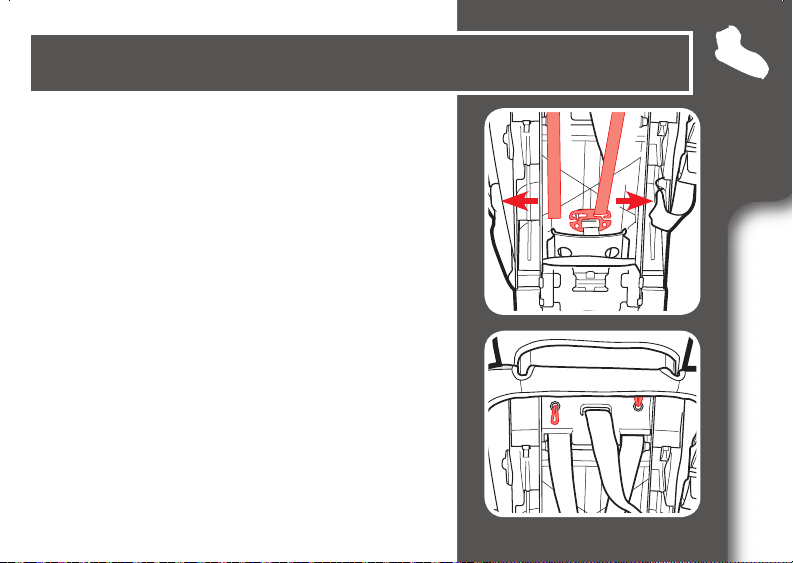

1. Make sure harness straps are loose, remove
both harness strap loops from splitter plate on
back of child restraint and pull through front
of pad. Open chest clip, release tongues from
buckle.
9-A
Cleaning Seat Pad
2. Remove the elastic straps from the
hooks on back of seat as shown.
84
9 Care &
Cleaning
3. Remove Seat Pad from Shell by
Pushing Harness Straps and Buckle
Strap Through Seat Pad.
4. Remove head support cover by pulling
the tab out from behind the head sup-
port foam and then peel the cover off
the head support.
85
Important
I
m
p
ortant
9 Care &
Cleaning

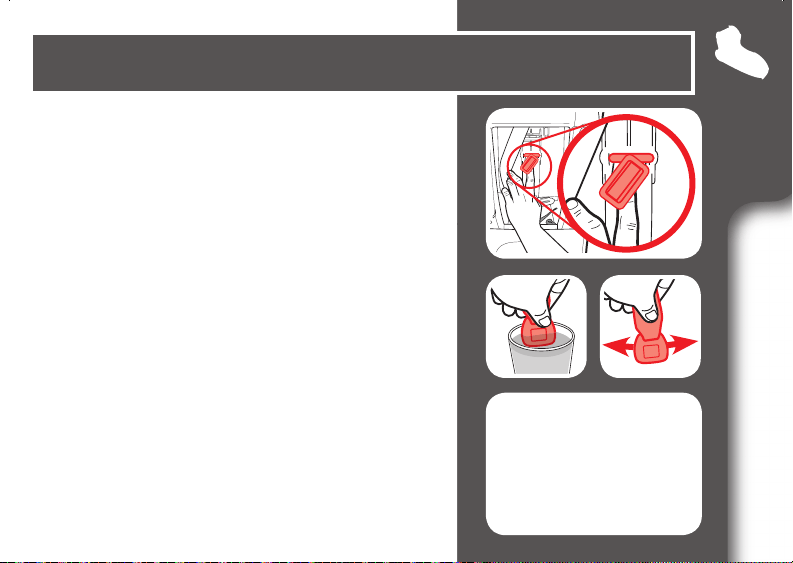

Recline the car seat and locate the metal retainer.
Rotate the metal retainer up through the shell and
pad. From the front, pull the buckle strap out.
To clean buckle, place in a cup of warm water
and gently agitate the buckle. Press the red
button several times while in the water.
DO NOT SUBMERGE THE BUCKLE STRAP. DO
NOT USE SOAPS, HOUSEHOLD DETERGENTS or
LUBRICANTS.
Shake out excess water and allow to air dry.
Repeat steps as needed until it fastens with a
click. Re-insert the buckle into the same slot it
was removed. Pull up on buckle strap to make
sure it is secured.
9-B Cleaning Buckle
WARNING! Inspect and
clean buckle from time
to time to remove any
objects or debris that
could prevent latching.
86
9 Care &
Cleaning
9-C Cleaning Harness and LATCH
Surface wash only with mild soap and damp
cloth. DO NOT IMMERSE THE HARNESS
STRAPS or LATCH STRAP IN WATER Doing so
may weaken the straps.
If harness straps or LATCH strap are frayed or
heavily soiled, contact Customer Service at
www.gracobaby.com or 1-800-345-4109.
87
NOTES:
88
To purchase parts or accessories in the United States, please contact us at the following:
www.gracobaby.com
or
1-800-345-4109
Store instruction manual behind the tab with
the instruction book icon as shown.
Replacement Parts
NWL0000644875C 3/19
CONTENDER 65/ADMIRAL 65
T
CONVERTIBLE CAR SEAT
www.gracobaby.com
Do not install or use this
child restraint until you
read and understand the
instructions in this manual.
FAILURE TO PROPERLY USE
THIS CHILD RESTRAINT
INCREASES THE RISK OF
SERIOUS INJURY OR DEATH
IN A SUDDEN STOP OR
