Owner's Manual
CRIIFTSHAN
5.0 HORSEPOWER
22" REAR DISCHARGE
POWER PROPELLED
ROTARY LAWN MOWER
Model No.
917.377523
Safety
Assembly
Operation
Maintenance
Espafiol
Repair Parts
CAUTION:
Read and followall
Safety Rulesand Instructions
beforeoperatingthisequipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman

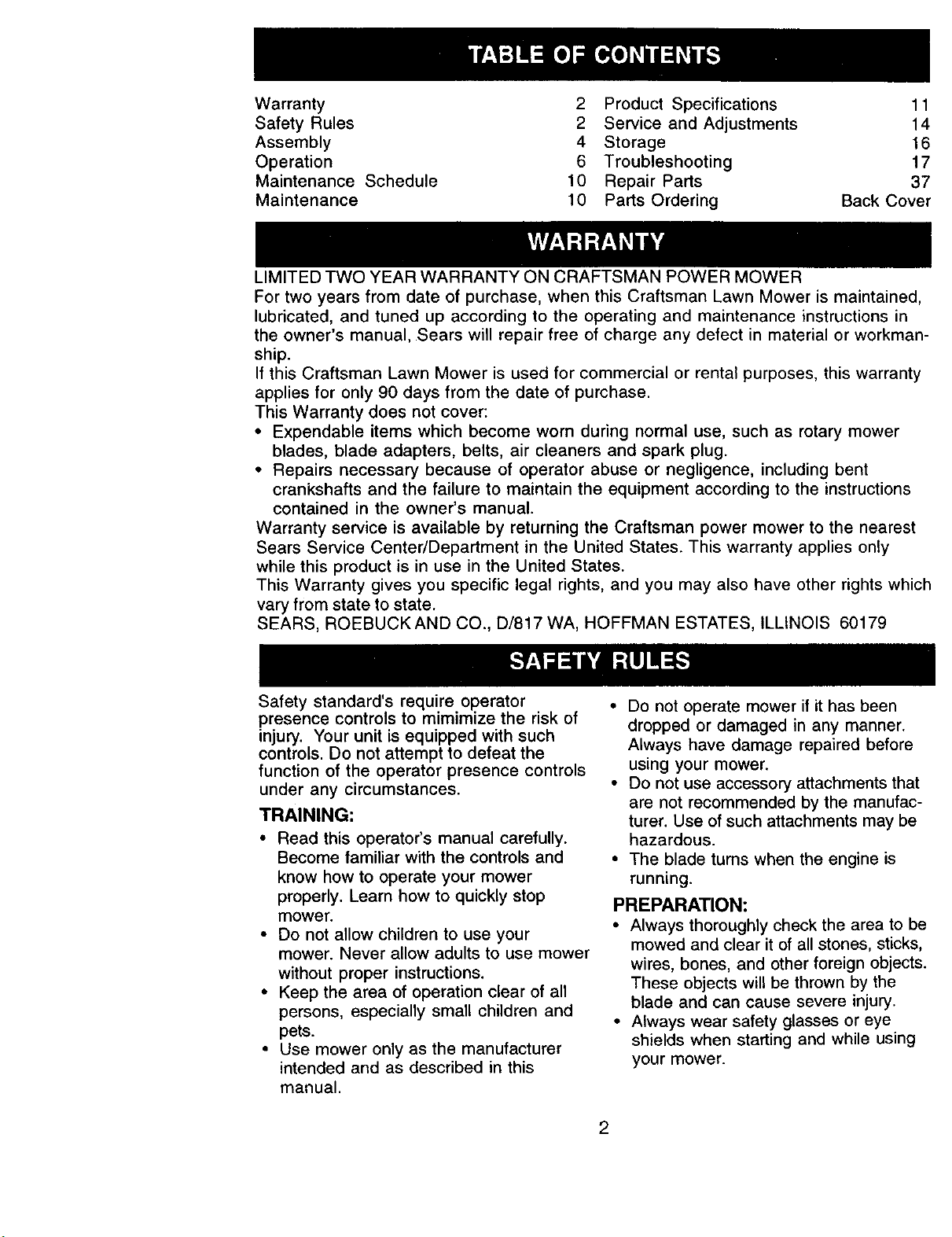

background
Warranty 2 Product Specifications 11
Safety Rules 2 Service and Adjustments 14
Assembly 4 Storage 16
Operation 6 Troubleshooting 17
Maintenance Schedule 10 Repair Parts 37
Maintenance 10 Parts Ordering Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
Safety standard's require operator
presence controls to mimimize the risk of
injury. Your unit is equipped with such
controls. Do not attempt to defeat the
function of the operator presence controls
under any circumstances.
TRAINING:
Read this operator's manual carefully.
Become familiar with the controls and
know how to operate your mower
properly. Learn how to quickly stop
mower.
Do not allow children to use your
mower. Never allow adults to use mower
without proper instructions.
Keep the area of operation clear of all
persons, especially small children and
pets.
Use mower only as the manufacturer
intended and as described in this
manual.
Do not operate mower if it has been
dropped or damaged in any manner.
Always have damage repaired before
using your mower.
Do not use accessory attachments that
are not recommended by the manufac-
turer. Use of such attachments may be
hazardous.
The blade turns when the engine is
running.
PREPARATION:
Always thoroughly check the area to be
mowed and clear it of all stones, sticks,
wires, bones, and other foreign objects.
These objects will be thrown by the
blade and can cause severe injury.
Always wear safety glasses or eye
shields when starting and while using
your mower.
2
background
Dress properly. Do not operate mower
when barefoot or wearing open sandals.
Wear only solid shoes with good traction
when mowing.
Check fuel tank before starting engine.
Do not fill gas tank indoors, when the
engine is running or when the engine is
hot. Allow the engine to cool for several
minutes before filling the gas tank.
Clean off any spilled gasoline before
starting the engine.
Always make wheel height adjustments
before starting your mower. Never
attempt to do this while the engine is
running.
Mow only in daylight or good artificial
light.
OPERATION:
Keep your eyes and mind on your
mower and the area being cut. Do not
let other interests distract you.
Do not mow wet or slippery grass. Never
run while operating your mower. Always
be sure of your footing - keep a firm hold
on the handles and walk.
Do not put hands or feet near or under
rotating parts. Keep clear of the dis-
charge opening at all times.
Always stop the engine whenever you
leave or are not using your mower, or
before crossing driveways, walks, roads,
and any gravel-covered areas.
Never direct discharge of material
toward bystanders nor allow anyone
near the mower while you are operating
it.
Before cleaning, inspecting, or repairing
your mower, stop the engine and make
absolutely sure the blade and all
moving parts have stopped. Then
disconnect the spark plug wire and keep
it away from the spark plug to prevent
accidental starting.
Do not continue to run your mower if you
hit a foreign object. Follow the proce-
dure outlined above, then repair any
damage before restarting and operating
your mower.
Do not change the governor settings or
overspeed the engine. Engine damage
or personal injury may result.
Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration
and repair as required.
Do not run the engine indoors. Exhaust
fumes are dangerous.
Never cut grass by pulling the mower
towards you. Mow across the face of
slopes, never up and down or you might
lose your footing. Do not mow exces-
sively steep slopes. Use caution when
operating the mower on uneven terrain
or when changing directions - maintain
good footing.
Never operate your mower without
proper guards, plates, grass catcher or
other safety devices in place.
MAINTENANCE AND STORAGE:
Check the blade and the engine
mounting bolts often to be sure they are
tightened properly.
Check all bolts, nuts and screws at
frequent intervals for proper tightness to
be sure mower is in safe working
condition.
Keep all safety devices in place and
working.
To reduce fire hazard, keep the engine
free of grass, leaves or excessive
grease and oil.
Check grass catcher often for deteriora-
tion and wear and replace worn bags.
Use only replacement bags that are
recommended by and comply with
specifications of the manufacturer of
your mower.
Always keep a sharp blade on your
mower.
Allow engine to cool before storing in
any enclosure.
Never store mower with fuel in the tank
inside a building where fumes may
reach an open flame or an ignition
source such as a hot water heater,
space heater, clothes dryer, etc.
ALook for this symbol to point out
important safety precautions. It means
CAUTION!H BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
ACAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
_.WARNING
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects, or
other reproductive harm.
3
background
These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and service
centers. Most Sears stores can also order repair pads for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS
MULCHER KITS
1 GRASSCATCHERS
FOR
STABILIZER
GAS CANS
SIDE DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as-
sembled at the factory with the exception of
those parts left unassembled for shipping
purposes. To ensure safe and proper
operation of your lawn mower, all parts and
hardware you assemble must be tightened
securely. Use the correct tools as neces-
sary to ensure proper tightneSS. All parts
such as nuts, washers, bolts, etc., neces-
sary to complete the aSSembly have been
placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARTON
Remove loose parts included with mower.
Cut down two end comers of carton and
lay end panel down flat.
Remove all packing materials except
padding between upper and lower handle
and padding holding operator presence
control bar to upper handle.
Roll lawn mower out of carton and check
carton thoroughly for additional loose
pads.
HOWTO SET UPYOUR LAWN MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handles carefully so as
not to pinch or damage control cables
Raise handles until lower handle section
locks into place in mowing position.
Remove protective padding, raise upper
handle section into place on lower handle
and tighten both handle knobs.
Remove handle padding holding operator
presence control bar to upper handle.
4
background
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "Adjust
Handle" in the Service and Adjustment
section of this manual.
Operator presence control
bar _ r,_
Upper handle ,,_ /_P__,-,,,
Lift uO ,.../J/i _ .,y
"_ Mowing position
Lower handle

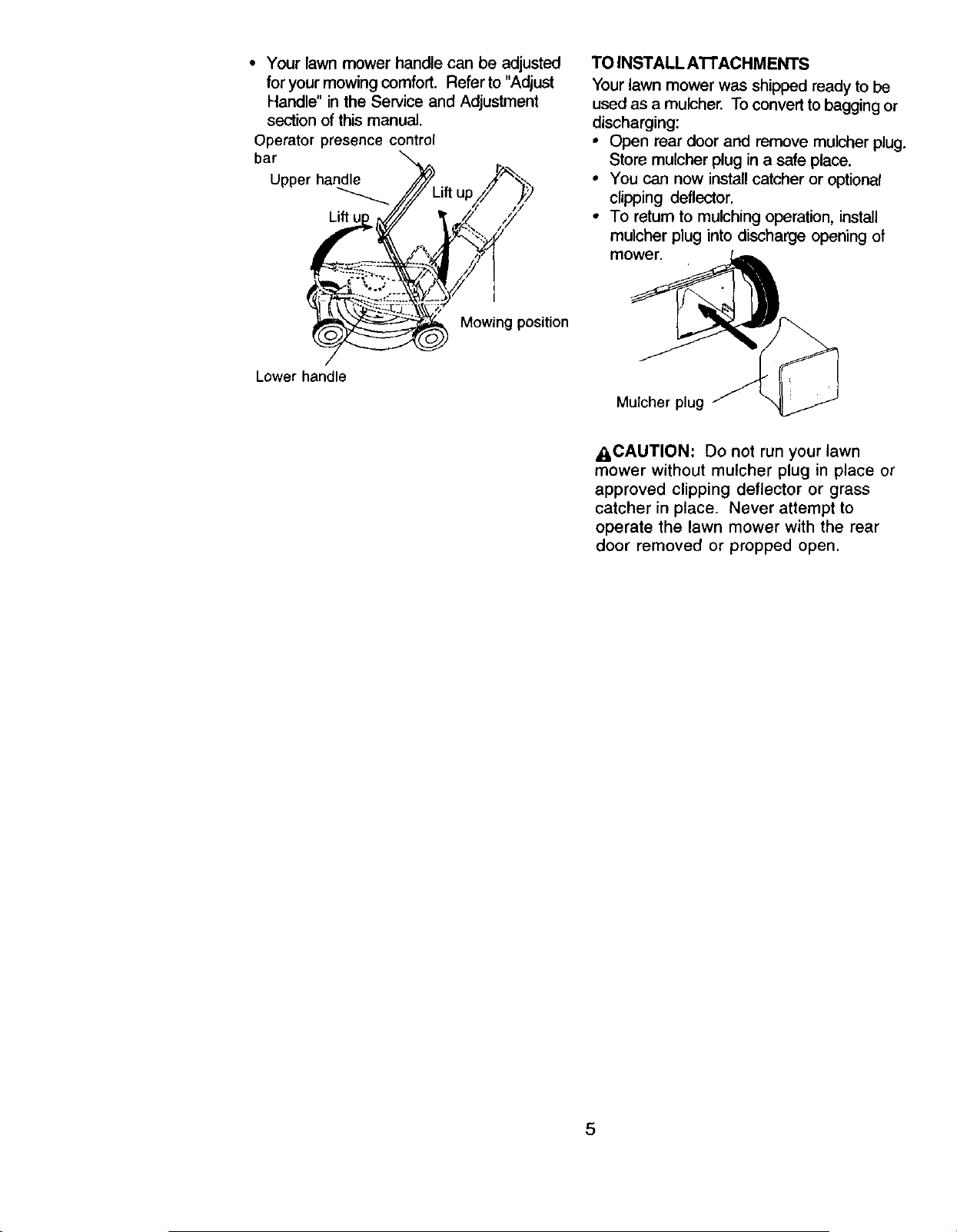

TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging or
discharging:
Open rear door and remove mulcher plug.
Store mulcher plug in a safe place.
You can now install catcher or optional
clipping deflector.
To return to mulching operation, install
mulcher plug into discharge opening of
mower.
Mulcher plug
_I,CAUTION: Do not run your lawn
mower without mulcher plug in place or
approved clipping deflector or grass
catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
5
background

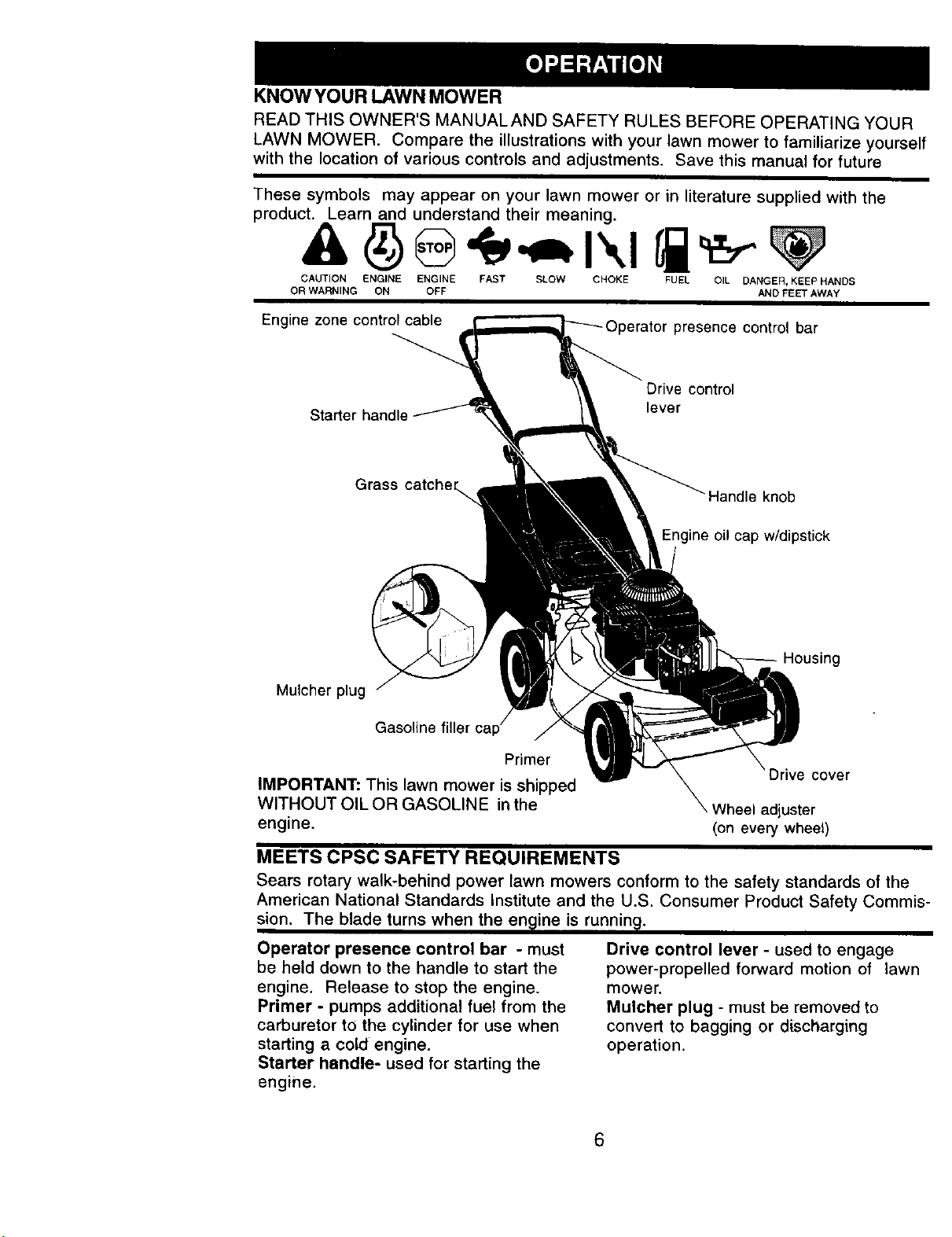

KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself
with the location of various controls and adjustments. Save this manual for future
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Engine zone control cable
presence control bar
Starter handle
Drive control
lever
Grass catche_
landle knob
Engine oil cap w/dipstick
Housing
Mulcher plug
Gasoline
Primer
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Drive cover
Wheel adjuster
(on every wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards institute and the U.S. Consumer Product Safety Commis-
sion, The blade turns when the engine is running.
Operator presence control bar - must
be held down to the handle to start the
engine. Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle- used for starting the
engine.
Drive control lever - used to engage
power-propelled forward motion of lawn
mower.
Mulcher plug - must be removed to
convert to bagging or discharging
operation.
6
background
The operation of any lawn
mower can result in foreign
objects thrown into the eyes,
which can result in severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments or repairs.
We recommend a wide vision safety
mask over spectacles or standard safety
glasses.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
_I, CAUTION." Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST cUTrlNG HEIGHT
Raise wheels for low cut and lower
wheels for high cut.
Adjust cutting height to suit your
requirements. Medium position is best
for most lawns.
To change cutting height, squeeze
adjuster lever toward wheel. Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the
same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
Lower Wheels for High Cut Plate Tab
Lever
Raise Wheels for Low Cut
TO ATTACH GRASS CATCHER
Close the flip lid. Flip lid must be
closed while operating lawn mower.
Lift the rear door on the mower housing
and place the grass catcher frame onto
the formed tabs on the rear door hinge
bracket.
The grass catcher is secured to the
lawn mower housing when the rear
door is lowered onto the grass catcher
frame.
,q,CAUTION: Do not run your lawn
mower without clipping deflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
P,ear door
Hinge Grass
catcher frame
Forme, "_
tabs
TO EMPTY GRASS CATCHER
To remove grass catcher, release
operator presence control bar to stop
engine.
Lift up rear door and remove the grass
catcher by the handle.
NOTE: Do not drag the bag when empty-
ing; it will cause unnecessary wear.
7
background
DRIVE CONTROL
Self-propelling is controlled by holding the
operator presence control bar down to the
handle and pushing the drive control lever
forward until itclicks; then release the drive
control lever.
Forward motion will stop when the operator
presence control bar is released. To stop
forward motion without stopping engine,
release the operator presence control bar
slightly until the drive control disengages.
Hold operator presence control bar down
to handle to continue mowing without self-
propelling.
To keep drive control engaged when
turning comers, push down on handle and
liftfront wheels off ground while turning
lawn mower.
Operator presence
control bar
Drive Drive
To engage control control
Drive control
drive control disengaged
BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oil in the
engine.
Be sure mower is level and area around oil
fill is clean.
Remove engine oil cap and fill to the full
line on the dipstick.
NOTE: Allow oil to settle down into
engine for accurate dipstick reading.
Engine holds 20 ozs. of oil. For type and
grade of oil to use, see "ENGINE" in
Maintenance section of this manual.
Pour oil slowly. Do not overfill.
Check oil level before each use. Add oil if
needed. Fill to full line on dipstick.
To read proper level, tighten engine oil cap
each time.
Reinstall engine oil cap and tighten.
Change the oil after every 25 hours of
operation or each season. You may need
to change the oil more often under dusty,
dirty conditions.
ADD GASOUNE
NOTE: Before filling fuel tank, remove
and discard the debris plug that is inside
the tank.
Fillfuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of 87
octane. Do not mix oil with gasoline.
Purchase fuel in quantities that can be
used within 30 days to assure fuel
freshness.
_WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
_,CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
TO START ENGINE
To start a cold engine, push primer three
(3) times before trying to start. Use a firm
push. This step is not usually necessary
when starting an engine which has
already run for a few minutes.
Hold operator presence control bar down
to the handle and pull starter handle
quickly. Do not allow starter rope to snap
back.
To stop engine, release operator presence
control bar.
8
NOTE: In cooler weather it may be neces-
sary to repeat priming steps. In warmer
weather over primieg may cause flooding
and engine will not start. If you do flood
engine, wait a few minutes before attempting
to start and do not repeat priming steps.
Engine oilcap
Gasoline filler cap
i Discard
debris plug
inside)
background
MOWING TIPS
Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
When using a rear discharge lawn
mower in moist, heavy grass, clumps of
cut grass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
If a trail of clippings is left on the right
side of a rear discharge mower, mow in
a clockwise direction with a small
overlap to collect the clippings on the
next pass.
Pores in cloth grass catchers can
become filled with dirt and dust with-
use and catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using.
Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. See "Cleaning" in MAINTENANCE
section of this manual.
The special mulching blade will recut the
grass clippings many times and reduce
them in size so that as they fall onto the
lawn they will disperse into the grass and
not be noticed. Also, the mulched grass will
biodegrade quickly to provide nutrients for
the lawn. Always mulch with your highest
engine (blade) speed as this will provide
the best recutting action of the blades.
Avoid cutting your lawn when it is wet. Wet
grass tends to form clumps and interferes
with the mulching action. The best time to
mow your lawn is the early afternoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
For best results, adjust the lawn mower
cutting height so that the lawn mower cuts
off only the top one-third of the grass
blades. If the lawn is overgrown it will be
necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching, reduce your width of cut
by overlapping previously cut path and
mow slowly.
Certain types of grass and grass condi-
tions may require that an area be mulched
a second time to completely hide the
clippings. When doing a second cut, mow
across or perpendicular to the first cut path.
Change your cutting pattem from week to
week. Mow north to south one week then
change to east to west the next week, This
will help prevent matting and graining of
the lawn.
Max. 1/3
9
background
MAINTENANCE SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
Check for Loose Fasteners -I1_
Cleardtnspect Grass Catcher
(If Equipped) V t Vq
Clean Lawn Mower
v'
Clean Under Drive Cover
(Power-Propelled Mowers)
Check drive belt/pulleys
(Power-Propelled Mowers)
Check/Sharpen/Replace Blade
Lubrication Chart
Clean Battery/Recharge
IElectric Start MowersI
Check Engine Oil Level IV!
Change Engine Oil
Clean Air Filter
Inspect Muffler
Clean or Replace Spark Plug
Replace Air Filter Paper Cartridge
v'
i,,,
v'
v%
v'
V#1,2
V'2
V'_
SERVICE DATES
V'4
1 -Change more olten when operating under a heavy load or in high ambient temperatures,
2 -Service more often when operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soil.
4 -Charge 48 hours at end of season,
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
Once a year, replace the spark plug,
replace air filter element and check
blade for wear. A new spark plug and
clean/new air filter element assures
proper air-fuel mixture and helps your
engine run better and last longer.
Follow the maintenance schedule in
this manual.
BEFORE EACH USE
Check engine oil level.
Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICA-
TION CHART").
LUBRICATION CHART
_ Wheel Adjuster
I
Engine oil
"_(_ Rear door
(_) Handle bracket hinge
mounting pin
O Spay lubricant
(_ Refer to MAINTENANCE "ENGINE"
section.
IMPORTANT: Do not oil or grease
plastic wheel bearings. Viscous lubricants
will attract dust and dirt that will shorten
the life of the self lubricating bearings. If
you feel they must be lubricated, use only
a dry, powdered graphite type lubricant
sparingly.
10
background

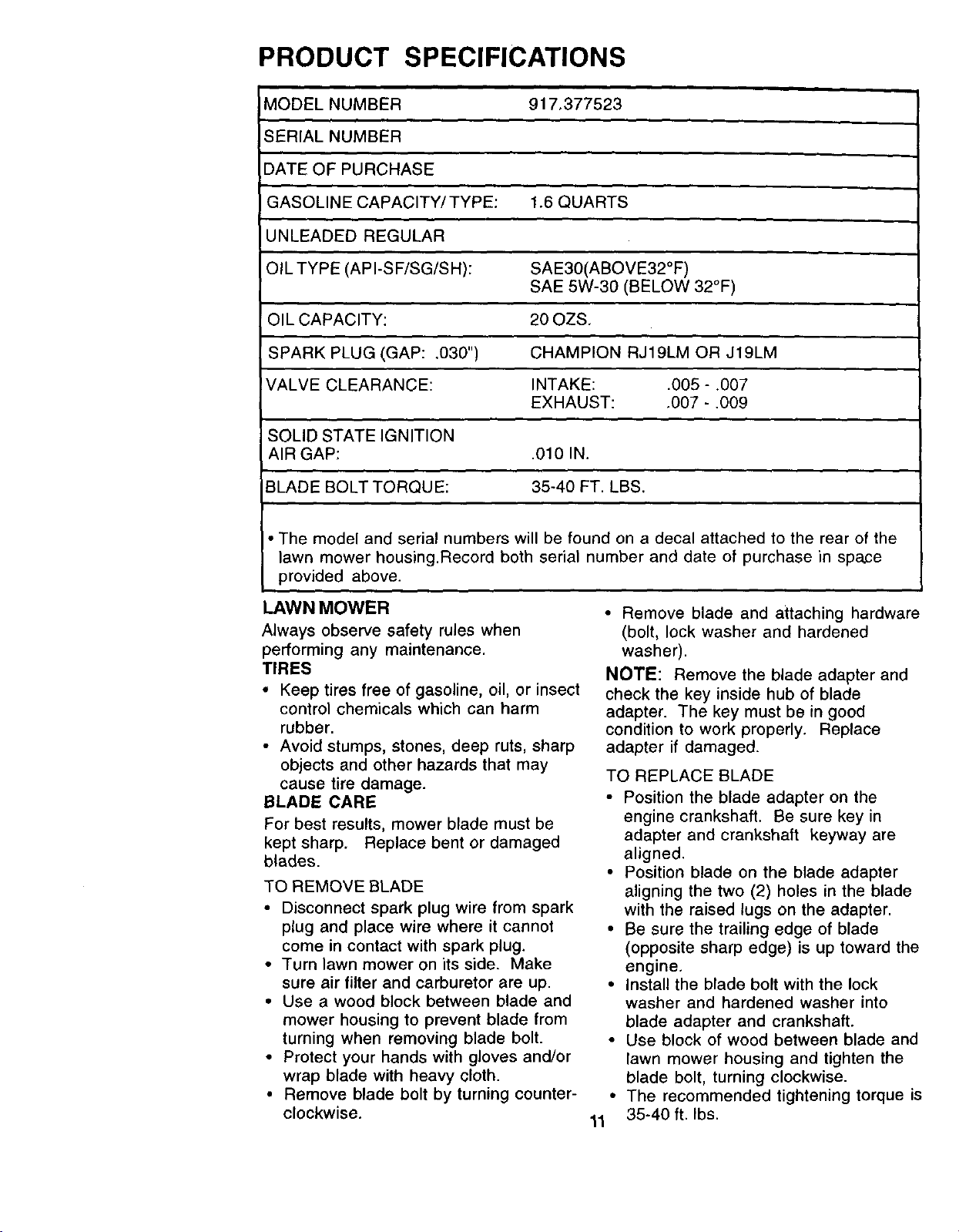

PRODUCT SPECIFICATIONS
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.6 QUARTS
UNLEADED REGULAR
OIL TYPE (API-SF/SG/SH):
OIL CAPACITY:
SPARK PLUG (GAP: .030")
VALVE CLEARANCE:
917,377523
SAE30(ABOVE32°F)
SAE 5W-30 (BELOW 32°F)
20 OZS.
CHAMPION RJ19LM OR J19LM
INTAKE: .005 - .007
EXHAUST: .007 - .009
SOLID STATE IGNITION
AIR GAP: .010 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWNMOWER Remove blade and attaching hardware
Always observe safety rules when
performing any maintenance.
TIRES
Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good
condition to work properly. Replace
adapter if damaged.
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
Turn lawn mower on its side. Make
sure air tilter and carburetor are up.
Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
Protect your hands with gloves and/or
wrap blade with heavy cloth.
Remove blade bolt by turning counter-
clockwise.
TO REPLACE BLADE
11
Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
The recommended tightening torque is
35-40 ft. Ibs.
background
IMPORTANT: Bladeboltisgrade8heat
treated.

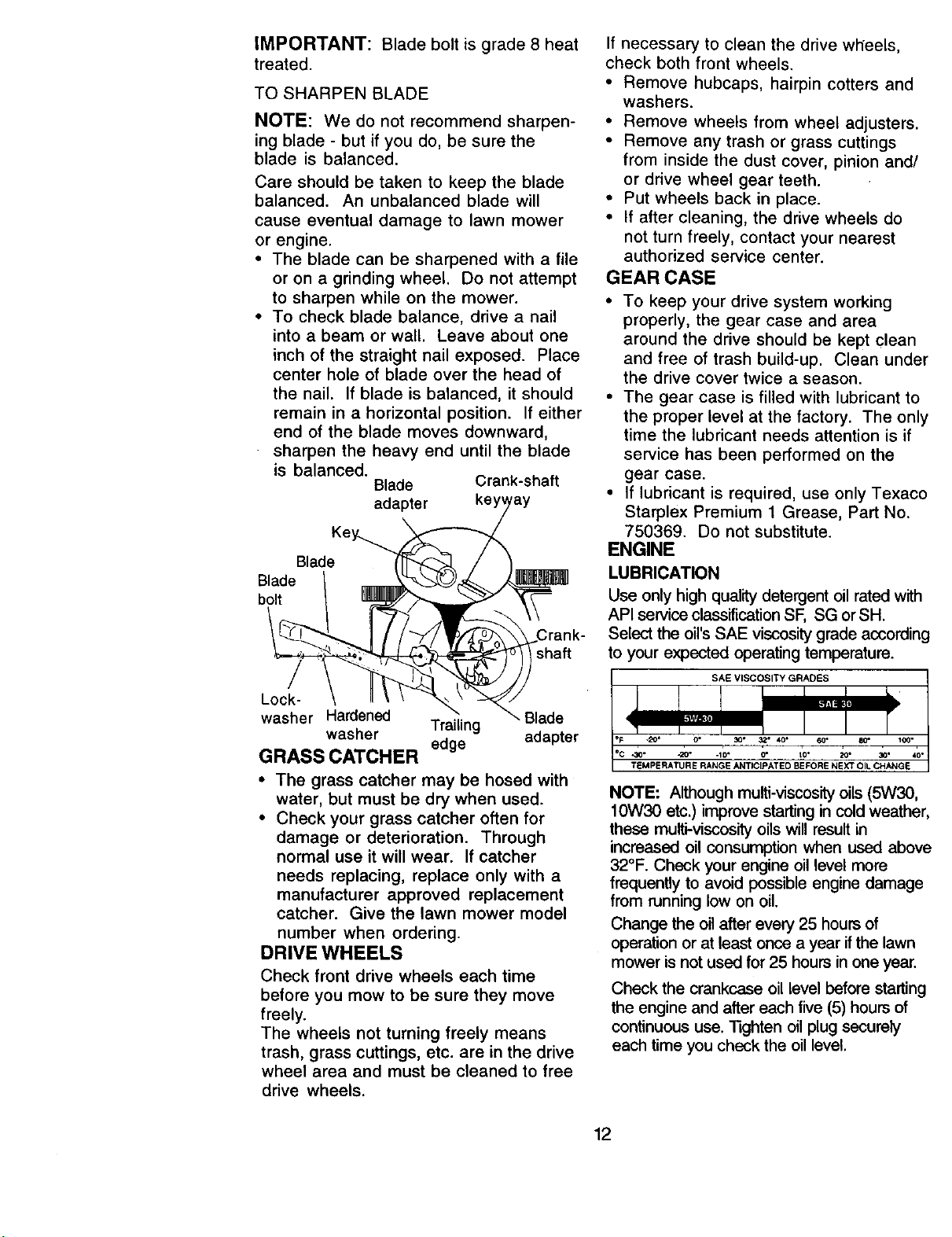

TOSHARPENBLADE
NOTE: Wedo notrecommendsharpen-
ingblade- butif youdo,besurethe
bladeis balanced.
Careshouldbe takento keeptheblade
balanced. An unbalancedbladewill
causeeventualdamageto lawn mower
orengine.
Thebladecan besharpenedwitha file
oron agrindingwheel. Do notattempt
to sharpenwhileon themower.
To checkbladebalance,drivea nail
intoa beamorwall. Leaveaboutone
inchofthestraightnail exposed. Place
centerholeof bladeoverthe headof
thenail. Ifbladeis balanced,itshould
remaininahorizontalposition. Ifeither
end ofthe blademovesdownward,
sharpentheheavyenduntilthe blade
is balanced.
Blade Crank-shaft
adapter key,vay
Blade
Blade
bolt
Lock-
washer Hardened Trailing \ Blade
washer edge adapter
GRASS CATCHER
The grass catcher may be hosed with
water, but must be dry when used.
Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catcher
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
DRIVE WHEELS
Check front drive wheels each time
before you mow to be sure they move
freely.
The wheels not turning freely means
trash, grass cuttings, etc. are in the drive
wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels,
check both front wheels.
Remove hubcaps, hairpin cotters and
washers.
Remove wheels from wheel adjusters.
Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
Put wheels back in place.
If after cleaning, the drive wheels do
not turn freely, contact your nearest
authorized service center.
GEAR CASE
To keep your drive system working
properly, the gear case and area
around the drive should be kept clean
and free of trash build-up. Clean under
the drive cover twice a season.
The gear case is filled with lubricant to
the proper level at the factory. The only
time the lubricant needs attention is if
service has been performed on the
gear case.
If lubricant is required, use only Texaco
Starplex Premium 1 Grease, Part No.
750369. Do not substitute.
ENGINE
LUBRICATION
Use only high quality detergent oil rated with
API service classification SF, SG or SH.
Select the oil's SAE viscosity grade according
to your expected operating temperature.
SAE VISCOSITY GRADES
.20' 60' 80'
.30- .20. O" 10. 20* 30'
TEMPERATURE RANGE ANTtCIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W30,
10W30 etc.) improve starting in cold weather,
these multi-viscosity oils will result in
increased oil consumption when used above
32°F. Check your engine oil level more
frequently to avoid possible engine damage
from running low on oil.
Change the oil after every 25 hours of
operation or at least once a year ifthe lawn
mower is not used for 25 hours in one year.
Check the crankcase oil level before starting
the engine and after each five (5) hours of
continuous use. l]ghten oil plug securely
each time you check the oil level.
12
background

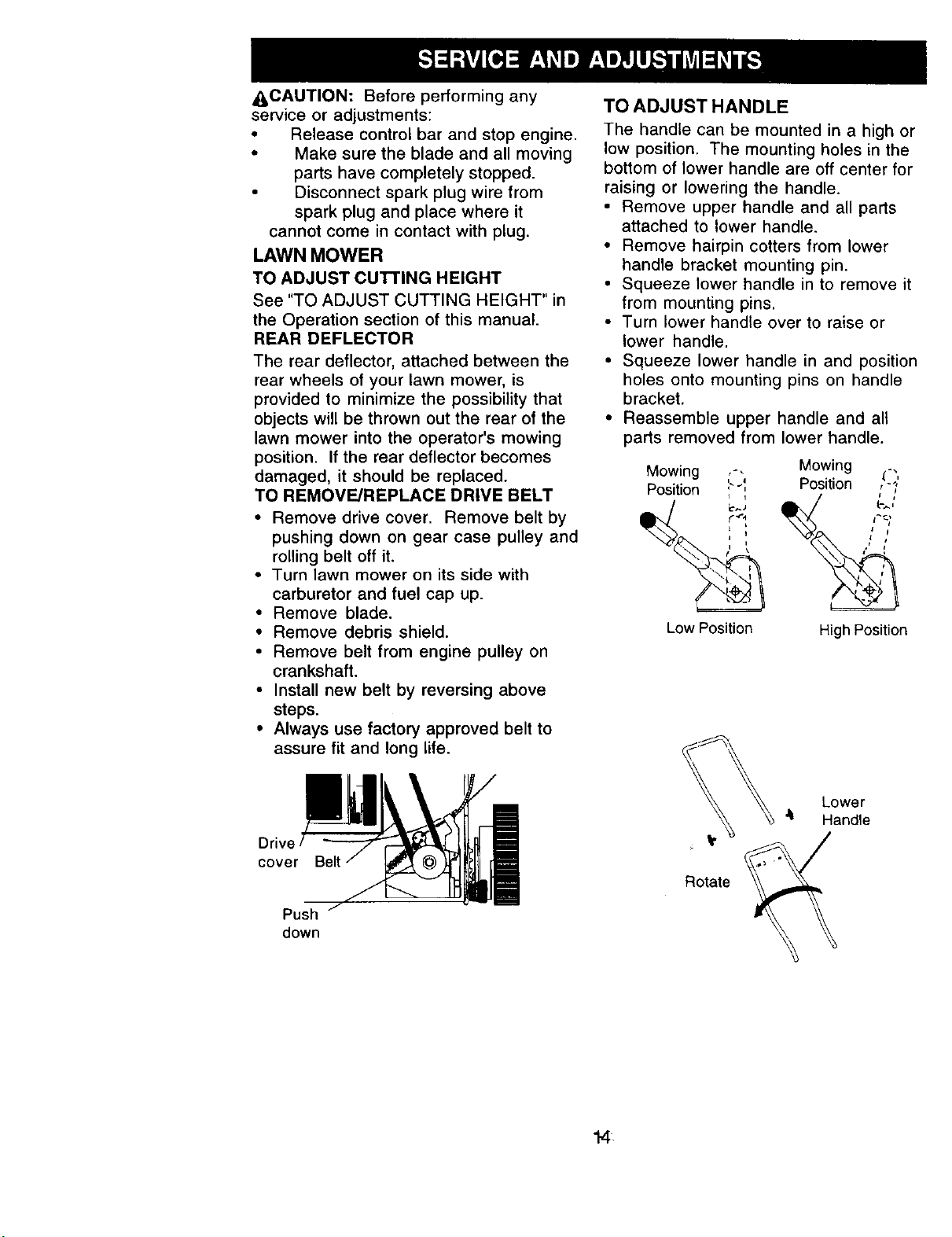

_,CAUTION: Before performing any
se[vice or adjustments:
Release control bar and stop engine.
Make sure the blade and all moving
parts have completely stopped.
Disconnect spark plug wire from
spark plug and place where it
cannot come in contact with plug.
LAWN MOWER
TO ADJUST CUTI'ING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your lawn mower, is
provided to minimize the possibility that
objects will be thrown out the rear of the
lawn mower into the operator's mowing
position. If the rear deflector becomes
damaged, it should be replaced.
TO REMOVE/REPLACE DRIVE BELT
Remove drive cover, Remove belt by
pushing down on gear case pulley and
rolling belt off it.
Turn lawn mower on its side with
carburetor and fuel cap up.
Remove blade.
Remove debris shield.
Remove belt from engine pulley on
crankshaft.
Install new belt by reversing above
steps.
Always use factory approved belt to
assure fit and long life.
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
Remove upper handle and all parts
attached to lower handle.
Remove hairpin cotters from lower
handle bracket mounting pin.
Squeeze lower handle in to remove it
from mounting pins.
Turn lower handle over to raise or
lower handle.
Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
Reassemble upper handle and all
parts removed from lower handle.
Mowing ,-, Mowing .,
Position :,-', Position ,(-_,'
1 i
I
Low Position High Position
Driv_
cover
f
Push i
down
I"
Rotate
Lower
Handle

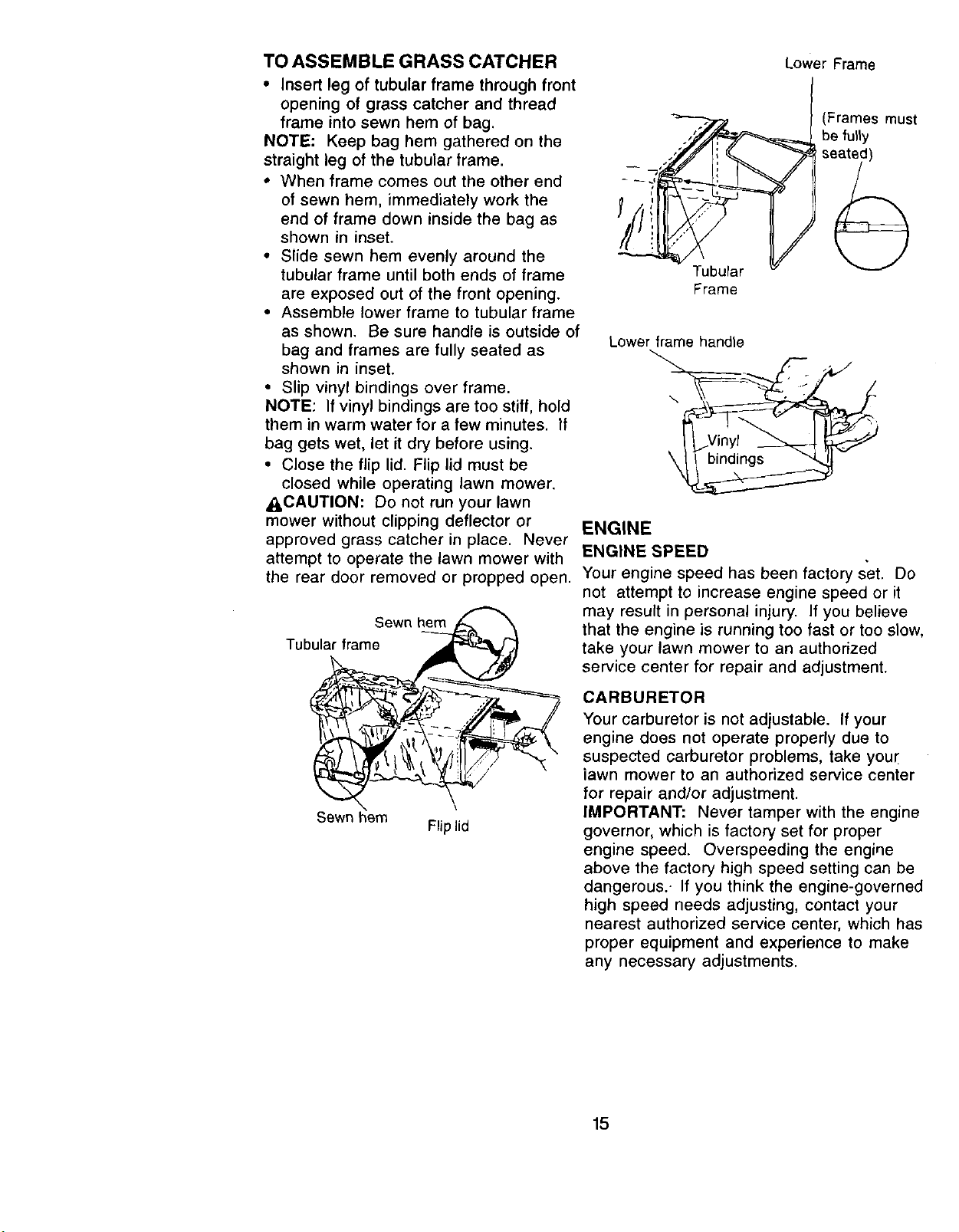

background
Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
C_ean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
Lubricate as shown in the Maintenance
section of this manual.
Be sure that all nuts, bolts, screws, and
pins are securely fastened. Inspect
moving parts for damage, breakage
and wear. Replace if necessary.
Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
Squeeze the bottom ends of the lower
handle toward each other until the
lower handle clears the handle bracket,
then move handle forward.
Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
* When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position. Lower handle
Handle
bracket
Squeeze to fold
Hairpin cotter
Operator presence control bar
Upper Handle
Fold
forward for
storage
Fold
backward
Mowing
position
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
Drain the fuel tank.
Start the engine and let it run until the
fuel lines and carburetor are empty.
Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits dudng storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
Remove spark plug.
Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
16
background
Pull starter handle slowly a few times to
distribute oil.
Replace with new spark plug.
OTHER
Do not store gasoline from one season
to another.
Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
Cover your unit with a suitable protec-
tive cover that does not retain mois-
ture. Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
ACAUTION: Never store the lawn
mower with gasoline in the tank inside a
building where fumes may reach an open
flame or spark. Allow the engine to cool
before storing in any enclosure.

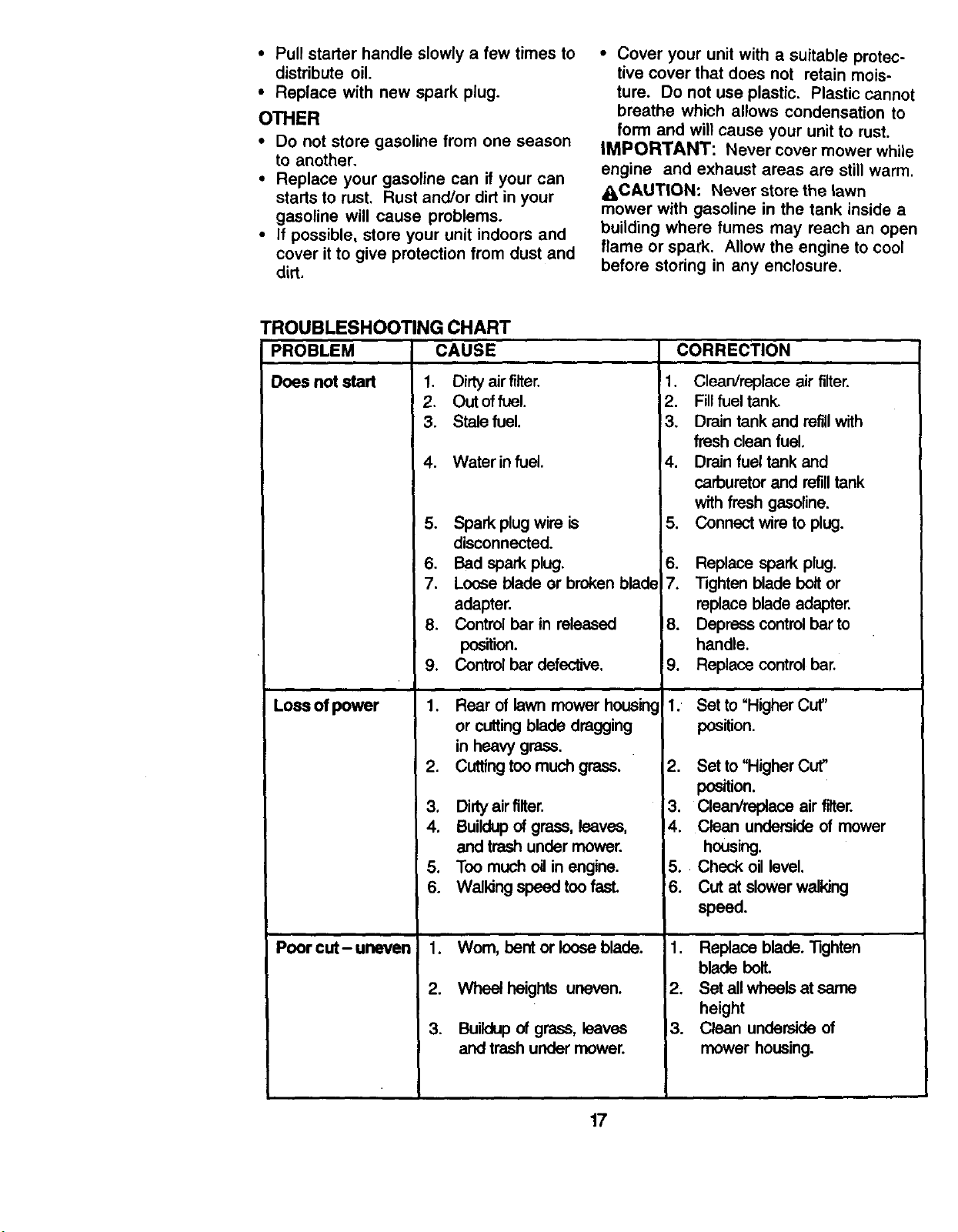

TROUBLESHOOTINGCHART
CAUSEPROBLEM
Doesn_stad
Loss of power
Poor cut- uneven
1. Dirty air filler.
2. Out offuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken blade
adapter.
8. Control bar in released
position.
9. Control bar defective.
.
.
3,
4.
5.
6.
Rear of lawn mower housing
or cutting blade dragging
in heavy grass.
Cutting too much grass.
Dirty air filter.
Buildup of grass, leaves,
and trash under mower.
Too much oil in engine.
Walldng speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
CORRECTION
!1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
i
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
'6. Cut at slower waildng
speed.
1. Replace blade. Tighten
blade bolt.
2; Set all wheels at same
height
3. Clean underside of
mower housing.
17
background
PROBLEM
TROUBLESHOOTING CHART
CAUSE
Excessive
vibration
Starter rope hard
to pull
Lossofddve
Grass catcher
not filling ('Ifso
equipped)
Hardtopush
1. Wom, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheelbrake ison
when controlbar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Drive wheels not tuming
withdrive control engaged.
2. Belt not driving
1. Cutting height too low.
2. Lifton blade wom off.
3. Catcher not venting air.
1. Grass is too high or wheel
height istoo low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not
nght for you.
CORRECTION
1. Replace blade. lighten
blade bolt.
2. Contact an authorized
service center.
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact an authorized
service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface.
1. Adjust or replace drive control
cable.
2. PUt belt on pulleys or
replace belts if broken.
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
i4. Adjust handle height to
suit.
18
background
SERVICE NOTES
36
background

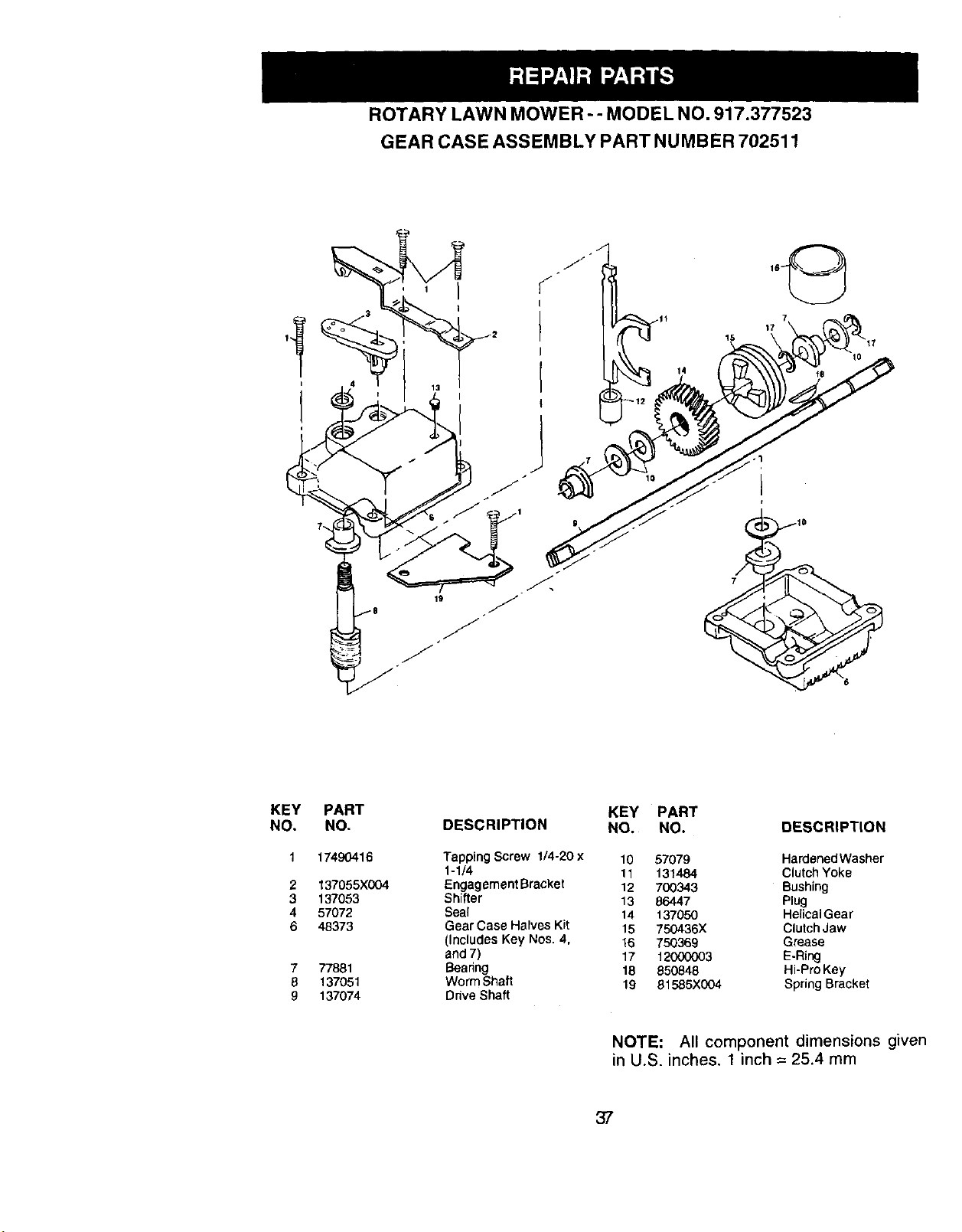

ROTARY LAWN MOWER - - MODEL NO. 917.377523
GEAR CASE ASSEMBLY PART NUMBER 702511
14
1
KEY
NO.
2
3
4
6
7
8
9
PART
NO.
17490416
137055X004
137053
57072
48373
77881
137051
137074
DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
Tapping Screw 1/4-20 x 10 57079 HardanedWasher
1-1/4 11 131484 Clutch Yoke
Engagement Bracket 12 700343 Bushing
Shifter 13 86447 Plug
Seal 14 137050 Helical Gear
Gear Case Halves Kit 15 750436X Clutch Jaw
(Includes Key Nos. 4, 16 750369 Grease
and 7) 17 12000003 E-Ring
Bearing 18 850848 Hi-ProKey
Worm Shaft 19 81585X004 Spring Bracket
Drive Shaft
NOTE: All component dimensions given
in U.S. inches. 1 inch = 25.4 mm
37
background
ROTARY LAWN MOWERMODEL NUMBER917.377523
8
1
13
27
22
J
12 14 -23 31-
56 35
I0_: 39 1
12
30
37
56
52
3O
27
28
29
41
background
ROTARY LAWN MOWER MODEL NUMBER 917.377523
KEY PART
NO. NO.
1 165452X479
2 162788
4 150425
5 66426
6 136376
8 145793
9 151023
10 128415
11 150050
12 STD512505
13 77400
14 156374X479
15 700365X479
16 133190X479
17 140661X479
18 63601
20 140540
22 845£6
23 87677
26 83923
27 151155
26 142748
29 62335
30 145935X£64
31 701037
32 7OO331X004
34 146630
35 700326X007
37 150076
39 151512)(479
40 151511X479
DESCRIPTION KEY PART
NO. NO. DESCRIPTION
UpperHandle
Engine ZoneControl Cable 41 150406
MulcherPlug 44 170025
Wire Ties 46 851514
Handle Knob 47 157101
ControlBar 48 851074
Rear Door Kit 49 850263
Pop Rivet 50 851084
SerfTapping Screw #10-24 x 5/8 51 170031
Hex Tapping Screw w/Sems 1/4-20 x 1/2 52 85463
Hubcap 55 751592
Back Plate 56 88652
Side Baffle 57 51793
Discharge Baffle 58 157081X479
Rear Baffle 59 131959
Keps Locknut 1/4-20 61 132001
Rear Skirt 62 134612
Engine Pulley 64
Hi-Pro Key #505
Hex Flange Nut 70 700327X007
Wheel 71 17600406
Shoulder Bolt 3/8-16x 1 - - 161058
Spring Washer - - 171770
Axle Arm Assembly
Selector Knob
Selector Spdeg - - 7133303
Spacer - - 71 33623
Wheel Adjusting Bracket - - 71 33500
Thread Cutting Screw w/Seres 5/16-18 x 3/4 - - 71 33000
Handle Bracket Assembly (Left) - - 71 33417
Handle Bracket Assembly (Right) -- 7133316
- - 71 33723
Hex Head Thread RoIJingScrew 3/8-16 x 1-1/8
Lawn Mower Housing(Incl. Key #14, 15, & 51)
Blade Adapter
Blade 22"
Hardened Washer
Helical Washer 3/8-24 x 1-3/8 Gr. 8
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
Front Baffle Kit
Danger Decal
Locknot 3/8-16
Hinge Screw 1/4-20 x 1-1/4
Hairpin Cotter
Lower Handle
Handle Bolt
RopeGuide
Debris Shield
Engine - (See Breakdown)
Briggs12H802-1978-E1
Wheel Adjusting Bracket
Screw
Warning Decal (Not shown)
Owner's Manual (English/Spanish)
Available accessories not included with lawn mower:
Clipping Deflector
Gas Can (2.5 gal.)
Fuel Stabilizer
SAE 30W Oil (20 oz.)
Dust Shield
MowerCover
High Wheel Kit
background

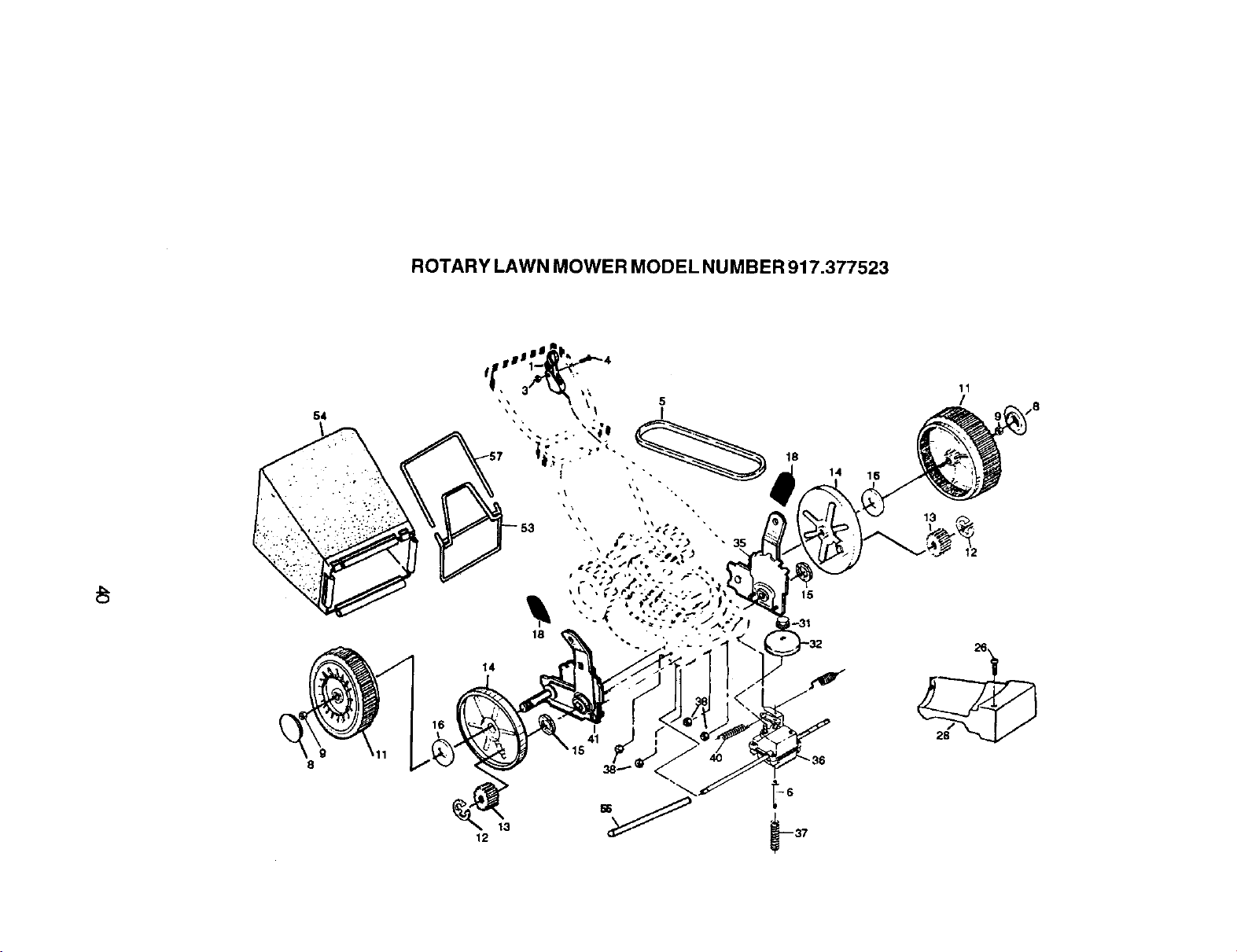

ROTARY LAWN MOWER MODEL NUMBER 917.377523
54
L
o o.
o
,\
\ \
18
9
8
18
15
-3t
14 16
11
/
13
background

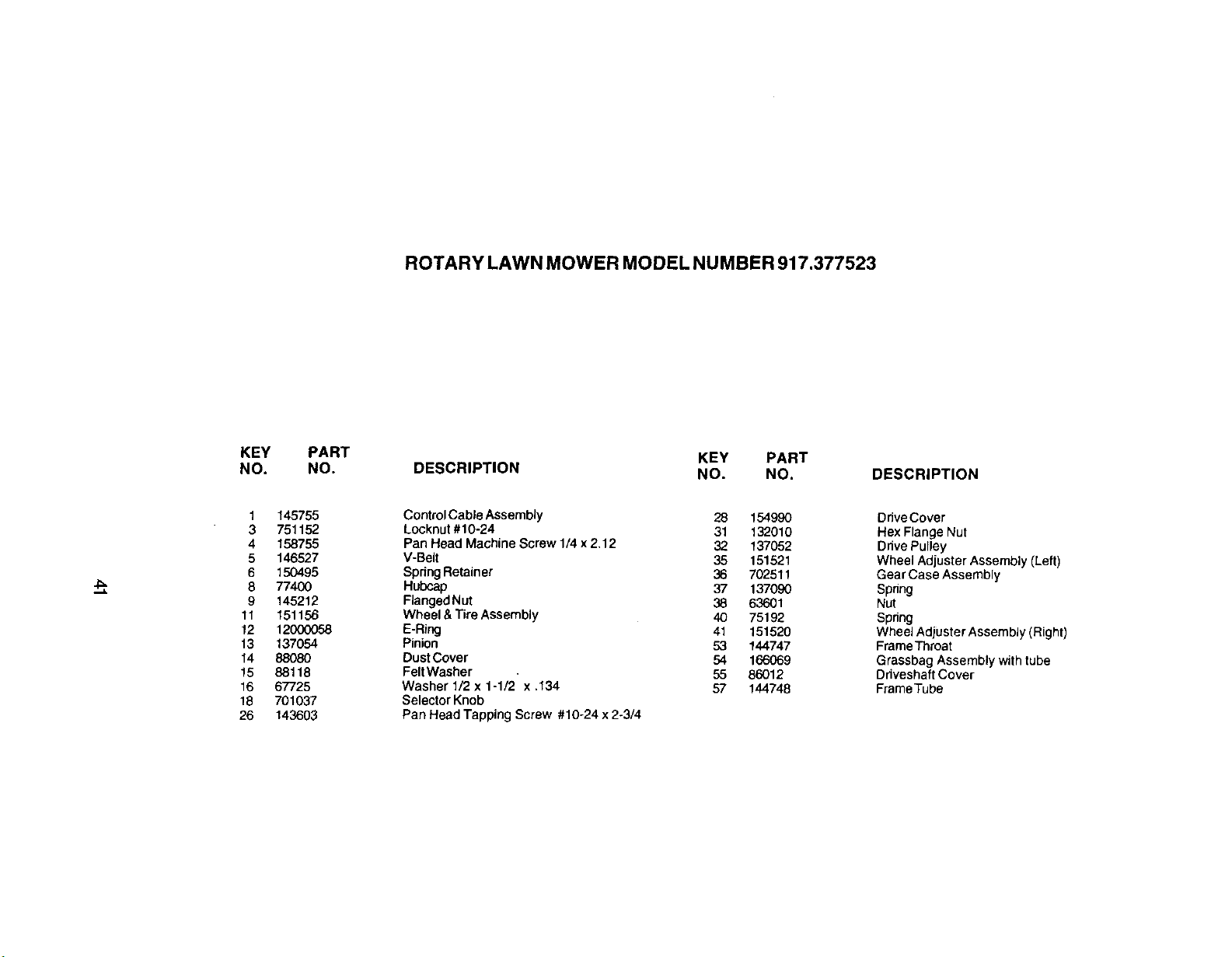

ROTARY LAWN MOWER MODEL NUMBER 917.377523
KEY PART
NO. NO.
KEY PART
DESCRIPTION NO. NO.
DESCRIPTION
1 145755
3 751152
4 158755
5 146527
6 150495
8 774O0
9 145212
11 151156
12 12000058
13 137054
14 88O8O
15 88118
16 67725
18 701037
26 143603
Control Cable Assembly 28 154990
Locknut#10-24 31 132010
Pan Head Machine Screw 1/4 x 2,12 32 137052
V-Belt 35 151521
Spdng Retainer 36 702511
Hubcap 37 137090
Flanged Nut 38 63601
Wheel & Tire Assembly 40 75192
E-Ring 41 151520
Pinion 53 144747
DustCover 54 166069
FeltWasher 55 86012
Washer 1/2 x 1-1/2 x .134 57 144748
Selector Knob
Pan Head Tapping Screw #10-24 x 2-3/4
DdveCover
Hex Flange Nut
Drive Pulley
Wheel Adjuster Assembly (Left)
Gear Case Assembly
Spring
Nut
Spring
Wheel Adjuster Assembly (Right)
Frame Throat
Grassbag Assembly with tube
Ddveshaft Cover
FrameTube
background

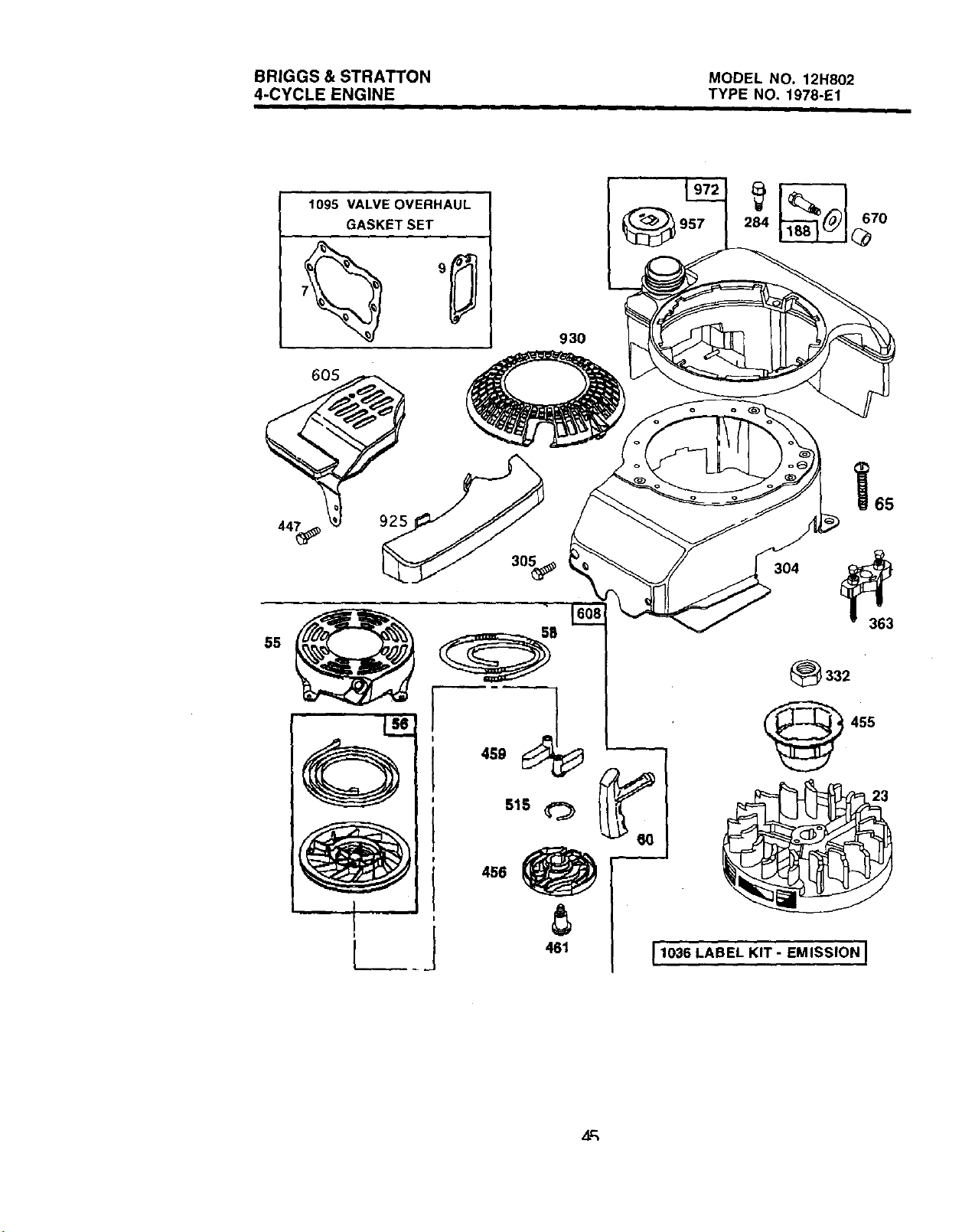

BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 1978-E1
969_:_ 968
606
843
967
621 92_ ;_
258
_971A
_163
%
124
@634
_134
110_ 9_
11oO I
background

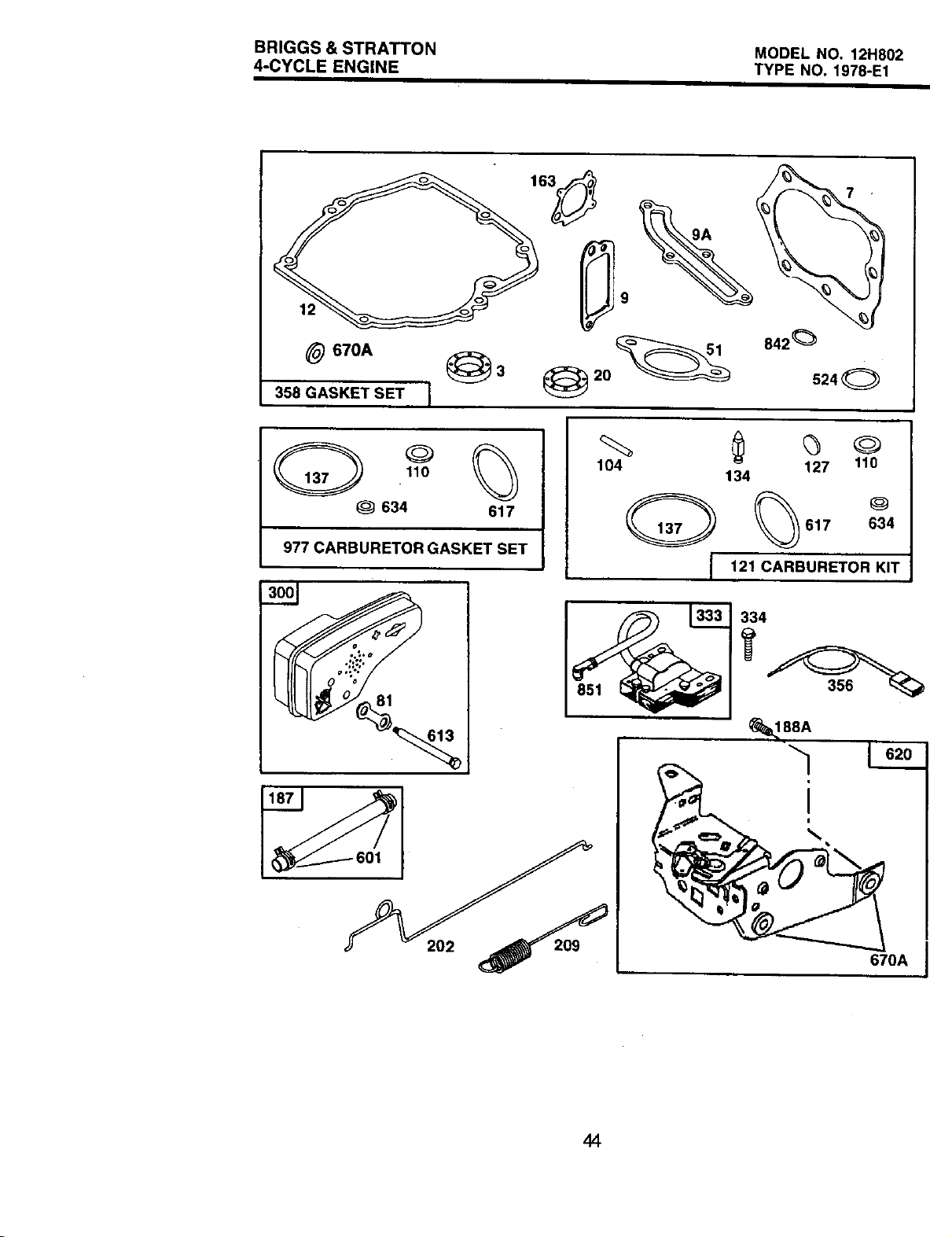

BRIGGS & STRATTON MODEL NO, 12HSQ2
4-CYCLE ENGINE TYPE NO. 1978-E1
_) 670A
_ _o
(_ 634 617
977 CARBURETOR GASKET SET
202
104 127 110
134
°
617 634
I 121 CARBURETOR KIT
334
670A
,44
background
BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 1978-E1
55
1095 VALVEOVERHAUL
GASKETSET
605
930
4S9
51S
461
_332
455
1036 LABEL KIT - EMISSION J
background
BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 1978-E1
PART
NO. NO.
1 493260
2 293708
3 299819
4 493279
5 214368
7 272916
8 495786
9 272481
9A 272238
10 94650
11 231933
12 272198
13 94547
15 94880
16 498565
94388
20 399781
22 94220
94612
23 492177
24 222698
25 499429
499430
499431
499432
26 499425
499426
499427
499426
27 263190
28 499423
29 499424
32 94699
33 262651
34 262652
35 262224
40 93312
45 262204
46 498275
47 493737
51 272199
DESCRIPTION
PART
NO. NO. DESCRIPTION
CylinderAssembly 54 94526
Bushing, Cylinder 55 497442
Seal, Oil 56 498144
Sump, Engine 58 280399
Head, Cylinder
.... Gasket, Cylinder Head 60 261434
Breather Assembly 65 94696
.... Gasket, Valve Cover 81 223664
* Gasket, Baffle Plate 95 94098
Screw, Hex Head 104 231371
Tube, Breather 110 - - -
* Gasket, Crankcase
Screw, Cylinder Head 117 494870
Plug, Oil Drain 121 498260
Crankshaft 124 94840
Timing Gear Key
Seal, Oil 125 498170
Screw, Hex Head 127 - - -
Screw, Hex Head
(Used in Hole Nearest 130 224908
Breather) 131 493267
Flywheel 133 398187
Key, Flywheel 134 398188
Piston Assembly,
Standard Size 137 - - -
Piston Assy. (.010" O.S.)
Piston Assy, (.020" O.S.) 163 272653
Piston Assy, (.030" O.S.) 187 298049
Ring Set, Piston, 188 398540
Standard Size 188A 94644
Ring Set (.010" O.S.) 202 262579
Ring Set (.020" 03.) 209 263044
Ring Set (.030" O.S.)
Lock, Piston Pin
Pin, Piston, Standard
Size
Rod, Connecting,
Standard Size
Screw, Connecting Rod
Valve, Exhaust
Valve, Intake
Spring, Valve
Retainer, Valve Spring
Tappet, Valve
Gear, Cam
Slinger, Oil
* Gasket, Intake Elbow
Screw, Hex Head
Housing, Rewind Stader
Pulley, Rewind Starter
Rope, Rewind Starter
(Cut To 88-5/8")
Grip, Starter Rope
Screw, Phillips
Lock, Muffler Screw
Screw, Round Head
** Pin, Float Hinge
*** Gasket, Sealing (Sold in
Kit Only)
Jet, Main
Carburetor Kit
Screw,Carburetor
Mounting
Carburetor
* Plug, Welch (Sold in Kit
Only)
Valve, Throttle
Shaft, Throttle
Float, Carburetor
Valve, Inlet (includes
Seat)
*** Gasket, Bowl (Sold in Kit
Only)
* Gasket, Air Cleaner
Hose, Fuel
Screw, Hex Head
Screw, Hex Head
Link, Governor
Spring, Governor
Included in Gasket Set (497316)
** Included in Carburetor Kit(498260)
*** Includedinboth Carburetor Kit (498260),
and Carburetor Gasket Set (498261)
.... Included inboth Gasket Set (497316),
Set (497316) and Valve overhaul
Gasket Set (498528).
NOTE: Allcomponent dimensions given in U.S. inches
1 inch = 25.4 mm
46
background
BRIGGS & STRATTON MODEL NO. 12H802
4-CYCLE ENGINE TYPE NO. 1978-E1
KEY PART
NO. NO.
227 492349
230 67072
258 94512
284 94511
300 497838
304 493293
305 94744
396 224324
307 94515
332 94877
333 802574
334 94731
337 802592
356 497833
358 497316
363 19069
383 89838
387 496115
447 95013
455 225121
456 281503
459 281505
461 94943
515 263079
523 495264
524 280393
525 495265
529 281299
562 94852
572 224328
592 231082
601 93053
605 225103
606 224815
6O8 49768O
Includes:
94904
94908
613 94231
815 94474
616 263175
617 270344
620 499835
621 396847
625 497465
634 - - -
635 66538
DESCRIPTION
Lever,Governor
Washer, Thrust
Screw, Hex Head
Screw, Hex Head
Muffler, Exhaust
Housing, Blower
Screw, Seres
Shield, Cylinder
Screw, Hex Head
Nut, Flywheel
Armature, Magneto
Screw, Sems
Plug, Spark
Wire, Ground
Gasket Set
Puller, Flywheel
Wrench, Spark Plug
Primer, Carburetor
Screw, Hex
Cup, Starter
Retainer, Starter
Pawl, Rachet
Screw, Shoulder
Spring, Retainer
Cap, Oil Filler
* Seal, FillerTube
Tube, Oil Fill
Grommet
Bolt, Governor Lever
Baffle, Cylinder
Nut, Hex
Clamp, Hose
Cover, Control
Strap, Bracket
Starter, Rewind
Screw, Hex
Nut, Hex
Screw, Hex Head
Fastener
Crank, Governor
*** Seal, Intake Elbow
Bracket, Carburetor
Switch, Stop
Tube, Fuel Intake
*'* Washer, Shaft (Sold in
Kit Only)
Elbow, Spark Plug
670 280512 Spacer, FuelTank
KEY PARr
NO. NO. DESCRIPTION
670A 493823 * Spacer, Bracket
741 262598 Gear, Timing
842 280966 * Seal, O-Ring
843 272616 Sleeve, Lever
847 495263 Tube Assembly, Oil
851 493880 Terminal, Ignition Cable
869 213512 Seat, Intake Valve
870 213513 Seat, Exhaust Valve
871 262001 Guide, Exhaust Valve
63709 Guide, Intake Valve
922 262640 Spring, Brake
923 493442 Brake Assembly
925 281145 Cover, Linkage
930 281136 Guard, Finger
957 397974 Cap, Fuel Tank
966 496116 Base, Air Cleaner
967 491588 Filter, Air
968 281340 Cover, AirCleaner
969 94872 Screw, Hex Head
971 94873 Screw, Hex Head
971A 94749 Screw, Hex Head
972 495224 Tank, Fuel
975 493640 Bowl,Float
977 498261 Gasket Set,Carburetor
1036 499341 Label Kit, Emission
1095 498258 Gasket Set, Valve
Overhaul
2500 12J802-2915 Replacement Engine
498826 Replacement Shortblock
RPM Settings:
Low: 1900-2100; High:
3000-3200
Included inGasket Set (497316)
* Included in Carburetor Kit (498260)
*** Included in both Carburetor Kit (498260),
and Carburetor Gasket Set (499261)
.... Included in both Gasket Set (497316),
Set (497316) and Valve overhaul
Gasket Set (498528).
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
47

Specifications

Craftsman 917377523 Questions and Answers
