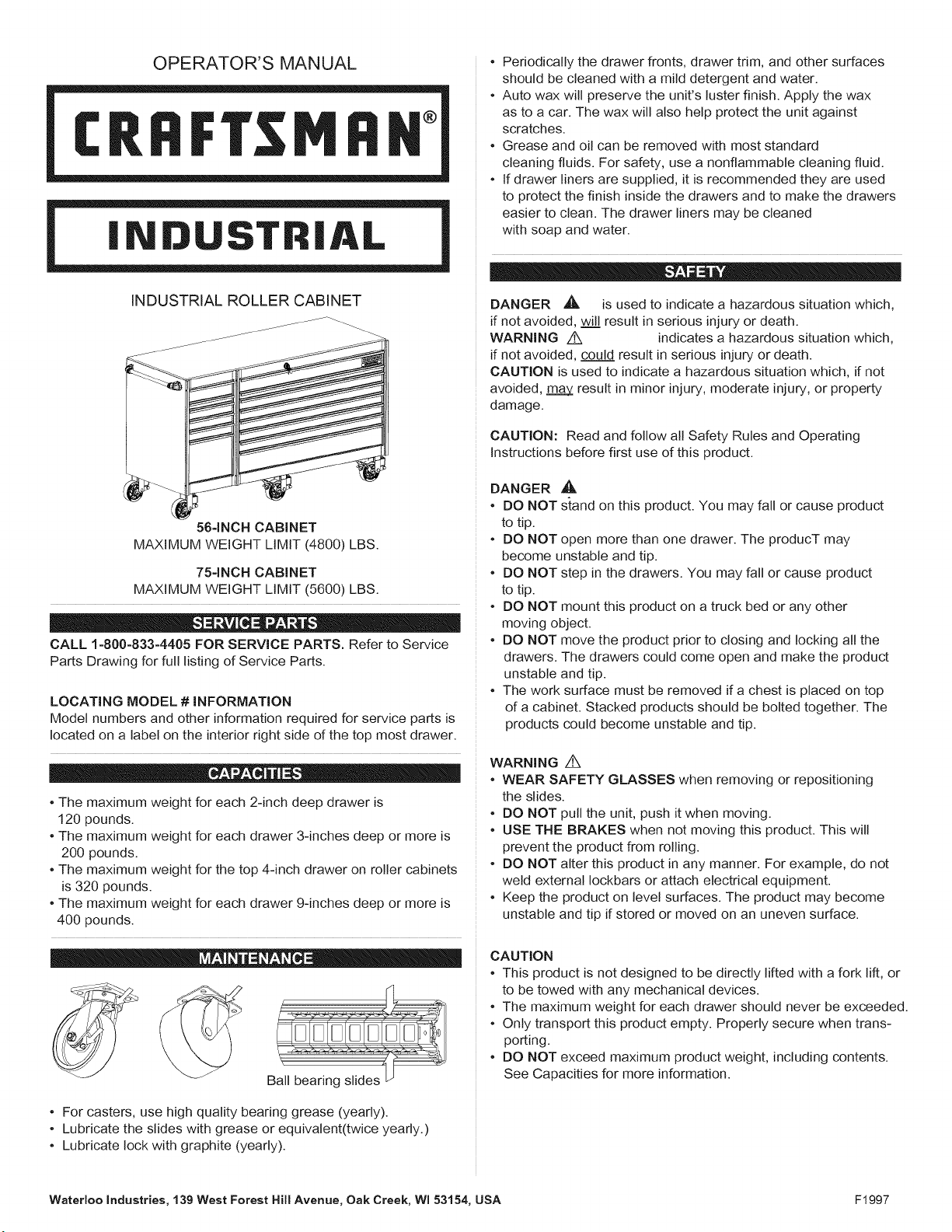

OPERATOR'S MANUAL
CRFIFrSMRH°
[s, L 1
INDUSTRIAL ROLLER CABINET
564NCH CABINET
MAXIMUM WEIGHT LIMIT (4800) LBS.
75=INCH CABINET
MAXIMUM WEIGHT LIMIT (5600) LBS.
CALL 1-800=833-4405 FOR SERVICE PARTS. Refer to Service
Parts Drawing for full listing of Service Parts.
LOCATING MODEL # INFORMATION
Model numbers and other information required for service parts is
located on a label on the interior right side of the top most drawer.
•The maximum weight for each 2-inch deep drawer is
120 pounds.
•The maximum weight for each drawer 3-inches deep or more is
200 pounds.
•The maximum weight for the top 4-inch drawer on roller cabinets
is 320 pounds.
•The maximum weight for each drawer 9-inches deep or more is
400 pounds.
Ball bearing slides
•For casters, use high quality bearing grease (yearly).
•Lubricate the slides with grease or equivalent(twice yearly.)
•Lubricate lock with graphite (yearly).
•Periodically the drawer fronts, drawer trim, and other surfaces
should be cleaned with a mild detergent and water.
•Auto wax will preserve the unit's luster finish. Apply the wax
as to a car. The wax will also help protect the unit against
scratches.
•Grease and oil can be removed with most standard
cleaning fluids. For safety, use a nonflammable cleaning fluid.
•If drawer liners are supplied, it is recommended they are used
to protect the finish inside the drawers and to make the drawers
easier to clean. The drawer liners may be cleaned
with soap and water.
DANGER ,_ is used to indicate a hazardous situation which,
if not avoided, will result in serious injury or death.
WARNING /K indicates a hazardous situation which,
if not avoided, could result in serious injury or death.
CAUTION is used to indicate a hazardous situation which, if not
avoided, may result in minor injury, moderate injury, or property
damage.
CAUTION: Read and follow all Safety Rules and Operating
Instructions before first use of this product.
DANGER ,_
• DO NOT stand on this product. You may fall or cause product
to tip.
• DO NOT open more than one drawer. The product may
become unstable and tip.
• DO NOT step in the drawers. You may fall or cause product
to tip.
• DO NOT mount this product on a truck bed or any other
moving object.
• DO NOT move the product prior to closing and locking all the
drawers. The drawers could come open and make the product
unstable and tip.
• The work surface must be removed if a chest is placed on top
of a cabinet. Stacked products should be bolted together. The
products could become unstable and tip.
WARNING z_
•WEAR SAFETY GLASSES when removing or repositioning
the slides.
•DO NOT pull the unit, push it when moving.
•USE THE BRAKES when not moving this product. This will
prevent the product from rolling.
•DO NOT alter this product in any manner. For example, do not
weld external Iockbars or attach electrical equipment.
•Keep the product on level surfaces. The product may become
unstable and tip if stored or moved on an uneven surface.
CAUTION
•This product is not designed to be directly lifted with a fork lift, or
to be towed with any mechanical devices.
•The maximum weight for each drawer should never be exceeded.
• Only transport this product empty. Properly secure when trans-
porting.
•DO NOT exceed maximum product weight, including contents.
See Capacities for more information.
Waterloo Industries, 139 West Forest Hill Avenue, Oak Creek, WI 53154, USA F1997
