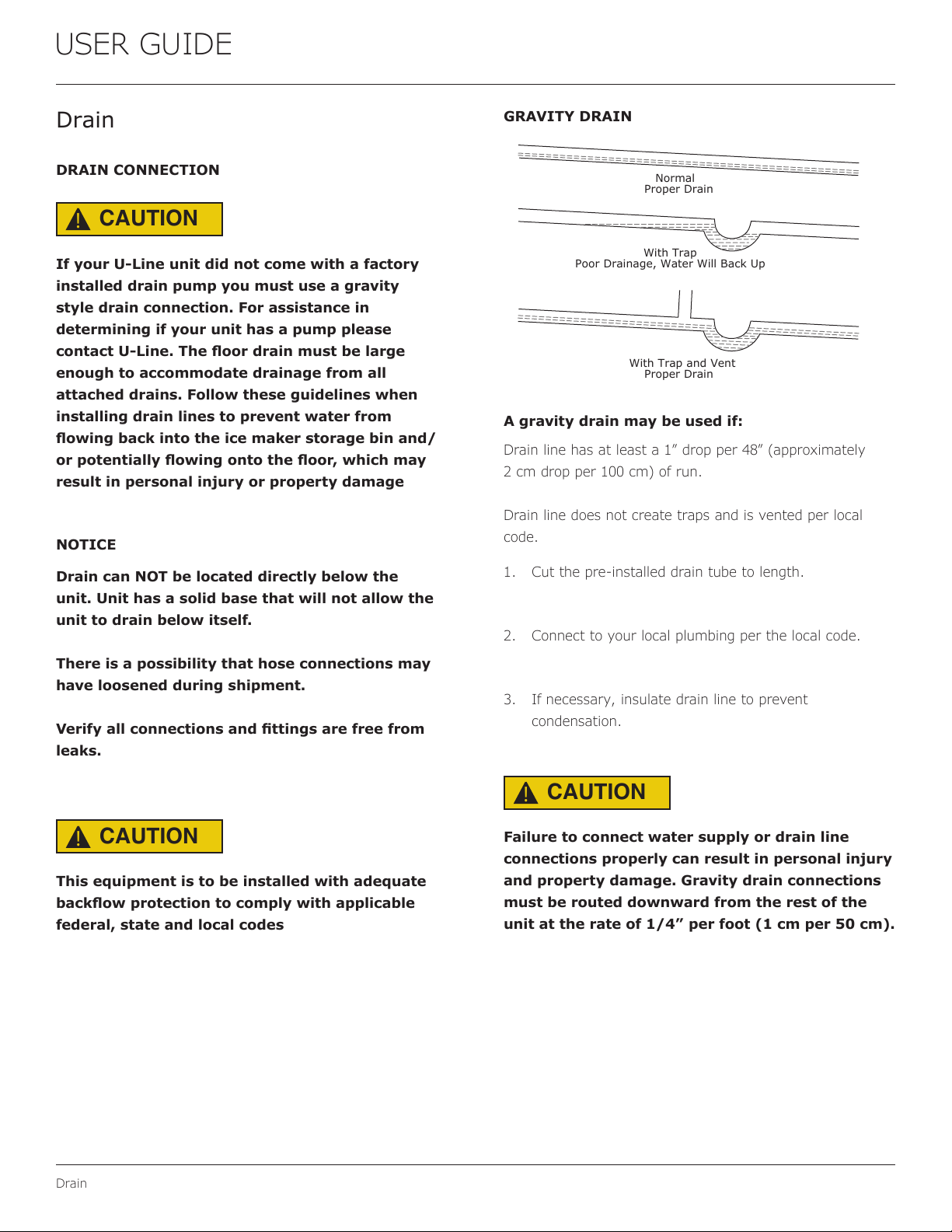

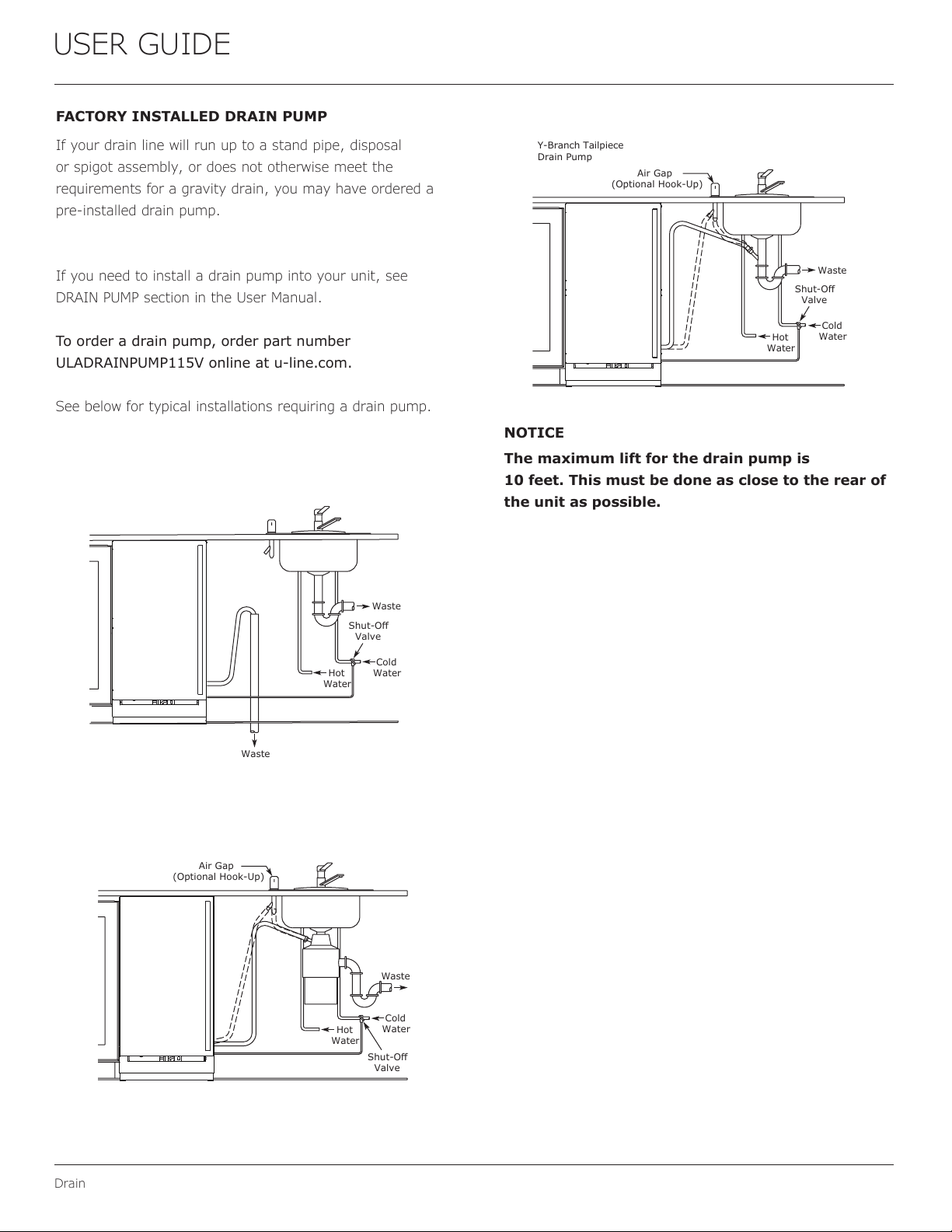

Drain

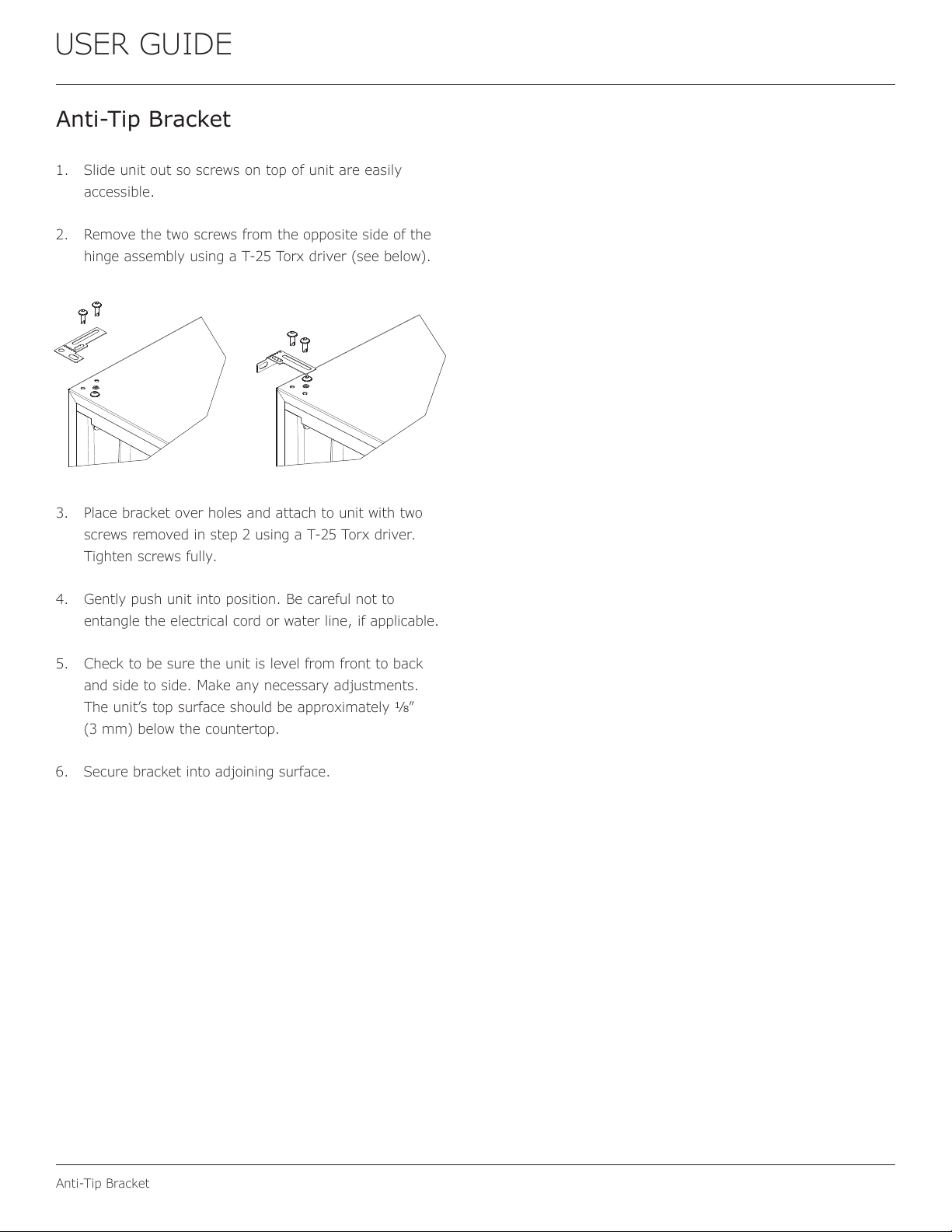

Anti-Tip Bracket

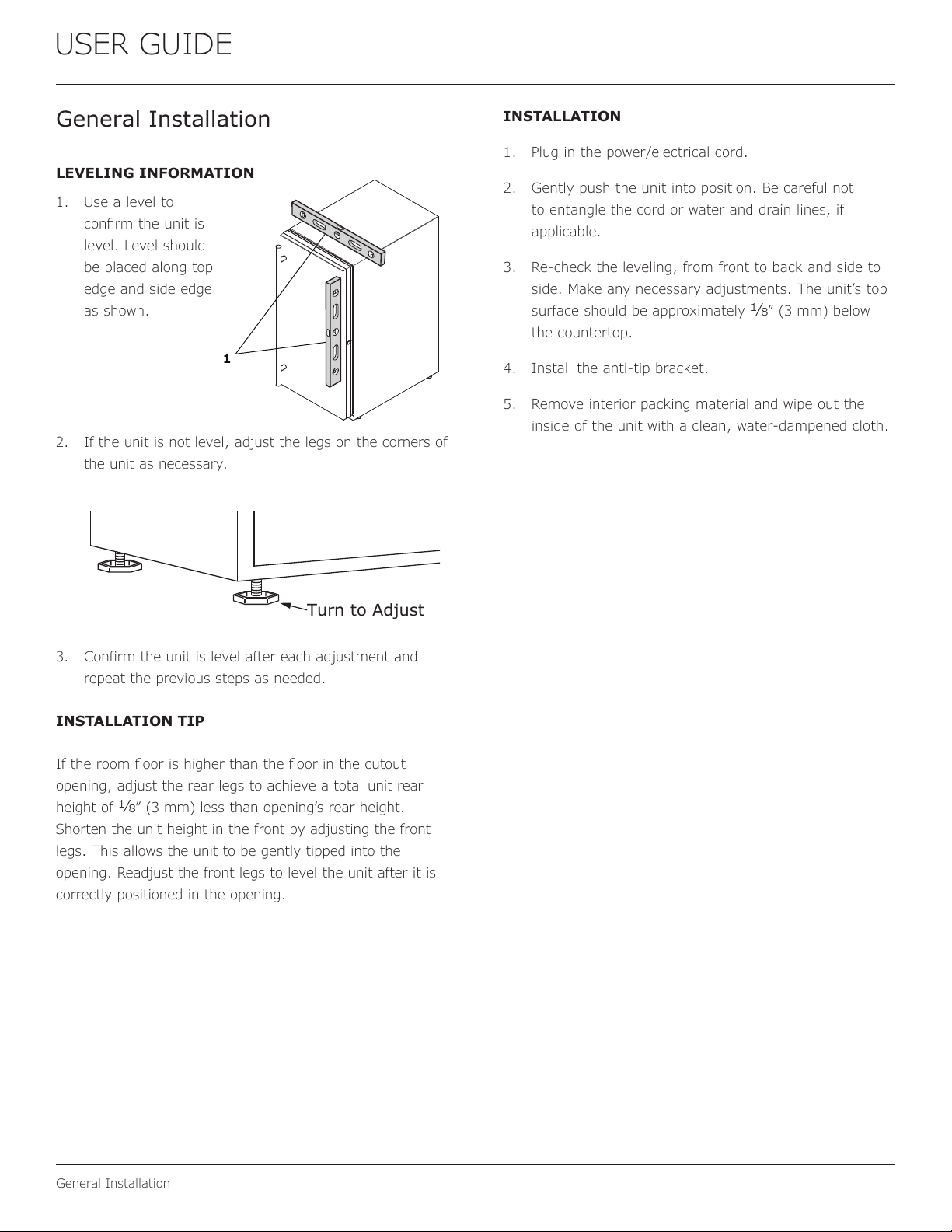

General Installation

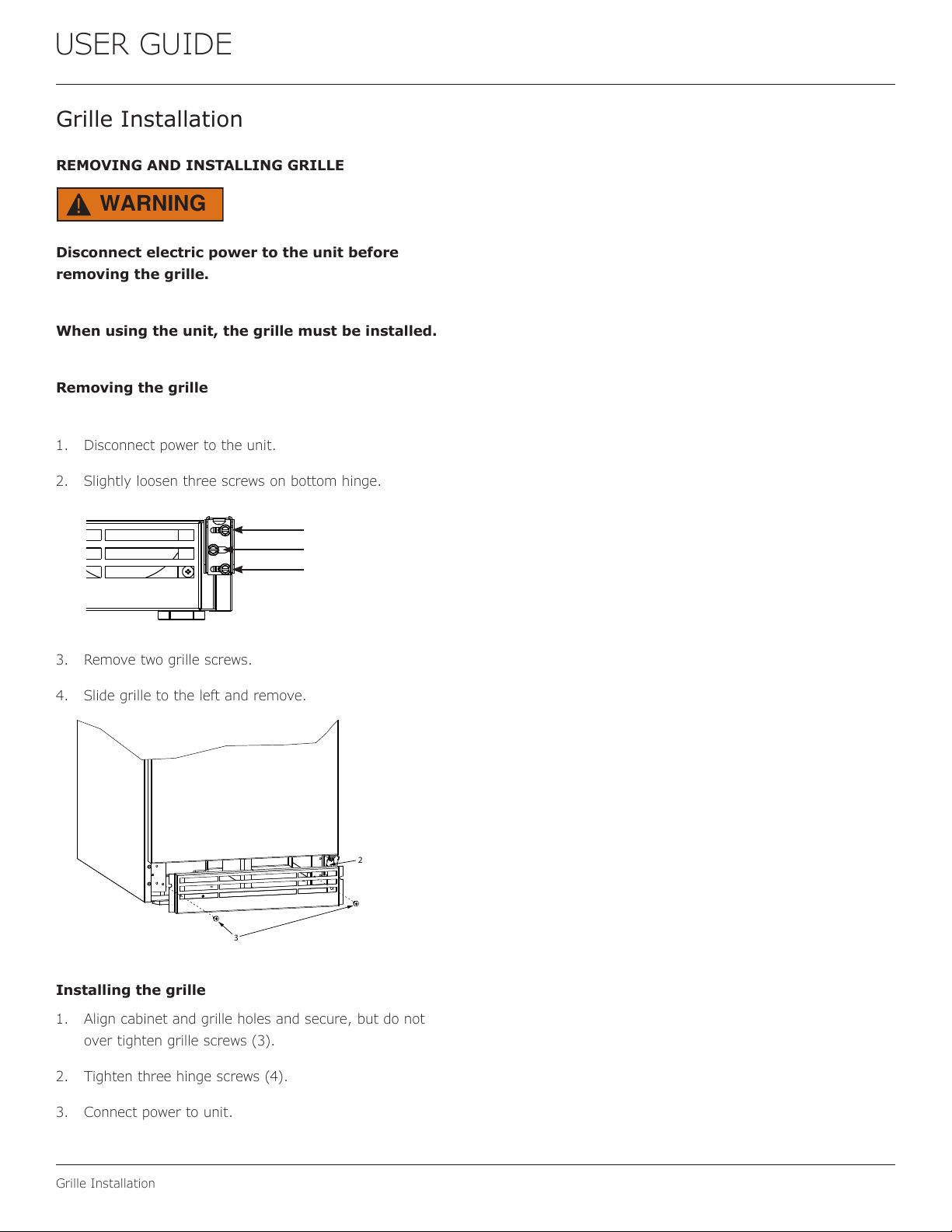

Grille Installation
Door Swing

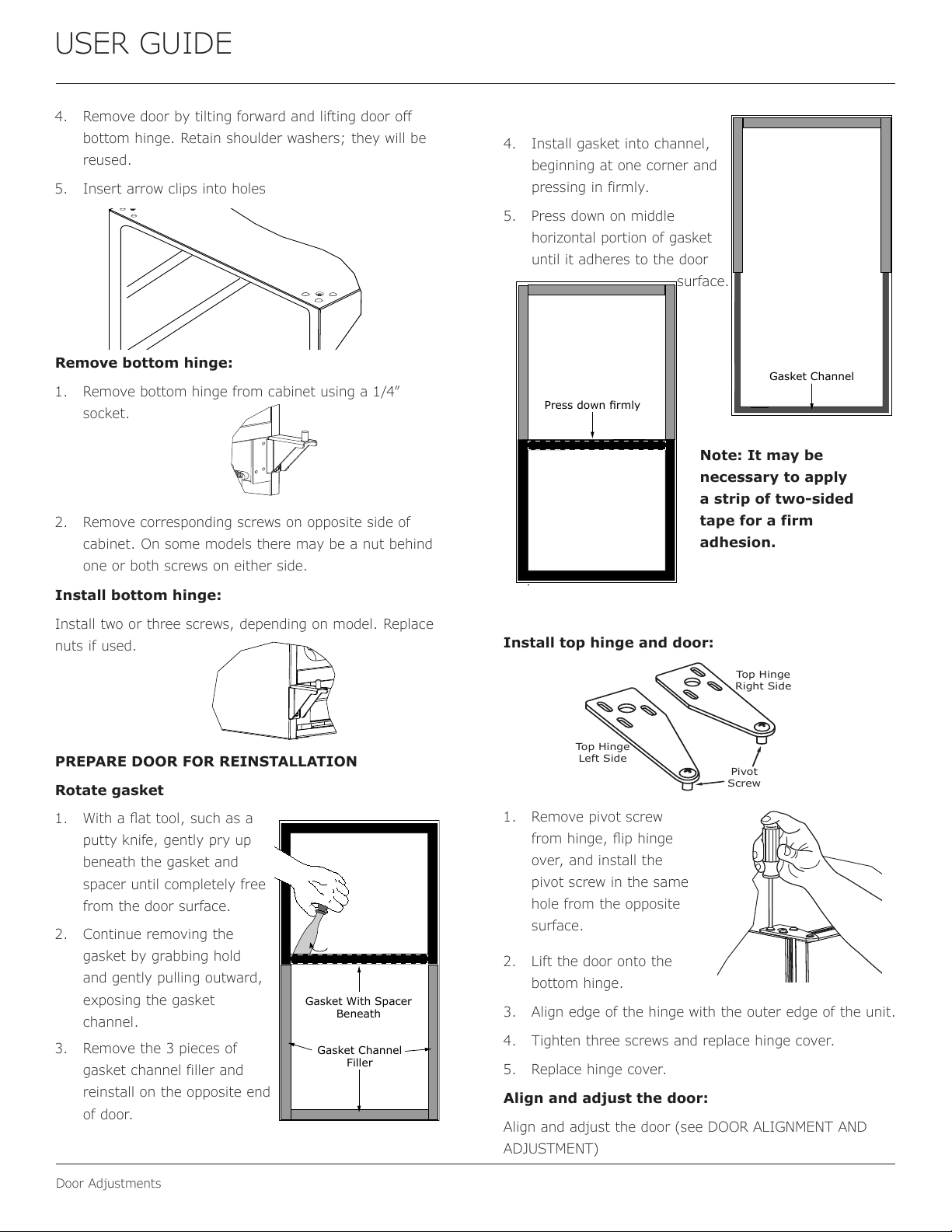

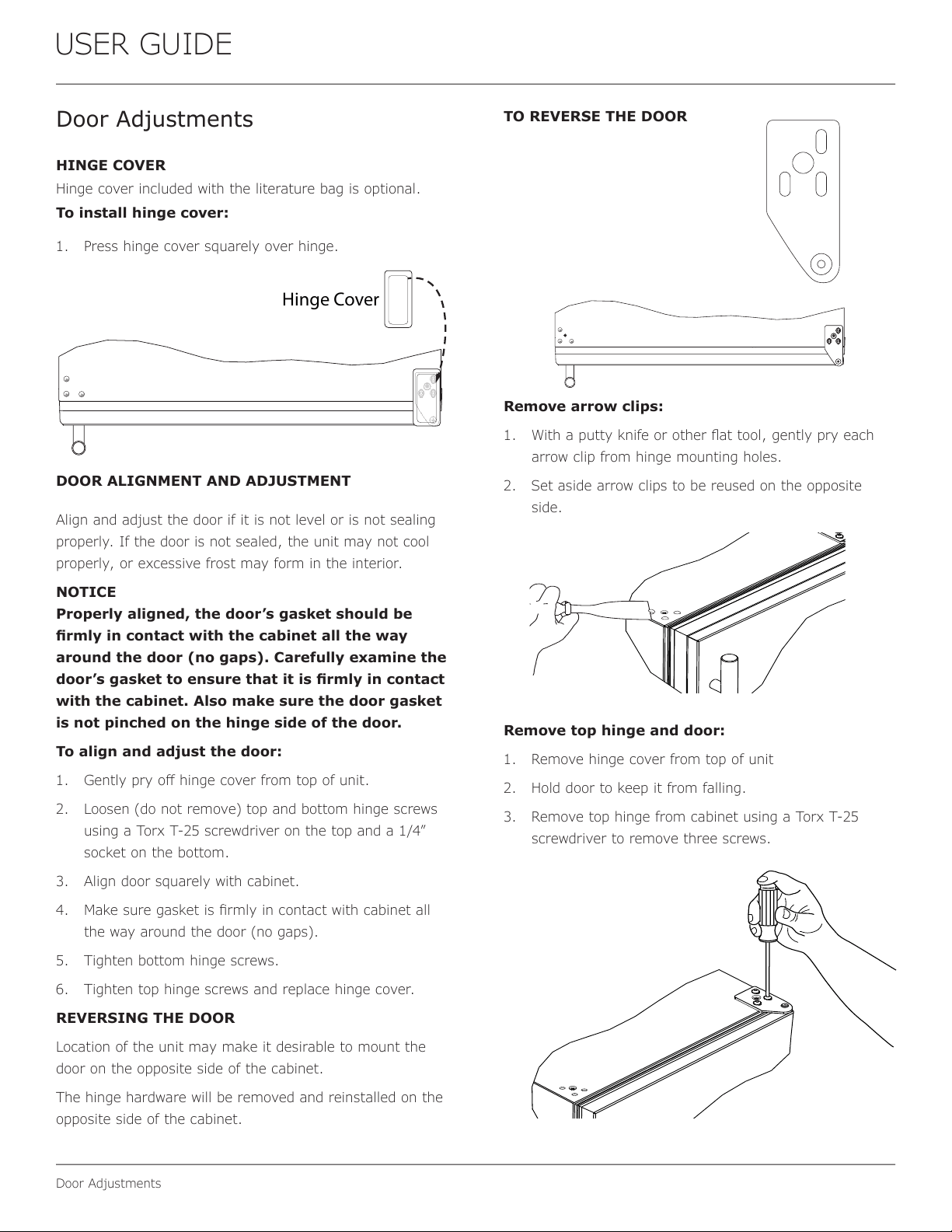

Door Adjust
Maintenance

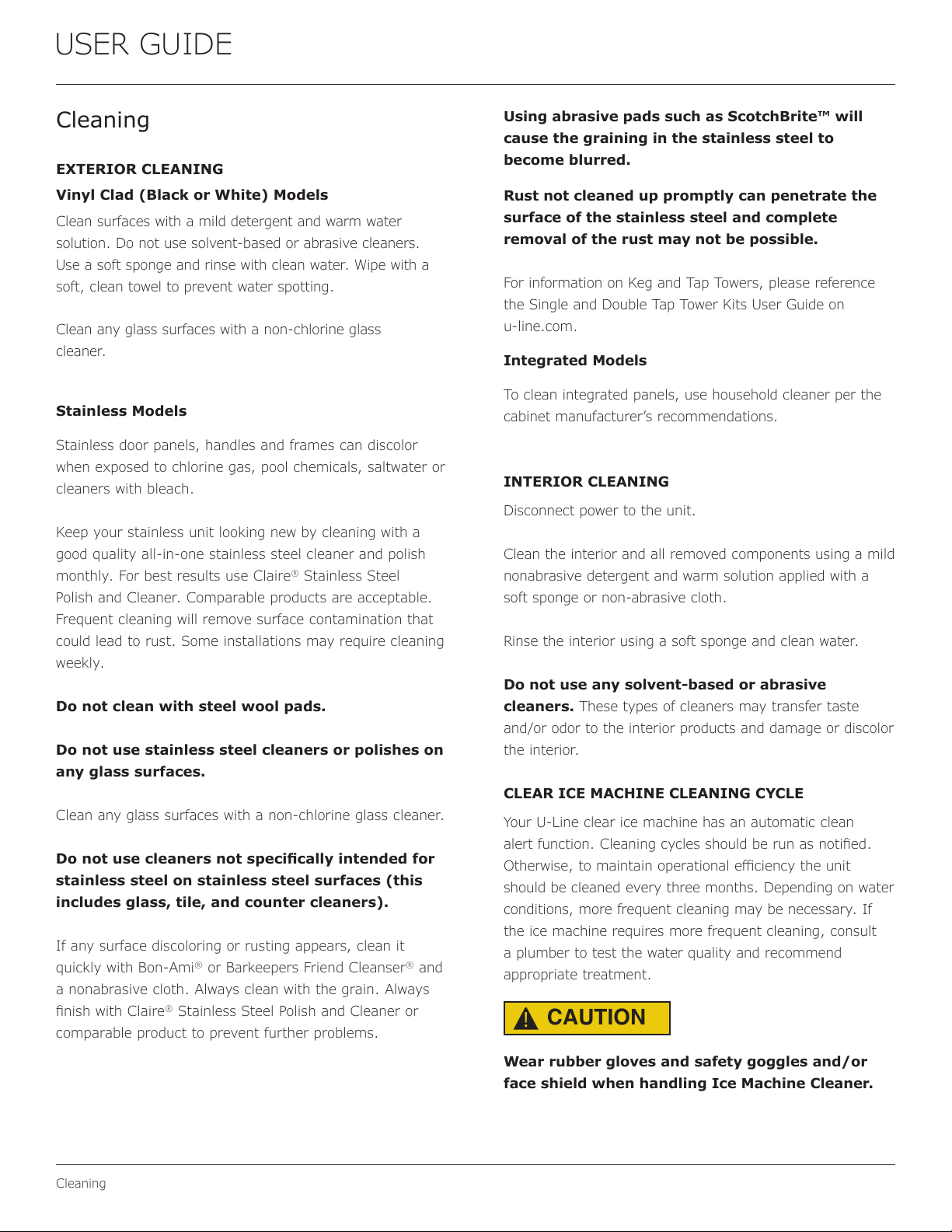

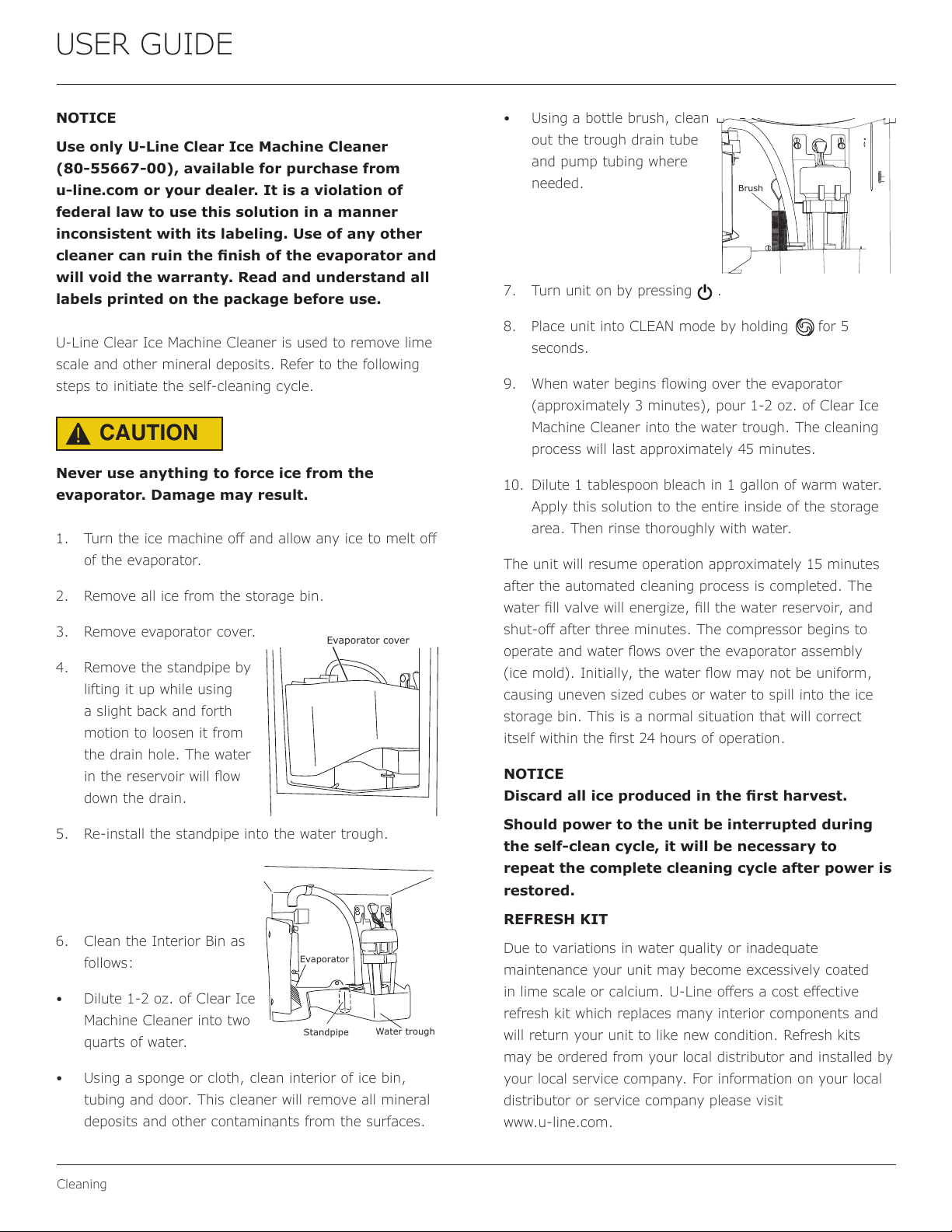

Cleaning

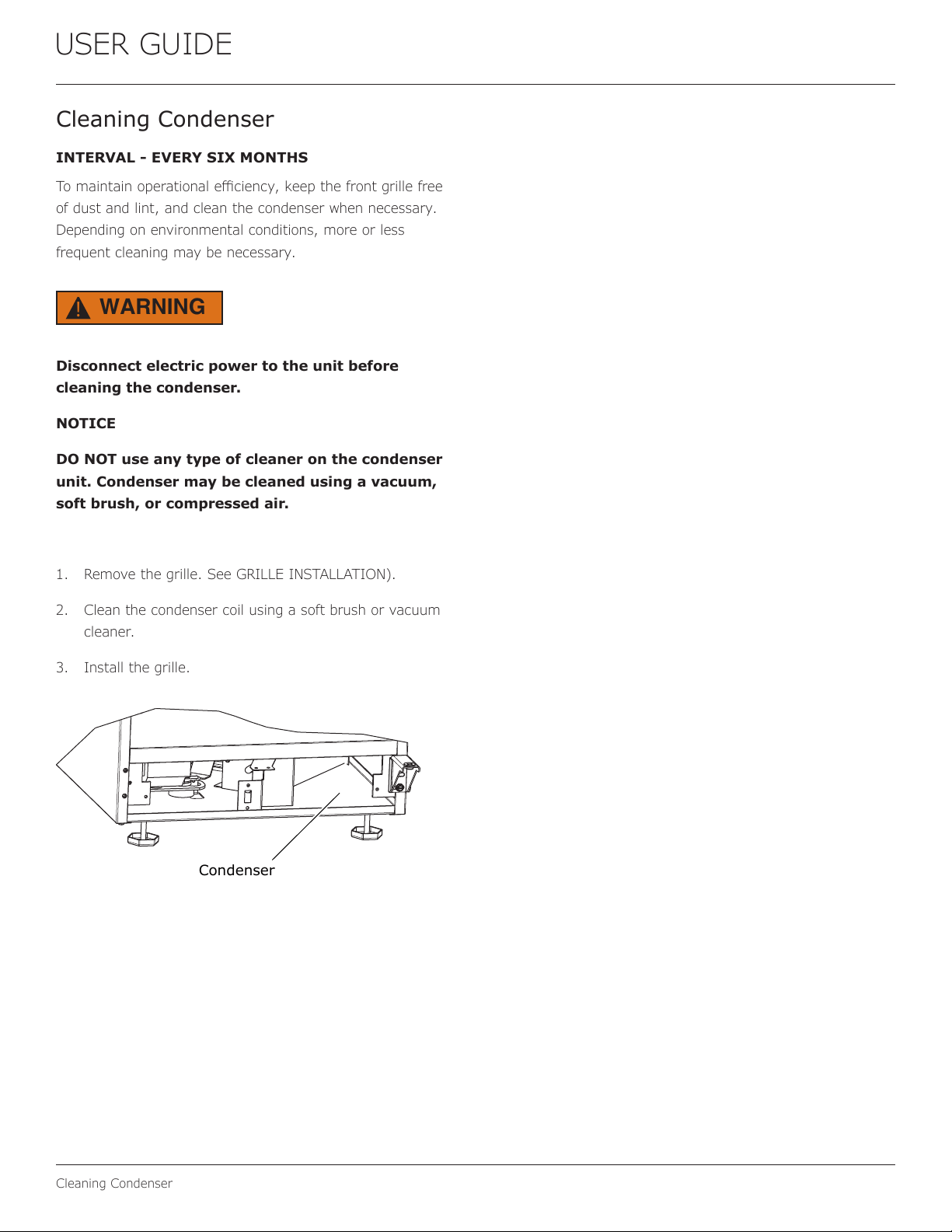

Cleaning Condenser

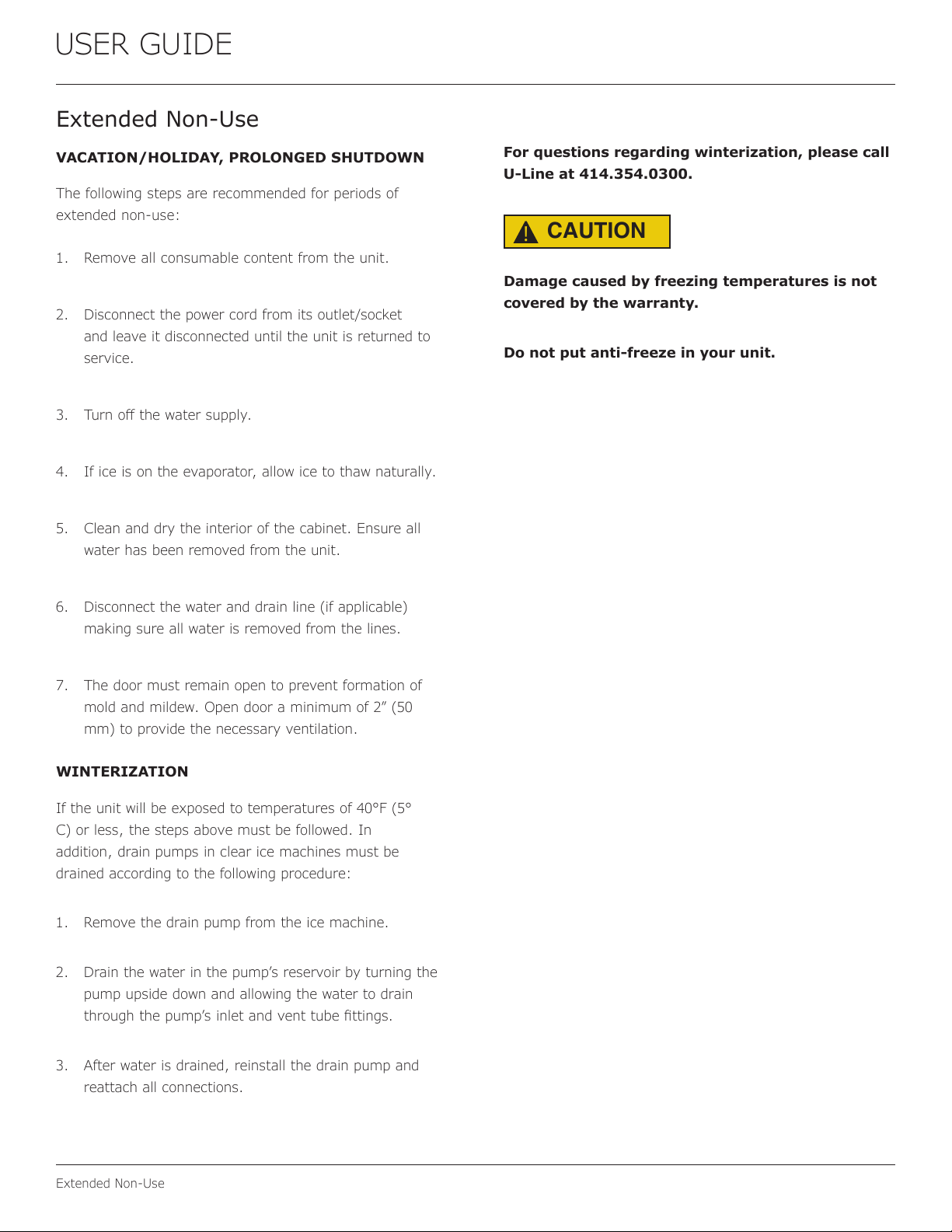

Extended Non-Use
Operating Instructions

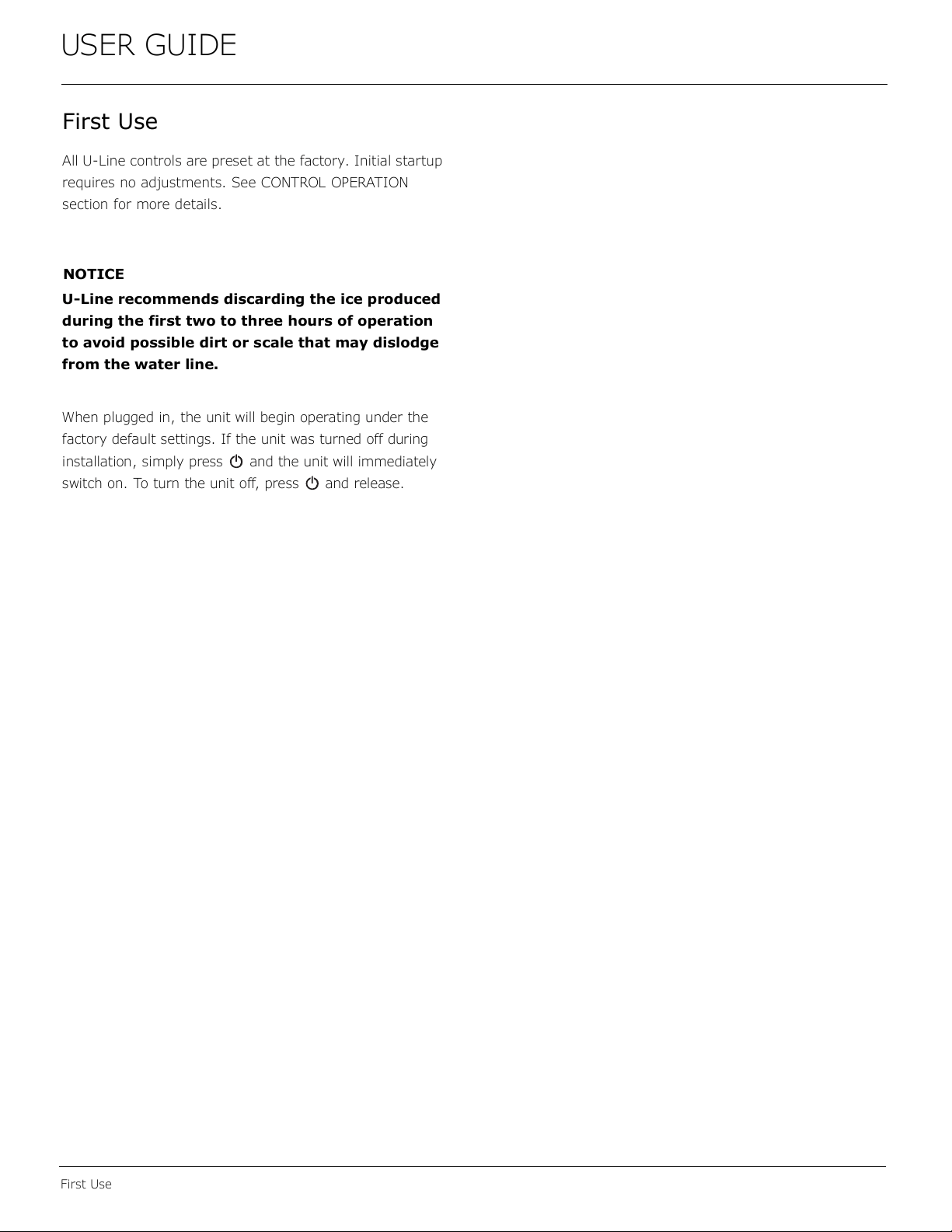

First Use

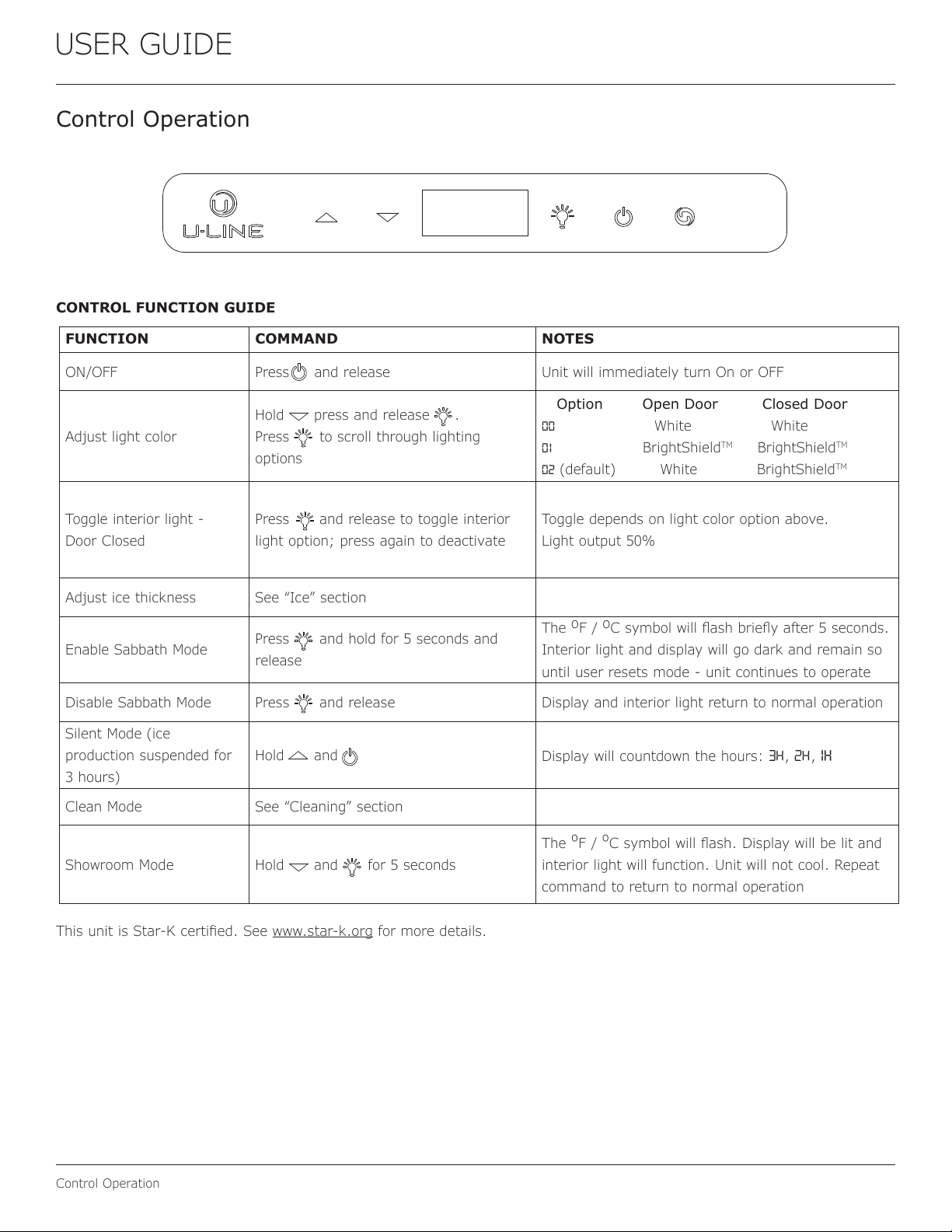

Control Operation

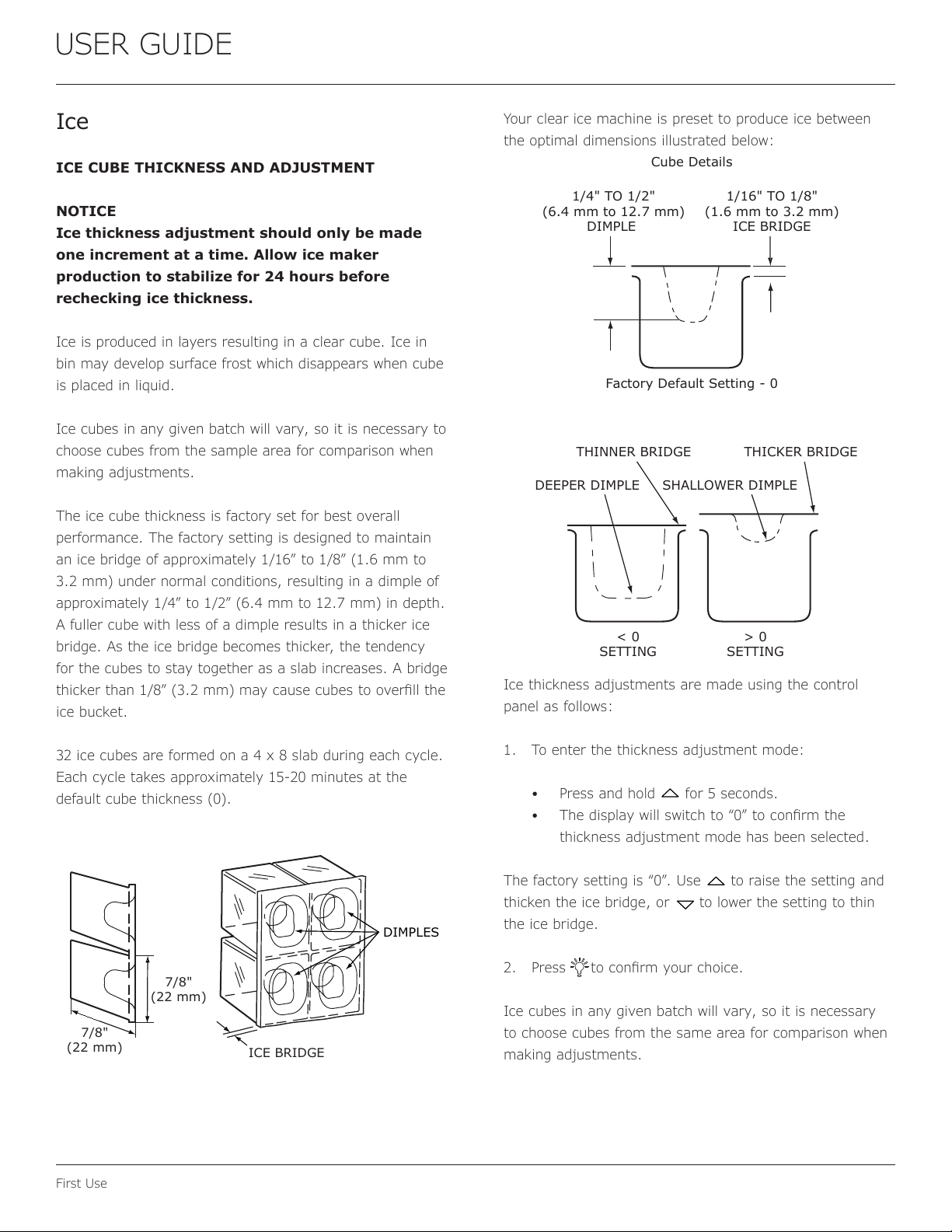

Ice

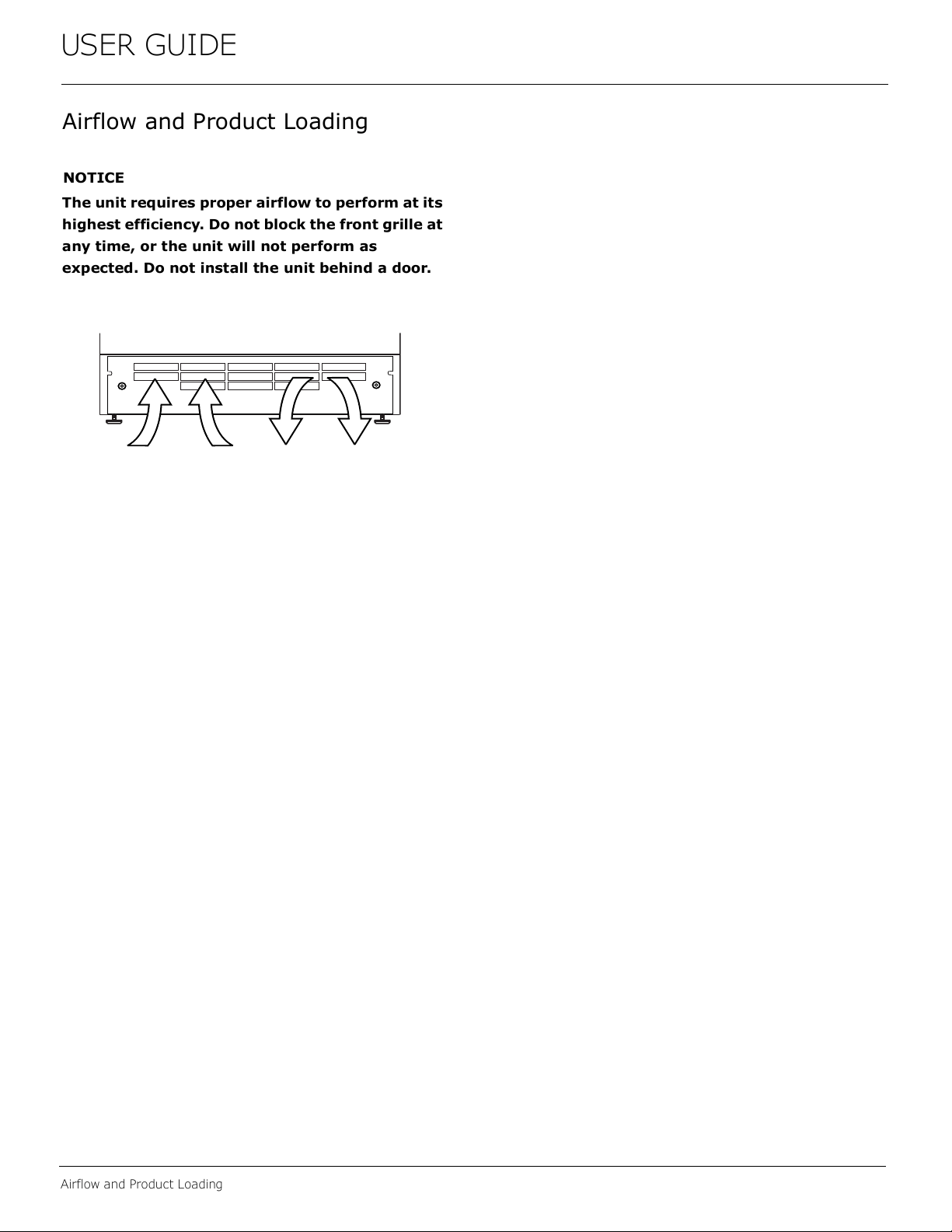

Airflow and Product Loading
Service

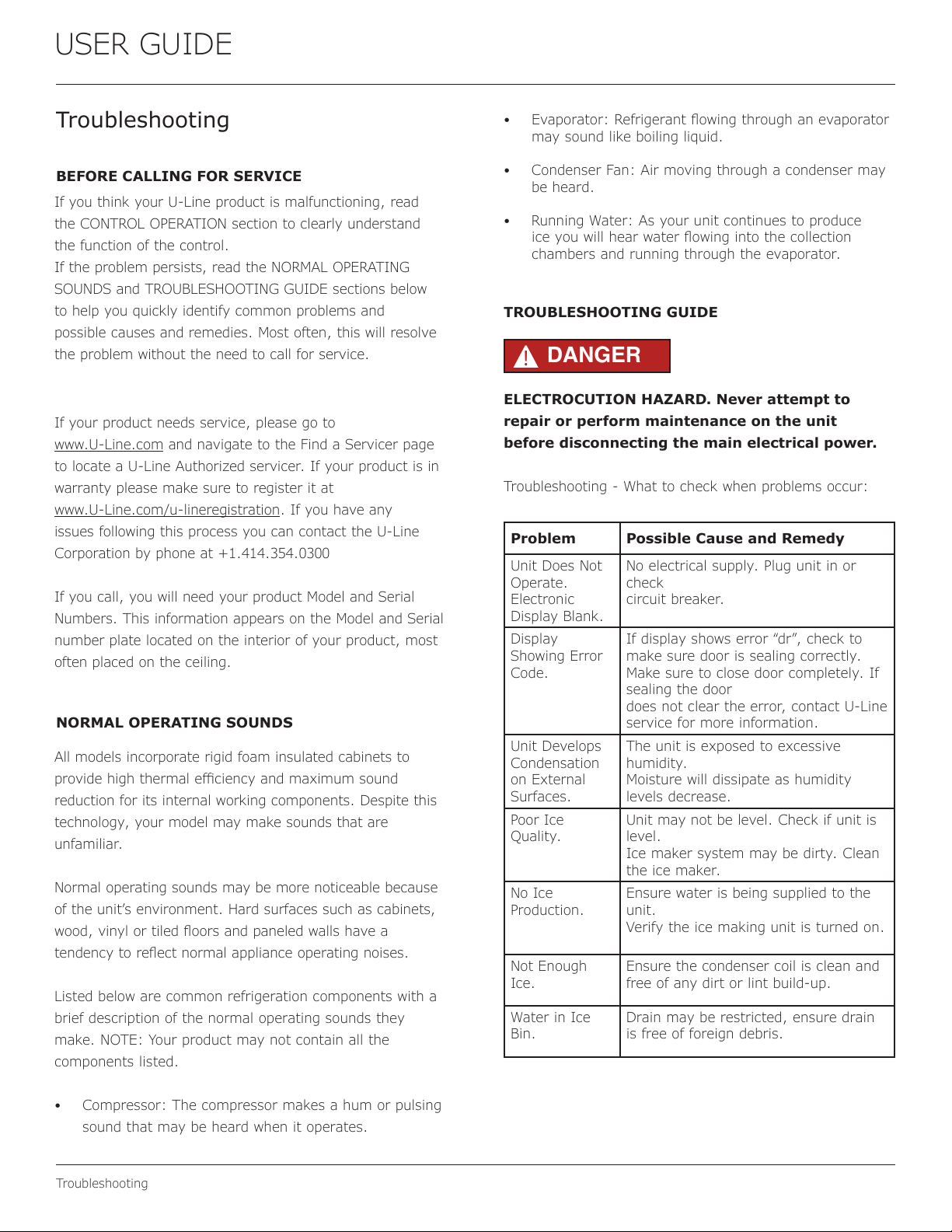

Troubleshooting

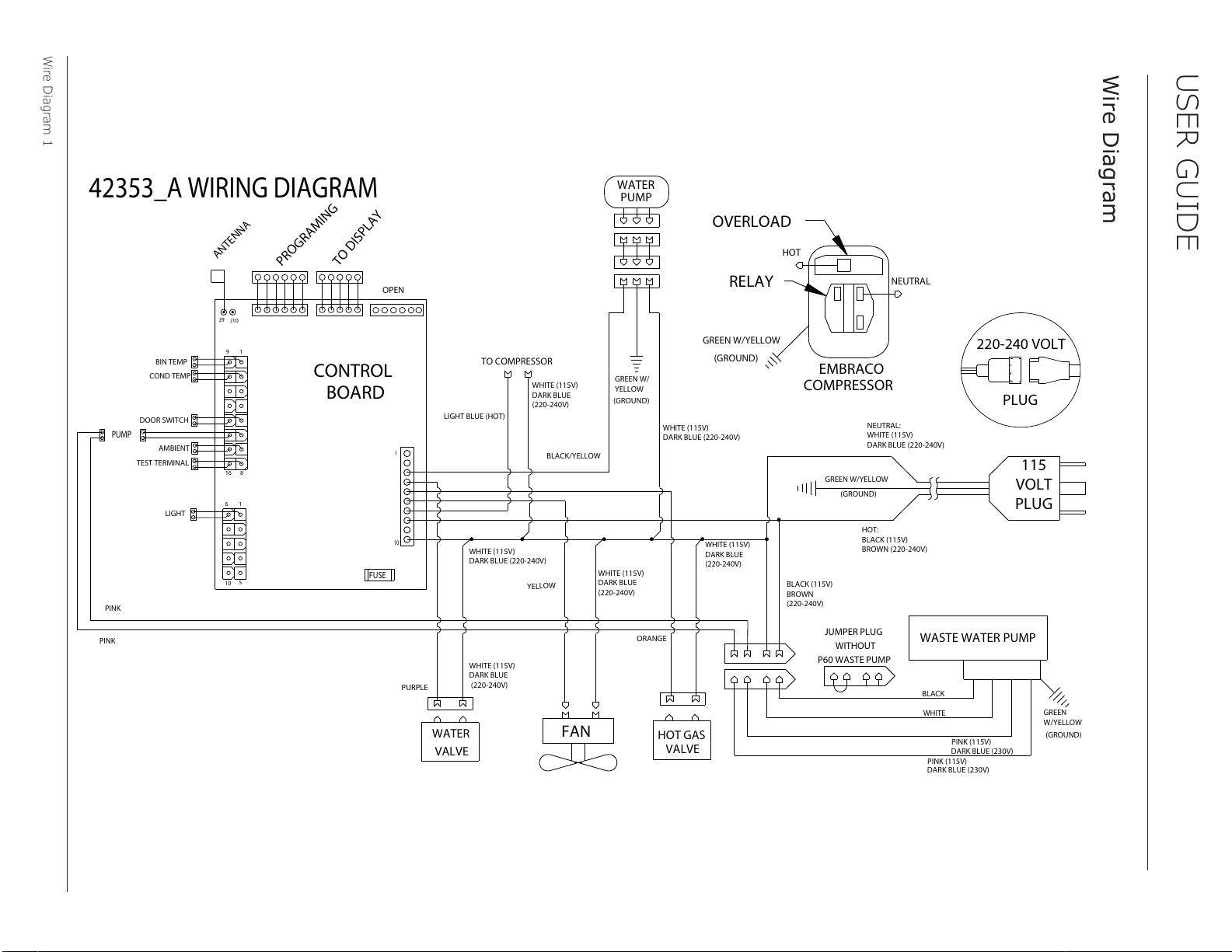

Wire Diagram

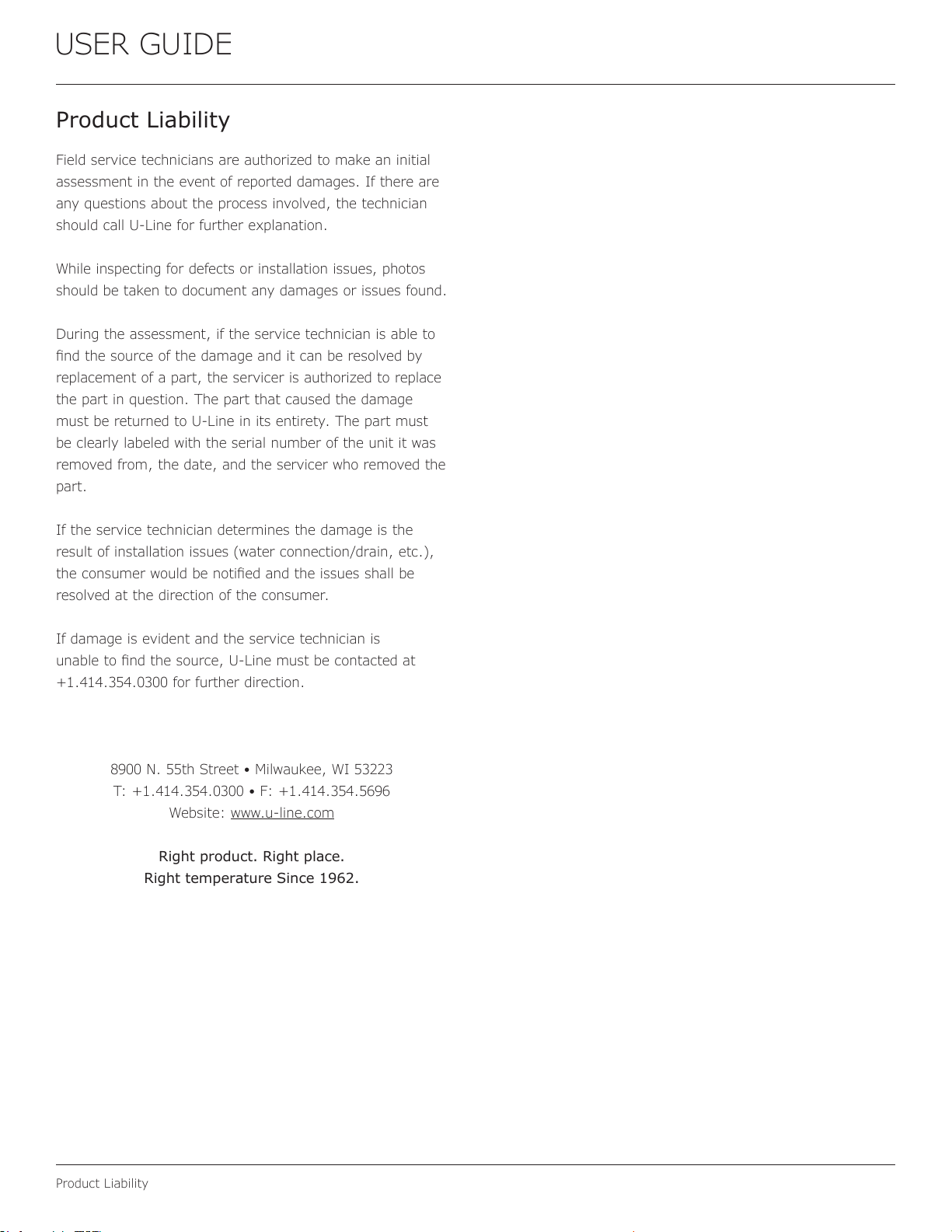

Product Liability

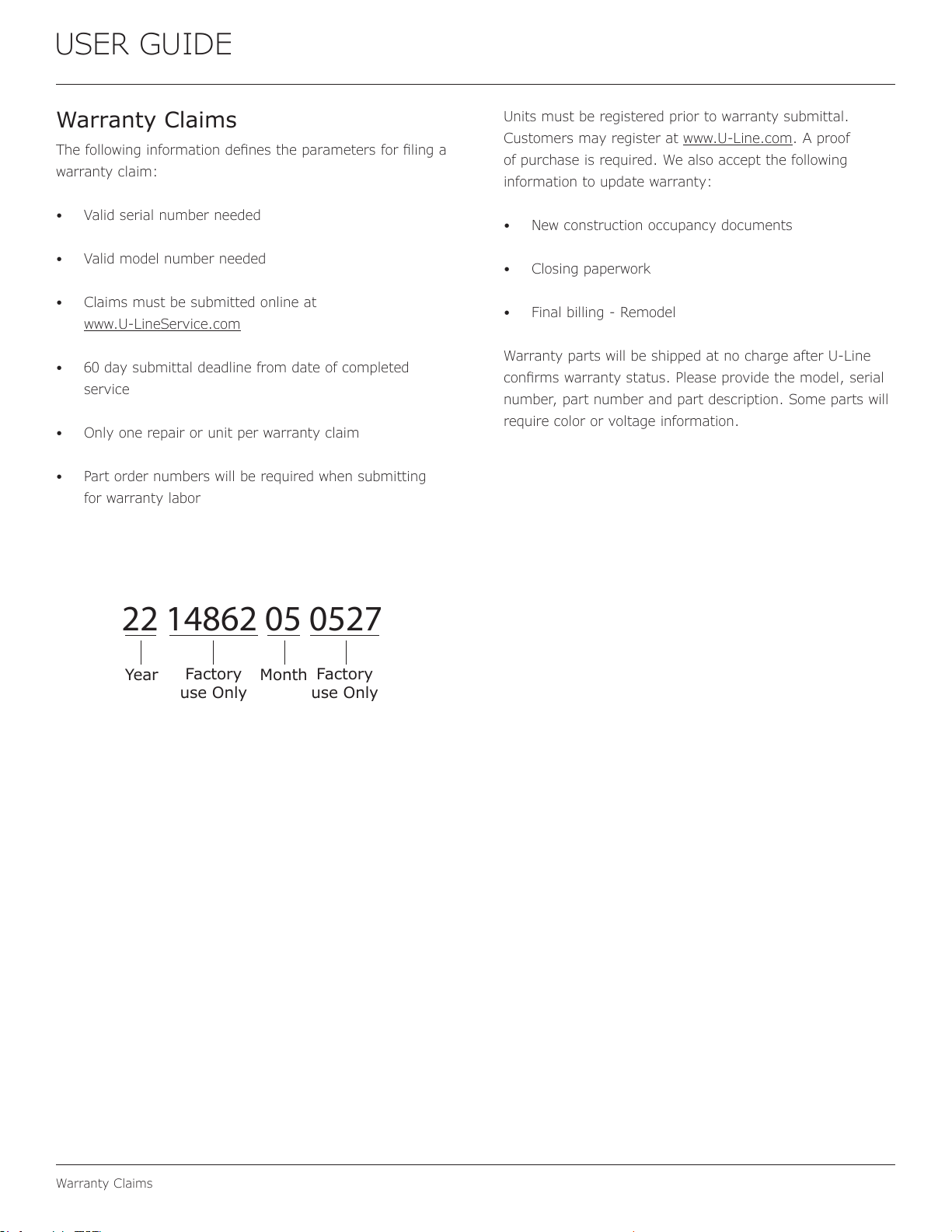

Warranty Claims

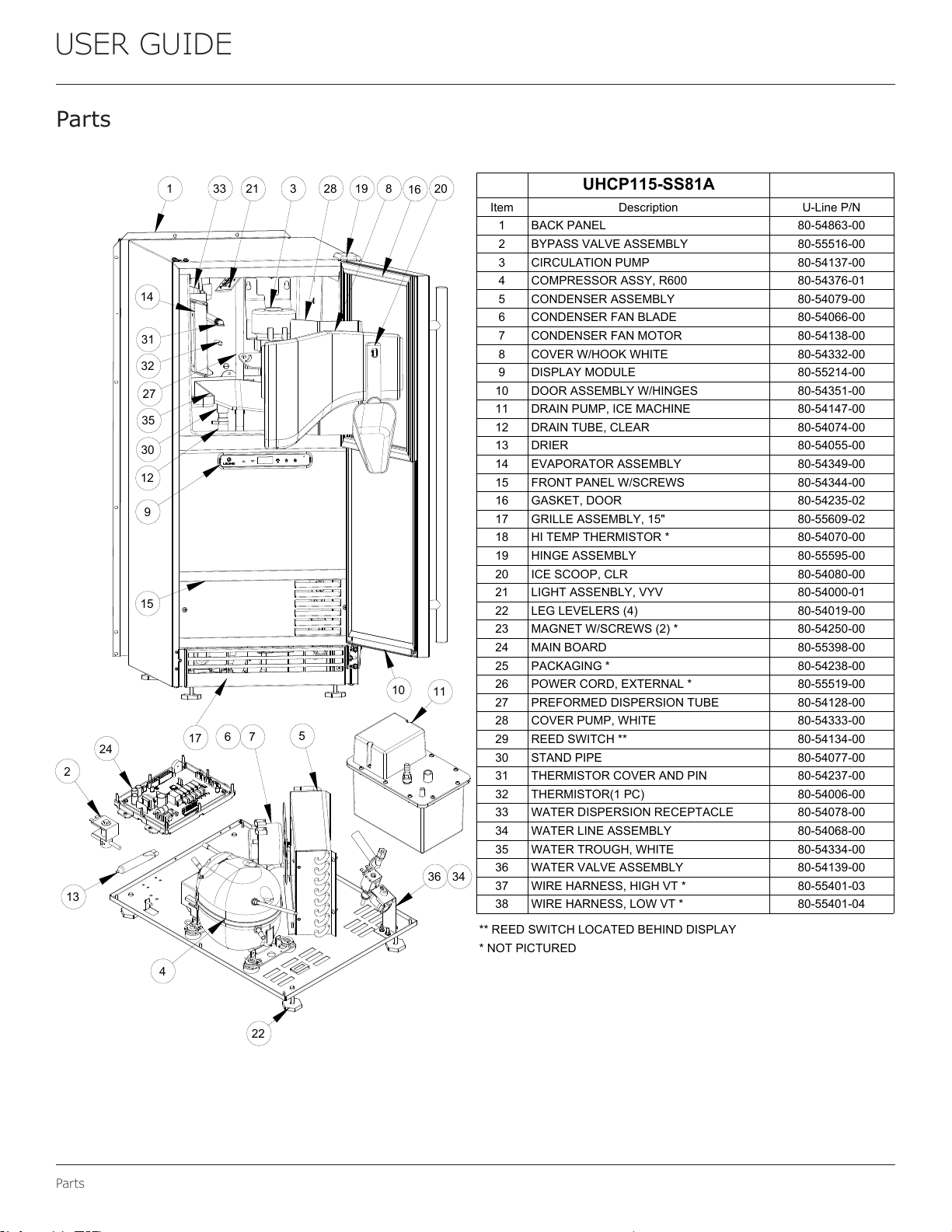

Parts

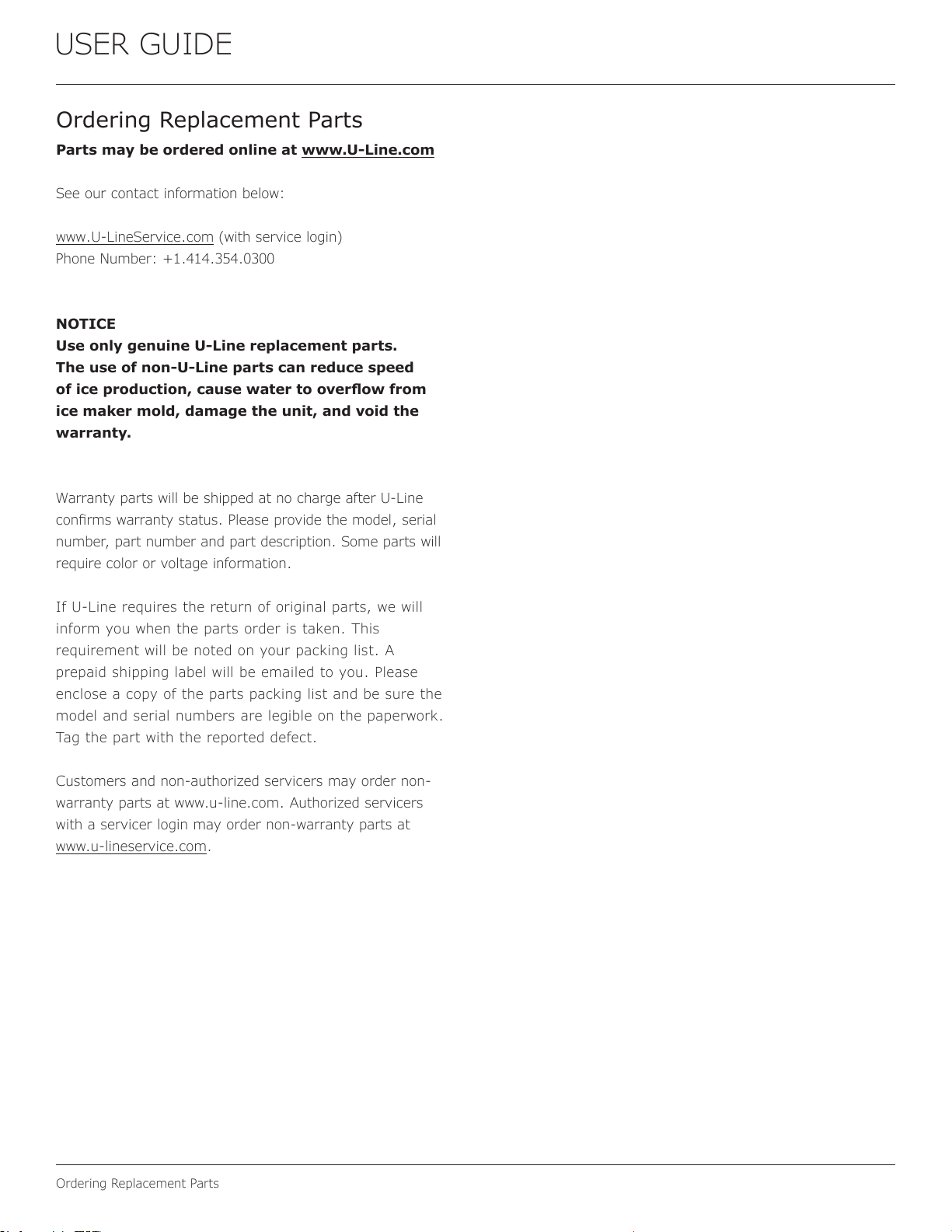

Ordering Replacement Parts

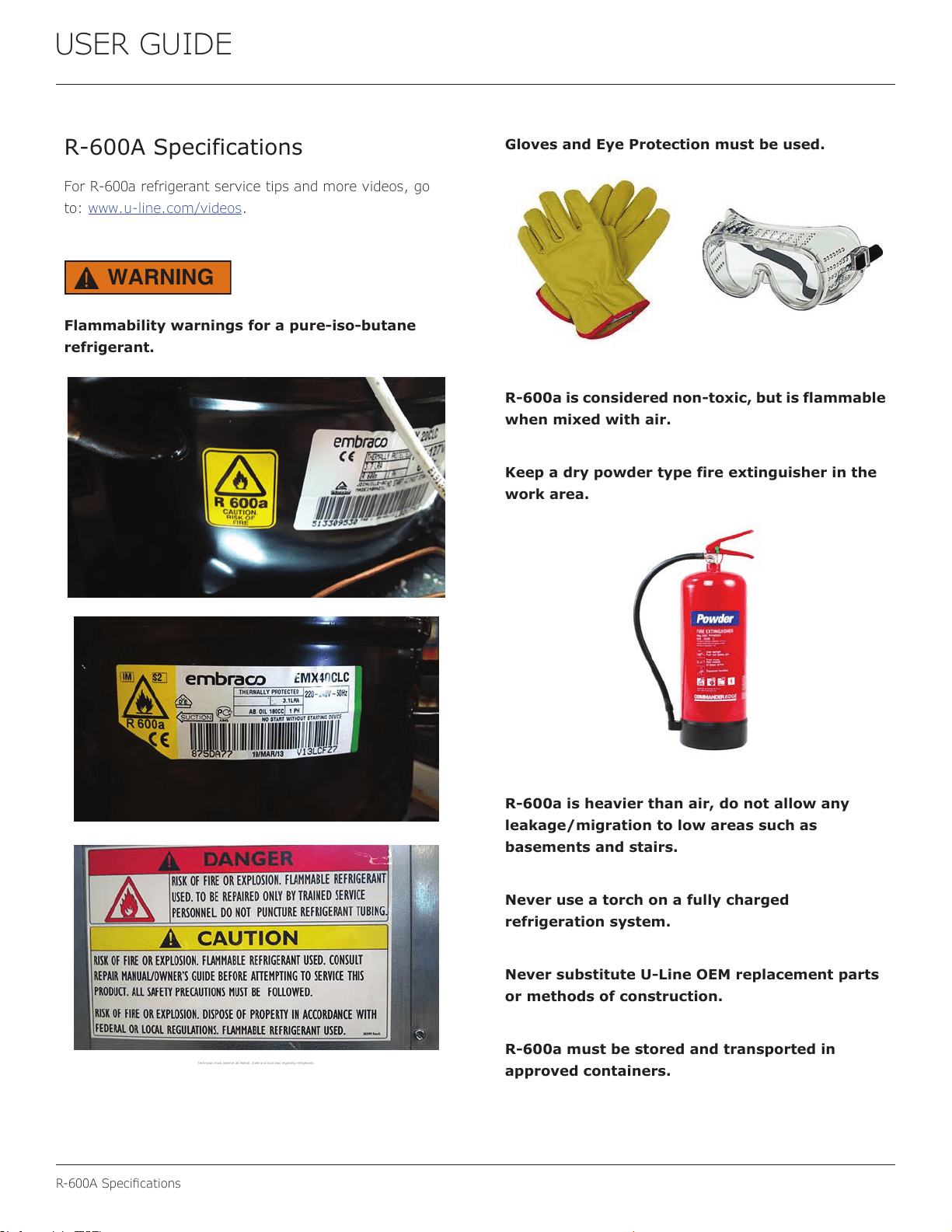

R600a Specifications

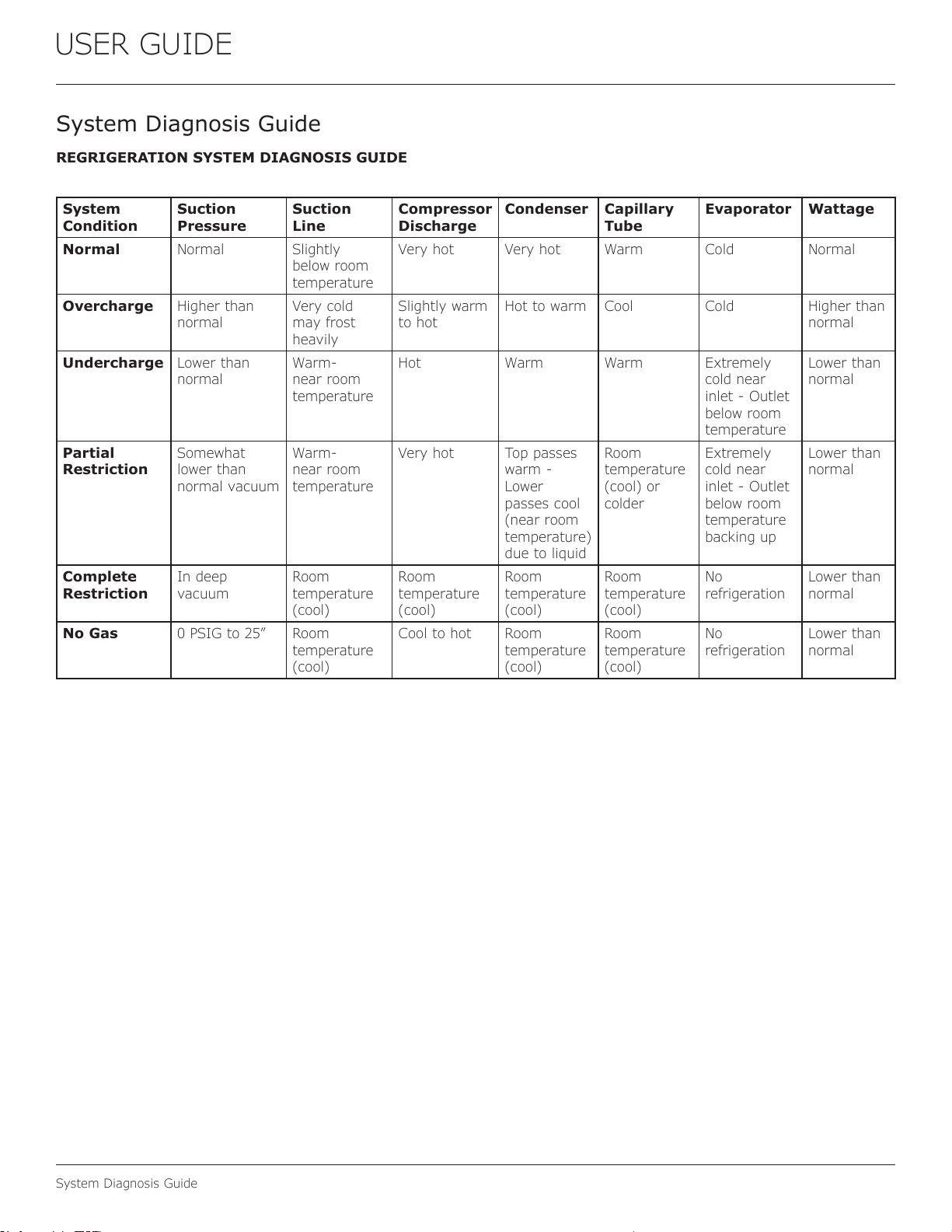

System Diagnosis Guide
Compressor Specifications

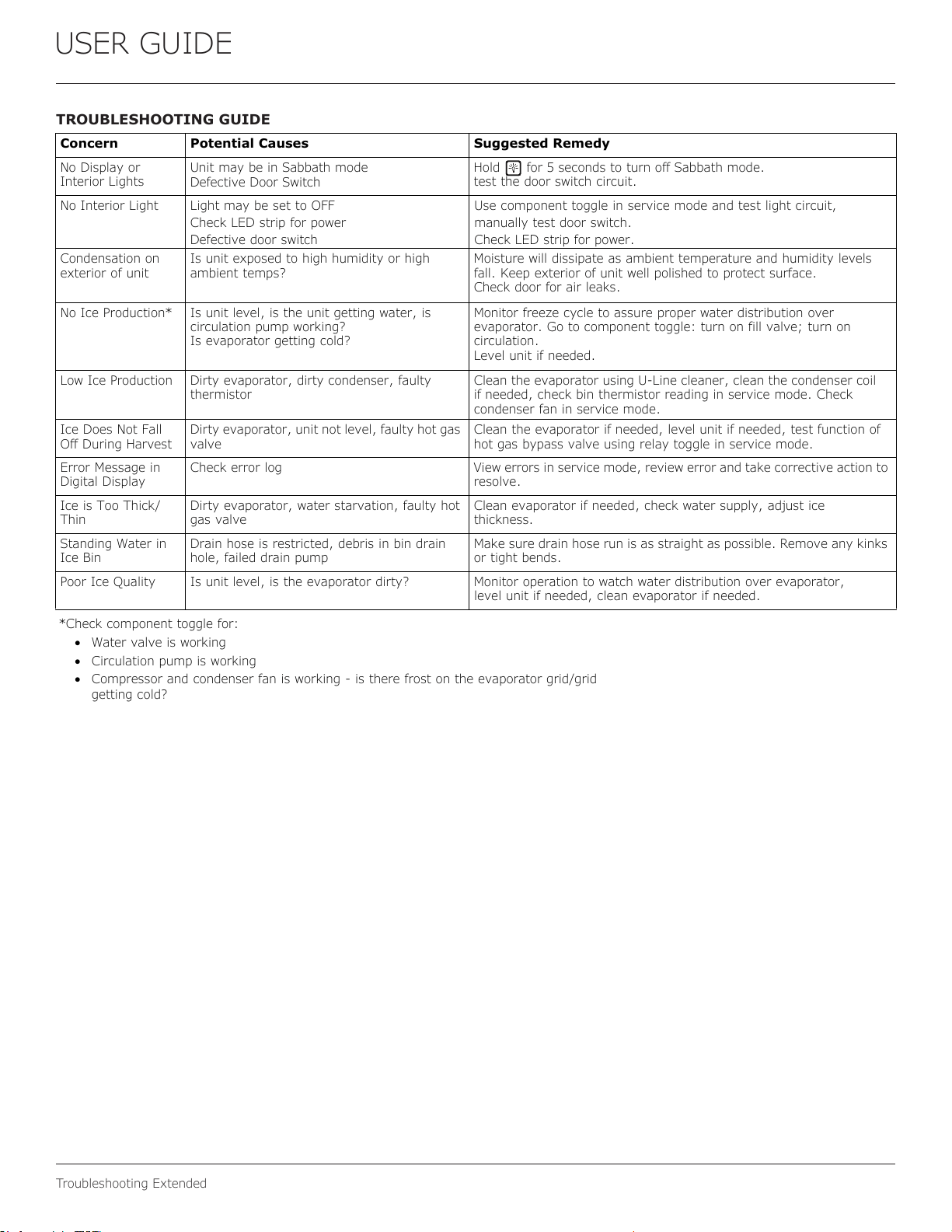

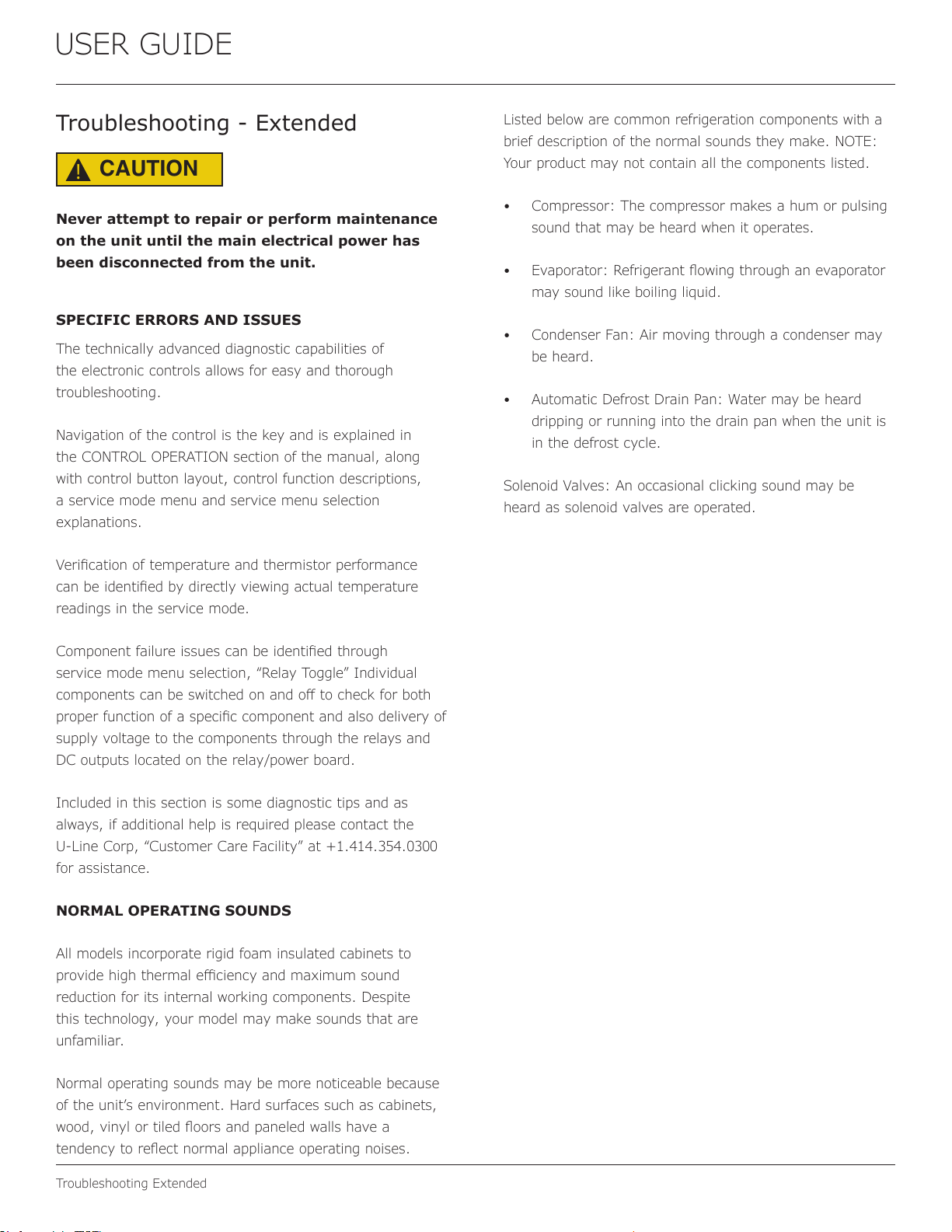

Troubleshooting Extended

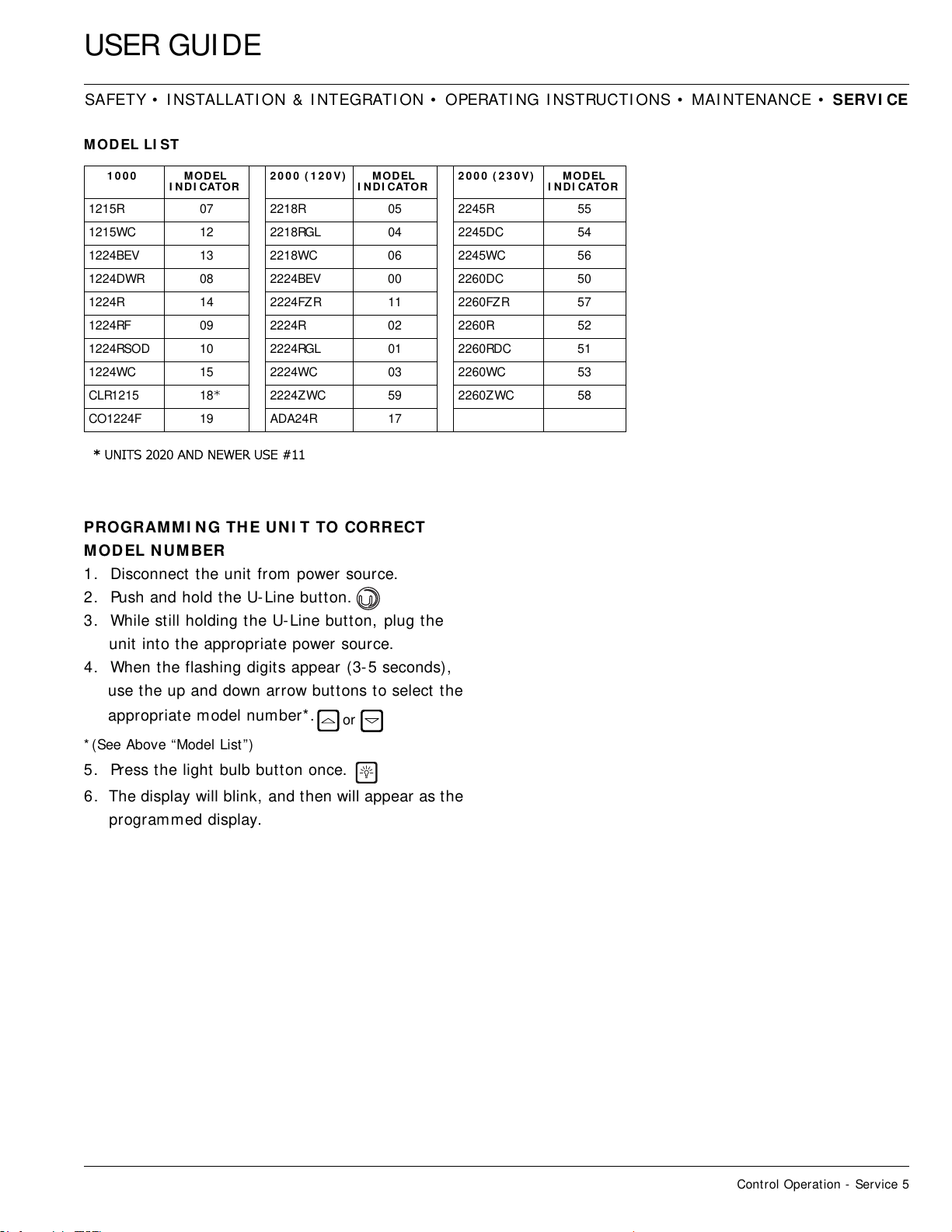

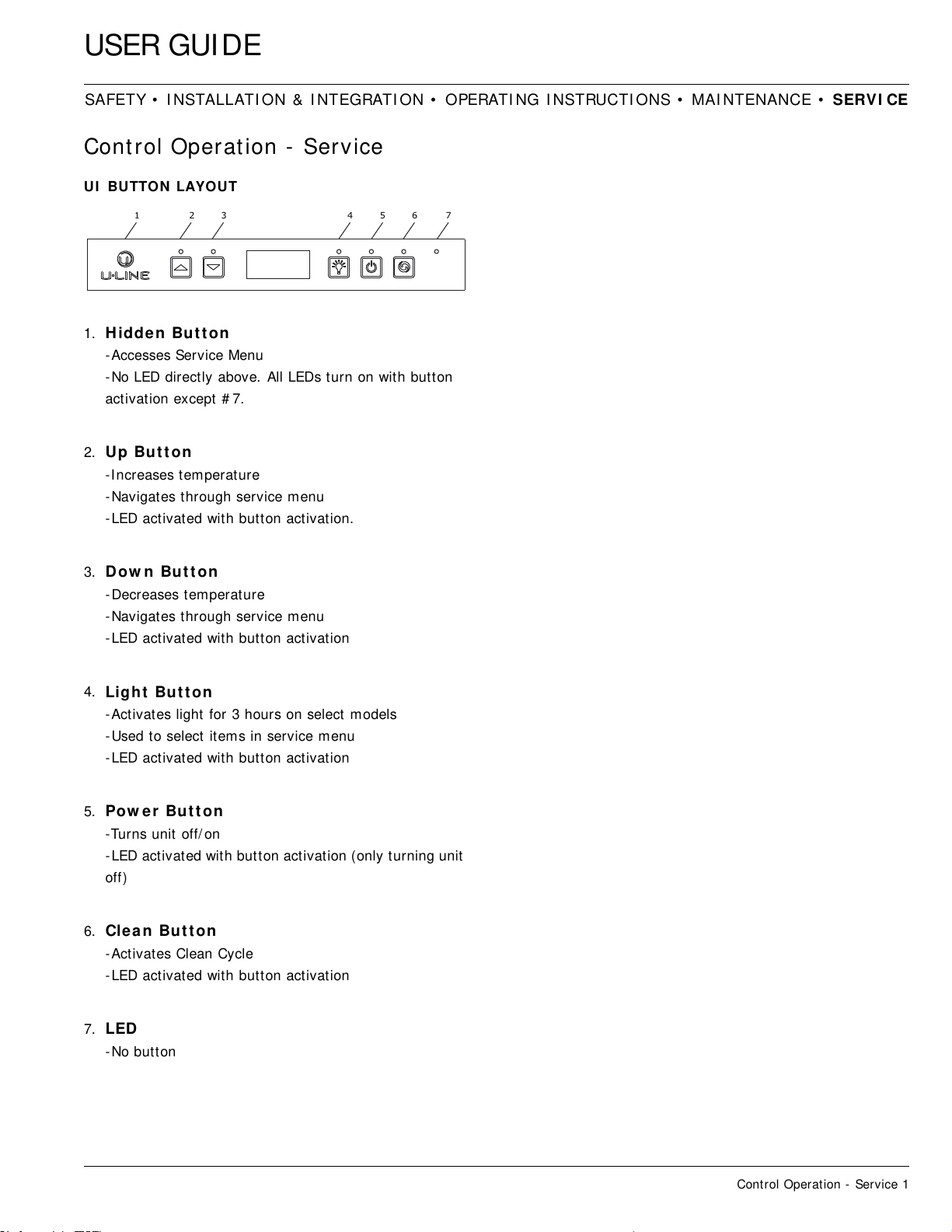

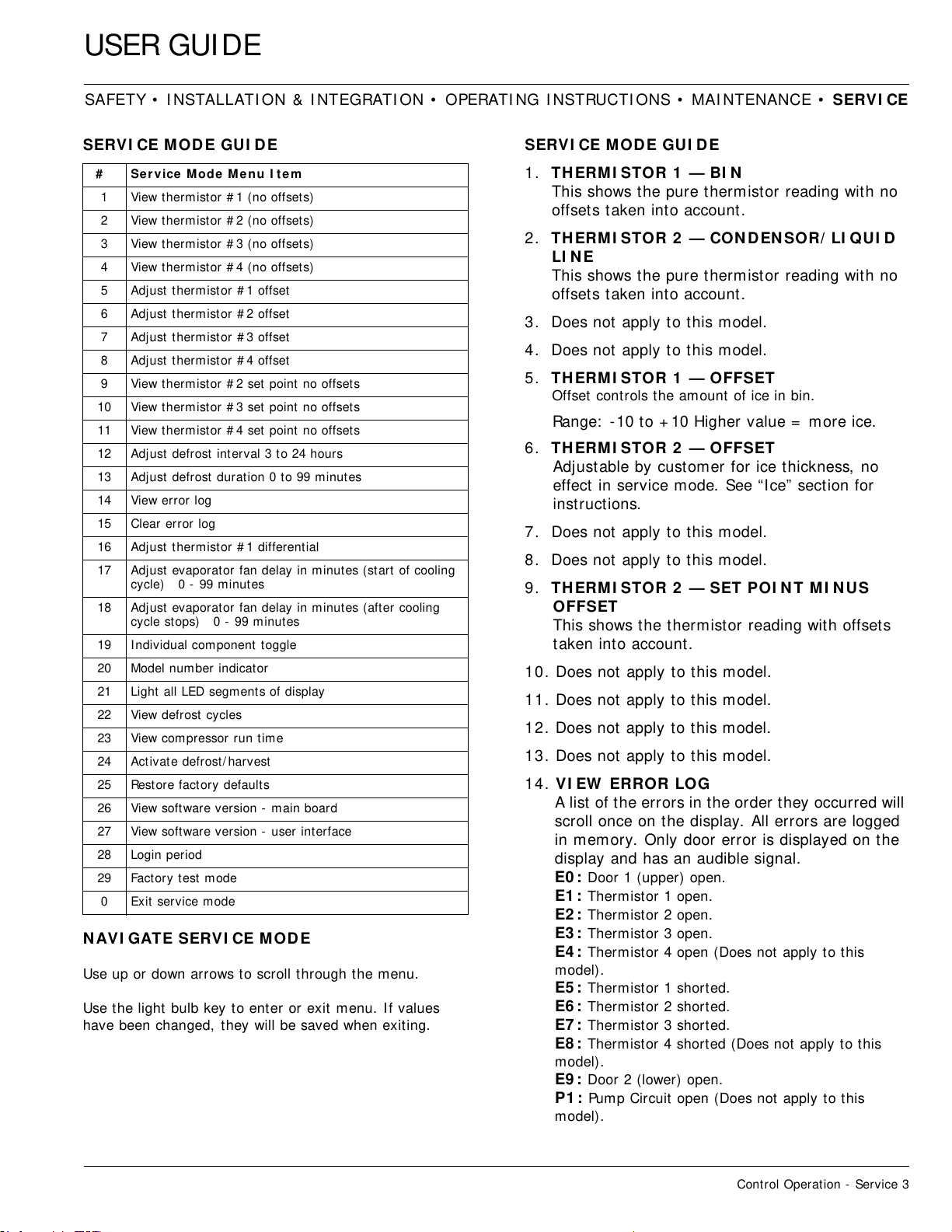

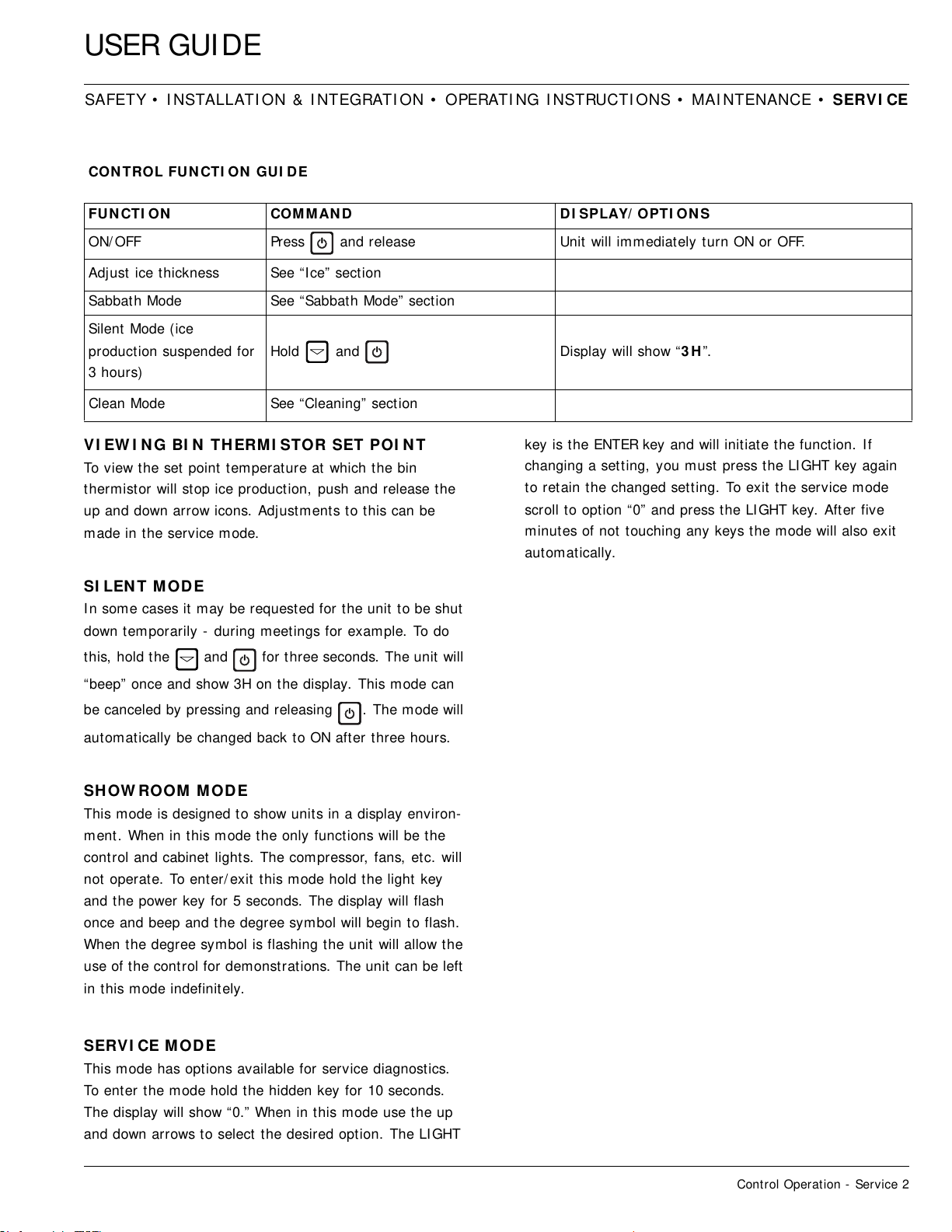

Control Operation - Service

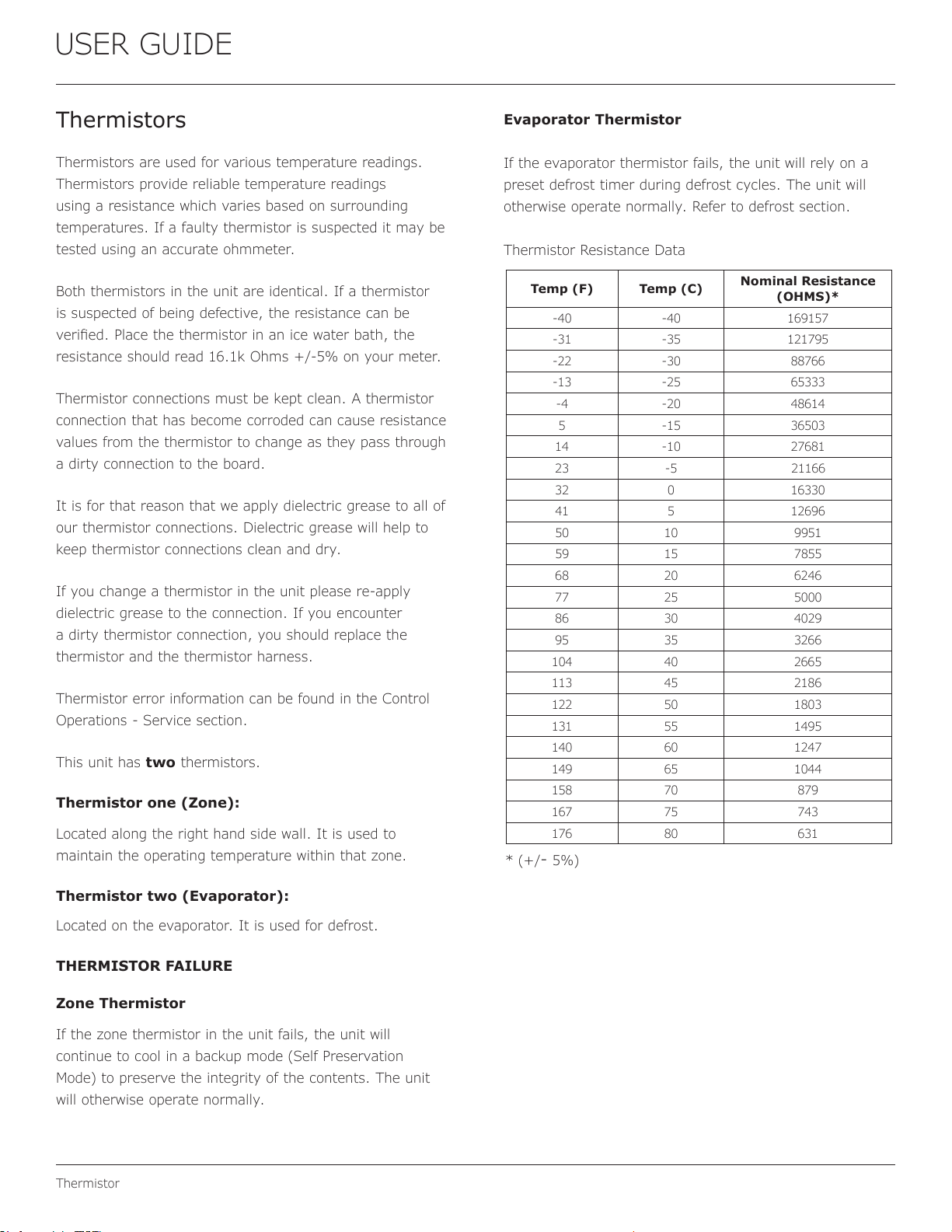

Thermistor
Defrost

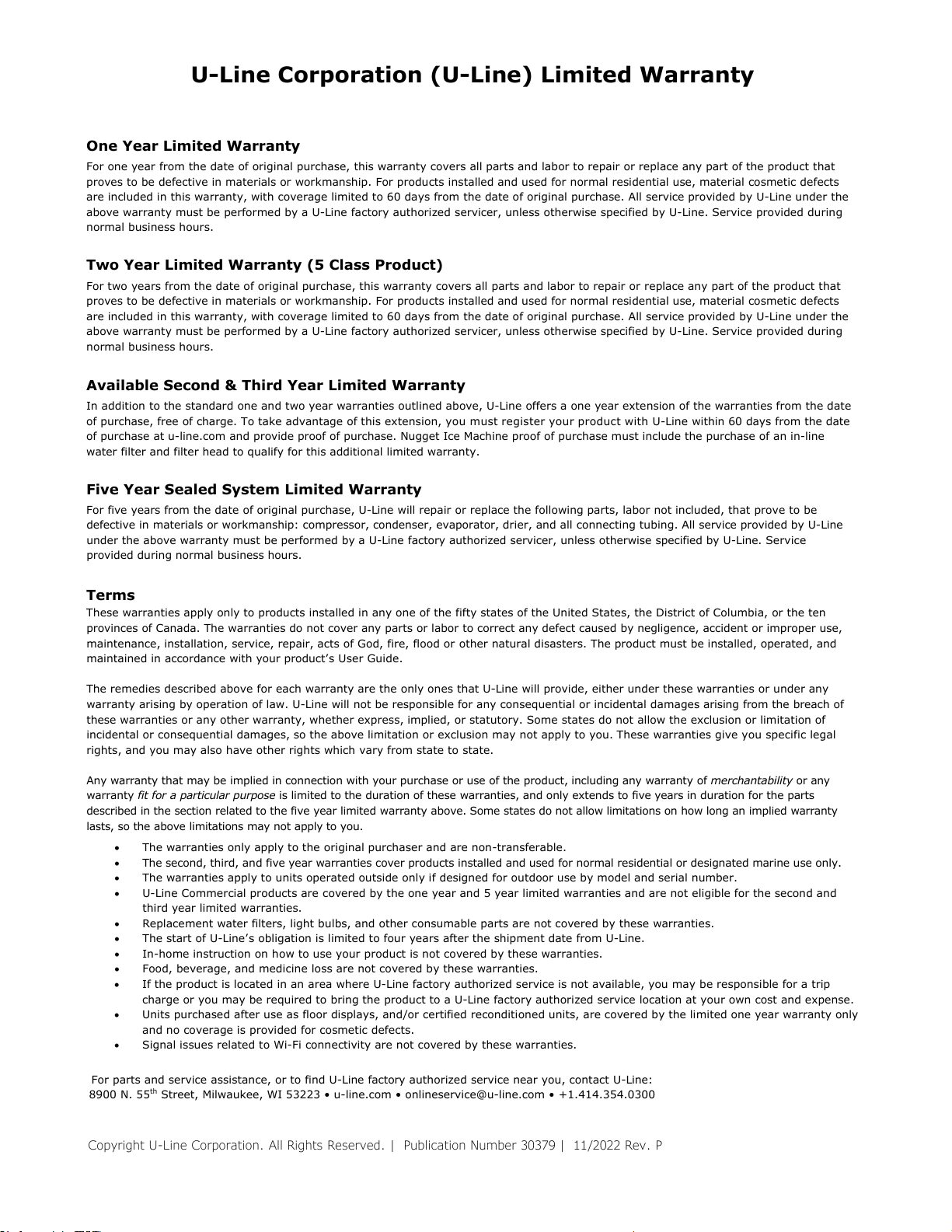

Warranty
USER GUIDE

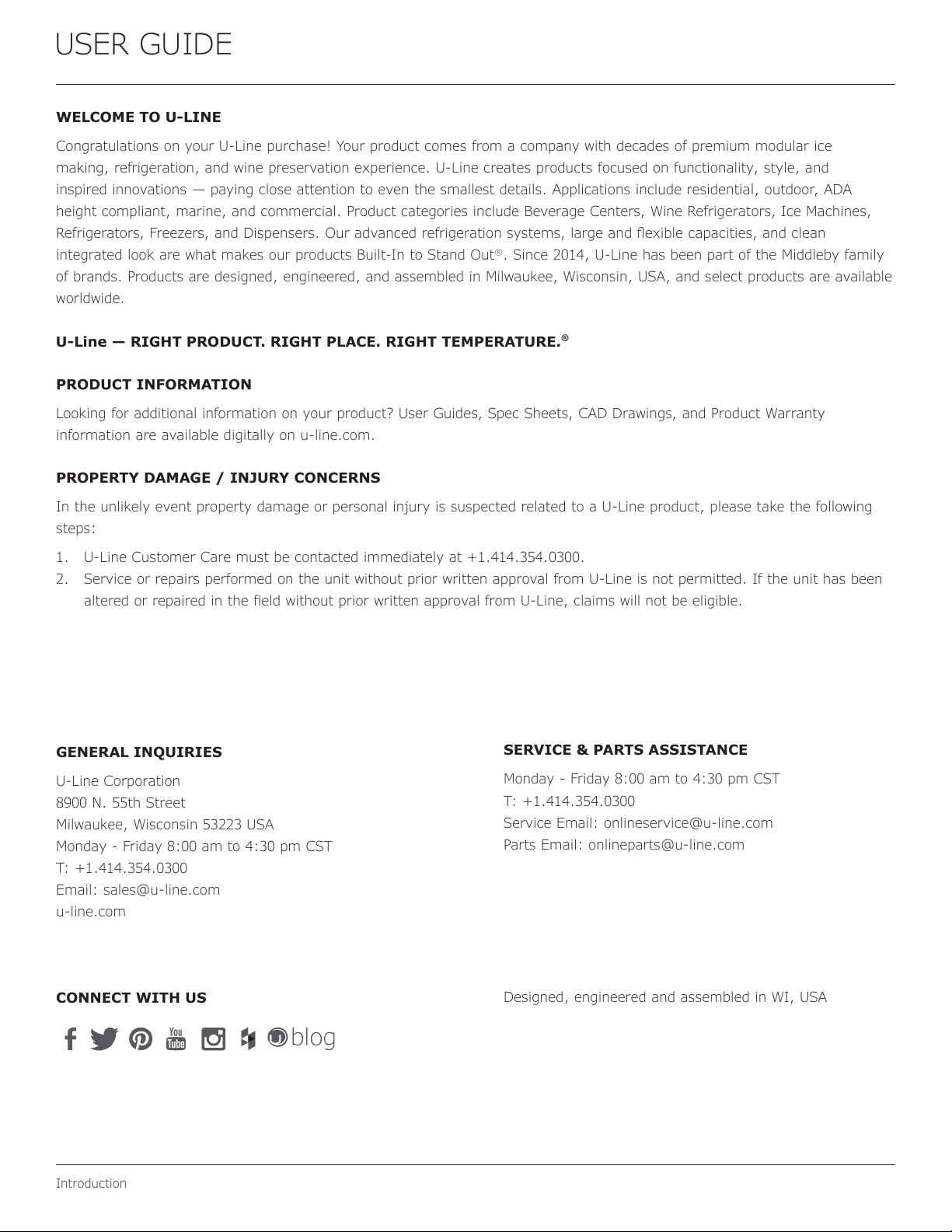

Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and
inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA
height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean
integrated look are what makes our products Built-In to Stand Out
®
. Since 2014, U-Line has been part of the Middleby family
of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available
worldwide.
U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.
®
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty
information are available digitally on u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: sales@u-line.com
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
Designed, engineered and assembled in WI, USA
3
USER GUIDE

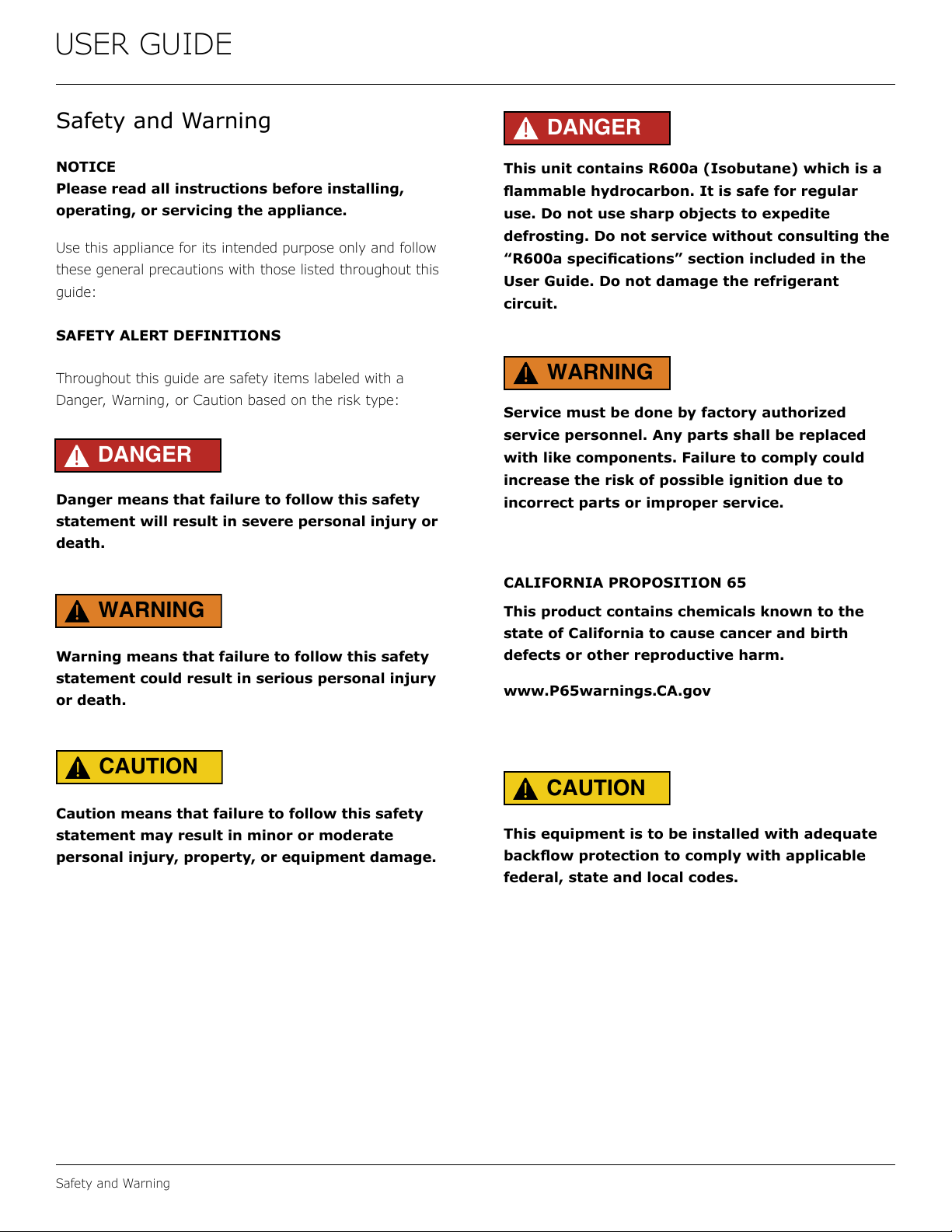

Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4
USER GUIDE

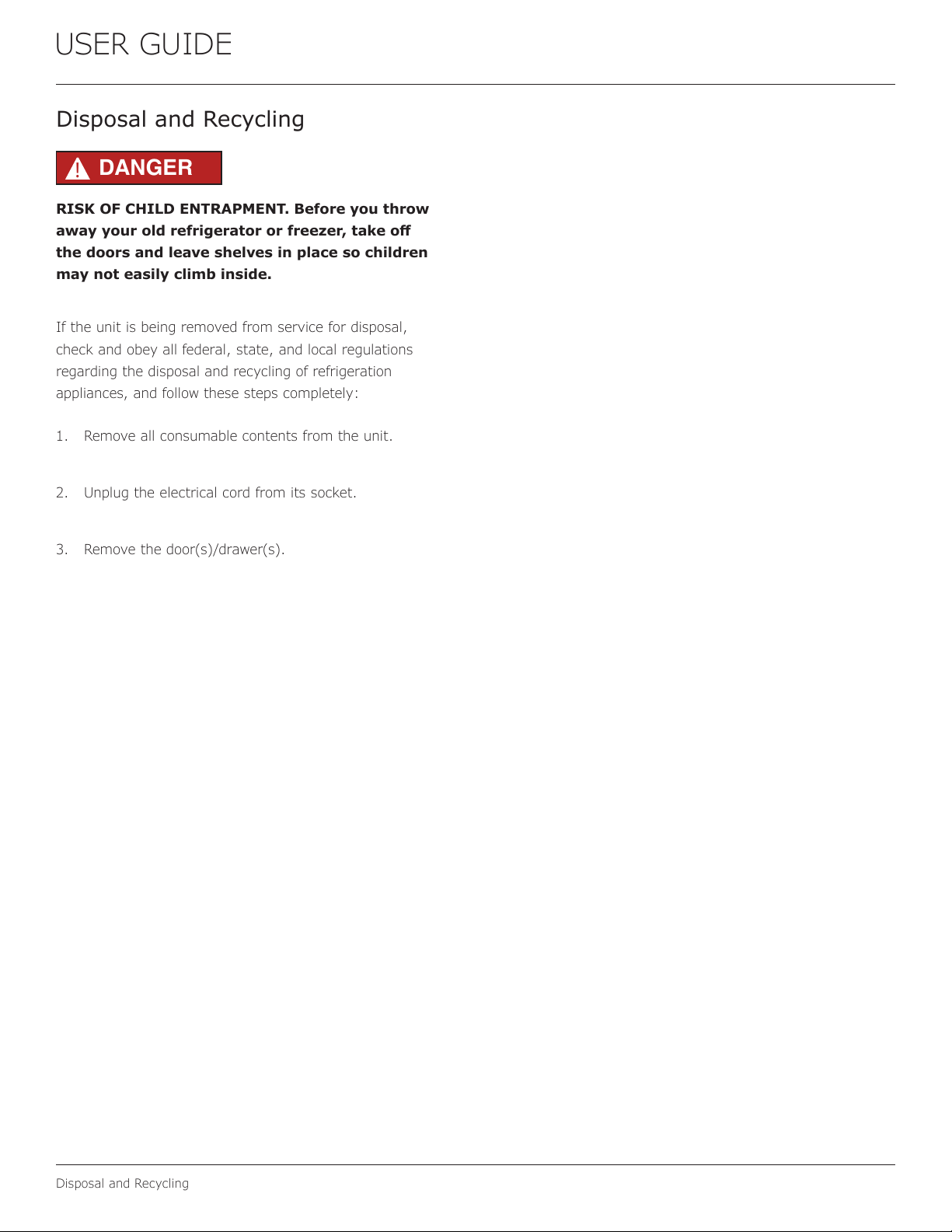

Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5
USER GUIDE

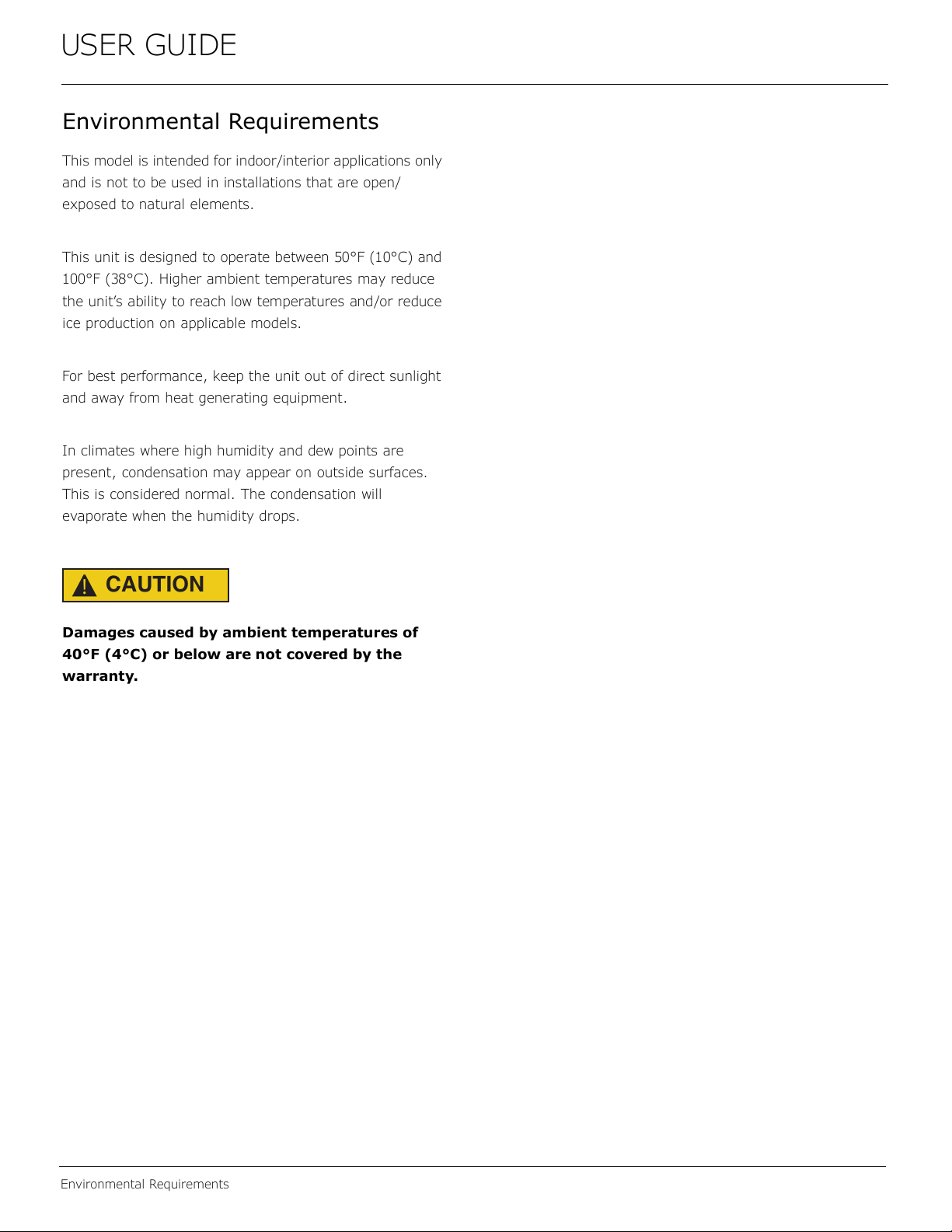

Environmental Requirements
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6
USER GUIDE

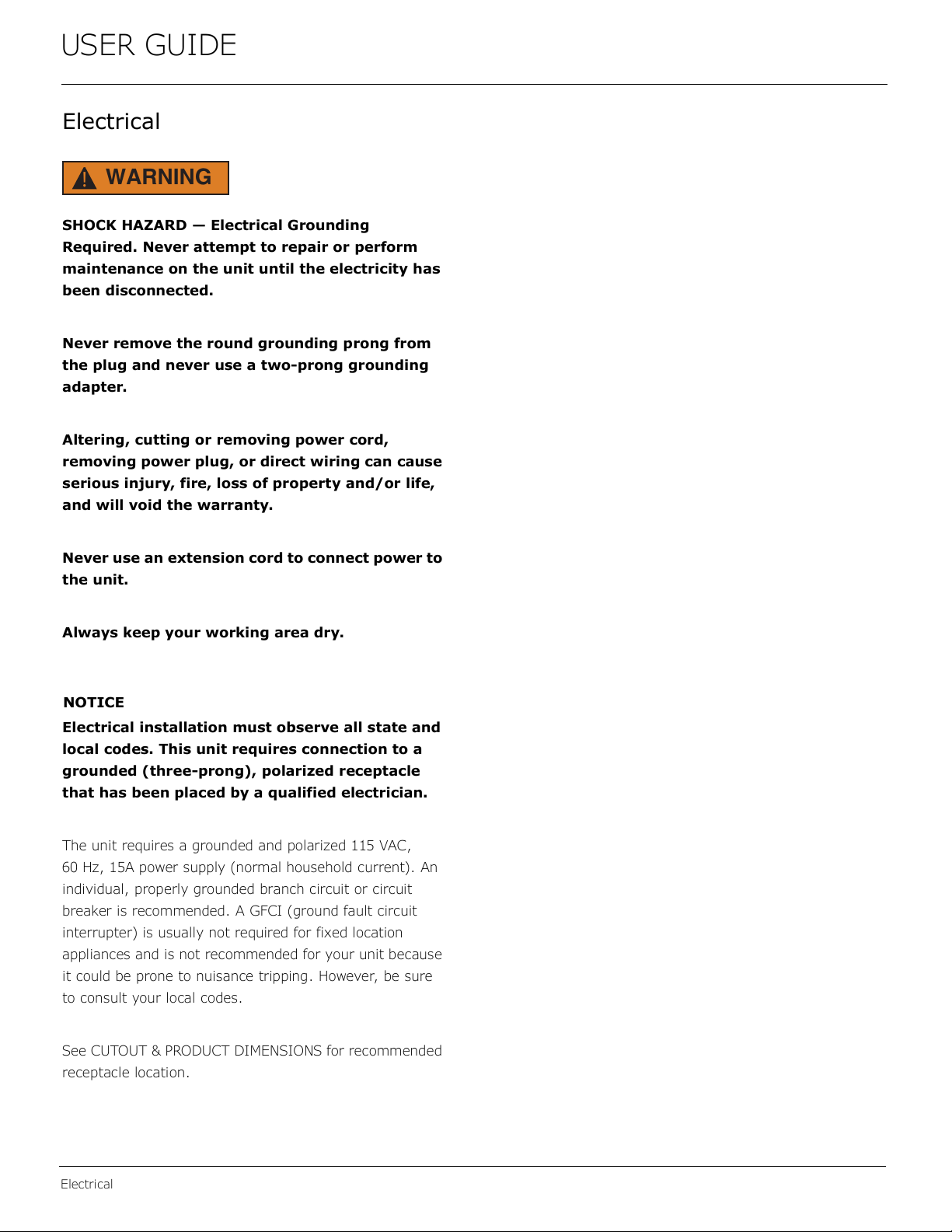

Electrical
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7
USER GUIDE
Cutout & Product Dimensions
4”
(102 mm)
1
½
”
(38 mm)
2
⁄
”
(73 mm)
4”
(102 mm)
Drain
Power Cord
Water Line
7
½
”
(102 mm)
8”
(203 mm)
6 ft (183 cm)

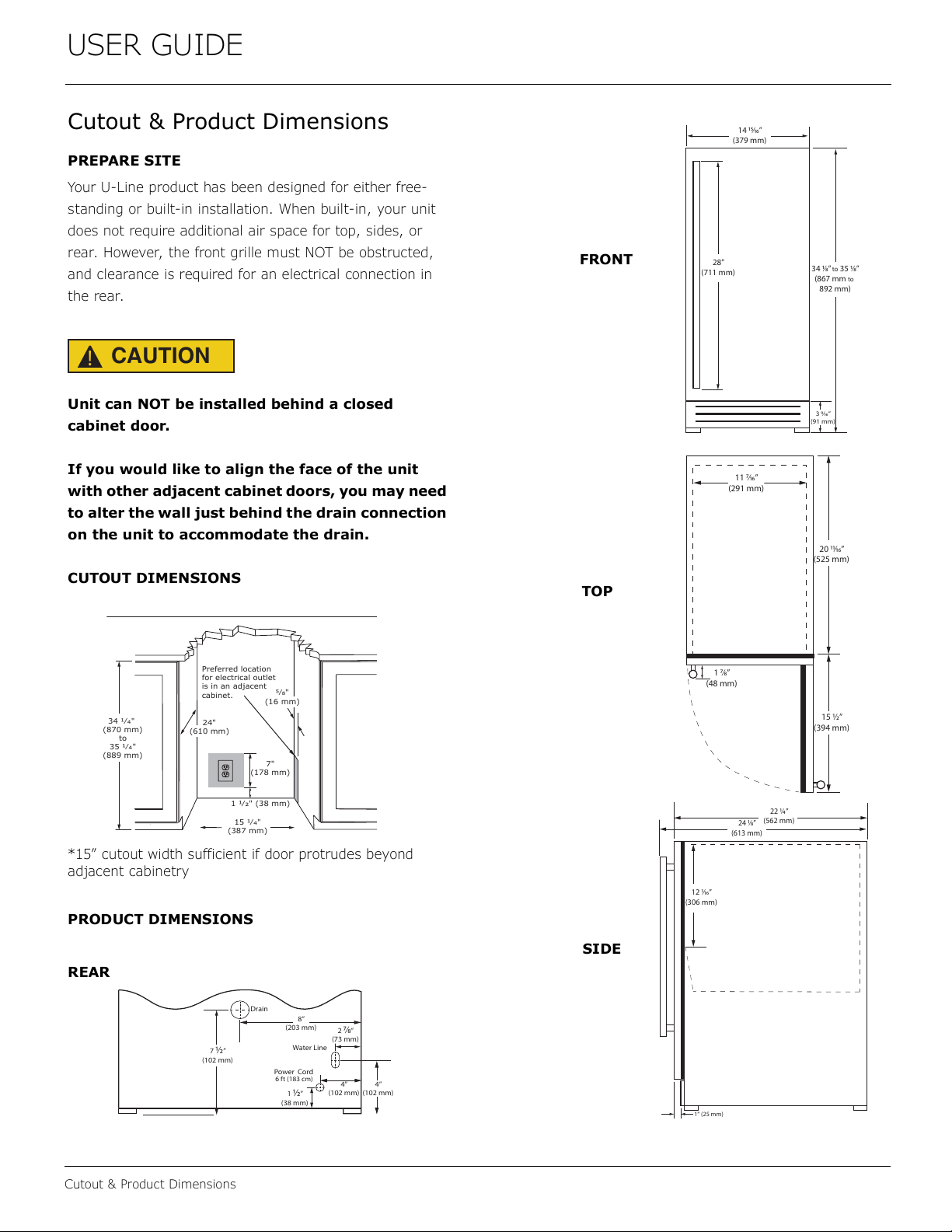

Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed
cabinet door.
If you would like to align the face of the unit
with other adjacent cabinet doors, you may need
to alter the wall just behind the drain connection
on the unit to accommodate the drain.
CUTOUT DIMENSIONS
*15” cutout width sufficient if door protrudes beyond
adjacent cabinetry
PRODUCT DIMENSIONS
REAR
1 ȟȭ" (38 mm)
7"
(178 mm)
15 ȟȯ"
(387 mm)
34 ȟȯ"
(870 mm)
to
35 ȟȯ"
(889 mm)
Preferred location
for electrical outlet
is in an adjacent
cabinet.
24"
(610 mm)
ΑȟΞ"
(16 mm)
14 ⁄”
(379 mm)
3 ⁄”
(91 mm)
28”
(711 mm)
34 ⁄”
to 35 ⁄”
(867 mm to
892 mm)
1 ⁄”
(48 mm)
11 ⁄”
(291 mm)
15 ½”
(394 mm)
20 ⁄”
(525 mm)
TOP
FRONT
SIDE
12 ⁄”
(306 mm)
22 ¼”
(562 mm)
24 ⁄”
(613 mm)
1“ (25 mm)
8
USER GUIDE

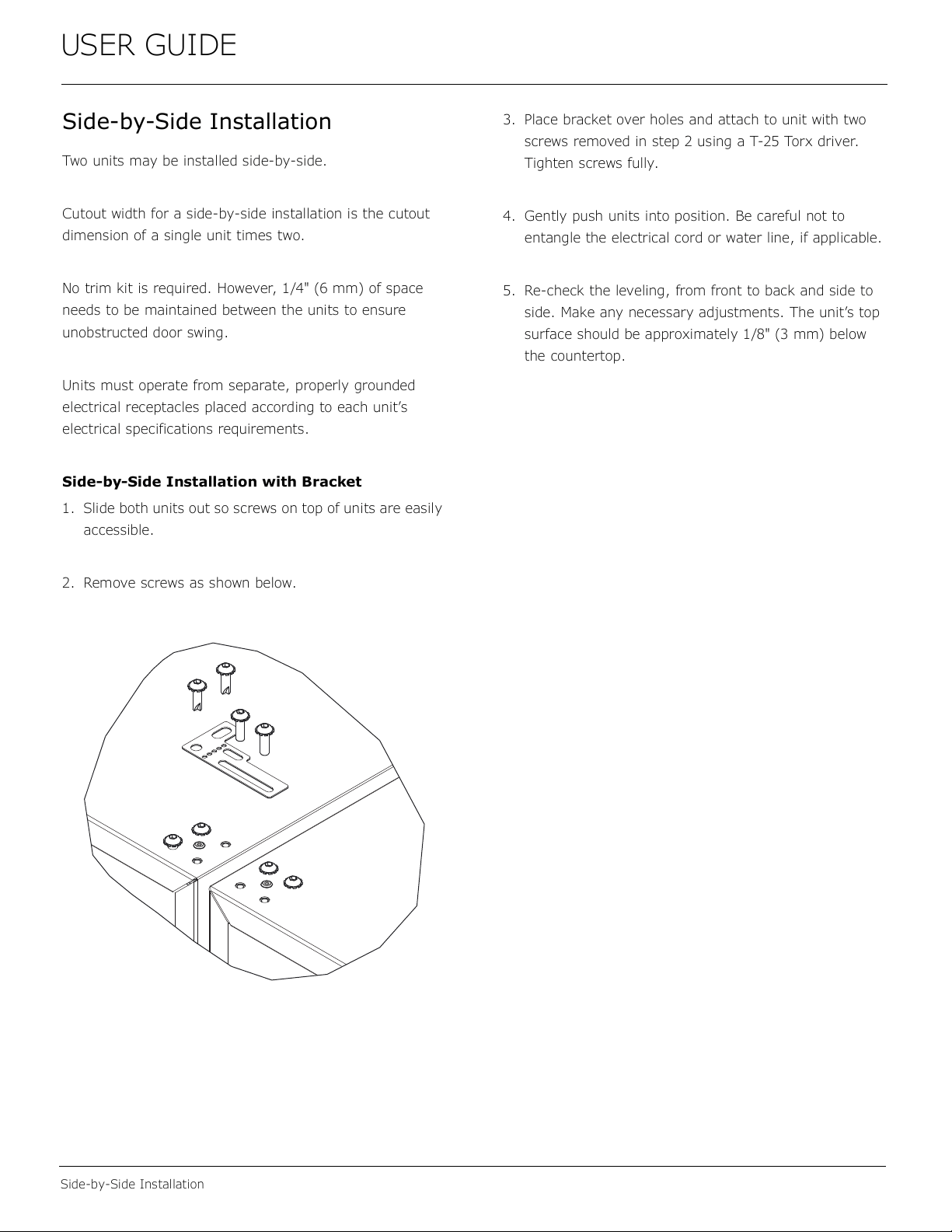

Side-by-Side Installation
Side-by-Side Installation
Two units may be installed side-by-side.
Cutout width for a side-by-side installation is the cutout
dimension of a single unit times two.
No trim kit is required. However, 1/4" (6 mm) of space
needs to be maintained between the units to ensure
unobstructed door swing.
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Side-by-Side Installation with Bracket
1. Slide both units out so screws on top of units are easily
accessible.
2. Remove screws as shown below.
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push units into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately 1/8" (3 mm) below
the countertop.
9
USER GUIDE

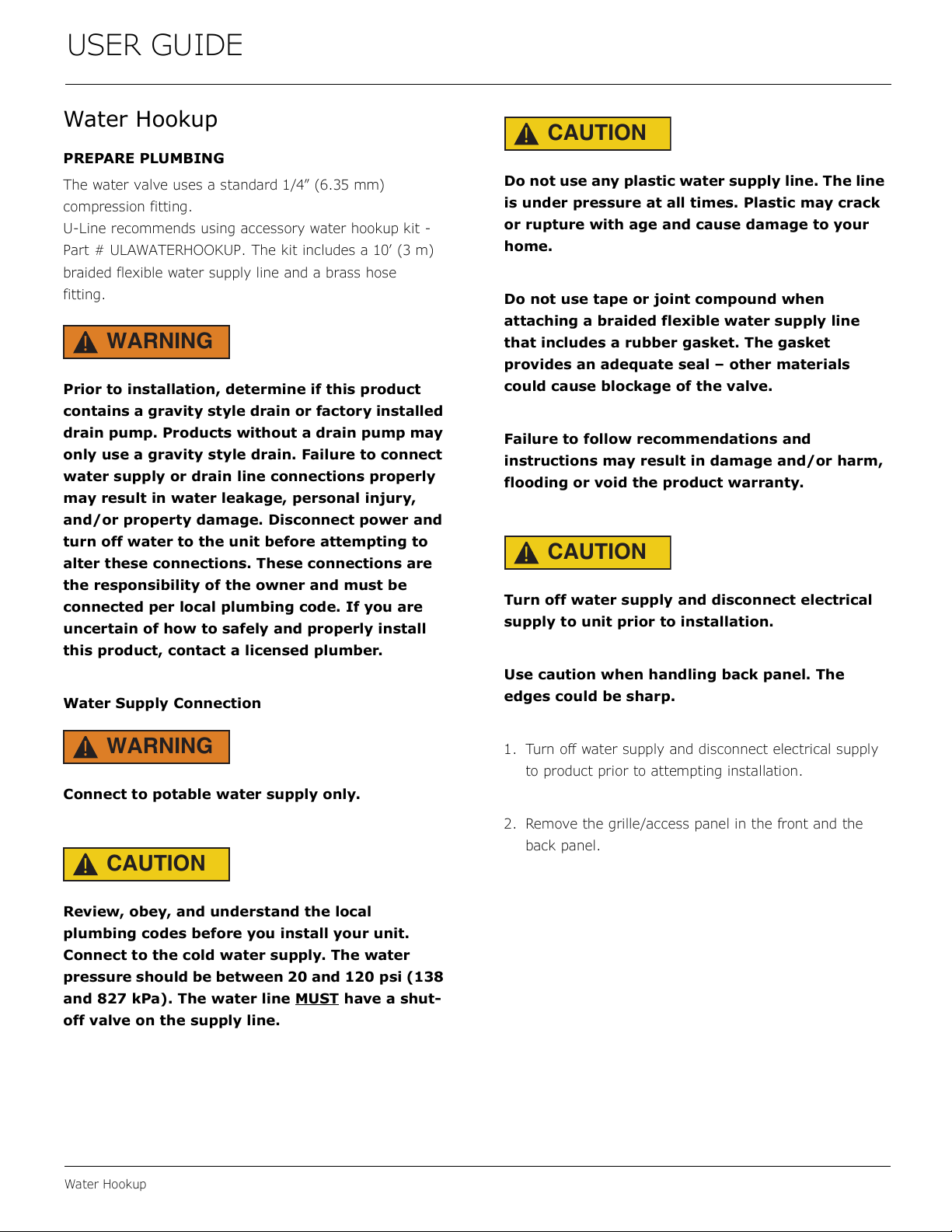

Water Hookup
Water Hookup
PREPARE PLUMBING
The water valve uses a standard 1/4” (6.35 mm)
compression fitting.
U-Line recommends using accessory water hookup kit -
Part # ULAWATERHOOKUP. The kit includes a 10’ (3 m)
braided flexible water supply line and a brass hose
fitting.
WARNING
!
Prior to installation, determine if this product
contains a gravity style drain or factory installed
drain pump. Products without a drain pump may
only use a gravity style drain. Failure to connect
water supply or drain line connections properly
may result in water leakage, personal injury,
and/or property damage. Disconnect power and
turn off water to the unit before attempting to
alter these connections. These connections are
the responsibility of the owner and must be
connected per local plumbing code. If you are
uncertain of how to safely and properly install
this product, contact a licensed plumber.
Water Supply Connection
WARNING
!
Connect to potable water supply only.
CAUTION
!
Review, obey, and understand the local
plumbing codes before you install your unit.
Connect to the cold water supply. The water
pressure should be between 20 and 120 psi (138
and 827 kPa). The water line MUST
have a shut-
off valve on the supply line.
CAUTION
!
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
Do not use tape or joint compound when
attaching a braided flexible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or harm,
flooding or void the product warranty.
CAUTION
!
Turn off water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The
edges could be sharp.
1. Turn off water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the grille/access panel in the front and the
back panel.
10
USER GUIDE

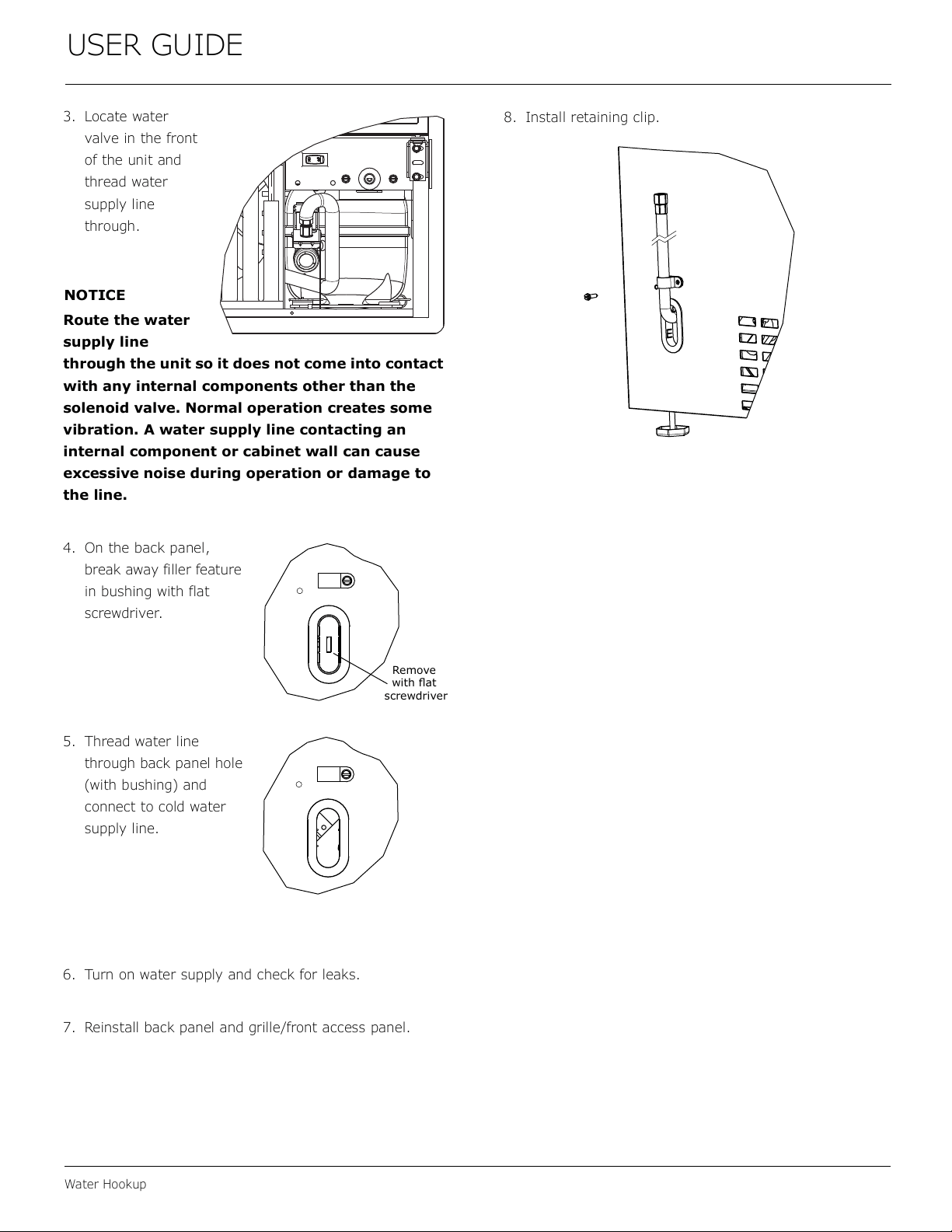

Water Hookup
3. Locate water
valve in the front
of the unit and
thread water
supply line
through.
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
4. On the back panel,
break away filler feature
in bushing with flat
screwdriver.
5. Thread water line
through back panel hole
(with bushing) and
connect to cold water
supply line.
6. Turn on water supply and check for leaks.
7. Reinstall back panel and grille/front access panel.
8. Install retaining clip.
Remove
ZLWKɠDW
screwdriver
11
USER GUIDE
Drain
If your U-Line unit did not come with a factory
installed drain pump you must use a gravity
style drain connection. For assistance in
determining if your unit has a pump please
contact U-Line. The oor drain must be large
enough to accommodate drainage from all
attached drains. Follow these guidelines when
installing drain lines to prevent water from
owing back into the ice maker storage bin and/
or potentially owing onto the oor, which may
result in personal injury or property damage
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Gravity drain connections
must be routed downward from the rest of the
unit at the rate of 1/4” per foot (1 cm per 50 cm).
Drain can NOT be located directly below the
unit. Unit has a solid base that will not allow the
unit to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and ttings are free from
leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
A gravity drain may be used if:
Drain line has at least a 1” drop per 48” (approximately
2 cm drop per 100 cm) of run.
Drain line does not create traps and is vented per local
code.
1. Cut the pre-installed drain tube to length.
2. Connect to your local plumbing per the local code.
3. If necessary, insulate drain line to prevent
condensation.
DRAIN CONNECTION
GRAVITY DRAIN
NOTICE
Drain
CAUTION
!
CAUTION
!
CAUTION
!
Normal
Proper Drain
With Trap
Poor Drainage, Water Will Back Up
With Trap and Vent
Proper Drain
12
USER GUIDE
Drain
The maximum lift for the drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
If your drain line will run up to a stand pipe, disposal
or spigot assembly, or does not otherwise meet the
requirements for a gravity drain, you may have ordered a
pre-installed drain pump.
If you need to install a drain pump into your unit, see
DRAIN PUMP section in the User Manual.
To order a drain pump, order part number
ULADRAINPUMP115V online at u-line.com.
See below for typical installations requiring a drain pump.
FACTORY INSTALLED DRAIN PUMP
NOTICE
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
Drain Pump
13
USER GUIDE
Anti-Tip Bracket
Anti-Tip Bracket
1. Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of the
hinge assembly using a T-25 Torx driver (see below).
3. Place bracket over holes and attach to unit with two
screws removed in step 2 using a T-25 Torx driver.
Tighten screws fully.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if applicable.
5. Check to be sure the unit is level from front to back
and side to side. Make any necessary adjustments.
The unit’s top surface should be approximately 1⁄8”
(3 mm) below the countertop.
6. Secure bracket into adjoining surface.
14
USER GUIDE
General Installation
General Installation
LEVELING INFORMATION
1. Use a level to
conrm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
INSTALLATION TIP
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of
1⁄8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not
to entangle the cord or water and drain lines, if
applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately
1⁄8” (3 mm) below
the countertop.
4. Install the anti-tip bracket.
5. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
1
Turn to Adjust
15
USER GUIDE
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Removing the grille
1. Disconnect power to the unit.
2. Slightly loosen three screws on bottom hinge.
3. Remove two grille screws.
4. Slide grille to the left and remove.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (3).
2. Tighten three hinge screws (4).
3. Connect power to unit.
WARNING
!
3
2
16
USER GUIDE
Door Swing
u-line.com
Door Swing
Wall Wall
90
Door Swing
90
Door Swing
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel and black and white models require
2-1/8" (54 mm) door clearance to accommodate the
handle if installed next to a wall.
Integrated models require 1/4" (6 mm) clearance if
installed next to a wall. Allow for additional space for any
knobs or pulls installed on the integrated panel/frame.
17
USER GUIDE
Door Adjustments
Door Adjustments
HINGE COVER
Hinge cover included with the literature bag is optional.
To install hinge cover:
1. Press hinge cover squarely over hinge.
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost may form in the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
To align and adjust the door:
1. Gently pry o hinge cover from top of unit.
2. Loosen (do not remove) top and bottom hinge screws
using a Torx T-25 screwdriver on the top and a 1/4”
socket on the bottom.
3. Align door squarely with cabinet.
4. Make sure gasket is rmly in contact with cabinet all
the way around the door (no gaps).
5. Tighten bottom hinge screws.
6. Tighten top hinge screws and replace hinge cover.
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Remove arrow clips:
1. With a putty knife or other at tool, gently pry each
arrow clip from hinge mounting holes.
2. Set aside arrow clips to be reused on the opposite
side.
Remove top hinge and door:
1. Remove hinge cover from top of unit
2. Hold door to keep it from falling.
3. Remove top hinge from cabinet using a Torx T-25
screwdriver to remove three screws.
Hinge Cover
18
USER GUIDE
Door Adjustments
4. Remove door by tilting forward and lifting door o
bottom hinge. Retain shoulder washers; they will be
reused.
5. Insert arrow clips into holes
Remove bottom hinge:
1. Remove bottom hinge from cabinet using a 1/4”
socket.
2. Remove corresponding screws on opposite side of
cabinet. On some models there may be a nut behind
one or both screws on either side.
Install bottom hinge:
Install two or three screws, depending on model. Replace
nuts if used.
PREPARE DOOR FOR REINSTALLATION
Rotate gasket
1. With a at tool, such as a
putty knife, gently pry up
beneath the gasket and
spacer until completely free
from the door surface.
2. Continue removing the
gasket by grabbing hold
and gently pulling outward,
exposing the gasket
channel.
3. Remove the 3 pieces of
gasket channel filler and
reinstall on the opposite end
of door.
4. Install gasket into channel,
beginning at one corner and
pressing in firmly.
5. Press down on middle
horizontal portion of gasket
until it adheres to the door
surface.
Install top hinge and door:
1. Remove pivot screw
from hinge, ip hinge
over, and install the
pivot screw in the same
hole from the opposite
surface.
2. Lift the door onto the
bottom hinge.
3. Align edge of the hinge with the outer edge of the unit.
4. Tighten three screws and replace hinge cover.
5. Replace hinge cover.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT)
Top Hinge
Right Side
Top Hinge
Left Side
Pivot
Screw
Gasket Channel
Filler
Gasket With Spacer
Beneath
Gasket Channel
Press down firmly
Note: It may be
necessary to apply
a strip of two-sided
tape for a firm
adhesion.
19
USER GUIDE
First Use
First Use
All U-Line controls are preset at the factory. Initial startup
requires no adjustments. See CONTROL OPERATION
section for more details.
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
When plugged in, the unit will begin operating under the
factory default settings. If the unit was turned off during
installation, simply press and the unit will immediately
switch on. To turn the unit off, press and release.
20
USER GUIDE
Control Operation
Control Operation
CONTROL FUNCTION GUIDE
FUNCTION COMMAND NOTES
ON/OFF Press and release Unit will immediately turn On or OFF
Adjust light color
Hold press and release .
Press to scroll through lighting
options
Option Open Door Closed Door
00 White White
01 BrightShield
TM
BrightShield
TM
02 (default) White BrightShield
TM
Toggle interior light -
Door Closed
Press and release to toggle interior
light option; press again to deactivate
Toggle depends on light color option above.
Light output 50%
Adjust ice thickness See “Ice” section
Enable Sabbath Mode
Press and hold for 5 seconds and
release
The
o
F /
o
C symbol will ash briey after 5 seconds.
Interior light and display will go dark and remain so
until user resets mode - unit continues to operate
Disable Sabbath Mode Press and release Display and interior light return to normal operation
Silent Mode (ice
production suspended for
3 hours)
Hold and
Display will countdown the hours: 3H, 2H,
1H
Clean Mode See “Cleaning” section
Showroom Mode Hold and for 5 seconds
The
º
F /
º
C symbol will ash. Display will be lit and
interior light will function. Unit will not cool. Repeat
command to return to normal operation
This unit is Star-K certied. See www.star-k.org for more details.
21
USER GUIDE
Control Operation

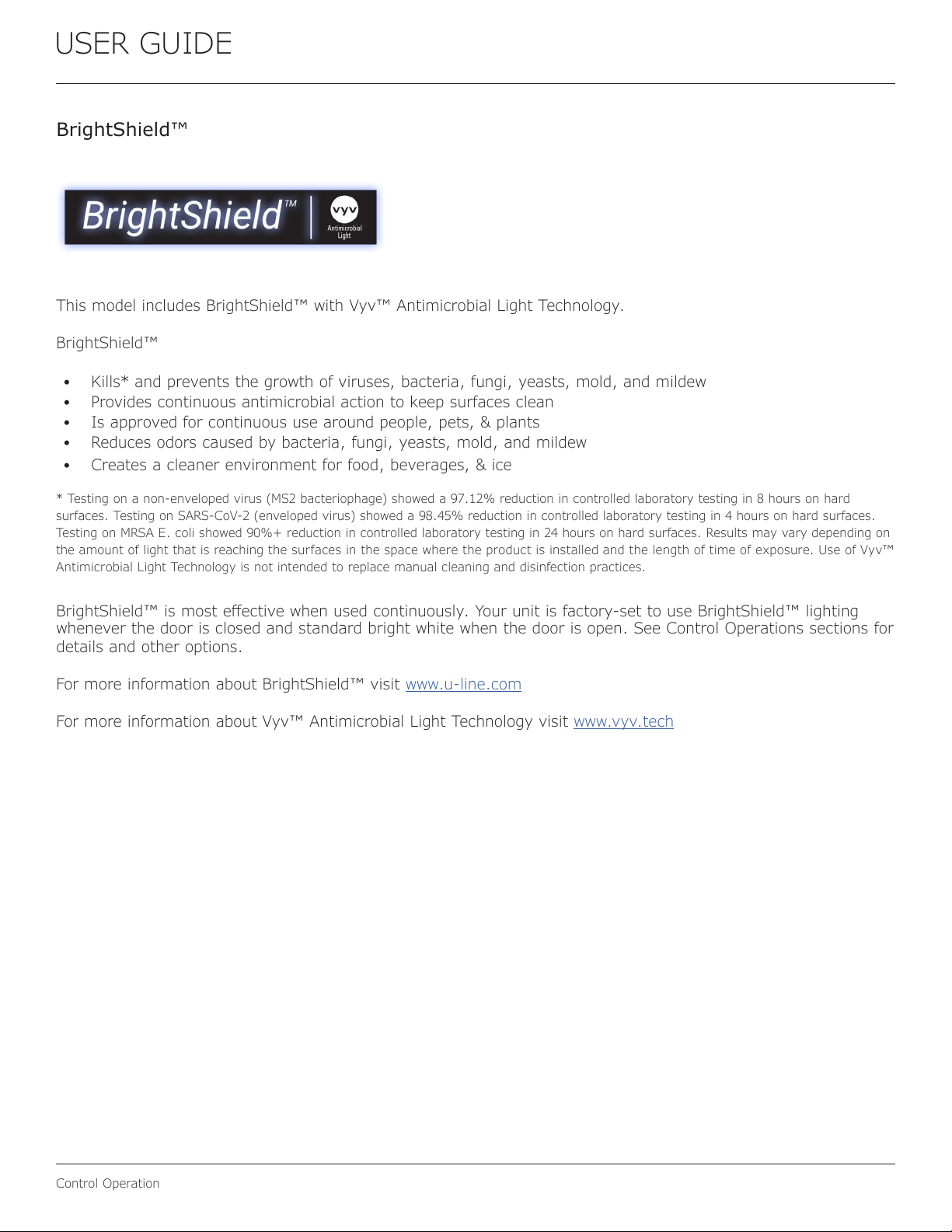

BrightShield™
This model includes BrightShield™ with Vyv™ Antimicrobial Light Technology.
BrightShield™
• Kills* and prevents the growth of viruses, bacteria, fungi, yeasts, mold, and mildew
• Provides continuous antimicrobial action to keep surfaces clean
• Is approved for continuous use around people, pets, & plants
• Reduces odors caused by bacteria, fungi, yeasts, mold, and mildew
• Creates a cleaner environment for food, beverages, & ice
BrightShield™ is most eective when used continuously. Your unit is factory-set to use BrightShield™ lighting
whenever the door is closed and standard bright white when the door is open. See Control Operations sections for
details and other options.
For more information about BrightShield™ visit
www.u-line.com
For more information about Vyv™ Antimicrobial Light Technology visit www.vyv.tech
* Testing on a non-enveloped virus (MS2 bacteriophage) showed a 97.12% reduction in controlled laboratory testing in 8 hours on hard
surfaces. Testing on SARS-CoV-2 (enveloped virus) showed a 98.45% reduction in controlled laboratory testing in 4 hours on hard surfaces.
Testing on MRSA E. coli showed 90%+ reduction in controlled laboratory testing in 24 hours on hard surfaces. Results may vary depending on
the amount of light that is reaching the surfaces in the space where the product is installed and the length of time of exposure. Use of Vyv™
Antimicrobial Light Technology is not intended to replace manual cleaning and disinfection practices.
22
USER GUIDE
First Use
Ice
ICE CUBE THICKNESS AND ADJUSTMENT
NOTICE
Ice thickness adjustment should only be made
one increment at a time. Allow ice maker
production to stabilize for 24 hours before
rechecking ice thickness.
Ice is produced in layers resulting in a clear cube. Ice in
bin may develop surface frost which disappears when cube
is placed in liquid.
Ice cubes in any given batch will vary, so it is necessary to
choose cubes from the sample area for comparison when
making adjustments.
The ice cube thickness is factory set for best overall
performance. The factory setting is designed to maintain
an ice bridge of approximately 1/16” to 1/8” (1.6 mm to
3.2 mm) under normal conditions, resulting in a dimple of
approximately 1/4” to 1/2” (6.4 mm to 12.7 mm) in depth.
A fuller cube with less of a dimple results in a thicker ice
bridge. As the ice bridge becomes thicker, the tendency
for the cubes to stay together as a slab increases. A bridge
thicker than 1/8” (3.2 mm) may cause cubes to overll the
ice bucket.
32 ice cubes are formed on a 4 x 8 slab during each cycle.
Each cycle takes approximately 15-20 minutes at the
default cube thickness (0).
Your clear ice machine is preset to produce ice between
the optimal dimensions illustrated below:
Ice thickness adjustments are made using the control
panel as follows:
1. To enter the thickness adjustment mode:
• Press and hold for 5 seconds.
• The display will switch to “0” to conrm the
thickness adjustment mode has been selected.
The factory setting is “0”. Use to raise the setting and
thicken the ice bridge, or to lower the setting to thin
the ice bridge.
2. Press to conrm your choice.
Ice cubes in any given batch will vary, so it is necessary
to choose cubes from the same area for comparison when
making adjustments.
DIMPLES
ICE BRIDGE
7/8"
(22 mm)
7/8"
(22 mm)
THINNER BRIDGE
THICKER BRIDGE
DEEPER DIMPLE
SHALLOWER DIMPLE
1/4" TO 1/2"
(6.4 mm to 12.7 mm)
DIMPLE
1/16" TO 1/8"
(1.6 mm to 3.2 mm)
ICE BRIDGE
Cube Details
Factory Default Setting - 0
< 0
SETTING
> 0
SETTING
23
USER GUIDE
Airflow and Product Loading
Airflow and Product Loading
NOTICE
The unit requires proper airflow to perform at its
highest efficiency. Do not block the front grille at
any time, or the unit will not perform as
expected. Do not install the unit behind a door.
24
USER GUIDE
Cleaning
Using abrasive pads such as ScotchBrite™ will
cause the graining in the stainless steel to
become blurred.
Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.
For information on Keg and Tap Towers, please reference
the Single and Double Tap Tower Kits User Guide on
u-line.com.
Integrated Models
To clean integrated panels, use household cleaner per the
cabinet manufacturer’s recommendations.
INTERIOR CLEANING
Disconnect power to the unit.
Clean the interior and all removed components using a mild
nonabrasive detergent and warm solution applied with a
soft sponge or non-abrasive cloth.
Rinse the interior using a soft sponge and clean water.
Do not use any solvent-based or abrasive
cleaners. These types of cleaners may transfer taste
and/or odor to the interior products and damage or discolor
the interior.
CLEAR ICE MACHINE CLEANING CYCLE
Your U-Line clear ice machine has an automatic clean
alert function. Cleaning cycles should be run as notied.
Otherwise, to maintain operational eciency the unit
should be cleaned every three months. Depending on water
conditions, more frequent cleaning may be necessary. If
the ice machine requires more frequent cleaning, consult
a plumber to test the water quality and recommend
appropriate treatment.
Wear rubber gloves and safety goggles and/or
face shield when handling Ice Machine Cleaner.
Clean surfaces with a mild detergent and warm water
solution. Do not use solvent-based or abrasive cleaners.
Use a soft sponge and rinse with clean water. Wipe with a
soft, clean towel to prevent water spotting.
Clean any glass surfaces with a non-chlorine glass
cleaner.
EXTERIOR CLEANING
Vinyl Clad (Black or White) Models
Stainless Models
Stainless door panels, handles and frames can discolor
when exposed to chlorine gas, pool chemicals, saltwater or
cleaners with bleach.
Keep your stainless unit looking new by cleaning with a
good quality all-in-one stainless steel cleaner and polish
monthly. For best results use Claire
®
Stainless Steel
Polish and Cleaner. Comparable products are acceptable.
Frequent cleaning will remove surface contamination that
could lead to rust. Some installations may require cleaning
weekly.
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on
any glass surfaces.
Clean any glass surfaces with a non-chlorine glass cleaner.
Do not use cleaners not specically intended for
stainless steel on stainless steel surfaces (this
includes glass, tile, and counter cleaners).
If any surface discoloring or rusting appears, clean it
quickly with Bon-Ami
®
or Barkeepers Friend Cleanser
®
and
a nonabrasive cloth. Always clean with the grain. Always
nish with Claire
®
Stainless Steel Polish and Cleaner or
comparable product to prevent further problems.
Cleaning
CAUTION
!
25
USER GUIDE
Cleaning
NOTICE
Use only U-Line Clear Ice Machine Cleaner
(80-55667-00), available for purchase from
u-line.com or your dealer. It is a violation of
federal law to use this solution in a manner
inconsistent with its labeling. Use of any other
cleaner can ruin the nish of the evaporator and
will void the warranty. Read and understand all
labels printed on the package before use.
U-Line Clear Ice Machine Cleaner is used to remove lime
scale and other mineral deposits. Refer to the following
steps to initiate the self-cleaning cycle.
Never use anything to force ice from the
evaporator. Damage may result.
1. Turn the ice machine o and allow any ice to melt o
of the evaporator.
2. Remove all ice from the storage bin.
3. Remove evaporator cover.
4. Remove the standpipe by
lifting it up while using
a slight back and forth
motion to loosen it from
the drain hole. The water
in the reservoir will ow
down the drain.
5. Re-install the standpipe into the water trough.
6. Clean the Interior Bin as
follows:
• Dilute 1-2 oz. of Clear Ice
Machine Cleaner into two
quarts of water.
• Using a sponge or cloth, clean interior of ice bin,
tubing and door. This cleaner will remove all mineral
deposits and other contaminants from the surfaces.
CAUTION
!
• Using a bottle brush, clean
out the trough drain tube
and pump tubing where
needed.
7. Turn unit on by pressing .
8. Place unit into CLEAN mode by holding for 5
seconds.
9. When water begins owing over the evaporator
(approximately 3 minutes), pour 1-2 oz. of Clear Ice
Machine Cleaner into the water trough. The cleaning
process will last approximately 45 minutes.
10. Dilute 1 tablespoon bleach in 1 gallon of warm water.
Apply this solution to the entire inside of the storage
area. Then rinse thoroughly with water.
The unit will resume operation approximately 15 minutes
after the automated cleaning process is completed. The
water ll valve will energize, ll the water reservoir, and
shut-o after three minutes. The compressor begins to
operate and water ows over the evaporator assembly
(ice mold). Initially, the water ow may not be uniform,
causing uneven sized cubes or water to spill into the ice
storage bin. This is a normal situation that will correct
itself within the rst 24 hours of operation.
NOTICE
Discard all ice produced in the rst harvest.
Should power to the unit be interrupted during
the self-clean cycle, it will be necessary to
repeat the complete cleaning cycle after power is
restored.
REFRESH KIT
Due to variations in water quality or inadequate
maintenance your unit may become excessively coated
in lime scale or calcium. U-Line oers a cost eective
refresh kit which replaces many interior components and
will return your unit to like new condition. Refresh kits
may be ordered from your local distributor and installed by
your local service company. For information on your local
distributor or service company please visit
www.u-line.com.
Evaporator cover
Standpipe
Evaporator
Water trough
Brush
26
USER GUIDE
Cleaning Condenser
Cleaning Condenser
INTERVAL - EVERY SIX MONTHS
To maintain operational eciency, keep the front grille free
of dust and lint, and clean the condenser when necessary.
Depending on environmental conditions, more or less
frequent cleaning may be necessary.
WARNING
!
Disconnect electric power to the unit before
cleaning the condenser.
NOTICE
DO NOT use any type of cleaner on the condenser
unit. Condenser may be cleaned using a vacuum,
soft brush, or compressed air.
1. Remove the grille. See GRILLE INSTALLATION).
2. Clean the condenser coil using a soft brush or vacuum
cleaner.
3. Install the grille.
Condenser
27
USER GUIDE
Extended Non-Use
Extended Non-Use
VACATION/HOLIDAY, PROLONGED SHUTDOWN
The following steps are recommended for periods of
extended non-use:
1. Remove all consumable content from the unit.
2. Disconnect the power cord from its outlet/socket
and leave it disconnected until the unit is returned to
service.
3. Turn o the water supply.
4. If ice is on the evaporator, allow ice to thaw naturally.
5. Clean and dry the interior of the cabinet. Ensure all
water has been removed from the unit.
6. Disconnect the water and drain line (if applicable)
making sure all water is removed from the lines.
7. The door must remain open to prevent formation of
mold and mildew. Open door a minimum of 2” (50
mm) to provide the necessary ventilation.
WINTERIZATION
If the unit will be exposed to temperatures of 40°F (5°
C) or less, the steps above must be followed. In
addition, drain pumps in clear ice machines must be
drained according to the following procedure:
1. Remove the drain pump from the ice machine.
2. Drain the water in the pump’s reservoir by turning the
pump upside down and allowing the water to drain
through the pump’s inlet and vent tube ttings.
3. After water is drained, reinstall the drain pump and
reattach all connections.
For questions regarding winterization, please call
U-Line at 414.354.0300.
CAUTION
!
Damage caused by freezing temperatures is not
covered by the warranty.
Do not put anti-freeze in your unit.
28
USER GUIDE
Troubleshooting
If you think your U-Line product is malfunctioning, read
the CONTROL OPERATION section to clearly understand
the function of the control.
If the problem persists, read the NORMAL OPERATING
SOUNDS and TROUBLESHOOTING GUIDE sections below
to help you quickly identify common problems and
possible causes and remedies. Most often, this will resolve
the problem without the need to call for service.
If your product needs service, please go to
www.U-Line.com and navigate to the Find a Servicer page
to locate a U-Line Authorized servicer. If your product is in
warranty please make sure to register it at
www.U-Line.com/u-lineregistration. If you have any
issues following this process you can contact the U-Line
Corporation by phone at +1.414.354.0300
If you call, you will need your product Model and Serial
Numbers. This information appears on the Model and Serial
number plate located on the interior of your product, most
often placed on the ceiling.
All models incorporate rigid foam insulated cabinets to
provide high thermal eciency and maximum sound
reduction for its internal working components. Despite this
technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable because
of the unit’s environment. Hard surfaces such as cabinets,
wood, vinyl or tiled oors and paneled walls have a
tendency to reect normal appliance operating noises.
Listed below are common refrigeration components with a
brief description of the normal operating sounds they
make. NOTE: Your product may not contain all the
components listed.
• Compressor: The compressor makes a hum or pulsing
sound that may be heard when it operates.
BEFORE CALLING FOR SERVICE
TROUBLESHOOTING GUIDE
ELECTROCUTION HAZARD. Never attempt to
repair or perform maintenance on the unit
before disconnecting the main electrical power.
Troubleshooting - What to check when problems occur:
NORMAL OPERATING SOUNDS
Troubleshooting
• Evaporator: Refrigerant owing through an evaporator
may sound like boiling liquid.
• Condenser Fan: Air moving through a condenser may
be heard.
• Running Water: As your unit continues to produce
ice you will hear water owing into the collection
chambers and running through the evaporator.
DANGER
!
Problem Possible Cause and Remedy
Unit Does Not
Operate.
Electronic
Display Blank.
No electrical supply. Plug unit in or
check
circuit breaker.
Display
Showing Error
Code.
If display shows error “dr”, check to
make sure door is sealing correctly.
Make sure to close door completely. If
sealing the door
does not clear the error, contact U-Line
service for more information.
Unit Develops
Condensation
on External
Surfaces.
The unit is exposed to excessive
humidity.
Moisture will dissipate as humidity
levels decrease.
Poor Ice
Quality.
Unit may not be level. Check if unit is
level.
Ice maker system may be dirty. Clean
the ice maker.
No Ice
Production.
Ensure water is being supplied to the
unit.
Verify the ice making unit is turned on.
Not Enough
Ice.
Ensure the condenser coil is clean and
free of any dirt or lint build-up.
Water in Ice
Bin.
Drain may be restricted, ensure drain
is free of foreign debris.
29
USER GUIDE
Wire Diagram 1
u-line.com
SERVICE
Wire Diagram
42353_A WIRING DIAGRAM
GREEN W/YELLOW
(GROUND)
WASTE WATER PUMP
JUMPER PLUG
WITHOUT
P60 WASTE PUMP
GREEN
W/YELLOW
(GROUND)
BLACK
WHITE
PINK (115V)
PINK (115V)
PINK
HOT GAS
VALVE
WATER
VALVE
GREEN W/
YELLOW
(GROUND)
TO COMPRESSOR
BLACK/YELLOW
ORANGE
WATER
PUMP
OVERLOAD
NEUTRAL
HOT
RELAY
EMBRACO
COMPRESSOR
GREEN W/YELLOW
(GROUND)
PINK
LIGHT BLUE (HOT)
WHITE (115V)
DARK BLUE
(220-240V)
WHITE (115V)
DARK BLUE
(220-240V)
PURPLE
PUMP
BLACK (115V)
BROWN
(220-240V)
FAN
115
VOLT
PLUG
CONTROL
BOARD
BIN TEMP
FUSE
16
8
9
1
6
1
10
5
COND TEMP
TEST TERMINAL
LIGHT
PROGRAMING
TO DISPLAY
DOOR SWITCH
OPEN
J9
J10
ANTENNA
1
10
220-240 VOLT
PLUG
DARK BLUE (230V)
DARK BLUE (230V)
YELLOW
WHITE (115V)
DARK BLUE
(220-240V)
WHITE (115V)
DARK BLUE (220-240V)
WHITE (115V)
DARK BLUE (220-240V)
WHITE (115V)
DARK BLUE
(220-240V)
HOT:
BLACK (115V)
BROWN (220-240V)
NEUTRAL:
WHITE (115V)
DARK BLUE (220-240V)
AMBIENT
Wire Diagram
30
USER GUIDE
Product Liability
Field service technicians are authorized to make an initial
assessment in the event of reported damages. If there are
any questions about the process involved, the technician
should call U-Line for further explanation.
While inspecting for defects or installation issues, photos
should be taken to document any damages or issues found.
During the assessment, if the service technician is able to
nd the source of the damage and it can be resolved by
replacement of a part, the servicer is authorized to replace
the part in question. The part that caused the damage
must be returned to U-Line in its entirety. The part must
be clearly labeled with the serial number of the unit it was
removed from, the date, and the servicer who removed the
part.
If the service technician determines the damage is the
result of installation issues (water connection/drain, etc.),
the consumer would be notied and the issues shall be
resolved at the direction of the consumer.
If damage is evident and the service technician is
unable to nd the source, U-Line must be contacted at
+1.414.354.0300 for further direction.
8900 N. 55th Street • Milwaukee, WI 53223
T: +1.414.354.0300 • F: +1.414.354.5696
Website: www.u-line.com
Right product. Right place.
Right temperature Since 1962.
Product Liability
31
USER GUIDE
Warranty Claims
The following information denes the parameters for ling a
warranty claim:
• Valid serial number needed
• Valid model number needed
• Claims must be submitted online at
www.U-LineService.com
• 60 day submittal deadline from date of completed
service
• Only one repair or unit per warranty claim
• Part order numbers will be required when submitting
for warranty labor
Units must be registered prior to warranty submittal.
Customers may register at www.U-Line.com. A proof
of purchase is required. We also accept the following
information to update warranty:
• New construction occupancy documents
• Closing paperwork
• Final billing - Remodel
Warranty parts will be shipped at no charge after U-Line
conrms warranty status. Please provide the model, serial
number, part number and part description. Some parts will
require color or voltage information.
Warranty Claims
22 14862 05 0527
Year
Factory
use Only
Factory
use Only
Month
32
USER GUIDE
Parts
Parts
UHCP115-SS81A
Item Description U-Line P/N
1 BACK PANEL 80-54863-00
2 BYPASS VALVE ASSEMBLY 80-55516-00
3 CIRCULATION PUMP 80-54137-00
4 COMPRESSOR ASSY, R600 80-54376-01
5 CONDENSER ASSEMBLY 80-54079-00
6 CONDENSER FAN BLADE 80-54066-00
7 CONDENSER FAN MOTOR 80-54138-00
8 COVER W/HOOK WHITE 80-54332-00
9 DISPLAY MODULE 80-55214-00
10 DOOR ASSEMBLY W/HINGES 80-54351-00
11 DRAIN PUMP, ICE MACHINE 80-54147-00
12 DRAIN TUBE, CLEAR 80-54074-00
13 DRIER 80-54055-00
14 EVAPORATOR ASSEMBLY 80-54349-00
15 FRONT PANEL W/SCREWS 80-54344-00
16 GASKET, DOOR 80-54235-02
17 GRILLE ASSEMBLY, 15" 80-55609-02
18 HI TEMP THERMISTOR * 80-54070-00
19 HINGE ASSEMBLY 80-55595-00
20 ICE SCOOP, CLR 80-54080-00
21 LIGHT ASSENBLY, VYV 80-54000-01
22 LEG LEVELERS (4) 80-54019-00
23 MAGNET W/SCREWS (2) * 80-54250-00
24 MAIN BOARD 80-55398-00
25 PACKAGING * 80-54238-00
26 POWER CORD, EXTERNAL * 80-55519-00
27 PREFORMED DISPERSION TUBE 80-54128-00
28 COVER PUMP, WHITE 80-54333-00
29 REED SWITCH ** 80-54134-00
30 STAND PIPE 80-54077-00
31 THERMISTOR COVER AND PIN 80-54237-00
32 THERMISTOR(1 PC) 80-54006-00
33 WATER DISPERSION RECEPTACLE 80-54078-00
34 WATER LINE ASSEMBLY 80-54068-00
35 WATER TROUGH, WHITE 80-54334-00
36 WATER VALVE ASSEMBLY 80-54139-00
37 WIRE HARNESS, HIGH VT * 80-55401-03
38 WIRE HARNESS, LOW VT * 80-55401-04
* NOT PICTURED
** REED SWITCH LOCATED BEHIND DISPLAY
4
5
67
13
22
36 34
2
11
24
1
3
28
8
9
35
15
16
17
31
20
14
21
12
27
33
30
10
19
32
33
USER GUIDE
Ordering Replacement Parts
Ordering Replacement Parts
Parts may be ordered online at www.U-Line.com
See our contact information below:
www.U-LineService.com (with service login)
Phone Number: +1.414.354.0300
NOTICE
Use only genuine U-Line replacement parts.
The use of non-U-Line parts can reduce speed
of ice production, cause water to overow from
ice maker mold, damage the unit, and void the
warranty.
Warranty parts will be shipped at no charge after U-Line
conrms warranty status. Please provide the model, serial
number, part number and part description. Some parts will
require color or voltage information.
If U-Line requires the return of original parts, we will
inform you when the parts order is taken. This
requirement will be noted on your packing list. A
prepaid shipping label will be emailed to you. Please
enclose a copy of the parts packing list and be sure the
model and serial numbers are legible on the paperwork.
Tag the part with the reported defect.
Customers and non-authorized servicers may order non-
warranty parts at www.u-line.com. Authorized servicers
with a servicer login may order non-warranty parts at
www.u-lineservice.com.
34
USER GUIDE
R-600A Specications
R-600A Specifications
For R-600a refrigerant service tips and more videos, go
to: www.u-line.com/videos
.
WARNING
!
Flammability warnings for a pure-iso-butane
refrigerant.
Technician m ust observe al l federal, st ate and local la ws regarding r efrigerants .
Gloves and Eye Protection must be used.
R-600a is considered non-toxic, but is flammable
when mixed with air.
Keep a dry powder type fire extinguisher in the
work area.
R-600a is heavier than air, do not allow any
leakage/migration to low areas such as
basements and stairs.
Never use a torch on a fully charged
refrigeration system.
Never substitute U-Line OEM replacement parts
or methods of construction.
R-600a must be stored and transported in
approved containers.
35
R-600A Specications
USER GUIDE
WARNING
!
Only skilled and well trained service technicians
permitted to service R-600a equipped products.
All tools and equipment must be approved for
use with R-600a refrigerant.
Local, state and federal laws, standards must be
observed along with proper certification and
licensing.
Ventilation is required during servicing.
No conversions to R-600a from any other
refrigerants. OEM R-600a equipped unit only.
Service area must be free of ignition sources.
No smoking is allowed in the service area.
All replacement electrical components must be
OEM and installed properly (sealed and
covered).
If the evaporator is cold prior to service, it must
be thawed prior to service.
When using a vacuum pump, start pump before
opening refrigeration system.
Vacuum pump and recovery equipment should
be at least 10 feet from the work area.
It is recommended that a simple LPG gas
detector is on site during service.
Ensure that all R-600a is removed from the
system prior to brazing any part of the sealed
system.
Only a clean, dry leak free system should be
charged with R-600a.
R-600A SPECIFICATIONS/LABELING
R-600a equipped products are labeled (both the unit and
the compressor).
R-600a is colorless and odorless.
R-600a is considered non-toxic, but is flammable when
mixed with air.
Do not remove or alter any R-600a labeling on the
product.
Use only a refrigerant grade R-600a from a properly
labeled container.
RECOVERING/RECLAIMING R-600A
(R-600a has been exempted from recovery/reclaiming
requirements by the US EPA)
Recovery/Reclaiming equipment must be approved for use
with R-600a.
Ensure the evaporator is at room temperature prior to
recovery/reclaiming R-600a.
Use a common piercing pliers or piercing valve to remove
R-600a from the compressor process tube. (Note: Piercing
devices must not be left on the system and must be
replaced with a Schrader type valve.)
36
USER GUIDE
R-600A Specications
Evacuate/reclaim via the piecing pliers to ensure the
system is empty of R-600a before any system work is
performed.
The recovery cylinder must be evacuated (no air inside)
prior to accepting R-600a.
The recovery cylinder must not be filled more than 45%
safe fill level and refrigerants must not be mixed.
The recovery cylinder must be clearly marked with R-
600a and Flammable Warning labels.
Ensure proper ventilation during recovery/reclaiming of R-
600a.
Start vacuum pump/recovery pump prior to piercing the
compressor process tube.
Follow recovery/reclaim OEM instructions for the specific
equipment used.
SYSTEM REPAIR
Ensure no residual R-600a refrigerant is left within the
system prior to repair (simple venting is not sufficient).
Evacuate and charge with dry nitrogen for leak checks.
Repair leaks or replace system parts as required.
When re-brazing, the system must be purged with dry
nitrogen and at least one access point open to the
atmosphere.
When re-brazing, proper ventilation is required along with
constant monitoring for the presence of R600a refrigerant.
The filter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
LEAK DETECTION
After removal of the R-600a, the unit can be charged with
dry nitrogen or helium.
Electronic leak detection or soap solution can be used to
check for nitrogen/helium leaks.
Never use a halide torch or lighted match to check the
system for leaks at any time.
The high side of the refrigeration system (compressor
discharge to outlet of drier) must be leak tested with the
compressor running.
37
R-600A Specications
USER GUIDE
The low side of the refrigeration system (evaporator,
compressor and suction line) must be leak tested with the
compressor off (equalized pressure).
RECHARGING
No air is ever to be allowed inside the refrigeration system
(R-600a refrigerant or dry nitrogen only).
Never use a torch on a fully charged refrigeration system.
Install a Schrader Type access port on the compressor
process stub.
Evacuate the system to 100 microns prior to charging.
Weigh in the R-600a charge using a refrigerant scale. (run
compressor an extra two minutes to clear the charging
hoses).
Seal the Schrader Type access port, a proper cap and seal
must be used to close the system.
SUMMARY
Safely handling R-600a requires proper procedures and
training.
R-600a approved service tools must be used.
R-600a labeling must not be removed or altered.
Proper ventilation during service is required.
Never apply a torch to a charged R-600a refrigeration
system.
Use OEM replacement service parts and do not alter the
construction of the unit.
38
USER GUIDE
System Diagnosis Guide
System Diagnosis Guide
REGRIGERATION SYSTEM DIAGNOSIS GUIDE
System
Condition
Suction
Pressure
Suction
Line
Compressor
Discharge
Condenser Capillary
Tube
Evaporator Wattage
Normal Normal Slightly
below room
temperature
Very hot Very hot Warm Cold Normal
Overcharge Higher than
normal
Very cold
may frost
heavily
Slightly warm
to hot
Hot to warm Cool Cold Higher than
normal
Undercharge Lower than
normal
Warm-
near room
temperature
Hot Warm Warm Extremely
cold near
inlet - Outlet
below room
temperature
Lower than
normal
Partial
Restriction
Somewhat
lower than
normal vacuum
Warm-
near room
temperature
Very hot Top passes
warm -
Lower
passes cool
(near room
temperature)
due to liquid
Room
temperature
(cool) or
colder
Extremely
cold near
inlet - Outlet
below room
temperature
backing up
Lower than
normal
Complete
Restriction
In deep
vacuum
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
No Gas 0 PSIG to 25” Room
temperature
(cool)
Cool to hot Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
39
USER GUIDE
Compressor Specications
Electrocution can cause death or serious injury.
Burns from hot or cold surfaces can cause serious
injury. Take precautions when servicing this unit.
Disconnect the power source.
Do not stand in standing water when working
around electrical appliances.
Make sure the surfaces you touch are not hot or
frozen.
Do not touch a bare circuit board unless you are
wearing an anti-static wrist strap that is grounded
to an electrical ground or grounded water pipe.
Handle circuit boards carefully and avoid touching
components.
Compressor Specications
EMX3115Y-115V
REFRIGERANT R600a
VOLTAGE 100V – 127V
FREQUENCY 50Hz
RUN CAPACITOR 17.5μF/180 VAC
START WINDING 4.20 +/- 8% Q at 25 °C (77°F)
RUN WINDING 2.76 +/- 8% Q at 25 °C (77°F)
LRA 16.70A
FLA -
STARTING DEVICE PTC V115
OVERLOAD T0819/07
*All resistance readings are
+
10%
DANGER
!
40
USER GUIDE
Troubleshooting Extended
Troubleshooting - Extended
CAUTION
!
Never attempt to repair or perform maintenance
on the unit until the main electrical power has
been disconnected from the unit.
SPECIFIC ERRORS AND ISSUES
The technically advanced diagnostic capabilities of
the electronic controls allows for easy and thorough
troubleshooting.
Navigation of the control is the key and is explained in
the CONTROL OPERATION section of the manual, along
with control button layout, control function descriptions,
a service mode menu and service menu selection
explanations.
Verication of temperature and thermistor performance
can be identied by directly viewing actual temperature
readings in the service mode.
Component failure issues can be identied through
service mode menu selection, “Relay Toggle” Individual
components can be switched on and o to check for both
proper function of a specic component and also delivery of
supply voltage to the components through the relays and
DC outputs located on the relay/power board.
Included in this section is some diagnostic tips and as
always, if additional help is required please contact the
U-Line Corp, “Customer Care Facility” at +1.414.354.0300
for assistance.
NORMAL OPERATING SOUNDS
All models incorporate rigid foam insulated cabinets to
provide high thermal eciency and maximum sound
reduction for its internal working components. Despite
this technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable because
of the unit’s environment. Hard surfaces such as cabinets,
wood, vinyl or tiled oors and paneled walls have a
tendency to reect normal appliance operating noises.
Listed below are common refrigeration components with a
brief description of the normal sounds they make. NOTE:
Your product may not contain all the components listed.
• Compressor: The compressor makes a hum or pulsing
sound that may be heard when it operates.
• Evaporator: Refrigerant owing through an evaporator
may sound like boiling liquid.
• Condenser Fan: Air moving through a condenser may
be heard.
• Automatic Defrost Drain Pan: Water may be heard
dripping or running into the drain pan when the unit is
in the defrost cycle.
Solenoid Valves: An occasional clicking sound may be
heard as solenoid valves are operated.
41
USER GUIDE
Troubleshooting Extended
TROUBLESHOOTING GUIDE
Concern Potential Causes Suggested Remedy
No Display or
Interior Lights
Unit may be in Sabbath mode
Defective Door Switch
Hold for 5 seconds to turn off Sabbath mode.
test the door switch circuit.
No Interior Light Light may be set to OFF
Check LED strip for power
Defective door switch
Use component toggle in service mode and test light circuit,
manually test door switch.
Check LED strip for power.
Condensation on
exterior of unit
Is unit exposed to high humidity or high
ambient temps?
Moisture will dissipate as ambient temperature and humidity levels
fall. Keep exterior of unit well polished to protect surface.
Check door for air leaks.
No Ice Production* Is unit level, is the unit getting water, is
circulation pump working?
Is evaporator getting cold?
Monitor freeze cycle to assure proper water distribution over
evaporator. Go to component toggle: turn on fill valve; turn on
circulation.
Level unit if needed.
Low Ice Production Dirty evaporator, dirty condenser, faulty
thermistor
Clean the evaporator using U-Line cleaner, clean the condenser coil
if needed, check bin thermistor reading in service mode. Check
condenser fan in service mode.
Ice Does Not Fall
Off During Harvest
Dirty evaporator, unit not level, faulty hot gas
valve
Clean the evaporator if needed, level unit if needed, test function of
hot gas bypass valve using relay toggle in service mode.
Error Message in
Digital Display
Check error log View errors in service mode, review error and take corrective action to
resolve.
Ice is Too Thick/
Thin
Dirty evaporator, water starvation, faulty hot
gas valve
Clean evaporator if needed, check water supply, adjust ice
thickness.
Standing Water in
Ice Bin
Drain hose is restricted, debris in bin drain
hole, failed drain pump
Make sure drain hose run is as straight as possible. Remove any kinks
or tight bends.
Poor Ice Quality Is unit level, is the evaporator dirty? Monitor operation to watch water distribution over evaporator,
level unit if needed, clean evaporator if needed.
*Check component toggle for:
•Water valve is working
•Circulation pump is working
•Compressor and condenser fan is working - is there frost on the evaporator grid/grid
getting cold?
42
USER GUIDE
Troubleshooting Extended
MAIN CONTROL
The main control board is very robust and is rarely the
cause of system issues. It is important to fully diagnose
the board for any suspected failures before attempting
to remove the board for replacement or service. Follow
the guidelines below to fully test and diagnose the main
control.

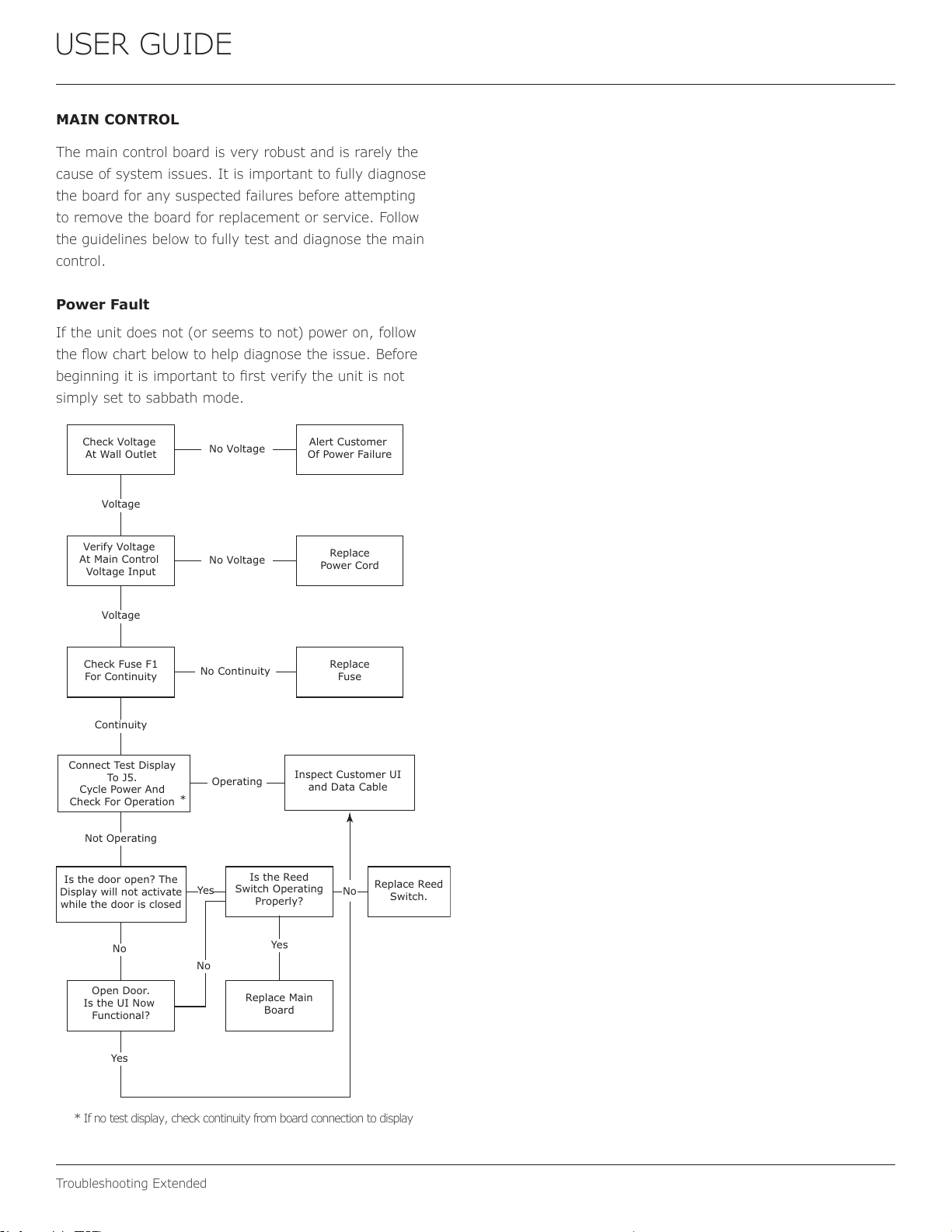

Power Fault
If the unit does not (or seems to not) power on, follow
the ow chart below to help diagnose the issue. Before
beginning it is important to rst verify the unit is not
simply set to sabbath mode.
Check Voltage
At Wall Outlet
Verify Voltage
At Main Control
Voltage Input
Check Fuse F1
For Continuity
Open Door.
Is the UI Now
Functional?
Replace Main
Board
Replace Reed
Switch.
Replace
Fuse
Replace
Power Cord
Alert Customer
Of Power Failure
Is the Reed
Switch Operating
Properly?
Is the door open? The
Display will not activate
while the door is closed
Inspect Customer UI
and Data Cable
Connect Test Display
To J5.
Cycle Power And
Check For Operation
No Voltage
No Voltage
Voltage
Continuity
Operating
Not Operating
No Continuity
No
No
No
Yes
Yes
Yes
Voltage
*
* If no test display, check continuity from board connection to display
43
USER GUIDE
Control Operation - Service 1
SAFETY • I NSTALLATION & I NTEGRATION • OPERATING INSTRUCTI ONS • MAINTENANCE • SERVI CE
Cont rol Operation - Service
UI BUTTON LAYOUT
1. Hidde n But ton
-Accesses Service Menu
-No LED directly above. All LEDs turn on with button
activation except # 7.
2.
Up Bu t t on
-Increases temperature
-Navigates through service menu
-LED activated with button activation.
3.
Dow n Bu t t on
-Decreases temperature
-Navigates through service menu
-LED activated with button activation
4.
Ligh t But ton
-Activates light for 3 hours on select models
-Used to select items in service menu
-LED activated with button activation
5.
Pow e r But t on
-Turns unit off/ on
-LED activated with button activation (only turning unit
off)
6. Clean Bu t t on
-Activates Clean Cycle
-LED activated with button activation
7.
LED
-No button
123 4567
44
USER GUIDE
Control Operation - Service 2
SAFETY • I NSTALLATION & I NTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVI CE
VI EW I N G BI N THERMI STOR SET POI NT
To view the set point temperature at which the bin
thermistor will stop ice production, push and release the
up and down arrow icons. Adjustments to this can be
made in the service mode.
SI LEN T MOD E
In some cases it may be requested for the unit to be shut
down temporarily - during meetings for example. To do
this, hold the and for three seconds. The unit will
“beep” once and show 3H on the display. This mode can
be canceled by pressing and releasing . The mode will
automatically be changed back to ON after three hours.
SH OW ROOM M ODE
This mode is designed to show units in a display environ-
ment. When in this mode the only functions will be the
control and cabinet lights. The compressor, fans, etc. will
not operate. To enter/ exit this mode hold the light key
and the power key for 5 seconds. The display will flash
once and beep and the degree symbol will begin to flash.
When the degree symbol is flashing the unit will allow the
use of the control for demonstrations. The unit can be left
in this mode indefinitely.
SERVI CE M ODE
This mode has options available for service diagnostics.
To enter the mode hold the hidden key for 10 seconds.
The display will show “0.” When in this mode use the up
and down arrows to select the desired option. The LIGHT
key is the ENTER key and will initiate the function. I f
changing a setting, you must press the LIGHT key again
to retain the changed setting. To exit the service mode
scroll to option “0” and press the LIGHT key. After five
minutes of not touching any keys the mode will also exit
automatically.
CON TROL FUN CTI ON GUI DE
FUN CTI ON COMMAN D DI SPLAY/ OPTI ON S
ON/ OFF Press and release Unit will immediately turn ON or OFF.
Adjust ice thickness See “Ice” section
Sabbath Mode See “Sabbath Mode” section
Silent Mode (ice
production suspended for
3 hours)
Hold and Display will show “3 H ”.
Cl
ean Mode See “Cleaning” section
45
USER GUIDE
Control Operation - Service 3
SAFETY • I NSTALLATION & I NTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVI CE
SERVI CE M ODE GUI DE
1. TH
ERM I STOR 1 — BI N
This shows the pure thermistor reading with
no
o
ffsets t aken into account.
2. TH ERMI STOR 2 — CON DEN SOR/ LI QUI D
LI NE
Thi
s shows the pure thermistor reading with
no
offsets t aken into account.
3. Does not appl
y to this model.
4. Does not appl
y to this model.
5. TH ERMI ST
OR 1 — OFFSET
Offset controls the amount of ice in bin.
Range: - 10 to + 10 Higher value = more ice.
6. TH ERMI ST
OR 2 — OFFSET
Adjustable by customer for ice thickness, no
effect in service mode. See “Ice” section fo
r
instructions
.
7.
Do
es not apply to this model.
8. Does not apply to this model.
9.
TH
ERM I STOR 2 — SET PO
I NT M I N US
OF
FSET
This shows the thermistor reading with of
fsets
t
aken into account.
10.
Does not appl
y to this model.
11. Does not appl
y to this model.
12. Does not apply to this model.
13. Does not apply to this model.
14. VI EW ERR
OR LOG
A list of the errors in the order they occurred will
scr
oll once on the display. All errors are logged
in memory. Only door error is displayed on
the
dis
play and has an audible signal.
E0 :
Door 1 (upper) open.
E1 : Thermistor 1 open.
E2 : Thermistor 2 open.
E3 : Thermistor 3 open.
E4 : Thermistor 4 open (Does not apply to this
model).
E5 : Thermistor 1 shorted.
E6 : Thermistor 2 shorted.
E7 : Thermistor 3 shorted.
E8 : Thermistor 4 shorted (Does not apply to this
model).
E9 : Door 2 (lower) open.
P1 : Pump Circuit open (Does not apply to this
model).
# Ser vice Mode Menu I te m
1 View thermistor # 1 (no offsets)
2 View thermistor # 2 (no offsets)
3 View thermistor # 3 (no offsets)
4 View thermistor # 4 (no offsets)
5 Adjust thermistor # 1 offset
6 Adjust thermistor # 2 offset
7 Adjust thermistor # 3 offset
8 Adjust thermistor # 4 offset
9 View thermistor # 2 set point no offsets
10 View thermistor # 3 set point no offsets
11 View thermistor # 4 set point no offsets
12 Adjust defrost interval 3 to 24 hours
13 Adjust defrost duration 0 to 99 minutes
14 View error log
15 Clear error log
16 Adjust thermistor # 1 differential
17 Adjust evaporator fan delay in minutes (start of cooling
cycle) 0 - 99 minutes
18 Adjust evaporator fan delay in minutes (after cooling
cycle stops) 0 - 99 minutes
19 Individual com ponent toggle
20 Model number indicator
21 Light all LED segments of display
22 View defrost cycles
23 View compressor run time
24 Activate defrost/ harvest
25 Restore factory defaults
26 View software version - main board
27 View software version - user interface
28 Login period
29 Factory test mode
0Exit service mode
N AV I GATE SERVI CE M ODE
Use up or down arrows to scroll through the menu.
Use the light bulb key to enter or exit menu. I f values
have been changed, they will be saved when exiting.
SERVI CE M ODE GUI DE
46
USER GUIDE
Control Operation - Service 4
SAFETY • I NSTALLATION & I NTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVI CE
15. C
LEAR ERROR LOG
To clear errors, press and hold
(5 seconds)
when CLR is flashing
.
16.
TH ERMI STOR — 1 D I FFEREN TI AL
This number should not be adjusted.
17. Does not apply to this model.
18. Doe
s not apply to this model.
19. I N
DI VI DUAL COMPON EN T TOGGLE
20. MO
DEL N UMBER I ND I CATOR
Displays the two-digit model number of th
e
speci
fic unit. See model list table.
21. LI GH T ALL LED S
EGM EN TS
This will illuminate all the LEDs on the display to
ensure they work properly.
22. Does not apply to this model.
23. VI EW
COM PRESSOR RUNTI M
E
Th
is will show the number of mi
nutes the
comp
ressor has run in the prior cycle (o
r
current cycle if the compressor was running
whe
n service mode was entered).
24.
A
CTI VATE DEFROST/ HARVEST
Turns on the hot gas bypass valve allowing ho
t
gas to circulate through the evaporator causing
fr
ost to melt.
25. REST
ORE FACTORY DEFAULTS
Will restore all adjustable functions to thei
r
factory settings.
26. SOF
TW ARE VERSI ON — M AI N BOARD
Displays soft ware version of the main control
board.
27. SOF
TW ARE VERSI ON —
USER I NTERFACE
Displays software version of the user interface.
28. LO
G I N PERI O D
Factory use only - do not adjust.
29. FACTORY TEST M ODE
Should be 0.
0. EXI T SER
VI CE MOD E
Displa y # Re lay/ Out put
0 Exit
2 Relay 2
3 Relay 3
4 Relay 4
5 Relay 5
6 Relay 6
7 Relay 7
8 DC Output 1
9 DC Output 2
10 DC Output 3
11 DC Output 4
12 DC Output 5
SEE RELAY/ OUTPUT CHART
47
USER GUIDE
Control Operation - Service 5
SAFETY • I NSTALLATION & I NTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVI CE
MODEL LI ST
PROGRAM M I NG TH E UN I T TO CORRECT
MOD EL N UMBER
1. Disconnect the unit from power source.
2. Push and hold the U-Line button.
3. While still holding the U-Line button, plug the
unit into the appropriate power source.
4. When the flashing digits appear (3-5 seconds),
use the up and down arrow buttons to select the
appropriate model number*.
* (See Above “Model List ”)
5. Press the light bulb button once.
6. The display will blink, and then will appear as the
programmed display.
1 0 0 0 M ODEL
I NDI CATOR
2 0 0 0 ( 1 2 0 V) M OD EL
I NDI CATOR
2 0 0 0 ( 2 3 0 V) M ODEL
I NDI CATOR
1215R 07 2218R 05 2245R 55
1215WC 12 2218RGL 04 2245DC 54
1224BEV 13 2218WC 06 2245WC 56
1224DWR 08 2224BEV 00 2260DC 50
1224R 14 2224FZR 11 2260FZR 57
1224RF 09 2224R 02 2260R 52
1224RSOD 10 2224RGL 01 2260RDC 51
1224WC 15 2224WC 03 2260WC 53
CLR1215 18* 2224ZWC 59 2260ZWC 58
CO1224F 19 ADA24R 17
or
* UNITS 2020 AND NEWER USE #11
48
USER GUIDE

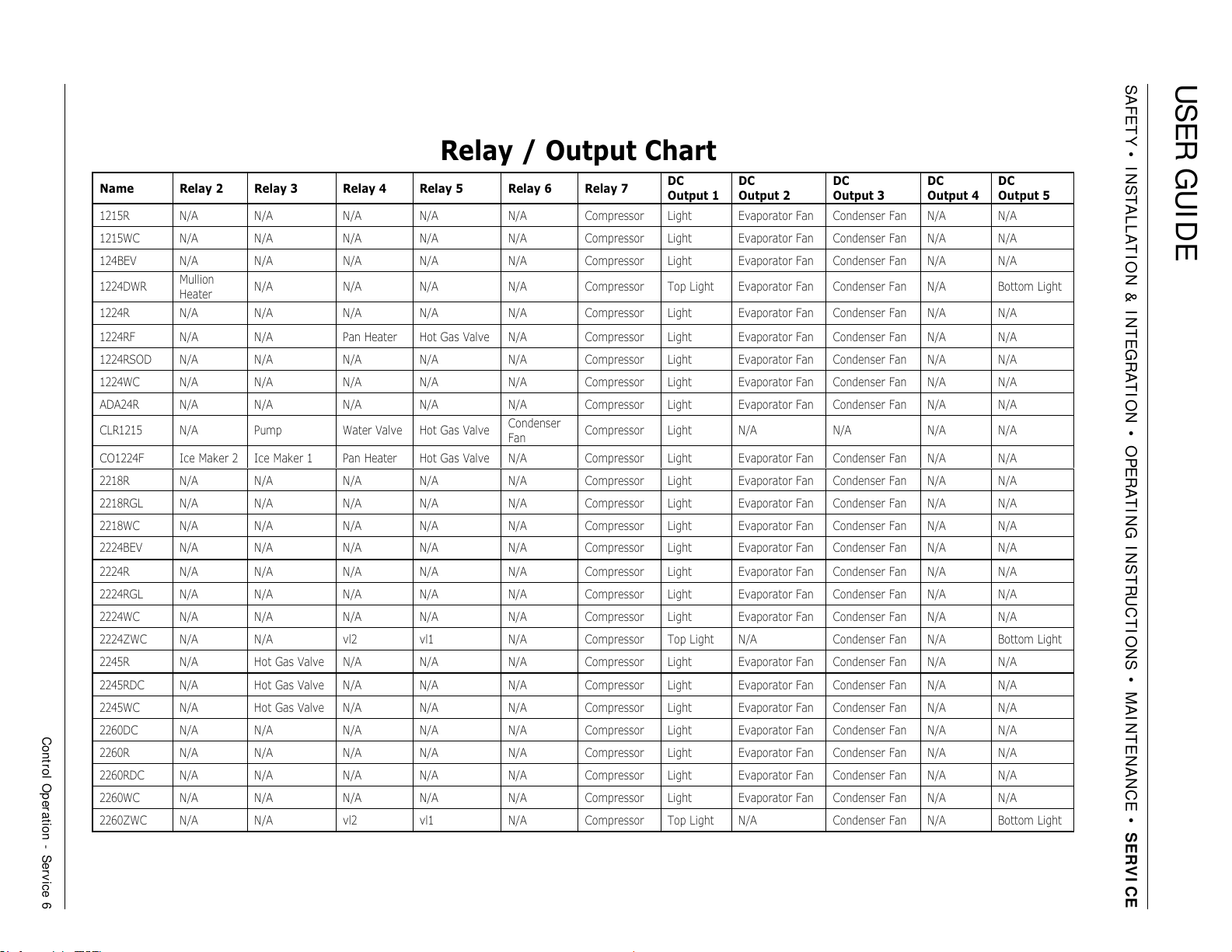

Control Operation - Service 6
SAFETY • I NSTALLATION & I NTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVI CE
Name Relay 2 Relay 3 Relay 4 Relay 5 Relay 6 Relay 7
DC
Out
p
ut 1
DC
Out
p
ut 2
DC
Out
p
ut 3
DC
Out
p
ut 4
DC
Out
p
ut 5
1215R N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
1215WC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
124BEV N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
1224DWR
Mullion
Heater
N/A N/A N/A N/A Compressor Top Light Evaporator Fan Condenser Fan N/A Bottom Light
1224R N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
1224RF N/A N/A Pan Heater Hot Gas Valve N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
1224RSOD N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
1224WC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
ADA24R N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
CLR1215 N/A Pump Water Valve Hot Gas Valve
Condenser
Fan
Compressor Light N/A N/A N/A N/A
CO1224F Ice Maker 2 Ice Maker 1 Pan Heater Hot Gas Valve N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2218R N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2218RGL N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2218WC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2224BEV N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2224R N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2224RGL N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2224WC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2224ZWC N/A N/A vl2 vl1 N/A Compressor Top Light N/A Condenser Fan N/A Bottom Light
2245R N/A Hot Gas Valve N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2245RDC N/A Hot Gas Valve N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2245WC N/A Hot Gas Valve N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2260DC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2260R N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2260RDC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2260WC N/A N/A N/A N/A N/A Compressor Light Evaporator Fan Condenser Fan N/A N/A
2260ZWC N/A N/A vl2 vl1 N/A Compressor Top Light N/A Condenser Fan N/A Bottom Light
5HOD\2XWSXW&KDUW
49
USER GUIDE
Thermistor
Evaporator Thermistor
If the evaporator thermistor fails, the unit will rely on a
preset defrost timer during defrost cycles. The unit will
otherwise operate normally. Refer to defrost section.
Thermistor Resistance Data
Thermistors
Thermistors are used for various temperature readings.
Thermistors provide reliable temperature readings
using a resistance which varies based on surrounding
temperatures. If a faulty thermistor is suspected it may be
tested using an accurate ohmmeter.
Both thermistors in the unit are identical. If a thermistor
is suspected of being defective, the resistance can be
veried. Place the thermistor in an ice water bath, the
resistance should read 16.1k Ohms +/-5% on your meter.
Thermistor connections must be kept clean. A thermistor
connection that has become corroded can cause resistance
values from the thermistor to change as they pass through
a dirty connection to the board.
It is for that reason that we apply dielectric grease to all of
our thermistor connections. Dielectric grease will help to
keep thermistor connections clean and dry.
If you change a thermistor in the unit please re-apply
dielectric grease to the connection. If you encounter
a dirty thermistor connection, you should replace the
thermistor and the thermistor harness.
Thermistor error information can be found in the Control
Operations - Service section.
This unit has two thermistors.
Thermistor one (Zone):
Located along the right hand side wall. It is used to
maintain the operating temperature within that zone.
Thermistor two (Evaporator):
Located on the evaporator. It is used for defrost.
THERMISTOR FAILURE
Zone Thermistor
If the zone thermistor in the unit fails, the unit will
continue to cool in a backup mode (Self Preservation
Mode) to preserve the integrity of the contents. The unit
will otherwise operate normally.
* (+/
- 5%)
Temp (F) Temp (C)
Nominal Resistance
(OHMS)*
-40 -40 169157
-31 -35 121795
-22 -30 88766
-13 -25 65333
-4 -20 48614
5 -15 36503
14 -10 27681
23 -5
21166
32 0 16330
41 5 12696
50 10 9951
59 15 7855
68 20 6246
77 25 5000
86 30 4029
95 35 3266
104 40 2665
113 45 2186
122 50 1803
131 55 1495
140 60 1247
149 65 1044
158 70 879
167 75 743
176 80 631
50
USER GUIDE
Defrost 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Defrost
These models have no defrost options.
51
Copyright U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 11/2022 Rev. P
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase. Nugget Ice Machine proof of purchase must include the purchase of an in-line
water filter and filter head to qualify for this additional limited warranty.
Five Year Sealed System Limited Wa
rranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.414.354.0300
52
