GUIDELINES LAID DOWN BY FCC RULES FOR USE OF THE UNIT IN THE U.S.A. (not applicable to
other areas).
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
.
• Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Important!
Please note the following important information before using this product.
• Before using the optional AD-5 Adaptor to power the unit, be sure to check
the AC Adaptor for any damage first. Carefully check the power cord for
breakage, cuts, exposed wire and other serious damage. Never let children
use an AC adaptor that is seriously damaged.
• Never attempt to recharge batteries.
• Do not use rechargeable batteries.
• Never mix old batteries with new ones.
• Use recommended batteries or equivalent types.
• Always make sure that positive (+) and negative (–) poles are facing correctly
as indicated near the battery compartment.
• Replace batteries as soon as possible after any sign they are getting weak.
• Do not short-circuit the battery terminals.
• The product is not intended for children under 3 years.
• Use only CASIO AD-5 adaptor.
• The AC adaptor is not a toy.
• Be sure to disconnect the AC adaptor before cleaning the product.
CASIO ELECTRONICS CO., LTD.
Unit 6, 1000
North Circular Road
London NW2 7JD, U.K.
This mark is valid in the EU countries only.
Please keep all information for future reference.
CTK230_E_CE.p65 03.10.7, 2:01 PM8
E-1
Safety Precautions
277A-E-003A
Congratulations on your selection of the
CASIO electronic musical instrument.
• Before using the instrument, be sure to
carefully read through the instructions
contained in this manual.
• Please keep all information for future
reference.
Symbols
Various symbols are used in this user’s
guide and on the product itself to ensure
that the product is used safely and
correctly, and to prevent injury to the user
and other persons as well as damage to
property. Those symbols along with their
meanings are shown below.
DANGER
This symbol indicates information that,
if ignored or applied incorrectly, creates
the danger of death or serious personal
injury.
WARNING
This indication stipulates matters that
have the risk of causing death or serious
injury if the product is operated
incorrectly while ignoring this
indication.
CAUTION
This indication stipulates matters that
have the risk of causing injury as well as
matters for which there is the likelihood
of occurrence of physical damage only if
the product is operated incorrectly while
ignoring this indication.
Symbol Examples
This triangle symbol ( )
means that the user should be
careful. (The example at left
indicates electrical shock
caution.)
This circle with a line through
it (
) means that the indicated
action must not be performed.
Indications within or nearby
this symbol are specifically
prohibited. (The example at left
indicates that disassembly is
prohibited.)
The black dot (
) means that
the indicated action must be
performed. Indications within
this symbol are actions that are
specifically instructed to be
performed. (The example at left
indicates that the power plug
must be unplugged from the
electrical socket.)
CTK230_E01-07.p65 03.10.7, 2:01 PM1
E-2
Safety Precautions
277A-E-004A
DANGER
Alkaline Batteries
Perform the following steps
immediately if fluid leaking from
alkaline batteries ever gets into
your eyes.
1. Do not rub your eyes! Rinse
them with water.
2.Contact your physician
immediately.
Leaving alkaline battery fluid in
your eyes can lead to loss of sight.
WARNING
Smoke, Strange Odor, Overheating
Continued use of the product
while it is emitting smoke, a
strange odor, or heat creates the
risk of fire and electric shock.
Take the following steps
immediately.
1. Turn off power.
2. If you are using the AC adaptor
for power, unplug it from the
wall outlet.
3. Contact your original retailer
or an authorized CASIO Service
Provider.
AC Adaptor
Misuse of the AC adaptor creates
the risk of fire and electric shock.
Always make sure you observe
the following precautions.
• Be sure to use only the AC
adaptor that is specified for this
product.
• Use only a power source whose
voltage is within the rating
marked on the AC adaptor.
• Do not overload electrical
outlets and extension cords.
AC Adaptor
Misuse of the AC adaptor’s
electric cord can damage or
break it, creating the risk of fire
and electric shock. Always
make sure you observe the
following precautions.
• Never place heavy objects on
the cord or subject it to heat.
• Never try to modify the cord
or subject it to excessive
bending.
• Never twist or stretch the cord.
• Should the electric cord or plug
become damaged, contact your
original retailer or authorized
CASIO Service Provider.
AC Adaptor
Never touch the AC adaptor
while your hands are wet.
Doing so creates the risk of
electric shock.
Batteries
Misuse of batteries can cause
them to leak, resulting in damage
to nearby objects, or to explode,
creating the risk of fire and
personal injury. Always make
sure you observe the following
precautions.
• Never try to take batteries apart
or allow them to become shorted.
• Never expose batteries to heat or
dispose of them by incineration.
• Never mix old batteries with
new ones.
• Never mix batteries of different
types.
• Do not charge the batteries.
• Make sure the positive (+) and
negative (–) ends of the
batteries are facing correctly.
CTK230_E01-07.p65 03.10.7, 2:01 PM2
E-3
Safety Precautions
277A-E-005A
Do not incinerate the product.
Never throw the product into fire.
Doing so can cause it to explode,
creating the risk of fire and
personal injury.
Water and Foreign Matter
Water, other liquids, and foreign
matter (such as pieces of metal)
getting into the product create the
risk of fire and electric shock.
Take the following steps
immediately.
1. Turn off power.
2. If you are using the AC adaptor
for power, unplug it from the
wall outlet.
3. Contact your original retailer
or an authorized CASIO Service
Provider.
Disassembly and Modification
Never try to take this product
apart or modify it in any way.
Doing so creates the risk of
electric shock, burn injury, or
other personal injury. Leave all
internal inspection, adjustment,
and maintenance up to your
original retailer or authorized
CASIO Service Provider.
Dropping and Impact
Continued use of this product
after it has been damaged by
dropping or subjecting it to strong
impact creates the risk of fire and
electric shock. Take the following
steps immediately.
1. Turn off power.
2. If you are using the AC adaptor
for power, unplug it from the
wall outlet.
3. Contact your original retailer
or an authorized CASIO Service
Provider.
Plastic Bags
Never place the plastic bag the
product comes in over your head
or in your mouth. Doing so
creates the risk of suffocation.
Particular care concerning this
precaution is required where
small children are present.
Keep off of the product and stand.*
Climbing onto the product or
stand can cause it to tip over or
become damaged. Particular care
concerning this precaution is
required where small children are
present.
Location
Avoid locating the product on an
unstable stand, on an uneven
surface, or any other unstable
location. An unstable location can
cause the product to fall over,
creating the risk of personal
injury.
CTK230_E01-07.p65 03.10.7, 2:01 PM3
E-4
277A-E-006A
Safety Precautions
CAUTION
AC Adaptor
Misuse of the AC adaptor creates
the risk of fire and electric shock.
Always make sure you observe
the following precautions.
• Do not locate the electric cord
near a stove or other sources of
heat.
• Never pull on the cord when
unplugging from the electrical
outlet. Always grasp the AC
adaptor when unplugging.
AC Adaptor
Misuse of the AC adaptor creates
the risk of fire and electric shock.
Always make sure you observe
the following precautions.
• Insert the AC adaptor into the
wall outlet as far as it will go.
• Unplug the AC adaptor from
the wall outlet during
lightening storms or before
leaving on a trip or other long-
term absence.
• At least once a year, unplug the
AC adaptor from the wall outlet
and wipe away any dust that is
built up in the area around the
prongs of the plug.
Relocating the Product
Before relocating the product,
always unplug the AC adaptor
from the wall outlet and
disconnect all other cables and
connecting cords. Leaving cords
connected creates the risk of
damage to the cords, fire, and
electric shock.
Cleaning
Before cleaning the product,
always unplug the AC adaptor
from the wall outlet first. Leaving
the AC adaptor plugged in
creates the risk of damage to the
AC adaptor, fire, and electric
shock.
Batteries
Misuse of batteries can cause
them to leak resulting in damage
to nearby objects, or to explode,
creating the risk of fire and
personal injury. Always make
sure you observe the following
precautions.
• Use only batteries that are
specified for use with this
product.
• Remove batteries from the
product if you do not plan to
use it for a long time.
Connectors
Connect only the specified
devices and equipment to the
product’s connectors. Connection
of a non-specified device or
equipment creates the risk of fire
and electric shock.
Location
Avoid the following locations for
this product. Such locations create
the risk of fire and electric shock.
• Areas subject to high humidity
or large amounts of dust.
• In food preparation areas or
other areas subject to oil smoke.
•
Near air conditioning equipment,
on a heated carpet, in areas
exposed to direct sunlight, inside
of a vehicle parked in the sun, or
any other area that subjects the
product to high temperatures
.
CTK230_E01-07.p65 03.10.7, 3:53 PM4
E-5
277A-E-007A
Safety Precautions
Display Screen
• Never push on the display
screen’s LCD panel or subject
it to strong impact. Doing so
can cause the LCD panel’s glass
to crack, creating the risk of
personal injury.
• Should the LCD panel ever
crack or break, never touch the
liquid inside of the panel. LCD
panel liquid can cause skin
irritation.
• Should LCD panel liquid ever
get inside your mouth,
immediately wash out your
mouth with water and contact
your physician.
• Should LCD panel liquid ever
get into your eyes or onto your
skin, rinse with clear water for
at least 15 minutes, and then
contact a physician.
Sound Volume
Do not listen to music at very loud
volumes for long periods.
Particular care concerning this
precaution is required when
using headphones. High volume
settings can damage your
hearing.
Heavy Objects
Never place heavy object on top
of the product.
Doing so can make the product
top heavy, causing the product
to tip over or the object to fall
from it, creating the risk of
personal injury.
Correct Stand* Assembly
An incorrectly assembled stand
can tip over, causing the product
to fall and creating the risk of
personal injury.
Make sure you assemble the stand
correctly, following the assembly
instructions that come with it.
Make sure you mount the product
on the stand correctly.
* Stand is available as an option.
IMPORTANT!
When using batteries, be sure to replace them
or shift to one of the alternate power sources
whenever you notice any of the following
symptoms.
• Dim power indicator
• Instrument does not turn on
• Display that is flickering, dim, or difficult to
read
• Abnormally low speaker/headphone volume
• Distortion of sound output
• Occasional interruption of sound when playing
at high volume
• Sudden power failure when playing at high
volume
• Flickering or dimming of the display when
playing at high volume
• Continued sound output even after you
release a key
• A tone that is totally different from the one that
is selected
• Abnormal rhythm pattern and Song Bank play
CTK230_E01-07.p65 03.10.7, 2:01 PM5
E-6
277A-E-008A
Introduction
Congratulations upon your selection of this CASIO musical instrument. This keyboard provides you with
the following features and functions.
❐ 100 tones
Choose from among orchestral sounds, synthesized sounds, and more.
❐ 100 rhythms
100 versatile rhythms help to add plenty of life to all your keyboard performances.
❐ Auto Accompaniment
Simply play a chord and the corresponding rhythm, bass and chord parts play automatically.
❐ 50-tune Song Bank
A wide selection of favorites including “ODE TO JOY” and “JINGLE BELLS” is yours for your listening
enjoyment or play along fun. A simple operation cuts out the melody part of the tune, allowing you to play
along on the keyboard.
CTK230_E01-07.p65 03.10.7, 2:01 PM6
E-7
277A-E-009A
Contents
Safety Precautions ........... E-1
Introduction ...................... E-6
Contents............................E-7
General Guide...................E-8
Attachment of the Score Stand ...... E-9
Using the Display ......................... E-10
Song Bank
Quick Reference ............. E-11
Playing Back a Song Bank Tune ...
E-11
Power Supply ................. E-13
Using batteries ............................. E-13
Using the AC Adaptor ................... E-14
Auto Power Off ............................. E-15
Settings......................................... E-15
Connections ................... E-16
Phones/Output Terminal............... E-16
Accessories and Options ............. E-16
Basic Operations............ E-17
Playing the Keyboard ................... E-17
Selecting a Tone ........................... E-17
Auto Accompaniment .... E-19
Selecting a Rhythm ...................... E-19
Playing a Rhythm ......................... E-20
Adjusting the Tempo ..................... E-20
Using Auto Accompaniment ......... E-21
Using a Fill-in Pattern ................... E-23
Synchro Starting Accompaniment
with Rhythm Play ......................... E-23
Adjusting the Accompaniment
Volume .......................................... E-24
Using the Song Bank ..... E-25
Playing Back a Song Bank Tune ..
E-25
Song Bank Mode Display ............. E-26
Adjusting the Tempo of a
Song Bank Tune ........................... E-27
Changing the Tone of a
Song Bank Tune’s Melody ........... E-27
Playing Along with a
Song Bank Tune ........................... E-27
Applause Sound ........................... E-28
Playing Back All Song Bank
Tunes in Succession .................... E-29
Keyboard Settings ......... E-30
Transposing the Keyboard ........... E-30
Tuning the Keyboard .................... E-31
Troubleshooting .............E-32
Specifications ................. E-34
Care of your keyboard ... E-35
Appendix ...........................A-1
Tone List ......................................... A-1
Rhythm List .................................... A-2
Note Table ...................................... A-3
Fingered Chord Chart .................... A-5

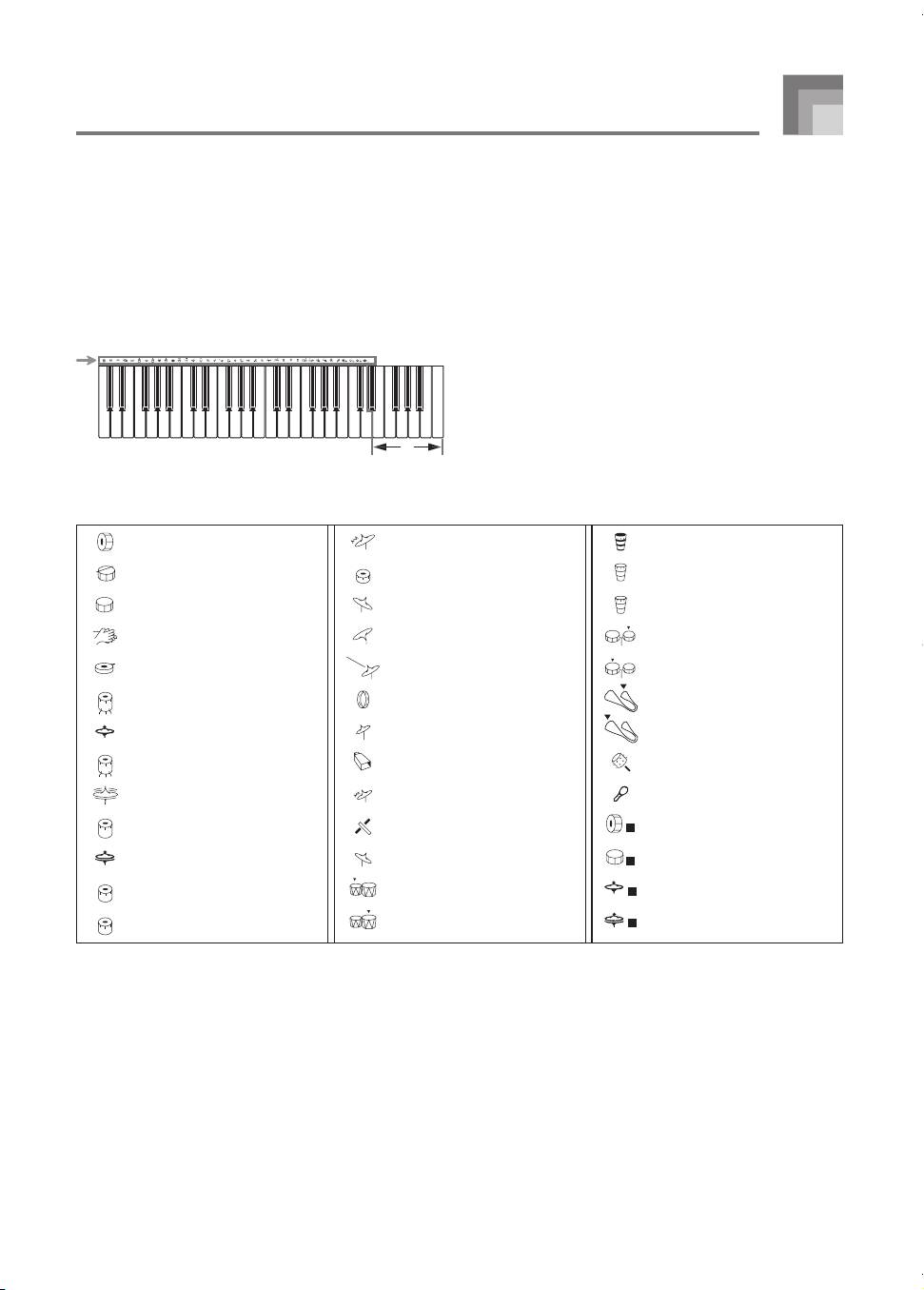

Percussion Instrument List ............. A-7
CTK230_E01-07.p65 03.10.7, 2:01 PM7
E-8

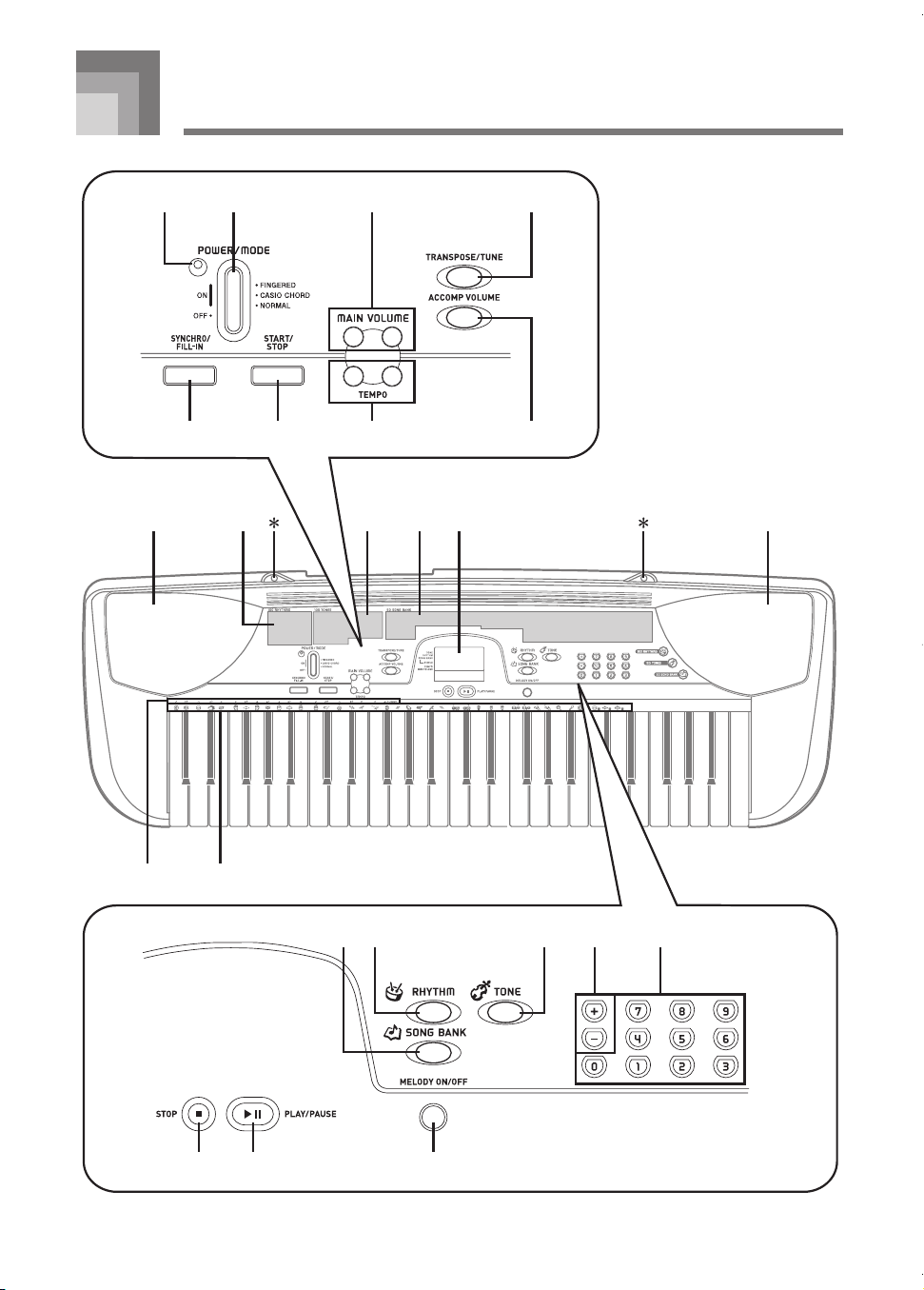

General Guide
277A-E-010A
1
G H JIF
2
9
D E
A B C0 9
3
5
MK L
6 7
4
8
CTK230_E08_18.p65 03.10.7, 2:01 PM8
E-9
General Guide
277A-E-011A

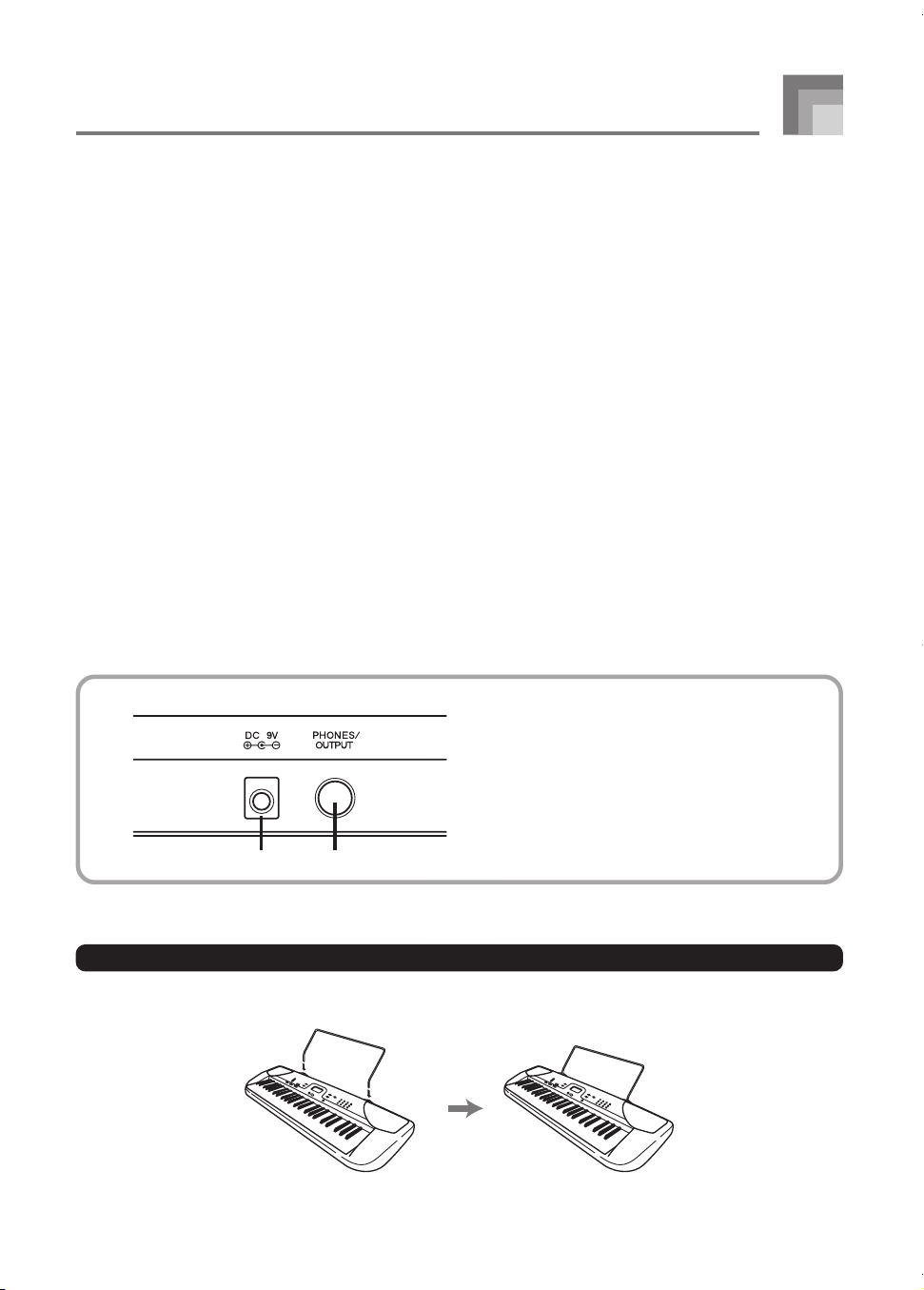

*Attachment of the Score Stand
Insert both ends of the music stand provided with the keyboard into the two holes on the top surface.
Rear Panel
N
DC 9V jack
O
PHONES/OUTPUT terminal
1
Power indicator
2
POWER/MODE switch
3
MAIN VOLUME buttons
4
TRANSPOSE/TUNE button
5
SYNCHRO/FILL-IN button
6
START/STOP button
7
TEMPO buttons
8
ACCOMP VOLUME button
9
Speaker
0
Rhythm list
A
Tone list
B
Song bank list
C
Display
D
Chord name
E
Percussion instrument list
F
SONG BANK button
G
RHYTHM button
H
TONE button
I
[+]
/
[–]
buttons
• Negative values can be changed only by
using [+] and [–] to increase and decrease
the displayed value.
J
Number buttons
• For input of numbers to change displayed
settings.
● SONG BANK CONTROLLER
K
STOP button
L
PLAY/PAUSE button
M
MELODY ON/OFF button
N O
CTK230_E08_18.p65 03.10.7, 2:01 PM9
E-10
General Guide
277A-E-012A
Using the Display
1.
An indicator appears next to the type of setting you are currently performing (TONE, RHYTHM, SONG
BANK).
2.
Tone number, rhythm number, song number, keyboard settings value
3.
Rhythm, auto-accompaniment, Song Bank tune beats
4.
Tone name, rhythm name, song name, mode name, keyboard setting names
5.
Auto-accompaniment and Song Bank chord names
6.
“MELODY” indicates the on/off status of the melody part during Song Bank playback.
7.
Rhythm, auto-accompaniment, Song Bank tune tempo
8.
Rhythm, auto-accompaniment, Song Bank tune tempo; volume setting
9.
Song Bank controller indicators
NOTE
• Display examples shown in this User’s Guide are intended for illustrative purposes only. The actual text
and values that appear on the display may differ from the examples shown in this User’s Guide.
• This is how the display appears
while the Song Bank is in use.
OdeToJo
y
1
23 4
5
678
9
CTK230_E08_18.p65 03.10.7, 2:01 PM10
E-11
277A-E-013A
Song Bank Quick Reference
A selection of 50 Song Bank tunes comes built-in
for your listening pleasure or play along fun. A
simple operation cuts out the melody part of the
tune, allowing you to play along on the keyboard.
See “Using the Song Bank” on page E-25 for details
on playing along with Song Bank tunes.
Playing Back a Song Bank
Tune

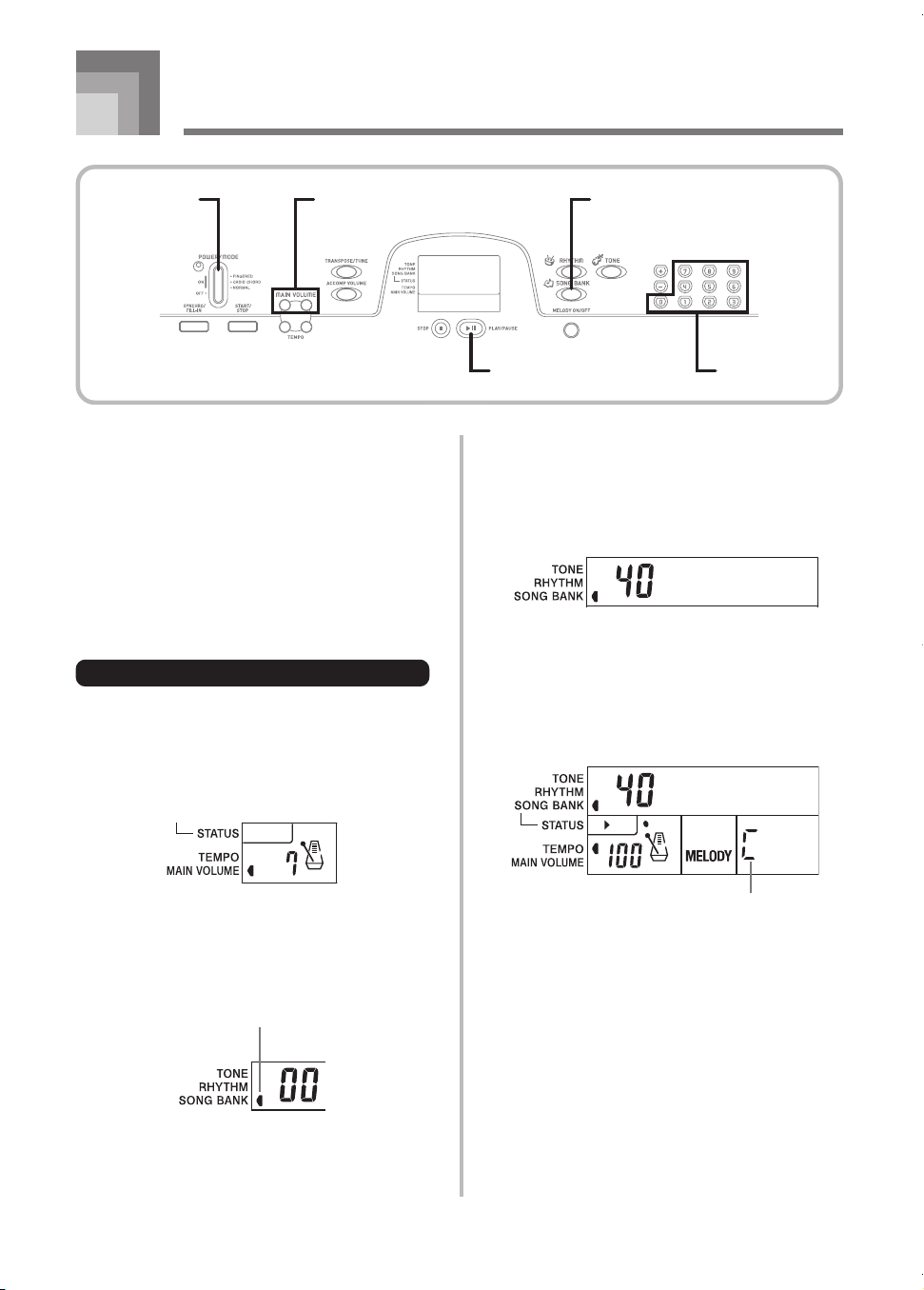

To play back a Song Bank tune
1
Set the POWER/MODE switch to NORMAL.
2
Use the MAIN VOLUME buttons to lower
the keyboard volume to a relatively low
level.
3
Press the SONG BANK button to enter the
Song Bank Mode.
4
Use the Song Bank list to find the tune you
want to play back, and then use the number
buttons to input the tune’s two-digit number.
Example: To select “40 ODE TO JOY”, input 4
and then 0.
5
Press the PLAY/PAUSE button to start play
of the tune.
• The tune plays in an endless loop, re-
starting after it reaches the end.
OdeToJo
y
Chord name
OdeToJo
y
Appears when SONG BANK button is pressed
POWER/MODE MAIN VOLUME SONG BANK
PLAY/PAUSE Number buttons
CTK230_E08_18.p65 03.10.7, 2:01 PM11
E-12
277A-E-014A
Song Bank Quick Reference

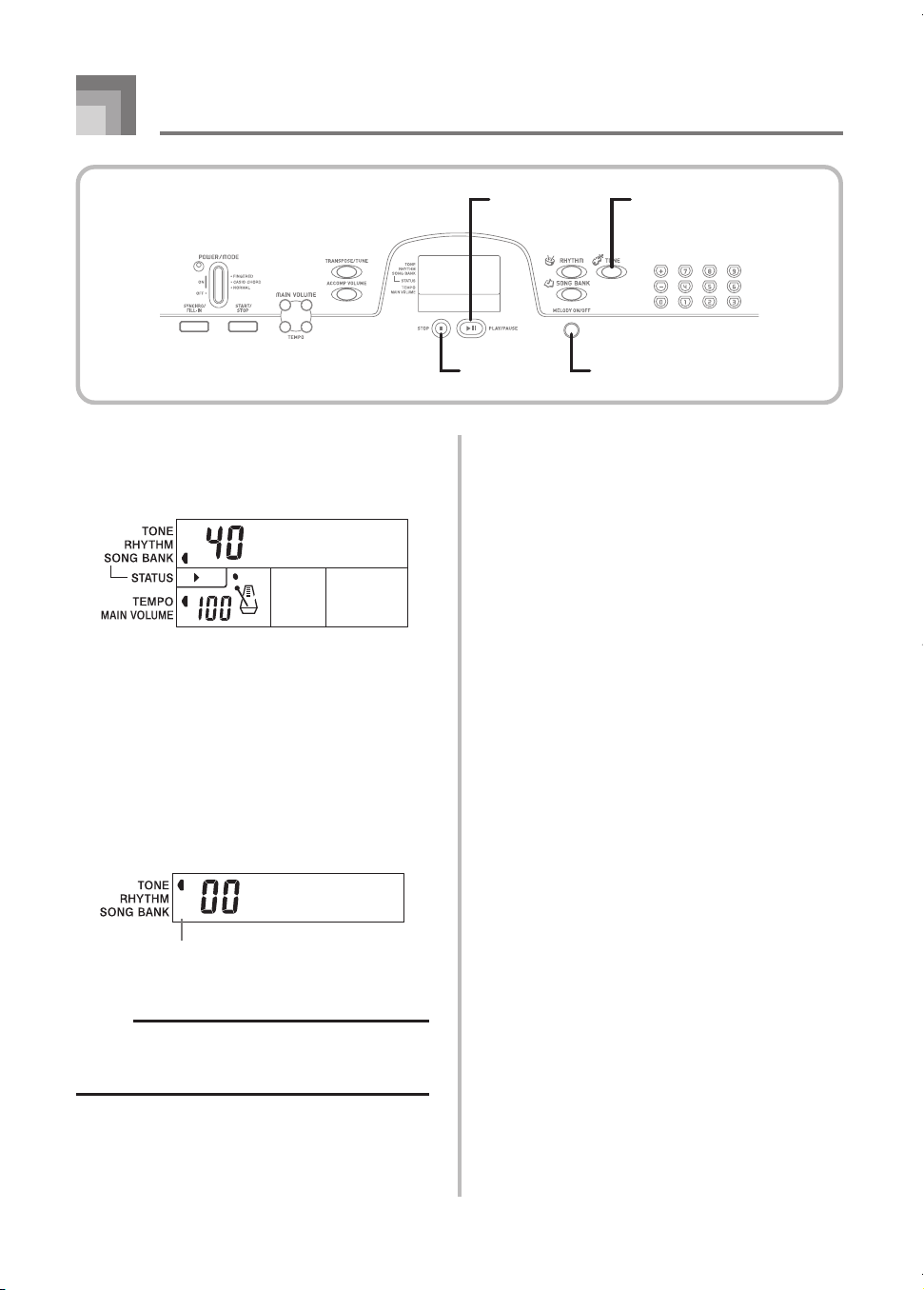

6
Press the MELODY ON/OFF button to turn
off the melody part and try playing along
on the keyboard.
7
Press the MELODY ON/OFF button again
to turn the melody part back on.
8
Press the STOP button to stop playback of
the Song Bank tune.
9
Press the TONE button to exit the Song Bank
Mode and return to the tone and rhythm
selection screen.
NOTE
• You can also perform the following operation
during play of a Song Bank tune.
• Pause: Press the PLAY/PAUSE button.
OdeTo J o
y
Piano 1
Indicator turns off
PLAY/PAUSE TONE
MELODY ON/OFFSTOP
CTK230_E08_18.p65 03.10.7, 2:01 PM12
E-13
277A-E-015A
Power Supply
This keyboard can be powered by current from a
standard household wall outlet (using the specified
AC adaptor) or by batteries. Always make sure you
turn the keyboard off whenever you are not using
it.
Using batteries
Always make sure you turn off the keyboard before
loading or replacing batteries.

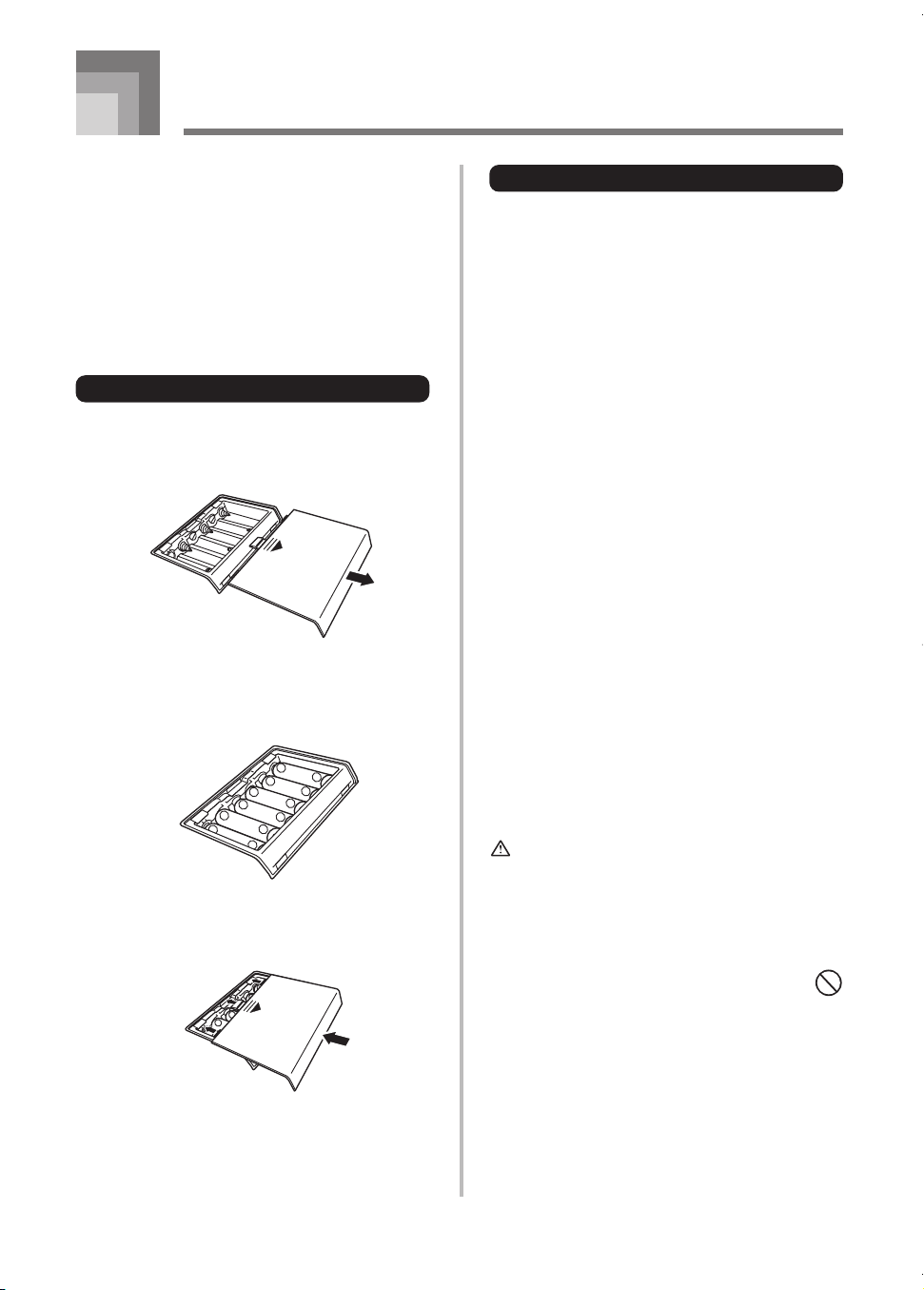

To load batteries
1
Remove the battery compartment cover by
sliding it in the direction of the arrow
indicated in the figure.
2
Load 6 AA-size batteries into the battery
compartment.
• Make sure that the positive (+) and
negative (–) ends are facing correctly.
3
Replace the battery compartment cover by
sliding it.
The keyboard may not function correctly if you
load or replace batteries with power turned on. If
this happens, turning the keyboard off and then
back on again should return functions back to
normal.
Important Battery Information
■
The following shows the approximate battery
life.
Alkaline batteries ............................... 6 hours*
Manganese batteries .......................... 3 hours*
* The above value is standard battery life at
normal temperature, with the keyboard
volume at medium setting. Temperature
extremes or playing at very loud volume
settings can shorten battery life.
■
Any of the following symptoms indicate low
battery power. Replace batteries as soon as
possible whenever any of the following occurs.
• Dim power indicator
• Instrument does not turn on
• Display that is flickering, dim, or difficult to
read
• Abnormally low speaker/headphone
volume
• Distortion of sound output
• Occasional interruption of sound when
playing at high volume
• Sudden power failure when playing at high
volume
• Flickering or dimming of the display when
playing at high volume
• Continued sound output even after you
release a key
• A tone that is totally different from the one
that is selected
• Abnormal rhythm pattern and Song Bank
play
WARNING
Misuse of batteries can cause them to leak,
resulting in damage to nearby objects, or to
explode, creating the risk of fire and personal injury.
Always make sure you observe the following
precautions.
• Never try to take batteries apart or allow
them to become shorted
• Never expose batteries to heat or dispose
of them by incineration.
• Never mix old batteries with new ones.
• Never mix batteries of different types.
• Do not charge the batteries.
• Make sure the positive (+) and negative (–)
ends of the batteries are facing correctly.
+
–
+
–
+
+
–
–
+
–
+
–
+
–
+
–
+
+
–
–
+
–
+
–
CTK230_E08_18.p65 03.10.7, 2:01 PM13
E-14
277A-E-016A
Power Supply
CAUTION
Misuse of batteries can cause them to leak resulting
in damage to nearby objects, or to explode, creating
the risk of fire and personal injury. Always make
sure you observe the following precautions.
• Use only batteries that are specified for use
with this product.
• Remove batteries from the product if you
do not plan to use it for a long time.
Using the AC Adaptor
Make sure that you use only the AC adaptor
specified for this keyboard.
Specified AC Adaptor: AD-5
[Rear Panel]
Also note the following important warnings and
precautions when using the AC adaptor.
WARNING
Misuse of the AC adaptor creates the risk of fire
and electric shock. Always make sure you observe
the following precautions.
• Be sure to use only the AC adaptor that is
specified for this product.
• Use only a power source whose voltage is
within the rating marked on the AC adaptor.
• Do not overload electrical outlets and
extension cords.
• Never place heavy objects on the cord or
subject it to heat.
• Never try to modify the cord or subject it to
excessive bending.
• Never twist or stretch the cord.
• Should the electric cord or plug become
damaged, contact your original retailer or
authorized CASIO Service Provider.
• Never touch the AC adaptor while your
hands are wet.
Doing so creates the risk of electric shock.
CAUTION
Misuse of the AC adaptor creates the risk of fire
and electric shock. Always make sure you observe
the following precautions.
• Do not locate the electric cord near a stove
or other sources of heat.
• Never pull on the cord when unplugging
from the electrical outlet. Always grasp the
AC adaptor when unplugging.
• Insert the AC adaptor into the wall outlet as
far as it will go.
• Unplug the AC adaptor from the wall outlet
during lightening storms or before leaving
on a trip or other long-term absence.
• At least once a year, unplug the AC adaptor
from the wall outlet and wipe away any dust
that is built up in the area around the prongs
of the plug.
IMPORTANT!
• Make sure that the keyboard is turned off
before connecting or disconnecting the AC
adaptor.
• Using the AC adaptor for a long time can
cause it to become warm to touch. This is
normal and does not indicate malfunction
DC 9V jack
AC adaptor AD-5
AC outlet
CTK230_E08_18.p65 03.10.7, 2:01 PM14
E-15
277A-E-017A
Power Supply
Auto Power Off
When you are using battery power, keyboard
power turns off automatically whenever you leave
it on without performing any operation for about
6 minutes. When this happens, use the POWER/
MODE switch to turn power back on.
NOTE
• Auto Power Off is disabled (it does not
function) when you are using the AC adaptor
to power the keyboard.
To disable Auto Power Off
Hold down the TONE button while turning on the
keyboard to disable Auto Power Off.
NOTE
• When Auto Power Off is disabled, the
keyboard does not turn off automatically no
matter how long it is left with no operation
being performed.
• Auto Power Off is automatically enabled
whenever you turn on keyboard power.
Settings
All keyboard settings are returned to their initial
defaults whenever keyboard power is turned back
on after being turned off by operation of the
POWER/MODE switch or Auto Power Off.
CTK230_E08_18.p65 03.10.7, 2:01 PM15
E-16
277A-E-018A
Connections
Phones/Output Terminal
Before connecting phones or other external
equipment, be sure to first turn down the volume
settings of the keyboard and the connected
equipment. You can then adjust volume to the
desired level after connections are complete.
[Rear Panel]
Connecting Phones (Figure 1)
Connecting phones cuts off output from the
keyboard’s built-in speakers, so you can play even
late at night without disturbing anyone.
Audio Equipment (Figure 2)
Connect the keyboard to an audio equipment using
a commercially available connecting cord with a
standard plug on one end and two PIN plugs on
the other end. In this configuration, you normally
set the input selector of the audio equipment to
the terminal (usually marked AUX IN or
something similar) where the cord from the
keyboard is connected. See the user documentation
that comes with your audio equipment for full
details.
Musical Instrument Amplifier (Figure 3)
Use a commercially available connecting cord* to
connect the keyboard to a musical instrument
amplifier.
* Be sure to use a connecting cord that has standard
plugs on the ends you connect to the keyboard
and amplifier.
When connected to a musical instrument amplifier,
set the volume of the keyboard to a relatively low
level and make output volume adjustments using
the amplifier’s controls.
[Connection Example]
Accessories and Options
Use only the accessories and options specified for
this keyboard. Use of non-authorized items creates
the danger of fire, electrical shock, and personal
injury.
LEFT
RIGHT
AUX IN or similar
terminalof audio
amplifier
White
Red
PIN plug
Stereo standard
plug
PHONES/OUTPUT Terminal
Keyboard amp,
guitar amp,etc.
1
2
3
Audio connection
To keyboard’s
PHONES/OUTPUT
j
ack
Keyboard or
guitar amp
Standard plug
INPUT
CTK230_E08_18.p65 03.10.7, 2:01 PM16
E-17
277A-E-019A
Basic Operations
This section provides information on performing
basic keyboard operations.
Playing the Keyboard
To play the keyboard
1
Set the POWER/MODE switch to NORMAL.
2
Use the MAIN VOLUME buttons to lower
the keyboard volume.
• It’s always a good idea to set the keyboard
volume at a relatively low level before
playing.
• Pressing [] or [] causes the current
volume setting to appear on the display.
Press [] or [] again to change the setting.
3
Play something on the keyboard.

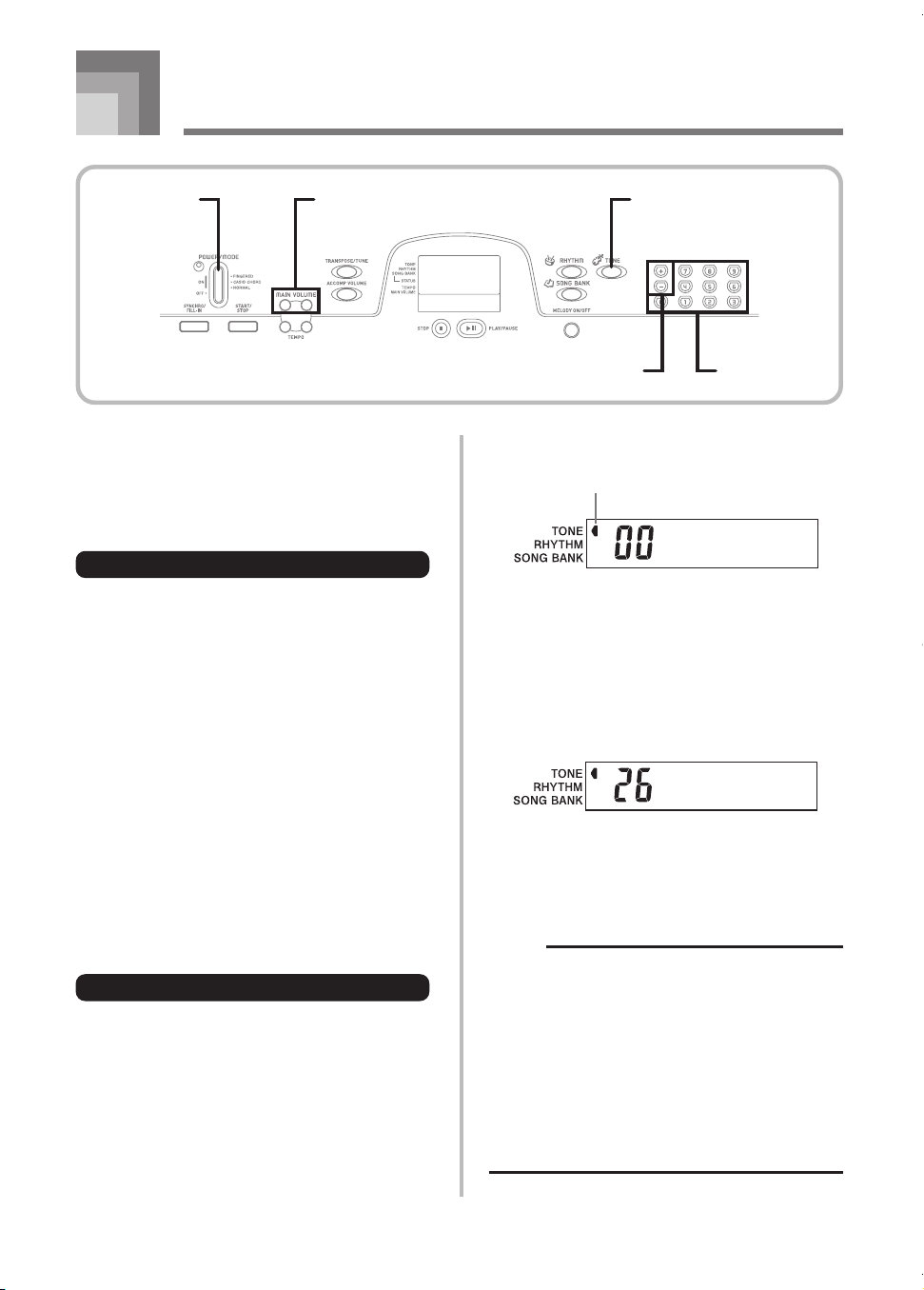

Selecting a Tone
This keyboard comes with 100 built-in tones. Use
the following procedure to select the tone you want
to use.
To select a tone
1
Find the tone you want to use in the tone
list and note its tone number.
• Not all of the available tones are shown on
the tone list printed on the keyboard
console. For a complete list, see the “Tone
List” on page A-1.
2
Press the TONE button.
3
Use the number buttons to input the two
digit tone number for the tone you want to
select.
Example: To select “26 WOOD BASS”, input
2 and then 6 .
• Now notes played on the keyboard will be
played using an acoustical wood bass
sound.
NOTE
• Always input both digits for the tone number,
including a leading zero (if any). If you input
one digit and stop, the display will
automatically clear your input after a few
seconds.
• You can also increment the displayed tone
number by pressing [+] and decrement it by
pressing [–].
• Sound effect tones such as 77 VEHICLE
sound best when you keep a keyboard key
depressed.
W
oodBas s
Appears when TONE button is pressed
Piano 1
POWER/MODE MAIN VOLUME
[+]/[
-
] Number buttons
TONE
CTK230_E08_18.p65 03.10.7, 2:01 PM17
E-18
277A-E-020A
Combination tones
The following describes the two types of
combination tones that are available.
Layered Tones (Tone Numbers: 80 through 89)
Example: 80 STR PIANO
This tone layers a strings tone with a piano tone
so they both sound when a keyboard key is
pressed.
Split Tones (Tone Numbers: 90 through 96)
Example: 90 BASS/PIANO
This tone splits the keyboard so one range is
assigned a bass tone and another range is assigned
a piano tone.
Percussion sounds
Example: 99 PERCUSSION
This tone assigns various percussion sounds to the
keyboard. See the “Percussion Instrument List” on
page A-7 for full details.
Sound Effect Tones
With sound effect tones 77 through 79, the type of
sound produced depends on the octave where the
key you press is located. When 78 PHONE is
selected available sound types are PUSH TONE 1,
PUSH TONE 2, RING 1, and RING 2.
Polyphony
The term polyphony refers to the maximum
number of notes you can play at the same time.
The keyboard has 12-note polyphony, which
includes the notes you play as well as the rhythms
and auto-accompaniment patterns that are played
by the keyboard. This means that when a rhythm
or auto-accompaniment pattern is being played by
the keyboard, the number of notes (polyphony)
available for keyboard play is reduced. Also note
that some of the tones offer only 6-note polyphony.
NOTE
• When rhythm or auto accompaniment is
playing, the number of sounds simultaneously
played is reduced.
Digital Sampling
A number of the tones that are available with this
keyboard have been recorded and processed using
a technique called digital sampling. To ensure a
high level of tonal quality, samples are taken in
the low, mid, and high ranges and then combined
to provide you with sounds that are amazingly
close to the originals. You may notice very slight
differences in volume or sound quality for some
tones when you play them at different positions
on the keyboard. This is an unavoidable result of
multiple sampling, and it is not a sign of
malfunction.
Basic Operations
PIANO
BASS
CTK230_E08_18.p65 03.10.7, 2:02 PM18
E-19
277A-E-021A

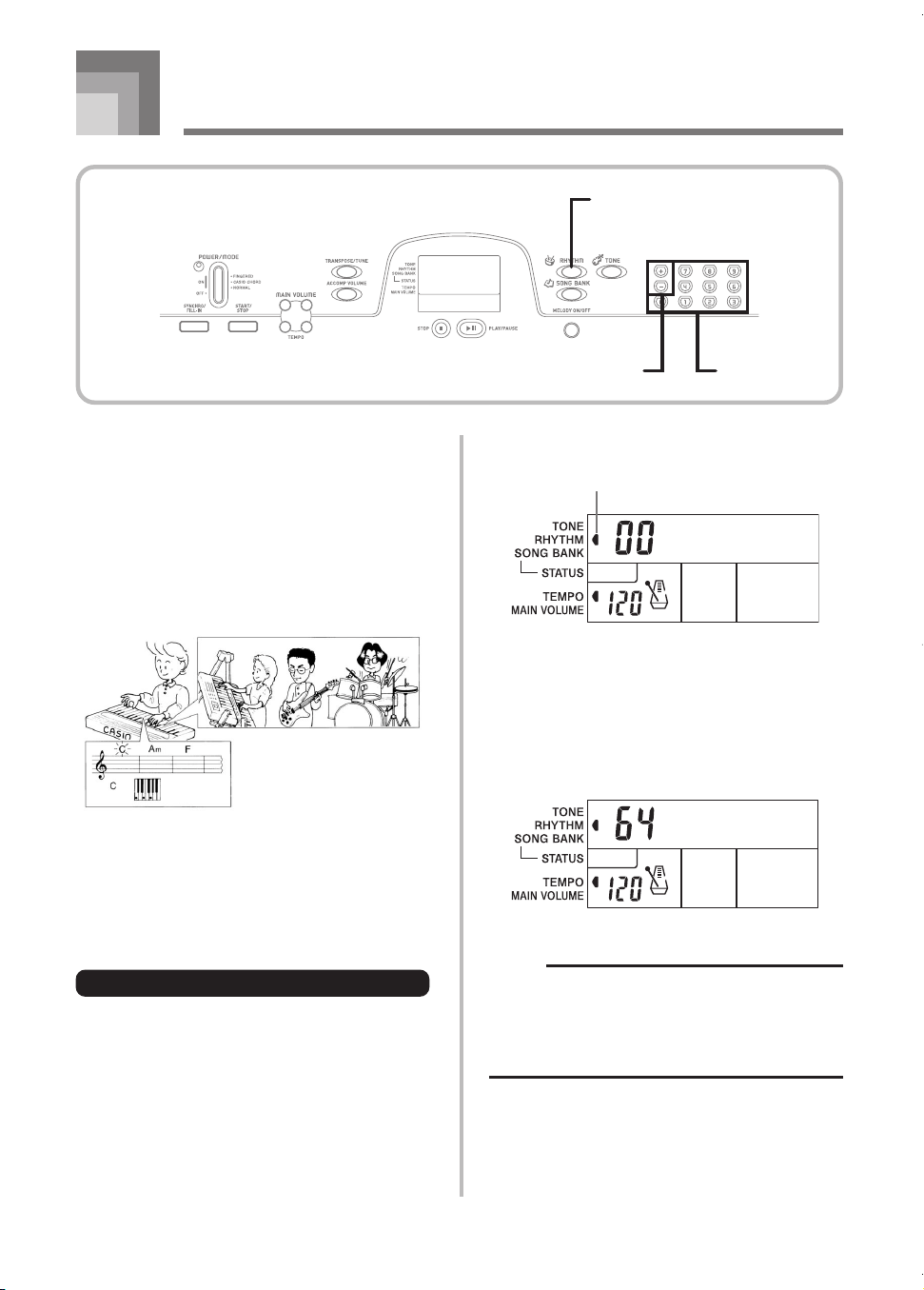

Auto Accompaniment
This keyboard automatically plays bass and
chord parts in accordance with the chords you
finger. The bass and chord parts are played
using sounds and tones that are automatically
selected to select the rhythm you are using. All
of this means that you get full, realistic
accompaniments for the melody notes you play
with your right hand, creating the mood of a
one-person ensemble.

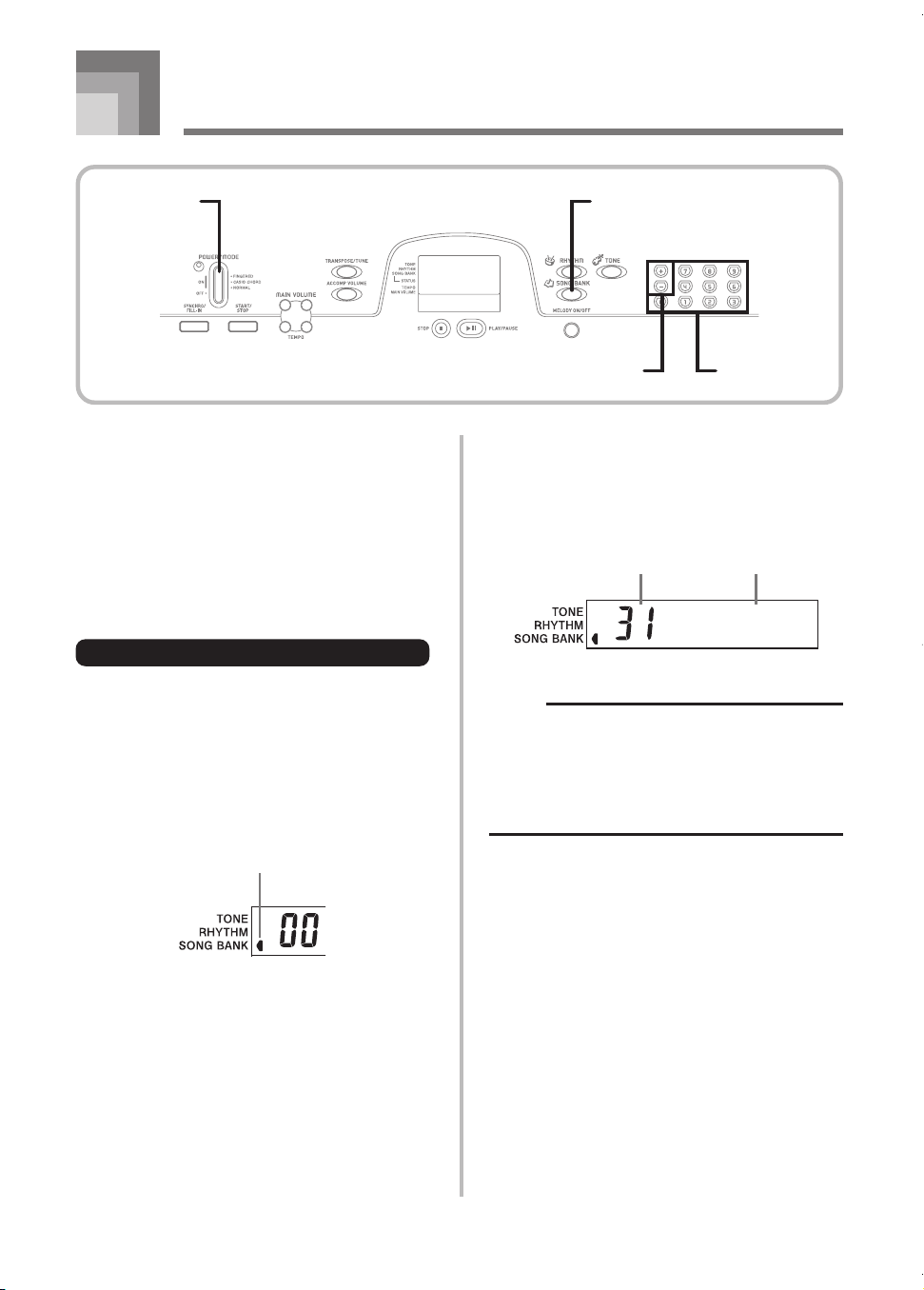

Selecting a Rhythm
This keyboard provides you with 100 exciting
rhythms that you can select using the following
procedure.
To select a rhythm
1
Find the rhythm you want to use in the
rhythm list and note its rhythm number.
• Not all of the available rhythms are
shown on the rhythm list printed on the
keyboard console. For a complete list,
see the “Rhythm List” on page A-2.
2
Press the RHYTHM button.
3
Use the number buttons to input the two
digit rhythm number for the rhythm you
want to select.
Example: To select “64 WALTZ”, input 6 and
then 4.
NOTE
•“00 CLUB POP” is the initial default rhythm
setting whenever you turn on keyboard power.
• You can also increment the displayed rhythm
number by pressing [+] and decrement it by
pressing [–].
Appears when RHYTHM button is pressed
Club Po
p
W
al tz
[+]/[
-
] Number buttons
RHYTHM
CTK230_E19_24.p65 03.10.7, 2:02 PM19
E-20
277A-E-022A
Auto Accompaniment
Playing a Rhythm
Use the following procedure to start and stop
rhythm play.
To play a rhythm
1
Set the POWER/MODE switch to NORMAL.
2
Press the START/STOP button to start play
of the currently selected rhythm.
3
To stop rhythm play, press the START/STOP
button again.
NOTE
• All of the keyboard keys are melody keys while
the POWER/MODE switch is set to NORMAL.

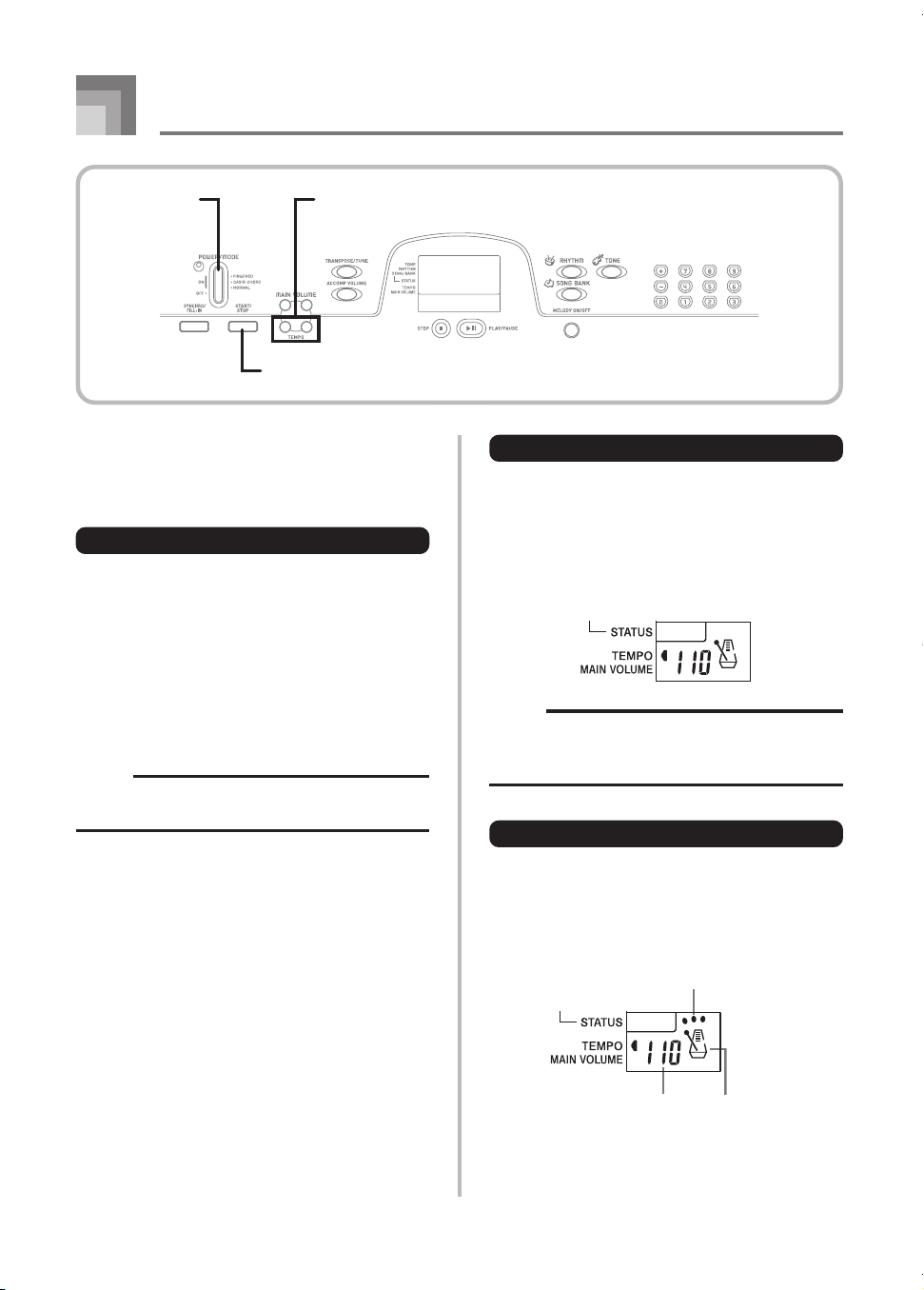

Adjusting the Tempo
You can adjust the tempo of rhythm play within a
range of 20 to 255 beats per minute. The tempo
setting is applied to Auto Accompaniment chord
play, and song bank operations.
To adjust the tempo
1
Use the TEMPO buttons ( / ) to adjust
the tempo.
: Increases the tempo value.
: Decreases the tempo value.
Example: Hold down the button until the
tempo value 110 is on the display.
NOTE
• Pressing both TEMPO buttons ( and ) at
the same time resets the tempo to the default
value of the currently selected rhythm.
About the Graphic Metronome
The graphic metronome appears on the display
along with the tempo value and beat of a rhythm
or built-in tune. The graphic metronome helps you
keep in time as you play along with a rhythm or
built-in tune.
Beat
Graphic
metronome
Tempo value
POWER/MODE TEMPO
START/STOP
CTK230_E19_24.p65 03.10.7, 2:02 PM20
E-21
Auto Accompaniment
Using Auto Accompaniment
The following procedure describes how to use the
keyboard’s Auto Accompaniment feature. Before
starting, you should first select the rhythm you
want to use and set the tempo of the rhythm to the
value you want.
To use Auto Accompaniment
1
Set the POWER/MODE switch to CASIO
CHORD or FINGERED.
2
Press the START/STOP button to start play
of the currently selected rhythm.
3
Play a chord.
• The actual procedure you should use to
play a chord depends on the current
POWER/MODE switch position. Refer to
the following pages for details on chord
play.
CASIO CHORD ........................... This page
FINGERED .................................. Page E-22
4
To stop Auto Accompaniment play, press the
START/STOP button again.
CASIO CHORD
This method of chord play makes it possible for
anyone to easily play chords, regardless of
previous musical knowledge and experience. The
following describes the CASIO CHORD
“Accompaniment keyboard” and “Melody
keyboard”, and tells you how to play CASIO
CHORDs.
CASIO CHORD Accompaniment Keyboard and
Melody Keyboard
NOTE
• The accompaniment keyboard can be used
for playing chords only.
No sound will be produced if you try playing
single melody notes on the accompaniment
keyboard.
Chord Types
CASIO CHORD accompaniment lets you play four
types of chords with minimal fingering.
Major chords
Major chord names are
marked above the keys of the
accompaniment keyboard.
Note that the chord produced
when you press an
accompaniment keyboard
does not change octave,
regardless of which key you
use to play it.
Minor chords (m)
To play a minor chord, keep
the major chord key
depressed and press any
other accompaniment
keyboard key located to the
right of the major chord key.
Seventh chords (7)
To play a seventh chord, keep
the major chord key
depressed and press any
other two accompaniment
keyboard keys located to the
right of the major chord key.
Minor seventh chords (m7)
To play a minor seventh
chord, keep the major chord
key depressed and press any
other three accompaniment
keyboard keys located to the
right of the major chord key.
ExampleChord Types
C minor seventh
(Cm7)
C
C
DE F F
#
E
#
G
A
AB
B
C
C
DE F
E
#
C seventh (C7)
C
C
DE F F
#
E
#
G
A
AB
B
C
C
DE F
E
#
C minor (Cm)
C
C
DE F F
#
E
#
G
A
AB
B
C
C
DE F
E
#
C
C
DE F F
#
E
#
G
A
AB
B
C
C
DE F
E
#
C Major (C)
277A-E-023A
Club Po
p
Chord name
Melody keyboard
Accompaniment
keyboard
CTK230_E19_24.p65 03.10.7, 2:02 PM21
E-22
Auto Accompaniment
NOTE
• It makes no difference whether you press
black or white keys to the right of a major
chord key when playing minor and seventh
chords.
FINGERED
FINGERED provides you with a total of 15
different chord types. The following describes the
FINGERED “Accompaniment keyboard” and
“Melody keyboard”, and tells you how to play a
C-root chord using FINGERED.
FINGERED Accompaniment Keyboard and
Melody Keyboard
NOTE
• The accompaniment keyboard can be used
for playing chords only. No sound will be
produced if you try playing single melody
notes on the accompaniment keyboard.
C
Caug
*1
Cm7
*2
C7
5 *1
Cmadd9
*2
Cm
Csus4
Cmaj7
*2
C7sus4
CmM7
*2
Cdim
C7
*2
Cm7
5
Cadd9
*2
Cdim7
*1
See the “Fingered Chord Chart” on page A-5 for
details on playing chords with other roots.
*1: Inverted fingerings cannot be used. The lowest
note is the root.
*2: The same chord can be played without pressing
the 5th G.
NOTE
• Except for the chords specified in note
*1
above, inverted fingerings (i.e. playing E-G-
C or G-C-E instead of C-E-G) will produce the
same chords as the standard fingering.
• Except for the exception specified in note
*2
above, all of the keys that make up a chord
must be pressed. Failure to press even a
single key will not play the desired FINGERED
chord.
277A-E-024A
Melody keyboard
Accompaniment
keyboard
CTK230_E19_24.p65 03.10.7, 2:02 PM22
E-23
Auto Accompaniment

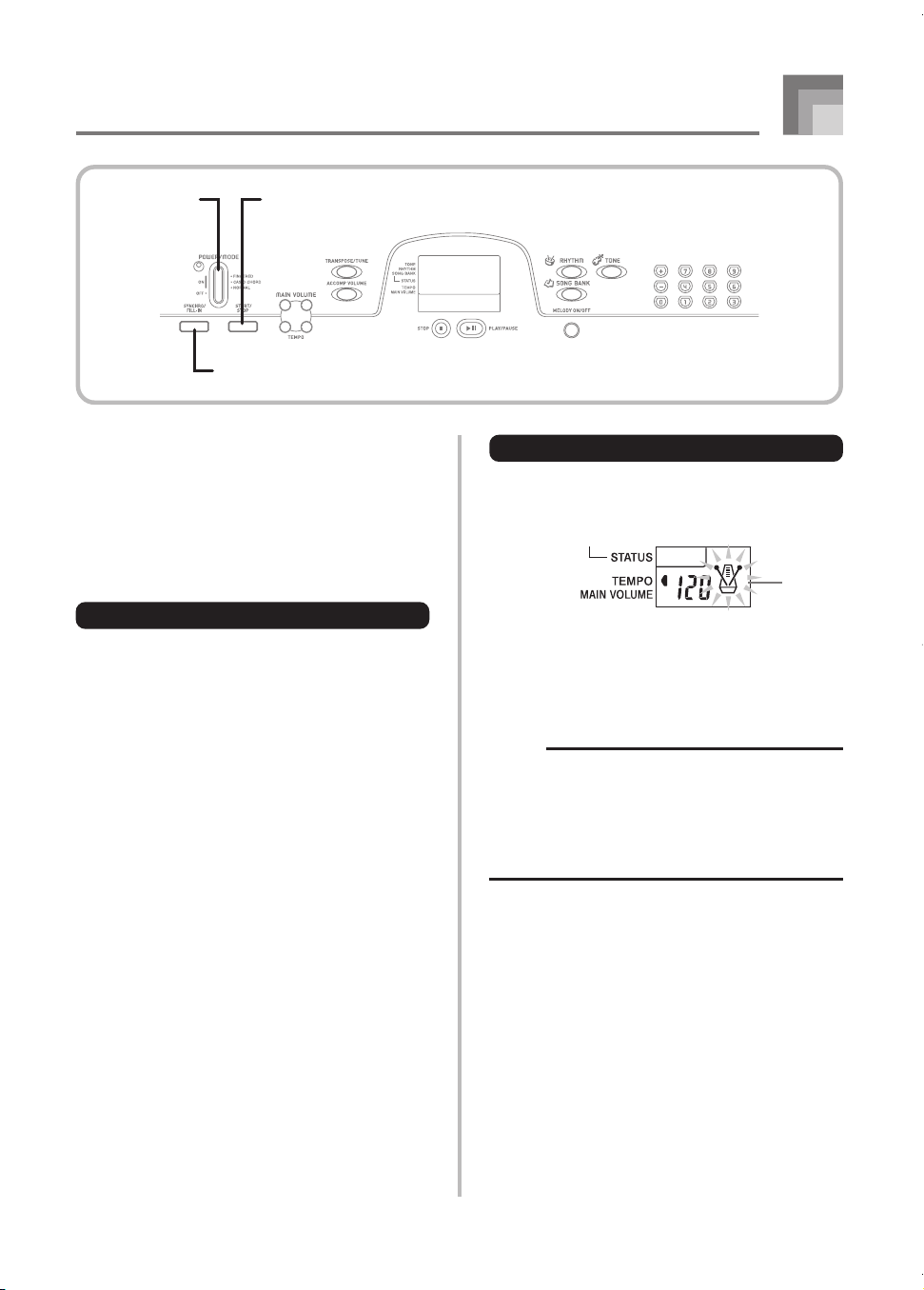

Using a Fill-in Pattern
Fill-in patterns let you momentarily change the
rhythm pattern to add some interesting variation
to your performances.
The following procedure describes how to use the
Fill-in feature.
To insert a fill-in
1
Press the START/STOP button to start rhythm
play.
2
Press the SYNCHRO/FILL-IN button to insert
a fill-in pattern for the rhythm you are using.
Synchro Starting
Accompaniment with
Rhythm Play
You can set up the keyboard to start rhythm play
at the same time you play the accompaniment on
the keyboard.
The following procedure describes how to use
synchro start. Before starting, you should first
select the rhythm you want to use, set the tempo,
and use the POWER/MODE switch to select the
chord play method you want to use (CASIO
CHORD, FINGERED).
To use synchro start
1
Press the SYNCHRO/FILL-IN button to put
the keyboard into synchro start standby.
2
Play a chord on the accompaniment
keyboard and the rhythm pattern starts to
play automatically.
NOTE
• If the POWER/MODE switch is set to
NORMAL, only the rhythm plays (without a
chord) when you play on the accompaniment
keyboard.
• To cancel synchro start standby, press the
SYNCHRO/FILL-IN button one more time.
277A-E-025A
Flash
POWER/MODE
SYNCHRO/FILL-IN
START/STOP
CTK230_E19_24.p65 03.10.7, 2:02 PM23
E-24
Auto Accompaniment

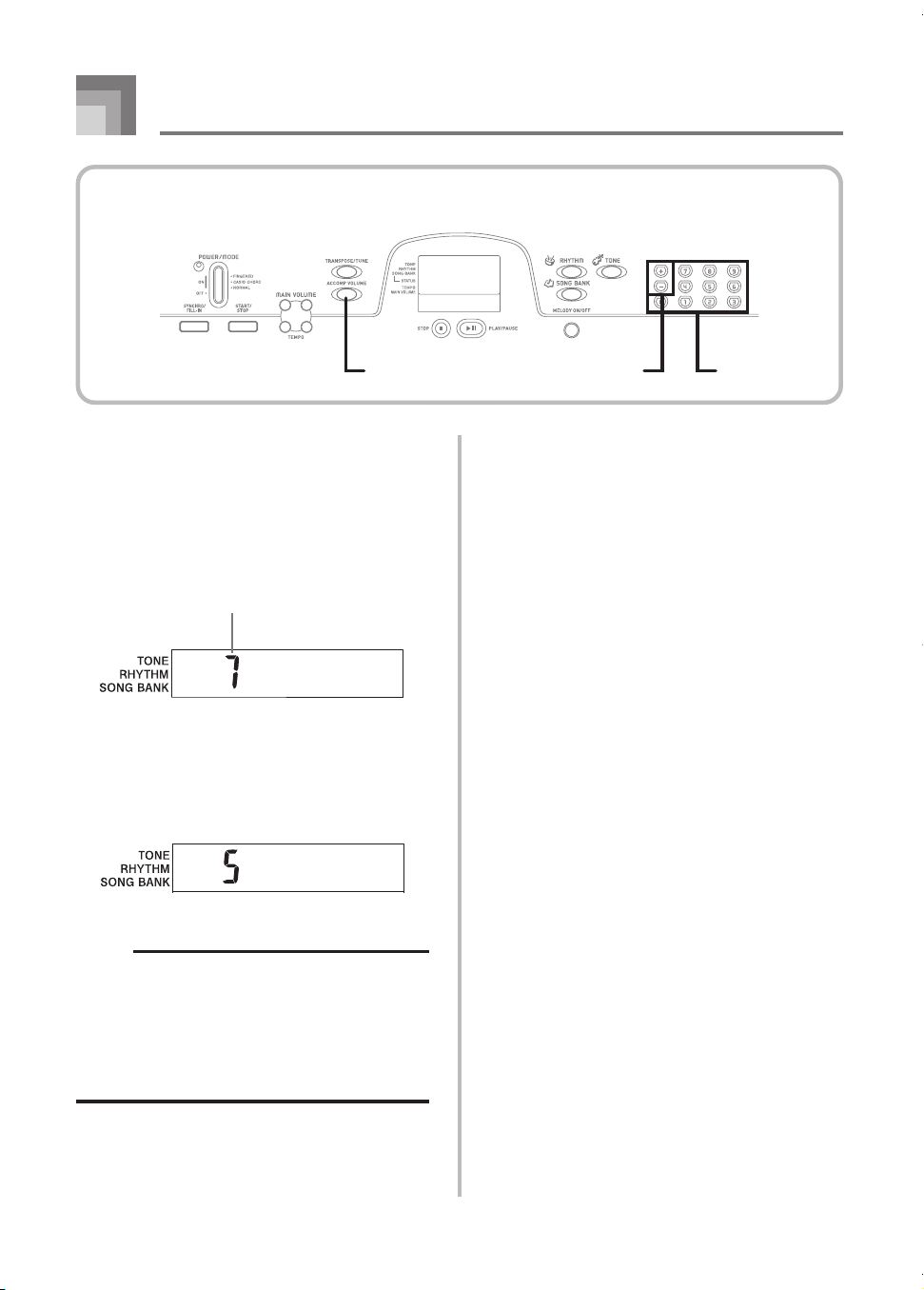

Adjusting the
Accompaniment Volume
You can adjust the volume of the accompaniment
parts as a value in the range of 0 (minimum) to 9.
1
Press the ACCOMP VOLUME button.
2
Use the number buttons or the [+]/[–]
buttons to change the current volume setting
value.
Example: 5
NOTE
• The current accompaniment volume value
that appears in Step 1 automatically clears
from the display if you do not input anything
within about five seconds.
• Pressing [+] and [–] buttons at the same time
automatically sets an accompaniment volume
of 7.
Current accompaniment volume setting
277A-E-026A
Accm
p
Vo l
Accm
p
Vo l
[+]/[
-
] Number buttonsACCOMP VOLUME
CTK230_E19_24.p65 03.10.7, 2:02 PM24
E-25
277A-E-027A

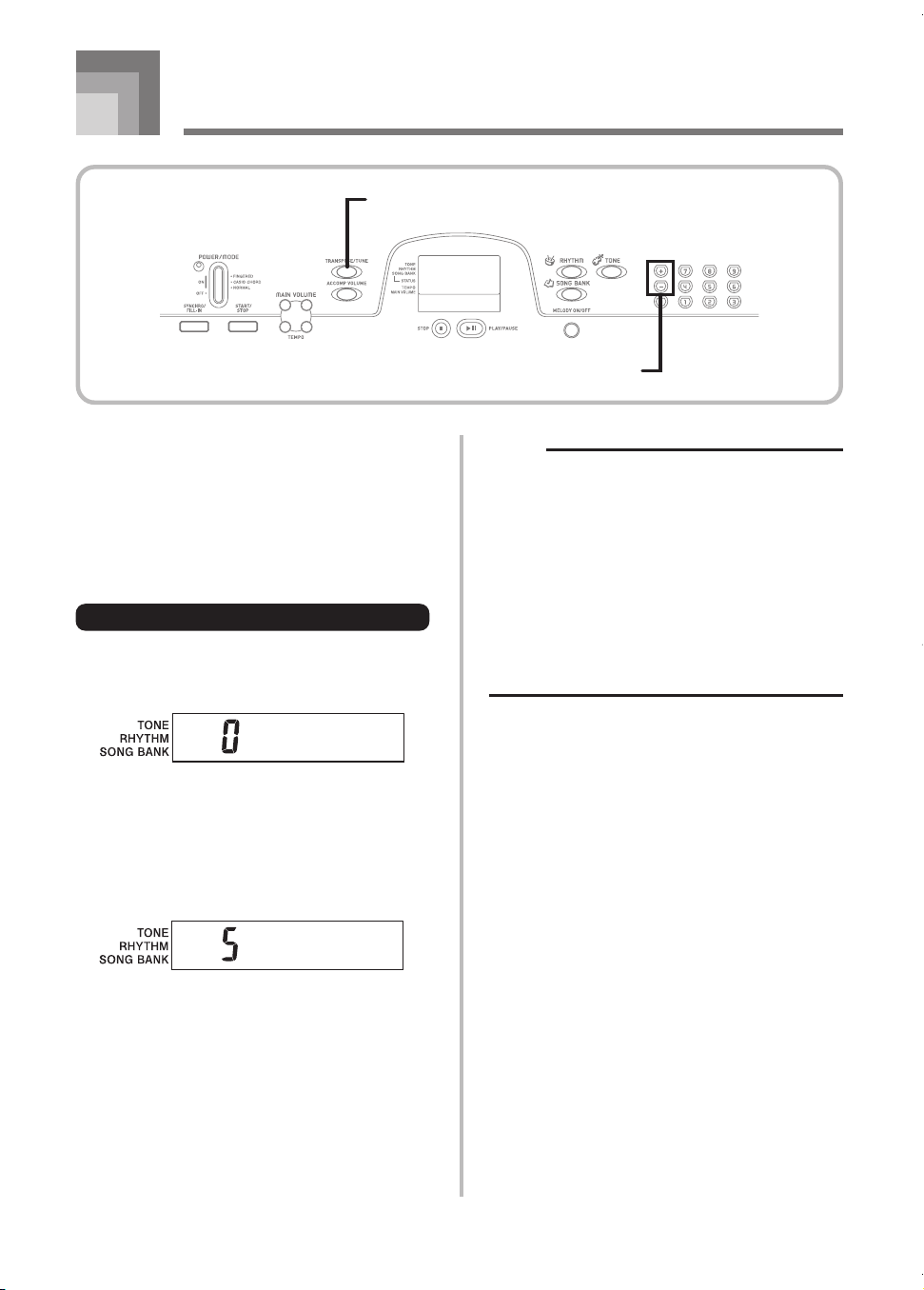

Using the Song Bank
A selection of 50 Song Bank tunes comes built-in
for your listening enjoyment or play along fun. You
can turn off the melody part to practice with the
remaining part.
Playing Back a Song Bank
Tune
To play back a Song Bank tune
1
Set the POWER/MODE switch to NORMAL,
FINGERED, or CASIO CHORD.
2
Adjust the main volume and accomp
volume.
3
Press the SONG BANK button to enter the
Song Bank Mode.
Appears when SONG BANK button is pressed
4
Use the Song Bank list to find the tune you
want to play back, and then use the number
buttons to input the tune’s two-digit number.
Example: To select “31 ALOHA OE”, input 3
and then 1.
NOTE
•“00 TWINKLE TWINKLE LITTLE STAR” is the
initial default Song Bank tune setting
whenever you turn on keyboard power.
• You can also increment the displayed tune
number by pressing [+] and decrement is by
pressing [–].
Song NameSong Number
Aloha Oe
[+]/[
-
] Number buttons
POWER/MODE SONG BANK
CTK230_E25_29.p65 03.10.7, 2:02 PM25
E-26
277A-E-028A

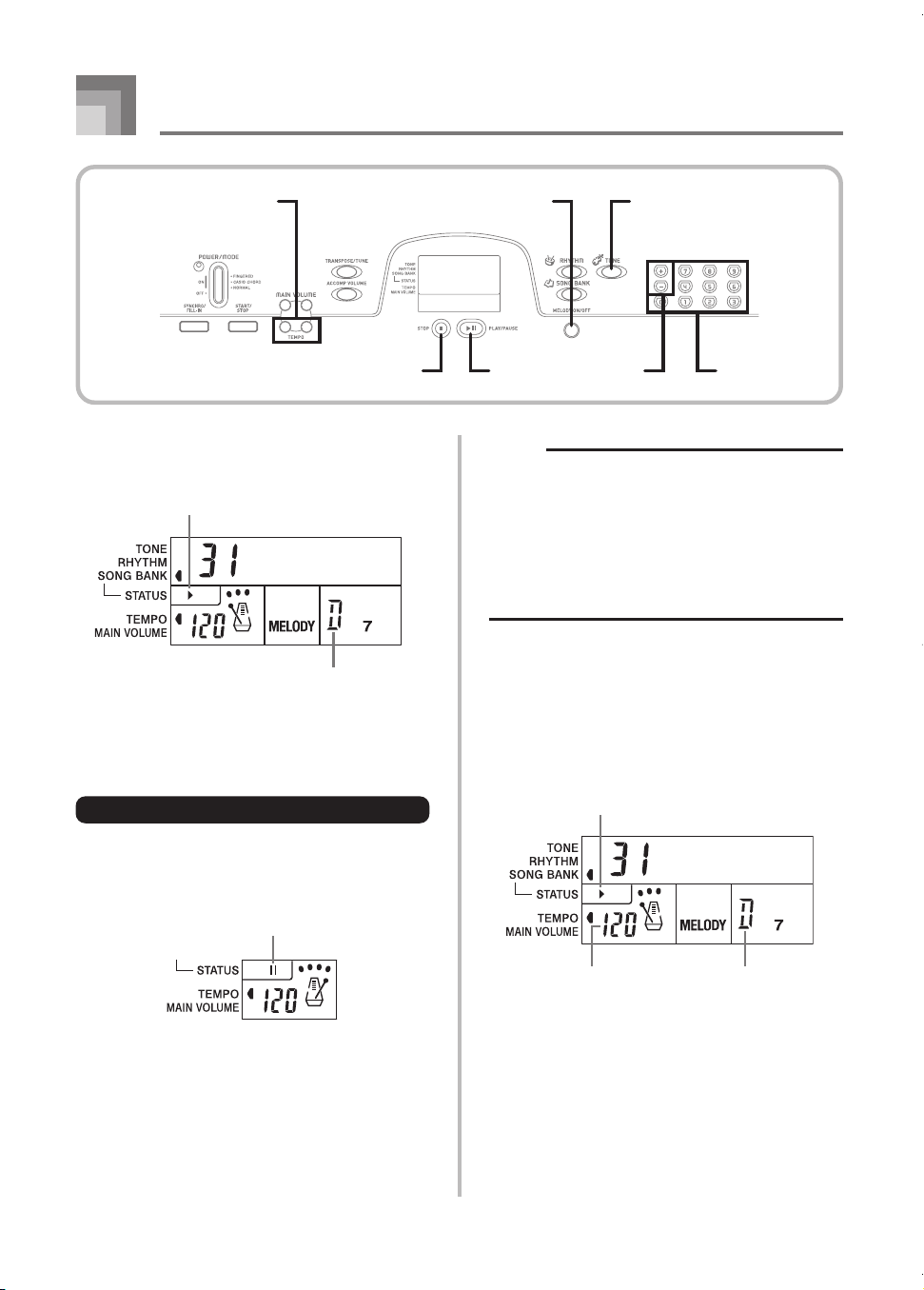

Using the Song Bank
5
Press the PLAY/PAUSE button to start play
of the tune.
6
Press the STOP button to stop playback of
the Song Bank tune.
To pause Song Bank tune play
1
While a Song Bank tune is playing, press
the PLAY/PAUSE button to pause it.
2
To resume play, press PLAY/PAUSE again.
NOTE
• Each time you select a new Song Bank tune,
the tone, tempo, and rhythm that is
programmed for the tune are automatically
selected. You can change a tune’s tone and
tempo during playback, but you cannot
change the rhythm.
• You can also adjust the accompaniment
volume (page E-24) for Song Bank tunes.
Song Bank Mode Display
In the Song Bank Mode, the display shows a variety
of information about the tune being played.
[Playback Display]
The indicator “ll” appears while a
tune play is paused.
Chord name
Appears when PLAY/PAUSE button is pressed
Aloha Oe
Chord name
Notes played
Tune tempo
Aloha Oe
STOP [+]/[
-
] Number buttons
TEMPO MELODY ON/OFF
PLAY/PAUSE
TONE
CTK230_E25_29.p65 03.10.7, 2:02 PM26
E-27
Using the Song Bank
277A-E-029A

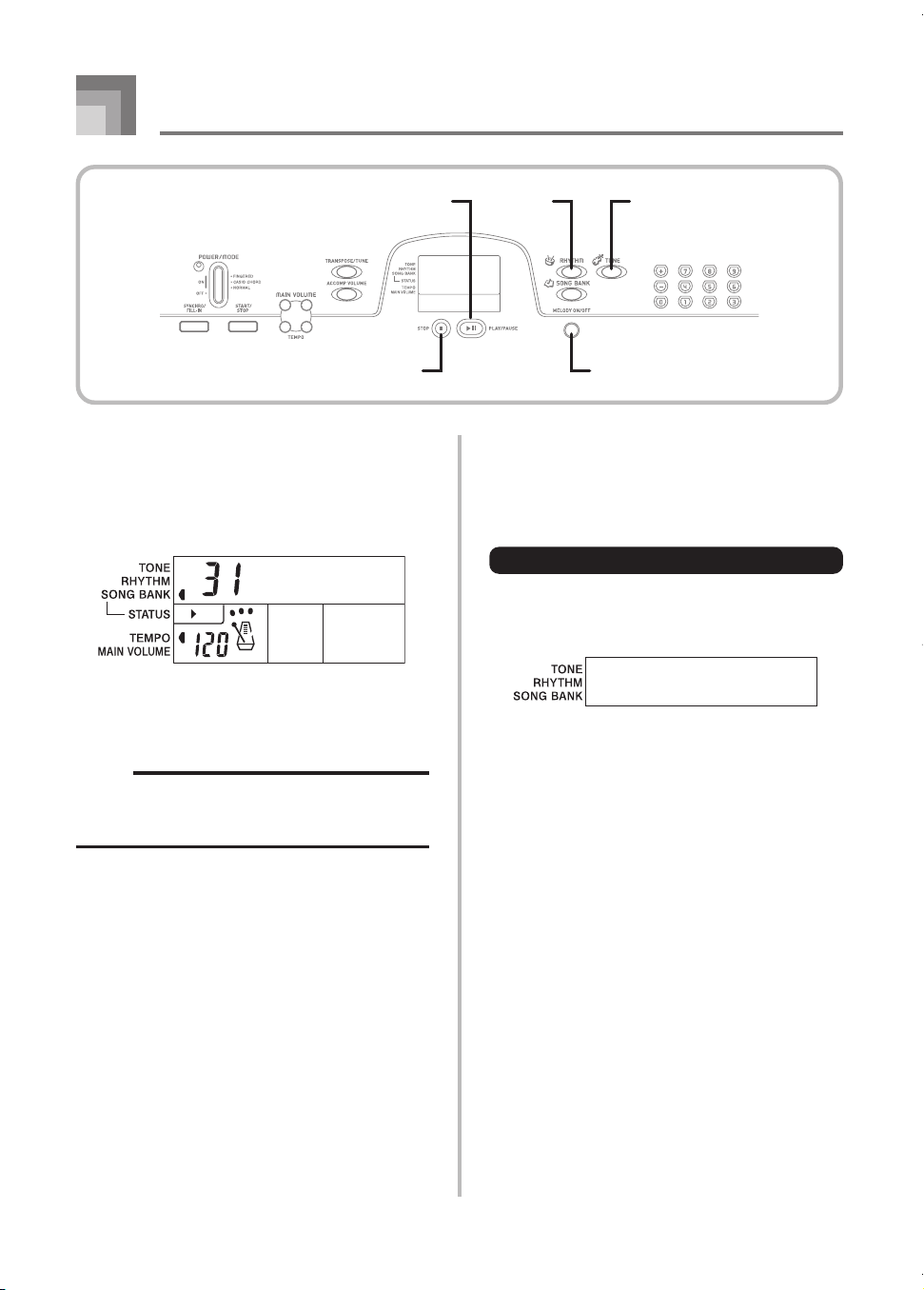

Adjusting the Tempo of a
Song Bank Tune
To change the tempo of a Song
Bank tune
The tempo can be set within a range of 20 to 255
beats per minute. The tempo setting can be
adjusted while the tune is stopped, playing back,
or paused.
1
Use the TEMPO buttons [ / ] to adjust
the tempo.
: each press increases the value
: each press decreases the value
NOTE
• Pressing both the [] and [] TEMPO buttons
at the same time returns the tempo setting to
the preset value for the currently selected
tune.
Changing the Tone of a Song
Bank Tune’s Melody
You can select any one of the keyboard’s 100 tones
to be used to play the melody part of a Song Bank
tune. The tone setting can be changed while the
tune is stopped or playing back.
1
While a song is playing back, press the
TONE button.
2
Find the tone you want in the Tone List, and
then use the number buttons or the [+] and
[–] buttons to specify the tone number.
Example: To select “30 VIOLIN”, input 3 and
then 0.
NOTE
• Pressing both the [+] and [–] buttons at the
same time selects “00 PIANO 1”.
• To return a Song Bank tune to its original
settings, simply select that tune again.
Playing Along with a Song
Bank Tune
Each Song Bank tune has an accompaniment part
and a melody part. You can turn off the melody
part of a Song Bank tune and play along with the
remaining part on the keyboard.
To play along with a Song Bank
tune
1
Perform steps 1 through 4 under “To play
back a Song Bank tune” on page E-25 to
select the song you want to play along with.
2
Press the MELODY ON/OFF button to turn
off the melody part.
• The on/off status of the melody part is
indicated by “MELODY” that appears on
the display. The melody part is turned on
when “MELODY” is displayed, and turned
off when “MELODY” is not displayed.
Gu t G t r
Viol in
Indicator turns off.
CTK230_E25_29.p65 03.10.7, 2:02 PM27
E-28
Using the Song Bank
277A-E-030A
3
Press the PLAY/PAUSE button to start play
of the Song Bank Tune.
• Only the accompaniment part is played, so
you can play the melody part on the
keyboard.
4
To end playback, press the STOP button.
NOTE
• The selected Song Bank tune continues to
repeat until you stop playback by pressing the
STOP button.
Applause Sound
Whenever you turn off the melody part of a Song
Bank tune and play it back, an applause sound is
produced when the tune reaches the end.
To turn off the applause sound
1
Press the STOP button and the MELODY
ON/OFF button at the same time.
• Pressing the STOP button and the
MELODY ON/OFF button at the same
time again turns the applause sound back
on.
Aloha Oe
A
p
ls=Off
STOP
PLAY/PAUSE RHYTHM
MELODY ON/OFF
TONE
CTK230_E25_29.p65 03.10.7, 2:02 PM28
E-29
Using the Song Bank
277A-E-031A
Playing Back All Song Bank
Tunes in Succession
1
Use the TONE or RHYTHM button to
change to any mode other than the Song
Bank Mode.
• Make sure a dot is not on the display next
to the SONG BANK indicator.
2
Press the PLAY/PAUSE button to start
playback of the Song Bank tunes starting
from tune 00.
3
To stop Song Bank tune playback, press the
STOP button.
• Pausing playback automatically cancels
consecutive playback of all Song Bank
tunes. Re-starting playback causes repeat
playback of the current tune only.
Indicator turns off.
Gu t G t r
CTK230_E25_29.p65 03.10.7, 2:02 PM29
E-30
277A-E-032A
Keyboard Settings
Transposing the Keyboard
Transpose lets you raise and lower the overall key
of the keyboard in semitone units. If you want to
play an accompaniment for a vocalist who sings
in a key that’s different from the keyboard, for
example, simply use transpose to change the key
of the keyboard.
To transpose the keyboard
1
Press the TRANSPOSE/TUNE button until
the transpose screen appears on the display.
2
Use [+] and [–] to change the transpose
setting of the keyboard.
Example: To transpose the keyboard five
semitones upwards.
NOTE
• The keyboard can be transposed within a
range of –6 to +5.
• The default transpose setting is “0” when
keyboard power is turned on.
• If you leave the transpose screen on the
display for about five seconds without doing
anything, the screen is automatically cleared.
• The transpose setting also affects Auto
Accompaniment.
• Playing back a Song Bank tune automatically
returns the transpose setting to its standard
default of “0”.
Trans
Trans
(
+
)
[+]/[
-
]
TRANSPOSE/TUNE
CTK230_E30_31.p65 03.10.7, 2:02 PM30
E-31
277A-E-033A
Keyboard Settings
Tuning the Keyboard
The tuning feature lets you fine tune the keyboard
to match the tuning of another musical instrument.
To tune the keyboard
1
Press the TRANSPOSE/TUNE button twice
to display the tuning screen.
2
Use [+] and [–] to change the tuning setting
of the keyboard.
Example: To lower the tuning by 20.
NOTE
• The keyboard can be tuned within a range of
–50 cents to +50 cents.
*100 cents is equivalent to one semitone.
• The default tuning setting is “00” when
keyboard power is turned on.
• If you leave the tuning screen on the display
for about five seconds without doing anything,
the screen is automatically cleared.
• The tuning setting also affects Auto
Accompaniment.
• Playing back a Song Bank tune automatically
returns the tuning setting to its standard
default of “00”.
Tune
Tune
(
-
)
CTK230_E30_31.p65 03.10.7, 2:02 PM31
E-32
No keyboard Sound
Any of the following
symptoms while using
battery power.
• Dim power indicator
• Instrument does not turn
on
• Display that is flickering,
dim, or difficult to read
• Abnormally low speaker/
headphone volume
• Distortion of sound output
• Occasional interruption of
sound when playing at
high volume
• Sudden power failure
when playing at high
volume
• Flickering or dimming of
the display when playing
at high volume
• Continued sound output
even after you release a key
• A tone that is totally
different from the one that
is selected
• Abnormal rhythm pattern
and Song Bank play
Auto Accompaniment does
not sound.
1. Power supply problem.
2. Power is not turned on.
3. Volume setting is too low.
4. The POWER/MODE
switch is in the CASIO
CHORD or FINGERED
position.
Low battery power
Auto accompaniment volume
is set to 0.
1. Correctly attach the AC
adaptor, make sure that
batteries poles (+/–) are
facing correctly, and check
to make sure that batteries
are not dead.
2.Set the POWER/MODE
switch to the NORMAL
position.
3. Use the MAIN VOLUME
buttons to increase volume.
4. Normal play is not possible
on the accompaniment
keyboard while the
POWER/MODE switch is
set to CASIO CHORD or
FINGERED. Change the
POWER/MODE switch
setting to NORMAL.
Replace the batteries with a
set of new ones or use the AC
adaptor.
Use the ACCOMP VOLUME
button to increase the volume.
Problem Possible Cause Action
Pages
E-13, 14
Page E-17
Page E-17
Page E-17
Pages
E-13, 14
Page E-24
See
277A-E-034A
Troubleshooting
CTK230_E32-35.p65 03.10.7, 2:02 PM32
E-33
Troubleshooting
Problem Possible Cause Action See
The key or tuning does not
match when playing along
with another instrument.
Missing Song Bank tune
The tuning or transpose
parameter is set to a value
other than 0 or 00.
Melody part is turned off.
Change the transpose or
tuning parameter value to 0
or 00.
Press the MELODY ON/OFF
button to turn on the melody
part.
Pages
E-30, 31
Page E-27
277A-E-035A
CTK230_E32-35.p65 03.10.7, 2:02 PM33
E-34
Specifications
Model: CTK-230
Keyboard: 49 standard-size keys, 4 octaves
Tones: 100
Polyphony: 12 notes maximum (6 for certain tones)
Auto Accompaniment
Rhythm Patterns: 100
Tempo: Variable (236 steps, = 20 to 255)
Chords: 2 fingering methods (CASIO CHORD, FINGERED)
Rhythm Controller: START/STOP, SYNCHRO/FILL-IN
Accomp Volume: 0 to 9 (10 steps)
Song Bank
Tunes: 50
Controllers: PLAY/PAUSE, STOP, MELODY ON/OFF
Display
Name display: TONE, RHYTHM, SONG BANK name/number, keyboard setting
names/values
Tempo: Tempo value, metronome, synchro standby, beat indicator, volume
setting
Chord: Chord name
Song Bank Status: PLAY, PAUSE, MELODY ON/OFF
Other Functions
Transpose: 12 steps (–6 semitones to +5 semitones)
Tuning: Variable (A4 = approximately 440Hz ±50 cents)
Volume: 0 to 9 (10 steps)
Terminals
Phones/Output Terminal: Stereo standard jack (Output is monaural.)
Output Impedance: 78Ω
Output Voltage: 3V (RMS) MAX
Power Supply Terminal: 9V DC
Power Supply: Dual power supply system
Batteries: 6 AA-size batteries
Battery Life: Approximately 6 hours continuous operation on alkaline batteries
Approximately 3 hours continuous operation on manganese
batteries
AC Adaptor: AD-5
Auto Power Off: Turns power off approximately 6 minutes after last operation.
Enabled under battery power only, can be disabled manually.
Speaker Output:
ø
10cm 2 (1.6W + 1.6W)
Power Consumption: 9V 6.5W
Dimensions: 87.5 30.0 10.0 cm (34
1
/
2
11
13
/
16
3
15
/
16
inch)
Weight: Approximately 3.2 kg (7.1 lbs) (without batteries)
277A-E-036A
CTK230_E32-35.p65 03.10.7, 2:02 PM34
E-35
277A-E-037A
Care of your keyboard
Avoid heat, humidity or direct sunlight.
Do not overexpose the instrument to direct sunlight, or place it near an air conditioner, or in any extremely
hot place.
Do not use near a TV or radio.
This instrument can cause video or audio interference with TV and radio reception. If this happens, move the
instrument away from the TV or radio.
Do not use lacquer, thinner or similar chemicals for cleaning.
Clean the keyboard with a soft cloth dampened in a weak solution of water and a neutral detergent. Soak the
cloth in the solution and squeeze until it is almost dry.
Avoid use in areas subjected to temperature extremes.
Extreme heat can cause figures on the LCD screen to become dim and difficult to read. This condition should
correct itself when the keyboard is brought back to normal temperature.
NOTE
• You may notice lines in the finish of the case of this keyboard. These lines are a result of the molding
process used to shape the plastic of the case. They are not cracks or breaks in the plastic, and are no
cause for concern.
CTK230_E32-35.p65 03.10.7, 2:02 PM35
A-1
Appendix/Apéndice
Tone List/Lista de sonidos
277A-E-075A
PIANO
00 PIANO1
01 PIANO2
02 HONKY-TONK
03 STUDIOPIANO
04 ELEC PIANO1
05 ELEC PIANO2
06 ELEC PIANO3
07 ELEC PIANO4
08 HARPSICHORD
09 CLAVELECTRO
ORGAN
10 ELEC ORGAN1
11 ELEC ORGAN2
12 ELEC ORGAN3
13 ELEC ORGAN4
14 CHURCH ORGAN
15 PIPE ORGAN
16 REED ORGAN
17 ACCORDION
18 BANDONEON
19 HARMONICA
GUITAR/BASS
20 GUT GUITAR
21 ACOUS GUITAR
22 JAZZ GUITAR
23 ELEC GUITAR
24 MUTE GUITAR
25 DIST GUITAR
26 WOOD BASS
27 ELEC BASS
28 SLAP BASS
29 BANJO
STRINGS/ENSEMBLE
30 VIOLIN
31 CELLO
32 HARP
33 STRINGS1
34 STRINGS2
35 STRINGS3
36 SYNTH-STR1
37 SYNTH-STR2
38 CHOIR
39 VOICE OOH
BRASS
40 TRUMPET
41 TUBA
42 BRASS ENS
43 FR.HORN1
44 FR.HORN2
45 BRASS1
46 BRASS2
47 SYN-BRASS1
48 SYN-BRASS2
49 SYN-BRASS3
REED/PIPE
50 SOPRANO SAX
51 ALTO SAX
52 TENOR SAX
53 OBOE
54 CLARINET
55 PICCOLO
56 FLUTE
57 RECORDER
58 PAN FLUTE
59 WHISTLE
SYNTH-SOUNDI
60 SYN-LEAD1
61 SYN-LEAD2
62 SYN-LEAD3
63 SYN-CALLIOPE
64 SYN-PAD1
65 SYN-PAD2
66 SYN-PAD3
67 GLASS HMCA
68 COUNTRY FARM
69 SYN-BASS
SYNTH-SOUNDII
70 PEARL DROP
71 COSMIC SOUND
72 SOUNDTRACK
73 SPACE PAD
74 VOICE BASS
75 APPLAUSE
76 SYNTH-SFX
77 VEHICLE
78 PHONE
79 FUNNY
LAYER
80 STR PIANO
81 STR E.PIANO
82 CHOIRE.P
83 CHOIR ORGAN
84 STR GUITAR
85 STR HARP
86 BRASS STR
87 VIB PAD
88 12 STR GTR
89 CHOIR STR
SPLIT/PERCUSSION
90 BASS/PIANO
91 BASS/E.PIANO
92 BASS/VIB
93 BASS/GUT GTR
94 V.BASS/OOH
95 STR/PIANO
96 STR/TRUMPET
97 VIBRAPHONE
98 MARIMBA
99 PERCUSSION
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM1
A-2
Appendix/Apéndice
277A-E-076A
Rhythm List/Lista de ritmos
POPS I
00 CLUB POP
01 VOCAL POP
02 RAP POP
03 FUNKY POP 1
04 SOUL BALLAD
05 POP BALLAD
06 LOVE BALLAD
07 FUNKY POP 2
08 EPIC BALLAD
09 LITE POP
POPS II
10 16 BEAT SHUFFLE
11 16 BEAT POP
12 16 BEAT FUNK
13 8 BEAT POP
14 8 BEAT SOUL
15 8 BEAT SHUFFLE
16 DANCE POP 1
17 DANCE POP 2
18 POP FUSION
19 FOLKIE POP
ROCK I
20 ROCK WALTZ
21 SLOW ROCK 1
22 SLOW ROCK 2
23 SOFT ROCK 1
24 SOFT ROCK 2
25 SOFT ROCK 3
26 POP ROCK 1
27 POP ROCK 2
28 50’S ROCK
29 60’S SOUL
ROCK II
30 4 BEAT ROCK
31 ROCK
32 HEAVY ROCK
33 8 BEAT ROCK
34 STRAIGHT ROCK
35 HEAVY METAL
36 TWIST
37 NEW ORLNS R&R
38 CHICAGO BLUES
39 R&B
JAZZ/FUSION
40 BIG BAND
41 SLOW SWING
42 SWING
43 FOX TROT
44 JAZZ WALTZ
45 MODERN JAZZ
46 COOL
47 HARD BOP
48 ACID JAZZ
49 LATIN FUSION
DANCE/FUNK
50 VOCAL GROOVE
51 RAVE
52 CLUB GROOVE
53 TECHNO
54 TRANCE
55 HOUSE
56 GROOVE SOUL
57 DISCO
58 RAP
59 FUNK
EUROPEAN
60 POLKA 1
61 POLKA 2
62 MARCH 1
63 MARCH 2
64 WALTZ
65 VIENNESE WALTZ
66 FRENCH WALTZ
67 SLOW WALTZ
68 SERENADE
69 TANGO 1
LATIN I
70 BOSSA NOVA
71 SAMBA
72 MAMBO
73 RHUMBA
74 CHA-CHA-CHA
75 MERENGUE
76 REGGAE
77 BOLERO
78 TANGO 2
79 LAMBADA
LATIN II/VARIOUS I
80 PUNTA
81 CUMBIA
82 SKA
83 TEX-MEX
84 SALSA
85 FOLKLORE
86 PASODOBLE
87 RUMBA CATALANA
88 SEVILLANA
89 FOLK
VARIOUS II
90 COUNTRY
91 BLUEGRASS
92 TOWNSHIP
93 FAST GOSPEL
94 SLOW GOSPEL
95 ADANI
96 BALADI
97 BAROQUE
98 ENKA
99 NEW AGE
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM2
A-3
Appendix/Apéndice
277A-E-077A
Note Table/Tabla de notas
(1) (2) (3)
00 12 A
01 12 A
02 6 A
03 6 A
04 12 A
05 12 A
06 6 A
07 6 A
08 12 A
09 12 A
(1) (2) (3)
10 12 A
11 12 A
12 12 A
13 6 A
14 12 A
15 6 A
16 12 A
17 6 A
18 12 A
19 12 A
(1) (2) (3)
20 12 A
21 12 A
22 12 A
23 12 A
24 12 A
25 12 A
26 12 B
27 12 B
28 12 B
29 12 A
(1) (2) (3)
30 12 A
31 12 B
32 12 A
33 12 A
34 12 A
35 6 A
36 12 A
37 6 A
38 12 A
39 12 A
(1) (2) (3)
40 12 A
41 12 B
42 6 A
43 12 B
44 6 B
45 12 B
46 6 B
47 12 B
48 6 B
49 6 B
(1) (2) (3)
50 12 A
51 12 A
52 12 A
53 12 A
54 12 A
55 12 C
56 12 A
57 12 A
58 12 A
59 12 A
(1) (2) (3)
60 12 A
61 6 A
62 12 A
63 6 A
64 6 A
65 6 A
66 6 A
67 6 A
68 6 A
69 12 B
(1) (2) (3)
70 6 A
71 6 A
72 6 A
73 6 A
74 12 B
75 12 D
76 6 A
77 6 D
78 12 D
79 6 D
(1) (2) (3)
80 6 A
81 6 A
82 6 A
83 6 A
84 6 A
85 6 A
86 6 B
87 6 A
88 6 A
89 6 A
(1) (2) (3)
90 12 E
91 6 E
92 12 E
93 12 E
94 12 E
95 12 E
96 12 E
97 12 A
98 12 A
99 12 D
(1): Tone number
(2): Maximum polyphony
(3): Range type
(1): Número de sonido
(2): Polifonía máxima
(3): Tipo de gama
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM3
A-4
Appendix/Apéndice
• See the illustration below for a description of range types (A through E).
• Vea la ilustración siguiente para una descripción de los tipos de gama (A a E).
........Range of keyboard play
........Gama de ejecución de teclado
Range Type
Tipo de gama
C-1
A
(
Standard type
)
(
Tipo estándar
)
E
(SPLIT)
(División)
D
(Sound Effect)
(
Efecto de sonido
)
C9C8C7C6C5C4C3C2C1C0
A0 A1 A2
G9
C
A=440Hz
No scale for tones.
Sin escala para los sonidos.
Scale changes in accordance with tone.
La escala cambia de acuerdo con el sonido.
“55 PICCOLO”
only
Solamente
“55 PICCOLO”
B
Low pitch
instruments
Instrumentos
de altura
tonal baja
277A-E-078A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM4
A-5
Appendix/Apéndice
Fingered Chord Chart
Cuadros de acordes Fingered
This table shows the left-hand fingerings (including inverted forms) for a number of often-used chords.
Esta tabla muestra las digitaciones (incluyendo las formas invertidas) para varios de los acordes más a menudo
usados.
• Chords marked with asterisk (
*
) cannot be played in the Fingered Mode on this keyboard.
• En este teclado, los acordes marcados con asterisco (
*
) no pueden ejecutarse en el modo Fingered.
M m 7 m7 dim7
C
D
E
F
G
A
B
C
(D )
F
(G )
E
(D
)
A
(G
)
B
(A
)
Chord
Type
Root
*
*
*
M7 m7-5 dim
277A-E-079A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM5
A-6
Appendix/Apéndice
aug sus4
C
D
E
F
G
A
B
C
(D )
F
(G )
E
(D
)
A
(G
)
B
(A
)
*
*
7 sus4 m add9 m M7 7-5 add9
Chord
Type
Root
277A-E-080A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM6
A-7
Appendix/Apéndice
Percussion Instrument List
Lista de instrumentos de percusión
• PERCUSSION (tone 99) assigns 39 percussion sound to the keyboard as illustrated below.
The sound assigned to each key are indicated above the keyboard.
• PERCUSSION (sonido 99) asigna 39 sonidos de percusión al teclado como se ilustra debajo.
Los sonidos asignados a cada tecla se indican sobre el teclado.
*
* No sound is produced when the keys in this range
are pressed.
* Cuando se presionan las teclas en esta gama no se
produce ningún sonido.
CRASH CYMBAL 1
H
HIGH TOM
RIDE CYMBAL 1
CHINESE CYMBAL
RIDE BELL
TAMBOURINE
SPLASH CYMBAL
COWBELL
CRASH CYMBAL 2
CLAVES
RIDE CYMBAL 2
HIGH BONGO
LOW BONGO
BASS DRUM
SIDE STICK
ACOUSTIC SNARE
HAND CLAP
ELECTRIC SNARE
L
LOW FLOOR TOM
CLOSED HI-HAT
H
HIGH FLOOR TOM
PEDAL HI-HAT
L
LOW TOM
OPEN HI-HAT
LM
LOW-MID TOM
HM
HIGH-MID TOM
MUTE HIGH CONGA
OPEN HIGH CONGA
LOW CONGA
HIGH TIMBALE
LOW TIMBALE
HIGH AGOGO
LOW AGOGO
CABASA
MARACAS
V
VOICE BASS DRUM
V
VOICE SNARE
V
VOICE CLOSED HI-HAT
V
VOICE OPEN HI-HAT
277A-E-081A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM7
277A-E-082A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM8
277A-E-083A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM9
277A-E-084A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM10
277A-E-085A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM11
277A-E-086A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM12
277A-E-087A
CTK230_ES_APPENDIX.p65 03.10.7, 2:02 PM13
CTK230-ES-1
This recycle mark indicates that the packaging conforms to
the environmental protection legislation in Germany.
Esta marca de reciclaje indica que el empaquetado se
ajusta a la legislación de protección ambiental en Alemania.
MA0306-A Printed in China
CASIO COMPUTER CO.,LTD.
6-2, Hon-machi 1-chome
Shibuya-ku, Tokyo 151-8543, Japan
