INSTRUCTION MANUAL
GA600S
GA900S
GA1200S
UNDERMOUNTED RANGEHOODS
Installation / Operation / Maintenance
Apr2022/ V1
Code:
Drawn by:
Weight:
Observations:
Rev.
GA-900S
1:6
Scale:
GA-900
SCHWEIGEN
.
Description:
Model:
Qty.
Date:
20/03/2019
Sheet:
A3
D. Izquierdo
.
CONFIDENTIAL
Thickness
Material:
.
Under our policy of connuous product
development, product specicaons may
change without noce. Please refer to
the online version of the manual for the
latest updates and specicaons.
Page 2
Welcome 3
Important Safety Information 4
Description 7
Operation 8
Cleaning and Maintenance 9
Installation 12
Condensation Information 20
Troubleshooting 21
Technical Specications 23
Disclaimer 26
INDEX
Page 3
Thank you for purchasing this Schweigen IN
appliance.
To achieve the optimal performance from your
appliance, and to avoid the risk of accident or
damage, it is essential to read this manual before
installation and rst time use.
This guide contains important information on the
use and maintenance of the appliance, as well as
important safety notes.
Your appliance has been thoroughly checked for
safety and functionality before being packaged
and leaving the manufacturer.
Please keep this instruction manual in a safe
place so you can refer to it at any time.
IMPORTANT!
The appliance should only be
operated when you have read and
understood this manual thoroughly.
The appliance can be only used for the
purpose for which it was designed.
Any other use is deemed improper
and can be dangerous.
Installation and maintenance of
electrical appliances must only
be carried out by qualied and
authorised professionals familiar
with Australian Appliance Industry
regulations.
Upon collection or delivery of your
appliance, any damage or defects
must be reported within 48 hours
to your retailer or Schweigen
Customer Service, in order
to recognise any claim.
The manufacturer reserves the right
to introduce product improvements,
which do not aect the operation of
the appliance.
WELCOME
YOUR STATE REGULATORY AUTHORITY
Dierent Australian states have varying legislative requirements for the installation of
rangehood ducting. Some will insist on ducting being vented externally (i.e. not in to the
ceiling cavity); others will not. It is imperative that you check with your state building
authority and/or private certier to conrm their position.
Page 4
IMPORTANT SAFETY INFORMATION
Please read the instructions carefully. Only then
will you be able to operate your appliance safely
and correctly. Retain the instruction manual for
future use or for subsequent owners.
Check the appliance for damage after unpacking it.
Do not connect or install the appliance if it has been
damaged in transport.
Any damage must be reported within 48
hours.
There must be adequate ventilation in the room
when the rangehood is used at the same time as
appliances burning gas or other fuels.
The air must not be discharged into a ue that
is used for exhausting fumes from appliances
burning gas or other fuels.
Air exhaust systems must be installed in
accordance with local and federal laws.
There is a re risk if regular cleaning is not carried
out in conjunction with the instructions.
Do not ambé (ignite food while cooking) under the
rangehood. This will damage the rangehood and
will void warranty.
Do not ignite burners that give o intense
uncontrolled ames beneath the rangehood.
Flames beneath the pan must be contained at all
times and cannot exceed the width of the pan in
use.
Do not leave any packaging material (bags,
corner brackets etc.) within reach of children.
This appliance is not intended for use by person/s
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and/or
knowledge. Unless, the person is given supervision
or instruction concerning the safe usage of the
appliance by person/s responsible for their safety.
Children must be supervised to ensure that they do
not play with the appliance, it is not a toy.
Accessible parts may become hot when used with
cooking appliances.
Before performing any cleaning or maintenance,
disconnect the rangehood from the mains power,
using the respective mains or sector switch, or by
unplugging it.
Do not use the rangehood without the grease
lters.
Keep the grease lters clean and respect the
recommended cleaning frequencies.
It is forbidden to use the rangehood as an aspirator.
IMPORTANT SAFETY INFORMATION
Page 5
BEFORE INSTALLATION
We recommend this appliance be installed or
repaired by an experienced Home Appliances
technician.
Please see our website www.schweigen.com.au
for a list of experienced installers.
It is dangerous to modify any part of this appliance.
Modication of any kind will immediately void the
warranty.
The manufacturer declines all responsibility in case
of failure to adopt proper safety measures.
Ensure the location in which this appliance is
installed, has good and permanent ventilation.
Please consult local laws and regulations and install
in accordance.
Please use an earthed electrical connector that
coincides with relevant local laws and regulations.
Check that the power voltage in your area
corresponds to the appliance voltage indicated on
the rating label.
This appliance must be connected to an electrical
supply that has a grounded connection.
Check that the indicated instructions and local
regulations are met and carried out by a qualied
technician, using materials that are compliant with
the applicable legislation.
Schweigen will not be responsible for any
installations executed by non-qualied technicians
that fail to heed the applicable legislation on
electrical safety.
The electrical technical data can be found inside
the rangehood, after removing the grease lters.
The power cables supplied are already connected
internally and emerge from the rangehood near
the air outlet.
Before installing the electrical connections,
you should:
Verify that the indicated electrical data coincides
with the voltage values and frequency of the
electrical circuit in the house where the rangehood
is to be installed.
Check that the premises has electrical protection
against short circuits and electrocution.
Before commencing maintenance the current must
be turned o using the double-pole switch (mains
power switch). The power can only be turned
on for normal use, once the operation has been
completed.
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid a hazard.
IMPORTANT SAFETY INFORMATION
Page 6
PRODUCT USE
This product is designed for household use and
should not be used for commercial applications.
After use, always ensure that all controls are in
the “OFF” position.
When frying with a gas ame, take particular care
not to allow the oil or grease in the pan to catch
re. (Flambé)
MAINTENANCE AND SERVICE

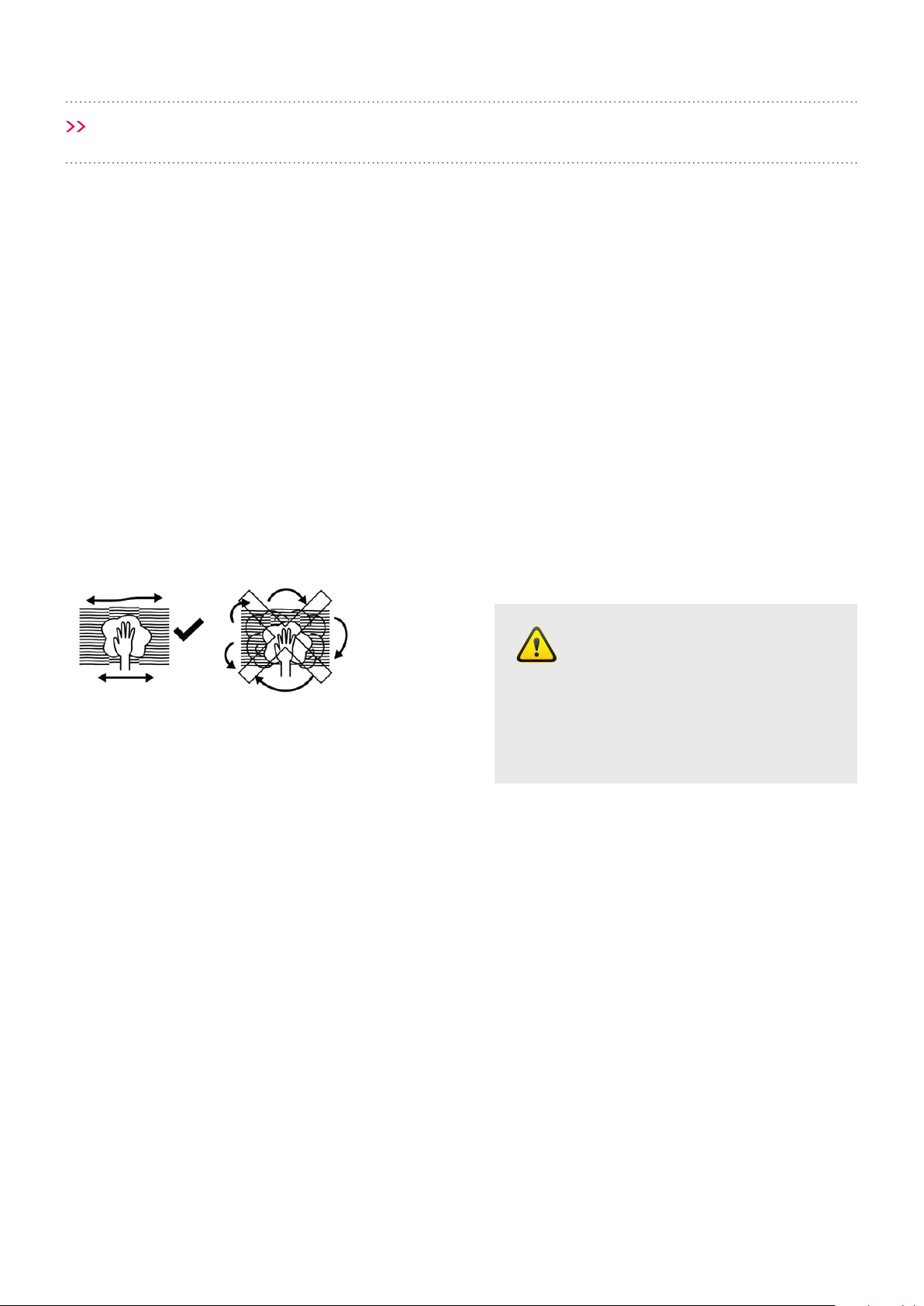

The rangehood surface should be cleaned with soft
cloth and non-corrosive detergent. Do not leave
the rangehood wet after cleaning or use, please
keep rangehood dry.
Important: Never attempt to repair this appliance
by yourself. Always refer to a qualied
Service Technician.
Always switch o the electricity and unplug the
connection before conducting maintenance
or cleaning.
ELECTRICAL CORD
Ensure the supply cord is not exposed to heat,
chemicals or sharp objects. If the supply cord is
damaged, it must be replaced by the manufacturer,
service agent or a similarly qualied person in order
to avoid
a hazard.
Page 7

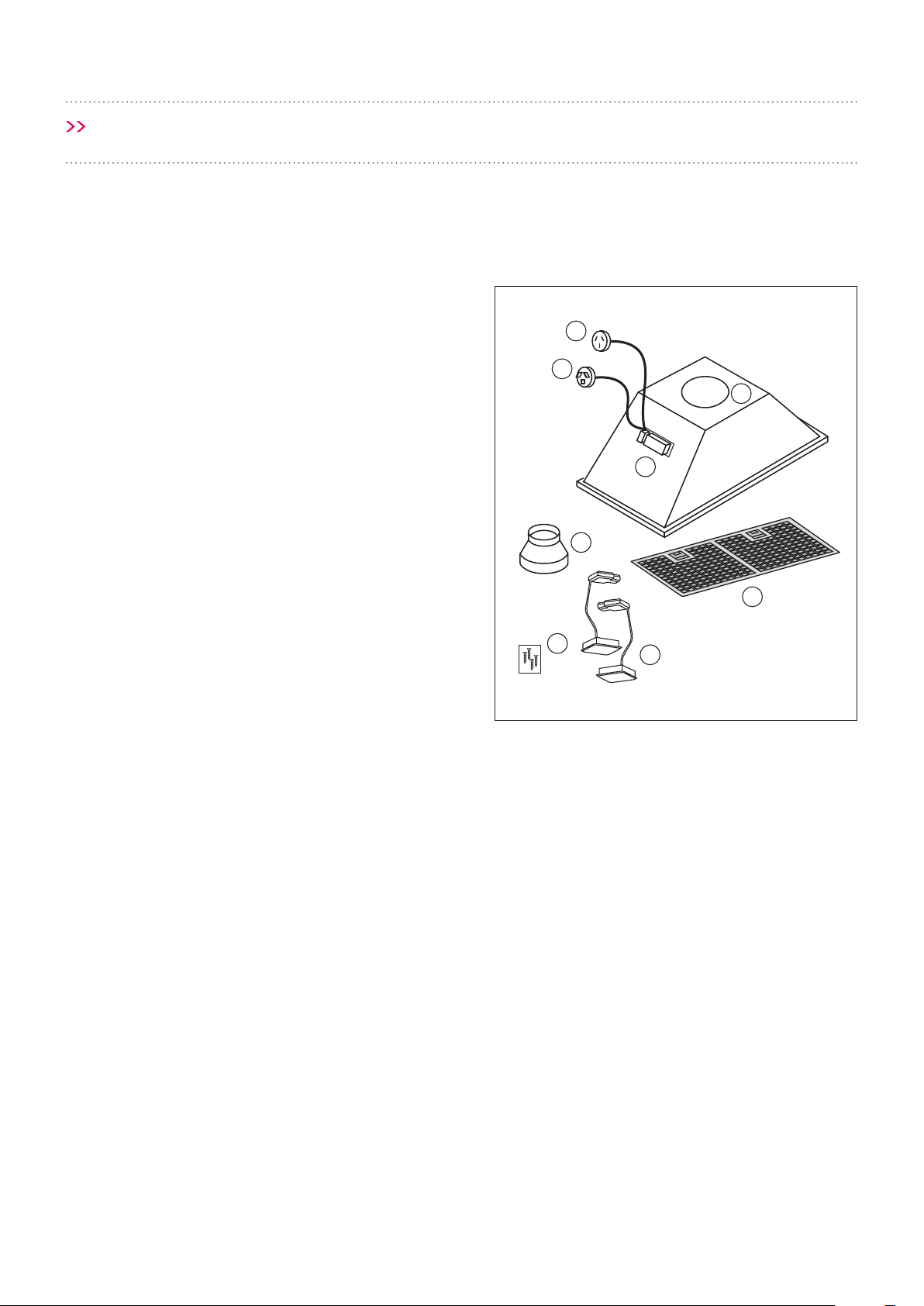

1. Socket lead to Isodrive
®
motor
2. Main power cord
3. Single 200mm Outlet
4. Computer board*
5. Reducer
6. Filters (depending on model lters vary in size)
7. Lights
8. Instruction and screws pack
*IMPORTANT: The electronics MUST be accessible
for servicing once installed, failure to do so, will
result in any charges involved with accessing the
part (removal of cabinetry etc.) being forwarded to
the customer.
DESCRIPTION
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
1
1
2
2
3
4
4
6
7
8
9
10
5
6
7
8
5
3
For models GA-600S, GA-900S and GA-1200S
Page 8
OPERATION

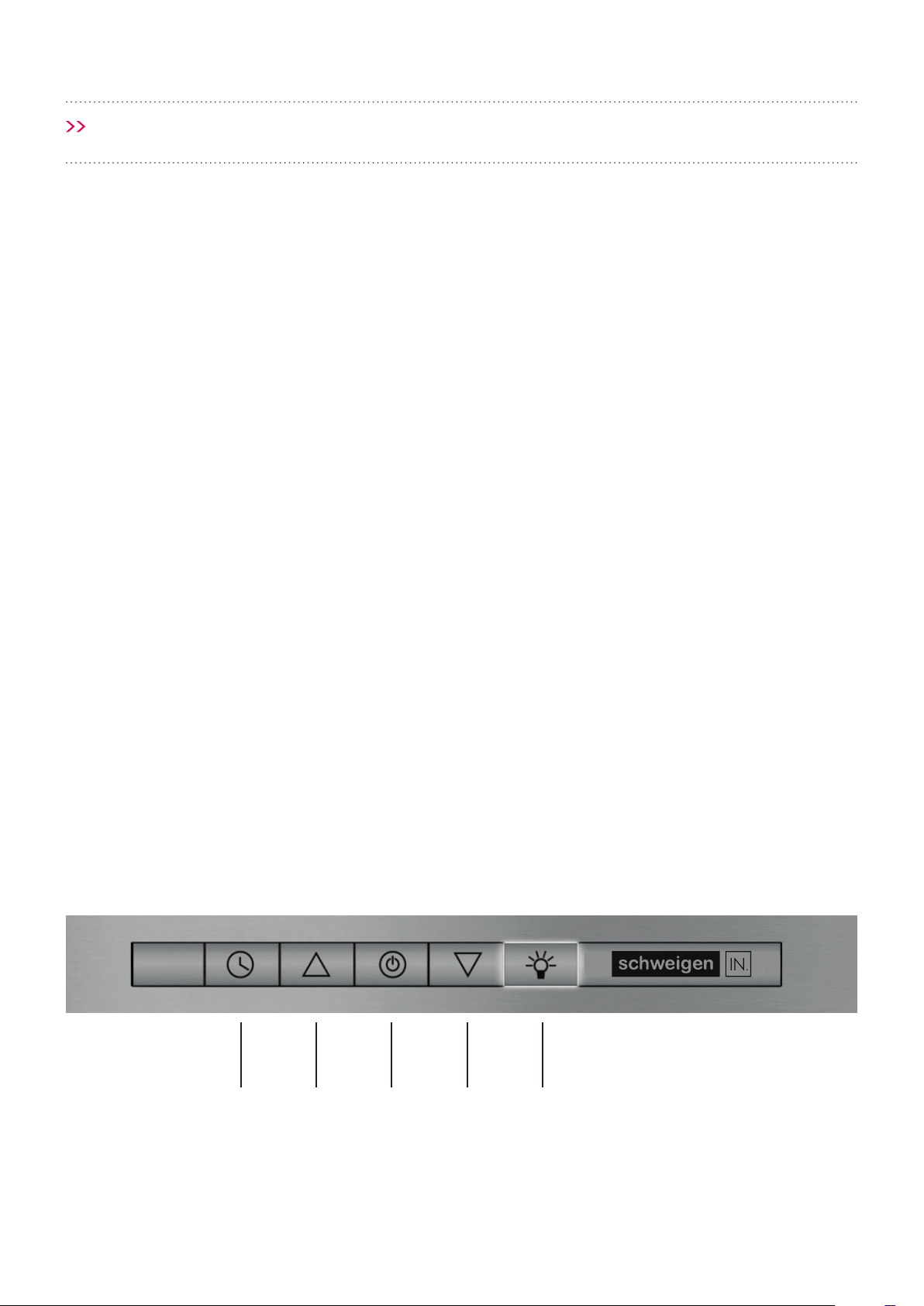

Electrical Tactile Keypad
To obtain the best performance, switch the
rangehood on a few minutes prior to cooking and
leave running for at least 10 minutes after you
have nished cooking.
The buttons have the following functions:
A.- Timer: When this function is activated, the
blue light will ash on the timer button. The
rangehood continues to operate for 10-15 minutes
at the required speed and then automatically
switches the motor o.
B.- Increase speed: This button increases the
aspiration speed. When at maximum speed, the
blue light will ash.
C.- ON / OFF: This button turns the rangehood on
and o. The rangehood will always turn on at the
same speed at which is was turned o.
D.- Reduce speed: This button reduces the
aspiration speed. When in operation, the low
speed button will be blue.
E.- Light: Press this button to turn the lights on
and o. When it is operating, the light is blue.
This rangehood has a device that lets you know
when the grease lters must be cleaned.
When the lamp on button “E” ashes, this means
the lters must be washed (usually after 40 hours
of operation).
When the lters have been washed and re-mounted,
hold the “E” button down for a few seconds to reset
it and return the counter down to zero.
A B C D E
For models GA-600S, GA-900S and GA-1200S
The rangehood has a 4-speed electronic keypad.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speeds are for heavy frying or heavy cooking.
Page 9
CLEANING AND MAINTENANCE
Latch A
Catch A
Figure 2Figure 1

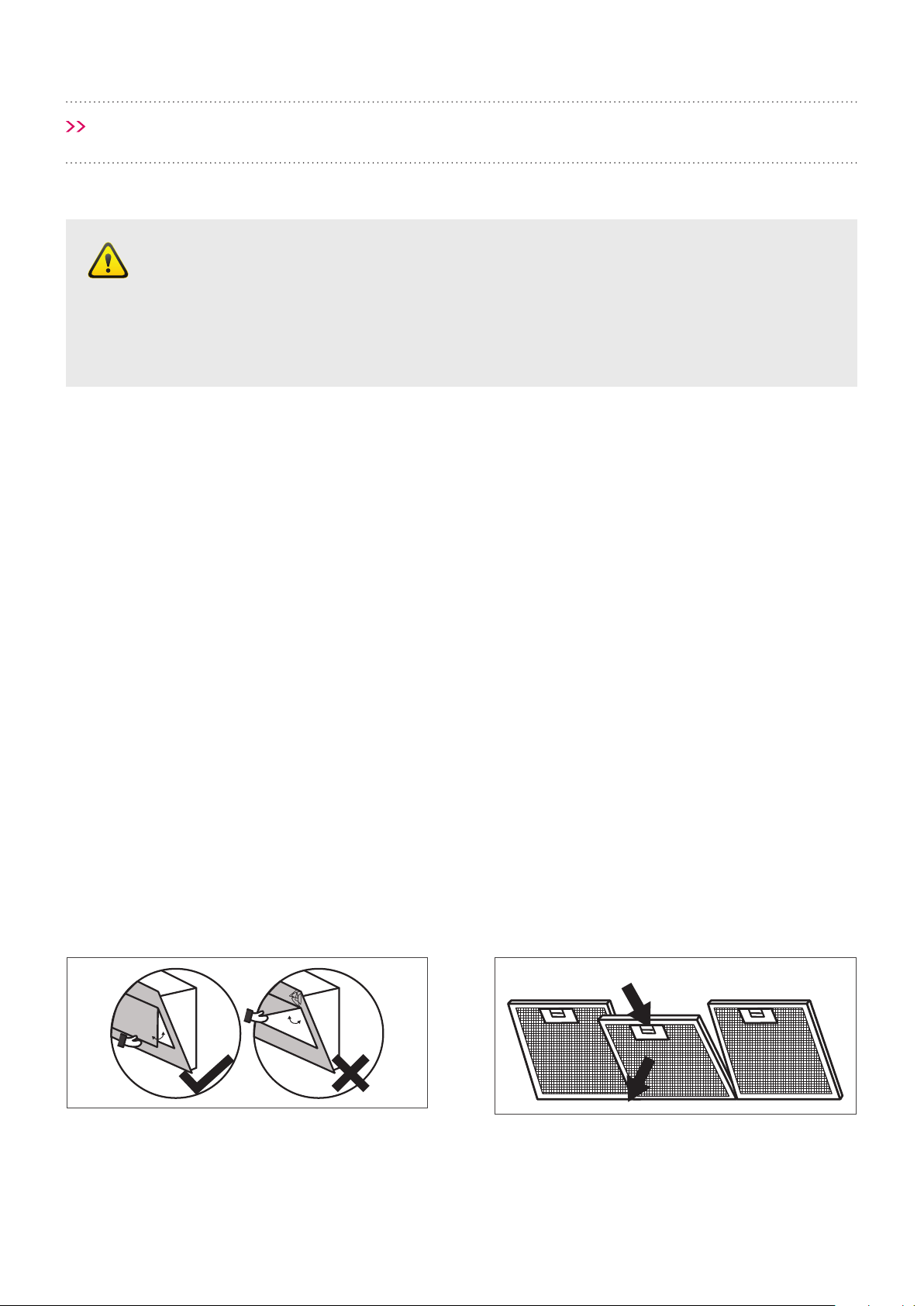

FILTERS
• For your appliance to function eectively,
regular maintenance is a must.
• The function of the lter is to absorb the grease
particles emitted during cooking.
• Blocked lters and heavy oil deposits restrict
airow and may cause the motor to overheat and
become a re hazard.
• Filters should be cleaned every 3-6 weeks or
after 40 hours of use.
• Disconnect the electrical connection before any
maintenance or cleaning processes are carried
out.
• In ceiling-mounted rangehoods, the doors or
glass must be opened before accessing the
lters.

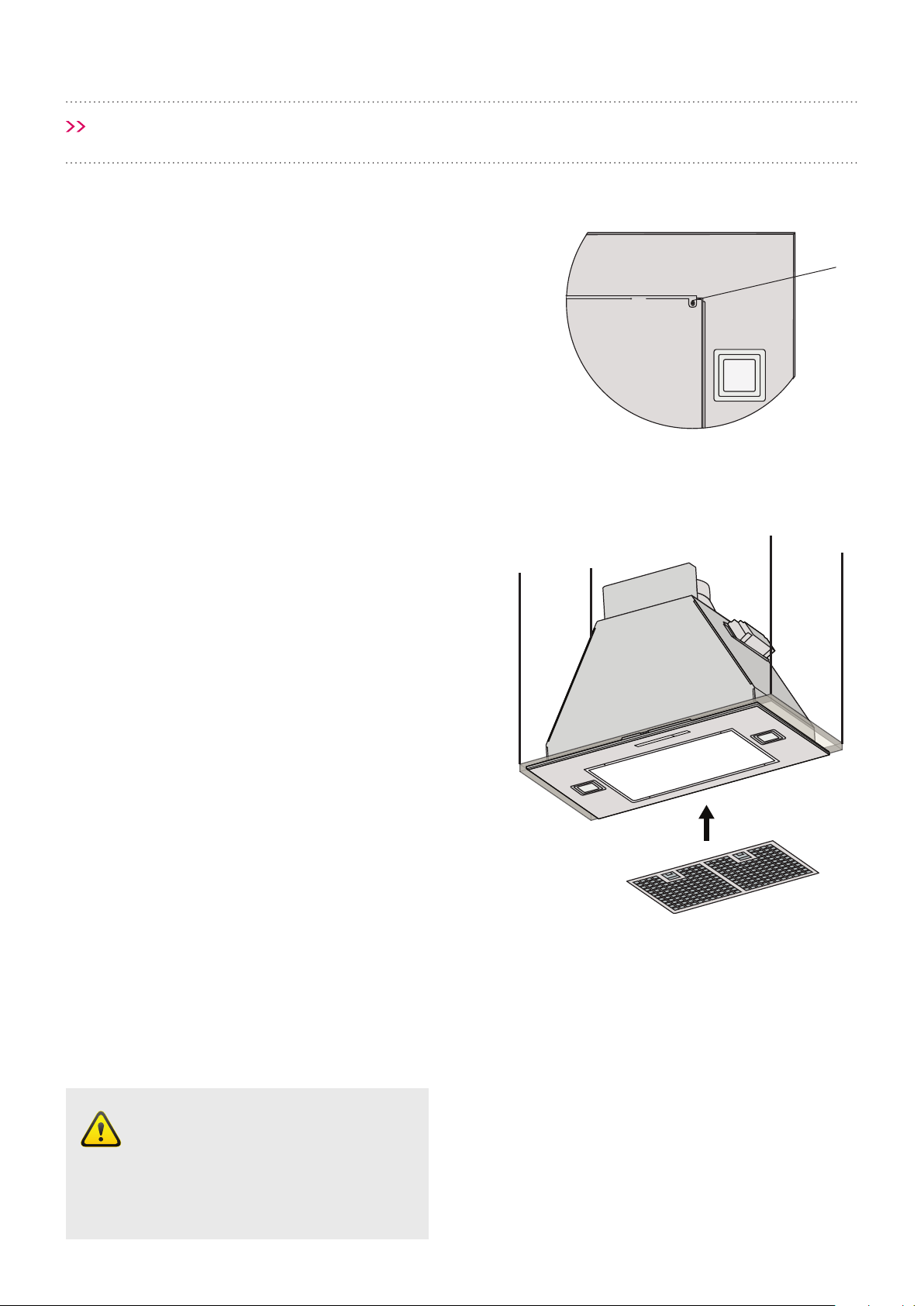

• To remove the lter, (open the glass panel, gure 1,
if required) press ‘Catch A’ towards the rear of
the rangehood (removing the pins from the
front guide), ease down slightly and remove.
To replace, perform the same operation but
in reverse, see gure 2.
• For an induction cooktop, please aim to clean
the lters at least every 10 days, depending
on frequency of use.
• The lters can be washed by hand or in the
dishwasher
Washing by hand - Immerse the lters in hot
water and a suitable detergent, when clean,
rinse with plenty of hot water.
Dishwasher - Put the lter in the dishwasher
and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may
change after several washes. This is normal and
it is not necessary to replace the lters.
WARNING
Always switch o and disconnect power to the rangehood before cleaning. The
manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the lters and rangehood.
Cleaning and user maintenance shall not be made by children without supervision.
Page 10
SURFACES
The surface of the rangehood can be cleaned with
warm soapy water and a soft sponge / cloth.
• Never use abrasive detergents, scouring pads,
steel wool or solvents on ANY part of this
appliance.
• Rinse with clean water and ensure that the
appliance is completely dry after cleaning.
• For better results, you can use high quality
cleaning and protection products (eg. Steel
Kleen) to clean your rangehood.
• Always make sure the appliance is completely
dry after cleaning and never leave wet, this may
cause irreparable damage.
It is important to follow the direction of the surface
grain with the cloth (refer to gure below).
Do not pour any liquid directly onto the rangehood,
apply to a soft cloth rst.
The cloth must have no buttons, zips or fasteners
that can scratch the surface.
It is strictly forbidden to use chemical solvents,
aggressive, grainy or abrasive products, naphtha,
alcohol or similar products that could damage the
surface of the rangehood.
The manufacturer will not be held responsible for
functional or aesthetic damage caused by using
inadequate cleaning methods.
Cleaning the Interior
Clean the interior of the rangehood with a damp
cloth and a neutral detergent or denatured alcohol.
WARNING
Do not use denatured
alcohol on the exterior of the
rangehood. Do not clean the
electric parts or the motor with
liquids or solvents.
CLEANING AND MAINTENANCE
Page 11
GLED Square
REPLACING THE LED BULB
The life span of an LED bulb is at least 10 times that
of a halogen bulb. If the globe needs to be replaced,
proceed as follows:
1. Unplug the respective connector (A).
2. Press the tabs (B) inside the rangehood.
3. Remove the LED.
4. Put in the new LED and reinstall, as above, but
in reverse order.
A
B
GLED Square
WARNING
Always switch o and disconnect the power cord before replacing any lights. Failure
to do so may cause serious injury. Please be aware that the LED light will retain heat
for a short period of time after being switched o. Never attempt to replace the LED by
yourself, always refer to a qualied Service Technician.
CLEANING AND MAINTENANCE
Page 12
INSTALLATION
RANGEHOOD SIZE VS COOKTOP SIZE
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.

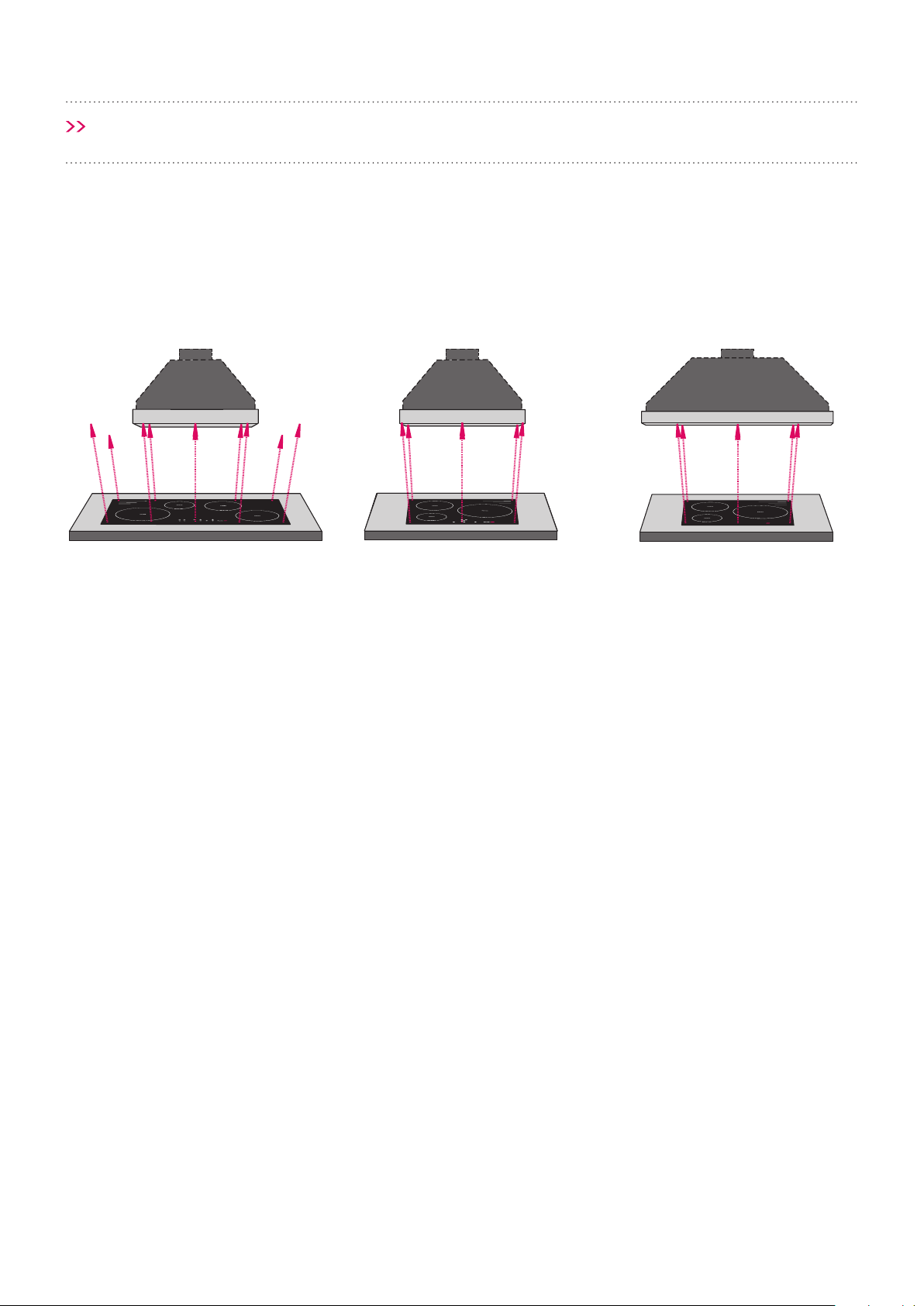

INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone
INSTALLATION
Page 13

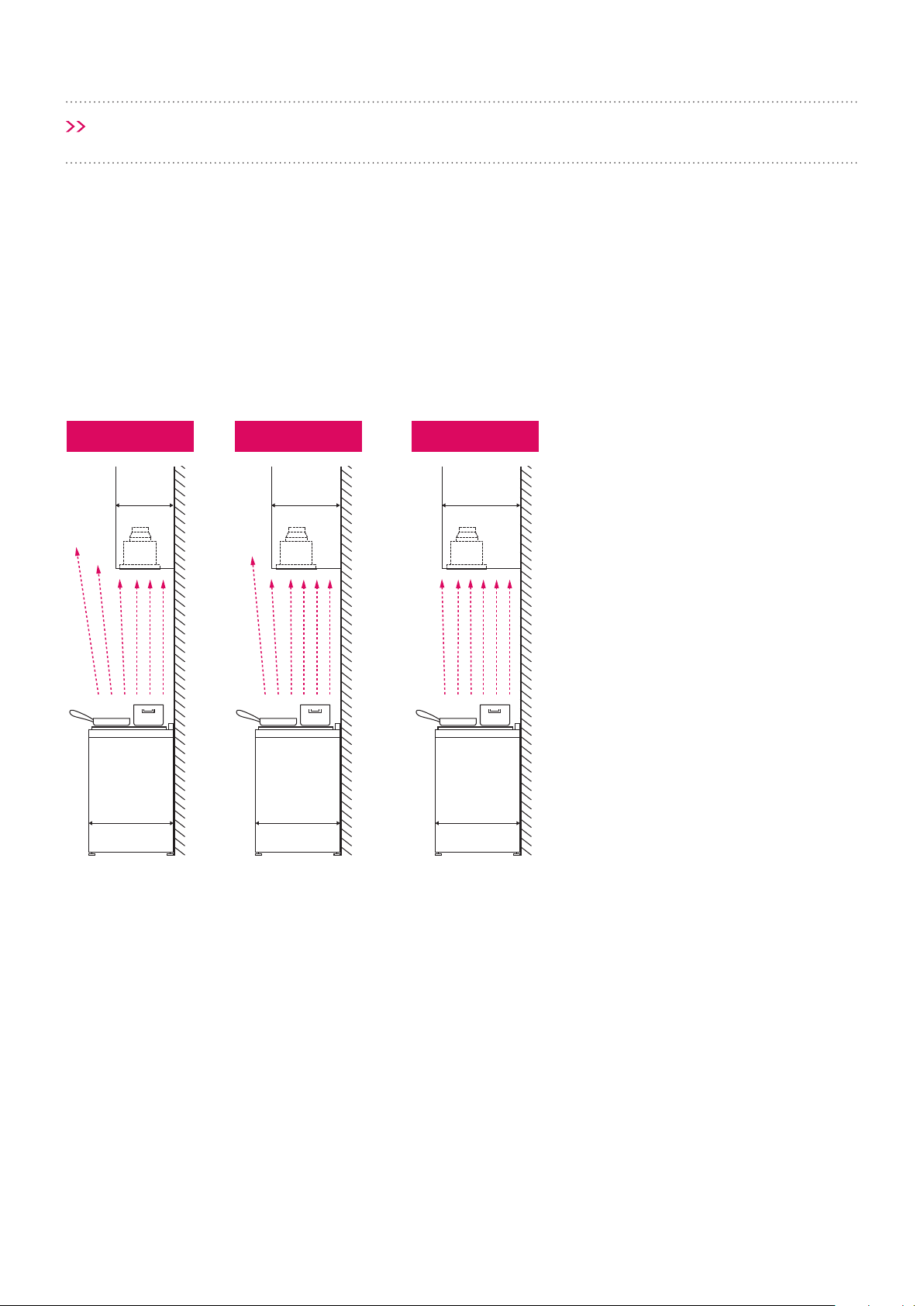

OVERHEAD CABINET RANGEHOOD INSTALLATION POSITION
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account
for all circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
GOOD
600mm 600mm 600mm
400mm
Side View Side View
BETTER
450mm
BEST
500mm
When the overhead cabinetry is
constructed and installed deeper than
standard, ensure the rangehood is
installed as close to the front as possible.
This will increase the rangehood
extraction results as there is a greater
coverage of the cooktop surface area.
Side View
INSTALLATION
Page 14
MOUNTING LAWS AND REGULATIONS
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop. This will greatly
improve its performance.
Minimum height from the hob top surface to the underside face of the rangehood:
• 650mm electric cooktop
• 650mm gas cooktop
Any installation above 800mm will compromise the extraction performance.
Note: If the instructions for the gas cooktop specify a greater distance, this must be taken into account.
RECOMMENDED INSTALLATION HEIGHT FOR INDUCTION COOKTOP
To help avoid condensation, particular to cooking with an induction cooktop, Schweigen recommends
a minimum height of 700mm. Refer to page 20 for further information.
DANGER
Always switch o and disconnect mains power before installing the rangehood.
Failure to do so may cause serious injury.
*IMPORTANT: If the user decides to install the
rangehood at a distance of less than minimum
height above the cooking surface, Schweigen
declines responsibility for damages suered
by the rangehood due to excess heat or damage
to objects, people and others caused directly
or indirectly by a malfunction, breakage or re.
Measurements are from the top of the trivets
to the lowest part of the rangehood, including
the button controls.
IMPORTANT
Please check all State and Federal Laws in relation to the minimum–maximum heights,
regulations concerning the expelling of air and install your rangehood in accordance
with local laws and regulations.
Page 15
INSTALLATION

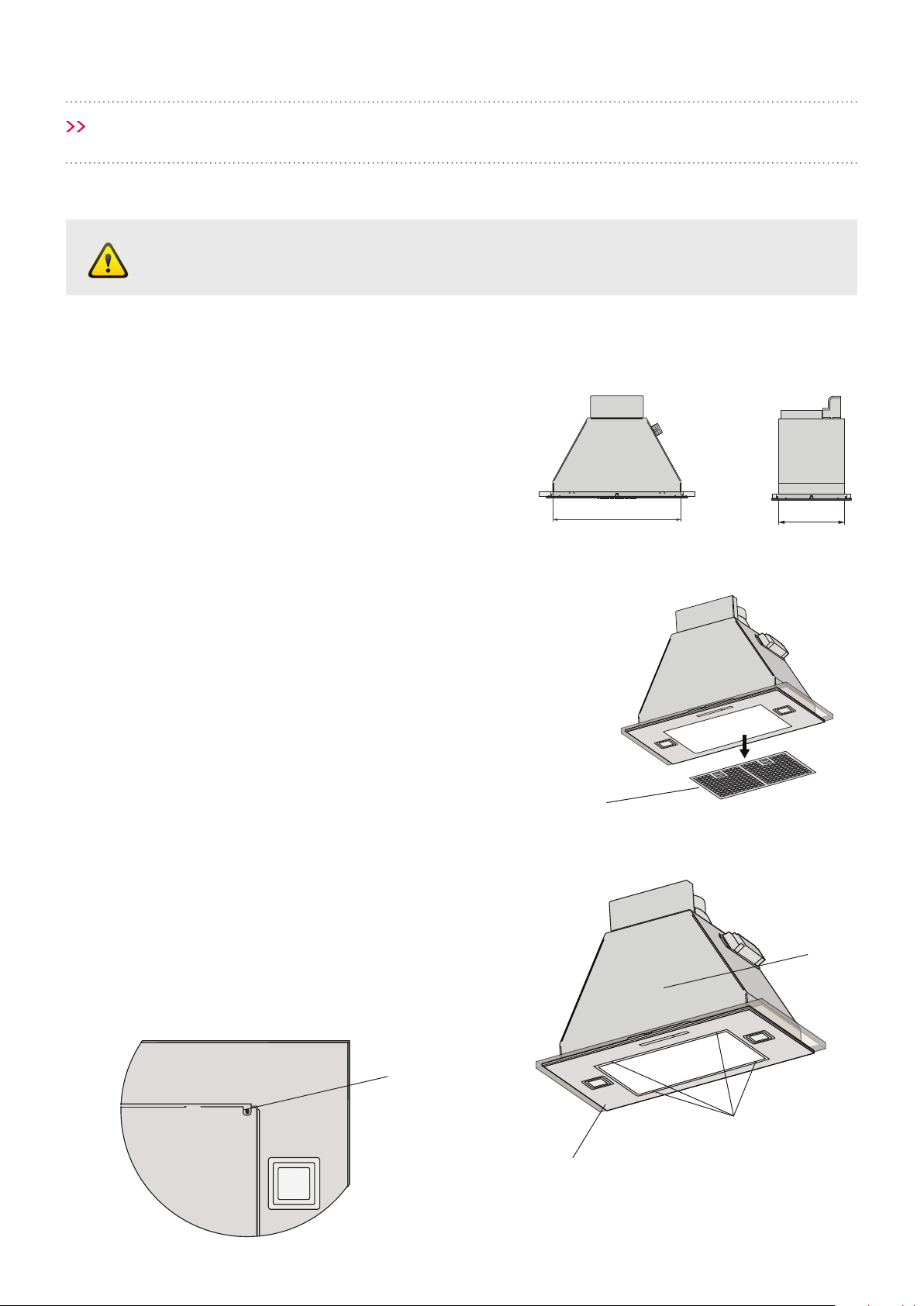

Installation for GA-600S
Y+20mm
X+20mm
Step 2
Remove the lters from the undermount.
Step 3

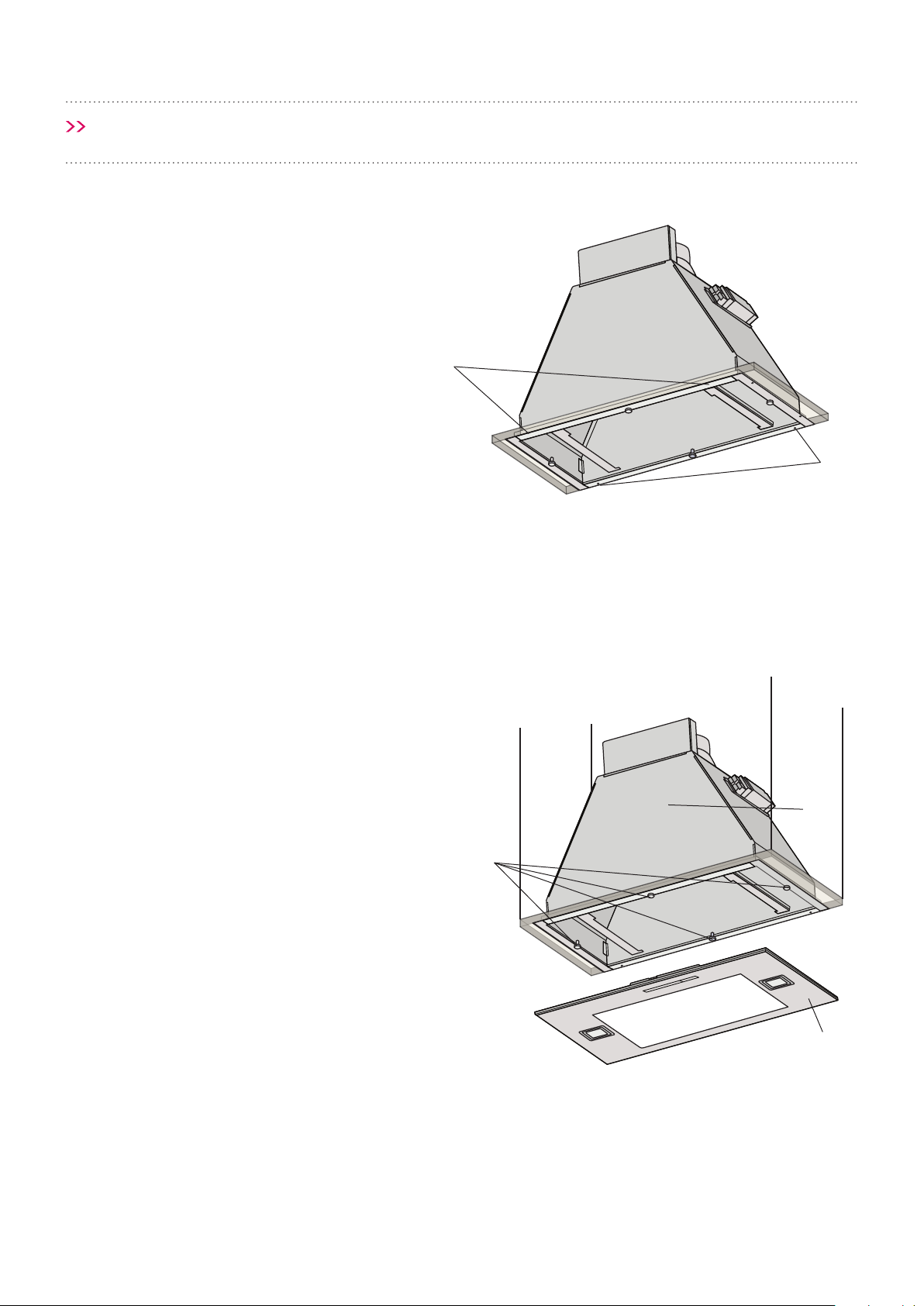

To separate the fascia (A) and release it from the
undermount (D), remove the 4 locking screws (E)
The fascia will remain xed due to the magnets.
E
D
A
E
Filters
Step 1
Cut the cabinetry to the correct size in order to t
the undermount, see gure on the right.
NOTE: It is always best to use the rangehood as a
cutting guide, not the cabinet cut out diagram as
this is only a guide.
NOTE
GA-900S and GA-1200S have the same installation steps as GA-600S
Page 16
INSTALLATION
Step 5
Once (D) has been rmly attached, x the fascia (A)
to the rangehood (D) the magnets (B) will hold the
fascia in place.
Step 4
Fix the undermount to the cabinetry with
appropriate screws, using the pre-drill holes in the
undermount body (C).
C
C
D
A
B
Page 17
INSTALLATION
Step 6
Re-attach the fascia by securing it with 4 x locking
screws (E).
Step 7
Re-install the lters.
E
IMPORTANT
Please ensure all plastic
protection on the rangehood and
lters are removed before use.
INSTALLATION
Page 18

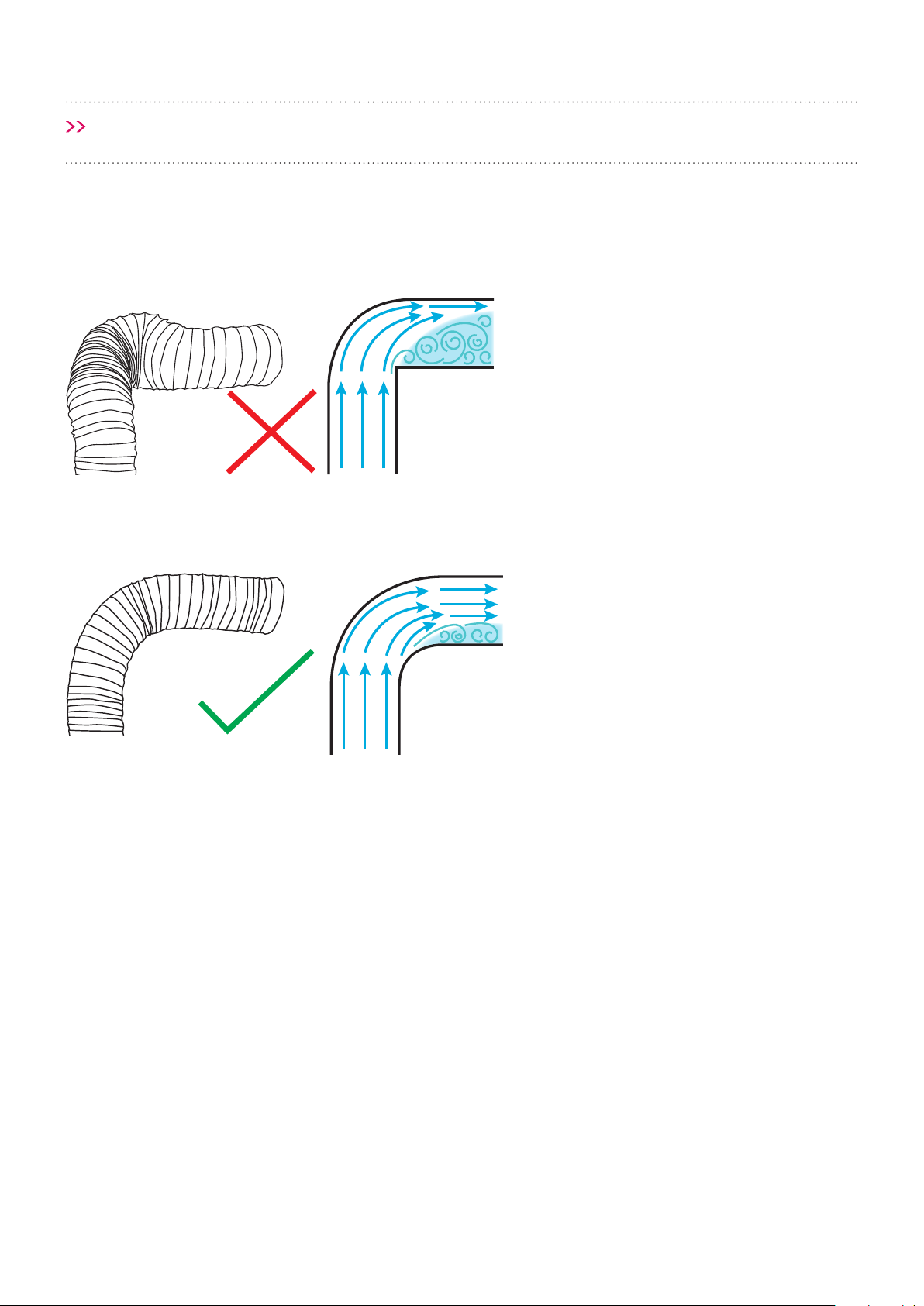

Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates sharp
corners that creates turbulence. This
reduces the size and eciency of the
ducting, lowers extraction and may
cause excessive noise.
2. Sweeping curves and taut ducting reduces
resistance and turbulence. The airow
and extraction will be more ecient
and stronger.
Page 19
INSTALLATION

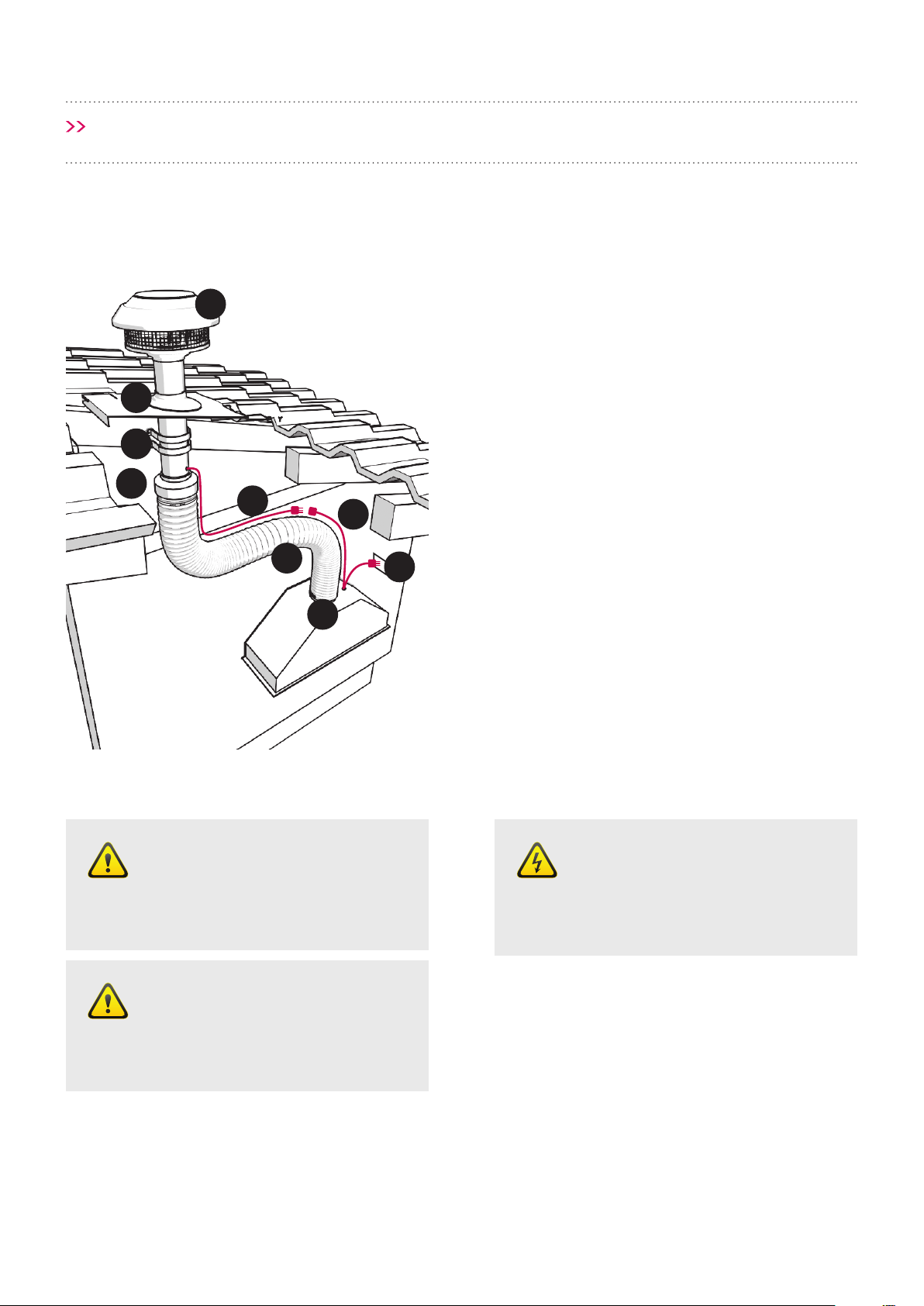

SYSTEM OVERVIEW
1. Isodrive
®
Motor
2. Roof Seal Kit (Dektite) (Not Supplied)*
3. Support Straps (Not Supplied)*
4. Attach Duct to Bell-Mouth Adaptor using ring
clamp. Please DO NOT rip the ducting.
5. Isodrive
®
Motor Power Lead (Plug)
6. Rangehood to Isodrive
®
Motor Lead
(Socket)
7. Main Power Lead (Plug, 10 Amp)
8. Ducting must be pulled taut.
DO NOT crush or kink the ducting.
9. Connect ducting to the outlet
on rangehood using ring clamp.
Please DO NOT rip the ducting.
Pictures are for illustrative purposes only, not to scale.
1
2
3
4
5
6
7
8
9
Danger
All electrical wiring from the motor to
the rangehood should be kept inside
the roof space.
Note
* The Isodrive
®
motor system does
not include the roof seal kit or the
support straps.
Note
Please see Isodrive
®
installation guide
for motor installation information.
Page 20
CONDENSATION INFORMATION
COOKING WITH INDUCTION
COOKTOPS
Cooking with an induction (or similar) cooktop,
may produce condensation on the rangehood.
Unlike basic electric or gas cooking, induction
cooktops heat food and liquid instantly, which in
turn, produces vapours rapidly. Because of the
accelerated process, the rangehood lters do not
have enough time to warm up, which increases the
chance of condensation forming.
There are many variables that may contribute
to condensation forming, some of which include
but are not limited to:
• Variance in climate – geographical location.
• Position of your home & kitchen – morning/
afternoon sun.
• Distance from cooktop to the rangehood.
• Speed of food & liquid heating.
• Angle of ducting – an ‘S’ bend is preferred.
• Filter size – larger rangehood preferred,
as it will have a larger lter extraction area.
• Quality of pots or cookware you are using –
high quality is recommended.
How to reduce the possibility of condensation
forming:
• Ensure the rangehood is installed by a qualied
professional, carefully following the installation
guide.
• Turn on the rangehood 5-10 minutes prior to
cooking, and leave on for 5-10 minutes after
cooking; this helps clear remaining vapours
from the ue.
• Start the cooking process at a low-to-medium
setting and allow time for the rangehood to
become warm.
• Clean lters regularly.
• Ensure constant airow in the cooking zone; this
helps optimise the rate of extraction.
• Follow all induction cooktop manufacturer’s
advice.
• Install at recommended height above induction
cooktop.
For further tips or information regarding cooking
with induction, please contact the induction
cooktop manufacturer.
Page 21
TROUBLESHOOTING
Before you contact the technical service
department, make sure that the product
is plugged in and power is supplied.
• Do not take any action that will damage
the product.
Check electric connection. Voltage of the electric
network should be between 220 - 240V, rangehood
should be connected to grounded plug and turned on.
Check motor switch. Please ensure that there is power
to the rangehood and the rangehood is switched on.
Check lamp switch. Lamp switch should be at on
position.
Check lters. The lters should be washed regularly,
see lter cleaning, page 14.
LEDs should be rmly in position.
Check LEDs.
Make sure they are not broken or faulty.
Please make sure there is no obstruction in ducting or
with the back draft ns.
Check the outlet, make sure it is not blocked and you
have the correct diameter ducting installed.
Check Isodrive
®
installation manual, make sure the
ducting is installed correctly, eg. Length of ducting
used, keep the ducting taut.
Check the ducting has not come unattached from
rangehood outlet.
Rangehood does
not work
X X
Light does not work X X X X
Rangehood air
exaction is weak
X X X X
Rangehood does
not direct air out
(through chimney)
X X
Loud noise from
the rangehood
X X
IMPORTANT
Never attempt to repair this
appliance by yourself. Always
refer to a qualied Service
Technician.
TROUBLESHOOTING
Page 22
SERVICE
Lodging an Online Service Request
In the event that the failure is not due to the faults
mentioned in the Troubleshooting section, you
can lodge an online Service Request. To lodge
an online Service Request, visit our website
www.schweigen.com.au/service-and-warranty
and click on the link and complete the service
request form.
A service request will require the following
information:
• The purchase date
• The model number
• The rangehood model and motor type
(eg. Isodrive
®
650)
• The serial number or batch number (this number
is on a sticker inside the rangehood).
• A copy of the purchase receipt (without a receipt
your service request cannot be processed).
Alternatively, you can call Customer Service:
Australia 1300 881 693
New Zealand 0800 200 510
FAULTY INSTALLATION
It is not the responsibility of Schweigen to rectify any incorrect installations. A service call out fee will be
charged for any Schweigen technician that attends a call, whereby it is established that the fault is due
to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way
that the service agent is unable to gain access to the appliance, the person/s who own the premises
or the property where the appliance resides — will be responsible to provide access to the appliance at
their expense.
Page 23

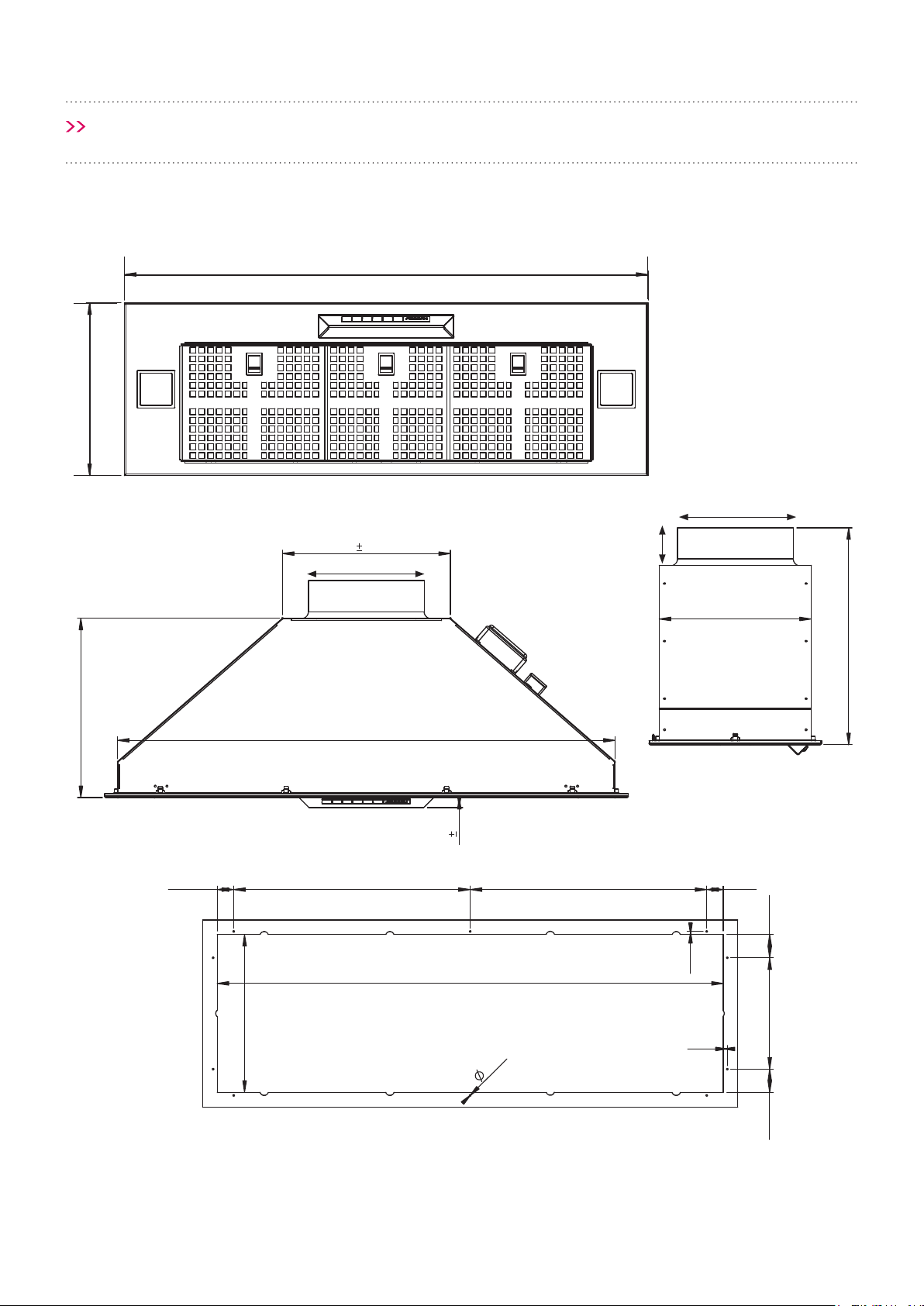

TECHNICAL SPECIFICATIONS
Model: GA-600S
Feeding Voltage: 220-240V 50Hz
Max Lamp Power: 2 x GLED Square 65 x 65mm
2.1W 3.12V 3000k
GA-600S
273
306,6
551
17
.
.
GA-600S
Thickness
Scale:
SCHWEIGWN
Observations:
Description:
Model:
1:6
Date:
21/03/2019
Code:
A3
D.IZQUIERDO
Drawn by:
CONFIDENTIAL
Rev.
Sheet:
Qty.
Material:
Weight:.
595
295
260
370,8
565
39,8
5,2
270
254,4 28,1 254,4
39,8
7
28,1
190,4
2
,
6
295
595
273
306,6
551
17
.
.
GA-600S
Thickness
Scale:
SCHWEIGWN
Observations:
Description:
Model:
1:6
Date:
21/03/2019
Code:
A3
D.IZQUIERDO
Drawn by:
CONFIDENTIAL
Rev.
Sheet:
Qty.
Material:
Weight:.
595
295
260
370,8
565
39,8
5,2
270
254,4 28,1 254,4
39,8
7
28,1
190,4
2
,
6
260
350
Ø199
45
273
306,6
551
17
.
.
GA-600S
Thickness
Scale:
SCHWEIGWN
Observations:
Description:
Model:
1:6
Date:
21/03/2019
Code:
A3
D.IZQUIERDO
Drawn by:
CONFIDENTIAL
Rev.
Sheet:
Qty.
Material:
Weight:.
595
295
260
370,8
565
39,8
5,2
270
254,4 28,1 254,4
39,8
7
28,1
190,4
2
,
6
28 28
4040
270
5
Ø3
190
254
545
254
7
273
306,6
551
17
.
.
GA-600S
Thickness
Scale:
SCHWEIGWN
Observations:
Description:
Model:
1:6
Date:
21/03/2019
Code:
A3
D.IZQUIERDO
Drawn by:
CONFIDENTIAL
Rev.
Sheet:
Qty.
Material:
Weight:.
595
295
260
370,8
565
39,8
5,2
270
254,4 28,1 254,4
39,8
7
28,1
190,4
2
,
6
307
551
273
±557
±19
TECHNICAL SPECIFICATIONS
Page 24
Code:
Drawn by:
Weight:
Observations:
Rev.
GA-900S
1:6
Scale:
GA-900
SCHWEIGEN
.
Description:
Model:
Qty.
Date:
20/03/2019
Sheet:
A3
D. Izquierdo
.
CONFIDENTIAL
Thickness
Material:
.
Code:
Drawn by:
Weight:
Observations:
Rev.
GA-900S
1:6
Scale:
GA-900
SCHWEIGEN
.
Description:
Model:
Qty.
Date:
20/03/2019
Sheet:
A3
D. Izquierdo
.
CONFIDENTIAL
Thickness
Material:
.
Code:
Drawn by:
Weight:
Observations:
Rev.
GA-900S
1:6
Scale:
GA-900
SCHWEIGEN
.
Description:
Model:
Qty.
Date:
20/03/2019
Sheet:
A3
D. Izquierdo
.
CONFIDENTIAL
Thickness
Material:
.
Code:
Drawn by:
Weight:
Observations:
Rev.
GA-900S
1:6
Scale:
GA-900
SCHWEIGEN
.
Description:
Model:
Qty.
Date:
20/03/2019
Sheet:
A3
D. Izquierdo
.
CONFIDENTIAL
Thickness
Material:
.

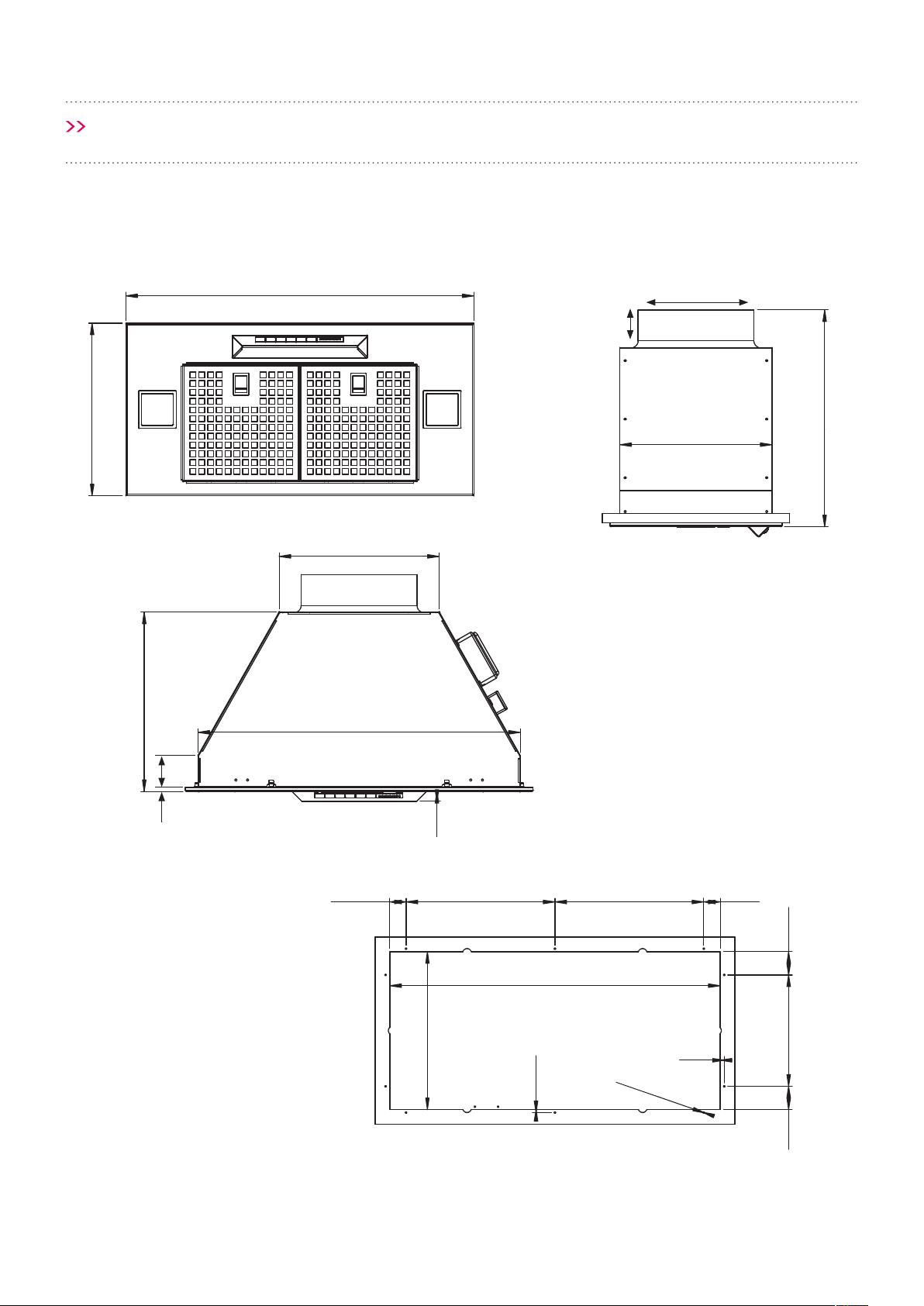

Model: GA-900S
Feeding Voltage: 220-240V 50Hz
Max Lamp Power: 2 x GLED Square 65 x 65mm
2.1W 3.12V 3000k
GA-900S
295
895
287
195
195
45
310
850
17
20
405 405 20
33.533.5
5
850
2.6
7
190
257
260
355
Page 25
Weight: .Thickness
GA-1200S
1:7
Scale:
GA-1200
SCHWEIGEN
Observations:
Description:
Model:
Code:
Date:
03/07/2020
Sheet:
A3
D. Izquierdo
Drawn by:
CONFIDENTIAL
Rev.
Material:
Qty.
.
.
Weight: .Thickness
GA-1200S
1:7
Scale:
GA-1200
SCHWEIGEN
Observations:
Description:
Model:
Code:
Date:
03/07/2020
Sheet:
A3
D. Izquierdo
Drawn by:
CONFIDENTIAL
Rev.
Material:
Qty.
.
.
Weight: .Thickness
GA-1200S
1:7
Scale:
GA-1200
SCHWEIGEN
Observations:
Description:
Model:
Code:
Date:
03/07/2020
Sheet:
A3
D. Izquierdo
Drawn by:
CONFIDENTIAL
Rev.
Material:
Qty.
.
.
Weight: .Thickness
GA-1200S
1:7
Scale:
GA-1200
SCHWEIGEN
Observations:
Description:
Model:
Code:
Date:
03/07/2020
Sheet:
A3
D. Izquierdo
Drawn by:
CONFIDENTIAL
Rev.
Material:
Qty.
.
.

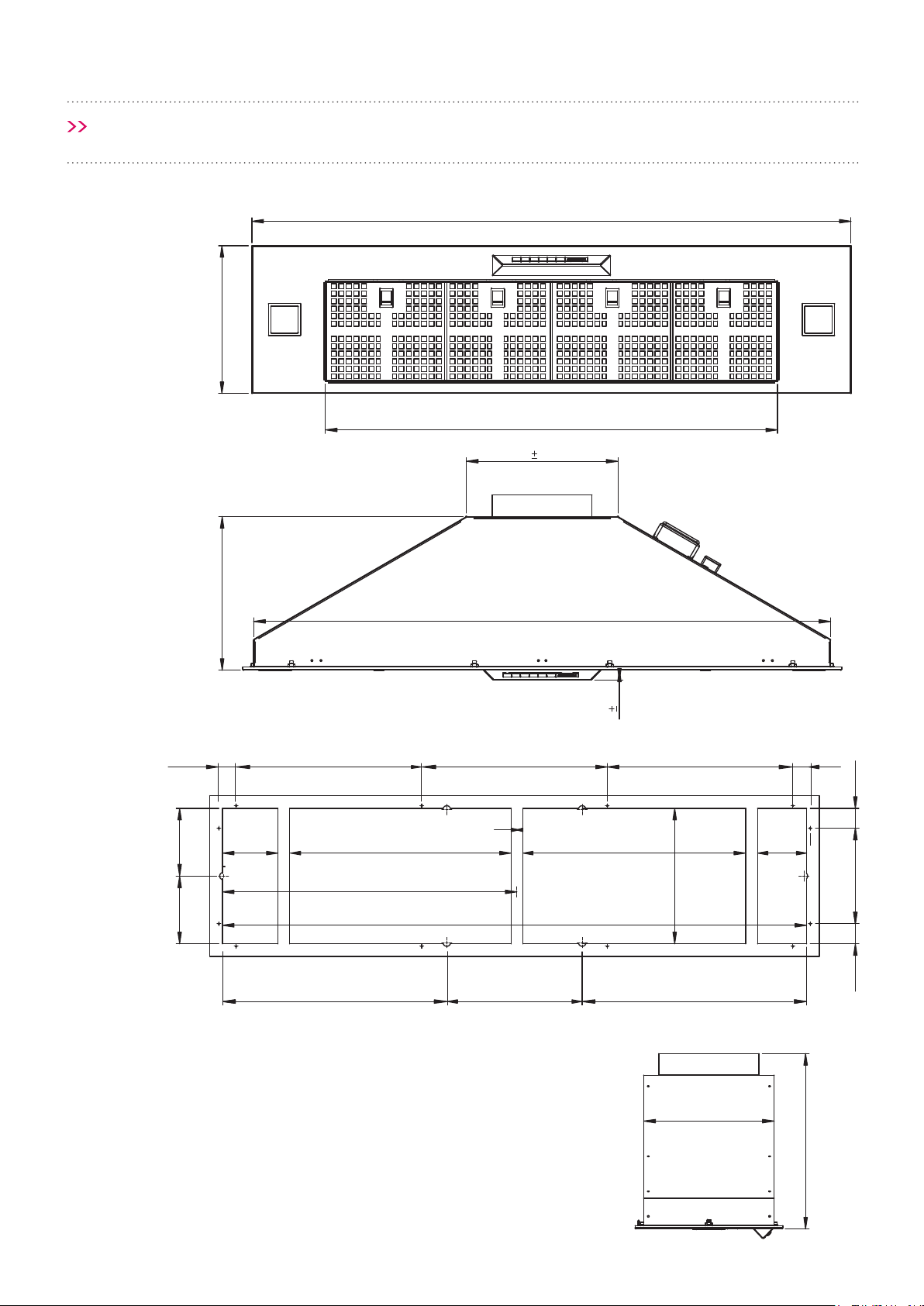

Model: GA-1200S
Feeding Voltage: 220-240V 50Hz
Max Lamp Power: 2 x GLED Square 65 x 65mm
2.1W 3.12V 3000k
GA-1200S
1195
295
904
303
307
1151
19
370 370
430
575
1150
430 110110
370
3030 190
250.7
440270440
20 20
135 135
260
355
TECHNICAL SPECIFICATIONS
Page 26
DISCLAIMER
Under our policy of continuous product
development, product specications may change
without notice. Prospective purchasers should
therefore check with the retailer to ensure this
publication correctly describes the products being
oered for sale. All information supplied is to be
used for general reference purposes only and
is on the understanding that Schweigen Home
Appliances will not be liable for any loss, liability or
damage of whatever kind arising as a result of any
reliance upon such information. All pictures used in
the guide are for illustrative purposes only.
Although our information and marketing states
the term ‘Silent’ for certain models, the following
applies to various models that are sold with
certain Isodrive
®
Systems and bae lters. When a
model with the larger motored Isodrive
®
System is
operated at the higher speed/s air movement may
be heard. For example, while operating on speed
4 & 5 (For 5 speed models) the rangehood may be
audible due to the large amount of air movement
moving through the lters.
*Please make sure that the rangehood and motor
have been installed as per the corresponding
instruction guides in order for optimal performance
(the Isodrive
®
Motor Manual can be found with the
Isodrive
®
Motor, or online at schweigen.com.au).
Schweigen Home Appliances has presented this
information in good faith to all their retailers and
distributors to convey before any/all purchase/s.
Information is supplied upon the condition that the
person/s receiving the information will make their
own determination as to its suitability for their
purpose/s prior to use. In no event will Schweigen
Home Appliances be responsible for damages of
any nature whatsoever resulting from the use of,
or reliance upon, information from their website or
the products to which the information refers.
DISPOSAL OF OLD APPLIANCES
Electronic waste (or e-waste) including kitchen appliances are banned from direct disposal
to landll. E-waste contains hazardous materials, which can harm the environment and human health.
Valuable materials contained in e-waste are lost when appliances, computers and other household
electrical goods are sent to landll.
Recycle your e-waste to:
• reduce landll
• protect the air and waterways from harmful materials
• minimise consumption of raw materials to produce electronic products
• reduce greenhouse gases created in the production of new materials.
Kitchen appliances including Rangehoods and Ovens can only be disposed at approved recycling centres.
Visit www.recyclingnearyou.com.au/whitegoods for more information, or contact your local council or the
store you purchased this appliance, for a list of approved recyclers.
Page 27
NOTES
www.schweigen.com.au
© Schweigen Home Appliances Pty Ltd. Apr2022.
Australia
Unit 4/1-5 Lake Drive, Dingley Village, Victoria 3172
Phone: 1300 881 693
Email: sales@schweigen.com.au
New Zealand
5 Tolich Place, Henderson, Auckland 0610
Phone: 0800 200 510
Email: inf[email protected]om
