Elechomes OX300 Hepa Air Purifier

Product's Documents

Below are documents related to this product, you can read online or download:
OX300 photo

USER MANUAL

This is the main product document for model OX300.

The file format is pdf, 16 pages, you can download this manual here .

background
background

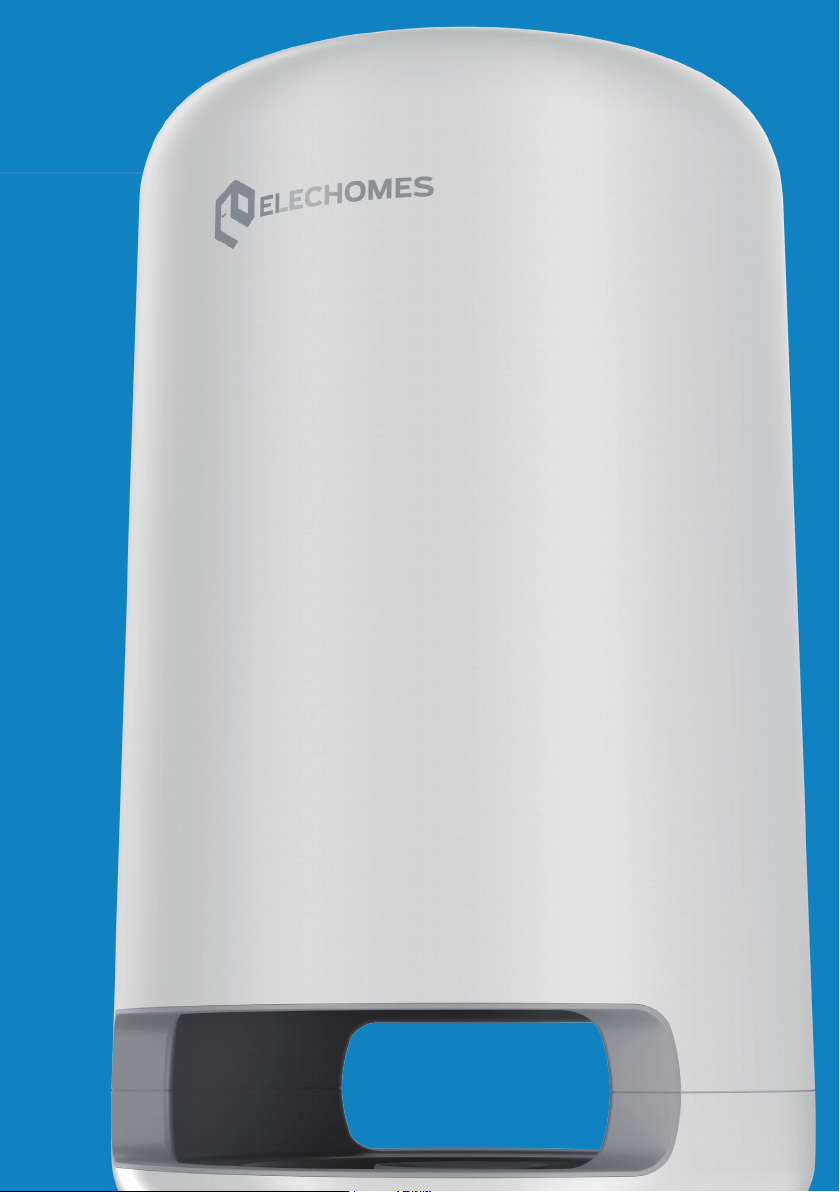

A LIGHTER WAY OF LIVING
background
background
background
background
Control Panel
Composite Filter
Bottom Case
Air Outlet
Main Body
background

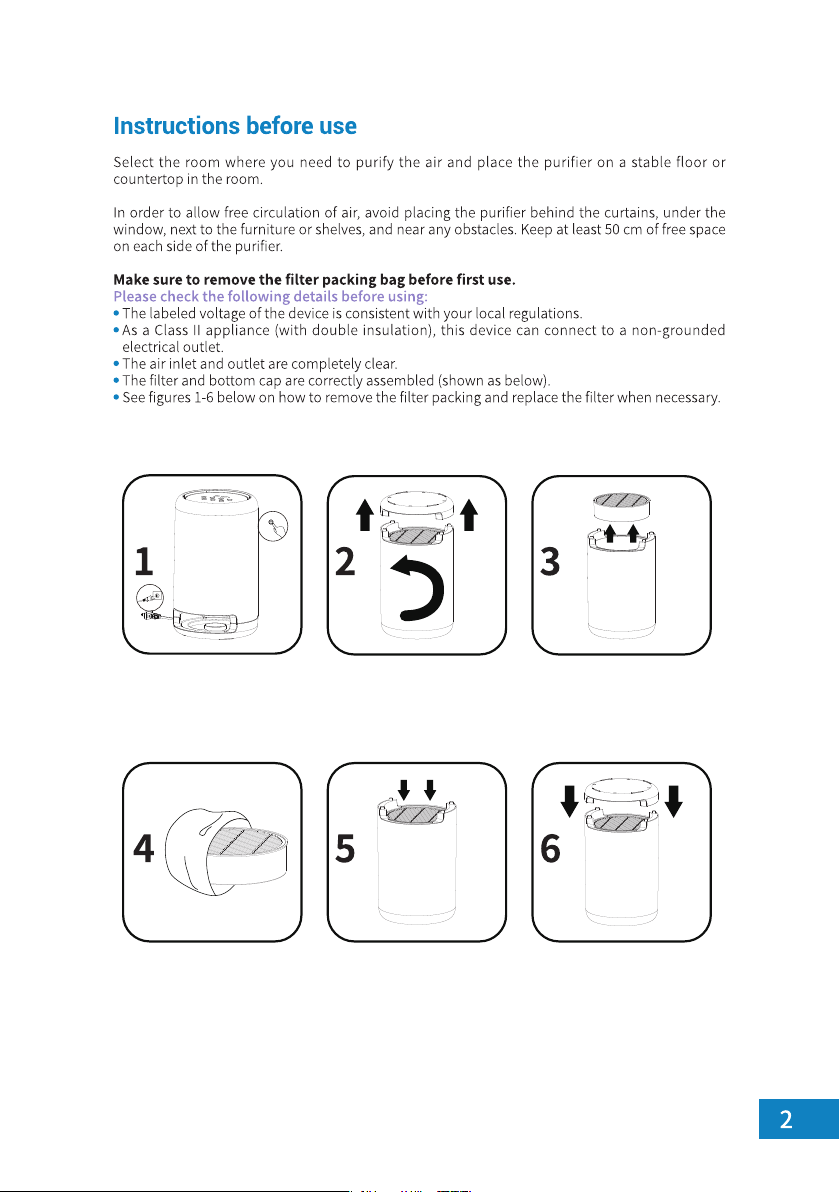

Press the power button to turn off
the purifier and unplug the power
cord from the socket. (If you’re
using the purifier for the first time,
start directly from Figure 2.)
Flip the purifier upside down and
lift the base directly (The base is
connected by the main unit by
magnets)
Remove the composite filter
Remove the plastic bag from the
new filter
Mount the new filter on the air
purifier
Replace the unit back onto the
base
background

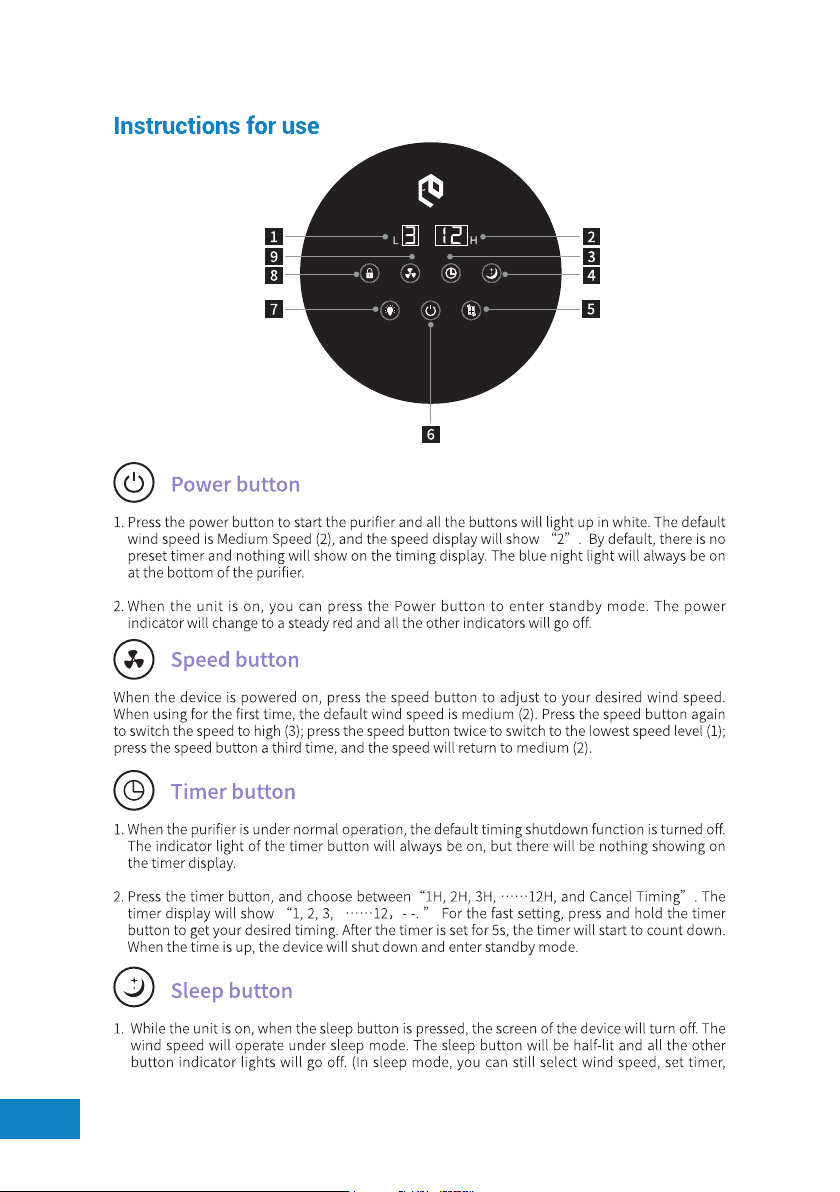

Speed Button
Child Lock Button
Lamp Button
Power Button
Filter Reset
Sleep Button
Timer Button
Timing Display
Wind Speed Display
3
background

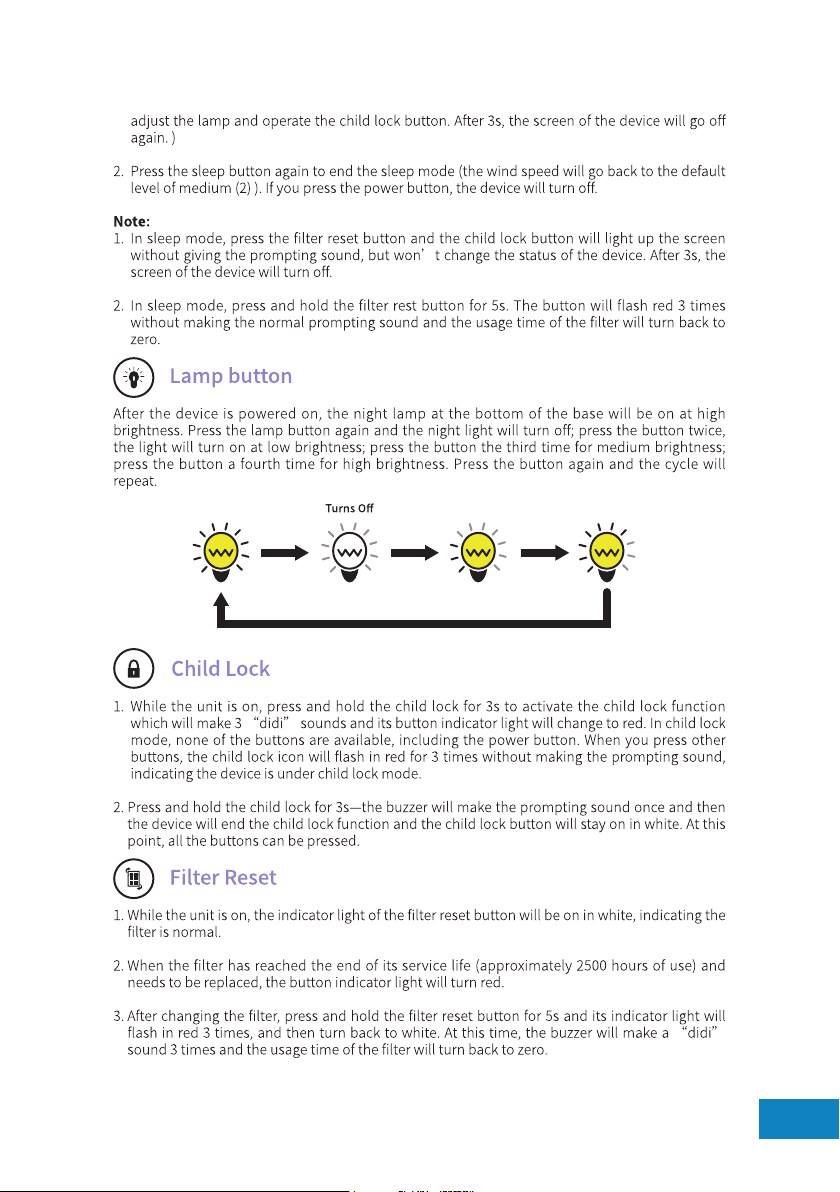

High Brightness Low Brightness Medium Brightness
4
background

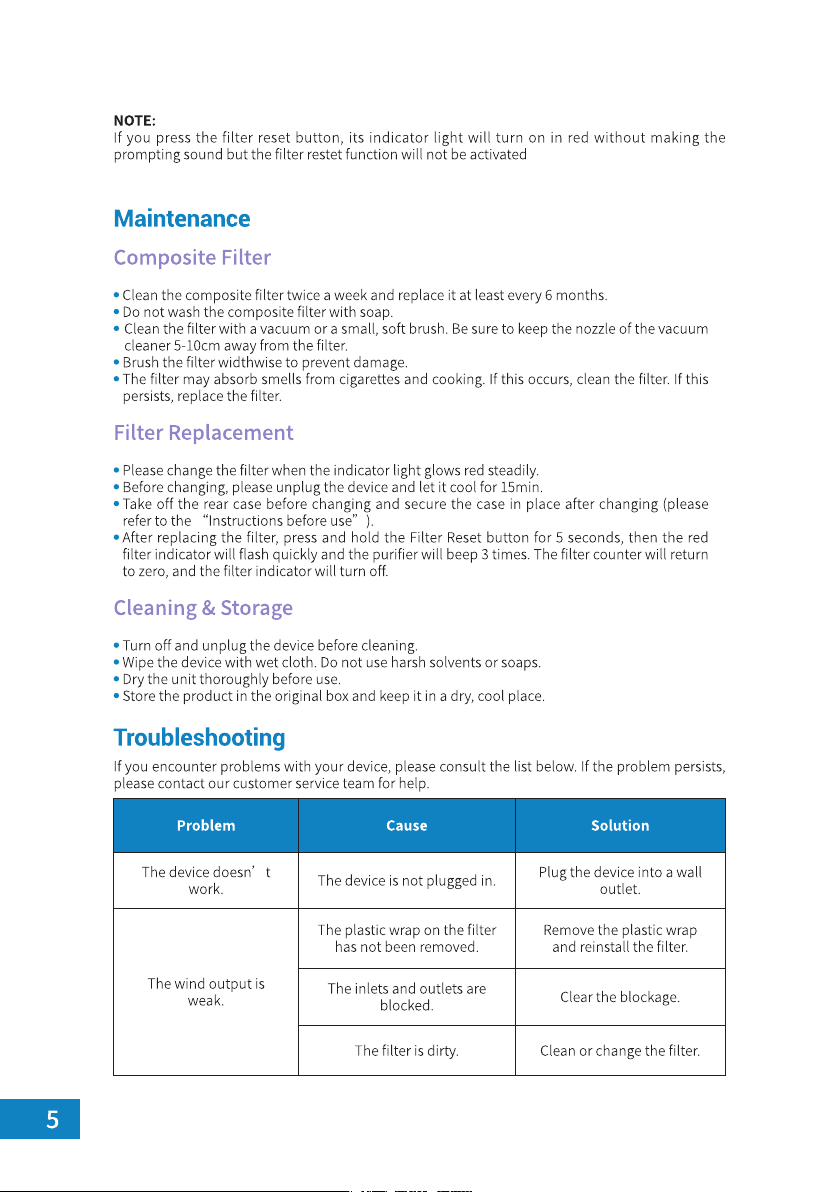

Problem Cause Solution
The device doesn’t
work.
The device is not plugged in.
Plug the device into a wall
outlet.
The wind output is
weak.
The plastic wrap on the 󽗉lter
has not been removed.
Remove the plastic wrap
and reinstall the 󽗉lter.
The inlets and outlets are
blocked.
Clear the blockage.
The 󽗉lter is dirty. Clean or change the 󽗉lter.
background
The air quality has
not improved.
The 󽗉lter has not been
installed.
Install the 󽗉lter.
Doors and windows are open.
Close all doors and windows
when using the device.
The inlets and outlets are
blocked.
Clear the blockage.
The 󽗉lter is dirty. Clean or change the 󽗉lter.
The device emits a
strange smell.
People smoke or cook inside
the room.
Ventilate the room.
The 󽗉lter is dirty. Clean or change the 󽗉lter.

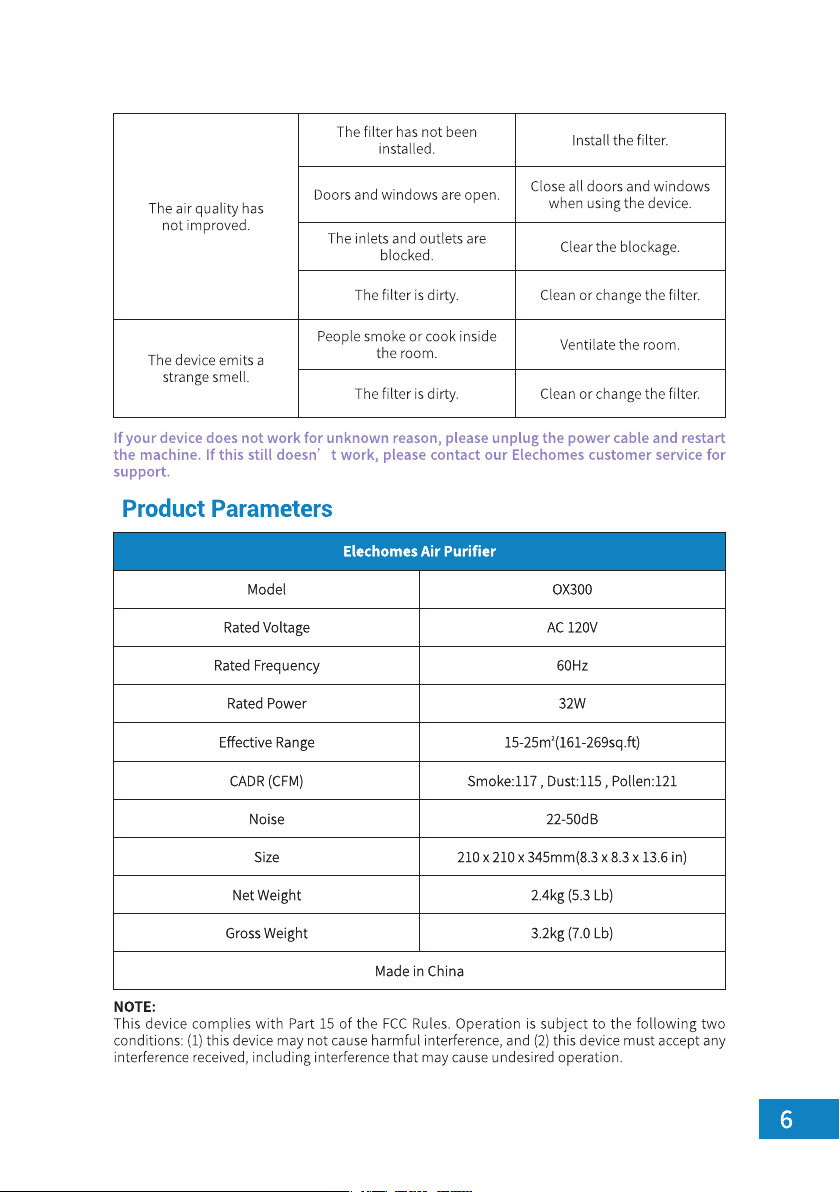

Elechomes Air Puri󽗉er
Model OX300
Rated Voltage AC 120V
Rated Frequency 60Hz
Rated Power 32W
E󽗈ective Range 15-25m
2
(161-269sq.ft)
CADR (CFM) Smoke:117 , Dust:115 , Pollen:121
Noise 22-50dB
Size 210 x 210 x 345mm(8.3 x 8.3 x 13.6 in)
Net Weight 2.4kg (5.3 Lb)
Gross Weight 3.2kg (7.0 Lb)
Made in China
background

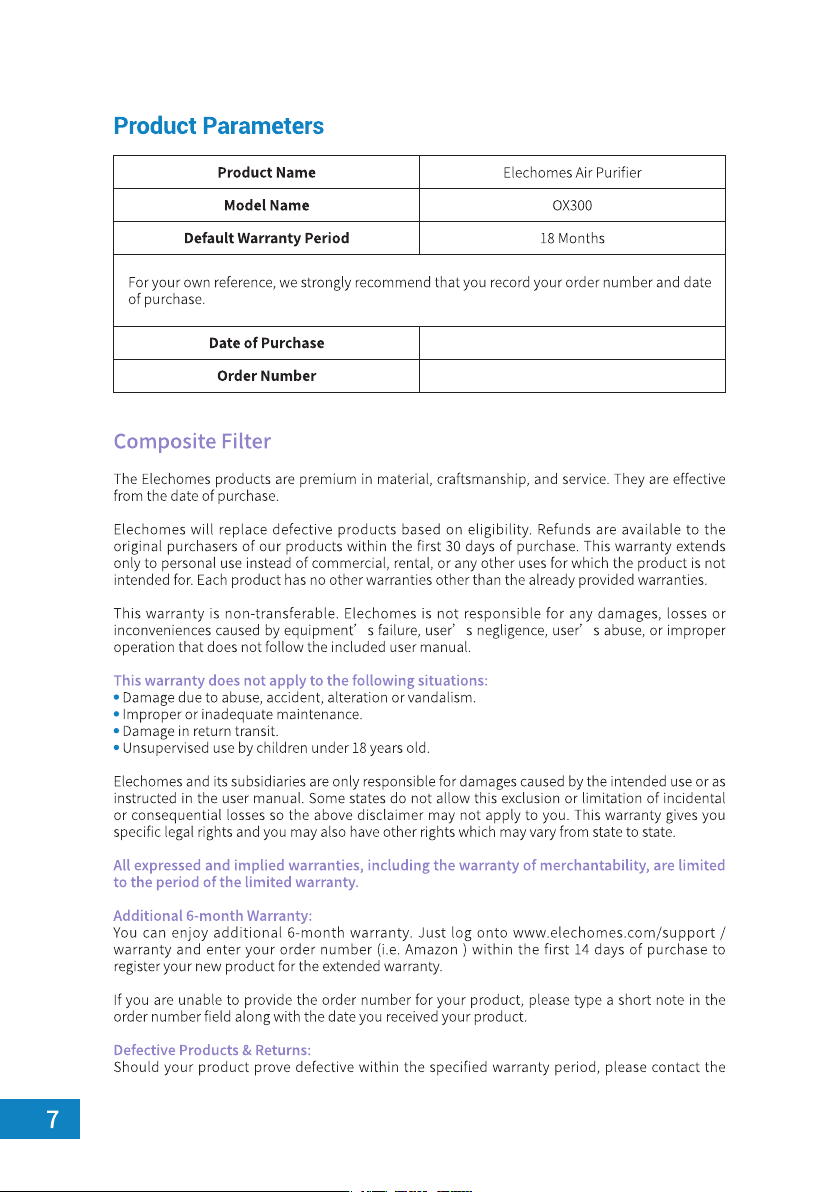

Product Name Elechomes Air Puri󽗉er
Model Name OX300
Default Warranty Period 18 Months
For your own reference, we strongly recommend that you record your order number and date
of purchase.
Date of Purchase
Order Number
background
background
background
background
US Importer: Thousandshores Inc., 37707 Cherry St, Newark, CA 94560, USA
EU Importer: Thousandshores Deutschland GmbH, Bredowstraße 17, Hamburg 22113,DE
JP Address: 東京都千代田区鍛治町 1-10-6 BIZ SMART 神田 402
Website: https://www.elechomes.com

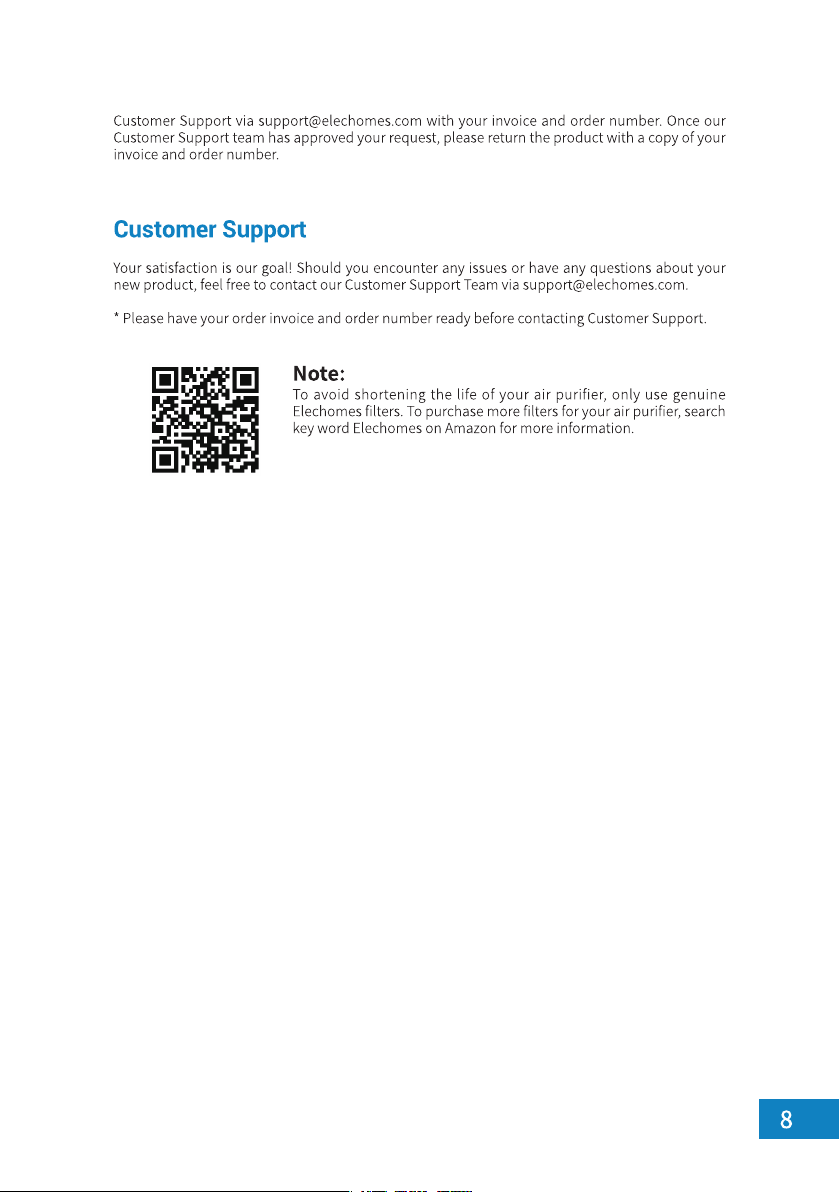

Customer Service: [email protected]om
Connect us with @Elechomes
