iNSTALLATiON AND SERVICE MUST BE PERFORMED BY
A QUALiFiED iNSTALLER.
iMPORTANT: SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS FOR FUTURE REFERENCE.
If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
-- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
JAdditional Safeguards
, Do not install wall oven beneath the work counter.
• The flue charge shall not be located below the 36" level.
42
5/16
4] 13/16"
Model 2 oven cavities
Clearance for complete door opening:
, For model with 2 cavities allow at least 17 518".
• For model with 1Y2cavity allow at least 19 3/8".
Figure I
c
B
H
A
Drill a lY2" diameter hole
for gas hook up
Electrical Outlet
Location for model
with lY2 oven
cavity
Electrical Outlet
Location for
with 2
oven cavities
--...
't- 27 "
18"
Modelwith2cavities 19Y2" Min. 2 Y2" Min. 24" Min. 163A '' 7 V8" 22Y2" 24" Min. 42 Vs"
10" Min. 37 Y2" Min.
Model with 1 Y2cavity 27 Y2" Max. 1 Y2" Min. 24" Min. 20" 7 s/8" 22" 23 Y2" Min. 38" Max.

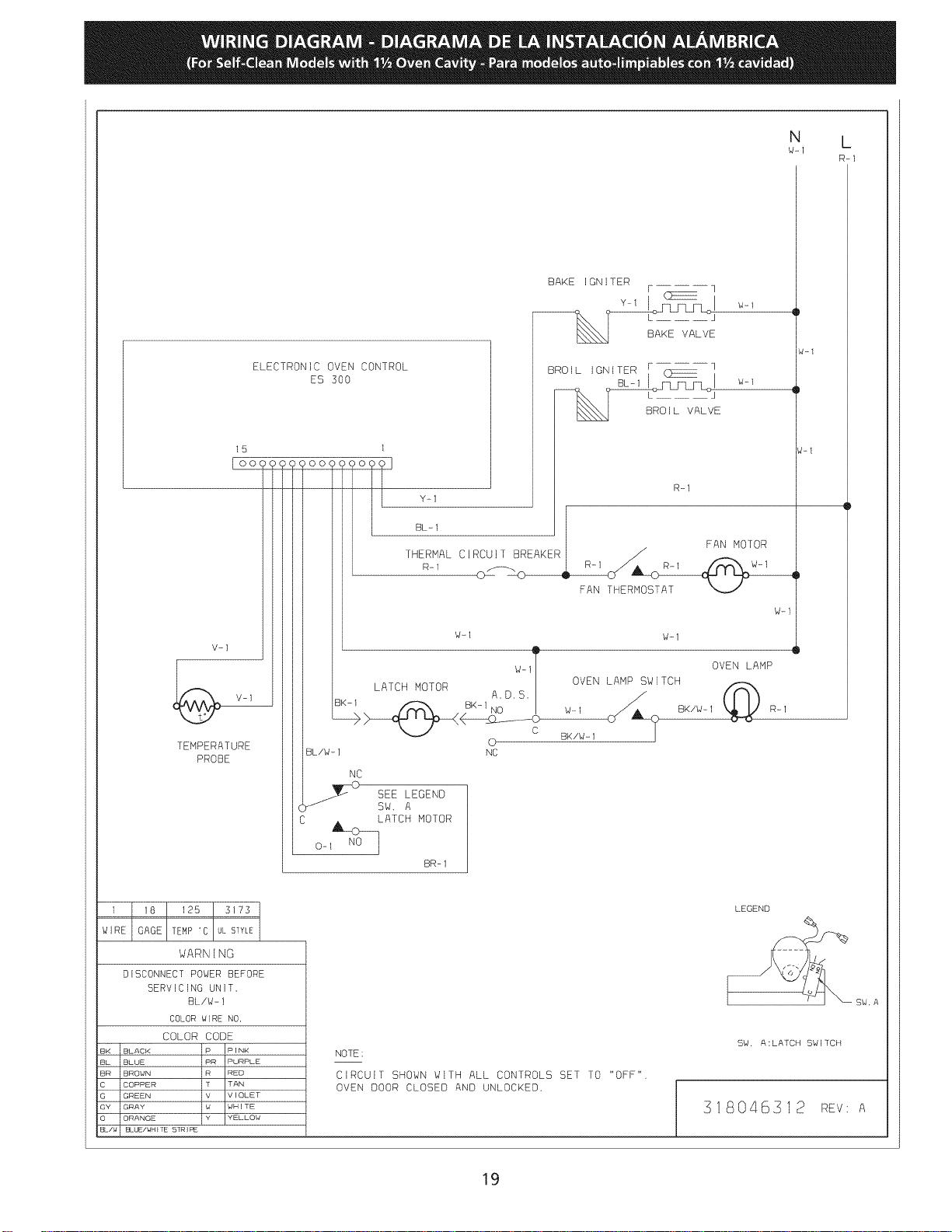

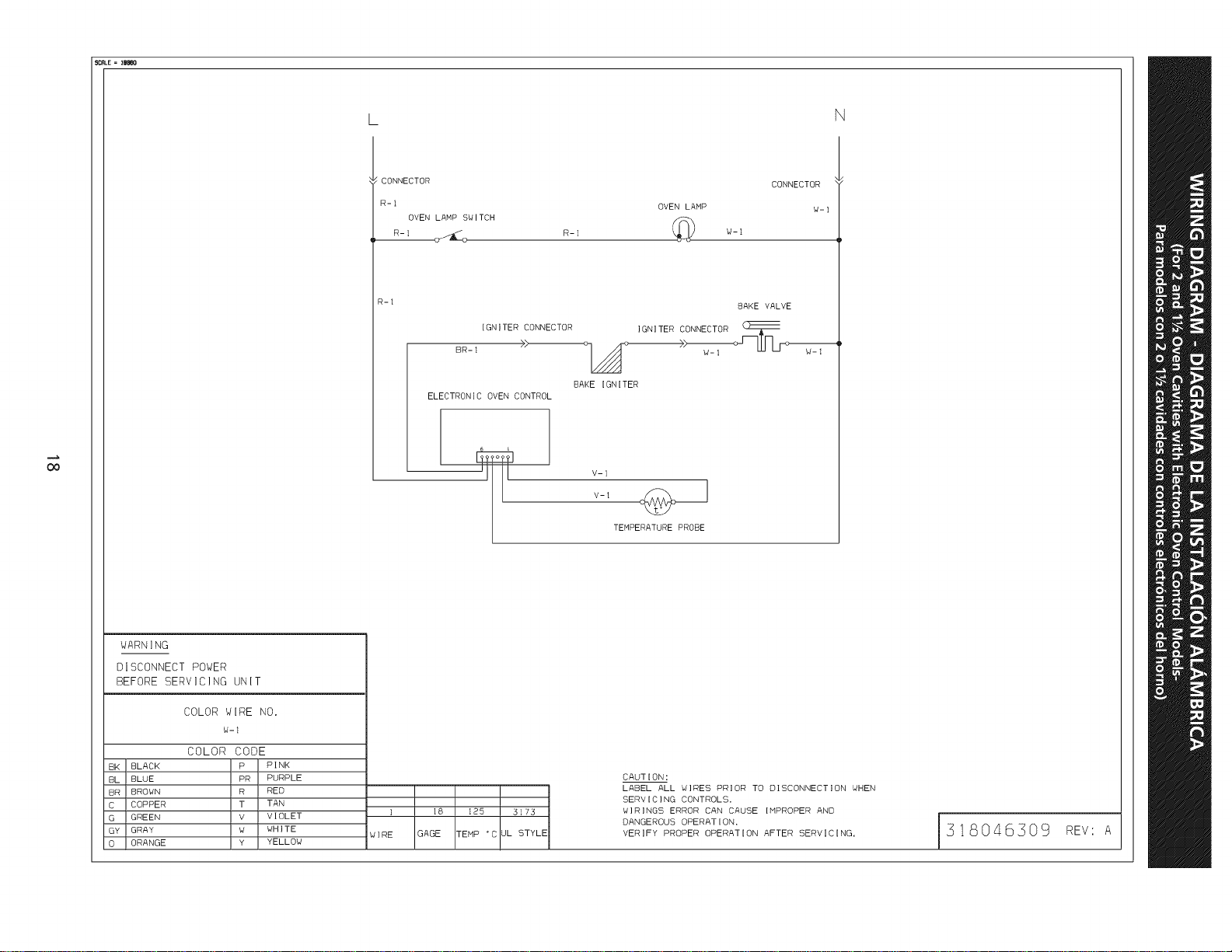

NOTE: Wiring diagrams for these appliances are enclosed in this booklet.
Printedin United States
PIN318201554 (0711) Rev.B
English - pages 1-8
Espahol - p_iginas 9-16
Wiring Diagram-pages 17-20
