MultiSync
®
E224F
MultiSync
®
E244F
MultiSync
®
E274F
MODEL: E224F/E224F-BK, E244F/E244F-BK, E274F/E274F-BK
The regulations for this monitor applied to one of model names listed above.
Please nd your model name on the label on the rear side of the monitor.
Registration Information .......................................................1
TCO Certied........................................................................2
Important Information ...........................................................3
Parts Name and Functions ................................................. 13
Control Panel ......................................................................13

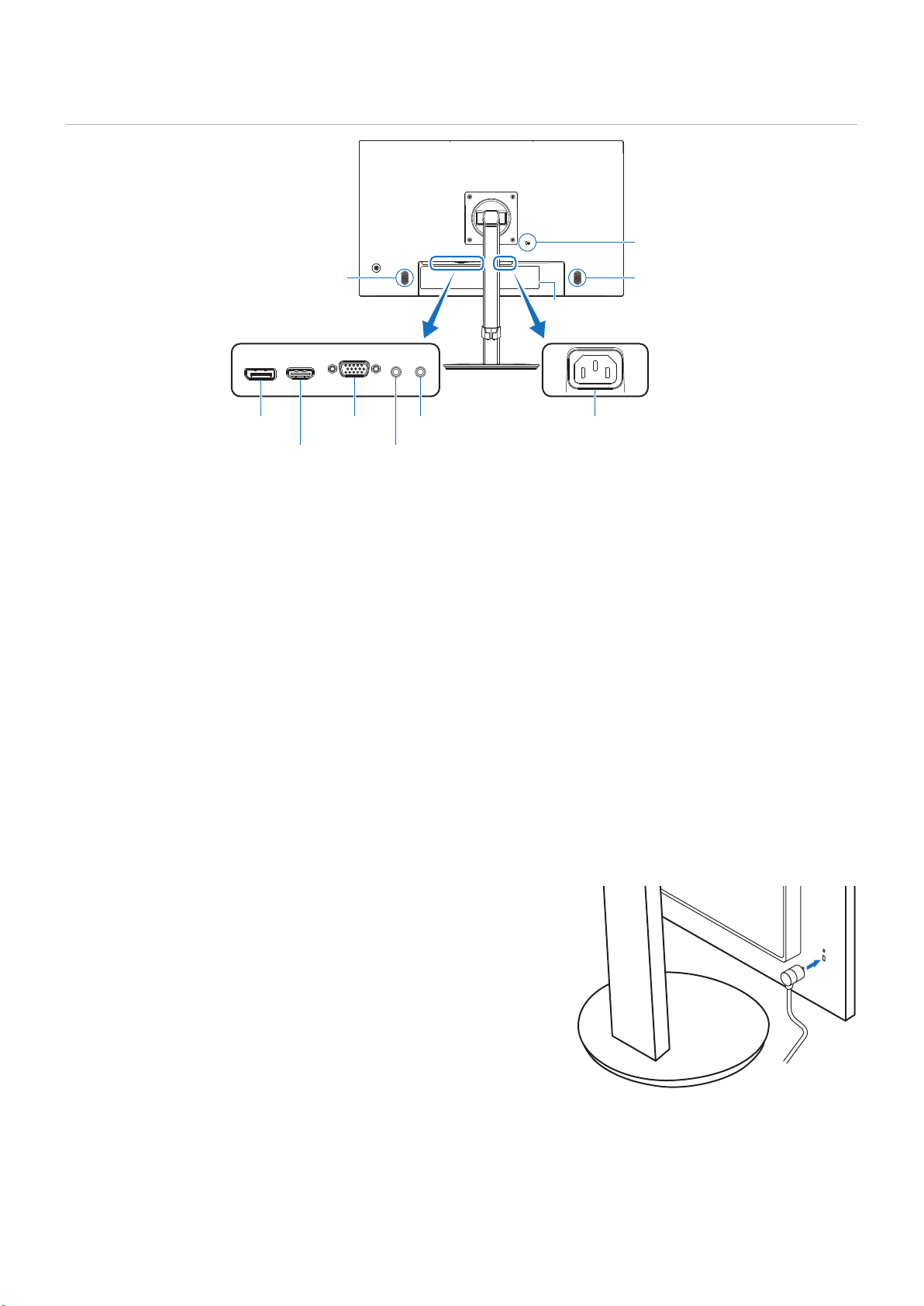

Terminal Panel ....................................................................14
Installation ..........................................................................15

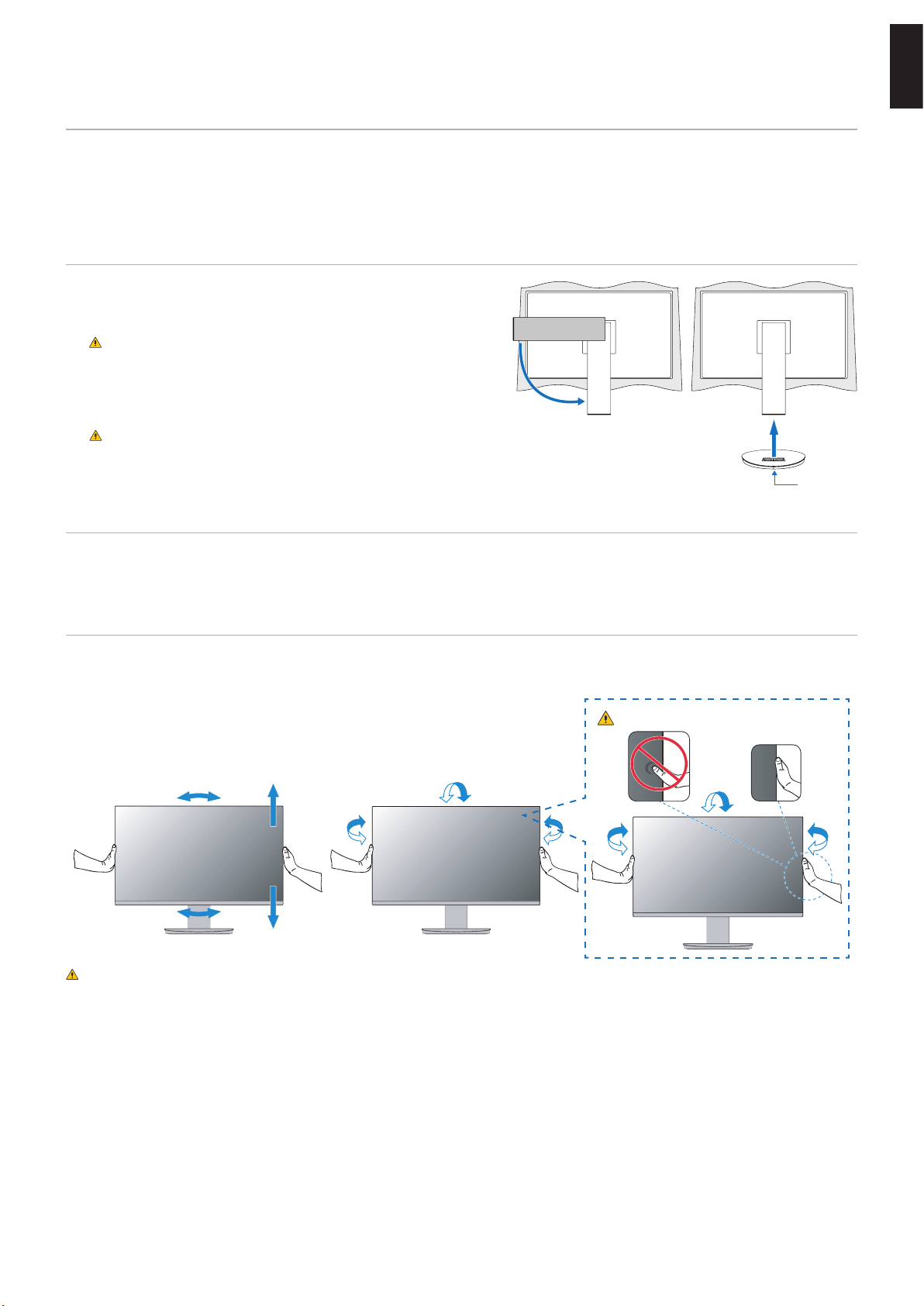

Attach the base to the LCD monitor stand..........................15

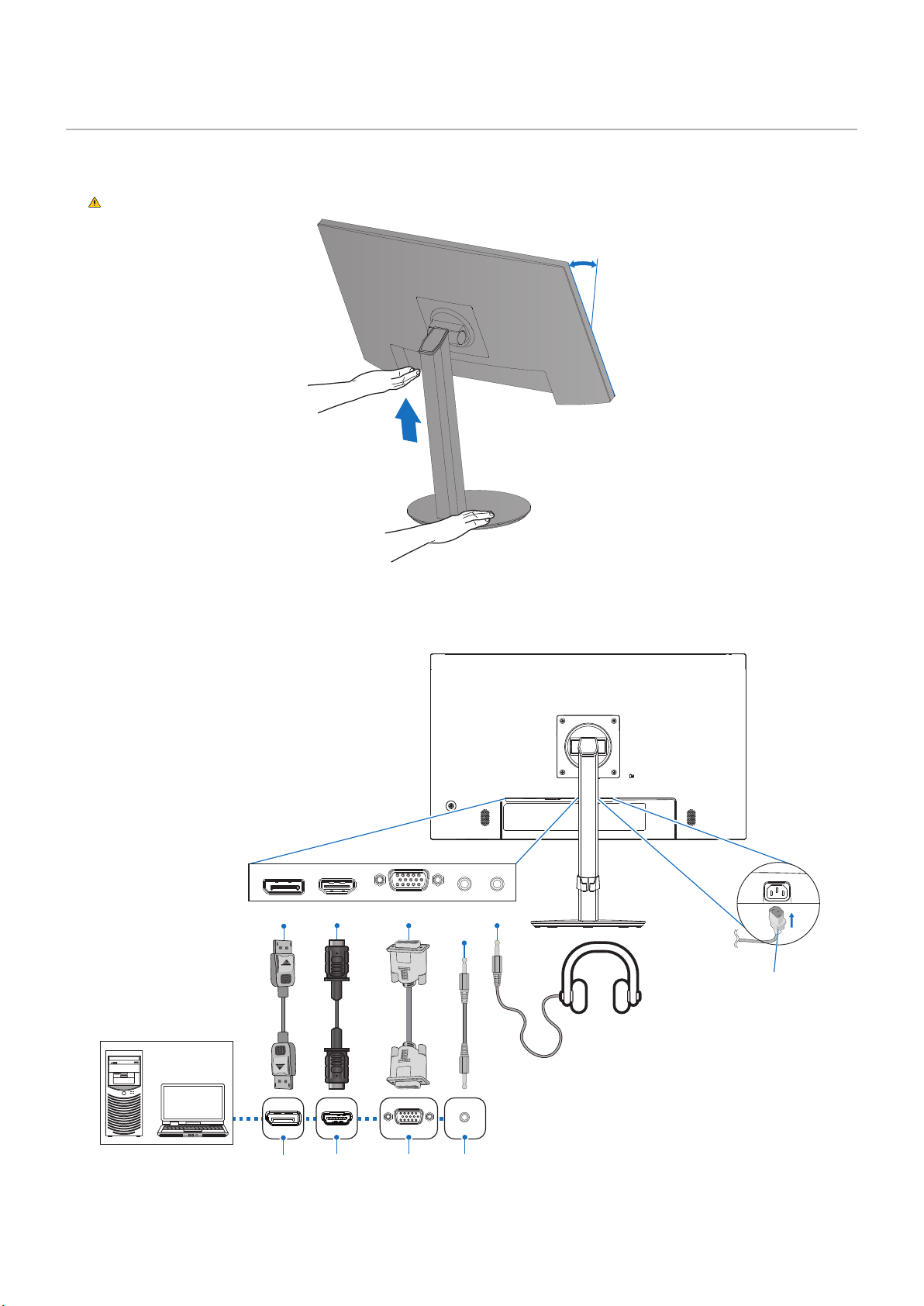

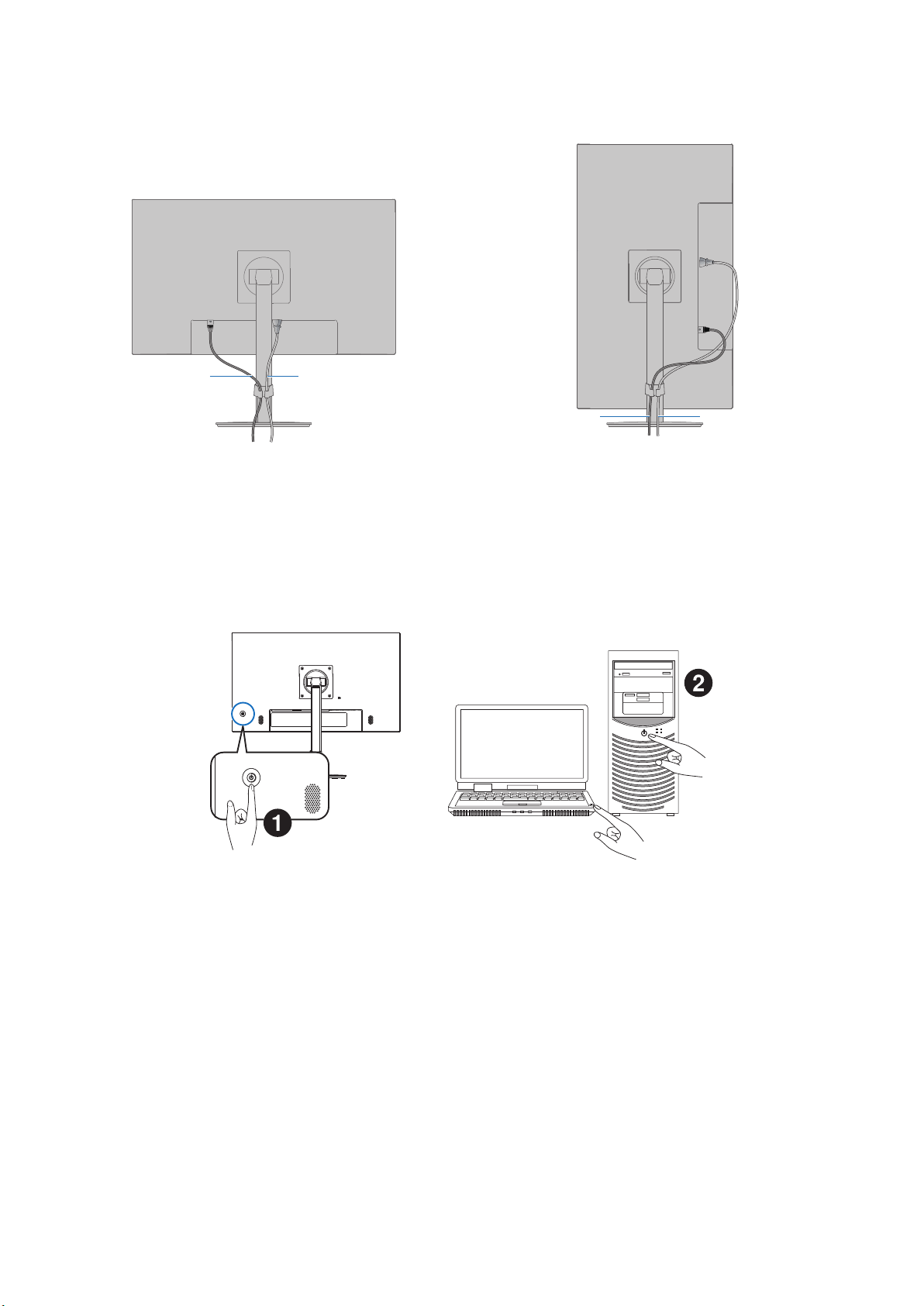

Connect the power cord and signal cables.........................15
Adjustable Stand with Pivot Capability ...............................15
Connections........................................................................16
Signal type and terminal connection...................................19

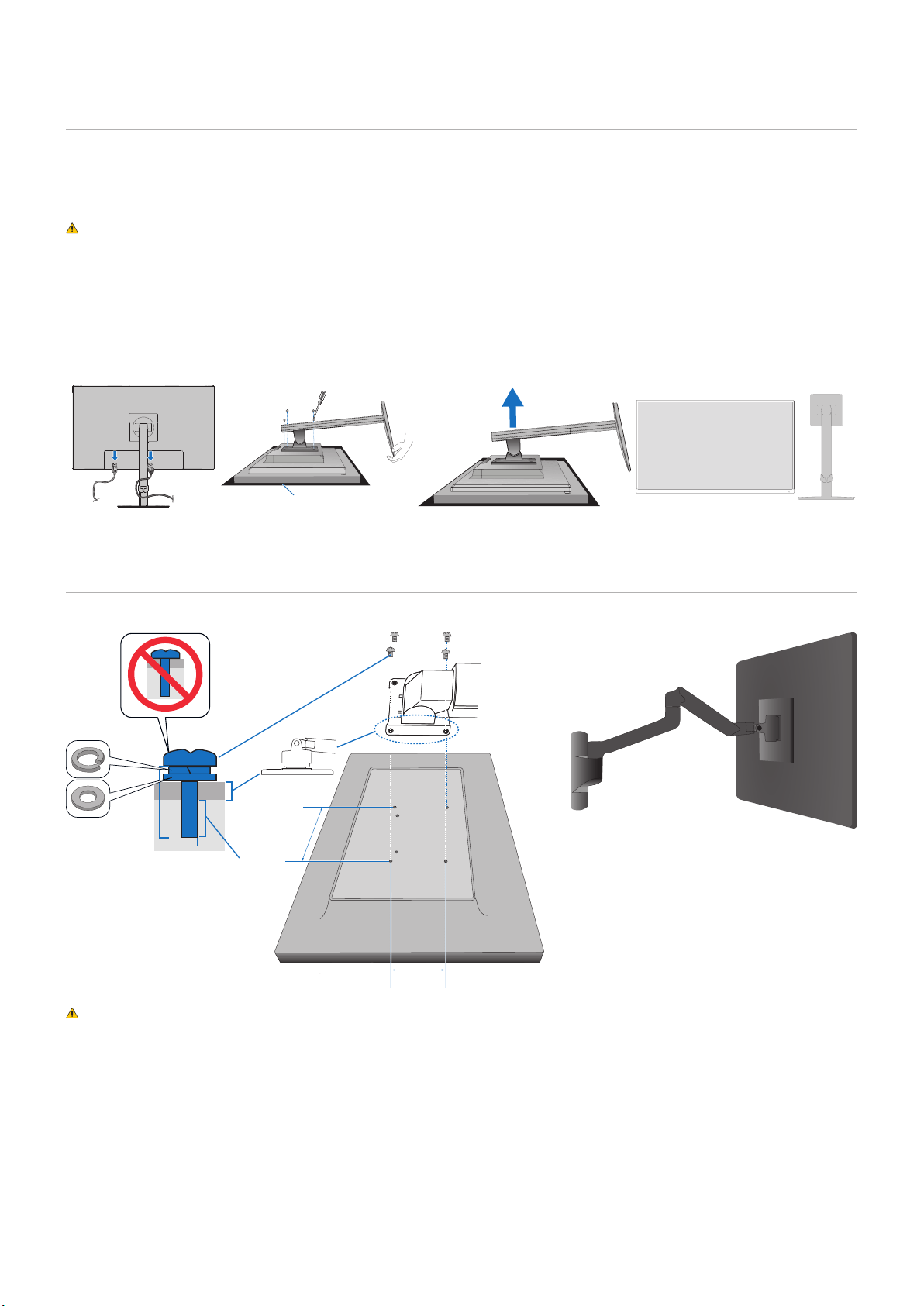

Flexible Arm Installation......................................................20
Remove the Monitor Stand for Mounting ............................20
Mount the Flexible Arm .......................................................20
Re-attaching the Original Stand .........................................21
Using the OSD (On-Screen Display) Controls....................23
Changing the Input .............................................................24
Power management function LED indicator patterns .........24
Screen Image and Video Signal Issues ..............................26 Hardware Issues.................................................................27
E224F ................................................................................. 29
E244F ................................................................................. 30
E274F ................................................................................. 31
Luminance .......................................................................... 33
Image Setup .......................................................................33
Color Setup.........................................................................33
OSD Setup .........................................................................34
System Setup .....................................................................34
Extra ...................................................................................34
OSD Warning .....................................................................34
Disposing of your old NEC product ....................................36
Energy Saving ....................................................................36
WEEE Mark (European Directive
2012/19/EU and amendments)...........................................36
English−1
English
Use the provided specied cables with this product so as not to interfere with radio and television reception.
For mini D-Sub 15-pin, please use a shielded signal cable with core.
For HDMI and DisplayPort, please use a shielded signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
The Federal Communications Commission does not allow any modications or changes to the unit EXCEPT those specied by
Sharp NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your
right to operate this equipment.
1. The power supply cord you use must have been approved by and comply with the safety standards of U.S.A., and meet the following
condition.

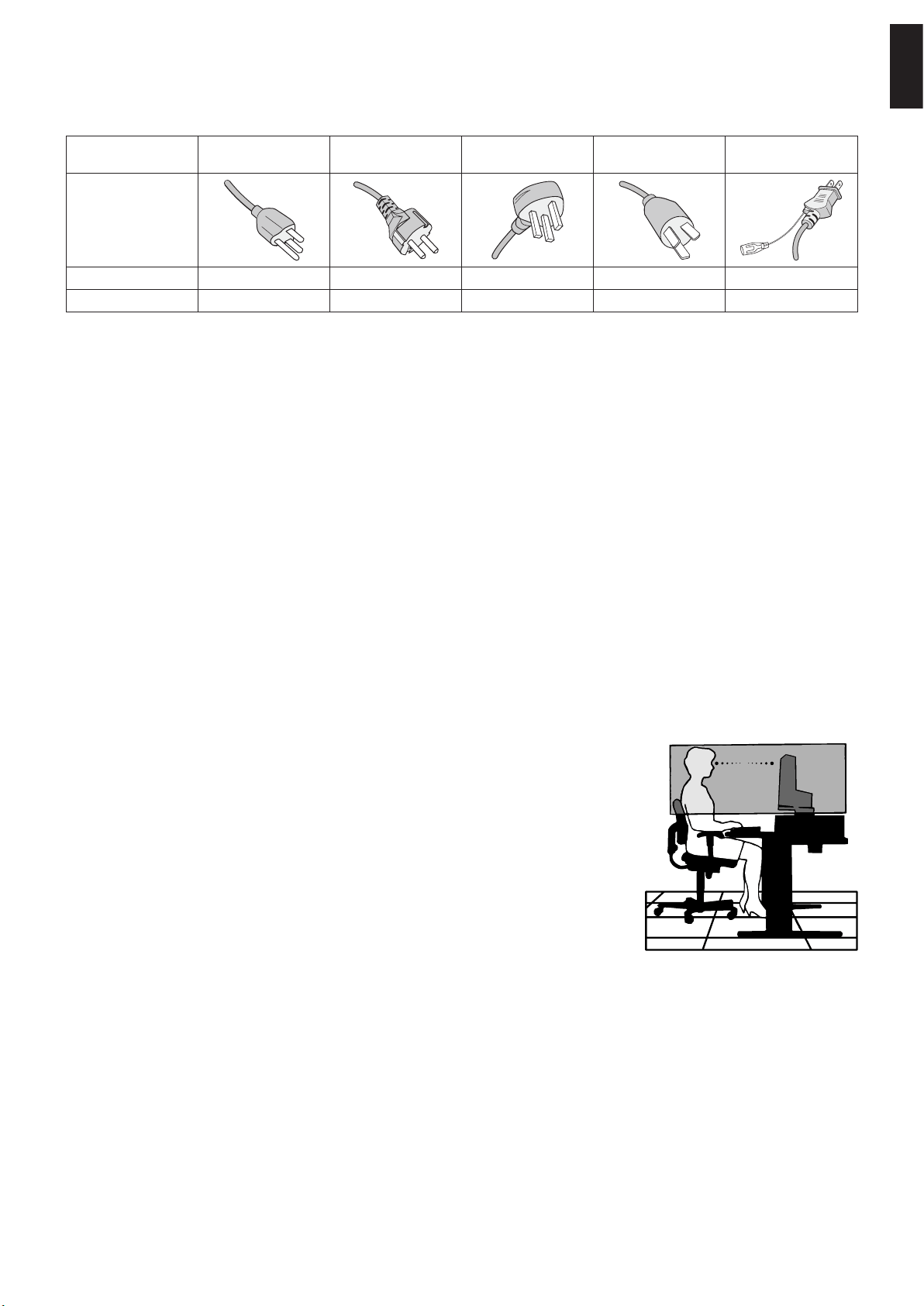

Power supply cord
Plug shape
Non shield type, 3-conductor
U.S.A.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may nd
the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference
Problems.” This booklet is available from the U.S. Government Printing Ofce, Washington, D.C., 20402, Stock No. 004-000-00345-4.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Type of Product: LCD Monitor
Equipment Classication: Class B Peripheral
Model: E224F, E224F-BK, E244F, E244F-BK, E274F, E274F-BK
English−2
• The wires in this mains lead are coloured in accordance with the
following code:
• As the colours of the wires in the mains lead of this apparatus may not
correspond with the coloured markings identifying the terminals in your
plug proceed as follows:
• The wire which is coloured GREEN-AND-YELLOW must be
connected to the terminal in the plug which is marked by the letter
or by the safety earth symbol or coloured green or green-and-
yellow.
• The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter or coloured black.
• The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter or coloured red.
• Ensure that your equipment is connected correctly. If you are in any
doubt consult a qualied electrician.
TCO Certied is a global sustainability certication for IT products, available for computers, mobile devices, display products and data center
products. Criteria cover both social and environmental sustainability and enable circular solutions. Compliance with criteria is independently
veried. TCO Certied is a third-party certication in accordance with ISO 14024.
To see a list of our TCO certied monitors and their TCO Certication (in English only), visit our website at:
https://www.sharp-nec-displays.com/global/about/legal_regulation/TCO_mn/index.html
Please refer to “CAUTION 2”.
• The intended primary use of this product is as an Information Technical Equipment in an ofce or domestic environment.
• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.
NEC is a registered trademark of NEC Corporation.
DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA
®
)
in the United States and other countries.
MultiSync
®
is a trademark or registered trademark of Sharp NEC Display Solutions, Ltd. in Japan and other countries.
Microsoft
®
and Windows
®
are either registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries.
The terms HDMI, HDMI High-Denition Multimedia Interface, HDMI Trade Dress and the
HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
All other brands and product names are trademarks or registered trademarks of their respective owners.
(1) The contents of this manual may not be reprinted in part or whole without permission.
(2) The contents of this manual are subject to change without notice.
(3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points, errors or
omissions, please contact us.
(4) The image shown in this manual is indicative only. If there is inconsistency between the image and the actual product, the actual
product shall govern.
(5) Notwithstanding articles (3) and (4), we will not be responsible for any claims on loss of prot or other matters deemed to result
from using this device.
(6) This manual is commonly provided to all regions so they may contain descriptions that are pertinent for other countries.
English−3
English
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LCD COLOR MONITOR:
To ensure safe and proper use of the product, this manual uses a number of symbols to prevent injury to you and others as well
as damage to property. The symbols and their meanings are described below. Be sure to understand them thoroughly before
reading this manual.
Failing to heed this symbol and handling the product incorrectly could result in accidents leading
to major injury or death.
Failing to heed this symbol and handling the product incorrectly could result in personal injury or
damage to surrounding property.
Indicates a warning or caution.
This symbol indicates you should be careful of electric shocks.
Indicates a prohibited action.
This symbol indicates something that must be prohibited.
Indicates a mandatory action.
This symbol indicates that the power cord should be unplugged from the power outlet.
Unplug the power cord if the product malfunctions.
Should the product emit smoke or strange odors or sounds, or if the product has been dropped or
the cabinet broken, turn off the product’s power, then unplug the power cord from the power outlet.
Contact your dealer for repairs. Never try to repair the product on your own. Doing so is dangerous.
Do not open or remove the product’s cabinet.
Do not disassemble the product.
There are high voltage areas in the product. Opening or removing product covers and modifying the
product may expose you to electric shock, re, or other risks.
Refer all servicing to qualied service personnel.
Do not use the product if it has structural damage or if its stand has cracked or peeled.
If you notice any structural damage such as cracks or unnatural wobbling, please refer servicing
to qualied service personnel. If the product is used in this condition, the product may fall or cause
personal injury.
English−4
Handle the power cord with care.
Damaging the cord could lead to re or electric shock.
• Do not place heavy objects on the cord.
• Do not place the cord under the product.
• Do not cover the cord with a rug, etc.
• Do not scratch or modify the cord.
• Do not bend, twist or pull the cord with excessive force.
• Do not apply heat to the cord.
If the cord gets damaged (exposed core wires, broken wires, etc.), turn off the product’s power, then
unplug the power cord from the power outlet. Ask your dealer to replace it.
Do not touch the power plug if you hear thunder.
Doing so could result in electric shock.
Please use the power cord provided with this product in accordance with the power cord table.
If a power cord is not supplied with this product, please contact us. For all other cases, please use
the power cord with the plug style that matches the power socket where the product is located.
The compatible power cord corresponds to the AC voltage of the power outlet and has been
approved by, and complies with, the safety standards in the country of purchase.
Please install the product in accordance with the following information.
When transporting, moving, or installing the product, please use as many people as necessary to
be able to lift the product without causing personal injury or damage to the product.
Please refer to the instructions included with the optional mounting equipment for detailed
information about attaching or removing.
Do not cover the vent on the product. Improper installation of the product may result in damage to
the product, an electric shock or re.
Do not install the product in the locations below:
• Poorly ventilated spaces.
• Near a radiator, other heat sources, or in direct sunshine.
• Continual vibration areas.
• Humid, dusty, steamy, or oily areas.
• Outdoors.
• High-temperature environment where humidity changes rapidly and condensation is likely to
occur.
Do not mount the product in any conguration or position not described in the user’s manual.
Please check the Specications for the available Tilt range when installing the product.
English−5
English
8
Prevent tipping and falling for earthquakes or other shocks.
To prevent personal injury or damage to the product caused by tipping over due to earthquakes or
other shocks, make sure to install the product in a stable location and take measures to prevent
falling.
• The product must be mounted to an approved exible arm (e.g. TUEV GS mark) or stand that
supports the weight of the product to prevent damage and personal injury that could result from
the product tipping over or falling.
• Only use the screws that were removed from the product’s stand or the specied screws to
avoid damage to the product or the stand.
• Please tighten all screws (Recommended Fasten Force: 98 - 137 N•cm) when installing the
product to a exible arm or stand. A loose screw may cause the product to fall, causing damage
to the product or personal injury.
• Attaching the exible arm should be performed by two or more people if the product cannot be
placed face-down on a at surface for installation.
Stability Hazard.
The product may fall, causing serious personal injury or death. To prevent injury, this product must
be securely attached to the oor/ wall in accordance with the installation instructions. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
• ALWAYS use stands or installation methods recommended by the manufacturer of the product
set.
• ALWAYS use furnitures that can safely support the product.
• ALWAYS ensure the product is not overhanging the edge of the supporting furniture.
• ALWAYS educate children about the dangers of climbing on furniture to reach the product or its
controls.
• ALWAYS route cords and cables connected to your product so they cannot be tripped over,
pulled or grabbed.
• NEVER place a product in an unstable location.
• NEVER place the product on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the product to a suitable support.
• NEVER place the product on cloth or other materials that may be located between the product
and supporting furniture.
• NEVER place items that might tempt children to climb, such as toys and remote controls, on the
top of the product or furniture on which the product is placed.
• ALWAYS use wall mounting accessories when installing the product at a high location. NEVER
place the product on a monitor stand when installing the product at a high location.
If the existing product is going to be retained and relocated, the same considerations as above
should be applied.
9
Do not place this product on a sloping or unstable cart, stand or table.
Doing so could lead to falling or tipping and cause personal injury.
Do not insert objects of any kind into the cabinet slots.
It may cause electric shock, re, or product failure. Keep objects away from children and babies.
If objects get into the cabinet slot, turn off the product’s power, then unplug the power cord from the
power outlet. Contact your dealer for repairs.
English−6
Do not spill any liquids into the cabinet or use your product near water.
Immediately turn off the power and unplug your product from the wall outlet, then refer servicing to
qualied service personnel. It may cause an electric shock or start a re.
Do not use ammable gas sprays to remove dust when cleaning the product.
Doing so could lead to a re.
Usage of the product must not be accompanied by fatal risks or dangers that, could lead directly to
death, personal injury, severe physical damage or other loss, including nuclear reaction control in
nuclear facility, medical life support system, and missile launch control in a weapon system.
English−7
English
Handling the power cord.
Handle the power cord with care. Damaging the cord could lead to re or electric shock.
• When connecting the power cord to the product’s AC IN terminal, make sure the connector is
fully and rmly inserted.
• Make sure the power cord cannot be easily disconnected.
• Do not connect or disconnect the power cord with wet hands.
• When connecting or disconnecting the power cord, pull the power cord out by holding onto its
plug.
• When cleaning the product, for safety purposes, unplug the power cord from the power outlet
beforehand. Regularly dust off the power cord by using a soft dry cloth.
• Before moving the product, make sure the monitor power is off, then unplug the power cord
from the power outlet and check that all cables connecting the product to other devices are
disconnected.
• When you are not planning to use the product for an extended period of time, always unplug the
power cord from the power outlet.
• This equipment is designed to be used in the condition of the power cord connected to the
earth.
If the power cord is not connected to the earth, it may cause electric shock. Please make sure
the power cord is connected to the wall outlet directly and earthed properly. Do not use a 2-pin
plug converter adapter.
Please conrm the distribution system in building installation shall provide the circuit breaker rated
120/240 V, 20 A (maximum).
Do not bind the power cord.
It may trap heat and cause a re.
Do not climb on the table where the product is installed. Do not install the product on a wheeled
table if the wheels on the table have not been properly locked. The monitor may fall, causing
damage to the product or personal injury.
Installation, removal, and adjustment of the stand.
• Handle with care when pulling the stand as it might pinch your ngers.
• Please securely hold the monitor stand while removing the screws to prevent the monitor stand
from falling. It may case personal injury.
• Before rotating the screen, disconnect the power cord and all cables from the product.
Otherwise, the power cord or cables might pull with excessive force and cause personal injury
or damage to the product.
• When rotating the screen, slide it to the highest level and set it to the maximum tilt.
Otherwise, it could cause personal injury or knock the screen on the desk.
Please check the Specications for the available Tilt range when installing the product on a exible
arm.
Do not tilt the monitor downward beyond 5 degrees. Doing so can cause the LCD panel to separate
and potentially fall out causing damage to the product or personal injury.
English−8
Do not push the product.
The product may fall, causing damage to the product or personal injury.
8
Do not impact the LCD panel surface, it can cause serious damage to the product or personal
injury.
9
Suitable for entertainment purposes at controlled luminous environments, to avoid disturbing
reections from the screen.
Do not connect headphones to the product while you are wearing them.
Depending on the volume level, it may damage your ears and cause loss of hearing.
Do not play with the plastic bag which covers the product.
Do not use this bag for any other purpose. To avoid the danger of suffocation, do not place this bag
over your head, nose or mouth. Do not place this bag over another person’s head, nose or mouth.
Keep this bag away from children and babies.
To ensure the product’s reliability, please clean the ventilation holes at the rear side of the cabinet
at least once a year to remove dirt and dust. Failure to do so could lead to electric shock or damage
to the product.
Avoid locations with extreme temperatures and humidity.
Failure to do so could lead to re or electric shock or damage to the product.
The usage environment for this product is as follows:
• The operating temperature: 5 °C to 35 °C/41 °F to 95 °F/
humidity: 20 to 80% (without condensation)
• The storage temperature: -10 °C to 60 °C/14 °F to 140 °F/
humidity: 10 to 85% (without condensation)
English−9
English
Plug Type North America
European
Continental
U.K. Chinese Japanese
Plug Shape
Region U.S.A./Canada EU U.K. China Japan
Voltage 120* 230 230 220 100
* Please use this power cord under 125 V power supply.
This product can only be serviced in the country where it was purchased.
Image Persistence, also called Image Retention, is a condition that occurs when a previously displayed image leaves a
residual or “ghost” impression on the screen. This happens when a single still image is shown for an extended time or when
an image tremors or ashes at high speed. This is due to the technology of the LCD module and screen characteristics; it is
not a product failure. While a residual image may disappear over time depending on the product usage, there is no guarantee
Image Persistence will resolve itself. Please follow these guidelines to care for the product and reduce the chance of Image
Persistence occurring:
Do not display images with repeated tremors or ashing at high speeds.
Do not display a single still image for an extended period of time.
One of the methods to avoid Image Persistence is to frequently switch the displaying image using computer power management
or screen savers.
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR CAN
REDUCE EYE, SHOULDER, AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
To realize the maximum ergonomics benets, we recommend the following:
• For optimum performance of the monitor, allow 20 minutes for warming up. Avoid
reproduction of still patterns on the monitor for long periods of time to avoid image
persistence (after image effects).
• Adjust the monitor height so that the top of the screen is at or slightly below eye level.
Your eyes should look slightly downward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm (15.75 inches) and no further away than
70 cm (27.56 inches) from your eyes. The optimal distance is 50 cm (19.69 inches).
• Rest your eyes periodically for 5 to 10 minutes for every 1 hour by focusing on an object
at least 20 feet away.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare
and reections. Adjust the monitor tilt so that ceiling lights do not reect on your screen.
• If reected light makes it hard for you to see your screen, use an anti-glare lter.
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize
turning your head while you are typing.
• Blink often. Eye exercise helps to reduce eye strain. Please contact your ophthalmologist. Get regular eye checkups.
• To avoid eye fatigue, adjust the brightness to a moderate setting. Place a sheet of white paper next to the LCD screen for
luminance reference.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.
English−10
• Use the preset Color Setting.
• Use non-interlaced signals.
• Do not use primary color blue on a dark background, as it is difcult to see and may produce eye fatigue due to insufcient
contrast.
For more detailed information on setting up a healthy work environment, write to the American National Standard for Human
Factors Engineering of Computer Workstations - ANSI/HFES 100-2007 - The Human Factors Society, Inc. P.O. Box 1369,
Santa Monica, California 90406.
• When the LCD Screen is dusty, please gently wipe with a soft cloth.
• Clean the LCD screen surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Please do not rub the LCD Screen with hard or coarse material.
• Please do not apply pressure to the LCD Screen surface.
• Please do not use OA cleaner as it will cause deterioration or discoloration on the LCD Screen surface.
• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
DO NOT clean with benzene thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner,
soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time.
These types of uids and materials can cause the paint to deteriorate, crack or peel.
English−11
English
Product Features
•
Allow you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.
•
Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.
•
A 5-way control button on the back with on-screen display (OSD) indicators for easy adjustment of key settings.
•
The ergonomic features include a fully articulating monitor stand, OSD controls for quick and easy image adjustment, and
lower emissions.
•
The Microsoft
®
solution with the Windows
®
operating system facilitates setup and installation by allowing the monitor to send
its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display
performance.
•
Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but
not in use, saving two-thirds of your monitor energy costs, reducing emissions, and lessening the air conditioning demands
on the workplace.
•
Automatically adjusts the monitor to the display card’s scanning frequency, thus displaying the resolution required.
•
Allows you to use the entire screen area in most resolutions, signicantly expanding the image size.
•
Allows you to connect your MultiSync monitor to any VESA standard third party mounting arm or bracket.
•
Low Blue Light function substantially reduces blue light and helps to alleviate eye strain (see page 33).
•
Special backlight system reduces icker for less eye strain.
•
Offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSD display settings from a
network PC.
English−13
English
21
1
Indicates that the power is on or off.
2
Up
Down
LeftRight
⏻
Turns the monitor on and off by touching this key for 3 seconds or more.
Opens the OSD menu.
RIGHT: Enters sub-menus or adjustment settings in the OSD menu when the
OSD menu is open.
LEFT: Exits the OSD sub-menus, adjustment settings, and main menu.
Opens the OSD menu.
UP: When the OSD menu is open, it navigates to the right or raises settings
adjustments.
DOWN: When the OSD menu is open, it navigates to the left or lowers settings
adjustments.
English−14
1 AC IN Connector
7 Security Slot
4 VGA
5 Audio IN
2 DisplayPort IN
3 HDMI IN
9 Label
6 Headphone
8 SpeakerSpeaker 8
1
Connects with the supplied power cord.
2
Digital DisplayPort signals input.
3
Digital HDMI signals input.
4
Analog RGB signals input.
5
Audio signal input from external equipment such as a
computer or player.
6
Connects with headphones.
The audio out signal is always routed to the headphone jack
when headphones are connected to the monitor; there is no
sound from the monitor speakers.
7
Security and theft protection lock slot compatible with
Kensington security cables/equipment.
For products visit Kensington’s website.
8
9
As a security measure, you can secure the monitor to a xed object with an
optional security cable.
Please follow the security cable supplier’s recommended instructions to install.
A security cable (purchased separately) is designed as a deterrent,
it is not guaranteed to prevent the device from being mishandled or
stolen.
English−15
English
For box contents, please refer to the printed contents sheet or setup manual provided in the box.
The accessories included depends on the location where the monitor was shipped.
1. Place the monitor face down on a non-abrasive surface ().
2. Please rotate the monitor stand 90 degrees as shown in .
Please refer to “CAUTION 5”.
3. Attach the base to the stand, then tighten the screw at the base’s
bottom ().
Reverse this procedure if you need to re-pack the monitor.
Please refer to “WARNING 8”.
Please connect the power cord and signal cables to the monitor (see page 14).
Hold the monitor on each side and adjust the screen position as desired.
For screen rotation (pivot), hold the monitor on each side, lift to its maximum height and turn it from landscape to portrait.
Please refer to “CAUTION 6” and “CAUTION 9”.
Screw
90°
English−16
1. Place your hands on each side of the monitor to tilt the panel to a maximum tilt angle and lift up to the highest position
().
Please refer to “CAUTION 5”.
Maximum Tilt (Up 25° Down 5°)
2. Connect devices to the monitor.
Turn off the power to your computer.
DisplayPort
Power cord
HDMI
DisplayPort HDMI
D-SUB Headphone
D-SUB
Audio
IN
Audio OUT
English−17
English
Use the provided specied cables with this product so as not to interfere with radio and television
reception.
For mini D-Sub 15-pin, please use a shielded signal cable with core.
For HDMI and DisplayPort, please use a shielded signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
Please refer to “CAUTION 3” and “CAUTION 9”.
Adjustment of the volume control as well as the equalizer to other settings than the center position may
increase the ear-/headphones output voltage and therefore the sound pressure level.
Incorrect cable connections may result in irregular operation, damage display quality/components of the LCD
module and/or shorten the module’s life.
Make sure the signal cable is fully connected to the monitor and the computer.
There can only be one audio source for the speakers. The audio source is via the video input when using the
DisplayPort or HDMI inputs. Sound from devices connected to the Audio IN terminal cannot be output to the
speakers in those circumstances.

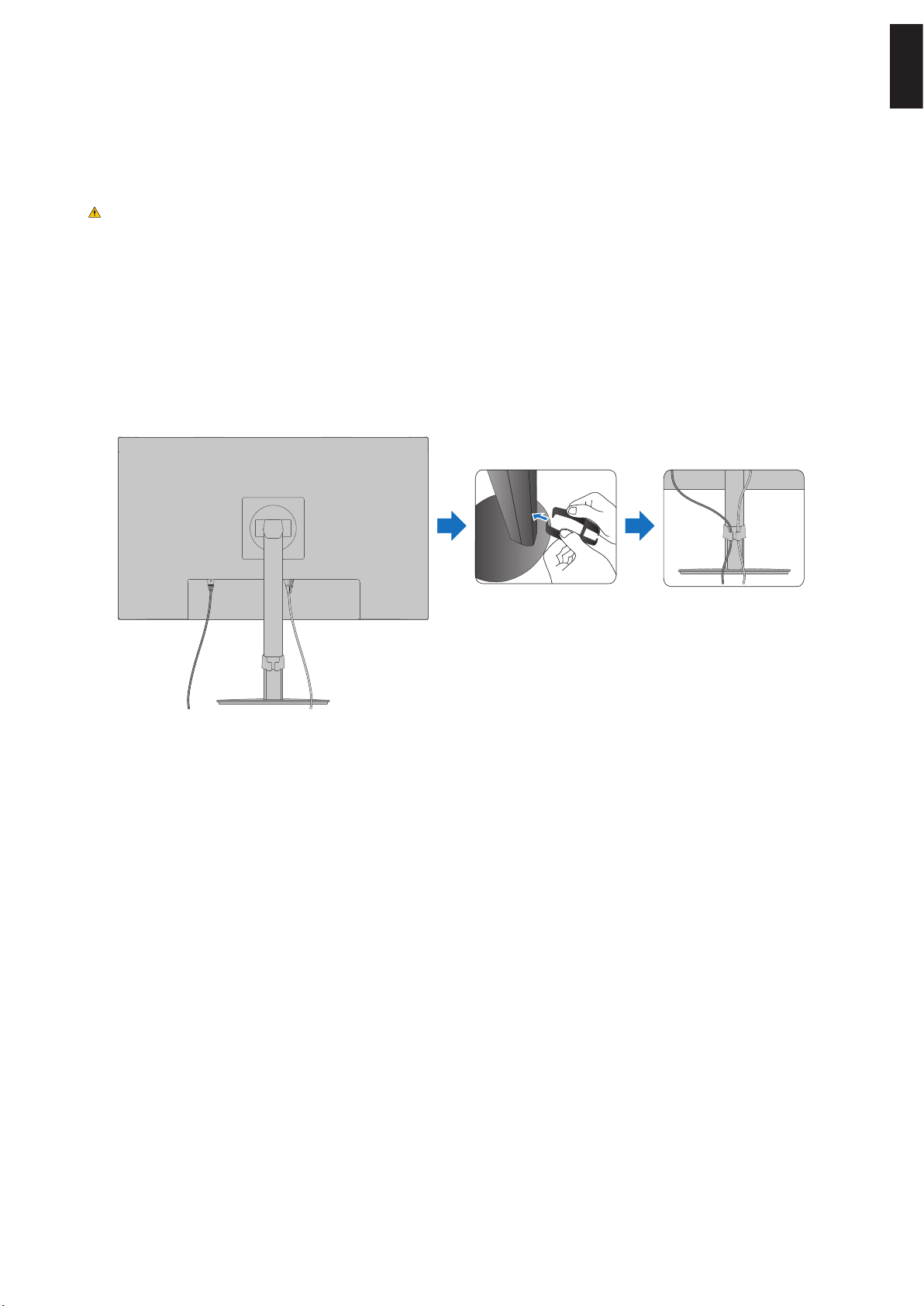

3. Place the cable holder onto the stand ().
Place the cables in the cable holder rmly and evenly.
English−18
4. Please check that you can still rotate, raise and lower the monitor screen after you have installed the cables ( and
).
Power Cord
DisplayPort Cable
DisplayPort Cable
Power Cord
5. Connect the power cord to a power outlet.
Please refer to the Caution section of this manual for proper selection of the AC power cord (see page 9).
Please make sure that enough power is supplied to the monitor. Please refer to “Power Supply” in the
“Chapter 4 Specications” on page 28.
6. Turn on the monitor by pressing the ⏻ button and then turn on the computer. Please make sure the LED on the front of the
monitor is lit.
If you have any problems please refer to the Troubleshooting section of this User’s Manual (see page 25).
English−19
English
• VGA (mini D-Sub 15-pin) – Analog video signal connection to a computer. Video only, no audio signal.
• HDMI – High denition digital video and audio signal connection to a computer, streaming media player, Blu-ray player,
game console, etc.
• DisplayPort – High denition digital video and audio signal connection to a computer.
Depending on the computer, you may need to manually set the computer’s audio to output through the DisplayPort or HDMI
connection. Please refer to the computer’s user manual.
The type of video connections that can be used to connect to a computer depends on the computer’s display adapter.
The following table shows the typical factory preset signal timing for each connection type. Some display cards may not be able
to support the required resolution for proper image reproduction with the selected connection. The monitor will show the proper
image by automatically adjusting the factory preset timing signal.
<Major supported timings>
V
640 x 480 60 Hz
720 x 480 60 Hz
720 x 576 50 Hz
800 x 600 56/60 Hz SVGA
1024 x 768 60 Hz XGA
1280 x 720 50/60 Hz 720p
1280 x 960 60 Hz
1280 x 1024 60 Hz SXGA
1440 x 900 60 Hz
1680 x 1050 60 Hz
1920 x 1080 50/60 Hz 1080p, Recommended (60 Hz)
Interlace signal is not supported.
• When the selected monitor resolution is not a native panel resolution, the text contents appearance in the monitor
screen is expanded in a horizontal or vertical direction to show the non-native resolution to full screen. This
expansion is done by interpolated resolution technologies, which are normal and widely used in at panel devices.
• Signal timings other than those listed in the table, and the screen position, size, and phase, may not be preserved for
the analog signal.
• Please use an HDMI cable with the HDMI logo.
• It may take a moment for the signal to appear after turning on the computer.
• Some display cards or drivers may not display an image correctly.
• If the monitor’s power is turned on after a connected computer is turned on, sometimes an image is not displayed. In this
case, please turn off the computer then turn it on again.
• Please use a certied DisplayPort cable.
• It may take a moment for the signal to appear after turning on the computer.
• When connecting a DisplayPort cable to a component with a signal conversion adapter, an image may not appear.
• Some DisplayPort cables feature a locking function. When removing this cable, hold down the top button to release the lock.
• If the monitor’s power is turned on after a connected computer is turned on, sometimes an image is not displayed. In this
case, please turn off the computer then turn it on again.
English−20
This monitor is designed for use with a exible arm. Contact us for more information.
Follow the instructions provided by the manufacturer of the display mount. Use only VESA-compatible alternative mounting
method. Remove the monitor stand before mounting.
Please refer to “WARNING 8”. See the Specications on page 28 for details.
Handle with care when removing the monitor stand.
1 2 3 4
Non-abrasive surface
Using four screws that meet the specications listed below, attach the arm to the monitor.
100 mm
100 mm
M4
6-10 mm
4 x 12 mm
12 mm
2.0 - 3.2 mm
6
VESA
100 mm x 100 mm
5
Please refer to “CAUTION 7”.
English−21
English

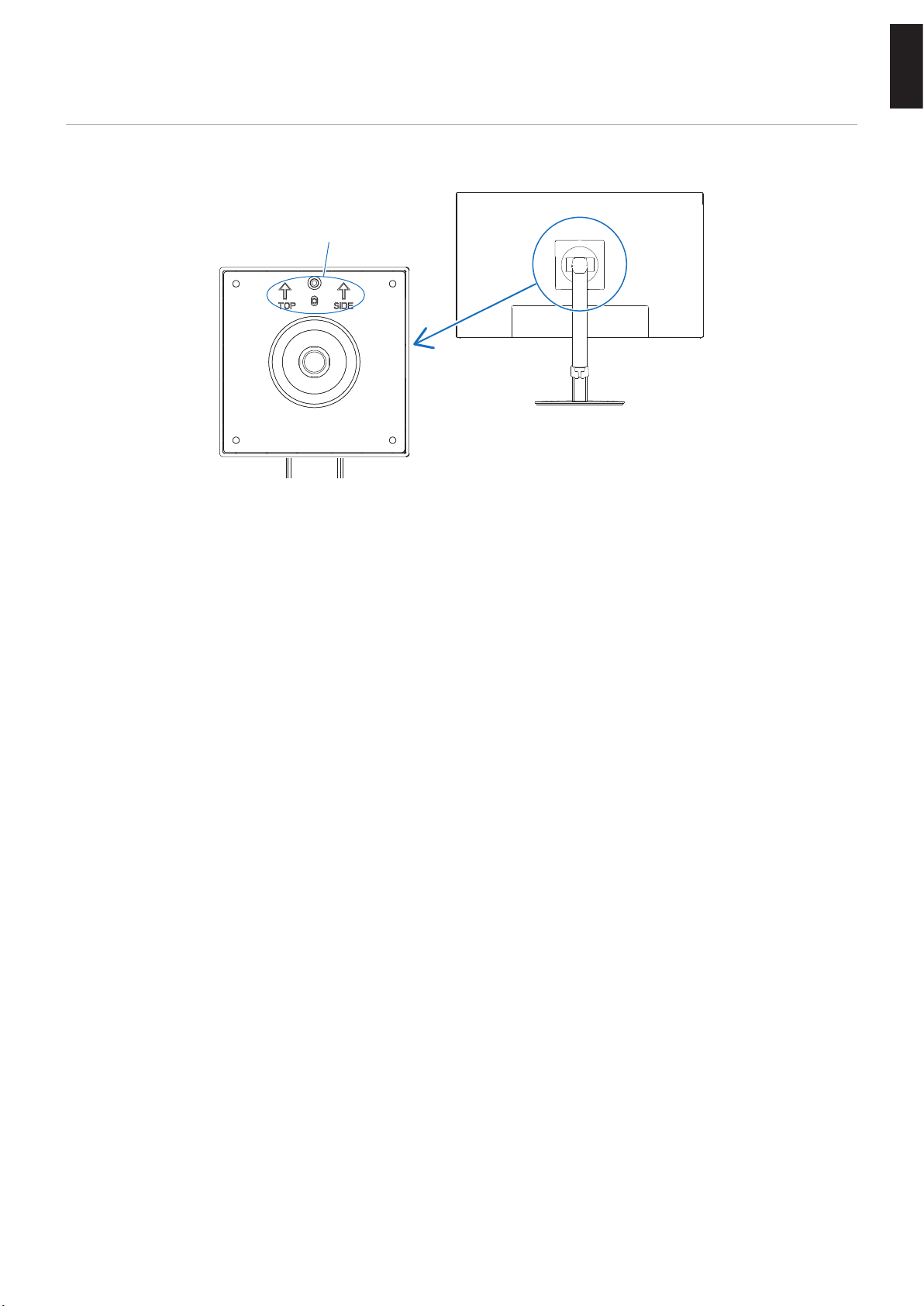

Reverse the process in the previous section to re-attach stand.
Match “TOP SIDE” mark on stand to top side of the monitor when re-attaching stand.
“TOP SIDE” mark
Please match top side of the monitor
English−23
English
• To open the OSD menu, touch any of 5-direction-key.
Luminance
Brightness
90
Contrast
50
DV MODE
Response Improve
Return Enter/Select Move/Adjust
Off
On
Off
ECO MODE
Press the DOWN or UP
keys to make adjustments
or selections.
1
UP key
2
DOWN key
3
RIGHT key
4
LEFT key
Adjustment SettingsSub-menuMain Menu
Selected Main
Menu name
Below is a brief summary of where controls are under each menu item. Tables listing all options available in the OSD menu are
located in “Appendix A OSD Controls List” on page 32.
Brightness and Eco Mode settings.
Screen adjustment settings.
Color settings.
OSD menu settings.
Automatic screen adjustments and factory reset.
Input and audio settings.
English−24
To change the signal input, open the OSD menu by touching any of 5-direction-key. You can select the input signal at “Input
Select” under the “Extra”.
When selecting [Auto] input, the monitor selects the active signal input automatically.
HDCP is a system for preventing illegal copying of video data sent over a digital signal. If you are unable to view material via
the digital inputs, this does not necessarily mean that the monitor is not functioning properly. With the implementation of HDCP,
there may be cases in which certain content is protected by HDCP and might not be displayed due to the decision/intention of
the HDCP community (Digital Content Protection, LLC). HDCP video content is generally commercially produced Blu-rays and
DVDs, television broadcast, and streaming media services.
The power management function is an energy saving feature that automatically reduces the power consumption of the monitor
when the keyboard or the mouse has not been used for a xed period.
Maximum operation Blue Approx. 22 W (E224F)
Approx. 26 W (E244F)
Approx. 29 W (E274F)
All functions work.
Normal operation Blue Approx. 14 W*
1
(E224F)
Approx. 17 W*
1
(E244F)
Approx. 18 W*
1
(E274F)
Default setting.
Energy saving mode Amber 0.22 W*
1
(E224F, E244F)
0.25 W*
1
(E274F)
The monitor has passed a certain amount of time with no video
signal input.
Off mode Off 0.18 W*
1
(E224F, E244F)
0.21 W*
1
(E274F)
Turn off the monitor by the ⏻ key.
*
1
: Power consumption depends on the OSD menu setting or which devices are connected to the monitor.
This function works with computers that support VESA approved DPM (Display Power Management).
English−26
• Make sure the signal cable is fully connected to the monitor and the computer.
• Make sure there is no DisplayPort converter adapter connected. The monitor does not support DisplayPort converter
adapter.
• Make sure the computer’s display card is fully seated in its slot.
• Make sure both the computer and monitor are powered on.
• Make sure that a supported resolution has been selected on the display card or system being used. If in doubt, please refer
to the user’s manual of the display controller or system to change the resolution.
• Check the monitor and your display card with respect to compatibility and recommended signal timings.
• Check the signal cable connector for bent or pushed-in pins.
• The monitor may be in power saving mode. The monitor automatically goes into standby at the preset time period after the
video signal is lost.
• Make sure the connected device outputs a signal to the monitor.
• If a ghost or residual image occurs, please check Image Persistence (see page 9).
• Make sure the signal cable is fully connected to the monitor and the computer.
• Check the monitor and your display card with respect to compatibility and recommended signal timings.
• Make sure [ECO MODE] is [Off].
• Make sure the signal cable is fully connected to the monitor and the computer.
• LCD brightness degradation occurs due to long-term usage or extreme cold conditions.
• If the brightness uctuates, make sure [DV MODE] is set to [Off]. Please refer to “OSD Warning” on page 34.
• If the resolution you set is over or under a range, “OUT OF RANGE” window will appear then warn you. Please set
supported resolution at the connected computer.
• Change [DV MODE] to [Off] and adjust brightness. Please refer to “OSD Warning” on page 34.
When [DV MODE] is set to [On], the monitor automatically adjusts brightness based on the video signal.
English−27
English
⏻
• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.
• Make sure the power cord is properly connected to the monitor and the wall, and make sure the monitor’s power switch is
on.
• If no video is present on the screen, turn the ⏻ key off for 3 seconds or more and on again.
• Make sure the computer is not in a power-saving mode by touching the connected keyboard or the connected mouse.
• When using DisplayPort, some display cards do not output video signal under low resolution modes when the monitor is
turned OFF/ON or disconnected/connected from the AC power cord.
• Check to see if [Audio Mute] is activated.
• Check to see if [Audio Volume] is set to a minimum.
• Check to see if the computer supports an audio signal through DisplayPort or HDMI.
• Check the input signal. It outputs the audio signal associated with the input signal. When the input signal is DisplayPort or
HDMI, this monitor cannot output Analog audio signal.
• Check to see if the headphones cable is properly connected when using headphones.
• Check to see if headphones are connected if not using headphones.
English−29
English
LCD Module Diagonal:
Viewable Image Size:
Native Resolution:
54.48 cm / 21.45 inches
54.48 cm / 21.45 inches
1920 x 1080 60 Hz
Active matrix; thin lm transistor (TFT) liquid crystal
display (LCD); 0.249 mm (H) x 0.241 mm (V) dot pitch;
250 cd/m
2
white luminance; 3000:1 contrast ratio
(typical), (30000:1 Contrast ratio, DV MODE ON).
Input Signal
VGA: Mini D-Sub 15-pin: Analog RGB
Sync
0.7 Vp-p / 75 ohm
Separate sync.TTL level Positive/Negative
DisplayPort: DisplayPort Connector: Digital RGB Up to 1920 x 1080 60 Hz, 8 bit, DisplayPort V1.2
(HDCP 1.3)
HDMI: HDMI Connector: Digital RGB / YUV Up to 1920 x 1080 60 Hz, HDMI (HDCP 1.4)
Display Colors 16777216 Depends on display card used.
Synchronization Range Horizontal:
Vertical:
31.5 kHz to 81.1 kHz
50 Hz to 75 Hz
Automatically
Automatically
Viewing Angle Left/Right:
Up/Down:
±89° (CR > 10)
±89° (CR > 10)
Response Time 6 ms (Gray to Gray Typ.)
Active Display Area Landscape: Horiz.:
Vert.:
Portrait: Horiz.:
Vert.:
478.7 mm / 18.8 inches
260.3 mm / 10.2 inches
260.3 mm / 10.2 inches
478.7 mm / 18.8 inches
AUDIO
AUDIO Input: STEREO Mini Jack:
DisplayPort Connector:
HDMI Connector:
Analog Audio
Digital Audio
Digital Audio
Stereo L/R 500mV rms 20 Kohm
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
Headphone Output: STEREO Mini Jack: Headphone Impedance 32 Ohm
Speakers Practical Audio Output: 1.0 W+ 1.0 W
Power Supply AC 100-240 V, 50/60 Hz
Current Rating 0.40 - 0.25 A
Dimensions Landscape:
Portrait:
493.2 mm (W) x 363.4 – 483.4 mm (H) x 233.2 mm (D)
19.4 inches (W) x 14.3 – 19.0 inches (H) x 9.2 inches (D)
285.3 mm (W) x 506.9 – 587.3 mm (H) x 233.2 mm (D)
11.2 inches (W) x 20.0 – 23.1 inches (H) x 9.2 inches (D)
Stand adjustable range Height Adjustment:
Tilt / Pivot / Swivel:
120 mm / 4.7 inches (Landscape orientation)
80.4 mm / 3.2 inches (Portrait orientation)
Up 25° Down 5° / ± 90° / ± 170°
Weight Approx. 5.2 kg (11.5 lbs) (with monitor stand)/
Approx. 3.1 kg (6.8 lbs) (without monitor stand)
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
5°C to 35°C / 41°F to 95°F
20% to 80%
0 to 16,404 Feet / 0 to 5,000 m
-10°C to 60°C / 14°F to 140°F
10% to 85%
0 to 40,000 Feet / 0 to 12,192 m
Technical specications are subject to change without notice.
English−30
LCD Module Diagonal:
Viewable Image Size:
Native Resolution:
60.47 cm / 23.8 inches
60.47 cm / 23.8 inches
1920 x 1080 60 Hz
Active matrix; thin lm transistor (TFT) liquid crystal
display (LCD); 0.275 mm dot pitch; 250 cd/m
2
white
luminance; 3000:1 contrast ratio (typical), (30000:1
Contrast ratio, DV MODE ON).
Input Signal
VGA: Mini D-Sub 15-pin: Analog RGB
Sync
0.7 Vp-p / 75 ohm
Separate sync.TTL level Positive/Negative
DisplayPort: DisplayPort Connector: Digital RGB Up to 1920 x 1080 60 Hz, 8 bit, DisplayPort V1.2
(HDCP 1.3)
HDMI: HDMI Connector: Digital RGB / YUV Up to 1920 x 1080 60 Hz, HDMI (HDCP 1.4)
Display Colors 16777216 Depends on display card used.
Synchronization Range Horizontal:
Vertical:
31.5 kHz to 81.1 kHz
50 Hz to 75 Hz
Automatically
Automatically
Viewing Angle Left/Right:
Up/Down:
±89° (CR > 10)
±89° (CR > 10)
Response Time 6 ms (Gray to Gray Typ.)
Active Display Area Landscape: Horiz.:
Vert.:
Portrait: Horiz.:
Vert.:
527.0 mm / 20.7 inches
296.5 mm / 11.7 inches
296.5 mm / 11.7 inches
527.0 mm / 20.7 inches
AUDIO
AUDIO Input: STEREO Mini Jack:
DisplayPort Connector:
HDMI Connector:
Analog Audio
Digital Audio
Digital Audio
Stereo L/R 500mV rms 20 Kohm
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
Headphone Output: STEREO Mini Jack: Headphone Impedance 32 Ohm
Speakers Practical Audio Output: 1.0 W+ 1.0 W
Power Supply AC 100-240 V, 50/60 Hz
Current Rating 0.45 - 0.3 A
Dimensions Landscape:
Portrait:
540.5 mm (W) x 381.0 – 501.0 mm (H) x 233.2 mm (D)
21.3 inches (W) x 15.0 – 19.7 inches (H) x 9.2 inches (D)
320.5 mm (W) x 554.2 – 611.0 mm (H) x 233.2 mm (D)
12.6 inches (W) x 21.8 – 24.1 inches (H) x 9.2 inches (D)
Stand adjustable range Height Adjustment:
Tilt / Pivot / Swivel:
120 mm / 4.7 inches (Landscape orientation)
56.8 mm / 2.2 inches (Portrait orientation)
Up 25° Down 5° / ± 90° / ± 170°
Weight Approx. 5.6 kg (12.3 lbs) (with monitor stand)/
Approx. 3.5 kg (7.7 lbs) (without monitor stand)
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
5°C to 35°C / 41°F to 95°F
20% to 80%
0 to 16,404 Feet / 0 to 5,000 m
-10°C to 60°C / 14°F to 140°F
10% to 85%
0 to 40,000 Feet / 0 to 12,192 m
Technical specications are subject to change without notice.
English−31
English
LCD Module Diagonal:
Viewable Image Size:
Native Resolution:
68.60 cm / 27 inches
68.60 cm / 27 inches
1920 x 1080 60 Hz
Active matrix; thin lm transistor (TFT) liquid crystal
display (LCD); 0.311 mm dot pitch; 250 cd/m
2
white
luminance; 4000:1 contrast ratio (typical), (30000:1
Contrast ratio, DV MODE ON).
Input Signal
VGA: Mini D-Sub 15-pin: Analog RGB
Sync
0.7 Vp-p / 75 ohm
Separate sync.TTL level Positive/Negative
DisplayPort: DisplayPort Connector: Digital RGB Up to 1920 x 1080 60 Hz, 8 bit, DisplayPort V1.2
(HDCP 1.3)
HDMI: HDMI Connector: Digital RGB / YUV Up to 1920 x 1080 60 Hz, HDMI (HDCP 1.4)
Display Colors 16777216 Depends on display card used.
Synchronization Range Horizontal:
Vertical:
31.5 kHz to 83.0 kHz
50 Hz to 75 Hz
Automatically
Automatically
Viewing Angle Left/Right:
Up/Down:
±89° (CR > 10)
±89° (CR > 10)
Response Time 6 ms (Gray to Gray Typ.)
Active Display Area Landscape: Horiz.:
Vert.:
Portrait: Horiz.:
Vert.:
597.9 mm / 23.5 inches
336.3 mm / 13.2 inches
336.3 mm / 13.2 inches
597.9 mm / 23.5 inches
AUDIO
AUDIO Input: STEREO Mini Jack:
DisplayPort Connector:
HDMI Connector:
Analog Audio
Digital Audio
Digital Audio
Stereo L/R 500mV rms 20 Kohm
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
PCM 2ch 32, 44.1, 48 kHz (16/20/24bit)
Headphone Output: STEREO Mini Jack: Headphone Impedance 32 Ohm
Speakers Practical Audio Output: 1.0 W+ 1.0 W
Power Supply AC 100-240 V, 50/60 Hz
Current Rating 0.5 - 0.3 A
Dimensions Landscape:
Portrait:
614.0 mm (W) x 401.7 – 521.7 mm (H) x 233.2 mm (D)
24.2 inches (W) x 15.8 – 20.5 inches (H) x 9.2 inches (D)
361.8 mm (W) x 627.4 – 647.7 mm (H) x 233.2 mm (D)
14.2 inches (W) x 24.7 – 25.5 inches (H) x 9.2 inches (D)
Stand adjustable range Height Adjustment:
Tilt / Pivot / Swivel:
120 mm / 4.7 inches (Landscape orientation)
20.3 mm / 0.8 inches (Portrait orientation)
Up 25° Down 5° / ± 90° / ± 170°
Weight Approx. 6.3 kg (13.9 lbs) (with monitor stand)/
Approx. 4.2 kg (9.3 lbs) (without monitor stand)
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
5°C to 35°C / 41°F to 95°F
20% to 80%
0 to 16,404 Feet / 0 to 5,000 m
-10°C to 60°C / 14°F to 140°F
10% to 85%
0 to 40,000 Feet / 0 to 12,192 m
Technical specications are subject to change without notice.
English−33
English
Brightness Adjusts the overall image and background screen brightness.
Contrast
Adjusts the image brightness in relation to the background.
ECO MODE
Decreases the amount of power consumption by reducing the brightness level.
Off Sets the brightness variable range from 0% to 100%.
1 Sets the brightness variable range from 0% to 70%.
2 Sets the brightness variable range from 0% to 30%.
DV MODE (Dynamic Visual Mode)
Adjusts the brightness by detecting the screen’s black areas and optimizes it.
[Off] is used for TCO Certicate compliance.
When [Low Blue Light] is selected in [Preset], [DV MODE] is disabled.
Response Imporve This function may reduce blurring that occurs in some moving images. Select [On].
Left/Right (Analog input only) Controls the horizontal position of the image within the display area of the LCD.
Down/Up (Analog input only) Controls the vertical position of the image within the display area of the LCD.
H.Size (Analog input only) Expands the width of the image on the right of the screen.
Narrows the width of the image on the left of the screen.
Fine (Analog input only) Adjusts the visual “noise” in the image.
Expansion Sets the Zoom method.
Full The image is expanded to full screen regardless of the resolution.
4:3 The image is expanded without changing the aspect ratio.
Preset Pre-congured color settings suitable for various situations.
The individual [Red], [Green], and [Blue] values can only be adjusted for the [USER] preset.
sRGB
sRGB dramatically improves the color delity in the desktop environment by a single standard RGB color
space. This item cannot be adjusted.
5000K, 9300K
Adjusts the color temperature of the entire screen. A low color temperature will result in a reddish screen.
A high color temperature will make the screen bluish. This item cannot be adjusted.
The options are: [5000K] or [9300K].
Low Blue Light
Reduces blue light emitted from the monitor. This item cannot be adjusted.
When [Low Blue Light] is selected in [Preset], [DV MODE] is disabled.
USER
Allows for individual adjustment of the [Red], [Green], and [Blue] colors depending upon which is selected.
The color change immediately affects the on-screen colors, and the bars will show the direction of the
increase or decrease.
English−34
Language Selects the language used by the OSD.
OSD Turn Off The OSD menu will stay open as long as it is in use. You can select how long the monitor waits after the
last touch to close the OSD menu. The preset choices are 5 - 120 seconds by 5-second increments.
Auto Adjust (Analog input only) [Left/Right], [Down/Up], [H.Size] and [Fine] are adjusted automatically when new timing is detected.
Auto Contrast (Analog input only) Adjusts the image displayed for non-standard video inputs.
FACTORY PRESET Resets all OSD control settings back to the default settings except [Language].
Input Select Selects the input signal source.
Auto, DSUB, HDMI, DisplayPort.
Audio Mute Mutes the speaker or headphone output.
Audio Volume Controls the volume of the speakers or headphones.
DDC/CI Turns the [DDC/CI] function [On] or [Off].
This function gives a warning when there is no horizontal or vertical sync. After power is turned on or when there
is a change of input signal, the window will appear. The message will close automatically.
This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned
on, or there is a change of input signal, or if the video signal doesn’t have proper timing, the message will
appear. To close the message, please disconnect signal cables.
This function noties of the increase in
power consumption. The message appears when adjusting [DV MODE], [Brightness], or [ECO MODE] settings.
To change the setting, select [Yes] in the message window and press the key.
To return without changing, select [No] in the message window and press the key.
English−35
English
Appendix B Manufacturer’s Recycling and
Energy Information
> “Disposing of your old NEC product” on page 36
> “Energy Saving” on page 36
> “WEEE Mark (European Directive 2012/19/EU and amendments)” on page 36
We are strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to
minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always
strive to help dene and comply with the latest independent standards from agencies such as ISO (International Organisation for
Standardization) and TCO (Swedish Trades Union).
English−36
The aim of recycling is to gain an environmental benet by means of re-use, upgrading, reconditioning or reclamation of
material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely
disposed. To ensure the best recycling of our products, we offer a variety of recycling procedures and gives advice on how to
handle the product in an environmentally sensitive way, once it has reached the end of its life.
All required information concerning the disposal of the product and country-specic information on recycling facilities can be
found on our following websites:
https://www.sharpnecdisplays.eu/p/hq/en/home.xhtml (in Europe),
https://www.sharp-nec-displays.com/jp/ (in Japan) or
https://www.sharpnecdisplays.us/ (in USA).
This monitor features an advanced energy saving capability. When a Display Power Management signal is sent to the monitor,
the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.
For additional information visit:
https://www.sharpnecdisplays.us/ (in USA)
https://www.sharpnecdisplays.eu/p/hq/en/home.xhtml (in Europe)
https://www.sharp-nec-displays.com/global/index.html (Global)
EU-wide legislation as implemented in each Member State requires that used electrical and electronic products
carrying the mark (left) must be disposed of separately from normal household waste. This includes monitors
and electrical accessories, such as signal cables or power cords. When you dispose of such products, please
follow the guidance of your local authority or ask the shop where you purchased the product, or if applicable,
follow applicable legislation or agreement you may have. The mark on electrical and electronic products may
only apply to the current European Union Member States.
If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority
and ask for the correct method of disposal.
Rev. 1
