Foldable 3-Wheel Golf Push Cart
SLGZ48
New Deluxe Scorecard Holder,
Upper & Lower Brackets with Elastic Strap
Includes Cup Holder, Scorecard Holder,
and Patented Bag Holder
www.SereneLifeHome.com
2
WARNING:
• For your own safety, please read and understand these
warnings and keep this user guide for future reference.
• Always make sure the trolley is fully extended and locked
before use. Always make sure the trolley is folded and
locked properly before lifting or transporting.
• Do not run while using this product.
• Do not use accessories other than those designed for use
with this trolley.
• Keep all packing materials away from children and recycle
where possible or where required by law.
MAINTENANCE
• To clean the trolley, wipe with a soft, dry cloth.
• Car polish may be used to maintain nish.
• Lubricate moving parts every 6 months.
WARNING:
• Keep hands and ngers away from moving or sliding parts!
• Always keep control of the buggy - Do not let it run down hills
without full control.
www.SereneLifeHome.com
3
PARTS LIST
A
B
C
D
E
F
G
H
I
J
K
K1
L
M
N
O
P
Q
R
S
T
U
V
W
PVC handle
Umbrella holder base
Scorecard holder
Handle tube
Umbrella holder storage rack
Upper bag holder bracket
Joint
Connecting rods
Main upper frame tube
Leg bracket
2 holes leg frame
4 holes leg frame
Anti-splay wire
Weight stabilizer
Right wheel locking mechanism
Left wheel locking mechanism
Rear wheel assembly
Main lower frame tube
Slippery connecting rods
Adjustable bag elastic rope
Lower bag holder bracket
Front wheel assembly
Adjustable handle mechanism
Handle brake for front wheel swivel
A
W
B
C
E
D
F
G
I
H
R
O
J
K
M
K1
P
L
N
Q
T
S
U
X
Z1
Z
V
Y
X Bottom bracket bag
Y Push button system
Z Strap
Z1 Hook
www.SereneLifeHome.com
4
ASSEMBLY STEPS
FOLDING STEP
Fig.1
Pull the handle up
until you hear the
cart 'Click' as in Fig.1
Fig.2
Button
Press the button and insert
the rear wheels as in Fig.2
Insert the front wheel as in
Fig.3
Completely assembled
trolley as Fig.4.
Fig.3
Fig.4
Press the red button
and fold the cart in
the direction of the
arrow as in Fig.5
Fig.6 shows the
folded position
Fig.5
Fig.6
www.SereneLifeHome.com
5
SWIVEL FRONT WHEEL SYSTEM USE THE BRAKE
USING THE BASKET
The front wheel can 360
swivel when the handle
brake pull down as Fig.7,
and the handle brake is
pull up, the front wheel
will run straight line.
Fig.7
Push on the brake pedal to stop the rear wheel
and pull o to release as in Fig.8 and 9.
Fig.8 Fig.9
1
2
1
2
3
6
4
7
5
8
7
8
6
3
4
5
Point 1, First step: Fixed the velcro strap
on the connecting rod, upper the plastic.
Check the two sides elastic strap the
same length.
www.SereneLifeHome.com
6
Point 2, Fixed the second velcro
strap on the lower connecting rod,
and only x the velcro, so it can
slide down and up when folding,
do not xed tightly, otherwise, it
will aect folding the trolley.
Point 3 & 4, Fixed velcro strap
on the 2 holes leg frame,
then pull the elastic strap
and click into Point 5 & 6 on
the 2 holes leg frame.
Point 7 & 8, Click the elastic strap
under the scorecard holder and
check the elastic strap if the same.
www.SereneLifeHome.com
7

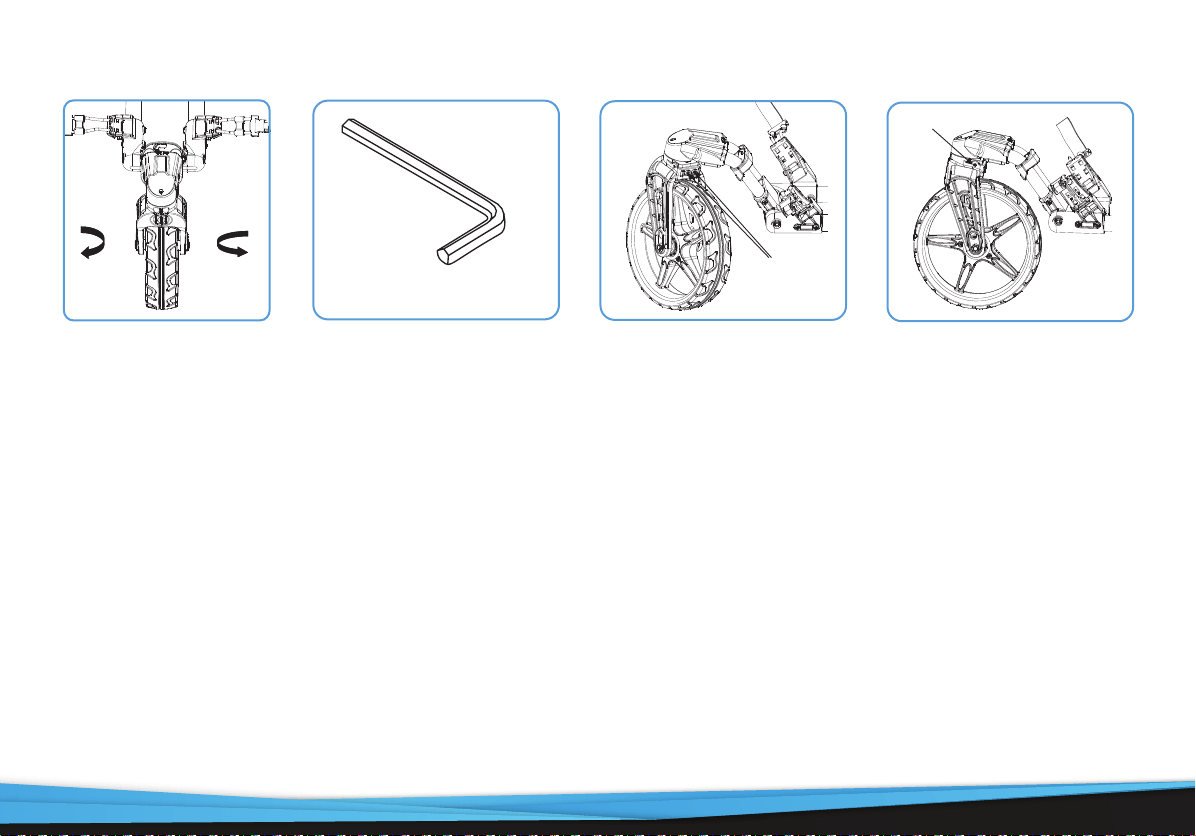

FRONT WHEEL ADJUSTABLE SYSTEM
WHEN FACING THE CART:
If the cart veers to RIGHT:
Use the Allen wrench (as shown in Fig. 12) to lose the 2 screws (A) on the backside of the front wheel frame as shown
in Fig. 13. Then adjust the front wheel to center position by turning the screw (B) counterclockwise as in Fig. 14.
Tighten the 2 Screws (A) after the front wheel alignment is done.
If the cart veers to LEFT:
Use the Allen wrench (as shown in Fig. 12) to lose the 2 screws (A) on the backside of the front wheel frame as shown
in Fig. 13. Then adjust the front wheel to center position by turning the screw (B) clockwise as in Fig. 14.
Tighten the 2 Screws (A) after the front wheel alignment is done.
Allen wrench/key
Fig.12
Left Right
Fig.11
A
Fig.13
B
Fig.14
www.SereneLifeHome.com
8
FEATURES:
• 3-Wheel AI Frame Trolley
• New Deluxe Scorecard Holder
• Includes Foot Brake for Rear Wheel
• With Handle Brake to Control 360° Swivel for Front Wheel
• Upper and Lower Bracket with Elastic Strap
• TPE Handle Grip
• Push Button System
• Ergonomic Padded Adjustable Handle
• Includes Cup Holder, Scorecard Holder, and Patented Bag Holder
• Simple Quick Braking System
• Convenient Storage and Cooler
• EZ Fold Mechanism
• Durable and Compact Size for Easy Storage and Transportation
• Easy to Fold and Unfold
• Designed for Multiple Pushing Positions
• Umbrella Holder Not Included
• * Assembly Needed
www.SereneLifeHome.com
9
WHAT'S IN THE BOX:
• (1) 3-Wheel Golf Push Cart
TECHNICAL SPECS:
• Construction Material: Aluminum Frame
• Max. Load Capacity: 33 lbs.
• Front Wheel Size: 9.5'' -inches
• Rear Wheels Size: 11.5'' -inches
• Folded Product Dimension (L x W x H): 19.1'' x 14.6'' x 22.8'' -inches
• Unfolded Product Dimension (L x W x H): 44.7'' x 28'' x 47.8'' -inches
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]
