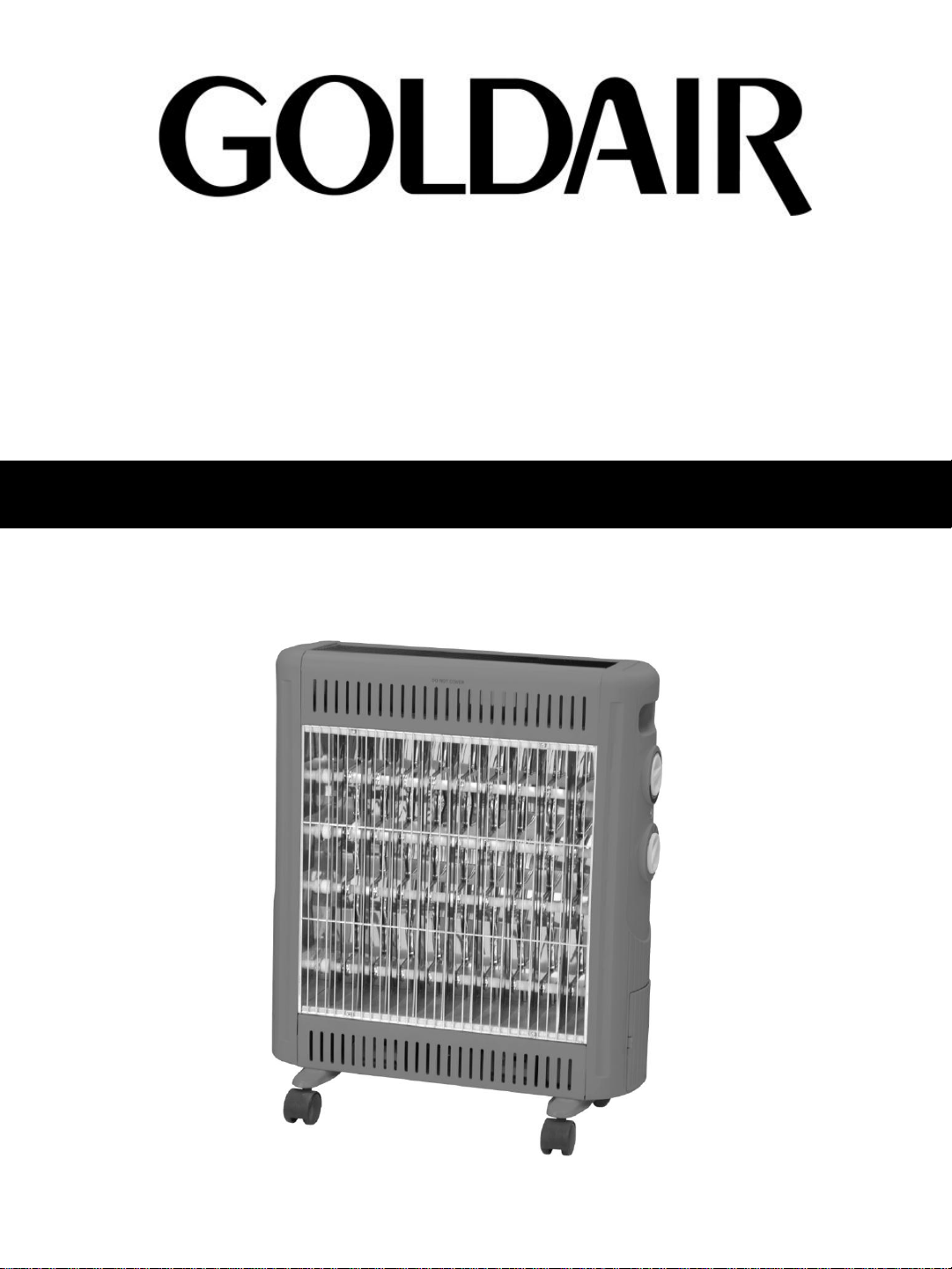

For models: GIR350
2200W Radiant Heater
OPERATING INSTRUCTIONS
1. Use only the voltage specified on the rating
plate of the appliance.
2. Keep all objects at least 1 metre from the
front, sides and rear of the appliance. Do not
place appliance close to radiant heat source.
3. Do not operate in areas where petrol, paint or
other flammable liquids are used or stored.
4. Do not insert or allow foreign objects to enter
any ventilation or exhaust opening, as this
may cause an electric shock, fire or damage
to the appliance.
5. Do not operate this appliance with a
damaged cord, plug or after the appliance
malfunctions or has been dropped or
damaged in any manner. Return to a
qualified electrical person for examination,
electrical service or repair.
6. This appliance is intended for household use
only and not for commercial or industrial use.
7. Use this appliance only as described in this
manual. Any other use is not recommended
by the manufacturer and may cause fire,
electrical shock or injury.
8. The common cause of overheating is
deposits of dust or fluff in the appliance.
Ensure these deposits are removed regularly
by unplugging the appliance and vacuum
cleaning the air vents and grills.
9. Do not use abrasive cleaning products on
this appliance. Clean with a damp cloth (not
wet) rinsed in hot soapy water only. Always
removed plug from the mains supply before
cleaning.
10.Do not connect the appliance to mains
voltage until completely assembled and
adjusted.
11.Switch off and use handles provided when
moving.
12.Do not operate with cord set coiled up as a
heat build up is likely, which could be
sufficient to become a hazard.
13.The use of an extension cord with this
appliance is not recommended.
14. Do not remove plug from power socket until the
appliance has been switched off.
15. Do not remove plug from power socket by
pulling cord – always grip plug.
16. Do not locate the unit immediately below a
socket outlet.
17. Always unplug appliance when not in use.
18. Do not twist, kink or wrap the cord around the
appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord
has been removed from any cord storage area
and is unrolled before use.
19. This appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person
to ensure that they can use the appliance safely.
20. Do not use this appliance in the immediate
surrounds of a bath, a shower, or a swimming
pool or other liquids. The appliance must not be
immersed in any liquids.
21. When the appliance has been unpacked, check
if for transport damage and ensure all parts have
been delivered. If parts are missing or the
appliance has been damaged, contact the
Goldair Customer Services Team. (refer to
details on back page)
22. If your appliance does not work, or is not
working properly, contact the place of purchase
or the Goldair Customer Services Team. (refer
to details on back page). Repair work on the
appliance by unqualified persons can cause
serious risk to the user.
23. There are no user serviceable parts installed in
the unit.
24. Do not put your fingers or other articles into or
near the air inlet or outlet. Do not sit on the unit.
25. Do not place the unit in wardrobes or other
enclosed spaces as this may cause fire hazards.
26. This unit is not supposed to be used in or around
locations where foodstuffs, works of art or
delicate articles of science, etc are stored.
27. Indoor use only.
28. Children should be supervised to ensure that
they do not play with the appliance.
WARNINGS AND SAFEGUARDS
OVERVIEW OF YOUR RADIANT HEATER
Your Goldair Radiant heater is equipped with four heat settings and a thermostat control to ensure
your precise heating needs are met. For security a tip over safety device is built into the heater for your
added protection.
ASSEMBLING YOUR HEATER
The heater comes with 2 wheel plates and castors that need to be fitted to the heater before using.
These wheel plates and castors are located in the base of the heater. Remove them from their storage
location and attach them to the base of the heater using the mounting screws that are already screwed
into the base.
OPERATING YOUR HEATER
Always choose a safe location for the heater (For safety reasons keep the heater 1 metre from other
objects – i.e. walls, curtains, furniture, etc.) keeping in mind the safety precautions outlined. Ensure that
all packaging has been removed from the unit before use.
SELECTING YOUR DESIRED HEAT SETTING
•LOW Heat - Turn the heat setting dial to “I”.
•MEDIMUM Heat - Turn the heat setting dial to “II” and ensure the thermostat is rotated to the highest
position.
•HIGH Heat - Turn the heat setting dial to “IIII” and ensure the thermostat is rotated to the highest
position.
THERMOSTAT
The heater is equipped with a rotary thermostat knob. Turn the knob clockwise until the maximum
setting is obtained. Once the desired temperature is reached slowly turn the knob anti clockwise until a
clicking noise is heard. The heater will now regulated the amount of output to maintain the temperature
at this level. In doing so one or two heating tubes may extinguish then come on this is completely
normal.
IMPORTANT! ~ NEVER COVER THIS HEATER!
WARNING: The heater must not be used if the glass tubes are damaged
Do not use this heater with a programmer, timer, separate remote-control
system or any other device that switches the heater on automatically, since a
fire risk exists if the heater is covered or positioned incorrectly.
CLEANING YOUR RADIANT HEATER
The heater requires regular cleaning to ensure trouble free operation:
•Unplug the heater from the mains supply before cleaning.
•Ensure that the heater has been allowed to cool down completely before cleaning.
•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
•Before cleaning the reflector, please remove the grill by unscrewing the screws at the front. The
reflector body can be cleaned with a soft damp cloth, using a small quantity of neutral detergent, taking
care not to splash any water in the heater as this can cause a short circuit or electric shock. Never use
solutions such as benzene, thinners or polishing agents. In order to get the maximum heat, the reflector
must be kept clean.
•Use a vacuum cleaner to remove dust and fluff from around the grilles.
•Ensure the heater is dry before plugging back into the mains supply.
RADIANT HEATER SPECIFICATION
Model No: GIR350
Power Supply: 220-240V, 50Hz AC only
Power: 2200W
PROOF OF PURCHASE
To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).
SUPPORT AND TECHNICAL ADVICE
North Shore City, Auckland, New Zealand
Monday – Friday 8am-5pm
Phone: 0800 232 633
Website: www.goldair.co.nz
Your Goldair product has been inspected and tested and is guaranteed subject to the
following for a period to two years from the date of purchase against defects in
workmanship and materials. During this period, such defects will be rectified by
repair or replacement of the product purchased. Your product contains no user
serviceable components and this warranty becomes invalid if in our opinion the
product has been misused, abused, incorrectly installed, tampered with, connected
to an electrical supply not corresponding with the name plate specification, or
subjected to power surges. The warranty does not include any labour or other
associated expense that may be involved in removal or installation of the product.
Normal wear and tear is expressly excluded.
If your Goldair product fails to operate satisfactorily, please return it to the retailer
from whom it was purchased. To obtain a repair or replacement product under this
warranty, you will need to produce satisfactory evidence of date of purchase. The
completed warranty and purchase receipt must be presented with the product. The
warranty should be filled out at the time of purchase. It is in your interest to make
sure this is done.
If the product is to be replaced (cannot be repaired) then that replacement will be of
the same or similar product or accessory excluding packaging, instruction card etc.
Where a replacement product is supplied, this shall be guaranteed for the balance of
the original warranty period.
Any model that is no longer available will be replaced by a model of a value and with
such features as we consider appropriate in the circumstances. Goldair Ltd is not
responsible for freight forwarding charges, losses or damage in transit.
If service is required after the warranty period has expired, the product should be
returned to a qualified electrical technician. Service outside of the warranty period
will be at your cost.
Consumers Guarantee Act (1993).
In accordance with the above act consumers are advised that: The manufacturer
does not undertake that repair facilities and parts are necessarily available for this
product.
If any of the provisions of the foregoing are contrary to any relevant legislation, then
that provision shall be deemed to be excluded from the warranty and the rest of the
provisions will continue to apply.
TWO YEAR WARRANTY
IMPORTANT: PLEASE RETAIN THIS WARRANTY CARD
NAME:
ADDRESS:
PURCHASED FROM:
SUBURB:
DATE OF PURCHASE:
NAME OF PRODUCT:
MODEL No:
