Powermatic PM1500 Bandsaw, 3HP 1PH 230V User Manual

Operating Instructions and Parts Manual

15-inch Woodworking Band Saw

Model PM1500

Powermatic

427 New Sanford Road

LaVergne, Tennessee 37086 Part No. M-1791500

Ph.: 800-274-6848 Edition 9 03/2022

1.0 Warranty and Service

Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair,

please contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.

Warranty Period

The general warranty lasts for the time period specified in the literature included with your product or on the official

Powermatic branded website.

• Powermatic products carry a limited warranty which varies in duration based upon the product. (See chart

below)

• Accessories carry a limited warranty of one year from the date of receipt.

• Consumable items are defined as expendable parts or accessories expected to become inoperable within a

reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.

Who is Covered

This warranty covers only the initial purchaser of the product from the date of delivery.

What is Covered

This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty

does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,

improper repair, alterations or lack of maintenance. Powermatic woodworking machinery is designed to be used with

Wood. Use of these machines in the processing of metal, plastics, or other materials may void the warranty. The

exceptions are acrylics and other natural items that are made specifically for wood turning.

Warranty Limitations

Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a

Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.

How to Get Technical Support

Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof

of initial purchase when calling. If a product requires further inspection, the Technical Service representative will

explain and assist with any additional action needed. Powermatic has Authorized Service Centers located throughout

the United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service

Center Locator on the Powermatic website.

More Information

Powermatic is constantly adding new products. For complete, up-to-date product information, check with your local

distributor or visit the Powermatic website.

How State Law Applies

This warranty gives you specific legal rights, subject to applicable state law.

Limitations on This Warranty

POWERMATIC LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH

PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

POWERMATIC SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR

FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF

OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official

Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at

any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem

necessary for any reason whatsoever.

Product Listing with Warranty Period

90 Days – Parts; Consumable items

1 Year – Motors, Machine Accessories

2 Year – Woodworking Machinery used for industrial or commercial purposes

5 Year – Woodworking Machinery

NOTE: Powermatic is a division of JPW Industries, Inc. References in this document to Powermatic also apply to JPW

Industries, Inc., or any of its successors in interest to the Powermatic brand.



0  Table of Contents
Section                                             Page
0  Warranty and Service ..................................................................................................................................... 2
0  Table of Contents ........................................................................................................................................... 3
0  Safety Warnings ............................................................................................................................................. 5
0  About this Manual .......................................................................................................................................... 6

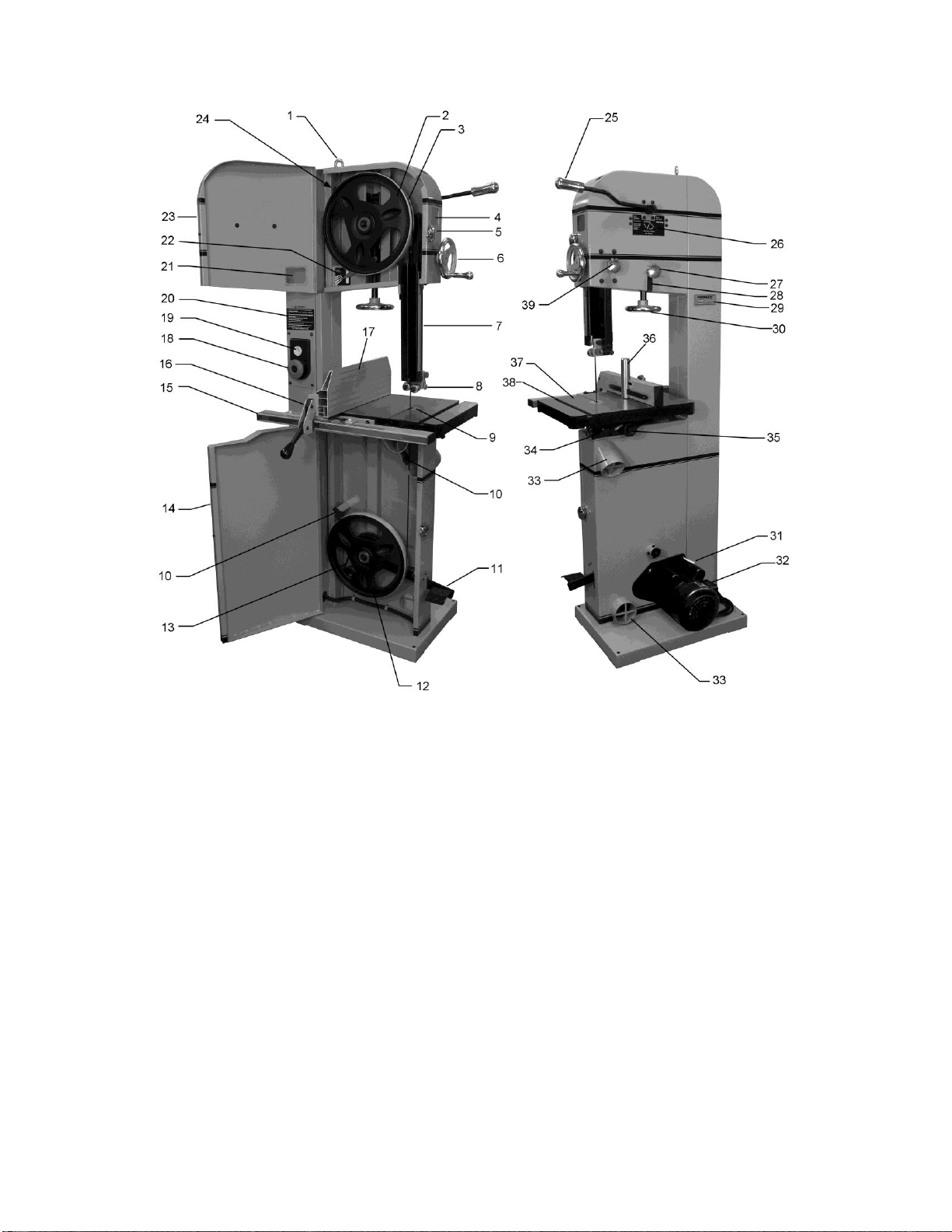

0  Features and Terminology ............................................................................................................................. 7
0  Specifications ................................................................................................................................................. 8

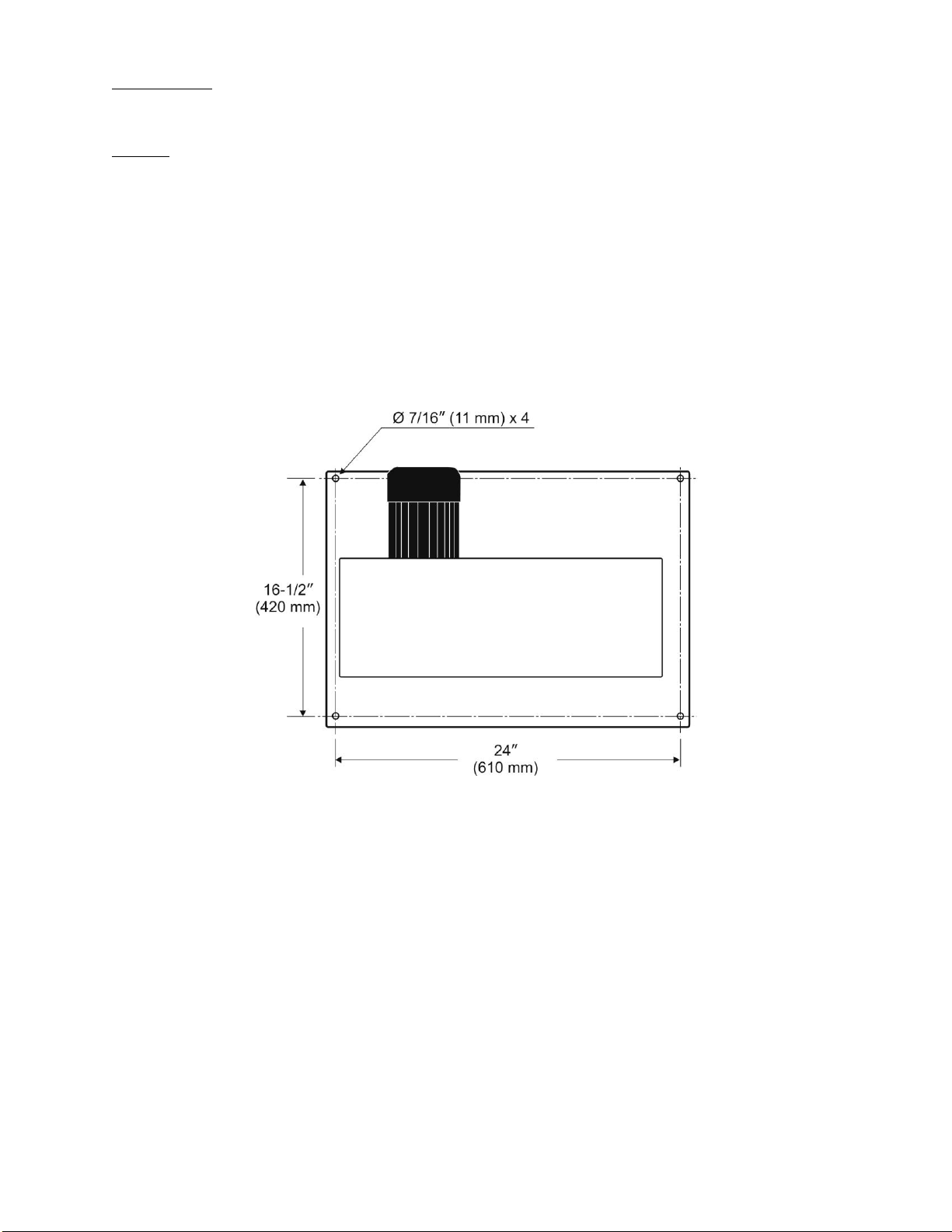

1  Base Hole Centers (PM1500 Band Saw) ................................................................................................... 9
0  Setup and Assembly .................................................................................................................................... 10
1  Unpacking ................................................................................................................................................ 10

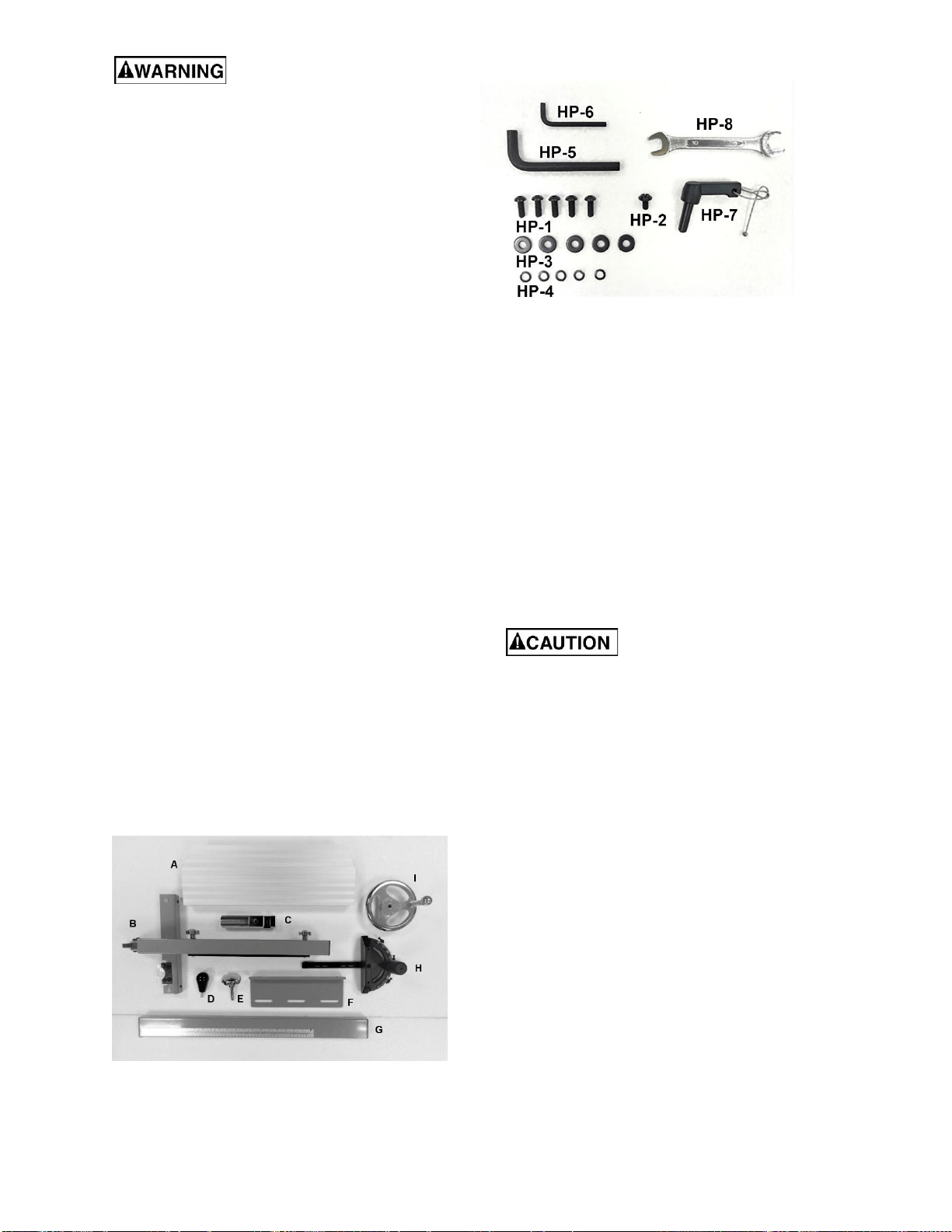

2  Shipping Contents .................................................................................................................................... 10
3  Location .................................................................................................................................................... 10
4  Dust Collection ......................................................................................................................................... 11
5  Electrical Connections .............................................................................................................................. 11

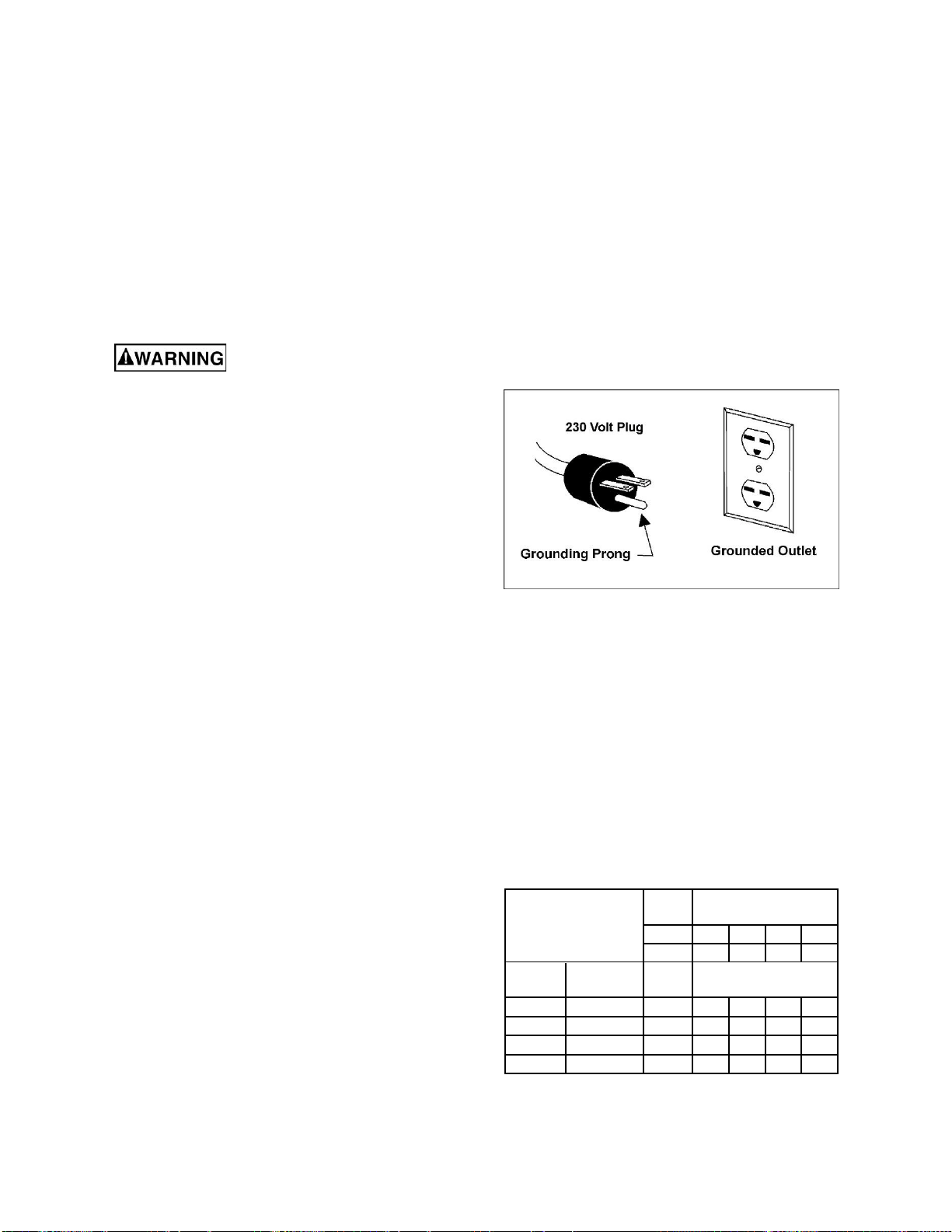

6  Grounding Instructions ............................................................................................................................. 11
7  Extension Cords ....................................................................................................................................... 11

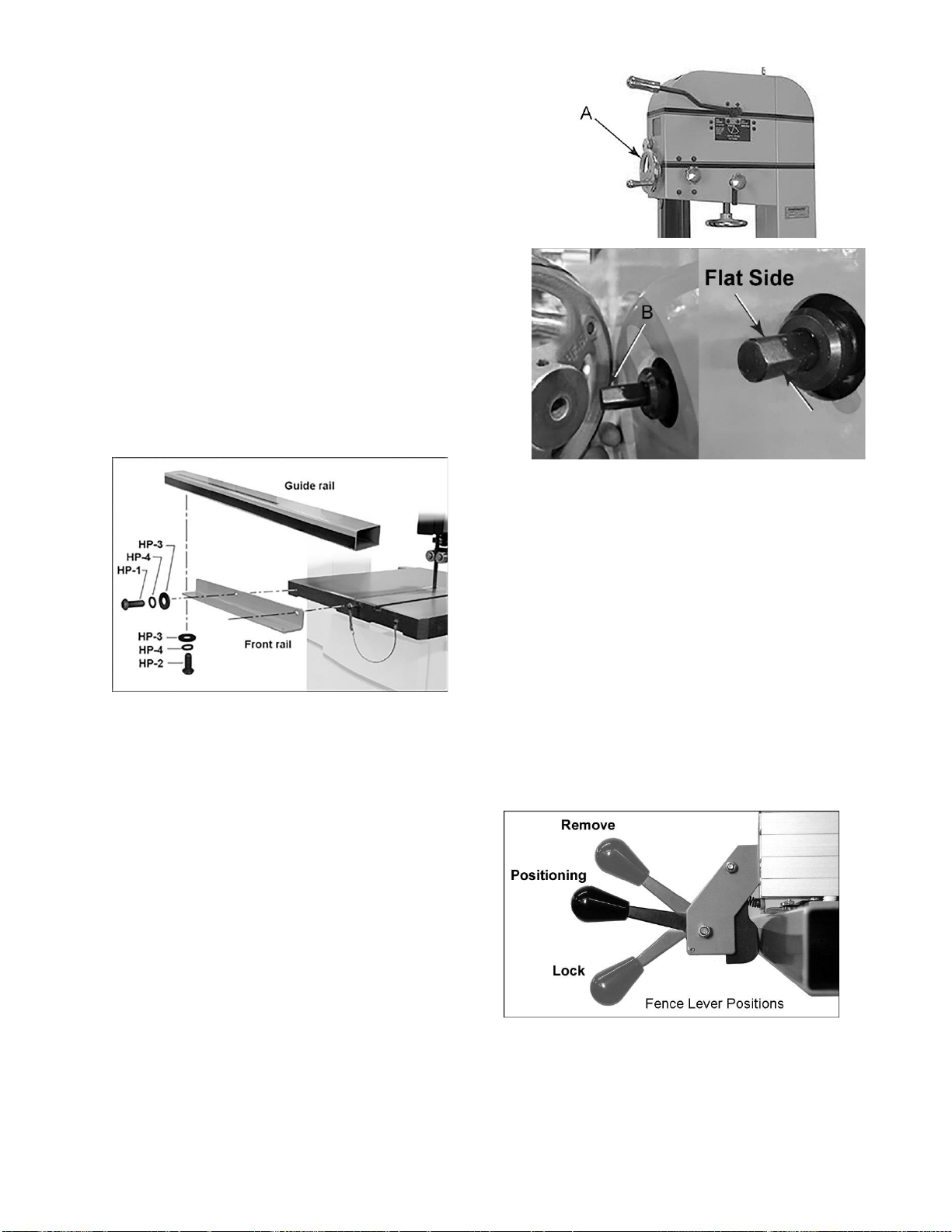

8  Rail and Guide Rail .................................................................................................................................. 12
9  Install Handwheel ..................................................................................................................................... 12
0  Adjustments ................................................................................................................................................. 12

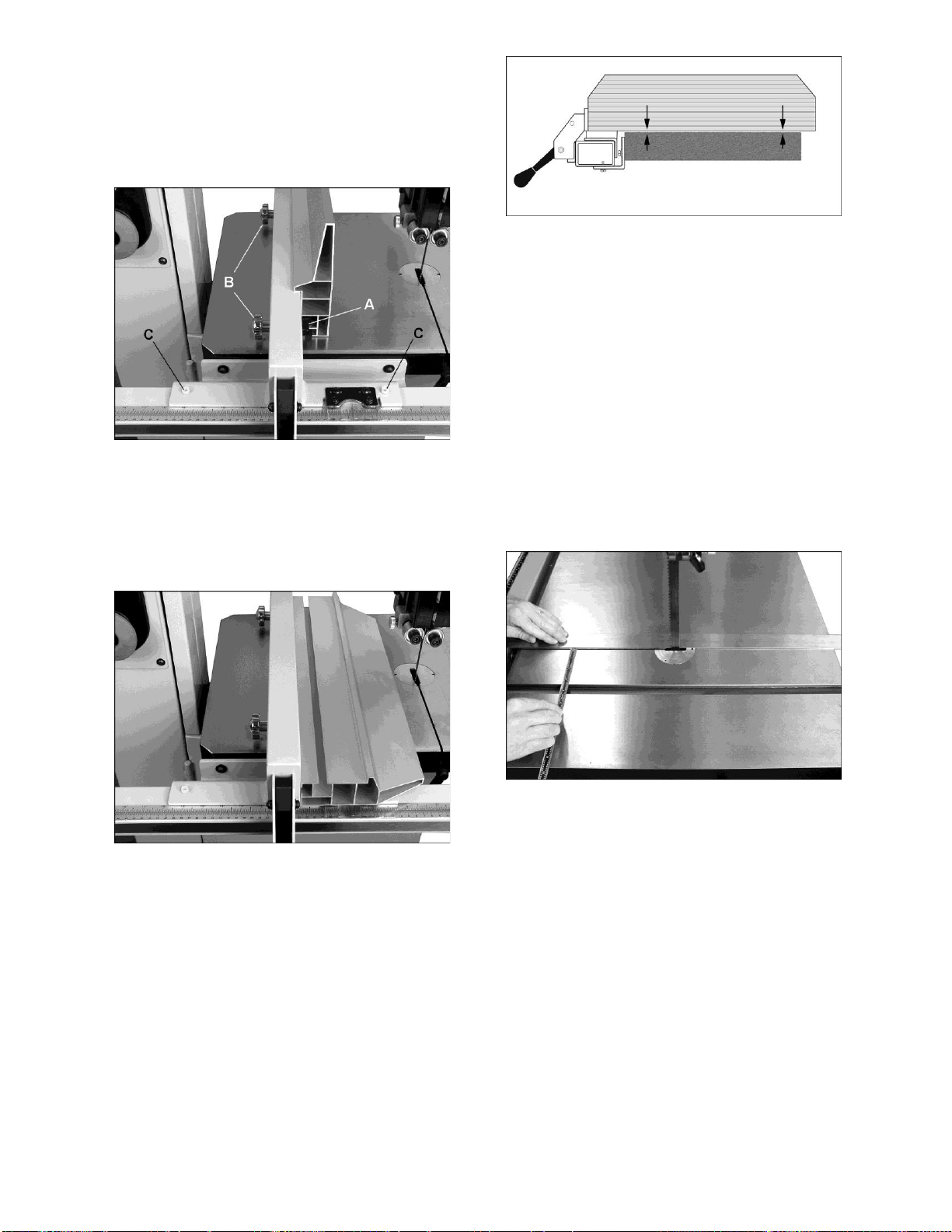

1  Fence Assembly ....................................................................................................................................... 12
2  Fence Plate .............................................................................................................................................. 13
3  Fence to Table Clearance ........................................................................................................................ 13
4  Setting Table Parallel to Blade ................................................................................................................. 13
5  Setting Fence Parallel to Blade ................................................................................................................ 14
6  Setting Cursor (Zero) Position .................................................................................................................. 14
7  Fence Locking Tightness ......................................................................................................................... 14
8  Table Tilt ................................................................................................................................................... 15
9  90° Table Stop .......................................................................................................................................... 15
10  Installing/Changing Blades ..................................................................................................................... 15
11  Blade Tension ........................................................................................................................................ 16

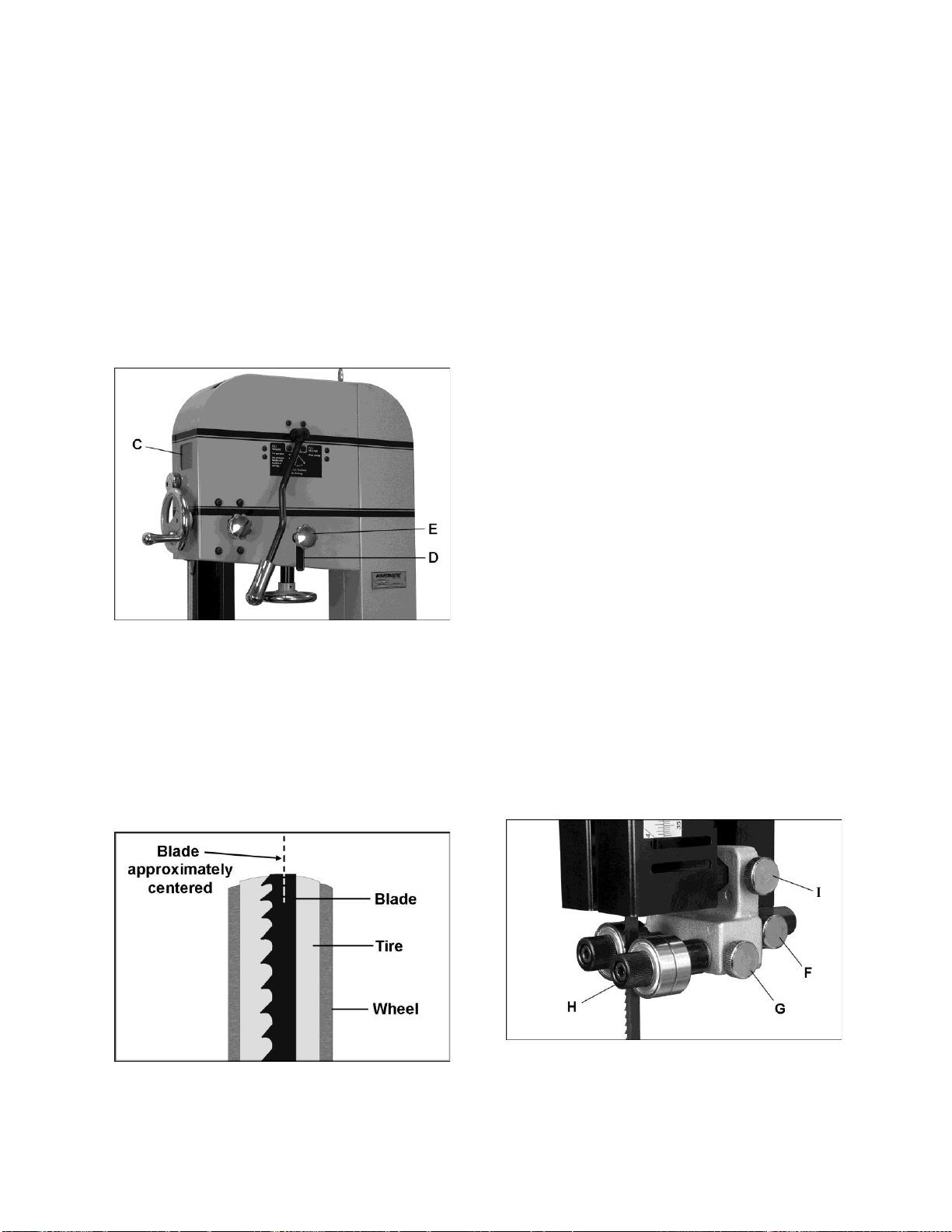

12  Blade Tracking ....................................................................................................................................... 17

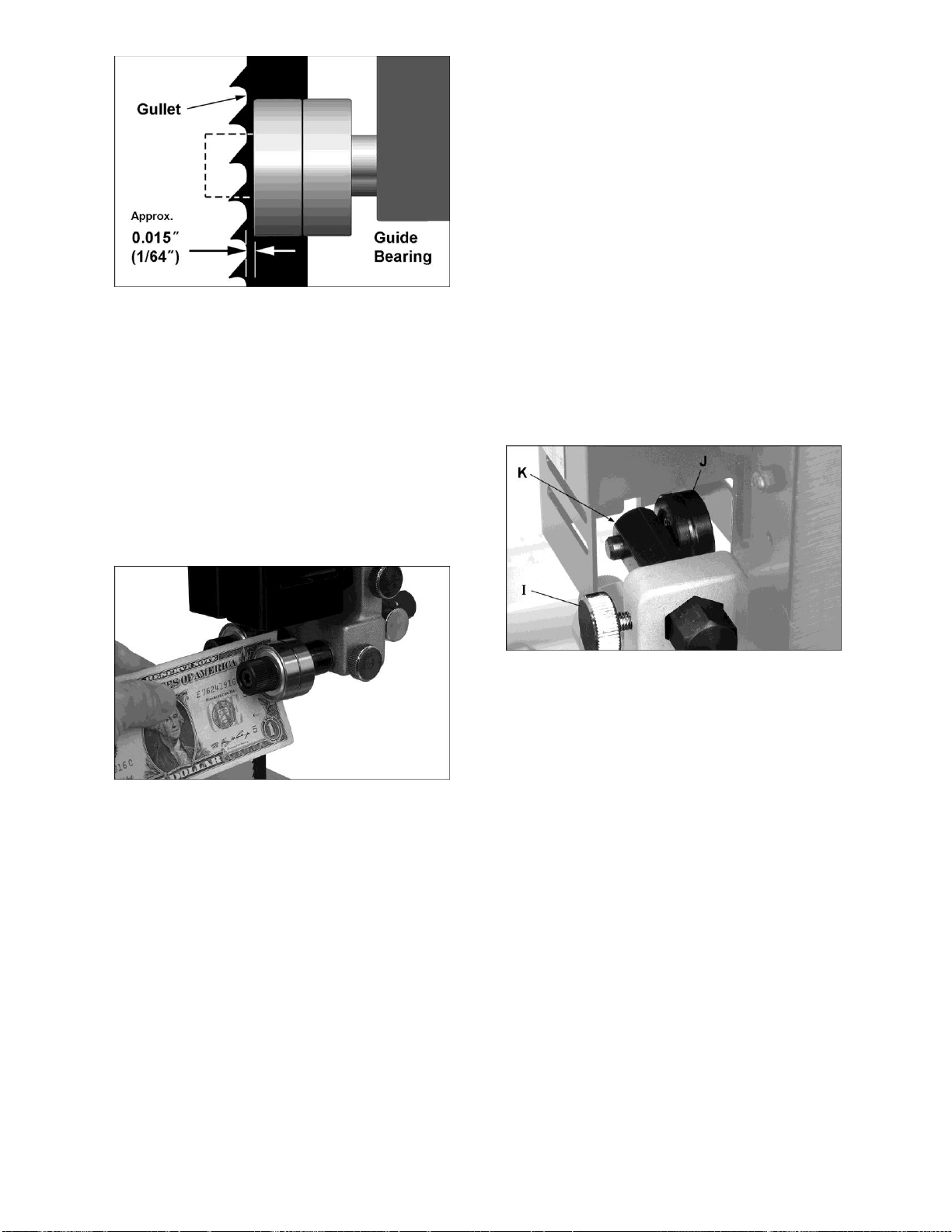

13  Upper Blade Guides ............................................................................................................................... 17
14  Upper Thrust Bearing ............................................................................................................................. 18
15  Lower Blade Guides ............................................................................................................................... 18
16  Guide Post .............................................................................................................................................. 19
17  Guide Post Parallelism ........................................................................................................................... 19
18  Resaw Pin .............................................................................................................................................. 19

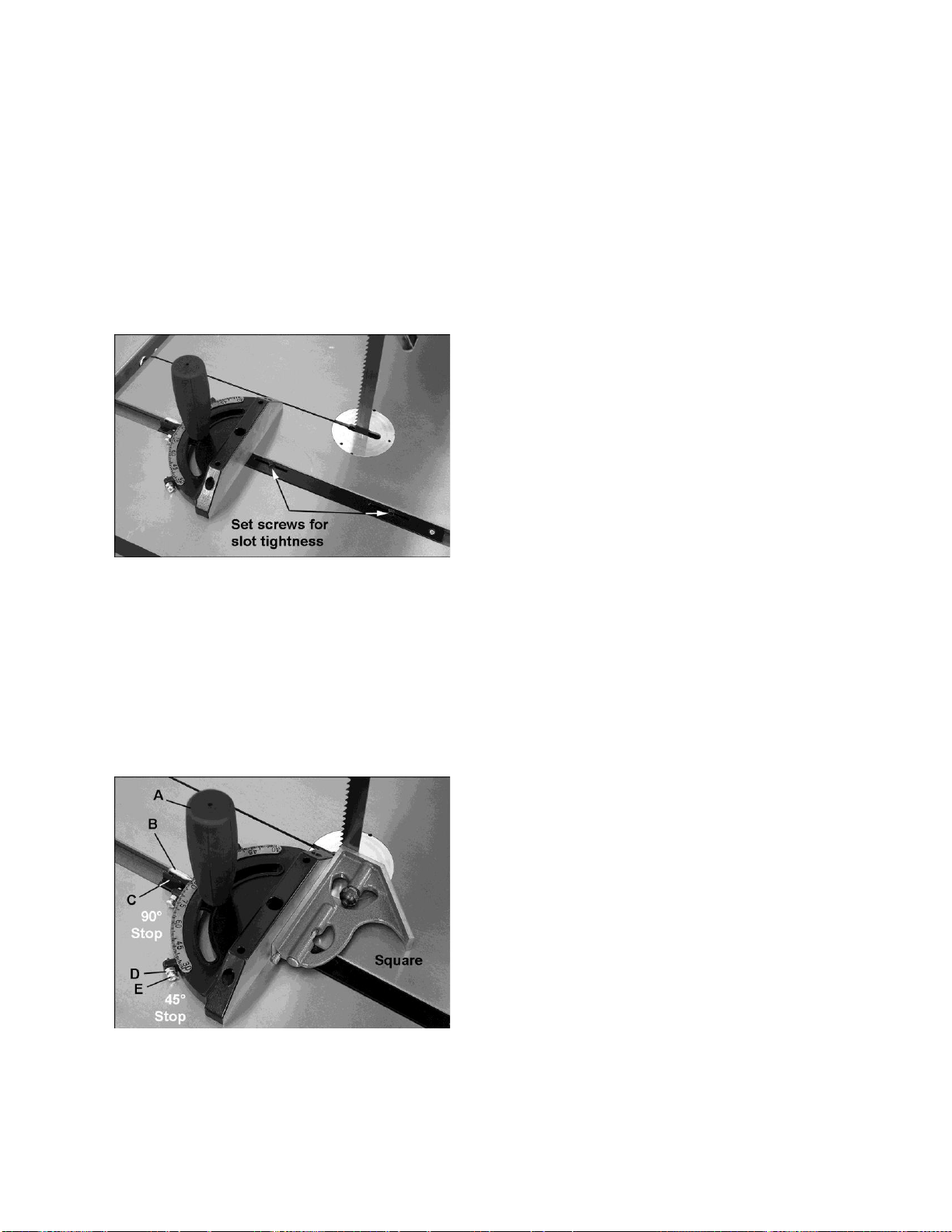

19  Miter Gauge ............................................................................................................................................ 20

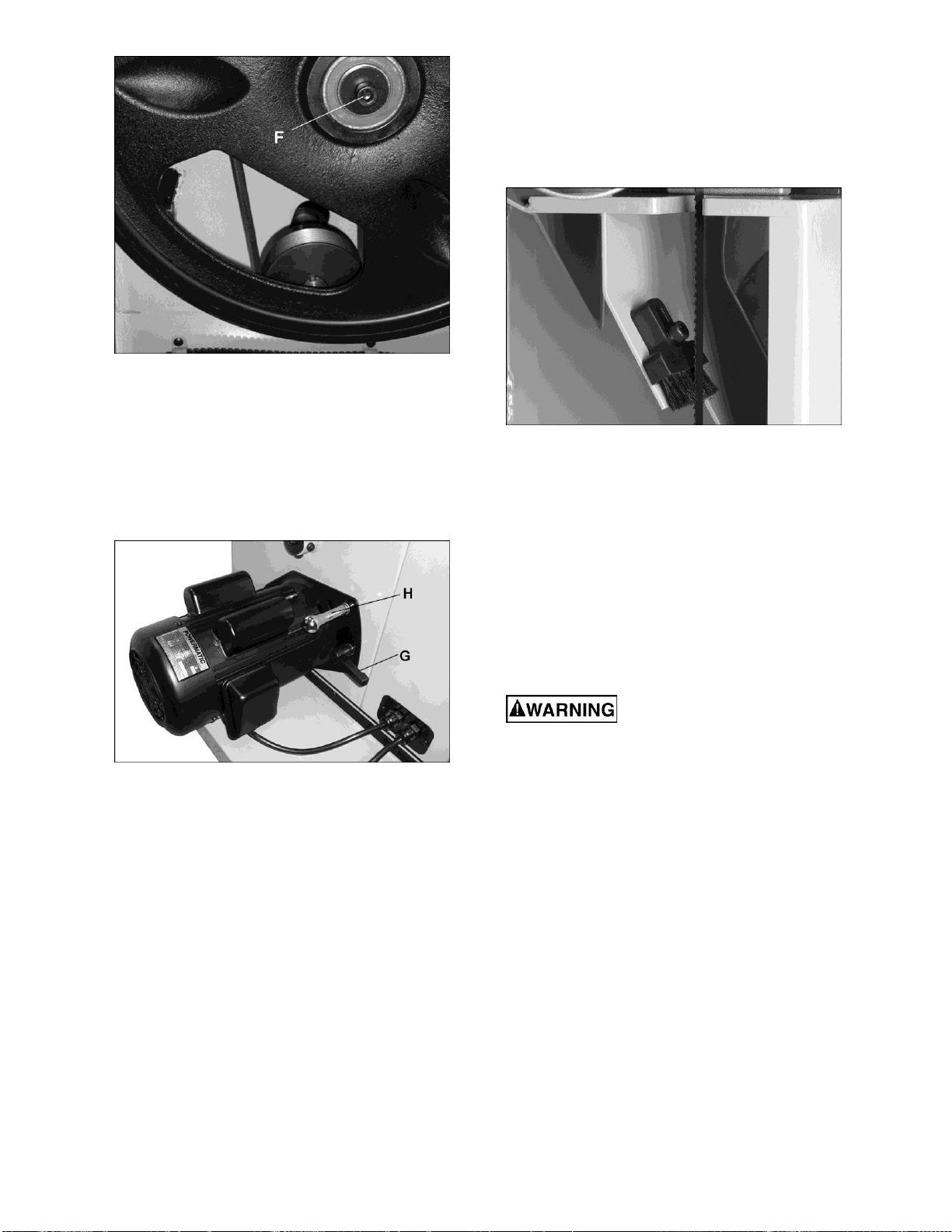

20  Drive Belt Replacement and Tensioning ................................................................................................ 20
21  Brushes .................................................................................................................................................. 21

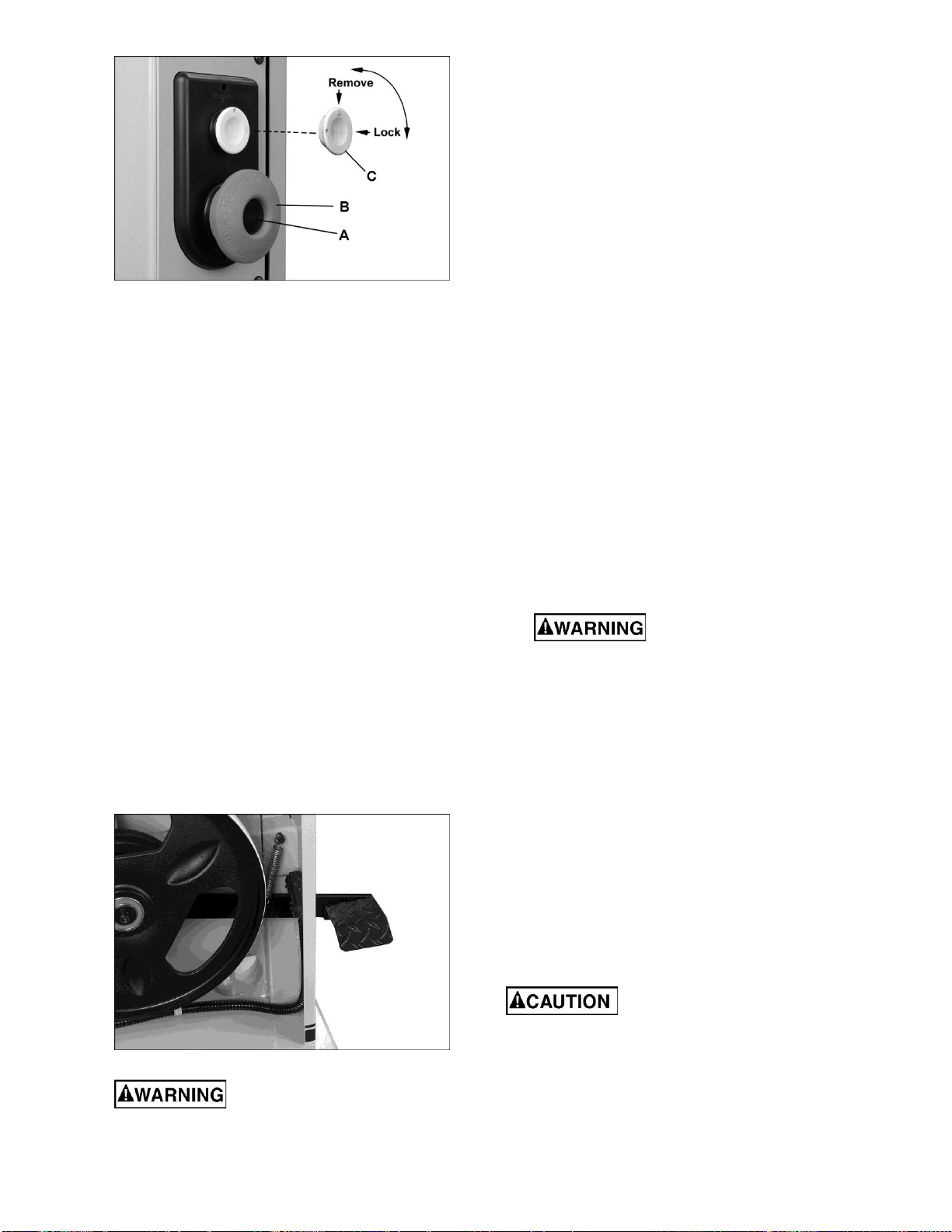

0  Operating Controls ....................................................................................................................................... 21
1  Start/Stop ................................................................................................................................................. 21
2  Safety Key ................................................................................................................................................ 22
3  Brake Pedal .............................................................................................................................................. 22

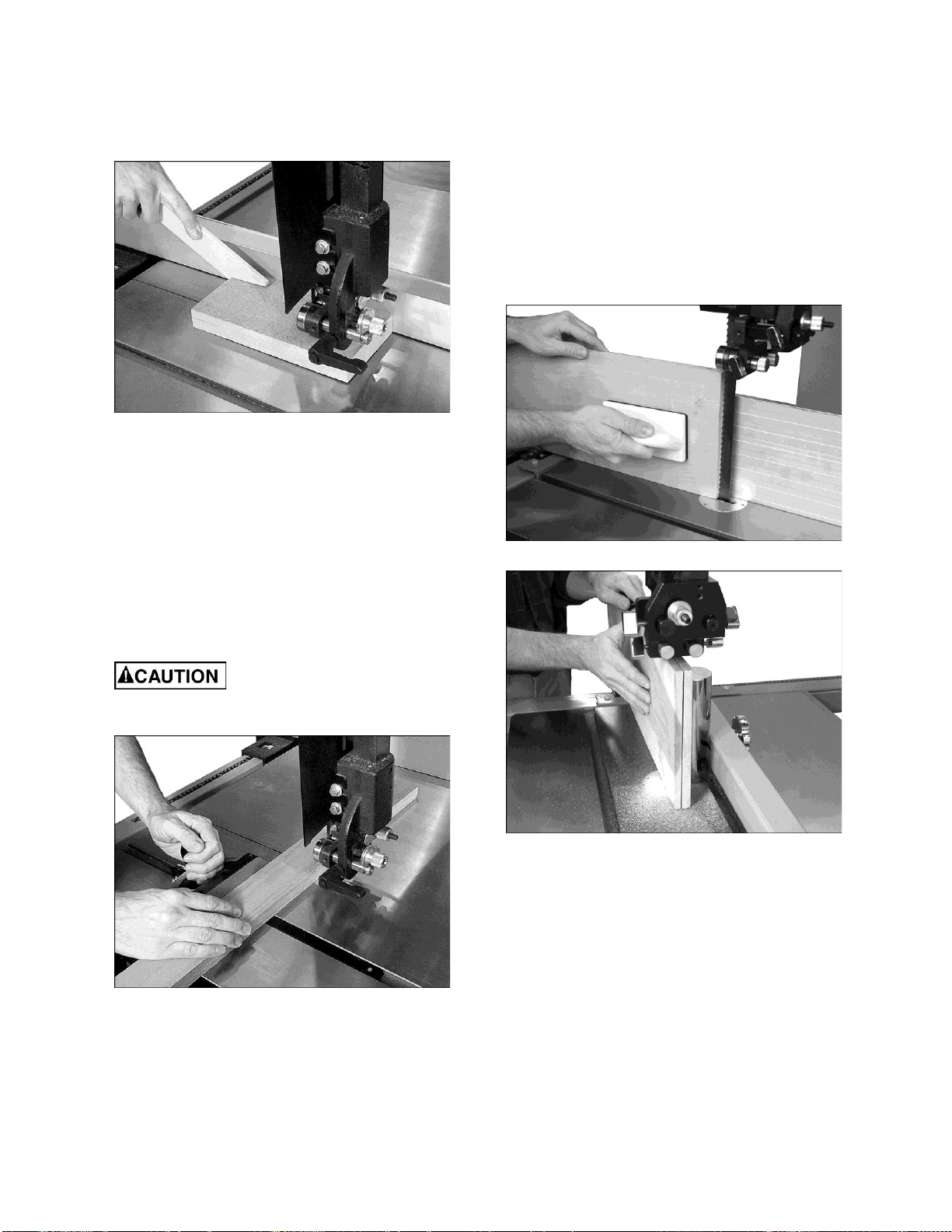

0  Operation ................................................................................................................................................... 22
1  General Procedure ................................................................................................................................. 22
2  Ripping ................................................................................................................................................... 23
3  Crosscutting ........................................................................................................................................... 23
4  Resawing ................................................................................................................................................ 23

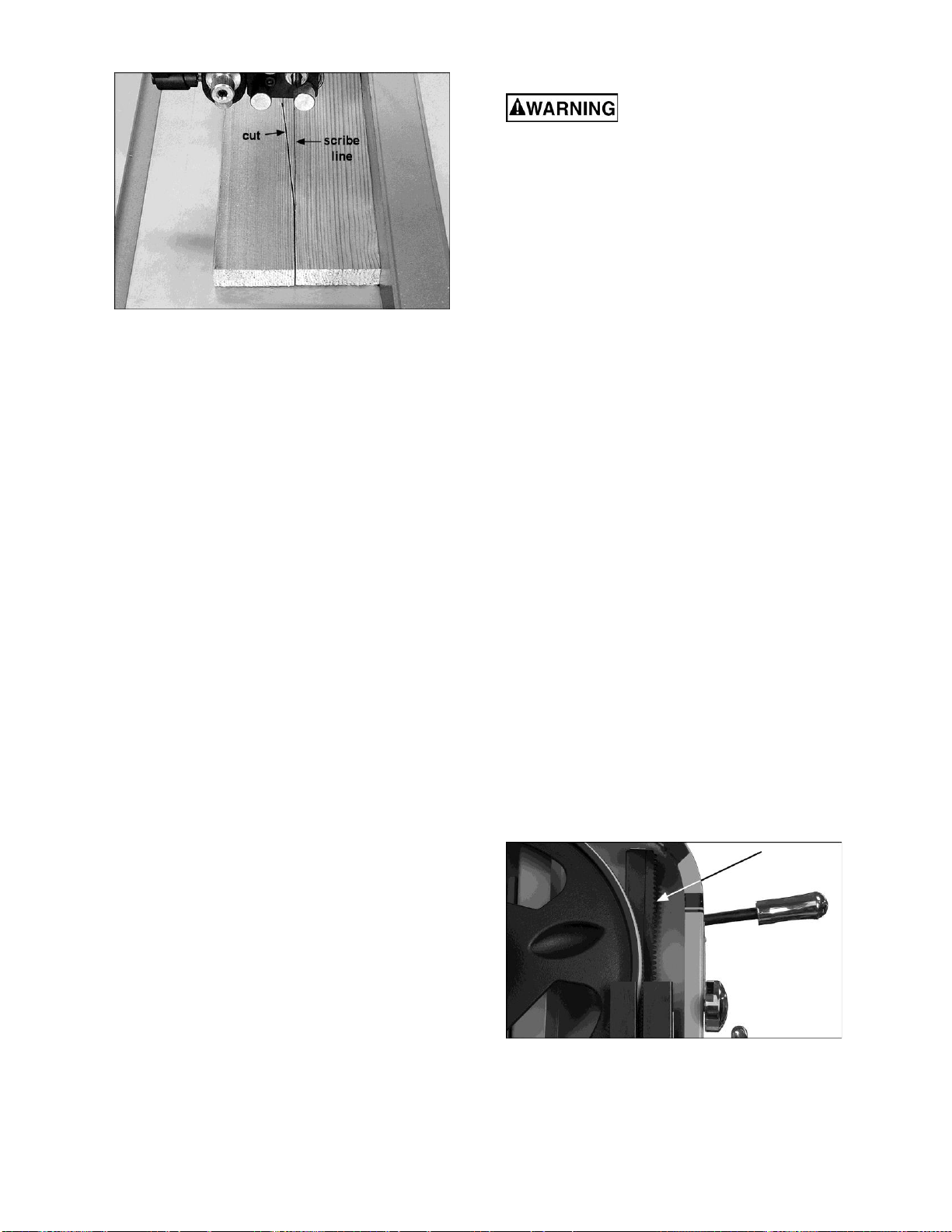

5  Blade Lead ............................................................................................................................................. 23
0  Maintenance ............................................................................................................................................... 24
1  Lubrication Points ................................................................................................................................... 24

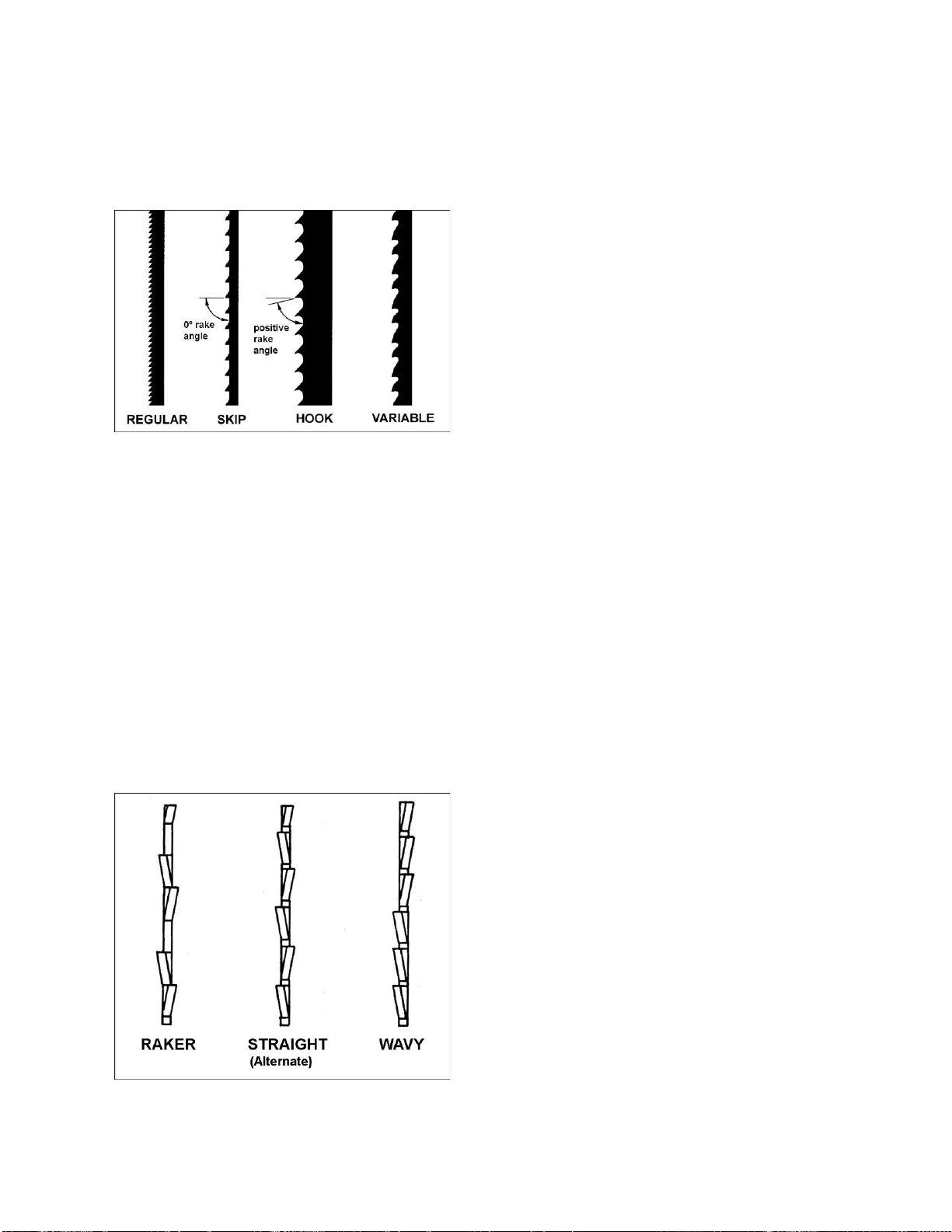

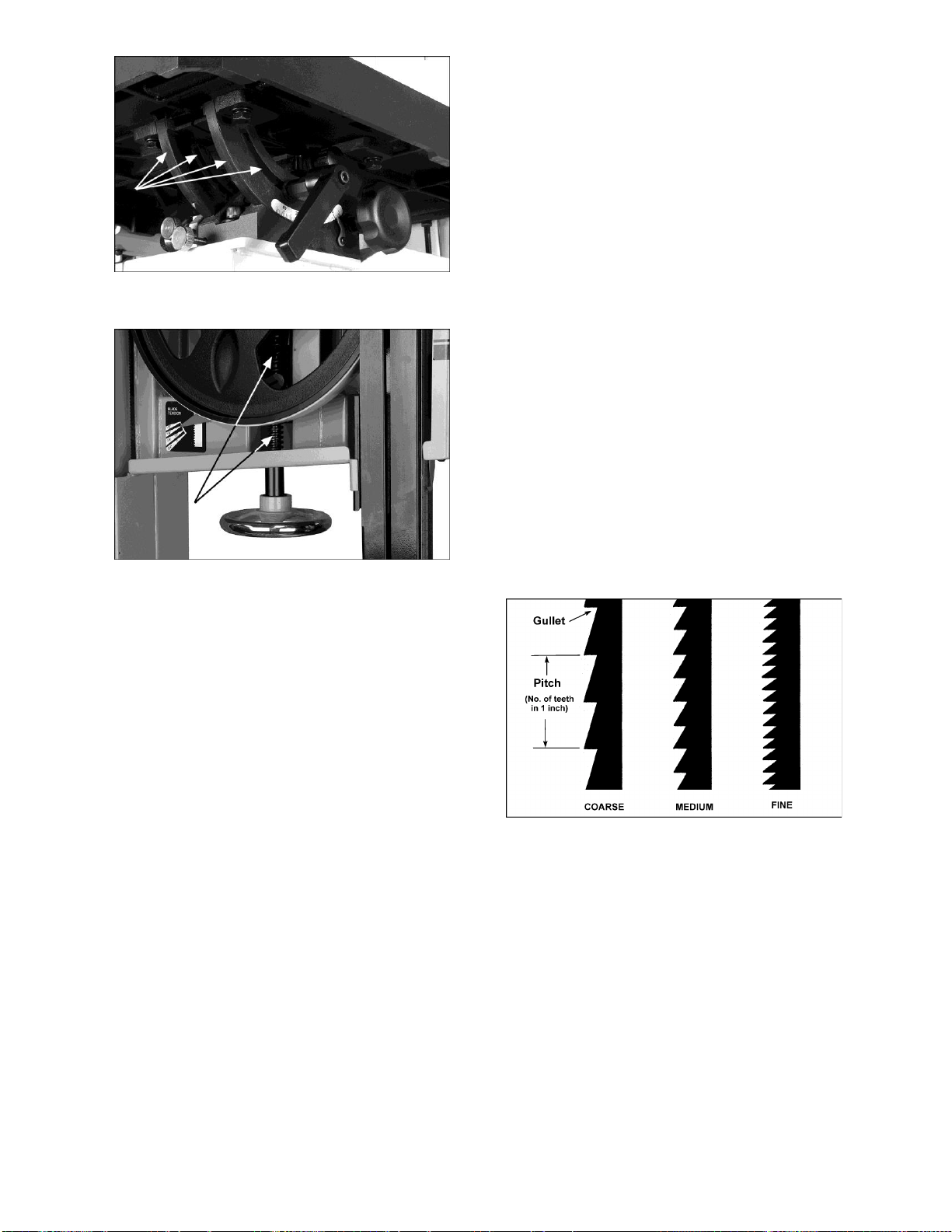

0  Blade Selection .......................................................................................................................................... 25

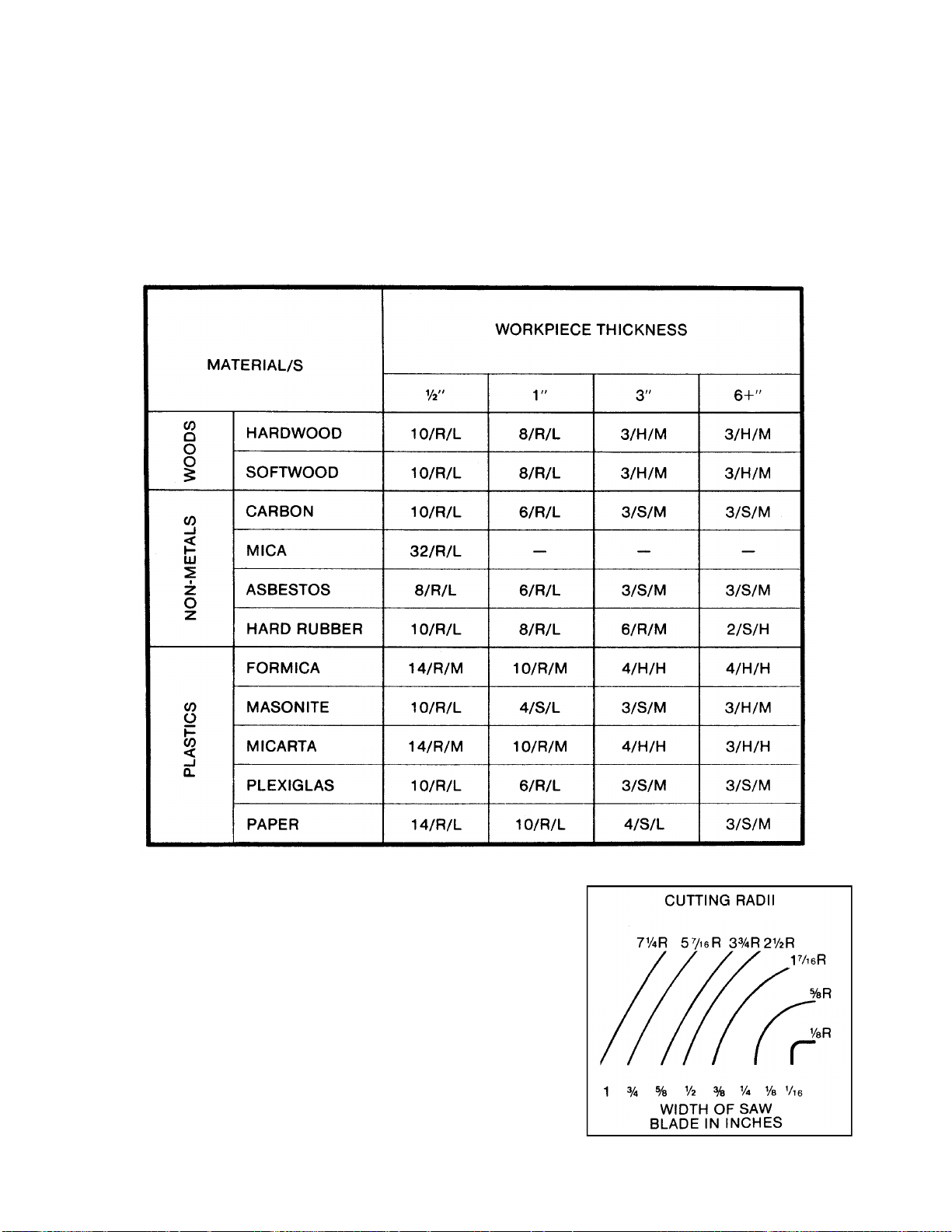

0  Blade Selection Guide ................................................................................................................................ 27
0  Troubleshooting the PM1500 Band Saw .................................................................................................... 28
1  Operational Problems ............................................................................................................................. 28
2  Mechanical and Electrical Problems ...................................................................................................... 30
0  Replacement Parts ..................................................................................................................................... 31

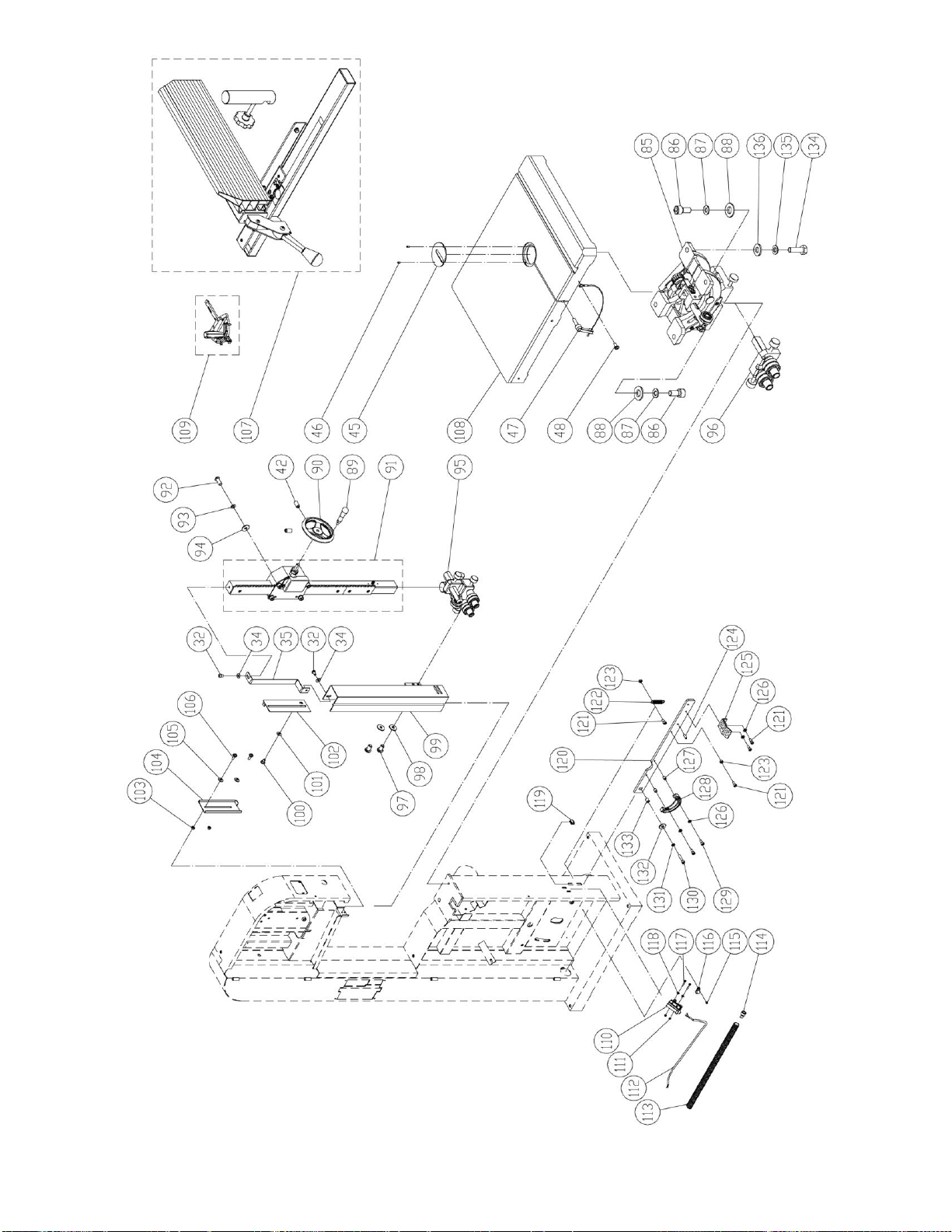

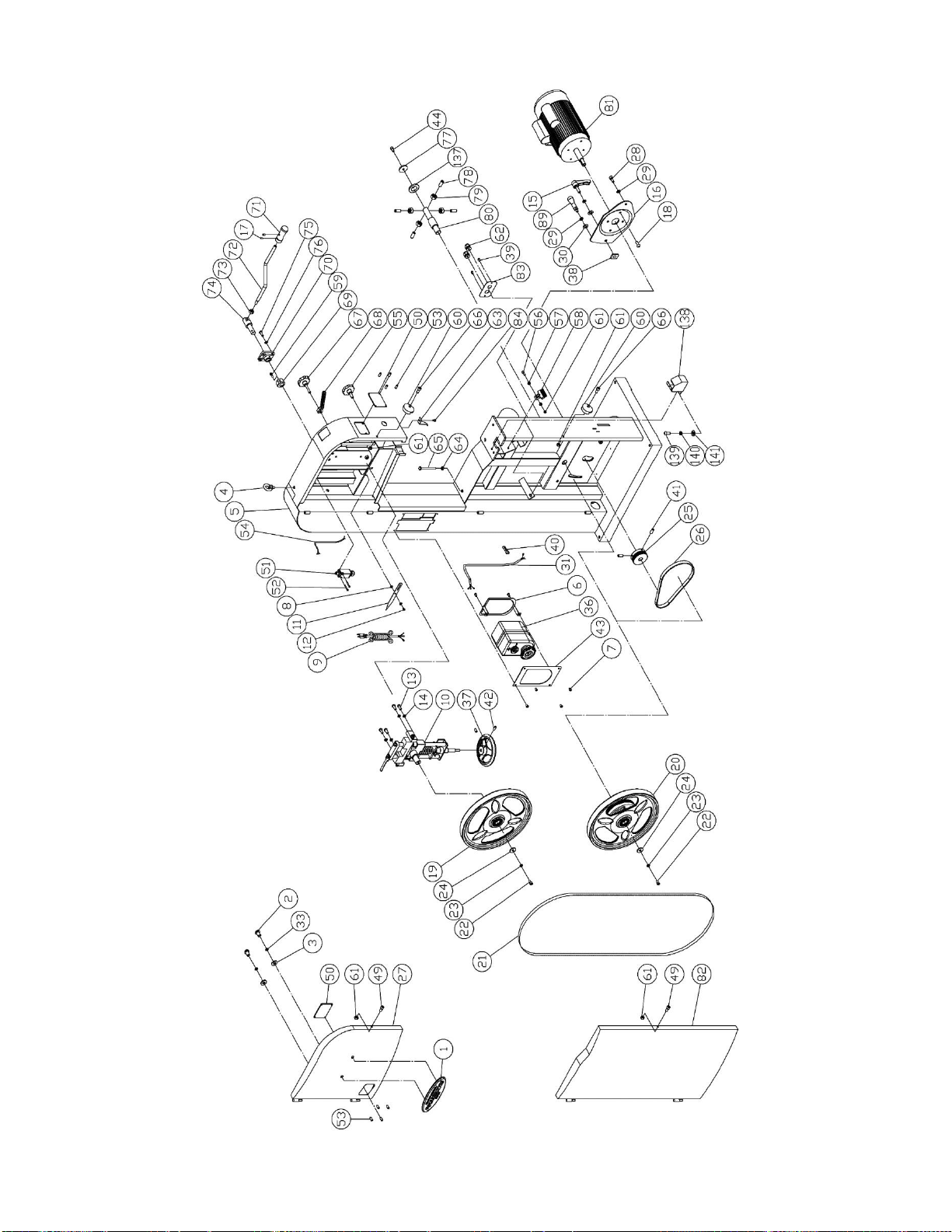

1.1  Complete Machine with Accessories – Exploded View ....................................................................... 32



1.2  Complete Machine with Accessories – Parts List ................................................................................ 34

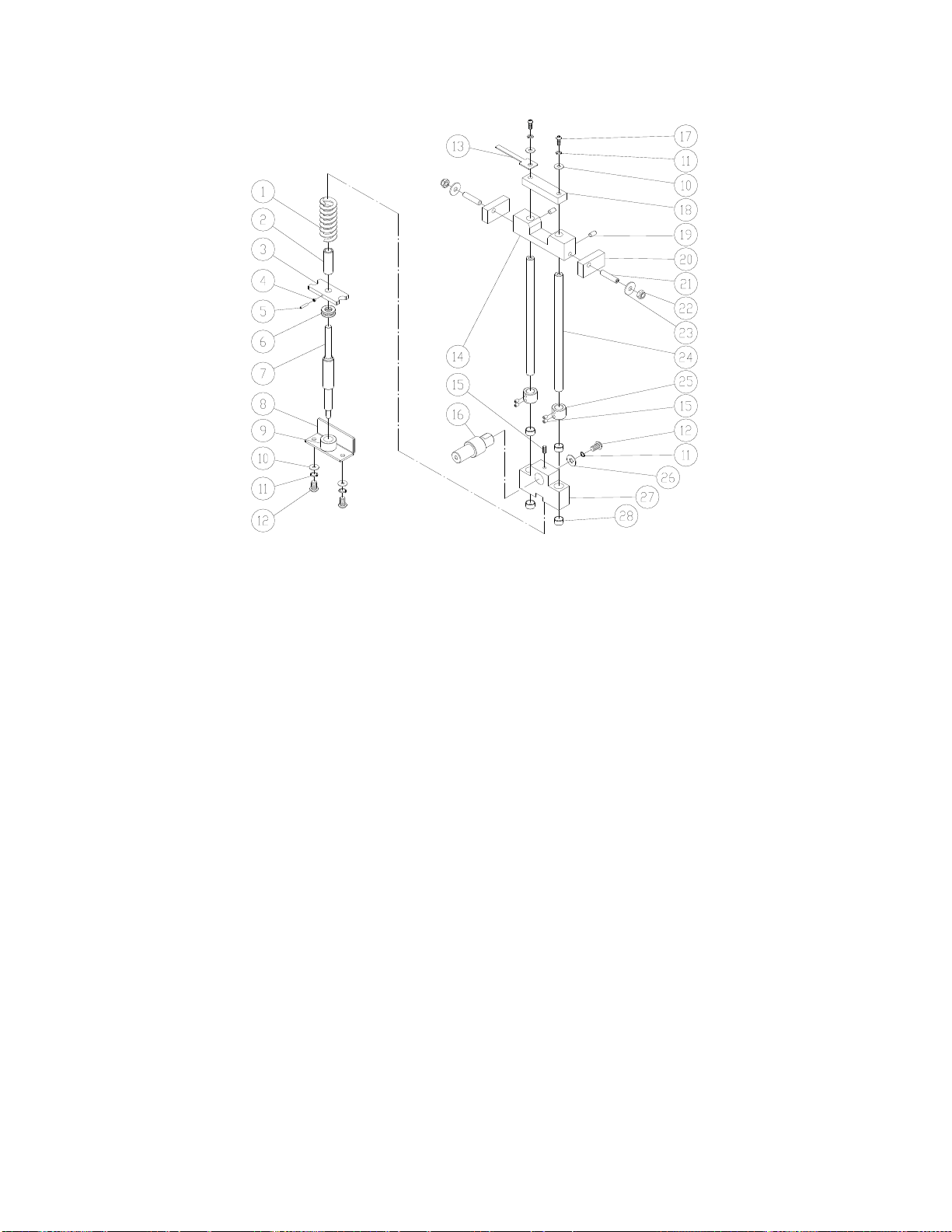

2.1  Upper Wheel Sliding Bracket & Tension Mechanism Assembly – Exploded View ........................................... 37
2.2  Upper Wheel Sliding Bracket & Tension Mechanism Assembly – Parts List ...................................... 37

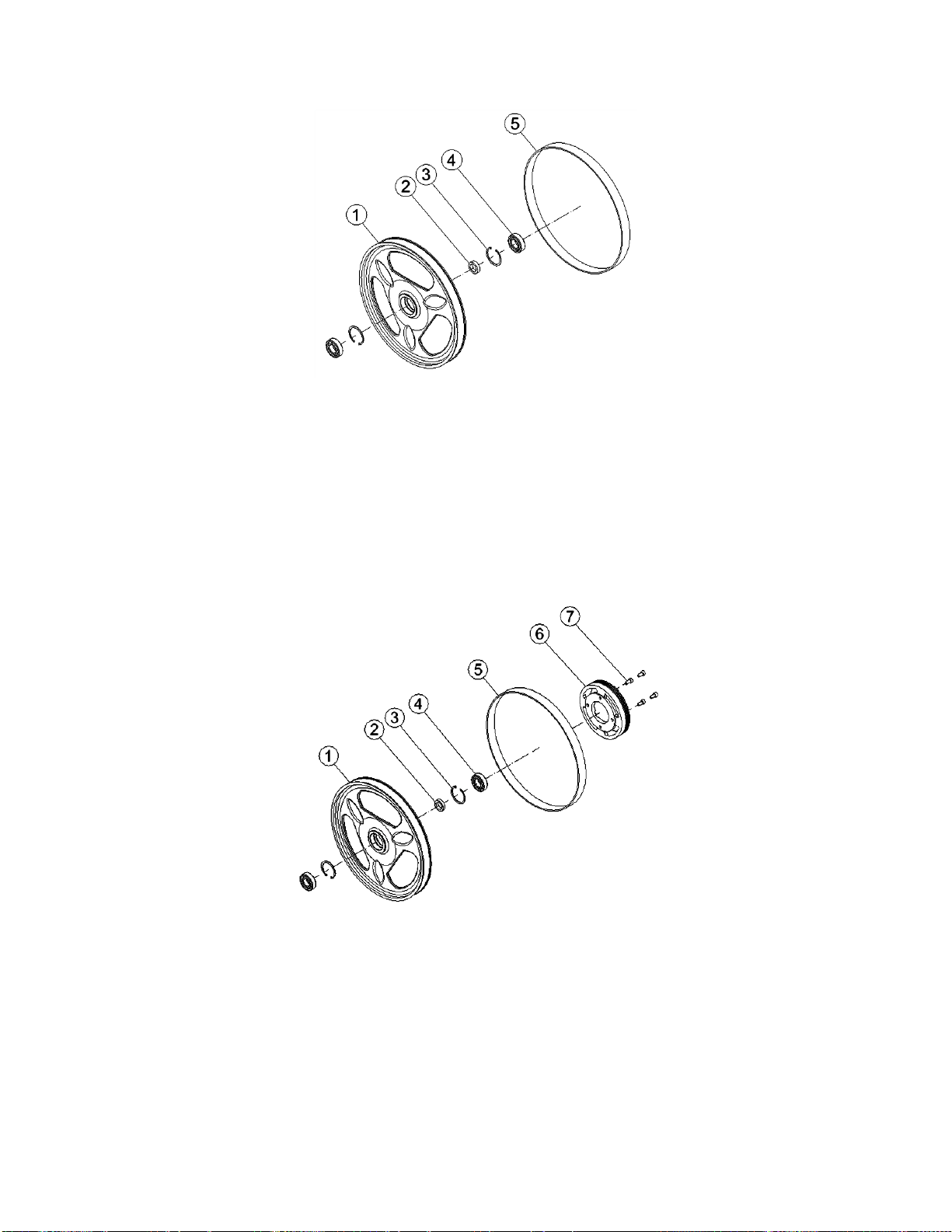

3.1  Upper Wheel Assembly – Exploded View ........................................................................................... 38
3.2  Upper Wheel Assembly – Parts List .................................................................................................... 38
4.1  Lower Wheel Assembly – Exploded View ........................................................................................... 38
4.2  Lower Wheel Assembly – Parts List .................................................................................................... 38

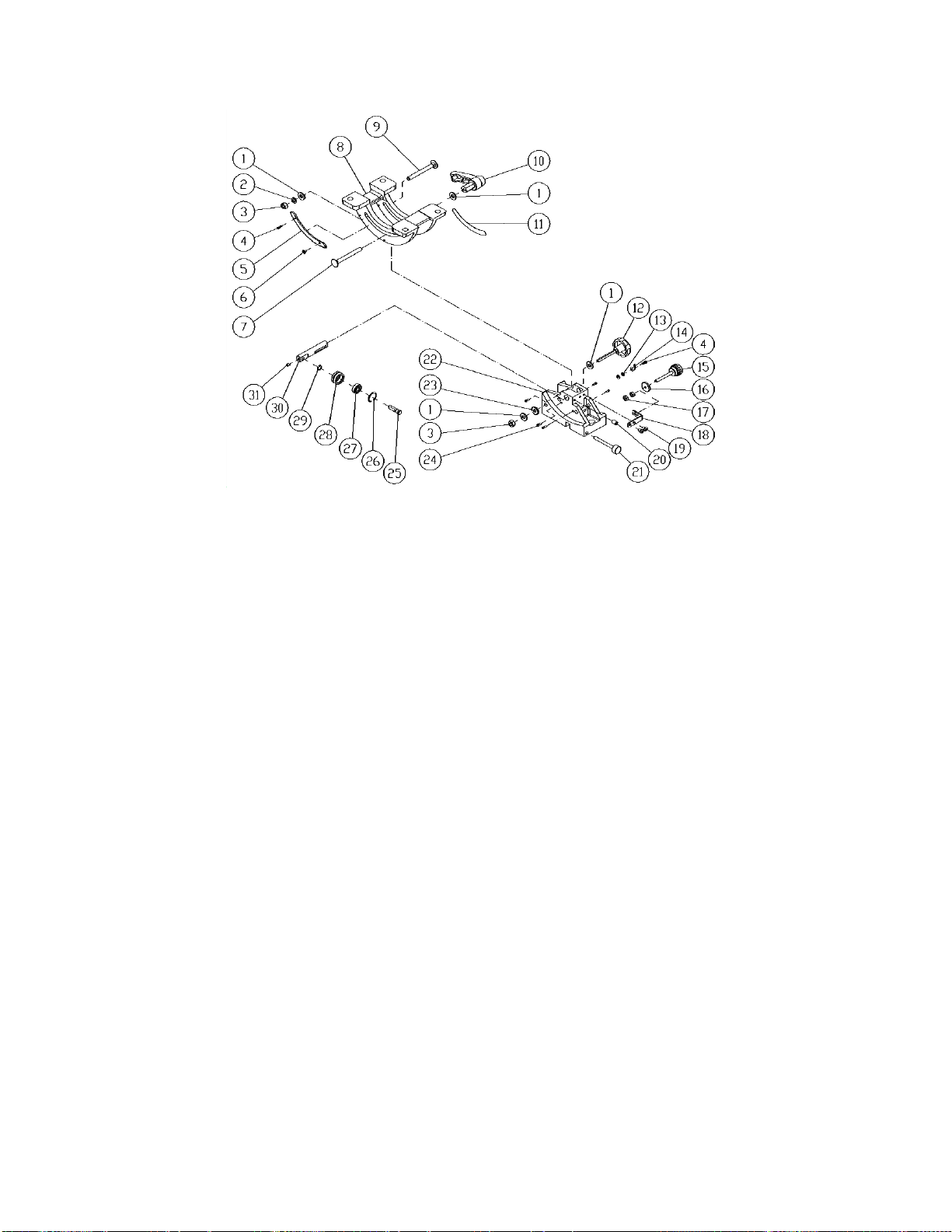

5.1  Trunnion  Support  Bracket  Assembly – Exploded View .................................................................... 39
5.2  Trunnion  Support  Bracket  Assembly – Parts List ............................................................................. 39

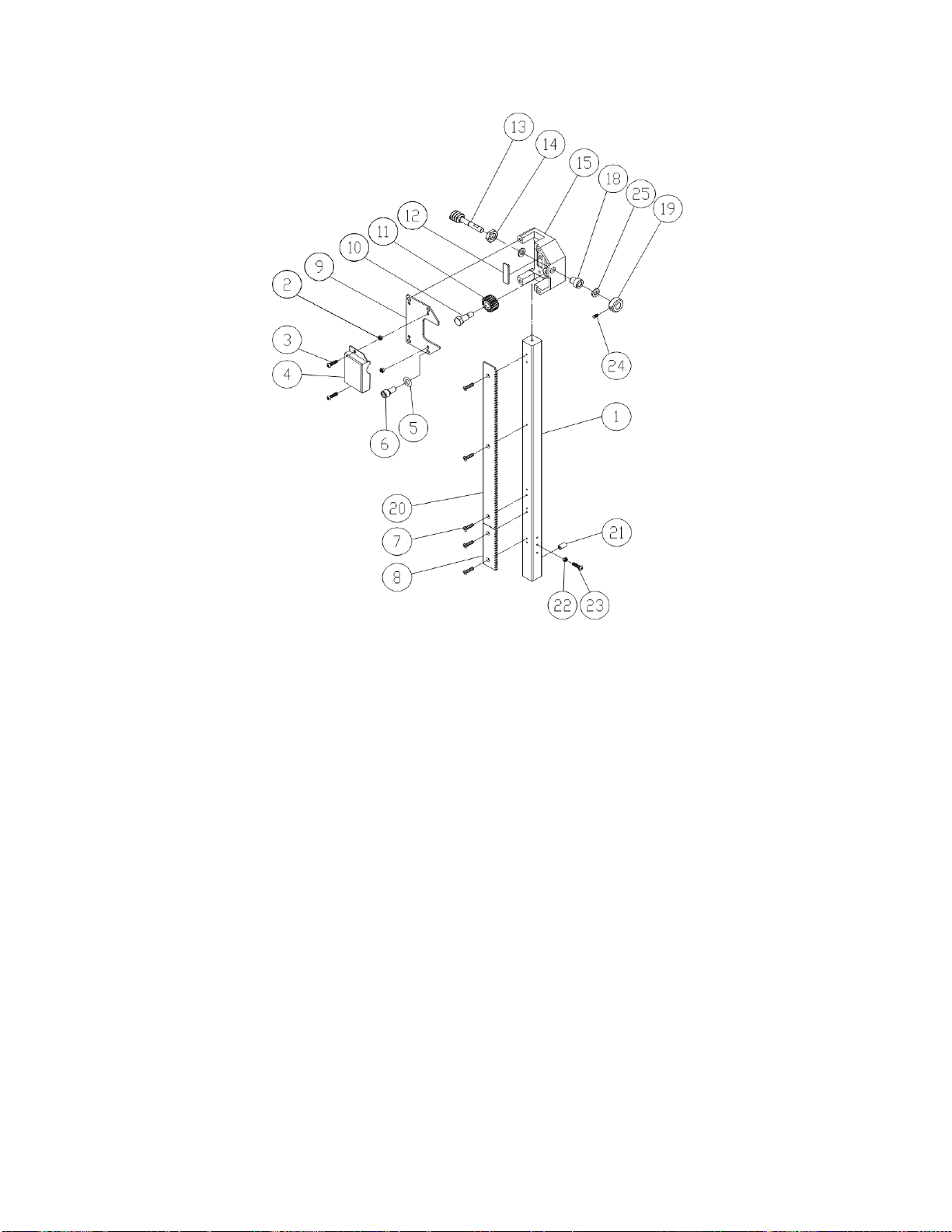

6.1  Guide Bar Bracket Assembly – Exploded View ................................................................................... 40
6.2  Guide Bar Bracket Assembly – Parts List ........................................................................................... 40

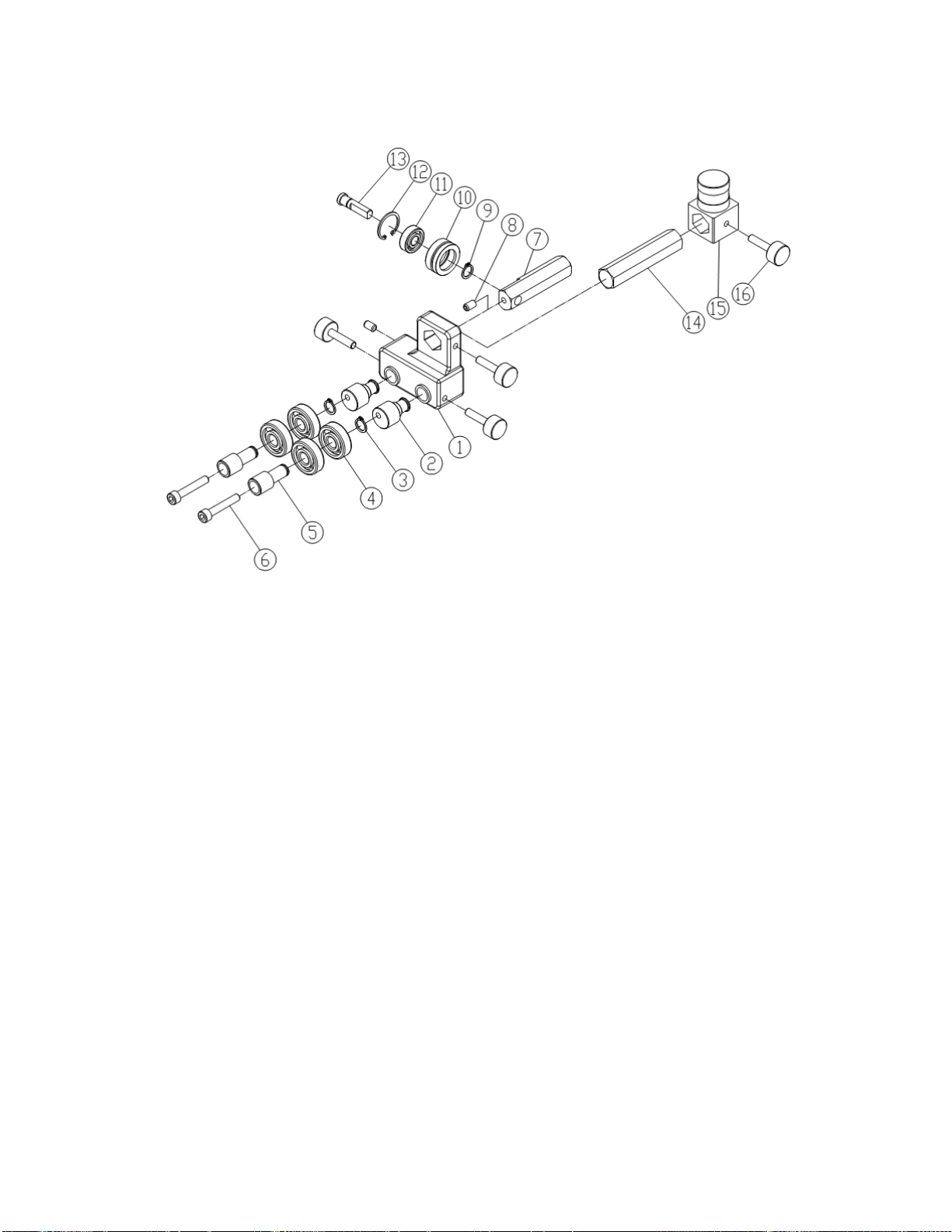

7.1  Upper Blade Guide Assembly – Exploded View ................................................................................. 41
7.2  Upper Blade Guide Assembly – Parts List .......................................................................................... 41

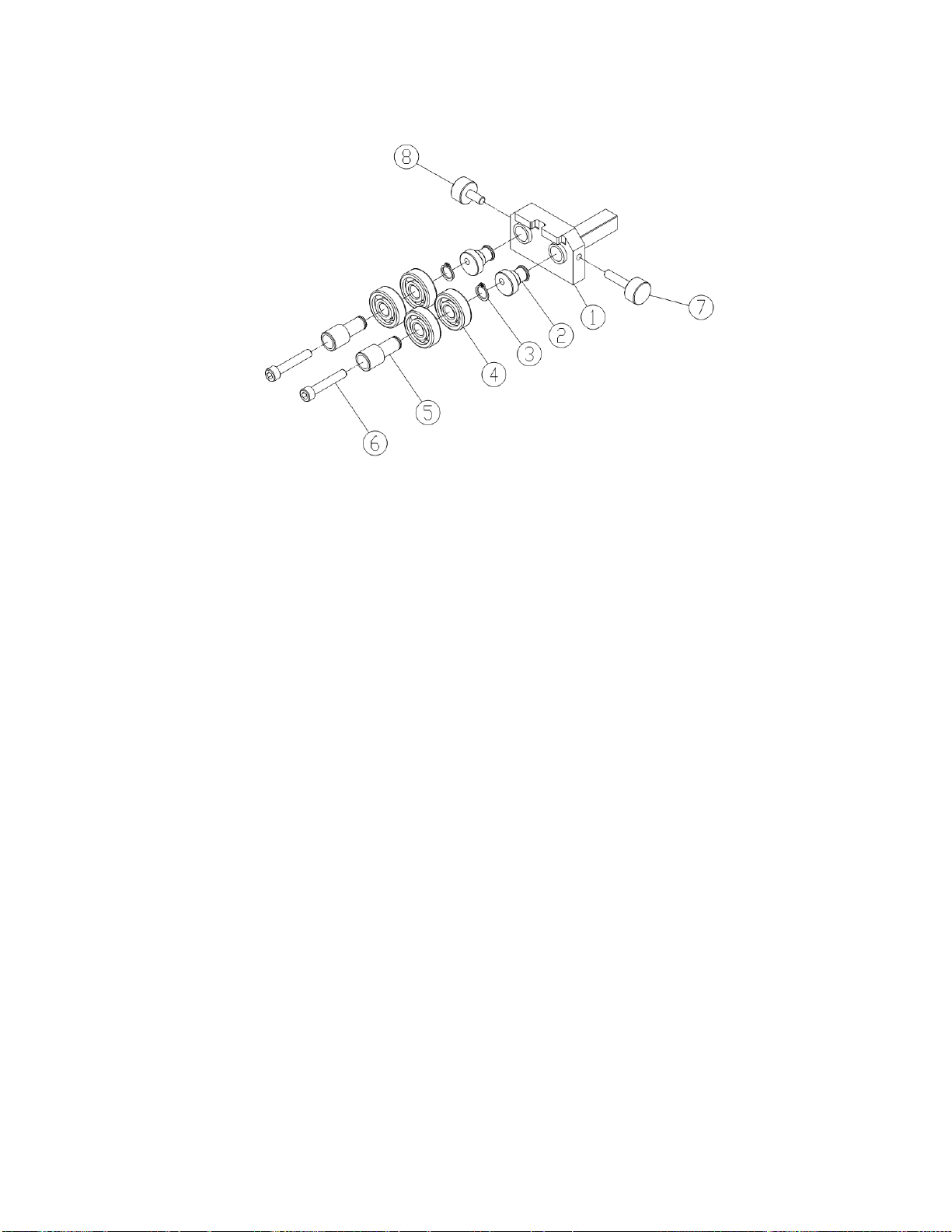

8.1  Lower Blade Guide Assembly – Exploded View ................................................................................. 42
8.2  Lower Blade Guide Assembly – Parts List .......................................................................................... 42

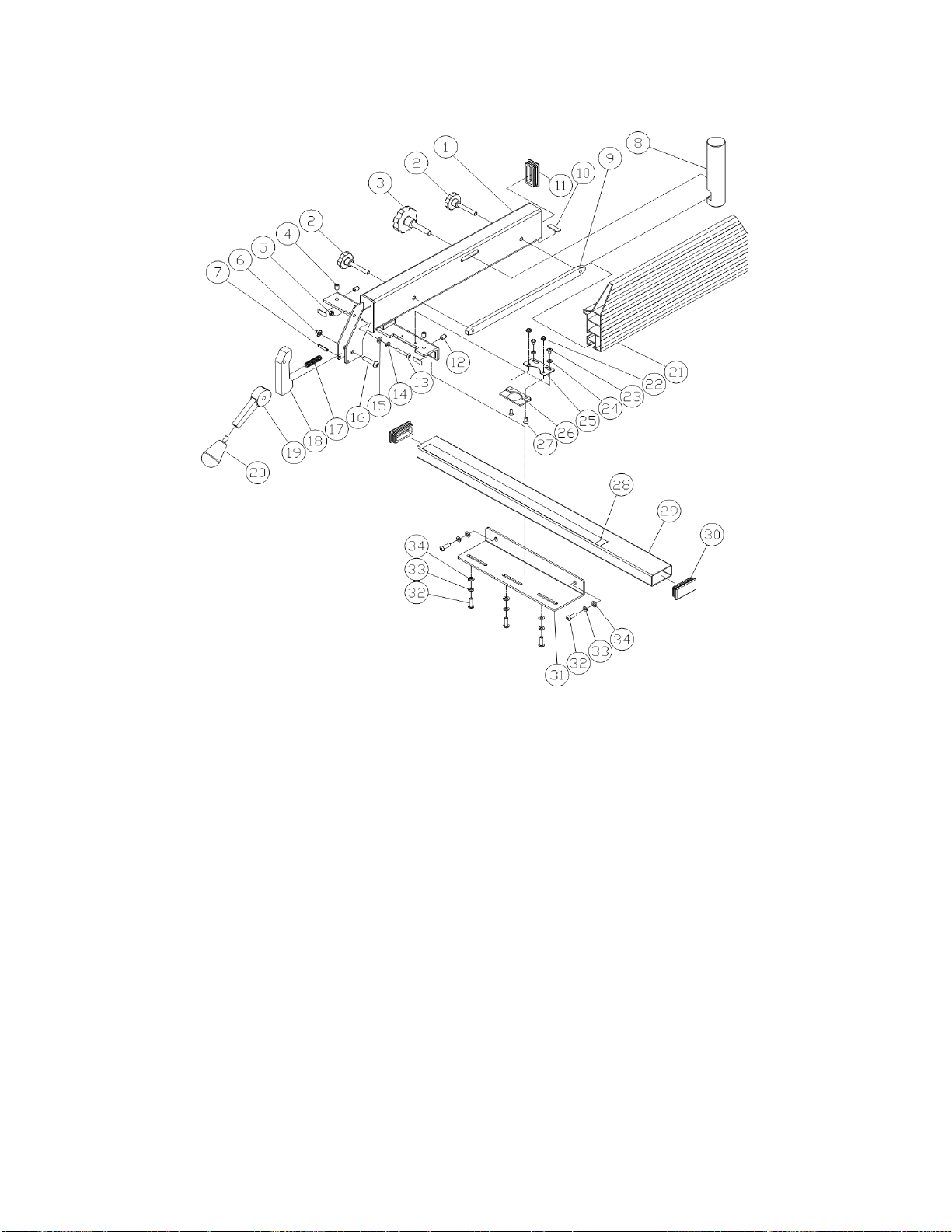

9.1  Fence Assembly – Exploded View ...................................................................................................... 43
9.2  Fence Assembly – Parts List ............................................................................................................... 43

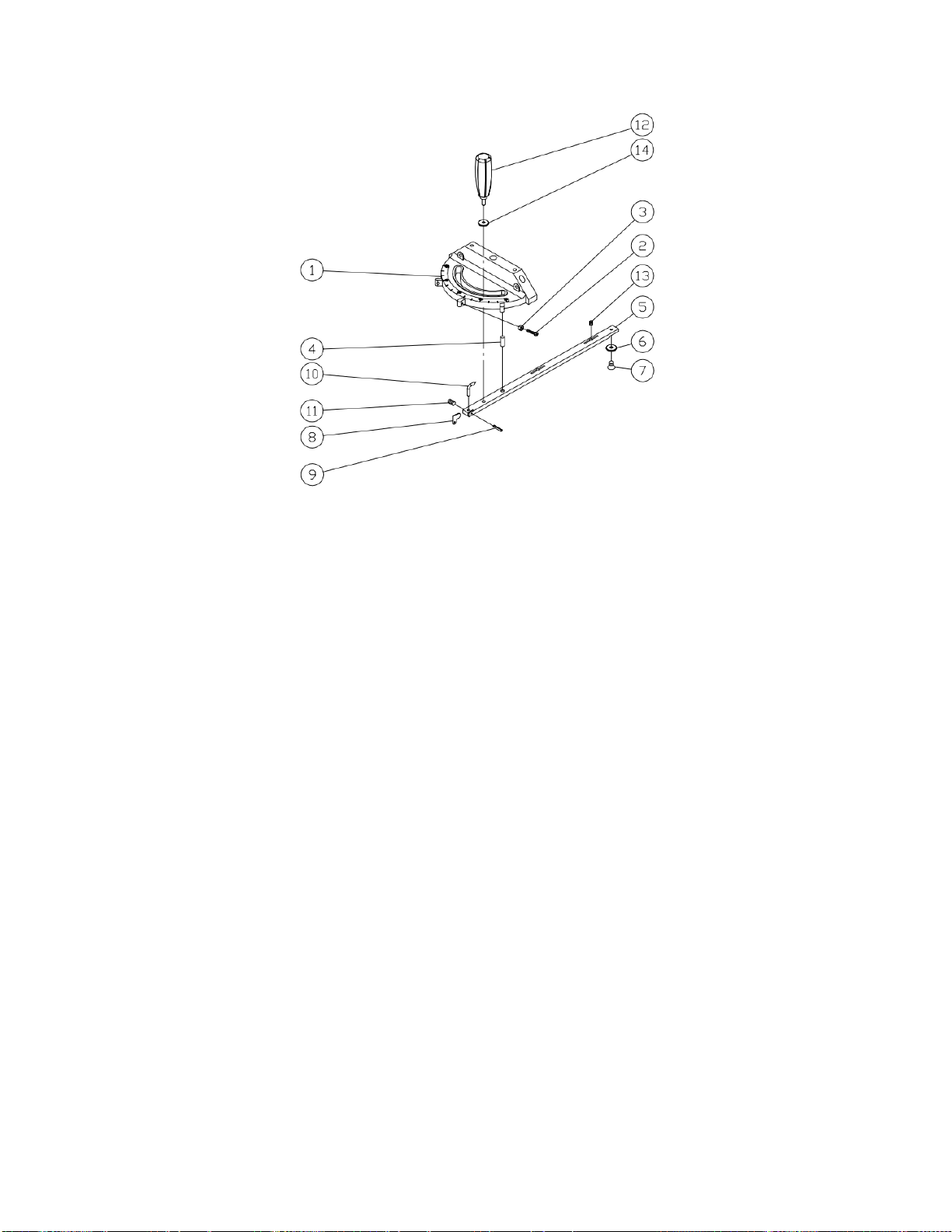

10.1  Miter Gauge Assembly – Exploded View .......................................................................................... 45
10.2  Miter Gauge Assembly – Parts List ................................................................................................... 45

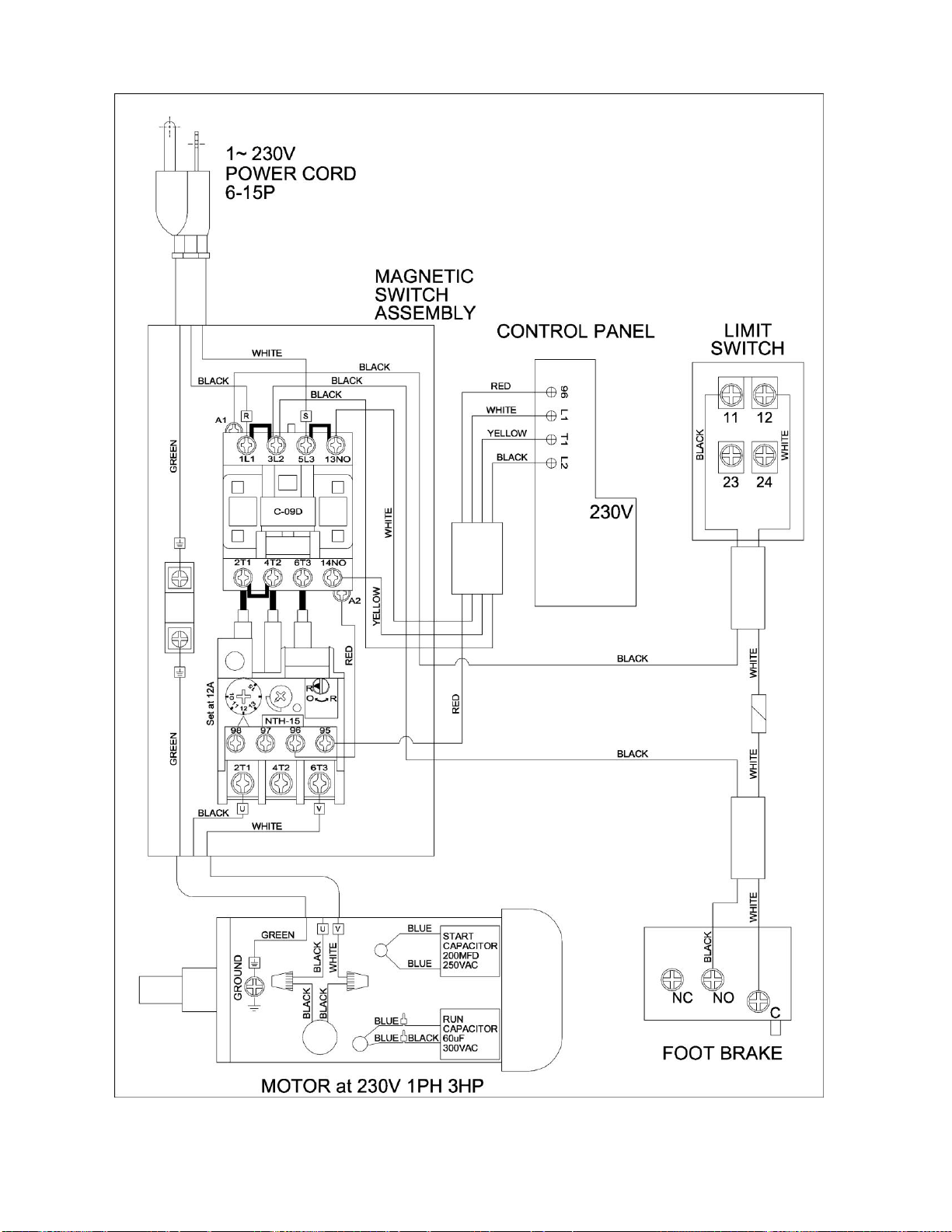

0  Electrical Connections – 3HP 1PH 230V ................................................................................................... 46



3.0 Safety Warnings

WARNING: For your own safety read instruction

manual before operating Band Saw.

- Wear eye protection.

- Do not remove jammed cutoff pieces until

blade has stopped.

- Maintain proper adjustment of blade tension,

blade guides, and thrust bearings.

- Adjust upper guide to just clear workpiece.

- Hold workpiece firmly against table.

1. Read and understand entire owner's manual

before attempting assembly or operation.

2. Read and understand the warnings posted on

the machine and in this manual. Failure to

comply with all of these warnings may cause

serious injury.

3. Replace warning labels if they become

obscured or removed.

4. This band saw is designed and intended for use

by properly trained and experienced personnel

only. If you are not familiar with the proper and

safe operation of a band saw, do not use until

proper training and knowledge have been

obtained.

5. Do not use this band saw for other than its

intended use. If used for other purposes,

Powermatic disclaims any real or implied

warranty and holds itself harmless from any

injury that may result from that use.

6. Always wear approved safety glasses/face

shield while using this machine. (Everyday

eyeglasses only have impact resistant lenses;

they are not safety glasses.)

7. Before operating band saw, remove tie, rings,

watches and other jewelry, and roll sleeves up

past the elbows. Remove all loose clothing and

confine long hair. Non-slip footwear or anti-skid

floor strips are recommended. Do not wear

gloves.

8. Keep work area clean. Cluttered areas and

benches invite accidents.

9. Use proper extension cord. Make sure your

extension cord is in good condition. When using

an extension cord, be sure to use one heavy

enough to carry the current your product will

draw. An undersized cord will cause a drop in

line voltage resulting in loss of power and

overheating. Table 1 shows the correct size to

use depending on cord length and nameplate

ampere rating. If in doubt, use the next heavier

gage. The smaller the gage number, the

heavier the cord.

10. Secure work. Use clamps or a vise to hold work

when practical. It’s safer than using your hand

and it frees both hands to operate tool.

11. Disconnect tools before servicing; when

changing accessories, such as blade, bits,

cutters and the like.

12. Direction of feed: Feed work into a blade or

cutter against the direction of rotation of the

blade or cutter only.

13. Adjust upper blade guides to approximately 1/8”

above workpiece.

14. Make sure blade tension, tracking and blade

guides are all properly adjusted.

15. Make relief cuts where possible, when cutting

curved stock.

16. When feeding small work pieces into blade,

always use push stick, fixture, or similar device

to keep hands at a safe distance.

17. Hold stock firmly and flat against table.

18. Wear ear protectors (plugs or muffs) during

extended periods of operation.

19. Do not operate this machine while tired or under

the influence of drugs, alcohol or any

medication.

20. Make certain switch is in OFF position before

connecting machine to power supply.

21. Make certain machine is properly grounded.

22. Do not back stock out of blade while blade is

running.

23. Remove adjusting keys and wrenches. Form a

habit of checking to see that keys and adjusting

wrenches are removed from the machine

before turning it on.

24. Keep safety guards in place at all times when

machine is in use. If removed for maintenance

purposes, use extreme caution and replace the

guards immediately after completion of

maintenance.

25. Check damaged parts. Before further use of

machine, a guard or other part that is damaged

should be carefully checked to determine that it

will operate properly and perform its intended

function. Check for alignment of moving parts,

binding of moving parts, breakage of parts,

mounting and any other conditions that may

affect its operation. A guard or other part that is

damaged should be properly repaired or

replaced.

26. Keep floor around machine clean and free of

scrap material, oil and grease.

27. Keep visitors a safe distance from work area.

Keep children away.

28. Make your workshop child proof with padlocks,

master switches or by removing starter keys.

29. Give your work undivided attention. Looking

around, carrying on a conversation and “horse-

play” are careless acts that can result in serious

injury.

30. Maintain a balanced stance at all times so that

you do not fall into blade or other moving parts.

Do not overreach or use excessive force to

perform any machine operation.

31. Use the right tool at the correct speed and feed

rate. Do not force a tool or attachment to do a

job for which it was not designed. The right tool

will do the job better and more safely.

32. Use recommended accessories; improper

accessories may be hazardous.

33. Maintain tools with care. Keep blades sharp and

clean for best and safest performance. Follow

instructions for lubricating and changing

accessories.

34. Turn off machine before cleaning. Use a brush

or compressed air to remove chips or debris —

not your hands.

35. Do not stand on machine. Serious injury could

occur if machine tips over.

36. Never leave machine running unattended. Turn

power off and do not leave band saw until blade

comes to a complete stop.

37. Remove loose items and unnecessary work

pieces from area before starting machine.

38. Keep hands out of line of saw blade.

39. Don’t use in dangerous environment. Do not

expose machine to rain or use in wet or damp

locations. Keep work area well lighted.

40. Remove safety key from switch whenever band

saw is turned “OFF”, and keep safety key out of

reach of unauthorized persons or children.

Familiarize yourself with the following safety notices used in this manual:

This means that if precautions are not heeded, it may result in minor injury and/or

possible machine damage.

This means that if precautions are not heeded, it may result in serious injury or

possibly even death.

4.0 About this Manual

This manual is provided by Powermatic covering the safe operation and maintenance procedures for a

Powermatic model PM1500 Band Saw. This manual contains instructions on installation, safety precautions,

general operating procedures, maintenance instructions and parts breakdown. Your machine has been designed

and constructed to provide consistent, long-term operation if used in accordance with the instructions as set forth

in this document.

This manual is not intended to be an exhaustive guide to band saw operational methods, use of jigs or after-

market accessories, choice of stock, etc. Additional knowledge can be obtained from experienced users or trade

articles. Whatever accepted methods are used, always make personal safety a priority.

Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.

Read and understand the entire contents of this manual before attempting assembly or

operation! Failure to comply may cause serious injury!

WARNING: This product can expose you to

chemicals including lead which is known to the

State of California to cause cancer and birth

defects or other reproductive harm. For more

information go to http://www.p65warnings.ca.gov.

WARNING: Drilling, sawing, sanding or

machining wood products generates wood dust

and other substances known to the State of

California to cause cancer. Avoid inhaling dust

generated from wood products or use a dust mask

or other safeguards for personal protection.

Wood products emit chemicals known to the State

of California to cause birth defects or other

reproductive harm. For more information go to

http://www.p65warnings.ca.gov/wood.

5.0 Features and Terminology

Figure 1

1. Lifting ring

2. Upper wheel

3. Tire

4. Tracking window

5. Door catch

6. Guide post handwheel

7. Guide post

8. Upper bearing blade guides

9. Table insert

10. Blade and wheel brushes

11. Brake pedal

12. Lower wheel

13. Drive belt and pulley

14. Lower door

15. Guide rail

16. Rip fence

17. Aluminum fence plate

18. Magnetic switch with power indicator light

19. Safety key

20. Warning label

21. Blade tension window

22. Blade tension scale

23. Upper door

24. Interlock switch

25. Blade tension lever

26. Tension lever position label

27. Tracking knob

28. Tracking knob lock lever

29. Serial number/machine identification plate

30. Blade tension handwheel

31. Motor lift handle

32. 3 horsepower TEFC motor

33. Dust port

34. Trunnion lock handle

35. Trunnion fine adjust knob

36. Resaw pin

37. Cast iron table

38. Miter slot

39. Guide post locking knob

The specifications in this manual were current at time of publication, but because of our policy of continuous

improvement, Powermatic reserves the right to change specifications at any time and without prior notice, without

incurring obligations.

6.0 Specifications

Model number ............................................................................................................................................ PM1500

Stock number ............................................................................................................................................ 1791500

Motor and electricals:

Motor type ....................................................................... totally enclosed fan cooled, induction, capacitor start

Horsepower ................................................................................................................................................ 3 HP

Phase ........................................................................................................................................................ single

Voltage ....................................................................................................................................................... 230V

Cycle .......................................................................................................................................................... 60Hz

Listed FLA (full load amps) .......................................................................................................................... 12A

Starting amps ............................................................................................................................................... 55A

Running amps (no load) .............................................................................................................................. 3.3A

Start capacitor ....................................................................................................................... 200MFD, 250VAC

Run capacitor ............................................................................................................................. 60µF, 300VAC

Power transfer ........................................................................................................... Poly-V 9 groove belt drive

On/off switch ..................................................................... Magnetic, with power indicator lamp and safety key

Motor speed ...................................................................................................................................... 1720 RPM

Blade speed .................................................................................................................................... 3100 SFPM

Power cord length ....................................................................................................................... 6.6 ft. (200cm)

Power plug installed ..................................................................................................................................... yes

Recommended circuit size

......................................................................................................................... 20A

Sound emission ...................................................................... 72 dB at 39” (1000mm) from blade, without load

subject to local and national electrical codes.

Capacities:

Maximum cutting height/resaw capacity ....................................................................................... 14” (355mm)

Throat capacity ........................................................................................................................ 14-1/2” (368mm)

Minimum blade width .................................................................................................................... 1/8” (3.2mm)

Maximum blade width .................................................................................................................... 1” (25.4mm)

Blade length

.................................................................................................................. 153 +/-1/2” (3886mm)

Blade provided ................................................................................................. hook type, 3/8” x 0.065” x 6 TPI

Wheel diameter ............................................................................................................................. 15” (381mm)

blade length range is 152-1/2” to 153” for band saws with serial no. 12100002 to 12100052.

Miscellaneous:

Fence plate .................................................................................................. 19-3/4”L x 6-1/2”H (502 x 165mm)

Resaw pin .................................................................................................... 1-1/2” dia x 6-1/2”H (38 x 165mm)

Stand footprint ........................................................................................... 17-3/4”L x 25-1/4”W (450 x 641mm)

Overall dimensions, assembled .................................. 30-1/4”L x 34-3/8”W x 80-1/4”H (768 x 873 x 2038mm)

Miter gauge positive stops .................................................................................................................... 45°, 90°

Materials:

Table ........................................................................................................................................ ground cast iron

Trunnion ............................................................................................................................................... cast iron

Enclosed cabinet ........................................................................................................................................ steel

Band wheels......................................................................................................................................... cast iron

Tires .............................................................................................................................................. polyurethane

Blade guides ................................................................................................................................... ball bearing

Resaw fence ....................................................................................................................... extruded aluminum

Handwheels .................................................................................................................. cast iron, chrome finish

Paint finish ...................................................................................................................................... powder coat

Table:

Table dimensions ....................................................................... 21-1/2”L x 16”W x 2”Thk (546 x 406 x 51mm)

Table tilt ................................................................................................................................... 10° left, 45° right

Table height from floor at 90-degrees ......................................................................................... 40” (1016mm)

Miter T-slot ............................................................................. 7/8”W x 3/8”D; opening 3/4"W (22 x 9.5; 19mm)

Edge bevel .................................................................................................................................................. front

Dust collection:

Dust port outside diameter .................................................................................................... two at 4” (100mm)

Minimum extraction volume required .................................................................................................. 600 CFM

Weights:

Net weight (fully assembled) ...................................................................................................... 394 lb (179 kg)

Shipping weight .......................................................................................................................... 502 lb (228 kg)

6.1 Base Hole Centers (PM1500 Band Saw)

Figure 2

Read and understand all

instructions before attempting assembly or

operation of band saw. Failure to comply may

cause serious injury.

7.0 Setup and Assembly

7.1 Unpacking

1. Remove all contents from shipping carton. Do

not discard any shipping material until band saw

is assembled and running satisfactorily.

2. Inspect contents for shipping damage. Report

any damage immediately to your distributor and

shipping agent.

3. Compare contents of shipping carton with the

contents list in this manual. Report shortages, if

any, to your distributor.

Note: Some parts may have come pre-assembled to

the saw.

7.2 Shipping Contents

Carton contents (see Figure 3):

1 Band saw

1 Fence plate – A

1 Fence body – B

1 Resaw pin – C

1 Fence lever knob – D

1 Resaw pin lock knob – E

1 Rail – F

1 Guide rail – G

1 Miter gauge – H

1 Hand wheel – I

1 Owner’s manual (not shown)

1 Warranty card (not shown)

Tools required for set up and assembly:

Hoist or forklift, with straps

Machinist square

Figure 3

Hardware for PM1500 (see Figure 3a):

Figure 3a: Contents (items not to scale)

5 Socket head button screws, M6x16 – HP-1

1 Pan head Phillips screw with flange, M6x10 –

HP-2

5 Flat washers, M6 – HP-3

5 Lock washers, M6 – HP-4

1 Hex wrench, 8mm – HP-5

1 Hex wrench, 3mm – HP-6

1 Table pin – HP-7

1 Wrench 13mm/10mm – HP-8

7.3 Location

Remove all crating and plastic from around

machine. Remove any screws or straps holding

band saw to shipping pallet.

Exercise care when removing

machine from shipping pallet.

Use a hoist or forklift with straps to remove band

saw from pallet. The straps used should have a

minimum 500-lb. lifting capacity. Do NOT place

forks or straps directly beneath table or against

handles or levers – use the lifting eye atop the band

saw.

Move band saw to its permanent location, which

should be dry and well lit, with a level floor and

enough space on all sides to handle long stock or

perform routine maintenance on the machine. Make

sure floor is able to support weight of machine. If

desired, band saw can be secured to floor using lag

screws (not provided) through the four holes in

base. See Figure 2 for hole spacing.

Exposed metal surfaces, such as table surface and

blade guides, have been given a protective coating

at the factory. This coating should be removed with

a soft cloth moistened with solvent. Do not get

solvents near plastic or rubber parts; and do not use

an abrasive pad as it may scratch exposed surfaces.

The handle on the front handwheel may be in

reverse position for shipping. Reinstall it in proper

position on the handwheel. Use a wrench on the flat

to tighten it to the handwheel.

7.4 Dust Collection

The use of a dust collection system is strongly

recommended for this band saw. It will help keep the

shop clean, as well as reduce potential health

hazards caused by inhalation of wood dust. The

collector should have a capacity sufficient for this

size machine: 400 CFM is recommended.

Powermatic has a line of dust collection systems

available; see your dealer or visit our website listed

on the cover.

Connect the hoses of your dust collection system to

the saw’s dust ports (4” outside diameter). Secure

tightly with hose clamps (not provided).

7.5 Electrical Connections

Electrical connections must be

made by a qualified electrician in compliance

with all relevant codes. This machine must be

properly grounded to help prevent electrical

shock and possible fatal injury.

The band saw is factory wired for 230 volts. It is

recommended that the band saw be connected to a

grounded and dedicated 20 amp circuit with a 20

amp circuit breaker or time delay fuse. Local codes

take precedence over recommendations.

7.6 Grounding Instructions

1. All grounded, cord-connected tools:

In the event of a malfunction or breakdown,

grounding provides a path of least resistance for

electric current to reduce the risk of electric shock.

This tool is equipped with an electric cord having an

equipment-grounding conductor and a grounding

plug. The plug must be plugged into a matching

outlet that is properly installed and grounded in

accordance with all local codes and ordinances. Do

not modify the plug provided - if it will not fit the

outlet, have the proper outlet installed by a qualified

electrician.

Improper connection of the equipment-grounding

conductor can result in a risk of electric shock. The

conductor with insulation having an outer surface

that is green with or without yellow stripes is the

equipment-grounding conductor. If repair or

replacement of the electric cord or plug is

necessary, do not connect the equipment-grounding

conductor to a live terminal.

Check with a qualified electrician or service

personnel if the grounding instructions are not

completely understood, or if in doubt as to whether

the tool is properly grounded. Use only 3-wire

extension cords that have 3-prong grounding plugs

and 3 pole receptacles that accept the tool's plug.

Repair or replace damaged or worn cord

immediately.

2. Grounded, cord-connected tools intended for use

on a supply circuit having a nominal rating between

150 – 250 volts, inclusive:

This tool is intended for use on a circuit that has an

outlet that looks like the one illustrated in Figure 4.

The tool has a grounding plug that looks like the plug

illustrated in Figure 4. Make sure the tool is

connected to an outlet having the same

configuration as the plug. No adapter is available or

should be used with this tool. If the tool must be

reconnected for use on a different type of electric

circuit, the reconnection should be made by

qualified service personnel; and after reconnection,

the tool should comply with all local codes and

ordinances.

Make sure the voltage of your power supply

matches the specifications on the motor plate of the

Band Saw.

Figure 4

7.7 Extension Cords

The use of extension cords is discouraged; try to

position machines within reach of power source. If

an extension cord becomes necessary, make sure

the cord rating is suitable for the amperage listed on

the machine’s motor plate. An undersized cord will

cause a drop in line voltage resulting in loss of

power and overheating.

Use Table 1 as a general guide in choosing the

correct size cord. The smaller the gauge number,

the heavier the cord. If in doubt, use the next heavier

gauge.

Recommended Gauges (AWG) of Extension Cords

Ampere rating

Volts

Total length of cord in

feet

120

100

150

240

100

200

300

than

Not more

than

Minimum gauge cord

NR: Not Recommended.

Table 1

7.8 Rail and Guide Rail

Refer to Figure 5a.

1. Install the rail to the front edge of the table,

using two (2) M6x16 socket head button screws

(HP-1), with M6 lock washers (HP-4), and M6

flat washers (HP-3), through the slotted holes in

the rail. Place the screws approximately in the

center of the slots; this can be adjusted later as

needed. Tighten the screws with the hex

wrench.

2. Install the guide rail to the bottom holes in the

front rail, using three (3) M6x16 socket head

button screws (HP-1), with M6 lock washers

(HP-4) and M6 flat washers (HP-3). Hand-

tighten only. Pull the guide rail away from the

table as far as it will go, then tighten all five (5)

screws in the guide tube with the hex wrench.

Do not overtighten.

3. Install the table pin (HP-7) to the front edge of

the table and connect the table pin tether to the

table using the provided screw (HP-2).

Figure 5a

7.9 Install Handwheel

Refer to Figure 5b.

Install the handwheel (A) onto the shaft (B). Align

the set screw on the handwheel with the flat side of

the shaft and tighten with the hex key.

Figure 5b

8.0 Adjustments

Tools required for adjustments:

Machinist square

Cross point (Phillips) screwdriver

Hex keys, 4mm/5mm/6mm

13mm wrench

Straight edge and gauge

8.1 Fence Assembly

Refer to Figure 5c.

Place fence body onto guide tube, as shown in

Figure 5c. Raise fence lever all the way up to install

or remove fence from guide rail. Midway lever

position allows fence to slide along guide rail.

Lowest lever position locks fence in place.

Figure 5c

HP-2

HP-7

8.2 Fence Plate

Refer to Figures 6 and 7.

Loosen lock bar (A) using knobs (B). Pull out on lock

bar until it protrudes enough on which to slide the

aluminum fence plate from one end, as shown in

Figure 6. Retighten knobs.

Figure 6 – vertical position

The aluminum fence plate can be installed in one of

two positions; vertically (resaw position), as shown

in Figure 6; or horizontally as shown in Figure 7.

Horizontal position is useful for smaller workpieces.

(The zero setting of the cursor cannot be used with

horizontal fence position.)

Figure 7 – horizontal position

8.3 Fence to Table Clearance

1. Check clearance between table and bottom of

fence (Figure 8). The fence plate should not rub

against table surface but be slightly above it.

This gap should be the same at both front and

back of table.

2. If clearance is not equal, use a 5mm hex key to

rotate the two nylon adjustment screws (C,

Figure 6) the same amount to raise or lower

fence body on guide tube. Clockwise raises

fence body, counterclockwise lowers.

Figure 8

8.4 Setting Table Parallel to Blade

Refer to Figures 9 and 10.

The table has been aligned by the manufacturer so

that the miter slot is parallel to the blade; it should

not require adjustment. However, in the future you

may wish to confirm the setting is still accurate. A

wide blade is recommended for the procedure.

1. Disconnect band saw from power source.

2. Blade should be fully tensioned (see section

8.11).

3. Place a long straightedge flush against blade,

making sure it contacts both front and back of

blade. (Do not deflect blade by pushing into it.)

See Figure 9.

Figure 9

4. Use a gauge to carefully measure distance from

miter slot to straight edge. Take measurements

at both front and back of table – these should

be identical.

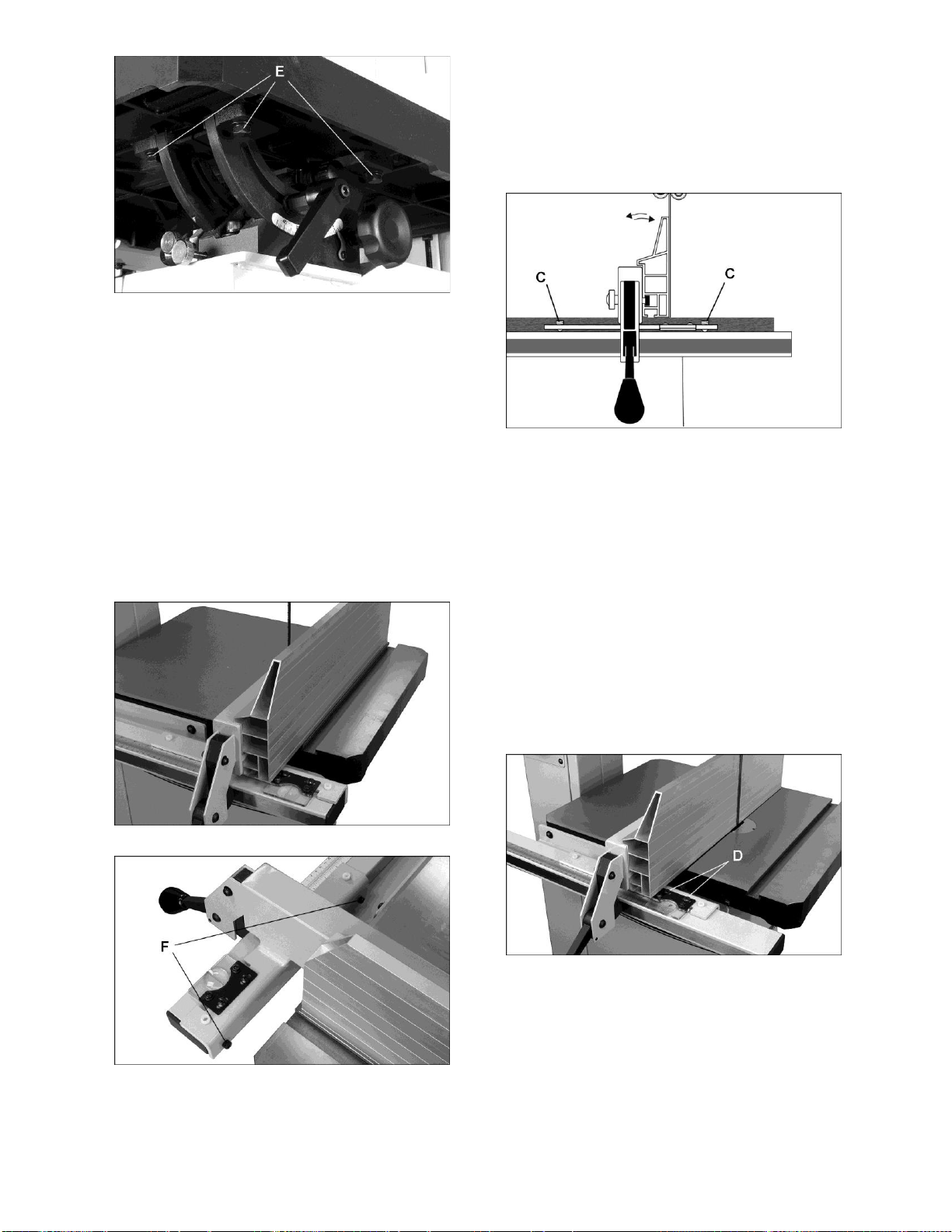

5. If miter slot is not parallel to blade, loosen four

screws (E, Figure 10) that secure table to

trunnion, and shift table as needed until miter

slot is parallel to blade.

6. Tighten the four screws.

Figure 10

8.5 Setting Fence Parallel to Blade

Refer to Figures 11 through 13.

Fence must be parallel to flat of blade for accurate

cutting. Since miter slot has been set parallel to

blade from the manufacturer (and confirmed by

user, as described in section 8.4), the miter slot can

be used to set fence parallelism.

1. Slide fence to edge of miter slot, as shown in

Figure 11. The fence should align with miter slot

along its entire length.

2. If adjustment is needed, use one of the back

adjustment screws (F, Figure 12) to turn fence

in line with miter slot (5mm hex key).

Figure 11

Figure 12

The fence must also be vertically parallel to blade.

Refer to Figure 13:

3. Make sure table has been set 90° to blade (see

section 8.9).

4. Slide fence (with aluminum plate securely

fastened) against blade; do not push into blade.

Turn either of the nylon adjustment screws (C)

until fence is parallel to blade along vertical

length of fence.

Figure 13

8.6 Setting Cursor (Zero) Position

Refer to Figure 14.

1. The fence must be set so that cursor reads zero

at line of blade. The fence plate must be

installed on fence body in vertical position, and

blade must be installed and fully tensioned.

Also, blade should be square with table and

fence (sect. 8.4 and 8.5).

2. Slide fence flush against flat of blade, as shown.

(Do not force fence into blade so that blade

deflects.)

3. If cursor is not at zero, loosen two screws (D,

Figure 14) and shift cursor as needed.

Retighten screws.

Figure 14

8.7 Fence Locking Tightness

The tightness of fence against guide rail tube can be

adjusted by rotating back adjustment screws (F,

Figure 12). Rotate the two screws equally

(clockwise to tighten).

Because these screws are also used to align fence

to blade, after adjusting fence locking tightness, you

should inspect fence-to-blade relationship, as

explained in section 8.5.

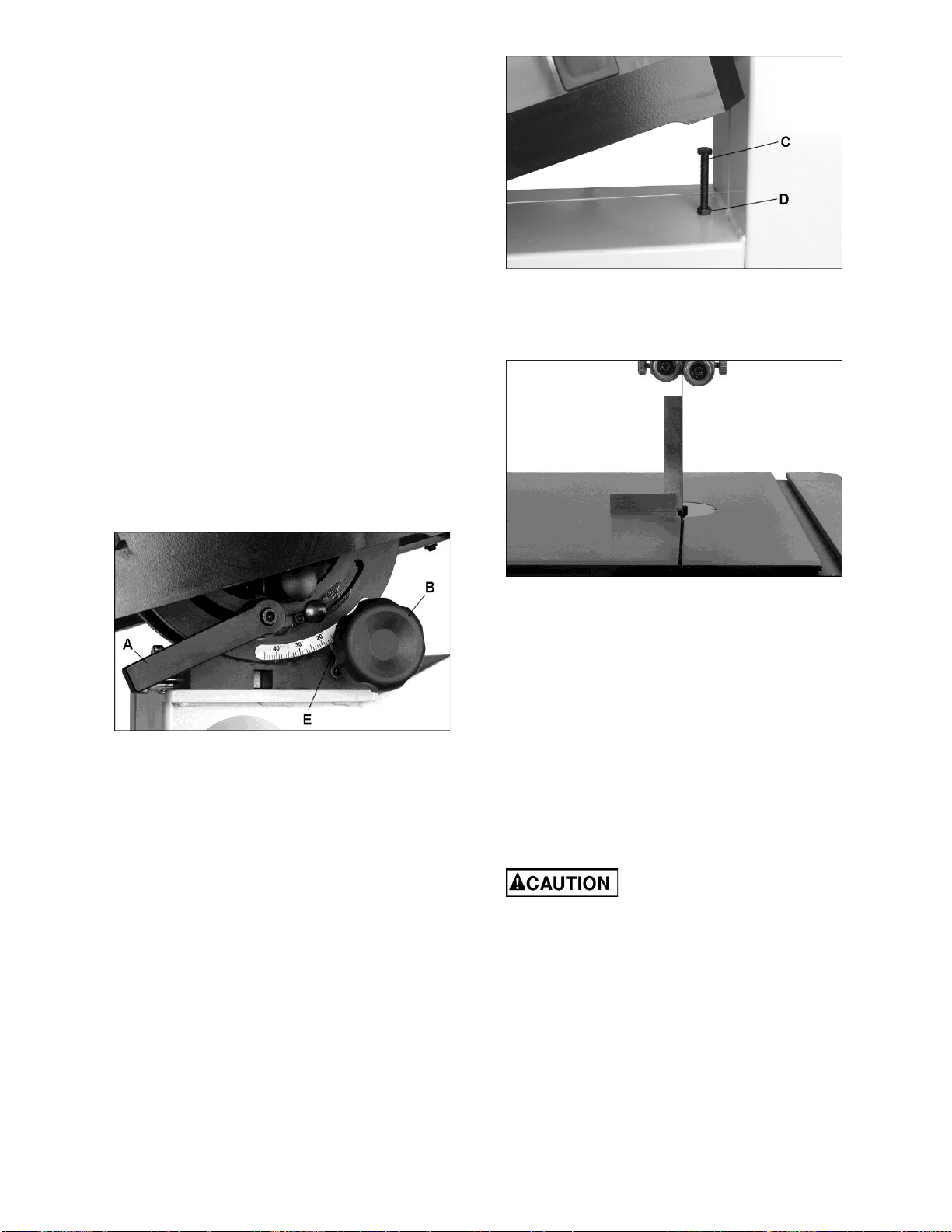

8.8 Table Tilt

Refer to Figure 15.

1. Loosen lock handle (A).

2. For right tilt (as viewed from front or operator’s

side of saw), push on table while rotating knob

(B) clockwise to tilt table up to 45°. Use knob (B)

for fine adjustment.

3. For left tilt (as viewed from front or operator’s

side of saw), loosen lock lever (A) and rotate

knob (B) clockwise a turn or two to release

pressure on the 90° stop bolt (shown in Figure

16). Remove stop bolt, then rotate knob to tilt

table up to 15°.

4. Tighten lock handle (A) to secure setting.

NOTE: The lock handle (A) can be pivoted to

more convenient positions. Simply lift straight

out on handle and rotate it on the pin, then

release handle making sure it seats itself on the

pin.

Figure 15

8.9 90° Table Stop

Refer to Figures 16 and 17.

The 90° positive stop ensures that table will always

be perpendicular to blade after table is returned to

horizontal position. Check and adjust this 90° stop

as follows:

1. Disconnect machine from power source.

2. Make sure blade is under full tension.

3. Tilt table until it rests on stop bolt (C).

Figure 16

4. Place a square on table and against blade to

check that table is 90° to blade. See Figure 17.

Do not push square into blade.

Figure 17

5. If table and blade are not square, use a 13mm

wrench to loosen lock nut (D, Figure 16) then

rotate stop bolt. Turn stop bolt as needed until

there is no longer light showing between square

and blade.

6. Tighten lock nut (D) to secure table stop in

position.

7. Tighten lock handle (A, Figure 15).

8. Check that scale pointer (E, Figure 15) is at

zero. If necessary, loosen screw on pointer and

shift pointer to zero. Re-tighten screw.

8.10 Installing/Changing Blades

Always wear gloves when

handling blades. New blades are usually

packaged in coiled position; to prevent injury

uncoil them slowly and carefully, while wearing

work gloves and safety glasses.

The PM1500 band saw is designed for blades from

1/8” to 1” wide.

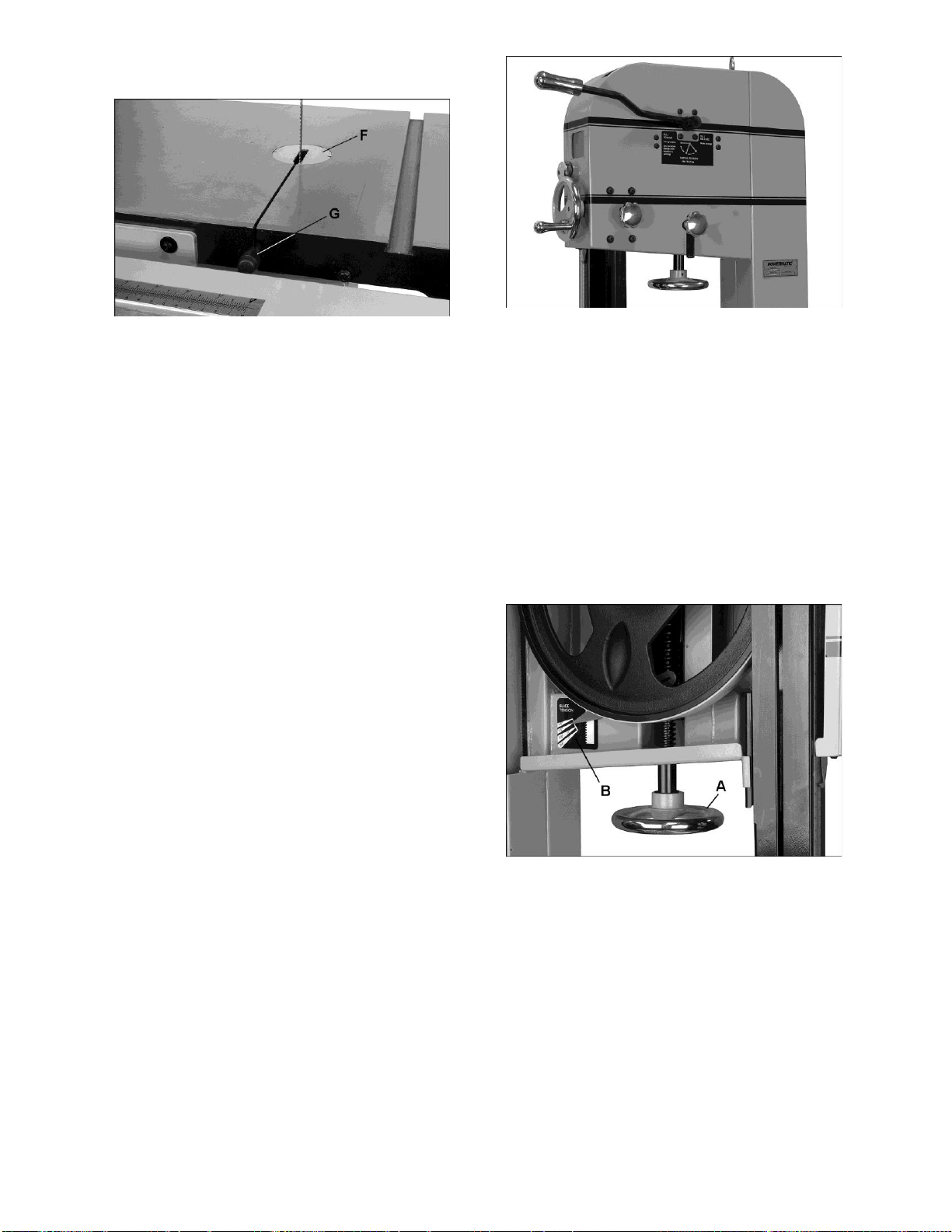

Refer to Figure 18.

1. Disconnect machine from power source.

2. Remove table insert (F, Figure 18).

3. Pull out table pin (G).

4. Adjust upper and lower blade guides away from

blade (see sections 8.13 and 8.15).

Figure 18

5. Move quick tension lever to “Full Release

(Blade Change)” position.

6. Open upper and lower doors by rotating door

catches.

7. Carefully remove blade from top wheel, then

from between upper and lower blade guides

and lower wheel. Slide blade out through slot in

table.

8. Guide new blade through table slot. Place blade

loosely in upper and lower blade guides. Make

sure blade teeth point down toward table, and

toward front of saw. (If the teeth will not point

down, no matter how you orient blade, then

blade is twisted inside-out. Twist it into correct

position and re-install it.)

9. Position blade at center of upper and lower

wheels.

10. Reinstall table insert (F) and table pin (G).

11. Before operating band saw, the new blade must

be tensioned and tracked, in that order. Find

instructions for tensioning and tracking the

blade in sections 8.11 and 8.12. The blade

guides must also be set properly according to

instructions in sections 8.13 through 8.16.

8.11 Blade Tension

Refer to Figure 19.

1. Disconnect machine from power source.

2. Back off upper and lower guide bearings to

eliminate any contact with blade.

3. With blade centered on wheels, move quick

tension lever to “Full Tension” position, as

shown in Figure 19. NOTE: You should feel

tension lever settle into each of its three

positions.

Figure 19

4. Open upper door.

5. Rotate tension handwheel (A, Figure 20) until

scale pointer (B) indicates width of installed

blade.

TIP: Use the band saw’s gauge setting initially.

As you become familiar with the machine and

with different properties of band saw blades,

you may find it necessary to change blade

tension from initial setting. Keep in mind that not

only changes in blade width, but also type of

material being cut will have an effect on blade

tension. Too little or too much blade tension can

cause blade breakage and/or poor cutting

performance.

Figure 20

6. Make a note of the specific tension setting for a

particular blade. Tension can then be re-set

quickly when that blade is reinstalled.

IMPORTANT: When band saw is not being used,

move quick tension lever to “Partial Tension-

Idle/Tracking” position. This will prolong the life

of blade and tires, and reduce load on wheels,

bearings and other components.

8.12 Blade Tracking

Refer to Figures 21 and 22.

After proper tensioning, the blade must be tracked.

“Tracking” refers to position of blade on the wheels

while machine is in operation. Tracking should be

checked periodically, and is mandatory after every

blade change. Blade tracking is done by hand with

machine disconnected from power.

1. Disconnect machine from power source.

2. Blade must be correctly tensioned (section

8.11).

3. Make sure blade guides and other parts of

machine will not interfere with blade movement.

Lower guide post until you can see blade

through tracking window (C).

Figure 21

4. Set quick tension lever initially to “Partial

Tension-Idle/Tracking” position, as shown in

Figure 21.

5. Open upper door to expose wheel.

6. Rotate wheel by hand, observing position of

blade through tracking window. As you rotate

wheel, move lever to “Full Tension” position.

The blade should continue to ride upon center

of tire (Figure 22).

Figure 22

7. If blade tends to move toward edge of wheel,

set lever to “Partial Tension-Idle/Tracking.”

8. Loosen lock handle (D, Figure 21) and slightly

rotate tracking knob (E) with your right hand

while continuing to rotate wheel with your left.

Observe blade through tracking window.

Rotating knob clockwise will cause blade to

move toward rear edge of wheel. Rotating knob

counterclockwise will cause blade to move

toward front edge of wheel.

IMPORTANT: This adjustment is sensitive;

perform in small increments and give blade time

to react to changes.

9. When blade is tracking in center of wheel, re-

tighten lock handle (D), and close upper door.

10. Move tension lever to “Full Tension” position,

and connect band saw to power. Turn it on for

a brief time to observe the blade in action

through tracking window.

11. If further adjustments are needed, disconnect

from power and repeat above procedure.

NOTE: An interlock switch in the upper housing

prevents operation of saw unless tension lever is in

full tension position.

8.13 Upper Blade Guides

The bearing guides should be set so that contact

between blade and guides will occur only when

blade is under pressure from a workpiece. To adjust

upper bearing guides for proper blade control,

proceed as follows.

Refer to Figures 23 through 24.

1. Disconnect machine from power source.

2. Blade must already be tensioned and tracking

correctly. Place quick tension lever in “Full

Tension” position.

3. Lower guide post until upper guide bearings are

a few inches off the table. (The reason for this

will be evident later in section 8.17)

4. Loosen lock knob (F, Figure 23).

Figure 23

5. Slide entire guide bracket until front of guide

bearings are about 0.015” (1/64”) behind the

blade’s gullet (curved area at base of tooth).

See Figure 24.

Figure 24

6. Tighten lock knob (F) to secure this position.

7. Loosen lock knob (G) for one of the guide

bearings.

8. The guide bearing rotates on an eccentric shaft.

Adjust guide bearing by rotating the knurled

knob (H) with a 5mm hex key, until guide

bearing is approximately 0.004” from blade. A

quick way to achieve this spacing is by placing

a single thickness of a crisp dollar bill (a dollar

bill is approximately 0.004” thick) between

blade and guide bearing. See Figure 25. Adjust

guide bearing until it just lightly grips the dollar

bill.

Figure 25

9. NOTE: Do not force guide bearing against side

of blade. It should generally only make contact

with blade when there is pressure from the

cutting operation.

10. Tighten lock knob (G).

11. Repeat process for opposite guide bearing.

8.14 Upper Thrust Bearing

Refer to Figures 23 and 26:

1. The thrust bearing prevents backward

deflection of blade during cutting. A groove

provided in the bearing surface helps stabilize

the moving blade.

2. Loosen lock knob (I) and push thrust bearing (J)

up to back of blade.

3. Adjust thrust bearing until space between

groove bottom and back edge of blade is

approximately 0.015” (1/64”). Tighten lock knob

(I).

4. If lateral adjustment of bearing is needed to

align groove with blade, loosen set screw (K) at

front of bearing assembly, and shift bearing as

needed. Retighten set screw.

5. Make sure all lock knobs on upper guide

bearing assembly are tightened when

adjustments are finished.

Figure 26

8.15 Lower Blade Guides

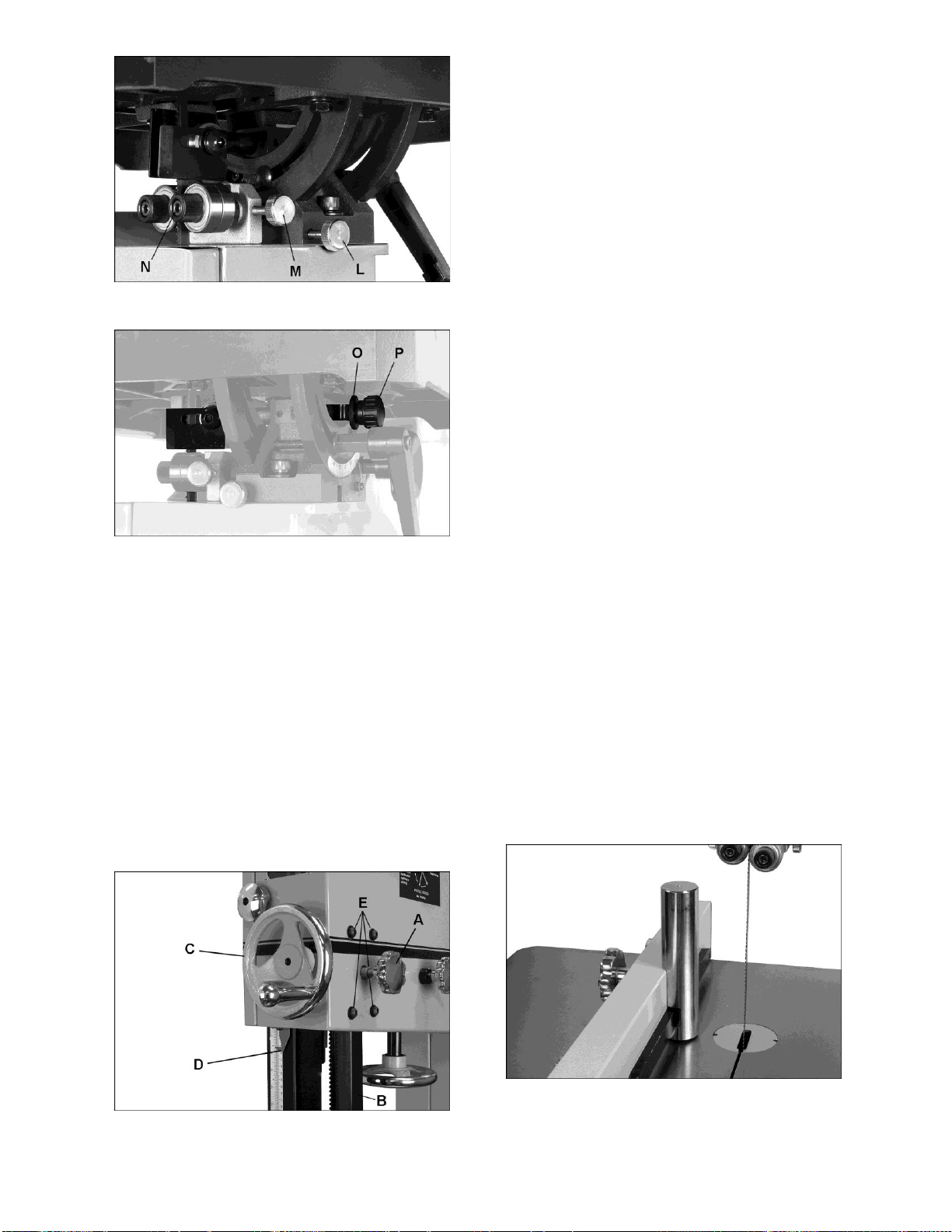

Refer to Figures 27 and 28.

1. Disconnect band saw from power source.

2. Open lower door and lower blade guard.

3. Adjust lower guide bearings and lower thrust

bearing below table, using same procedure and

measurements as for upper guide bearings and

thrust bearing described above.

Movement summary: Loosen lock knob (L) to

move guide bracket. Loosen lock knob (M) to

rotate side bearing, using knurled knob (N).

Loosen lock ring (O, Figure 27) and rotate knob

(P) to adjust thrust bearing in relation to blade.

4. Make sure all knobs are tightened after

adjustments are complete.

5. Close lower blade guard and lower door.

Figure 27 (Blade guard removed for clarity;

install lower blade guard before operating)

Figure 28

8.16 Guide Post

Refer to Figure 29.

1. Disconnect band saw from power source.

2. Loosen lock knob (A) and raise or lower guide

post (B) using handwheel (C).

3. Position blade guide assembly so that bottom of

guide bearings are about 1/8” above material to

be cut. Or, simply lower guide post until scale

pointer (D) indicates the height of your

workpiece. This provides minimal clearance

between workpiece and bottom of guide

bearings, which will minimize blade deflection

as well as enhance operator safety.

4. Tighten lock knob (A).

Figure 29

8.17 Guide Post Parallelism

The guide post should be parallel to blade

throughout vertical travel of the guide post; thus the

guide bearings will maintain their relationship to

blade at any height from the table and won’t require

re-setting each time guide post is moved. This

setting has been accurately made by the

manufacturer and should not require immediate

attention, but may be checked in future as follows:

1. Disconnect band saw from power source.

2. Move blade tension lever to “Full Tension”

position.

3. The guide bearings in low position should

already be set in relation to blade (see section

8.13). Also, the table must be square with blade

(see section 8.4)

4. Loosen lock knob (A, Figure 28) and raise guide

post to a high position.

5. Confirm that guide post travels straight up and

down, and guide bearings maintain their

relationship to blade.

6. If guide post does not go straight up and down

(blade begins deflecting when guide post is

raised), slightly loosen the four screws (E,

Figure 29) and adjust guide post assembly as

needed.

7. When finished adjusting, securely tighten the

four screws (E).

8. Verify the setting by raising and lowering guide

post.

8.18 Resaw Pin

Refer to Figure 30.

The resaw pin provides a single contact point while

ripping a workpiece into thinner boards.

Remove aluminum plate and mount resaw pin to slot

in fence body, securing it with knob, as shown. The

resaw pin is usually positioned so that its center is

approximately even with the front edge of the blade.

Figure 30

See section 10.4 for further information about using

resaw pin.

8.19 Miter Gauge

Refer to Figures 31 and 32.

A miter gauge is provided for crosscutting

operations. Install miter gauge by sliding end of

miter gauge bar into table T-slot.

The miter gauge should fit snugly within miter slot

while still sliding easily. The miter gauge bar has two

slots, each with a set screw (Figure 31). Rotate one

or both of these set screws with a 4mm hex key as

needed, to eliminate any play between miter gauge

bar and miter slot.

Figure 31

If table/miter slot is square to blade (see section 8.5)

the miter gauge will also be square to blade. Before

operating, however, the 90° setting of miter gauge

should be checked in relation to blade, as follows.

1. Place a square against miter gauge face, and

against flat of blade, as shown in Figure 32.

(Place square against flat of blade, not against

the teeth which are set wider than the blade

body). A wide blade is preferred for this

procedure.

Figure 32

2. Flip 90° stop plate (C) out of the way, and

loosen handle (A). Shift miter gauge body until

it is flush with square, then re-tighten handle

(A).

3. Flip stop plate (C) back down, and loosen 90°

stop hex nut. Adjust screw until it contacts 90°

stop plate.

4. Re-tighten hex nut.

5. Loosen set screw at base of pointer (B) and shift

pointer so that it lines up with 90° mark on scale.

6. Re-tighten set screw.

7. The 45° stops can be checked in similar

fashion, using an angle gauge similar to that

shown in Figure 32.

To adjust miter gauge angle for operations:

1. Loosen handle (A).

2. Rotate gauge body until pointer (B) lines up with

desired angle on scale. You may have to pivot

90° stop plate (C) out of the way to allow the

body to rotate.

3. Tighten handle (A).

4. There are three stops: at 90°, and 45° left and

right. Each of these can be adjusted by

loosening hex nut (D) and turning screw (E) as

needed. Re-tighten hex nut (D) when

adjustment is finished.

8.20 Drive Belt Replacement and

Tensioning

The drive belt and pulleys are properly adjusted at

the factory. However, belt tension should be

occasionally checked when the band saw is new, as

a new belt may stretch slightly during the breaking-

in process.

If belt becomes worn, cracked, frayed or glazed, it

should be replaced as follows:

Refer to Figures 33 and 34.

1. Disconnect machine from power source.

2. Open upper and lower doors and remove blade.

3. Remove screw (F, Figure 33) from lower wheel

shaft with a 6mm hex key, and remove lower

wheel.

Figure 33

4. Loosen motor lock handle (G, Figure 34).

5. Raise motor lift handle (H) and retighten motor

lock handle to hold motor in raised position.

6. Remove old belt and install new one, making

sure it seats properly in pulley grooves.

7. Loosen motor lock handle (G) and allow motor

to lower.

Figure 34

8. The weight of the motor itself should produce

proper tension for the belt. Check tension by

pushing with moderate pressure on the belt

halfway between the pulleys. An adequately

tensioned belt will deflect about 1/2”. If tension

isn’t strong enough, push down on motor.

9. Tighten motor lock handle (G).

10. Reinstall lower wheel, and tighten screw (F)

securely.

11. Install blade, and verify blade tension and

tracking before operating (sections 8.11 and

8.12).

8.21 Brushes

Refer to Figure 35.

Two adjustable brushes are located in lower wheel

housing. They should remain in constant contact

with blade or wheel to prevent buildup of gum and

debris.

Figure 35

9.0 Operating Controls

9.1 Start/Stop

Refer to Figure 36.

Power Indicator Light – The start switch (A) has a

power indicator lamp which is on whenever there is

power connected to the band saw, not just when the

band saw is running. Do not assume that no light

means there is no power to the machine. If the bulb

is bad, there will be no indication. Always check

before use.

Do not rely that no light means

no power to the machine. Always check for

power first. Failure to comply may cause serious

injury!

Start – Press green start switch (A).

When power is connected to machine, the green

light is always on regardless of whether band saw is

running or not.

Stop – Press red switch (B) to stop.

Reset – If band saw stops without pressing the stop

button (as result of tripped fuse or circuit breaker,

etc.) proceed as follows:

1. Press red switch to reset.

2. Press green switch to restart machine.

Figure 36

9.2 Safety Key

The start/stop switch on the Band Saw comes

equipped with a magnetic safety key (C, Figure 36).

When in place on the switch, the magnetic safety

key trips a relay which will allow the machine to start

and stop when the respective switches are pressed.

Being magnetic, the lock can be removed to make

the machine inoperable and can be hidden for safe

storage by attaching it to another magnetic surface.

When using the band saw, place the key on the

switch cover, lining up arrow on key with REMOVE

arrow on cover. Then rotate key so that arrow lines

up with LOCK arrow on cover. This will prevent the

safety key coming loose from vibration when

machine is in use.

9.3 Brake Pedal

When the stop button is used to shut off the band

saw, the blade will coast slowly to a stop. An

alternate method of stopping the machine is to press

and hold the brake pedal, shown in Figure 37. The

blade will stop moving in approximately three to four

seconds after pedal is pressed. Restart saw by

pressing start switch on column.

NOTE: Unnecessary and excessive use of brake

pedal may shorten life of brake pad.

Figure 37

After machine is shut off, allow

wheels and blade to come to a complete stop

before opening guards/doors, making

adjustments, or leaving the area.

10.0 Operation

The following section contains basic information,

and is not intended to cover all possible applications

or techniques using the band saw. Consult

published sources of information, acquire formal

training, and/or talk to experienced band saw users

to gain proficiency and knowledge of band saw

operations.

(The following figures may or may not show your

specific model, but procedures are the same.)

10.1 General Procedure

1. Make sure blade is adjusted correctly for

tension and tracking, and that upper and lower

guide bearings and thrust bearings are set in

proper relation to blade.

2. Adjust guide post so that guide bearings are just

above workpiece (about 1/8”) allowing minimum

exposure to blade.

3. If using the fence, move it into position and lock

it to guide rail. If using miter gauge for a

crosscut, the fence should be moved safely out

of the way.

4. Turn on band saw and allow a few seconds for

machine to reach full speed.

Whenever possible, use a

push stick, hold-down, power feeder, jig, or

similar device while feeding stock, to

prevent your hands getting too close to the

blade.

5. Place the straightest edge of the workpiece

against the fence for a rip cut; or against the

miter gauge for a crosscut. Push workpiece

slowly into blade, while also keeping it pressed

against fence or held against miter gauge. Do

not force workpiece into blade.

Additional operating tips:

Make relief cuts whenever possible. A relief cut is an

extra cut made through the waste portion of a

workpiece up to the layout line. When that

intersection is reached by the blade while following

the layout line, the waste portion comes free. This

helps prevent pinching of the back edge of the blade

in the cut.

When cutting, do not overfeed

blade; overfeeding will reduce blade life, and

may cause blade to break.

When cutting long stock, the operator should use

roller stands, support tables, or an assistant to help

stabilize the workpiece.

10.2 Ripping

Ripping is cutting lengthwise down the workpiece,

along the grain of wood. See Figure 38. Always use

a push stick or similar device when ripping narrow

pieces.

Figure 38 (ripping)

10.3 Crosscutting

Crosscutting is cutting across the grain of the

workpiece, while using the miter gauge to feed the

workpiece into the blade.

The right hand should hold workpiece steady

against miter gauge, while left hand pushes miter

gauge past blade, as shown in Figure 39.

Do not use fence in conjunction with miter gauge.

The offcut of the workpiece must not be constrained

during or after the cutting process.

Using the fence in conjunction

with miter gauge can cause binding and

possible damage to blade.

Figure 39 (crosscut)

10.4 Resawing

Resawing is the process of slicing stock to reduce

its thickness, or to produce boards that are thinner

than the original workpiece, such as veneers.

The ideal blade for resawing is the widest one the

machine can handle, as the wider the blade the

better it can hold a straight line.

Resawing can be performed using the aluminum

fence plate or the resaw pin. When using the plate,

use a push block, push stick, or similar device to

keep your hands away from the blade. The resaw

pin offers a pivot point by which you can carefully

follow your layout line; it is especially useful for

sawing curves, when the fence cannot be used and

it is difficult to control the cut freehand.

Figure 40 demonstrates resawing with the

aluminum plate; Figure 41, with the resaw pin.

Figure 40 (resawing)

Figure 41 (resaw pin)

10.5 Blade Lead

Blade lead, or drift, is when the blade begins to

wander off the cutting line even when the band saw

fence is being used. Figure 42 shows an example of

blade lead. It is more common with small, narrow

blades, and is almost always attributable to poor

blade quality, or lack of proper adjustments. Inspect

the band saw for the following:

• Fence not parallel to miter slot and blade.

• Blade not tensioned correctly.

• Blade is dull.

• Teeth have excessive “set” on one side of

blade.

• Workpiece being fed too quickly.

Figure 42

If the blade is suspect, but replacing it is not

currently an option, the blade lead can be

temporarily compensated for by skewing the fence:

1. Cut a scrap piece of wood about the same

length as the band saw table, and joint one

edge along its length, or rip it on a table saw to

give it a straight edge.

2. Draw a line on the board parallel with the

jointed, or straight edge of the board.

3. Move the band saw fence out of the way, and

carefully make a freehand cut along your drawn

line on the board. Stop about midway on the

board, and shut off the band saw (allow blade

to come to a complete stop) but do not allow the

board to move.

4. Clamp the board to the table.

5. Slide the band saw fence over against the

board until it contacts the straight edge of the

board at some point. Lock the fence down.

6. Use the back adjustment screws (F, Figure 13)

to line up fence against board.

NOTE: Skewing the fence to correct blade lead is

effective for that particular blade; when a new blade

is installed, the fence will need re-adjustment and

re-squaring to miter slot. See appropriate sections

in this manual.

11.0 Maintenance

Before doing maintenance on

the machine, disconnect it from electrical

supply by pulling out plug or switching off main

switch! Failure to comply may cause serious

injury.

Clean band saw regularly to remove any resinous

deposits and sawdust.

Keep miter slot, and guide bearings, clean and free

of resin.

Keep blade clean and sharp. Check it periodically

for cracks or other signs of wear.

The drive belt should be checked periodically. If it

looks worn, frayed, glazed or otherwise damaged,

replace it.

Remove any deposits from band wheels to avoid

vibration and potential blade breakage.

Vacuum or blow out dust from inside cabinet. (Use

proper dust mask equipment).

The table surface must be kept clean and free of rust

for best results. If rust appears, it can often be

removed with a mixture of household ammonia,

good commercial detergent and #000 steel wool.

Alternatively, commercial rust removers can be

found at many hardware stores.

Apply a light coat of paste wax to table. There are

also products in aerosol form available in major

hardware stores and supply catalogs. Whatever

method is chosen, the coating should protect the

metal and provide a smooth surface, without

staining workpieces.

If the power cord is worn, cut, or damaged in any

way, have it replaced immediately.

11.1 Lubrication Points

1. Periodically apply a light, non-hardening grease

to rack and pinion system of guide post (Figure

43).

Figure 43

2. Grease the sliding surfaces of the table

trunnions (Figure 44).

Figure 44

3. Grease blade tension screw (Figure 45).

Figure 45

4. Oil any pins, shafts, and joints. (Do not get oil

on pulleys or belts.)

Note: Bearings on the band saw are pre-lubricated

and sealed, and do not require attention.

12.0 Blade Selection

Using the proper blade for the job will increase the

operating efficiency of your band saw, help reduce

necessary saw maintenance, and improve your

productivity. Thus, it is important to follow certain

guidelines when selecting a saw blade.

Here are factors to consider during selection:

• Type of material you will be cutting.

• Thickness of workpiece.

• Features of workpiece, such as bends or curves

with small radii.

These factors are important because they involve

basic concepts of saw blade design. There are five

(5) blade features that are normally changed to meet

certain kinds of sawing requirements. They are:

1. Width

2. pitch (number of teeth per inch)

3. tooth form (or shape)

4. “set” of the teeth

5. the blade material itself

Width

Band saw blades come in different standard widths,

measured from back edge of blade to tip of tooth.

Generally, wider blades are used for ripping or

making straight cuts, such as resawing. Narrower

blades are often used when the part being cut has

curves with small radii. When cutting straight lines

with a narrow blade, the blade may have a tendency

to drift (see section 10.5).

Pitch

Pitch is measured in “teeth per inch” (TPI) and can

be constant or variable. Figure 46 shows blades with

different pitches.

A fine pitch (more teeth per inch) will cut slowly but

more smoothly. A coarse pitch (fewer teeth per inch)

will cut faster but more roughly.

As a rule of thumb, the thicker the workpiece, the

coarser will be the blade pitch. If you have to cut a

hard or very brittle material, you will probably want

to use a blade with a finer pitch in order to get clean

cuts.

Using a blade with too few teeth may cause vibration

and a rough cut, while too many teeth may cause

the gullets to fill with sawdust and overheat the

blade.

As a general rule, use a blade that will have from 6

to 12 teeth in the workpiece at any given time.

Figure 46 – Blade Pitch

Shape

Figure 47 shows common types of tooth shape, or

form. Tooth shape has an effect on cutting rate.

The Regular, or standard blade, has evenly spaced

teeth that are the same size as the gullets, and a

zero-degree rake (i.e. cutting angle). These offer

precise, clean cuts at slower rates. It is usually a

good choice for cutting curves and making

crosscuts.

The Skip type has fewer teeth and larger gullets with

a zero rake. It allows faster cutting rates than the

Regular type, with a slightly coarser finish. It is

useful for resawing and ripping thick stock, as well

as cutting softwoods.

The Hook type blade has larger teeth and gullets

and a positive rake angle for more aggressive, faster

cutting when resawing or ripping thick stock,

especially hardwoods.

Variable-tooth blades combine features of the other

shapes, with tooth style and spacing varying on the

same blade. This produces smooth cuts while

dampening vibration.

Figure 47 – Blade Tooth Shape

Set

The term “set” refers to the way in which the saw

teeth are bent or positioned. Bending the teeth

creates a kerf that is wider than the back of the

blade. This helps the operator more easily pivot a

workpiece through curve cuts, and decreases

friction between blade and workpiece on straight

cuts.

Set patterns are usually selected depending upon

the type of material that needs to be cut. Three

common set patterns are shown in Figure 48.

Generally, the Raker set is used for cutting metal

workpieces; the Wavy set, when the thickness of the

workpiece changes, such as cutting hollow tubing or

structurals. The Straight, or Alternate, set is the one

most used for woodworking blades, and is also used

to cut plastics.

Figure 48 – Blade Set

Material

Band saw blades can be made from different types

of metals. The most common include spring steel,

carbon steel, bimetal (alloy steel equipped with a

high speed cobalt steel edge welded to it), or

carbide tips.

Because of the importance of blade selection, it is

recommended that you use the blade selection

guide (section 13.0). Also, listening to experienced

band saw users will produce valuable information as

to blade types currently on the market along with

their pros and cons.

Blade Breakage

Band saw blades are subject to high stresses and

breakage may sometimes be unavoidable.

However, many factors can be controlled to help

prevent most blade breakage. Here are some

common causes for breakage:

1. Misalignment of blade guides.

2. Feeding workpiece too quickly.

3. Using a wide blade to cut a tight radius curve.

4. Excessive tension.

5. Teeth are dull or improperly set.

6. Upper guides set too high off workpiece.

7. Faulty weld on blade.

Although not essential, some users round or “stone”

the back edge of their blade. This is done by placing

a sharpening stone on the table and in light contact

with the back corners of the blade as the blade is

running. Rounding can help the back blade edge

move more smoothly through the kerf, smooths the

weld, and helps prevent cracks from starting at the

back corners.

13.0 Blade Selection Guide

Identify the material and thickness of your workpiece. The chart will show recommended PITCH, blade TYPE,

and FEED RATE.

Key: H – Hook L – Low

S – Skip M – Medium

R – Regular H – High

Example: 10/H/M means 10 teeth per inch / Hook Type Blade / Medium Feed

Tables 3 and 4

For Radius Cutting

Study the part drawing or prototype, or actually measure the smallest

cutting radius required, and locate this radius (in inches) on the chart

at the right. Follow the curve to where the approximate blade width is

specified. If a radius falls between two of the curves, select the widest

blade that will saw this radius.

This procedure should be used for making initial blade selections.

These recommendations can, of course, be adjusted to meet specific

requirements of a cutting job. Compromises may be necessary if you

cannot find all needed specifications in a single blade.

14.0 Troubleshooting the PM1500 Band Saw

14.1 Operational Problems

Table 5

Trouble

Probable Cause

Remedy

Table tilt does not hold

position under load.

Lock handle not tight.

Tighten lock handle.

Trunnion locking mechanism is broken

or worn.

Replace trunnion locking mechanism.

Table will not tilt.

Trunnion not lubricated.

Lubricate trunnion.

Trunnion jammed.

Disassemble and replace jammed parts.

Table vibration while

sawing.

Drive belt too slack.

Increase tension on drive belt (sect.

8.20). Replace belt if worn.

Incorrect choice of saw blade pitch.

Check blade selection chart and use

correct blade (sect. 13.0).

Saw dust or debris on band wheel. Or

tire is worn/damaged.

Keep band wheels clean. Replace tires if

necessary.

Surface finish on

workpiece is rough.

Blade pitch too coarse.

Change to finer pitch blade.

Workpiece being fed too strongly.

Reduce feed force.

Blade cutting

inaccurately. Cuts not

straight.

Gum or pitch on blade.

Clean blade.

Worn blade teeth or damaged blade.

Replace blade.

Fence not parallel to blade.

Align fence properly (sect. 8.6).

Incorrect adjustment of blade guides.

Adjust blade guides properly (sect. 8.13

thru 8.15).

Workpiece being fed too strongly.

Reduce feed force.

Upper blade guides not located close

enough to workpiece.

Position guides about 1/8” above

workpiece.

Incorrect choice of saw blade for that

particular operation.

Install correct blade.

Blade tension too light.

Increase tension (sect. 8.11).

Blade cannot be

tensioned properly.

Tension spring is fatigued.

Replace tension spring (contact Walter

Meier service representative).

Blade binds in

workpiece.

Incorrect blade tension or damaged

blade.

Correct accordingly.

Blade too wide for desired radius.

Select narrower blade (sect. 13.0).

Blade forms cracks at

base of teeth.

Teeth not suitable for operation, or

incorrectly set.

Replace with proper blade.

Blade thickness not suitable for band

wheel diameter.

Replace with proper thickness blade.

Trouble

Probable Cause

Remedy

Blade sharpened incorrectly, becomes

overheated.

Sharpen blade properly or replace.

Band wheels have become misaligned.

Contact service representative.

Cracks on back edge

of blade.

Workpiece being fed too quickly.

Reduce feed speed to lessen strain on

blade.

Welding on blade not perfectly aligned.

Eliminate welded part, and re-weld

properly; or acquire a new blade. Round

the back edge of a new blade.

Thrust bearing is worn; caused by

constant contact with back of blade.

Replace thrust bearing. Adjust new

bearing according to instructions (sect.

8.14).

Blade breaks

prematurely.

Feed force too great.

Reduce feed force.

Blade pitch too coarse.

Refer to blade selection chart; use finer

pitch blade.

Guide bearings not properly supporting

blade.

Check guide bearings for correct

position and signs of wear. Adjust or

replace as needed.

Blade tensioned too tightly.

Reduce tension.

Blade breaks close to

weld.

Blade overheated during welding.

Have blade annealed, or eliminate brittle

part and weld correctly.

Blade cooled too rapidly after welding.

Have blade annealed, or eliminate brittle

part and weld correctly.

Premature dulling of

saw teeth.

Blade pitch too fine.

Refer to blade selection chart (sect.

13.0). Use blade with coarser pitch.

Feed pressure too light.

Increase feed pressure.

Cutting rate too low.

Increase feed pressure and cutting rate.

Incorrect choice of blade.

Re-examine material. Select proper

blade from chart (sect. 13.0).

Chipped tooth or foreign object lodged in

cut.

Stop saw and remove lodged particle.

Replace blade if damaged.

14.2 Mechanical and Electrical Problems

Table 6

Trouble

Probable Cause

Remedy

Machine will not

start/restart or

repeatedly trips circuit

breaker or blows

fuses.

No incoming power.

Verify machine is connected to power

source, and safety key is installed on

switch.

Cord damaged.

Replace cord.

Overload automatic reset has not been

reset.

Reset overload by pushing in completely

the OFF (red) button on the magnetic

switch. Allow a few minutes for machine

to cool. If problem persists, check amp

setting on motor starter.

Band Saw frequently trips.

One cause of overloading trips which are

not electrical in nature is too heavy a cut.

The solution is to reduce feed pressure

into the blade. If too heavy a cut is not

the problem, then check the amp setting

on the overload relay. Match the full load

amps on the motor as noted on the motor

plate. If amp setting is correct, there is

probably a loose electrical lead.

Building circuit breaker trips or fuse

blows.

Verify that band saw is on a circuit of

correct size. If circuit size is correct,

there is probably a loose electrical lead.

Check amp setting on motor starter.

Upper limit switch is engaged.

Adjust limit switch plate (#13, sect.

15.2.1) so that limit switch disengages

when blade is tensioned. NOTE: Plate

must still activate limit switch when blade

is not tensioned.

Switch or motor failure (how to

distinguish).

If you have access to a voltmeter, you

can separate a starter failure from a

motor failure by first, verifying incoming

voltage at 230+/-10% and second,

checking the voltage between starter

and motor at 230+/-10%. If incoming

voltage is incorrect, you have a power

supply problem. If voltage between

starter and motor is incorrect, you have

a starter problem. If voltage between

starter and motor is correct, you have a

motor problem.

Motor overheated.

Clean motor of dust or debris to allow

proper air circulation. Allow motor to cool

down before restarting.

Motor failure.

If electric motor is suspect, you have two

options: Have a qualified electrician test

the motor for function or remove the

motor and take it to a qualified electric

motor repair shop for testing.

Trouble

Probable Cause

Remedy

Machine will not

start/restart or

repeatedly trips circuit

breaker or blows

fuses.

(continued)

Miswiring of unit.

Double check to confirm all electrical

connections are correct. Refer to wiring

diagram to make any needed

corrections.

Switch failure.

If the start/stop switch is suspect, you

have two options: Have a qualified

electrician test the switch for function, or

purchase a new start/stop switch and

establish if that was the problem on

change-out.

Band Saw does not

attain full speed.

Extension cord too light or too long.

Replace with adequate size and length

cord.

Low current.

Contact a qualified electrician.

15.0 Replacement Parts

Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-800-

274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and Serial Number of

your machine available when you call will allow us to serve you quickly and accurately.

Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from

Powermatic. Some parts are shown for reference only, and may not be available individually.

15.1.1 Complete Machine with Accessories – Exploded View

15.1.2 Complete Machine with Accessories – Parts List

Index No Part No Description Size Qty

1 ................ PM2000-105 .............. Powermatic Nameplate, Large ................................ . ..................................... 1

2 ................ TS-0254011 .............. Socket Head Button Screw ...................................... 1/4"-20UNCx3/8"L ......... 2

3 ................ TS-1550041 .............. Flat Washer ............................................................. M6 x Ø16 ...................... 2

4 ................ PM1500-004 .............. Lifting Eye ................................................................ M10 ............................... 1

5 ................ PM1500-005 .............. Machine Main Body Frame ...................................... ...................................... 1

6 ................ PM1500-006 .............. Switch Bracket ......................................................... ...................................... 1

7 ................ TS-2246082 .............. Socket Head Button Screw ...................................... M6x8 ............................. 6

8 ................ TS-1550041 .............. Flat Washer ............................................................. M6 x Ø13 ...................... 2

9 ................ PM1500-009 .............. Power Cord .............................................................. 14AWGx3Cx3.4M ......... 1

10 .............. PM1500-010 .............. Upper Wheel Sliding Bracket Assembly .................. ...................................... 1

11 .............. PM1500-011 .............. Tension Pointer ....................................................... ...................................... 1

12 .............. PM1500-012 .............. Step Screw .............................................................. ...................................... 1

13 .............. TS-2248202 .............. Socket Head Button Screw ...................................... M8x20 ........................... 4

14 .............. TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 4

15 .............. PM1500-015 .............. Motor Bracket Lock Handle ..................................... M10x33 ......................... 1

16 .............. PM1500-016 .............. Motor Mount Plate ................................................... . ..................................... 1

17 .............. TS-1524011 .............. Set Screw ................................................................ M8x8 ............................. 2

18 .............. TS-2248202 .............. Socket Head Button Screw ...................................... M8x20 ........................... 4

19 .............. PM1500-019 .............. Upper Wheel Assembly ........................................... Ø15” .............................. 1

20 .............. PM1500-020 .............. Lower Wheel Assembly ........................................... Ø15” .............................. 1

21 .............. PM1500-021 .............. Saw Blade………………………………...153"L / 3/8"W / 0.65mm Thk ........... 1

22 .............. TS-1504041 .............. Hex Socket Screw ................................................... M8x20 ...................... 2

23 .............. TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 2

24 .............. TS-1550061 .............. Flat Washer ............................................................. M8 x Ø30 ...................... 2

25 .............. PM1500-025 .............. Motor Pulley ............................................................. ...................................... 1

26 .............. PM1500-026 .............. Poly-V Belt ............................................................... 290J9 ............................ 1

27 .............. PM1500-027 .............. Upper Cabinet Door ................................................. ...................................... 1

28 .............. TS-1505031 .............. Socket Head Cap Screw ........................................ M10x25 ......................... 1

29 .............. TS-2361101 .............. Lock Washer ............................................................ M10 ............................... 3

30 .............. TS-1550071 .............. Flat Washer ............................................................. M10 x Ø20 .................... 2

31 .............. PM1500-031 .............. Motor Cord ............................................................... 14AWGx3Cx1.7M ......... 1

32 .............. TS-2246082 .............. Socket Head Button Screw ...................................... M6x8 ............................. 2

33 .............. TS-2361061 .............. Lock Washer ............................................................ M6 ................................. 1

34 .............. TS-1550041 .............. Flat Washer ............................................................. M6 x Ø16 ...................... 2

35 .............. PM1500-035 .............. Support Plate .......................................................... ...................................... 1

36 .............. PM1500-036 .............. Magnetic Switch Assembly ...................................... 230V/60Hz/1PH ............ 1

............... PM2000-298 .............. Safety Key for Magnetic Switch ............................... ...................................... 1

37 .............. PM1500-037 .............. Handwheel ............................................................... 6” ................................... 1

38 .............. PM1500-038 .............. Locating Block ......................................................... ...................................... 1

39 .............. PM1500-039 .............. Tapping Screw ......................................................... M4x8 ............................. 2

40 .............. PM1500-040 .............. Wire Connector ........................................................ 224-201 ......................... 1

41 .............. TS-1523041 .............. Socket Set Screw .................................................... M6x12 ........................... 2

42 .............. TS-1523051 .............. Socket Set Screw .................................................... M6x16 ........................... 4

43 .............. PM1500-043 .............. Face Plate ............................................................... ...................................... 1

44 .............. TS-1504041 .............. Socket Head Cap Screw ......................................... M8x20 ........................... 1

45 .............. PM1500-045 .............. Table Insert (Aluminum) .......................................... ...................................... 1

46 .............. PM1500-046 .............. Roll Pin .................................................................... Ø4x8 ............................. 2

47 .............. PM1500-047 .............. Table Pin Assembly ................................................. ...................................... 1

48 .............. TS-1534032 .............. Pan Head Bolt w/Flange .......................................... M6x10 ........................... 1

49 .............. TS-1503021 .............. Socket Head Cap Screw ......................................... M6x10 ........................... 2

50 .............. PM1500-050 .............. Viewing Window ...................................................... ...................................... 2

51 .............. PM1500-051 .............. Limit Switch ............................................................. AZD-1112 ..................... 1

52 .............. TS-2284302 .............. Phillips Pan Head Machine Screw ........................... M4x30 ........................... 2

53 .............. TS-1521031 .............. Socket Set Screw .................................................... M4x8 ............................. 8

54 .............. PM1500-054 .............. Switch Cord ............................................................. 18AWGx2Cx1.2M ......... 1

55 .............. PM1500-055 .............. Lock Knob ................................................................ M10x30 ......................... 1

56 .............. TS-1482051 .............. Hex Cap Screw ........................................................ M6x25 ........................... 2

57 .............. TS-1550041 .............. Flat Washer ............................................................. M6 x Ø13 ...................... 4

58 .............. PM1500-058 .............. Brush ....................................................................... ...................................... 2

59 .............. TS-1503061 .............. Socket Head Cap Screw ......................................... M6x25 ........................... 1

Index No Part No Description Size Qty

60 .............. PM1500-060 .............. Door Lock Knob ....................................................... ...................................... 2

61 .............. TS-1541021 .............. Nylon Lock Hex Nut ................................................. M6 ................................. 6

62 .............. PM1500-062 .............. Strain Relief ............................................................. PG13.5 .......................... 2

63 .............. PM1500-063 .............. Pointer ..................................................................... ...................................... 1

64 .............. TS-2311101 .............. Hex Nut .................................................................... M10 ............................... 1

65 .............. TS-1491151 .............. Hex Cap Screw ........................................................ M10x90 ......................... 1

66 .............. TS-1503061 .............. Socket Head Cap Screw ......................................... M6x25 ........................... 2

67 .............. PM1500-067 .............. Blade Tracking Adjustment Knob ............................ M10x50 ......................... 1

68 .............. PM1500-068 .............. Lock Handle ............................................................. M10 ............................... 1

69 .............. PM1500-069 .............. Cam ......................................................................... ...................................... 1

70 .............. PM1500-070 .............. Shaft Fixed Block ..................................................... ...................................... 1

71 .............. PM1500-071 .............. Tension Quick release Handle ................................ ...................................... 1

72 .............. PM1500-072 .............. Tension Quick release Lever ................................... ...................................... 1

73 .............. TS-1540081 .............. Hex Nut .................................................................... M12 ............................... 1

74 .............. PM1500-074 .............. Tension Quick release Lever Shaft ......................... ...................................... 1

75 .............. TS-2248202 .............. Socket Head Button Screw ...................................... M8x20 ........................... 4

76 .............. TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 4

77 .............. PM1500-077 .............. Washer .................................................................... ...................................... 1

78 .............. TS-1524051 .............. Socket Set Screw .................................................... M8x20 ........................... 4

79 .............. TS-1540061 .............. Hex Nut .................................................................... M8 ................................. 4

80 .............. PM1500-080 .............. Lower Wheel Shaft .................................................. ...................................... 1

81 .............. PM1500-081 .............. Motor ....................................................................... 3HP, 1PH, 230V ........... 1

.............. PM1500-081-01 ........ Motor Fan (not shown)............................................. ...................................... 1

.............. PM1500-081-02 ........ Motor Fan Cover (not shown) .................................. ...................................... 1

.............. PM1500-081-03 ........ Start Capacitor (not shown) ..................................... 200MFD, 250VAC ......... 1

.............. PM1500-081-04 ........ Running Capacitor (not shown) ............................... 60µF, 300VAC .............. 1

.............. PM1500-081-05 ........ Junction Box (not shown) ........................................ ...................................... 1

.............. PM1500-081-06 ........ Junction Box Cover (not shown) .............................. ...................................... 1

.............. PM1500-081-07 ........ Centrifugal Switch (not shown) ............................... ...................................... 1

82 .............. PM1500-082 .............. Lower Cabinet Door ................................................. ...................................... 1

83 .............. PM1500-083 .............. Strain Relief Fixed Plate .......................................... ...................................... 1

84 .............. JMS12SCMS-81 ....... Pan Head Bolt w/Flange .......................................... M5x8 ............................. 1

85 .............. PM1500-085 .............. Trunnion Support Bracket Assembly ....................... ...................................... 1

86 .............. TS-1505051 .............. Socket Head Cap Screw ........................................ M10x35 ......................... 2

87 .............. TS-2361101 .............. Lock Washer ............................................................ M10 ............................... 2

88 .............. TS-1550071 .............. Flat Washer ............................................................. M10 x Ø23 .................... 2

89 .............. 3520B-126 ................. Handle ..................................................................... ...................................... 2

90 .............. PM1500-090 .............. Handwheel ............................................................... ...................................... 1

91 .............. PM1500-091 .............. Guide Bar Bracket Assembly ................................... ...................................... 1

92 .............. TS-2248202 .............. Socket Head Button Screw ..................................... M8x20 ........................... 4

93 .............. TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 4

94 .............. TS-1550061 .............. Flat Washer ............................................................. M8 x Ø18 ...................... 4

95 .............. PM1500-095 .............. Upper Blade Guide Support Assembly .................... ...................................... 1

96 .............. PM1500-096 .............. Lower Blade Guide Support Assembly .................... ...................................... 1

97 .............. TS-2246082 .............. Socket Head Button Screw ...................................... M6x8 ............................. 2

98 .............. TS-1550041 .............. Flat Washer ............................................................. M6 x Ø16 ...................... 2

99 .............. PM1500-099 .............. Blade Guard Cover ................................................. ...................................... 1

100 ............ PM1500-012 .............. Shoulder bolt ........................................................... ...................................... 1

101 ............ PM1500-101 .............. Plastic Washer ......................................................... M6xØ13, Thk 1.5mm .... 1

102 ............ PM1500-102 .............. Sliding Plate ............................................................. ...................................... 1

103 ............ TS-1541011 .............. Nylon Lock Hex Nut ................................................. M5 ................................. 2

104 ............ PM1500-104 .............. Protect Cover ........................................................... ...................................... 1

105 ............ PM1500-101 .............. Plastic Washer ......................................................... M6xØ13,Thk 1.5mm. .... 2

106 ............ TS-1533032 .............. Phillips Pan Head Machine Screw ........................... M5x10 ........................... 2

107 ............ PM1500-107 .............. Fence Assembly ...................................................... ...................................... 1

108 ............ PM1500-108 .............. Table ........................................................................ 21½"x16"....................... 1

109 ............ PM1500-109 .............. Miter Gauge Assembly ............................................ ...................................... 1

110 ............ PM1500-110 .............. Limit Switch ............................................................. KL7141 ......................... 1

111 ............ TS-1540021 .............. Hex Nut .................................................................... M4 ................................. 2

112 ............ PM1500-112 .............. Limit Switch Cord ..................................................... 18AWGx2Cx2.2m ......... 1

113 ............ PM1500-113 .............. Wire Jacket .............................................................. ½"x1100mm(L) ............. 1

114 ............ PM1500-114 .............. Wire Bushing ........................................................... ...................................... 1

Index No Part No Description Size Qty

115 ............ JWTS10-217 ............. Tapping Screw ......................................................... M4x8 ............................. 2

116 ............ PM1500-116 .............. Wire Fixed Clamp .................................................... 5/8” ................................ 2

117 ............ TS-2284302 .............. Phillips Pan Head Machine Screw ........................... M4x30 ........................... 2

118 ............ TS-1550021 .............. Flat Washer ............................................................. M4xØ8 .......................... 2

119 ............ PM1500-119 .............. Plastic Bumper ........................................................ 9mmx10mm .................. 1

120 ............ PM1500-120 .............. Foot Brake Lever ..................................................... ...................................... 1

121 ............ TS-1503041 .............. Socket Head Cap Screw ......................................... M6x16 ........................... 4

122 ............ PM1500-122 .............. Spring ...................................................................... ...................................... 1

123 ............ TS-2311061 .............. Hex Nut .................................................................... M6 ................................. 2

124 ............ PM1500-124 .............. Nylon Set Screw ...................................................... M7x10 ........................... 1

125 ............ PM1500-125 .............. Foot Brake Pedal ..................................................... ...................................... 1

126 ............ TS-2361061 .............. Lock Washer ............................................................ M6 ................................. 4

127 ............ PM1500-127 .............. Bushing .................................................................... ...................................... 2

128 ............ PM1500-128 .............. Brake Pad ................................................................ ...................................... 1

129 ............ TS-1503061 .............. Socket Head Cap Screw ......................................... M6x25 ........................... 2

130 ............ TS-1504051 .............. Socket Head Cap Screw ......................................... M8x25 ........................... 1

131 ............ TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 1

132 ............ TS-1550061 .............. Flat Washer ............................................................. M8 x Ø30 ...................... 1

133 ............ PM1500-133 .............. Bushing .................................................................... ...................................... 1

134 ............ TS-1490041 .............. Hex Cap Screw ........................................................ M8x25 ........................... 4

135 ............ TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 4

136 ............ TS-1550061 .............. Flat Washer ............................................................. M8 x Ø18 ...................... 4

137 ............ PM1500-137 .............. Plate ........................................................................ ...................................... 1

138 ............ PM1500-138 .............. Lower Blade Guard .................................................. ...................................... 1

139 ............ TS-2246082 .............. Socket Head Button Screw ...................................... M6 x 8 ........................... 2

140 ............ TS-2361061 .............. Lock Washer ............................................................ M6 ................................. 2

141 ............ TS-1550041 .............. Flat Washer ............................................................. M6 x Ø13 ...................... 2

.................. 3520B-157 ................. Upper (Narrow) Stripe, 50”L (not shown)................. ...................................... 4

.................. 3520B-158 ................. Lower (Wide) Stripe, 50”L (not shown) .................... ...................................... 2

.................. PM1500-WL .............. Warning Label (not shown) ...................................... 4”H x 5-1/4”W ............... 1

.................. PM1500-ID ................ I.D. Label (not shown).............................................. ...................................... 1

.................. PM1500-GS .............. Guide Post Scale (not shown) ................................. ...................................... 1

.................. PM1500-TLL ............. Tension Lever Label (not shown) ............................ ...................................... 1

.................. PM1500-BTL ............. Blade Tension Label (not shown) ............................ ...................................... 1

15.2.1 Upper Wheel Sliding Bracket & Tension Mechanism Assembly – Exploded View

Part Assembly No.: PM1500-010

15.2.2 Upper Wheel Sliding Bracket & Tension Mechanism Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-010-01 ........ Spring ...................................................................... . ..................................... 1

2 ................ PM1500-010-02 ........ Bushing .................................................................... ...................................... 1

3 ................ PM1500-010-03 ........ Plate ........................................................................ ...................................... 1

4 ................ TS-1540021 .............. Hex Nut .................................................................... M4 ................................. 1

5 ................ A077 .......................... Socket Set Screw .................................................... M4x25 ........................... 1

6 ................ BB-51201 .................. Thrust Bearing ......................................................... ...................................... 1

7 ................ PM1500-010-07 ........ Adjustment Screw Rod ............................................ ...................................... 1

8 ................ PM1500-010-08 ........ Adjustment Plate ..................................................... ...................................... 1

9 ................ PM1500-010-09 ........ Screw Bushing ......................................................... ...................................... 1

10 .............. TS-1550061 .............. Flat Washer ............................................................. M8 x Ø18 ...................... 4

11 .............. TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 5

12 .............. TS-2248202 .............. Socket Head Button Screw ...................................... M8x20 ........................... 3

13 .............. PM1500-010-13 ........ Limit Switch Plate .................................................... ...................................... 1

14 .............. PM1500-010-14 ........ Fixed Position Block ................................................ ...................................... 1

15 .............. TS-1524011 .............. Hex Socket Screw ................................................... M8x6 ............................. 5

16 .............. PM1500-010-16 ........ Wheel Shaft ............................................................. . ..................................... 1

17 .............. TS-2248302 .............. Socket Head Button Screw ...................................... M8x30 ........................... 2

18 .............. PM1500-010-18 ........ Locating Block ......................................................... ...................................... 1

19 .............. TS-1523031 .............. Socket Set Screw .................................................... M6x10 ........................... 2

20 .............. PM1500-010-20 ........ Fixed Block .............................................................. ...................................... 2

21 .............. PM1500-010-21 ........ Socket Set Screw .................................................... M10x50 ......................... 2

22 .............. TS-1541041 .............. Nylon Lock Hex Nut ................................................. M10 ............................... 2

23 .............. TS-1550071 .............. Flat Washer ............................................................. M10 ............................... 2

24 .............. PM1500-010-24 ........ Guide Post ............................................................... ...................................... 2

25 .............. PM1500-010-25 ........ Collar ....................................................................... ...................................... 2

26 .............. TS-1550061 .............. Flat Washer ............................................................. M8 x Ø30 ...................... 1

27 .............. PM1500-010-27 ........ Upper Wheel Sliding Bracket ................................... ...................................... 1

28 .............. PM1500-010-28 ........ Bushing .................................................................... DU1610 ......................... 4

15.3.1 Upper Wheel Assembly – Exploded View

Part Assembly No.: PM1500-019

15.3.2 Upper Wheel Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-019-01 ........ Upper Wheel ............................................................ Dia.15 inches. ............... 1

2 ................ PM1500-019-02 ........ Spacer ..................................................................... ...................................... 1

3 ................ JWBS20QT-504 ........ Retaining Ring ......................................................... R52 ............................... 2

4 ................ BB-6205LLU .............. Ball Bearing ............................................................. 6205LLU. ...................... 2

5 ................ PM1500-019-05 ........ Tire .......................................................................... ...................................... 1

15.4.1 Lower Wheel Assembly – Exploded View

Part Assembly No.: PM1500-020

15.4.2 Lower Wheel Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-020-01 ........ Lower Wheel ............................................................ Dia.15 inches. ............... 1

2 ................ PM1500-019-02 ........ Spacer ..................................................................... ...................................... 1

3 ................ JWBS20QT-504 ........ Retaining Ring ......................................................... R52 ............................... 2

4 ................ BB-6205LLU .............. Ball Bearing ............................................................. 6205LLU. ...................... 2

5 ................ PM1500-019-05 ........ Tire .......................................................................... ...................................... 1

6 ................ PM1500-020-06 ........ Drive Pulley ............................................................. . ..................................... 1

7 ................ TS-1504031 .............. Socket Head Cap Screw ......................................... M8x16 ........................... 4

15.5.1 Trunnion Support Bracket Assembly – Exploded View

Part Assembly No.: PM1500-085

15.5.2 Trunnion Support Bracket Assembly – Parts List

Index No Part No Description Size Qty

1 ................ TS-1550061 .............. Flat Washer ............................................................. M8 x Ø18 ...................... 4

2 ................ TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 1

3 ................ TS-1541031 .............. Nylon Lock Hex Nut ................................................. M8 ................................. 2

4 ................ TS-2284062 .............. Phillips Pan Head Machine Screw ........................... M4x6 ............................. 2

5 ................ PM1500-085-05 ........ Gear Rack ............................................................... ...................................... 1

6 ................ TS-2284061 .............. Phillips Flat Head Machine Screw ........................... M4x6 ............................. 1

7 ................ PM1500-085-07 ........ Carriage Bolt ............................................................ M8x85 ........................... 1

8 ................ PM1500-085-08 ........ Trunnion Block ......................................................... ...................................... 1

9 ................ PM1500-085-09 ........ Carriage Bolt ............................................................ M8x80 ........................... 1

10 .............. PM1500-085-10 ........ Lock Handle ............................................................. ...................................... 1

11 .............. PM1500-085-11 ........ Tilt Scale .................................................................. ...................................... 1

12 .............. PM1500-085-12 ........ Adjustment Knob Bolt .............................................. ...................................... 1

13 .............. TS-1550021 .............. Flat Washer ............................................................. M4 x Ø8 ........................ 2

14 .............. PM1500-085-14 ........ Angle Pointer ........................................................... ...................................... 1

15 .............. PM1500-085-15 ........ Adjustment Knob Bolt .............................................. M6 ................................. 1

16 .............. PM1500-085-16 ........ Locking Ring ............................................................ . ..................................... 1

17 .............. TS-1540041 .............. Hex Nut .................................................................... M6 ................................. 2

18 .............. PM1500-085-18 ........ Adjustment Plate ..................................................... ...................................... 1

19 .............. TS-1533032 .............. Phillips Pan Head Machine Screw ........................... M5x8 ............................. 2

20 .............. PM1500-085-20 ........ Set Screw ................................................................ ...................................... 1

21 .............. PM1500-085-21 ........ Lock Knob ................................................................ ...................................... 1

22 .............. PM1500-085-22 ........ Trunnion Support Bracket ........................................ ...................................... 1

23 .............. PM1500-085-23 ........ Gear ......................................................................... ...................................... 1

24 .............. TS-2235061 .............. Socket Head Cap Screw ......................................... M5x6 ............................. 6

25 .............. PM1500-085-25 ........ Adjustment Shaft ..................................................... ...................................... 1

26 .............. PM1500-085-26 ........ Retaining Ring ......................................................... R22 ............................... 1

27 .............. BB-608ZZ .................. Ball Bearing ............................................................. 608ZZ ........................... 1

28 .............. PM1500-085-28 ........ Thrust Bearing Holder.............................................. ...................................... 1

29 .............. PM1500-085-29 ........ Retaining Ring ......................................................... S8 ................................. 1

30 .............. PM1500-085-30 ........ Adjustment Bar ........................................................ ...................................... 1

31 .............. TS-1523011 .............. Socket Set Screw .................................................... M6x6 ............................. 1

15.6.1 Guide Bar Bracket Assembly – Exploded View

Part Assembly No.: PM1500-091

15.6.2 Guide Bar Bracket Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-091-01 ........ Guide Bar ................................................................ . ..................................... 1

2 ................ TS-1540031 .............. Hex Nut .................................................................... M5 ................................. 2

3 ................ TS-1533032 .............. Phillips Pan Head Machine Screw ........................... M5x10 ........................... 2

4 ................ PM1500-091-04 ........ Cover ....................................................................... ...................................... 1

5 ................ TS-2361081 .............. Lock Washer ............................................................ M8 ................................. 4

6 ................ TS-1504031 .............. Hex Socket Screw ................................................... M8x16 ........................... 4

7 ................ 6286927 .................... Phillips Flat Head Machine Screw ........................... M4x10 ........................... 1

8 ................ PM1500-091-08 ........ Guide Bar Rack (short) ............................................ ...................................... 1

9 ................ PM1500-091-09 ........ Cover ....................................................................... ...................................... 1

10 .............. PM1500-091-10 ........ Fixed Pin .................................................................. ...................................... 1

11 .............. PM1500-091-11 ........ Gear ......................................................................... ...................................... 1

12 .............. PM1500-091-12 ........ Fixed Plate ............................................................... ...................................... 1

13 .............. PM1500-091-13 ........ Worm Shaft .............................................................. ...................................... 1

14 .............. TS-154010 ................ Hex Nut .................................................................... M16 ............................... 1

15 .............. PM1500-091-15 ........ Guide Bracket .......................................................... ...................................... 1

18 .............. PM1500-091-18 ........ Bushing .................................................................... ...................................... 1

19 .............. PM1500-091-19 ........ Collar ....................................................................... ...................................... 1

20 .............. PM1500-091-20 ........ Guide Bar Rack (long) ............................................. ...................................... 1

21 .............. TS-1523021 .............. Socket Set Screw .................................................... M6x8 ............................. 2

22 .............. TS-1540021 .............. Hex Nut .................................................................... M4 ................................. 1

23 .............. TS-1532032 .............. Phillips Pan Head Machine Screw ........................... M4x10 ........................... 1

24 .............. TS-1522011 .............. Socket Set Screw .................................................... M5x5 ............................. 1

25 .............. PM1500-091-25 ........ Plastic Washer ......................................................... ...................................... 2

15.7.1 Upper Blade Guide Assembly – Exploded View

Part Assembly No.: PM1500-095

15.7.2 Upper Blade Guide Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-095-01 ........ Upper Blade Guide Support .................................... ...................................... 1

2 ................ PM1500-095-02 ........ Eccentric Shaft ........................................................ ...................................... 2

3 ................ 6286478 .................... Retaining Ring ......................................................... S12 ............................... 2

4 ................ BB-6201ZZ ................ Ball Bearing ............................................................. 6201ZZ ......................... 4

5 ................ PM1500-095-05 ........ Knurled Knob ........................................................... ...................................... 2

6 ................ TS-1503081 .............. Socket Head Cap Screw ......................................... M6x35 ........................... 2

7 ................ PM1500-095-07 ........ Upper Spacing Sleeve ............................................. ...................................... 1

8 ................ TS-1523011 .............. Socket Set Screw .................................................... M6x6 ............................. 2

9 ................ PM1500-085-29 ........ Retaining Ring ......................................................... S8 ................................. 1

10 .............. PM1500-085-28 ........ Thrust Bearing Holder.............................................. ...................................... 1

11 .............. BB-608ZZ .................. Ball Bearing ............................................................. 608ZZ ........................... 1

12 .............. PM1500-085-26 ........ Retaining Ring ......................................................... R22 ............................... 1

13 .............. PM1500-085-25 ........ Adjustment Shaft ..................................................... ...................................... 1

14 .............. PM1500-095-14 ........ Hex Post .................................................................. ...................................... 1

15 .............. PM1500-095-15 ........ Upper Blade Guide Support Block ........................... ...................................... 1

16 .............. PM1500-095-16 ........ Lock Knob ................................................................ . ..................................... 4

15.8.1 Lower Blade Guide Assembly – Exploded View

Part Assembly No.: PM1500-096

15.8.2 Lower Blade Guide Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-096-01 ........ Lower Blade Guide Support .................................... ...................................... 1

2 ................ PM1500-096-02 ........ Eccentric Shaft ........................................................ ...................................... 2

3 ................ PM1500-095-03 ........ Retaining Ring ......................................................... S12 ............................... 2

4 ................ BB-6201ZZ ................ Ball Bearing ............................................................. 6201ZZ ......................... 4

5 ................ PM1500-095-05 ........ Knurled Knob ........................................................... ...................................... 2

6 ................ TS-1503081 .............. Hex Socket Screw (Black) ....................................... M6x35 ........................... 2

7 ................ PM1500-095-16 ........ Lock Knob ............................................................... ...................................... 1

8 ................ PM1500-096-08 ........ Lock Knob ................................................................ ...................................... 2

15.9.1 Fence Assembly – Exploded View

Part Assembly No.: PM1500-107

15.9.2 Fence Assembly – Parts List

Index No Part No Description Size Qty

1 ................ PM1500-107-01 ........ Fence Body ............................................................. ...................................... 1

2 ................ PM1500-107-02 ........ Lock Knob ............................................................... M8x52 ........................... 2

3 ................ PM1500-107-03 ........ Resaw Lock Knob ................................................... M10x50 ......................... 1

4 ................ PM1500-107-04 ........ Nylon Set Screw ...................................................... M10x12 ......................... 2

5 ................ TS-1541021 .............. Nylon Lock Hex Nut ................................................. M6 ................................. 1

6 ................ TS-1541031 .............. Nylon Hex Nut (Black) ............................................. M8 ................................. 1

7 ................ 992322 ...................... Roll Pin .................................................................... Ø5x26 ........................... 1

8 ................ PM1500-107-08 ........ Resaw Pin ............................................................... 1½ “x 6½ “(Dia.xH) ....... 1

9 ................ PM1500-107-09 ........ Lock Bar .................................................................. ...................................... 1

10 .............. PM1500-107-10 ........ Nylon Pad ................................................................ ...................................... 3

11 .............. PM1500-107-11 ........ Tube Plug ................................................................ 40x80mm ...................... 1

12 .............. TS-1525011 .............. Socket Set Screw .................................................... M10x10 ......................... 2

13 .............. TS-2246352 .............. Socket Head Button Screw ...................................... M6x35 ........................... 1

14 .............. TS-2361061 .............. Lock Washer ............................................................ M6 ................................. 1

15 ............. TS-1550041 .............. Flat Washer ............................................................. M6 x Ø13 ...................... 1

16 .............. 9180-56 ..................... Socket Head Button Screw ...................................... M8x35 ........................... 1

17 .............. PM1500-107-16 ........ Spring ...................................................................... . ..................................... 1

18 .............. PM1500-107-17 ........ Handle Lock Bracket ............................................... ...................................... 1

19 .............. PM1500-107-18 ........ Lock Handle ............................................................. ...................................... 1

20 .............. PM1500-107-19 ........ Knob ........................................................................ M8x21 ........................... 1

21 .............. PM1500-107-20 ........ Fence Plate ............................................................. 19½ “x 6½ “(LxW) ......... 1

22 .............. PM1500-107-22 ........ Hex Flange Nut ........................................................ M5 ................................. 2

Index No Part No Description Size Qty

23 .............. PM1900-108-6 .......... Phillips Pan Head Machine Screw ........................... M5x8 ............................. 2

24 .............. TS-1550031 .............. Flat Washer ............................................................. M5 x Ø12 ...................... 2

25 .............. PM1500-107-25 ........ Cursor Bracket ......................................................... ...................................... 1

26 .............. PM1500-107-26 ........ Convex Cursor ......................................................... ...................................... 1

27 .............. TS-2285121 .............. Phillips Flat Head Machine Screw ........................... M5x12 ........................... 2

28 .............. PM1500-107-28 ........ Scale Label .............................................................. ...................................... 1

29 .............. PM1500-107-29 ........ Guide Rail Tube ....................................................... ...................................... 1

30 .............. PM1500-107-30 ........ Tube Plug ................................................................ 30x60mm ...................... 2

31 .............. PM1500-107-31 ........ Guide Rail ................................................................ ...................................... 1

32 .............. TS-1482031 .............. Hex Cap Screw ........................................................ M6x16 ........................... 5

33 .............. TS-2361061 .............. Lock Washer ............................................................ M6 ................................. 5

34 .............. TS-1550041 .............. Flat Washer ............................................................. M6 x Ø16 ...................... 5

15.10.1 Miter Gauge Assembly – Exploded View

Part Assembly No.: PM1500-109

15.10.2 Miter Gauge Assembly – Parts List

Index No Part No Description Size Qty

1 ................ 6295167 .................... Miter Gauge Body .................................................... ...................................... 1

2 ................ TS-1533062 .............. Pan Head Screw ..................................................... M5x20 ........................... 3

3 ................ TS-1540031 .............. Hex Nut ................................................................... M5 ................................. 3

4 ................ 6295168 .................... Steel Pin .................................................................. ...................................... 1

5 ................ PM1500-109-05 ........ Guide Bar ................................................................ ...................................... 1

6 ................ 6295163 .................... Guide Disc ............................................................... ...................................... 1

7 ................ PM1800-461 .............. Flat Head Screw ...................................................... M6x8 ............................. 1

8 ................ 6295171 .................... Stop Tab .................................................................. ...................................... 1

9 ................ PM1800-462 .............. Spring Pin ................................................................ 3x6mm .......................... 1

10 .............. 6295169 .................... Pointer ..................................................................... ...................................... 1

11 .............. SS050100 ................. Socket Set Screw .................................................... M5x5 ............................. 1

12 .............. PM1800-451 .............. Handle ..................................................................... M8x20 ........................... 1

13 .............. PM2000-343 .............. Socket Set Screw .................................................... M8x6 ............................. 2

14 .............. TS-0680031 .............. Flat Washer ............................................................. M8x Ø18 ....................... 1
