CR0232W
Visit our web site at ‘www.emersonradio.com’
DOUBLE DOOR COMPACT
REFRIDGERATOR / FREEZER

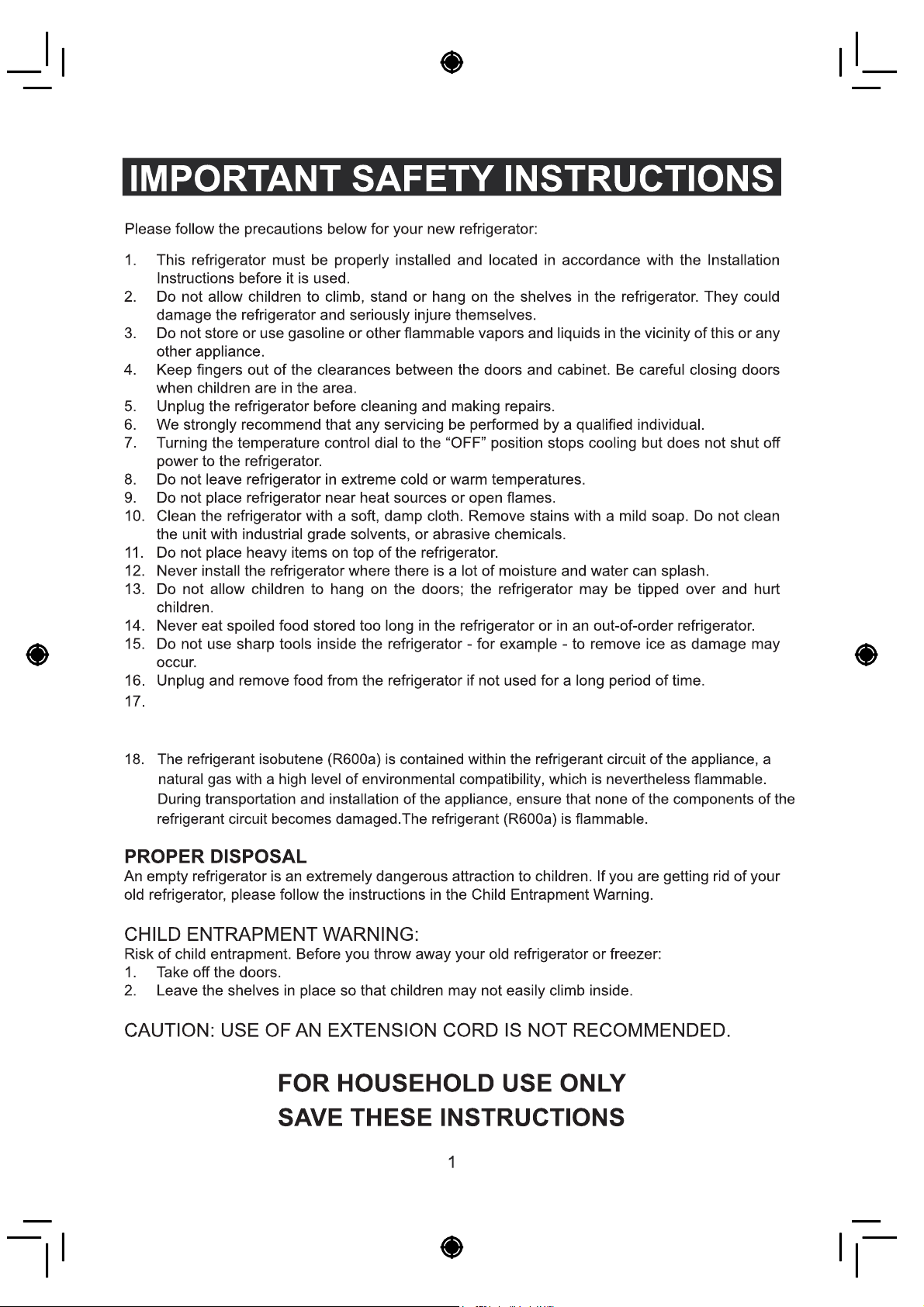

Caution: flammable refrigerant used! When handing, moving and
refrigerator,make sure to avoid either damaging the refrigerant tubing, or increasing
the risk of a leak.
use of the

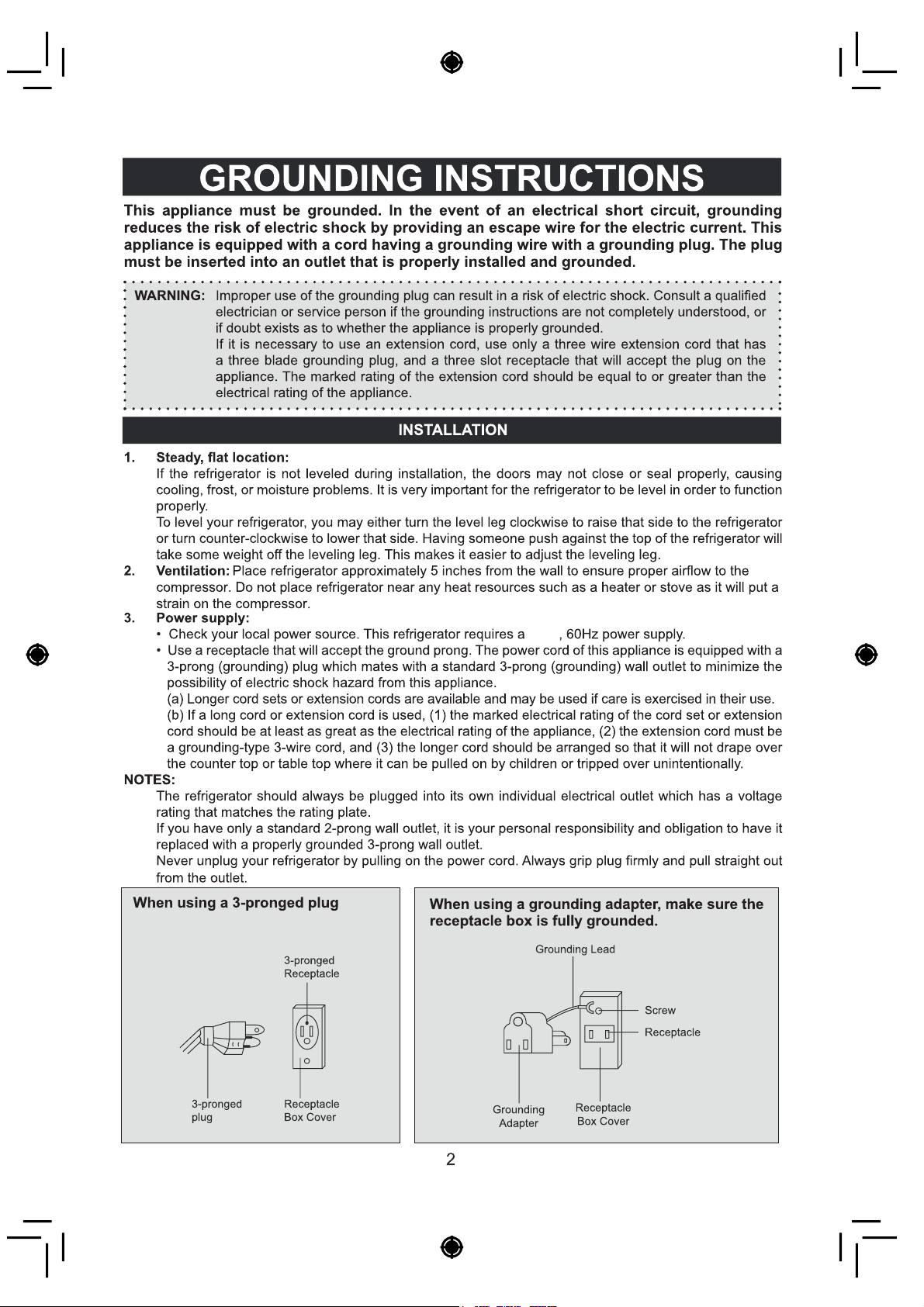

115V
1
4
3
2
3
OFF
1
7

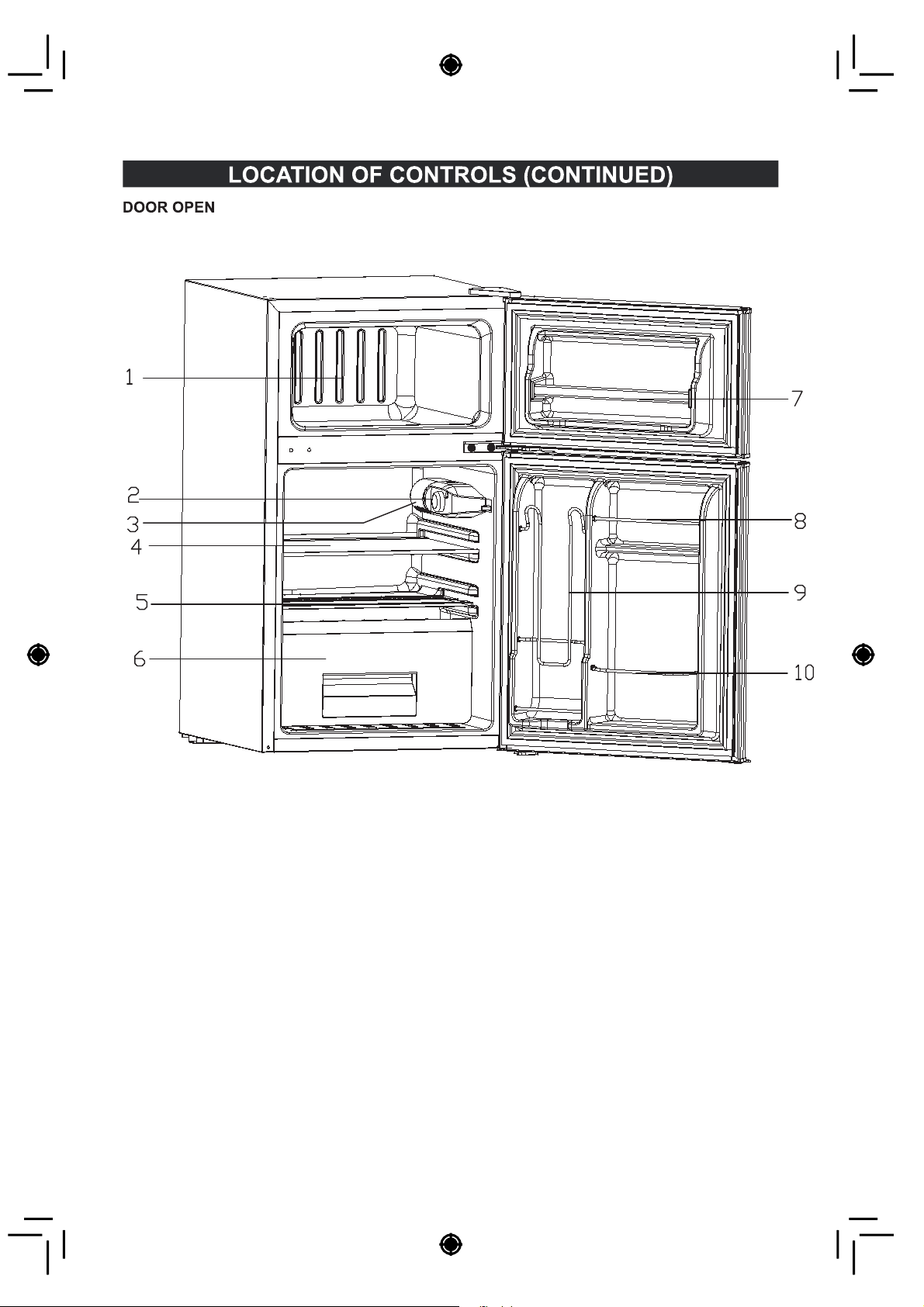

1. Freezer Compartment
2. Thermostat Control Knob

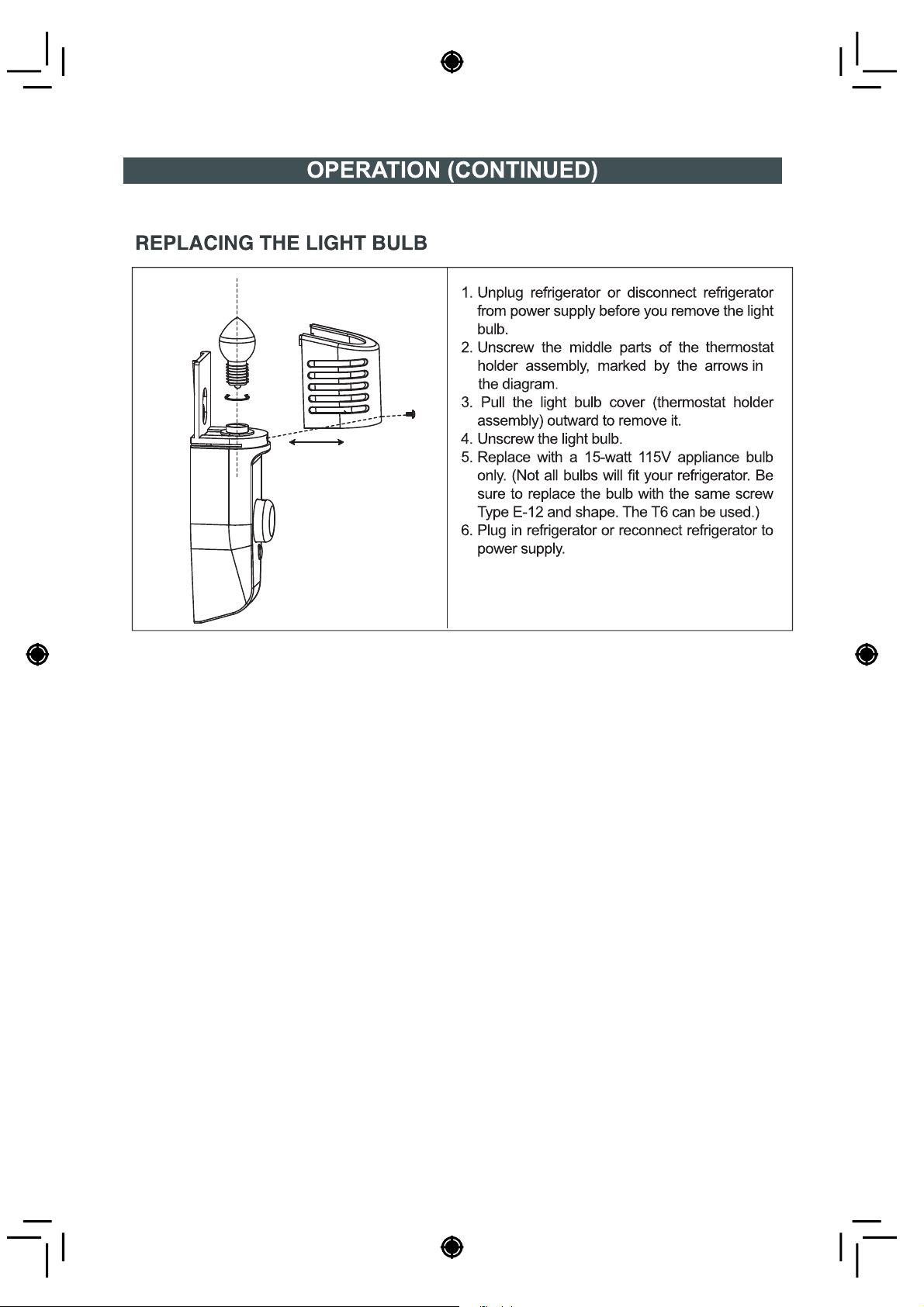

3. Light Bulb
4. Shelf
5. Half Size Shelf
6. Crisper Drawer
7. Frozen Food Storage
8. Can Storage
9. Can Dispenser
10. Bottle Storage
4
5
5
4
3
OFF
7
1
6
8mm socket screw driver
Phillips style screw driver
1. Upper Hinge Bracket
2. Adjustable Leveling Foot
3. Machine Screw
4. Bottom Hinge Bracket
5. Middle door Hinge
6. Self-locking block left
7. Self-locking block right

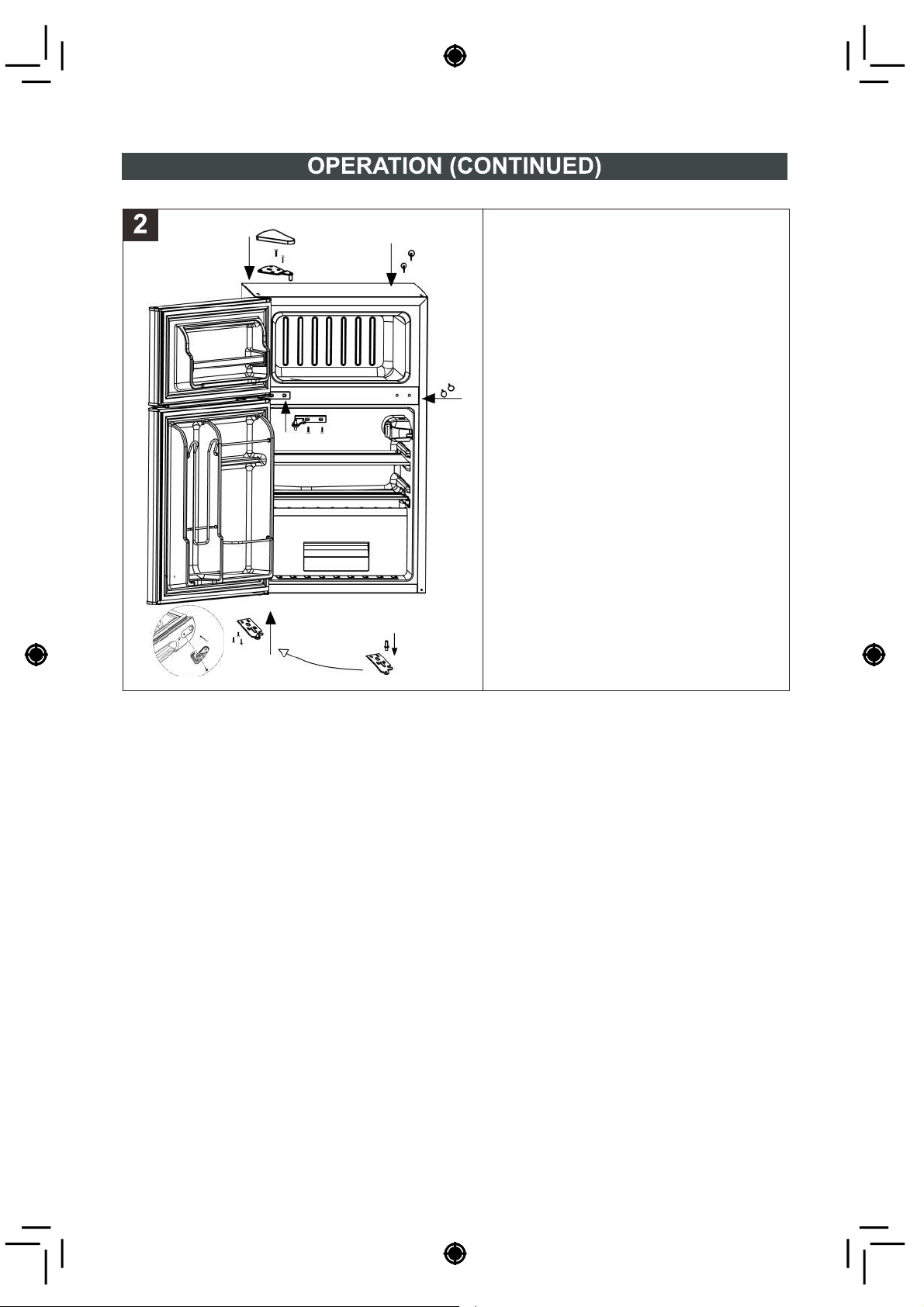

Open the upper hinge cover, remove
the screws, and take out the upper
hinge.
Remove the upper freezing door and
remove the right door shaft self-locking
block.
Remove the screw hole plug on the left
side of the box and install it on the right
side.
Remove the middle hinge screws and
take out the middle hinge.
Remove the screw hole plug on the left
side of the box and install it on the right
side.
Remove the refrigeration door and
remove the right door shaft self-locking
block.
Remove the lower hinge screws and
take out the lower hinge.
Unscrew the hinge shaft
counterclockwise.
7
Turn the lower hinge over and install the hinge
shaft clockwise.
Install the lower hinge onto the left side of the
box and tighten the screws.
Install the self-locking block of the left door shaft
onto the left side of the door body and tighten
the screws, then install the hinge shaft hole of
the door body into the lower hinge shaft.
Rotate the middle hinge, insert the hinge shaft
into the hinge hole of the door body, and fix it on
the middle beam with screws.
Install the self-locking block of the left door shaft
onto the left side of the door body and tighten
the screws, then install the hinge shaft hole of
the door body into the middle hinge shaft.
Insert the upper hinge shaft into the door shaft
hole and secure it to the box with screws, then
cover the hinge cover.
8

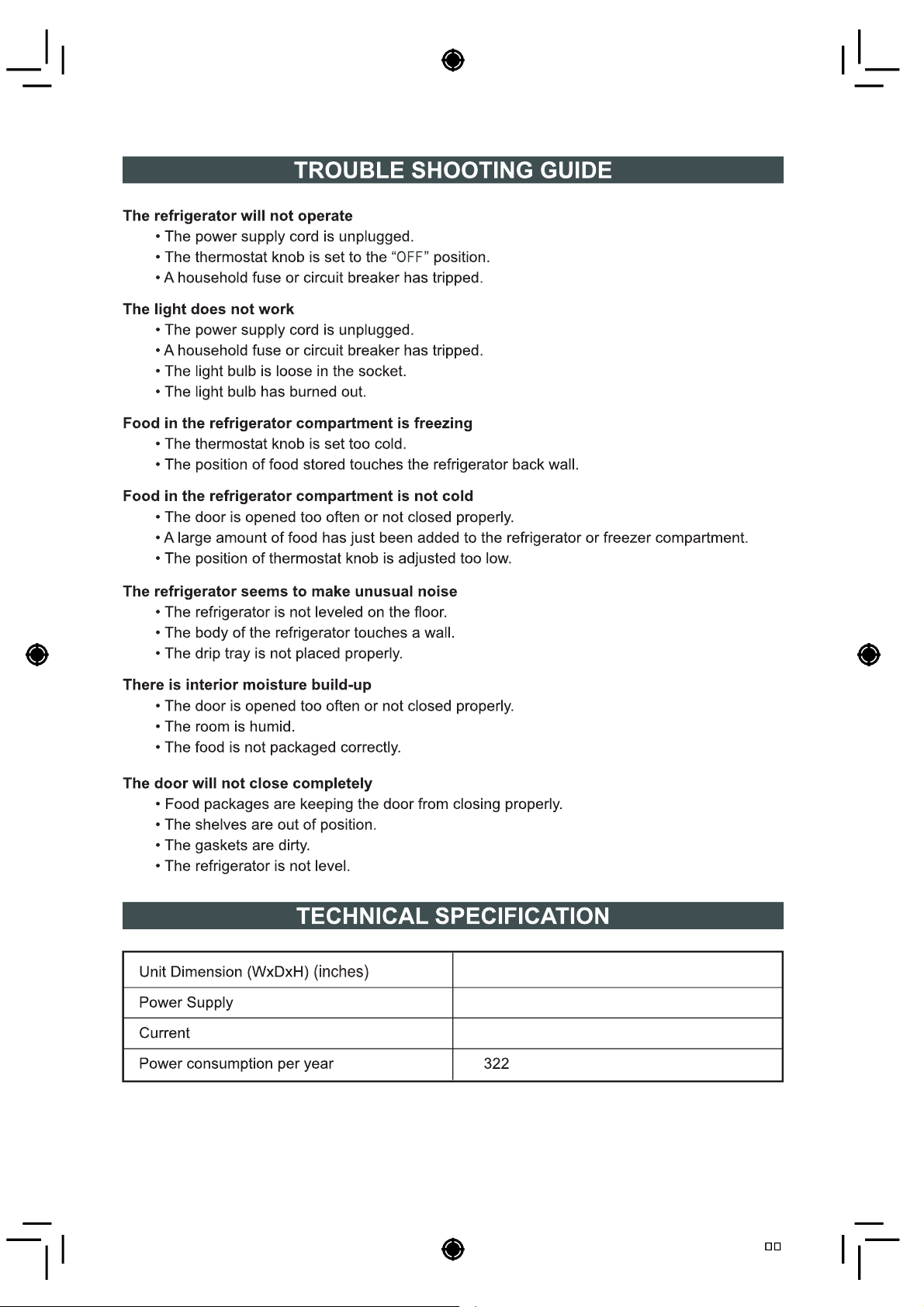

kwh
17.5 x 19.3 x 31.5
AC115V 60Hz
1.1A
9
CR0232W
15-01-1402
959 ute 46 East
Suite 210, 2
nd
Floor
Parsippany, NJ 07054
10
EMERSON
Part No.:CR0232W-20230615-01
