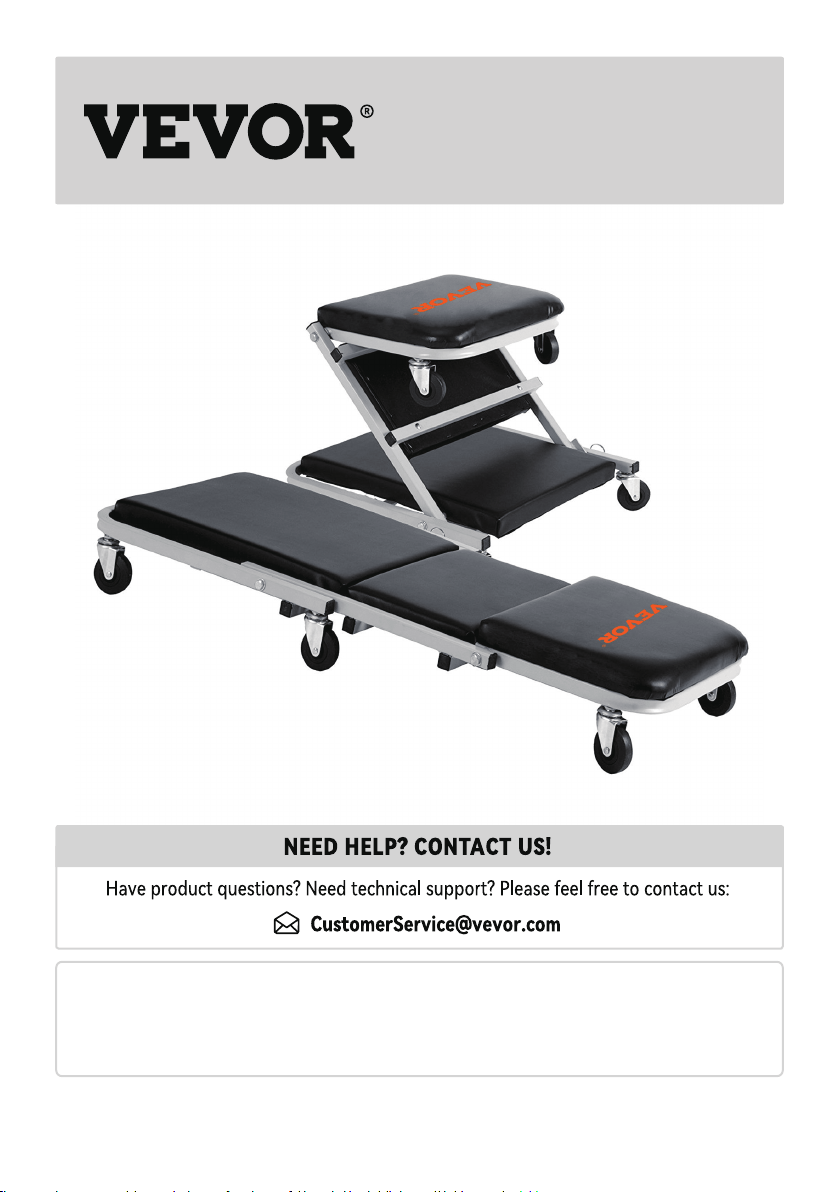

Z-CREEPER SEAT
User Manual
01
This is the original instruction, please read all manual instructions carefully before operating.
VEVOR resees clear interpretation of our user manual. The appearance of the product shall
be subject to the product you received. Please forgive us that we won't inform you again if
there is any technology or software updates on our product.
Z-CREEPER SEAT
User Manual
02
PRODUCT DESCRIPTION
Technical Parameters
Brand
540*460*100MM
6.2KG
6.7KG
Package Size
Net Weight
Gross Weight
Standard Accessories
Serial Number
6
Quantity
4
4
4
1
Icon
1
2
3
4
5
Project
Wheel
Screw M8*15
Screw M8*55
M8 Lock Nut
M6 Wrench
Note: The pictures are for reference only, the specic product appearance and color are subject
to the actual product!

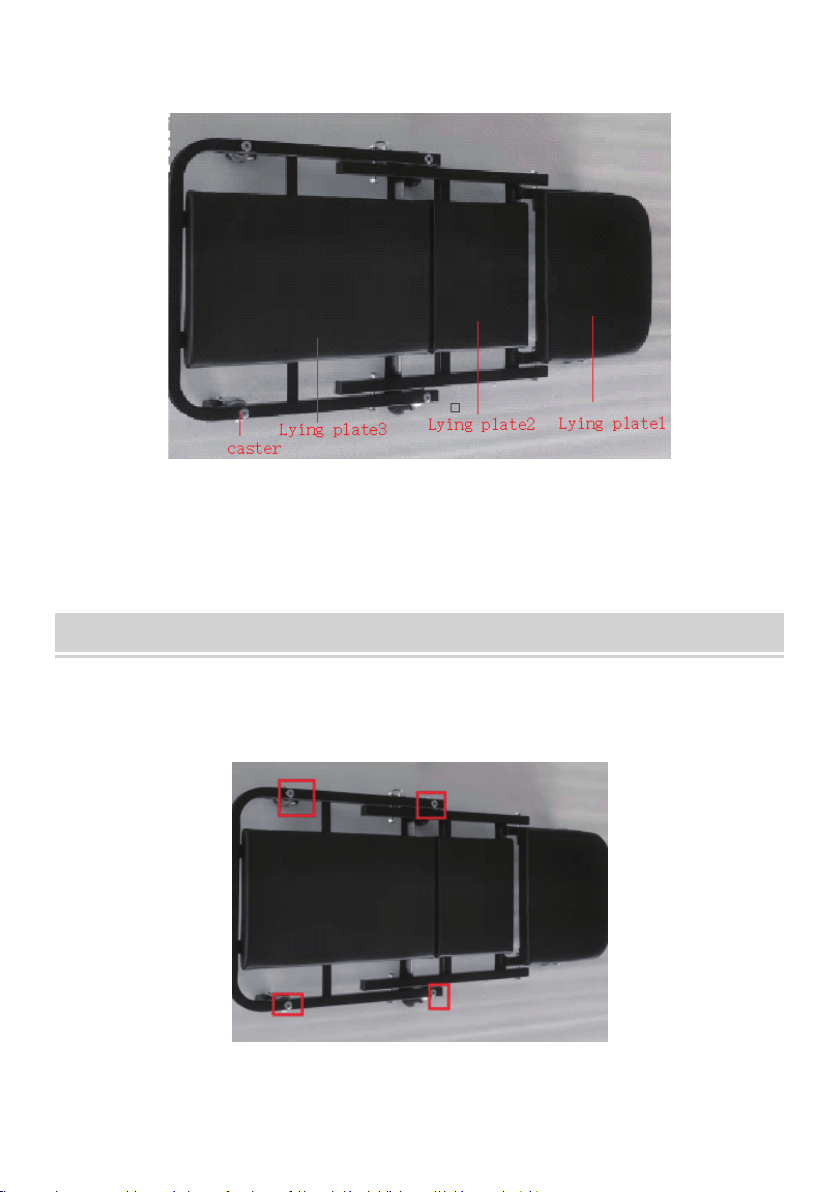

INSTALLATION AND USE INSTRUCTIONS
1. As shown in the product structure diagram, use an M6 wrench (1) to lock the M8*15 (4) screws
at the four wheel positions of the reclining board 3.
Standard Accessories
04
04
2. As shown in the product structure diagram, use M8*55 (4 pieces) and M8 anti-loosening
(4 pieces) to connect the reclining board 1, reclining board 2, and reclining board 3 together.
COMMON FAULT ANALYSIS
Fault Phenomenon
Wheel screw loose
Cause of Issue Solution
Re-tighten with a wrenchWheel o
