49-7000194 Rev. 0 09-22 GEA
Write the model and serial
numbers here:
Model # _________________
Serial # _________________
You can find them on a label inside
the oven.
ESPAÑOL
Para consultar una version en
español de este manual de
instrucciones, visite nuestro sitio de
internet GEAppliances.com.
OWNER’S MANUAL
MICROWAVE OVEN
UVM9125
GE is a trademark of the General Electric Company. Manufactured under trademark license.
SAFETY INFORMATION .........3
OPERATING INSTRUCTIONS
Features ..............................6
Cooking Controls ......................7
Power Levels
..........................8
Defrosting Guide .....................10
Sensor Features
...................... 11
Other Features .......................17
Settings .............................19
CARE AND CLEANING
Care and Cleaning ....................21
TROUBLESHOOTING
Things that are Normal ................23
CONSUMER SUPPORT
Limited Warranty .....................25
Consumer Support
................... 26
2 49-7000194 Rev. 0
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.
49-7000194 Rev. 0 3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to
excessive microwave energy:
When using electrical appliances, basic safety precautions should be followed, including the following:
■ Read all instructions before using this appliance.
■ Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 5.
■ Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This
microwave oven is specifically designed to heat, dry
or cook food, and is not intended for laboratory or
industrial use.
■ This appliance should be serviced only by qualified
service personnel. Contact nearest authorized
service facility for examination, repair, or adjustment.
INSTALLATION
■ Install or locate this appliance only in accordance
with the provided installation instructions.
■ This appliance must be grounded. Connect only to
a properly grounded outlet. See the “GROUNDING
INSTRUCTIONS” found on page 5.
■ This microwave oven is UL listed for installation over
both gas and electric ranges.
■ This unit is suitable for use above gas or electric
cooking equipment, 36’’ or less wide.
■ Do not operate this appliance if it has a damaged
power cord or plug, if it is not working properly, or if it
has been damaged or dropped.
■ Keep power cord away from heated surfaces.
■ Do not let cord hang over edge of table or counter.
■ Do not immerse power cord or plug in water.
■ Do not cover or block any opening on the appliance.
■ Do not store this appliance outdoors. Do not use this
product near water - for example, in a wet basement,
near a swimming pool, or in a similar location.
■ Do not mount over a sink.
TO REDUCE THE RISK OF FIRE IN THE CAVITY:
— Do not overcook food. Carefully attend appliance
when paper, plastic or other combustible materials
are placed inside the oven while cooking.
— Remove wire twist-ties and metal handles from paper
or plastic containers before placing them in the oven.
— If materials inside the oven ignite, keep the oven
door closed, turn the oven off and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
— Do not store any materials in the oven when not in
use. Do not leave paper products, cooking utensils,
or food in the cavity when not in use.
— Do not operate the microwave feature without food in
the oven.
TO REDUCE THE RISK OF BURNS
■ Be careful when opening containers of hot food. Use
pot holders and direct steam away from face and
hands.
■ Vent, pierce, or slit containers, pouches or plastic
bags to prevent build-up of pressure.
■ Be careful when touching the turntable, door, or walls
of the oven which may become hot during use.
■ HOT CONTENTS CAN CAUSE SEVERE BURNS.
DO NOT ALLOW CHILDREN TO USE THE
MICROWAVE. Use caution when removing hot items.
READ AND SAVE THESE INSTRUCTIONS
4 49-7000194 Rev. 0
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
WARNING
OPERATING
■
Do not operate the oven without the turntable in place.
The turntable must be unrestricted so it can turn.
■
Make sure all cookware used in your microwave oven
is suitable for microwaving. Most glass casseroles,
cooking dishes, measuring cups, custard cups, pottery
or china dinnerware which does not have metallic trim or
glaze with a metallic sheen can be used in compliance
with cookware manufacturers’ recommendations.
■
Do not store anything directly on top of the microwave
surface when the microwave is in operation.
■
Some products such as whole eggs and sealed
containers - for example, closed jars - are able to
explode and should not be heated in the microwave
oven.
■
Do not overcook potatoes. They could dehydrate and
catch fire.
■
Do not cover any other part of the oven with metal foil.
This will cause overheating of the oven.
■
Cook meat and poultry thoroughly—meat to at least an
INTERNAL temperature of 160°F and poultry to at least
an INTERNAL temperature of 180°F. Cooking to these
temperatures usually protects against foodborne illness.
■
This oven is not approved or tested for marine use.
CLEANING
■
Keep the oven free from grease buildup.
■
Do not clean with metal scouring pads. Pieces can burn
off the pad and touch electrical parts involving risk of
electric shock.
■
When cleaning surfaces of door and oven that come
together on closing the door, use only mild, nonabrasive
soaps, or detergents applied with a clean sponge or soft
cloth. Rinse well.
SUPER HEATED WATER
■
Liquids, such as water, coffee, or tea, are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or boiling
when the container is removed from the microwave
oven is not always present. THIS COULD RESULT
IN VERY HOT LIQUIDS SUDDENLY BOILING
OVER WHEN THE CONTAINER IS DISTURBED
OR A SPOON OR OTHER UTENSIL IS INSERTED
INTO THE LIQUID.
■
To reduce the risk of injury to persons:
- Do not overheat the liquid.
- Stir the liquid both before and halfway through
heating it.
- Do not use straight-sided containers with narrow
necks.
- After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
- Use extreme care when inserting a spoon or other
utensil into the container.
49-7000194 Rev. 0 5
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
GROUNDING INSTRUCTIONS
WARNING
Improper use of the grounding plug can result in a risk of electric shock.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a power cord having a grounding wire with a
grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
Consult a qualified electrician or service technician if
the GROUNDING INSTRUCTIONS are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
If the outlet is a standard 2-prong wall outlet, it is
your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
Do not under any circumstances cut or remove the
third (ground) prong from the power cord.
Do not use an extension cord. If the power cord is too
short, have a qualified electrician or service technician
install an outlet near the appliance.
For best operation, plug this appliance into its own
electrical outlet to prevent flickering of lights, blowing
of fuse or tripping of circuit breaker.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do Not Attempt to operate this oven with the
door open since open-door operation can result
in harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety
interlocks.
(b) Do Not Place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do Not Operate the oven if it is damaged.
It is particularly important that the oven door close
properly and that there is no damage to the:
(1) door (bent),
(2) hinges and latches (broken or loosened),
(3) door seals and sealing surfaces.
(d) The Oven Should Not be adjusted or repaired by
anyone except properly qualified service personnel.
NOTICE: PACEMAKERS
Most pacemakers are shielded from interference from electronic products, including microwaves. However,
patients with pacemakers may wish to consult their physicians if they have concerns.
Ensure proper ground
exists before use.
VENT FAN
The fan will operate automatically under certain conditions. Take care to prevent the starting
and spreading of accidental cooking fires while the vent fan is in use.
■
Clean the underside of the microwave often. Do not
allow grease to build up on the microwave or the fan
filters.
■ In the event of a grease fire on the surface units
below the microwave oven, smother a flaming pan
on the surface unit by covering the pan completely
with a lid, a cookie sheet or a flat tray.
■ Use care when cleaning the vent fan filters.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filters.
■ When preparing flaming foods under the
microwave, turn the fan on.
■ Never leave surface units beneath your microwave
oven unattended at high heat settings. Boilovers
cause smoking and greasy spillovers that may
ignite and spread if the microwave vent fan is
operating. To minimize automatic fan operation,
use adequate sized cookware and use high heat on
surface units only when necessary.
WARNING
6 49-7000194 Rev. 0

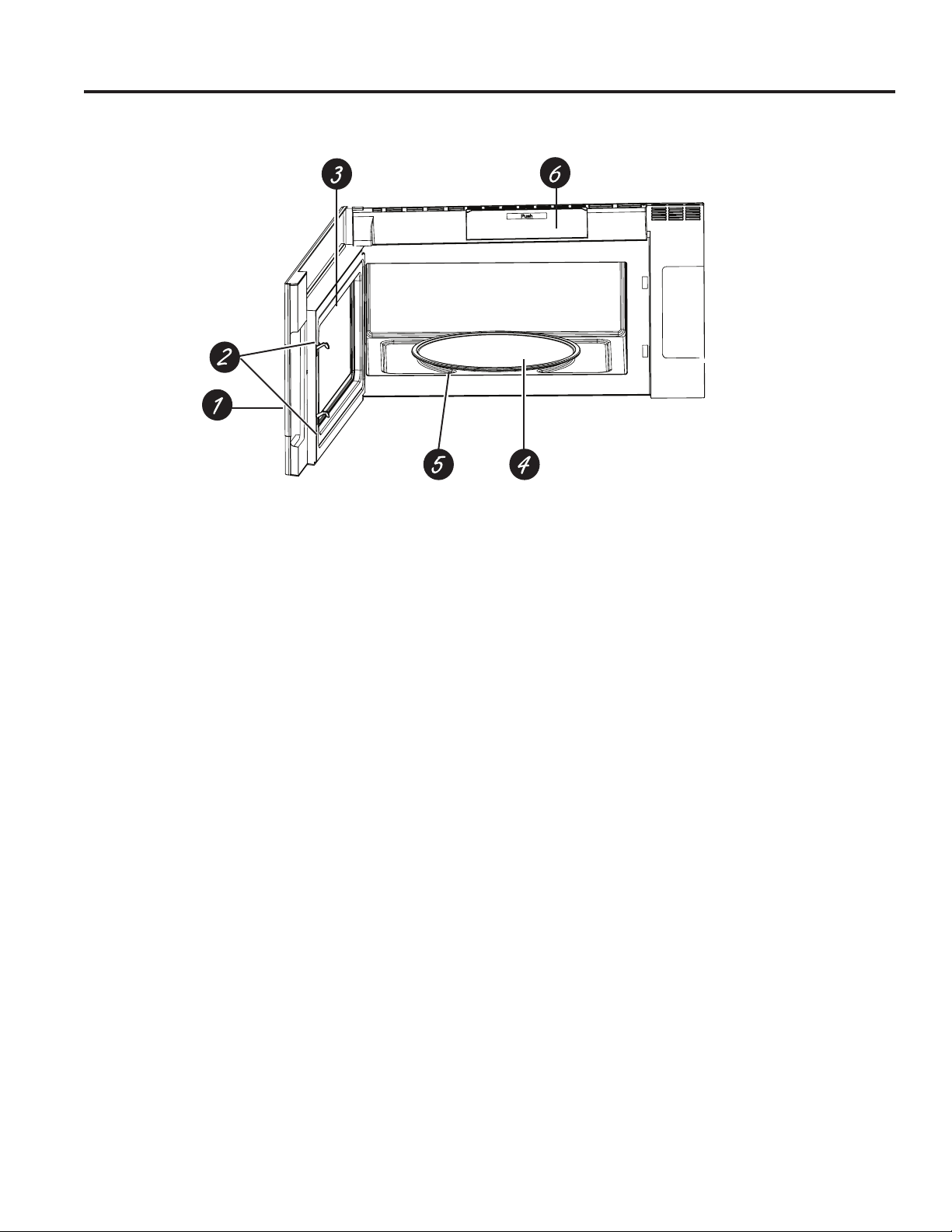

1. Door Handle
2. Door Latches
3. Window with Metal Shield
Screen allows cooking to be viewed while keeping
microwaves confined in the oven.
4. Removable Turntable
Do not operate the oven in the microwave mode
without the turntable and turntable support seated and
in place.
5. Removable Turntable Support
Do not operate the oven in the microwave mode
without the turntable and turntable support seated and
in place.
6. Charcoal Filter Cover
Push the cover to replace the charcoal filter without
taking the unit off from cabinet.
Features
Throughout this manual, features and appearance may vary from your model.
USING YOUR OVEN
49-7000194 Rev. 0 7
Cooking Controls
Check the Convenience Guide before you begin.
USING YOUR OVEN
About the features
Time Features
Press Enter
POWER LEVEL Power Level 0 to 10 (High)
COOK TIME Amount of cooking time
EXPRESS COOK Starts immediately!
ADD 30 SEC Starts immediately!
Sensor/Convenience Features
Press Enter
POPCORN Press pad to select amount
SNACK
Press pad to select food
SENSOR POTATO
MELT/SOFTEN
REHEAT
AUTO COOK
SENSOR COOK
WEIGHT DEFROST Weight
TIME DEFROST Time
8 49-7000194 Rev. 0
Cook Time
Allows you to microwave for any time up to 99 minutes
and 99 seconds.
Power level 10 (HIGH) is automatically set, but you may
change it for more flexibility.
1. Press Cook Time.
2. Enter cooking time.
3. Press START.
Cooking will start when the countdown begins in the
display.
You may open the door during Cook Time to check
the food. Close the door and press START to resume
cooking.
Express Cook
This is a quick way to set cooking time for 1-9 minutes.
1. Press one of the Express Cook pads (from 1-9) for 1-9
minutes of cooking at power level 10.
For example, press the 2 pad for 2 minutes of cooking
time.
The power level can be changed as time is counting down.
Press POWER LEVEL and enter 1-10.
NOTE: Express Cook function pertains to pads 1-9
only.
Add 30 Sec
This will add 30 seconds to the time counting down each
time the pad is pressed. Each touch will add 30 seconds,
up to 99 minutes and 99 seconds.
Add 30 sec can also be used like an
express 30 seconds button. The microwave
oven will start immediately when pressed.
Weight Defrost
Use Weight Defrost for meat, poultry and fish. Use Time
Defrost for most other frozen foods. (Time Defrost is
explained on page 9.)
1. Press WEIGHT DEFROST.
2. Enter the weight in pounds.
3. Press START.
Cooking will start when the countdown begins in the
display.
Defrosting Tips
• Remove meat from package and place on microwave-
safe dish.
• When the oven signals, turn the food over. Remove
defrosted meat or shield warm areas with small pieces
of foil.
• After defrosting, most meats need to stand 5 minutes
to complete defrosting. Large roasts should stand for
about 30 minutes.
Conversion Guide
If the weight of food is stated in pounds and ounces, the
ounces must be converted to tenths (.1) of a pound.
Ounces Pounds
1-2 .1
3 .2
4-5 .3
6-7 .4
8 .5
9-10 .6
11 .7
12-13 .8
14-15 .9
USING YOUR OVEN
About the features
49-7000194 Rev. 0 9
USING YOUR OVEN
About the features
Time Defrost
Allows you to defrost for a selected length of time. See
the Defrosting Guide on page 14 for suggested times
(Weight Defrost is explained on page 8).
1. Press TIME DEFROST.
2. Enter defrosting time in minutes and seconds.
3. Press START.
Cooking will start when the countdown begins in the
display.
At one half of selected defrosting time, turn food over and
break apart or rearrange pieces for more even defrosting.
Shield any warm areas with small pieces of foil. The oven
will continue to defrost if you don’t open the door and turn
the food.
Noises may be heard during defrosting. This is normal when
oven is not operating at High power.
Defrosting Tips
•
Foods frozen in paper or plastic can be defrosted in the
package. Closed packages should be slit, pierced or
vented AFTER food has partially defrosted. Plastic storage
containers should be partially uncovered.
•
Family-size, prepackaged frozen dinners can be
defrosted and microwaved. If the food is in a foil
container, transfer it to a microwave-safe dish.
•
Foods that spoil easily should not be allowed to sit out for
more than one hour after defrosting. Room temperature
promotes the growth of harmful bacteria.
•
For more even defrosting of larger foods, such as roasts,
use Time Defrost. Be sure large meats are completely
defrosted before cooking.
•
When defrosted, food should be cool but softened in all
areas. If still slightly icy, return to the microwave very
briefly, or let it stand a few minutes.
10 49-7000194 Rev. 0
USING YOUR OVEN
About the features
Defrosting Guide
Food Time Comments
Breads, Cakes
Bread, buns or rolls (1 piece) 1/4 min.
Sweet rolls (approx. 12 oz.) 2 to 4 min. Rearrange after half of time.
Fish and Seafood
Fillets, frozen (1 lb.) 6 to 9 min.
Shellfish, small pieces (1 lb.) 3 to 7 min. Place block in casserole. Turn over and break up after first half of
time.
Fruit
Plastic pouch—1 or 2
(10-oz. package)
1 to 5 min.
Meat
Bacon (1 lb.) 2 to 5 min.
Place unopened package in oven. Let stand 5 minutes after
defrosting.
Franks (1 lb.) 2 to 5 min. Place unopened package in oven. Microwave just until franks
can be separated. Let stand 5 minutes, if necessary, to complete
defrosting.
Ground meat (1 lb.) 4 to 6 min. Turn meat over after first half of time.
Roast: beef, lamb, veal, pork 9 to 12 min.
per lb.
Use power level Warm (1).
Steaks, chops and cutlets 4 to 8 min.
per lb.
Place unwrapped meat in cooking dish. Turn over after first half
of time and shield warm areas with foil. After second half of time,
separate pieces with table knife. Let stand to complete defrosting.
Poultry
Chicken, broiler-fryer, cut up
(2
1
¼2 to 3 lbs.)
14 to 19 min. Place wrapped chicken in dish. Unwrap and turn over after first
half of time. After second half of time, separate pieces and place
in cooking dish. Microwave 2 to 4 minutes more, if necessary. Let
stand a few minutes to finish defrosting.
Chicken, whole (2
1
¼2 to 3 lbs.) 20 to 24 min. Place wrapped chicken in dish. After first half of time, unwrap
and turn chicken over. Shield warm areas with foil. To complete
defrosting, run cool water in cavity until giblets can be removed.
Cornish hen 7 to 12 min.
per lb.
Place unwrapped hen in oven breast-side-up. Turn over after first
half of time. Run cool water in cavity until giblets can be removed.
Turkey breast (4 to 6 lbs.) 3 to 8 min.
per lb.
Place unwrapped breast in microwave-safe dish breast-side-down.
After first half of time, turn breast-side-up and shield warm areas
with foil. Defrost for second half of time. Let stand 1 to 2 hours in
refrigerator to complete defrosting.
49-7000194 Rev. 0 11
USING YOUR OVEN
About the features
The Sensor Features detect the increasing humidity released
during cooking. The oven automatically adjust the cooking
time to various types and amounts of food.
Do not use the Sensor Features twice in succession on the
same food portion - It may result in severely overcooked
or burnt food. Be sure to let the oven cool down for 5 - 10
minutes before starting the next sensor cook.
If food is undercooked after the countdown, use Cook Time
for additional cooking time
• The proper containers and covers are essential for best
sensor cooking.
• Always use microwave-safe containers and cover
them with lids or vented plastic wrap. Never use tight-
sealing plastic covers - they can prevent steam from
escaping and cause food to overcook.
• Be sure the outside of the cooking container and the
inside of the microwave oven are dry before placing
food in the oven. Beads of moisture turning into steam can
mislead the sensor.
Covered
Vented
Dry off dishes so they don’t
mislead the sensor.
Sensor Cook
Allows you to microwave food choices with sensor.
1. Press SENSOR COOK up to seven times to choose the
desired food selection. See Cooking Guide for SENSOR
COOK or check the display for the food selections.
2. Press START.
The oven signals when steam is sensed and the time
remaining begins counting down.
Do not open the oven door until time is counting down. If
the door is opened before time is counting down 4 beeps
are emitted while the display will Scroll & Cycle “SENSOR
ERROR “ until OFF is pressed. The sensor cook will be
cancelled as well. If the Door is opened during the counting
down, close it and press START immediately.
Cooking Guide for Sensor Cook Feature
Press Food
x1 Frozen Dinner (10 oz / 20 oz)
x2 Rice (1-2 Cups)
x3 Frozen Breakfast (8-12 oz)
x4 Fresh Veggies (4-16 oz)
x5 Frozen Veggies (6-16 oz)
x6 Dinner Plate (1-2 Plates)
x7 Roll/Muffin (1-3 Pieces)
12 49-7000194 Rev. 0
USING YOUR OVEN
About the features
Popcorn
To use the Popcorn feature:
1. Place the package of popcorn in the center of the
microwave.
2. Press POPCORN once for a 3.3-ounce bag or twice
for a 3.0-ounce bag.
3. Press START.
If food is undercooked after the countdown, use Cook
Time for additional cooking time. We recommend 30
seconds and watch carefully.
Reheat
The REHEAT feature reheats servings of previously
cooked foods.
1. Press REHEAT.
2. See Cooking Guide for REHEAT or check the display
for the food selections.
3. Press START.
After removing food from the oven, stir, if possible,
to even out the temperature. If the food is not
hot enough, use Cook Time to reheat for more
time. Reheated foods may have wide variations in
temperature. Some areas may be extremely hot.
It is best to use Cook Time for these foods:
• Bread products.
• Foods that must be reheated covered.
• Foods that need to be stirred or rotated during
reheating.
• Foods calling for a dry look or crisp surface after
reheating.
Cooking Guide for Reheat Feature:
Press Food Note
x1 Beverage
(1-3 Cups)
Press START to select.
Enter amount using keypad.
Press START to begin.
x2 Soup/Sauce
(1 Cup)
Press START to begin
x3 Casserole/Lasagna
(10.5 oz)
Press START to begin
Sensor Potato
1. Place the potato in the center of the microwave.
2. Press SENSOR POTATO.
3. Press START.
Do not open the oven door until time is counting down.
If the door is opened before time is counting down 4
beeps are emitted while the display will Scroll & Cycle
“SENSOR ERROR “ until OFF is pressed.
The sensor cook will be cancelled as well. If the Door
is opened during the counting down, close it and press
START immediately.
49-7000194 Rev. 0 13
USING YOUR OVEN
About the features
Auto Cook
The AUTO COOK feature allows you to choose from
preset categories and cook without entering cook times
and power levels.
1. Press AUTO COOK up to ten times to choose the
desired food selection.
2. See Cooking Guide for AUTO COOK or check the
display for the food selections.
3. Press START
Melt/Soften
The MELT/SOFTEN feature allows you to choose from
preset categories and melt/soften without entering cook
times and power levels.
1. Press MELT/SOFTEN up to four times to choose the
desired food selection.
2. See Cooking Guide for MELT/SOFTEN or check the
display for the food selections
3. Press START
Press Food Note
x1 Scrambled Eggs (1-6 Eggs) Press START to select.
Enter amount using keypad.
Press START to begin
x2 Hot Cereal (1-3 Servings) Press START to select.
Enter amount using keypad.
Press START to begin
x3 Frozen Pizza (6, 8, 12 oz) Press START to select.
Enter amount using keypad.
Press START to begin
x4 Fudge Brownies (18-19 oz) Press START to begin
x5 Garlic Shrimp Press START to begin
x6 Stued Mushrooms Press START to begin
x7 Asiago Red Potatoes Press START to begin
x8 Roasted Vegetable Medley Press START to begin
x9 Lemon Shrimp Risotto Press START to begin
x10 Bacon (1-3 slices) Press START to select.
Enter amount using keypad.
Press START to select.
Press Food Note
x1 Melt Butter (1-2 Sticks) Press START to select.
Enter amount using keypad.
Press START to begin
x2 Melt Chocolate
(2, 4, 8 oz)
Press START to select.
Enter amount using keypad.
Press START to begin
x3 Soften Ice Cream
(1 Pint, 1.5 Quart)
Press START to select.
Enter amount using keypad.
Press START to begin
x4 Soften Cream Cheese
(3, 8 oz)
Press START to select.
Enter amount using keypad.
Press START to begin
14 49-7000194 Rev. 0
USING YOUR OVEN
About the features
Snack
1. Press SNACK up to three times to select the desired
food selection.
2. See Cooking Guide for SNACK or check the display
for the food selections.
3. Press START
Press Food Note
x1 Hot Dogs (1-6 Pieces) Press START to select.
Enter amount using keypad.
Press START to begin
x2 Meal In A Cup (2.9 oz) Press START to begin
x3 Frozen Kids Meal (8.8 oz) Press START to begin
49-7000194 Rev. 0 15
USING YOUR OVEN
About the features
Term Definition
Arcing Arcing is the microwave term for sparks in the oven. Arcing is caused by:
• metal or foil touching the side of the oven.
• foil that is not molded to food (upturned edges act like antennas).
• metal such as twist-ties, poultry pins, gold-rimmed dishes.
• recycled paper towels containing small metal pieces.
Covering Covers hold in moisture, allow for more even heating and reduce cooking time. Venting plastic
wrap or covering with wax paper allows excess steam to escape.
Shielding In a regular oven, you shield chicken breasts or baked foods to prevent over-browning. When
microwaving, you use small strips of foil to shield thin parts, such as the tips of wings and legs
on poultry, which would cook before larger parts.
Standing Time When you cook with regular ovens, foods such as roasts or cakes are allowed to stand to finish
cooking or to set. Standing time is especially important in microwave cooking. Note that a
microwaved cake is not placed on a cooling rack.
Venting After covering a dish with plastic wrap, vent the plastic wrap by turning back one corner so
excess steam can escape.
Microwave Terms
16 49-7000194 Rev. 0
Changing the Power Level
The power level may be entered or changed before or
during cooking. Power Level is set for Level 10 (High)
unless it is changed.
1. Press Power Level button.
2. Enter new power level by using the number pads or
press the Power Level button multiple times until you
find the level you want.
3. After you have selected the power level, wait five
seconds. The display will go back to the Cook Time
screen.
4. Enter cooking time and press START.
OR
1. Press Cook Time button.
2. Enter your cooking time.
3. Press Power Level button.
4. Enter new power level by using the number pads or
press the Power Level button multiple times until you
find the level you want.
5. After you have selected the power level, wait five
seconds. The display will go back to the Cook Time
(Enter Time) screen.
6. Press START.
Variable power levels add flexibility to microwave
cooking. The power levels on the microwave oven can
be compared to the surface units on a range. Each
power level gives you microwave energy a certain
percent of the time. Power level 7 is microwave energy
70% of the time. Power level 3 is energy 30% of the
time. Most cooking will be done on High (power level 10)
which gives you 100% power. Power level 10 will cook
faster but food may need more frequent stirring, rotating
or turning over. A lower setting will cook more evenly
and need less stirring or rotating of the food. Some foods
may have better flavor, texture or appearance if one of
the lower settings is used. Use a lower power level when
cooking foods that have a tendency to boil over, such as
scalloped potatoes and some casseroles.
Rest periods (when the microwave energy cycles off)
give time for the food to “equalize” or transfer heat to
the inside of the food. An example of this is shown with
Power level 3—the defrost cycle. If microwave energy
did not cycle off, the outside of the food would cook
before the inside was defrosted.
Here are some examples of uses for various power
levels:
High 10 (100%): Fish, bacon, vegetables, boiling
liquids.
Med-High 7 (70%): Gentle cooking of meat and poultry;
baking casseroles and reheating.
Medium 5 (50%): Slow cooking and tenderizing for
stews and less tender cuts of meat.
Low 2 or 3 (20 or 30%): Defrosting; simmering; delicate
sauces.
Warm 1 (10%): Keeping food warm; softening butter.
NOTE: You can also change the power level during
many cooking modes by pressing the power level button
entering a valid power level.
USING YOUR OVEN
About the features
49-7000194 Rev. 0 17
Other Features
USING YOUR OVEN
Surface Light
Press SURFACE LIGHT once for high light, twice for low
light, or a third time to turn the light off
Start/Add 30 Sec
In addition to starting many functions, START/ADD 30 Sec
allows you to add cook time in 30-second increments during
an active cook cycle.
Pause/Off
Press the PAUSE/OFF button to pause or cancel
cooking at any time.
Control Lock-Out
You may lock the control panel to prevent the oven from
being accidentally started during cleaning or being used
by children.
To lock or unlock the controls, press and hold the LOCK
CONTROL button for three seconds. When the control
panel is locked, LOCKED will be displayed briefly anytime
a button or dial is pressed. “L” will show in the display.
Timer
NOTE: The Timer indicator will be lit while the timer is operating.
The Timer operates as a minute timer and can be used at any
time, even when the oven is operating.
1. Press the Timer button.
2. Enter a time.
3. Press the Timer button to start.
To cancel, press the Timer button.
When time is up, the oven will signal.
To turn off the timer signal, press Timer.
18 49-7000194 Rev. 0
Other Features
USING YOUR OVEN
Vent Fan
The vent fan removes steam and other vapors from
surface cooking.
Press VENT FAN once for high fan speed, twice for low fan
speed, or a third time to turn the fan off.
Automatic Fan
An automatic fan feature protects the microwave from
too much heat rising from the cooktop below it. It
automatically turns on if it senses too much heat.
If you have turned the fan on you may find that you
cannot turn it off. The fan will automatically turn off when
the internal parts are cool. It may stay on for 30 minutes
or more after the cooktop and microwave controls are
turned off.
Insert Food Reminder
A reminder will show on the display if the user tries to
start the cooking cycle without placing food inside the
microwave oven within 5 minutes prior to starting the
cooking cycle.
Cooking Complete Reminder
To remind you that you have food in the oven, the oven
will display “Food is ready” and beep once a minute until
you either open the oven door or press the PAUSE/OFF
button.
Turntable On/Off
For best cooking results, leave the turntable on. It can be
turned off for large dishes.
Press Turntable On/Off to stop or start rotating the
turntable.
The turntable can become too hot to touch. Be careful
touching the turntable during and after cooking.
49-7000194 Rev. 0 19
Other Features
USING YOUR OVEN
SETTINGS
Settings allow to change the default settings for your
OTR.
1. Press SETTINGS.
2. See table below for available options.
Press Setting Option Note
x1 Volume (Low, Med, High, Off) Press SETTINGS once (x1) and wait until “VOLUME” appears.
“Low, Med, High, Off” will display and cycle automatically.
Press START to confirm when the desired setting is displayed.
x2 Weight (lb., kg.) Press SETTINGS twice (x2) and wait until “Lb / KG” appears.
Press START to confirm.
x3 Clock Display (On, Off) Press SETTINGS three times (x3) and wait until “CLOCK DISPLAY” appears.
Press START to turn Clock Display off.
Repeat the steps to turn Clock Display back on.
x4 Demo Mode Press SETTINGS four times (x4) and wait until “DEMO OFF” appears.
Press START to turn Demo Mode on.
Repeat the steps to turn Demo Mode back off.
20 49-7000194 Rev. 0
Charcoal Filter
The charcoal filter cannot be cleaned. It must be
replaced. See back cover for ordering online at
GEAppliances.com.
If the model is not vented to the outside, the air will be
recirculated through a disposable charcoal filter that
helps remove smoke and odors.
The charcoal filter should be replaced every 6-12
months, depending on usage.
To Install the Charcoal Filter
To remove and replace the charcoal filter, first disconnect
power at the main fuse or circuit breaker, or pull the plug.
Remove the two vent plate screws located at the top of
the microwave using a #1 Phillips screwdriver. Change
the charcoal filter from the vent plate. Replace the vent
plate and reinstall the two vent plate screws located at
the top of the microwave using a #1 Phillips screwdriver.
Close the microwave door. Plug in the microwave or
reconnect power.
Other Features
USING YOUR OVEN
Charcoal Filter
Vent Plate
49-7000194 Rev. 0 21
How to Clean the Outside
Do not use cleaners containing ammonia or alcohol on
the microwave oven. Ammonia or alcohol can damage
the appearance of the microwave.
Case
Clean the outside of the microwave with a sudsy cloth.
Rinse with a damp cloth and then dry. Wipe the window
clean with a damp cloth.
Control Panel and Door
Wipe with a damp cloth. Dry thoroughly. Do not use
cleaning sprays, large amounts of soap and water,
abrasives or sharp objects on the panel—they can
damage it. Some paper towels can also scratch the
control panel.
Door Surface
It is important to keep the area clean where the door
seals against the microwave. Use only mild, non-
abrasive detergents applied with a clean sponge or soft
cloth. Rinse well.
Power Cord
If the cord becomes soiled, unplug and wash with a
damp cloth. For stubborn spots, sudsy water may be
used, but be certain to rinse with a damp cloth and dry
thoroughly before plugging cord into outlet.
Stainless Steel (on some models)
Do not use a steel-wood pad; it will scratch the surface.
To clean the stainless steel surface, use a hot, damp
cloth with a mild detergent suitable
for stainless steel surfaces. Use a clean, hot, damp cloth
to remove soap. Dry with a dry, clean cloth. Always
scrub lightly in the direction of the grain.
Helpful Hints
An occasional thorough wiping with a solution of baking
soda and water keeps the inside fresh.
Be certain the oven control is turned off before
cleaning any part of this oven.
How to Clean the Inside
Walls, Floor, Inside Window, Metal and Plastic Parts
on the Door
Some spatters can be removed with a paper towel;
others may require a damp cloth. Remove greasy
spatters with a sudsy cloth, then rinse with a damp cloth.
Do not use abrasive cleaners or sharp utensils on oven
walls.
To clean the surface of the door and the surface of the
oven that come together upon closing, use only mild,
nonabrasive soaps or
detergents using a sponge
or soft cloth. Rinse with a
damp cloth and dry.
Never use a commercial
oven cleaner on any part of
your microwave.
Removable Turntable and
Turntable Support
To prevent breakage, do not
place the turntable into water
just after cooking. Wash it
carefully in warm, sudsy water
or in the dishwasher. The turntable and support can be
broken if dropped. Remember, do not operate the oven
in the microwave mode without the turntable and support
seated and in place.
Care and Cleaning
CARE AND CLEANING
22 49-7000194 Rev. 0
Removing and Cleaning the Filters
To remove, slide them to the rear using the tabs. Pull down
and out.
To clean the vent filters, soak them and then swish around
in hot water and detergent. Don’t use ammonia or ammonia
products because they will darken the metal. Light brushing
can be used to remove embedded dirt.
Rinse, shake and let dry before replacing.
To replace, slide the filters into the frame slots on the back
of each opening. Press up and to the front to lock into place.
Cooktop Lights/Nite Lights
See back cover for ordering online at
GEAppliances.com.
1. To replace the cooktop lights/nite lights, first
disconnect the power at the main fuse or circuit
breaker panel, or pull the plug.
2. One side at a time, remove the screw from the side of
the light compartment cover and lower the cover until
it stops.
3. Be sure the LED light is cool before removing. Gently
remove the LED wiring connector from LED board.
4. Replace with the new LED board and insert the wiring
plug, then raise the light cover and replace the screw.
Repeat for the other light. Connect electrical power to
the oven.
Remove screws.
Vent Fan
The vent fan has two metal reusable vent filters.
Models that recirculate air back into the room also use a
charcoal filter.
Reusable Vent Filters
The metal filters trap grease released by foods on the
cooktop. They also prevent flames from foods on the
cooktop from damaging the inside of the oven.
For this reason, the filters must always be in place when
the hood is used. The vent filters should be cleaned
once a month, or as needed.
Reusable vent filters
(on all models).
Charcoal filter
(on some models).
Replacing the Oven Cavity Light
1. Disconnect power at the main fuse or circuit breaker
panel.
2. Remove the vent plate screw located at the top of the
microwave on the left (door hinge side) using a #1
Phillips screwdriver.
3. Be sure the LED light is cool before removing.
4. Unsecure the LED light from the two clips and
carefully slide it out.
5. Gently remove the LED wiring connector from the LED
board.
6. Replace with the new LED board and insert the LED
wiring connector. See back cover for ordering online
at GEAppliances.com
7. Carefully insert the new LED board and secure it with
the two clips.
8. Replace the vent plate reinstall the screw.
9. Reconnect power to the microwave.
Care and Cleaning
CARE AND CLEANING
49-7000194 Rev. 0 23
TROUBLESHOOTING TIPS
Troubleshooting Tips
Things That Are Normal With Your Microwave Oven
■ Steam or vapor escaping from around the door.
■ Light reflection around door or outer case.
■ Dimming oven light and change in the blower sound at
power levels other than high.
■ Dull thumping sound while oven is operating.
■ TV-radio interference might be noticed while using the
microwave. Similar to the interference caused by other
small appliances, it does not indicate a problem with
the microwave. Plug the microwave into a different
electrical circuit, move the radio or TV as far away
from the microwave as possible or check the position
and signal of the TV/radio antenna.
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY
INTERFERENCE STATEMENT (U.S.A. ONLY)
This equipment generates and uses ISM frequency
energy and if not installed and used properly, that is in
strict accordance with the manufacturer’s instructions,
may cause interference to radio and television reception.
It has been type tested and found to comply with limits
for ISM Equipment pursuant to part 18 of FCC Rules,
which are designed to part 18 of FCC Rules, which are
designed to provide residential installation.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following:
■ Reorient the receiving antenna of the radio or
television.
■ Relocate the Microwave Oven with respect to the
receiver.
■ Move the microwave oven away from the receiver.
■ Plug the microwave oven into a different outlet so that
the microwave oven and the receiver are on different
branch codes.
The manufacturer is not responsible for any radio of TV
interference caused by unauthorized modification to this
microwave oven. It is the responsibility of the user to
correct such interference.
24 49-7000194 Rev. 0
Troubleshooting Tips... Before you schedule service
TROUBLESHOOTING TIPS
Save time and money! Review the charts on the following pages first and you may not need to schedule service.
Problem Possible Causes What To Do
Oven will not start A fuse in your home may be blown or
the circuit breaker tripped.
Replace fuse or reset circuit breaker.
Power surge. Unplug the microwave oven, then plug it back in.
Plug not fully inserted into wall outlet. Make sure the 3-prong plug on the oven is fully
inserted into wall outlet.
Door not securely closed. Open the door and close securely.
Control panel
lighted, yet oven will
not start
Door not securely closed. Open the door and close securely.
START button not pressed after
entering cooking selection.
Press START.
Another selection entered already
in oven and PAUSE/OFF button not
pressed to cancel it.
Press PAUSE/OFF.
Cooking time not entered after
pressing TIME COOK.
Make sure you have entered cooking time after
pressing
TIME COOK.
PAUSE/OFF was pressed
accidentally.
Reset cooking program and press START.
Food weight not entered after
selecting WEIGHT DEFROST.
Make sure you have entered food weight after
selecting WEIGHT DEFROST.
Food type not entered after pressing
COOK.
Make sure you have entered a food type.
CONTROL LOCKED
appears on display
The control has been locked. Press and hold PAUSE/OFF for about 3 seconds
to unlock the control.
HOT appears on
display
The temperature inside the oven is
greater than 200°F.
This is normal.
One of the sensor cooking pads was
pressed when the temperature inside
the oven was greater than 200°F.
These features will not operate when the oven is
hot.
49-7000194 Rev. 0 25
Staple your receipt here. Proof of the original purchase
date is needed to obtain service under the warranty.
LIMITED WARRANTY
GE Appliances Microwave Oven Limited Warranty
GEAppliances.com
All warranty service is provided by our Factory Service Centers, or an authorized service technician. To schedule
service online, visit us at GEAppliances.com/service or call 800.GE.CARES (800.432.2737) during normal business hours.
What GE Appliances will not cover:
■ Service trips to your home to teach you how to use
the product.
■ Improper installation, delivery or maintenance. If you
have an installation problem, contact your dealer or
installer. You are responsible for providing adequate
electrical, exhausting, and other connecting facilities.
■ Failure of the product or damage to the product if it is
abused, misused (for example, cavity arcing from wire
rack or metal/foil), or used for other than the intended
purpose or used commercially.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage to the product caused by accident, fire,
floods or acts of God.
■ Incidental or consequential damage caused by
possible defects with this appliance.
■ Damage caused after delivery.
■ Product not accessible to provide required service.
■ Service to repair or replace light bulbs, except for LED
lamps.
■ Damage to the finish, such as surface rust, tarnish, or
small blemishes not reported within 48 hrs of delivery.
EXCLUSION OF IMPLIED WARRANTIES
Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied
warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited
to one year or the shortest period allowed by law.
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased
for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized
Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an
Authorized GE Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping
or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know what
your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: GE Appliances, a Haier company
Louisville KY,40225
For the period of GE Appliances will replace
One year
From the date
of the original
purchase
Any part of the oven which fails due to a defect in materials or workmanship. During this
limited one-year warranty, GE Appliances will also provide, free of charge, all labor and
related service costs to replace the defective part when the unit is serviced.
26 49-7000194 Rev. 0
Consumer Support
CONSUMER SUPPORT
GE Appliances Website
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year!
You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for
your convenience. GEAppliances.com
Register Your Appliance
Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and
prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card
included in the packing material. GEAppliances.com/register
Schedule Service
Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your
convenience any day of the year.
GEAppliances.com/service or call 800.GE.CARES (800.432.2737) during normal business hours.
Contact Us
If you are not satisfied with the service you receive from GE Appliances, contact us on our Website with all the details including
your phone number, or write to: General Manager,
General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225
GEAppliances.com/contact
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.
GEAppliances.com/parts or call 800.432.2737 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should
be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe
operation.
