1
09-41
INSTALLER: Leave these instructions with consumer.
CONSUMER: Retain for future reference.
INSTALLATION AND OPERATING
INSTRUCTIONS
Important: READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION
DANGER:
IF YOU SMELL GAS:
1. Shut off the gas to the appliance.
2. Extinguish any open fl ame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your
gas supplier or the fi re department.
WARNING:
1. Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
CODE AND SUPPLY REQUIREMENTS: This
appliance must be installed in accordance with
local codes and ordinances, or, in the absence
of local codes, with the latest National Fuel Gas
Code (ANSI Z223.1/NFPA 54), or Natural Gas and
Propane Storage and Handling Installation Code
(CSA-B149.1).
This appliance and its dedicated manual shutoff
valve must be disconnected from the gas-supply
piping system when testing the system at pressures
in excess of ½ psig (3.5 kPa).
This appliance must be isolated from the gas-
supply piping system by closing its dedicated
manual shutoff valve during any pressure testing
of the gas-supply system at pressures up to and
including ½ psig (3.5 kPa).
All electrical outlets in the vicinity of the appliance
must be properly grounded in accordance with local
codes, or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70, or the
Canadian Electrical Code, CSA C22.1, whichever
is applicable.
Keep all electrical-supply cords and fuel-supply
hoses away from any heated surface.
WARNING:
Improper installation, adjustment, alteration,
service, or maintenance can cause injury
or property damage. For proper installation,
refer to the installation instructions. For
assistance or additional information, consult
a qualifi ed professional service technician,
service agency, or the gas supplier.
Proper operation of your appliance
requires prompt and periodic
maintenance. See the CARE &
CLEANING section for details.
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746 Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
Certifi ed to: ANSI Z21.58b-2012
CSA 1.6b-2012
GETTING
STARTED
WARNINGS AND SAFETY CODES
REV 0 - 1601191055
L-C2-448
DOUBLE SIDEBURNER
3281(P)L Series
2
INSTALLATION INSTRUCTIONS ET MANUEL DU PROPRIÉTAIRE
Certifi é à la norme: ANSI Z21.58b-2012
CSA 1.6b-2012
DANGER:
SI VOUS SENTEZ LE GAZ :
1. Coupez le gaz à l’appareil.
2. Éteignez-vous n’importe quelle fl amme nue.
3. Ouvrez le couvercle si équipé d’un four.
4. Si l’odeur continue, gardez loin de
l’appareil et appelez immédiatement
votre département de fournisseur ou de
feu de gaz.
AVERTISSEMENT:
1. Ne stockez pas ou n’employez pas
l’essence ou d’autres vapeurs et liquides
infl ammables à proximité de ceci ou
d’aucun autre appareil.
2. Un cylindre de propane non relié pour
l’usage ne sera pas stocké à proximité
de ceci ou d’aucun autre appareil.
CONDITIONS DE CODE ET D’APPROVISIONNEMENT:
Ce gril doit être installé selon des codes et des ordonnances
locaux, ou, en l’absence des codes locaux, avec l’un ou l’autre
le plus défunt Code national de gaz de carburant (norme ANSI
Z223.1/NFPA 54), et Stockage de gaz naturel et de propane
et manipulation du code d’installation (CSA-B149.1).
Cet appareil et ses différents robinets d’isolement doivent être
démontés du gaz-fournissent le système siffl ant en examinant
le système aux pressions au-dessus du ½ psig (kPa 3.5).
Cet appareil doit être isolé dans gaz-fournissent le système
siffl ant par fermeture que ses différents robinets d’isolement
manuels pendant tous les essais sous pression du gaz-
fournissent le système aux pressions jusques et y compris
le ½ psig (kPa 3.5).
Toutes les sorties électriques à proximité du gril doivent être
correctement fondues selon des codes locaux, ou en l’absence
de local code, avec le code électrique national, ANSI/NFPA
70, ou le code électrique canadien, CSA C22.1, celui qui est
applicable.
Maintenez tout électrique-fournissent des cordes et carburant-
fournissent des tuyaux partis de n’importe quelle surface de
chauffage.
INSTALLATEUR : Laissez ces instructions avec le consommateur.
CONSOMMATEUR : Maintenez pour la future référence.
AVERTISSEMENT:
L’installation inexacte, l’ajustement, le
changement, le service, ou l’entretien
peuvent causer des dommages ou des
dégats matériels. Référez-vous à ce manuel.
Pour de l'aide ou des renseignements
supplémentaires, consultez un technicien
professionnel qualifié de service, une
agence de service ou le fournisseur de gaz.
• Ce gril est pour ultilisation à l’extérieur seulement.
Si l’appareil est entreposé à l’intérieur, enlever les
bouteilles et les laisser à l’extérieur.
• Ne pas ranger le gril immédiatement aprés l’avoir utilisé.
le laisser refroidir avant de le déplacer ou de la ranger.
Le non respect de cette mesure de sécurité pourrait
entraîner un incendie causant des dommages à la
propriété, des blessures ou la mort.
• Ne pas utiliser cet appareil sous une surface combustible.
• Ne pas utiliser cet appareil sous un auvent. Le non
respect de cette mesure de sécurité pourrait entraîner
un incendie ou des blessures.
• Dégagement minimal entre les parois latérales et l’arriére
de l’appareil et la construction combustible (45.7 cm à
partir des parois latérales et 45.7cm à partir de l’arriére).
• Le régulareur de pression de gaz prévu avec cet appareil
de cuisson à gaz pour l’extérieur doit être utilisé. Ce
régulateur est réglé pour une pression de sortie de 5
pouces de colonne de l’eau pour le gaz naturel, et 10
pouces pour le propane.
• LE RÉGULATEUR INCLUS D’APPAREILS EST ÉVALUÉ
POUR LE MAXIMUM DE 1/2 (LIVRES PAR POUCE
CARRÉ). SI VOTRE OFFRE DE GAZ EST 1/2 PLUS
GRAND QUE (LIVRES PAR POUCE CARRÉ), UN
RÉGULATEUR ADDITIONNEL DOIT ÊTRE INSTALLÉ
AVANT LE GRIL. VOIR LA SECTION DE CONDITIONS
D’OFFRE DE GAZ POUR LA PRESSION APPROPRIÉE
D’OFFRE DE GAZ.
• Ne couvrez jamais la surface entière de cuisine ou de
gril de gauffreuses ou de casseroles. La surchauffe se
produira et les brûleurs ne seront pas très performants
quand la chaleur de combustion est emprisonnée au-
dessous de la surface à cuire.
• Ne pulvérisez jamais l’eau sur une unité chaude de gaz,
comme ceci peut endommager des composants de
porcelaine ou de fer de fonte.
• Une fuite de GPL peut causer une incendie ou une
explosion si enflammée entraînant des blessures
corporelles graves ou la mort.
• Communiquez avec le fournisseur de GPL pour les
réparations ou pour disposer de qules bouteille ou du
GPL non utilisé.
SÛRETÉ ET CODES D’AVERTISSEMENT
REV 0 - 1601191055
L-C2-448
DANS LE CONTRE- DOUBLE SIDEBURNER
3
CONTENTS
ELECTRICAL SAFETY
ELECTRICAL SAFETY
To protect against electric shock, do not immerse cord or plugs (if equipped) in water or other liquid.
Unplug from the outlet (if applicable) when not in use and before cleaning. Allow to cool before putting
on or taking off parts.
Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance
malfunctions or has been damaged in any manner. Contact the manufacturer for repair.
Do not let the cord hang over the edge of a table or touch hot surfaces.
Do not use an outdoor cooking gas appliance for purposes other than intended.
When connecting, fi rst connect plug to the outdoor cooking gas appliance then plug appliance into the outlet.

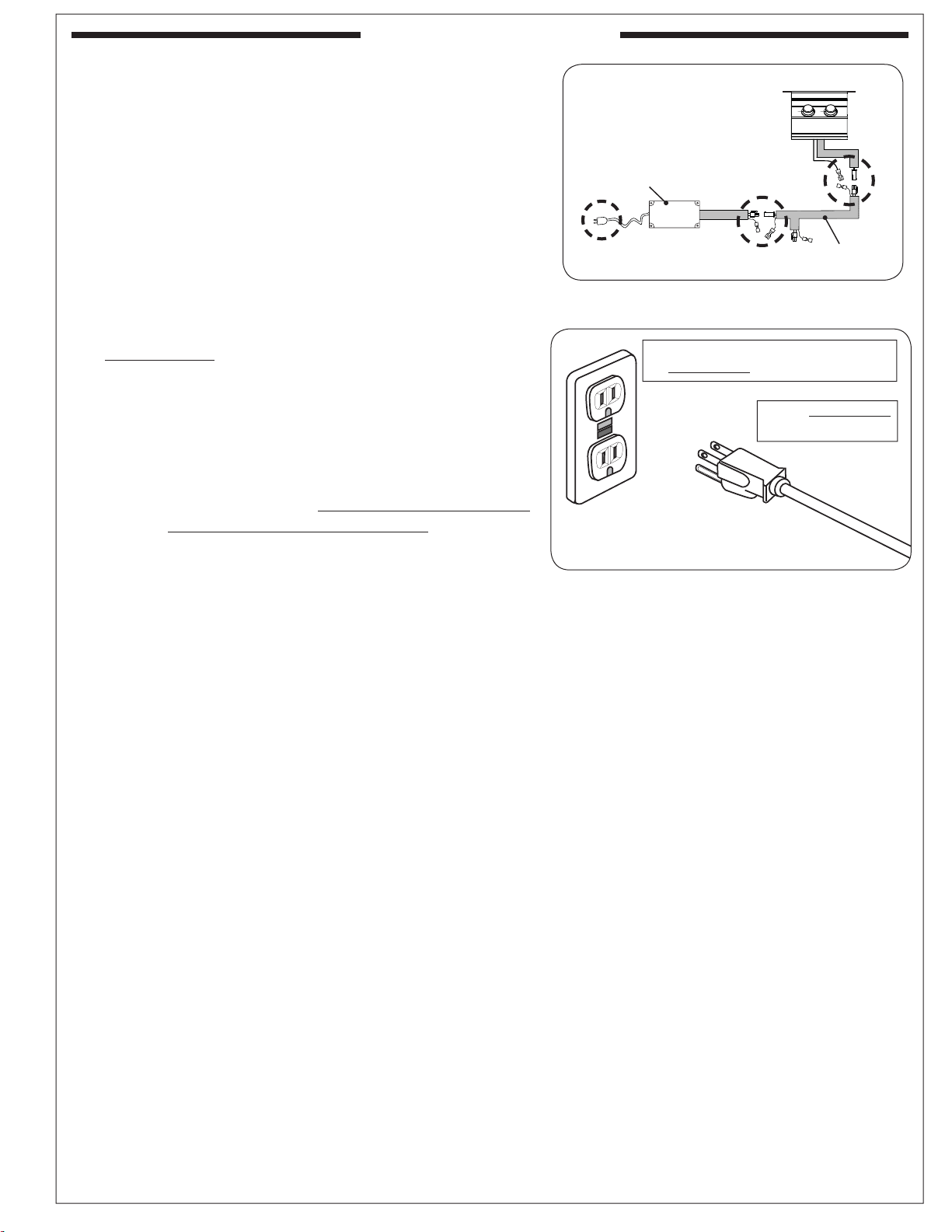

Use only a properly wired and inspected 120VAC (15 AMP minimum) GFCI GROUNDED 3-wire
receptacle with this outdoor cooking gas appliance.
Never remove the grounding plug or use with an adapter of 2 prongs.
Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and
approved for outdoor use with a W-A marking.
REV 0 - 1601191055
L-C2-448
GETTING STARTED
ELECTRICAL SAFETY ........................................................3
ELECTRICAL SAFETY .....................................................3
DOUBLE SIDEBURNER PARTS LIST ................................4
MODEL SPECIFICATIONS ..................................................5
COUNTERTOP OVERHANG ............................................5
Model Specifi cations Table ................................................5

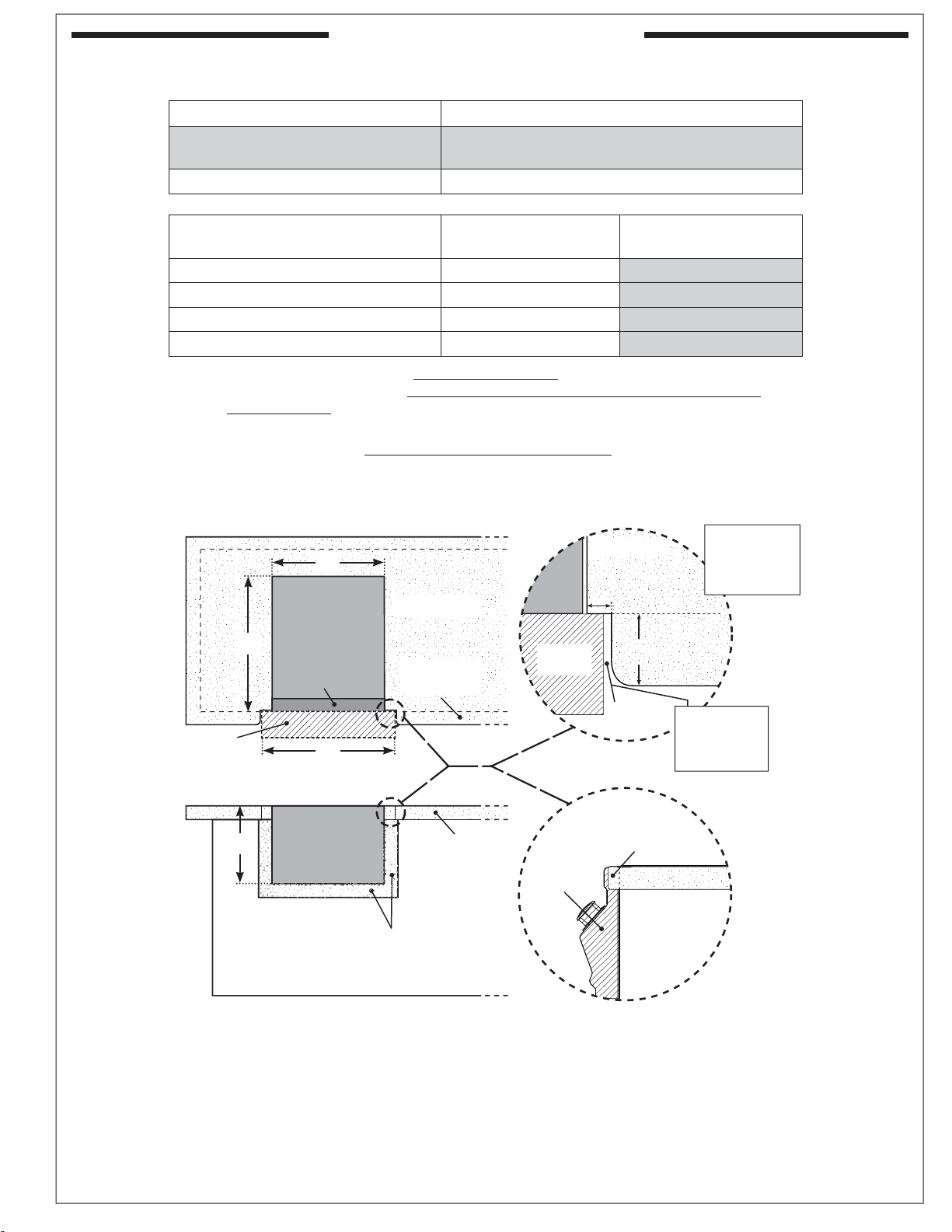

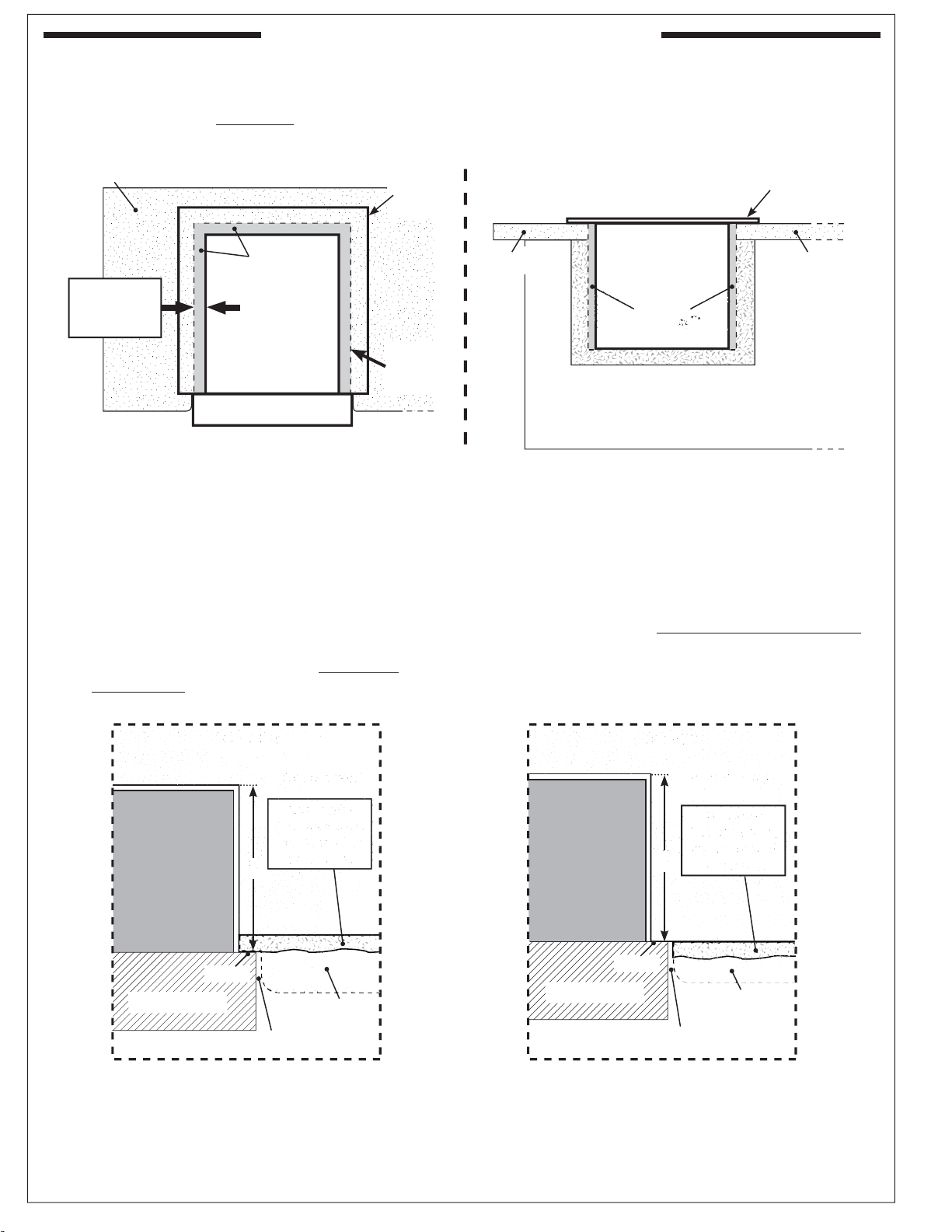

COMBUSTIBLE ENCLOSURE CUT-OUT ..........................6
SUBSTRATE ....................................................................6

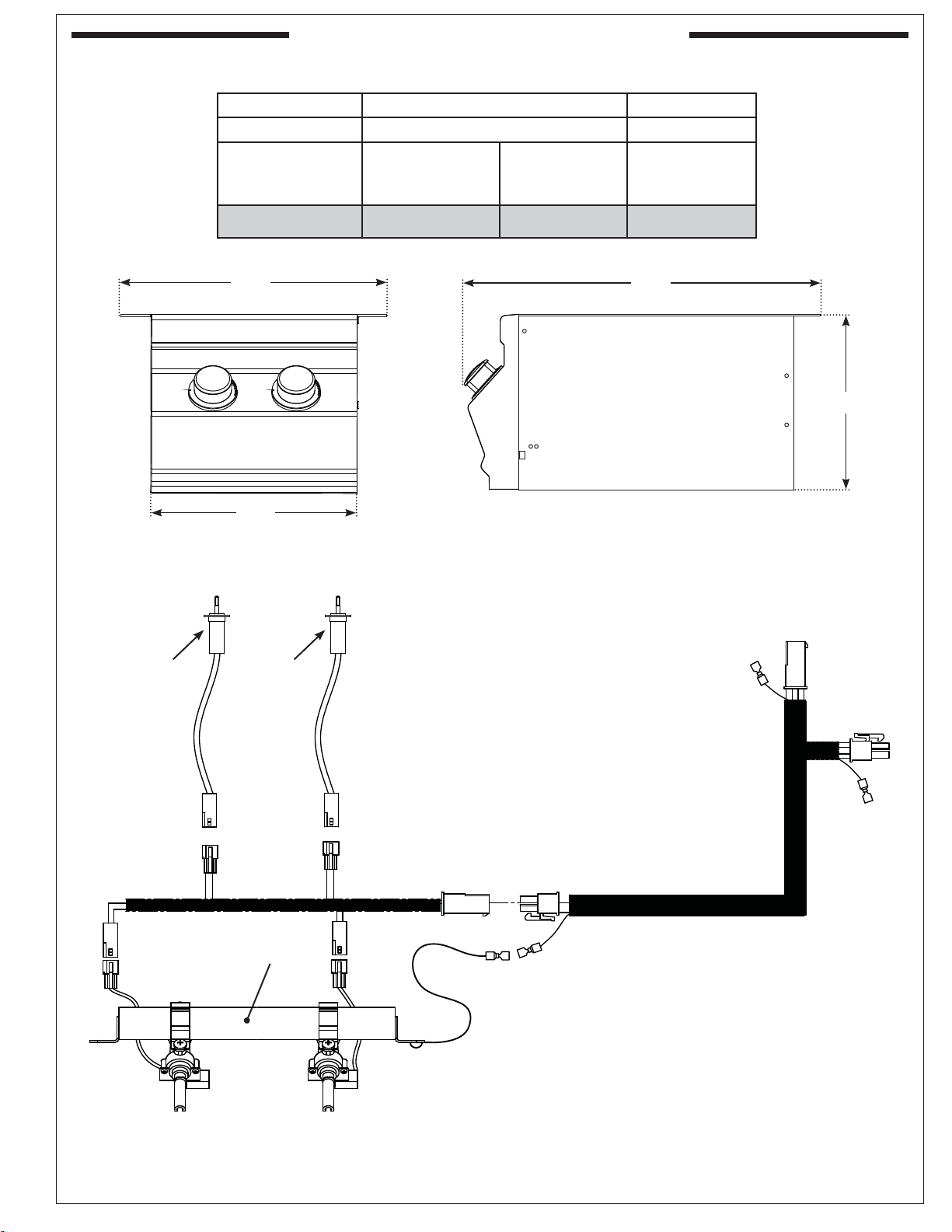

DOUBLE SIDEBURNER DIMENSIONS TABLE .................7
DOUBLE SIDEBURNER WIRING DIAGRAM ....................7
MAINTENANCE AND SAFETY INFORMATON ..............8
ELECTRICAL CONNECTIONS .........................................8

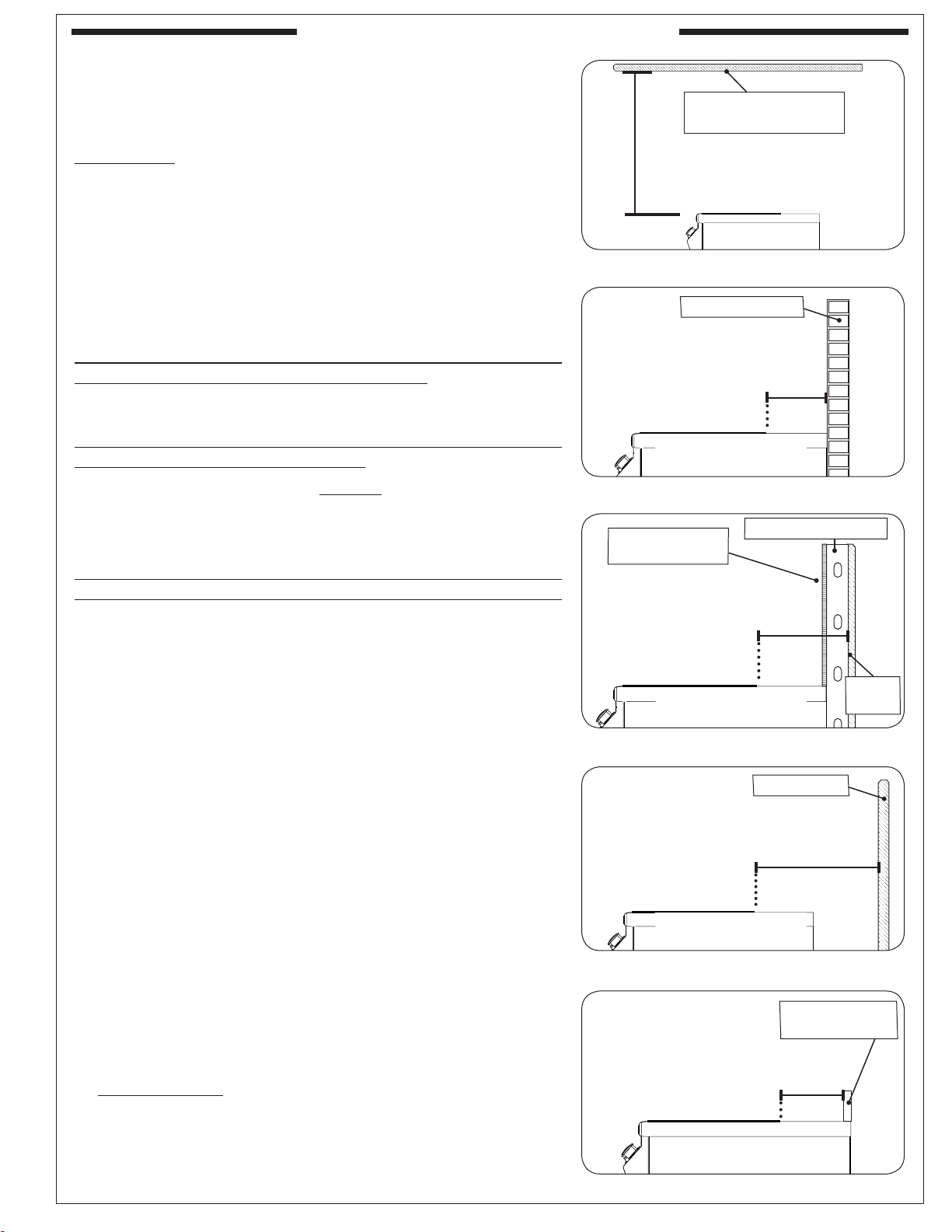

INSTALLATION REQUIREMENTS ....................................9
ENSURE PROPER COMBUSTION AIR AND
COOLING AIRFLOW
.....................................................10
GAS-SUPPLY PLUMBING REQUIREMENTS ..................10
ENCLOSURE REQUIREMENTS .......................................11
VENTILATION (ALL ENCLOSURES)...............................11

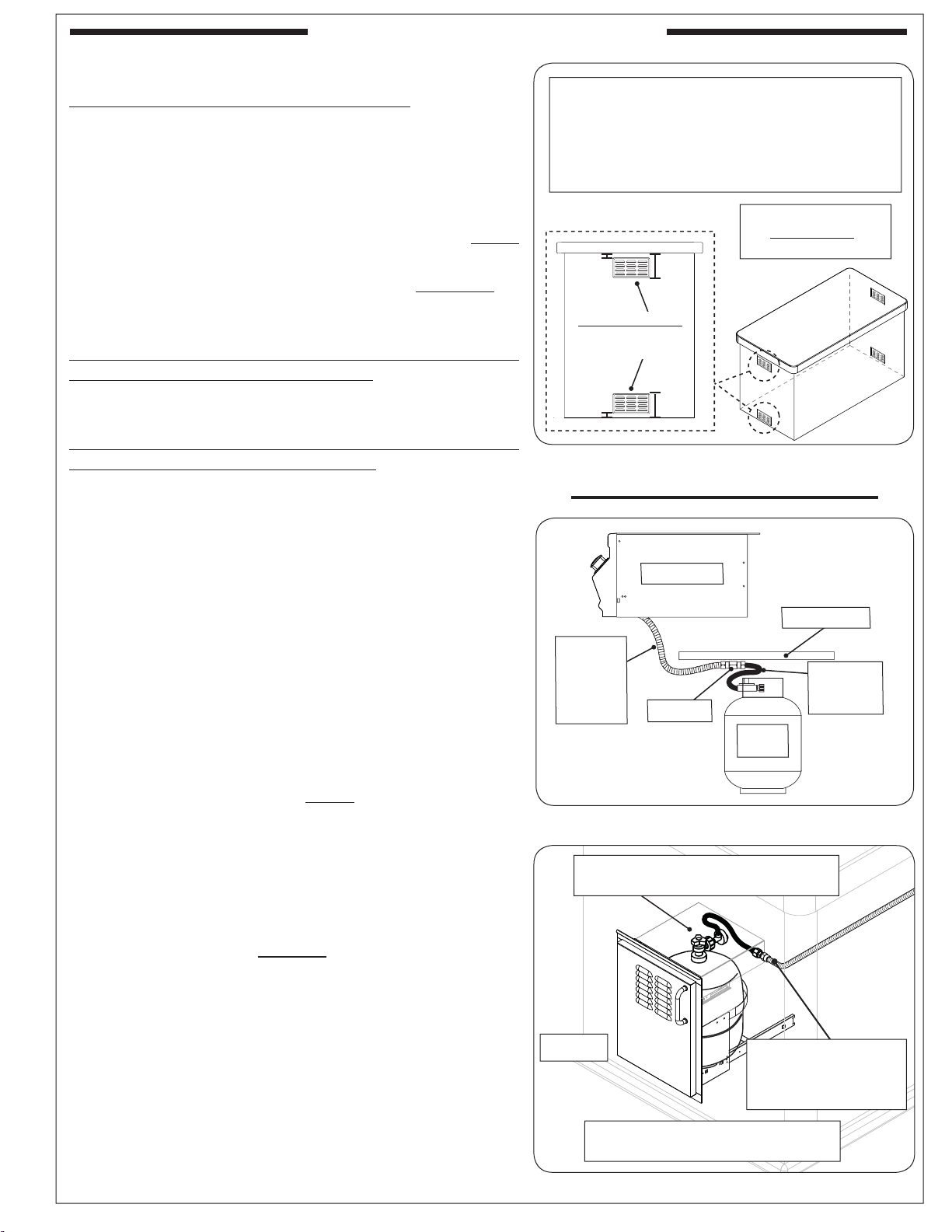

WHEN A PROPANE (L.P.) CYLINDER IS USED IN
THE ENCLOSURE
.........................................................11
PROPANE SAFETY INFORMATION ................................12
WARNING .....................................................................12
INSTALLATION SAFETY GUIDELINES ........................... 12
OPERATING THE UNIT SAFELY AND CORRECTLY ....12

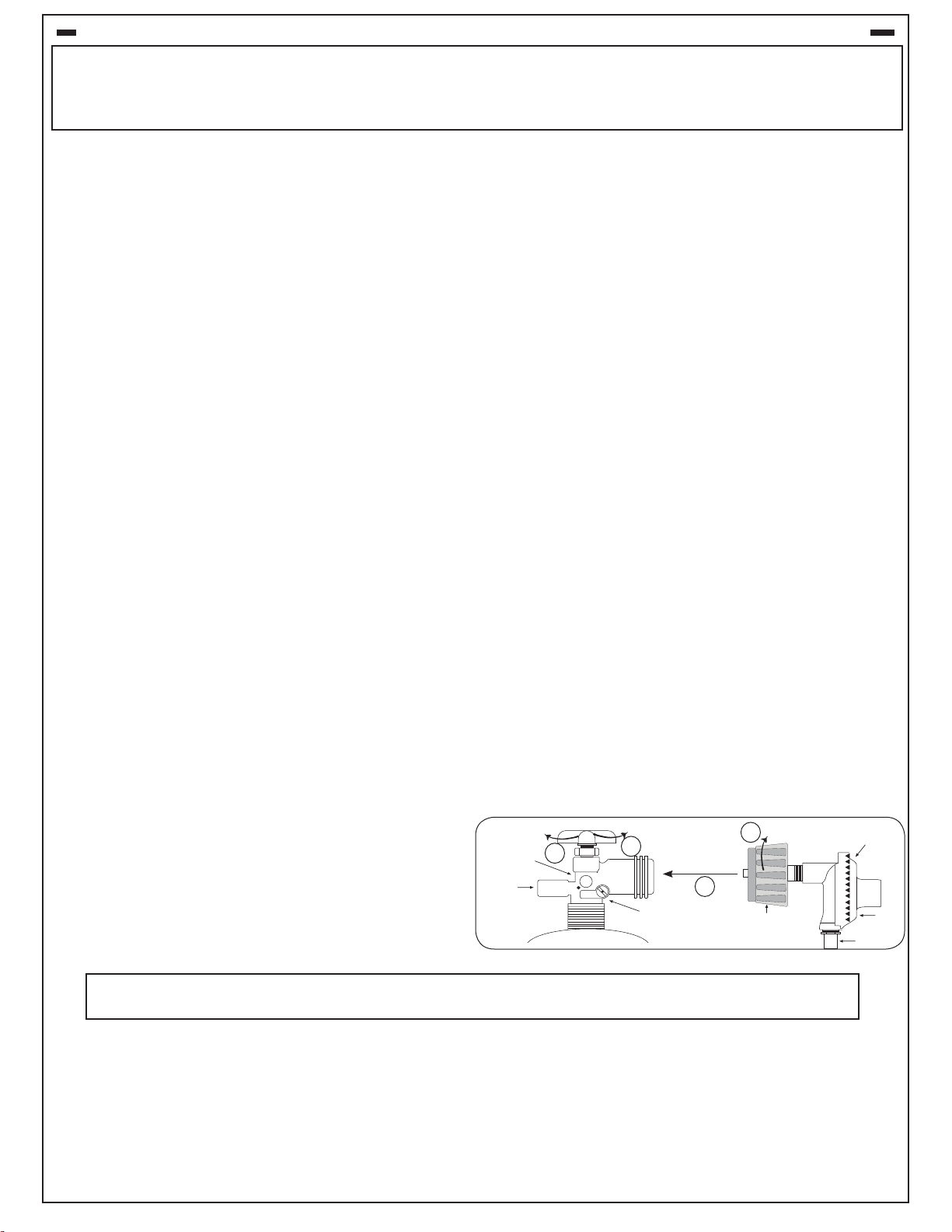

SAFE USE & MAINTENANCE OF
PROPANE GAS CYLINDERS ............................................13
INSTALLATION
INSTALLATION .................................................................. 15

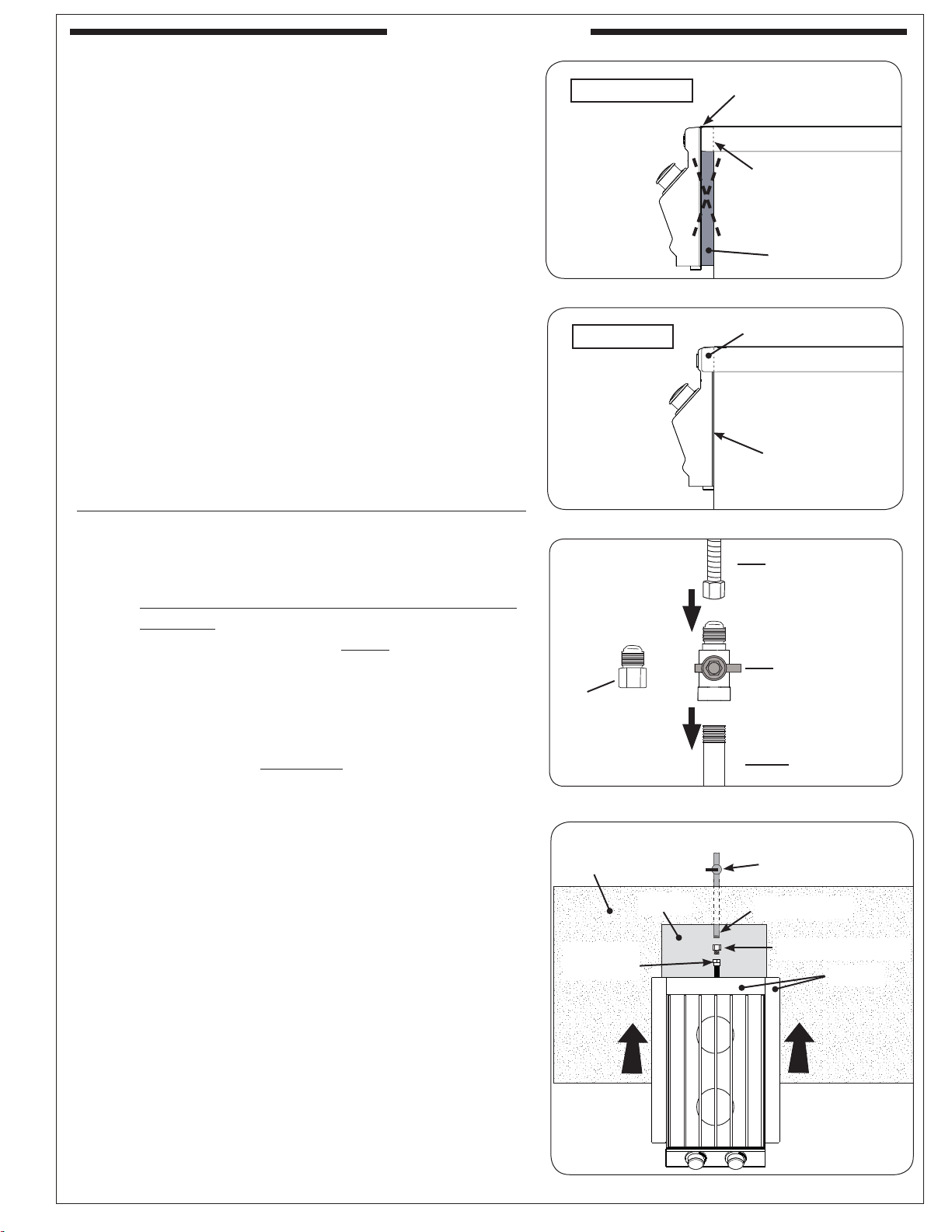

COUNTER PREPARATION ............................................. 15
CONNECT THE GAS SUPPLY ......................................... 15

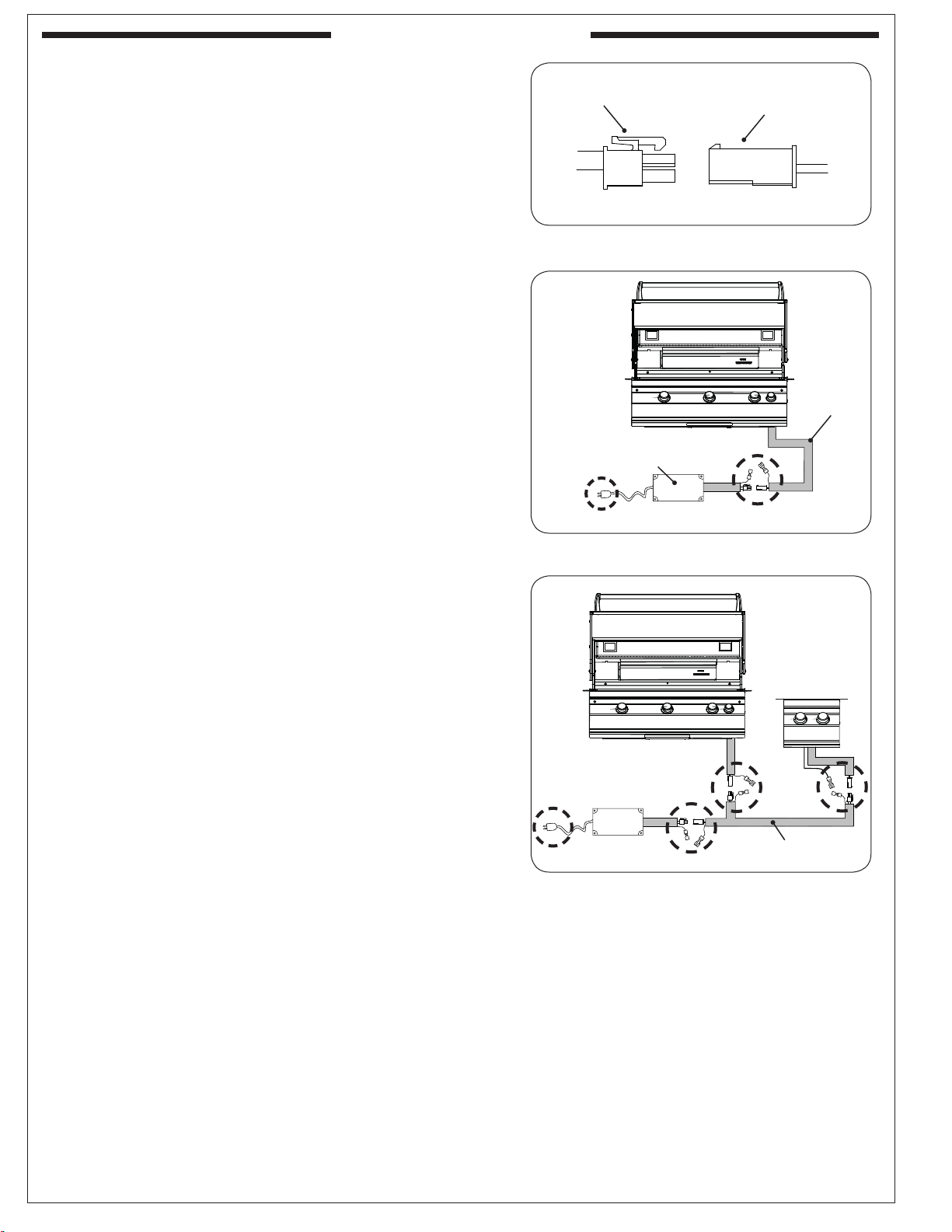

CONNECT TO A POWER SOURCE ................................. 16

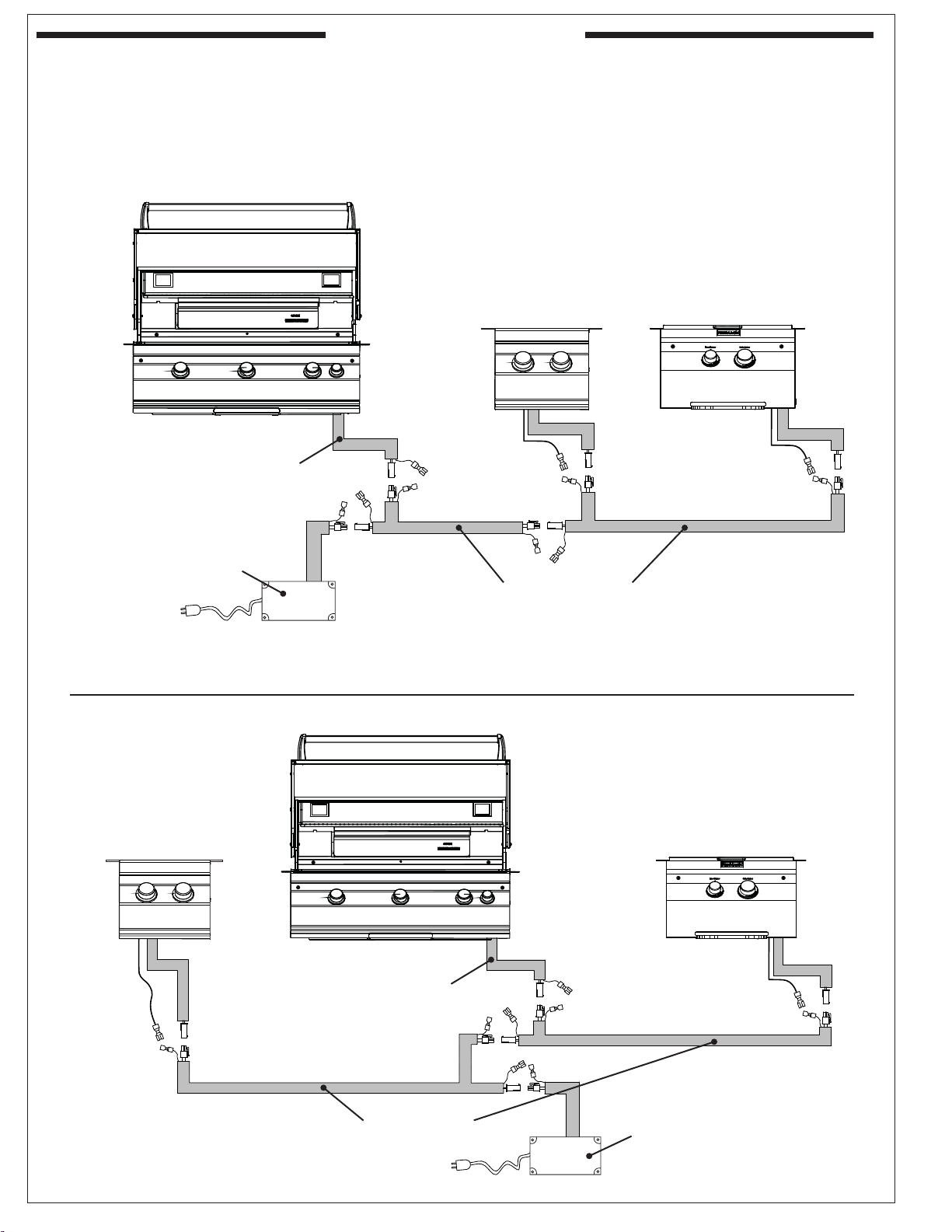

POWER SUPPLY (MULTIPLE ACCESSORY UNITS) ........ 18

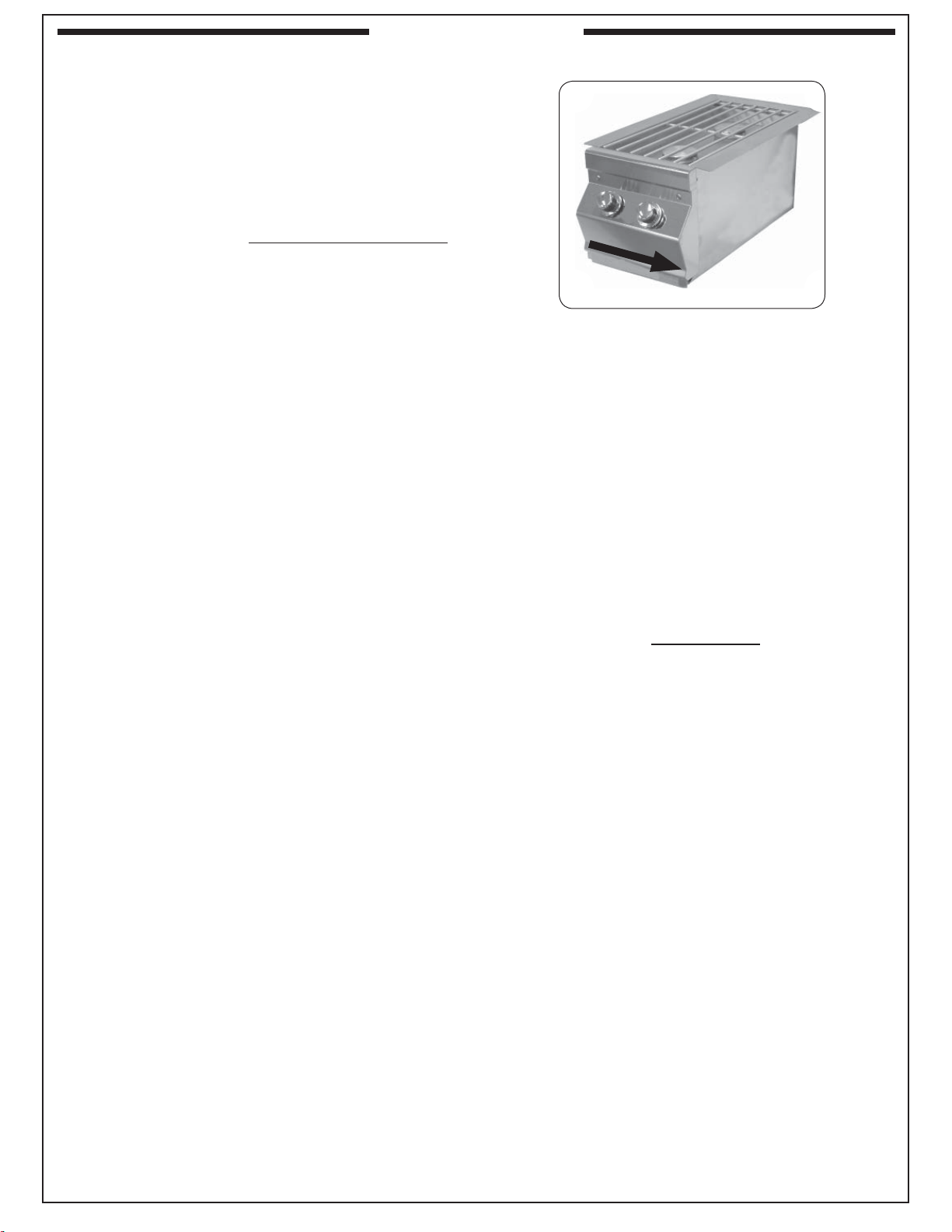

SLIDE UNIT INTO ENCLOSURE .................................... 19
POSITION THE BURNER CAPS ..................................... 19
USE, CARE, & SERVICE

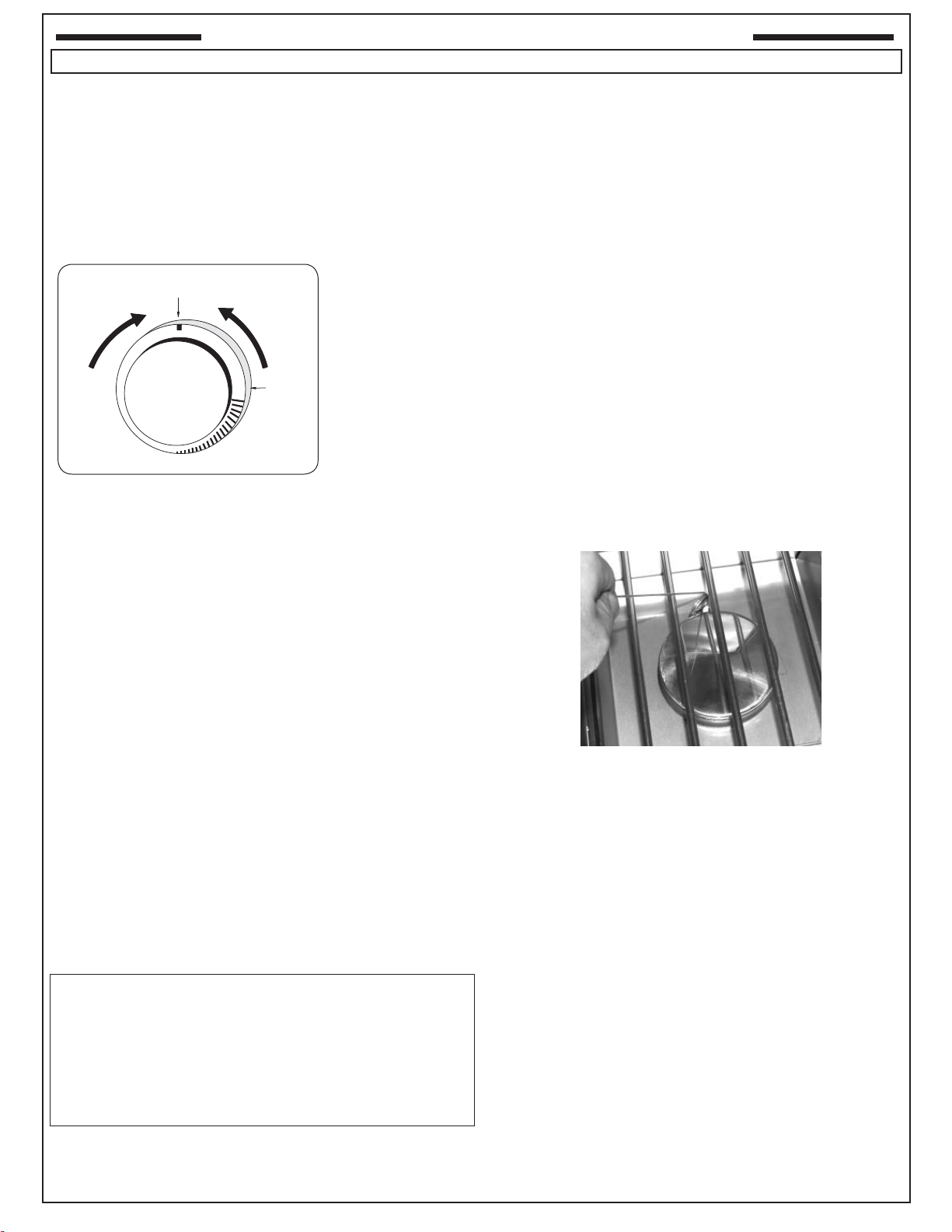

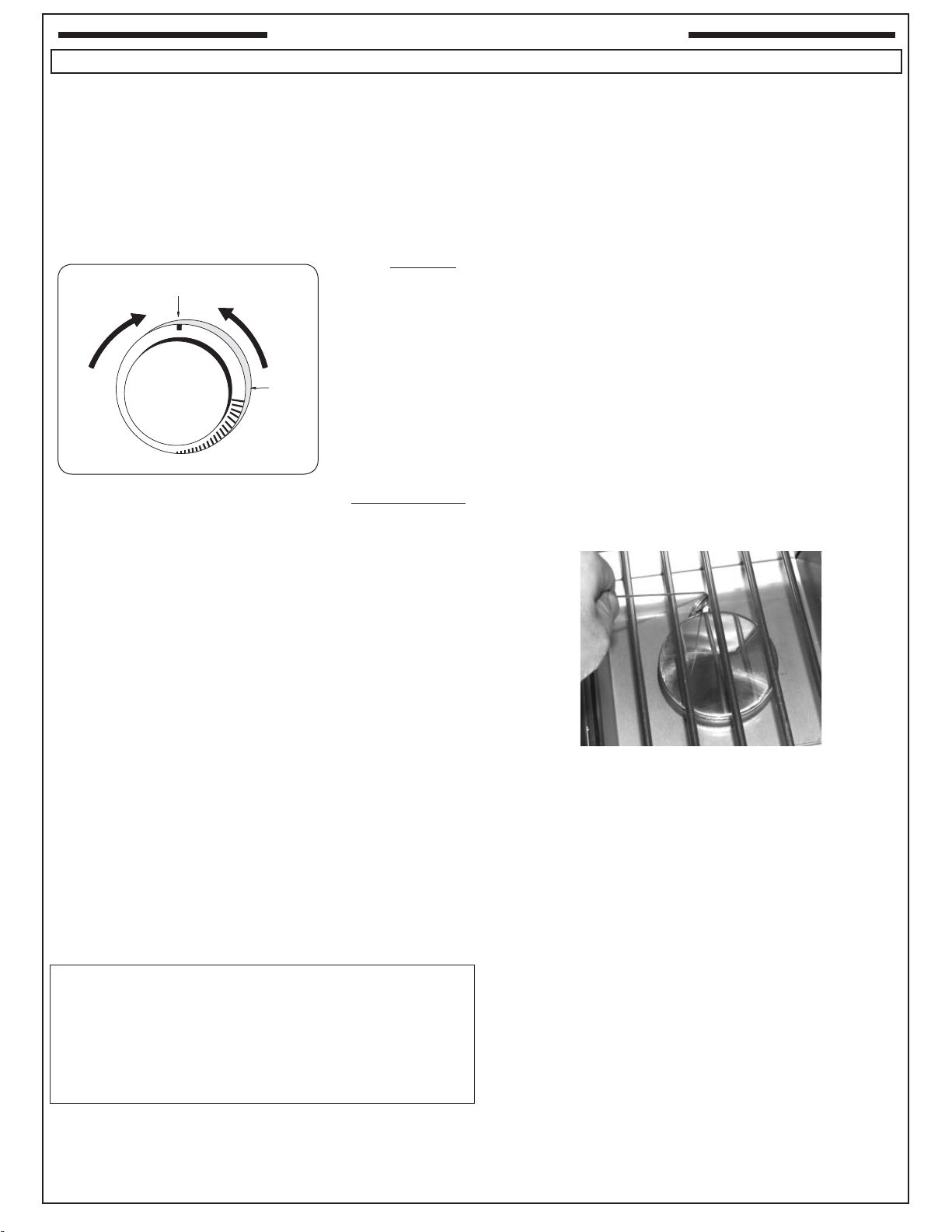

LIGHTING (IGNITION) INSTRUCTIONS ........................ 21
ELECTRONIC LIGHTING .............................................. 21
MANUAL LIGHTING...................................................... 21
SHUTTING OFF THE UNIT ........................................... 21
CARE & CLEANING .......................................................... 22

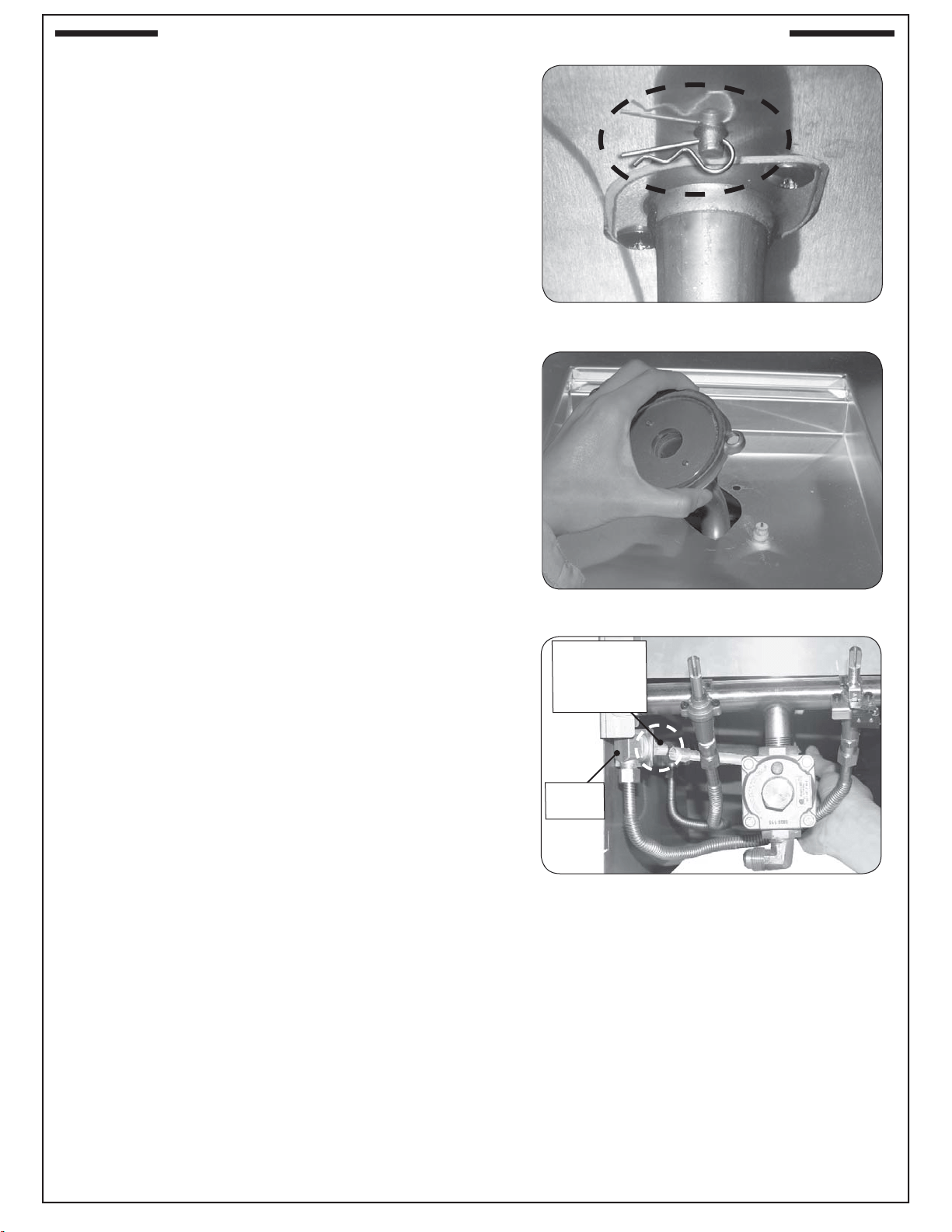

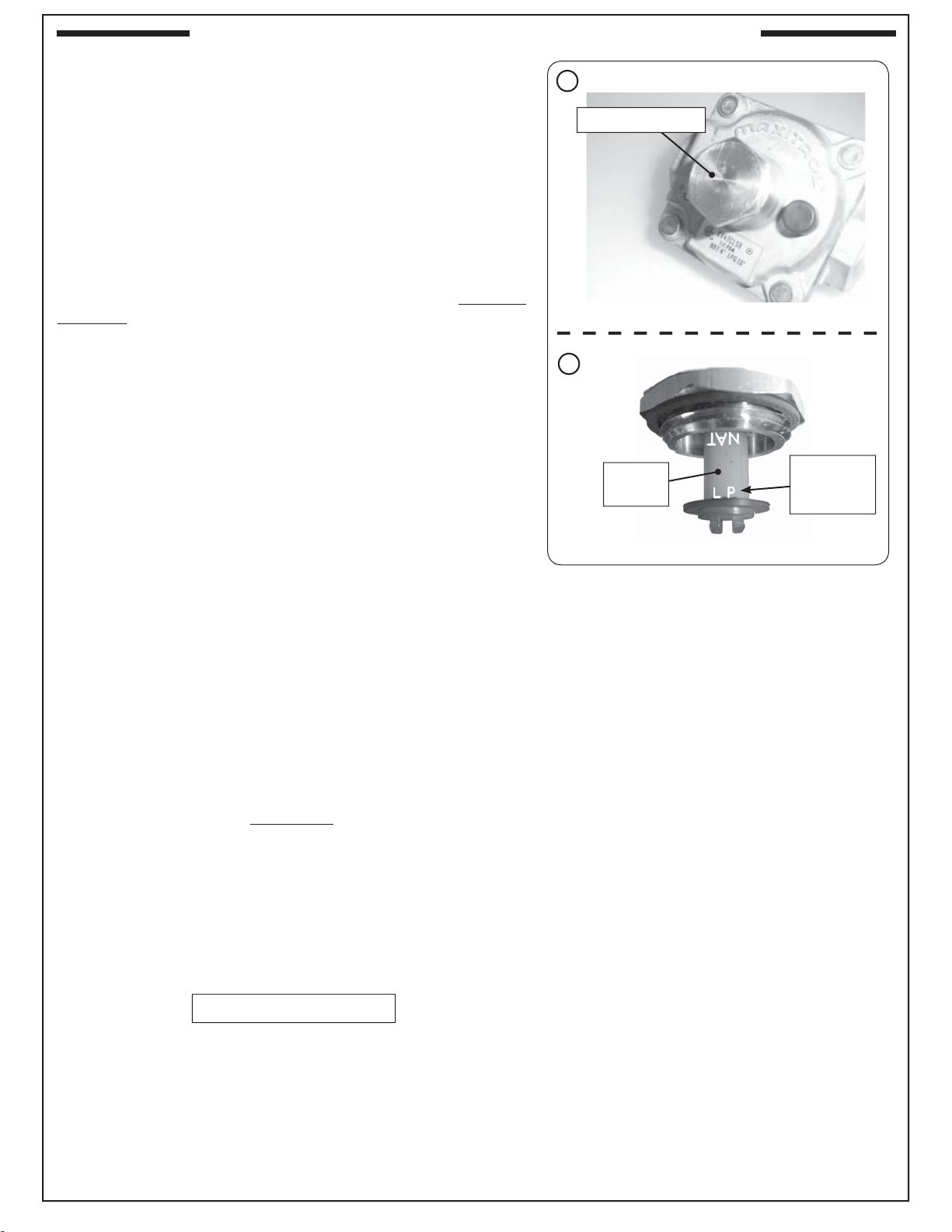

CONVERT GAS TYPE / CHECK BURNER ORIFICES ... 23

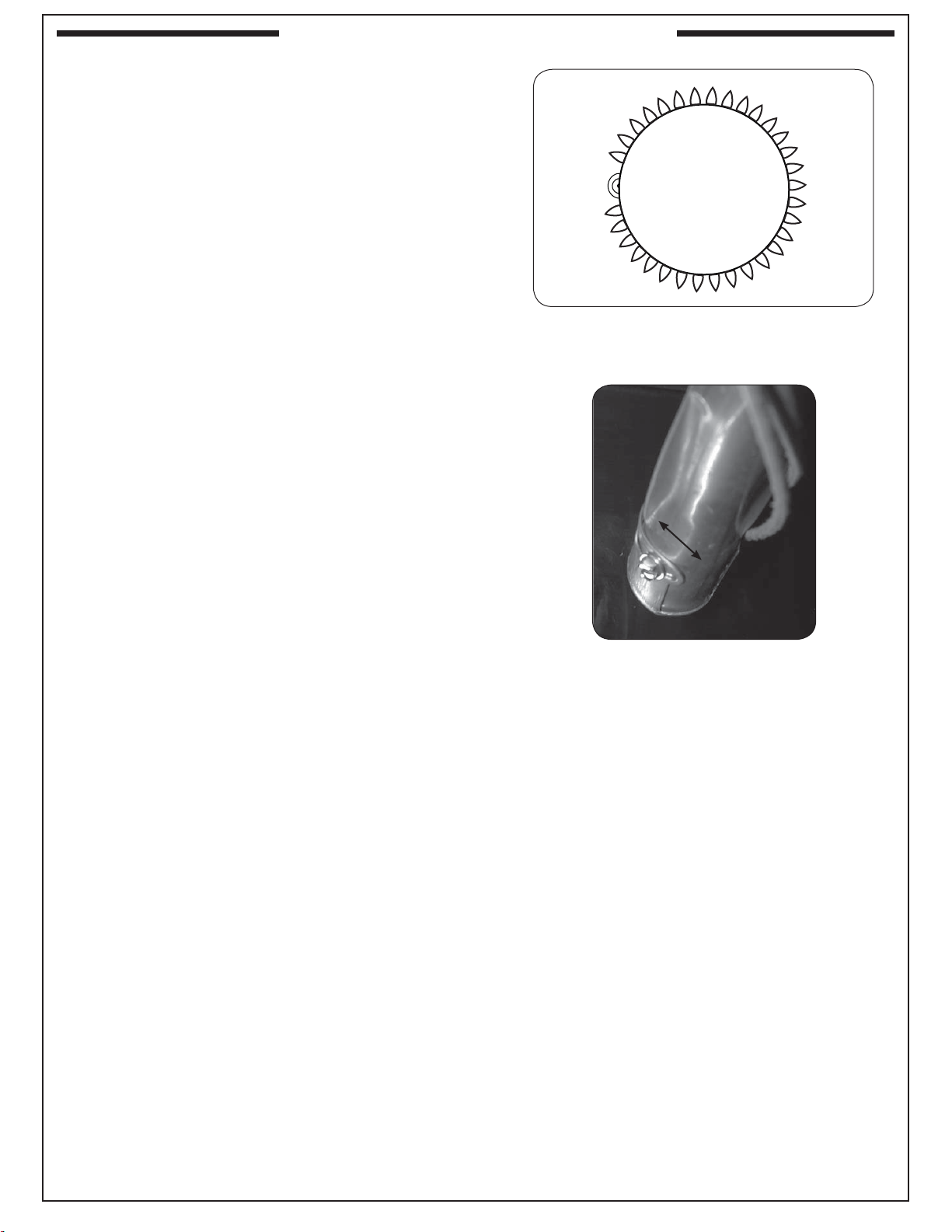

AIR SHUTTER ADJUSTMENT.......................................... 25
CONTROL PANEL REMOVAL .......................................... 26
TROUBLESHOOTING ....................................................... 27
WARRANTY ........................................................................ 28
4
REV 0 - 1601191055
L-C2-448
1
9
4
6
5
3
8

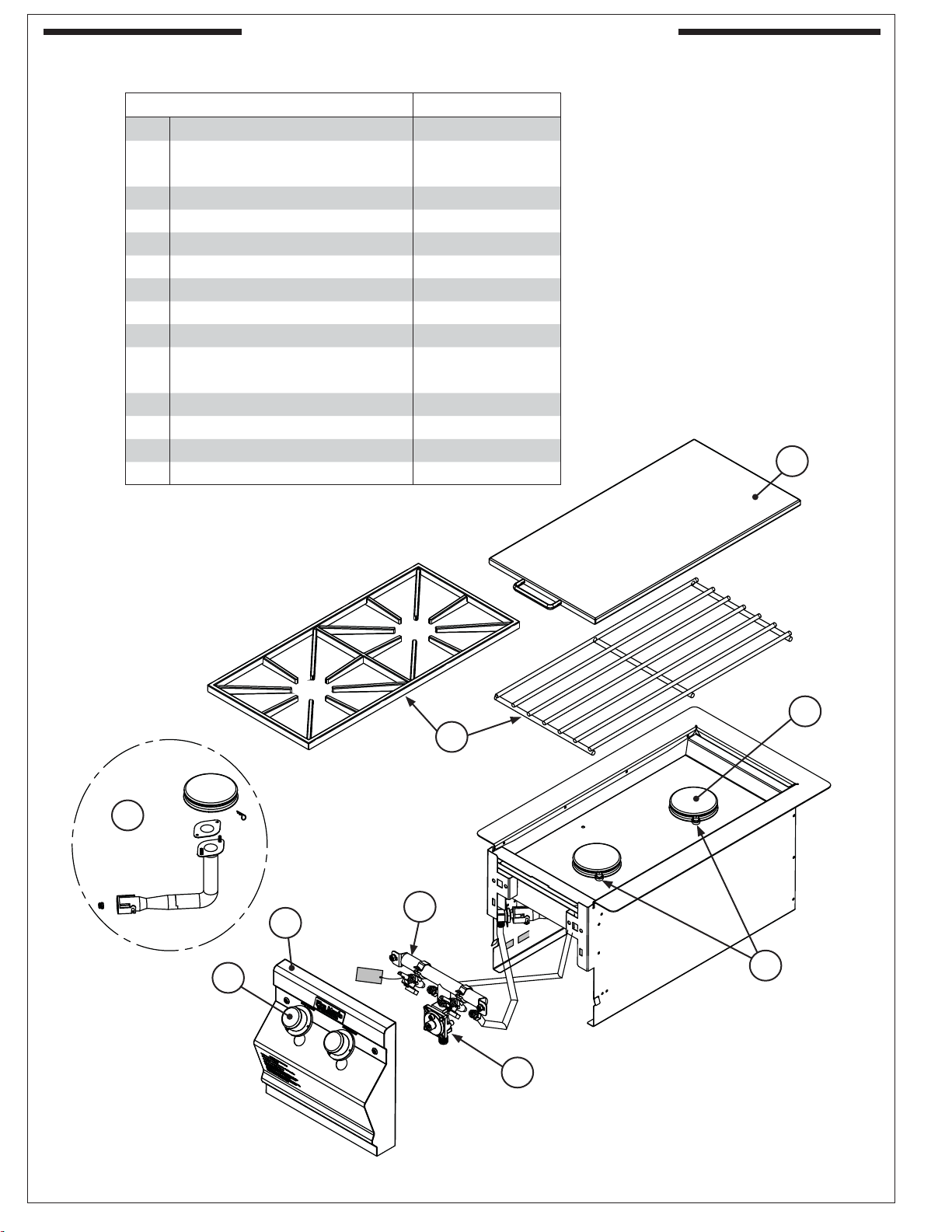

Item Description Part No. Qty.
1.
Double sideburner cover 3281-07 1
2.
Porcelain cast iron cooking grid 3529 1
or
Stainless steel cooking grid 3529-S 1
3.
Burner assembly (w/ burner pipe) 3279-32 2
4.
Burner cap (only) 3279-36 2
5.
Control panel 23281-07 1
6.
Valve manifold assembly 3281-22 1
7.
Burner igniter 3199-72 2
8.
Control knob 3016 2
9.
Convertible Regulator PR-4 1
10.
Natural gas orifi ce
‡
3001-51-1 2
or
Propane gas orifi ce
‡
3001-58-1 2
11.
Wire harness assembly
‡
3281-24 1
12.
Wire harness extension
‡
24182-55 1
13.
Flex connector w/ fi ttings
‡
3031 1
14.
Power supply w/ connector *
‡
24177-12 1
‡
Not shown
*
Optional / purchased separately
2
7
DOUBLE SIDEBURNER PARTS LIST
5
TOP VIEW
(Countertop)
Lower support
Countertop
overhang
Control
panel
ENCLOSURE
CUT-OUT
DIMENSIONS
Fig. 5-1
FRONT VIEW
B
C
D
See next page
for substrate
considerations
Countertop
overhang
X
TOP VIEW
SIDE VIEW
Countertop
overhang
(Control
panel)
(Countertop)
Y
1
/
4
"
Clearance
(Overhang)
X= D-B
÷
2
Y= Total
Countertop
Overhang
A
Control
panel
Check
clearance for
control panel
removal
▲
The increased dimensions for combustible enclosures allow for a required air gap along
the sides and rear of the unit. See the COMBUSTIBLE ENCLOSURE CUT-OUT section
on the next page for details.
†
Includes any substrate at front wall of enclosure (in the area the rear of the control panel
is to sit fl ush against). See SUBSTRATE section on next page.
‡
Only applicable for enclosures that have countertops with an overhang (see illustration
and section below).
COUNTERTOP OVERHANG
The control panel is designed to sit fl ush against the enclosure front wall. If the enclosure countertop extends beyond the front wall,
creating a countertop overhang, it must be cut fl ush with the front wall for the width of the control panel or a gap will be created exposing
the forward portions of the left and right side fi re walls of the unit. See illustrations above.
Important: FOR YOUR SAFETY, you must provide openings in the island enclosure for drainage, replacement air, and
cross-ventilation of any storage area exposed to possible leakage from gas connections, the unit, or propane
tanks. See the ENCLOSURE REQUIREMENTS section for details.
MODEL SPECIFICATIONS
REV 0 - 1601191055
L-C2-448
MODEL SPECIFICATIONS TABLE
Table 1
Main burner quantity
N/P orifi ce drill size
2
#51 / #58
Input electrical requirements
120VAC / 15 AMP minimum / 60 Hz / GFCI outlet
Non-combustible
enclosures
Combustible
enclosures
A Countertop to unit bottom cut-out 12" 12"
B Side to side cut-out 11-
1
/
2
" 12"
▲
C Front to back cut-out† 22-
3
/
4
" 23-
1
/
4
"
▲
D Control panel width cut-out‡ 12-
5
/
8
" 12-
5
/
8
"
6
SUBSTRATE
When adding any substrate to the enclosure front wall (including tiles, stone, etc.), consider the following:
Substrate Behind Control Panel
Substrate Alongside Control Panel
C
C
Flush
(Control panel)
(Countertop)
(Countertop)
(Control panel)
Substrate
(includes tiles,
etc. at front of
enclosure)
Countertop
overhang
(if applicable)
Flush
Double
sideburner
liner
Substrate
(includes tiles,
etc. at front of
enclosure)
1
/4"
Clearance
Any additional substrate alongside the control panel
does not need to be considered in Dim. C (see previous
page), however a
1
/4" clearance on each side (same as
overhang) and below is required.
Substrate
+
countertop "front to back" cutout
must equate to Dim. C (see previous page)
when the substrate sits fl ush behind the
control panel.
Fig. 6-2 Fig. 6-3
Countertop
overhang
(if applicable)
TOP VIEW TOP VIEW
1
/4"
Clearance
COMBUSTIBLE ENCLOSURE CUT-OUT
This unit may be installed into combustible framing (wood, for instance) provided there is a minimum of a
1
/2" airspace between ALL sides of the unit and any combustible material.
TOP VIEW
FRONT VIEW
Stainless
steel
hanger
Fig. 6-1
(Sideburner)
Countertop
CountertopCountertop
(Sideburner)
Stainless
steel
hanger
Maintain air gap all the way down
(sides and rear) below countertop
Edge of
counter
cut-out
1
/2"
AIR GAP
1
/2"
AIR GAP
1
/2" min.
air gap to all
combustible
material
Double
sideburner
liner
MODEL SPECIFICATIONS (cont.)
REV 0 - 1601191055
L-C2-448
7
Note: In addition, a wire diagram for this unit can be found affi xed to
the inside of the control panel.
MODEL SPECIFICATIONS (cont.)
REV 0 - 1601191055
L-C2-448
Height Width Depth
(Top to bottom) (Left to right) (Front to back)
Top of hanger to
bottom of unit
(E)
Hanger to hanger
(F)
Control panel
width
(G)
Maximum depth
(H)
12" 15
1
/2" 12
1
/8" 29"
H
E
F
Fig. 7-1
DOUBLE SIDEBURNER DIMENSIONS TABLE
G
Burner igniter
Wire harness
extension
Wire harness
assembly
Burner
manifold
Ground wire
Burner igniter
DOUBLE SIDEBURNER WIRING DIAGRAM
8
1. The sideburner and surrounding area MUST
remain clear of fl ammable substances such as
gasoline, yard debris, wood, etc.
2. The airfl ow through the vent space located below
the control panel must remain unobstructed.
3. When using propane gas:
a. The required ventilation openings in the
enclosure must be clear of debris. See the
PROPANE SAFETY INFORMATION section.
b. The propane cylinder, regulator, and rubber
hose must be in a location not subject to
temperature above 125° F (51° C).
4. The fl ames on each burner burn evenly along the
burner caps with a steady fl ame (mostly blue). If
burner fl ames are not normal, check and clean
the orifi ce and burner/venturi tubes for insects
and insect nests. A clogged tube can lead to a
fi re beneath the unit. A proper fl ame pattern will
ensure safe operation and optimal performance.
Adjust the air shutter as needed (see AIR
SHUTTER ADJUSTMENT).
5. The in-line gas valve or gas cylinder valve must
always be shut OFF when the unit is not in use.
6. Do not operate the burner with the cover in
place.
7. Whenever reconnecting any wires, apply a
small amount of dielectric grease to the male
connector, then make the connection. This will
ensure conductivity and prevent moisture from
affecting the contact.
WARNING: NEVER cover more than 75% of the cooking surface with griddles or pans. Overheating will occur, and
burners will not perform properly when combustion heat is trapped below the cooking surface.
CAUTION: NEVER spray water on a hot gas unit.
The unit serial identifi cation number and rating label are located on the inside of the
control panel. The unit must be completely cool before opening.
ELECTRICAL CONNECTIONS
A 120VAC (15 AMP minimum) Ground Fault Circuit Interrupter (GFCI) GROUNDED 3-wire receptacle
(not included) is required within the vicinity of the unit to provide power to the unit.
• Observe all local codes.
• Verify proper polarity of the receptacle.
• If an extension cord is used, ensure it is a 3-wire GROUNDED cord that is rated for the power
of the equipment, and is approved for outdoor use with a W-A marking. DO NOT use 2-prong
adapters.
• DO NOT TAMPER WITH THE EXTENSION CORD OR THE UNIT POWER-SUPPLY CORD.
MAINTENANCE AND SAFETY INFORMATON
REV 0 - 1601191055
L-C2-448
9
Installation must be performed by a qualifi ed professional
service technician.
This unit is designed for outdoor use only. DO NOT use this unit
inside a building, garage, enclosed area, or under overhead
combustible construction.
See below for details on installing under non-combustible
overhead construction.
DO NOT use this unit in or on a recreational vehicle or boat.
Important: If installing this unit in a combustible enclosure, the
correct air gap requirement must be met.
Important: Refer to the information below to ensure all
required clearances are met.
The unit must have a minimum clearance of 18" from
combustible materials/items AT ALL TIMES.
Overhead Construction Requirements (if applicable)
This outdoor cooking gas appliance shall not be used under
overhead combustible construction.
A minimum clearance of 5 feet is required between the countertop
and the non-combustible construction above (Fig. 9-1).
Side and Rear Wall Clearances
For the minimum clearances between the sideburner and any side or
rear walls, your setup must fall within one (or more) of the following:
A. Clearance between sideburner and strictly non-
combustible wall
(i.e. brick wall, see Fig. 9-2)
• The unit must have a minimum of 4" right, left, and rear
clearance from any non-combustible wall.
(To allow for proper ventilation and prevent dangerous
overheating.)
B. Clearance between sideburner and a protected
combustible wall
(i.e. a non-combustible wall in front of a combustible wall to
serve as a barrier. This can be accomplished by brick, or a metal
stud fi nished with non-combustible substrate, see Fig. 9-3)
• The unit must have a minimum of 14" right, left, and rear
clearance from the protected combustible wall.
(The 4" non-combustible material plus an additional 10"
clearance between the sideburner and protected wall.)
C. Clearance between sideburner and combustible wall
• The unit must have a minimum of 18" right, left, and rear
clearance from any combustible wall (see Fig. 9-4).
Backsplash (if applicable)
If a non-combustible backsplash exists, it must have a minimum of a
4" clearance from the rear of the unit (to allow for proper ventilation
and prevent dangerous overheating). See Fig. 9-5.
Important: This 4" backsplash clearance must fi rst be met prior
to any non-combustible walls beginning behind it.
Min.
14"
Min.
18"
Min.
4"
Fig. 9-2 Clearance 'A' Diagram
Fig. 9-3 Clearance 'B' Diagram
Fig. 9-4 Clearance 'C' Diagram
Non-combustible
Non-combustible
substrate
Non-combustible 4"
Combustible
(Clearance required for
right, left, and rear)
Fig. 9-5 Backsplash clearance
Non-combustible
Backsplash
Com-
bustible
(Clearance required for
right, left, and rear)
(Clearance required for
right, left, and rear)
Fig. 9-1 Overhead requirements
Min.
5'
Min.
4"
INSTALLATION REQUIREMENTS
NON-COMBUSTIBLE
CONSTRUCTION ONLY
REV 0 - 1601191055
L-C2-448
10
The control panel MUST remain removable for servicing
(see PARTS LIST).
THIS UNIT MUST NOT BE LOCATED IN A FULLY
ENCLOSED AREA OF ANY KIND.
ENSURE PROPER COMBUSTION AIR AND
COOLING AIRFLOW
Proper airfl ow (Fig. 10-1) MUST be maintained for the
sideburner to perform as it was designed. If airfl ow is
blocked, overheating and poor combustion will result.
Do not block the 1" front air inlet along the bottom of
the control panel or more than 75% of the cooking grid
surface with pans or griddles.
GAS-SUPPLY PLUMBING REQUIREMENTS
For natural gas or a household propane system, rigid
1
/
2
" or
3
/
4
" black steel pipe or local code-approved
pipe is required to conduct the gas supply to the unit.
Contact your local gas supplier. Connect this pipe to a
required C.S.A.-approved stainless-steel fl ex connector
(attached). An NPT adapter has been provided for
1
/
2
"
pipe. DO NOT use a rubber hose within the unit
enclosure. Apply only joint compounds that are resistant
to all gasses to all male pipe fi ttings except fl are fi ttings.
Make sure to tighten every joint securely.
Note: If
1
/
2
" pipe is used with natural gas, it should
be no longer than 20'.
Important: A shut-off valve (not included) in
the gas line is required. It provides
for safety when the unit is not in use
and for convenient maintenance and
repair. It must be installed within 6 feet
of the unit. Use a pipe joint compound
resistant to all gasses on all male
fi ttings except fl are fi ttings.
GAS SUPPLY AND MANIFOLD PRESSURES:
For natural gas - normal 7" (17.78 cm) water column
(w.c.), minimum 5" (12.7 cm), maximum 10
1
/
2
" (26.7
cm). For propane gas - normal 11" w.c., minimum 10"
(25.4 cm), maximum 13" (33 cm).
INSTALLATION REQUIREMENTS (cont.)
REV 0 - 1601191055
L-C2-448
Fig. 10-1 Ventilation Diagram
DO NOT BLOCK
MORE THAN 75% OF
COOKING AREA
11
ENCLOSURE REQUIREMENTS
VENTILATION (ALL ENCLOSURES)
For All Piping Systems and All Gas Types:
(Natural Gas, Household Propane, L.P. Cylinder)
FOR YOUR SAFETY, you must provide the openings listed
below for replacement air and cross-ventilation of the
unit enclosure.
One side of the enclosure shall be left completely open to
the outside; OR 4 (minimum) ventilation openings MUST
be created (reference Fig. 11-1):
Each opening must have a minimum of 10 sq. in. of
free area. The openings must be equally sized and
unobstructed.
Two openings must be in the side walls of the enclosure, at
the top level, and spaced at 180 degrees. The openings must
begin 1" or less below the countertop level and end no more
than 5" below the countertop level.
Two openings must be in the side walls of the enclosure, at
the fl oor level, and spaced at 180 degrees. The openings must
begin 1" or less above the fl oor level and end no more than
5" above the fl oor level.
To achieve the proper ventilation, you may use RHP venting
panels (PN 5510-01) as shown. Contact your dealer.
KEEP THE VENT OPENINGS AND SURROUNDING
AREA OF THE ENCLOSURE CLEAN AND FREE OF
OBSTRUCTIONS AT ALL TIMES.
WARNING: Ventilation openings in side walls shall not
communicate directly with other enclosures of
the outdoor cooking gas appliance.
WHEN A PROPANE (L.P.) CYLINDER IS USED IN
THE ENCLOSURE
When a propane (L.P.) cylinder is installed inside of the
enclosure, the guidelines below MUST be followed. FAILURE
TO DO SO MAY CAUSE DAMAGE TO YOUR UNIT AND/OR
PERSONAL INJURY. Reference Fig. 11-2 for an example.
• Only a C.S.A. listed stainless steel connector can be
connected to the unit.
• The regulator/hose assembly coming from the propane
cylinder can only be connected to the above mentioned
unit fl ex connector. DO NOT connect the regulator/
hose assembly directly to the unit. An adapter will
be required.
• A heatshield must be installed to protect the regulator/
hose assembly and propane cylinder valve.
• RHP offers propane tank door with tank tray models
to meet the cylinder install requirements. See Fig.
11-3. Contact your dealer for ordering information.
Fig. 11-1 Ventilation detail
Fig. 11-3 Optional RHP door w/ tank tray
Cylinder & regulator/hose assembly
protected by heatshield
Additional adapters may be required
for your setup (not included)
Equipped with adapter
for hose assembly and
fl ex connector
(not included)
Ventilation Requirements:
• Minimum 4 openings
(2 per side wall - spaced at 180 degrees)
• Top openings: within 5" of countertop (see below)
• Bottom openings: within 5" of fl oor (see below)
1"
max.
Keep surrounding area
and vent openings clear
for proper venting
5"
max.
1"
max.
5"
max.
33820-TSL
model shown
Vent openings (4)
10 sq. in. of free
area min. (ea.)
REV 0 - 1601191055
L-C2-448
Fig. 11-2 Propane cylinder orientation
Adapter
Sideburner
C.S.A.
listed
stainless
steel fl ex
connector
Heatshield
Regulator/
hose
assembly
L.P.
cylinder
12
PROPANE SAFETY INFORMATION
WHEN OPERATING THIS APPLIANCE WITH PROPANE, ALL INSTRUCTIONS AND
WARNINGS MUST BE OBSERVED. FAILURE TO DO SO MAY RESULT IN A FIRE OR
EXPLOSION CAUSING SERIOUS INJURY OR DEATH.
WARNING
This gas appliance, its enclosure, and the propane cylinder enclosure, if any, MUST be plumbed and
vented in accordance with local building and safety codes and should be approved by local code
enforcement offi cials. This appliance MUST be installed and operated according to the information
below.
FAILURE TO PROPERLY VENT THE ENCLOSURE MAY RESULT IN A FIRE OR EXPLOSION CAUSING
SERIOUS INJURY OR DEATH.
When using propane gas:
• Propane gas (also known as L.P. gas) is heavier than air and will accumulate or pool in an inadequately
vented enclosure or recessed area.
• A leaking gas connection or valve unintentionally left open will create a hazard.
• If a pool of propane gas is ignited, an explosion will occur. Adequate venting at the fl oor level, or the
lowest point where gas could accumulate, will eliminate this danger.
Refer to the ENCLOSURE REQUIREMENTS section.
Observe all local codes.
• DO NOT store a spare propane-gas cylinder under or near the enclosure.
INSTALLATION SAFETY GUIDELINES
THIS UNIT MUST BE INSTALLED IN SUCH A MANNER THAT ALL REQUIRED VENT OPENINGS ON THE
UNIT ENCLOSURE REMAIN CLEAR AND FREE OF ALL OBSTRUCTIONS AT ALL TIMES AND DURING
ALL WEATHER CONDITIONS. See the ENCLOSURE REQUIREMENTS section for details.
Important: FOR YOUR SAFETY, you must provide openings in the enclosure for replacement air and
cross-ventilation (in case of possible leakage from gas connections or propane cylinders).
See the ENCLOSURE REQUIREMENTS section for details.
The gas cylinder, regulator, and rubber hose must be in a location not subject to temps. above 125° F
(51° C).
WHEN A PROPANE CYLINDER IS INSTALLED INSIDE OF THE ENCLOSURE, THE GUIDELINES FOUND
IN THE ENCLOSURE REQUIREMENTS SECTION MUST BE FOLLOWED.
Every time you use the unit, make sure that:
1. The area around the enclosure is clear and free from combustible materials, gasoline and fl ammable vapors/
liquids.
2. There is no blockage of the airfl ow through the vent openings located on the enclosure.
3. The hose is inspected (if applicable). See SAFE USE & MAINTENANCE OF PROPANE-GAS CYLINDERS section.
DO NOT store any combustible materials, gasoline, and any other fl ammable vapors/liquids in the vicinity of the
unit. Provide adequate clearance for servicing and operation.
OPERATING THE UNIT SAFELY AND CORRECTLY
REV 0 - 1601191055
L-C2-448
13
U
L
Fig. 13-1 Type I Acme thread quick coupler
Pressure
relief
valve
QCC
Type 1
valve
Brass Acme
thread fi tting
Liquid level
indicator
(optional)
Hand nut with Acme
thread
Regulator
Vent
Hose
Hand wheel
The use of pliers or a wrench should not be necessary. Only
cylinders marked “propane” may be used.
To disconnect: Turn the hand nut counterclockwise until
detached (Fig. 13-1).
Important: Before using the unit, and after each time the
cylinder is removed and reattached, check
the hose for wear (see a.) and check all
connections for leaks. Turn off the unit valves
and open the main cylinder valve, then check
connections with soapy water. Repair any
leaks before lighting the unit.
CAUTION: Always turn the propane cylinder main valve
off after each use, and before moving the unit
and cylinder or disconnecting the coupling.
This valve must remain closed and the
cylinder disconnected while the appliance
is not in use, even though the gas fl ow is
stopped by a safety feature when the coupler
is disconnected.
Carefully inspect the hose assembly each time before the
gas is turned on. A cracked or frayed hose must be replaced
immediately.
If the appliance is stored indoors, the cylinder must be
disconnected and removed. Disconnected
cylinders must be
stored outdoors, out of the reach of children, with threaded
valve plugs tightly installed, and must not be stored in a
building, garage, or any other enclosed area.
FOR YOUR SAFETY
a. DO NOT store a spare propane-gas cylinder under or
near this appliance.
b. NEVER fi ll the cylinder beyond 80-percent full.
c. IF THE INFORMATION IN a. AND b. IS NOT FOLLOWED
EXACTLY, A FIRE CAUSING DEATH OR SERIOUS
INJURY MAY OCCUR.
IMPORTANT FOR YOUR SAFETY
READ AND FOLLOW ALL WARNINGS PROVIDED WITH THE PROPANE-GAS CYLINDER.
When operating this appliance with a propane-gas cylinder, these instructions and warnings MUST be observed.
FAILURE TO DO SO MAY RESULT IN A SERIOUS FIRE OR EXPLOSION.
CYLINDER/CONNECTOR REQUIREMENTS
a. Propane-gas cylinders, valves, and hoses must be
maintained in good condition and must be replaced if
there is visible damage to either the cylinder or valve. If the
hose is cut or shows excessive abrasion or wear, it must
be replaced before using the gas appliance (see e.).
b. This unit, when used with a cylinder, should be connected
to a standard 5-gallon (20 lb.) propane-gas cylinder
equipped with an OPD (Overfi ll Prevention Device).
The OPD has been required on all cylinders sold since
October 1,1998, to prevent overfi lling.
c. Cylinder dimensions should be approximately 12" (30.5
cm) in diameter and 18" (45.7 cm) high. Cylinders must
be constructed and marked in accordance with the
Specifi cations for Propane Gas Cylinders of the U.S.
Department of Transportation (D.O.T.) or the National
Standard of Canada, CAN/CSA-B339, Cylinders,
Spheres, and Tubes for Transportation of Dangerous
Goods.
d. The cylinder used must include a collar to protect the
cylinder valve, and the cylinder supply system must be
arranged for vapor withdrawal.
e. The pressure regulator and hose assembly (Fig. 13-1)
supplied with this outdoor gas appliance (L.P. models
only) must be used. Original and replacement pressure
regulator and hose assemblies must be those specifi ed
by the manufacturer for connection with a cylinder
connecting device identifi ed as Type I by the ANSI Z
21.58-2005/CGA 1.6-2005 (see PARTS LIST for ordering
information).
f. The propane-gas cylinder valve must be equipped with a
cylinder connection coupling device, described as Type I
in the standard defi ned in paragraph e. above. This device
is commonly described as an Acme thread quick coupler.
g. If the propane-gas cylinder comes with a dust plug, place
the dust cap on the cylinder valve outlet whenever the
cylinder is not in use.
QUICK COUPLER OPERATION
To connect the regulator/hose assembly to the propane-
gas cylinder valve fi tting: Press the hand nut on the regulator
over the Acme thread fi tting on the cylinder valve. Turn the hand
nut clockwise to engage the threads and tighten until snug.
e. The pressure regulator and hose assembly used must
match the specifi cation for Type I by ANSI Z 21.58-2005/
CGA 1.6-2005 (see Fig. 13-1).
For propane ventilation requirements, see the ENCLOSURE REQUIREMENTS section.
SAFE USE & MAINTENANCE OF PROPANE GAS CYLINDERS
14
U
L
Fig. 14-1 type coupleur rapide de fi l de point culminant d’I
Valve
de
décompression
QCC
Type 1
Valve
Ajustage de précision
en laiton de fi l de
point culminant
Indicateur
de niveau
de liquide
(facultatif)
Écrou de main avec le
fi l de point culminant.
Régulateur
Passage
Tuyau
Volant de commande
main dans le sens des aiguilles d’une montre pour engager les
fi ls et pour serrer jusqu’à ce que douillettement. L’utilisation des
pinces ou de la clé ne devrait pas être nécessaire. Seulement
le propane marqué par cylindres doit être employé.
Pour débrancher: Tournez l’écrou de main dans le sens
contraire des aiguilles d’une montre jusqu’à isolé (fi g. 14-1).
Important: Avant d’employer le gril, et ensuite chaque
fois que le cylindre est enlevé et rattaché,
examinez tous les raccordements pour déceler
les fuites. Arrêtez les valves de gril et ouvrez
la valve principale de cylindre, puis vérifi ez
les raccordements avec de l’eau savonneux.
Réparez toutes les fuites avant d’allumer le gril.
ATTENTION: Tournez toujours la valve principale de cylindre
de propane au loin après chaque utilisation,
et avant de déplacer le gril et le cylindre, ou
débrancher l’accouplement. Cette valve doit
rester fermée et le cylindre a débranché alors
que l’appareil n’est pas en service, quoique
l’écoulement de gaz soit arrêté par un dispositif
de sûreté quand le coupleur est débranché.
Inspectez soigneusement l’ensemble de tuyau chaque fois
avant que le gaz soit allumé. Un tuyau fi ssuré ou effi loché doit
être immédiatement remplacé.
Si l'appareil est stocké à l'intérieur, le cylindre doit être disconnected
et a enlevé. Des cylindres Disconnected doivent être stockés
dehors, hors de la portée des enfants, avec les prises de valve
fi letées étroitement installées, et ne doivent pas être stockés dans
un bâtiment, le garage, ou n'importe quel autre secteur inclus.
POUR VOTRE SÛRETÉ
a. Ne stockez pas un cylindre de gaz disponible de propane
dessous ou ne vous approchez pas de cet appareil.
b. Ne remplissez jamais cylindre au delà de 80 pour cent de
plein.
c. SI L’INFORMATION DANS “A” ET “B” N’EST PAS SUIVIE
EXACTEMENT, UN FEU CAUSANT LA MORT OU DES
DOMMAGES SÉRIEUX PEUT SE PRODUIRE.
IMPORTANT POUR VOTRE SÛRETÉ
LISEZ ET SUIVEZ TOUS LES AVERTISSEMENTS ÉQUIPÉS DE VOTRE CYLINDRE DE GAZ DE PROPANE.
En actionnant cet appareil avec un cylindre de gaz de propane ON DOIT observer ces instructions et avertissements.
LE MANQUE DE FAIRE AINSI PEUT AVOIR COMME CONSÉQUENCE UNE INCENDIE OU UNE EXPLOSION SÉRIEUSE.
CYLINDRE ET CONDITIONS ET
CARACTÉRISTIQUES DE CONNECTEUR
a. Des cylindres et les valves de gaz de propane doivent être
maintenus en bon état et doivent être remplacés s’il y a
des dommages évidents au cylindre ou à la valve.
b. Ce gril, une fois utilisé avec un cylindre, devrait être relié à
un gallon de la norme 5 (20lb.) cylindre de gaz de propane
équipé d’un OPD (remplissez au-dessus du niveau le
dispositif d’empêchement). L’OPD a été exigé sur tous les
cylindres vendus depuis octobre 1.1998 pour empêcher le
remplissage excessif.
c. Les dimensions de cylindre devraient être approximativement
12"(30.5cm) de diamètre et 18" (45.7cm) hauts. Des
cylindres doivent être construits et marqués selon les
caractéristiques pour des cylindres de gaz de propane du
département des ETATS-UNIS du transport (D.O.T.) ou
le niveau national du Canada, du CAN/CSA-B339, des
cylindres, des sphères et des tubes pour le transport des
marchandises dangereuses.
d. Le cylindre doit inclure un collier pour protéger la valve
de cylindre et le circuit d’alimentation de cylindre doit être
assuré le retrait de vapeur.
e. Le montage du régulateur de pression et le fl exible (Fig. 14-1)
fourni avec cet appareil au gaz en plein air (modèles au
propane seulement) doit être utilisé. Assemblées d'origine et
régulateur de pression et le tuyau de remplacement doivent
être ceux spécifi és par le fabricant pour le raccordement d'un
dispositif de cylindre de liaison identifi ée comme de type I par
le 21.58-2005/CGA ANSI Z 1.6 à 2005 (voir liste des pièces
pour les informations de commande).
f. La valve de cylindre de gaz de propane doit être équipée
d’un dispositif d’accouplement de raccordement de
cylindre, décrit comme type I dans la norme défi nie dans le
e. de paragraphe ci-dessus. Ce dispositif est généralement
décrit comme coupleur rapide de fi l de point culminant.
g. Si votre cylindre de gaz de propane vient avec une prise
de la poussière, placez le bouchon anti-poussière sur la
sortie de valve de cylindre toutes les fois que le cylindre
n’est pas en service.
OPÉRATION DE COUPLEUR RAPIDE
Pour relier le regulator/hose à l’ajustage de précision de
valve de cylindre de gaz de propane: Serrez l’écrou de main
sur le régulateur au-dessus de l’ajustage de précision de fi l
de point culminant sur la valve de cylindre. Tournez l’écrou de
1
2
3
4
e. Le régulateur de pression et l’ensemble de tuyau utilisé
doivent assortir les spécifi cations pour le type I par ANSI
Z 21.58-2005/CGA 1.6-2005 (voir la fi gue. 14-1).
Pour la ventilation de propane, voir la section sur les exigences de boîtier.
UTILISATION SÛRE ET ENTRETIEN DES CYLINDRES DE GAZ DE PROPANE
15
COUNTER PREPARATION
Consult Table 1 for enclosure cut-out dimensions. If the
counter or any supporting construction is combustible, the
COMBUSTIBLE ENCLOSURE CUT-OUT section must be
followed before beginning the installation.
This sideburner must be supported by the stainless-steel
hanger extending from the upper portion of the frame. The
hanger rests on the left, right, and back of the countertop.
The control panel is designed to sit fl ush against the enclosure
front wall (see Fig. 15-2). If the enclosure countertop extends
beyond the front wall, creating a countertop overhang (see
Fig. 15-1), it must be cut fl ush with the front wall for the width
of the control panel or a gap will be created exposing the
forward portions of the left and right side fi re walls of the unit.
See the MODEL SPECIFICATIONS section.
Note: It is not necessary to remove the control panel or
knobs to install this unit.
CONNECT THE GAS SUPPLY
For propane cylinders:
For connecting a propane unit to a portable propane tank,
read the safety warnings and follow the instructions in the
section SAFE USE AND MAINTENANCE OF PROPANE
GAS CYLINDERS.
Note: When a propane cylinder is installed inside of the
enclosure, the guidelines found in the ENCLOSURE
REQUIREMENTS section MUST be followed.
For household propane or natural gas units:
CAUTION: Use only C.S.A. listed stainless-steel flex
connectors within the enclosure.
WARNING
A rubber or plastic connector will rupture or leak,
resulting in an explosion or serious injury if used inside
the appliance enclosure.
1. Locate the attached fl ex connector (found underneath
the unit) and route it to the gas-supply stub.
2. Turn OFF the gas supply at the source.
3. A shut-off valve is required within 6 feet of the unit.
If shut-off valve is connected to end of gas supply
stub:
• Connect the fl ex connector to the shut-off valve (see
Fig. 15-3). Tighten securely.
If shut-off valve is installed in-line:
• Install the supplied fl are adapter to the gas supply
using a pipe joint compound resistant to all gasses
(see Fig. 15-3). Tighten securely.
• Connect the fl ex connector to the fl are adapter (see
Fig. 15-3). Tighten securely.
INSTALLATION
INSTALLATION
Fig. 15-3 Connecting to a gas line
Gas supply
Flare adaptor
(use on gas
supply stub only
if shut-off valve
installed in-line)
Flex connector
(coming from unit)
Shut-off valve
(required, not
included, must be
installed within 6 feet
of unit)
(Countertop)
GAP CREATED
Proposed cut-out
in overhang
Control panel
stops here
INCORRECT
Fig. 15-1 Countertop overhang - incorrect cutout
IDEAL
Flush-mounted
control panel
Overhang
Fig. 15-2 Countertop overhang - correct cutout
CORRECT
(Countertop)
Fig. 15-4 Household propane & natural gas diagram
OFF
To gas system
Gas inlet pipe
Flex
connector
Hanger
Countertop
Cut-out
Pipe adapter fi tting
Shut-off valve (shown
in-line) must be within
6 feet of the unit.
16
4. Tur n all burner control knobs to the OFF position. Turn the
gas supply on. Then carefully check all gas connections
for leaks with a brush and half-soap/half-water solution
before lighting. NEVER USE A MATCH OR OPEN FLAME
TO TEST FOR LEAKS.
5. Close the shut-off valve.
CONNECT TO A POWER SOURCE
CAUTION: Improperly connected wires will cause
damage to the unit and may result in property
damage and/or personal injury.
The unit comes with a 6' wire extension to retrieve power
from a separately purchased Aurora grill. Select Aurora
grills are equipped with power supply boxes, which
can supply power to the sideburner. Alternatively; an
optional power supply box may be ordered and installed
to individually power this unit. Contact your dealer for
ordering information.
To install using the wire extension:
1. Locate the power supply box inside of the island enclosure
and disconnect the power cord (See Fig. 16-2, A).
2. Disconnect the grill wire harness extension connectors
from the power supply connectors. See Fig. 16-2, (B)
3. Locate the end of the sideburner wire extension that has
two molex and ground connections. Connect the extension
(plug) molex connection to the power supply (receptacle)
molex connection and ground wires (See Fig. 16-3, C).
4. Connect the extension (receptacle) molex to the grill (plug)
molex connection and ground wires (See Fig. 16-3, D).
5. Connect the opposite end of the extension to the
sideburner as shown in Fig. 16-3, E (molex and ground
wire connections).
6. Reconnect the power cord (see Fig. 16-3, F).
Proceed to the SLIDE UNIT INTO ENCLOSURE section.
Fig. 16-2 Disconnect grill connections
A
B
Power supply
box
Grill wire
harness
extension
Fig. 16-1 Connection detail
Receptacle
Plug
INSTALLATION (cont.)
Fig. 16-3 Connect sideburner to grill setup
C
D
E
Sideburner
Sideburner
wire harness extension
F
17
To install using a power supply box (not included):
1. Install the power supply box at least 12 inches below the
bottom of the sideburner.
2. Fasten the power supply box to the inside of the enclosure.
3. Connect the power supply box connectors to the sideburner
wire harness extension, as shown in Fig. 17-1, A (molex
and ground wire connections).
4. Connect the sideburner wire harness extension to the
sideburner, as shown in Fig. 17-1, B (molex and ground
wire connections).
5. Connect the cord coming from the power supply
box to a 120VAC (15 AMP minimum) GFCI
GROUNDED 3-wire receptacle. See Fig. 17-1,
C, and 17-2.
WARNING: Electrical Grounding Instructions - The
power supply box is equipped with a three-
pronged (grounding) plug for your protection
against shock hazard and should be plugged
directly into a properly grounded three-
prong receptacle. Do not cut or remove the
grounding prong from this plug.
INSTALLATION (cont.)
Fig. 17-2 Connect power cord
3-wire GROUNDED
cord from unit
120VAC (20 AMP minimum) GFCI
GROUNDED 3-wire receptacle
Fig. 17-1 Connect sideburner to power supply
A
B
Sideburner
Sideburner
wire harness extension
Power supply
box
C
18
POWER SUPPLY (MULTIPLE ACCESSORY UNITS)
The previous section covers in detail how to individually connect this accessory unit to an Aurora grill power
supply box. If multiple accessory units are to be installed, the following diagrams will assist in their installation.
INSTALLATION (cont.)
Grill Left Install
Grill Center Install
Grill wire harness
extension
Power supply box
Each accessory unit equipped with one wire extension
Power supply box
Each accessory unit equipped with one wire extension
Grill wire harness
extension
19

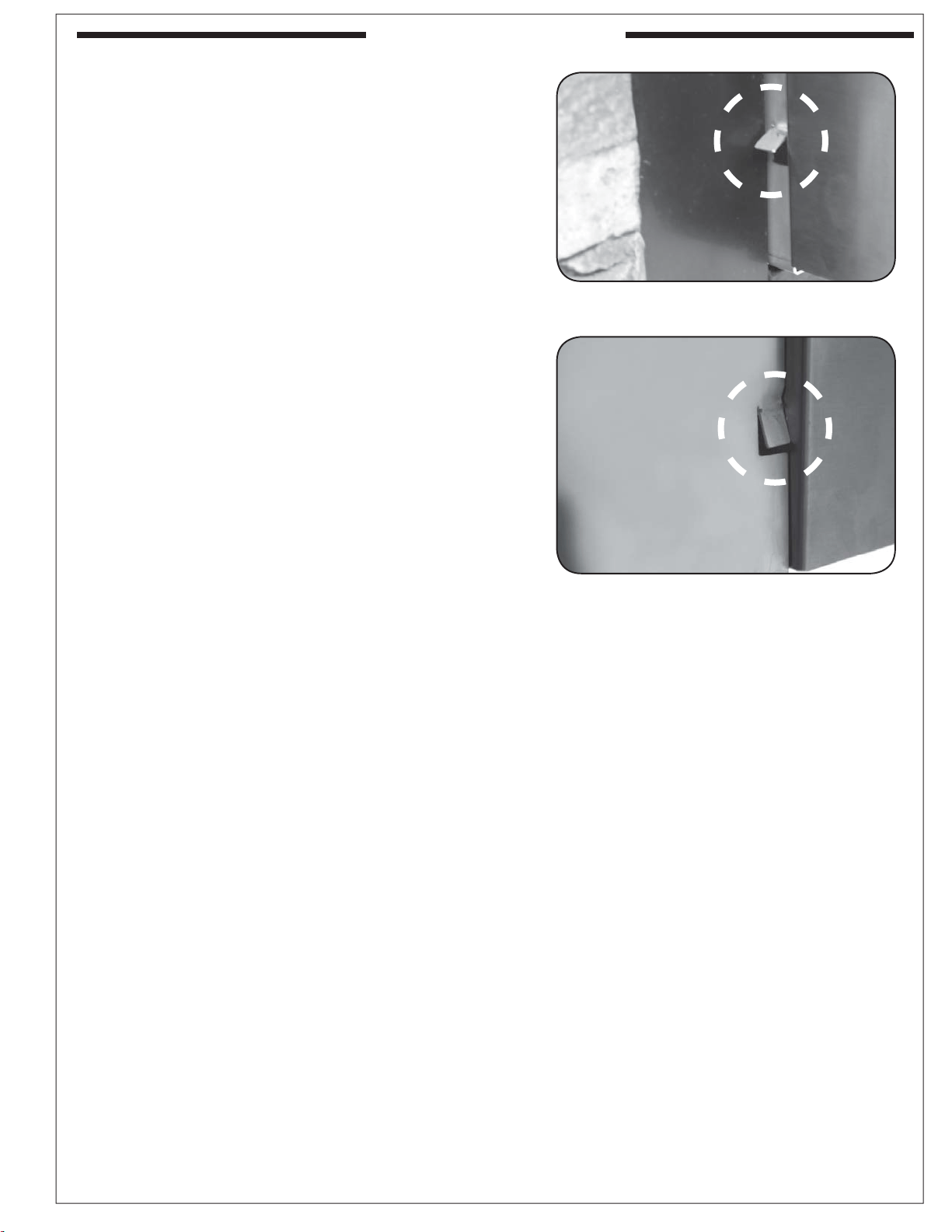

Fig. 19-1 Tab may interfere when sliding in unit
Fig. 19-2 Tab slightly bent in for clearance
SLIDE UNIT INTO ENCLOSURE
Slide the unit into place. Do not to pinch, kink, or
damage the gas connector line.
Note: Each side of the unit has a tab just behind
the control panel. These tabs prevent the
control panel from moving inward. If the
tabs interfere with the unit sliding in (see
Fig. 19-1), use pliers to bend them inward
so that they clear the enclosure sides.
Leave the tabs slightly out to ensure they
still keep the control panel from moving
inward (see Fig. 19-2).
POSITION THE BURNER CAPS
Place the burner caps so they are centered over each
burner. Ensure that they rest securely in place.
INSTALLATION (cont.)
20
ARRÊT DU UNITÉ
Pour couper le unité, diminuez chaque bouton de commande
de valve et tout en pressant tour il dans le sens des aiguilles
d’une montre à la position de repos.
Fermez toujours la valve de la fourniture de gaz après chaque
utilisation du unité.
ÉCLAIRAGE ÉLECTRONIQUE
Note: L’éclairage électronique exige une batterie installée
de 9 volts avec une bonne charge.
1. Ouvrez les couvercles ou enlevez les couvertures des brûleurs
pour être Lit.
2. Tournez tous les boutons de commande de gaz à leurs
positions de repos.
3. Allumez le gaz à sa source.
Note: N’ouvrez
pas plus d’une
valve à la fois
pour l’éclairage
électronique ou
manuel.
4. Diminuez le bouton de commande désiré pendant 5
secondes, puis, et tout en pressant le tour il dans le sens
contraire des aiguilles d’une montre dans la position
LÉGÈRE de HI. Une fois que le brûleur s’allume, libérez
le bouton.
ATTENTION : Si un brûleur ne s’allume pas dans cinq
(5) secondes d’allumer le bouton de
commande, enfoncez le bouton et tournez-
le à la position de repos. ATTENDEZ CINQ
(5) MINUTES avant de répéter l’étape 4. Si
vous sentez le gaz, suivez les instructions
sur la couverture de ce manuel. Si les
brûleurs ne s’allument toujours pas après
que plusieurs tentatives, se rapportent aux
instructions pour l’éclairage manuel.
5. Répétez l’étape 4 pour que chaque brûleur additionnel soit Lit.
EN EMPLOYANT UN RÉSERVOIR DE PROPANE PORTATIF
Des réservoirs de propane sont équipés d’un dispositif
d’arrêt de sûreté qui peut ne pas causer le bas ou aucunes
pression de gaz/fl amme aux brûleurs si le fonctionnement
et l’allumage des instructions ne sont pas suivis exactement
(voir la note importante dans la section de dépannage pour
plus de détails.)
ÉCLAIRAGE MANUEL
ATTENTION: Attendez toujours cinq (5) minutes le gaz
pour se dégager après que n’importe quelle
tentative non réussie d’éclairage.
1. Suivez les étapes 1 à 3 (à gauche).
2. Passez un allumeur brûlant de butane de long-baril ou
une allumette brûlante de long-tige dans la grille à cuire
s’ouvrant au dessus du tube d’éclairage. (Fig. 20-2). Pour
des backburners, tenez la fl amme contre le surface du
backburner. Pour des sideburners, tenez la fl amme contre
le brûleur.
3. Vieux match / fl amme d’un briquet à la partie supérieure
du tube d’éclairage pendant 5 secondes, ou, à côté de la
brûleur latéral / veilleuse. Puis appuyer sur le bouton de
contrôle approprié et en appuyant tourner dans le sens
antihoraire à la position HI LIGHT. Retirez le briquet ou
des allumettes quand le brûleur s’allume, puis relâchez
le bouton de commande.
4. Si le brûleur ne se allume pas dans les cinq (5)
secondes de tourner le bouton de commande, enfoncez
immédiatement le bouton et tournez la valve à AU LOIN.
ATTENDEZ CINQ (5) MINUTES avant de répéter les
étapes 2 à 4 des instructions manuelles d’éclairage.
Lisez toutes les instructions avant l’allumage, et suivez ces instructions chaque fois vous lumière le unité.
Fig. 20-2 - Éclairage manuel
Plus léger
Tube
d’éclairage
Fig. 20-1 - bouton de commande
OFF
HI
LIGHT
LOW
TO
TURN OFF
TO TURN ON
Read setting
here
HIGH to
LIGHT
Lisez l’établissement ici
(OUTRE de montrer)
OUTRE DE
SUR
Utilisation
SALUT
(haute)
à la lu-
mière
Enfoncez
le bouton
pour
tourner
2. Insérez un allumeur brûlant de butane de long-baril, une
allumette brûlante de long-tige, ou une allumette brûlante
tenue par un support de prolongation de fi l par la grille
à cuire s’ouvrant au brûleur (fi g. 20-2). Tenez la fl amme
contre le bord du brûleur.
3. Tout en tenant l’allumette ou la fl amme plus légère à côté
du brûleur, diminuez le bouton de commande et tout en
pressant le tour il dans le sens contraire des aiguilles
d’une montre dans la position LÉGÈRE de HI. Enlevez
l’allumeur ou assortissez quand le brûleur s’allume, et
libérez le bouton de commande.
4. Si le brûleur ne se allume pas dans les cinq (5)
secondes de tourner le bouton de commande, enfoncez
immédiatement le bouton et tournez la valve à AU LOIN.
ATTENDEZ CINQ (5) MINUTES avant de répéter les
étapes 2 à 4 des instructions manuelles d’éclairage.
Fig. 20-2 - Éclairage manuel
Note: Le unité doit être relié à la puissance 120VAC pour
l’éclairage électronique.
ALLUMAGE DES INSTRUCTIONS (D’ALLUMAGE)
21
SHUTTING OFF THE UNIT
To shut off the unit, depress each valve control knob
and while pressing turn it clockwise to the OFF position.
Always close the valve from the gas supply after each
use of the unit.
ELECTRONIC LIGHTING
Note: Electronic lighting requires an installed 9-volt
battery with a good charge.
1. Open lid(s) or remove cover(s) from burner(s) to be lit.
2. Turn all gas control knob(s) to their OFF position(s).
3. Turn on the gas at its source.
Note: DO NOT
turn on more
than one valve at
a time for either
electronic or
manual lighting.
4. Depress the desired control knob for 5 seconds,
then, while pressing turn it counterclockwise to the
HI LIGHT position. Once the burner lights, release
the knob.
CAUTION: If a burner does not light within fi ve (5)
seconds of turning on the control knob,
depress the knob and turn it to the OFF
position. WAIT FIVE (5) MINUTES
before repeating step 4. If you smell
gas, follow the instructions on the cover
of this manual. If the burners still do not
light after several attempts, refer to the
instructions for manual lighting.
5. Repeat step 4 for each additional burner to be lit.
WHEN USING A PORTABLE PROPANE TANK
Propane tanks are equipped with a safety shutdown
device that may cause low or no gas pressure/fl ame
at the burners if operating and lighting instructions
are not followed exactly (See important note in the
TROUBLESHOOTING section for more details.)
MANUAL LIGHTING
CAUTION: Always wait fi ve (5) minutes for gas to
clear after any unsuccessful lighting
attempt.
1. Follow steps 1 through 3 (left).
2. Insert either a burning long-barrel butane lighter or
a burning long-stem match through the cooking grid
opening to the top of the lighting tube. (Fig. 21-2).
For backburners, hold the flame
against the surface of the backburner.
For sideburners, hold the fl ame against the burner.
3. Hold the match / lighter fl ame at the top of the lighting
tube for 5 seconds, or, next to the sideburner /
backburner. Then depress the appropriate control
knob and while pressing turn it counterclockwise to
the HI LIGHT position. Remove the lighter or match
when the burner lights, and release the control knob.
4. If the burner does not light within fi ve (5) seconds
of turning the control knob, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4 of
the MANUAL LIGHTING instructions.
Read all instructions before lighting, and follow these instructions each time you light the unit.
Fig. 21-2 - Manual lighting
Lighter
Lighting
tube
Fig. 21-1 - Control knob
OFF
HI
LIGHT
LOW
TO
TURN OFF
TO TURN ON
Read setting
here
HIGH to
LIGHT
Read setting here
(OFF position shown)
To Turn OFF
To Turn ON
Use
HI (high)
to light
Press
knob in
to turn
3. Hold the match / lighter fl ame at the top of the lighting
tube for 5 seconds, or, next to the backburner. Then
depress the appropriate control knob and while
pressing turn it counterclockwise to the HI LIGHT
position. Remove the lighter or match when the
burner lights, and release the control knob.
2. Insert either a burning long-barrel butane lighter, a
burning long-stem match, or a burning match held
by a wire extension holder through the cooking grid
opening to the burner (Fig. 21-2). Hold the fl ame
against the edge of the burner.
3. While holding the match or lighter fl ame next to the
burner, depress the control knob and while pressing
turn it counterclockwise to the HI LIGHT position.
Remove the lighter or match when the burner lights,
and release the control knob.
4. If the burner does not light within fi ve (5) seconds
of turning the control knob, immediately depress
the knob and turn the valve to OFF. WAIT FIVE
(5) MINUTES before repeating steps 2 through 4 of
the MANUAL LIGHTING instructions.
Fig. 21-2 - Manual lighting
Note: This unit must be connected to 120VAC power
for electronic lighting.
LIGHTING (IGNITION) INSTRUCTIONS
USE
,
CARE
,
&
SERVICE
22
Fig. 22-1 - Wipe with grain
PROTECTING YOUR APPLIANCE FROM
THE WEATHER
An optional cover will protect your appliance when
not in use. (Allow to cool before covering.)
Please specify the model number and serial
number of your appliance when ordering a cover.
APPLIANCE MUST BE COMPLETELY COOL WHEN
CLEANING. DO NOT SPRAY ANY CLEANER OR
LIQUIDS ON THE APPLIANCE WHEN HOT.
The appliance must be cleaned as often as once a month
(depending on use) to prevent grease build-up and other
food deposits.
INTERIOR
THE BURNER PORTS MUST BE KEPT CLEAN TO
ENSURE PROPER IGNITION AND OPERATION.
Remove the burner (see the CHECK BURNER ORIFICES
section) and clean the ports as required. Also inspect and
clean the burner inlet for insects and nests. A clogged
burner can lead to a fi re in the bottom of the appliance.
The inside of the appliance may be cleaned periodically
with oven cleaner if desired. Follow the oven cleaner
instructions for proper use.
Be careful not to get oven cleaner on the outside surface
of the appliance as it can permanently damage the fi nish.
EXTERIOR
Stainless steel surfaces when exposed to temperatures
produced by the grilling process will change color. The
stainless steel will change color from silver to brown
and blue. This can be removed by using stainless steel
cleaner.
Clean your appliance by fi rst using stainless steel grill
cleaner to remove grease and dirt. Always wipe with the
grain (See Fig. 22-1). Next, apply stainless steel polish
and wipe down using polish wipes to restore the stainless
steel color. To clean any mirror fi nish (if applicable),
use a quality brand glass cleaner only, not any of
the cleaners mentioned above.
If your appliance is installed in a seaside (salt air) or
poolside (chlorine) location, it will be more susceptible
to corrosion and must be maintained/cleaned more
frequently. Do not store chemicals (such as chlorine or
fertilizer) near your stainless steel appliance.
Due to the nature of stainless steel, surface iron oxide
deposits may appear. Do not be alarmed – these deposits
are removable with stainless steel cleaner through prompt
and periodic maintenance. If not attended to promptly,
permanent pitting may occur.
By following these recommendations, you will enjoy the
beauty and convenience of your appliance for many years
to come.
IMPORTANT
IN THE EVENT OF A GREASE FIRE,
IMMEDIATELY SHUT OFF THE MAIN GAS
VALVE TO THE UNIT. KEEP THE LID OPEN
AND ALLOW THE FIRE TO EXTINGUISH
ITSELF. A THOROUGH INSPECTION BY A
TRAINED SERVICE TECHNICIAN SHOULD
BE CONDUCTED BEFORE FUTURE USE OF
YOUR UNIT. THE SERVICE TECHNICIAN WILL
CHECK THE SYSTEM FOR GAS LEAKS AND
WILL CHECK ALL ELECTRICAL WIRING FOR
DAMAGE. ALL GAS LEAKS AND WIRING MUST
BE REPAIRED PRIOR TO FUTURE USE.
Wipe with grain
CARE & CLEANING
23
Continued on next page
CAUTION: Make sure the unit is at a safe temperature and is
isolated from gas and electrical supplies before
beginning.
For your safety, exercise caution, and make sure you have
adequate hand protection, such as gloves, when handling metal
parts.
CONVERT LABEL
This unit comes from the factory confi gured for one type of gas
as marked on the label behind the control panel.
When the unit is converted, the label for the new gas
(included at original shipping) MUST be applied over the
old label mentioned above.
CONVERT REGULATOR
The gas regulator, located behind the control panel , must be set
for the type of gas used to fuel the unit. To check the regulator
setting, remove the cap in the center of the regulator (Fig. 23-1,
A). Holding the cap vertical (see Fig. 23-2, B), the letters at the
bottom of the plastic stalk indicate the gas type for which the
regulator is currently confi gured.
If the text on the bottom of the regulator stalk does not match
the gas type connected to the unit, remove the stalk from the
cap, invert, and replace into center of cap. Replace cap on the
regulator, screwing down until snug.
CONVERT GAS ORIFICES
When converting the unit to a different gas type, each burner’s
orifi ce must be replaced with the corresponding orifi ce for the
new gas.
See MODEL SPECIFICATIONS TABLE, Table 1 at the beginning
of this document to determine the proper orifi ce
sizes for each
burner.
Important: It is critical to the operation of each burner that
its orifi ce be fully inserted into the center of
its orifi ce opening.
WARNING
HAZARDOUS OVERHEATING WILL OCCUR IF A NATURAL-
GAS ORIFICE IS USED WITH PROPANE GAS.
CONNECT TO NEW GAS SUPPLY
Plumb the unit as appropriate for the new gas supply. (Additional
components may be needed for your specifi c setup.) Be sure
to leak test at all connections.
A
B
Invert if
needed
Gas regulator cap
Read gas
type here
(LP shown)
Fig. 23-1 Convert regulator
CONVERT GAS TYPE / CHECK BURNER ORIFICES
24
CONVERT/CHECK DOUBLE SIDE BURNER ORIFICE
1. Lift the side burner lid. Then remove the cooking grid and
side burner cap and set them aside.
2. Remove the control panel. See the CONTROL PANEL
REMOVAL section for details.
3. Reach up under the burner support and remove the
burner retaining clip (see Fig. 24-1), located at the rear
of the burner pipe.
4. Remove the burner cap and carefully lift the burner up
and out, clearing the ceramic electrode (see Fig. 24-2),
and pulling the burner tube away from the orifi ce, located
on the end of the orifi ce holder on the left side of the unit
(see Fig. 24-3).
Note: You do not have to lift the burner completely out of
the unit to access the orifi ce.
5. Using a 3/8" socket, remove orifi ce from the orifi ce holder
(see Fig. 24-3) and check the number stamped on the
orifi ce face.
6. If an orifi ce change is necessary, replace the orifi ce with
the correct size.
Note: To protect the manifold threads when placing the
new orifi ce, start the threading manually, and then
tighten with the nut driver.
7. Replace the sideburner tube over the orifi ce, aligning
the burner over the electrode, taking care not to detach
it from the wire.
8. Replace the burner retaining clip (underneath burner),
and burner cap.
9. Repeat steps 3. through 8. for the second burner.
10. Replace the control panel and control knobs.
11. Replace the grid and cover.
Fig. 24-1 Remove burner clip
Fig. 24-2 Remove burner
Fig. 24-3 Orifi ce location
Orifi ce is located at
the end of the valve
(View from interior of
unit shown for clarity)
Fig. 24-3 Orifi ce location
Orifi ce
holder
Orifi ce
located at
end of orifi ce
holder
CONVERT GAS TYPE / CHECK BURNER ORIFICES (cont.)
25
Fig. 25-1 Flame pattern
Fig. 25-2 Adjust air shutter
Close
Open
Air shutters are preset at the factory based on the gas the
sideburner is built to burn. However, altitude or other local
conditions may require air shutter adjustment for proper
combustion.
The fl ames from a properly adjusted sideburner will touch
the burner ports and appear mostly blue.
If the fl ames are orange, “lazy”, or lift off the burner ports,
then adjust the sideburner air shutter using the following
steps.
The air shutters are located at the end of the burner
assemblies, behind the control panel. They can safely and
easily be adjusted while the unit is lit.
CAUTION: Do not touch the sideburner surrounding
top area, as it will be hot while adjusting
the air shutter.
1.
Remove the control panel. See the CONTROL PANEL
REMOVAL section for details.
2. Replace the control knobs back on to the valve stems.
3. Light the sideburner following the LIGHTING
INSTRUCTIONS section.
4. Loosen the
front burner air shutter adjustment screw,
then use the tip of a screwdriver to open or close the
air shutter until the fl ames appear blue and touch the
burner ports.
5. Retighten the adjustment screw.
6. Repeat for rear burner air shutter.
Should you have diffi culty accessing the
rear burner air shutter, you may shut down,
remove the rear burner (when cool), then
adjust the air shutter to the same opening
as the already adjusted front burner. (See
CONVERT/CHECK SIDE BURNER ORIFICE
section to remove rear burner.) Be sure
to properly reinstall rear burner when
complete.
7. Once all adjustments are complete; be sure the
unit is off and remove the knobs, then replace
the control panel and knobs.
AIR SHUTTER ADJUSTMENT
26
To remove the control panel:
1. Turn the control knobs to the OFF position and turn off the gas supply to the unit.
2. Pull the control knobs from the stems and set aside .
3. Using a Phillips screwdriver, unscrew and remove the control panel fastener screws and washers
(located on the left and right front face of the control panel). Retain the screws for later re-installation .
4. Carefully open the control panel by lifting and pulling the control panel from the frame .
Important: When opening, take caution to not damage any wiring.
5. If wire disconnections are required, reference the wire diagram in the MODEL SPECIFICATIONS
section in this instruction manual or the wire diagram label affi xed to the inside of the control panel.
Note: Secure any disconnected wires (coming from the inside of the unit) to prevent them from falling in.
Note: Whenever reconnecting any wires, apply a small amount of dielectric grease to the male connector,
then make the connection.
Important: During reinstallation; prior to opening the gas shutoff valve , be sure the control knobs are
in the OFF position.
CONTROL PANEL REMOVAL
27
Table 2
If you have trouble with the unit, please use this list to identify the problem. By trying one or more of the solutions
to the possible cause, you should be able to solve the problem. If this list does not cover your present problem, or
if you have other technical diffi culties with the unit, please contact your local dealer.
PROBLEM POSSIBLE CAUSE CORRECTION
Ignition system
failure
1.
Power supply failure
1a. System reset: Disconnect (wait 10 minutes
minimum) and reconnect power to unit. With lights
OFF (if applicable), test ignition.
1b. Replace power supply.
2. Improper air shutter adjustment 2. Adjust air shutters.
3. Ignition wire disconnected 3. Reconnect wires into igniter module.
4. Low gas pressure 4. Have the gas co. check supply pressure.
5. Igniter switch malfunction 5. Contact dealer for replacement.
6. Igniter malfunction 6. Contact dealer for replacement.
Insuffi cient heat /
low fl ame
1.
Improper air-shutter adjustment 1. Adjust air shutters.
2. Using propane orifi ce for natural gas 2. Check/change orifi ces.
3. Low gas pressure/fl ame (propane) 3. Refill propane tank, or reset propane tank
safety*: Shut off all valves (including propane
tank) and follow lighting instructions exactly.
4. Low gas pressure/fl ame (natural) 4. Have the gas co. check pressure at unit.
5. L.P. regulator hose cracked due to age 5. Replace L.P. regulator hose.
Uneven heating
1.
Burner ports partially blocked by
debris
1. Remove burners and clean out ports.
2. Small spiders or insects in burner 2. Inspect burners and orifi ces for spider webs or
other debris that may block fl ow.
3. Improper air shutter adjustment 3. Adjust air shutter.
Burner goes out on
LOW
1.
Valve “Low” setting needs adjustment 1. Light burner on HIGH, immediately turn to
LOW setting. Remove knob from valve and
using a small fl at screwdriver, slowly turn the
adjustment screw in the stem, a little at a time
(30° to 45°), in either direction, until the fl ame is
approximately
1
/
4
” in height from burner ports.
No power to unit
1.
Input power source failure 1. Check GFCI / circuit breaker.
2. Power supply failure 2. See 1a of Ignition system failure section above
and/or replace power supply.
Note: *Propane tanks are equipped with a safety shutdown device that may cause low or no gas/fl ame at the
burners if operating and lighting instructions are not followed exactly. If you suspect the propane tank
safety shutoff is in effect, shut off all burner control valves and the propane tank valve. Then read and
follow the LIGHTING INSTRUCTIONS exactly. Lighting instructions are located in the owner’s manual
and printed on the front face of the unit. If the problem persists, continue troubleshooting, or contact your
local dealer or distributor for assistance.
on valve
wire harness.
TROUBLESHOOTING
28
Robert H. Peterson Co. • 14724 East Proctor Avenue • City of Industry, CA 91746
Quality Check Date:_________________
Burner Orifi ces Nat. L.P. Leak Test: ___________ Model#: ___________________
Main: ____ ____ Burn Test: ___________ Serial#: ___________________
Other: ____ ____ Gas Type:
Nat. / L.P. Air Shutter: ___________________
Inspector: ___________________
A COPY OF YOUR SALES SLIP FOR PROOF OF PURCHASE IS REQUIRED
This warranty applies to the original purchaser for products which are installed in the United States or Canada and which are operated and maintained
as intended for single family residential usage. This warranty is valid only with proof of purchase, shall commence on the date of purchase, and shall
terminate (both as to original and any replacement products) on the anniversary date of the original purchase of the product stated on the above schedules.
This warranty covers defects in material and workmanship. This warranty does not cover parts which become defective as a result of negligence, misuse,
use not in compliance with the Owner’s Manual/Installation Instructions, accidental damage, improper handling, improper storage, improper installation,
lack of required routine maintenance (as specifi ed in the Owner’s Manual/Installation Instructions), electrical damage, local gas impurities or failure to
protect against combustibles. Product must be installed (and gas must be connected) as specifi ed in the Owner’s Manual/Installation Instructions by
a qualifi ed professional installer. Modifi cations to products which are not specifi cally authorized will void this warranty. Accessories, parts, valves,
remotes, etc. when used must be Peterson products or this warranty is void. Warrantied items will be repaired or replaced at Peterson’s sole discretion.
This warranty does not apply to rust, corrosion, oxidation, or discoloration unless the affected part becomes inoperable.
This warranty does not cover labor or labor related charges, except as provided by separate specifi c written programs from the Peterson Co. All repair
work must be performed by a qualifi ed professional service person and requires prior approval of Peterson.
Peterson may require the defective product or part to be returned to the factory to determine the cause of failure. Peterson will pay freight charges if
the product or part is determined to be defective. This warranty does not cover breakage in shipment from our (Independent) distributor to its customer
if the damage is determined to have occurred during that shipment.
This warranty specifi cally excludes liability for indirect, incidental, or consequential damages. Some states and provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specifi ed legal rights, and
you may have other rights that vary from state to state or province.
For additional information regarding this warranty, or to place a warranty claim, contact the R. H. Peterson dealer where the product was purchased.
TO REGISTER YOUR PRODUCT ONLINE GO TO: WWW.RHPETERSON.COM,
AND CLICK ON PRODUCT REGISTRATION. THANK YOU FOR YOUR PURCHASE.
PETERSON FIRE MAGIC GRILLS AND ACCESSORIES
LIMITED WARRANTY
Robert H. Peterson Co. ("RHP") warrants your Fire Magic
®
grill to be free from defects in material and workmanship.
Fire Magic
®
cast stainless-steel burners, stainless-steel rod cooking grids, and stainless-steel housings are warranted for as long as you own
your Fire Magic
®
grill -- LIFETIME. (Except as noted below.)
Fire Magic Choice stainless steel tubular burners are warranted for TWENTY (20) YEARS.
Fire Magic
®
cast brass burners, brass valves, inner liners, manifold assemblies, and backburner assemblies (except ignition parts) are
warranted for FIFTEEN (15) YEARS.
Fire Magic
®
Electric Grills, including stainless steel grid, and housings are warranted for TEN (10) YEARS.
Fire Magic
®
Infra-red burners, fl avor grids, Charcoal stainless steel grills, and Smokers are warranted for FIVE (5) YEARS; except for the
charcoal pan, charcoal grid, wood pellet screen, thermometer, and ash tray; which are warranted for ONE (1) YEAR.
Fire Magic
®
sideburners and all other Fire Magic
®
grill components (except ignition and electronic parts) are warranted for THREE (3)
YEARS.
Fire Magic
®
ignition systems (excluding batteries), electronic components (including lights and thermometers), and grill accessories are
warranted for ONE (1) YEAR.
WARRANTY
