www.SereneLifeHome.com2 www.SereneLifeHome.com 3
Too much sun or a sudden rain shower can ruin your sailing experience.
A bimini, however, can provide excellent shade or shelter when under
sail or at the dock without creating that “closed in” feeling. It is easy to
set up or fold away when not in use.
PLEASE NOTE:
•
Please use the boot to protect the fabric if you will not use the Bimini Top.
• Fold the Bimini Top when the vessel speed exceeds 45MPH.
• NEVER attempt to operate the top while the boat is in motion.
• NEVER open the top in excessively high winds.
BOAT BIMINI TOP BENEFITS
• Provides protection from sun and rain with high quality material
• Allows for an open view for all passengers and drivers
• It is convenient to put up or down, as well as easy to store
• Protects the boat from sun rays, extending the life of the boat's interior
• Provides protection while still allowing for great circulation
• Easy assembly and storage allows boaters to quickly put the top down if they want
to go faster or easily put the top back up if they want to cruise at leisure
• While in use rear poles provide superior support for the bimini frame and allows
the top to be stored out of the way
www.SereneLifeHome.com2 www.SereneLifeHome.com 3
Too much sun or a sudden rain shower can ruin your sailing experience.
A bimini, however, can provide excellent shade or shelter when under
sail or at the dock without creating that “closed in” feeling. It is easy to
set up or fold away when not in use.
PLEASE NOTE:
•
Please use the boot to protect the fabric if you will not use the Bimini Top.
• Fold the Bimini Top when the vessel speed exceeds 45MPH.
• NEVER attempt to operate the top while the boat is in motion.
• NEVER open the top in excessively high winds.
BOAT BIMINI TOP BENEFITS
• Provides protection from sun and rain with high quality material
• Allows for an open view for all passengers and drivers
• It is convenient to put up or down, as well as easy to store
• Protects the boat from sun rays, extending the life of the boat's interior
• Provides protection while still allowing for great circulation
• Easy assembly and storage allows boaters to quickly put the top down if they want
to go faster or easily put the top back up if they want to cruise at leisure
• While in use rear poles provide superior support for the bimini frame and allows
the top to be stored out of the way
www.SereneLifeHome.com4 www.SereneLifeHome.com 5

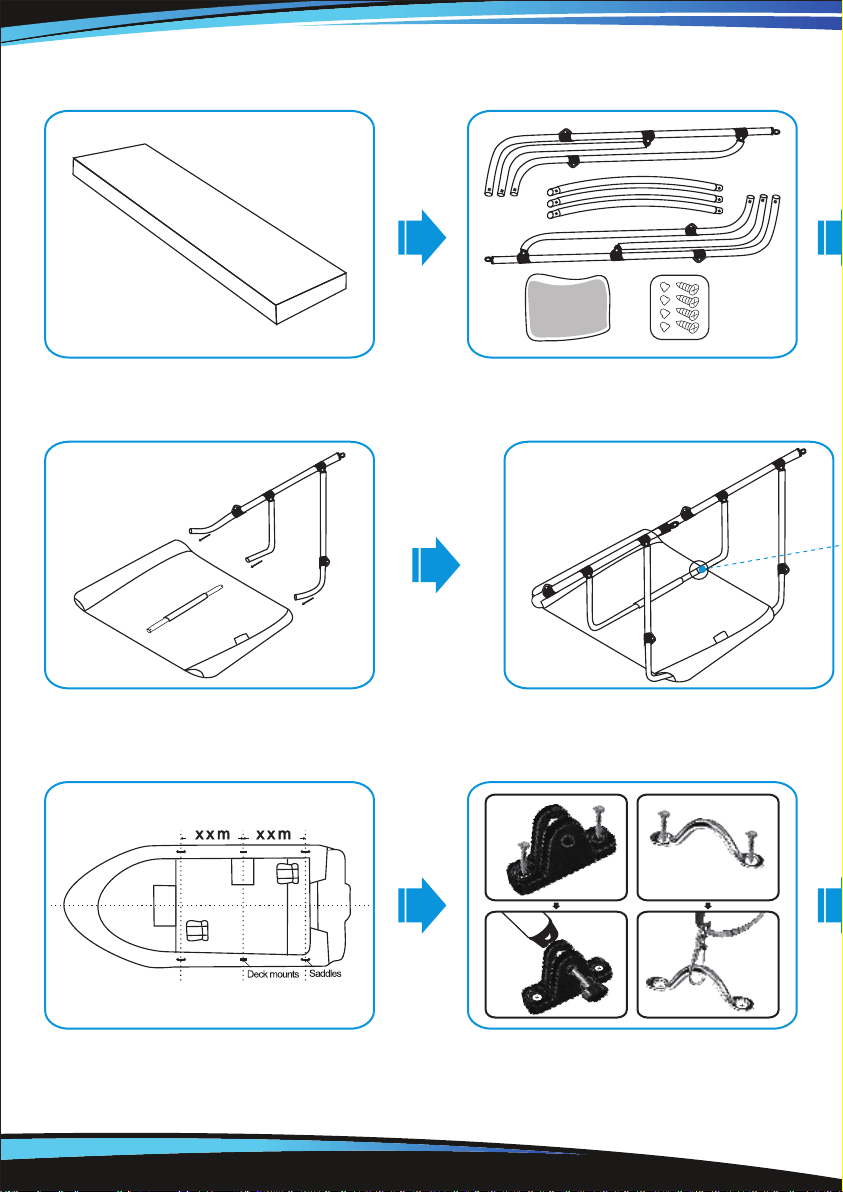

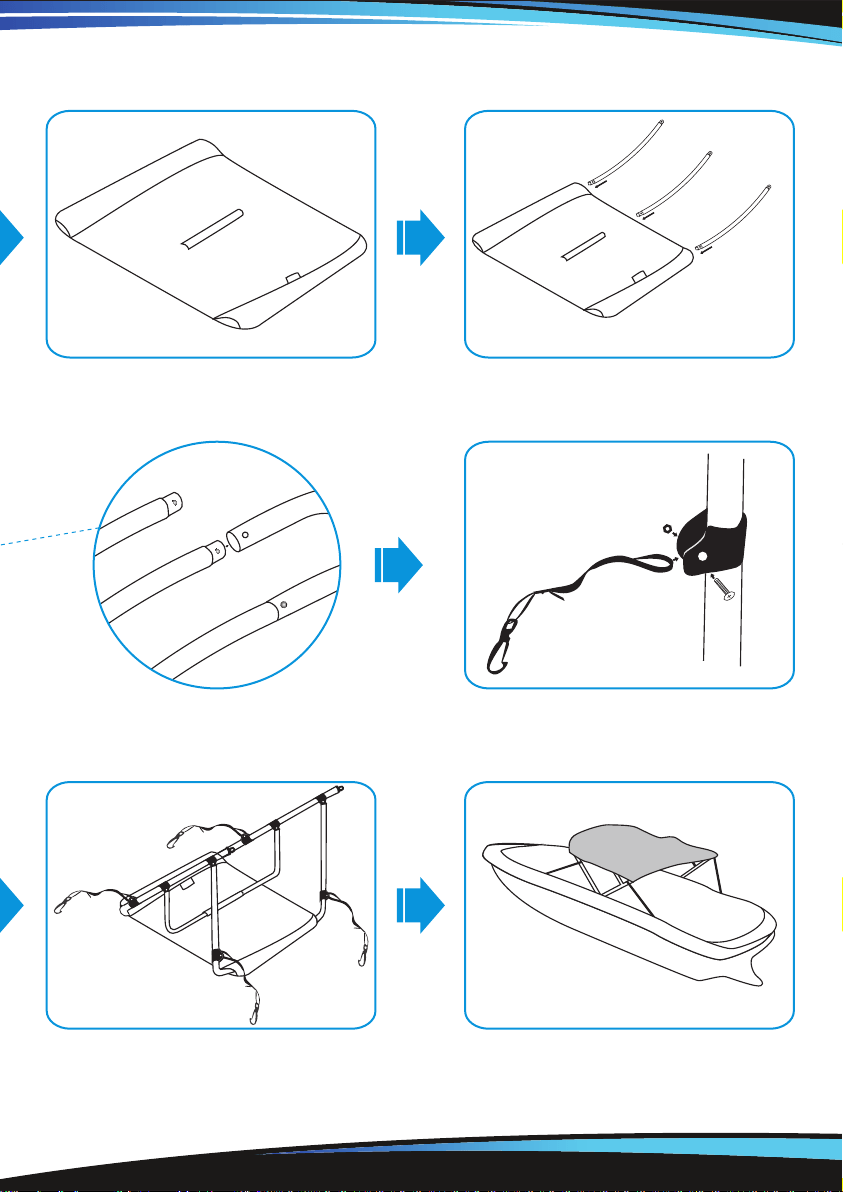

ASSEMBLY INSTRUCTIONS
1. Check and open bimini box carefully 2. Take out full set bimini parts 3. Lay fabric at upside-down, sleeves up. 4. Insert the crossbars into the fabric
sleeves.
5 & 6. Snap the frame into the crossbars via the connectors, then slide into the fabric 7. Snap connector 8. Secure each straps with bolls and
nuts as showed.
9. Measure and conrm the marks for
the deck mourns and saddles.
10. Drill and secure the deck mourns
and saddles.
11&12. Flip the bimini and place it on deck mourns,and tighten all straps to
complete your bimini.
