Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
IMPORTANT
OPERATOR’S MANUAL
22” Rotary Mower — Model Series 260
11/15/2006
FORM NO. 769-02337A
2
Finding and Recording Model Number
Table of Contents
BEFORE ASSEMBLING YOUR NEW EQUIPMENT,
please locate the model plate on the equipment and
copy the information to the sample model plate pro-
vided to the right. You can locate the model plate by
standing at the operating position and looking down
at the rear of the deck. This information will be neces-
sary to use the manufacturer’s web site, to obtain
assistance from the Customer Support Department,
or when contacting an authorized service dealer.
This Operator’s Manual is an important part of your new lawn mower. It will help you assemble,
prepare, and maintain the unit for best performance. Please read and understand what it says.
Model Number Serial Number
• Visit www.mtdproducts.com
• Call a Customer Support Representative at 1-800-800-7310.
• The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifica-
tions, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with
your unit, for more information.
Please do NOT return the unit to the retailer from which it was purchased, without first
contacting Customer Support.
Customer Support
Slope Gauge........................................................ 3
Safe Operation Practices ................................... 4
Setup and Adjustment ....................................... 6
Operating Your Lawn Mower .............................. 8
Maintaining Your Lawn Mower ......................... 10
Troubleshooting ................................................ 12
Off-Season Storage and Safety Labels .......... 13

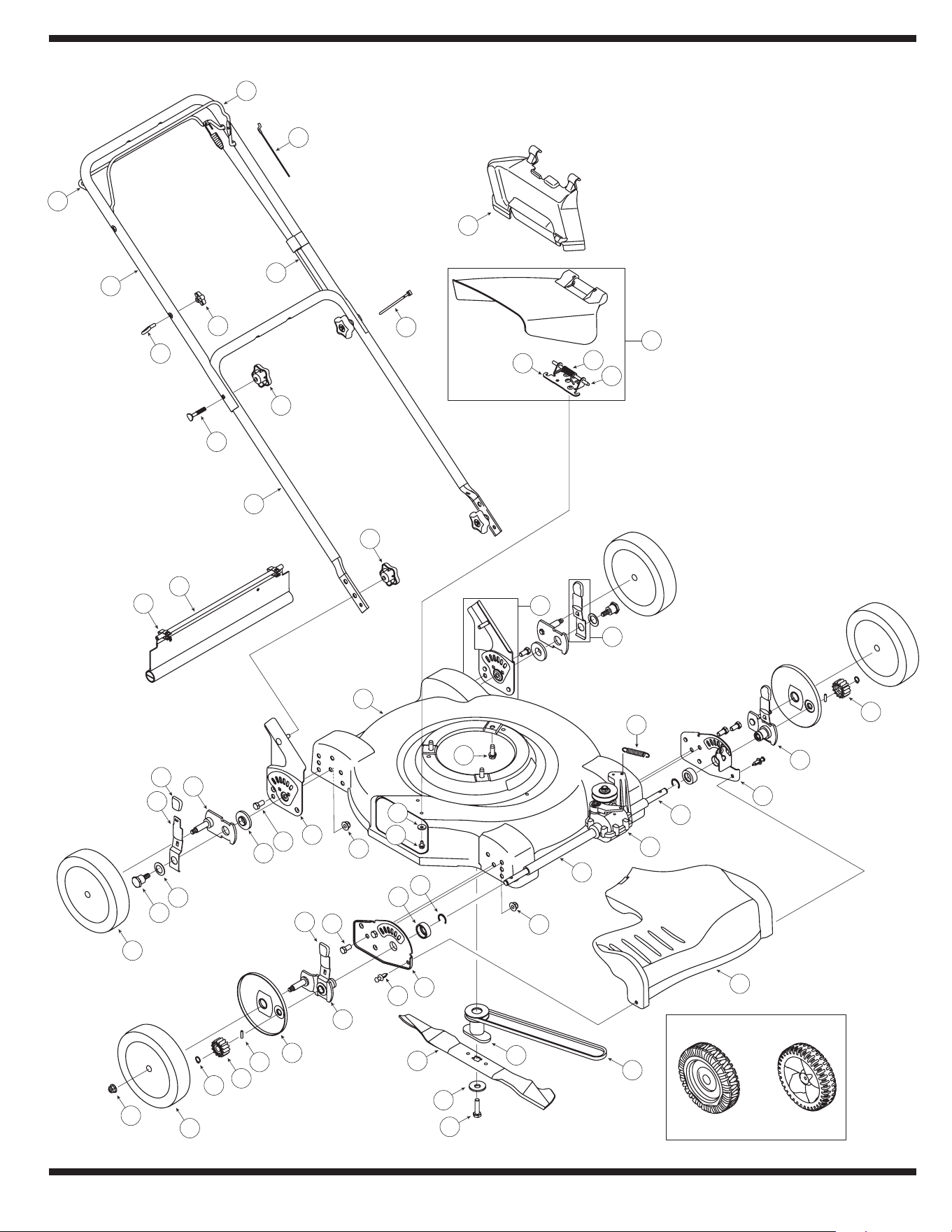

Parts List ........................................................... 14
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this
unit, you can seek help from the experts. Choose from the options below:
MTD LLC reserves the right to change product specifications, designs, and equipment without notice and without incurring obligation.
3
1
Slope
Gauge
WARNING
Do not mow on inclines
with a slope in excess
of 15 degrees (a rise
of approximately 2-1/2
feet every 10 feet).
Operate WALK-BEHIND
mowers across the
face of slopes, never
up and down slopes.
3IGHTANDHOLDTHISLEVELWITHAVERTICALTREE
ORACORNEROFABUILDING
ORAFENCEPOST
&OLDALONGDOTTEDLINEREPRESENTSASLOPE
Use this page as a guide to determine slopes where you may not operate safely.
Do not operate your lawn mower on such slopes.
4
2
Safe
Operation
Practices
Children
Tragic accidents can occur if operator is not alert to presence
of children. Children are often attracted to mower and mowing
activity. They do not understand the dangers. Never assume
that children will remain where you last saw them.
1. Keep children out of the mowing area and under watchful
care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down
for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
5. Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
6. Never allow children under 14 years old to operate a power
mower. Children 14 years old and over should read and
understand operation instructions and safety rules in this
manual and should be trained and supervised by a parent.
General Operation
1. Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Be completely familiar with
the controls and the proper use of this machine before
operating it. Keep this manual in a safe place for future
and regular reference and for ordering replacement parts.
2. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. Your unit has been designed to perform one job: to
mow grass. Do not use it for any other purpose.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions in this manual and should
be trained and supervised by a parent. Only responsible
individuals who are familiar with these rules of safe
operation should be allowed to use this machine.
4. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire, bones, toys
and other foreign objects, which could be tripped over or
picked up and thrown by the blade. Thrown objects can
cause serious personal injury. Plan your mowing pattern
to avoid discharge of material toward roads, sidewalks,
bystanders and the like. Also, avoid discharging material
against a wall or obstruction, which may cause discharged
material to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object injury,
stay in operator zone behind handles and keep children,
bystanders, helpers and pets at least 75 feet from mower
while it is in operation. Stop machine if anyone enters
area.
6. Always wear safety glasses or safety goggles during opera
-
tion and while performing an adjustment or repair to protect
your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
7. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms and
legs and steel-toed shoes are recommended. Never operate
this machine in bare feet, sandals, slippery or light-weight
(e.g. canvas) shoes.
8. Do not put hands or feet near rotating parts or under cutting
deck. Contact with blade can amputate hands and feet.
9. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
10. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
11. Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping and
then follow these steps:
a. Step back from mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
12. Do not operate the mower while under the influence of
alcohol or drugs.
13. Do not engage the self-propelled mechanism on units so
equipped while starting engine.
14. The blade control handle is a safety device. Never attempt
to bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating blade. The blade control handle
must operate easily in both directions and automatically
return to the disengaged position when released.
15. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.
16. Mow only in daylight or good artificial light. Walk, never run.
17. Stop the blade when crossing gravel drives, walks or roads.
18. If the equipment should start to vibrate abnormally, stop the
engine and check immediately for the cause. Vibration is
generally a warning of trouble.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo-
nents contain or emit chemicals known to State of California to cause cancer and
birth defects or other reproductive harm.
WARNING
This symbol points
out important safety
instructions which, if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this
manual before at-
tempting to operate
this machine. Failure
to comply with these
instructions may result
in personal injury. When
you see this symbol.
HEED ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the rules for safe operation in this
manual. As with any type of power equipment, carelessness or error on the part of the operator
can result in serious injury. This machine is capable of amputating hands and feet and throwing
objects. Failure to observe the following safety instructions could result in serious injury or death.
5
19. Shut the engine off and wait until the blade comes to a
complete stop before removing the grass catcher or unclog-
ging the chute.
The cutting blade continues to rotate for a few seconds after
the engine is shut off. Never place any part of the body in
the blade area until you are sure the blade has stopped
rotating.
20. Never operate mower without proper trail shield, discharge
cover, grass catcher, blade control handle or other safety
protective devices in place and working. Never operate
mower with damaged safety devices. Failure to do so can
result in personal injury.
21. Muffler and engine become hot and can cause a burn. Do
not touch.
22. Only use parts and accessories made for this machine by
manufacturer. Failure to do so can result in personal injury.
23. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer for
assistance.
Slope Operation
Slopes are a major factor related to slip and fall accidents, which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it. For your
safety, use the slope gauge included as part of this manual to
measure slopes before operating this unit on a sloped or hilly
area. If the slope is greater than 15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
3. Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately, and
the blade will stop rotating within 3 seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes,
which can ignite. Wash your skin and change clothes
immediately.
2. Use only an approved gasoline container.
3. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
4. Remove gas-powered equipment from the truck or trailer
and refuel it on the ground. If this is not possible, then refuel
such equipment on a trailer with a portable container, rather
than from a gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
6. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
7. Never fuel machine indoor because flammable vapors will
accumulate in the area.
8. Never remove gas cap or add fuel while engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
9. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide for fuel expansion.
10. Replace gasoline cap and tighten securely.
11. If gasoline is spilled, wipe it off the engine and equipment.
Move unit to another area. Wait 5 minutes before starting
engine.
12. Never store the machine or fuel container near an open
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.
13. To reduce fire hazard, keep mower free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
14. Allow a mower to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine to prevent
unintended starting.
3. Check the blade and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, worn) Replace blade with
the original equipment manufacture’s (O.E.M.) blade only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
4. Mower blades are sharp and can cut. Wrap the blade or
wear gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the equip
-
ment is in safe working condition.
6. Never tamper with safety devices. Check their proper
operation regularly.
7. After striking a foreign object, stop the engine, discon
-
nect the spark plug wire and ground against the engine.
Thoroughly inspect the mower for any damage. Repair the
damage before starting and operating the mower.
8. Never attempt to make a wheel or cutting height adjust
-
ment while the engine is running.
9. Grass catcher components, discharge cover, and trail
shield are subject to wear and damage which could
expose moving parts or allow objects to be thrown. For
safety protection, frequently check components and re-
place immediately with original equipment manufacturer’s
(O.E.M.) parts only, listed in this manual. “Use of parts
which do not meet the original equipment specifications
may lead to improper performance and compromise
safety!”
10. Do not change the engine governor setting or over-rev the
engine. The governor controls the maximum safe operating
speed of the engine.
11. Maintain or replace safety labels, as necessary.
12. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions, which if
not followed, could
endanger the personal
safety and/or property
of yourself and others.
Read and follow all
instructions in this man-
ual before attempting to
operate this machine.
Failure to comply with
these instructions may
result in personal injury.
When you see this
symbol.
HEED IT’S WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
6
3
Setup and
Adjustment
1. For shipping purposes, the chute deflector on your
mower is held in an upright position by a retainer.
Remove the retainer as follows:
a. Pull chute deflector up and back towards engine.
Holding deflector in this position, remove the
retainer and discard. See Figure 3-1.
b. Lower the chute deflector carefully keeping your
fingers out of the way.
c. If wanting to side discharge grass clippings, remove
the mulch plug. Refer to the Adjustment section on
the following page for instructions.
WARNING: The chute retainer must be
removed and discarded before operating the
mower.
2. Perform the following sequence for handle setup:
a. Lift the upper handle up from the folded position
and pull it back to the extended position. See
Figure 3-2. The handle should click into this
position.
b. Make sure the carriage bolt is seated properly in
the handle. Tighten star knobs to secure upper
handle to the lower handle
3. Follow the steps below to secure the lower handle to
the handle mounting brackets:
a. Position each handle bracket stud into the top or
bottom hole in the lower handle. See Figure 3-3.
b. Tighten the star knobs.
NOTE: The handle height may be adjusted at anytime by
moving the stud on each bracket to the other hole on each
side of the lower handle.
4. To secure cables to lower handle, wrap cables around
lower handle using the cable tie. Pull cable tie tight and
trim excess. See Figure 3-4.
NOTE: Each end of the
lower handle must be
attached to the handle
mounting brackets at
the same position.
IMPORTANT: This
unit is shipped without
gasoline or oil in the
engine. Fill up gasoline
and oil as instructed
in the accompanying
engine manual BE-
FORE operating your
mower.
WARNING
The chute retainer
must be removed
and discarded before
operating the mower.

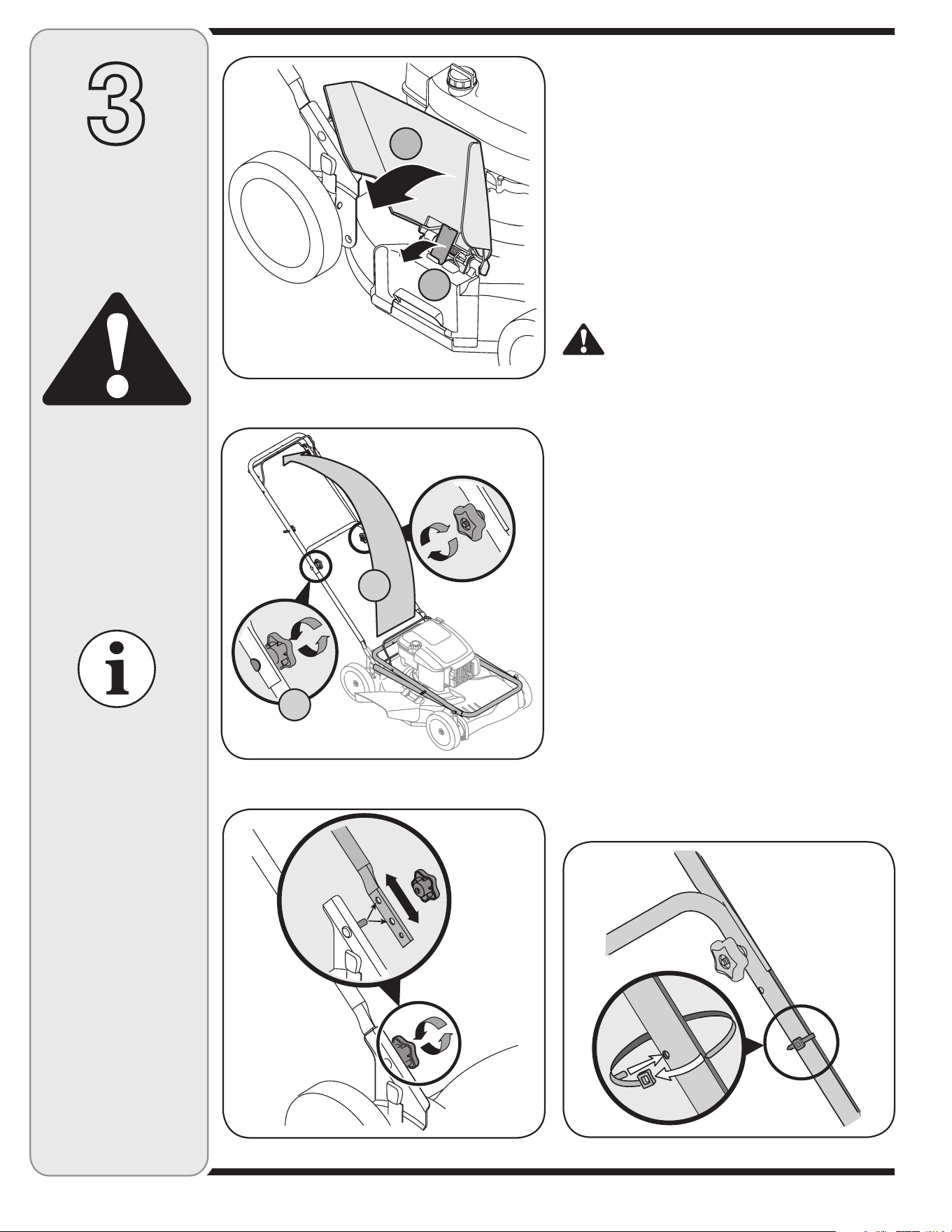

Figure 3-1: Remove retainer from underside of chute.
Figure 3-2: Unfold handle and tighten hardware.
Figure 3-3: Secure lower handle to mounting brackets. Figure 3-4: Use cable tie to secure cables to lower handle.
A
B
A
B
7
CUTTING HEIGHT
For rough or uneven
lawns, move the height
adjustment lever to a
higher position. This will
stop scalping of grass.
MULCH BAFFLE (if
equipped)
For proper assembly,
install bottom lip inside
chute opening before
placing hooks over the
hinge pin.
3
Setup and
Adjustment
IMPORTANT: This
unit is shipped without
gasoline or oil in the
engine. Fill up gasoline
and oil as instructed
in the accompanying
engine manual BE-
FORE operating your
mower.
5. Follow the steps below to secure the recoil starter.
See Figure 3-5.
a. Hold the blade control against the upper handle.
b. Slowly pull starter rope out of engine.
c. Slip starter rope into the rope guide.
d. Tighten rope guide wing nut.

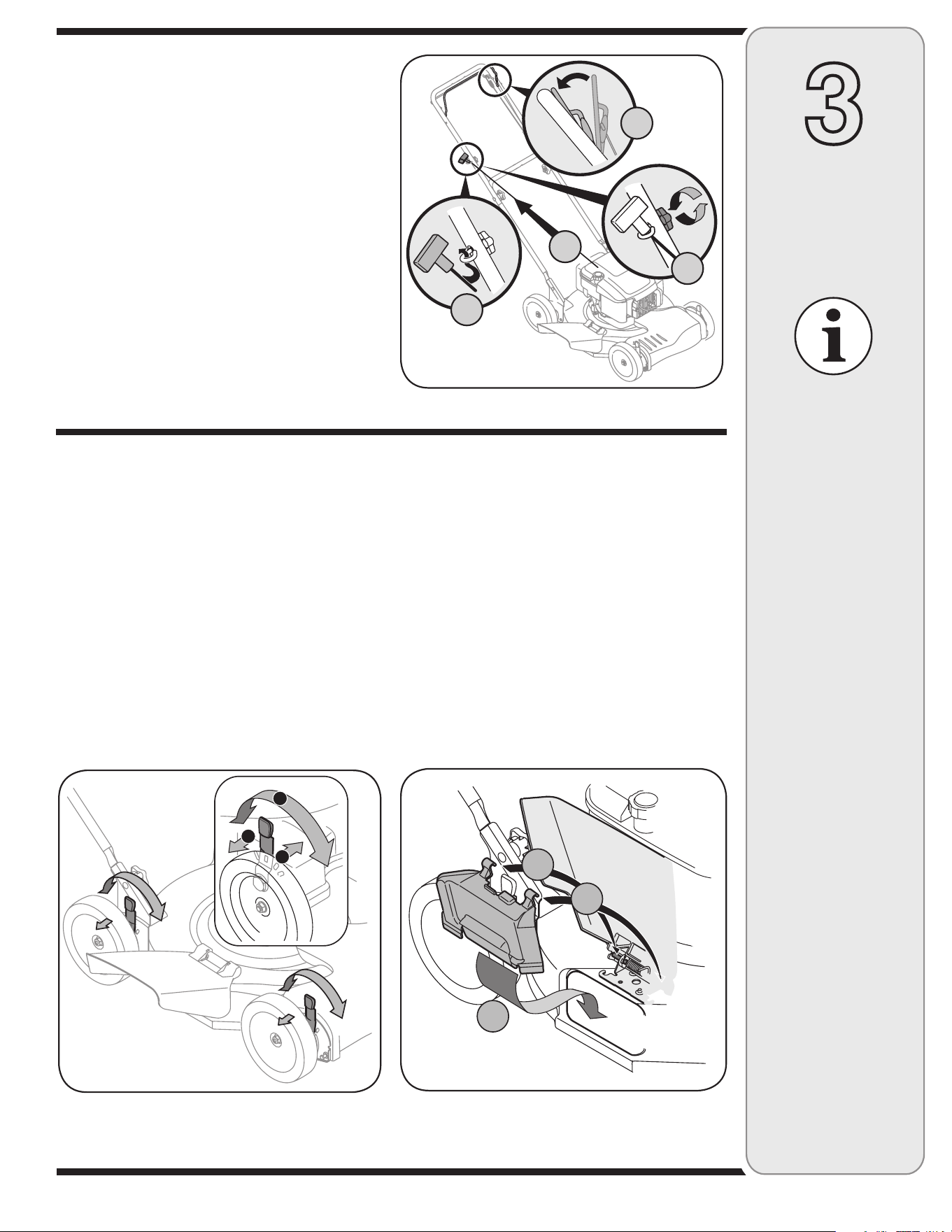

Figure 3-5: Pull recoil starter through rope guide and tighten.
Figure 3-7: Install the optional mulching baffle to use the mower
as a mulcher.
Figure 3-6: Use the lever at each wheel to adjust the cutting
height.
Adjustments
Cutting Height Adjustment
Each wheel has a height adjustment lever to change the
cutting height of the mower. Follow the steps below to
adjust the cutting height.
NOTE: All wheels must be moved to the same position.
For rough or uneven lawns, move the height adjustment
lever to a higher position.
1. Depress height adjustment lever towards wheel. See
Figure 3-6.
2. Slide lever to desired position for a change in cutting
height.
3. Release lever towards deck.
Mulching Baffle (if equipped)
Instead of expelling the clippings from the side discharge
chute, the mower has the option of recirculating the
clippings back to the lawn by installing the optional
mulching baffle.
1. Lift up and hold the side discharge chute. Insert
bottom lip of the mulching baffle inside the chute
opening. See Figure 3-7.
2. Snap hooks on the mulching baffle over the hinge
pin. The hooks must snap into place on the hinge
pin, locking the mulching baffle firmly onto mower.
Release chute deflector.
1
2
3
A
B
C
D
1
2
2
8
4
Operating
Your Lawn
Mower
Now that you have set up your lawn mower for opera-
tion, get aquainted with its controls and features. These
are described below and illustrated on this page. This
knowledge will allow you to use your new equipment to
its fullest potential.
Blade Control
The blade control is attached to the upper handle of
the mower. Depress and squeeze it against the upper
handle to operate the unit. Release it to stop engine and
blade.
WARNING: This blade control mecha-
nism is a safety device. Never attempt
to bypass its operations.
Drive Control
The drive control is located on the underside of the
upper handle and is used to engage the drive. Squeeze
it against the upper handle to engage the drive; release
it to slow down or stop mower from propelling. See
Figure 4-1.
Mulching Baffle
Instead of collecting the grass clippings in the grass
catcher, your mower has the option of recirculating the
clippings back to the lawn. Remove grass catcher (if
applicable), and operate with the mulching baffle only
for this purpose.
Cutting Height Adjustment Levers
One adjustment lever is located on each wheel and is
used to adjust the cutting height. All four levers have to
be at the same relative position to ensure a uniform cut.
Recoil Starter
The recoil starter is attached to the right upper handle.
Stand behind the unit and pull the recoil starter rope to
start the unit.
Gas and Oil Fill-Up
1. Check oil level and add oil if necessary. Follow engine
manual for this.
2. Service the engine with gasoline as instructed in the
engine manual. See engine manual for location of oil
and gas fill.
WARNING: Use extreme care when han-
dling gasoline. Gasoline is extremely
flammable and the vapors are explosive.
Never fuel the machine indoors or while
the engine is hot or running. Extinguish
cigarettes, cigars, pipes and other
sources of ignition.
WARNING
The blade control
mechanism is a
safety device. Never
attempt to bypass its
operations.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
Keep hands and feet
away from the chute
area on cutting deck.
Refer to warning
label on the unit.

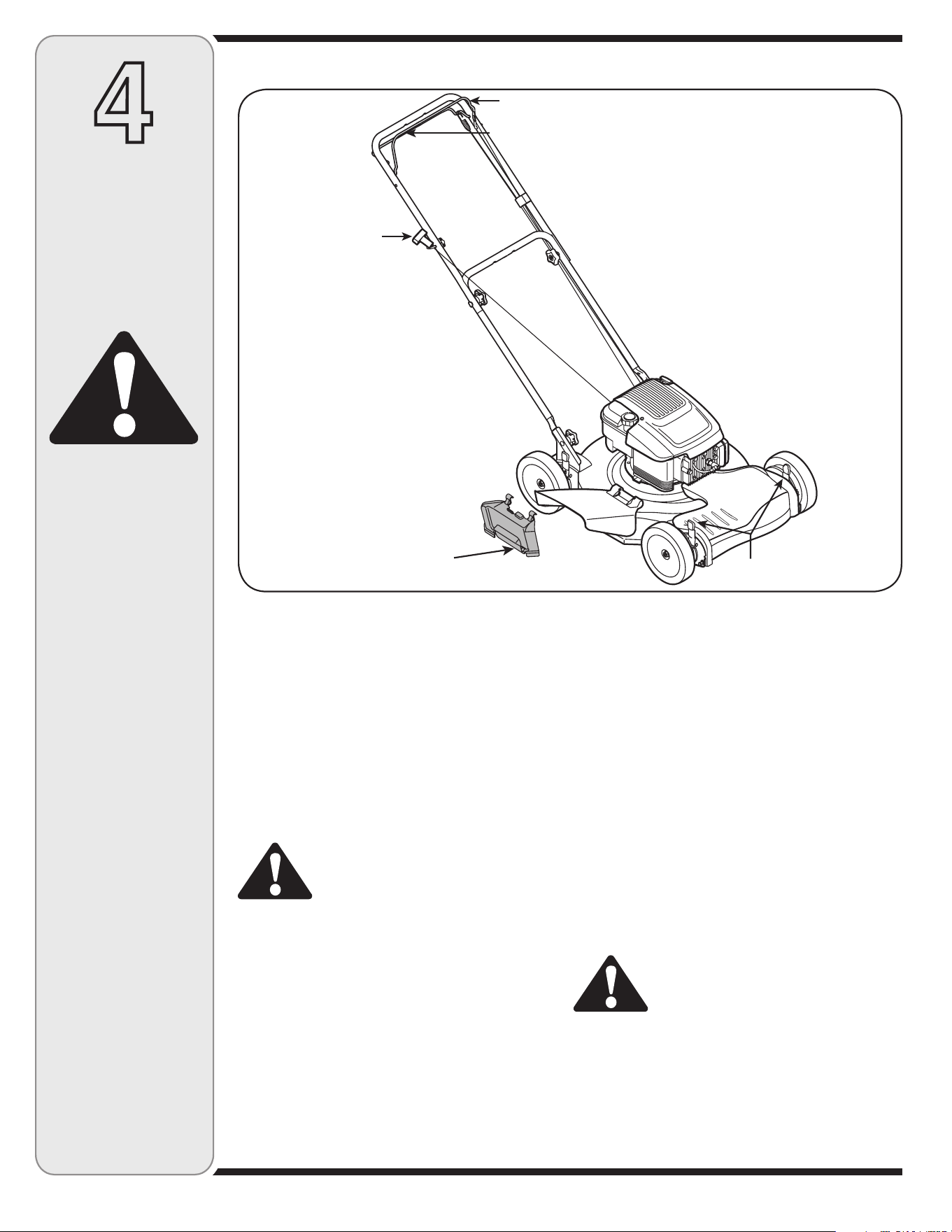

Figure 4-1: Controls and features.
Know Your Lawn Mower
Blade Control
Recoil Starter
Height Adjustment
Levers
Mulching Baffle
Drive Control
9
4
Operating
Your Lawn
Mower
WARNING
The operation of any
lawn mower can result
in foreign objects
being thrown into
the eyes, which can
damage your eyes
severely. Always wear
safety glasses while
operating the mower,
or while performing
any adjustments or
repairs on it.
Be sure no one other
than the operator is
standing near the lawn
mower while starting
engine or operating
mower. Never run
engine indoors or
in enclosed, poorly
ventilated areas. En-
gine exhaust contains
carbon monoxide, an
odorless and deadly
gas. Keep hands, feet,
hair and loose clothing
away from any moving
parts on engine and
lawn mower.
WARNING: The operation of any lawn
mower can result in foreign objects
being thrown into the eyes, which can
damage your eyes severely. Always
wear safety glasses while operating
the mower, or while performing any
adjustments or repairs on it.
Starting Engine
WARNING: Be sure no one other than
the operator is standing near the lawn
mower while starting engine or operat-
ing mower. Never run engine indoors
or in enclosed, poorly ventilated areas.
Engine exhaust contains carbon monox-
ide, an odorless and deadly gas. Keep
hands, feet, hair and loose clothing
away from any moving parts on engine
and lawn mower.
1. Push primer (if equipped) three times. Wait about
two seconds between each push. See Figure 4-2. In
temperature around 55° F or below, prime five times.
Do not prime to restart a warm engine.
2. Standing behind the mower, squeeze the blade control
against upper handle. See Figure 4-2.
3. Holding these two handles together firmly, grasp recoil
starter handle and pull rope out with a rapid, continu-
ous, full arm stroke. See Figure 4-2. Keeping a firm
grip on the starter handle, let the rope rewind slowly.
Repeat until engine cranks. Let the rope rewind each
time slowly.
Stopping Engine
1. Release blade control to stop the engine and blade.
2. Disconnect spark plug wire from spark plug and
ground against the engine.
WARNING: Wait for the blade to stop
completely before doing any work
on the mower or to remove the grass
catcher.
Using Your Lawn Mower
WARNING: Never operate your mower
without either the rear door or the entire
grass catcher assembly firmly secured.
Be sure lawn is clear of stones, sticks, wire, or other
objects which could damage lawn mower or engine.
Such objects could be accidently thrown by the mower
in any direction and cause serious personal injury to the
operator and others.
WARNING: If you strike a foreign
object, stop the engine. Remove
wire from the spark plug, thoroughly
inspect mower for any damage, and
repair damage before restarting and
operating. Extensive vibration of
mower during operation is an indica-
tion of damage. The unit should be
promptly inspected and repaired.
1. Once the engine is running, squeeze the drive
control against the upper handle to propel mower.
2. For best results, do not cut wet grass.
3. For a healthier lawn, never cut off more than one-
third of the total length of the grass.
Using as Mulcher
For mulching grass, remove the grass catcher (if
apllicable) and install mulching baffle following instruc-
tions in “Setup and Adjustment”.
1. For effective mulching, do not cut wet grass.
2. New or thick grass may require a narrower cut.
Adjust ground speed according to condition of lawn.
3. If the grass has been allowed to grow in excess of
4 inches, mulching is not recommended. Use the
grass catcher to bag clippings instead.

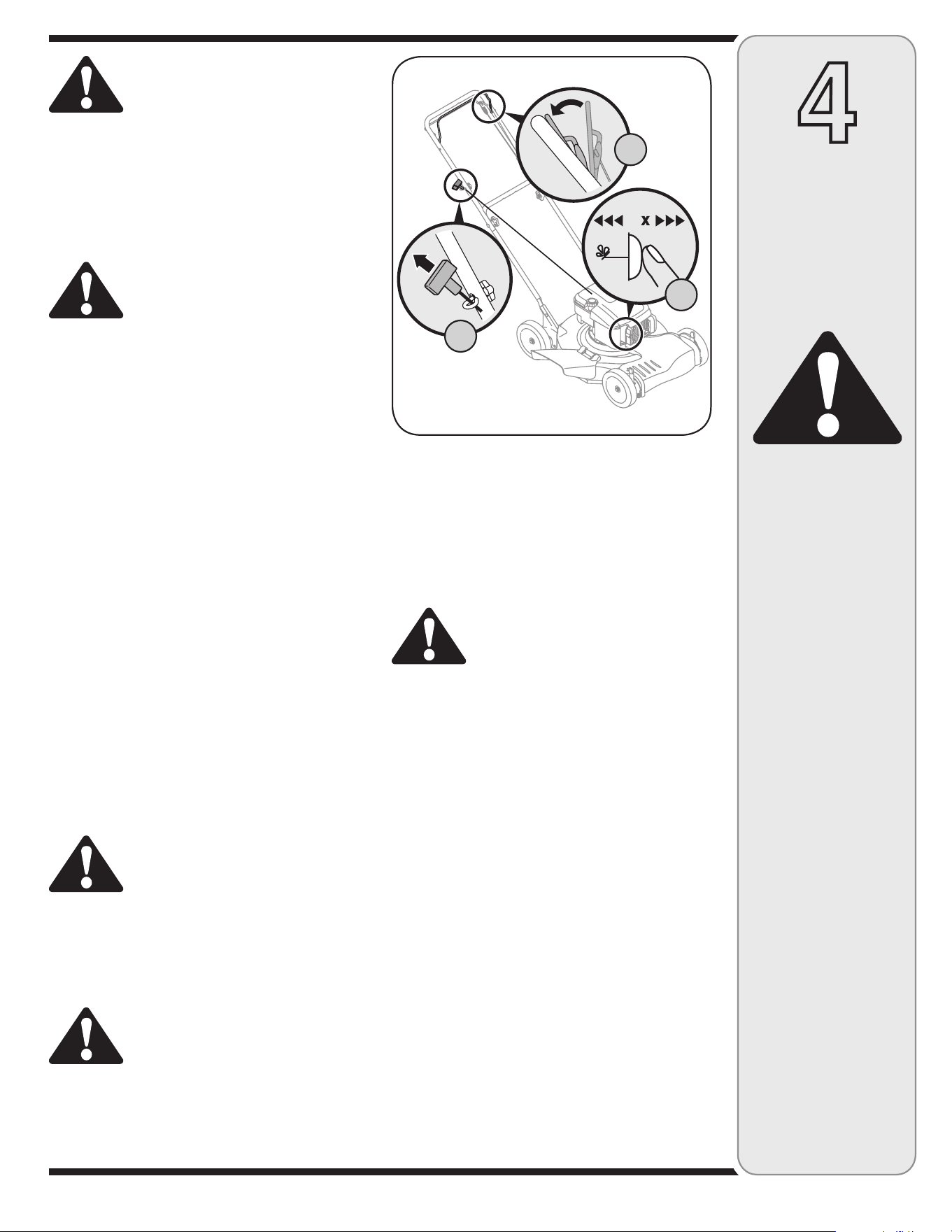

Figure 4-2: Starting engine.
3
2
3
1
10
5
Maintaining
Your Lawn
Mower
WARNING
Always stop engine,
disconnect spark
plug, and ground
against engine before
cleaning, lubricating
or doing any kind of
maintenance on your
machine.
NOTE: We do not
recommend the use
of pressure washers
or garden hose to
clean your unit. These
may cause damage to
electric components,
spindles, pulleys, bear-
ings, or the engine. The
use of water will result
in shortened life and
reduce serviceability.

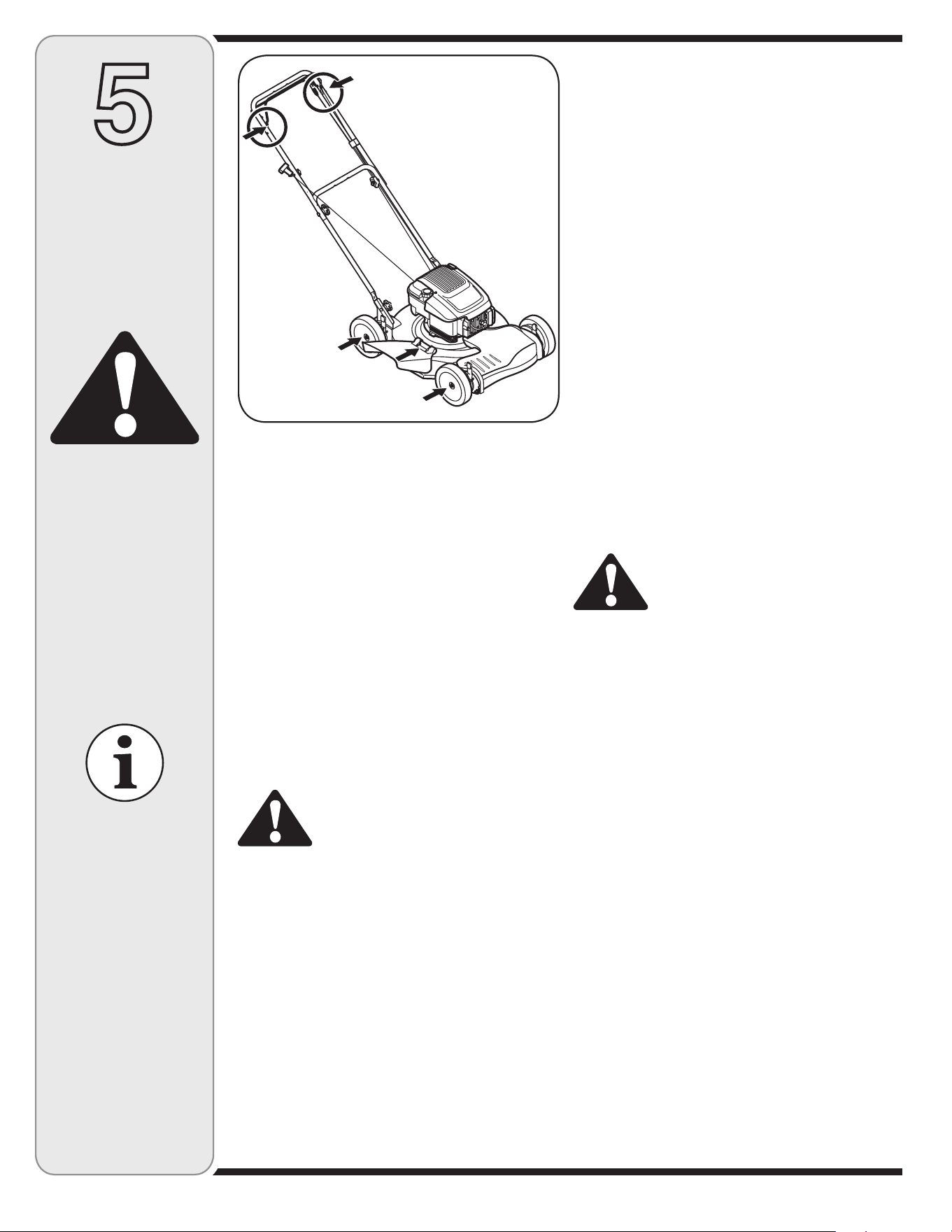

Figure 5-1: Lubrication areas.
General Recommendations
1. Always observe safety rules when performing
any maintenance.
2. The warranty on this lawn mower does not cover
items that have been subjected to operator abuse
or negligence. To receive full value from warranty,
operator must maintain the lawn mower as
instructed here.
3. Changing of engine-governed speed will void
engine warranty.
4. All adjustments should be checked at least once
each season.
5. Periodically check all fasteners and make sure these
are tight.
WARNING: Always stop engine,
disconnect spark plug, and ground
against engine before cleaning,
lubricating or doing any kind of
maintenance on your machine.
Lubrication
1. Lubricate pivot points on the blade control and drive
control at least once a season with light oil. These
controls must operate freely in both directions. See
Figure 5-1.
2. Lubricate the wheels at least once a season with
light oil (or motor oil). If wheels are removed for any
reason, lubricate surface of the pivot arm and inner
surface of the wheel with light oil. See Figure 5-1.
3. Lubricate the torsion spring and pivot point on each
end of the side mulching baffle/ chute deflector
periodically with light oil to prevent rust. See Figure
5-1.
4. The transmission is pre-lubricated and sealed at the
factory and does not require lubrication.
5. Follow the accompanying engine manual for lubrica-
tion schedule and instruction for engine lubrication.
Deck Care
1. Disconnect spark plug wire. Drain gasoline from lawn
mower, or place a piece of plastic under the gas cap.
2. Tip mower so that it rests on the housing. Keep the
side with the air cleaner facing up. Hold mower firmly.
WARNING: Never tip the mower more
than 90 degrees in any directions and
do not leave the mower tipped for any
length of time. Oil can drain into the
upper part of the engine causing a
starting problem.
3. Scrape and clean the underside of the deck with a
suitable tool. Do not spray with water.
4. Put the mower back on its wheels on the ground. If
you had put plastic under the gas cap earlier, make
sure to remove it now.
Engine Care
1. Maintain oil level as instructed in engine manual.
2. Service air cleaner every 25 hours under normal
conditions. Clean every few hours under extremely
dusty conditions. Refer to engine manual.
3. Clean spark plug and reset the gap once a season.
Check engine manual for correct plug type and gap
specifications.
4. Clean engine regularly with a cloth or brush. Keep the
cooling system (blower housing area) clean to permit
proper air circulation. Remove all grass, dirt and
combustible debris from muffler area.
11
5
Maintaining
Your Lawn
Mower
WARNING
When removing
the cutting blade
for sharpening or
replacement or
when sliding the belt
around it, protect
your hands with a
pair of heavy gloves
or use a heavy rag to
hold the blade.
An unbalanced blade
will cause excessive
vibration when rotat-
ing at high speeds. It
may cause damage
to mower, and could
break causing per-
sonal injury.
Blade Care
WARNING: When removing cutting
blade for sharpening or replacement,
protect your hands with a pair of heavy
gloves or use a heavy rag to hold blade.
1. Disconnect spark plug wire from spark plug. Turn
mower on its side making sure that the air filter and
the carburetor are up.
2. Remove bolt, bell washer, blade, and blade adapter
from the engine crankshaft. See Figure 5-2.
3. The blade can be sharpened with a file or on a grind
-
ing wheel. Do not attempt to sharpen the blade while
it is still on the mower. When sharpening blade, follow
original angle of grind. Grind cutting edges equally to
keep blade balanced.
4. Remove blade from the adapter for testing balance.
Balance the blade on a round shaft screwdriver to
check. Remove metal from the heavy side until it
balances evenly.
WARNING: An unbalanced blade will
cause excessive vibration when rotating
at high speeds. It may cause damage
to mower, and could break causing
personal injury.
5. Lubricate the engine crankshaft and the inner surface
of the blade adapter with light oil. Slide the blade
adapter onto the engine crankshaft. Place the blade
on the adapter such that the side of the blade marked
“Bottom” (or with part number) faces the ground when
the mower is in the operating position. Make sure that
blade is aligned and seated on blade adapter flanges.
6. Place bell washer on the blade. Replace hex bolt and
tighten hex bolt to torque: 450 in. lbs. min., 600 in. lbs.
max.
To ensure safe operation of your mower, periodically
check the blade bolt for correct torque.
Belt Care
1. Remove the front drive cover by sliding off the
two plastic rivets on each side of the cover with a
screwdriver. See Figure 5-3.
2. Disconnect belt tension spring from transmission. See
Figure 5-3.
3. Push transmission up a little and slide belt off the
transmission pulley. Lift mower to access belt from
underside of mower. Slide belt off of engine pulley and
around the blade. See Figure 5-4.
4. Replace with new belt, working around blade. Make
sure belt is firmly seated on engine pulley while
pulling from the other side and sliding it around the
transmission pulley. Secure belt tension spring to the
transmission. Reassemble front drive cover.

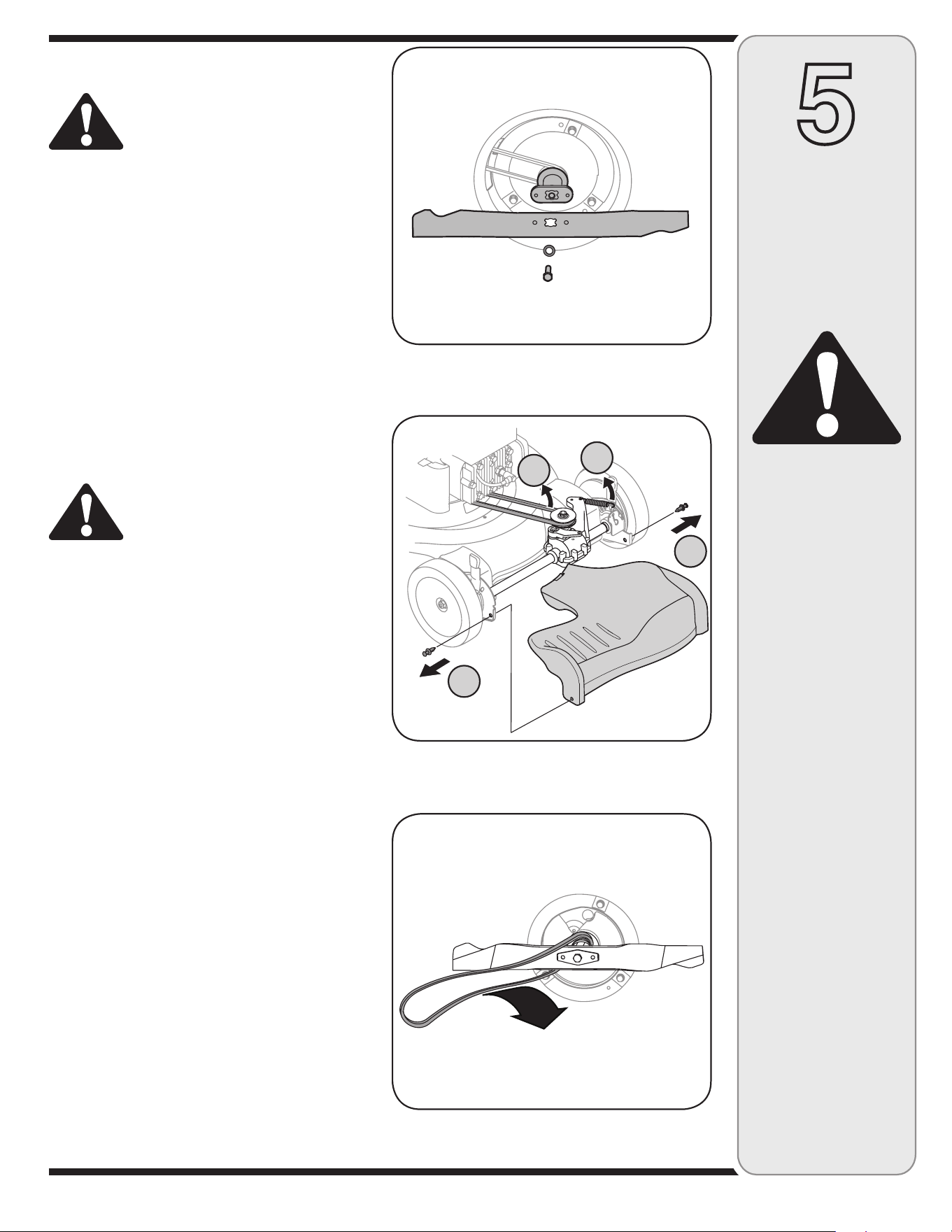

Figure 5-2: Removing blade and hardware.
Figure 5-3: Removing front drive cover.
Figure 5-4: Removing belt.
1
1
3
2
12
For repairs beyond
the minor adjustments
listed here, contact
an authorized service
dealer.
6
Trouble
Shooting
Cause
Problem
Remedy
Engine fails to start
1. Blade control disengaged.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed (if equipped with
primer).
5. Faulty spark plug.
6. Blocked fuel line.
7. Engine flooded.
8. Fuel valve (if equipped) closed.
9. Engine not choked (if equipped w/choke).
1. Engage blade control.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Prime engine as instructed in “Operat
-
ing Your Lawn Mower”.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Wait a few minutes to restart, but do
not prime.
8. Open fuel valve. See engine manual.
9. Choke engine. See engine manual.
Engine runs erratic
1. Connect and tighten spark plug wire.
2. Clean fuel line; fill tank with clean,
fresh gasoline.
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Refer to engine manual.
6. Refer to engine manual.
1. Spark plug wire loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
Engine overheats
1. Fill crankcase with proper oil.
2. Remove blower housing
and clean.
3. Refer to engine manual.
1. Engine oil level low.
2. Air flow restricted.
3. Carburetor not adjusted properly.
Occasional skips
(hesitates) at
high speed
1. Adjust gap to .030”.
2. Refer to engine manual.
1. Spark plug gap too close.
2. Carburetor idle mixture adjustment
improperly set.
Idles poorly
1. Reset gap to .030” or replace
spark plug.
2. Refer to engine manual.
3. Refer to engine manual.
1. Spark plug fouled, faulty or gap
too wide.
2. Carburetor improperly adjusted.
3. Dirty air cleaner.
Mower will not
mulch grass (If
Equipped)
1. Do not mow when grass is wet; wait
until later to cut.
2. Mow once at a high cutting height,
then mow again at desired height or
make a narrower cutting path.
3. Sharpen or replace blade.
1. Wet grass.
2. Excessively high grass.
3. Dull blade.
Uneven cut
1. Place all four wheels in same
height position.
2. Sharpen or replace blade.
1. Wheels not positioned correctly.
2. Dull blade.
Excessive
Vibration
1. Cutting blade loose or unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance
blade.
2. See an authorized service dealer.
Mower will not
self propel
1. Check belt for proper pulley installation
and movement.
2. Stop engine, disconnect spark plug
wire and clean out debris.
3. Inspect and replace belt.
1. Belt not installed properly.
2. Debris clogging drive operation.
3. Damaged or worn belt.
13
7
WARNING
DO NOT remove safety
(or any) labels from
mower for any reason.
Off-Season Storage
The following steps should be taken to prepare your lawn
mower for storage.
1. Clean and lubricate mower thoroughly as described in
the lubrication instructions.
2. We do not recommend the use of a pressure washer
or garden hose to clean your unit.
3. Refer to engine manual for correct engine
storage instructions.
4. Coat mower’s cutting blade with chassis grease to
prevent rusting.
5. Store mower in a dry, clean area. Do not store next
to corrosive materials, such as fertilizer.
When storing any type of power equipment in a poorly
ventilated or metal storage shed, care should be taken
to rust-proof the equipment. Using a light oil or silicone,
coat the equipment, especially cables and all moving
parts of your lawn mower before storage.

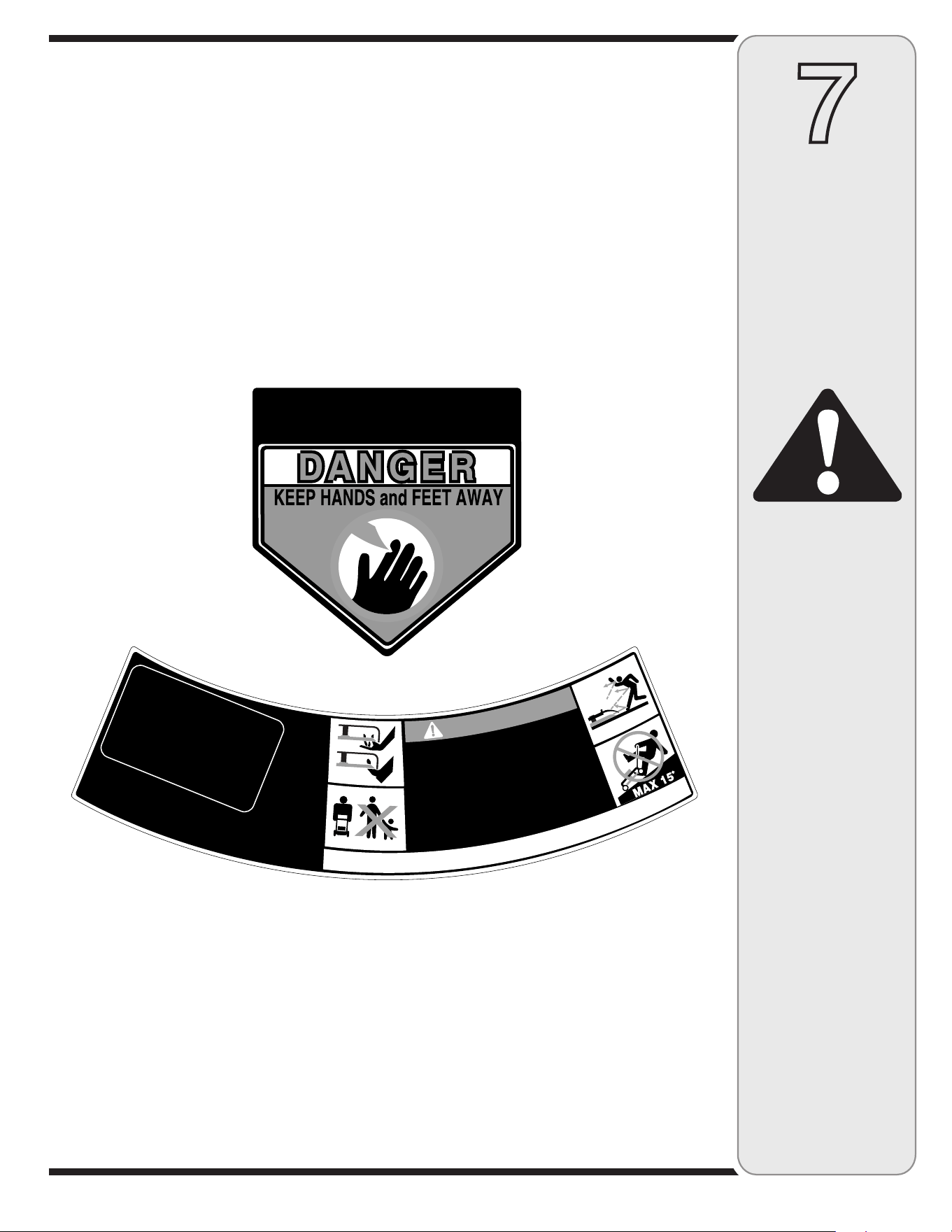

Safety Labels Found On Your Lawn Mower
Off Season
Storage
and Safety
Labels
2
/
7
D
A
N
G
E
R
E
R
E
H
E
T
A
L
P
L
E
D
O
M
E
C
A
L
P
•
K
E
E
P
H
A
N
D
S
A
N
D
F
E
E
T
A
W
A
Y
F
R
O
M
R
O
T
A
T
I
N
G
P
A
R
T
S
.
A
V
O
I
D
S
E
R
I
O
U
S
I
N
J
U
R
Y
O
R
D
E
A
T
H
•
R
E
M
O
V
E
O
B
J
E
C
T
S
T
H
A
T
C
A
N
B
E
T
H
R
O
W
N
B
Y
T
H
E
B
L
A
D
E
I
N
A
N
Y
D
I
R
E
C
T
I
O
N
.
W
E
A
R
S
A
F
E
T
Y
G
L
A
S
S
E
S
.
•
D
O
N
O
T
M
O
W
W
H
E
N
C
H
I
L
D
R
E
N
O
R
O
T
H
E
R
S
A
R
E
A
R
O
U
N
D
.
•
U
S
E
E
X
T
R
A
C
A
U
T
I
O
N
O
N
S
L
O
P
E
S
.
D
O
N
O
T
M
O
W
S
L
O
P
E
S
G
R
E
A
T
E
R
T
H
A
N
1
5
˚
.
M
O
W
A
C
R
O
S
S
,
N
E
V
E
R
U
P
A
N
D
D
O
W
N
.
N
E
V
E
R
P
U
L
L
M
O
W
E
R
C
L
O
S
E
T
O
Y
O
U
R
F
E
E
T
.
L
O
O
K
D
O
W
N
A
N
D
B
E
H
I
N
D
B
E
F
O
R
E
A
N
D
W
H
I
L
E
M
O
V
I
N
G
B
A
C
K
W
A
R
D
S
.
R
E
A
D
O
P
E
R
A
T
O
R
'
S
M
A
N
U
A
L
.
K
E
E
P
S
A
F
E
T
Y
D
E
V
I
C
E
S
(
B
L
A
D
E
C
O
N
T
R
O
L
,
T
R
A
I
L
I
N
G
S
H
I
E
L
D
,
D
I
S
C
H
A
R
G
E
C
O
V
E
R
E
T
C
.
)
I
N
P
L
A
C
E
A
N
D
W
O
R
K
I
N
G
.
I
F
D
A
M
A
G
E
D
,
R
E
P
L
A
C
E
I
M
M
E
D
I
A
T
E
L
Y
.
TO REDUCE THE RISK OF INJURY, DO NOT
OPERATE UNLESS DISCHARGE COVER OR
GRASS CATCHER IS IN ITS PROPER PLACE.
IF DAMAGED, REPLACE IMMEDIATELY.
14
Model Series 260
Wheel Treads
Bar Tread
Zag Tread
3
4
5
1
13
50
9
47
46
48
34
35
33
23
32
24
31
12
12
15
16
14
10
6
7
2
42
41
38
39
43
11
49
17
28
26
36
27
25
53
30
20
22
21
29
44
53
43
40
45
20
54
52
39
19
51
38
18
20
8
55
37
15
8
Parts List
Ref.
No.
Part No. Description
1. 747-1214 Drive Control
2. 747-1161A Blade Control
3. 746-1113 Control Cable - 37.75”
746-1114 Control Cable - 50.56”
4. 746-04204 Drive Control Cable
5. 749-1092A Upper Handle
6. 710-1205 Eye Bolt
7. 720-0279 Wing Nut, 1/4-20
8. 732-1026 Spring Lever
9. 631-04045 Mulching Baffle
10. 710-1174 Carriage Bolt, 5/16-18 x 2.0
11. 748-0390 Bearing Support Spacer
12. 720-04072 Wing Nut
13. 749-04037 Lower Handle
14. 725-0157 Cable Tie
15. 17098 Hinge Clip
16. 731-04019 Trail Shield
17. 710-0599 Hex Screw, 1/4-20 x.500
18. 682-3064 Handle Bracket Assy - RH
19. 736-0741 Bell Washer, .760 x 1.25 x.041
20. 712-04065 Lock Nut, 3/8-16
21. 682-3065 Handle Bracket Assembly - LH
22. 687-02046 22” Deck Assembly
23. 710-0654A Hex Washer Scr., 3/8-16 x 1.0
24. 754-04100 V-Belt, 3L x 32.90
25. 782-0585A Forward Height Adj. Plate - LH
26. 728-0199 Rivet
27. 750-04407 Sleeve Spacer, .550 ID x 2.22
28. 716-0198 Retainer Ring
29. 618-04375A Transmission Assy. Comp.
30. 750-04406A Sleeve Spacer, .550 ID x 8.51
Ref.
No.
Part No. Description
31. 731-0073 Transmission Cover
731-04636 Transmission Cover - Yellow
32. 748-04016A Blade Adapter
33. 742-0742A 22” Mulching Blade
34. 736-0452 Washer, Bell, .396 x 1.140 x .095
35. 710-1044 Hex Cap Screw, 3/8-24 x 1.5
36. 782-0584 Forward Hght. Adj. Plate - RH
37. 734-1987 Rear Wheel, 8 x 1.8, Bar
734-04087 Rear Wheel, 8 x 1.8, Bar - Yellow
38. 710-0216 Hex Cap Screw, 3/8-16 x.75
39. 720-0426 Adjustment Knob
40. 716-0865 Snap Ring.500
41. 731-04643 Wheel Dust Cover
42. 715-0221 Pin
43. 717-1762 Spur Gear 14T - RH
717-1761 Spur Gear 14T - LH
44. 732-04049 Ext. Spring, .47 OD x 2.50
45. 634-0190 Front Wheel, 8 x 1.8, Bar
634-04100 Front Wheel, 8 x 1.8, Bar, Yellow
46. 747-0710 Hinge Pin
47. 732-1014 Torsion Spring
48. 731-1034B Side Discharge Assembly
49. 736-0270 Bell Washer, .265 ID x.75 OD
50. 17032A Deflector Chute Adapter
51. 741-0751 Height Adjustment Bearing
52. 687-02051 Rear Hgt. Adj. Lever Assembly
53. 687-02140 Front Lever Assembly - LH
687-02141 Front Lever Assembly - RH
54. 687-02094 Rear Pivot Arm Assembly
55. 738-1173 Shoulder Screw, 3/8-16
IMPORTANT
For a proper working
machine, use Factory
Approved Parts.
V-BELTS are specially
designed to engage
and disengage safely.
A substitute (non OEM)
V-Belt can be danger-
ous by not disengaging
completely.
To order replacement
parts, contact
1-800-800-7310
or visit
www.mtdproducts.com.
The limited warranty set forth below is given by MTD LLC with respect
to new merchandise purchased and used in the United States, its
possessions and territories.
“MTD” warrants this product against defects in material and workman-
ship for a period of two (2) years commencing on the date of original
purchase and will, at its option, repair or replace, free of charge, any
part found to be defective in materials or workmanship. This limited war-
ranty shall only apply if this product has been operated and maintained
in accordance with the Operator’s Manual furnished with the product,
and has not been subject to misuse, abuse, commercial use, neglect,
accident, improper maintenance, alteration, vandalism, theft, fire, water,
or damage because of other peril or natural disaster. Damage resulting
from the installation or use of any part, accessory or attachment not
approved by MTD for use with the product(s) covered by this manual
will void your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of purchase.
Normal wear parts include, but are not limited to items such as: batter-
ies, belts, blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, shave plates, auger spiral rubber and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH
PROOF OF PURCHASE, through your local authorized service
dealer. To locate the dealer in your area, check your Yellow Pages,
or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-
0019, or call 1-800-800-7310 or 1-330-220-4683 or log on to our
Web site at www.mtdproducts.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a
separate manufacturer’s warranty. Refer to applicable manufacturer’s
warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a separate one year
warranty.
c. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to
use or exposure.
d. Service completed by someone other than an authorized service
dealer.
e. MTD does not extend any warranty for products sold or exported
outside of the United States, its possessions and territories, except
those sold through MTD’s authorized channels of export distribution.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
No implied warranty, including any implied warranty of mer-
chantability of fitness for a particular purpose, applies after the
applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. During the period of the warranty, the exclusive remedy
is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental or consequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injury to you and your property and/or to others and
their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to obtain
warranty coverage.
MANUFACTURER’S LIMITED WARRANTY FOR
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683
