INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
PVC 61 SK
CERAMIC COOKTOP
distributed by
ELBA Appliances Australia
(a Division of Fisher&Paykel Australia)
22
33
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features oered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstus. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following
codes and specications:
AS/NZS 60335.1 General Requirements for Domestic electrical appliances
AS/NSZ 60335.2.6
Particular Requirements for Domestic electrical cooking appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements
44
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products and it fullls all the safety requirements shown
in this manual, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
• After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
55
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
• Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
• Do not cover the hob with aluminium foils.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in bare feet.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
• After use, ensure that the controls are in the o position.
• Children less than 8 years of age shall be kept away unless
continuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
66
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o the appliance and then cover ame e.g.
with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• Do not place or leave empty pans on the glass ceramic hob.
• Do not allow heavy or sharp objects to drop on the glass ceramic
hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
• Models provided with power supply cable. If the power supply
cable is damaged, it must be replaced only by an authorised
service agent in order to avoid a hazard.
77
• If the appliance is not tted with a supply cord and a plug, or with
other means for disconnection from the supply mains having a
contact separation in all poles that provide full disconnection under
overvoltage category III conditions, means for disconnection
must be incorporated in the xed wiring in accordance with the
wiring rules.
• WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
• WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
• Do NOT place combustible materials or products on this appliance
at any time.
• Do NOT spray aerosols in the vicinity of this appliance while it is
in use.
• IMPORTANT NOTE: This appliance shall not be used as a space
heater, especially if installed in marine craft or caravans.
88
99
Advice for
the installer
1010
IMPORTANT:
• The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments
and could aect any third party or public liability insurances you may have.
• This appliance is to be installed only by an authorised person according to the current
local regulations and in observation of the manufacturer’s instructions.
Failure to comply with this condition will render the guarantee invalid.
• Incorrect installation, for which the manufacturer accepts no responsibility, may cause
personal injury of damage.
• This appliance shall only be serviced by authorized personnel.
• Always disconnect the cooktop from mains power supply before carrying out any
maintenance operations or repairs.
• Important: The use of suitable protective clothing/gloves is recommended when
handling or installing this appliance.
• The appliance must be housed in heat resistant units.
• The walls of the units must not be higher than work top and must be capable of
resisting temperatures of 70 °C above room temperature.
• We would point out that the adhesive which bonds the plastic laminate to the
furniture must withstand temperatures not less than 150 °C to avoid delamination.
• Standard installation (not ush): Do not seal the cooktop into the benchtop with
silicone or glue; this makes future servicing dicult. Elba Appl. AUS Service Agent
will not cover the costs of removing the cooktop, or of damage caused by this
removal.
• Do not install the appliance near inammable materials (eg. curtains).
WARNING
When correctly installed, your product meets all safety requirements laid down for
this type of product category.
However special care should be taken around the underneath of the appliance as
this area is not designed or intended to be touched and may contain sharp or rough
edges, that may cause injury.
INSTALLATION
1
1111
Measures (mm)
Description A (*) B (*) C (**) D D1 E E1
60cm wide models 600 520
50 or 55 for
ush
installation
560 605 480 525
(*) For models with metal trim/s add 4mm to the measurement for each trim.
Example: front metal trim= B+4mm.
(**) from the top of countertop to bottom of cooktop.
FLUSH INSTALLATION (MODELS WITHOUT METAL TRIM/S ONLY)
If you wish to install the hob ush with the work surface, it is neccessary to execute/carry
out a miling in the hole of the cut-out as indicated in g. 1.1b.
E
50 mm
D
A
B
C

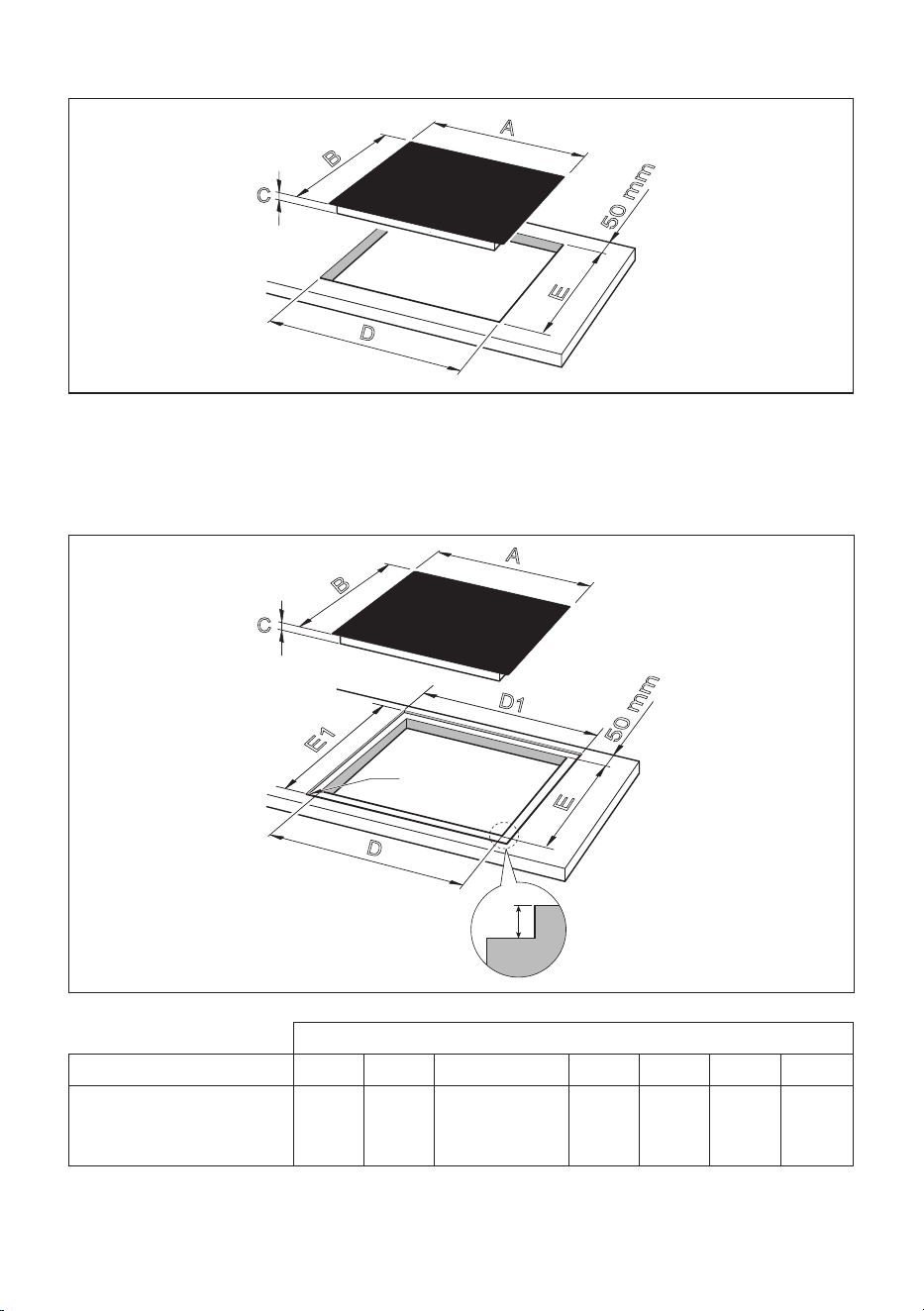

Fig. 1.1a
E
50 mm
D
D1
E1
R7
5
A
B
C
Fig. 1.1b
STANDARD INSTALLATION
1212
FITTING REQUIREMENTS
This cooktop can be built into a working surface from 20 mm thick and 600 mm deep.
In order to install the ceramic hob into the kitchen xture, a hole with the dimensions shown
in gures 1.1a and 1.1b has to be made, keeping in consideration the following:
• A 20 mm ventilation gap must be provided between the bottom of the appliance and any
cabinetry, draw unit or oven (g. 1.3).
• If the cooktop is installed above an oven, the oven shall be provided with cooling fan.
The two appliances should be connected to the electrical supply with independent
connections.
• The ceramic hob must be kept no less than 50 mm away from any side wall
(from side
edge of cutout).
• The rear wall must be at least 50 mm from the ceramic hob
(from rear edge of cutout).

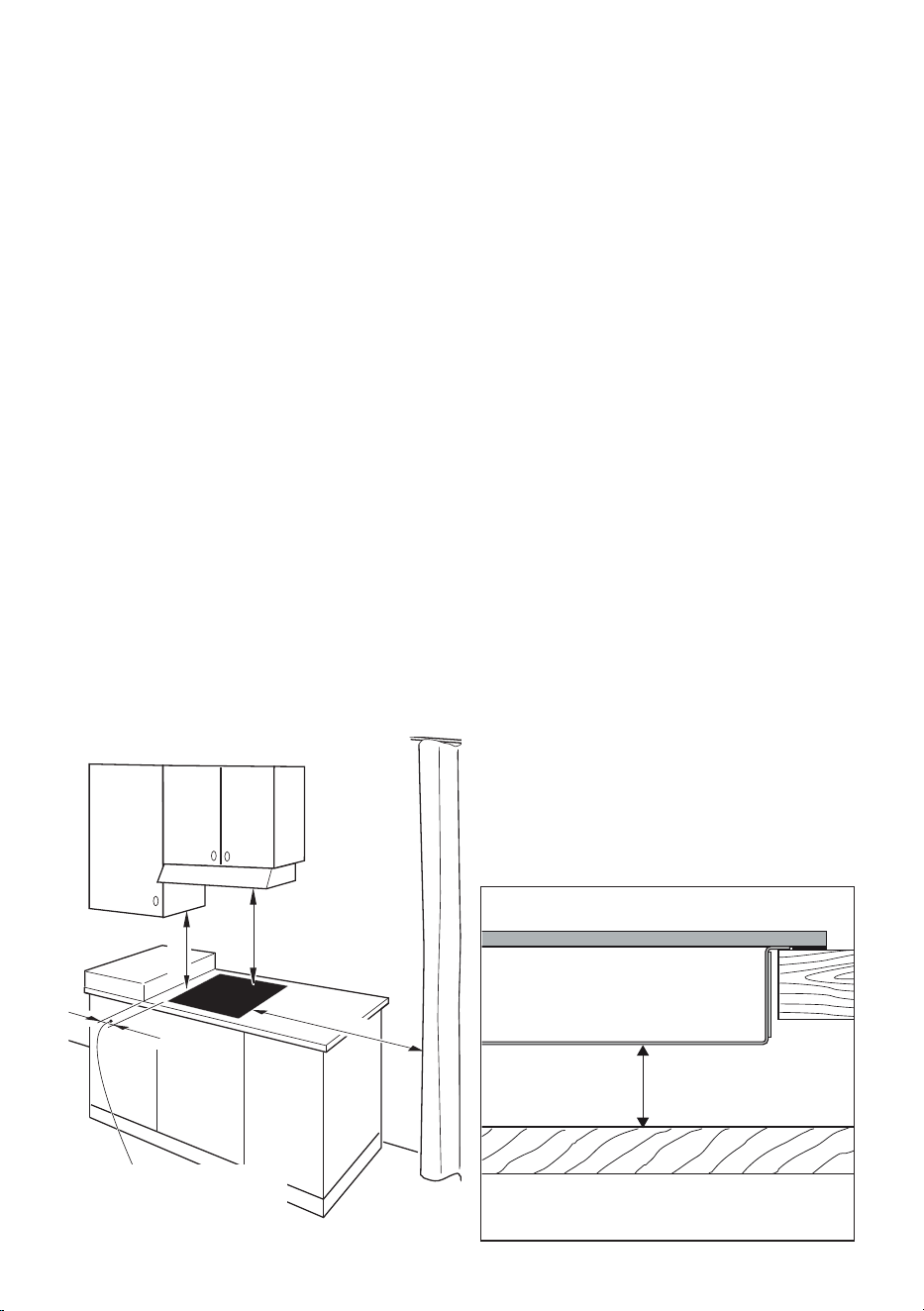

• There must be a distance of at least 650 mm between the hob and any wall cupboard
or extractor hood positioned immediately above (see g. 1.2).
• Standard installation (not ush): Do not seal the cooktop into the benchtop with silicone
or glue; this makes future servicing dicult. Elba Appl. AUS Service Agent will not
cover the costs of removing the cooktop, or of damage caused by this removal.
• The walls surrounding the cooktop must be made of heat-resistant material.
• Do not install the appliance near inammable materials (eg. curtains).
min
20 mm
Fig. 1.3
650 mm
500 mm
450 mm
Fig. 1.2
50 mm minimum
between the side of the
cut-out and the side wall
1313
FASTENING THE COOKTOP
Each cooktop is provided with an installation kit including brackets and screws for fastening
the cooktop to benches from 20 mm thick. Before you install the cooktop, make sure that
the work surface is square and level, and no structural members interfere with space
requirements previously indicated.
The kit includes four metal clips “B” and four self-threading screws “A” (g. 1.4).
• Cut the unit according to the dimensions in g. 1.1a or 1.1b.
• Turn the hob upside down and rest the glass side on a soft surface.
• Spread the seal “D” around the edge of the hob (g. 1.5).
• Fasten the metal clips “B” into the hole “C” using the screws A”. Make sure that the
metal clips are mounted correctly as shown in the gure 1.4.
• Put the cooktop into the cutout and position it correctly.
• Using a sharp cutter or trimmer knife, trim the excess sealing material around the edge
of the cooktop. Take care not to damage the workbench.
• In case to install the hob ush with the work surface, ll any gaps between the glass
and along the perimeter of the work surface with insulating silicone, and wipe away
any excess.
D
D
Adhesive side
Adhesive side
Fig. 1.5
C
B
A
B
A

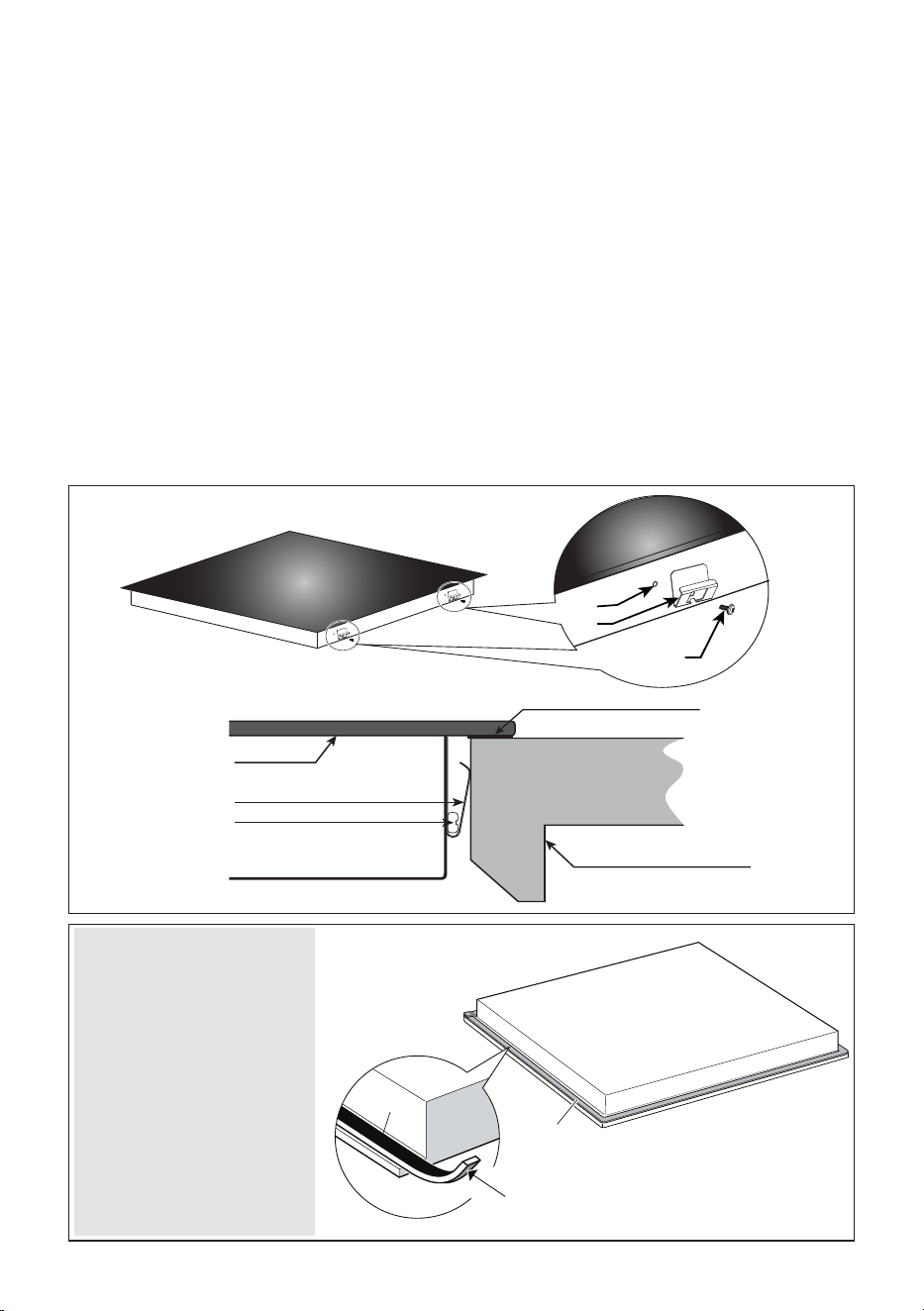

Fig. 1.4
Glass
Metal clips
Fixing screw
Worktop / kitchen cabinet
Seal “D”
IMPORTANT: Spread
the sealing material “D”
around the edge of the
hob (edge of the glass).
The sealing material
“D” must be installed
correctly to guarantee a
perfect seal between the
appliance and the unit.
Incorrect installation may
cause irreparable damage
to the appliance.
1414
ELECTRICAL SECTION
2
IMPORTANT: Installation must be carried out according to the manufacturer’s
instructions. Incorrect installation may cause harm and damage to people,
animals or property, for which the manufacturer accepts no responsibility.
Before carrying out any work on the electrical section of the appliance, it must be
disconnected from the mains.
Connection to a good earth wiring system is absolutely essential.
The manufacturer accepts no responsibility for any inconvenience caused by
failure to comply with this rule.
If the hob surface is cracked disconnect the appliance from the mains and contact
the After-Sales Service.
ELECTRICAL REQUIREMENTS
• Connection to the electric power supply must be carried out by a qualied technician
and following the appropriate safety regulations.
• The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
• The appliance should be connected directly to the mains placing an omnipolar switch with
minimum opening between the contacts of 3 mm between the appliance and the mains
(Australia and New Zealand only: means providing full disconnection under overvoltage
category III conditions must be incorporated in the xed wiring in accordance with
AS/NZS 3000).
• The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 50°C above ambient.
• Once the appliance has been installed, the switch must always be in a accessible
position.
N.B. For connections to the mains power supply, never use adaptors, reductions or
multiple power points as these may overheat and catch re.
In the event that installation should require modications to the mains supply wiring system,
it is recommended that a qualied technician be called to carry out substitution.
He should also check that the domestic electrical system is suitable for the power absorbed
by the appliance.
VOLTAGE AND POWER CONSUMPTION
220-240/380-415 V 3N 50-60 Hz 5900 W (25.65 A) @230V (diversity not applied)
1515
CONNECTION OF THE POWER SUPPLY CABLE
Important! This cooktop must be connected to the electricity supply only by an
authorised person.
To connect the feeder cable to the hob it is necessary to carry out the following operations:
• Unhook the terminal board cover “A” by inserting a screwdriver into the two hooks “B”
(g. 2.1). Open completely the terminal block cover “A”.
• Unscrew the screw “C”, then unhook the cable clamp “D” by inserting a screwdriver
into the hook “E”. Remove completely the cable clamp “D” (g. 2.1).
• Connect the phase, neutral and earth wires to terminal board “F” according to the
diagrams in g. 2.2; the U bolts “G” (g. 2.1) shall be used as indicated in the diagrams
in g. 2.2 (they are supplied already tted to the terminals or inside the terminal board,
behind the cover).
• Strain the feeder cable and block it with cable clamp “D” (by hooking hook “E” and
screwing screw “C”).
• Close the cover “A” of the terminal board “F” (check the two hooks “B” are correctly hooked).
NOTE: The earth conductor must be left about 3 cm longer than the others.
The operations must be executed by a qualied technician.
FEEDER CABLE SECTION “Type H05RR-F or “H05V2V2-F (resistance to
temperatures of 90°C)”
220-240 V ac (V 2 ac) 3 x 2,5 mm
2
(*) (**)
380-415 V 2N ac 4 x 1,5 mm
2
(*)
380-415 V 3N ac 5 x 1,5 mm
2
(*)
(*) Connection with wall box connection.
(**) Diversity factor applied. A diversity factor may be applied to the total loading of the
appliance only by a suitably qualied person.
FEEDER CABLE SECTION “Type H05RR-F, H07RN-F or H05V2V2-F
(resistance to temperatures of 90°C)”
220-240 V ac (V 2 ac) 3 x 2,5 mm
2
(*) (**) or 3 x 4 mm
2
(*) or 5 x 1,5 mm
2
(*)
380-415 V 2N ac 5 x 1,5 mm
2
(*) (***), some models only
380-415 V 3N ac 5 x 1,5 mm
2
(*) (***), some models only
(*) Connection with wall box connection.
(**) Diversity factor applied. A diversity factor may be applied to the total loading of the
appliance only by a suitably qualied person.
(***) See also “MODELS SUPPLIED WITH POWER CORD 5x1,5 mm
2
ALREADY FITTED
TO THE APPLIANCE”
MODELS SUPPLIED WITHOUT POWER CORD
ALREADY FITTED TO THE APPLIANCE
MODELS SUPPLIED WITH POWER CORD
ALREADY FITTED TO THE APPLIANCE
1616
1
2
1
2
A
B
B
E
F
G
C
D

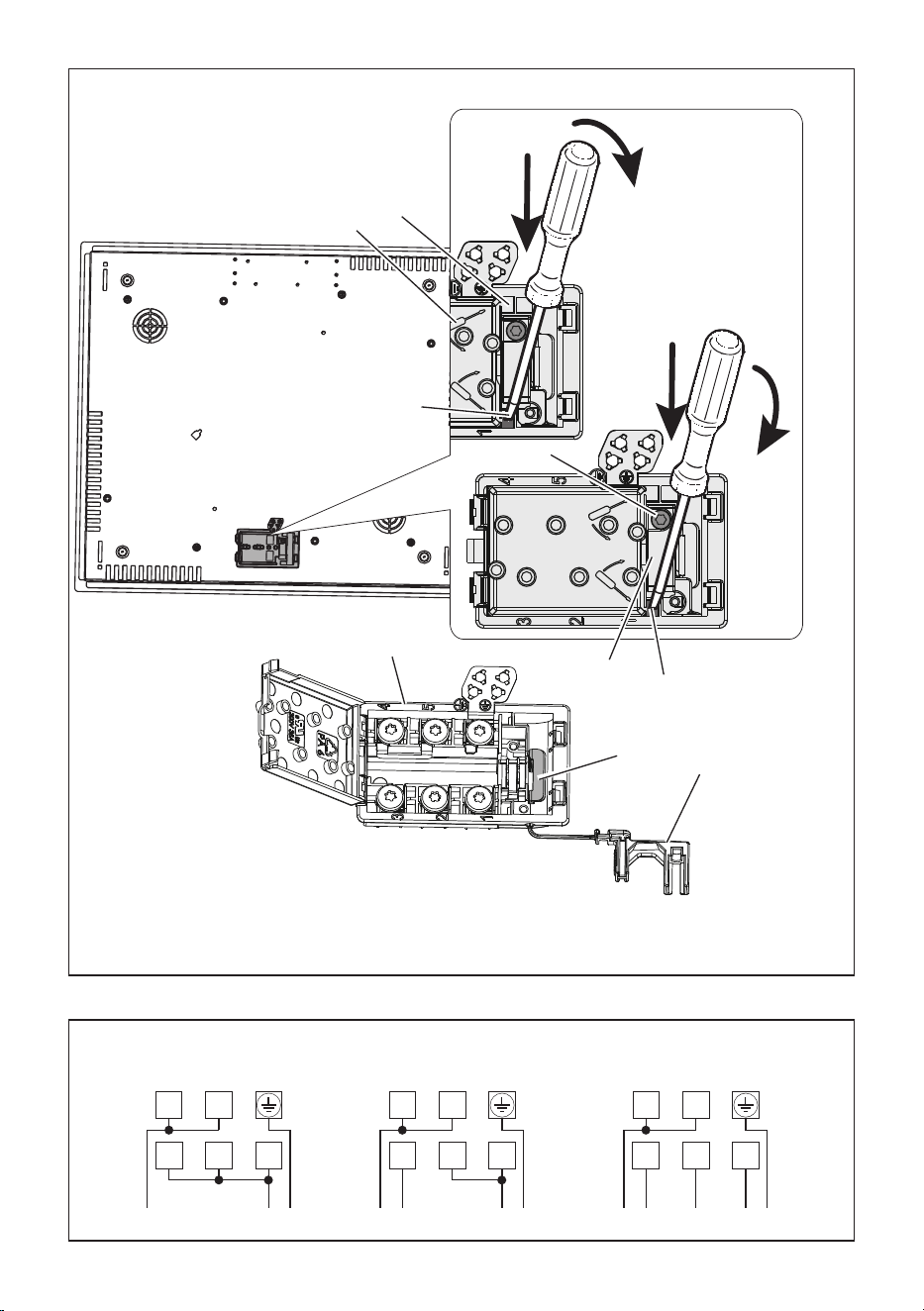

Fig. 2.1
D
220 - 240 V~
L
1N (L2) PE
4
2
5
1
3
380 - 415 V 2N~
L
1N PE
4
2
5
1
3
L2
380 - 415 V 3N~
L
3N PE
4
2
5
1
3
L1 L2

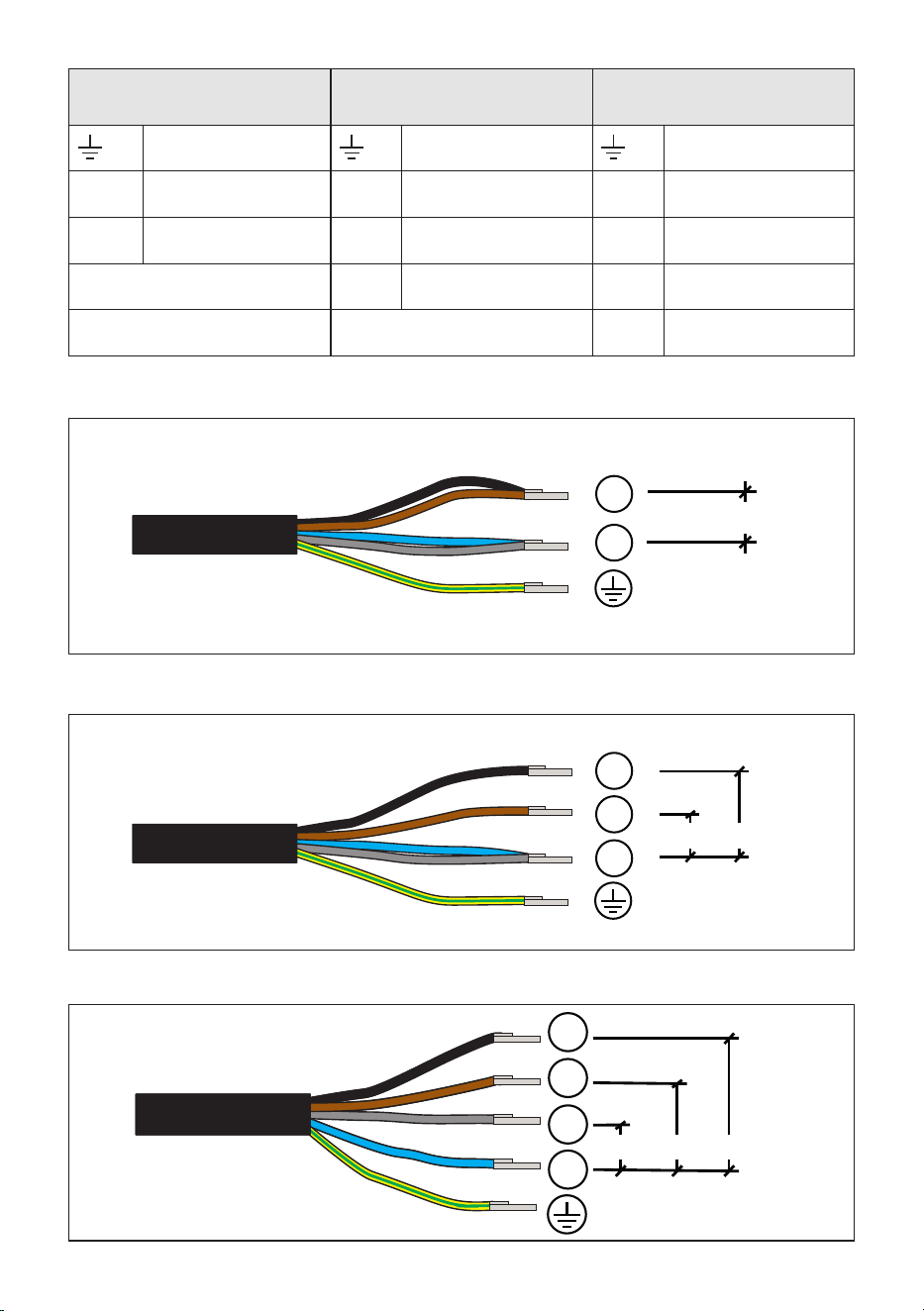

Fig. 2.2
220 - 240 V ac (V 2 ac) 380 - 415 V 2N ac 380 - 415 V 3N ac
1717
ATTENTION!
All the operations/electrical connections must be carried out by a qualied technician.
CAUTION!
Do not pierce or weld the terminal ends of the wires. This is strictly forbidden!
CAUTION!
Do not connect the power cord to the electrical power supply without the metallic terminals
correctly in place.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualied person in order to avoid a hazard.
• The cooktop is supplied with a power cord already tted to the appliance and it is
suitable for a single-phase type electrical connection (g. 2.3).
• For the two-phase type electrical connection (g. 2.4):
– separate the black and brown wires by removing the metallic terminal;
– remove about 5 mm of the insulation sheathing from the terminal end of the black
and brown wires;
– tightly t a new metallic terminal (1,5 mm) on the terminal end of each wire (black
and brown).
• For the three-phase type electrical connection (g. 2.5):
– disconnect the blue and grey crimped wires from the terminal block and separate
them by removing the metallic terminal on both ends (to access the terminal block
see chapter “CONNECTION OF THE POWER SUPPLY CABLE”). Remove about
5 mm of the insulation sheathing from both the terminal ends of the blue and grey
wires. Tightly t a new metallic terminal (1,5 mm) on both the terminal ends of each
wire (blue and grey). Connect the blue and grey wires respectively to the N and L3
terminals of the terminal block and close its cover.
– separate the black and brown wires by removing the metallic terminal. Remove
about 5 mm of the insulation sheathing from the terminal ends of the black and
brown wires. Tightly t a new metallic terminal (1,5 mm) on the terminal end of each
wire (black and brown).
MODELS SUPPLIED WITH POWER CORD 5x1,5 mm
2
ALREADY FITTED TO THE APPLIANCE
1818
“220-240 V ac (V 2 ac)”
connection
“380-415 V 2N ac”
connection
“380-415 V 3N ac”
connection
Green - Yellow Green - Yellow Green - Yellow
N
Blue and Grey
N
Blue and Grey
N
Blue
L
Black and Brown
L1
Black
L1
Black
/
L2
Brown
L2
Brown
/ /
L3
Grey
L
N
L1
N
L2
220...240 V ac
220...240 V ac
220-240 V ac
380-415 V 2N ac
L
N
L1
N
L2
220...240 V ac
220...240 V ac
220-240 V ac
380-415 V 2N ac
Fig. 2.3
Fig. 2.4
L
N
L1
N
L2
220...240 V ac
220...240 V ac
220-240 V ac
380-415 V 2N ac
L1
L3
L2
380-415 V 3N ac
N
220...240 V ac
Fig. 2.5
380-415 V 3N ac
380-415 V 2N ac
220-240 V ac (V 2 ac)
1919
ELECTRIC DIAGRAM
S1
S2
4
P1
P2
2
4a
S1
S2
4
P1
P2
PILOT
2
S1
S2
4
P1
P2PILOT
2
S1
S2
4
P1
P2
PILOT
2
P1
H
S2
4
P2
H
S2
4
P3
H
S
2
4
4
4A
H
S
2
P4
F1
F2
F3
F4
S1
CR
42
5
31
M
T
ELECTRIC DIAGRAM KEY
F1/F2/F4 Energy regulators (single zones)
F3 Energy regulator (double zone)
P1/P2/P3 Radiant hotplates (single zones)
P4 Radiant hotplate (double zone)
CR Residual heat lamps
S1 Pilot lamp
M Terminal block
T Earth connection
2020
2121
User guide
2222
Fig. 1.1
FEATURES AND TECHNICAL DATA
1
4
5
7
6
8
1
1
3
2
9
2323
Electrical insulation Class I
COOKING ZONES

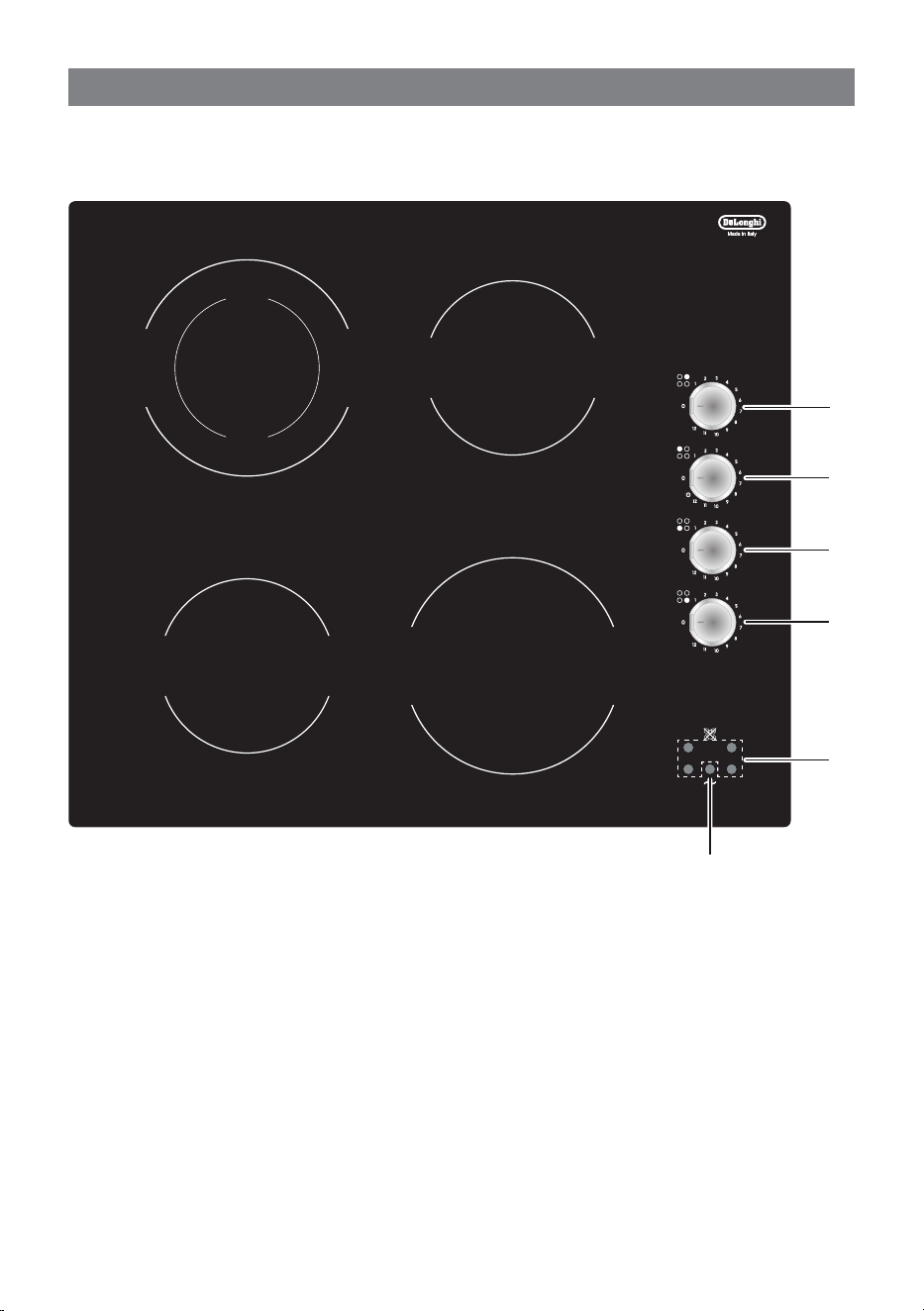

1. ‘Hi-light’ cooking zone Ø 140 mm - 1200 W
2. ‘Hi-light’ cooking zone Ø 180 mm - 1800 W
3. Double ‘Hi-light’ cooking zone Ø 180/120 mm - 1700/700 W
CONTROLS DESCRIPTION
4. Front right cooking zone control knob
5. Front left cooking zone control knob
6. Rear left cooking zone control knob
7. Rear right cooking zone control knob
8. Power on indicator light
9. Residual heat indicators
2424
The ceramic surface of the hob allows a fast transmission of heat in the vertical direction,
from the heating elements underneath the ceramic glass to the pans set on it.
The heat does not spread in a horizontal direction, so that the glass stays “cool” at only a
few centimeters from the cooking plate.
The cooking zones are shown by painted disks on the ceramic surface.
Before switching on the cooktop make sure that it is clean.
Important note:
The heating elements incorporate a thermolimiter that switches the element ON/OFF
during all settings to protect the ceramic glass from overheating.

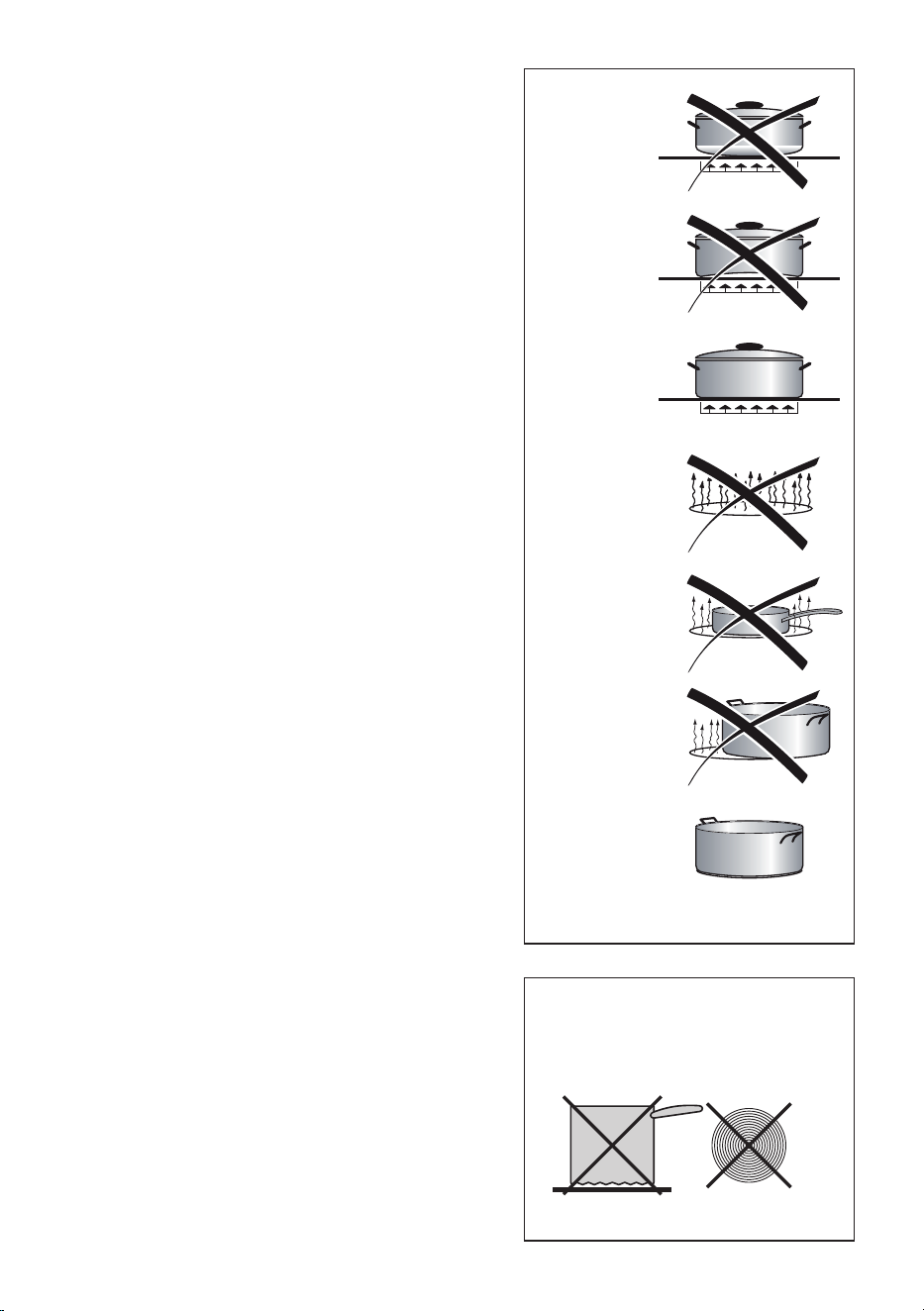

The use of incorrect pans and/or wrong pan positioning will cause the temperature limiter
to operate more frequently, resulting in a reduction of cooking performance.
The temperature limiter can be seen under the glass dissecting the element. This is not a
fault with the appliance.

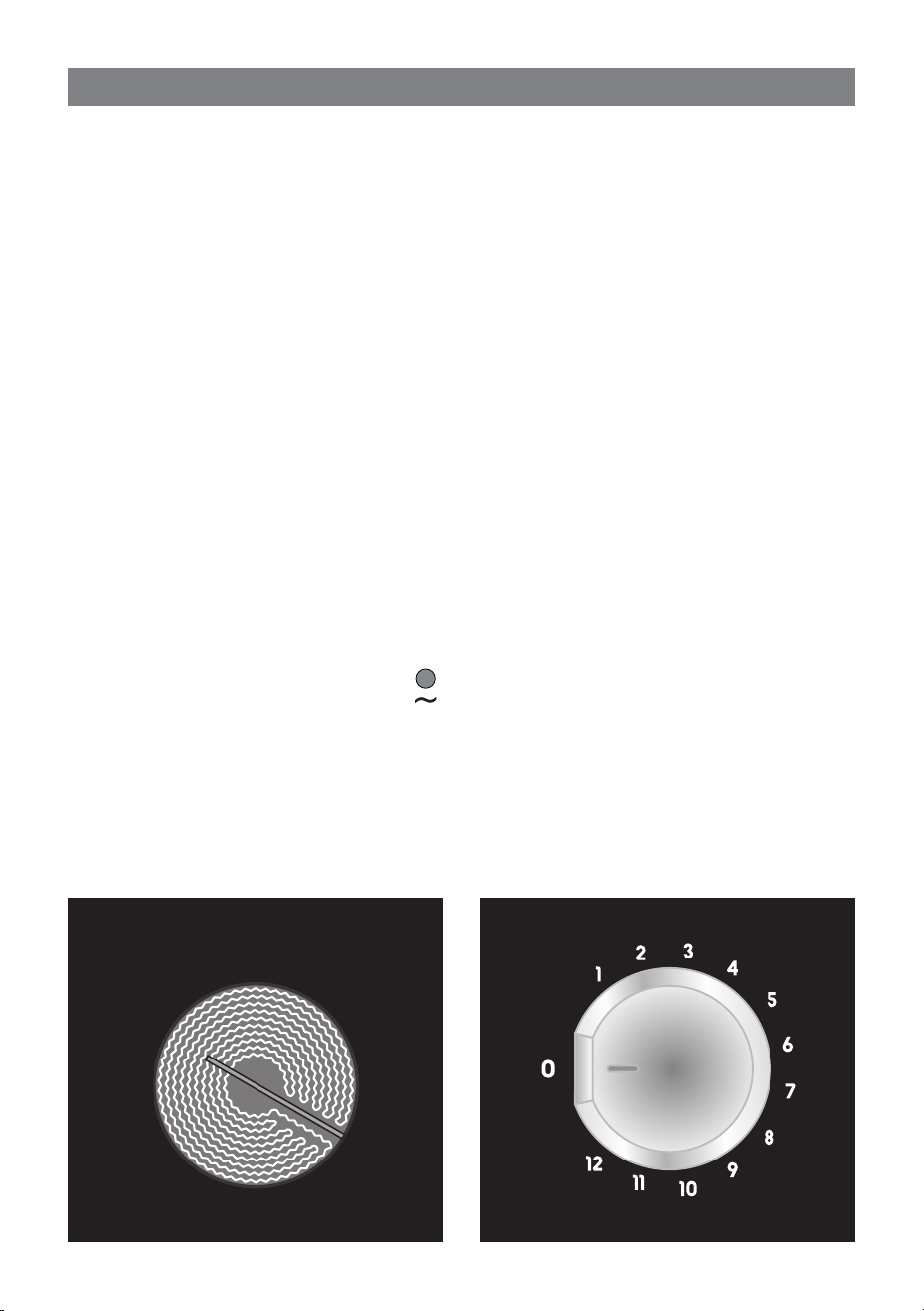

HI-LIGHT RADIANT ZONES (g. 2.1)
The heating element is formed of a coil of resistant material which reaches the working
temperature quickly.
• The zone is controlled by a continuous energy regulator switch (g. 2.2).
• The heat intensity can be regulated continuously from “0” to “12” (max).
Check that the hob is clean and then switch on by turning the control knob.
When the hob is working, the pilot light
will be on.
HI-LIGHT DOUBLE ZONE (g. 2.3)
The heating element is formed of a 2 coils of resistant material which reaches the working
temperature quickly.
• The zone is controlled by a continuous energy regulator switch (g. 2.4).
The heat intensity can be regulated continuously from “0” to “12” (max).
HOW TO USE THE HOB
2
Hi-light radiant zone
Fig. 2.1
4
5
7
6
8
1
1
3
2
9
Fig. 2.2
2525
• By switching on the second element (g. 2.3), the surface area of the double zone can
be extended.
To turn on both zones, turn the control knob fully clockwise to the position
.
Note: if you leave the knob at the position
, the full double element will remain at
the highest heat setting.
To reduce the heat of the full double element, turn its knob anticlockwise to setting
“12” or lower.
Adjust the heat during cooking as necessary.
• To return to using only the inner zone of the double element, rst turn the knob to the
“0“ (o) position (you should feel a click) and then clockwise to a setting from “1” to
“12”.
Check that the hob is clean and then switch on by turning the control knob.
When the hob is working, the pilot light
will be on.
Hi-light double radiant zone
Second element
Fig. 2.3
4
5
7
6
8
1
1
3
2
9
Fig. 2.4
Attention: Detach the appliance from the mains if the ceramic glass is cracked and
contact the After-Sales Service.
Caution!
The cooking hob becomes very hot during operation.
Keep children well out of reach.
Never cook the food directly on the glass ceramic cooktop, but in special pans or
containers.
Metallic objects such as knives, forks, spoons and lids should not be placed on the
hob surface since they can get hot.
WARNING: Hobs become very hot with use, and retain their heat for a long time
after cooking has nished (about 30 minutes).
Children should be supervised at all times and be prevented from touching the hot
surfaces, until such time as the appliance has cooled.
2626
1
2
3
4
5
6
7
8
9
10
11
12
Fig. 2.5
After a short period of use, experience will
teach you which setting is the right one for
your needs.
COOKING HINTS
Knob
setting
TYPE OF COOKING
0 Switched OFF
1
2
For melting operations
(butter, chocolate).
2
3
4
To maintain food hot and to
heat small quantities of liquid
(sauces, eggs).
4
5
6
To heat bigger quantities;
to whip creams and sauces
(vegetables, fruits, soups).
6
7
Slow boiling, i.e.: boiled
meats, spaghetti, soups,
continuations of steam
cooking of roasts, stews,
potatoes.
7
8
For every kind of frying,
cutlets, uncovered cooking,
i.e.: risotto.
8
9
10
Browning of meats,
roasted potatoes, fried sh,
omelettes, and for boiling
large quantities of water.
11
12
Fast frying, grilled steaks,
etc.
Switching on the second
element (Double and oval
zones only)
Heating
Cooking
Roasting-frying
Cooking
zone
knob
setting
1
2
3
4
5
6
7
8
9
10
11
12
2727
RESIDUAL HEAT INDICATORS
The hob also features 4 warning lamps which are
wired to the corresponding plate.
When the temperature of a cooking plate is over 60°C,
the relevant warning lamp is also litup to warn of heat
on the surface of the hob.
These lamps also stay on after the cooking plates
have been switched o to shown that the hob surface
is still hot.
This residual heat will lasts for a long time after the
cooking plate has been switched o.
During this time you should avoid touching the hob surface over the cooking area.
Please pay special attention to ensure that children are not allowed near the hob.
The lamps will switch o automatically as soon as the surface temperature of the cooking
zone falls below 60°C.
Fig. 2.6
Caution!
The cooking hob becomes very hot during operation.
Keep children well out of reach.
Never cook the food directly on the glass ceramic cooktop, but in special pans or
containers.
WARNING: Hobs become very hot with use, and retain their heat for a long time
after cooking has nished (about 30 minutes).
Children should be supervised at all times and be prevented from touching the hot
surfaces, until such time as the appliance has cooled.
2828
DISTORTED
PANBASE
WRONG
DISTORTED
PANBASE
WRONG
LEVEL
PANBASE
CORRECT
WRONG
WASTING
POWER
WRONG
WASTING
POWER
WRONG
WASTING
POWER
CORRECT
COMPLETE USE
OF THE HEAT
DO NOT USE GLASSWARE ON CERAMIC HOBS.
DO NOT USE PANS WITH ROUGHT CIRCULAR
MACHINED BASE.
Fig. 2.7
Fig. 2.8
SAFETY HINTS
• Before you switch the hob on, make sure you
know which control operates the required
cooking zone. It is advisable to put the pan
on the hotplate before switching on and to
take it away after switching o.
• You should use pots and pans with at bases
(pans with the test mark for glass ceramic
hobs are available from specialist shops).
• Do not use pots and pans with rough bases
(pay attention to cookware made of cast-
iron). Rough bases can damage the glass
surface of the hob (scratches).
• Pots with aluminium bottoms may leave
silver streaks or spots on the hob.
• Always ensure that the base of your
saucepan is clean and dry before placing on
the hob.
• The diameter of the pan should match that
of the cooking plate (or be slightly bigger) to
make the most of the energy.
• Do not lay cooking foil or plastic materials on
the ceramic surface when it is hot.
• Do not leave wet or damp lids on the hob.
• The glass-ceramic surface and pans must
be clean. Carefully eliminate any food
remains (especially containing sugar), dirt
etc. with the aid of a cleansing agent.
• Pan handles should never stand out beyond
the kitchen worktop, as there is a great
danger of knocking the pan over. This will
also ensure that children cannot reach them.
• Do not use the hob if the glass surface
is broken or cracked in any way. Please
disconnect the hob from the mains and
contact the After-Sales Service.
• Do not lean over the cooking plate when in
use.
• Remember that the surface remains hot for
a long time (about 30 min.) after the cooking
plate has been switched o.
• Since the cooking surface stays hot for
a certain time after the plate has been
switched o, you can switch it o 5 or 10
minutes before the end of the cooking. The
residual heat of the hob will complete the
cooking.
• To save electricity, use pan lids whenever
possible.
• Follow the cleaning instructions carefully.
• Never use the glass surface for storage.
2929
GENERAL ADVICE
• Before you begin cleaning, you must ensure that the appliance is switched o
and disconnected from the electrical power supply.
• It is advisable to clean when the appliance is cold.
• Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
• Avoid using cleaning products with a chlorine or acidic base.
• Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
• Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
• Do not scratch the cooktop with cutting or sharp objects.
• Important: The manufacturer declines all liability for possible damage caused by
the use of unsuitable products to clean the appliance.
• Clean surfaces with a damp cloth and use gentle, neutral cleaning products. Dry with
a clean, dry cloth.
• IMPORTANT: Do not use any abrasive products (e.g. certain types of sponge) and/
or aggressive products (e.g. caustic soda, products containing corrosive substances),
which could cause irreparable surface damage.
WARNING!
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
underneath of the appliance as this area is not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
CLEANING AND MAINTENANCE
3
3030
CLEANING THE CERAMIC HOB
• Remove spillages and other types of incrustations.
• Dust or food particles can be removed with a damp cloth.
• If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive
or scouring powders can damage the glass surface of the hob.
• All traces of the cleaner must be removed with a damp cloth.
• Dust, fat and liquids from food that has boiled over must be removed as soon as
possible. If they are allowed to harden they become increasingly dicult to remove.
This is especially true in the case of sugar/syrup mixtures which could permanently pit
the surface of the hob if left to burn on it.
• Do not put articles on the hob which can melt: i.e plastic, aluminium foil, sugar, sugar
syrup mixtures etc.
• If any of these products has melted on the ceramic surface, you should remove it
immediately (when the surface is still hot) by using a proper scraper to avoid any
permanent damage to the surface of the hob.
• Avoid using a knife or other sharp utensil as these may damage the ceramic surface.
• Do not use steel wool or an abrasive sponge which could scratch the surface
permanently.
STAINLESS STEEL ELEMENTS (only models with side stainless steel trims)
Stainless steel parts must be rinsed with water and dried with a soft and clean cloth.
For persistent dirt, use specic non-abrasive products available commercially or a little
hot vinegar.
Fig. 3.1
3131
SERVICE AND MAINTENANCE
Servicing the appliance:
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised ELBA APPLIANCES Service Agent shared services with Fisher and Paykel
Australia PTY LTD (ELBA Appliances AUS, a division of F&P AUS PTY LTD).:
Servicing shall be carried out only by authorized personnel.
The appliance shall not be modied.
TROUBLESHOOTING
If you acquire a problem with your hob, check the following points before calling an engineer.
1. The power is switched on.
2. The controls are switched on.
3. Both the fuse and the mains fuse are intact.
Should you still require assistance please contact our Customer Service Centre for your
nearest Authorised Elba Appl. AUS Service Agent..
www.delonghicookingappliances.com.au
Cod. 1106351 - ß0
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the
models described here, at any time and without notice, to make eventual necessary
modifications for their construction or for commercial needs.
