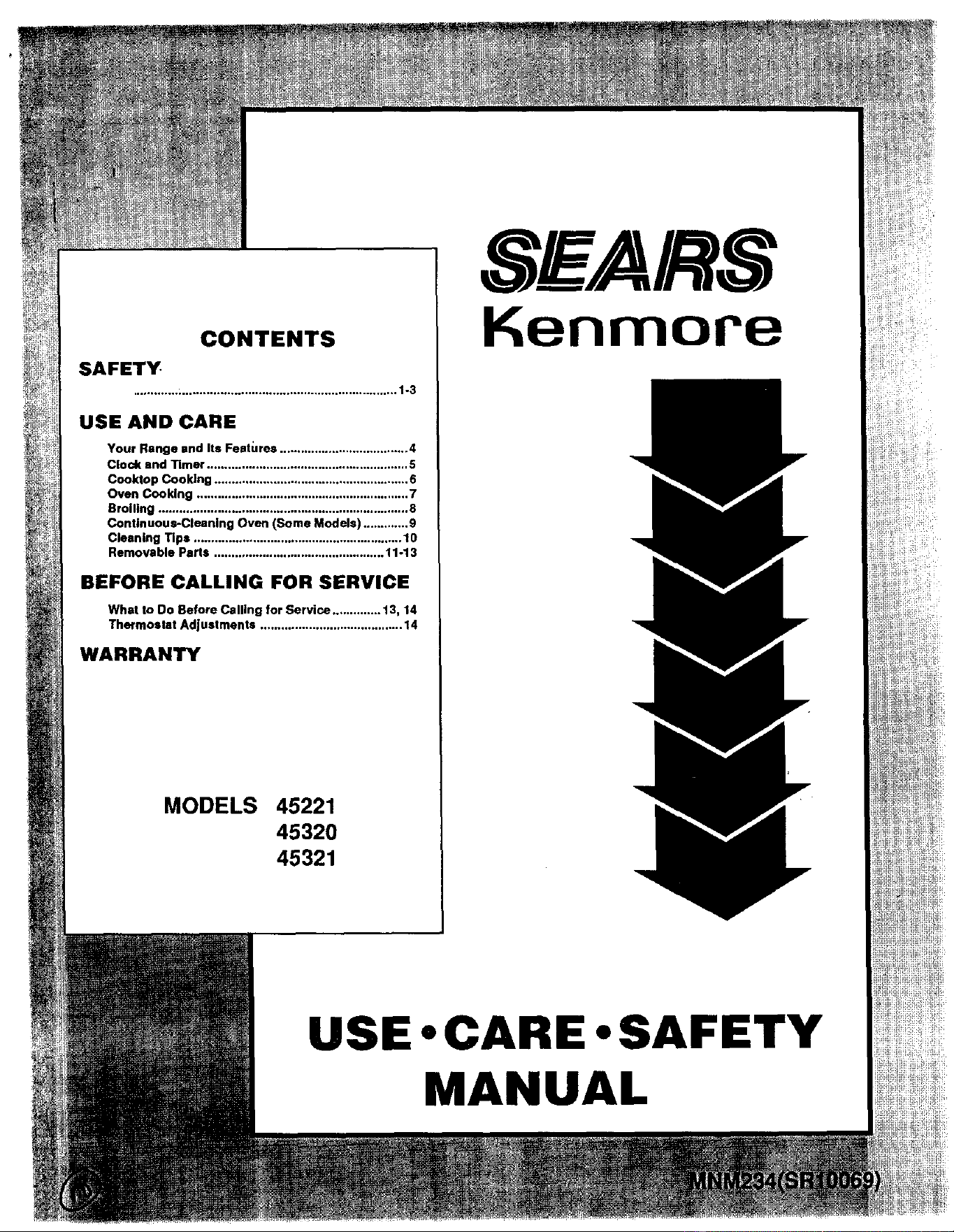

CONTENTS
SAFETY
,,,,,.... .............. .,o. ........... .. .................................... 1-3
USE AND CARE
Your Range and Its Features ..................................... 4
Clock and Timer .......................................................... 5
Cool(top Cooking ........................................................ 6
Oven Cooking ............................................................. 7
Broiling ........................................................................ 8
Continuous-Cleaning Oven (Some Models) ............. 9
Cleaning Tips ............................................................ 10
Remora hie Parts ................................................. 11-13
BEFORE CALLING FOR SERVICE
What to Do Before Calling for Service .............. 13, 14
Thermostat Adjust ments ......................................... 14
WARRANTY
MODELS 45221
45320
45321
SF_AIRS
Kenmore
USE • CARE • SAFETY
MANUAL

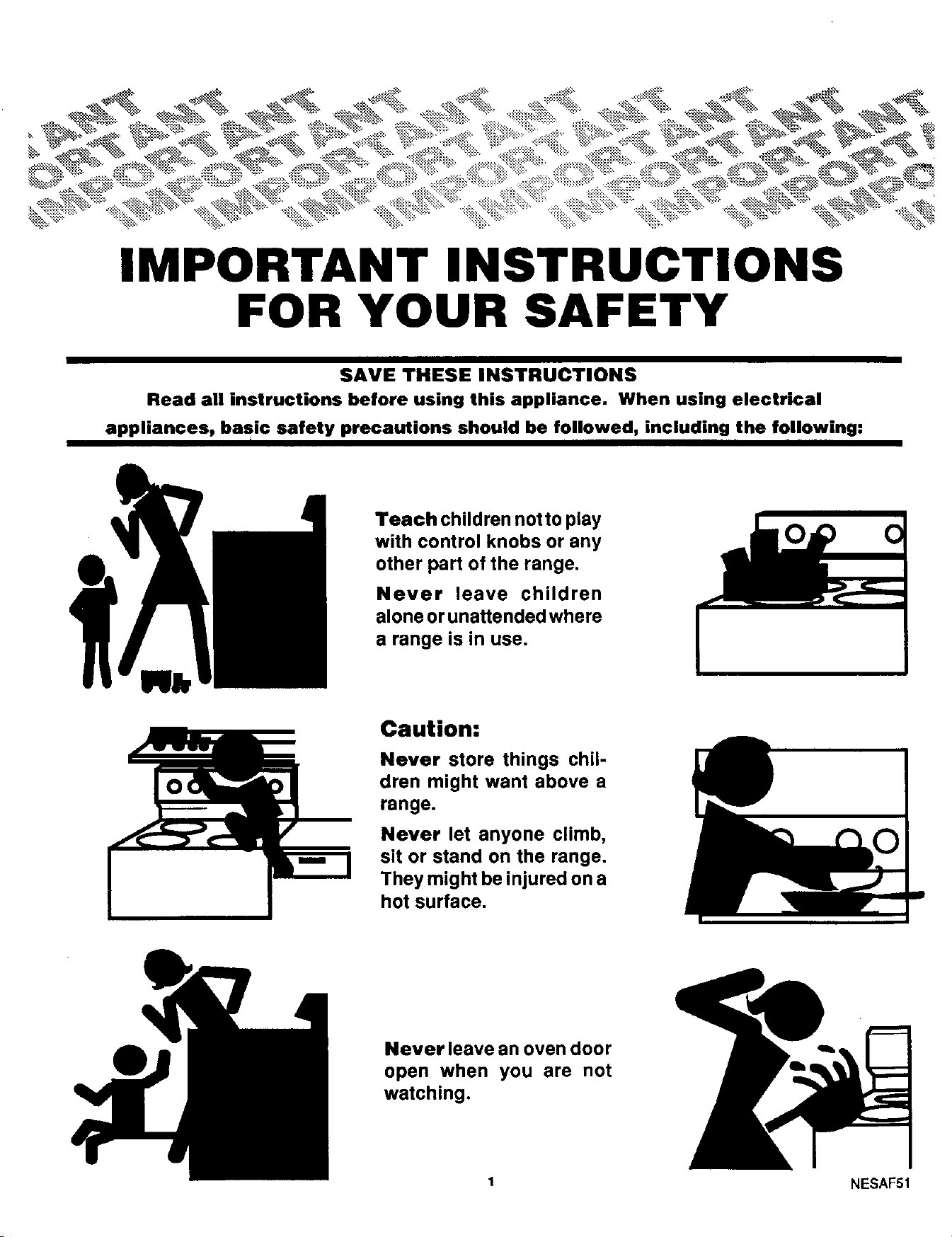

IMPORTANT INSTRUCTIONS
FOR YOUR SAFETY
SAVE THESE INSTRUCTIONS
Read all instructions before using this appliance. When using electrical
appliances, basic safety precautions should be followed, including the following:
Teach children notto play
with control knobs or any
other part of the range.
Never leave children
alone or unattended where
a range is in use.
Caution:
Never store things chil-
dren might want above a
range.
Never let anyone climb,
sit or stand on the range.
They might be injured on a
hot surface.
Never leave an oven door
open when you are not
watching.
1 NFSAF51

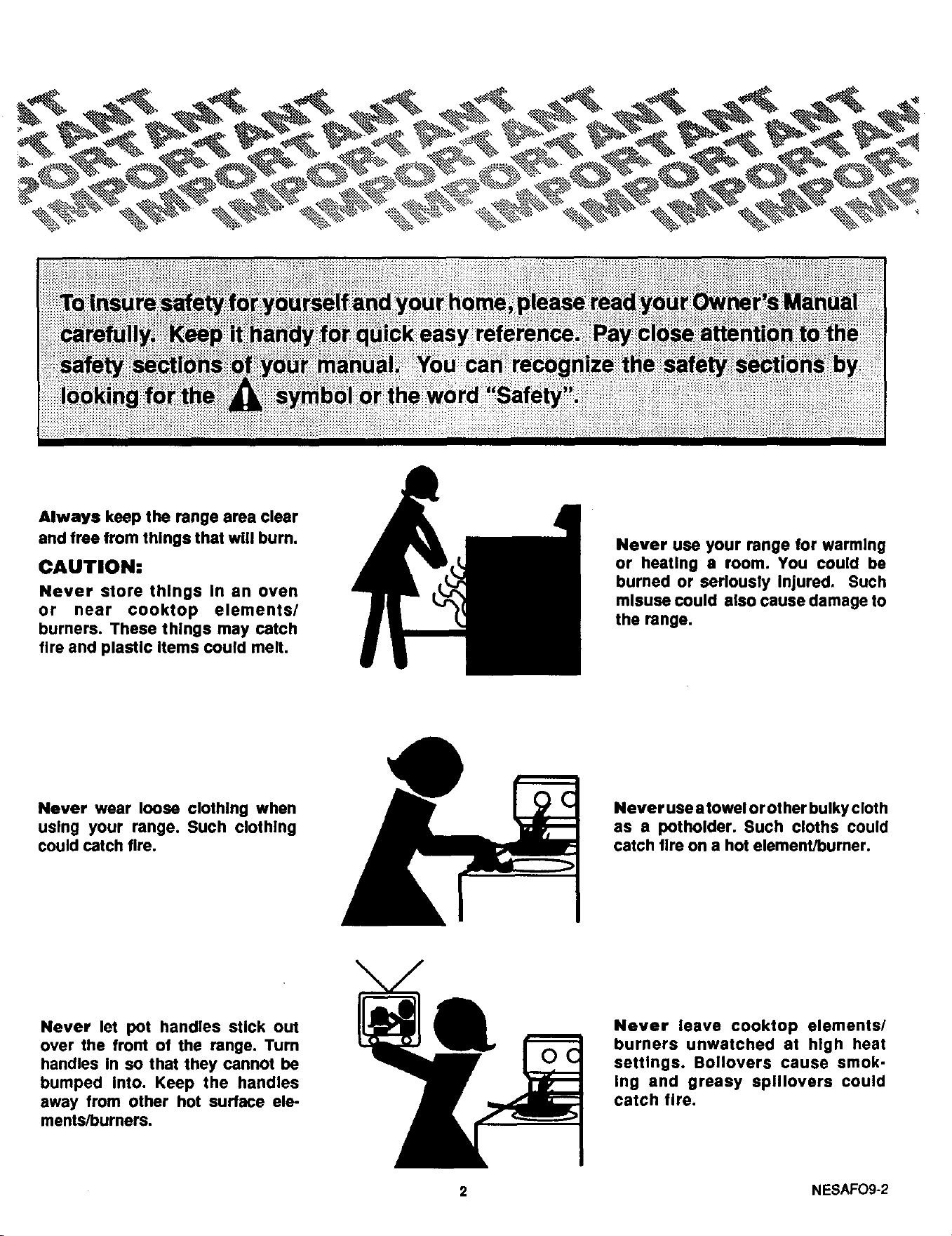

Always keep the range area clear
and free from things that will burn.
CAUTION:
Never store things In an oven
or near cooktop elements/
burners. These things may catch
fire and plastic Items could melt.
Never use your range for warming
or heating a room. You could be
burned or seriously Injured. Such
misuse could also cause damage to
the range,
Never wear loose clothing when
using your range. Such clothing
could catch fire.
Never use atowel orother bulky cloth
as s potholder. Such cloths could
catch fire on a hot element/burner.
Never let pot handles stick out
over the front of the range. Turn
handles In so that they cannot be
bumped Into. Keep the handles
away from other hot surface ele-
ments/burners.
Never leave cooktop elements/
burners unwatched at high heat
settings. Bollovers cause smok-
ing and greasy splllovers could
catch fire.
2 NESAFO9-2

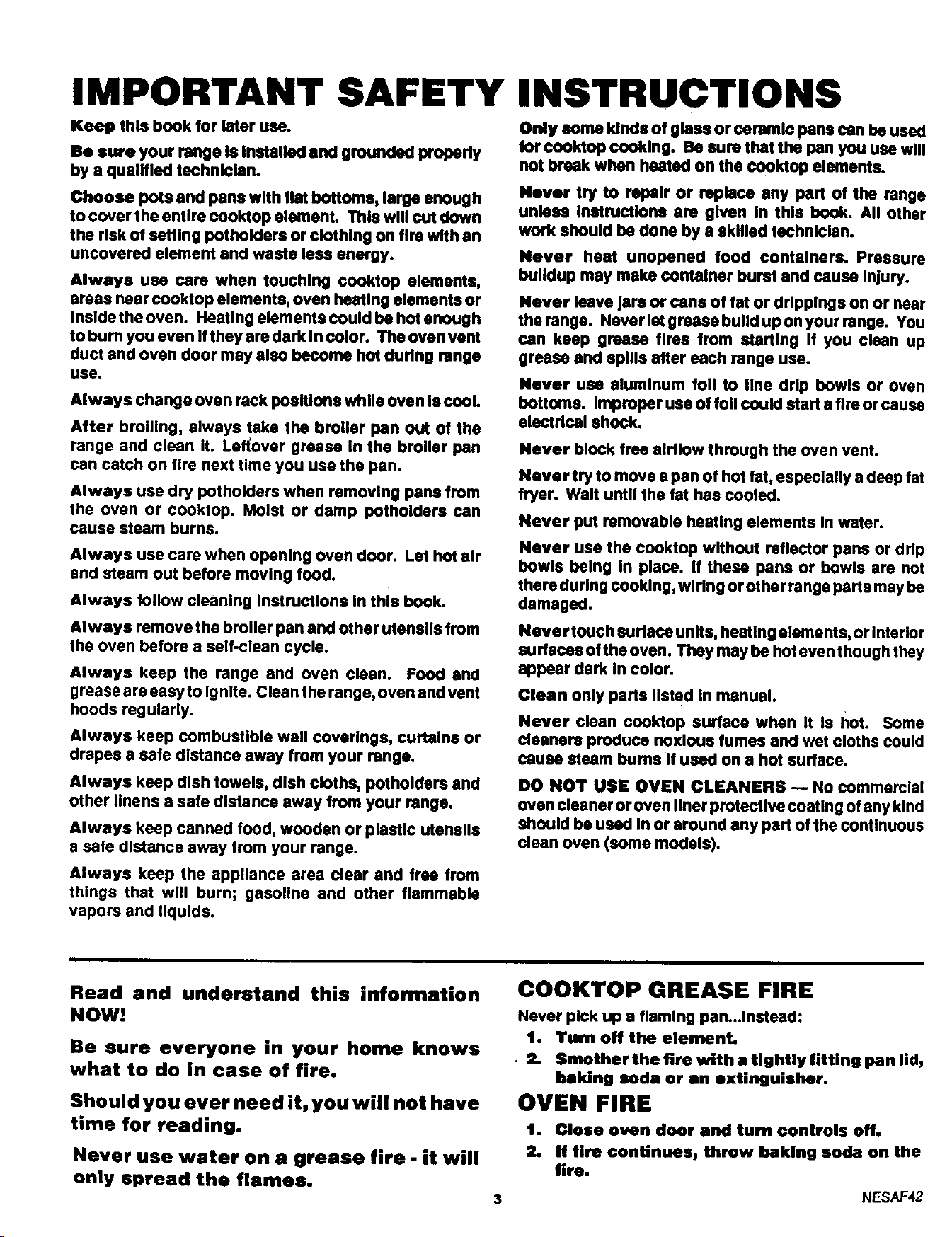

IMPORTANT SAFETY INSTRUCTIONS
Keep thls book forleter use.
Be sure your range Is Installed end grounded property
by a qualified technician.
Choose pots and pans with flat bottoms, large enough
to cover the entire cooktop elemenL Thla will cut down
the risk of setting potholdera or clothing on fire with an
uncovered element and waste less energy.
Always use care when touching cooktop elements,
areas near cooktop elements, oven heating elements or
Insldetheoven. HeaUng elements could be hot enough
to bum you even If they are dark In color. The oven vent
duct and oven door may also become hot during range
use.
Always change oven rack positions while oven Is cool.
After broiling, always take the broiler pan out of the
range and clean It. Leftover grease In the broiler pan
can catch on fire next time you use the pan.
Always use dry potholders when removing pans from
the oven or cooktop. MOIst or damp potholdere can
cause steam burns.
Always use care when opening oven door. Let hot alr
and steam out before moving food.
Always follow cleaning Instructions In this book.
Always remove the broiler pan and other utensils from
the oven before a self-clean cycle.
Always keep the range and oven clean. Food and
grease are easy to Ignlte. Clean the range, oven and vent
hoods regularly.
Always keep combustible wall coverings, curtains or
drapes a safe distance away from your range.
Always keep dish towels, dish cloths, potholdera and
other linens a safe distance away from your range.
Always keep canned food, wooden or plestlc utensils
a safe distance away from your range.
Only some klnds of glass or coramlc pans can be used
for cooMop cooklng. Be sure that the pen you Use wlll
not break when heated on the cooktop elements.
Never try to repair or replace any part of the range
unless Instructions are given In this book. All other
work should be done by a skilled technician.
Never heat unopened food containers. Pressure
buildup may make container burst and cause Injury.
Never leave Jars or cans of fat or drippings on or near
therange. NeverletgreassbuIIduponyourrange. You
can keep grease fires from starting If you clean up
grease and spills after each range use.
Never use aluminum foil to line drip bowls or oven
bottoms. Improper use of foil could start a fira or cause
electrical shook.
Never block free slrtlow through the oven vent.
Never try to move • pen of hot fat, especlally a deep fat
fryer. Walt until the fat has cooled.
Never put removable heaftng elements In water.
Never use the cooktop without reflector pans or drip
bowls being In place. If these pens or bowls are not
there during cooking, wiring or other range parts may be
damaged.
Never touch surface units, heating elements, or Interior
surfaces of the oven. They may be hot even though they
appear dark In color.
Clean only parts listed In manual.
Never clean cooktop surface when It Is hot. Some
cleaners produce noxious fumes and wet cloths could
cause steam bums If used on s hot surface.
DO NOT USE OVEN CLEANERS -- No commercial
oven cleaner or oven liner protective costing of any kind
should be used In or around any part of the continuous
clean oven (some models).
Always keep the appliance area clear and free from
things that will burn; gasoline and other flammable
vapors and liquids.
Read and understand this information
NOW!
Be sure everyone in your home knows
what to do in case of fire.
Should you ever need it, you will not have
time for reading.
Never use water on a grease fire - it will
only spread the flames.
COOKTOP GREASE FIRE
Never pick up • flaming pan...Instead:
1. Tum off the element.
• 2. Smether the fire with a tightly fitting pan lid,
baking soda or an extinguisher.
OVEN FIRE
1. Close oven door and turn controls off.
2. If fire continues, throw baking soda on the
fire.
NESAF42

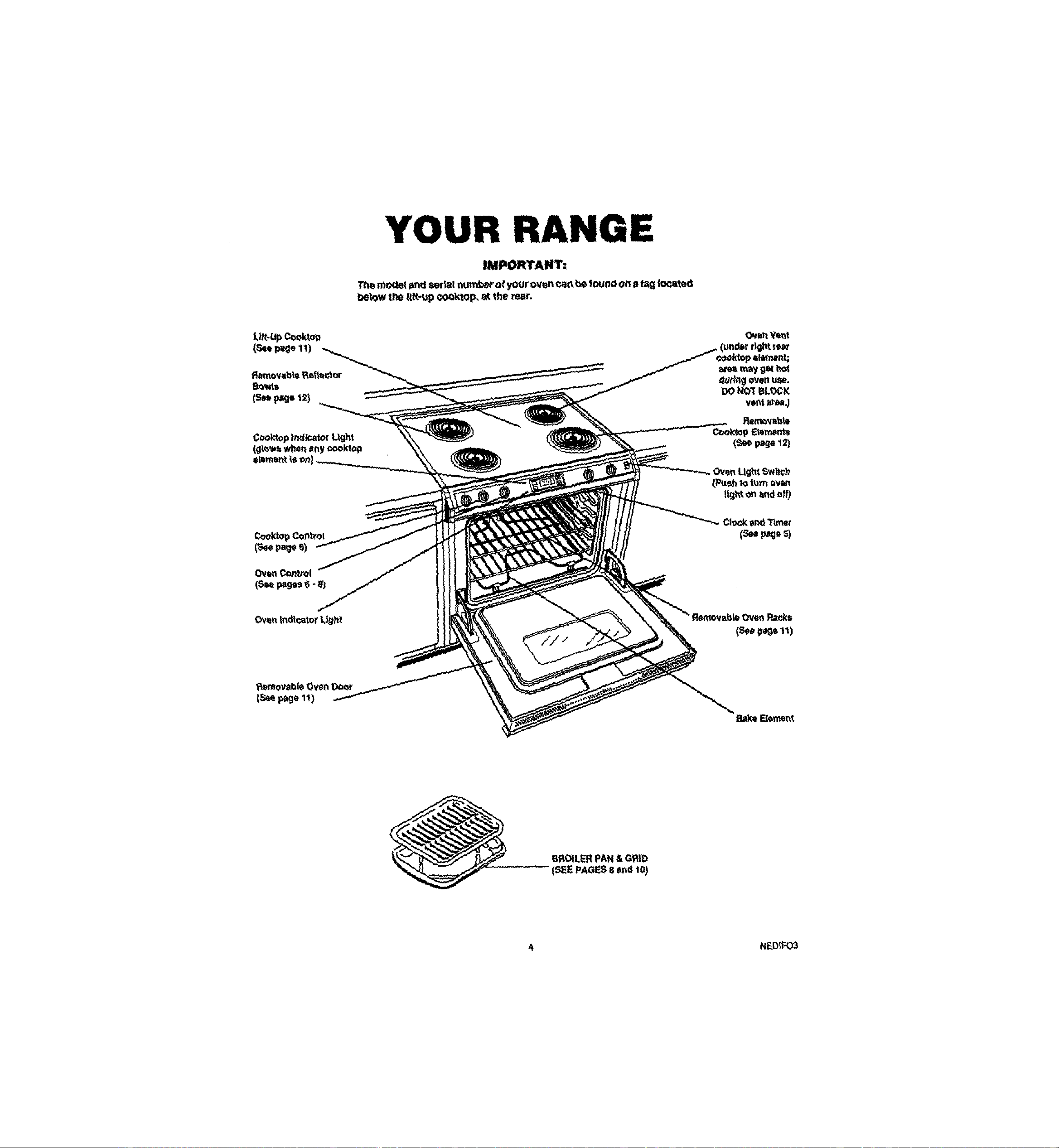

YOUR RANGE
IMPORTANT:
The moael and serial numtx_rof yourov_n e.._ I_etoun_ on a _g foe.areal
betow the lIR-up cooktop, at the rear.
6ROLLERPAN & GRID
(SEE PAGES _ encl I0,_
4 N£[3_FO_

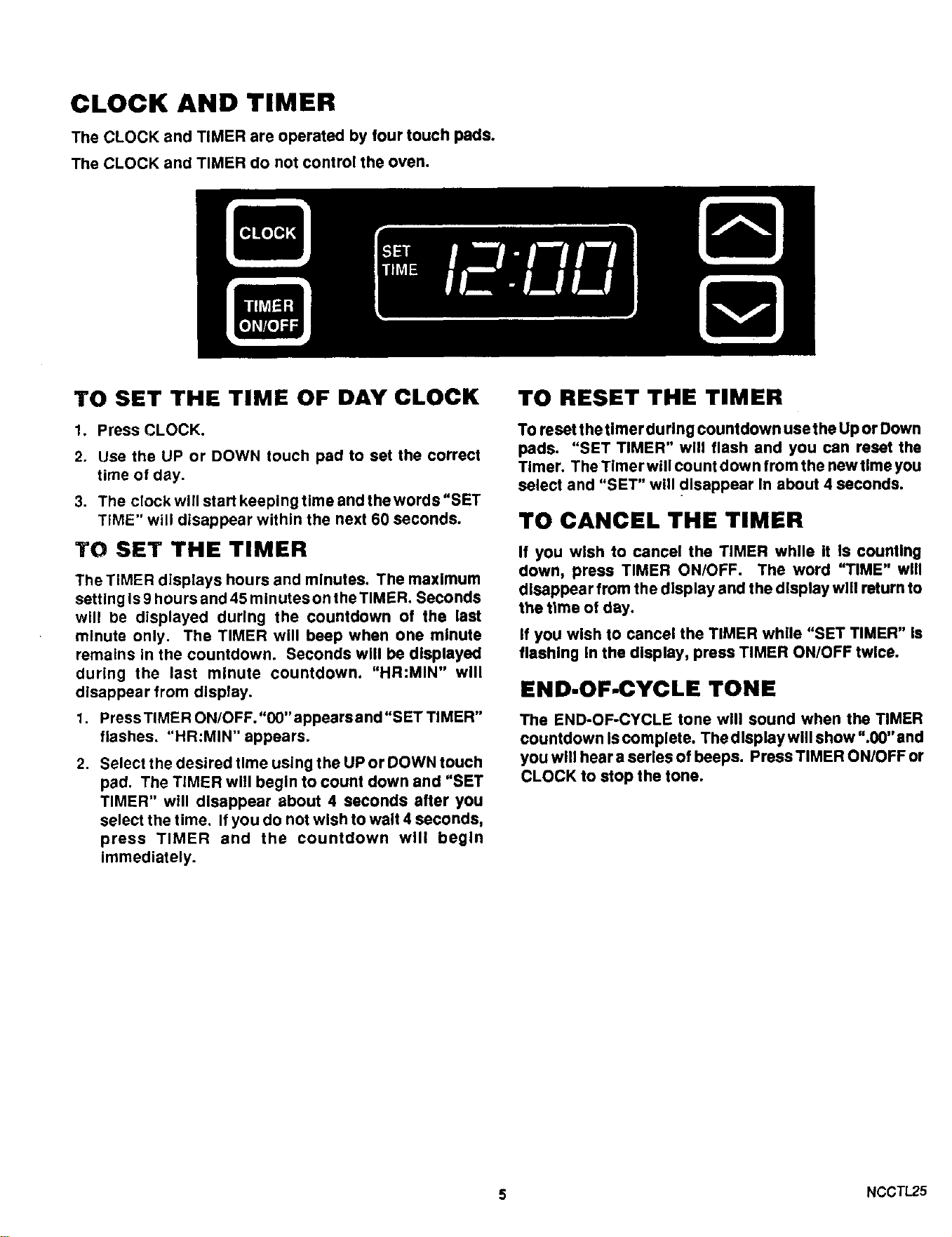

CLOCK AND TIMER
The CLOCK and TIMER are operated by four touch pads.
The CLOCK and TIMER do not control the oven.
TO SET THE TIME OF DAY CLOCK
1. Press CLOCK.
2. Use the UP or DOWN touch pad to set the correct
time of day.
3. The clock will start keeping time and thewords "SET
TIME" will disappear within the next 60 seconds.
TO SET THE TIMER
The TIMER displays hours and minutes. The maximum
setting Is 9 hours and 45 minuteson the TIMER. Seconds
will be displayed during the countdown of the last
minute only. The TIMER will beep when one minute
remains in the countdown. Seconds will be displayed
during the last minute countdown. "HR:MIN" will
disappear from display.
1. Press TIMER ON/OFF. "00" appears and "SET TIMER"
flashes. "HR:MIN" appears.
2. Select the desired time using the UP or DOWN touch
pad. The TIMER will begin to count down and "SET
TIMER" will disappear about 4 seconds after you
select the time. If you do not wish to walt 4 seconds,
press TIMER and the countdown will begin
immediately.
TO RESET THE TIMER
To reset the timer during countdown use the Up or Down
pads. "SET TIMER" will flash and you can reset the
Timer. The Timer will count down from the newtlme you
select and "SET" will disappear In about 4 seconds.
TO CANCEL THE TIMER
If you wish to cancel the TIMER while it Is counting
down, press TIMER ON/OFF. The word "TIME" will
disappear from the display and the display will return to
the time of day.
If you wish to cancel the TIMER while "SET TIMER" Is
flashing In the display, press TIMER ON/OFF twice.
END-OF-CYCLE TONE
The END-OF-CYCLE tone will sound when the TIMER
countdown Is complete. The display will show ".00" end
you will hear a series of beeps. Press TIMER ON/OFF or
CLOCK to stop the tone.
5 NCCTL25
To
Start Things
Cooking

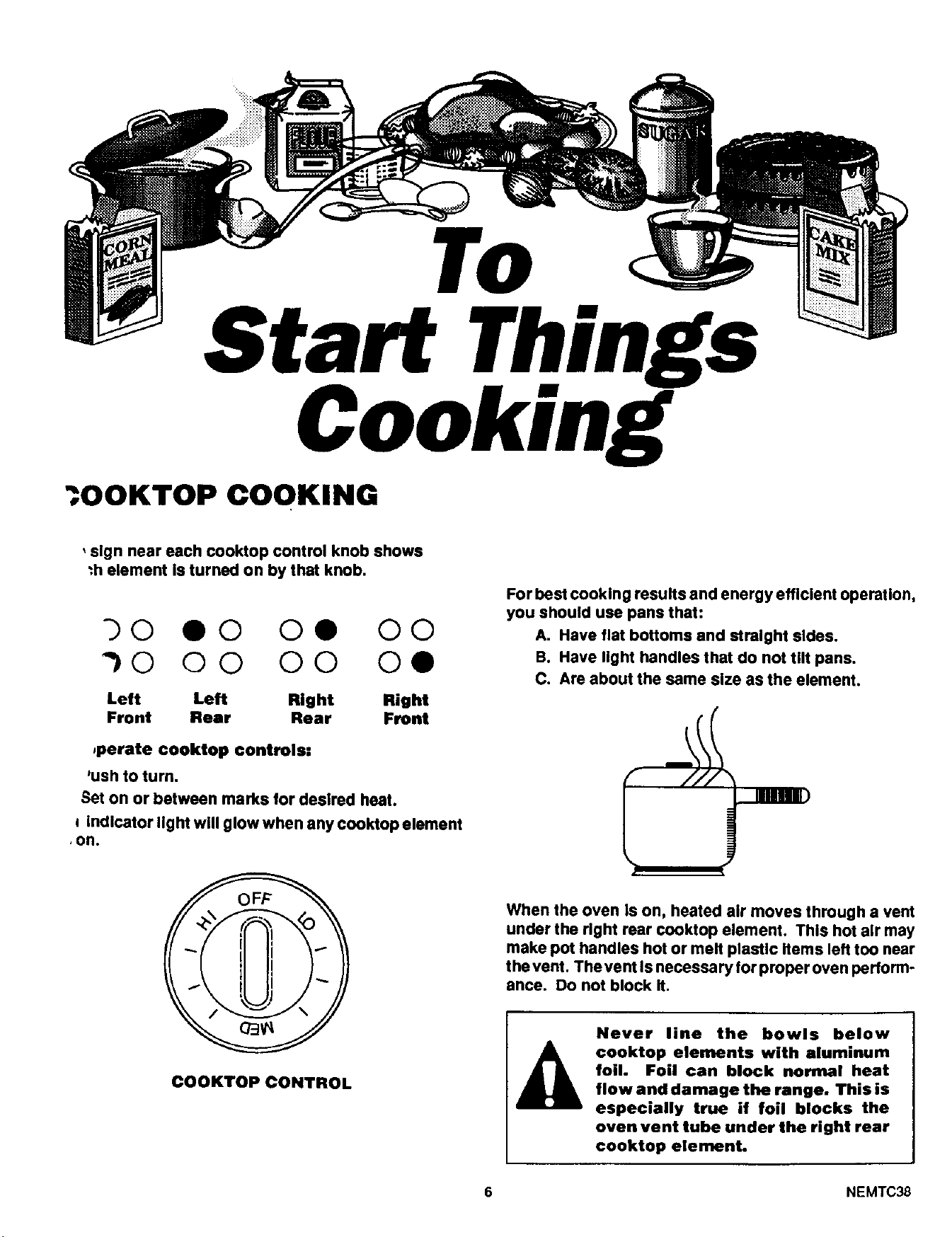

";OOKTOP COOKING
, sign near each cooktop control knob shows
;h element is turned on by that knob.
DO eO Oe O0
_10 0 0 O00e
Left Left Right Right
Front Rear Rear Front
,perate cooktop controls:
*ush to turn.
Set on or between marks for desired heat.
Indicator light will glow when any cooktop element
, on.
COOKTOP CONTROL
For best cooking results and energy efficient operation,
you should use pans that:
A. Have flat bottoms and straight sides.
B. Have light handles that do not tilt pans.
C. Are about the same size as the element.
When the oven is on, heated air moves through a vent
under the right rear cooktop element. This hot air may
make pot handles hot or melt plastic items left too near
the vent. The vent Is necessary for proper oven perform-
ance. Do not block It.
Never line the bowls below
cooktop elements with aluminum
foil. Foil can block normal heat
flow and damage the range. This is
especially true if foil blocks the
oven vent tube under the right rear
cooktop element.
6 NEMTC38

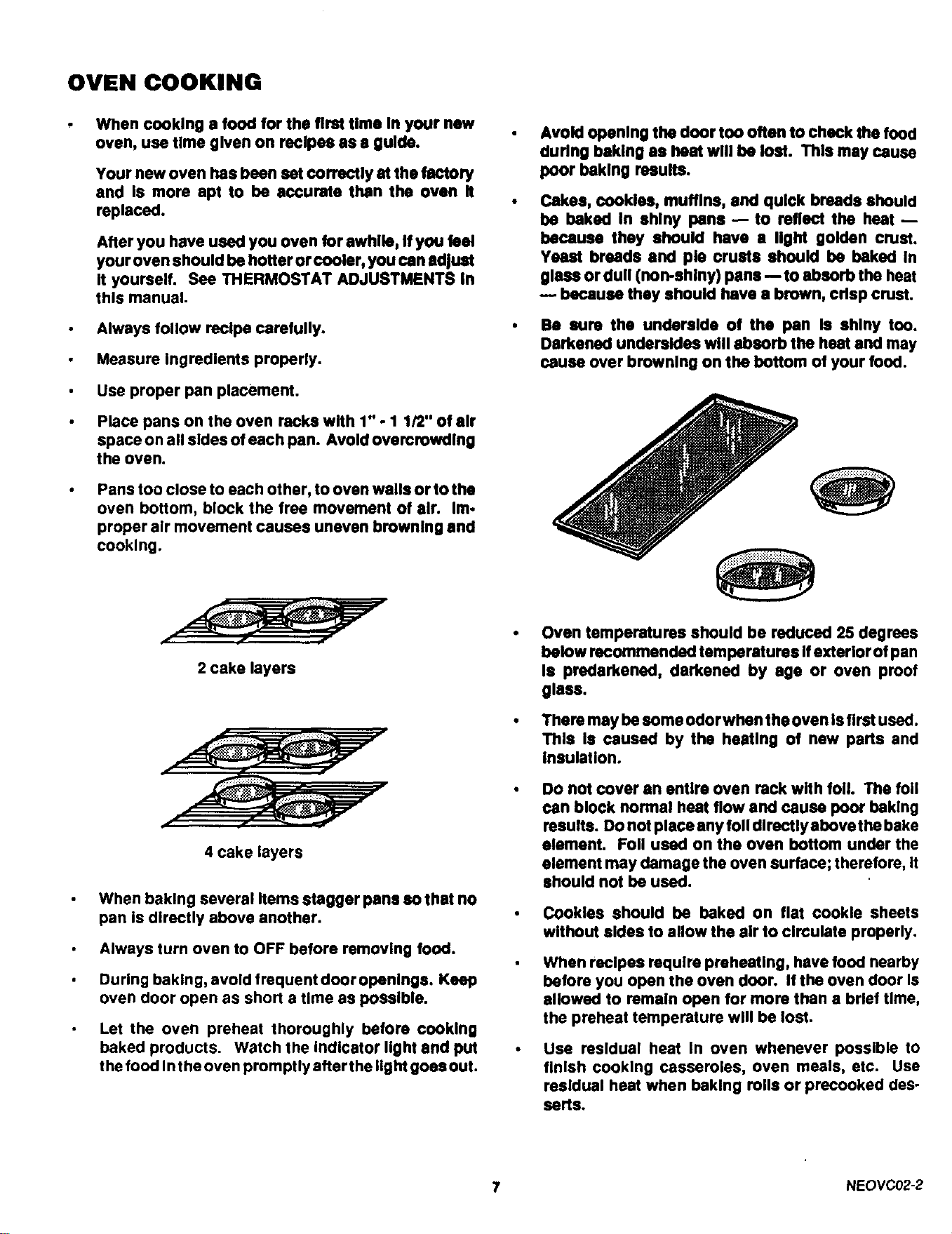

OVEN COOKING
When cooking a food for the first Ume In your new
oven, use time given on recipes as • guide.
Your new oven has been set correctly at the factory
and Is more apt to be accurate than the oven It
replaced.
After you have used you oven for awhlis, If you feel
your oven should be hotter or cooler, you can adjust
It yourself. See THERMOSTAT ADJUSTMENTS In
this manual.
Always follow recipe carefully.
Measure Ingredients properly.
Use proper pan placement.
Place pans on the oven racks wIth 1" - 1 1/2" of elf
space on all sides of each pan. Avoid overcrowding
the oven.
Pans too close to each other, to oven walls or to the
oven bottom, block the free movement of air. Ira-
proper air movement causes uneven browning and
cooking.
Avoid opening the door too often to check the food
during baking as heat will be lost. This may cause
poor baking results.
Cakes, cooklea, muffins, and quick breads should
be baked in shiny pane -- to reflect the heat m
because they should have a light golden crust.
Yeast breads and pie crusts should be baked In
glass or dull (non-shiny) pans B to absorb the heat
because they should have a brown, crisp crust.
Be sure the underside of the pan Is shiny too.
Darkened undersides will absorb the heat and may
cause over browning on the bottom of your food.
2 cake layers
4 cake Isyers
When baking several Items stagger pans so that no
pan is directly above another.
Always turn oven to OFF before removing food.
During baking, avoid frequent door openings. Keep
oven door open as short a time as possible.
Let the oven preheat thoroughly before cooking
baked products. Watch the Indicator light end put
the food In the oven promptly after the light goes out.
Oven temperatures should be reduced 25 degrees
below recommended temperatures If exterior of pan
Is prederkened, darkened by age or oven proof
glass.
There may be soma odor when the oven Is first used.
This Is caused by the heating of new parts and
Insulation.
Do not cover an entire oven rack wIth foil. The foil
can block normal heat flow end cause poor baking
results. Do not place any foil dlracUyabove the bake
element. Foil used on the oven bottom under the
element may damage the oven surface; therefore, It
should not be used.
Cookies should be baked on flat cookie sheets
without aides to allow the air to circulate properly.
When recipes rsqulrs prsheatlng, have food nearby
before you open the oven door. If the oven door Is
allowed to remain open for more than a brief time,
the preheat temperature will be lost.
Use rssldual heat In oven whenever possible to
finish cooking casseroles, oven meals, etc. Use
residual heat when baking rolls or precooked des-
serts.
7 NEOVC02-2

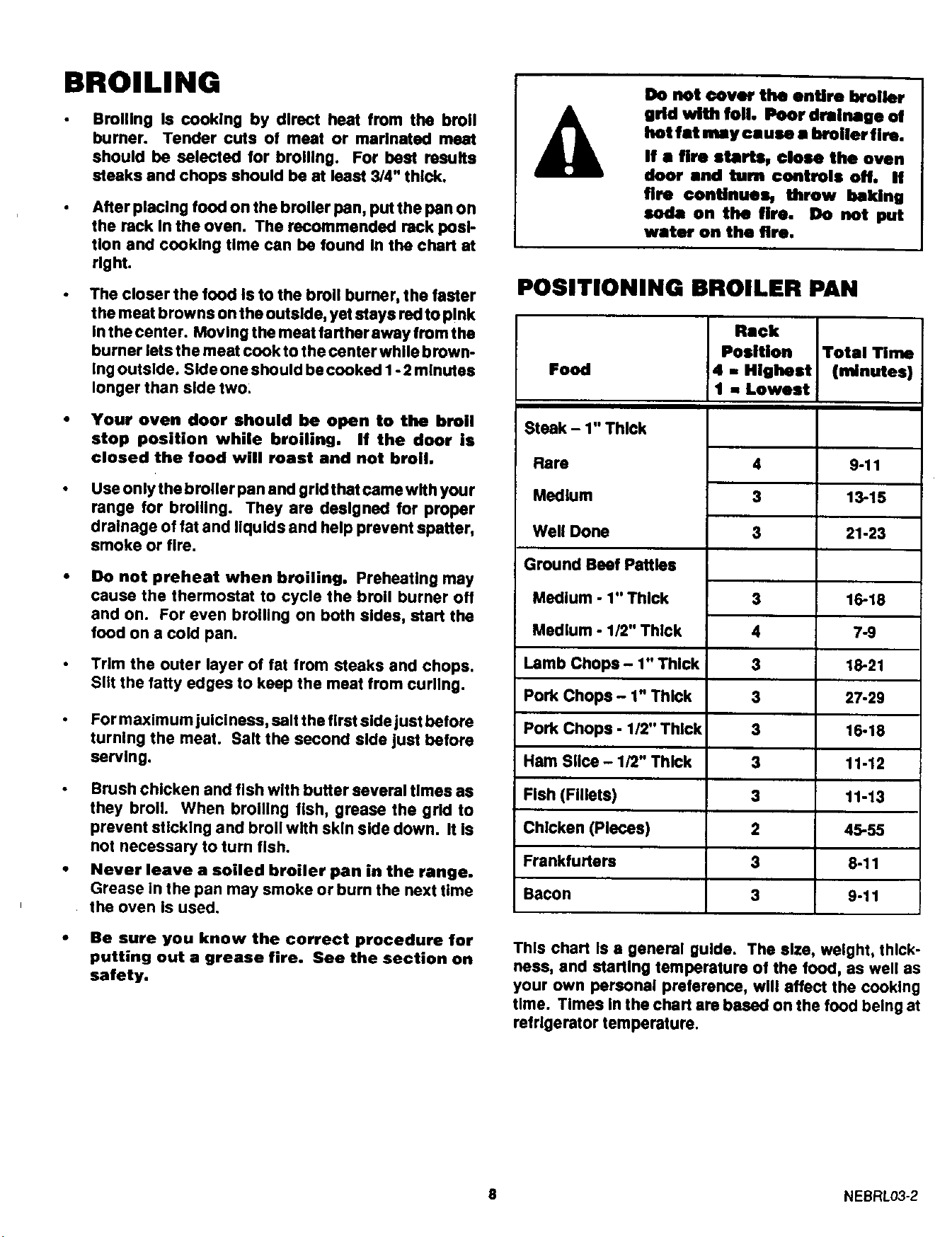

BROILING
Broiling Is cooking by direct heat from the broil
burner. Tender cuts of meet or marinated meat
should be selected for broiling. For beat results
steaks and chops should be at least 3/4" thick.
After placing food on the broiler pan, put the pan on
the reck In the oven. The recommended rack posi-
tion and cooking time can be found In the chart at
right.
The closer the food Is to the broil burner, the faster
the meat browns on the outside, yet stays red to pink
In the center. Moving the meat farther away from the
burner lets the meat cook to the center while brown-
Ing outslde. Side one should be cooked I - 2 minutes
longer than side two_
Your oven door should be open to the broil
stop position while broiling. If the door is
closed the food will roast and not broil.
Use only the broiler pan and grid that came with your
range for broiling. They are designed for proper
drainage of fat and liquids and help prevent spatter,
smoke or fire.
Do not preheat when broiling. Preheating may
cause the thermostat to cycle the broil burner off
and on. For even broiling on both sides, start the
food on a cold pan.
Trim the outer layer of fat from steaks and chops.
Slit the fatty edges to keep the meat from curling.
For maximum juiciness, salt the first side just before
turning the meat. Salt the second side just before
serving.
Brush chicken and fish wlth butter several times as
they broil. When broiling fish, grease the grid to
prevent sticking and broil with skin side down. It Is
not necessary to turn fish.
Never leave a soiled broiler pan in the range.
Grease in the pan may smoke or burn the next time
the oven is used.
• Be sure you know the correct procedure for
putting out a grease fire. See the section on
safety.
Do not cover the enUre broiler
grid with foil. Poor drainage of
hot fat my cause • broiler fire.
If • fire starts, close the oven
doer and turn controls off. If
fire €onUnues, throw baking
soda on the fire. Do not put
water on the fire.
POSITIONING BROILER PAN
Food
Steak - 1" Thick
Rare
Medium
Well Done
Ground Beef Patties
Medium - 1" Thick
Medium - 1/2" Thick
Lamb Chops - 1" Thick
Pork Chops - 1" Thick
Pork Chops - 1/2" Thick
Ham Slice - 1/2" Thick
Fish (Fillets)
Chicken (Pieces)
Frankfurters
Bacon
Rook
Position
4 - Highest
1 ,, Lowest
Total Tim
(minutes)
3
4
3
3
3
3
3
2
3
3
4 9-11
3 13-15
3 21-23
16-18
7-9
16-21
27-29
16-18
11-12
11-13
45-55
8-11
9-11
This chart Is a general guide. The size, weight, thick-
ness, and starting temperature of the food, as well as
your own personal preference, will affect the cooking
time. Times in the chart are based on the food being at
refrigerator temperature.
8 NEBRL03-2

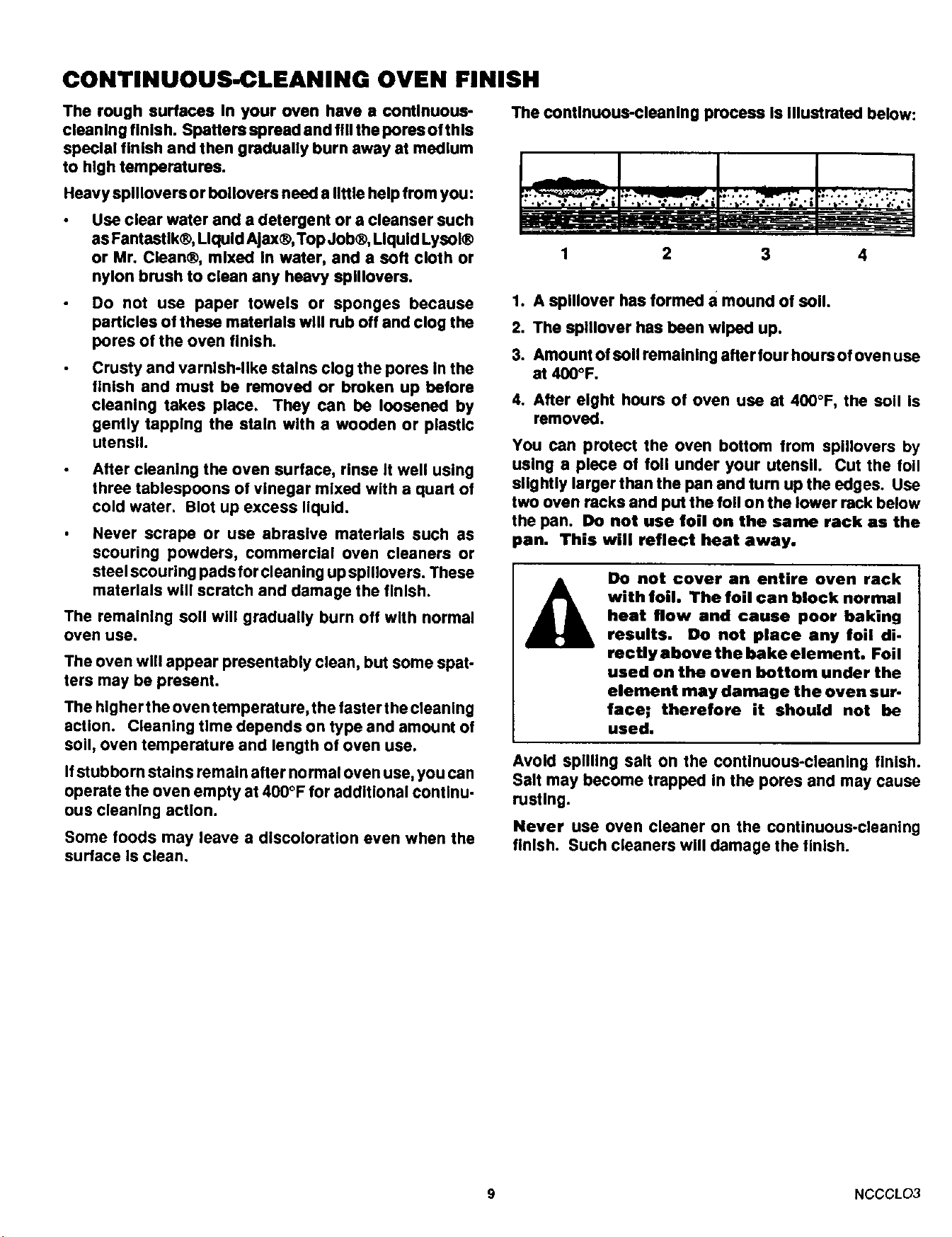

CONTINUOUS-CLEANING OVEN FINISH
The rough surfaces In your oven have a continuous-
cleaning finish. Spatters spread and fill the pores of this
special finish and then gradually burn away at medium
to high temperatures.
Heavy splllovers orbollovers need a little help from you:
Use clear water and a detergent or a cleanser such
as Fantastlk®, Liquid Ajax®, Top Job®, Liquid Lysol®
or Mr. Clean®, mixed In water, and a soft cloth or
nylon brush to clean any heavy splllovers.
Do not use paper towels or sponges because
particles of these materials will rub off and clog the
pores of the oven finish.
Crusty and varnish-like stains clog the pores In the
finish and must be removed or broken up before
cleaning takes place. They can be loosened by
gently tapping the stain with a wooden or plastic
utensil.
After cleaning the oven surface, rinse It well using
three tablespoons of vinegar mixed with a quart of
cold water. Blot up excess liquid.
Never scrape or use abrasive materials such as
scouring powders, commercial oven cleaners or
steel scouring pads for cleaning up splllovers. These
materials will scratch and damage the finish.
The remaining soil will gradually burn off with normal
oven use.
The oven will appear presentably clean, but some spat-
ters may be present.
The higher the oven temperature,the faster the cleaning
action. Cleaning time depends on type and amount of
soil, oven temperature and length of oven use.
Ifstubborn stains remain after normal oven use, you can
operate the oven empty at 400°F for additional continu-
ous cleaning action.
Some foods may leave a discoloration even when the
surface Is clean.
The continuous-cleaning process Is Illustrated below:
1
4
1. A splllover has formed a mound of soil
2. The splllover has been wlpad up.
3. Amount of soil remaining after four hours of oven use
at 400°F.
4, After eight hours of oven use at 400°F, the soil Is
removed.
You can protect the oven bottom from spillovers by
using a piece of foil under your utensil Cut the foil
slightly larger than the pan and turn up the edges. Use
two oven racks and put the foil on the lower rack below
the pan. Do not use foil on the same rack as the
pan. This will reflect heat away.
Do not cover an entire oven rack
with foil. The foil can block normal
heat flow and cause poor baking
results. Do not place any foil di-
rectly above the bake element. Foil
used on the oven bottom under the
element may damage the oven sur-
face; therefore it should not be
used.
Avoid spllllng salt on the continuous-cleaning finish.
Salt may become trapped In the pores and may cause
rusting.
Never use oven cleaner on the continuous-cleaning
finish. Such cleaners will damage the finish.
9 NCCCL03

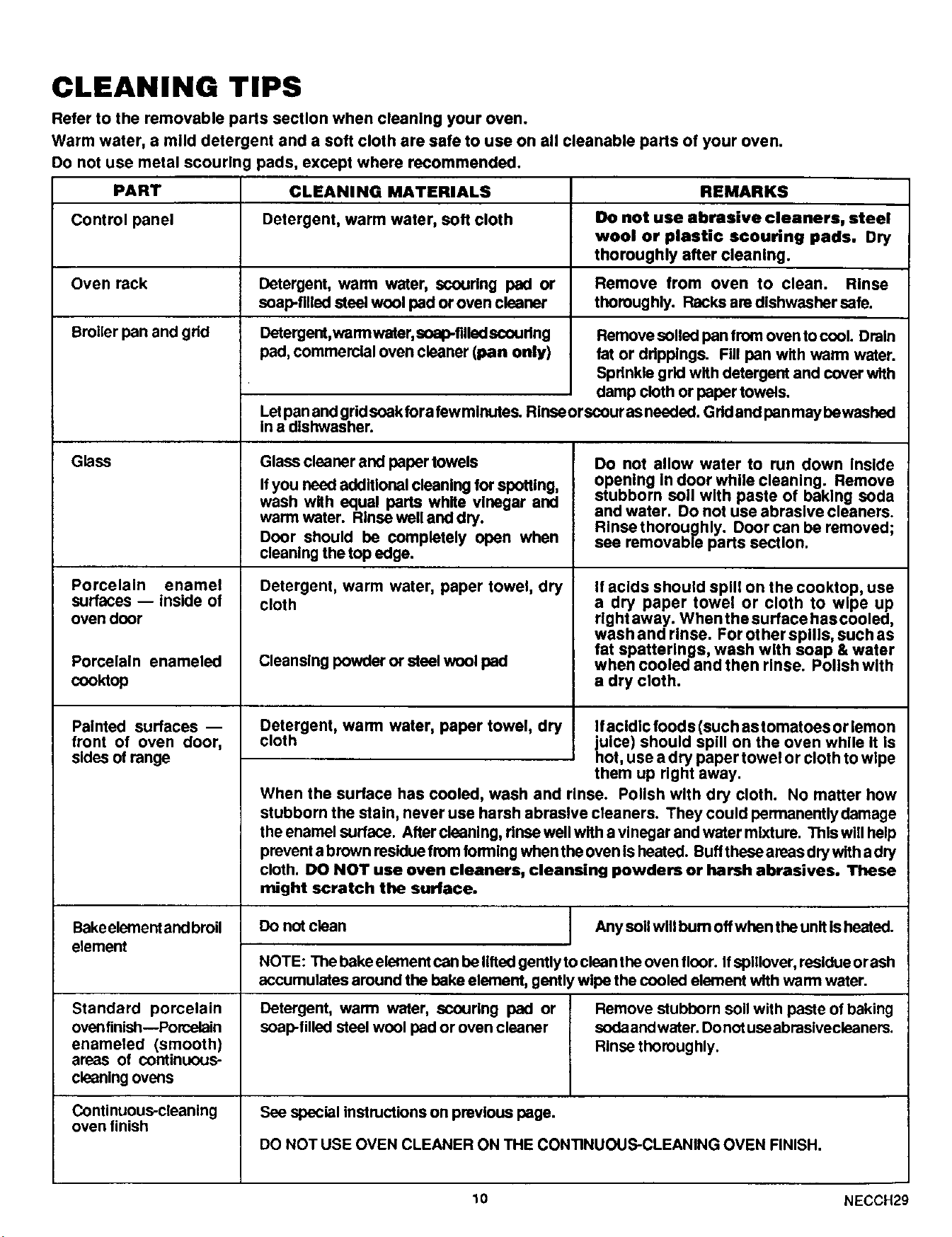

CLEANING TIPS
Refer to the removable parts section when cleaning your oven.
Warm water, a mild detergent and a soft cloth are safe to use on all cleanable parts of your oven.
Do not use metal scouring pads, except where recommended.
PART CLEANING MATERIALS REMARKS
Control panel Detergent, warm water, soft cloth Do not use abrasive cleaners, steel
wool or plastic scouring pads, Dry
thoroughly after cleaning.
Oven rack Detergent, warm water, scouring pad or Remove from oven to clean. Rinse
seap-filled steel wool pad or oven cleaner thoroughly. Racks aredishwasher safe.
Broiler pan and gdd Detergent, warmwater, soalPfllledscoudng Remove soiled pan from oven to cool. Drain
pad, commemlal oven cleaner (pan only) fat or ddpplngs. Fill pan with warm water.
Spdnkle grid with detergent and cover with
damp cloth or paper towels.
Letpan and gridsoakfora fewmlnutes. Rlnseorscour as nesded. Gdd and pan may bewashed
in a dishwasher.
Glass Glass cleaner and paper towels Do not allow water to run down inside
Ifyou need additional cleaning for spotting, opening In door while cleaning. Remove
wash with equal parts white vinegar and stubborn soil with paste of baking soda
warm water. Rinse well and dry. and water. Do not use abrasive cleaners.
Rinse thoroughly. Door can be removed;
Door should be completely open when see removable parts section.
cleaning the top edge.
Detergent, warm water, paper towel, dry
cloth
Porcelain enamel
surfaces -- inside of
oven door
Porcelain enameled
cooktop
Painted surfaces --
front of oven door,
sides of range
Bakeelement andbroil
element
Standard porcelain
ovenfinish--Porcelain
enameled (smooth)
areas of continuous-
cleaningovens
Continuous-cleaning
oven finish
Cleansing powder or steel wool pad
Detergent, warm water, paper towel, dry
cloth
When the surface has cooled, wash and
If acids should spill on the cooktop, use
a dry paper towel or cloth to wipe up
right away. When the surface has cooled,
wash and rinse. For ot her spills, such as
fat spatterlngs, wash with soap & water
when cooled and then rinse. Polish with
a dry cloth.
Ifacidic foods (such as tomatoes or lemon
juice) should spill on the oven while It Is
hot, use a dry paper towel or cloth to wipe
them up right away.
rinse. Polish with dry cloth. No matter how
stubborn the stain, never use harsh abrasive cleaners. They could permanently damage
the enamel surface. After cleaning, rinse well with a vinegar and water mixture. This will help
prevent a brown residue from forming when the oven Isheated. Buffthese areas drywith adry
cloth. DO NOT use oven cleaners, cleansing powders or harsh abrasives. These
might scratch the surface.
Do not clean
Any soil will bum off when the unit Is heated.
NOTE: The bake element can be lifted gently toclean the oven floor. If splllover, residue orash
accumulates around the bake element, gently wipe the cooled element with warm water.
Detergent, warm water, scouring pad or
soap-filled steel wool pad or oven cleaner
Remove stubborn soil with paste of baking
sodaand water. Donotuse abrasivecleaners.
Rinse thoroughly.
See special instructions on previous page.
DO NOT USE OVEN CLEANER ON THE CONTINUOUS-CLEANING OVEN FINISH.
10 NECCH29

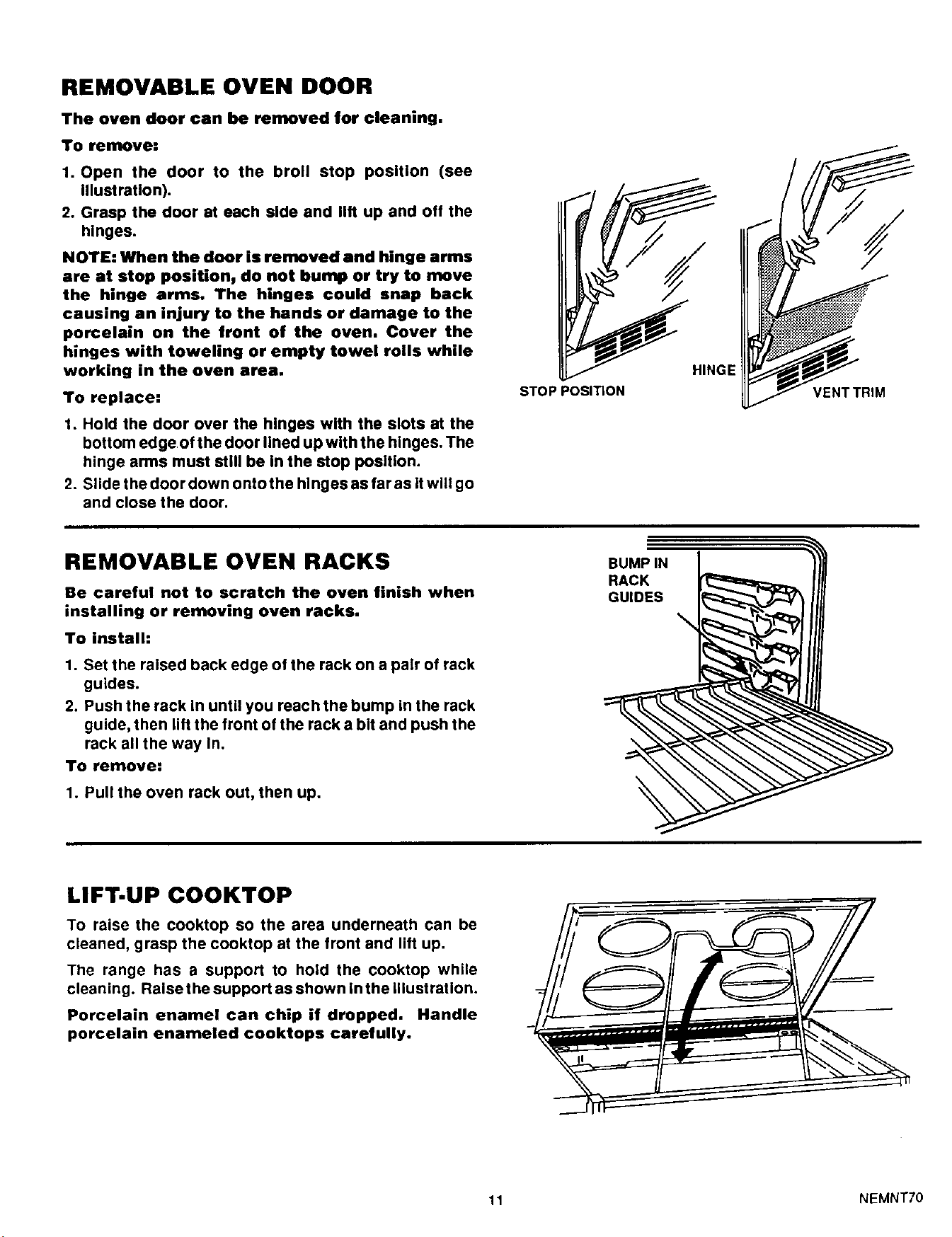

REMOVABLE OVEN DOOR
The oven door can be removed for cleaning.
To remove:
1. Open the door to the broil stop position (see
Illustration).
2. Grasp the door at each side and lift up and off the
hinges.
NOTE: When the door is removed and hinge arms
are at stop position, do not bump or try to move
the hinge arms. The hinges could snap back
causing an injury to the hands or damage to the
porcelain on the front of the oven. Cover the
hinges with toweling or empty towel roils while
working in the oven area.
To replace:
1. Hold the door over the hinges with the slots at the
bottom edge of the door lined up with the hinges. The
hinge arms must still be in the stop position.
2. Slide the door down onto the hinges as far as it will go
and close the door.
STOP POSITION
HINGE
VENTTRIM
REMOVABLE OVEN RACKS
Be careful not to scratch the oven finish when
installing or removing oven racks.
To install:
1. Set the raised back edge of the rack on a pair of rack
guides.
2. Push the rack In until you reach the bump in the rack
guide, then lift the front of the rack a bit and push the
rack all the way In.
TO remove:
1. Pull the oven rack out, then up.
BUMPIN
RACK
GUIDES
\
LIFT-UP COOKTOP
To raise the cooktop so the area underneath can be
cleaned, grasp the cooktop at the front and lift up.
The range has a support to hold the cooktop while
cleaning. Raise the support as shown In the Illustration.
Porcelain enamel can chip if dropped. Handle
porcelain enameled cooktops carefully.
11 NEMNT70

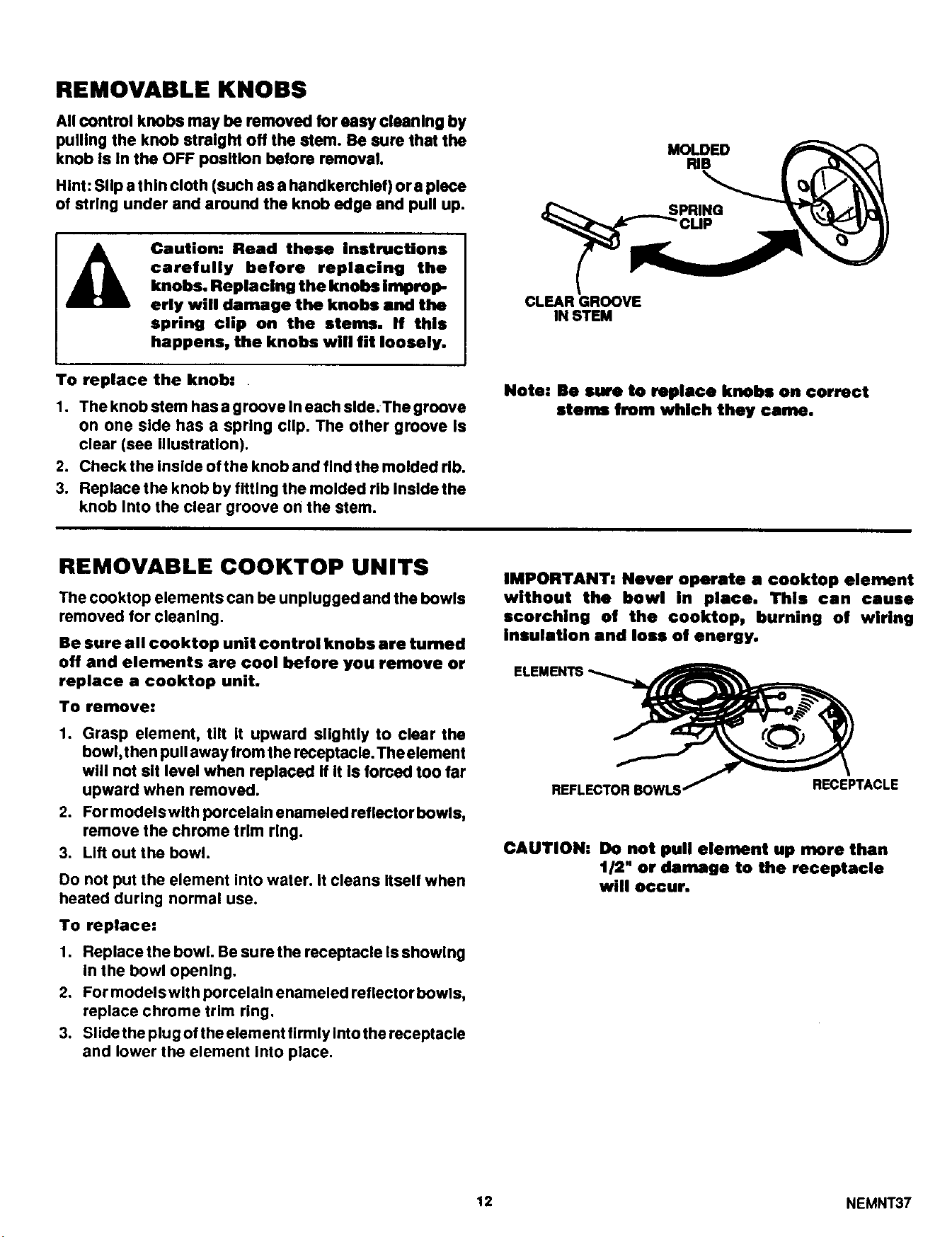

REMOVABLE KNOBS
All control knobs may be removed for easy cleaning by
pulling the knob straight off the stem. Be sure that the
knob Is In the OFF position before removal.
Hint: Slip a thin cloth (such as a handkerchief) ore piece
of string under and around the knob edge and pull up.
Caution: Read these Instructions
carefully before replacing the
knobs. Replacing the knobs imprep-
erly will damage the knobs end the
spring clip on the stems. If this
happens, the knobs will fit loosely.
To replace the knob:
1. The knob stem has a groove In each side. The groove
on one side has a spring clip. The other groove Is
clear (see Illustration).
2. Check the Inside of the knob and find the molded rib.
3. Replace the knob by fitting the molded rib Inside the
knob Into the clear groove on the stem.
MOLDED
mB
PRING
CUP
CLEAR GROOVE
IN STEM
Note: Be sure to replace knobs on correct
stems from which they came.
REMOVABLE COOKTOP UNITS
The cooktop elements can be unplugged and the bowls
removed for cleaning.
Be sure all cooktop unit control knobs are turned
off and elements are cool before you remove or
replace a cooktop unit.
To remove:
1. Grasp element, tilt It upward slightly to clear the
bowl,then pull away from the receptacle. Theelement
will not sit level when replaced If It Is forced too far
upward when removed.
2. For modelswit hporcelain enameled reflector bowls,
remove the chrome trim ring.
3. Lift out the bowl.
Do not put the element Into water. It cleans Itself when
heated during normal use.
To replace:
1. Replace the bowl. Be sure the receptacle Is showing
In the bowl opening.
2. For modelswlth porcelain enameled reflector bowls,
replace chrome trim ring.
3. Slide the plug of the element firmly Into the receptacle
and lower the element into place.
IMPORTANT: Never operate • €ooktop element
without the bowl in place. This can cause
scorching of the cooktop, burning of wiring
insulation end loss of energy.
REFLECTOR BOWLS
RECEPTACLE
CAUTION: Do not pull element up more then
1/2" or damage to the receptacle
will occur.
12 NEMNT37

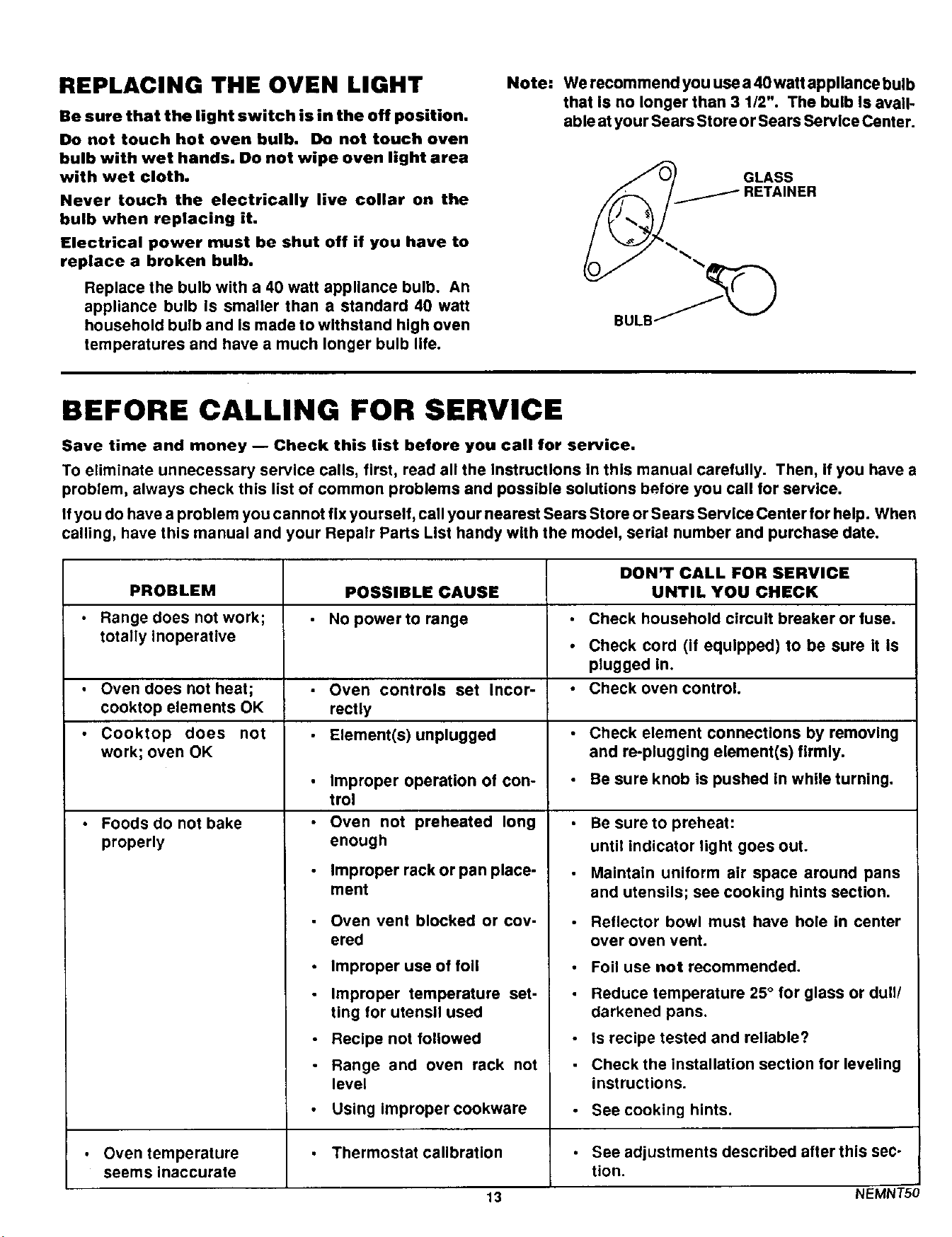

REPLACING THE OVEN LIGHT
Be sure that the light switch is in the off position•
Do not touch hot oven bulb• Do not touch oven
bulb with wet hands• Do not wipe oven light area
with wet cloth•
Never touch the electrically live collar on the
bulb when replacing it.
Electrical power must be shut off if you have to
replace a broken bulb.
Replace the bulb with a 40 watt appliance bulb, An
appliance bulb Is smaller than a standard 40 watt
household bulb and Is made to withstand high oven
temperatures and have a much longer bulb life.
Note: We recommend you use a 40watt appliance bulb
that is no longer than 3 1/2". The bulb Is avail-
able at your Sears Store or Sears Service Center.
S GLASS
RETAINER
BEFORE CALLING FOR SERVICE
Save time and money -- Check this list before you call for service•
To eliminate unnecessary service calls, first, read all the Instructions In this manual carefully. Then, If you have a
problem, always check this list of common problems and possible solutions before you call for service.
If you do have a problem you cannot fix yourself, call your nearest Sears Store or Sears Service Center for help. When
calling, have this manual and your Repair Parts List handy with the model, serial number and purchase date.
DON'T CALL FOR SERVICE
PROBLEM POSSIBLE CAUSE UNTIL YOU CHECK
Range does not work; • No power to range Check household circuit breaker or fuse.
totally inoperative Check cord (if equipped) to be sure It Is
plugged in.
Oven does not heat; • Oven controls set Incor- Check oven control.
cooktop elements OK rectly
Cooktop does not • Element(s) unplugged Check element connections by removing
work; oven OK and re-plugging element(s) firmly.
• Improper operation of con- Be sure knob is pushed in while turning.
trol
• Foods do not bake • Oven not preheated long
properly enough
Improper rack or pan place-
ment
Oven vent blocked or cov-
ered
Improper use of foil
Improper temperature set-
ting for utensil used
Recipe not followed
Range and oven rack not
level
Using Improper cookware
Be sure to preheat:
until indicator light goes out.
Maintain uniform air space around pans
and utensils; see cooking hints section.
• Reflector bowl must have hole in center
over oven vent.
• Foil use not recommended.
• Reduce temperature 25° for glass or dull/
darkened pans.
• Is recipe tested and reliable?
• Check the installation section for leveling
instructions.
• See cooking hints.
• Oven temperature Thermostat calibration See adjustments described after this sec-
seems inaccurate tion.
13 NEMNT5u

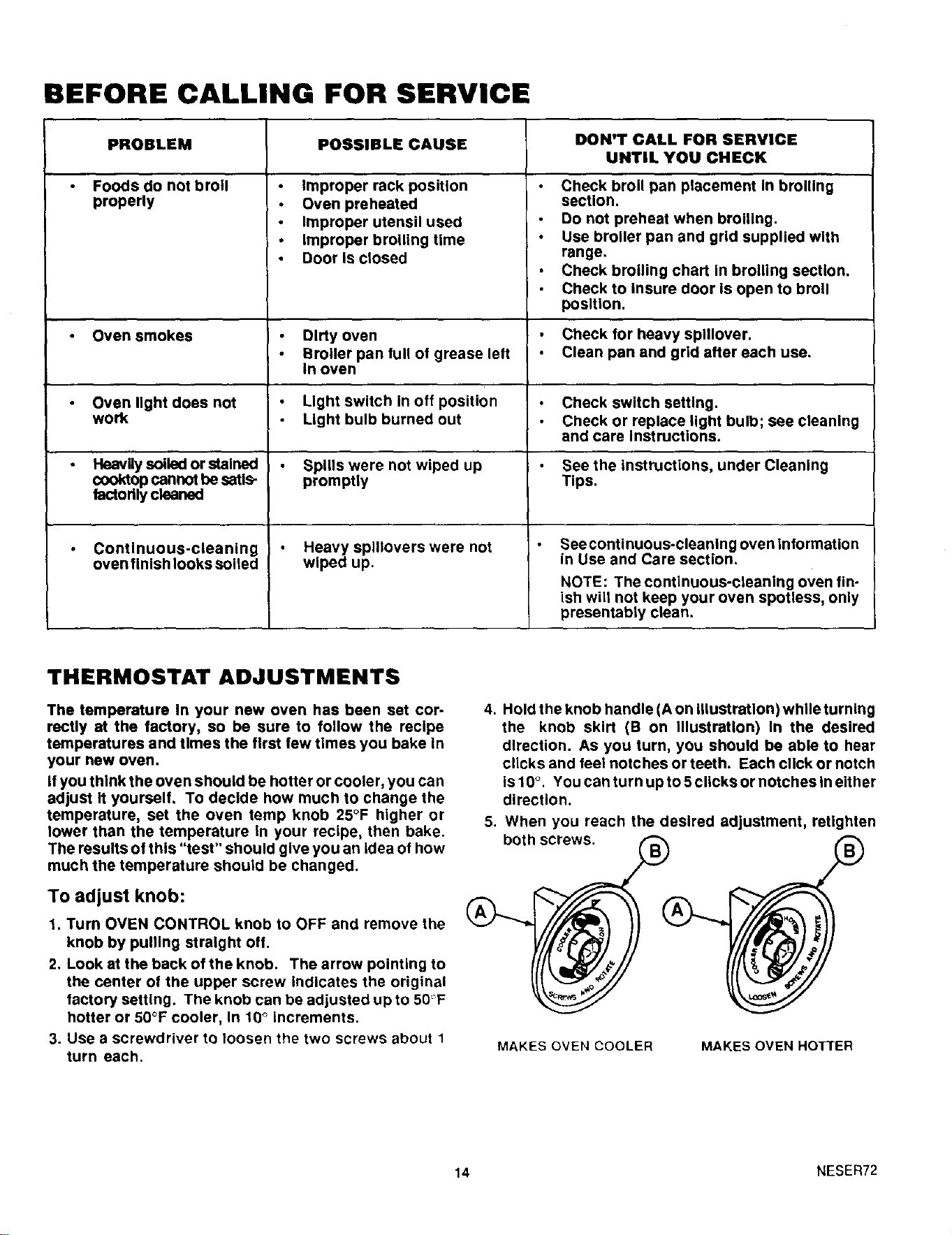

BEFORE CALLING FOR SERVICE
PROBLEM POSSIBLE CAUSE DON_I " CALL FOR SERVICE
UNTIL YOU CHECK
Foods do not broil
properly
Improper rack position
Oven preheated
Improper utensil used
Improper broiling time
Door Is closed
Check broil pan placement In broiling
section.
Do not preheat when broiling.
Use broiler pan and grid supplied with
range.
Check broiling chart In broiling section.
Check to Insure door Is open to broil
position.
Oven smokes Dirty oven Check for heavy splllover.
Broiler pan full of grease left Clean pan and grid after each use.
In oven
Oven light does not Light switch In off position Check switch setting.
work Light bulb burned out Check or replace light bulb; see cleaning
and care Instructions.
Heavilysoiled or stained Spills were not wiped up See the instructions, under Cleaning
cooktop cannot be satls- promptly Tips.
factodly cleaned
Continuous-cleaning Heavy splllovers were not See contlnuous-cleanlng oven information
oven flnlshlookssolled wiped up. in Use and Care section,
NOTE: The continuous-cleaning oven fin-
ish will not keep your oven spotless, only
presentably clean,
THERMOSTAT ADJUSTMENTS
The temperature In your new oven has been set cor-
rectly at the factory, so be sure to follow the recipe
temperatures and times the first few times you bake In
your new oven.
If you think the oven should be hotter or cooler, you can
adjust it yourself. To decide how much to change the
temperature, set the oven temp knob 25°F higher or
lower than the temperature In your recipe, then bake.
The results of this "test" should give you an idea of how
much the temperature should be changed.
To adjust knob:
1. Turn OVEN CONTROL knob to OFF and remove the
knob by pulling straight off.
2. Look at the back of the knob. The arrow pointing to
the center o! the upper screw Indicates the original
factory setting. The knob can be adjusted up to 5Q"F
hotter or 50°F cooler, In 10° increments.
3. Use a screwdriver to loosen the two screws about 1
turn each.
4. Hold the knob handle (A on illustration) while turning
the knob skirt (B on illustration) In the desired
direction. As you turn, you should be able to hear
clicks and feel notches or teeth. Each click or notch
Is10 °, Youcanturnupto5clicksornotcheslneither
direction,
5. When you reach the desired adjustment, retighten
S
MAKES OVEN COOLER MAKES OVEN HOTTER
14 NESER72
KENMORE ELECTRIC RANGE WARRANTY
f
Dear Customer:
Our constant efforts are
directed toward making
sure your new Kenmore
Range will arrive at your
home in perfect condition
and will give you proper
performance As part of
these efforts, we feel it is
our responsibility to pro-
vide you with this warranty
for your range
• .J
f
FULL ONE YEAR WARRANTY ON THE FUNCTIONING OF ALL
PARTS EXCEPT GLASS PARTS
If, within one year from the date of Installation, any part, other than a glass
pert, fails to function properly due to a defect in material or workmanship,
Sears will repair or replace it, free of charge
FULL 3e-DAY WARRANTY ON GLASS PARTS AND FINISH OF PORCE-
LAIN ENAMEL, PAINTED OR BRIGHT METAL FINISHED PARTS
If, within 30 days from the date of installation, any glass part or the finish
on any porcelain enamel, painted or bright metal part Is defective in
material or workmanship, Sears will replace the part, free of charge
FULL 90-DAY WARRANTY ON MECHANICAL ADJUSTMENTS
For 90 days from the date of Installation, Sears will provide, free of charge,
any mechanical adjustments necessary for proper operation of the range,
except for normal maintenance
If the range is subjected to other than private family use, the above
warranty coverage Is effective for only 90 days
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE
NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE
UNITED STATES
This warranty applies only while this product is In use In the United States
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state. SEARS, ROEBUCK and CO.
Dept. 731 CR-W
Sears Tower
Chicago, IL 60684
J
WE SERVICE WHAT WE SELL
"We Service What We Sell" Is our assurance to you that you can depend on Sears for service because Sears
eervlce Is nationwide.
Your Kenmore Range has added value when you consider that Sears has a service unit near you staffed by
Sears trained technicians.., professional technicians specifically trained on Sears appliances, having the
parts, tools and equipment to ensure that we meet our pledge to you -- "We Service What We Sell!"
TO FURTHER ADD TO THE VALUE OF YOUR RANGE, BUY A SEARS MAINTENANCE AGREEMENT.
Kenmore Ranges are designed, manufactured and
tested for years of dependable operation. Yet, any
modern appliance may require service from time
to time. The Sears Warranty plus the Sears Main-
tenance Agreement provides protection from un-
expected repair bills and assures you of enjoying
maximum range efficiency.
Here's a comparative warranty and Maintenance
Agreement chart showing you the benefits of a
Sears Range Maintenance Agreement.
Years of Ownership Coverage 1st Year 2nd Year 3rd Year
Replacement of Defective
1 Parts other than Porc.lain W MA MA
or Glass
90 DAYS
2 MechanicalAdi.stmentW MA MA
30 DAYS
3 Porcelain and Glass Parts W MA MA
Annual Preventive Mainten-
4 anceCheckatyourrequest MA MA MA
W o Warranty MA - Malntenam, ce Agreement
CONTACT YOUR SEARS SALESPERSON OR LOCAL SEARS SERVICE
CENTER TODAY AND PURCHASE A SEARS MAINTENANCE AGREEMENT.
Ken more America's Best Selling Appliance Brand
Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684
I
