Quick Start Guide
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2018 Tripp Lite. All rights reserved.
Toolless Shielded Cat6/6a
Keystone Jack
Models: N238-001-SH-TF, N238-001-SH-TFA
Este manual esta disponible en español en la página de
Tripp Lite: www.tripplite.com/support
Ce manuel est disponible en français sur le site Web de
Tripp Lite : www.tripplite.com/support
Русскоязычная версия настоящего руководства
представлена на веб-сайте компании Tripp Lite по
адресу: www.tripplite.com/support
18-10-348-9334AB-EN.indd 1 11/7/2018 12:52:14 PM
2
1
3
5
1
2
2
4

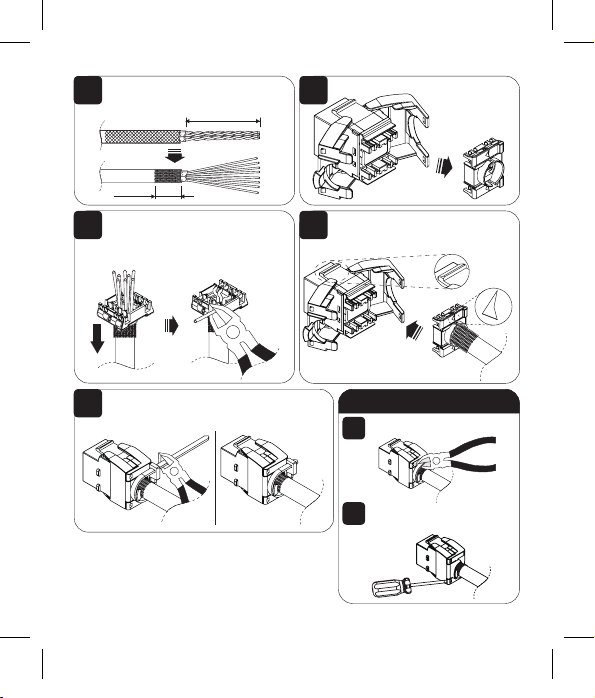

Remove approximately 30 mm of cable
sheath. Keep about 15 mm of cable
brail (foil).
Pass the cable end through the wire cap.
Set each color-coded wire to its matching
color position on the cap. Use wire cutters
to remove any excess wire.
Run the included cable tie through the keystone
jack slot and secure by tightening. Use wire cutters
to remove any excess cable tie.
Cut the cable tie.
Use a flathead screwdriver to
unlock the keystone jack.
30 mm
15 mm
Wire Cap
Latch
Tab UP
To Disconnect:
Release the keystone jack wire cap.
Ensure the wire cap is correctly aligned
with the connector’s latch tab. Press the
wire cap into the jack and lock it in place.
Note: To maximize performance with Power over Ethernet
(PoE) applications, these keystone jacks are specifically
designed to prevent spark gap erosion that degrades the
plug and jack contacts over time and can impact data and/
or power transmission capabilities.
