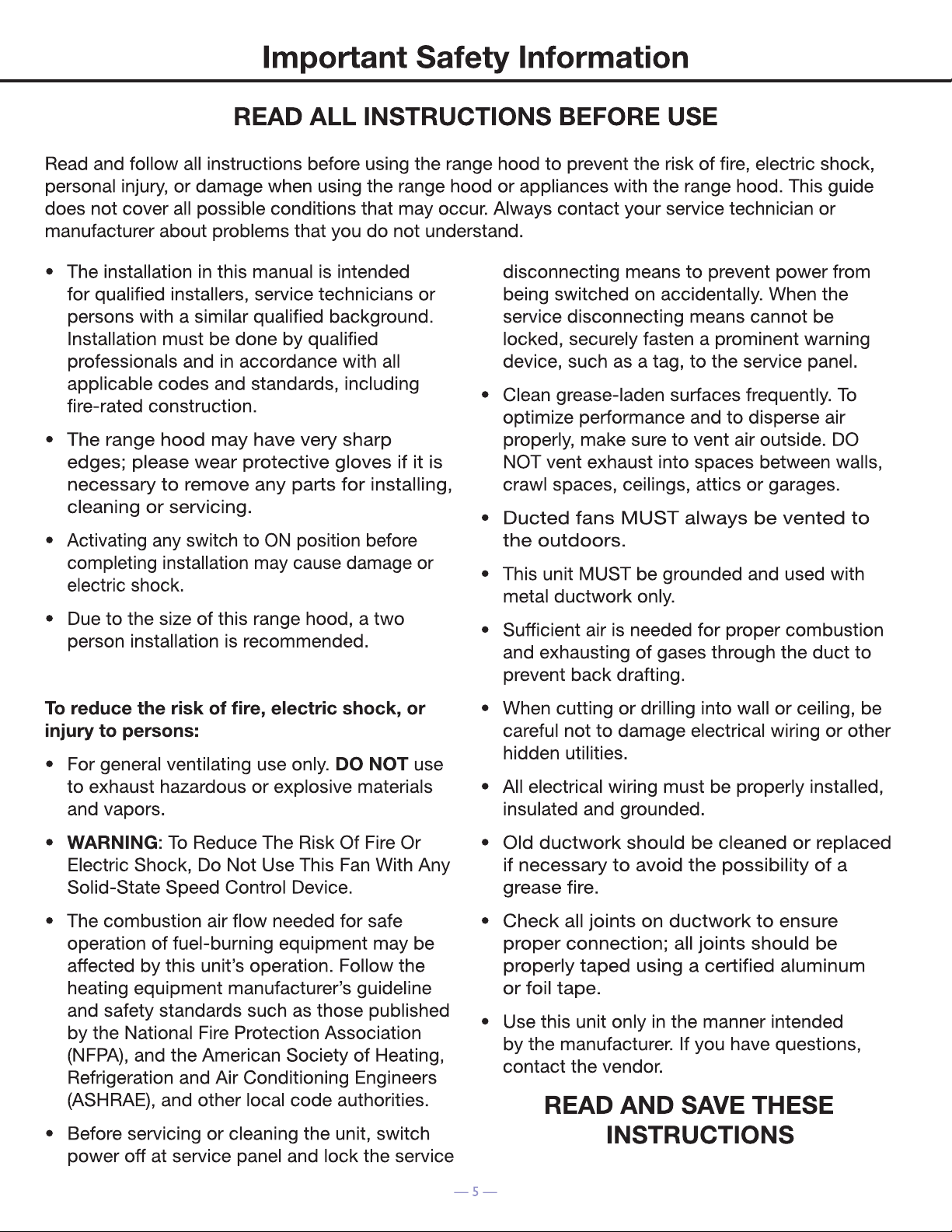

Wall, Island, Insert and
Under Cabinet Range Hood
User Manual
and
Installation Instructions

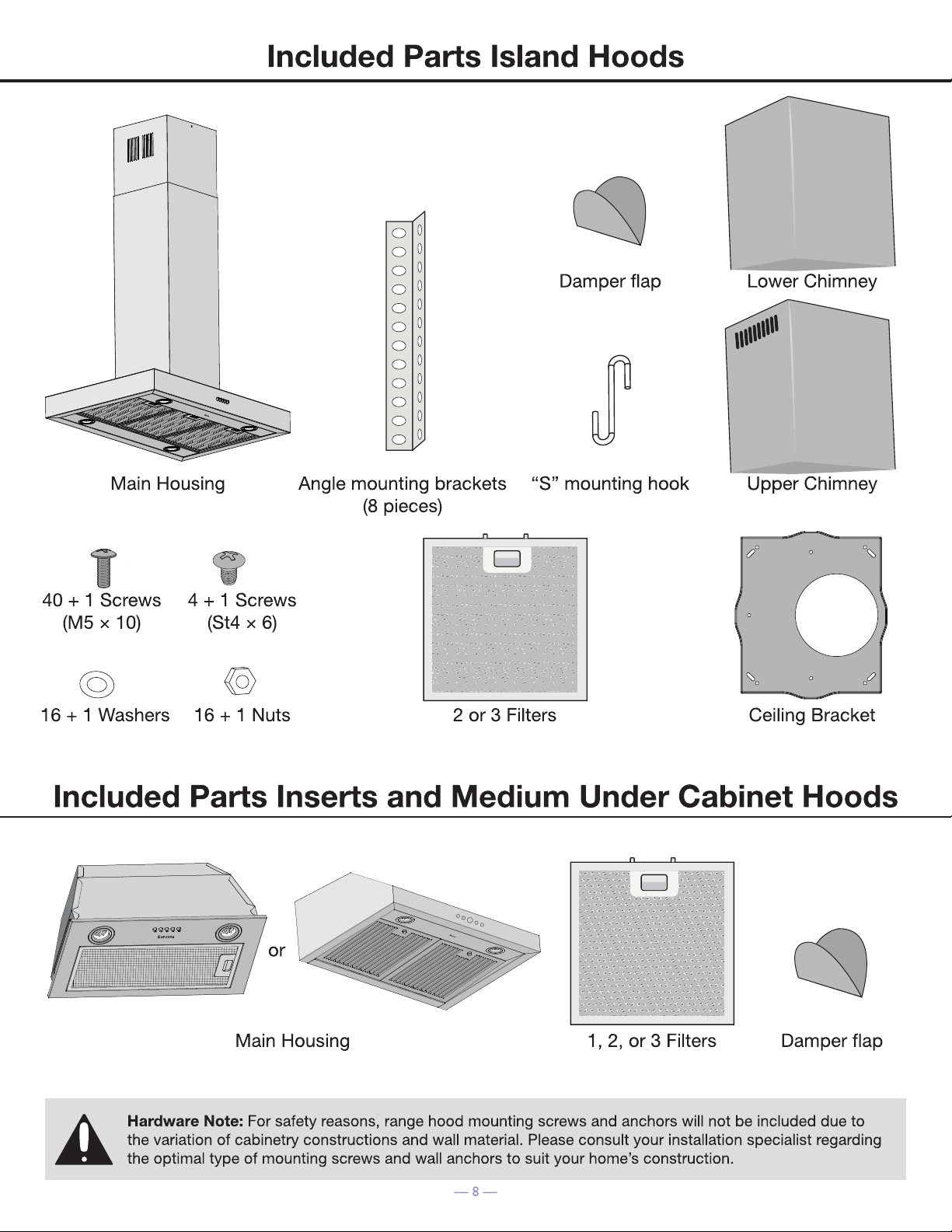

8

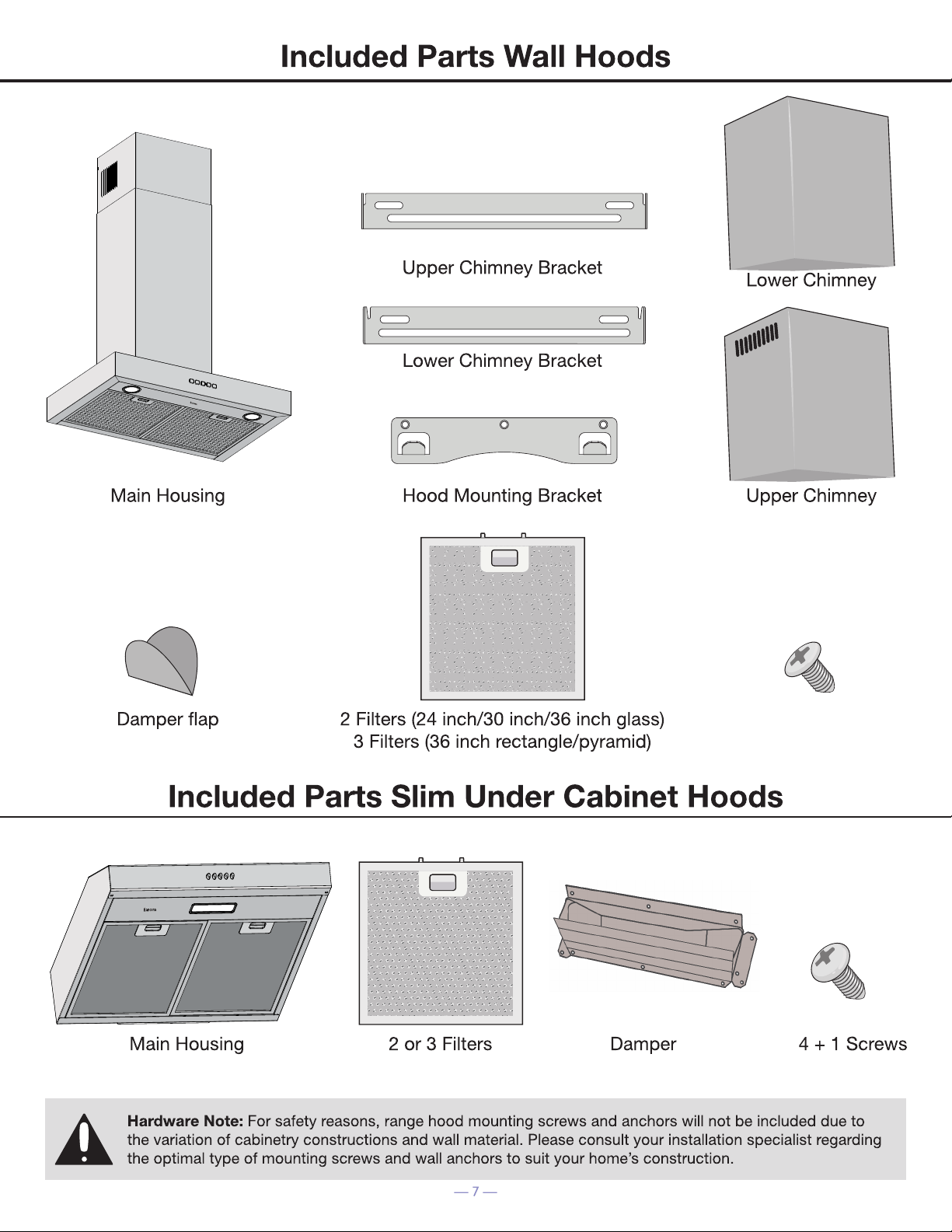

2 + 2 Screws

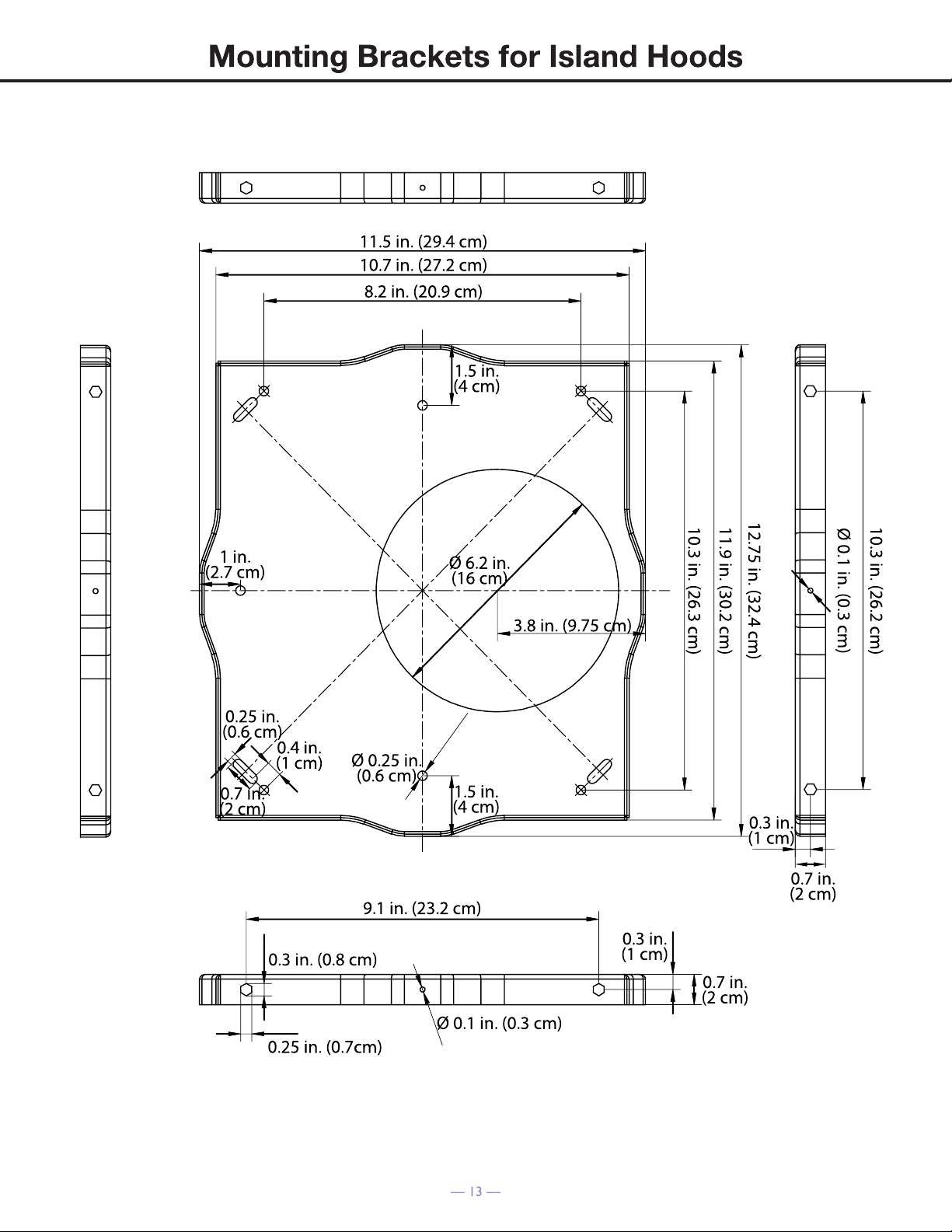

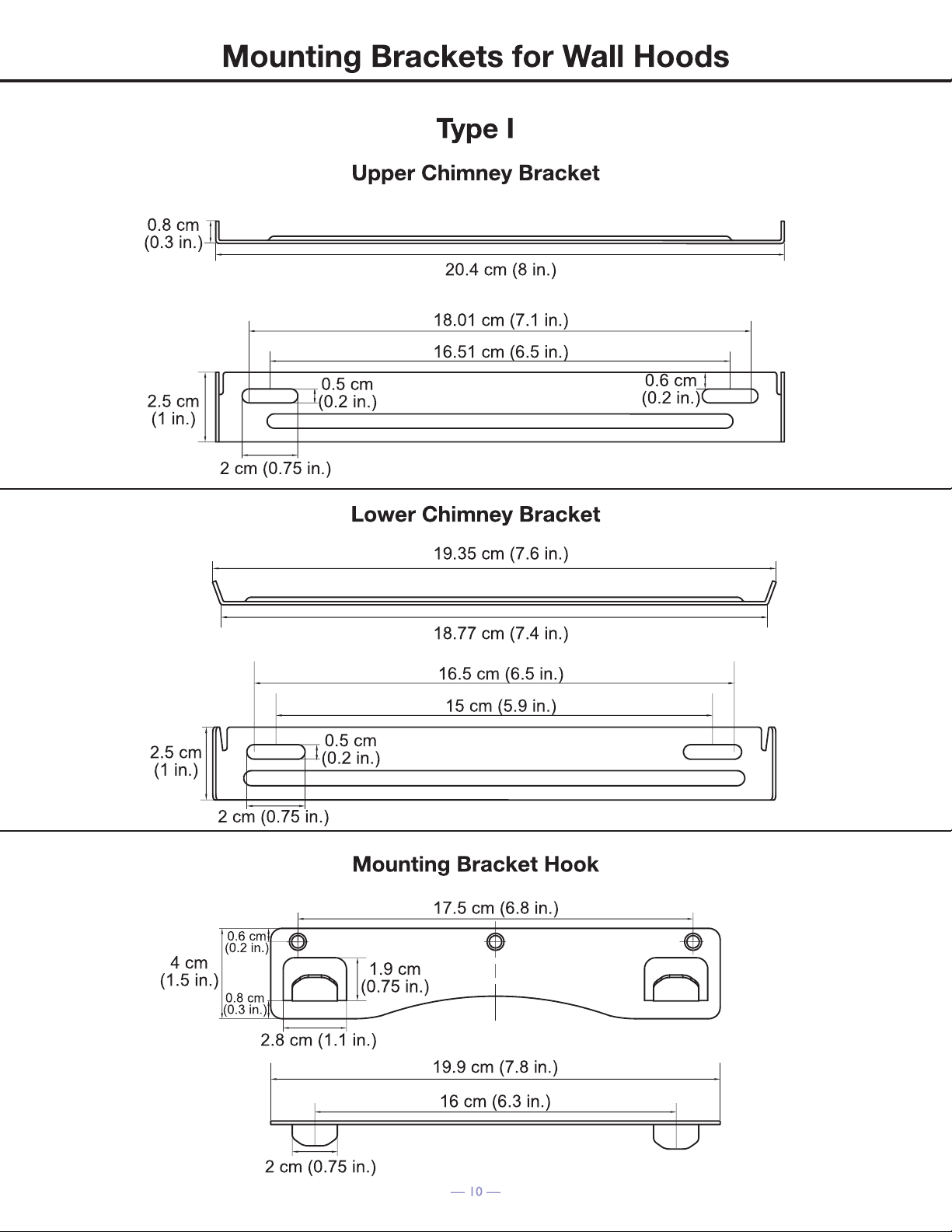

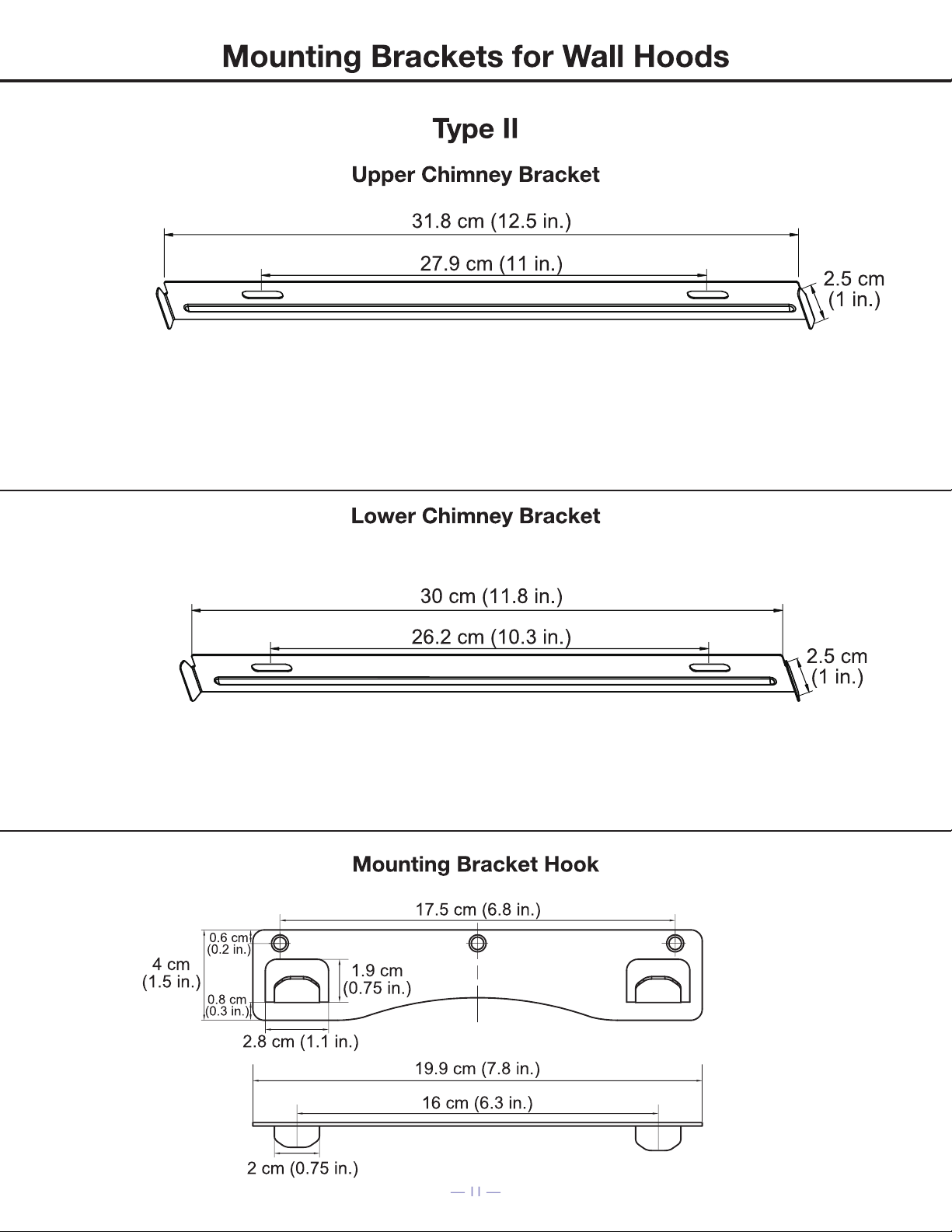

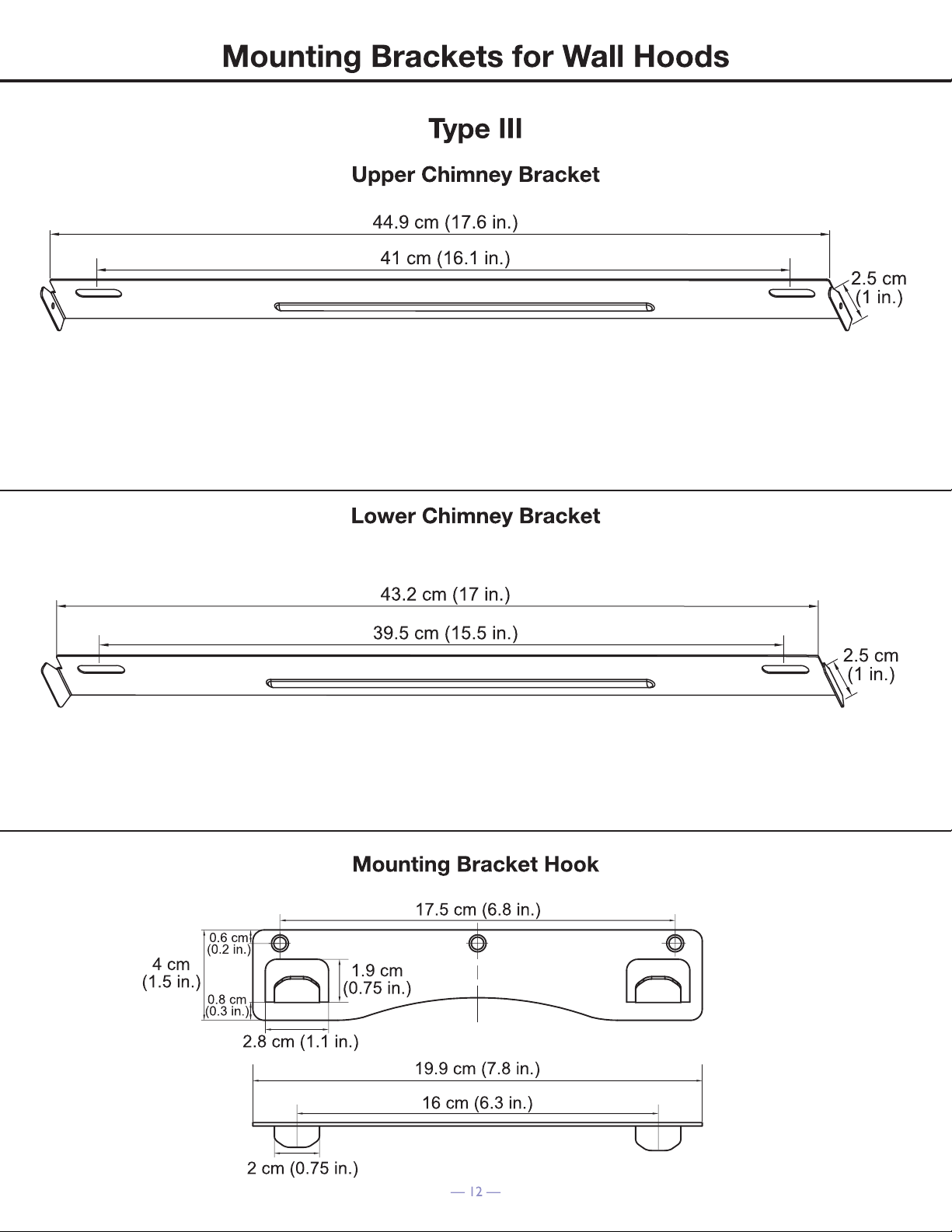

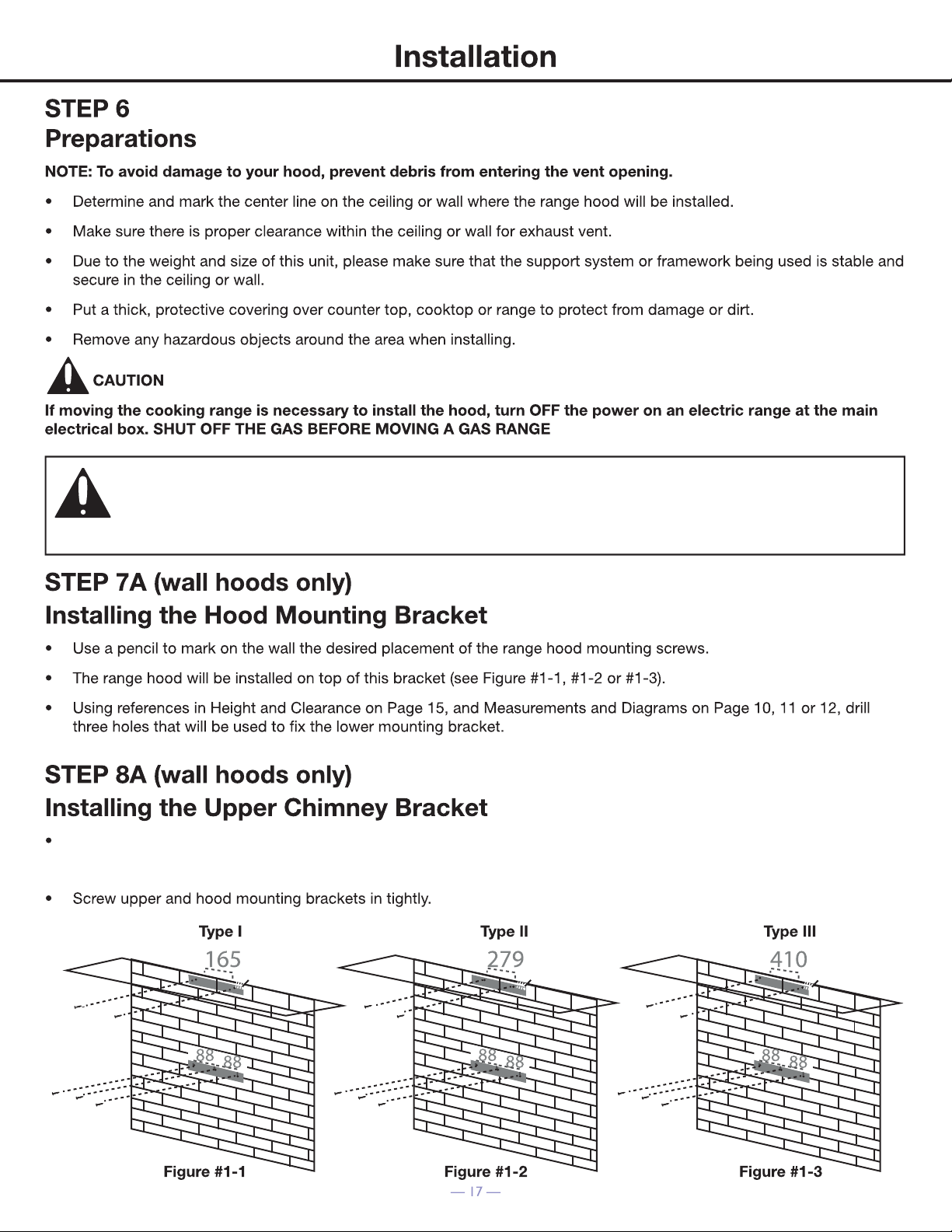

Drill two holes according to the size of the upper mounting bracket. To install chimney flush to the ceiling, the upper
mounting bracket orifice should be positioned 2.1 cm from the ceiling if hooking chimney to bracket (see Figure
#6-1), or 2.6 cm from the ceiling if screwing bracket to chimney (see Figure #6-2).
2.1 or 2.6 cm
2.1 or 2.6 cm
2.1 or 2.6 cm

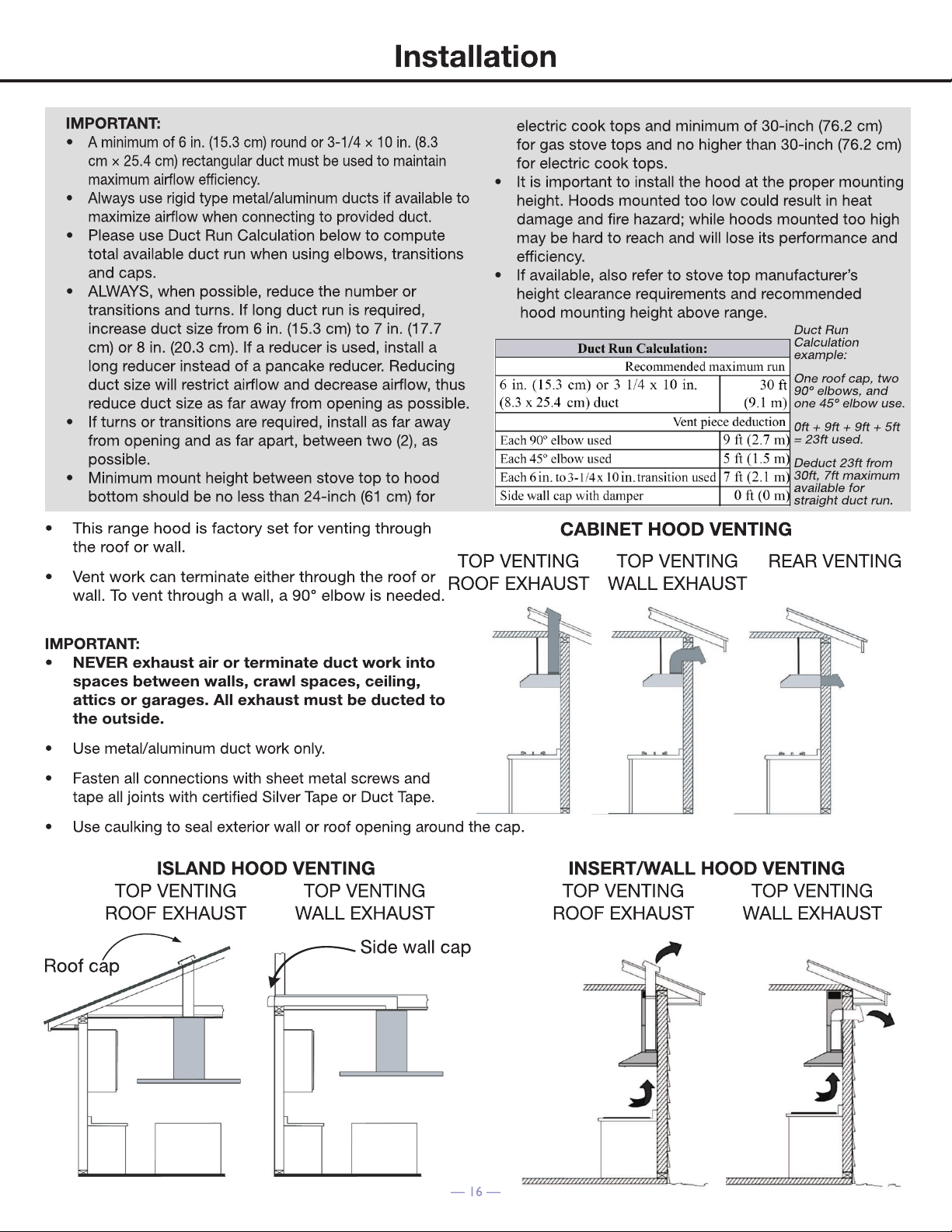

• If performing wall installation, please follow Steps A

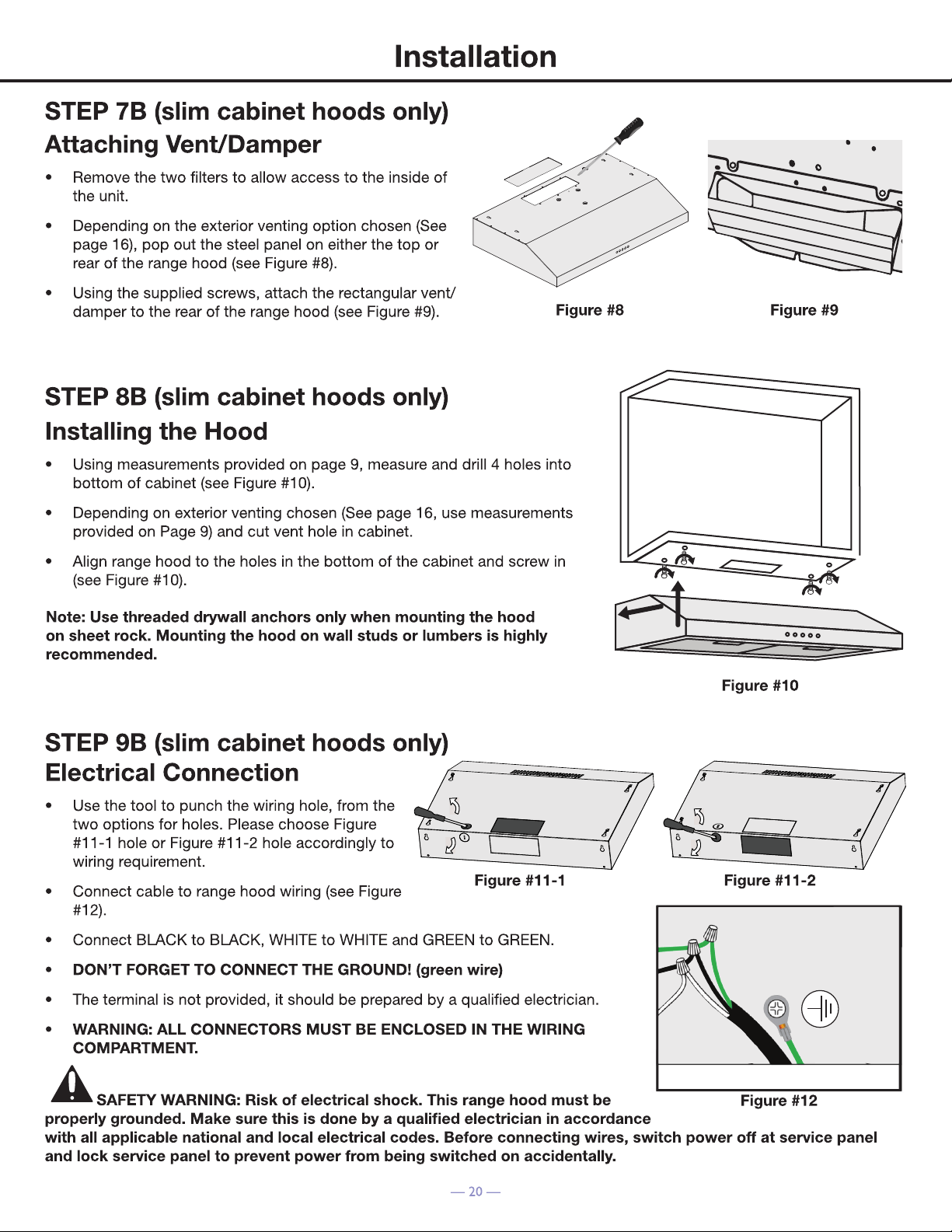

• If performing under cabinet installation, please follow Steps B, C or D

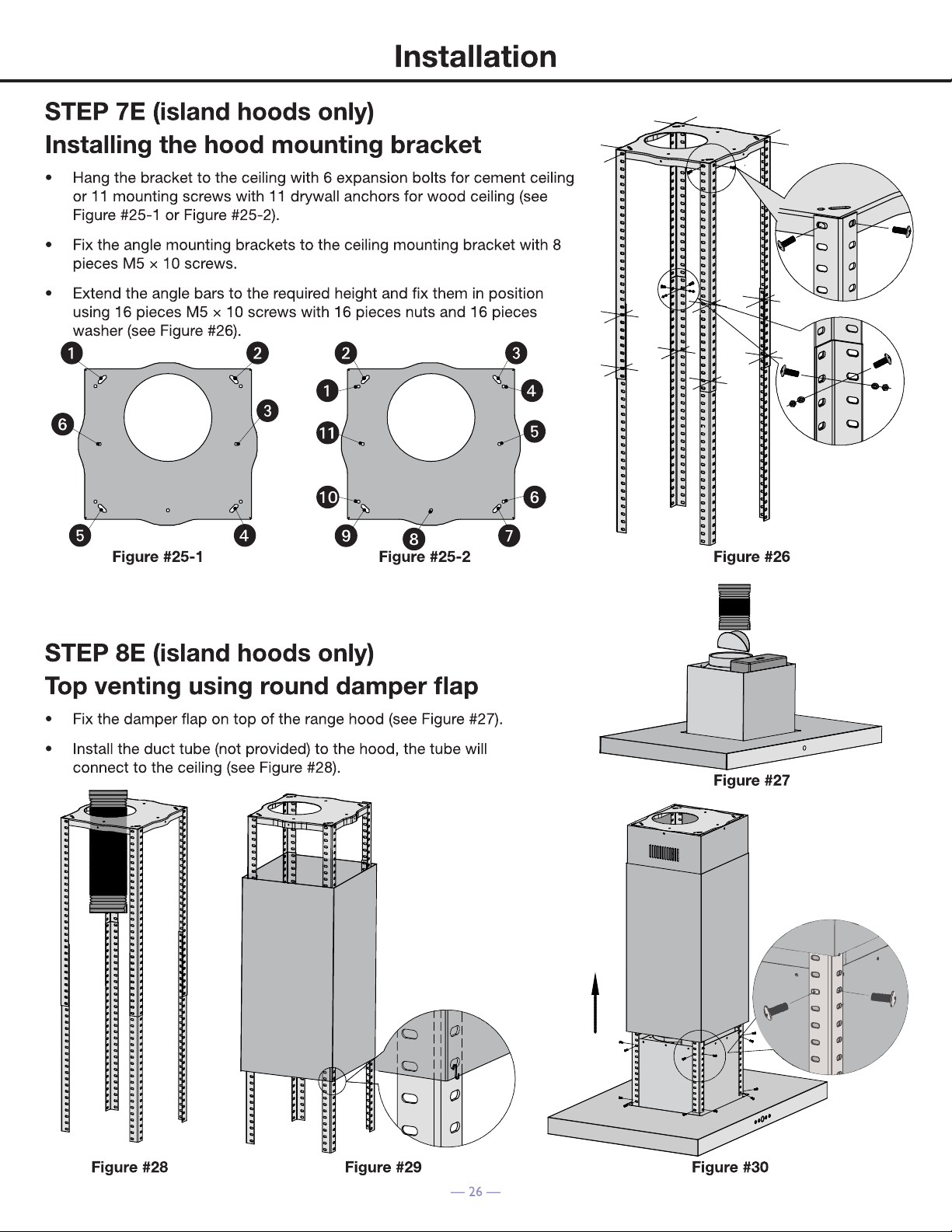

• If performing island installation, please follow steps E
.

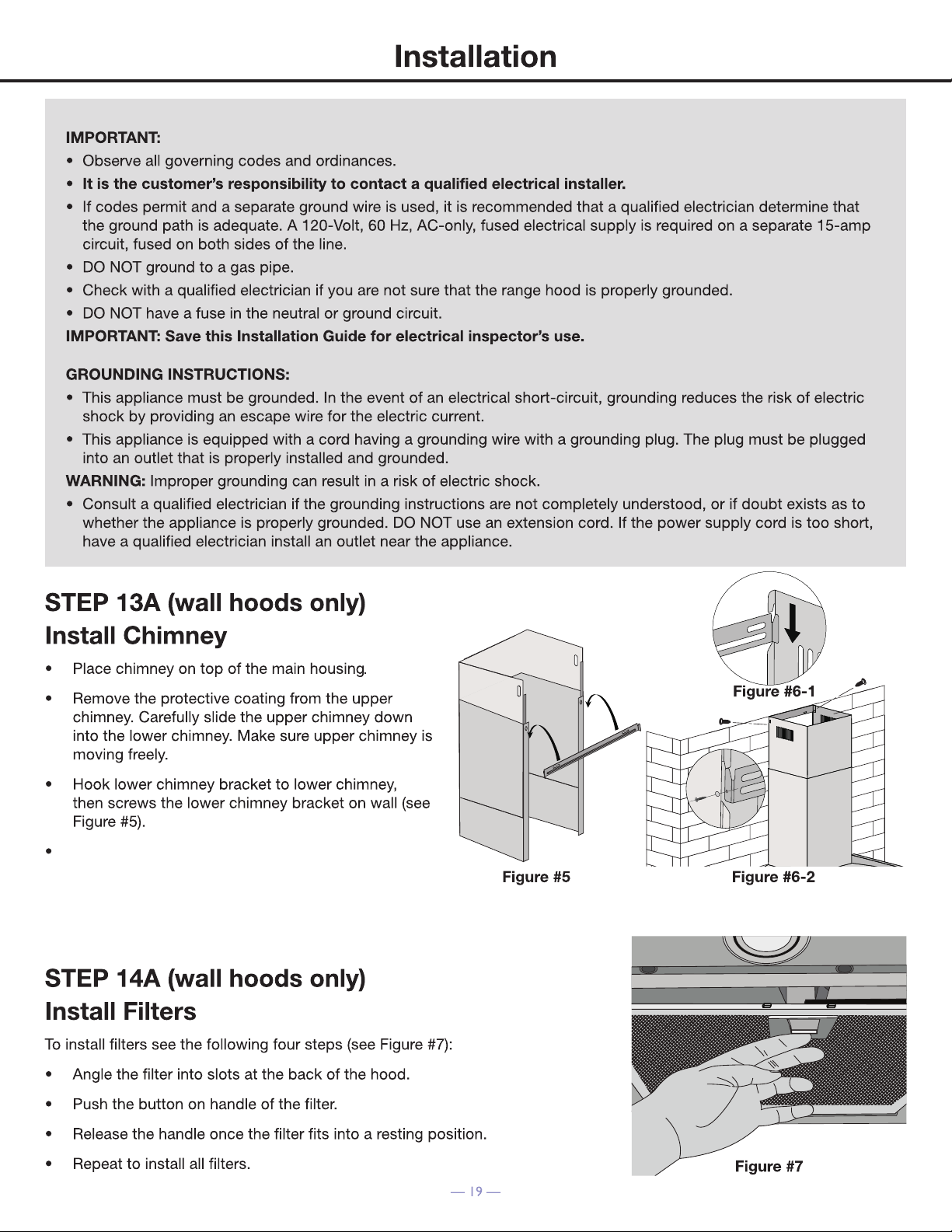

Either hook the bracket to the upper chimney by
matching the side lock (see Figure #6-1),
OR
screw the upper chimney to the upper mounting
bracket (see Figure #6-2).

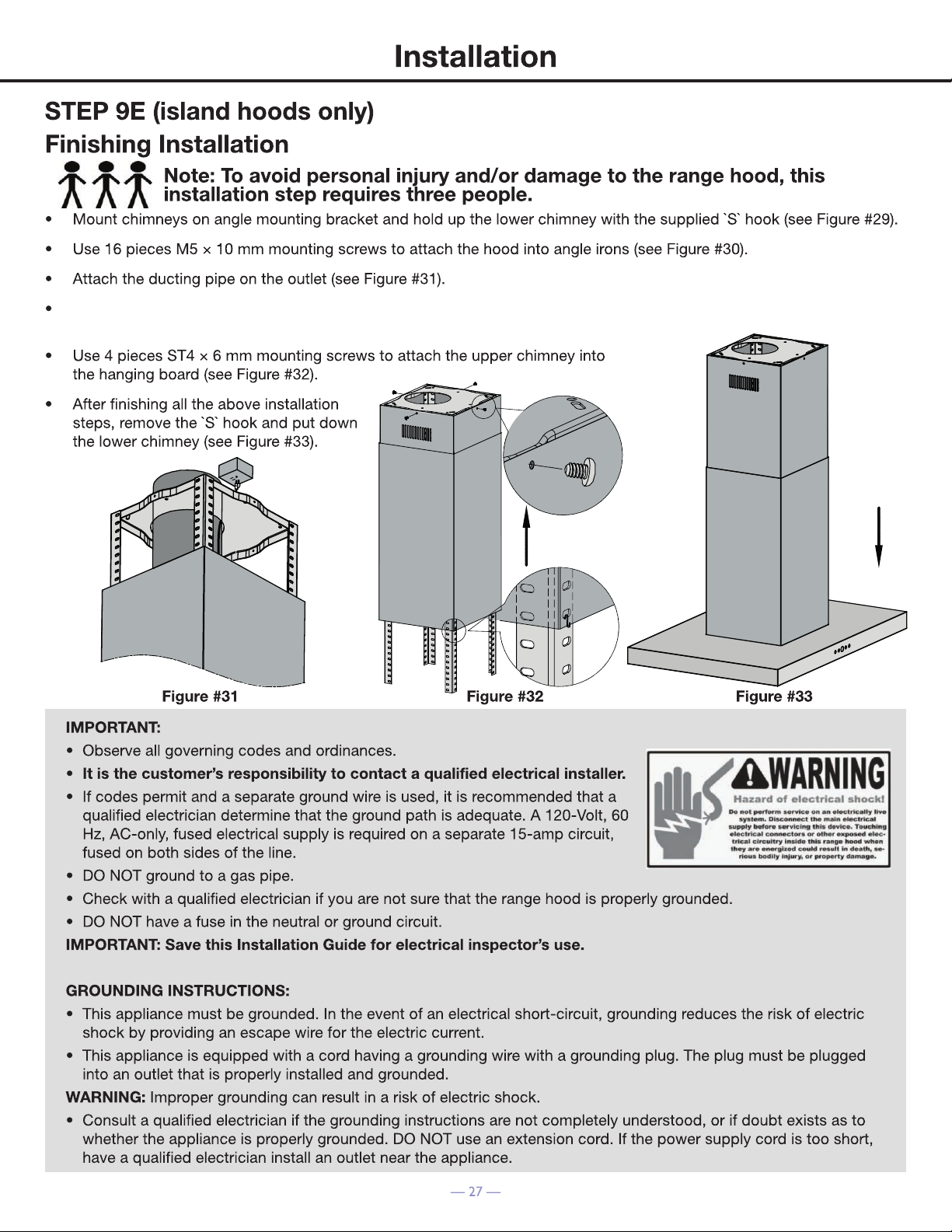

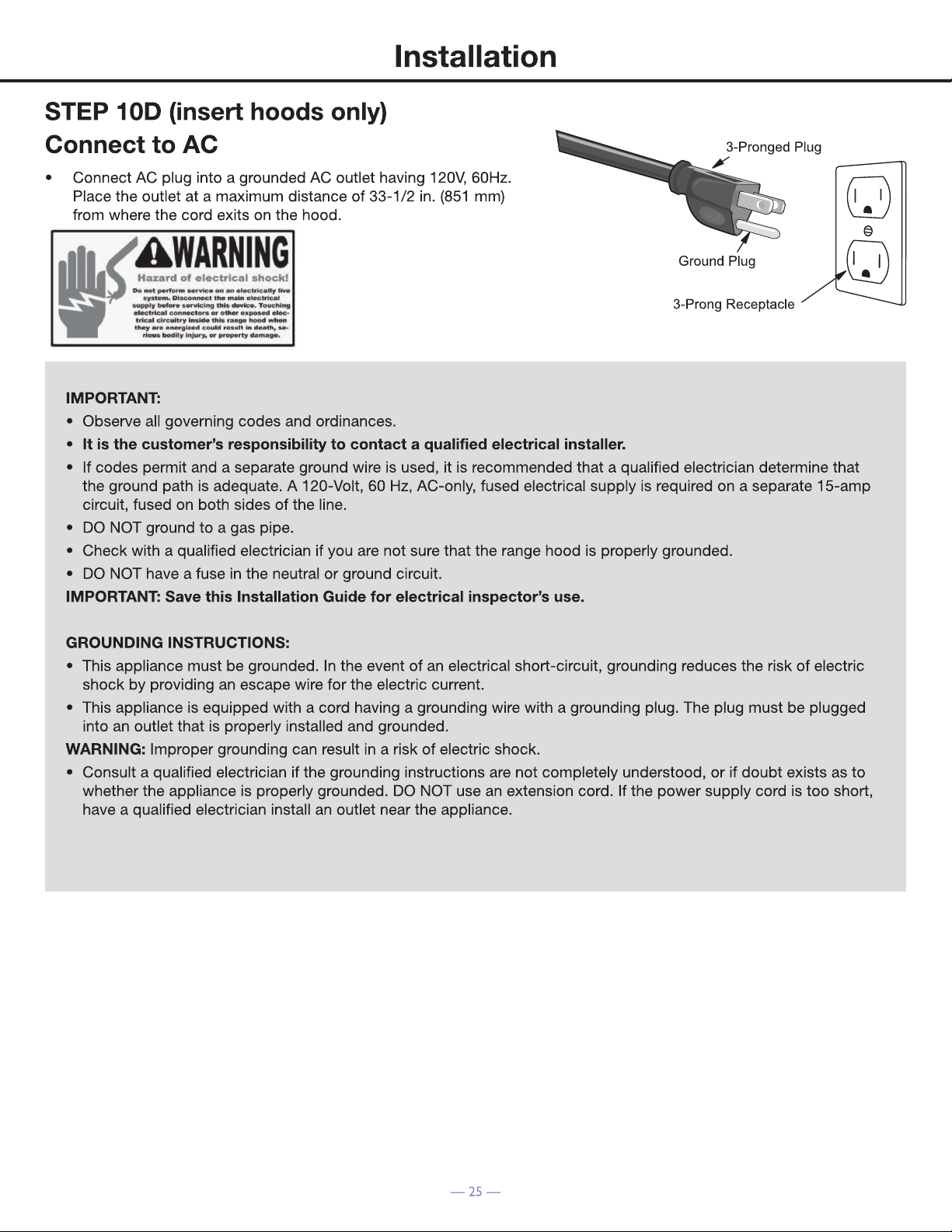

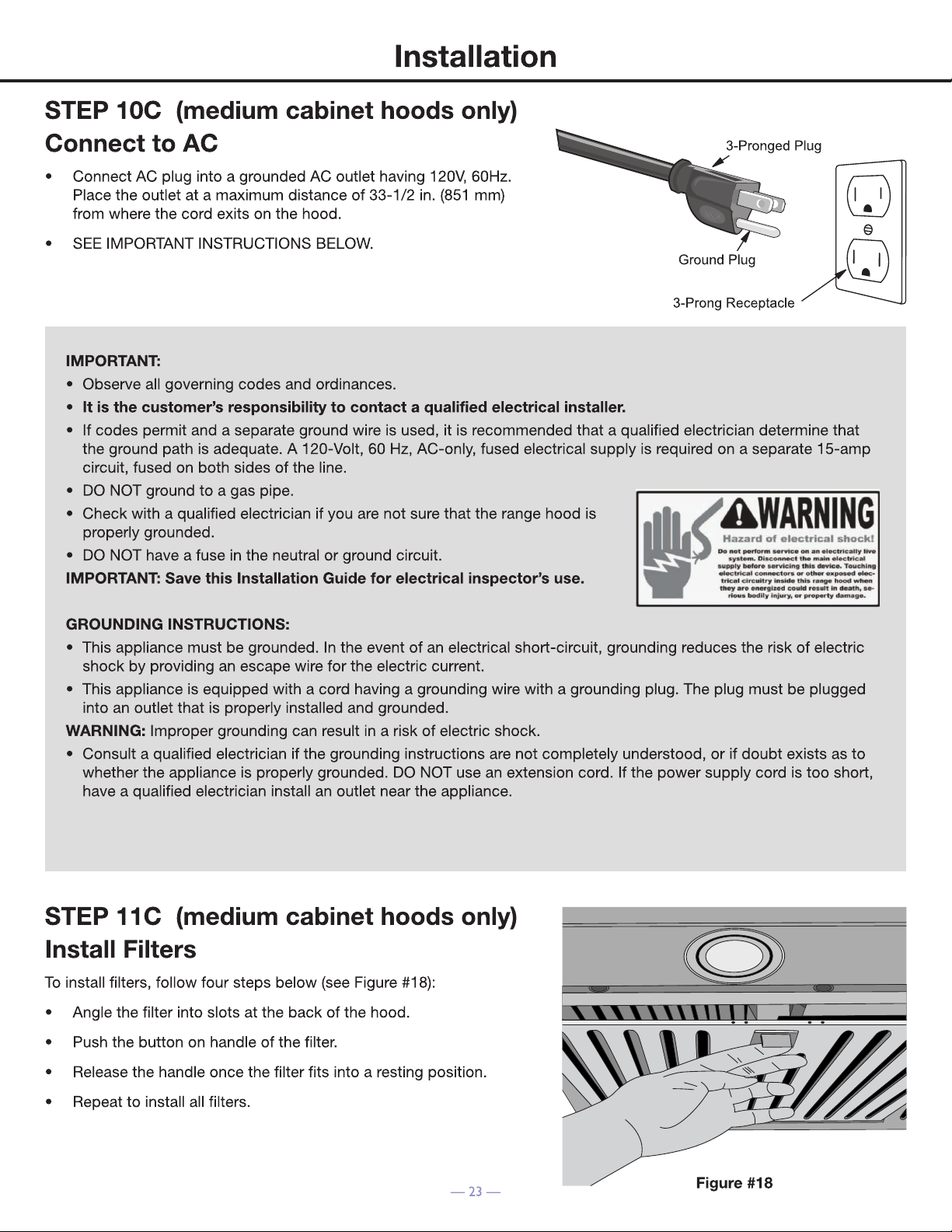

Pass the cord through ducting opening and connect the plug of the power cord to the outlet (see Figure #31). To
remove plug visibility, outlet can be installed inside the ceiling by a qualified electrician.
MAANTM01-05
©2021CopyrightofAnconaHome.Allrightsreserved.Thismaterialmaynotbereproduced,displayed,modiedordistributed.
Canada & USA
Phone: 1-800-350-4562
Fax: 800-350-8563
Email: [email protected]
Website: www.anconahome.com
