Wireless BT Portable PA Speaker
Portable PA & Karaoke Party Audio Speaker
with microphone, Built-in Rechargeable Battery,
Flashing Party Lights, MP3/USB/FM Radio
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: suppor[email protected]
Wireless BT Portable PA Speaker
Portable PA & Karaoke Party Audio Speaker
with microphone, Built-in Rechargeable Battery,
Flashing Party Lights, MP3/USB/FM Radio
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: support@pyleusa.com
11 12 2
13 14 15 16 17 18
10 8 6 5 4 3 179
WARNING
Illegal operation may cause personal injury, which could be fatal and may cause
damage to property.
1. DO NOT place objects on top of the device, as objects may
scratch the device.
2. DO NOT expose the device to dirty or dusty environments.
3. DO NOT insert any foreign objects into the device.
4. DO NOT expose the device to strong magnetic or electrical eld.
5. DO NOT use the device in the rain
6. Please check with your Local Authority or retailer for proper
disposaI of electronic products.
7. DO NOT disassemble the device. Only a certied service
technician should perform repair.
8. The device has apertures to disperse heat. DO NOT block the
device ventilation, the device may become hot and malfunction
as a result.
CONTROL BOARD FUNCTIONS
1. Power Switch
2. Master volume control
3. DC 9V input jack/charge LED indicator red color is ON in charging mode,
light o is full charge mode.
4. Bass volume control knob
5. Treble volume control knob
6. Microphone Echo control knob
7. USB and Micro SD Memory card slot
8. 3.5mm AUX input jack
9. 6.5mm Microphone input jack
10. LED light switch
www.PyleUSA.com
2
www.PyleUSA.com
3
11 12 2
13 14 15 16 17 18
10 8 6 5 4 3 179
WARNING
Illegal operation may cause personal injury, which could be fatal and may cause
damage to property.
1. DO NOT place objects on top of the device, as objects may
scratch the device.
2. DO NOT expose the device to dirty or dusty environments.
3. DO NOT insert any foreign objects into the device.
4. DO NOT expose the device to strong magnetic or electrical eld.
5. DO NOT use the device in the rain
6. Please check with your Local Authority or retailer for proper
disposaI of electronic products.
7. DO NOT disassemble the device. Only a certied service
technician should perform repair.
8. The device has apertures to disperse heat. DO NOT block the
device ventilation, the device may become hot and malfunction
as a result.
CONTROL BOARD FUNCTIONS
1. Power Switch
2. Master volume control
3. DC 9V input jack/charge LED indicator red color is ON in charging mode,
light o is full charge mode.
4. Bass volume control knob
5. Treble volume control knob
6. Microphone Echo control knob
7. USB and Micro SD Memory card slot
8. 3.5mm AUX input jack
9. 6.5mm Microphone input jack
10. LED light switch
www.PyleUSA.com
2
www.PyleUSA.com
3

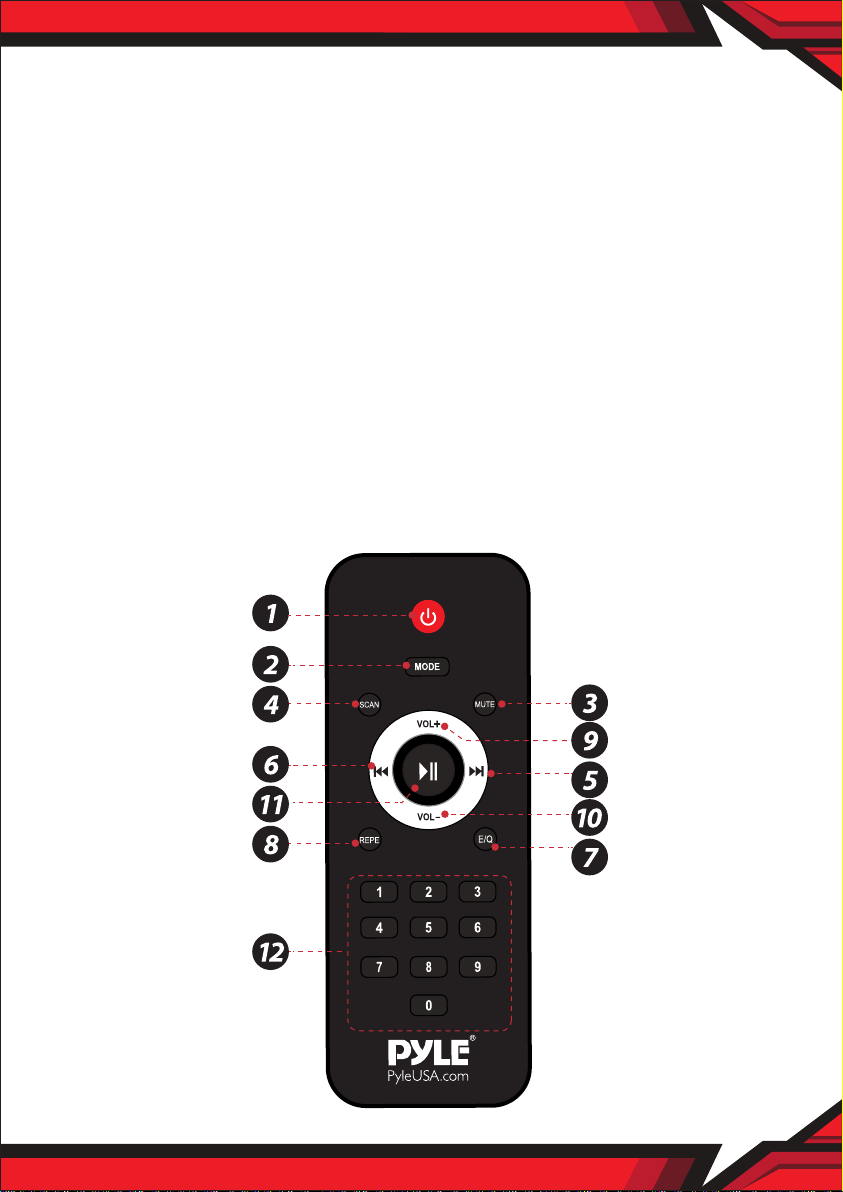

REMOTE CONTROL FUNCTIONS
1. Power: Used to turn on/o the MP3 player power.
2. MODE: Used to switch the AUX/USB/BT/Radio
3. Mute button
4. In FM mode, press to search radio station automatically and save.
5. Next song in USB/In FM mode, short press to select saved radio station.
6. Previous song in USB//In FM mode, short press to select last frequency,
press and hold to fast forward frequency.
7. EQ solution
8. Repeat song
9. Increase volume
10. Decrease volume
11. Play/Pause/In FM Mode, press to select saved radio station.
12. Choose song number directly/In FM mode, choose FM frequency directly
TWS FUNCTION
For increase sound eect, our unit provides TWS function as follows:
Step-1: Turn ON BT mode on your device and connect the machine.
Step-2: Press and hold each control board “TWS” button more than 3's, and you will
see "ON" on display, unit will start to connect the other unit automatically,
now you can enjoy stereo sound, and adjusting one unit volume will aect
the other unit.
Remark:
1. After connection, press and hold again one of control board "TWS" button more
than 3's, you will see "OFF" on display, unit's TWS dis-connection.
11. Microphone volume control knob
12. Display screen
13. Mode button: Short press to select BT, FM, AUX, USB, SD mode; Press & hold to
start power saving mode, press and hold again to quit power saving mode.
14. Previous
15. Play/Pause/Press and hold for TWS function
16. Next
17. Press to start recording, short press again to save. Press and hold to play recorded
les. Press and hold again to quit recording.
18. Short press to start microphone priority/When playing recorded le, press and
hold to delete current recording.
REMOTE CONTROL FUNCTIONS
www.PyleUSA.com
4
www.PyleUSA.com
5
REMOTE CONTROL FUNCTIONS
1. Power: Used to turn on/o the MP3 player power.
2. MODE: Used to switch the AUX/USB/BT/Radio
3. Mute button
4. In FM mode, press to search radio station automatically and save.
5. Next song in USB/In FM mode, short press to select saved radio station.
6. Previous song in USB//In FM mode, short press to select last frequency,
press and hold to fast forward frequency.
7. EQ solution
8. Repeat song
9. Increase volume
10. Decrease volume
11. Play/Pause/In FM Mode, press to select saved radio station.
12. Choose song number directly/In FM mode, choose FM frequency directly
TWS FUNCTION
For increase sound eect, our unit provides TWS function as follows:
Step-1: Turn ON BT mode on your device and connect the machine.
Step-2: Press and hold each control board “TWS” button more than 3's, and you will
see "ON" on display, unit will start to connect the other unit automatically,
now you can enjoy stereo sound, and adjusting one unit volume will aect
the other unit.
Remark:
1. After connection, press and hold again one of control board "TWS" button more
than 3's, you will see "OFF" on display, unit's TWS dis-connection.
11. Microphone volume control knob
12. Display screen
13. Mode button: Short press to select BT, FM, AUX, USB, SD mode; Press & hold to
start power saving mode, press and hold again to quit power saving mode.
14. Previous
15. Play/Pause/Press and hold for TWS function
16. Next
17. Press to start recording, short press again to save. Press and hold to play recorded
les. Press and hold again to quit recording.
18. Short press to start microphone priority/When playing recorded le, press and
hold to delete current recording.
REMOTE CONTROL FUNCTIONS
www.PyleUSA.com
4
www.PyleUSA.com
5
TROUBLESHOOTING
Wireless BT Streaming:
•
Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32’ ft.
www.PyleUSA.com
6
www.PyleUSA.com
7
This product can expose you to a chemical or group of chemicals, which may include
“Lead and lead compounds” which is known in the state of California to cause cancer, birth
defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
1. The audio format in the U disc
is incorrect.
2. Improper operation has caused
a process disorder.
3. USB disc is disconnected.
1. Convert audio format into Mp3
format.
2. Reboot the machine.
3. Insert USB disc properly.
MP3
does not
play
Fault
Possible Cause
Solution
No sound
Distortion
of sound
Karaoke
does not
work
1. No input sound source.
2. Volume is too low.
1. Volume too high.
2. Speaker may be damaged
1. Microphone plug is not fully
inserted.
2. Microphone switch is not on.
3. Microphone volume knob is at
the lowest position.
1. Use a better music signal.
2. Adjust volume.
1. Turn down the volume.
2. If speaker is damaged, repair
or replace it.
1. Plug microphone properly into
the socket.
2. Turn on microphone switch.
3. Adjust microphone volume
properly.
TROUBLESHOOTING
Wireless BT Streaming:
•
Built-in BT for Wireless Music Streaming
• Simple & Hassle-Free Pairing
• Works with All of Today’s Latest Devices
• Smartphones, Tablets, Laptops, Computers, etc.
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: Up to 32’ ft.
www.PyleUSA.com
6
www.PyleUSA.com
7
This product can expose you to a chemical or group of chemicals, which may include
“Lead and lead compounds” which is known in the state of California to cause cancer, birth
defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.
1. The audio format in the U disc
is incorrect.
2. Improper operation has caused
a process disorder.
3. USB disc is disconnected.
1. Convert audio format into Mp3
format.
2. Reboot the machine.
3. Insert USB disc properly.
MP3
does not
play
Fault
Possible Cause
Solution
No sound
Distortion
of sound
Karaoke
does not
work
1. No input sound source.
2. Volume is too low.
1. Volume too high.
2. Speaker may be damaged
1. Microphone plug is not fully
inserted.
2. Microphone switch is not on.
3. Microphone volume knob is at
the lowest position.
1. Use a better music signal.
2. Adjust volume.
1. Turn down the volume.
2. If speaker is damaged, repair
or replace it.
1. Plug microphone properly into
the socket.
2. Turn on microphone switch.
3. Adjust microphone volume
properly.
www.PyleUSA.com
8
www.PyleUSA.com
9
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With two wireless microphones
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 600 Watt Max
• Sound System: 10’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3.5 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery: 7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 11.8’’ x 9.4 ’’ x 19.3 ’’ -inches
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With a wireless microphone
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 800 Watt Max
• Sound System: 12’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery:7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 14 ’’ x 11.4 ’’ x 21.7 ’’ -inches
PPHP101WMB
10’’ Wireless BT Portable PA Speaker
(600 Watt MAX)
PPHP121WMB
12’’ Wireless BT Portable PA Speaker
(800 Watt MAX)
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Two wireless microphones
• AUX cable
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Wireless microphone
• AUX cable
www.PyleUSA.com
8
www.PyleUSA.com
9
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With two wireless microphones
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 600 Watt Max
• Sound System: 10’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3.5 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery: 7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 11.8’’ x 9.4 ’’ x 19.3 ’’ -inches
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With a wireless microphone
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 800 Watt Max
• Sound System: 12’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery:7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 14 ’’ x 11.4 ’’ x 21.7 ’’ -inches
PPHP101WMB
10’’ Wireless BT Portable PA Speaker
(600 Watt MAX)
PPHP121WMB
12’’ Wireless BT Portable PA Speaker
(800 Watt MAX)
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Two wireless microphones
• AUX cable
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Wireless microphone
• AUX cable
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With wired microphone
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 800 Watt Max
• Sound System: 12’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery:7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 14 ’’ x 11.4 ’’ x 21.7 ’’ -inches
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With wired microphone
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 800 Watt Max
• Sound System: 12’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery:7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 14 ’’ x 11.8 ’’ x 21.7 ’’ -inches
www.PyleUSA.com
10
www.PyleUSA.com
11
PPHP127B
12’’ Wireless BT Portable PA Speaker
(800 Watt MAX)
PPHP128B
12’’ Wireless BT Portable PA Speaker
(800 Watt MAX)
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Wired microphone
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Wired microphone
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With wired microphone
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 800 Watt Max
• Sound System: 12’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery:7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 14 ’’ x 11.4 ’’ x 21.7 ’’ -inches
Features:
•
True Wireless Stereo System
• Portable Speaker System
• High-Powered PA Loudspeaker Style
• Wireless BT Music Streaming Ability
• Multi-Color Flashing LED Party Lights
• Built-in Rechargeable Battery
• FM Radio with Digital LED Display
• Connect & Stream Audio from External Devices
• Aux (3.5mm) Input Connector Jack
• USB Flash Memory Reader
• Micro SD Card Reader
• 6.5mm Microphone input
• Battery Level LED Indicator Lights
• Recording Function
• Microphone Priority Function
• Microphone Echo Adjust Knob
• Bass & Treble Adjust Knobs
• Power saving mode to play music longer time
• With wired microphone
• Rugged & Durable Molded Cabinet Design
• Convenient Trolley & Wheels
• For Indoor / Outdoor Use
Technical Specs:
• Construction Material: Polypropylene (PP)
• Max Power Output: 800 Watt Max
• Sound System: 12’’ -inch Subwoofer + 1” Tweeter
• USB Interface Type: 2.0
• Digital Audio File Support: MP3
• Maximum USB Flash Support: 32GB
• Remote Control Battery Operated, 1 Piece Button Cell Battery
CR-2025 (Included)
• Battery Life: Up to 3 Hours (Charge Time: Approx. 5 Hours)
• Rechargeable Battery:7.4V, 3600mAh – 26.64 Wh
• Power Supply: 120/240V, Switchable (9V/1.33A Power Adapter)
• Product Dimensions (L x W x H): 14 ’’ x 11.8 ’’ x 21.7 ’’ -inches
www.PyleUSA.com
10
www.PyleUSA.com
11
PPHP127B
12’’ Wireless BT Portable PA Speaker
(800 Watt MAX)
PPHP128B
12’’ Wireless BT Portable PA Speaker
(800 Watt MAX)
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Wired microphone
What's in the Box:
•
PA Speaker System
• Remote Control
• Power Adapter
• Wired microphone
