Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure

OWNER'S MANUAL

For SRW10US. Series: Series AG-00EA
Also, The document are for others Tripp Lite models: SRW**US, SRW**USG

PDF File Manual, 32 pages, Read Online | Download pdf file

SRW10US photo
1
Table of Contents

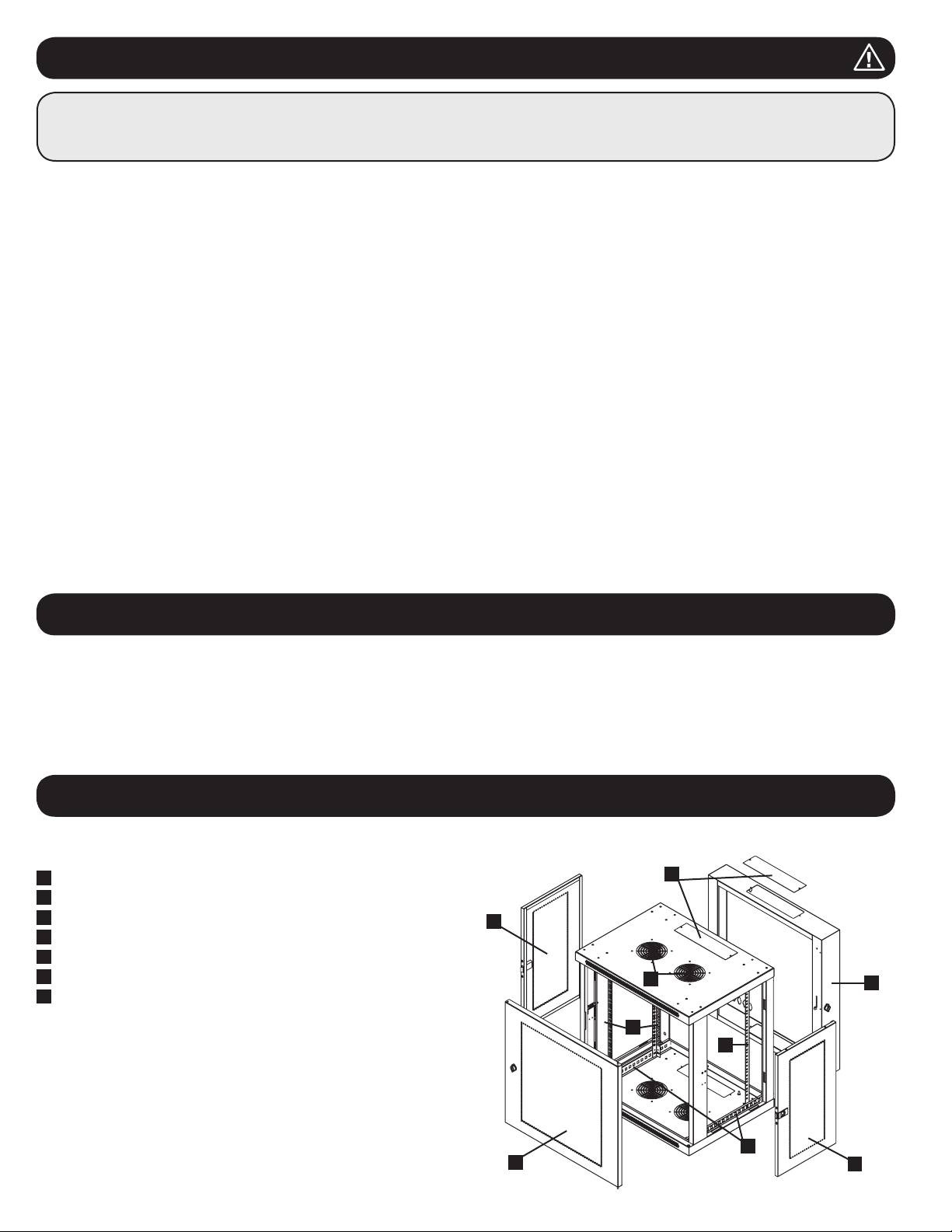

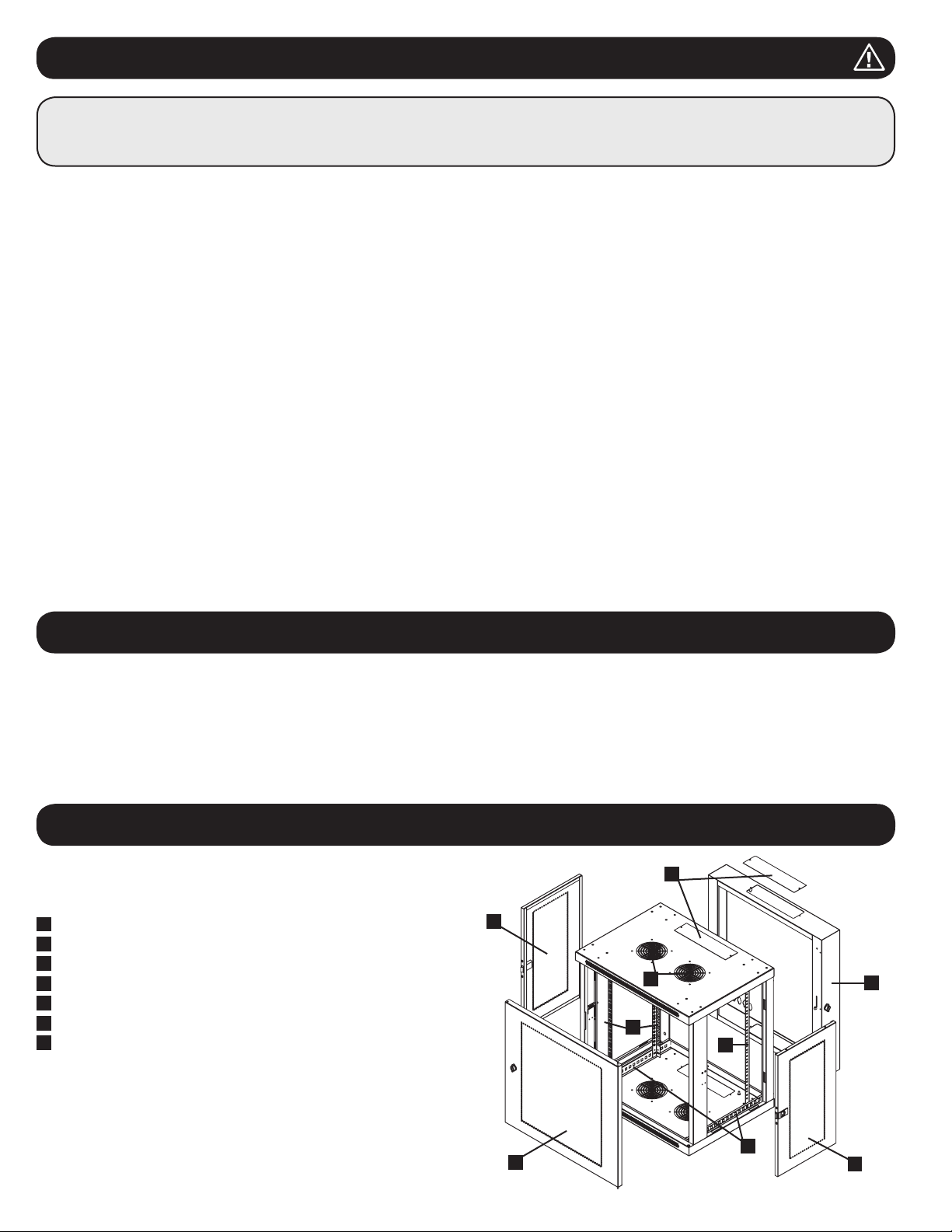

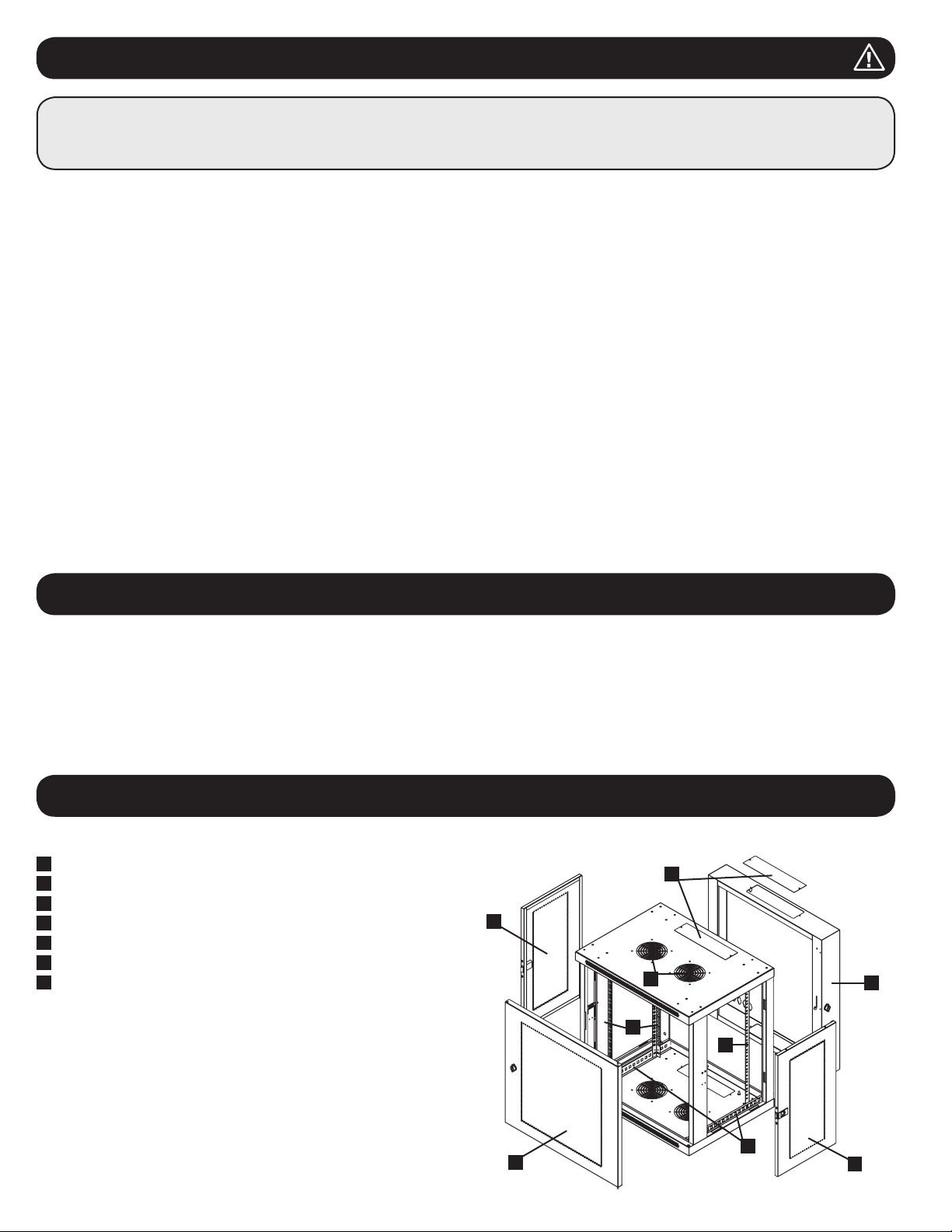

1. Important Safety Instructions 2
2. Overview 2

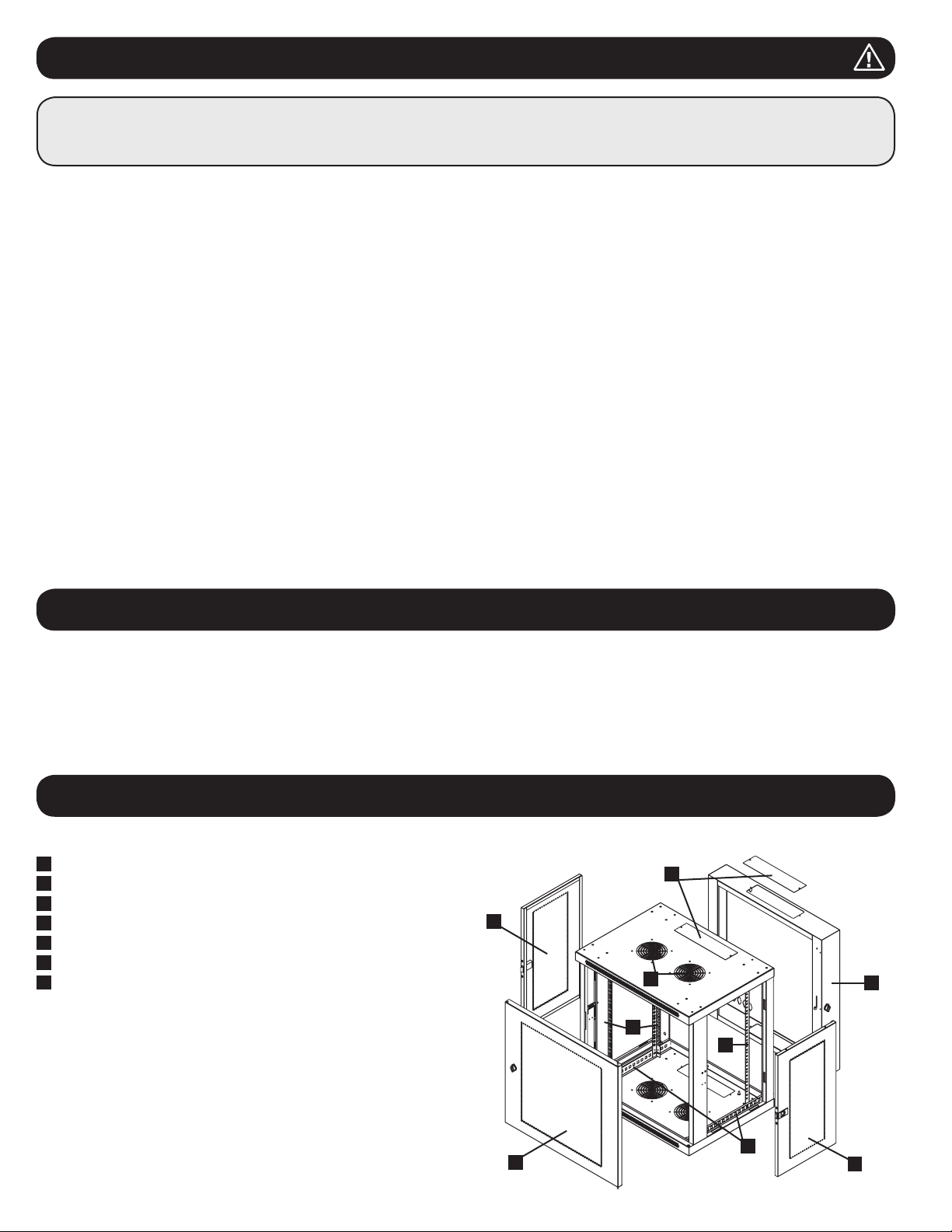

3. Feature Identification 2

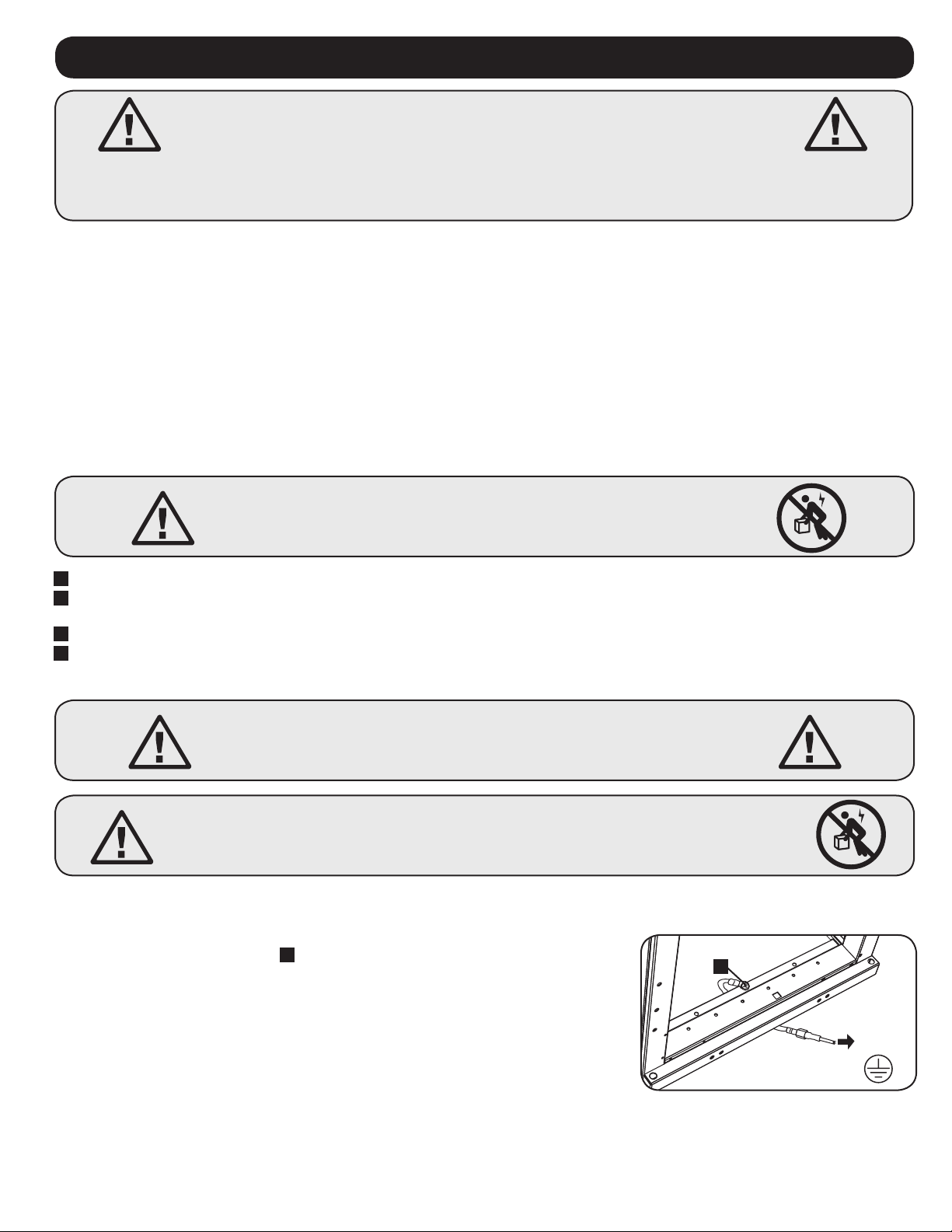

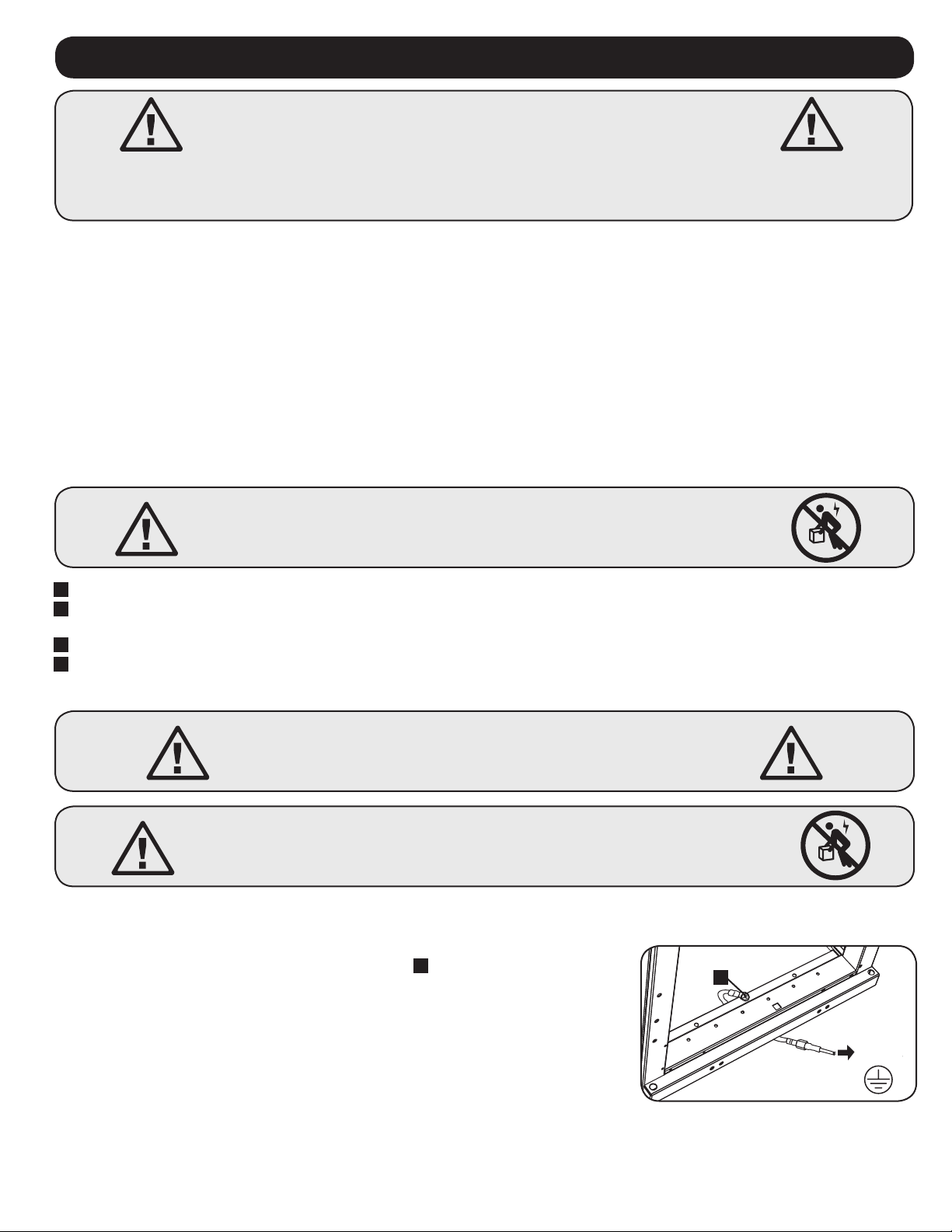

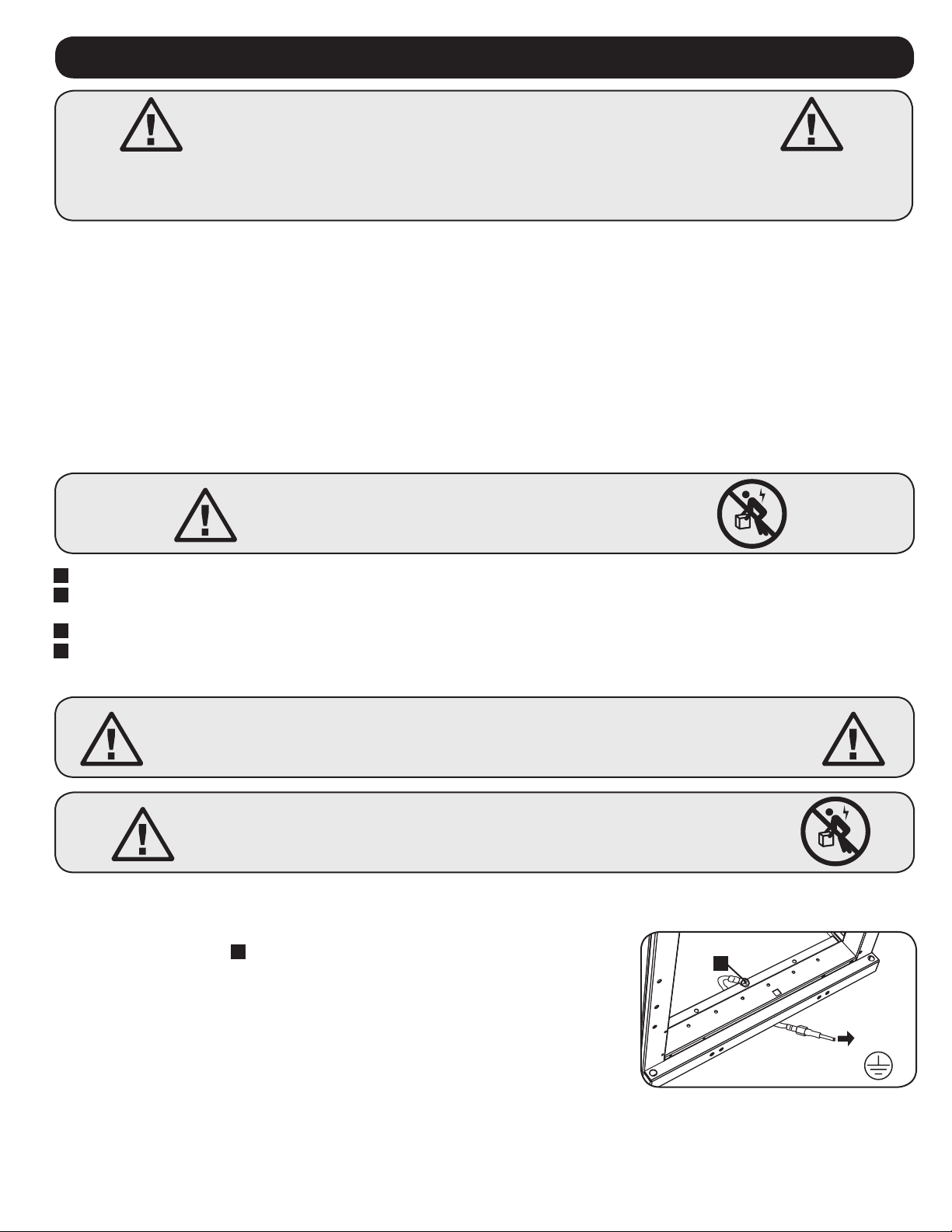

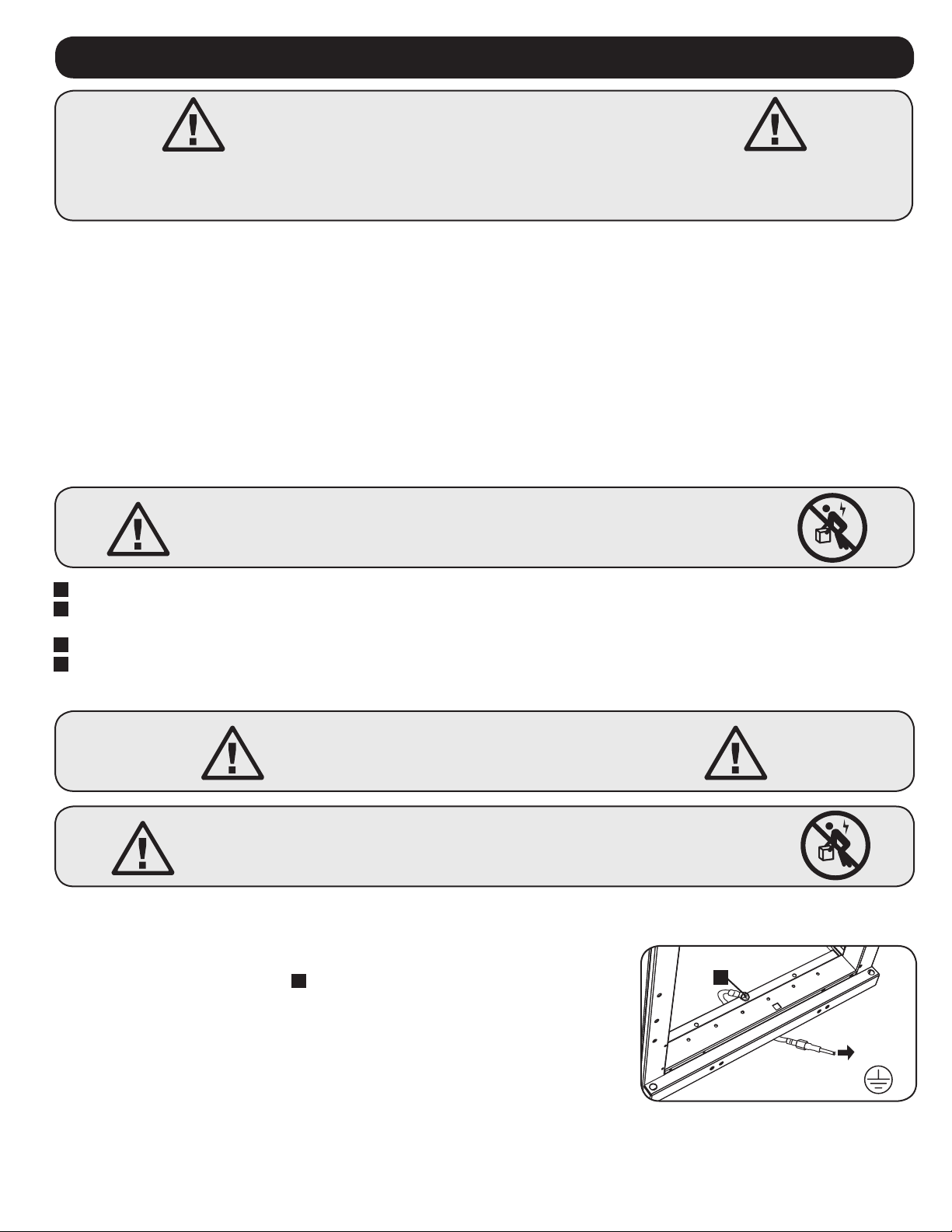

4. Enclosure Installation 3
4.1 Preparation 3
4.2 Unpacking 3
4.3 Ground Connection 3

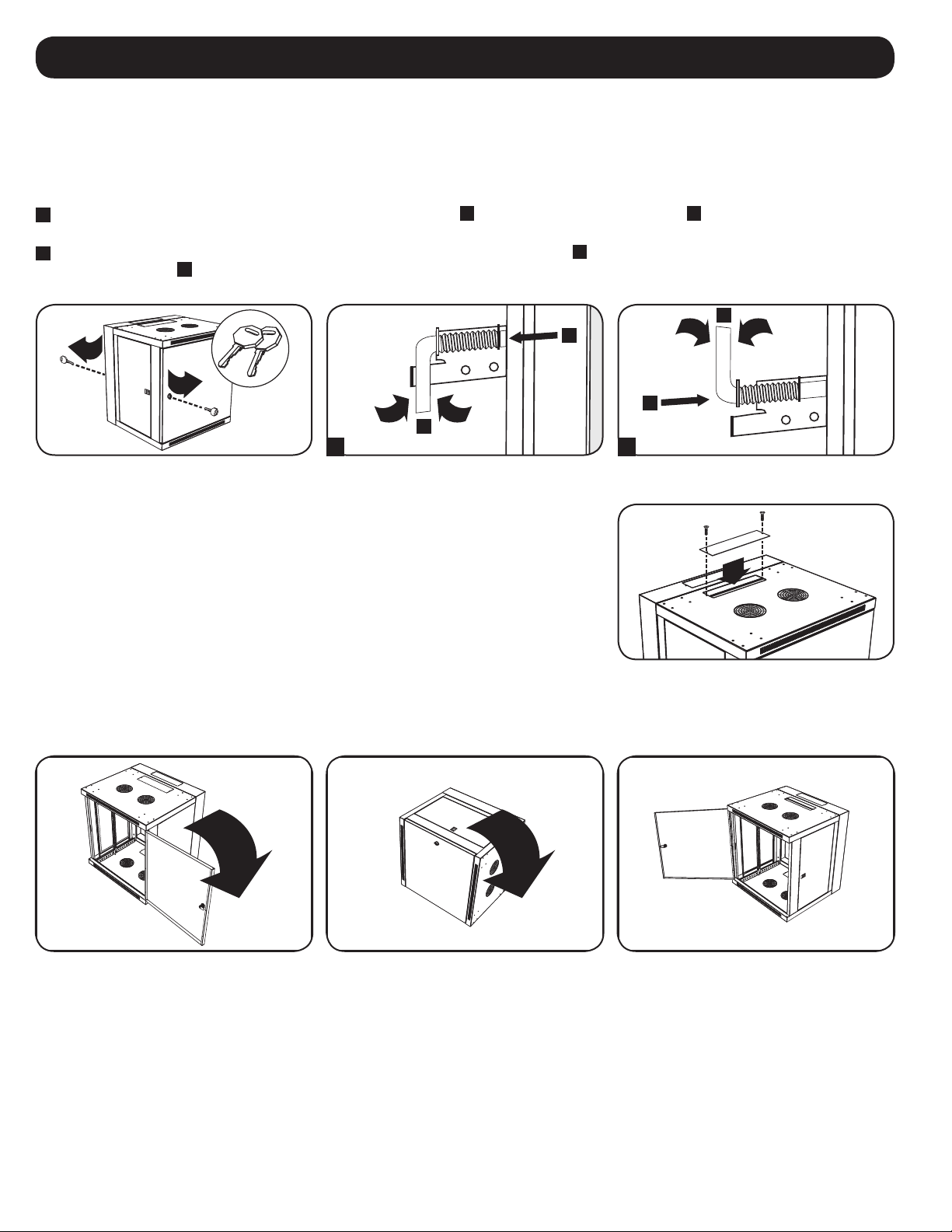

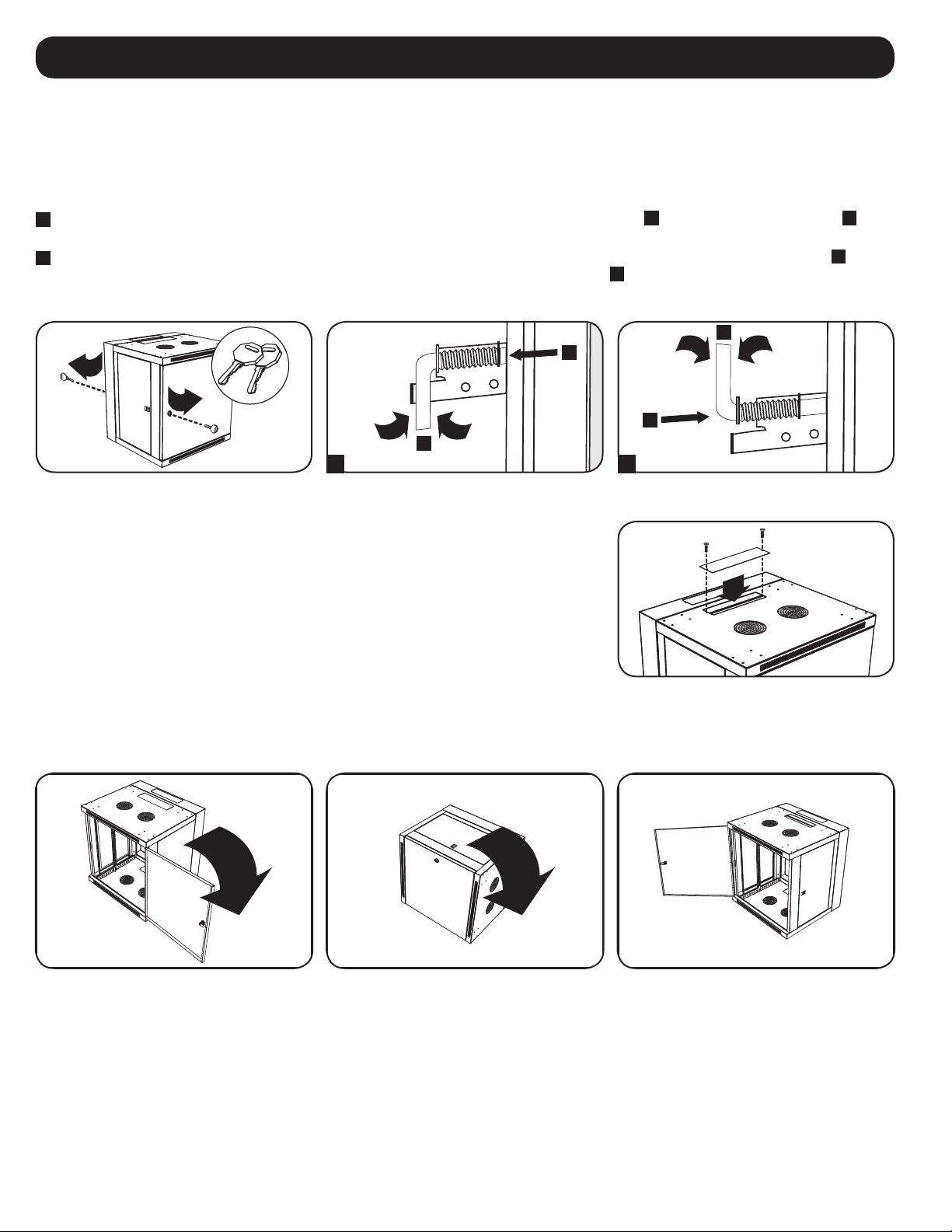

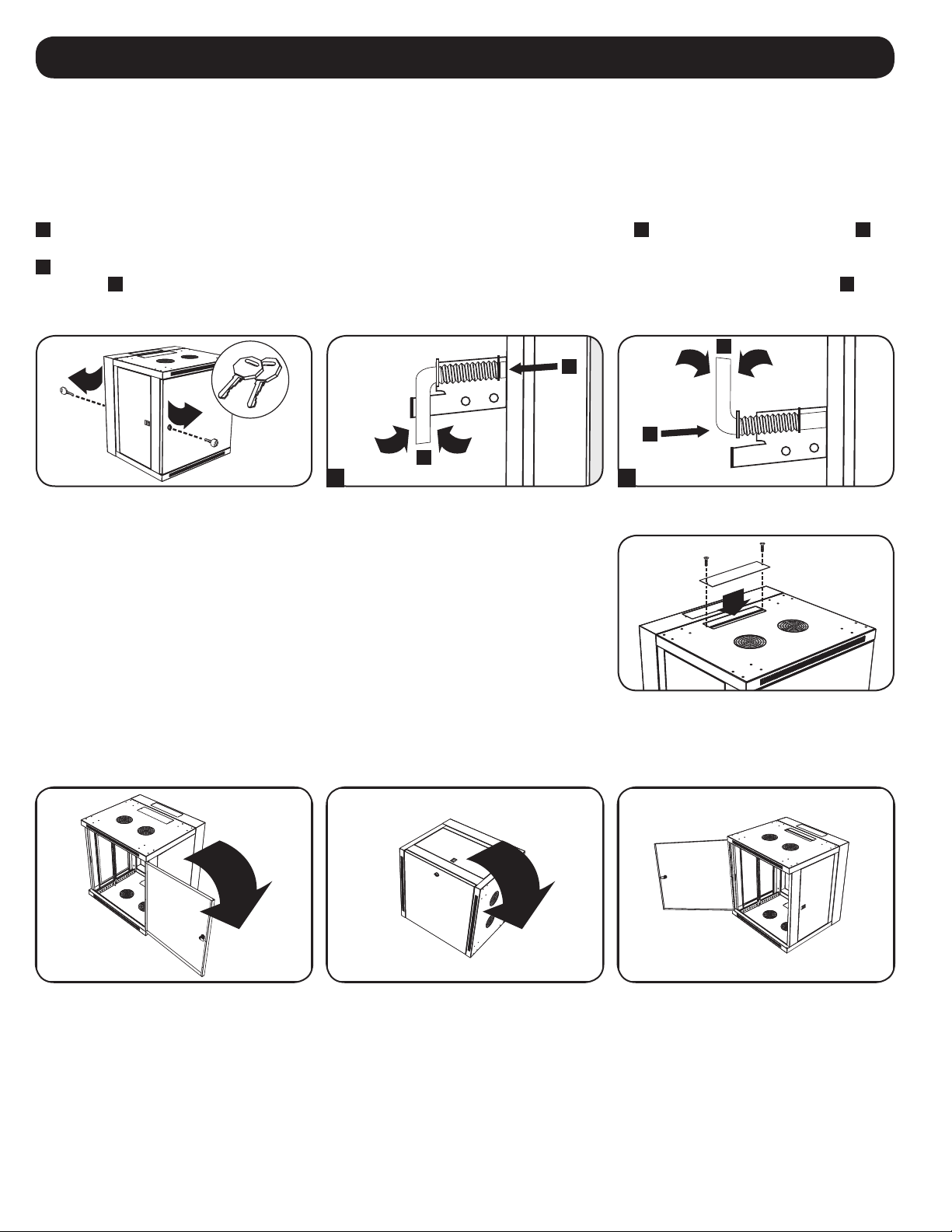

5. Enclosure Configuration 4
5.1 Door Locks 4

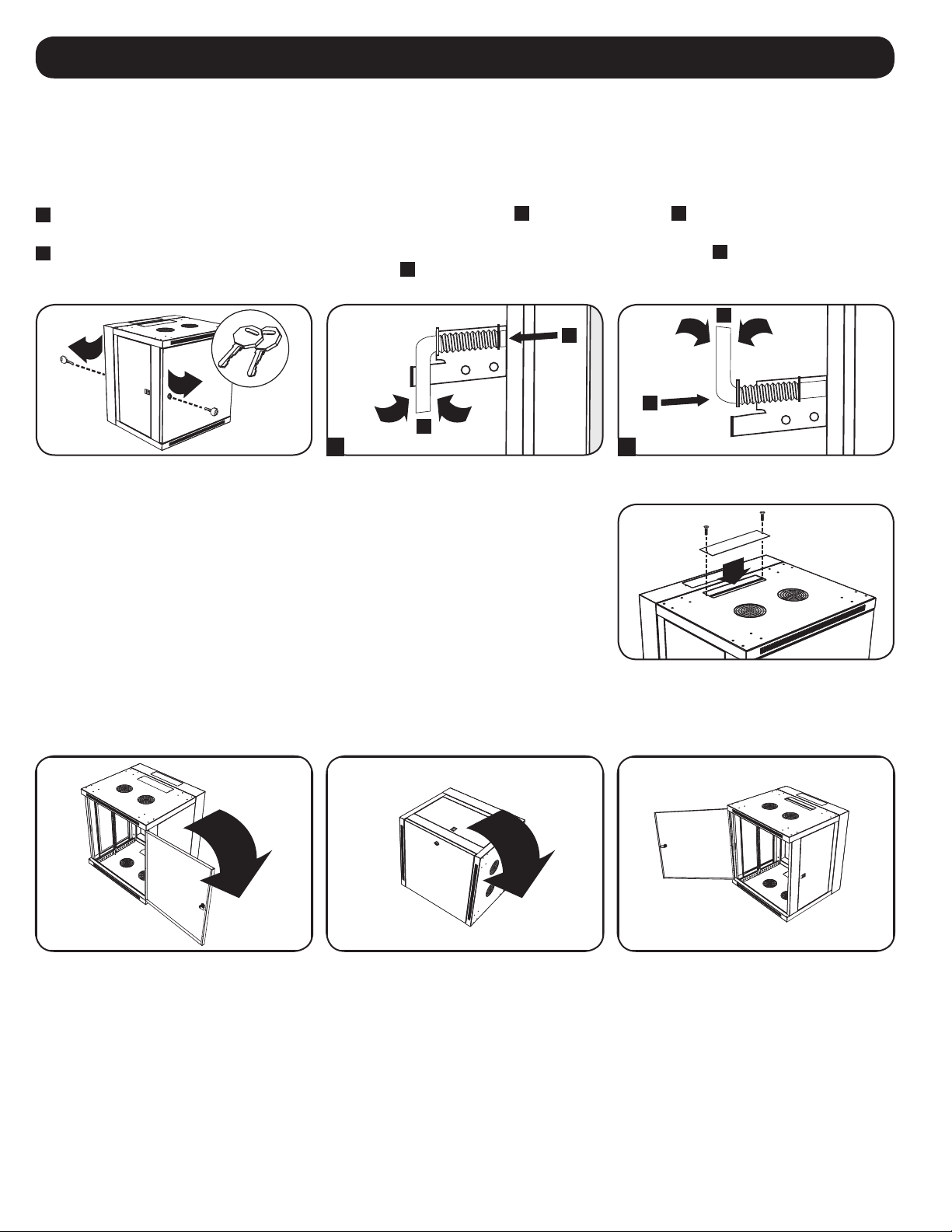

5.2 Cable Access and Management 4
5.3 Reversing the Enclosure 4

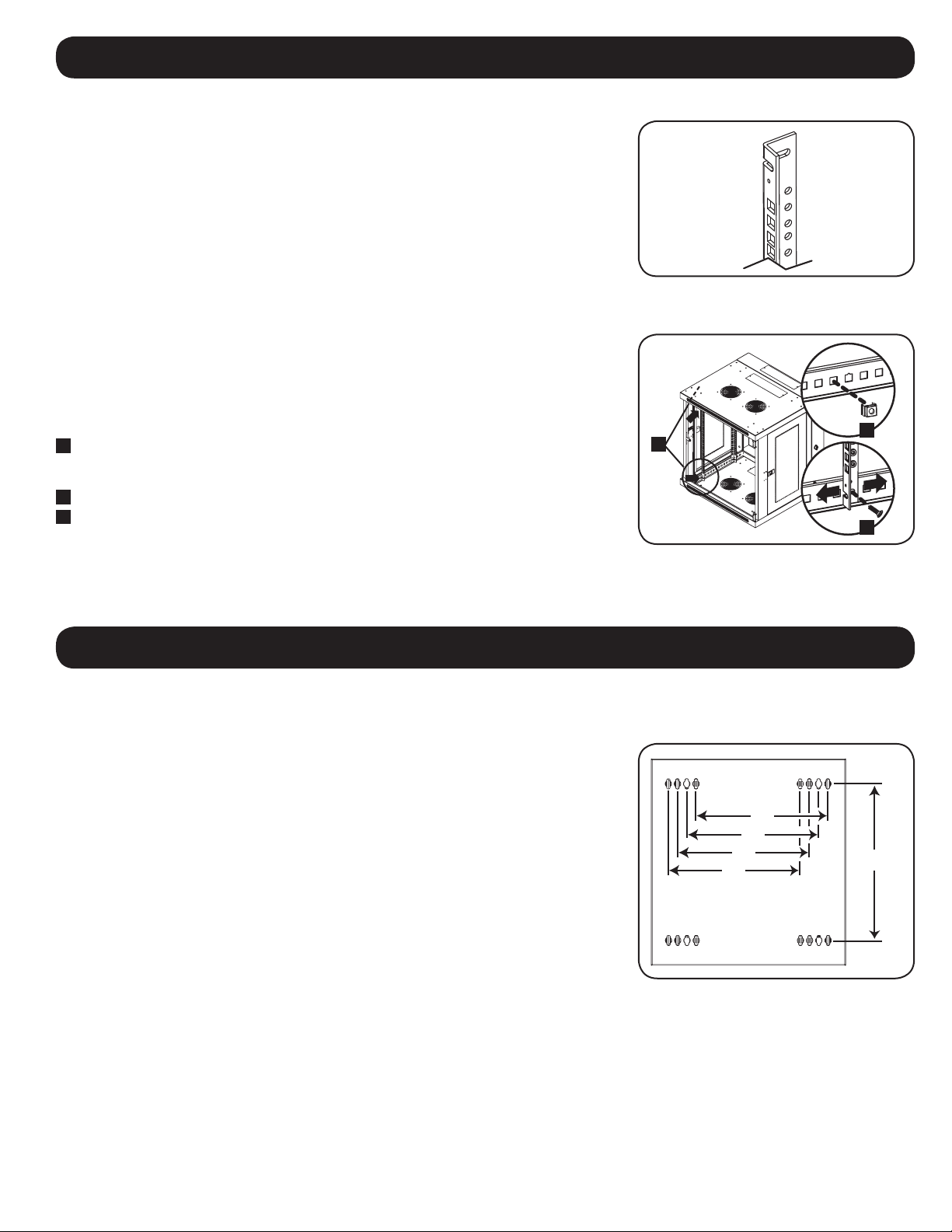

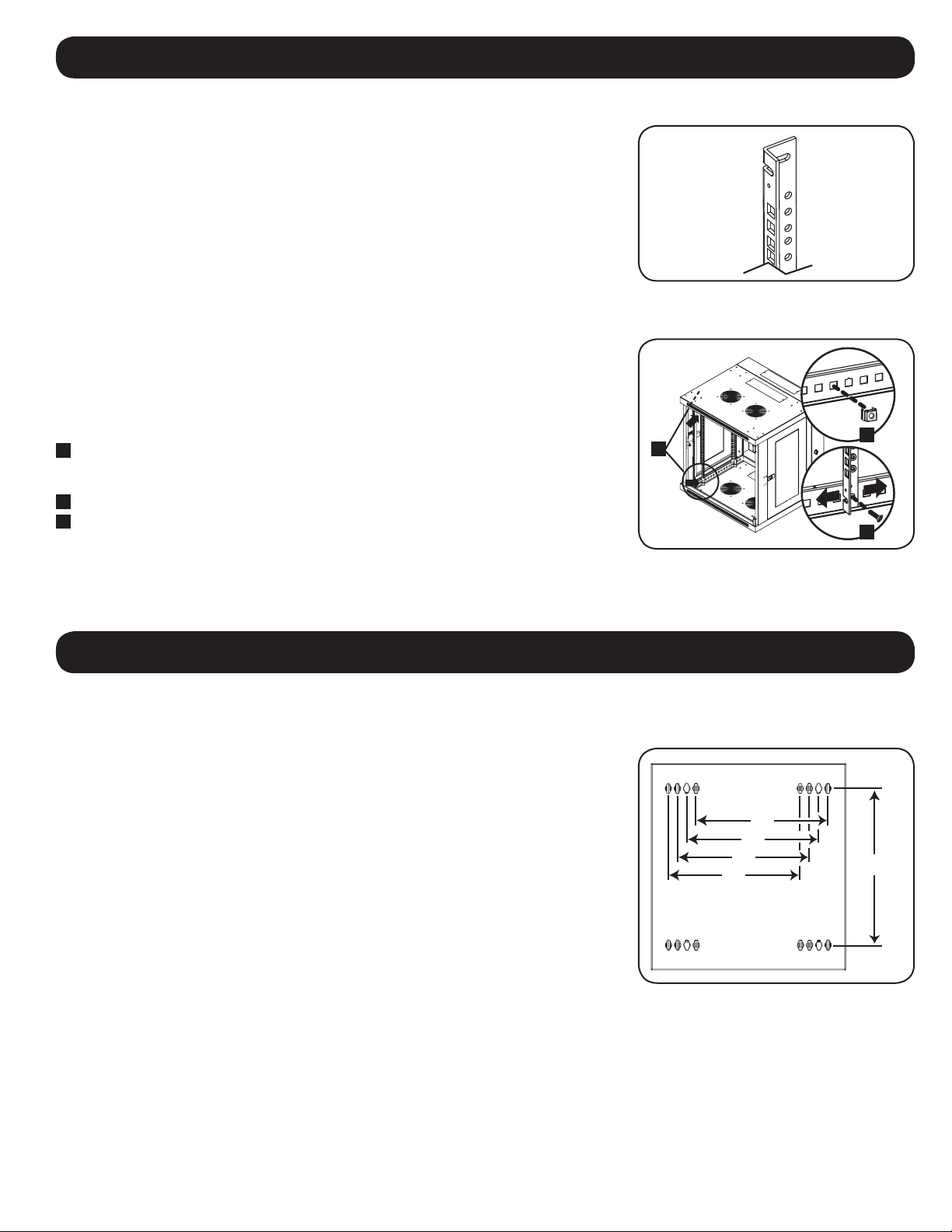

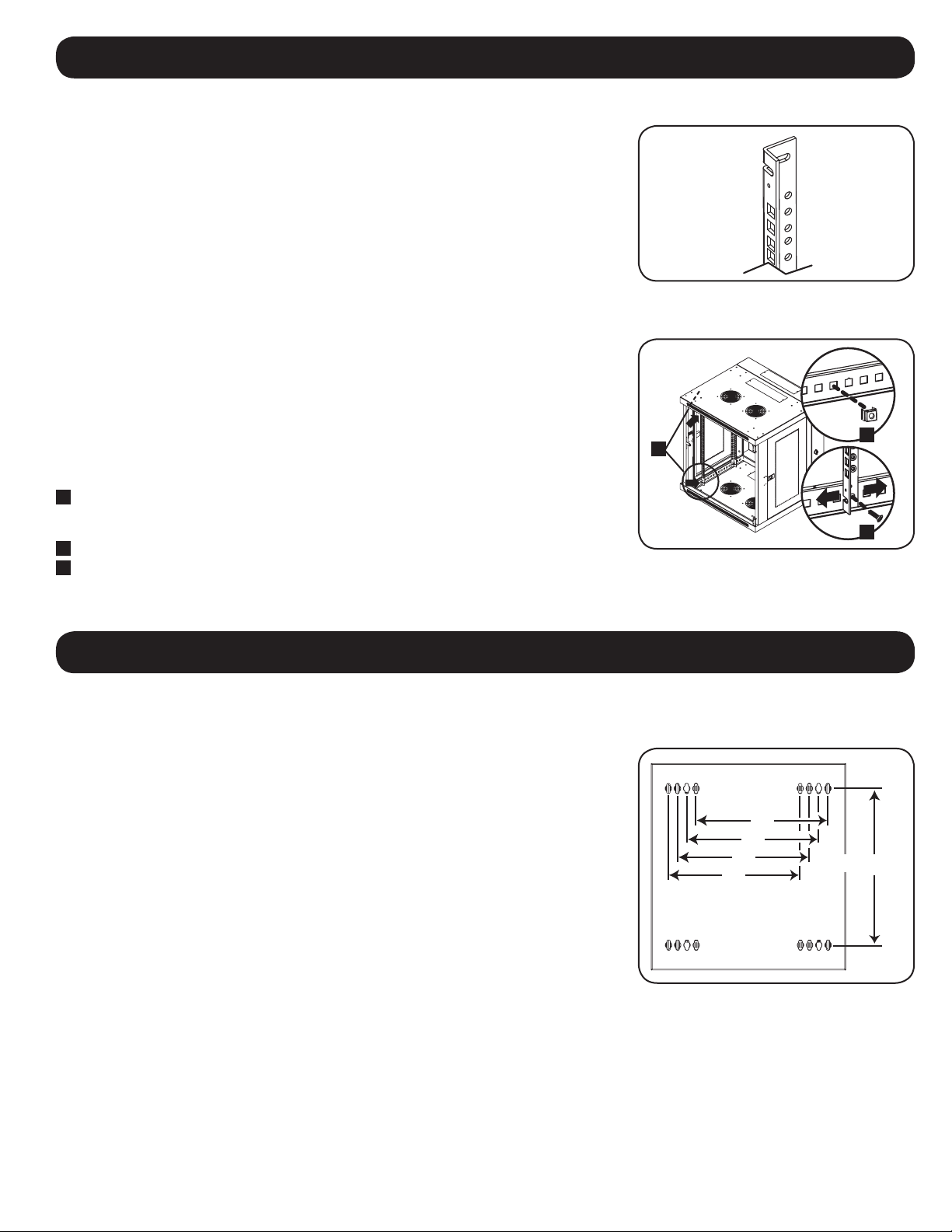

5.4 Mounting Rails 5

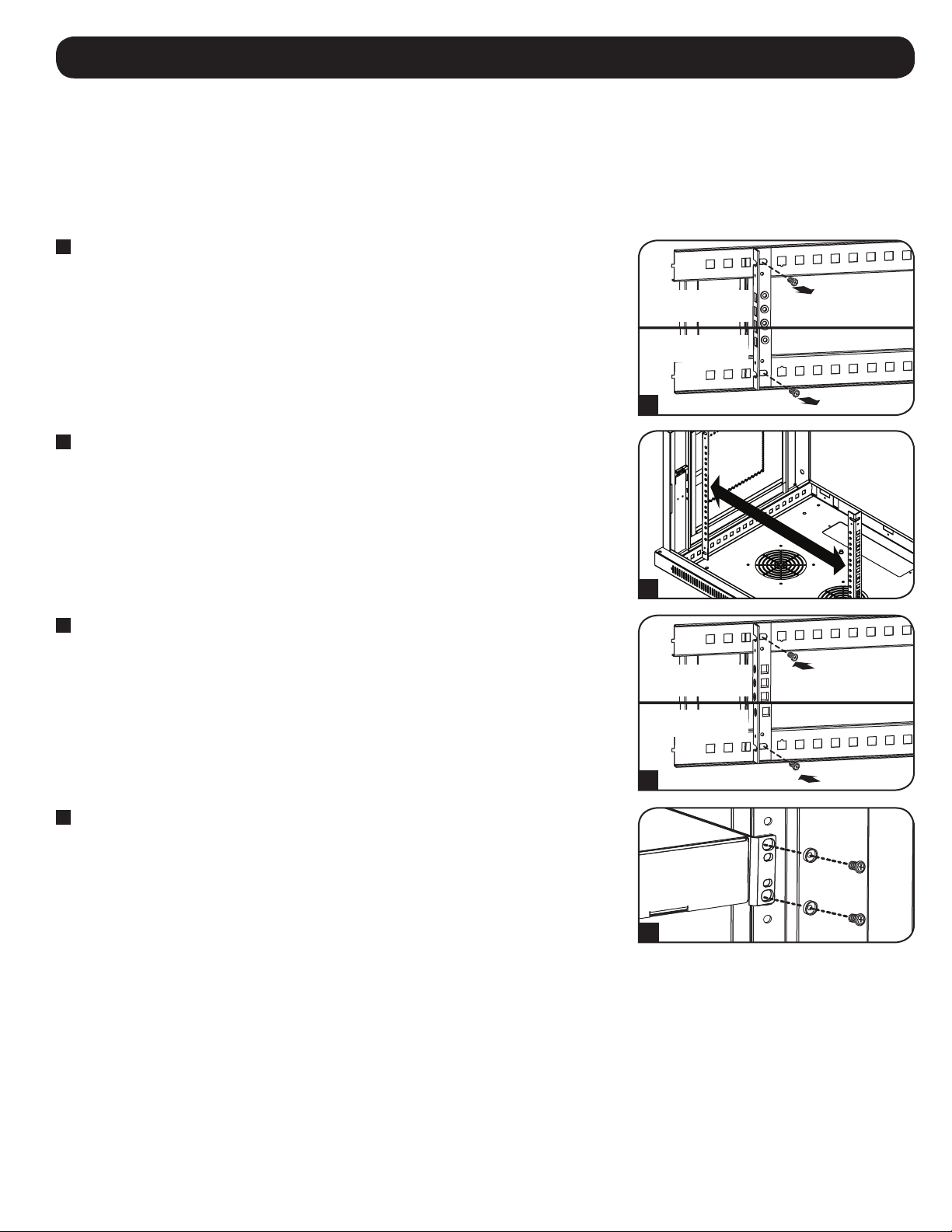

5.5 Adjusting Mounting Rail Depth 5
6. Wall Mounting the Enclosure 5
6.1 Mounting 5

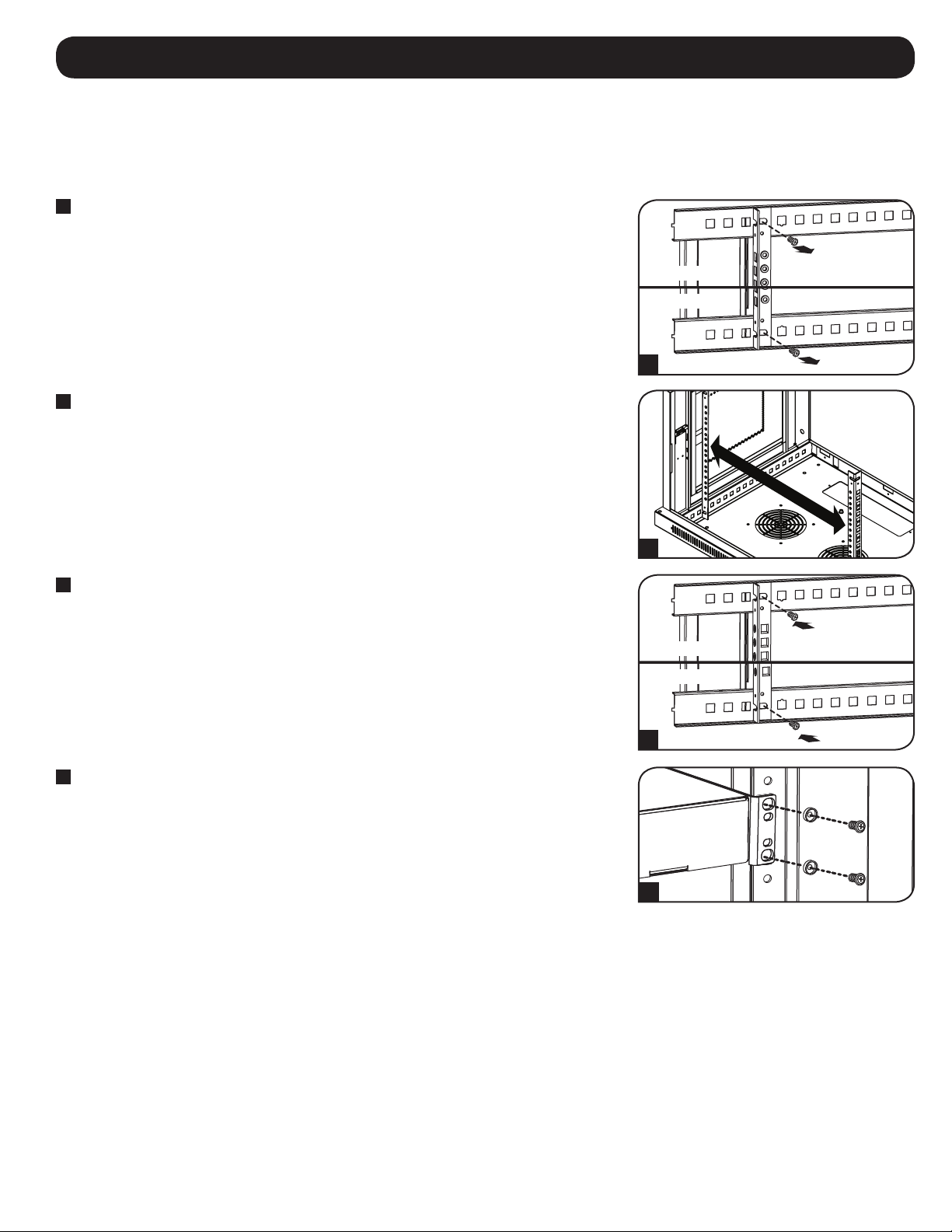

7. Equipment Installation 6

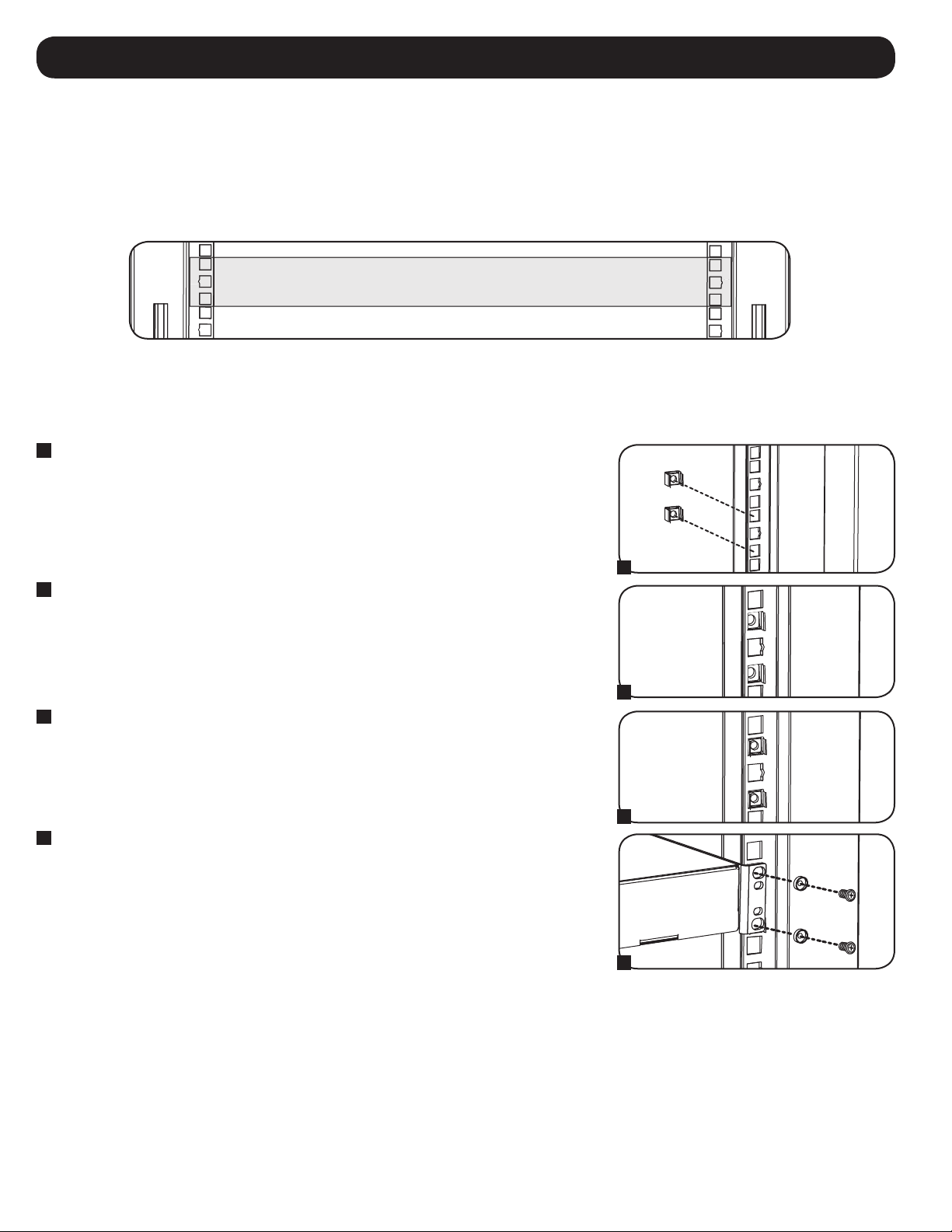

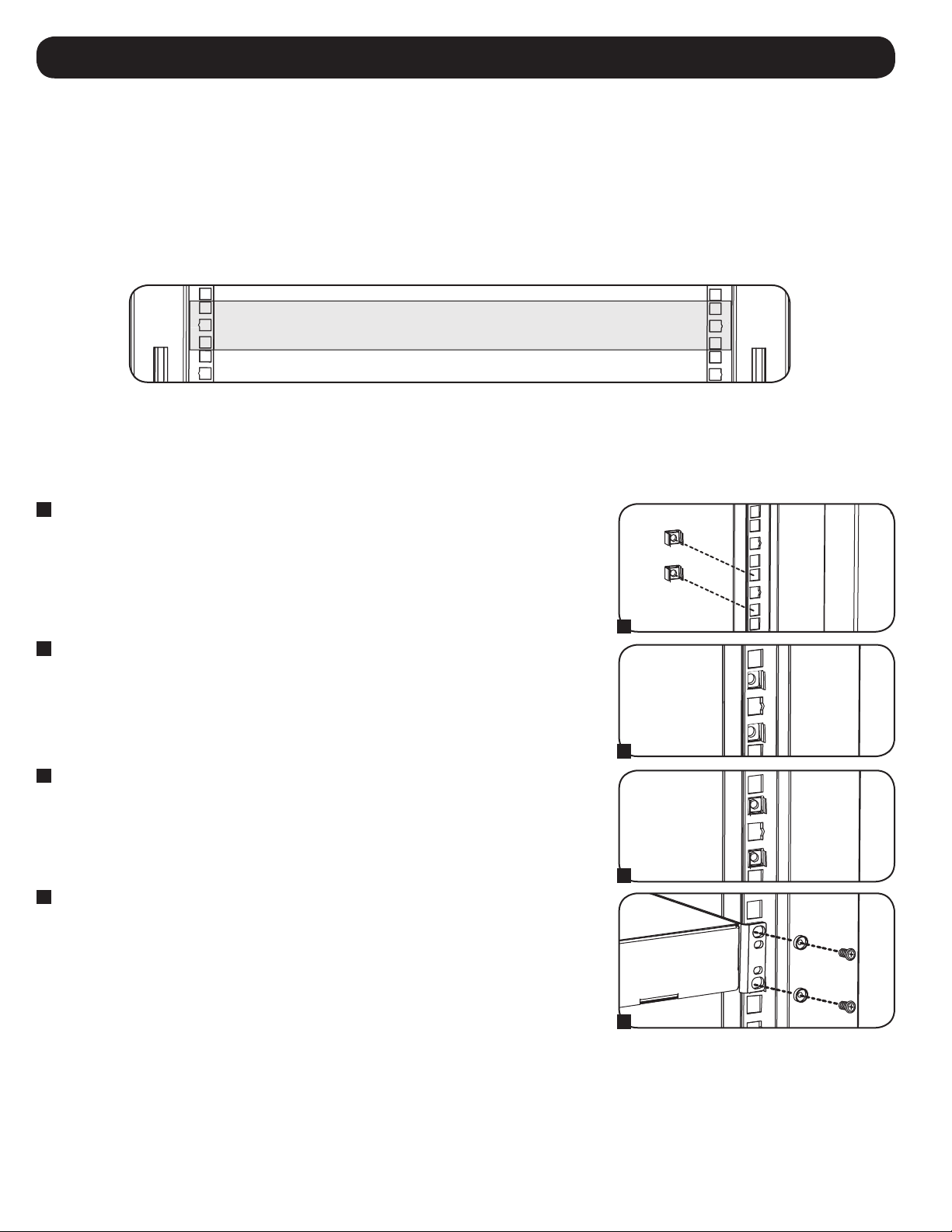

7.1 Installing or Removing Cage Nuts 6
7.2 Alternate Mounting: 7
Tapped Hole Mounting Rail
8. Storage and Service 8
9. Warranty and Product Registration 8
Español 9
Francais 17
Русский 25
Swinging Wall-Mounted
SmartRack
®
Enclosures
Applies to Model Series: SRWxxUS, SRWxxUSG
(Agency Series Number: AG-00EA)
