BOTTOM FREEZER REFRIGERATOR
CONGELADOR INFERIOR REFRIGERADOR
CONGI_LATEUR INFI_RIEUR RI_FRIGI_RATEUR
Models /Modelos /ModUles
795.6500-$, 6501-$, 6520-$, 6521-$, 7500-$, 7501-$, 7508-$, 7509-$, 7520-$, 7521-$, 7528-$, 7529-$
÷= color number /n_mero de color /num6ro de couleur
Z_
o
3828JLS024B Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com
Printed in Mexico
English Version
Warranty
Protection Agreements

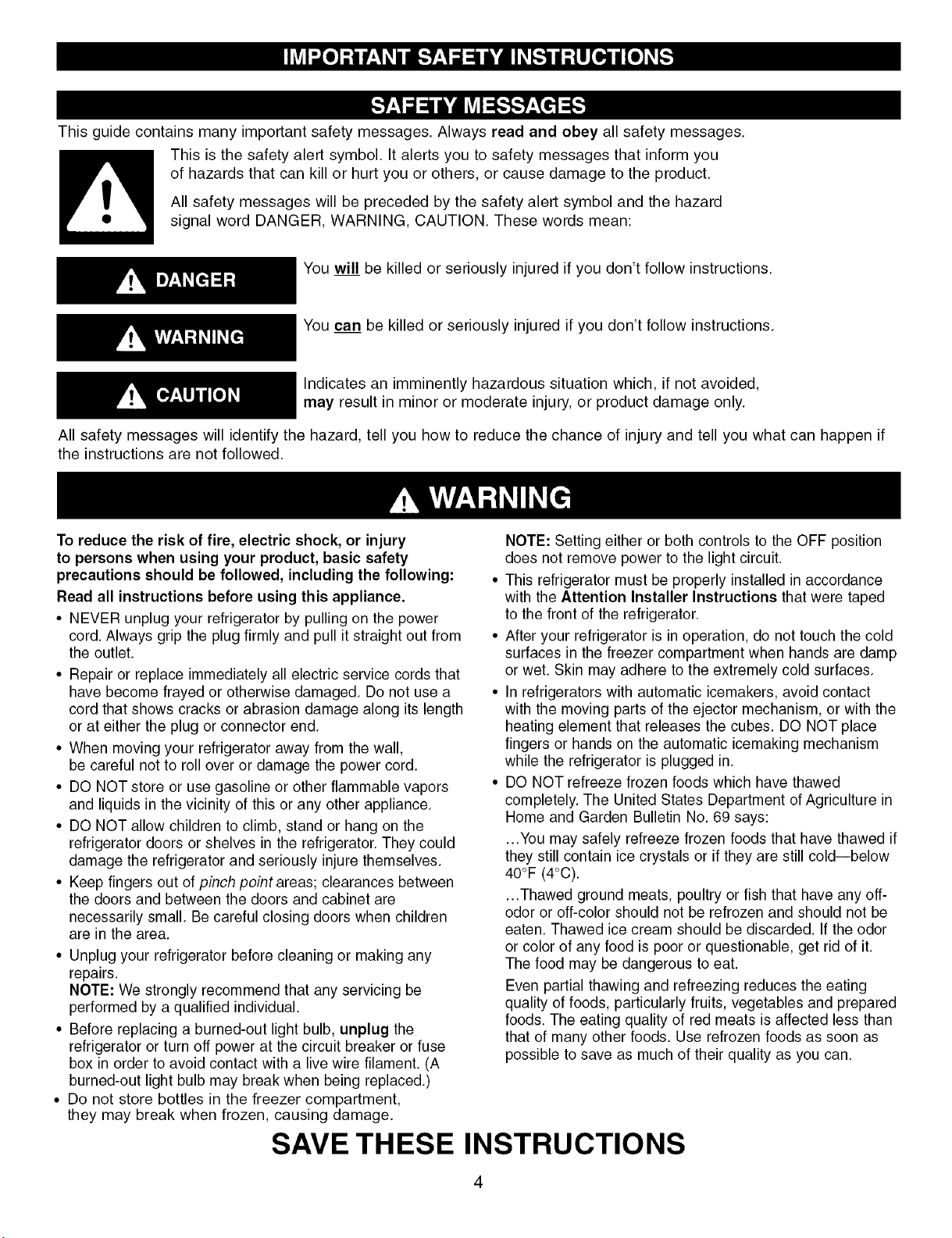

Safety Instructions
Grounding Requirements

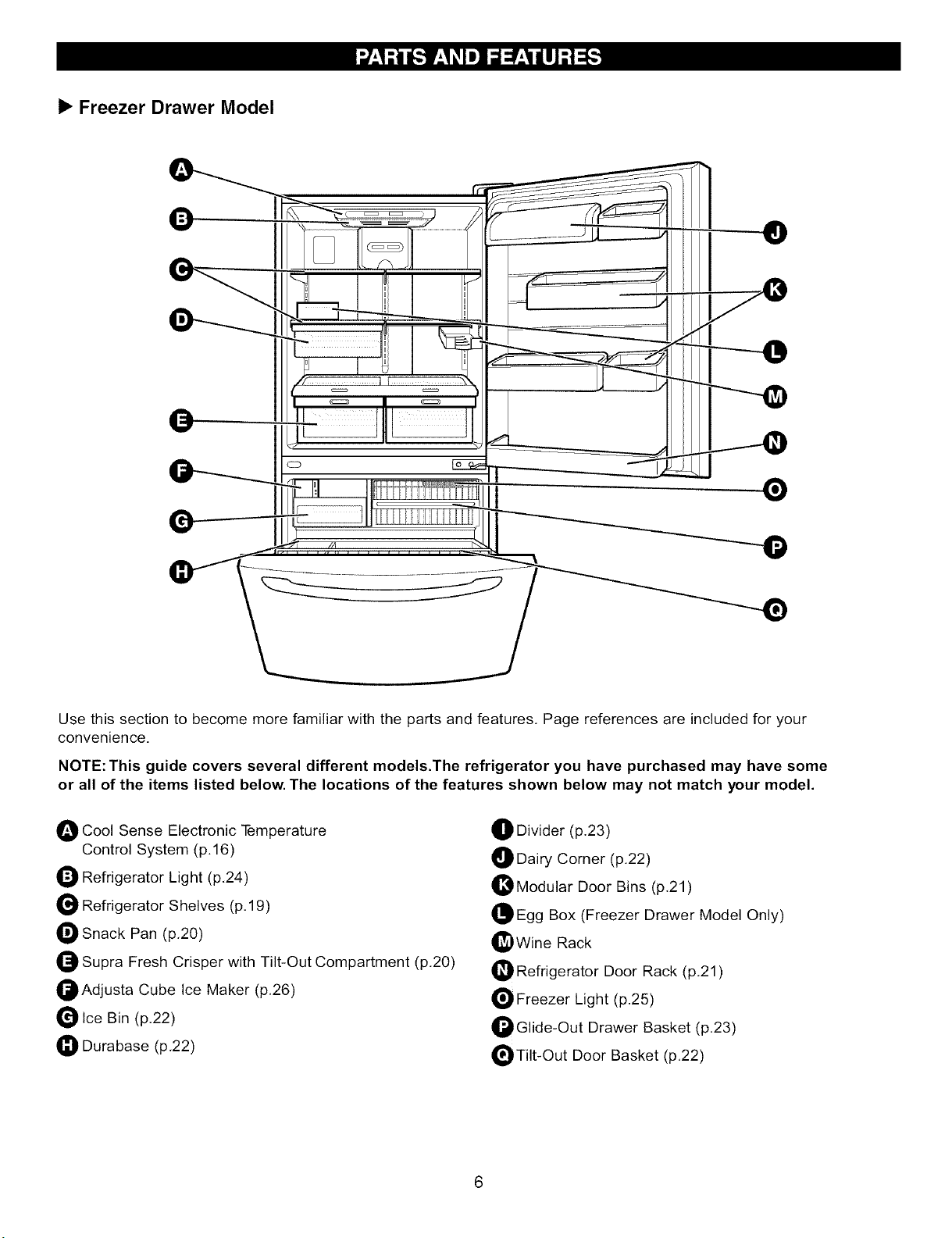

Parts and Features

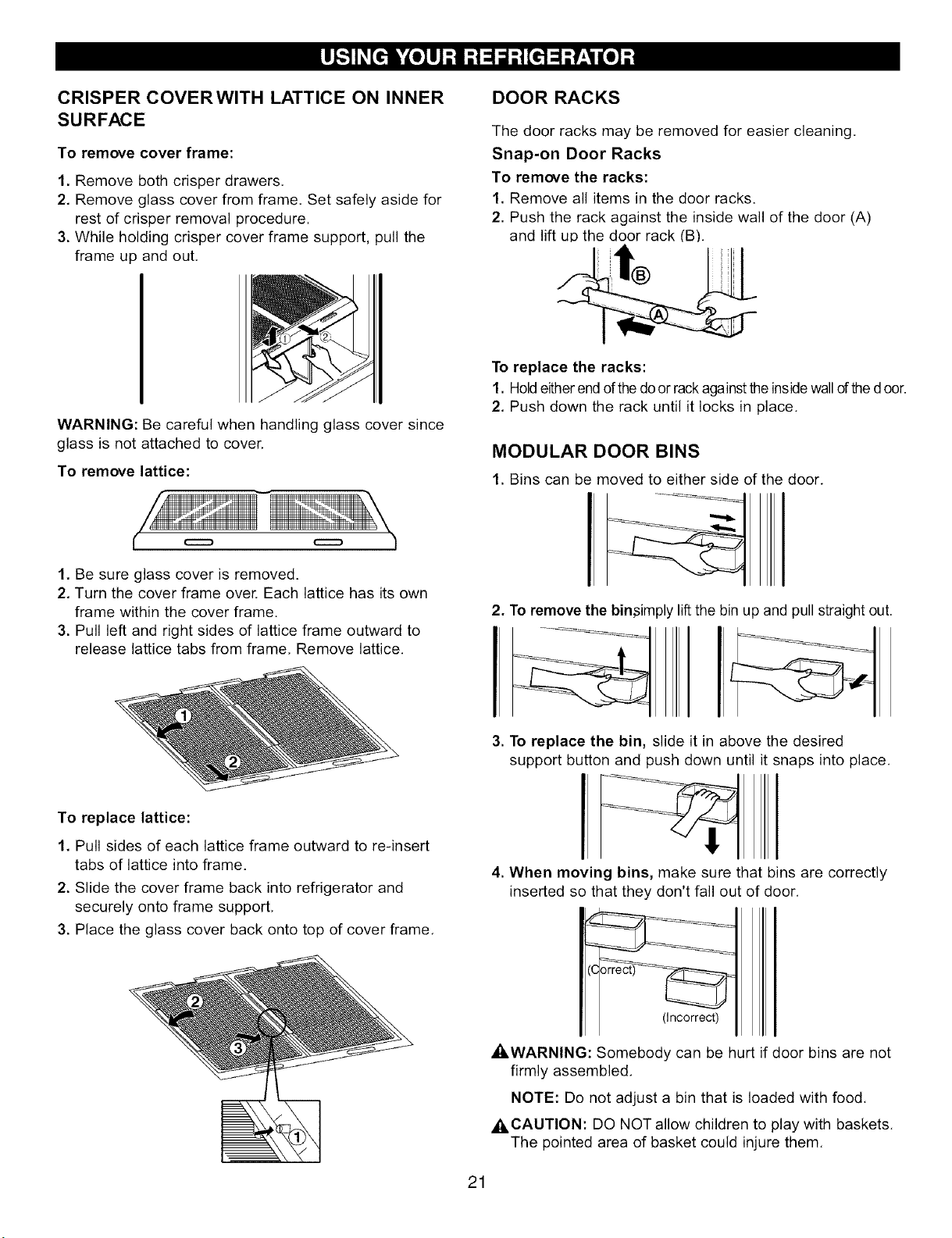

2 Crisper Cover with Lattice on inner Surface 21
2 Door Racks 21
Modular Door Bins 21
3 Dairy Corner 22
4 Tilt-Out Door Basket 22
Ice Bin 22
5Durabase 22
6-7 Wire Durabase 22

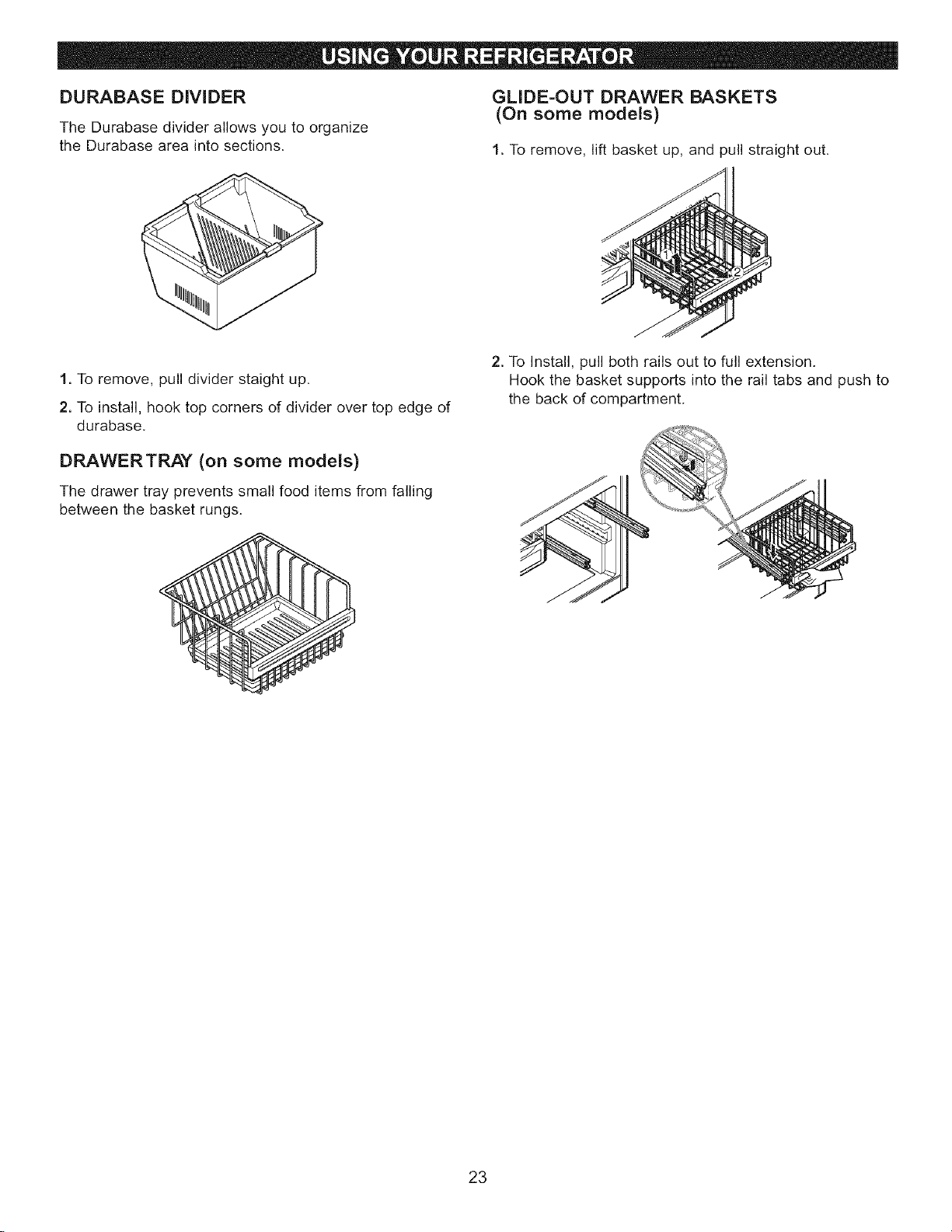

8-15 Durabase Divider 23
Drawer Tray 23
8Glide-Out Drawer Baskets 23
8
8 Care and Cleaning 24-25
General Cleaning Tips 24
Outside 24
Inside Walls 24
Door Liner and Gaskets 24
Plastic Parts 24
Condenser Coils 24

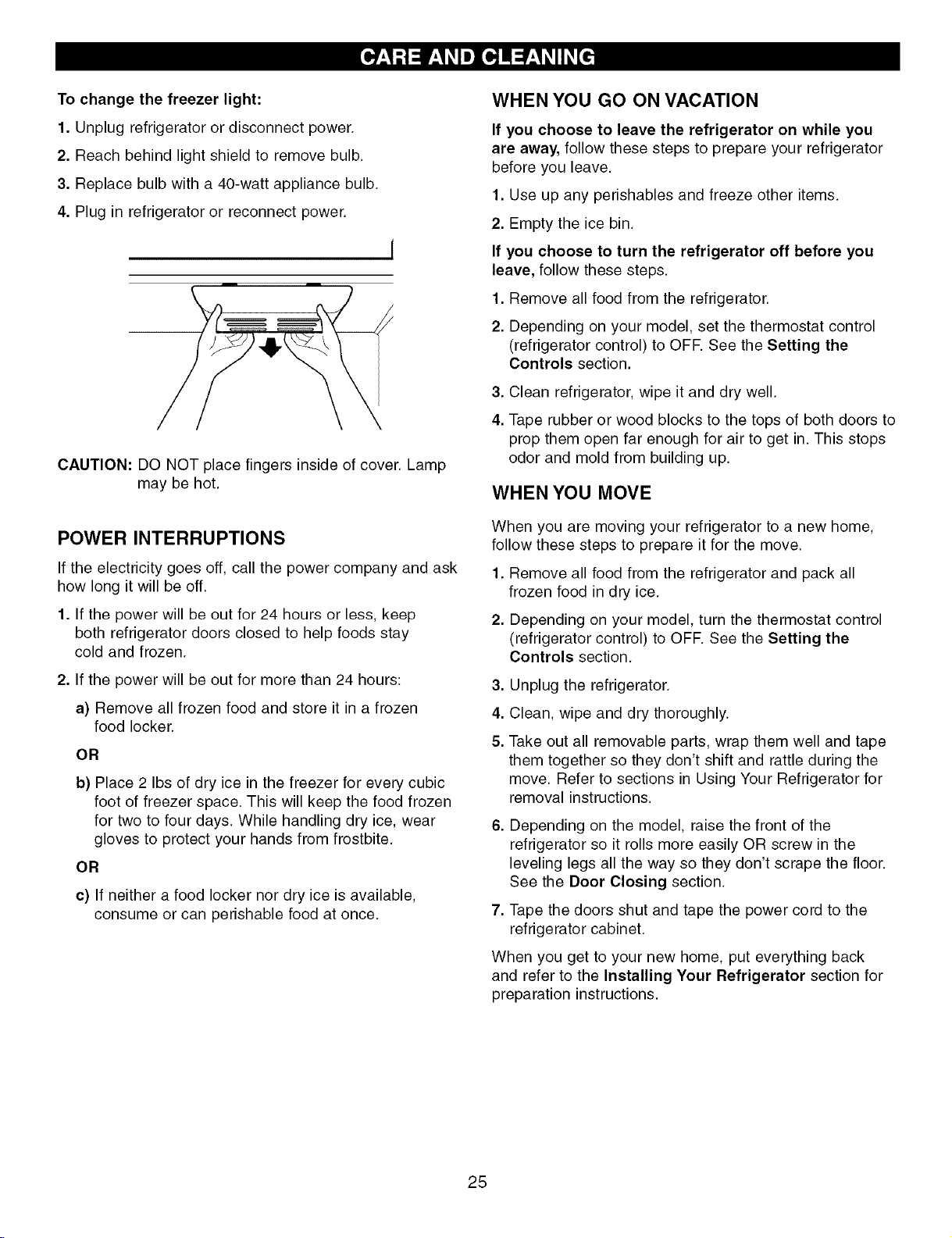

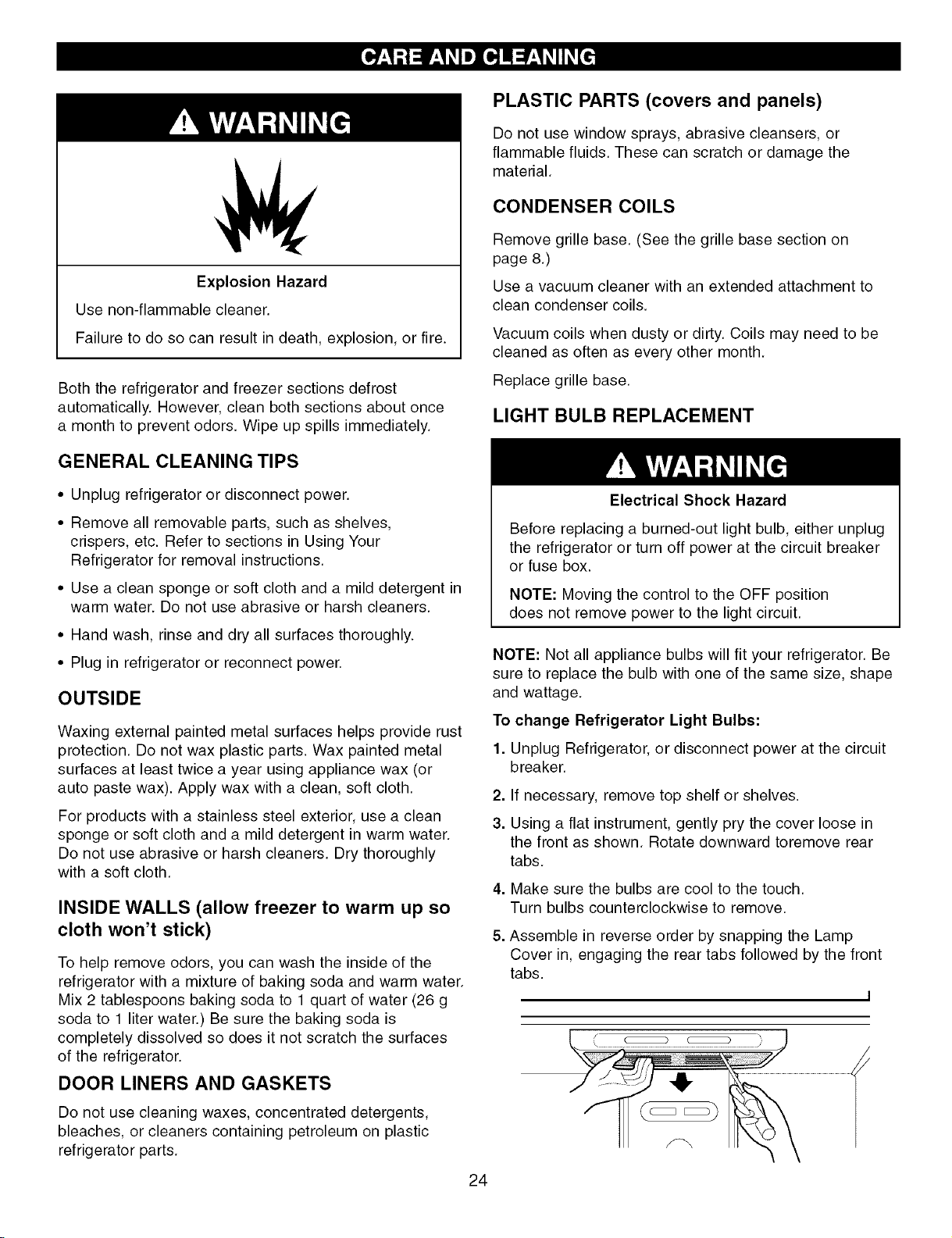

Light Bulb Replacement 24-25
Power Interruptions 25
When you go on vacation 25

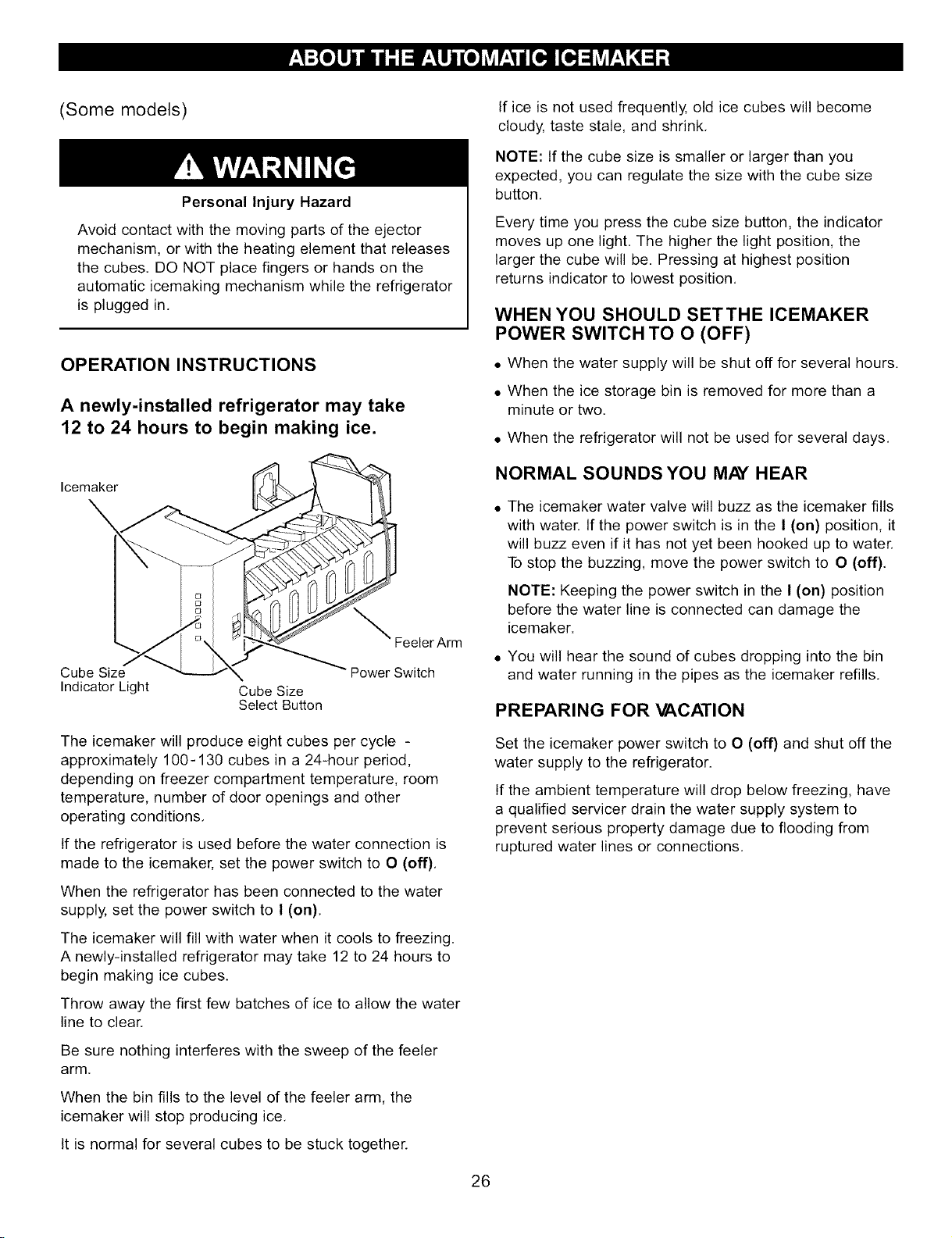

About the Automatic Icemaker 26

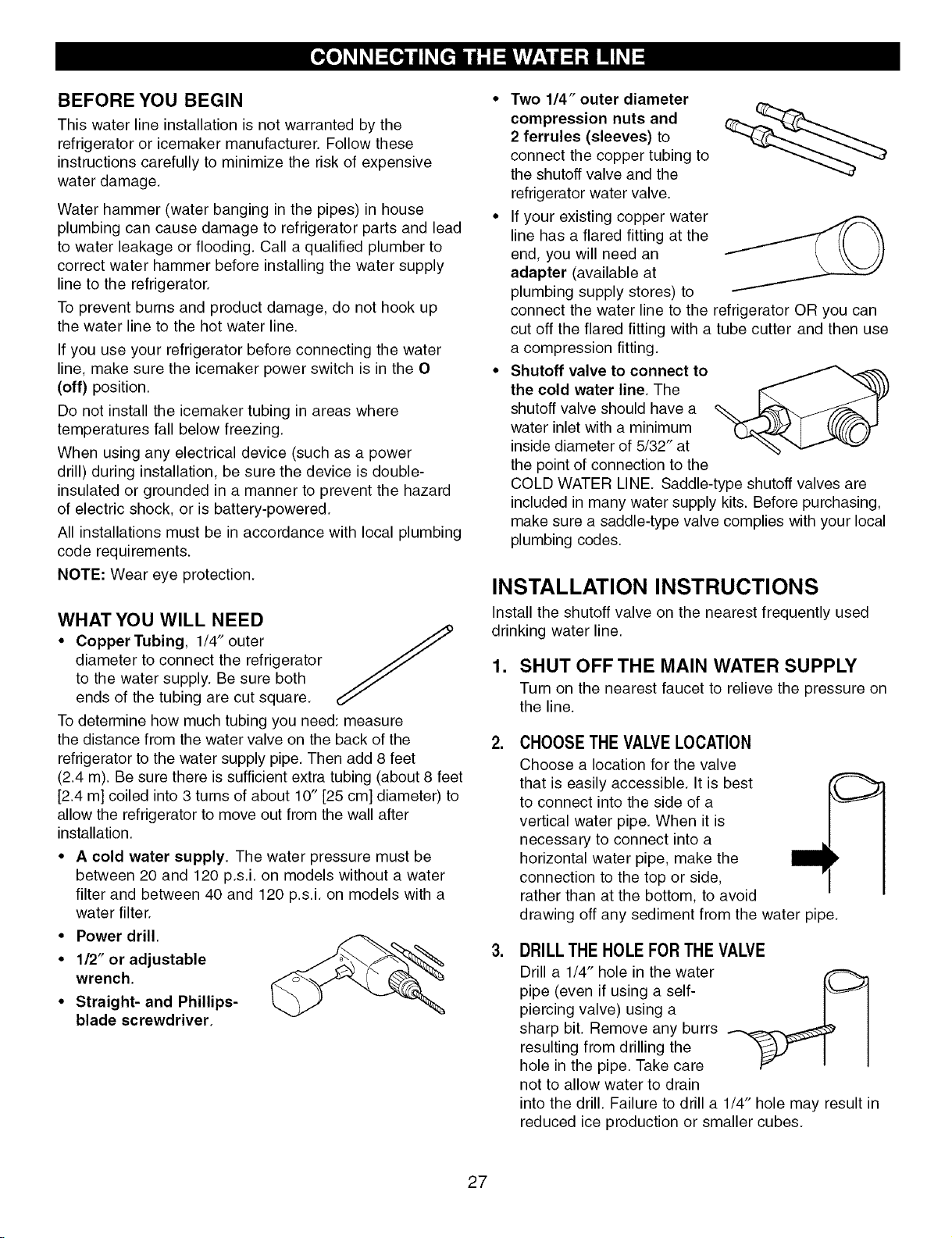

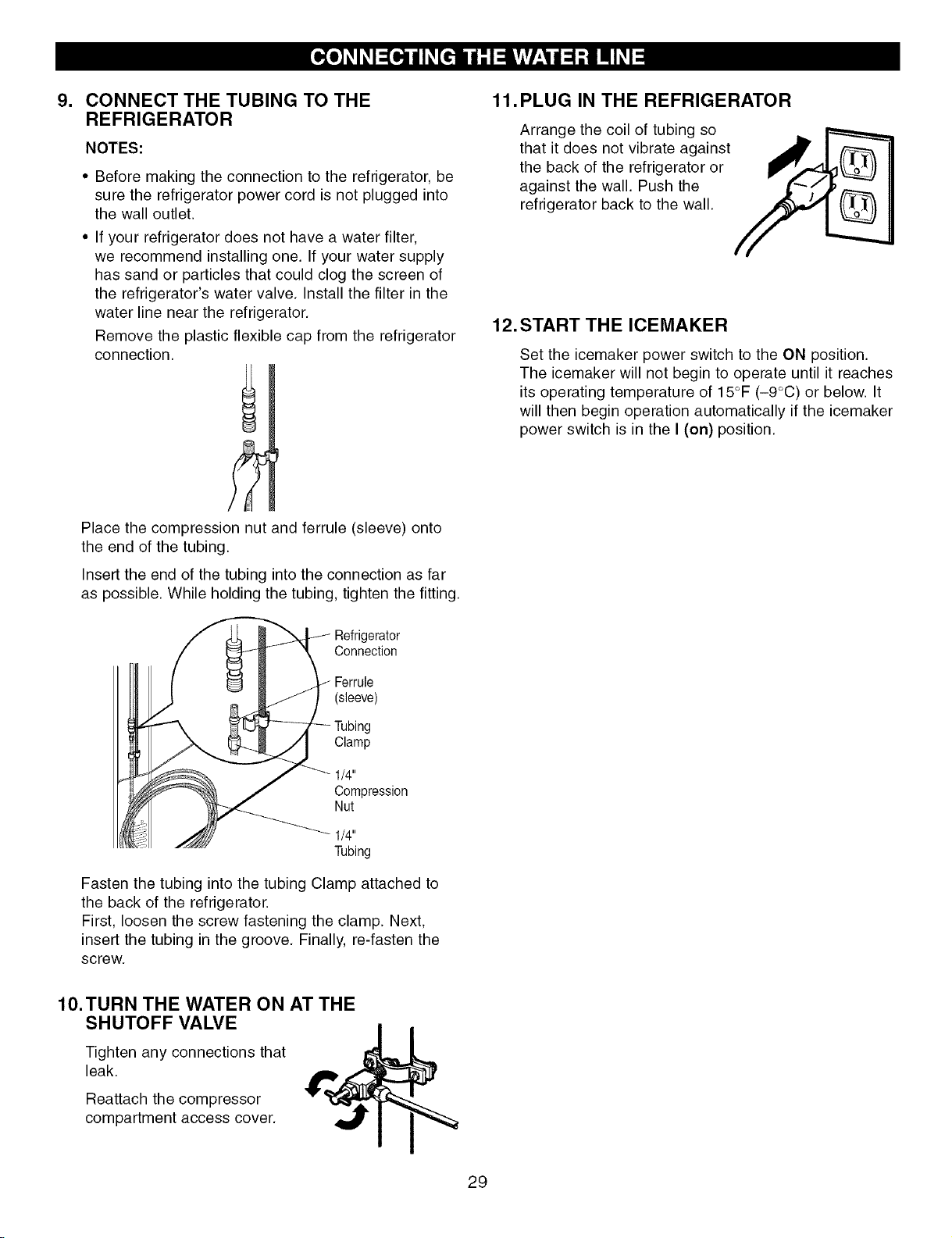

Connecting the Water Line 27-29

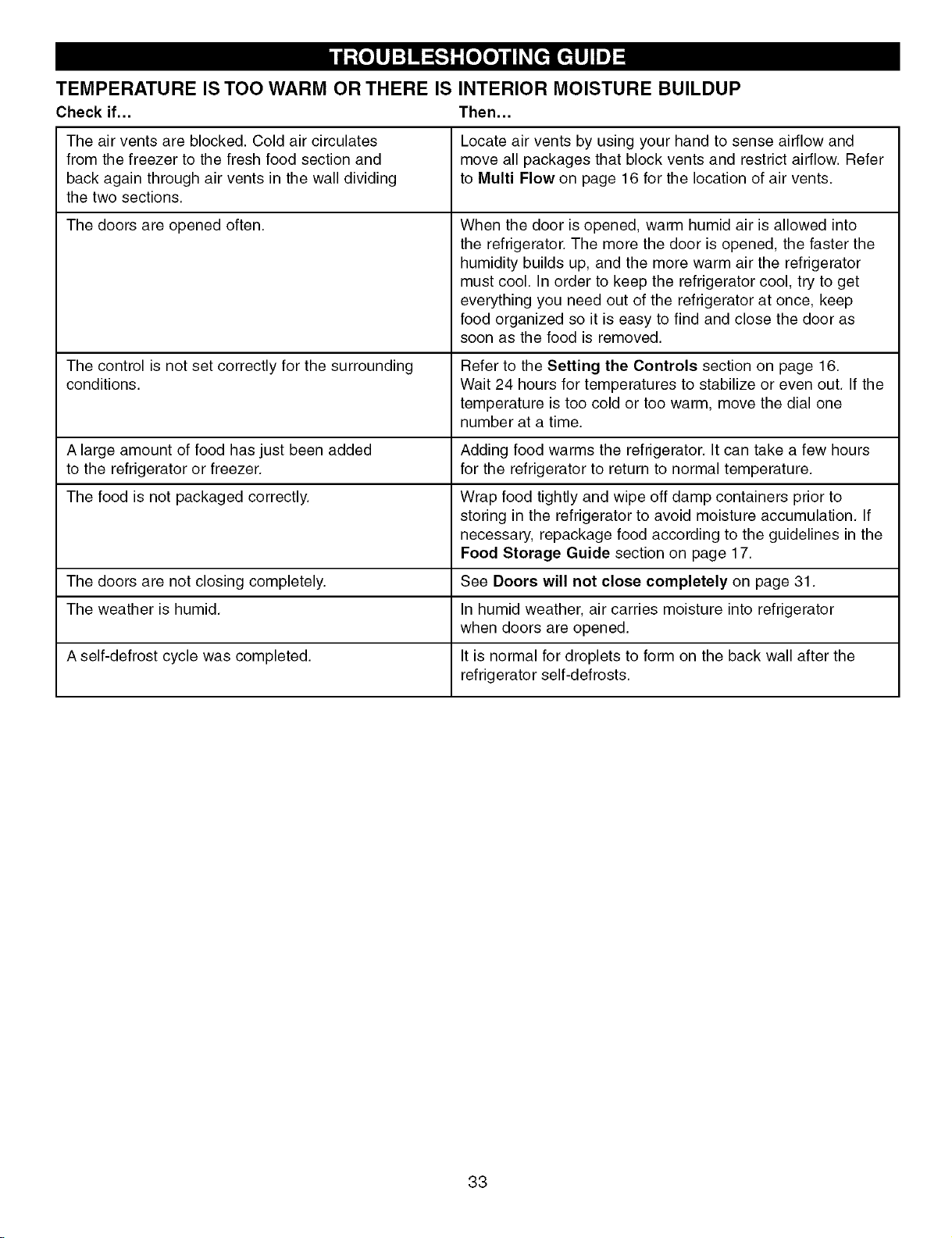

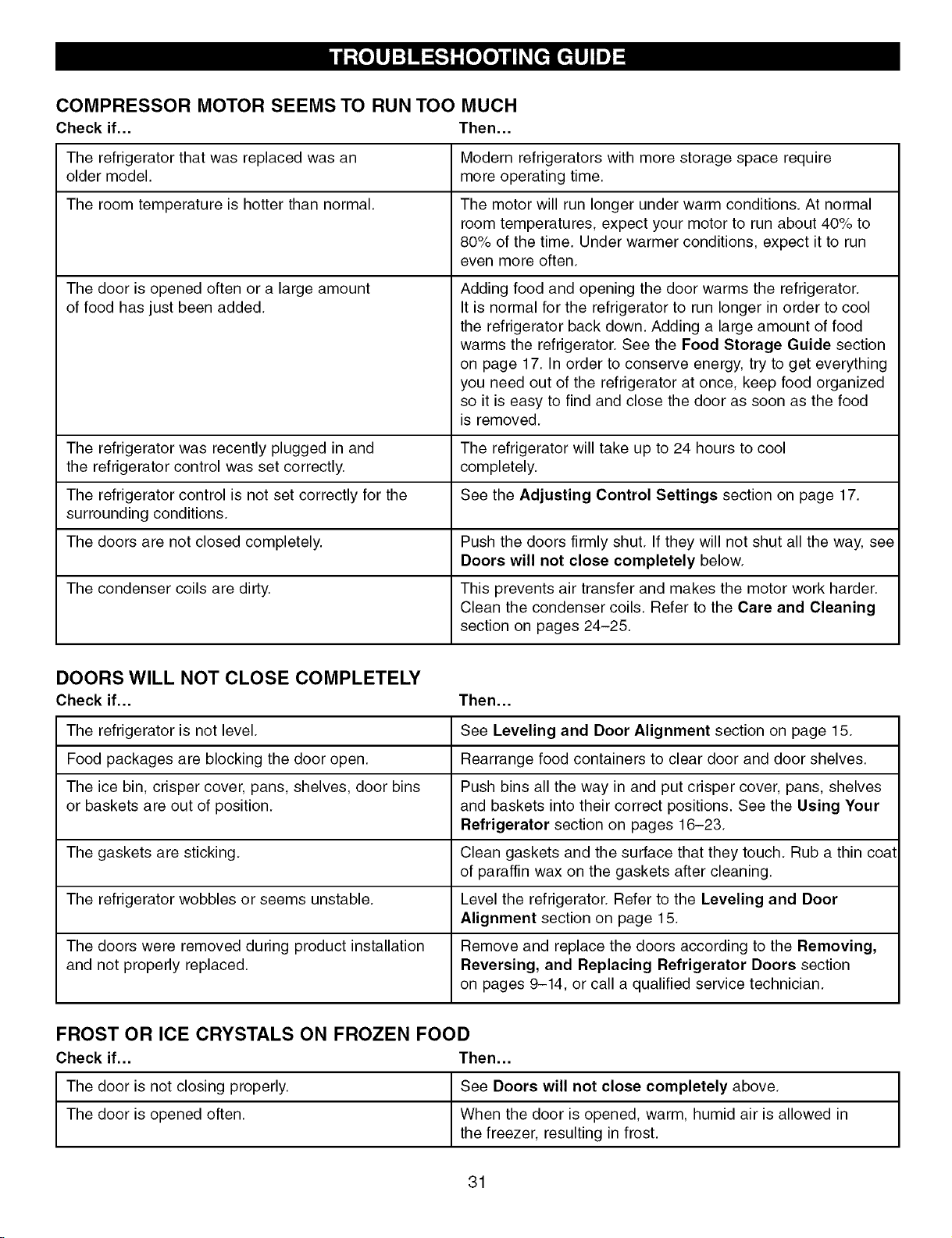

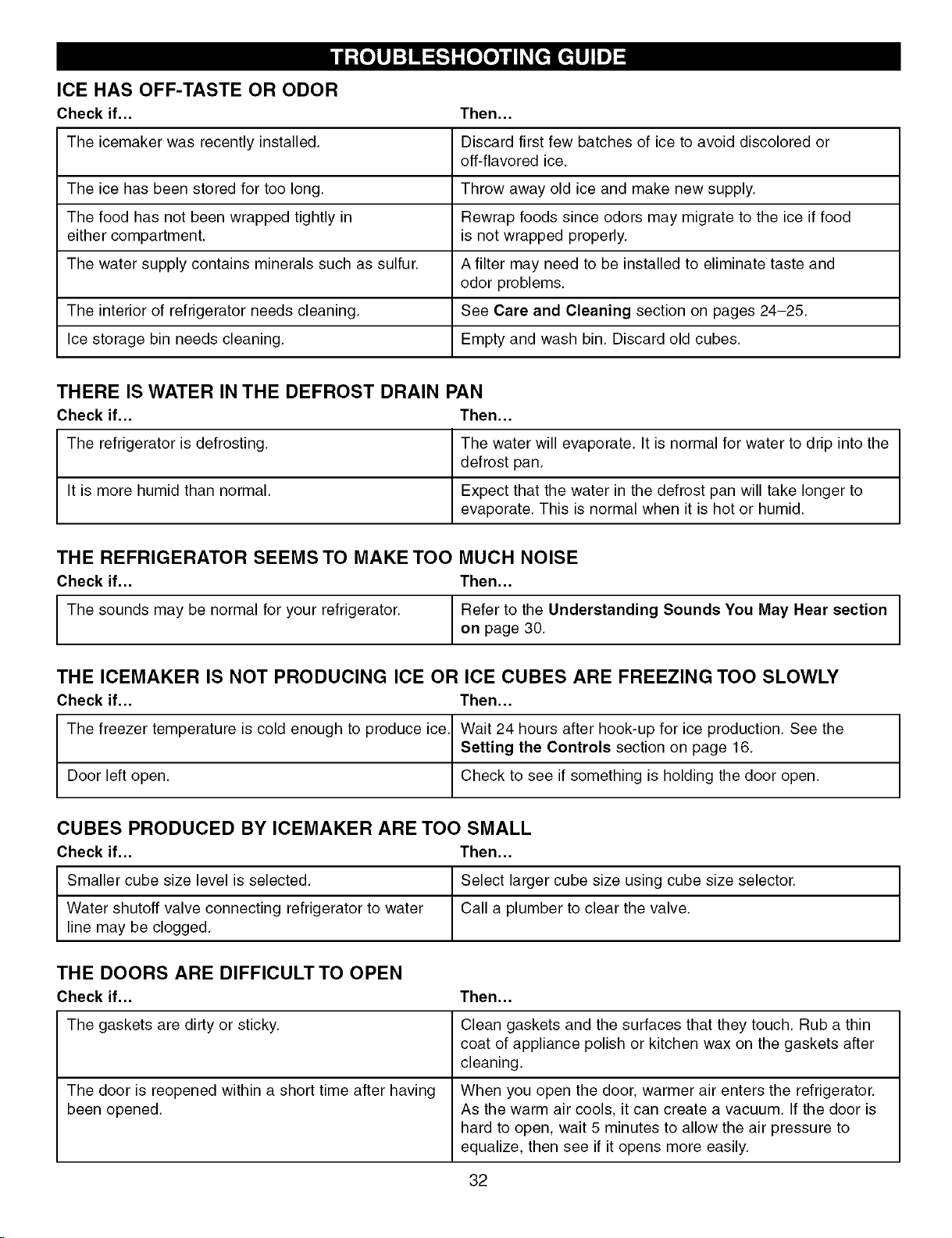

Troubleshooting Guide 30-33
Customer Service Back Cover
Refrigerator Installation

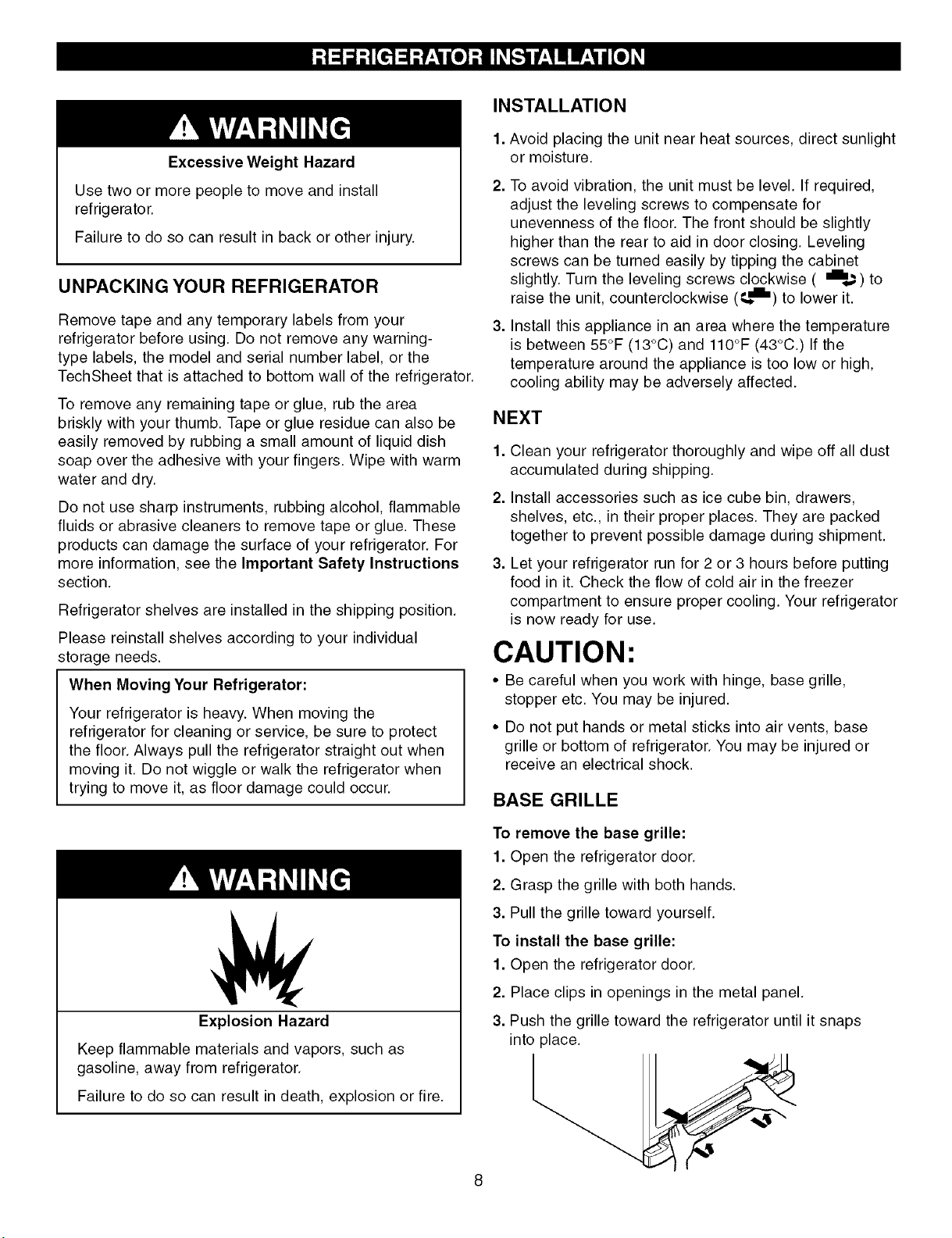

Unpacking Your Refrigerator
Installation
Base Grille

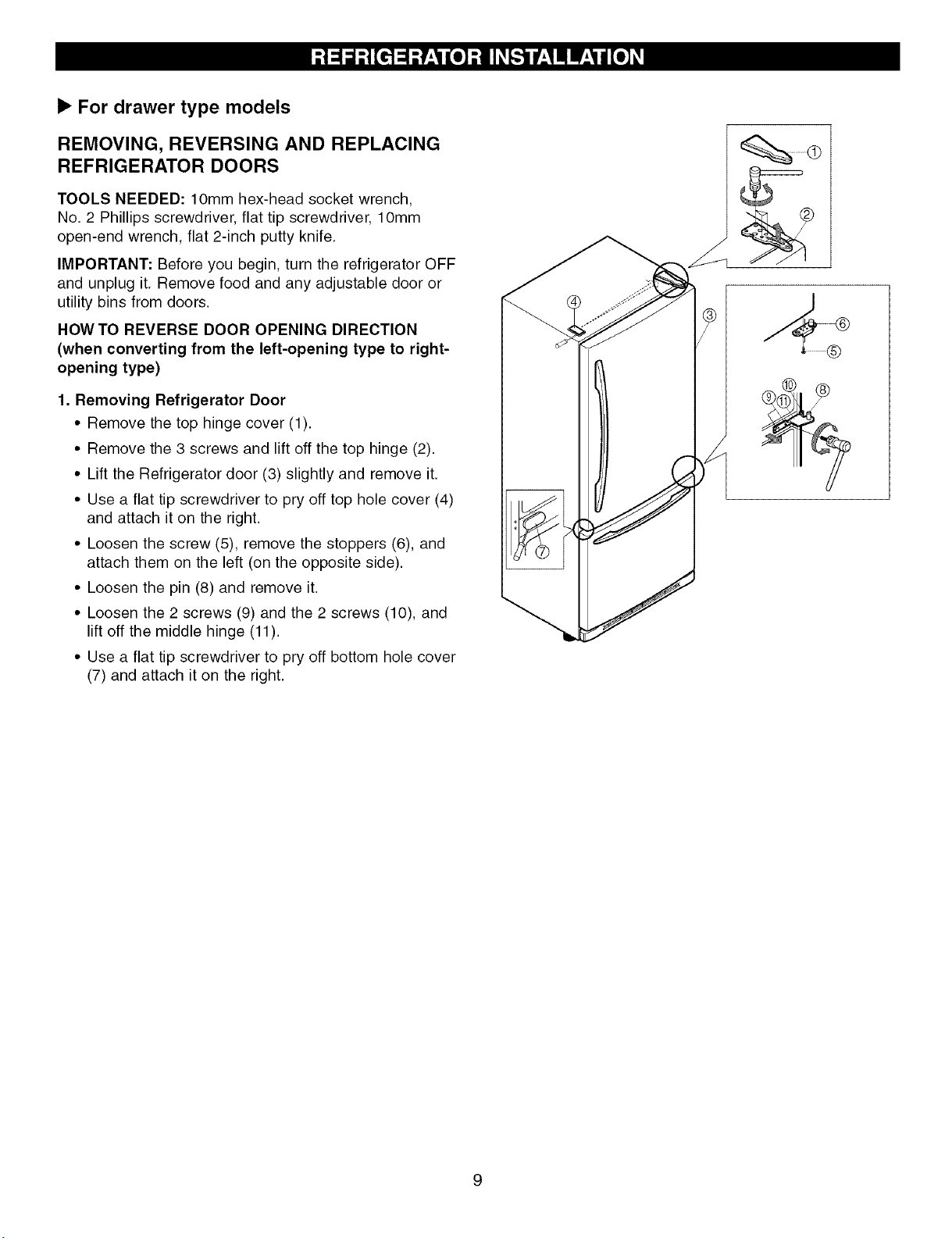

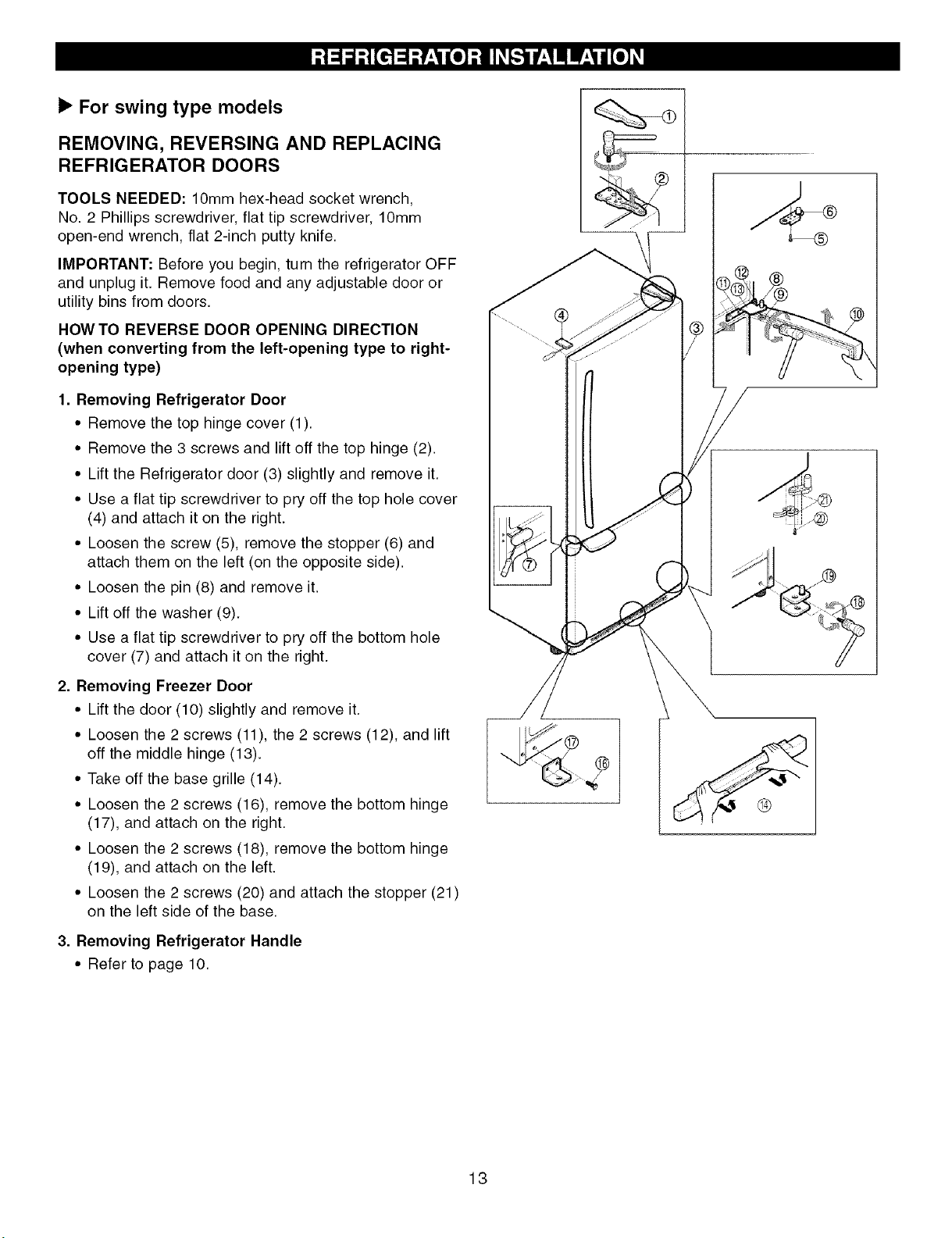

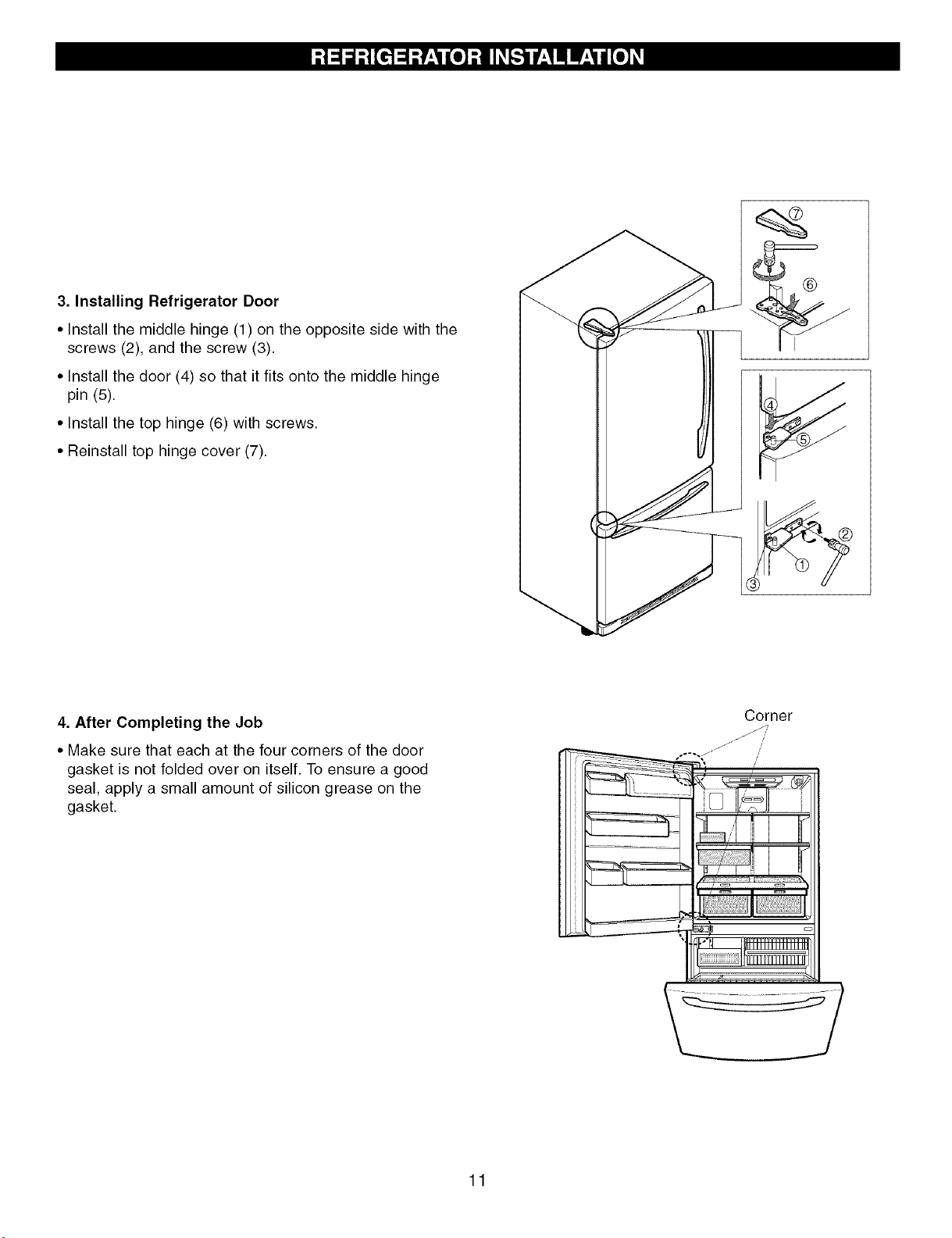

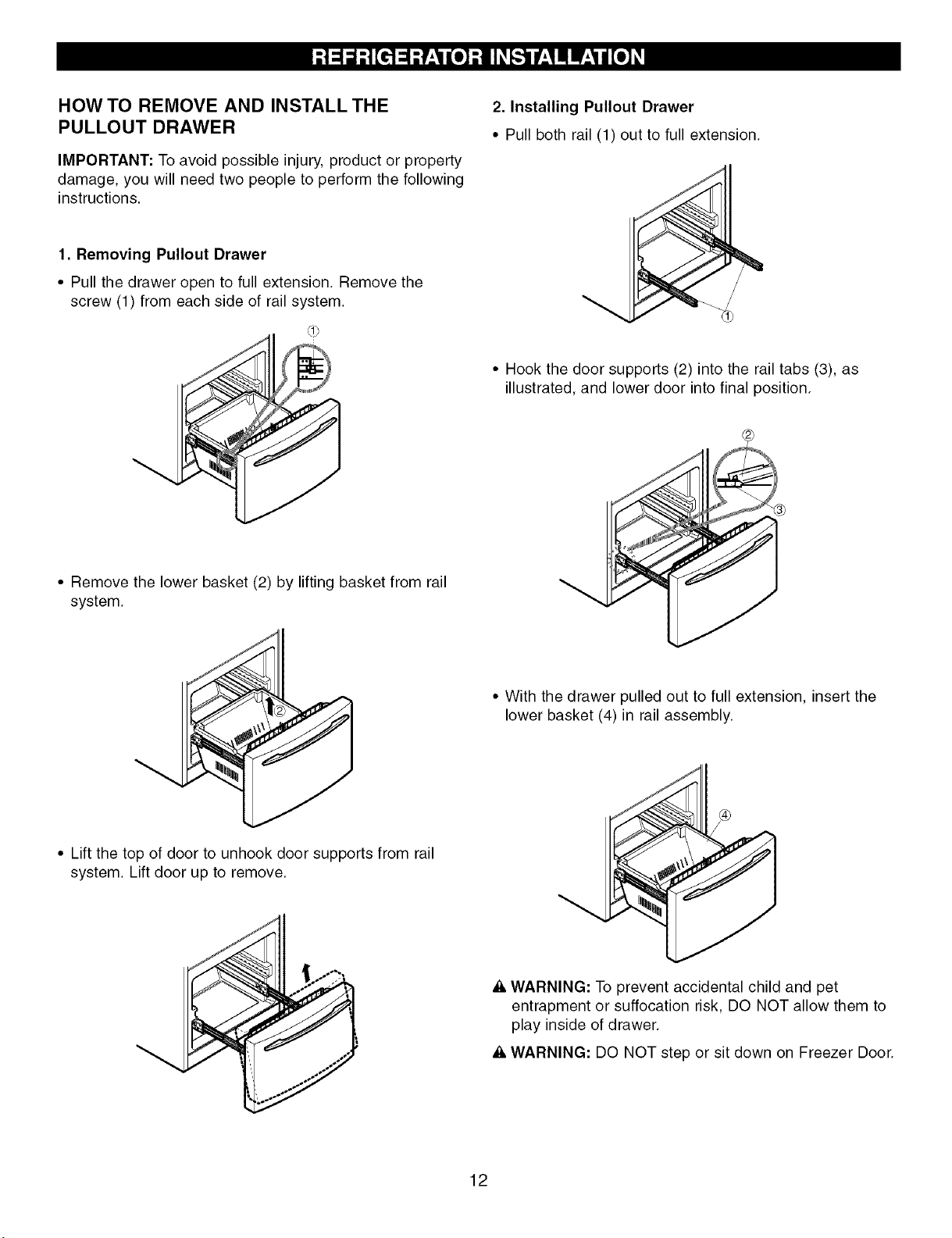

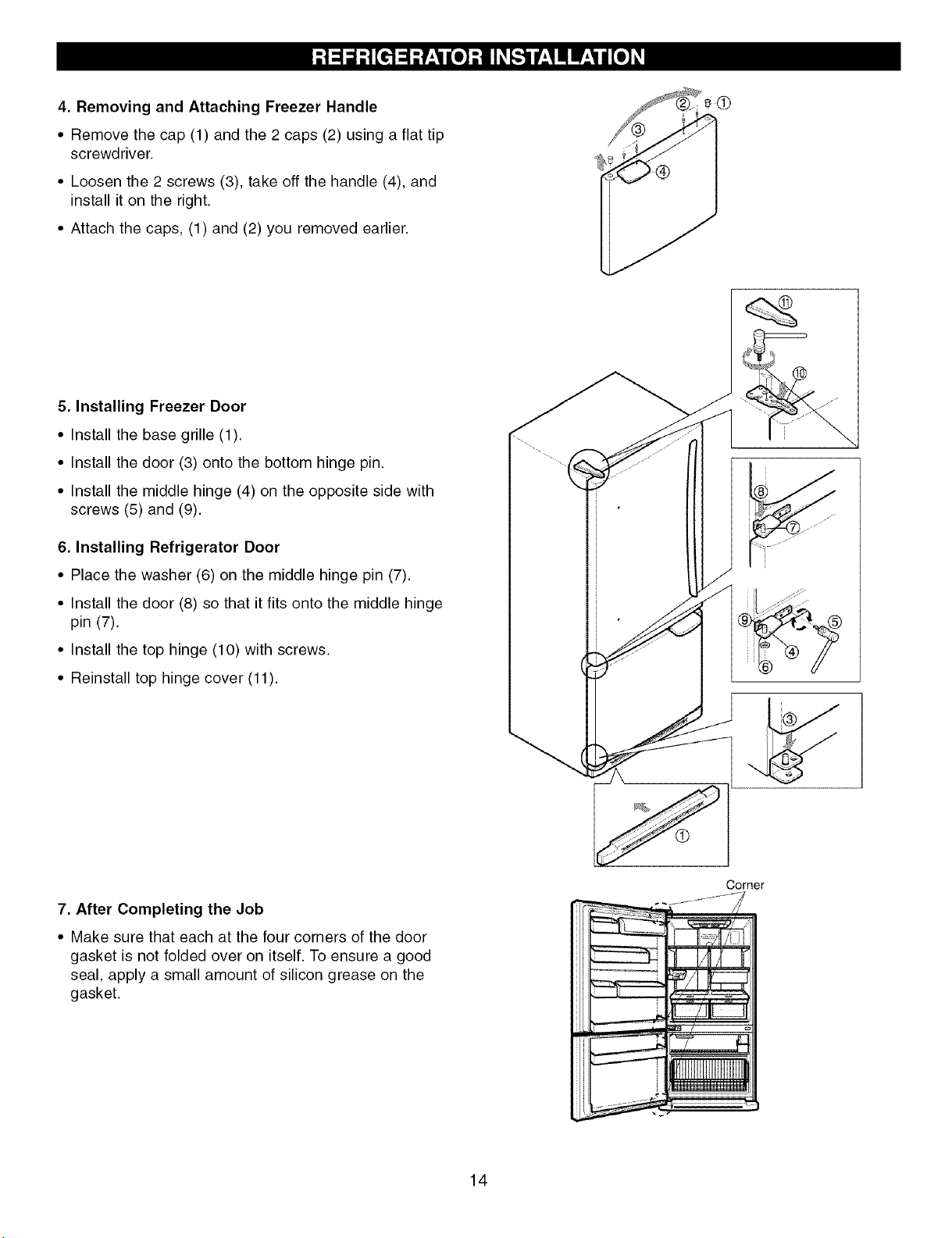

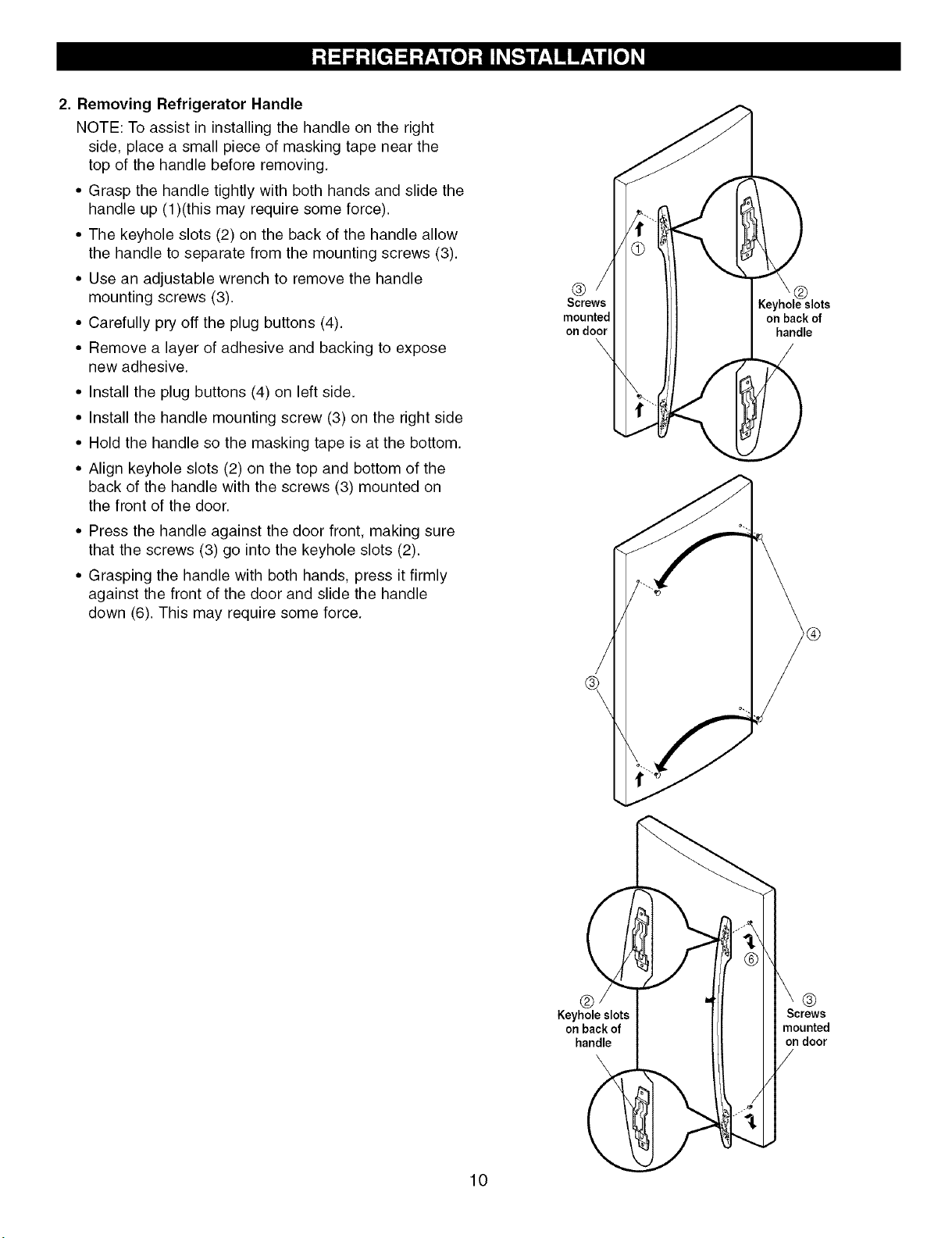

Removing, Reversing and Replacing
Your Refrigerator Doors 9-14

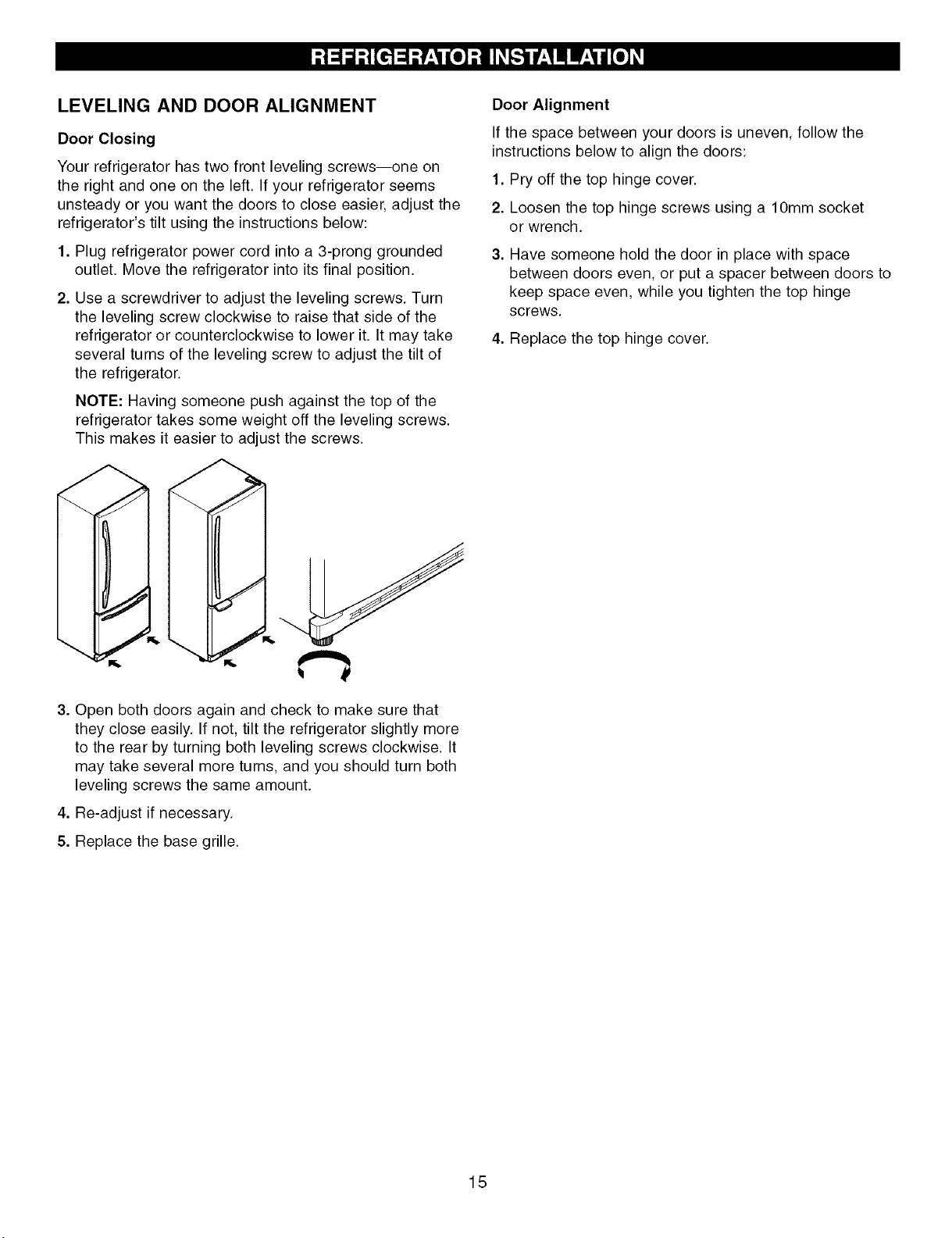

Leveling and DoorAlignment 15
Using Your Refrigerator 16-23
Ensuring Proper Air Circulation 16
Multi Flow 16
Setting the Controls 16

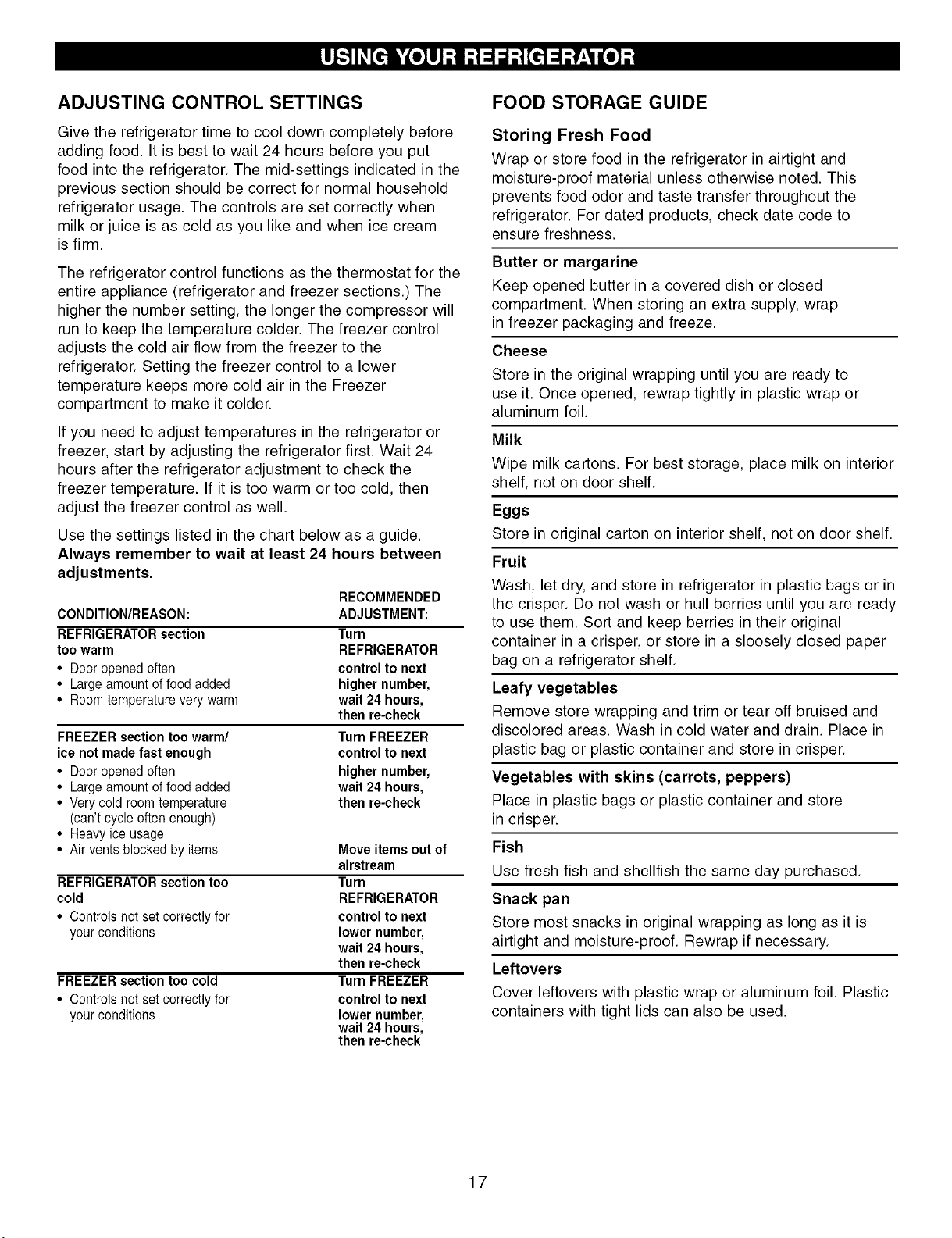

Adjusting Control Settings 17
Food Storage Guide 17
Storing Frozen Food 18

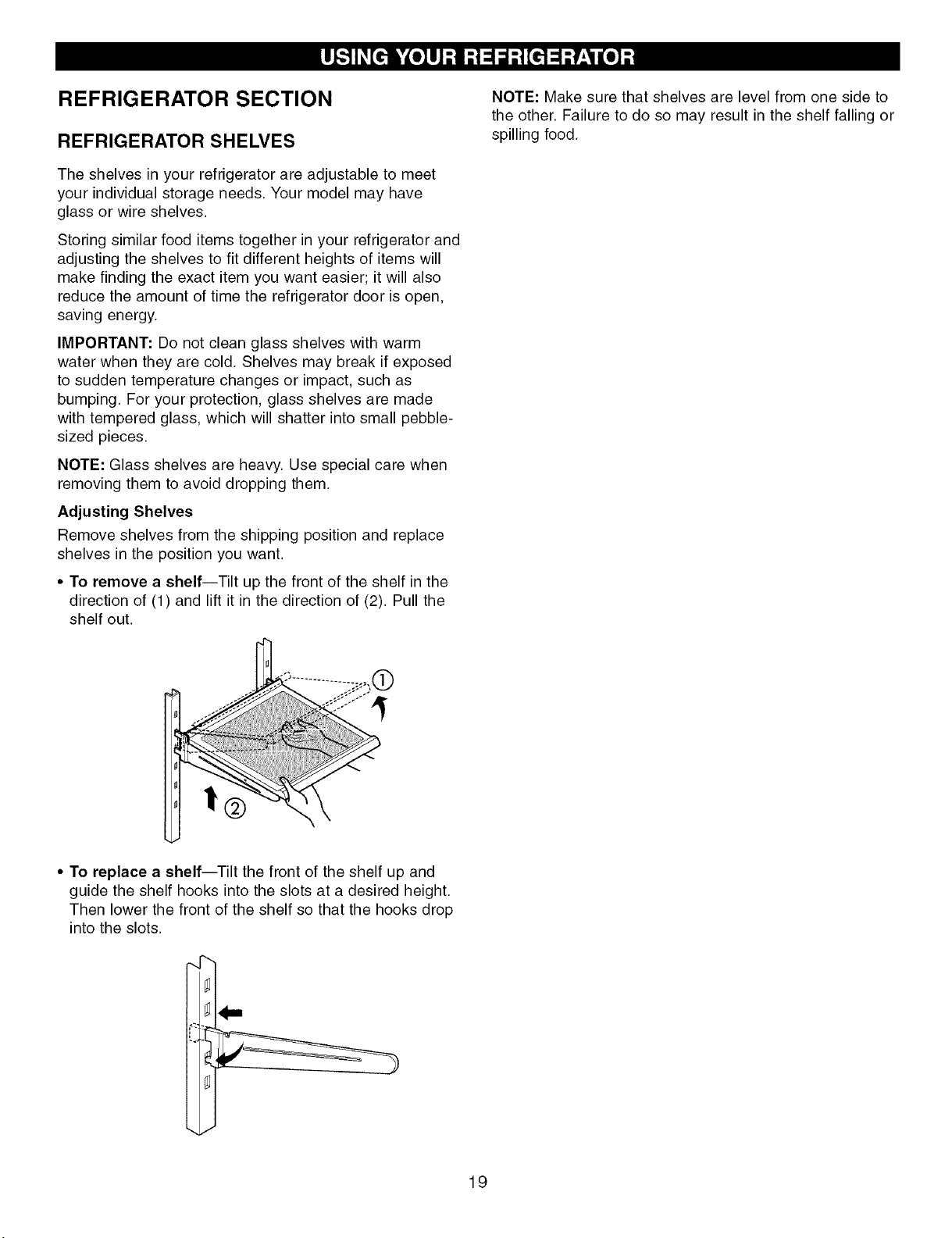

Refrigerator Shelves 19

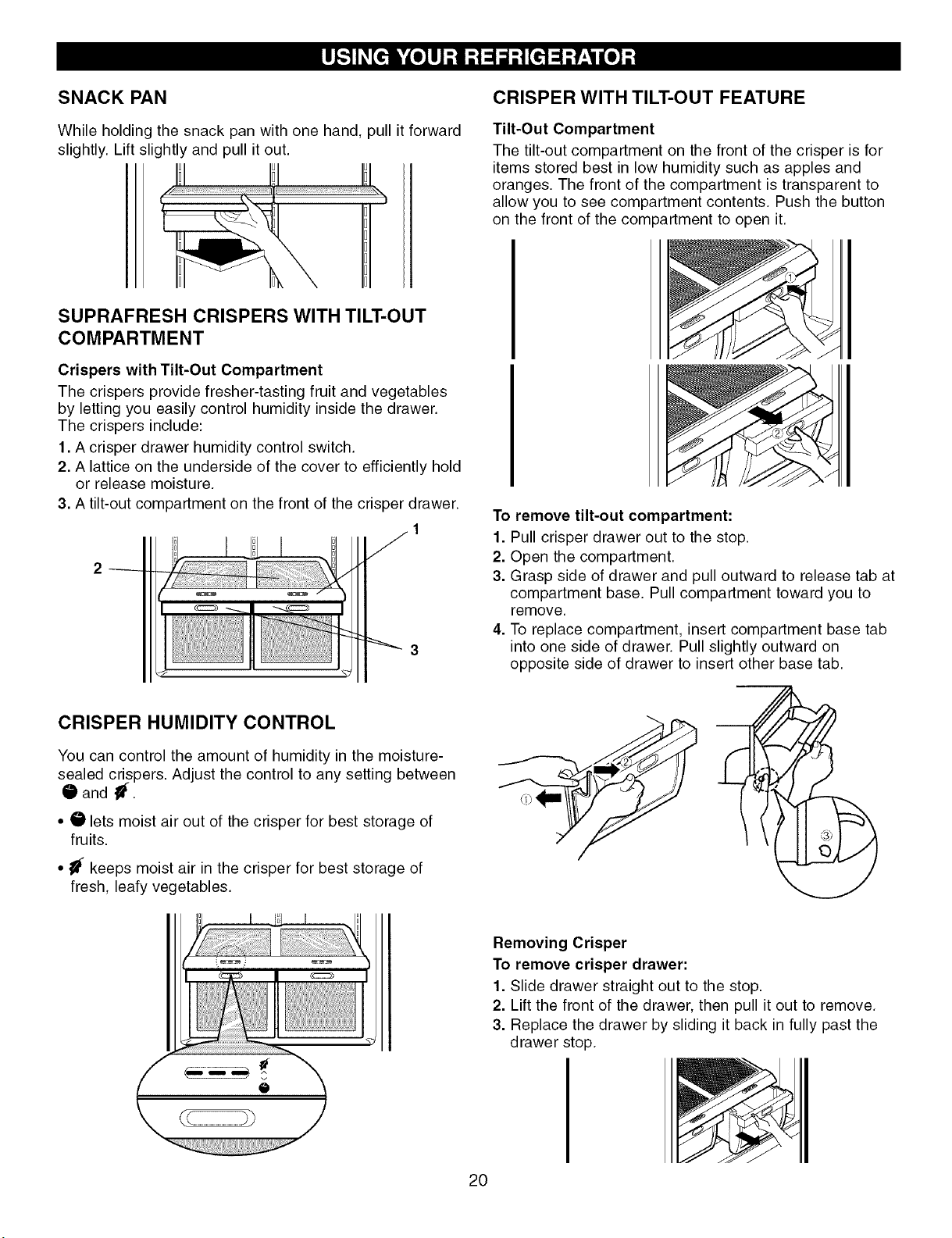

Snack Pan 20
Suprafresh Crispers with Tilt-out Compartment 20
Crisper Humidity Control 20
Crisper with Tilt-out Feature 20
BOTTOM FREEZER REFRIGERATOR
KENMORE AND KENMORE ELITE REFRIGERATOR WARRANTY
t =
tONE YEAR FULL WARRANTY ON REFRIGERATOR
For one year from the date of purchase, when this refrigerator is operated and maintained according to the instructions
supplied with it, Sears will repair this refrigerator, free of charge, if defective in material or workmanship. This one year
time period does not include the refrigerator water filter cartridge (if equipped), which is an expendable part warranted
for only 30 days (see below).
FIVE YEAR FULL WARRANTY ON SEALED REFRIGERATION SYSTEM
For five years from the date of purchase, when this refrigerator is operated and maintained according to the instructions
supplied with it, Sears will repair the sealed system (consisting of refrigerant, connecting tubing, and compressor), free
of charge, if defective in material or workmanship.
30 DAY FULL WARRANTY ON WATER FILTER CARTRIDGE (if equipped)
For thirty days from the date of purchase, Sears will replace the refrigerator water filter cartridge if it is defective in
material or workmanship.
All above warranty coverage applies only to refrigerators which are used for storage of food for private household
purposes.
Warranty service is available in the United States or Canada by contacting Sears at 1-800-4-MY-HOME® (1-800-469-
4663).
This warranty applies only while this product is in use in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or
province to province. Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Sears Canada, !nc:, Toronto, Ontario, Canada M5B 2B8 ,_
2
In the U.S.A.

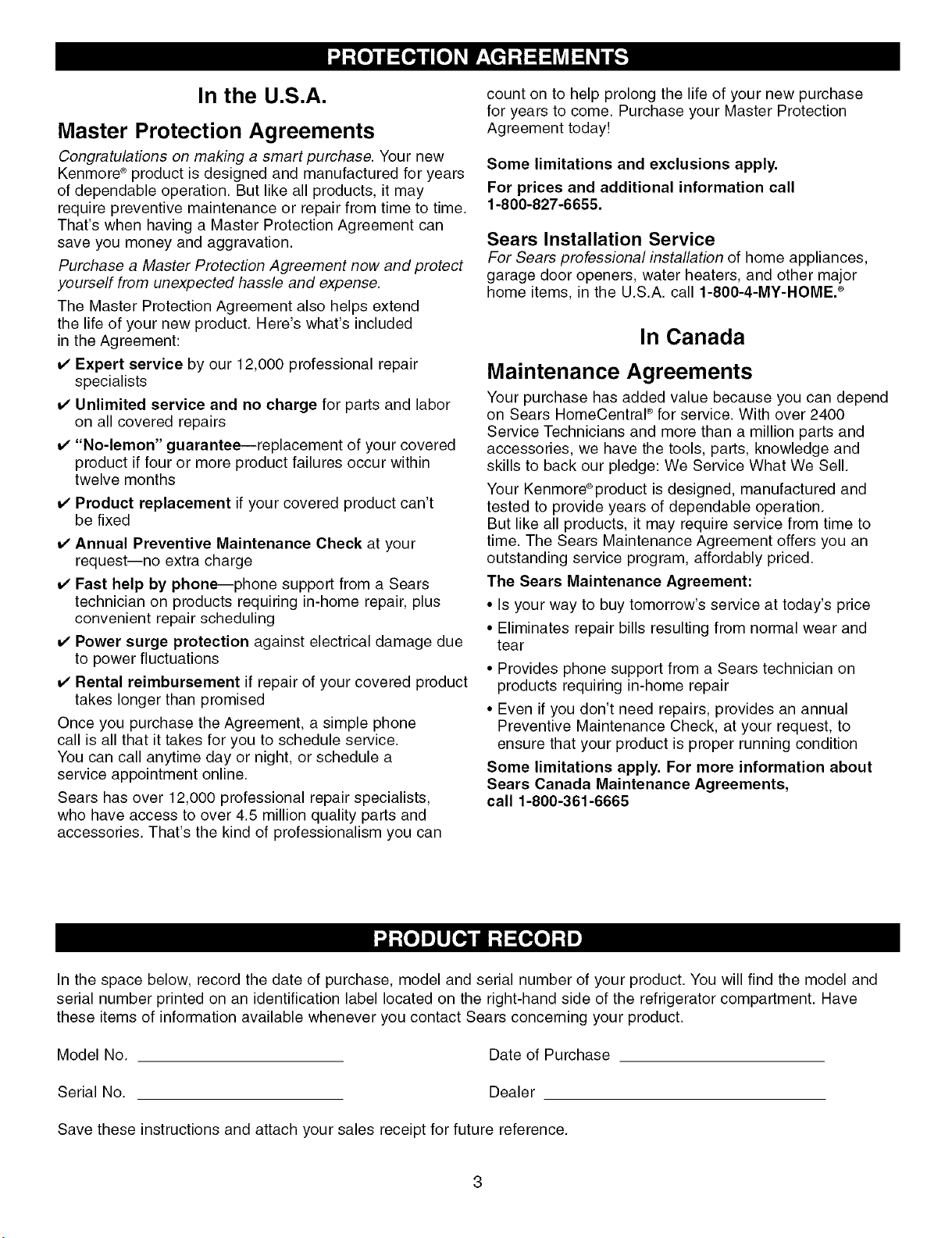

Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ®product is designed and manufactured for years
of dependable operation. But like all products, it may
require preventive maintenance or repair from time to time.
That's when having a Master Protection Agreement can
save you money and aggravation.
Purchase a Master Protection Agreement now and protect
yourself from unexpected hassle and expense.
The Master Protection Agreement also helps extend
the life of your new product. Here's what's included
in the Agreement:
v' Expert service by our 12,000 professional repair
specialists
v' Unlimited service and no charge for parts and labor
on all covered repairs
v' "No-lemon" guarantee--replacement of your covered
product if four or more product failures occur within
twelve months
v' Product replacement if your covered product can't
be fixed
v' Annual Preventive Maintenance Check at your
request--no extra charge
v' Fast help by phone--phone support from a Sears
technician on products requiring in-home repair, plus
convenient repair scheduling
v' Power surge protection against electrical damage due
to power fluctuations
v' Rental reimbursement if repair of your covered product
takes longer than promised
Once you purchase the Agreement, a simple phone
call is all that it takes for you to schedule service.
You can call anytime day or night, or schedule a
service appointment online.
Sears has over 12,000 professional repair specialists,
who have access to over 4.5 million quality parts and
accessories. That's the kind of professionalism you can
count on to help prolong the life of your new purchase
for years to come. Purchase your Master Protection
Agreement today!
Some limitations and exclusions apply.
For prices and additional information call
1-800-827-6655.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. call 1-800-4-MY-HOME. ®
In Canada
Maintenance Agreements
Your purchase has added value because you can depend
on Sears HomeCentral ®for service. With over 2400
Service Technicians and more than a million parts and
accessories, we have the tools, parts, knowledge and
skills to back our pledge: We Service What We Sell.
Your Kenmore®product is designed, manufactured and
tested to provide years of dependable operation.
But like all products, it may require service from time to
time. The Sears Maintenance Agreement offers you an
outstanding service program, affordably priced.
The Sears Maintenance Agreement:
• Is your way to buy tomorrow's service at today's price
• Eliminates repair bills resulting from normal wear and
tear
• Provides phone support from a Sears technician on
products requiring in-home repair
• Even if you don't need repairs, provides an annual
Preventive Maintenance Check, at your request, to
ensure that your product is proper running condition
Some limitations apply. For more information about
Sears Canada Maintenance Agreements,
call 1-800-361-6665
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have
these items of information available whenever you contact Sears concerning your product.
Model No. Date of Purchase
Serial No. Dealer
Save these instructions and attach your sales receipt for future reference.
Thisguidecontainsmanyimportantsafetymessages.Alwaysreadandobeyallsafetymessages.
Thisisthesafetyalertsymbol.Italertsyoutosafetymessagesthatinformyou
ofhazardsthatcankillorhurtyouorothers,orcausedamagetotheproduct.
Allsafetymessageswillbeprecededbythesafetyalertsymbolandthehazard
signalwordDANGER,WARNING,CAUTION.Thesewordsmean:
Youwill bekilledorseriouslyinjuredifyoudon'tfollowinstructions.
Youcanbekilledorseriouslyinjuredifyoudon'tfollowinstructions.
Indicatesanimminentlyhazardoussituationwhich,ifnotavoided,
mayresultinminorormoderateinjury,orproductdamageonly.
Allsafetymessageswillidentifythehazard,tellyouhowtoreducethechanceofinjuryandtellyouwhatcanhappenif
theinstructionsarenotfollowed.
To reduce the risk of fire, electric shock, or injury
to persons when using your product, basic safety
precautions should be followed, including the following:
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the power
cord. Always grip the plug firmly and pull it straight out from
the outlet.
•Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length
or at either the plug or connector end.
• When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• DO NOT allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
• Keep fingers out of pinch point areas; clearances between
the doors and between the doors and cabinet are
necessarily small. Be careful closing doors when children
are in the area.
• Unplug your refrigerator before cleaning or making any
repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
• Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse
box in order to avoid contact with a live wire filament. (A
burned-out light bulb may break when being replaced.)
• Do not store bottles in the freezer compartment,
they may break when frozen, causing damage.
NOTE: Setting either or both controls to the OFF position
does not remove power to the light circuit.
This refrigerator must be properly installed in accordance
with the Attention Installer Instructions that were taped
to the front of the refrigerator.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp
or wet. Skin may adhere to the extremely cold surfaces.
In refrigerators with automatic icemakers, avoid contact
with the moving parts of the ejector mechanism, or with the
heating element that releases the cubes. DO NOT place
fingers or hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture in
Home and Garden Bulletin No. 69 says:
...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold--below
40°F (4°C).
...Thawed ground meats, poultry or fish that have any off-
odor or off-color should not be refrozen and should not be
eaten. Thawed ice cream should be discarded. If the odor
or color of any food is poor or questionable, get rid of it.
The food may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and prepared
foods. The eating quality of red meats is affected less than
that of many other foods. Use refrozen foods as soon as
possible to save as much of their quality as you can.
SAVE THESE INSTRUCTIONS
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous...even if they will sit for just a few days. If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
•Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric ozone.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
3-prong
grounding
plug
g_r_ii!!neg ttyp ee _"_'_

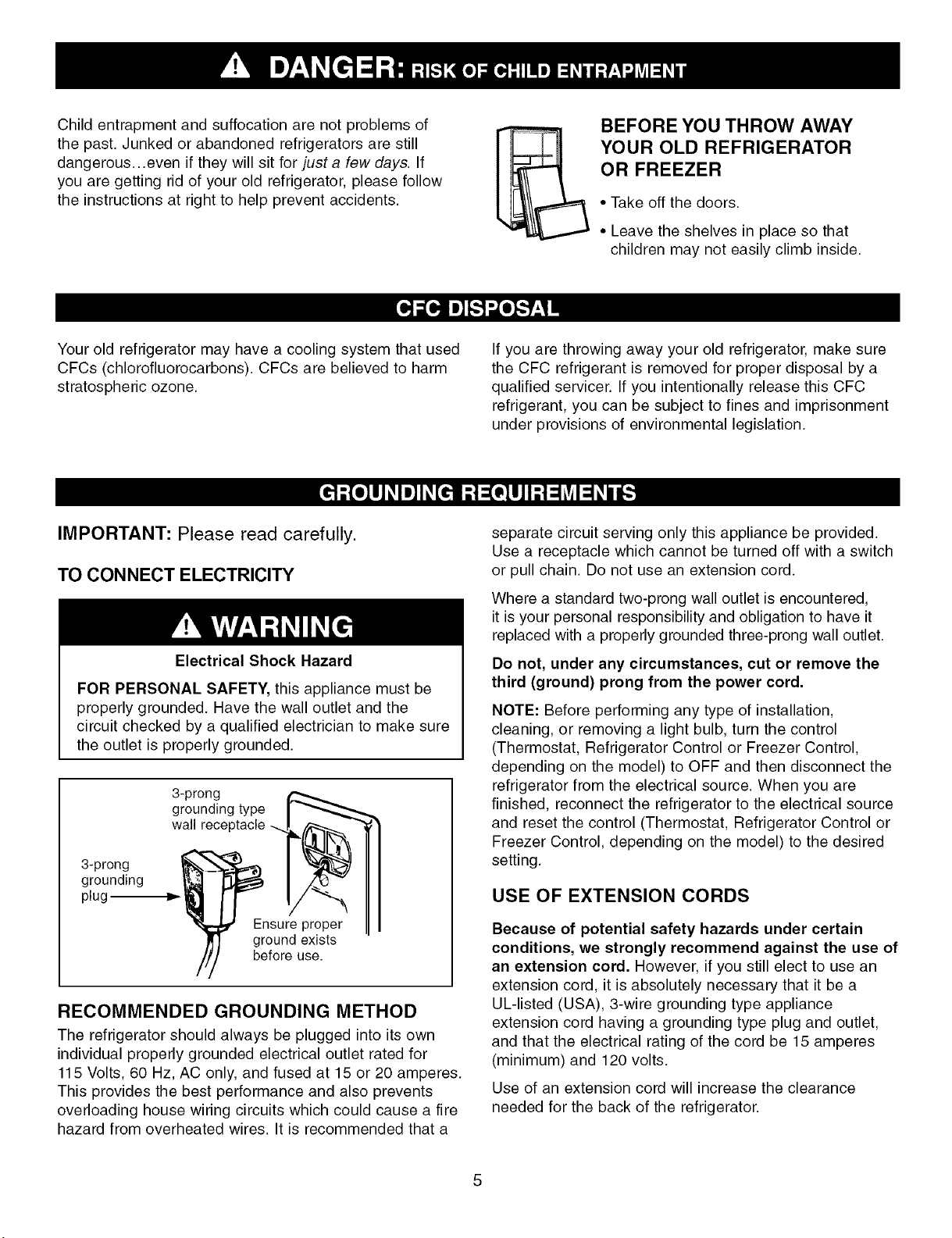

RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the
refrigerator from the electrical source. When you are
finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator Control or
Freezer Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, ifyou still elect to use an
extension cord, it is absolutely necessary that it be a
UL-listed (USA), 3-wire grounding type appliance
extension cord having a grounding type plug and outlet,
and that the electrical rating of the cord be 15 amperes
(minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
I_ Freezer Drawer Model
Use this section to become more familiar with the parts and features, Page references are included for your
convenience.
NOTE: This guide covers several different models.The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
OCool Sense Electronic Temperature
Control System (p.16)
ORefrigerator Light (p.24)
e Refrigerator Shelves (p.19)
O Snack Pan (p.20)
O Supra Fresh Crisper with Tilt-Out Compartment (p,20)
_Adjusta Cube Ice Maker (p.26)
O Ice Bin (p,22)
O Durabase (p,22)
ODivider (p.23)
ODairy Corner (p,22)
OModular Door Bins (p,21)
OEgg Box (Freezer Drawer Model Only)
@Wine Rack
O Refrigerator Door Rack (p,21)
e Freezer Light (p.25)
OGlide-Out Drawer Basket (p,23)
eTilt-Out Door Basket (p,22)

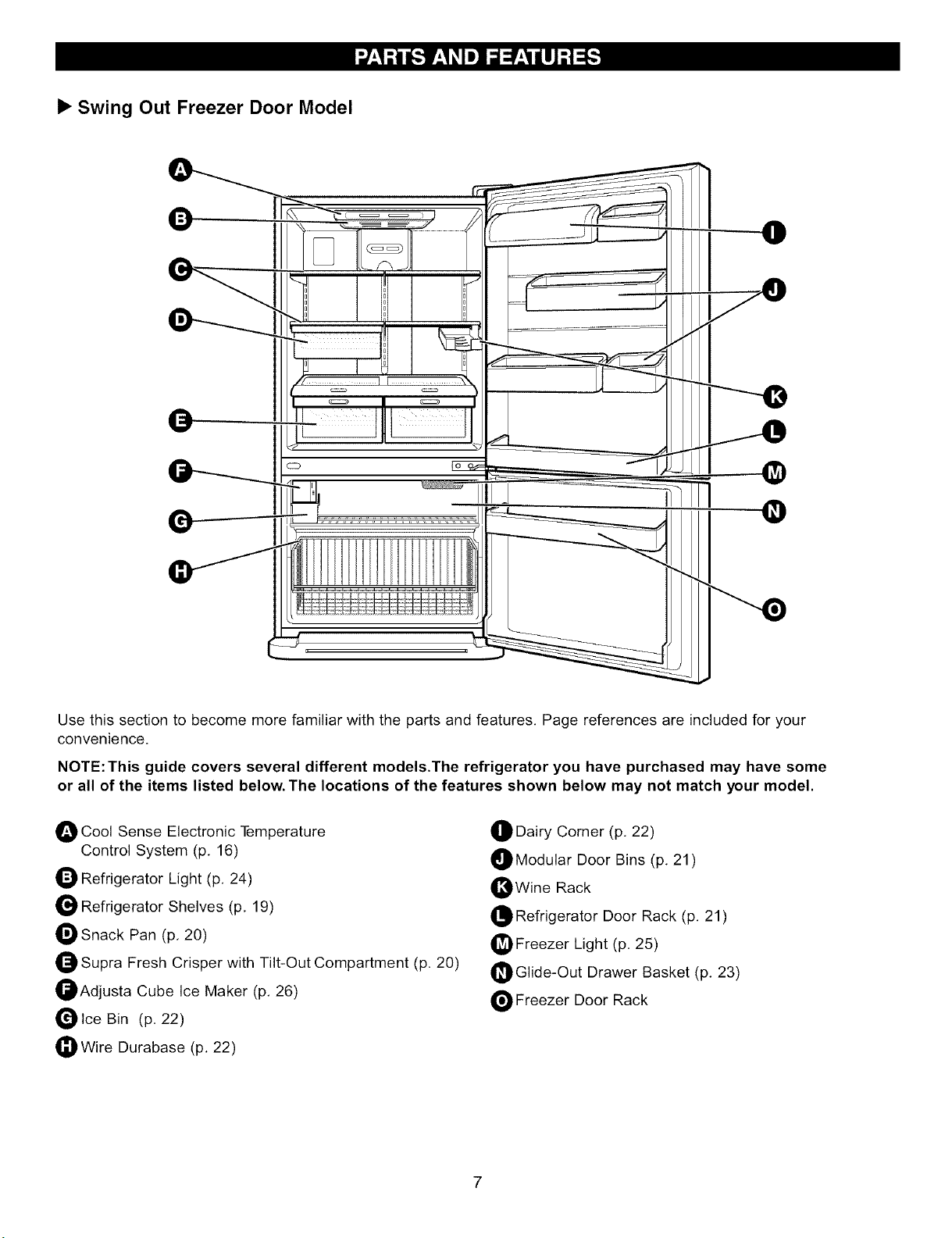

I_ Swing Out Freezer Door Model
Use this section to become more familiar with the parts and features. Page references are included for your
convenience.
NOTE: This guide covers several different models.The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
OCool Sense Electronic Temperature
Control System (p. 16)
ORefrigerator Light (p, 24)
e Refrigerator Shelves (p, 19)
e Snack Pan (p, 20)
O Supra Fresh Crisper with Tilt-Out Compartment (p. 20)
_Adjusta Cube Ice Maker (p. 26)
O Ice Bin (p, 22)
OWire Durabase (p. 22)
ODairy Corner (p. 22)
OModular Door Bins (p. 21)
OWine Rack
O Refrigerator Door Rack (p. 21)
@Freezer Light (p. 25)
OGlide-Out Drawer Basket (p. 23)
e Freezer Door Rack
INSTALLATION
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
TechSheet that is attached to bottom wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
.
2.
.
Avoid placing the unit near heat sources, direct sunlight
or moisture.
To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise (_) to
raise the unit, counterclockwise (_,.L) to lower it.
Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
CAUTION:
• Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
• Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
To remove the base grille:
1. Open the refrigerator door.
2. Grasp the grille with both hands.
3. Pull the grille toward yourself.
To install the base grille:
1. Open the refrigerator door.
2. Place clips in openings in the metal panel.
3. Push the grille toward the refrigerator until it snaps
into place.
For drawer type models
REMOVING, REVERSING AND REPLACING
REFRIGERATOR DOORS
TOOLS NEEDED: 10mm hex-head socket wrench,
No. 2 Phillips screwdriver, flat tip screwdriver, 10mm
open-end wrench, flat 2-inch putty knife.
IMPORTANT: Before you begin, turn the refrigerator OFF
and unplug it. Remove food and any adjustable door or
utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
•Remove the top hinge cover (1).
• Remove the 3 screws and lift off the top hinge (2).
• Lift the Refrigerator door (3) slightly and remove it.
• Use a flat tip screwdriver to pry off top hole cover (4)
and attach it on the right.
• Loosen the screw (5), remove the stoppers (6), and
attach them on the left (on the opposite side).
• Loosen the pin (8) and remove it.
• Loosen the 2 screws (9) and the 2 screws (10), and
lift off the middle hinge (11).
• Use a flat tip screwdriver to pry off bottom hole cover
(7) and attach it on the right.
2. Removing Refrigerator Handle
NOTE: To assist in installing the handle on the right
side, place a small piece of masking tape near the
top of the handle before removing.
• Grasp the handle tightly with both hands and slide the
handle up (1)(this may require some force).
• The keyhole slots (2) on the back of the handle allow
the handle to separate from the mounting screws (3).
• Use an adjustable wrench to remove the handle
mounting screws (3).
• Carefully pry off the plug buttons (4).
• Remove a layer of adhesive and backing to expose
new adhesive.
• Install the plug buttons (4) on left side.
• Install the handle mounting screw (3) on the right side
• Hold the handle so the masking tape is at the bottom.
• Align keyhole slots (2) on the top and bottom of the
back of the handle with the screws (3) mounted on
the front of the door.
• Press the handle against the door front, making sure
that the screws (3) go into the keyhole slots (2).
• Grasping the handle with both hands, press it firmly
against the front of the door and slide the handle
down (6). This may require some force.
®
Scmws
moun_d
ondoor on back of
handle
/®
®
Keyhole slots
on back of
handle
®
Screws
mounted
ondoor
10
3. Installing Refrigerator Door
• Install the middle hinge (1) on the opposite side with the
screws (2), and the screw (3).
• Install the door (4) so that it fits onto the middle hinge
pin (5).
• Install the top hinge (6) with screws.
• Reinstall top hinge cover (7). 1
4. After Completing the Job
• Make sure that each at the four corners of the door
gasket is not folded over on itself. To ensure a good
seal, apply a small amount of silicon grease on the
gasket.
11
HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
1. Removing Pullout Drawer
• Pull the drawer open to full extension. Remove the
screw (1) from each side of rail system.
:!_
2. Installing Pullout Drawer
• Pull both rail (1) out to full extension.
• Hook the door supports (2) into the rail tabs (3), as
illustrated, and lower door into final position.
• Remove the lower basket (2) by lifting basket from rail
system.
• With the drawer pulled out to full extension, insert the
lower basket (4) in rail assembly.
• Lift the top of door to unhook door supports from rail
system. Lift door up to remove.
_i,WARNING: To prevent accidental child and pet
entrapment or suffocation risk, DO NOT allow them to
play inside of drawer.
WARNING: DO NOT step or sit down on Freezer Door.
12
For swing type models
REMOVING, REVERSING AND REPLACING
REFRIGERATOR DOORS
TOOLS NEEDED: 10mm hex-head socket wrench,
No. 2 Phillips screwdriver, flat tip screwdriver, 10mm
open-end wrench, flat 2-inch putty knife.
IMPORTANT: Before you begin, turn the refrigerator OFF
and unplug it. Remove food and any adjustable door or
utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
• Remove the top hinge cover (1).
• Remove the 3 screws and lift off the top hinge (2).
• Lift the Refrigerator door (3) slightly and remove it.
• Use a flat tip screwdriver to pry off the top hole cover
(4) and attach it on the right.
• Loosen the screw (5), remove the stopper (6) and
attach them on the left (on the opposite side).
• Loosen the pin (8) and remove it.
• Lift off the washer (9).
• Use a flat tip screwdriver to pry off the bottom hole
cover (7) and attach it on the right.
2. Removing Freezer Door
• Lift the door (10) slightly and remove it.
• Loosen the 2 screws (11), the 2 screws (12), and lift
off the middle hinge (13).
• Take off the base grille (14).
• Loosen the 2 screws (16), remove the bottom hinge
(17), and attach on the right.
• Loosen the 2 screws (18), remove the bottom hinge
(19), and attach on the left.
• Loosen the 2 screws (20) and attach the stopper (21)
on the left side of the base.
3. Removing Refrigerator Handle
• Refer to page 10.
13
4. Removing and Attaching Freezer Handle
•Remove the cap (1) and the 2 caps (2) using a flat tip
screwdriver.
• Loosen the 2 screws (3), take off the handle (4), and
install it on the right.
• Attach the caps, (1) and (2) you removed earlier.
5. Installing Freezer Door
• Install the base grille (1).
• Install the door (3) onto the bottom hinge pin.
• Install the middle hinge (4) on the opposite side with
screws (5) and (9).
6. Installing Refrigerator Door
• Place the washer (6) on the middle hinge pin (7).
• Install the door (8) so that it fits onto the middle hinge
pin (7).
• Install the top hinge (10) with screws.
• Reinstall top hinge cover (11).
7. After Completing the Job
• Make sure that each at the four corners of the door
gasket is not folded over on itself. To ensure a good
seal, apply a small amount of silicon grease on the
gasket.
Corner
14
LEVELING AND DOOR ALIGNMENT
Door Closing
Your refrigerator has two front leveling screws--one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator's tilt using the instructions below:
1. Plug refrigerator power cord into a 3-prong grounded
outlet. Move the refrigerator into its final position.
2. Use a screwdriver to adjust the leveling screws. Turn
the leveling screw clockwise to raise that side of the
refrigerator or counterclockwise to lower it. It may take
several turns of the leveling screw to adjust the tilt of
the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to adjust the screws.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. Pry off the top hinge cover.
2. Loosen the top hinge screws using a lOmm socket
or wrench.
3. Have someone hold the door in place with space
between doors even, or put a spacer between doors to
keep space even, while you tighten the top hinge
screws.
4. Replace the top hinge cover.
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling screws clockwise. It
may take several more turns, and you should turn both
leveling screws the same amount.
4. Re-adjust if necessary.
5. Replace the base grille.
15

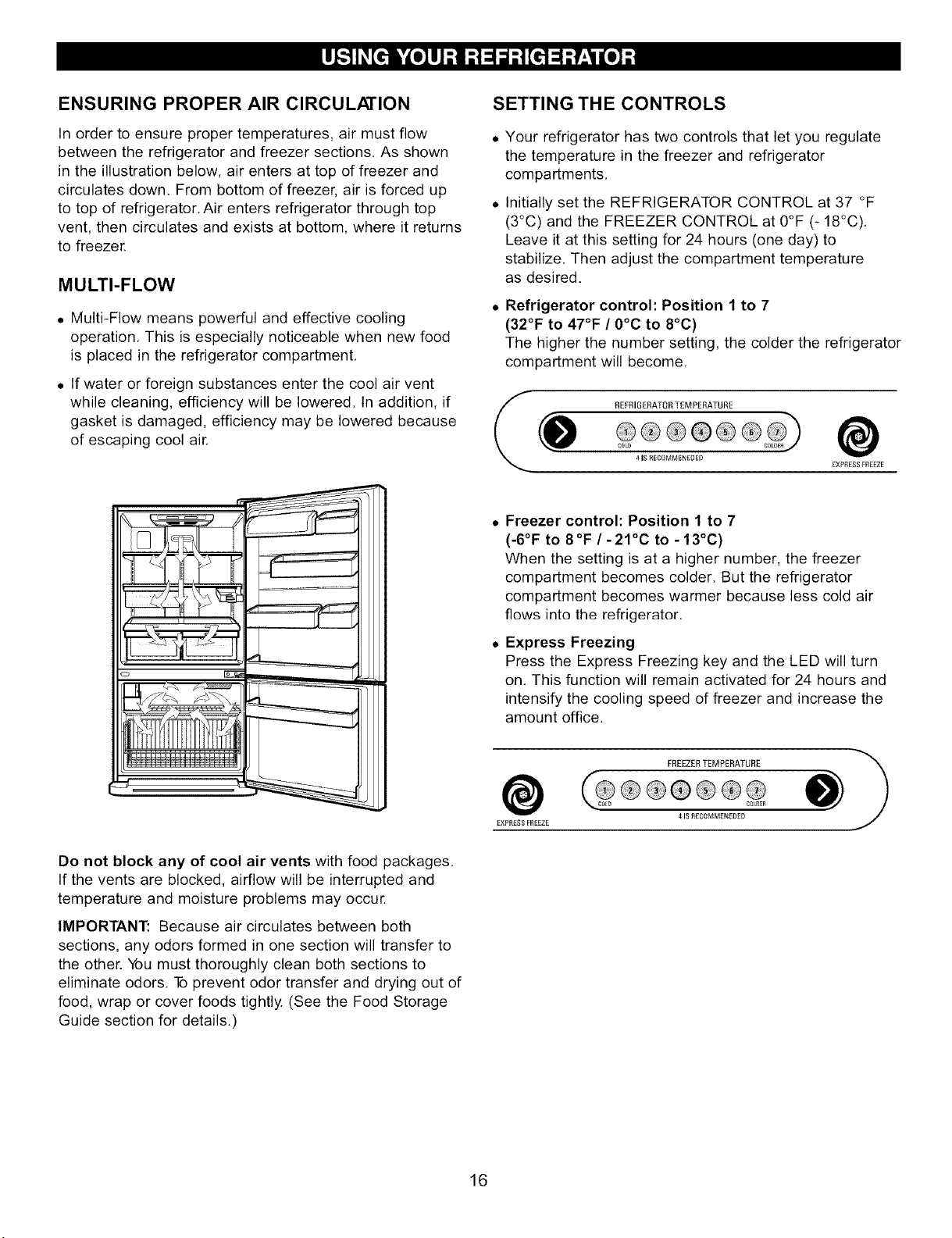

ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow •
between the refrigerator and freezer sections. As shown
in the illustration below, air enters at top of freezer and
circulates down. From bottom of freezer, air is forced up
to top of refrigerator. Air enters refrigerator through top •
vent, then circulates and exists at bottom, where it returns
to freezer.
MULTI-FLOW
• Multi-Flow means powerful and effective cooling
operation. This is especially noticeable when new food
is placed in the refrigerator compartment,
SETTING THE CONTROLS
Your refrigerator has two controls that let you regulate
the temperature in the freezer and refrigerator
compartments.
Initially set the REFRIGERATOR CONTROL at 37 °F
(3°C) and the FREEZER CONTROL at 0°F (- 18°C).
Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature
as desired.
Refrigerator control: Position 1 to 7
(32°F to 47°F /0°C to 8°C)
The higher the number setting, the colder the refrigerator
compartment will become.
• If water or foreign substances enter the cool air vent
while cleaning, efficiency will be lowered. In addition, if /-
gasket is damaged, efficiency may be lowered because \
of escaping cool air.
Do not block any of cool air vents with food packages.
If the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer to
the other. You must thoroughly clean both sections to
eliminate odors. Toprevent odor transfer and drying out of
food, wrap or cover foods tightly. (See the Food Storage
Guide section for details.)
REFRIGERATORTEMPERATURE
4 IS RECOMMENEOED £XPRESSFREEZE
•Freezer control: Position 1 to 7
(-6°F to 8°F/-21°C to -13°C)
When the setting is at a higher number, the freezer
compartment becomes colder. But the refrigerator
compartment becomes warmer because less cold air
flows into the refrigerator.
•Express Freezing
Press the Express Freezing key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of freezer and increase the
amount office.
£XPR£SSFR£EZE
FREEZERTEMPERATURE
4IS £ECOMMENEDED
16
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put
food into the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is as cold as you like and when ice cream
is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections.) The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
CONDITION/REASON:
REFRIGERATORsection
too warm
• Door opened often
• Largeamount of food added
• Room temperature very warm
FREEZER section too warm/
ice not made fast enough
• Door opened often
• Largeamount of food added
• Very cold room temperature
(can't cycle often enough)
• Heavy ice usage
• Air vents blocked by items
REFRIGERATORsection too
cold
• Controls not set correctly for
your conditions
FREEZER section too cold
• Controls not set correctly for
your conditions
RECOMMENDED
ADJUSTMENT:
Turn
REFRIGERATOR
control to next
higher number,
wait 24 hours,
then re-check
Turn FREEZER
control to next
higher number,
wait 24 hours,
then re-check
Move items out of
airstream
Turn
REFRIGERATOR
control to next
lower number,
wait 24 hours,
then re-check
Turn FREEZER
control to next
lower number,
wait 24 hours,
then re-check
FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping until you are ready to
use it. Once opened, rewrap tightly in plastic wrap or
aluminum foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in refrigerator in plastic bags or in
the crisper. Do not wash or hull berries until you are ready
to use them. Sort and keep berries in their original
container in a crisper, or store in a sloosely closed paper
bag on a refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in
plastic bag or plastic container and store in crisper.
Vegetables with skins (carrots, peppers)
Place in plastic bags or plastic container and store
in crisper.
Fish
Use fresh fish and shellfish the same day purchased.
Snack pan
Store most snacks in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary.
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
containers with tight lids can also be used.
17

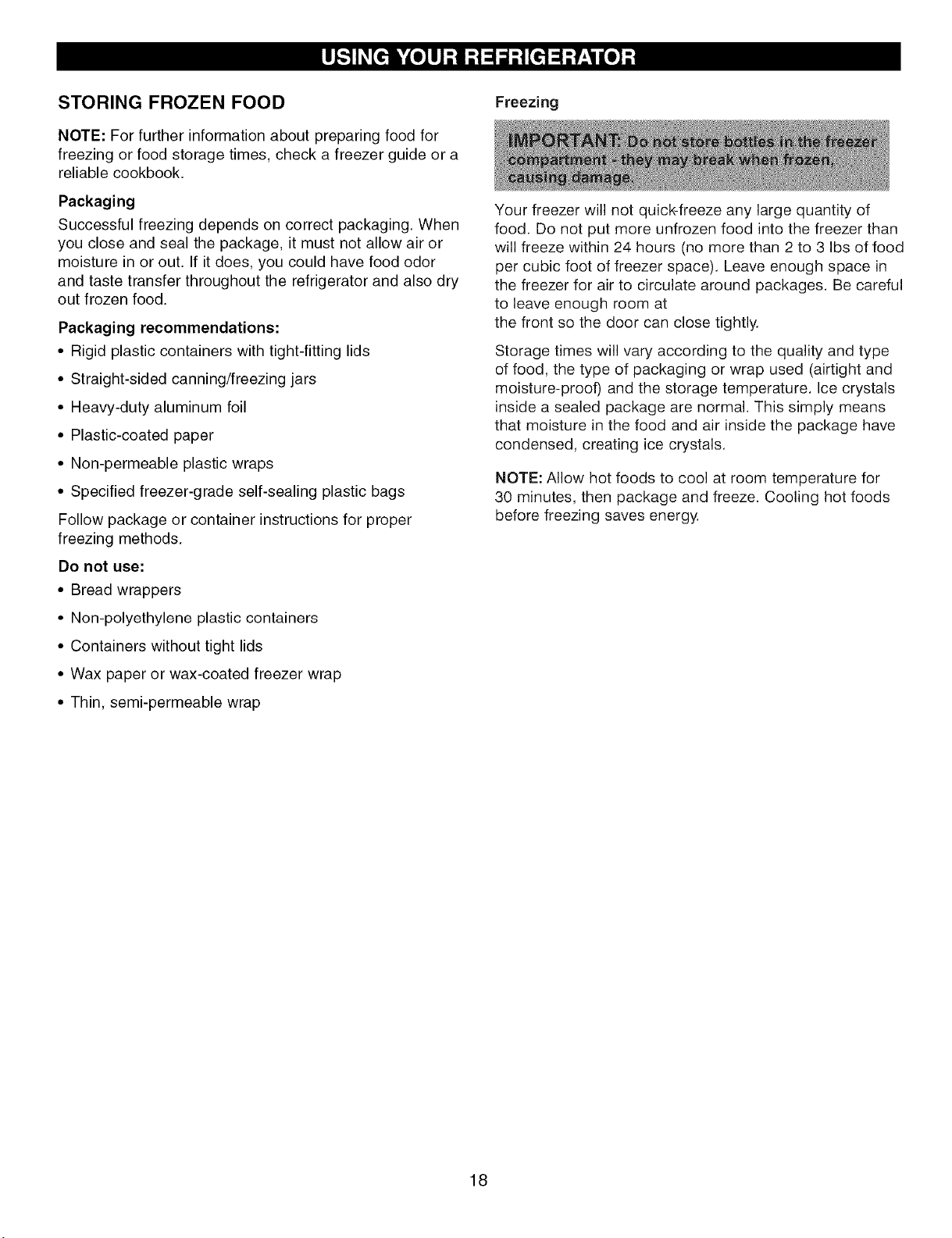

STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If it does, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use:
• Bread wrappers
• Non-polyethylene plastic containers
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 Ibs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at
the front so the door can close tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
18
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have
glass or wire shelves.
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebble-
sized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
Remove shelves from the shipping position and replace
shelves in the position you want.
•To remove a shelf--Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
NOTE: Make sure that shelves are level from one side to
the other. Failure to do so may result in the shelf falling or
spilling food.
• To replace a shelf--Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired height.
Then lower the front of the shelf so that the hooks drop
into the slots.
19
SNACK PAN
While holding the snack pan with one hand, pull itforward
slightly. Lift slightly and pull it out.
CRISPER WITH TILT-OUT FEATURE
Tilt-Out Compartment
The tilt-out compartment on the front of the crisper is for
items stored best in low humidity such as apples and
oranges. The front of the compartment is transparent to
allow you to see compartment contents. Push the button
on the front of the compartment to open it.
SUPRAFRESH CRISPERS WITH TILT-OUT
COMPARTMENT
Crispers with Tilt-Out Compartment
The crispers provide fresher-tasting fruit and vegetables
by letting you easily control humidity inside the drawer.
The crispers include:
1. A crisper drawer humidity control switch.
2. A lattice on the underside of the cover to efficiently hold
or release moisture.
3. A tilt-out compartment on the front of the crisper drawer.
CRISPER HUMIDITY CONTROL
You can control the amount of humidity in the moisture-
sealed crispers. Adjust the control to any setting between
• and _€.
• • lets moist air out of the crisper for best storage of
fruits.
• _ keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
To remove tilt-out compartment:
1. Pull crisper drawer out to the stop.
2.
3.
.
Open the compartment.
Grasp side of drawer and pull outward to release tab at
compartment base. Pull compartment toward you to
remove.
To replace compartment, insert compartment base tab
into one side of drawer. Pull slightly outward on
opposite side of drawer to insert other base tab.
Removing Crisper
To remove crisper drawer:
1. Slide drawer straight out to the stop.
2. Lift the front of the drawer, then pull it out to remove.
3. Replace the drawer by sliding it back in fully past the
drawer stop.
2O
CRISPER COVERWITH LATTICE ON INNER
SURFACE
To remove cover frame:
1. Remove both crisper drawers.
2. Remove glass cover from frame. Set safely aside for
rest of crisper removal procedure.
3. While holding crisper cover frame support, pull the
frame up and out,
WARNING: Be careful when handling glass cover since
glass is not attached to cover.
To remove lattice:
DOOR RACKS
The door racks may be removed for easier cleaning,
Snap-on Door Racks
To remove the racks:
1. Remove all items in the door racks.
2. Push the rack against the inside wall of the door (A)
and lift uo the door rack (B),
To replace the racks:
1. Holdeitherend ofthedo or rackagainsttheinsidewallofthe door.
2. Push down the rack until it locks in place,
MODULAR DOOR BINS
1. Bins can be moved to either side of the door,
1. Be sure glass cover is removed.
2. Turn the cover frame over. Each lattice has its own
frame within the cover frame,
3. Pull left and right sides of lattice frame outward to
release lattice tabs from frame, Remove lattice,
2. To remove the bin;_implylift the bin up and pull straight out.
To replace lattice:
1, Pull sides of each lattice frame outward to re-insert
tabs of lattice into frame.
2. Slide the cover frame back into refrigerator and
securely onto frame support,
3. Place the glass cover back onto top of cover frame,
3. To replace the bin, slide it in above the desired
support button and push down until it snaps into place,
4. When moving bins, make sure that bins are correctly
inserted so that they don't fall out of door,
<
(c
(Incorrect)
_WARNING: Somebody can be hurt if door bins are not
firmly assembled,
NOTE: Do not adjust a bin that is loaded with food,
,_,CAUTION: DO NOT allow children to play with baskets,
The pointed area of basket could injure them,
21

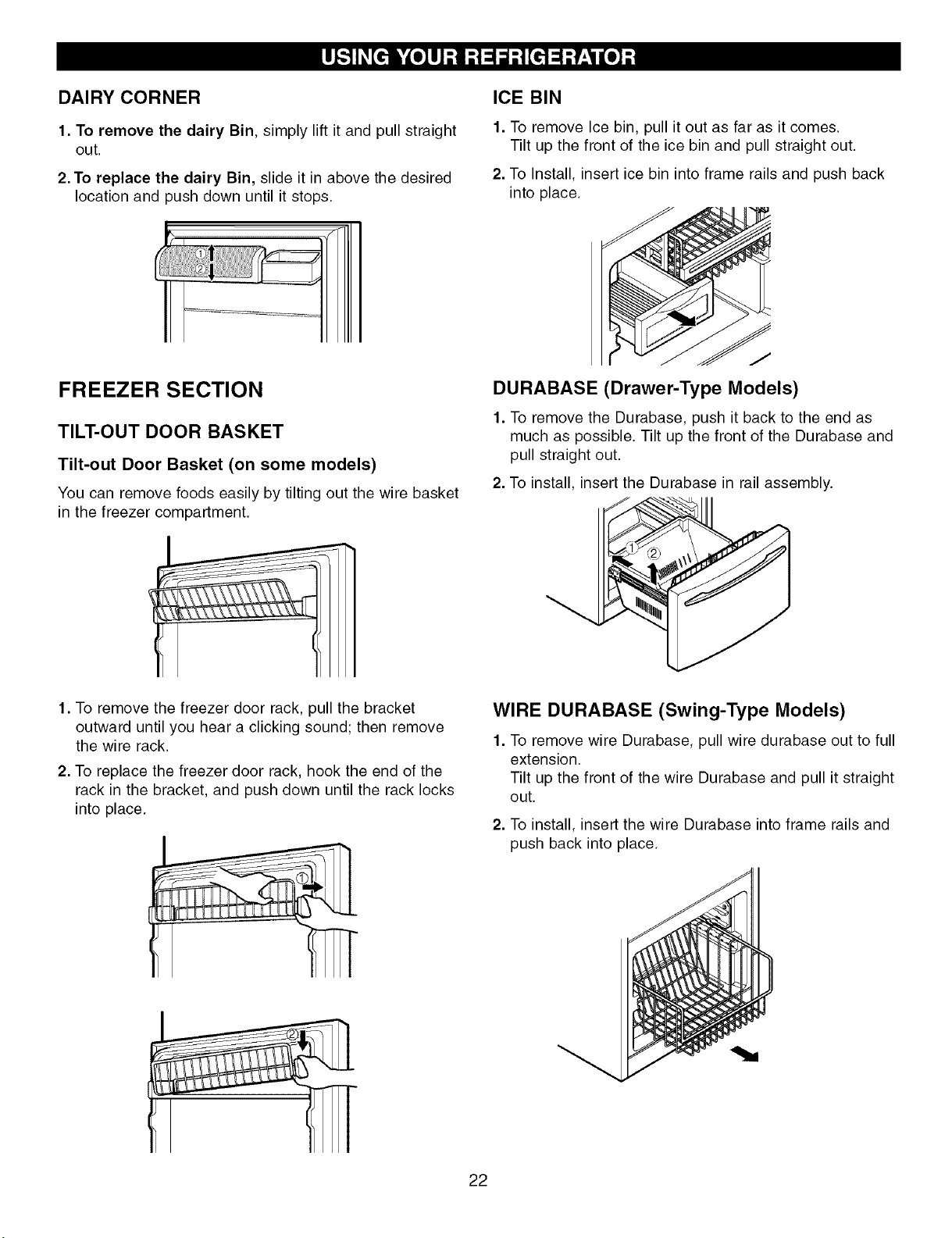

DAIRY CORNER
1. To remove the dairy Bin, simply lift it and pull straight
out.
2. To replace the dairy Bin, slide it in above the desired
location and push down until it stops.
ICE BIN
1. To remove Ice bin, pull it out as far as it comes.
Tilt up the front of the ice bin and pull straight out.
2. To Install, insert ice bin into frame rails and push back
into place.
FREEZER SECTION
TILT-OUT DOOR BASKET
Tilt-out Door Basket (on some models)
You can remove foods easily by tilting out the wire basket
in the freezer compartment.
1. To remove the freezer door rack, pull the bracket
outward until you hear a clicking sound; then remove
the wire rack.
2. To replace the freezer door rack, hook the end of the
rack in the bracket, and push down until the rack locks
into place.
DURABASE (Drawer-Type Models)
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
2. To install, insert the Durabase in rail assembly.
WIRE DURABASE (Swing-Type Models)
1. To remove wire Durabase, pull wire durabase out to full
extension.
Tilt up the front of the wire Durabase and pull it straight
out.
2. To install, insert the wire Durabase into frame rails and
push back into place.
22
DURABASE DiViDER
The Durabase divider allows you to organize
the Durabase area into sections.
GLIDE=OUT DRAWER BASKETS
(On some models)
1. To remove, lift basket up, and pull straight out.
1. To remove, pull divider staight up.
2. To install, hook top corners of divider over top edge of
durabase.
DRAWERTRAY (on some models)
The drawer tray prevents small food items from falling
between the basket rungs.
2. To Install, pull both rails out to full extension.
Hook the basket supports into the rail tabs and push to
the back of compartment.
23
Explosion Hazard
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once
a month to prevent odors. Wipe up spills immediately.
PLASTIC PARTS (covers and panels)
Do not use window sprays, abrasive cleansers, or
flammable fluids. These can scratch or damage the
material.
CONDENSER COILS
Remove grille base. (See the grille base section on
page 8.)
Use a vacuum cleaner with an extended attachment to
clean condenser coils.
Vacuum coils when dusty or dirty. Coils may need to be
cleaned as often as every other month.
Replace grille base.
LIGHT BULB REPLACEMENT
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or
auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
INSIDE WALLS (allow freezer to warm up so
cloth won't stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is
completely dissolved so does it not scratch the surfaces
of the refrigerator.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergents,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
Electrical Shock Hazard
Before replacing a burned-out light bulb, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
NOTE: Not all appliance bulbs will fit your refrigerator. Be
sure to replace the bulb with one of the same size, shape
and wattage.
To change Refrigerator Light Bulbs:
1. Unplug Refrigerator, or disconnect power at the circuit
breaker.
2. If necessary, remove top shelf or shelves.
3. Using a flat instrument, gently pry the cover loose in
the front as shown. Rotate downward toremove rear
tabs.
4. Make sure the bulbs are cool to the touch.
Turn bulbs counterclockwise to remove.
5. Assemble in reverse order by snapping the Lamp
Cover in, engaging the rear tabs followed by the front
tabs.
24
To change the freezer light:
1. Unplug refrigerator or disconnect power.
2. Reach behind light shield to remove bulb.
3. Replace bulb with a 40-watt appliance bulb.
4. Plug in refrigerator or reconnect power.
CAUTION: DO NOT place fingers inside of cover. Lamp
may be hot.
POWER INTERRUPTIONS
If the electricity goes off, call the power company and ask
how long it will be off.
1. If the power will be out for 24 hours or less, keep
both refrigerator doors closed to help foods stay
cold and frozen.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
OR
b) Place 2 Ibs of dry ice in the freezer for every cubic
foot of freezer space. This will keep the food frozen
for two to four days. While handling dry ice, wear
gloves to protect your hands from frostbite.
OR
c) If neither a food locker nor dry ice is available,
consume or can perishable food at once.
WHEN YOU GO ON VACATION
if you choose to leave the refrigerator on while you
are away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Empty the ice bin.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control to OFR See the Setting the
Controls section.
.
4.
Clean refrigerator, wipe it and dry well.
Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Unplug the refrigerator.
4. Clean, wipe and dry thoroughly.
5. Take out all removable parts, wrap them well and tape
them together so they don't shift and rattle during the
move. Refer to sections in Using Your Refrigerator for
removal instructions.
6. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don't scrape the floor.
See the Door Closing section.
7. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
25
(Some models)
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
OPERATION INSTRUCTIONS
A newly-installed refrigerator may take
12 to 24 hours to begin making ice.
If ice is not used frequently, old ice cubes will become
cloudy, taste stale, and shrink.
NOTE: If the cube size is smaller or larger than you
expected, you can regulate the size with the cube size
button.
Every time you press the cube size button, the indicator
moves up one light. The higher the light position, the
larger the cube will be. Pressing at highest position
returns indicator to lowest position.
WHEN YOU SHOULD SETTHE ICEMAKER
POWER SWITCH TO O (OFF)
• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a
minute or two,
• When the refrigerator will not be used for several days.
Icemaker
\
Cube Size
Indicator Light Cube Size
Select Button
NORMAL SOUNDS YOU MAY HEAR
The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the I (on) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to O (off).
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
The icemaker will produce eight cubes per cycle -
approximately 100-130 cubes in a 24-hour period,
depending on freezer compartment temperature, room
temperature, number of door openings and other
operating conditions,
If the refrigerator is used before the water connection is
made to the icemaker, set the power switch to 0 (off),
When the refrigerator has been connected to the water
supply, set the power switch to I (on),
The icemaker will fill with water when it cools to freezing.
A newly-installed refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice to allow the water
line to clear.
Be sure nothing interferes with the sweep of the feeler
arm,
When the bin fills to the level of the feeler arm, the
icemaker will stop producing ice.
It is normal for several cubes to be stuck together.
Set the icemaker power switch to O (off) and shut off the
water supply to the refrigerator.
If the ambient temperature will drop below freezing, have
a qualified servicer drain the water supply system to
prevent serious property damage due to flooding from
ruptured water lines or connections.
26
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house •
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O •
(off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double-
insulated or grounded in a manner to prevent the hazard
of electric shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
NOTE: Wear eye protection.
WHAT YOU WILL NEED
•Copper Tubing, 1/4" outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about 8 feet
[2.4 m] coiled into 3 turns of about 10" [25 cm] diameter) to
allow the refrigerator to move out from the wall after
installation.
•A cold water supply. The water pressure must be
between 20 and 120 p.s.i, on models without a water
filter and between 40 and 120 p.s.i, on models with a
water filter.
•Power drill.
• 1/2" or adjustable
wrench.
• Straight- and Phillips-
blade screwdriver.
Two 1/4" outer diameter
compression nuts and
2ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
Shutoff valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
INSTALLATION INSTRUCTIONS
Install the shutoff valve on the nearest frequently used
drinking water line.
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
,CHOOSETHE VALVELOCATION
Choose a location for the valve
that is easily accessible. It is best
to connect into the side of a
vertical water pipe. When it is
necessary to connect into a
horizontal water pipe, make the
connection to the top or side,
rather than at the bottom, to avoid
drawing off any sediment from the water pipe.
,DRILLTHEHOLEFORTHEVALVE
Drill a 1/4" hole in the water
pipe (even if using a self-
piercing valve) using a
sharp bit. Remove any burrs
resulting from drilling the
hole in the pipe. Take care
not to allow water to drain
into the drill. Failure to drill a 1/4" hole may result in
reduced ice production or smaller cubes.
27

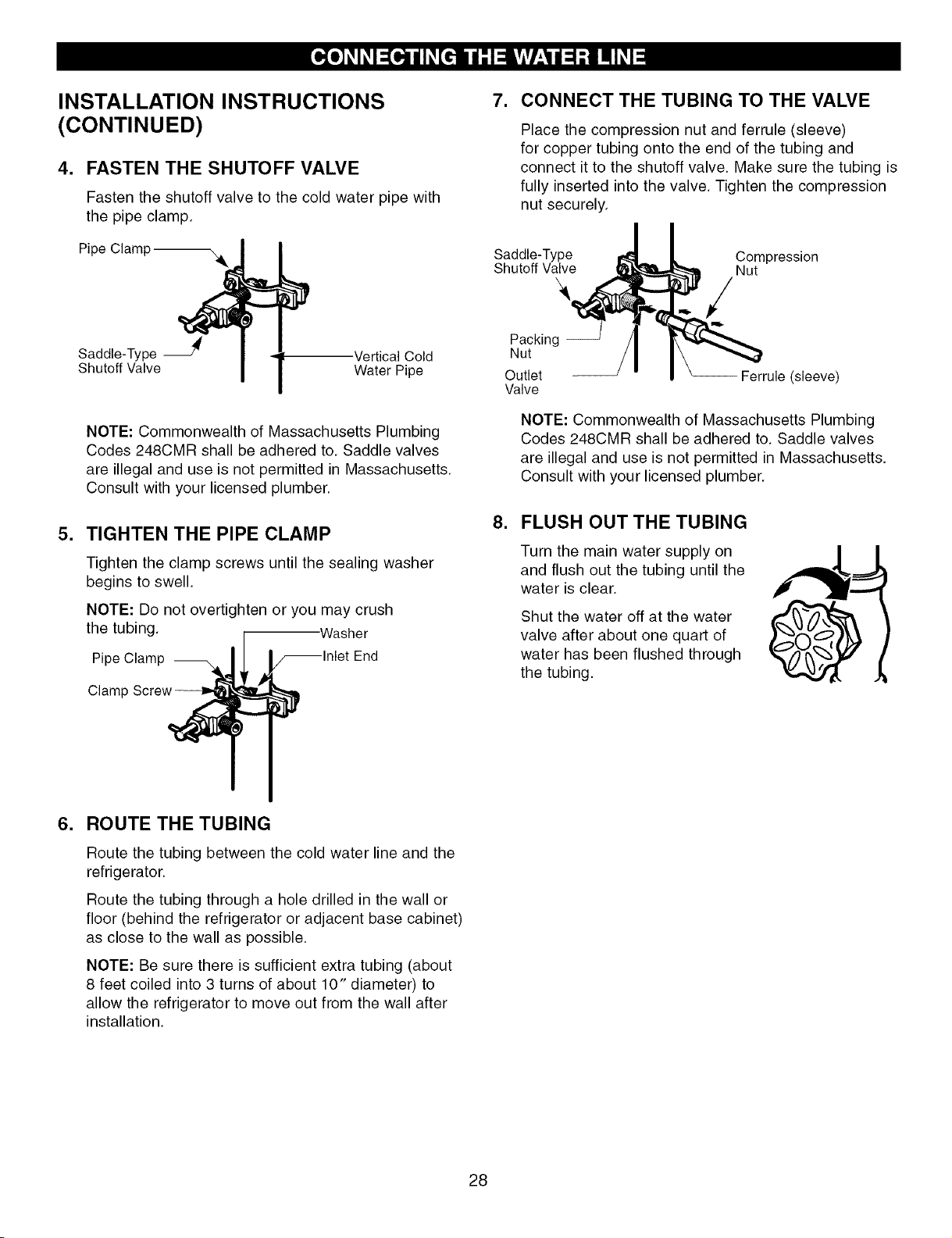

INSTALLATION INSTRUCTIONS
(CONTINUED)
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clamp
Saddle-Type J
Shutoff Valve Vertical Cold
Water Pipe
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush
the tubing.
Pipe Clamp --
Clamp Screw_
-Washer
_lnlet End
7. CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
Saddle-Type
Shutoff Va_
Packing _ _
Nut
Outlet
Valve
Compression
_rule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
8. FLUSH OUT THE TUBING
Turn the main water supply on
and flush out the tubing until the
water is clear.
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10" diameter) to
allow the refrigerator to move out from the wall after
installation.
28
,CONNECT THE TUBING TO THE
REFRIGERATOR
NOTES:
•Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing one. If your water supply
has sand or particles that could clog the screen of
the refrigerator's water valve. Install the filter in the
water line near the refrigerator.
Remove the plastic flexible cap from the refrigerator
connection.
Place the compression nut and ferrule (sleeve) onto
the end of the tubing.
Insert the end of the tubing into the connection as far
as possible. While holding the tubing, tighten the fitting.
Refrigerator
Connection
Ferrule
(sleeve)
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so ,._ _
that it does not vibrate against
the back of the refrigerator or
against the wall. Push the
refrigerator back to the wall.
12. START THE ICEMAKER
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (-9°C) or below. It
will then begin operation automatically if the icemaker
power switch is in the I (on) position.
Clamp
1/4"
Compression
Nut
1/4"
Tubing
Fasten the tubing into the tubing Clamp attached to
the back of the refrigerator.
First, loosen the screw fastening the clamp. Next,
insert the tubing in the groove. Finally, re-fasten the
screw.
10.TURN THE WATER ON AT THE
SHUTOFF VALVE
Tighten any connections that
leak.
Reattach the compressor
compartment access cover.
29

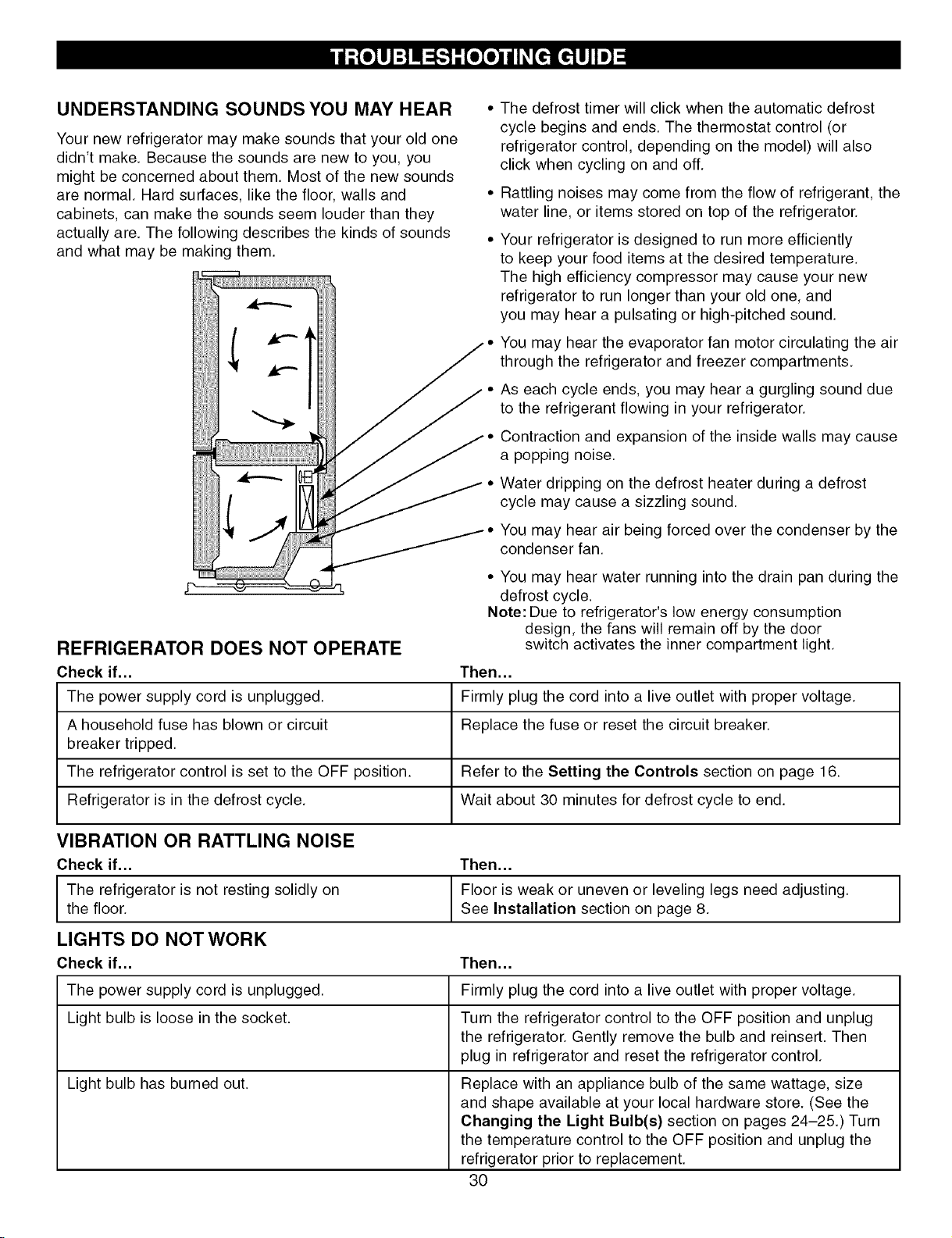

UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
didn't make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds
and what may be making them.
•The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
• Rattling noises may come from the flow of refrigerant, the
water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently
to keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and
you may hear a pulsating or high-pitched sound.
You may hear the evaporator fan motor circulating the air
through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
Contraction and expansion of the inside walls may cause
a popping noise.
• Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
You may hear air being forced over the condenser by the
condenser fan.
REFRIGERATOR DOES NOT OPERATE
Check if...
The power supply cord is unplugged.
A household fuse has blown or circuit
breaker tripped.
The refrigerator control is set to the OFF position.
Refrigerator is in the defrost cycle.
• You may hear water running into the drain pan during the
defrost cycle.
Note: Due to refrigerator's low energy consumption
design, the fans will remain off by the door
switch activates the inner compartment light.
Then...
Firmly plug the cord into a live outlet with proper voltage.
Replace the fuse or reset the circuit breaker.
Refer to the Setting the Controls section on page 16.
Wait about 30 minutes for defrost cycle to end.
VIBRATION OR RATTLING NOISE
Check if... Then...
The refrigerator is not resting solidly on Floor is weak or uneven or leveling legs need adjusting.
the floor. See Installation section on page 8.
LIGHTS DO NOT WORK
Check if... Then...
The power supply cord is unplugged. Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket. Turn the refrigerator control to the OFF position and unplug
the refrigerator. Gently remove the bulb and reinsert. Then
plug in refrigerator and reset the refrigerator control.
Light bulb has burned out. Replace with an appliance bulb of the same wattage, size
and shape available at your local hardware store. (See the
Changing the Light Bulb(s) section on pages 24-25.) Turn
the temperature control to the OFF position and unplug the
refrigerator prior to replacement.
30
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if... Then...
The refrigerator that was replaced was an Modern refrigerators with more storage space require
older model, more operating time.
The room temperature is hotter than normal. The motor will run longer under warm conditions. At normal
room temperatures, expect your motor to run about 40% to
80% of the time. Under warmer conditions, expect it to run
even more often.
The door is opened often or a large amount
of food has just been added. Adding food and opening the door warms the refrigerator.
It is normal for the refrigerator to run longer in order to cool
the refrigerator back down. Adding a large amount of food
warms the refrigerator. See the Food Storage Guide section
on page 17. In order to conserve energy, try to get everything
you need out of the refrigerator at once, keep food organized
so it is easy to find and close the door as soon as the food
is removed.
The refrigerator was recently plugged in and The refrigerator will take up to 24 hours to cool
the refrigerator control was set correctly, completely.
The refrigerator control is not set correctly for the See the Adjusting Control Settings section on page 17.
surrounding conditions.
The doors are not closed completely. Push the doors firmly shut. If they will not shut all the way, see
Doors will not close completely below.
The condenser coils are dirty. This prevents air transfer and makes the motor work harder.
Clean the condenser coils. Refer to the Care and Cleaning
section on pages 24-25.
DOORS WILL NOT CLOSE COMPLETELY
Check if... Then...
The refrigerator is not level. See Leveling and Door Alignment section on page 15.
Food packages are blocking the door open. Rearrange food containers to clear door and door shelves.
The ice bin, crisper cover, pans, shelves, door bins Push bins all the way in and put crisper cover, pans, shelves
or baskets are out of position, and baskets into their correct positions. See the Using Your
Refrigerator section on pages 16-23.
The gaskets are sticking. Clean gaskets and the surface that they touch. Rub a thin coat
of paraffin wax on the gaskets after cleaning.
The refrigerator wobbles or seems unstable. Level the refrigerator. Refer to the Leveling and Door
Alignment section on page 15.
The doors were removed during product installation Remove and replace the doors according to the Removing,
and not properly replaced. Reversing, and Replacing Refrigerator Doors section
on pages 9-14, or call a qualified service technician.
FROST OR ICE CRYSTALS ON FROZEN FOOD
Check if... Then...
The door is not closing properly. See Doors will not close completely above.
The door is opened often. When the door is opened, warm, humid air is allowed in
the freezer, resulting in frost.
31
ICE HAS OFF-TASTE OR ODOR
Check if... Then...
The icemaker was recently installed. Discard first few batches of ice to avoid discolored or
off-flavored ice.
The ice has been stored for too long. Throw away old ice and make new supply.
The food has not been wrapped tightly in Rewrap foods since odors may migrate to the ice if food
either compartment, is not wrapped properly.
The water supply contains minerals such as sulfur. A filter may need to be installed to eliminate taste and
odor problems.
The interior of refrigerator needs cleaning. See Care and Cleaning section on pages 24-25.
Ice storage bin needs cleaning. Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
Check if... Then...
The refrigerator is defrosting. The water will evaporate. It is normal for water to drip into the
defrost pan.
It is more humid than normal. Expect that the water in the defrost pan will take longer to
evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
Check if... Then...
The sounds may be normal for your refrigerator. Refer to the Understanding Sounds You May Hear section
on page 30.
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
Check if... Then...
The freezer temperature is cold enough to produce iceJ Wait 24 hours after hook-up for ice production. See the
tSetting the Controls section on page 16.
Door left open. Check to see if something is holding the door open.
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Check if... Then...
Smaller cube size level is selected. Select larger cube size using cube size selector.
Water shutoff valve connecting refrigerator to water Call a plumber to clear the valve.
line may be clogged.
THE DOORS ARE DIFFICULT TO OPEN
Check if... Then...
The gaskets are dirty or sticky. Clean gaskets and the surfaces that they touch. Rub a thin
coat of appliance polish or kitchen wax on the gaskets after
cleaning.
The door is reopened within a short time after having When you open the door, warmer air enters the refrigerator.
been opened. As the warm air cools, it can create a vacuum. If the door is
hard to open, wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
32
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
Check if...
The air vents are blocked. Cold air circulates
from the freezer to the fresh food section and
back again through air vents in the wall dividing
the two sections.
The doors are opened often.
Then...
Locate air vents by using your hand to sense airflow and
move all packages that block vents and restrict airflow. Refer
to Multi Flow on page 16 for the location of air vents.
When the door is opened, warm humid air is allowed into
the refrigerator. The more the door is opened, the faster the
humidity builds up, and the more warm air the refrigerator
must cool. In order to keep the refrigerator cool, try to get
everything you need out of the refrigerator at once, keep
food organized so it is easy to find and close the door as
soon as the food is removed.
The control is not set correctly for the surrounding Refer to the Setting the Controls section on page 16.
conditions. Wait 24 hours for temperatures to stabilize or even out. If the
temperature is too cold or too warm, move the dial one
number at a time.
A large amount of food has just been added Adding food warms the refrigerator. It can take a few hours
to the refrigerator or freezer, for the refrigerator to return to normal temperature.
The food is not packaged correctly. Wrap food tightly and wipe off damp containers prior to
storing in the refrigerator to avoid moisture accumulation. If
necessary, repackage food according to the guidelines in the
Food Storage Guide section on page 17.
The doors are not closing completely. See Doors will not close completely on page 31.
The weather is humid. In humid weather, air carries moisture into refrigerator
when doors are opened.
A self-defrost cycle was completed. It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
33
34
