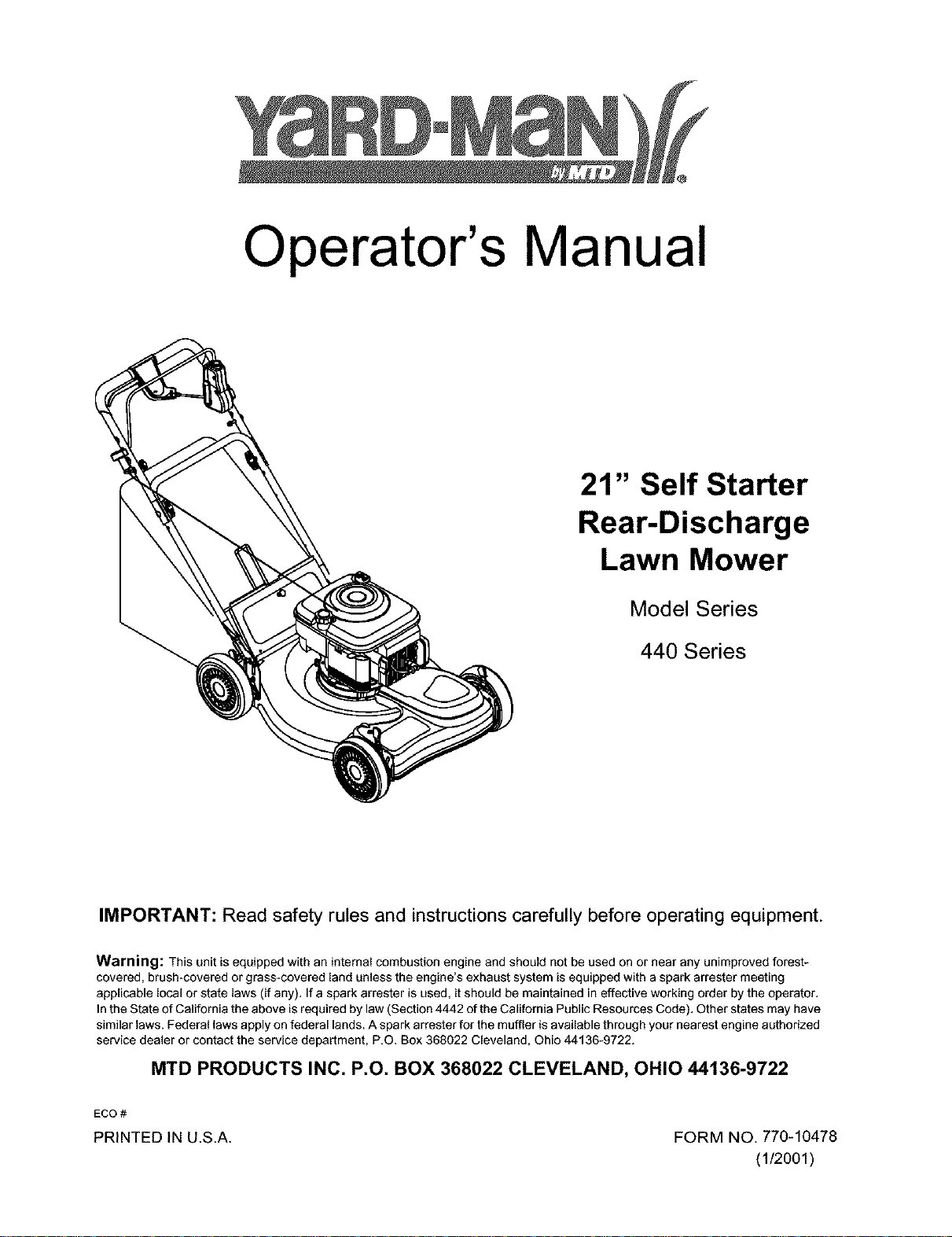

Operator's Manu
I
21" Self Starter
Rear-Discharge
Lawn Mower
Model Series
440 Series
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning: This unit isequipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
ECO#
PRINTED IN U.S.A. FORM NO. 770-10478
(112001)

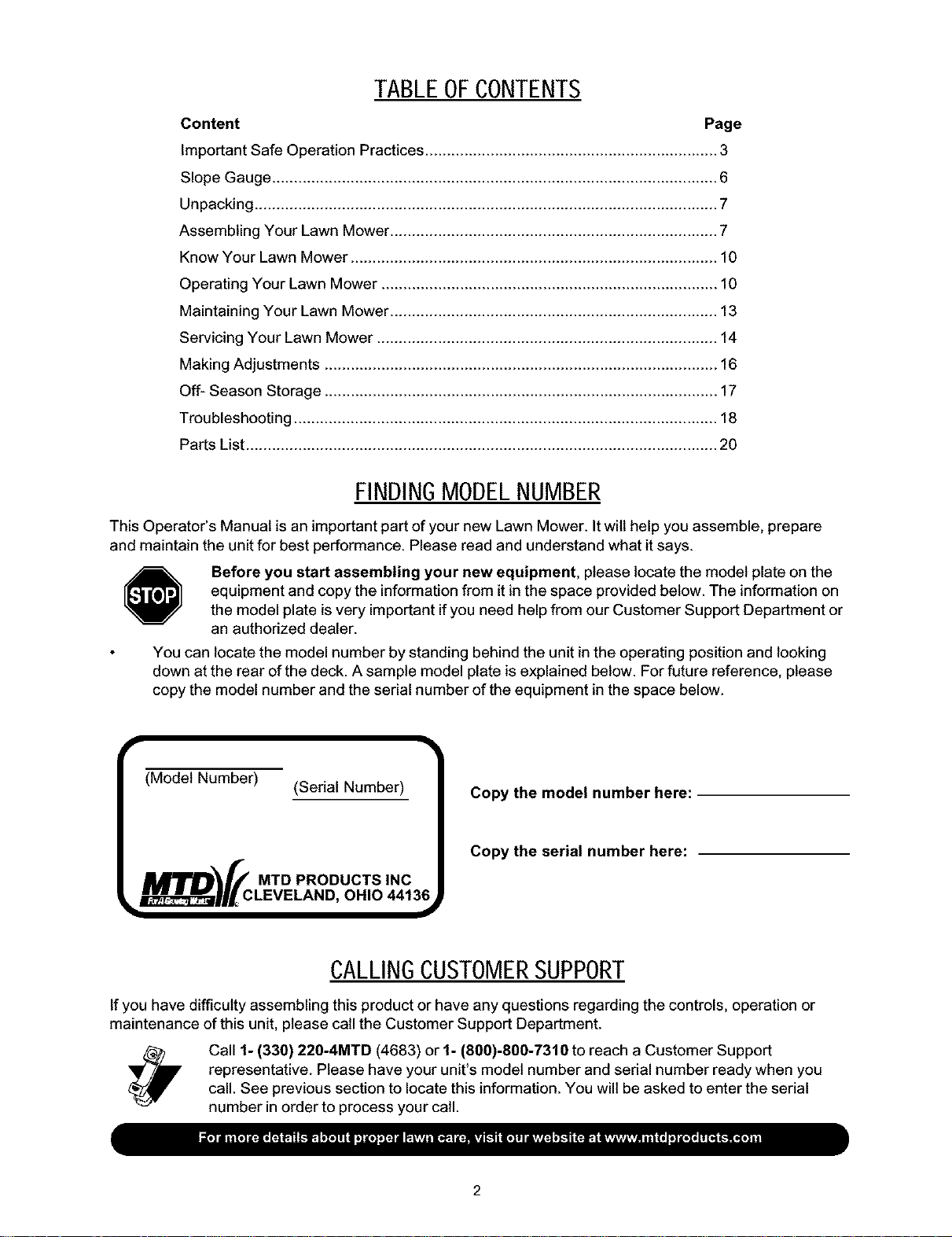

TABLEOFCONTENTS
Content Page
Important Safe Operation Practices ................................................................... 3
Slope Gauge ...................................................................................................... 6
Unpacking .......................................................................................................... 7
Assembling Your Lawn Mower ........................................................................... 7
Know Your Lawn Mower .................................................................................... 10
Operating Your Lawn Mower ............................................................................. 10
Maintaining Your Lawn Mower ........................................................................... 13
Servicing Your Lawn Mower .............................................................................. 14
Making Adjustments .......................................................................................... 16
Off- Season Storage .......................................................................................... 17
Troubleshooting ................................................................................................. 18
Parts List ............................................................................................................ 20
FINDINGMODELNUMBER
This Operator's Manual is an important part of your new Lawn Mower. It will help you assemble, prepare
and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the
equipment and copy the informationfrom itin the space provided below. The information on
the model plate is very important ifyou need help from our Customer Support Department or
an authorized dealer.
You can locate the model number by standing behind the unit in the operating position and looking
down at the rear of the deck. A sample model plate is explained below. For future reference, please
copy the model number and the serial number of the equipment in the space below.
Copy the model number here:
Copy the serial number here:
CALLINGCUSTOMERSUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or
maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support
representative. Please have your unit's model number and serial number ready when you
call. See previous section to locate this information. You will be asked toenter the serial
number inorder to process your call.

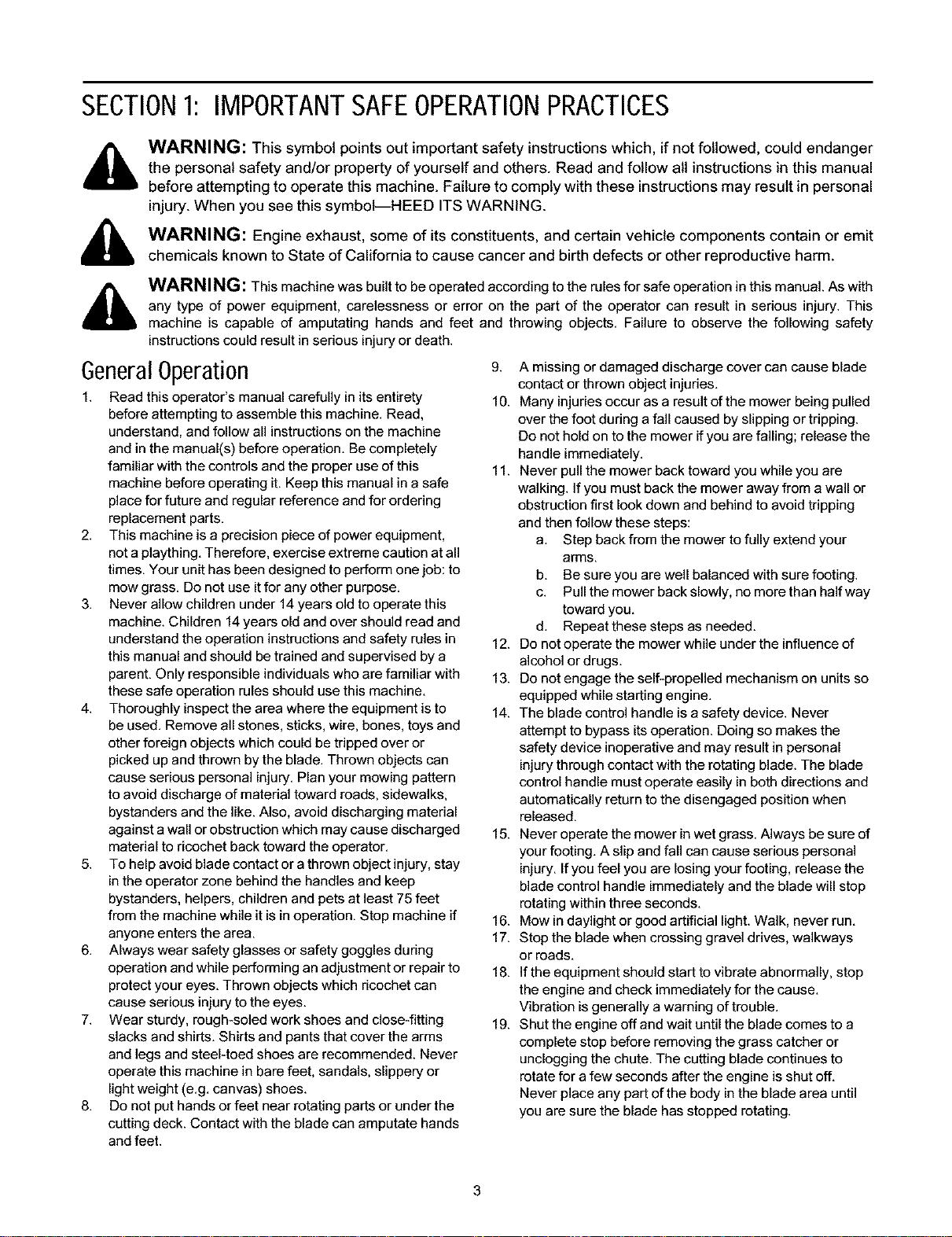

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES
WARNING: This symbol points out important safety instructionswhich, ifnot followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in this manual
before attempting to operate this machine. Failure to comply with these instructions may result in personal
injury. When you see this symbol--HEED ITS WARNING.
WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit
chemicals known to State of California to cause cancer and birth defects or other reproductive harm.
WARNING: This machine was built to be operated according to the rules for safe operation in this manual. As with
any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This
machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety
instructions could result in serious injury or death.
GeneralOperation
1. Read this operator's manual carefully in its entirety
before attempting to assemble this machine. Read,
understand, and follow all instructions on the machine
and in the manual(s) before operation. Be completely
familiar with the controls and the proper use of this
machine before operating it. Keep this manual in a safe
place for future and regular reference and for ordering
replacement parts.
2. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. Your unit has been designed to perform one job: to
mow grass. Do not use it for any other purpose.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the operation instructions and safety rules in
this manual and should be trained and supervised by a
parent. Only responsible individuals who are familiar with
these safe operation rules should use this machine.
4. Thoroughly inspect the area where the equipment is to
be used. Remove all stones, sticks, wire. bones, toys and
other foreign objects which could be tripped over or
picked up and thrown by the blade. Thrown objects can
cause serious personal injury. Plan your mowing pattern
to avoid discharge of material toward roads, sidewalks,
bystanders and the like. Also, avoid discharging material
against a wall or obstruction which may cause discharged
material to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object injury, stay
in the operator zone behind the handles and keep
bystanders, helpers, children and pets at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
6. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair to
protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
7. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or
light weight (e.g. canvas) shoes.
8. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with the blade can amputate hands
and feet.
9. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
10. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
11. Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping
and then follow these steps:
a. Step back from the mower to fully extend your
arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
12. Do not operate the mower while under the influence of
alcohol or drugs.
13. Do not engage the self-propelled mechanism on units so
equipped while starting engine.
14. The blade control handle is a safety device. Never
attempt to bypass its operation. Doing so makes the
safety device inoperative and may result in personal
injury through contact with the rotating blade. The blade
control handle must operate easily in both directions and
automatically return to the disengaged position when
released.
15. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.
16. Mow in daylight or good artificial light. Walk, never run.
17. Stop the blade when crossing gravel drives, walkways
or roads.
18. If the equipment should start to vibrate abnormally, stop
the engine and check immediately for the cause.
Vibration is generally awarning of trouble.
19. Shuttheengineoffandwaituntilthebladecomestoa
complete stop before removing the grass catcher or
unclogging the chute. The cutting blade continues to
rotate for a few seconds after the engine is shut off.
Never place any part of the body in the blade area until
you are sure the blade has stopped rotating.
20.Neveroperatemowerwithoutpropertrailshield, 5.
dischargecover,grasscatcher,bladecontrolhandleor
othersafetyprotectivedevicesinplaceandworking. 6.
Neveroperatemowerwithdamagedsafetydevices.
Failuretodoso,canresultinpersonalinjury.
21.Mufflerandenginebecomehotandcancauseaburn.Do
nottouch.
22.Onlyusepartsandaccessoriesmadeforthismachineby
theoriginalequipmentmanufacturer(O.E.M).Failureto Service
do so can result in personal injury.
23. If situations occur which are not covered in this manual,
use care and good judgment. Contact your dealer for
assistance. Telephone 1-800-800-7310 for the name of
your nearest dealer.
SlopeOperation
Slopes are a major factor related to slip and fall accidents
which can result in severe injury. Operation on slopes
requires extra caution. If you feel uneasy on a slope, do not
mow it. Before operating this unit on a slope or hilly area, use
the slope gauge on page 6 to measure slopes. If the slope is
greater than 15 degrees, do not mow it.
DO:
1. Mow across the face of slopes; never up and down.
Exercise extreme caution when changing direction on
slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
3. Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately,
and the blade will stop rotating within 3 seconds.
Do Not:
1. De not mow near drop-offs, ditches or embankments,
you could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
mower and the mowing activity. They do not understand the
dangers. Never assume that children will remain where you
last saw them.
1. Keep children out of the mowing area and under the
watchful care of a responsible adult other than the
operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and
down for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may
obscure your vision of a child who may run into the
mower.
Keep children away from hot or running engines. They
can suffer burns from a hot muffler.
Never allow children under 14 years old to operate a
power mower. Children 14 years old and over should
read and understand the operation instructions and
safety rules in this manual and should be trained and
supervised by a parent.
Safe Handling of Gasoline:
1. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely
flammable and the vapors are explosive. Serious
personal injury can occur when gasoline is spilled on
yourself or your clothes which can ignite.
2. Wash your skin and change clothes immediately.
3. Use only an approved gasoline container.
4. Never fill containers inside a vehicle or on atruck or
trailer bed with a plastic liner. Always place containers on
the ground away from your vehicle before filling.
5. If possible, remove gas-powered equipment from the
truck or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer with a
portable container, rather than from a gasoline dispenser

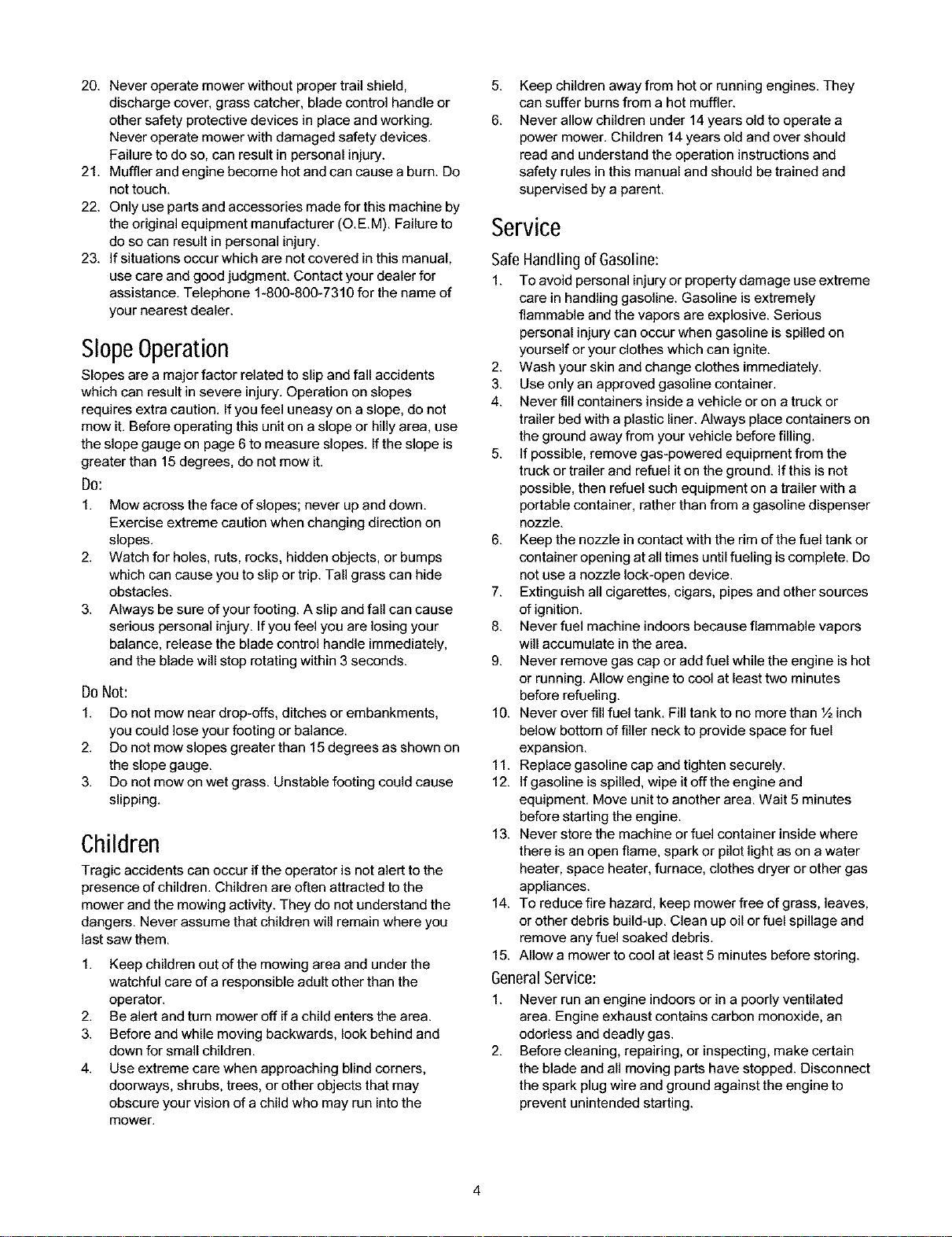

nozzle.
6. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
7. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
8. Never fuel machine indoors because flammable vapors
will accumulate in the area.
9. Never remove gas cap or add fuel while the engine is hot
or running. Allow engine to cool at least two minutes
before refueling.
10. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide space for fuel
expansion.
11. Replace gasoline cap and tighten securely.
12. If gasoline is spilled, wipe it off the engine and
equipment. Move unit to another area. Wait 5 minutes
before starting the engine.
13. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light as on a water
heater, space heater, furnace, clothes dryer or other gas
appliances.
14. To reduce fire hazard, keep mower free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
15. Allow a mower to cool at least 5 minutes before storing.
GeneralService:
1. Never run an engine indoors or in a poorly ventilated
area. Engine exhaust contains carbon monoxide, an
odorless and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain
the blade and all moving parts have stopped. Disconnect
the spark plug wire and ground against the engine to
prevent unintended starting.
3. Checkthebladeandenginemountingboltsatfrequent
intervalsforpropertightness.Also,visuallyinspectblade
fordamage(e.g.,bent,cracked,worn)Replaceblade
withtheoriginalequipmentmanufacture's(O.EM.)blade
only,listedinthismanual."Useofpartswhichdonot
meettheoriginalequipmentspecificationsmayleadto
improperperformanceandcompromisesafetyF
4. Mowerbladesaresharpandcancut.Wrapthebladeor
weargloves,anduseextracautionwhenservicingthem.
5. Keepallnuts,bolts,andscrewstighttobesurethe
equipmentisinsafeworkingcondition.
6. Nevertamperwithsafetydevices.Checktheirproper
operationregularly.
7. Afterstrikingaforeignobject,stoptheengine,disconnect
thesparkplugwireandde-energizethestarter.(See
section"ToDe-energizeSelfStarter".Thoroughlyinspect
themowerforanydamage.Repairthedamagebefore
startingandoperatingthemower.
8. Neverattempttomakeawheelorcuttingheight
adjustmentwhiletheengineisrunning.
9. Grasscatchercomponents,dischargecover,andtrail
10.
11.
12.
13.
shieldaresubjecttowearanddamagewhichcould
exposemovingpartsorallowobjectstobethrown.
Forsafetyprotection,frequentlycheckcomponentsand
replaceimmediatelywithoriginalequipment
manufacturer's(O.EM.)partsonly,listedinthismanual.
"Useofpartswhichdonotmeettheoriginalequipment
specificationsmayleadtoimproperperformanceand
compromisesafetyF
Donotchangetheenginegovernorsettingoroverspeed
theengine.Thegovernorcontrolsthemaximumsafe
operatingspeedoftheengine.
Maintainorreplacesafetyandinstructionlabels,as
necessary.
Observeproperdisposallawsandregulations.Improper
disposaloffluidsandmaterialscanharmthe
environment.
ALWAYSde-energizeselfstarterpriortoperformingany
maintenanceorservicetotheengineandormower.
Followinstructionsbothinthemanualand on the engine
and or machine to de-energize starter.

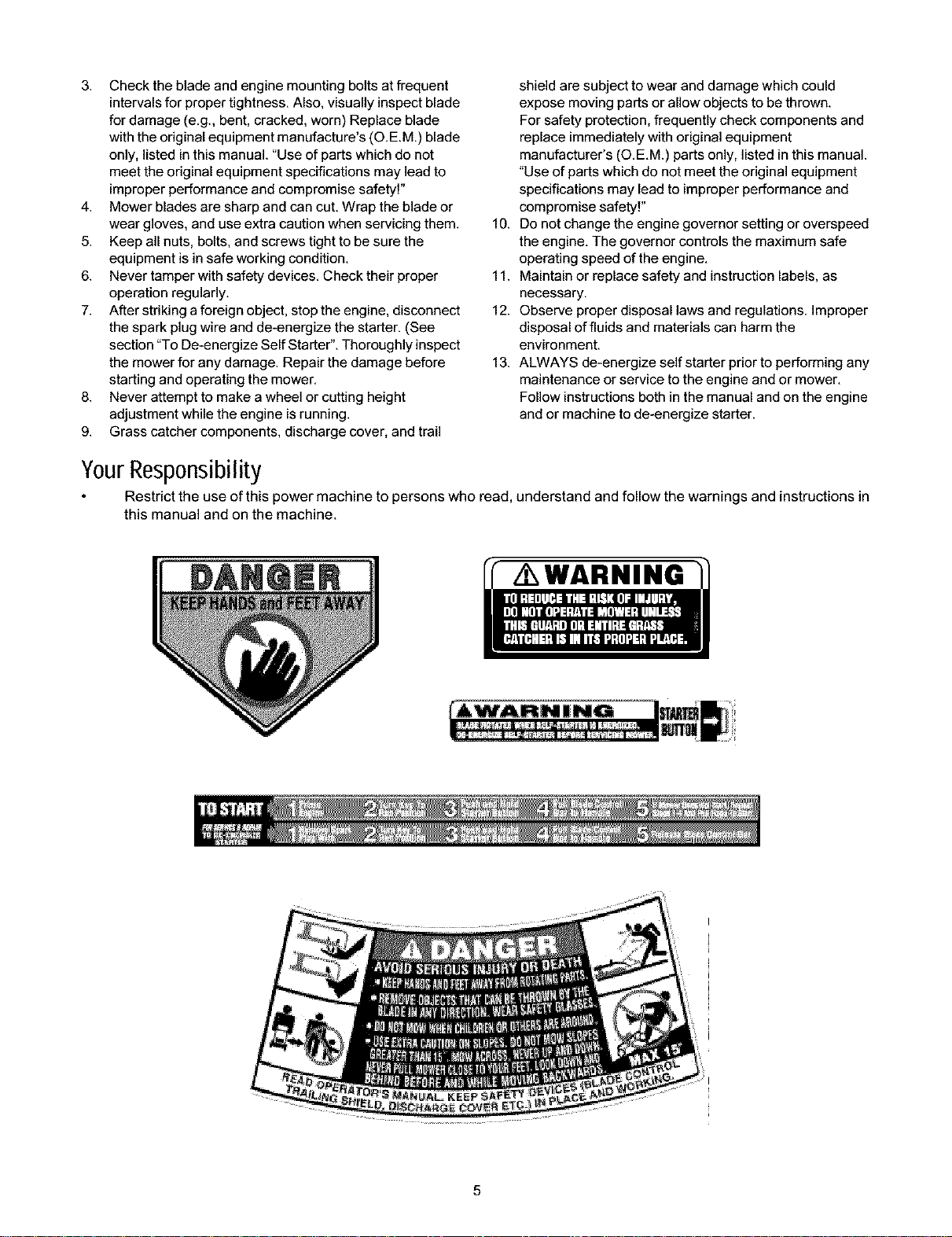

YourResp0nsibility
Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in
this manual and on the machine.

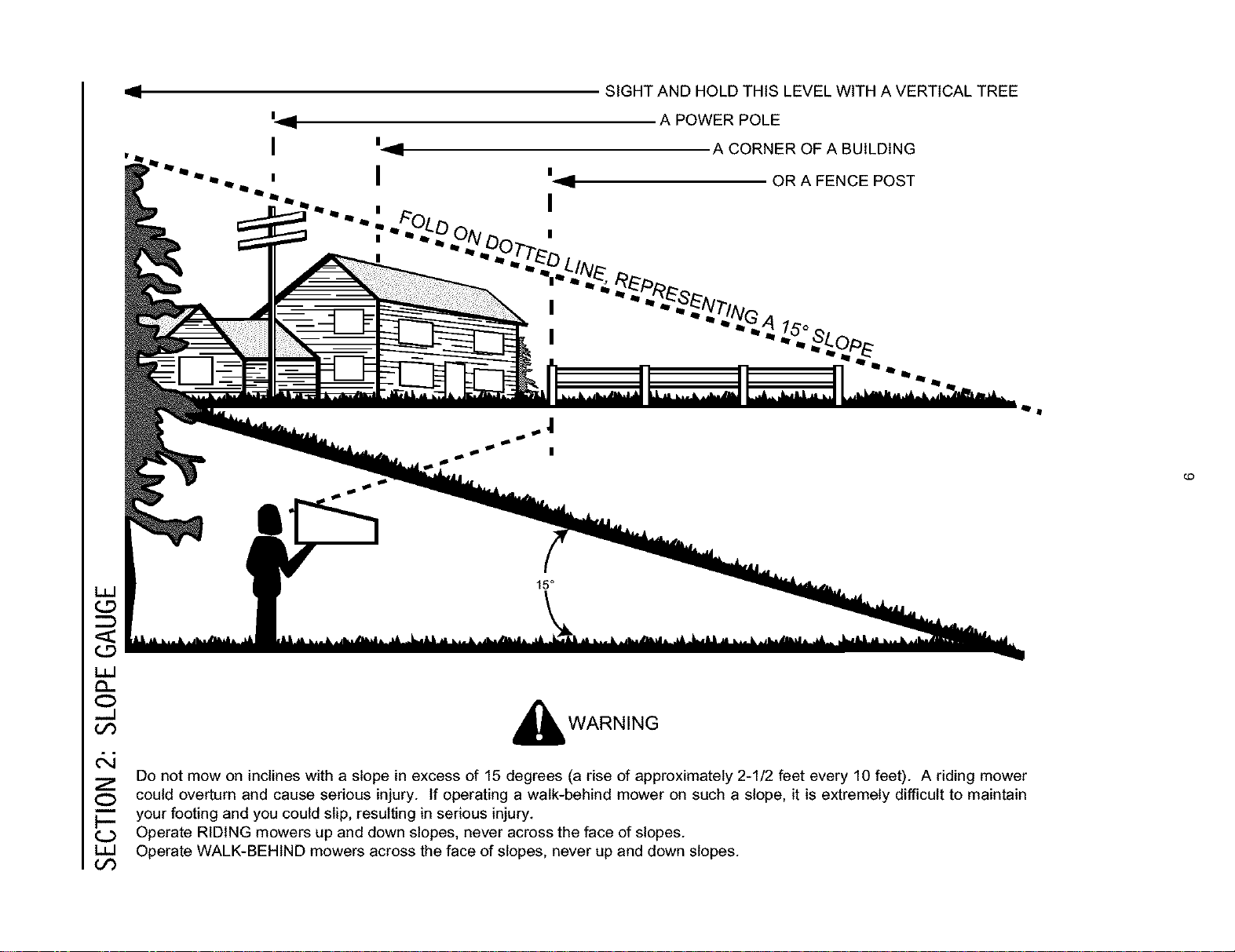

/ WARNING
q SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
A POWER POLE
A CORNER OF A BUILDING
OR A FENCE POST
I
I
t.O
i,i
O
_.J
V3
Z
O
_lb WARNING
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower
could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain
your footing and you could slip, resulting in serious injury.
Operate RIDING mowers up and down slopes, never across the face of slopes.
Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

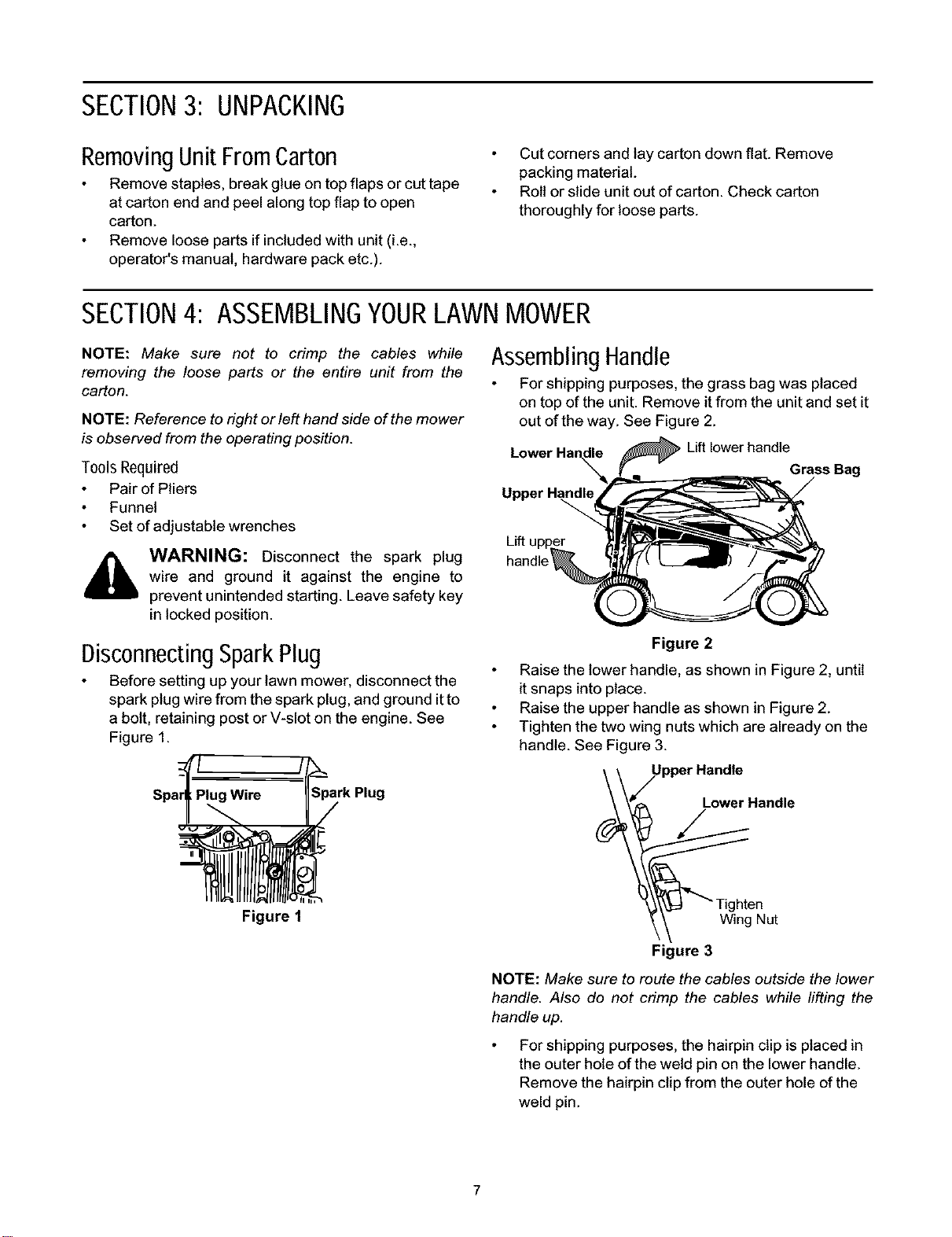

SECTION3: UNPACKING
RemovingUnitFromCarton
Remove staples, break glue on top flaps or cut tape
at carton end and peel along top flap to open
carton.
Remove loose parts if included with unit (i.e.,
operator's manual, hardware pack etc.).
Cut corners and lay carton down flat. Remove
packing material.
Roll or slide unit out of carton. Check carton
thoroughly for loose parts.
SECTION4: ASSEMBLINGYOURLAWNMOWER
NOTE: Make sure not to crimp the cables while
removing the loose parts or the entire unit from the
carton.
NOTE: Reference to right or left hand side of the mower
is observed from the operating position.
Tools Required
Pair of Pliers
Funnel
Set of adjustable wrenches
WARNING: Disconnect the spark plug
wire and ground it against the engine to
prevent unintended starting. Leave safety key
in locked position.
DisconnectingSparkPlug
Before setting up your lawn mower, disconnect the
spark plug wire from the spark plug, and ground itto
a bolt, retaining post or V-slot on the engine. See
Figure 1.
Spark Plug
Figure 1
AssemblingHandle
For shipping purposes, the grass bag was placed
on top of the unit. Remove it from the unit and set it
out of the way. See Figure 2.
Lift lower handle
Grass Bag
Upper Handle
Lift i
Figure 2
Raise the lower handle, as shown in Figure 2, until
it snaps into place.
Raise the upper handle as shown in Figure 2.
Tighten the two wing nuts which are already on the
handle. See Figure 3.
\\ Upper Handle
J Lower Handle
v ,ho e ut
Figure 3
NOTE: Make sure to route the cables outside the lower
handle. Also do not crimp the cables while rifting the
handle up.
For shipping purposes, the hairpin clip is placed in
the outer hole of the weld pin on the lower handle.
Remove the hairpin clip from the outer hole of the
weld pin.

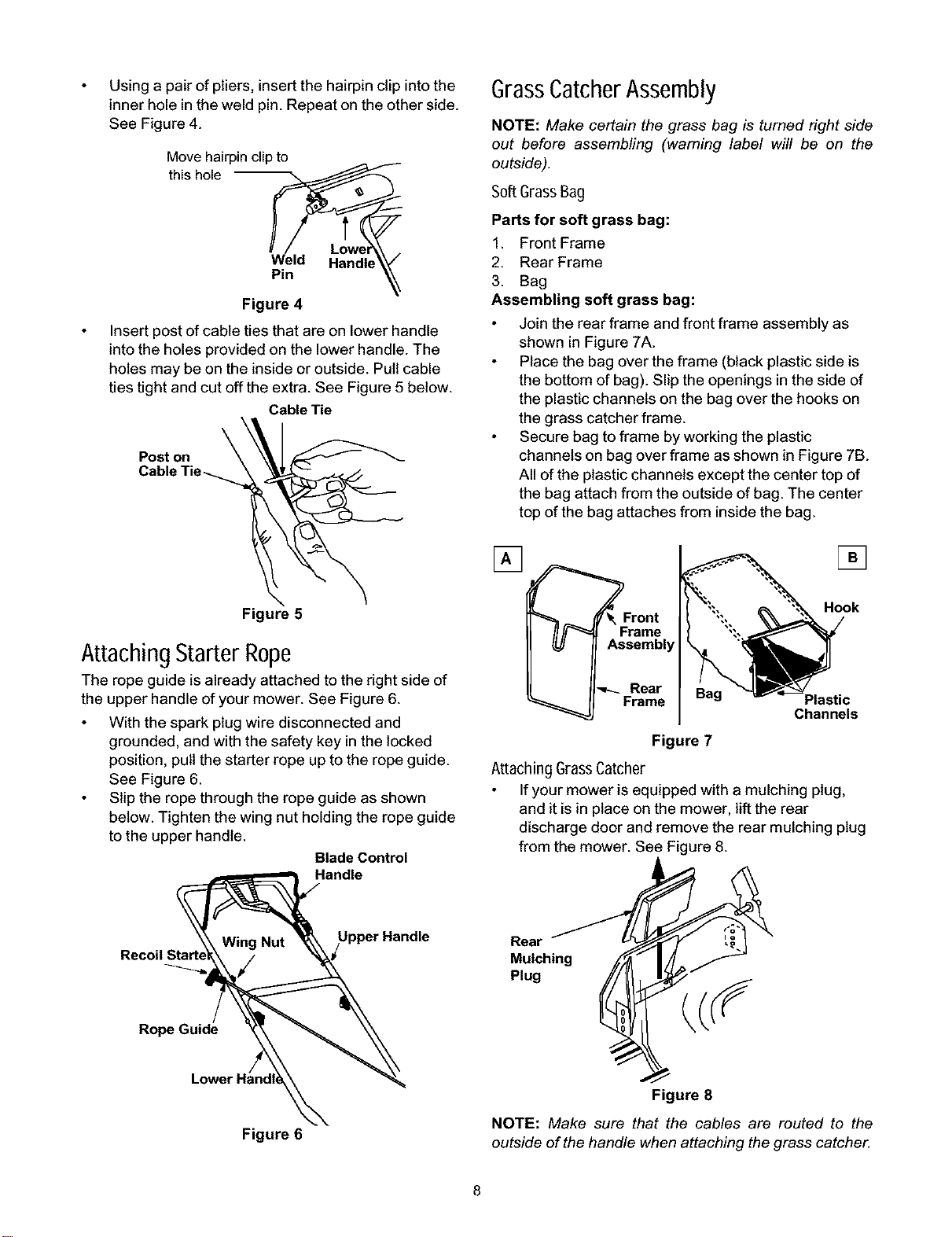

Usingapairofpliers,insertthehairpinclipintothe
innerholeintheweldpin.Repeatontheotherside.
SeeFigure4.
Movehairpinclipto
thishole
Pi.
Figure 4
Insert post of cable ties that are on lower handle
into the holes provided on the lower handle. The
holes may be on the inside or outside. Pull cable
ties tight and cut off the extra. See Figure 5 below.
Cable Tie
Figure 5
AttachingStarter Rope
The rope guide is already attached to the right side of
the upper handle of your mower. See Figure 6.
With the spark plug wire disconnected and
grounded, and with the safety key in the locked
position, pull the starter rope up to the rope guide.
See Figure 6.
Slip the rope through the rope guide as shown
below. Tighten the wing nut holding the rope guide
to the upper handle.
Blade Control
Handle
Figure 6
GrassCatcherAssembly
NOTE: Make certain the grass bag is turned right side
out before assembling (warning label will be on the
outside).
Soft Grass Bag
Parts for soft grass bag:
1. Front Frame
2. Rear Frame
3. Bag
Assembling soft grass bag:
Join the rear frame and front frame assembly as
shown in Figure 7A.
Place the bag over the frame (black plastic side is
the bottom of bag). Slip the openings in the side of
the plastic channels on the bag over the hooks on
the grass catcher frame.
Secure bag to frame by working the plastic
channels on bag over frame as shown in Figure 7B.
All of the plastic channels except the center top of
the bag attach from the outside of bag. The center
top of the bag attaches from inside the bag.
[] []
Frame
Assembly
Hook
Rear
Frame
Plastic
Channels
Figure 7
Attaching Grass Catcher
If your mower is equipped with a mulching plug,
and it is in place on the mower, lift the rear
discharge door and remove the rear mulching plug
from the mower. See Figure 8.
Rear
Mulching
Plug
Figure 8
NOTE: Make sure that the cables are muted to the
outside of the handle when attaching the grass catcher.

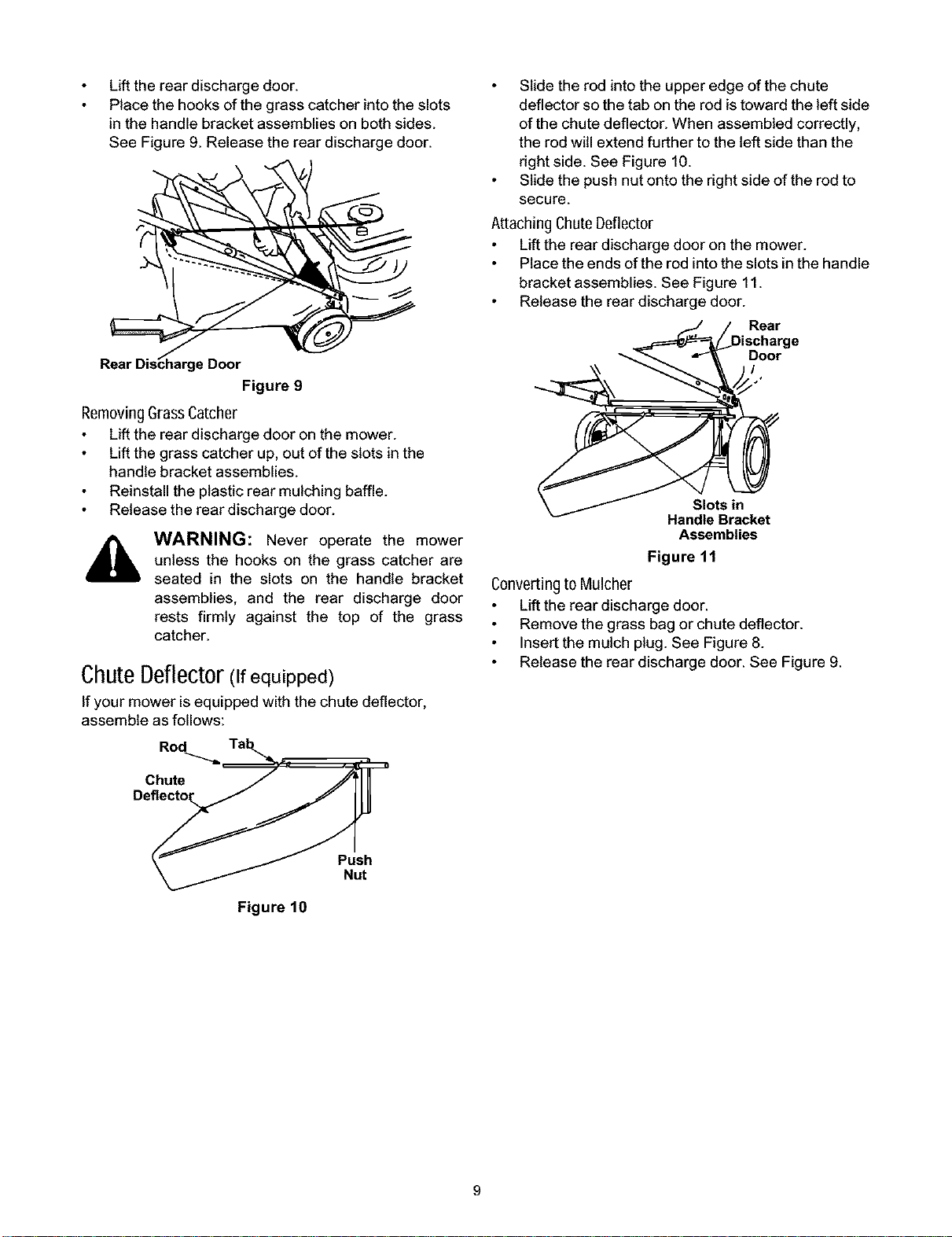

Lift the rear discharge door.
Place the hooks of the grass catcher into the slots
in the handle bracket assemblies on both sides.
See Figure 9. Release the rear discharge door.
Figure 9
RemovingGrassCatcher
Lift the rear discharge door on the mower.
Lift the grass catcher up, out of the slots in the
handle bracket assemblies.
Reinstall the plastic rear mulching baffle.
Release the rear discharge door.
WARNING: Never operate the mower
unless the hooks on the grass catcher are
seated in the slots on the handle bracket
assemblies, and the rear discharge door
rests firmly against the top of the grass
catcher.
ChuteDeflector(ifequipped)
If your mower is equipped with the chute deflector,
assemble as follows:
Rod
Chute
Slide the rod into the upper edge of the chute
deflector so the tab on the rod is toward the left side
of the chute deflector. When assembled correctly,
the rod will extend further to the left side than the
right side. See Figure 10.
Slide the push nut onto the right side of the rod to
secure.
Attaching Chute Deflector
Lift the rear discharge door on the mower.
Place the ends of the rod into the slots in the handle
bracket assemblies. See Figure 11.
Release the rear discharge door.
Rear
Door
!
Slots in
Handle Bracket
Assemblies
Figure 11
Converting to Mulcher
Lift the rear discharge door.
Remove the grass bag or chute deflector.
Insert the mulch plug. See Figure 8.
Release the rear discharge door. See Figure 9.
Push
Nut
Figure 10

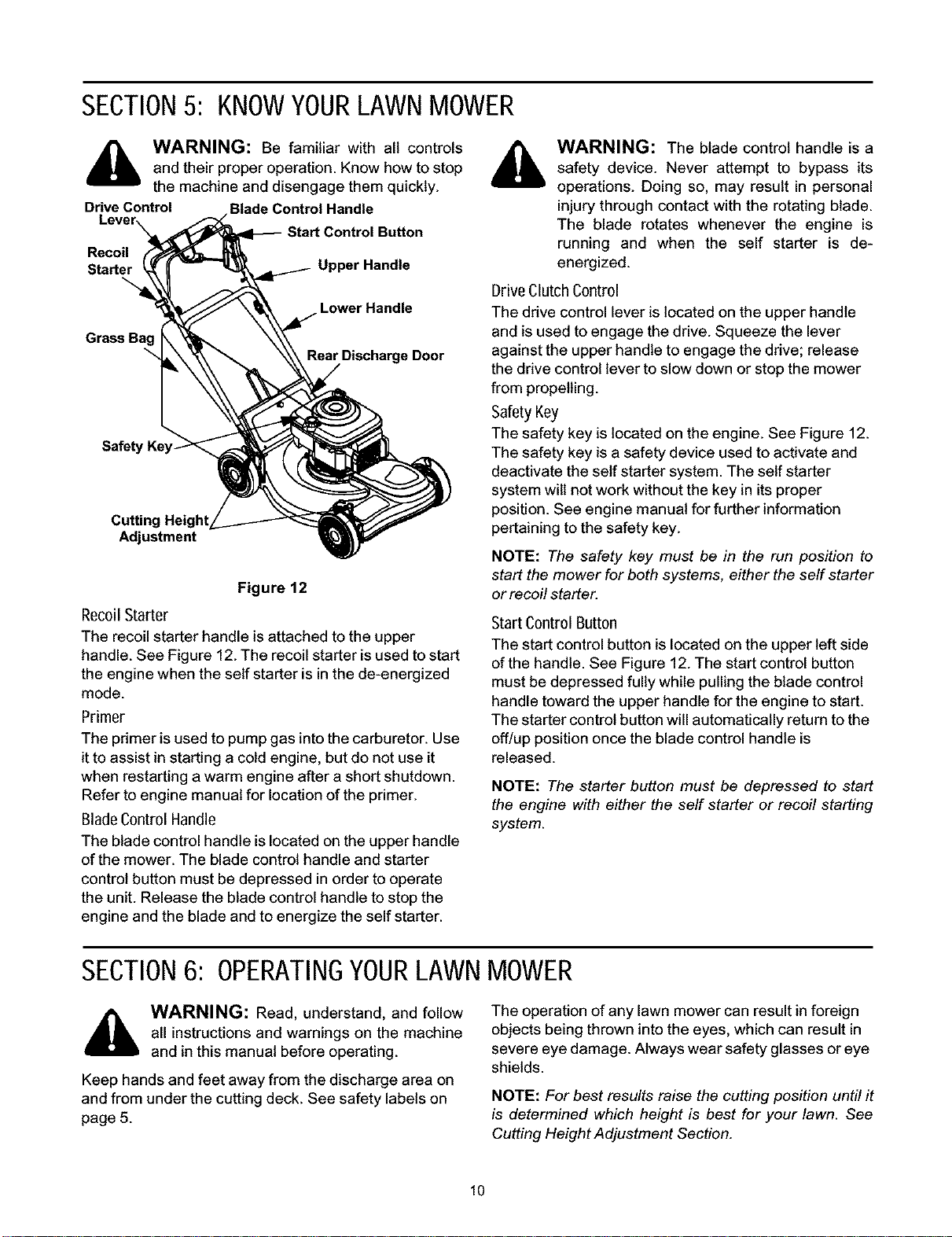

SECTION5: KNOWYOURLAWNMOWER
_, WARNING: Be familiar with all controls
and their proper operation. Know how to stop
the machine and disengage them quickly.
Drive Control Blade Control Handle
Lever
Start Control Button
Recoil
Starter Upper Handle
Lower Handle
Grass Bag
\
Rear Discharge Door
Safet
Cuttin
Adjustment
Figure 12
Recoil Starter
The recoil starter handle is attached to the upper
handle. See Figure 12. The recoil starter is used to start
the engine when the self starter is in the de-energized
mode.
Primer
The primer is used to pump gas into the carburetor. Use
it to assist in starting a cold engine, but do not use it
when restarting a warm engine after a short shutdown.
Refer to engine manual for location of the primer.
Blade Control Handle
The blade control handle is located on the upper handle
of the mower. The blade control handle and starter
control button must be depressed in order to operate
the unit. Release the blade control handle to stop the
engine and the blade and to energize the self starter.
WARNING: The blade control handle is a
safety device. Never attempt to bypass its
operations. Doing so, may result in personal
injury through contact with the rotating blade.
The blade rotates whenever the engine is
running and when the self starter is de-
energized.
Drive Clutch Control
The drive control lever is located on the upper handle
and is used to engage the drive. Squeeze the lever
against the upper handle to engage the drive; release
the drive control lever to slow down or stop the mower
from propelling.
Safety Key
The safety key is located on the engine. See Figure 12.
The safety key is a safety device used to activate and
deactivate the self starter system. The self starter
system will not work without the key in its proper
position. See engine manual for further information
pertaining to the safety key.
NOTE: The safety key must be in the run position to
start the mower for both systems, either the self starter
or recoil starter.
Start Control Button
The start control button is located on the upper left side
of the handle. See Figure 12. The start control button
must be depressed fully while pulling the blade control
handle toward the upper handle for the engine to start.
The starter control button will automatically return to the
off/up position once the blade control handle is
released.
NOTE: The starter button must be depressed to start
the engine with either the self starter or recoil starting
system.
SECTION6: OPERATINGYOURLAWN
,_ WARNING: Read, understand, and follow
all instructions and warnings on the machine
and in this manual before operating.
Keep hands and feet away from the discharge area on
and from under the cutting deck. See safety labels on
page 5.
MOWER
The operation of any lawn mower can result in foreign
objects being thrown into the eyes, which can result in
severe eye damage. Always wear safety glasses or eye
shields.
NOTE: For best results raise the cutting position until it
is determined which height is best for your lawn. See
Cutting Height Adjustment Section.
10

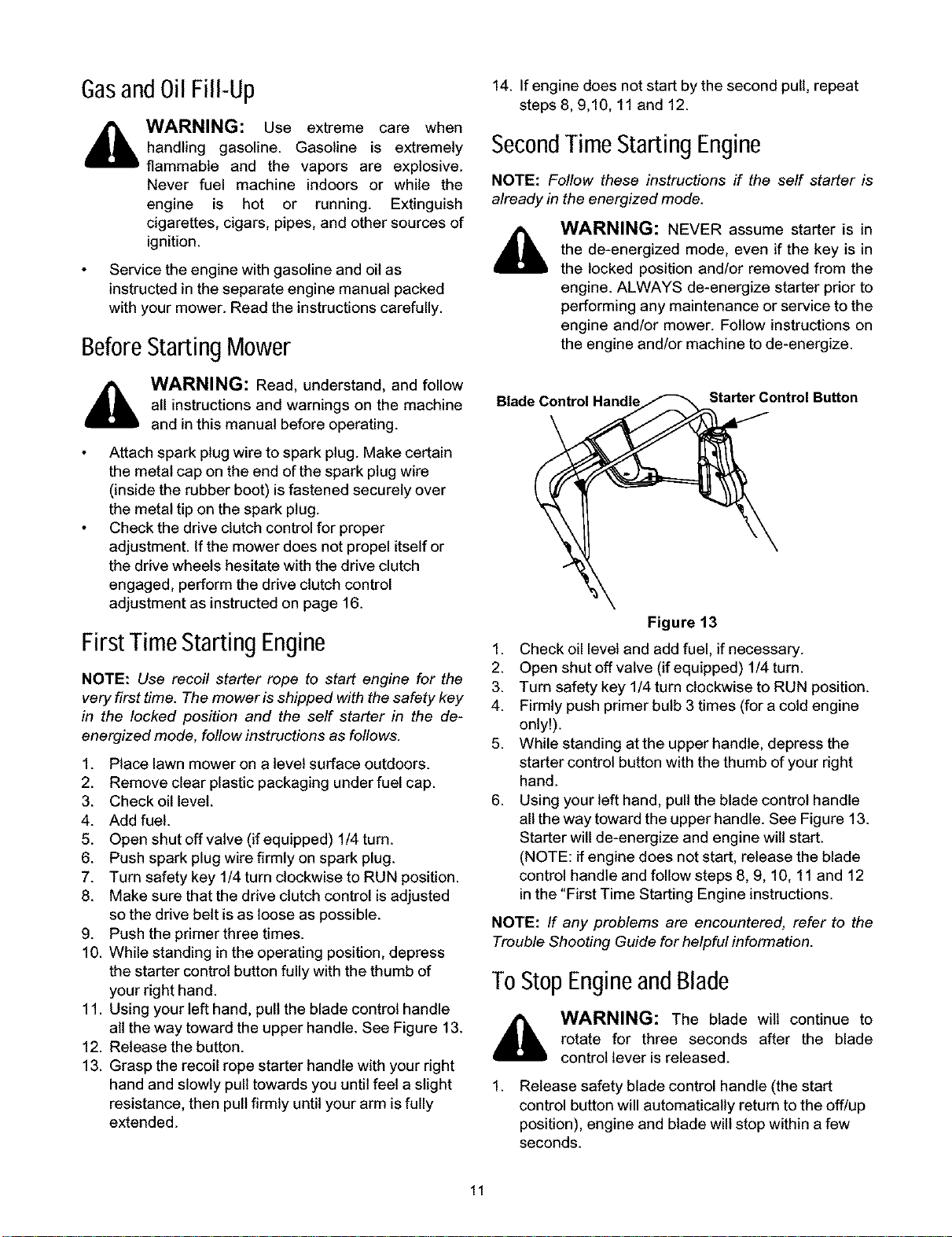

GasandOil Fill-Up
WARNING: Use extreme care when
handling gasoline. Gasoline is extremely
flammable and the vapors are explosive.
Never fuel machine indoors or while the
engine is hot or running. Extinguish
cigarettes, cigars, pipes, and other sources of
ignition.
Service the engine with gasoline and oil as
instructed in the separate engine manual packed
with your mower. Read the instructions carefully.
BeforeStartingMower
,_ WARNING: Read, understand, and follow
all instructions and warnings on the machine
and in this manual before operating.
Attach spark plug wire to spark plug. Make certain
the metal cap on the end of the spark plug wire
(inside the rubber boot) is fastened securely over
the metal tip on the spark plug.
Check the drive clutch control for proper
adjustment. If the mower does not propel itself or
the drive wheels hesitate with the drive clutch
engaged, perform the drive clutch control
adjustment as instructed on page 16.
FirstTimeStarting Engine
NOTE: Use recoil starter rope to start engine for the
very first time. The mower is shipped with the safety key
in the locked position and the self starter in the de-
energized mode, follow instructions as follows.
1. Place lawn mower on a level surface outdoors.
2. Remove clear plastic packaging under fuel cap.
3. Check oil level.
4. Add fuel.
5. Open shut off valve (if equipped) 1/4 turn.
6. Push spark plug wire firmly on spark plug.
7. Turn safety key 1/4 turn clockwise to RUN position.
8. Make sure that the drive clutch control is adjusted
so the drive belt is as loose as possible.
9. Push the primer three times.
10. While standing in the operating position, depress
the starter control button fully with the thumb of
your right hand.
11. Using your left hand, pull the blade control handle
all the way toward the upper handle. See Figure 13.
12. Release the button.
13. Grasp the recoil rope starter handle with your right
hand and slowly pull towards you until feet a slight
resistance, then pull firmly until your arm is fully
extended.
14. If engine does not start by the second pull, repeat
steps 8, 9,10, 11 and 12.
SecondTimeStartingEngine
NOTE: Follow these instructions if the self starter is
already in the energized mode.
WARNING: NEVER assume starter is in
the de-energized mode, even if the key is in
the locked position and/or removed from the
engine. ALWAYS de-energize starter prior to
performing any maintenance or service to the
engine and!or mower. Follow instructions on
the engine and/or machine to de-energize.
Blade Control Handle
Starter Control Button
Figure 13
1. Check oillevel and add fuel, if necessary.
2. Open shut offvalve (if equipped) 1!4turn.
3. Turn safety key 1/4 turn clockwise to RUN position.
4. Firmly push primer bulb 3 times (for a cold engine
only!).
5. While standing at the upper handle, depress the
starter control button with the thumb of your right
hand.
6. Using your left hand, pull the blade control handle
all the way toward the upper handle. See Figure 13.
Starter will de-energize and engine will start.
(NOTE: if engine does not start, release the blade
control handle and follow steps 8, 9, 10, 11 and 12
in the "First Time Starting Engine instructions.
NOTE: If any problems are encountered, refer to the
Trouble Shooting Guide for helpful information.
ToStopEngineandBlade
WARNING: The blade wilt continue to
rotate for three seconds after the blade
control lever is released.
1.
Release safety blade control handle (the start
control button will automatically return to the off/up
position), engine and blade will stop within a few
seconds.
11

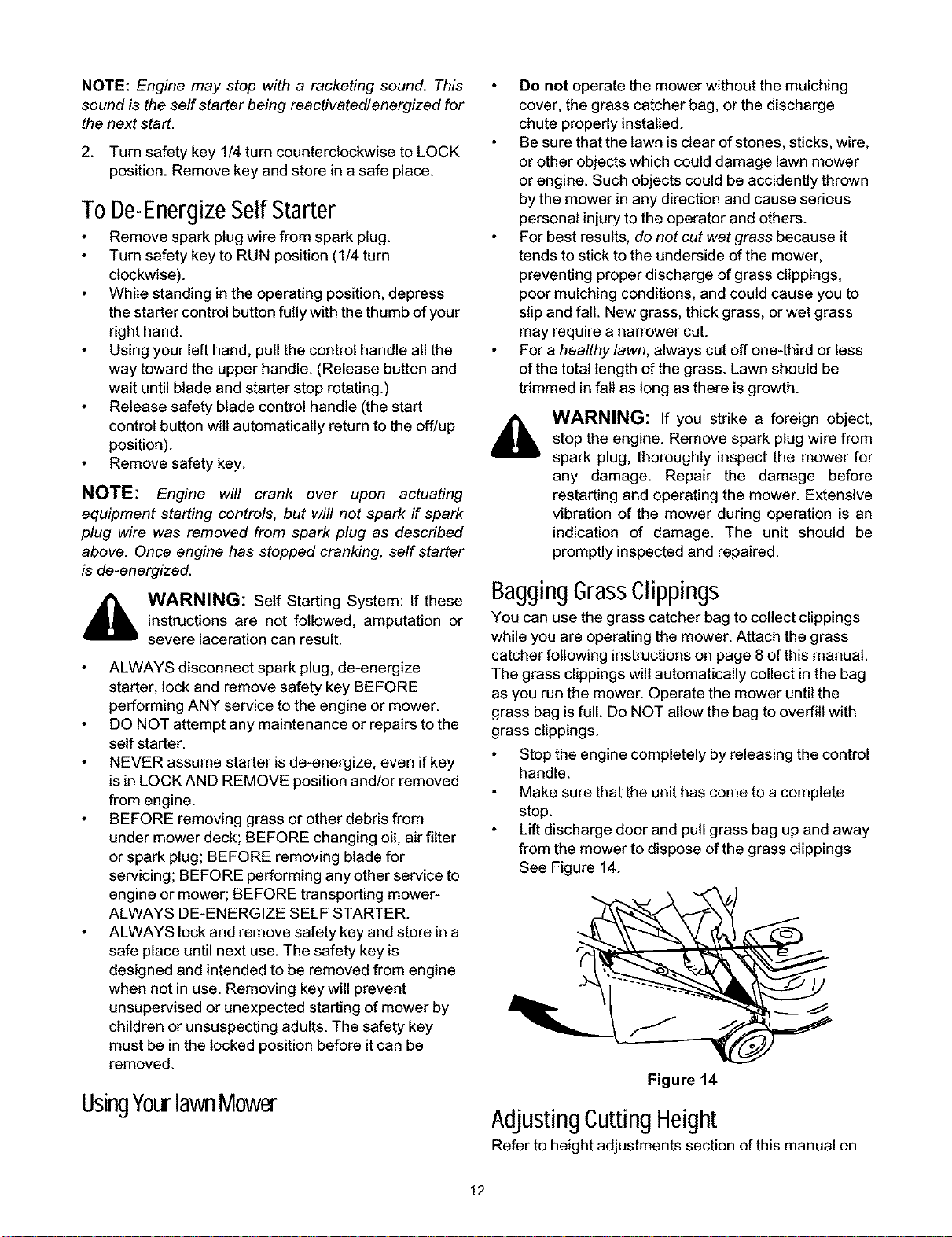

NOTE: Engine may stop with a racketing sound. This
sound is the self starter being reactivated/energized for
the next start.
2. Turn safety key 1/4 tum counterclockwise to LOCK
position. Remove key and store in a safe place.
ToDe-EnergizeSelfStarter
Remove spark plug wire from spark plug.
Turn safety key to RUN position (1/4 turn
clockwise).
While standing in the operating position, depress
the starter control button fully with the thumb of your
right hand.
Using your left hand, pull the control handle all the
way toward the upper handle. (Release button and
wait until blade and starter stop rotating.)
Release safety blade control handle (the start
control button will automatically return to the off/up
position).
Remove safety key.
NOTE: Engine will crank over upon actuating
equipment starting controls, but will not spark if spark
plug wire was removed from spark plug as described
above. Once engine has stopped cranking, self starter
is de-energized.
,i_ WARNING: Self Starting System: If these
instructions are not followed, amputation or
severe laceration can result.
ALWAYS disconnect spark plug, de-energize
starter, lock and remove safety key BEFORE
performing ANY service to the engine or mower.
DO NOT attempt any maintenance or repairs to the
self starter.
NEVER assume starter is de-energize, even if key
is in LOCK AND REMOVE position and/or removed
from engine.
BEFORE removing grass or other debris from
under mower deck; BEFORE changing oil, air filter
or spark plug; BEFORE removing blade for
servicing; BEFORE performing any other service to
engine or mower; BEFORE transporting mower-
ALWAYS DE-ENERGIZE SELF STARTER.
ALWAYS lock and remove safety key and store in a
safe place until next use. The safety key is
designed and intended to be removed from engine
when not in use. Removing key will prevent
unsupervised or unexpected starting of mower by
children or unsuspecting adults. The safety key
must be in the locked position before it can be
removed.
UsingYourlawnMower
Do not operate the mower without the mulching
cover, the grass catcher bag, or the discharge
chute properly installed.
Be sure that the lawn is clear of stones, sticks, wire,
or other objects which could damage lawn mower
or engine. Such objects could be accidently thrown
by the mower in any direction and cause serious
personal injury to the operator and others.
For best results, do not cut wet grass because it
tends to stick to the underside of the mower,
preventing proper discharge of grass clippings,
poor mulching conditions, and could cause you to
slip and fall. New grass, thick grass, or wet grass
may require a narrower cut.
For a healthy lawn, always cut off one-third or less
of the total length of the grass. Lawn should be
trimmed in fall as long as there is growth.
WARNING: If you strike a foreign object,
stop the engine. Remove spark plug wire from
spark plug, thoroughly inspect the mower for
any damage. Repair the damage before
restarting and operating the mower. Extensive
vibration of the mower during operation is an
indication of damage. The unit should be
promptly inspected and repaired.
BaggingGrassClippings
You can use the grass catcher bag to collect clippings
while you are operating the mower. Attach the grass
catcher following instructions on page 8 of this manual.
The grass clippings will automatically collect in the bag
as you run the mower. Operate the mower until the
grass bag is full. Do NOT allow the bag to overfill with
grass clippings.
Stop the engine completely by releasing the control
handle.
Make sure that the unit has come to a complete
stop.
Lift discharge door and pull grass bag up and away
from the mower to dispose of the grass clippings
See Figure 14.
Figure 14
AdjustingCuttingHeight
Refer to height adjustments section of this manual on
12
page 17 for instruction on how to adjust the cutting
height and the handle height.
For best results in mowing, keep the cutting height
position high until you have determined which
cutting height is preferred.

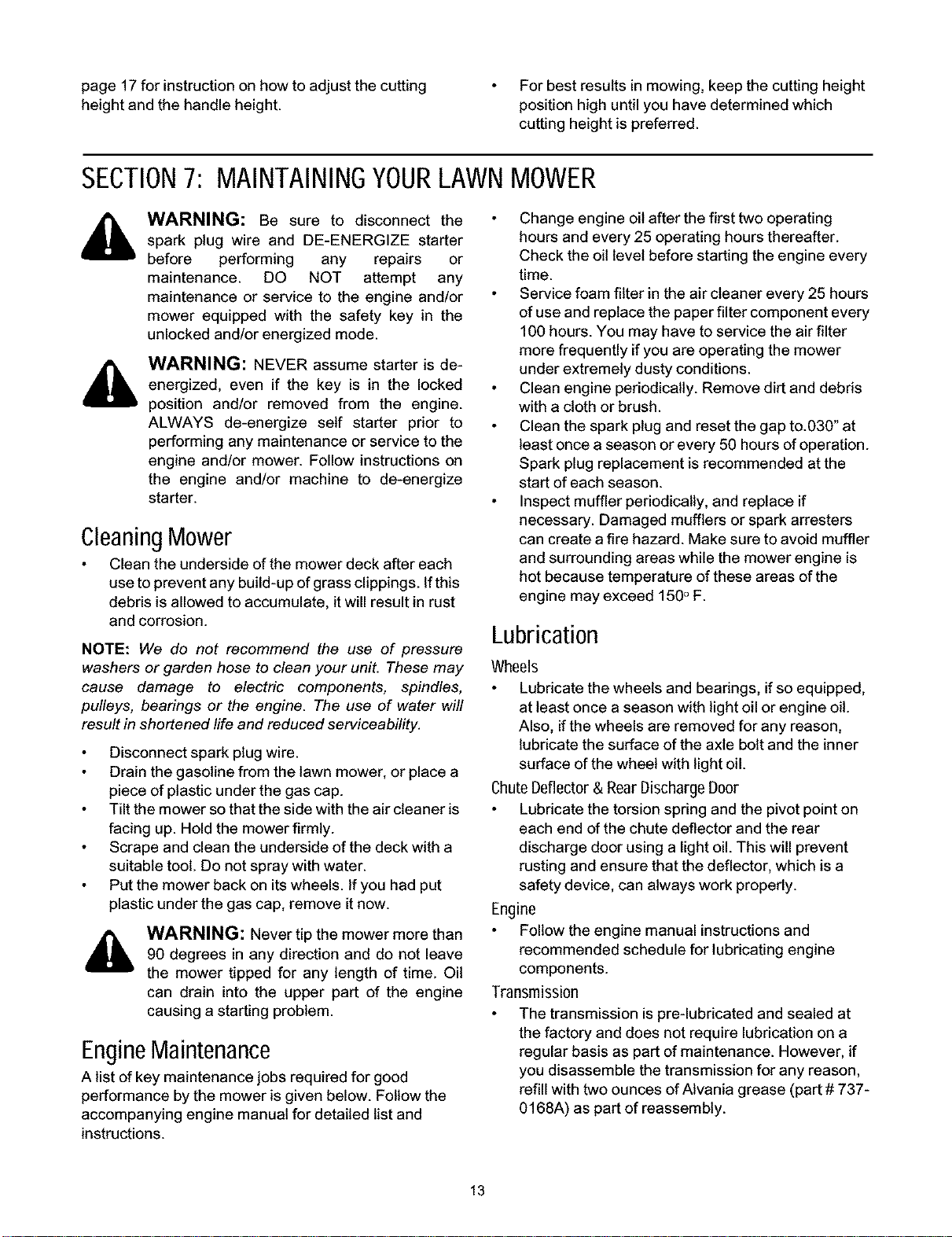

SECTION7: MAINTAININGYOURLAWNMOWER
WARNING: Be sure to disconnect the
spark plug wire and DE-ENERGIZE starter
before performing any repairs or
maintenance. DO NOT attempt any
maintenance or service to the engine and/or
mower equipped with the safety key in the
unlocked and/or energized mode.
WARNING: NEVER assume starter is de-
energized, even if the key is in the locked
position and/or removed from the engine.
ALWAYS de-energize self starter prior to
performing any maintenance or service to the
engine and/or mower. Follow instructions on
the engine and/or machine to de-energize
starter.
CleaningMower
Clean the underside of the mower deck after each
use to prevent any build-up of grass clippings. If this
debris is allowed to accumulate, it will result in rust
and corrosion.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit. These may
cause damage to electric components, spindles,
pulleys, bearings or the engine. The use of water will
result in shortened life and reduced serviceability.
Disconnect spark plug wire.
Drain the gasoline from the lawn mower, or place a
piece of plastic under the gas cap.
Tilt the mower so that the side with the air cleaner is
facing up. Hold the mower firmly.
Scrape and clean the underside of the deck with a
suitable toot. Do not spray with water.
Put the mower back on its wheels. If you had put
plastic under the gas cap, remove it now.
WARNING: Never tip the mower more than
90 degrees in any direction and do not leave
the mower tipped for any length of time. Oil
can drain into the upper part of the engine
causing a starting problem.
EngineMaintenance
A list of key maintenance jobs required for good
performance by the mower is given below. Follow the
accompanying engine manual for detailed list and
instructions.
Change engine oil after the first two operating
hours and every 25 operating hours thereafter.
Check the oil level before starting the engine every
time.
Service foam filter in the air cleaner every 25 hours
of use and replace the paper filter component every
100 hours. You may have to service the air filter
more frequently if you are operating the mower
under extremely dusty conditions.
Clean engine periodically. Remove dirt and debris
with a cloth or brush.
Clean the spark plug and reset the gap to.030" at
least once a season or every 50 hours of operation.
Spark plug replacement is recommended at the
start of each season.
Inspect muffler periodically, and replace if
necessary. Damaged mufflers or spark arresters
can create a fire hazard. Make sure to avoid muffler
and surrounding areas while the mower engine is
hot because temperature of these areas of the
engine may exceed 150° F.
Lubrication
Wheels
Lubricate the wheels and bearings, if so equipped,
at least once a season with light oil or engine oil.
Also, if the wheels are removed for any reason,
lubricate the surface of the axle bolt and the inner
surface of the wheel with light oil.
Chute Deflector & RearDischarge Door
Lubricate the torsion spring and the pivot point on
each end of the chute deflector and the rear
discharge door using a light oil. This will prevent
rusting and ensure that the deflector, which is a
safety device, can always work properly.
Engine
Follow the engine manual instructions and
recommended schedule for lubricating engine
components.
Transmission
The transmission is pre-lubricated and sealed at
the factory and does not require lubrication on a
regular basis as part of maintenance. However, if
you disassemble the transmission for any reason,
refill with two ounces of Alvania grease (part # 737-
0168A) as part of reassembly.
13

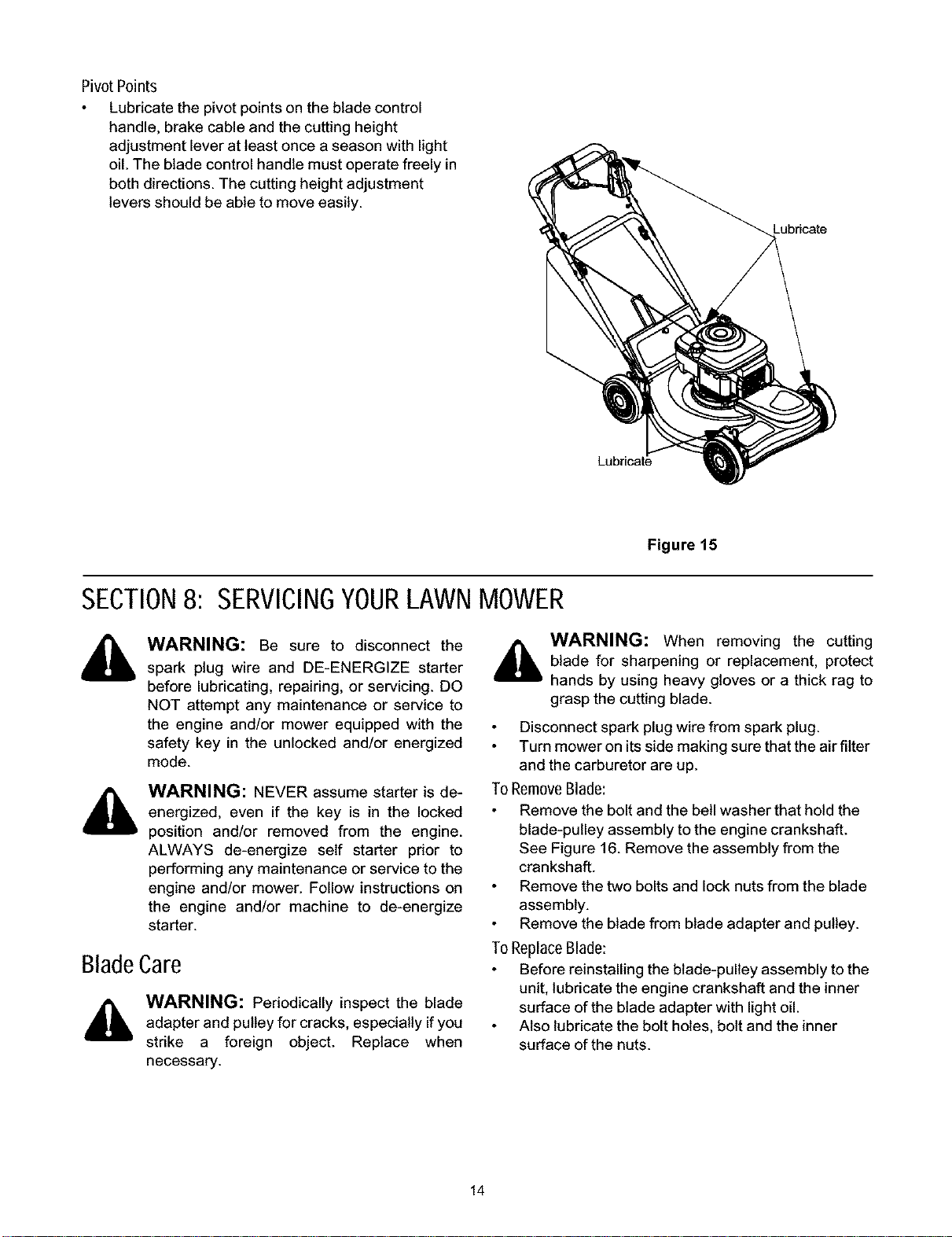

PivotPoints
Lubricatethepivotpointsonthebladecontrol
handle,brakecableandthecuttingheight
adjustmentleveratleastonceaseasonwithlight
oil.Thebladecontrolhandlemustoperatefreelyin
bothdirections.Thecuttingheightadjustment
leversshouldbeabletomoveeasily.
Lubricate
Figure 15
SECTION8: SERVICINGYOURLAWNMOWER
,_ WARNING: Be sure to disconnect the I_
spark plug wire and DE-ENERGIZE starter
before lubricating, repairing, or servicing. DO
NOT attempt any maintenance or service to
the engine and/or mower equipped with the
safety key in the unlocked and/or energized
mode.
WARNING: NEVER assume starter is de-
energized, even if the key is in the locked
position and/or removed from the engine.
ALWAYS de-energize self starter prior to
performing any maintenance or service to the
engine and/or mower. Follow instructions on
the engine and/or machine to de-energize
starter.
BladeCare
WARNING: Periodically inspect the blade
adapter and pulley for cracks, especially if you
strike a foreign object. Replace when
necessary.
WARNING: When removing the cutting
blade for sharpening or replacement, protect
hands by using heavy gloves or a thick rag to
grasp the cutting blade.
Disconnect spark plug wire from spark plug.
Turn mower on its side making sure that the air filter
and the carburetor are up.
To RemoveBlade:
Remove the bolt and the bell washer that hold the
blade-pulley assembly to the engine crankshaft.
See Figure 16. Remove the assembly from the
crankshaft.
Remove the two bolts and lock nuts from the blade
assembly.
Remove the blade from blade adapter and pulley.
To Replace Blade:
Before reinstalling the blade-pulley assembly to the
unit, lubricate the engine crankshaft and the inner
surface of the blade adapter with light oil.
Also lubricate the bolt holes, bolt and the inner
surface of the nuts.
14

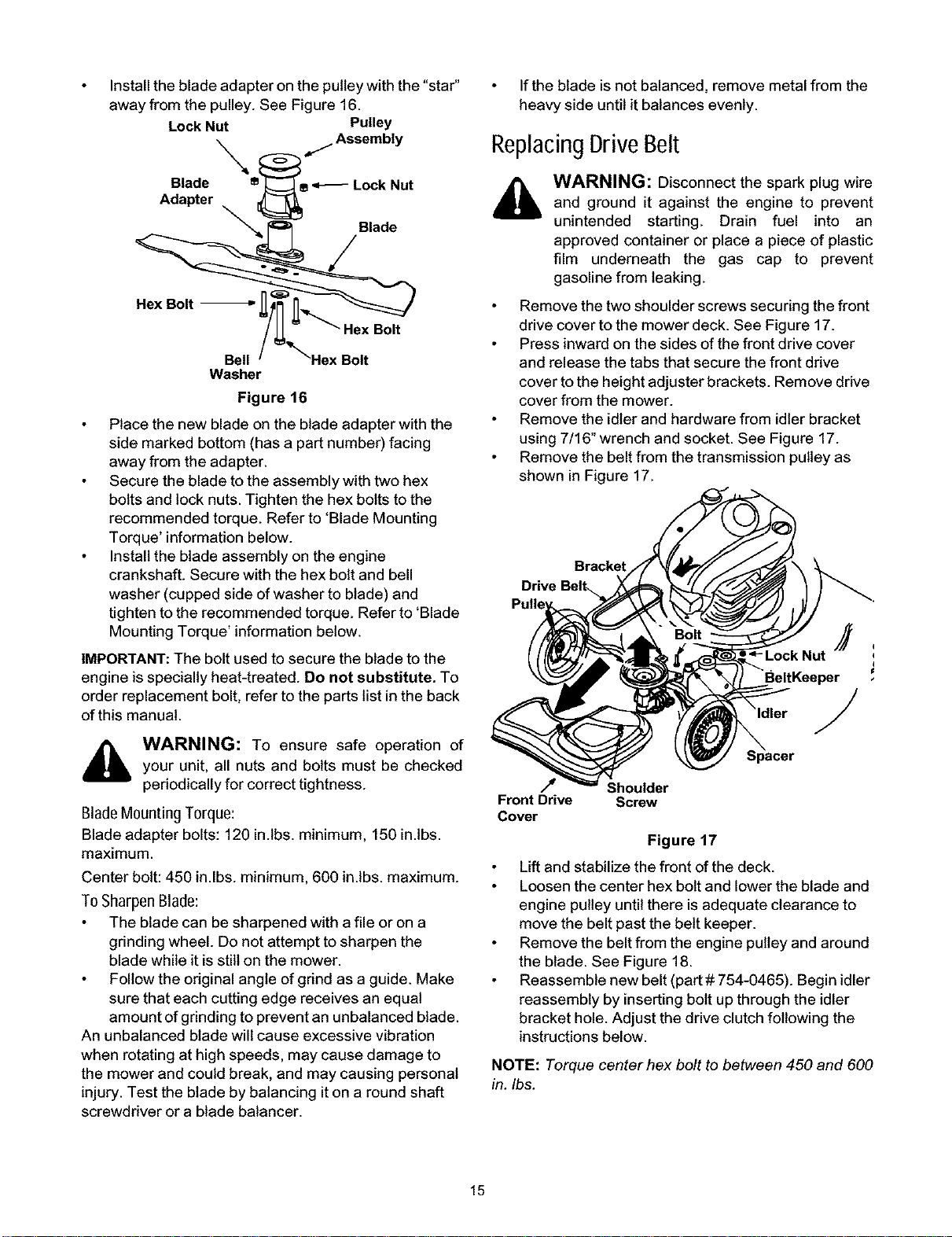

Install the blade adapter on the pulley with the "star"
away from the pulley. See Figure 16.
Lock Nut Pulley
._ / Assembly
Blade e ]_e _ Lock Nut
Adapter .
"_=1 Blade
"exBo't nir
/_ Hex Bolt
Bell -- "Hex Bolt
Washer
Figure 16
Place the new blade on the blade adapter with the
side marked bottom (has a part number) facing
away from the adapter.
Secure the blade to the assembly with two hex
bolts and lock nuts. Tighten the hex bolts to the
recommended torque. Refer to 'Blade Mounting
Torque' information below.
Install the blade assembly on the engine
crankshaft. Secure with the hex bolt and bell
washer (cupped side of washer to blade) and
tighten to the recommended torque. Refer to 'Blade
Mounting Torque' information below.
IMPORTANT: The bolt used to secure the blade to the
engine is specially heat-treated. Do not substitute. To
order replacement bolt, refer to the parts list inthe back
of this manual.
,_ WARNING: To ensure safe operation ofyour unit, all nuts and bolts must be checked
periodically for correct tightness.
Blade Mounting Torque:
Blade adapter bolts: 120 in.lbs, minimum, 150 in.lbs.
maximum.
Center bolt: 450 in.lbs, minimum, 600 in.lbs, maximum.
To Sharpen Blade:
The blade can be sharpened with a file or on a
grinding wheel. Do not attempt to sharpen the
blade while it is still on the mower.
Follow the original angle of grind as a guide. Make
sure that each cutting edge receives an equal
amount of grinding to prevent an unbalanced blade.
An unbalanced blade will cause excessive vibration
when rotating at high speeds, may cause damage to
the mower and could break, and may causing personal
injury. Test the blade by balancing it on a round shaft
screwdriver or a blade balancer.
If the blade isnot balanced, remove metal from the
heavy side until it balances evenly.
ReplacingDriveBelt
WARNING: Disconnect the spark plug wire
and ground it against the engine to prevent
unintended starting. Drain fuel into an
approved container or place a piece of plastic
film underneath the gas cap to prevent
gasoline from leaking.
Remove the two shoulder screws securing the front
drive cover to the mower deck. See Figure 17.
Press inward on the sides of the front drive cover
and release the tabs that secure the front drive
cover to the height adjuster brackets. Remove drive
cover from the mower.
Remove the idler and hardware from idler bracket
using 7/16" wrench and socket. See Figure 17.
Remove the belt from the transmission pulley as
shown in Figure 17.
Bracket
Driv
/
,7 Shoulder
Front Drive Screw
Cover
Figure 17
Lift and stabilize the front of the deck.
Loosen the center hex bolt and lower the blade and
engine pulley until there isadequate clearance to
move the belt past the belt keeper.
Remove the belt from the engine pulley and around
the blade. See Figure 18.
Reassemble new belt (part # 754-0465). Begin idler
reassembly by inserting bolt up through the idler
bracket hole. Adjust the drive clutch following the
instructions below.
NOTE: Torque center hex bolt to between 450 and 600
in. Ibs.
15

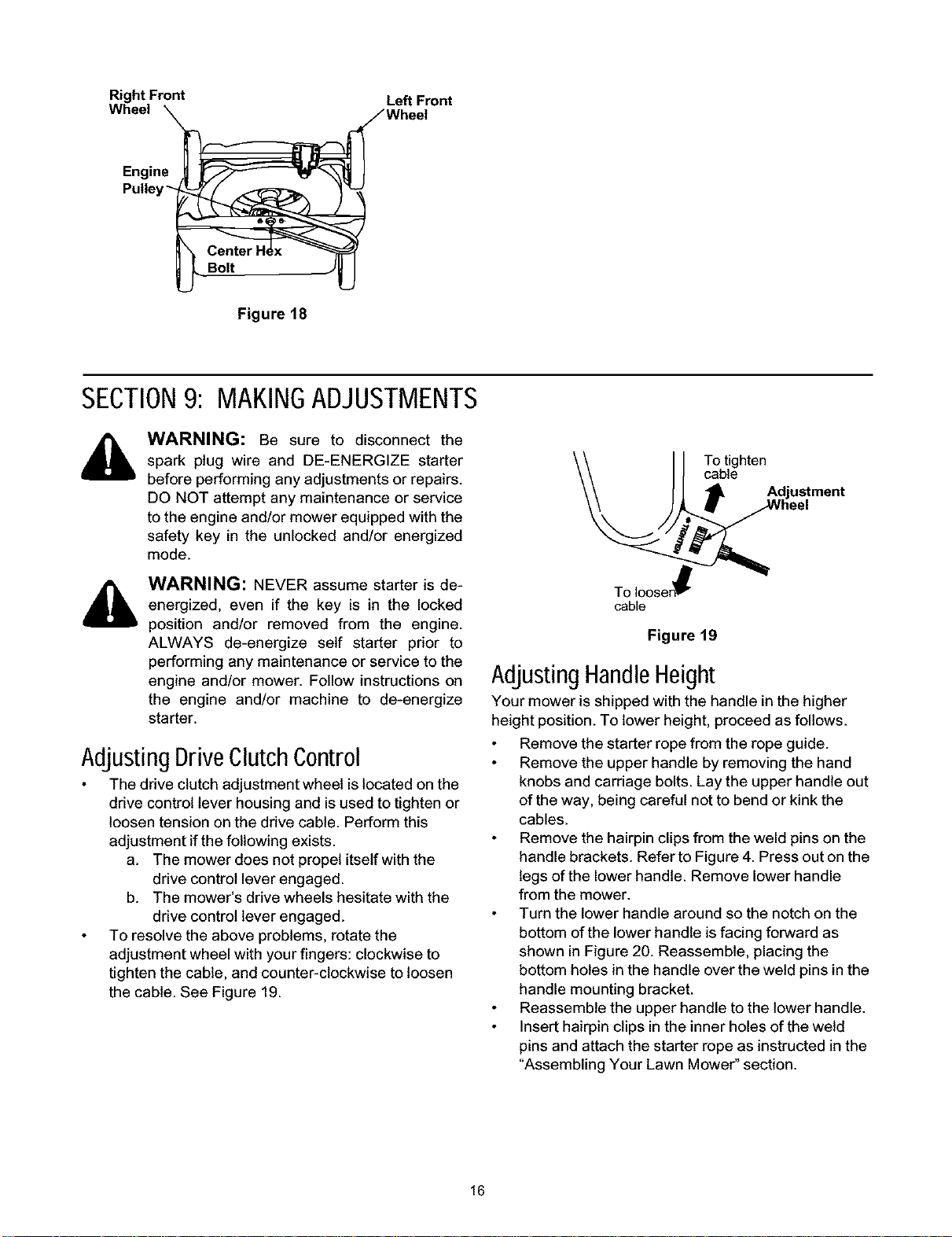

Right Front
Wheel
Engine _/_
Pulley "_
Center H_x
_Bolt
Figure 18
Left Front
Wheel
SECTION9: MAKINGADJUSTMENTS
WARNING: Be sure to disconnect the
spark plug wire and DE-ENERGIZE starter
before performing any adjustments or repairs.
DO NOT attempt any maintenance or service
to the engine and/or mower equipped with the
safety key in the unlocked and/or energized
mode.
WARNING: NEVER assume starter is de-
energized, even if the key is in the locked
position and/or removed from the engine.
ALWAYS de-energize self starter prior to
performing any maintenance or service to the
engine and/or mower. Follow instructions on
the engine and/or machine to de-energize
starter.
AdjustingDriveClutchControl
The drive clutch adjustment wheel islocated on the
drive control lever housing and is used to tighten or
loosen tension on the drive cable. Perform this
adjustment if the following exists.
a. The mower does not propel itself with the
drive control lever engaged.
b. The mower's drive wheels hesitate with the
drive control lever engaged.
To resolve the above problems, rotate the
adjustment wheel with your fingers: clockwise to
tighten the cable, and counter-clockwise to loosen
the cable. See Figure 19.
To tighten
cable
cable
Figure 19
AdjustingHandleHeight
Your mower is shipped with the handle inthe higher
height position. To lower height, proceed as follows.
Remove the starter rope from the rope guide.
Remove the upper handle by removing the hand
knobs and carriage bolts. Lay the upper handle out
of the way, being careful not to bend or kink the
cables.
Remove the hairpin clips from the weld pins on the
handle brackets. Refer to Figure 4. Press out on the
legs of the lower handle. Remove lower handle
from the mower.
Turn the lower handle around so the notch on the
bottom of the lower handle is facing forward as
shown in Figure 20. Reassemble, placing the
bottom holes inthe handle over the weld pins in the
handle mounting bracket.
Reassemble the upper handle to the lower handle.
Insert hairpin clips in the inner holes of the weld
pins and attach the starter rope as instructed in the
"Assembling Your Lawn Mower" section.
16
\
Lower
Handle
Notch
Figure 20

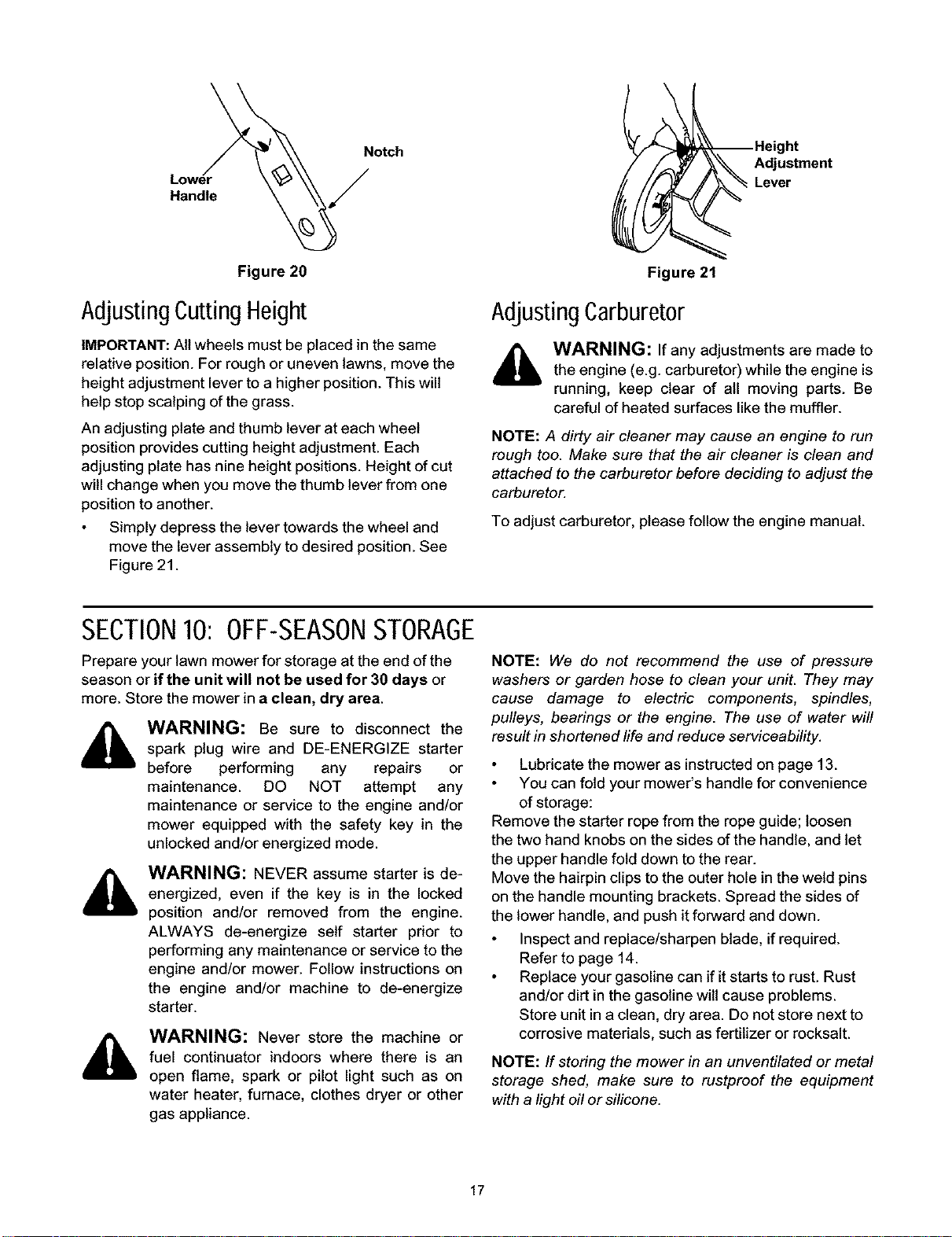

AdjustingCuttingHeight
IMPORTANT: All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
height adjustment lever to a higher position. This will
help stop scalping of the grass.
An adjusting plate and thumb lever at each wheel
position provides cutting height adjustment. Each
adjusting plate has nine height positions. Height of cut
will change when you move the thumb lever from one
position to another.
Simply depress the lever towards the wheel and
move the lever assembly to desired position. See
Figure 21.
"edl, u",'tment
Lever
Figure 21
AdjustingCarburetor
A/,
WARNING: If any adjustments are made to
the engine (e.g. carburetor) while the engine is
running, keep clear of all moving parts. Be
careful of heated surfaces like the muffler.
NOTE: A dirty air cleaner may cause an engine to run
rough too. Make sure that the air cleaner is clean and
attached to the carburetor before deciding to adjust the
carburetor.
To adjust carburetor, please follow the engine manual.
SECTION10: 0FF-SEASONSTORAGE
Prepare your lawn mower for storage at the end of the
season or if the unit will not be used for 30 days or
more. Store the mower in a clean, dry area.
WARNING: Be sure to disconnect the
spark plug wire and DE-ENERGIZE starter
before performing any repairs or
maintenance. DO NOT attempt any
maintenance or service to the engine and/or
mower equipped with the safety key in the
unlocked and/or energized mode.
WARNING: NEVER assume starter is de-
energized, even if the key is in the locked
position and/or removed from the engine.
ALWAYS de-energize self starter prior to
performing any maintenance or service to the
engine and/or mower. Follow instructions on
the engine and/or machine to de-energize
starter.
WARNING: Never store the machine or
fuel continuator indoors where there is an
open flame, spark or pilot light such as on
water heater, furnace, clothes dryer or other
gas appliance.
NOTE: We do not recommend the use of pressure
washers or garden hose to clean your unit. They may
cause damage to electric components, spindles,
pulleys, bearings or the engine. The use of water will
result in shortened life and reduce serviceability.
Lubricate the mower as instructedon page 13.
You can fold your mower's handle for convenience
of storage:
Remove the starter rope from the rope guide; loosen
the two hand knobs on the sides of the handle, and let
the upper handle fold clown to the rear.
Move the hairpin clips to the outer hole in the weld pins
on the handle mounting brackets. Spread the sides of
the lower handle, and push itforward and down.
Inspect and replace/sharpen blade, if required.
Refer to page 14.
Replace your gasoline can if it starts to rust. Rust
and/or dirt in the gasoline wilt cause problems.
Store unit in a clean, dry area. Do not store next to
corrosive materials, such as fertilizer or rocksalt.
NOTE: If storing the mower in an unventilated or metal
storage shed, make sure to rustproof the equipment
with a light oil or silicone.
17

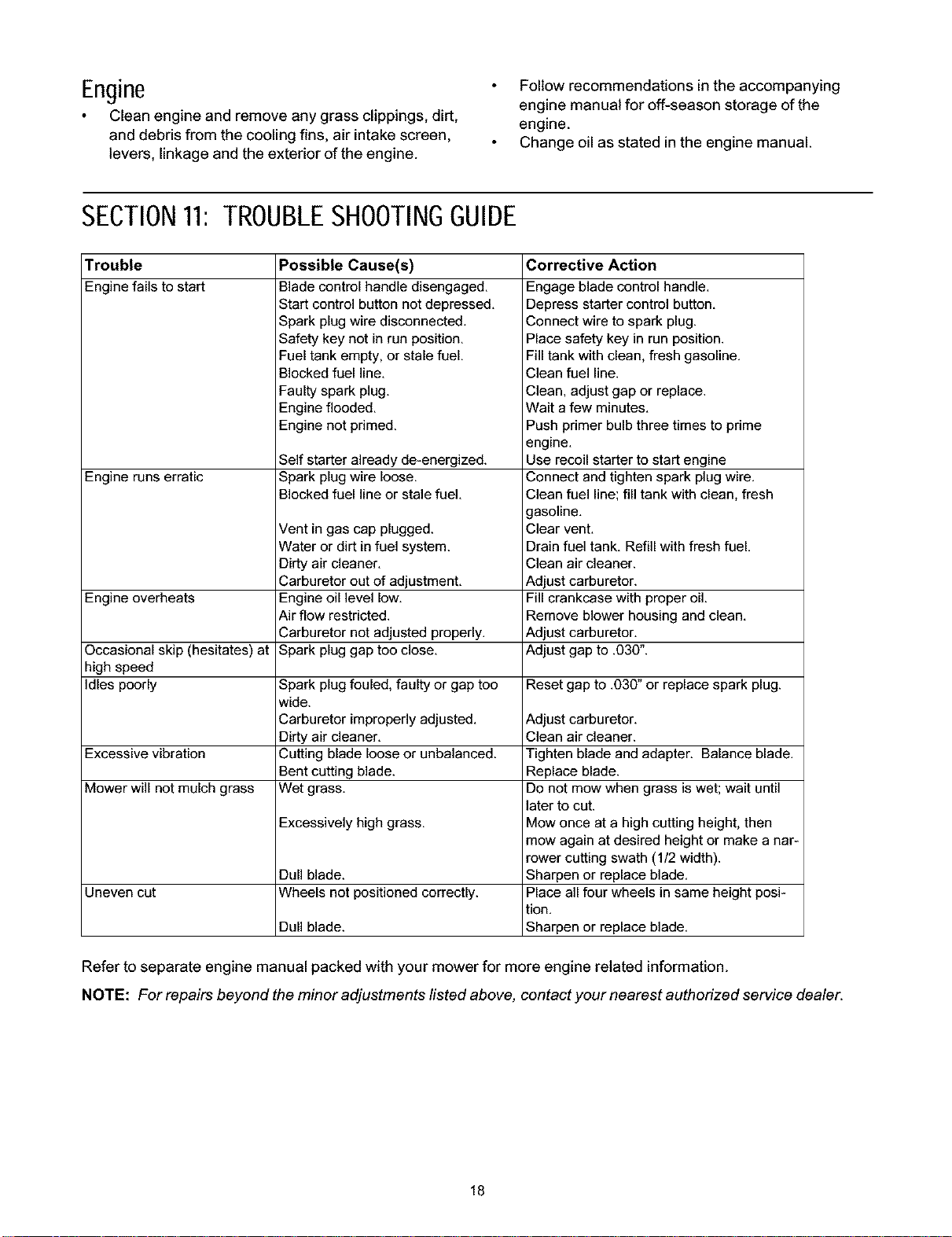

Engine
Clean engine and remove any grass clippings, dirt,
and debris from the cooling fins, air intake screen,
levers, linkage and the exterior of the engine.
Follow recommendations in the accompanying
engine manual for off-season storage of the
engine.
Change oil as stated in the engine manual.
SECTION11:TROUBLESHOOTINGGUIDE
Trouble
Engine fails to start
Possible Cause(s)
Blade control handle disengaged.
Start control button not depressed.
Spark plug wire disconnected.
Safety key not in run position.
Fuel tank empty, or stale fuel.
Blocked fuel line.
Faulty spark plug.
Engine flooded.
Engine not primed.
Self starter already de-energized.
Engine runs erratic Spark plug wire loose.
Blocked fuel line or stale fuel.
Vent in gas cap plugged.
Water or dirt in fuel system.
Dirty air cleaner.
Carburetor out of adjustment.
Engine overheats Engine oil level low.
Air flow restricted.
Carburetor not adjusted properly.
Occasional skip (hesitates) at Spark plug gap too close.
high speed
Corrective Action
Engage blade control handle.
Depress starter control button.
Connect wire to spark plug.
Place safety key in run position.
Fill tank with clean, fresh gasoline.
Clean fuel line.
Clean, adjust gap or replace.
Wait a few minutes.
Push primer bulb three times to prime
engine.
Use recoil starter to start engine
Connect and tighten spark plug wire.
Clean fuel line; fill tank with clean, fresh
gasoline.
Clear vent.
Drain fuel tank. Refill with fresh fuel.
Clean air cleaner.
Adjust carburetor.
Fill crankcase with proper oil.
Remove blower housing and clean.
Adjust carburetor.
Adjust gap to .030".
Idles poorly Spark plug fouled, faulty or gap too Reset gap to .030" or replace spark plug.
wide.
Carburetor improperly adjusted. Adjust carburetor.
Dirty air cleaner. Clean air cleaner.
Excessive vibration Cutting blade loose or unbalanced. Tighten blade and adapter. Balance blade.
Bent cutting blade. Replace blade.
Mower will not mulch grass Wet grass. Do not mow when grass is wet; wait until
later to cut.
Excessively high grass. Mow once at a high cutting height, then
mow again at desired height or make a nar-
rower cutting swath (1/2 width).
Dull blade. Sharpen or replace blade.
Uneven cut Wheels not positioned correctly. Place all four wheels in same height posi-
tion.
Dull blade. Sharpen or replace blade.
Refer to separate engine manual packed with your mower for more engine related information.
NOTE: For repairs beyond the minor adjustments listed above, contact your nearest authorized service dealer.
18
NOTES
19

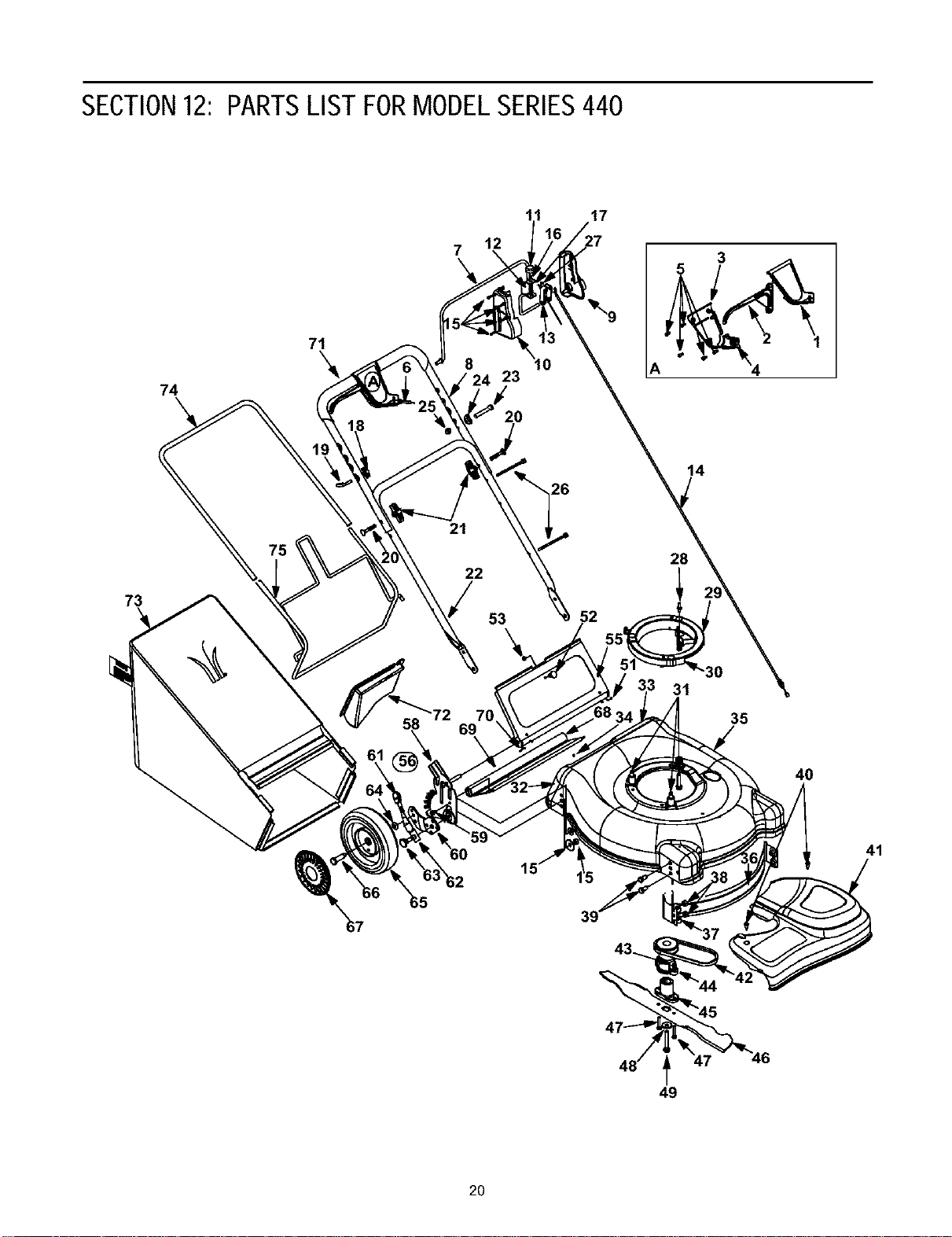

SECTION12: PARTSLISTFORMODELSERIES440
74
71
\
7 12
8
23
2O
17
14
26
73
21
22
53
52
28
'30
31
35
40
41
39
49
20

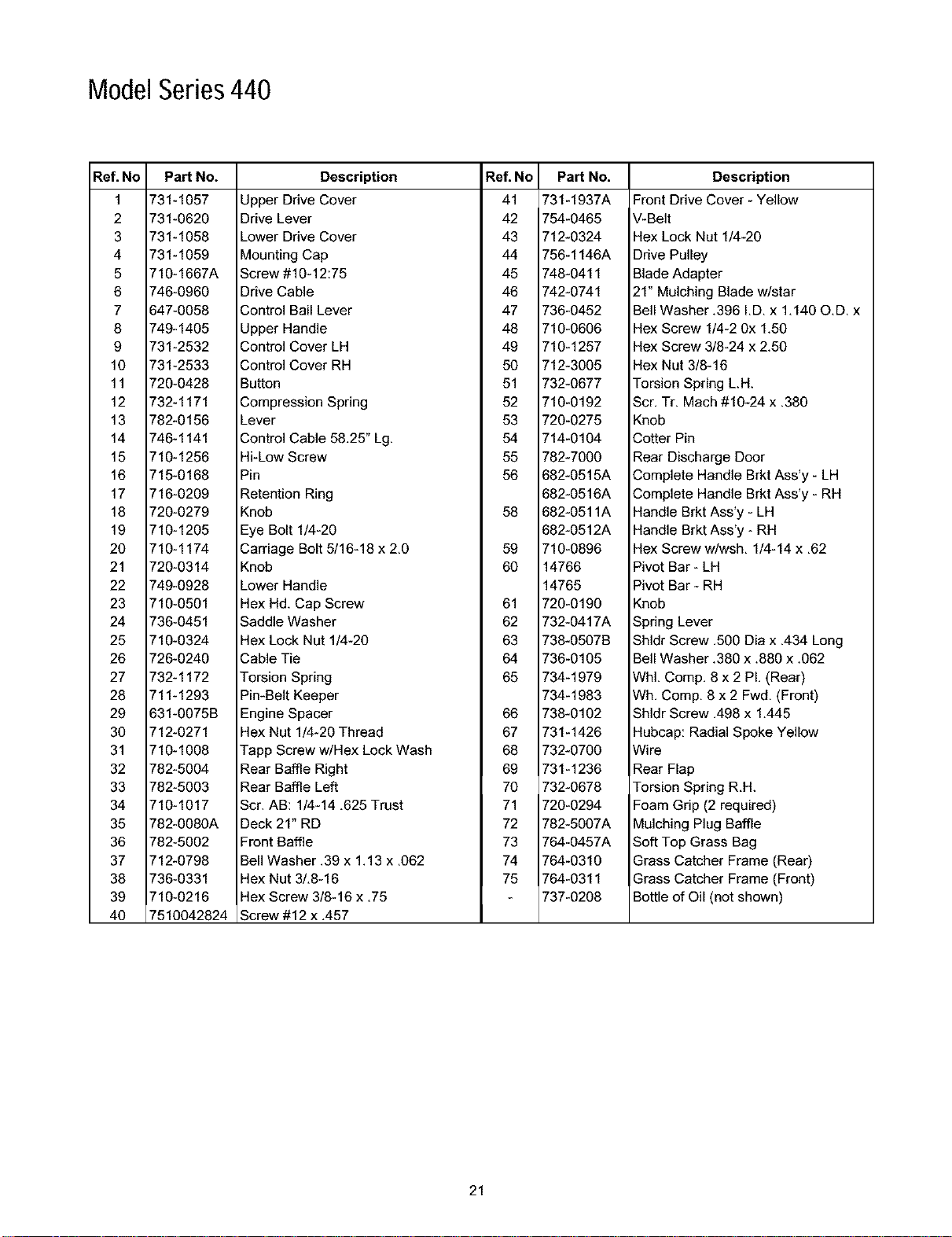

ModelSeries440
Ref.No Pad No.
1 731-1057
2 731-0620
3 731-1058
4 731-1059
5 710-1667A
6 746-0960
7 647-0058
8 749-1405
9 731-2532
10 731-2533
11 720-0428
12 732-1171
13 782-0156
14 746-1141
15 710-1256
16 715-0168
17 716-0209
18 720-0279
19 710-1205
20 710-1174
21 720-0314
22 749-0928
23 710-0501
24 736-0451
25 710-0324
26 726-0240
27 732-1172
28 711-1293
29 631-0075B
30 712-0271
31 710-1008
32 782-5004
33 782-5003
34 710-1017
35 782-0080A
36 782-5002
37 712-0798
38 736-0331
39 710-0216
40 7510042824
Description
Upper Drive Cover
Drive Lever
Lower Drive Cover
Mounting Cap
Screw #10-12:75
Drive Cable
Control Bail Lever
Upper Handle
Control Cover LH
Control Cover RH
Button
Compression Spring
Lever
Control Cable 58,25" Lg.
Hi-Low Screw
Pin
Retention Ring
Knob
Eye Bolt 1/4-20
Carriage Bolt 5/16-18 x 2,0
Knob
Lower Handle
Hex Hd. Cap Screw
Saddle Washer
Hex Lock Nut 1/4-20
Cable Tie
Torsion Spring
Pin-Belt Keeper
Engine Spacer
Hex Nut 1/4-20 Thread
Tapp Screw w/Hex Lock Wash
Rear Baffle Right
Rear Baffle Left
Scr. AB: 1/4-14,625 Trust
Deck 21" RD
Front Baffle
Bell Washer.39 x 1.13 x ,062
Hex Nut 3/,8-16
Hex Screw 3/8-16 x ,75
Screw #12 x ,457
Ref. No
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
58
59
6O
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
Pad No.
731-1937A
754-0465
712-0324
756-1146A
748-0411
742-0741
736-0452
710-0606
710-1257
712-3005
732-0677
710-0192
720-0275
714-0104
782-7000
682-0515A
682-0516A
682-0511A
682-0512A
710-0896
14766
14765
720-0190
732-0417A
738-0507B
736-0105
734-1979
734-1983
738-0102
731-1426
732-0700
731-1236
732-0678
720-0294
782-5007A
764-0457A
764-0310
764-0311
737-0208
Description
Front Drive Cover - Yellow
V-Belt
Hex Lock Nut 1/4-20
Drive Pulley
Blade Adapter
21" Mulching Blade w/star
Bell Washer .396 I,D, x 1,140 O,D, x
Hex Screw 1/4-20x 1.50
Hex Screw 3/8-24 x 2.50
Hex Nut 3/8-16
Torsion Spring L.H.
Scr, Tr. Mach #10-24 x .380
Knob
Cotter Pin
Rear Discharge Door
Complete Handle Brkt Ass'y - LH
Complete Handle Brkt Ass'y - RH
Handle Brkt Ass'y - LH
Handle Brkt Ass'y - RH
Hex Screw w/wsh, 1/4-14 x ,62
Pivot Bar - LH
Pivot Bar - RH
Knob
Spring Lever
Shldr Screw ,500 Dia x .434 Long
Bell Washer .380 x .880 x .062
Whl. Comp, 8 x 2 PI, (Rear)
Wh, Comp, 8 x 2 Fwd, (Front)
Shldr Screw ,498 x 1.445
Hubcap: Radial Spoke Yellow
Wire
Rear Flap
Torsion Spring R,H.
Foam Grip (2 required)
Mulching Plug Baffle
Soft Top Grass Bag
Grass Catcher Frame (Rear)
Grass Catcher Frame (Front)
Bottle of Oil (not shown)
21

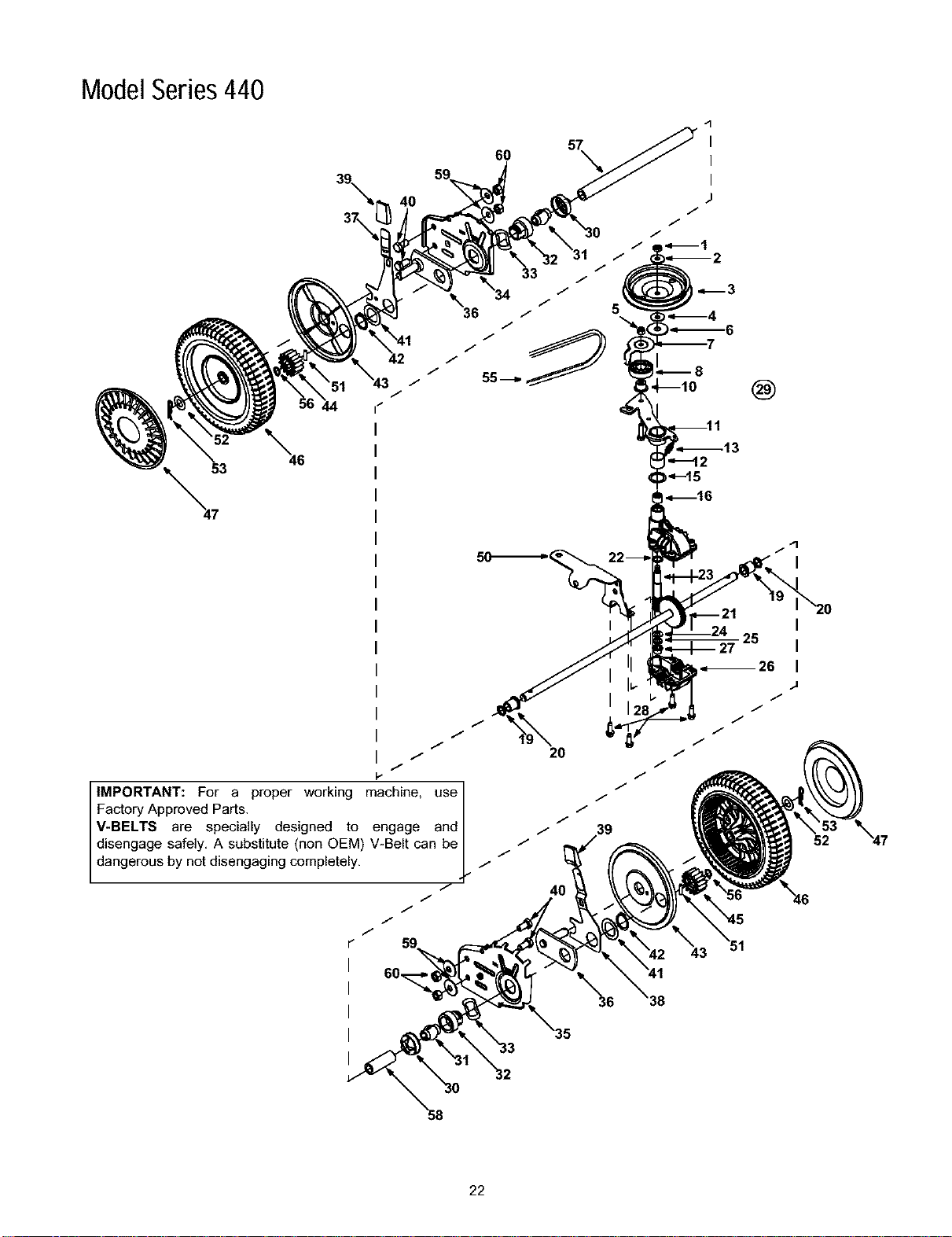

ModelSeries440
f
f
f
f
f
F-
IMPORTANT: For a proper working machine, use I
Factory Approved Parts,
V-BELTS are specially designed to engage and
disengage safely, A substitute (non OEM) V-Belt can be
dangerous by not d sengag ng comp ete y.
f
f
,/
r" 59
60
20
4(
--1
I
I
I
J
J
f
@
52
\o
22

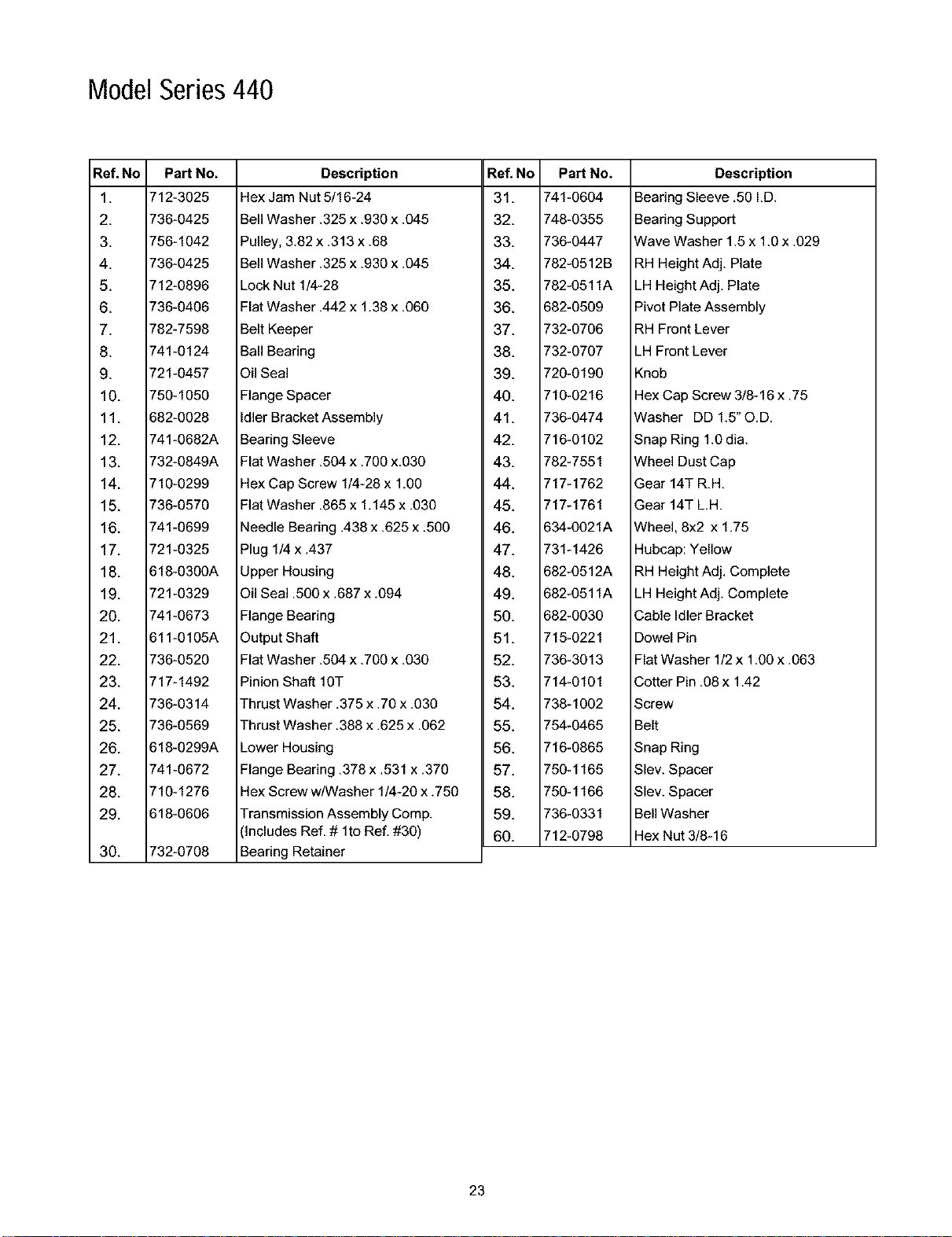

ModelSeries440
Ref.No Pad No.
1. 712-3025
2. 736-0425
3. 756-1042
4. 736-0425
5. 712-0896
6. 736-0406
7. 782-7598
8. 741-0124
9. 721-0457
10. 750-1050
11. 682-OO28
12. 741-0682A
13. 732-0849A
14. 710-0299
15. 736-0570
16. 741-0699
17. 721-0325
18. 618-0300A
19. 721-0329
20. 741-0673
21. 611-0105A
22. 736-0520
23. 717-1492
24. 736-0314
25. 736-0569
26. 618-0299A
27. 741-0672
28. 710-1276
29. 618-0606
30. 732-0708
Description
Hex Jam Nut 5/16-24
Bell Washer .325 x .930 x .045
Pulley, 3.82 x .313 x .68
Bell Washer .325 x .930 x .045
Lock Nut 1/4-28
Flat Washer .442 x 1.38 x .060
Belt Keeper
Ball Bearing
Oil Seal
Flange Spacer
Idler Bracket Assembly
Bearing Sleeve
Flat Washer .504 x .700 x.030
Hex Cap Screw 1/4-28 x 1.00
Flat Washer .865 x 1.145 x .030
Needle Bearing .438 x .625 x .500
Plug 1/4 x .437
Upper Housing
Oil Seal .500 x .687 x .094
Flange Bearing
Output Shaft
Flat Washer .504 x .700 x .030
Pinion Shaft 10T
Thrust Washer .375 x .70 x .030
Thrust Washer .388 x .625 x .062
Lower Housing
Flange Bearing .378 x .531 x .370
Hex Screw w/Washer 1/4-20 x.750
Transmission Assembly Comp.
Includes Ref. # 1to Ref. #30)
Bearing Retainer
Re_ No
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
Pad No.
741-0604
748-0355
736-0447
782-0512B
782-0511A
682-0509
732-0706
732-0707
720-0190
710-0216
736-0474
716-0102
782-7551
717-1762
717-1761
634-0021A
731-1426
682-0512A
682-0511A
682-0030
715-0221
736-3013
714-0101
738-1002
754-0465
716-0865
750-1165
750-1166
736-0331
712-0798
Description
Bearing Sleeve .50 I.D.
Bearing Support
Wave Washer 1.5 x 1.0 x .029
RH Height Adj. Plate
LH Height Adj. Plate
Pivot Plate Assembly
RH Front Lever
LH Front Lever
Knob
Hex Cap Screw 3/8-16 x .75
Washer DD 1.5"O.D.
Snap Ring 1.0 dia.
Wheel Dust Cap
Gear 14T R.H.
Gear 14T L.H.
Wheel, 8x2 x 1.75
Hubcap: Yellow
RH Height Adj. Complete
LH Height Adj. Complete
Cable Idler Bracket
Dowel Pin
Flat Washer 1/2 x 1.00 x .063
Cotter Pin .08 x 1.42
Screw
Belt
Snap Ring
Slev. Spacer
Slev. Spacer
Bell Washer
Hex Nut 3/8-16
23
MANUFACTURER'S LIMITED WARRANTY FOR:
YaRD'MaN:)//
The limited warranty set forth below is given by MTD
PRODUCTS INC ("MTD") with respect to new merchandise
purchased and used in the United States, its possessions
and territories,
MTD warrants this product against defects in material and
workmanship for a period of two (2) years commencing on
the date of original purchase and will, at its option, repair or
replace, free of charge, any part found to be defective in
material or workmanship. This limited warranty shall only
apply if this product has been operated and maintained in
accordance with the Operator's Manual furnished with the
product, and has not been subject to misuse, abuse, com-
mercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water or damage because
of other peril or natural disaster. Damage resulting from the
installation or use of any accessory or attachment not
approved by MTD Products Inc. for use with the product(s)
covered by this manual will void your warranty as to any
resulting damages.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear part or compo-
nent failures will be covered on the product for a period of
90 days regardless of cause. After 90 days. but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in material or workmanship of
OTHER component parts. Normal wear parts and compo-
nents include, but are not limited to, belts, blades, blade
adapters, grass bags, rider deck wheels, seats, snow
thrower skid shoes, shave plates and tires. Batteries are
covered by a 90-day limited replacement warranty.
HOW TO OBTAIN SERVICE: Warranty service is available,
WITH PROOF OF PURCHASE THROUGH YOUR LOCAL
AUTHORIZED SERVICE DEALER. To locate the dealer in
your area, please check for a listing in the Yellow Pages or
contact the Customer Service Department of MTD PROD-
UCTS INC by calling 1-800-800-7310 or writing to P.O. Box
368022. Cleveland. Ohio 44136-9722.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component parts thereof. These items
carry a separate manufacturer's warranty. Please refer
to the applicable manufacturer's warranty on these
items.
b. Log splitter pumps, valves and cylinders have a sepa-
rate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening and tune-ups, or adjustments such
as brake adjustments, clutch adjustments or deck
adjustments; and normal deterioration of the exterior
finish due to use or exposure.
d. MTD does not extend any warranty for products sold
or exported outside of the United States of America,
its possessions and territories, except those sold
through MTD's authorized channels of export distribu-
tion.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty or guaranty, whether written or oral,
except as mentioned above, given by any person or
entity, including a dealer or retailer, with respect to any
product shall bind MTD. During the period of the War*
ranty, the exclusive remedy is repair or replacement of
the product as set forth above. (Some states do not
allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you.)
The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sales. MTD
shall not be liable for incidental or consequential loss
or damages including, without limitation, expenses
incurred for substitute or replacement lawn care ser*
vices, for transportation or for related expenses, or for
rental expenses to temporarily replace a warranted
product. (Some states do not allow the exclusion or limita-
tion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of the safety features of the product shall void this War-
rarity. You assume the risk and liability for loss, damage, or
injury to you and your property and/or to others and their
property arising out of the use or misuse or inability to use
the product.
This limited warranty shall not extend to anyone other than
the original purchaser, original lessee or the person for
whom it was purchased as a gift.
How State Law Relates to this Warranty: This limited
warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
