NEC Display Solutions of America, Inc.
PA500U/PA500X/PA550W/PA600X Installation Guide
Desktop and Ceiling Mount Rev 1.7
www.necdisplay.com PA500U/PA500X/PA550W/PA600X Page 1 of 13
Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Pg 1
Distance Charts and Formulas
Pg 2-4

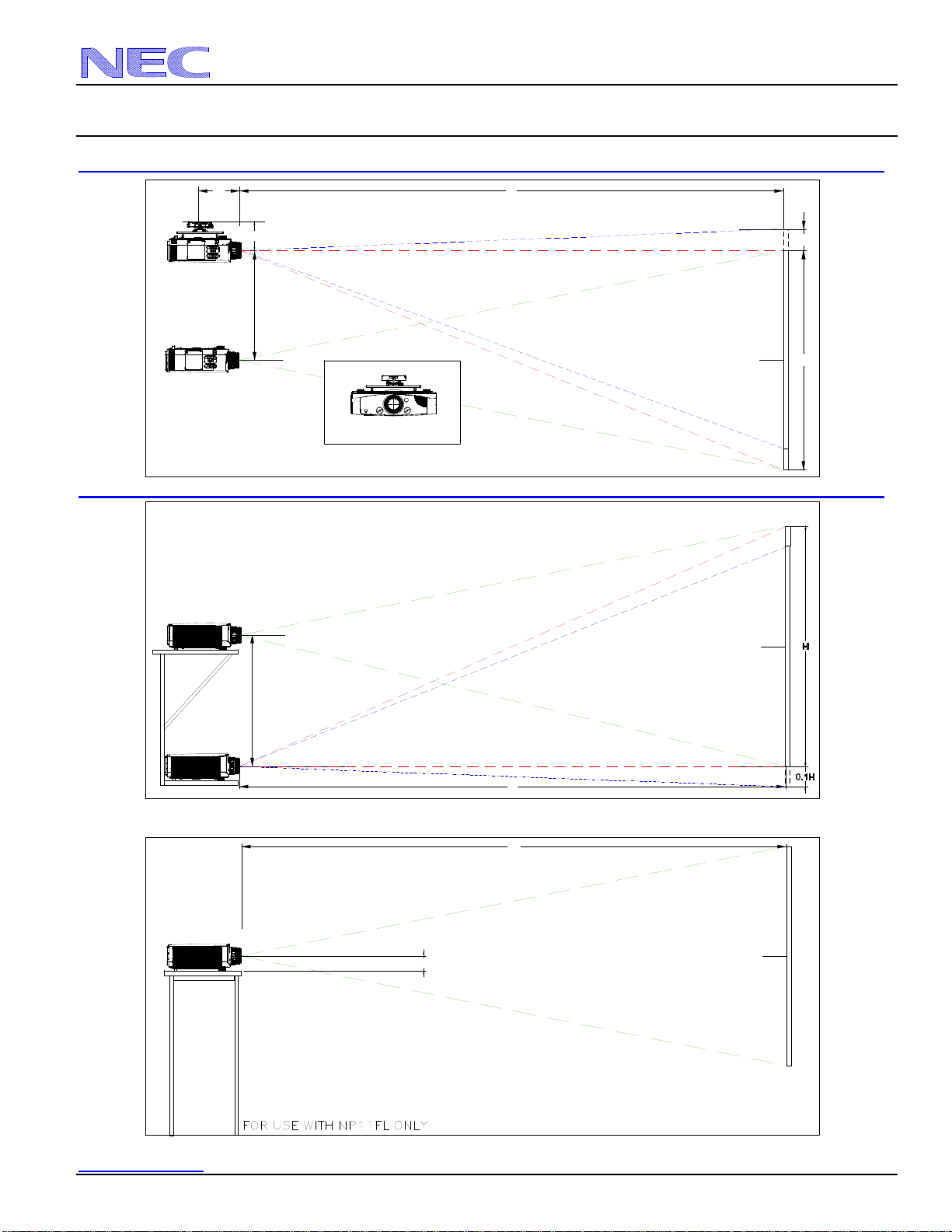

Ceiling Mount/Desktop Installation
Pg 5

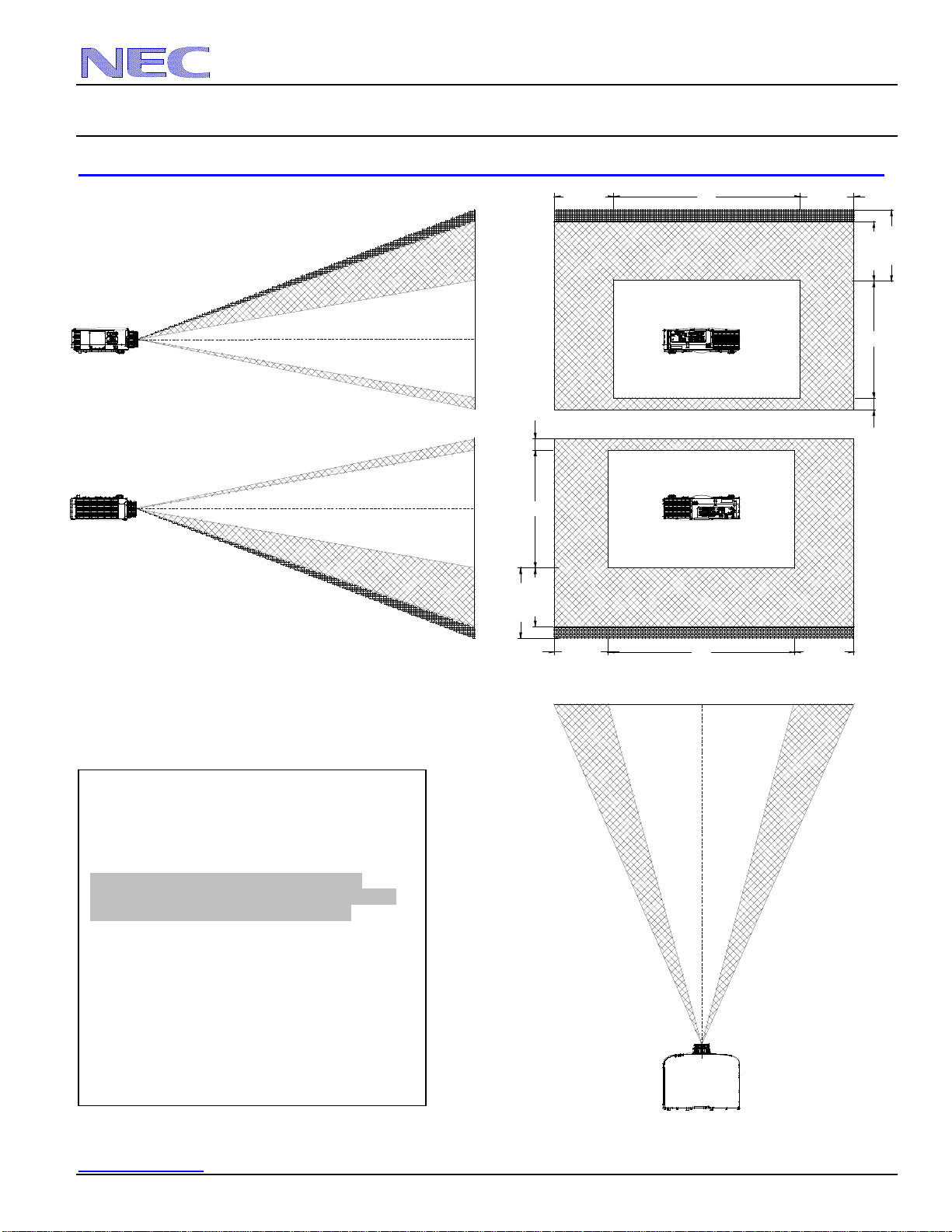

Lens Shift Adjustable Range
Pg 6

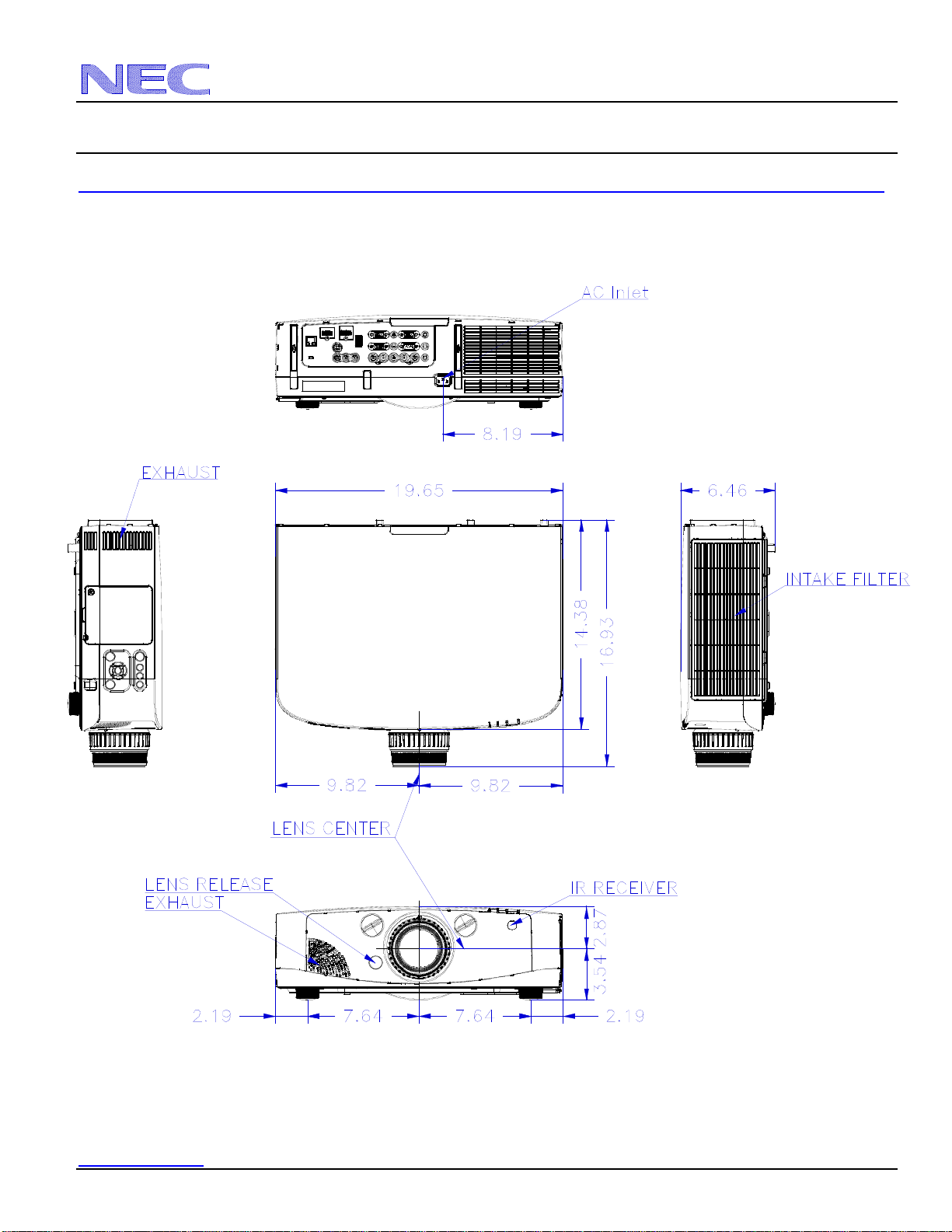

Cabinet Dimensions
Pg 7
Cabinet Dimensions
Pg 8

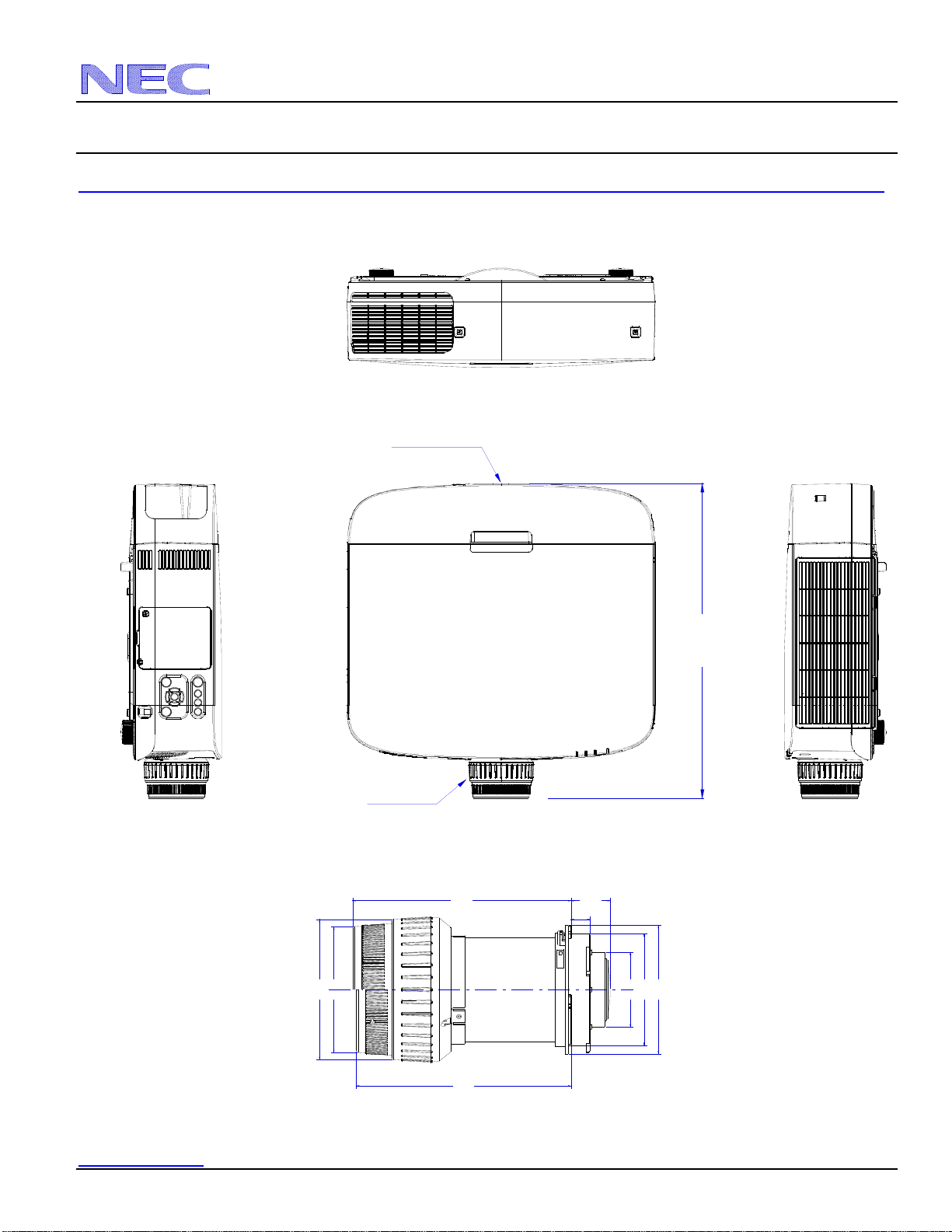

Cabinet Dimensions (Terminal Cover)
Pg 9

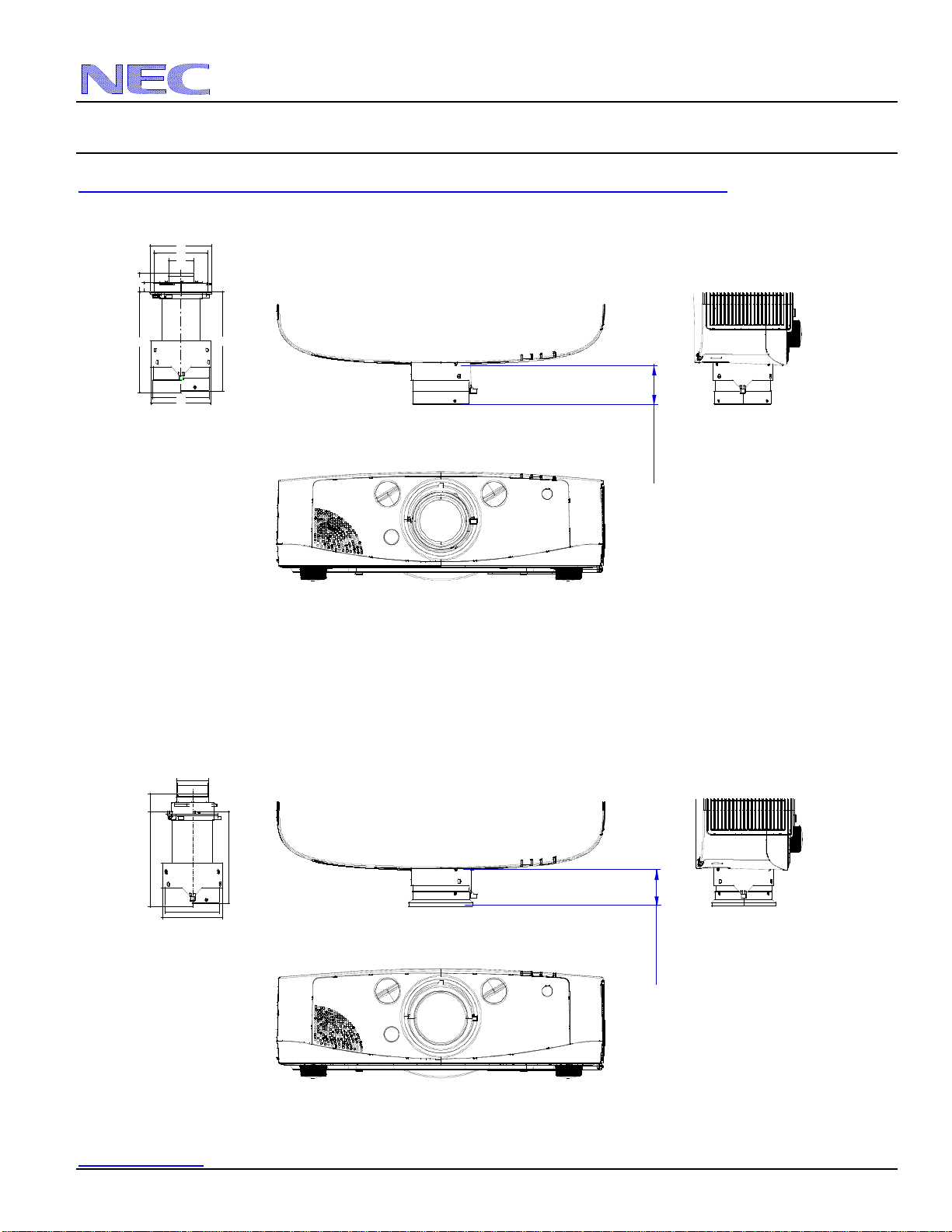

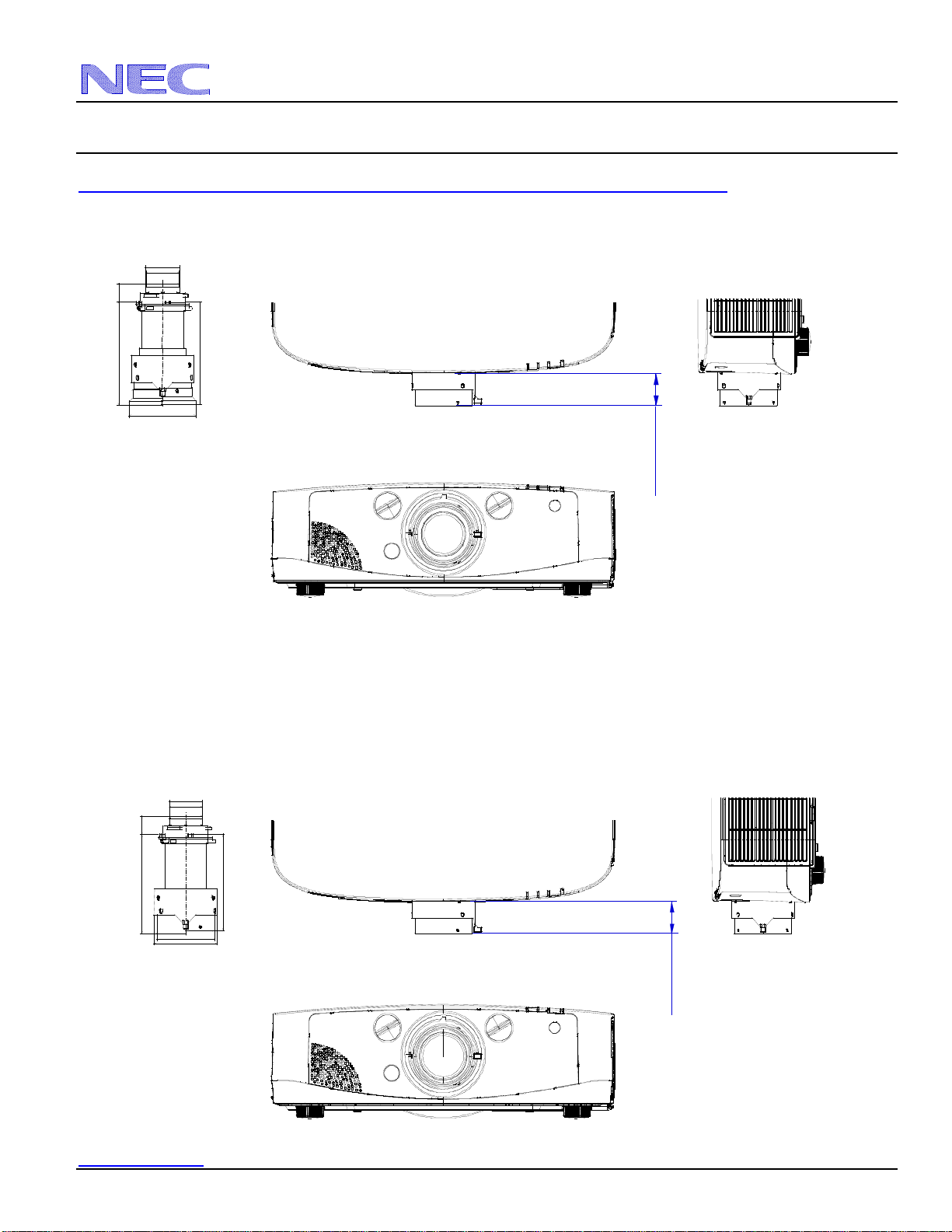

Lens Dimensions (Optional)
Pg 10-11

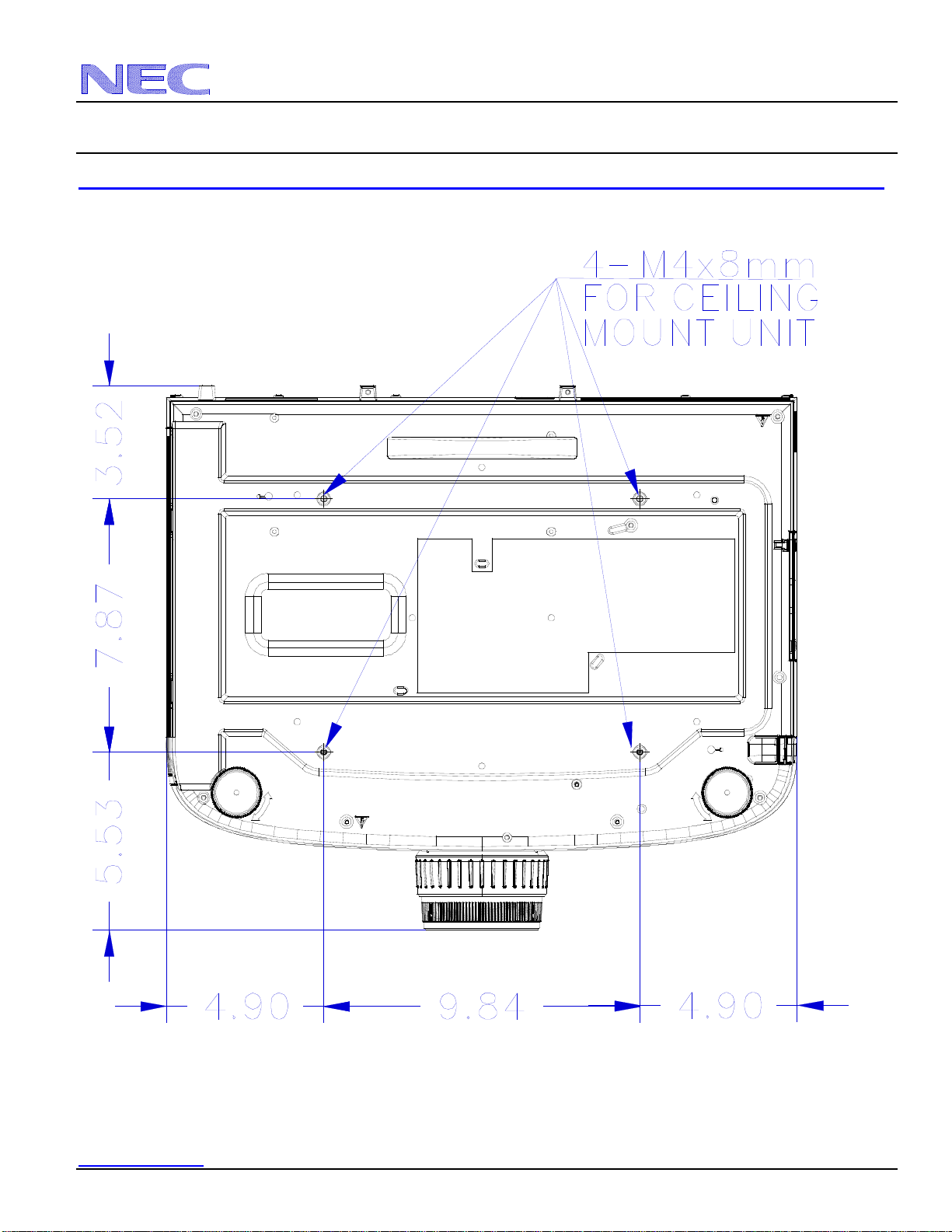

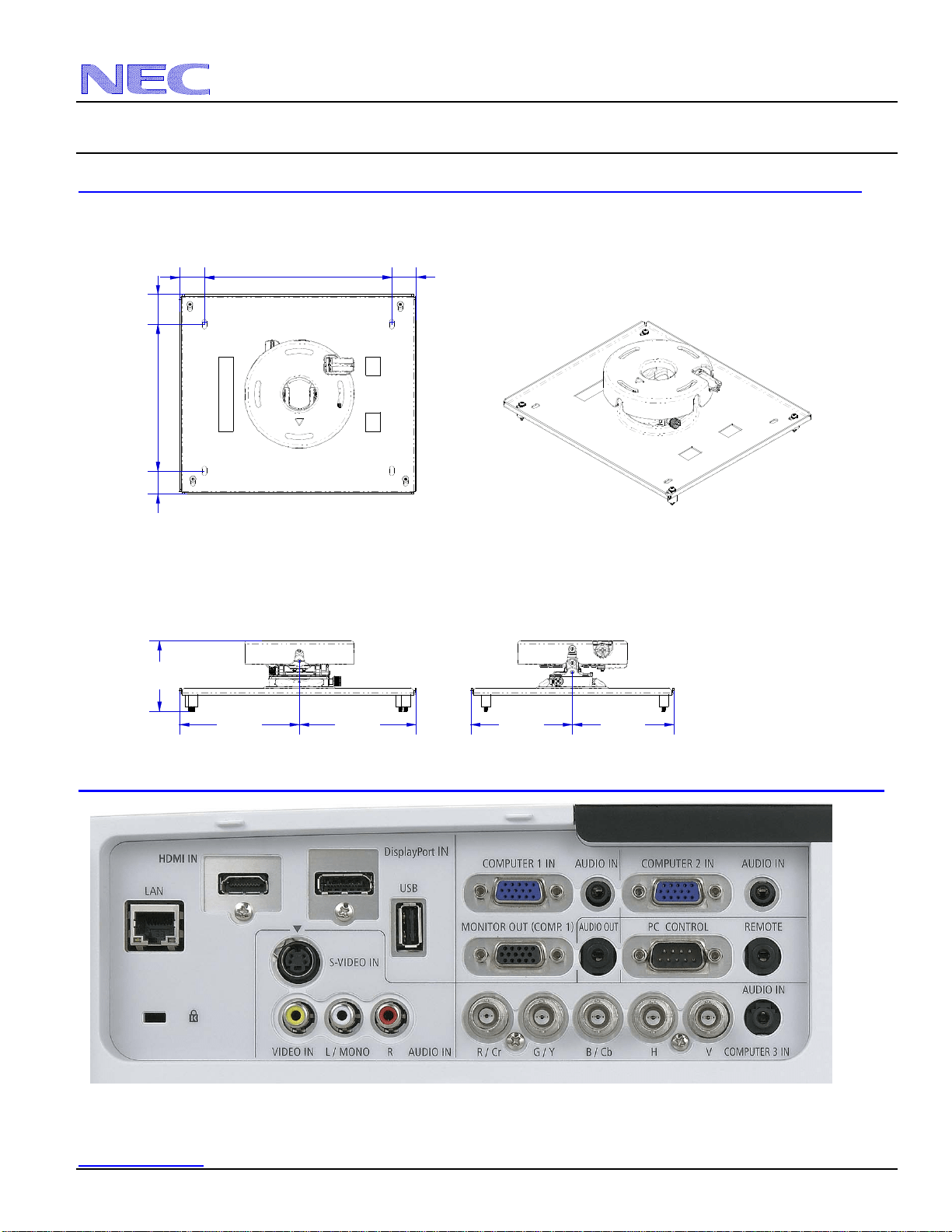

Ceiling Mount Dimensions and Input Panel
Pg 12
Control Codes
Pg 13
Product Description
Type: 3 panel LCD projector, Dimensions: 19.7”(W) x 6.5”(H) x 14.4”(D)
0.79 p-Si TFT w/MLA (PA500X/PA600X)
0.75 p-Si TFT w/MLA (PA550W) Weight: PA500X/550W/600X: 17.0 lbs
0.76 p-Si TFT w/MLA (PA500U) PA500U: 17.2 lbs.
Resolution: 1024 x 768 (4:3) Brightness: PA500X: 5000 Lumens
1920 x 1200 (16:10) PA500U: 5000 Lumens
PA550W: 5500 Lumens
Fan Noise: PA500X: 38 dB / 31dB @ 1 meter PA600X: 6000 Lumens
PA500U: 38 dB / 32dB @ 1 meter
PA550W: 38 dB / 31dB @ 1 meter
PA600X: 38 dB / 31dB @ 1 meter
Power Consumption: PA500X/PA550W: 464W (max) BTU’s: PA500X/PA550W: 1583 BTU/hour
PA600X: 464W (max) PA600X: 1583 BTU/hour
PA500U: 477W (max) PA500U: 1628 BTU/hour
Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP11FL: Throw Ratio: ~ 0.8:1 Focal Length: 13.2mm NP14ZL: Throw Ratio: 2.97 -4.79:1 Focal Length: 48.5 - 77.6mm
Screen Sizes: 60”-150” F/#:2.3 Screen Sizes: 60” - 200” F/#:2.2
NP12ZL: Throw Ratio: 1.19 - 1.56:1 Focal Length: 19.4 – 25.3mm NP15ZL: Throw Ratio: 4.70 - 7.02:1 Focal Length: 76.6 - 116.5mm
Screen Sizes: 40” - 200” F/#:2.2 _________ Screen Sizes: 80” - 200” F/#:2.2
NP13ZL: Throw Ratio: 1.50 - 3.02:1 Focal Length: 24.4 – 48.6mm
Screen Sizes: 40” - 200” F/#:1.7
Screen/Aspect Ratio
4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table..
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
