User Manual

For LAUNCH HD3.

PDF File Manual, 3 pages, Read Online | Download pdf file

LAUNCH HD3 photo
Diagnostic socket
(For connecting the diagnostic cable.)
DC-IN power jack
Displays the working status of the HD III. t is defined as
follows:
I
1. Vehicle: While the HD III is communicating with the
vehicle, the indicator lights up and flashes. Otherwise,
it will not illuminate.
2. Power: It illuminates solid red when is
powered on.
3. BT: Blue indicates is working in BT
communication mode.
4. I/O: It lights up when is connected to the
diagnostic tool via data cable.
5. Wireless: It lights up when works as a WLAN
hotspot or network adaptor.
the HD III
the HD III
the HD III
the HD III
LED Indicators
HD III
(Collects vehicle data)
(Sends the vehicle data to scan tool)
(For connecting the power adaptor or cigarette lighter/battery clamps
cable to obtain power.
Scan Tool
(For analyzing vehicle
data and indicating the
test results.)
Data I/O port
(For connecting it to the scan tool to perform vehicle diagnosis.)
Vehicle
Power
BT
I/O
Wireless
Vehicle
Diagnostic Cable
To connect the HD III
to the vehicle’s DLC.
Battery Clamps Cable
To supply power to the HD III
through connection to vehicle’s
battery.
OBD-16 Adaptor
16-pin J1962 adaptor for use
with heavy-, light and medium-
duty trucks.
HYUNDAI-16 Adaptor
16-pin adaptor for use with
HYUNDAI trucks.
Data Cables
Choose the corresponding
data cable and connect the HD
III and scan tool to perform
vehicle diagnosis.
Type II OBD-9 Adaptor
9-pin Deutsch adaptor for use
with vehicles covering 1998 to
present Class 4-8 heavy-duty
OEM.
AC Power Adaptor
To supply power to the HD III
through AC outlet.
BENZ-14 Adaptor
14-pin adaptor for use
Mercedes Benz trucks.
IVECO-38 Adaptor
38-pin adaptor for use IVECO
trucks.
IVECO-30 Adaptor
30-pin adaptor for use IVECO
trucks.
MAN-12 Adaptor
12-pin adaptor for use MAN
trucks.
Password Envelope
A piece of paper bearing S/N
and Activation Code, which is
needed for your registration.
Cigarette Lighter Cable
To supply power to the HD III
through connection to cigarette
lighter receptacle.
MITSUBISHI-12+16 Adaptor
The captive adaptor for use
Mitsubishi/Fuso trucks.
MAN-37 Adaptor
37-pin adaptor for use MAN
trucks.
OBD-6 Adaptor
Standard 9-pin Deutsch adaptor
for most heavy-duty vehicles.
Covers 1995 to present Class 4-
8 heavy-duty OEM.
Cables & Accessories
The following cables and accessories are only for reference. For detailed accessory items, please consult from the local agency or check the package list supplied with together.the HD III
EU Declaration of Conformity
FCC Statement
How does it work with the diagnostic tool?
Vehicle
Power
BT
I/O
Wireless
VOLVO-8 Adaptor
8-pin adaptor for use with Volvo
trucks.
RENAULT-12 Adaptor
12-pin adaptor for use with
Renault trucks.
CAT-9 Adaptor
9-pin Deutsch adaptor for
connecting to Caterpillar
engines.

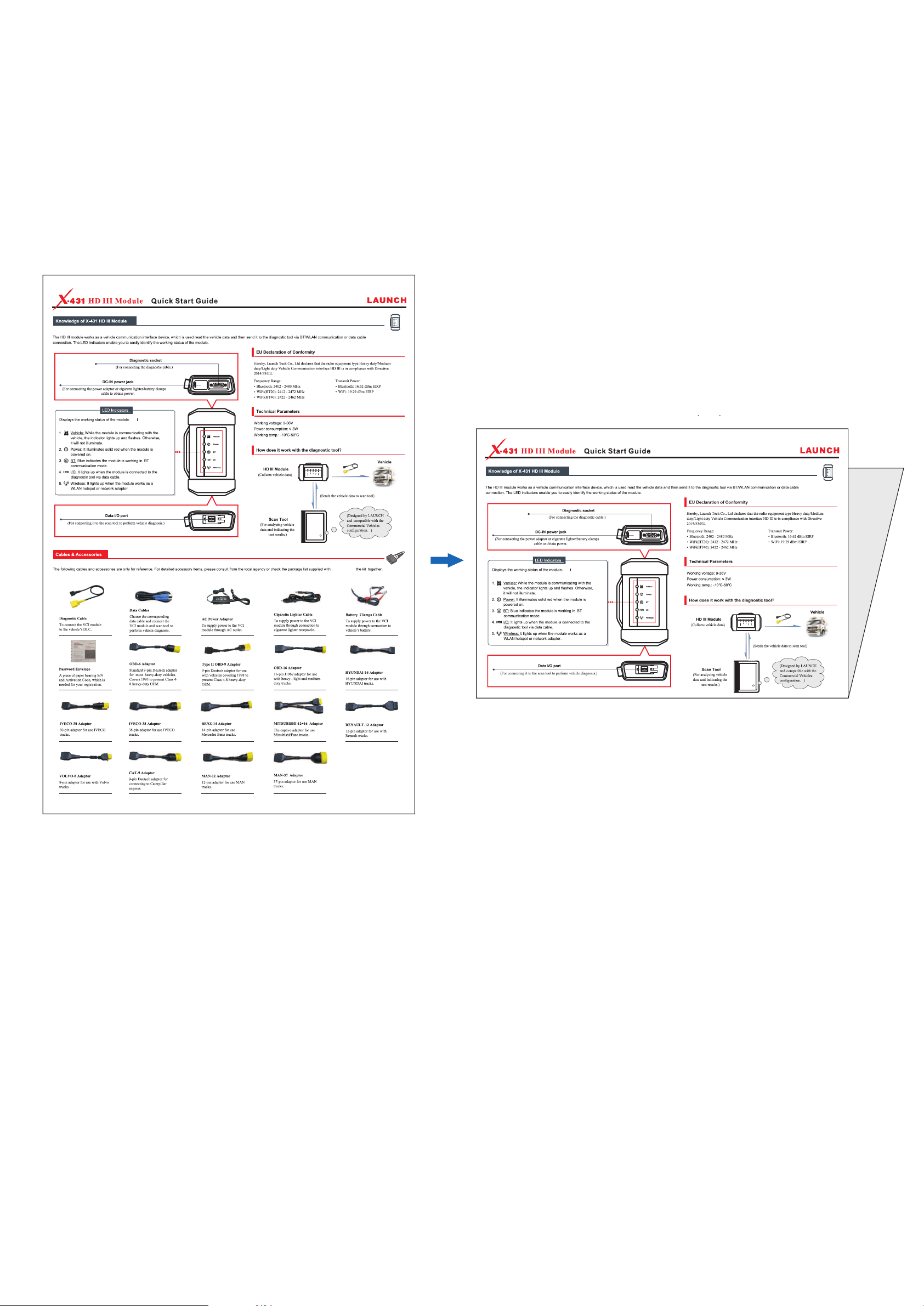

Knowledge of HD III
The HD III works as a vehicle communication interface device, which is used read the vehicle data and then send it to the diagnostic tool via BT/WLAN communication or data cable connection.
The LED indicators enable you to easily identify the working status of the HD III.
Vehic le
Powe r
BT
I/O
Wire less
Frequency Range:
Bluetooth: 2402 - 2480 MHz
WiFi(HT20): 2412 - 2472 MHz
WiFi(HT40): 2422 - 2462 MHz
Hereby, Launch Tech Co., Ltd declares that the radio equipment type Heavy duty/Medium
duty/Light duty Vehicle Communication interface HD III is in compliance with Directive
2014/53/EU.
Transmit Power:
Bluetooth: 16.62 dBm EIRP
WiFi: 19.29 dBm EIRP
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
(Designed by LAUNCH
and
)
compatible with the
Commercial Vehicles
configuration.
Heavy duty/Medium duty/Light duty Vehicle Communication Interface HD III
