Suzhou Cleva Electric Appliance Co., Ltd.
NO.8 Ting Rong Street 215122 Suzhou, China
Replacement Filters &
Accessories available at:
Vacmaster.com
FOR YOUR SAFETY
Read and understand this manual before use.
Keep this manual for future reference.
5 Gallon
Model No.
VOC508S 1102
Operator’s Manual
Wet/Dry Vacuum
Wet/Dry Vacuum / 5 Gallon
3
TABLE OF CONTENTS
WARRANTY
Warranty .......................................................................................................................................
Important Safety Instructions ........................................................................................................
Double Insulation Instructions ......................................................................................................
Extension Cords ...........................................................................................................................
Symbols ........................................................................................................................................
Unpacking & Checking Carton Contents ......................................................................................
General Assembly Instructions .....................................................................................................
Dry Vacuum Operation .................................................................................................................
Liquid Vacuum Operation .............................................................................................................
Blower Operation ..........................................................................................................................
Maintenance .................................................................................................................................

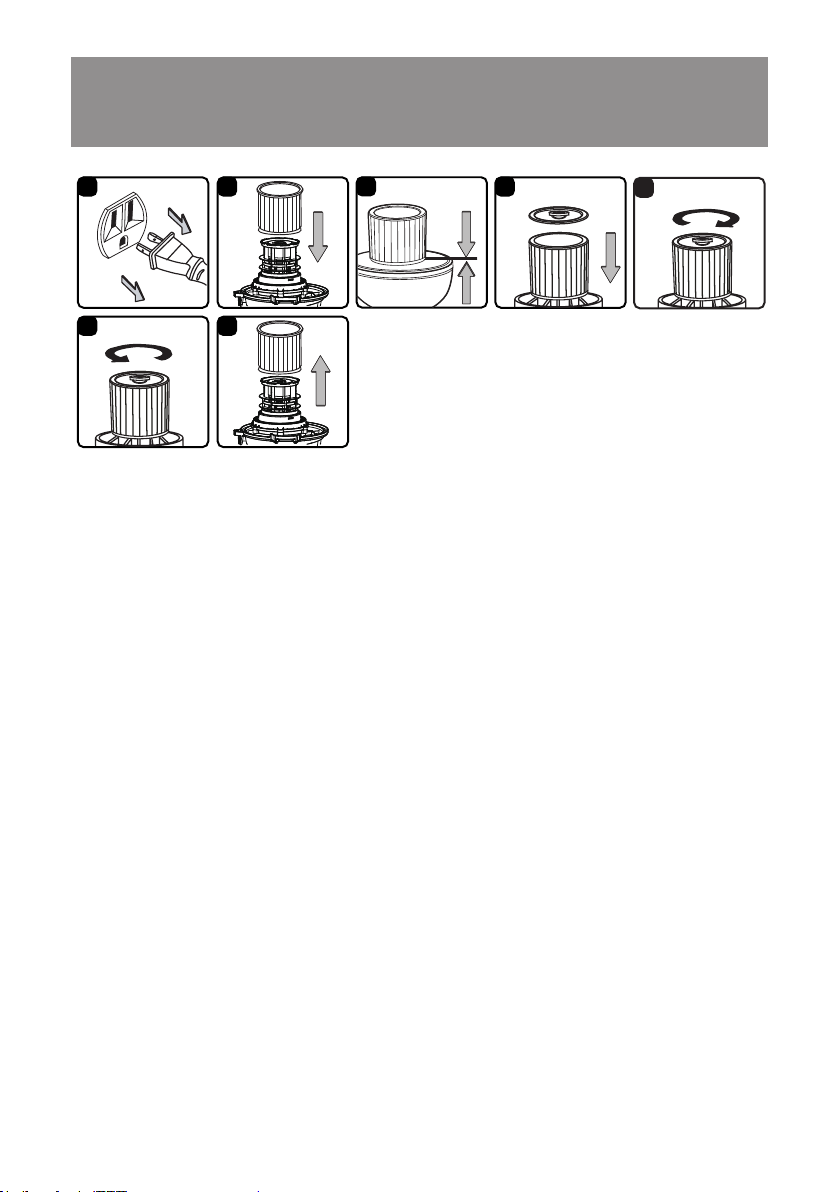

Installing & Cleaning Cartridge Filter ............................................................................................

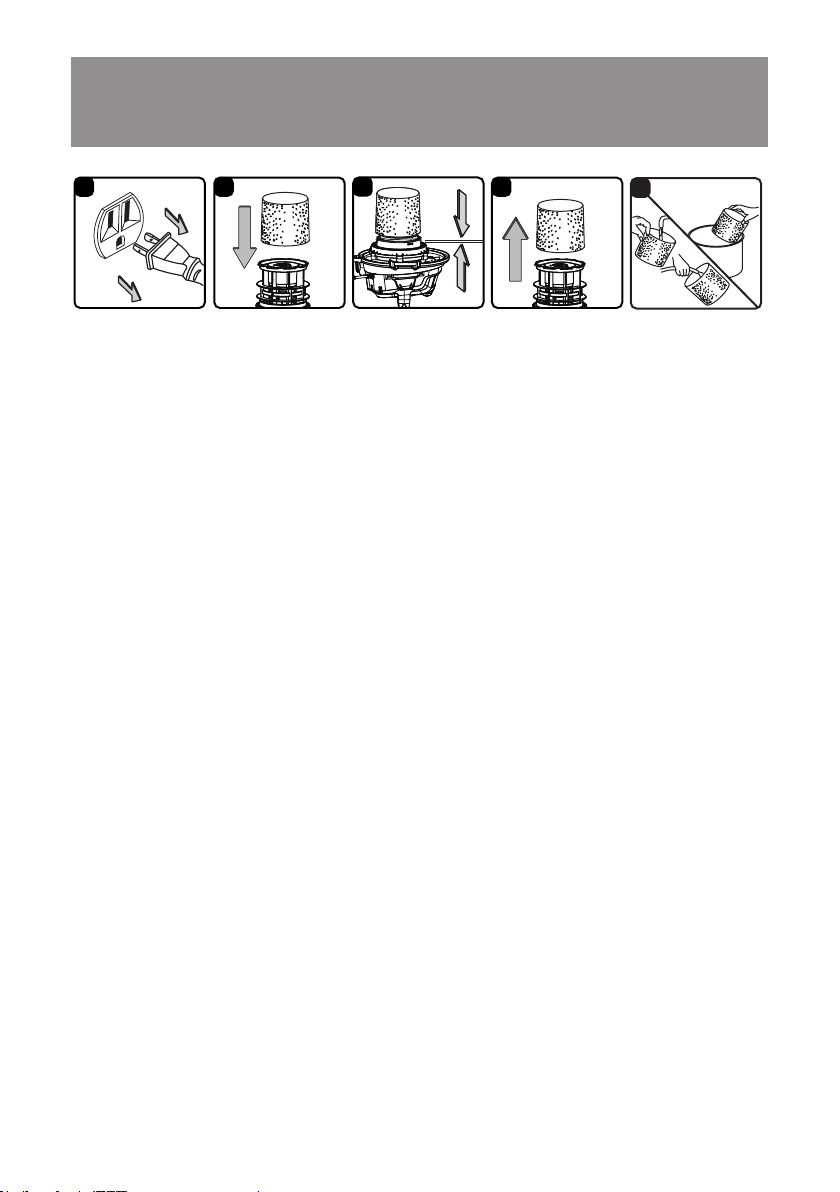

Installing & Cleaning Foam Wet Filter ..........................................................................................
Troubleshooting ............................................................................................................................

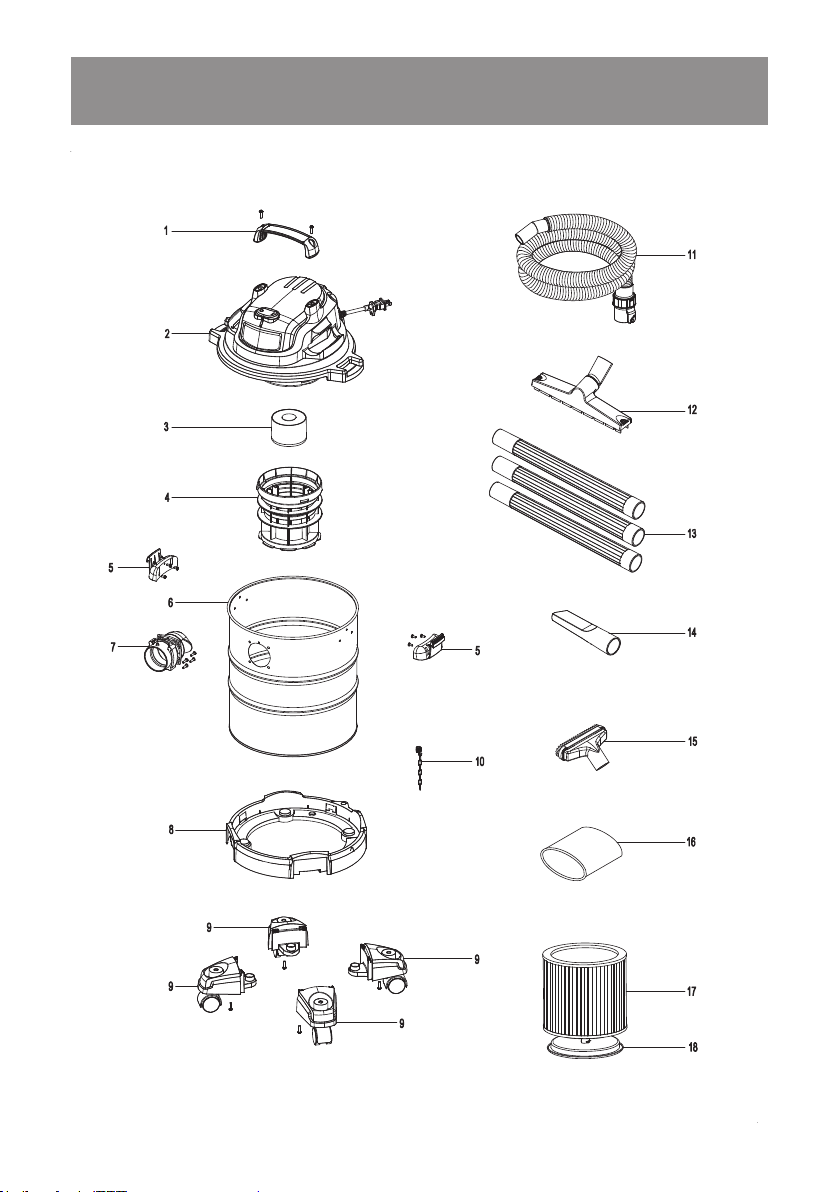

Exploded View ..............................................................................................................................
Parts List.......................................................................................................................................
3
4
5
6
6
7
8
9
10
12
13
14
15
16
17
18
SECTION PAGE
Thank you for purchasing this Vacmaster
®
wet/dry vacuum cleaner. Feel condent that with
Vacmaster
®
you are obtaining a high quality product engineered for optimal performance.
This vacuum is capable of picking up liquids and dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
We take pride in producing a high quality, durable product. This Vacmaster
®
product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial, or rental use, a
90 day limited warranty will apply. Please keep your receipt as proof of purchase. This warranty
gives you specic legal rights, and you may have other rights, which vary from state to state. For
customer service please call 1-866-384-8432.
Not Covered by Warranty:
• Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,
improper maintenance, repairs, or alterations;
• Consumables such as lters and accessories;
• Normal wear and tear of parts and attachments, such as hose, nozzles, or casters;
• Normal deterioration of the exterior nish due to use or exposure;
• Any product where serial number/data label is tampered with or removed;
• Any product purchased from an unauthorized retailer.
4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE.
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS VACUUM.
Read and understand this operator’s manual and all labels on the Wet/Dry Vacuum cleaner before
operating. Safety is a combination of common sense, staying alert and knowing how your vacuum
works. Use this Wet/Dry Vacuum only as described in this manual. To reduce the risk of personal
injury or damage to your Wet/Dry Vacuum, use only manufacturer recommended accessories.
When using a vacuum, basic precautions should always be followed including the
following.
Failure to follow the warnings and instructions may result in explosion, re and/
or serious injury.
• Do not run vacuum unattended.
• Do not use to pick up ammable or combustible liquids, such as gasoline, or use in areas where
they may be present.
• Do not vacuum, or use this vacuum near ammable liquids, gases, or explosive vapors like
gasoline or other fuels, lighter uids, cleaners, oil-based paints, natural gas, hydrogen, or
explosive dusts like coal dust, magnesium dust, grain dust, or gun powder. Sparks inside the
motor can ignite ammable vapors or dust.
• To reduce the risk of health hazards from vapors or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not expose to rain. Store indoors.
• If vacuum is not working as it should, has been dropped, damaged, left outdoors, or dropped
into water, return it to a service center.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord or plug.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around
sharp edges or corners.
• Keep cord away from heated surfaces.
• Do not run the vacuum over cord.
• Do not handle plug or vacuum with wet hands.
• Do not use without dust bag and/or lters in place.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or
cleaning lter.
• Do not leave vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off all controls before unplugging.
• Unplug before connecting or disconnecting hose, or any other accessories.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint,
hair, and anything that may reduce air ow.
• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• This vacuum is provided with double insulation. Use only identical replacement parts. DOUBLE
See DOUBLE INSULATION INSTRUCTIONS.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:
CAUTION:
To reduce the risk of injury from moving parts - Unplug before servicing.
5

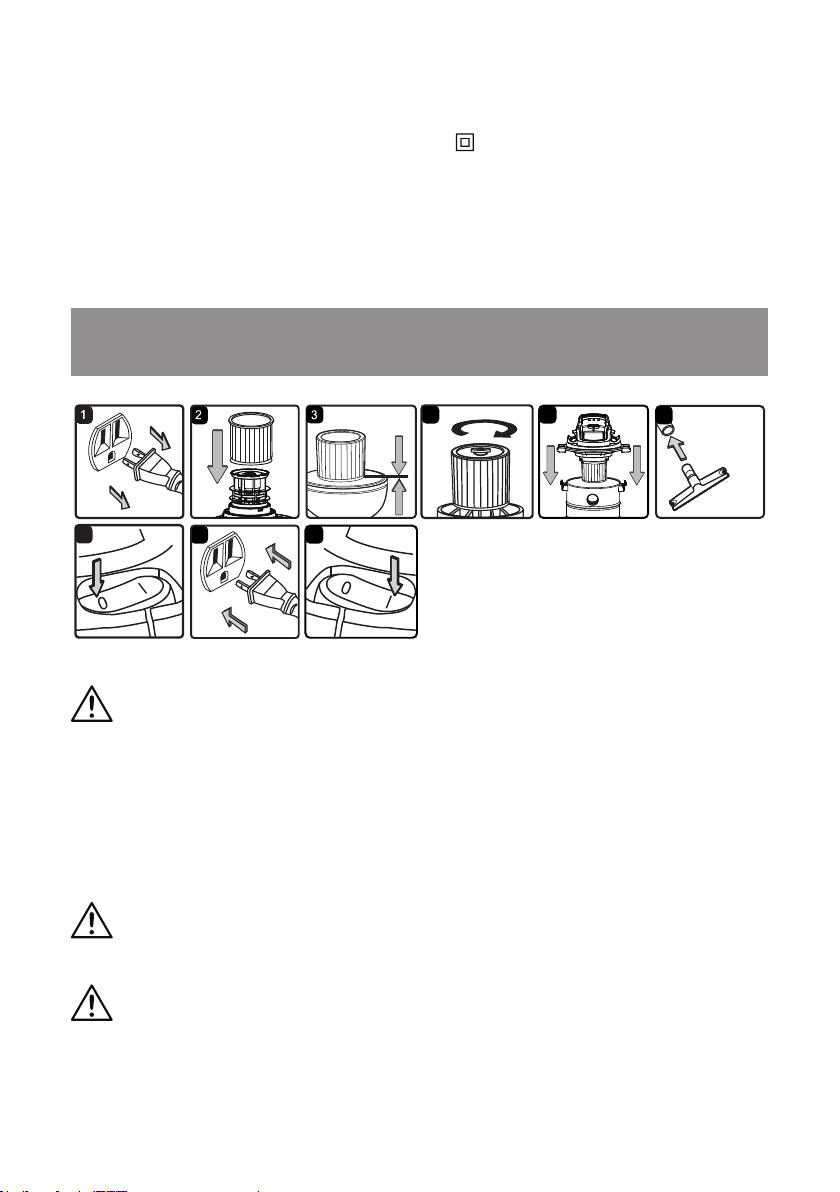

DOUBLE INSULATED - GROUNDING NOT REQUIRED - WHEN SERVICING USE
ONLY IDENTICAL REPLACEMENT PARTS.
DOUBLE INSULATION INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system.
Use only identical replacements parts. Read the instructions for Servicing Double- Insulated Wet/
Dry Vacuums before servicing. Use this vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your vacuum.
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK - DO NOT EXPOSE TO
RAIN. STORE INDOORS.
WARNING:
FOR YOUR OWN SAFETY, READ AND UNDERSTAND THE OPERATOR’S
MANUAL. DO NOT RUN UNATTENDED. DO NOT PICK UP HOT ASHES, COALS, TOXIC,
FLAMMABLE OR OTHER HAZARDOUS MATERIALS. DO NOT USE AROUND EXPLOSIVE
LIQUIDS OR VAPORS.
CAUTION:
DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH WITH
STANDARD WET/DRY FILTER. THIS TYPE OF DUST IS VERY FINE WHICH MAY NOT BE
CAPTURED BY THE FILTER AND CAUSE DAMAGE TO MOTOR. WHEN VACUUMING FINE
DUST USE A FINE DUST FILTER (SOLD SEPARATELY).
WARNING:
SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM
WITH A DOUBLE-INSULATED WET/DRY VACUUM, TWO SYSTEMS OF INSULATION ARE
PROVIDED INSTEAD OF GROUNDING. NO GROUNDING MEANS IS PROVIDED ON A
DOUBLE-INSULATED APPLIANCE, NOR SHOULD A MEANS FOR GROUNDING BE ADDED.
SERVICING A DOUBLE INSULATED WET/DRY VACUUM REQUIRES EXTREME CARE AND
KNOWLEDGE OF THE SYSTEM, AND SHOULD BE DONE ONLY BY QUALIFIED SERVICE
PERSONNEL. REPLACEMENT PARTS FOR A DOUBLE-INSULATED WET/DRY VACUUM
MUST BE IDENTICAL TO THE PARTS THEY REPLACE. YOUR DOUBLE-INSULATED WET/
DRY VAC IS MARKED WITH THE WORDS ‘DOUBLE INSULATED’ AND THE SYMBOL
(SQUARE WITHIN A SQUARE) MAY ALSO BE MARKED ON THE APPLIANCE.
WARNING:
To reduce the risk of electric shock - Unplug before cleaning or
servicing.
When using as blower:
• Direct air discharge only at work area.
• Do not use Wet/Dry Vacuum as a sprayer.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Wear safety goggles.
For Household Use Only
6
EXTENSION CORDS
SYMBOLS
When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine
the required A.W.G. wire size. Before using the cleaner make sure the power cord and extension
cord are in good working condition. Make repairs or replacements before using the vacuum
cleaner. Only use extension cords that are rated for outdoor use.
25ft (7.62m) 50ft (15.24m) 100ft(30.48m)
Length of Extension Cord
150ft (45.72m)120V
Ampere rating
More than Not more than
A.W.G. Wire Size
Not recommended
0
6
10
12
6
10
12
16
18
18
16
14
16
16
16
12
16
14
14
14
12
12
The following signal words and meanings are intended to explain the levels of risk associated with
this product.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
NOTICE
(Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
7

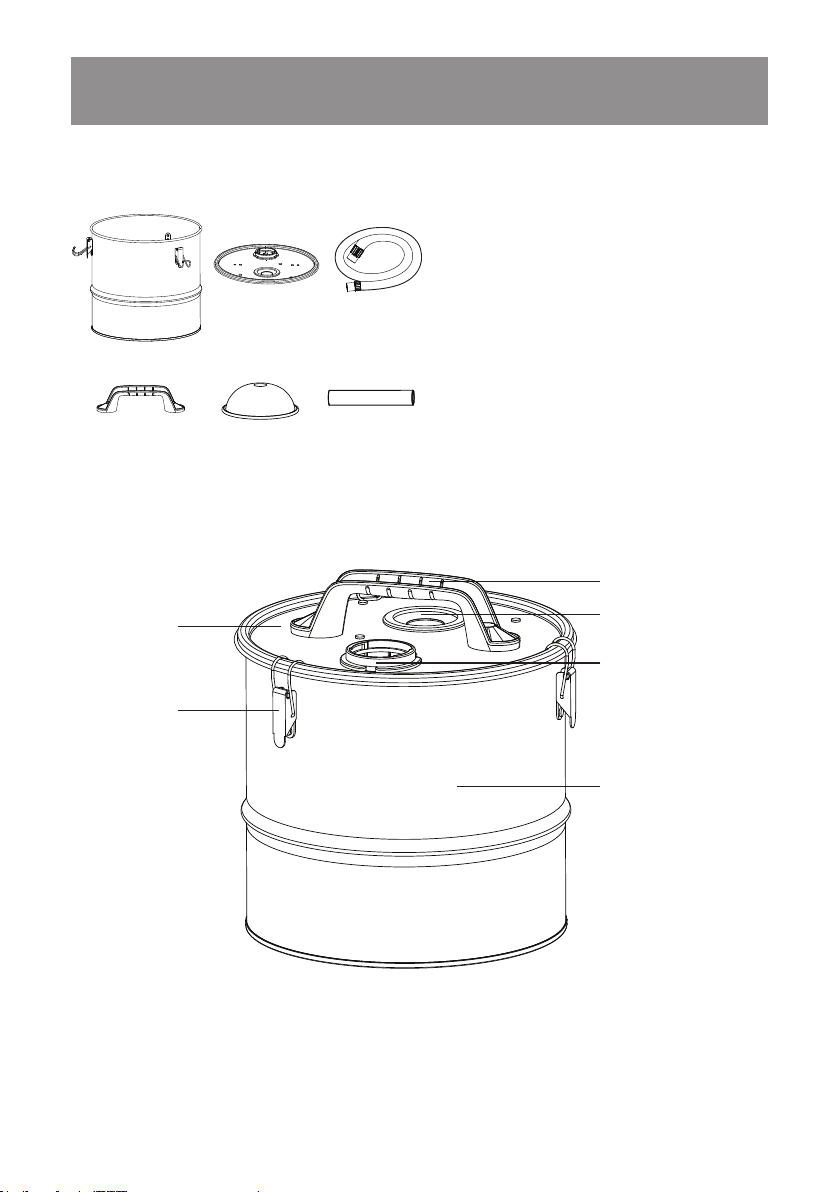

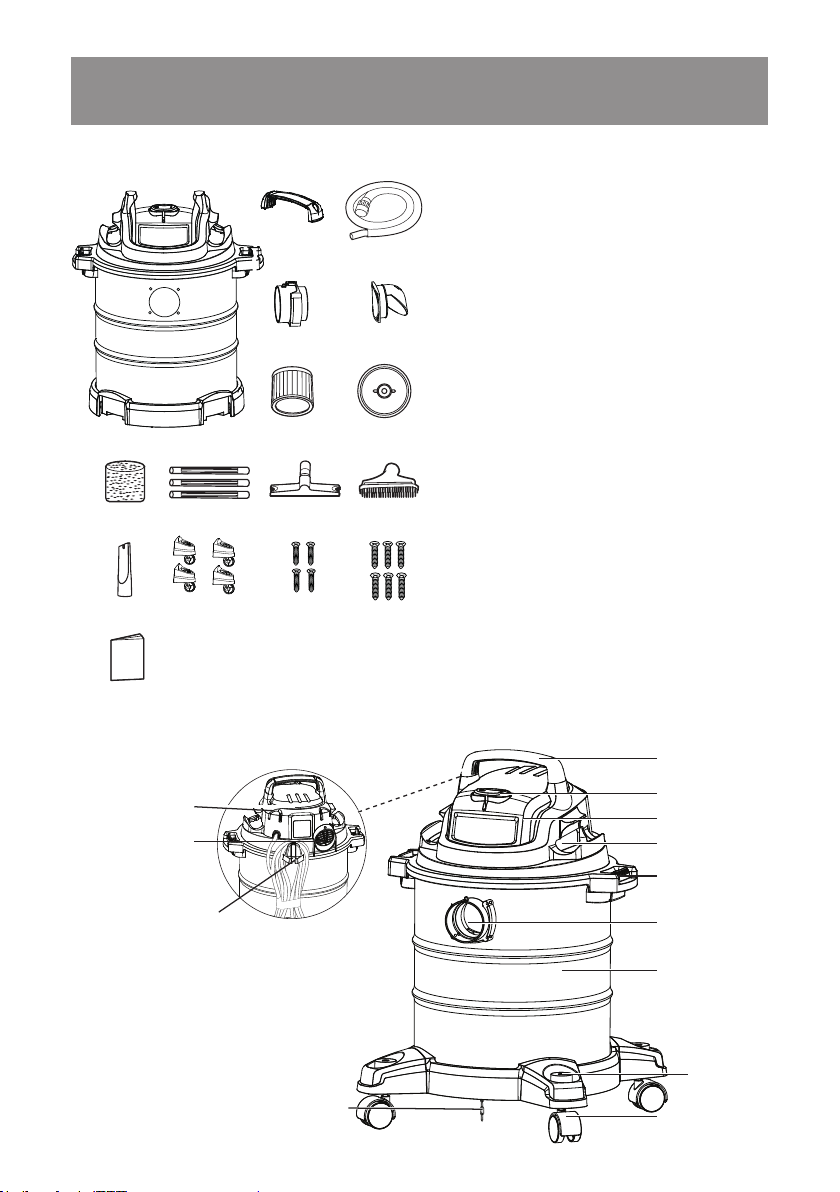

UNPACKING & CHECKING CARTON
CONTENTS
Remove all contents from the box.
Remove the power head and take out any
contents inside the collection tank.
Check each item against the carton
contents list.
NOTE: The hose and accessories for this
vacuum are 1-1/4" (3.2 cm) diameter.
A B C
D E
F
G
H I
J
K
L
M
N
P
O
Carton Contents List
Key
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Handle
On/Off Switch
Hose Storage
Collection Tank
Caster
Blower Port
Accessory
Storage
Power Cord Storage
Anti-static Chain
Power Head
Latch
Accessory
Storage
Vacuum Port
Description................................Qty.
Vacuum Assembly..........................1
Handle ..........................................1
Hose.............................................1
Vacuum Port...................................1
Inlet Port.........................................1
Cartridge Filter...............................1
Filter Retainer................................1
Foam Wet Filter.............................1
Extension Wand.......................3
Floor Brush/Squeegee Nozzle......1
Utility Nozzle..................................1
Crevice Tool...................................1
Caster Foot Assembly....................4
4 Small Screws (Bag).....................1
6 Big Screws (Bag).........................1
Operator’s Manual.........................1
8

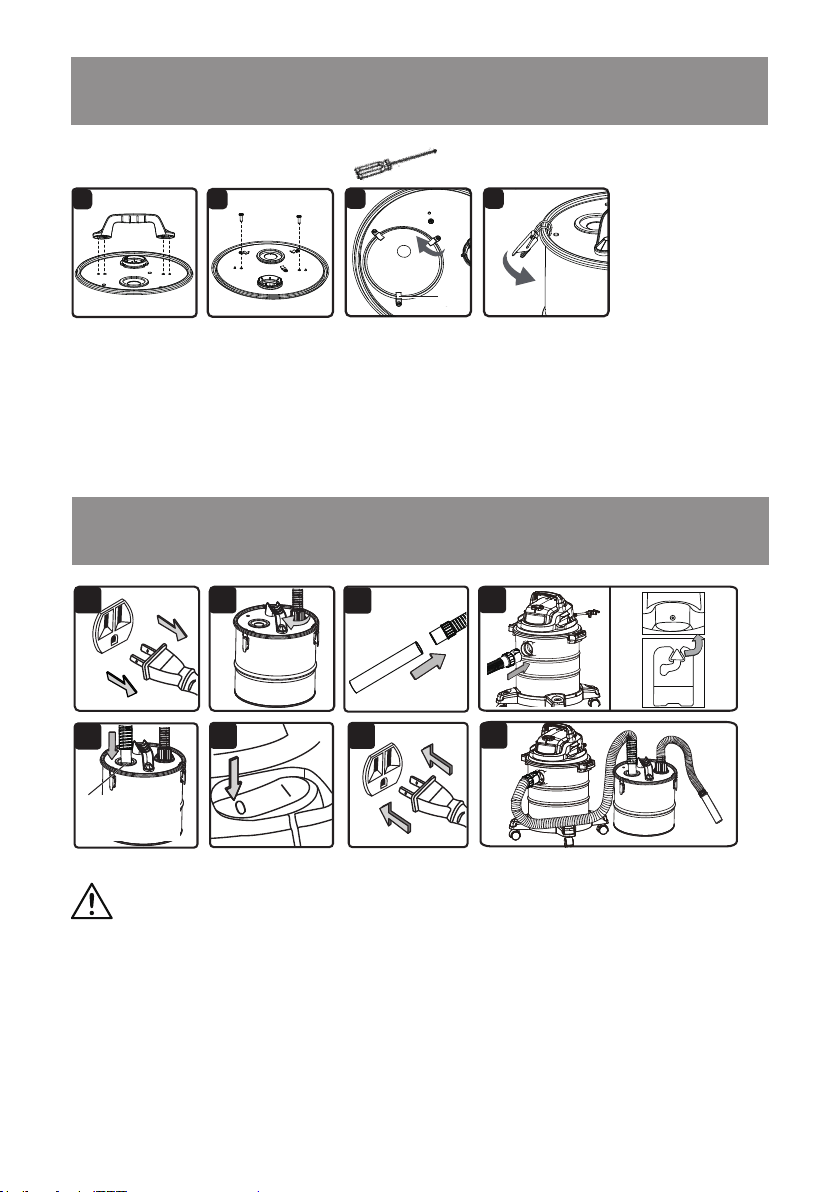

GENERAL ASSEMBLY INSTRUCTIONS
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE ASSEMBLING THE WET/DRY VACUUM. TO
REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE TO RAIN.

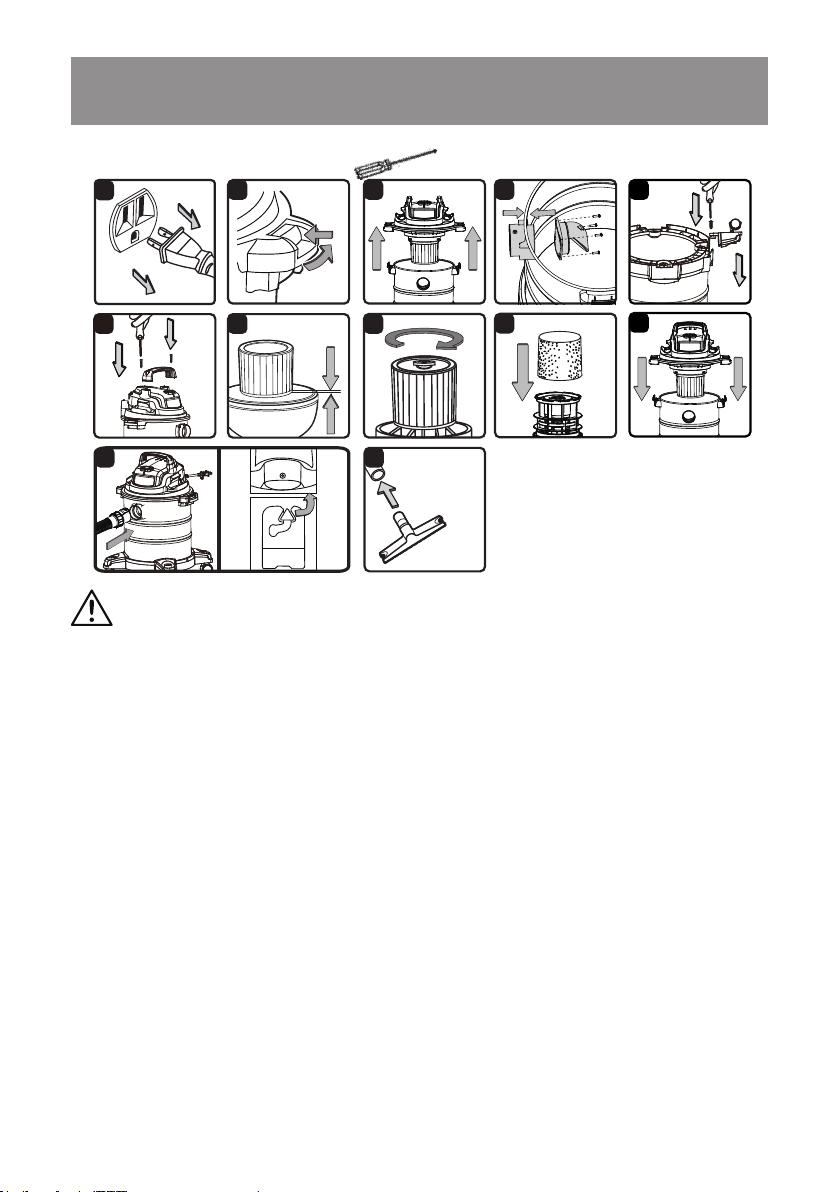

UNPACKING YOUR WET/DRY VACUUM & GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the latches (Fig. 2).
3. Lift the power head off the collection tank (Fig. 3).
4. Remove the contents from inside the collection tank; make sure you have all contents as listed
on page 7.
5. Place the vacuum port on the outside of the tank and the inlet port on the inside of the tank.
Make sure the arrow on the inlet port is aligned with the notch on top of the vacuum port. Align
the screw holes on the vacuum port and inlet port with the screw holes on the collection tank.
Secure the connection with supplied four small screws (Fig. 4).
6. Turn the collection tank upside down and insert the four caster feet into the slots on the
collection tank and tighten with supplied four big screws. Verify that the casters are mounted
correctly. Do not over-tighten screws (Fig. 5).
7. Insert the handle into the slots located on the top of the power head and secure it with two big
screws provided. Do not over-tighten screws (Fig. 6).
8. Your vacuum comes ready for dry vacuum cleaning. If the cartridge lter is not installed, refer
to page 14 for installation instructions (Fig. 7 & 8).
9 For wet vacuum cleaning, remove the cartridge lter, and install the supplied foam wet lter.
See page 15 for the foam wet lter installation instructions (Fig. 9).
10. Place the power head back on the collection tank and secure into place using the latches (Fig.
10).
11. Insert the locking end of the hose into the vacuum port on the collection tank and lock into
place (Fig. 11).
12. Choose the desired attachment and insert onto the end of the hose or extension wand (Fig.
12).
A Philips head screw driver is required.
11
4
9
1
12
6
2
10
3
1
2
7
8
5
Ⅱ
Ⅰ
9
DRY VACUUM OPERATION
DRY VACUUMING
WARNING:
BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR
GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,
DO NOT VACUUM TOXIC MATERIALS.
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.
8 9
54
6
7
CAUTION:
DO NOT VACUUM DRYWALL DUST, FIREPLACE SOOT, OR ASH
WITH STANDARD WET/DRY FILTER. THIS IS A VERY FINE DUST WHICH WILL NOT BE
CAPTURED BY THE FILTER AND MAY CAUSE DAMAGE TO MOTOR. WHEN VACUUMING
FINE DUST USE A FINE DUST FILTER (SOLD SEPARATELY).
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade wider than the
other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet,
reverse the plug. If it still does not t, contact a qualied electrician to install the proper outlet.
Do not change the plug in any way. Double insulation eliminates the need for the three wire
grounded power cord and grounded power supply system.
NOTE: A static discharge chain is attached to the bottom of the collection tank. It is normal for the
chain to drag on to ground. Operating the vacuum in dry conditions can build up static, and the
chain helps dissipate any build-up by allowing a path of least resistance to the ground.
10
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. In order to prepare your vacuum for dry vacuuming, make sure the cartridge lter completely
covers the lter cage against the power head. Your wet/dry vacuum comes with the cartridge
lter pre-installed. For installation instructions, see page 14 (Fig. 2 & 3).
3. Place the lter retainer on the top of the cartridge lter and tighten down by turning the retainer
handle clockwise (Fig. 4).
4. Place the power head back on the collection tank and secure it in place using the latches (Fig. 5).
OPERATING INSTRUCTIONS: DRY VACUUMING
5. Insert the larger end of the hose into the vacuum port on the power head and lock into place.
6. Push the required attachment onto the free end of the hose or extension wand (Fig. 6).
7. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 7 & 8).
8. Turn the motor on by ipping the switch to the ‘I’ ON position and begin vacuuming (Fig. 9).
9. Once you have completed vacuuming, ip the switch to the “O” OFF position and unplug the
power cord from the power outlet.
O = OFF I = ON
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
LIQUID VACUUM OPERATION
6
6
5
7
2
LIQUID VACUUMING
WARNING:
BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION
ENTITLED “IMPORTANT SAFETY INSTRUCTIONS”. DO NOT VACUUM IN AREAS WITH
FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE
GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT
TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
EXPLOSIVE DUSTS INCLUDE BUT ARE NOT LIMITED TO: COAL, MAGNESIUM, GRAIN, OR
GUN POWDER. TO REDUCE THE RISK OF HEALTH HAZARDS FROM VAPORS OR DUST,
DO NOT VACUUM TOXIC MATERIALS.
11
WARNING:
DO NOT PLUG THE POWER CORD INTO A POWER OUTLET. MAKE
SURE THE PLUG IS DISCONNECTED BEFORE CHANGING THE FILTERS.

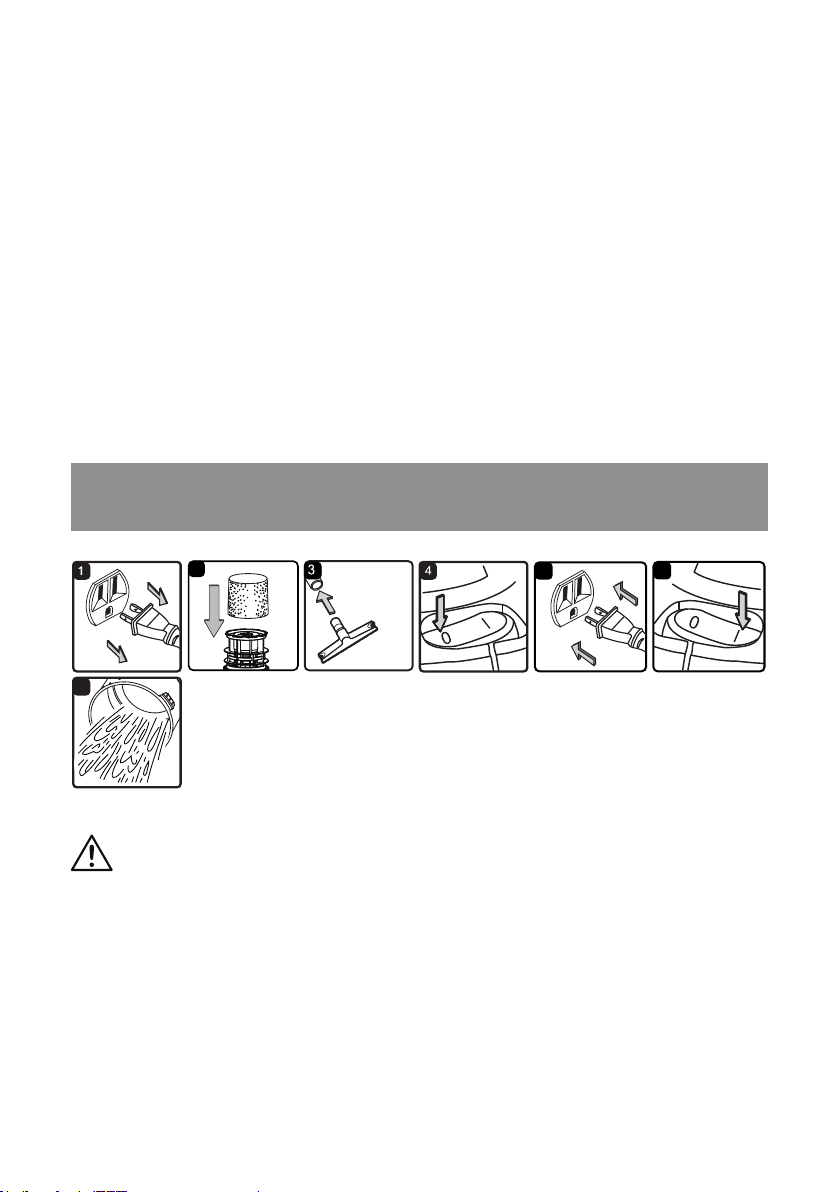

1. Verify that the power cord is disconnected from the outlet. Make sure that the collection tank is
clean and free of dust and dirt (Fig. 1).
2. Remove the cartridge lter, then carefully install the foam wet lter over the lter cage and
place the power head back on the collection tank. For foam wet lter installation instructions,
see page 15 (Fig. 2).
DO NOT USE THE CARTRIDGE FILTER FOR LIQUID VACUUMING.
OPERATING INSTRUCTIONS: WET VACUUMING
3. Push the required attachment onto the free end of the hose or extension wand (Fig. 3).
4. Verify that the switch is in the ‘O’ OFF position before plugging the power cord into the power
outlet. Plug the power cord into the outlet (Fig. 4 & 5).
5. Turn the motor on by ipping the switch to the ‘I’ ON position (Fig. 6).
6. Once you have completed vacuuming, ip the switch to the ‘O’ OFF position and unplug the
power cord from the outlet.
7. After use, empty the collection tank, clean, and dry the inside and outside of the collection tank
(Fig. 7)
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely
in the liquid; leave a gap at the tip of the nozzle opening to allow air inow. The machine is tted
with a oat valve that stops the suction action when the collection tank reaches its maximum
capacity. You will notice an increase in motor speed. When this happens, turn off the machine,
disconnect from power supply, and drain the liquid. To continue vacuuming, replace the drainage
cap. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the
collection tank, clean and dry the inside and outside before storage.
REMEMBER! The foam wet lter must be removed after wet vacuuming and the cartridge lter
must be installed before dry vacuuming again.
12
BLOWER OPERATION
This Wet/Dry Vacuum has blowing capabilities. To use the blower feature follow the instructions
listed.

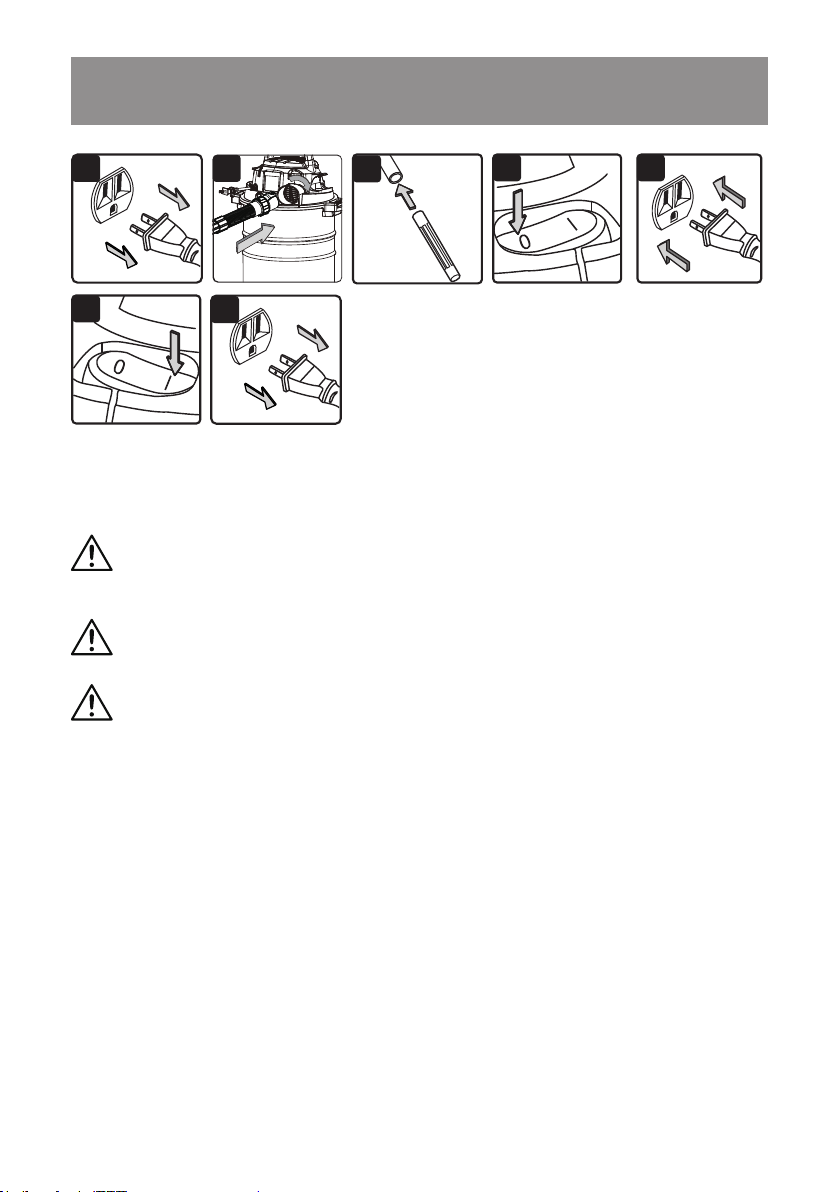

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Make sure the collection tank is empty before using as a blower. Clear all dirt and debris from
the hose and collection tank.
3. Remove the hose from the vacuum port.
4. Insert the larger end of the hose into the blower port on the back of the power head and lock
into place (Fig. 2).
5. Fit the desired attachment onto the hose or extension wand (Fig. 3).
6. Verify that the power switch is in the ‘O’ OFF position before plugging the power cord into the
outlet. Plug the power cord into the outlet (Fig. 4 & 5).
7. Before turning on the vacuum, rmly hold the loose end of the hose. Turn the motor on by
ipping the switch to the ‘I’ ON position (Fig. 6).
8. Once you have completed blowing, ip the power switch to the ‘O’ OFF position and unplug the
power cord from the outlet (Fig. 7).
WARNING:
ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR
IN CANADA, CSAZ94.3) BEFORE USING BLOWER.
WARNING:
WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE
INHALED.
WARNING:
KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
4
3
1
5
6
7
2
13

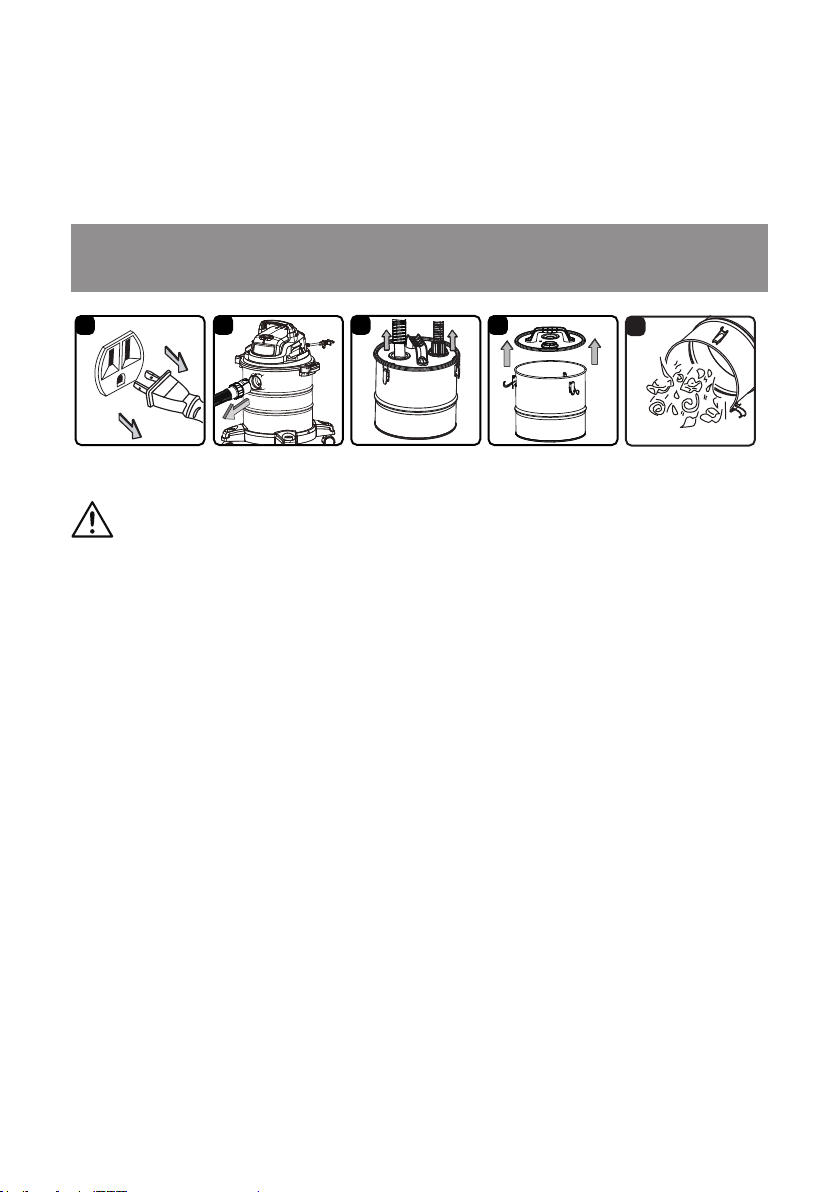

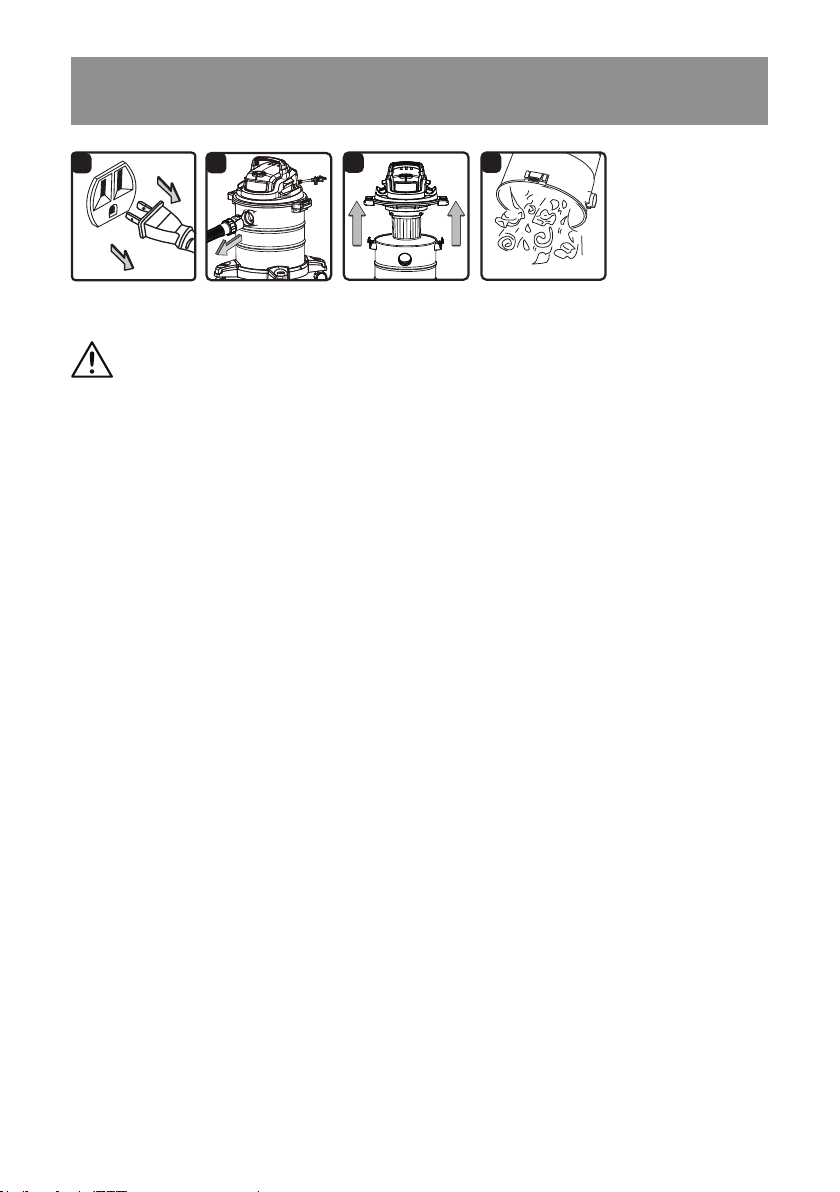

1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the vacuum (Fig. 2).
3. Undo the latches and remove the power head from the collection tank (Fig. 3). Place power
head on a soft, clean surface upside down.
4. Clear all dirt or debris from the collection tank and hose into a proper waste container (Fig. 4).
5. Clean or replace the lters .
6. Check the hose, attachments, and power cord to verify that they have not been damaged.
7. Place power head back on collection tank and secure latches.
IMPORTANT! Clean or change the lter regularly for best performance. ALWAYS USE THE
CARTRIDGE FILTER FOR DRY VACUUMING. If the machine is used without the cartridge lter,
the motor will burn out and the warranty will be voided. Always keep spare lters on hand.
NOTICE! The lters included are made of high quality materials designed to stop small dust
particles. The cartridge lter should be used for dry pick-up only. A dry cartridge lter is necessary
to pick up dust. If the cartridge lter is wet, it will clog quickly and be difcult to clean. Handle the
lter carefully when removing it for cleaning or replacing. Check the lters for tears or small holes.
A small hole can let dust pass through and out of the lter. Do not use a lter with holes or tears in
it; replace it immediately.
STORAGE
Before storing your vacuum, the collection tank should be emptied and cleaned. The accessories
should be cleaned and stored so they can be readily available when needed. Store the wet/dry
vacuum indoors.
REPAIRS
Repairs for this wet/dry vacuum should be performed only by qualied service personnel using
only identical replacement parts.
MAINTENANCE
4
1
3
2
EMPTYING THE COLLECTION TANK
WARNING:
ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET
BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK.
14
INSTALLING & CLEANING CARTRIDGE
FILTER
INSTALLING CARTRIDGE FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the power head and place in an upside down position.
3. Install the cartridge lter over the lter cage making sure the cage is completely covered (Fig. 2
& 3).
4. Place the lter retainer on the top of the cartridge lter over the raised lip and tighten down by
turning the retainer clockwise; do not over-tighten (Fig. 4 & 5).
5. Place the power head back onto the collection tank.
REMOVING & CLEANING CARTRIDGE FILTER
1. Unlock and remove the lter retainer by turning the retainer handle counter clockwise (Fig. 6).
2. With the removed power head in an upside down position, carefully remove the cartridge lter
from the lter cage (Fig. 7).
3. Clean the cartridge lter by gently tapping or brushing dirt off. Cleaning should not be done
indoors in living areas. For optimal performance a new lter is recommended.
4. Install cleaned or new lters as above in steps 2-4 of Installing Cartridge Filter.
5. Allow the wet lter to air dry for 24 hours before installing onto the lter cage.
5
21 4
3
76
15
INSTALLING & CLEANING
FOAM WET FILTER
INSTALLING FOAM WET FILTER
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Remove the power head and place in an upside down position. Follow instructions to remove
the cartridge lter on page 14.
3. Carefully slide the foam wet lter down over the lter cage making sure the cage is completely
covered (Fig. 2 & 3).
4. Place the power head onto the collection tank.
CLEANING FOAM WET FILTER
1. With the removed power head in an upside down position, carefully remove the foam wet lter
(Fig. 4).
2. Use a mild soap and water solution to wash the foam wet lter and rinse with clean water (Fig. 5).
3. Allow the wet lter to air dry for 24 hours before installing onto the lter cage.
21 4
3
5
16
TROUBLESHOOTING
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE
TROUBLESHOOTING.
For assistance with your product, call Customer Service at 1-866-384-8432.
PROBLEM POSSIBLE CAUSE SOLUTION
The wet/dry vacuum will not
operate.
No power supply.
Check power supply, cord,
breakers and fuses..
Faulty power cord.
Unplug and check the power
cord. If damaged, have it
repaired by a professional.
Collection tank is full. Empty the collection tank.
Switch in the wrong position.
Press the ON ‘I’ button on the
power head.
The dust comes out from the
motor cover.
The cartridge lter is missing or
damaged.
Attach or replace the cartridge
lter.
Vacuum has been used to
collect ne dust, such as dry
wall dust, replace soot, or ash,
without a ne dust lter.
Remove the standard cartridge
lter and install the appropriate
ne dust lter.
Reduced efciency and motor/
speed vibration.
There are blockages in the
nozzle, hose, or the collection
tank inlets.
Unplug and check nozzle, hose
and collection tank inlets for
blockages.
The cartridge lter is clogged by
ne dust.
Take off the lter and clean it or
install a new cartridge lter.
17
EXPLODED VIEW
18
PARTS LIST
Part Drawing Number Description Quantity
1 551058101 Handle Assembly 1
2 Power Head Assembly 1
3 551416106 Float 1
4 551437105 Filter Cage 1
5 551086101 Latch Assembly 2
6 Collection Tank 1
7 551016105 Vacuum Port Assembly 1
8 551114104 Base 1
9 551070105 Caster Foot Assembly 4
10 551021121 Anti-static Chain Assembly 1
11 551003108 Hose 1
12 551296103 Floor Brush/Squeegee Nozzle 1
13 551003109 Extension Wand 3
14 551004114 Crevice Tool 1
15 551004113 Utility Nozzle 1
16 551002118 Foam Wet Filter 1
17 551030114 Cartridge Filter 1
18 551437107 Filter Retainer 1
ASH TANK / 3 Gallon
20
TABLE OF CONTENTS
Important Safety Instructions ........................................................................................................
Unpacking & Checking Carton Contents ......................................................................................
General Assembly Instructions .....................................................................................................
Dry Vacuum Operation .................................................................................................................
Maintenance .................................................................................................................................
Exploded View ..............................................................................................................................
Parts List.......................................................................................................................................
21
22
23
23
24
25
26
SECTION PAGE
Thank you for purchasing this Vacmaster
®
ash tank. Feel condent that with Vacmaster
®
you are obtaining a high quality product engineered for optimal performance. This ash tank
is capable of picking up dry materials.
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS.
21
IMPORTANT SAFETY INSTRUCTIONS
Please also read the operating instructions of your vacuum cleaner before using this device and
pay particular attention to the safety instructions detailed below.
In addition to the information contained in the operating instructions, you must also comply with all
statutory regulations and provisions relating to safety and the prevention of accidents.
• Only vacuum cold ashes of a nontoxic nature. This ash tank is particularly suitable for
vacuuming: cold ashes from replaces, pellet stoves, and grills.
• Do not vacuum hot, burning, or glowing objects (e.g. cigarettes, charcoal, ashes, etc.).
• The temperature of any vacuumed material must be below 104°F (40°C). If the temperature of
the vacuumed material exceeds 104°F (40°C), there is a risk of re.
CAUTION:
Vacuuming materials, which appear to have cooled down, may still be very
hot inside. Hot ash particles may ignite with airflow. Wait until the fire is extinguished and the
ashes have cooled down before you begin cleaning. It is not recommend to quickly extinguish the
re with water. Please make sure that ashes are cold before you vacuum. Temperature exceeding
104°F (40°C) may damage the vacuum cleaner and the ash tank.
It is not recommended to extinguish re in replaces or stoves with water. The stone, metal or
other construction material may not withstand sudden variations in temperature and could become
permanently damaged.
Continuously check hose, ash tank, and vacuum cleaner for excessive temperatures during
operation. If you notice a temperature rise, switch off the vacuum cleaner immediately and
disconnect it from the power outlet. Take the vacuum outside and remove the power head.
Remove the vacuumed material from the ash tank. Let vacuum and ash tank cool down under
supervision.
CAUTION:
Excessive temperatures can damage, the ash tank or the vacuum
cleaner.
CAUTION:
Excessive temperature can cause a risk of re in the vacuum cleaner.
Always empty the ash tank after completing your work.
22
UNPACKING & CHECKING CARTON
CONTENTS
Remove all contents from the box.
Remove the power head and take out any
contents inside the collection tank.
Check each item against the carton
contents list.
A
B
C
D
F
E
Carton Contents List
Key
A
B
C
D
E
F
Handle
Connection Port for
Wet/Dry Vac Hose
Tank
Ash Tank Metal
Hose Port
Latch
Tank Cover
Description................................Qty.
Ash Tank Assembly.........................1
Tank Cover.....................................1
Metal Hose..............................1
Handle Assembly............................1
Ash Filter........................................1
Aluminum Wand.............................1
23
GENERAL ASSEMBLY INSTRUCTIONS
1. Remove the two provided screws from the handle. Insert the handle of ash tank into the slots
located on the top of the tank cover and secure it with the screws as shown. Do not over-
tighten screws (Fig. 1 & 2).
2. Clip the ash lter onto the underside of the ash tank hose port with two xed clips, and rotate
the third movable clip to secure in place (Fig. 3).
3. Place the tank cover on the tank and secure into place using the latches (Fig. 4).
A Philips head screw driver is required.
4
1
3
2
DRY VACUUM OPERATION
6
3
1
7
5
8
2
4
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Insert the locking end of the ash tank hose into the ash tank hose port and turn it clockwise to
secure (Fig. 2).
3. Insert the aluminum wand into the end of the ash tank hose (Fig. 3).
4. Insert the locking end of the wet/dry vac hose into the vacuum port on the collection tank and
lock into place (Fig. 4).
DRY VACUUMING
WARNING:
WHEN CONNECTED TO A VACUUM CLEANER, THIS ASH TANK
IS DESIGNED TO COLLECT COLD ASH OR COARSE RESIDUAL MATERIAL FROM
FIREPLACES, PELLET STOVES, AND GRILLS.
NOTE: THIS ASH TANK IS DESIGNED TO BE USED TO IN CONJUNCTION WITH THE
VACUUM CLEANER.
Clip
Connection Port
for the Hose of
Vacuum Cleaner
24
5. Insert the end of the wet/dry vac hose into the connection port on the tank cover (Fig. 5).
6. Verify that the switch of the vacuum cleaner is in the ‘O’ OFF position before plugging the power
cord into the power outlet. Plug the power cord into the outlet (Fig. 6 & 7).
7. Turn on the vacuum cleaner by ipping the switch to the ‘I’ ON position and use the aluminum
wand to collect the ash (Fig. 8).
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the vacuum (Fig. 2).
3. Disconnect the wet/dry vac hose and the ash tank hose from the connection ports on top of the
tank cover (Fig. 3).
4. Undo the latches and remove the tank cover from the tank (Fig. 4). Place tank cover on a soft,
clean surface upside down.
5. Empty and clean the tank after every use. Use water to clean the tank and allow to dry before
using again (Fig. 5).
Do not use cleaning agents or solvents. Never use combustible cleaning agents.
MAINTENANCE
21 4
3
5
EMPTYING THE ASH TANK CONTAINER
WARNING:
ALWAYS DISCONNECT THE PLUG FROM THE POWER OUTLET
BEFORE REMOVING THE POWER HEAD FROM COLLECTION TANK.
25

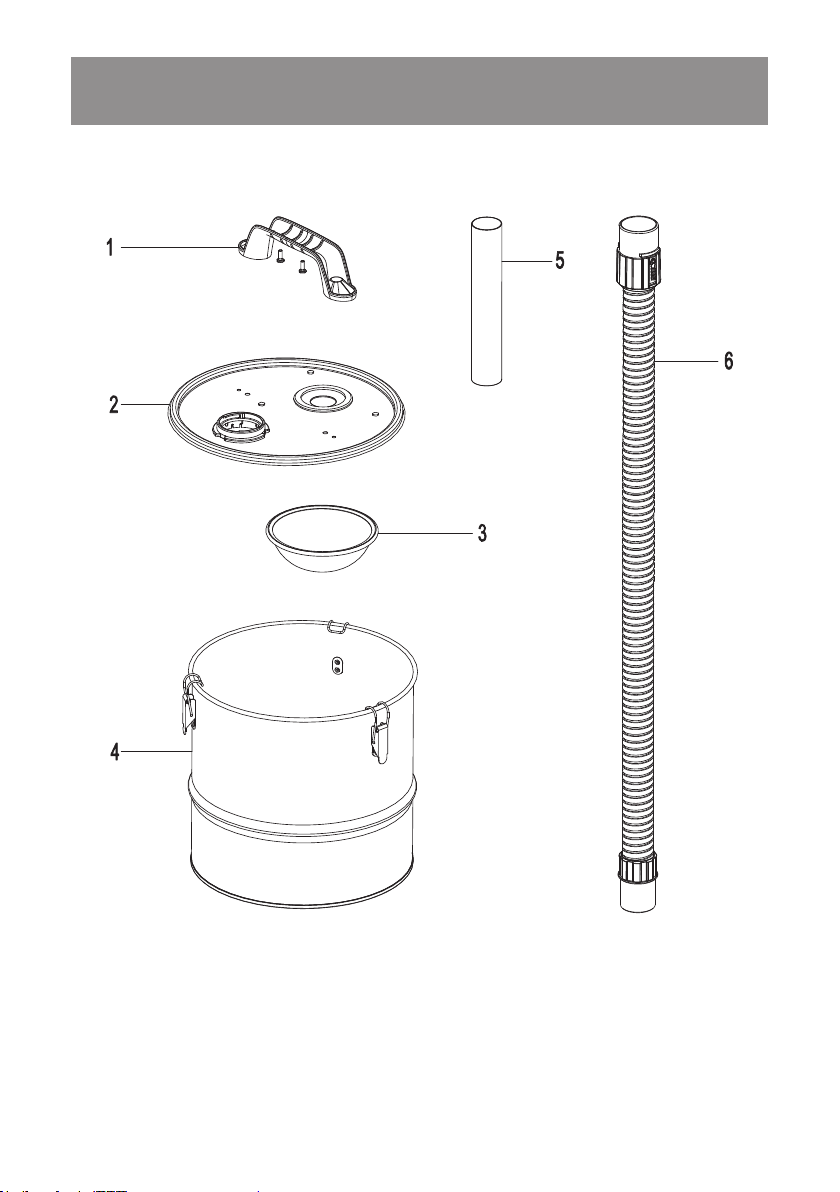

EXPLODED VIEW
26
PARTS LIST
Part Drawing Number Description Quantity
1 551632101 Handle Assembly 1
2 551632102 Tank Cover 1
3 551166101 Ash Filter 1
4 Ash Tank Assembly 1
5 551029113 Aluminium Wand 1
6 551029112 Metal Hose 1
