Free-Standing Bathtub
Installation Instructions
Model # EMPV-59FT002
Distributed by Empava Appliances Inc.
15253 Don Julian Rd,
City of Industry, CA 91745
United States
www.empava.com
2
Contents
1. Product Drawing ................................................................................ 3
2. Installation Steps ................................................................................ 4
3. Cleaning and maintenance tips .......................................................... 4
4. Caution .............................................................................................. 5
3

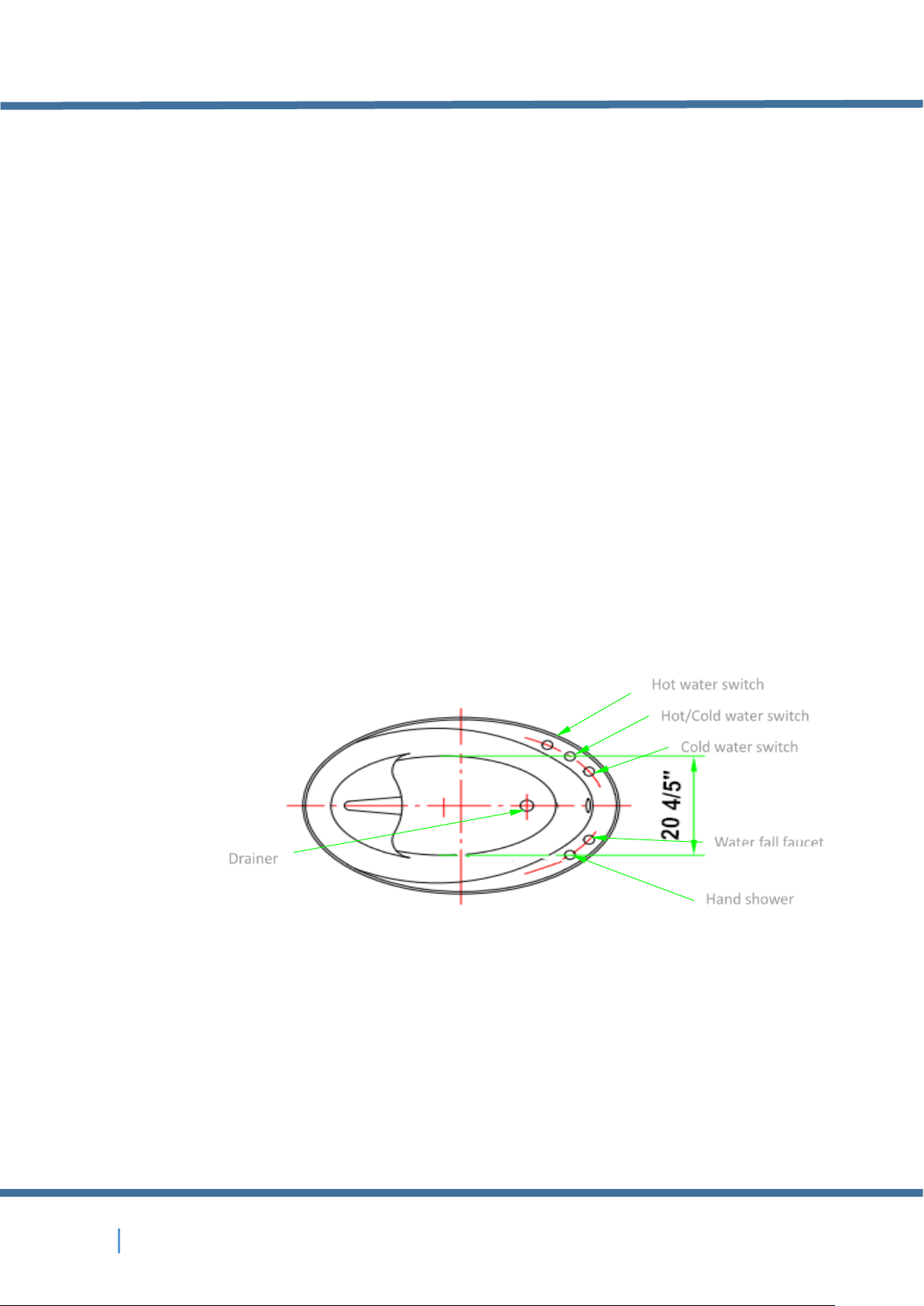

1. Product Drawing
Remark: acrylic bathtub is a kind of plastic products, physical objects and
dimensional drawing may have ±20mm of deviation.
Hot water switch
Hot/Cold water switch
Cold water switch
Water fall faucet
Hand shower
Drainer
4
2. Installation Steps
2-1. Remove the Bath from the carton.
Ensure the Bath does not come into contact with rough surfaces.
Rough surfaces will scratch your Bath.
Always ensure that the Bath is placed on cardboard or carpets during installation.
Place the Bath in position for installation.
2-2. Adjust the feet make sure the Bath is level.
Only if the Bath is level will all water drain to the waste outlet. Please ensure legs are
adjusted in line with the base of bath. Check the sits flat.
2-3. Connect the Bath to the waste outlet.
2-4. Finally, you need to do a final test for drainage.
Ensure that the thin masking plastic adhered to your bath during manufacture has
been removed. Fill the Bath with water and check that ALL the water flows freely to
the waste outlet.
A small amount of water may pool owing to surface tension.
2-5. Apply a thick layer of silicon sealant around the bath outline allow it set 24
hours.
This installation guide, the installation of waste connection should be only suitably by
qualified person.
3. Cleaning and maintenance tips
3-1. In time to clean.
To clean convenient, it is suggested that immediately wash the bath after taking a
bath. This time will be expanded easily to remove dirt and soapsuds, after a long time
will accumulate in the tub wall and difficult to remove, especially in places where hard
5
water quality in high calcium content, after a long time will form macular at the
bottom of the tub wall and faucet.
3-2. Cleaning method.
Use soft cloth with neutral detergent or soap water.
3-3. Some attentions.
It is strictly prohibited to use sharp objects or hard clean tool friction bath, in order
to avoid scratch the bath surface, away from open flame, high temperature bulb,
cigarette butts etc., so as not to burn the bath surface, Avoid the use of the paint,
varnish removal agent such as acetone and chloroform organic volume, this organic
volume may cause the bath surface to soften, dissolve or crack. The whole tub
cannot stay in sealed temperature higher than 70- degrees centigrade for long time.
the tubs soak in high concentration of salt water. high concentration hydrochloric
acid water. Otherwise, it would layer bulge, even the bulge would break.
3-4. Self-curing.
If there any cut or scratch because of careless. Please coated car polish or metal
polishing agent on the surface of the injured, with soft cloth to wipe a few times
harder, if the scratch is deep, can use 1000# water sandpaper remove the scratched,
and then use the above method to be polished it get bright surface.
4. Caution
4.1. Note the skid.
4.2. Children must use under adult guardianship. Invalid should use under the
professional help.
4.3. Drunk, patients high blood pressure or heart disease use with caution. If any
uncomfortable, please come out immediately.
