IMPORTANT NOTICE:
Read through and fully understand this manual
before installing or operating your new air
conditioning unit. Be sure to store this manual
for your convenient future reference.
This manual only describes the outdoor
unit of the system. For detailed information on the
indoor unit, refer to the indoor unit’s user manual.
•
•
MULTI-SPLIT SYSTEM AIR CONDITIONER / HEAT PUMP
Owner’s
Manual
YN-M Series
Inverter++ Models
Two, Three, Four, and Five Zones
(Dual, Triple, Quad, and Quint Multi)
Unit Parts and Major Functions ......................... 05
Manual Operation and Maintenance .............. 09
Table of Contents
Owner’s Manual
SAFETY
FIRST
Safety Precautions .................................................... 04
1
2
3
Page 3
Troubleshooting................................. 10
a. Common Problems ................................. 10
b. Troubleshooting Tips ............................... 11
European Disposal Guidelines.............................................................. 12
4
5
Page 4
Thank you for your purchase of this air conditioner. This manual will provide you with information on
how to operate, maintain, and troubleshoot your air conditioner. Following the instructions closely will
ensure the proper function and extended lifespan of your unit.
Please pay attention to the following signs:
Safety Precautions
1
WARNING
• Have an authorized dealer install this air
conditioner. Inappropriate installation may
cause water leakage, electric shock, or fire.
• The warranty will be voided if the unit is not
installed by professionals.
• If abnormal situations arise (such as burning
odors), turn o the power supply and call
your dealer for instructions to avoid electric
shock, fire or injury.
•
DO NOT
let the indoor unit or the remote
control get wet. It may cause electric shock
or fire.
•
DO NOT
insert fingers, rods, or other
objects into the air inlet or outlet. This could
cause injury, since the fan may be rotating
at high speeds.
•
DO NOT
use a flammable spray such as
hair spray, lacquer, or paint near the unit.
This may cause fire or combustion.
CAUTION
General
Introduction
•
DO NOT touch the air outlet while the swing
flap is in motion. Fingers may get injured
or the unit may break down.
•
DO NOT inspect the unit by yourself. Ask an
authorized dealer to perform the inspection.
•
To prevent product deterioration, do not use
the air conditioner for preservation purposes
(storage of foods, plants, animals, works of
art, etc.).
Failure to observe a warning may result in death. The appliance must be
installed in accordance with all national regulations.
.
Failure to observe a caution may result in injury or equipment damage.
WARNING
CAUTION
•
DO NOT place items that might be aected
by moisture damage under the indoor unit.
Condensation can occur at a relative
humidity of 80%.
•
DO NOT
expose heat-producing appliances
to cold air or place them under the indoor
unit. This may cause incomplete combustion
or deformation of the unit due to the heat.
• After long periods of usage, check the
indoor unit to see if anything is damaged. If
the indoor unit is damaged, it may fall and
cause injury.
• If the air conditioner is used together with
other heating devices, thoroughly ventilate
the room to avoid oxygen deficiency.
•
DO NOT
climb onto or place objects on top
of the outdoor unit.
•
DO NOT
operate the air conditioner when
using fumigant insecticides. The chemicals
may adhere to inner parts of the the unit
and endanger those who are hypersensitive
to chemicals.
•
DO NOT
let children play with, or near, the air
conditioner.
•
This air conditioner can be used by children aged
8 years and older, as well as people with reduced
physical, sensory, or mental capabilities, or lack
of experience and knowledge, if they have been
given proper instruction on how to properly and
safely operate the system.
•
DO NOT
operate the air conditioner in highly
humid spaces (e.g. bathroom or laundry room).
This can cause electrical shock, and cause the
product to deteriorate.
Safety
Precautions
•
DO NOT operate the air conditioner with
wet hands. It may cause electric shock.
•
DO NOT touch the evaporator coils inside
the indoor unit. The evaporator coils are
sharp and can cause injury.
Page 5

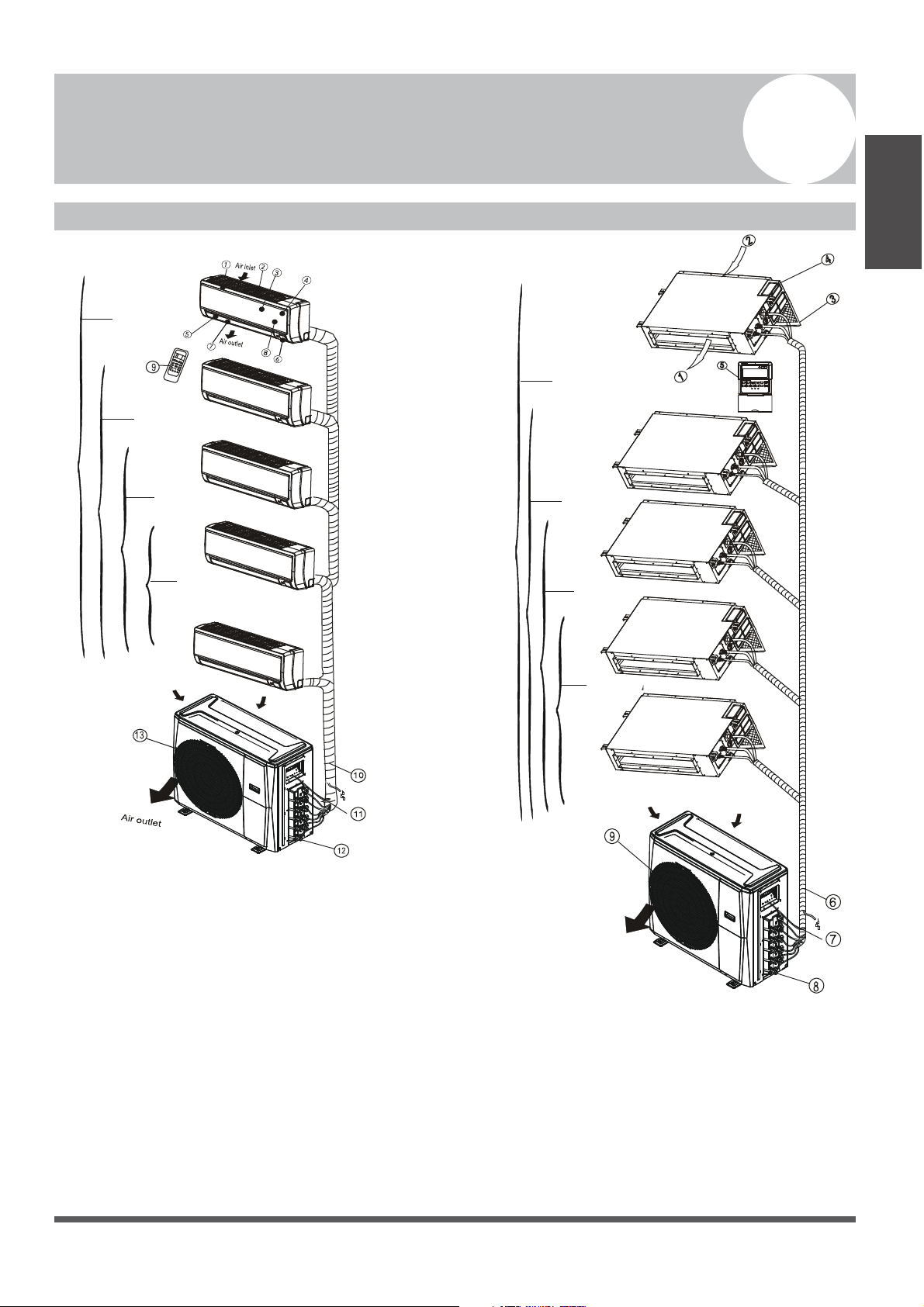

Unit Parts And Major Functions
2
Unit Parts
Fig. 2.1
Fig. 2.2
Unit Parts
And Major
Functions
Wall-mounted type
Duct / Ceiling type
Indoor unit
1. Panel frame
2. Rear air intake grille
3. Front panel
4. Air Purifying lter & Air lter (behind)
5. Horizontal louver
6. LCD display window
7. Vertical louver
8. Manual control button (behind)
9. Remote controller holder
Outdoor unit
10. Refrigerant connecting piping
11. Connective cable
12. Service valve
13. Fan grill
Indoor unit
1. Air outlet
2. Air inlet
3. Air lter
4. Electric control box
5. Wired controller
Outdoor unit
6. Refrigerant connecting piping
7. Connective cable
8. Service valve
9. Fan grill
Unit Parts
And Major
Functions
Five Zone
(Quint)
Four Zone
(Quad)
Three Zone
(Triple)
Two Zone
(Dual)
Five Zone
(Quint)
Four Zone
(Quad)
Three Zone
(Triple)
Two Zone
(Dual)
Fig. 2.3
Page 6
Unit Parts
And Major
Functions

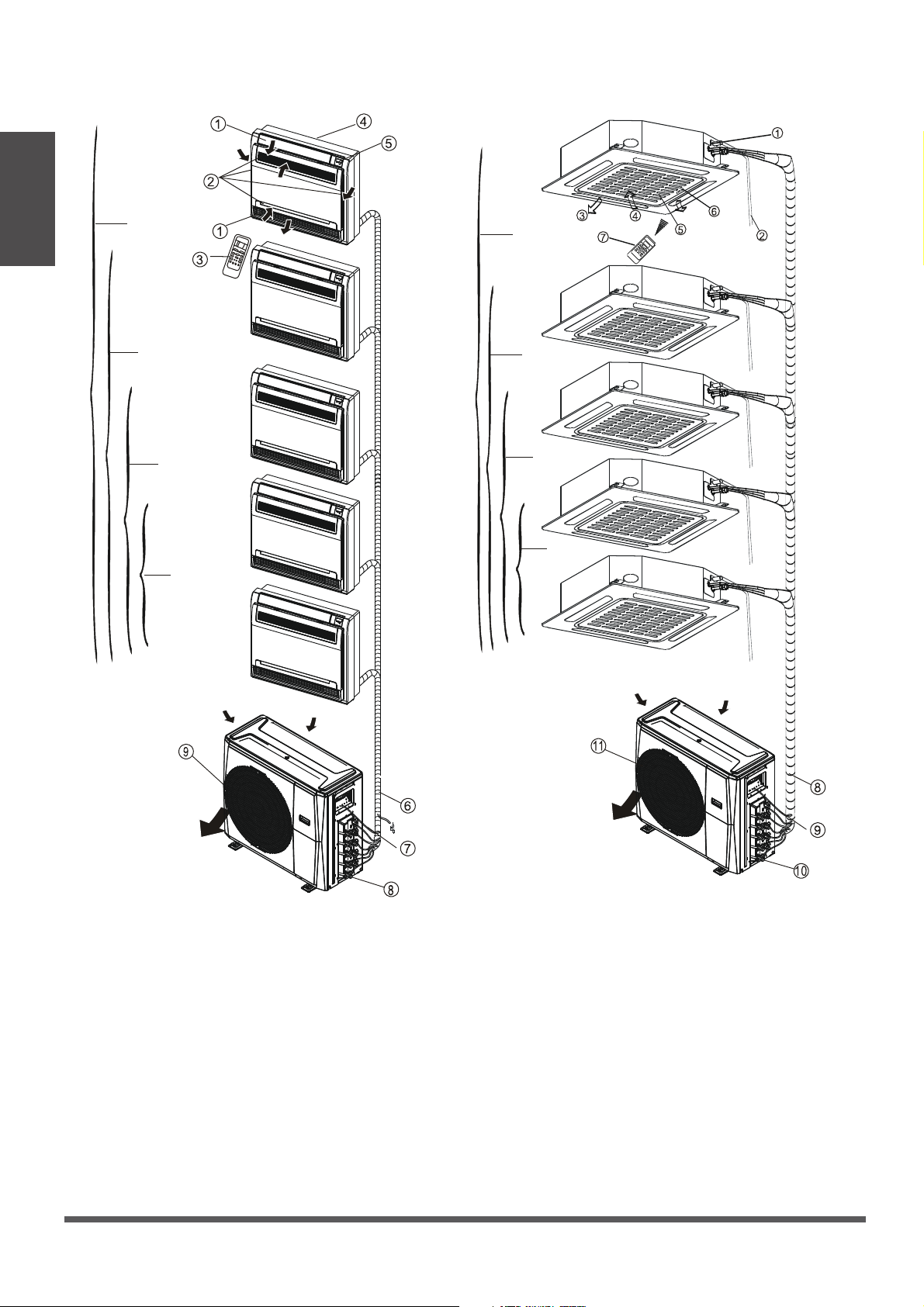

Floor and standing type(console) Compact four-way cassette type
Indoor unit
1. Air ow louver (at air outlet)
2. Air inlet(containing air lter)
3. Remote controller
4. Installation panel
5. Display panel
Outdoor unit
6. Refrigerant connecting piping
7. Connective cable
8. Service valve
9. Fan grill
Fig. 2.4
Indoor unit
1. Drain pump(condensate removal pump)
2. Drain hose
3. Air outlet
4. Air inlet
5. Return air grill
6. Display panel
7. Remote controller
Outdoor unit
8. Refrigerant connecting piping
9. Connective cable
10. Service valve
11. Fan grill
Five Zone
(Quint)
Four Zone
(Quad)
Three Zone
(Triple)
Two Zone
(Dual)
Five Zone
(Quint)
Four Zone
(Quad)
Three Zone
(Triple)
Two Zone
(Dual)
Operating Conditions
Operate the system under the following temperatures for safe and eective operation. If the air
conditioner is used under dierent conditions, it may malfunction or become less ecient.
COOL Mode HEAT mode DRY mode
Indoor
Temperature
17-32°C
(62-90°F)
0-30°C
(32-86°F)
17-32°C
(62-90°F)
Outdoor
Temperature
0-50°C
(32-122°F)
-15-24°C
(5-76°F)
0-50°C
(32-122°F)
Unit Parts
And Major
Functions
Page 7
Features
Protections of the air conditioner:
a. Compressor Protection
• The compressor will not restart for 3 minutes
following an o cycle or for initial start.
b. Draft-Prevention Mode (Warm-Start Mode)
• The indoor unit fan is designed to not start in
HEAT mode, when the indoor heat exchanger
is in one of the following four situations, and
the set temperature has not been reached:
A) When heating has just begun.
B) During defrosting.
C) Low temperature heating.
D) Indoor heat exchanger is not warm yet.
• The indoor or outdoor fans stop running when
defrosting, in order to speed up the defrost cycle.
c. Defrosting (automatically handled as needed)
• Frost will accumulate on the outdoor unit coils
during a heat cycle when outdoor temperature
is low and humidity is high, resulting in lowered
heating eciency and performance.
• Under these conditions, the air conditioner will
stop heating operations and will automatically
begin defrosting for a brief period.
• The time to defrost may vary from 4 to 10
minutes, depending the outdoor temperature
and the amount of frost buildup on the
outdoor unit heat exchangers.
d. Auto-Restart (can be user deactivated)
In case of power failure, the system will
immediately stop. When power returns, the
operation light on the indoor unit will flash. To
restart the unit, press the ON/OFF button on the
remote control. If the system has the auto-restart
function enabled, the unit will restart with the
same settings without any action (by default).
White mist may emerge from the indoor unit
• White mist may be generated, due to a large
temperature dierence between the air inlet and
air outlet, in COOL mode in places with high
relative humidity.
• White mist may also be generated due to moisture
created in the defrosting process, when the air
conditioner restarts in HEAT mode operation
after defrosting.
Noise coming from your air conditioner
• You may notice a low hissing sound when the
compressor is running, or has just stopped
running. This sound is the eect of the
refrigerant owing or coming to a stop.
• You may also hear a low "squeaking" sound
when the compressor is running, or has just
stopped running. This is caused by heat
expansion and cold contraction of plastic
parts in the unit due to changing
temperatures.
• A noise may be heard due to the louver
restoring itself to its original position when
the power is rst turned on.
Dust blowing out from the indoor unit.
This is happens when the air conditioner has not
been used for a long time or during its rst use.
Smell emitting from the indoor unit.
This is caused by the indoor unit giving o smells
permeated from building materials, furniture,or
smoke.
NOTE: For multi-split type air conditioners, one outdoor unit can be matched with other types of
indoor units of various dierent styles, as well as those with similar capacities, within the same system.
Your system may be slightly dierent in shape. The following pages introduce several kinds
of indoor units that can be matched with the multi zone outdoor units.
•
•
Unit Parts
And Major
Functions
Page 8
Energy Saving Tips
•
DO NOT
set the unit to excessive temperature levels.
• While cooling, close the curtains in order to avoid direct sunlight.
• Doors and windows should be kept closed so as to keep cool or warm air in the room.
•
DO NOT
place objects near the air inlet or outlet of the unit.
• Set a timer and use the built-in SLEEP/ECONOMY mode if applicable.
• If you do not plan to use the unit for a long time, remove the batteries from the remote control.
• Clean the air filter every two weeks.
• Adjust louvers properly and avoid direct airflow toward people, animals, or plants.
The air conditioner turns to FAN-ONLY
mode from COOL or HEAT (for cooling and
heating models only) mode.
When the indoor temperature reaches the set
temperature setting, the compressor will stop
automatically, and the air conditioner shifts to
FAN-ONLY mode. The compressor will start again
when the indoor temperature rises on COOL
mode, or falls on HEAT mode, to the set point.
Droplets of water may form on the surface of
the indoor unit when cooling during relatively
high humidity (dened as higher than 80%).
Adjust the horizontal louver to the maximum air
outlet position, and select HIGH fan speed.
Heating mode (for cooling and heating
models only)
The air conditioner draws in heat from the
outdoor unit and releases it via the indoor unit
during heating. When the outdoor temperature
falls, heat drawn in by the air conditioner
decreases accordingly. At the same time, heat
loading of the air conditioner increases due to
larger dierence between indoor and outdoor
temperature. If a comfortable temperature
cannot be achieved with the air conditioner
alone, it is recommended that you use a
supplementary heating device.
Lightning or a wireless devices operating
nearby may cause the unit to malfunction.
Disconnect the unit from its power source and
then re-connect the unit with the power source
again. Push the ON/OFF button on the remote
controller to restart operations.
Closing curtains during heating also
helps to keep the heat in
Doors and windows should be kept
closed as much as possible
Inverter models will adjust their refrigeration
capacities automatically based on actual room
loads. Fan will keep running during operation.
Manual Operations
And Maintenance
Page 9
Manual Operations And Maintenance
3
Operation mode selection
Maintenance
While two or more indoor units are
simultaneously operating, make sure the “modes”
do not conict with each other. The heat mode
claims precedence over all other modes. If the
unit initially begins operation in HEAT mode, the
other units can operate in HEAT mode only. For
example: If the unit intially started operating under
COOL (or FAN) mode, the other units can operate
under any mode except HEAT. If one of the units is
set in HEAT mode, the other running units will
stop operation and diplay ”P5” (for units with
display window only) or the auto and operation
indication lights will ash rapidly, the defrost
indication light will turn o, and the timer
indication light will remain on (for units without
a display window). Alternatively, the defrost and
alarm indication light (if applicable) will light up,
or the operation indication light will ash rapidly,
and the timer indication light will turn o (for
the oor and standing type).
If you plan on leaving the unit idle for a long time,
perform the following tasks:
1. Clean the indoor unit and air lter.
2. Select FAN-ONLY mode and let the indoor fan
run for some time to dry the inside of the unit.
3. Disconnect the power supply and remove the
battery from the remote control.
4. Check the components of the outdoor unit
periodically. Contact a local dealer or a
customer service center if the unit requires
servicing.
When the air conditioner is to be used
again:
• Use a dry cloth to wipe o any dust that has
accumulated on the rear air intake grille, in order
to avoid the dust being dispersed from the
indoor unit.
• Check that the wiring is not broken o or
disconnected.
• Check that the air lter is installed.
• Check if the air outlet or inlet is blocked after
the air conditioner has not been used for a long
time.
For units that feature an outdoor electrical heater,
when the outdoor ambient temperature is
below 0°C (32°F), it is strongly recommended
for you to keep the machine energized so as
to keep it warm for a smoother restarting operation.
Optimal operation
To achieve optimal performance, please note the
following:
• Adjust the direction of the air ow so that it is
not blowing directly onto any people.
• Adjust the temperature to achieve the highest
possible level of comfort. Do not adjust the
unit to extreme temperature levels.
• Close doors and windows in COOL mode or
HEAT mode.
• Use the TIMER ON button on the remote
controller to select a time that you want your
air conditioner to start.
• Do not place any objects near the air inlet or air
outlet, as the eciency of the air conditioner
may be reduced, and the air conditioner may
stop running.
• Clean the air lter periodically, otherwise
cooling or heating performance may be
reduced, and the heat exchanger can get clogged.
• Do not operate unit with the horizontal louver in
a closed position.
NOTE: Before you clean the air conditioner, be
sure to switch o the unit and disconnect the
power supply breaker.
Page 10
Troubleshooting
CAUTIONS
If one of the following conditions occur, switch o the power supply immediately and contact
your installer or dealer for further assistance.
• The operation light continues to flash rapidly after the unit has been restarted.
• The remote control buttons do not work.
• The unit continually trips fuses or circuit breakers.
• A foreign object or water enters the air conditioner.
• Any other abnormal situation.
Common Problems
The following symptoms are not a malfunction and in most situations will not require repairs.
Problem Possible Causes
Unit does not
turn on when
pressing ON/
OFF button
The unit has a 3-minute protection feature that prevents the unit from
overloading. The unit cannot be restarted within three minutes of being
turned o, and within 3 minutes of each initial startup.
Cooling and Heating Models: If the Operation light and PRE-DEF (Pre-heating/
Defrost) indicators are lit up, the outdoor temperature is too cold and the unit’s
warm-start mode is activated in order to defrost the unit.
In Cooling-Only Models: If the “Fan-Only” indicator is lit up, the outdoor
temperature is too cold and the unit’s anti-freeze protection is activated in
order to defrost the unit.
The unit changes
from COOL mode
to FAN mode
The unit changes its setting to prevent frost from forming onto the unit. Once
the temperature increases, the unit will start operating again.
The set temperature has been reached, at which point the unit turns o the
compressor. The unit will resume operating when the temperature fluctuates
again.
The indoor unit
emits white mist
In humid regions, a large temperature dierence between the room’s air and
the conditioned air can cause white mist.
Both the indoor
and outdoor units
emit white mist
When the unit restarts in HEAT mode after defrosting, white mist may be
emitted due to moisture generated from the defrosting process.
The indoor unit
makes noises
A squeaking sound is heard when the system is OFF or in COOL mode. The
noise is also heard when the drain pump (optional) is in operation.
A squeaking sound may occur after running the unit in HEAT mode due to
expansion and contraction of the unit’s plastic parts.
Both the indoor
unit and outdoor
unit make noises
A low hissing sound may occur during operation. This is normal and is caused
by refrigerant gas flowing through both the indoor and outdoor units.
A low hissing sound may be heard when the system starts, has just stopped
running or is defrosting. This noise is normal and is caused by the refrigerant
gas stopping or changing direction.
The outdoor unit
makes noises
The unit will make certain expected sounds based on its operating mode.
Troubleshooting
4
Page 11
Troubleshooting
Problem Possible Causes
Dust is emitted from
either the indoor or
outdoor unit
The unit may accumulate dust during extended periods of non-use, which
will be emitted when the unit is turned on. This can be mitigated by covering
the unit during long periods of inactivity.
The unit emits a
foul odor
The unit may absorb odors from the environment (such as furniture, cooking,
cigarettes, etc.), which will be emitted during operation.
The unit’s filters have become dirty or moldy, and should be cleaned.
The fan of the
outdoor unit
does not operate
During defrosting operations, the fan of the outdoor unit is stop-controlled to
optimize the defrosting operation. Otherwise, check for blockage by ice/snow.
Troubleshooting Tips
When trouble is noticed, please check the following points before contacting a service company.
Problem Possible Causes Solution
The unit
is not
working
Power failure Wait for the power to be restored
The power switch or breaker is o Turn on the power switch or breaker
The fuse is burned out Replace the fuse
Remote control batteries are dead Replace the remote control batteries
The unit’s 3-minute protection has
been activated
Wait three minutes after restarting the unit
Poor cooling
performance
Temperature setting may be higher
than the ambient room temperature
Lower the temperature setting
The heat exchanger on the indoor
or outdoor unit is dirty
Clean the aected heat exchanger
The air filter is dirty
Remove the filter and clean it according
to instructions
The air inlet or outlet of either unit
is blocked
Turn the unit o, remove the obstruction
and turn it back on
Doors and windows are open
Make sure that all doors and windows are
closed while operating the unit
Excessive heat is generated by
sunlight
Close windows and curtains during
periods of high heat or bright sunshine
Low refrigerant due to leak or
long-term use
Check for leaks, re-seal if necessary, and
top o refrigerant
The unit
starts and
stops
frequently
There’s too much or too little
refrigerant in the system
Check for leaks and drain or recharge the
system with refrigerant if needed
There is air, incompressible gas or
foreign material in the refrigeration
system.
Evacuate and recharge the system with
fresh refrigerant
System circuit is blocked
Determine which circuit is blocked and replace
the malfunctioning piece of equipment
The compressor is broken Replace the compressor
The voltage is too high or too low Install a regulator, or call the power company
Poor heating
performance
The outdoor temperature is lower
than 7°C (44.5°F)
Check for leaks and, recharge the system
with refrigerant
Cold air is entering through doors
and windows
Make sure that all doors and windows are
closed during use
Low refrigerant due to leak or
long-term use
Check for leaks, re-seal if necessary, and
top o refrigerant
Page 12
European Disposal
Guidelines
European Disposal Guidelines
5
Users in European countries may be required to properly dispose of this unit. This appliance contains
refrigerant and other potentially hazardous materials. When disposing of this appliance, the law
requires special collection and treatment.
DO NOT
dispose of this product as household waste or
unsorted municipal waste.
When disposing of this appliance, you have the following options:
• Dispose of the appliance at a designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
• The manufacturer will also take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.
NOTE: Disposing of this appliance improperly or other natural surroundings endangers your health
and is bad for the environment. Hazardous substances may leak into the ground water and enter
the food chain.
QSBPTYU-041AEN
16122000003395
20170606
The design and specications of this product are subject to change without prior notice
as development continues. Consult with the sales agency or manufacturer for details.
is a registered trademark of Parker Davis HVAC International, Inc.
Parker Davis HVAC International, Inc.
2250 NW 102 Place, Doral, FL 33172 - USA
Tel : (305) 513-4488
Fax : (305) 513-4499
email : info@pd-hvac.com
Website: www.pd-hvac.com
Copyright 2017, Parker Davis HVAC International, Inc., All rights reserved.
