SAFETY PRECAUTIONS
Ensure no child or at risk party is present
during the installation of the indoor or outdoor
unit as unforeseeable accidents can occur.
Make sure that the base of the outdoor unit is
firmly secured.
Check that air cannot enter the refrigerant
system and that there are no refrigerant leaks
when moving the air conditioner.
SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER
Test the air conditioner after installing the unit
and record the operating data.
Ensure the indoor unit is connected to a fuse
that can withstand the maximum input current or
another device with overload protection.
Make sure the mains voltage matches to the
voltage stamped on the rating plate. Keep the
switch and power plug clean. Insert the power
plug correctly and firmly into the socket, thereby
avoiding the risk of electric shock or fire due to
insufficient contact.
Check that the socket is the same physical
configuration as the plug; otherwise, change the
socket to match.
Make sure to install the appliance more than
50 cm from inflammable substances
(e.g., alcohol, etc.) and pressurized containers
(e.g., spray cans).
If the appliance is used in areas without
proper ventilation, precautions must be
taken to prevent any refrigerant gas leaks that
can become trapped and create fire hazards.
The packaging materials are recyclable and
should be disposed of in the appropriate
waste bins. When it is time, take the air
conditioner to a special waste collection
center for disposal.
Only use the air conditioner as instructed in
this booklet. These instructions are not intended
to cover every possible condition and situation .
As with any electrical household appliance ,
common sense and caution are therefore always
recommended for installation, operation and
maintenance.
The appliance must be installed in accordance
with applicable national and regional
regulations.
Before accessing the terminals , all power
circuits must be disconnected from the power
supply.
Read this guide before installing and using the
appliance.
1
The appliance must be fitted with means for
disconnection from the supply mains having a
contact separation in all poles that provide full
disconnection under over voltage category III
conditions, and these means must be incorporated
in the fixed wiring in accordance with the wiring
rules.
The appliance shall be installed in accordance
with national and regional wiring regulations.
This appliance can only be used by children
8 years and older and persons with reduced
physical, sensory or mental capabilities
or persons that lack experience and knowledge
of the device IF they have been supervision or
instruction concerning the use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance and should not clean or exercise
maintenance of the unit without direct
supervision.
The air conditioner must be installed by
professionals or qualified persons.
SAFETY RULES AND RECOMMENDATIONS FOR THE USER
Do not try to install the conditioner alone;
always contact specialized technical personnel.
Cleaning and maintenance must be carried out
by specialized technical personnel. Make sure to
disconnect the appliance from the mains
electricity supply before carrying out any
cleaning or maintenance.
Do not pull out the plug to switch off the
appliance when it is in operation, since this
could create a spark and cause a fire, etc.
If the appliance gives off smoke or there is a
burning smell, immediately cut off the power
supply and contact the Service Center.
All repairs should be carried out by an
authorised service center. Incorrect repair can
expose the user to the risk of electric shock,
fire, etc.
Use of the device in the state mentioned
above can cause fire or electrocution.
Never remain in direct flow of cold air for
extended periods of time as this could be
dangerous for your health. Exercise caution in
rooms where there are children and old or sick
individuals.
This appliance has been made for air
conditioning domestic environments and must
not be used for any other purpose , such as for
drying clothes, cooling food, etc.
Always use the appliance with the air filter
installed. Use of the conditioner without
air filter could cause an excessive accumulation
of dust or waste on the inner parts of the device
with possible subsequent failures.
Unhook the automatic switch if you foresee
not using the device for a long time.
The airflow direction must be properly adjusted.
The user is responsible for having the appliance
installed by a qualified technician , who must
check that it is earthed in accordance with current
legislation and insert a thermomagnetic circuit
breaker.
Ensure that the appliance is disconnected from
the power supply when it will remain inoperative
for a long period and before carrying out any
cleaning or maintenance.
Selecting the most suitable temperature can
prevent damage to the appliance.
The flaps must be directed downwards in
the heating mode and upwards in the cooling
mode.
The batteries in remote controller must be
recycled or disposed of properly.
Disposal of Scrap Batteries --- Please discard
the batteries as sorted municipal waste at the
accessible collection point.
2
SAFETY RULES AND PROHIBITIONS
3
Do not bend , tug or compress the power cord
as this could damage it and may result in
electrical shocks or fire hazards. Only specialized
technical personnel should replace a damaged
power cord.
Do not use extension cords, power strips, or
gang modules.
Do not touch the appliance when barefoot or
parts of the body are wet or damp.
Do not obstruct the air inlet or outlet of the
indoor or the outdoor unit.
The obstruction of these openings causes a
reduction in the operating efficiency of the
conditioner and may cause unit damage or
failure.
In no way alter the characteristics of the
appliance.
Do not install the appliance in environments
where the air could contain gas , oil or sulphur
or near sources of heat.
Do not climb onto or place any heavy or hot
objects on top of the appliance.
Do not leave windows or doors open for long
periods of time.
Do not direct airflow onto plants or animals as
long, direct exposure could have negative
effects.
Do not install the conditioner in areas with risk
to water exposure and do not allow water to
come in contact with the unit as the electrical
insulation could become damaged, resulting in
electrocution.
Never insert a stick or similar object into the
appliance. It could cause injury.
This appliance is not intended for use by
persons (including children ) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer,its service
agent or similarly qualified persons in
order to avoid a hazard.
4
NAMES OF PARTS
Air filter
Air deflector and flap
Emergency button
Front panel
Air inlet
Air outlet
Indoor unit
Outdoor unit
Note: This figure shown may be different from the actual
object. Please take the latter as the standard.
Mounting plate
Air outlet
Air inlet
Drainage pipe
Wiring cover
Connection wiring
Valve protective cover
With the protective
cover removed
Liquid valve
(High pressure valve)
Gas valve
(Low pressure valve)
Refrigerant
connection pipe
Remote controller
INDOOR UNIT DISPLAY
5
The shape and position of switches and indicators may be different according to the model, but their
function is the same.
2
No.
Led
Function
1
2
3
Temperature display (if present)
/Error code
(1) Lights up during Timer operation when
the air conditioner is operational
(2)Displays the malfunction code when
fault occurs.
SLEEP mode
Lights up during Timer operation.
SLEEP
TIMER
3
1
Note:
For the models with Wi-Fi function, there will be some information shown on the display when setting
Wi-Fi function:
PP means searching the router
SA means connected to the router
AP means connected to the server
MANUAL ON/OFF FUNCTION & AUTO-RESTART FUNCTION
6
The shape and position of the emergency button
may be different according to the model, but their
function is the same.
Emergency
button
The emergency button is located on the E-box
cover of the unit under the front panel.
front panel
Open and lift the front panel up to reach the
emergency button.
For cooling only model, press the manual on/off once
to enter COOL mode. Press the manual on/off a
second time to turn off the unit.
For cooling and heating models, press the manual
on/off once to enter COOL mode, Press the manual
on/off a second time within 3 seconds to enter HEAT
mode.
If the remote controller fails to work or maintenance is
necessary, proceed as the following:
The appliance is preset with an auto-restart function.
In case of a sudden power failure, the module
memorizes the settings before power failure.
When the power restores, the unit will restart
automatically with the previous settings preserved
by the memory function.
MANUAL ON/OFF FUNCTION
AUTO-RESTART FUNCTION
7
REMOTE CONTROLLER
8
REMOTE CONTROLLER
The shape and position of buttons and indicators may vary according to the model, but their function is the same.
The display and some functions of the remote control may vary according to the model.
The unit confirms the correct reception of each button with a beep.
To turn on/off the air conditioner
8
10
12
6
7
9
MODE
TURBO
11
1
2
(TEMP DN)
(TEMP UP)
3
4
FAN
5
No.
To activate the function of Child Lock, press and buttons
together for more than 3 seconds.
13
14
( + )
15
To decrease the temperature or reduce the time when setting the TIMER.

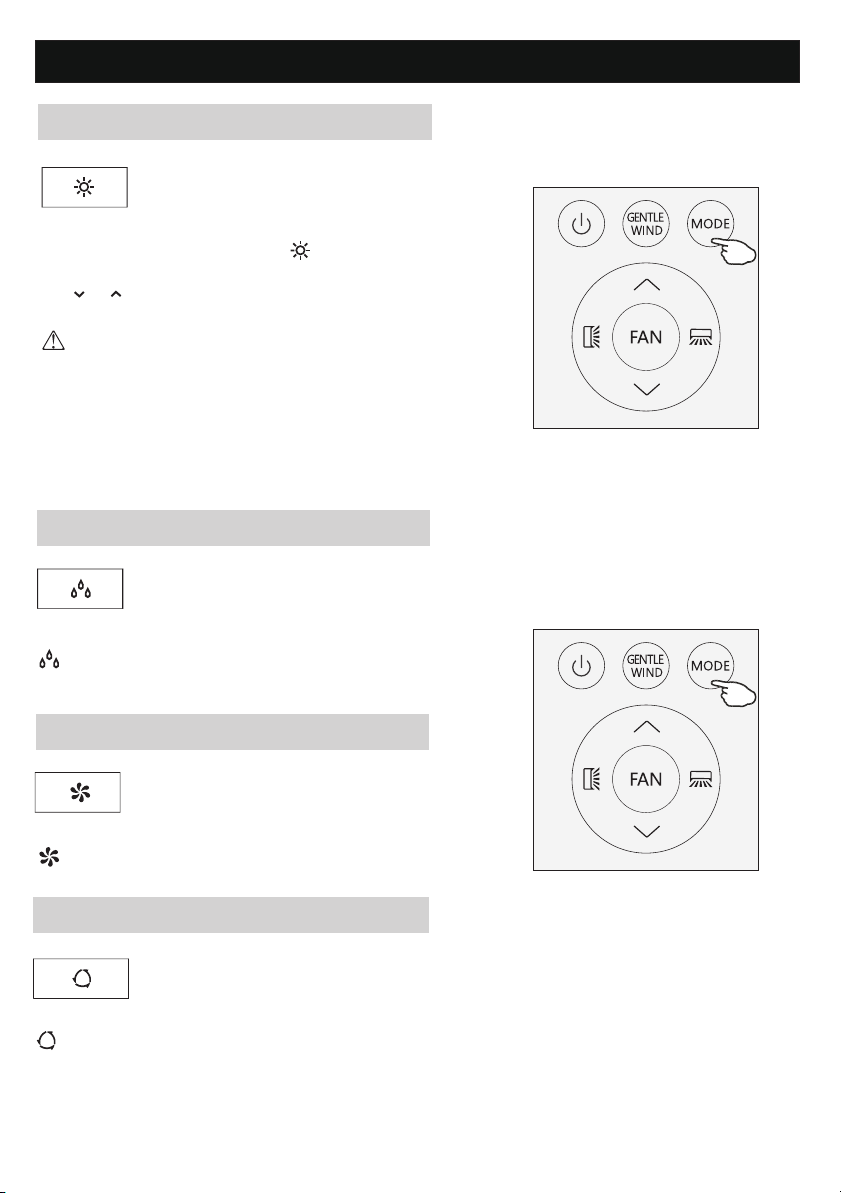

To select the operation mode: AUTO, COOL, DRY, FAN, HEAT.

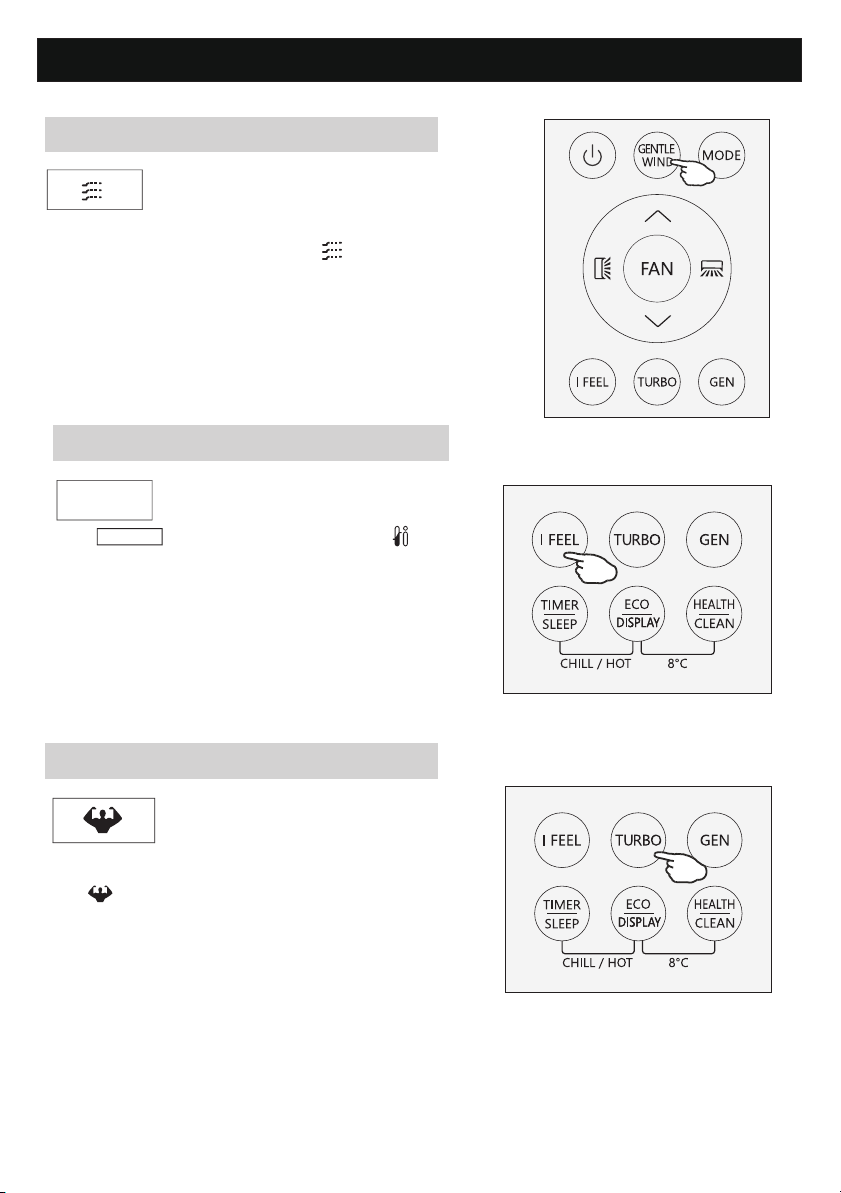

To switch on/off TURBO mode
To adjust the fan speed: auto, mute, low, mid-low, mid, mid-high, high, Turbo.
To switch the temperature display between Fahrenheit & Celsius, press and
hold the FAN button for 5 seconds
To adjust the air flow direction vertically(optional).
To increase the temperature or lengthen the time when setting the TIMER.
16
17
GENTLE WIND
To activate Gentle Wind function.
To adjust the air flow direction horizontally.
I FEEL
To activate the I FEEL function
To switch on/off GENERATOR mode
TIMER/SLEEP
To switch on/off the TIMER function and SLEEP mode
ECO/DISPLAY
To switch on/off the HEALTH function and Auto Clean function.
HEALTH/CLEAN
To switch on/off ECO mode and LED display light
TIMER/SLEEP + ECO/DISPLAY
ECO/DISPLAY + HEALTH/CLEAN
To switch on/off the CHILL WIND and HOT WIND fucntion.
To switch on/off the 8C heating function.
Remote controller buttons
Buttons Function
Some functions on your remote may not be fit for the purchased air conditioner. In this event, the air conditioner
will beep but will not activate the request accordingly.
Some functions may not apply to the purchased model. Refer to the included remote control for which functions are applicable to the unit.
9
REMOTE CONTROLLER
Remote controller DISPLAY (Symbols on the liquid crystal display)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AUTO MODE indicator
COOLING MODE indicator
DRY MODE indicator
FAN MODE indicator
HEATING MODE indicator
TIMER indicator
AUTO FAN indicator
FAN SPEED indicator
SLEEP MODE indicator
FLAP SWING (Air flow) indicator
15
TURBO indicator
16
17
HEALTHY indicator
18
ECO indicator
Meaning
No.
Symbols
TEMPERATURE/ CLOCK indicator
BATTERY indicator
19
I FEEL indicator
20
MUTE indicator
(FLASH)
or
8 C heating function indicator
GENERATOR MODE indicator
21
22
CHILE LOCK indicator
GENTLE WIND indicator
CHILL WIND indicator
HOT WIND indicator
DISPLAY LIGHT indicator
CLEAN function indicator
23
24
25
10
Battery Installation & Replacement
Remove the battery cover plate from the rear of the remote controller
by sliding it in the direction of the arrow.
Install the batteries according to the directions (+and -)shown on the Remote
Controller.
Reinstall the battery cover by sliding it into place.
Use 2 AAA (1.5V) batteries . Do not use rechargeable
batteries . Replace the old batteries with new ones of the same
type when the display is no longer legible.
Do not dispose batteries as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is recommended to keep the remote controller in the designated wall mounted holder (if included) .
OPERATING INSTRUCTIONS
Filter
Heat
Fan
Exchanger
11
The direction of the air outlet is motorized up and down
by flaps, and manually moved right and left by the vertical
deflectors, for some models, the vertical deflectors could be
controlled by motor as well.
Air is pulled by the fan through the grille and passes through
the filter, then it is cooled/dehumidified or heated through
the heat exchanger.
Fan
Turn ON / Turn OFF the air conditioner
Press the button to turn on or turn off the air conditioner.
COOLING MODE
The cooling function allows the air condit-
ioner to cool the room and, at the same time,
reduces air humidity.
To activate the cooling function ( COOL ) , press the
MODE button until the symbol appears on
the display.
Use or set the unit to the desired temperature.
OPERATING INSTRUCTIONS
HEATING MODE
DRY MODE
The heating function allows the air conditi-
oner to heat the room.
To activate the heating function ( HEAT ) , press the
MODE button until the symbol appears on
the display.
Use or set the unit to the desired temperature.
In HEAT mode, the unit can automatically
activate a defrost cycle, which is essential to remove
frost from the condenser and restore the heat exchange.
This cycle usually lasts for 2-10 minutes.
When activated, the indoor unit fan will pause and then resume
heating once the cycle has finished.
This function reduces the humidity of the
air to make the room more comfortable.
To set the DRY mode , Press MODE until
appears in the display.
The DRY setting humidity level is fixed and can not
be changed.
FAN MODE(Not FAN button)
Fan mode circulates air only.
To set the FAN mode, press MODE until
appears on the display.
AUTO MODE
Automatic mode.
To set AUTO mode, press MODE until
appears on the display.
In AUTO mode, the run mode will be set automatically
according to the room temperature.
12
13
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Horizontal Flaps
flap
movement
Vertical Deflectors
AIR FLOW CONTROL
Never position Flaps manually, the delicate
mechanism can be seriously damaged.
Never poke fingers, sticks or other objects in the
air inlet or outlet vents. Such accidental contact
with liveparts might cause unforeseeable damage
or injury.
This adjustment must be done while the
appliance is switched off.
1. Normal 4 way air flow (vertical and horizontal):
(1) Press to activate the horizontal flaps to
swing from up to down. Press again to stop the swing
movement at the current angle.
(2) Press to active the vertical deflectors to
swing from left to right. Press again to stop the swing
movement at the current angle.
2. Vector precise air flow
(1)Press and hold for 1s, it will go into the horizontal
vector air flow, you can select a small swing angle:
Hold for 5s to stop the selection. Press again to exit the horizontal vector precise air flow.
(2) Press and hold for 1s, it will go into the vertical
vector air flow:
Hold for 5s to stop the selection. Press again to exit the vertical vector precise air flow.
3. If the vertical deflectors are positioned manually which are placed under the flaps, they can be adjusted to
airflow left or right.
Change the fan speed
Press FAN button to set the running fan speed, it can
be set to AUTO/ MUTE/ LOW/ MID-LOW/ MID/
MID-HIGH/HIGH/TURBO speed.
Flashing
14
OPERATING INSTRUCTIONS
GENTLE WIND (select models only)
The vertical louvers will close and air flow
will be forced through the louvers diffused
holes to cool the room gently.
Press the GENTLE WIND button and appears on
the display, and the appliance will run in GENTLE WIND mode.
Press again to cancel it..
NOTE:
The gentle wind function is available in COOLING mode only.
I FEEL function
I FEEL
Press I FEEL button to active the function, and
will appear on the remote display.
Do it again to deactivate this function.
This function enables the remote control to measure
the temperature at its current location, and send this
signal to the air conditioner to optimize the temperature
around you.
It will automatically deactivate after 2 hours.
Turbo function
To activate turbo function, press the TURBO button,
and will appear on the display.
In COOL/HEAT mode, when you select TURBO ,
the appliance will operate the fast cooling/
fast heating with the highest fan speed.
Press again to cancel this function.
OPERATING INSTRUCTIONS
15
SLEEP MODE
After 10 hours running in sleep mode, the air conditioner
will change to its previous setting.
Press SLEEP button and hold for 2s to activate the sleep
mode, then appears on the display.
Press and hold for 2s again to cancel this mode.
In sleep mode, the air conditioner will automatically adjust
the temperature and fan speed to make the room more
comfortable during the night.
In generator mode, the air conditioner will
work at selected current percentage.
To activate GEN function, press the button GEN and
the unit current level will cycle as below
OFF L3 L2 L1
To cancel this function,press the GEN until code OF
appers on the display.
Through GEN mode,you can choose the current level of
the unit.There are three levels (L1,L2,L3) in this mode,
and the current increases in turn.
GENERATOR MODE (select models only)
Running current (% of rated current):
L1: 30%, L2: 50%, L3:70%
ECO MODE
Eco mode helps to conserve energy.
Press the ECO button, the appears on the
display, and the appliance will run in ECO mode.
Press again to cancel it.
NOTE:
The ECO function is available in both COOLING and
HEATING modes.
OPERATING INSTRUCTIONS
16
LED display light ON/OFF
Press DISPLAY button and hold for 2s to turn on/off
the indoor LED display light.
HEALTH function (Select models only)
Press HEALTH button to active / exit the health functions
such as ion generator/ plasma, etc.
Note: Health function is not available when the air conditioner
is off.
1. This function helps carry away the accumulated
dirt, bacteria, etc from the evaporator.
2. Turn off the air conditioner, and press CLEAN button ( "CL"
will be displayed on the indoor unit display).
3. This function will run about 30 minutes, and it will exit
automatically. You will hear 2 beeps when it's finished or
cancelled.
4. It's normal if there are some noise during this process as
plastic materials expand with heat and contract with cold.
5. It is recommended to enable this feature in the following
ambient temperatures.
6. It is recommended to enable this function every 3 months.
Indoor unit
Outdoor unit
Temp<86 F
41 F<Temp<86 F
SELF-CLEAN function (select models only)
OPERATING INSTRUCTIONS
17
TIMER MODE----SET TIMER OFF
TIMER
Set the air conditioner to turn off
automatically.
With the AC off, press the Timer button and use the
and buttons to set the desired amount of time before the
AC turns on. Press the timer button again to start the countdown.
After setting the time, you can set the operation mode, fan
speed, desired temperature, air flow when air conditioner starts
to run.
Note:To cancel the setted function, press the TIMER
button again.
Note:In case of power off,it is necessary to set TIMER
OFF again
TIMER MODE----SET TIMER ON
TIMER
Note: To cancel the timer function ,press the TIMER
button again.
Note: In case of power off, it is necessary to set TIMER
ON again
With the AC on, press the Timer button and then use the
and buttons to set the length of time before the AC will
turn off. Press the timer button again to start the countdown.
Set the air conditioner to turn on
automatically.
OPERATING INSTRUCTIONS
18
CHILL wind/ HOT wind function (select models only)
8 heating function (Select models only)
1.Press both ECO/DISPLAY and HEALTH/CLEAN buttons and
hold for 2s to active the 8 heating.
2.If the air conditioner is in standby, this function will enable
the air conditioner to automatically start heating when the
indoor temperature is equal or lower than 8 , the unit will
return to standby if the temperature is equal or higher than 18 .
1. In cooling mode, press both TIMER/SLEEP and ECO/DISPLAY
buttons and hold for 2s to active the chill wind function.
2. In heating mode, press both TIMER/SLEEP and ECO/DISPLAY
buttons and hold for 2s to active the hot wind function.
3. Press both TIMER/SLEEP and ECO/DISPLAY buttons and hold
for 2s to exit the chill wind or hot wind function.
3.When the AC is turned off, press both ECO/DISPLAY and
HEALTH/CLEAN buttons and hold for 2s to exit the 8 heating.
19
The air conditioner is programmed for appropriate environmental conditions as shown below.
If used outside the specified conditions, certain safety precautions feature might be activated.
OPERATING INSTRUCTIONS
Operating Temperature
Inverter air conditioner:
MODE
Temperature
Room temperature
Outdoor
temperature
Cooling operating
Heating operating
Drying operating
59 F~122 F
5 F~ 122 F
For models with low
temperature cooling
system
The unit does not operate immediately if it is turned on after being turned off or after changing
the mode during operation.This is a normal self-protection action,you need waiting for about 3
minutes.
The capacity and efficiency are according to the test conducted at full-load operation(The
highest speed of indoor fan motor and the maximum open angle of the flaps and deflectors
are requested.)
32 F~81 F
5 F~75 F
-13 F~75 F
For models with low
temperature heating
system
63 F~90 F
59 F~122 F
5 F~ 122 F
For models with low
temperature cooling
system
63 F~90 F
INSTALLATION MANUAL---Selecting the Installation Place
Condensed water
drain pipe
15cm
15cm
15cm
Sleeve
insulating covering
electrical cable
Mounting plate
Do not install the outdoor unit near sources of heat,
steam or flammable gas.
Do not install the unit in too windy or dusty places.
Do not install the unit where people often pass.Select
a place where the air discharge and operating sound
will not disturb the neighbors.
Avoid installing the unit where it will be exposed
to direct sunlight ( other wise use a protective covering ,
if necessary, that should not interfere with the air flow).
Reserve the spaces as shown in the picture for the air to
circulate freely.
Install the outdoor unit in a safe and solid place.
If the outdoor unit is subject to vibration, place rubber
gaskets onto the feet of the unit.
water drain pipe
300
500
2000
300
minimum space to be reserved (mm) showing
in the picture
500
Installation Diagram
20
INDOOR UNIT
OUTDOOR UNIT
The purchaser must ensure that the person and/or company who is to install, maintain or repair this air
conditioner has qualifications and experience in refrigerant products.
Install the indoor unit on a strong wall that is not subject
to vibrations.
The inlet and outlet ports should not be obstructed. The
air should be able to blow all over the room.
Do not install the unit near a source of heat , steam, or
flammable gas.
Do not install the unit where it will be exposed to
direct sunlight.
Select a site where the condensed water can be easily drained
out, and where it is easily connected to outdoor unit.
Check the machine operation regularly and reserve the
necessary spaces as shown in the picture.
Select a place where the filter can be easily taken out.
2.5m or more
INSTALLATION MANUAL---Installation of the Indoor unit
5mm
Note : Keep the drain pipe down towards the direction
of the wall hole, otherwise leakage may occur.
Before starting installation, decide on the position of the
indoor and outdoor units, taking into account the minim-
um space reserved around the units
To install, proceed as follows:
The hole must slope downwards towards the exterior
Note : The shape of the mounting plate may be different
from the one above, but installation method is similar .
Indoors
Outdoors
21

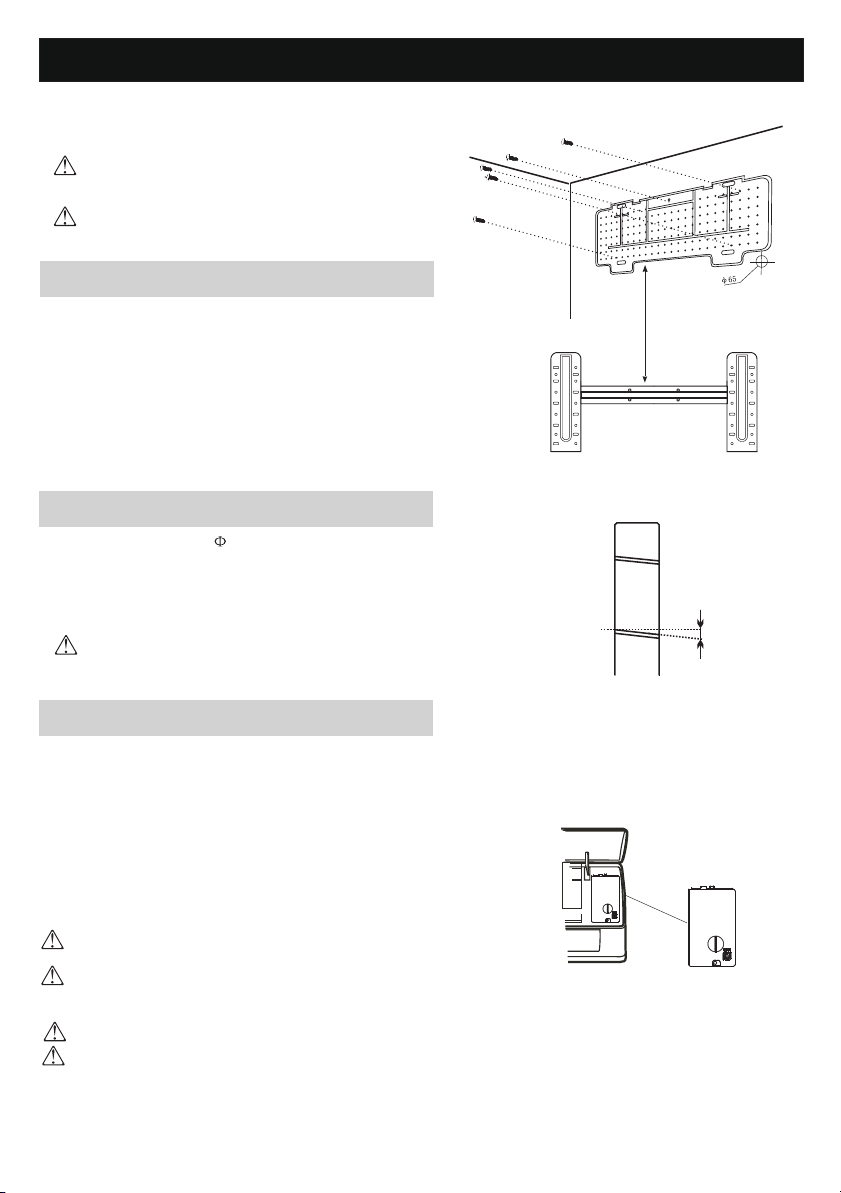

Installation of the mounting plate
Drilling a hole in the wall for the piping
Electrical connections---Indoor unit
Do not install your air conditioner in a
wet room such as a bathroom or laundry etc
The installation site should be 250cm or more
above the floor.
1. Always mount the rear panel horizontally and vertically
2. Drill 32 mm deep holes in the wall to fix the
plate;
3. Insert the plastic anchors into the hole;
4. Fix the rear panel on the wall with provided tapping screws
5. Be sure that the rear panel has been fixed firmly enough
to withstand the weight.
1. Make the piping hole ( 65) in the wall at a slight
downward slant to the outdoor side.
2. Insert the piping-hole sleeve into the hole to prevent the
connection piping and wiring from being damaged when
passing through the hole.
1. Open the front panel.
2. Take off the cover as indicated in the piciure ( by
removing a screw or breaking the hooks).
3. For the electrical connections, see the circuit diagram
on the right part of the unit under the front panel.
4. Connect the cable wires to the screw terminals by
following the numbers. Use wire size suitable to
the electric power input (see name plate on the unit)
and in accordance with all current national safety code
requirements.
The cable connecting the outdoor and indoor units
must be suitable for outdoor use.
The plug must be accessible after the appliance
has been installed so that it can be pulled out if nece-
ssary.
An efficient ground connection must be used.
If the power cable is damaged, it must be replaced by
an authorised Service Center.
Note Optional: the wires can been connected to the main
PCB of indoor unit by manufacturer according to the
model without terminal block.
INSTALLATION MANUAL---Installation of the Indoor unit
3
2
1
The piping can be run in the 3 directions indicated by
numbers in the picture . When the piping is run in
direction 1or 3, cut a notch along the groove on the side
of the indoor unit with a cutter.
Run the piping in the direction of the wall hole and bind
the copper pipes , the drain pipe and the power cables
together with tape with the drain pipe at the bottom,
so that water can flow freely.
1. Remove the indoor unit pipe cap (check that there is
no debris inside).
2. Insert the fare nut and create a flange at the extreme
end of the connection pipe.
3. Tighten the connections by using two wrenches
working in opposite directions.
4. For R32/R290 refrigerants, mechanical connectors
should be outdoors.
torque wrench
Indoor unit condensed water drainage
The indoor unit condensed water drainage is fundamen-
tal for the success of the installation.
1. Place the drain hose below the piping, taking care not
to create siphons.
2. The drain hose must slant downwards to aid drainage.
3. Do not bend the drain hose or leave it protruding or
twisted and do not put the end of it in water . If an
extension is connected to the drain hose , ensure that
it is lagged when it passes into the indoor unit.
4. If the piping is installed to the right, the pipes, power
cable and drain hose must be lagged and secured onto
the rear of the unit with a pipe connection.
1) Insert the pipe connection into the relative slot.
2) Press to join the pipe connection to the base.
YES
22
Refrigerant piping connection
Connections to the indoor unit
NO NO
NO
YES
Extending the rolled pipe
Shape the connection pipe
Do not remove the cap from the pipe until connecting
it to avoid dampness or dirt from entering.
If the pipe is bent or pulled too often , it will become
stiff . Do not bend the pipe more than three times at
one point.
When extending the rolled pipe, straighten the pipe by
unwinding it gently as shown in the picture.
The connectors
should be outdoors
INSTALLATION MANUAL---Installation of the Indoor unit

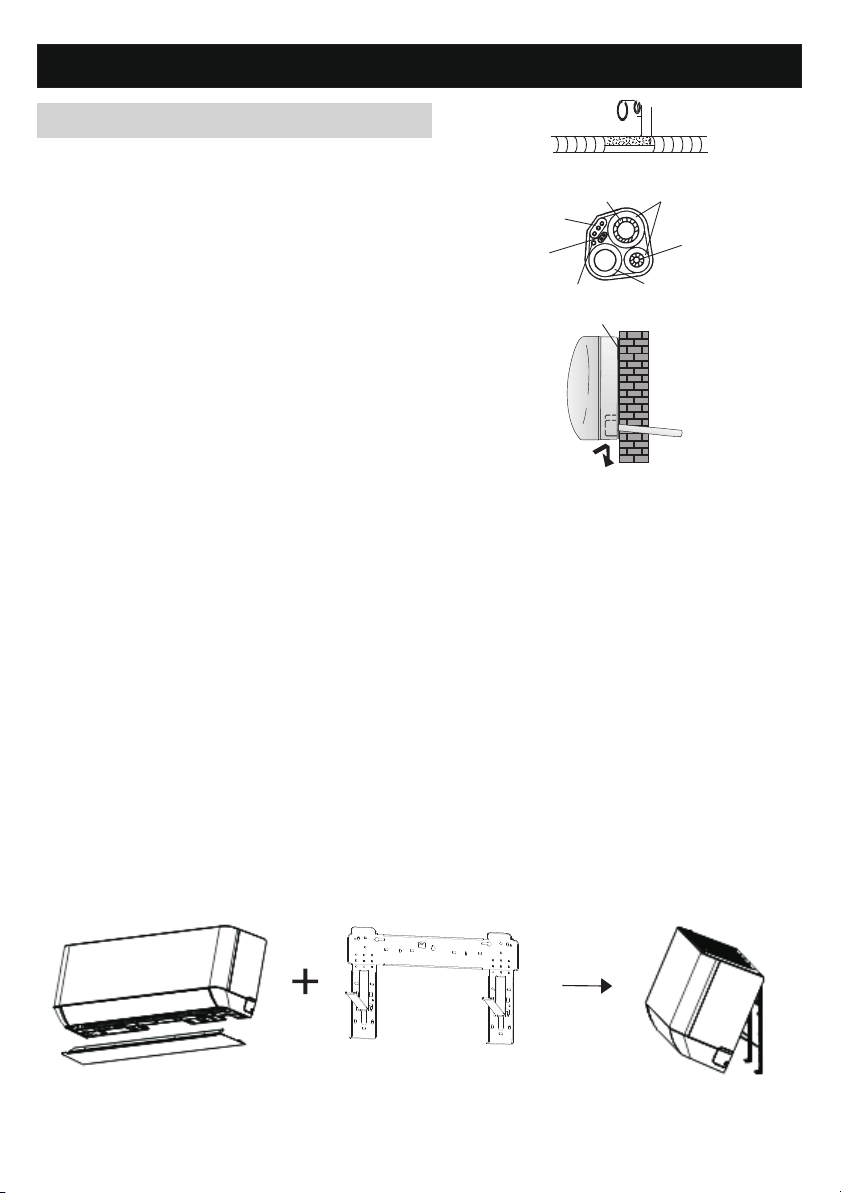

INSTALLATION OF THE INDOOR UNIT
refrigerant
pipe
refrigerant
pipe
insulation
sleeve
connection
(for heat-pump)
cable 1
connection
cable
Probe
cable(for heat-pump)
Condensed water
drain pipe
Covered by vinyl tape
After having connected the pipe according to the instruc-
tions, install the connection cables. Now, install the drain
pipe. After connecting, lag the pipe, cables and drain pipe
with the insulating material.
1. Arrange the pipes ,cables and drain hose well.
2. Lag the pipe joints with insulating material , securing
it with vinyl tape.
3. Run the bound pipe , Cables and drain pipe through
the wall hole and mount the indoor unit onto the upper
part of the mounting plate securely.
4. Press and push the lower part of the indoor unit tightly
against the mounting plate
mounting plate
23
Sometimes, if the refrigerant piping is already embedded in the wall,or if you want to connecting
the piping and wiring on the wall, do as below:
1.Gab both ends of the bottom plate, apply a little outward force to take off the bottom plate.
2.Hook the top of the indoor unit on the mounting plate without piping and wiring.
3.Lift the indoor unit opposite the wall, unfold the bracket on the mounting plate, and use this bracket
to prop up the indoor unit, there will be a big space for operation.
4.Do the refrigerant piping, wiring, connect drainage hose, and wrap them as Step 4 to 7.
5.Replace the bracket of mounting plate.
6.Push down the bottom of indoor unit to let the snaps onto the bottom hooks of the mounting plate,
and make sure it is hooked firmly.
7.Replace the bottom plate of the indoor unit.
Take off the bottom plate
Unfold the bracket on the mounting plate
INSTALLATION MANUAL---Installation of the outdoor unit
The outdoor unit should be installed on a solid wall
and fastened securely.
The following procedure must be observed before co-
nnecting the pipes and connecting cables : decide
which is the best position on the wall and leave enough
space to be able to carry out maintenance easily.
Fasten the support to the wall using screw anchors
which are particularly suited to the type of wall;
Use a larger quantity of screw anchors than normally
required for the weight they claim to avoid
vibration during operation and to remain fastened in the
same positing for years without the screws becoming
loose.
The unit must be installed following national regulations.
drain pipe
The condensed water and the ice formed in the outdoor
unit during heating operation can be drained away thro-
ugh the drain pipe
1. Fasten the drain port in the 25mm hole placed in the
part of the unit as shown in the picture.
2. Connect the drain port and the drain pipe.
Pay attention that water is drained in a suitable place.
Outdoor unit condensed water drainage
(only for heat pump models)
drain port
24
INSTALLATION MANUAL---Installation of the outdoor unit
Screw the flare nuts to the outdoor unit coupling with
the same tightening procedures described for the indoor
unit.
connection pipes
flare nuts
liquid tap
gas tap
indoor unit
protection caps
liquid valve
gas valve
service port nut
To avoid leakage, pay attention to the following points:
1. Tighten the flare nuts using two wrenches. Pay atten-
tion not to damage the pipes.
2. If the tightening torque is not sufficient , there will
probably be some leakage. With excessive tightening
torque there will also be some leakage, as the flange
could be damaged.
3. The surest system consists in tightening the connecti-
on by using a fix wrench and a torque wrench as below:
25
ELECTRICAL CONNECTIONS
CONNECTING THE PIPES
tap
1. Remove the handle on the right side plate of outdoor unit.
2. Connect the power connection cord to the terminal board.
Wiring should fit that of indoor unit.
3. Fix the power connection cord with wire clamp.
4. Confirm if the wire has been fixed properly.
5. An efficient ground connection must be ensured.
6. Recover the handle.
screw
wiring diagram on the
back of the cover
PIPE
Size
1/4
( 6.35)
3/8
( 9.52)
1/2
( 12)
5/8
( 15.88)
Newton meter
[N x m]
18 - 20
30 - 35
45 - 50
60 - 65
Pound-force foot
(1bf-ft)
Kilogram-force meter
(kgf-m)
24.4 - 27.1
40.6 - 47.4
61.0 - 67.7
81.3 - 88.1
2.4 - 2.7
4.1 - 4.8
6.2 - 6.9
8.2 - 8.9
INSTALLATION MANUAL---Installation of the outdoor unit
Air Vacuumizing
vacuum pump
service port
5.Turn on the vacuum pump to vacuumize the system.
6.T
1.Use a spanner to take down the protective caps from
the service port, low pressure valve and high pressure
valve of the outdoor unit.
2.Connect the pressure hose of the manifold gauge to the
service port on the outdoor unit low pressure valve.
3.Connect the charge hose from the manifold gauge
to the vacuum pump.
4.Open the low pressure valve of the manifold gauge
and close the high pressure valve.
he vacuuming time should not be less than 15
minutes, or make sure the compound gauge
indicates -0.1 MPa (-76 cmHg)
7.Close the low pressure valve of the manifold gauge
and turn off the vacuum.
8.Hold the pressure for 5 minutes, make sure that the
rebound of compound gauge pointer does not
exceed 0.005 Mpa.
9.Turn the low pressure valve counterclockwise for 1/4
turn with hexagonal wrench to let a little refrigerant
fill in the system, and close the low pressure valve
after 5 seconds and quickly remove the pressure hose.
10.Check all indoor and outdoor joints for leakage
with soapy water or leak detector.
11.Fully open the low pressure valve and high pressure
valve of the outdoor unit with hexagonal wrench.
12.Replace the protective caps of the service port, low
pressure valve and high pressure valve of the outdoor unit.
13.Replace the valve cover.
Manifold gauge
compound gauge
Low pressure valve
Valve protective caps
Pressure hose
Pressure gauge
High pressure valve
Charge hose
High pressure valve
Low pressure valve
Vacuum pump
Service port
26
INSTALLATION MANUAL---Installation of the outdoor unit
The air and humidity left inside the refrigerant circulat-
ion can cause compressor malfunction. After having co-
nnected the indoor and outdoor units, bleed the air and
humidity from the refrigerant circulation using a va-
cuum pump.
Refrigerant flow direction
2-way valve
(6) Open 1/4 turn
valve cap
(1) Turn
(8) Tighten
(2) Turn
3-way valve
(8) Tighten
(1) Turn
(7) Turn to fully
open the valve
(7) Turn to fully
open the valve
(8) Tighten
Service
port nut
Valve cap
(1) Unscrew and remove the caps from the 2 - way and
3-way valves.
(2) Unscrew and remove the cap from the service port.
(3) Connect the vacuum pump hose to the service port.
(4) Operate the vacuum pump for 10 - 15 minutes until
an absolute vacuum of 10 mm Hg has been reached.
(5) With the vacuum pump still in operation , close the
low - pressure knob on the vacuum pump coupling.
Stop the vacuum pump.
(6) Open the 2 - way valve by 1/4 turn and then close it
after10 seconds. Check all the joints for leaks using
liquid soap or an electronic leak device.
(7) Turn the body of the 2-way and 3-way valves.
Disconnect the vacuum pump hose.
(8) Replace and tighten all the caps on the valves.
3-way valve diagram
connect to indoor unit
open position
spindle
service port cap
Connect to
outdoor unit
Valve core
needle
INSTALLATION MANUAL--- operation test
wall
(indoor) (outdoor)
piping
piping
gasket
insulating tape
insulating covering
Clamps
1. Install wind insulating covering around the joints of
the indoor unit and fix it with insulating tape.
2. Fix the exceeding part of the signal cable to the
piping or to the outdoor unit.
3. Fix the piping to the wall ( after having coated it with
insulating tape) using clamps or insert them into pla-
stic slots.
4. Seal the hole in the wall through which the piping is
passed so that no air or water can fill.
Do the ON/OFF and FAN operate normally?
Does the MODE operate normally?
Do the set point and TIMER function properly?
Does each lamp light normally?
Do the flap for air flow direction operate normally?
Is the condensed water drained regularly?
Is there any abnormal noise or vibration during
operation?
Could the noise , the air flow or the condensed water
drainage disturb the neighbours?
Is there any coolant leakage?
Indoor unit test
Outdoor unit test
Note: the electronic controller allows the compressor to
start only three minutes after voltage has reached
the system.
27
BLEEDING
Indoor unit
Minimum Wire Cross-sec�onal Area
(AWG)
INSTALLATION MANUAL---Information for the installer
WIRING DIAGRAM
29
Note: For some models, the wires has been connected to the main PCB of indoor unit by manufacturer
without terminal block.
For different models, the wiring diagram may be different. Please refer to the wiring diagrams pasted on the
indoor unit and outdoor unit, respectively.
On indoor unit, the wiring diagram is pasted under the front panel;
On outdoor unit, the wiring diagram is pasted on the backside of the outdoor handle cover.
Front panel
Wiring diagram
Wiring diagram
Outdoor handle cover
power supply
L
N
(L)
N
1
N
N
L
1
N
N
outdoor
indoor
Wiring example:
INSTALLATION MANUAL---Information for the installer
CABLE WIRES SPECIFICATION
30
9K/115V
18k
Power supply cable
Connection supply cable
3(L)
2(N)
1(S
N(L2)
L(L1)
sectional area
12AWG
INVERTER TYPE
MODEL capacity (Btu/h)
16AWG 16AWG 16AWG 16AWG 16AWG
24k 36k
16AWG 16AWG
12K/115V 9K/230V 12K/230V
12AWG 14AWG 14AWG 12AWG 12AWG 10AWG
12AWG 12AWG 14AWG 14AWG 12AWG 12AWG 10AWG
12AWG 12AWG 14AWG 14AWG 12AWG 12AWG 10AWG

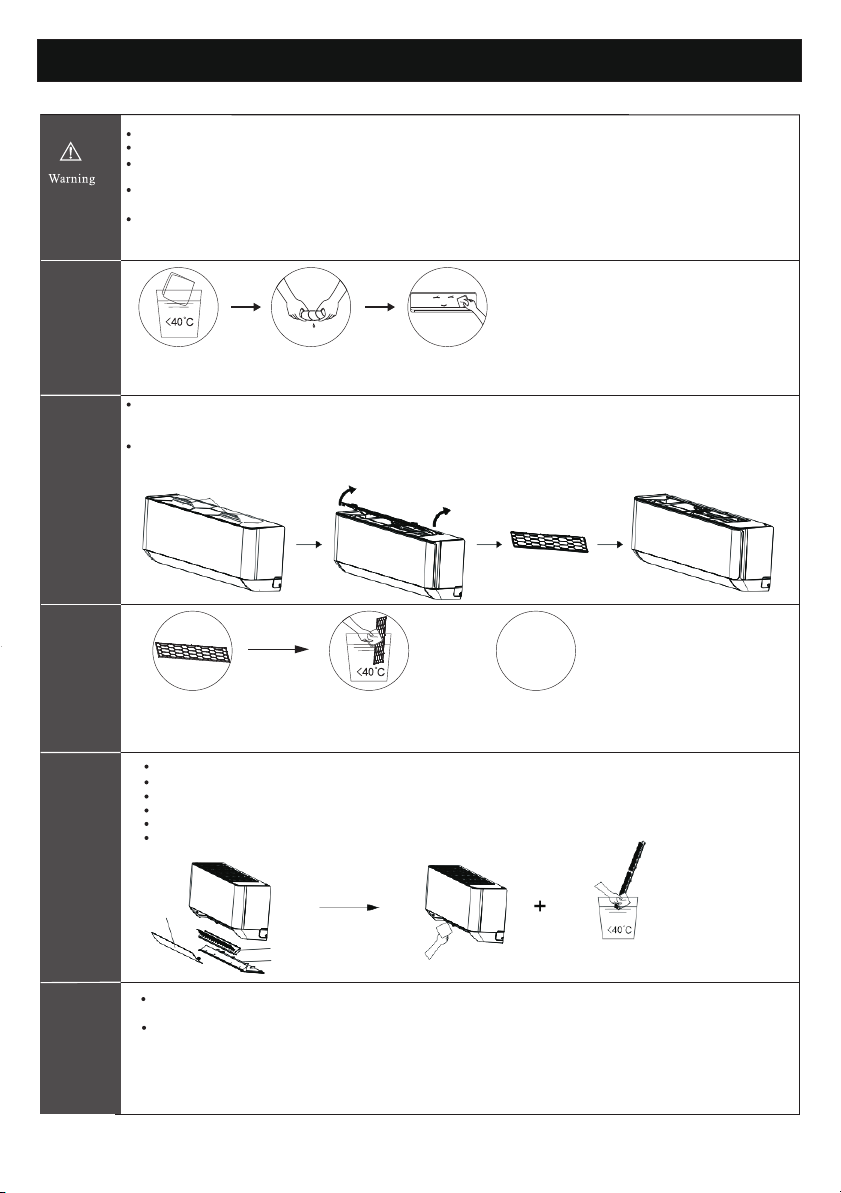

MAINTENANCE
31
Louver
Bottom plate
Deflector assembly
Clean the
filter screen
Opposite to the
direction of taking
out the filter screen
Take out the filter
screen from the unit
Clean the filter screen with
soapy water and air dry it
Replace the filter
Tip: When you find accumulated dust in the filter screen, please clean the filter screen in time to ensure the clean,
healthy and efficient operation inside the air conditioner.
Cleaning
of inner
air duct
Service
and
maintenance
When the air conditioner is not in use for a long time, do the following work:
Take out the batteries of the remote controller and disconnect the power supply of the air conditioner.
When starting to use after long-term shutdown:
1.Clean the unit and filter screen;
2.Check whether there are obstacles at the air inlet and outlet of indoor and outdoor units;
3.Check whether the drain pipe is unobstructed;
Install the batteries of the remote controller and check whether the power is on.
First, loosen the knob on the middle of louver and bend the louver outwards to take it out.
Then, grasp both sides of bottom plate push downwards to take down the bottom plate.
Finally, loosen the buckle of deflector assembly with your thumb and take it out.
Wipe the air duct and fan assembly with a clean and wrung wet rag.
Clean the removed parts with soapy water and air dry it.
After cleaning, restore the removed parts in turn.
Clean
the unit
Disassembly
and
assembly
of
filter screen
When cleaning, you must shut down the machine and cut off the power supply for more than 5 minutes.
Under no circumstances should the air conditioner be flushed with water.
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner , so only use soft dry cloth or
wet cloth dipped with neutral detergent to clean the air conditioner.
Pay attention to cleaning the filter screen regularly to avoid dust covering which will affect the filter screen
effect. When the operating environment is dusty, the cleaning frequency should be increased appropriately.
After removing the filter screen, do not touch the fins of the indoor unit to avoid scratching.
Tip: Wipe frequently to keep air conditioner clean and good appearance .
Plastic handle
wring it dry
Gentle wipe
the unit surface
Grasp the raised plastic handle on the filter screen by hand, and then pull the filter screen out in the direction
deviating from the unit, so that the upper edge of the filter screen is separated from the unit.
The filter can be removed by lifting the filter upwards.
When installing the filter screen, first insert the lower end of the filter screen into the corresponding position
of the unit, and then squeeze the upper end of the filter screen into the corresponding buckling position of the
unit body.
TROUBLESHOOTING
32
MALFUNCTION
Strange odor
The appliance does not
operate
Noise of running water
A fine mist comes from
the air outlet
Insufficient airflow, either
hot or cold
The appliance does not
respond to commands
The display is off
Switch off the air condi-
tioner immediately and
cut off the power supply
in the event of:
ERROR SIGNALS ON THE DISPLAY
POSSIBLE CAUSES
Power failure/plug pulled out.
Damaged indoor/outdoor unit fan motor.
Faulty compressor thermomagnetic circuit breaker.
Faulty protective device or fuses.
Loose connections or plug pulled out.
It sometimes stops operating to protect the appliance.
Voltage higher or lower than the voltage range.
Active TIMER-ON function.
Damaged electronic control board.
Dirty air filter.
Back flow of liquid in the refrigerant circulation.
This occurs when the air in the room becomes very cold, for example in the
COOLING or DEHUMIDIFYING/DRY modes.
This noise is made by the expansion or contraction of the front panel due
to variations in temperature and does not indicate a problem.
Unsuitable temperature setting.
Obstructed air conditioner intakes and outlets.
Dirty air filter.
Fan speed set at minimum.
Other sources of heat in the room.
No refrigerant.
Remote control is not close enough to indoor unit.
The batteries of remote control need to be replaced.
Obstacles between remote control and signal receiver in indoor unit.
Active LIGHT function.
Power failure.
Uncommon noises during operation.
Faulty electronic control board.
Faulty fuses or switches.
Spraying water or objects inside the appliance.
Overheated cables or plugs.
Very strong smells coming from the appliance.
A strange noise can be
heard
Indoor temperature sensor fault
Description of the troubleDisplay
Outdoor pipe temperature sensor fault
Indoor pipe temperature sensor fault
Malfunction of indoor fan motor
Refrigerant system leakage or fault
Outdoor air temperature sensor fault
Outdoor discharge temperature sensor fault
Outdoor IPM module fault
Description of the trouble
Display
Outdoor PCB EEPROM fault
Outdoor current detect fault
In case of error, the display on the indoor unit shown the following error codes:
Outdoor suction temperature sensor fault
Outdoor fan motor fault
