USER MANUAL
MDF18A1AWW,MDF18A1ABB
MDF18A1AST models
www.midea.com
en
Power supply: 120 V
Frequency: 60 Hz
Capacity: 8 Place Settings
Dishwasher
Warning:
Before using this product,
please read this manual
carefully and keep it for future
reference. The design and
specifications are subject to
change without prior notice
for product improvement.
Consult with your dealer or
manufacturer for details.
version A - 12 - 2022
Free 3 months extension
of the original limited
warranty period!* Simply
text a picture of your
proof of purchase to:
1-844-224-1614
*The warranty extension is for the three
months immediately following the
completion of the product’s original
warranty period. Individuals do not need to
register the product in order to get all the
rights and remedies of registered owners
under the original limited warranty.
Safety Precautions ........................................................................................................... 3
Operating Requirements................................................................................................ 7
Part And Specifications .................................................................................................. 8
Start Up Guide ................................................................................................................. 10
Controls ................................................................................................................................11
Preparing And Loading Dishes .................................................................................. 14
Detergent And Rinse Aid Dispenser.........................................................................18
Dishwasher Care ...............................................................................................................21
Troubleshooting ..............................................................................................................25
Dear user
Thank you for letting Midea help you "make yourself at home." This
manual is part of our commitment to your total satisfaction. Please
read this manual carefully before use and keep it in a convenient
place for future reference.
To help us serve you better, please consider registering your product
using our convenient Midea app MSmartlife, by visiting HYPERLINK
http://www.midea.com, or by texting a picture of your proof of
purchase to 1-866-646-4332.
By using the text option you will earn an additional 3 month warranty
extension immediately following the completion of the product's
original warranty.
3
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
SAFETY PRECAUTIONS
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY
IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage, including death.
The level of risk is shown by the following indications.
WARNING
This symbol indicates the possibility of
death or serious injury.
CAUTION
This symbol indicates the possibility of
injury or damage to property.
WARNING
This symbol indicates the possibility of
dangerous voltage constituting a risk of
electrical shock is present that could result in
death or serious injury.
WARNING/GROUNDING INSTRUCTIONS
Improper connection of the equipment-grounding conductor can result
in a risk of electric shock. Check with a qualified electrician or service
representative if you are in doubt whether the appliance is properly
grounded. Do not modify the plug if provided with the appliance. If the
plug will not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by providing
a path of least resistance for electric current. If this appliance is equipped
with a cord having an equipment-grounding conductor and a grounding
plug, the plug must be plugged into an appropriate outlet that is installed
and grounded in accordance with all local codes and ordinances.
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor must be run with
the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
4
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using your dishwasher, follow basic precautions, including the
following:
●
Read all instructions before using the dishwasher.
●
Use the dishwasher only for its intended function.
●
Use only detergents or rinse/wetting agents recommended for use
in a dishwasher and keep them out of the reach of children.
●
When loading items to be washed:
●
Locate sharp items so that they are not likely to damage the
door seal.
●
Load sharp knives with the handles up to reduce the risk of cut-
type injuries.
●
Do not wash plastic items unless they are marked "Dishwasher
Safe" or the equivalent. For plastic items not so marked, check the
manufacturer's recommendations.
●
Items that are not dishwasher safe may melt and create a potential
fire hazard.
●
Do not touch the heating element during or immediately after use.
●
Do not operate your dishwasher unless all enclosure panels are
properly in place.
●
Do not tamper with controls.
●
Do not abuse, sit on, or stand on the dishwasher door, or dish racks.
●
To reduce the risk of injury, do not allow children to play in or on a
dishwasher.
●
Under certain conditions, hydrogen gas may be produced in a
hot-water system that has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on
all hot-water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame during this time.
●
Severe product damage and/or injury could result from the use of
unqualified service technicians or non-original replacement parts.
All repairs must be performed by a qualified service technician using
only original equipment factory replacement parts.
●
Do not store or use combustible materials, gasoline or other
flammable vapors and liquids in the vicinity of this or any other
appliance.
●
Keep young children and infants away from dishwasher when it is
operating.
5
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
●
Do not use the dishwasher if it has a damaged power line or plug,
and do not plug the dishwasher into a damaged outlet. Failure to
observe these instructions may result in electrical shock.
●
This manual does not cover every possible condition or situation
that may occur.
●
Remove the door to the washing compartment when removing an
old dishwasher from service or discarding it.
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
WARNING
Tip Over Hazard
●
Do not use dishwasher until completely installed.
●
Do not push down on open door.
●
Doing so can result in serious injury or cuts.
State of California Proposition 65 Warnings:
WARNING:
Cancer and Reproductive Harm
-www.P65Warnings.ca.gov
WARNING
Suffocation Hazard
●
Before you throw away your old appliance, remove the door or lid so
that children cannot hide or get trapped inside your old appliance.
●
Failure to follow these instructions can result in death or brain
damage.
6
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
CAUTION
●
Never use harsh chemicals to clean your dishwasher. Some chloride-
containing products can damage your dishwasher and may present
health hazards!
●
Never use steam cleaning products to clean your dishwasher. The
manufacturer will not be responsible for the possible damages or
consequences.
●
To avoid possible dishwasher damage, do not use harsh chemicals,
abrasive cleaners, scouring pads (metal or plastic), or abrasive
cloths/paper towels to clean your dishwasher's exterior door panel.
Your dishwasher's exterior door panel can be damaged by doing so.
●
It is highly recommended that the user become familiar with the
procedure to shut off the incoming water supply and the procedure
to shut off the incoming power supply. See the Installation
Instructions or contact your installer for more information.
●
If the dishwasher drains into a food disposer, make sure disposer is
completely empty before running dishwasher.
●
NSF/ANSI 184 Certified residential dishwashers are not intended for
licensed food establishments.
●
Protect your dishwasher from the elements. Protect against freezing
to avoid possible damage to the fill valve. Damage caused by
freezing is not covered by the warranty.
●
Not for outdoor use.
Safety
Precautions
Operating
Requirements
Parts and
Features
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
7
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
OPERATING REQUIREMENTS
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
●
Electrically ground dishwasher.
●
Connect ground wire to green ground connector in terminal box.
●
Do not use an extension cord.
●
Failure to follow these instructions can result in death, fire, or
electrical shock.
This dishwasher is designed for operation on an adequately wired
individual 120 V, 60 Hz, 15- or 20-amp fused electrical supply with copper
wire only. It is recommended that a time-delay fuse or circuit breaker is
used, and that a separate circuit serving only this appliance is provided. If
an outlet is used, the outlet should be placed in adjacent cabinet.
LOCATION REQUIREMENTS
●
Install where dishwasher is protected from the elements. Protect
against freezing to avoid possible rupture of fill valve. Such ruptures
are not covered by the warranty.
●
Install and level dishwasher on a floor that will hold the weight and in
an area suitable for its size and use.
WATER SUPPLY REQUIREMENTS
●
The water supply temperature should be 120°F to 150°F (49°C to
66°C).
●
The water supply must maintain water pressure between 20 and 80
psi for sufficient flow.
8
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting

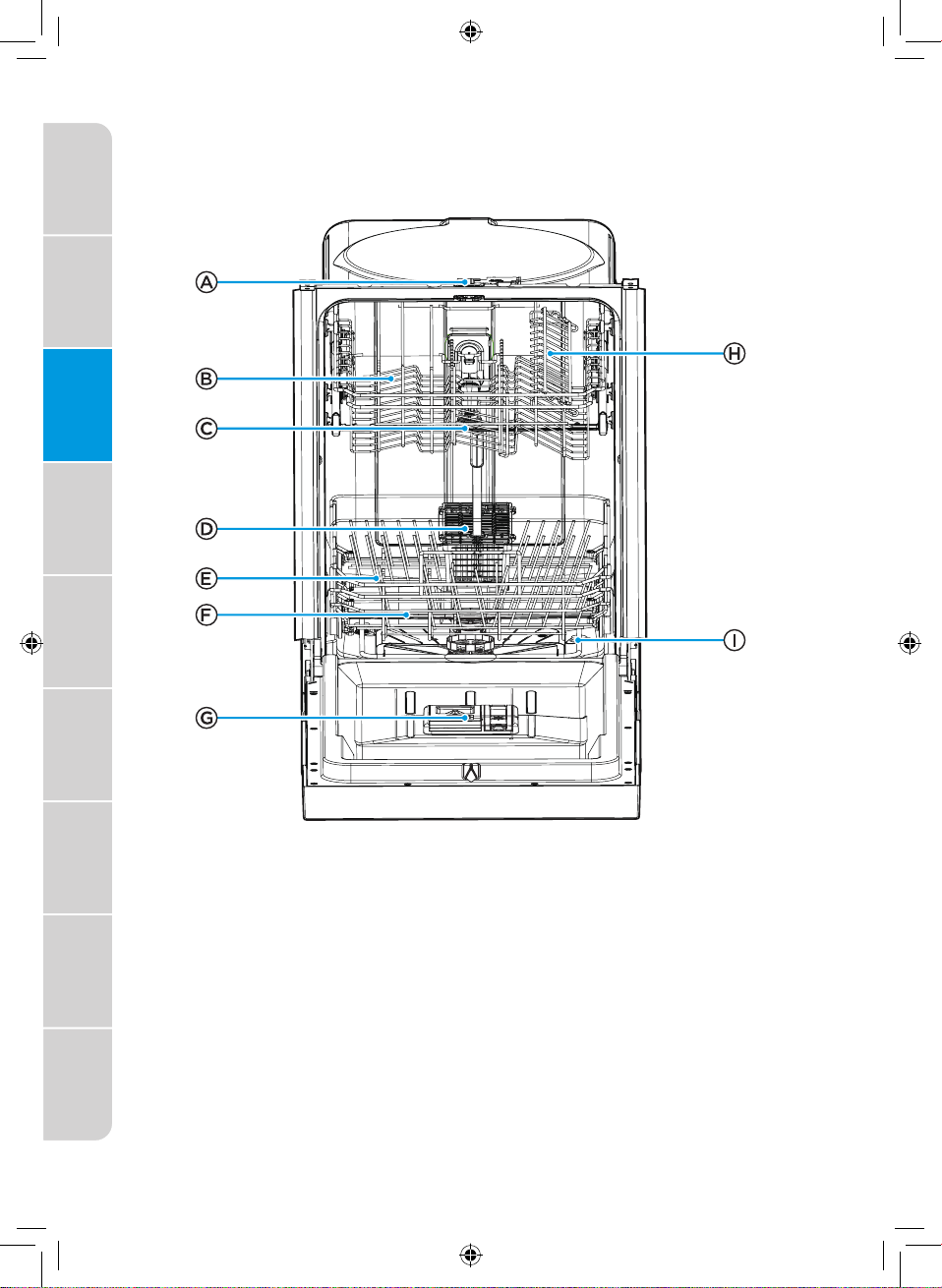

PART AND SPECIFICATIONS
A)
Lock
B)
Upper Basket
C)
Upper Spray Arm
D)
Cutlery Basket
E)
Lower Basket
F)
Lower Spray Arm
G)
Dispenser
H)
Cup Shelf
I)
Heating Element
9
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
Product Specifications
Capacity 8 place settings
Dimensions 17.6 x 22.6 x 32.4 inches
450 x 575 x 825 mm
(W x D x H)
Power Supply 120V, 60Hz
Water feed pressure 20 psi–80 psi
(0.14 MPa–0.82 MPa)
10
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
Safety
Precautions
Operating
Requirements
Parts and
Features
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
START UP GUIDE
IMPORTANT:
●
Properly dispose of/recycle all packing material.
●
Read this entire User Manual. You will find important safety
information and useful operating tips.
HOW YOUR DISHWASHER CLEANS
Your dishwasher cleans by spraying a mixture of hot water and detergent
through the spray arms against soiled surfaces.
The dishwasher fills with water covering the filter area. Water is then
pumped through the multiple filters and spray arms. Soil particles are
separated from the water and go down the drain as the water is pumped
out and replaced with clean water.
The number of water fills will vary depending on the cycle selected.
BEFORE USING YOUR DISHWASHER
1. Check the filters for debris that may have been introduced from the
packaging or during installation. See the “Clean Filters” section.
2. Add Rinse Aid. See “Rinse Aid.”
USING YOUR NEW DISHWASHER
NOTE: To decrease cycle time and possibly improve performance, turn on
the hot water faucet nearest to the dishwasher until the water runs hot.
Turn off the water.
1. Load dishwasher. See “Dishwasher Loading.”
2. Add detergent. See “Filling the detergent dispenser.”
3. Select desired CYCLE and OPTIONS. See “Cycle and Option Charts.”
4. Close the door firmly to latch.
5. Press START.
6. Upon the completion of the cycle. The screen will display "END".
11
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
CONTROLS
A
B
C ECG D F
A)
POWER
Press this button for 3 seconds to turn on or turn off the dishwasher.
B)
DELAY START
The Delay time feature allows you to program the dishwasher to
began the selected wash cycle 1 to 24 hours later.
●
Press the “Delay -/+” control repeatedly to toggle from 1 to 24H.
C)
CYCLES
Press this button to select the appropriate washing program, the
corresponding program indicator will be lit.
HEAVY
Heavy cycle is for pots, pans, casseroles and dinnerware with dried-
on or baked on soil.
NORMAL
Normal cycle with only the Heated Dry option selected is
recommend to completely wash and dry a full load of normally
soiled dishes.
The energy usage label is based on this cycle and option
combination with the upper rack in the raised position.
ECO
It is suitable to clean normally soiled tableware and it is the most
efficient program in terms of it's combined energy and water
consumption for that type of tableware.
DELICATE
Glass cycle is for lightly soiled loads, such as glasses, crystal and fine
china.
QUICK
Delicate cycle is for lightly soiled loads, such as glasses, crystal and
fine china.
12
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
RINSE
Use for pre-rinsing dishes or glasses. This is only a rinse that keeps
food from drying on your dishes and reduces odor buildup in your
dishwasher until you are ready to wash a full load.
D)
CHILD LOCK
Use to lock all controls and prevent children from accidently
changing the dishwasher cycle or starting the dishwasher.
●
Press the button for 3 seconds to lock. After the function is
selected the control lock icon will illuminate.
●
Press the button again for 3 seconds to unlock.
E)
OPTIONS
Options enhance the wash cycle. Some Options are available with
only certain Wash Cycles. Refer to the "Cycles and Options Charts"
to see which Options are available for the wash cycle you selected.
●
Press the button to select a option, corresponding indicator will
be lit.
HEATED DRY
When the Heated Dry option is selected, the heater will work during
the drying process. The Heated Dry process adds time to the wash
cycle.
HI TEMP
When the Hi Temp option is selected, the water temperature will be
maintained at 136°F (58°C) maximum during the wash portion of the
cycle.
SANITIZE
When Sanitize is selected, the temperature of water will be
maintained at 156.2°F (69°C) max. The max temperature may
not be reached if the incoming water temperature is not correct.
Certified residential dishwashers are not intended for licensed food
establishments.
F)
START
START - Close the door and press START. The pilot lamp “:” in the
screen will blink when starting.
PAUSE - If you need to pause a dishwasher cycle in process:
IMPORTANT: Open the door slightly, and then wait for the spray
arms and wash action to stop before opening the door completely.
Doing this will help keep you from being splashed with hot water.
1. Open the door slightly and wait a few seconds until the wash
action stops.
2. Open the door to add or remove items.
3. Close the door and then Press START to resume the wash
cycle.
CANCEL - To cancel a cycle when the dishwasher is running, press
and hold START for 3 seconds. The screen will display”--:--”.
13
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
G)
SCREEN
This LED screen displays minutes remaining in a running cycle, hours
of delay before the unit is set to start, error codes, etc.
●
If the machine is in operation, the remaining time (mins) of the
selected cycle will be shown in the display window.
●
If the Delay option is selected, the number of hours of delay
(1h-24h) will be shown in the display window. After the machine
starts, the remaining time of the selected cycle will be shown in
minutes on the display window.
NOTE: The remaining time could suddenly increase or drop several
minutes. This means the Smart Sensor has checked the soil level and
adjusted the number of fill cycles.
●
If an error occurs which is critical to the machines function and
safe operation, the control shall shut down and indicate an error
code in the display window. (See Error Codes)
●
If Error codes are displayed, contact the dealer or qualified
service center. They will available to provide assistance in trouble
shooting the problem and/or locate and authorized service
technician if needed.
Warning indicators
●
If the “
” indicator is lit, it means the dishwasher is low on
dishwasher rinse aid and needs to be refilled.
●
If the “ ” indicator is lit, it means the water faucet closed.
CYCLE AND OPTION CHARTS
Cycle Options Available Water Usage Cycle Time
Heavy
Heated Dry
High Temp, or Sanitize
4.9 gal.
18.5L
155 mins.
Normal
Heated Dry
High Temp, or Sanitize
2.5-4.9 gal.
9.5-18.5L
125-145 mins.
ECO Heated Dry, or Sanitize
4.1 gal.
15.5 L
130 mins.
Delicate Heated Dry
4.1 gal.
15.5 L
105 mins.
Quick Heated Dry, or Sanitize
3.3 gal.
12.5 L
60 mins.
Rinse Heated Dry
1.8 gal.
6.7 L
20 mins.
14
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
PREPARING AND LOADING DISHES

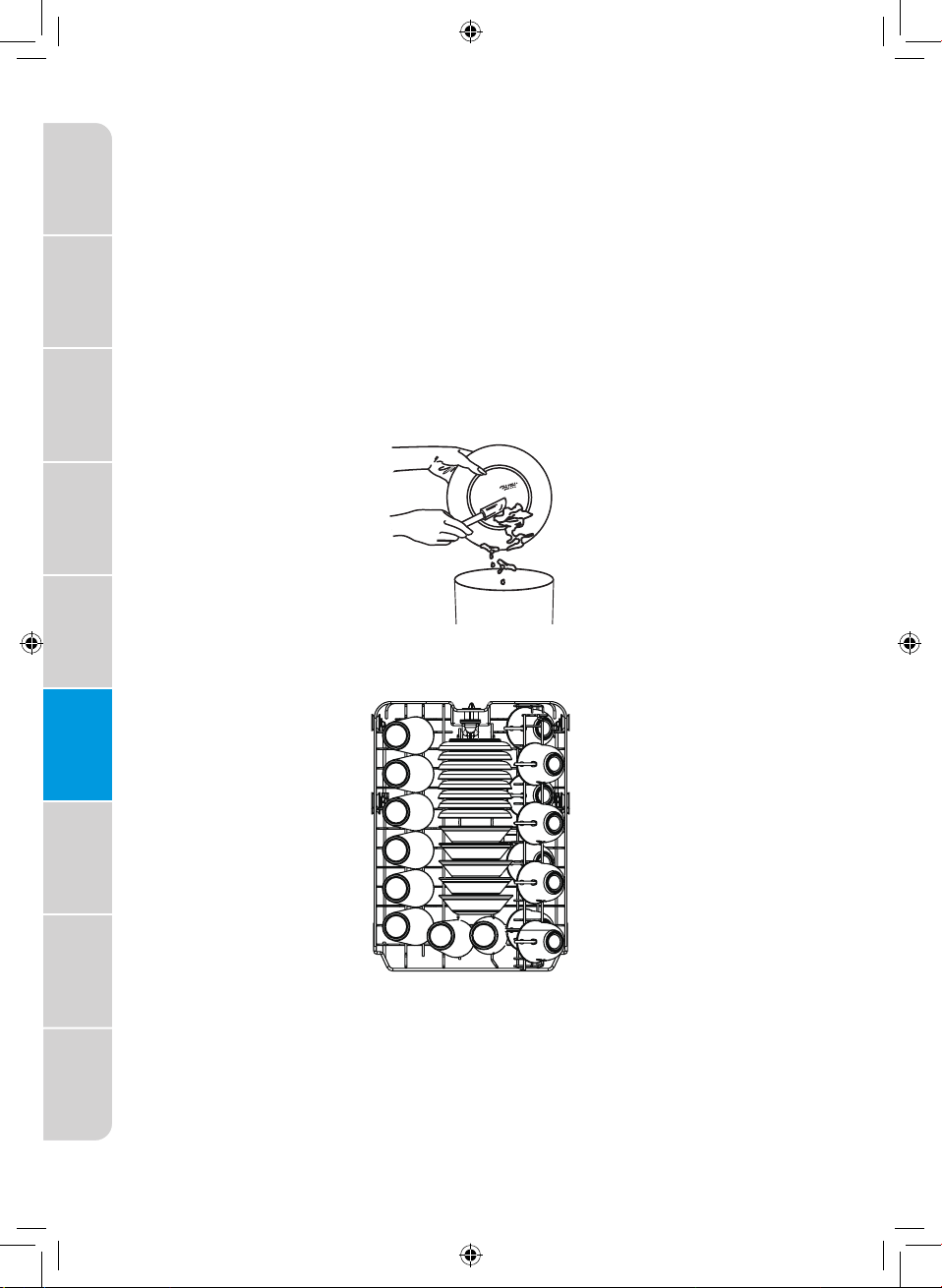

Dish Preparation
Scrape away large pieces of food, bones, pits, toothpicks, etc. The
continuously filtered wash system will remove the remaining food
particles. Burned on foods should be loosened before loading. Empty
liquids from glasses and cups. Foods such as mustard, mayonnaise,
vinegar, lemon juice and tomato based products may cause discoloration
of stainless steel and plastics if allowed to sit for a long period of time.
Unless the dishwasher is to be operated at once it is best to rinse off
these food soils. If the dishwasher drains into a food disposer, be sure
disposer is completely empty before starting dishwasher.
Loading the Upper Basket
Features and appearance of racks and silverware basket as shown may
vary from your model.
Standard 8 place setting for upper basket.
15
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
The upper basket has been designed for small plates, mugs, glasses, and
plastic items marked “dishwasher safe”, etc. For best results, place the
bowls, cups, glasses with soiled surface facing down or toward the center.
Tilt slightly for better drainage. Load small plates and bowls in two half
rows, so the plate in front of it, and the open sides of the plates at the
center of the dishwasher face each other.
When loading dishes, pull the upper basket out sufficiently so you can
load it without striking the counter.
IMPORTANT:
Make sure the loaded dishes do not interfere with the rotation of the
spray arm located at the bottom of the upper basket. (Check this by
rotating the spray arm by hand.)
Loading the Lower Basket
Features and appearance of racks and silverware basket as shown may
vary from your model.
Standard 8 place setting for lower basket.
The bottom basket is designed to load plates, soup bowls, plates, saucers
and cookware.
●
The adjustable basket space will allow you to load items with a
maximum height of 11 inches.
●
The fold-down tines in the bottom basket make it easy to load those
extra large and hard-to-fit items. The tines may be left up for normal
use or folded down for more flexible loading. Fold down for more
space to load large pots or pans.
Load your plates into the dishwasher in two half rows, so that the front of
each plate faces the back of the plate in front of it, and the open sides of
the plates at the center of the dishwasher face each other.
16
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
Large items should be turned so that the inside faces downward. Load
large items such as pans and pots into the dishwasher so their open sides
face downwards. We recommend loading cups, stemware, and small
plates into the upper basket.
Larger items should be placed along the edge so they do not interfere
with the spray arm rotation. Check to ensure that they do not prevent the
detergent dispenser from opening.
Loading the Silverware Basket
Features and appearance of racks and silverware basket as shown may
vary from your model.
The silverware basket can be divided into three separate modules that
can be used in both upper and lower racks.
1 32 6444 5
4
4
5
6
5
4
4
1
1
1
1
1
1
1
1
1
1
1
1
4
4
4
4
1
1
1
1
22 22
22 22
3
3
3
3
3
3
3
3
In
1 Spoons
2 Knives
3 Salad forks
4 Forks
5 Large spoons
6 Large forks
IMPORTANT:
Load sharp items (knives, skewers, etc.) pointing down.
Failure to do so may result in injury.
Make sure the loaded dishes do not interfere with the rotation of the
spray arm located at the bottom of the upper basket. (Check this by
rotating the spray arm by hand.)
17
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
Adding a Dish
To add or remove items after wash cycle starts:
1. Open door slightly and wait a few seconds until wash action stops
before completely opening.
2. Add the item.
3. Close the door firmly to latch and press START, then cycle will
resume.
WARNING
TO AVOID BURN INJURY: Slightly open door and wait until spray arms
and wash action stop. Hot water may splash out of dishwasher. Failure
to do so may result in injury.
18
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
DETERGENT AND RINSE AID
DISPENSER
The detergent and rinse aid dispenser will automatically release the
measured amount of detergent and rinse aid at the appropriate time
during the dishwasher cycles.
Rinse aid greatly improves drying and reduces water spots and filming.
Without rinse aid your dishes and dishwasher interior will have exces-sive
moisture.
The Heat Dry option will not perform as well without rinse aid. The rinse
aid dispenser, located next to the detergent cup, automatically releases a
measured amount of rinse aid during the last rinse.
Check the viewing port over rinse aid dispenser to determine if the rinse
aid is low. Fill as needed.
NOTE:
Your dishwasher is designed to use a liquid rinse aid. The use of rinse
greatly improves drying performance after the final rinse. Do not use a
solid or bar-type rinse aid. Under normal conditions, the rinse aid will last
approximately one month. It is best to keep it full, but do not over fill.
Filling the Detergent Dispenser
1. Push the dispenser cover release catch to open the main wash
detergent compartment.
NOTE:
The flap is always open at the end of a dishwashing cycle.
19
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
2. Add the recommended amount of detergent to the detergent
compartment.
3. Press down on the top of the cover to secure.
Filling the Rinse Aide Dispenser
Rinse aid improves the drying performance of the dishwasher.
This dishwasher has been designed to use liquid rinse aid only. Using
a powdered rinse aid will clog the reservoir opening and cause the
dishwasher to malfunction.
WARNING
●
DO NOT add regular detergent to the rinse aid dispenser.
●
DO NOT use powdered rinse aid in the rinse aid dispenser.
20
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
To refill the rinse aid dispenser
1. Lift up the end tab of rinse aid cover to open.
2. Fill the rinse aid dispenser with liquid rinse aid until full.
DO NOT overfill.
NOTE:
Use the viewing port when filling the rinse aid reservoir.
WARNING
Do not fill the reservoir above the full level indicator. Excess rinse aid
can overflow during the wash cycle.
3. Press the rinse aid cover down firmly to close.
21
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
DISHWASHER CARE
Keeping your dishwasher clean improves its performance, reduces
unnecessary repairs, and lengthens its life.
Cleaning the Exterior
It's best to clean spills on the outside of your dishwasher as they occur.
Use a soft, damp cloth on the control panel to gently wipe away spills and
dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These
materials may discolor the inner walls and cause stains. Do not clean the
dishwasher by sprinkling water over it and avoid letting water come into
contact with any of the electrical parts.
NOTE:
If your dishwasher has a stainless steel door panel, you can clean it with
a stainless steel cleaner for Home Appliances or a similar product using a
clean, soft cloth.
Cleaning the Interior
WARNING
BURN HAZARD
Allow heating element to cool before cleaning the interior.
Failure to do so can result in burns.
Clean the interior of your dishwasher periodically to remove any dirt or
food particles. Wipe the inside of the dishwasher and the inner part of the
door with a wet dishcloth. We recommend filling the detergent dispenser
with dish detergent, and then running the dishwasher empty periodically
using either the Normal or Express 60 cycle with the sanitize option. This
will keep your dishwasher clean.
If white spots and odor are still present in your dishwasher, run the
Normal cycle with the dishwasher empty and without detergent until it
flushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar
into the lower basket. Close the dishwasher and let the cycle finish.
WARNING
Do not remove the tub front seal (the long rubber seal enclosing the
opening of the dishwasher).
22
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
Cleaning The Filters
1. Turn off the dishwasher.
2. Rotate the filter insert counterclockwise to unfasten and then detach
the filter insert.
3. Remove the fine filter (flat, rectangular).
23
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
4. Remove any dirt or other remains from the filters, and then rinse them
under running water.
5. Reassemble the filters in the reverse order of the disassembly, replace
the filter insert, and rotate clockwise to the close arrow.
CAUTION
If the filter insert is not closed properly, its performance will be
decreased.
24
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
Cleaning the Lower Spray Arm
If your dishwasher does not seem to be cleaning adequately or the spray
arm nozzles seem clogged, the lower spray arm can be removed and
cleaned. Remove spray arm carefully to avoid damage.

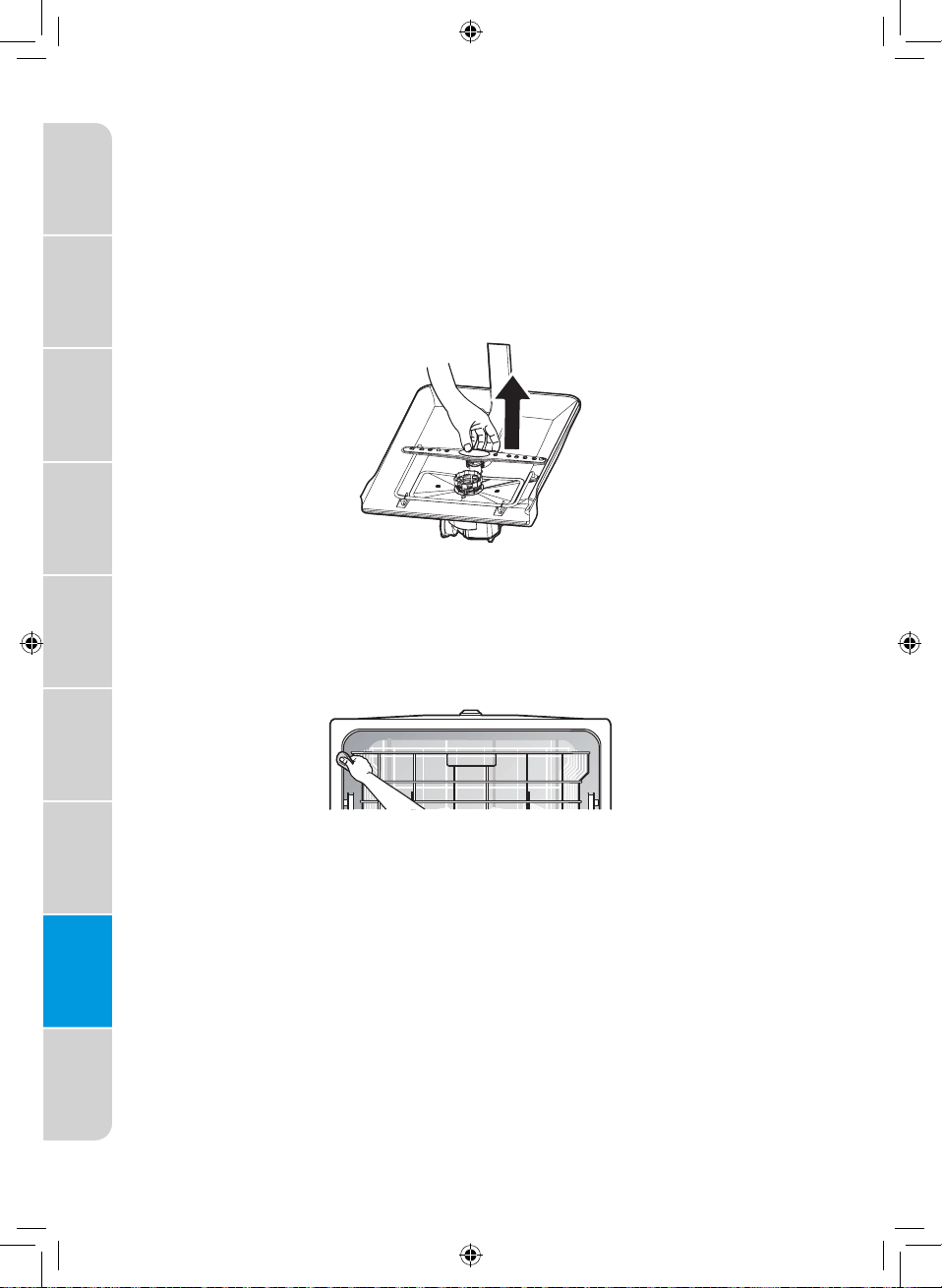

Remove lower spray arm
1. Check whether the nozzle holes are clogged by food particles.
2. If cleaning is needed, remove the spray arm by pulling it upwards.
3. Clean the nozzles, and then push the spray arm back into place.
4. Rotate the spray arm to check that it is properly in place.
Cleaning the Door Gasket
If the dishwasher door is not closing properly or if water is leaking from
the door during the cycle, check that door gasket is clear of debris.
If needed, clean the door gasket with a damp cloth to remove food
particles and ensure a tight seal.
25
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
TROUBLESHOOTING
Before calling for service, review this list. It may save you both time and
expense.
This list includes common experiences that are not the result of defective
workmanship or material in your dishwasher.
PROBLEM POSSIBLE CAUSE SOLUTION
Dishwasher
won't start
●
Dishwasher won't start.
●
Power supply or power
line is not connected.
●
Delay Start option has
been selected.
●
Child Lock activated.
(selected models)
●
Shut the door completely
make sure it is latched.
●
Check and connect the
power supply.
●
Refer to Delay Start section
in this manual to reset.
●
Deactivate the child lock,
refer to Child lock section in
this manual.
Dishwasher
beeps at the
end of the
cycle
●
The wash cycle will beep
to indicate the end of the
cycle.
Dishwasher
operates too
long
●
The dishwasher is
connected to cold water.
●
The cycle time will vary
due to the soil.
●
The sanitize option is
selected.
●
Check the dishwasher, make
sure it is properly connected
to the hot water supply.
●
When heavy soil is detected,
the auto, normal, pots &
pan cycle will automatically
increase the cycle time.
●
When sanitize option is
selected, the cycle time
will be increase to meet
the sanitized temperature
request.
Dishes are not
clean enough
●
Water pressure is
temporarily low.
The inlet water
temperature is low.
●
Dishes are loaded too
close together.
Improper use of
detergent.
●
The selected cycle is
not suitable for food soil
condition.
●
Spay arms is blocked by
some items.
●
Use you dishwasher when
the water pressure is normal.
●
Make sure the dishwasher is
connected to the hot water
supply. Try not use your
dishwasher when hot water
is being used elsewhere in
the house.
●
Load the dishes again as the
manual.
●
Add detergent depending on
the water hardness and the
cycle you chose. Use fresh
detergent.
●
Choose anther cycle for
longer washing time.
●
Make sure the spay arm is
rotated freely.
26
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
Dishes not
drying enough
●
Rinse aid dispenser is
empty.
●
Improper loading of
dishes.
●
The cycle you chose did
not included the drying.
●
Fill rinse aid dispenser or
increase the amount of rinse
aid.
●
Load the dishes again as the
manual instructs.
●
Choose the proper cycle
with drying.
Spots and
filming on
dishes
●
Water hardness is too
high.
●
Improper loading of
dishes.
●
Old rinse aid is used.
●
Rinse dispenser empty.
●
For extremely hard water
install a water softener.
●
Load the dishes again as the
manual indicates.
●
Use fresh rinse aid.
●
Add rinse aid to the
dispenser.
Etching
●
Using too much
detergent.
●
The inlet water
temperature exceeds
158°F (70°C).
●
Use less detergent if you
have soft water.
●
Lower the inlet water
temperature.
Detergent left
in dispenser
cup
●
Large Dish/Pan blocking
water from spray arm
from washing out
detergent cup.
●
Do not load large pans along
the front of the rack, try to
place them along the sides
of the rack.
Detergent
dispenser will
not shut
●
Improper operation of
the detergent cover.
●
Add the detergent and
rinse aid as indicated by the
manual.
Water
remains in the
dishwasher
●
Previous cycle has not
finished or has been
interrupted.
●
Select the proper cycle
explained in the manual.
Dishwasher
does notdrain
properly
●
Drain is clogged.
●
Drain hose is kinked.
●
Check the air gap if you have
one. Make sure the disposer
is empty if the dishwasher is
connected to the disposer
●
Make sure the drain hose is
properly connected to the
sink.
Suds in the tub
●
Improper detergent is
used.
●
Make sure to use only the
automatic dishwasher
detergent.
Dishwasher
leaks
●
Excessive suds caused
by using the improper
detergent.
Dishwasher is not level.
●
Make sure to use only the
proper dishwasher detergent
Level the dishwasher.
Black or gray
marks on
dishes
●
Aluminum utensils have
rubbed against dishes.
●
Use a mild abrasive cleaner
to eliminate those marks.
27
Safety
Precautions
Operating
Requirements
Part and
Specifications
Start Up
Guide
Controls
Dishwasher
Loading
Dishwasher
Use
Dishwasher
Care
Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
Stained tub
interior
●
Coffee and tea soil.
●
Reddish stain.
●
Using an approved spot
cleaner to remove the soil.
●
Some tomato-based foods
will cause this, use of the
rinse only cycle right after
loading this will decrease the
staining.
Noises
●
Detergent cup opening\
Drain pump sound.
●
A hard object has entered
the wash module. When
the object is ground up,
the sound should stop.
●
This is normal.
●
If the noise persists after
a complete cycle, call for
service.
Dishwasher
won't fill with
water
●
Water valve is turn off
●
Door latch may not be
properly seated
●
Check if the water valve is
turn on
●
Make sure the door is closed
Error Codes
Error codes will display on the display window when the following errors
occur:
Code Meanings Cause
E1 Not enough water flow in
allotted time
Confirm water is turned on to
the dishwasher. Verify water
pressure.
NOTE: Water supply must
maintain water pressure between
20 and 80 psi for sufficient flow.
E4 Overflow or leak sensor
activated
First, turn off water to the
dishwasher. Check filter system
for blockage.
IMPORTANT: Watch for broken
glass in the filter. If there is
no water in the tub, contact
Customer Service.
WARNING
●
If overflow occurs, turn off the main water supply before calling a
service provider.
●
If there is water in the base pan because of an overfill or small leak,
the water should be removed before restarting the dishwasher.
28
MIDEA
DISHWASHER
LIMITED
WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS
REQUIRED TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you
call the Customer Service Center:
Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer name and
address
IF YOU NEED SERVICE:
1.
Before contacting us to arrange service, please determine whether your product
requires repair. Some questions can be addressed without service. Please take
a few minutes to review the Troubleshooting section of the User Manual, or visit
http://us.Midea.com/support
2.
All warranty service is provided exclusively by our authorized Midea Service Providers,
in the U.S. and Canada.
Midea Customer Service
In the U.S.A. or Canada, call 1-866-646-4332.
If outside the 50 States of the United States or Canada, contact your authorized Midea
dealer to determine whether another warranty applies.
LIFETIME LIMITED WARRANTY
WHAT IS COVERED
FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)
For one year from the date of purchase, if this major appliance is installed, operated and
maintained according to instructions attached to or furnished with the product, Midea
America Corporation (hereafter "Midea") will pay for factory specified replacement parts
and repair labor to correct defects in materials or workmanship that existed when this
major appliance was purchased, or at its sole discretion replace the product. In the event of
product replacement, your appliance will be warranted for the remaining term of the original
unit's warranty period.
LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB AND INNER DOOR LINER ONLY)
For the lifetime of the product from the date of original purchase, when this major appliance
is installed, operated and maintained according to instructions attached to or furnished with
the product, Midea will pay for factory specified parts and repair labor for the following
components to correct non-cosmetic defects in materials or workmanship that existed when
this major appliance was purchased:
Stainless steel tub
Inner door liner
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided
by a Midea designated service company. This limited warranty is valid only in the 50 States
of the United States or Canada and applies only when the major appliance is used in the
country in which it was purchased. This limited warranty is effective from the date of original
consumer purchase. Proof of original purchase date is required to obtain service under this
limited warranty.
29
LIFETIME LIMITED WARRANTY
WHAT IS NOT COVERED
1.
Commercial, non-residential or multiple-family use, or use inconsistent with published
user, operator or installation instructions.
2.
In-home Instruction on how to use your product.
3.
Service to correct improper product maintenance or installation, installation not in
accordance with electrical or plumbing codes or correction of household electrical or
plumbing (i.e. house wiring, fuses, plumbing or water inlet hoses).
4.
Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5.
Defects or damage caused by the use of non-genuine Midea parts or accessories.
6.
Damage from accident, misuse, abuse, fire, floods, electrical issues, acts of God or use with
products not approved by Midea.
7.
Repairs to parts or systems to correct product damage or defects caused by unauthorized
service, alteration or modification of the appliance.
8.
Cosmetic damage including scratches, dents, chips, and other damage to appliance
finishes unless such damage results from defects in materials and workmanship and is
reported to Midea within 30 days.
9.
Routine maintenance of the product.
10.
Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive
environments including but not limited to high salt concentrations, high moisture or
humidity or exposure to chemicals.
11.
Pick-up or delivery. This product is intended for in-home repair.
12.
Travel or transportation expenses for service in remote locations where an authorized
Midea servicer is not available.
13.
Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative
panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing,
removal or replacement of the product.
14.
Service or parts for appliances with original model/serial numbers removed, altered or not
easily identified.
The cost of repair or replacement under these excluded circumstances shall be borne by
the customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR
OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may
not apply to you. This warranty gives you specific legal rights, and you also may have other rights
that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Midea makes no representations about the quality, durability, or need for service or repair of this
major appliance other than the representations contained in this warranty. If you want a longer or
more comprehensive warranty than the limited warranty that comes with this major appliance, you
should ask Midea or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of
incidental or consequential damages, so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you also may have other rights that vary from state to
state or province to province.
Free 3 months extension
of the original limited
warranty period!* Simply
text a picture of your
proof of purchase to:
1-844-224-1614
*The warranty extension is for the three
months immediately following the
completion of the product’s original
warranty period. Individuals do not need to
register the product in order to get all the
rights and remedies of registered owners
under the original limited warranty.
