MICROWAVE HOOD COMBINATION
INSTALLATION INSTRUCTIONS
This product is suitable for use above electric or gas cooking products up to and including 30" (76.2 cm) wide. See
"Installation Requirements" section for further notes.
These installation instructions cover different models. The appearance of your particular model may differ slightly from the
illustration in these installation instructions.
INSTRUCTIONS D'INSTALLATION
DE L'ENSEMBLE FOUR A MICRO-ONDES/HOTTE
Ce produit est con_u pour rutilisation au-dessus d'appareils de cuisson 61ectriques ou _.gaz de 30" (76,2 cm) de largeur
ou moins. Voir la section "Exigences d'installation" pour d'autres remarques.
Ces instructions d'installation sont valables pour plusieurs modules. IIse peut que I'apparence de votre propre module soit
16g&rement diff6rente de celle montr6e sur les illustrations dans ce document.
Table of Contents / Table des mati_res
MICROWAVE HOOD COMBINATION SAFETY ....................... 1

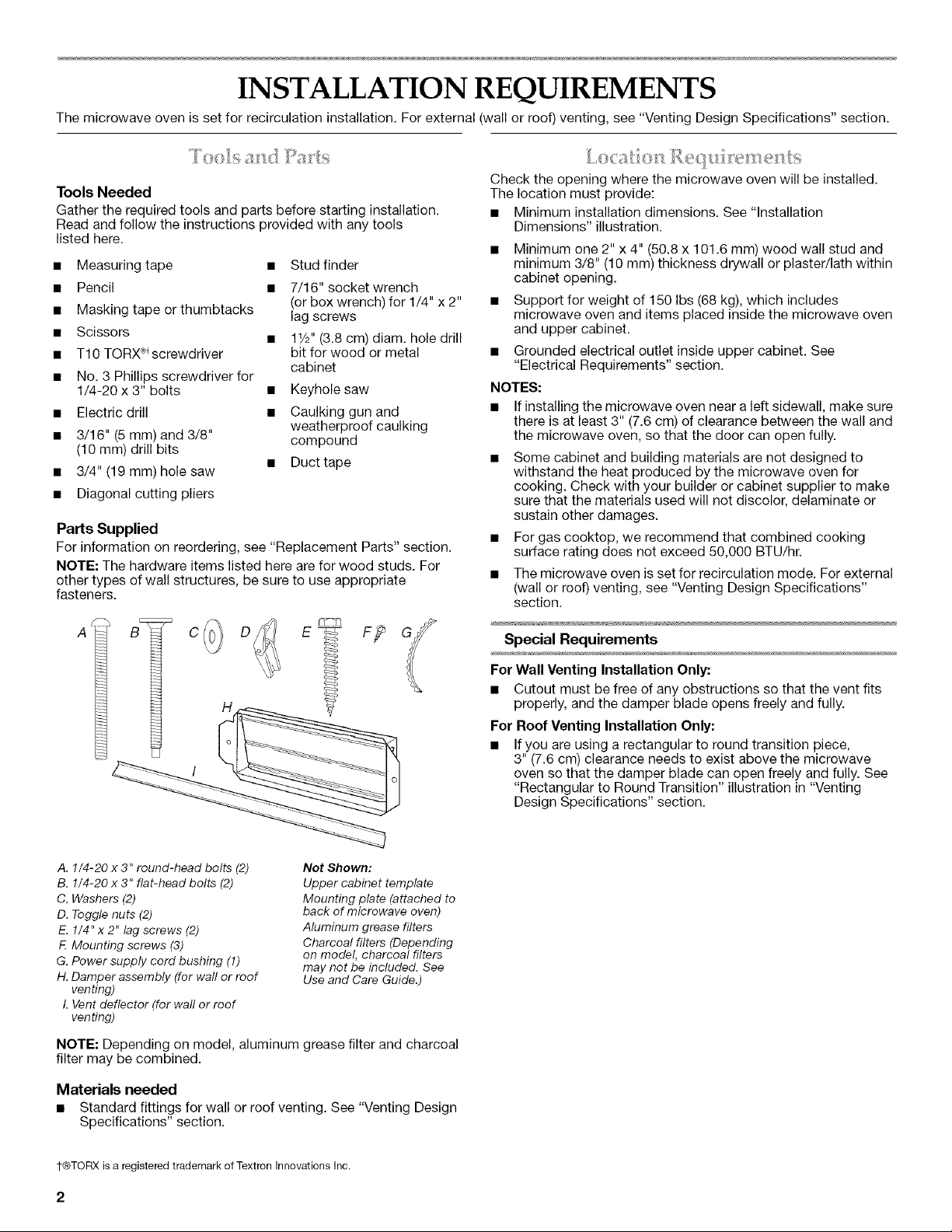

INSTALLATION REQUIREMENTS ............................................ 2
Tools and Parts ....................................................................... 2
Location Requirements ........................................................... 2

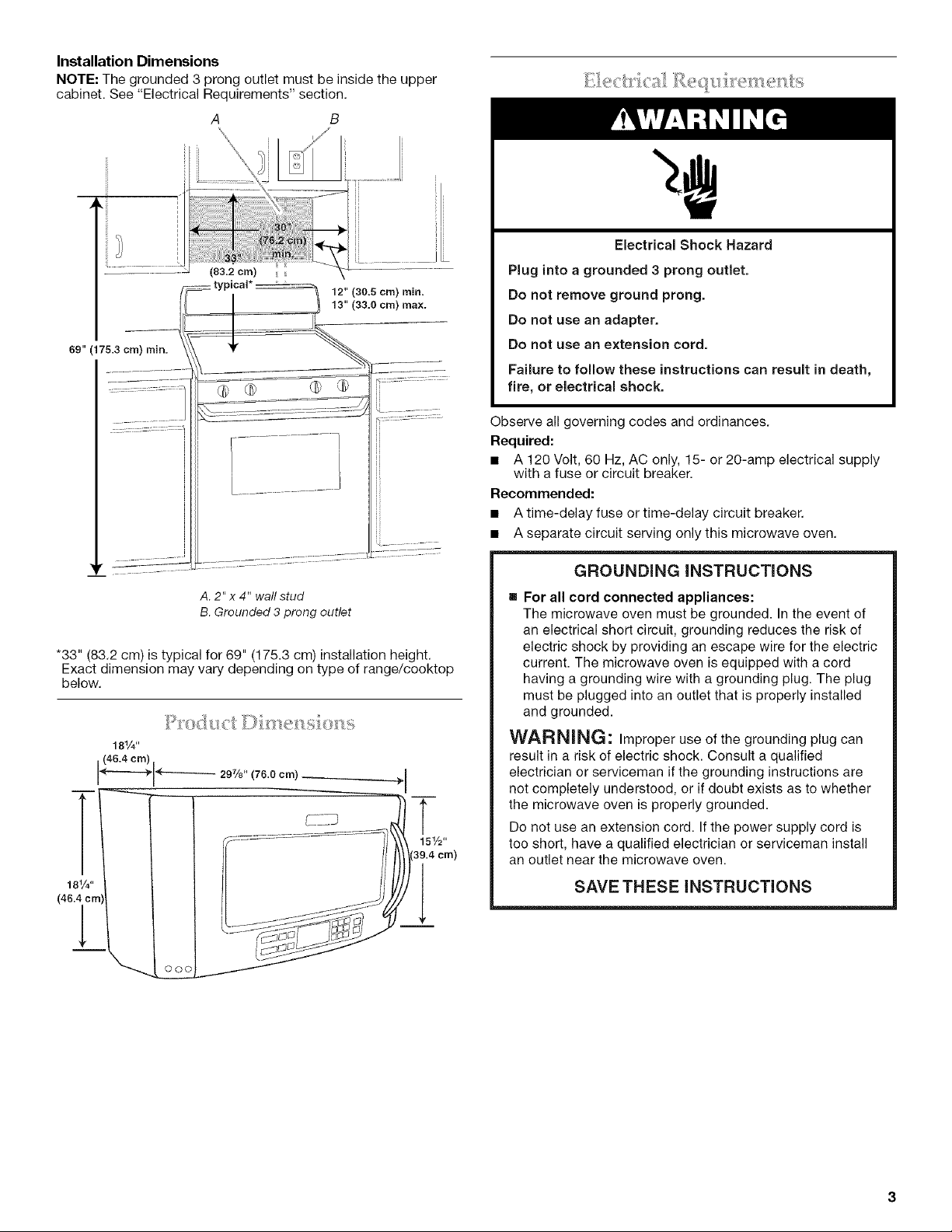

Product Dimensions ................................................................ 3
Electrical Requirements .......................................................... 3
INSTALLATION INSTRUCTIONS .............................................. 4

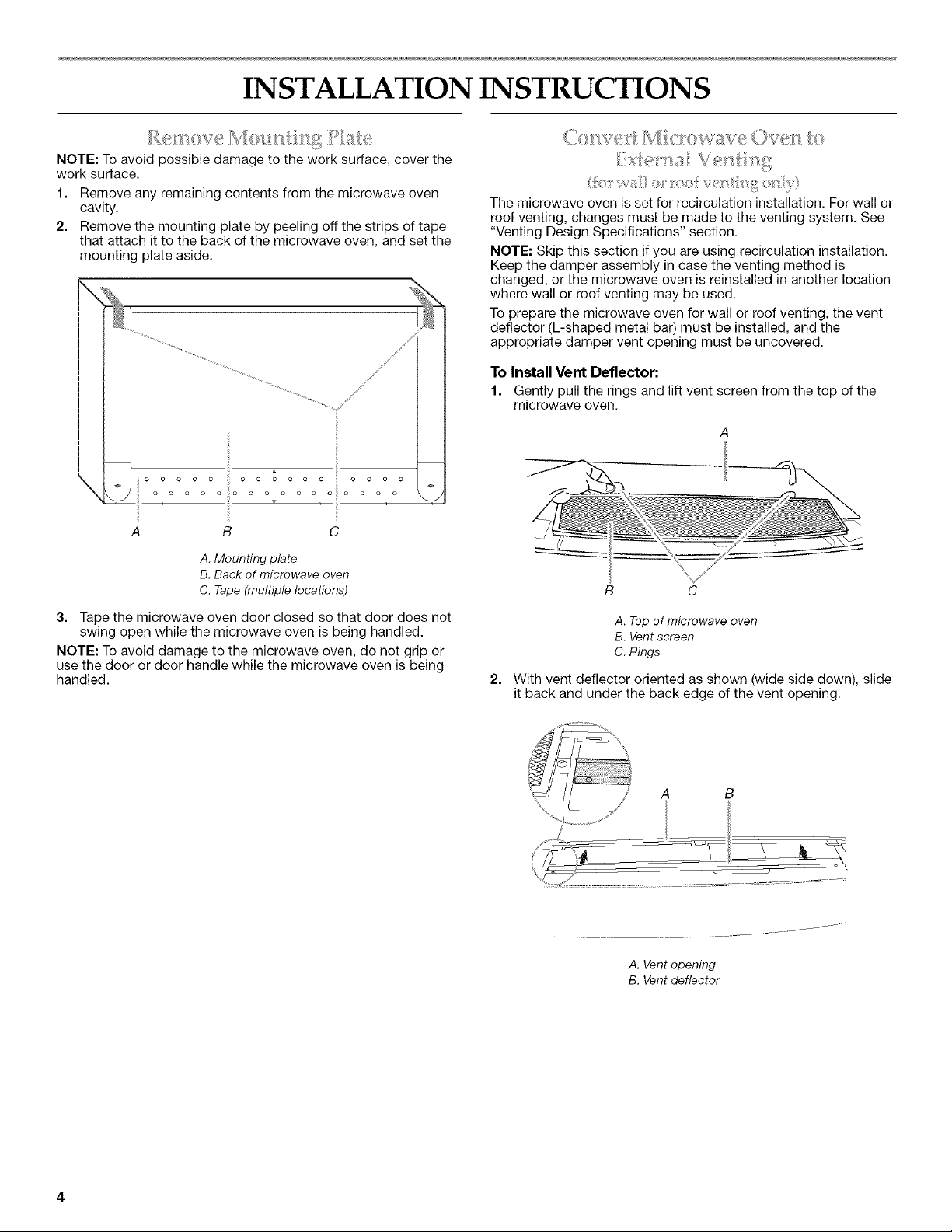

Remove Mounting Plate .......................................................... 4

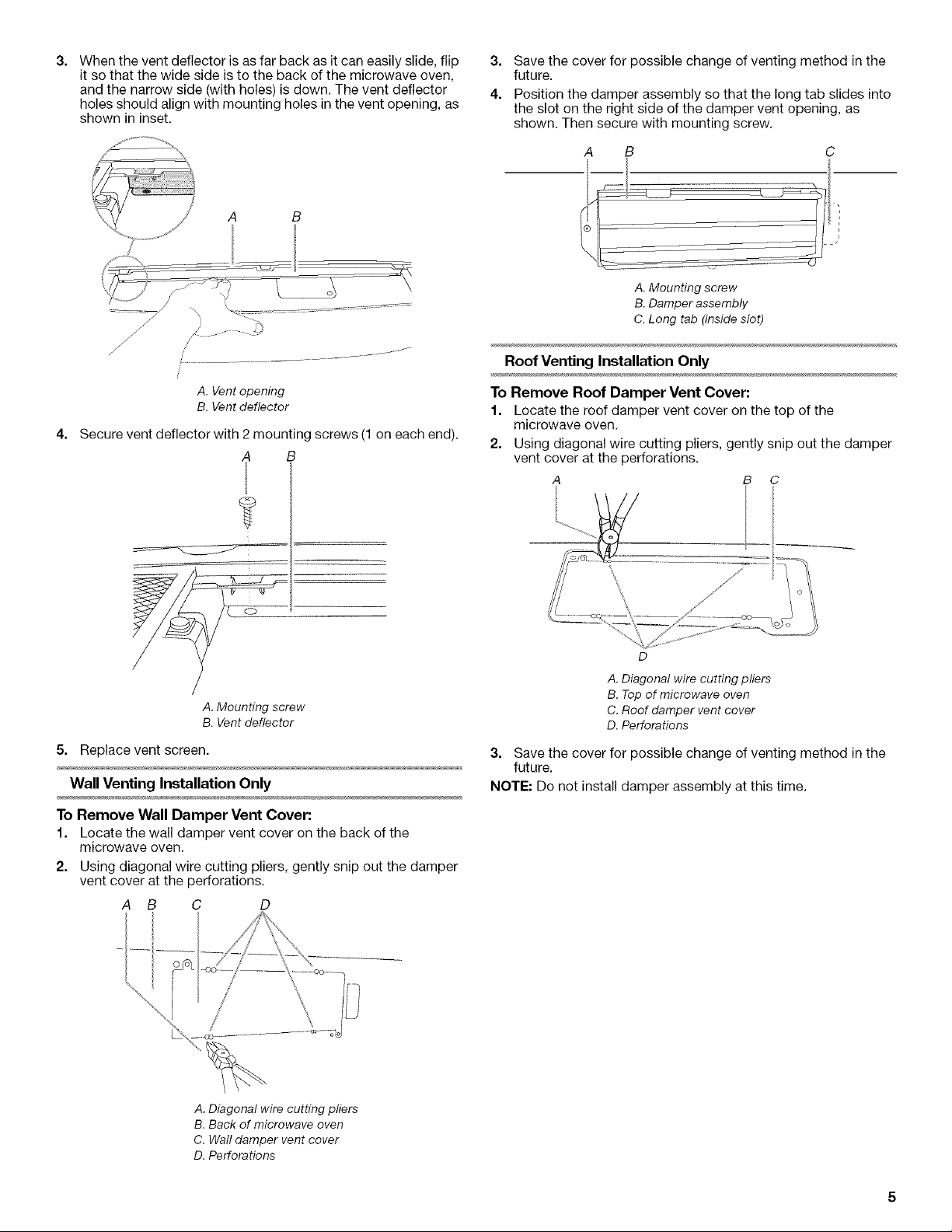

Convert Microwave Oven to External Venting ........................ 4

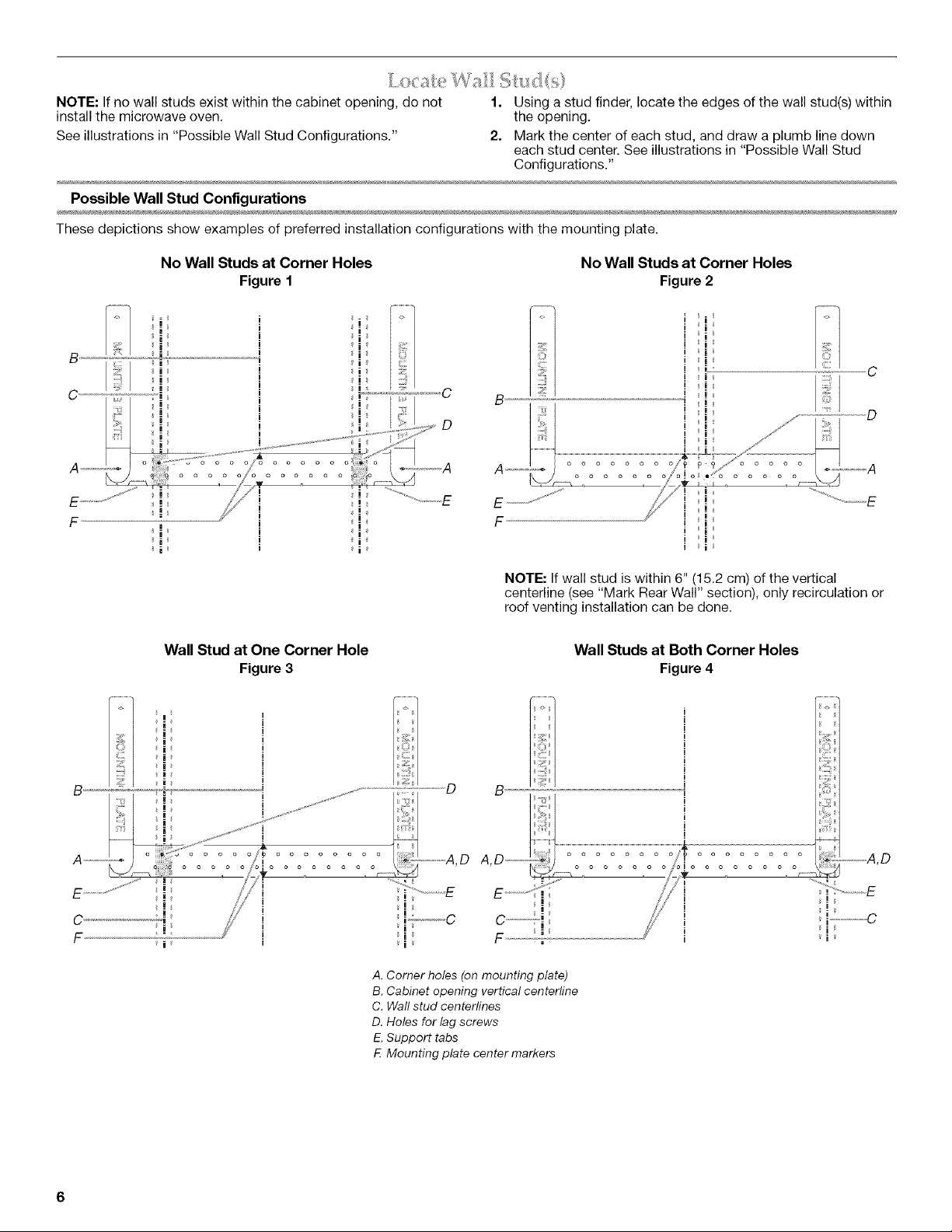

Locate Wall Stud(s) ................................................................. 6
Mark Rear Wall ........................................................................ 7
Drill Holes in Rear Wall ............................................................ 7

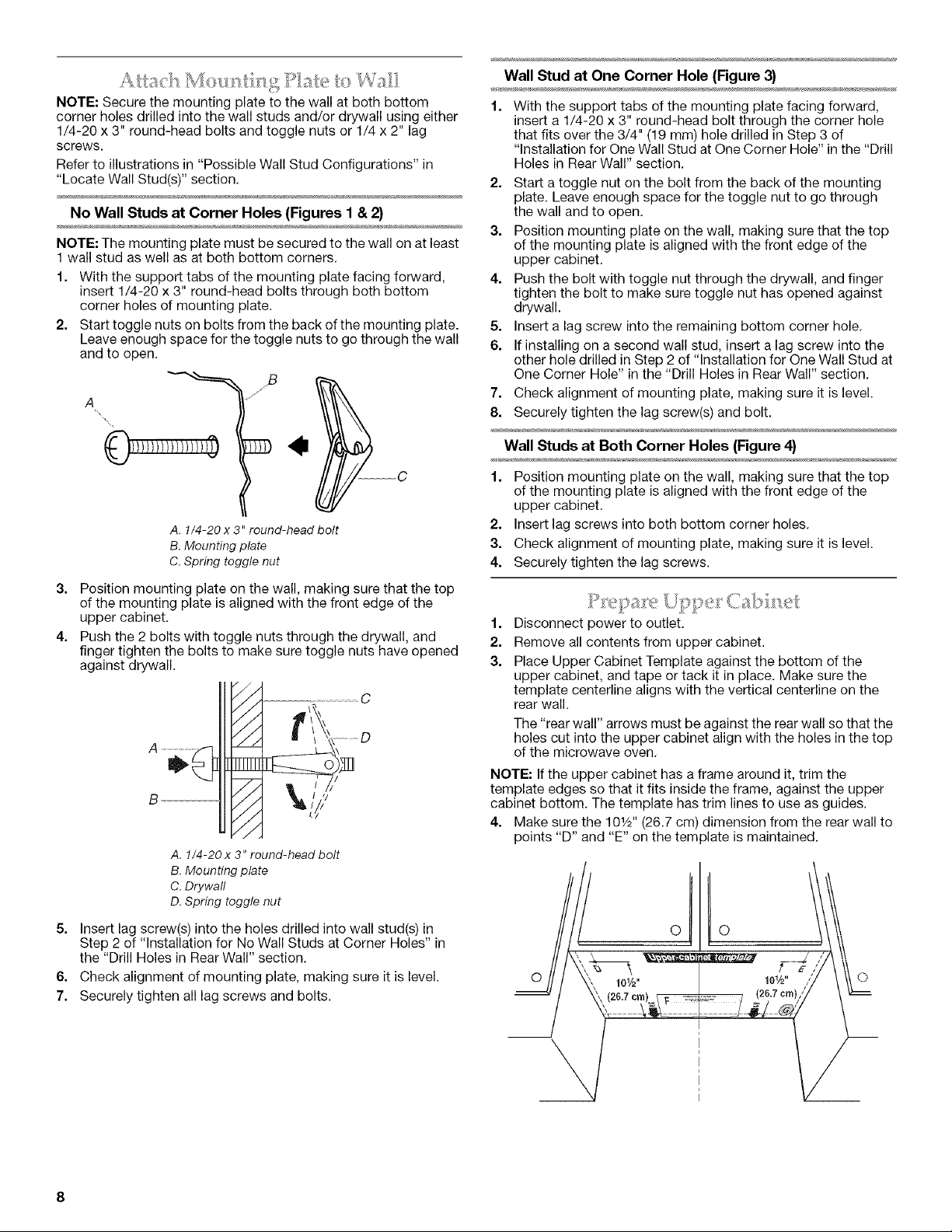

Attach Mounting Plate to Wall ................................................ 8
Prepare Upper Cabinet ........................................................... 8

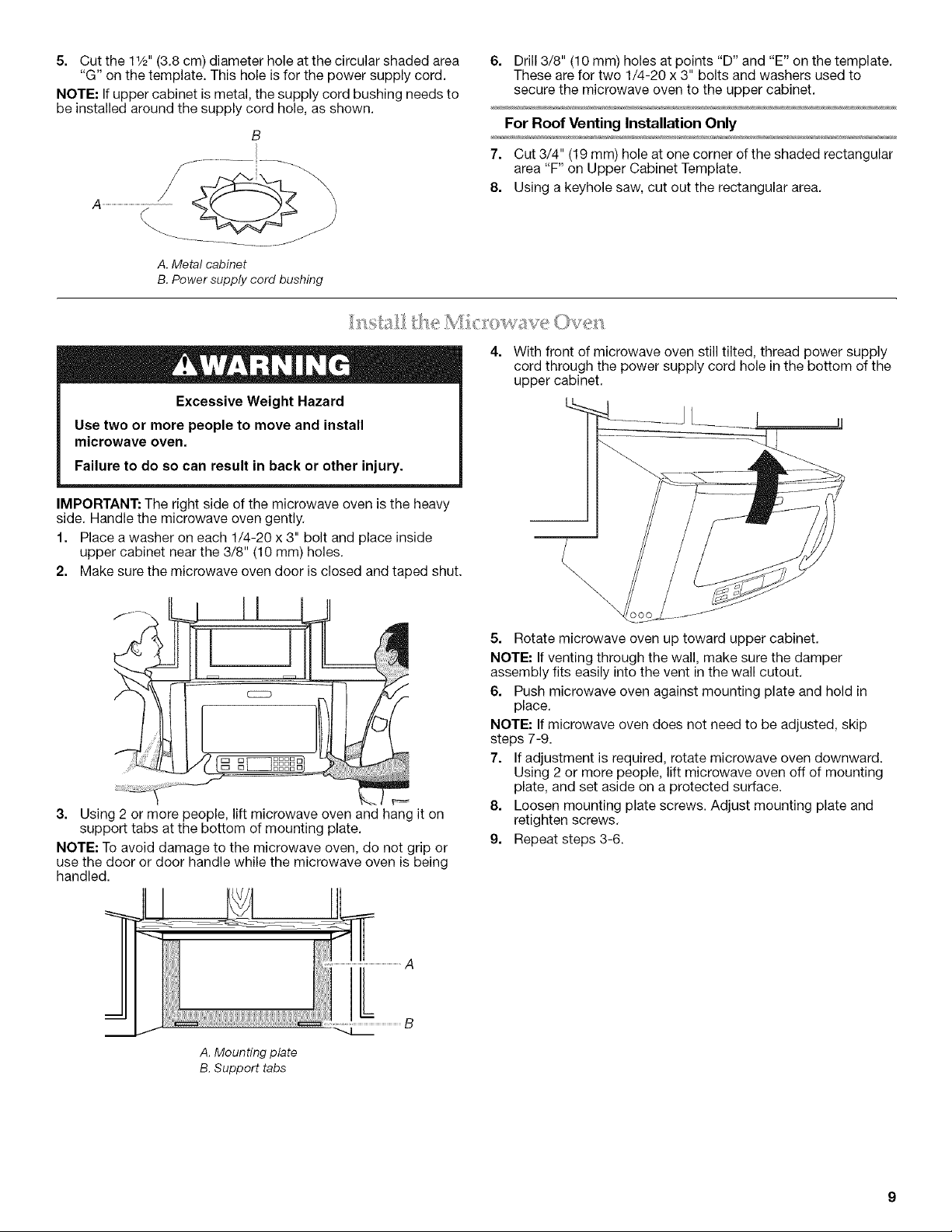

Install the Microwave Oven ..................................................... 9

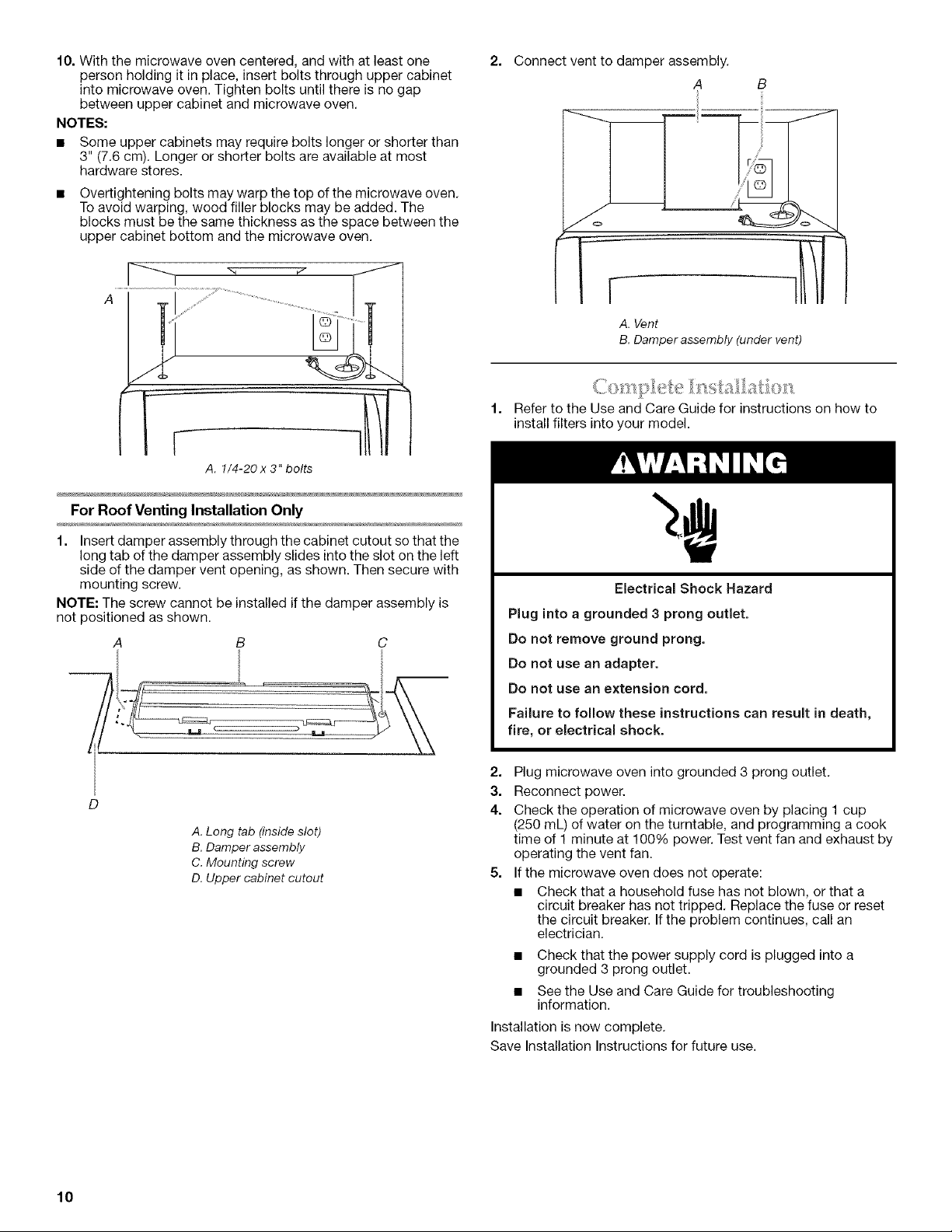

Complete Installation ........................................................... 10

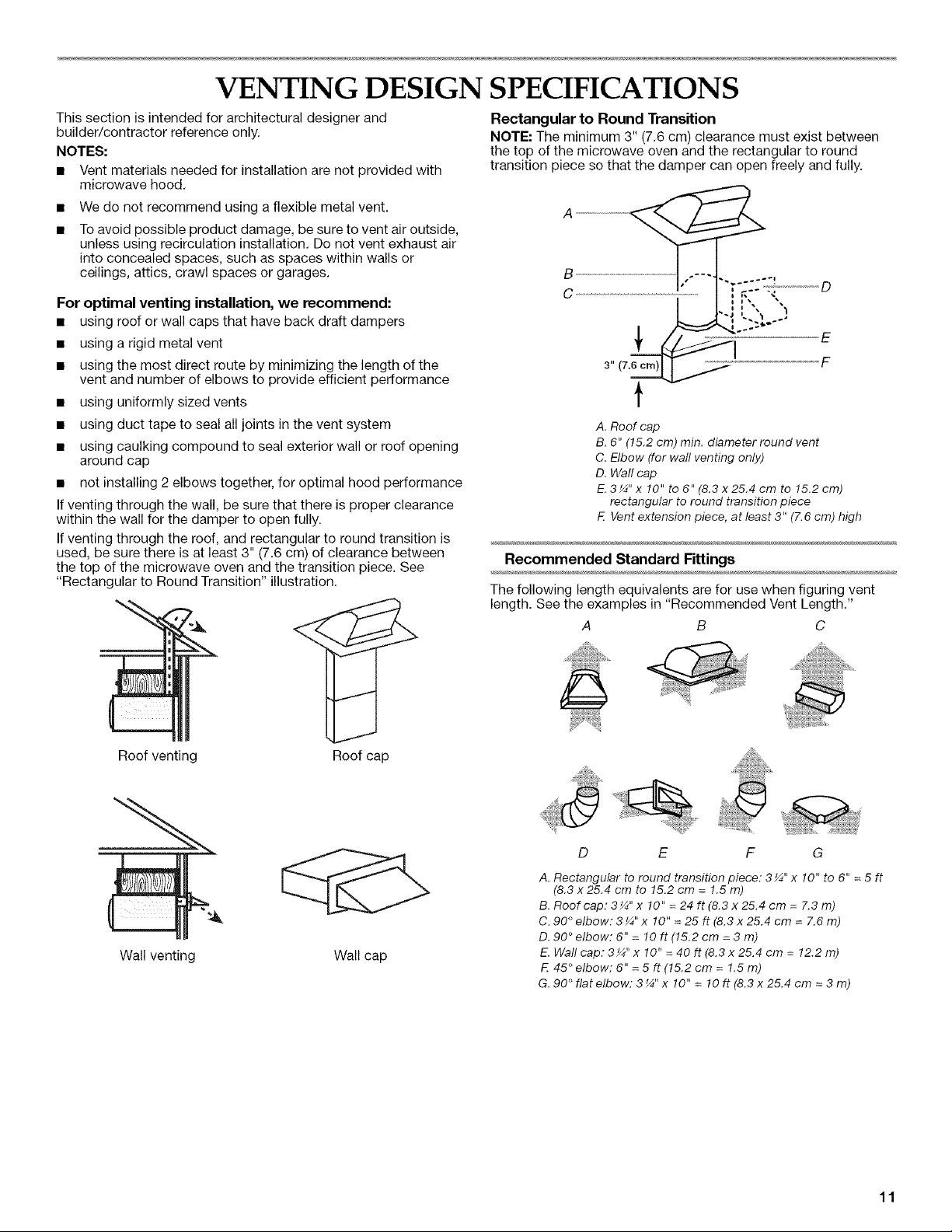

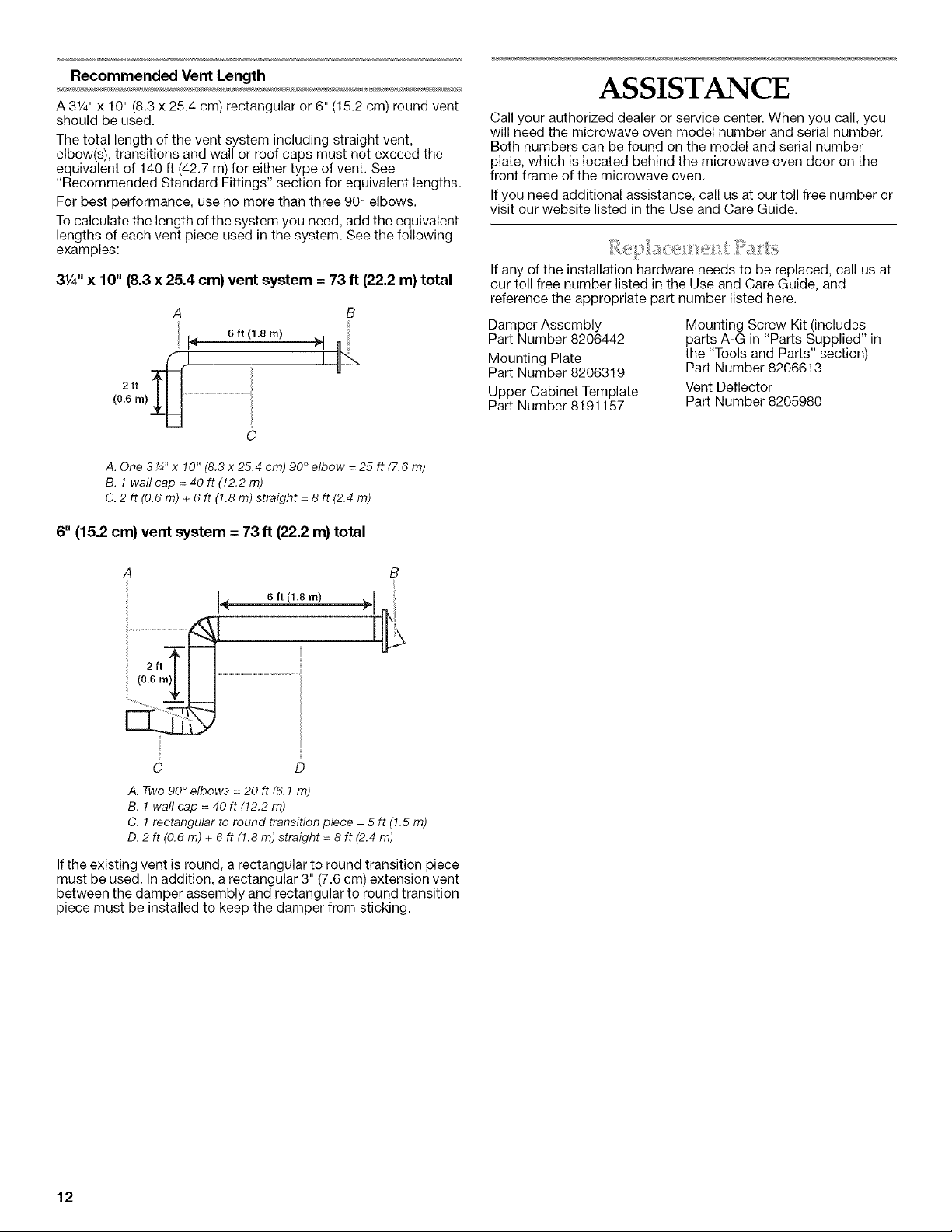

VENTING DESIGN SPECIFICATIONS ................................... 11
ASSISTANCE ........................................................................... 12
Replacement Parts ............................................................... 12

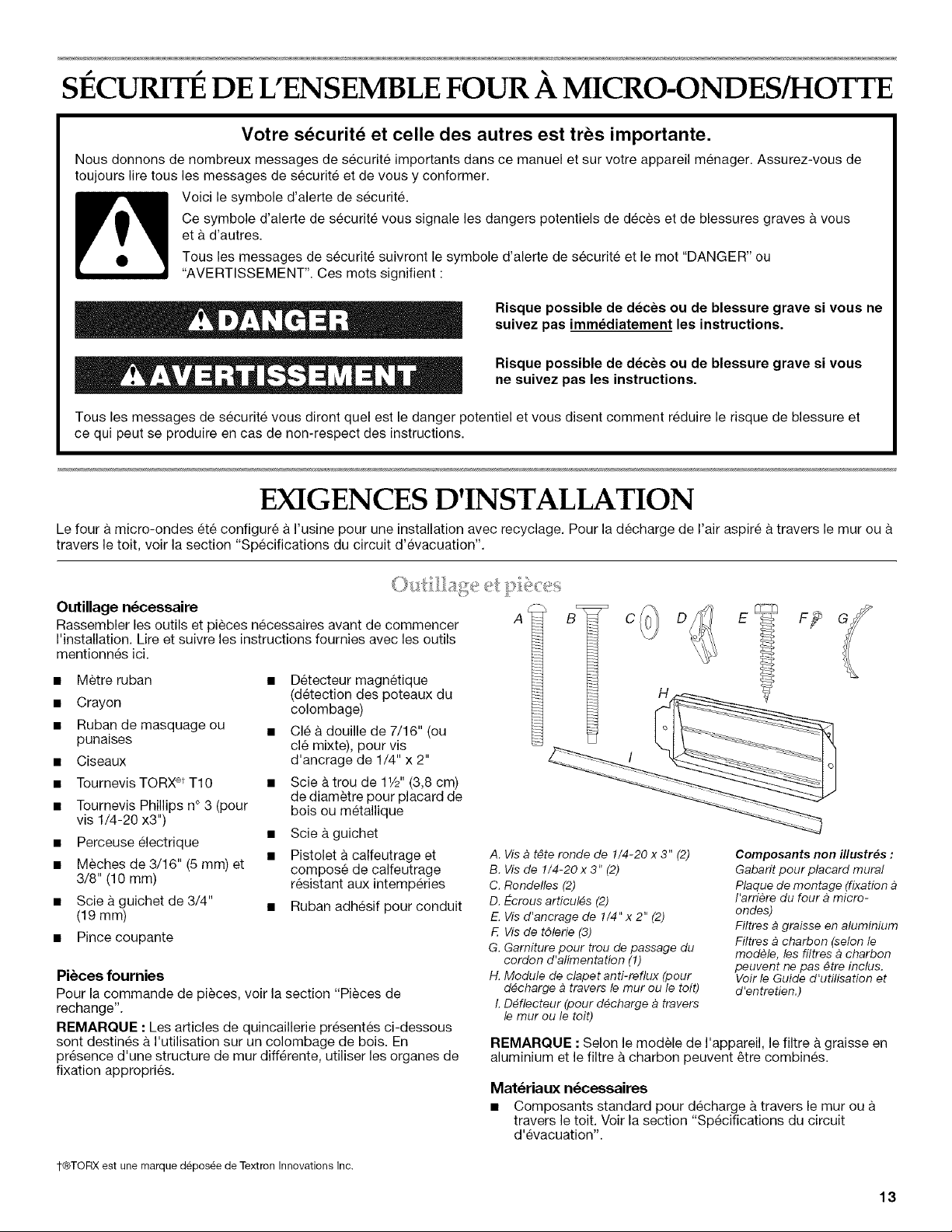

SleCURITle DE L'ENSEMBLE FOUR .&MICRO-ONDES/HOTTE...13
EXIGENCES D'INSTALLATION ......................................................... 13
Outillage et pieces ........................................................................... 13

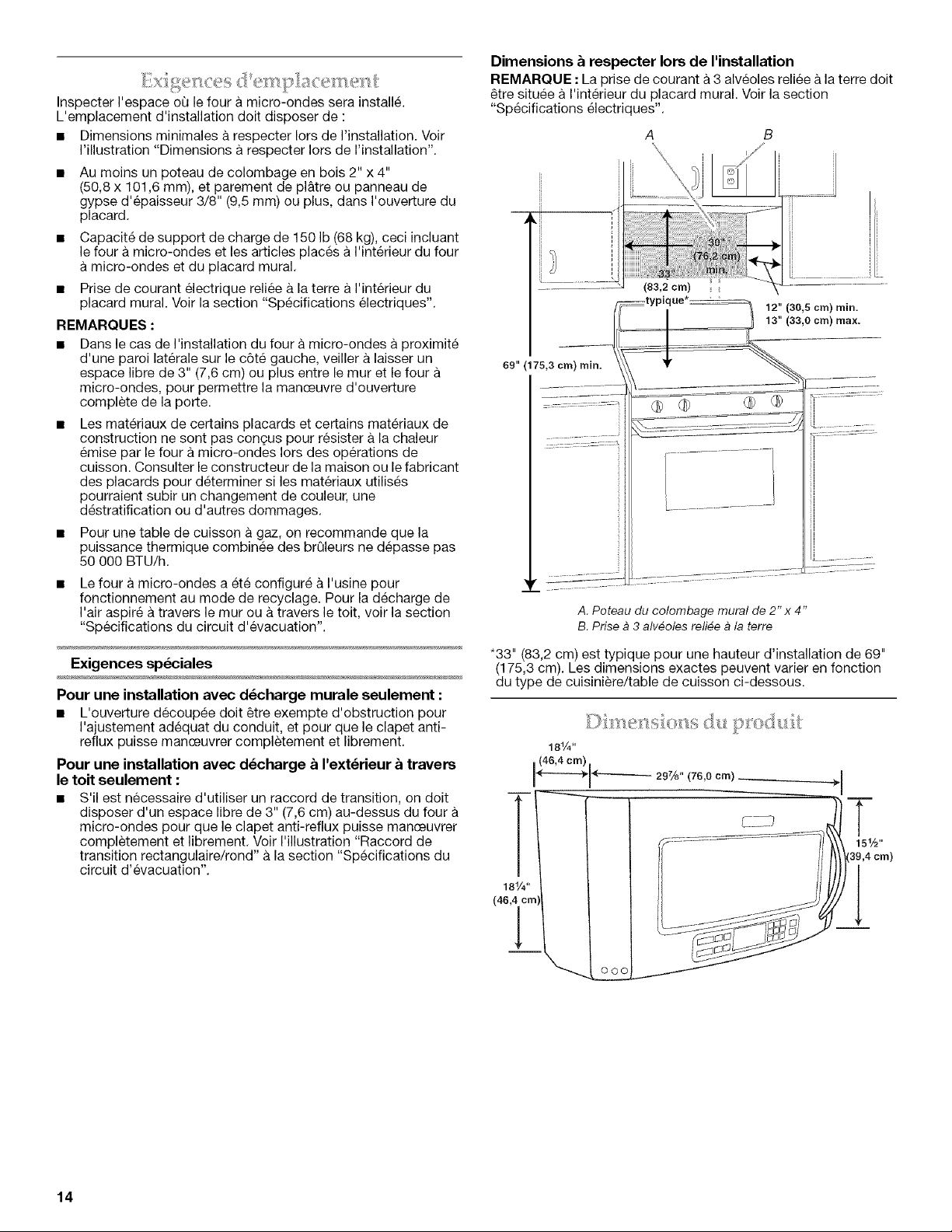

Exigences d'emplacement .............................................................. 14
Dimensions du produit .................................................................... 14

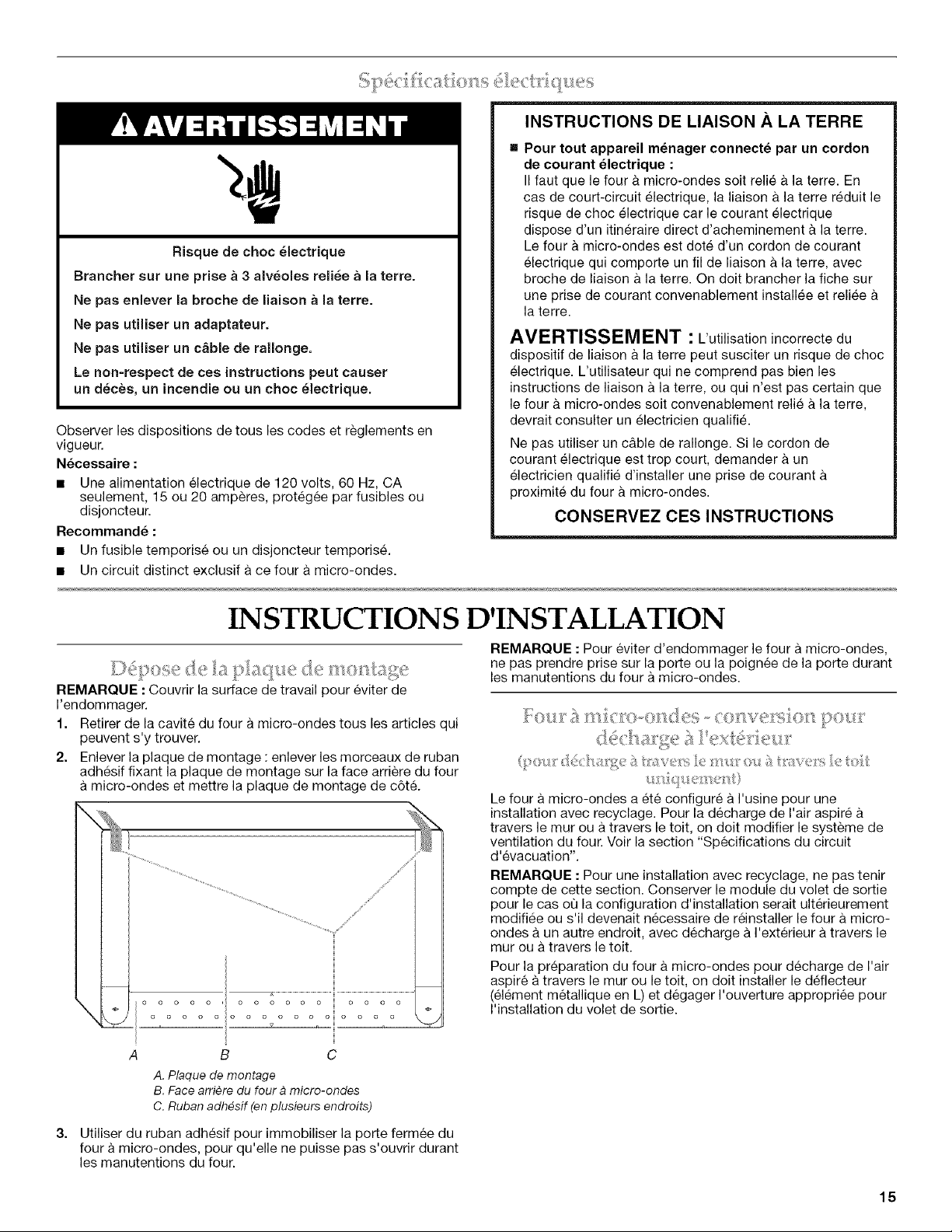

Specifications _lectriques ............................................................... 15
INSTRUCTIONS D'INSTALLATION .................................................. 15
D_pose de la plaque de montage ................................................... 15

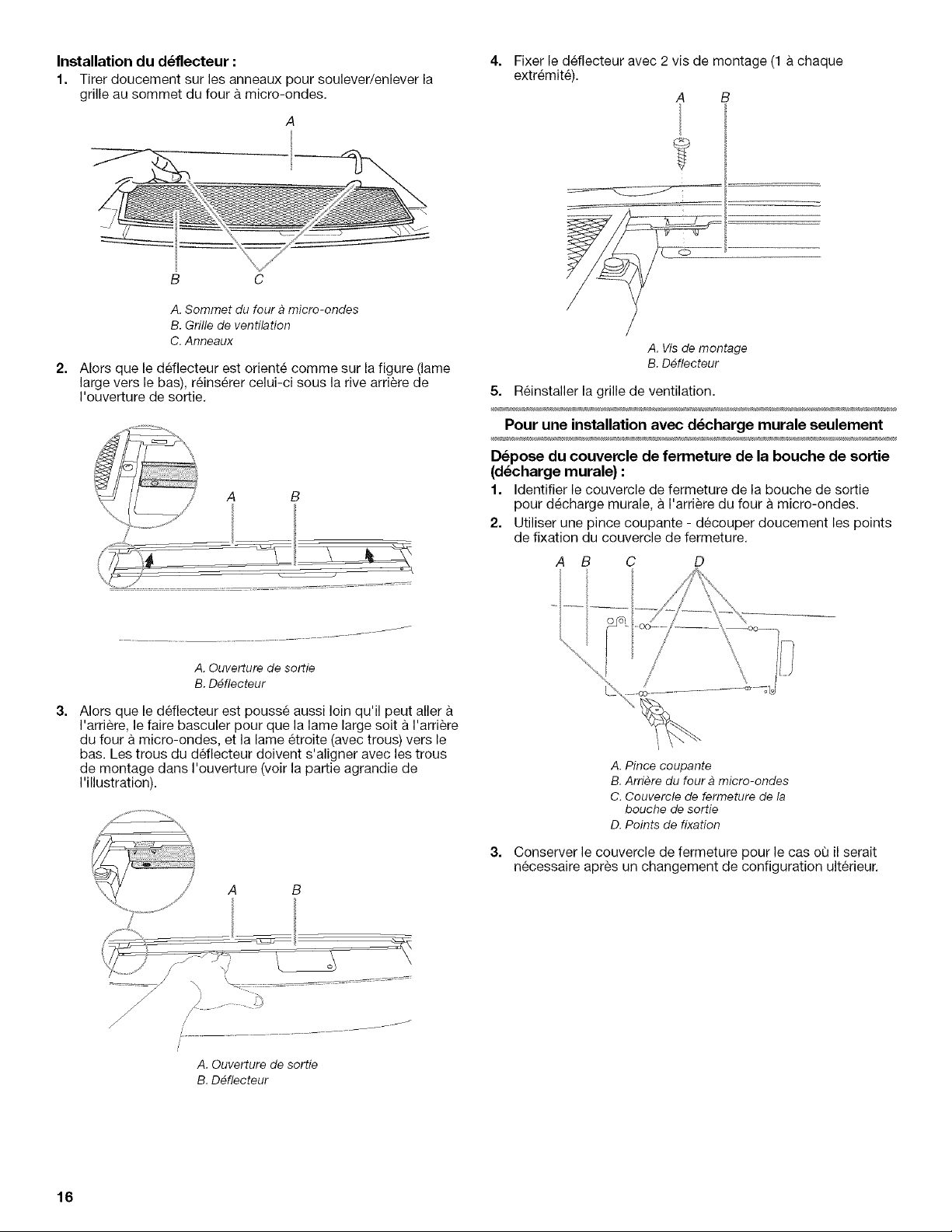

Four µ-ondes - conversion pour d_charge &I'ext_rieur ....... 15
Identifier la position du/des poteaux du colombage mural ............ 17

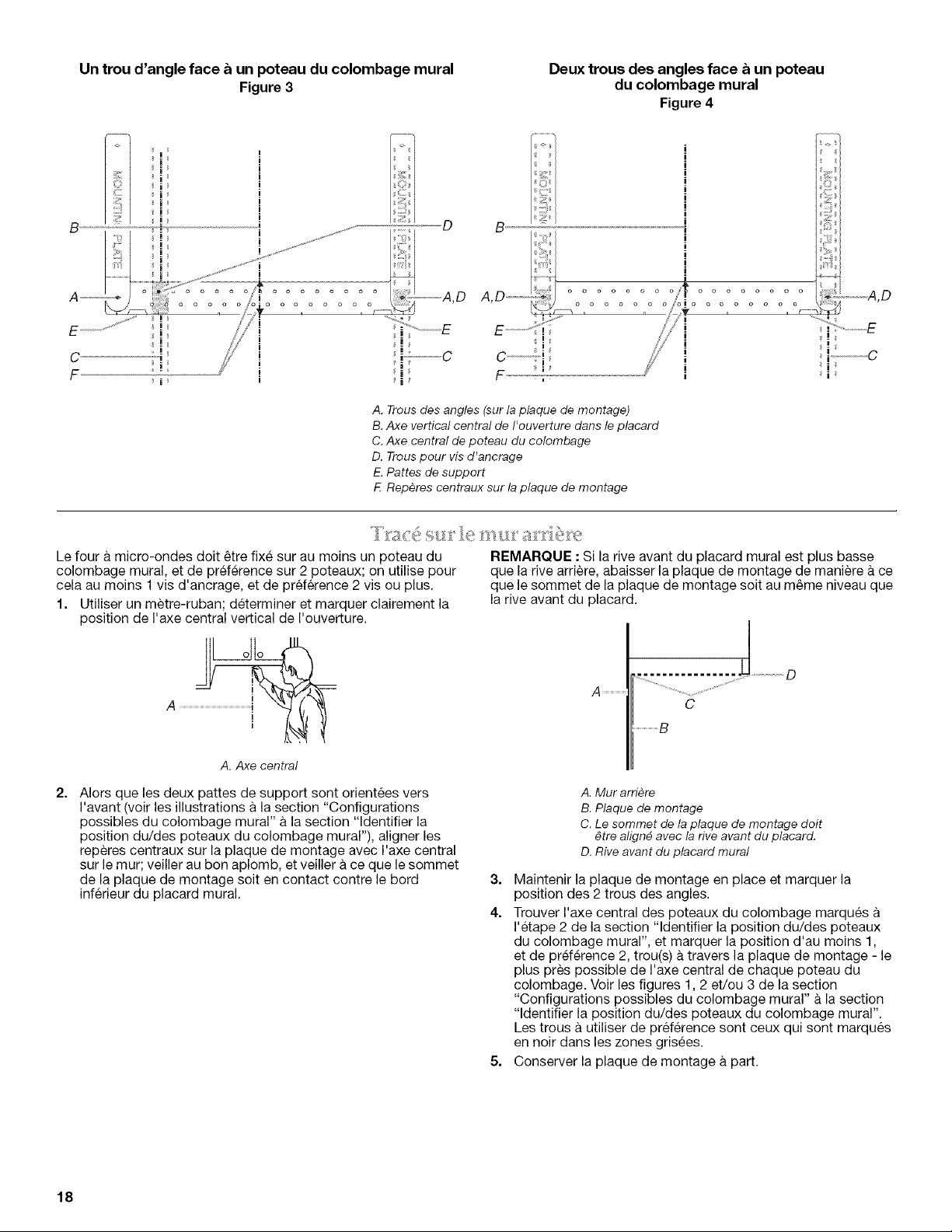

Trac_ sur le mur arri_re ................................................................... 18

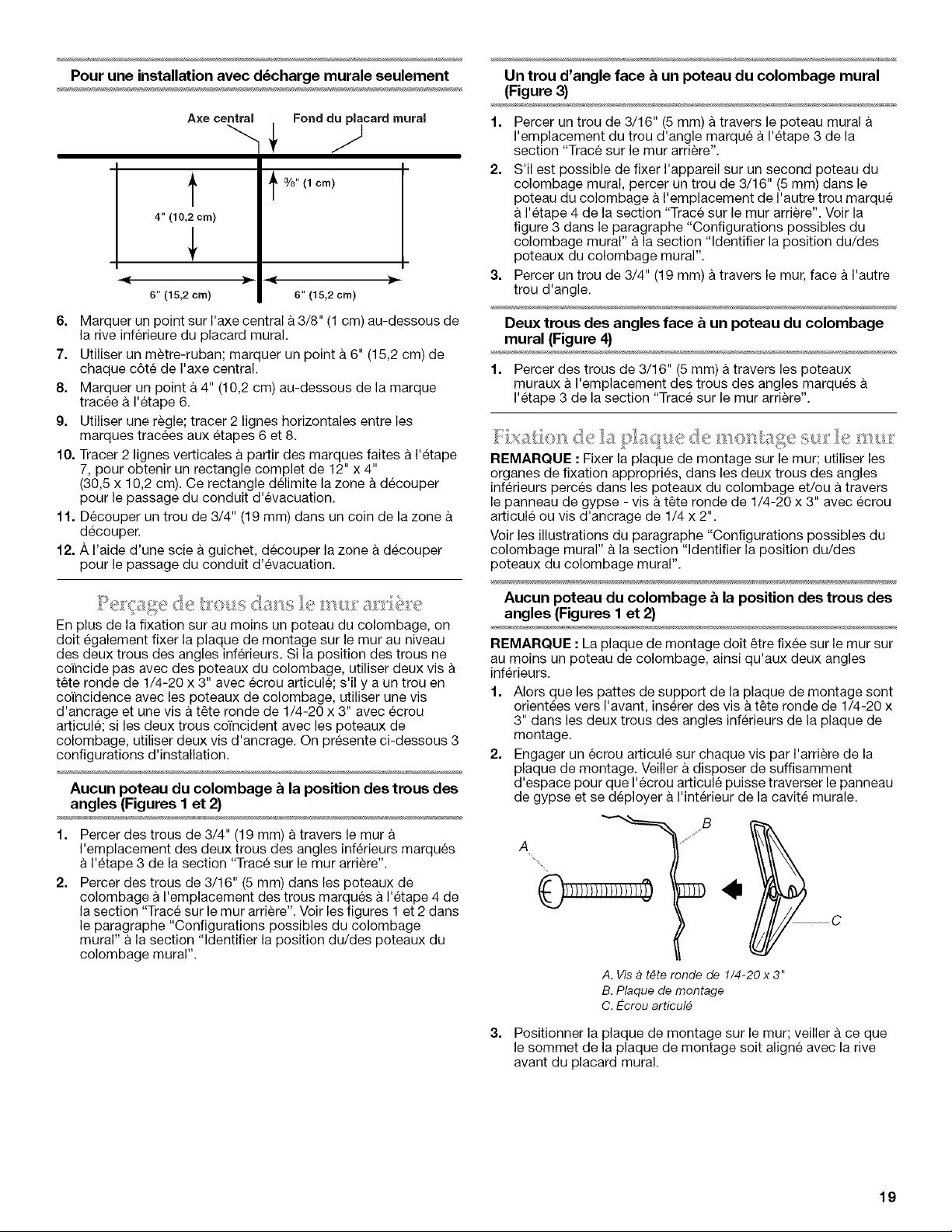

Pergage de trous dans lemur arriere .............................................. 19
Fixation de la plaque de montage sur lemur ................................. 19

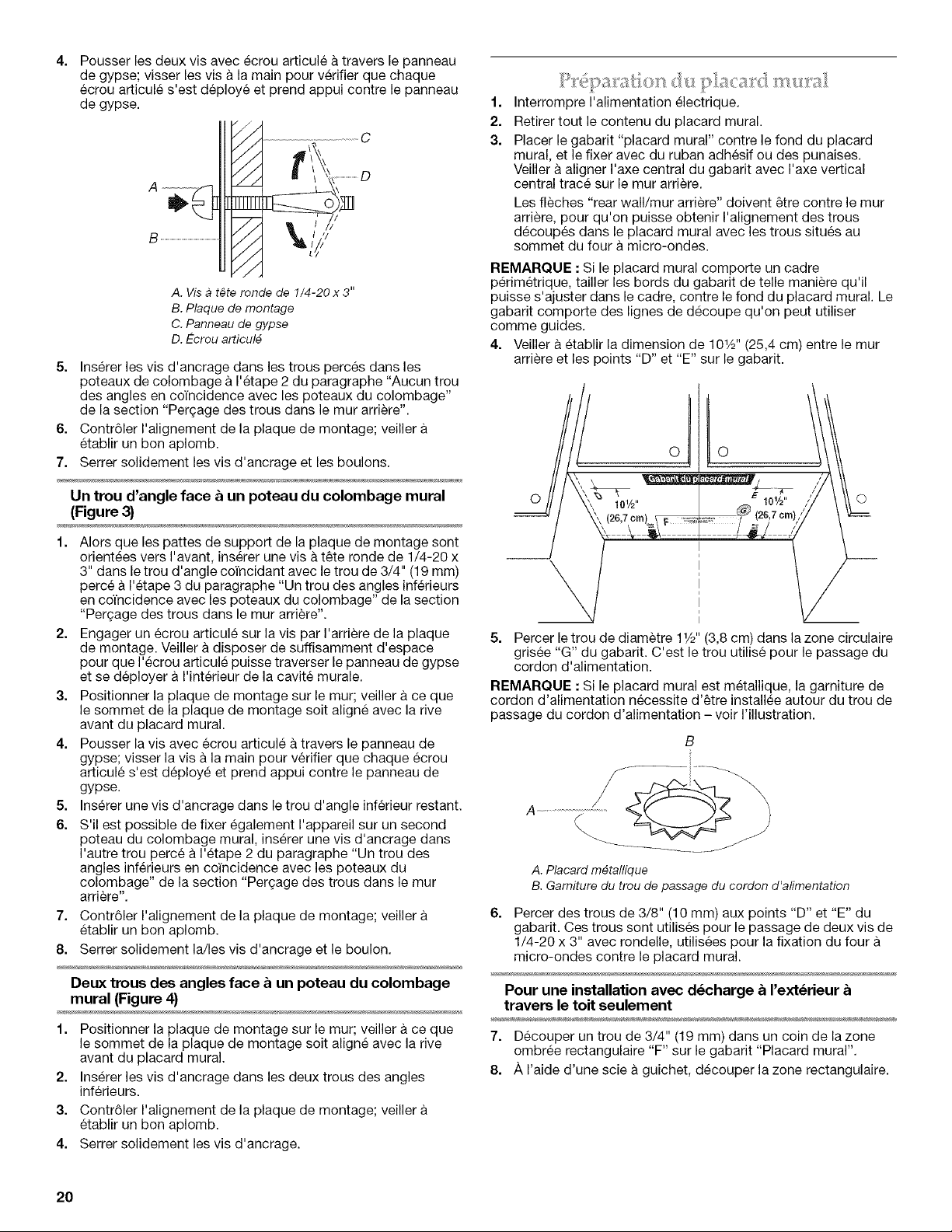

Preparation du placard mural .......................................................... 20

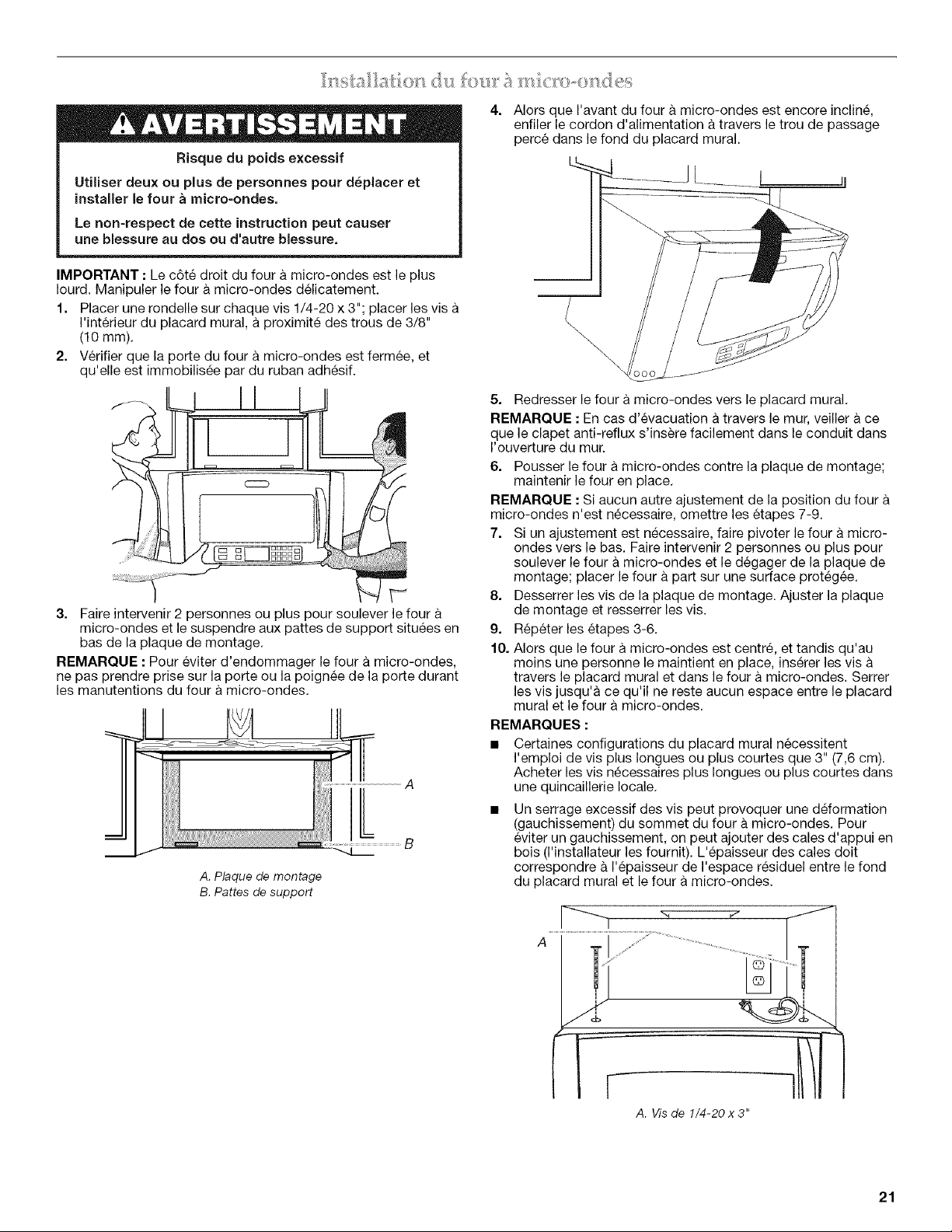

Installation du four & micro-ondes .................................................. 21
Achever I' installation ........................................................................ 22

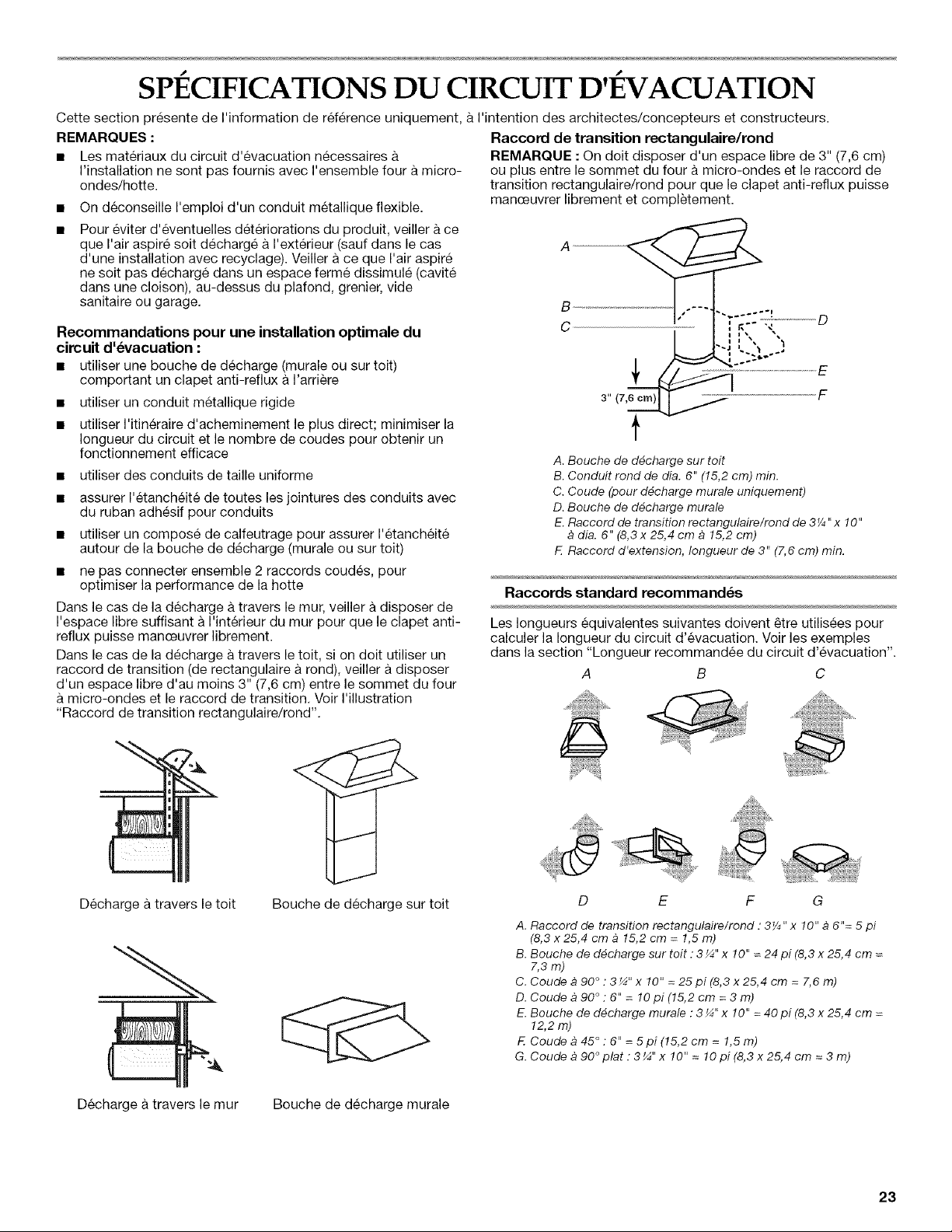

SPleCIFICATIONS/CONCEPTION DU CIRCUIT D'I_'VACUATION........23

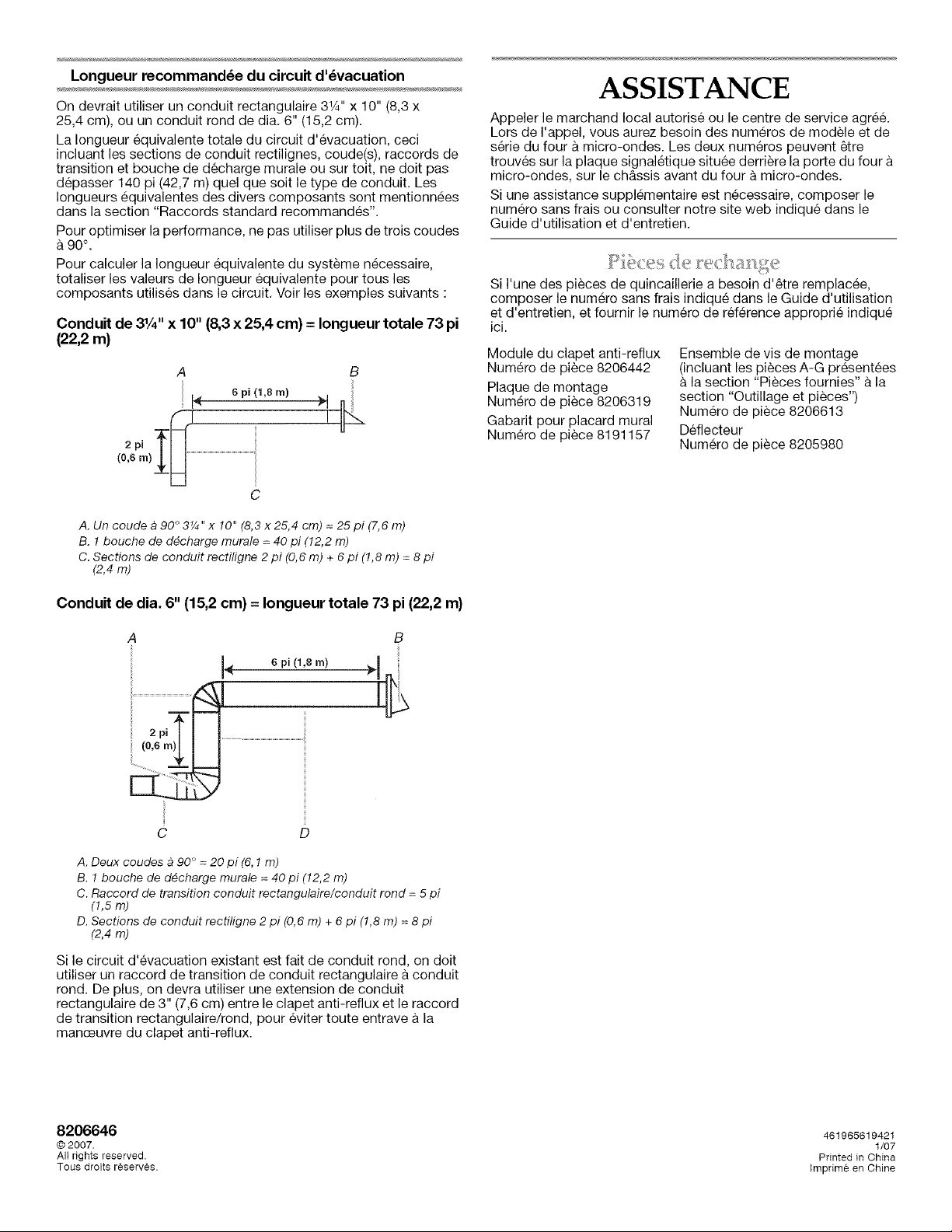

ASSISTANCE ...................................................................................... 24
Pieces de rechange ......................................................................... 24
MICROWAVE HOOD COMBINATION SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
8206646
