Craftsman 917274822 Electric Start Automatic Transmission User Manual

Owner's Manual

ICRRFTSMIIH°I

LAWN TRACTOR

18.5 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.274822

[_ his product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

Visit our Craftsman website:www.sears.com/craftsman

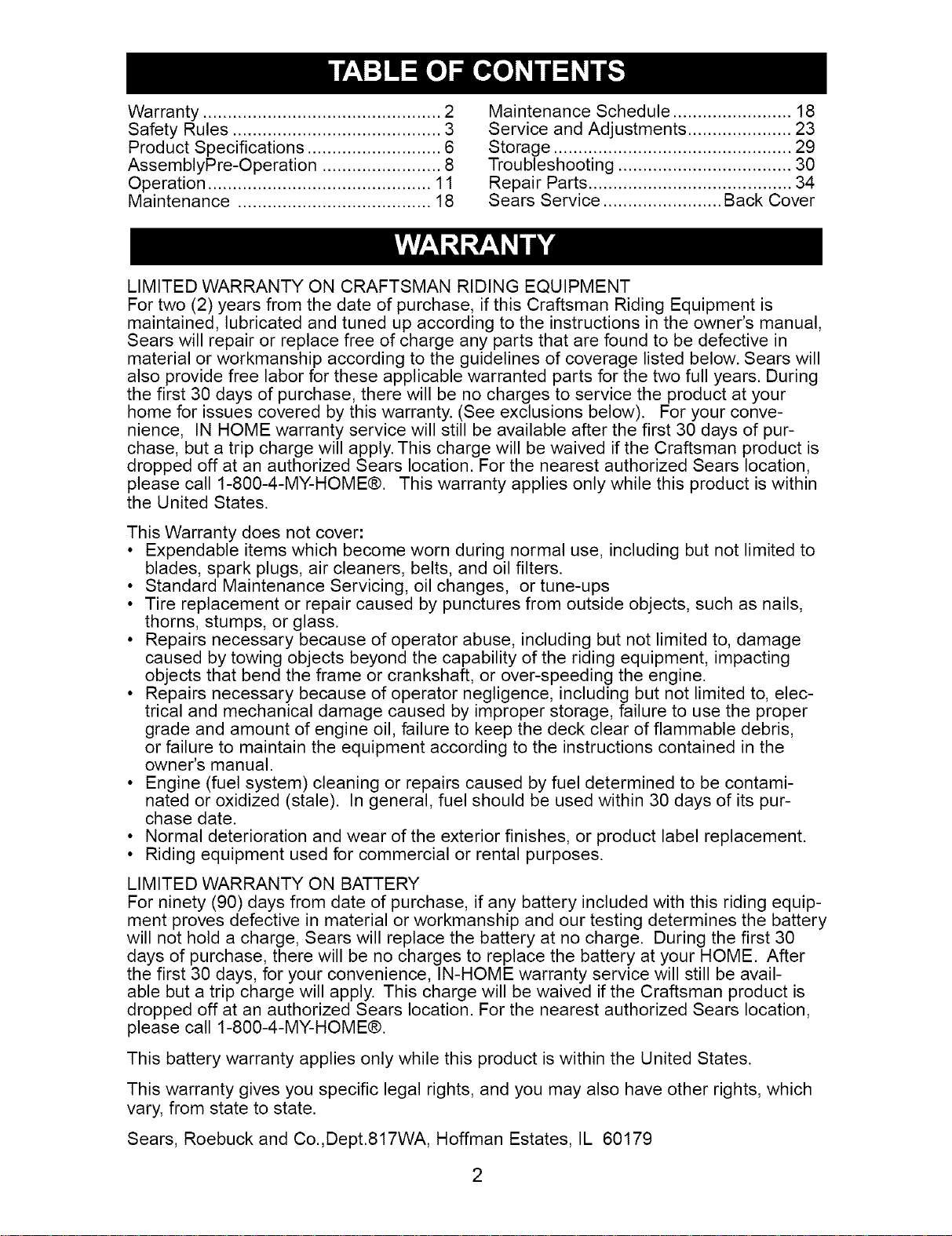

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

AssemblyPre-Operation ........................ 8

Operation ............................................. 11

Maintenance ....................................... 18

Maintenance Schedule ........................ 18

Service and Adjustments ..................... 23

Storage ................................................ 29

Troubleshooting ................................... 30

Repair Parts ......................................... 34

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

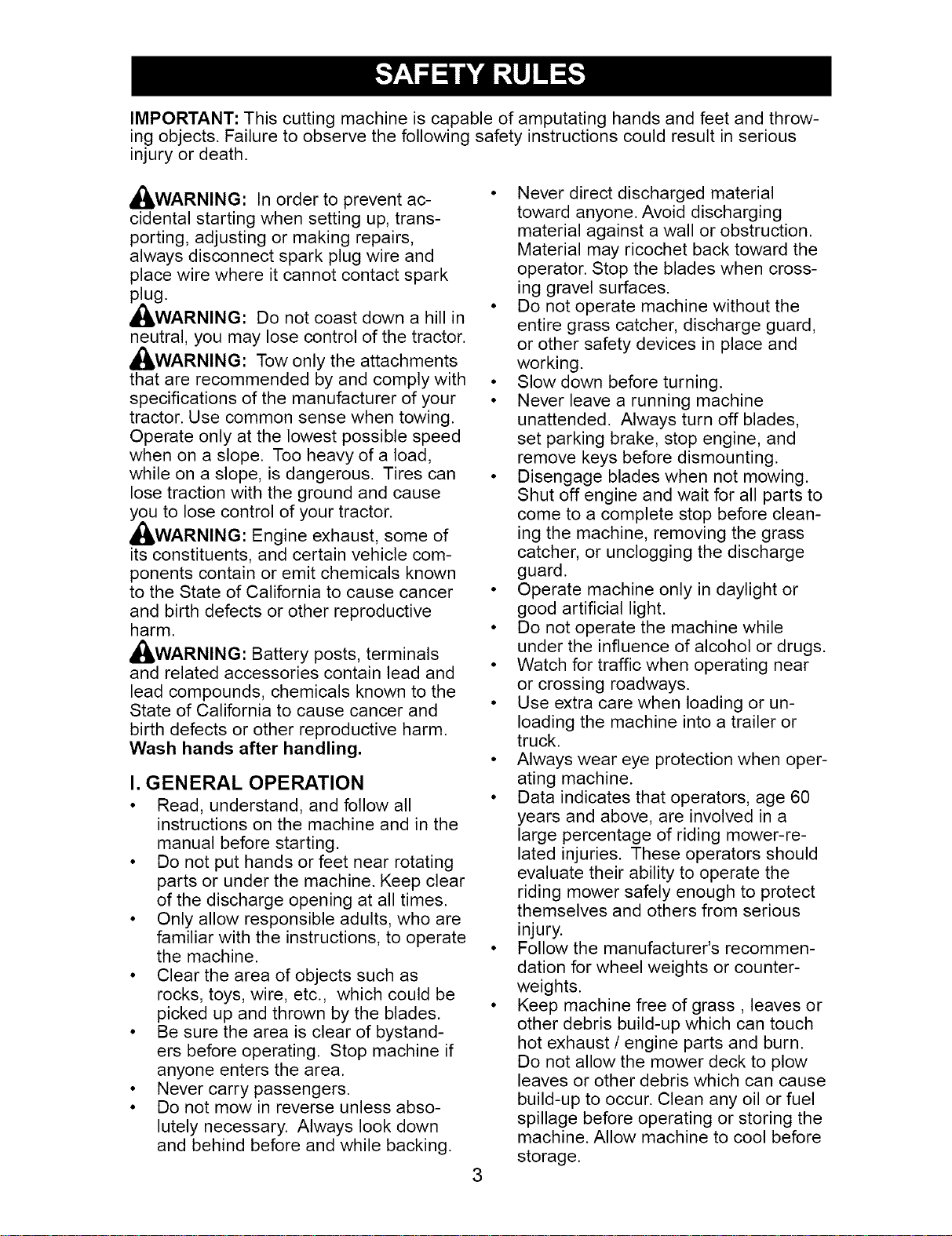

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_I_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_,WARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_,WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slowdown before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Follow the manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

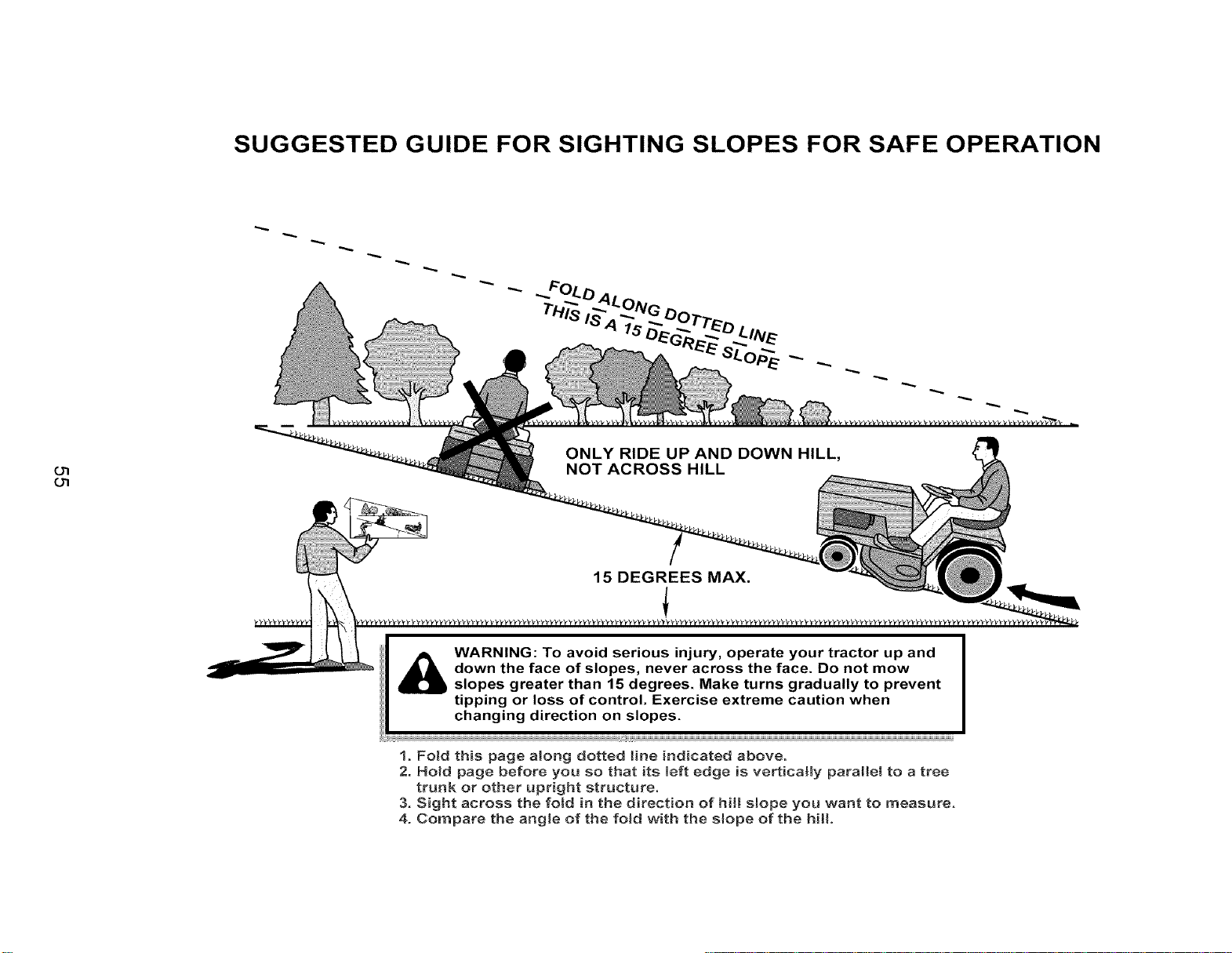

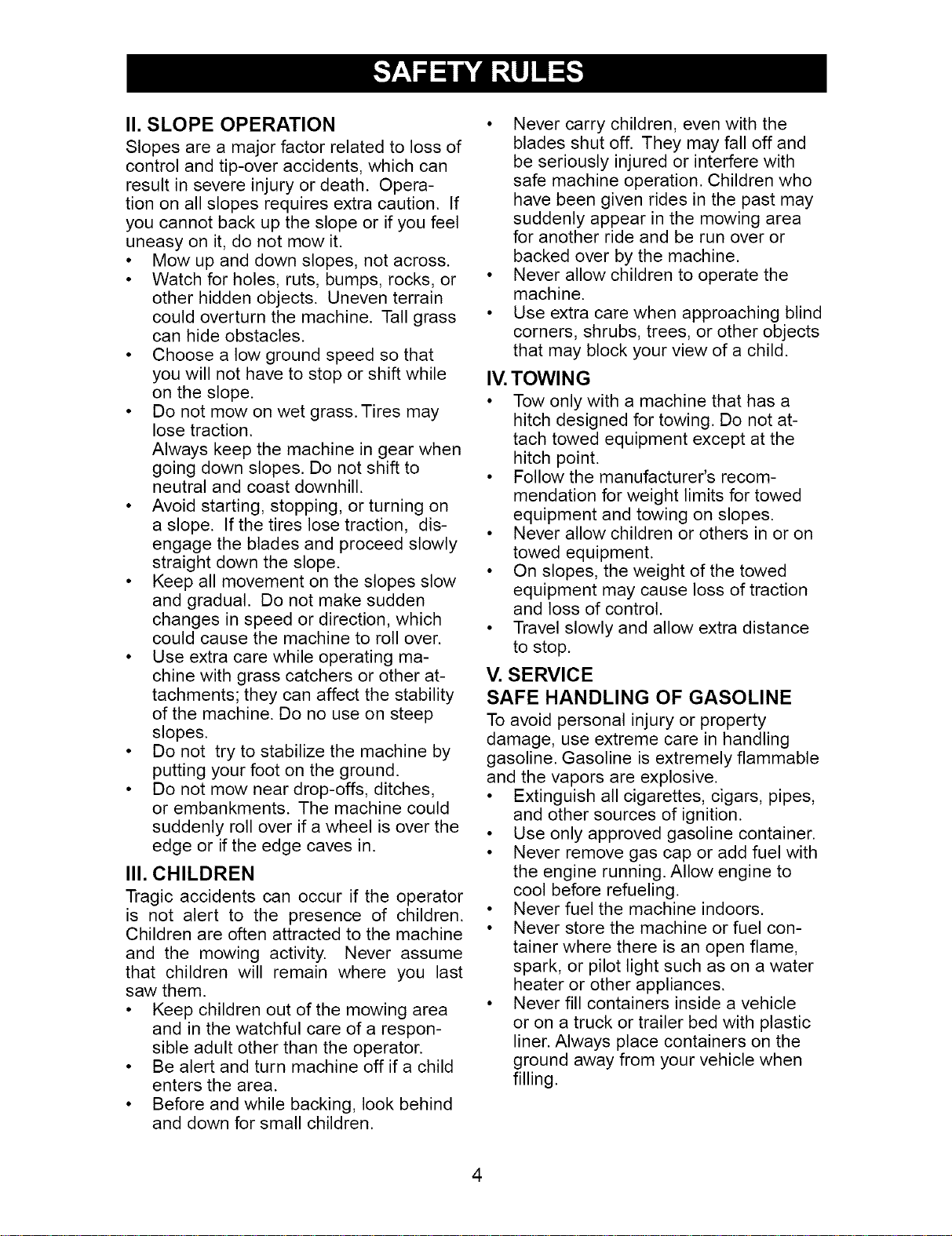

II. SLOPE OPERATION

Slopesarea majorfactorrelatedto lossof

controlandtip-overaccidents,whichcan

resultin severeinjuryordeath. Opera-

tionon allslopesrequiresextracaution. If

youcannotbackuptheslopeor ifyoufeel

uneasyon it,do not mowit.

• Mowup anddownslopes,notacross.

• Watchfor holes,ruts,bumps,rocks,or

otherhiddenobjects. Uneventerrain

couldoverturnthe machine.Tallgrass

canhideobstacles.

• Choosea lowgroundspeedso that

youwillnothaveto stoporshiftwhile

ontheslope.

• Do notmowon wetgrass.Tiresmay

losetraction.

Alwayskeepthemachineingearwhen

going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV, TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Follow the manufacturer's recom-

mendation for weight limits for towed

equipment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

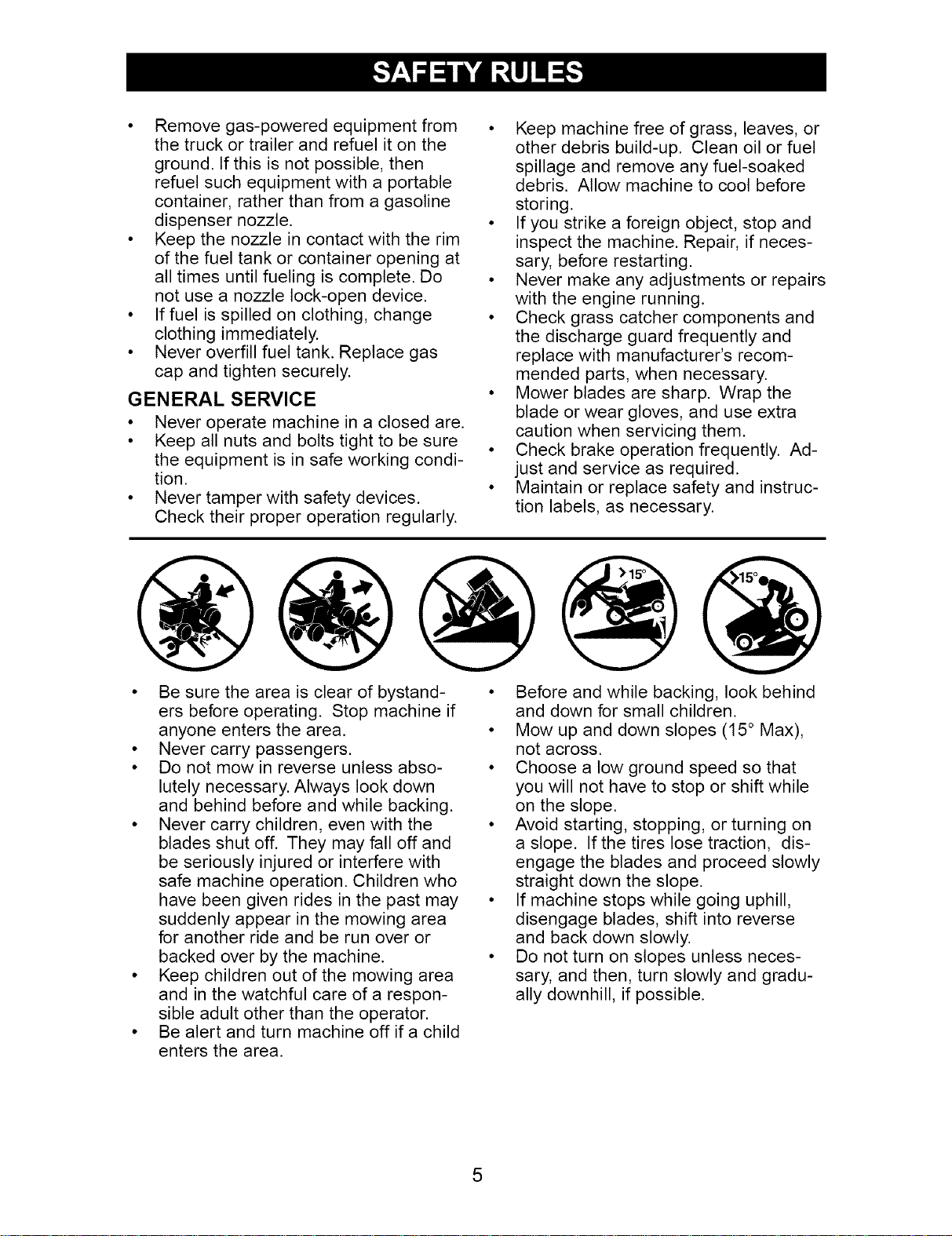

liner. Always place containers on the

ground away from your vehicle when

filling.

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfill fuel tank. Replace gas

cap and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

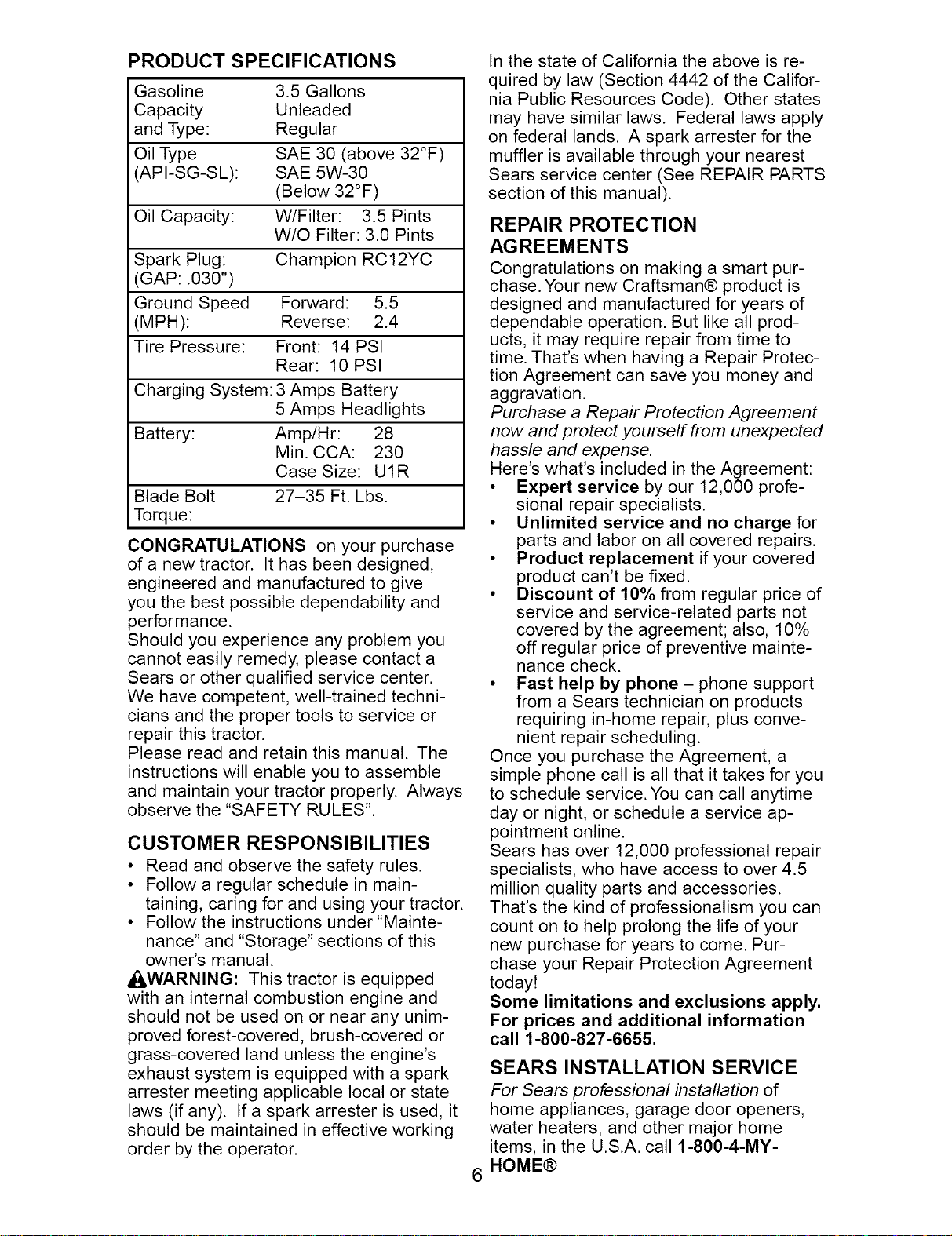

PRODUCT SPECIFICATIONS

Gasoline 3.5 Gallons

Capacity Unleaded

and Type: Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W-30

(Below 32°F)

Oil Capacity: W/Filter: 3.5 Pints

W/O Filter: 3.0 Pints

Spark Plug: Champion RC12YC

(GAP: .030")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 3 Amps Battery

5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: U1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

AI:_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Pur-

chase your Repair Protection Agreement

today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of

home appliances, garage door openers,

water heaters, and other major home

items, in the U.S.A. call 1-800-4-MY-

HOME®

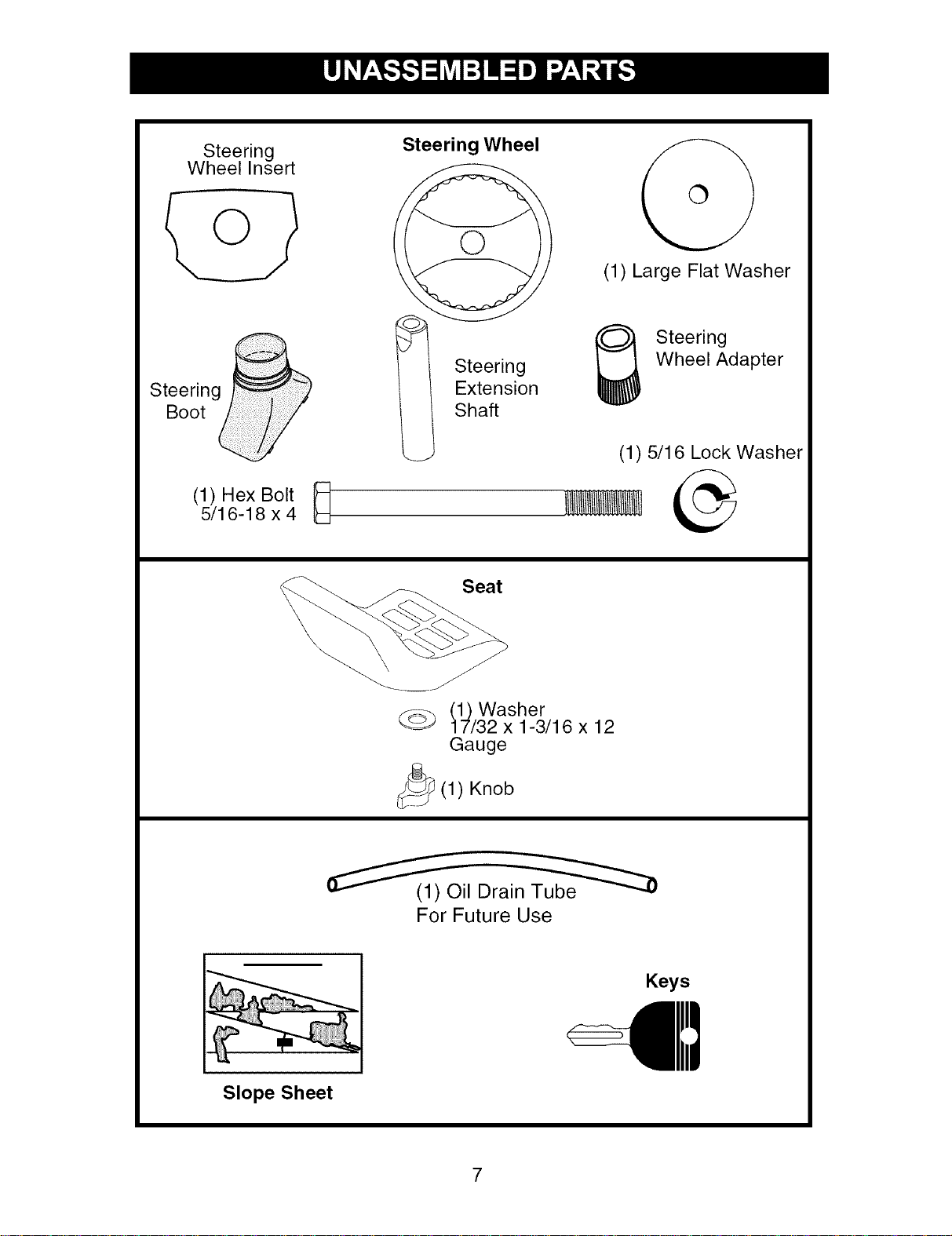

Steering

Wheel Insert

Steering

Boot

(1) Hex Bolt R

5/16-18 x 4

Steering Wheel

(1) Large Flat Washer

Steering

Wheel Adapter

(1) 5/16 Lock Washer

Seat

(1) Washer

_h 17/32 x 1-3/16 x 12

Gauge

__9 (1) Knob

For Future Use

Keys

Slope Sheet

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 3/4" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

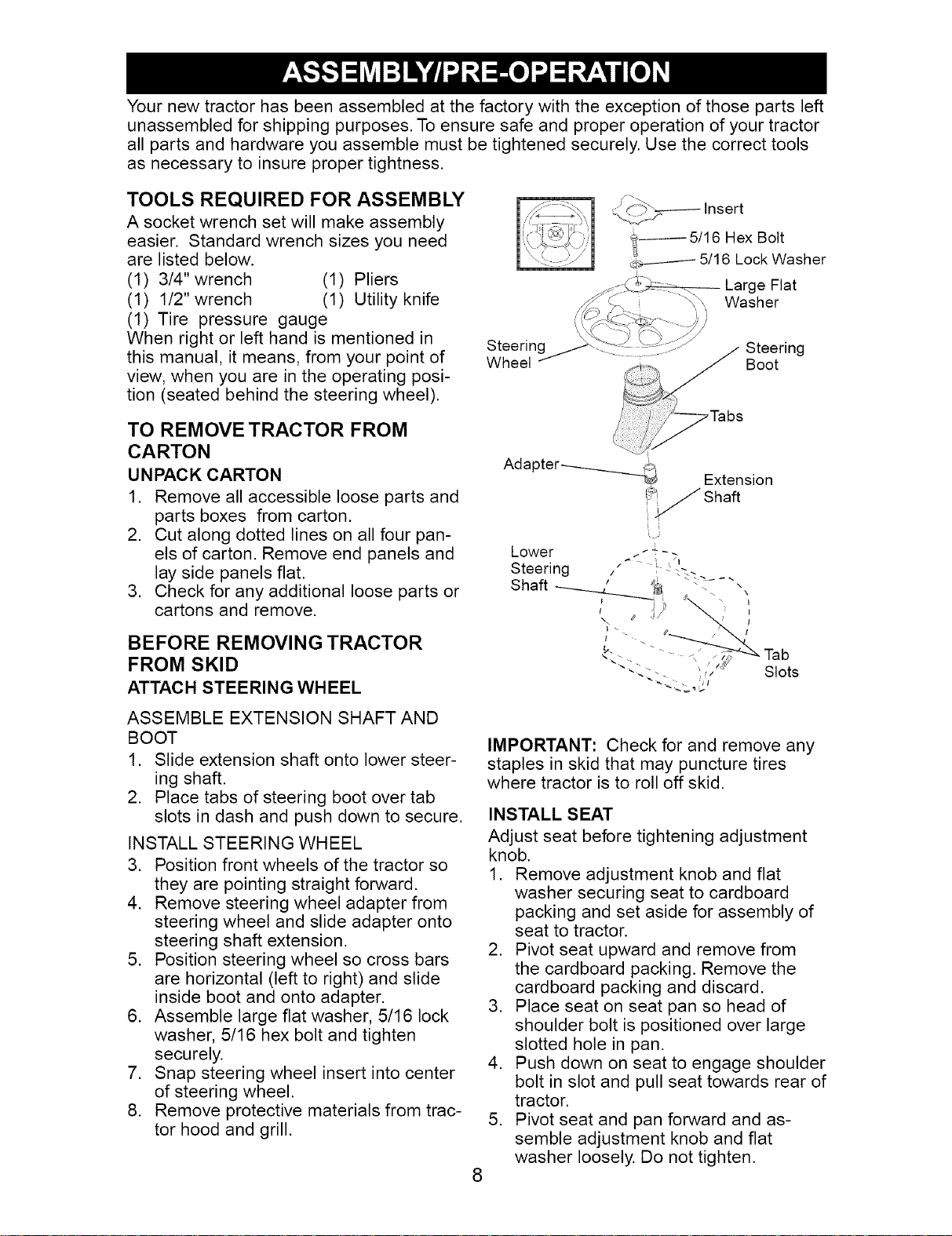

Steering

Wheel

Q_ 5/16 Hex Bolt

--G

_,_ 5/16 Lock Washer

-- Large Flat

, Washer

Steering

Boot

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

Tab

Slots

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower steer-

ing shaft.

2. Place tabs of steering boot over tab

slots in dash and push down to secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 5/16 lock

washer, 5/16 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage shoulder

bolt in slot and pull seat towards rear of

tractor.

5. Pivot seat and pan forward and as-

semble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its ad-

justed position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Flat Washer

Adjustment

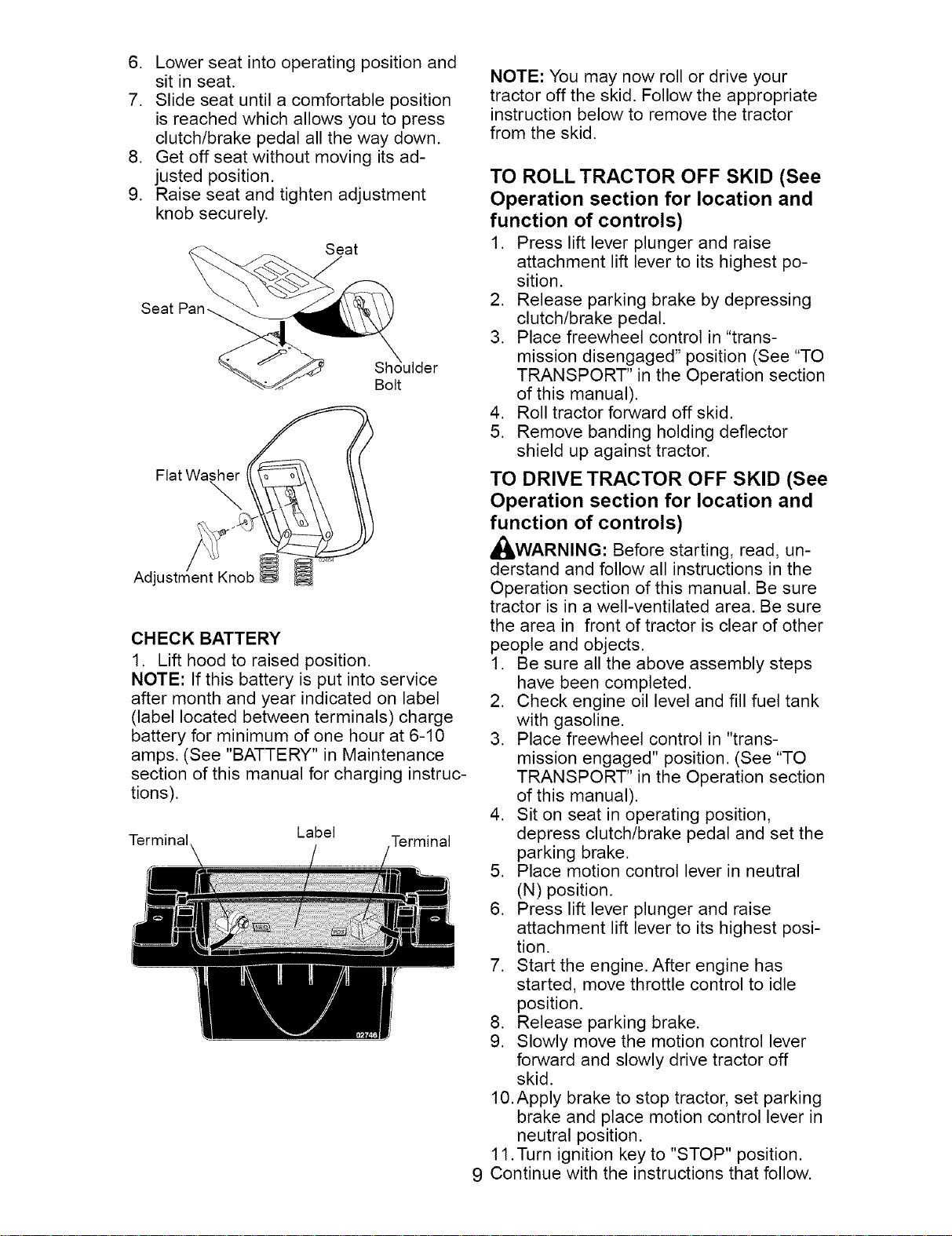

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

Terminal Label Terminal

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place freewheel control in "trans-

mission disengaged" position (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

,_,WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Place freewheel control in "trans-

mission engaged" position. (See "TO

TRANSPORT" in the Operation section

of this manual).

4. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

5. Place motion control lever in neutral

(N) position.

6. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

7. Start the engine. After engine has

started, move throttle control to idle

position.

8. Release parking brake.

9. Slowly move the motion control lever

forward and slowly drive tractor off

skid.

10.Apply brake to stop tractor, set parking

brake and place motion control lever in

neutral position.

11.Turn ignition key to "STOP" position.

9 Continue with the instructions that follow.

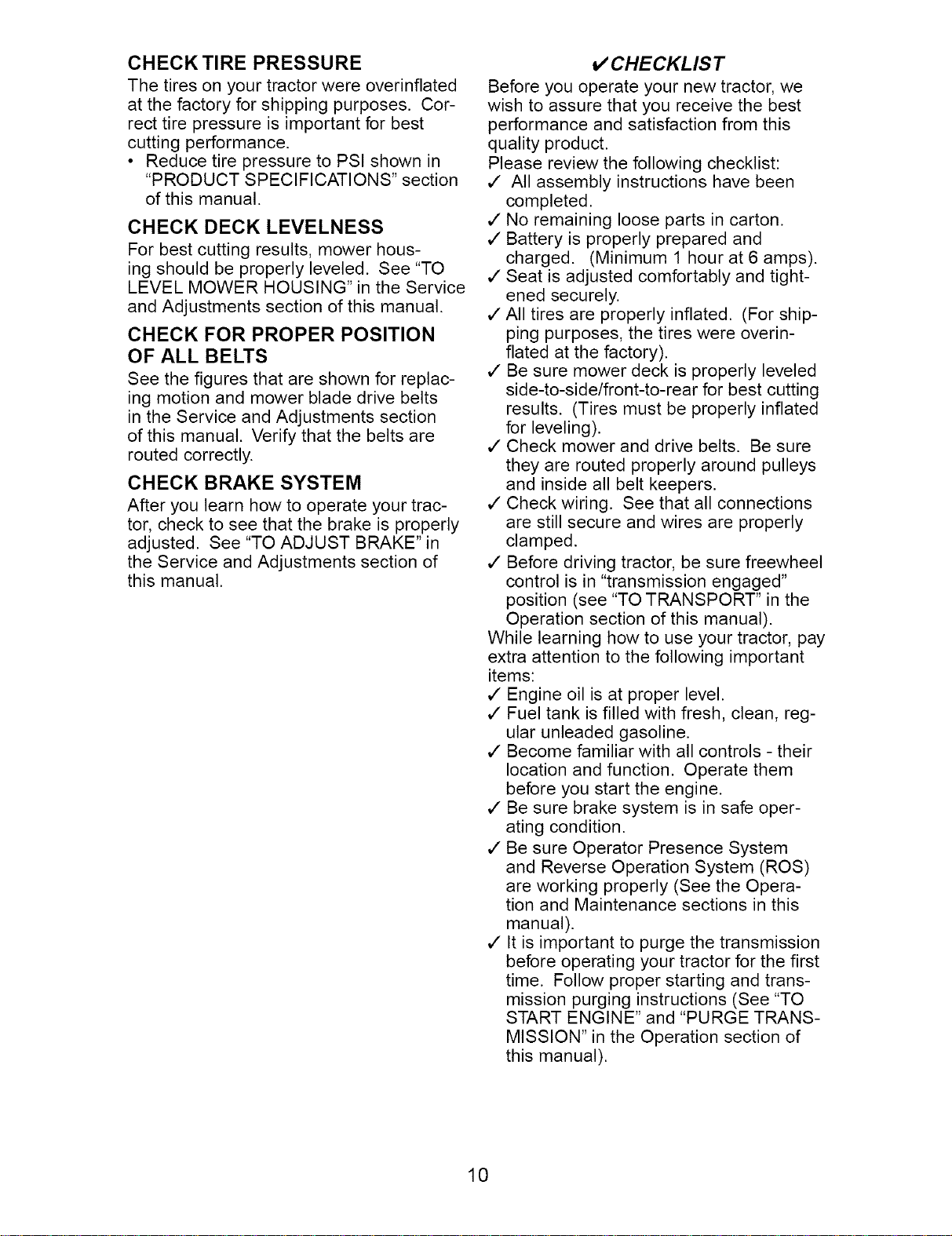

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

_CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

v" Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

v" Check wiring. See that all connections

are still secure and wires are properly

clamped.

v" Before driving tractor, be sure freewheel

control is in "transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

v" Engine oil is at proper level.

v" Fuel tank is filled with fresh, clean, reg-

ular unleaded gasoline.

v" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

v" Be sure brake system is in safe oper-

ating condition.

v" Be sure Operator Presence System

and Reverse Operation System (ROS)

are working properly (See the Opera-

tion and Maintenance sections in this

manual).

v" It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of

this manual).

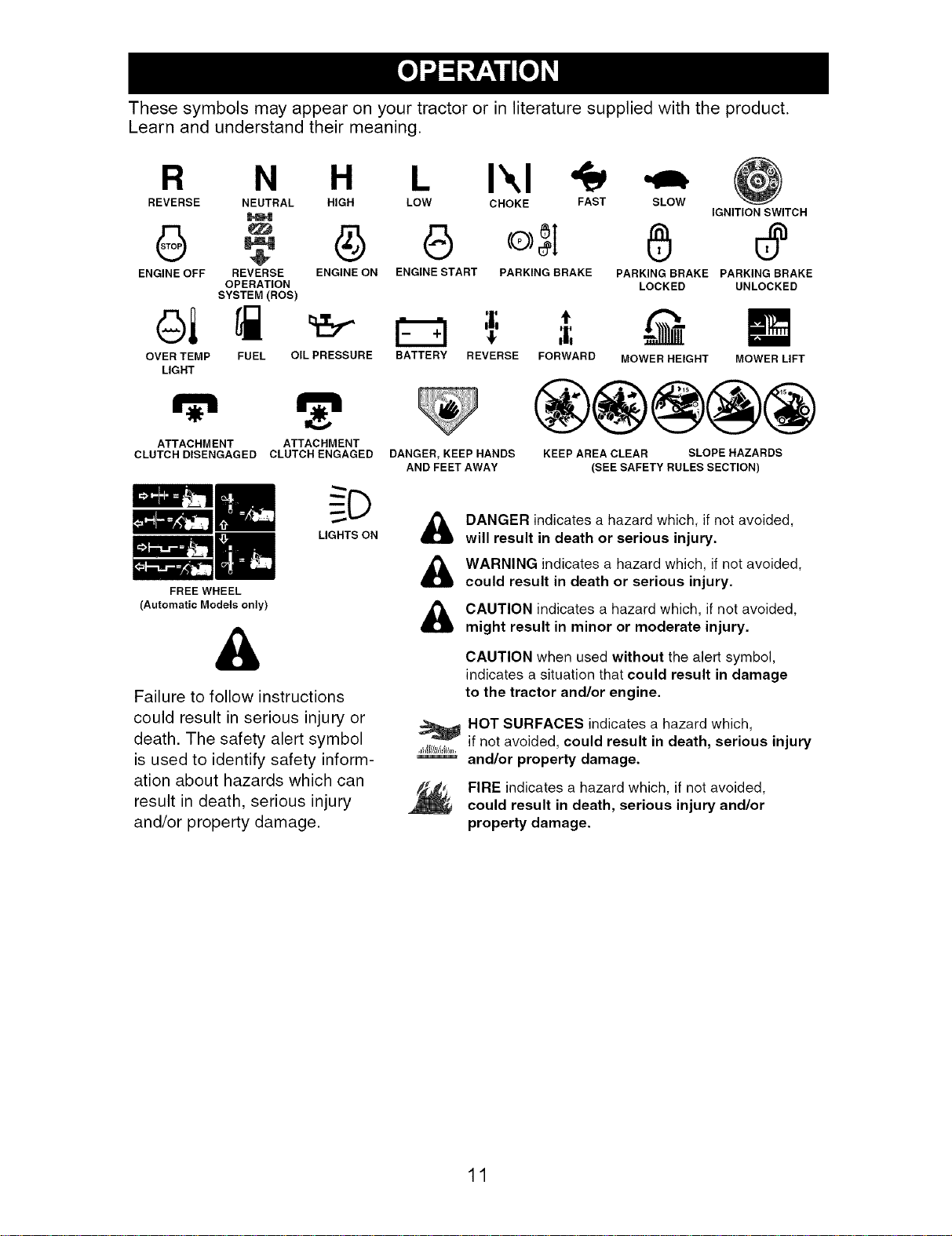

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H

REVERSE NEUTRAL HIGH LOW

G " G

ENGINE OFF REVERSE ENGINE ON ENGINE START

OPERATION

SYSTEM (ROS)

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

LIGHTS ON

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

SLOW

IGNITION SWITCH

PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

DANGER, KEEP HANDS

AND FEET AWAY

FORWARD MOWER HEIGHT MOWER LIFT

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

4_ll/lll/_l/,,

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

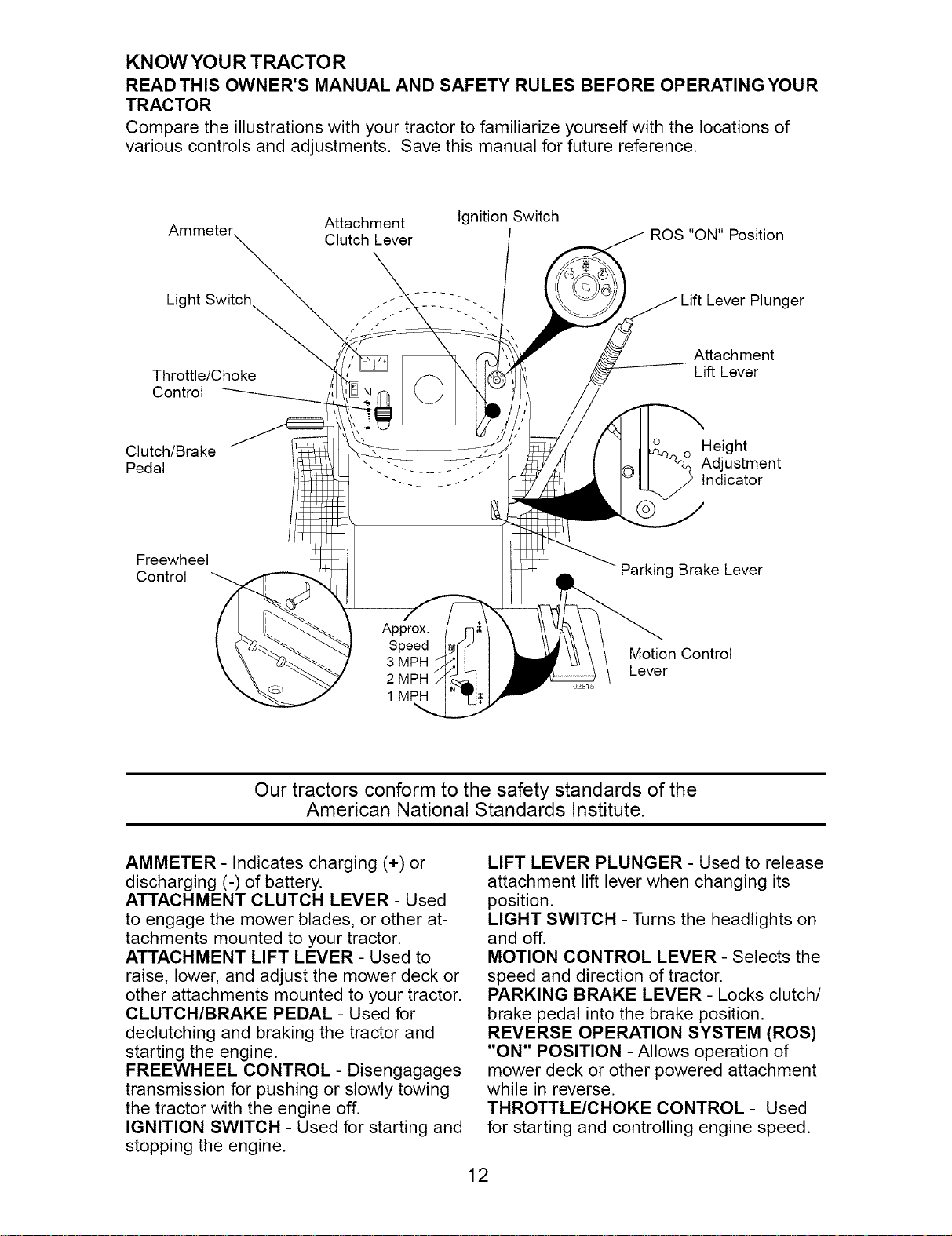

KNOWYOUR TRACTOR

READTHIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter Attachment

Clutch Lever

Ignition Switch

ROS "ON" Position

Throttle/Choke

Control

Lift Lever Plunger

Attachment

Lift Lever

Freewheel

Control g Brake Lever

Approx.

Speed

3 MPH

2 MPH

1 MPH

Motion Control

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck or

other attachments mounted to your tractor.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

FREEWHEEL CONTROL - Disengagages

transmission for pushing or slowly towing

the tractor with the engine off.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH - Turns the headlights on

and off.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

REVERSE OPERATION SYSTEM (ROS)

"ON" POSITION - Allows operation of

mower deck or other powered attachment

while in reverse.

THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into the I

eyes, which can result in severe eye damage. Always wear safety glasses I

or eye shields while operating your tractor or performing any adjustments I

or repairs. We recommend standard safety glasses or a wide vision safety I

mask worn over spectacles. I

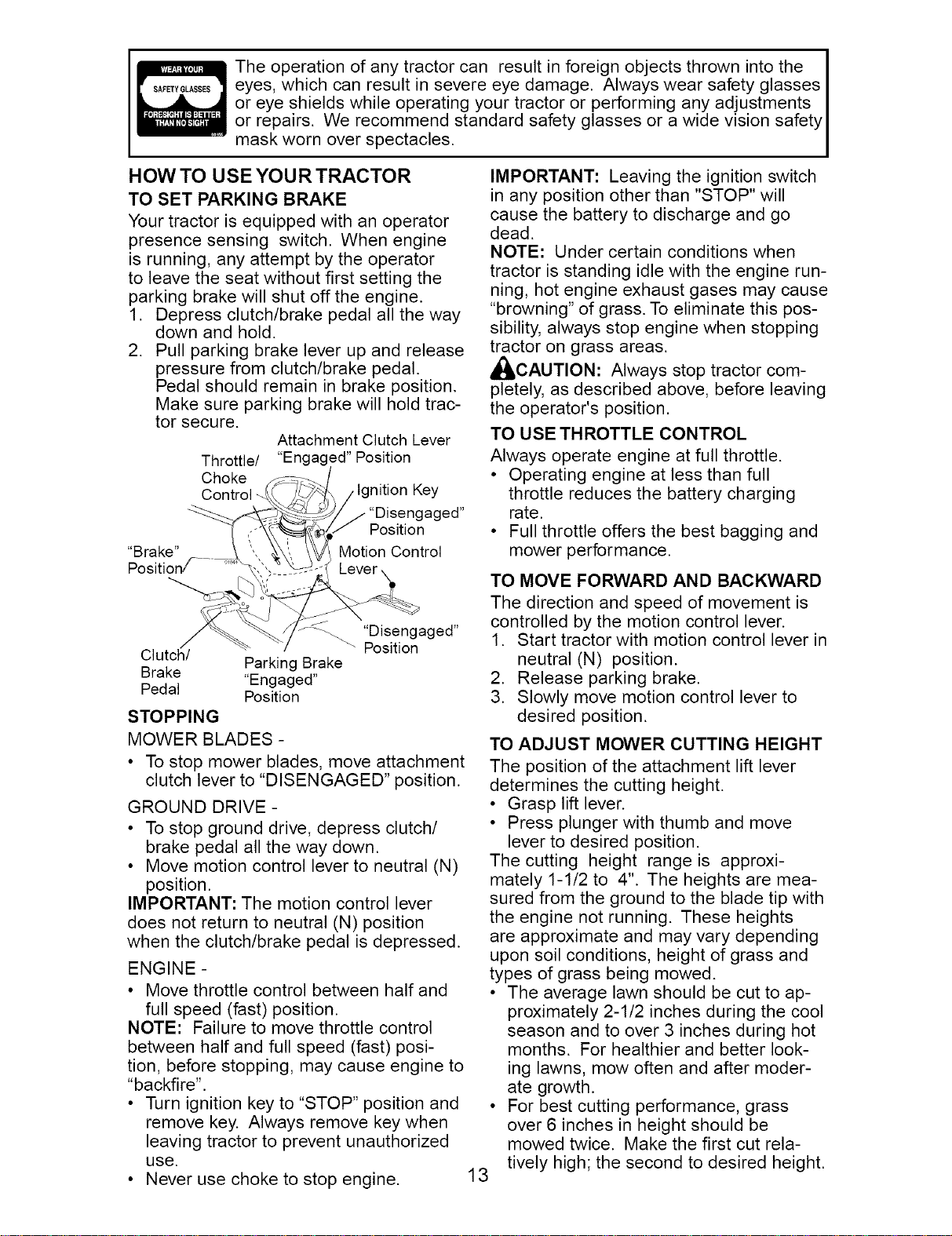

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Attachment Clutch Lever

"Engaged" Position

Throttle/

Choke

nition Key

"Disengaged"

Position

"Brake" Motion Control

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine run-

ning, hot engine exhaust gases may cause

"browning" of grass. To eliminate this pos-

sibility, always stop engine when stopping

tractor on grass areas.

_,CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

f_ "Disengaged"

Position

Clutch/ Parking Brake

Brake "Engaged"

Pedal Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the motion control lever.

1. Start tractor with motion control lever in

neutral (N) position.

2. Release parking brake.

3. Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to ap-

proximately 2-1/2 inches during the cool

season and to over 3 inches during hot

months. For healthier and better look-

ing lawns, mow often and after moder-

ate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut rela-

tively high; the second to desired height.

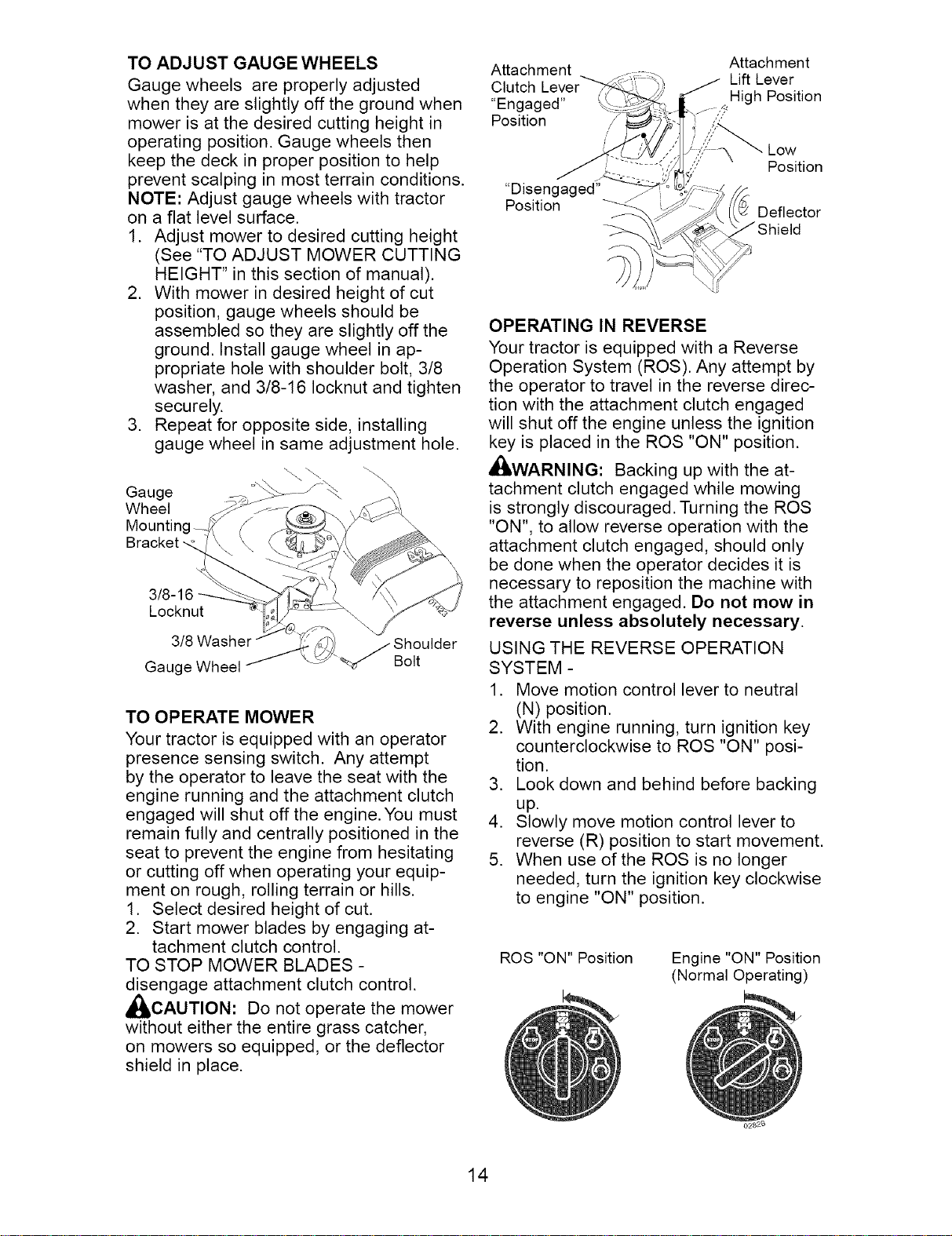

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "TO ADJUST MOWER CUTTING

HEIGHT" in this section of manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in ap-

propriate hole with shoulder bolt, 3/8

washer, and 3/8-16 Iocknut and tighten

securely.

3. Repeat for opposite side, installing

gauge wheel in same adjustment hole.

Gauge

Wheel

Mountinc

Locknut

Gauge Wheel

Bolt

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Attachment

Clutch Lift Lever

High Position

"Engaged" z./2

Position ,/

"Disengaged"

Position

Low

," ,v Position

Deflector

OPERATING IN REVERSE

Your tractor is equipped with a Reverse

Operation System (ROS). Any attempt by

the operator to travel in the reverse direc-

tion with the attachment clutch engaged

will shut off the engine unless the ignition

key is placed in the ROS "ON" position.

_,WARNING: Backing up with the at-

tachment clutch engaged while mowing

is strongly discouraged. Turning the ROS

"ON", to allow reverse operation with the

attachment clutch engaged, should only

be done when the operator decides it is

necessary to reposition the machine with

the attachment engaged. Do not mow in

reverse unless absolutely necessary.

USING THE REVERSE OPERATION

SYSTEM -

1. Move motion control lever to neutral

(N) position.

2. With engine running, turn ignition key

counterclockwise to ROS "ON" posi-

tion.

3. Look down and behind before backing

up.

4. Slowly move motion control lever to

reverse (R) position to start movement.

5. When use of the ROS is no longer

needed, turn the ignition key clockwise

to engine "ON" position.

ROS "ON" Position

Engine "ON" Position

(Normal Operating)

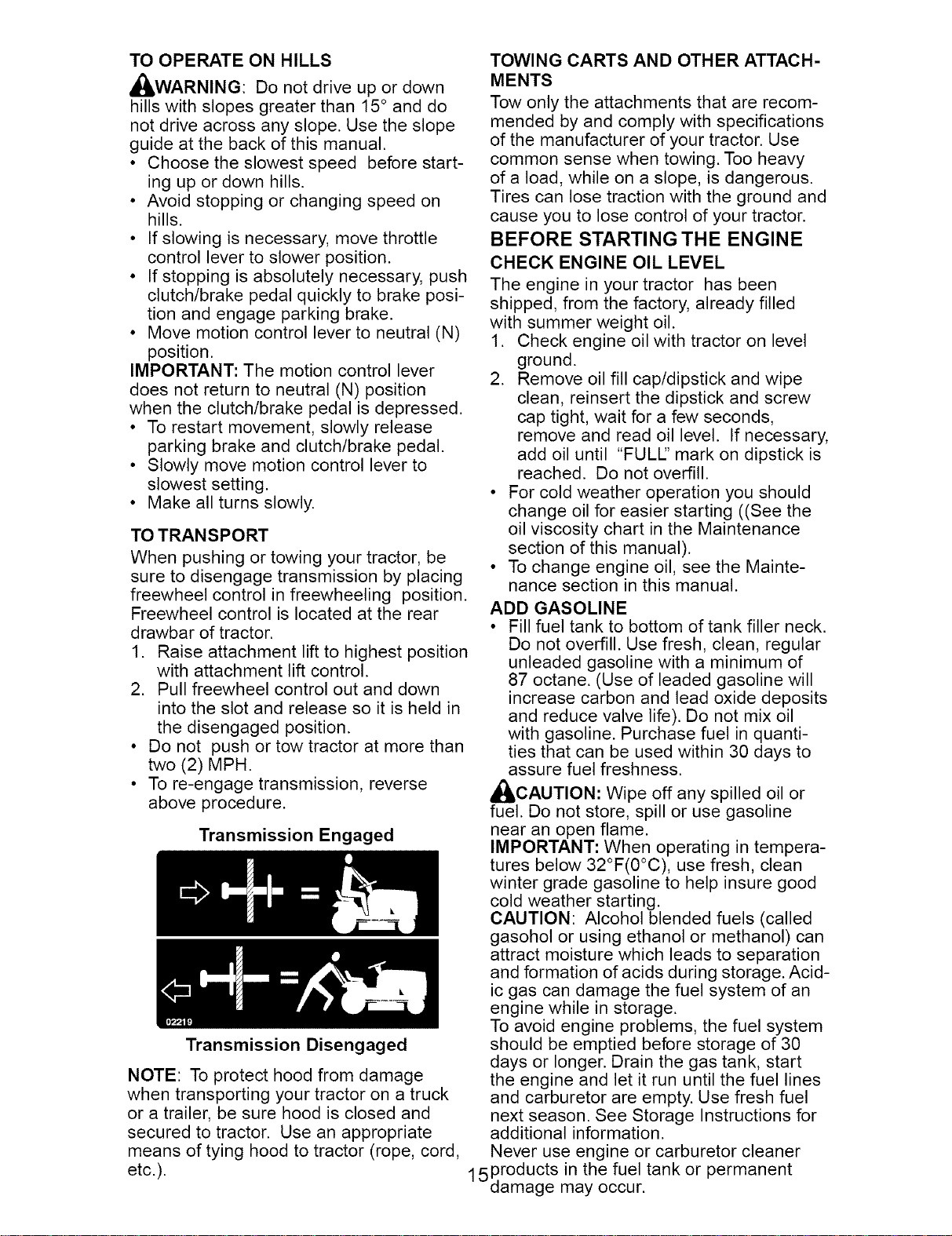

TO OPERATE ON HILLS

_ILWARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before start-

ing up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake posi-

tion and engage parking brake.

• Move motion control lever to neutral (N)

position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is depressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motion control lever to

slowest setting.

• Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by placing

freewheel control in freewheeling position.

Freewheel control is located at the rear

drawbar of tractor.

1. Raise attachment lift to highest position

with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

• Do not push or tow tractor at more than

two (2) MPH.

• To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmission Disengaged

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If necessary,

add oil until "FULl" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting ((See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of tank filler neck.

Do not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quanti-

ties that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tempera-

tures below 32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage. Acid-

ic gas can damage the fuel system of an

engine while in storage.

To avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information.

Never use engine or carburetor cleaner

15P r°ducts in the fuel tank or permanent

damage may occur.

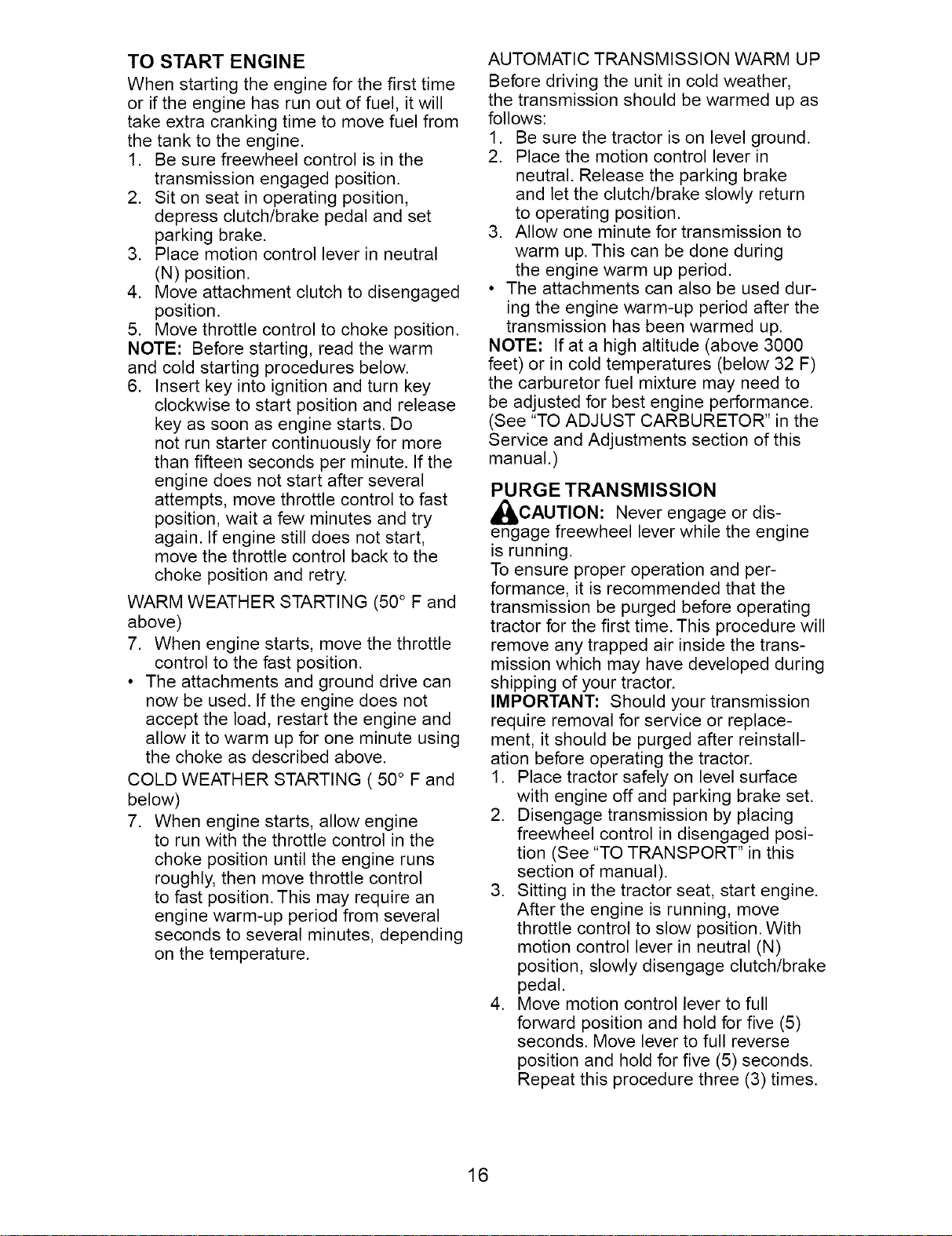

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

3. Place motion control lever in neutral

(N) position.

4. Move attachment clutch to disengaged

position.

5. Move throttle control to choke position.

NOTE: Before starting, read the warm

and cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING ( 50 ° F and

below)

7. When engine starts, allow engine

to run with the throttle control in the

choke position until the engine runs

roughly, then move throttle control

to fast position. This may require an

engine warm-up period from several

seconds to several minutes, depending

on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake slowly return

to operating position.

3. Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can also be used dur-

ing the engine warm-up period after the

transmission has been warmed up.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

(See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.)

PURGE TRANSMISSION

4_IbCAUTION: Never engage or dis-

engage freewheel lever while the engine

is running.

To ensure proper operation and per-

formance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure will

remove any trapped air inside the trans-

mission which may have developed during

shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstall-

ation before operating the tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged posi-

tion (See "TO TRANSPORT" in this

section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

4. Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: During this step there will be no

movement of drive wheels. The air is being

removed from hydraulic drive system.

5. Move motion control lever to neutral

(N) position. Shutoff engine and set

parking brake.

6. Engage transmission by placing free-

wheel control in engaged position (See

"TO TRANSPORT" in this section of

manual).

7. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to half (1/2) speed.

With motion control lever in neutral (N)

position, slowly disengage clutch/brake

pedal.

8. Slowly move motion control lever for-

ward, after the tractor moves approxi-

mately five (5) feet, slowly move motion

control lever to reverse position. After

the tractor moves approximately five

(5) feet return the motion control lever

to the neutral (N) position. Repeat this

procedure with the motion control lever

three (3) times.

Your transmission is now purged and now

ready for normal operation.

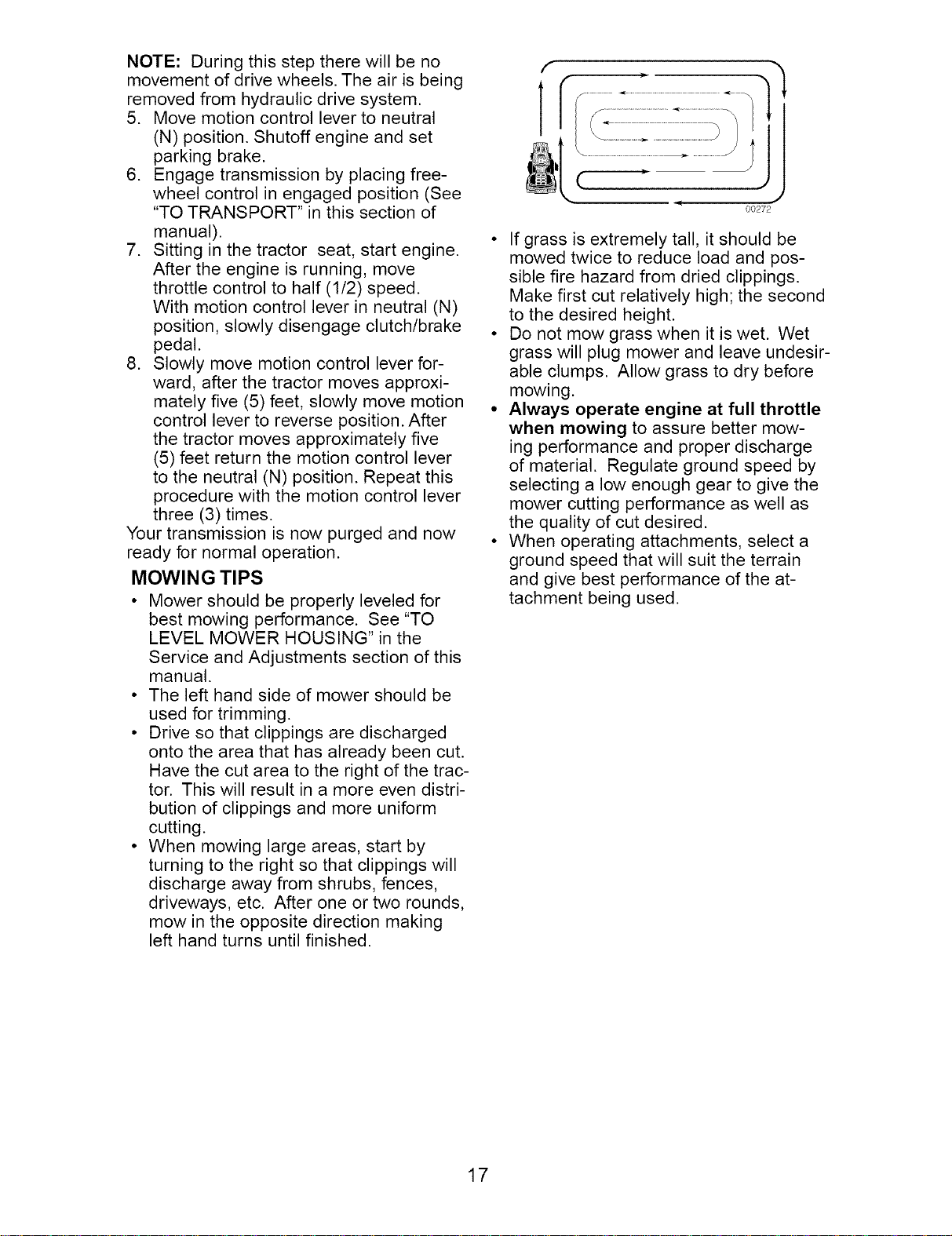

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been cut.

Have the cut area to the right of the trac-

tor. This will result in a more even distri-

bution of clippings and more uniform

cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

00272

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave undesir-

able clumps. Allow grass to dry before

mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

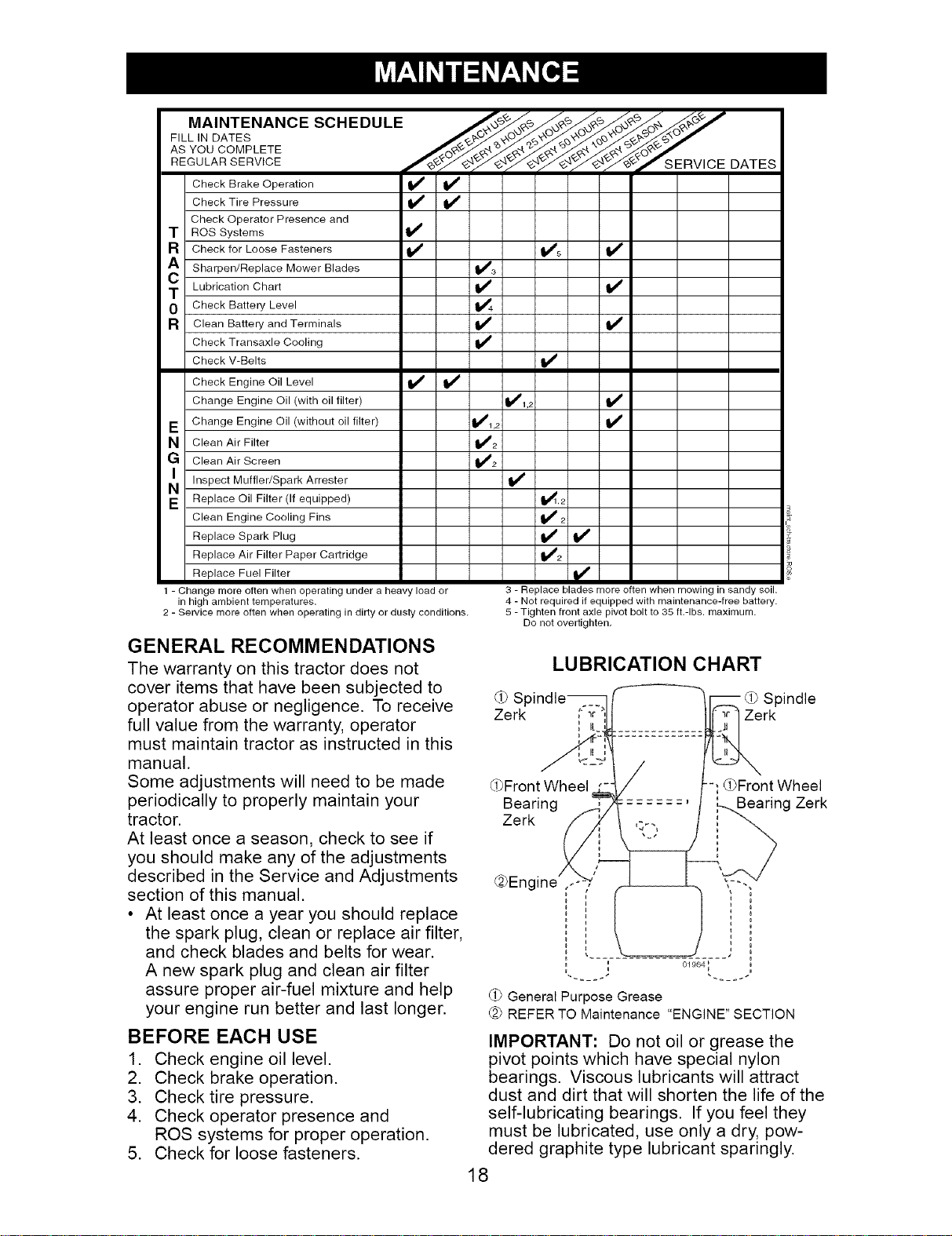

FILL IN DATES /_/_X'x_'_/_ _ "

AS YOU COMPLETE /__/_ _4 _/_/O.Oq._"

REGULAR SERVICE /_r/_'_r_VSERVICE DATES

C hh:; kkBirakp r?sPe_;i° n _

Check Operator Presence and

T ROS Systems I_

R Check for Loose Fasteners If ll_s If

A Sharpen/Replace Mower Blades 11_3

C Lubrication Chart I_ I_

0 Check Battery Level 1_4

R Clean Battery and Terminals ll_ If

Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level If ll_

Change Engine Oil (with oil filter) _1,_

E Change Engine Oil (without oil filter) _1,2

N Clean Air Filter 11_2

G Clean Air Screen 1_2

Inspect Muffler/Spark

Arrester

E Replace Oil Filter (If equipped) _1,2

Clean Engine Cooling Fins If

Replace Spark Plug If If

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions,

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

ROS systems for proper operation.

5. Check for loose fasteners.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-tree battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten,

LUBRICATION CHART

dPSI: Spindle

Zerk ; _r Zerk

_Front Wheel ;_Front Wheel

Bearing ........ _ng Zerk

Zerk

@Engine ,_ ,, "--,

t i

, ' 019641

@ General Purpose Grease

@ REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

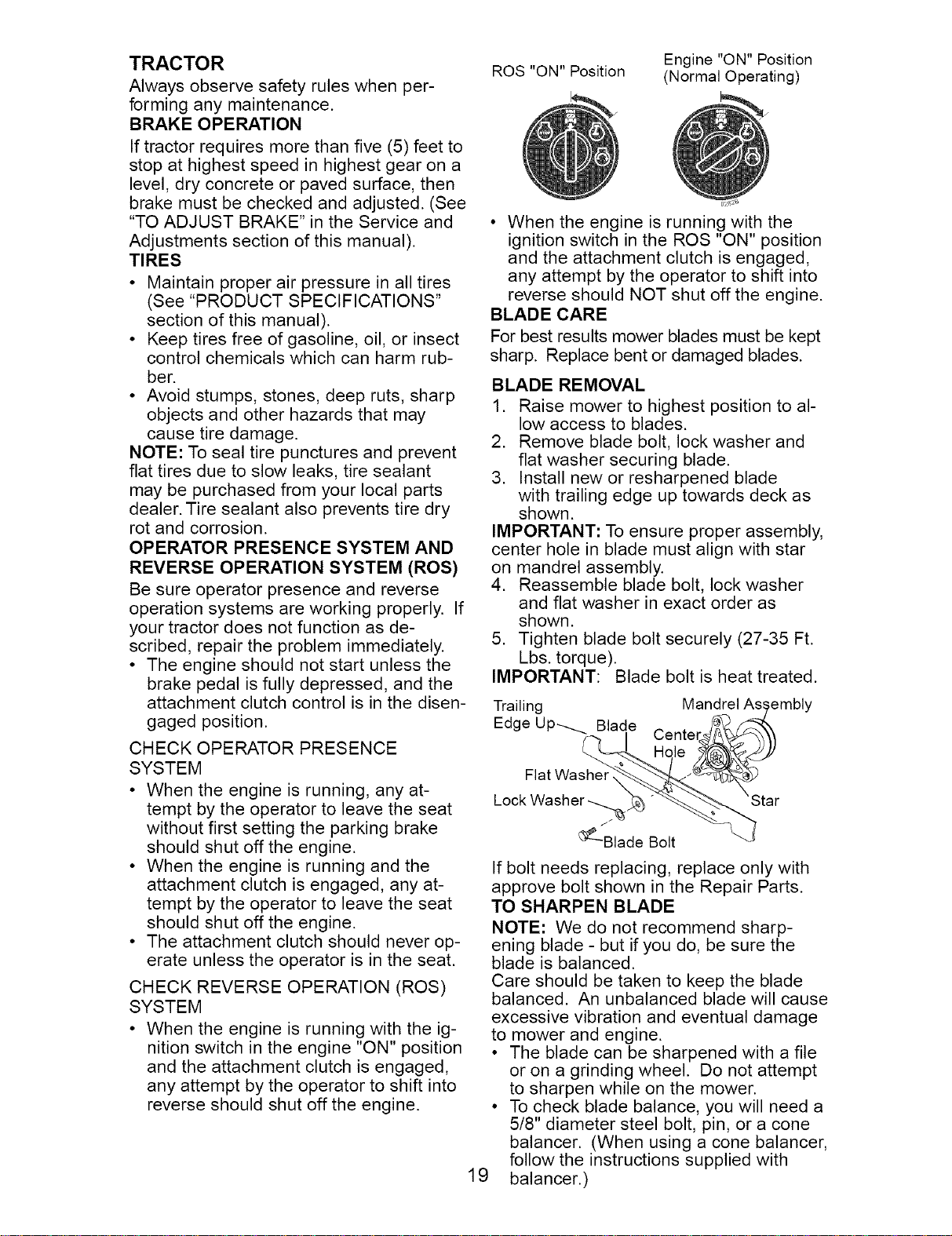

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM AND

REVERSE OPERATION SYSTEM (ROS)

Be sure operator presence and reverse

operation systems are working properly. If

your tractor does not function as de-

scribed, repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed, and the

attachment clutch control is in the disen-

gaged position.

CHECK OPERATOR PRESENCE

SYSTEM

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

CHECK REVERSE OPERATION (ROS)

SYSTEM

• When the engine is running with the ig-

nition switch in the engine "ON" position

and the attachment clutch is engaged,

any attempt by the operator to shift into

reverse should shut off the engine.

ROS "ON" Position

Engine "ON" Position

(Normal Operating)

• When the engine is running with the

ignition switch in the ROS "ON" position

and the attachment clutch is engaged,

any attempt by the operator to shift into

reverse should NOT shut off the engine.

BLADE CARE

For best results mower blades must be kept

sharp. Replace bent or damaged blades.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade

with trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is heat treated.

Trailing Mandrel iembly

Edge Up_ Blade

Centel

If bolt needs replacing, replace only with

approve bolt shown in the Repair Parts.

TO SHARPEN BLADE

NOTE: We do not recommend sharp-

ening blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

19 balancer.)

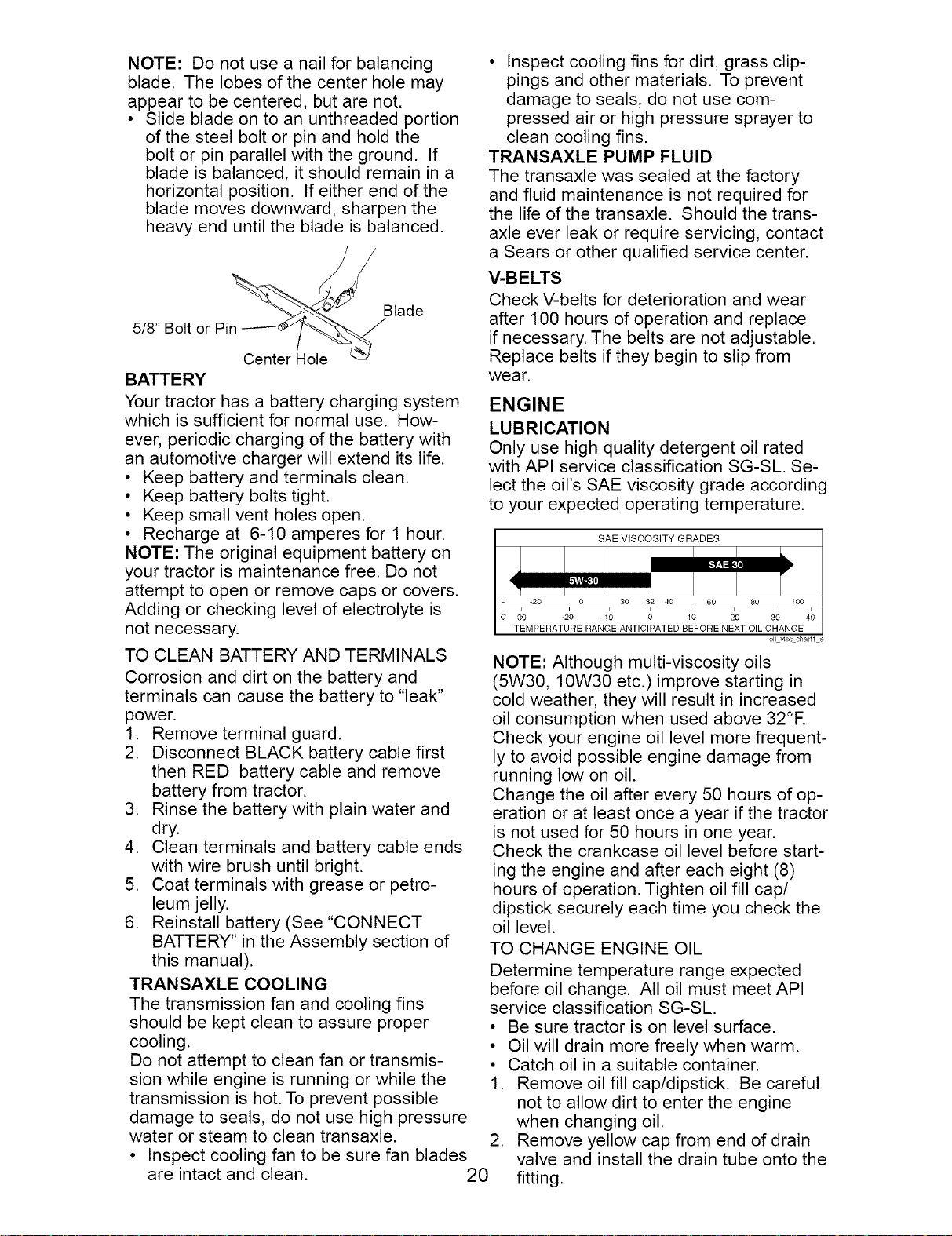

NOTE: Donotusea nailfor balancing

blade. Thelobesofthe centerholemay

appearto becentered,butare not.

• Slidebladeonto an unthreadedportion

of thesteel boltor pinandholdthe

boltor pinparallelwith theground. If

bladeisbalanced,it shouldremainin a

horizontalposition. Ifeitherendof the

blademovesdownward,sharpenthe

heavyenduntilthebladeisbalanced.

5/8" Bolt or Pin

Blade

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "CONNECT

BATTERY" in the Assembly section of

this manual).

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

• Inspect cooling fan to be sure fan blades

are intact and clean.

• Inspect cooling fins for dirt, grass clip-

pings and other materials. To prevent

damage to seals, do not use com-

pressed air or high pressure sprayer to

clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the trans-

axle ever leak or require servicing, contact

a Sears or other qualified service center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL. Se-

lect the oil's SAE viscosity grade according

to your expected operating temperature.

SAE VISCOSITY GRADES

F _20 0 30 32 40 60 80 100

c -i0 -2; -1; ; 1'0 _0 i0 4;

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oil vJs(- cha_tl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°E

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting.

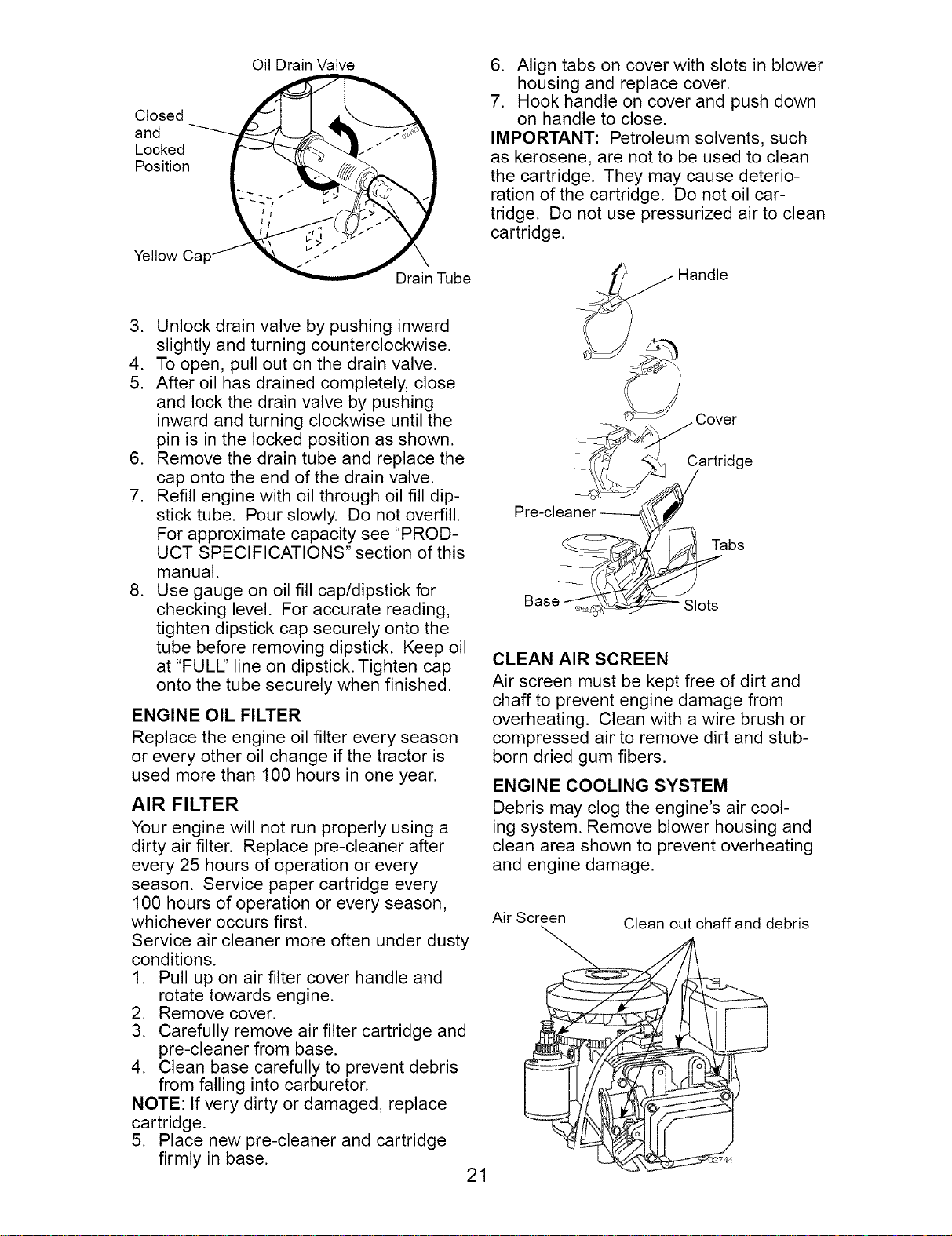

Oil Drain Valve

Closed

and

Locked

Position

Yellow Ca

Drain Tube

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Replace pre-cleaner after

every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Pull up on air filter cover handle and

rotate towards engine.

2. Remove cover.

3. Carefully remove air filter cartridge and

pre-cleaner from base.

4. Clean base carefully to prevent debris

from falling into carburetor.

NOTE: If very dirty or damaged, replace

cartridge.

5. Place new pre-cleaner and cartridge

firmly in base.

6. Align tabs on cover with slots in blower

housing and replace cover.

7. Hook handle on cover and push down

on handle to close.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil car-

tridge. Do not use pressurized air to clean

cartridge.

_ Handle

Cartridge

Tabs

Slots

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

ENGINE COOLING SYSTEM

Debris may clog the engine's air cool-

ing system. Remove blower housing and

clean area shown to prevent overheating

and engine damage.

Air Screen

Clean out chaff and debris

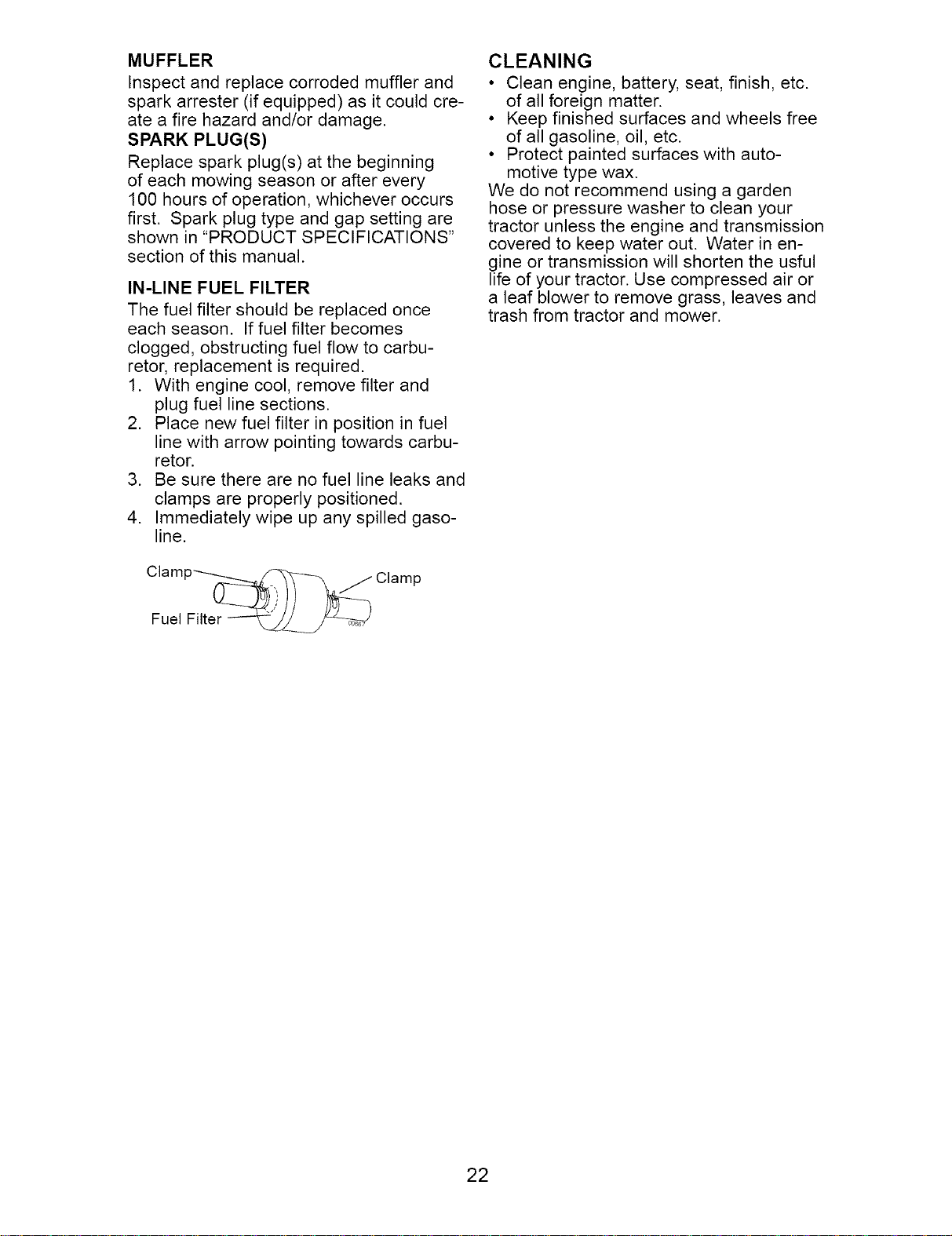

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning

of each mowing season or after every

100 hours of operation, whichever occurs

first. Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbu-

retor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp__ Clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with auto-

motive type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmission

covered to keep water out. Water in en-

gine or transmission will shorten the usful

life of your tractor. Use compressed air or

a leaf blower to remove grass, leaves and

trash from tractor and mower.

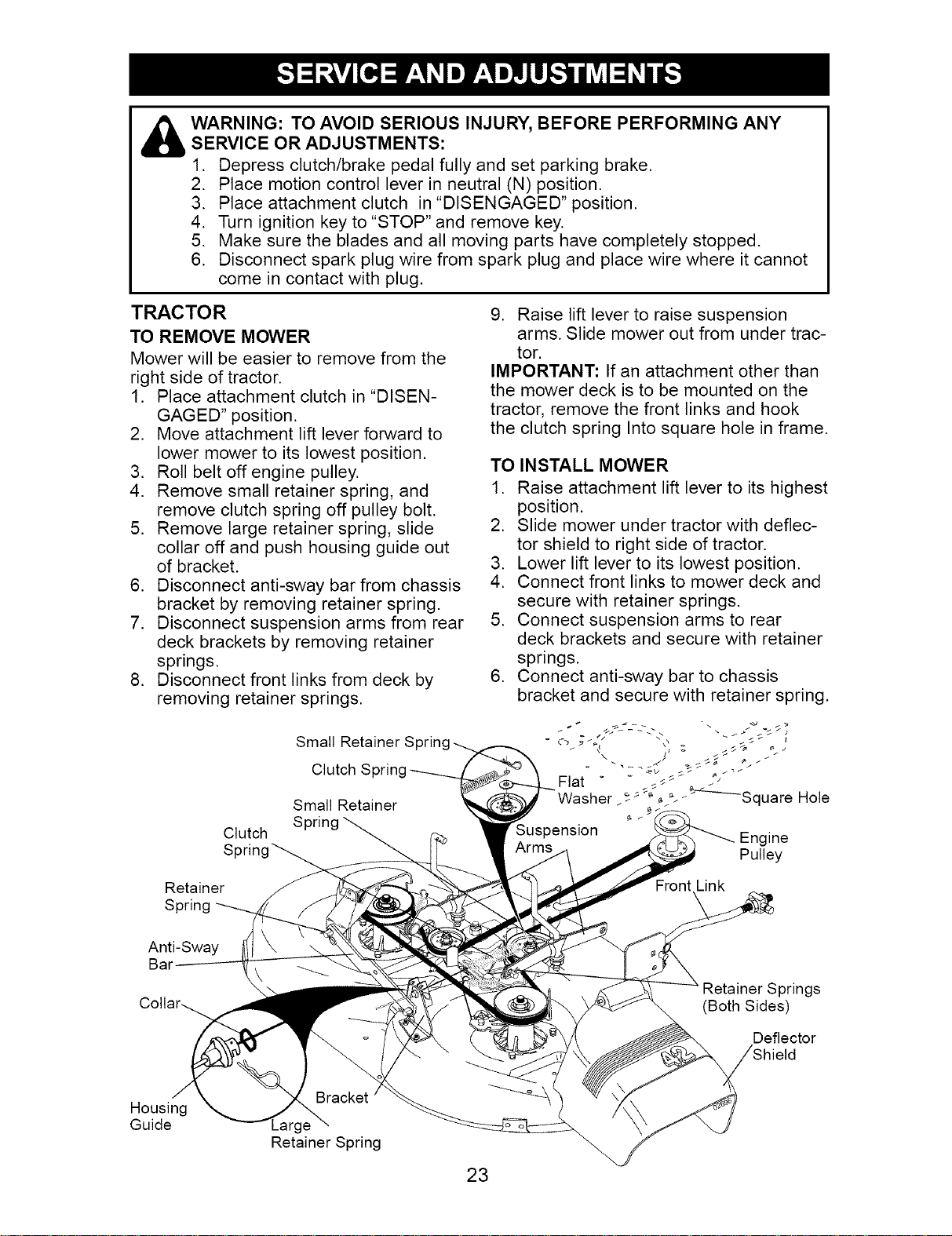

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANYSERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place motion control lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and

remove clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from rear

deck brackets by removing retainer

springs.

8. Disconnect front links from deck by

removing retainer springs.

Small

Small Retainer

Clutch

9. Raise lift lever to raise suspension

arms. Slide mower out from under trac-

tor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its highest

position.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with retainer

springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer spring.

Engine

Pulley

Retainer

Spring

Front Link

Anti-Sway

Bar

Springs

(Both Sides)

Deflector

Housing

Guide

Retainer Spring

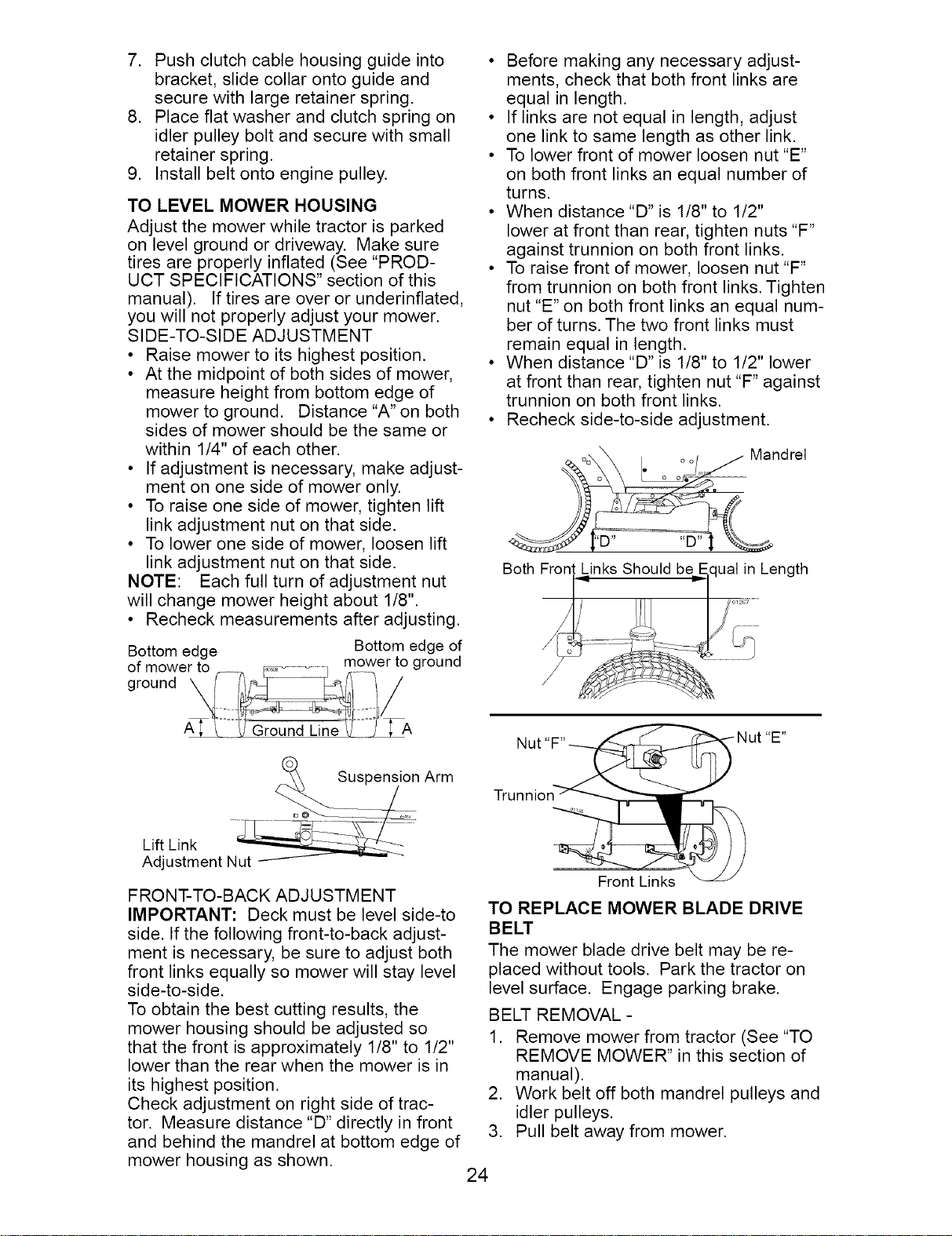

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Place flat washer and clutch spring on

idler pulley bolt and secure with small

retainer spring.

9. Install belt onto engine pulley.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom edge Bottom edge of

of mower to mower to ground

ground'. S--__,,._I -q,/

n Arm

@ 0,

Lift Link ...............................................

Adjustment Nut ----'-"-'- - --

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of trac-

tor. Measure distance "D" directly in front

and behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2"

lower at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "F"

from trunnion on both front links. Tighten

nut "E" on both front links an equal num-

ber of turns. The two front links must

remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

'D.... D"

Both Front Links Should be E.qual in Length

,o...........

Nut "F"

Trunnion

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be re-

placed without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

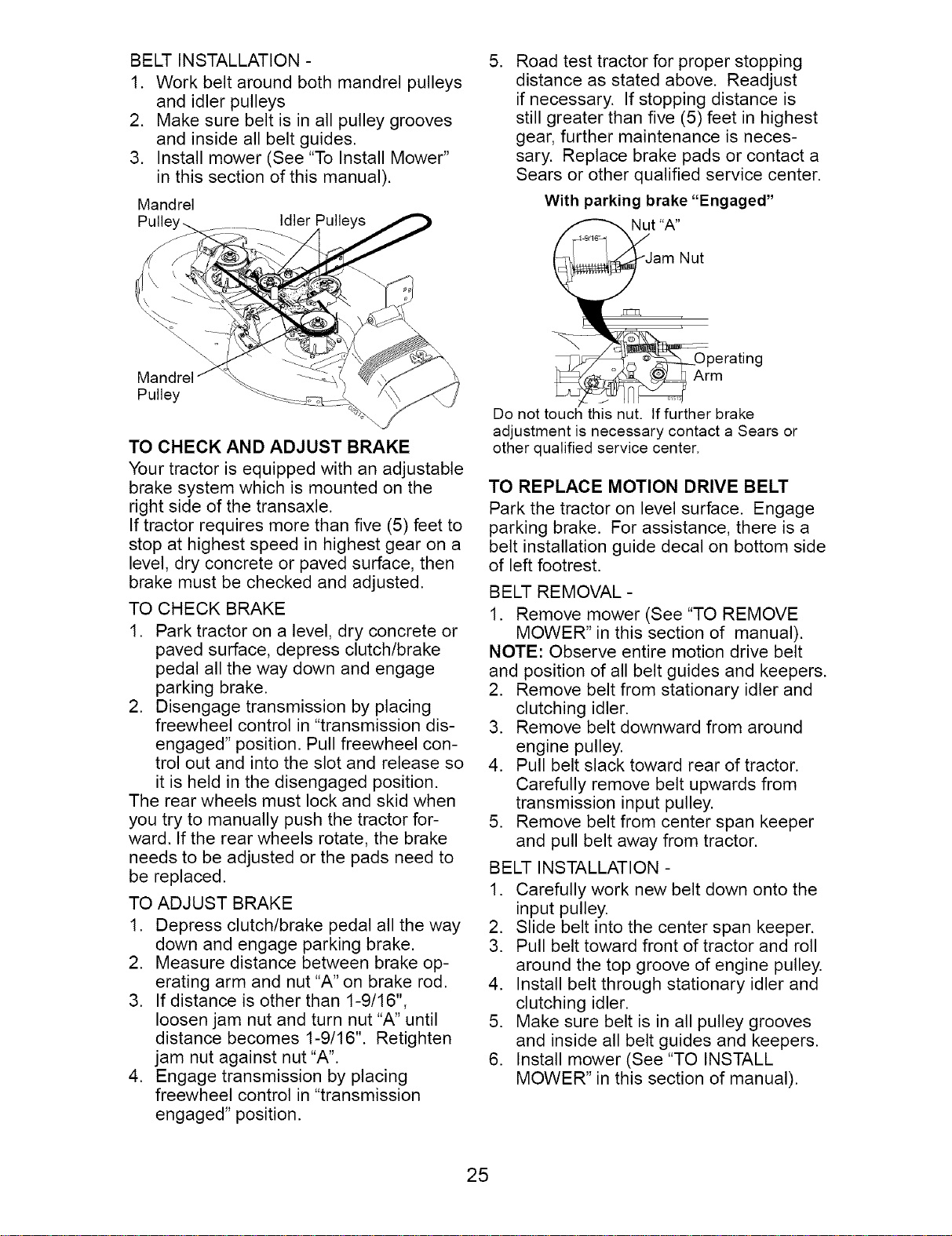

BELT INSTALLATION -

1. Work belt around both mandrel pulleys

and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel

Idler

Pulley

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Disengage transmission by placing

freewheel control in "transmission dis-

engaged" position. Pull freewheel con-

trol out and into the slot and release so

it is held in the disengaged position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake op-

erating arm and nut "A" on brake rod.

3. If distance is other than 1-9/16",

loosen jam nut and turn nut "A" until

distance becomes 1-9/16". Retighten

jam nut against nut "A".

4. Engage transmission by placing

freewheel control in "transmission

engaged" position.

Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

_N_t "A"

am Nut

!'_

perating

Do not touch this nut. tffurther brake

adjustment is necessary contact a Sears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom side

of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keepers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

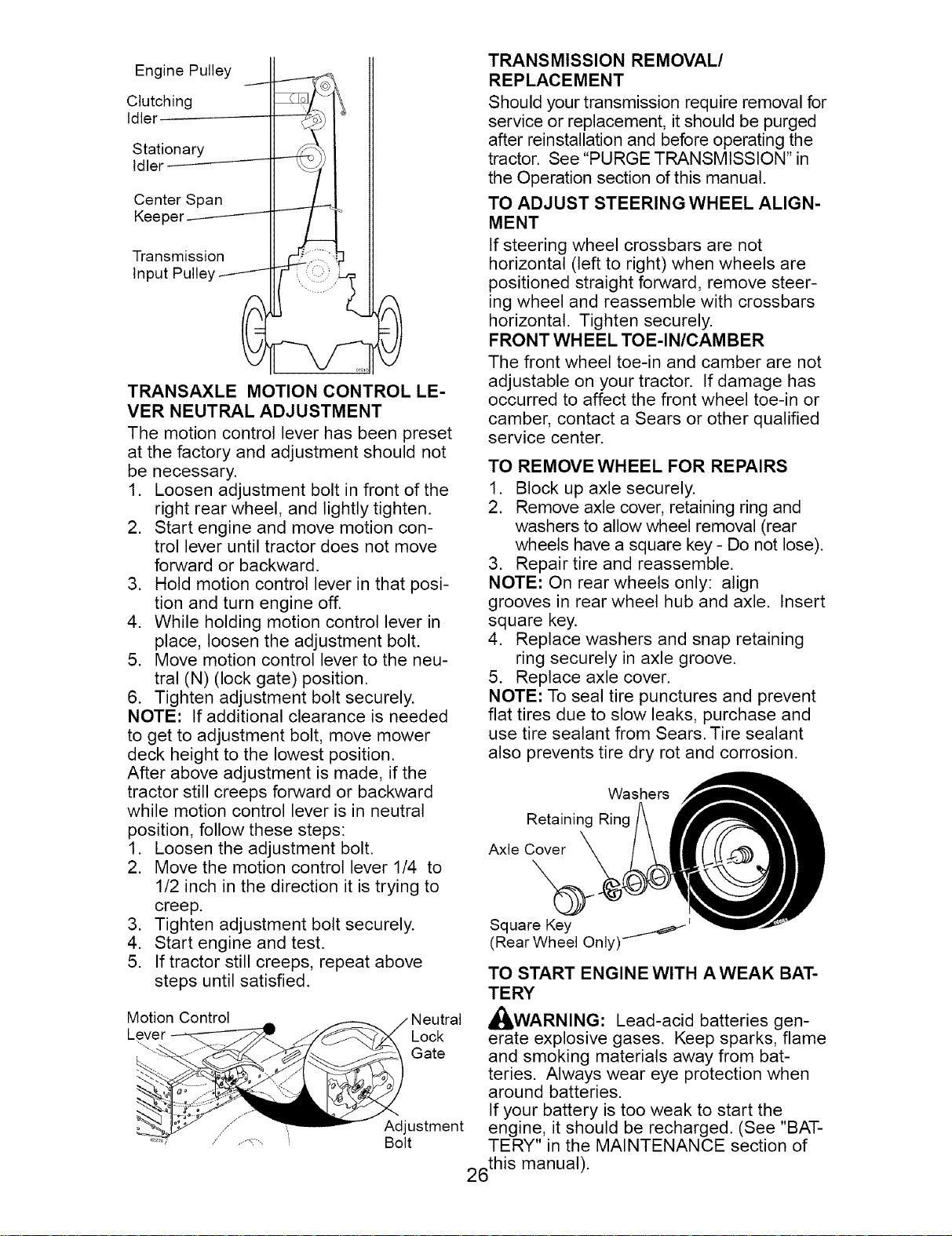

Engine Pulley _L_

Clutching --I\

Stationary _[----_,-i _ I

Center Span II__--J--.[

Keeper.-------_ _

Transmission II__P_L

Input Pulley/_

TRANSAXLE MOTION CONTROL LE-

VER NEUTRAL ADJUSTMENT

The motion control lever has been preset

at the factory and adjustment should not

be necessary.

1. Loosen adjustment bolt in front of the

right rear wheel and lightly tighten.

2. Start engine and move motion con-

trol lever until tractor does not move

forward or backward.

3. Hold motion control lever in that posi-

tion and turn engine off.

4. While holding motion control lever in

place, loosen the adjustment bolt.

5. Move motion control lever to the neu-

tral (N) (lock gate) position.

6. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

After above adjustment is made, if the

tractor still creeps forward or backward

while motion control lever is in neutral

position, follow these steps:

1. Loosen the adjustment bolt.

2. Move the motion control lever 1/4 to

1/2 inch in the direction it is trying to

creep.

3. Tighten adjustment bolt securely.

4. Start engine and test.

5. If tractor still creeps, repeat above

steps until satisfied.

Motion Control

Lever

Lock

Gate

Adjustment

Bolt

TRANSMISSION REMOVAL/

REPLACEMENT

Should your transmission require removal for

service or replacement, it should be purged

after reinstallation and before operating the

tractor. See "PURGE TRANSMISSION" in

the Operation section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAM BER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle. Insert

square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining Ring

Axle Cover

TO START ENGINE WITH A WEAK BAT-

TERY

,_WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

26this manual).

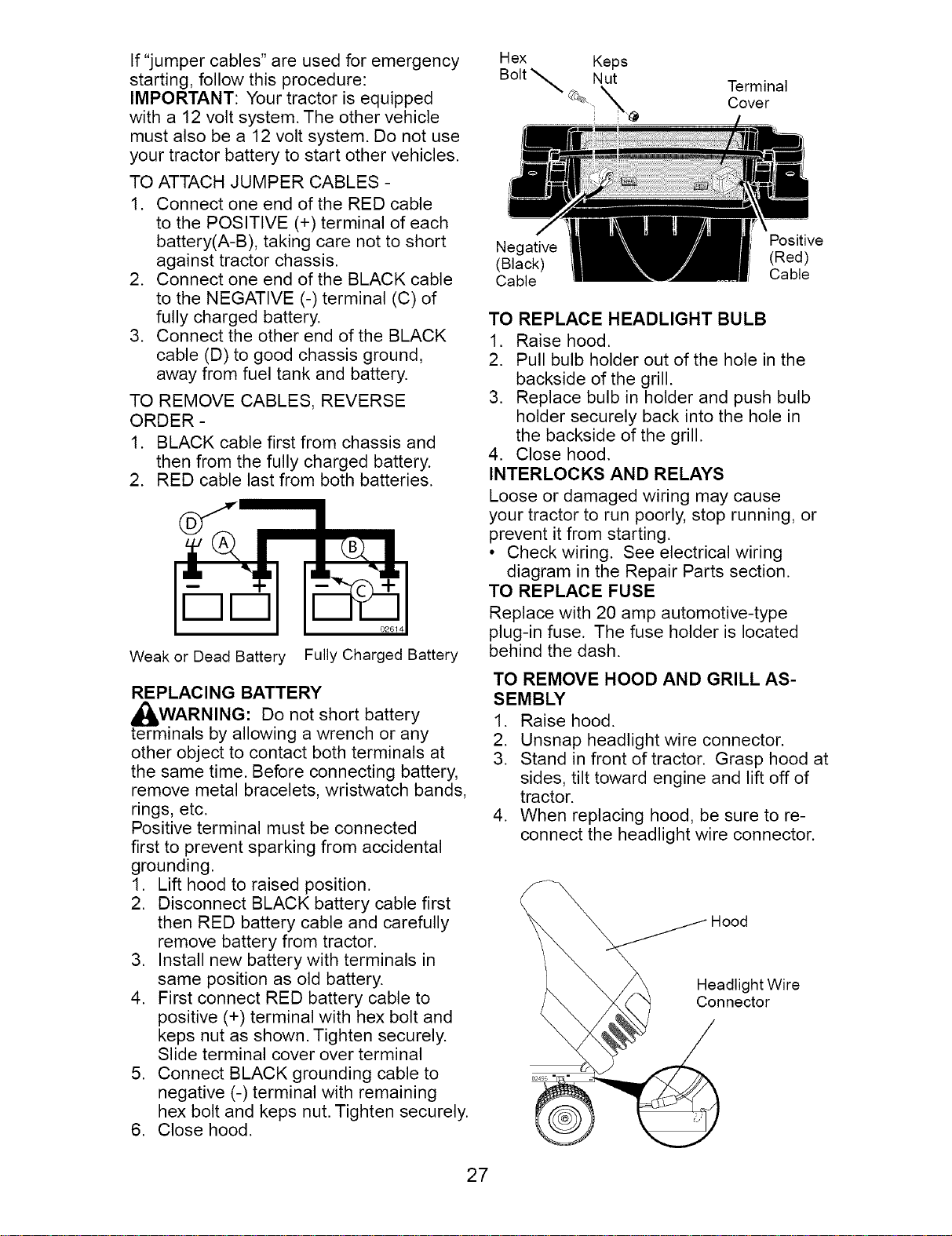

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

02614

Weak or Dead Battery Fully Charged Battery

REPLACING BATTERY

, " ,WARNING" Do not short battery

termnals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected

first to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten securely.

6. Close hood.

Hex Keps

Bolt _ Nut Terminal

X Cover

J i"

Negative Positive

(Black) (Red)

Cable Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Headlight Wire

Connector

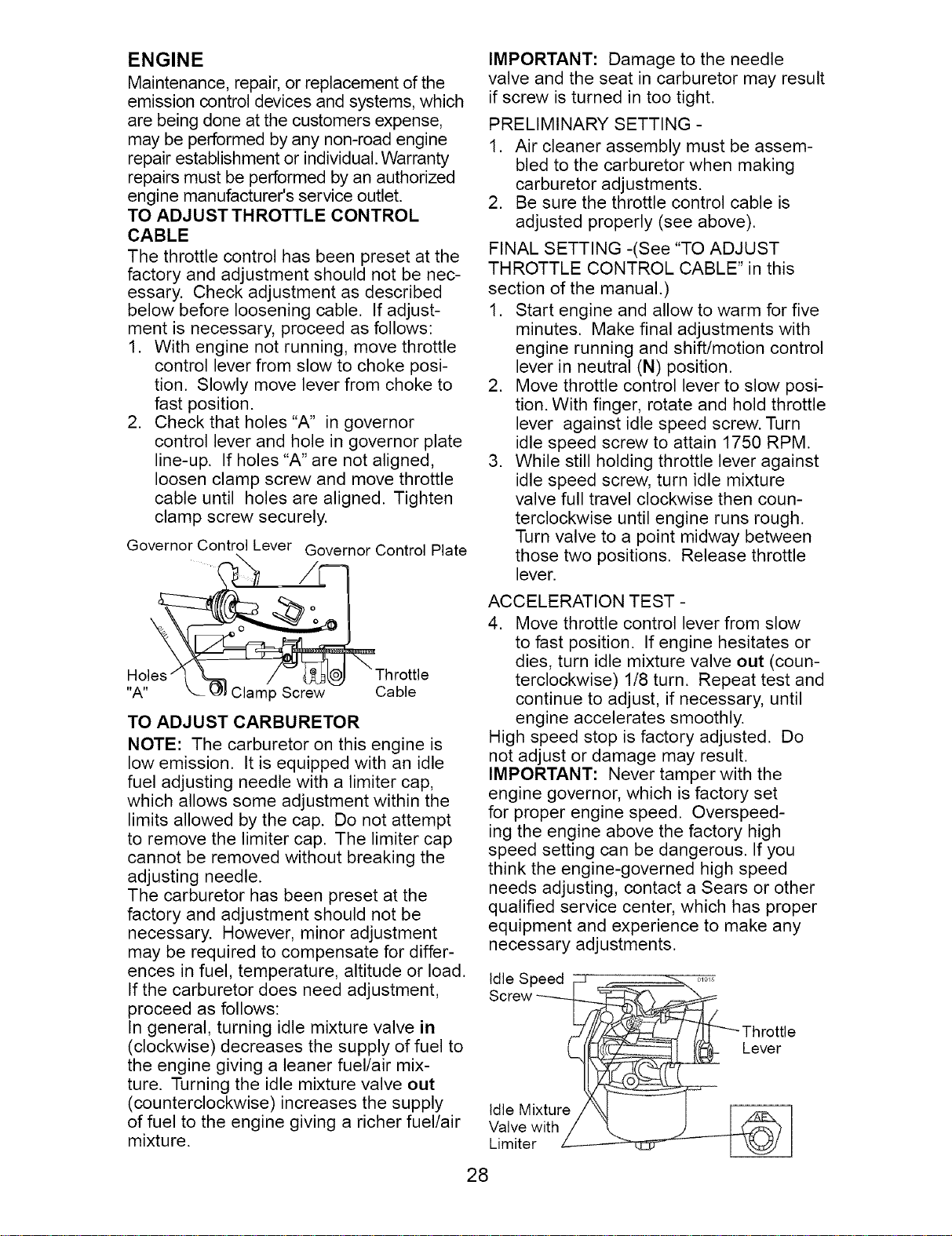

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke posi-

tion. Slowly move lever from choke to

fast position.

2. Check that holes "A" in governor

control lever and hole in governor plate

line-up. If holes "A" are not aligned,

loosen clamp screw and move throttle

cable until holes are aligned. Tighten

clamp screw securely.

Governor Control Lever Governor Control Plate

Holes

"A" Clamp Screw Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is

low emission. It is equipped with an idle

fuel adjusting needle with a limiter cap,

which allows some adjustment within the

limits allowed by the cap. Do not attempt

to remove the limiter cap. The limiter cap

cannot be removed without breaking the

adjusting needle.

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for differ-

ences in fuel, temperature, altitude or load.

If the carburetor does need adjustment,

proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fuel/air mix-

ture. Turning the idle mixture valve out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needle

valve and the seat in carburetor may result

if screw is turned in too tight.

PRELIMINARY SETTING -

1. Air cleaner assembly must be assem-

bled to the carburetor when making

carburetor adjustments.

2. Be sure the throttle control cable is

adjusted properly (see above).

FINAL SETTING -(See "TO ADJUST

THROTTLE CONTROL CABLE" in this

section of the manual.)

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow posi-

tion. With finger, rotate and hold throttle

lever against idle speed screw. Turn

idle speed screw to attain 1750 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

valve full travel clockwise then coun-

terclockwise until engine runs rough.

Turn valve to a point midway between

those two positions. Release throttle

lever.

ACCELERATION TEST -

4. Move throttle control lever from slow

to fast position. If engine hesitates or

dies, turn idle mixture valve out (coun-

terclockwise) 1/8 turn. Repeat test and

continue to adjust, if necessary, until

engine accelerates smoothly.

High speed stop is factory adjusted. Do

not adjust or damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center, which has proper

equipment and experience to make any

necessary adjustments.

Idle Speed

Screw

Lever

Idle Mixture

Valve with

Limiter

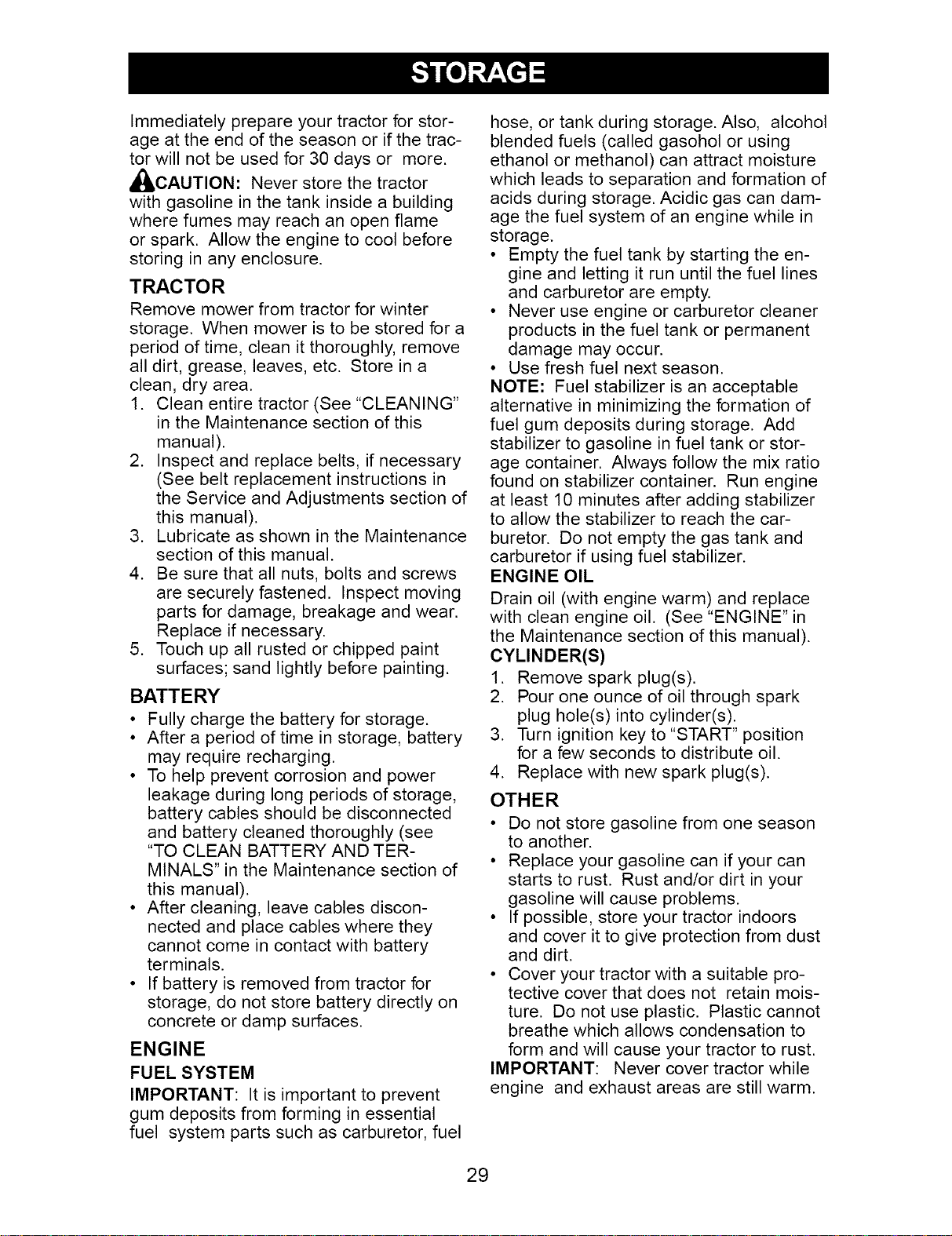

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

tor will not be used for 30 days or more.

_CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TER-

MINALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the car-

buretor. Do not empty the gas tank and

carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

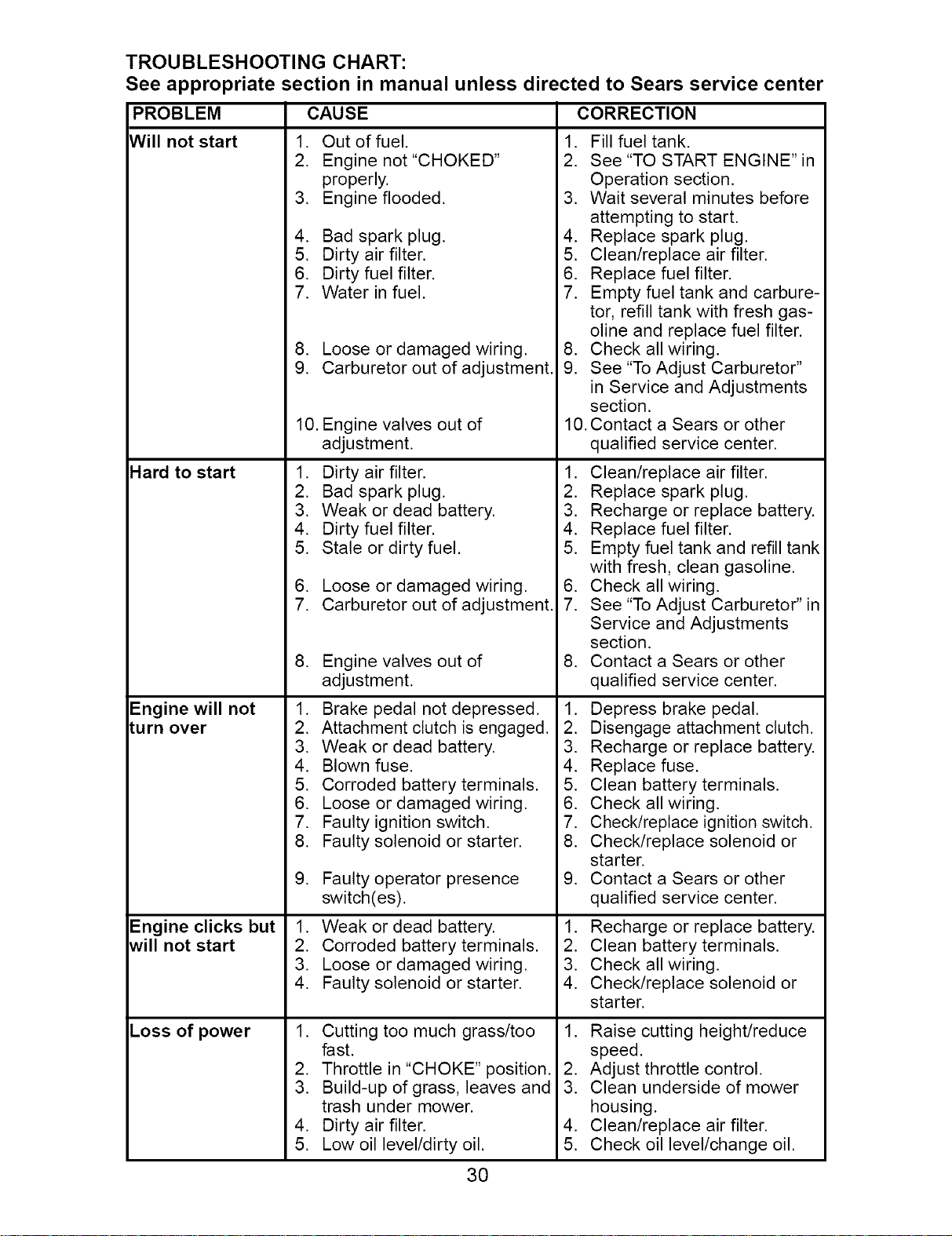

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and

trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

1. Fill fuel tank.

2. See "TO START ENGINE" in

Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

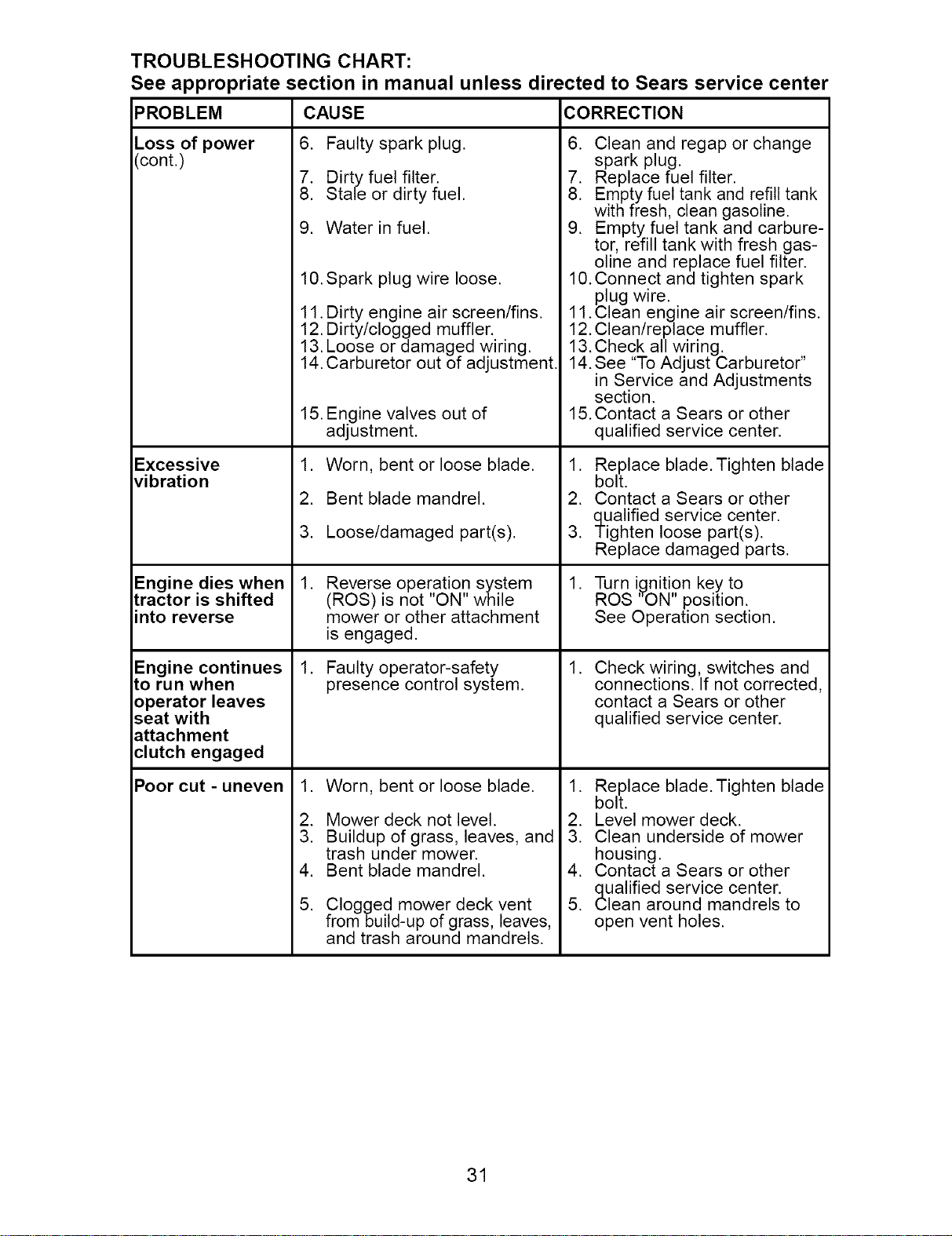

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Loss of power

(cont.)

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh gas-

oline and replace fuel filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

1. Turn ignition key to

ROS "ON" position.

See Operation section.

1. Check wiring, switches and

connections. If not corrected,

contact a Sears or other

qualified service center.

1. Replace blade. Tighten blade

bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

Excessive

vibration

Engine dies when

tractor is shifted

into reverse

Engine continues

to run when

operator leaves

seat with

attachment

clutch engaged

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

Reverse operation system

(ROS) is not "ON" while

mower or other attachment

is engaged.

Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves, and

trash under mower.

Bent blade mandrel.

Clogged mower deck vent

from build-up of grass, leaves,

and trash around mandrels.

Poor cut - uneven

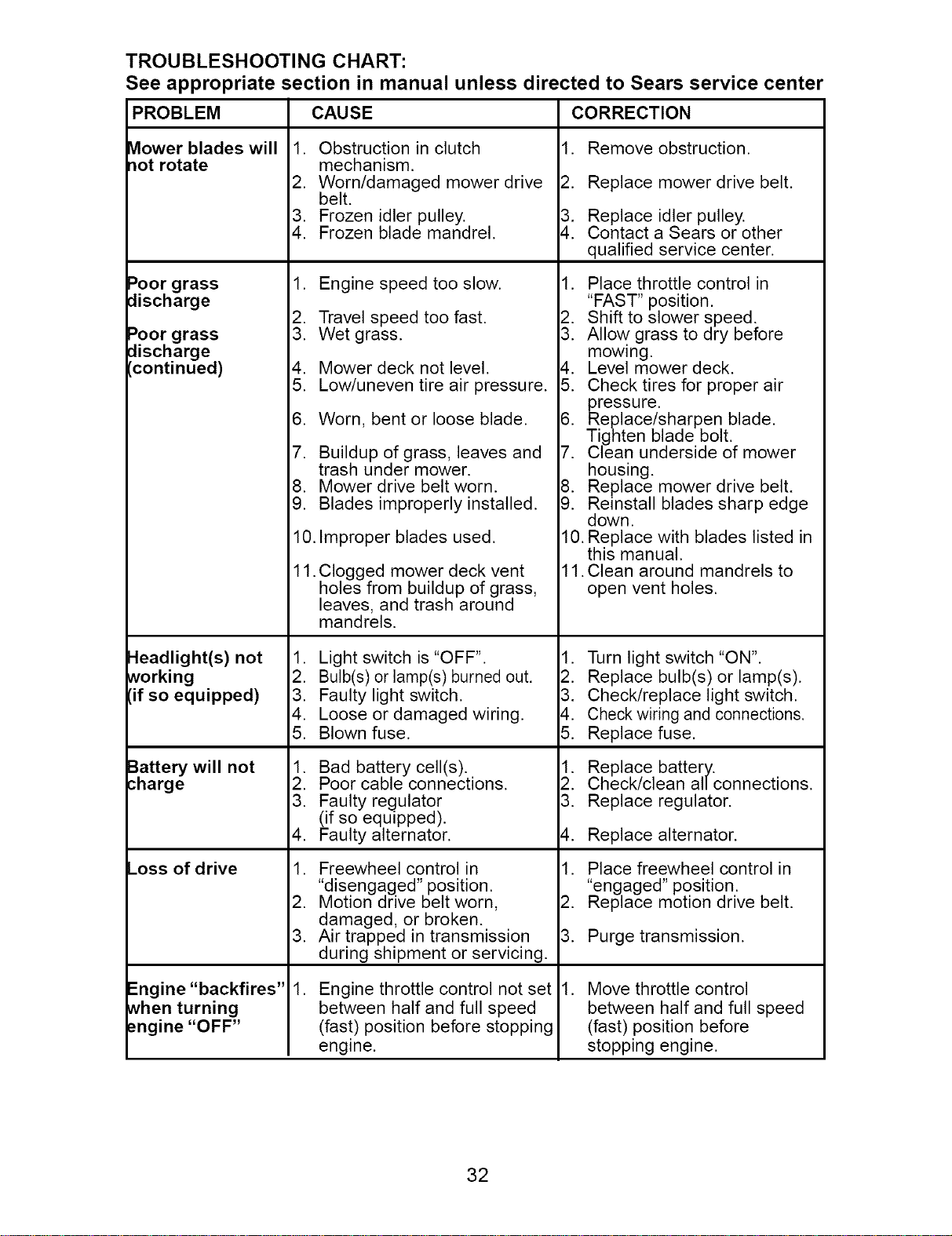

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

_ower blades will

mot rotate

_oor grass

_ischarge

_oor grass

_ischarge

'continued)

-leadlight(s) not

Norking

'if so equipped)

3attery will not

:harge

_oss of drive

-ngine "backfires"

Nhen turning

._ngine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Light switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

1. Freewheel control in

"disengaged" position.

2. Motion drive belt worn,

damaged, or broken.

3. Air trapped in transmission

during shipment or servicing.

Engine throttle control not set

between half and full speed

(fast) position before stopping

engine.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed in

this manual.

11. Clean around mandrels to

open vent holes.

1. Turn light switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean al/connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

"engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

. Move throttle control

between half and full speed

(fast) position before

stopping engine.

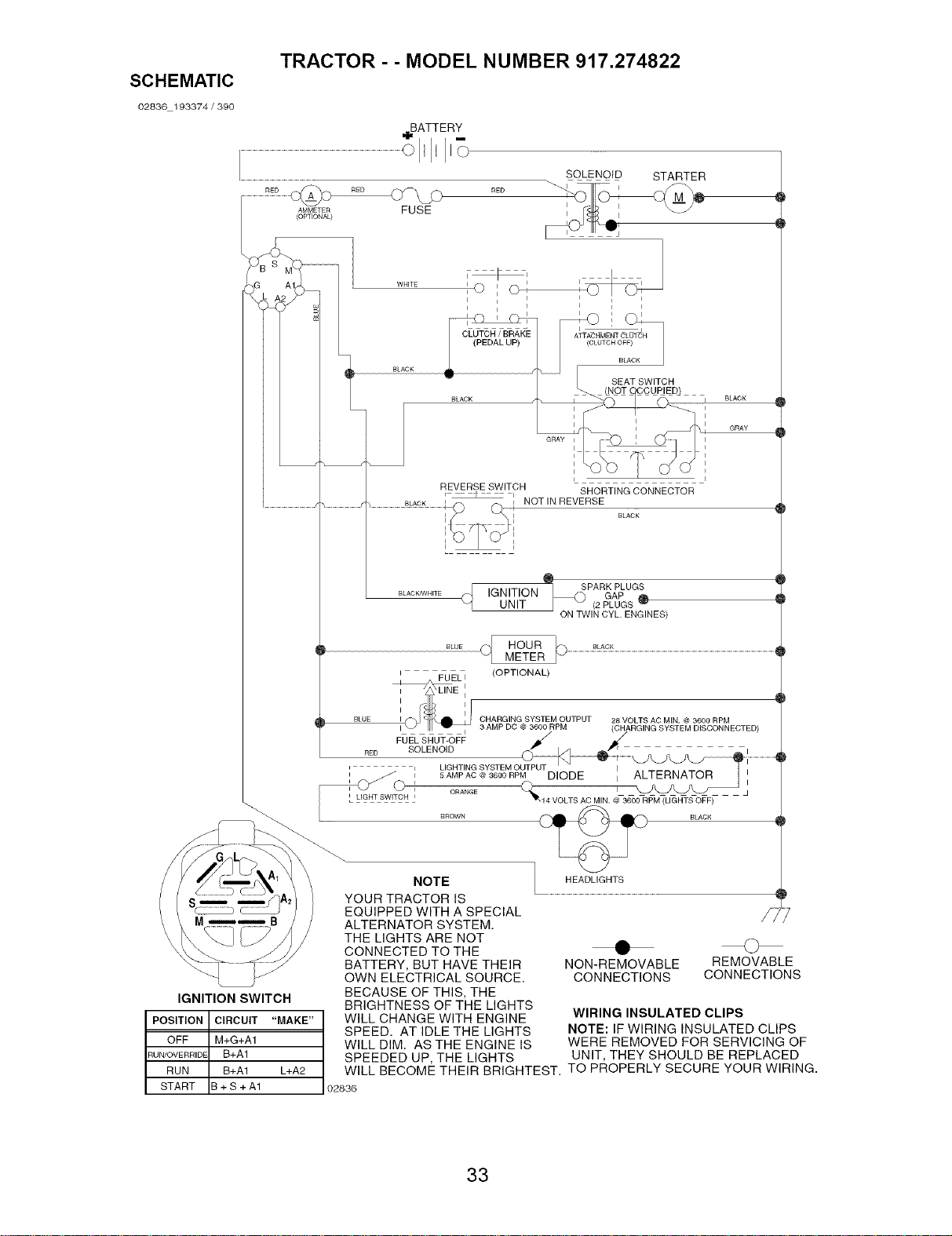

SCHEMATIC

02836 193374 / 380

TRACTOR - - MODEL NUMBER 917.274822

SOLENOID

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1

RUN/OVERRIDE B+A1

B+A1 L+A2

B+S+A1

......... ,GN,T,ONuN,T PAR UG;j,2PLUGS

ON TWIN CYL. ENGINES)

B_UE HOUR

METER

(OPTIONAL)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

_Eo%_SE"yi°_ _,/ _ _

I'N ..............................

' I LIGHTING SYSTEM OUTPUT I I

I _ I 5 AMP AC @ 3600 RPM D ODE I ALTERNATOR I

I UGHTSWITCH I _1_

I LIGHT 5WI] _ 14 VOLTS AC MIN.@ 3600 RPM (LIGHTSOFF)

NOTE L HEADLIGHTS

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

STARTER

BLACK

GRAY

28 VOLTS AC MIN. @ 3600 RPM

(C_ARGING SYSTEM DISCONNECTED)

• ©

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNECTIONS

RUN

START

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE WIRING INSULATED CLIPS

SPEED. AT IDLE THE LIGHTS NOTE: IF WIRING INSULATED CLIPS

WILL DIM. AS THE ENGINE IS WERE REMOVED FOR SERVICING OF

SPEEDED UP, THE LIGHTS UNIT, THEY SHOULD BE REPLACED

WILL BECOME THEIR BRIGHTEST. TO PROPERLY SECURE YOUR WIRING.

02836

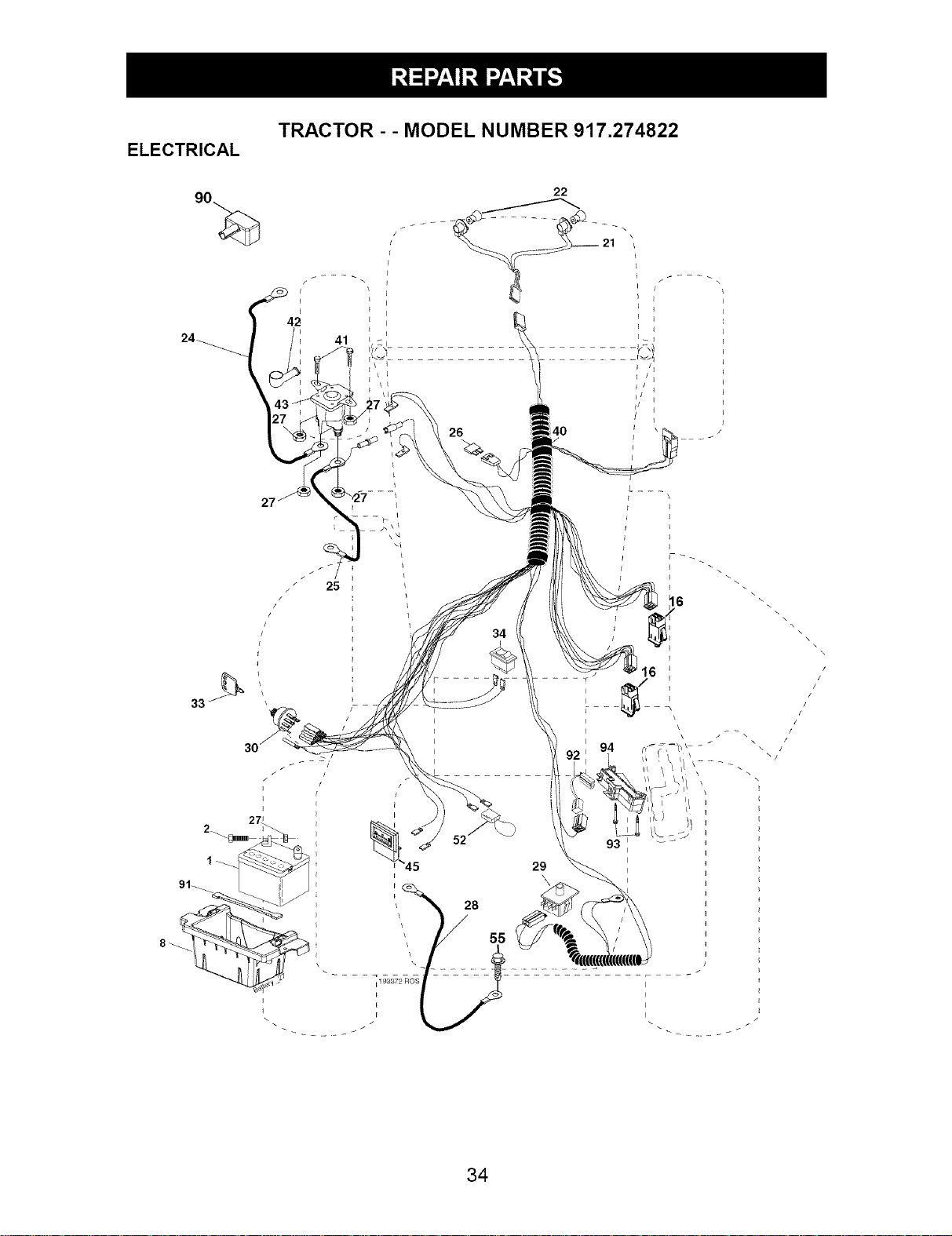

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.274822

i \

1193372 ROS

\ /

i !

i i

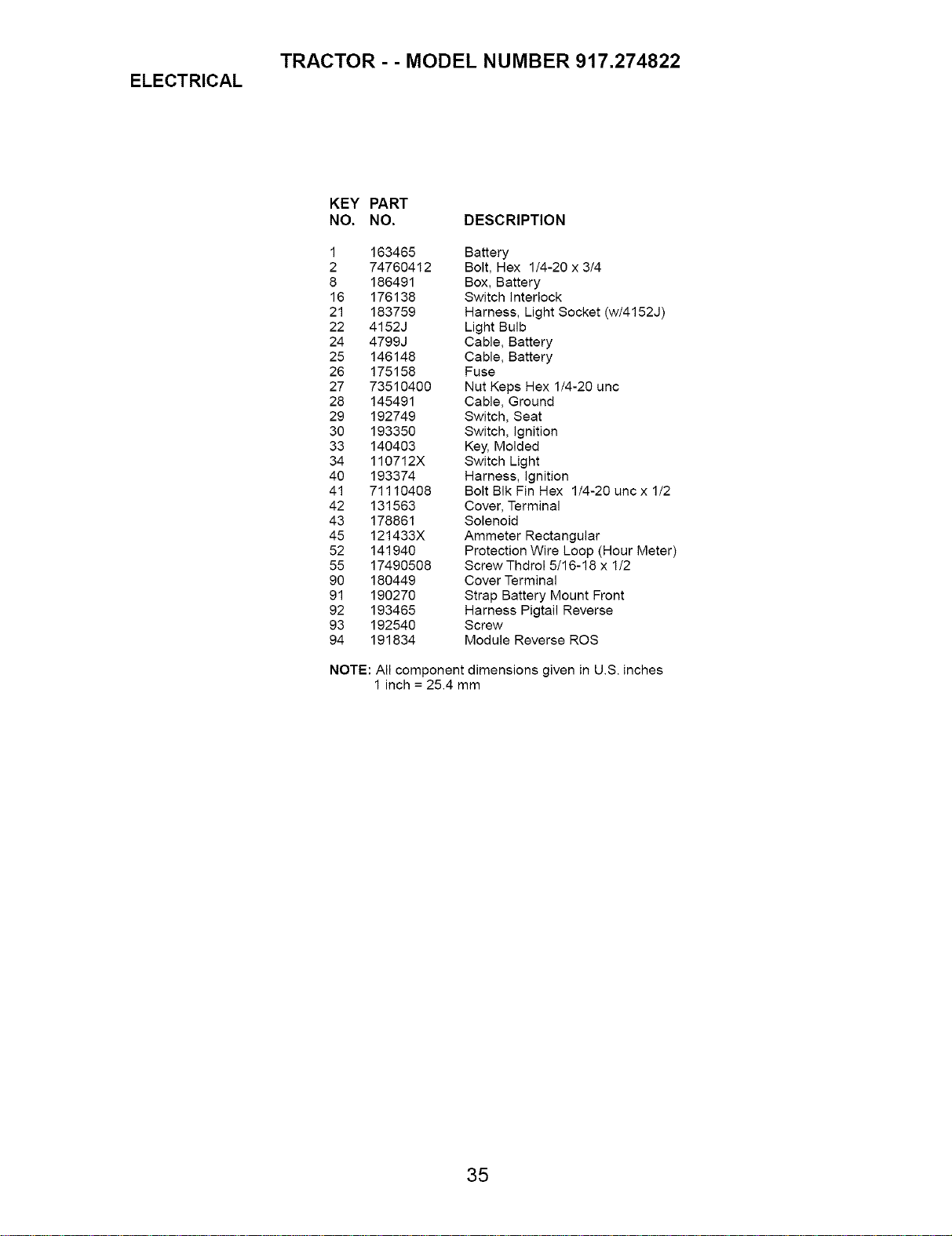

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.274822

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 186491 Box, Battery

16 176138 Switch Interlock

21 183759 Harness, Light Socket (wi4152J)

22 4152J Light Bulb

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 unc

28 145491 Cable, Ground

29 192749 Switch, Seat

30 193350 Switch, Ignition

33 140403 Key, Molded

34 110712X Switch Light

40 193374 Harness, Ignition

41 71110408 Bolt BIk Fin Hex 1/4-20 uric x 1/2

42 131563 Cover, Terminal

43 178861 Solenoid

45 121433X Ammeter Rectangular

52 141940 Protection Wire Loop (Hour Meter)

55 17490508 Screw Thdrol 5/16-18 x 1/2

90 180449 Cover Terminal

91 190270 Strap Battery Mount Front

92 193465 Harness Pigtail Reverse

93 192540 Screw

94 191834 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

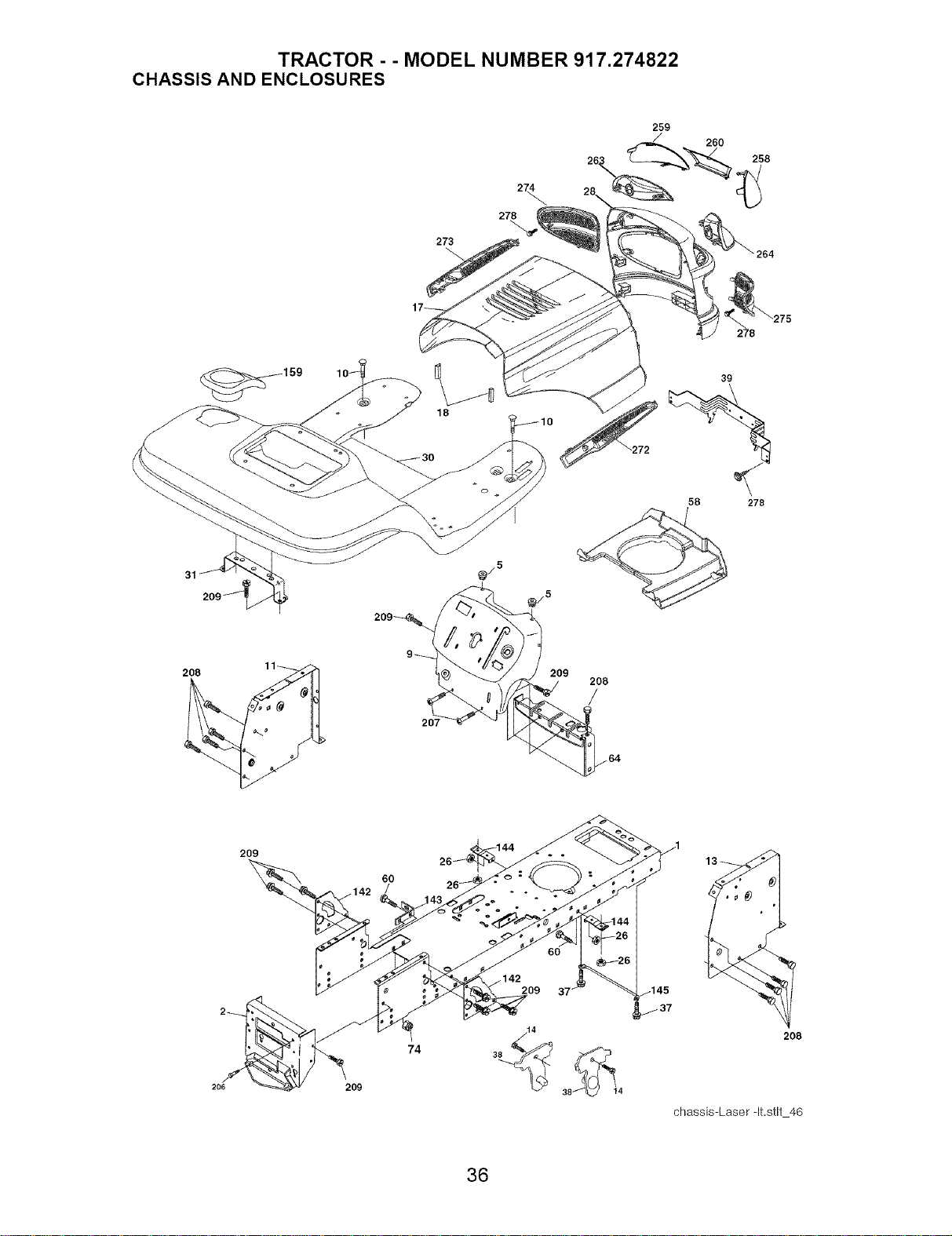

TRACTOR - - MODEL NUMBER 917.274822

CHASSIS AND ENCLOSURES

259

260

258

208

273

20'_

_275

278

58 278

209

208

2O6

209

208

chassis-Laser-It.stir 46

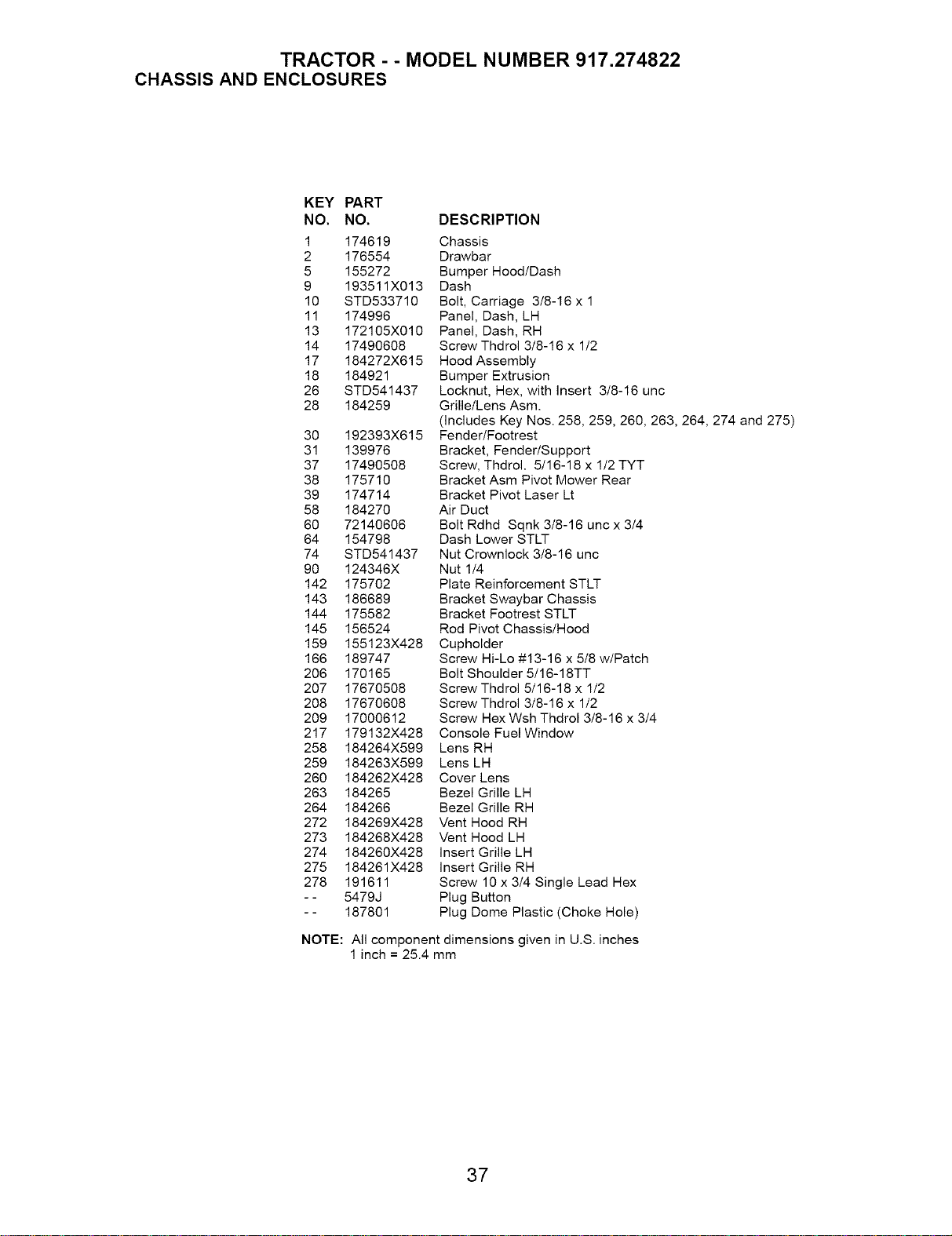

TRACTOR - - MODEL NUMBER 917,274822

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbar

5 155272 Bumper Hood/Dash

9 193511X013 Dash

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 174996 Panel, Dash, LH

13 172105X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 184272X615 Hood Assembly

18 184921 Bumper Extrusion

26 STD541437 Locknut, Hex, with insert 3/8-16 unc

28 184259 Grille/Lens Asm.

(includes Key Nos. 258, 259, 260, 263, 264, 274 and 275)

30 192393X615 Fender/Footrest

31 139976 Bracket, Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 Bracket Asm Pivot Mower Rear

39 174714 Bracket Pivot Laser Lt

58 184270 Air Duct

60 72140606 Bolt Rdhd Sqnk 3/8-16 uric x 3/4

64 154798 Dash Lower STLT

74 STD541437 Nut Crownlock 3/8-16 unc

90 124346X Nut 1/4

142 175702 Plate Reinforcement STLT

143 186689 Bracket Swaybar Chassis

144 175582 Bracket Footrest STLT

145 156524 Rod Pivot Chassis/Hood

159 155123X428 Cupholder

166 189747 Screw Hi-Lo #13-16 x 5/8 w/Patch

206 170165 Bolt Shoulder 5/16-18TT

207 17670508 ScrewThdrol 5/16-18 x 1/2

208 17670608 ScrewThdrol 3/8-16 x 1/2

209 17000612 Screw Hex Wsh Thdrol 3/8-16 x 3/4

217 179132X428 Console Fuel Window

258 184264X599 Lens RH

259 184263X599 Lens LH

260 184262X428 Cover Lens

263 184265 Bezel Grille LH

264 184266 Bezel Grille RH

272 184269X428 Vent Hood RH

273 184268X428 Vent Hood LH

274 184260X428 insert Grille LH

275 184261X428 insert Grille RH

278 191611 Screw 10 x 3/4 Single Lead Hex

-- 5479J Plug Button

- - 187801 Plug Dome Plastic (Choke Hole)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

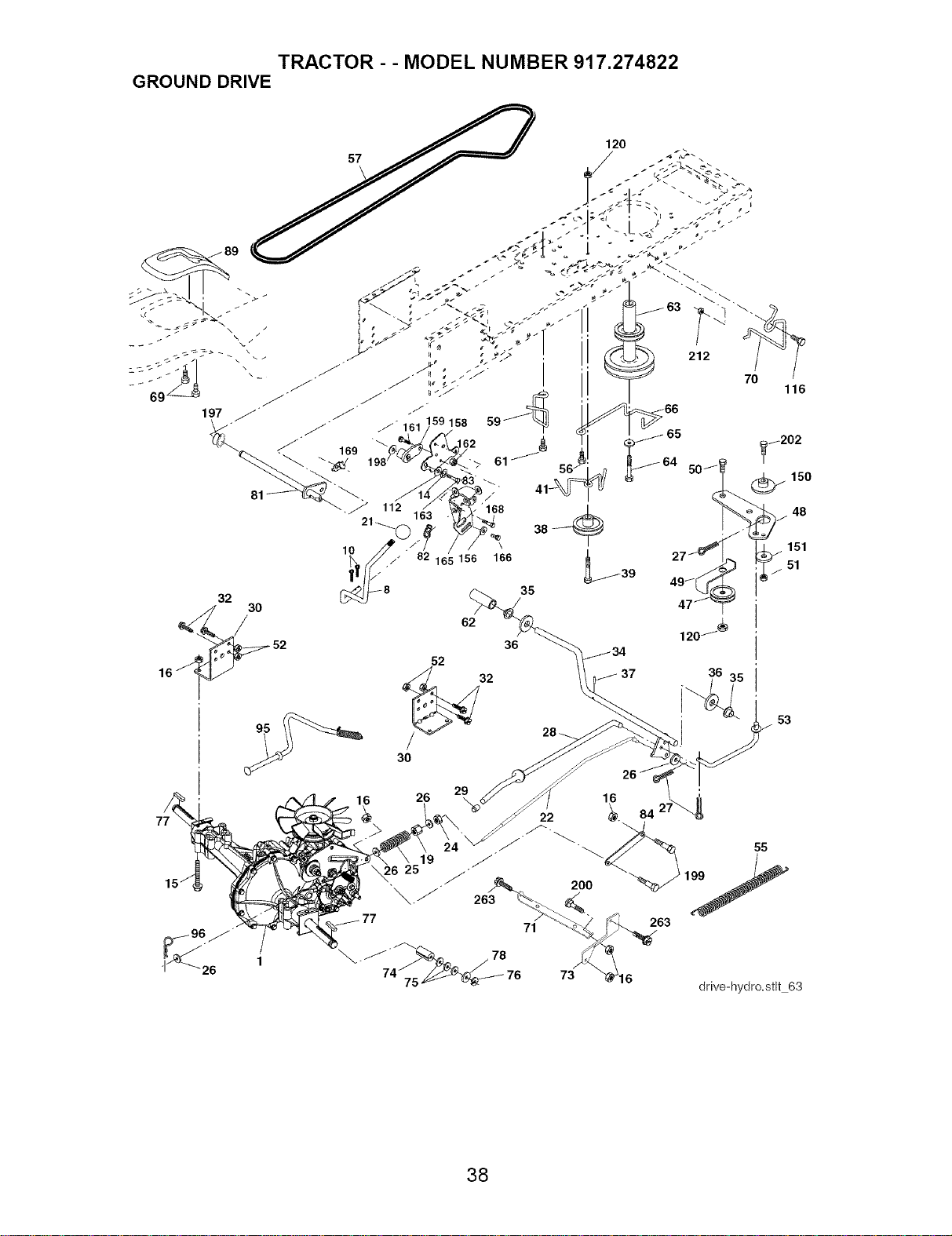

10 _i? / 166

30 62

52 52

26 84

22 --_

19 / 1

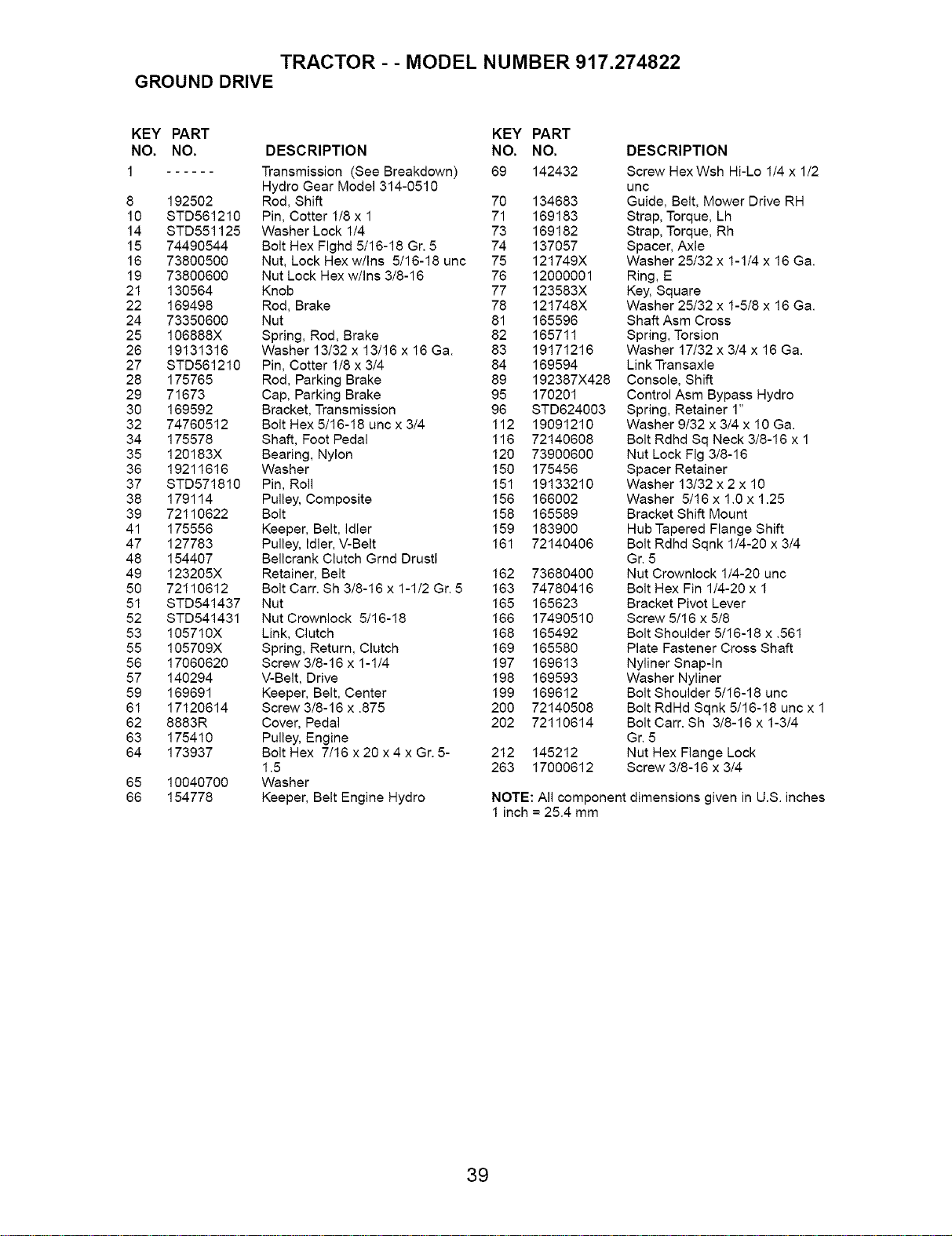

TRACTOR - - MODEL NUMBER 917,274822

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 Transmission (See Breakdown) 69 142432

Hydro Gear Model 314-0510

8 192502 Rod, Shift 70 134683

10 STD561210 Pin, Cotter 1/8 x 1 71 169183

14 STD551125 Washer Lock 1/4 73 169182

15 74490544 Bolt Hex Flghd 5/16-18 Gr. 5 74 137057

16 73800500 Nut, Lock Hex w/Ins 5/16-18 unc 75 121749X

19 73800600 Nut Lock Hex w/Ins 3/8-16 76 12000001

21 130564 Knob 77 123583X

22 169498 Rod, Brake 78 121748X

24 73350600 Nut 81 165596

25 106888X Spring, Rod, Brake 82 165711

26 19131316 Washer 13/32 x 13/16 x 16 Ga. 83 19171216

27 STD561210 Pin, Cotter 1/8 x 3/4 84 169594

28 175765 Rod, Parking Brake 89 192387X428

29 71673 Cap, Parking Brake 95 170201

30 169592 Bracket, Transmission 96 STD624003

32 74760512 Bolt Hex 5/16-18 unc x 3/4 112 19091210

34 175578 Shaft, Foot Pedal 116 72140608

35 120183X Bearing, Nylon 120 73900600

36 19211616 Washer 150 175456

37 STD571810 Pin, Roll 151 19133210

38 179114 Pulley, Composite 156 166002

39 72110622 Bolt 158 165589

41 175556 Keeper, Belt, idler 159 183900

47 127783 Pulley, Idler, V-Belt 161 72140406

48 154407 Bellcrank Clutch Grnd Drustl

49 123205X Retainer, Belt 162 73680400

50 72110612 Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5 163 74780416

51 STD541437 Nut 165 165623

52 STD541431 Nut Crownlock 5/16-18 166 17490510

53 105710X Link, Clutch 168 165492

55 105709X Spring, Return, Clutch 169 165580

56 17060620 Screw3/8-16 x 1-1/4 197 169613

57 140294 V-Belt, Drive 198 169593

59 169691 Keeper, Belt, Center 199 169612

61 17120614 Screw 3/8-16 x .875 200 72140508

62 8883R Cover, Pedal 202 72110614

63 175410 Pulley, Engine

64 173937 Bolt Hex 7/16 x 20 x 4 x Gr. 5- 212 145212

1.5 263 17000612

65 10040700 Washer

66 154778 Keeper, Belt Engine Hydro

DESCRIPTION

Screw HexWsh Hi-Lo 1/4 x 1/2

unc

Guide, Belt, Mower Drive RH

Strap, Torque, Lh

Strap, Torque, Rh

Spacer, Axle

Washer 25t32 x 1-1/4 x 16 Ga.

Ring, E

Key, Square

Washer 25t32 x 1-5t8 x 16 Ga.

Shaft Asm Cross

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Console, Shift

Control Asm Bypass Hydro

Spring, Retainer 1"

Washer 9132 x 3/4 x 10 Ga.

Bolt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Fig 3/8-16

Spacer Retainer

Washer 13t32 x 2 x 10

Washer 5/16 x 1.0 x 1.25

Bracket Shift Mount

Hub Tapered Flange Shift

Bolt Rdhd Sqnk 1/4-20 x 3/4

Gr. 5

Nut Crownlock 1/4-20 unc

Bolt Hex Fin 1/4-20 x 1

Bracket Pivot Lever

Screw 5t16 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastener Cross Shaft

Nyliner Snap-in

Washer Nyliner

Bolt Shoulder 5/16-18 unc

Bolt RdHd Sqnk 5/16-18 unc x 1

Bolt Carr. Sh 318-16 x 1-3/4

Gr. 5

Nut Hex Flange Lock

Screw 3/8-16 x 3/4

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

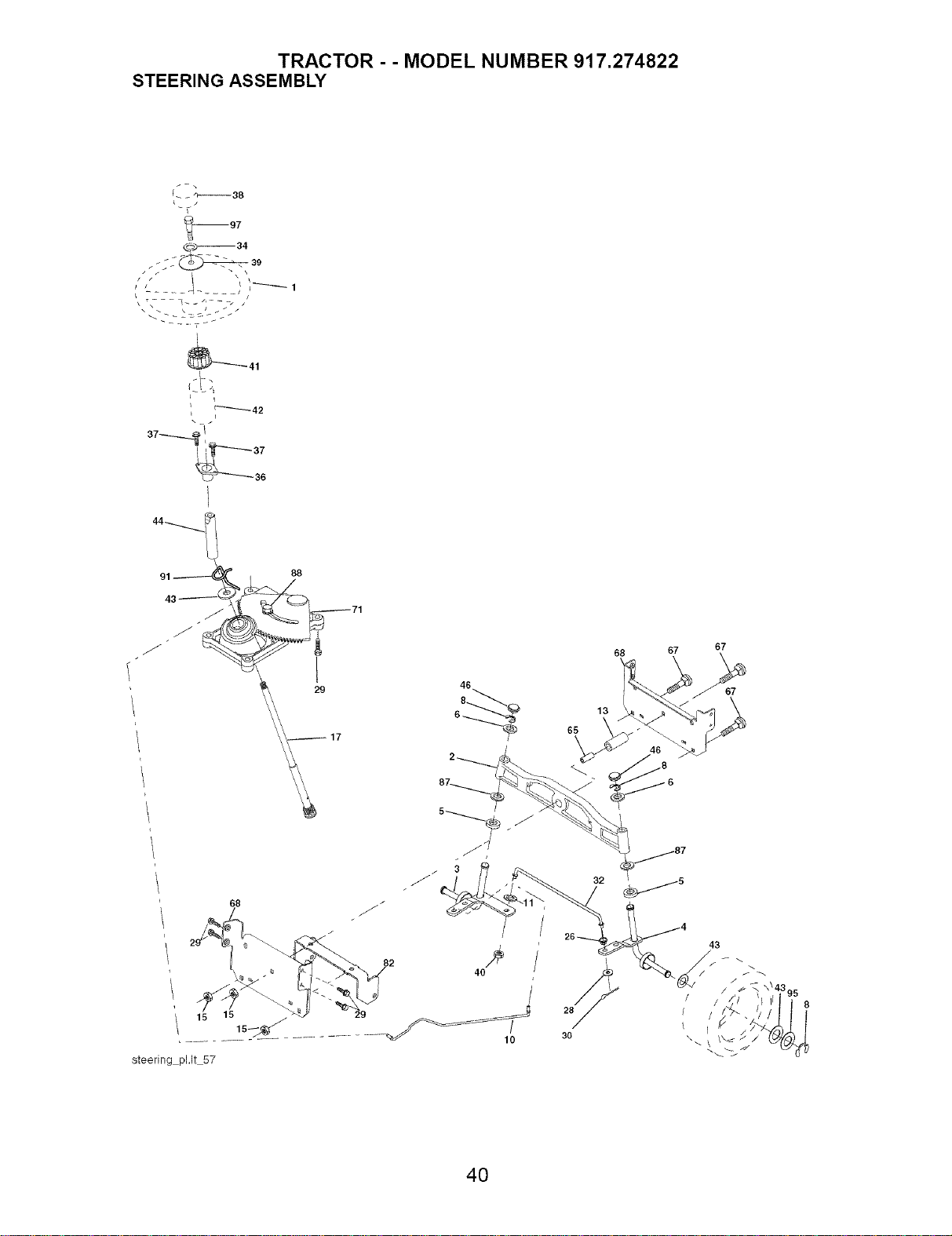

TRACTOR - - MODEL NUMBER 917.274822

STEERING ASSEMBLY

-7

--97

_\ +_-- i__],- +.+¢ i

-- _y++ _+_-/+_] -

_36

44_

82 ./_

__$40 89_

15 15 :_+ t_+_T 2

15-_ _.f ....

..................... -- ..... 10 30

steering pl.lt 57

68 67

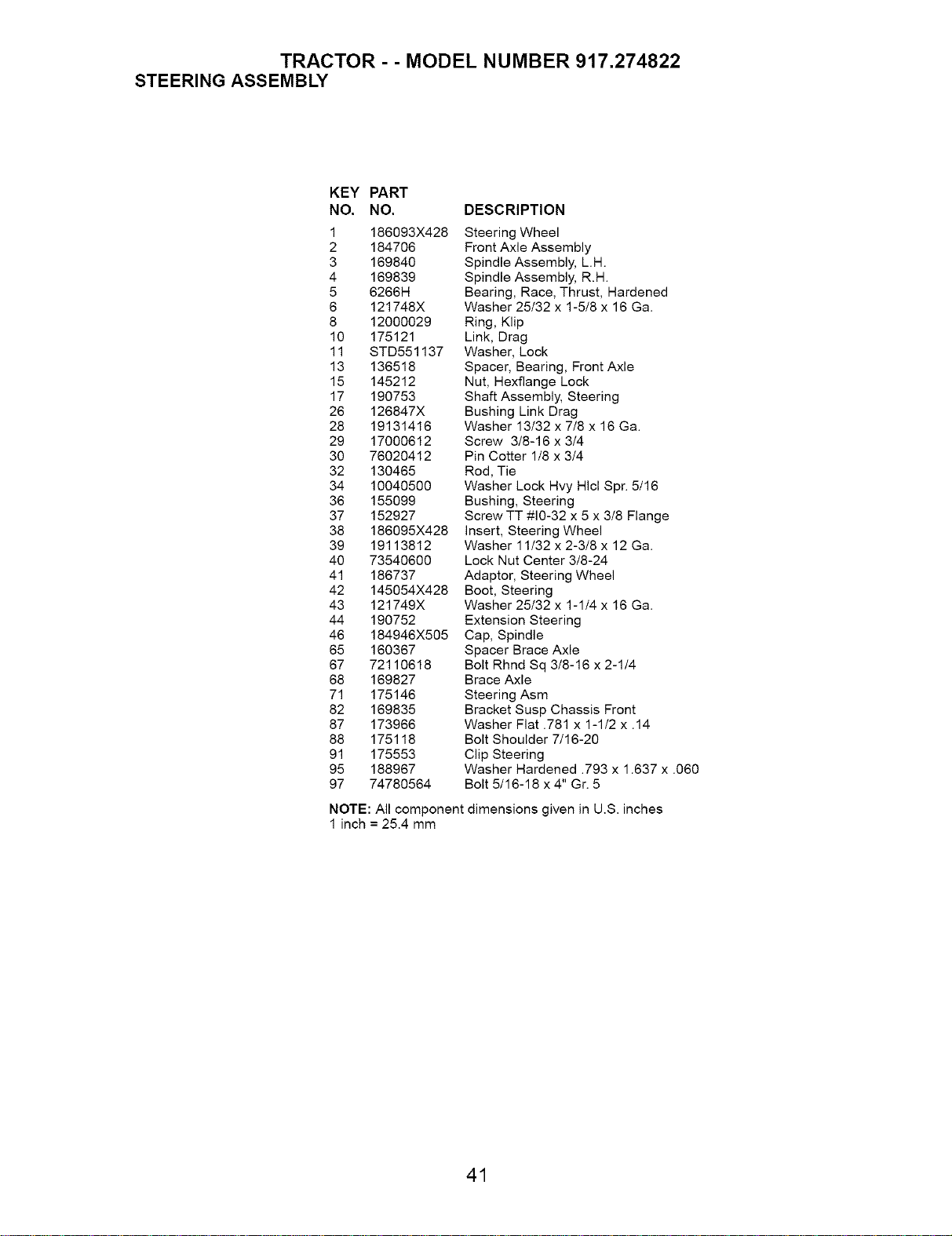

TRACTOR - - MODEL NUMBER 917.274822

STEERING ASSEMBLY

KEY PART

NO. NO.

1 186093X428

2 184706

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 175121

11 STD551137

13 136518

15 145212

17 190753

26 126847X

28 19131416

29 17000612

30 76020412

32 130465

34 10040500

36 155099

37 152927

38 186095X428

39 19113812

40 73540600

41 186737

42 145054X428

43 121749X

44 190752

46 184946X505

65 160367

67 72110618

68 169827

71 175146

82 169835

87 173966

88 175118

91 175553

95 188967

97 74780564

DESCRIPTION

Steering Wheel

Front Axle Assembly

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip

Link, Drag

Washer, Lock

Spacer, Bearing, Front Axle

Nut, Hexflange Lock

Shaft Assembly, Steering

Bushing Link Drag

Washer 13/32 x 7/8 x 16 Ga.

Screw 3/8-16 x 3/4

Pin Cotter 1/8 x 3/4

Rod, Tie

Washer Lock Hvy HIcl Spr. 5/16

Bushing, Steering

Screw TT #10-32 x 5 x 3/8 Flange

Insert, Steering Wheel

Washer 11/32 x 2-3/8 x 12 Ga.

Lock Nut Center 3/8-24

Adaptor, Steering Wheel

Boot, Steering

Washer 25/32 x 1-1/4 x 16 Ga.

Extension Steering

Cap, Spindle

Spacer Brace Axle

Bolt Rhnd Sq 3/8-16 x 2-1/4

Brace Axle

Steering Asm

Bracket Susp Chassis Front

Washer Flat .781 x 1-1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

Washer Hardened .793 x 1.637 x .060

Bolt 5/16-18 x 4" Gr. 5

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

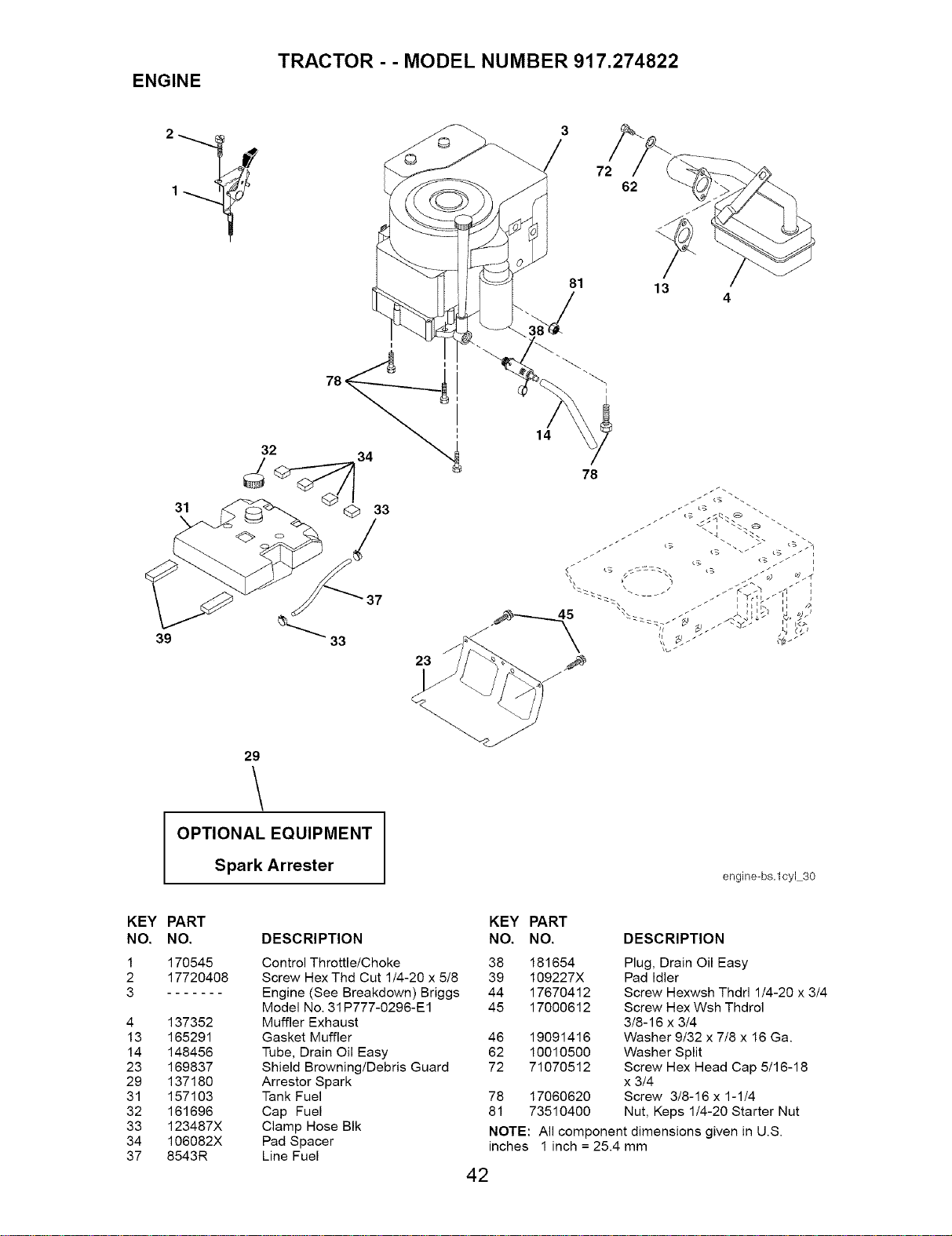

ENGINE

TRACTOR - - MODEL NUMBER 917,274822

32 78

OPTIONAL EQUIPMENT

Spark Arrester

engine-bs.lcyl 30

KEY

NO.

PART

NO.

170545

17720408

137352

165291

148456

169837

137180

157103

161696

123487X

106082X

8543R

DESCRIPTION

Control Throttle/Choke

Screw Hex Thd Cut 1/4-20 x 5/8

Engine (See Breakdown) Briggs

Model No. 31P777-0296-E1

Muffler Exhaust

Gasket Muffler

Tube, Drain Oil Easy

Shield Browning/Debris Guard

Arrestor Spark

Tank Fuel

Cap Fuel

Clamp Hose BIk

Pad Spacer

Line Fuel

KEY PART

NO. NO. DESCRIPTION

38 181654 Plug, Drain Oil Easy

39 109227X Pad Idler

44 17670412 Screw Hexwsh Thdrl 1/4-20 x 3/4

45 17000612 Screw Hex Wsh Thdrol

3/8-16 x 3/4

46 19091416 Washer 9/32 x 7/8 x 16 Ga.

62 10010500 Washer Split

72 71070512 Screw Hex Head Cap 5116-18

x 3/4

78 17060620 Screw 3/8-16 x 1-1t4

81 73510400 Nut, Keps 1/4-20 Starter Nut

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

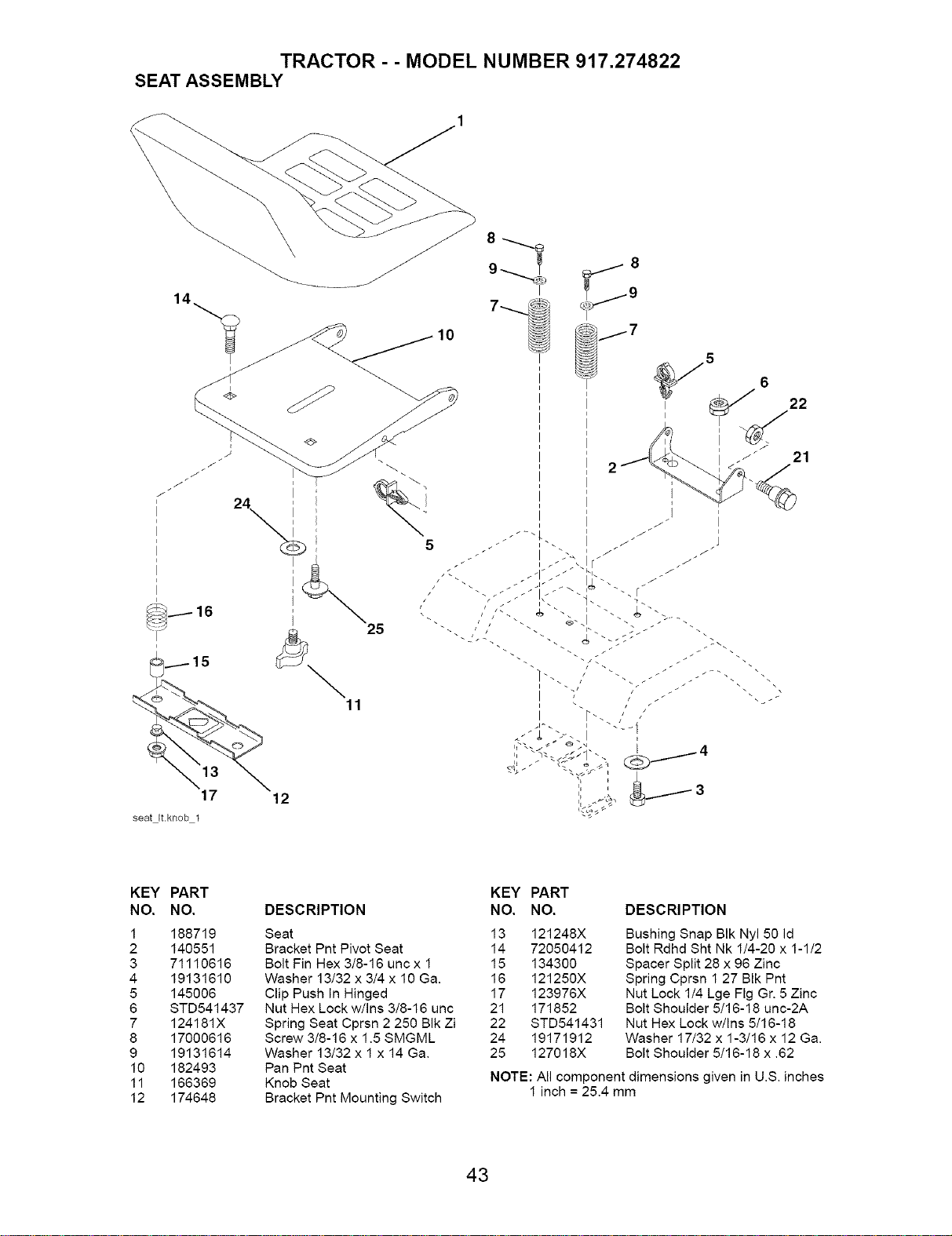

TRACTOR - - MODEL NUMBER 917.274822

SEAT ASSEMBLY

14_

17 12

seat It.knob 1

/ /

KEY PART

NO. NO.

1 188719

2 140551

3 71110616

4 19131610

5 145006

6 STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 166369

12 174648

DESCRIPTION

Seat

Bracket Pnt Pivot Seat

Bolt Fin Hex 3/8-16 unc x 1

Washer 13/32 x 3/4 x 10 Ga.

Clip Push In Hinged

Nut Hex Lock w/Ins 3/8-16 unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3t8-16 x 1.5 SMGML

Washer 13/32 x 1 x 14 Ga.

Pan Pnt Seat

Knob Seat

Bracket Pnt Mounting Switch

KEY PART

NO. NO.

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 STD541431

24 19171912

25 127018X

DESCRIPTION

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sht Nk 1/4-20 x 1-1/2

Spacer Split 28 x 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock 1/4 Lge Fig Gr. 5 Zinc

Bolt Shoulder 5/16-18 unc-2A

Nut Hex Lock w/Ins 5/16-18

Washer 17/32 x 1-3/16 x 12 Ga.

Bolt Shoulder 5/16-18 x .62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

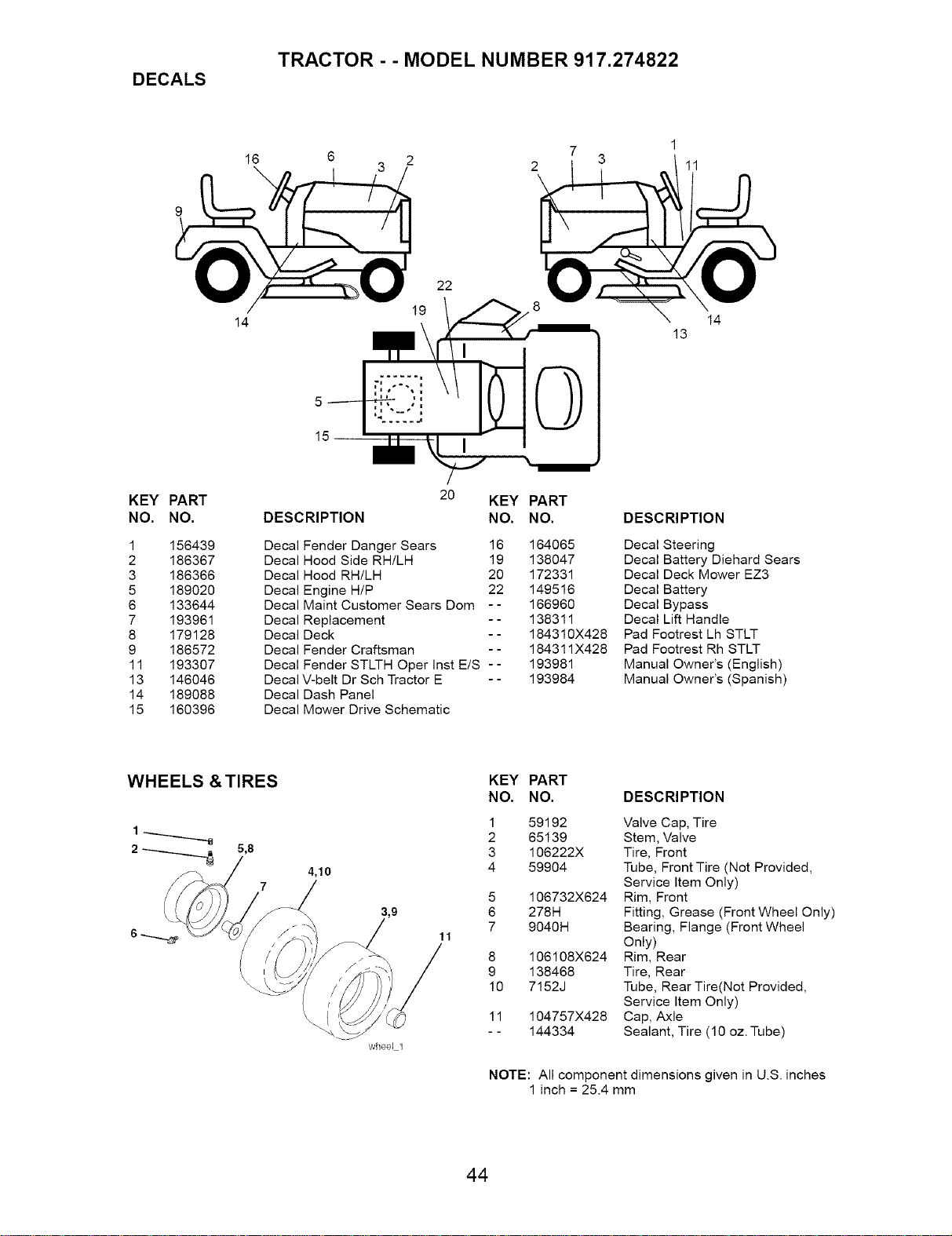

DECALS

TRACTOR - - MODEL NUMBER 917.274822

3 2 2

15--

KEY

NO.

PART

NO.

1 156439

2 186367

3 186366

5 189020

6 133644

7 193961

8 179128

9 186572

11 193307

13 146046

14 189088

15 160396

2O KEY PART

DESCRIPTION NO. NO.

Decal Fender Danger Sears 16 164065

Decal Hood Side RH/LH 19 138047

Decal Hood RH/LH 20 172331

Decal Engine H/P 22 149516

Decal Maint Customer Sears Dom - - 166960

Decal Replacement - - 138311

Decal Deck - - 184310X428

Decal Fender Craftsman - - 184311X428

Decal Fender STLTH Oper Inst E/S - - 193981

Decal V-belt Dr Sch Tractor E - - 193984

Decal Dash Panel

Decal Mower Drive Schematic

DESCRIPTION

Decal Steering

Decal Battery Diehard Sears

Decal Deck Mower EZ3

Decal Battery

Decal Bypass

Decal Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual Owner's (English)

Manual Owner's (Spanish)

WHEELS &TIRES

2 _ 5,8

6 _

4,10

wheeb 1

KEY PART

NO. NO.

DESCRIPTION

59192 Valve Cap, Tire

65139 Stem, Valve

106222X Tire, Front

59904 Tube, Front Tire (Not Provided,

Service Item Only)

106732X624 Rim, Front

278H Fitting, Grease (Front Wheel Only)

9040H Bearing, Flange (Front Wheel

Only)

106108X624 Rim, Rear

138468 Tire, Rear

7152J Tube, Rear Tire(Not Provided,

Service Item Only)

104757X428 Cap, Axle

144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.274822

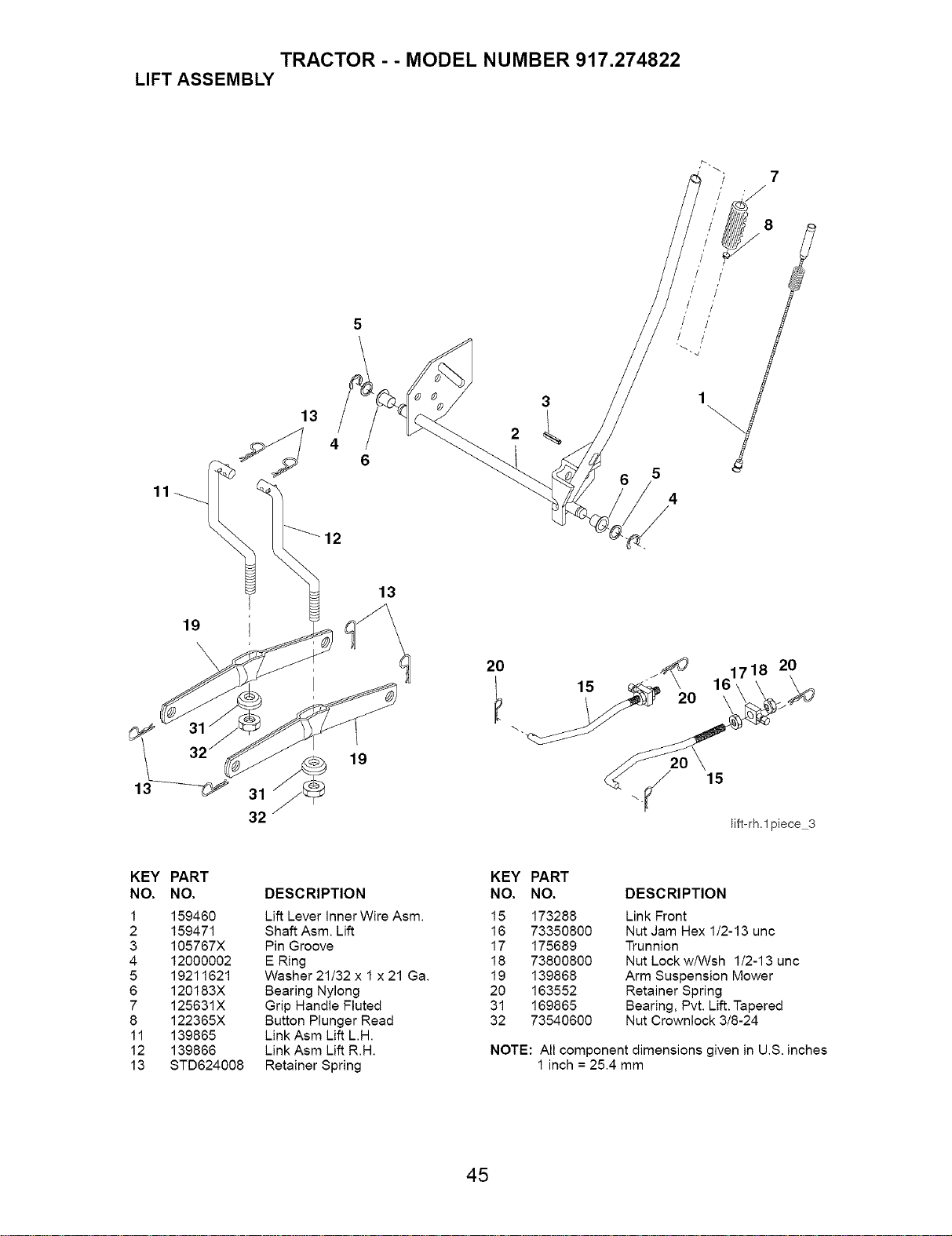

LIFT ASSEMBLY

19 / 1531 \.

lift-rh=1piece3

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 159460 Lift Lever Inner Wire Asm. 15 173288

2 159471 Shaft Asm. Lift 16 73350800

3 105767X Pin Groove 17 175689

4 12000002 E Ring 18 73800800

5 19211621 Washer 21132 x 1 x21 Ga. 19 139868

6 120183X Bearing Nylong 20 163552

7 125631X Grip Handle Fluted 31 169865

8 122365X Button Plunger Read 32 73540600

11 139865 Link Asm Lift L.H.

12 139866 Link Asm Lift R.H.

13 STD624008 Retainer Spring

DESCRIPTION

Link Front

Nut Jam Hex 1/2-13 unc

Trunnion

Nut Lock w/Wsh 1/2-13 unc

Arm Suspension Mower

Retainer Spring

Bearing, Pvt. Lift. Tapered

Nut Crownlock 3/8-24

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917,274822

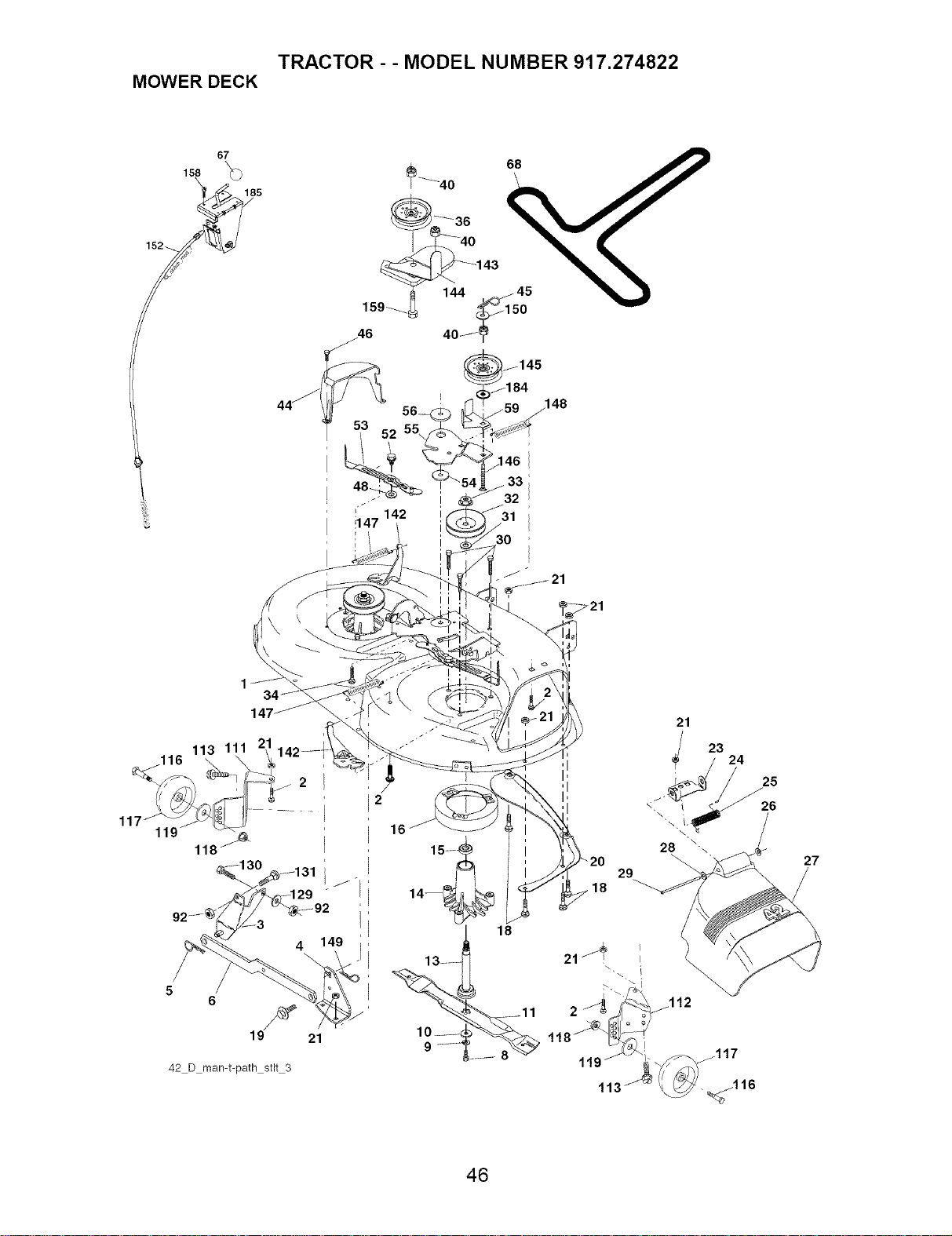

MOWER DECK

i147 i

113 111

@116

11g

19 21

42 D man-t-path stlt 3

.117

_116

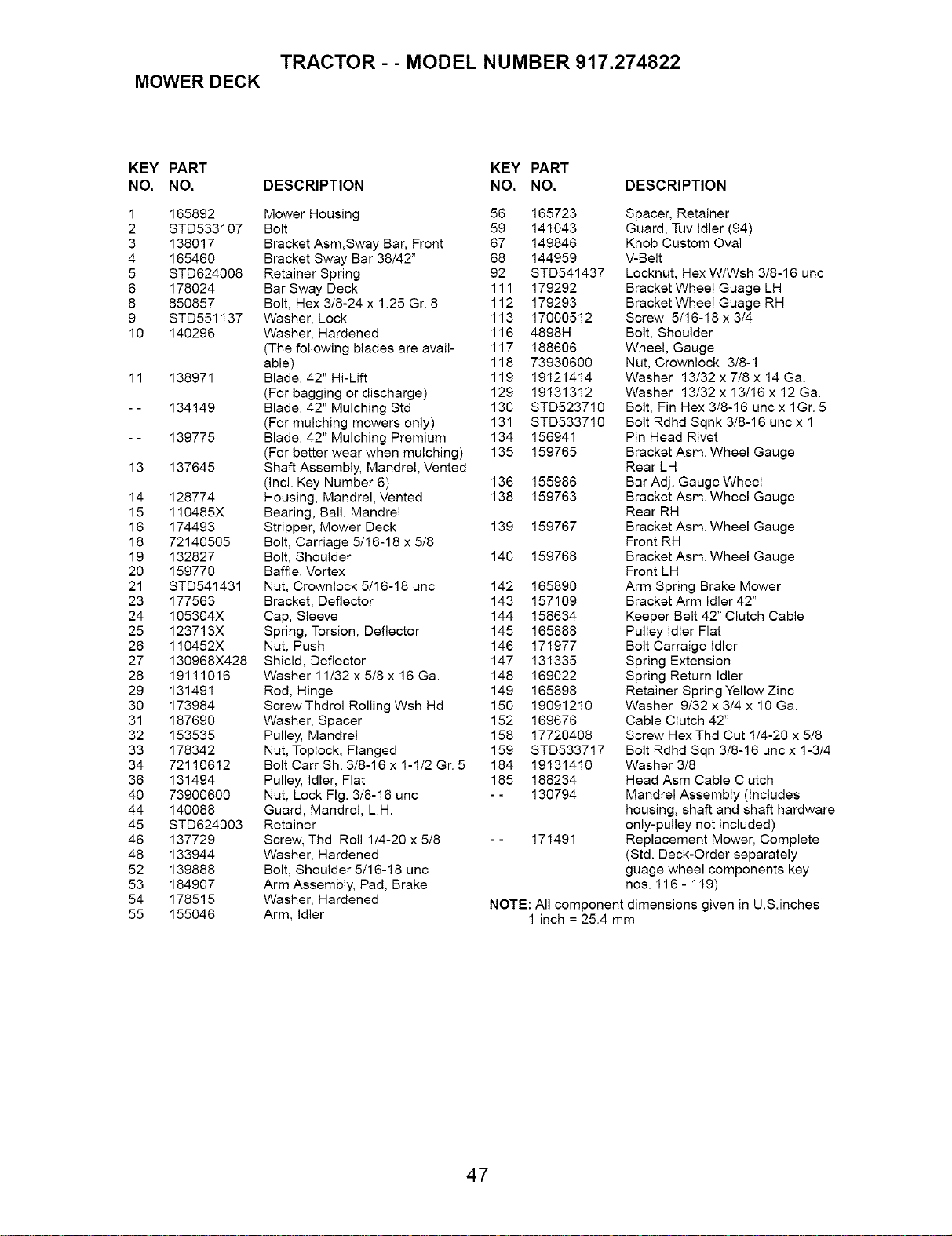

TRACTOR - - MODEL NUMBER 917.274822

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892 Mower Housing 56 165723

2 STD533107 Bolt 59 141043

3 138017 Bracket Asm,Sway Bar, Front 67 149846

4 165460 Bracket Sway Bar 38/42" 68 144959

5 STD624008 Retainer Spring 92 STD541437

6 178024 Bar Sway Deck 111 179292

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 112 179293

9 STD551137 Washer, Lock 113 17000512

10 140296 Washer, Hardened 116 4898H

(The following blades are avail- 117 188606

able) 118 73930600

11 138971 Blade, 42" Hi-Lift 119 19121414

(For bagging or discharge) 129 19131312

- - 134149 Blade, 42" Mulching Std 130 STD523710

(For mulching mowers only) 131 STD533710

- - 139775 Blade, 42" Mulching Premium 134 156941

(For better wear when mulching) 135 159765

13 137645 Shaft Assembly, Mandrel, Vented

(Incl. Key Number 6) 136 155986

14 128774 Housing, Mandrel, Vented 138 159763

15 110485X Bearing, Ball, Mandrel

16 174493 Stripper, Mower Deck 139 159767

18 72140505 Bolt, Carriage 5/16-18 x 5/8

19 132827 Bolt, Shoulder 140 159768

20 159770 Baffle, Vortex

21 STD541431 Nut, Crownlock 5/16-18 unc 142 165890

23 177563 Bracket, Deflector 143 157109

24 105304X Cap, Sleeve 144 158634

25 123713X Spring, Torsion, Deflector 145 165888

26 110452X Nut, Push 146 171977

27 130968X428 Shield, Deflector 147 131335

28 19111016 Washer 11/32 x 5/8 x 16 Ga. 148 169022

29 131491 Rod, Hinge 149 165898

30 173984 ScrewThdrol Rolling Wsh Hd 150 19091210

31 187690 Washer, Spacer 152 169676

32 153535 Pulley, Mandrel 158 17720408

33 178342 Nut, Toplock, Flanged 159 STD533717

34 72110612 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 184 19131410

36 131494 Pulley, idler, Flat 185 188234

40 73900600 Nut, Lock Fig. 3/8-16 uric - - 130794

44 140088 Guard, Mandrel, L.H.

45 STD624003 Retainer

46 137729 Screw, Thd. Roll 114-20 x 5t8 - - 171491

48 133944 Washer, Hardened

52 139888 Bolt, Shoulder 5/16-18 unc

53 184907 Arm Assembly, Pad, Brake

54 178515 Washer, Hardened

55 155046 Arm, idler

Spacer, Retainer

Guard, Tuv Idler (94)

Knob Custom Oval

V-Belt

Locknut, Hex W/Wsh 3/8-16 uric

Bracket Wheel Guage LH

Bracket Wheel Guage RH

Screw 5116-18 x 3/4

Bolt, Shoulder

Wheel, Gauge

Nut, Crownlock 3/8-1

Washer 13132 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 uncx 1Gr. 5

Bolt Rdhd Sqnk 318-16 unc x 1

Pin Head Rivet

Bracket Asm. Wheel Gauge

Rear LH

Bar Adj. Gauge Wheel

Bracket Asm. Wheel Gauge

Rear RH

Bracket Asm. Wheel Gauge

Front RH

Bracket Asm. Wheel Gauge

Front LH

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley idler Flat

Bolt Carraige idler

Spring Extension

Spring Return idler

Retainer Spring Yellow Zinc

Washer 9t32 x 314 x 10 Ga.

Cable Clutch 42"

Screw Hex Thd Cut 114-20 x 518

Bolt Rdhd Sqn 3/8-16 unc x 1-3/4

Washer 3/8

Head Asm Cable Clutch

Mandrel Assembly (Includes

housing, shaft and shaft hardware

only-pulley not included)

Replacement Mower, Complete

(Std. Deck-Order separately

guage wheel components key

nos. 116- 119).

NOTE: All component dimensions given in U.S.inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917,274822

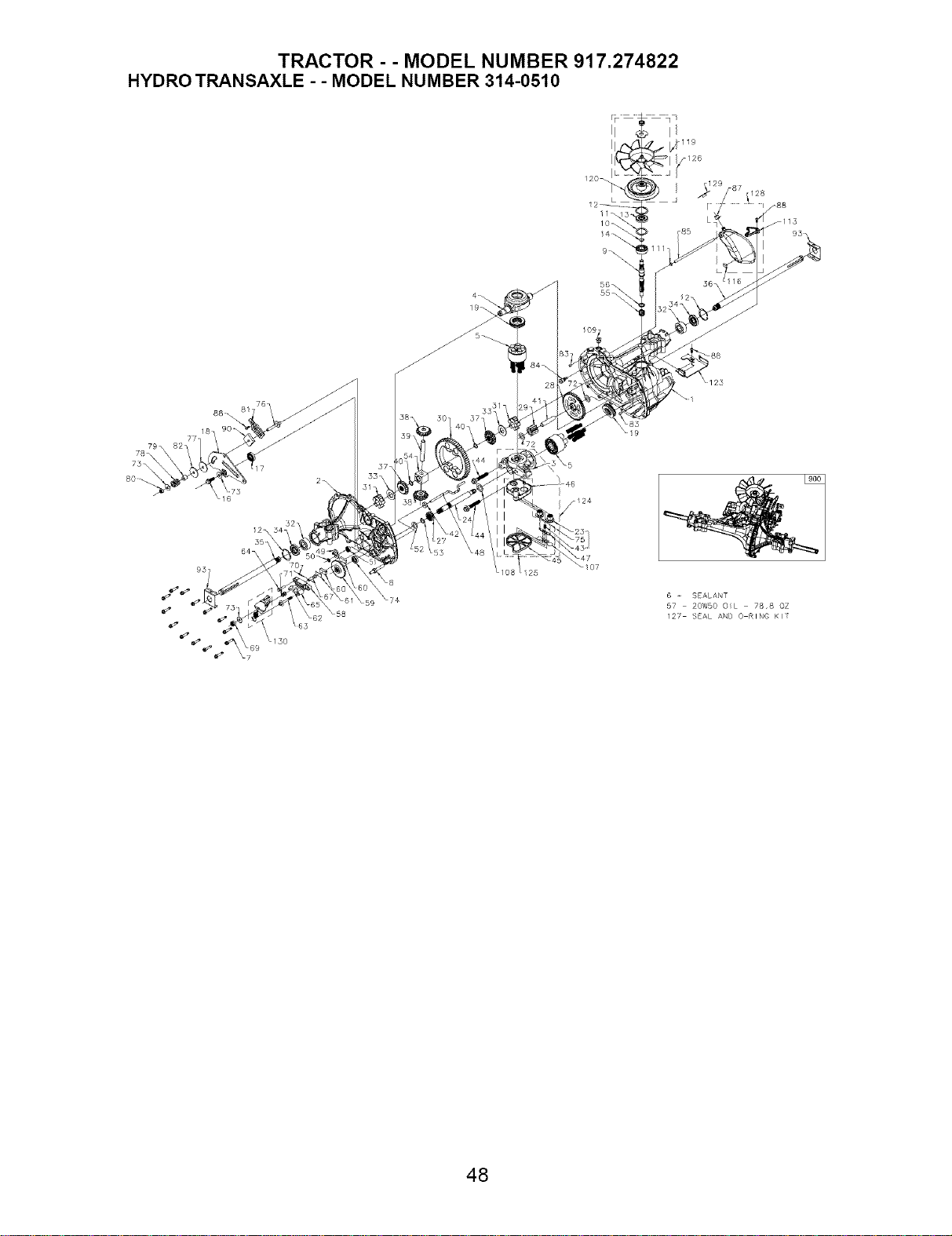

HYDRO TRANSAXLE - - MODEL NUMBER 314-0510

120_

10-\

_119

/126

128

78m

75\

88 \

L130

\58

/25

107

6 SEALANT

57 20W50 OIL 78,80Z

127 SEAL AND 0 RING KIT

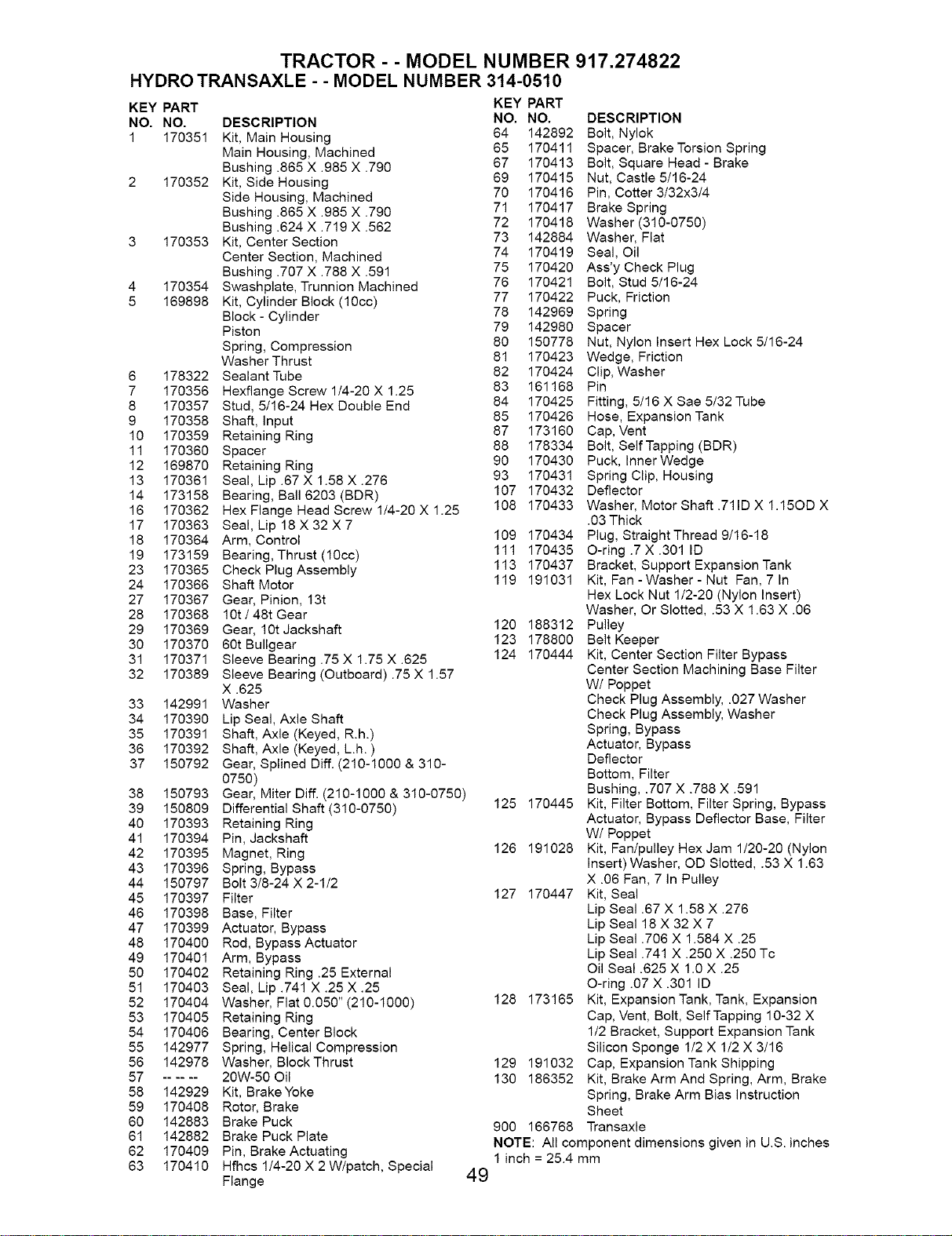

TRACTOR - - MODEL NUMBER 917,274822

HYDRO TRANSAXLE - - MODEL NUMBER 314-0510

KEY PART

NO. NO. DESCRIPTION

1 170351 Kit, Main Housing

Main Housing, Machined

Bushing .865 X .985 X .790

2 170352 Kit, Side Housing

Side Housing, Machined

Bushing .865 X .985 X .790

Bushing .624 X .719 X .562

3 170353 Kit, Center Section

Center Section, Machined

Bushing .707 X .788 X .591

4 170354 Swashplate, Trunnion Machined

5 169898 Kit, Cylinder Block (10cc)

Block - Cylinder

Piston

Spring, Compression

Washer Thrust

6 178322 Sealant Tube

7 170356 Hexflange Screw 1/4-20 X 1.25

8 170357 Stud, 5/16-24 Hex Double End

9 170358 Shaft, input

10 170359 Retaining Ring

11 170360 Spacer

12 169870 Retaining Ring

13 170361 Seal, Lip .67 X 1.58 X .276

14 173158 Bearing, Ball 6203 (BDR)

16 170362 Hex Flange Head Screw 1/4-20 X 1.25

17 170363 Seal, Lip 18 X 32 X 7

18 170364 Arm, Control

19 173159 Bearing, Thrust (10cc)

23 170365 Check Plug Assembly

24 170366 Shaft Motor

27 170367 Gear, Pinion, 13t

28 170368 10t / 48t Gear

29 170369 Gear, 10tJackshaft

30 170370 60t Bullgear

31 170371 Sleeve Bearing .75 X 1.75 X .625

32 170389 Sleeve Bearing (Outboard) .75 X 1.57

X .625

33 142991 Washer

34 170390 Lip Seal, Axle Shaft

35 170391 Shaft, Axle (Keyed, R.h.)

36 170392 Shaft, Axle (Keyed, L.h. )

37 150792 Gear, Splined Diff. (210-1000 & 310-

O75O)

38 150793 Gear, Miter Diff. (210-1000 & 310-0750)

39 150809 Differential Shaft (310-0750)

40 170393 Retaining Ring

41 170394 Pin, Jackshaft

42 170395 Magnet, Ring

43 170396 Spring, Bypass

44 150797 Bolt 3/8-24 X 2-1/2

45 170397 Filter

46 170398 Base, Filter

47 170399 Actuator, Bypass

48 170400 Rod, Bypass Actuator

49 170401 Arm, Bypass

50 170402 Retaining Ring .25 External

51 170403 Seal, Lip .741 X .25 X .25

52 170404 Washer, Flat 0.050" (210-1000)

53 170405 Retaining Ring

54 170406 Bearing, Center Block

55 142977 Spring, Helical Compression

56 142978 Washer, BIockThrust

57 20W-50 Oil

58 142929 Kit, BrakeYoke

59 170408 Rotor, Brake

60 142883 Brake Puck

61 142882 Brake Puck Plate

62 170409 Pin, Brake Actuating

63 170410 Hfhcs 1/4-20 X 2 W/patch, Special

Flange

KEY PART

NO. NO. DESCRIPTION

64 142892 Bolt, Nylok

65 170411 Spacer, Brake Torsion Spring

67 170413 Bolt, Square Head - Brake

69 170415 Nut, Castle 5/16-24

70 170416 Pin, Cotter 3/32x3/4

71 170417 Brake Spring

72 170418 Washer (310-0750)

73 142884 Washer, Flat

74 170419 Seal, Oil

75 170420 Ass'y Check Plug

76 170421 Bolt, Stud 5/16-24

77 170422 Puck, Friction

78 142969 Spring

79 142980 Spacer

80 150778 Nut, Nylon Insert Hex Lock 5/16-24

81 170423 Wedge, Friction

82 170424 Clip, Washer

83 161168 Pin

84 170425 Fitting, 5/16 X Sae 5/32 Tube

85 170426 Hose, Expansion Tank

87 173160 Cap, Vent

88 178334 Bolt, Self Tapping (BDR)

90 170430 Puck, Inner Wedge

93 170431 Spring Clip, Housing

107 170432 Deflector

108 170433 Washer, MotorShaft.711DX1.15ODX

.03 Thick

109 170434 Plug, Straight Thread 9/16-18

111 170435 O-ring.7X.301 ID

113 170437 Bracket, Support Expansion Tank

119 191031 Kit, Fan-Washer-Nut Fan, 71n

Hex Lock Nut 1/2-20 (Nylon Insert)

Washer, Or Slotted, .53 X 1.63 X .06

120 188312 Pulley

123 178800 Belt Keeper

124 170444 Kit, Center Section Filter Bypass

Center Section Machining Base Filter

W/Poppet

Check Plug Assembly, .027 Washer

Check Plug Assembly, Washer

Spring, Bypass

Actuator, Bypass

Deflector

Bottom, Filter

Bushing, .707 X .788 X .591

125 170445 Kit, Filter Bottom, Filter Spring, Bypass

Actuator, Bypass Deflector Base, Filter

W/Poppet

126 191028 Kit, Fan/pulley Hex Jam 1/20-20 (Nylon

Insert) Washer, OD Slotted, .53 X 1.63

X .06 Fan, 7 in Pulley

127 170447 Kit, Seal

Lip Seal .67 X 1.58 X .276

Lip Seal 18X32X7

Lip Seal .706 X 1.584 X .25

Lip Seal .741 X .250 X .250 Tc

Oil Seal .625 X 1.0 X .25

O-ring .07 X .301 ID

128 173165 Kit, Expansion Tank, Tank, Expansion

Cap, Vent, Bolt, Self Tapping 10-32 X

1/2 Bracket, Support Expansion Tank

Silicon Sponge 1/2 X 1/2 X 3/16

129 191032 Cap, Expansion Tank Shipping

130 186352 Kit, Brake Arm And Spring, Arm, Brake

Spring, Brake Arm Bias instruction

Sheet

900 166768 Transaxle

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

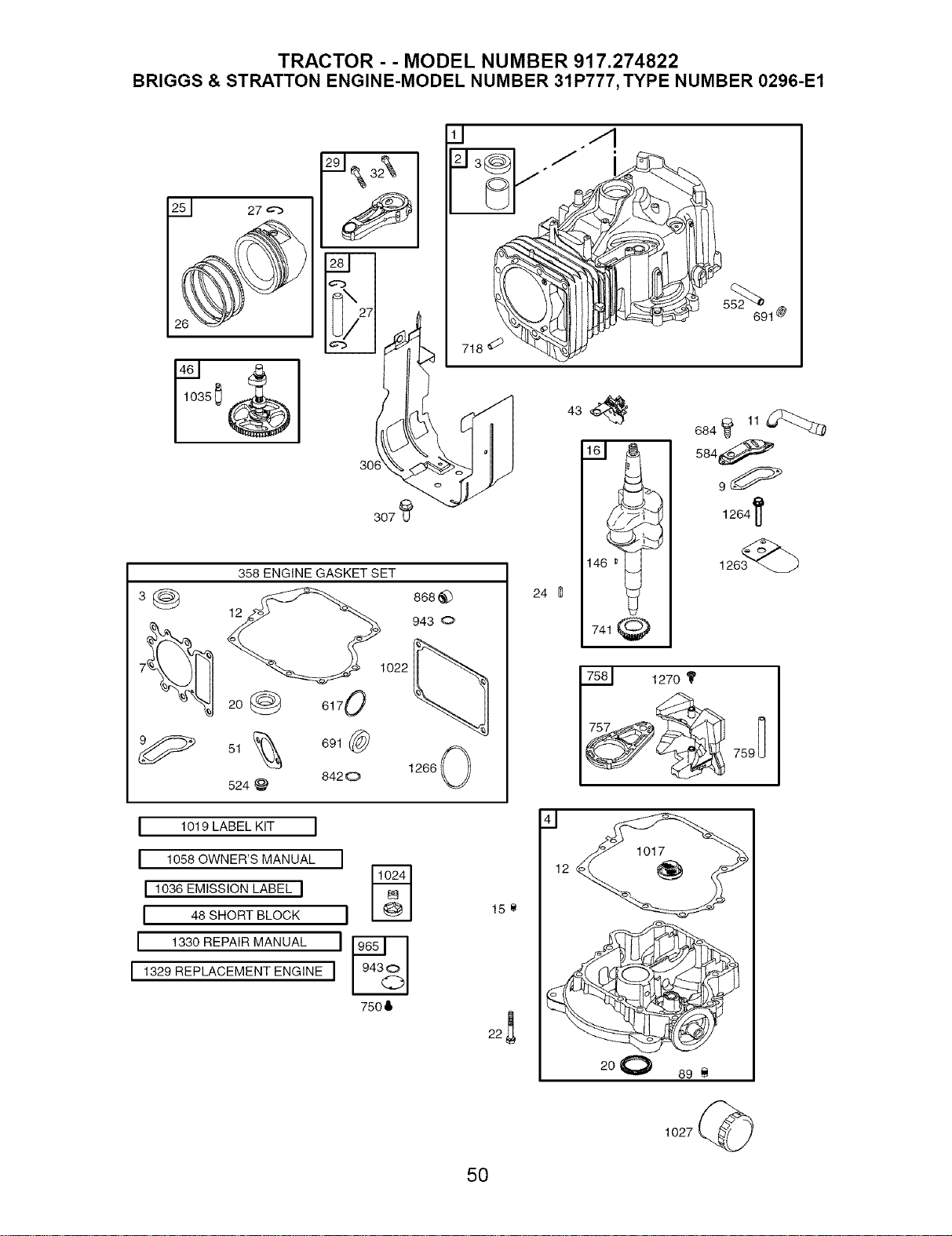

TRACTOR - - MODEL NUMBER 917.274822

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

307

358 ENGINE GASKET SET

20_ 6170

868

943 o

022

524 _ 842 O 1266

24 _)

434

146_

741

684!11_

584_ _'

1264I_

I 1019 LABEL KIT I

I 1058 OWNER'S MANUAL ]

I 1036EMISSIONLABELI

I 48SHORTBLOCK I

I 1330REPAIRMANUALI

[ 1329 REPLACEMENT ENGINE I

750 •

15_

200 89

1027

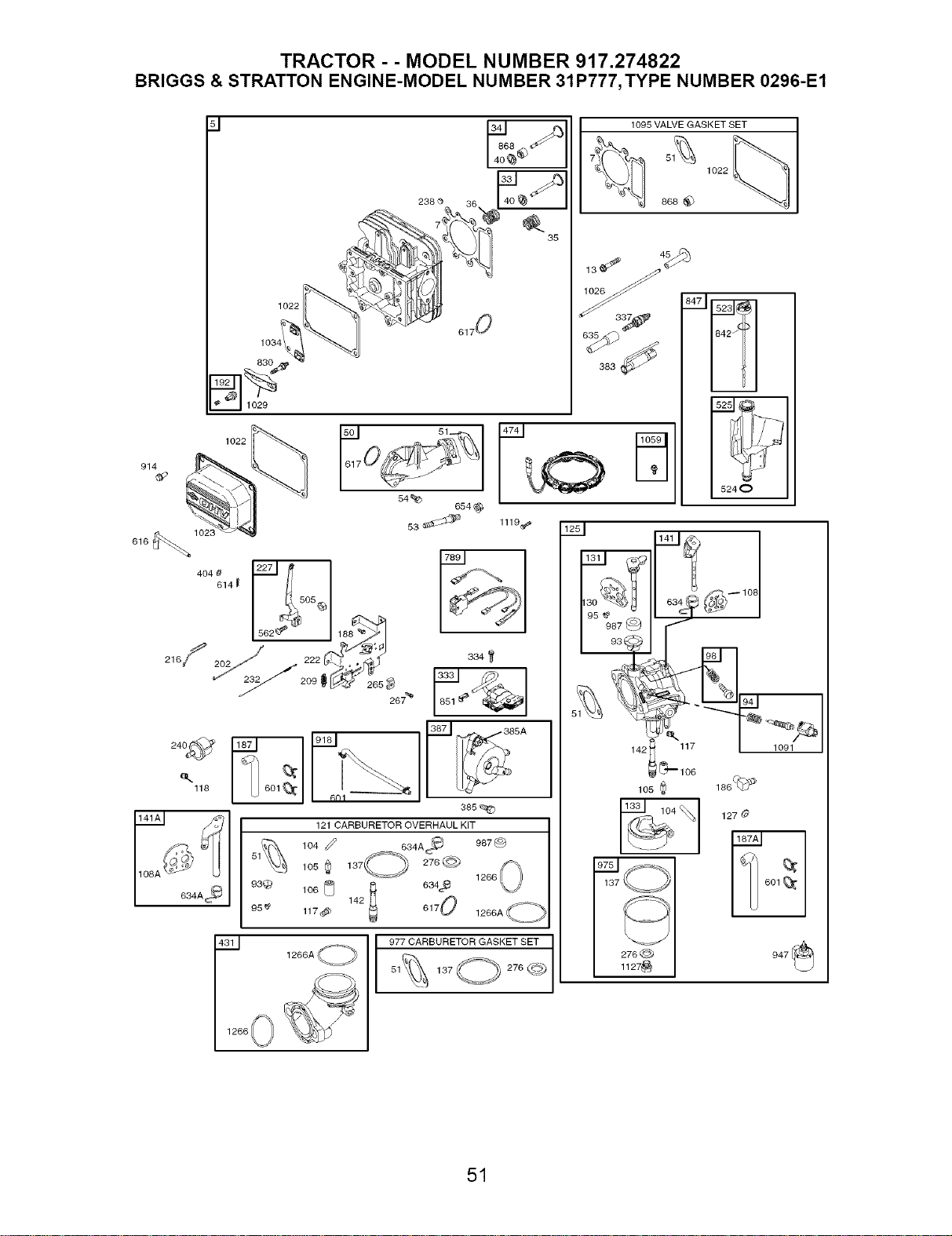

TRACTOR - - MODEL NUMBER 917.274822

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

914

1023

1022

238

6170

54_

654

53_

1119_,

1095 VALVE GASKET SET

1022

868

525

105

276 @

1127_

1091

127 O

947

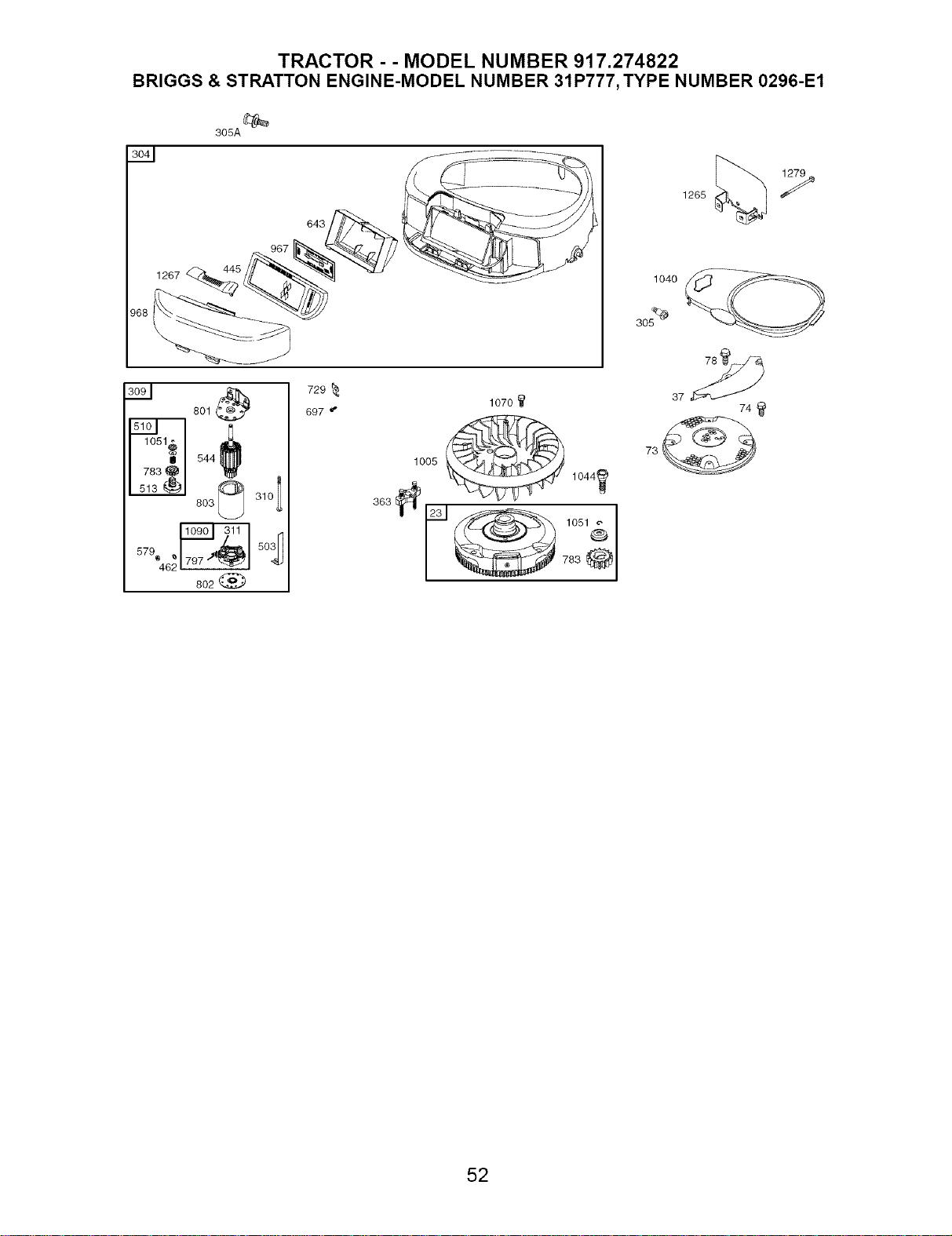

TRACTOR - - MODEL NUMBER 917.274822

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

305A

643

1267

968

801

_ 544_

803_ 310 1

_ 5o_579 _ _""_

462 I 797 "

802 @

729

697 _

363

1070

1005 _ 1044_

1051&

_ _'_J _ 783 _

73__

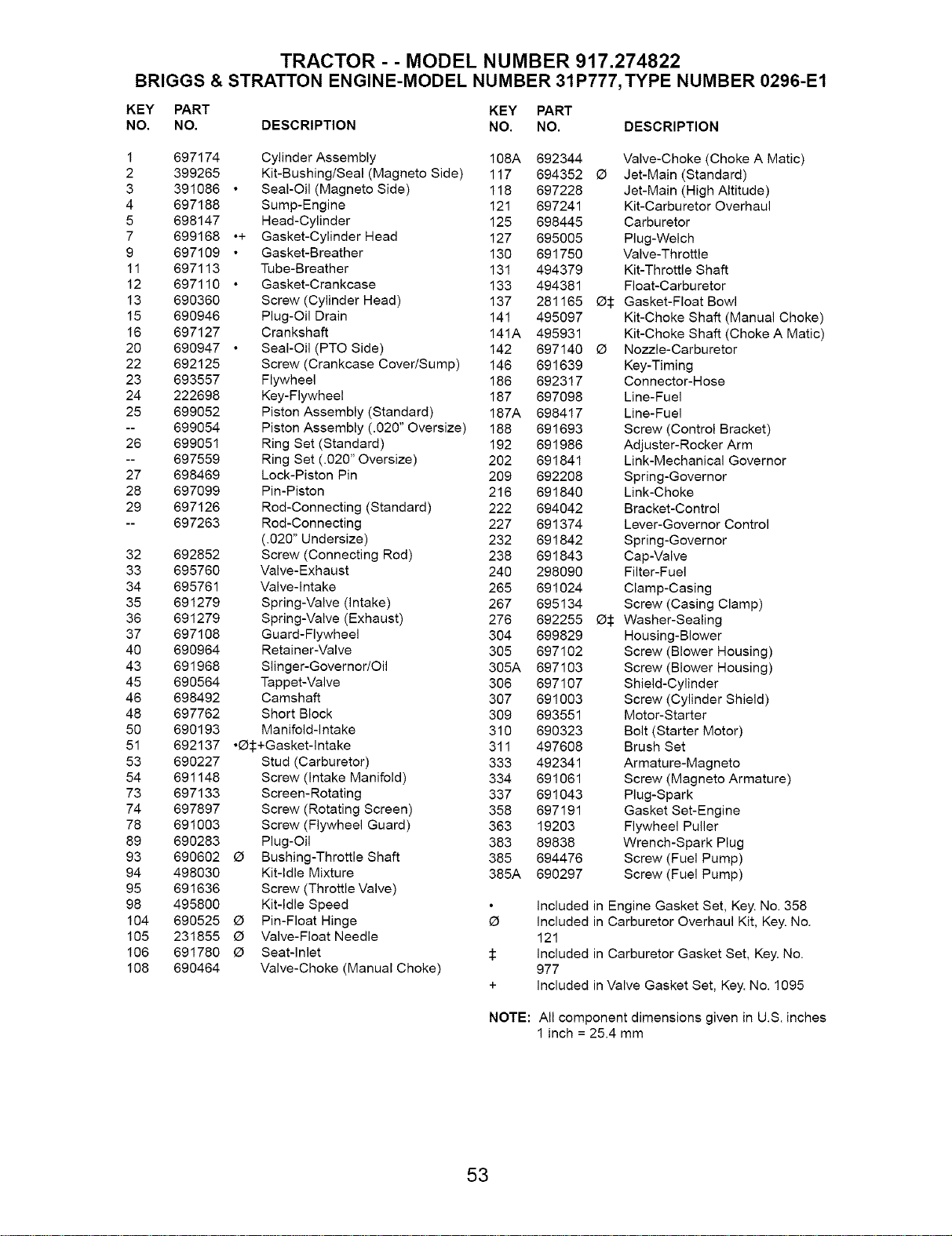

TRACTOR - - MODEL NUMBER 917.274822

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 697174 Cylinder Assembly 108A 692344 Valve-Choke (Choke A Matic)

2 399265 Kit-Bushing/Seal (Magneto Side) 117 694352 O Jet-Main (Standard)

3 391086 • Seal-Oil (Magneto Side) 118 697228 Jet-Main (High Altitude)

4 697188 Sump-Engine 121 697241 Kit-Carburetor Overhaul

5 698147 Head-Cylinder 125 698445 Carburetor

7 699168 ,+ Gasket-Cylinder Head 127 695005 Plug-Welch

9 697109 • Gasket-Breather 130 691750 Valve-Throttle

11 697113 Tube-Breather 131 494379 Kit-Throttle Shaft

12 697110 • Gasket-Crankcase 133 494381 Float-Carburetor

13 690360 Screw (Cylinder Head) 137 281165 O5 Gasket-Float Bowl

15 690946 Plug-Oil Drain 141 495097 Kit-Choke Shaft (Manual Choke)

16 697127 Crankshaft 141A 495931 Kit-Choke Shaft (Choke A Matic)

20 690947 • Seal-Oil (PTO Side) 142 697140 O Nozzle-Carburetor

22 692125 Screw (Crankcase Cover/Sump) 146 691639 Key-Timing

23 693557 Flywheel 186 692317 Connector-Hose

24 222698 Key-Flywheel 187 697098 Line-Fuel

25 699052 Piston Assembly (Standard) 187A 698417 Line-Fuel

-- 699054 Piston Assembly (.020" Oversize) 188 691693 Screw (Control Bracket)

26 699051 Ring Set (Standard) 192 691986 Adjuster-Rocker Arm

-- 697559 Ring Set (.020" Oversize) 202 691841 Link-Mechanical Governor

27 698469 Lock-Piston Pin 209 692208 Spring-Governor

28 697099 Pin-Piston 216 691840 Link-Choke

29 697126 Rod-Connecting (Standard) 222 694042 Bracket-Control

-- 697263 Rod-Connecting 227 691374 Lever-Governor Control

(.020" Undersize) 232 691842 Spring-Governor

32 692852 Screw (Connecting Rod) 238 691843 Cap-Valve

33 695760 Valve-Exhaust 240 298090 Filter-Fuel

34 695761 Valve-Intake 265 691024 Clamp-Casing

35 691279 Spring-Valve (Intake) 267 695134 Screw (Casing Clamp)

36 691279 Spring-Valve (Exhaust) 276 692255 O5 Washer-Sealing

37 697108 Guard-Flywheel 304 699829 Housing-Blower

40 690964 Retainer-Valve 305 697102 Screw (Blower Housing)

43 691968 Slinger-Governor/Oil 305A 697103 Screw (Blower Housing)

45 690564 Tappet-Valve 306 697107 Shield-Cylinder

46 698492 Camshaft 307 691003 Screw (Cylinder Shield)

48 697762 Short Block 309 693551 Motor-Starter

50 690193 Manifold-intake 310 690323 Bolt (Starter Motor)

51 692137 ,O$+Gasket-lntake 311 497608 Brush Set

53 690227 Stud (Carburetor) 333 492341 Armature-Magneto

54 691148 Screw (Intake Manifold) 334 691061 Screw (Magneto Armature)

73 697133 Screen-Rotating 337 691043 Plug-Spark

74 697897 Screw (Rotating Screen) 358 697191 Gasket Set-Engine

78 691003 Screw (Flywheel Guard) 363 19203 Flywheel Puller

89 690283 Plug-Oil 383 89838 Wrench-Spark Plug

93 690602 O Bushing-Throttle Shaft 385 694476 Screw (Fuel Pump)

94 498030 Kit-Idle Mixture 385A 690297 Screw (Fuel Pump)

95 691636 Screw (Throttle Valve)

98 495800 Kit-Idle Speed included in Engine Gasket Set, Key. No. 358

104 690525 O Pin-Float Hinge O included in Carburetor Overhaul Kit, Key. No.

105 231855 O Valve-Float Needle 121

106 691780 O Seat-inlet $ included in Carburetor Gasket Set, Key. No.

108 690464 Valve-Choke (Manual Choke) 977

+ included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

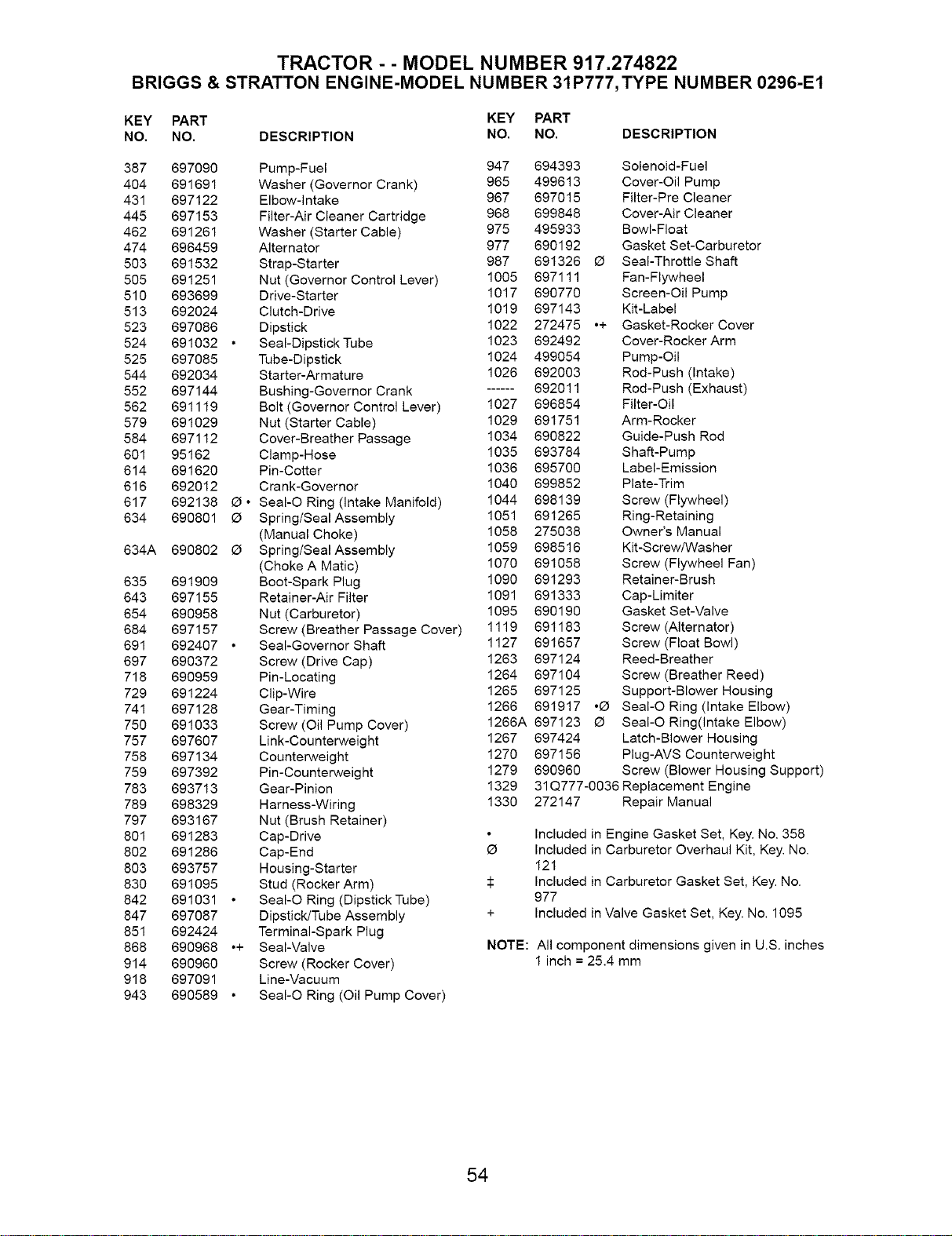

TRACTOR - - MODEL NUMBER 917.274822

BRIGGS & STRATTON ENGINE-MODEL NUMBER 31P777, TYPE NUMBER 0296-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

387 697090 Pump-Fuel 947 694393 Solenoid-Fuel

404 691691 Washer (Governor Crank) 965 499613 Cover-Oil Pump

431 697122 Elbow-intake 967 697015 Filter-Pre Cleaner

445 697153 Filter-Air Cleaner Cartridge 968 699848 Cover-Air Cleaner

462 691261 Washer (Starter Cable) 975 495933 Bowl-Float

474 696459 Alternator 977 690192 Gasket Set-Carburetor

503 691532 Strap-Starter 987 691326 O Seal-Throttle Shaft

505 691251 Nut (Governor Control Lever) 1005 697111 Fan-Flywheel

510 693699 Drive-Starter 1017 690770 Screen-Oil Pump

513 692024 Clutch-Drive 1019 697143 Kit-Label

523 697086 Dipstick 1022 272475 .+ Gasket-Rocker Cover

524 691032 Seal-Dipstick Tube 1023 692492 Cover-Rocker Arm

525 697085 Tube-Dipstick 1024 499054 Pump-Oil

544 692034 Starter-Armature 1026 692003 Rod-Push (Intake)

552 697144 Bushing-Governor Crank ...... 692011 Rod-Push (Exhaust)

562 691119 Bolt (Governor Control Lever) 1027 696854 Filter-Oil

579 691029 Nut (Starter Cable) 1029 691751 Arm-Rocker

584 697112 Cover-Breather Passage 1034 690822 Guide-Push Rod

601 95162 Clamp-Hose 1035 693784 Shaft-Pump

614 691620 Pin-Cotter 1036 695700 Label-Emission

616 692012 Crank-Governor 1040 699852 Plate-Trim

617 692138 O • SeaI-O Ring (intake Manifold) 1044 698139 Screw (Flywheel)

634 690801 O Spring/Seal Assembly 1051 691265 Ring-Retaining

(Manual Choke) 1058 275038 Owner's Manual

634A 690802 O Spring/Seal Assembly 1059 698516 Kit-ScrewtWasher

(Choke A Matic) 1070 691058 Screw (Flywheel Fan)

635 691909 Boot-Spark Plug 1090 691293 Retainer-Brush

643 697155 Retainer-Air Filter 1091 691333 Cap-Limiter

654 690958 Nut (Carburetor) 1095 690190 Gasket Set-Valve

684 697157 Screw (Breather Passage Cover) 1119 691183 Screw (Alternator)

691 692407 Seal-Governor Shaft 1127 691657 Screw (Float Bowl)

697 690372 Screw (Drive Cap) 1263 697124 Reed-Breather

718 690959 Pin-Locating 1264 697104 Screw (Breather Reed)

729 691224 Clip-Wire 1265 697125 Support-Blower Housing

741 697128 Gear-Timing 1266 691917 °0 SeaI-O Ring (Intake Elbow)

750 691033 Screw (Oil Pump Cover) 1266A 697123 O SeaI-O Ring(Intake Elbow)

757 697607 Link-Counterweight 1267 697424 Latch-Blower Housing

758 697134 Counterweight 1270 697156 Plug-AVS Counterweight

759 697392 Pin-Counterweight 1279 690960 Screw (Blower Housing Support)

783 693713 Gear-Pinion 1329 31Q777-0036 Replacement Engine

789 698329 Harness-Wiring 1330 272147 Repair Manual

797 693167 Nut (Brush Retainer)

801 691283 Cap-Drive Included in Engine Gasket Set, Key. No. 358

802 691286 Cap-End O Included in Carburetor Overhaul Kit, Key. No.

803 693757 Housing-Starter 121

830 691095 Stud (Rocker Arm) :l: Included in Carburetor Gasket Set, Key. No.

842 691031 SeaI-O Ring (Dipstick Tube) 977

847 697087 Dipstick/Tube Assembly + Included in Valve Gasket Set, Key. No. 1095

851 692424 Terminal-Spark Plug

868 690968 .+ Seal-Valve NOTE: All component dimensions given in U.S. inches

914 690960 Screw (Rocker Cover) 1 inch = 25.4 mm

918 697091 Line-Vacuum

943 690589 SeaI-O Ring (Oil Pump Cover)

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_ ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fotd this page atong dotted tine indicated above.

2. Hold page before you so that its left edge is vertically paraHe! to a tree

trunk or other upright structure,

3. Sight across the fold in the direction of hilt slope you want to measure.

4. Compare the angle of the fold with the slope of the hilt.

Your Home

Au Canada pour service en frangais:

1-800-LE-FOYER Mc

(1-800-533-6937)

www.sears.ca

02410

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de Fabrica / - Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / Marque depos6e de Sears, Roebuck and Co.

193981 Rev. 1 09.16.04 RD Printed in U.S.A.

Craftsman 917274822 Electric Start Automatic Transmission Tractor

Product's Documents

Owner's Manual

Specifications

Craftsman 917274822 Questions and Answers
