Use Care
A Note to You ............ 2
Range Safety ............ 3
Parts and Features....6
Using Your Range .... 8
Using the Self-
CleaNng Cycle ........ 30
Caring for Your
Range ...................... 34
TrouNeshooting ...... 42
Requesting
Assistance or
Service .................... 44
index ........................ 47
Warranty .................. 48
Call our Consumer Assistance Center
with questions or comments.
,Super Capacity 466 withACCUBAKE®System
4.65 Cubic Foot Oven
MODELS GR395LXG GR396LXG GR399LXG GR399LXH
8272340A www.whirlpool.com

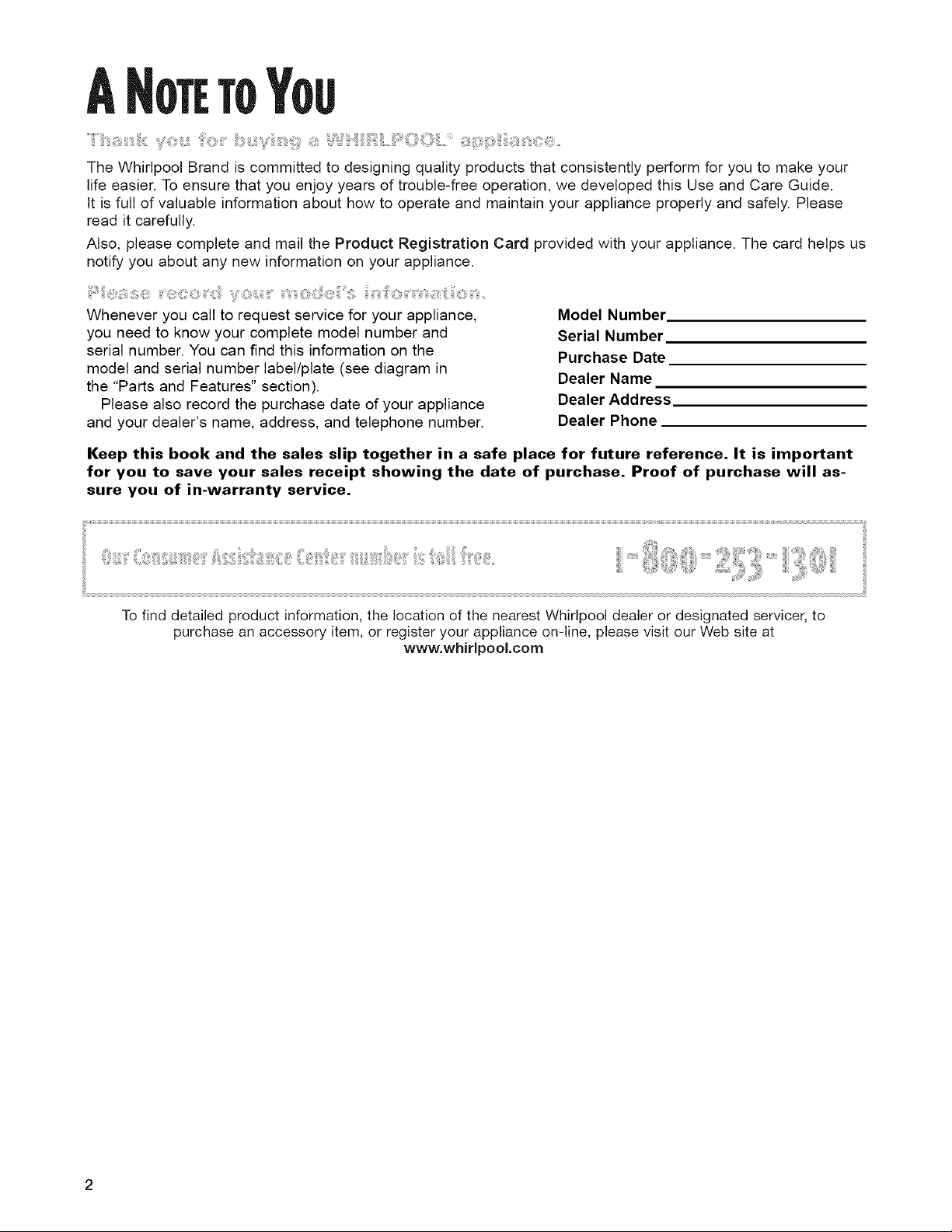

The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-flee operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly and safely. Please
read it carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the "Parts and Features" section).
Please also record the purchase date of your appliance
and your dealer's name, address, and telephone number.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference. It is important
for you to save your sales receipt showing the date of purchase. Proof of purchase will as-
sure you of in-warranty service.
To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer, to
purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpooLcom
.NGESAFETY
Yoursafetyandthesafetyofothersisveryimportant.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
I!i, iliil!il ¸,,iiiii!!iiil!ii i!i! ii iiiiiiii ,iii!il!!!!iiii

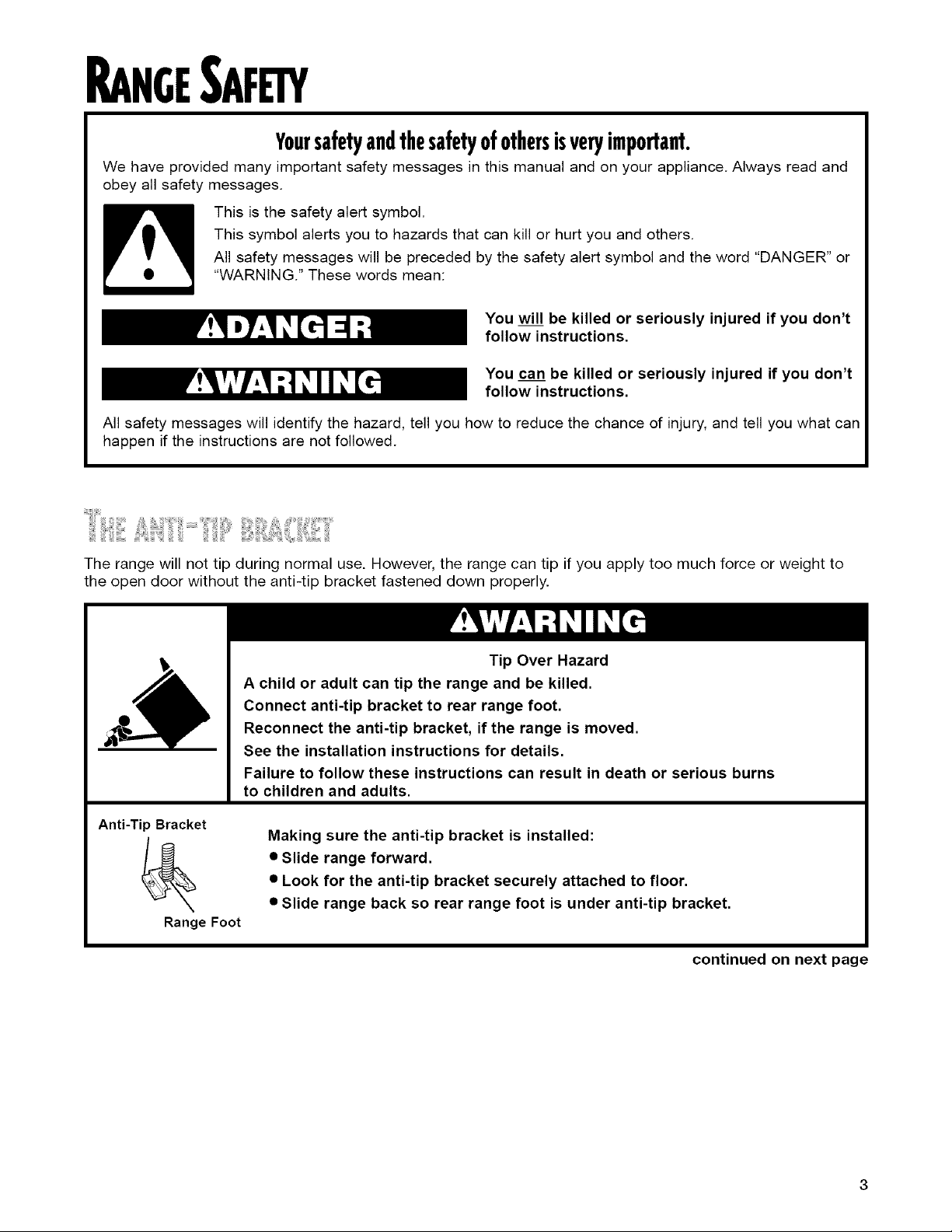

The range will not tip during normal use. However, the range can tip if you apply too much force or weight to
the open door without the anti-tip bracket fastened down properly.
Anti-Tip Bracket
Range Foot
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
See the installation instructions for details.
Failure to follow these instructions can result in death or serious burns
to children and adults.
Making sure the anti-tip bracket is installed:
• Slide range forward.
• Look for the anti-tip bracket securely attached to floor.
• Slide range back so rear range foot is under anti-tip bracket.
continued on next page

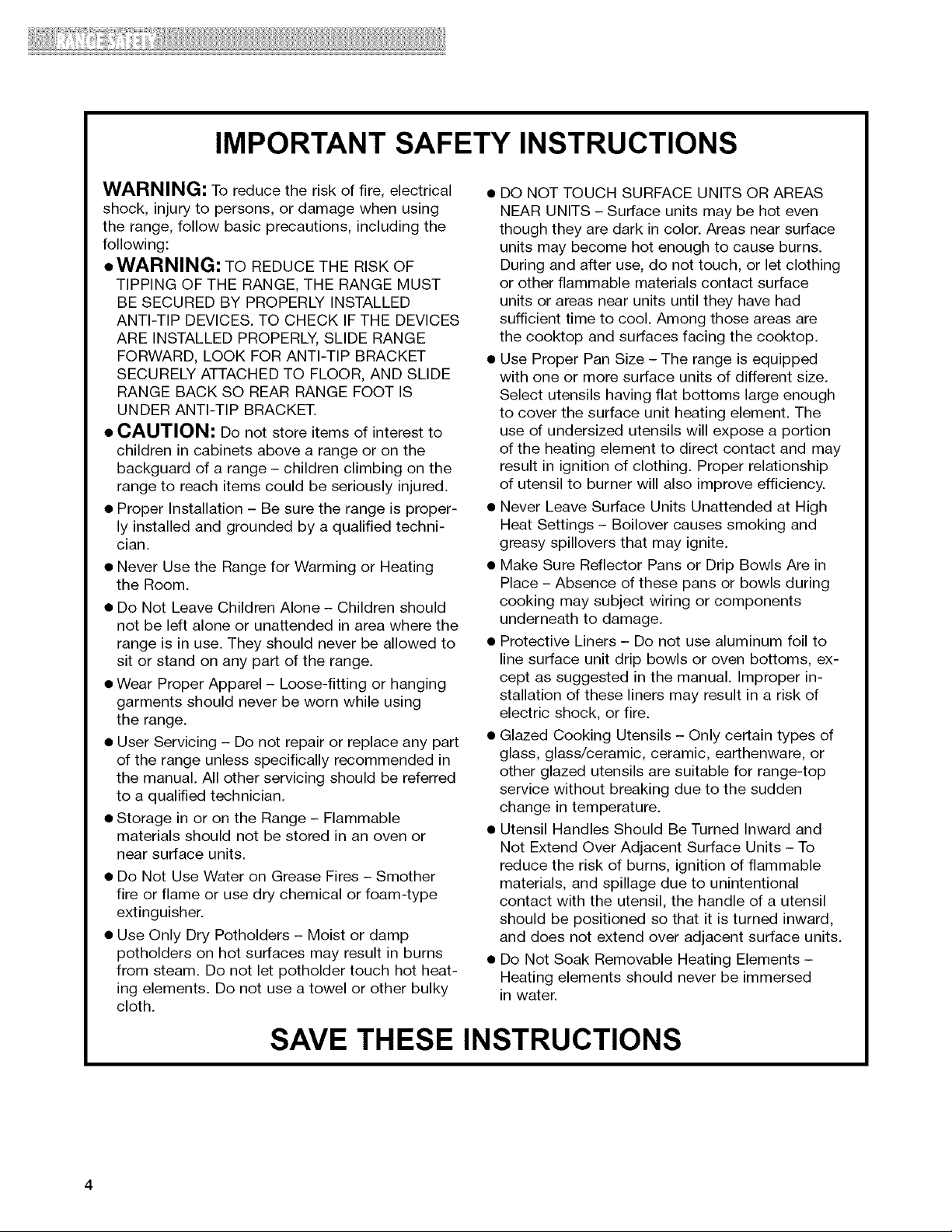

IMPORTANT SAFETY INSTRUCTIONS
WARNING: To reduce the risk of fire, electrical
shock, injury to persons, or damage when using
the range, follow basic precautions, including the
following:
• WARNING: TO REDUCE THE RISK OF
TIPPING OF THE RANGE, THE RANGE MUST
BE SECURED BY PROPERLY INSTALLED
ANTI-TIP DEVICES. TO CHECK IF THE DEVICES
ARE INSTALLED PROPERLY, SLIDE RANGE
FORWARD, LOOK FOR ANTI-TIP BRACKET
SECURELY ATTACHED TO FLOOR, AND SLIDE
RANGE BACK SO REAR RANGE FOOT IS
UNDER ANTI-TIP BRACKET.
• CAUTION: Do not store items of interest to
children in cabinets above a range or on the
backguard of a range - children climbing on the
range to reach items could be seriously injured.
• Proper Installation - Be sure the range is proper-
ly installed and grounded by a qualified techni-
cian.
• Never Use the Range for Warming or Heating
the Room.
• Do Not Leave Children Alone - Children should
not be left alone or unattended in area where the
range is in use. They should never be allowed to
sit or stand on any part of the range.
• Wear Proper Apparel - Loose-fitting or hanging
garments should never be worn while using
the range.
• User Servicing - Do not repair or replace any part
of the range unless specifically recommended in
the manual. All other servicing should be referred
to a qualified technician.
• Storage in or on the Range - Flammable
materials should not be stored in an oven or
near surface units.
• Do Not Use Water on Grease Fires - Smother
fire or flame or use dry chemical or foam-type
extinguisher.
• Use Only Dry Potholders - Moist or damp
potholders on hot surfaces may result in burns
from steam. Do not let potholder touch hot heat-
ing elements. Do not use a towel or other bulky
cloth.
• DO NOT TOUCH SURFACE UNITS OR AREAS
NEAR UNITS - Surface units may be hot even
though they are dark in color. Areas near surface
units may become hot enough to cause burns.
During and after use, do not touch, or let clothing
or other flammable materials contact surface
units or areas near units until they have had
sufficient time to cool. Among those areas are
the cooktop and surfaces facing the cooktop.
• Use Proper Pan Size - The range is equipped
with one or more surface units of different size.
Select utensils having flat bottoms large enough
to cover the surface unit heating element. The
use of undersized utensils will expose a portion
of the heating element to direct contact and may
result in ignition of clothing. Proper relationship
of utensil to burner will also improve efficiency.
• Never Leave Surface Units Unattended at High
Heat Settings - Boilover causes smoking and
greasy spillovers that may ignite.
• Make Sure Reflector Pans or Drip Bowls Are in
Place - Absence of these pans or bowls during
cooking may subject wiring or components
underneath to damage.
• Protective Liners - Do not use aluminum foil to
line surface unit drip bowls or oven bottoms, ex-
cept as suggested in the manual. Improper in-
stallation of these liners may result in a risk of
electric shock, or fire.
• Glazed Cooking Utensils - Only certain types of
glass, glass/ceramic, ceramic, earthenware, or
other glazed utensils are suitable for range-top
service without breaking due to the sudden
change in temperature.
• Utensil Handles Should Be Turned Inward and
Not Extend Over Adjacent Surface Units - To
reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional
contact with the utensil, the handle of a utensil
should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
• Do Not Soak Removable Heating Elements -
Heating elements should never be immersed
in water.
SAVE THESE INSTRUCTIONS

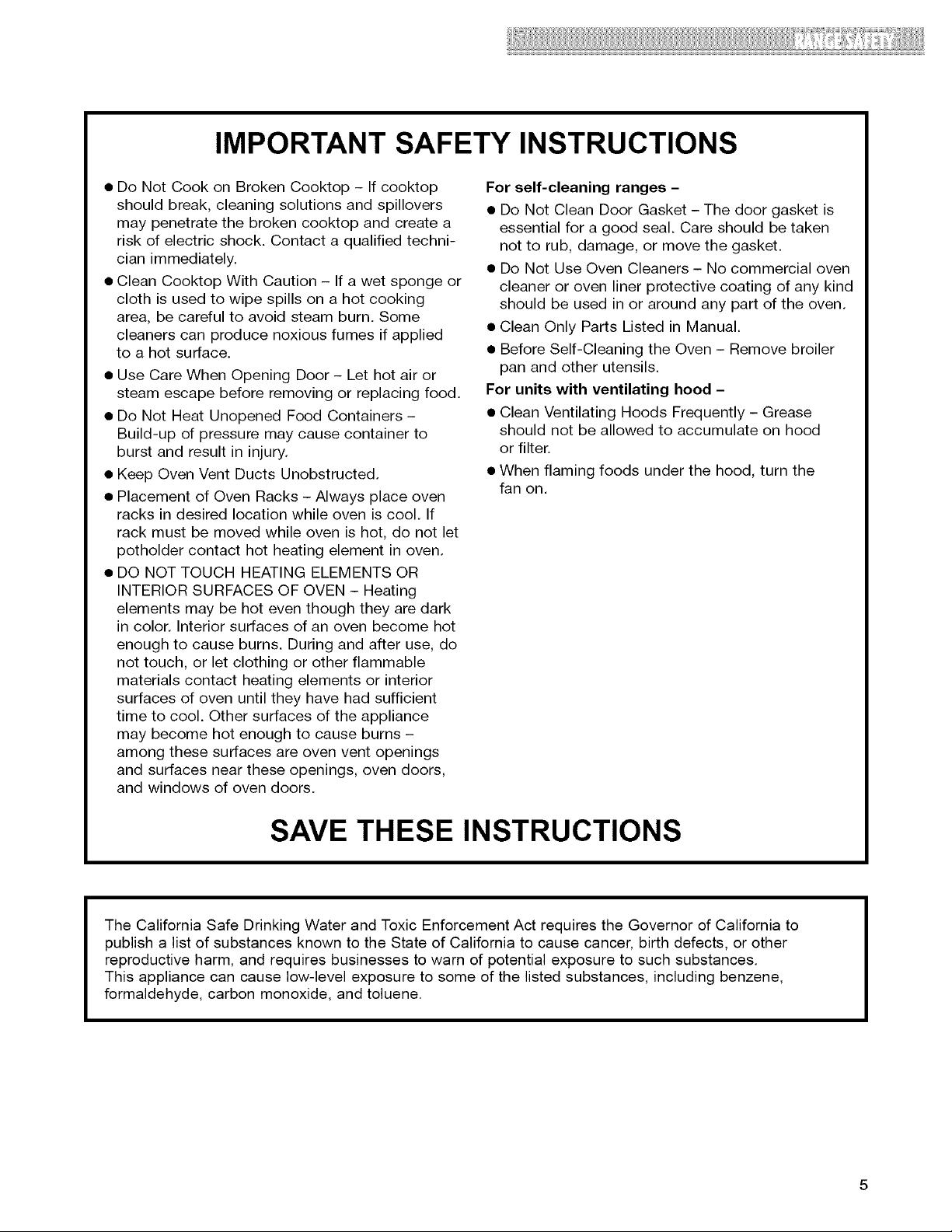

IMPORTANT SAFETY INSTRUCTIONS
• Do Not Cook on Broken Cooktop - If cooktop
should break, cleaning solutions and spillovers
may penetrate the broken cooktop and create a
risk of electric shock. Contact a qualified techni-
cian immediately.
• Clean Cooktop With Caution - If a wet sponge or
cloth is used to wipe spills on a hot cooking
area, be careful to avoid steam burn. Some
cleaners can produce noxious fumes if applied
to a hot surface.
• Use Care When Opening Door - Let hot air or
steam escape before removing or replacing food.
• Do Not Heat Unopened Food Containers -
Build-up of pressure may cause container to
burst and result in injury.
• Keep Oven Vent Ducts Unobstructed.
• Placement of Oven Racks - Always place oven
racks in desired location while oven is cool. If
rack must be moved while oven is hot, do not let
potholder contact hot heating element in oven.
• DO NOT TOUCH HEATING ELEMENTS OR
INTERIOR SURFACES OF OVEN - Heating
elements may be hot even though they are dark
in color. Interior surfaces of an oven become hot
enough to cause burns. During and after use, do
not touch, or let clothing or other flammable
materials contact heating elements or interior
surfaces of oven until they have had sufficient
time to cool. Other surfaces of the appliance
may become hot enough to cause burns -
among these surfaces are oven vent openings
and surfaces near these openings, oven doors,
and windows of oven doors.
For self-cleaning ranges -
• Do Not Clean Door Gasket - The door gasket is
essential for a good seal. Care should be taken
not to rub, damage, or move the gasket.
• Do Not Use Oven Cleaners - No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the oven.
• Clean Only Parts Listed in Manual.
• Before Self-Cleaning the Oven - Remove broiler
pan and other utensils.
For units with ventilating hood -
• Clean Ventilating Hoods Frequently - Grease
should not be allowed to accumulate on hood
or filter.
• When flaming foods under the hood, turn the
fan on.
SAVE THESE INSTRUCTIONS
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the State of California to cause cancer, birth defects, or other
reproductive harm, and requires businesses to warn of potential exposure to such substances.
This appliance can cause low-level exposure to some of the listed substances, including benzene,
formaldehyde, carbon monoxide, and toluene.

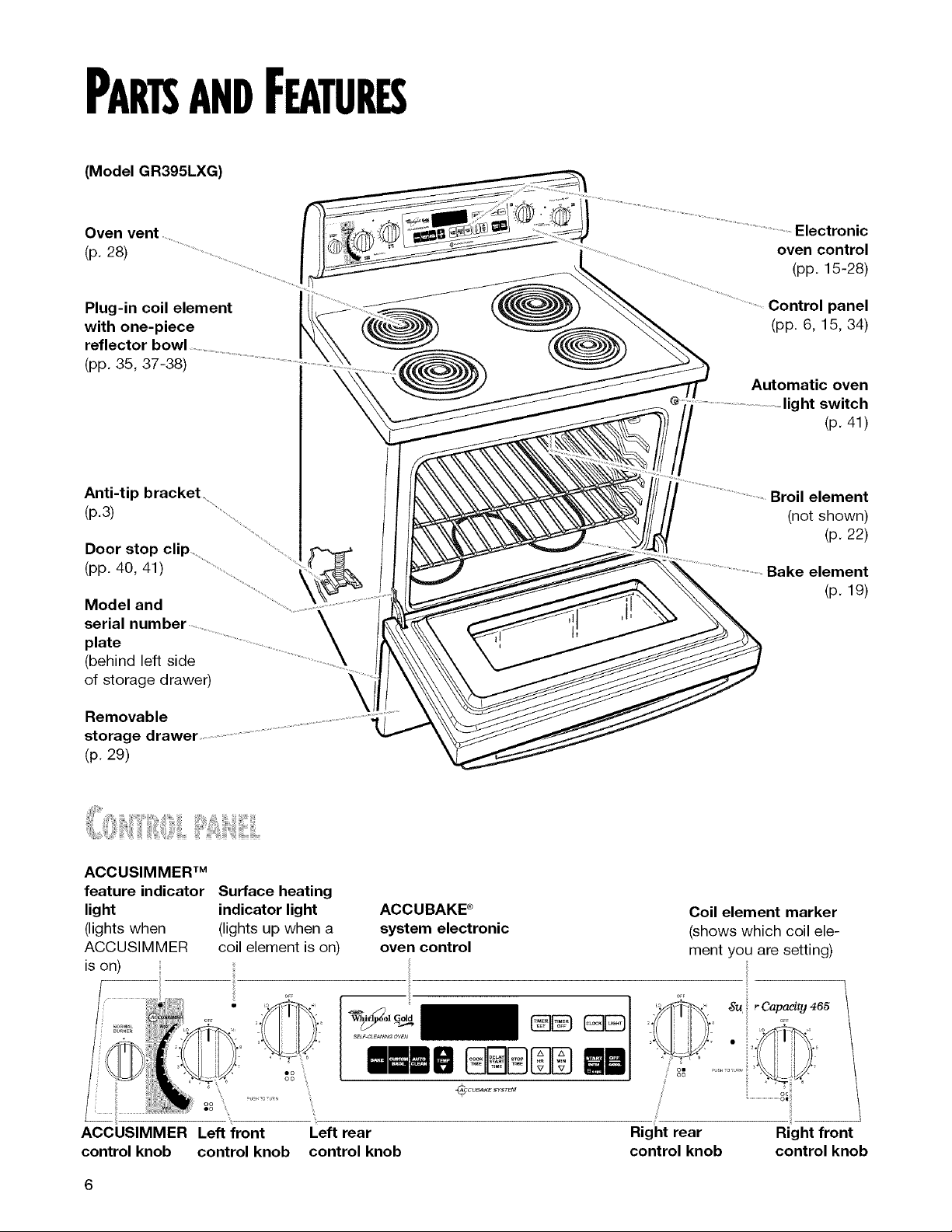

PARTSANDFEATURES
(Model GR395LXG)
Oven
(p. 28)
Plug-in coil element
with one-piece
reflector bowl
(pp. 35, 37-38)
Anti-tip bracket ....
(p.3) ............
Door stop
(pp. 40, 41)
Model and
serial
plate
(behind left side
of storage drawer)
Removable
storag,
(p. 29)
Electronic
oven control
(pp. 15-28)
Control panel
(pp. 6, 15, 34)
Automatic oven
ight switch
(p. 41)
Broil element
(not shown)
(p. 22)
Bake element
(p. 19)
ACCUSIMMER TM
feature indicator
light
(lights when
ACCUSIMMER
is on)
Surface heating
indicator light
(lights up when a
coil element is on)
eoi
ACCUSIMMER Left front
control knob control knob
ACCUBAKE ®
system electronic
oven control
Right rear
control knob
Left rear
control knob
Coil element marker
(shows which coil ele-
ment you are setting)
•_u, _Oap_i_1465
o_F
Right front
control knob

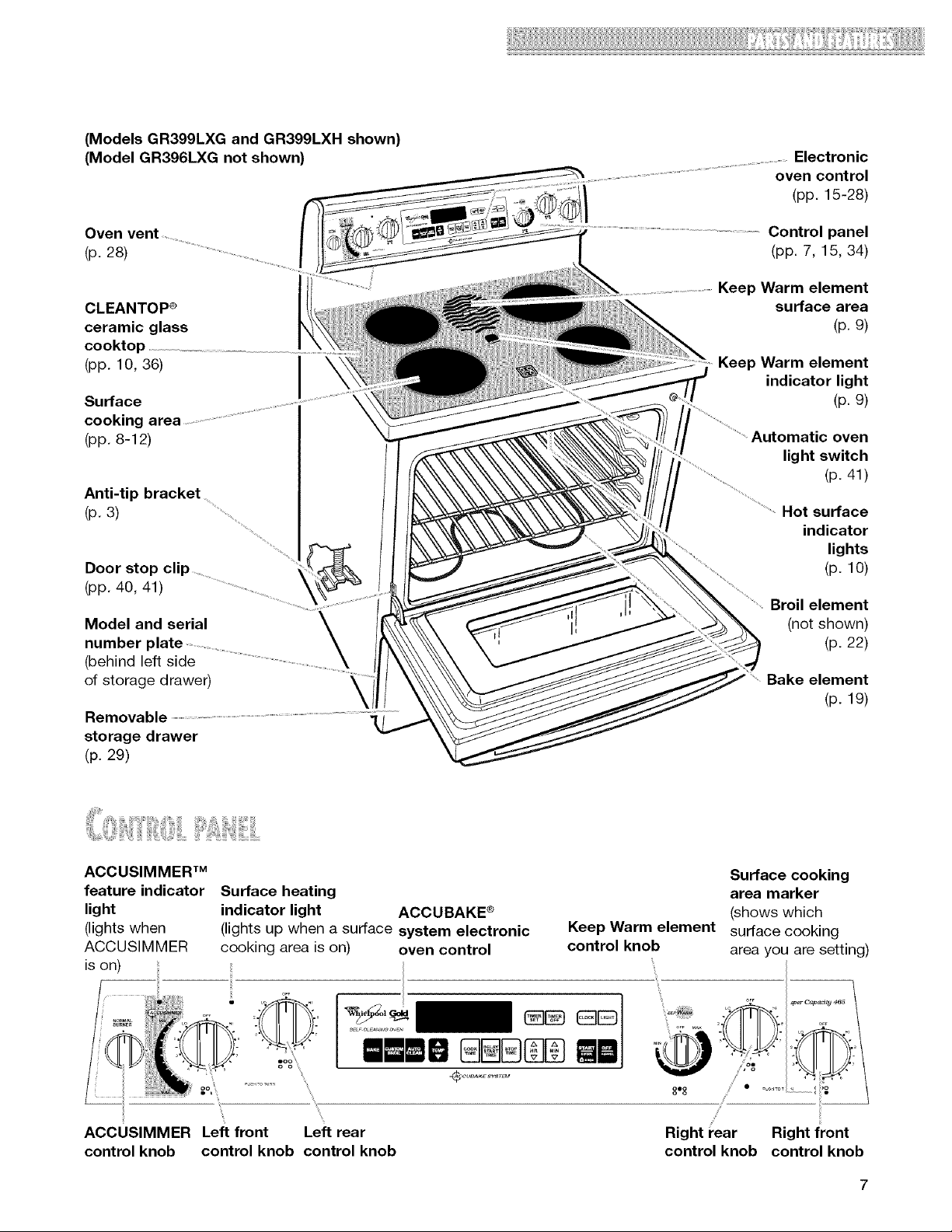

(ModelsGR399LXGandGR399LXHshown)
(ModelGR396LXGnotshown)
Oven
(p. 28)
CLEANTOP ®
ceramic glass
cooktoi
(pp. 10, 36)
Surface
cooking area
(pp. 8-12)
Anti-tip bracket
(p. 3) .........
Door stop
(pp. 40, 41)
Model and serial
number
(behind left side
of storage drawer)
Removable ...................................................................................................................--,
storage drawer
(p. 29)
Electronic
oven control
(pp. 15-28)
Control panel
(pp. 7, 15, 34)
Keep Warm element
surface area
(p. 9)
Keep Warm element
indicator light
(p. 9)
Automatic oven
light switch
(p. 41)
....................Hot surface
indicator
lights
......... (p. 1O)
Broil element
(not shown)
(p. 22)
........Bake element
(p. 19)
ACCUSIMMER TM
feature indicator
light
(lights when
ACCUSIMMER
is on'
.........
ACCUSIMMER Left front Left rear
control knob control knob control knob
Surface heating
indicator light ACCUBAKE ®
(lights up when a surface system electronic
Surface cooking
area marker
(shows which
Keep Warm element surface cooking
area you are setting)
cooking area is on) oven control control knob
lmBO 8NB@B
_CU_KE SYST_
oo.oo/. ........
Right rear Right front
control knob control knob

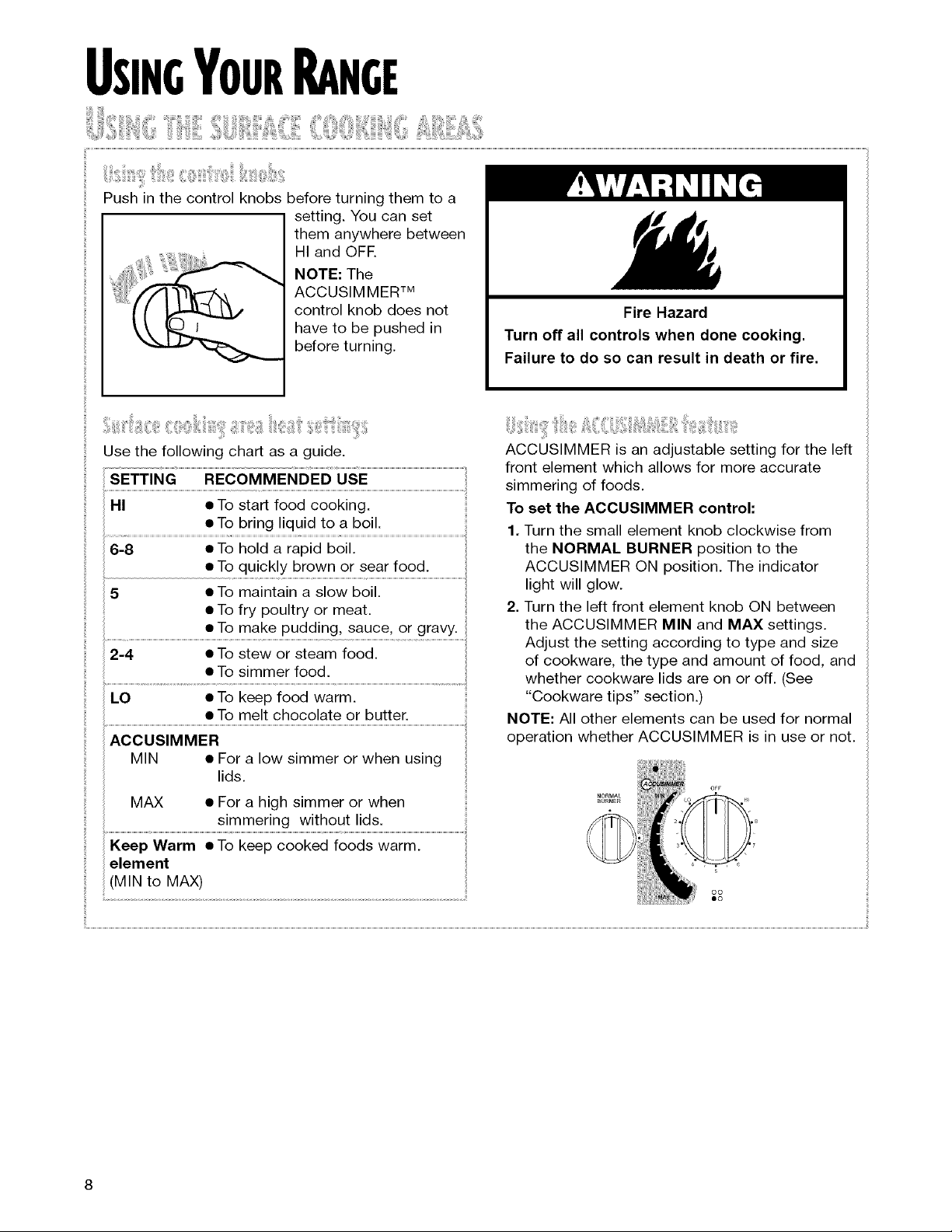

USINGYOURRANGE
Push in the control knobs before turning them to a
i etting. You can set
them anywhere between
HI and ©FE
NOTE: The
ACCUSIMMER TM
control knob does not
I have to be pushed in
before turning.
Fire Hazard
Turn off all controls when done cooking.
Failure to do so can result in death or fire.
Use the following chart as a guide.
HI • To start food cooking.
• To bring liquid to a boil.
6_8................................................................................eT0 hoid a iapid boii
• To quickly brown or sear food.
5 • To maintain a slow boil.
• To fry poultry or meat.
• To make pudding, sauce, or gravy.
2-4 • To stew or steam food.
.....................................................................................................• TO simme[ !ood: ...........................................................................................................................................
LO • To keep food warm.
• To melt chocolate or butter.
ACCUSIMMER
MIN • For a low simmer or when using
lids.
MAX • For a high simmer or when
simmering without lids.
Keep Warm • To keep cooked foods warm.
element
(MIN to MAX)
ACCUSIMMER is an adjustable setting for the left
front element which allows for more accurate
simmering of foods.
To set the ACCUSIMMER control:
1. Turn the small element knob clockwise from
the NORMAL BURNER position to the
ACCUSIMMER ON position. The indicator
light will glow.
2. Turn the left front element knob ON between
the ACCUSIMMER MIN and MAX settings.
Adjust the setting according to type and size
of cookware, the type and amount of food, and
whether cookware lids are on or off. (See
"Cookware tips" section.)
NOTE: All other elements can be used for normal
operation whether ACCUSIMMER is in use or not.
ii!iiiii!iiiiiilliii iiii iiii!!!iill!i!
iiiji;i!iiiii!'iil iiiiiilliiliiiiliiiiii!i!i!!iiiiiiiiiiii,iiiiiil:;i;iiiii :;i , iiiiiiiiiiii !i ii iiiiiiiiiiiii 0iii, il;iii!iiii,, !!iiiiil;¸,i ii!i!i ,: il
_iJ!!_iiiiii_ili_!!Ii_ili_ii_!_iii_i_i!i!_:!iii;i_i!_'_i!__i!?i!_il;_¸i_iiii,_ii!_l_ii_i;i:¸

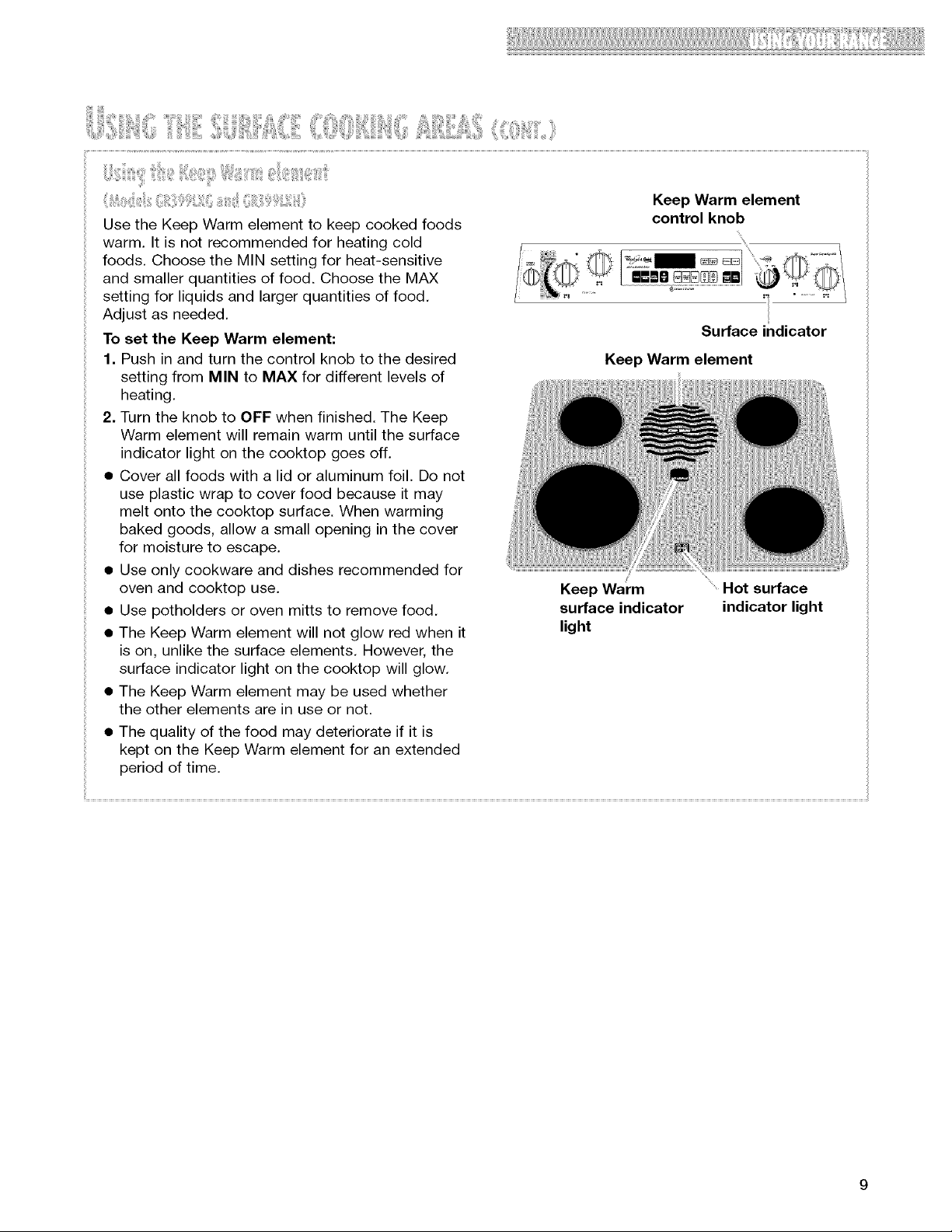

Use the Keep Warm element to keep cooked foods
warm. It is not recommended for heating cold
foods. Choose the MIN setting for heat-sensitive
and smaller quantities of food. Choose the MAX
setting for liquids and larger quantities of food.
Adjust as needed.
To set the Keep Warm element:
1. Push in and turn the control knob to the desired
setting from MIN to MAX for different levels of
heating.
2. Turn the knob to OFF when finished. The Keep
Warm element will remain warm until the surface
indicator light on the cooktop goes off.
• Cover all foods with a lid or aluminum foil. Do not
use plastic wrap to cover food because it may
melt onto the cooktop surface. When warming
baked goods, allow a small opening in the cover
for moisture to escape.
• Use only cookware and dishes recommended for
oven and cooktop use.
• Use potholders or oven mitts to remove food.
• The Keep Warm element will not glow red when it
is on, unlike the surface elements. However, the
surface indicator light on the cooktop will glow.
• The Keep Warm element may be used whether
the other elements are in use or not.
• The quality of the food may deteriorate if it is
kept on the Keep Warm element for an extended
period of time.
Keep Warm element
control knob
Surface indicator
Keep Warm element
il
Keep Warm .......Hot surface
surface indicator indicator light
light
it! i:ii i !iiliiii}iiii:! ¸¸<:, iii ii i:iili ii iiiiii<i:¸ <i:G<i iili:li; iii: /

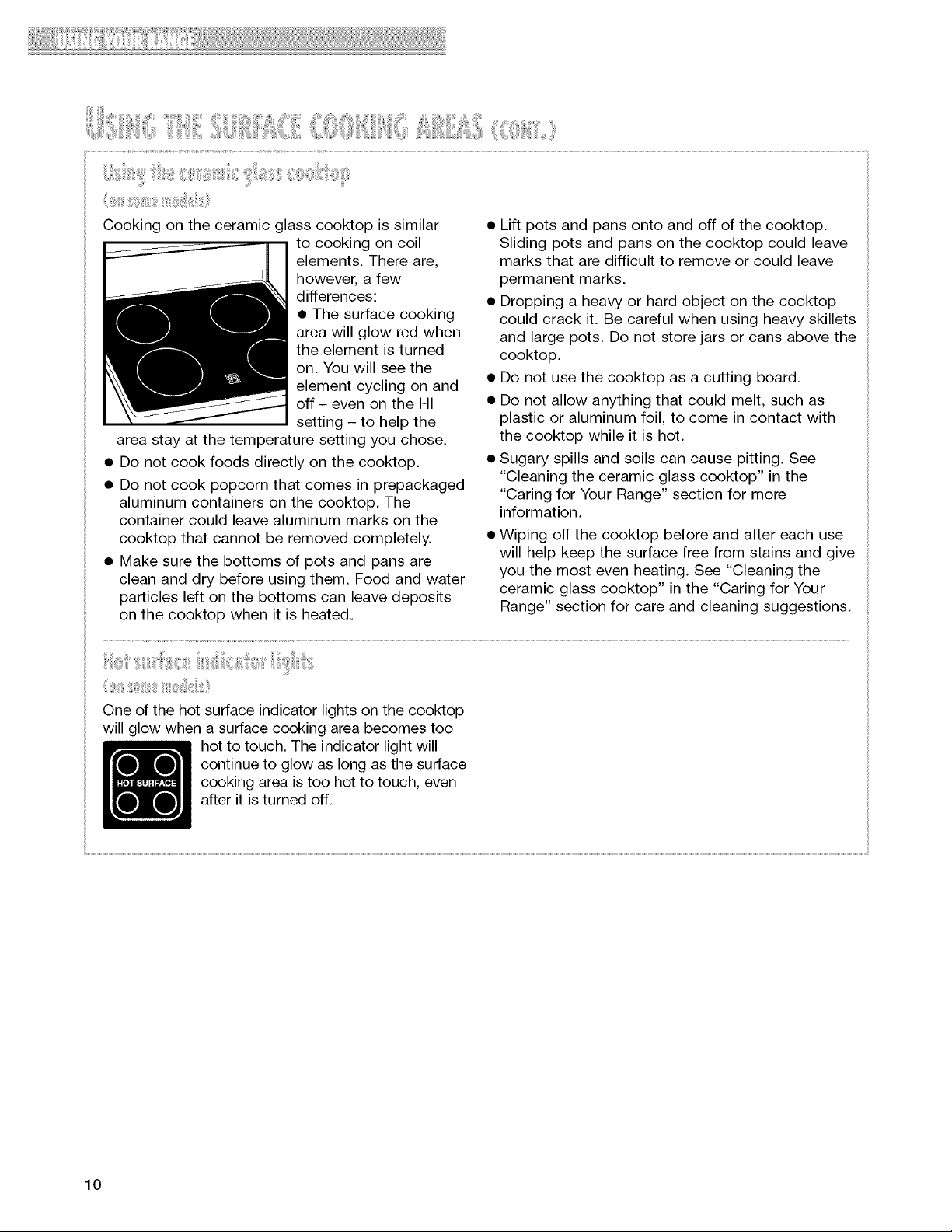

Cooking on the ceramic glass cooktop is similar
to cooking on coil
elements. There are,
however, a few
differences:
• The surface cooking
area will glow red when
the element is turned
on. You will see the
element cycling on and
off - even on the HI
setting - to help the
area stay at the temperature setting you chose.
• Do not cook foods directly on the cooktop.
• Do not cook popcorn that comes in prepackaged
aluminum containers on the cooktop. The
container could leave aluminum marks on the
cooktop that cannot be removed completely.
• Make sure the bottoms of pots and pans are
clean and dry before using them. Food and water
particles left on the bottoms can leave deposits
on the cooktop when it is heated.
• Lift pots and pans onto and off of the cooktop.
Sliding pots and pans on the cooktop could leave
marks that are difficult to remove or could leave
permanent marks.
• Dropping a heavy or hard object on the cooktop
could crack it. Be careful when using heavy skillets
and large pots. Do not store jars or cans above the
cooktop.
• Do not use the cooktop as a cutting board.
• Do not allow anything that could melt, such as
plastic or aluminum foil, to come in contact with
the cooktop while it is hot.
• Sugary spills and soils can cause pitting. See
"Cleaning the ceramic glass cooktop" in the
"Caring for Your Range" section for more
information.
• Wiping off the cooktop before and after each use
will help keep the surface free from stains and give
you the most even heating. See "Cleaning the
ceramic glass cooktop" in the "Caring for Your
Range" section for care and cleaning suggestions.
(
One of the hot surface indicator lights on the cooktop
will glow when a surface cooking area becomes too
hot to touch. The indicator light will
continue to glow as long as the surface
cooking area is too hot to touch, even
after it is turned off.
10
i!i !!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!!ii!!!iifilli!iiiiiiiilliiiiiiiii!!il_iiiii!!iiilliiilliiii!!!iiiii!!iiil;i¸1!¸11i_iiii!!iiiiiii_!i;iiiiiliili!!i!!!!

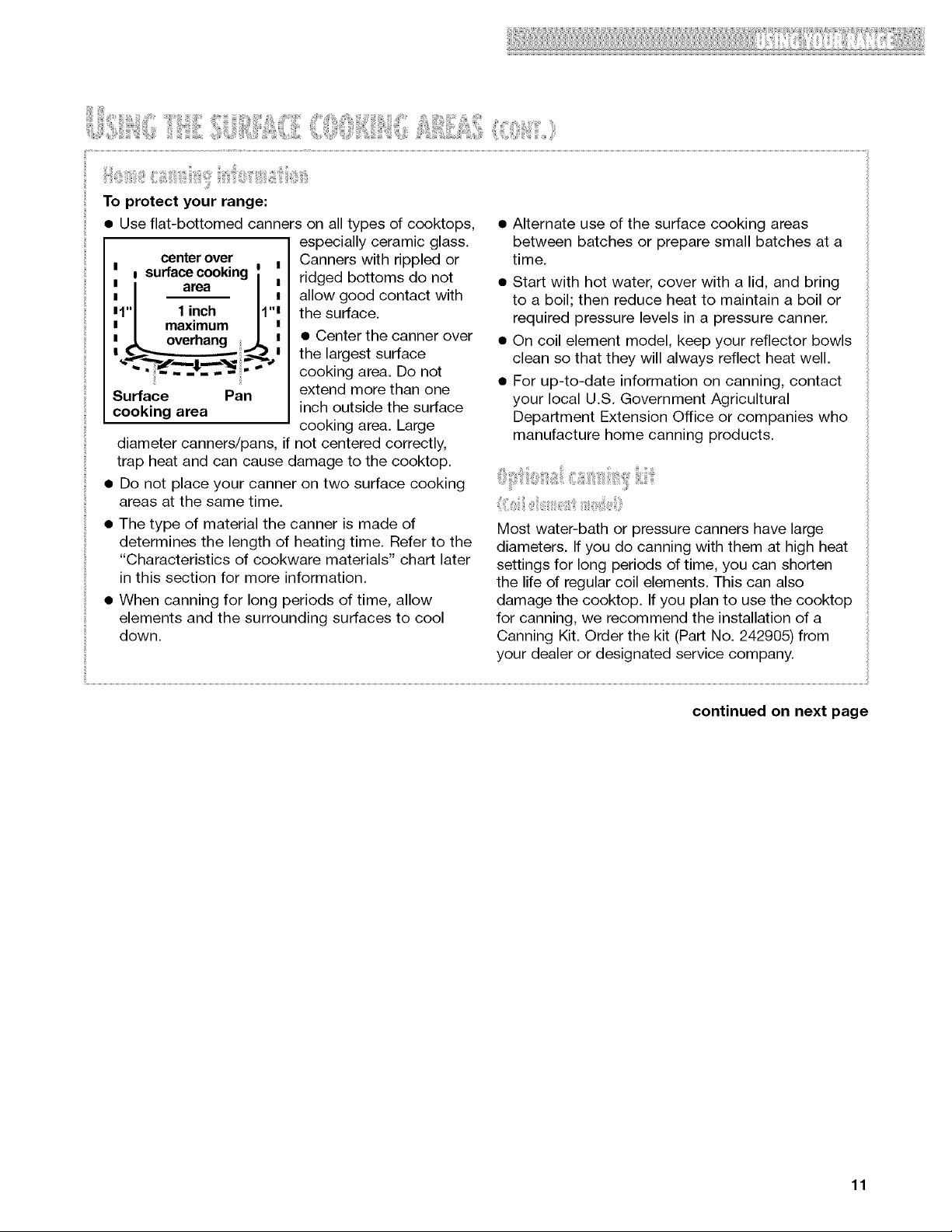

To protect your range:
• Use flat-bottomed canners on all types of cooktops,
especially ceramic glass.
centerover
= = surfacecooking =, =
== area =
=1"1 1 inch I1"'
= I maximum I '
= .l overhang L '
Surface Pan
cooking area
Canners with rippled or
ridged bottoms do not
allow good contact with
the surface.
• Center the canner over
the largest surface
cooking area. Do not
extend more than one
inch outside the surface
cooking area. Large
diameter canners/pans, if not centered correctly,
trap heat and can cause damage to the cooktop.
• Do not place your canner on two surface cooking
areas at the same time.
• The type of material the canner is made of
determines the length of heating time. Refer to the
"Characteristics of cookware materials" chart later
in this section for more information.
• When canning for long periods of time, allow
elements and the surrounding surfaces to cool
down.
• Alternate use of the surface cooking areas
between batches or prepare small batches at a
time.
• Start with hot water, cover with a lid, and bring
to a boil; then reduce heat to maintain a boil or
required pressure levels in a pressure canner.
• On coil element model, keep your reflector bowls
clean so that they will always reflect heat well.
• For up-to-date information on canning, contact
your local U.S. Government Agricultural
Department Extension Office or companies who
manufacture home canning products.
Most water-bath or pressure canners have large
diameters. If you do canning with them at high heat
settings for long periods of time, you can shorten
the life of regular coil elements. This can also
damage the cooktop. If you plan to use the cooktop
for canning, we recommend the installation of a
Canning Kit. Order the kit (Part No. 242905) from
your dealer or designated service company.
continued on next page
11
!iii ii!iii !i!i ! ii ? ?i ?: !i :iiiIiiiiiiIiIi IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII

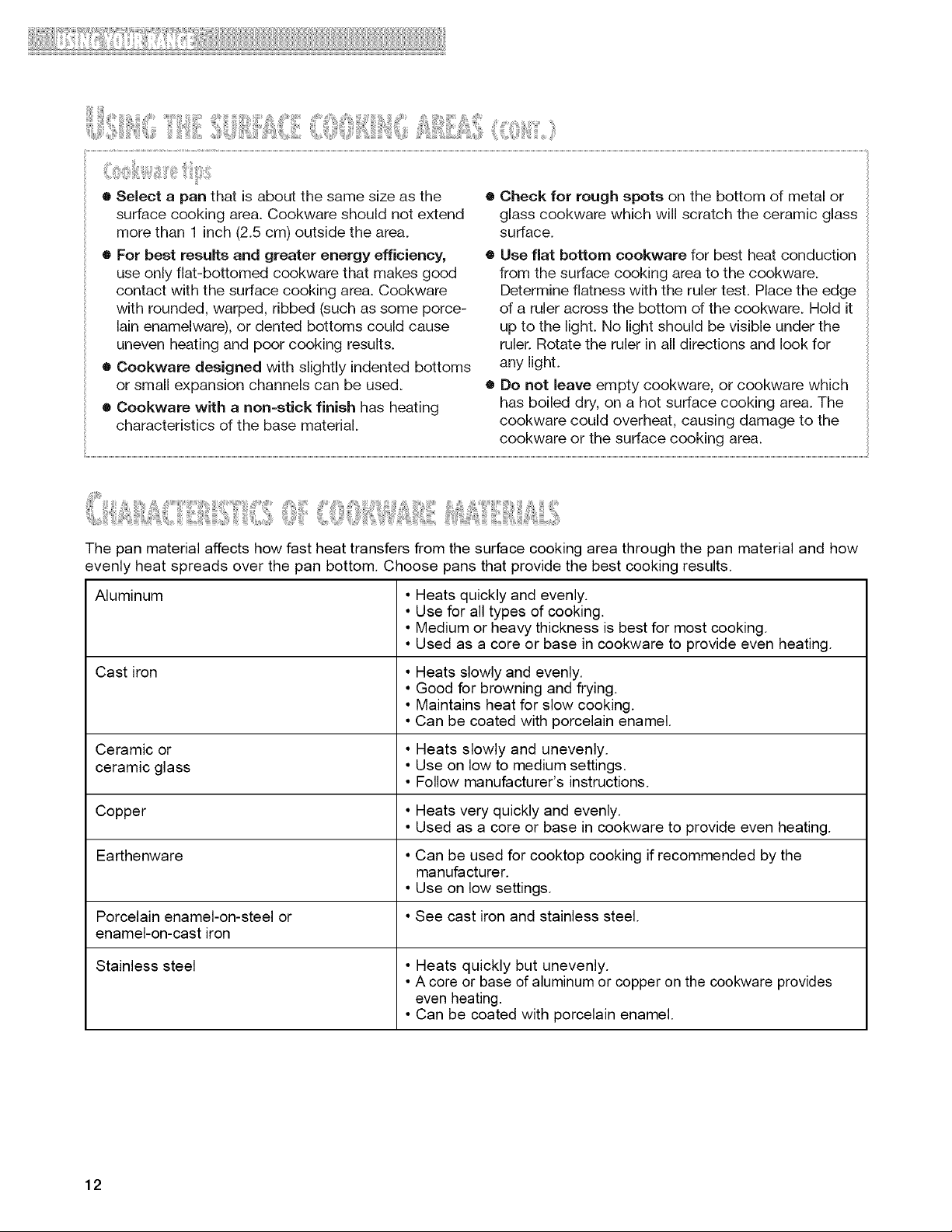

• Select a pan that is about the same size as the
surface cooking area. Cookware should not extend
more than 1 inch (2.5 cm) outside the area.
• For best results and greater energy efficiency,
use only flat-bottomed cookware that makes good
contact with the surface cooking area. Cookware
with rounded, warped, ribbed (such as some porce-
lain enamelware), or dented bottoms could cause
uneven heating and poor cooking results.
• Cookware designed with slightly indented bottoms
or small expansion channels can be used.
• Cookware with a non=stick finish has heating
characteristics of the base material.
• Check for rough spots on the bottom of metal or
glass cookware which will scratch the ceramic glass
surface.
• Use flat bottom cookware for best heat conduction
from the surface cooking area to the cookware.
Determine flatness with the ruler test. Place the edge
of a ruler across the bottom of the cookware. Hold it
up to the light. No light should be visible under the
ruler. Rotate the ruler in all directions and look for
any light.
• Do not leave empty cookware, or cookware which
has boiled dry, on a hot surface cooking area. The
cookware could overheat, causing damage to the
cookware or the surface cooking area.
The pan material affects how fast heat transfers from the surface cooking area through the pan material and how
evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.
Aluminum • Heats quickly and evenly.
• Use for all types of cooking.
• Medium or heavy thickness is best for most cooking.
• Used as a core or base in cookware to provide even heating.
Cast iron • Heats slowly and evenly.
• Good for browning and frying.
• Maintains heat for slow cooking.
• Can be coated with porcelain enamel.
Ceramic or • Heats slowly and unevenly.
ceramic glass • Use on low to medium settings.
• Follow manufacturer's instructions.
Copper • Heats very quickly and evenly.
• Used as a core or base in cookware to provide even heating.
Earthenware • Can be used for cooktop cooking if recommended by the
manufacturer.
• Use on low settings.
Porcelain enamel-on-steel or • See cast iron and stainless steel.
enamel-on-cast iron
Stainless steel • Heats quickly but unevenly.
• A core or base of aluminum or copper on the cookware provides
even heating.
• Can be coated with porcelain enamel.
12
ii !!iiiii! iiii iiil;i !iiiiii!!!l!i!i,;,iiii!iiiiiiiii!iii !iill!!!!i!

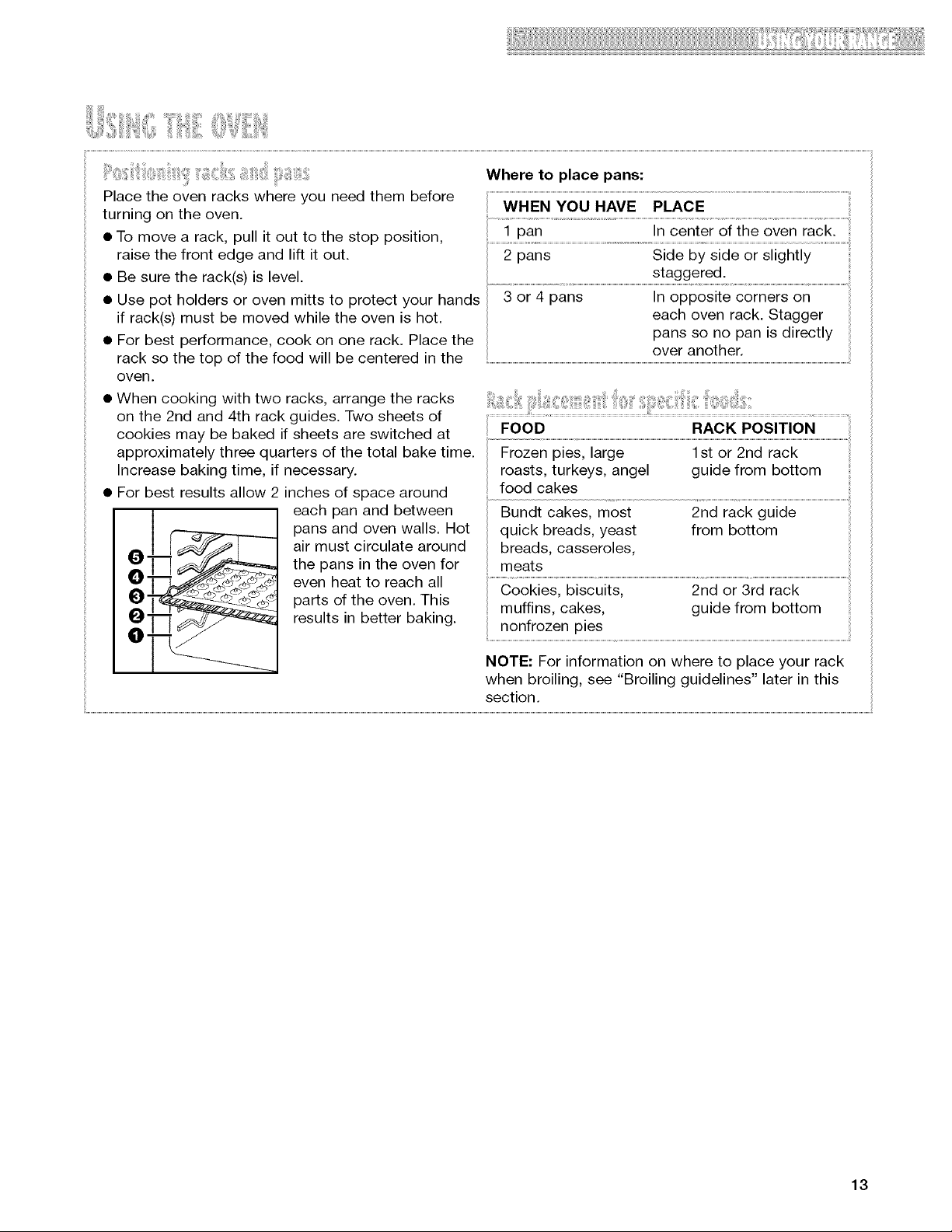

Place the oven racks where you need them before
turning on the oven.
• To move a rack, pull it out to the stop position,
raise the front edge and lift it out.
• Be sure the rack(s) is level.
• Use pot holders or oven mitts to protect your hands
if rack(s) must be moved while the oven is hot.
• For best performance, cook on one rack. Place the
rack so the top of the food will be centered in the
oven.
• When cooking with two racks, arrange the racks
on the 2nd and 4th rack guides. Two sheets of
cookies may be baked if sheets are switched at
approximately three quarters of the total bake time.
Increase baking time, if necessary.
• For best results allow 2 inches of space around
each pan and between
pans and oven walls. Hot
air must circulate around
the pans in the oven for
even heat to reach all
parts of the oven. This
results in better baking.
Where to place pans:
WHEN YOU HAVE PLACE
1 pan In center of the oven rack.
2 pans Side by side or slightly
staggered.
3 or 4 pans In opposite corners on
each oven rack. Stagger
pans so no pan is directly
over another.
Frozen pies, large 1st or 2nd rack
roasts, turkeys, angel guide from bottom
food cakes
Bundt cakes, most 2nd rack guide
quick breads, yeast from bottom
breads, casseroles,
meats
Cookies biscuits 2nd or 3rd rack
muffins, cakes, guide from bottom ....
NOTE: For information on where to place your rack
when broiling, see "Broiling guidelines" later in this
section.
13
i!iii ii!iiii!i!ii!i'ii iiiiiii !ili !i;;i!!li'iiiil,iii?:ii !i"i:iii/iiiiiililil lllllllllllllllllllllllllllllllllllllllllllll

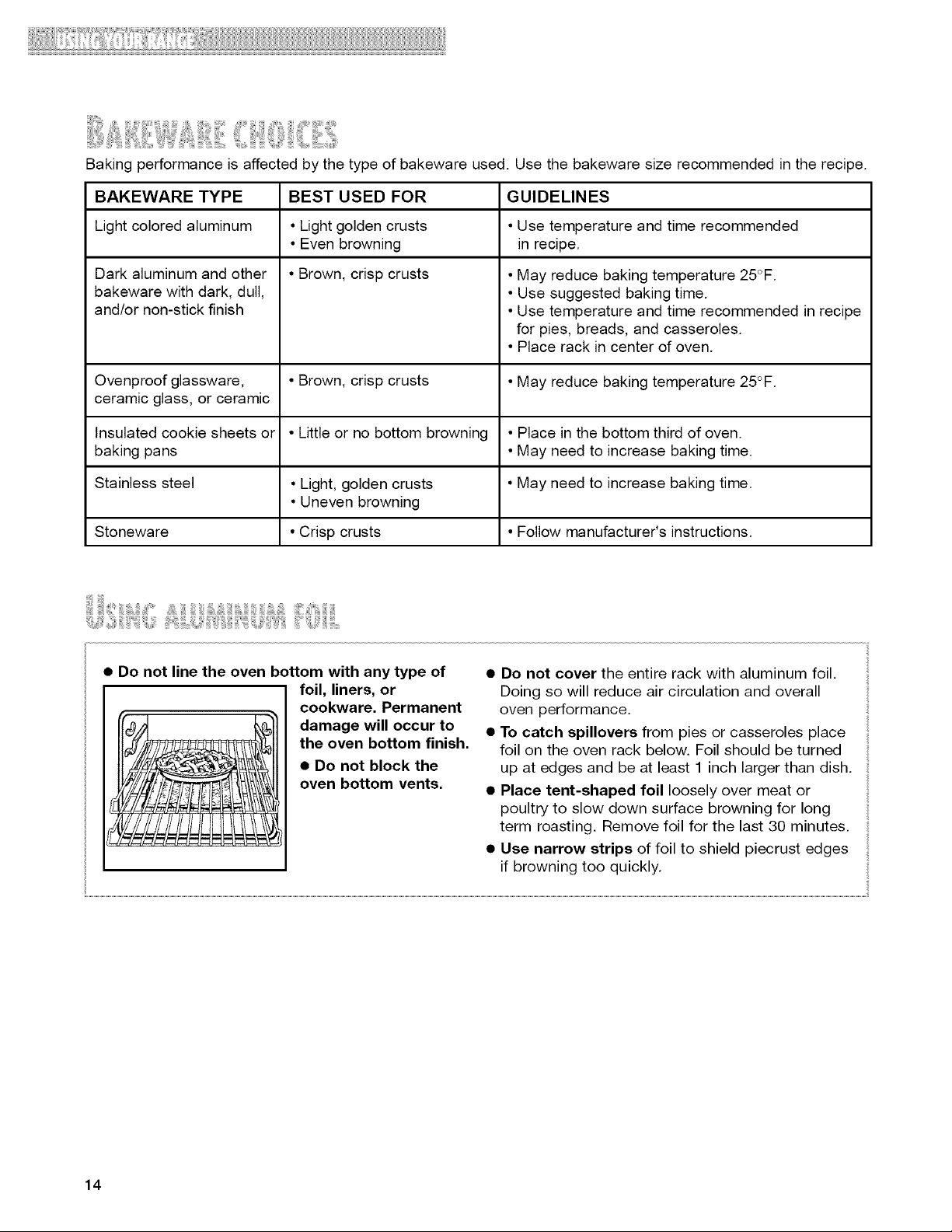

Baking performance is affected by the type of bakeware used. Use the bakeware size recommended in the recipe.
BAKEWARE TYPE BEST USED FOR GUIDELINES
Light colored aluminum • Light golden crusts • Use temperature and time recommended
• Even browning in recipe.
• Brown, crisp crusts
Dark aluminum and other
bakeware with dark, dull,
and/or non-stick finish
• May reduce baking temperature 25°F.
• Use suggested baking time.
• Use temperature and time recommended in recipe
for pies, breads, and casseroles.
• Place rack in center of oven.
Ovenproof glassware, • Brown, crisp crusts • May reduce baking temperature 25°F.
ceramic glass, or ceramic
Insulated cookie sheets or • Little or no bottom browning • Place in the bottom third of oven.
baking pans • May need to increase baking time.
Stainless steel • Light, golden crusts • May need to increase baking time.
• Uneven browning
Stoneware • Crisp crusts • Follow manufacturer's instructions.
• Do not line the oven bottom with any type of •
foil, liners, or
cookware. Permanent
damage will occur to
the oven bottom finish.
• Do not block the
oven bottom vents.
Do not cover the entire rack with aluminum foil.
Doing so will reduce air circulation and overall
oven performance.
To catch epillovere from pies or casseroles place
foil on the oven rack below. Foil should be turned
up at edges and be at least 1 inch larger than dish.
Place tent-shaped foil loosely over meat or
poultry to slow down surface browning for long
term roasting. Remove foil for the last 30 minutes.
Use narrow strips of foil to shield piecrust edges
if browning too quickly.
14
!iii ii!iiii!i! !! !ii i!!!iiil;iiiiliiiiliiii!!!:! iiiiiii!ili;i;ii!iiiiii!i iiiii iiiiii!!i!ill

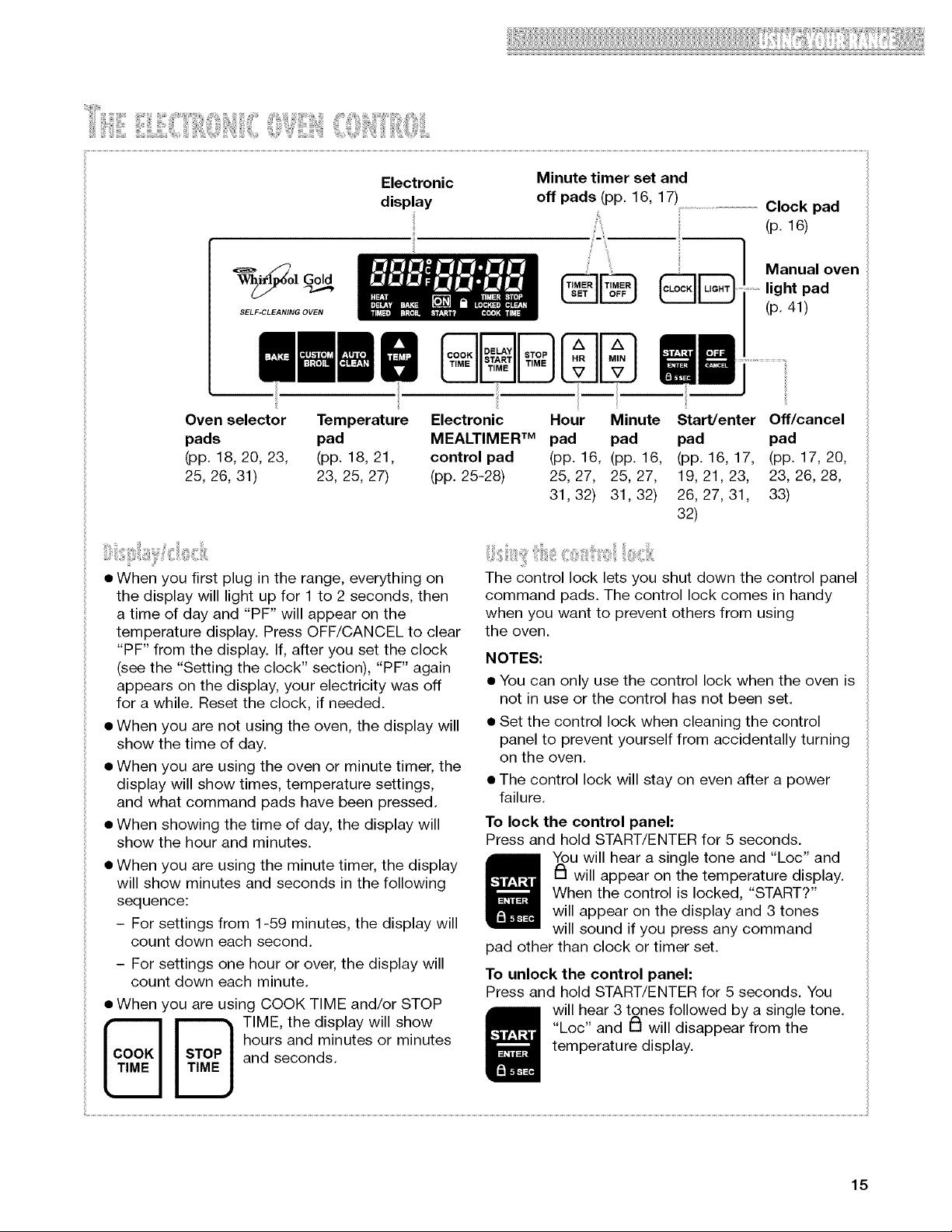

Electronic
display
SELF-CLEANtNG OVEN
Minute timer set and
off pads (pp. 16, 17) ............................Clock pad
(p. 16)
®® Oano,oven
(p. 41)
Oven selector Temperature
pads pad
(pp. 18, 20, 23, (pp. 18, 21,
25, 26, 31) 23, 25, 27)
F¢ I,q ]D
Electronic Hour Minute
MEALTIMER TM pad pad
control pad (pp. 16, (pp. 16,
(pp. 25-28) 25, 27, 25, 27,
31,32) 31,32)
Start/enter Off/cancel
pad pad
(pp. 16,17, (pp. 17,20,
19, 21, 23, 23, 26, 28,
26, 27, 31, 33)
32)
• When you first plug in the range, everything on
the display will light up for 1 to 2 seconds, then
a time of day and "PF" will appear on the
temperature display. Press OFF/CANCEL to clear
"PF" from the display. If, after you set the clock
(see the "Setting the clock" section), "PF" again
appears on the display, your electricity was off
for a while. Reset the clock, if needed.
• When you are not using the oven, the display will
show the time of day.
• When you are using the oven or minute timer, the
display will show times, temperature settings,
and what command pads have been pressed.
• When showing the time of day, the display will
show the hour and minutes.
• When you are using the minute timer, the display
will show minutes and seconds in the following
sequence:
- For settings from 1-59 minutes, the display will
count down each second.
- For settings one hour or over, the display will
count down each minute.
• When you are using COOK TIME and/or STOP
_ _ TIME, the display will show
hours and minutes or minutes
and seconds.
The control lock lets you shut down the control panel
command pads. The control lock comes in handy
when you want to prevent others from using
the oven.
NOTES:
• You can only use the control lock when the oven is
not in use or the control has not been set.
• Set the control lock when cleaning the control
panel to prevent yourself from accidentally turning
on the oven.
• The control lock will stay on even after a power
failure.
To lock the control panel:
Press and hold START/ENTER for 5 seconds.
You will hear a single tone and "Loc" and
_1 will appear on the temperature display.
When the control is locked, "START?"
will appear on the display and 3 tones
will sound if you press any command
pad other than clock or timer set.
To unlock the control panel:
Press and hold START/ENTER for 5 seconds. You
will hear 3 tones followed by a single tone.
"Loc" and _1 will disappear from the
temperature display.
15
i!iii_iiiiiii!i!!iiii_!_iS!iiii_!iiiiiii!iii!!i::_!!iii!!!_i¸iiiii!!ii!i:J:ii!i_!!J!ii!ii!!!!!!!!!!!!!!!
iiiiiiii!!!!i!iil_iiiii!iii!ili!_iiiiiiiiiiiii!iiii!!!iiiiiiiiiii!:iilii:iiiiiiiiiiiiiiiill

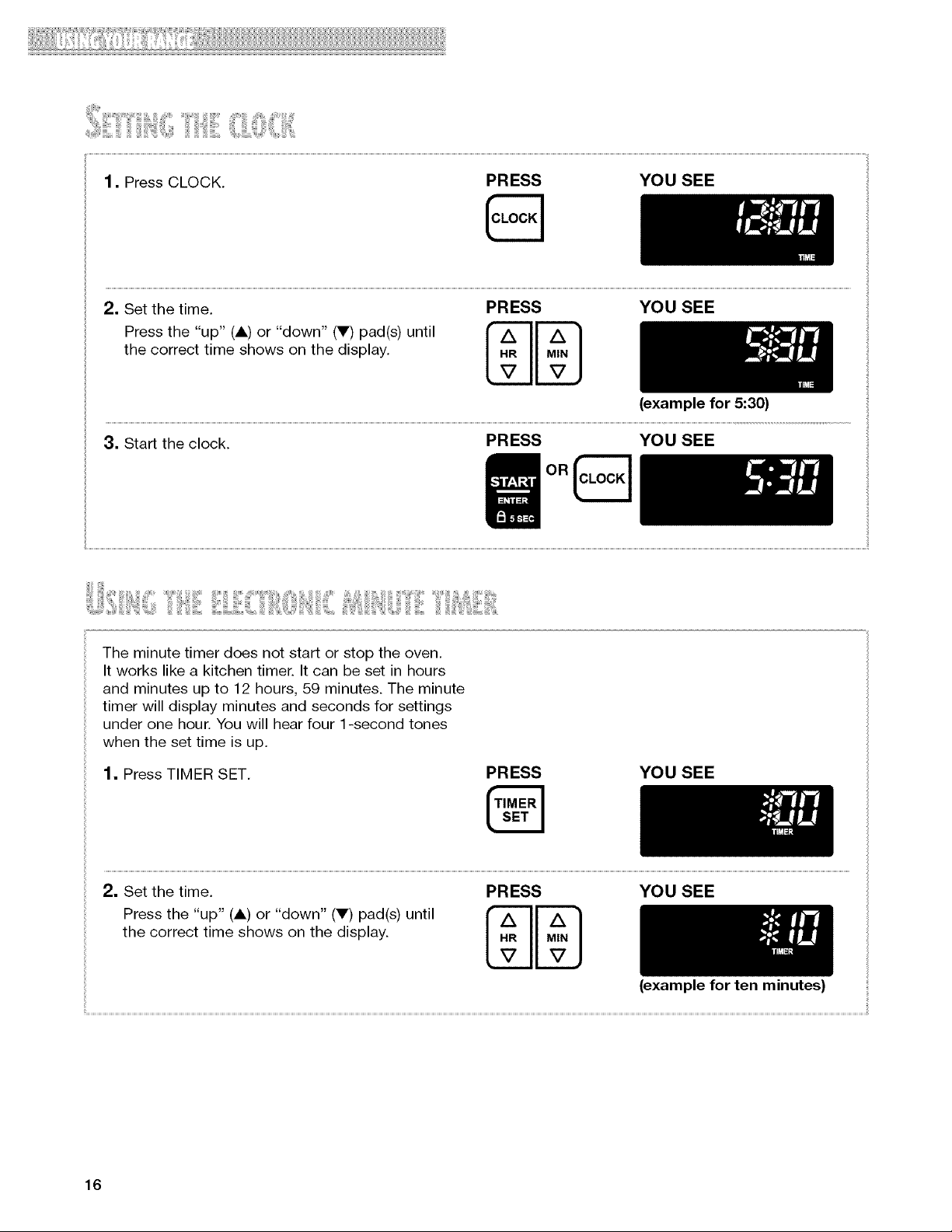

1. Press CLOCK. PRESS YOU SEE
2. Set the time. PRESS YOU SEE
_ressthe-u_,.,or"dowo_,_ad,s,uo,.[_11_1the correct time shows on the display. HR MIN
(example for 5:30)
3. Start the clock. PRESS YOU SEE
The minute timer does not start or stop the oven.
It works like a kitchen timer. It can be set in hours
and minutes up to 12 hours, 59 minutes. The minute
timer will display minutes and seconds for settings
under one hour. You will hear four 1 -second tones
when the set time is up.
1. Press TIMER SET.
PRESS YOU SEE
2. Set the time. PRESS YOU SEE
_ressthe-u_,.,or-_owo,._ad,s,uot,[_11_1.._.
l_Z II _zJ
the correct time shows on the display.
(example for ten minutes)
16
iii !!ii iiiiiiii!!i i i iiii!!;iiiiiiii!i!ii

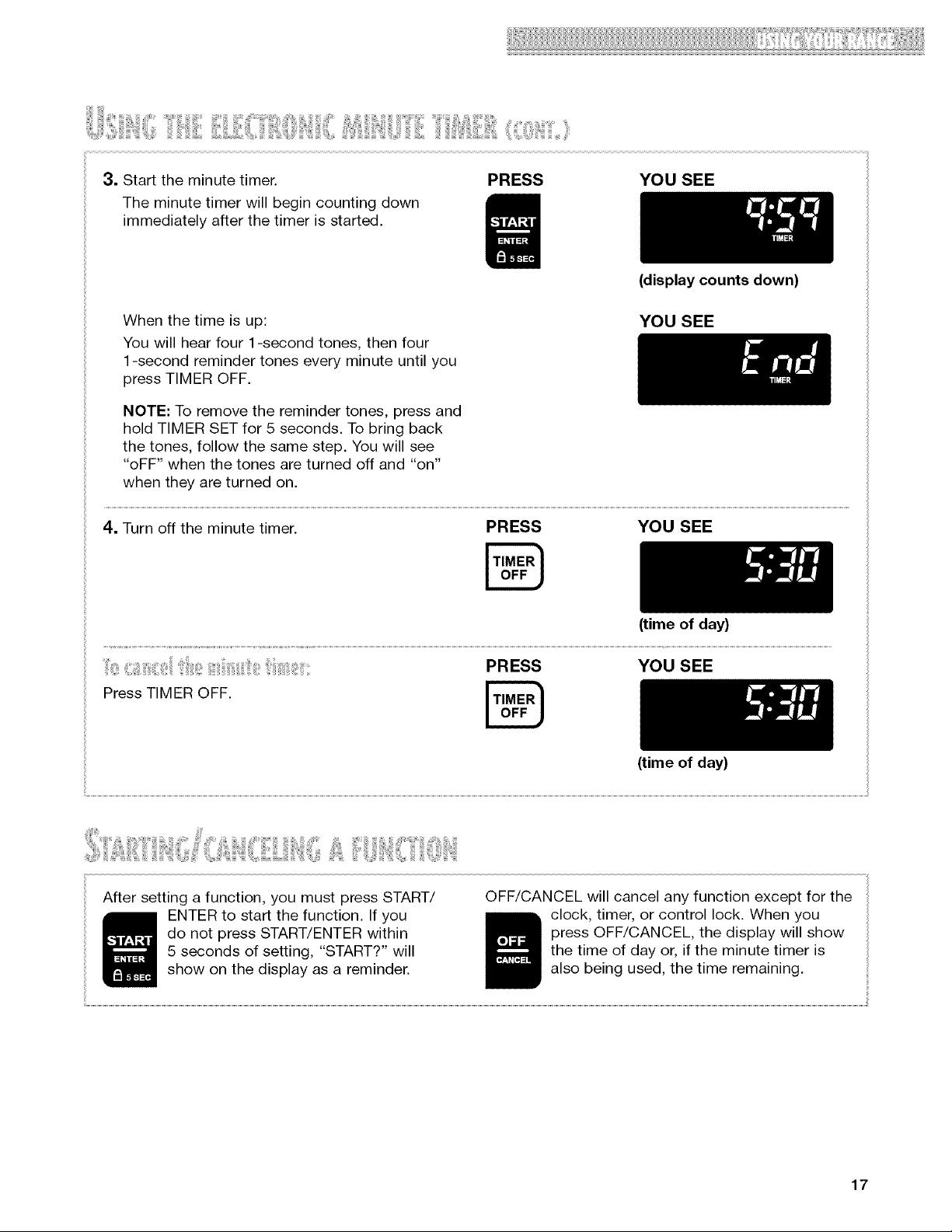

3. Start the minute timer. PRESS
The minute timer will begin counting down
immediately after the timer is started.
YOU SEE
When the time is up:
You will hear four 1-second tones, then four
1-second reminder tones every minute until you
press TIMER OFF.
(display counts down)
YOU SEE
NOTE: To remove the reminder tones, press and
hold TIMER SET for 5 seconds. To bring back
the tones, follow the same step. You will see
"oFF" when the tones are turned off and "on"
when they are turned on.
4. Turn off the minute timer. PRESS YOU SEE
(time of day)
PRESS YOU SEE
Press TIMER OFF.
(time of day)
After setting a function, you must press START/
ENTER to start the function. If you
do not press START/ENTER within
5 seconds of setting, "START?" will
show on the display as a reminder.
OFF/CANCEL will cancel any function except for the
clock, timer, or control lock. When you
press OFF/CANCEL, the display will show
the time of day or, if the minute timer is
also being used, the time remaining.
17
i!iii iiiiiii!i!!iiii ! iS!iiii !iiiiiii!iii!!il; !;iii!!! i¸iiiii!!ii!i:J:i !

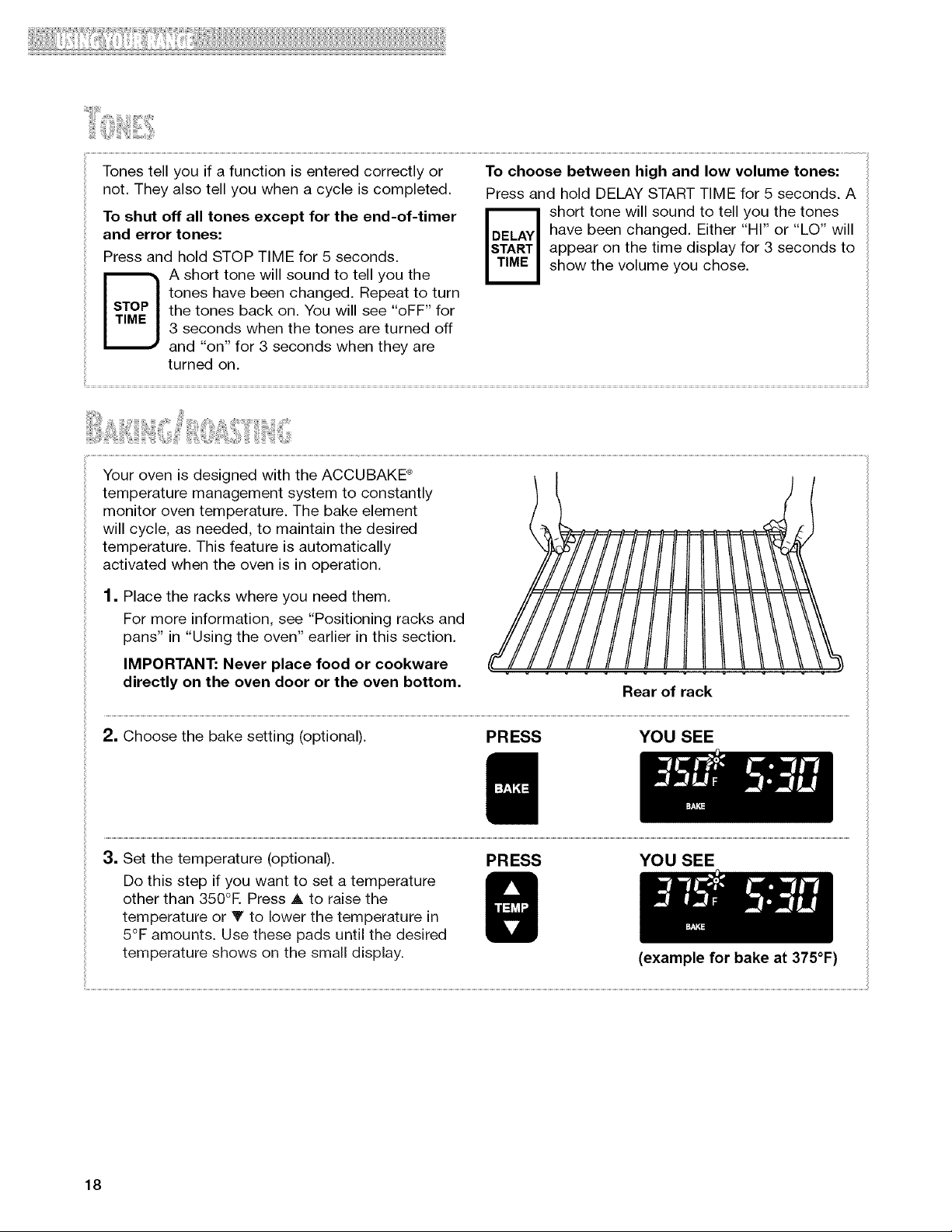

Tones tell you if a function is entered correctly or
not. They also tell you when a cycle is completed.
To shut off all tones except for the end-of-timer
and error tones:
Press and hold STOP TIME for 5 seconds.
A short tone will sound to tell you the
tones have been changed. Repeat to turn
the tones back on. You will see "oFF" for
3 seconds when the tones are turned off
and "on" for 3 seconds when they are
turned on.
To choose between high and low volume tones:
Press and hold DELAY START TIME for 5 seconds. A
_ hort tone will sound to tell you the tones
have been changed. Either "HI" or "LO" will
appear on the time display for 3 seconds to
show the volume you chose.
Your oven is designed with the ACCUBAKE _ |
temperature management system to constantly
t
monitor oven temperature. The bake element
will cycle, as needed, to maintain the desired
temperature. This feature is automatically
activated when the oven is in operation.
1. Place the racks where you need them.
For more information, see "Positioning racks and
pans" in "Using the oven" earlier in this section.
IMPORTANT: Never place food or cookware
directly on the oven door or the oven bottom.
Rear of rack
2. Choose the bake setting (optional). PRESS YOU SEE
3. Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°E Press A to raise the
temperature or V to lower the temperature in
5°F amounts. Use these pads until the desired
temperature shows on the small display.
(example for bake at 375°F)
18

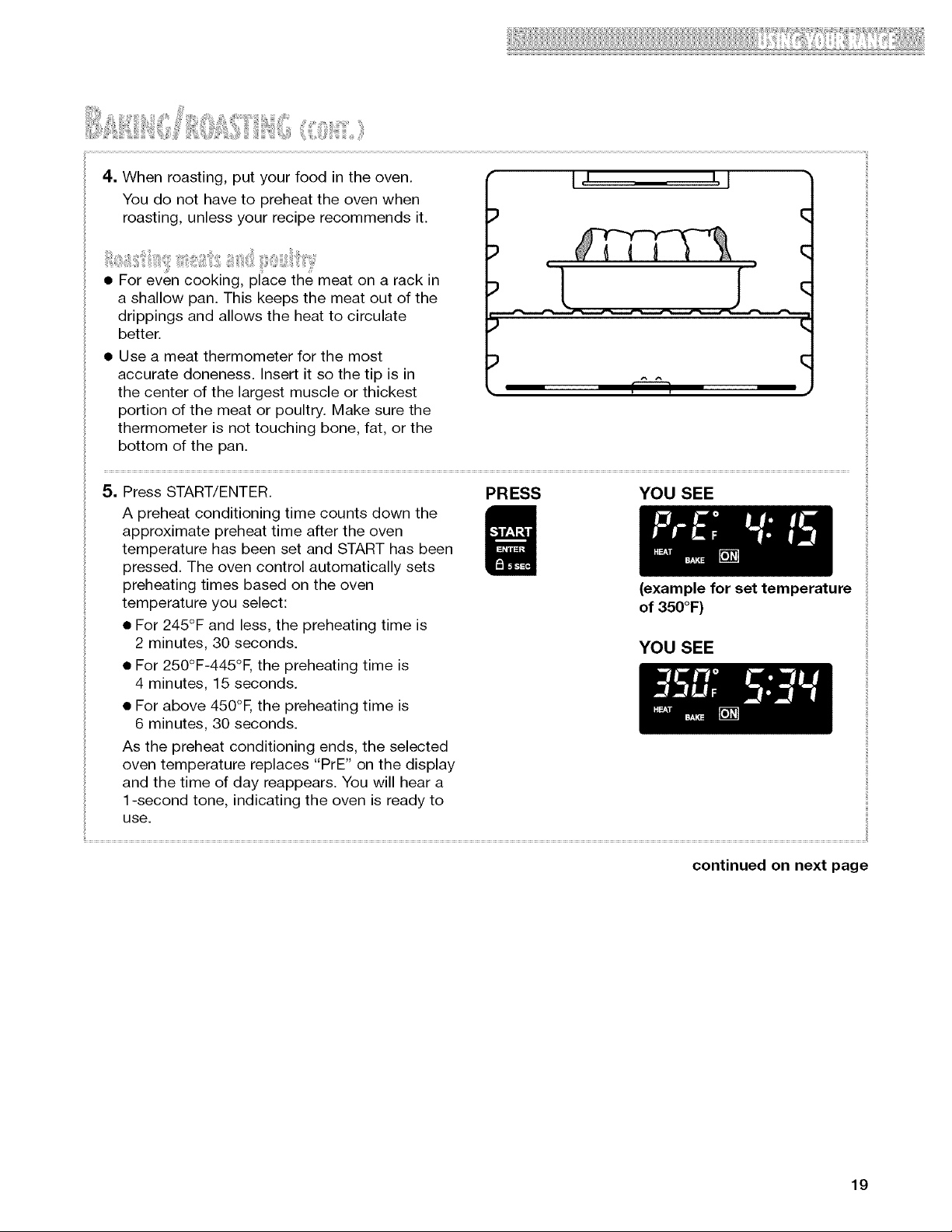

4. Whenroasting,putyourfoodin theoven.
Youdo nothaveto preheattheovenwhen
roasting,unlessyourreciperecommendsit.
i; ,t ii t 2
• For even cooking, place the meat on a rack in
a shallow pan. This keeps the meat out of the
drippings and allows the heat to circulate
better. ;_
• Use a meat thermometer for the most
accurate doneness. Insert it so the tip is in
the center of the largest muscle or thickest _.
portion of the meat or poultry. Make sure the
thermometer is not touching bone, fat, or the
bottom of the pan.
I, I I, I
q w
L J
q
q
q
5. Press START/ENTER. PRESS YOU SEE
A preheat conditioning time counts down the
approximate preheat time after the oven
temperature has been set and START has been
pressed. The oven control automatically sets
preheating times based on the oven (example for set temperature
temperature you select: of 350°F}
• For 245°F and less, the preheating time is
2 minutes, 30 seconds. YOU SEE
• For 250°F-445°F, the preheating time is
4 minutes, 15 seconds.
• For above 450°E the preheating time is
6 minutes, 30 seconds.
As the preheat conditioning ends, the selected
oven temperature replaces "PrE" on the display
and the time of day reappears. You will hear a
1-second tone, indicating the oven is ready to
use.
continued on next page
19
i!iii iiiiiii!i!!iiii ! iS!iiii !iiiiiii!iii!!i:; !;iii!!! i!
The ACCUBAKE _ system electronically regulates
the preheat time and temperature to maintain a
precise temperature range for the best cooking
results. The preheat and set temperatures may
be different at the end of the countdown. This
is normal.
NOTE: You can change the temperature setting
any time after pressing START/ENTER. You do
not have to press START/ENTER again. The
preheat time will not change if you reset the
temperature before the countdown time ends.

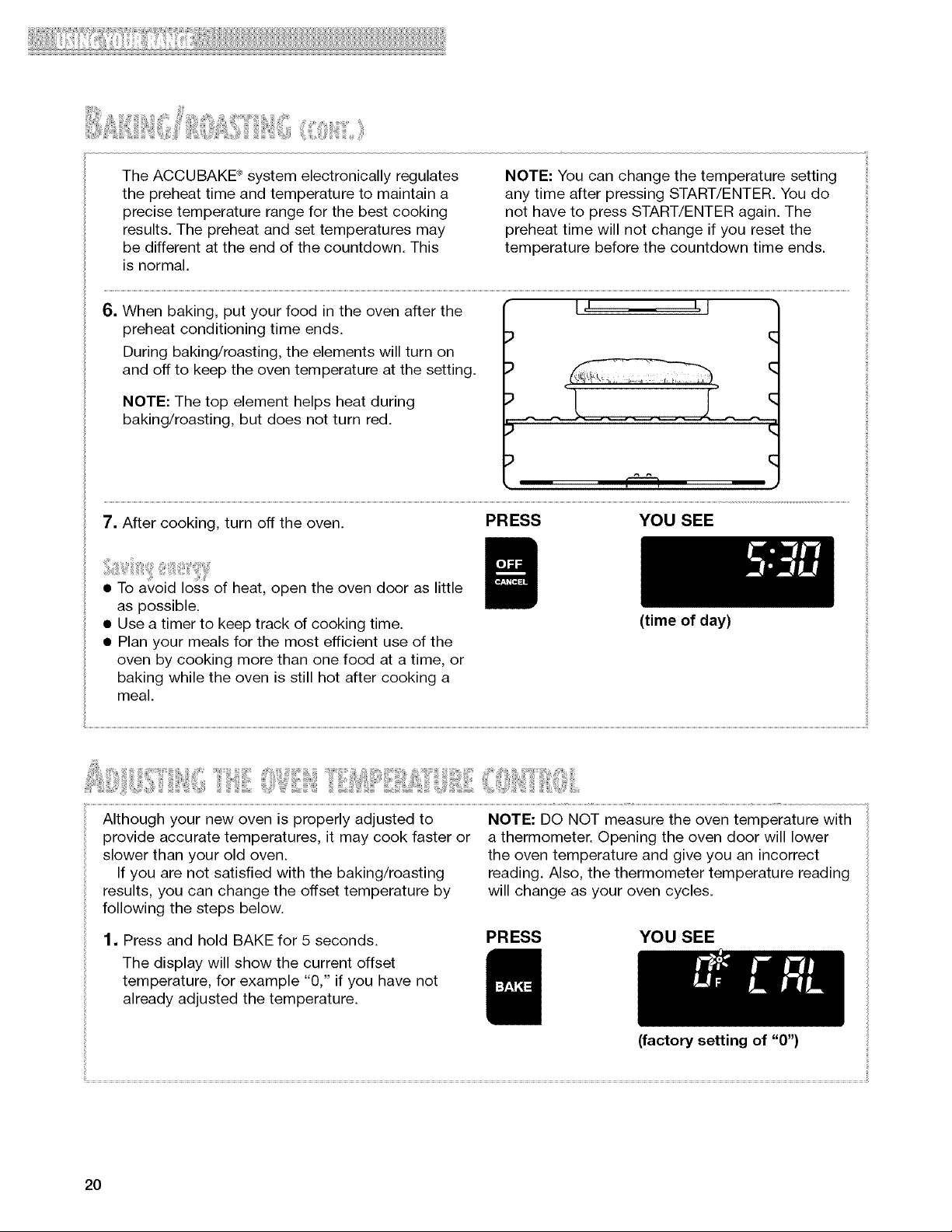

6. When baking, put your food in the oven after the r J i, J
preheat conditioning time ends.
During baking/roasting, the elements will turn on
and off to keep the oven temperature at the setting. ;2 q[
NOTE: The top element helps heat during
baking/roasting, but does not turn red.
7. After cooking, turn off the oven. PRESS YOU SEE
• To avoid loss of heat, open the oven door as little
as possible.
• Use a timer to keep track of cooking time.
• Plan your meals for the most efficient use of the
oven by cooking more than one food at a time, or
baking while the oven is still hot after cooking a
meal.
(time of day)
Although your new oven is properly adjusted to
provide accurate temperatures, it may cook faster or
slower than your old oven.
If you are not satisfied with the baking/roasting
results, you can change the offset temperature by
following the steps below.
NOTE: DO NOT measure the oven temperature with
a thermometer. Opening the oven door will lower
the oven temperature and give you an incorrect
reading. Also, the thermometer temperature reading
will change as your oven cycles.
1. Press and hold BAKE for 5 seconds.
The display will show the current offset
temperature, for example "0," if you have not
already adjusted the temperature.
PRESS YOU SEE
(factory setting of "0")
20

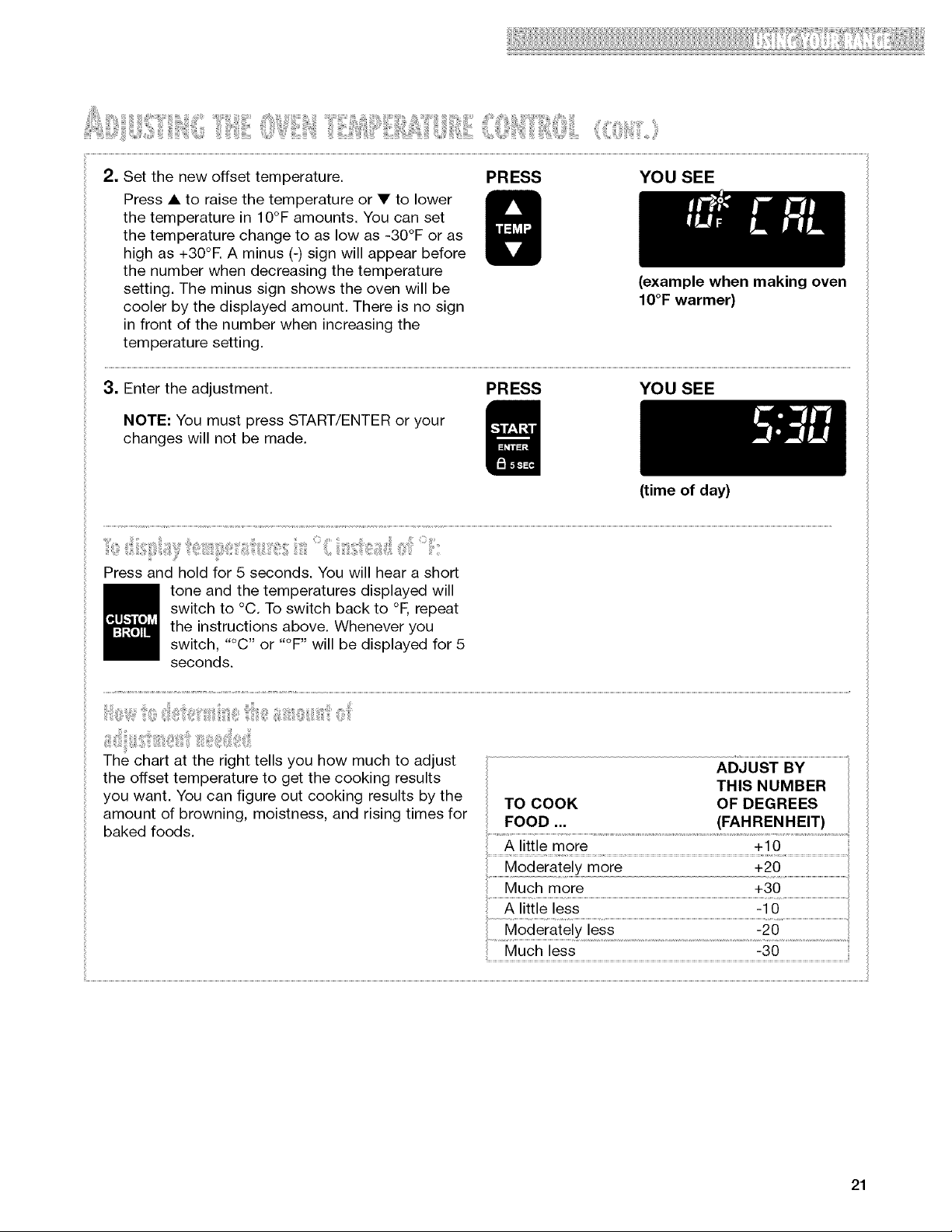

2. Setthenewoffsettemperature.
Press• to raisethetemperatureor• to lower
thetemperaturein10°Famounts.Youcanset
thetemperaturechangeto aslowas-30°Foras
highas +30°EA minus(-)signwillappearbefore
thenumberwhendecreasingthetemperature
setting.Theminussignshowstheovenwillbe
coolerbythedisplayedamount.Thereis nosign
in frontofthe numberwhenincreasingthe
temperaturesetting.
PRESS YOU SEE
(example when making oven
10°F warmer)
3. Enter the adjustment. PRESS YOU SEE
NOTE: You must press START/ENTER or your
changes will not be made.
(time of day)
Press and hold for 5 seconds. You will hear a short
tone and the temperatures displayed will
switch to °C. To switch back to °F, repeat
the instructions above. Whenever you
switch, "°C" or "°F" will be displayed for 5
seconds.
ilil_i_i_ij_i¸_iiiiii:_i_,ili!!i_i!'i!_ii'i!_i'_i!i_t_iiiiiii,i_'!i_;_,iiiiii!i_l_;,,_ii_ii_ii_i;;_iiiiiii'iii!__ily_ii:
The chart at the right tells you how much to adjust
the offset temperature to get the cooking results
you want. You can figure out cooking results by the
amount of browning, moistness, and rising times for
baked foods.
ADJUST BY
THIS NUMBER
TO COOK OF DEGREES
F°0D::-...................................................................................................................................................................................
A !ittle more .............................................................................................................................................................................................................................................................
Moderate!y more +20........................................................................
Much more +30
21
i!iii_ii!iiii!i!ii!i'ii_iiiiiii_!ili_!i;;i!!li'iiiil,i?i!!'_!i_'!'_iii?:ii_!i"i:iii/iiiiiililil_lllllllllllllllllllllllllllllllllllllllllllll_
NOTES:
• Do not preheat when broiling, unless your recipe
recommends it.
• Leave the door partly open whenever you use the
oven to broil. This lets the oven stay at the proper
temperatures.

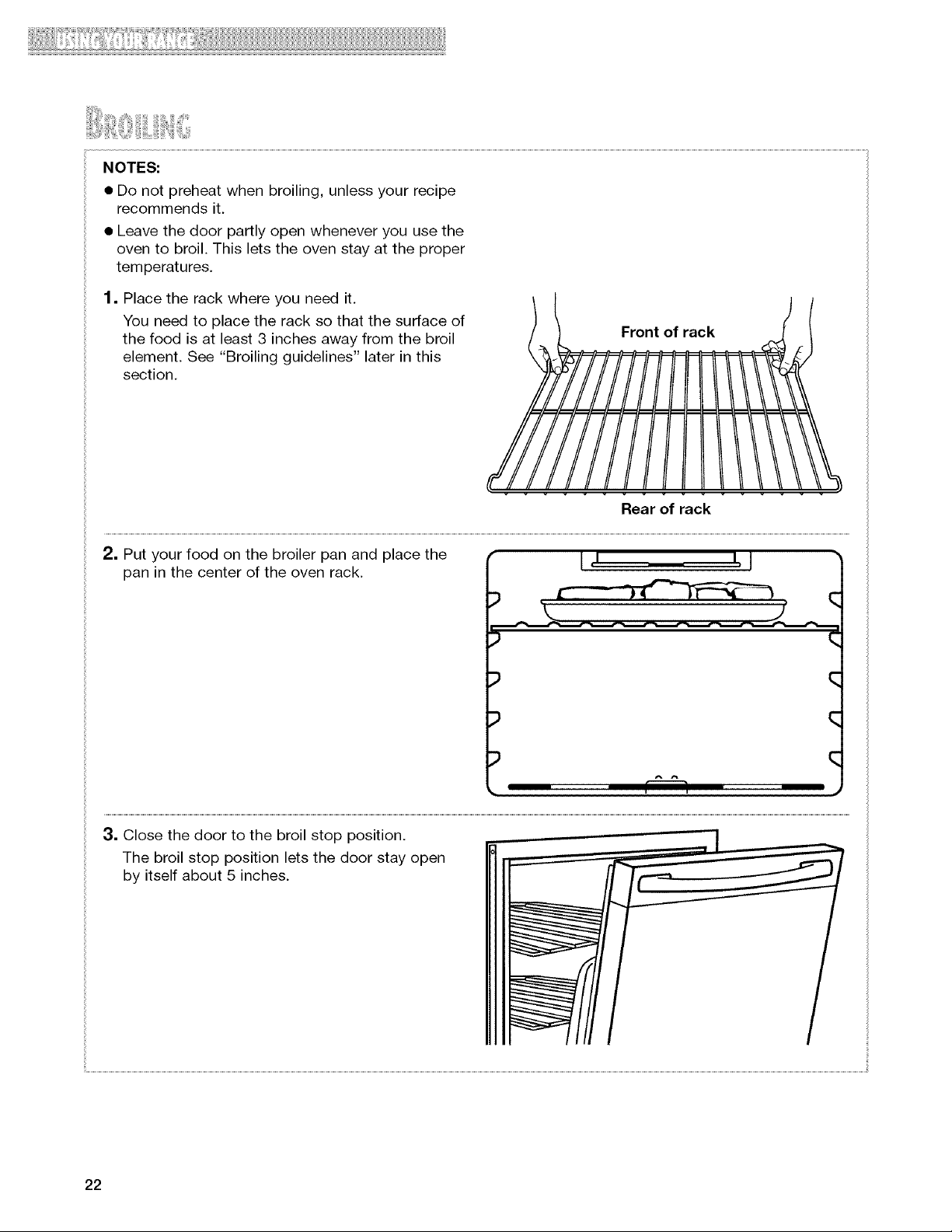

1, Place the rack where you need it.
You need to place the rack so that the surface of
the food is at least 3 inches away from the broil
element. See "Broiling guidelines" later in this
section.
Front of rack
Rear of rack
2. Put your food on the broiler pan and place the I ,I I, I
pan in the center of the oven rack.
• ,.,)'
, r-_ ,
3. Close the door to the broil stop position.
The broil stop position lets the door stay open
by itself about 5 inches.
22

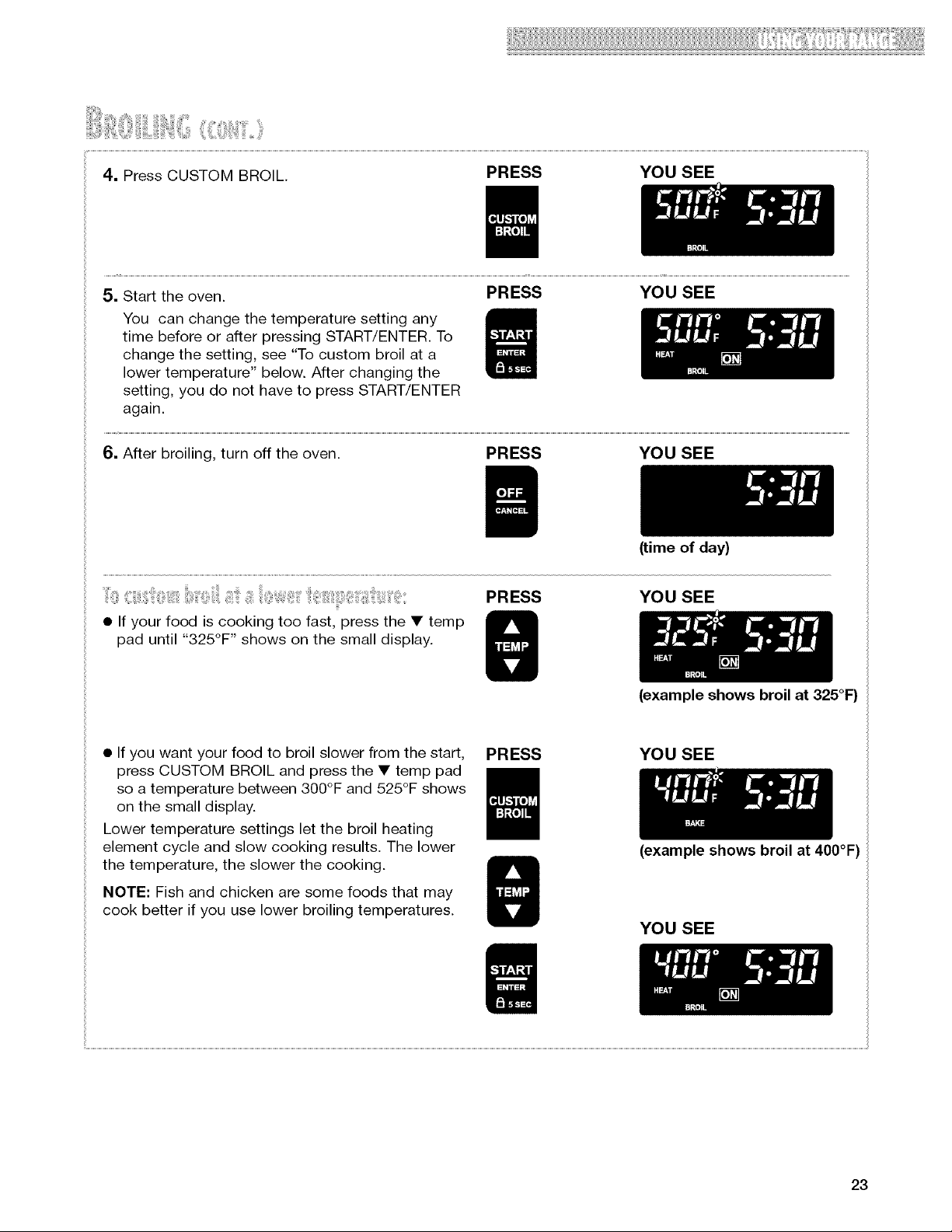

4. Press CUSTOM BROIL. PRESS YOU SEE
5. Start the oven. PRESS YOU SEE
You can change the temperature setting any
time before or after pressing START/ENTER. To
change the setting, see "To custom broil at a
lower temperature" below. After changing the
setting, you do not have to press START/ENTER
again.
6. After broiling, turn off the oven. PRESS YOU SEE
(time of day)
PRESS YOU SEE
• If your food is cooking too fast, press the • temp
pad until "325°F" shows on the small display.
(example shows broil at 325°F)
• If you want your food to broil slower from the start,
press CUSTOM BROIL and press the • temp pad
so a temperature between 300°F and 525°F shows
on the small display.
Lower temperature settings let the broil heating
element cycle and slow cooking results. The lower
the temperature, the slower the cooking.
NOTE: Fish and chicken are some foods that may
cook better if you use lower broiling temperatures.
PRESS YOU SEE
(example shows broil at 400°F)
YOU SEE
23
!iiiii!iii !i!i ! : !i :iiiIiiiiiiIiIi IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
i; lliiiiiii i!iiiii i iii,IiI,,,l iiilli::i ii : i:i i ,ilii ,:ii¸
• Use only the broiler pan and grid provided. They
are designed to drain extra juices from the
cooking surface. This drainage helps prevent
spatter and smoke.
• To make sure the juices drain well, do not cover
the grid with foil.
• Trim excess fat to reduce spattering. Slit the fat
on the edges to prevent curling.
• Use tongs to turn meat to avoid losing juices.
• Pull out oven rack to stop position before turning
or removing food.
• After broiling, remove the pan from the oven
when removing the food. Drippings will bake on
the pan if left in the heated oven, making cleaning
more difficult.
• For easier cleaning, line the bottom of the pan
with aluminum foil. Clean the pan and grid as
soon as possible after each use.

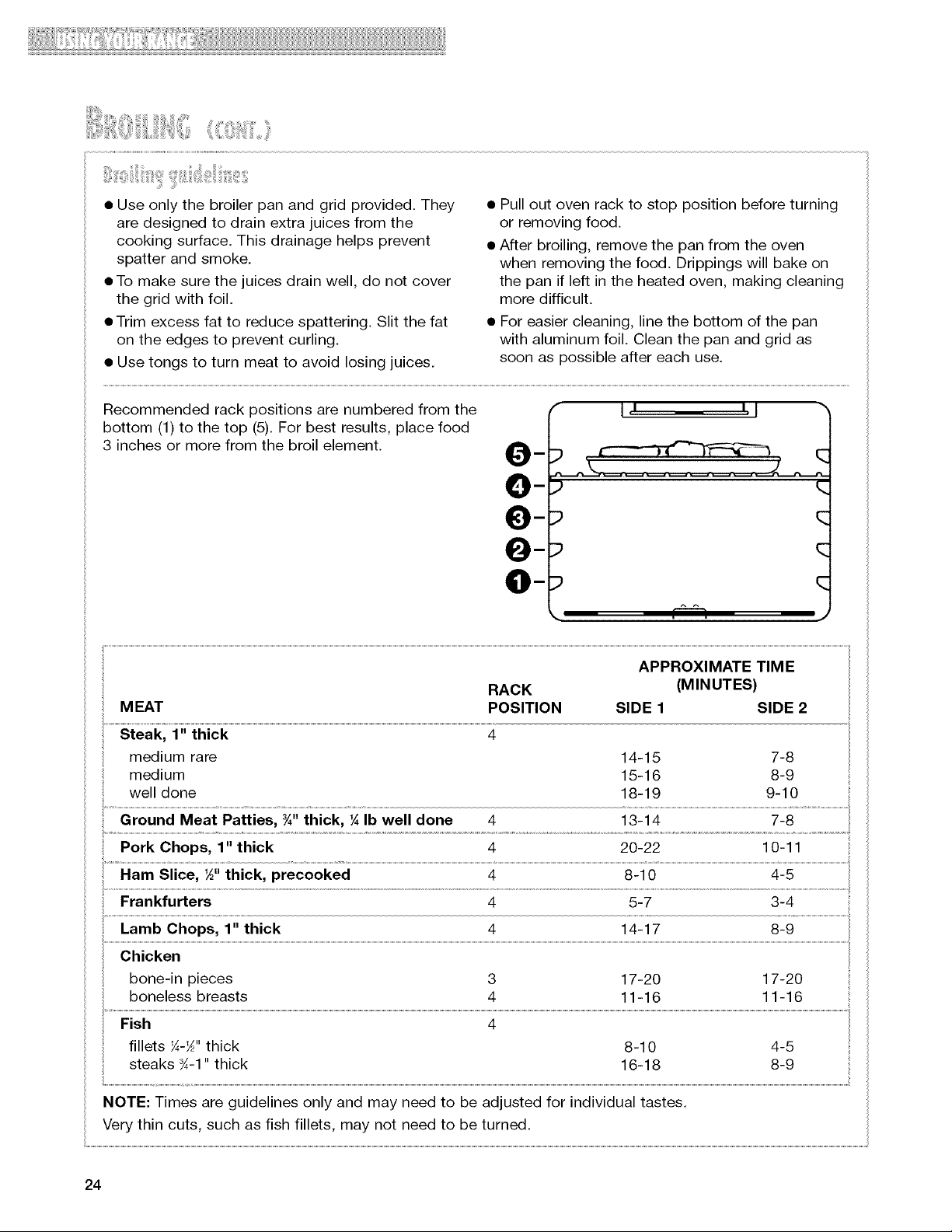

Recommended rack positions are numbered from the
bottom (1) to the top (5). For best results, place food
3 inches or more from the broil element.
m
O-
O-
O-
I, I I, I
<
<
APPROXIMATE TIME
RACK (M IN UTES)
MEAT POSITION SIDE 1 SIDE 2
medium rare
medium
well done
3 II 1
Ground Meat Patties, ¾ thick, ¼ Ib well done
Pork Chops, 1" thick
4
4
14-15 7-8
15-16 8-9
18-19 9-10
13-14
20-22
Frankfurters 4 5-7 3-4
i
Lamb Chops, 1" thick 4 14-17 8-9
bone-in pieces 3 17-20 17-20
Fish 4
fillets ¼-_" thick 8-10 4-5
steaks ¾-1" thick 16-18 8-9
NOTE: Times are guidelines only and may need to be adjusted for individual tastes.
Very thin cuts, such as fish fillets, may not need to be turned.
24

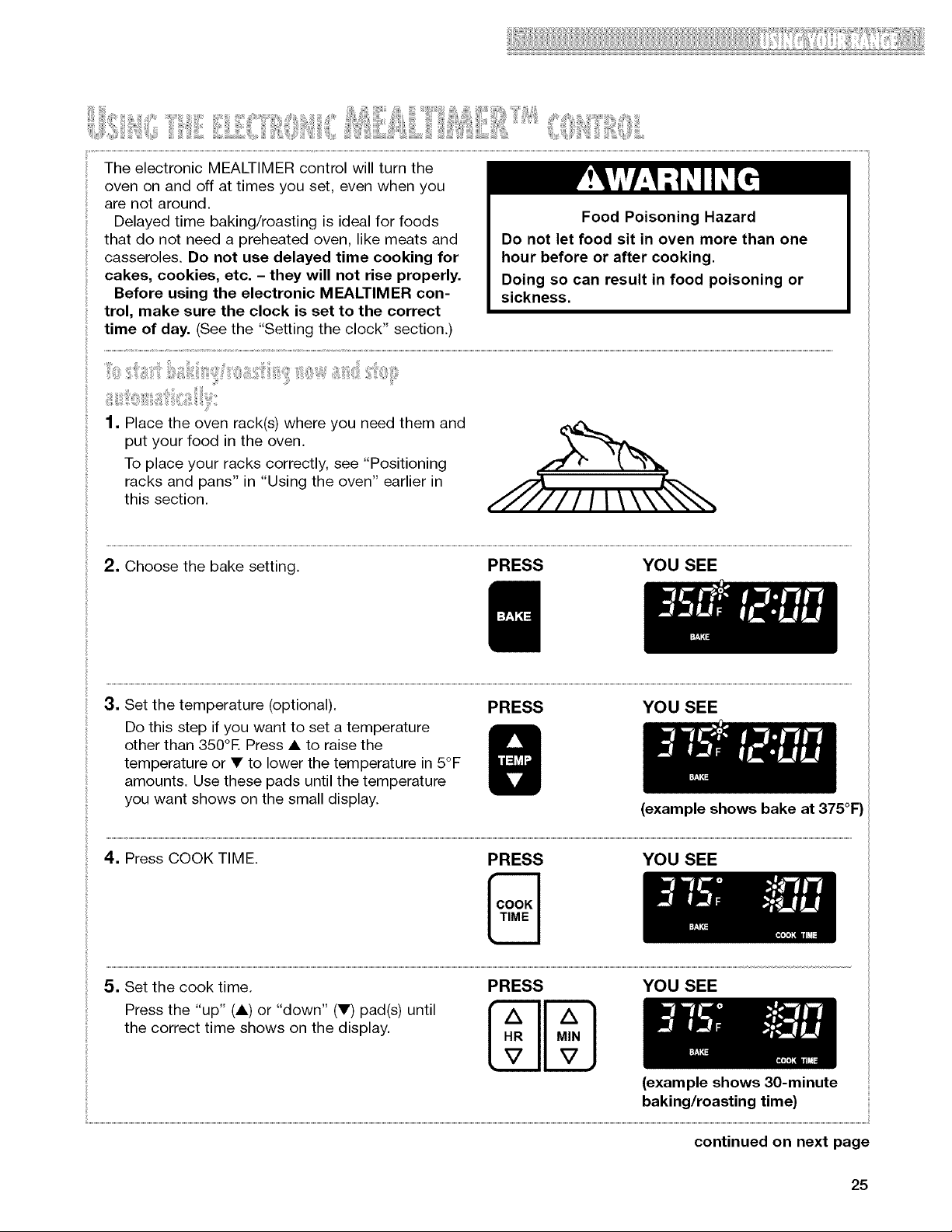

TheelectronicMEALTIMERcontrolwillturnthe
ovenonandoffat timesyouset,evenwhenyou
arenotaround.
Delayedtimebaking/roastingis idealforfoods
thatdo not needapreheatedoven,likemeatsand
casseroles.Do not use delayed time cooking for
cakes, cookies, etc. - they will not rise properly.
Before using the electronic MEALTIMER con-
trol, make sure the clock is set to the correct
time of day. (See the "Setting the clock" section.)
Food Poisoning Hazard
Do not let food sit in oven more than one
hour before or after cooking.
Doing so can result in food poisoning or
sickness.
1, Place the oven rack(s) where you need them and
put your food in the oven.
To place your racks correctly, see "Positioning
racks and pans" in "Using the oven" earlier in
this section.
2. Choose the bake setting. PRESS YOU SEE
3. Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°E Press • to raise the
temperature or • to lower the temperature in 5°F
amounts. Use these pads until the temperature
you want shows on the small display.
(example shows bake at 375°F)
4. Press COOK TIME. PRESS YOU SEE
5. Set the cook time. PRESS YOU SEE
Press the "up" (•) or "down" (•) pad(s) until ||
the correct time shows on the display.
(example shows 30-minute
baking/roasting time)
continued on next page
25
!iiiii!iii !i!i ! : !i :iiiIiiiiiiIiIi IIIIIIIIIIIIIIIIIIIIIIIIIIIIIII iiiIi i i !iiiiiii ii iiiiii ii iiiiii i! iiiiii i

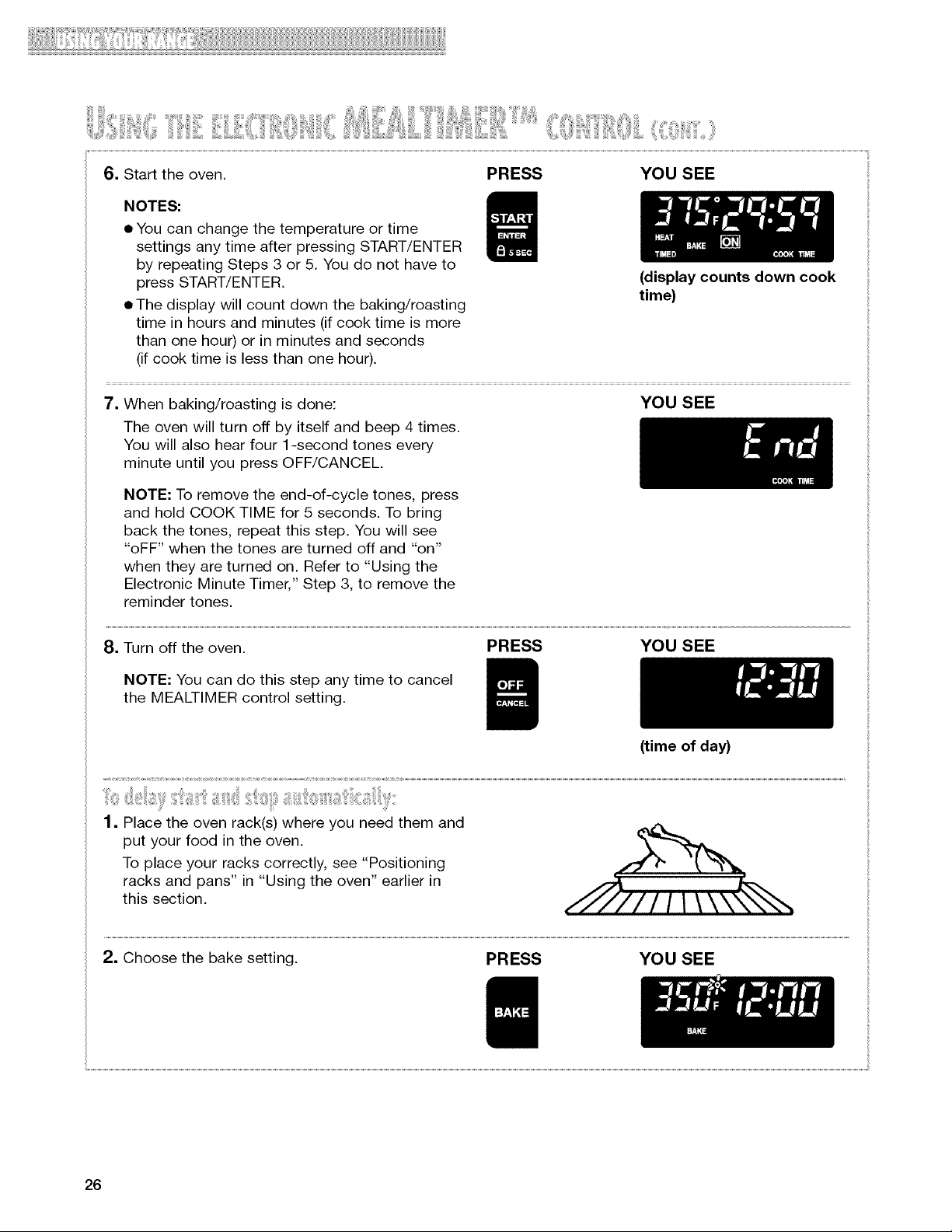

6. Start the oven. PRESS YOU SEE
NOTES:
• You can change the temperature or time
settings any time after pressing START/ENTER
by repeating Steps 3 or 5. You do not have to
press START/ENTER.
• The display will count down the baking/roasting
time in hours and minutes (if cook time is more
than one hour) or in minutes and seconds
(if cook time is less than one hour).
(display counts down cook
time)
7. When baking/roasting is done: YOU SEE
The oven will turn off by itself and beep 4 times.
You will also hear four 1-second tones every
minute until you press OFF/CANCEL.
NOTE: To remove the end-of-cycle tones, press
and hold COOK TIME for 5 seconds. To bring
back the tones, repeat this step. You will see
"oFF" when the tones are turned off and "on"
when they are turned on. Refer to "Using the
Electronic Minute Timer," Step 3, to remove the
reminder tones.
8. Turn off the oven. PRESS YOU SEE
NOTE: You can do this step any time to cancel
the MEALTIMER control setting.
(time of day)
1. Place the oven rack(s) where you need them and
put your food in the oven.
To place your racks correctly, see "Positioning
racks and pans" in "Using the oven" earlier in
this section.
2. Choose the bake setting. PRESS YOU SEE
26

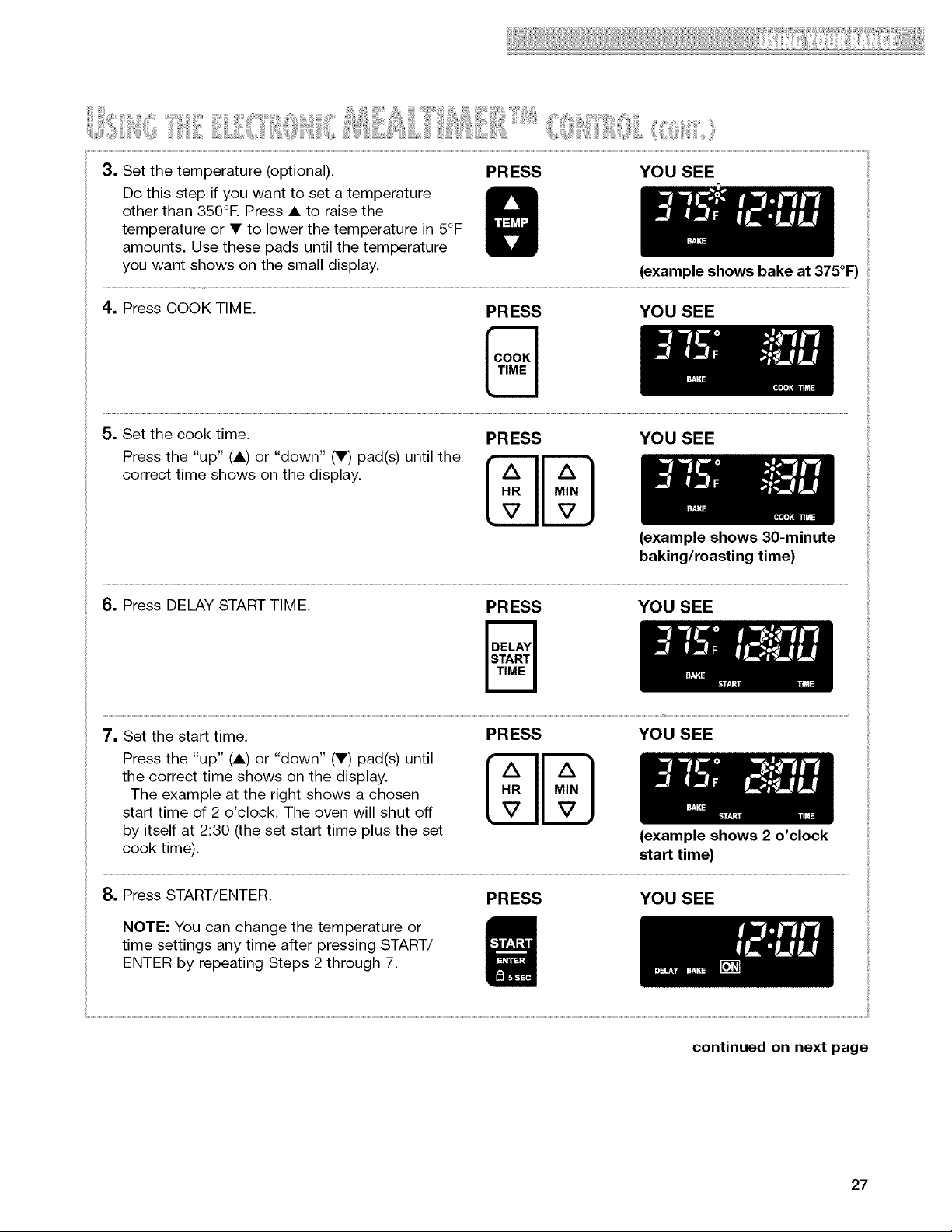

3. Set the temperature (optional). PRESS YOU SEE
Do this step if you want to set a temperature
other than 350°R Press • to raise the
temperature or • to lower the temperature in 5°F
amounts. Use these pads until the temperature
you want shows on the small display. (example shows bake at 375°F)
4, Press COOK TIME.
PRESS YOU SEE
5. Set the cook time.
Press the "up" (•) or "down" (V) pad(s) until the
correct time shows on the display.
PRESS YOU SEE
(example shows 30-minute
baking/roasting time)
6. Press DELAY START TIME.
PRESS
E
YOU SEE
7. Set the start time.
Press the "up" (•) or "down" (V) pad(s) until
the correct time shows on the display.
The example at the right shows a chosen
start time of 2 o'clock. The oven will shut off
by itself at 2:30 (the set start time plus the set
cook time).
PRESS YOU SEE
(example shows 2 o'clock
start time)
8. Press START/ENTER. PRESS YOU SEE
NOTE: You can change the temperature or
time settings any time after pressing START/
ENTER by repeating Steps 2 through 7.
continued on next page
27
_!iiiii!iii_!i!i_!_ii_i_!i_i_!_;;_!!_i_i__i_!J_i!!_!i_!_i_!_:_!i_:iiiIiiiiiiIiIi_IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII_
....i;iiiiiii!!:i:!i!iii iiil:l iiiii !,,,,i!iiiiii ¸i!i i i ¸¸ji!i!!ii ,ilSiiliiiii iil!iiiill liiii iiil;i: !i,,,il'liiiii iiiii: iii

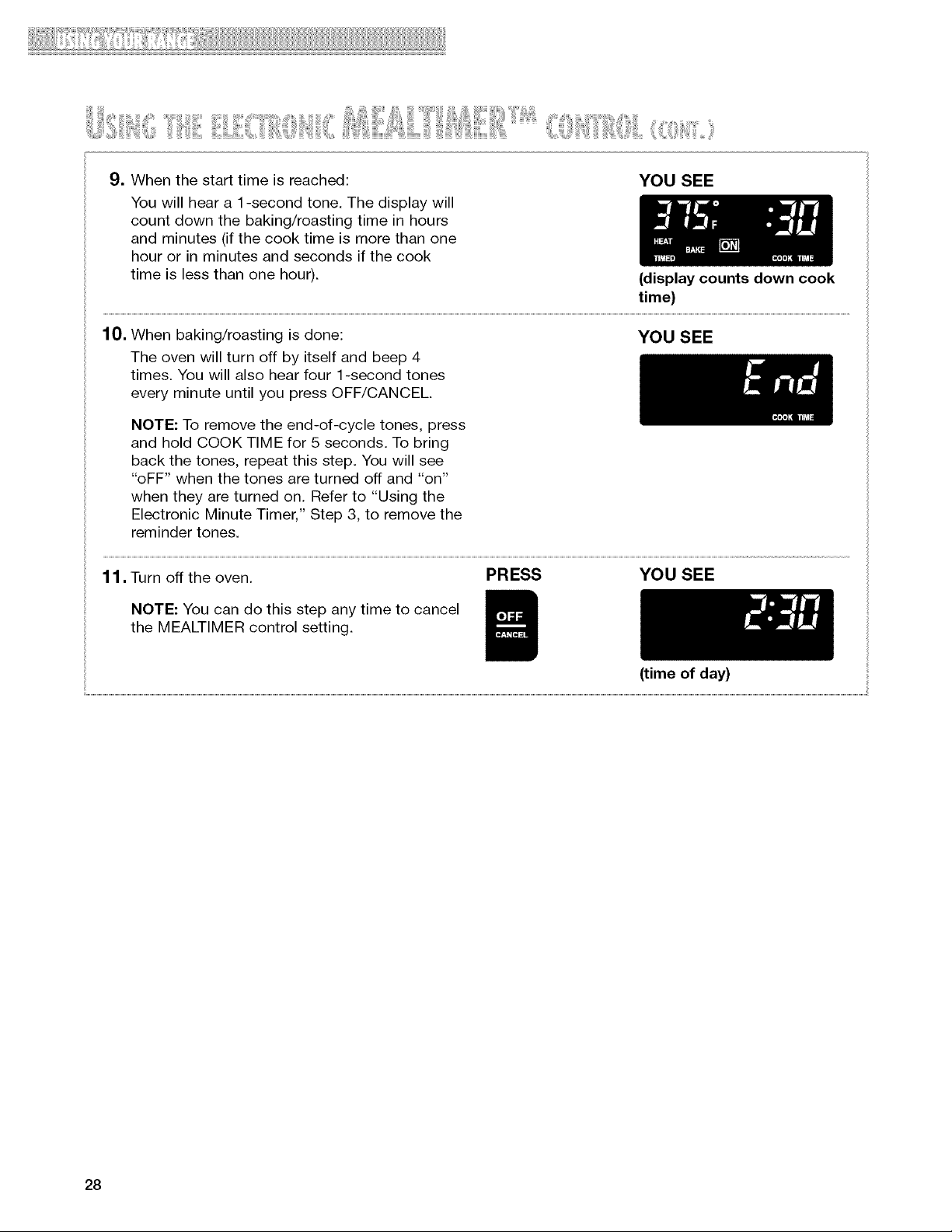

9. When the start time is reached:
You will hear a 1-second tone. The display will
count down the baking/roasting time in hours
and minutes (if the cook time is more than one
hour or in minutes and seconds if the cook
time is less than one hour).
YOU SEE
(display counts down cook
time)
10, When baking/roasting is done: YOU SEE
The oven will turn off by itself and beep 4
times. You will also hear four 1 -second tones
every minute until you press OFF/CANCEL.
NOTE: To remove the end-of-cycle tones, press
and hold COOK TIME for 5 seconds. To bring
back the tones, repeat this step. You will see
"oFF" when the tones are turned off and "on"
when they are turned on. Refer to "Using the
Electronic Minute Timer," Step 3, to remove the
reminder tones.
11. Turn off the oven. PRESS YOU SEE
NOTE: You can do this step any time to cancel
the MEALTIMER control setting.
(time of day)
28
..... l !iiiiiiiiii!iiiiiiii i ii'iiii!!!!iii,,,I, ii!i; ,iiyi:!ii!,,iii''

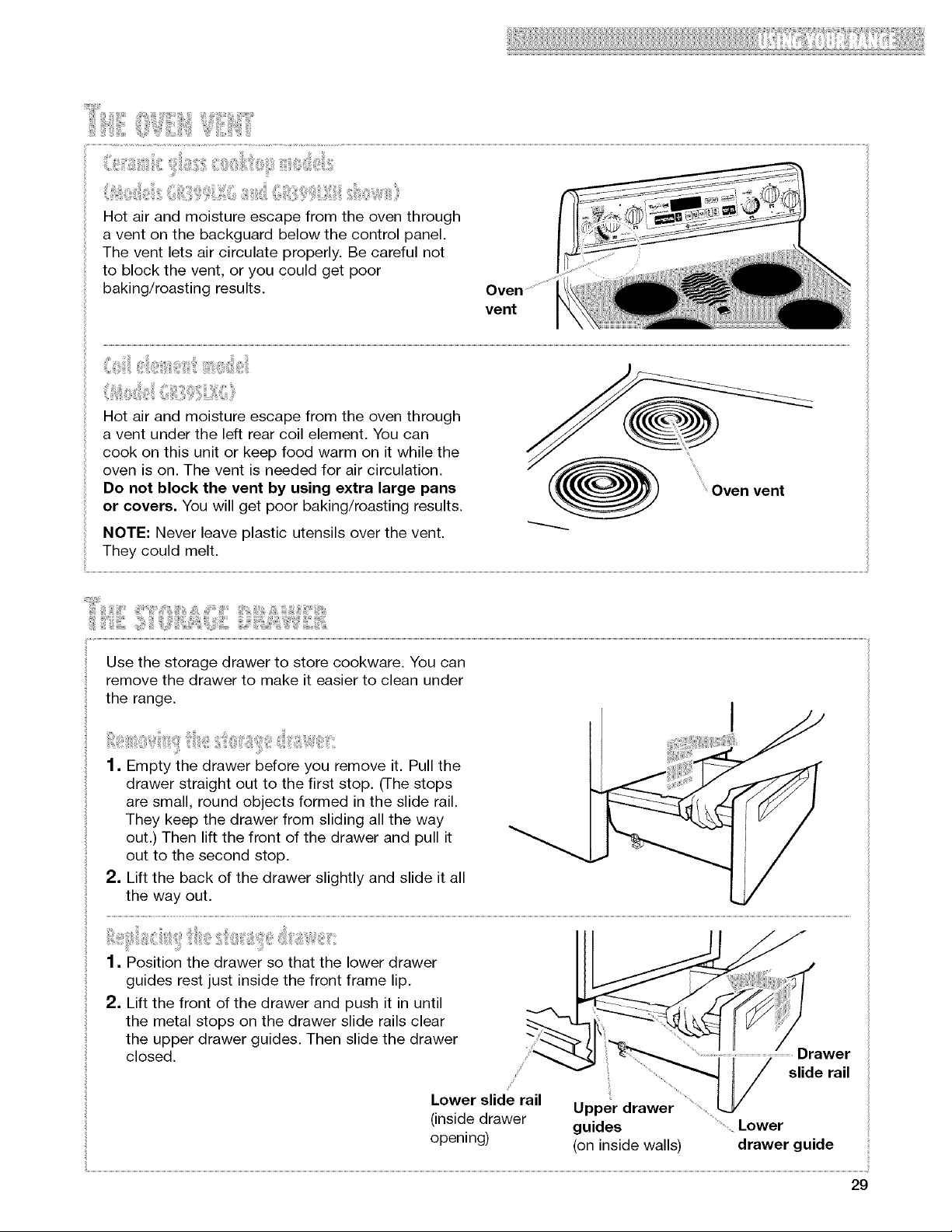

Hot air and moisture escape from the oven through
a vent on the backguard below the control panel.
The vent lets air circulate properly. Be careful not
to block the vent, or you could get poor
baking/roasting results.
vent
Hot air and moisture escape from the oven through
a vent under the left rear coil element. You can
cook on this unit or keep food warm on it while the
oven is on. The vent is needed for air circulation.
Do not block the vent by using extra large pans vent
or covers. You will get poor baking/roasting results.
NOTE: Never leave plastic utensils over the vent.
They could melt.
Use the storage drawer to store cookware. You can
remove the drawer to make it easier to clean under
the range.
1, Empty the drawer before you remove it. Pull the
drawer straight out to the first stop. (The stops
are small, round objects formed in the slide rail.
They keep the drawer from sliding all the way
out.) Then lift the front of the drawer and pull it
out to the second stop.
2, Lift the back of the drawer slightly and slide it all
the way out.
1. Position the drawer so that the lower drawer
guides rest just inside the front frame lip.
2, Lift the front of the drawer and push it in until
the metal stops on the drawer slide rails clear
the upper drawer guides. Then slide the drawer
closed.
I
Lower slide rail
Upper drawer
(inside drawer guides
opening) (on inside walls)
Drawer
slide rail
Lower
drawer guide
29

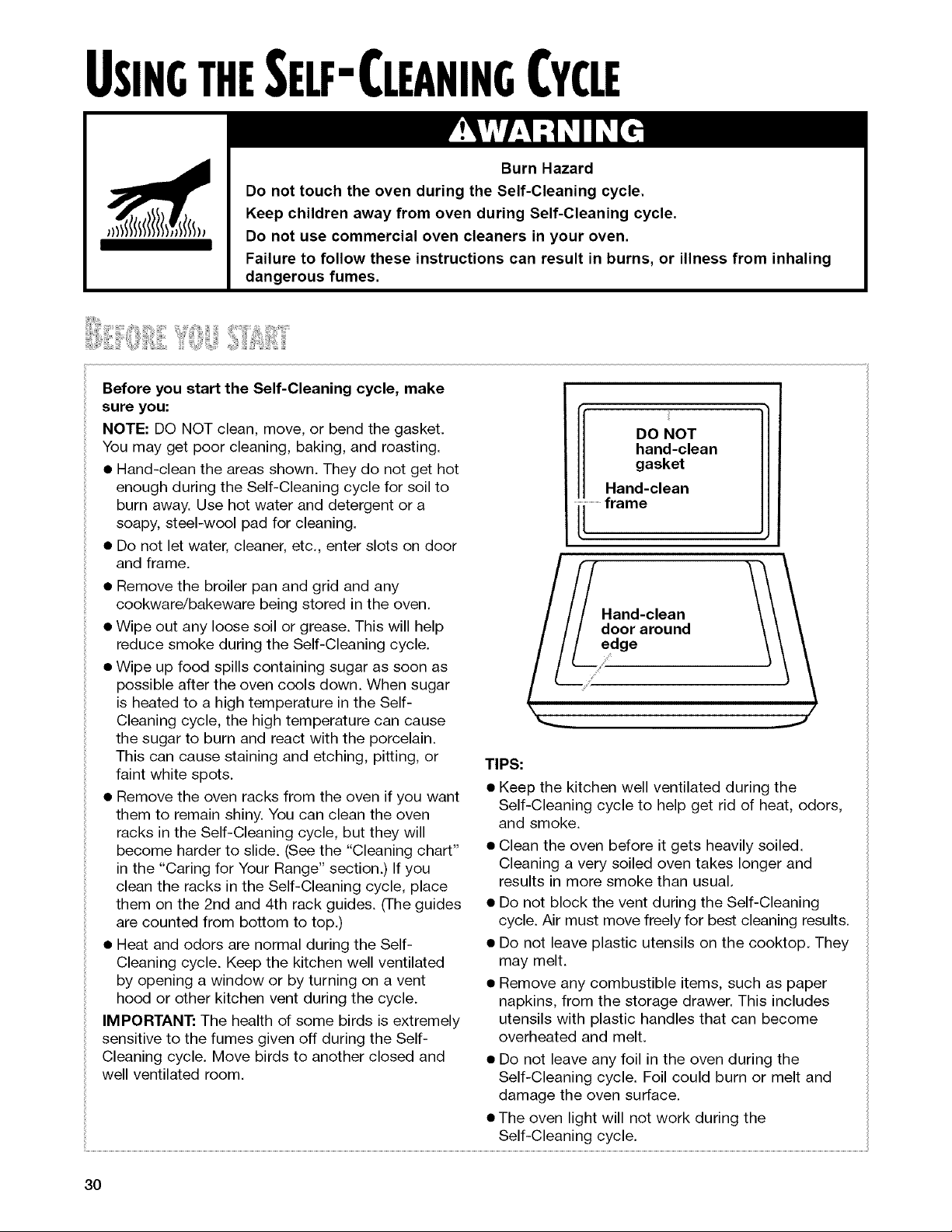

USINGTHESELF-CLEANINGCYCLE
Burn Hazard
Do not touch the oven during the Self-Cleaning cycle.
Keep children away from oven during Self-Cleaning cycle.
Do not use commercial oven cleaners in your oven.
Failure to follow these instructions can result in burns, or illness from inhaling
dangerous fumes.
ii:! !iiii!ii , liiiii iii iiiii!!?i ii'ili ii,,, i l,!!iil;'iiiii"¸¸¸¸¸¸'
Before you start the Self-Cleaning cycle, make
sure you:
NOTE: DO NOT clean, move, or bend the gasket.
You may get poor cleaning, baking, and roasting.
• Hand-clean the areas shown. They do not get hot
enough during the Self-Cleaning cycle for soil to
burn away. Use hot water and detergent or a
soapy, steel-wool pad for cleaning.
• Do not let water, cleaner, etc., enter slots on door
and frame.
• Remove the broiler pan and grid and any
cookware/bakeware being stored in the oven.
• Wipe out any loose soil or grease. This will help
reduce smoke during the Self-Cleaning cycle.
• Wipe up food spills containing sugar as soon as
possible after the oven cools down. When sugar
is heated to a high temperature in the Self-
Cleaning cycle, the high temperature can cause
the sugar to burn and react with the porcelain.
This can cause staining and etching, pitting, or
faint white spots.
• Remove the oven racks from the oven if you want
them to remain shiny. You can clean the oven
racks in the Self-Cleaning cycle, but they will
become harder to slide. (See the "Cleaning chart"
in the "Caring for Your Range" section.) If you
clean the racks in the Self-Cleaning cycle, place
them on the 2nd and 4th rack guides. (The guides
are counted from bottom to top.)
• Heat and odors are normal during the Self-
Cleaning cycle. Keep the kitchen well ventilated
by opening a window or by turning on a vent
hood or other kitchen vent during the cycle.
IMPORTANT: The health of some birds is extremely
sensitive to the fumes given off during the Self-
Cleaning cycle. Move birds to another closed and
well ventilated room.
DO NOT
hand-clean
gasket
Hand-clean
..............frame
Hand-clean
TIPS:
• Keep the kitchen well ventilated during the
Self-Cleaning cycle to help get rid of heat, odors,
and smoke.
• Clean the oven before it gets heavily soiled.
Cleaning a very soiled oven takes longer and
results in more smoke than usual.
• Do not block the vent during the Self-Cleaning
cycle. Air must move freely for best cleaning results.
• Do not leave plastic utensils on the cooktop. They
may melt.
• Remove any combustible items, such as paper
napkins, from the storage drawer. This includes
utensils with plastic handles that can become
overheated and melt.
• Do not leave any foil in the oven during the
Self-Cleaning cycle. Foil could burn or melt and
damage the oven surface.
• The oven light will not work during the
Self-Cleaning cycle.
30
!! !!

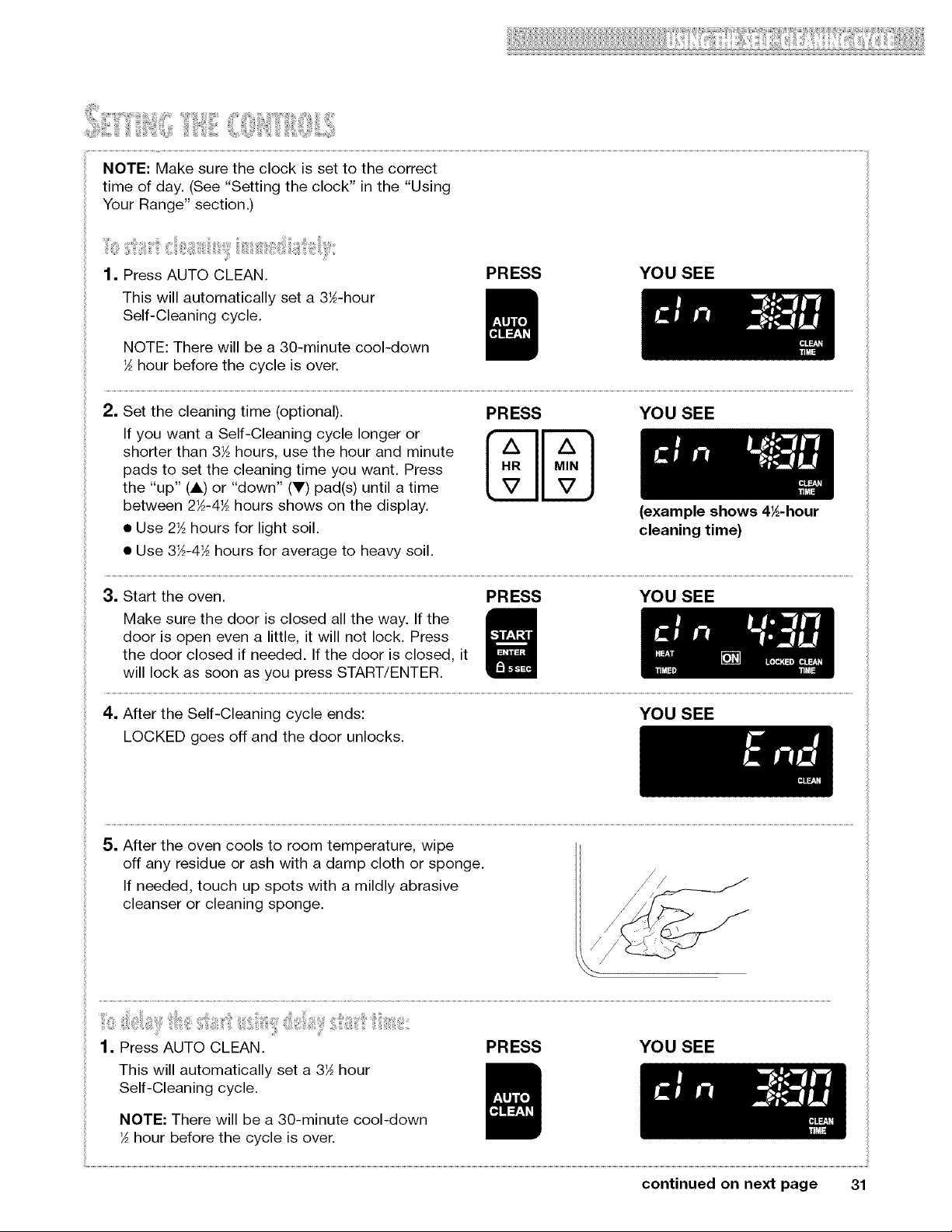

i!i!iii[I] iii',,l(ii;]liliiii!3:1:!i
NOTE: Make sure the clock is set to the correct
time of day. (See "Setting the clock" in the "Using
Your Range" section.)
1. Press AUTO CLEAN.
This will automatically set a 3_-hour
Self-Cleaning cycle.
PRESS YOU SEE
NOTE: There will be a 30-minute cool-down
hour before the cycle is over.
PRESS
mN
YOU SEE
(example shows 4½-hour
cleaning time)
2. Set the cleaning time (optional).
If you want a Self-Cleaning cycle longer or
shorter than 3_ hours, use the hour and minute
pads to set the cleaning time you want. Press
the "up" (A) or "down" (V) pad(s) until a time
between 2_-4½ hours shows on the display.
• Use 21/2hours for light soil.
• Use 3_-4_ hours for average to heavy soil.
3. Start the oven. PRESS YOU SEE
Make sure the door is closed all the way. If the
door is open even a little, it will not lock. Press
the door closed if needed. If the door is closed, it
will lock as soon as you press START/ENTER.
4. After the Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
5. After the oven cools to room temperature, wipe
off any residue or ash with a damp cloth or sponge.
If needed, touch up spots with a mildly abrasive
cleanser or cleaning sponge.
1. Press AUTO CLEAN. PRESS YOU SEE
This will automatically set a 3_ hour
Self-Cleaning cycle.
NOTE: There will be a 30-minute cool-down
hour before the cycle is over.
continued on next page 31
:¸¸ ii!ilii ii! i iillI lllllllllllllllllllllllll

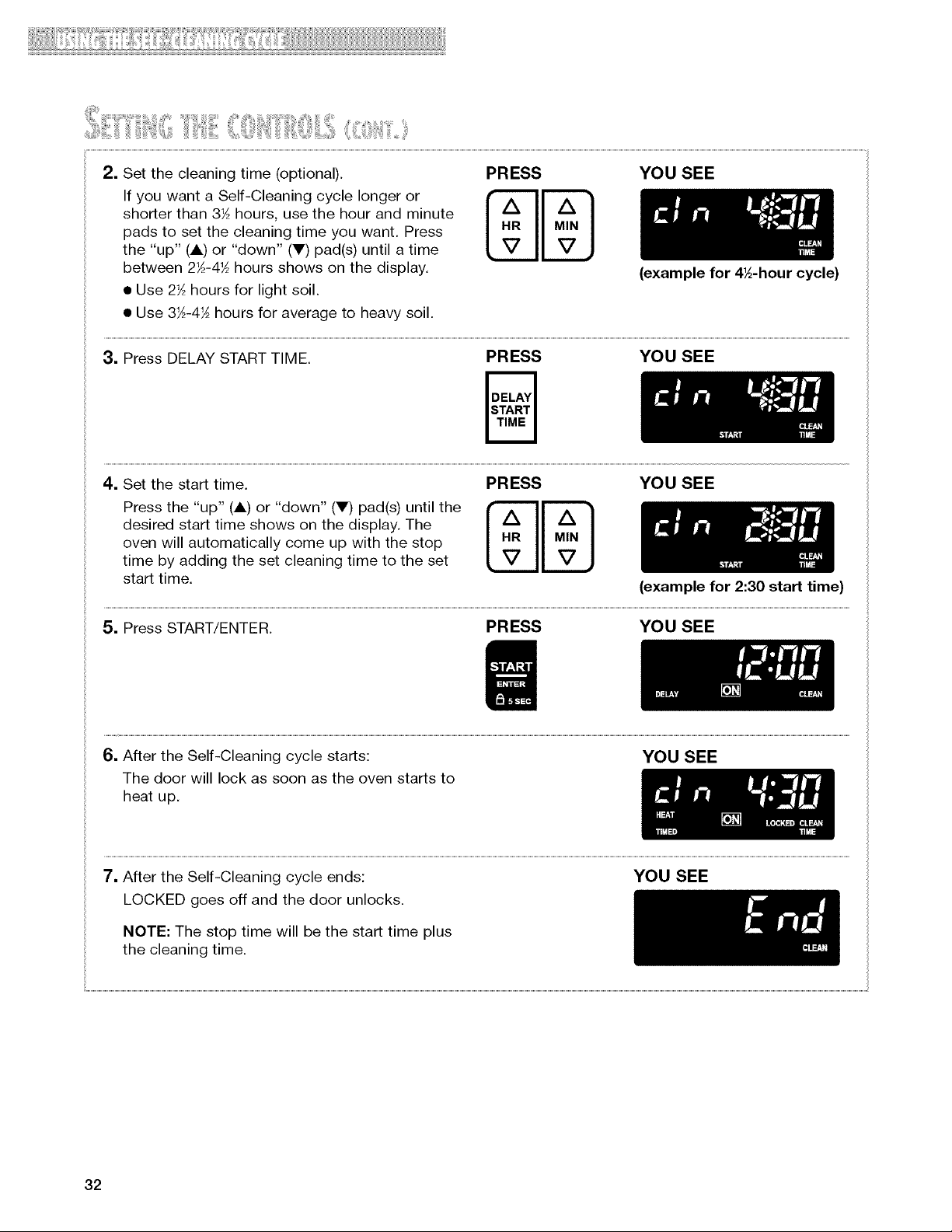

2. YOU SEE
Set the cleaning time (optional).
If you want a Self-Cleaning cycle longer or
shorter than 3_ hours, use the hour and minute
pads to set the cleaning time you want. Press
the "up" (A) or "down" (V) pad(s) until a time
between 2_-4½ hours shows on the display.
• Use 21/2hours for light soil.
• Use 3Y_-4Y_hours for average to heavy soil.
PRESS
MN
(example for 4½-hour cycle)
3. Press DELAY START TIME. PRESS YOU SEE
N
4. Set the start time.
PRESS YOU SEE
Press the "up" (A) or "down" (V) pad(s) until the
desired start time shows on the display. The
oven will automatically come up with the stop
time by adding the set cleaning time to the set
start time.
(example for 2:30 start time)
5. Press START/ENTER.
PRESS YOU SEE
6, After the Self-Cleaning cycle starts: YOU SEE
The door will lock as soon as the oven starts to
heat up.
7, After the Self-Cleaning cycle ends: YOU SEE
LOCKED goes off and the door unlocks.
NOTE: The stop time will be the start time plus
the cleaning time.
32

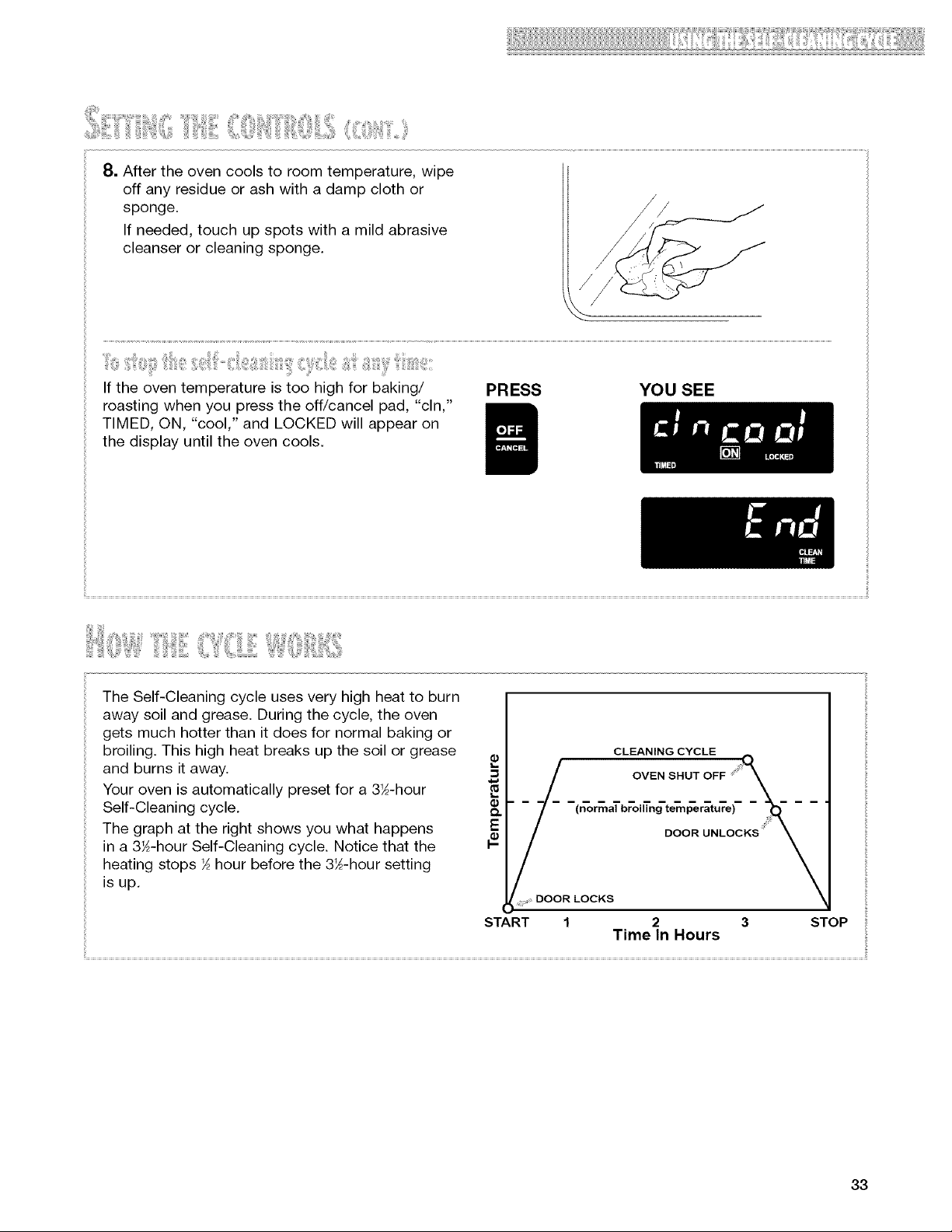

8. After the oven cools to room temperature, wipe
off any residue or ash with a damp cloth or
sponge.
If needed, touch up spots with a mild abrasive
cleanser or cleaning sponge.
If the oven temperature is too high for baking/ PRESS YOU SEE
roasting when you press the off/cancel pad, "cln,"
TIMED, ON, "cool," and LOCKED will appear on
the display until the oven cools.
l!
The Self-Cleaning cycle uses very high heat to burn
away soil and grease. During the cycle, the oven
gets much hotter than it does for normal baking or
broiling. This high heat breaks up the soil or grease
and burns it away.
Your oven is automatically preset for a 3_-hour
Self-Cleaning cycle.
The graph at the right shows you what happens
in a 3_-hour Self-Cleaning cycle. Notice that the
heating stops Y_hour before the 3_-hour setting
is up.
¢}
o.
E
CLEANING CYCLE _O_,
OVEN SHUT OFF
(norrna_ bToilTng"te_p'er_tu_e)" - ;_ - -
..... DOOR LOCKS DOOR UNLOCKS/_
START 1 2 3 STOP
Time In Hours
33

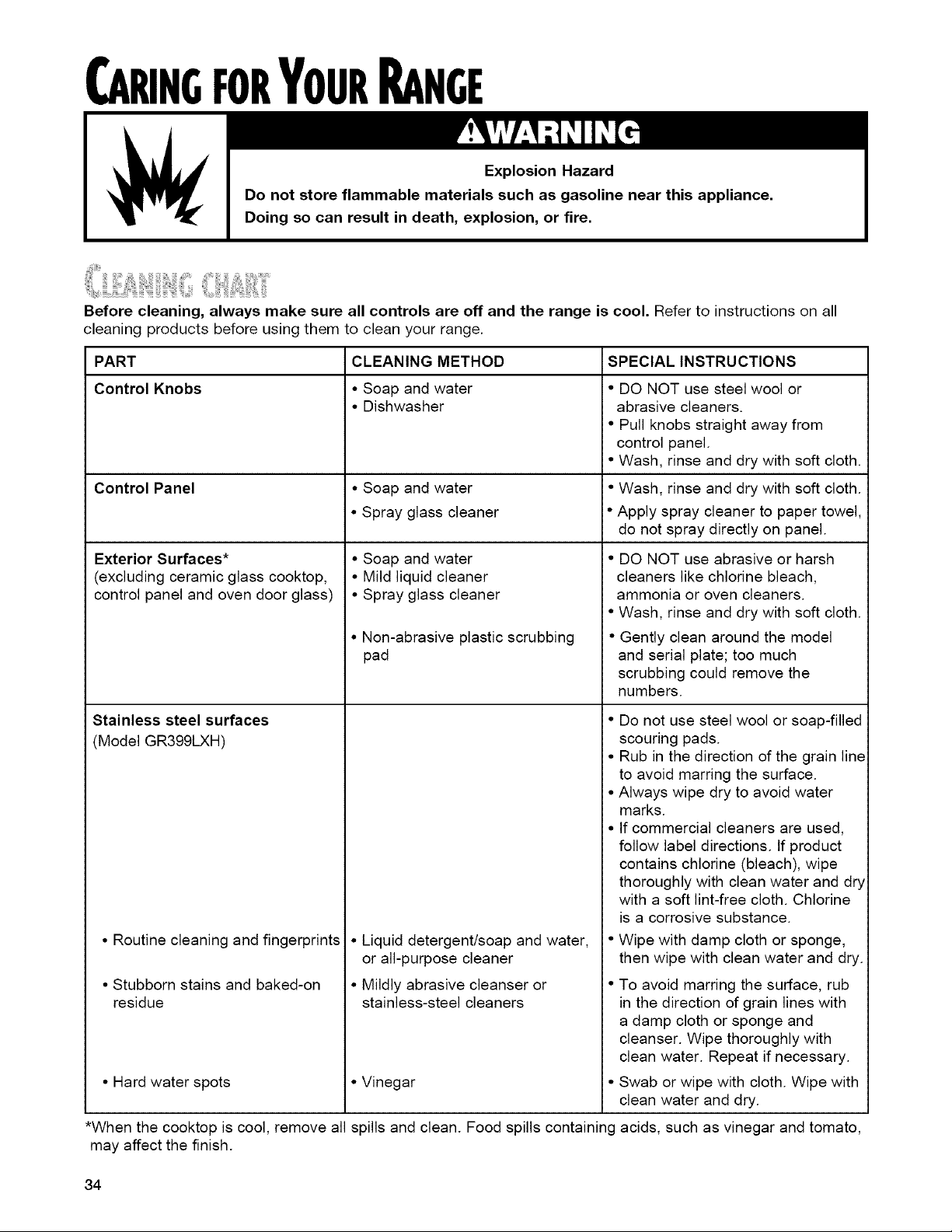

CAmNCFORYourRANCE
I _ I Explosion Hazard
Do not store flammable materials such as gasoline near this appliance.
Doing so can result in death, explosion, or fire.
Before cleaning, always make sure all controls are off and the range is cool. Refer to instructions on all
cleaning products before using them to clean your range.
PART
Control Knobs
Control Panel
Exterior Surfaces*
(excluding ceramic glass cooktop,
control panel and oven door glass)
Stainless steel surfaces
(Model GR399LXH)
• Routine cleaning and fingerprints
• Stubborn stains and baked-on
residue
CLEANING METHOD
• Soap and water
• Dishwasher
• Soap and water
• Spray glass cleaner
• Soap and water
• Mild liquid cleaner
• Spray glass cleaner
• Non-abrasive plastic scrubbing
pad
• Liquid detergent/soap and water,
or all-purpose cleaner
• Mildly abrasive cleanser or
stainless-steel cleaners
• Hard water spots • Vinegar
•When the cooktop is cool, remove all spills and clean. Food spills containing
may affect the finish.
SPECIAL INSTRUCTIONS
• DO NOT use steel wool or
abrasive cleaners.
• Pull knobs straight away from
control panel.
• Wash, rinse and dry with soft cloth.
• Wash, rinse and dry with soft cloth.
• Apply spray cleaner to paper towel,
do not spray directly on panel.
• DO NOT use abrasive or harsh
cleaners like chlorine bleach,
ammonia or oven cleaners.
• Wash, rinse and dry with soft cloth.
• Gently clean around the model
and serial plate; too much
scrubbing could remove the
numbers.
• Do not use steel wool or soap-filled
scouring pads.
• Rub in the direction of the grain line
to avoid marring the surface.
• Always wipe dry to avoid water
marks.
• If commercial cleaners are used,
follow label directions, tf product
contains chlorine (bleach), wipe
thoroughly with clean water and dry
with a soft lint-free cloth. Chlorine
is a corrosive substance.
• Wipe with damp cloth or sponge,
then wipe with clean water and dry.
• To avoid marring the surface, rub
in the direction of grain lines with
a damp cloth or sponge and
cleanser. Wipe thoroughly with
clean water. Repeat if necessary.
• Swab or wipe with cloth. Wipe with
clean water and dry.
acids, such as vinegar and tomato,
34
i!iiiiii!i!i!!, iii; iiii ,,,,l!iii!i ,iiii0i:::iil,,{:iI,B,!ii iiiii::" }

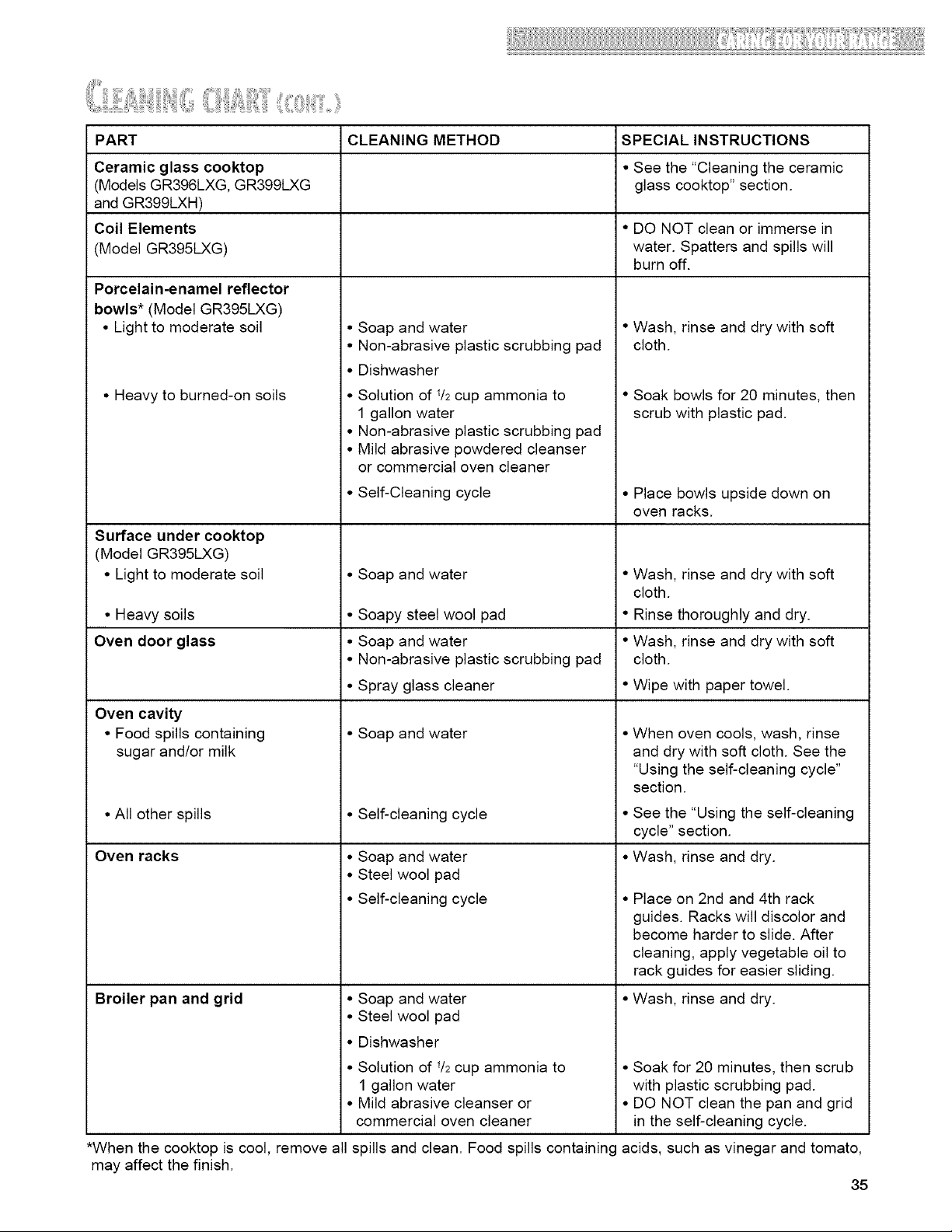

PART CLEANING METHOD SPECIAL INSTRUCTIONS
Ceramic glass cooktop • See the "Cleaning the ceramic
(Models GR396LXG, GR399LXG glass cooktop" section.
and GR399LXH)
Coil Elements • DO NOT clean or immerse in
(Model GR395LXG) water. Spatters and spills will
burn off.
Porcelain-enamel reflector
bowls* (Model GR395LXG)
• Light to moderate soil
• Heavy to burned-on soils
Surface under cooktop
(Model GR395LXG)
• Light to moderate soil
• Heavy soils
Oven door glass
Oven cavity
• Food spills containing
sugar and/or milk
• All other spills
Oven racks
Broiler pan and grid
Soap and water
Non-abrasive plastic scrubbing pad
Dishwasher
Solution of I/2 cup ammonia to
1 gallon water
Non-abrasive plastic scrubbing pad
Mild abrasive powdered cleanser
or commercial oven cleaner
Self-Cleaning cycle
• Soap and water
• Soapy steel wool pad
• Soap and water
• Non-abrasive plastic scrubbing pad
• Spray glass cleaner
• Soap and water
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Self-cleaning cycle
• Soap and water
• Steel wool pad
• Dishwasher
• Solution of I/2 cup ammonia to
1 gallon water
• Mild abrasive cleanser or
commercial oven cleaner
• Wash, rinse and dry with soft
cloth.
• Soak bowls for 20 minutes, then
scrub with plastic pad.
• Place bowls upside down on
OVeRracks.
• Wash, rinse and dry with soft
cloth.
• Rinse thoroughly and dry.
• Wash, rinse and dry with soft
cloth.
• Wipe with paper towel.
• When oven cools, wash, rinse
and dry with soft cloth. See the
"Using the self-cleaning cycle"
section.
• See the "Using the self-cleaning
cycle" section.
• Wash, rinse and dry.
• Place on 2nd and 4th rack
guides. Racks will discolor and
become harder to slide. After
cleaning, apply vegetable oil to
rack guides for easier sliding.
• Wash, rinse and dry.
• Soak for 20 minutes, then scrub
with plastic scrubbing pad.
• DO NOT clean the pan and grid
in the self-cleaning cycle.
*When the cooktop is cool, remove all spills and clean. Food spills containing acids, such as vinegar and tomato,
may affect the finish.
35

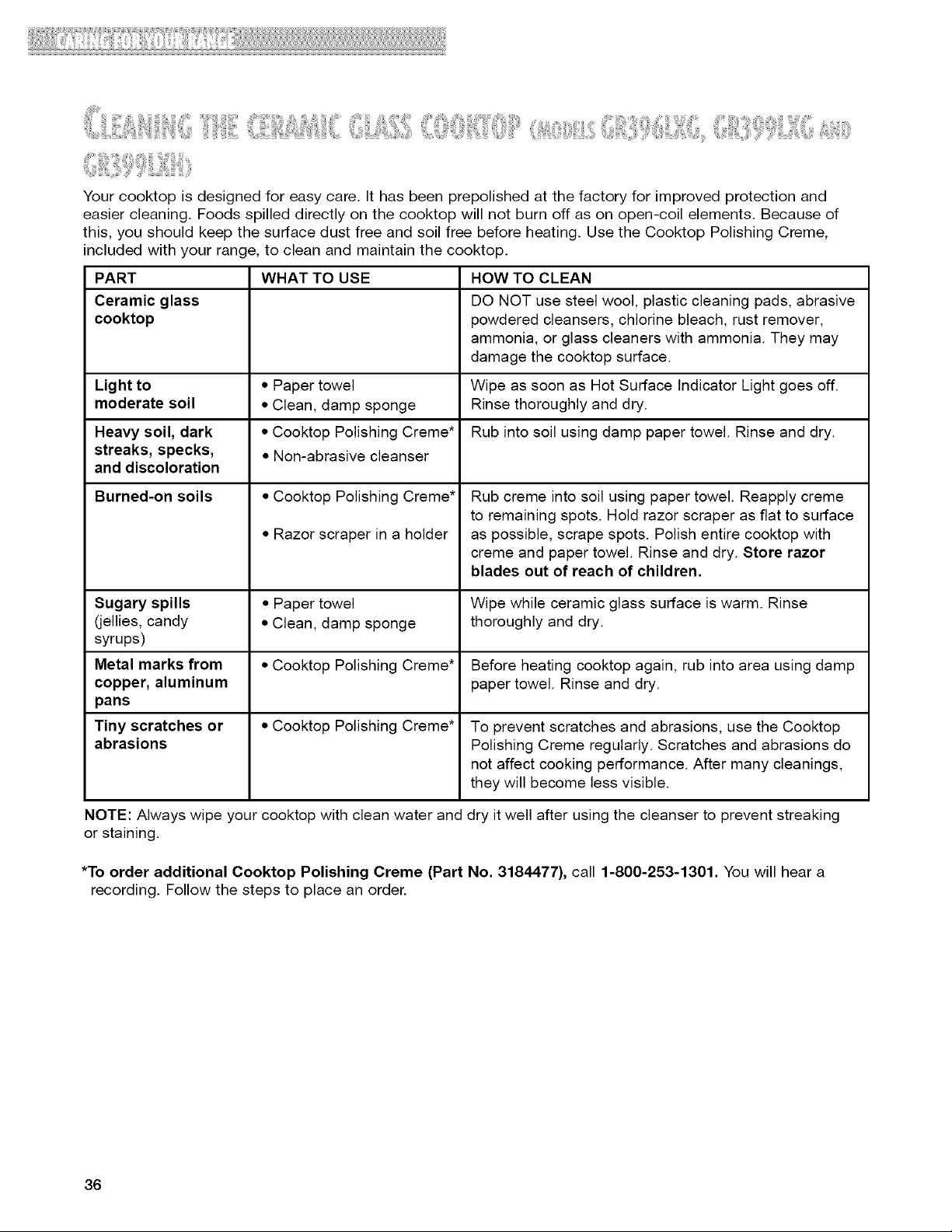

!ilii!!i!ili!!!!!!i]iii!i!i!!iiiiiii!]!!i!]i_!i!_!!!!!ii!ii!i:i!i!i!iii!!i:;!;i_]!!;]i]!!] !!!!!!!
Your cooktop is designed for easy care. It has been prepolished at the factory for improved protection and
easier cleaning. Foods spilled directly on the cooktop will not burn off as on open-coil elements. Because of
this, you should keep the surface dust free and soil free before heating. Use the Cooktop Polishing Creme,
included with your range, to clean and maintain the cooktop.
PART WHAT TO USE HOW TO CLEAN
Ceramic glass DO NOT use steel wool, plastic cleaning pads, abrasive
cooktop powdered cleansers, chlorine bleach, rust remover,
ammonia, or glass cleaners with ammonia. They may
damage the cooktop surface.
Light to • Paper towel Wipe as soon as Hot Surface Indicator Light goes off.
moderate soil • Clean, damp sponge Rinse thoroughly and dry.
Heavy soil, dark * Cooktop Polishing Creme* Rub into soil using damp paper towel. Rinse and dry.
streaks, specks, * Non-abrasive cleanser
and discoloration
Burned-on soils
Sugary spills
(jellies, candy
syrups)
Metal marks from
copper, aluminum
pans
Tiny scratches or
abrasions
• Cooktop Polishing Creme*
• Razor scraper in a holder
• Paper towel
• Clean, damp sponge
• Cooktop Polishing Creme*
• Cooktop Polishing Creme*
Rub creme into soil using paper towel. Reapply creme
to remaining spots. Hold razor scraper as flat to surface
as possible, scrape spots. Polish entire cooktop with
creme and paper towel. Rinse and dry. Store razor
blades out of reach of children.
Wipe while ceramic glass surface is warm. Rinse
thoroughly and dry.
Before heating cooktop again, rub into area using damp
paper towel. Rinse and dry.
To prevent scratches and abrasions, use the Cooktop
Polishing Creme regularly. Scratches and abrasions do
not affect cooking performance. After many cleanings,
they will become less visible.
NOTE: Always wipe your cooktop with clean water and dry it well after using the cleanser to prevent streaking
or staining.
*To order additional Cooktop Polishing Creme (Part No. 3184477), call 1-800-253-1301. You will hear a
recording. Follow the steps to place an order.
36

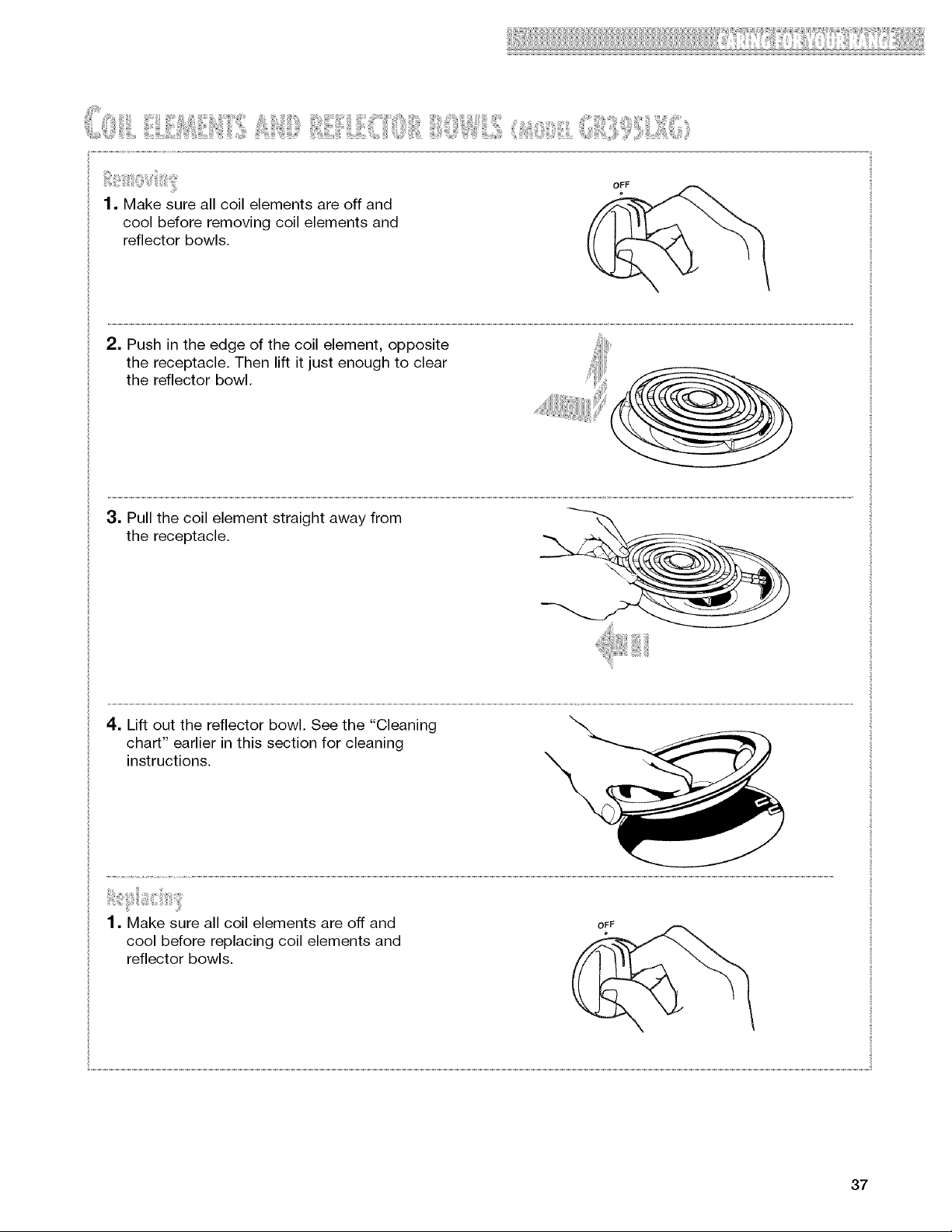

1i
ii
OFF
1. Make sure all coil elements are off and
cool before removing coil elements and
reflector bowls.
2. Push in the edge of the coil element, opposite
the receptacle. Then lift it just enough to clear
the reflector bowl.
!
!
!
!
!
!
1. Make sure all coil elements are off and
cool before replacing coil elements and
reflector bowls.
ii
ii
ii
37
i!!!!!!iiii!!_!iiii!i!i!!iiiiiii!iii!!!!i!i;!i:!i!_!!!!!ii!ii!i;:!i!iii!iii!!ii;i!;i_iii_ii!!!;iii!!!iii!i!!!!iii!!!!i!!!!!_!_!_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

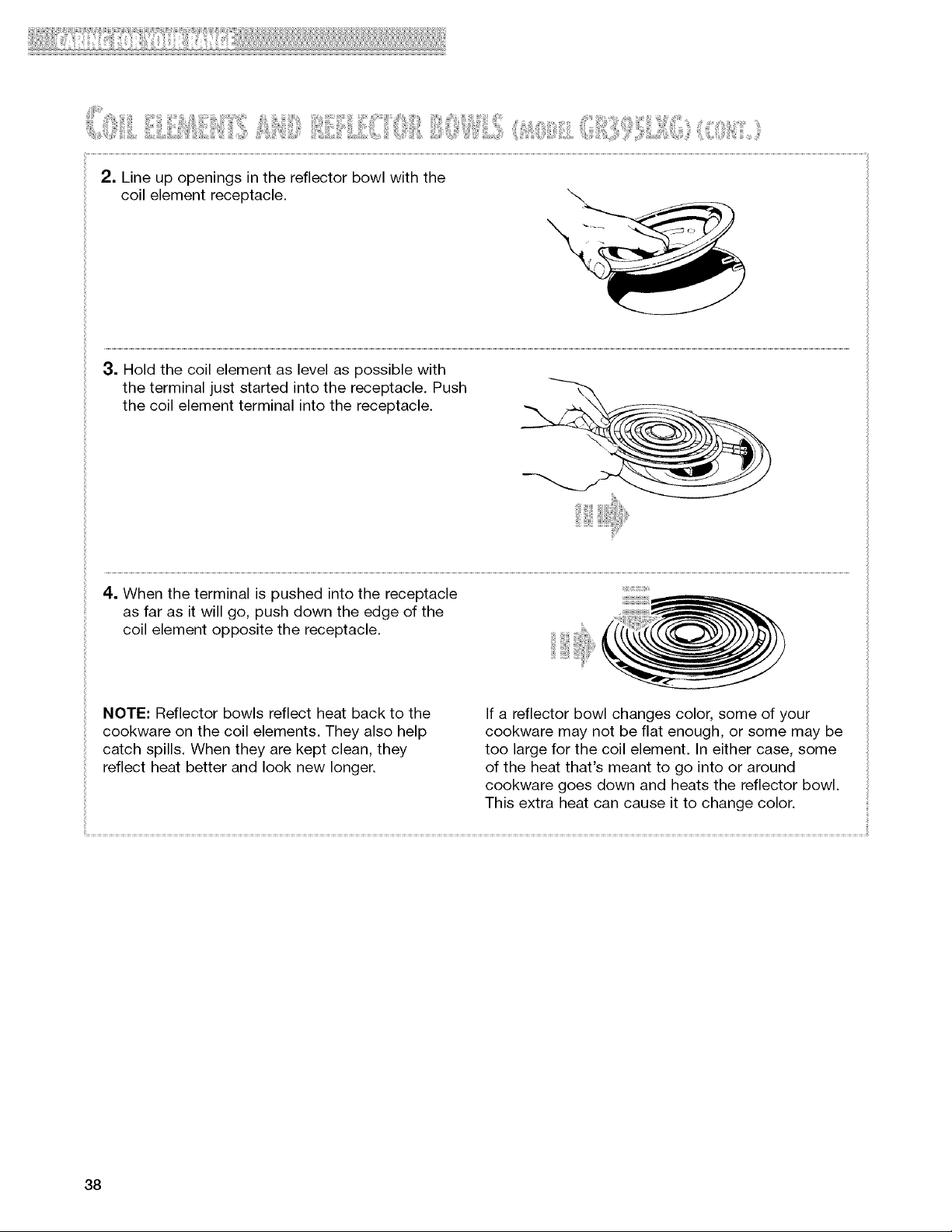

2. Line up openings in the reflector bowl with the
coil element receptacle. \
3. Hold the coil element as level as possible with
the terminal just started into the receptacle. Push
the coil element terminal into the receptacle.
4. When the terminal is pushed into the receptacle
as far as it will go, push down the edge of the
coil element opposite the receptacle.
NOTE: Reflector bowls reflect heat back to the
cookware on the coil elements. They also help
catch spills. When they are kept clean, they
reflect heat better and look new longer.
If a reflector bowl changes color, some of your
cookware may not be flat enough, or some may be
too large for the coil element. In either case, some
of the heat that's meant to go into or around
cookware goes down and heats the reflector bowl.
This extra heat can cause it to change color.
38

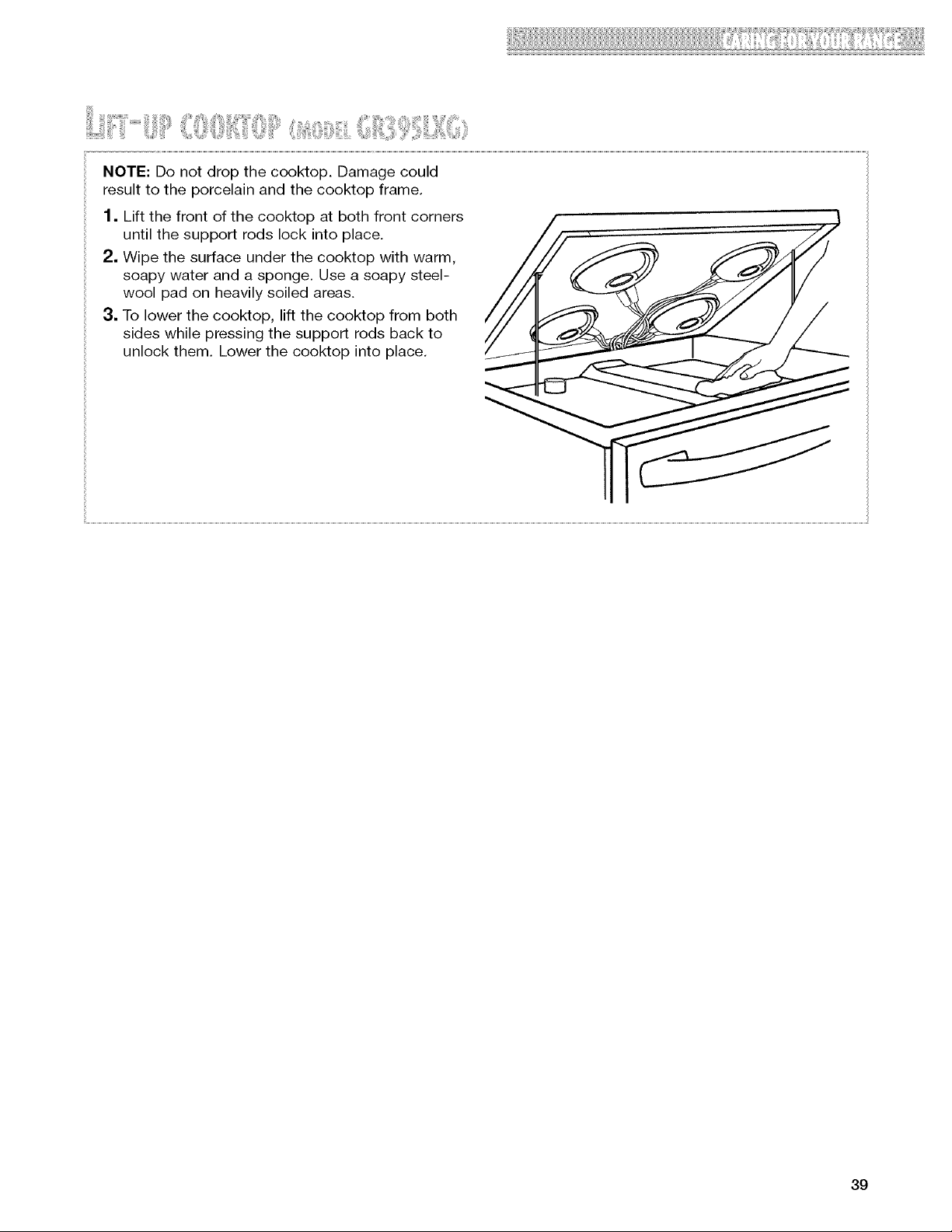

!]Iiii_i'='¸'¸'¸'!t!!!il_'_()i]i()iI]()i,'_'¸'!i_i!_,_'!ii_ili_i:_i!iiL(ii_i!Y!!!_!ii!_!!il!iXi])
NOTE: Do not drop the cooktop. Damage could
result to the porcelain and the cooktop frame.
1. Lift the front of the cooktop at both front corners
until the support rods lock into place.
2. Wipe the surface under the cooktop with warm,
soapy water and a sponge. Use a soapy steel-
wool pad on heavily soiled areas.
3. To lower the cooktop, lift the cooktop from both
sides while pressing the support rods back to
unlock them. Lower the cooktop into place.
39
i:;i ]llii!!:i:!i()ii'lii!i!l!,,!i]i()()l:il

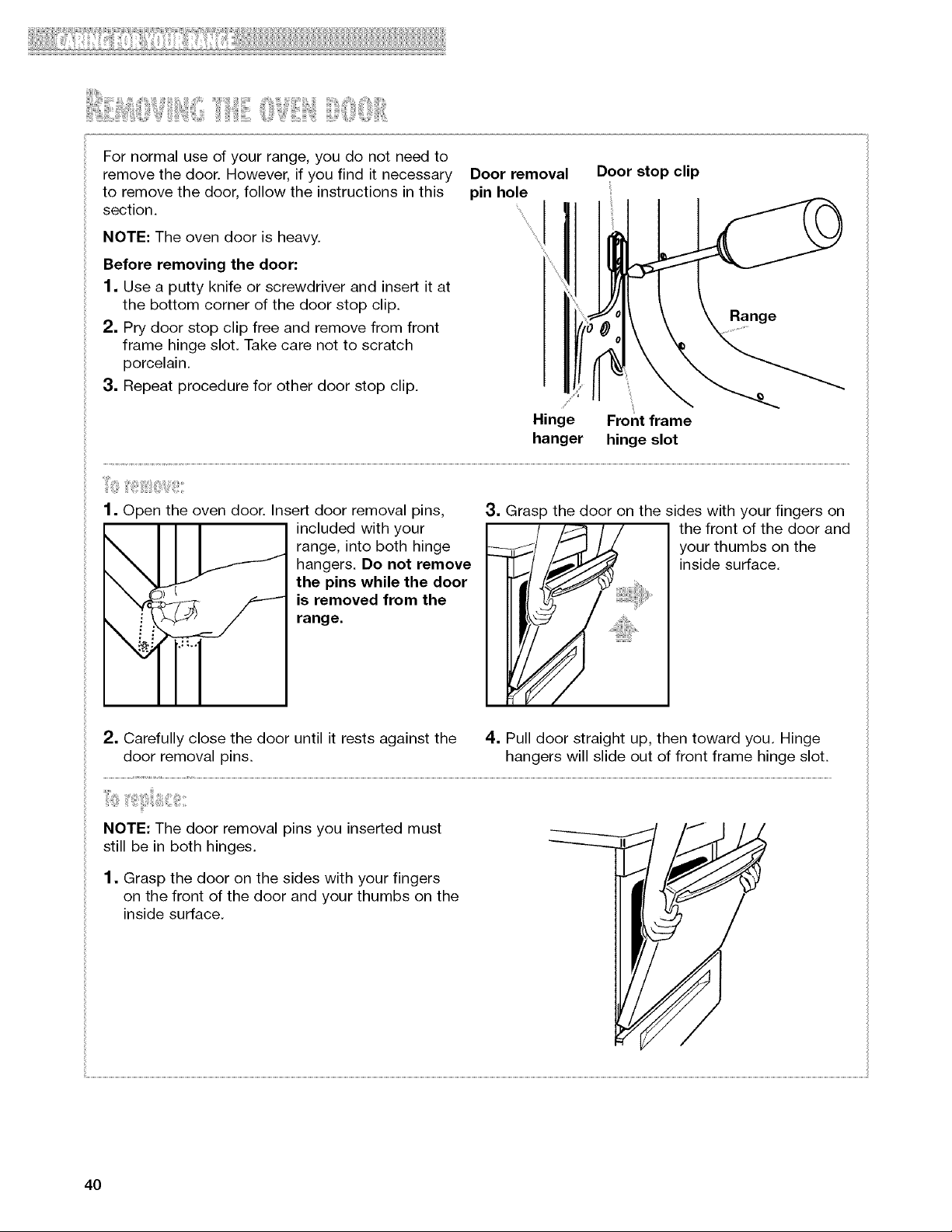

For normal use of your range, you do not need to
remove the door. However, if you find it necessary
to remove the door, follow the instructions in this
section.
NOTE: The oven door is heavy.
Before removing the door:
1. Use a putty knife or screwdriver and insert it at
the bottom corner of the door stop clip.
2. Pry door stop clip free and remove from front
frame hinge slot. Take care not to scratch
porcelain,
3. Repeat procedure for other door stop clip,
Door removal
pin hole
!
+
li,
Hinge
hanger
Door stop clip
Front frame
hinge slot
Range
1. Open the oven door. Insert door removal pins,
included with your
range, into both hinge
hangers. Do not remove
the pins while the door
is removed from the
range.
3. Grasp the door on the sides with your fingers on
the front of the door and
your thumbs on the
inside surface,
2. Carefully close the door until it rests against the 4. Pull door straight up, then toward you, Hinge
door removal pins. hangers will slide out of front frame hinge slot.
NOTE: The door removal pins you inserted must
still be in both hinges.
1. Grasp the door on the sides with your fingers
on the front of the door and your thumbs on the
inside surface,
40
......iiiiii!iiiiii ! !!i{X!iiiiiii!!!iii, ii2iiil},i i:Xiiiiii!i iil;(i ixsliixi

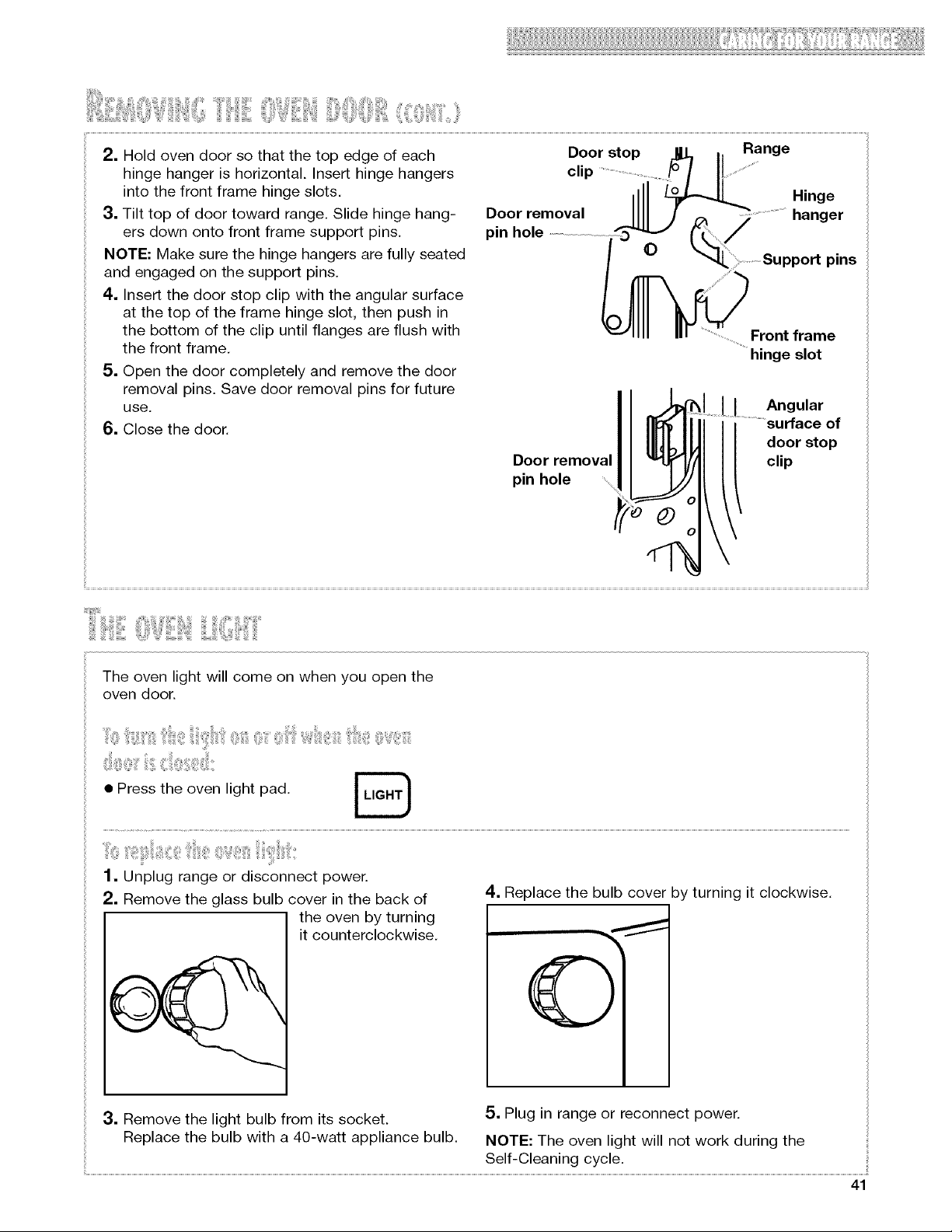

2. Hold oven door so that the top edge of each
hinge hanger is horizontal. Insert hinge hangers
into the front frame hinge slots.
3. Tilt top of door toward range. Slide hinge hang-
ers down onto front frame support pins.
NOTE: Make sure the hinge hangers are fully seated
and engaged on the support pins.
4, Insert the door stop clip with the angular surface
at the top of the frame hinge slot, then push in
the bottom of the clip until flanges are flush with
the front frame.
5, Open the door completely and remove the door
removal pins. Save door removal pins for future
use,
6, Close the door.
Door stop Range
clip
Door removal
pin hole
Door removal
pin hole
Hinge
.................hanger
pins
Front frame
hinge slot
Angular
surface of
door stop
clip
The oven light will come on when you open the
oven door.
• Press the oven light pad. _ __r.HT}
1. Unplug range or disconnect power.
2, Remove the glass bulb cover in the back of
the oven by turning
it counterclockwise.
4. Replace the bulb cover by turning it clockwise.
3. Remove the light bulb from its socket. 5, Plug
in
range
or
reconnect
power.
Replace the bulb with a 40-watt appliance bulb. NOTE: The oven light will not work during the
Self-Cleaning cycle.
41

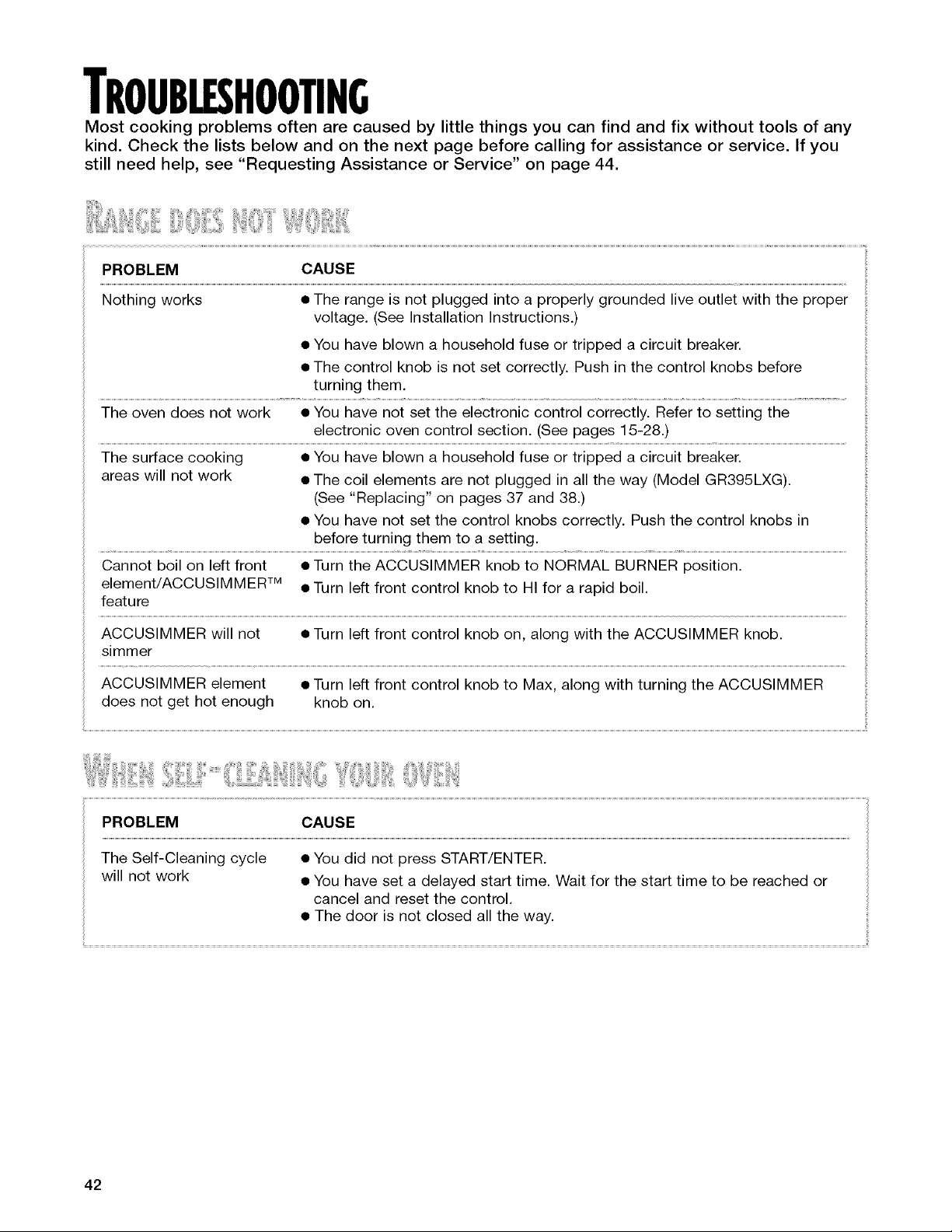

TROUBLESHOOTING
Most cooking problems often are caused by little things you can find and fix without tools of any
kind. Check the lists below and on the next page before calling for assistance or service. If you
still need help, see "Requesting Assistance or Service" on page 44.
PROBLEM CAUSE
Nothing works • The range is not plugged into a properly grounded live outlet with the proper
voltage. (See Installation Instructions.)
• You have blown a household fuse or tripped a circuit breaker.
• The control knob is not set correctly. Push in the control knobs before
turning them.
The oven does not work • You have not set the electronic control correctly. Refer to setting the
electronic oven control section. (See pages 15-28.)
The surface cooking • You have blown a household fuse or tripped a circuit breaker.
areas will not work • The coil elements are not plugged in all the way (Model GR395LXG).
(See "Replacing" on pages 37 and 38.)
i
• You have not set the control knobs correctly. Push the control knobs in
before turning them to a setting.
Cannot boil on left front • Turn the ACCUSIMMER knob to NORMAL BURNER position.
element/ACCUSIMMEFM • Turn left front control knob to HI for a rapid boil.
feat u re
ACCUSIMMER will not • Turn left front control knob on, along with the ACCUSIMMER knob.
simmer
ACCUSIMMER element • Turn left front control knob to Max, along with turning the ACCUSIMMER
does not get hot enough knob on.
PROBLEM CAUSE
The Self-Cleaning cycle • You did not press START/ENTER.
will not work • You have set a delayed start time. Wait for the start time to be reached or
cancel and reset the control.
• The door is not closed all the way.
42

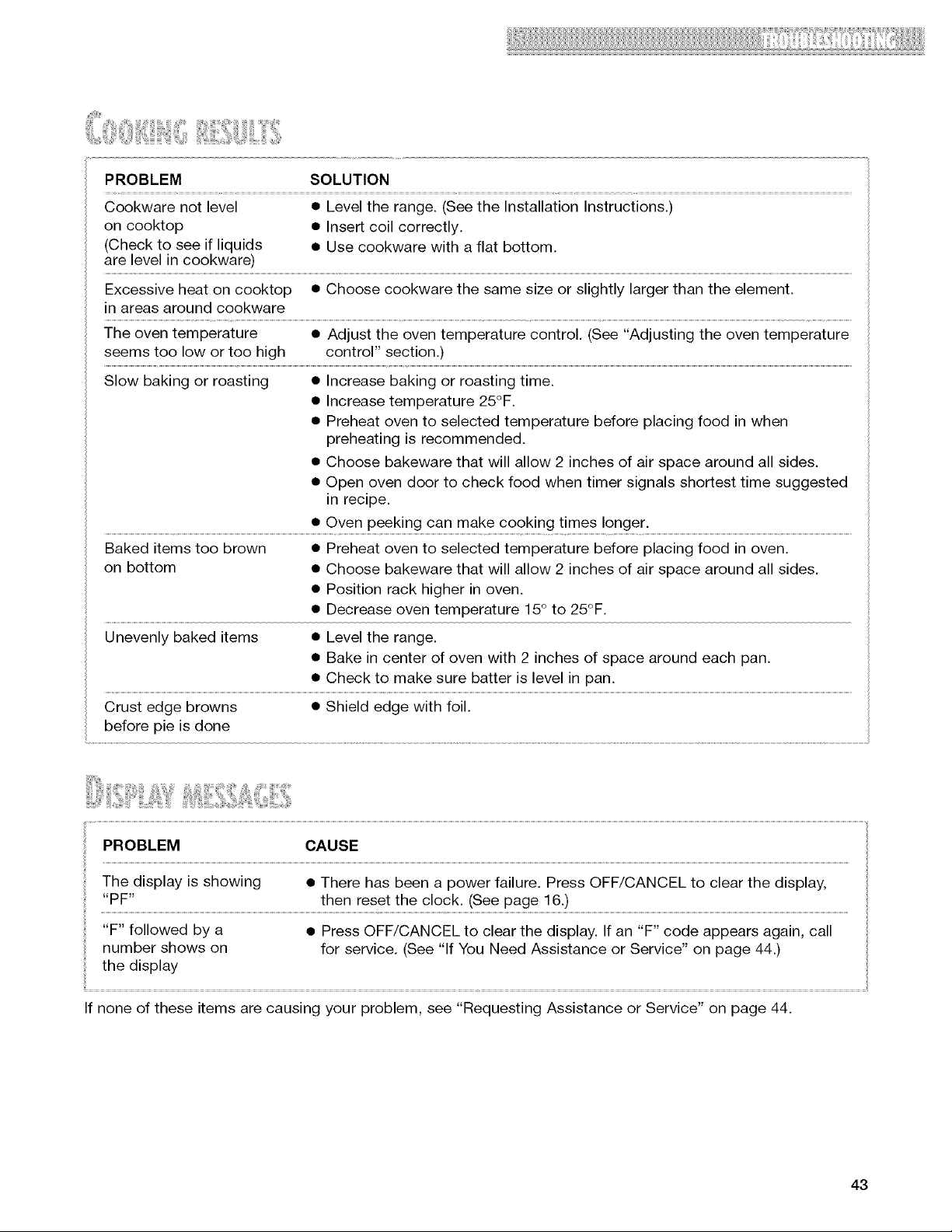

PROBLEM SOLUTION
Cookware not level • Level the range. (See the Installation Instructions.)
on cooktop • Insert coil correctly.
(Check to see if liquids • Use cookware with a flat bottom.
are level in cookware)
Excessive heat on cooktop • Choose cookware the same size or slightly larger than the element.
in areas around cookware
The oven temperature • Adjust the oven temperature control. (See "Adjusting the oven temperature
seems too low or too high control" section.)
Slow baking or roasting • Increase baking or roasting time.
• Increase temperature 25°F.
• Preheat oven to selected temperature before placing food in when
preheating is recommended.
• Choose bakeware that will allow 2 inches of air space around all sides.
• Open oven door to check food when timer signals shortest time suggested
in recipe.
• Oven peeking can make cooking times longer.
Baked items too brown • Preheat oven to selected temperature before placing food in oven.
on bottom • Choose bakeware that will allow 2 inches of air space around all sides.
• Position rack higher in oven.
• Decrease oven temperature 15° to 25°F.
Unevenly baked items • Level the range.
• Bake in center of oven with 2 inches of space around each pan.
• Check to make sure batter is level in pan.
Crust edge browns • Shield edge with foil.
before pie is done
PROBLEM CAUSE
The display is showing • There has been a power failure. Press OFF/CANCEL to clear the display,
"PF" then reset the clock. (See page 16.)
"F" followed by a • Press OFF/CANCEL to clear the display. If an "F" code appears again, call
number shows on for service. (See "If You Need Assistance or Service" on page 44.)
the display
If none of these items are causing your problem, see "Requesting Assistance or Service" on page 44.
43
REQUI "flN(;ASSISTANCEORSERVICE
To avoid unnecessary service calls, please check the "Troubleshooting" section. It may save you
the cost of a service call. If you still need help, follow the instructions below.
Call the Whirlpool Consumer Assistance
Center toll free at 1-800-253-1301.
Our consultants are available to
assist you.
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see the "A Note to You" section).
This information will help Whirlpool better respond
to your request.
Our consultants provide assistance with:
• Features and specifications on our full line
of appliances
• Installation information
• Accessory and repair parts sales
• Specialized customer assistance (Spanish
speaking, hearing impaired, limited vision, etc.)
• Referrals to local dealers, service companies, and
repair parts distributors
Whirlpool designated service technicians are
trained to fulfill the product warranty and provide
after-warranty service, anywhere in the United States.
To locate the Whirlpool designated service company
in your area, you can also look in your telephone
directory Yellow Pages.
• Use and maintenance procedures
If you need to order replacement parts, we recom-
mend that you only use FSP®factory specified
parts. FSP replacement parts will fit right and work
right, because they are made to the same exacting
specifications used to build every new
WHIRLPOOL ® appliance.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest designated service center.
If you need further assistance, you can write to
Whirlpool with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
44
INDEX
TOPIC PAGE TOPIC PAGE
ACCUSIMMER TM feature .............................................. 8
ANTI-TIP BRACKET ...................................................... 3
ASSISTANCE .............................................................. 44
BAKING
ACCUBAKE _ system ........................................ 18, 20
Aluminum foil .......................................................... 14
Bakeware ................................................................ 14
Pans .................................................................. 12, 13
Racks ...................................................................... 13
Setting cycle ............................................................ 18
Tips .................................................................... 19, 20
BROILING
Grid .......................................................................... 24
Guidelines ................................................................ 24
Pan .................................................................... 22, 24
Rack positions .................................................. 22, 24
Setting cycle ............................................................ 23
CLEANING
Broiler pan and grid ................................................ 35
Ceramic glass cooktop .......................................... 36
Coil elements .............................................. 35, 37, 38
Control knobs .......................................................... 34
Control panel .......................................................... 34
Exterior surfaces .................................................... 34
Oven cavity ............................................................ 35
Oven door glass ...................................................... 35
Oven racks .............................................................. 35
Reflector bowls .......................................... 35, 37, 38
Self-cleaning cycle .................................................. 30
Stainless steel surfaces .......................................... 34
Surface under cooktop .................................... 35, 39
CONTROL PANEL
ACCUSlMMER control knob ................................ 6, 7
ACCUSlMMER indicator light .............................. 6, 7
Celsius/Fahrenheit .................................................. 21
Coil element markers ................................................ 6
Control knobs .................................................. 6, 7, 8
Hot surface indicator lights ................................ 7, 10
Keep Warm element control knob ........................ 7, 9
Surface cooking area markers .................................. 7
Surface heating indicator light .............................. 6, 7
COOKWARE
Canning .................................................................. 11
Materials .................................................................. 12
Tips .......................................................................... 12
ELECTRONIC OVEN CONTROL
Canceling ................................................................ 17
Clock ...................................................................... 16
Control lock ............................................................ 15
Display/clock .......................................................... 15
Minute timer ...................................................... 16, 17
Starting .................................................................... 17
Tones ...................................................................... 18
FEATURES ................................................................ 6, 7
KEEP WARM ELEMENT .............................................. 9
LIFT-UP COOKTOP .................................................... 39
MEALTIMER TM CONTROL
Delay start .............................................................. 26
Starting now ............................................................ 25
MODEL AND SERIAL NUMBER .................................. 2
OVEN DOOR ........................................................ 40, 41
OVEN LIGHT .............................................................. 41
OVEN TEMPERATURE
Adjusting ................................................................ 20
S_ting .................................................. 18,23,25,27
OVEN VENT ................................................................ 29
PANS .................................................................... 12, 13
PARTS ...................................................................... 6, 7
RACKS ........................................................................ 13
ROAST ING
Pans .................................................................. 12, 13
Racks ...................................................................... 13
Setting cycle ............................................................ 18
Tips .................................................................... 19, 20
SAFETY ................................................................ 3, 4, 5
SELF-CLEANING CYCLE
Before you start ...................................................... 30
Delay start .............................................................. 31
How the cycle works .............................................. 33
Setting the controls .................................... 31, 32, 33
Starting immediately .............................................. 31
Stopping the cycle .................................................. 33
Tips .......................................................................... 30
SERVICE .................................................................... 44
STORAGE DRAWER .................................................. 29
SURFACE COOKING AREAS
Ceramic glass cooktop .......................................... 10
Coil element markers ................................................ 6
Control knobs .................................................. 6, 7, 8
Control setting guide ................................................ 8
Hot surface indicator lights ................................ 7, 10
Keep Warm element ............................................ 7, 9
Keep Warm element indicator light ...................... 7, 9
Surface cooking area markers .................................. 7
Surface heating indicator light .............................. 6, 7
Tips .......................................................................... 12
TROUBLESHOOTING .......................................... 42, 43
WARRANTY ................................................................ 48
WARRANTY
WHIRLPOOL°ELECTRICRANCE
LENGTH OF WARRANTY WHIRLPOOL CORPORATION WILL PAY FOR
FULL ONE-YEAR FSP® replacement parts and repair labor to correct defects in materials
WARRANTY or workmanship. Service must be provided by a Whirlpool designated
FROM DATE OF PURCHASE service company.
FULL FIVE-YEAR
WARRANTY
FROM DATE OF PURCHASE
For ranges with a ceramic glass cooktop only: FSP replacement parts and
repair labor for CLEANTOP ®ceramic glass cooktop.
Whirlpool warrants that:
-The ceramic glass cooktop will not discolor
-The ceramic glass cooktop pattern will not wear off
-The rubber seal between the ceramic glass cooktop and porcelain edge will
not crack
-The ceramic glass cooktop will not crack due to thermal shock
-The surface unit elements will not burn out
Service must be provided by a Whirlpool designated service company.
WHIRLPOOL CORPORATION WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your range.
2. Instruct you how to use your range.
3. Replace house fuses or correct house wiring.
4. Replace owner-accessible light bulbs.
B. Repairs when your range is used in other than normal, single-family household use.
C. Pickup and delivery. Your range is designed to be repaired in the home.
D. Damage to your range caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Whirlpool.
E. Repairs to CLEANTOP ceramic glass cooktop if it has not been cared for as recommended in this
Use and Care Guide.
F. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
G. Replacement parts or repair labor costs for units operated outside the United States.
7/99
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so this exclusion
or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please contact your authorized
Whirlpool dealer.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting,"
additional help can be found by checking the "Requesting Assistance or Service" section, or by calling the
Whirlpool Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.
8272340A 7Jgg
© 1999 Whirlpool Corporation ® Registered Trademark/TM Trademark of Whirlpool, U.S.A. Printed in U.S.A.
