User Manual Kenmore 10652224100 side-by-side refrigerator

Kenmore 10652224100 side-by-side refrigerator - Use Manual - Use Guide PDF.
Documents: Go to donwload!
User Manual
  • Owner's manual - (English)
Installation Instruction
  • Installation Instruction - (English)

User manual of Kenmore 10652224100 (24 pages)
file thumbnail

OF CONTENTS WARRANTY

WARRANTY .

REFRIGERATOR SAFETY ..

REFRIGERATOR INSTALLATION

Unpacking

Location Requirements . Electrical Requirements . Base Grille Door Removal . Door Closing and Alignment .. Water Supply Connection

Water System Preparation .. Normal Sounds ..

REFRIGERATOR USE .. Ensuring Proper Air Circulation . Using the Controls Water and Ice Dispensers Water Filtration System . Ice Maker and Storage Bin/Bucket

REFRIGERATOR FEATURES .. Refrigerator Shelves Flip-up Shelf Adjustable Flip-up Shelf Dell Drawer .. Convertible Vegetable/Meat Drawer. Crisper and Covers. 14 Convertible Vegetable/Meat Drawer Temperature Control 14 Crisper Humidity Control .. Wine or Can/Bottle Rack .. Utility Bin FREEZER FEATURES .. Freezer Shelf Freezer Basket or Bin .

DOOR FEATURES .. Door Rails . Can Racks and Door Bins

REFRIGERATOR CARE Cleaning . Changing the Light Bulbs . Power Interruptions

Vacation and Moving Care .. TROUBLESHOOTING

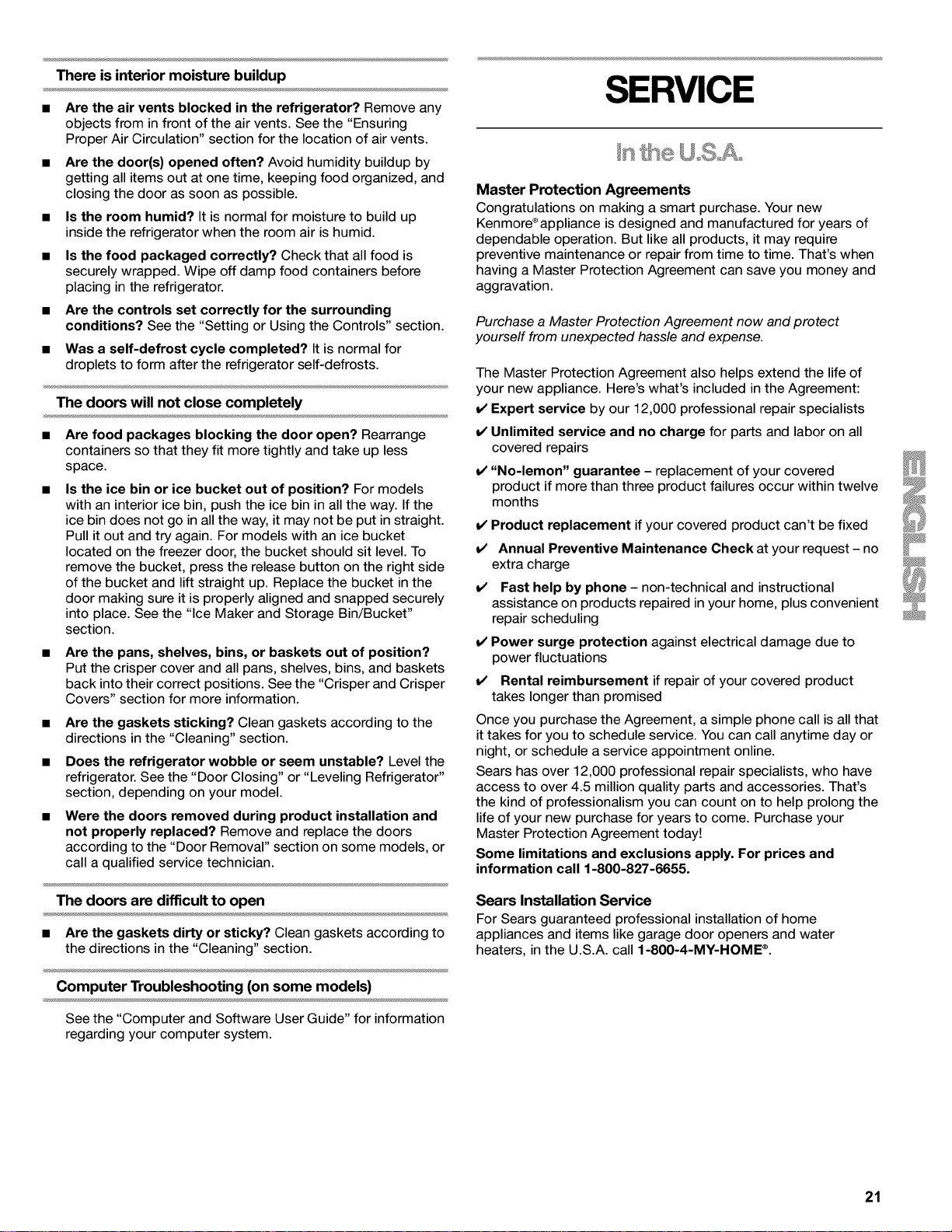

SERVICE In the U.S.A .. In Canada . Accessories

WATER FILTER CERTIFICATIONS

PRODUCT DATA SHEETS .

ONE-YEAR FULL WARRANTY ON REFRIGERATOR

For one year from the date of purchase. when this refrigerator is operated and maintained according to instructions attached to or furnished with the product.

Sears will repair this refrigerator. free of charge. if defective in material or workmanship.

FIVE-YEAR FULL WARRANTY ON SEALED REFRIGERATION SYSTEM

For five years from the date of purchase. when this refrigerator is operated and maintained according to owner's instructions attached to or furnished with the product.

Sears will repair the sealed system (consisting of refrigeration. connecting tubing. and compressor). free of charge. if defective in materials or workmanship.

The above warranty coverage applies only to refrigerators which are used for storage of food for private household purposes and excludes original and replacement Kenmore Filtered Ice & Water filter cartridges (if equipped with the filter system).

Original and replacement cartridges are warranted for 30 days. parts only. against defects in material or workmanship.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER IN THE UNITED STATES OR CANADA.

This warranty applies only while this product is in use in the United States or Canada. This warranty gives you specific legal rights. and you may also have other rights which vary from state to state or province to province.

Warranty terms may vary in Canada. Contact your local Sears Service Center for complete details.

Sears. Roebuck and Co.

Dept. 817WA.

Hoffman Estates. IL 60179

Sears Canada.

Inc. Toronto.

Ontario.

Canada M5B 2B8

Product Record

In the space below. record your complete model number. serial number. and purchase date. You can find this information on the model and serial number label located on the inside wall of the refrigerator compartment.

Have this information available to help you obtain assistance or service more quickly whenever you contact Sears concerning your refrigerator.

Model number 106.

Serial number

Purchase date

Save these instructions and your sales receipt for future reference.

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is. tell you how to reduce the chance of injury. and tell you what can happen if the instructions are not followed.

IM PORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of fire. electric shock. or injury when using your refrigerator. follow these basic precautions:

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord.

Disconnect power before servicing. Replace all panels before operating. Remove doors from your old refrigerator.

Use nonflammable cleaner.

Keep flammable materials and vapors. such as gasoline. away from refrigerator. Use two or more people to move and install refrigerator. Disconnect power before installing ice maker (on ice maker kit ready models only). Use a sturdy glass when dispensing ice or water (on some models).

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

Before you throw away your old refrigerator or freezer: Take off the doors.

Leave the shelves in place so that children may not easily climb inside.

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for "just a few days." If you are getting rid of your old refrigerator. please follow these instructions to help prevent accidents.

REFRIGERATOR INSTALLATION

Excessive Weight Hazard Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Removing packaging materials Remove tape and glue residue from surfaces before turning on the refrigerator.

Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments. rubbing alcohol. flammable fluids. or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

For more information. see the "Refrigerator Safety" section.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service. be sure to protect the floor.

Always pull the refrigerator straight out when moving it.

Do not wiggle or "walk" the refrigerator when trying to move it. as floor damage could occur.

Cleaning before use After you remove all of the packaging materials. clean the inside of your refrigerator before using it. See the cleaning instructions in the "Refrigerator Care" section.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact. such as bumping.

For your protection. tempered glass is designed to shatter into many small. pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when re moving them to avoid impact from dropping.

_'_. _ A¸ oe.

Explosion Hazard

Keep flammable materials and vapors. such as gasoline. away from refrigerator.

Failure to do so can result in death. explosion. or fire.

To ensure proper ventilation for your refrigerator. allow for 1/2in. (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall. leave 2 in. (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has an ice maker. allow extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven. radiator. or other heat source. nor in a location where the temperature will fall below 55°F (13°C).

1/2" (1.25 cm)

2" (5.08 cm)

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death. fire. or electrical shock.

Before you move your refrigerator into its final location. it is important to make sure you have the proper electrical connection:

Recommended grounding method A 115 Volt. 60 Hz. AC only 15 or 20 ampere fused. grounded electrical supply is required.

It is recommended that a separate circuit serving only your refrigerator be provided.

Use an outlet that cannot be turned off by a switch.

Do not use an extension cord.

NOTE: Before performing any type of installation. cleaning. or removing a light bulb. turn the control (Thermostat. Refrigerator or Freezer Control depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished. reconnect the refrigerator to the electrical source and reset the control (Thermostat. Refrigerator or Freezer Control depending on the model) to the desired setting.

To remove the base grille:

Open both refrigerator doors.

Place hands along the ends of the grille. with your thumbs along the top. Push in with your thumbs and pull up on the bottom.

NOTE: Be sure to refasten the Tech Sheet behind the base grille after cleaning.

To replace the base grille:

Open the doors.

Line up the grille support tabs with the metal clips.

Push the grille firmly to snap it into place.

TOOLS NEEDED: 1/4in. 1/in. and 5A6in. hex-head socket wrenches. a flat-head screwdriver and a Phillips screwdriver.

IMPORTANT: Before you begin. turn the refrigerator control OFF. unplug refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors.

Electrical Shock Hazard

Disconnect power before removing doors.

Reconnect both ground wires before operating.

Failure to do so can result in death or electrical shock.

Top Left Hinge

1. Do Not Remove Screw

Water Dispenser Tubing Connection

1. Red Outer Ring

Base Grille

Door Removal

Handle Removal (Optional)

Top Right Hinge

1. Do Not Remove Screw

Bottom Hinge

1. Do Not Remove Screw

NOTE: It may only be necessary to remove either the door handle or the doors to get your product through the doorway of your residence.

Measure the door opening to determine whether to remove the refrigerator handles or the doors.

Handle Removal (optional)

Apply firm pressure with your hand on the face of trim. Slide top trim up and bottom trim down away from handle.

Lift trim pieces off shoulder screws (see Graphic

Remove handle screws and handles.

Move refrigerator into place. Replace handles as shown (see Graphic

Door Removal

Door and Hinge Replacement

Replace both bottom hinges. if removed.

Tighten screws.

Assistance may be needed to feed the water line through the bottom hinge while reinstalling the freezer door. Carefully feed the dispenser tubing through the bottom left hinge before replacing the door on the hinge.

NOTE: Provide additional support for the doors while the top hinges are being replaced.

Do not depend on the door magnets to hold the doors in place while you are working.

Reconnect water dispenser tubing by pushing tubing into fitting until it stops and black mark touches face of fitting (see Graphic 3). On some models. replace tubing in hose clip.

Align and replace the top left hinge as shown (see Graphic

Tighten screws.

Electrical Shock Hazard

Disconnect power before removing doors.

Failure to do so can result in death or electrical shock.

Unplug refrigerator or disconnect power.

Open both refrigerator doors. Remove the base grille by pulling up on the bottom outside corners (see Graphic 2).

Close both doors and keep them closed until you are ready to lift them free from the cabinet.

If you have a dispenser (ice or water). disconnect the water dispenser tubing located behind the base grille on the freezer door side (see Graphic 3).

Press red outer ring against the face of fitting and pull the dispenser tubing free.

On some models. remove tubing from hose clip.

Remove top left hinge screw and cover as shown (see Graphic 4).

Disconnect wiring plug and both ground wires from ground wire screw (on some models) as shown (see Graphic 4).

Remove remaining left hinge screws and hinge as shown (see Graphic 4). Do not remove screw 1.

Carefully lift freezer door straight up off bottom hinge (see Graphic 5). The water dispenser tubing remains attached to the freezer door and pulls through the bottom left hinge.

Make sure you protect the dispenser tubing from damage.

Remove top right hinge cover and screws as shown (see Graphic 6). Do not remove screw 1.

10. Lift the refrigerator door straight up off bottom hinge.

11. It may not be necessary to remove the bottom hinge to move the refrigerator through a doorway.

Both bottom hinges have similar construction.

Disassemble the hinges as shown (see Graphic 7). Do not remove screw 1.

Electrical Shock Hazard

Reconnect both ground wires.

Failure to do so can result in death or electrical shock.

Style 1

Reconnect both ground wires.

Reconnect wiring plug.

S: de l

Style 2

Reconnect wiring plug.

Replace left hinge cover and screws.

Replace the refrigerator door by carefully lifting the door onto the bottom right hinge.

Align and replace the top right hinge as shown (see Graphic 6). Tighten screws.

Replace hinge cover and screws. Tighten screws.

Plug into a grounded 3 prong outlet.

_ SC

Door Closing

Move the refrigerator into its final position.

Place a level inside the refrigerator at the back of the top shelf (see Graphic 8).

Locate the leveling screws behind the base grille of the refrigerator on either side.

Use a hex-head socket wrench to adjust the rear roller leveling screws until the refrigerator is level. Turn the rear roller leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side (see Graphic 9). Make sure refrigerator is level before proceeding.

Check the door alignment after leveling the refrigerator.

Door Alignment

If the doors are uneven after leveling the product (see Graphic 10). follow the steps below.

Use a hex-head socket wrench to adjust the front roller leveling screws until the doors are even. Turn the front roller leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side (see Graphic 11).

NOTE: Open and close both the refrigerator and freezer doors after each adjustment to check the door alignment.

Open the doors and replace the base grille. Line up the grille support tabs with the metal clips.

Push the grille firmly to snap it into place.

NOTE: Be sure to refasten the Tech Sheet behind the base grille.

Supply Con

Read all directions carefully before you begin.

IMPORTANT:

If you turn the refrigerator on before the water line is connected. turn the ice maker OFR

All installations must meet local plumbing code requirements.

Use copper tubing and check for leaks. Install copper tubing only in areas where temperatures will remain above freezing.

Tools required: Standard screwdriver.

7/16in. and V2in. open-end wrenches or two adjustable wrenches.

V4in. nut driver and drill bit. hand drill or electric drill (properly grounded).

NOTE: Your refrigerator dealer has a kit available with a V4in. (6.35 mm) saddle-type shutoff valve. a union. and copper tubing.

Before purchasing. make sure a saddle-type valve complies with your local plumbing codes.

Do not use a piercing-type or 3/1ein. (4.76 mm) saddle valve which reduces water flow and clogs more easily.

Cold water supply Connect the ice maker to a cold water line with water pressure between 30 and 120 psi. If you have questions about your water pressure. call your utility company.

Connecting to Water Line

Unplug refrigerator or disconnect power.

Turn OFF main water supply. Turn ON nearest faucet long enough to clear line of water.

Locate a _/2in. to 1V4in. (1.25 cm to 3.18 cm) vertical COLD water pipe near the refrigerator.

NOTE: Horizontal pipe will work. but drill on the top side of the pipe. not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

Determine the length of copper tubing you need. Measure from the connection on the lower left rear of refrigerator to the water pipe. Add 7 ft. (2.1 m) to allow for cleaning.

Use V4in. (6.35 mm) O.D. (outside diameter) copper tubing.

Be sure both ends of copper tubing are cut square.

Using a grounded drill. drill a V4in. hole in the cold water pipe you have selected.

1. Cold Water Pipe 5. Compression Sleeve 2. Pipe Clamp 6. Shutoff Valve 3. Copper Tubing 7. Packing Nut 4. Compression Nut

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Be sure the outlet end is solidly in the V4in. drilled hole in the water pipe and that the washer is under the pipe clamp.

Tighten the packing nut. Tighten the pipe clamp screws carefully and evenly so washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

Slip the compression sleeve and compression nut on the copper tubing as shown.

Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench.

Do not overtighten.

Place the free end of the tubing in a container or sink. and turn ON the main water supply.

Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.

Connecting to Refrigerator

Attach the copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

Use the tube clamp on the back of the refrigerator to secure the tubing to the refrigerator as shown.

This will help prevent damage to the tubing when the refrigerator is pushed back against the wall.

Turn shutoff valve ON.

Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak.

1. Tube Clamp 2. Copper Tubing

3. Compression Nut 4. ValveInlet

The ice maker is equipped with a built-in water strainer. If your water conditions require a second water strainer. install it in the V4in. (6.35 mm) water line at either tube connection.

Obtain a water strainer from your nearest appliance dealer.

Plug in refrigerator or reconnect power.

Pleasereadbeforeusingthewatersystem.

Open the freezer door and turn off the ice maker. For Style 1 lift up the wire shutoff arm as shown.

For Style 2 move the switch to the OFF (right) setting as shown. The ON/OFF switch is located on the top right side of the freezer compartment.

Style 1

Style 2

Your refrigerator is designed to run more efficiently to keep your food items at the desired temperatures and to minimize energy usage. The high efficiency compressor and fans may cause your refrigerator to run longer than your old one. You may also hear a pulsating or high-pitched sound from the compressor or fans adjusting to optimize performance.

You may hear the evaporator fan motor circulating air through the refrigerator and freezer compartments.

The fan speed may increase as you open the doors or add warm food.

Rattling noises may come from the flow of refrigerant. the water line. or items stored on top of the refrigerator.

Water dripping on the defrost heater during a defrost cycle may cause a sizzling sound.

As each cycle ends. you may hear a gurgling sound due to the refrigerant flowing in your refrigerator.

Contraction and expansion of the inside walls may cause a popping noise.

You may hear air being forced over the condenser by the condenser fan.

You may hear water running into the drain pan during the defrost cycle.

NOTES:

If your model has a base grille filter system. make sure the base grille filter is properly installed and the cap is in the horizontal position.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Use a sturdy container to depress the water dispenser bar until the water begins to flow. Flush the water system by dispensing and discarding 2 to 3 gal. (8 to 12 L) of water.

Cleaning the system will take approximately 6 to 7 minutes and will help clear air from the line. Additional flushing may be required in some households.

NOTE: As air is cleared from the system. water may spurt out of the dispenser.

Open the freezer door and turn on the ice maker. For Style 1 lower the wire shutoff arm. For Style 2 move the switch to the ON (left) position.

Please refer to the "Ice Maker and Storage Bin/Bucket" section for further instructions on the operation of your ice maker.

Allow 24 hours to produce the first batch of ice.

Discard the first three batches of ice produced.

Depending on your model. you may want to select the maximum ice feature to increase the production of ice.

Nomsa Sounds

Your new refrigerator may make sounds that your old one didn't make. Because the sounds are new to you. you might be concerned about them. Most of the new sounds are normal. Hard surfaces. such as the floor. walls. and cabinets. can make the sounds seem louder. The following describes the kinds of sounds and what may be making them.

If your product is equipped with an ice maker. you will hear a buzzing sound when the water valve opens to fill the ice maker for each cycle.

REFRIGERATOR USE

In order to ensure proper temperatures. you need to permit air to flow between the two sections.

Cold air enters the bottom of the freezer section and moves up. It then enters the refrigerator section through the top vent. Air then returns to the freezer as shown.

Do not block any of these vents with food such as soda. cereal. bread. etc. If the vents are blocked. airflow will be prevented and the temperature controls will not function properly.

IMPORTANT: Because air circulates between both sections. any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To prevent odor transfer from food. wrap or cover foods tightly.

Rotary Controls (on some models)

For your convenience. your refrigerator controls are preset at the factory.

When installing your refrigerator. make sure that the controls are still preset to the "mid-settings" as shown.

COLD

FREEZER

COLDER COLD

REFRIGERATOR

COLDER

IMPORTANT:

Your product will not cool when the REFRIGERATOR Control is set to OFF.

The Refrigerator Control adjusts the refrigerator compartment temperature.

The Freezer Control adjusts the freezer compartment temperature.

Settings to the left of the mid setting make the temperature less cold. Settings to the right of the mid-setting make the temperature colder.

Wait 24 hours before you put food into the refrigerator.

If you add food before the refrigerator has cooled completely. your food may spoil.

NOTE: Adjusting the Refrigerator and Freezer Controls to a higher (colder) setting will not cool the compartments any faster.

The preset settings should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

If the temperature is too warm or too cold in the refrigerator or freezer. first check the air vents to be sure they are not blocked before adjusting the controls.

Adjusting Rotary Controls

If you need to adjust temperatures. adjust the refrigerator temperature first.

NOTE: Wait at least 24 hours between adjustments and then re check the temperatures.

CONDITION/REASON:

REFRIGERATOR too cold

Not set correctly for your conditions

REFRIGERATOR too warm

Door opened often. large amount of food added or room temperature very warm

FREEZER too cold

Not set correctly for your conditions

FREEZER too warm/too little ice

Door opened often. or large amount of food added or very cold room temperature (can't cycle often enough) or heavy ice usage

SETTING ADJUSTMENT:

REFRIGERATOR Control one setting lower

REFRIGERATOR Control one setting higher

FREEZER Control one setting lower

FREEZER Control one setting higher

OFS;;>Ore . _$1F}Oc¢>}

Cut Hazard

Use a sturdy glass when dispensing ice or water.

Failure to do so can result in cuts.

Depending on your model. you may have one or more of the following options: the ability to select either crushed or cubed ice. a special light that turns on when you use the dispenser. or a lock option to avoid accidental dispensing.

The ice dispenser

Ice dispenses from the ice maker storage bin in the freezer. When the dispenser lever is pressed:

A trap door opens in a chute between the dispenser and the ice bin. Ice moves from the bin and falls through the chute.

When you release the dispenser lever. the trap door closes and the ice dispensing stops. The dispensing system will not operate when the freezer door is open.

Some models dispense both cubed and crushed ice. Before dispensing ice. select which type of ice you prefer. The button controls are designed for easy use and cleaning.

For cubed ice. press the CUBE button until the red indicator appears in the window above the CUBE button.

For crushed ice. press the CRUSH button until the red indicator appears in the window above the CRUSH button.

For crushed ice. cubes are crushed before being dispensed.

This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal. and pieces of ice may vary in size.

When changing from CRUSH to CUBE. a few ounces of crushed ice will be dispensed along with the first cubes.

To dispense ice:

Press button for the desired type of ice.

Press a sturdy glass against the ice dispenser lever. Hold the glass close to the dispenser opening so ice does not fall outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the lever in order to activate the ice dispenser.

Pressing hard will not make the ice dispense faster or in greater quantities.

Remove the glass to stop dispensing.

NOTE: The first few batches of ice may have an off-flavor from new plumbing and parts. Throw the ice away. Also. take large amounts of ice from the ice bin. not through the dispenser.

The water dispenser

If you did not flush the water system when the refrigerator was first installed. press the water dispenser bar with a glass or jar until you draw and discard 2 to 3 gal. (8 to 12 L) or approximately 6 to 7 minutes of water after water begins dispensing.

It will take 3 to 4 minutes for the water to begin dispensing.

The water you draw and discard cleans the system and helps clear air from the lines. Allow several hours for the refrigerator to cool down and chill water.

IMPORTANT: Depending on your model. the small removable tray at the bottom of the dispenser is designed to catch small spills and allow for easy cleaning. There is no drain in the tray.

The tray can be removed from the dispenser and carried to the sink to be emptied or cleaned.

To dispense water:

Press a glass against the water dispenser lever.

Remove the glass to stop dispensing.

NOTE: Dispense enough water every week to maintain a fresh supply.

The dispenser light

The dispenser area has a light. It can be turned on manually by pressing the ON button at the right-hand side of the control panel. The red indicator above the ON button will appear.

On some models: Whenever you use the dispenser the lever will automatically turn the light on.

LIGHT

NOTE: See the "Changing the Light Bulbs" section for information on changing the dispenser light bulb.

On models without crushed ice. the light switch is a rocker-style type.

Push the switch to turn the light on. and push again to turn the light off.

The dispenser lock (on some models)

Your dispenser can be turned off for easy cleaning or to prevent accidental dispensing by small children and pets. To turn off the dispenser. press the LOCK button. The indicator will appear above the LOCK button and the ice and water dispensers will not work. To unlock the dispenser. press the UNLOCK button until the indicator appears.

Then continue to dispense ice or water as usual.

DISPENSER

NOTE: The lock feature does not shut off power to the product. to the ice maker. or to the dispenser light. It simply deactivates the dispenser levers.

F°It 'at on < .te. m

{on. .. d-*'

The base grille water filter status light (on some models)

The water filter status light will help you know when to change your water filter cartridge.

The light is located at the top of the refrigerator compartment.

The light will change from green to yellow. This tells you that it is almost time to change the water filter cartridge (90% of the filter life has been used). It is recommended that you replace the base grille water filter cartridge when the water filter indicator light changes to red OR water flow to your water dispenser or ice maker decreases noticeably. (See "Changing a base grille water filter cartridge" later in this section.)

NOTE: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

1. Status Light 2. Light Switch

After changing the water filter cartridge. reset the water filter status light by pressing the light switch 5 times within seconds.

The status light will change from red to green when the system is reset.

Non-indicator water filter (on some models)

If your refrigerator does not have the water filter status light. you should change the water filter cartridge every 6 to 9 months depending upon your usage. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed. replace the water filter cartridge more often.

Changing a base grille water filter cartridge

The base grille water filter is located below the freezer compartment door. Depending on your model. you may have a filter that is located behind the base grille (Style 1) or a filter that is located through the base grille (Style 2).

Style 1: Behind the base grille filter

Remove the base grille (see "Removing the base grille" section).

Rotate the cartridge counterclockwise to a vertical position and pull the filter cartridge out.

NOTE: There will be water in the cartridge.

Some spilling may Occur.

Take the new cartridge out of its packaging and remove protective cover from o-rings.

Push the new filter cartridge into the base until it stops.

Rotate the cartridge clockwise to a horizontal position.

Flush the water system (see "Flushing the Water System After Replacing Filter" later in this section).

Style 2: Through the base grille filter

Locate the water filter cartridge cap in the front base grille.

Rotate the cap counterclockwise to a vertical position and pull the cap and filter cartridge out through the base grille.

NOTE: There will be water in the cartridge.

Some spilling may Occur.

Remove the cartridge cap by sliding it off the end of the old cartridge.

The cap will slide to the left or right. DO NOT DISCARD THE CAP.

Take the new cartridge out of its packaging and remove protective cover from o-rings.

Slide the cartridge cap onto the new cartridge.

See illustration in Step 2.

With cartridge cap in the vertical position. push the new filter cartridge into the base grille until it stops. Rotate the cartridge cap clockwise to a horizontal position.

Flush the water system (see "Flushing the Water System After Replacing Filter" later in this section).

Flushing the Water System After Replacing Filter

Use a sturdy container to depress the water dispenser bar until the water begins to flow. Flush the water system by dispensing and discarding 2 to 3 gal. (8 to 12 L) of water. Cleaning the system will take approximately 6 to 7 minutes and will help clear air from the line. Additional flushing may be required in some households.

NOTE: As air is cleared from the system. water may spurt out of the dispenser.

Using the dispenser without the water filter

You can run the dispenser without a water filter cartridge.

Your water will not be filtered.

Remove the base grille water filter cartridge.

For Style 1. replace the base grille after removing the filter.

For Style 2. slide the cartridge cap off the end of the filter cartridge.

DO NOT DISCARD THE CAP. With the cartridge cap in the vertical position. insert the cap into the base grille until it stops.

Rotate the cartridge cap to a horizontal position.

The cartridge cap might not be even with the base grille.

Msk÷ a// d on!sge B n/Bucket

To turn the ice maker on/off (Style 1): The on/off switch for the ice maker is a wire shutoff arm located on the side of the ice maker.

To turn the ice maker on. simply lower the wire shutoff arm.

NOTE: Your ice maker has an automatic shutoff. As ice is made. the ice cubes will fill the ice storage bin and the ice cubes will raise the wire shutoff arm to the OFF (arm up) position.

To manually turn the ice maker off. lift the wire shutoff arm to the OFF (arm up) position and listen for the click to make sure the ice maker will not continue to operate.

To increase ice production rate:

Normal Ice Production: In normal ice production mode. the ice maker should produce approximately 7 to 9 batches of ice in a 24-hour period. If ice is not being made fast enough. turn the Freezer Control toward a higher (colder) number in half number steps. (For example. if the control is at 3. move it to between 3 and 4.) Wait 24 hours between each increase.

Maximum Ice Production (on some models): In maximum ice production. the ice maker should produce approximately 10 to 14 batches of ice in a 24-hour period. If your refrigerator has the maximum ice production feature. push the switch to MAX.

To remove and replace freezer shelf ice bin (Style 1):

Pull the covering panel out from the bottom and then slide it back toward the rear.

Lift the wire shutoff arm so it clicks into the OFF (up) position.

Ice can still be dispensed. but no more can be made.

Lift up the front of the storage bin and pull it out.

Replace the bin by pushing it in all the way or the dispenser will not work. Push the wire shutoff arm down to the ON position to restart ice production.

Make sure the door is closed tightly.

To turn the ice maker on/off (Style 2):

The ON/OFF switch is located on the top right side of the freezer compartment.

To turn the ice maker on. slide the control to the ON (left) position.

NOTE: Your ice maker has an automatic shutoff.

The ice maker sensors will automatically stop ice production. but the control will remain in the ON (left) position.

To manually turn the ice maker off. slide the control to the OFF (right) position.

To remove and replace freezer door ice bucket (Style 2):

Place four fingers in bucket base opening and rest thumb on the release button.

Holding the base of the bucket with both hands. depress the release button and lift the bucket up and out. It is not necessary to turn the ice maker control to the OFF (right) position. The ice maker will not produce ice without the bucket installed in the door.

Wash ice bin or bucket with a mild detergent. rinse well and dry thoroughly.

Do not use harsh or abrasive cleaners or solvents.

REMEMBER:

Allow 24 hours to produce the first batch of ice.

Discard the first three batches of ice produced to avoid impurities that may be flushed out of the system.

The quality of your ice will be only as good as the quality of the water supplied to your ice maker.

Avoid connecting the ice maker to a softened water supply.

Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided. make sure the water softener is operating properly and is well maintained.

It is normal for the ice cubes to be attached at the corners.

They will break apart easily.

For Style 1 ice maker. do not force the wire shutoff arm up or down.

Do not store anything on top of or in the ice maker or ice bin or bucket.

REFRIGERATOR

Your model may have some or all of these features.

Features that can be purchased separately as product accessories are labeled with the word "Accessory." Not all accessories will fit all models.

If you are interested in purchasing one of the accessories. please call the toll-free number on the cover or in the "Accessories" section.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact. such as bumping.

For your protection. tempered glass is designed to shatter into many small. pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use special care when re moving them to avoid impact from dropping.

Your model may have glass or wire shelves. Store similar foods together and adjust the shelves to fit different heights. This reduces the time the refrigerator door is open and saves energy.

Slide-out Shelves (on some models)

To remove and replace a shelf in a metal frame:

Pull the shelf forward to the stop. Tilt the front of the shelf up and lift it slightly as you pull the shelf from the frame.

To care for ice storage bin or bucket:

Empty the ice container.

Use warm water to melt the ice if necessary.

NOTE: Never use anything sharp to break up the ice in the bin or bucket.

This can cause damage to the ice container and the dispenser mechanism.

Replace the shelf by guiding it back into the slots on the frame and pushing the shelf in past the stop.

Shelves and Shelf Frames

To remove and replace a shelf/frame:

Remove the shelf/frame by tilting it up at the front and lifting it out of the shelf supports.

Replace the shelf/frame by guiding the rear shelf hooks into the shelf supports.

Tilt the front of the shelf up until rear shelf hooks drop into the shelf supports.

Check to make sure that the shelf is securely in position.

/@s some mode/@

To raise or lower the shelf:

Raise the shelf by pulling forward on the lever located at the bottom front of the shelf and lift until the shelf locks into the vertical position.

Lower the shelf until it is latched securely in place.

[email protected]@sb/e/s/ipo¢@ Stse/f

(on some [email protected]

To raise or lower the shelf:

Raise the shelf by first sliding it back and down to make it half-width. (You can use the shelf in this position to allow taller items to be stored on the shelf below.)

Lift the front of the shelf until it fits securely in place against the back wall. Lower the shelf securely back into position.

Pull the front of the shelf forward until it fits into place.

[}eli

The dell drawer stores raisins. nuts. spreads. and other small items at normal refrigerator temperatures.

To remove and replace the dell drawer:

Remove the dell drawer by sliding it straight out to the stop.

Lift the front and slide the drawer out the rest of the way.

Replace the dell drawer by sliding it back past the stop.

C©nve tib/e getab e/Mest C ssper and C©ve ;

Crisper and Convertible Vegetable Meat Drawers

To remove and replace drawers:

Slide crisper or meat drawer straight out to the stop.

Lift the front of drawer with one hand while supporting the bottom of drawer with other hand and slide the drawer out the rest of the way.

Replace the crisper or meat drawer by sliding it back in fully past the drawer stop.

Crisper or Vegetable/Meat Drawer Covers

To remove and replace covers:

Remove the crisper and meat drawer. Press up in center of crisper glass insert until it rises above the plastic frame.

Holding the crisper glass firmly. carefully slide the glass insert forward to remove.

Lift crisper cover frame and remove. Repeat steps to remove the meat drawer cover.

Replace back of meat drawer cover frame into supports or slides on side walls of the refrigerator and lower or slide the front of the cover frame into place.

Slide rear of glass insert into cover frame and lower front into place. Repeat steps to replace the crisper cover.

C©nve:t bb

+ge bb/Meat

The convertible vegetable/meat drawer can be adjusted to properly chill meats or vegetables.

The air inside the pan is cooled to prevent "spot" freezing and can be set to keep meats at the National Livestock and Meat Board recommended storage temperatures of 28°- 32°F (-2 °- O°C).

IMPORTANT: To extend freshness. wrap meats in airtight. moisture-proof materials before storing. Always store meat as recommended.

Adjusting the control The convertible control comes preset at the lowest meat setting.

To change a control setting: Move the control to the right (colder) or to the left (less cold) as desired.

To store vegetables: Set the control to VEG (all the way to the left) to store vegetables at their optimal storage temperatures (which need to be warmer than those for meat).

Wi se

+a /e

(on some mo(Ses. ccessxc9

To remove and replace the wine rack (left) or can/bottle rack (right):

Remove the rack by pulling it straight out from the shelf.

Replace the rack by sliding it in between the shelf and the wall of the refrigerator.

IMPORTANT: If food starts to freeze. move the control to the left (less cold). Remember to wait 24 hours between adjustments.

Doing so gives the temperature of the food time to change.

Meat storage guide Store most meat in original wrapping as long as it is airtight and moisture-proof.

Rewrap if necessary. See the following chart for storage times. When storing meat longer than the times given. freeze the meat.

Fresh fish or shellfish use same day as purchased

Chicken. ground beef. variety meat (liver. etc.) 1-2 days

Cold cuts. steaks/roasts

3-5 days

Cured meats 7-10 days

Leftovers - Cover leftovers with plastic wrap. aluminum foil. or plastic containers with tight lids.

(onsomemo Se ®

You can control the amount of humidity in the moisture-sealed crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) lets moist air out of the crisper for best storage of fruits and vegetables with skins.

Fruit: Wash. let dry and store in refrigerator in plastic bag or crisper. Do not wash or hull berries until they are ready to use.

Sort and keep berries in original container in crisper. or store in a loosely closed paper bag on a refrigerator shelf.

Vegetables with skins: Place in plastic bag or plastic container and store in crisper.

HIGH (closed) keeps moist air in the crisper for best storage of fresh. leafy vegetables.

Leafy vegetables: Wash in cold water. drain and trim or tear off bruised and discolored areas. Place in plastic bag or plastic container and store in crisper.

Humidity control location: Humidity Control on crisper drawer (Style 1 - on left)

Humidity Control on crisper cover (Style 2 - on right)

High Low

NOTE: For long-term storage. place eggs in a covered container or in their original carton on an interior shelf.

Your model may have some or all of these features.

Features that can be purchased separately as product accessories are labeled with the word "Accessory." Not all accessories will fit all models.

If you are interested in purchasing one of the accessories. please call the toll-free number on the cover or in the "Accessories" section.

(_}um c}s/selves vsies wis moSe/

To remove and replace the shelf:

Lift the shelf off of the supports.

Slide it out of the shelf support holes.

Replace shelf in the reverse order.

Frozen food storage guide Storage times will vary according to the quality and type of food. the type of packaging or wrap used (should be airtight and moisture-proof). and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed. creating ice crystals.

Put no more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 Ibs. of food per cubic foot [907-1. 50 g per L] of freezer space). Leave enough space in the freezer for air to circulate around packages.

Be careful to leave enough room for the door to close tightly.

For more information on preparing food for freezing. check a freezer guide or reliable cookbook.

The freezer basket or bin can be used to store bags of frozen fruits and vegetables that may slide off freezer shelves.

To remove and replace the freezer basket or bin:

Remove basket or bin by sliding itout to the stop.

Lift the front of the basket or bin and slide it out the rest of the way.

Oan and [email protected] 'Bns

(s msome mo Se s}

NOTE: Can racks may be purchased as an Accessory for some models.

To remove and replace the racks/bins:

Remove the rack/bin by lifting it and pulling it straight out.

Replace the rack/bin by sliding it in above the desired support and pushing it down until it stops.

Replace the basket or bin by positioning it on the side wall guide rails. Lift the basket or bin front slightly while pushing it past the guide rail stops and slide basket or bin in the rest of the way.

REFRIGERATOR CARE

DOOR

Your model may have some or all of these features.

Features that can be purchased separately as product accessories are labeled with the word "Accessory." Not all accessories will fit all models.

If you are interested in purchasing one of the accessories. please call the toll-free number on the cover or in the "Accessories" section.

The door rails may be removed for easier cleaning.

Snap-on Door Rails

To remove and replace the rails:

Remove the rails by pushing in slightly on the front of the bracket while pulling out on the inside tab. Repeat these steps for the other end of the rail.

Replace the rails by aligning the ends of the brackets with the buttons on the sides of the door liner. Firmly snap bracket and rail assembly onto the tabs above the shelf as shown.

Drop-in Door Rails

To remove and replace the rails:

Remove the rails by pulling straight up on each end of the rail.

Replace the rails by sliding the shelf rail into the slots on the door and pushing the railstraight down until it stops.

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death. explosion. or fire.

Both the refrigerator and freezer sections defrost automatically.

However. clean both sections about once a month to prevent odors from building up. Wipe up spills immediately.

Cleaning your refrigerator

Unplug refrigerator or disconnect power.

Remove all removable parts from inside. such as shelves. crispers. etc.

Hand wash. rinse. and dry removable parts and interior surfaces thoroughly.

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners such as window sprays. scouring cleansers. flammable fluids. cleaning waxes. concentrated detergents. bleaches or cleansers containing petroleum products on plastic parts. interior and door liners or gaskets.

Do not use paper towels. scouring pads. or other harsh cleaning tools. These can scratch or damage materials.

To help remove odors. you can wash interior walls with a mixture of warm water and baking soda (2 tbs. to 1 qt. [26 g to .95 L] of water).

Wash stainless steel and painted metal exteriors with a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.

Dry thoroughly with a soft cloth. For additional protection against damage to painted metal exteriors. apply appliance wax (or auto paste wax) with a clean. soft cloth.

Do not wax plastic parts.

NOTE: To keep your Stainless Steel refrigerator looking like new and to remove minor scuffs or marks. it is suggested that you use the manufacturer's approved Stainless Steel Cleaner & Polish.

IMPORTANT: This cleaner is for Stainless Steel parts only!

Do not allow the Stainless Steel Cleaner & Polish to come into contact with any plastic parts such as the trim pieces. dispenser covers or door gaskets. If accidental contact does occur. clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth. To order the cleaner. see the "Accessories" section.

There is no need for routine condenser cleaning in normal home operating environments.

If the environment is particularly greasy or dusty. or there is significant pet traffic in the home. the condenser should be cleaned every two to three months to ensure maximum efficiency.

If you need to clean the condenser:

Remove the base grille (see "Base Grille" or "Door Removal" section).

Use a vacuum with a soft brush to clean the grille. the open areas behind the grille and the front surface area of the condenser.

Replace the base grille when finished.

Plug in refrigerator or reconnect power.

C ' ang ng t s Lig st Bu)bs

NOTE: Not all appliance bulbs will fit your refrigerator.

Be sure to replace the bulb with one of the same size and shape. The dispenser light requires a heavy duty 10-watt bulb. All other lights require a 40-watt appliance bulb. Replacement bulbs are available from your dealer.

Unplug refrigerator or disconnect power.

Remove light shield when applicable as shown.

NOTE: To clean the light shield. wash it with warm water and liquid detergent.

Rinse and dry the shield well.

Remove light bulb and replace with one of the same size. shape and wattage.

Replace light shield when applicable as shown.

Plug in refrigerator or reconnect power.

Dispenser Light (on some models)

Reach through the dispenser area to remove and replace light bulb.

1. Dispenser Light

Refrigerator Control Panel Light

Reach behind the refrigerator control panel to remove and replace light bulb.

Refrigerator Crisper Light or Upper Freezer Light (on some models)

Remove light shield by grasping the top center of the shield and pulling forward while turning it slightly to one side. If necessary. remove top crisper drawer to access crisper light shield.

Replace the light shield by inserting the tabs on one end into the slotted holes in the refrigerator or freezer liner. Then. carefully bend the shield at the center to insert the tabs on the other end.

Upper Freezer Light (on some models)

Remove the light shield by grasping the sides and squeezing in toward the center and while pulling forward the shield.

Replace the light shield by fitting the tabs into the slotted holes in the freezer liner. Push in the shield until it snaps into place.

Lower Freezer Light Beneath Ice Bin (on some models)

Remove the light shield by grasping the sides and squeezing in toward the center. Once the side hooks of shield are free from the freezer lining. pull down the shield.

Replace the light shield by squeezing the sides toward the center and inserting the side hooks into the slotted holes.

Once the side hooks are in place. snap the front tab into the slotted hole.

Lower Freezer Light Behind Top Freezer Basket (on some models)

Depending on your model. remove the top freezer basket or top freezer basket shelf. Remove light shield by removing the Phillips screw on the top of the shield. Carefully. rotate the shield until the left tab can be gently pulled from the freezer wall.

Replace the light shield by inserting the left tab into the freezer wall. Align top tab with screw hole and replace screw.

If the power will be out for 24 hours or less. keep both refrigerator doors closed to help food stay cold and frozen.

If the power will be out for more than 24 hours. do one of the following: Remove all frozen food and store it in a frozen food locker.

Place 2 Ibs. (907 g) of dry ice in the freezer for every cubic foot (28 L) of freezer space. This will keep the food frozen for two to four days.

If neither a food locker nor dry ice is available. consume or can perishable food at once.

REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If you see that food contains ice crystals. it may be refrozen. although the quality and flavor may be affected.

If the condition of the food is poor. dispose of it.

Vacations

If you choose to leave the refrigerator on while you're away:

Use up any perishables and freeze other items.

If your refrigerator has an automatic ice maker:

Raise wire shutoff arm to OFF (up) position or move the switch to the OFF (right) setting.

Shut off water supply to the ice maker.

Empty the ice bin.

If you choose to turn the refrigerator off before you leave:

Remove all food from the refrigerator.

If your refrigerator has an automatic ice maker:

Turn off the water supply to the ice maker at least one day ahead of time.

When the last load of ice drops. raise the wire shutoff arm to the OFF (up) position or move the switch to the OFF (right) setting.

Depending on your model. turn the Thermostat Control or Refrigerator Control to OFF. See the "Setting or Using the Control(s)" section.

Clean refrigerator. wipe it. and dry well.

Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

Moving

When you are moving your refrigerator to a new home. follow these steps to prepare it for the move.

If your refrigerator has an automatic ice maker: Turn off the water supply to the ice maker at least one day ahead of time.

Disconnect the water line from the back of the refrigerator.

When the last load of ice drops. raise the wire shutoff arm to the OFF (up) position or move the switch to the OFF (right) setting.

Remove all food from the refrigerator and pack all frozen food in dry ice.

Empty the ice bin.

Depending on your model. turn the Thermostat Control or Refrigerator Control to OFF. See the "Setting or Using the Controls" section.

Unplug the refrigerator.

Empty water from the defrost pan.

Clean. wipe. and dry thoroughly.

Take out all removable parts. wrap them well. and tape them together so they don't shift and rattle during the move.

Depending on the model. raise the front of the refrigerator so it rolls more easily OR screw in the leveling legs so they don't scrape the floor. See the "Door Closing" or "Leveling Your Refrigerator" section.

10. Tape the doors shut and the power cord to the refrigerator cabinet.

When you get to your new home. put everything back and refer to the "Refrigerator Installation" section for preparation instructions.

Also. if your refrigerator has an automatic ice maker. remember to reconnect the water supply to the refrigerator.

TROUBLESHOOTING

Trythe solutions suggested here first in order to avoid the cost of an unnecessary service call.

Your refrigerator will not operate

Is the power supply cord unplugged?

Plug into a grounded 3 prong outlet.

Has a household fuse or circuit breaker tripped?

Replace the fuse or reset the circuit breaker.

Is the refrigerator or freezer control turned to the OFF position? Refer to the "Setting or Using the Controls" section.

Is the refrigerator defrosting?

Recheck to see if the refrigerator is operating in 30 minutes.

Your refrigerator will regularly run an automatic defrost cycle.

Is the refrigerator not cooling?

For models with digital controls. turn the unit OFF then ON again to reset. See the "Setting or Using the Controls" section.

If this does not correct the problem. call for service.

The lights do not work

Is the power supply cord unplugged?

Plug into a grounded 3 prong outlet.

Is a light bulb loose in the socket or burned out? See the "Changing the Light Bulb(s)" section.

There is water in the defrost drain pan

Is the refrigerator defrosting? The water will evaporate. It is normal for water to drip into the defrost pan.

Is it more humid than normal? When it is humid. expect that the water in the defrost pan will take longer to evaporate.

The motor seems to run too much

Is the room temperature hotter than normal? The motor will run longer under warm conditions. At normal room temperatures. expect your motor to run about 40% to 80% of the time. Under warmer conditions. it will run even more.

Has a large amount of food just been added to the refrigerator?. Adding a large amount of food warms the refrigerator.

The motor normally will run longer to cool the refrigerator back down.

Are the doors opened often?

The motor will run longer when this occurs. Conserve energy by getting all items out at one time. keeping food organized. and closing the door as soon as possible.

Are the controls not set correctly for the surrounding conditions?

Refer to the "Setting or Using the Controls" section.

Are the doors not closed completely?

Close the doors firmly. If they do not close completely. see "The doors will not close completely" later in this section.

Are the condenser coils dirty? This prevents air transfer and makes the motor work harder. Clean the condenser coils.

Refer to the "Cleaning" section.

Are the door gaskets not sealed all the way around?

Contact a technician or other qualified person.

NOTE: Your new refrigerator will run longer than your old one due to its high-efficiency motor.

The refrigerator seems to make too much noise

The sounds may be normal for your refrigerator.

See the "Normal Sounds" section.

The ice maker is not producing ice or not enough ice

Has the ice maker just been installed?

Wait 72 hours for full ice production to begin. Once your refrigerator is cooled. the ice maker should produce 70 to 120 cubes every 24 hours.

Is the freezer temperature cold enough to produce ice?

Wait 24 hours after ice maker hook-up for ice production.

See the "Setting or Using the Controls" section.

Is the ice maker wire shutoff arm in the OFF (arm up) position (on some models)?

Lower the wire shutoff arm to the ON (arm down) position.

See the "Ice Maker and Storage Bin/Bucket" section.

Is the ice maker switch in the OFF (right) position (on some models)?

Move ice maker switch to the ON (left) position.

See the "Ice Maker and Storage Bin/Bucket" section.

Is the water line shutoff valve to the refrigerator turned on? Turn on the water valve. See the "Water Supply Connection" section.

Does the ice maker mold have water in it or has no ice been produced?

Make sure your refrigerator has been connected to a water supply and the supply shutoff valve is turned on. See the "Water Supply Connection" section.

Is an ice cube jammed in the ice maker ejector arm?

For models with an interior ice bin. remove the ice from the ejector arm with a plastic utensil.

For models with an ice bucket located on the freezer door. access the ice maker by depressing the ice sensor door on the upper left side of the freezer interior. While depressing the sensor door. lift the ice maker service door and remove the ice from the ejector with a plastic utensil. See the "Ice Maker and Storage Bin/Bucket" section.

Has a large amount of ice just been removed?

Allow 24 hours for ice maker to produce more ice.

Are the controls set correctly?

See the "Setting or Using the Controls" section.

Is there a water filter installed on the refrigerator?

The filter may be clogged or installed incorrectly. Check the filter installation instructions to ensure that the filter was installed correctly and is not clogged.

If installation or clogging is not a problem. call a technician or other qualified person.

NOTE: If not due to any of the above. there may be a problem with the water line. Call for service.

Off-taste. odor or gray color in the ice

Are the plumbing connections new. causing discolored or off-flavored ice? Discard the first few batches of ice.

Have the ice cubes been stored too long? Throw old ice away and make a new supply.

Does the freezer and ice bin or bucket need to be cleaned?

See the "Cleaning" or "Ice Maker and Storage Bin/ Bucket" section.

Has food in the freezer or refrigerator been wrapped properly? Use airtight. moisture-proof packaging to help prevent odor transfer to stored food.

Does the water contain minerals (such as sulfur)? A filter may need to be installed to remove the minerals.

Is there a water filter installed on the refrigerator?

Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing.

Run additional water through the water dispenser to flush the water filtration system more thoroughly (at least 2 to 3 gal. [8 to 12 L] or 6 to 7 minutes initially). Discard discolored ice.

The ice dispenser will not operate properly

Is the freezer door closed completely?

Push the door firmly shut. If it will not shut all the way. see "The doors will not close completely" later in this section.

Is the ice bin or bucket installed correctly?

For models with an interior ice bin. push the ice bin in all the way. If the ice bin does not go in all the way. it may not be put in straight.

Pull it out and try again. For models with an ice bucket located on the freezer door. the bucket should sit level. To remove the bucket. press the release button on the right side of the bucket and lift straight up. Replace the bucket in the door making sure it is properly aligned and snapped securely into place. Refer to the "Ice Maker and Storage Bin/Bucket" section.

Has the wrong ice been added to the bin or bucket? Use only cubes produced by the current ice maker. If other cubes have been added. remove all cubes and check to see that none have become stuck in the delivery chute.

Has the ice frozen in the ice bin or bucket? Shake the ice bin or bucket to separate cubes.

If cubes do not separate. empty bin or bucket and wait 24 hours for ice to restock.

Has the ice melted around the auger (metal spiral) in the ice bucket?

Dump the ice cubes and clean the ice bucket completely.

Allow 24 hours for the ice maker to restock. Do not try to remove the melted ice with a sharp object. You could damage the ice bucket.

Is ice stuck in the delivery chute? Clear the ice from the delivery chute with a plastic utensil. Do not use anything sharp to remove the ice. You could cause damage.

Is the ice dispenser stalling while dispensing "crushed" ice? Stop dispensing ice. Change the ice button from "crushed" to "cubed." Depress the ice dispenser arm using a sturdy glass. If cubed ice dispenses correctly. depress the button for "crushed" ice and begin dispensing again. Refer to the "Water and Ice Dispensers" section.

Is there ice in the bucket? See "The ice maker is not producing ice" earlier in this section.

Has the dispenser arm been held in too long? Release dispenser arm. Ice will stop dispensing when the arm is held in too long. Wait three minutes for dispenser motor to reset before using again. It is best to take large amounts of ice directly from the ice bin or bucket. not through the dispenser.

Ice bucket difficult to remove

Is the ice bucket difficult to remove (on some models)?

For models with an ice bucket located on the freezer door. select "cubed" ice. Using a sturdy glass. quickly depress and release the ice dispenser arm. Open the freezer door. depress the release button on the ice bucket and lift upward. Refer to the "Ice Maker and Storage Bin/Bucket" section.

The water dispenser will not operate properly

Has the water system not filled? The water system needs to be filled the first time it is used. Use a sturdy container to depress the water dispenser bar until the water begins to flow. Flush the water system by dispensing and discarding 2 to 3 gal. (8 to 12 L) of water. Cleaning the system will take approximately 6 to 7 minutes and will help clear air from the line. Additional flushing may be required in some households.

See the "Water and Ice Dispensers" section.

Is the water shutoff valve not turned on or the water line connected at the source? Make sure the water shutoff valve is turned on and the water source is connected to the refrigerator. See the "Water Supply Connection" section.

Is the water shutoff valve clogged or incorrectly installed?

See the "Water Supply Connection" section.

If clogging or installation is not a problem. call for service or contact plumber.

Is there a kink in the home water source line? Ifyou find or suspect a kink in the water line. call for service.

Is there a water filter installed on the refrigerator?. The filter may be clogged or incorrectly installed. First. check the filter installation instructions to ensure that the filter was installed correctly and is not clogged.

If installation or clogging is not a problem. call for service.

Water or ice is leaking from the dispenser

Is the glass not being held under the ice dispenser long enough. causing the ice to spill? Hold the container under the ice chute for two to three seconds after releasing the dispenser lever. Water or ice may continue to dispense during this time.

Is an ice cube stuck in the chute and holding the trap door open? Remove the cube.

Is there a water filter installed on the refrigerator?

The water filtration system may have air inthe lines. causing water to drip. Additional flushing may help clear air from the lines.

Normal dispenser use should flush air from the lines within 24 to 72 hours.

Water flow from the dispenser decreases noticeably

Is there a water filter installed on the refrigerator?

The filter may be full or incorrectly installed. Remove the water filter cartridge (see the "Water Filtration System" section). Operate the dispenser. If the water flow increases noticeably. replace the filter.

The dispenser water is not cool enough

Has the refrigerator been newly installed? Allow 24 hours for the refrigerator to cool completely.

Has a large amount of water been recently dispensed?

Allow 24 hours for the water to cool completely.

Has water not been recently dispensed?

The first glass of water may not be cool. Discard the first glass of water.

The divider between the two compartments is warm

The warmth is probably due to normal operation of the automatic exterior moisture control.

If still concerned. call for service.

Temperature is too warm

Are the air vents blocked in either compartment?

This prevents the movement of cold air from the freezer to the refrigerator. Remove any objects from infront of the air vents.

See the "Ensuring Proper Air Circulation" section for the location of air vents.

Are the door(s) opened often? The refrigerator will warm when this occurs. Keep the refrigerator cool by getting all items out at one time. keeping food organized. and closing the door as soon as possible.

Has a large amount of food just been added to the refrigerator or freezer?. Adding a large amount of food warms the refrigerator. It can take several hours for the refrigerator to return to the normal temperature.

Are the controls set correctly for the surrounding conditions?

See the "Setting or Using the Controls" section.

Is the refrigerator not cooling?

For models with digital controls. turn the unit OFF then ON again to reset. See the "Setting or Using the Controls" section.

If this does not correct the problem. call for service.

There is interior moisture buildup

Are the air vents blocked in the refrigerator?

Remove any objects from in front of the air vents. See the "Ensuring Proper Air Circulation" section for the location of air vents.

Are the door(s) opened often? Avoid humidity buildup by getting all items out at one time. keeping food organized. and closing the door as soon as possible.

Is the room humid?

It is normal for moisture to build up inside the refrigerator when the room air is humid.

Is the food packaged correctly?

Check that all food is securely wrapped.

Wipe off damp food containers before placing in the refrigerator.

Are the controls set correctly for the surrounding conditions?

See the "Setting or Using the Controls" section.

Was a self-defrost cycle completed?

It is normal for droplets to form after the refrigerator self-defrosts.

The doors will not close completely

Are food packages blocking the door open? Rearrange containers so that they fit more tightly and take up less space.

Is the ice bin or ice bucket out of position?

For models with an interior ice bin. push the ice bin in all the way. If the ice bin does not go in all the way. it may not be put in straight.

Pull it out and try again. For models with an ice bucket located on the freezer door. the bucket should sit level. To remove the bucket. press the release button on the right side of the bucket and lift straight up. Replace the bucket in the door making sure it is properly aligned and snapped securely into place. See the "Ice Maker and Storage Bin/Bucket" section.

Are the pans. shelves. bins. or baskets out of position?

Put the crisper cover and all pans. shelves. bins. and baskets back into their correct positions.

See the "Crisper and Crisper Covers" section for more information.

Are the gaskets sticking?

Clean gaskets according to the directions in the "Cleaning" section.

Does the refrigerator wobble or seem unstable?

Level the refrigerator.

See the "Door Closing" or "Leveling Refrigerator" section. depending on your model.

Were the doors removed during product installation and not properly replaced?

Remove and replace the doors according to the "Door Removal" section on some models. or call a qualified service technician.

The doors are difficult to open

Are the gaskets dirty or sticky? Clean gaskets according to the directions in the "Cleaning" section.

Computer Troubleshooting (on some models)

See the "Computer and Software User Guide" for information regarding your computer system.

SERVICE

Master Protection Agreements Congratulations on making a smart purchase.

Your new Kenmoreappliance is designed and manufactured for years of dependable operation.

But like all products. it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

Purchase a Master Protection Agreement now and protect yourself from unexpected hassle and expense.

The Master Protection Agreement also helps extend the life of your new appliance.

Here's what's included in the Agreement:

Expert service by our 12. 00 professional repair specialists

Once you purchase the Agreement. a simple phone call is all that it takes for you to schedule service. You can call anytime day or night. or schedule a service appointment online.

Sears has over 12. 00 professional repair specialists. who have access to over 4.5 million quality parts and accessories.

That's the kind of professionalism you can count on to help prolong the life of your new purchase for years to come. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply.

For prices and information call 1-800-827-6655.

Sears Installation Service

For Sears guaranteed professional installation of home appliances and items like garage door openers and water heaters. in the U.S.A. call 1-800-4-MY-HOME

Oanada

Your purchase has added value because you can depend on Sears HomeCentral ®for service. With over 2. 00 Service Technicians and access to over 900. 00 parts and accessories. we have the tools. parts. knowledge and skills to back our pledge: We Service What We Sell.

Sears Maintenance Agreements Your Kenmore ®appliance is designed. manufactured and tested to provide years of dependable operation.

Yet any major appliance may require service from time to time. The Sears Maintenance Agreement offers you an outstanding service program. affordably priced.

The Sears Maintenance Agreement Guarantees tomorrow's service at today's price.

Eliminates repair bills resulting from normal wear and tear.

Covers non-technical and instructional service calls.

Provides an annual Preventive Maintenance Check. at your request. to ensure that your appliance is in proper running condition.

Some limitations apply. For information concerning Sears Home Central ®Maintenance Agreements. call 1-800-361-6665.

WATER CERTIFICATIONS

State of California

Department of Health Services Water Treatment Device Certificate Number 1366

DateIssue& November 18.1998

Trademark/iVlodel Designation Replacement Elements

Whirlpool WF-NLC250 NLC 250

Manufacturer: Whirlpool Corp.

The water treatment device(s) listed On this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

MierobioloaleatContaminants and Turbidity

Cysts (protozoan) T=bkty

Inoreanie/Radioloaleal Contaminants

Lead

Or2anie Contaminant Ncme

Replacement Parts To order stainless steel cleaner or replacement filters. call 1-800-4MY-HOME ®and ask for the appropriate part number listed below or contact your authorized Kenmore dealer.

Stainless Steel Cleaner & Polish: Order Part #D22 M40083

Base grille water filter cartridges: Cyst Cartridge: Order Part #9902 (WF-NLC250 and WF-LC400)

Rated Service Capacity: 250 gallons Rated Service Flow: 0.5 gpm

Do not use where water is microbiologically unsafe or with water of unknown quality. except that systems claiming cyst reduction may be used on water containing cysts.

State of California

Department of Health Services Water Treatment Device Certificate Number 1367

Date Issued: Novembez 18.1998

Trademark/Model Designation

Replacement Elements WhiWF-LC400

Mannfacturer: Whirlpool 0i

Section 116830e

PRODUCT DATA

Base Grille Water Filtration System Model WF-NLC250/NLC250

Tested and certified by NSF International against ANSI/NSF Standard 42 for the reduction of Chlorine (Class I) Taste and Odor and against ANSI/NSF Standard 53 for the reduction of Lead. Cysts and Turbidity.

Capacity: 250 Gallons (946 Liters) Service Flow Rate: 0.5 GPM (1.89 L/min.) @60 psi.

Substance Reduction U.S. EPA Average Maximum Average Minimum Average NSF Test Aesthetic Effects MCL Influent Effluent Reduction Number

Chlorine Taste/Odor N/A 1.9 mg/L N/A 0.04 mg/L N/A 97.9% 994707 Particulate N/A 610.000/mL* N/A 154/mL N/A 99.97% 994711

Contaminant U.S. EPA Average Maximum Average Minimum Average NSF Test Reduction MCL Influent Effluent Reduction Number

Cyst 99.95%** 89.250/mL* 6/mL 2.3/mL 99.993% 99.997% 994710 Turbidity 0.5 NTU 29 NTU 0.1 NTU 0.09 NTU 99.5% 99.69% 994710

Lead: @pH 6.5 0.015 mg/L 0.16 mg/L*** 0.001mg/L 0.001 mg/L 99.4% 994708 Lead: @pH 8.5 0.015 mg/L 0.16 mg/L*** 0.002 mg/L 0.001 mg/L 98.8% 99.4% 994709

Base Grille Water Filtration System Model WF-LC400/LC400

Tested and certified by NSF International against ANSI/NSF Standard 42 for the reduction of Chlorine (Class I) Taste and Odor and against ANSI/NSF Standard 53 for the reduction of Lead. Cysts and Turbidity.

Capacity: 400 Gallons (1514 Liters) Service Flow Rate: 0.5 GPM (1.89 L/min.) @60 psi.

Substance Reduction U.S. EPA Average Maximum Average Minimum Average NSF Test Aesthetic Effects MCL Infiuent Effluent Reduction Number

Chlorine Taste/Odor N/A 2.0 mg/L N/A 0.04 mg/L N/A 994707 Particulate N/A 610.000/mL* N/A 154/mL N/A 994711

Contaminant U.S. EPA Average Maximum Average Minimum Average NSF Test Reduction MCL Infiuent Effluent Reduction Number

Cyst 99.95%** 89.250/mL* 6/mL 2.3/mL 99.993% 99.997% 994710 Turbidity 0.5 NTU 29 NTU 0.12 NTU 0.09 NTU 99.59% 99.69% 994710

Lead: @pH 6.5 0.015 mg/L 0.16 mg/L*** 0.001mg/L 0.001 mg/L 99.4% 994708 Lead: @pH 8.5 0.015 mg/L 0.16 mg/L*** 0.002 mg/L 0.001 mg/L 98.8% 99.4% 994709

It is essential that operational. maintenance. and filter Refer to the front cover or "Assistance or Service" section for replacement requirements be carried out for the product to the Manufacturer's name. address and telephone number. perform as advertised. Refer to the "Warranty" section for the Manufacturer's limited Model WF-NLC250 Change cartridge at least every 6-9 warranty. months.

Use replacement cartridge NLC 250. part# 9902.

2002 suggested retail price of $39.95 U.S.A./S49.95 Canada.

Prices are subject to change without notice.

Model WF-LC400 The filter monitor system measures the amount of water that passes through the filter and alerts you to replace the filter. When 90% of the filter's rated life is used. the filter indicator light changes from green to yellow. When 100% of the filter's rated life is used. the filter indicator light changes from yellow to red. and it is recommended that you replace the filter. Use replacement cartridge LC400. part# 9902. 2002 suggested retail price of $39.95 U.S.A./ $49.95 Canada. Prices are subject to change without notice.

The product is for cold water use only. Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

+ Test requirement is at least 100. 00 particles/ml of AC Fine Test Dust.

+* Cyst performance is % reduction based on NSF Standard 53.

Application Guidelines/Water Supply Parameters

Water Supply City or Well Water Pressure 30 - 120 psi (207 - 827 kPa) Water Temperature 33° - 100°F (0.6 ° - 37.8 ° C)

+** Test requirement is 0.15 mg/L + 10%. These contaminants are not necessarily in your water supply.

Performance may vary based on local water conditions.

® NSF is a registered trademark of NSF International.

Your Home

For repair-in your home-of all major brand appliances. lawn and garden equipment. or heating and cooling systems. no matter who made it. no matter who sold it!

For the replacement parts. accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME (1-800-469-4663)

Call anytime. day or night (U.S.A. and Canada)

Our Home

For repair of carry-in items like vacuums. lawn equipment. and electronics. call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime. day or night (U.S.A. only)

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaci6n a domicilio. y para ordenar piezas: 1-888-SU-HOGAR

(1-888-784-6427)

Au Canada pour service en fran(;ais: 1-800-LE-FOYER Mc

(1-800-533-6937) www.sears.ca SEARS

2220695

+ Sears. Roebuck and Co.

® Registered Trademark / TMTrademark / SMservice Mark of Sears. Roebuck and Co.

® Marca Registrada / TMMarca de F&brica / SMMarca de Servicio de Sears.

Roebuck and Co.

MCMarque de commerce / M°Marque d6pos6e de Sears. Roebuck and Co.

5/02

Printed in U.S.A.

Impreso en EE. UU.

Imprim6 aux I.-U.



Newest Added: 79579993511 58054501500 59679313511 10661189900 79043494400

Kenmore 10652224100 | Pages: 24 | File type: PDF | Filename: 63414735_10652224100.pdf | Size: 4.16 MB | Language: English | Other documents: 1 files.

Download User Manual

Contact us

T: @manualsFile

https://manualsFile.com
