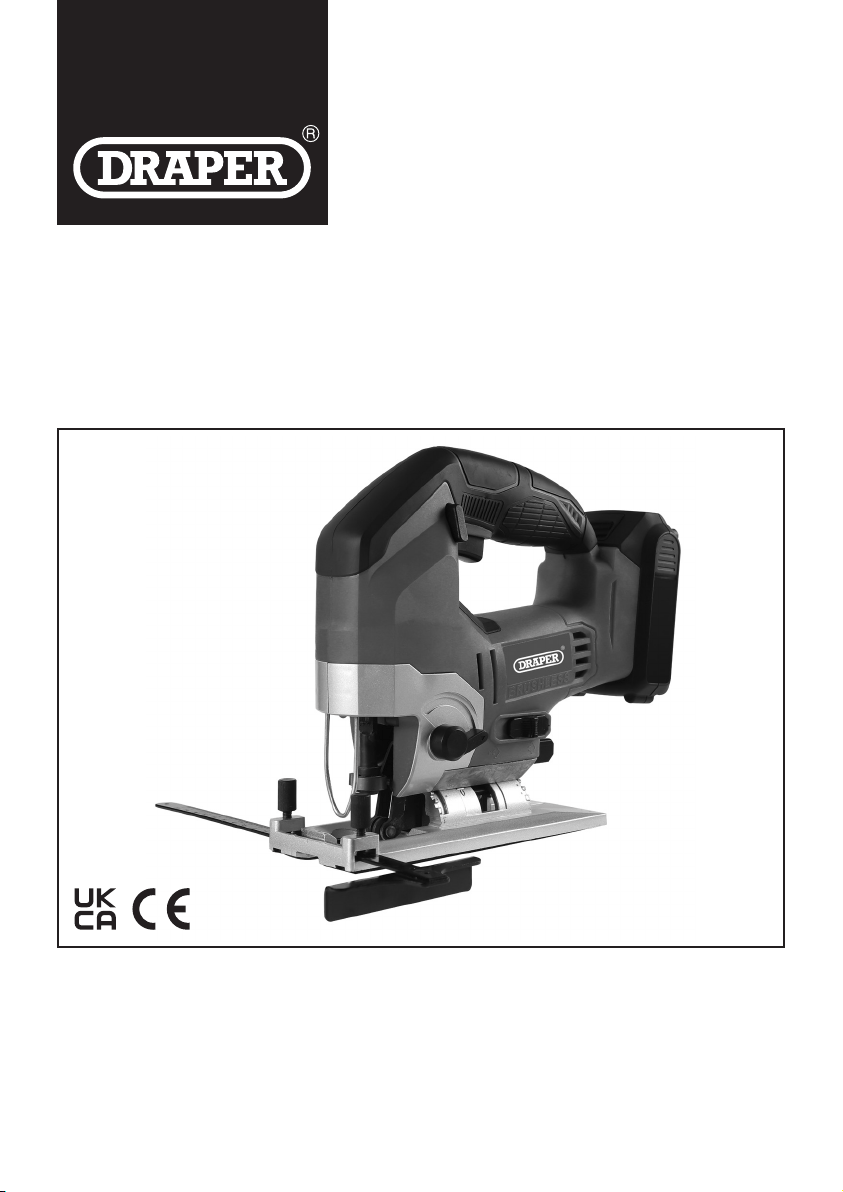

D20 20V BRUSHLESS
JIGSAW
79883
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
ORIGINAL
LANGUAGE
1.1 INTRODUCTION:
USER MANUAL FOR: D20 20V Brushless Jigsaw
Stock No: 79883.
Part No: D20JS.
1.2 REVISIONS:
Date first published August 2021.
As our user manuals are continually updated, users should make
sure that they use the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Help Line: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT:
Warning! – Information that draws attention to the risk of injury or death.
Important – Information that draws attention to the risk of damage to the product or surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other form or
means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1. TITLE PAGE
– 2 –
2. CONTENTS
– 3 –
2.1 TABLE OF CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION: ......................................................................................................... 2
1.2 REVISIONS: ................................................................................................................. 2
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT: ......................................... 2
1.4 COPYRIGHT © NOTICE: ............................................................................................. 2
2. CONTENTS
2.1 TABLE OF CONTENTS ............................................................................................... 3
3. WARRANTY
3.1 WARRANTY ................................................................................................................. 4
4. INTRODUCTION
4.1 SCOPE ......................................................................................................................... 5
4.2 SPECIFICATION .......................................................................................................... 5
4.3 HANDLING AND STORAGE ........................................................................................ 5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE ............................... 6
5.2 CORDLESS JIGSAW SAFETY WARNINGS ............................................................... 8
6. TECHNICAL DESCRIPTION

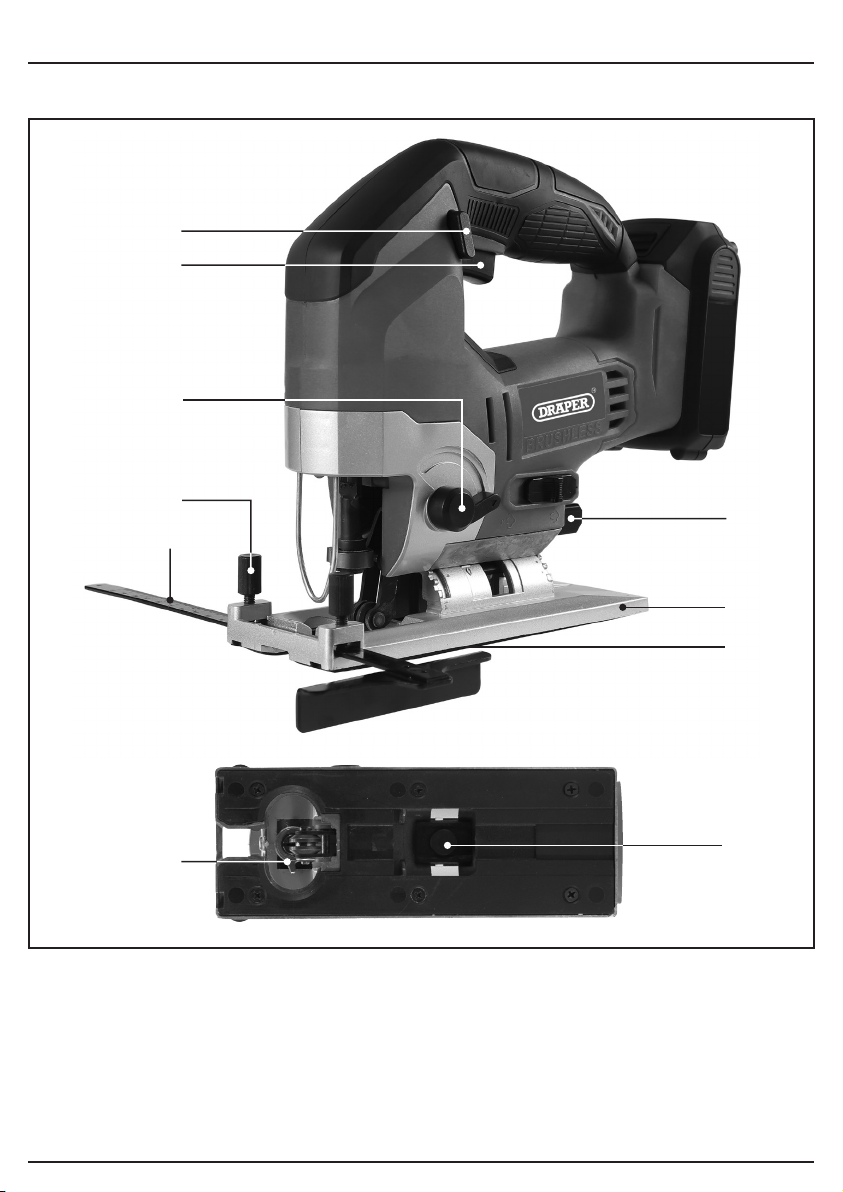

6.1 IDENTIFICATION ......................................................................................................... 9
7. UNPACKING AND CHECKING
7.1 PACKAGING .............................................................................................................. 10

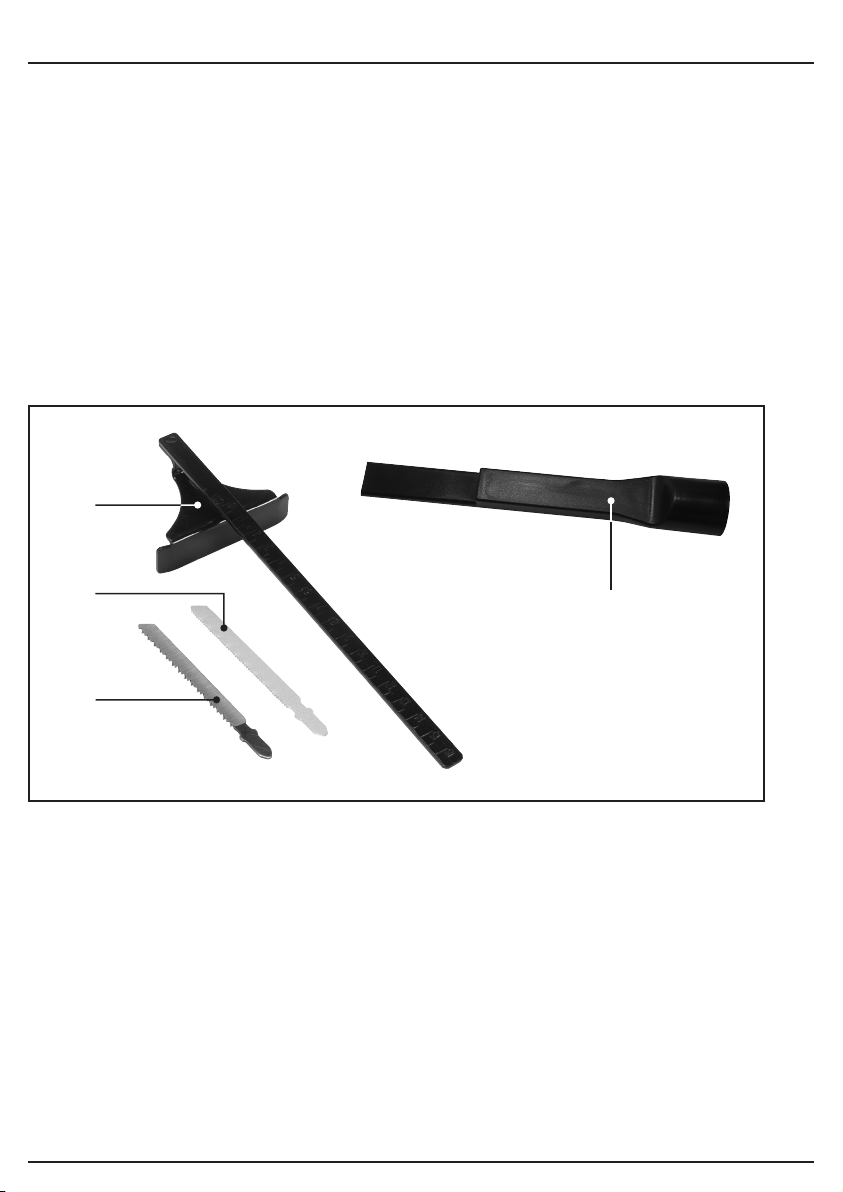

7.2 WHAT’S IN THE BOX ................................................................................................ 10
8. PREPARING THE JIGSAW

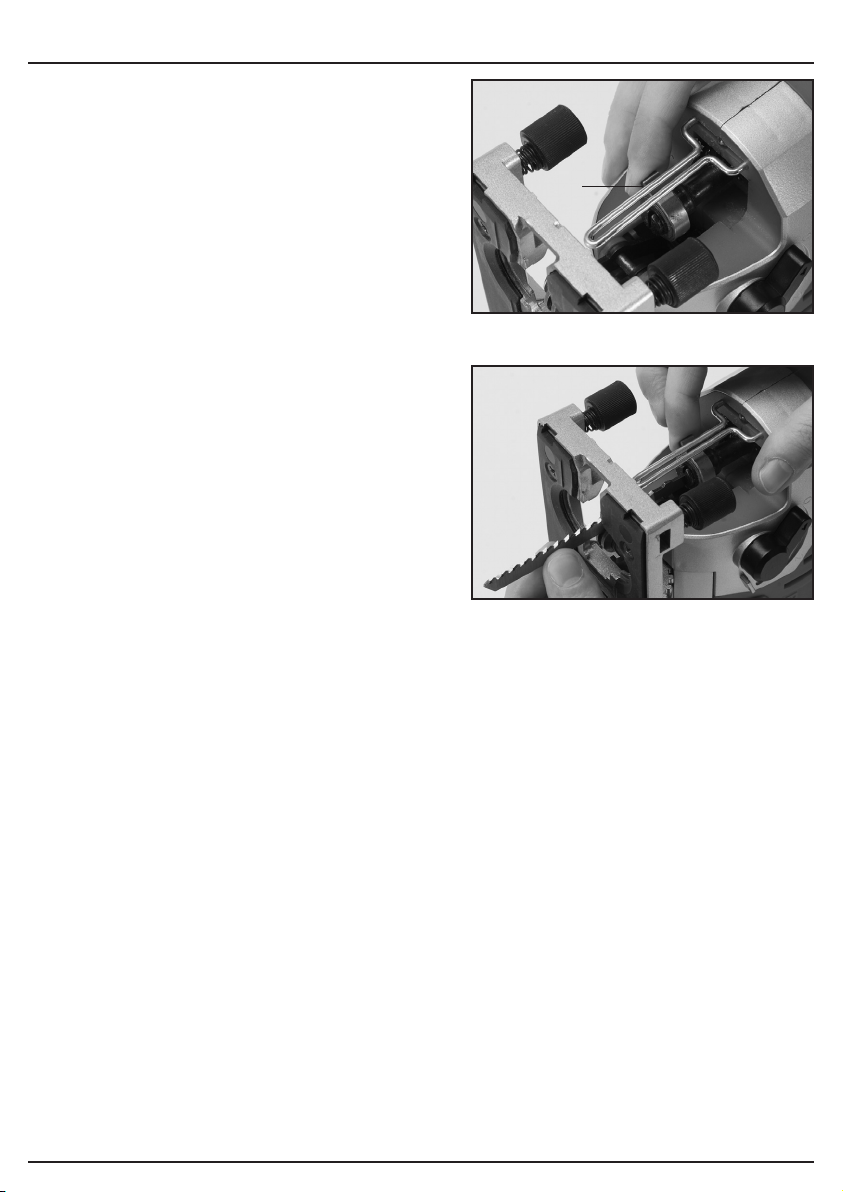

8.1 BLADE INSTALLATION AND REPLACEMENT ......................................................... 11
9. OPERATION

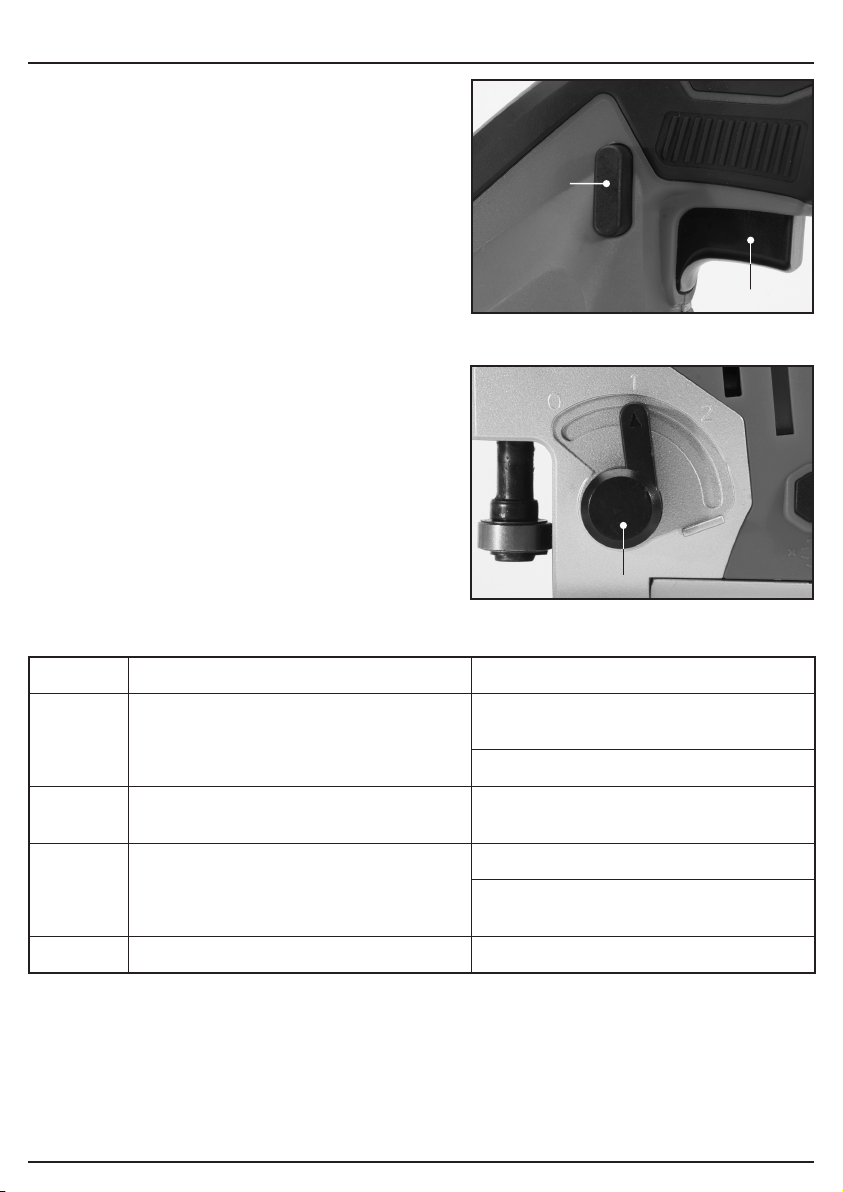

9.1 SWITCH ACTION ....................................................................................................... 12
9.2 SELECTING THE CUTTING ACTION ....................................................................... 12
9.3 GENERAL CUTTING ................................................................................................. 13

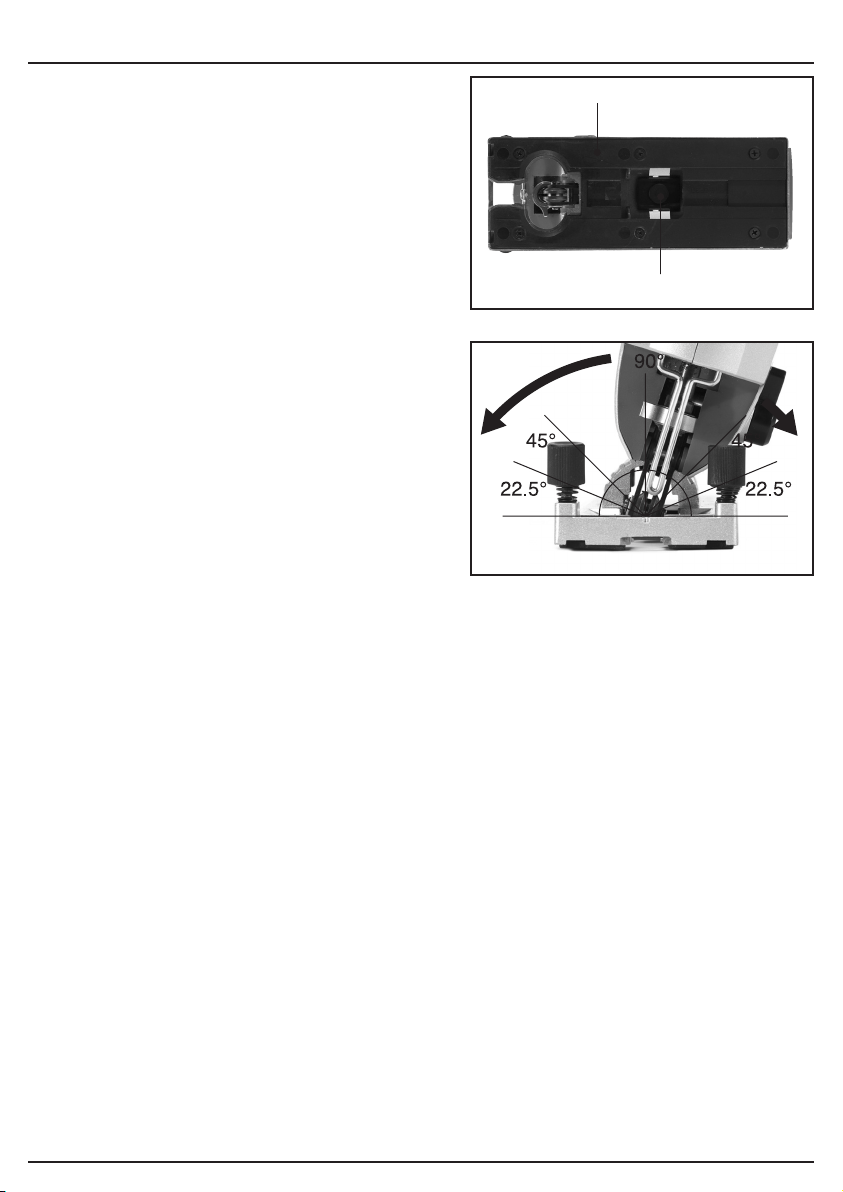

9.4 ANGLED/BEVEL CUTTING ....................................................................................... 13
9.5 PARALLEL GUIDE ..................................................................................................... 14
9.6 DUST EXTRACTION ................................................................................................. 14
10. MAINTENANCE AND TROUBLESHOOTING
10.1 MAINTENANCE ......................................................................................................... 15
10.2 TROUBLESHOOTING ............................................................................................... 15
11. OPTIONAL ACCESSORIES
11.1 OPTIONAL ACCESSORIES ...................................................................................... 16
12. DISPOSAL
12.1 DISPOSAL ................................................................................................................. 17
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS .................................................................................. 18
3. WARRANTY
– 4 –
3.1 WARRANTY
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: +44 (0) 8049 4333 or Product Help Line +44 (0) 23 8049 4344.
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This warranty period covering parts and labour is
12 months from the date of purchase except where tools are hired out when the warranty period
is 90 days from the date of purchase. This warranty does not apply to any consumable parts, any
type of battery or normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will
be quoted and made accordingly.
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms
are not authorised.
Your Draper warranty is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the warranty period.
Please note that this warranty is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
4. INTRODUCTION
4.1 SCOPE
This hand held power tool is designed to cut wood and mild steel materials.
As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any
application other than that it was intended for, is considered misuse.
4.2 SPECIFICATION
Stock No. .................................................................................................................................. 79883
Part No. ................................................................................................................................... D20JS
Voltage......................................................................................................................................... 18V
Strokes per minute (no load): ........................................................................................ 0 – 3000spm
Stroke length: ...........................................................................................................................25mm
Orbital/pendulum settings .................................................................................................................4
Cutting capacity:
Wood ...............................................................................................................................90mm
Mild steel .........................................................................................................................10mm
Aluminium ........................................................................................................................20mm
Bevel cutting angles ............................................................................................................... 0 – 45°
Sound pressure level (LpA): ..................................................................................................82dB(A)
Sound power level (LWA): .....................................................................................................93dB(A)
Vibration level:
Board ...................................................................................................... 8.051m/s
2
, K=1.5m/s
2
Sheet metal ............................................................................................ 8.558m/s
2
, K=1.5m/s
2
Weight (machine only): ............................................................................................................ 1.76kg
4.3 HANDLING AND STORAGE
– Care must be taken when handling this product.
• Dropping this power tool could have an effect on its accuracy and could also result in
personal injury. This product is not a toy and must be respected.
– Environmental conditions can have a detrimental effect on this product if neglected.
• Exposure to damp air can gradually corrode components.
• If the product is unprotected from dust and debris, components will become clogged.
• If not cleaned and maintained correctly or regularly, the machine will not perform at its best.
– 5 –
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE
Warning! Read all safety warnings, instructions, illustrations and specifications provided
with this power tool. Failure to follow all instructions listed below may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tools” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged
or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result
in serious personal injury.
b) Use personal protective equipment Always wear eye protection. Protective equipment
such as a dust mask, non-skid safety shoes, hard hat or hearing protection use for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
– 6 –
5. HEALTH AND SAFETY INFORMATION
g) If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce
dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become
complacent and ignore tool safety principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack,
if detachable, from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could
result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for safe handling and control of the tool in
unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacements parts. This will ensure that the safety of the power tool is maintained.
5.2 CORDLESS JIGSAW SAFETY WARNINGS
1) Hold power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live” and could give the operator an
electric shock.
2) Use clamps or another practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body leaves it unstable and may lead
to loss of control.
3) Always use safety glasses or goggles. Ordinary eye or sun glasses are NOT safety glasses.
4) Avoid cutting nails. Inspect workpiece for any nails and remove them before operation.
5) Do not cut over-size workpiece.
6) Check for the proper clearance beyond the workpiece before cutting so that the blade will not
strike the floor, workbench, etc.
7) Hold the tool firmly.
– 7 –
5. HEALTH AND SAFETY INFORMATION
– 8 –
8) Make sure the blade is not contacting the workpiece before the switch is turned on.
9) Keep hands away from moving parts.
10) Do not leave the tool running. Operate the tool only when hand-held.
11) Always switch off and wait for the blade to come to a complete stop before removing the blade
from the workpiece.
12) Do not touch the blade or the workpiece immediately after operation; they may be extremely
hot and could burn your skin.
13) Do not operate the tool at no-load unnecessarily.
14) Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation
and skin contact. Follow material supplier safety data.
15) Always use the correct dust mask/respirator for the material and application you are
working with.
WARNING: Do not let comfort or familiarity with product (gained from repeated use) replace
product. Misuse or failure to follow the safety rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for battery cartridge
1) Before using battery cartridge, read all instructions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2) Do not disassemble battery cartridge.
3) If operating time has become excessively shorter, stop operating immediately. It may result
in a risk of over-heating, possible burns and even an explosion.
4) If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention
right away. It may result in loss of your eyesight.
5) Do not short the battery cartridge:
a) Do not touch the terminals with any conductive material.
b) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
c) Do not expose battery cartridge to water or rain.
A battery short can cause a large current flow, over-heating, possible burns and even
a breakdown.
6) Do not store the tool and battery cartridge in locations where the temperature may reach or
exceed 50°C (122°F).
7) Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
The battery cartridge can explode in a fire.
8) Be careful not to drop or strike battery.
9) Do not use a damaged battery.
10) The contained lithium-ion batteries are subject to the Dangerous Goods Legislation
requirements.
For commercial transports e.g. by third parties, forwarding agents, special requirement on
packaging and labelling must be observed.
For preparation of the item being shipped, consulting an expert for hazardous material
is required.
Please also observe possibly more detailed national regulations.
Tape or mask off open contacts and pack up the battery in such a manner that it cannot move
around in the packaging.
11) Follow your local regulations relating to disposal of battery.
6. TECHNICAL DESCRIPTION
– 9 –
6.1 IDENTIFICATION
(2)
(1)
(6)
(4)
(8)
(10)
(9)
(5)
(3)
(7)
(1) Lock on button.
(2) Switch trigger.
(3) Orbital/pendulum speed adjustment
switch.
(4) Parallel guide locking bolt.
(5) Parallel guide.
(6) Quick change blade clamp.
(7) Dust extraction outlet.
(8) Base plate.
(9) Anti-splinter guard.
(10) Bevel cutting adjustment locking bolt.
7. UNPACKING AND CHECKING
– 10 –
(5) Parallel guide.
(11) Aluminium cutting blade.
(12) Wood cutting blade.
(13) Dust extraction adaptor.
(5)
(12)
(11)
(13)
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing, please contact the Draper Help Line (the telephone
number appears on the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the warranty period, in case the
machine needs to be returned for repair.
Warning!
− Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
− If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.
7.2 WHAT’S IN THE BOX
As well as the main product, there are several parts not fitted or attached to it.
– 11 –
8. PREPARING THE JIGSAW
8.1 BLADE INSTALLATION AND
REPLACEMENT – FIGS.1–2
− Before installing the jigsaw blade, make sure
that the blade clamp lever (6) is in the released
position.
− To install the jigsaw blade, insert the blade
(teeth facing forward) into the blade holder.
The lever moves to the fixed position and the
blade is locked. Make sure that the back edge
of the blade fits into the roller. Pull the blade
lightly to make sure that the blade does not fall
off during operation.
(6)
1 FIG.
2 FIG.
– 12 –
9. OPERATION
9.1 SWITCH ACTION – FIG.3
− To turn on the tool, press the lock/unlock button
(1). The tool goes into standby mode. To start
the tool, pull the switch trigger (2). To stop the
tool, release the switch trigger, and the tool
goes back into standby mode. To turn off the
tool, press the lock/unlock button.
− For continuous operation, pull the switch
trigger in the standby mode, and then push in
the lock on button. To stop the tool, pull the
switch trigger fully, and then release it.
9.2 SELECTING THE CUTTING
ACTION – FIG.4
− This tool can be operated with an orbital or a
straight line (up and down) cutting action. The
orbital cutting action thrusts the jig blade
forward on the cutting stroke and greatly
increases cutting speed.
− To change the cutting action, just turn the
orbital/pendulum speed adjustment switch (3)
to the desired cutting action position. Refer
to the table to select the appropriate
cutting action.
Position Cutting action Applications
0 Straight line cutting action For cutting mild steel, stainless steel
and plastics.
For clean cuts in wood and plywood.
1 Small orbit cutting action For cutting mild steel, aluminium and
hard wood.
2 Medium orbit cutting action For cutting wood and plywood.
For fast cutting in aluminium and mild
steel.
3 Large orbit cutting action For fast cutting in wood and plywood.
(2)
(1)
3 FIG.
4 FIG.
(3)
– 13 –
9. BASIC JIGSAW OPERATIONS
6 FIG.
5 FIG.
9.3 GENERAL CUTTING
Important: Always wear safety goggles.
Important: Due to the shape of the body, this
machine can be operated with only one hand, but
for reasons of safety it is strongly advised to keep
both hands on the machine during use.
Note: Applying pressure on the blade can overload
the motor and result in damage.
− During cutting operations, make sure that the
base is always resting on the workpiece.
− When cutting metals, it is advisable to spread a
few drops of oil on the cutting line to help keep
the blade cool and help prolong the blade life.
− Sheets should always be rested on sufficient
stable supports (chipboard or plywood tables).
In this manner dragging is avoided and the
elasticity of the material is compensated for.
− Small workpieces should be securely clamped
in order that they remain in position during
working operations (for example: fix in position
with a clamp).
Note: When using longer blades and cutting
thicker material, sideways pressure can cause the
blade to bend and start to bevel the cut edge. Keep
the blade straight to ensure a perpendicular cut.
Caution: Make certain the end of the blade does
not contact obstructions below the workpiece as
this will cause the saw to recoil and possibly result
in the blade breaking and injury.
9.4 ANGLED/BEVEL CUTTING –
FIGS.5 – 6
For making bevel cuts the base can be adjusted to
angles of 22° and 45° in either direction.
− Loosen the bevel cutting adjustment bolt (10)
located on the underside of the base plate (8).
Note: If using the jigsaw in conjunction with the
parallel guide (5), it must be removed to carry out
the above step.
– 13 –
(8)
(9)
– 14 –
9. BASIC JIGSAW OPERATIONS

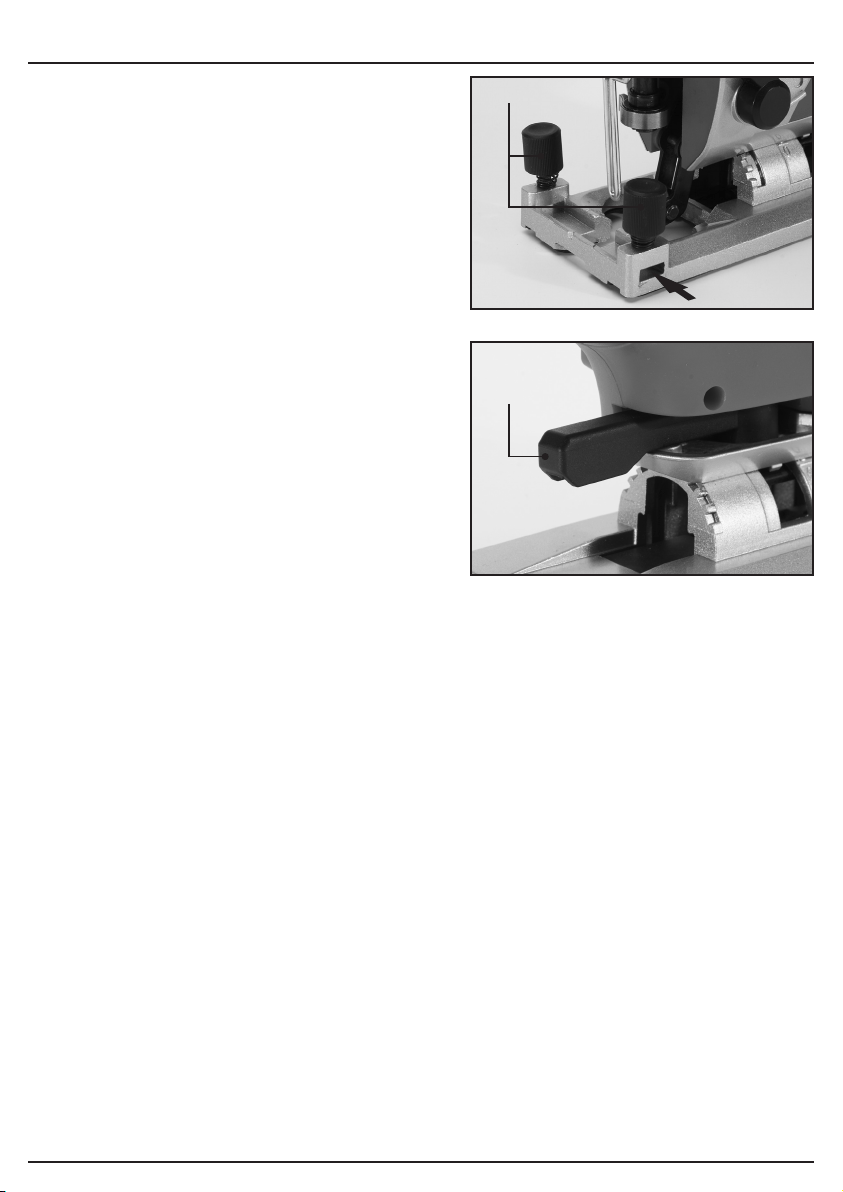

9.5 PARALLEL GUIDE – FIG.7
If the material to be cut has a straight edge, the
supplied parallel guide (5) can be used as an aid
to track the straight edge.
− Pass the parallel guide through the points in
the base.
− Tighten the two parallel guide locking bolts (4)
to secure the guide firmly.
Make a test cut on a scrap piece of timber prior
to making any cuts on the work piece and adjust
accordingly.
Note: When not in use, tighten bolt (4) to prevent
them vibrating loose and getting lost.
9.6 DUST EXTRACTION – FIG.8
Inhalation of dust particles can be detrimental to
health. The dust extraction outlet (7) must be
connected to a suitable dust extraction device.
− The saw is supplied with a dust extraction
adaptor (12) that slots onto the dust extraction
outlet (7). This enables the saw to be
connected up to a suitable dust extraction
device.
Warning! All wood dust (including dust from
composites like chipboards and fibre boards etc.)
is hazardous to health. It can affect the nose, the
respiratory system and the skin. For example MDF
(medium density fibreboard) which contains
formaldehyde is a known carcinogen. In addition to
the above measures a correctly fitted dust mask,
suitable for the activity and in accordance to the
relevant standard, must be worn.
− Contact Draper Tools for details of the
comprehensive range of professional CE
marked face masks available – all conforming
to EN specifications.
7
8
FIG.
FIG.
(7)
(4)
– 15 –
10. MAINTENANCE AND TROUBLESHOOTING
10.1 MAINTENANCE
Regular inspection and cleaning reduces the necessity for maintenance operations and will keep
your tool in good working condition.
The motor must be correctly ventilated during tool operation. Avoid blocking the air inlets and
vacuum the ventilation slots regularly.
10.2 TROUBLESHOOTING
Problem Possible Cause Remedy
Motor does not start. 1. Fuse. 1. Replace/reset 13 amp
time delay fuse or circuit
breaker.
2. Unsure. 3. Return to an authorised
service agent for
diagnosis.
Poor cutting performance. 1. Saw blade blunt. 1. Replace saw blade.
2. Saw blade incorrectly
mounted.
2. Remove and refit saw
blade as per instructions.
3. Incorrect saw blade
selection.
3. Seek advice on suitable
saw blades.
11. OPTIONAL ACCESSORIES
– 16 –
11.1 OPTIONAL ACCESSORIES
A full range of accessories are available from Draper Tools.
Please visit our website for details: www.drapertools.com
– 17 –
12. DISPOSAL
12.1 DISPOSAL
– At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is
disposed of according to national regulations.
– Contact your local authority for details of collection schemes in your area.
In all circumstances:
• Do not dispose of power tools with domestic waste.
• Do not incinerate.
• Do not dispose of WEEE* as unsorted municipal waste.
* Waste Electrical & Electronic Equipment.
13. EXPLANATION OF SYMBOLS
13.1 EXPLANATION OF SYMBOLS
Read the instruction manual.
Wear face mask and safety
glasses.
Wear ear defenders.
Wear protective gloves.
Do not abandon into the
environment.
Keep out of the reach of children.
Warning!
Bayonet fitting jigsaw blade.
Class II construction
(Double insulated).
WEEE –
Waste Electrical & Electronic Equipment.
Do not dispose of Waste Electrical & Electronic
Equipment in with domestic rubbish.
– 18 –
NOTES
– 19 –
CONTACTS
Draper Tools Limited, Hursley Road,
Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. U.K.
Help Line: (023) 8049 4344
Sales Desk: (023) 8049 4333
Internet: drapertools.com
E-mail: [email protected]
General Enquiries: (023) 8026 6355
Service/Warranty Repair Agent:
For aftersales servicing or warranty repairs, please contact the
Draper Tools Help Line for details of an agent in your local area.
YOUR DRAPER STOCKIST
TAPR0821
©Published by Draper Tools Limited.
No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means,
electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
