Smart Choice
™
BEFORE BEGINNING INSTALLATION, READ
ALL MANUFACTURER’S INSTALLATION
INSTRUCTIONS THOROUGHLY
DANGER
FIRE AND ELECTROCUTION HAZARD
This Kit Includes:
1
pn/ 55304501582
One 6' Long x 3/8" OD Gas Supply Line
One 3/8" OD FLare x 1/2" MIP Fitting
One 3/8" OD Flare x 3/8" FIP Fitting
One 3/8" OD Flare x 3/4" MIP Fitting
One Tube of Thread Sealant
One Tube of Leak Detector Solution
Two 4" Dryer Vent Clamps
Two 4" Close Elbows with Dryer Vent Clamps
One 8' Semi Rigid Dryer Vent Pipe
Two 6' Braided Stainless Steel Fill Hoses
YOU DO NOT POSSESS THE NECCESSARY
Washer & Gas Dryer Installation Kit
2
removed and stored
Shipping bolts and spacers removed from
appliance and stored
Leveling
Washer is level, side-to-side and front-to-back
Cabinet is setting solid on all corners
Water Supply
Use only new hoses and verify rubber sealing
washers are installed
HOT supply is connected to HOT inlet and
COLD supply is connected to COLD inlet
HOT and COLD water supply turned on
No leaks present at water supply connections or
appliance inlet connections -
recheck in 24 hours
Drain
Stand pipe or wall drain height minimum 24”
Drain hose secured in place with cable tie
Electrical Power
House power turned on
Washer plugged in
Final Checks
Installation Instructions and Use and Care Guide
read thoroughly
Door locks and water enters drum when cycle
starts
Registration card sent in
Installation Checklist
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
Definitions
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
WARNING
Please read all instructions before using washer.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
3
IMPORTANT SAFETY INSTRUCTIONS-WASHER
NOTE
The electrical service to the washer must conform with
local codes and ordinances and the latest edition of the
National Electrical Code, ANSI/NFPA 70, or in Canada,
the Canadian Electrical Code C22.1 part 1.
WARNING
FIRE HAZARD
For your safety the information in this manual must be
followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
Do not store or use gasoline or other fl ammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING
SUFFOCATION HAZARD
Destroy the carton and plastic bags after the washer is
unpacked. Children might use them for play. Cartons
covered with rugs, bedspreads, or plastic sheets can become
airtight chambers causing suffocation. Place all materials in a
garbage container or make materials inaccessible to children.
IMPORTANT
The instructions in this manual and all other literature
included with this washer are not meant to cover every
possible condition and situation that may occur. Good
safe practice and caution MUST be applied when
installing, operating and maintaining any appliance.
Maximum benifits and enjoyment are achieved when all
the Safety and Operating Instructions are understood
and practiced as a routine with your laundering tasks.
CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one
person move or lift the washer.
Save these instructions for future reference.

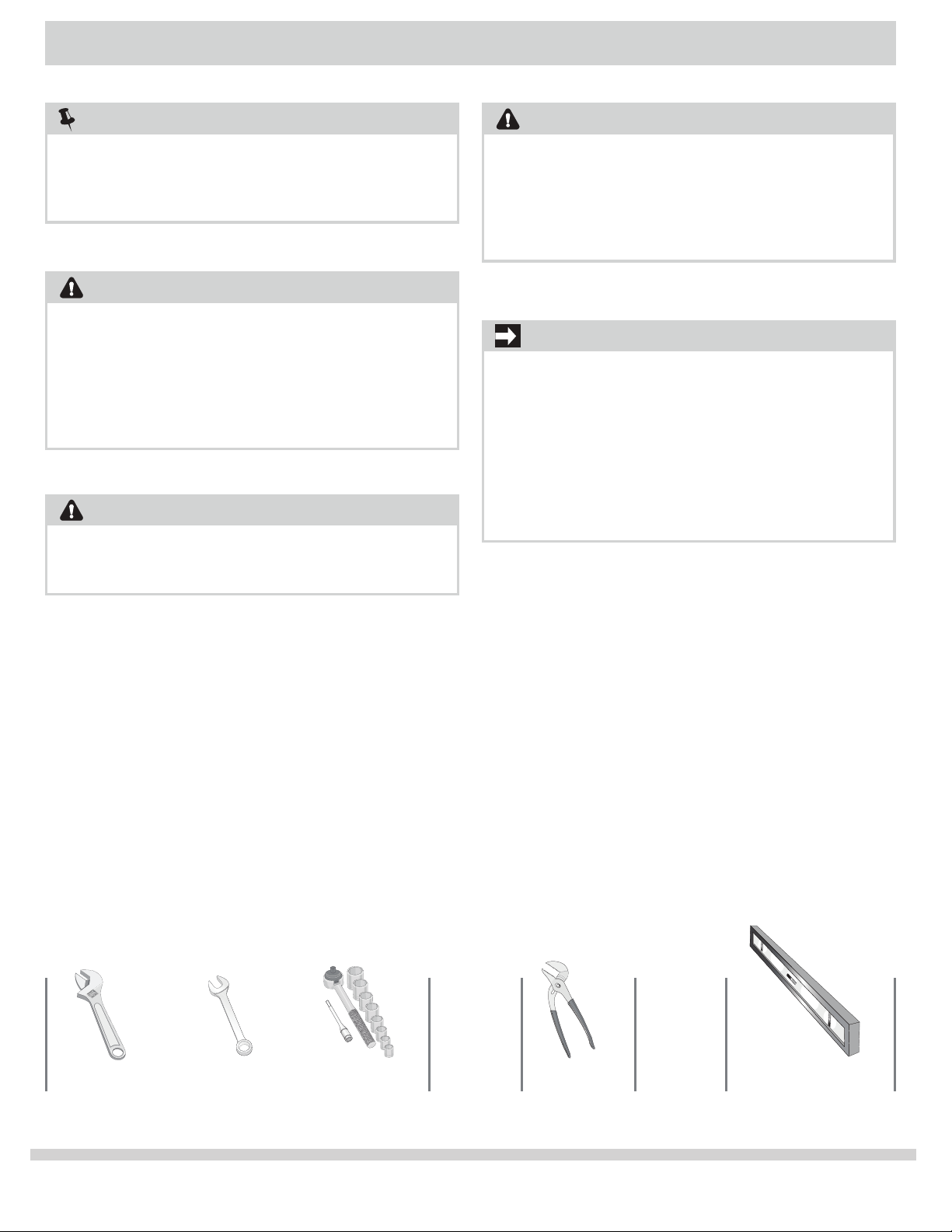

Tools and materials needed for installation:
Adjustable
pliers
Adjustable
wrench
Box wrench
OR OR AND AND
Ratchet and
socket set
Carpenter’s level
4

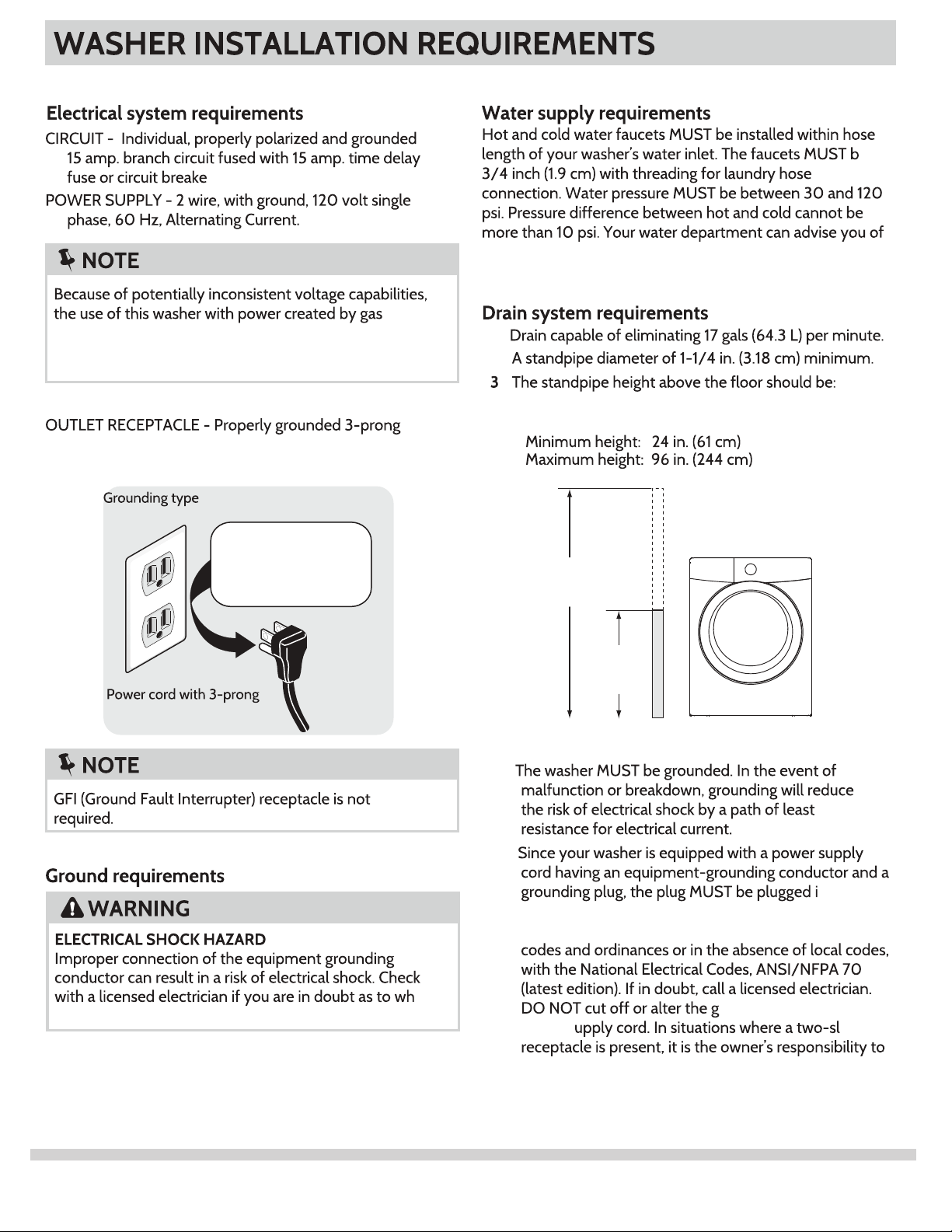

powered generators, solar powered generators, wind
powered generators or any other generator other than
the local utility company is not recommended.
r.

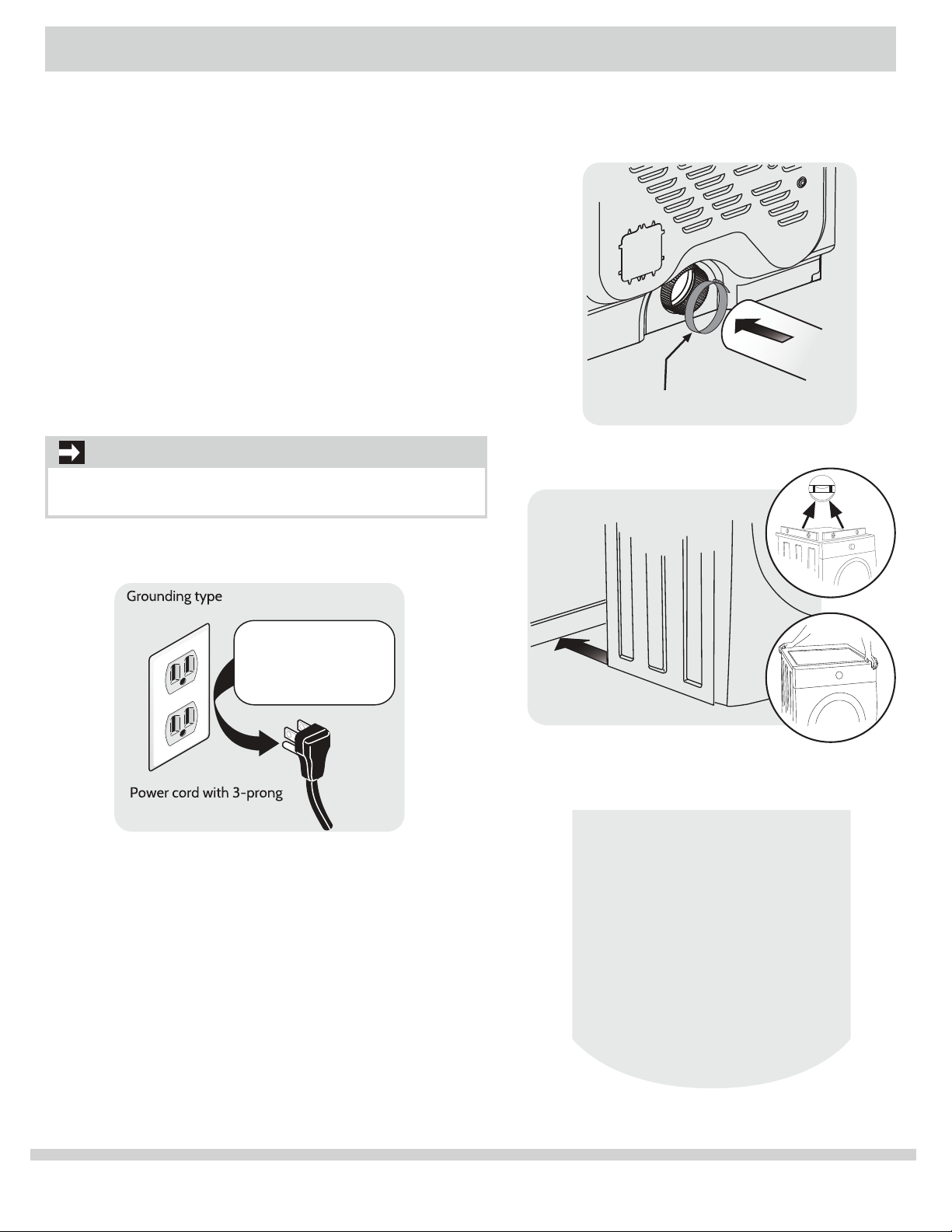

receptacle to be located so the power supply cord is
accessible when the washer is in an installed position.
wall receptacle
96”
(244cm)
max.
24”
(61cm)
min.
2
e
your water pressure.
1
1
2
nto an
appropriate, copper wired receptacle that is properly
installed and grounded in accordance with all local
rounding prong on the
power s
ot
have a licensed electrician replace it with a properly
grounded three prong grounding type receptacle.
ether
the appliance is properly grounded.
Do not, under any
circumstances, cut,
remove , or bypass
the grounding prong.
grounded plug
5
oor
ventila
nches
p a
r
o r.

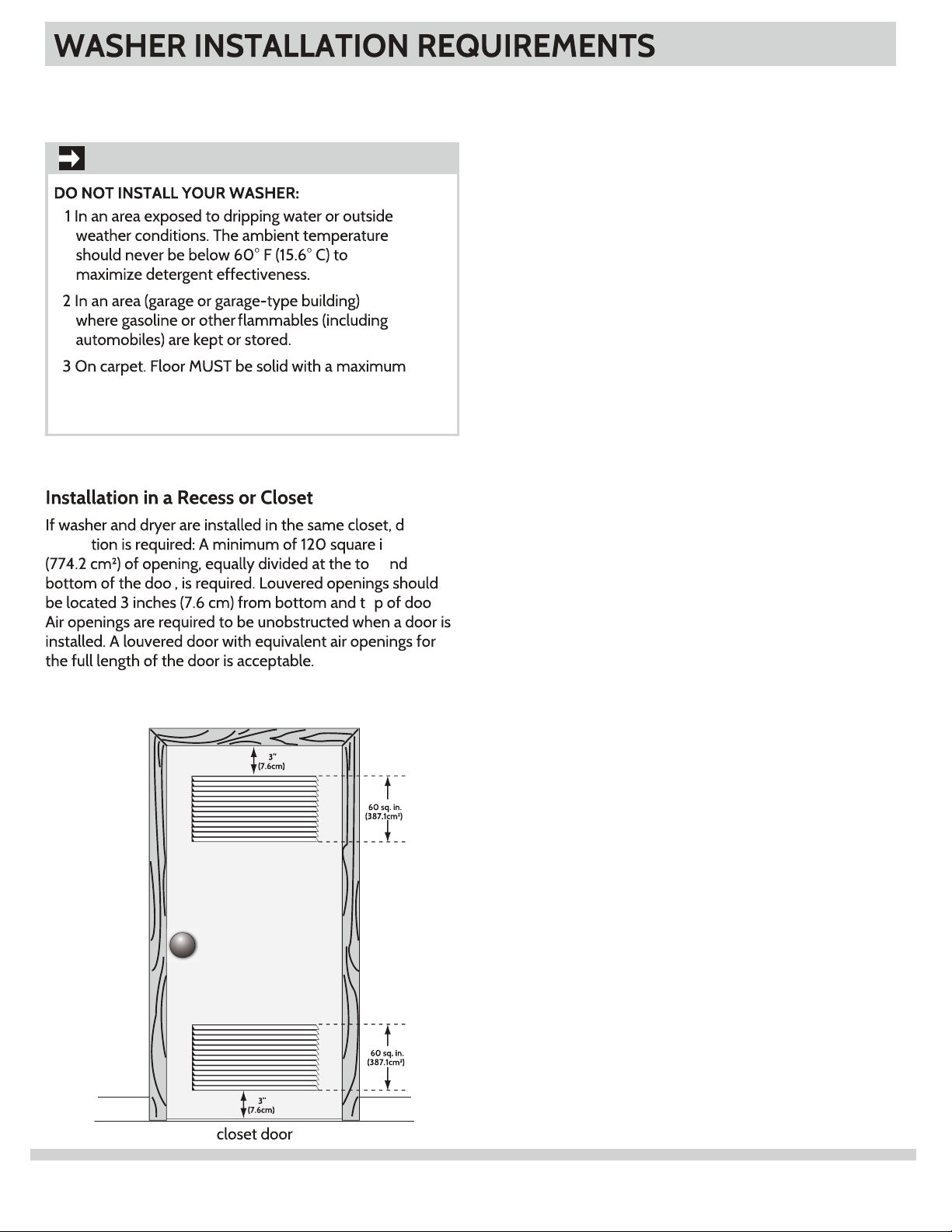

Clearance requirements
IMPORTANT
slope of 1 inch (2.5 cm). To minimize vibration or
movement, reinforcement of the floor may
be necessary.
6
a
b
c
d
raise
lower
a
e
f
g
b
c
d

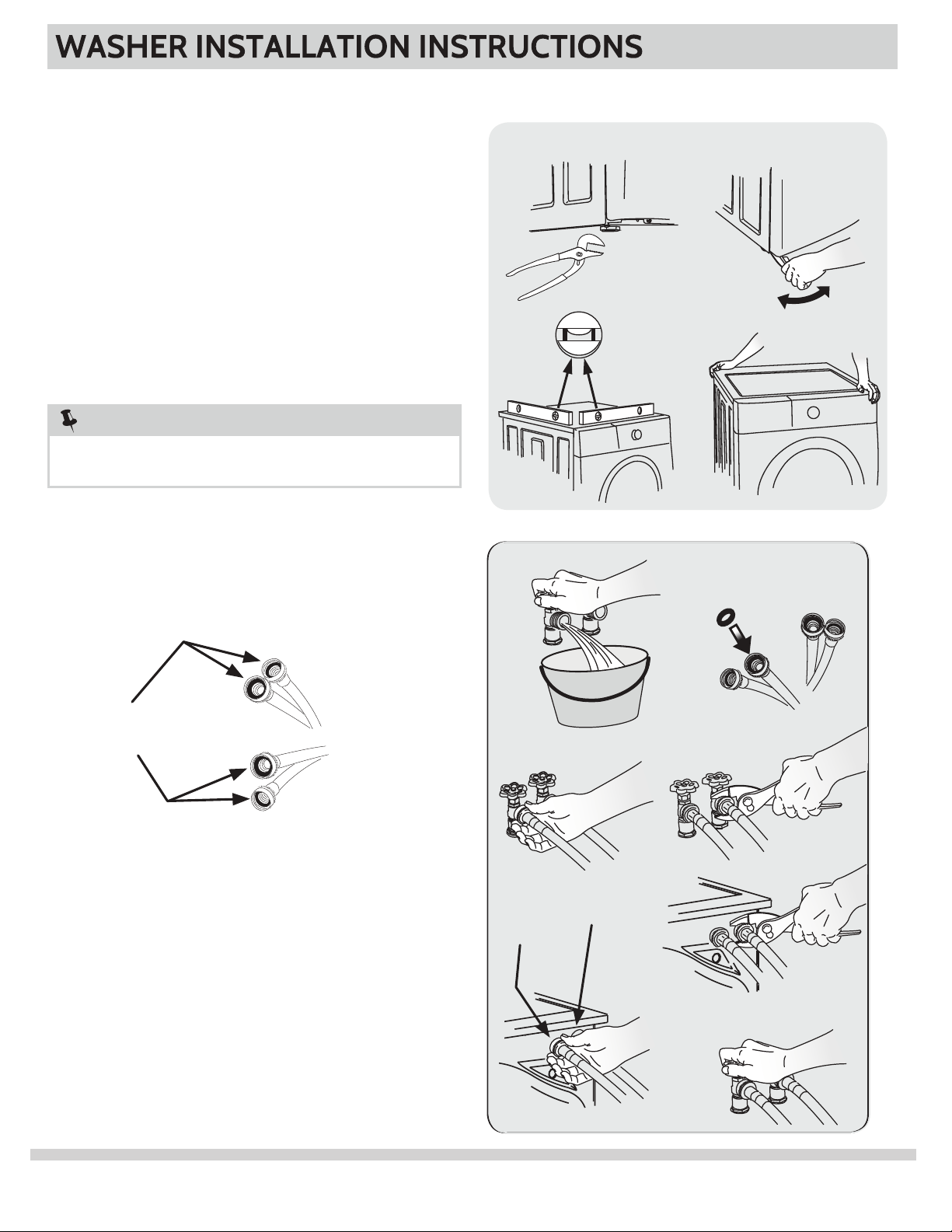

Leveling your washer
Excessive noise and vibration can be prevented by
properly leveling the washer.
1 For free standing installation and with the washer
within 4 feet (1 m) of its final location, place a level on
top of the washer.
2 Use adjustable pliers to adjust the leveling legs so
the washer is level front-to-rear and side-to-side,
and stable corner-to-corner.
3 Press down on alternate corners and sides and feel
for the slightest movement. Adjust the appropriate
leg(s) so the washer sits solidly on the floor on ALL
four legs. Keep the leveling leg extension at a
minimum for best performance of the washer.
Connecting inlet water
COLD
HOT
NOTE
For pedestal installations, see additional installation
instructions included with the pedestal.
1 Run some water from the hot and cold faucets
to flush the water lines and remove particles that
might clog the water valve screens and to
determine which faucet is hot and which is
cold supply.
2 Connect the HOT inlet hose to the HOT inlet
connection on the washer and the COLD inlet hose
to the COLD inlet connection on the washer.
Tighten by hand until snug. Then tighten each
supply connection another 2/3 turn with pliers.
Do not cross thread or over-tighten these connections.
3 Connect the HOT inlet hose to the HOT water
supply and the COLD inlet hose to the COLD water
supply. Tighten by hand until snug. Then tighten each
supply connection another 2/3 turn with pliers.
Do not bend, kink or pinch water inlet hoses.
4 Turn on the water and check for leaks.
RUBBER WASHERS
MUST BE PRESENT
USE ONLY
NEW HOSES
7

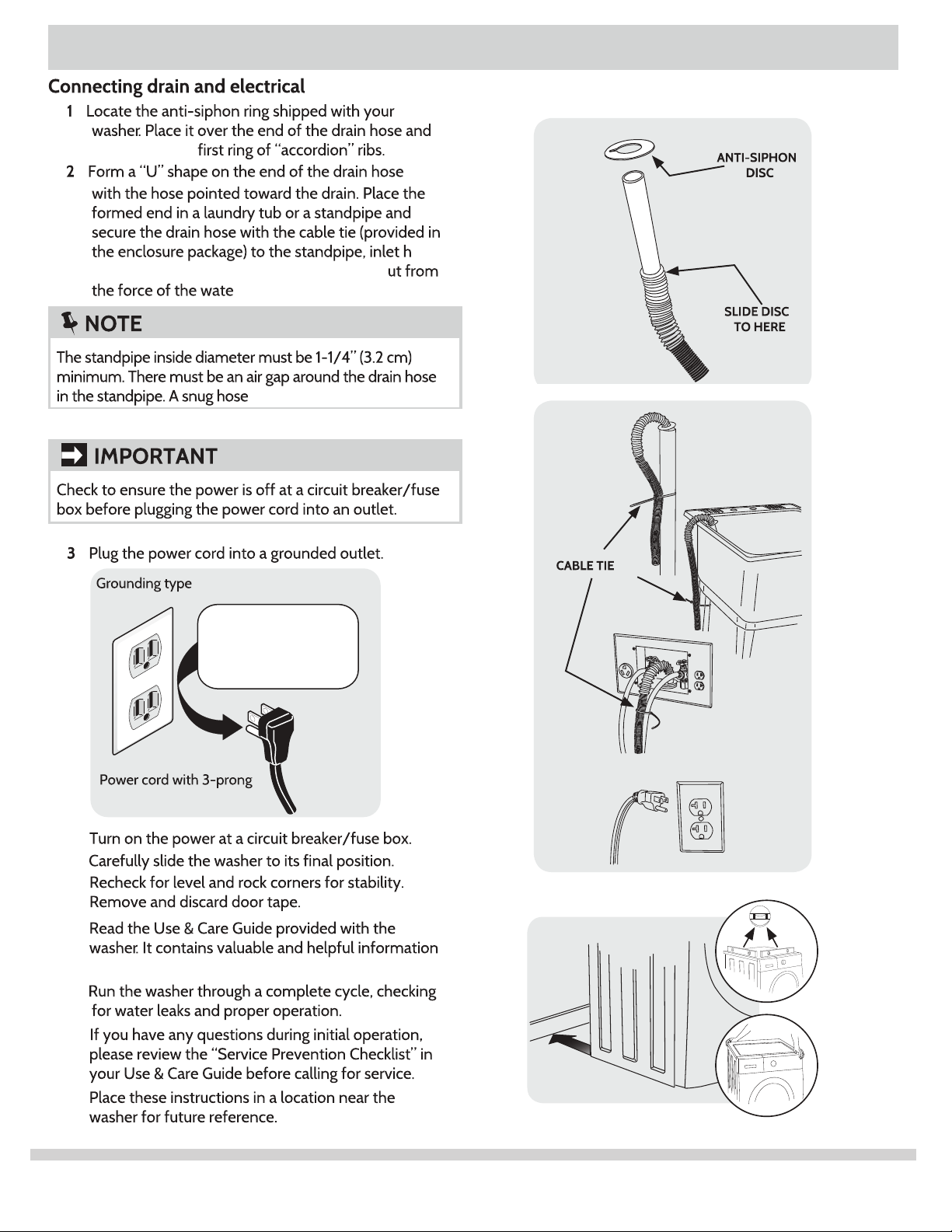

WASHER INSTALLATION INSTRUCTIONS
(Cont.)
slide it past the
ose,
laundry tub, etc. so the hose does not pull o
r.
4
5
6
that will save you time and money.
7
8
9
fit can cause a siphoning action.

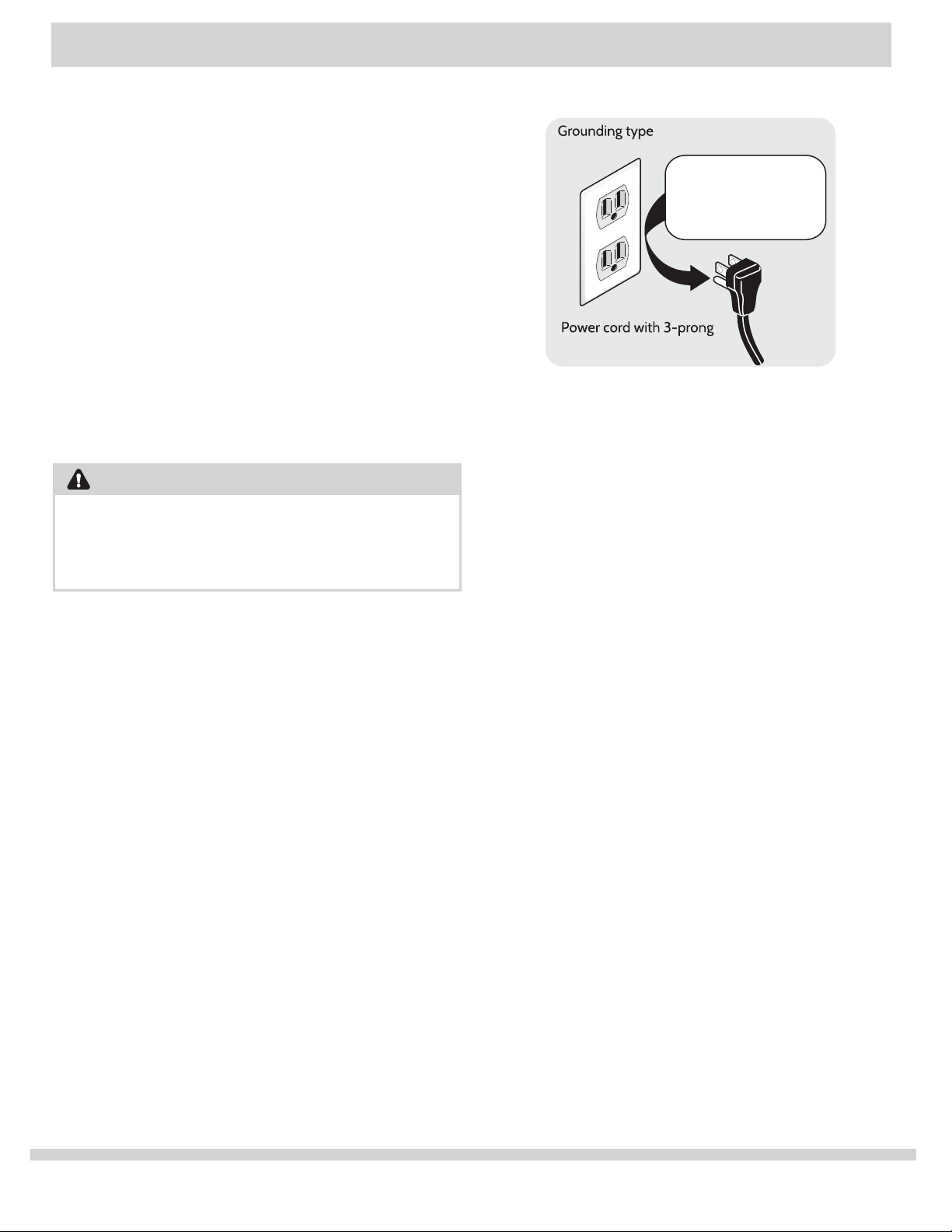

wall receptacle
Do not, under any
circumstances, cut,
remove , or bypass
the grounding prong.
grounded plug
8
IMPORTANT SAFETY INSTRUCTIONS - DRYER
WARNING
For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent
property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one
person move or lift the appliance.
Read all of the following instructions before installing and using this appliance:
• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered with
rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a garbage
container or make materials inaccessible to children.
• Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National
Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
• The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas
Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. An individual manual shut-off valve must be installed within 6
ft (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
• The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME USE
only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
• Do not install a clothes dryer with flexible plastic or flexible foil venting material. Flexible venting materials are known to
collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer air flow and increase the risk of fire.
• Do not stack a dryer on top of washer already installed on pedestal. Do not stack dryer on top of another dryer. Do not
stack washer on top of dryer. Do not stack washer on top of another washer. Do not stack dryer on top of washer without
use of manufacturer approved and correctly installed stacking kit appropriate for your model.
• The instructions in this manual and all other literature included with this dryer are not meant to cover every possible
condition and situation that may occur. Good safe practice and caution MUST be applied when installing, operating and
maintaining any appliance.
Pre-Installation Requirements
Tools and materials needed for installation:
• Adjustable pliers
• Phillips, straight, & square bit
screwdrivers
• Adjustable wrench
• Pipe wrench for gas supply (gas dryer)
LP-resistant thread tape (for natural
gas or LP supply, gas dryer)
• Carpenter’s level
• External vent hood
• 4-inch (102 mm), rigid metal or
semi-rigid metal exhaust duct work
•
• 4 in. (102 mm) clamp
• Gas line shutoff valve (gas dryer)
• ½ NPT union flare adapters (x2)
and flexible gas supply line (gas dryer)
• Metal foil tape (not duct tape)
WARNING - RISK OF FIRE
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the
fire department.
Save these instructions for
future reference.
9
IMPORTANT SAFETY INSTRUCTIONS-DRYER (Cont.)

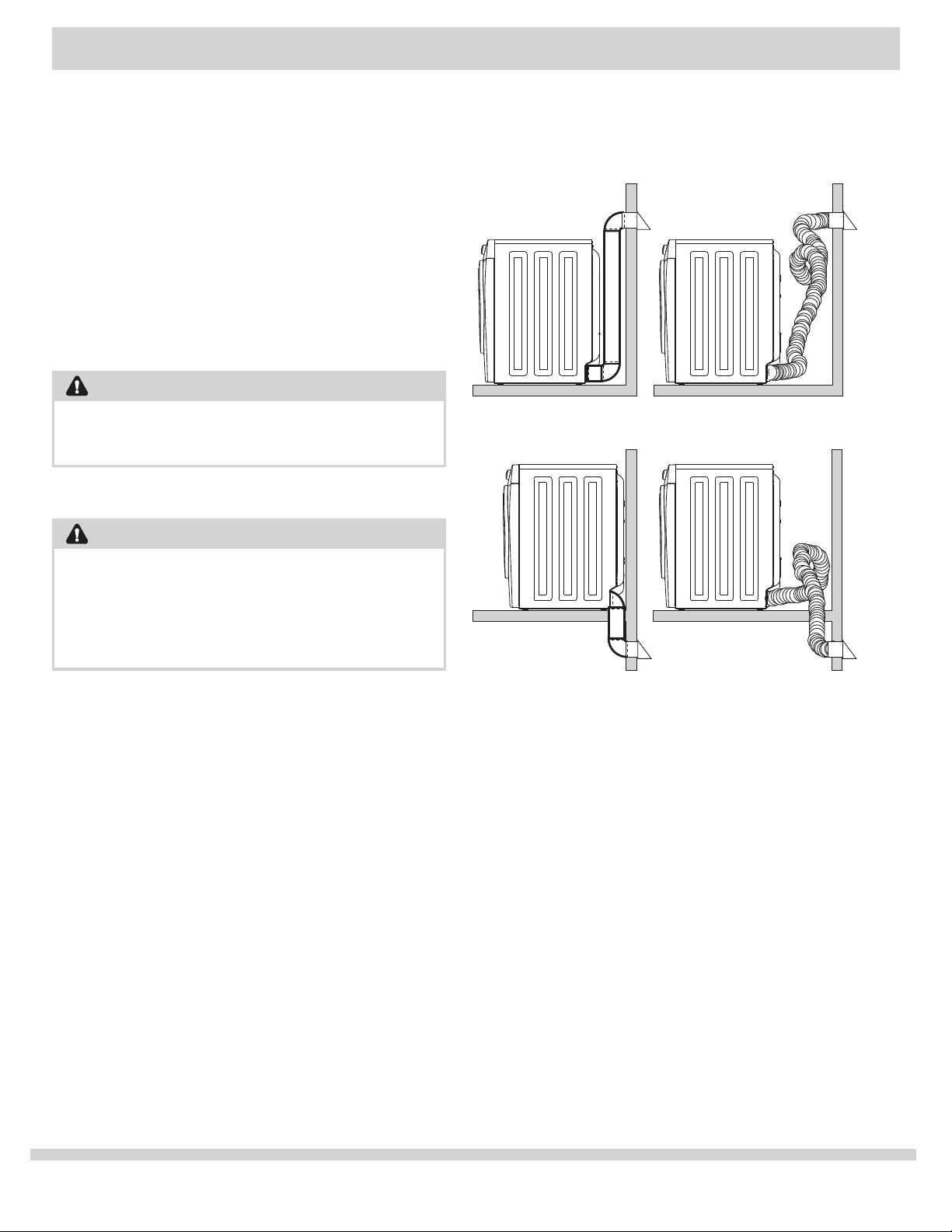

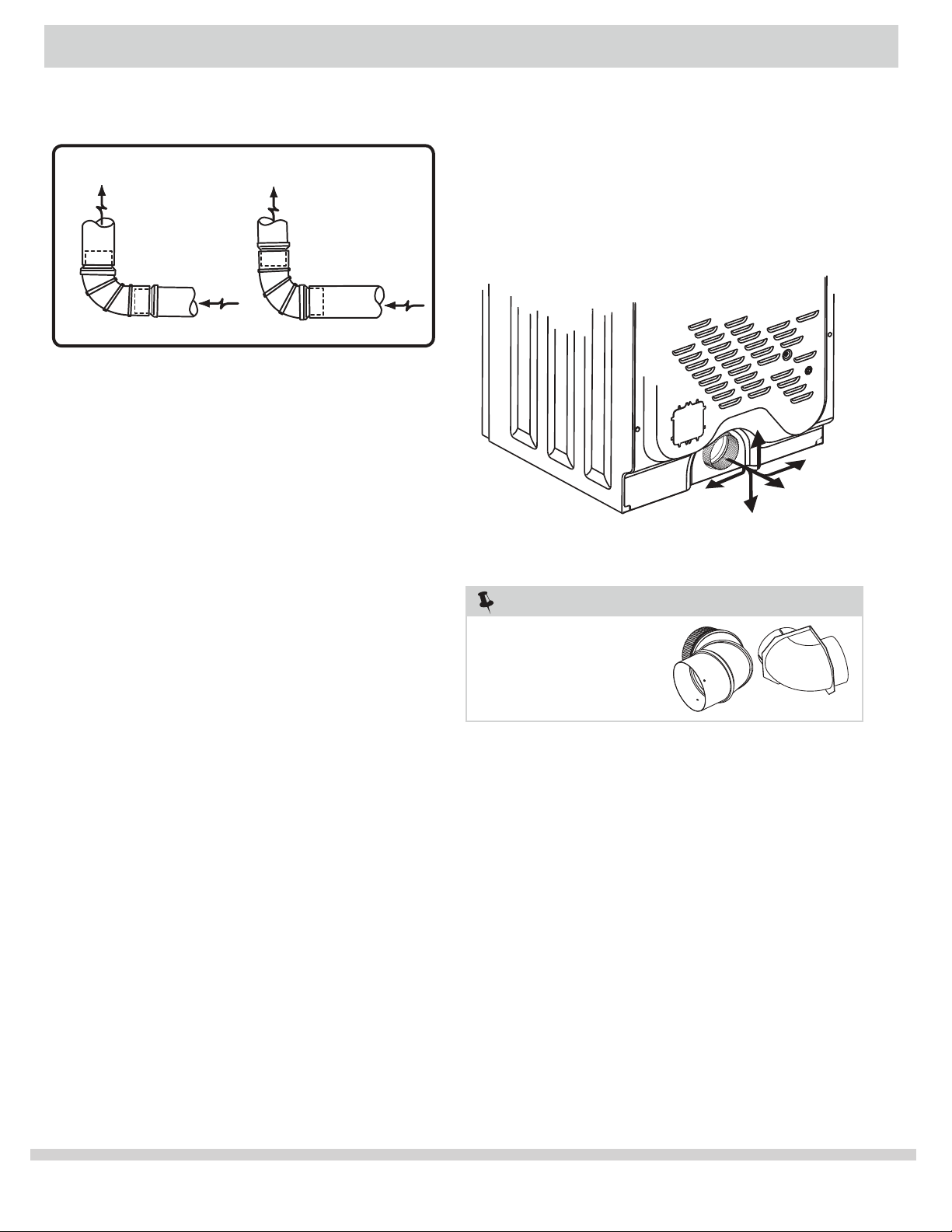

Exhaust Venting
Free-flowing, clear of lint buildup
4 inch (102 mm) rigid or semi-rigid ducting of
minimal length and turns
NO foil or plastic venting material
Approved vent hood exhausted to outdoors
Leveling
Dryer is level, side-to-side and front-to-back
Cabinet is setting solid on all corners

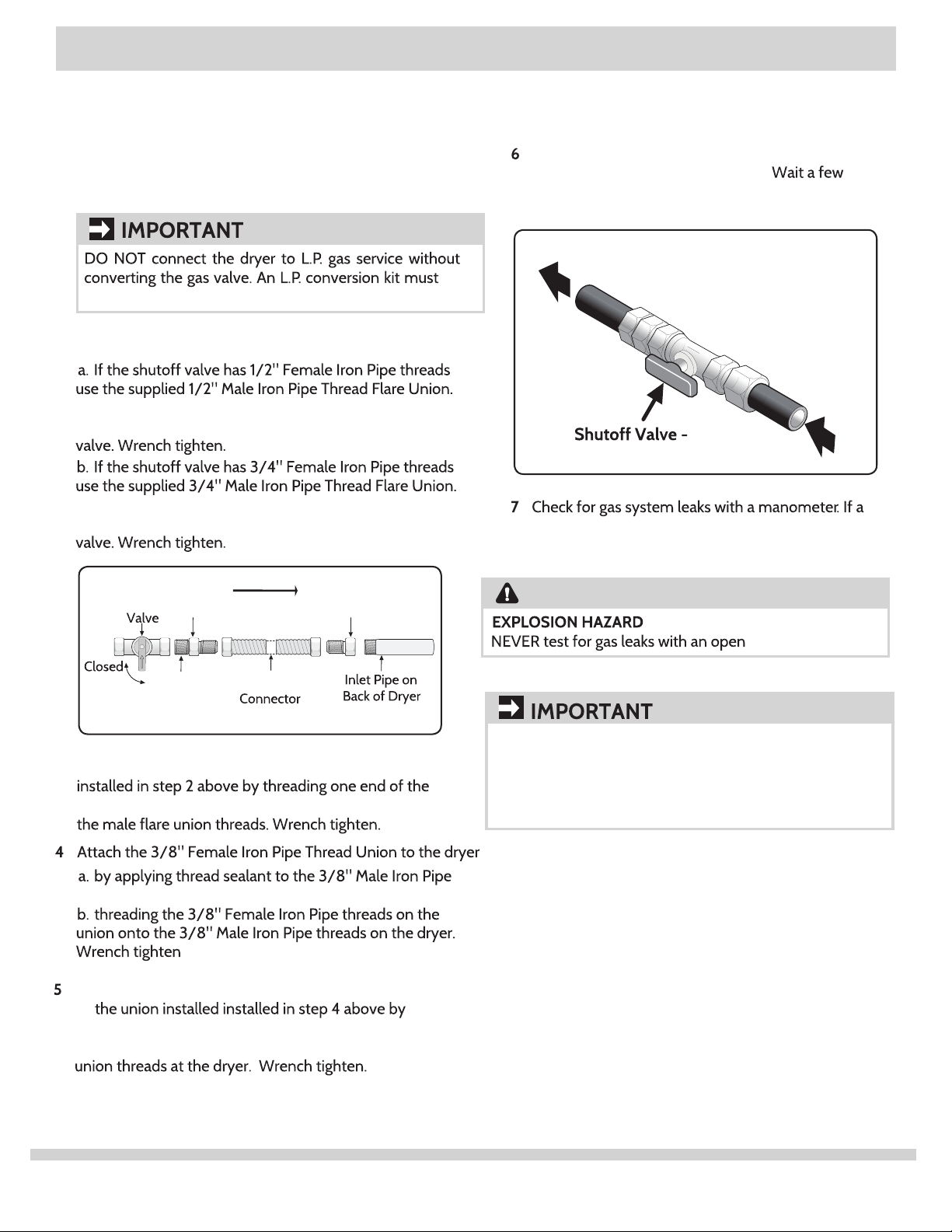

Gas Supply (Gas Dryer)
Manual shutoff valve present in supply
All connections sealed with approved sealer and
wrench tight
Conversion kit for LP system
Gas supply turned on
No leaks present at all connections -
check with leak detection solution, NEVER check
with flame
Electrical Power
House power turned on
Dryer plugged in
Final Checks
Installation Instructions and Use and Care Guide
read thoroughly
Door latches and drum tumbles when cycle starts
Registration card sent in
Installation Checklist
Recognize safety symbols, words
and labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
WARNING
Please read all instructions before using this dryer.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
10
wall receptacle
Do not, under any
circumstances, cut,
remove , or bypass
the grounding prong.
grounded plug
INSTALLATION REQUIREMENTS - GAS DRYER
WARNING
EXPLOSION HAZARD
Uncoated copper tubing will corrode when subjected to
natural gas, causing gas leaks. Use ONLY black iron,
stainless steel, or plastic-coated brass piping for gas supply.
Gas supply requirements
Electrical requirements for gas dryer
CIRCUIT - Individual, properly polarized and grounded
15 amp. branch circuit fused with 15 amp. time delay
fuse or circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current.
POWER SUPPLY CORD - The dryer is equipped with a 120
volt 3-wire power cord.
GROUNDING CONNECTION - See “Grounding
requirements” in Electrical Installation section.
1 Installation MUST conform with local codes, or in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1 (latest edition).
2 The gas supply line should be 1/2 inch (1.27 cm) pipe.
3 If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing MUST be constructed of stainless steel or
plastic-coated brass.
4 The gas supply line MUST have an individual
shutoff valve installed in accordance with the B149.1,
Natural Gas and Propane Installation Code.
5 A 1/8 inch (0.32 cm) N.P.T. plugged tapping,
accessible for test gauge connection, MUST be
installed immediately upstream of the gas supply
connection to the dryer.
6 The dryer MUST be disconnected from the gas
supply piping system during any pressure testing of
the gas supply piping system at test pressures in
excess of 1/2 psig (3.45 kPa).
7 The dryer MUST be isolated from the gas supply
piping system during any pressure testing of the gas
supply piping system at test pressures equal to or less
than 1/2 psig (3.45 kPa).
8 Connections for the gas supply must comply with
the Standard for Connectors for Gas Appliances,
ANSI Z21.24.
11
Correct Incorrect
Correct Incorrect
INSTALLATION REQUIREMENTS (Cont.)
Exhaust System Requirements
Use only 4 inch (102 mm) diameter (minimum) rigid
or flex ible metal duct and approved vent hood which
has a swing-out damper(s) that open when the dryer
is in operation. When the dryer stops, the dampers
automatically close to prevent drafts and the entrance
of insects and rodents. To avoid restricting the outlet,
maintain a minimum of 12 inches (30.5 cm) clearance
between the vent hood and the ground or any other
obstruction.
If your present system is made up of plastic duct or metal
foil duct, replace it with a rigid or semi-rigid metal duct. Also,
ensure the present duct is free of any lint prior to installing
dryer duct.
The following are specific requirements for proper and
safe operation of your dryer.
WARNING
FIRE HAZARD
Failure to follow these instructions can create excessive
drying times and fire hazards.
WARNING
FIRE HAZARD
Do not install a clothes dryer with flexible plastic or metal
foil venting materials. Flexible venting materials are
known to collapse, be easily crushed and trap lint. These
conditions will obstruct clothes dryer airflow and increase
the risk of fire.
12
The dryer must be connected to an exhaust outdoors.
Regularly inspect the outdoor exhaust opening and
remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area.
INSTALLATION REQUIREMENTS (Cont.)
Exhaust System Requirements, continued
Number of 90° turns
MAXIMUM LENGTH
of 4” (102mm) Rigid Metal Duct
VENT HOOD TYPE
(Preferred)
4”
(102mm)
louvered
2.5”
(6.35cm)
0 64 ft. (19.5 m) 48 ft. (14.6 m)
1 52 ft. (15.9 m) 40 ft. (12.2 m)
2 44 ft. (13.5 m) 32 ft. (9.8 m)
3 36 ft. (11 m) 24 ft. (7.3 m)
4 28 ft. (9.5 m) 16 ft. (4.9 m)
WARNING
FIRE HAZARD
A clothes dryer must be exhausted outdoors. Do not
exhaust dryer into a chimney, a wall, a ceiling, an attic, a
crawl space or any concealed space of a building. A
clothes dryer produces combustible lint. If the dryer is
not exhausted outdoors, some fine lint will be expelled
into the laundry area. An accumulation of lint in any area
of the home can create a health and fire hazard.
WARNING
FIRE HAZARD
Exceeding the length of duct pipe or number of elbows
allowed in the “MAXIMUM LENGTH” charts can cause an
accumulation of lint in the exhaust system. Plugging the
system could create a fire hazard, as well as increase
drying times.
WARNING
FIRE HAZARD
• Do not allow combustible materials (for example:
clothing, draperies/curtains, paper) to come in
contact with exhaust system. The dryer MUST NOT
be exhausted into a chimney, a wall, a ceiling,
or any concealed space of a building which can
accumulate lint, resulting in a fire hazard.
• Do not screen the exhaust ends of the vent system, or
use any screws, rivets or other fasteners that extend
into the duct to assemble the exhaust system. Lint can
become caught in the screen, on the screws or rivets,
clogging the duct work and creating a fire hazard as well
as increasing drying times. Use an approved vent hood
to terminate the duct outdoors, and seal all joints with
metal foil duct tape. All male duct pipe fittings MUST
be installed downstream with the flow of air.
WARNING
FIRE HAZARD
• Do not install flexible plastic or flexible foil venting
material.
• If installing semi-rigid venting, do not exceed 8 ft.
(2.4 m) duct length.
13
INSTALLATION REQUIREMENTS (Cont.)
See also Clearance Requirements on the next page.
Exhaust direction
Directional exhausting can be accomplished by installing a
quick-turn 90° dryer vent elbow directly to exhaust outlet
of dryer. Dryer vent elbows are available through your local
parts distributor or hardware store.
In installations where the exhaust system is not described in
the charts, the following method must be used to determine
if the exhaust system is acceptable:
1 Connect an inclined or digital manometer between
the dryer and the point the exhaust connects to
the dryer.
2 Set the dryer timer and temperature to air fluff
(cool down) and start the dryer.
3 Read the measurement on the manometer.
4 The system back pressure MUST NOT be higher
than 0.75 inches of water column. If the
system back pressure is less than 0.75 inches of
water column, the system is acceptable. If the
manometer reading is higher than 0.75 inches of
water column, the system is too restrictive and the
installation is unacceptable.
Although vertical orientation of the exhaust system is
acceptable, certain extenuating circumstances could
affect the performance of the dryer:
• Only rigid metal duct work should be used.
• Venting vertically through a roof may expose the
exhaust system to down drafts causing an increase in
vent restriction.
• Running the exhaust system through an uninsulated
area may cause condensation and faster accumulation
of lint.
• Compression or crimping of the exhaust system will
cause an increase in vent restriction.
• The exhaust system should be inspected and cleaned a
minimum of every 18 months with normal usage. The
more the dryer is used, the more often you should check
the exhaust system and vent hood for proper operation.
Install male fittings in correct direction:
CORRECT
INCORRECT
Exhaust system requirements, continued
NOTE
Use of 90° quick-turn
elbow is required to meet
minimum installation
depth of free-standing
dryer.
14
WARNING
EXPLOSION HAZARD
Do not install the dryer where gasoline or other
flammmables are kept or stored. If the dryer is installed
in a garage, it must be a minimum of 18 inches (45.7 cm)
above the floor. Failure to do so can result in death,
explosion, fire or burns.
IMPORTANT
DO NOT INSTALL YOUR DRYER:
1 In an area exposed to dripping water or outside
weather conditions.
2 In an area where it will come in contact with
curtains, drapes, or anything that will obstruct the
flow of combustion and ventilation air.
3 On carpet. Floor MUST be solid with a maximum
slope of 1 inch (2.5 cm).
Clearance requirements
1 Installation MUST conform to current Manufactured
Home Construction & Safety Standard, Title 24 CFR,
Part 32-80 (formerly the Federal Standard for
Mobile Home Construction and Safety, Title 24,
HUD Part 280) or Standard CAN/CSAZ240 MH.
2 Dryer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducting
that will not support combustion. Metal ducting
must be 4 inches (10.16 cm) in diameter with no
obstructions. Rigid metal duct is preferred.
3 If dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the exhaust
system MUST terminate outside the enclosure with
the termination securely fastened to the mobile
home structure.
4 Refer to previous sections in this guide for other
important exhaust venting system requirements.
5 When installing a gas dryer into a mobile home, a
provision must be made for outside make up air. This
provision is to be not less than twice the area of the
dryer exhaust outlet.
6 Installer MUST anchor this (1) dryer or (2) dryer
mounted on pedestal to the floor with
approved Mobile Home Installation Kit.
INSTALLATION REQUIREMENTS (Cont.)
Manufactured or Mobile Home Installation
Installation in a Recess or Closet
1 A dryer installed in a bedroom, bathroom, recess or
closet, MUST be exhausted outdoors.
2 No other fuel burning appliance shall be installed in
the same closet as the gas dryer.
3 Your dryer needs the space around it for proper
ventilation.
DO NOT install your dryer in a closet with a solid door.

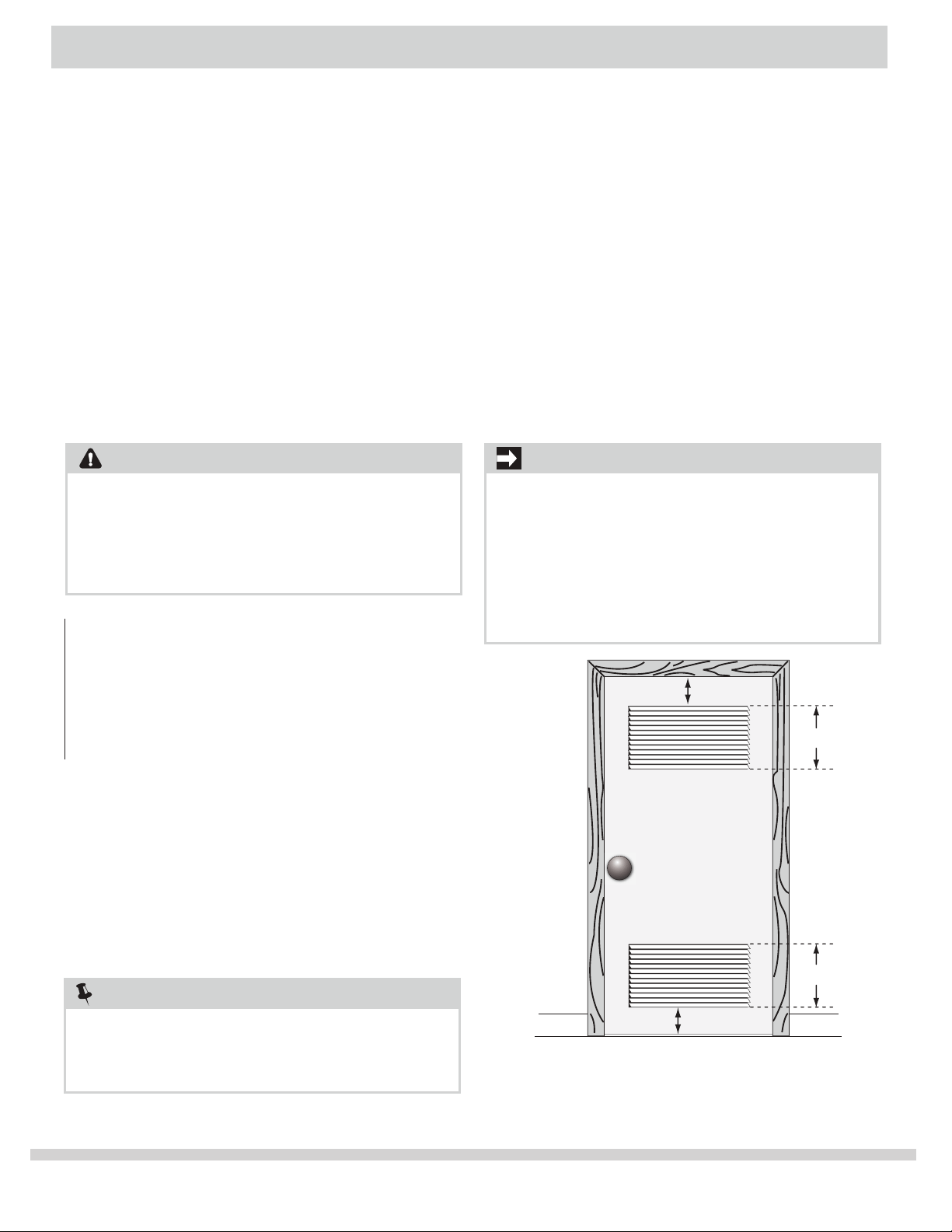

4 Closet door ventilation required: A minimum
of 120 square inches (774.2 cm²) of opening, equally
divided at the top and bottom of the door, is
required. Openings should be located 3 inches (7.6
cm) from bottom and top of door. Openings are
required to be unobstructed when a door is
installed. A louvered door with equivalent air
openings for the full length of the door is
acceptable.
60 sq. in.
(387.1cm²)
3”
(7.6cm)
60 sq. in.
(387.1cm²)
3”
(7.6cm)
Closet door
NOTE
To achieve an installation with 0” (0 cm) clearance for the
back of the dryer (for other than straight back venting), a
quick-turn 90° dryer vent elbow must be installed as
described previously in this manual.
15
wall receptacle
Do not, under any
circumstances, cut,
remove , or bypass
the grounding prong.
grounded plug
INSTALLATION INSTRUCTIONS - GAS DRYER
Electrical Installation
The following are specific requirements for proper and safe
electrical installation of your dryer. Failure to follow these
instructions can create electrical shock and/or a fire hazard.
WARNING
ELECTRICAL SHOCK HAZARD
• A U.L.-approved strain relief must be installed onto
power cord. If the strain relief is not attached, the cord
can be pulled out of the dryer and can be cut by any
movement of the cord, resulting in electrical shock.
• Do not use an aluminum wired receptacle with a
copper wired power cord and plug (or vice versa). A
chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The proper
wiring and receptacle is a copper wired power cord
with a copper wired receptacle.
WARNING
ELECTRICAL SHOCK HAZARD
• This appliance MUST be properly grounded. Electrical
shock can result if the dryer is not properly grounded.
Follow the instructions in this manual for proper
grounding.
• Do not use an extension cord with this dryer. Some
extension cords are not designed to withstand the
amounts of electrical current this dryer utilizes
and can melt, creating electrical shock and/
or fire hazard. Locate the dryer within reach of
the receptacle for the length power cord to be
purchased, allowing some slack in the cord. Refer to the
pre-installation requirements in this manual for the
proper power cord to be purchased.
Grounding requirements - Gas dryer (USA and Canada)
1 The dryer is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a
properly grounded three-prong receptacle.
2 The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances. If in
doubt, call a licensed electrician.
3 DO NOT modify the plug provided with this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
16
INSTALLATION INSTRUCTIONS - Gas Dryer
Gas Connection
Open position
to dryer
from gas supply
1 Ensure the manual gas supply shut off valve is in the
manometer is not available, test all connections
by using the supplied leak detection solution.
Open the shutoff valve in the gas supply line to
allow gas to flow through the pipe.
minutes for gas to move through the gas line.
WARNING
flame.
be
installed by a qualifi ed gas technician.
The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in the
same room as the dryer and should be in a location that
allows ease of opening and closing. Do not block access
to the gas shutoff valve.
2 Identify the thread size of the shut off valve.
Apply pipe thread sealant to the male iron pipe threads on
the union and thread the iron pipe thread into the shutoff
Apply pipe thread sealant to the male iron pipe threads on
the union and thread the iron pipe thread into the shutoff
3 Attach the flexible gas line connector to the flare union
female flare nut of the flexible gas supply line onto
on the back of the dryer and
Attach the other end of the flexible gas line connector
to
threading the other end of the female flare nut
of the flexible gas supply line onto the male flare
All connections must be wrench-tightened
Flare
Union
Flare
Union
GAS FLOW
Manual
Shutoff
Open
Flexible
Nipple
OFF position and remove the shipping cap from the
gas pipe at the rear of the dryer.
17
INSTALLATION INSTRUCTIONS - DRYER
General installation
1 Connect the exhaust duct to the outside exhaust
system. Use of a 4” (102 mm) clamp (item A) is
recommended to connect the dryer to the exhaust vent
system. Use metal foil tape to seal all other joints.
2 Use a carpenter’s level to level your dryer front-to-back
and side-to-side.
3 Use adjustable pliers to adjust the leveling legs so the
dryer is level front-to-rear and side-to-side, and stable
corner-to-corner.
4 Press down on alternate corners and sides and feel for
the slightest movement. Adjust the appropriate leg(s) so
the dryer sits solidly on the floor on ALL four legs. Keep
the leveling leg extension at a minimum for best
performance of the dryer.
A
5 Plug the power cord into a grounded outlet.
6 Turn on the power at the circuit breaker/fuse box.
7 Read the Use & Care Guide provided with the dryer. It
contains valuable and helpful information that will save
you time and money.
8 If you have any questions during initial operation,
please review the “Avoid Service Checklist” in your Use &
Care Guide before calling for service.
9 Place these instructions in a location near the dryer for
future reference.
IMPORTANT
Be sure the power is off at a circuit breaker/fuse box
before plugging the power cord into an outlet.
wall receptacle
Do not, under any
circumstances, cut,
remove , or bypass
the grounding prong.
grounded plug
Limited Warranty
Smart Choice
®
Parts and Accessories are
warranted to be free from defects in material
and workmanship for a period of 90 days from
date of purchase. If this product is found to be
defective, return to place of purchase for
replacement. Smart Choice
®
Parts & Accessories
shall not be liable for damages or delays caused
by defects in material or workmanship,
improper installation, consequential loss,
service call costs, installation or reinstallation
costs, or by failure due to normal wear.
Made In The USA With Globally
Sourced Components
