Yale Security B-YRD226-CBA-NW-0BP Yale Assure Lock User Manual

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Failure to follow these instructions could result in damage to the product, voiding the factory warranty and could lead to failure of the product to provide access.

Yale Assure Lock

Touchscreen Deadbolt

Installation and Programming Instructions

(YRD226/YRD620/YRD622)

This manual will walk you through all the required steps to add your new

Yale Assure Lock to your door.

• Remove existing deadbolt

• Double check door measurements

• Install your Assure Lock

• Program your Assure Lock

• Add your Assure Lock to your smart home system or Yale

Access app if purchased with Yale Smart Module or Yale Access

Upgrade Kit

Before you begin

Using the app on your smart

phone, scan this QR for step-by

-step installation instructions & to

DOWNLOAD

THE BILT APP

Tools Needed

Standard

Phillips Head

Screwdriver

Tools Needed For New

Doors Or Adjusting Existing Door

Utility

Knife

Drill

Wood

Mortise

Chisel

Pencil

Tape

Measure

Level

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

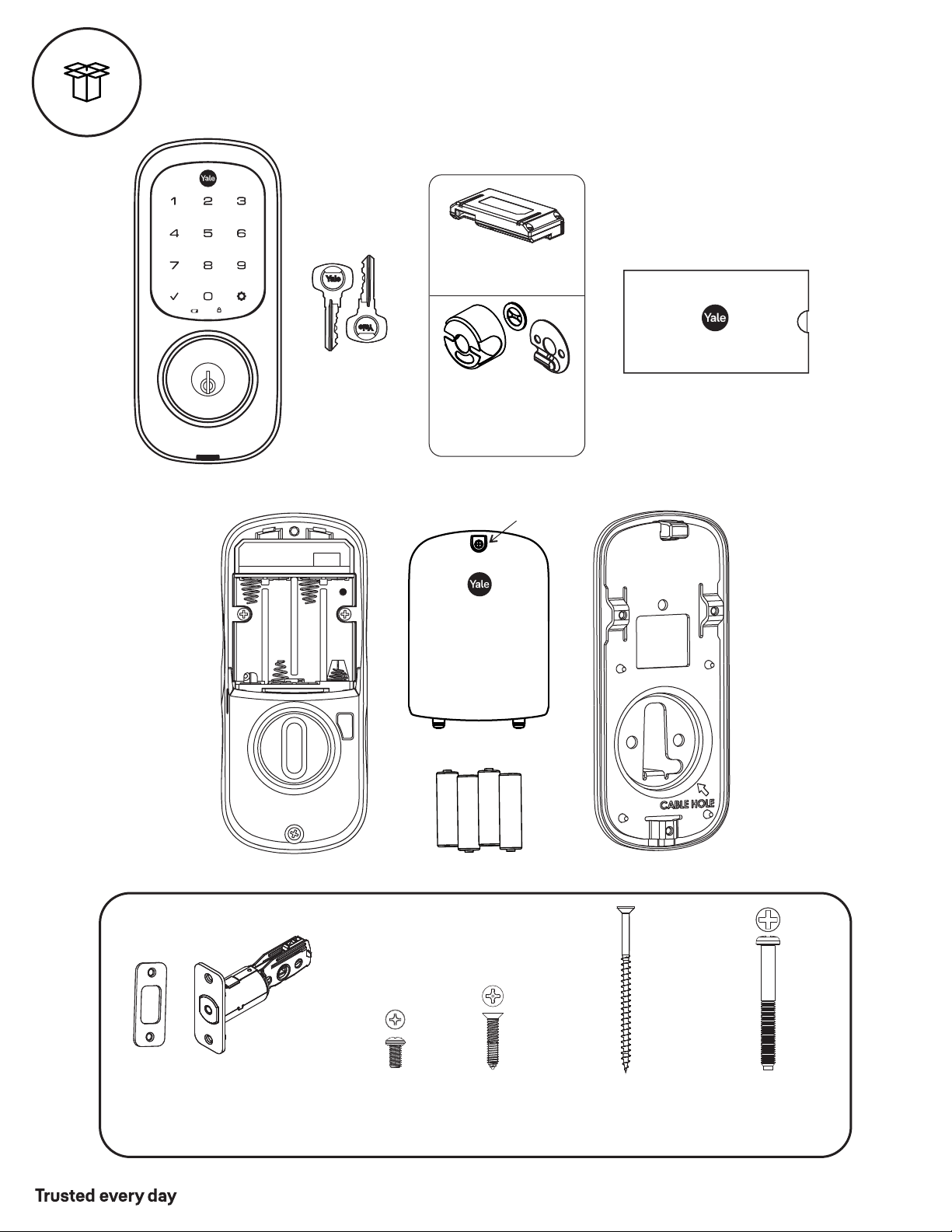

What's In The Box

Installation Guide

and Door Template

Mounting Hardware

Strike Plate

Adjustable

Deadbolt

(AYRDB-DRIVE

Adjustable Drive-In Deadbolt

available for purchase)

Strike Plate

and

Deadbolt Screws

Inside Lock

Screws

Optional

Security

Strike Plate Screws

Let's Get Started

Touchscreen Keypad

Long Through-bolt for

1-3/4" - 2-1/4"

Door Thickness

Yale Smart Module

(with select models)

Optional

Fire Kit Parts

(Required for

Fire Rated Openings)

x2 x2 x2

Keys

Loosen screw to

remove cover

Battery Cover

Mounting Plate

Inside Lock 4 AA Batteries

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

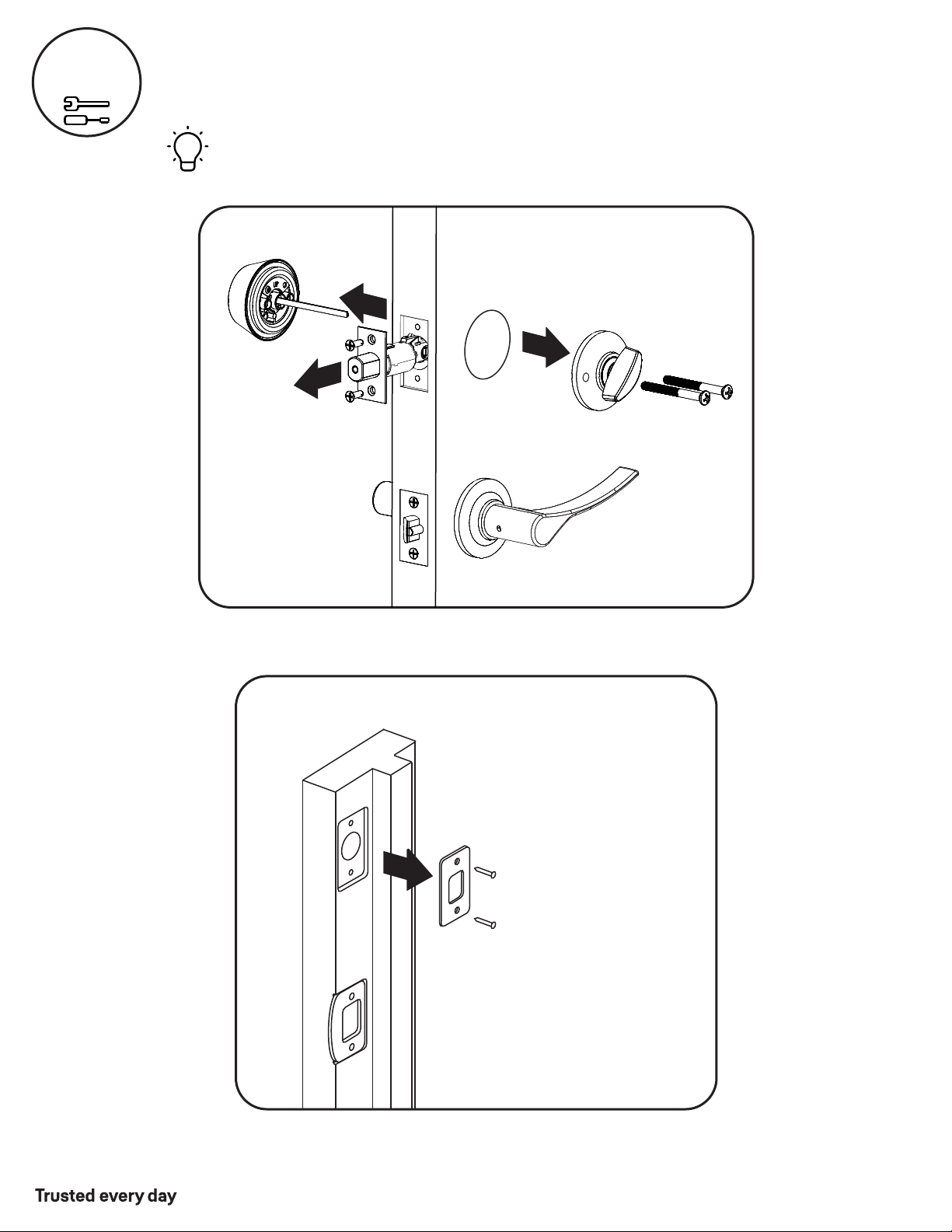

Remove Existing Deadbolt

Do not discard old lock hardware until Assure Lock has been successfully installed.

Frame

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

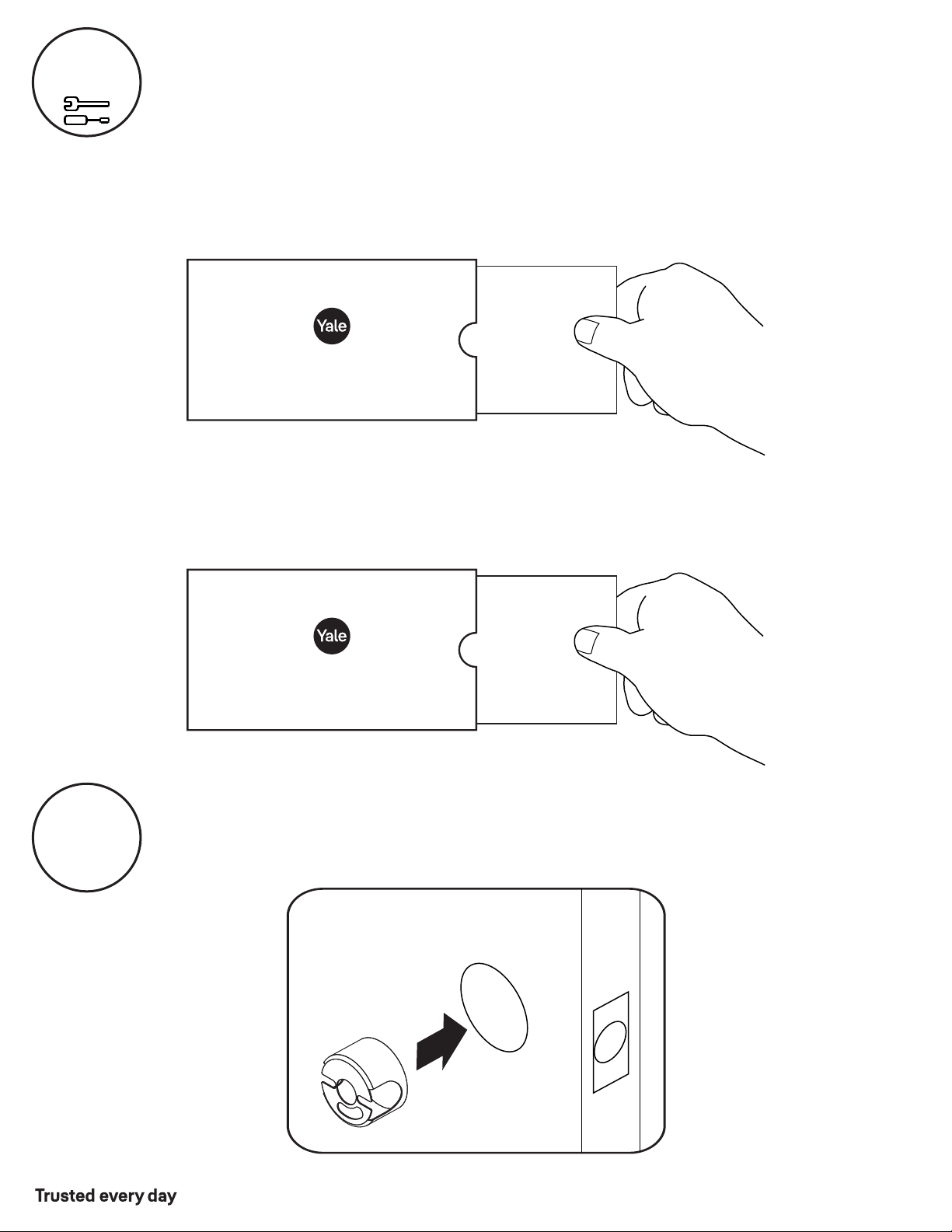

New Door Marking Template

Door Checker

Check Door Measurements And

Make Adjustments If Needed

Use door checker from installation guide envelope to verify your door

measurements and make any needed adjustments.

With the door checker, use the template from installation guide envelope

to prep a new door that has not been predrilled for hardware.

Inside of Door

optional

1 of 3

Install Optional Fire Cup for Fire Rated Openings

Only included with select models

New Door

Marking

Template

Check

Your Door

Guide

Let's Get Started

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Install Deadbolt and Strike Plate

For Deadbolt

Actual Size

*Deadbolt position is based on

backset. Choose position

appropriate for your door.

Reference Door Checker

measurements E and F.

AYRDB-DRIVE

Adjustable Drive-In Deadbolt

available for purchase

optional

*2-3/8" Backset, default

*2-3/4" Backset, optional

Press

Pull

Bolt must be in retracted (unlocked)

position. Note horizontal orientation of

tailpiece slot and UP orientation of

deadbolt latch.

Backset

For Strike Plate

Actual Size

Choose

standard strike

plate screws

or security

screws.

For Strike Plate, optional

Actual Size

Bolt must be in

retracted

(unlocked)

position.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

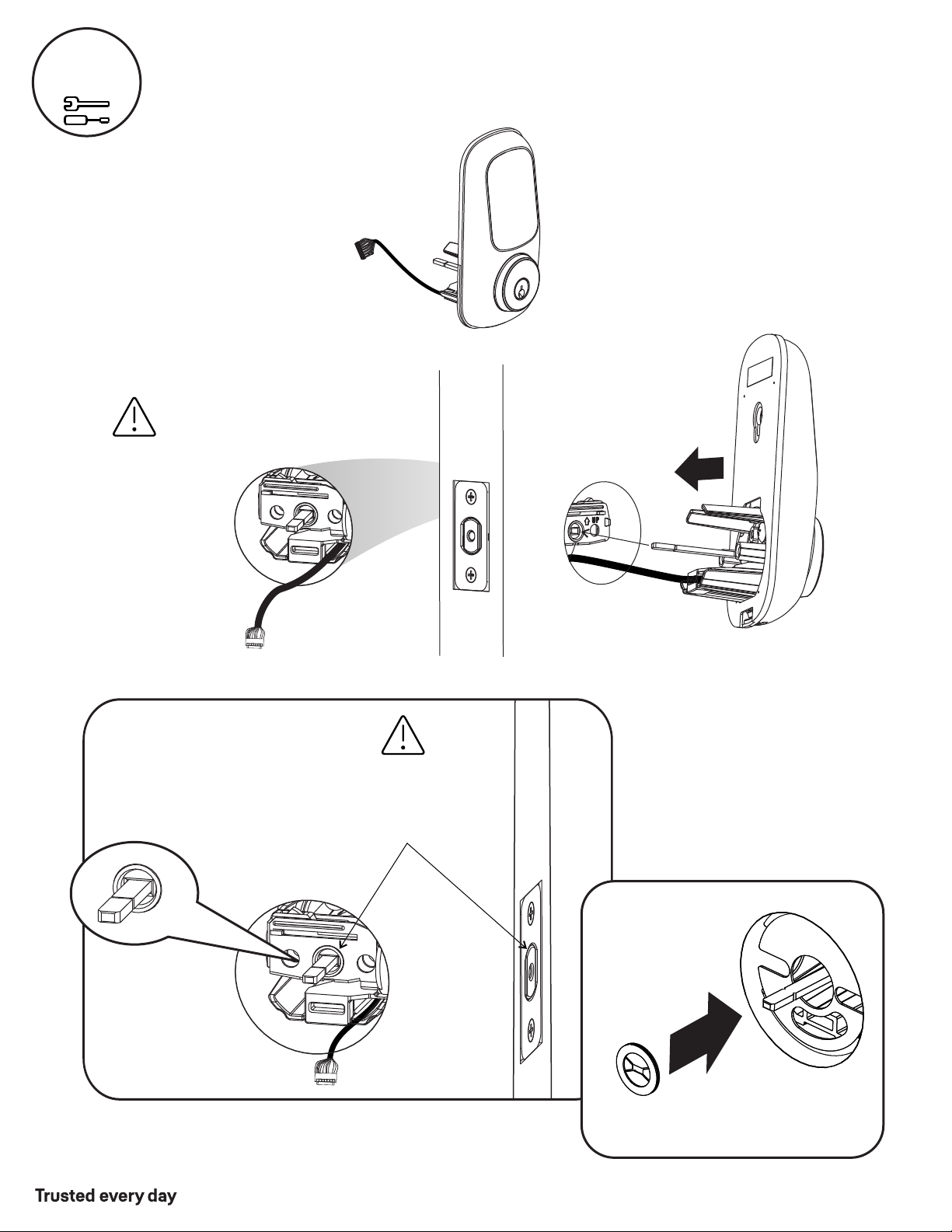

Install Touchscreen Keypad

Bolt must be in retracted

(unlocked) position. Note

horizontal orientation of

mechanism.

Outside of DoorInside of Door

To be used with Fire Cup

for Fire Rated openings

Door face hole

must be at least

2-1/8".

If hole is too

small, a door lock

installation kit or

jig should be used

to increase hole

size.

optional

2 of 3

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Actual Size

Install Inside Mounting Plate

To be used with Fire Cup

for Fire Rated openings

optional

3 of 3

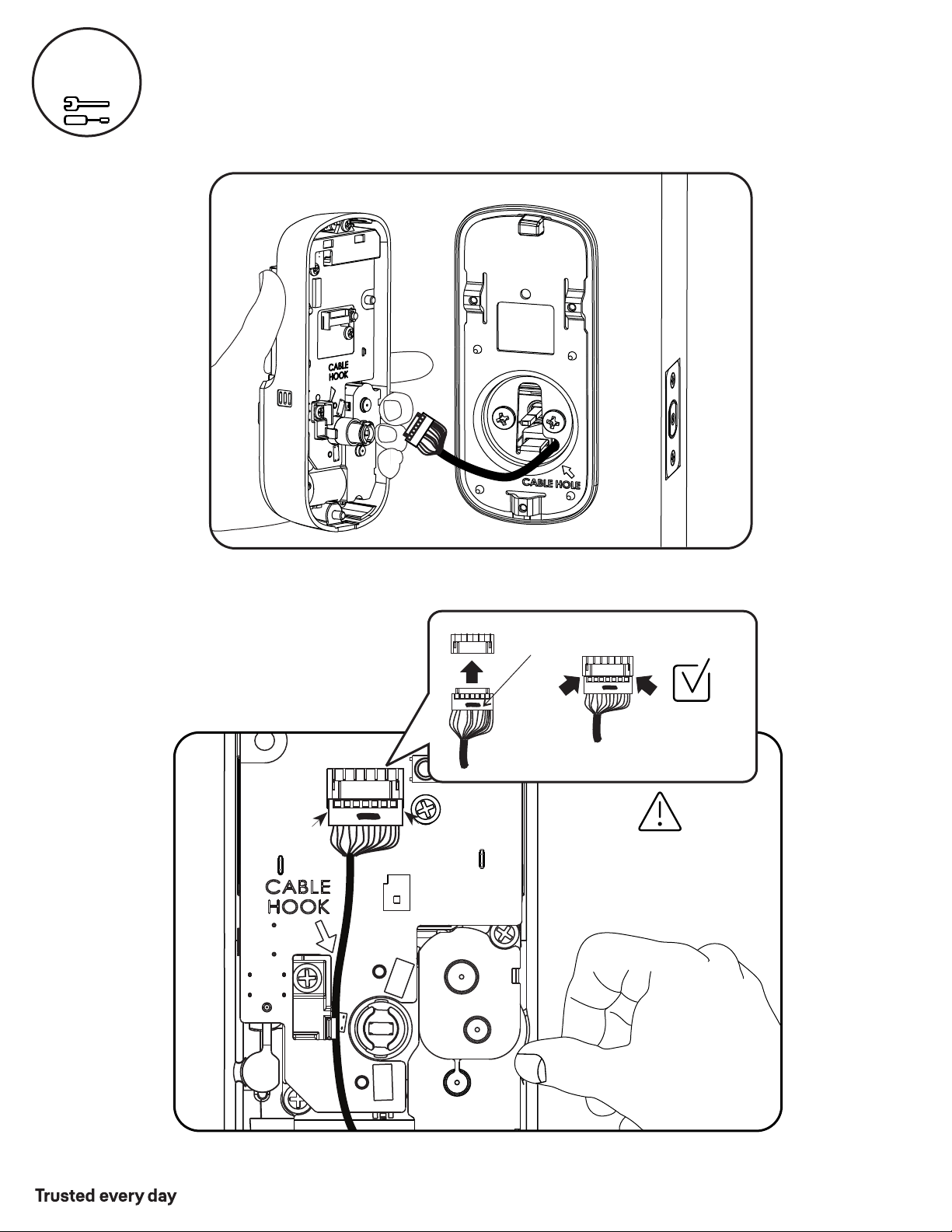

Attach Cable

This Side Up

mark

Make sure cable

is securely

attached

Use cable hooks for proper

routing, when possible. Position

wires carefully when not using

hook. Do not pinch wire.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Install Inside Lock

Actual Size

Make sure thumbturn

is vertical. If thumbturn does

not move freely, refer to

"Hardware Troubleshooting".

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Test Mechanical Operation

If thumbturn operation fails, check the installation beginning with Step 7.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Batteries must not be installed

prior to inserting and/or

removing Yale Smart module.

Inside of Door

If key operation fails, check installation beginning with Step 4.

Test Mechanical Operation

For more information about Yale Smart modules and smart home features

visit US.YaleHome.com/Smart

optional

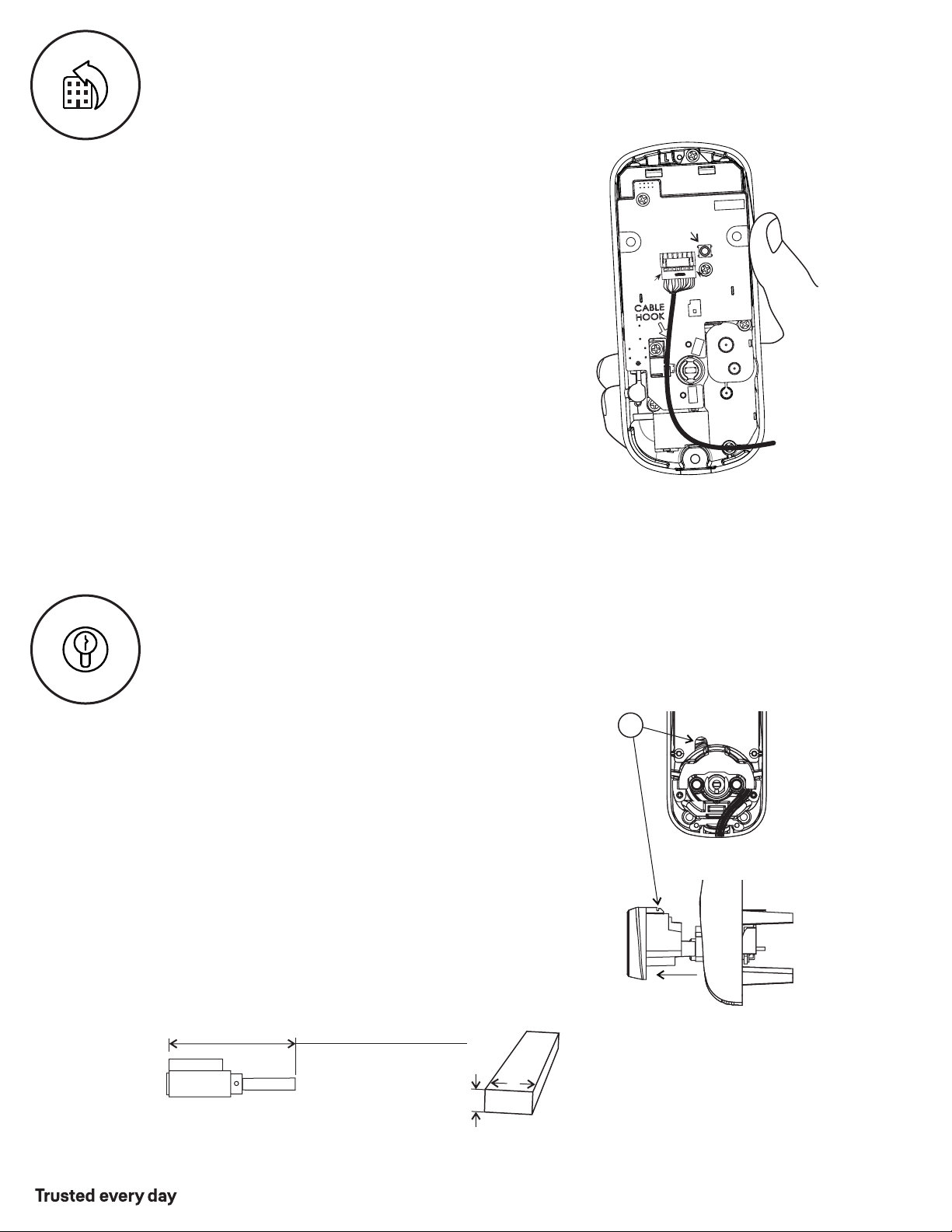

Install Yale Smart Module

Included with select models

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

® ®

Congratulations, you've installed the Yale Assure Lock

Touchscreen Deadbolt ( 226/YRD620/YRD622)!YRD

Using Your Lock instructions will help you customize your lock.

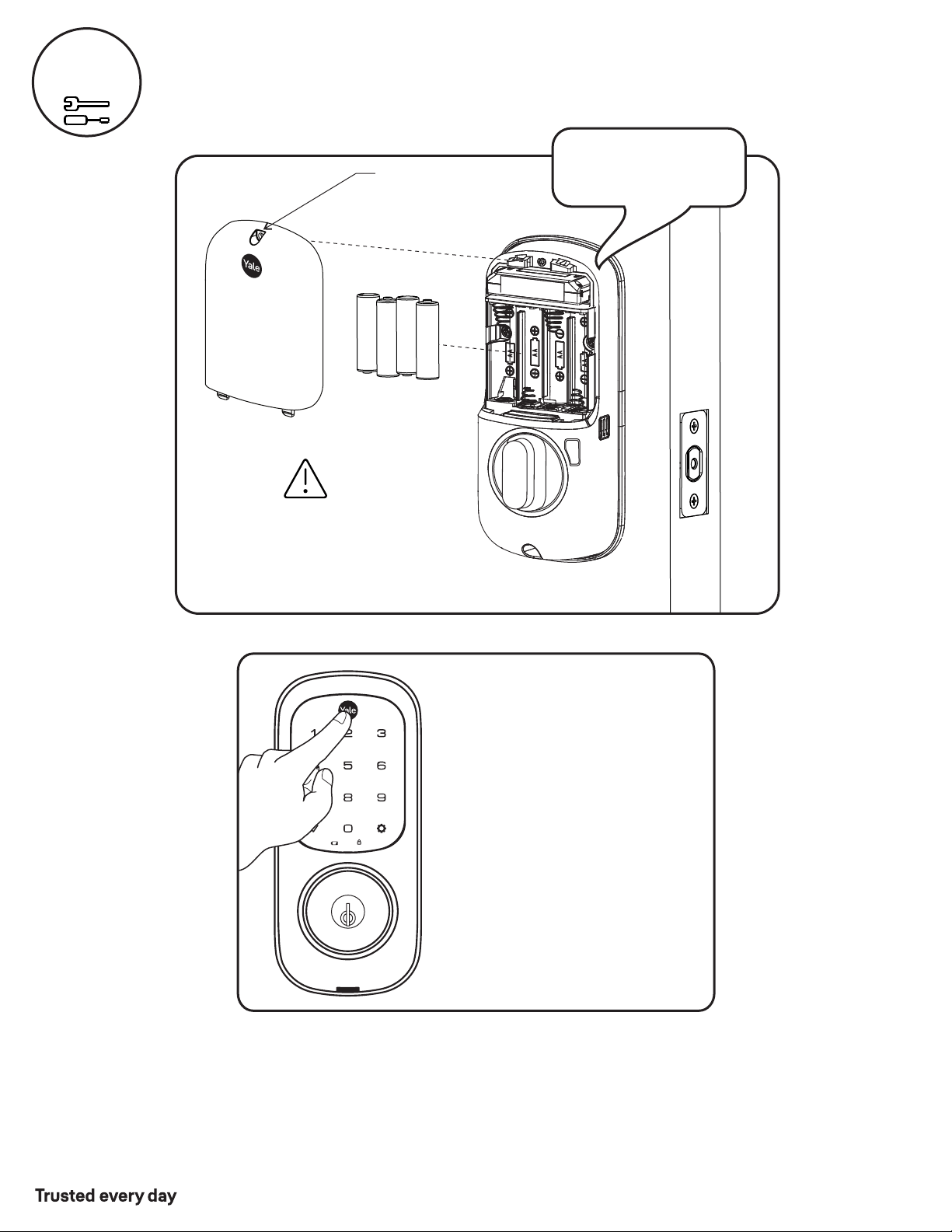

Install Batteries and Cover

Inside of Door

Tighten screw

to replace cover

Bolt must be in retracted

(unlocked) position before

installing batteries.

Press the Yale logo to wake the lock.

You will be guided through setup by

audio instructions on the lock.

Additional entry codes and further

programming can be done through

the Settings Menu. Refer to page 19

for YRD226 or page 20 for

YRD620/YRD622.

"Welcome to

Yale Real Living"

Using Your Lock

Speaker

Touchscreen Keypad

Inside Lock

Thumbturn for

manual locking

and unlocking

Privacy Button

Battery Cover

Inside Notiﬁcation

Light

Mechanical Key

Backup Entry Method

Press to wake keypad

or lock door

Enter Master Entry Code

and press to access

Settings Menu

Press to enter

or unlock

Low Battery

Indicator

All Code Lockout

Indicator

Speaker

Press to return to

previous Settings Menu

Location of RFID

Signal Receiver

(YRD620/YRD622 ACC ONLY)

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Creating Master Entry Code

The Master Entry Code is used to change lock settings.

A security best practice is to set your Master Entry Code with 6 or more digits

and create a separate code that is used daily to lock and unlock the door.

Enter 4-8 digit

Master

Entry Code

Press

"Register Master

Code. Press the gear

key to continue."

"Enter a 4 to 8 digit

PIN code followed by

the gear key."

"Registered."

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

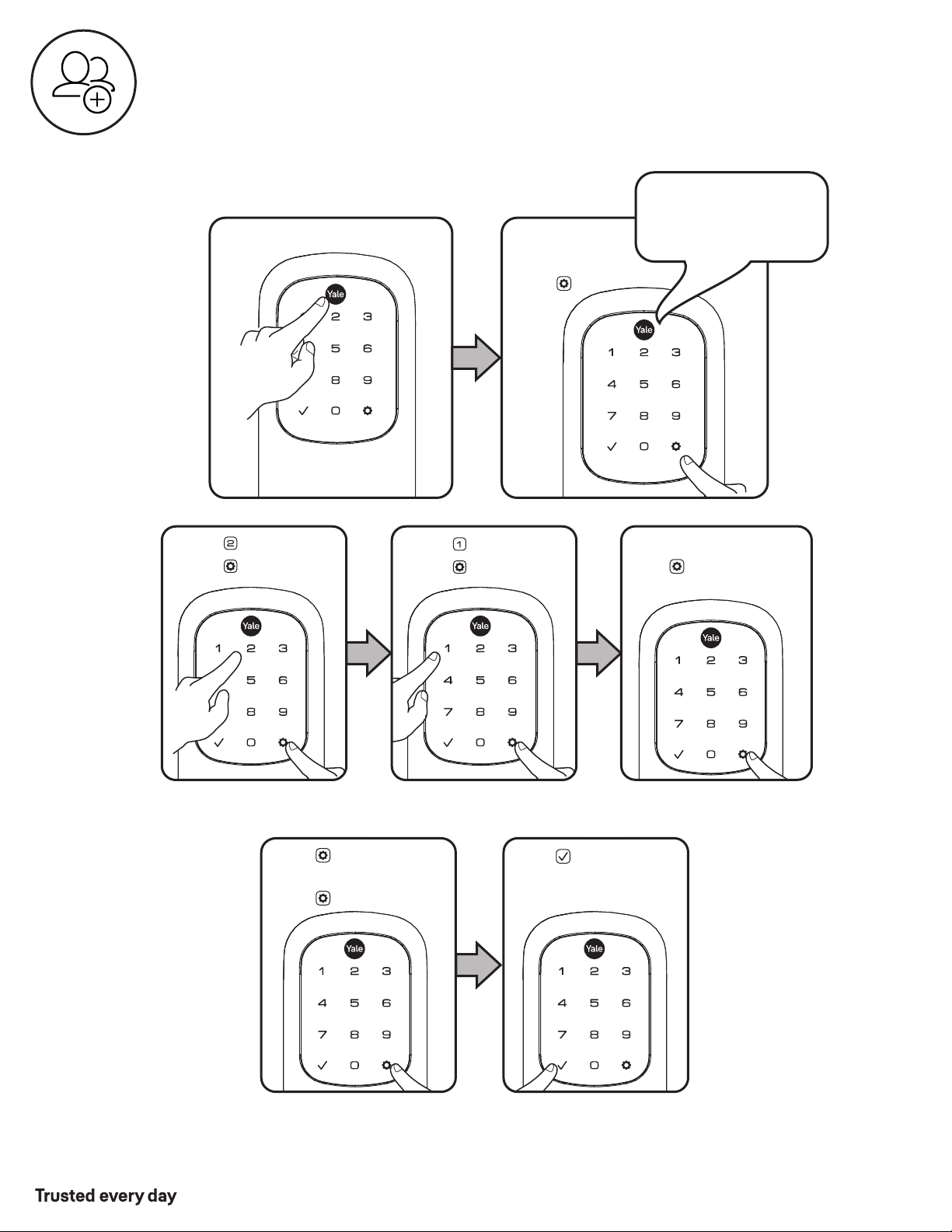

Creating Entry Codes

Master Entry Code must be created ﬁrst.

*Max Entry Codes = 250 with Smart Module; 25 without.

Enter Master

Entry Code

Press

"Menu Mode,

press the gear key

to continue."

Press

Enter 4-8 digit Entry Code

Press

(code ﬂashes)

Press

Adding more *Entry Codes:

Enter 4-8 digit Entry Code

Press

To end programming:

Press

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Enter Master

Entry Code

"Menu Mode,

enter number,

press the gear key

to continue."

Press

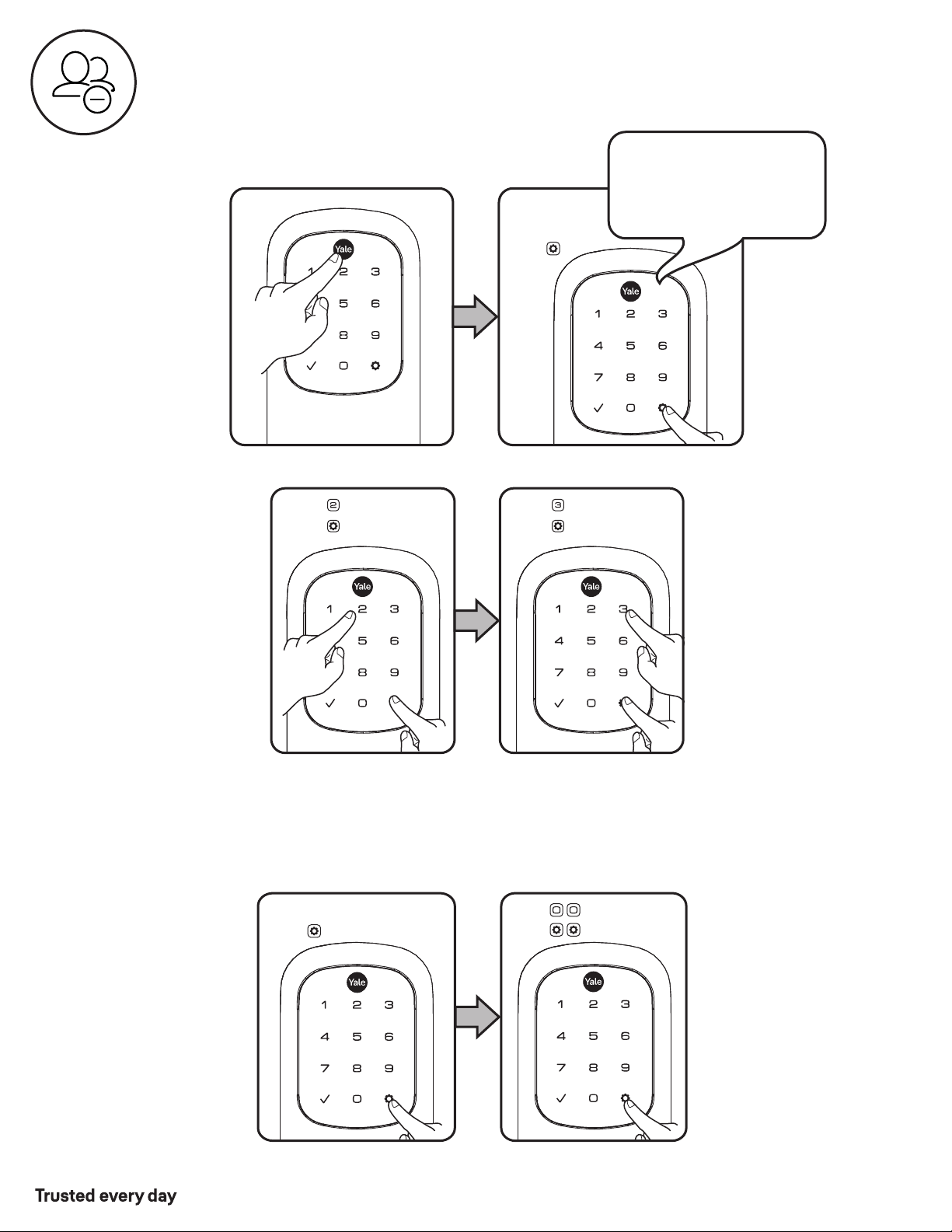

Deleting Entry Codes

Press

Deleting one Entry Code:

Enter 4-8 digit Entry Code

Press

To delete all Entry Codes:

(Does not delete

Master Entry Code)

Press

Enter

To delete one Entry Code,

you must enter the Entry

Code you wish to delete.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

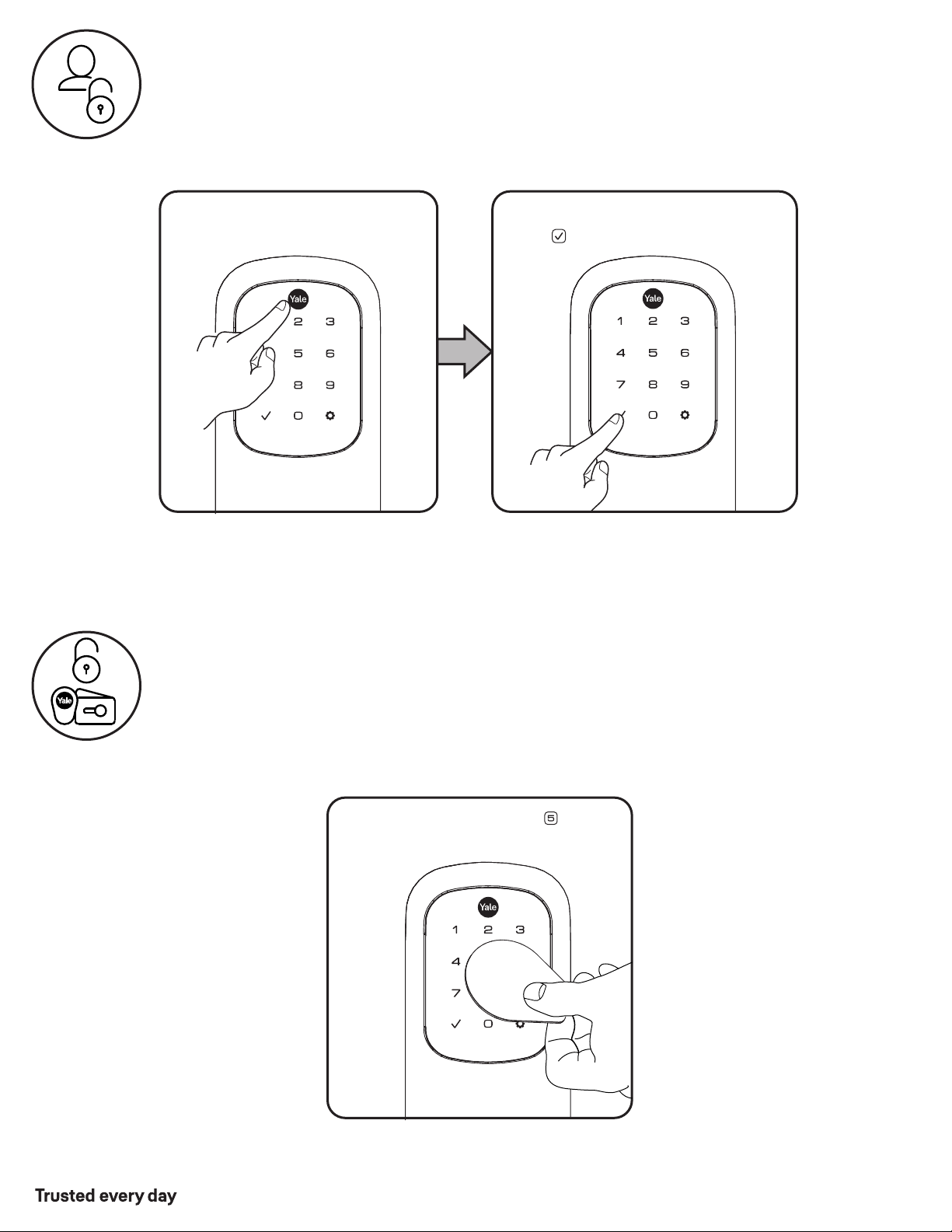

Unlocking Door with Entry Codes

Unlocking Door with RFID

(YRD620/YRD622 ACC ONLY)

See "Customizing YRD620/YRD622 Lock Using Settings Menu", page 20

to conﬁgure RFID communication.

Enter Entry Code

Press

Touch and hold fob or card to

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Setting Deﬁnitions

*The Master Entry Code must be created prior to any other programming of the lock.

Creation

required*

Inside Indicator Light

Disabled (Off)

Master Entry Code

Auto Re-lock Disabled

The Master Entry Code is used for programming

and feature settings. It must be created prior to

programming the lock. The Master Entry Code will also

operate (unlock/lock) the lock.

After a successful code entry or manual unlock

with the key, the lock will automatically re-lock after

each unlock in an effort to keep your home secure.

This feature is optional, and can be turned off.

When enabled, the lock will automatically re-lock

after thirty (30) seconds.

Located on the inside lock. Shows active status

(Locked) of lock and can be enabled or disabled in

Advanced Lock Settings (Main Menu selection #3).

Wrong Code

Entry Limit

5 Times

After ﬁve (5) unsuccessful attempts at entering a

valid Entry Code, the lock will shut down and not

allow operation for sixty (60) seconds.

Escape Return Mode

(YRD620/YRD622

ONLY)

Disabled

When enabled, Auto Re-lock is prohibited. Requires

door to be physically manipulated for lock to be re-

locked once door is open from the inside.

Settings

Default Setting

Deﬁnition

One Touch Locking

Enabled

Privacy Button

Disabled

When the latch is retracted, activating the keypad

will extend the latch (during Auto Re-lock duration

or when Auto Re-lock is disabled). When One-Touch

Re-lock is not in use (disabled), any valid Entry Code

will re-lock the lock.

Privacy mode is disabled by default. When enabled,

activate Privacy mode by pressing the privacy button for

4 seconds to put the lock in do-not-disturb mode (all

Entry Codes are disabled).

Volume

Enabled (Low)

The volume setting for Entry Code veriﬁcation is set

to Low (2) by default; otherwise it can be set to

High (1) or Silent (3) for quiet areas.

Language English

Choosing English (1), Spanish (2) or French (3)

becomes the (default) setting for the lock voice

prompts.

All Code Lockout

Disabled

This feature is enabled by the Master Entry Code.

When enabled, it restricts all Entry Code access

(except Master). When attempting to enter a

code while the lock is in All Code Lockout, the RED

locked padlock will appear on the screen.

Shutdown Time 60 Seconds

The lock will shutdown (ﬂashing RED) for sixty

(60) seconds and not allow operation after the

wrong code entry limit (5 attempts) has been met.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Customizing YRD226 Lock Using Settings Menu

*Master Entry Code required

Join the Network

Enable

Disable

English

Spanish

French

Silent

Low

High

Exit the Network

Volume Setting

Language Setting

All Code Lockout

**Network Module Setting

Default settings in bold.

Privacy Button Setting

Enable

Disable

Handing the Lock

Preforms automatic

handing of the lock

Advanced

Lock Settings

Auto Re-lock

Disable

30 sec

Inside Indicator Light

One Touch Locking

Enable

Disable

Enable

60 sec

3 min

2 min

Disable

1. Press Yale logo to wake up lock .

2. Enter Master Entry Code* followed by icon.

Lock Response: "Welcome to the Settings Menu. Press each number to hear

available settings and then press the settings icon to enter."

3. Enter digit corresponding to the function to be performed followed by

the icon. Follow the voice commands.

*The Master Entry Code must be created prior to any other programming of the lock.

**Network Module Setting function appears only with Yale Smart module installed.

Here is an example of how to set Auto Lock to 30 seconds:

Master Entry Code , 3 , 1 , 2 ,

Exit

Settings

Remain

Settings

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Customizing YRD620/YRD622 ACC ONLY Lock

Using Settings Menu *Master Entry Code Required

Enable

Disable

English

Spanish

French

Silent

Low

High

Volume Setting

Language Setting

All Code Lockout

Privacy Button Setting

Enable

Disable

Handing the Lock

Preforms automatic

handing of the lock

Advanced

Lock Settings

**Auto Re-lock

Disable

30 sec

Inside Indicator Light

One Touch Locking

Enable

Disable

Enable

60 sec

3 min

2 min

Disable

*Master Entry Code must be created prior to any other programming of the lock.

**If Escape Return Mode is enabled, Auto Re-lock cannot be enabled.

***Conﬁguration will disable locking/unlocking via Entry Codes.

Exit

Settings

Remain

Settings

orR

***Conﬁgure for Accentra

**Escape Return Mode

Enable

Disable

Default settings in bold.

Here is an example of how to set

Auto Lock to 30 seconds:

Master Entry Code , 3 , 1 , 2 ,

Use Yale Accentra Conﬁguration app to complete

1. Press Yale logo to wake up lock .

2. Enter Master Entry Code* followed by icon.

Lock Response: "Welcome to the Settings Menu. Press each number to hear

available settings and then press the settings icon to enter."

3. Enter digit corresponding to the function to be performed followed by

the icon. Follow the voice commands.

Join the Network

Exit the Network

**Network Module Setting

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Troubleshooting

Symptom

Suggested Action

Lock does not respond –

door is open and accessible.

•

Lock chimes indicating code

acceptance, but door will not open.

•

Lock operates to allow access, but

will not automatically re-lock.

•

Entry Codes will not register.

•

Upon entering an Entry Code and

pressing key, the lock displays

"invalid code" error or lock times

out without responding.

•

Lock operates,

but makes no sound.

•

* When batteries are replaced, Smart Module locks have a real time clock that will be set through the User Interface.

It is recommended to verify correct date and time; particularly those locks operating under Daylight Savings Time.

Lock does not respond –

door is locked and inaccessible.

Lock is on for a while then shows

no reaction. Lights dim.

•

Apply a 9V battery to terminals below the keypad for backup power option.

Keypad becomes active when the Yale logo is pressed.

Verify contact with the logo.

If keypad numbers are visible, check they respond when pressed.

Check batteries are installed and oriented correctly (polarity) in battery case.

Replace batteries* if batteries are dead.

Check keypad cable is fully connected and not pinched.

Batteries may not have enough power. Replace batteries*.

•

Batteries do not have enough power. Replace batteries*.

Check for any foreign objects between door and frame.

Check that the cable is ﬁrmly connected to inside lock.

Check to see if Auto Re-lock is enabled.

Disable Auto Re-lock to lock the door (manually).

If low battery indicator is lit, change batteries*.

Entry Codes must consist of 4 to 8 digits.

The same Entry Code cannot be used for multiple users.

Entry Codes are set by the Master Entry Code, which is set ﬁrst.

Contact the Master user.

Entry Codes must be entered within 5 seconds (while keypad is active) or

process will have to be restarted.

Check or gear cannot be part of the Entry Code.

All Code Lockout is enabled. Only the Master Entry Code can change All Code

Lockout. Contact the Master user.

•

Check to see if the lock is set to All Code Lockout. Setting/managing

All Code Lockout is done through Master Entry Code only.

Check to see if Volume is set to Silent (see Feature #4).

This is the alert to replace the batteries. Replace all four (4) batteries* with

new AA Alkaline batteries.

Upon entering an Entry Code and

pressing the key, red padlock

icon appears and there are different

tones.

Upon entering an Entry Code and

pressing the key, lock responds

"Wrong number of digits".

•

The digits entered were incorrect or incomplete. Re-enter the correct code

followed by the key.

•

Verify entered code is a valid, previously programmed, 4 to 8 digit code.

Lock responds "Low Battery"

Lock shows an X on keypad after

entering a code.

•

Bolt failed to fully retract. Refer to "Hardware Troubleshooting".

•

Entry Code has not been scheduled for use at time of day it is tried.

Try Entry Code again during scheduled time.

Deadbolt does not extend when

locking the door with keypad.

•

Lock was not handed properly. Rehand lock through Settings Menu.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

Helpful Tip:

Ensuring smooth deadbolt operation can enhance your battery life.

Thumbturn

with

door open

Keypad

with

door open

Thumbturn

with

door closed

Hardware Troubleshooting

If you feel resistance, ensure deadbolt strike plate aligns

with deadbolt. If deadbolt strike plate is out of alignment,

please attempt to adjust knob/ lever/ handleset strike

using steps below. The knob/ lever/ handleset latch

engagement into the strike is the main component used

for door alignment.

If deadbolt does not fully extend, consider increasing

depth of deadbolt strike pocket in frame.

To adjust Knob/Lever/Handleset strike plate:

1. Remove plate from door frame with a manual

screwdriver. (Using an electric driver may strip screw

heads or enlarge screw holes.)

2. Locate strike plate tab.

Bend the tab towards surface of strike.

Note: A small change may be all that is

required.

3. Reinstall strike plate using a manual screw

driver and test again.

4. If door cannot be adjusted sufﬁciently with strike tab,

both knob/lever/handleset latch and deadbolt latch

could require adjustment – we suggest you contact a

local locksmith for assistance.

For help with misalignments, watch our door alignment

video: US.YaleHome.com/en/support/yale-assure-lock-

faqs/electronic-lock-installation/

Tab

• If deadbolt does not extend or retract easily when testing thumbturn and keypad operation, revisit

installation steps. It is important that the bolt be in the retracted position during lock installation

and that installation procedure is followed carefully.

• Attempt rehanding using Settings Menu.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

1-3/8"* - 2" thick doors:

L = 3-1/2" (88.8mm)

2" - 2-1/4" thick doors:

L = 3-3/4" (95.3mm)

*Requires addition of Thin Door Kit.

W = .2" (5.2mm)

Tailpiece

T = .098" (2.5mm)

1. To Remove cylinder:

A. Remove outside lock from door.

B. Remove rubber gasket.

C. Insert small ﬂathead screwdriver under spring.

Gently lift spring. Note: Notch on top of cylinder

engages spring.

D. Remove cylinder by pulling outward.

Before installing cylinder, be sure tailpiece is correct

length (see below).

2. To install new cylinder:

A. Reverse previous steps for removing cylinder.

Replacing Cylinder

Resetting Lock to Factory Defaults

Reset

Button

Inside Lock

When lock is reset to factory defaults all Entry Codes

(including the Master Entry Code*) are deleted and all

programming features are reset to original default

settings (see below).

1. Remove battery cover and batteries.

2. Remove inside lock to access reset button.

3. Reset button (see image at right) is located beside

cable adapter.

4. While pressing reset button reinstall batteries. Hold

reset button a minimum of 3 seconds then release.

5. Replace battery cover.

After reset, Master Entry Code creation is the only

option available and must be performed prior to any

other programming of the lock.

P/N YRD226-MNL-0001 Rev J

Part of ASSA ABLOY

24/7 Product Support : 1-855-213-5841 • www.US.YaleHome.com

FCC:

FCC ID : 2ABFG-YRD622BLEV1

Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful Interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

Ÿ Reorient or relocate the receiving antenna.

Ÿ Increase the separation between the equipment and receiver.

Ÿ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Ÿ Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modiﬁcations to this device, not expressly approved by Yale Home could void the user's

authority to operate the equipment.

Industry Canada:

IC ID : 11626A-YRD622BLEV1

This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.

Cet appareillage numérique de la classe A répond à toutes les exigences de l'interférence canadienne causant des

règlements d'équipement.

Yale® and Assure Lock® are registered trademarks of Yale Home. Yale Accentra™ is a trademark of Yale Home.

Other products' brand names may be trademarks or registered trademarks of their respective owners and are

without the express written permission of Yale Home is prohibited.

Yale Home

Yale Security B-YRD226-CBA-NW-0BP Yale Assure Lock Touchscreen, Wi-Fi Smart Lock

Product's Documents

User Manual

Specifications

Yale Security B-YRD226-CBA-NW-0BP Questions and Answers
