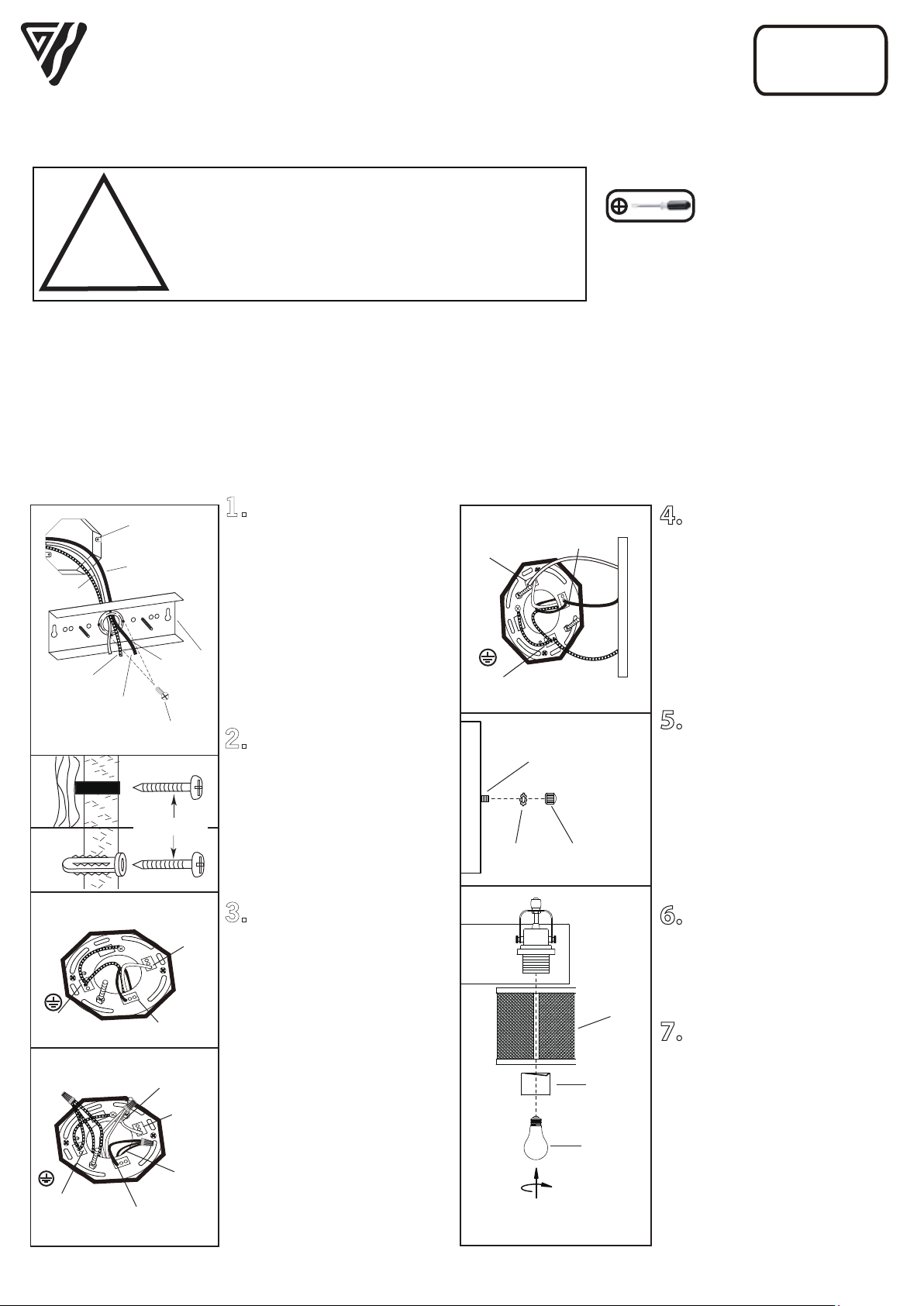

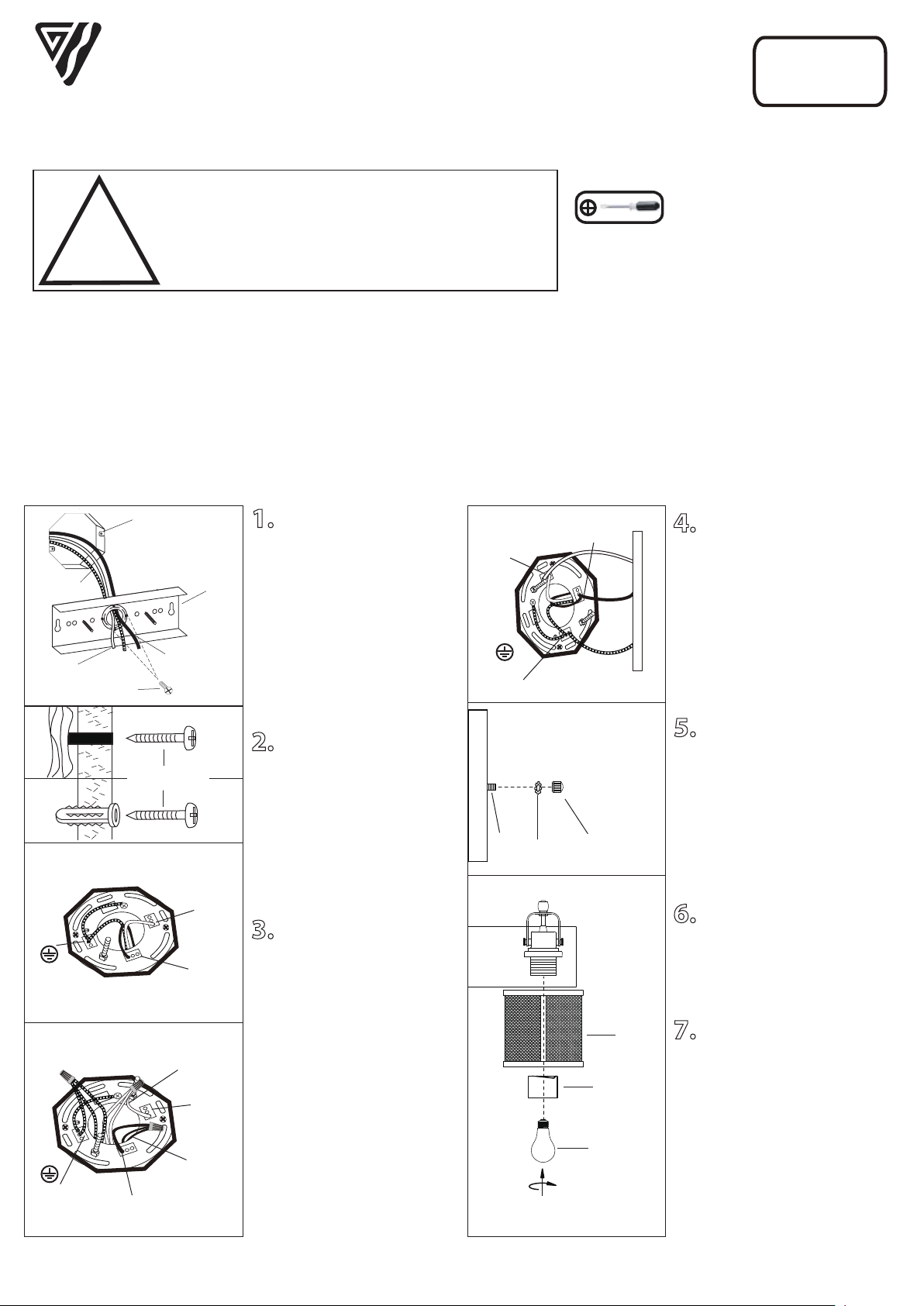

INSTALLATION:
IVL626A03
IVL626A04
11/17
Option 1
Option 2
White
(Neutral)
Electrical
Box
Electrical
box screws
1. Feed power cords from
the electrical box through
the centre hole of the back
cover. Align holes of back
cover over electrical box and
secure with electrical box
screws (not included).
NOTE: Make sure the back
cover is level before
tightening the screws.
2. Additional support may
be required for fixtures
longer than 20” . Position the
fixture and add wood screws
(one on each side) for the
wooden studs or plastic wall
anchor and wood screws for
dry wall.
3. Option 1: Connect
(push) electrical wires from
electric box (house wiring)
into correct inserts.
Option 2: For multiple
green (ground), black (live)
and white (neutral) wires
joined in the electrical box
(house wiring), attach a
single “green”, “black” and
“white” jumper wire before
connecting. Strip 7mm from
the 6 in. jumper wires (AWG
12-24) supplied. Then
connect (push) wires into the
correct inserts.
4. Connect (push) electrical
wires from fixture into correct
inserts.
5. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
6. Remove spinner nut from
socket. Position shade on lamp
and secure with spinner nut.
7. Install proper bulb type
and wattage (not included).
Black (Live)
Green
(Ground)
Back
Cover
Wood Screw
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE
WITH A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Stud
Cap
Nut
Star
Washer
EASY CONNECT®
INSTALLATION INSTRUCTIONS
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) • 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598
L
N
(L)
Black
(Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Jumper Wire
Jumper Wire
L
N
L
N
Fixture
(L)
Black (Live)
(N)
White
(Neutral)
Green
(Ground)
Shade
Spinner
Nut
Bulb
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
