Instructions for installation and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Neff D46BR22X0:
[en] Instructions for installation and use
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Danger of death!
3
: Warning
3
Risk of fire!
3
: Warning
4
Risk of burns!
4
: Warning
4
Risk of injury!
4
: Warning
4
Risk of electric shock!
4
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).
4
7 Environmental protection
4
Environmental protection
4
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
4
Saving energy
4
Environmentally-friendly disposal
5
Dispose of packaging in an environmentally-friendly manner.
5
Ç Operating modes
5
Operating modes
5
Exhaust air mode
5
Note:
5
Air recirculation
5
Note:
5
1 Operating the appliance
5
Operating the appliance
5
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
5
Note:
5

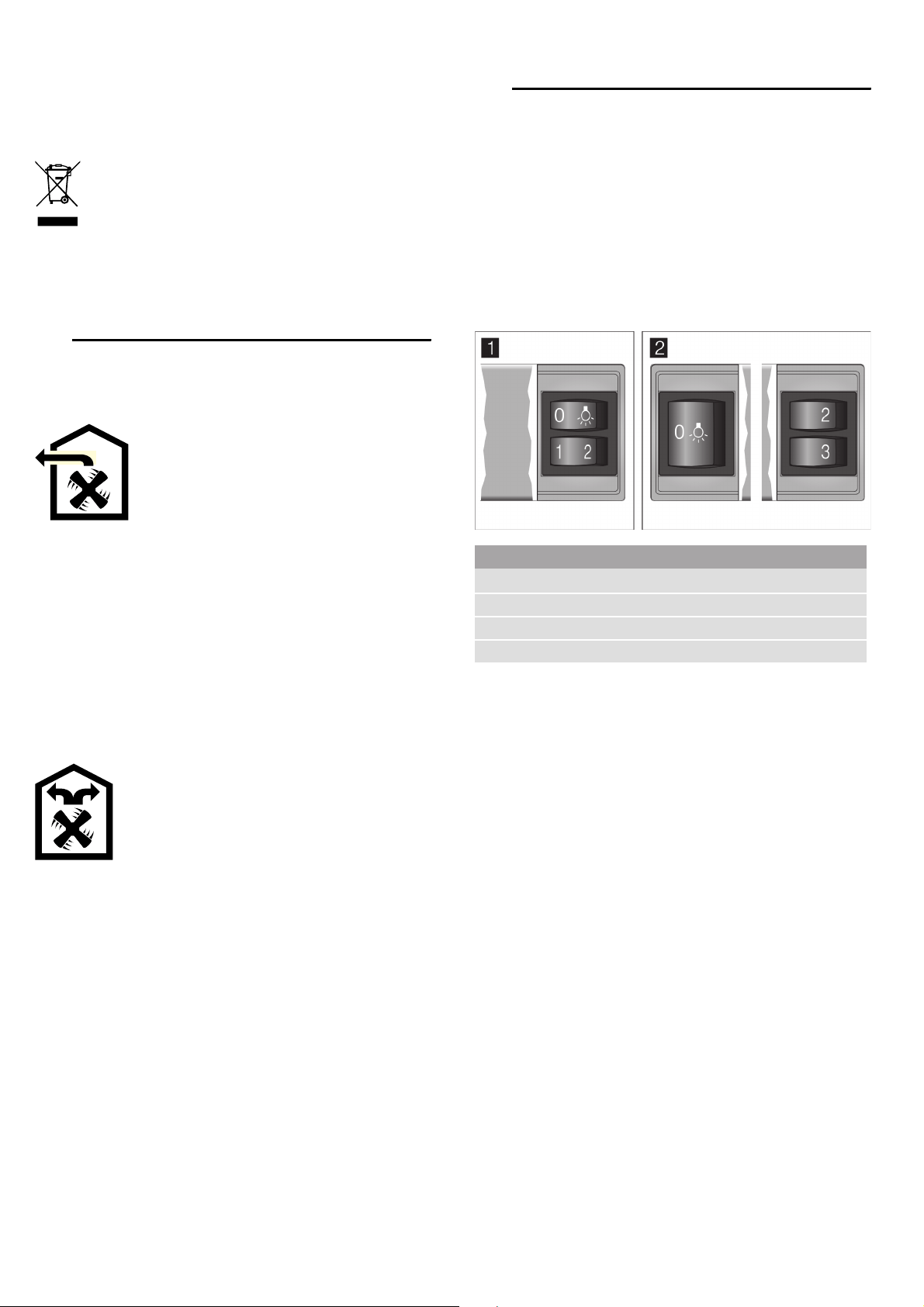

Control panel model 1 and 2
5
Explanation
5
Setting the fan
5
Switching on
5
Pull out the filter pull-out. The fan starts at the selected level.
5
Press buttons 1, 2 or 3 in order to change the fan strength.
5
Switching off
5
Slide the filter pull-out in as far as the limit stop.
5
Note:
5
Control panel model 3
6
Explanation
6
Setting the fan
6
Switching on
6
Pull out the filter pull-out and press the # button. The fan starts at setting 2.
6
Press the + or - button to change the fan strength.
6
Switching off
6
Press the # button. Slide the filter pull-out in.
6
Intensive setting
6
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
6
Press the + button until all of the LEDs in the display light up. The intensive setting is activated.
6
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
6
The run time is limited. The fan is then automatically reduced to a lower fan setting. You can switch back manually at any time.
6
Fan run-on time
6
If you slide in the filter pull-out, the run-on time will be activated for as long as the extractor hood is operating.
6
After approx. 10 minutes, the fan switches off automatically.
6
Lighting
6
The lighting can be switched on and off independently of the ventilation.
6
Press the A button.
6
2 Cleaning and maintenance
6
Cleaning and maintenance
6
: Warning
6
Risk of burns!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of injury!
6
Cleaning agents
6
To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following:
6
Wash new sponge cloths thoroughly before use.
6
Follow all instructions and warnings included with the cleaning agents.
6
Area
7
Cleaning agent
7
Cleaning the metal mesh grease filters
7
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
7
: Warning
7
Risk of fire!
7
Notes
7
By hand:
7
Note:
7
In the dishwasher:
7
Note:
7
Removing metal grease filter
7
1. Open the lock and fold down the metal grease filter. While doing this, place your other hand under the metal grease filter.
7
2. Take the metal grease filter out of the holder.
7
Notes
7
3. Clean the metal grease filter.
7
On appliances with a glass plate in the filter pull-out:
8
Installing the metal mesh grease filter
8
1. Insert the metal mesh grease filter.
8
2. Fold the metal mesh grease filter upwards, locking it in place.
8
3 Trouble shooting
8
Trouble shooting
8
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
8
: Warning
8
Risk of electric shock!
8
Malfunction table
8
Problem
8
Possible cause
8
Solution
8
Replacing bulbs
8
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
8
: Warning
8
Risk of burns!
8
: Warning
8
Risk of electric shock!
8
Important! Only use bulbs of the same type and wattage.
8
Replacing halogen bulbs
8
Note:
8
1. Carefully remove the bulb ring using a suitable tool.
8
2. Pull out the bulb and replace it with a bulb of the same type.
8
3. Insert the bulb cover.
8
4. Insert the mains plug or switch on the fuse again.
8
LED lights
8
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
8
: Warning
8
Risk of injury!
8
4 Customer service
9
Customer service
9
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter ...
9
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
9
E no.
9
FD no.
9
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
9
Please find the contact data of all countries in the enclosed customer service list.
9
To book an engineer visit and product advice
9
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
9
Accessories
9
(not included in the scope of delivery)
9
Note:
9
Note:
9
Accessories
9
Order number
9
Installation instructions
10
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
10
Appliance width 60 cm:
10
Appliance width, 90 cm:
10
( Important safety information
11
Important safety information
11
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
11
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
11
The width of the extractor hood must correspond at least with the width of the hob.
11
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
11
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
11
: Warning
11
Risk of death!
11
: Warning
11
Danger of death!
11
: Warning
11
Danger of death!
11
: Warning
12
Risk of fire!
12
: Warning
12
Risk of injury!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Danger of suffocation!
12
K General information
12
General information
12
Exhaust air mode
12
: Warning
12
Risk of death!
12
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
12
Exhaust duct
12
Note:
12
Round pipes An inner diameter of 150 mm, but at least 120 mm, is recommended.
12
Flat ducts The inner cross-section must correspond to the diameter of the round pipes.
12
150 mm diameter, approx. 177 cm2
12
120 mm diameter, approx. 113 cm2
12
Electrical connection
13
: Warning
13
Risk of electric shock!
13
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
13
Length of the cable: approx. 1.30 m
13
This appliance complies with the EC interference suppression regulations.
13
: Warning
13
Risk of electric shock!
13
Preparing the units
13

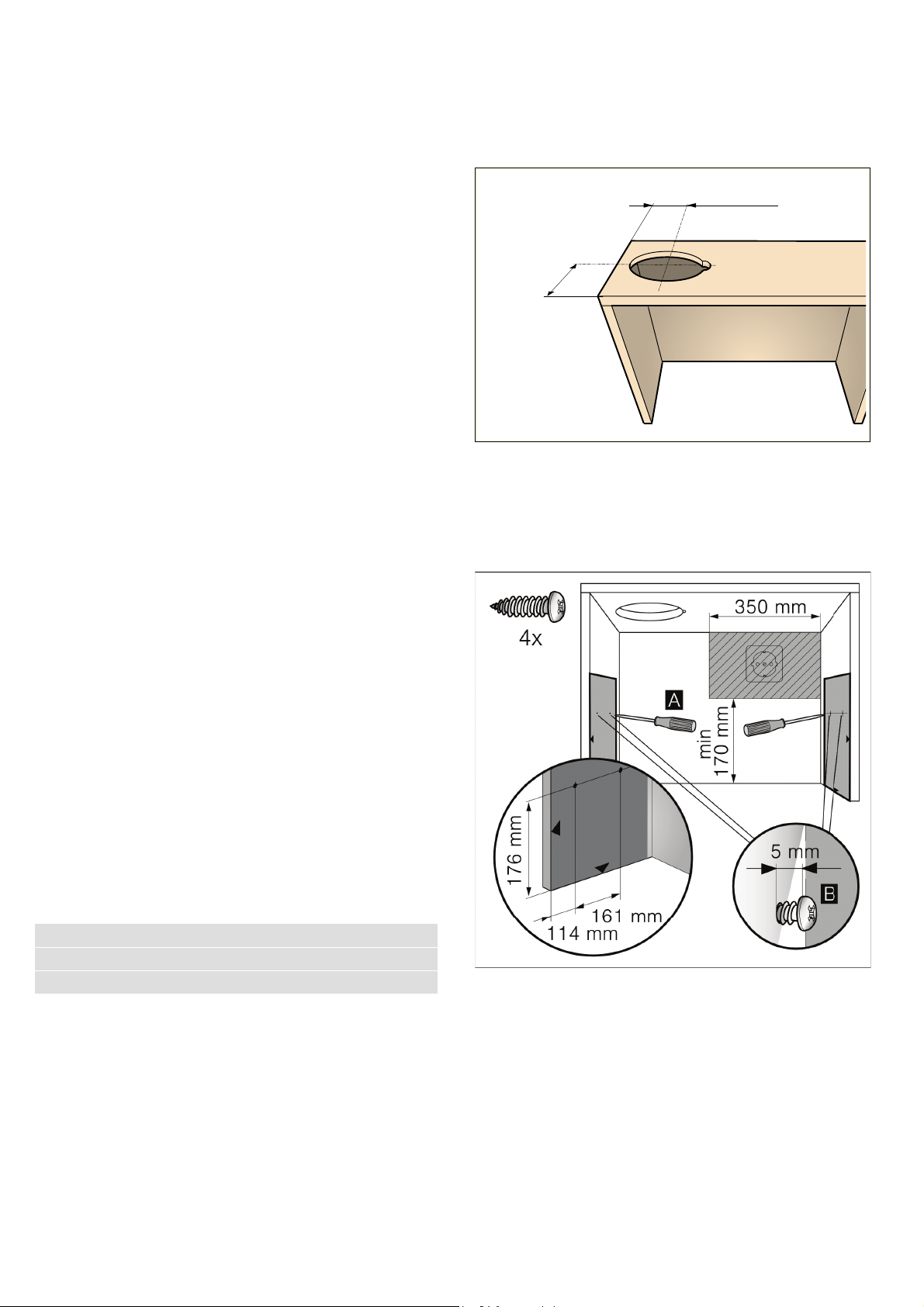

Appliance dimensions and safety clearances
13
1. Make the cut-out for the exhaust air pipe. To do this, make an opening in the ceiling or back wall of the fitted unit with an additional recess for the power cord.
13
2. If the cabinet base is present, remove this. Mark the securing points on the inside of the cabinet and pre- cut the holes using a piercer. Use the enclosed template to mark the securing points. ¨
13
3. Screw in the four enclosed screws for the angle bracket up to 5 mm. ©
13
Preparing the appliance
14

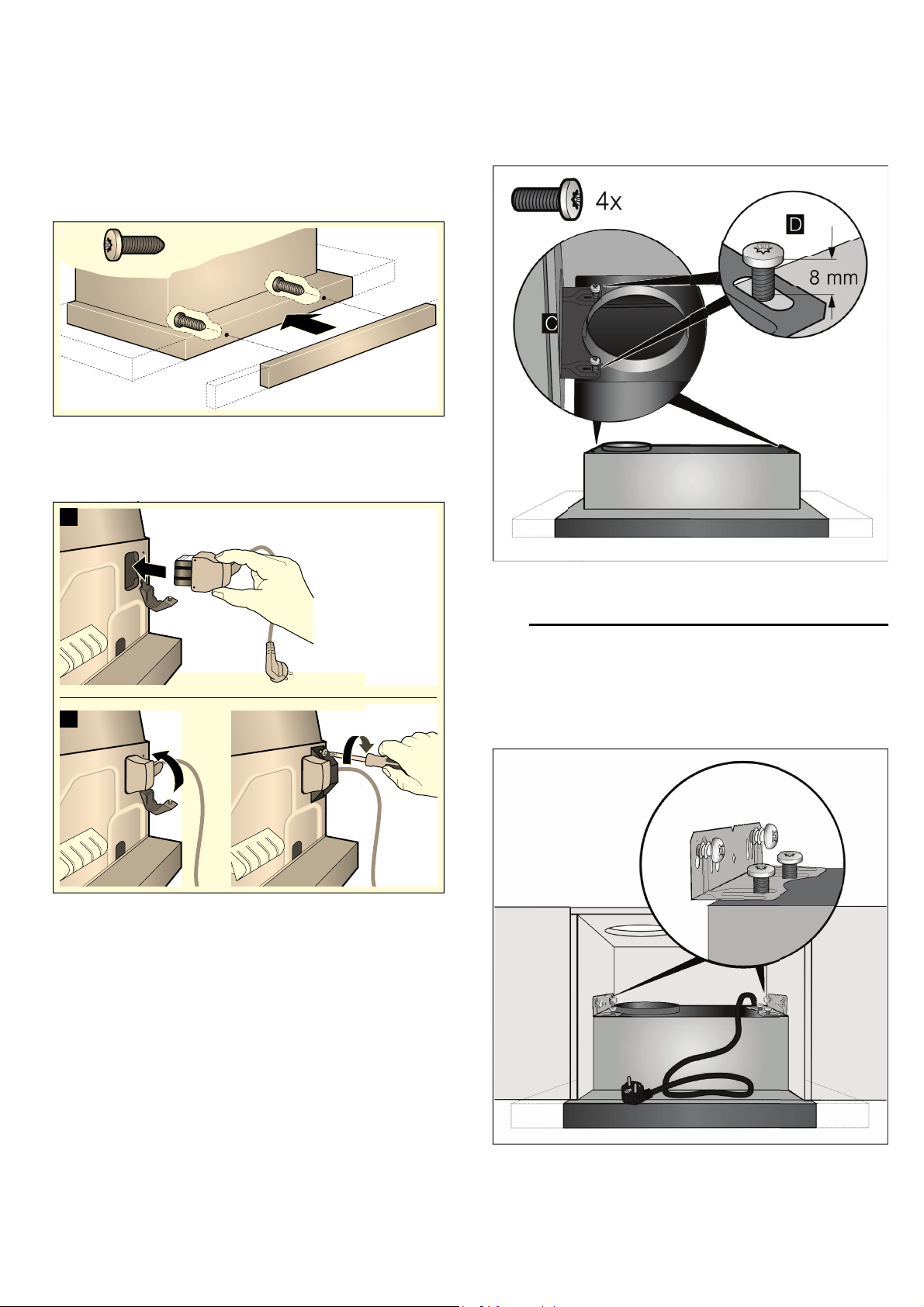

A handle strip must be screwed to the filter pull-out. This handle strip can be one that is provided with the appliance, or one that is available as an accessory.
14
1. Use the screws provided to secure the handle strip to the filter pull-out.
14
2. Connect the power cord provided to the appliance. ¨
14
3. Use the strain relief to secure the power cord in place.©
14
4. Screw the two angle brackets to the appliance. Ensure that the screws are positioned correctly.ª Screw in the screws until 8 mm of the threaded section is still protruding. «
14
5 Installation
14
Installation
14
Installation
14

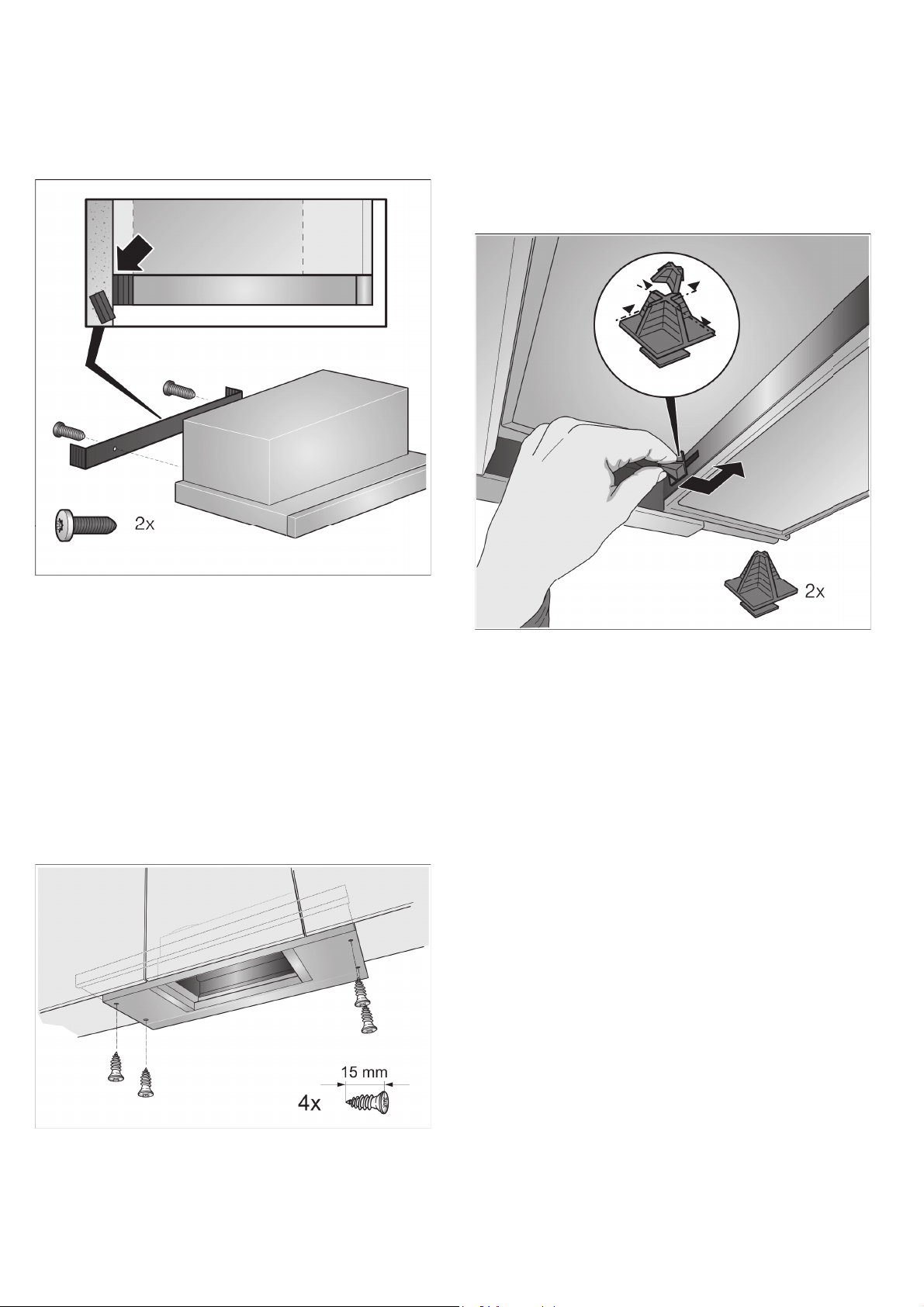

1. Use the angle brackets to hang the appliance on the screws and align it.
14
2. Measure the distance from the appliance to the wall and mark this on the filler strip.
15
3. If required, shorten the filler strip to the required dimension.
15
4. Remove the appliance and screw in the filler strip.
15
5. Remount the appliance, align it and screw it in place. Carefully screw in all screws.
15
6. Establish the electrical connection.
15
Note:
15
Appliance width, 90 cm:
15
You must also screw the appliance onto the side upper cabinets.
15
Change the filter pull-out's limit stop
15
1. Pull the filter pull-out forwards.
15
2. Shorten the spacer to the required dimension and insert it into the specified slot.
15
Connecting the pipes
15
Note:
15
Exhaust-air pipe Ø 150 mm (recommended size)
15
Attach the exhaust-air pipe directly to the air-pipe connector and seal.
15
Exhaust-air pipe Ø 120 mm
15
1. Attach the reducing connector directly to the air-pipe connector.
15
2. Attach the exhaust air pipe to the reducing connector.
15
3. Seal both joints appropriately.
15
File type: PDF
File name: 97618491_d46br22x0.pdf
File size: 2.99 MB
File Language: English
Pages: 16
Author: Neff
File created: 2016-09-09
Published: 2022-04-25
Updated: 2023-05-22
Download File
Specifications
Brand:
Neff
Model: D46BR22X0
Category:
Hoods
View in the file:
Full Specifications
See other models:
KI7861FF0G
KI7861SF0G
Z19DD10X0
C17KS61G0
S511A50X2G
Photos
View more photos
Download User Manual
Related Products
Neff D46BR22N0B
Neff D46BR22N1A
Neff D46ED52X0
Neff D46BR22N1B
Neff D4772X0/02
Neff D4972X0/01
Neff D4972X0/03
Neff D4972X0/05
Neff D4982X0/03
Neff D4982X0/02
Neff D4962X0/02
Neff D4982X0/01
Neff D4962X0/01
Neff D4962X0/04
Neff D4772X0/01
Table of Contents
×
[en] Instructions for installation and use
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual
2
Additional information on products, accessories, replacement parts and services can be found at www.neff-international.com and in the online shop www.neff-eshop.com
2
8 Intended use
2
Intended use
2
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
2
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
2
This appliance is intended for domestic use and the household environment only. The appliance is not intended for use outside. Do not leave the appliance unattended during operation. The manufacturer is not liable for damage which is caused by improp...
2
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
2
This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsi...
2
Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
2
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
2
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
2
This appliance is not intended for operation with an external clock timer or a remote control.
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Danger of death!
3
: Warning
3
Risk of fire!
3
: Warning
4
Risk of burns!
4
: Warning
4
Risk of injury!
4
: Warning
4
Risk of electric shock!
4
Causes of damage
4
Caution!
4
Always replace faulty bulbs to prevent the remaining bulbs from overloading.
4
Risk of damage due to ingress of humidity into the electronic circuitry. Never clean operator controls with a wet cloth.
4
Surface damage due to incorrect cleaning. Clean stainless steel surfaces in the direction of the grain only. Do not use any stainless steel cleaners for operator controls.
4
Surface damage due to strong or abrasive cleaning agents. Never use strong and abrasive cleaning agents.
4
Risk of damage from returning condensate. Install the exhaust duct in such a way that it falls away from the appliance slightly (1° slope).
4
7 Environmental protection
4
Environmental protection
4
Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.
4
Saving energy
4
Environmentally-friendly disposal
5
Dispose of packaging in an environmentally-friendly manner.
5
Ç Operating modes
5
Operating modes
5
Exhaust air mode
5
Note:
5
Air recirculation
5
Note:
5
1 Operating the appliance
5
Operating the appliance
5
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
5
Note:
5
Control panel model 1 and 2
5
Explanation
5
Setting the fan
5
Switching on
5
Pull out the filter pull-out. The fan starts at the selected level.
5
Press buttons 1, 2 or 3 in order to change the fan strength.
5
Switching off
5
Slide the filter pull-out in as far as the limit stop.
5
Note:
5
Control panel model 3
6
Explanation
6
Setting the fan
6
Switching on
6
Pull out the filter pull-out and press the # button. The fan starts at setting 2.
6
Press the + or - button to change the fan strength.
6
Switching off
6
Press the # button. Slide the filter pull-out in.
6
Intensive setting
6
You can use the intensive setting if there is a large build-up of odours and fumes/vapours.
6
Press the + button until all of the LEDs in the display light up. The intensive setting is activated.
6
After approx. six minutes, the electronics automatically reduce the fan to a lower setting . If you want to end the intensive setting before the preset time expires, press the - button until the required fan setting is reached.
6
The run time is limited. The fan is then automatically reduced to a lower fan setting. You can switch back manually at any time.
6
Fan run-on time
6
If you slide in the filter pull-out, the run-on time will be activated for as long as the extractor hood is operating.
6
After approx. 10 minutes, the fan switches off automatically.
6
Lighting
6
The lighting can be switched on and off independently of the ventilation.
6
Press the A button.
6
2 Cleaning and maintenance
6
Cleaning and maintenance
6
: Warning
6
Risk of burns!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of injury!
6
Cleaning agents
6
To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Do not use any of the following:
6
Wash new sponge cloths thoroughly before use.
6
Follow all instructions and warnings included with the cleaning agents.
6
Area
7
Cleaning agent
7
Cleaning the metal mesh grease filters
7
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
7
: Warning
7
Risk of fire!
7
Notes
7
By hand:
7
Note:
7
In the dishwasher:
7
Note:
7
Removing metal grease filter
7
1. Open the lock and fold down the metal grease filter. While doing this, place your other hand under the metal grease filter.
7
2. Take the metal grease filter out of the holder.
7
Notes
7
3. Clean the metal grease filter.
7
On appliances with a glass plate in the filter pull-out:
8
Installing the metal mesh grease filter
8
1. Insert the metal mesh grease filter.
8
2. Fold the metal mesh grease filter upwards, locking it in place.
8
3 Trouble shooting
8
Trouble shooting
8
Malfunctions often have simple explanations. Please read the following notes before calling the after-sales service.
8
: Warning
8
Risk of electric shock!
8
Malfunction table
8
Problem
8
Possible cause
8
Solution
8
Replacing bulbs
8
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
8
: Warning
8
Risk of burns!
8
: Warning
8
Risk of electric shock!
8
Important! Only use bulbs of the same type and wattage.
8
Replacing halogen bulbs
8
Note:
8
1. Carefully remove the bulb ring using a suitable tool.
8
2. Pull out the bulb and replace it with a bulb of the same type.
8
3. Insert the bulb cover.
8
4. Insert the mains plug or switch on the fuse again.
8
LED lights
8
Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.
8
: Warning
8
Risk of injury!
8
4 Customer service
9
Customer service
9
When calling us, please give the product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate with these numbers can be found inside the appliance (remove the metal mesh grease filter ...
9
You can make a note of the numbers of your appliance and the telephone number of the after-sales service in the space below to save time should it be required.
9
E no.
9
FD no.
9
Please be aware that a visit by an after-sales engineer will be charged if a problem turns out to be the result of operator error, even during the warranty period.
9
Please find the contact data of all countries in the enclosed customer service list.
9
To book an engineer visit and product advice
9
Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.
9
Accessories
9
(not included in the scope of delivery)
9
Note:
9
Note:
9
Accessories
9
Order number
9
Installation instructions
10
These instructions apply to several appliance variants. It is possible that individual features are described which do not apply to your appliance.
10
Appliance width 60 cm:
10
Appliance width, 90 cm:
10
( Important safety information
11
Important safety information
11
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
11
The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.
11
The width of the extractor hood must correspond at least with the width of the hob.
11
For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
11
When conveying the exhaust air, official and legal regulations (e.g. state building regulations) must be followed.
11
: Warning
11
Risk of death!
11
: Warning
11
Danger of death!
11
: Warning
11
Danger of death!
11
: Warning
12
Risk of fire!
12
: Warning
12
Risk of injury!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Risk of electric shock!
12
: Warning
12
Danger of suffocation!
12
K General information
12
General information
12
Exhaust air mode
12
: Warning
12
Risk of death!
12
If the exhaust air is conveyed through the outer wall, a telescopic wall box should be used.
12
Exhaust duct
12
Note:
12
Round pipes An inner diameter of 150 mm, but at least 120 mm, is recommended.
12
Flat ducts The inner cross-section must correspond to the diameter of the round pipes.
12
150 mm diameter, approx. 177 cm2
12
120 mm diameter, approx. 113 cm2
12
Electrical connection
13
: Warning
13
Risk of electric shock!
13
The required connection data can be found on the rating plate inside the appliance; to do this, remove the metal mesh grease filter.
13
Length of the cable: approx. 1.30 m
13
This appliance complies with the EC interference suppression regulations.
13
: Warning
13
Risk of electric shock!
13
Preparing the units
13
Appliance dimensions and safety clearances
13
1. Make the cut-out for the exhaust air pipe. To do this, make an opening in the ceiling or back wall of the fitted unit with an additional recess for the power cord.
13
2. If the cabinet base is present, remove this. Mark the securing points on the inside of the cabinet and pre- cut the holes using a piercer. Use the enclosed template to mark the securing points. ¨
13
3. Screw in the four enclosed screws for the angle bracket up to 5 mm. ©
13
Preparing the appliance
14
A handle strip must be screwed to the filter pull-out. This handle strip can be one that is provided with the appliance, or one that is available as an accessory.
14
1. Use the screws provided to secure the handle strip to the filter pull-out.
14
2. Connect the power cord provided to the appliance. ¨
14
3. Use the strain relief to secure the power cord in place.©
14
4. Screw the two angle brackets to the appliance. Ensure that the screws are positioned correctly.ª Screw in the screws until 8 mm of the threaded section is still protruding. «
14
5 Installation
14
Installation
14
Installation
14
1. Use the angle brackets to hang the appliance on the screws and align it.
14
2. Measure the distance from the appliance to the wall and mark this on the filler strip.
15
3. If required, shorten the filler strip to the required dimension.
15
4. Remove the appliance and screw in the filler strip.
15
5. Remount the appliance, align it and screw it in place. Carefully screw in all screws.
15
6. Establish the electrical connection.
15
Note:
15
Appliance width, 90 cm:
15
You must also screw the appliance onto the side upper cabinets.
15
Change the filter pull-out's limit stop
15
1. Pull the filter pull-out forwards.
15
2. Shorten the spacer to the required dimension and insert it into the specified slot.
15
Connecting the pipes
15
Note:
15
Exhaust-air pipe Ø 150 mm (recommended size)
15
Attach the exhaust-air pipe directly to the air-pipe connector and seal.
15
Exhaust-air pipe Ø 120 mm
15
1. Attach the reducing connector directly to the air-pipe connector.
15
2. Attach the exhaust air pipe to the reducing connector.
15
3. Seal both joints appropriately.
15
Search:
×
Search
